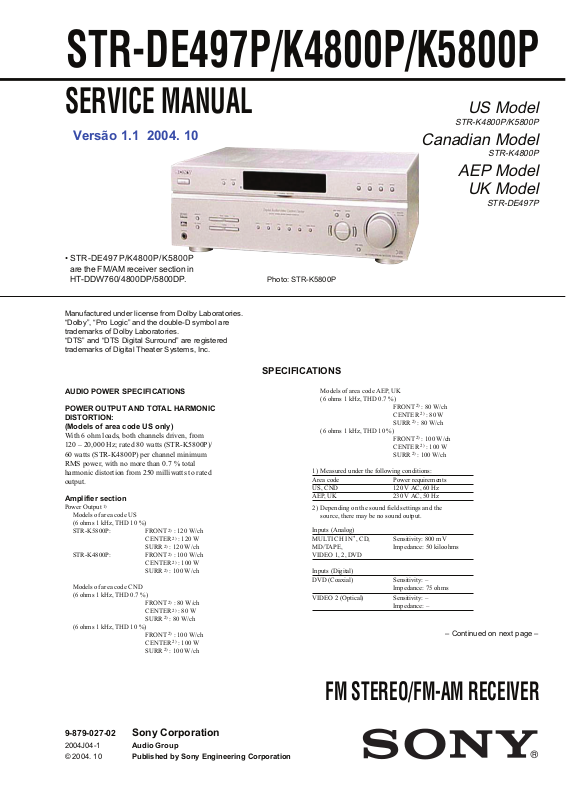

SERVICE MANUAL
US Model
STR-K4800P/K5800P
Canadian Model
STR-K4800P
AEP Model
UK Model
STR-DE497P
STR-DE497P/K4800P/K5800P
FM STEREO/FM-AM RECEIVER
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(Models of area code US only)
With 6 ohm loads, both channels driven, from
120 – 20,000 Hz; rated 80 watts (STR-K5800P)/
60 watts (STR-K4800P) per channel minimum
RMS power, with no more than 0.7 % total
harmonic distortion from 250 milliwatts to rated
output.
Amplifier section
Power Output
1)
Models of area code US
(6 ohms 1 kHz, THD 10 %)
STR-K5800P: FRONT
2)
: 120 W/ch
CENTER
2)
: 120 W
SURR
2)
: 120 W/ch
STR-K4800P: FRONT
2)
: 100 W/ch
CENTER
2)
: 100 W
SURR
2)
: 100 W/ch
Models of area code CND
(6 ohms 1 kHz, THD 0.7 %)
FRONT
2)
: 80 W/ch
CENTER
2)
: 80 W
SURR
2)
: 80 W/ch
(6 ohms 1 kHz, THD 10 %)
FRONT
2)
: 100 W/ch
CENTER
2)
: 100 W
SURR
2)
: 100 W/ch
SPECIFICATIONS
Models of area code AEP, UK
(6 ohms 1 kHz, THD 0.7 %)
FRONT
2)
: 80 W/ch
CENTER
2)
: 80 W
SURR
2)
: 80 W/ch
(6 ohms 1 kHz, THD 10 %)
FRONT
2)
: 100 W/ch
CENTER
2)
: 100 W
SURR
2)
: 100 W/ch
1) Measured under the following conditions:
Area code Power requirements
US, CND 120 V AC, 60 Hz
AEP, UK 230 V AC, 50 Hz
2) Depending on the sound field settings and the
source, there may be no sound output.
Inputs (Analog)
MULTI CH IN *, CD, Sensitivity: 800 mV
MD/TAPE, Impedance: 50 kiloohms
VIDEO 1, 2, DVD
Inputs (Digital)
DVD (Coaxial) Sensitivity: –
Impedance: 75 ohms
VIDEO 2 (Optical) Sensitivity: –
Impedance: –
Versão 1.1 2004. 10
9-879-027-02
2
004J04-1
© 2004. 10
Sony Corporation
Audio Group
Published by Sony Engineering Corporation
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are
trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Surround” are registered
trademarks of Digital Theater Systems, Inc.
– Continued on next page –
Photo: STR-K5800P
• STR-DE497P/K4800P/K5800P
are the FM/AM receiver section in
HT-DDW760/4800DP/5800DP.
Page 2
2
STR-DE497P/K4800P/K5800P
Outputs (Analog)
MD/TAPE (OUT), Voltage: 800 mV
VIDEO 1 Impedance: 10 kiloohms
(AUDIO OUT)
SUB WOOFER Voltage: 2 V
Impedance: 1 kiloohms
Reproduction frequency range:
28 – 20,000 Hz
Tone
Gain levels ±6 dB, 1 dB step
* Models of area code AEP, UK only.
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Models of area code US, CND
With 10-kHz tuning scale: 530 – 1,710 kHz
3)
With 9-kHz tuning scale: 531 – 1,710 kHz
3)
Models of area code AEP, UK
With 9-kHz tuning scale: 531 – 1,602 kHz
Antenna Loop antenna
Intermediate frequency 450 kHz
3) You can change the AM tuning scale to 9 kHz or 10 kHz.
After tuning in any AM station, turn off the receiver. While
holding down PRESET TUNING + or TUNING +, press
?/1. All preset stations will be erased when you change
the tuning scale. To reset the scale to 10 kHz (or 9 kHz),
repeat the procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
General
Power requirements
Area code Power requirements
US, CND 120 V AC, 60 Hz
AEP, UK 230 V AC, 50/60 Hz
Power consumption
Area code Power consumption
US (STR-K4800P) 165 W
US (STR-K5800P) 180 W
CND 225 VA
AEP, UK 150 W
Power consumption (during standby mode)
0.3 W
Dimensions (w/h/d) (Approx.)
430 × 145 × 310.5 mm
(17 × 5 6/8 × 11 7/8 inches)
including projecting parts
and controls
Mass (Approx.) 6.5 kg (14 lb 6 oz)
Design and specifications are subject to change
without notice.
• Abbreviation
CND : Canadian model
Page 3
Part No.
MODEL PART No.
STR-DE497P: AEP 4-252-088-0s
STR-DE497P: UK 4-252-088-1s
STR-K4800P: US 4-252-088-2s
STR-K4800P: CND 4-252-088-3s
STR-K5800P: US 4-252-088-6s
• Abbreviation
CND: Canadian model
STR-DE497P/K4800P/K5800P
1.5 k
!
0.15 µF
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
MODEL IDENTIFICATION
— BACK PANEL —
3
Page 4
STR-DE497P/K4800P/K5800P
1. GENERAL
Main unit (STR-DE497P) ....................................................... 5
Main unit (STR-K4800P/K5800P) .......................................... 7
Remote button description ....................................................... 9
2. DISASSEMBLY
2-1. Case ................................................................................... 10
2-2. Front Panel Section ........................................................... 11
2-3. Back Panel ......................................................................... 11
2-4. Digital Board ..................................................................... 12
2-5. Standby Board ................................................................... 12
2-6. Main Board ....................................................................... 13
3. TEST MODE ..................................................................... 14
4. DIAGRAMS
4-1. Circuit Boards Location .................................................... 15
4-2. Block Diagram – Tuner/Audio Section –.......................... 16
4-3. Block Diagram – Digital Section – ................................... 17
4-4. Block Diagram – Video/Display Section – ....................... 18
4-5. Block Diagram – Power Section – .................................... 19
4-6. Printed Wiring Boards – Main Section – .......................... 20
4-7. Schematic Diagram – Main Section (1/2) – ...................... 21
4-8. Schematic Diagram – Main Section (2/2) – ...................... 22
4-9. Printed Wiring Board – Digital Section (1/2) – ................ 23
4-10. Printed Wiring Board – Digital Section (2/2) – ................ 24
4-11. Schematic Diagram – Digital Section (1/2) – ................... 25
4-12. Schematic Diagram – Digital Section (2/2) – ................... 26
4-13. Printed Wiring Board – Video Section – ........................... 27
4-14. Schematic Diagram – Video Section – .............................. 27
4-15. Printed Wiring Boards – Display Section – ...................... 28
4-16. Schematic Diagram – Display Section – ........................... 29
4-17. Printed Wiring Boards – Power Section – ......................... 30
4-18. Schematic Diagram – Power Section – ............................. 31
4-19. IC Block Diagrams ............................................................ 32
TABLE OF CONTENTS
5. EXPLODED VIEWS
5-1. Case Section ...................................................................... 37
5-2. Front Panel Section ........................................................... 38
5-3. Chassis Section-1 .............................................................. 39
5-4. Chassis Section-2 .............................................................. 40
6. ELECTRICAL PARTS LIST ........................................ 41
4
Page 5
STR-DE497P:
SECTION 1
GENERAL
STR-DE497P/K4800P/K5800P
This section is extracted
from instruction manual.
5
Page 6
STR-DE497P/K4800P/K5800P
STR-DE497P:
6
Page 7
STR-K4800P/K5800P:
STR-DE497P/K4800P/K5800P
7
Page 8
STR-DE497P/K4800P/K5800P
STR-K4800P/K5800P:
8
Page 9
STR-DE497P/K4800P/K5800P
9
Page 10
STR-DE497P/K4800P/K5800P
2-5. STANDBY BOARD
(Page 12)
2-4. DIGITAL BOARD
(Page 12)
2-6. MAIN BOARD
(Page 13)
Note : Follow the disassembly procedure in the numerical order given.
1
two screws
(tapping)
2
three screws
(tapping)
3
two screws
(tapping)
4
case
SECTION 2
DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
SET
2-1. CASE
(Page 10)
2-2. FRONT PANEL SECTION
(Page 11)
2-3. BACK PANEL
(Page 11)
2-1. CASE
10
Page 11
2-2. FRONT PANEL SECTION
5
front panel section
1
CNS4
2
CNP791
3
three screws
(BVTP3 x 8)
4
two screws
(BVTP3 x 8)
1
CNS7
3
CNP156
5
CNP901
4
CNP801
2
CNS8
8
two screws
(BVTP3 x 8)
qa
four screws
(BVTP3 x 8)
qs
back panel
9
two screws
(BVTP3 x 8
)
0
five screws
(BVTP3 x 8)
7
two screws
(BVTP3 x 8)
6
screw
(BVTP3 x 8)
STR-DE497P/K4800P/K5800P
2-3. BACK PANEL
11
Page 12
STR-DE497P/K4800P/K5800P
4
CNS1
5
CNS2
1
CNP6
2
CNP5
8
bracket (digital
)
6
DIGITAL board
3
screw
(BVTP3 x 8)
7
screw
(BVTP3 x 8)
7
STANDBY board
1
CNP915
4
CNP804
5
CNP903
2
CNP802
3
CNP902
6
three screws
(BVTP3 x 8)
2-5. STANDBY BOARD
2-4. DIGITAL BOARD
12
Page 13
5
MAIN board
1
two screws
(+BV SUMITITE (B3))
2
two screws
(+BV SUMITITE (B3))
4
two screws
(+BV SUMITITE (B3)
)
3
screw
(+BV SUMITITE (B3))
2-6. MAIN BOARD
STR-DE497P/K4800P/K5800P
13
Page 14
STR-DE497P/K4800P/K5800P
MEMORY
DIRECT
LSWR
S
SB
LFE
SP A
SP B SLEEP OPT COAX MULTI CH IN 96/24
DIGITALEX PRO LOGIC II x DTS-ES NEO:6 MPEG-2 AAC RDS
D.RANGE EQ STEREO MONO
D
D
D
D
dB
kHz
mft.
MHz
MEMORY
DIRECT
C
SL SR
SBL SBR
SP A
SP B SLEEP OPT COAX MULTI CH IN 96/24
DIGITALEX PRO LOGIC II x DTS-ES NEO:6 MPEG-2 AAC RDS
D.RANGE EQ STEREO MONO
D
D
D
D
kHz
mft.
MHz
MEMORY
DIRECT
SECTION 3
TEST MODE
FACTORY PRESET MODE
* All preset contents are reset to the default setting.
* Procedure:
While depressing the [MAIN MENU] and the [PRESET TUNING
--] buttons simultaneously, press the ?/1 button to turn on the
main power.
The message “FACTORY” appears for a moment and the present
contents are reset to the default values.
AM CHANNEL STEP 9 kHz/10 kHz SELECTION
MODE (US, Canadian model only)
* Either the 9 kHz step or 10 kHz step can be selected for the AM
channel step.
* Procedure:
Press the [TUNER FM/AM] button to set AM and press the ?/1
button to turn off the main power.
While depressing the [TUNING +] button or the
[PRESET TUNING +] button, press the ?/1 button to turn on the
main power.
Either the message “9k STEP” or “10k STEP” appears for a
moment and select the desired step.
SPEAKER SIZE SELECTION MODE
* Either the normal speaker or micro satellite speaker can be se-
lected.
* Procedure:
While depressing the [DIMMER] button, press the ?/1 button to
turn on the main power.
Either the message “NORM. SP.” or “MICRO SP.” appears for a
moment and select the desired speaker size.
VACUUM FLUORESCENT DISPLAY TEST MODE
* All fluorescent segments are tested.
When this test is activated, all segments light on at the same
time, then each segment lights on one after another.
* Procedure:
While depressing the [MOVIE] and the [>] buttons simultaneously,
press the ?/1 button to turn on the main power.
1. ALL segments light on.
kHz
mft.
MHz
dB
SP A
D
D
LFE
SW
L
C R
SL S SR
SBL SB SBR
D
SP B SLEEP OPT COAX MULTI CH IN 96/24
D
DIGITALEX PRO LOGIC II x DTS-ES NEO:6 MPEG-2 AAC RDS
D.RANGE EQ STEREO MONO
[2CH], [A.F.D.], [MOVIE], [MUSIC] and [MULTI CHANNEL DECODING] LED light on.
4. Press the [VIDEO 1] button, all segments and all LEDs light off.
5. Every pressing the [VIDEO 1] button turns on each segment and
LED one after another in the same order.
(Not only the [VIDEO 1] button, but also the other buttons such
as [VIDEO 2], [DVD], [MD/TAPE], [CD] and [TUNER FM/AM] can
be used.)
SOUND FIELD CLEAR MODE
* The preset sound field is cleared when this mode is activated.
Use this mode before returning the product to clients upon
completion of repair.
* Procedure:
While depressing the [2CH] button, press the ?/1 button to turn
on the main power.
The message “SF. CLR.” appears for a moment and initialization is performed.
SOFTWARE VERSION DISPLAY MODE
* The software version is displayed.
* Procedure:
While depressing the [FM MODE] and the [DISPLAY] buttons simultaneously, press the ?/1 button to turn on the main power.
The model name, destination and the software version are displayed for a moment.
KEY CHECK MODE
* Button check
* Procedure:
While depressing the [TUNER FM/AM] and the [A.F.D.] buttons
simultaneously, press the ?/1 button to turn on the main power.
Either the message “REST 26” (STR-DE497P) or “REST 25”
(STR-K4800P/K5800P) appears.
Every pressing of any button other than the ?/1 counts down
the buttons. The buttons which are already counted once are not
counted again. When all buttons are pressed “REST 00” appears.
AUTOBETICAL MODE (AEP, UK model only)
* When this mode is used, the receiver scans the broadcasts that
can be received by the tuner, and sets up the broadcasts.
Be sure to start scanning after connecting the antenna.
* Procedure:
Check that the antenna is connected.
While depressing the [MEMORY] button, press the ?/1 button
to turn on the main power.
The message “AUTO-BETICAL SELECT” appears for a moment and the receiver starts scanning.
2. Press the [VIDEO 1] button, confirm display.
[A.F.D.] and [MUSIC] LED light on.
3. Press the [VIDEO 1] button, confirm display.
[2CH], [MOVIE] and [MULTI CHANNEL DECODING] LED light
on.
14
COMMAND MODE SELECTION MODE
* The command mode (AV1 or AV2) of the remote commander
can be selected.
* Procedure:
While depressing the [ENTER] button, press the ?/1 button to
turn on the main power.
Either the message “C.MODE.AV 1” or “C.MODE.AV 2” appears for a moment and select the desired mode.
Page 15
STR-DE497P/K4800P/K5800P
15 15
STR-DE497P/K4800P/K5800P
SECTION 4
DIAGRAMS
4-1. CIRCUIT BOARDS LOCATION
POWER board
STANDBY board
VIDEO board
DIGITAL boar
d
MAIN board
TUNING board
DISPLAY board
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in ! and1/4W or less unless otherwise
specified.
•f: internal component.
• 2 : nonflammable resistor.
• 5 : fusible resistor.
• C : panel designation.
• A : B+ Line.
• B : B– Line.
• Voltage and wav eforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
• Voltages are taken with a VOM (Input impedance 10 M!).
Voltage variations may be noted due to normal production tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : TUNER (FM/AM)
L : VIDEO (AUDIO)
I : VIDEO
J : CD (ANALOG)
c : CD (DIGITAL)
• Abbreviation
CND : Canadian model.
for printed wiring boards:
• X : parts extracted from the component side.
•f: internal component.
•
: Pattern from the side which enables seeing.
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
C
B
These are omitted.
E
Q
B
These are omitted.
C
Q
Q
E
B C E
• Abbreviation
CND : Canadian model.
Note:
The components identified by mark 0 or dotted
line with mark 0are critical for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pié ce p orta nt l e nu méro
spécifié.
• Waveforms (DIGITAL Board)
3.4Vp-p
1
IC1101
qd
(CKOUT)
1V/DIV 50nsec/DIV
12.288MHz
3.4Vp-p
2
IC1101
qf
(BCK)
1V/DIV 0.2µsec/DIV
3.07MHz
3.2Vp-p
3
IC1101
wa
(XOUT)
1V/DIV 50nsec/DIV
12.288MHz
4.4Vp-p
4
IC1501
el
(MCLKI)
1V/DIV 50nsec/DIV
12.288MHz
3.4Vp-p
5
IC1201
qs
(MCLK2)
1V/DIV 50nsec/DIV
13.59MHz
3.4Vp-p
6
IC1201
qf
(SCKOUT)
1V/DIV 50nsec/DIV
12.288MHz
2.5Vp-p
7
IC1601
id
(X1)
1V/DIV 50nsec/DIV
16MHz
Page 16
STR-DE497P/K4800P/K5800P
TU+10V
TN1
FM/AM TUNER UNIT
TU+3.3V
+10V
L CH
R CH
STEREO
TUNED
MUTE
CE
RDS SIGNAL
RDS DATA
RDS CLOCK
STEREO
TUNED
MUTE
SLATCH
DO
FM OUT
RDS DATA
RDS INT
STEREO
TUNED
MUTE
CE CLK
DATA
TU-DO
DATA
CLK
LATCH-VOL IC
WOOFER RELAY
ST-DO/MC-DI
ST-DI/MC-DO
CLK
DE497P
DE497P
STEREO
TUNED
MUTE
CE
TU-DO
DATA
CLK
FM SIGNAL OUT
RDS DATA
FM OUT
RDS DATA
RDS INT
RDS INT
R-CH
REC L2
58
REC L1
14
BAL L+
17
BAL R+
R-CH
INL1
2
INL2
INL3
INL4
INL5
INL6
INL7
INL9
LIN1
SLIN1
SW IN1
C IN1
78
76
R-CH
R-CH
VIDEO2
VIDEO 1
AUDIO
IN
AUDIO
IN
74
72
68
INL10
INL8
R-CH
R-CH
MULTI
CH IN
FRONT
SURROUND
CENTER
SUB
WOOFER
10
20
43
53
52
74
73
75
78
76
14
15
16
68
24
25
23
LOUT
41
36
35 5 7
SLOUT
47
ROUT
R-CH
R-CH
42
SROUT
COUT
SWOUT
67
31
30
AVEE
SAVCC
DVDD
28
27
29
R-CH
R-CH
R-IN
L-IN
J402 (2/2)
-4
R
-3
L
OUT MD/TAPE
VIDEO 1
J404 (2/2)
-3
L
-4
R
AUDIO
OUT
-1
L
-2
R
-1
L
-2
R
-5
L
-6
R
-3
L
-4
R
-1
L
-2
R
AUDIO
IN
-3
L
-4
R
7
MUTE
Q361,362
MUTE
Q365,366
MUTE
Q363
MUTE
Q364
RELAY
DRIVER
Q560
L OUT
C OUT
SW OUT
SL OUT
LIN2
CIN2
SWIN2
SLIN2
MCU
I/F
DATA
CLK
LATCH
DIR
FUNCTION
SELECT
IC201
RY560
Q379
INV.
FC MUTE
J405
SUB
WOOFER
AUDIO
OUT
FL-CH
FR-CH
SL-CH
SR-CH
C-CH
WOOFER
AMP
IC401
11
(0/6/12/18dB)
(0/6/12/18dB)
(0/6/12/18dB)
(0 – -99dB)
(0 – -99dB)
(0 – -99dB)
+3.3V
REG
Q471
+7V
-7V
+7V
-2
-1
TUNER
VOL IC/
TUNER
SYSTEM
CONTROL
IC1601 (1/4)
POWER
SECTION
D
DIGITAL
SECTION
A
DIGITAL
SECTION
B
DIGITAL
SECTION
C
(0/6/12/18dB)
(0 – -99dB)
ATT
0/-6/-12/-18dB
65
70
8
5456
39
38
33
55
40
37
34
• Signal path
: TUNER (FM/AM)
: CD (ANALOG)
: VIDEO (AUDIO)
• R-ch is omitted due to
same as L-ch.
(Page 17)
(Page 17)
(Page 19)
(Page 17)
4-2. BLOCK DIAGRAM — TUNER/AUDIO SECTION —
AM
ANTENNA
FM 75!
COAXIAL
STR-DE497P/K4800P/K5800P
4
J402 (1/2)
-5
L
CD
IN
-6
R
IN
MD/TAPE
J403
DVD
J404 (1/2)
J401
80
R-CH
R-CH
R-CH
1616
60
Page 17
4-3. BLOCK DIAGRAM — DIGITAL SECTION —
(COAXIAL)
VIDEO 2
IN
(OPTICAL)
OUT
IC1104
IC1102
DIR
IC1101
J1101
23
WAVE
SHAPER
+5V-2
D.5V
+2.5V
VDDI
+3.3V
VDDE
+3.3V
VDD
L-IN
R-IN
FC MUTE
R-CH
L IN
HPF
AUDIO
I/F
(1/2)
CODEC
IC1501
DSP
IC1201
SDRAM
IC1202
L OUT
C OUT
SW OUT
SL OUT
PD
S.MUTE
CDT1
CCLK
CS
PD
SMUTE
CDT1
SCL
CS
CODEC
GP9
DATAO
HACN
BST
HCS
XRST
HDIN
PM
HDOUT
HCLK
GP9
HACN
BST
HCS
XRST
HDINPMHDOUT
HCLK
DSP
CLK
CE
DI
DO
CKSEL1
XSTATE
CLKCEDI
DO
CKSEL1
93
48
XMODE XMODE
XSTATE
DIR
5
3
XOUT
DIN0
DIN2
XIN
F.MUTE
Q1601
INV.
ERROR
24
ANA/DIG
Q1602
D1601
D1101
D0-15A0-15
D0-15A0-15
SYSTEM
CONTROL
IC1601 (2/4)
TUNER/
AUDIO
SECTION
C
TUNER/
AUDIO
SECTION
B
TUNER/
AUDIO
SECTION
A
ADC
• Signal path
: TUNER (FM/AM)
: CD (DIGITAL)
: VIDEO (AUDIO)
• R-ch is omitted due to
same as L-ch.
(Page 16)
(Page 16)
(Page 16)
STR-DE497P/K4800P/K5800P
DIGITAL
DVD
IN
SDTO
39 14
AUDIO
24 69
CKOUT
13 22
BCK
14 29
LRCK
15 28
DATAO
16 30
ERROR
34 59
9 18
31
+5V-2
A.5V
DATA
INPUT
DEMODULATOR
1
21
X1101
12.288MHz
22
21
99
Pa,Pb DETECTION LOCK
C bit DETECTION
MICROPROCESSOR
I/F
38 37 36 35 47 17
95 96 97 98 94 100
DETECTION
DSI1
SCKOUTMCLKI
GP8
KFSI0
BCKI2
LRCKI2
SDI2
EXLOCK
68 56
321 6 74 18 19 205
SD01
23 6
SD02
24 7
SD03
25 8
GP10
67
LRCKO
19 5
BCKO
20 4
MCLK1
9
MCLK2
12
CSO
44
WEO
45
108,107,105 -102,99,
112,110,109,97 - 92,
2 11336 35 33 3432
X1201
13.59MHz
98,80 - 77,75 - 72
85-82,66 - 64
SDTI1
SDTI2
SDTI3
LRCK
BCK
CS
6
17
WE
16-13,10 - 7
29 - 32,35 - 38,
1 - 5,18 - 21
24 - 27,42 - 44,
AUDIO
I/F
(2/2)
17
8 9 10 12 13
DAC
DAC
DAC
DAC
3 43 42 41
LOUT1
27
LOUT 3
23
ROUT 3
24
LOUT 2
25
STR-DE497P/K4800P/K5800P
17 17
Page 18
STR-DE497P/K4800P/K5800P
S152
+5V
12
I
/
I
D101
MULTI CHANNEL
DECODING
D102
D103
D104
D105
MUSIC
MOVIE
A.F.D.
2CH
-2
-1
-1
-2
-3
• Signal path
: VIDEO
4-4. BLOCK DIAGRAM — VIDEO/DISPLAY SECTION —
VIDEO AMP
VIDEO 1
VIDEO2
J201 (1/2)
VIDEO
IN
J200 (1/2)
VIDEO
IN
VIDEO
DVD
IN
EEPROM
IC1604
5
SDA
SCL
6
X1601
16MHz
V3
12
V2
3
V1
1
S2M2S1
2 413
88
83
X1
X0
82
SDA
34
EEPROM
SCL
33
IC203
SW2
SW1
VIDEO SW
FL101
VACUUM
DISPLAY
DRIVER
IC100
J201 (2/2)
J200 (2/2)
SW1
SW2
SW3
SW4
VIDEO
MONITOR
OUT
VIDEO
VIDEO 1
OUT
F1
F2
1
2
3
4
VOUT1
10
VOUT2
5
8
+5V
-5V
FL DRV/
LED DRV
FL_STB
BLUE LED
14
61
DIN
62
CLK
63
LED DRIVER
46
Q100
M1
11
8890
SW3
+V
IC807
+5V
13
REG
-V
-5V
23
REG
IC804
BUFFER
IC101
+5V
5
6
4
1
3
2
10
8
9
FLUORESCENT
14 - 29 42 - 31
SEG1-16 GRID1-12
DIN
7
8
CLK
FL DISPLAY
9
STB
STR-DE497P/K4800P/K5800P
FLASH
PROGRAMMING
CNS3
1
2
7
6
5
+3.3V
(STBY)
SYSTEM
CONTROL
56
POWER KEY
FLASH1
FLASH2
MD2
MD0
RESET
RESET
IC1602
28
FLASH1
27
FLASH2
MD2
51
MD0
49
77
RSTX
IC1601 (3/4)
1818
SIRCS
VOL(A)
VOL(B)
54
60
59
A/D0
38
A/D1
39
A/D2
40
41
A/D3
3
1
RV102
MASTER
VOLUME
SW NETWORK S131-135,151
SW NETWORK S100-107
SW NETWORK S120-123,125
SW NETWORK S110-116
SIRCS
OUT
1
REMOTE
CONTROL
RECEIVER
IC102
Page 19
4-5. BLOCK DIAGRAM — POWER SECTION —
PRE DRIVER
IC701
IN 2
PRE
DRIVE
PRE
DRIVE
PRE
DRIVE
PROTECTOR
HEADPHONE
PREOUT/FRONT
REAR RELAY
CENTER RELAY
HP DETECT
SYSTEM
CONTROL
IC1601 (4/4)
POWER RELAY
RELAY
RELAY
STOP
PRE DRIVER
IC702
PRE DRIVER
IC501
66
D733
67
71
69
70
25
65
48
DRIVE
DRIVE
DRIVE
D734
TUNER/
AUDIO
SECTION
(Page 16)
D
FL-CH
FR-CH
R-CH
SL-CH
SR-CH R-CH
C-CH
8
IN 2
8
IN+
1
+VOUT2
-VOUT2
-BB +B
+VOUT2
-VOUT2
-BB +B
+VOUT
-VOUT
-BB +B
D731
FRONT-RY
CENTER-RY
HP DETECT
12
11
12
11
6
5
PROTECTOR
Q722,723,725
HP-RY
REAR-RY
D721,722
POWER AMP
Q701-704
POWER AMP
Q651-654
POWER AMP
Q501-504
OVERLOAD
DETECT AMP
STR-DE497P/K4800P/K5800P
J791
TM602 (1/2)
TM601
TM602 (2/2)
RECT
D914
PHONES
L
FRONT
R
SPEAKERS
IMPEDANCE
USE 8-16!
L
SURROUND
R
CENTER
T901
POWER
TRANSFORMER
R810
R812
R910
D804
T902
POWER
TRANSFORMER
F901
• Signal path
: TUNER (FM/AM)
• R-ch is omitted due to
same as L-ch.
~ AC IN
D915
R-CH
RELAY
DRIVER
CURRENT
OVERLOAD
DETECT
DETECT
Q705,706
D740,Q740
R-CH
OVERLOAD
DETECT
D640,Q640
R-CH R-CH
OVERLOAD
DETECT
D540,Q540
-30V REG
-30V
TU+3.3V
TU+10V
+7V
-7V
+5V-2
+5V-1
+2.5V
+3.3V
R-CH
Q801
DE497P
R-CH
CURRENT
DETECT
Q655,656
R-CH
CURRENT
DETECT
Q505,506
+B
-B
-BB
Q691
IC601
Q692
72
+3.3V
(STBY)
Q790
RY791
RELAY
DRIVER
Q710
RY701
RELAY
DRIVER
Q610
RELAY
DRIVER
Q510
HP-RY
FRONT-RY
REAR-RY
CENTER-RY
HP DETECT
IC1905
+3.3V
REG
IC1503
+5V
REG
IC1901
5
BACK-UP
SWITCH
2
IC1902
+10V
13
13
4
IC801
IC802
IC1903
13
REG
+7V
31
REG
-7V
23
REG
+5V
13
REG
RY601
RY501
R-CH
R-CH
RECT
D802
+V
-V
IC1904
+3.3V
D820-823
F1
F2
-30V
RY901
RELAY
DRIVER
Q901
RECT
D910-913
13
REG
Q921
STR-DE497P/K4800P/K5800P
19 19
Page 20
STR-DE497P/K4800P/K5800P
1
A
B
C
D
E
F
G
H
I
2 3 4 5 6 7 8 9 10 11 12 13 14
TP800
CNP79 1
J791
JW700
IC201
CC20
JW628
JW756
JW739
JW612
CC42
R409
JW504
CC55
R452
CC61
JW720
R459
CC52
CC02
CC59
CC09
CC57
CC07
CC56
CC58
CC08
CC06
JW805
CC14
R503
JW610
JW755
CC05
CC54
R691
JW506
JW705
TP900
JW568
RR15
CC62
R692
JW503
JW722
JW502
CC04
CC12
JW719
CC31
CC41
CC18
JW721
C803
JW507
JW710
RR14
JW620
R474
RR12
JW578
C800
C804
R703
C500
JW611
R603
CC32
R402
J401
R404
R462
R469
R405
R458
R408
R455
R456
C471
R457
R407
R454
R406
C458
R540
R412
C459
C498
J405
R680
R750
R640
R533
IC401
R499
C408
D560
Q560
R431
C409
R740
R473
R470
R432
R461
JW615
JW630
JW731
RR13
JW439
C472
CC16
JWH112
JWH105
JW601
R411
JW745
JWH106
JWH108
C400
RR11
JW402
JW403
JW404
JW405
JW407
JW408
JW410
JW412
JW414
JW428
JW411
JW442
JW444
JW446
JW447
JW448
JW449
JWH107
JWH101
JWH109
JW458
JW461
JW440
JW441
JW438
JWH102
JW418
R532
R802
JW759
JW752
JW406
JW783
JW558
JW716
JW717
JW569
JW723
JW614
JW417
JW751
JW734
JW613
JW505
JW702
JW626
JW584
JW701
JW703
JW637
JW636
JW419
R563
JW401
JW421
JW409
JW757
JW413
JW462
JW463
JW464
JW465
JW471
JW472
JW473
JW730
JW732
JW467
JW468
JW469
JW470
JW474
JW475
JW476
JW477
JW478
JW479
JW481
JW482
JW754
JW415
JW804
R653
R753
J402
J404
R803
JW301
TM601
TM602
JW639
JW416
JW758
JWH103
JW
H104
JW760
JW784
JW480
JW556
Q722
Q640
IC801
R501
Q652
C475
C722
R410
R747
C375
L651
D732
D680
D722
R528
R748
Q753 Q75 4
R648
L601
R690
C811
R681
C752
C770
R791
R766
R699
R792
R360
C621
R656
R631
C482
R695
R517
R618
R769
R771
R772
C700
R770
C494
Q680
L751
R479
D791
Q756
R758
R478
R775
CN792
Q501
C703
R477
R657
R361
R696
R757
C810
R368
C766
R623
R733
R621
R735
C750
C517
D510
C733
R765
C742
R760
C541
R761
C491
R667
Q725
C516
D721
C808
D605
R755
R504
C643
R764
R721
C666
R502
R381
C619
C510
C505
C669
C511
R573
R546
R614
Q503
R620
R745
Q752
Q603 Q60 4
R616
R622
R617
C603
R731
Q755
R638
C680
C611
R615
R610
Q602
R778
R611
R624
R668
L701
R374
C701
C681
R768
R794
R613
R367
R767
R378
R701
C519
Q605
Q701
C467
D610
R505
R516
R704
R671
R520
R522
R556
R521
R515
R725
C540
Q502
Q540
R510
C504
R511
R379
R557
C481
R524
Q710
R744
Q506
R714
C497
R780
R513
Q504
D705
D505
C620
C710
Q702
C415
R718
C414
Q653
Q654
C490
R362
R666
R669
R634
D665
R672
R698
R675
C486
C670
C489
L521
Q606
R476
D540
C661
Q655
C640
Q705
C376
Q656
C485
R665
C711
C642
Q692
R660
R756
R773
D750
R661
R677
Q601
C493
R737
C720
C716
R736
R663
R472
Q651
D734
Q610
R719
C483
C760
Q750
Q703 Q70 4
R716
D740
R722
R380
R715
R734
C740
Q505
Q751
R710
Q365
D765
R711
R723
R514
R676
R366
Q790
C610
R724
Q364
R746
Q471
Q740
R376
C805
R673
R674
C507
R370
R372
CNP911
C416
Q723
Q550
R664
C651
R373
C371
D733
Q366
R601
R763
C503
R694
C806
C767
C492
C660
R625
RY601
D802
J403
C488
Q379
D691
R732
R713
R430
Q361
R369
C751
C496
D690
R363
C506
R471
R693
C807
D640
C691
R531
C508
IC702
C418
C373
IC601
C655
C601
Q691
R371
C605
C705
R717
R525
C495
RY501
R534
Q362
R375
R475
C604
R377
C732
C606
Q706
R604
D731
R654
C487
C464
R652
R655
C501
C484
C657
IC701
C654
C721
C653
C753
C607
C419
C755
RY701
C372
R602
R555
R793
C717
C374
RY791
IC802
R651
D710
C706
C413
C761
C754
D896
C757
C704
C744
CNP801
C756
C465
Q363
C707
C417
C433
R752
R702 R751
R754
CNP915
JW559
JWB03
JWB02
JWB01
JWH111
JWH110
CNP501
CNP502
RY560
IC501
JW811
JW736
C656
R643
JW706
JW707
JW582
JW581
JW627
JW625
CN505
(Page 24)
(Page 24)
D505 G-3
D510 D-9
D540 G-4
D560 D-7
D605 F-11
D610 D-10
D640 G-7
D665 G-7
D680 F-10
D690 E-9
D691 E-8
D705 F-5
D710 D-8
• Semiconductor Location
Ref. No. Location
Ref. No. Location Ref. No. Location Ref. No. Location
D721 F-10
D722 E-10
D731 F-12
D732 F-11
D733 F-12
D734 F-12
D740 G-5
D750 F-9
D765 G-9
D791 G-12
D802 D-13
D896 D-6
IC201 D-4
IC401 E-3
IC501 F-2
IC601 E-8
IC701 E-6
IC702 E-7
IC801 D-6
IC802 D-6
Q361 E-6
Q362 E-6
Q363 E-2
Q364 E-2
Q365 E-6
Q366 E-7
Q379 F-2
Q471 E-2
Q501 G-2
Q502 G-4
Q503 G-3
Q504 G-4
Q505 F-3
Q506 F-3
Q540 G-4
Q550 D-9
Q560 D-7
Ref. No. Location
Q601 F-10
Q602 G-11
Q603 G-10
Q604 G-11
Q605 F-11
Q606 F-11
Q610 F-11
Q640 F-8
Q651 G-6
Q652 G-7
Q653 G-7
Q654 G-8
Q655 F-7
Q656 F-8
Q680 F-10
Q691 E-10
Q692 E-8
Q701 G-4
Q702 G-5
Q703 G-5
Q704 G-6
Q705 G-6
Q706 G-5
Q710 D-8
Q722 E-11
Q723 E-11
Q725 E-11
Q740 G-6
Q750 F-9
Q751 G-8
Q752 G-9
Q753 G-9
Q754 G-9
Q755 F-9
Q756 F-12
Q790 F-12
Ref. No. Location Ref. No. Location
(Page 27)
(Page 24)
(Page 30)
(Page 30)
4-6. PRINTED WIRING BOARDS — MAIN SECTION — • Refer to page 15 for Circuit Boards Location and Common Note on Printed Wiring Boards.
STR-DE497P/K4800P/K5800P
2020
Page 21
4-7. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 15 for Common Note on Schematic Diagram and page 32 for IC Block Diagrams.
STR-DE497P/K4800P/K5800P
(Page 27)
(Page 25)
J404
J403
J402
J401
J405
CN505
C408
CC06
R406
C500
R456
CC56
CC08
R408
R458
CC58
C458
C464
CC07
R407
C700
CC57
R457
CC05
R405
R455
CC55
R404
CC04
CC54
R454
CC09
R409
R459
CC59
CC02
R402
CC52
R452
CC61
R461
R462
CC62
R432
CC32
CC42
R412
CC31
R431
R411
CC41
C800
C400
R469
R470
CNP501
C465
C409
C459
IC B/D
C413
C433
RY560
Q560
D560
R802
R533 R532
IC401
R499R563
C482
C492
C491
IC201
R410 R430
C471
R474
C498
C472
R473
C484
C483
C481
C494
C493
C485
C486
C496
C495
JW401
C487
C488
C467
C497
C490
C489
Q471
C416
C414
C415
C417
C418
C419
R472
R471
R475
C475
C807
C808
R361
Q361
R373
R363
C371
C372
R360
R362
Q362
R374
R379
Q363
R375
R367
C373
C374
R368
R366
Q364
R376
Q365
R369
R377
R371
C375
R380
C376
R372
R370
Q366
R378
Q379
R381
IC801
C811
C810D896
IC802
CNP502
R476
R477
R478
R479
CNP911
(Page 22)
(Page 26)
STR-DE497P/K4800P/K5800P
(Page 26)
21 21
Page 22
STR-DE497P/K4800P/K5800P
C519
C540
C541
C605
C607
C640
C642
C680
C681
C691
C705
C706
C707
C722
C732C733
C740
C742
C750
C752
C770
D505
D510
D540
D605
D610
D640
D665
D680
D705
D710
D721
D740
D765
D791
IC501
L521
L601
L651
L701
L751
Q605
Q606
Q655
Q656
Q691
Q692
Q701
Q706
Q755
Q756
R501
R504
R514
R520
R524
R528
R531
R555
R556
R557
R601
R602
R614
R615
R620
R621
R624
R631
R655
R657
R664
R665
R671
R674
R675
R677
R701
R702
R714
R715
R718
R724
R731
R735
R736
R737
R744
R747
R755
R757
R764
R765
R769
R770
R771
R778
R780
R791
R794
R803
D690
Q703
Q653
Q603
Q503
Q504
Q754
Q604
Q654
Q704
R694
C508
R793
R734
R634
R534
C721
R651
R751
R643
C657
R652
C757
R752
C656
C655
R654
R746
R745
R754
R704
R690
R699
R521
R775
R525
R625
R540
R680
R750
R693
CNP801
CNP915
R740
R640
C701
C751
C753 C703
C651
C601
C603 C653
TM602
CN792 CNP791
Q702
R713
R711
R710
C710
R719
C720
Q705
R722
R721
R725
C711
R723
R717
R676
C661
R667
R638
R672
C670
R669
R661
R660
R663
Q651
Q652
C660
R611
R610
Q601
Q602
R613
C610
R622
C619
R656
R756
R773C761
R772
R763
Q752
C760
Q751
R760
R761
Q753
R767
R511
R510
Q501
Q502
R513
C510
R515
Q505
C511
Q506
R522
R517
R573
D732
D731
D722
D733
D734
R673
R618
R668
R617
C611
R623
R768
D750
C756
C755
C606
R604
C643
C744
C505
R505
R502
C507
R732
C506
RY701
RY601
RY501
RY791
R753 R703
IC701
R603
R653
R716
R666
R616
R766
R516
R733
D691
Q740
Q640
Q680
Q750
Q540
R792
Q790
Q710
Q725 Q723
Q722
Q550
Q610
J791
RR13
CC16
RR14
RR15
CC18
CC20
RR12
CC14
RR11
CC12
D802
R695
TM601
C754
C704
IC702
C654
C604
C501
R503
C503 C504
IC601
C716
C669
C666
C621
C767
C766
C517
C516
R696
R698
R691
R692
C717
R748
R648
R681
C620
R546
R758
C803
C804
C805
C806
(Page
21)
(Page 31)
(Page 31)
The components id entified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les compo sants identifiés par
une marque 0 sont critiq ues
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
4-8. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 15 for Common Note on Schematic Diagram and page 32 for IC Block Diagrams.
IC B/D
IC B/D
IC B/D
STR-DE497P/K4800P/K5800P
2222
Page 23
4-9. PRINTED WIRING BOARD — DIGITAL SECTION (1/2) — • Refer to page 15 for Circuit Boards Location and Common Note on Printed Wiring Boards.
1
A
B
C
D
E
F
G
H
I
J
2345678910111213
R167 9
R167 8
R167 7
R167 6
C191 4
R130 3
C160 6
C161 7
C111 5
R110 3
R120 4
R162 8
R122 7
R166 2
R121 4
R111 2
FB12 03
FB11 04
R122 6
C151 4
R111 1
R150 9
R160 6
R110 5
C150 8
R168 8
R169 8
R111 3
R112 0
R152 0
R164 2
R163 9
C162 7
R160 2
R110 0
R121 3
FB16 02
C160 3
R163 3
C190 6
R122 5
C150 9
FB15 02
C121 2
R111 7
C110 4
R151 6
R151 7
R152 1
R164 0
R166 3
R164 1
R110 2
IC16 04
R160 0
R169 7
R163 1
R121 5
R169 9
R121 6
R151 9
R121 2
R120 7
IC15 01
IC11 01
IC16 01
IC12 02
X110 1
C191 2
R122 4
R110 7
R161 3
C121 1
R112 4
IC11 02
C110 7
R165 6
R162 4
R161 7
R162 6
C151 5
C110 5
R166 6
R110 4
C190 8
D110 1
R162 9
R167 2
Q160 1
C110 2
R122 2
R123 0
R164 5
C112 4
R111 0
FB15 01
R163 6
R166 0
R123 1
R123 2
R110 8
R168 7
C111 7
R161 5
R161 2
R165 5
R166 7
Q160 2
R169 6
R122 0
R160 7
R121 7
R120 8
R164 8
R151 8
R123 3
R123 4
FB11 05
R161 8
C150 7
R123 5
R160 9
R160 1
R161 0
R130 0
C161 2
R160 8
R161 1
C110 3
IC16 02
R160 4
R111 8
R160 3
R120 5
C160 5
R124 2
C111 0
R122 1
D160 1
R110 1
R121 8
R163 0
R162 7
C111 4
R111 4
R164 7
R160 5
R124 3
R163 8
R161 9
R169 4
L190 1
C150 6
R121 9
R164 4
R124 4
R130 2
R110 9
R164 6
R164 9
C110 9
R162 5
C191 5
C191 0
R120 6
R124 1
R164 3
R161 4
R124 0
R162 1
R111 9
C110 1
R120 9
R150 8
R123 9
R130 4
R123 8
R123 6
R123 7
IC12 01
C110 8
X120 1
X160 1
C111 6
C111 9
C155 2
C150 2
R112 2
G110 1
C163 6
D1101 F-9
D1601 I-4
IC1101 D-10
IC1102 F-11
IC1201 F-8
IC1202 D-8
IC1501 H-9
IC1601 H-5
IC1602 H-3
IC1604 I-3
Q1601 I-5
Q1602 I-4
• Semiconductor
Location (Side A)
Ref. No. Location
STR-DE497P/K4800P/K5800P
STR-DE497P/K4800P/K5800P
23 23
Page 24
STR-DE497P/K4800P/K5800P
1
A
B
C
D
E
F
G
H
I
J
2 3 4 5 6 7 8 9 10 11 12 13
C167 1
C191 3
JR13 00
JR13 01
JR16 00
C120 4
C111 2
C136 5
R168 9
C163 3
C113 0
JR11 16
C121 3
C121 8
FB12 01
FB11 01
C113 1
C162 4
D100 1
C162 5
C120 8
R131 3
R131 4
R168 5
R165 3
C121 0
R168 3
R166 9
C160 2
C163 5
R167 5
C150 5
C120 7
R163 5
C123 0
C121 4
R168 1
C162 0
R165 1
R169 0
C161 5
C130 2
C120 1
C112 0
FB11 02
R121 0
C121 6
R168 2
C111 8
R111 5
C152 1
R168 4
C151 2
R131 5
C122 9
C151 8
C151 9
C152 0
C161 3
C123 1
C121 9
R168 0
C161 8
C191 1
R165 4
C163 2
C161 9
R122 8
C130 4
C152 3
C130 3
C131 5
R130 6
R136 5
C111 3
C160 4
D150 1
R122 9
R163 2
C111 1
C161 4
R130 1
C161 1
C120 6
C112 9
C130 1
C151 3
C151 7
C122 0
C120 5
R111 6
R165 0
C110 6
C151 1
R167 0
R165 7
C120 3
C161 6
C120 2
R120 3
R165 2
FB16 03
R165 8
C160 8
C160 1
FB16 01
C161 0
R130 5
C191 6
C120 9
R167 3
C190 9
C162 6
R120 2
FB12 02
R110 6
FB12 04
R131 2
C163 4
C151 6
C190 5
D150 2
C130 0
R167 1
JR12 00
R168 6
R166 8
R162 2
IC19 02
CNS4
IC11 04
CNS3
IC19 01
IC15 03
CNS8
IC19 03
J110 1
IC19 04
CNP5
IC19 05
CNP6
CNS7
TN1
CNS2
CNS1
(Page 28)
(Page 20)
(Page 20)
(Page 27)
(Page 20)
(Page 30)
(Page 30)
D1001 F-10
D1501 G-10
D1502 G-10
IC1104 D-11
IC1503 H-8
IC1901 D-3
IC1902 C-4
IC1903 E-3
IC1904 E-4
(IC1905) C-3
• Semiconductor
Location (Side B)
Ref. No. Location
( ): STR-DE497P only
4-10. PRINTED WIRING BOARD — DIGITAL SECTION (2/2) — • Refer to page 15 for Circuit Boards Location and Common Note on Printed Wiring Boards.
STR-DE497P/K4800P/K5800P
2424
Page 25
STR-DE497P/K4800P/K5800P
4-11. SCHEMATIC DIAGRAM — DIGITAL SECTION (1/2) — • Refer to page 15 for Common Note on Schematic Diagram and Waveforms and page 32 for IC Block Diagrams and page 33 for IC Pin Descriptions.
C1129
(Page 21)
C1112
IC1104
R1120
JR1116
R1122
C1120
J1101
R1116
C1118
C1130
C1106
C1107
R1107
R1105
R1106
R1104
C1101
C1119
C1104
C1103
C1124
C1102
R1117
R1119
R1118
FB1101
C1114
D1001
IC1102
C1116
R1109
C1115
FB1104
R1112
C1117
R1509
C1111
R1115
FB1105
R1102
R1114
R1108
R1111
R1103
D1101
IC B/D
R1101
R1110
IC1101
C1105
C1108
C1109
R1113
C1113
C1131
R1124
R1100
X1101
C1110
C1511
D1502D1 501
C1512
C1523
IC B/D
C1513
C1515
C1514
R1508
CNS1
C1516
C1517
C1518
C1519
C1520
FB1501
IC1503
C1506
IC1501
C1508
C1507
C1509
C1505
C1502 C1552
R1520
R1521
R1516
R1517
R1518
R1519
C1521
FB1502
FB1102
FB1202 FB1201
C1230
C1211
C1212
IC1202
C1231
TP1218
TP1219
TP1220
R1229
R1228
R1227
R1226
R1225
R1224
R1222
R1221
R1220
C1206
R1219
R1218
R1217
R1216
R1215
C1207
R1214
R1213
R1212
C1216
TP1221
TP1222
R1203
C1208
C1219
R1210
C1210
C1214
C1213
C1204C1205
TP1216
TP1217
R1230
R1231
R1232
R1233
R1235
R1236
R1234
R1237
R1238
R1239
R1240
R1241
R1242
R1243
IC1201
FB1203
C1209
TP1201
FB1204
X1201
TP1202
R1202
TP1203
R1207
R1208
R1206
R1209
R1204
C1203
C1218
TP1214
TP1215
R1244
C1220
TP1213
TP1212
TP1211
TP1210
C1202
TP1209
TP1208
C1201
TP1207
TP1206
TP1205
TP1204
(Page 26)
(Page 26)
JR1200
R1205
STR-DE497P/K4800P/K5800P
25 25
Page 26
STR-DE497P/K4800P/K5800P
4-12. SCHEMATIC DIAGRAM — DIGITAL SECTION (2/2) — • Refer to page 15 for Common Note on Schematic Diagram and Waveforms and page 35 for IC Pin Descriptions.
IC1904
IC1903
C1910 C1908
C1909
C1906
L1901
IC1901
C1905
C1911
C1912
FB1601
CNP5
CNP6
R1688
(Page 31)
(Page 21)
(Page 31)
(Page 25)
(Page 27)
TN1
(Page 25)
STR-DE497P/K4800P/K5800P
CNS8
IC1602
IC1902
C1914
C1913
IC1905
C1915
C1916
C1365
CNS7
C1303
C1315
R1315
R1365
R1314
R1313
R1312
C1301
C1300
C1304
C1302
R1642
C1612
C1627
C1626
C1229
R1673
R1675 R1632
R1676
R1677
R1678
R1679
R1680
R1681
R1643
R1694
R1644
R1645
R1646
R1647
R1648
R1649
R1690
C1619
R1306
R1305
C1617
X1601
R1601
R1655
R1668
R1302
R1304
R1667
R1300
R1301
R1603
R1604
R1605
R1606
R1602
R1303
R1699
R1638
R1631
R1698
IC1601
R1611
R1607
R1608
R1609
R1610
R1612
R1613
R1614
R1652
C1611
C1610
R1600
R1669
R1641
R1640
R1639
R1619
R1618
R1617
R1621
R1622
R1615
C1636
C1625
R1689
R1653
R1658
C1601
D1601
Q1601
G1101
R1696
R1697
JR1300
JR1301
R1624
R1625
R1650
R1651
R1654
C1624
FB1602
R1687 C1603
R1660
R1633
R1672
C1632
C1671
R1630
R1629
R1628
R1627
C1602
R1662
R1663
R1683
R1684
R1685
R1686
R1626
R1670
C1634
Q1602
R1656
R1657
C1618
C1606
R1636
C1605
C1604
C1620R1635
R1671
JR1600
C1633
C1616
C1615
C1614
C1613
C1635
R1682
FB1603
(Page 29)
CNS4
R1666
CNS3
C1608
IC1604
CNS2
(Page 21)
2626
Page 27
4-13. PRINTED WIRING BOARD — VIDEO SECTION — • Refer to page 15 for Circuit Boards Location and Common Note on Printed Wiring Boards.
1
A
B
C
D
2 3 4 5 6 7 8
JW20 2
JW20 3
JW
201
JW20 4
R218
IC80 7
IC80 4
R201
CNP1 56
C214
C824
R200
C215
C809
C210
C213
CNS2 50
C208
R220
C248
C206
C201
R221
C200
C825
J201
J200
C207
IC20 3
T201
T202
IC B/D
C200
R220
R218
R221
C214
C215
C248
C201
C213
C809
C825
C824
C208
C210
J201
IC203
CNS250
CNP156
R201
R200
J200
C206
C207
IC807
IC804
(Page 24)
(Page 26)
(Page 21)
(Page 20)
4-14. SCHEMATIC DIAGRAM — VIDEO SECTION — • Refer to page 15 for Common Note on Schematic Diagram and page 32 for IC Block Diagrams.
STR-DE497P/K4800P/K5800P
STR-DE497P/K4800P/K5800P
27 27
Page 28
STR-DE497P/K4800P/K5800P
1
A
B
C
D
E
F
G
H
I
J
2 3 4 5 6 7 8 9 10 11 12 13 14
IC100
JW
100
C132
C133
C134
C135
C136
RV102
CNS100
IC101
R162
C104
Q100
L101
C150
C151
C152
C156
FL101
L103
C144
C143
C142
C141
C140
C139
C138
C137
R198
C108
C109
C101
C115
C100
S105
S107
S120
S121
S125
R121
R122
R101
R103
R107
S100
S101
S102
S103
S104
R123
R106
S106
S110
S111
S112
S113
S114
S115
S116
R111
R112
R113
R115
D102
R175
D101
R160
D105
C155
C157
JW112
R116
R114
JW
115
JW118
R104
JW122
JW
123
JW
132
JW133
C105
R105
JW
101
JW109
JW116
JW
119
JW
113
JW
120
JW
124
R199
C153
C154
R161
JW106
JW105
JW
114
JW
111
JW110
R173
R172
R174
IC102
L102
R102
JW
107
R141
CNP103
CNP101
JW
130
JW
129
JW128
JW
127
JW126
JW125
C114
R154
R153
C110
C111
C112
JW
131
R150
JW121
JW
104
JW108
JW
102
D103
D104
R132
R133
R134
R135
R136
S131
S132
S133
S134
S135
S151
CNP104
S152
S122
S123
R124
CNP102
(Page 24)
4-15. PRINTED WIRING BOARDS — DISPLAY SECTION — • Refer to page 15 for Circuit Boards Location and Common Note on Printed Wiring Boards.
STR-DE497P/K4800P/K5800P
2828
• Semiconductor
Location
Ref. No. Location
D101 G-4
D102 G-10
D103 G-13
D104 G-12
D105 G-11
IC100 G-4
IC101 F-6
IC102 G-1
Q100 F-5
Page 29
4-16. SCHEMATIC DIAGRAM — DISPLAY SECTION — • Refer to page 15 for Common Note on Schematic Diagram.
STR-DE497P/K4800P/K5800P
CNS100
CNP101
R133
CNP102
R104
R105
S105S103S102S101
S104
R114
R115
RV102
(Page 26)
C108
R198
R161
D102
D103
D104
D105
R172
R173
R174
C151
R175
C101
R150
C112
C111
C110
C100
C115
C152C150
C153 C154
C132
C133
C134
C135
C136
C137
C138
C139
FL101
IC100
C144
IC101
L102
C109
C140
C141
C142
C143
R199
R160
D101
R162
C104
Q100
R141
L103
C157
C156
L101
C155
CNP103
S120 S121 S125
S100
S110 S111 S112 S113 S114 S115
R153
CNP104
R123
R121
R122
R101
R102 R103
R111
R112 R113
IC102
C105
C114
R154
R136R132 R134 R135
S151
S135S134S133S132S131
S152 S122 S123
R106 R107
S107S106
R116
S116
R124
STR-DE497P/K4800P/K5800P
29 29
Page 30
STR-DE497P/K4800P/K5800P
1
A
B
C
D
E
F
G
H
I
2 3 4 5 6 7 8 9 10 11 12 13
JW83 3
B901
JW83 1
T902
CNP9 02
R810
R812
JW83 2
JW90 4
JW83 4
C813
D814
CNP8 04
C831
C802
C822
C801
R804
Q801
C830
CNP8 02
C820
C823
D813
CNP9 12
R923
R922
Q921
R902
Q901
D821
D822
D820
D823
C816
C815
C950
CNP9 01
C920
D901
D815
D812
C921
D914
R903
RY90 1
D910
D911
D915
D912
D913
R904
CNP9 03
R921
R806
CNP9 05
D804
F901
C821
D801
C814
C923
R910
G901
R901
T90 1
(Page 20)
(Page 24)
D801 C-6
D804 C-8
D812 E-7
D813 D-7
D814 D-7
D815 E-7
D820 F-7
D821 F-8
D822 G-7
D823 G-7
D901 F-8
D910 H-11
D911 H-11
D912 I-11
D913 H-10
D914 H-10
D915 H-10
Q801 B-7
Q901 G-9
Q921 G-8
• Semiconductor
Location
Ref. No. Location
(Page 20)
(Page 24)
4-17. PRINTED WIRING BOARDS — POWER SECTION — • Refer to page 15 for Circuit Boards Location and Common Note on Printed Wiring Boards.
STR-DE497P/K4800P/K5800P
3030
Page 31
4-18. SCHEMATIC DIAGRAM — POWER SECTION — • Refer to page 15 for Common Note on Schematic Diagram.
C830
R903
R902
D914
D915
C920
C921
C950
C813
C814
R904
C831
C820C8 21
C923
R923
R806
R922
R921
C801 C802
C816
C822
D804
D813
D814
D815
D820
D821 D822
D823
D910
D911
D912
D913
CNP804
CNP905
CNP903
CNP901
C815
RY901
C823
T901
Q801
CNP802
CNP912
Q921
R910
R810
R812
Q901
D901
T902
CNP902
D812
F901
D801
R804
R901
G901
(Page 26)
(Page 22)
(Page 22)
(Page 26)
The components id entified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les compo sants identifiés par
une marque 0 sont critiq ues
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
STR-DE497P/K4800P/K5800P
STR-DE497P/K4800P/K5800P
31 31
Page 32
STR-DE497P/K4800P/K5800P
1
IN+
2
IN-
3 4 5
-VOUT
6
+VOUT
7-B8
GND
9
+B
PRE
GND
DRIVER
PROTECTOR
DRIVE
1
2
3 456 7 8 9 10 11 12 13 14 15
PRE
DRIVE
PRE
DRIVE
BIAS CIRCUIT
REG
+VOUT1
–VOUT1
NF1
IN1
GND
IN2
NF2
–VOUT2
+VOUT2
VCC
VCC
VEE
DRIVE
IC203 NJM2279D (VIDEO BOARD)
IC1101 LC89056W-E (DIGITAL BOARD (1/2))
13
14
CKOUT
12
A.GND11AVDD
4
DIN1
10
LPF9VIN8R7DVDD6D.GND5DIN22DOUT1DISEL3DIN0
25
CSFLAG
33
BPSYNC
32
AUTO
31
DGND
30
DVDD
26 27 28 29
F3/P3/C3
F2/P2/C2
F1/P1/C1
F0/P0/C0
35DO36DI34
ERROR
BCK
15
16
LRCK
DATAO
17
XSTATE
18
19
DGND
DVDD
20
21
XMCK
XOUT
22
XIN
23
24
EMPHA
AUDIO
48
47
XMODE
CKSEL1
46
45
CKSEL0
DOSEL1
44
DOSEL0
43
42
DVDD
DGND
41
40
MODE1
MODE0
39
XSEL
38
37
CLK
CE
INPUT
PLL
DATA
DEMODULATOR
C BIT DETECTIONPa,Pb DETECTION
MICROPROCESSOR INTERFACE
LOCK
DETECTIONfsCALCULATION
TIMING
X'TAL1
IC1501 AK4626VQ (DIGITAL BOARD (1/2))
1
SDOS
TMD0
CDT1
CCLKCSS/P
MCLKI
DZF1
A.GND
A.5V
VREFH
VCOM
2
I2C
3
S.MUTE
4
BCLK
5
LRCK
6
SDTI1
7
SDTI2
8
SDTI3
9
SDTO
10
DAUX
11
DFSO
33
DZF2
32
RIN
31
LIN
30
NC
29
TST5
28
ROUT1
ADC
AUDIO
I/F
HPF
ADCHPF
FORMAT
CONVERTER
DATT DAC LPF
27
LOUT1
DATT DAC LPF
26
ROUT2
DATT DAC LPF
25
LOUT2
DATT DAC LPF
24
ROUT3
DATT DAC LPF
23
LOUT3
DATT DAC LPF
MCLK
SDOUT
BCLK
LRLK
SDT0
SDTI1
SDTI2
3940414243 3738 353644 34
TST1
DZFE
TVDD
D.5V
D.GND
PD
TST2
CAD1
CAD0
TST3
TST4
1716151413 1918 212012 22
14 13 12 11 10 9 8
1 2 3 4 5 6 7
AMP
-5VS1V3
M1
VOUT1NC+5V
V1S2V2
M2
VOUT2
GND2
GND1
AMP
4-19. IC BLOCK DIAGRAMS
IC201 M61527FP (MAIN BOARD (1/2))
SLSELOUT
CSELOUT
COUT
CVIN
SLVIN
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25
C ch
C ch
VOL
AVEE
AVEE
INR10/RECR4
SL ch VOL
SR ch VOL
R ch VOL
L ch VOL
INL9
SW ch
INR9
SL ch
SLOUT
41
SR ch
42
SROUT
SRVIN
43
44
SRSELOUT
45
RSELOUT
46
RVIN
47
ROUT
48
NC
49
NC
50
NC
R ch
51
NC
NC
52
53
NC
L ch
LOUT
54
55
LVIN
56
LSELOUT
GND
57
GND
RECL1
58
59
RECR1
60
RECL2
61
RECR2
62
RECL3
63
RECR3
64
GND
GND
65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
INL10/RECL4
SWOUT
INL8
L ch
SWVIN
SW ch
VOL
SWIN2
DGND
CLOCK
DATA
LATCH
DVDD
AVCC
GND
SWSELOUT
AVCCGND
DVDD
LATCH
DATA
MCU I/F
CLK
SW ch
C ch
SL ch
SR ch
R ch
L ch
L ch
R ch
R ch
INL7
INL6
INL5
INR8
INR7
INL4
INR6
INR5
CIN2
24
SLIN2
23
22
SRIN2
RIN2
21
20
LIN2
GND
GND
19
R ch
18
BALANCER R/+
17
BALANCER R/-
GND
GND
16
L ch
BALANCER L/+
15
BALANCER L/-
14
GND
13
GND
12
RIN1
LIN1
11
SLIN1
10
9
SRIN1
8
SWIN1
CIN1
7
GND
6
GND
5
INR1
4
INL1
INR2
3
INL2
2
INR3
1
INL3
INR4
IC501 STK350-230 (MAIN BOARD (2/2)) IC701 µPC2581V-S (MAIN BOARD (2/2))
STR-DE497P/K4800P/K5800P
IC702 µPC2581V-S (MAIN BOARD (2/2))
3232
Page 33
33
STR-DE497P/K4800P/K5800P
• IC Pin Descriptions
IC1201 CXD9617R (DSP) (DIGITAL Board (1/2))
Pin No. Pin Name I/O Pin Description
1 VSS — Ground
2 XRST I Reset signal input from SYSTEM CONTROL IC
3 EXTIN I Not used (Connect to ground)
4 FS2 I Not used (Connect to ground)
5 VDDI I Power supply pin (+2.6 V)
6 FS1 I Not used (Connect to ground)
7 PLOCK O Not used (Open)
8 VSS — Ground
9 MCLK1 I Clock signal input (13.59 MHz)
10 VDDI I Power supply pin (+2.6 V)
11 VSS — Ground
12 MCLK2 O Clock signal output (13.59 MHz)
13 MS I Not used (Connect to ground)
14 SCKOUT O Internal system clock signal output for CODEC IC
15 LRCKI1 I Not used (Open)
16 VDDE I Power supply pin (+3.3 V)
17 BCKI1 I Not used (Open)
18 SDI1 I Audio IF data input from CODEC IC
19 LRCKO O Sampling clock signal output for CODEC IC
20 BCKO O Bit clock signal output for CODEC IC
21 VSS — Ground
22 KFSIO I/O Audio clock signal (384fs/256fs) input/output for DIR IC
23 to 25 SDO1 to SDO3 O Digital audio serial data output for CODEC IC
26 SDO4 O Not used (Open)
27 SPDIF O Not used (Open)
28 LRCKI2 I Sampling clock signal input from DIR IC
29 BCKI2 I Bit clock signal input from DIR IC
30 SDI2 I Digital audio serial data input from DIR IC
31 VSS — Ground
32 HACN O Acknowledge signal output for SYSTEM CONTROL IC
33 HDIN I Serial data input from SYSTEM CONTROL IC
34 HCLK I Clock signal input from SYSTEM CONTROL IC
35 HDOUT O Serial data output for SYSTEM CONTROL IC
36 HCS I Chip select signal input from SYSTEM CONTROL IC
37 SDCLK O Not used (Open)
38 CLKEN O Not used (Open)
39 RAS O Not used (Open)
40 VDDI I Power supply pin (+2.6 V)
41 VSS — Ground
42 CAS O Not used (Open)
43 DQM/OE0 O Not used (Open)
44 CS0 O External memory chip select signal output for D/A converter IC (SDRAM)
45 WE0 O SDRAM write enable signal output for D/A converter IC (SDRAM)
46 VDDE I Power supply pin (+3.3 V)
47 WMD1 I Not used (Fixed at H)
48 VSS — Ground
49 WMD0 I Not used (Fixed at H)
50 PAGE2 O Not used (Open)
51 VSS — Ground
52, 53 PAGE1, PAGE0 O Not used (Open)
54 BOOT I Not used (Connect to ground)
Page 34
STR-DE497P/K4800P/K5800P
Pin No. Pin Name I/O Pin Description
55 BTACT O Not used (Open)
56 BST I Boot stop signal input from SYSTEM CONTROL IC
57 MOD1 I Operation mode signal input (L: 386fs, H: 256fs) (Fixed at H)
58 MOD0 I Operation mode signal input (L: single chip mode, H: use prohibited) (Fixed at L)
59 EXLOCK I Error detection signal input from DIR IC
60 VDDI I Power supply pin (+2.6 V)
61 VSS — Ground
62, 63 A17, A16 O Not used (Open)
64 to 66 A15 to A13 O External memory address signal output for D/A converter IC (SDRAM)
67 GP10 O Connect to LRCKO
68 GP9 O Decode signal output for SYSTEM CONTROL IC
69 GP8 I Audio signal input from DIR IC
70 VDDI I Power supply pin (+2.6 V)
71 VSS — Ground
72 to 75 D15/GP7 to D12/GP4 I/O External memory data input/output for D/A converter IC (general port)
76 VDDE I Power supply pin (+3.3 V)
77 to 80 D11/GP3 to D8/GP0 I/O External memory data input/output for D/A converter IC (general port)
81 VSS — Ground
82 A9 O External memory address signal output for D/A converter IC (SDRAM)
83 to 85 A12 to A10 O External memory address signal output for D/A converter IC (SDRAM)
86 TDO O Not used (Open)
87 TMS I Not used (Open)
88 XTRST I Not used (Open)
89 TCK I Not used (Open)
90 TDI I Not used (Open)
91 VSS — Ground
92 to 97 A8 to A3 O External memory address signal output for D/A converter IC (SDRAM)
98, 99 D7, D6 I/O External memory data input/output for D/A converter IC (SDRAM)
100 VDDI I Power supply pin (+2.6 V)
101 VSS — Ground
102 to 105 D5 to D2 I/O External memory data input/output for D/A converter IC (SDRAM)
106 VDDE I Power supply pin (+3.3 V)
107, 108 D1, D0 I/O External memory data input/output for D/A converter IC (SDRAM)
109, 110 A2, A1 O External memory address signal output for D/A converter IC (SDRAM)
111 VSS — Ground
112 A0 O External memory address signal output for D/A converter IC (SDRAM)
113 PM I PLL initialization signal input from SYSTEM CONTROL IC
114, 115 SDI3, SDI4 I Not used (Open)
116 SYNC I Sync/async select signal input (L: sync, H: async) (Fixed at H)
117 to 119 VSS — Ground
120 VDDI I Power supply pin (+2.6 V)
34
Page 35
STR-DE497P/K4800P/K5800P
IC1601 MB90478PF-G-170-BND (SYSTEM CONTROL) (DIGITAL Board (2/2))
Pin No. Pin Name I/O Pin Description
1 DATAO I Serial data line signal input from DIR IC
2 GP9 I GP9 signal input from DSP IC
3 BST O Boot stop control signal output for DSP IC
4 HCS O Chip select signal output for DSP IC
5 HACN I Acknowledge signal input from DSP IC
6 XRST O Reset signal output for DSP IC
7 PM O PLL control signal output for DSP IC
8 PD O Power down signal output for CODEC IC
9 SMUTE O Soft mute signal output for CODEC IC
10 CDT1 O Control data output for CODEC IC
11 VSS — Ground
12 SCL O Serial data clock signal output for CODEC IC
13 CS O Latch signal output for CODEC IC
14 DATA O Serial data output for VOL/TUNER IC
15 CLK O Clock signal output for VOL/TUNER IC
16 LATCH– VOL IC O Latch signal output for VOL/TUNER IC
17 SPK B RELAY O Not used (Fixed at L)
18 HDOUT I Serial data input from DSP IC
19 HDIN O Serial data output for DSP IC
20 HCLK O Serial data clock signal output for DSP IC
21 F.MUTE O Function mute control signal output
22 NC O Not used (Fixed at L)
23 VCC5 — Power supply pin (+3.3 V)
24 ANA/DIG O Muting and error port signal output
25 HP DETECT I Headphone detection signal input
26 NC — Not used (Fixed at L)
27 FLASH2 — Flash programming signal output 2
28 FLASH1 — Flash programming signal output 1
29 to 32 NC — Not used (Fixed at L)
33 SCL O Clock signal output for EEPROM IC
34 SDA I/O Serial data input/output for EEPROM IC
35 AVCC — Power supply pin (+3.3 V)
36 AVRH — Power supply pin (+3.3 V)
37 AVSS — Ground
38 to 41 A/D0 to A/D3 I Key signal input (A/D port)
42 VSS — Ground
43 RDS SIGNAL I RDS signal level input (STR-DE497P only)
44 MODEL I Model detection signal input
45 VERSION I Destination detection signal input
46 BLUE LED I LED (MULTI CHANNEL DECODING) driver signal input
47 NC — Not used (Fixed at L)
48 STOP I AC off detection signal input
49 MOD0 — Selection of micon operation mode
50 MOD1 — Not used (Connect to AVCC)
51 MOD2 — Selection of micon operation mode
52 RDS CLOCK I RDS data clock signal input (STR-DE497P only)
53 RDS DATA I RDS data input (STR-DE497P only)
54 SIRCS I SIRCS signal input
55 FUSE DETECT I Fuse open detection signal input
56 POWER KEY I Power key detection signal input
57, 58 NC I Not used (Fixed at L)
59 VOL (B) I Volume encoder signal input
35
Page 36
STR-DE497P/K4800P/K5800P
Pin No. Pin Name I/O Pin Description
60 VOL (A) I Volume encoder signal input
61 DIN O Serial data output for FL display driver IC
62 CLK O Clock signal output for FL dispaly driver IC
63 FL_STB O Latch signal output for FL display driver IC
64 NC — Not used (Fixed at L)
65 POWER RELAY O Power relay driver control signal output
66 PROTECTOR O Protector detection signal output
67 HEADPHONE RELAY O Headphone relay driver control signal output
68 WOOFER RELAY O Sub woofer relay driver control signal output
69 REAR RELAY O Surround speaker relay driver control signal output
70 CENTER RELAY O Center speaker relay driver control signal output
71 PREOUT/FRONT RELAY O Speaker A relay driver control signal output
72 BRIDGEABLE RELAY O Not used (Fixed at L)
73 TUNED I Tuned signal detection input
74 STEREO I Stereo signal detection input
75 MUTE O Tuner mute signal output
76 DO I Tuner serial data input
77 RSTX I Reset signal input
78 SLATCH O Tuner latch signal output
79 X0A — Not used (Open)
80 X1A — Not used (Connect to VSS)
81 VSS — Ground
82 X0 — Clock signal input (16 MHz)
83 X1 — Clock signal output (16 MHz)
84 VCC3 — Power supply pin (+3.3 V)
85 REMOTE SELECT — Not used (Fixed at H)
86, 87 NC — Not used (Fixed at L)
88 to 90 SW3 to SW1 O Video select signal output
91, 92 NC — Not used (Fixed at L)
93 XMODE O Xmode signal output for DIR IC
94 CKSEL1 O Clock select signal output for DIR IC
95 CLK O Data clock signal output for DIR IC
96 CE O Latch signal output for DIR IC
97 DI O Data output for DIR IC
98 DO I Data input from DIR IC
99 ERROR I Error detection signal input from DIR IC
100 XSTATE I Xstate signal input from DIR IC
36
Page 37
SECTION 5
#1
#1
1
2
2
2
EXPLODED VIEWS
STR-DE497P/K4800P/K5800P
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Abbreviation
CND : Canadian model
5-1. CASE SECTION
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
R
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
R
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No. Part No. Description Remark
1 4-248-479-21 CASE
2 3-070-883-11 SCREW, TAPPING
Ref. No. Part No. Description Remark
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
37
Page 38
STR-DE497P/K4800P/K5800P
5-2. FRONT PANEL SECTION
56
not supplied
(HEADPHONE board)
54
55
54
54
57
54
54
54
54
FL101
53
51
58
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4956-133-1 PANEL ASSY, FRONT (DE497P)
51 X-4956-136-1 PANEL ASSY, FRONT (K4800P:US)
51 X-4956-211-1 PANEL ASSY, FRONT (K4800P:CND)
51 X-4956-388-1 PANEL ASSY, FRONT (K5800P)
52 4-977-358-01 CUSHION
53 1-773-114-11 WIRE (FLAT TYPE) (19 CORE)
54 4-951-620-01 SCREW (2.6X8), +BVTP
supplied with
RV102
52
55 1-861-044-11 TUNING BOARD
56 1-861-045-11 POWER BOARD
57 A-4750-402-A DISPLAY BOARD, COMPLETE (DE497P)
57 A-4752-700-A DISPLAY BOARD, COMPLETE
(K4800P/K5800P)
58 4-232-113-12 KNOB (VOL)
FL101 1-518-966-11 VACUUM FLUORESCENT DISPLAY
38
Page 39
5-3. CHASSIS SECTION-1
not supplied
101
102
103
104
105
106
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
TN1
The compo nen ts identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
STR-DE497P/K4800P/K5800P
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-4750-456-A DIGITAL BOARD, COMPLETE (DE497P)
101 A-4750-463-A DIGITAL BOARD, COMPLETE (K4800P/K5800P)
102 1-575-662-31 WIRE (FLAT TYPE) (5 CORE)
103 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
(K4800P/K5800P)
103 1-773-001-11 WIRE (FLAT TYPE) (15 CORE) (DE497P)
104 A-4750-410-A VIDEO BOARD, COMPLETE
* 105 3-703-244-00 BUSHING (2104), CORD
0 106 1-777-071-23 CORD, POWER (AEP,UK)
0 106 1-783-820-11 CORD, POWER (US,CND)
TN1 1-693-577-13 TUNER PACK (ANTENNA) (K5800P)
TN1 1-693-577-21 TUNER PACK (ANTENNA) (K4800P)
TN1 1-693-578-13 TUNER PACK (ANTENNA) (DE497P)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
39
Page 40
STR-DE497P/K4800P/K5800P
5-4. CHASSIS SECTION-2
158
154
155
151
#1
T901
153
152
F901
#1
154
158
#2
not supplied
156
Q604
158
not supplied
Q603
Q754
Q704
Q703
not supplied
Q753
Q654
Q653
152
#1
153
158
Q504
Q503
157
151
#1
The components iden tified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 X-4953-448-1 FOOT ASSY
152 4-232-237-01 FOOT (DIA.30)
153 4-977-358-01 CUSHION
154 4-249-675-01 +BV SUMITITE S 4X6 ROUND
155 A-4750-409-A STANDBY BOARD, COMPLETE (DE497P)
155 A-4750-608-A STANDBY BOARD, COMPLETE
(K4800P/K5800P)
156 A-4750-435-A MAIN BOARD, COMPLETE (K4800P)
156 A-4750-441-A MAIN BOARD, COMPLETE (DE497P)
156 A-4752-285-A MAIN BOARD, COMPLETE (K5800P)
157 3-905-609-01 SCREW (TRANSISTOR)
158 3-970-608-01 SUMITITE (B3), +BV
0 F901 1-532-503-51 FUSE (T1.6AL/250V) (AEP,UK)
0 F901 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V)
(US,CND)
Q503 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q504 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q603 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q604 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q653 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q654 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q703 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q704 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q753 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q754 8-749-010-26 TRANSISTOR MP1620-OPY-M
0 T901 1-443-185-11 TRANSFORMER, POWER (K4800P:US,CND)
0 T901 1-443-211-11 TRANSFORMER, POWER (AEP,UK)
0 T901 1-443-248-11 TRANSFORMER, POWER (K5800P:US)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
40
Page 41
STR-DE497P/K4800P/K5800P
SECTION 6
ELECTRICAL PARTS LIST
DIGITAL
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-4750-456-A DIGITAL BOARD, COMPLETE (DE497P)
A-4750-463-A DIGITAL BOARD, COMPLETE (K4800P/K5800P)
***********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
< CAPACITOR >
C1101 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1102 1-126-204-11 ELECT CHIP 47uF 20% 16V
C1103 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1104 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1105 1-126-204-11 ELECT CHIP 47uF 20% 16V
C1106 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1107 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1108 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1109 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C1110 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C1111 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1112 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1113 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1114 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V
C1115 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C1116 1-110-530-11 ELECT CHIP 1000uF 20% 6.3V
C1117 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1118 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1119 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C1120 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1124 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1129 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1130 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C1201 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1202 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1203 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1204 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1205 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1206 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1207 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1208 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1209 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1210 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1211 1-128-396-11 ELECT CHIP 470uF 20% 10V
C1212 1-128-396-11 ELECT CHIP 470uF 20% 10V
C1213 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1214 1-164-156-11 CERAMIC CHIP 0.1uF 25V
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
• CAPACITORS
uF : µF
• COILS
uH : µH
• Abbreviation
CND : Canadian model
C1216 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C1218 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C1219 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1220 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C1229 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1230 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1231 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1300 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1301 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1302 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1303 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1304 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1315 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C1365 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C1502 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C1505 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1506 1-128-396-11 ELECT CHIP 470uF 20% 10V
C1507 1-124-779-00 ELECT CHIP 10uF 20% 16V
C1508 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1509 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1511 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1512 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C1513 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1514 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1515 1-128-396-11 ELECT CHIP 470uF 20% 10V
C1516 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C1517 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C1518 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C1519 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C1520 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C1521 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C1523 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1552 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C1601 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1602 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1603 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1604 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1605 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1606 1-126-204-11 ELECT CHIP 47uF 20% 16V
C1608 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1610 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1611 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1612 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1613 1-164-156-11 CERAMIC CHIP 0.1uF 25V
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
(DE497P)
41
Page 42
STR-DE497P/K4800P/K5800P
DIGITAL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C1614 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1615 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1616 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1617 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1618 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1619 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1620 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1624 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1625 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1626 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1627 1-124-779-00 ELECT CHIP 10uF 20% 16V
C1632 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1633 1-164-156-11 CERAMIC CHIP 0.1uF 25V
(DE497P)
C1634 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1635 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1636 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1671 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1905 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1906 1-128-396-11 ELECT CHIP 470uF 20% 10V
C1908 1-128-396-11 ELECT CHIP 470uF 20% 10V
C1909 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1910 1-128-396-11 ELECT CHIP 470uF 20% 10V
C1911 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1912 1-128-396-11 ELECT CHIP 470uF 20% 10V
C1913 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1914 1-126-204-11 ELECT CHIP 47uF 20% 16V
C1915 1-126-204-11 ELECT CHIP 47uF 20% 16V
(DE497P)
C1916 1-164-156-11 CERAMIC CHIP 0.1uF 25V
(DE497P)
< CONNECTOR >
CNP5 1-779-978-11 PIN, CONNECTOR 3P
CNP6 1-784-929-11 PIN, CONNECTOR 14P
CNS1 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P
CNS2 1-784-031-41 CONNECTOR, BOARD TO BOARD 8P
CNS4 1-569-308-11 SOCKET, CONNECTOR (L TYPE) 19P
CNS7 1-569-060-11 SOCKET, CONNECTOR 11P (K4800P/K5800P)
CNS7 1-569-321-11 SOCKET, CONNECTOR 15P (DE497P)
CNS8 1-569-315-11 SOCKET, CONNECTOR 5P
FB1502 1-216-864-11 SHORT CHIP 0
FB1601 1-469-727-21 FERRITE, EMI (SMD) (2012)
FB1602 1-216-864-11 SHORT CHIP 0
FB1603 1-216-864-11 SHORT CHIP 0
< GROUND TERMINAL >
G1101 1-537-738-21 TERMINAL, GROUND
< IC >
IC1101 8-759-825-15 IC LC89056W-E
IC1102 8-759-242-70 IC TC7WU04F
IC1104 6-600-014-01 IC TORX141L (DIGITAL VIDEO 2 IN
(OPTICAL))
IC1201 8-759-698-76 IC CXD9617R
IC1202 6-704-037-01 IC IC61LV6416-15TG
IC1501 6-705-627-01 IC AK4626VQ
IC1503 8-759-231-53 IC TA7805S
IC1601 6-803-873-11 IC MB90478PF-G-170-BNDE1
IC1602 6-701-680-01 IC PST3629NR
IC1604 6-704-004-01 IC BR24L16F-WE2
IC1901 6-701-887-02 IC SI-3004KWF
IC1902 8-759-231-57 IC TA7810S
IC1903 6-705-464-01 IC BA50BC0T
IC1904 6-705-463-01 IC BA33BC0T
IC1905 6-702-771-01 IC TA78033LS (DE497P)
< JACK >
J1101 1-794-972-11 JACK, PIN 1P (DIGITAL DVD IN (COAXIAL))
< JUMPER RESISTOR >
JR1116 1-216-864-11 SHORT CHIP 0
JR1200 1-216-864-11 SHORT CHIP 0
JR1300 1-216-864-11 SHORT CHIP 0 (K4800P/K5800P)
JR1301 1-216-864-11 SHORT CHIP 0 (K4800P/K5800P)
JR1600 1-216-864-11 SHORT CHIP 0 (K4800P/K5800P)
L1901 1-216-864-11 SHORT CHIP 0
< TRANSISTOR >
Q1601 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q1602 8-729-230-49 TRANSISTOR 2SC2712-YG
< DIODE >
D1001 8-719-016-74 DIODE 1SS352
D1101 8-719-988-61 DIODE 1SS355TE-17
D1501 8-719-049-09 DIODE 1SS367-T3SONY
D1502 8-719-049-09 DIODE 1SS367-T3SONY
D1601 8-719-988-61 DIODE 1SS355TE-17
< FERRITE BEAD >
FB1101 1-469-727-21 FERRITE, EMI (SMD) (2012)
FB1102 1-469-727-21 FERRITE, EMI (SMD) (2012)
FB1104 1-469-710-21 FERRITE, EMI (SMD) (2012)
FB1105 1-469-710-21 FERRITE, EMI (SMD) (2012)
FB1201 1-469-727-21 FERRITE, EMI (SMD) (2012)
FB1202 1-469-727-21 FERRITE, EMI (SMD) (2012)
FB1203 1-469-710-21 FERRITE, EMI (SMD) (2012)
FB1204 1-469-710-21 FERRITE, EMI (SMD) (2012)
FB1501 1-469-727-21 FERRITE, EMI (SMD) (2012)
42
< RESISTOR >
R1100 1-216-857-11 METAL CHIP 1M 5% 1/10W
R1101 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1102 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1103 1-216-809-11 METAL CHIP 100 5% 1/10W
R1104 1-216-809-11 METAL CHIP 100 5% 1/10W
R1105 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1106 1-216-839-11 METAL CHIP 33K 5% 1/10W
R1107 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R1108 1-216-809-11 METAL CHIP 100 5% 1/10W
R1109 1-216-809-11 METAL CHIP 100 5% 1/10W
R1110 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1111 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1112 1-216-809-11 METAL CHIP 100 5% 1/10W
R1113 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1114 1-216-809-11 METAL CHIP 100 5% 1/10W
Page 43
STR-DE497P/K4800P/K5800P
DIGITAL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R1115 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1116 1-218-285-11 METAL CHIP 75 5% 1/10W
R1117 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1118 1-216-854-11 METAL CHIP 560K 5% 1/10W
R1119 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1120 1-216-809-11 METAL CHIP 100 5% 1/10W
R1122 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1124 1-216-809-11 METAL CHIP 100 5% 1/10W
R1202 1-216-809-11 METAL CHIP 100 5% 1/10W
R1203 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1204 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1205 1-216-809-11 METAL CHIP 100 5% 1/10W
R1206 1-216-809-11 METAL CHIP 100 5% 1/10W
R1207 1-216-809-11 METAL CHIP 100 5% 1/10W
R1208 1-216-809-11 METAL CHIP 100 5% 1/10W
R1209 1-216-809-11 METAL CHIP 100 5% 1/10W
R1210 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1212 1-216-813-11 METAL CHIP 220 5% 1/10W
R1213 1-216-813-11 METAL CHIP 220 5% 1/10W
R1214 1-216-813-11 METAL CHIP 220 5% 1/10W
R1215 1-216-813-11 METAL CHIP 220 5% 1/10W
R1216 1-216-813-11 METAL CHIP 220 5% 1/10W
R1217 1-216-813-11 METAL CHIP 220 5% 1/10W
R1218 1-216-813-11 METAL CHIP 220 5% 1/10W
R1219 1-216-813-11 METAL CHIP 220 5% 1/10W
R1220 1-216-813-11 METAL CHIP 220 5% 1/10W
R1221 1-216-813-11 METAL CHIP 220 5% 1/10W
R1222 1-216-813-11 METAL CHIP 220 5% 1/10W
R1224 1-216-813-11 METAL CHIP 220 5% 1/10W
R1225 1-216-813-11 METAL CHIP 220 5% 1/10W
R1226 1-216-813-11 METAL CHIP 220 5% 1/10W
R1227 1-216-813-11 METAL CHIP 220 5% 1/10W
R1228 1-216-813-11 METAL CHIP 220 5% 1/10W
R1229 1-216-813-11 METAL CHIP 220 5% 1/10W
R1230 1-216-813-11 METAL CHIP 220 5% 1/10W
R1231 1-216-813-11 METAL CHIP 220 5% 1/10W
R1232 1-216-813-11 METAL CHIP 220 5% 1/10W
R1233 1-216-813-11 METAL CHIP 220 5% 1/10W
R1234 1-216-813-11 METAL CHIP 220 5% 1/10W
R1235 1-216-813-11 METAL CHIP 220 5% 1/10W
R1236 1-216-813-11 METAL CHIP 220 5% 1/10W
R1237 1-216-813-11 METAL CHIP 220 5% 1/10W
R1238 1-216-813-11 METAL CHIP 220 5% 1/10W
R1239 1-216-813-11 METAL CHIP 220 5% 1/10W
R1240 1-216-813-11 METAL CHIP 220 5% 1/10W
R1241 1-216-813-11 METAL CHIP 220 5% 1/10W
R1242 1-216-813-11 METAL CHIP 220 5% 1/10W
R1243 1-216-813-11 METAL CHIP 220 5% 1/10W
R1244 1-216-813-11 METAL CHIP 220 5% 1/10W
R1300 1-216-809-11 METAL CHIP 100 5% 1/10W
R1301 1-216-809-11 METAL CHIP 100 5% 1/10W
R1302 1-216-809-11 METAL CHIP 100 5% 1/10W
R1303 1-216-809-11 METAL CHIP 100 5% 1/10W
R1304 1-216-809-11 METAL CHIP 100 5% 1/10W
R1305 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1306 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1312 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE497P)
R1313 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE497P)
R1314 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE497P)
R1315 1-216-864-11 SHORT CHIP 0
R1365 1-216-864-11 SHORT CHIP 0
R1508 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1509 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1516 1-216-813-11 METAL CHIP 220 5% 1/10W
R1517 1-216-813-11 METAL CHIP 220 5% 1/10W
R1518 1-216-813-11 METAL CHIP 220 5% 1/10W
R1519 1-216-813-11 METAL CHIP 220 5% 1/10W
R1520 1-216-813-11 METAL CHIP 220 5% 1/10W
R1521 1-216-813-11 METAL CHIP 220 5% 1/10W
R1600 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1601 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1602 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1603 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1604 1-216-809-11 METAL CHIP 100 5% 1/10W
R1605 1-216-809-11 METAL CHIP 100 5% 1/10W
R1606 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1607 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1608 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1609 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1610 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1611 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1612 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1613 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1614 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1615 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1617 1-216-809-11 METAL CHIP 100 5% 1/10W
R1618 1-216-809-11 METAL CHIP 100 5% 1/10W
R1619 1-216-809-11 METAL CHIP 100 5% 1/10W
R1621 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1622 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1624 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1625 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1626 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1627 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1628 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1629 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1630 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1631 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1632 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
(DE497P)
R1632 1-216-864-11 SHORT CHIP 0 (K4800P/K5800P)
R1633 1-216-841-11 METAL CHIP 47K 5% 1/10W
(DE497P)
R1635 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1636 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1638 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1639 1-216-809-11 METAL CHIP 100 5% 1/10W
R1640 1-216-809-11 METAL CHIP 100 5% 1/10W
R1641 1-216-809-11 METAL CHIP 100 5% 1/10W
R1642 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1643 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1644 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1645 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1646 1-216-821-11 METAL CHIP 1K 5% 1/10W
43
Page 44
STR-DE497P/K4800P/K5800P
DISPLAYDIGITAL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R1647 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1648 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1649 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1650 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1651 1-216-833-11 METAL CHIP 10K 5% 1/10W
C104 1-164-159-11 CERAMIC 0.1uF 50V
C105 1-126-795-11 ELECT 10uF 20% 50V
C108 1-164-159-11 CERAMIC 0.1uF 50V
C109 1-164-159-11 CERAMIC 0.1uF 50V
C110 1-128-825-11 CERAMIC 0.0022uF 5% 50V
R1652 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1653 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1654 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1655 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1656 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1657 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1658 1-216-809-11 METAL CHIP 100 5% 1/10W
R1660 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1662 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1663 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1666 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1667 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1668 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1669 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1670 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1671 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1672 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1673 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1675 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1676 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1677 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1678 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1679 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1680 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1681 1-216-833-11 METAL CHIP 10K 5% 1/10W
C111 1-128-809-11 CERAMIC 100PF 5% 50V
C112 1-128-809-11 CERAMIC 100PF 5% 50V
C114 1-164-159-11 CERAMIC 0.1uF 50V
C115 1-126-795-11 ELECT 10uF 20% 50V
C132 1-128-813-11 CERAMIC 220PF 5% 50V
C133 1-128-813-11 CERAMIC 220PF 5% 50V
C134 1-128-813-11 CERAMIC 220PF 5% 50V
C135 1-128-813-11 CERAMIC 220PF 5% 50V
C136 1-128-813-11 CERAMIC 220PF 5% 50V
C137 1-128-813-11 CERAMIC 220PF 5% 50V
C138 1-128-813-11 CERAMIC 220PF 5% 50V
C139 1-128-813-11 CERAMIC 220PF 5% 50V
C140 1-128-813-11 CERAMIC 220PF 5% 50V
C141 1-128-813-11 CERAMIC 220PF 5% 50V
C142 1-128-813-11 CERAMIC 220PF 5% 50V
C143 1-128-813-11 CERAMIC 220PF 5% 50V
C144 1-164-159-11 CERAMIC 0.1uF 50V
C150 1-164-159-11 CERAMIC 0.1uF 50V
C151 1-126-795-11 ELECT 10uF 20% 50V
C152 1-128-813-11 CERAMIC 220PF 5% 50V
C153 1-128-813-11 CERAMIC 220PF 5% 50V
C154 1-128-813-11 CERAMIC 220PF 5% 50V
C155 1-164-159-11 CERAMIC 0.1uF 50V
C156 1-164-159-11 CERAMIC 0.1uF 50V
C157 1-164-159-11 CERAMIC 0.1uF 50V
R1682 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1683 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1684 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1685 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1686 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1687 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1688 1-216-864-11 SHORT CHIP 0
R1689 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1690 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1694 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1696 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1697 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1698 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1699 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
< VIBRATOR >
X1101 1-795-126-21 VIBRATOR, CRYSTAL (12.288MHz)
X1201 1-795-363-21 VIBRATOR, CERAMIC (13.59MHz)
X1601 1-767-922-11 VIBRATOR, CERAMIC (16MHz)
*************************************************************
A-4750-402-A DISPLAY BOARD, COMPLETE (DE497P)
A-4752-700-A DISPLAY BOARD, COMPLETE
(K4800P/K5800P)
************************
< CAPACITOR >
< CONNECTOR >
* CNP101 1-564-518-11 PLUG, CONNECTOR 3P
* CNP103 1-564-517-11 PLUG, CONNECTOR 2P
CNS100 1-569-323-11 SOCKET, CONNECTOR 19P
< DIODE >
D101 6-500-647-01 LED SEL5E20C-STP15
(MULTI CHANNEL DECODING)
D102 8-719-061-96 LED SLR-325DCT31 (2CH)
D103 8-719-061-96 LED SLR-325DCT31 (MUSIC)
D104 8-719-061-96 LED SLR-325DCT31 (MOVIE)
D105 8-719-061-96 LED SLR-325DCT31 (A.F.D.)
< VACUUM FLUORESCENT DISPLAY >
FL101 1-518-966-11 VACUUM FLUORESCENT DISPLAY
< IC >
IC100 8-759-643-83 IC uPD16315GB-3BS
IC101 8-759-243-51 IC TC74ACT08P
IC102 6-600-309-01 IC RPM7240-H9 (IR)
< TRANSISTOR >
Q100 8-729-119-78 TRANSISTOR 2SC2785-HFE
< RESISTOR >
C100 1-164-159-11 CERAMIC 0.1uF 50V
C101 1-164-159-11 CERAMIC 0.1uF 50V
44
R101 1-247-831-11 CARBON 1K 5% 1/4W
R102 1-249-421-11 CARBON 2.2K 5% 1/4W
Page 45
STR-DE497P/K4800P/K5800P
DISPLAY HEADPHONE MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R103 1-249-421-11 CARBON 2.2K 5% 1/4W
R104 1-247-847-11 CARBON 4.7K 5% 1/4W
R105 1-249-429-11 CARBON 10K 5% 1/4W
R106 1-247-863-11 CARBON 22K 5% 1/4W
R107 1-247-871-11 CARBON 47K 5% 1/4W
R111 1-247-831-11 CARBON 1K 5% 1/4W
R112 1-249-421-11 CARBON 2.2K 5% 1/4W
R113 1-249-421-11 CARBON 2.2K 5% 1/4W
R114 1-247-847-11 CARBON 4.7K 5% 1/4W
R115 1-249-429-11 CARBON 10K 5% 1/4W
CNP791 1-691-766-11 PLUG (MICRO CONNECTOR) 4P
J791 1-815-314-21 JACK (PHONES)
*************************************************************
HEADPHONE BOARD
*****************
< CONNECTOR >
< JACK >
R116 1-247-863-11 CARBON 22K 5% 1/4W
(DE497P)
R121 1-247-831-11 CARBON 1K 5% 1/4W
R122 1-249-421-11 CARBON 2.2K 5% 1/4W
R123 1-249-421-11 CARBON 2.2K 5% 1/4W
R141 1-249-421-11 CARBON 2.2K 5% 1/4W
R150 1-249-440-11 CARBON 82K 5% 1/4W
R153 1-247-807-31 CARBON 100 5% 1/4W
R154 1-249-393-11 CARBON 10 5% 1/4W F
R160 1-247-804-11 CARBON 75 5% 1/4W
R161 1-249-409-11 CARBON 220 5% 1/4W
R162 1-249-429-11 CARBON 10K 5% 1/4W
R175 1-249-393-11 CARBON 10 5% 1/4W F
R198 1-249-381-11 CARBON 1 5% 1/4W F
R199 1-249-381-11 CARBON 1 5% 1/4W F
< ROTARY ENCODER >
RV102 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
< SWITCH >
S100 1-771-410-21 SWITCH, TACTILE (INPUT MODE)
S101 1-771-410-21 SWITCH, TACTILE (>)
S102 1-771-410-21 SWITCH, TACTILE (–)
S103 1-771-410-21 SWITCH, TACTILE (+)
S104 1-771-410-21 SWITCH, TACTILE (<)
S105 1-771-410-21 SWITCH, TACTILE (TUNER FM/AM)
S106 1-771-410-21 SWITCH, TACTILE (MD/TAPE)
S107 1-771-410-21 SWITCH, TACTILE (VIDEO 1)
S110 1-771-410-21 SWITCH, TACTILE (MUSIC)
S111 1-771-410-21 SWITCH, TACTILE (MOVIE)
S112 1-771-410-21 SWITCH, TACTILE (A.F.D.)
S113 1-771-410-21 SWITCH, TACTILE (2CH)
S114 1-771-410-21 SWITCH, TACTILE (ENTER)
S115 1-771-410-21 SWITCH, TACTILE (MAIN MENU)
S116 1-771-410-21 SWITCH, TACTILE (MULTI CH IN) (DE497P)
S120 1-771-410-21 SWITCH, TACTILE (CD)
S121 1-771-410-21 SWITCH, TACTILE (DVD)
S125 1-771-410-21 SWITCH, TACTILE (VIDEO 2)
*************************************************************
A-4750-435-A MAIN BOARD, COMPLETE (K4800P)
A-4750-441-A MAIN BOARD, COMPLETE (DE497P)
A-4752-285-A MAIN BOARD, COMPLETE (K5800P)
*********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
< CAPACITOR >
C371 1-161-494-00 CERAMIC 0.022uF 25V
C372 1-161-494-00 CERAMIC 0.022uF 25V
C373 1-161-494-00 CERAMIC 0.022uF 25V
C374 1-164-159-11 CERAMIC 0.1uF 50V
C375 1-161-494-00 CERAMIC 0.022uF 25V
C376 1-161-494-00 CERAMIC 0.022uF 25V
C400 1-164-159-11 CERAMIC 0.1uF 50V
C408 1-126-963-11 ELECT 4.7uF 20% 50V
C409 1-126-963-11 ELECT 4.7uF 20% 50V
C413 1-126-961-11 ELECT 2.2uF 20% 50V
C414 1-126-961-11 ELECT 2.2uF 20% 50V
C415 1-126-961-11 ELECT 2.2uF 20% 50V
C416 1-126-961-11 ELECT 2.2uF 20% 50V
C417 1-126-961-11 ELECT 2.2uF 20% 50V
C418 1-126-961-11 ELECT 2.2uF 20% 50V
C419 1-126-961-11 ELECT 2.2uF 20% 50V
C433 1-126-961-11 ELECT 2.2uF 20% 50V
C458 1-126-963-11 ELECT 4.7uF 20% 50V
C459 1-126-963-11 ELECT 4.7uF 20% 50V
C464 1-164-159-11 CERAMIC 0.1uF 50V
C465 1-126-934-11 ELECT 220uF 20% 16V
C467 1-164-159-11 CERAMIC 0.1uF 50V
C471 1-126-963-11 ELECT 4.7uF 20% 50V
C472 1-126-963-11 ELECT 4.7uF 20% 50V
C475 1-104-658-11 ELECT 100uF 20% 10V
C481 1-126-963-11 ELECT 4.7uF 20% 50V
C482 1-126-963-11 ELECT 4.7uF 20% 50V
C483 1-126-963-11 ELECT 4.7uF 20% 50V
C484 1-126-963-11 ELECT 4.7uF 20% 50V
C485 1-126-964-11 ELECT 10uF 20% 50V
C486 1-126-963-11 ELECT 4.7uF 20% 50V
C487 1-126-964-11 ELECT 10uF 20% 50V
C488 1-164-159-11 CERAMIC 0.1uF 50V
C489 1-128-809-11 CERAMIC 100PF 5% 50V
C490 1-128-809-11 CERAMIC 100PF 5% 50V
C491 1-126-963-11 ELECT 4.7uF 20% 50V
C492 1-126-963-11 ELECT 4.7uF 20% 50V
C493 1-126-963-11 ELECT 4.7uF 20% 50V
C494 1-126-963-11 ELECT 4.7uF 20% 50V
C495 1-126-963-11 ELECT 4.7uF 20% 50V
45
Page 46
STR-DE497P/K4800P/K5800P
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C496 1-126-963-11 ELECT 4.7uF 20% 50V
C497 1-128-809-11 CERAMIC 100PF 5% 50V
C498 1-128-803-11 CERAMIC 33PF 5% 50V
C500 1-128-825-11 CERAMIC 0.0022uF 5% 50V
C501 1-126-963-11 ELECT 4.7uF 20% 50V
C721 1-126-934-11 ELECT 220uF 20% 16V
C722 1-126-964-11 ELECT 10uF 20% 50V
C732 1-128-582-11 ELECT 10uF 20% 100V
C733 1-128-582-11 ELECT 10uF 20% 100V
C740 1-126-964-11 ELECT 10uF 20% 50V
C503 1-104-658-11 ELECT 100uF 20% 10V
C504 1-107-583-11 CERAMIC 3PF 0.25PF 500V
C505 1-106-359-00 MYLAR 0.0047uF 5% 50V
C506 1-102-233-00 CERAMIC 33PF 10% 500V
C507 1-128-809-11 CERAMIC 100PF 5% 50V
C508 1-128-809-11 CERAMIC 100PF 5% 50V
C510 1-126-947-11 ELECT 47uF 20% 35V
C511 1-136-157-00 FILM 0.022uF 5% 50V
C516 1-162-815-11 CERAMIC 47PF 5% 500V
C517 1-162-815-11 CERAMIC 47PF 5% 500V
C519 1-128-813-11 CERAMIC 220PF 5% 50V
C540 1-126-964-11 ELECT 10uF 20% 50V
C541 1-127-876-11 CERAMIC 0.01uF 10% 50V
C601 1-126-963-11 ELECT 4.7uF 20% 50V
C603 1-104-658-11 ELECT 100uF 20% 10V
C604 1-107-583-11 CERAMIC 3PF 0.25PF 500V
C605 1-102-233-00 CERAMIC 33PF 10% 500V
C606 1-128-813-11 CERAMIC 220PF 5% 50V
C607 1-128-809-11 CERAMIC 100PF 5% 50V
C610 1-126-947-11 ELECT 47uF 20% 35V
C611 1-136-157-00 FILM 0.022uF 5% 50V
C619 1-128-813-11 CERAMIC 220PF 5% 50V
C620 1-162-815-11 CERAMIC 47PF 5% 500V
C621 1-162-815-11 CERAMIC 47PF 5% 500V
C640 1-126-964-11 ELECT 10uF 20% 50V
C642 1-127-876-11 CERAMIC 0.01uF 10% 50V
C643 1-128-579-11 ELECT 2.2uF 20% 100V
C651 1-126-963-11 ELECT 4.7uF 20% 50V
C653 1-104-658-11 ELECT 100uF 20% 10V
C654 1-107-583-11 CERAMIC 3PF 0.25PF 500V
C655 1-102-233-00 CERAMIC 33PF 10% 500V
C656 1-128-813-11 CERAMIC 220PF 5% 50V
C657 1-128-809-11 CERAMIC 100PF 5% 50V
C660 1-126-947-11 ELECT 47uF 20% 35V
C661 1-136-157-00 FILM 0.022uF 5% 50V
C666 1-162-815-11 CERAMIC 47PF 5% 500V
C669 1-162-815-11 CERAMIC 47PF 5% 500V
C670 1-128-813-11 CERAMIC 220PF 5% 50V
C680 1-126-964-11 ELECT 10uF 20% 50V
C681 1-127-876-11 CERAMIC 0.01uF 10% 50V
C691 1-164-159-11 CERAMIC 0.1uF 50V
C700 1-128-825-11 CERAMIC 0.0022uF 5% 50V
C701 1-126-963-11 ELECT 4.7uF 20% 50V
C703 1-104-658-11 ELECT 100uF 20% 10V
C704 1-107-583-11 CERAMIC 3PF 0.25PF 500V
C705 1-102-233-00 CERAMIC 33PF 10% 500V
C706 1-128-813-11 CERAMIC 220PF 5% 50V
C707 1-128-809-11 CERAMIC 100PF 5% 50V
C710 1-126-947-11 ELECT 47uF 20% 35V
C711 1-136-157-00 FILM 0.022uF 5% 50V
C716 1-162-815-11 CERAMIC 47PF 5% 500V
C717 1-162-815-11 CERAMIC 47PF 5% 500V
C720 1-128-813-11 CERAMIC 220PF 5% 50V
C742 1-127-876-11 CERAMIC 0.01uF 10% 50V
C744 1-128-579-11 ELECT 2.2uF 20% 100V
C750 1-126-964-11 ELECT 10uF 20% 50V
C751 1-126-963-11 ELECT 4.7uF 20% 50V
C752 1-127-876-11 CERAMIC 0.01uF 10% 50V
C753 1-104-658-11 ELECT 100uF 20% 10V
C754 1-107-583-11 CERAMIC 3PF 0.25PF 500V
C755 1-102-233-00 CERAMIC 33PF 10% 500V
C756 1-128-813-11 CERAMIC 220PF 5% 50V
C757 1-128-809-11 CERAMIC 100PF 5% 50V
C760 1-126-947-11 ELECT 47uF 20% 35V
C761 1-136-157-00 FILM 0.022uF 5% 50V
C766 1-162-815-11 CERAMIC 47PF 5% 500V
C767 1-162-815-11 CERAMIC 47PF 5% 500V
C770 1-128-813-11 CERAMIC 220PF 5% 50V
C800 1-128-825-11 CERAMIC 0.0022uF 5% 50V
(DE497P)
C803 1-165-498-11 ELECT 4700uF 20% 63V
(DE497P/K4800P)
C803 1-165-960-11 ELECT 6800uF 20% 71V
(K5800P)
C804 1-165-498-11 ELECT 4700uF 20% 63V
(DE497P/K4800P)
C804 1-165-960-11 ELECT 6800uF 20% 71V
(K5800P)
C805 1-135-851-21 MYLAR 0.22uF 100V
(K5800P)
C805 1-136-497-81 FILM 0.1uF 5% 50V
(DE497P/K4800P)
C806 1-135-851-21 MYLAR 0.22uF 100V
(K5800P)
C806 1-136-497-81 FILM 0.1uF 5% 50V
(DE497P/K4800P)
C807 1-104-658-11 ELECT 100uF 20% 10V
C808 1-126-925-11 ELECT 470uF 20% 10V
C810 1-164-159-11 CERAMIC 0.1uF 50V
C811 1-164-159-11 CERAMIC 0.1uF 50V
CC02 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC04 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC05 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC06 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC07 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC08 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC09 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC12 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE497P)
CC14 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE497P)
46
Page 47
STR-DE497P/K4800P/K5800P
Ver 1.1
MAIN
Ref. No. Part No. Description Remark
CC16 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE497P)
CC18 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE497P)
CC20 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE497P)
CC31 1-128-813-11 CERAMIC 220PF 5% 50V
(DE497P)
CC32 1-128-813-11 CERAMIC 220PF 5% 50V
(DE497P)
CC41 1-128-813-11 CERAMIC 220PF 5% 50V
(DE497P)
CC42 1-128-813-11 CERAMIC 220PF 5% 50V
(DE497P)
CC52 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC54 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC55 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC56 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC57 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC58 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC59 1-128-809-11 CERAMIC 100PF 5% 50V
(DE497P)
CC61 1-128-813-11 CERAMIC 220PF 5% 50V
(DE497P)
CC62 1-128-813-11 CERAMIC 220PF 5% 50V
(DE497P)
< CONNECTOR >
CNP501 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P
* CNP502 1-774-876-21 CONNECTOR, BOARD TO BOARD 8P
* CNP801 1-564-104-00 PIN, CONNECTOR (3.96mm PITCH) 3P
CNP911 1-784-924-11 PIN, CONNECTOR 8P
CNP915 1-793-674-21 CONNECTOR, BOARD TO BOARD 7P
< DIODE >
D505 8-719-991-33 DIODE 1SS133T-77
D510 8-719-991-33 DIODE 1SS133T-77
D540 8-719-991-33 DIODE 1SS133T-77
D560 8-719-991-33 DIODE 1SS133T-77
D605 8-719-991-33 DIODE 1SS133T-77
D610 8-719-991-33 DIODE 1SS133T-77
D640 8-719-991-33 DIODE 1SS133T-77
D665 8-719-991-33 DIODE 1SS133T-77
D680 8-719-991-33 DIODE 1SS133T-77
D690 8-719-934-21 DIODE HZS30-1L
D691 8-719-991-33 DIODE 1SS133T-77
D705 8-719-991-33 DIODE 1SS133T-77
D710 8-719-991-33 DIODE 1SS133T-77
D721 8-719-991-33 DIODE 1SS133T-77
D722 8-719-991-33 DIODE 1SS133T-77
D731 8-719-991-33 DIODE 1SS133T-77
D732 8-719-991-33 DIODE 1SS133T-77
D733 8-719-991-33 DIODE 1SS133T-77
D734 8-719-991-33 DIODE 1SS133T-77
D740 8-719-991-33 DIODE 1SS133T-77
Ref. No. Part No. Description Remark
D750 8-719-991-33 DIODE 1SS133T-77
D765 8-719-991-33 DIODE 1SS133T-77
D791 8-719-991-33 DIODE 1SS133T-77
D802 8-719-072-05 DIODE RBV-602LF-A
D896 8-719-043-76 DIODE AK04V0
< IC >
IC201 6-703-501-01 IC M61527FP
IC401 8-759-167-88 IC NJM4565D
IC501 8-749-011-16 IC STK350-230
IC601 8-759-167-88 IC NJM4565D
IC701 6-700-943-01 IC uPC2581V-S
IC702 6-700-943-01 IC uPC2581V-S
IC801 8-759-071-48 IC TA7807S
IC802 8-759-071-47 IC TA79007S
< JACK >
J401 1-793-775-12 JACK, PIN 6P (MULTI CH IN
CENTER,SUB WOOFER,SURROUND,FRONT)
(DE497P)
J402 1-691-887-11 JACK, PIN 6P (MD/TAPE IN/OUT,CD IN)
J403 1-794-981-11 JACK, PIN 4P (VIDEO 2 AUDIO IN,
DVD AUDIO IN)
J404 1-770-614-11 JACK, PIN 4P (VIDEO 1 AUDIO IN/OUT)
J405 1-774-785-11 JACK, PIN 1P (SUB WOOFER AUDIO OUT)
< COIL >
L521 1-420-872-52 COIL, AIR-CORE
L601 1-420-872-52 COIL, AIR-CORE
L651 1-420-872-52 COIL, AIR-CORE
L701 1-420-872-52 COIL, AIR-CORE
L751 1-420-872-52 COIL, AIR-CORE
< TRANSISTOR >
Q361 8-729-922-37 TRANSISTOR 2SD2144S-UVW
Q362 8-729-922-37 TRANSISTOR 2SD2144S-UVW
Q363 8-729-922-37 TRANSISTOR 2SD2144S-UVW
Q364 8-729-922-37 TRANSISTOR 2SD2144S-UVW
Q365 8-729-922-37 TRANSISTOR 2SD2144S-UVW
Q366 8-729-922-37 TRANSISTOR 2SD2144S-UVW
Q379 8-729-900-63 TRANSISTOR DTA124ES
Q471 8-729-922-37 TRANSISTOR 2SD2144S-UVW
Q501 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q502 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q505 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q506 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q540 8-729-281-53 TRANSISTOR 2SC1815-GR
Q550 8-729-119-79 TRANSISTOR 2SC2785-FEK
Q560 8-729-119-79 TRANSISTOR 2SC2785-FEK
Q601 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q602 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q605 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q606 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q610 8-729-119-79 TRANSISTOR 2SC2785-FEK
Q640 8-729-281-53 TRANSISTOR 2SC1815-GR
Q651 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q652 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q655 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q656 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
47
Page 48
STR-DE497P/K4800P/K5800P
Ver 1.1
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q680 8-729-281-53 TRANSISTOR 2SC1815-GR
Q691 8-729-281-53 TRANSISTOR 2SC1815-GR
Q692 8-729-900-63 TRANSISTOR DTA124ES
Q701 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q702 8-729-141-30 TRANSISTOR 2SC3623A-LK
R455 1-247-831-11 CARBON 1K 5% 1/4W
R456 1-247-831-11 CARBON 1K 5% 1/4W
R457 1-247-831-11 CARBON 1K 5% 1/4W
R458 1-247-831-11 CARBON 1K 5% 1/4W
R459 1-247-831-11 CARBON 1K 5% 1/4W
Q705 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q706 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q710 8-729-119-79 TRANSISTOR 2SC2785-FEK
Q722 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q723 8-729-119-79 TRANSISTOR 2SC2785-FEK
Q725 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q740 8-729-281-53 TRANSISTOR 2SC1815-GR
Q750 8-729-281-53 TRANSISTOR 2SC1815-GR
Q751 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q752 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q755 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q756 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q790 8-729-119-79 TRANSISTOR 2SC2785-FEK
< RESISTOR >
R360 1-247-879-11 CARBON 100K 5% 1/4W
R361 1-247-847-11 CARBON 4.7K 5% 1/4W
R362 1-247-847-11 CARBON 4.7K 5% 1/4W
R363 1-247-879-11 CARBON 100K 5% 1/4W
R366 1-249-429-11 CARBON 10K 5% 1/4W
R367 1-247-879-11 CARBON 100K 5% 1/4W
R368 1-247-871-11 CARBON 47K 5% 1/4W
R369 1-247-847-11 CARBON 4.7K 5% 1/4W
R370 1-247-847-11 CARBON 4.7K 5% 1/4W
R371 1-247-879-11 CARBON 100K 5% 1/4W
R372 1-247-879-11 CARBON 100K 5% 1/4W
R373 1-247-831-11 CARBON 1K 5% 1/4W
R374 1-247-831-11 CARBON 1K 5% 1/4W
R375 1-247-831-11 CARBON 1K 5% 1/4W
R376 1-247-831-11 CARBON 1K 5% 1/4W
R377 1-247-831-11 CARBON 1K 5% 1/4W
R378 1-247-831-11 CARBON 1K 5% 1/4W
R379 1-247-847-11 CARBON 4.7K 5% 1/4W
R380 1-247-879-11 CARBON 100K 5% 1/4W
R381 1-249-429-11 CARBON 10K 5% 1/4W
R402 1-247-831-11 CARBON 1K 5% 1/4W
R404 1-247-831-11 CARBON 1K 5% 1/4W
R405 1-247-831-11 CARBON 1K 5% 1/4W
R406 1-247-831-11 CARBON 1K 5% 1/4W
R407 1-247-831-11 CARBON 1K 5% 1/4W
R408 1-247-831-11 CARBON 1K 5% 1/4W
R409 1-247-831-11 CARBON 1K 5% 1/4W
R410 1-247-871-11 CARBON 47K 5% 1/4W
R411 1-247-831-11 CARBON 1K 5% 1/4W
(DE497P)
R412 1-247-831-11 CARBON 1K 5% 1/4W
(DE497P)
R461 1-247-831-11 CARBON 1K 5% 1/4W
(DE497P)
R462 1-247-831-11 CARBON 1K 5% 1/4W
(DE497P)
R469 1-247-831-11 CARBON 1K 5% 1/4W
R470 1-247-871-11 CARBON 47K 5% 1/4W
R471 1-249-415-11 CARBON 680 5% 1/4W
R472 1-247-831-11 CARBON 1K 5% 1/4W
R473 1-247-847-11 CARBON 4.7K 5% 1/4W
R474 1-249-429-11 CARBON 10K 5% 1/4W
R475 1-249-421-11 CARBON 2.2K 5% 1/4W
R476 1-247-807-31 CARBON 100 5% 1/4W
R477 1-247-807-31 CARBON 100 5% 1/4W
R478 1-247-807-31 CARBON 100 5% 1/4W
R479 1-249-421-11 CARBON 2.2K 5% 1/4W
R499 1-247-871-11 CARBON 47K 5% 1/4W
R501 1-247-831-11 CARBON 1K 5% 1/4W
R502 1-249-439-11 CARBON 68K 5% 1/4W
R503 1-249-421-11 CARBON 2.2K 5% 1/4W
R504 1-249-411-11 CARBON 330 5% 1/4W
R505 1-249-439-11 CARBON 68K 5% 1/4W
R510 1-249-421-11 CARBON 2.2K 5% 1/4W
R511 1-249-440-11 CARBON 82K 5% 1/4W
R513 1-249-414-11 CARBON 560 5% 1/4W
R514 1-249-405-11 CARBON 100 5% 1/4W F
R515 1-249-405-11 CARBON 100 5% 1/4W F
R516 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R517 1-249-393-11 CARBON 10 5% 1/4W F
R520 1-247-847-11 CARBON 4.7K 5% 1/4W
R521 1-247-850-11 CARBON 6.2K 5% 1/4W
R522 1-249-419-11 CARBON 1.5K 5% 1/4W
R524 1-249-431-11 CARBON 15K 5% 1/4W
R525 1-249-439-11 CARBON 68K 5% 1/4W
R528 1-249-389-11 CARBON 4.7 5% 1/4W F
R531 1-247-847-11 CARBON 4.7K 5% 1/4W
R532 1-247-847-11 CARBON 4.7K 5% 1/4W
R533 1-247-871-11 CARBON 47K 5% 1/4W
R534 1-249-404-00 CARBON 82 5% 1/4W F
R540 1-247-863-11 CARBON 22K 5% 1/4W
R546 1-247-843-11 CARBON 3.3K 5% 1/4W
R555 1-247-863-11 CARBON 22K 5% 1/4W
R556 1-247-863-11 CARBON 22K 5% 1/4W
R557 1-249-431-11 CARBON 15K 5% 1/4W
R563 1-249-429-11 CARBON 10K 5% 1/4W
R573 1-247-871-11 CARBON 47K 5% 1/4W
R601 1-247-831-11 CARBON 1K 5% 1/4W
R602 1-249-439-11 CARBON 68K 5% 1/4W
R430 1-247-871-11 CARBON 47K 5% 1/4W
R431 1-247-831-11 CARBON 1K 5% 1/4W
R432 1-247-831-11 CARBON 1K 5% 1/4W
R452 1-247-831-11 CARBON 1K 5% 1/4W
R454 1-247-831-11 CARBON 1K 5% 1/4W
48
(DE497P)
(DE497P)
R603 1-249-421-11 CARBON 2.2K 5% 1/4W
R604 1-249-439-11 CARBON 68K 5% 1/4W
R610 1-249-421-11 CARBON 2.2K 5% 1/4W
R611 1-249-440-11 CARBON 82K 5% 1/4W
R613 1-249-414-11 CARBON 560 5% 1/4W
R614 1-249-405-11 CARBON 100 5% 1/4W F
Page 49
STR-DE497P/K4800P/K5800P
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R615 1-249-405-11 CARBON 100 5% 1/4W F
R616 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R617 1-249-393-11 CARBON 10 5% 1/4W F
R618 1-249-389-11 CARBON 4.7 5% 1/4W F
R620 1-247-847-11 CARBON 4.7K 5% 1/4W
R711 1-249-440-11 CARBON 82K 5% 1/4W
R713 1-249-414-11 CARBON 560 5% 1/4W
R714 1-249-405-11 CARBON 100 5% 1/4W F
R715 1-249-405-11 CARBON 100 5% 1/4W F
R716 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R621 1-247-850-11 CARBON 6.2K 5% 1/4W
R622 1-249-419-11 CARBON 1.5K 5% 1/4W
R623 1-247-871-11 CARBON 47K 5% 1/4W
R624 1-249-431-11 CARBON 15K 5% 1/4W
R625 1-249-439-11 CARBON 68K 5% 1/4W
R631 1-247-847-11 CARBON 4.7K 5% 1/4W
R634 1-249-404-00 CARBON 82 5% 1/4W F
R638 1-249-439-11 CARBON 68K 5% 1/4W
R640 1-247-863-11 CARBON 22K 5% 1/4W
R643 1-247-863-11 CARBON 22K 5% 1/4W
R648 1-247-843-11 CARBON 3.3K 5% 1/4W
R651 1-247-831-11 CARBON 1K 5% 1/4W
R652 1-249-439-11 CARBON 68K 5% 1/4W
R653 1-249-421-11 CARBON 2.2K 5% 1/4W
R654 1-249-439-11 CARBON 68K 5% 1/4W
R655 1-247-863-11 CARBON 22K 5% 1/4W
R656 1-247-863-11 CARBON 22K 5% 1/4W
R657 1-249-431-11 CARBON 15K 5% 1/4W
R660 1-249-421-11 CARBON 2.2K 5% 1/4W
R661 1-249-440-11 CARBON 82K 5% 1/4W
R663 1-249-414-11 CARBON 560 5% 1/4W
R664 1-249-405-11 CARBON 100 5% 1/4W F
R665 1-249-405-11 CARBON 100 5% 1/4W F
R666 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R667 1-249-393-11 CARBON 10 5% 1/4W F
R717 1-249-393-11 CARBON 10 5% 1/4W F
R718 1-249-389-11 CARBON 4.7 5% 1/4W F
R719 1-247-847-11 CARBON 4.7K 5% 1/4W
R721 1-247-850-11 CARBON 6.2K 5% 1/4W
R722 1-249-419-11 CARBON 1.5K 5% 1/4W
R723 1-247-871-11 CARBON 47K 5% 1/4W
R724 1-249-431-11 CARBON 15K 5% 1/4W
R725 1-249-439-11 CARBON 68K 5% 1/4W
R731 1-247-847-11 CARBON 4.7K 5% 1/4W
R732 1-249-381-11 CARBON 1 5% 1/4W F
R733 1-249-381-11 CARBON 1 5% 1/4W F
R734 1-249-404-00 CARBON 82 5% 1/4W F
R735 1-249-427-11 CARBON 6.8K 5% 1/4W
R736 1-247-831-11 CARBON 1K 5% 1/4W
R737 1-249-436-11 CARBON 39K 5% 1/4W
R740 1-247-863-11 CARBON 22K 5% 1/4W
R744 1-247-863-11 CARBON 22K 5% 1/4W
R745 1-247-863-11 CARBON 22K 5% 1/4W
R746 1-247-863-11 CARBON 22K 5% 1/4W
R747 1-249-431-11 CARBON 15K 5% 1/4W
R748 1-247-843-11 CARBON 3.3K 5% 1/4W
R750 1-247-863-11 CARBON 22K 5% 1/4W
R751 1-247-831-11 CARBON 1K 5% 1/4W
R752 1-249-439-11 CARBON 68K 5% 1/4W
R753 1-249-421-11 CARBON 2.2K 5% 1/4W
R668 1-249-389-11 CARBON 4.7 5% 1/4W F
R669 1-247-847-11 CARBON 4.7K 5% 1/4W
R671 1-247-850-11 CARBON 6.2K 5% 1/4W
R672 1-249-419-11 CARBON 1.5K 5% 1/4W
R673 1-247-871-11 CARBON 47K 5% 1/4W
R674 1-249-431-11 CARBON 15K 5% 1/4W
R675 1-247-863-11 CARBON 22K 5% 1/4W
R676 1-247-863-11 CARBON 22K 5% 1/4W
R677 1-249-431-11 CARBON 15K 5% 1/4W
R680 1-247-863-11 CARBON 22K 5% 1/4W
R681 1-247-843-11 CARBON 3.3K 5% 1/4W
R690 1-247-887-00 CARBON 220K 5% 1/4W
0 R691 1-216-452-11 METAL OXIDE 180 5% 2W F
0 R692 1-215-888-00 METAL OXIDE 220 5% 2W F
(DE497P)
0 R692 1-215-889-00 METAL OXIDE 330 5% 2W F
(K4800P/K5800P)
R693 1-249-429-11 CARBON 10K 5% 1/4W
R694 1-249-429-11 CARBON 10K 5% 1/4W
R695 1-249-429-11 CARBON 10K 5% 1/4W
R696 1-249-435-11 CARBON 33K 5% 1/4W
R698 1-247-871-11 CARBON 47K 5% 1/4W
R699 1-247-895-00 CARBON 470K 5% 1/4W
R701 1-247-831-11 CARBON 1K 5% 1/4W
R702 1-249-439-11 CARBON 68K 5% 1/4W
R703 1-249-421-11 CARBON 2.2K 5% 1/4W
R704 1-249-439-11 CARBON 68K 5% 1/4W
R710 1-249-421-11 CARBON 2.2K 5% 1/4W
R754 1-249-439-11 CARBON 68K 5% 1/4W
R755 1-247-863-11 CARBON 22K 5% 1/4W
R756 1-247-863-11 CARBON 22K 5% 1/4W
R757 1-249-431-11 CARBON 15K 5% 1/4W
R758 1-247-843-11 CARBON 3.3K 5% 1/4W
R760 1-249-421-11 CARBON 2.2K 5% 1/4W
R761 1-249-440-11 CARBON 82K 5% 1/4W
R763 1-249-414-11 CARBON 560 5% 1/4W
R764 1-249-405-11 CARBON 100 5% 1/4W F
R765 1-249-405-11 CARBON 100 5% 1/4W F
R766 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R767 1-249-393-11 CARBON 10 5% 1/4W F
R768 1-249-389-11 CARBON 4.7 5% 1/4W F
R769 1-247-847-11 CARBON 4.7K 5% 1/4W
R770 1-247-871-11 CARBON 47K 5% 1/4W
R771 1-247-850-11 CARBON 6.2K 5% 1/4W
R772 1-249-419-11 CARBON 1.5K 5% 1/4W
R773 1-247-871-11 CARBON 47K 5% 1/4W
R775 1-249-439-11 CARBON 68K 5% 1/4W
R778 1-249-431-11 CARBON 15K 5% 1/4W
R780 1-249-429-11 CARBON 10K 5% 1/4W
R791 1-247-847-11 CARBON 4.7K 5% 1/4W
0 R792 1-215-868-00 METAL OXIDE 680 5% 1W F
R793 1-249-404-00 CARBON 82 5% 1/4W F
0 R794 1-215-868-00 METAL OXIDE 680 5% 1W F
R802 1-249-409-11 CARBON 220 5% 1/4W F
R803 1-249-389-11 CARBON 4.7 5% 1/4W F
The co mpo nents identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
49
Page 50
STR-DE497P/K4800P/K5800P
MAIN POWER STANDBY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
RR11 1-249-393-11 CARBON 10 5% 1/4W F
(DE497P)
RR12 1-249-393-11 CARBON 10 5% 1/4W F
(DE497P)
RR13 1-249-393-11 CARBON 10 5% 1/4W F
(DE497P)
RR14 1-249-393-11 CARBON 10 5% 1/4W F
(DE497P)
RR15 1-249-393-11 CARBON 10 5% 1/4W F
(DE497P)
CNP802 1-779-977-11 PIN, CONNECTOR 6P
CNP804 1-691-767-11 PLUG (MICRO CONNECTOR) 5P
CNP901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
CNP902 1-794-577-21 PIN, CONNECTOR (POWER) 2P
CNP903 1-564-506-11 PLUG, CONNECTOR 3P
CNP905 1-793-673-11 CONNECTOR, BOARD TO BOARD 7P
CNP912 1-779-978-11 PIN, CONNECTOR 3P
< CONNECTOR >
< RELAY >
RY501 1-755-421-11 RELAY (12V)
RY560 1-755-267-11 RELAY
RY601 1-755-421-11 RELAY (12V)
RY701 1-755-421-11 RELAY (12V)
RY791 1-755-421-11 RELAY (12V)
< TERMINAL BOARD >
TM601 1-694-785-11 TERMINAL BOARD (SPEAKERS SURROUND)
TM602 1-694-805-11 TERMINAL BOARD (SPEAKERS
FRONT,CENTER)
*************************************************************
1-861-045-11 POWER BOARD
*************
< RESISTOR >
R124 1-247-847-11 CARBON 4.7K 5% 1/4W
< SWITCH >
S122 1-771-410-21 SWITCH, TACTILE (DIMMER)
S123 1-771-410-21 SWITCH, TACTILE (DISPLAY)
S152 1-771-410-21 SWITCH, TACTILE (?/1)
*************************************************************
A-4750-409-A STANDBY BOARD, COMPLETE (DE497P)
A-4750-608-A STANDBY BOARD, COMPLETE
(K4800P/K5800P)
************************
1-533-217-41 HOLDER, FUSE
< CAPACITOR >
C801 1-126-947-11 ELECT 47uF 20% 35V
C802 1-126-947-11 ELECT 47uF 20% 35V
C813 1-164-159-11 CERAMIC 0.1uF 50V
C814 1-164-159-11 CERAMIC 0.1uF 50V
C815 1-126-943-11 ELECT 2200uF 20% 25V
C816 1-126-942-61 ELECT 1000uF 20% 25V
C820 1-164-159-11 CERAMIC 0.1uF 50V
C821 1-164-159-11 CERAMIC 0.1uF 50V
C822 1-126-947-11 ELECT 47uF 20% 35V
C823 1-126-936-11 ELECT 3300uF 20% 16V
C830 1-164-159-11 CERAMIC 0.1uF 50V
C831 1-164-159-11 CERAMIC 0.1uF 50V
C920 1-164-159-11 CERAMIC 0.1uF 50V
C921 1-164-159-11 CERAMIC 0.1uF 50V
C923 1-126-959-11 ELECT 0.47uF 20% 50V
C950 1-126-936-11 ELECT 3300uF 20% 16V
< DIODE >
D801 8-719-933-95 DIODE HZS20-1L
D804 8-719-068-28 DIODE HZ6.8BP-TK
D812 6-500-522-11 DIODE 10EDB40-TA2B5
D813 6-500-522-11 DIODE 10EDB40-TA2B5
D814 6-500-522-11 DIODE 10EDB40-TA2B5
D815 6-500-522-11 DIODE 10EDB40-TA2B5
D820 6-500-522-11 DIODE 10EDB40-TA2B5
D821 6-500-522-11 DIODE 10EDB40-TA2B5
D822 6-500-522-11 DIODE 10EDB40-TA2B5
D823 6-500-522-11 DIODE 10EDB40-TA2B5
D901 8-719-991-33 DIODE 1SS133T-77
D910 6-500-522-11 DIODE 10EDB40-TA2B5
D911 6-500-522-11 DIODE 10EDB40-TA2B5
D912 6-500-522-11 DIODE 10EDB40-TA2B5
D913 6-500-522-11 DIODE 10EDB40-TA2B5
D914 8-719-991-33 DIODE 1SS133T-77
D915 8-719-991-33 DIODE 1SS133T-77
< EARTH TERMINAL >
* G901 1-537-738-21 TERMINAL, EARTH (K4800P/K5800P)
< TRANSISTOR >
Q801 8-729-140-97 TRANSISTOR 2SB734-34
Q901 8-729-119-79 TRANSISTOR 2SC2785-FEK
Q921 8-729-119-79 TRANSISTOR 2SC2785-FEK
< RESISTOR >
R804 1-249-429-11 CARBON 10K 5% 1/4W
R806 1-247-863-11 CARBON 22K 5% 1/4W
0 R810 1-243-634-11 FUSIBLE 0.22 5% 1/2W F
0 R812 1-243-634-11 FUSIBLE 0.22 5% 1/2W F
0 R901 1-219-237-11 SOLID 3.3M 20% 1/2W F
(US,CND)
R902 1-247-871-11 CARBON 47K 5% 1/4W
R903 1-247-847-11 CARBON 4.7K 5% 1/4W
R904 1-249-381-11 CARBON 1 5% 1/4W F
0 R910 1-243-635-11 FUSIBLE 0.33 5% 1/2W F
R921 1-247-871-11 CARBON 47K 5% 1/4W
R922 1-249-435-11 CARBON 33K 5% 1/4W
R923 1-249-429-11 CARBON 10K 5% 1/4W
< RELAY >
0 RY901 1-755-276-31 RELAY, POWER
< TRANSFORMER >
0 T902 1-435-281-11 TRANSFORMER, POWER (US,CND)
50
The components iden tified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Page 51
STR-DE497P/K4800P/K5800P
STANDBY TUNING VIDEO
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0 T902 1-435-282-11 TRANSFORMER, POWER (AEP,UK)
*************************************************************
1-861-044-11 TUNING BOARD
*************
< RESISTOR >
R132 1-247-831-11 CARBON 1K 5% 1/4W
R133 1-249-421-11 CARBON 2.2K 5% 1/4W
R134 1-249-421-11 CARBON 2.2K 5% 1/4W
R135 1-247-847-11 CARBON 4.7K 5% 1/4W
R136 1-249-429-11 CARBON 10K 5% 1/4W
R220 1-247-804-11 CARBON 75 5% 1/4W
R221 1-247-804-11 CARBON 75 5% 1/4W
*************************************************************
MISCELLANEOUS
***************
53 1-773-114-11 WIRE (FLAT TYPE) (19 CORE)
102 1-575-662-31 WIRE (FLAT TYPE) (5 CORE)
103 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
(K4800P/K5800P)
103 1-773-001-11 WIRE (FLAT TYPE) (15 CORE) (DE497P)
0 106 1-777-071-23 CORD, POWER (AEP,UK)
< SWITCH >
S131 1-771-410-21 SWITCH, TACTILE (TUNING –)
S132 1-771-410-21 SWITCH, TACTILE (FM MODE)
S133 1-771-410-21 SWITCH, TACTILE (MEMORY)
S134 1-771-410-21 SWITCH, TACTILE (PRESET TUNING –)
S135 1-771-410-21 SWITCH, TACTILE (PRESET TUNING +)
S151 1-771-410-21 SWITCH, TACTILE (TUNING +)
*************************************************************
A-4750-410-A VIDEO BOARD, COMPLETE
**********************
< CAPACITOR >
C200 1-128-805-11 CERAMIC 47PF 5% 50V
C201 1-128-805-11 CERAMIC 47PF 5% 50V
C206 1-126-964-11 ELECT 10uF 20% 50V
C207 1-126-964-11 ELECT 10uF 20% 50V
C208 1-126-964-11 ELECT 10uF 20% 50V
C210 1-126-964-11 ELECT 10uF 20% 50V
C213 1-126-934-11 ELECT 220uF 20% 16V
C214 1-164-159-11 CERAMIC 0.1uF 50V
C215 1-164-159-11 CERAMIC 0.1uF 50V
C248 1-128-825-11 CERAMIC 0.0022uF 5% 50V
C809 1-126-934-11 ELECT 220uF 20% 16V
C824 1-164-159-11 CERAMIC 0.1uF 50V
C825 1-164-159-11 CERAMIC 0.1uF 50V
0 106 1-783-820-11 CORD, POWER (US,CND)
0 F901 1-532-503-51 FUSE (T1.6AL/250V) (AEP,UK)
0 F901 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V)
(US,CND)
Q503 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q504 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q603 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q604 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q653 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q654 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q703 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q704 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q753 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q754 8-749-010-26 TRANSISTOR MP1620-OPY-M
0 T901 1-443-185-11 TRANSFORMER, POWER (K4800P:US,CND)
0 T901 1-443-211-11 TRANSFORMER, POWER (AEP,UK)
0 T901 1-443-248-11 TRANSFORMER, POWER (K5800P:US)
TN1 1-693-577-13 TUNER PACK (ANTENNA) (K5800P)
TN1 1-693-577-21 TUNER PACK (ANTENNA) (K4800P)
TN1 1-693-578-13 TUNER PACK (ANTENNA) (DE497P)
< CONNECTOR >
CNP156 1-691-765-11 PLUG (MICRO CONNECTOR) 3P
CNS250 1-569-315-11 SOCKET, CONNECTOR 5P
< IC >
IC203 8-759-333-84 IC NJM2279D
IC804 8-759-701-65 IC NJM79M05FA
IC807 8-759-231-53 IC TA7805S
< JACK >
J200 1-794-978-11 JACK, PIN 3P (VIDEO 1 VIDEO OUT,
VIDEO2 VIDEO IN,DVD VIDEO IN)
J201 1-815-043-11 JACK, PIN 2P (MONITOR VIDEO OUT,
VIDEO 1 VIDEO IN)
< RESISTOR >
R200 1-247-804-11 CARBON 75 5% 1/4W
R201 1-247-804-11 CARBON 75 5% 1/4W
R218 1-247-804-11 CARBON 75 5% 1/4W
The co mpo nents identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
51
Page 52
STR-DE497P/K4800P/K5800P
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2004. 06 New
1.1 2004. 10 End of the part number of 8-729-042-29 is changed to -09. (SPM-04105)
52
Loading...
