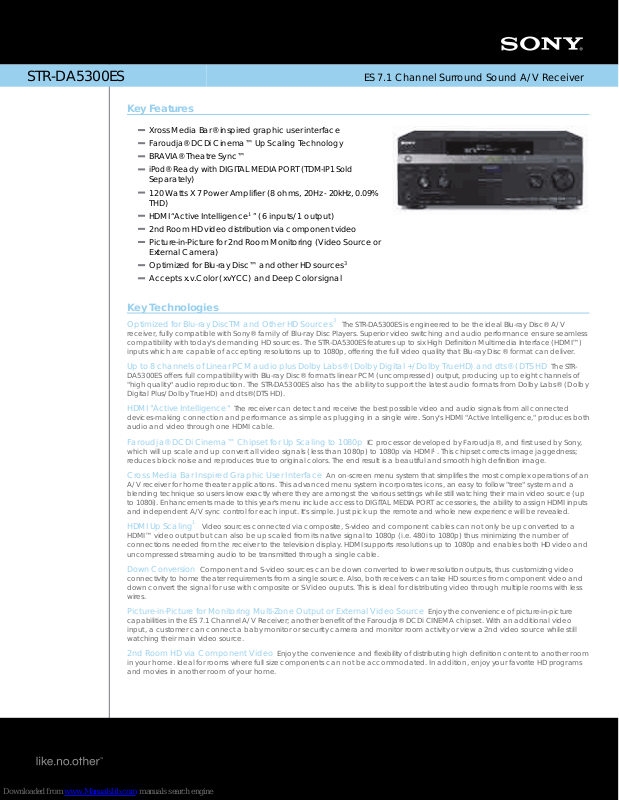

Sony STR-DA5300ES Marketing Specifications

STR-DA5300ES

ES 7.1 Channel Surround Sound A/V Receiver

Key Features

Xross Media Bar® inspired graphic user interface

Faroudja® DCDi Cinema™

Up Scaling Technology

BRAVIA® Theatre Sync™

iPod® Ready with DIGITAL MEDIA PORT (TDM-IP1 Sold
Separately)

120 Watts X 7 Power Amplifier (8 ohms, 20Hz - 20kHz, 0.09%
THD)

HDMI “Active Intelligence” (6 inputs/1 output)

1

2nd Room HD video distribution via component video

Picture-in-Picture for 2nd Room Monitoring (Video Source or
External Camera)

Optimized for Blu-ray Disc™ and other HD sources

3

Accepts x.v.Color (xvYCC) and Deep Color signal

Key Technologies

Optimized for Blu-ray DiscTM and Other HD Sources

The STR

-DA5300ES is engineered to be the ideal Blu-ray Disc® A/V
receiver, fully compatible with Sony® family of Blu-ray Disc Players. Superior video switching and audio performance ensure seamless
compatibility with today's demanding HD sources. The STR-DA5300ES features up to six High Definition Multimedia Interface (HDMI™

)

inputs which are capable of accepting resolutions up to 1080p, offering the full video quality that Blu-ray Disc® format can deliver.

3

Up to 8 channels of Linear PCM audio plus Dolby Labs® (Dolby Digital +/Dolby TrueHD) and dts® (DTS HD

The STR

­DA5300ES offers full compatibility with Blu-ray Disc® format's linear PCM (uncompressed) output, producing up to eight channels of
"high quality" audio reproduction. The STR-DA5300ES also has the ability to support the latest audio formats from Dolby Labs® (Dolby
Digital Plus/Dolby TrueHD) and dts®(DTS HD).

HDMI "Active Intelligence" The receiver can detect and receive the best possible video and audio signals from all connected

devices-making connection and performance as simple as plugging in a single wire. Sony's HDMI "Active Intelligence," produces both
audio and video through one HDMI cable.

Faroudja® DCDi Cinema™ Chipset for Up Scaling to 1080p IC processor developed by Faroudja®, and first used by Sony,

which will up scale and up convert all video signals (less than 1080p) to 1080p via HDMI . This chipset corrects image jaggedness;
reduces block noise and reproduces true to original colors. The end result is a beautiful and smooth high definition image.

1

Cross Media Bar Inspired Graphic User Interface

An on

-screen menu system that simplifies the most complex operations of an
A/V receiver for home theater applications. This advanced menu system incorporates icons, an easy to follow "tree" system and a
blending technique so users know exactly where they are amongst the various settings while still watching their main video source (up
to 1080i). Enhancements made to this year's menu include access to DIGITAL MEDIA PORT accessories, the ability to assign HDMI inputs
and independent A/V sync control for each input. It's simple. Just pick up the remote and whole new experience will be revealed.

HDMI Up Scaling Video sources connected via composite, S-video and component cables can not only be up converted to a

HDMI™ video output but can also be up scaled from its native signal to 1080p (i.e. 480i to 1080p) thus minimizing the number of
connections needed from the receiver to the television display. HDMI supports resolutions up to 1080p and enables both HD video and
uncompressed streaming audio to be transmitted through a single cable.

1

Down Conversion

Component and S-video sources can be down converted to lower resolution outputs, thus customizing video

connectivity to home theater requirements from a single source. Also, both receivers can take HD sources from component video and
down convert the signal for use with composite or S-Video ouputs. This is ideal for distributing video through multiple rooms with less
wires.

Picture-in-Picture for Monitoring Multi-Zone Output or External Video Source

Enjoy the convenience of picture

-in-

capabilities in the ES 7.1 Channel A/V Receiver; another benefit of the Faroudja® DCDi CINEMA chipset. With an additional video
input, a customer can connect a baby monitor or security camera and monitor room activity or view a 2nd video source while still
watching their main video source.

2nd Room HD via Component Video Enjoy the convenience and flexibility of distributing high definition content to another room

in your home. Ideal for rooms where full size components can not be accommodated. In addition, enjoy your favorite HD programs
and movies in another room of your home.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 04/02/2008

STR-DA5300ES

ES 7.1 Channel Surround Sound A/V Receiver

Please visit the Dealer Network for current

information at www.sony.com/dn

Features

Video

Up Conversion: Yes (HDMI Up Conversion

from Component, S-Video and Composite
to 1080p)

Up Scaling: Yes (HDMI Up Scaling up to

1080p)

Audio

Dolby® Digital Decoding: Yes
Dolby® Pro Logic® II Decoding: Yes
DTS® 96/24 Decoding: Yes
DTS® NEO:6 Decoding: Yes
Dolby® Digital EX Decoding: Yes
Dolby® Pro Logic® IIX Decoding:

Yes

Amplification Relocation: Yes
Digital Cinema Sound™

Technology:

Yes

Dolby® Pro Logic® Decoding: Yes
dts®-

ES Decoding:

Yes

Dolby® Digital plus Decoding: Yes
Dolby® TrueHD: Yes
dts® Decoding: Yes (dts® HD Master

Audio)

Convenience

A/B Speaker Switch: Yes (A / B / A+B)
On Screen Display: Yes
HDMI™

Technology:

Intelligent A/V Selector

Digital Cinema Auto Calibration: Yes (Mic-

Stereo)

Specifications

Speaker

Center Speaker Terminal: Yes
Surround Back Speakers: Yes
Surround Speaker Terminal: Screw Binding

Posts

Speaker Terminal Type: Screw Binding

Posts (A & B)

Audio

Impedance: 8 Ohms
Channel Power Rating: 7.1 Channel Power

Rating: 120W x 7 Amp Power (8 ohms,
20Hz-20kHz, THD 0.09%)

Sound Fields: Cinema - 4; Music - 7; Auto

Format Decoding - 14; 2 Channel - 1;
Headphone - 4

Zones: 3 Zone/3 Room (2nd Room A/V, 3rd

Room Audio Only) with Independent
Source and Volume

Tuner Type: Auto Tuning, Direct Tuning,

Station Name, Presets 30/30/30
(XM/FM/AM)

Convenience

AM/FM Memory Presets: 30 FM - 30 AM
XM® Connect and Play™ Compatible: Yes

(Neural 5.1 Surround Sound Decoding)

XM® Memory Presets: 30
Preset Memory: 30 Sirius® Presets

Inputs and Outputs

Component Video (Y/Pb/Pr) Output(s): 2

(Rear)

S-

Video Output(s): 3 (2 Rear/1 Monitor

Out)

Composite Video Output(s): 3 (Rear-1

Monitor Output, 2 Video Outputs)

Optical Audio Output(s): 2 (Rear)
Component Video (Y/Pb/Pr ) Input(s): 3

(Rear)

S-

Video Input(s): 5 (1 Front/4 Rear)

Composite Video Input(s): 5 (1 Front/4

Rear)

Coaxial Audio Digital Input(s): 3 (Rear)
Optical Audio Input(s): 5 (1 Front/4 Rear)
RCA Audio Input(s): 5 (Rear)
RCA Audio Output(s): 2 (Rear)
Multi-Channel Input(s): 1 (Rear, 7.1

Channel)

Phono Input(s): 1 (Rear)
RS232 Control: 1 (Rear)
IR Input(s): 2 (Rear)
IR Output(s): 1 (Rear)
Headphone Output(s): 1 (Front- Gold)
Subwoofer Output(s): 1 (Rear)
HD Component Video Input(s): 3 (Rear)
HD Component Video Output(s): 1 (Rear)
Antenna Terminal (AM Loop): 1 (Rear)
Antenna Terminal (FM 75 Ohm): 1 (Rear)
HDMI™ Connection Input(s): 6 (Rear)
HDMI™ Connection Output(s): 1 (Rear)

Repeater

DIGITAL MEDIA PORT (Connector): Yes
Control-S Connection(s): Yes
Infrared Port: Yes
12V Trigger Output(s): 3
Digital Media Port (Input): Yes

Hardware

Remote Control: Yes (Advanced

Learning/Pre Programed)

Power

Power Consumption (in Operation): 480W
Power Requirements: AC120V, 60 Hz
Power Consumption (in Standby): 1W

Dimensions

Weight: 33 lbs 1 oz (15Kg)
Measurements: 16 15/16 x 6 3/4 x 16

15/16" (430 x 171.5 x 430mm)

Supplied Accessories

Instruction Manual
FM Wire Antenna
AM Loop Antenna
Size AA Batteries: 2
1 Way LCD Pre Programmed Macro capable

Learning Remote Commander® Remote

Control
1 Basic Remote Commader
Stereo Mic (for Auto Calibration only)

Color:

Black

UPC Code:

027242713819

1. Requires HDMI connector and compatible HDTV with equivalent
display capability. Image quality may vary.

2. Requires HDMI connector and compatible HDTV with 1080/60p and
24p display capability.

3. HD Source requires HDMI and/or component video connectivity.

4. Requires satellite radio subscription and antenna sold separately.
Antenna placement restrictions apply.

5. Bravia Theatre Sync feature must be in each device for One Touch
Control. Please refer to owner's manual.
