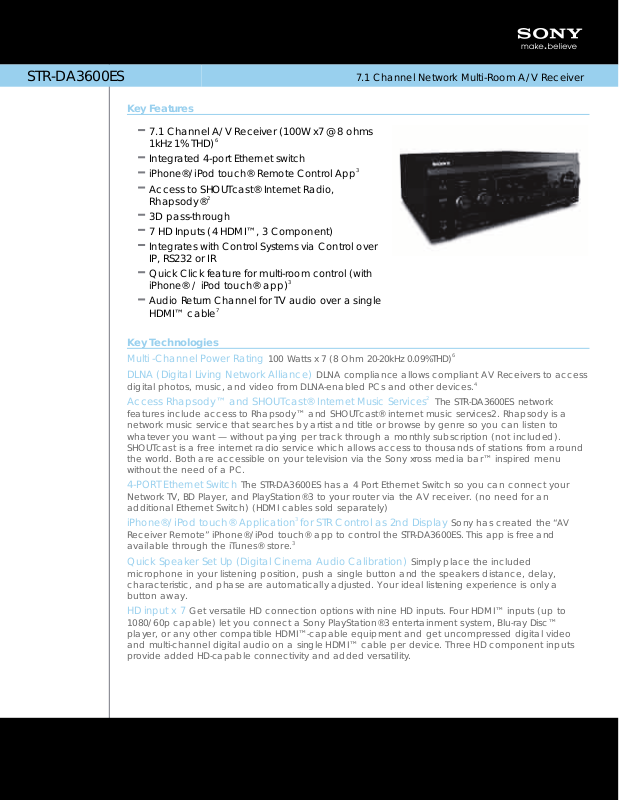

Sony STR-DA3600ES BROCHURE

STR-DA3600ES

7.1 Channel Network Multi

-Room A/V Receiver

Key Features

7.1 Channel A/V Receiver (100W x7 @ 8 ohms
1kHz 1% THD)

6

Integrated 4-

port Ethernet switch

iPhone®/

iPod touch® Remote Control App

3

Access to SHOUTcast®

Internet Radio,

Rhapsody®

2

3D pass-

through

7 HD Inputs (4 HDMI™ ,

3 Component)

Integrates with Control Systems via Control over
IP, RS232 or IR

Quick Click feature for multi-room control (with
iPhone® /

iPod touch

® app)

3

Audio Return Channel for TV audio over a single
HDMI™ cable

7

Key Technologies

Multi-Channel Power Rating

100 Watts x 7 (8 Ohm 20

-

20kHz 0.09%THD)

6

DLNA (Digital Living Network Alliance)

DLNA compliance allows compliant AV Receivers to access

digital photos, music, and video from DLNA-enabled PCs and other devices.

4

Access Rhapsody™ and SHOUTcast®

Internet Music Services

The STR

-

DA3600ES network

features include access to Rhapsody™ and SHOUTcast® internet music services2. Rhapsody is a
network music service that searches by artist and title or browse by genre so you can listen to
whatever you want — without paying per track through a monthly subscription (not included).
SHOUTcast is a free internet radio service which allows access to thousands of stations from around
the world. Both are accessible on your television via the Sony xross media bar™ inspired menu
without the need of a PC.

2

4-

PORT Ethernet Switch

The STR

-

DA3600ES has a 4 Port Ethernet Switch so you can connect your

Network TV, BD Player, and PlayStation®3 to your router via the AV receiver. (no need for an
additional Ethernet Switch) (HDMI cables sold separately)

iPhone

®/iPod touch®

Application

for STR Control as 2nd Display Sony has created the “

AV

Receiver Remote” iPhone®/iPod touch® app to control the STR-DA3600ES. This app is free and
available through the iTunes® store.

3

3

Quick Speaker Set Up (Digital Cinema Audio Calibration)

Simply place the included

microphone in your listening position, push a single button and the speakers distance, delay,
characteristic, and phase are automatically adjusted. Your ideal listening experience is only a
button away.

HD input x 7

Get versatile HD connection options with nine HD inputs. Four HDMI™ inputs (up to

1080/60p capable) let you connect a Sony PlayStation®3 entertainment system, Blu-ray Disc™
player, or any other compatible HDMI™-capable equipment and get uncompressed digital video
and multi-channel digital audio on a single HDMI™ cable per device. Three HD component inputs
provide added HD-capable connectivity and added versatility.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 01/03/2011

STR-DA3600ES

7.1 Channel Network Multi

-Room A/V Receiver

Please visit the Dealer Source for current

information at www.sony.com/dealersource

UPC Code: 027242779921

1. 3D viewing requires 3D content, 3D HDTV and a high speed HDMI

™
cable (supporting at least 10.2 Gbps) connection. Other 3D
accessories (including active 3D glasses) also required.

2. Broadband Internet connection speed of at least 2.5 Mbps
recommended (10 Mbps for HD content). Video quality and picture
size vary and are dependent upon broadband speed and delivery by
content provider. Select content provided subject to change.
Premium content may require additional fees, a subscription and/or
PC registration. Connectivity requires Ethernet cable (sold
separately), home network with an 802.11 access point (802.11n
recommended)

3. Application must be downloaded from the iTunes® application store.
Requires that the Blu-ray Disc Player and the iPhone®

or iPod touch

®
be connected to the same home network with the iPhone or iPod
touch connected through an 802.11 access point (802.11n
recommended).

4. DLNA requires a home network and content stored on a DLNA
compliant PC or server. Requires Internet connectivity.

5. Works with other BRAVIA Sync™ or Theatre Sync™

labeled home

audio/video products when connected via HDMI

™

interface.

6. Measurements at 3 Ohms, 80Hz – 1 kHz with a THD of 1%.

7. HDMI cable required, sold separately.

8. 1080p playback and upscaling require HDMI

™

cable (sold separately)
and HDTV with equivalent display capabilities. Upscaled image quality
will vary..

9. Dolby®

True-HD and dts®-

HD Master Audio decoding require HDMI

™

cable and capable source device (both sold separately).

10. Deep Color and x.v. Color

™

technology are supported only when

source product, HDMI

™

cable, media and HDTV all support those

features.

11. iPod® support is limited to the following players with the optional
dock: iPod touch®,

iPod classic®,

iPod nano

® 1st-

3rd generation,

iPod

® 4th& 5th generation &iPod mini®. The TDM-IP50 dock will

support iPhone® as well
