Sony SSC-DC80 Series, SSC-DC80P, SSC-DC830P, SSC-DC88P Specifications

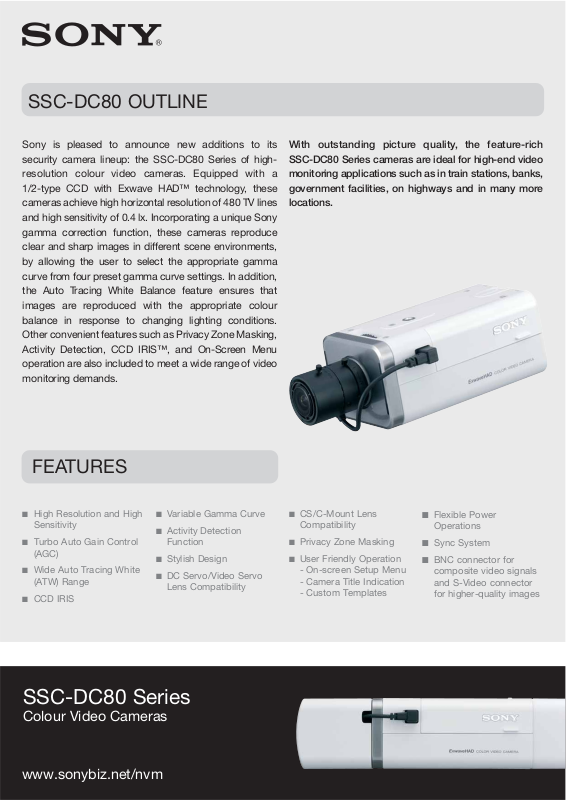

SSC-DC80 OUTLINE
Sony is pleased to announce new additions to its
security camera lineup: the SSC-DC80 Series of highresolution colour video cameras. Equipped with a
1/2-type CCD with Exwave HAD™ technology, these
cameras achieve high horizontal resolution of 480 TV lines
and high sensitivity of 0.4 lx. Incorporating a unique Sony
gamma correction function, these cameras reproduce
clear and sharp images in different scene environments,
by allowing the user to select the appropriate gamma
curve from four preset gamma curve settings. In addition,
the Auto Tracing White Balance feature ensures that
images are reproduced with the appropriate colour
balance in response to changing lighting conditions.
Other convenient features such as Privacy Zone Masking,
Activity Detection, CCD IRIS™, and On-Screen Menu
operation are also included to meet a wide range of video
monitoring demands.
With outstanding picture quality, the feature-rich
SSC-DC80 Series cameras are ideal for high-end video
monitoring applications such as in train stations, banks,
government facilities, on highways and in many more
locations.
FEATURES
SSC-DC80 Series
Colour Video Cameras
www.sonybiz.net/nvm
■ High Resolution and High
Sensitivity
■ Turbo Auto Gain Control
(AGC)
■ Wide Auto Tracing White
(ATW) Range
■ CCD IRIS
■ Variable Gamma Curve
■ Activity Detection
Function
■ Stylish Design
■ DC Servo/Video Servo
Lens Compatibility
■ CS/C-Mount Lens
Compatibility
■ Privacy Zone Masking
■ User Friendly Operation
- On-screen Setup Menu
- Camera Title Indication
- Custom Templates
■ Flexible Power
Operations
■ Sync System
■ BNC connector for
composite video signals
and S-Video connector
for higher-quality images
www.sonybiz.net/nvm
© 2006 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission
is prohibited. Design, features, and specifications are subject to change without notice. All non-metric
weights and measurements are approximate. Sony is a registered trademark of Sony Corporation. Exwave
HAD and CCD IRIS are trademarks of Sony Corporation. SSC-DC80_DataSheet/GB- / /2006
SPECIFICATIONS
CAMERA SSC-DC80P SSC-DC83P SSC-DC88P
Image device 1/2-type CCD with Exwave HAD technology
Number of effective pixels (H x V) 440,000 (768 x 494)
Auto Gain Control Turbo/Normal/Manual/Off
White balance mode ATW-pro/ATW/3200K/5600K/Manual
Lens type CS/C*-mount (*C-mount adaptor is supplied), DC/Video servo auto iris
CCD iris ON/OFF, 1/50 to 1/100,000 s switchable
Back-Light Compensation (BLC) SPOT/WEIGHT/OFF switchable
Analogue video output BNC x 1, 1.0 Vp-p, 75Ω, Sync negative, S-Video x 1
Signal system PAL
Sync system Internal/VS/VD Internal/AC Line lock/VS
Horizontal Resolution 480 TV lines
S/N ratio More than 57 dB (AGC OFF, WEIGHT ON)
Minimum illumination 0.4 lx (50 IRE, F1.2, Turbo AGC ON)
General
Mass approx. 560 g (1.4 oz) approx. 550 g (1.3 oz) approx. 600 g (1.5 oz)
Dimensions (W x H x D) 70 x 57 x 260 mm (2 7⁄8 x 2 1⁄4 x 20 1⁄4 inches) (including front and rear covers)
Power requirements Multiplexing AC 24 V ±10%, AC 24 V ±10%,
with the 50 Hz or 50 Hz
YS-W170P/ DC 12 V ±10%
W270P, or
DC 12 V ±10%
Power consumption 4.6 W 4.4 W 4.2 W
Operating temperature -10 to 50 °C (14 to 122 °F)
Storage temperature -40 to 60 °C (-40 to 140 °F)
Supplied accessories
Lens mount cap, Operating instructions, Front cover, Lens mount cap, Operating instructions,
Rear cover, Screws (2), C-mount adaptor Front cover, Rear cover,
Screws (2), Power cable
CAMERA ADAPTORS YS-W270P YS-W170P
Video output BNC(8), composite video BNC(2), composite video
Signal system PAL
Video input Camera in, BNC(4) Camera in, BNC(1)
External sync VS or VD-W
Internal sync MPX-VS or MPX-VD-W
Max. cable length 300 m (984 ft) using RG-59B/U
500 m (1640 ft) using RG-6A/U
600 m (1968 ft) using RG-11A/U
Cable compensation 3 positions
Power requirements AC 220 to 240 V, 50 Hz
Power consumption 49.5 W 15 W
Operating temperature -10 to 50°C (14 to 122°F)
Mass 3.8 kg (8 lb 6 oz) 1.9 kg (4 lb 3 oz)
Dimensions (W x H x D) 424 x 52 x 345 mm 212 x 52 x 345 mm
(16 3⁄4 x 2 1⁄8 x 13 5⁄8 inches) (8
8
⁄3 x 2 1⁄8 x 13 5⁄8 inches)
YS-W170P
Camera Adaptor
YS-W270P
Camera Adaptor
