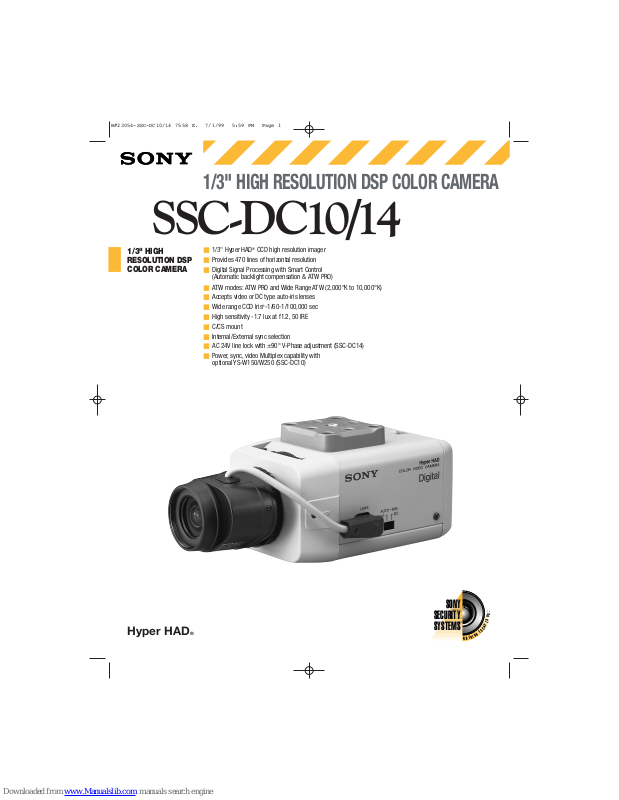

Sony SSC-DC10, SSC-DC14 Specifications
1/3" HIGH RESOLUTION DSP COLOR CAMERA
SSC-DC10/14
■ 1/3" Hyper HAD®CCD high resolution imager
■ Provides 470 lines of horizontal resolution
■ Digital Signal Processing with Smart Control
(Automatic backlight compensation & ATW PRO)
■ ATW modes:ATW PRO and Wide Range ATW (2,000°K to 10,000°K)
■ Accepts video or DC type auto-iris lenses
■ Wide range CCD Iris
®
-1/60-1/100,000 sec
■ High sensitivity -1.7 lux at f1.2, 50 IRE
■ C/CS mount
■ Internal/External sync selection
■ AC 24V line lock with ±90° V-Phase adjustment (SSC-DC14)
■ Power,sync,video Multiplex capability with
optional YS-W150/W250 (SSC-DC10)
1/3" HIGH
RESOLUTION DSP
COLOR CAMERA
N
O
T
H
I
N
G
E
S
C
A
P
E
S
U
S
.
™
SONY
SECURITY
SYSTEMS
SONY
SECURITY
SYSTEMS
Hyper HAD®
B#23054-SSC-DC10/14 7558 E. 7/1/99 5:59 PM Page 1
SPECIFICATIONS
SSC-DC10-/14
Imaging Device: 1/3" Hyper HAD Interline Transfer CCD
Picture Elements (HxV): 768 x 494
Sensing Area (HxV): 4.4 x 3.3 mm
Lens Mount: C/CS
Signal System: EIA, NTSC Color
Scanning System: 2:1 Interlace, 525 lines
Sync System: Internal/External
External Sync:
SSC-DC10 VS or Multiplex via optional YS-W150/YS-W250
SSC-DC14 AC Line lock, 60 Hz
Horizontal Resolution: 470 lines
Minimum Illumination: 1.7 lux f1.2, 50 IRE (Turbo AGC ON)
1.4 lux f1.2, 40 IRE (Turbo AGC ON)
1.1 lux f1.2, 30 IRE (Turbo AGC ON)
S/N: Better than 50 dB (Weight ON)
AGC: ON/OFF selectable
White Balance: ATW PRO/ ATW selectable
ATW PRO Range: 2,500°K to 6,000°K
ATW Range: 2,000°K to 10,000°K
Backlight compensation: On (Smart Control*)/Off selectable
Aperture: Normal/Sharp switchable
Video Output: 1Vp-p, 75 Ohm, sync negative
Connectors:
Power Supply: 2-pole terminals
Auto Iris: 4-pin
Video: SSC-DC10 BNC x 2, Video out and Mon.out/Sync in
SSC-DC14 BNC x 1, Video out
Power Requirements:
SSC-DC10 DC 12V,or Multiplex via optional YS-W150/YS-W250
SSC-DC14 AC 24V,60 Hz
Phase Control:
SSC-DC10 H-Phase, ±0.25H
SSC-DC14 V-Phase, adjustable ±90°
Power Consumption:
SSC-DC10 3.0W on DC 12V,4.0W on YS-W150/YS-W250
SSC-DC14 4.5W
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Dimensions (WHD): SSC-DC10 2-7/8 x 2-1/4 x 4-1/3 inches
(70 x 57 x 110 mm)
SSC-DC14 2-7/8 x 2-1/4 x 5-1/8 inches
(70 x 57 x 130 mm)
Weight: SSC-DC10 15 oz. (430 grams)
SSC-DC14 1 lb. 4 oz. (550 grams)
Supplied Accessories:
Operation Manual
4-pin auto iris connector
Optional Accessories:
YS-W150/YS-W250: Single/Four Channel Power Sync Multiplex
for SSC-DC50
CB-101: Camera Bracket
*On CCD Iris mode & DC type auto iris only
© 1997 Sony Electronics Inc. All rights reserved. Reproduction in
whole or in part without written permission is prohibited.
All specifications are subject to change without notice.
Sony, Hyper HAD, CCD Iris, and Nothing Escapes Us
are trademarks of Sony.
SSC-DC10/14
1/3" HIGH
RESOLUTION DSP
COLOR CAMERA
N
O
T
H
I
N
G
E
S
C
A
P
E
S
U
S
.
™
SONY
SECURITY
SYSTEMS
SONY
SECURITY
SYSTEMS
REAR PANEL VIEW – SSC-DC10
REAR PANEL VIEW – SSC-DC14
Sony Security Systems
Business and Professional Group
3 Paragon Drive
Montvale, New Jersey 07645
TEL: (201) 358-4954 • FAX:(201) 358-4927
Printed in U.S.A. 04/97 S-SSC-DC10/DC14
42
31
Signal Signal
Pin (DC auto iris) (Video type)
1 Control (-) Power
2 Control (+) Not Used
3 Drive (+) Video signal
4 Drive (-) Ground
AUTO-IRIS CONNECTOR
B#23054-SSC-DC10/14 7558 E. 7/1/99 5:59 PM Page 2
