Page 1

MEMORY DATA TRANSFER UNIT

SRPC-5 SR-PC4

OPERATION MANUAL [English] 1st Edition

Page 2

Before operating the unit, please read this manual thoroughly and retain it for future reference.

For SRPC-5

Important Safety Instructions

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

THIS APPARATUS MUST BE EARTHED.

This apparatus is provided with a main switch on the rear panel. Install this apparatus so that user can access the main switch easily. To completely turn off the power, turn off the main power switch on the rear panel.

WARNING:

Using this unit at a voltage other than 120 V may require the use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Attention-when the product is installed in Rack:

1. Prevention against overloading of branch circuit

When this product is installed in a rack and is supplied power from an outlet on the rack, please make sure that the rack does not overload the supply circuit.

2. Providing protective earth

When this product is installed in a rack and is supplied power from an outlet on the rack, please confirm that the outlet is provided with a suitable protective earth connection.

3. Internal air ambient temperature of the rack

When this product is installed in a rack, please make sure that the internal air ambient temperature of the rack is within the specified limit of this product.

Page 3

4. Prevention against achieving hazardous condition due to uneven mechanical loading

When this product is installed in a rack, please make sure that the rack does not achieve hazardous condition due to uneven mechanical loading.

5. Install the equipment while taking the operating temperature of the equipment into consideration

For the operating temperature of the equipment, refer to the specifications of the Operation Manual.

6. When performing the installation, keep the following space away from walls in order to obtain proper exhaust and radiation of heat.

Right, Left : 4 cm (1.6 inches) or more Rear : 10 cm (4 inches) or more

When installing the installation space must be secured in consideration of the ventilation and service operation.

• Do not block the ventilation slots at the left side and right

side panels, and vents of the fans.

• Leave a space around the unit for ventilation.

• Leave more than 40 cm of space in the rear of the unit to

secure the operation area. When the unit is installed on the desk or the like, leave at least 4 cm of space in the left and right sides. Leaving 40 cm or more of space above the unit is recommended for service operation.

WARNING: THIS WARNING IS APPLICABLE

FOR USA ONLY.

If used in USA, use the UL LISTED power cord specified below. DO NOT USE ANY OTHER POWER CORD. Plug Cap Parallel blade with ground pin

(NEMA 5-15P Configuration)

Cord Type SJT, three 16 or 18 AWG

wires

Length Minimum 1.5 m (4 ft .11 in.),

Less than 2.5 m (8 ft .3 in.) Rating Minimum 10A, 125V Using this unit at a voltage other than 120V may require the use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

WARNING: THIS WARNING IS APPLICABLE

FOR OTHER COUNTRIES.

1. Use the approved Power Cord (3-core mains lead) / Appliance Connector / Plug with earthing-contacts that conforms to the safety regulations of each country if applicable.

2. Use the Power Cord (3-core mains lead) / Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel.

CAUTION

The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install the appliance in a confined space, such as book case or built-in cabinet.

CAUTION

The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

For kundene i Norge

Dette utstyret kan kobles til et IT-strømfordelingssystem.

Apparatet må tilkoples jordet stikkontakt

Suomessa asuville asiakkaille

Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan

För kunderna i Sverige

Apparaten skall anslutas till jordat uttag

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-003.

For the customers in Europe

This product with the CE marking complies with the EMC Directive issued by the Commission of the European Community.

Page 4

Compliance with this directive implies conformity to the following European standards:

• EN55103-1: Electromagnetic Interference(Emission)

• EN55103-2: Electromagnetic Susceptibility(Immunity) This product is intended for use in the following Electromagnetic Environment: E4 (controlled EMC environment, ex. TV studio).

For the customers in Europe

The manufacturer of this product is Sony Corporation, 17-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

This apparatus shall not be used in the residential area.

For the customers in Europe, Australia and New Zealand

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

For the customers in Taiwan only

For SR-PC4

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

WARNING

This unit has no power switch. When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

WARNING: THIS WARNING IS APPLICABLE

FOR USA ONLY.

If used in USA, use the UL LISTED power cord specified below. DO NOT USE ANY OTHER POWER CORD. Plug Cap Parallel blade

(NEMA 1-15P Configuration)

Cord Type NISPT-2 or SPT-2,

two 16 or 18 AWG wires

Length Minimum 1.5 m (4 ft .11 in.),

Less than 2.5 m (8 ft .3 in.) Rating Minimum 7 A, 125 V Using this unit at a voltage other than 120V may require the use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

WARNING: THIS WARNING IS APPLICABLE

FOR OTHER COUNTRIES.

1. Use the approved Power Cord (2-core mains lead) / Appliance Connector / Plug that conforms to the safety regulations of each country if applicable.

2. Use the Power Cord (2-core mains lead) / Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel.

IMPORTANT

The nameplate is located on the bottom.

Page 5

For the customers in the U.S.A.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-003.

For the customers in Europe, Australia and New Zealand

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

For the customers in Europe

The manufacturer of this product is Sony Corporation, 17-1 Konan, Minato-ku, Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.

This apparatus shall not be used in the residential area.

For the customers in Taiwan only

Page 6

Overview................................................................................ 7

Features ................................................................................... 7

System Configuration Example .............................................. 7

Names and Functions of Parts ............................................9

Front ........................................................................................ 9

Rear ....................................................................................... 10

Setup.................................................................................... 11

Setup Flow ............................................................................ 11

Preparation ............................................................................ 11

Shared File Server Settings ................................................... 11

Displaying the Web Application Screen ............................... 11

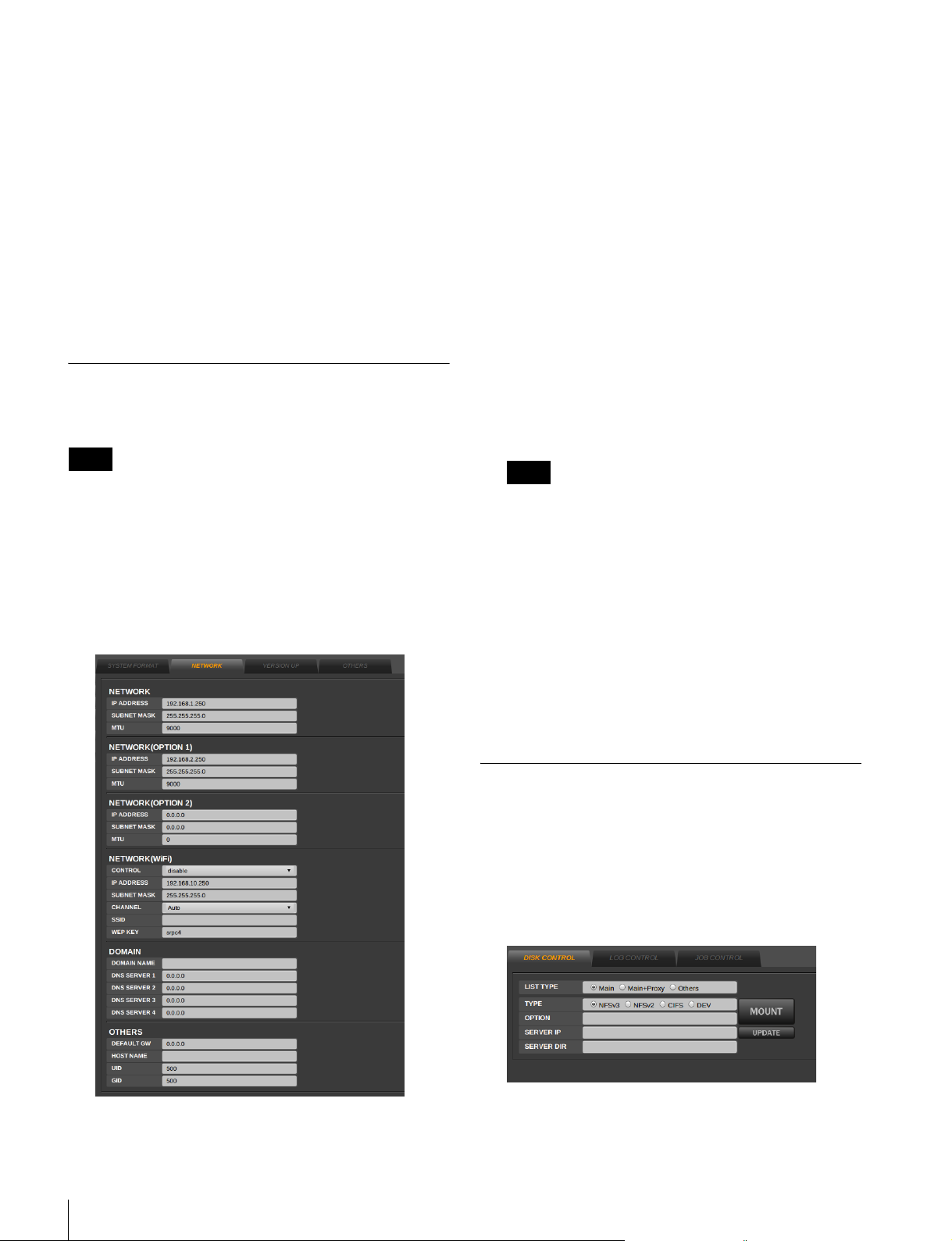

Network Settings................................................................... 12

Mounting the File Server ...................................................... 12

Proxy Settings ....................................................................... 13

Saving and Recalling GUI Configuration Data .................... 15

Configuring the Monitor Output Signal................................ 15

Lookup Table (LUT) Settings............................................... 16

Color Control Function for the Monitor Output ................... 16

Basic Operations................................................................ 17

Web Application Screen ....................................................... 17

Displaying Video Data.......................................................... 17

Importing Files ...................................................................... 18

Other Operations ................................................................ 21

Viewing SRMemory Card Information ................................ 21

Viewing File Server Data...................................................... 21

Displaying the Web Client IP Addresses .............................. 21

Managing Log Files .............................................................. 21

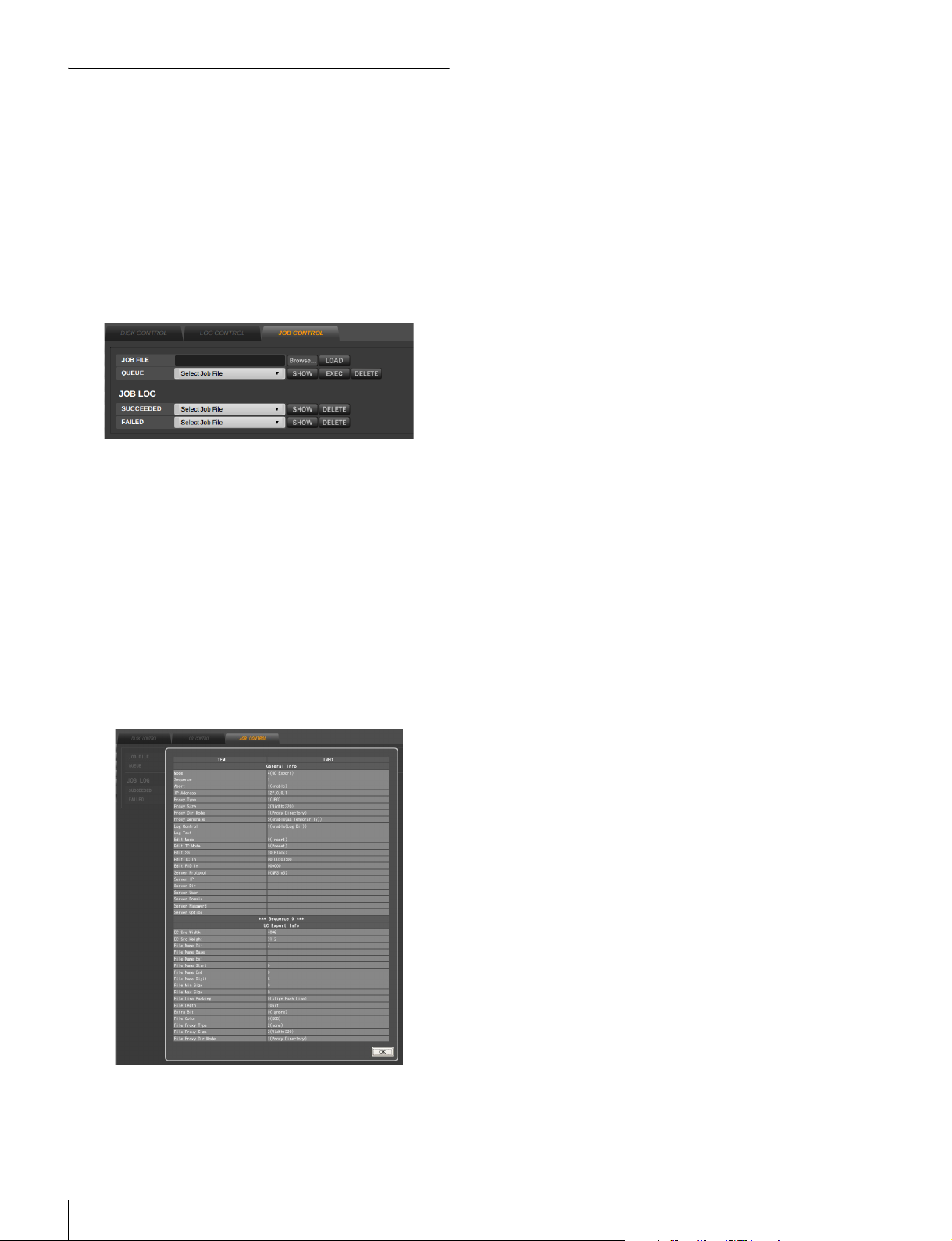

Automatic Execution Using a Job File.................................. 22

Specifications ..................................................................... 23

SRPC-5.................................................................................. 23

SR-PC4.................................................................................. 24

Appendix ............................................................................. 24

Error/Warning Messages....................................................... 24

Salvaging SRMemory Cards for which File Content

was Lost ....................................................................... 25

List of Keyboard Shortcuts ................................................... 25

Supported Formats ................................................................ 26

LUT File Formats Applicable to This Board ........................ 26

MPEG-4 Visual Patent Portfolio License ............................. 27

Job File Samples ................................................................... 28

Table of Contents

Page 7

Overview

The SRPC-5 or SR-PC4 (herein referred to as the “unit”) is a data transfer unit used for displaying and transferring materials recorded on an SRMemory card. Using the unit, you can view materials recorded on an SRMemory card on a master monitor, or transfer recorded materials on an SRMemory card to a server or non-linear editing equipment.

Operations can be performed via a web browser on a PC or workstation. These operations include clip playback/ pausing, clip list display, and metadata confirmation/ editing.

Features

View video recorded on SRMemory cards

The unit is equipped with an HD-SDI connector that allows you to view video recorded on an SRMemory card on a master monitor. [PC5] The HD-SDI connector also supports 3G-SDI dual link, allowing display of a wide range of formats.

Transfer data recorded on SRMemory cards

Material recorded on an SRMemory card can be transferred to a server or non-linear editing equipment via Gigabit Ethernet.

Marks for model-specific functions

This manual uses the following markers to indicate functions that are specific to the SRPC-5 or SR-PC4.

[PC5] : SRPC-5 [PC4] : SR-PC4

10 Gigabit Ethernet and eSATA support

By installing a commercially available 10GbE network interface card into the PCIe expansion slot on the rear of the unit, even faster data transfer is possible via 10 Gigabit Ethernet. By installing a commercially available eSATA card into the PCIe expansion slot, you can transfer data to external HDDs, etc.

For details on recommended third-party products, contact your local Sony representative.

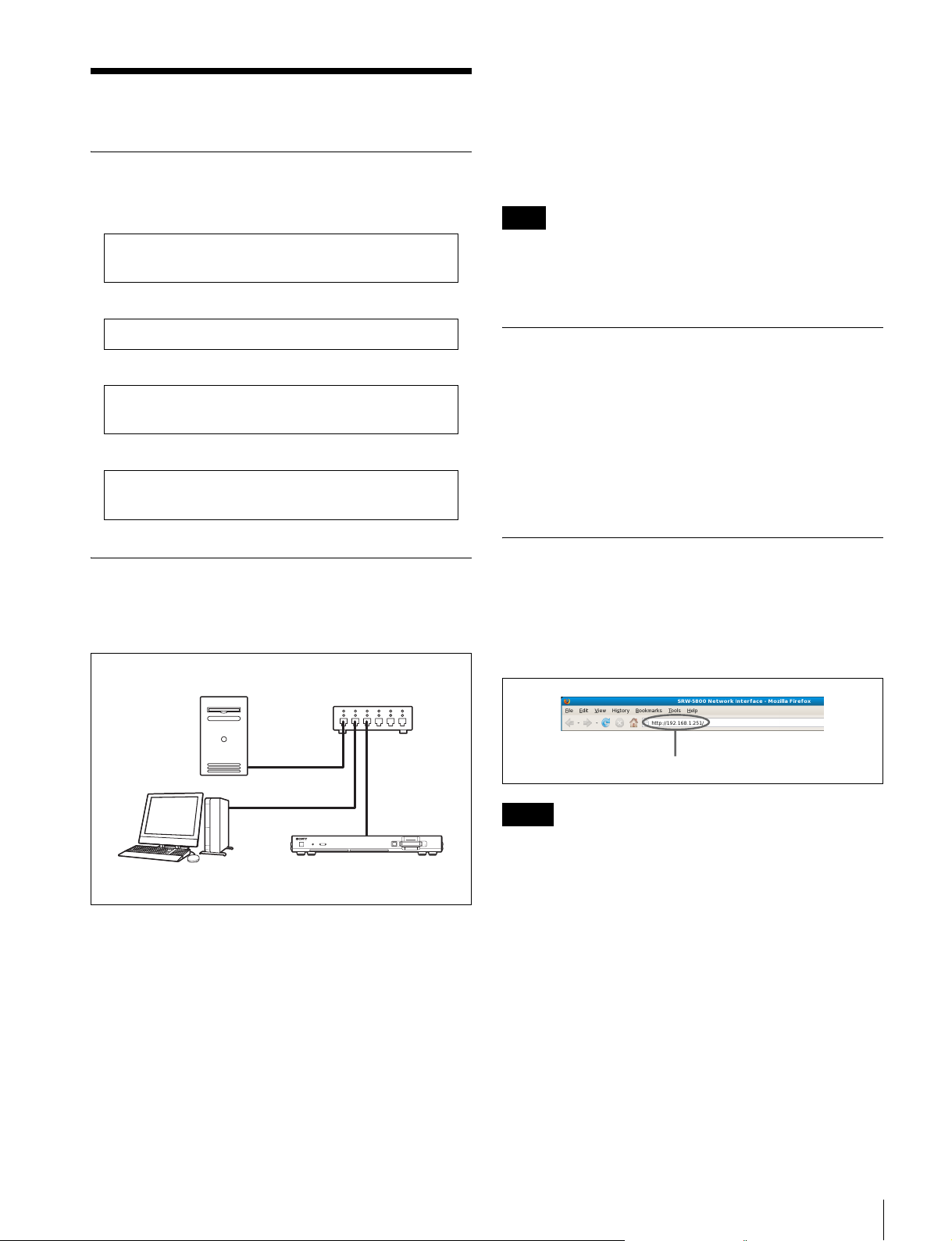

System Configuration Example

The following are examples of network system configurations in which data is transferred between a shared file server using the unit.

For the SRPC-5

Shared file server

Switching hub

Web client

SRPC-5

HD monitor

Overview

Page 8

For the SR-PC4

Web client

Shared file server

Switching hub

SR-PC4

HD monitor

Overview

Page 9

Names and Functions of Parts

Front

SRPC-5

1234 5 6 7

SR-PC4

6 1 2 4

a On/standby button

[PC5] When the main power switch on the rear of the unit is turned on, this turns on the unit or sets it to standby mode. [PC4] Turns the unit on/off.

The button will light or blink based on the operating status of the unit.

Lit red: The unit is in standby mode. Blinking green: The unit is starting up. Lit green: The unit is turned on. Blinking green: If the button blinks green after startup,

the unit may be malfunctioning.

Blinking red: [PC4] If the button is blinking red before

the unit is turned on, the power supply voltage may be

incorrect. If the button blinks green after startup or blinks red, stop operation and contact your local Sony representative.

b STATUS indicator

Displays the status of the unit.

Lit green: Operating normally. Blinking green: The unit is starting up. Lit yellow: A warning has occurred.

Lit red: An error has occurred. Blinking blue: The unit is starting up in default IP

address mode (see page 12).

c [PC5] VTR indicator This is not used in this version.

d NETWORK indicator

Displays the communication status between the unit and the server.

Off: The server is not mounted. Lit green: The server is mounted. Blinking green: Data is being transferred.

e [PC5] Eject button Press this to eject the SRMemory card.

f SRMemory indicator

Displays the status of the SRMemory card inserted in the slot. Off: The SRMemory card is logically detached from the

unit.

Lit blue: The SRMemory card is connected to the unit and

available for use.

Lit green: Data is being read from the SRMemory card. Blinking blue

attached to or detached from the unit.

Blinking green

signals, such as file name changes, is being written.

Blinking purple

is being performed from the menu.

Blinking red

performed in response to an error.

Fast blinking red

: The SRMemory card is logically being

: Data other than audio and video

: Files are being deleted or formatting

: Salvaging or formatting is being

: A problem was detected while

processing the SRMemory card. Eject or salvage the card or perform the appropriate operation as instructed by the message that appears.

1) Blinking LED: Blinks at 1-second interval. Fast blinking LED: Blinks at 1/4-second interval.

g SRMemory slot

Insert the SRMemory card here.

Note

[PC4] Be sure to insert the SRMemory card all the way into the slot. The card may not lock into place if it is not inserted completely.

h [PC4] UNLOCK button

Unlocks the SRMemory slot. Press this button to unlock the slot before removing an SRMemory card.

Names and Functions of Parts

Page 10

Rear

SRPC-5

12345678

g [PC5] AC IN connector Connect the power cord here for connection to a power outlet.

h [PC5] Main power switch Use this to turn the power supply on/off. During regular use of the unit, leave the main power switch in the on position, and use the on/standby button on the front of the unit to switch between operational mode and standby mode.

Note

SR-PC4

a PCIe expansion slot

You can install a commercially available 10GbE card or eSATA card here.

b NETWORK connector

Connect a network cable here to enable file transfer to the file server and control of the unit from a web client.

Always make sure that the unit is in standby mode before setting the main power switch to the off position to turn off the power.

i [PC4] MONITOR connector

HD SDI signals are output from here for connection to an HD monitor.

j [PC4] DC IN connector

Connect the supplied AC adapter here and connect it to a power outlet.

Notes

• Do not use AC adapters other than the one supplied.

• Before disconnecting the AC adapter, always turn off the unit using the on/standby button on the front panel of the unit.

CAUTION

• For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to this port. Follow the instructions for this port.

• When you connect the NETWORK cable of the unit to peripheral device, use a shielded-type cable to prevent malfunction due to radiation noise.

c [PC5] VTR I/F OUTPUT connector Used for future expansion. This is not used in this version.

d [PC5] VTR I/F INTPUT connector Used for future expansion. This is not used in this version.

e [PC5] AUX INPUT connector Used for future expansion. This is not used in this version.

f [PC5] AUX OUTPUT connector HD SDI signals are output from here for connection to an HD monitor.

Names and Functions of Parts

Page 11

Setup

Setup Flow

Web client

The web client is a PC or workstation used to operate the unit via the web application. It can also be used as a shared file server. A web browser is required (Internet Explorer, Safari, Firefox, etc.). Any operating system is acceptable.

The following is an overview of the setup procedure.

Connect the unit, shared file server, and web client within a LAN (see page 11).

Configure the shared file server (see page 11).

Configure the network settings from the web client (see page 12).

Mount the shared directory of the shared file server from the web client (see page 12).

Preparation

Connect the unit, shared file server, and web client within the same segment of the LAN (Gigabit Ethernet).

Note

Only one shared file server can be connected to the unit. Up to five web clients can be connected to the unit at one time.

Shared File Server Settings

Configure permission settings for the shared directory mounted by the unit. Grant read, write, and execute permissions to the unit (i.e., users). You can configure the user ID and group ID in the NETWORK tab of the DIAGNOSIS menu. For details on file server settings, consult your system administrator.

Displaying the Web Application Screen

Enter the IP address of the unit in the address bar of the web browser to display the web application screen of the unit on the web client.

Shared file server

Web client

Switching hub

SRPC-5 or SR-PC4

Shared file server

The shared file server consists of a shared disk and stores image data transferred from an SRMemory card. The file server must support NFS server and CIFS server functions. Any operating system is acceptable. If an eSATA card is installed in the PCIe expansion slot, an HDD connected via eSATA can be used as a shared disk in place of a file server.

Enter the IP address of the unit here.

Notes

• The factory default setting for the IP address is

192.168.0.1. When displaying the web application screen for the first time, enter “192.168.0.1” in the address bar of the web browser.

• Before accessing the unit, make sure Javascript and cookies are enabled in the web browser.

• When the web application of the unit is used, the [Return] and [Update] buttons in the browser menu do not operate. If the display of the browser cannot be updated or abnormality has occurred in the display contents, do not click the [Update] button. In this case, re-enter the IP address of the unit.

Setup

Page 12

If you forget the IP address

If you forget the IP address of the unit, turn the unit off and perform the following to restart the unit.

Hold down the eject button ([PC5]) or UNLOCK button ([PC4]), and press the on/standby button.

Release the button when the STATUS indicator starts to blink blue.

The unit starts up in default IP address mode, and the IP address is reset to the factory default address, 192.168.0.1. Enter this address in the web application to connect to the unit, and verify or reconfigure the IP address as necessary.

Configure the following items under NETWORK.

IP ADDRESS: IP address of the unit. SUBNET MASK: Subnet mask of the unit. MTU: Maximum transfer volume for data in bytes.

If necessary, configure the following items under DOMAIN.

DOMAIN NAME: Network domain name. DNS SERVER 1: IP address of DNS server 1. DNS SERVER 2: IP address of DNS server 2. DNS SERVER 3: IP address of DNS server 3. DNS SERVER 4: IP address of DNS server 4.

Configure the following items under OTHERS.

Network Settings

Configure the unit’s IP address and other settings.

Note

When opening the web application and configuring network settings for the first time, enter “192.168.0.1” in the address bar of your web browser to display the web application screen.

Click the DIAGNOSIS menu button in the web application screen, and click the NETWORK tab.

The NETWORK tab screen appears.

DEFAULT GW: Default gateway of the unit. HOST NAME: Host name of the unit. UID: User ID of the unit. GID: Group ID of the unit.

Note

Be sure to consult the file server administrator before entering the appropriate values for UID and GID.

If you are transferring data through means other than the NETWORK connector on the rear of the unit, configure the IP address of the network adaptor that will be used for transfer as well.

When a commercially available 10GbE card or other option is installed in the PCIe expansion slot

Configure the IP address and other items under NETWORK (OPTION 1) and NETWORK (OPTION 2).

Mounting the File Server

Mount the shared disk of the file server as follows.

Setup

Click the DISK SETUP menu button in the web application screen, and click the DISK CONTROL tab.

The DISK CONTROL tab screen appears.

Page 13

Configure the TYPE setting to select the shared disk protocol for the server to be mounted.

You can select from NFSv3, NFSv2, CIFS, or DEV. When mounting a hard drive connected to an eSATA card, select DEV.

Configure the following settings based on the protocol selected in step 2.

For the NFSv3 or NFSv2 protocol OPTION: Server mount option. SERVER IP: IP address of the server. SERVER DIR: Path to shared directory provided by

the server.

For the CIFS protocol OPTION: Server mount option. SERVER IP: IP address of the server. SERVER DIR: Path to shared directory provided by

the server.

USER NAME: Name of user accessing the server. DOMAIN: Domain to which the user belongs. PASSWORD: Password used to access the server.

For the DEV protocol OPTION: Mount option. DEVICE: Select the device that will be mounted from

the list of connected device types.

NODE: Select the node that will be mounted from the

list of connected device node names.

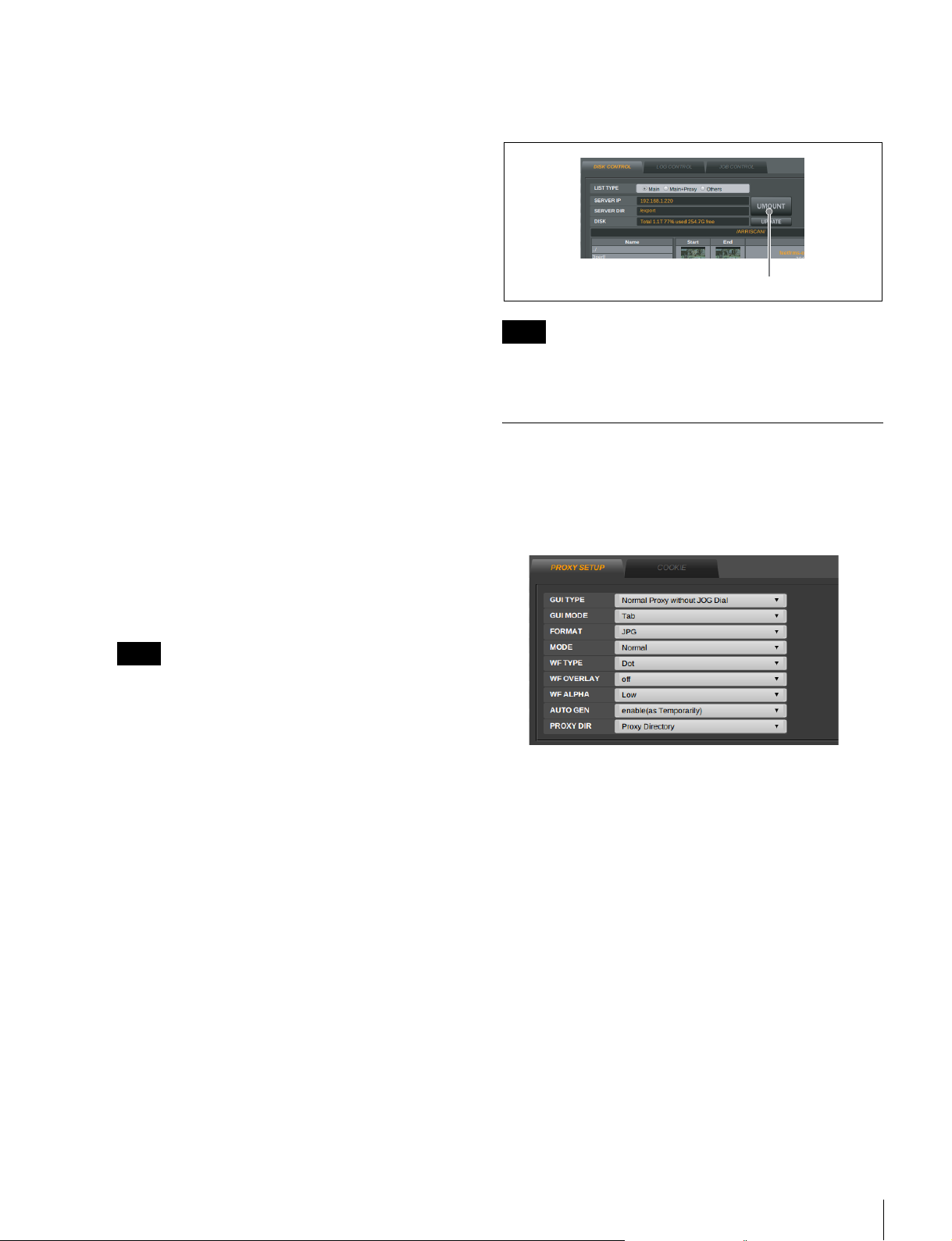

To unmount the server

Click the UMOUNT button on the DISK CONTROL tab screen.

UMOUNT button

Note

Unmount the server before turning off the unit or before the unit restarts after changing the unit format settings.

Proxy Settings

Click the PROXY SETUP menu button in the web application screen, and click the PROXY SETUP tab.

The PROXY SETUP tab screen appears.

Note

The OPTION setting should be left blank during normal use. However, if you want to optimize transfer speeds by specifying the block size for files at the time of disk mounting, enter the data as shown in the following example. Example) wsize=32768, rsize=32768 Consult your file server administrator if the OPTION setting requires configuration.

Click the MOUNT button to mount the file server or device.

After the server is mounted, the MOUNT button will change to the UNMOUNT button.

Configure the LIST TYPE setting to specify how image clips on the shared directory of the mounted file server are displayed.

Main: Display only the main image files. Main+Proxy: Display main image files and proxies. Others: Display non-image files.

Set the following items.

Underlined values in the table indicate default settings.

Setup

Page 14

Item Function/settings

GUI TYPE Selects the size of the proxy and

whether the jog dial appears or not in the GUI. Normal Proxy without JOG Dial

The proxy is displayed with a 320-pixel width. The jog dial does not appear in the MEM CONTROL display.

Normal Proxy with JOG Dial: The

proxy is displayed with a 320pixel width. The jog dial appears in the MEM CONTROL display.

Large Proxy without JOG Dial:

The proxy is displayed with a 640-pixel width. The jog dial does not appear in the MEM CONTROL display.

Note

The proxy that appears in the DISK SETUP menu is always displayed with a 320-pixel width, regardless of this setting.

GUI MODE Selects how the items in the

FORMAT Selects the file type of the proxy

MODE Selects the display mode of the

WF TYPE Selects the drawing method of the

display are shown.

: Items are divided into

Ta b

multiple tab displays.

Flat: Items are shown in one

display.

displayed on the GUI. BMP: Bitmap

: JPEG

JPG

proxies that appear in the GUI during tape playback.

: Displays the picture.

Normal Waveform(Parade) : Displays the

waveforms (red, green, and blue).

Waveform(Red): Displays the

waveform (red).

Waveform(Green): Displays the

waveform (green).

Waveform(Blue): Displays the

waveform (blue). Vector: Displays the vector scope. Vector(×2): Displays the vector

scope at 2-fold magnification.

waveform.

: Dots

Dot Line: Lines

Item Function/settings

WF OVERLAY Selects the display method of the

waveform(s).

: Does not display the picture.

off

Only the waveform(s) is (are) displayed.

on: Waveform(s) is (are) displayed

over the picture.

on(Mix):Waveform(s) and the

picture are mixed and displayed.

WF ALPHA Specifies the waveform

AUTO GEN Determines whether or not

transparency when the waveform(s) and the picture are mixed.

: Low transparency

Low Middle: Medium transparancy High: High traneparency

proxies are automatically generated. disable: Proxies are not generated

automatically.

enable: When previewing files in

the clip list, proxies are automatically generated for picture files that do not have their own proxies.

enable(as Temporarily)

are generated for display on the GUI. However, the generated proxies are not stored on the disk.

: Proxies

Setup

Page 15

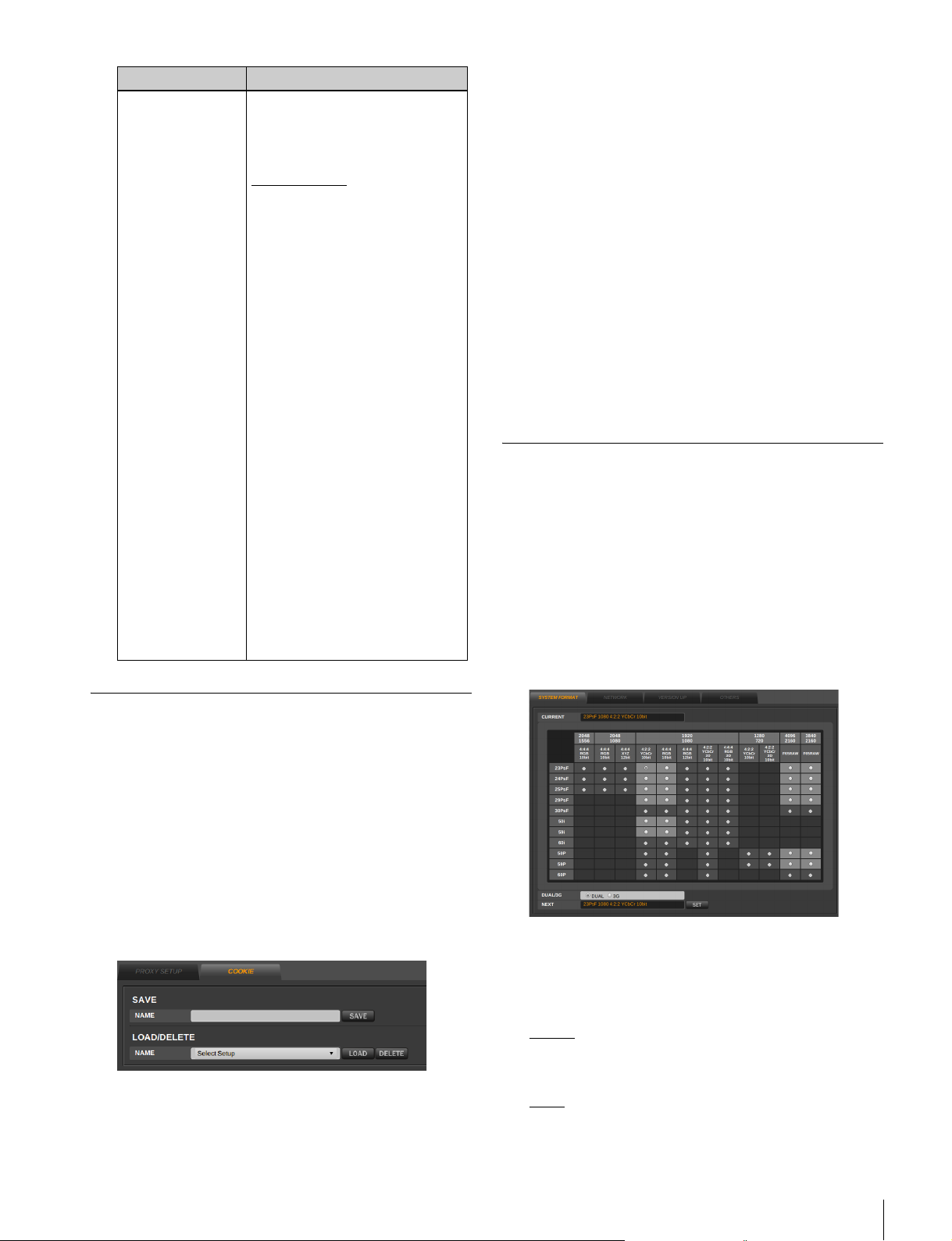

Item Function/settings

PROXY DIR Determines the directory where

the generated proxies are stored. Same as Main Files: Proxies are

stored in the same directory as the main picture files.

Proxy Directory

is automatically created right under the directory where the main picture files are stored. Proxies are stored in the “proxy/” directory.

Resolution directory: When the

main picture files are stored in directories labeled according to size (e.g., 1920 × 1080), a directory for storing small-size picture files (e.g., 320 × 180) is created to store proxies. When the main picture files are not stored in directories according to picture file size, proxies are stored in the same directory where their main picture files are stored. When importing files, a directory for storing main picture files and a directory for storing their proxies labeled according to size (e.g., 1920 × 1080, 320 ×

180) are created directly under the specified directory. The main picture files and their proxies are stored in these directories.

: “proxy/” directory

Enter a name for the cookie in the NAME box of the SAVE area, and then click the SAVE button.

The entered file name is automatically appended with the date. Then, the cookie is stored in the directory for cookies on the mounted server.

To recall GUI setup data

Click the NAME box of the LOAD/DELETE area, select the stored cookie, and then click the LOAD button. Selecting “Factory Preset” at this time resets the GUI settings to their default values.

To delete GUI setup data

Click the NAME box of the LOAD/DELETE area, select the stored cookie, and then click the DELETE button.

Configuring the Monitor Output Signal

You can select the type of SDI signal that is output from the AUX OUTPUT connector ([PC5]) or MONITOR connector ([PC4]) on the rear of the unit.

Click the DIAGNOSIS menu button in the web application screen, and click the SYSTEM FORMAT tab.

The SYSTEM FORMAT tab screen appears.

Saving and Recalling GUI Configuration Data

GUI configuration data is temporarily saved in your browser’s cookies. By naming this configuration data and saving it to the mounted file server, you can recall the data later to restore the previous configuration.

Click the PROXY SETUP menu button in the web application screen, and click the COOKIE tab.

The COOKIE tab screen appears.

Select the video format in the matrix table.

Select one of the following in the DUAL/3G setting.

[PC5]

DUAL

: Dual link (1.5G HD SDI)

3G: 3G HD SDI output

[PC4]

1.5G

: 1.5G HD SDI output

3G: 3G HD SDI output

Setup

Page 16

Lookup Table (LUT) Settings

Color Control Function for the

It is possible to load lookup table (LUT) files to the LUT banks of the unit using the web application. The eight LUT banks provided in the unit are used to store LUTs that are used for importing, and monitor signal output. LUT files stored in the banks are maintained even after the unit is turned off. The bit depth of LUT files can be applied 8, 10, 12, and 16bit data. Note, however, that the lower four of 16 bits are ignored because of the hardware’s 12-bit process. On the contrary, when the bit depth of the input data is 8 or 10, the signal is linearly interpolated into 12-bit data.

For details on applicable LUT file formats, see “LUT File Formats Applicable to This Board” in “Appendix”.

Click the SRPC SETUP menu button, and click the LUT tab.

The LUT tab screen appears.

Set the following items.

Item Function/settings

BANK Selects one of the eight banks

WP check box Check this box when you do not

Click the Browse… button to open the local disk or

(BANK 1 to BANK 8).

want to overwrite the contents of the selected LUT bank.

external media of the web client, then select the LUT file. And then, click the LOAD button.

The selected LUT file is loaded to the LUT bank selected in step 2.

Clearing the contents of a LUT bank

Select the bank whose contents you want to delete, and then click the CLEAR button.

Monitor Output

Color control function for the monitor output can be set using the web application or through control panel operation on the VTR.

Click the SRPC SETUP menu button, and click the MONITOR tab.

The MONITOR tab screen appears.

Set the following items.

Underlined values in the table indicate default settings.

Item Function/settings

COLOR SPACE Specifies the monitor output

LUT Selects one of the eight banks.

RANGE Specifies whether the monitor

signal type. RGB 4:4:4 YCbCr: YcbCr 4:2:2 signal

: No LUT is used.

off BANK1 to BANK8: The LUT in the

output signal is extended from Head to Full before the LUT and compressed from Full to Head after the LUT. Pre(HtF) checkbox: Check this

Post(F tH) checkbox: Check this

: RGB 4:4:4 signal

specified bank is applied to the monitor output.

box to extend the effective signal range of a monitor output signal with headroom to full range before the LUT.

box to compress a full range monitor output signal to the effective signal range of a monitor output signal with headroom after the LUT.

Setup

Page 17

Basic Operations

Web Application Screen

Configuration and data transfer controls for the unit are performed in the web application screen from a web client.

Contents of the web application screen

The web application screen consists of the following contents.

Menu button Description

Tab

HOME Initial screen of the web application.

MEM CONTROL

DISK CONTROL

REMOTE Displays the IP address of the client

IMPORT Allows you to import files from the

MEM CONTROL

DISK CONTROL

FILE SETUP Allows you to configure the format

PROXY SETUP Allows you to configure proxy and

PROXY SETUP Allows you to configure settings for

COOKIE Allows you to save and recall GUI

Displays video from the SRMemory card.

Allows you to verify files stored on the file server.

PC connected to the unit.

SRMemory card to the file server.

Displays data stored on the SRMemory card, and allows you to select videos for import.

Allows you to configure the storage location, file names, and other settings for the imported files.

and conversion methods for the imported files.

GUI settings.

the proxy display method and GUI display style.

configuration data.

Menu button Description

Tab

SRPC SETUP Allows you to configure settings for

the unit.

LUT Allows you to configure lookup table

MONITOR Allows you to configure color settings

SRMEMORY Displays information and file lists for

OTHERS Allows you to configure settings for

DISK SETUP Allows you to configure system

DISK CONTROL

LOG CONTROL

JOB CONTROL Allows you to perform job file controls.

DIAGNOSIS Allows you to configure other detailed

SYSTEM FORMAT

NETWORK Allows you to configure network

VERSION UP Allows you to perform version

OTHERS Allows you to configure the date and

(LUT) settings.

for monitor output signals.

the SRMemory card.

operation mode.

settings.

Allows you to mount/unmount the shared file server.

Allows you to manage log files.

settings.

Allows you to select the format of the SDI signal that is output to the monitor.

settings.

updates.

time.

Displaying Video Data

You can view video data stored on an SRMemory card via a web browser or HD monitor connected to the unit by accessing the MEM CONTROL tab screen from the HOME or IMPORT menu. Using the control buttons in the MEM CONTROL tab screen, you can perform operations such as play, pause, fast forward, and rewind for the video data.

Note

To play back files stored on an SRMemory card, you must configure the frame frequency and color space in the SYSTEM FORMAT tab of the DIAGNOSIS menu beforehand.

For details, see “Configuring the Monitor Output Signal” on page 15.

Basic Operations

Page 18

You can display a jog dial and adjust the size of the proxy screen for the GUI of the MEM CONTROL tab screen. The GUI is configured with the GUI TYPE setting in the PROXY SETUP tab screen of the PROXY SETUP menu (see page 13).

Importing Files

You can import files stored on an SRMemory card inserted in the unit to the shared file server.

Click the IMPORT menu button in the web application screen, and click the FILE SETUP tab.

The FILE SETUP tab screen appears.

Item Function/settings

AUDIO Specifies the number of audio

channels to be added to the imported files. 0CH: No audio channel is added. 2CH: Channel 1 to 2 4CH: Channel 1 to 4 6CH: Channel 1 to 6 8CH: Channel 1 to 8 10CH: Channel 1 to 10 12CH: Channel 1 to 12 14CH: Channel 1 to 14 16CH: Channel 1 to 16

: Adds the channel numbers

Auto

stored in the imported files.

METADATA Selects whether to add ANC metadata

TC Select the timecode to be included in

REEL NAME (top field)

REEL NAME (bottom field)

Click the DISK CONTROL tab.

to the imported files.

: ANC metadata is not added.

OFF ON: ANC metadata is added.

the header of the MXF file.

: LTC

LT C VITC: VITC Recount: Includes a timecode that is

generated using the timecode of the first frame as a starting point.

Select one of the following as information to be included in the header of the imported file. Manual: Includes the reel name

entered in the bottom field in the header.

SRMemory ID

assigned to the SRMemory card.

SRMemory Label: Includes the label

assigned to the SRMemory card.

If [Manual] is selected in the top field, enter a reel name.

: Includes the ID

The DISK CONTROL tab screen appears.

Configure the following items.

Underlined values in the table indicate default settings.

Basic Operations

Page 19

Select the directory in which to store the imported file in the DISK CONTROL tab screen.

The file server directories and stored files appear at the bottom of the screen. Open the directory in which to store the imported files in this area.

To create, delete, or rename directories, use the controls at the bottom of the screen.

To create a new directory

Enter a name for the new directory in the MKDIR field, and click the MKDIR button. The new directory is created directly under the currently displayed directory.

When you enter the following character strings in the directory name, the corresponding information is retrieved from the system and automatically reflected in the directory name. The character stings that can be entered and the information that is retrieved are as follows.

<memid>: SRMemory ID <date>: Date (year, month, day) <time>: Time (hour, minute, second)

The following is an example of the directory name when the SRMemory card ID is “0123456789” and “test<memid>_<date><time>” is entered at 17:42:35 on November 16, 2011. test0123456789_20111116174235/

To rename a directory

Click the top box of the RMDIR / RENAME field, and select the directory you want to rename. Enter a new directory name in the bottom box of the RMDIR / RENAME field, and click the RENAME button.

To delete a directory

Click the top box of the RMDIR / RENAME field, select the directory you want to delete, and click the RMDIR button.

Configure the following items in the DISK CONTROL screen.

Underlined values in the table indicate default settings.

Item Function/settings

NAME SRC Specify the method in which imported

files are named. Original

Manual: Renames the files during

: Uses the original file names that are stored on the SRMemory card.

import. When “Manual” is selected, the FILE NAME field appears under NAME SRC. A sample file name based on the settings you specify will appear in this field.

Item Function/settings

BASE NAME When Manual is selected for NAME

SRC, this specifies the portion of the name that will be common in all the file names. +SubID check box: Select this to add

sub IDs (for identifying clips) to the file names. The sub ID is a serial number that increases sequentially by 1 with each file imported.

Note

Select the “+SubID” check box when importing multiple files of the same name to the same directory.

REEL DIR Selects whether to create a directory

named after the SRMemory card ID when storing the file.

: A directory named after the

disable

SRMemory card ID is not created. The file will be saved directly under the specified directory.

SRMemory ID: Creates a directory

named after the SRMemory card ID.

Reel Name: Creates a directory

named after the reel name.

DELIMITTER Specifies the delimiter to be used

IMPORT LOG Specifies the import log file setting.

COMMENT Enter comments to be included in the

Click the MEM CONTROL tab.

between the file name specified in BASE NAME and the serial number. You can select underbars (_), periods (.), or hyphens (-). The default setting is a period.

disable: An import log file is not

created.

enable(Log Dir)

be saved in the log directory.

enable(Selected Dir): An import log

file will be saved directly under the directory you specify.

+FCP check box: Select this to

generate Final Cut Pro 7 format

XML files. To view the created import log file, click the Import LOG button at the bottom right of the DISK CONTROL tab.

For details on import log files, see “Import log display” on page 20. For details on managing import log files, see “Managing Log Files” on page 21.

import log file.

: An import log file will

The MEM CONTROL tab screen appears.

Basic Operations

Page 20

Select the check boxes for the files to be imported, and click the “Add” button.

The selected files are added to the CLIP LIST. If you click the proxy screen, the file that appears in the screen will be added directly to the CLIP LIST. When you click a check box, the images for that file will be played back in the proxy screen. To select the files without playing images, click the check boxes while pressing the Ctrl key. If you double-click a check box while pressing the Shift key, all the check boxes will be selected. If you double-click a check box while pressing the Ctrl key, all the check boxes will be cleared.

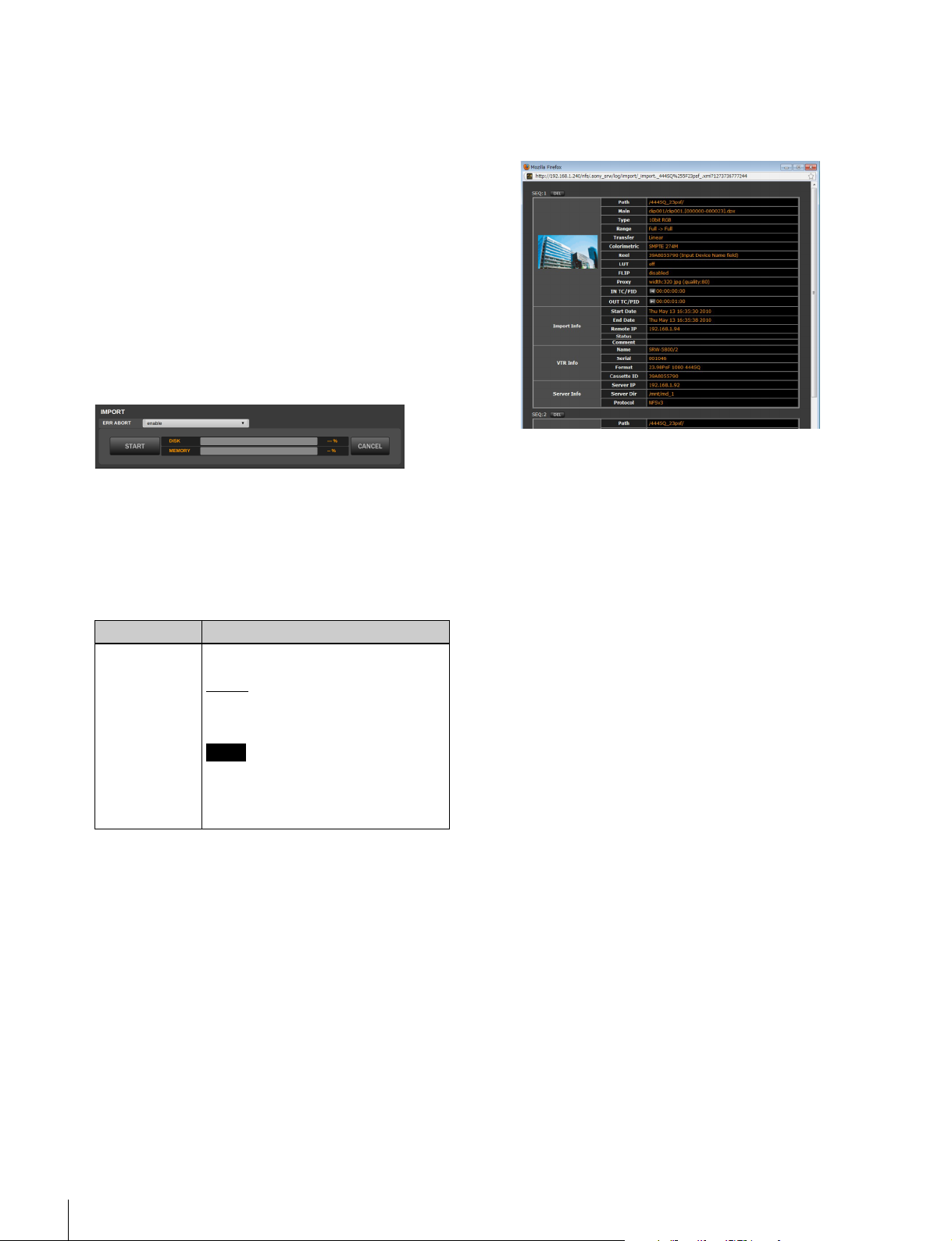

Click the START button in the IMPORT area.

File import starts.

During file import, the transfer status is indicated by a progress bar and percentage in the DISK field.

Action when errors occur

You can specify the action to be taken if an error occurs during import. Underlined values in the table indicate default settings.

Import log display

Click the Import LOG button in the DISK CONTROL tab screen to open the import log display. You can view the log for each import (sequence).

To clear the contents of the import log display

Each sequence in the import log display can be cleared. Click the DEL button at the beginning of the sequence indication whose contents you want to clear.

Item Function/settings

ERR ABORT Specify whether to abort import if an

error occurs.

: Import is aborted.

enable disable: Import continues for as long

as possible.

Note

When [disable] is selected, import will continue for as long as possible, but proper operation is not guaranteed. Select [enable] during normal use.

Basic Operations

Page 21

Other Operations

Viewing SRMemory Card Information

When you click the SRPC SETUP menu button in the web application screen and click the SRMEMORY tab, media information on the SRMemory card inserted in the unit's SRMemory slot is displayed, in addition to a list of files stored on the memory card.

To do so, click the HOME menu button in the web application screen, and click the REMOTE button. The IP addresses of all the web clients appear in the REMOTE tab screen.

Managing Log Files

You can manage the import log files. To do so, click the DISK SETUP menu button in the web application screen, and click the LOG CONTROL tab to display the LOG CONTROL tab screen.

Viewing File Server Data

You can view the directories and files stored on the shared file server by accessing the DISK CONTROL tab from the HOME or IMPORT menu.

Managing import log files

To display an import log file

Select the import log file using one of the following methods.

• Specify the directory name of the log file in the DIR NAME field.

• Specify the date and time the log file was saved in the DATE/TIME field.

Click the SHOW button for the DIR NAME or DATE/ TIME field.

The selected log file appears.

To delete an import log file

Select the import log file in the DIR NAME or DATE/ TIME field.

Click the DELETE button for the DIR NAME or DATE/TIME field.

The selected log file is deleted.

Displaying the Web Client IP Addresses

You can view the IP addresses of the web clients that are currently accessing the unit.

Other Operations

Page 22

Automatic Execution Using a Job File

Operations such as importing can be automatically carried out by loading an XML-format job file that you create with an external editor.

Click the DISK SETUP menu select button on the web application, and then click the JOB CONTROL tab. You can load or delete a job file, check its contents, execute it, and check the results in the JOB CONTROL tab screen.

Loading a job file

Click the Browse... button to the right of the JOB FILE box in the JOB CONTROL tab screen, specify the job file stored on the web client disk or external media, and then click the LOAD button. Job files that have been loaded can be selected in the QUEUE box.

Executing a job file

In the QUEUE box, select the job file that you want to execute, and then click the EXEC button. The contents of the selected job file are automatically executed.

Checking the results of an automatic execution

Log files for job files that have been automatically executed are stored in the JOB LOG area, each indicated by the name of job file appended by the date and time of execution. A log file of a successfully executed job file can be selected by clicking the SUCCEEDED box, while a log file of a job file that failed can be selected by clicking the FAILED box.

After selecting the log file that you want to check its contents, click the SHOW button to display the contents.

To delete a log file

Select the log file that you want to delete, and then click the DELETE button.

Deleting a job file

In the QUEUE box, select the job file that you want to delete, and then click the DELETE button.

Checking the contents of a job file

In the QUEUE box, select the job file that you want to check, and then click the SHOW button. The contents of the selected job file are displayed.

About creating a job file

To create a job file using the settings configured in the web application, configure import settings and other settings in the IMPORT menu, and then click the START button while holding down the Shift key. A job file is created without import taking place. The tasks that can be defined in a job file correspond with most of the items that can be specified in the menus of the web application.

For details, see “Job File Samples” on page 28 in “Appendix”.

Other Operations

Page 23

Specifications

Notes

• Always make a test recording, and verify that it was recorded successfully. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF FAILURE OF THIS UNIT OR ITS RECORDING MEDIA, EXTERNAL STORAGE SYSTEMS OR ANY OTHER MEDIA OR STORAGE SYSTEMS TO RECORD CONTENT OF ANY TYPE.

• Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

SRPC-5

General

Power supply 100 to 240 V AC (50/60 Hz) Power consumption

110 W (with all options installed)

Inrush current

(1) Maximum possible inrush current at

initial switch-on (Voltage changes caused by manual switching): 28 A peak, 1.7 A r.m.s. (240 V AC)

(2) Inrush current after a mains

interruption of five seconds (Voltage changes caused at zero-crossing): 5 A peak, 1.6 A r.m.s. (240 V AC)

Operating temperature

5°C to 40°C (41°F to 104°F)

Storage temperature

–20°C to +60°C (–4°F to +140°F) Mass 10 kg (22 lb.) Dimensions 427 × 43.6 × 546 mm (16

/2 in.) (W×H×D)

/8 × 1 3/4 ×

Output connectors

AUX OUTPUT A, B

A: BNC (1) B: BNC (1) HD SDI (1.485 Gbps) (conforming to

SMPTE-292M/372M, BTA-S004B)

3G SDI (2.97 Gbps) (SMPTE-424M)

I/O connectors

VTR I/F (IN, OUT)

Local I/F INPUT A/B: BNC (2)

Local I/F OUTPUT A/B: BNC (2) NETWORK 1000Base-T modular jack (1) OPTION PCI Express Slot (1) (PCI Express x4

Gen1)

Supported formats

See “Supported Formats” on page 26.

On-board functions

1D LUT, downconverter, color space converter

Confirmed operational environment

Browser Firefox, Internet Explorer, Safari,

Google Chrome NFS server Redhat Linux E5, Mac OS v10.6 CIFS server Windows XP, Windows 7

Supplied accessories

Rack mount angle (1 each for left and right)1) Washers (4) Screws (4) SR Viewer (CD-ROM) (1) Installation manual (1) Operation guide (1) Operation manual (1)

An optional RMM-10 Rack Mount Kit is necessary to mount the unit on a rack.

Design and specifications are subject to change without notice.

Input connectors

AUX INPUT BNC (2)

Input for uncompressed video data

dubbing between SRW-5800

Specifications

Page 24

SR-PC4

General

Power supply 19.5 V Currnet consumption

5 A (with all options installed)

Operating temperature

5 °C to 35 °C (41 °F to 95 °F)

Storage temperature

–20°C to +60°C (–4°F to +140°F) Mass 3.9 kg (8 lb. 10 oz.) Dimensions 88 × 250 × 231 mm (3

/8 in.) (W×H×D) (excluding

protrusions)

Output connectors

MONITOR BNC (1)

HD SDI (1.485 Gbps) (conforming to

SMPTE-292M, BTA-S004B)

3G SDI (2.97 Gbps) (SMPTE-424M) NETWORK 1000Base-T modular jack (1) Option PCI Express Slot (1) (PCI Express x4

Gen1)

Supported formats

See “Supported Formats” on page 26.

On-board functions

1D LUT, downconverter, color space converter

Confirmed operational environment

Browser Firefox, Internet Explorer, Safari, Google

Chrome NFS server Redhat Linux E5, Mac OS v10.6 CIFS server Windows XP, Windows 7

Supplied accessories

AC adapter (1) Rubber feet (4) SR Viewer (CD-ROM) (1) Installation manual (1) Operation guide (1) Operation manual (CD-ROM) (1)

Design and specifications are subject to change without notice.

/2 × 97/8 ×

Appendix

Error/Warning Messages

When an abnormality is detected on the unit, a yellow warning mark ( ) flashes to the left of the timecode (or picture ID) in the MEM CONTROL window. Clicking the warning mark displays the message as follows.

Error messages

Code Message Description

03 FAN STOP A fan error was detected.

04 POWER FAN

STOP

81 EPR PLD1 INITIAL

ERROR

82 EPR PLD2 INITIAL

ERROR

83 CN PLD1 INITIAL

ERROR

83 DC PLD1 INITIAL

ERROR

84 DM INTERFACE

ERROR

88 NVRAM

CHECKSUM ERROR

[PC5] An error was detected with the fan located in the power section.

[PC5] A PLD1 initialization error was detected for the EPR-3 board. [PC4] A PLD1 initialization error was detected for the EPR-4 board.

[PC5] A PLD2 initialization error was detected for the EPR-3 board. [PC4] A PLD2 initialization error was detected for the EPR-4 board.

[PC5] A PLD1 initialization error was detected for the CN-3367 board.

[PC4] A PLD1 initialization error was detected for the DC-161 board.

A communication error was detected between the DM-145 and CPU.

An NVRAM (IC310) checksum error was detected. IP address and other configuration data may be damaged. Restart the unit using the factory default settings (IP address: 192.168.0.1; subnet mask: 255.255.255.0; MTU: 1500).

Appendix

Page 25

Warning messages

Code Message Description

11 EPR PLD1

TEMPERATURE HIGH

12 DM PLD1

TEMPERATURE HIGH

[PC5] A PLD1 temperature error was detected for the EPR-3 board. [PC4] A PLD1 temperature error was detected for the EPR-4 board.

A PLD1 temperature error was detected for the DM-145 board.

Note

After you start the salvaging process, the process cannot be stopped. Be sure that you have enough time to wait for the process to complete before starting.

Select and confirm “Salvage.”

The salvaging process starts, and the “Please wait.” message appears. The message closes automatically when the process is complete.

Salvaging SRMemory Cards for which File Content was Lost

The unit incorporates a salvage function that is designed to minimize data loss for SRMemory cards for which file content was lost. The salvage function restores files based on factors such as the maker information recorded on the SRMemory card. The salvaging process can take as little as a few seconds or up to 60 minutes, depending on the conditions at the time recording was interrupted.

Notes

• The salvage function is intended to salvage as much recorded material as possible in the event of an unforeseen accident, but it does not guarantee 100% restoration of data.

• This function will not restore data recorded immediately preceding the recording interruption. The amount of data lost will be as follows.

SR-Lite mode: Approx. 8 seconds of data SR-SQ mode: Approx. 4 seconds of data

• Whenever you insert an SRMemory card that requires salvaging or turn on the unit with such a card inserted, a message asking whether you want to perform salvaging will appear.

• Recording and playback are disabled for SRMemory cards that require salvaging.

• When you format an SRMemory card, the memory card will be ready for use immediately. However, any previously recorded data will be lost.

To restore files via salvaging

Insert the SRMemory card for which file content was lost into the SRMemory slot.

A warning massage and a message asking whether you want to perform salvaging or formatting appear.

If files are not restored after salvaging

If an SRMemory card cannot be restored even after salvaging, you can format the SRMemory card to make the card usable again.

Insert the SRMemory card that could not be salvaged.

A warning massage and a message asking whether you want to perform salvaging or formatting appear.

Select and confirm “Format.”

The formatting process starts, and the “Please wait.” message appears. The message closes automatically when the process is complete.

List of Keyboard Shortcuts

Category Key Function

File control operations

Menu/tab control operations

Space bar

Ctrl+Shift+H Opens the HOME menu.

Ctrl+Shift+I Opens the IMPORT menu.

Ctrl+Shift+P Opens the PROXY SETUP

Ctrl+Shift+D Opens the DISK SETUP

Ctrl+T Moves to the next tab

Ctrl+Shift+T Moves to the previous tab

REV/REW

PA U SE

PLAY/FFWD

PAUSE/PLAY

menu.

screen.

Appendix

Page 26

Category Key Function

Importing operations

DISK SETUP operations

a) Make sure that the cursor is not in the text field when you press the key.

Ctrl+\ Previews the selected clip.

Ctrl+A Adds the selected sequence

to the import list.

Ctrl+C Starts importing.

ESC Cancels importing.

Shift+ double-click

Crtl+ double-click

Ctrl+U Updates the file list.

Ctrl+Shift+M Mounts the NFS server.

Ctrl+Shift+U Unmounts the NFS server.

Selects all files.

Clears selection of all files.

Supported Formats

SRMemory

Resolution Playback mode System frequency

1080 4:2:2Lite, 4:2:2SQ,

4:4:4SQ

F65RAW 23.98p, 24p

23.98PsF, 24PsF, 25PsF, 29PsF, 50i,

59.94i

File formats

Typ e Format

MXF 4:2:2Lite, 4:2:2SQ, 4:4:4SQ (SRMemory format)

LUT File Formats Applicable to This Board

Examples of the five lookup table (LUT) file formats applicable to this board are shown below.

Note

Line numbers (“Lx” in the tables below) do not appear in the actual LUT files.

LUT file type 1: R, G, and B have the same value (the same curve)

“LUT: 1 1024” in the header indicates one output data block (common to R, G, and B) corresponding with the 10bit (1024) input data. The bit depth of the output is determined by the maximum output value. (This is an example of 10-bit input and 10-bit output.)

# Comment

LUT: 1 1024

# (Line No,) Output value

L1 0

L2 0

L3 1

•

L1023 1023

L1024 1023

LUT file type 2: R, G, and B have individual values (individual curves) and are aligned vertically in the order of R, G, B

“LUT: 3 1024” in the header indicates three separate output data blocks (for R, G, and B) corresponding with the 10-bit (1024) input data. The bit depth of the output is determined by the maximum output value. The output values on lines L1 to L1024 are R values, the values on lines L1025 to L2048 are G values, and the values on lines L2049 to L3072 are B values. (This is an example of 10-bit input and 10-bit output.)

# Comment

LUT: 3 1024

# (Line No,) Output value

L1 0

L2 0

L3 1

•

L1023 1023

L1024 1023

L1025 0

L1026 0

L1027 1

•

L2047 1023

L2048 1023

L2049 0

Appendix

Page 27

L2050 0

L2051 0

•

L3071 1022

L3072 1023

LUT file type 3: R, G, and B have individual values (individual curves) and are aligned horizontally

“LUT10” in the header indicates the bit depth of the output is 10 bits. The bit depth of the input is determined by the maximum number of lines. (This is an example of 10-bit input and 10-bit output.)

# Comment

LUT10

# (Line No,) Input

value

L10222

L21222

L32222

L1023 1022 1023 1023 1023

L1024 1023 1023 1023 1023

LUT file type 4: R, G, and B have individual values (individual curves) and are aligned horizontally

The bit depth is not indicated in the header. It is automatically determined by the number of lines and their values. (This is an example of 10-bit input and 10-bit output.)

Output R Output G Output B

•

LUT file type 5: R, G, and B have individual values (individual curves) and are aligned horizontally

The bit depth is not indicated in the header. It is automatically determined by number of lines and their values. There are no lines for input values. (This is an example of 10-bit input and 10-bit output.)

# Comment

# (Line No,) Output R Output G Output B

L1 2 2 2

L2 2 2 2

L3 2 2 2

•

L1023 1023 1023 1023

L1024 1023 1023 1023

MPEG-4 Visual Patent Portfolio License

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR

(i) ENCODING VIDEO IN COMPLIANCE WITH THE

MPEG-4 VISUAL STANDARD (“MPEG-4

VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS

ENCODED BY A CONSUMER ENGAGED IN A

PERSONAL AND NON-COMMERCIAL

ACTIVITY AND/OR WAS OBTAINED FROM A

VIDEO PROVIDER LICENSED BY MPEG LA TO

PROVIDE MPEG-4 VIDEO.

# Comment

# (Line No,) Input

value

L1 0 2 2 2

L2 1 2 2 2

L3 2 2 2 2

L1023 1022 1023 1023 1023

L1024 1023 1023 1023 1023

Output R Output G Output B

•

NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM

MPEG LA is offering licenses for (i) manufacturing/sales of any storage media storing MPEG-4 Visual video information (ii) distribution/broadcasting of MPEG-4 Visual video information in any manner (such as online video distribution service, internet broadcasting, TV broadcasting). Other usage of this product may be required to obtain license from MPEGLA.

Appendix

Page 28

Please contact MPEG LA for any further information. MPEG LA, L.L.C., 250 STEELE STREET, SUITE 300, DENVER, COLORADO 80206, http://www.mpegla.com

Job File Samples

Samples of job files used for automatic execution are shown below. You can copy these samples and edit them as necessary on an external editor to create your own job files.

A comment () is indicated below each element as an explanation of the element.

Example of a comment:

Note

Errors in description in a job file may result in unforeseen operations during automatic execution.

For details on actual operations related to automatic executions, see “Automatic Execution Using a Job File” on page 22.

Sample: Importing from the SRMemory card

<?xml version="1.0" encoding="UTF-8"?> <jobinfo> <general> <mode>11</mode>  <log> <control></control>  <text></text>  <fcp></fcp>  <handle></handle>  </log> <proxy>  <type></type>  <size></size>  <dirmode></dirmode>  <gen></gen>  </proxy> <abort></abort>  </general> <sequence>  <memory> <filename></filename>  </memory> <main> <name> <original></original>  <dir></dir>  <base></base>  <sid></sid>

Appendix

Page 29

Appendix

Page 30

The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual. Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual without the express written permission of Sony Corporation.

Trademarks

• Windows and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Mac OS, Safari, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

• Firefox is a registered trademark of the Mozilla Foundation in the United States and/or other countries.

• Linux is a registered trademark of Linus Torvalds in the U.S. and other countries.

• Chrome is a trademark of Google Inc.

• Other system names, products names, and company names appearing in this manual are trademarks or registered trademarks of their respective holders. In this manual, such names are not indicated by ® or TM marks.

Page 31

Sony CorporationSRPC-5 (SYL/CNC)
