WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus
to rain or moisture.
To reduce the risk of fire, do not cover the
ventilation opening of the appliance with
newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked flame
sources (for example, lighted candles).
To reduce the risk of f ire or electric shock, do
not expose this appliance to dripping or
splashing, and do not place objects filled
with liquids, such as vases, on the appliance.
As the main plug is used to disconnect the
unit from the mains, connect the unit to an
easily accessible AC outlet. Should you
notice an abnormality in the unit, disconnect
the main plug from the AC outlet
immediately.
Do not install the appliance in a confined
space, such as a bookcase or built-in cabinet.
Do not expose batteries or appliances with
battery-installed to excessive heat, such as
sunshine and fire.
The unit is not disconnected from the mains
as long as it is connected to the AC outlet,
even if the unit itself has been turned off.
This equipment has been tested and found to
comply with the limits set out in the EMC
Directive using a connection cable shorter
than 3 meters.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
When unpacking or handling a big and/or
heavy speaker, be sure to handle the unit
with two or more persons. Dropping the unit
may cause personal injury and/or property
damage.
License and Trademark Notice
• “WALKMAN” and “WALKMAN” logo
are registered trademarks of Sony
Corporation.
• MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.
• Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
• This product is protected by certain
intellectual property rights of Microsoft
Corporation. Use or distribution of such
technology outside of this product is
prohibited without a license from
Microsoft or an authorized Microsoft
subsidiary.
•The Bluetooth
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
Sony Corporation is under license. Other
trademarks and trade names are those of
their respective owners.
• The N Mark is a trademark or registered
trademark of NFC Forum, Inc. in the
United States and in other countries.
• Android is a trademark of Google Inc.
• All other trademarks and registered
trademarks are of their respective holders.
In this manual, ™ and ® marks are not
specified.
®
word mark and logos are
This appliance is classified as a CLASS 1
LASER product. This marking is located on
the rear exterior.
GB
2
Table of Contents
Guide to parts and controls ..........4
Getting Started
Hooking up the system
securely ........................................8
Positioning the speakers...............9
Setting the clock.........................10
Disc/USB Playback
Playing a disc .............................10
Before using the USB device
with this system..........................10
Playing a USB device ................11
Searching a track or audio file
(Track Search)............................11
Using play mode ........................12
USB Transfer
Transferring music .....................13
Tuner
Listening to the radio .................16
Bluetooth
About the Bluetooth wireless
technology..................................17
Listening to music wirelessly on
a Bluetooth device ......................17
Setting the Bluetooth audio
codecs.........................................21
Setting/Canceling Bluetooth
standby mode .............................21
Sound Adjustment
Adjusting the sound .................. 22
Creating your own sound
effect.......................................... 22
Creating a party atmosphere
(DJ EFFECT) ............................ 22
Other Operations
Singing along ............................ 23
Changing the illumination
pattern and color........................ 23
Using the timers ........................ 23
Changing the display................. 25
Using optional equipment ......... 25
Deactivating the buttons on the
unit (Child Lock)....................... 26
Additional Information
Playable discs ............................ 26
Websites for compatible
devices....................................... 27
Troubleshooting ........................ 27
Messages ................................... 32
Precautions ................................ 33
Specifications ............................ 34
GB
3

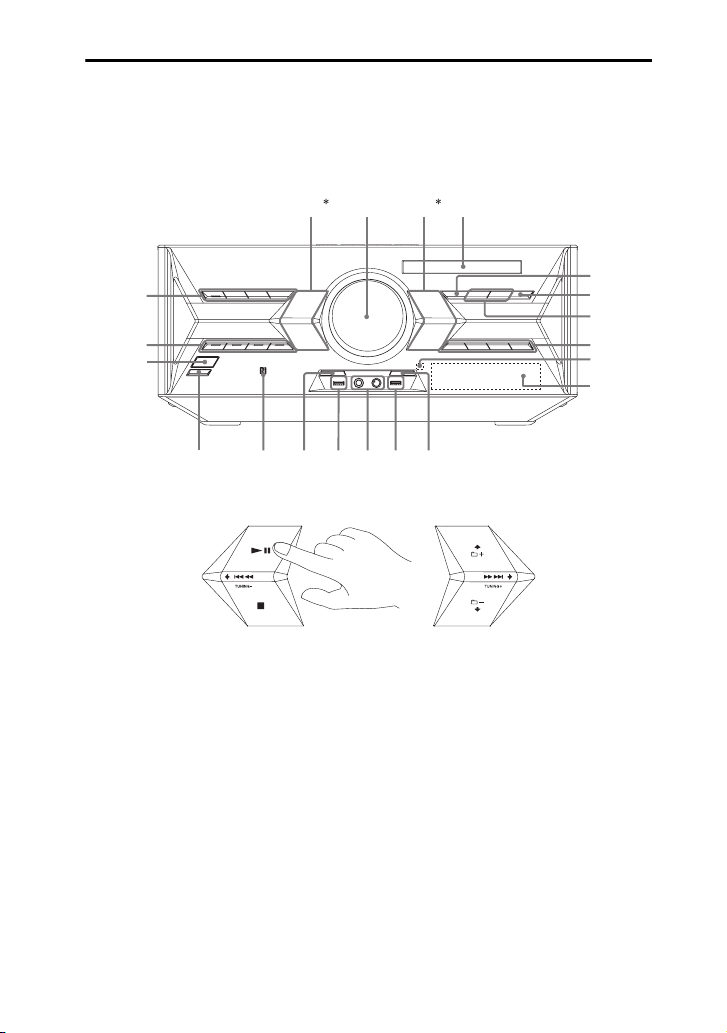

Guide to parts and controls
RQDONM
P
This manual mainly explains operations using the remote control, but the same operations
can also be performed using the buttons on the unit having the same or similar names.
Unit
DEDF
G
C
B
A
* When pressing the buttons, press on the printings of the buttons as shown below.
H
I
J
K
L
GB
4
Remote control RM-AMU163
S
I
ISOLATOR
FLANGER
B
SOUND
PHASER
FLASH
MOVIE
/
MUSIC
GAME
CD
J
USB
Y
D
X
W
1
"/1 (on/standby)
Turn on the system, or set it to standby
mode.
B
FLANGER, ISOLATOR, SOUND
FLASH, PHASER (page 22)
Select the DJ EFFECT type.
C
MUSIC, MOVIE/GAME, FOOTBALL
Select the preset sound effect (page 22).
Unit: BASS BAZUCA (page 22)
Select the BASS BAZUCA effect.
D
///
Select the menu items.
+/– (select folder)
Select a folder on an MP3 disc or a USB
device.
FOOTBALL
FUNCTION
A
E
C
T
U
E
V
D
m/M (rewind/fast forward)
Hold down to find a point in a track or file
during playback.
./> (go back/go forward)
Select a track or file.
TUNING+/–
Tune to the station you want.
x (stop)
Stop playback.
Press twice to cancel resume playback of
the USB device.
Unit: ENTER
Remote control:
Enter the settings.
Unit: NX (play/pause)
Remote control: N (play)*,
X (pause)
Start or pause playback.
To resume playback, press NX or N.
E
Unit: VOLUME/DJ CONTROL
Adjust the volume.
Adjust the DJ EFFECT level (page 22).
You cannot use this knob to adjust the
volume when the DJ EFFECT is
activated.
Remote control: VOLUME +/–*
Adjust the volume.
Remote control: DJ CONTROL +/–
Adjust the DJ EFFECT level.
F
Disc tray
G
OPTIONS
Enter or exit options menu.
H
Z OPEN/CLOSE
Insert or eject a disc.
GB
5
I
LED PATTERN (page 23)
Change the illumination pattern on the
speakers and the unit.
LED COLOR (page 23)
Change the illumination color on the
speakers and the unit.
J
CD
Select the CD function.
Unit: USB/USB SELECT
Remote control: USB
Select the USB function.
Select the USB device connected to the
A or B port during USB function.
Unit: TUNER/BAND
Select the TUNER function.
Select the FM or AM band during
TUNER function.
Unit: AUDIO IN
Select the TV/DVD/SAT or PC/GAME
function.
Remote control: FUNCTION
Select a function.
K
Remote control sensor
L
Display panel
M
REC TO USB B
Transfer onto the optional USB device
which is connected to the B port.
N
B (REC/PLAY) (USB) port
Connect and transfer to an optional USB
device.
B indicator
O
MIC jack
Connect a microphone.
MIC LEVEL (MIN/MAX)
Adjust the microphone volume.
P
A (PLAY) (USB) port
Connect an optional USB device.
A indicator
Q
(N-Mark) (page 19)
Near Field Communication (NFC)
touchpoint indication.
R
BLUETOOTH (page 17)
Press to select Bluetooth function.
Hold down to activate Bluetooth pairing
during Bluetooth function.
S
SLEEP (page 23)
Set the Sleep Timer.
T
REPEAT/FM MODE
Listen to a disc, a USB device, a single
track or file repeatedly (page 13).
Select the FM reception mode (monaural
or stereo) (page 16).
U
DISPLAY
Change the information on the display
panel.
V
SEARCH/TUNER MEMORY
Enter or exit search mode.
Preset the radio station (page 17).
W
CLEAR
Delete the last step from the program list.
GB
6
X
TIMER MENU (page 10, 24)
Set the clock and the timers.
Y
PLAY MODE/TUNING MODE
Select the play mode of an AUDIO CD,
MP3 disc or a USB device (page 12).
Select the tuning mode (page 16).
* The VOLUME + and N buttons have a
tactile dot. Use the tactile dot as a reference
when operating the system.
GB
7
Getting Started
Hooking up the system securely
ANTENNA
AUDIO IN
TV/DVD/
PC/
FM/AM
SAT
GAME
TWEETERS/WOOFERS
IMPEDANCE USE 4Ω
L
R
LR
SUBWOOFERSMID SPEAKERS
IMPEDANCE USE 4IMPEDANCE USE 5
RL R L
LED
SPEAKER
L
R
A Antennas
Find a location and an orientation that
provide good reception when you set up
the antennas.
Keep the antennas away from the speaker
cords, the power cord and the USB cable
to avoid picking up noise.
Extend the FM lead
antenna horizontally
AM loop
antenna
GB
8
B Speakers
The speaker connectors are color-coded
with their respective speaker terminals on
the unit.
Example:
Ω
ETERS/WOOFERS
SE 4
E
TW
ANCE U
PED
IM
LR
White
A
N
TE
N
N
A
FM/AM
Notes
• Be sure to use only the supplied speakers.
• When connecting speaker cords, insert the
connector straight into the terminals.
– LED SPEAKER terminals
Connect the LED SPEAKER connector
of the speaker to this terminal.
The lighting on the speakers will react
according to the music source. You can
select the illumination pattern and color
according to your preference (page 23).
Example:
LED
SPEAKER
L
R
C AUDIO IN jacks
Use an audio cord (not supplied) to
connect to the audio output jacks of the
following equipment. The sound is output
through this system.
– TV/DVD/SAT L/R
Connect to a TV or an audio/video
equipment.
– PC/GAME L/R
Connect to a computer or gaming
device.
D Power
Plug the power cord into a wall socket.
The demonstration appears in the display
panel. Press "/1 to turn on the system and
the demonstration automatically ends.
If the supplied adaptor on the plug does
not fit your wall outlet, detach it from the
plug (only for models equipped with an
adaptor).
Inserting batteries
Insert the two supplied R6 (size AA)
batteries, matching the polarities shown
below.
Notes
• Do not mix an old battery with a new one or
mix different types of batteries.
• If you do not use the remote control for a long
period of time, remove the batteries to avoid
damage from battery leakage and corrosion.
Positioning the speakers
To obtain optimum performance from the
system, we recommend you to place the
speakers as shown below.
A Unit
B Speaker (left)
C Speaker (right)
A
B
0.3 m 0.3 m
C
4545
Getting Started
GB
9
Setting the clock
Disc/USB Playback
You cannot set the clock in Power Saving
Mode.
1 Press "/1 to turn on the system.
2 Press TIMER MENU.
If “PLAY SET” appears in the display
panel, press / repeatedly to
select “CLOCK SET”, then press
.
3 Press / repeatedly to set the
hour, then press .
4 Press / repeatedly to set the
minutes, then press .
Playing a disc
1
Press CD.
2 Press Z OPEN/CLOSE on the
unit.
3 Load a disc with the label side
facing up on the disc tray.
When you play
back an 8 cm
disc such as a
CD single, place
it on the inner
circle of the tray
4 Press Z OPEN/CLOSE on the
unit to close the disc tray.
Do not forcibly push the disc tray to
close it as this may cause a
malfunction.
5 Press N to start playback.
Before using the USB device with this system
Check the websites for the information
about compatible USB devices (page 27).
10
To select the playback source or
transferring destination (USB
memory select)
If the USB device has more than one
memory (for example, internal memory
and a memory card), you can select which
memory to use as a playback source or
transferring destination.
Use the buttons on the unit to perform this
operation.
GB
Note
You cannot select a memory during playback or
transfer. Make sure to select a memory before
starting playback or transfer.
1 Connect the USB device to the A
or B port.
2 Press USB/USB SELECT
repeatedly until “USB A” or “USB B”
lights up in the display panel.
3 Press OPTIONS when playback is
stopped.
4 Press / to select “USB MEM
SEL”, then press ENTER.
5 Press / to select the memory
you want, then press ENTER.
Playing a USB device
The audio formats that can be played back
by this system are as follows:
– MP3: file extension “.mp3”
– WMA: file extension “.wma”
– AAC: file extension “.m4a”, “.mp4” or
“.3gp”
If the audio files have the above file
extension but are not the respective
formats, the system may produce noise or
may malfunction.
1 Press USB repeatedly until
“USB A” or “USB B” lights up in
the display panel.
2 Connect a USB device to the A
or B port.
USB device
Note
You can use a USB adaptor (not supplied) to
connect the USB device to the unit if the
USB device cannot be plugged into the
port.
3 Press N.
The audio files are played back in
different orders depending on the play
mode.
Searching a track or
audio file
(Track Search)
1 Press SEARCH.
“SEARCH” lights up in the display
panel.
2 (Audio files only)
Press / to select the folder
you want, then press or N.
3 Press / to select the track or
audio file you want, then press
or N.
The selected track or audio file starts
playback.
Notes on disc
• (For AUDIO CD) This system can recognize
up to 99 tracks.
• (For MP3 dics) This system can recognize up
to
– 999 folders (including root folder).
– 999 MP3 files.
– 250 MP3 files in a folder.
– 8 folders levels (tree structure of files).
• CD-TEXT information is not supported.
Notes on USB device
• This system can recognize up to
– 250 audio files in a folder.
– 3,000 audio files in a USB device.
– 1,000 folders in a USB device (including
root folder).
Disc/USB Playback
11
GB
Using play mode
Creating your own program
(Program Play)
Playing in original order
(Normal Play)
Press PLAY MODE repeatedly when
playback is stopped.
When playing a disc
• (blank): play a disc
• FLDR*: play all audio files in the folder
on the disc
* When playing an AUDIO CD, “FLDR”
performs the same operation as “(blank)” play
mode.
When playing a USB device
• ALL USB: play all USB devices
• 1 USB: play a USB device
• FLDR: play all audio files in the folder
on the USB device
Playing in random order
(Shuffle Play)
Press PLAY MODE repeatedly when
playback is stopped.
When playing a disc
• SHUF: shuffle a disc
• FLDR SHUF*: shuffle all audio files in
the folder on the disc
* When playing an AUDIO CD, “FLDR
SHUF” performs the same operation as
“SHUF” play mode.
When playing a USB device
• ALL USB SHUF: shuffle all USB
devices
• 1 USB SHUF: shuffle a USB device
• FLDR SHUF: shuffle all audio files in
the folder on the USB device
Note
When you turn off the system, the selected
Shuffle Play is cleared and the play mode
returns to Normal Play.
You can make a program of up to 25 steps
in the order you want them to be played
back.
1 For CD function:
Press CD to select CD function.
For USB function:
Press USB repeatedly to select the
USB device you want.
2 When playback is stopped,
press PLAY MODE repeatedly
until “PGM” lights up in the
display panel.
3 (Audio files only)
Press +/– repeatedly to select
a folder.
If you want to program all files in the
folder, press .
4 Press ./> repeatedly to
select the track or audio file you
want, then press .
Total playing time of
Selected track
or file number
“--.--” appears when the total playing
time exceeds 100 minutes for an
AUDIO CD or when you program an
audio file.
program (including
selected track or file)
5 Repeat steps 3 to 4 to program
additional tracks or audio files.
6 Press N to start Program Play.
12
GB
Loading...
