Sony SDM-X53, SDM-X93, SDM-X73 User Guide

TFT LCD Color

Computer Display

SDM-X53

SDM-X73

SDM-X93

© 2003 Sony Corporation

NOTICE
This notice is applicable for USA/Canada only.
If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:
SPECIFICATIONS
Plug Type Nema-Plug 5-15p
Cord Type SVT or SJT, minimum 3 × 18 AWG Length Maximum 15 feet
Rating Minimum 7 A, 125 V
NOTICE
Cette notice s’applique aux Etats-Unis et au Canada uniquement.
Si cet appareil est exporté aux Etats-Unis ou au Canada, utiliser le cordon d’alimentation portant la mention UL LISTED/CSA LABELLED et remplissant les conditions suivantes: SPECIFICATIONS
Type de fiche Fiche Nema 5-15 broches
Cordon Type SVT ou SJT, minimum 3 × 18 AWG Longueur Maximum 15 pieds
Tension Minimum 7 A, 125 V
As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
This monitor complies with the TCO’99 guidelines.

Owner’s Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

If you have any questions about this product, you may call: Sony Customer Information Center

1-800-222-SONY (7669) or write to:

Sony Customer Information Center

1 Sony Drive, Mail Drop #T1-11, Park Ridge, NJ 07656

Declaration of Conformity

Trade Name:

SONY

Model No.:

SDM-X53/X73/X93

Responsible Party:

Sony Electronics Inc.

Address:

680 Kinderkamack Road,Oradell,NJ 07649



USA

Telephone No.:

201-930-6972

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2

Table of Contents

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Identifying parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Setup 1: Connect the video signal cables . . . . . . . . . . . . . . . . . . .

. 7

Setup 2: Connect the audio cord . . . . . . . . . . . . . . . . . . . . . . . . .

. 8

Setup 3: Connect the power cord . . . . . . . . . . . . . . . . . . . . . . . . .

. 8

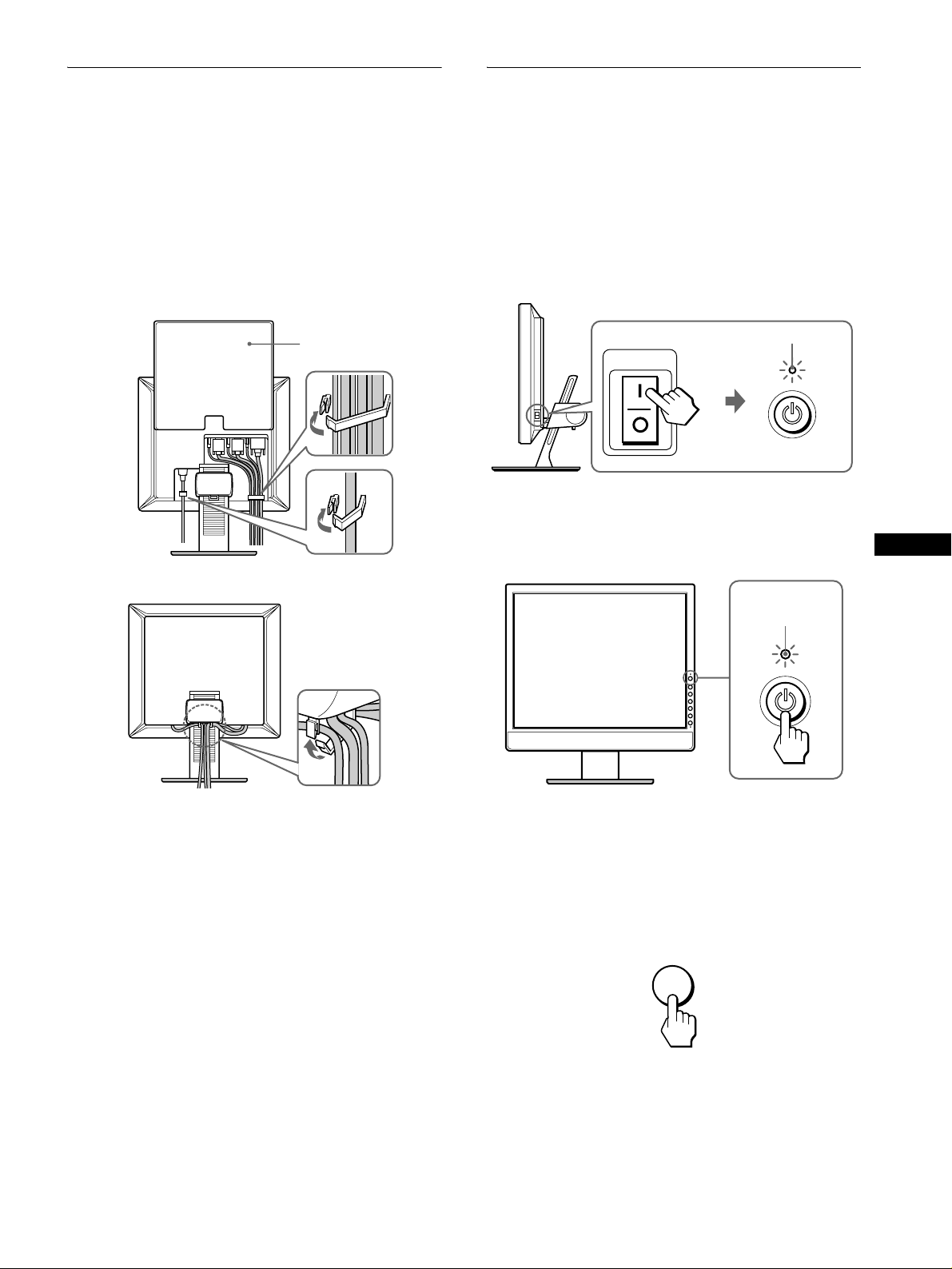

Setup 4: Bundle the cords and cables . . . . . . . . . . . . . . . . . . . . .

. 9

Setup 5: Turn on the monitor and computer . . . . . . . . . . . . . . . . .

. 9

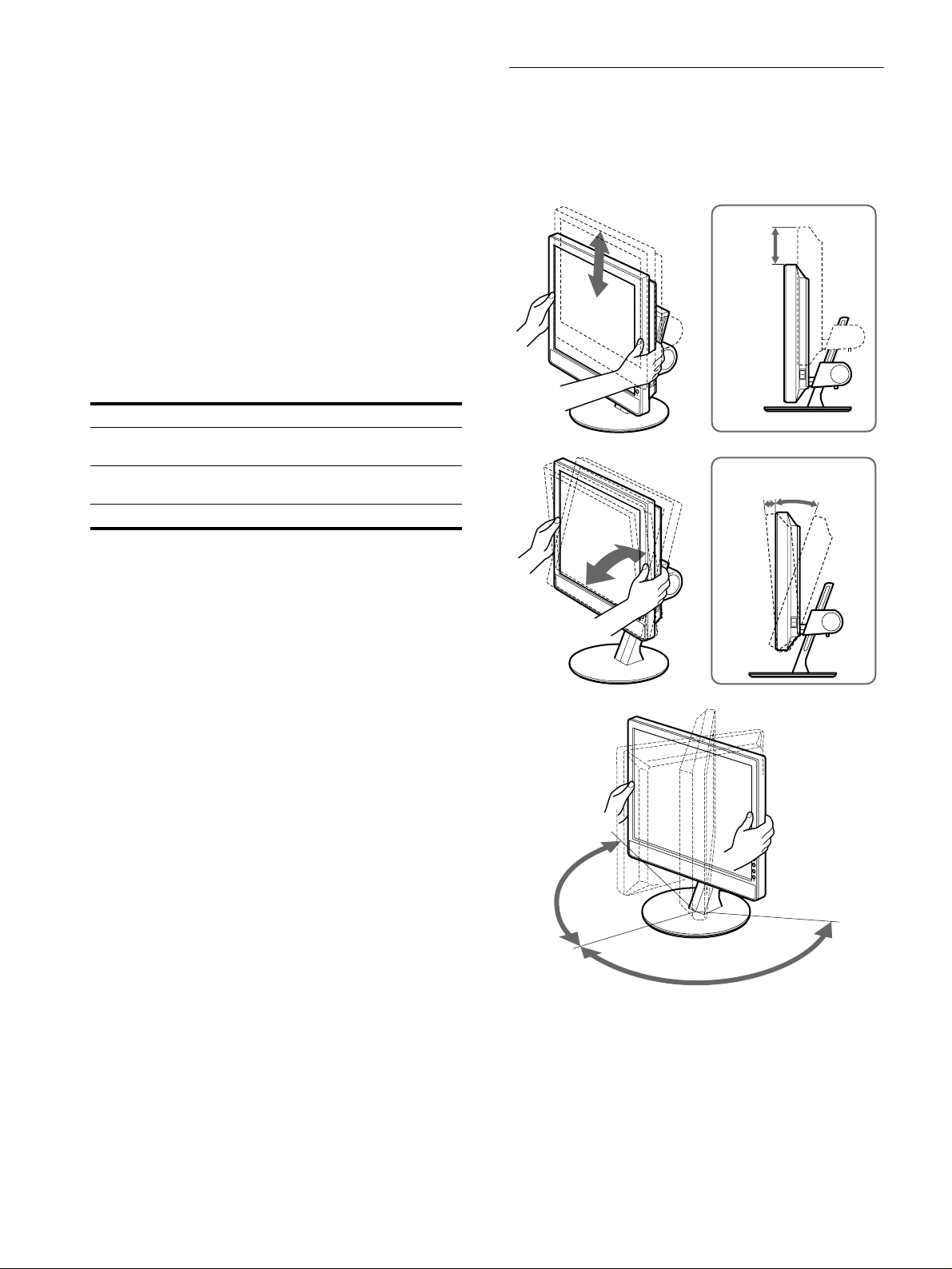

Setup 6: Adjust the height and tilt . . . . . . . . . . . . . . . . . . . . . . . . .

10

Selecting the input signal



(INPUT button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Customizing Your Monitor . . . . . . . . . . . . . . . . . . . . . . .12

Navigating the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

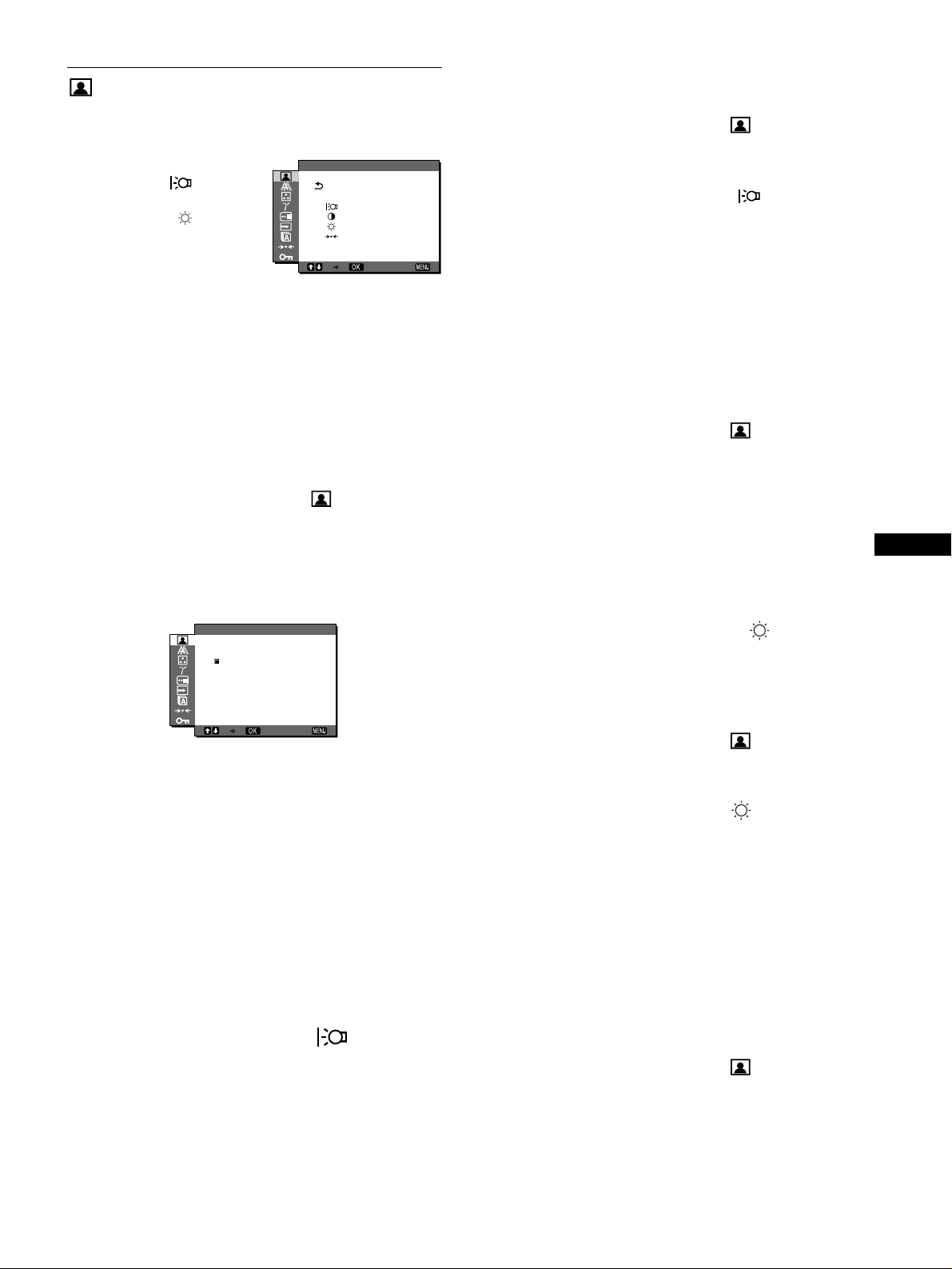

PICTURE ADJUST menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

SCREEN menu (analog RGB signal only) . . . . . . . . . . . . . . . . 14

COLOR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 GB

GAMMA menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

MENU POSITION menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

INPUT SENSING ON/OFF menu . . . . . . . . . . . . . . . . . . . . . . . 16 LANGUAGE menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 0 RESET menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 MENU LOCK menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Macintosh is a trademark licensed to Apple Computer, Inc., registered in the U.S.A. and other countries.

Windows is registered trademark of Microsoft Corporation in the United States and other countries.

IBM PC/AT and VGA are registered trademarks of IBM Corporation of the U.S.A.

VESA and DDC are trademarks of the Video Electronics Standards Association.

ENERGY STAR is a U.S. registered mark.

Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.

Furthermore, “ ” and “ ” are not mentioned in each case in this manual.

Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Controlling the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Power saving function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Reducing the power consumption (ECO mode) . . . . . . . . . . . . . . 19 Automatic brightness adjustment function (light sensor) . . . . . . . . 19 Automatic picture quality adjustment function

(analog RGB signal only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

On-screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Trouble symptoms and remedies . . . . . . . . . . . . . . . . . . . . . . . . . 21 Self-diagnosis function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

http://www.sony.net/

3

Precautions

Warning on power connections

Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

For the customers in the UK

If you use the monitor in the UK, be sure to use the appropriate UK power cord.

Example of plug types

for 100 to 120 V AC for 200 to 240 V AC for 240 V AC only

The equipment should be installed near an easily accessible outlet.

Installation

Do not install or leave the monitor:

In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the monitor to extreme temperatures, such as in an automobile parked in direct sunlight or near a heating vent, could cause deformations of the casing or malfunctions.

In places subject to mechanical vibration or shock.

Near any equipment that generates a strong magnetic field, such as a TV or various other household appliances.

In places subject to inordinate amounts of dust, dirt, or sand, for example near an open window or an outdoor exit. If setting up temporarily in an outdoor environment, be sure to take adequate precautions against airborne dust and dirt. Otherwise irreparable malfunctions could occur.

Handling the LCD screen

Do not leave the LCD screen facing the sun as it can damage the LCD screen. Take care when you place the monitor by a window.

Do not push on or scratch the LCD screen. Do not place a heavy object on the LCD screen. This may cause the screen to lose uniformity or cause LCD panel malfunctions.

If the monitor is used in a cold place, a residual image may appear on the screen. This is not a malfunction. The screen returns to normal as the temperature rises to a normal operating level.

If a still picture is displayed for a long time, a residual image may appear for a while. The residual image will eventually disappear.

The LCD panel becomes warm during operation. This is not a malfunction.

About the built-in stereo speakers

Be sure to keep magnetic recording equipment, tapes, and floppy discs away from the speaker’s opening as the speakers generate a magnetic field. This magnetic field may affect data stored on magnetic tapes and discs.

Note on the LCD (Liquid Crystal Display)

Please note that the LCD screen is made with high-precision technology. However, black points or bright points of light (red, blue, or green) may appear constantly on the LCD screen, and irregular colored stripes or brightness may appear on the LCD screen. This is not malfunction.

(Effective dots: more than 99.99%)

Maintenance

Be sure to unplug the power cord from the power outlet before cleaning your monitor.

Clean the LCD screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the LCD screen’s coating.

Clean the cabinet, panel, and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.

Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.

Note that material deterioration or LCD screen coating degradation may occur if the monitor is exposed to volatile solvents such as insecticide, or if prolonged contact is maintained with rubber or vinyl materials.

Transportation

Disconnect all cables from the monitor, and after fixing the LCD display at its highest point, grasp both side of the LCD display firmly taking care not to scratch the screen when transporting. If you drop the monitor, you may be injured or the monitor may be damaged.

When you transport this monitor for repair or shipment, use the original carton and packing materials.

Disposal of the monitor

Do not dispose of this monitor with general household waste.

The fluorescent tube used in this monitor contains mercury. Disposal of this monitor must be carried out in accordance to the regulations of your local sanitation authority.

4

Identifying parts and controls

See the pages in parentheses for further details.

Front of the LCD display

MENU

OK

INPUT

ECO

Side view of the LCD display

MAIN POWER

Rear of the display stand

A1 (Power) switch and 1 (power) indicator

(pages 9, 18, 23)

This switch turns the monitor on when the 1 (power) indicator lights up in red. To turn the monitor off, press this switch again.

If the 1 (power) indicator does not light up, press the MAIN POWER switch (9).

B MENU button (page 12)



This button turns the menu screen on and off.





C M/m and 2 (volume control) buttons (pages 12, 18)







GB





These buttons are used to select the menu items and make







adjustments, and also display the “Volume” menu to control





the volume.









DOK button (page 12)

This button activates the selected menu item and adjustments made using the M/m buttons (3).

EINPUT button (page 11)

This button switches the video input signal between INPUT1, INPUT2 and INPUT3 (SDM-X73/X93) when two computers are connected to the monitor.

FECO button (page 19)

This button is used to reduce the power consumption.

GLight sensor (page 19)

This sensor measures the brightness of the surrounding area. Be sure not to cover the sensor with papers, etc.

HStereo speakers (page 18)

These speakers output the audio signals as sound.

IMAIN POWER switch (page 9)

This switch turns the monitor’s main power on and off.

JBack cover (page 7)

Remove this cover when you connect cables or cords.

KHeadphones jack (page 18)

This jack outputs audio signals to the headphones.

(continued)

5

Rear of the LCD display

SDM-X73/X93

INPUT 1

INPUT 2

INPUT 3

SDM-X53

INPUT 1

INPUT 2

LAC IN connector (page 8)

This connector connects the power cord (supplied).

MSecurity Lock Hole

The security lock hole should be used with the Kensington Micro Saver Security System.

Micro Saver Security System is a trademark of Kensington.

NAudio input jack for INPUT1 (page 8)

This jack inputs audio signals when connected to the audio output jack of a computer or other audio equipment connected to INPUT1.

OHD15 input connector (analog RGB) for INPUT1 (page 7)

This connector inputs analog RGB video signals (0.700 Vp-p, positive) and sync signals.

PAudio input jack for INPUT2 (page 8)

This jack inputs audio signals when connected to the audio output jack of a computer or other audio equipment connected to INPUT2.

QDVI-D input connector (digital RGB) for INPUT2 (SDM-X53) (page 7)

This connector inputs digital RGB video signals that comply with DVI Rev.1.0.

RHD15 input connector (analog RGB) for INPUT2 (SDM-X73/X93) (page 7)

This connector inputs analog RGB video signals (0.700 Vp-p, positive) and sync signals.

SAudio input jack for INPUT3 (SDM-X73/X93) (page 8)

This jack inputs audio signals when connected to the audio output jack of a computer or other audio equipment connected to INPUT3.

TDVI-D input connector (digital RGB) for INPUT3 (SDM-X73/X93) (page 7)

This connector inputs digital RGB video signals that comply with DVI Rev.1.0.

UCable holder (page 9)

This part secures cables and cords to the monitor.

6

Sony SDM-X53, SDM-X93, SDM-X73 User Guide

Setup

Before using your monitor, check that the following items are included in your carton:

LCD display

Power cord

HD15-HD15 video signal cable (analog RGB)

DVI-D video signal cable (digital RGB)

Audio cord (stereo miniplug)

CD-ROM (utility software for Windows/Macintosh, Operating Instructions, etc.)

Warranty card

Quick Setup Guide

Setup 1:Connect the video signal cables

Turn off the monitor and computer before connecting them.

When connecting the computer to the monitor’s HD15 input connector (analog RGB), refer to “Connect a computer equipped with an HD15 output connector (analog RGB).”

Note

Do not touch the pins of the video signal cable connector as this might bend the pins.

1Slide up the back cover.

2Tilt the display forward.

Connect a computer equipped with a DVI output connector (digital RGB)

Using the supplied DVI-D video signal cable (digital RGB), connect the computer to the monitor’s DVI-D input connector (digital RGB) for INPUT2 (SDM-X53) or INPUT3 (SDM-X73/X93).

to the DVI-D input connector (digital RGB)

to the computer’s DVI output connector (digital RGB)

DVI-D video signal cable (digital RGB) (supplied)

GB

Connect a computer equipped with an HD15 output connector (analog RGB)

Using the supplied HD15-HD15 video signal cable (analog RGB), connect the computer to the monitor’s HD 15 input connector (analog RGB) for INPUT1 or INPUT2 (SDM-X73/X93).

Connect the computer according to the following illustrations.

xConnecting to an IBM PC/AT or compatible computer

to the HD 15 input connector (analog RGB)

IBM PC/AT or compatible computer

to the computer’s HD15 output connector (analog RGB)



HD15-HD15 video signal

IBM PC/AT or compatible

cable (analog RGB)

(supplied)

computer



(continued)

7

x Connecting to a Macintosh

to the HD 15 input connector (analog RGB)

to the computer’s output connector

HD15-HD15 video signal cable (analog RGB) (supplied)

Macintosh

When connecting a Macintosh computer, use an adapter (not supplied), if necessary. Connect the adapter to the computer before connecting the video signal cable.

Setup 2:Connect the audio cord

Connect the supplied audio cord to the monitor’s corresponding audio input jack.

Using the monitor’s speakers or headphones, you can listen to sound from your computer or other audio equipment connected to the monitor’s audio input jacks.

For more information, see “Controlling the volume” on page 18.

to the audio input

to audio output of the computer or other audio equipment

audio cord (supplied)

Setup 3:Connect the power cord

1Connect the supplied power cord securely to the monitor’s AC IN connector.

2Connect the other end securely to a power outlet.

1

to AC IN

to power outlet 2

power cord (supplied)

8
