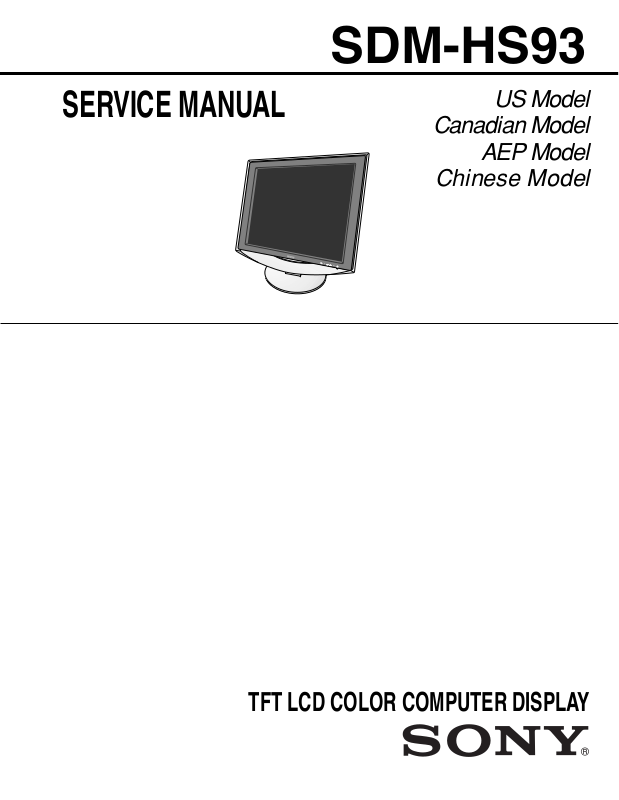

SERVICE MANUAL

E N

O K

SDM-HS93

US Model

Canadian Model

AEP Model

Chinese Model

TFT LCD COLOR COMPUTER DISPLAY

1. LCD CHARACTERISTICS

Type : TFT Color LCD Module Active Display Area : 19 inch(376.32(H) x 301.056(V)) Size : 404.2(W) x 330(H) x 20(D) Pixel Pitch : 0.294 (Per one triad) x 0.294 Color Depth : 16,777,216 colors Electrical Interface : LVDS Operating Mode : Normally Black Backlight Unit : 4-CCFL (Cold Cathode

Fluorescent Lamp)

2. OPTICAL CHARACTERISTICS

2-1. Viewing Angle by Contrast Ratio

10 Left : -55° min., -70°(Typ) Right : +55° min., +70°(Typ) Top :+55° min., +70°(Typ) Bottom : -55°min., -70°(Typ)

2-2. Luminance : 200(min), 250(Typ)

2-3. Contrast Ratio : 200(min), 450(Typ)

3. SIGNAL (Refer to the Timing Chart)

3-1. Sync Signal

• Type : Separate Sync

3-2. Video Input Signal

1) Type : R, G, B Analog

2) Voltage Level : 0~0.70 V(±

5%)

a) Color 0, 0 : 0 Vp-p

b) Color 7, 0 : 0.35 Vp-p

c) Color 15, 0 : 0.7 Vp-p

3) Input Impedance : 75

3-3. Operating Frequency

Horizontal : 28 ~ 80kHz Vertical : 48 ~ 75Hz

. Max. Resolution

Analog : 1280 x 1024 / 75Hz

5. POWER SUPPLY

5-1. Power

: AC 100~240V, 50/60Hz , 1.0A

5-2. Power Consumption

6. ENVIRONMENT

6-1. Operating Temperature: 5°C~35°C (41°F~95°F)

(Ambient)

6-2. Relative Humidity : 10%~80%

(Non-condensing)

6-3. MTBF : 50,000 Hours(Typ)

30,000 Hours(Min)

7. DIMENSIONS (with TILT/SWIVEL)

Width : 480 mm (18.89'') Depth : 260 mm (10.25'') Height : 439 mm (17.28'')

8. WEIGHT (with TILT/SWIVEL)

Net. Weight : 7.1 kg (15.65 lbs) Gross Weight : 9.4 kg (20.72 lbs)

CONTENTS

SPECIFICATIONS

- 2 -

SPECIFICATIONS ................................................... 2

PRECAUTIONS ....................................................... 3

TIMING CHART ........................................................4

OPERATING INSTRUCTIONS ................................ 5

WIRING DIAGRAM ................................................. 6

BLOCK DIAGRAM ................................................. 7

ADJUSTMENT ....................................................... 8

EXPLODED VIEW...................................................9

EXPLODED VIEW PA RTS LIST ..............................10

MODE

POWER ON (NORMAL)

STAND-BY

SUSPEND

DPMS OFF

POWER S/W OFF

H/V SYNC

ON/ON

OFF/ON

ON/OFF

OFF/OFF

POWER CONSUMPTION

less than 50 W

less than 1 W

LED COLOR

GREEN

AMBER

OFF

VIDEO

ACTIVE

OFF

less than 1 W

SDM-HS93 (E)

PRECAUTION

WARNING FOR THE SAFETY-RELATED COMPONENT.

• There are some special components used in LCD monitor that are important for safety.

These parts are marked on the schematic diagram and the replacement parts list.

parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard.

• Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee.

TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT.

• Must mount the module using mounting holes arranged in four corners.

• Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

• Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel.

It is essential that these critical

WARNING

BE CAREFUL ELECTRIC SHOCK !

• If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms.

• Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire.

• Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

• Make certain that treatment person’s body are grounded through wrist band.

• Do not leave the module in high temperature and in areas of high humidity for a long time.

• The module not be exposed to the direct sunlight.

• Avoid contact with water as it may a short circuit within the module.

• If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.)

CAUTION

Please use only a plastic screwdriver to protect yourself from shock hazard during service operation.

- 3 SDM-HS93 (E)

Mode

H/V

Sort

720x400

70Hz

H – 35.00 864 640 64 64 96 224 V – 66.667Hz 525 480 3 3 39 45

640x480

60Hz

H – 37.50 840 640 16 64 120 200

V – 75.0Hz 500 480 1 3 16 20

640x480

65Hz

H – 31.500 900 720 18 108 54 180

V + 70.156Hz 449 400 12 3 34 49

640x480

75Hz

H – 35.162 896 720 34 40 102 176

V – 59.901Hz 587 480 12 2 93 107

720x480

60Hz

H +- 35.156 1024 800 24 72 128 224

V + 56.250Hz 625 600 1 2 22 25

800x600

56Hz

H + 37.879 1056 800 40 128 88 256

V + 60.317Hz 628 600 1 4 23 28

800x600

60Hz

H + 48.077 1040 800 56 120 64 240

V + 72.188Hz 666 600 37 6 23 66

800x600

72Hz

H + 46.875 1056 800 16 80 160 256

V + 75.0Hz 625 600 1 3 21 25

800x600

75Hz

H – 49.727 1152 832 32 64 224 320

V – 74.553Hz 667 624 3 3 37 43

832x624

(MAC16”)

75Hz

H – 48.363 1344 1024 24 136 160 320

V – 60.004Hz 806 768 3 6 29 38

1024x768

60Hz

H – 56.476 1328 1024 24 136 144 304

V – 70.069Hz 806 768 3 6 29 38

1024x768

70Hz

H + 60.023 1312 1024 16 96 176 288

V + 75.029Hz 800 768 1 3 28 32

1024x768

75Hz

H – 60.241 1328 1024 32 96 176 304

V – 74.927Hz 804 768 3 3 30 36

1024x768

(MAC19)

75Hz

H + 67.500 1600 1152 64 128 256 448

V + 75.000Hz 900 864 1 3 32 36

1152x864

75Hz

H – 68.681 1456 1152 32 128 144 304

V – 75.062Hz 915 870 3 3 39 45

1152x870

(MAC21)

75Hz

H – 61.795 1504 1152 30 128 194 352

V – 65.950Hz 937 900 2 4 31 37

1152x900

66Hz

H – 71.732 1472 1152 16 96 208 320

V – 76.068Hz 943 900 2 8 33 43

1152x900

75Hz

H + 31.216 1480 1170 37 129 144 310

V + 50.026Hz 624 584 3 3 34 40

1170x584

50Hz

H + 60.000 1800 1280 96 112 312 520

V + 60.000Hz 1000 960 1 3 36 40

1280x960

60Hz

H + 63.981 1688 1280 48 112 248 408

V + 60.020Hz 1066 1024 1 3 38 42

1280x1024

60Hz

H + 79.976 1688 1280 16 144 248 408

V + 75.025Hz 1066 1024 1 3 38 42

1280x1024

75Hz

Sync

Polarity

Frequency

Dot

Clock

Back Porch

(F)

Blanking time

(B)

Resolution

28.350

25.175

30.240

31.500

31.505

36.000

40.000

50.000

49.500

57.285

65.000

75.000

78.750

80.000

108.000

100.000

92.940

105.590

46.200

108.000

135.000

<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >>

H – 31.469 800 640 16 96 48 160

V – 59.940Hz 525 480 10 2 33 45

Sync Duration

(D)

Front Porch

(C)

Video Active Time

(A)

Total Period

(E)

TIMING CHART

- 4 -

SDM-HS93 (E)
