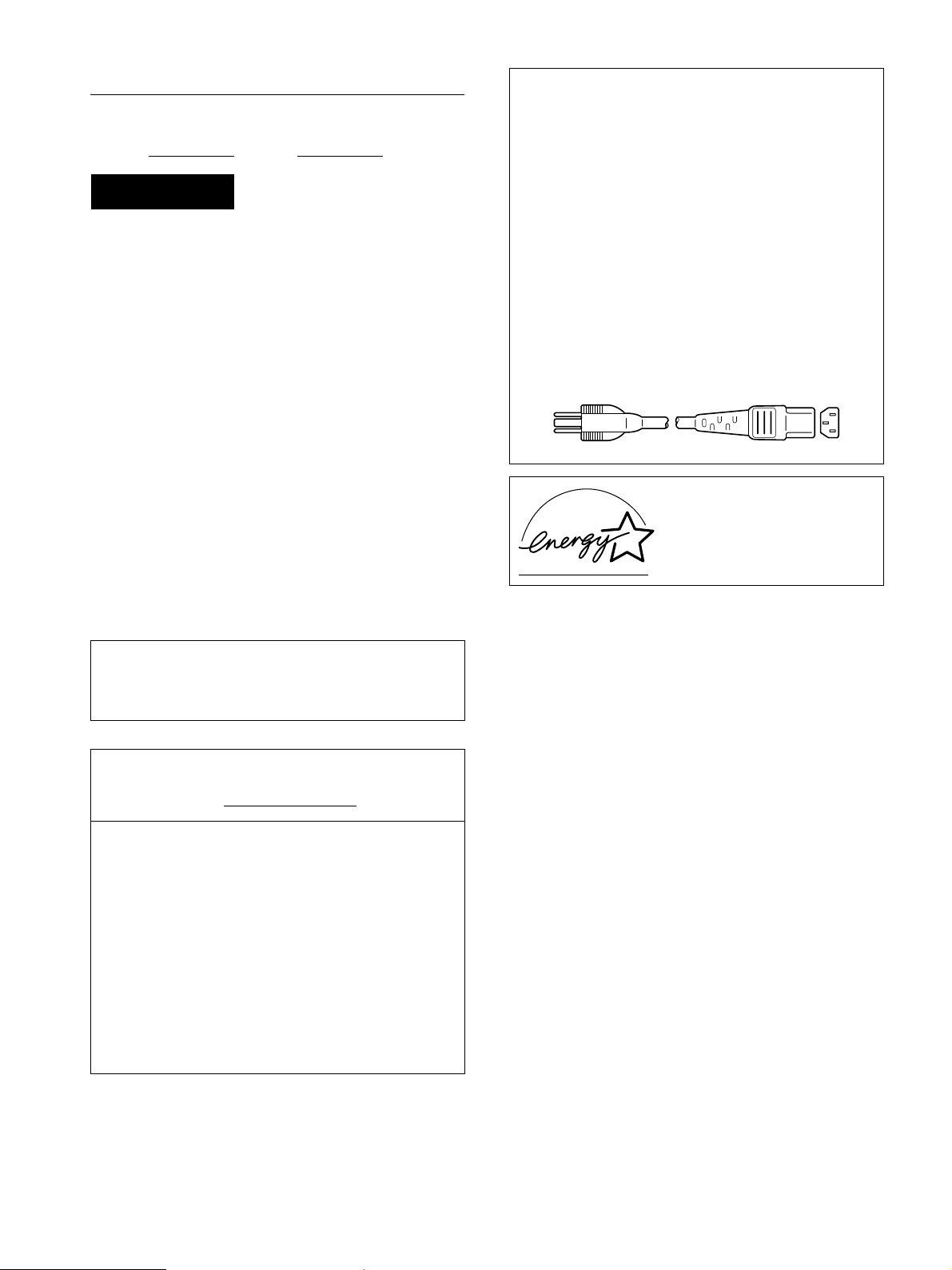

The model and serial numbers are located at the rear of the unit.
Record these numbers in the spaces provided below. Refer to them
whenever you call upon your dealer regarding this product.
Model No.
Serial No.
WARNING
To prevent fire or shock hazard, do not expos e the
unit to rain or moisture.
Dangerously high voltages are present inside the
unit. Do not open the cabinet. Refer servicing to
qualified personnel only.
FCC Notice
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
– Consult the dealer or an ex perienced r adio/TV te chnician f or help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
NOTICE
This notice is applicable for USA/Canada only.
If shipped to USA/Canada, install only a UL LISTED/CSA
LABELLED power supply cord meeting the following
specifications:
SPECIFICATIONS
Plug TypeNema-Plug 5-15p
Cord Type SVT or SJT, minimum 3 × 18 AWG
LengthMaximum 15 feet
RatingMinimum 7 A, 125 V
NOTICE
Cette notice s’applique aux Etats-Unis et au Canada
uniquement.
Si cet appareil est exporté aux Etats-Unis ou au Canada, utiliser
le cordon d’alimentation portant la mention UL LISTED/CSA
LABELLED et remplissant les conditions suivantes:
SPECIFICATIONS
Type de ficheFiche Nema 5-15 broches
CordonType SVT ou SJT, minimum 3 × 18 AWG
LongueurMaximum 15 pieds
TensionMinimum 7 A, 125 V
ENERGY STAR Partner, Sony
As an
Corporation has determined that this
product meets the
guidelines for energy efficiency.
ENERGY STAR
IMPORTANTE
Para prevenir cualquier mal funcionamiento y evitar daños, por
favor, lea detalladamente este manual de instrucciones antes
de conectar y operar este equipo.
If you have any questions about this product, you may call;
Sony Customer Information Services Center
1-800-222-7669 or http://www.sony.com/
Declaration of Conformity
Trade Name:SONY
Model:SDM-HS74/
Responsible Party: Sony Electronics Inc.
Address:16450 W. Bernardo Dr,
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
SDM-HS74P/
San Diego, CA 92127 U.S.A.
2
Table of Contents
• Macintosh is a trademark license d to
Apple Computer, Inc., registered in the
U.S.A. and other countries.
• Windows
trademarks of M ic roso ft C orp o rat ion i n
the United States an d o ther countries.
• IBM PC/AT and VGA are registered
trademarks of IBM Corporation of the
U.S.A.
• VESA and DDC
Video Electronics Standards
Association.
ENERGY STAR is a U.S. registered
•
mark.
• A dobe and Acrobat are tr ademarks of
Adobe Systems Incorporated.
• A l l ot he r product names mentioned
herein may be the trademarks or
registered trademarks of thei r respecti ve
companies.
• Furthermore, “” and “” are not
mentioned in each case in this manual.
• Use the supplied power cord. If you use a different power cord,
be sure that it is compatible with your local power supply.
For the customers in the U.S.A.
If you do not use the appropriate cord, this monitor will not
conform to mandatory FCC standards.
For the customers in the UK
If you use the monitor in the UK, be sure to use the appropriate
UK power cord.

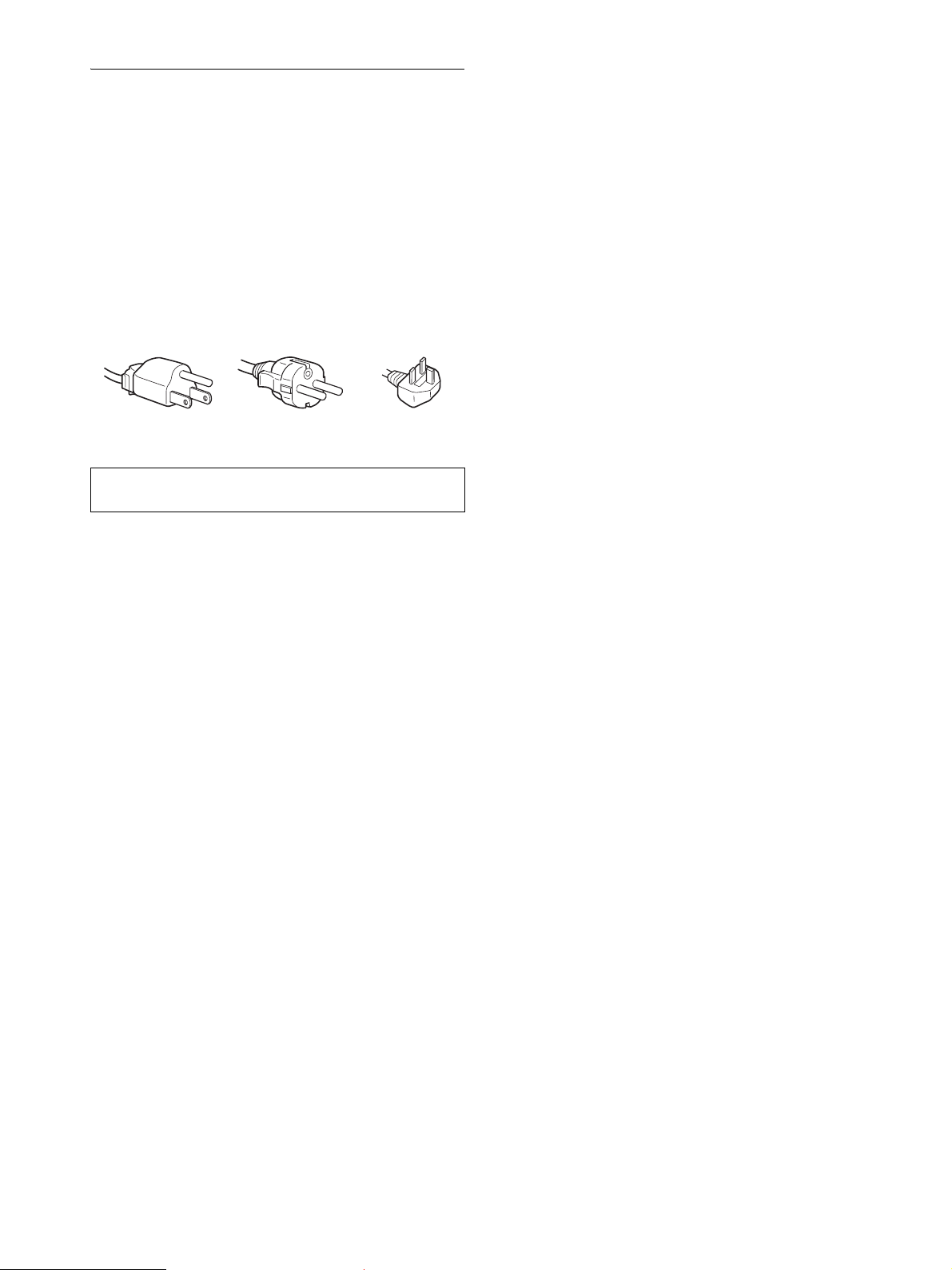

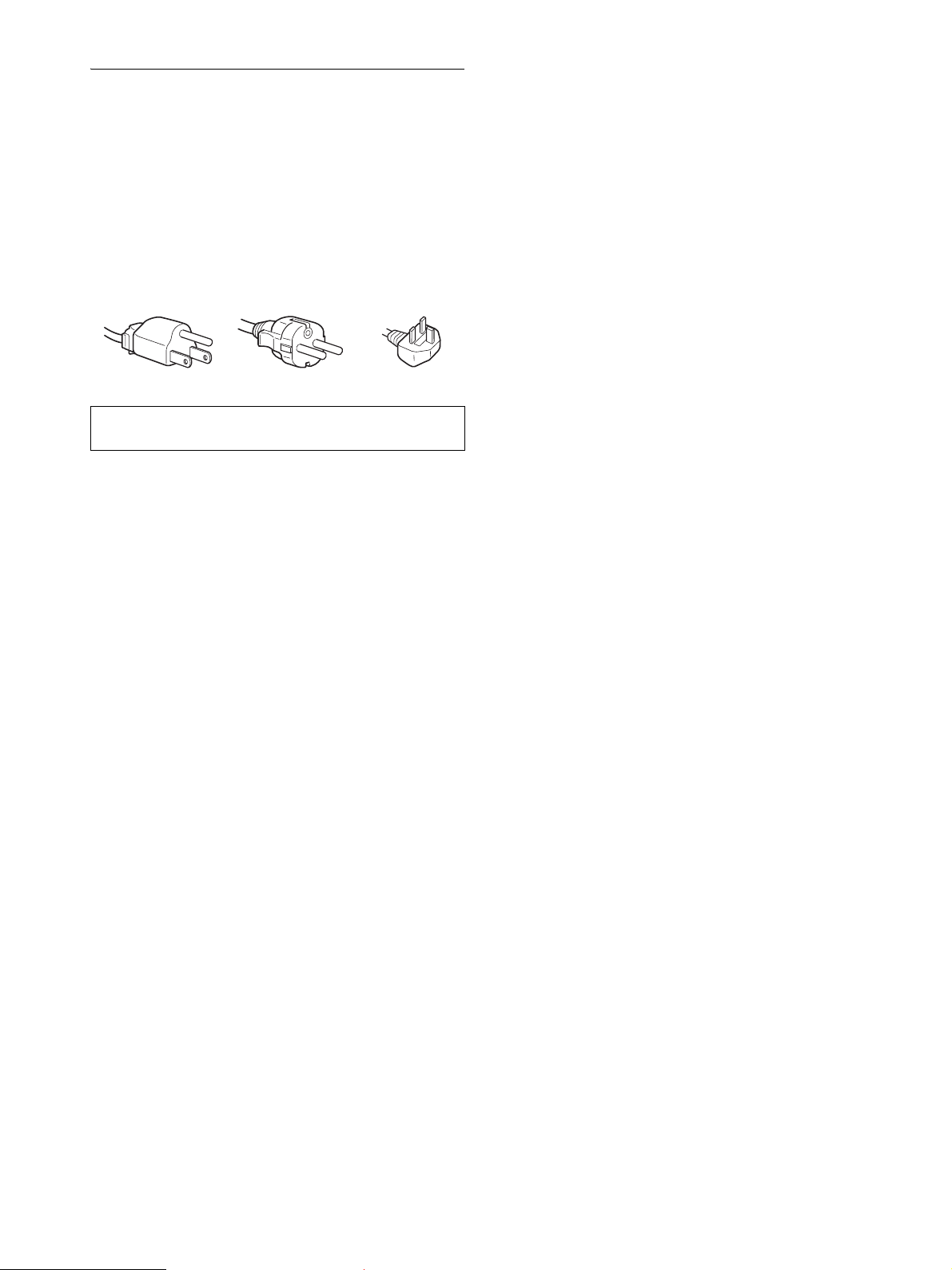

Example of plug types
for 100 to 120 V AC for 200 to 240 V AC for 240 V AC only
The equipment should be installed near an easily accessible outlet.
Installation
Do not install or leave the monitor:
• In places subject to ex treme temperatures, for example near a
radiator, heating ve nt, or in direc t su nlight. Subjecting the
monitor to extreme temperatures, such as in an automobile
parked in direct sunlight or near a heating vent, could cause
deformations of the casing or malfunctions.
• In places subject t o mechanical vibration or shock.
• Near any equipment that generates a strong magnetic field,
such as a TV or various other household appliances.
• In places subject to inordinate amounts of dust, dirt, or sand, for
example near an open window or an outdoor exit. If setting up
temporarily in an outdoor environ me n t, be sur e to take
adequate precautions against airborne dust and dirt. Otherwise
irreparable malfu nctions could occur.
Handling the LCD screen
• Do not leave the LCD screen facing the sun as it can damage
the LCD screen. Take care when you place the monitor by a
window.
• Do not push on or scratch the LCD screen. Do not place a heavy
object on the LCD screen. This may cause th e screen to lose
uniformity or cause LCD panel malfunctions.
• If the monitor is used in a cold place, a residual image may
appear on the screen. This is not a malfunction. The screen
returns to normal as the temperature rises to a normal operating
level.
• If a still picture is displayed for a long time, a residual image
may appear for a while. The residual image will eventually
disappear.
• The LCD panel becomes warm during operation. This is not a
malfunction.
Note on the LCD (Liquid Crystal Display)
Please note that the LCD screen is made with highprecision technology. However, black points or bright
points of light (red, blue, or green) may appear
constantly on the LCD screen, and irregular colored
stripes or brightness may appear on the LCD screen.
This is not malfunction.
(Effective dots: mor e than 99.99%)
Maintenance
• Be sure to unplug the power cord from the power outlet before
cleaning your mon itor.
• Clean the LCD screen with a soft cloth. If you use a glass
cleaning liquid, do not use any type of cle a ner containing an
anti-static solution or similar additive as this may scratch the
LCD screen’s coating.
• Clean the cabinet , panel, and controls with a soft cloth light ly
moistened with a mil d detergent soluti on. Do not use any type
of abrasive pad, scouring powder, or solvent, such as alcohol or
benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or
abrasive items such as a ballpoint pen or screwdriver. This type
of contact may result in a scratched picture tube.
• Note that material deterioration or LCD screen coat in g
degradation may occur if the monitor is exposed to volatile
solvents such as insecticide, or if prolonged co ntact is
maintained with rubber or vinyl materials.
Transportation
• Disconnect al l cables from the monitor and grasp the support
and base sections of the display stand firmly with both hands
when transporti ng. If you d rop the mo nitor, yo u may be in jured
or the monitor m a y be damaged.
• When you transport this monitor for repair or shipment, use the
original carton and packing materials.
Disposal of the monitor
• Do not dispose of this monitor with general
household waste.
• The fluorescent tube used in this monitor contains
mercury. Disposal of this mon itor must be carried out
in accordance to the regulations of your local
sanitation authority.
4

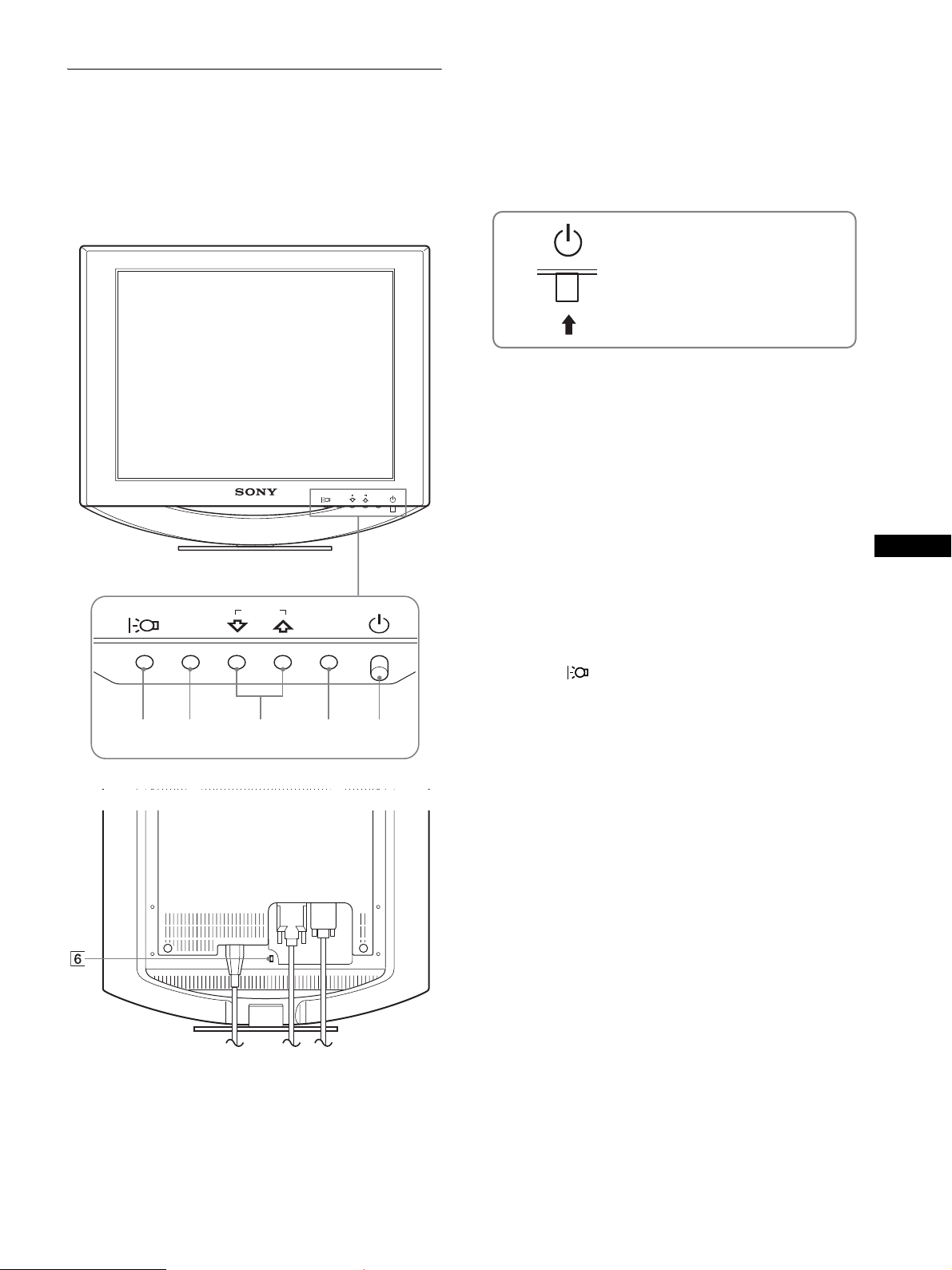

Identifying parts and controls
See the pages in parentheses for further details.
The 1 (power) switch and the control buttons are on the lower
right part of the front of the monitor.

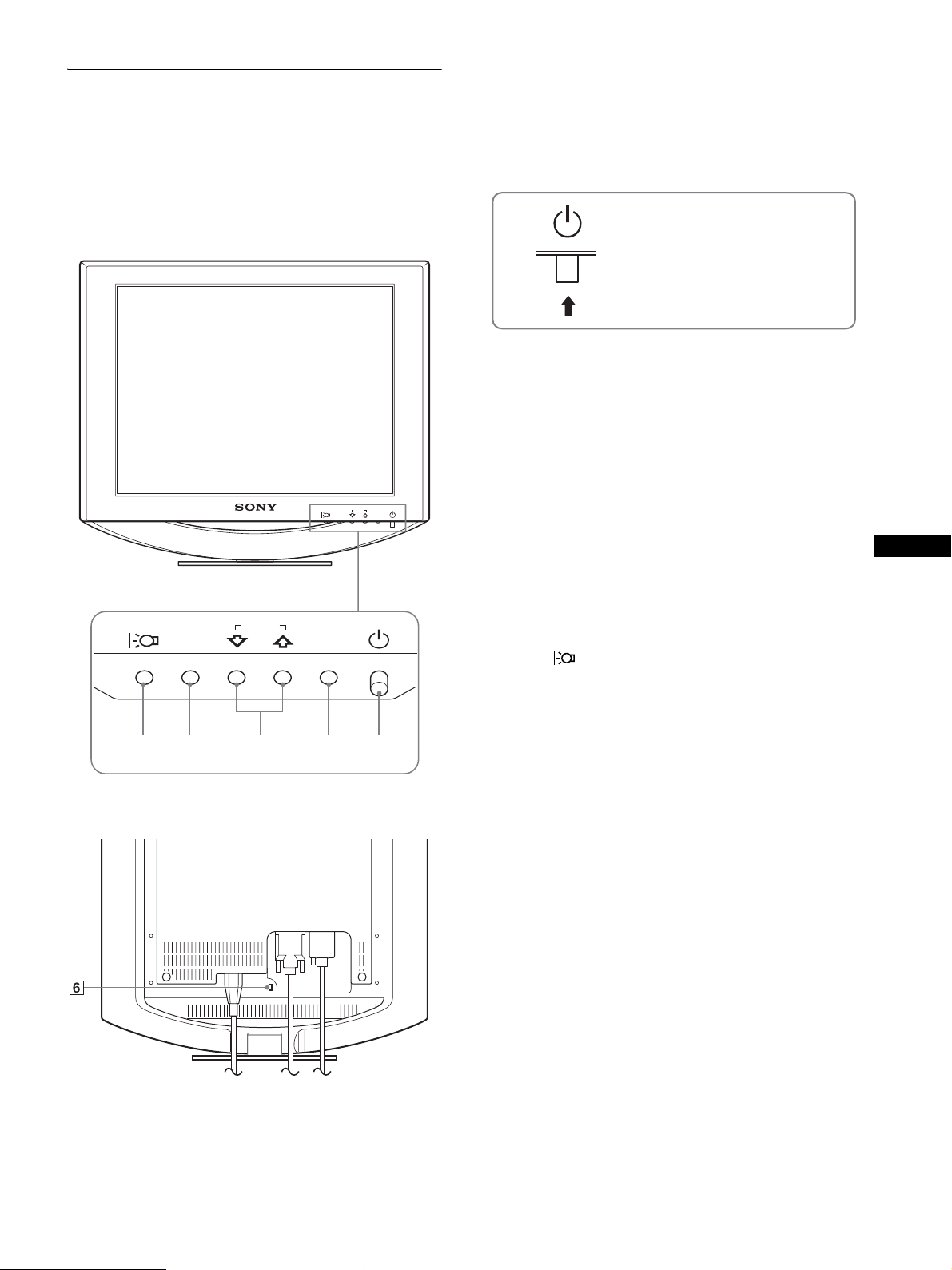

Front of the LCD display
INPUT
MENU
OK

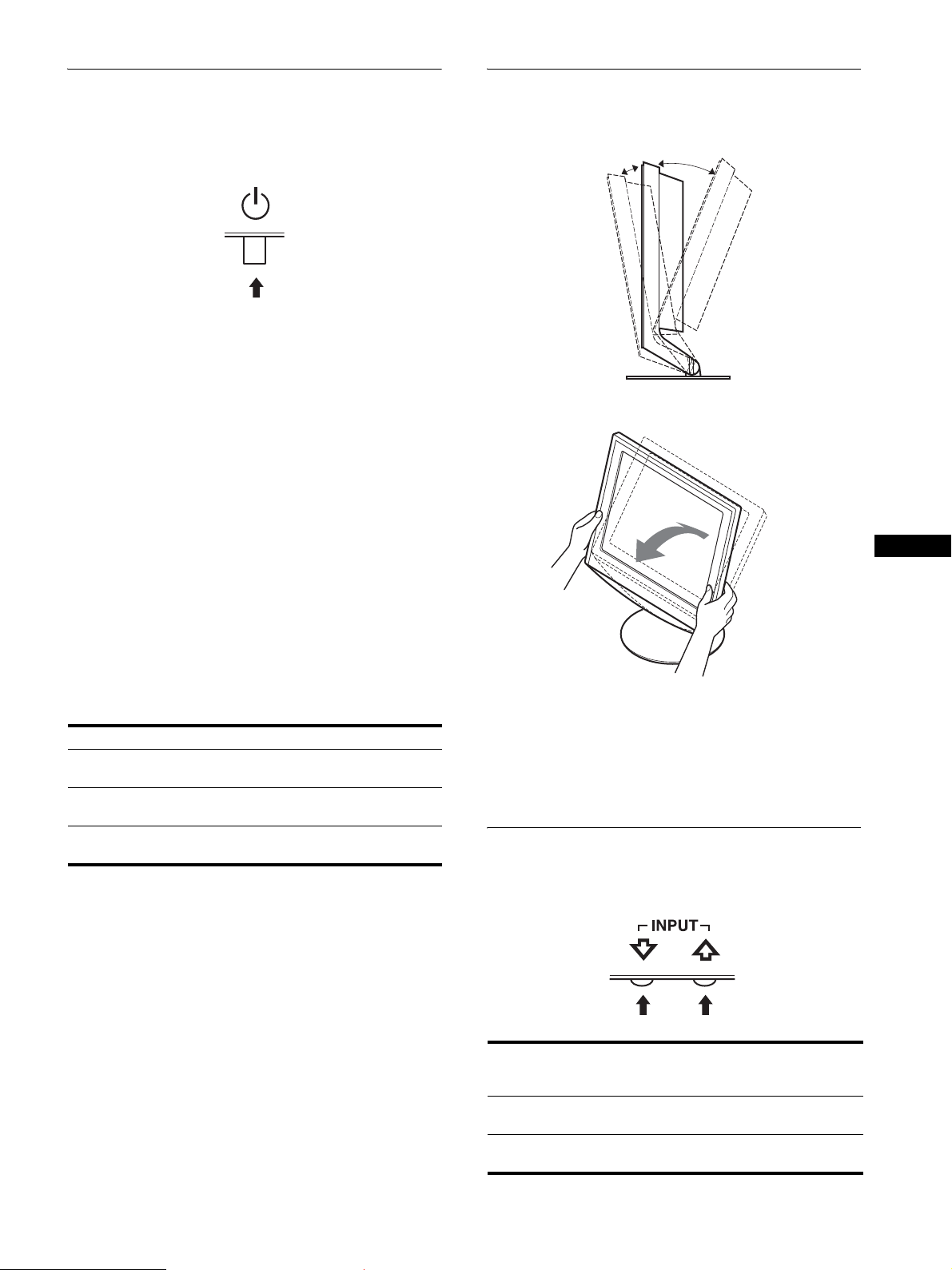

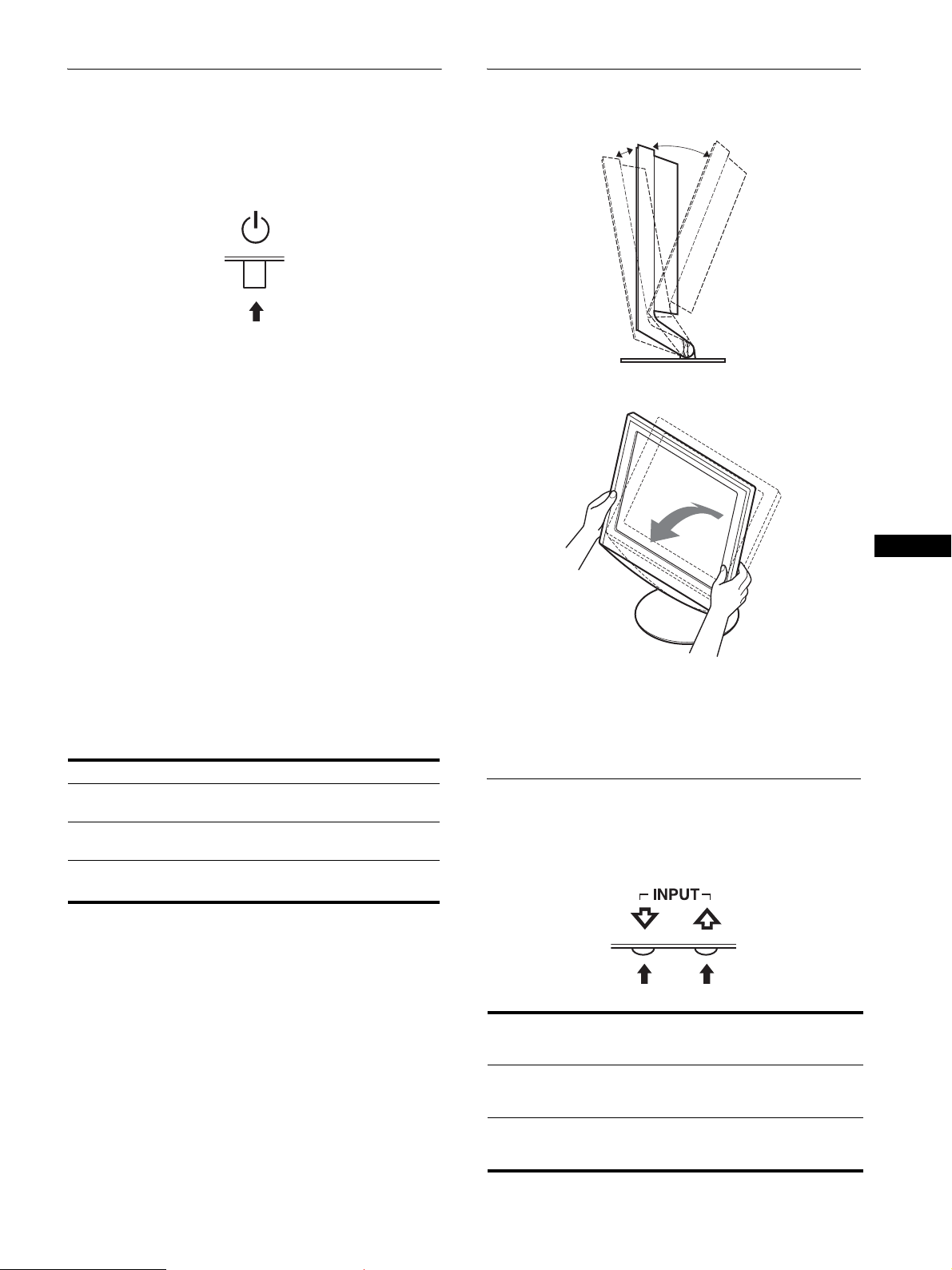

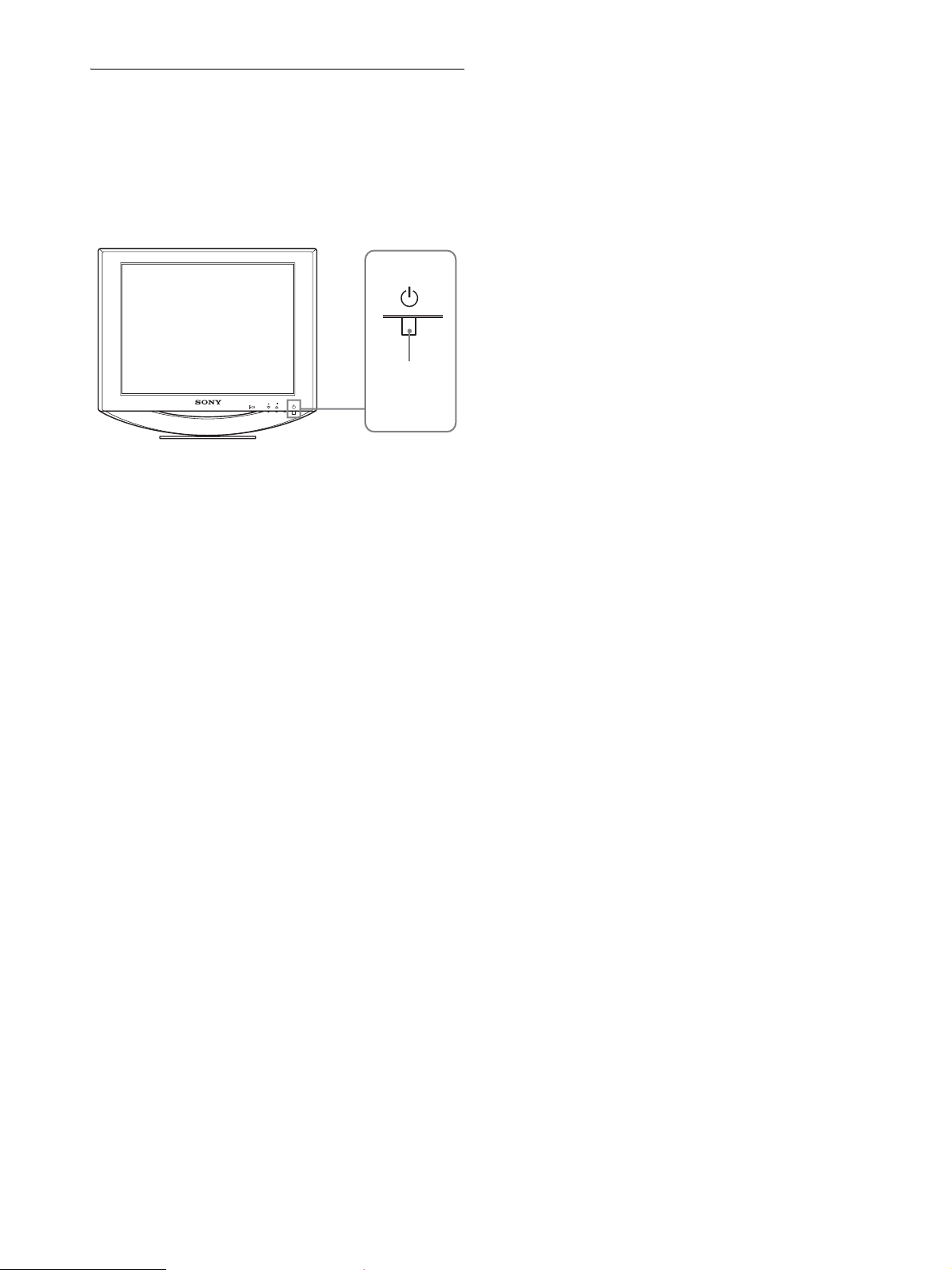

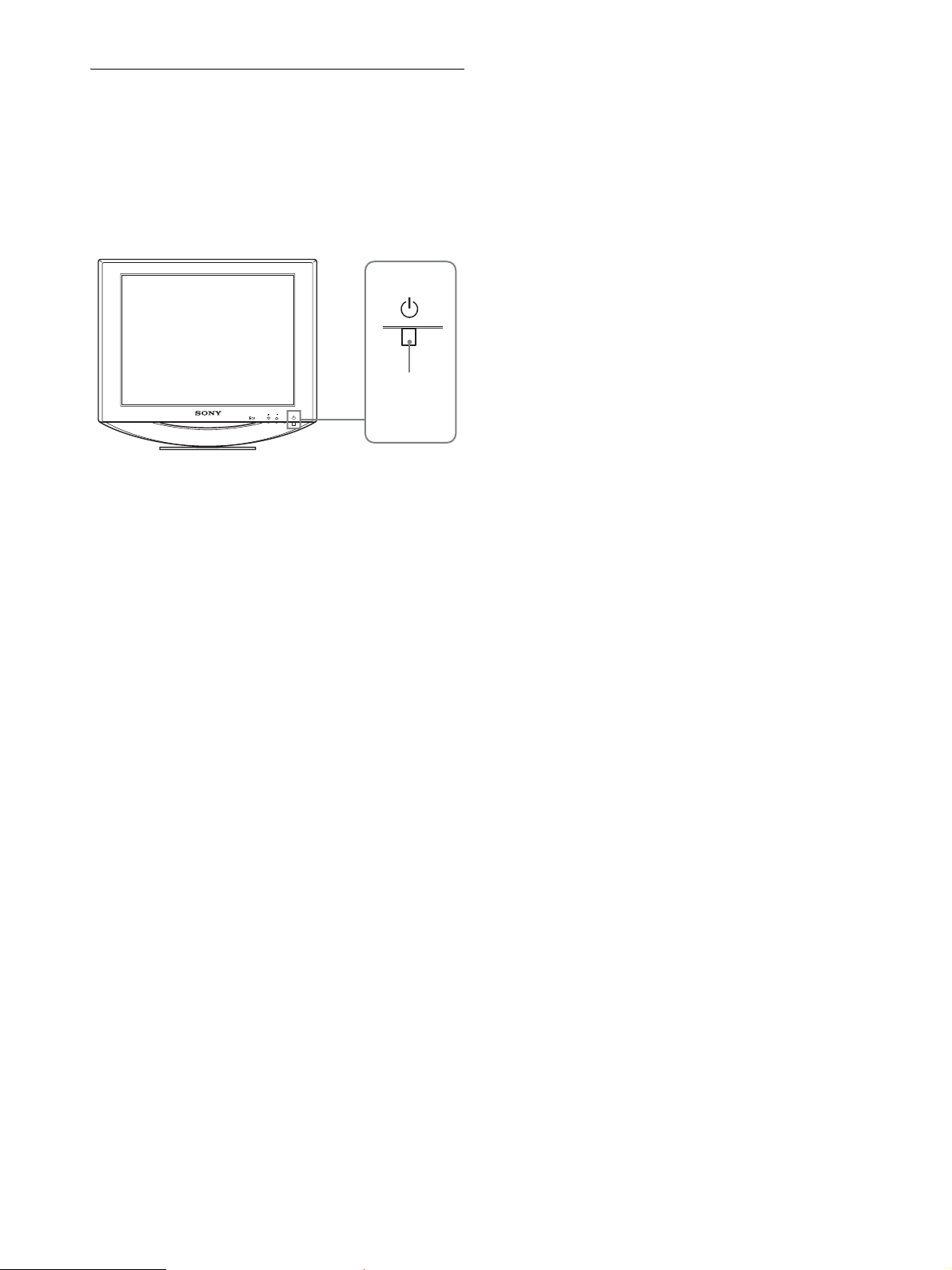

1 1 (Power) switch and indicator (pages 9, 16, 20)
To turn the displ ay on or off, press the 1 (power) switch
upward.
The power indicator lights up in green when the display is
turned on, and lights up in orange when the monitor is in
power saving mode.
Press upward to turn the display on or off.
2 MENU button (pages 10, 11)
This button displays or closes the main menu.
3 m/M buttons (page 11)
These buttons function as the m/M buttons when selecting
the menu items and making adjustments.
Also these buttons switch the video input signal between
INPUT1 and INPUT2 when two computers are connected to
the monitor. (Only available when menu is turned off.)
OK
Rear of the display
INPUT
MENU
4 OK button (page 11)
GB
This button selects the item or executes the settings in the
menu.

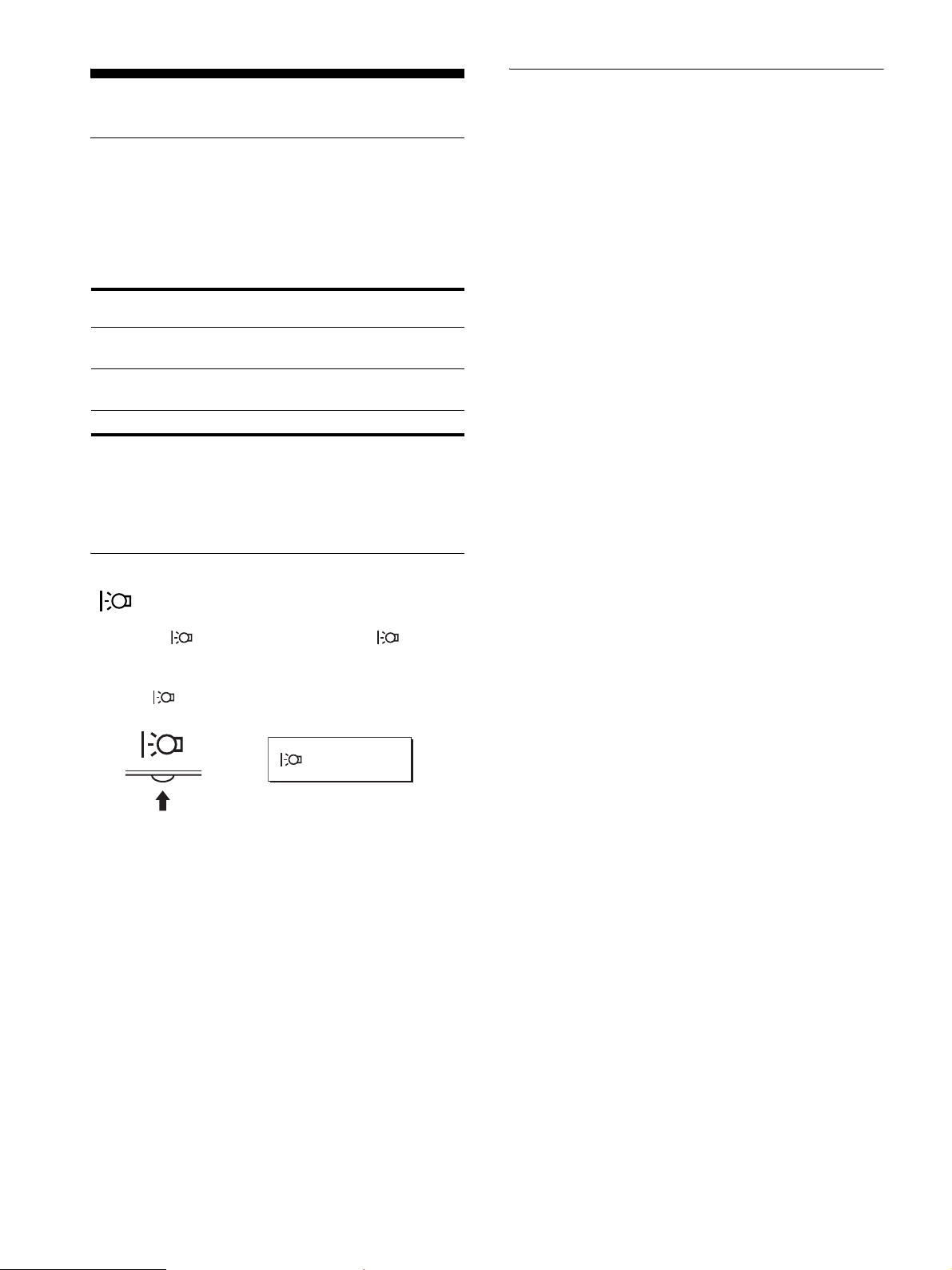

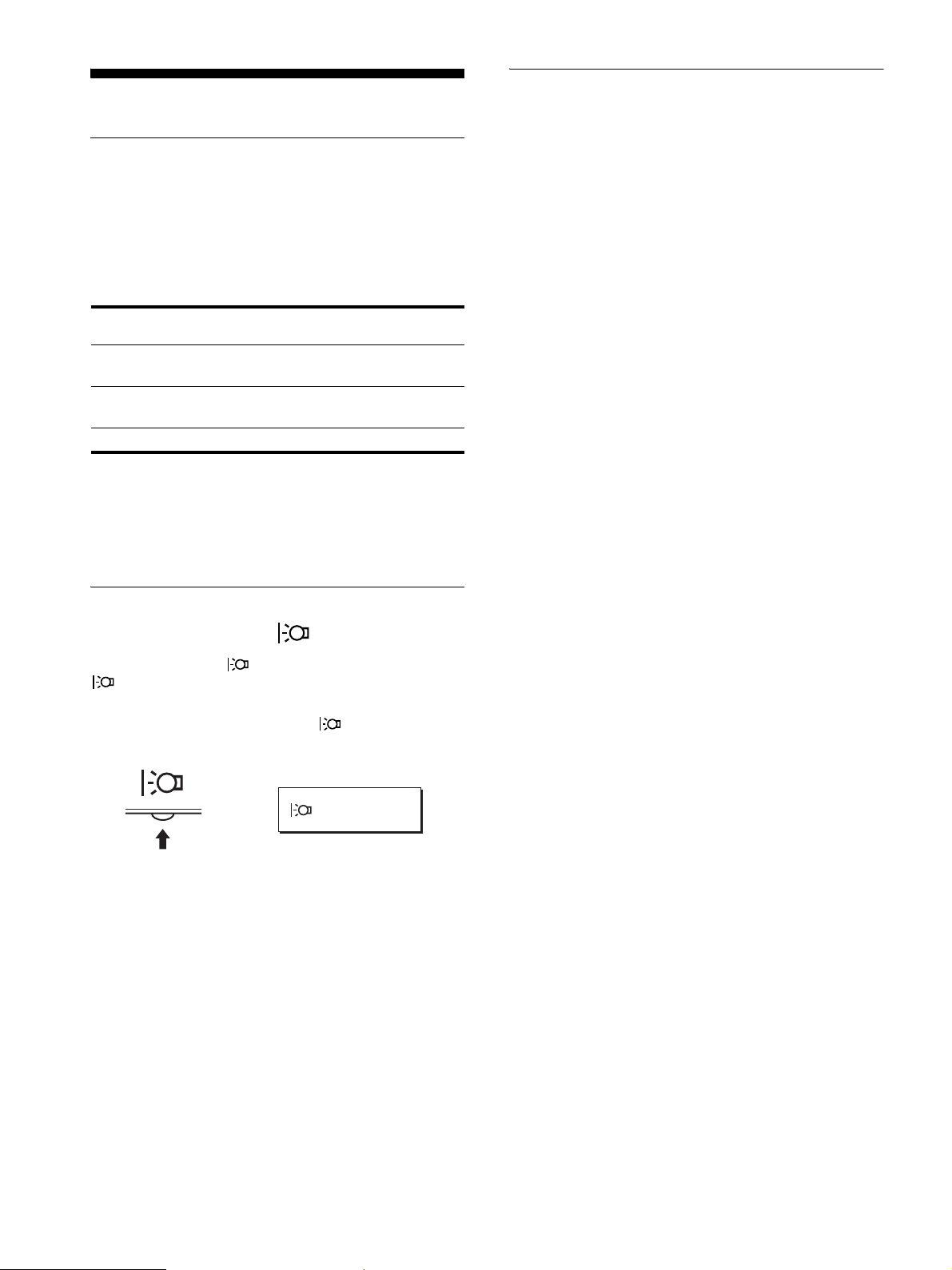

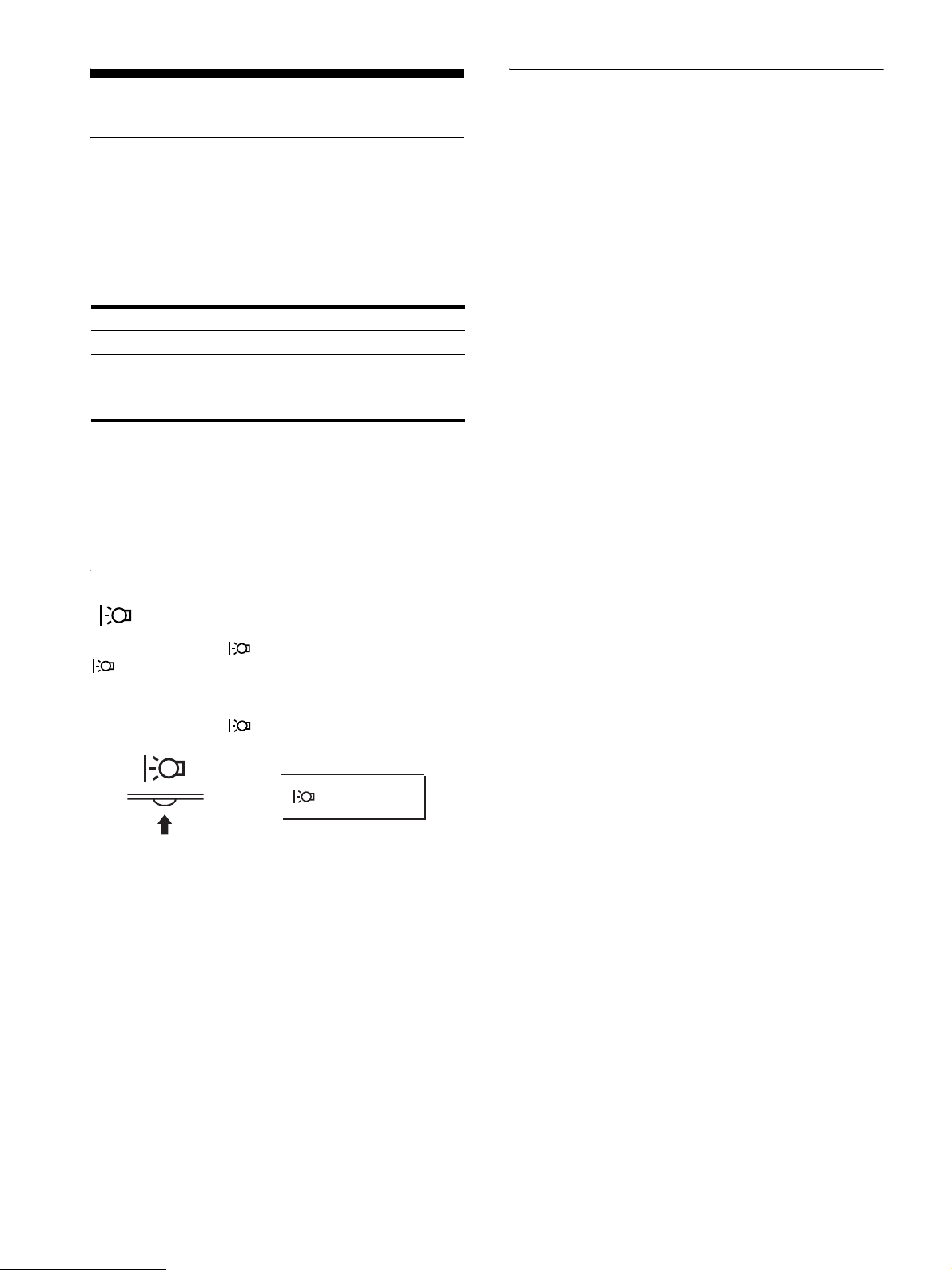

5 button (page 10)
This button is used to change the brightness of the screen.
6 Security Lock Hole
12345
The security lock hole should be app lied with t he Kensingt on
Micro Saver Security System.
Micro Saver Security System is a tra demark of Kensington.
5

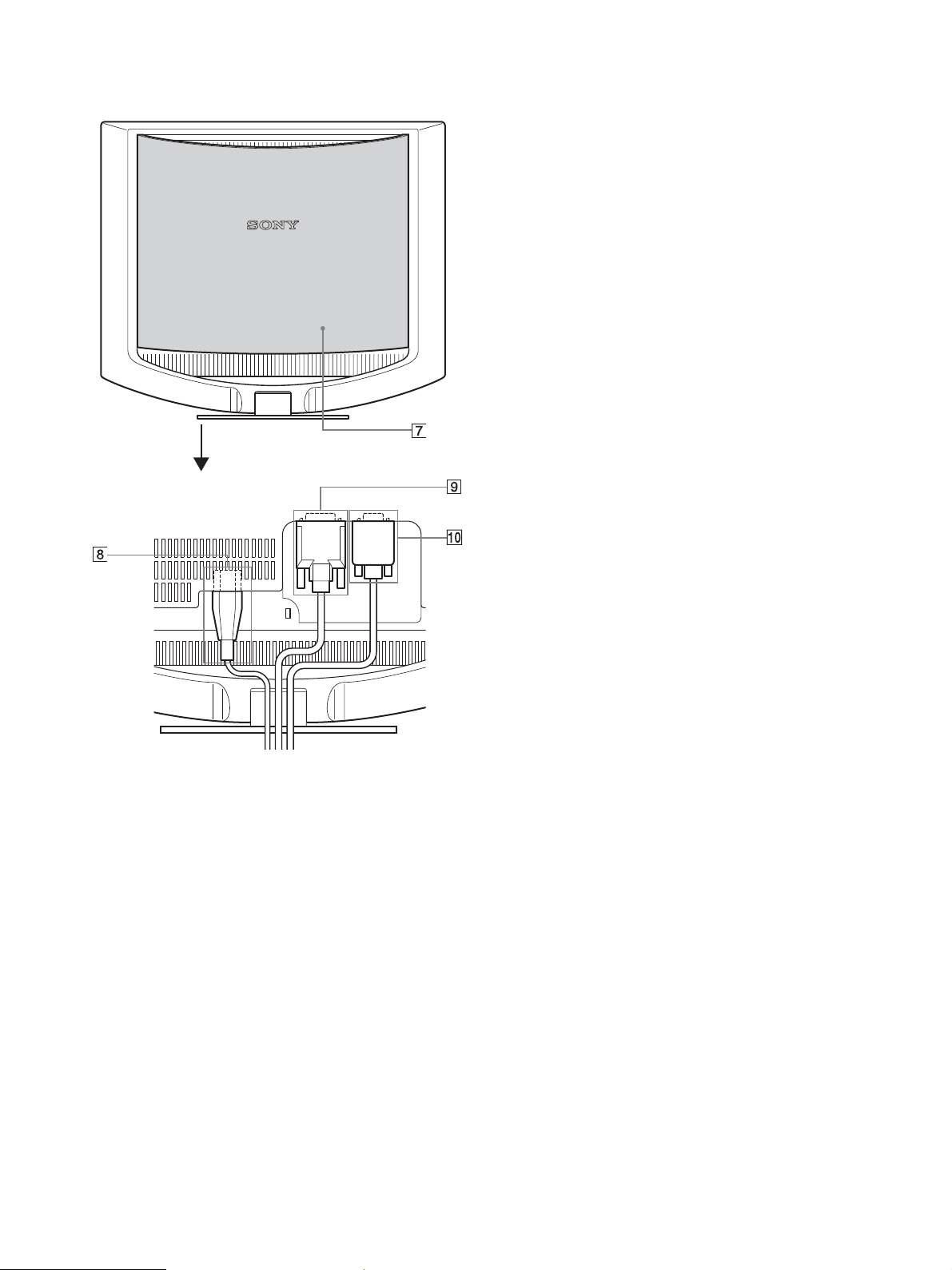

Rear of the LCD display
Remove the back cover.

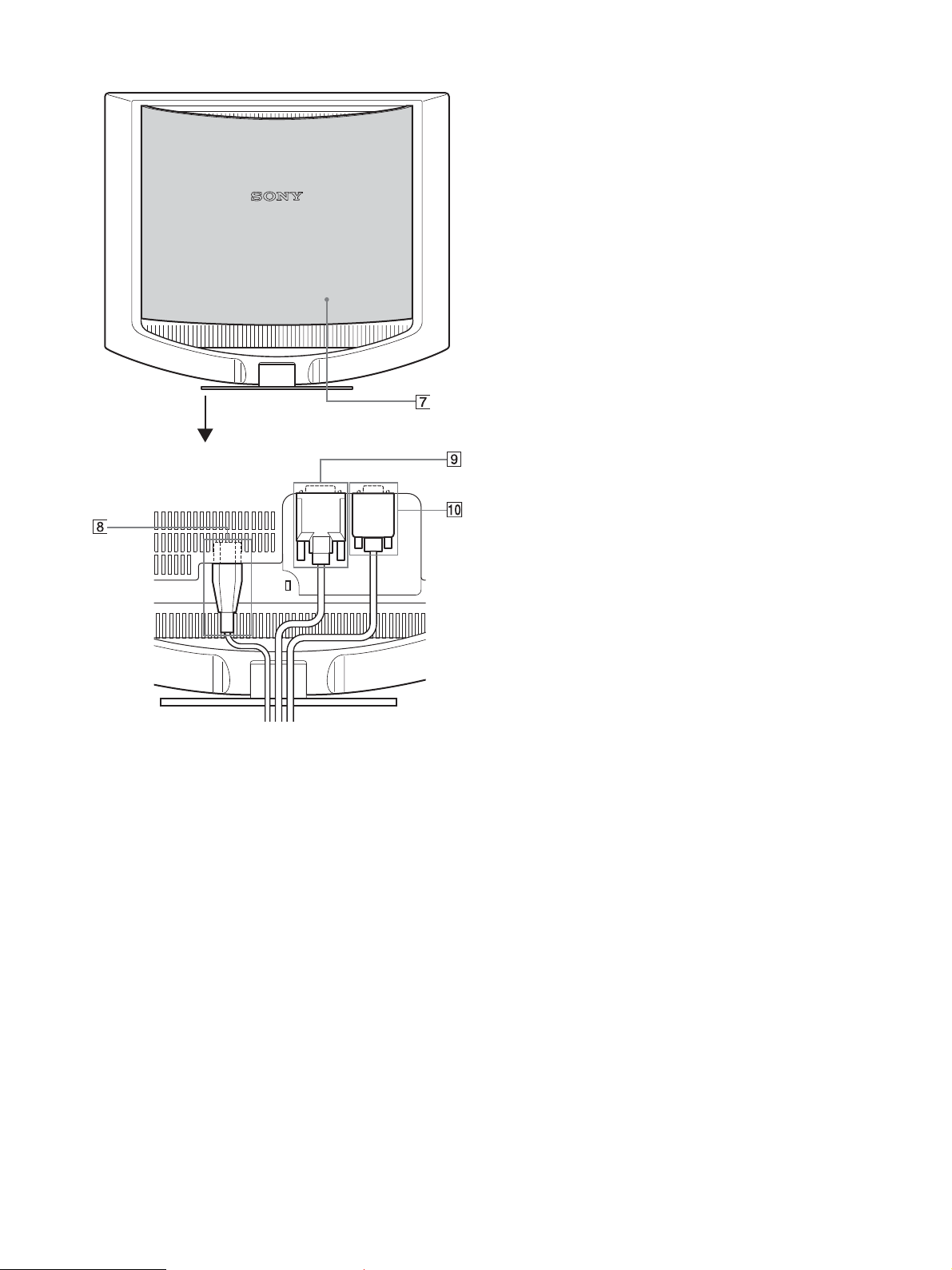

7 Back cover (page 8)
Remove this cover when you connect/disconnect cables or
cords.
8 AC IN connector (page 8)
Connect the power cord ( s upplied).
9 DVI-D input connector (digital RGB) for INPUT1
(page 7)
This connector in pu ts d igital RGB video sig na ls th at comply
with DVI Rev.1.0.
0 HD15 input connector (analog RGB) for INPUT2
(page 7)
This connector inputs analog RGB video signals (0.7 Vp-p,
positive) and SYNC signals.
6
Setup
Before using your monitor, check that the following items are
included in your carton:
•LCD display
• Power cord
• HD15-HD15 video signal cable (analog R G B )
• DVI-D video signal cable (digital RGB)
•Cord strap
• CD-ROM (utility software for Windows/Macintosh, Operating
Instructions, etc.)
• Warranty card
• Quick Setup Guide
Step 1:Connect the display to your
computer
Turn off the monitor and computer before co nnecting.
Notes
• Do not touch the pins of the video signal cable connector as this might
bend the pins.
• Check the alignment of the HD15 connector to prevent bending the pins
of the video signal cable connector.
Connect a computer equipped with a DVI output
connector (digital RGB)
Using the supplied DVI-D video signal cable (digital RGB), connect the
computer to the monit or’s D VI-D input connector (digit al RG B)
Connect a computer equipped with an HD15
output connector (analog RGB)
Using the supplied HD15-HD15 video signal cable (ana log RGB),
connect the computer to the monitor’s HD15 input connector (analog
RGB).

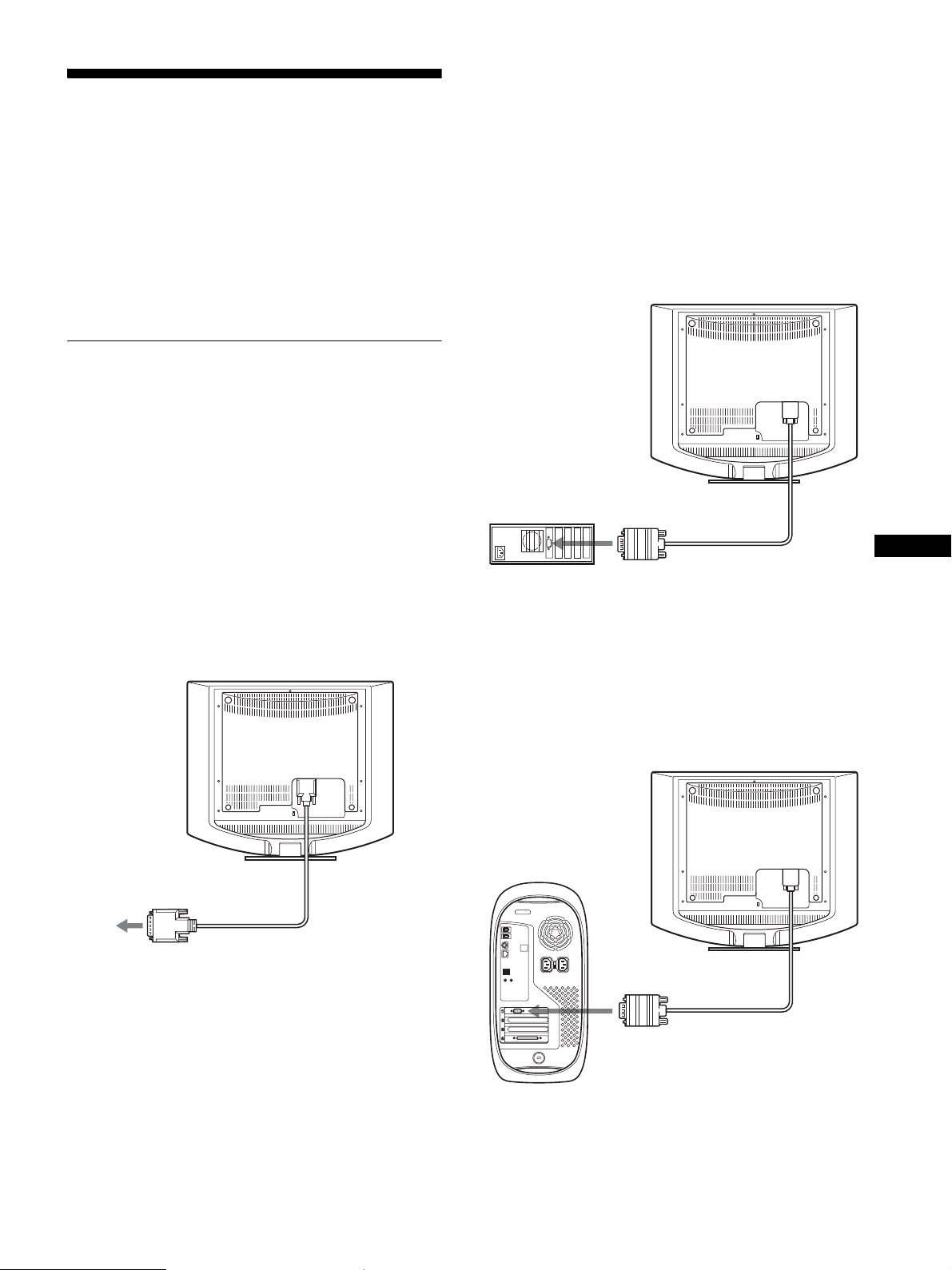

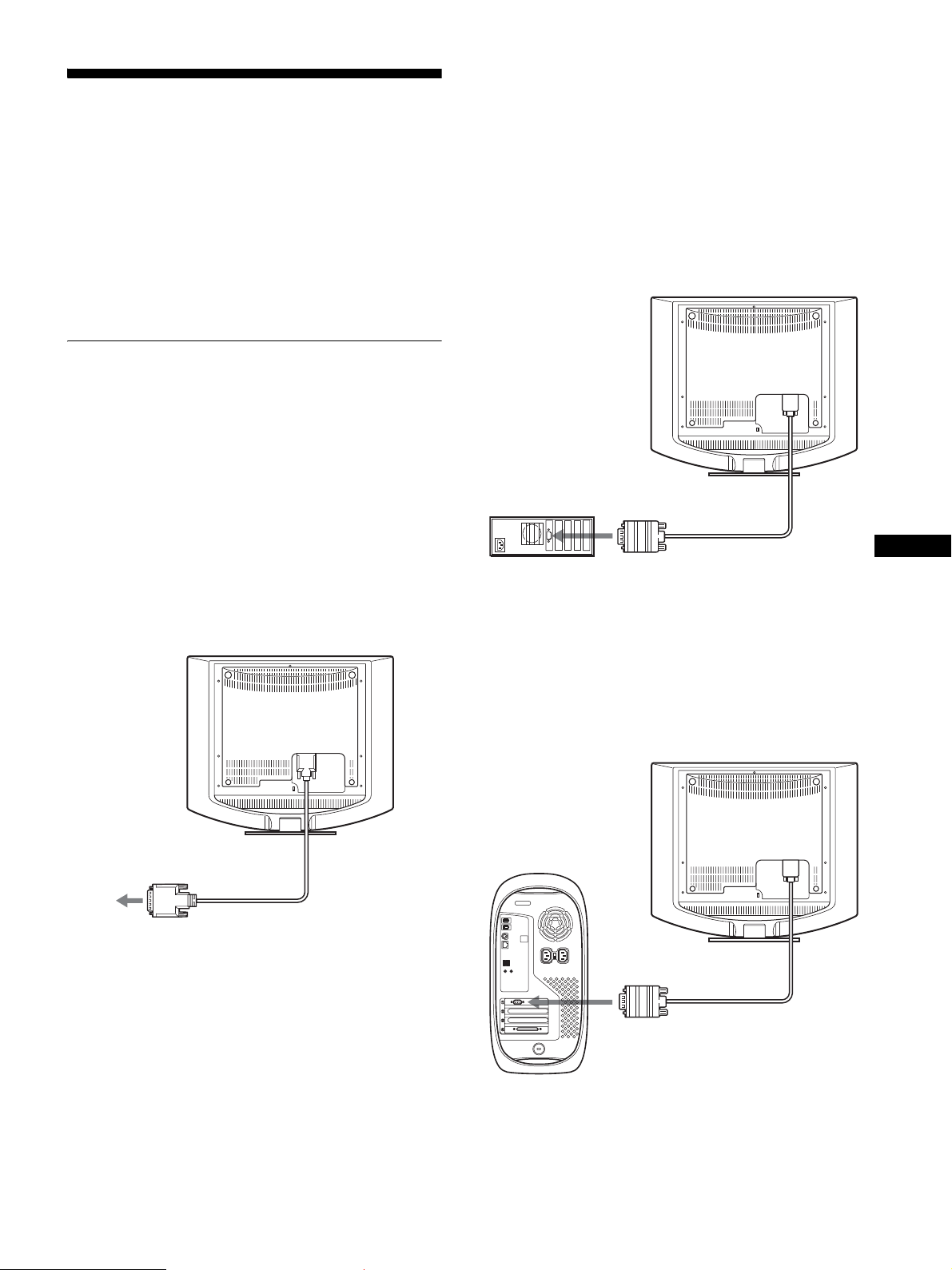

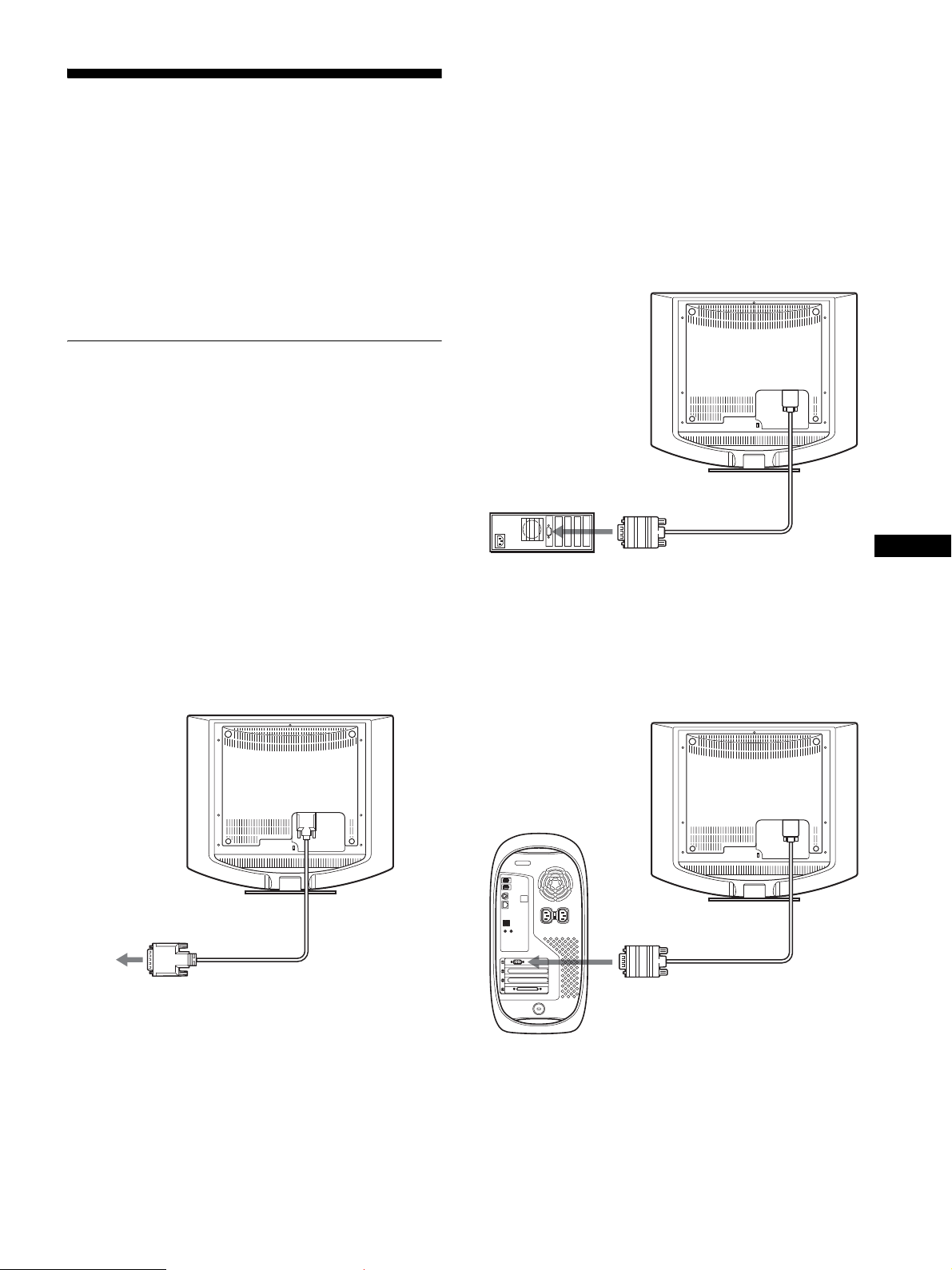

Connect the compute r according to the following illustrations.
x Connecting to an IBM PC/AT or compatible
computer
to the HD15
input connector
(analog RGB)
to the computer’s HD15
output connector
(analog RGB)
HD15-HD15 video signal
IBM PC/AT or
compatible computer
cable (analog RGB)
(supplied)
x Co nn e cti ng to a Mac in tos h co m puter
When connecting this monitor to a Macintosh computer, use the
Macintosh adapter (not supplied) if necessary. Connect the
Macintosh adapter to the computer before connecting the cab le.
GB
to the computer’s DVI output
connector (digital RGB)
to the DVI-D input
connector
(digital RGB)
DVI-D video signal
cable (digital RGB)
(supplied)
to the computer’s
HD15 output connector
(analog RGB)
Macintosh computer
to the HD15
input connector
(analog RGB)
HD15-HD15 video
signal cable (analog
RGB) (supplied)
7

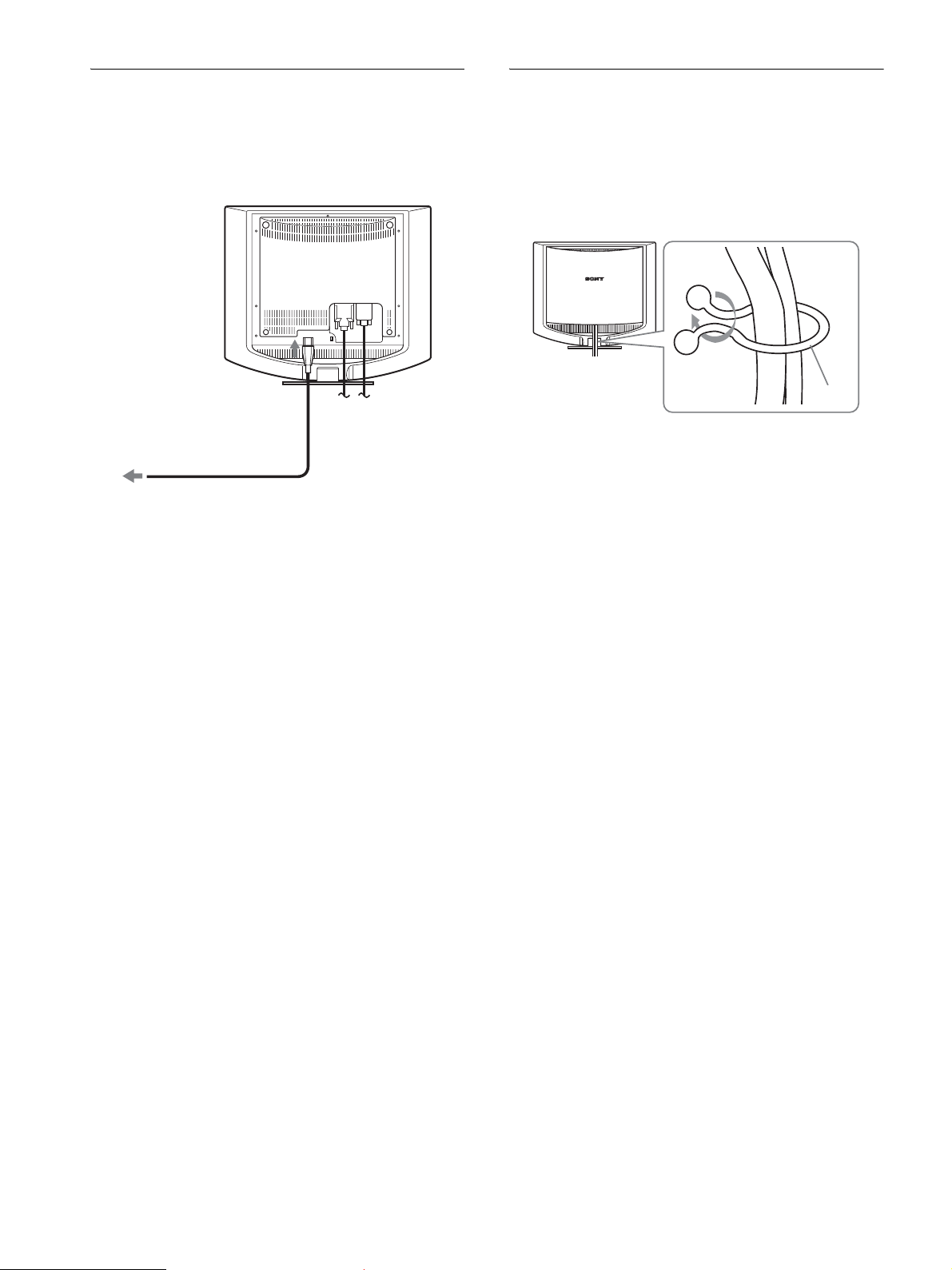

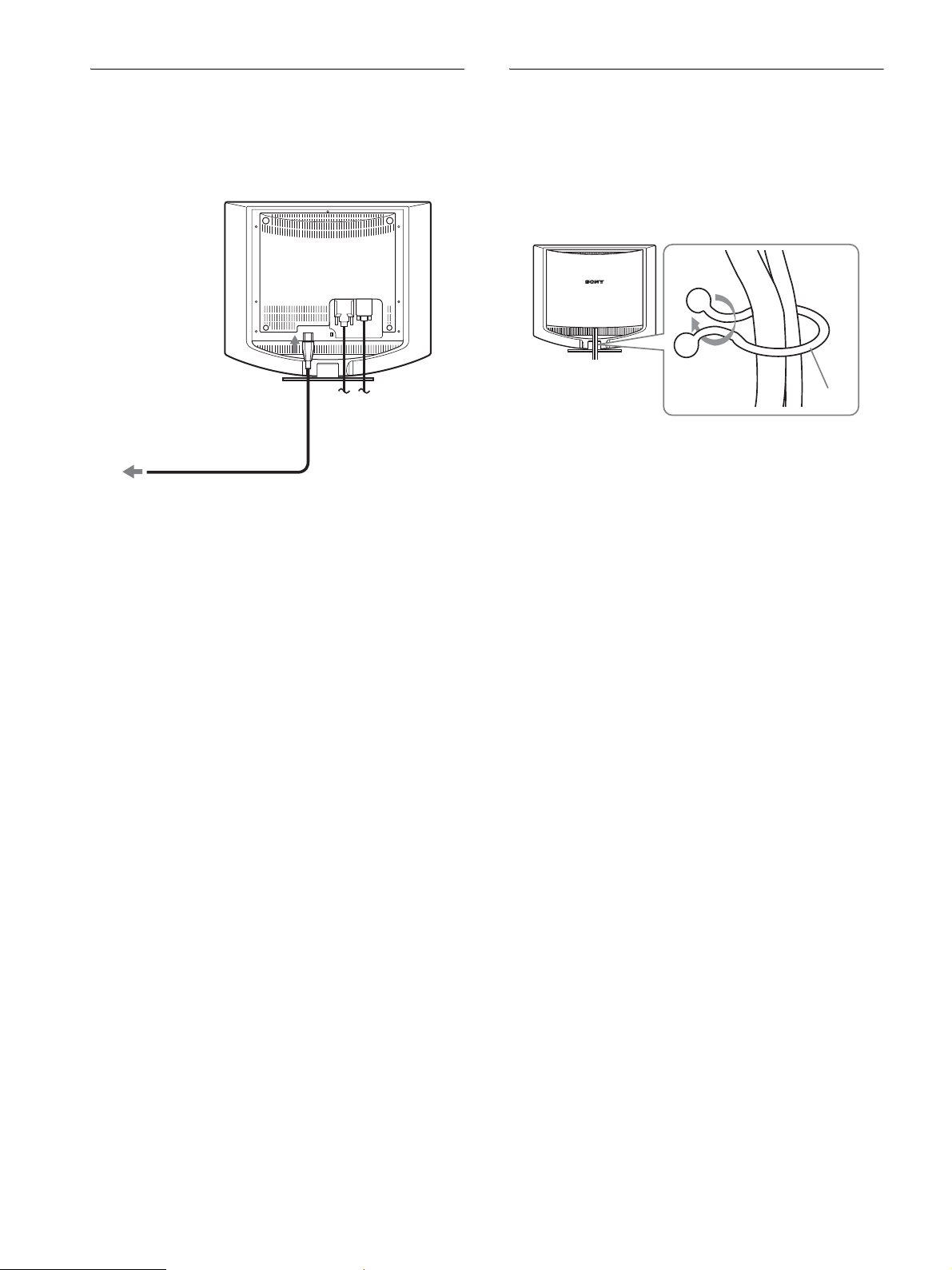

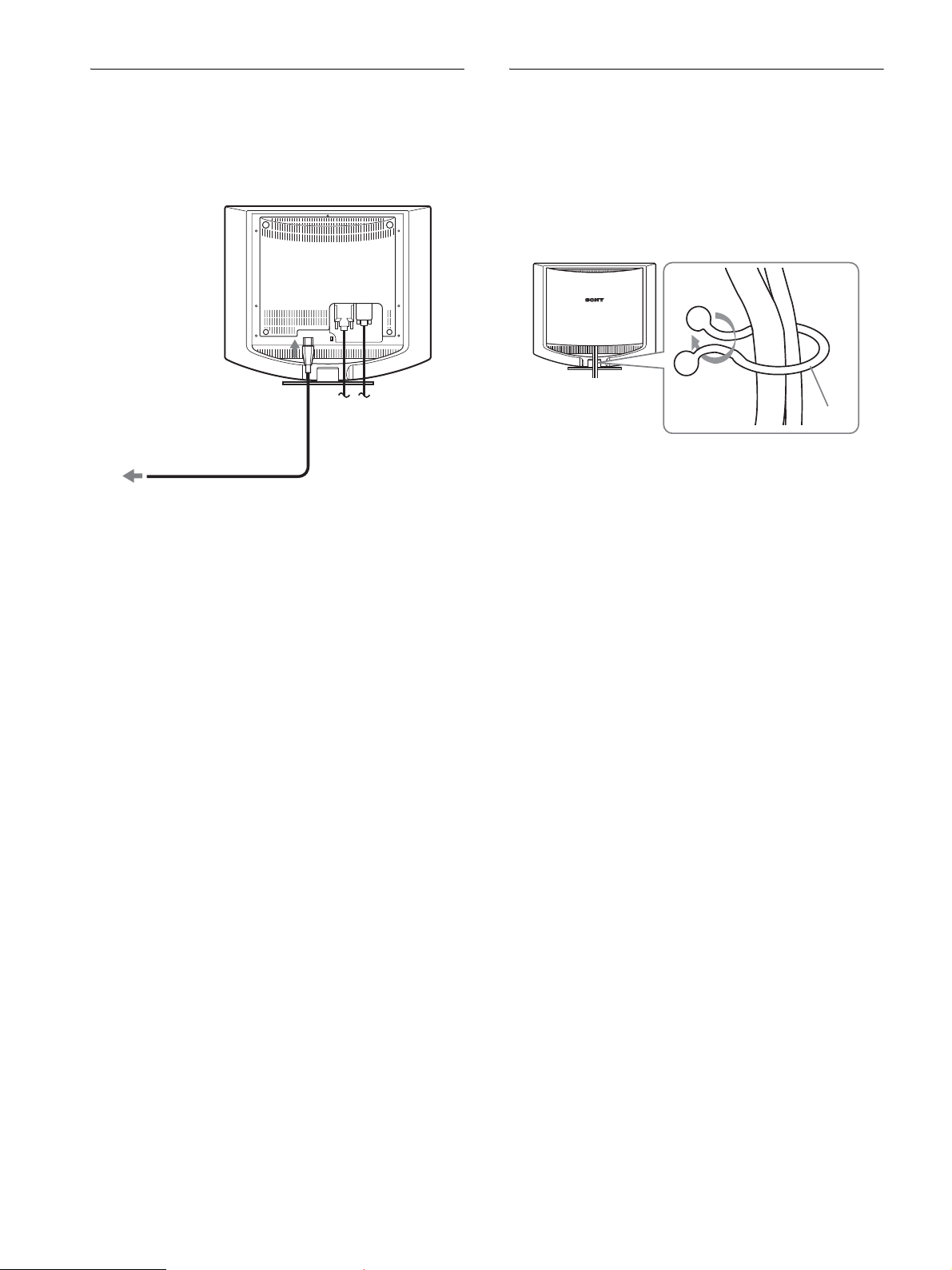

Step 2:Connect the power cord
Step 3:Secure the cords and
With the monitor and computer switched off, first connect the
power cord to the monitor, then connect it to a power outlet.
to AC IN
to a power outlet
power cord (supplied)
replace the back cover
1 Bundl e the cables a nd cords.
Using the supplied cord strap, bund le the cables and cords .
Cord
strap
2 Replace the back cover.
8
Loading...
+ 288 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
