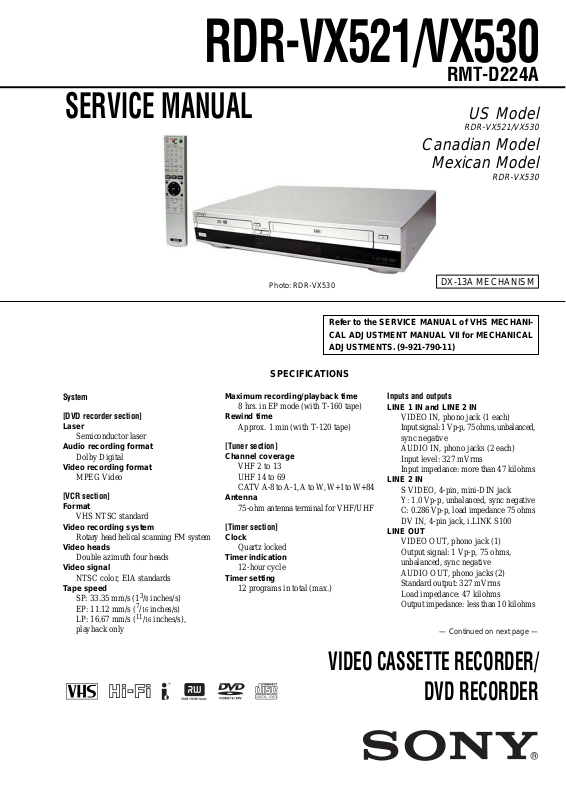

RDR-VX521/VX530

RMT-D224A

SERVICE MANUAL

Photo: RDR-VX530

SPECIFICATIONS

US Model

RDR-VX521/VX530

Canadian Model

Mexican Model

RDR-VX530

DX-13A MECHANISM

Refer to the SERVICE MANUAL of VHS MECHANICAL ADJUSTMENT MANUAL VII for MECHANICAL ADJUSTMENTS. (9-921-790-11)

System

[DVD recorder section]

Laser

Semiconductor laser

Audio recording format

Dolby Digital

Video recording format

MPEG Video

[VCR section]

Format

VHS NTSC standard

Video recording system

Rotary head helical scanning FM system

Video heads

Double azimuth four heads

Video signal

NTSC color, EIA standards

Tape speed

SP: 33.35 mm/s (13/8 inches/s) EP: 11.12 mm/s ( LP: 16.67 mm/s ( playback only

/16 inches/s)

/16 inches/s),

Maximum recording/playback time

8 hrs. in EP mode (with T-160 tape)

Rewind time

Approx. 1 min (with T-120 tape)

[Tuner section]

Channel coverage

VHF 2 to 13 UHF 14 to 69 CATV A-8 to A-1, A to W, W+1 to W+84

Antenna

75-ohm antenna terminal for VHF/UHF

[Timer section]

Clock

Quartz locked

Timer indication

12-hour cycle

Timer setting

12 programs in total (max.)

VIDEO CASSETTE RECORDER/

Inputs and outputs

LINE 1 IN and LINE 2 IN

VIDEO IN, phono jack (1 each) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO IN, phono jacks (2 each) Input level: 327 mVrms Input impedance: more than 47 kilohms

LINE 2 IN

S VIDEO, 4-pin, mini-DIN jack Y: 1.0 Vp-p, unbalanced, sync negative C: 0.286 Vp-p, load impedance 75 ohms DV IN, 4-pin jack, i.LINK S100

LINE OUT

VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms

— Continued on next page —

DVD RECORDER

DIGITAL AUDIO OUT

OPTICAL, Optical output jack

−18 dBm (wave length: 660 nm) COAXIAL, phono jack Output signal: 0.5 Vp-p, 75 ohms

COMPONENT VIDEO OUT (Y, PB, PR)

Phono jack

Y: 1.0 Vp-p/P

S VIDEO OUT

, PR: 0.7 Vp-p, 75 ohms

4-pin, mini-DIN jack Y: 1.0 Vp-p, unbalanced, sync negative C: 0.286 Vp-p, load impedance 75 ohms

SET TOP BOX CONTROL (US, Canadian)

Mini jack

General

Power requirements

120 V AC, 60 Hz

Power consumption

36 W

Power back-up

Back-up duration: 0 min (US, Canadian), 30 min (Mexican)

Operating temperature

5°C to 35°C (41°F to 95°F)

Storage temperature

−20°C to 60°C (−4°F to 140°F)

Operating humidity

25% to 80%

Dimensions including projecting parts and controls (w/h/d)

Approx. 430 × 82 × 334 mm (Approx. 17 × 3

Mass

/4 × 131/4 inches)

Approx. 4.8 kg (Approx. 10.6 lbs)

Supplied accessories

Remote commander (remote) (1) Size AA (R6) batteries (2) Antenna cable (1) Audio/video cord (1) Set top box controller (1) (US, Canadian)

Design and specifications are subject to change without notice.

— 2 —

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

5. Check the line cord for cracks and abrasion. Recommend the replacement of any such line cord to the customer.

6. Check the B+ voltage to see it is at the values specified.

7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for A C leakage. Check leakage as described below.

To Exposed Metal Parts on Set

1.5 k

0.15 µF

Fig. A. Using an AC voltmeter to check AC leakage.

Ω

Earth Ground

AC voltmeter (0.75 V)

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods.

1. A commercial leakage tester , such as the Simpson 229 or RCA

WT-540A. Follow the manufacturers' instructions to use these

instruments.

2. A battery-operated AC milliammeter. The Data Precision 245

digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a V OM

or battery-operated AC voltmeter. The “limit” indication is

0.75V , so analog meters must ha ve an accurate low-voltage scale.

The Simpson 250 and Sanwa SH-63Trd are examples of a

passive VOM that is suitable. Nearly all ba ttery operated digital

multimeters that have a 2V A C range are suita ble. (See Fig. A)

Unleaded solder

Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40°C higher than

ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscous (sticky , less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSER VE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

CAUTION:

The use of optical instrument with this product will increase eye hazard.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!

LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU D ANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

— 3 —

Precautions

1 Safety Precautions ······························································ 5 2 Servicing Precautions ························································ 7 3 ESD Precautions································································· 8 4 Handling the Optical Pick-up ············································· 9 5 Reset operation after IC203 was replaced ························ 10

1. General

Hookups and Settings ······················································1-2 Quick Guide to Disc Types··············································1-6 DVD Playback·································································1-8 DVD Recording·····························································1-11 DVD Editing··································································1-13 VCR Playback ·······························································1-17 VCR Recording ·····························································1-18 Dubbing (TAPA y DVD) ···········································1-21 DV/D8 Dubbing (DV/D8 t DVD)······························1-22 Settings and Adjustments ··············································1-23 Additional Information··················································1-26

2. Disassembly and Reassembly

2-1 Cabinet and PCB ···························································· 2-1 2-1-1 Cabinet Top Removal ·····················································2-1 2-1-2 Botton Cover Removal···················································2-1 2-1-3 Ass’y Front Panel Removal············································2-1 2-1-4 Function Timer PCB Removal ·······································2-1 2-1-5 Chassis Removal ····························································2-2 2-1-6 VCR Main PCB Removal ··············································2-2 2-2 Circuit Board Locations ·················································2-3 2-3 VCR Deck Parts Locations ············································2-4 2-3-1 T op V iew ········································································2-4 2-3-2 Bottom Vie w···································································2-6 2-4 VCR DECK····································································2-7 2-4-1 Ass’y Holder Cassette Removal·····································2-7 2-4-2 Ass’y Lever Arm Removal·············································2-7 2-4-3 Lever FL Door Removal ················································2-8 2-4-4 Slider FL Drive, Gear FL Cam Removal ·······················2-8 2-4-5 Gear W orm Wheel Removal··········································· 2-9 2-4-6 Cable Flat Removal························································2-9 2-4-7 Ass’y Motor Loading Removal····································2-10 2-4-8 Bracket Gear, Gear Joint 2, 1 Removal ························2-10 2-4-9 Gear Loading Drive, Slider Cam,

Ass’y Lever Load S, T Removal ··································2-11

2-4-10Gear Loading Drive, Slider Cam,

Ass’y Lever Load S, T Assembly·································2-11 2-4-11Lever Pinch Drive, Lever Tension Drive Removal·······2-12 2-4-12Ass’y Lever Tension, Ass’y Band Brake Removal ······2-12 2-4-13Ass’y Lever Brake S, T Removal·································2-13 2-4-14Ass’y Gear Idle Removal ·············································2-13 2-4-15Disk S, T Reel Removal ···············································2-14 2-4-16Ass’y Holder Clutch Removal ·····································2-14 2-4-17Ass’y Lever Up Down, Ass’y Gear Center Removal ···2-15 2-4-18Guide Cassette Door Removal ·····································2-15 2-4-19Ass’y Lever Unit Pinch, Plate Joint,

Spring Pinch Drive Removal ········································2-16 2-4-20Ass’y Lever #9 Guide Removal ···································2-16 2-4-21FE Head Removal ························································2-17 2-4-22Ass’y ACE Head Removal ···········································2-17 2-4-23Ass’y Slider S, T Removal ···········································2-18 2-4-24Plate Ground Deck, Ass’y Cylinder Removal··············2-18 2-4-25Hook Capstan, Belt Pulley Removal ····························2-19 2-4-26Ass’y Motor Capstan Removal ····································2-19 2-4-27Ass’y Post #8 Guide Removal ·····································2-20 2-4-28Ass’y Level Head Cleaner Removal ····························2-20 2-4-29How to Eject the Cassette Tape···································· 2-20 2-5 The Table of Cleaning, Lubrication and

Replacement Time about Principal Parts ·····················2-21

3. Block Diagram..........................................................3-1

4. PCB Diagrams

4-1 VCR Main PCB·······························································4-3 4-2 DVD Jack Main PCB ······················································4-7 4-3 DV Jack PCB·································································4-11 4-4 Front Jack PCB······························································4-11 4-5 Function Timer PCB······················································4-13

5. Schematic Diagrams

5-1 S.M.P.S (VCR Main PCB) ··············································5-3 5-2 Power (VCR Main PCB) ·················································5-5 5-3 Logic (VCR Main PCB)··················································5-7 5-4 A/V (VCR Main PCB) ····················································5-9 5-5 Hi-Fi (VCR Main PCB) ················································5-11 5-6 Function Timer (Function Timer PCB) ·························5-13 5-7 Encoder (DVD Jack Main PCB) ···································5-15 5-8 Decoder (DVD Jack Main PCB) ··································· 5-17 5-9 Video Decoder and Connector

(DVD Jack Main PCB)··················································5-19

5-10 DV Interface and 1394 Connector

(DVD Jack Main PCB)··················································5-21

5-11 Component/Super Out (Front Jack PCB) ······················5-23

6. Alignment and Adjustments

6-1 VCR Adjustment ····························································· 6-1 6-1-1 Reference ·········································································6-1 6-1-2 Head Switching Point Adjustment ··································6-3 6-2 VCR Mechanical Adjustment··········································6-4 6-2-1 Tape Transport System and Adjustment Locations ·········6-4 6-2-2 Tape T ransport System Adjustment·································6-5 6-2-3 Reel Torque ···································································6-10

7. Troubleshooting·················································7-1

8. Repair Parts List

8-1 Exploded Views·······························································8-2 8-1-1 Cabinet Assembly ····························································8-2 8-1-2 VCR Deck Section (Top Side) ········································8-3 8-1-3 VCR Deck Section (Bottom Side)···································8-4 8-2 Electrical Parts List ·························································8-5

— 4 —

PRECAUTIONS

1 SAFETY PRECAUTIONS

1) Before returning an instrument to the customer, always mak e a safety check of the entire instrument, including, but not limited to, the following items:

(1) Be sure that no built-in protective de vices are defecti ve or ha v e

been defeated during servicing. (1)Protective shields are provided to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2)When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including, but not limited to, nonmetallic control knobs, insulating fish papers, adjustment and compartment covers/ shields, and isolation resistor/capacitor networks. Do not operate this instrument or permit it to be operated without all protective devices correctly installed and functioning.

(2) Be sure that there are no cabinet openings through which adults

or children might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, excessively wide cabinet v entilation slots, and an improperly fitted and/or incorrectly secured cabinet back cover.

(3) Leakage Current Hot Check-With the instrument completely

reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1270 (40.7). With the instrument’s AC switch first in the ON position and then in the OFF position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinets, screwheads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5mA. Reverse the instrument power cord plug in the outlet and repeat the test. See Fig. 1. Any measurements not within the limits specified herein indicate a potential shock hazard that must be eliminated before returning the instrument to the customer.

(READING SHOULD

NOT BE ABOVE

0.5mA)

EARTH

GROUND

DEVICE UNDER

TEST

TEST ALL

EXPOSED METER

SURFACES

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED)

LEAKAGE CURRENT

TESTER

(4) Insulation Resistance Test Cold Check-(1) Unplug the power

supply cord and connect a jumper wire between the two prongs of the plug. (2) Turn on the po wer switch of the instrument. (3) Measure the resistance with an ohmmeter between the jumpered AC plug and all exposed metallic cabinet parts on the instrument, such as screwheads, antenna, control shafts, handle brackets, etc. When an exposed metallic part has a return path to the chassis, the reading should be between 1 and 5.2 megohm. When there is no return path to the chassis, the reading must be infinite. If the reading is not within the limits specified, there is the possibility of a shock hazard, and the instrument must be repared and rechecked before it is returned to the customer. See Fig. 2.

Antenna Terminal

Exposed Metal Part

ohm

ohmmeter

Fig. 2 Insulation Resistance Test

2) Read and comply with all caution and safety related notes on or inside the cabinet, or on the chassis.

3) Design Alteration W arning-Do not alter or add to the mechanical or electrical design of this instrument. Design alterations and additions, including but not limited to, circuit modifications and the addition of items such as auxiliary audio output connections, might alter the safety characteristics of this instrument and create a hazard to the user. Any design alterations or additions will make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4) Observe original lead dress. Take extra care to assure correct lead dress in the following areas: (1) near sharp edges, (2) near thermally hot parts (be sure that leads and components do not touch thermally hot parts), (3) the AC supply, (4) high voltage, and (5) antenna wiring. Always inspect in all areas for pinched, out-of-place, or frayed wiring, Do not change spacing between a component and the printedcircuit board. Check the AC power cord for damage.

5) Components, parts, and/or wiring that appear to have overheated or that are otherwise damaged should be replaced with components, parts and/ or wiring that meet original specifications. Additionally, determine the cause of o verheating and/or damage and, if necessary, tak e corrective action to remo ve any potential safety hazard.

Fig. 1 AC Leakage Test

— 5 —

6) Product Safety Notice-Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they gi ve necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by shading, an ( ) or a ( ) on schematics and parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.

— 6 —

2 SERVICING PRECAUTIONS

CAUTION: Before servicing units co v ered by this service manual and its supplements, read and follow the Safety Precautions section of this manual.

Note: If unforseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions. Remember: Safety First.

2-1 General Servicing Precautions

(1) a. Always unplug the instrument’s AC po wer cord from the AC

power source before (1) re-moving or reinstalling any component, circuit board, module or any other instrument assembly, (2) disconnecting an y instrument electrical plug or other electrical connection, (3) connecting a test substitute in parallel with an electrolytic capacitor in the instrument.

b. Do not defeat any plug/socket B+ voltage interlocks with

which instruments covered by this service manual might be equipped.

c. Do not apply AC power to this instrument and/or any of its

electrical assemblies unless all solid-state device heat sinks are correctly installed.

d. Always connect a test instrument’s ground lead to the

instrument chassis ground before connecting the test instrument positive lead. Always remove the test instrument ground lead last.

2-2 Insulation Checking Procedure

Disconnect the attachment plug from the AC outlet and turn the power ON. Connect the insulation resistance meter (500V) to the blades of the attachment plug. The insulation resistance between each blade of the attachment plug and accessible conductive parts (see note) should be more than 1 Megohm.

Note: Accessible conductive parts include metal panels, input terminals, earphone jacks, etc.

Note: Refer to the Safety Precautions section ground lead last.

(2) The service precautions are indicated or printed on the cabinet,

chassis or components. When servicing, follow the printed or indicated service precautions and service materials.

(3) The components used in the unit have a specified flame

resistance and dielectric strength. When replacing components, use components which have the same ratings. Components identified by shading, by ( ) or by ( ) in the circuit diagram are important for safety or for the characteristics of the unit. Always replace them with the exact replacement components.

(4) An insulation tube or tape is sometimes used and some

components are raised above the printed wiring board for safety . The internal wiring is sometimes clamped to prevent contact with heating components. Install such elements as they were.

(5) After servicing, always check that the removed screws,

components, and wiring have been installed correctly and that the portion around the serviced part has not been damaged and so on. Further, check the insulation between the blades of the attachment plug and accessible conductive parts.

— 7 —

3 ESD PRECAUTIONS

Electrostatically Sensitive Devices (ESD)

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some field-effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

(1) Immediately before handling any semiconductor component or

semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test.

(2) After removing an electrical assembly equipped with ESD

devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

(3) Use only a grounded-tip soldering iron to solder or unsolder

ESD devices.

(4) Use only an anti-static solder removal devices. Some solder

removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESD devices.

(5) Do not use freon-propelled chemicals. These can generate

electrical charges sufficient to damage ESD devices.

(6) Do not remove a replacement ESD device from its protective

package until immediately before your are ready to install it. (Most replacement ESD devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive materials).

(7) Immediately before removing the protective materials from the

leads of a replacement ESD device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

(8) Minimize bodily motions when handling unpackaged

replacement ESD devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ESD device).

— 8 —

4 HANDLING THE OPTICAL PICK-UP

The laser diode in the optical pick up may suffer electrostatic breakdown because of potential static electricity from clothing and your body.

The following method is recommended. (1) Place a conductive sheet on the work bench (The black sheet

used for wrapping repair parts.)

(2) Place the set on the conductive sheet so that the chassis is

grounded to the sheet.

(3) Place your hands on the conductive sheet (This gives them the

same ground as the sheet.)

(4) Remove the optical pick up block

(5) Perform work on top of the conductive sheet. Be careful not to

let your clothes or any other static sources to touch the unit.

◆ Be sure to put on a wrist strap grounded to the sheet.

◆ Be sure to lay a conductive sheet made of copper etc. Which is

grounded to the table.

WRIST-STRAP FOR GROUNDING

THE UNIT

CONDUCTIVE SHEET

Fig.3

(6) Short the short terminal on the PCB, which is inside the Pick-

Up ASS’Y, before replacing the Pick-Up. (The short terminal is shorted when the Pick-Up Ass’y is being lifted or moved.)

(7) After replacing the Pick-up, open the short terminal on the PCB.

— 9 —

5 Reset operation after IC203 was replaced

Be sure to perform the reset by the method described below, if the IC203 (FLASH MEMORY) used on the DVD Jac k Main board was replaced.

Resetting method

1. Enter the Adjustment mode, and press two times the “1” button on the remote commander. (For an entering method of Adjustment mode, see 6-1. VCR Adjustment.) The tray will automatically open and the version information will be displayed on the TV screen.

2. Turn the power off.

— 10 —

RDR-VX521/VX530

1. GENERAL

About this manual

•Instructions in this manual describe th e controls on the remote. You can also use the controls on the recorder if they have the same or similar names as those on the remote.

•The on-screen display illustrations used in this manual may not match the graphics displayed on your TV screen.

•The explanations regarding discs in this manual refer to discs created on this recorder. The explanations do not apply to discs that are created on other recorders and played back on this recorder.

Icon Meaning

Functions available for DVD+RWs

Functions available for DVD-RWs

RWVR

in VR (Video Recording) mode Functions available for DVD-RWs

RWVideo

in video mode Functions available for DVD+Rs

Functions available for DVD-Rs in

RVR

VR (Video Recording) mode Functions available for DVD-Rs in

RVideo

video mode Functions available for DVD

DVD

VIDEOs Functions available for DVD-RAMs

RAM

Functions available for VIDEO CDs or CD-Rs/CD-RWs in video CD

VCD

format Functions available for music CDs

or CD-Rs/CD-RWs in music CD

format Functions available for DATA CDs

(CD-Rs/CD-RWs containing MP3

DATA CD

audio tracks or JPEG image files) Functions available for DATA

DVDs (DVD+RWs/DVD-RWs/ DVD+Rs/DVD-Rs containing

DATA DVD

MP3* audio tracks or JPEG image files)

Functions available for VHS VIDEOs

*MP3 (MPEG1 Audio Layer 3) is a standard format

defined by ISO/MPEG which compresses audio data.

This section is extracted from RDR-VX530 instruction manual. (2-672-429-11)

What is a Video Cassette Recorder/DVD Recorder?

This is a DVD recorder with built-in VHS video deck, and allows recording/playback of DVD discs and VHS tapes. DVD editing is also possible.

Recording and timer recording

Record TV programs on a DVD or VHS tape, either manually or using the timer.

Easy selection between DVD and VCR

Simply press the DVD or VIDEO button to select the media format you want to use.

DVD VIDEO

VIDEO

DVD

Easy dubbing

Dub in either direction between a DVD disc and VHS tape with the simple press of a button.

*Note that copy-protected signals will not be recorded.

VIDEODVD

Control your cable box or satellite receiver – Set top box control

Connect the supplied set top box controller to have the recorder change the channel of your cable box or satellite receiver during a timer recording (page 12).

103

CH 103!

Quick access to recorded titles Title List

Display the Title List to view all titles on a disc and select a title for playback or editing.

Title List (Original)

No.1/4

Title Length Edit

Ch 23 01:29:03

Ch 66 00:31:23

Ch 95 01:59:00

Ch 97 00:58:56

Ch23 May/02/2006 08:00 PM

One Touch Dubbing - DV/D8 Dubbing

Connect your digital video camera to the DV IN jack and press the ONE TOUCH DUBBING button to dub a DV/D8 format tape over to a disc.

10:10 AM

> > > >

ONE-TOUCH

DUBBING

Control

Dubbing

Creating your own program - Playlist

Record a program on a DVD-RW (VR mode) or DVD-R (VR mode), then erase, move or add scenes as you like without changing the original contents.

Original

Playlist

Operation restrictions

Current Operation

Playing a VHS tape

Recording on a VHS tape No — Yes Yes

Playing a DVD

Recording on a DVD Yes Yes

When pressing DVD, VCR playback stops.

When pressing VIDEO, DVD playback stops.

Only the same program can be recorded on a DVD and a VHS tape.

Possible Simultaneous Operations

VCR

Playback

VCR

Recording

DVD

Playback

— No No Yes

No Yes — No

No —

Recording

DVD

A “Title List”

How to Use the On-Screen Menus

The following three displays are mainly used to operate this recorder. Once you become familiar with the basic operations, you will find the recorder easy to use.

SYSTEM

System Menu

The System Menu appears when you press SYSTEM MENU, and provides entries to all of the recorder’s main functions, such as timer recording and setup. Select an option by pressing M/m and ENTER.

Title List (Original)

Title List

Press ENTER :

Timer

Edit

Title Menu for DVD Title List.

Dubbing

Disc Setting

Setup

M/m/</,, ENTER

TOOLSO RETURN

10:10 AM

Displays the list of the disc contents, including the recording information and movie thumbnail image, which allows you to select a title to play or edit.

Title List (Original)

No. Title Length Edit

1/4

May/02/2006 08:00 PM

B “Timer”

Used to set a new timer recording for a disc or VHS tape, as well as change or cancel the timer recordings you set.

C “Edit”

Used to create or edit a Playlist (unfinalized DVD-RWs (VR mode)/DVD-Rs (VR mode) only).

D “Dubbing”

Used to dub from a disc to a VHS tape and vice versa, and also dub from a DV/D8 format tape to a disc.

E “Disc Setting”

Used to rename, format, or finalize a disc.

F “Setup”

Displays the “Setup” display for setting up the recorder to suit your preferences.

01 Ch 23 >01:29:03 02 Ch 66 >00:31:23 03 Ch 95 >01:59:00 04 Ch 97 >00:58:56

10:10 AM

1-1

Sub-menu

The sub-menu appears when you select an item from a list menu (e.g., a title from the Title List menu), and press ENTER. The sub-menu displays options applicable only to the selected item. The displayed options differ depending on the situation and disc type. Select an option by pressing M/m and ENTER.

Example: The Title List menu

Ch 23 May/02/2006

08:00 PM

Title List (Original)

1/4

Options for the selected item

10:10 AM

No. Title Length Edit

01 Ch 23 >01:29:03

Play

02 Ch 66 >00:31:23

Title Erase

03 Ch 95 >01:59:00

Chapter Erase

04 Ch 97 >00:58:56

Protect Title Name A·B Erase Divide Title

TOOLS

The TOOLS menu appears when you press TOOLS. You can search for a title/chapter/track, check the playing and remaining time, or change audio and repeat settings. The displayed options differ depending on the media type. Press M/m to select an option, press </, to select the desired item, and press ENTER.

Example: When you press TOOLS while a DVD-RW (VR mode) is playing.

1/4

Title

1/1

Chapter

Time

00:00:25

ENG Dolby 5.1ch (1/3)

Audio

Repeat

Off

00:01:30

Remain

Selectable options

Selectable options on the System Menu differ depending on the media type, disc condition, and operating status.

Example: When a disc or a VHS tape is stopped.

Type Selectable option

RWVR

RWVideo

RVR

RVideo

*1 *1

DVD

RAM

VCD

DATA CD

DATA DVD

Unfinalized disc only

With a disc inserted

To return to the previous display

Press O RETURN.

Notes

•The TOOLS menu may not appear during DVD recording.

•The System Menu does not appear when recording on a DVD, or dubbing from VHS tape to a DVD.

•You cannot use the DVD or VIDEO buttons with the System Menu turned on.

Hookups and Settings

Hooking Up the Recorder

Follow steps 1 to 7 to hook up and adjust the settings of the recorder.

Notes

•Plug cords securely to prevent unwanted noise.

•See the instructions supplied with the components to be connected.

•You cannot connect this recorder to a TV that does not have a video input jack.

•Be sure to disconnect the power cord of each component before connecting.

Step 1: Unpacking

Check that you have the following items:

•Audio/video cord (phono plug u 3 y phono plug u 3) (1)

•Antenna cable (1)

•Remote commander (remote) (1)

•Set top box controller (1)

•Size AA (R6) batteries (2)

Step 2: Connecting the Antenna Cable and Set Top Box Controller

Select one of the following antenna hookups. Do not connect the power cord until you reach “Connecting the Power Cord” on page 20.

If you have Hookup

Cable box or satellite receiver with a video/audio output

Cable box with an antenna output only

Cable without cable box, or antenna only (no cable TV)

A (page 13)

B (page 14)

C (page 15)

Using the cable box/satellite receiver control function

The cable box/satellite receiver control function can be used with hookup A or B. It allows the recorder to control a cable box or satellite receiver via the supplied set top box controller. The recorder controls channels on the cable box or satellite receiver for timer recording. You can also use the recorder’s remote control to change channels on the cable box/satellite receiver whenever the cable box/satellite receiver and the recorder are turned on. To use the cable box/satellite receiver control function, you need to connect the set top box controller and set the code number and output channel (page 23). After setting up the cable box/ satellite receiver control, check that the recorder can correctly control the cable box or satellite receiver (page 25).

Note to CATV system installer (in USA)

This reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Notes

•If your antenna is a flat cable (300-ohm twin lead cable), use an external antenna connector (not supplied) to connect the antenna to the recorder.

•If you have separate cables for VHF and UHF antennas, use a UHF/VHF band mixer (not sup plied) to connect the antenna to the recorder.

A: Cable box or satellite receiver with a video/audio output

With this hookup, you can record any channel on the cable box or satellite receiver. Be sure that the cable box or satellite receiver is turned on. This connection is necessary to use the Synchro-Rec function (pages 53 and 83). To watch cable or satellite programs, you need to match the channel on the recorder (L1) to the input jack connected to the cable box or satellite receiver (LINE 1 IN). Place the set top box controller near the remote sensor on the cable box/satellite receiver.

Wall

Set top box controller (supplied)

Cable box/

to SET TOP BOX CONTROL

VCR-DVD recorder

SET TOP BOX

CONTROL

AUDIO

OUT

satellite receiver

VIDEO

OUT

Audio/video cord (not supplied)

to LINE 1 IN

COMPONENT

AUDIO OUT S VIDEO OUT

VIDEO OUT

OPTICAL COAXIAL

SET TOP BOX CONTROL

DIGITAL AUDIO OUT

ANT IN

TO TV

to antenna input

LINE 1 IN

VIDEO

AUDIO

VIDEO

AUDIO

LINE 1 IN

VIDEO

AUDIO

VHF/UHFLINE OUT

OUT

Antenna cable (supplied)

Hookups and Settings

B: Cable box with an antenna output only

With this hookup, you can record any channel on the satellite receiver or cable box. Be sure that the cable box or satellite receiver is turned on. To watch cable programs, you need to match the channel on the recorder (3ch or 4ch) to the antenna output channel on the cable box (3ch or 4ch). Place the set top box controller near the remote sensor on the cable box/satellite receiver.

Wall

to VHF/UHF IN

VCR-DVD recorder

: Signal flow

to SET TOP BOX CONTROL

Set top box controller (supplied)

Cable box

ANT IN

TO TV

Antenna cable (supplied)

SET TOP BOX

CONTROL

COMPONENT

AUDIO OUT S VIDEO OUT

VIDEO OUT

OPTICAL COAXIAL

SET TOP BOX CONTROL

DIGITAL AUDIO OUT

VHF/UHF

VHF/UHFLINE OUT

LINE 1 IN

VIDEO

OUT

AUDIO

OUT

to VHF/UHF OUT

to antenna input

: Signal flow

Note

Synchro-Recording does not work with some tuners. For details, see the tuner’s operating instructions.

,continued

1-2

C: Cable without cable box, or antenna only (no cable TV)

Use this hookup if you watch cable channels without a cable box. Also use this hookup if you are using a VHF/UHF antenna or separate VHF and UHF antennas. With this hookup, you can record any channel by selecting the channel on the recorder.

Wall

Hookups and Settings

Step 3: Connecting to Your TV

Connect the supplied audio/video cord to the LINE OUT (VIDEO/AUDIO L/R) jacks of the recorder. To enjoy higher quality images, connect an S video cord (not supplied) instead of the yellow (video) plug. When using this connection, be sure to connect the audio cord to the LINE OUT (AUDIO L/R) jacks.

INPUT

S VIDEO

TV or projector

INPUT

AUDIO

RLVIDEO

(red) (white) (yellow)

VCR-DVD recorder

: Signal flow

SET TOP BOX CONTROL

OPTICAL COAXIAL

DIGITAL AUDIO OUT

AUDIO OUT S VIDEO OUT

COMPONENT

VIDEO OUT

Antenna cable (supplied)

VHF/UHF

VHF/UHFLINE OUT

LINE 1 IN

VIDEO

OUT

AUDIO

OUT

to VHF/UHF OUT

to antenna input

to VHF/UHF IN

If your TV has component video input jacks

Connect the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and high quality images. If your TV accepts progressive 480p format signals, you must use this connection and then set “Progressive” of “Video” to “On” in the “Setup” display (page 101). The PROGRESSIVE indicator lights up when the recorder outputs progressive signals. When using this connection, be sure to connect the audio cord to the LINE OUT (AUDIO L/R) jacks.

COMPONENT VIDEO IN

PBP

(blue) (red)(green) (white) (red)

TV or projector

Component video cord (not supplied)

(green)

(blue)

(red)

to COMPONENT VIDEO OUT

: Signal flow

z Hint

Video signal can also be output from the COMPONENT VIDEO OUT jack when playing a VHS tape.

Note

During DVD recording, you cannot watch VHS pictures by pressing VIDEO, as the COMPONENT VIDEO OUT jacks will output DVD video signals only.

COMPONENT VIDEO OUT

COMPONENT

AUDIO OUT S VIDEO OUT

VIDEO OUT

OPTICAL COAXIAL

SET TOP BOX CONTROL

DIGITAL AUDIO OUT

VCR-DVD recorder

LINE 1 IN

VIDEO

AUDIO

INPUT

AUDIO

LINE OUT

VIDEO

AUDIO

VHF/UHFLINE OUT

VIDEO

OUT

AUDIO

Audio/video cord (supplied)

(white)

(red)

to LINE OUT (AUDIO L/R)

Hookups and Settings

S video cord (not supplied)

to S VIDEO OUT

VCR-DVD recorder

S VIDEO OUT

VIDEO

AUDIO

VIDEO

AUDIO

OPTICAL COAXIAL

SET TOP BOX

CONTROL

DIGITAL AUDIO OUT

(yellow)

(white)

(red)

to LINE OUT (VIDEO/AUDIO L/R)

COMPONENT

LINE 1 IN

AUDIO OUT S VIDEO OUT

VIDEO OUT

VIDEO

AUDIO

Audio/video cord (supplied)

VHF/UHFLINE OUT

VIDEO

OUT

AUDIO

LINE OUT

LINE 1 IN

: Signal flow

When playing “wide screen” images

Some recorded images may not fit your TV screen. To change the picture size, see page 100.

Notes

•Do not connect to the S VIDEO OUT and yellow LINE OUT (VIDEO) jacks at the same time.

•During DVD recording, you cannot watch VHS pictures by pressing VIDEO, as the S VIDEO OUT jack will output DVD video signals only.

•Do not connect your TV’s audio output jacks to the LINE IN (AUDIO L/R) jacks at the same time. This will cause unwanted noise to come from your TV’s speakers.

Step 4: Connecting to Your AV Amplifier (Receiver)

Select one of the following patterns A or B, according to the input jack on your AV amplifier (receiver). This will enable you to listen to DVD audio tracks through your AV amplifier (receiver).

INPUT

AUDIO

[Speakers][Speakers]

Rear (R)

Front (R)

Subwoofer

VCR-DVD recorder

AUDIO OUT

Rear (L)

Front (L)

Center

: Signal flow

(white)

(red)

OPTICAL COAXIAL

DIGITAL AUDIO OUT

Optical digital cord (not supplied)

Audio cord (not supplied)

to AUDIO OUT (L/R)

COMPONENT

VHF/UHFLINE OUT

LINE 1 IN

AUDIO OUT S VIDEO OUT

VIDEO OUT

VIDEO

OUT

OPTICAL COAXIAL

SET TOP BOX

AUDIO

CONTROL

DIGITAL AUDIO OUT

to DIGITAL AUDIO OUT (COAXIAL or OPTICAL)

to optical digital input

AV amplifier (receiver) with a decoder

(white)

(red)

Coaxial digital cord (not supplied)

to coaxial digital input

AV amplifier (receiver)

1-3

A Connecting to audio L/R jacks

This connection uses a stereo amplifier’s (receiver’s) two front speakers for sound. You can enjoy the surround function that creates virtual speakers from two stereo speakers. Select from “Surround1,” “Surround2,” or “Surround3” of the surround effects (page 36). Surround 1

Surround 2

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

z Hints

•For correct speaker location, see the operating instructions supplied with the connected components.

•During VHS playback, the DIGITAL AUDIO OUT jacks can also output digital audio signals.

Notes

•During DVD recording, the DIGITAL AUDIO OUT jacks output DVD audio signals only. You cannot hear VHS sound by pressing VIDEO.

•After you have completed the connection, make the appropriate settings under “Audio Connection Setup” in Easy Setup (page 23). Otherwise, no sound or a loud noise will come from your speakers.

•With a coaxial or optical digital connection, you cannot use the virtual surround effects of this recorder.

•When outputting from the DIGITAL AUDIO OUT jacks, you cannot switch the bilingual sounds on a DVD-RW (VR mode) or DVD-R (VR mode) by pressing AUDIO.

Hookups and Settings

Step 5: Connecting the Power Cord

Plug the recorder and TV power cords into an AC outlet. After you connect the power cord, you

must wait for a short while before operating the recorder. You can operate the

recorder only after the front panel display lights up and the recorder enters standby mode. If you connect additional equipment to this recorder (page 28), be sure to connect the power cord only after all connections are complete.

AUDIO OUT

OPTICAL COAXIAL

SET TOP BOX

CONTROL

DIGITAL AUDIO OUT

to AC outlet

Step 6: Preparing the Remote

You can control the recorder using the supplied remote. Insert two size AA (R6) batteries by matching the 3 and # ends on the batteries to the markings inside the battery compartment. Be sure to close the battery cover properly. When using the remote, point it at the remote sensor on the recorder.

COMPONENT

VIDEO OUT

Surround 3

Virtual speaker

B Connecting to a digital audio input jack

Use this connection if your AV amplifier (receiver) has a Dolby and a digital input jack. You can enjoy the surround effect of Dolby Digital (5.1ch) or DTS (5.1ch).

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Digital or DTS*2 decoder

Controlling TVs with the remote

You can adjust the remote control’s signal to control your TV. If you connect the recorder to an AV amplifier (receiver), you can also use the supplied remote to control the AV amplifier’s (receiver’s) volume.

Notes

•Depending on the connected unit, you may not be able to control your TV or AV amplifier (receiver) with some or all of the buttons below.

•If you enter a new code number, the code number previously entered will be erased.

•When you replace the batteries of the remote, the code number may be reset to the default setting. Set the appropriate code number again.

Number buttons,

SET

TV/DVD·VIDEO switch

"/1

CH +/– VOL +/–

TV/VIDEO

WIDE MODE

1 Slide the TV/DVD·VIDEO switch to TV. 2 Hold down "/1. 3 Enter your TV’s manufacturer code (see

below) using the number buttons.

4 Release "/1.

When the TV/DVD·VIDEO switch is set to TV, the remote performs the following:

Press To

"/1 Turn your TV on or off

VOL +/– Adjust the volume of

CH +/– Select the channel on

TV/VIDEO Switch your TV’s input

Number buttons and SET

WIDE MODE Switch to or from the

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer Code number

Sony 01 (default) Akai 04 AOC 04 Centurion 12 Coronado 03 Curtis-Mathes 12, 14 Daewoo 04, 22 Daytron 03, 12 Fisher 11 General Electric 04, 06, 10 Hitachi 02, 03, 04 J.C.Penney 04, 10, 12 JVC 09 KMC 03 LG/Gold Star 03, 04, 17 Magnavox 03, 04, 08, 12, 21 Marantz 04, 13 MGA/Mitsubishi 04, 12, 13, 17 NEC 04, 12 Panasonic 06, 19 Philco 02, 03, 04, 08 Philips 08, 21 Pioneer 06, 16

your TV

source Select the channel on a

Sony TV

wide mode of a Sony wide-screen TV

,continued

Hookups and Settings

Manufacturer Code number

Portland 03 Proscan 10 Quasar 06, 18 Radio Shack 05, 10, 14 RCA 04, 10 Sampo 12 Samsung 03, 04, 12, 20 Sanyo 11, 14 Scott 12 Sears 07, 10, 11 Sharp 03, 05, 18 Sylvania 08, 12 Teknika 03, 08, 14 Toshiba 07, 18 Wards 03, 04, 12 Yorx 12 Zenith 14, 15

Controlling the volume of your AV amplifier (receiver) with the remote

TV/DVD·VIDEO switch

"/1

Number buttons

1 Slide the TV/DVD·VIDEO switch to

DVD·VIDEO.

2 Hold down "/1, and enter the

manufacturer code (see the table below) for your AV amplifier (receiver) using the number buttons.

3 Release "/1.

The VOL +/– buttons control the AV amplifier’s volume. If you want to control the TV’s volume, slide the TV/DVD·VIDEO switch to TV.

VOL +/–

Notes

•If the supplied remote interferes your other Sony DVD recorder or player, change the command mo de number for this recorder (page 26).

•Use the batteries correctly to avoid possible leakage and corrosion. Do not touch the liquid with bare hands should leakage occur. Observe the following: –Do not use a new battery with an old battery, or

batteries of different manufacturers. –Do not attempt to recharge the batteries. –If you do not intend to use the remote for an extended

period of time, remove the batteries. –If battery leakage occurs, wipe out any liquid inside

the battery compartment, and insert new batteries.

•Do not expose the remote sensor (marked on the front panel) to strong light, such as direct sunligh t or lighting apparatus. The recorder may not respond to the remote.

•With normal use, the batteries should last about three to six months.

•Do not leave the remote in an extremely hot or humid place.

•Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

z Hint

If you want to control the TV’s volume even when the TV/DVD·VIDEO switch is set to DVD·VIDEO, repeat the steps above and enter the code number 90 (default).

Code numbers of controllable AV amplifiers (receivers)

If more than one code number is listed, try entering them one at a time until you find the one that works with your AV amplifier (receiver).

Manufacturer Code number

Sony 78, 79, 80, 91 Denon 84, 85, 86 Kenwood 92, 93 Onkyo 81, 82, 83 Pioneer 99 Sansui 87 Technics 97, 98 Yamaha 94, 95, 96

1-4

Step 7: Easy Setup

Follow the steps below to make the minimum number of basic adjustments for using the recorder. If you do not complete Easy Setup, it will appear each time you turn on your recorder. Settings are made in the following order.

OSD Language Setup

Clock Setup

Cable Box/Sat. Control Setup

Tuner and Channel Setup

TV Type Setup

Audio Connection Setup

Finished!

"/1

Number buttons

M/m/</,,

O RETURN

ENTER

1 Turn on the TV. 2 Press "/1.

The recorder turns on.

3 Switch the input selector on your TV so that

the signal from the recorder appears on your TV screen.

“Initial setting necessary to operate the DVD recorder will be made. You can change them later using setup.” appears.

• If this message does not appear, select “Easy Setup” in the “Setup” display to run Easy Setup (page 108).

4 Press ENTER.

The setup display for selecting the language used in the on-screen display appears.

Easy Setup

No Disc

Select the screen language.

English Français Español

5 Select a language, and press ENTER.

The setup display for clock setting appears.

Easy Setup

No Disc

Select a method for setting the clock.

If you select "Auto", this recorder will look

for a time signal when you turn it off.

Auto Manual

6 Select “Manual,” and press ENTER.

Press M/m to set the month and press ,. Set the day, year, hour, minutes, and AM/PM in the same way, then press ENTER. The day of the week is set automatically.

• If you used antenna hookup C (page 15), you can select “Auto.” The recorder will automatically search for a channel that carries a time signal when you turn off the recorder after finishing Easy Setup.

The setup display for cable box/satellite receiver control appears.

Hookups and Settings

Easy Setup

No Disc

Do you want to control

your set top box with this recorder?

(Changes to the current setting will

erase all timer settings.)

Yes No

7 Select whether or not you use the cable

box/satellite receiver control, and press ENTER.

If you want to use the cable box/satellite receiver control (page 12), select “Yes.” If you do not have a cable box, select “No,” then go to step 11.

8 Press the number buttons to enter the

brand code of your cable box/satellite receiver.

See “Cable Box/Satellite Receiver Brand Code” (page 125).

Easy Setup

No Disc

Enter the brand code of

your set top box.

OK Cancel

•To re-enter the code number, select “Cancel” and return to step 7.

10:10 AM

9 Select “OK,” and press ENTER.

Easy Setup

No Disc

Select input line or

Set Top Box's output channel.

Line1 Line2 Ch3 Ch4

Select the cable box output channel.

If you connect your cable box or satellite receiver to the recorder’s audio/video input (page 13), select “Line1” or “Line2” and press ENTER, then go to step 13.

10:10 AM

If you connect the satellite receiver or cable box to the recorder’s antenna input (page 14), select “Ch3” or “Ch4” and press ENTER, then go to step 13. See the instructions supplied with your cable box to confirm the cable box’s antenna output channel.

Select whether or not you have a cable connection.

Easy Setup

No Disc

Select the way in which you will receive

channels.

Antenna Cable

If you use an antenna only (no cable TV), select “Antenna.” For all other connections, select “Cable.”

Press ENTER.

The Tuner Preset function automatically starts searching for all of the receivable channels and presets them.

Easy Setup

No Disc

Searching for receivable channels. 25

Please wait.

To set the channels manually, see page 99. After the Tuner Preset is finished, the setup display for selecting the picture size of the connected TV appears.

Select the setting that matches your TV type.

Easy Setup

No Disc

Select your TV screen type.

16 : 9 4 : 3 Letter Box 4 : 3 Pan Scan

10:10 AM

“4:3 Letter Box”: For standard TVs. Displays “wide screen” pictures with bands on the upper and lower sections of the screen. “4:3 Pan Scan”: For standard TVs. Automatically displays “wide screen” pictures on the entire screen and cuts off the sections that do not fit. “16:9”: For wide-screen TVs or standard TVs with a wide screen mode. For details, see “Video Settings (Video)” on page 100.

Press ENTER.

The setup display for selecting the type of Dolby Digital signal appears.

Easy Setup

No Disc

Dolby Digital

D-PCM Dolby Digital

Select the type of Dolby Digital signal you want to send to your amplifier (receiver).

If your AV amplifier (receiver) has a Dolby Digital decoder, select “Dolby Digital.” Otherwise, select “D-PCM.”

Press ENTER.

The setup display for selecting the type of DTS signal appears.

Easy Setup

No Disc

On Off

Select whether or not you want to send a DTS signal to your amplifier (receiver), and press ENTER.

If your AV amplifier (receiver) has a DTS decoder, select “On.” Otherwise, select “Off.”

10:10 AM

DTS

,continued

Press ENTER when “Finish” appears.

Easy Setup is finished. All connections and setup operations are complete. If you use the cable box/satellite receiver control, check that the control works correctly (page 25).

Easy Setup

No Disc

Easy Setup is finished.

To return to the previous display

Press O RETURN.

z Hint

If you want to run Easy Setup again, select “Easy Setup” in the “Setup” display (page108).

Note

To record TV programs using the timer, you must set the clock accurately.

10:10 AM

Finish

Checking the cable box/satellite receiver control setting

1 Turn on the recorder and the cable box/

satellite receiver.

2 Point the recorder’s remote at the recorder

(not at the cable box/satellite receiver).

3 Press CH +/– and check that the channel

changes on the cable box/satellite receiver window.

4 Press the number buttons and check that

the channel changes on the cable box/ satellite receiver window.

If you cannot get the recorder to control your cable box/satellite receiver

Check the settings at “Set Top Box Control” in “Features” setup (page 105). Check the connection and place the set top box controller near the cable box/satellite receiver (page 12).

,continued

Hookups and Settings

If your cable box or satellite receiver still does not operate with this recorder, contact your cable or satellite company to see if they can provide you with a compatible cable box or satellite receiver.

To fix the set top box controller to your cable box/satellite receiver

Once you have confirmed that the set top box controller controls your cable box or satellite receiver, affix it in place.

1 Attach the supplied double-sided tape to the

set top box controller. Remove the backings on the double-sided tape.

2 Affix it so that the set top box controller is

near the remote control sensor on your cable box/satellite receiver.

If you have a Sony DVD player or more than one Sony DVD recorder

If the supplied remote interferes with your other Sony DVD recorder or player, set the command mode number for this recorder and the supplied remote to one that differs from the other Sony DVD recorder or player. The default command mode setting for this recorder and the supplied remote is DVD 3.

SYSTEM

O RETURN

1 Press SYSTEM MENU.

The System Menu appears.

M/m/</,, ENTER

COMMAND MODE switch

2 Select “Setup,” and press ENTER.

Setup

No Disc

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

Tuner Preset Clock Set Video Audio Features Options Easy Setup

10:10 AM

3 Select “Options,” and press ENTER.

No Disc

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

Options

Language Parental Front Display Command Mode Factory Setting

: Auto : DVD 3

10:10 AM

1-5

4 Select “Command Mode,” and press

ENTER.

Options

No Disc

Title List

Language Parental

Timer

Front Display

Edit

Command Mode

Dubbing

Factory Setting

Disc Setting

Setup

5 Select the command mode (“DVD 1,”

“DVD 2,” or “DVD 3”), and press ENTER.

6 Slide the COMMAND MODE switch on the

remote so it matches the mode you selected above.

To return to the previous display

Press O RETURN.

Note

If the command mode does not match, the recorder’s command mode appears on the front panel display when you operate the remote. Set the remote’s command mode to one that matches the recorder’s.

: Auto

DVD 1

: DVD1 No

DVD 2 DVD 3

10:10 AM

Hookups and Settings

Connecting Another VCR or Similar Device

After disconnecting the recorder’s power cord from an AC outlet, connect the other VCR or similar recording device to the LINE IN jacks of this recorder. See also the instruction manual supplied with the connected equipment. To record on this recorder, see “Recording From Connected Equipment With a Timer (Synchro Rec)” on page 53 and page 83. Connect the equipment to the LINE 1 IN jacks of the recorder to record using the Synchro Rec function.

Connecting to the LINE 2 IN jacks on the front panel

Connect other VCR or similar device to the LINE 2 IN jacks of this recorder. If the equipment has an Svideo jack, you can use an S video cord (not supplied) instead of the yellow (video) plug of the audio/ video cord. Do not connect to the S VIDEO and yellow VIDEO jacks at the same time. You can connect a second DVD player and record DVDs.

S video cord (not supplied)

VCR-DVD recorder

: Signal flow

Other VCR, etc

S VIDEO

OUTPUT

VIDEO

S VIDEO

AUDIO

LINE 2 IN

VIDEO

L AUDIO R

(MONO)

Audio/video cord (not supplied)

DV IN

to LINE 2 IN

Connecting to the LINE 1 IN jacks

You can connect a second VCR or similar device.

Other VCR, etc.

LINE OUTPUT

AUDIO

VIDEO

Audio/video cord (not supplied)

VCR-DVD recorder

: Signal flow

z Hints

•When the connected equipment outputs only monaural sound, connect an audio cord to the white LINE IN AUDIO L (mono) jack.

•To record from connected equipment, select an input source (LINE1 or LINE2) to match the jack you connected to (pages 56 and 86).

Notes

•Do not connect more than one type of video cord between the recorder and your TV at the same time.

•Pictures containing copy protection signals that prohibit any copying cannot be recorded. You cannot dub from DVD VIDEOs to this recorder.

•Do not connect the output jack of this recorder to another equipment’s input jack with the other equipment’s output jack connected to the input jack of this recorder. Noise (feedback) may result.

•If you pass the recorder signals via the VCR, you may not receive a clear image on your TV screen.

VCRVCR-DVD recorder TV

Be sure to connect your VCR to the VCR-DVD recorder and your TV in the order shown below. To watch video tapes, watch the tapes through a second line input on your TV.

Line input 1

VCR VCR-DVD recorder TV

Line input 2

to LINE 1 IN

AUDIO OUT S VIDEO OUT

OPTICAL COAXIAL

SET TOP BOX

CONTROL

DIGITAL AUDIO OUT

LINE 1 IN

VIDEO

AUDIO

COMPONENT

VHF/UHFLINE OUT

LINE 1 IN

VIDEO OUT

VIDEO

OUT

AUDIO

Hookups and Settings

Quick Guide to Disc Types

Recordable and Playable Discs

Icon used

Disc

Disc Type

DVD+RW

mode DVDRW

Video

mode

DVD+R

DVD+R DL

mode DVD-

Video

mode DVD-

R DL

Usable disc versions (as of February 2006)

•4×-speed or slower DVD+RWs

•2×-speed or slower DVD-RWs (Ver.1.1, Ver.1.1

with CPRM

•4×-speed or slower DVD-RWs (Ver.1.2, Ver.1.2

• 16×-speed or slower DVD+Rs

• 16×-speed or slower DVD-Rs (Ver.2.0, Ver.2.0

)

with CPRM)

with CPRM, Ver.2.1, Ver.2.1 with CPRM)

Logo

in this manual

RWVR

RWVideo

RVR

RVideo

Formatting (new discs)

Automatically formatted

Format in VR mode*2 (page 49)

Format in Video

mode

(page 49)

Automatically formatted

Format in VR mode using the “Disc Setting” display (page 49)

Automatically formatted in Video mode

•2.4×-speed DVD+R DL (Double Layer) discs

•4×-speed or slower DVD-R DL (Dual Layer) discs

“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD+R DL,” and “DVD-R” logos are trademarks.

Compatibility with other DVD players (finalizing)

Playable on DVD+RW compatible players (automatically finalized)

Playable only on VR mode compatible players (finalization unnecessary) (page 91)

Playable on most DVD players (finalization necessary) (page 91)

Playable on DVD+R compatible players (finalization necessary) (page 91)

Playable only on DVD-R VR mode compatible players (finalization necessary)

Playable on most DVD players (finalization necessary) (page 91)

(page 91)

1-6

12 cm/8 cm discs

Recording Features Editing Features

Change

Auto Chapter (page 51)

Manual Chapter (page 62)

Rewrite (page 70)

Yes Yes Yes Yes Yes/No*3Yes Yes No

Yes Yes Yes Yes Yes/Yes*4Yes Yes Yes

Yes Yes No Yes Yes/No*3No No No

No Yes No Yes Yes/No*5No No No

No Yes Yes Yes Yes/Yes*5Yes Yes Yes

No Yes No Yes Yes/No*5No No No

CPRM (Content Protection for Recordable Media) is a coding technology that protects copyrights for images.

Unused DVD-RWs are automatically formatted according to the setting of “Format DVD-RW” in “Features” setup (page 105).

Erasing titles only frees up disc space if you erase the last title.

Erasing titles or chapters frees up disc space.

Erasing titles or chapters does not free up disc space.

Title Name (page 63)

Erase

A-B Erase (page 60)

Divide Title (page 61)

Title/ Chapter (page 59)

When using DVD+R DL (Double Layer) discs, see the instructions supplied with the discs.

Playlist (page 64)

,continued

Quick Guide to Disc Types

Disc Type

DVD+RW Yes Yes Yes No

DVD-RW

DVD-R

DVD+R Yes Yes — —

Discs that cannot be recorded on

•DVD-RWs (Ver.1.0)

•DVD+RWs that are not 2.4×-speed compatible

•8 cm discs

•DVD-RAMs

•DVD-R DL (Dual Layer) discs in VR mode

VR mode Yes Yes Yes No

Video mode Yes Yes Yes No

VR mode Yes Yes — —

Video mode Yes Yes Yes No

12 cm 8 cm

Playback Recording Playback Recording

Playable Discs

Icon Used

Disc Type Disc Logo

DVD VIDEO

DVD-RAM —

VIDEO CD

DATA CD

DATA DVD —

8 cm DVD+RW/ DVD-RW/DVD-R

“DVD VIDEO” and “CD” logos are trademarks.

*A logical format of files and folders on DATA-CDs,

defined by ISO (International Organization for Standardization).

in This Manual

DVD

RAM

VCD

DATA CD

DATA DVD

——

Characteristics

Discs such as movies that can be purchased or rented

DVD-RAMs recorded by another recording device. 12 cm/8 cm discs without cartridges, or removable from their cartridges can be played.

VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD format (with PBC function)

Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased

CD-Rs/CD-RWs created on a PC or similar device in music format, or MP3 or JPEG format that conforms to ISO9660* Level 1/Level 2

DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs in MP3 or JPEG format conforming to UDF

8 cm DVD+RWs, DVD-RWs, and DVD-Rs recorded with a DVD video camera (Still images recorded with a DVD video camera cannot be played.)

Discs that cannot be played

•CD-Rs/CD-RWs, other than those recorded in music CD format, MP3 or JPEG format, or Video CD format

•Data part of CD-Extras

•CD-ROMs

•DVD-ROMs

•DVD Audio discs

•DVD-R DL (Dual Layer) discs in VR mode

•HD layer on Super Audio CDs

•DVD VIDEOs with a different region code (see page 34)

•A disc recorded in a color system other than NTSC, such as PAL or SECAM

Quick Guide to Disc Types

Note on playback operations of DVD VIDEOs/ VIDEO CDs

Some playback operations of DVD VIDEOs/ VIDEO CDs may be intentionally set by software producers. Since this recorder plays DVD VIDEOs/VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, see the instructions supplied with the DVD VIDEOs/ VIDEO CDs.

Note on DualDiscs

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.

Region code (DVD VIDEO only)

Your recorder has a region code printed on the rear of the unit and will only play DVD VIDEOs (playback only) labeled with identical region codes. This system is used to protect copyrights. DVD VIDEOs labeled will also play on this recorder. If you try to play any other DVD VIDEO, a message will appear on the TV screen to indicate that the disc is not playable. Depending on the DVD VIDEO, no region code indication may be labeled even though playing the DVD VIDEO is prohibited by area restrictions.

NO.

Music discs encoded with copyright protection technologies

This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are being marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

ALL

RDR-VX530

Region code

Notes

•Some DVD+RWs/DVD+Rs, DVD-RWs/DVD-Rs, or CD-RWs/CD-Rs cannot be played on this recorder due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device .

•You cannot mix VR mode and Video mode on the same DVD-RW or DVD-R. To change the DVD-RW’s format, reformat the disc (page 70). Note that a disc’s contents will be erased after reformatting.

•You cannot shorten the time required for recording even with high-speed discs. Also, you cannot record on the disc if the disc is not 1x speed compatible.

•It is recommended that you use discs with “For Video ” printed on their packaging.

•You cannot add new recordings to DVD-RWs (Video mode) or DVD-Rs (Video mode) recorded on other equipment.

•You may not be able to further record on a DVD+RW recorded on other equipment. Note that recording on such discs may cause the recorder to rewrite the DVD menu.

•If the disc contains PC data unrecognizable by this recorder, the data may be erased.

,continued

1-7

DVD Playback

Playing

RWVR-RWVideo

DVD

RAM

Z OPEN/

DVD

TOP MENU

H PLAY

Press DVD to operate the DVD recorder.

2 Press Z OPEN/CLOSE, and place a disc on

the disc tray.

Playback side facing down

3 Press Z OPEN/CLOSE to close the disc

tray.

Wait until “LOAD” disappears from the front panel display.

4 Press H PLAY.

Playback starts.

VCD

RVideo

RVR

DATA DVD

DATA CD

x STOP

To stop playback

Press x STOP.

z Hints

•You can play DATA CDs or DATA DVDs with MP3 audio tracks or JPEG image files (pages43 or 44).

• If you insert a DVD VIDEO, VIDEO CD, or CD, playback starts automatically depending on the disc.

•When playing a DVD+RW, DVD-RW, DVD+R, DVD-R, and DVD-RAM, you can select the title from the Title List menu (page 40).

•When using a DVD-RAM with a cartridge, remove the disc from the cartridge.

Notes

•To play a disc recorded with other equipment on this recorder, finalize the disc on the recording equipment first.

•For simultaneous VHS and DVD operation, see page 9.

Using the DVD’s Menu

When you play a DVD VIDEO, or a finalized DVD+RW, DVD-RW (Video mode), DVD+R, or DVD-R (Video mode), you can display the disc’s menu by pressing TOP MENU or MENU.

RWVideo

RVideo

DVD

Playback Options

Z OPEN/CLOSE

Number buttons

AUDIO

DVD Playback

SUBTITLE

O RETURN

REPLAY/

ADVANCE

. PREV

ZOOM

ANGLE

REPEAT

Button Operation Disc

Z OPEN/CLOSE Stops playing and opens the disc tray. All discs

AUDIO Selects one of the audio tracks recorded on the disc

when pressed repeatedly.

: Selects the audio source.

DVD

: Selects stereo or monaural audio tracks.

VCD

SUBTITLE Selects a subtitle language when pressed repeatedly.

ANGLE Selects an angle when pressed repeatedly.

ZOOM Zooms into a scene during playback or still mode

If various angles (multi-angles) for a scene are recorded on the disc, “ ” appears in the front panel display.

when pressed repeatedly. Magnification changes as follows: normal t ×2 t ×4 t normal

The zoom function may not work depending on the DVD. To zoom in a JPEG image, see page 44.

SUR MENU M/m/</,,

ENTER

> NEXT H PLAY

x STOP X PAUSE

DVD

VCD

RWVR

RWVideo

RVideo

RVR

RAM

VCD

Button Operation Disc

All discs

DVD

All discs

DVD

*Playback direction

All discs

SUR (surround)

REPLAY/ ADVANCE

. PREV/ NEXT >

(fast reverse/fast forward)

(slow)

Surround lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from a stereo TV or two front speakers (page 19). Selects one of the effects when pressed repeatedly. “Off”: No surround effect. “Surround1”: Creates one set of virtual surround speakers. “Surround2”: Creates two sets of virtual surround speakers. “Surround3”: Creates three sets of virtual surround speakers. This feature is effective when you use two separate front speakers.

•Replays or briefly fast forwards a scene when pressed during playback.

•Goes to the previous or next frame when pressed during pause mode.

•Goes to the beginning of the current or next title/ chapter/scene/track and starts playback when pressed during playback.

•Goes to the beginning of the previous title/chapter/ scene/track when .PREV is pressed within three seconds after starting a title/chapter/scene/track.

Fast reverses or fast forwards the disc when pressed during playback. Search speed changes with each press:

FR2*2 T T t t FF2

FR3*3 T T T t t t FF3

Plays in slow motion when pressed in pause mode. Playback speed changes with each press:

reverse slow motion forward slow motion

X PAUSE Pauses playback.

If you pause playback for more than five minutes, playback starts automatically.

fast reverse fast forward

FR1 T t FF1

T T t t

T T T t t t

T t

RWVR-RWVideo

RVR

RAM

FF1 with sound (Scan Audio) is available for DVDs with Dolby Digital soundtracks. FR2 and FF2 are not available for MP3. FR3 and FF3 are only available for DVDs and VIDEO CDs.

RWVR-RWVideo

RVR

RAM

only

,continued

VCD

RVideo

Button Operation Disc

REPEAT Displays the items to be repeated when pressed.

DVD Playback

Select an item using M/m, and press ENTER. To cancel Repeat Play, select “Off” and press ENTER. Press O RETURN to turn off the display.

When playing a DVD

“Chapter”: Repeats the current chapter. “Title”: Repeats the current title on a disc. “A-B” (Repeat A-B Play): Repeats a specific portion (page 39).

When playing a VIDEO CD (with PBC function off)

“Track”: Repeats the current track. “Disc”: Repeats all of the tracks. “A-B” (Repeat A-B Play): Repeats a specific portion (page 39).

Selects the item to be repeated when pressed repeatedly. To cancel Repeat Play, select “Off.”

When playing a CD

“Track”: Repeats the current track. “Disc”: Repeats all of the tracks.

When playing a DATA CD/DATA DVD (MP3 audio)

“File”: Repeats the current track. “Folder”: Repeats the current album.

RWVR-RWVideo

DVD

*With PBC function off

RVideo

RVR

VCD

RAM

DATA CDCDDATA DVD

To resume normal playback after playing at various speeds, press H PLAY.

z Hints

•You can change playback options, such as subtitle, audio track, angle, etc., using the TOOLS menu (page 11).

•During playback or pause mode, the recorder’s m/ M buttons and the remote’s .PREV/>NEXT buttons work the same way (page 37). Hold the buttons down during playback to fast forward or fast rever se. In pause mode, you can play in slow motion . Three speeds are available, depending on the duration of the pr ess.

•See “DVD Audio/Subtitle Language” on page 124 for the meaning of the language abbreviation.

Notes

•You cannot use the repeat play function with VIDEO CDs while the PBC function is on (page39).

•When the playback signal does not contain a signal for the surround speakers, the surround effects will be difficult to hear.

•When you select one of the surround modes, turn off the surround settings of the connected TV or amplifier (receiver).

• If you pause playback of a CD, or DATA CD/DATA DVD containing MP3 audio tracks, playback will not start until you press H PLAY or X PAUSE.

•Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings.

•Sound will be interrupted during Scan Audio (page 39).

Notes on playing DTS soundtracks on a CD

When playing DTS-encoded CDs, excessive noise will be heard from the analog stereo jacks. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo jacks of the recorder are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external

5.1-channel decoder system must be connected to the digital jack of the recorder.

Notes on playing DVDs with a DTS soundtrack

DTS audio signals are output only through the DIGITAL AUDIO OUT (COAXIAL or OPTICAL) jack. When you play a DVD with DTS soundtracks, set “Digital Out” – “DTS” to “On” of “Audio” in the “Setup” display (page 102).

1-8

Playing quickly with sound (Scan Audio)

(DVDs with Dolby Digital soundtracks

only)

You can play quickly with dialog or sound during FF1 fast-forward of a DVD with Dolby Digital soundtracks. Simply press M during playback.

z Hint

To turn off the Scan Audio function, set “Scan Audio” of “Audio” to “Off” in the “Setup” display (page 104).

Note

Sound will be interrupted during Scan Audio.

Playing VIDEO CDs with PBC functions

VCD

PBC (Playback Control) allows you to play VIDEO CDs interactively using a menu on your TV screen. When you start playing a VIDEO CD with PBC functions, a menu appears. Select an item using the number buttons and press ENTER. Then follow the instructions in the menu (press H PLAY when “Press SELECT” appears). Operations differ depending on the disc. See the instructions supplied with the disc.

To cancel PBC Playback

Press MENU to display “Menu: Off.” To use the PBC functions, press MENU again to display “Menu:On.”

Resuming playback from the point where you stopped the disc (Resume Play)

Press H PLAY again after stopping a disc to resume playback from the same point. To start from the beginning, press x STOP twice, and press H PLAY.

The point where you stopped playing is cleared when: –you open the disc tray. –you play another title. –you switch the Title List menu to original or

Playlist (DVD-RW (VR mode)/DVD-R (VR mode)/DVD-RAM only).

–you edit the title after stopping playback. –you make a recording.

Repeating a specific portion (Repeat A-B Play)

DVD

RWVR-RWVideo

RAM

VCD

RVideo

RVR

1 During playback, press REPEAT. 2 Select “A” using M/m. 3 Press ENTER at the starting point (point A) of

the portion to be played repeatedly. “A-” appears.

4 Continue playing or press m/M to locate

the ending point (point B), and press ENTER. Repeat A-B Play starts.

To return to normal playback, press REPEAT to select “Off,” and press ENTER. Press O RETURN to turn off the display.

*Only with PBC function off.

Playing restricted DVDs (Parental Control)

DVD

If you play a restricted DVD, a message appears asking whether you want to override the restriction.

1 Select “OK” and press ENTER.

The display for entering your password appears.

2 Enter your four digit password using the

number buttons. The recorder starts playback.

To register or change the password, see “Parental (DVD VIDEOs only)” on page 107.

,continued

Locking the recorder (Child Lock)

You can lock all of the buttons on the recorder so that the settings are not canceled by mistake.

DVD Playback

With the recorder turned on and stopped, hold down x on the recorder The recorder turns off and “CHILD LOCK” appears in the front panel display. The indicator remains lit if there is a timer setting. The recorder will not work except for timer recordings.

To unlock the recorder, hold down x on the recorder until “CHILD LOCK” disappears from the front panel display. The recorder is unlocked and turns on.

To stop timer recording while the recorder is locked, press x twice. The recording stops and the recorder is unlocked.

Note

The recorder will be unlocked when: –you stop timer recording by pressing x. –you insert a tape.

for more than ten seconds.

Playing a Title From the Title List

RWVR-RWVideo

RAM

The Title List menu displays the program titles on the disc.

DVD

ORIGINAL/

PLAYLIST

TOP MENU

RVideo

RVR

TITLE LIST MENU M/m/</,,

ENTER

1 Press DVD to operate the DVD recorder. 2 Place a disc on the disc tray. 3 Press TITLE LIST.

Example: DVD-RW (VR mode)

Title List (Original)

1/4

May/02/2006 08:00 PM

A Disc type:

Displays a disc type. Also displays the title type (original or Playlist) for DVD-RWs (VR mode), DVD-Rs (VR mode), and DVD-RAMs.

10:10 AM

No. Title Length Edit

01 Ch 23 >01:29:03 02 Ch 66 >00:31:23 03 Ch 95 >01:59:00 04 Ch 97 >00:58:56

B Movie thumbnail image C Title information:

Displays the title number, title name, recording date, and recording mode. “” indicates a protected title, while “” indicates unprotected.

D Clock

4 Select the title, and press ENTER.

The sub-menu appears.

5 Select “Play,” and press ENTER.

Playback starts from the selected title on the disc.

About the Title List for DVD-RWs (VR mode) and DVD-Rs (VR mode)

You can switch the Title List to show an original or Playlist. While the Title List menu is turned on, press ORIGINAL/PLAYLIST repeatedly to select either “Title List (Original)” or “Playlist.” For details, see “Edit options for DVD-RWs (VR mode)/DVD-Rs (VR mode)” on page 58.

To turn off the Title List

Press TITLE LIST.

z Hint

You can also switch the Title List of DVD-RAMs to show an original or Playlist.

Notes

•The Title List does not appear for DVD-RWs (Video mode), DVD+Rs, or DVD-Rs (Video mode) that have been finalized. To view a title, press TOP MENU or MENU (page 35).

•The Title List may not appear for discs created on other DVD recorders.

•Letters that cannot be displayed are replaced with “*.”

Searching for a Title/ Chapter/Track, etc.

RWVR-RWVideo

RAMDVD

You can search a DVD by title or chapter, and VIDEO CD by track or scene. As titles and tracks are assigned individual numbers on the disc, select the title or track by entering its number. You can also search for a scene using the time code.

1 Press TOOLS during playback.

2 Select a search method.

4 Press ENTER.

VCD

Number

buttons

The TOOLS menu appears.

“Title” (for DVDs) “Chapter” (for DVDs) “Track” (for VIDEO CDs with PBC function off) “Time” (for DVDs/VIDEO CDs): Searches for a starting point using the time code.

Press M/m/</, to select the number of the title, chapter, track, etc., you want, or press the number buttons to enter the time code.

For example: “Time” To find a scene at 2 hours, 5 minutes, and 20 seconds, enter “20520.” If you make a mistake, wait a moment until the display returns to the elapsed playing time display, then select another number.

The recorder starts playback from the selected point. To turn off the display, press TOOLS.

RVideo

RVR

M/m/</,, ENTER

TOOLS

Note

Depending on the disc, you may not be able to use the TOOLS menu to search for a title/chapter/track, or enter the time code for a playback point.

Bookmarking a favorite scene (Bookmark)

RWVR-RWVideo

RAMDVD

DVD Playback

You can have the recorder store specific portions of a disc in memory and play them immediately whenever you want (Bookmark). Up to ten bookmarks per disc can be set.

CLEAR

MARKER SEARCH

During playback, press MARKER at a favorite scene.

The bookmark is set.

RVR

M/m/</,, ENTER

To erase bookmarks

1 During playback, press SEARCH. 2 Press </, to select the bookmark to be

erased.

3 Press CLEAR.

Note

When you eject the disc, the bookmark information is

RVideo

cleared.

To play from bookmarks

1 During playback, press SEARCH.

01 02 03 04 05 -- -- -- -- -- N:5

2 Press </, to select a bookmark, and press

ENTER. Playback starts from the selected bookmark.

,continued

1-9

Playing MP3 Audio Tracks and JPEG Image Files

DATA DVD

DATA CD

You can play DATA CDs (CD-ROMs/CD-Rs/ CD-RWs)/DATA DVDs (DVD-ROMs/ DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs) that contain MP3 audio tracks or JPEG image files.

DVD

TOP MENU

O RETURN

H PLAY

REPEAT

M/m/</,, ENTER

TOOLS

./> x STOP X PAUSE

Playing MP3 audio tracks

You can play MP3 audio tracks on DATA CDs or DATA DVDs.

1 Press DVD to operate the DVD recorder. 2 Place a DATA CD/DATA DVD on the disc

tray.

When you insert a DATA CD/DATA DVD containing MP3 audio tracks and JPEG image files, the display for selecting a media type appears. When you select “Mix,” you can enjoy a slide show with sound (page 45).

Music

Press ENTER :


Mix

If you insert a DATA CD/DATA DVD containing only MP3 audio tracks, the “Music” display appears. Go to step 4.

3 Select “Music,” and press ENTER.

The “Music” display appears.

10:10 AM

Music menu for this disc.

4 Select an album, and press ENTER.

Music

Repeat:Off Surround:Off

Prev Directory

MP3_001

01-Track1.mp3

0/9

02-Track2.mp3 03-Track3.mp3 04-Track4.mp3 05-Track5.mp3

5 Select a track, and press ENTER.

Playback starts from the selected track. When a track or album is being played, the title is shown in a box.

To stop playback

Press x STOP.

To pause playback

Press X PAUSE. To restart playback, press H PLAY or X PAUSE.

To play repeatedly

Press REPEAT repeatedly during playback. “Off”: Does not play repeatedly. “File”: Repeats the current track. “Folder”: Repeats the current album.

To return to the previous display

Press O RETURN.

10:10 AM

Stop 00:00:00

,continued

To switch between MP3 audio tracks and JPEG image files

Press x STOP, and press TOP MENU.

z Hint

When playback of all the MP3 audio tracks within the album finishes, the recorder stops.

Playing JPEG image files

You can play JPEG image files on DATA CDs or

DVD Playback

DATA DVDs.

1 Press DVD to operate the DVD recorder. 2 Place a DATA CD/DATA DVD on the disc

tray.

When you insert a DATA CD/DATA DVD containing MP3 audio tracks and JPEG image files, the display for selecting a media type appears. When you select “Mix,” you can

enjoy a slide show with sound (page 45).

Music

Press ENTER :


Mix

If you insert a DATA CD/DATA DVD containing only JPEG image files, the “Photo” display appears. Go to step 4.

3 Select “Photo,” and press ENTER.

The “Photo” display appears.

10:10 AM

Music menu for this disc.

4 Select a folder, and press ENTER.

Directory information


\\abc\defg

Page 1 / 2

To display the previous or next page, press ./>.

5 Select an image file, and press ENTER.

The selected image is displayed over the

entire screen.

10:10 AM

Slideshow

To display the previous or next image, press ./>.

The following menu icons appear in the upper part of the screen.

: Returns to the “Photo” display.

: Starts the slide show (page 44). : Rotates the image (page 44). : Zooms the image (page 44).

Press TOOLS to turn on/off the menu icons.

To play the slide show

1 Press </, to select “ ,” and press

ENTER. The “Slideshow Speed” menu appears. “”: Slow “”: Normal “”: Fast

2 Press </, to select the desired play speed,

and press ENTER. The slide show starts from the selected image. To stop playing, press x STOP.

To rotate the selected image

Press </, to select “ ,” and press ENTER. Each time you press ENTER, the image turns clockwise by 90°.

To zoom in an image

Press </, to select “ ,” and press ENTER. Each time you press ENTER, the magnification changes as follows: 2u t 4u t 2u t normal

To return to the previous display

Press O RETURN.

To switch between MP3 audio tracks and JPEG image files

Press x STOP, and press TOP MENU.

z Hint

You can also start the slide show by pressing H PLAY in step 5 above.

Notes

•You cannot use M/m/</, to move the image within the screen while zooming.

•Slide show can play in only one direction.

•You cannot rotate or zoom during slide show.

• If you select “ ” in the rotated image display,

the images in the “Photo” display will not be rotated.

Enjoying a slide show with sound

When a disc contains both MP3 audio tracks and JPEG image files, you can enjoy a slide show with sound.

1 Press DVD to operate the DVD recorder. 2 Insert a DATA CD/DATA DVD containing

both the MP3 audio tracks and JPEG image files.

The display for selecting a media type appears.

Music

Press ENTER :


Mix

3 Select “Mix,” and press ENTER.

The “Music” display appears.

10:10 AM

Music menu for this disc.

4 Select an album, and press ENTER. 5 Select a track, and press ENTER.

Playback starts from the selected track, and the display asks for confirmation.

6 Select “Yes,” and press ENTER.

The “Photo” display appears.

7 Select the folder you want to view, and

press ENTER.

8 Press H PLAY to start the slide show.

The “Slideshow Speed” menu appears.

9 Press </, to select the slide show

speed, and press ENTER.

The slide show starts with sound.

To repeat playback

Before you select an album or track in the steps above, press REPEAT repeatedly to select a repeat menu. “File”: Repeats the current track. “Folder”: Repeats the current album. To cancel Repeat Play, select “Off.”

To stop the slide show

Press x STOP.

z Hints

•When playing JPEG images, you can also use the onscreen menu. For details, see “Playing JPEG image files” (page 44).

•The slide show is played repeatedly until MP3 playback stops.

About MP3 audio tracks and JPEG image files

MP3 is audio compression technology that satisfies the ISO/IEC MPEG regulations. JPEG is image compression technology. You can play back DATA CDs (CD-ROMs/CDRs/CD-RWs) or DATA DVDs (DVD-ROMs/ DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs) recorded in MP3 (MPEG1 Audio Layer 3) and JPEG format. However, this recorder only plays DATA CDs whose logical format is ISO9660 Level 1/Level 2 or Joliet, and DATA DVDs of Universal Disk Format (UDF). See the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format.

Note

The recorder may not be able to play some DATA CDs or DATA DVDs created in the Packet Write format.

MP3 audio tracks or JPEG image files that the recorder can play

The recorder can play the following tracks and files:

–MP3 (MPEG1 Audio Layer 3) audio tracks. –MP3 audio tracks with the extension “.MP3.” –JPEG image files with the extension “.JPEG” or

“.JPG.”

z Hints

• If you add numbers (01, 02, 03, etc.) to the front of the file names, the files will be played in that order.

•Since a disc with many trees takes longer to start playback, it is recommended that you create albums with no more than two trees.

,continued

Notes

•Some DATA CDs or DATA DVDs cannot be played on this recorder depending on file format.

•Only one session of a multi-session DATA DVD can be played back.

•Only alphabet and numbers can be used for album or track names. Anything else is displayed as an asterisk.

•The recorder will play any data with the extension “.MP3,” even if they are not in MP3 format. Playing such data may generate a loud noise which could damage your speaker system.

DVD Playback

•The recorder does not conform to audio tracks in MP3PRO format.

•The recorder can recognize up to 499 MP3 audio tracks within a single album. The recorder may not r ecognize some discs depending on the recording device used for recording or the disc condition.

•The recorder can play MP3 audio tracks recorded in the following sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz.

•ID3 tags cannot be displayed.

•If you add the extension “.JPG” or “.JPEG” to data not in JPEG format, a message appears indicating that the format is not supported.

•Depending on the disc or the size of image files, playback may take some time to start.

•The recorder can recognize up to 999 JPEG image files within a single folder. The recorder may not recognize some discs depending on the recording device used for recording or the disc condition.

•Progressive and lossless compression JPEG image files are not supported.

•The image size that the recorder can display is limited to width 32 - 7680 pixels by height 32 - 8192 pixels.

•JPEG image files that conform to the DCF* image file format are not supported.

*“Design rule for Camera File system”: Image standards

for digital cameras regulated by JEITA (Japan Electronics and Information Technology Industr i es Association).

Displaying the Playing Time and Play Information

RWVR-RWVideo

RAM

DVD

You can check disc information, such as playing time, recording mode, and remaining disc space.

Press DISPLAY.

The information display appears. Each time you press the button, the display changes as follows:

Disc and tape information/date and time

Disc information only

No display

VCD

Play

0:05:30

Rem 00:25

Original

Tue May 02. 2006 10:10 AM

RVR

DATA CD

TIME/TEXTDISPLAY

Stop

0:30:00

Rem 01:30

Ch 110

RVideo

DATA DVD

◆DVD

A Playing status B Playing time C Recording mode

1-10

D Remaining disc space (in stop mode)

Remaining time of the current title (during

)

playback

E Channel or input source F Date and time

Also appears in stop mode with Resume Play activated (page 39).

Title type (original or Playlist) for DVD-RWs (VR mode)/DVD-Rs (VR mode)/DVD-RAMs.

Viewing information on the front panel display

You can view the information on the front panel display.

Press TIME/TEXT repeatedly.

The displays differ depending on the disc type or playing status.

Example: When playing a DVD

Playing time of the current title

Current title number and current chapter number

Clock

Example: When a DVD is stopped

Clock

Current title and chapter number

Remaining disc space

Channel or input source

Example: When playing a CD

Playing time of the current track

Current track number

Clock

Recording mode and recording time

DVD Recording

Before Recording

Before you start recording…

•This recorder can record on various disc types. Select the disc type according to your needs (page 30).

DVD Playback

•Check that the disc has enough available space for the recording (page 46). For DVD+RWs or DVD-RWs, you can free up disc space by erasing titles (page 59).

z Hint

To play a disc recorded with this recorder on other equipment, finalize the disc (page 91).

Notes

•Timer recordings will start with or without the recorder turned on. The recorder automatically turns off after a recording has finished.

•This recorder records at ×1 speed.

•This recorder shares a single tuner for both the DVD recorder and the VCR. You cannot record different programs to a DVD and a VHS tape at the same time.

Recording mode

Like the SP or EP recording mode of VCRs, this recorder has eight different recording modes. Select a recording mode according to the time and picture quality you need. For example, if picture quality is your top priority, select “HQ” (high quality). If recording time is your priority, “SLP” can be a possible choice.

Press REC MODE repeatedly to switch the recording modes.

I want to record with the best possible picture quality, so I’ll select HQ.

The following table is an approximate guide for the recording time on a single DVD (4.7 GB).

Recording mode Approximate

HQ (High quality) 60 HSP R 90 SP (Standard mode) 120 LSP r 150 ESP r 180 LP r 240 EP r 360 SLP (Long duration) 480

z Hint

The approximate recording time for DVD+R DL (Double Layer)/DVD-R DL (Dual Layer) discs is as follows: HQ: 1 hour 48 minutes HSP: 2 hours 42 minutes SP: 3 hours 37 minutes LSP: 4 hours 31 minutes ESP: 5 hours 25 minutes LP: 7 hours 14 minutes EP: 10 hours 51 minutes SLP: 14 hours 28 minutes

Note

Situations below may cause slight inaccuracies with the recording time. –Recording a program with poor reception, or a program

or video source of low picture quality –Recording on a disc that has already been edited –Recording only a still picture or just sound

recording time (minute)

Recording a stereo/SAP program

The recorder can receive and record stereo/SAP programs.

Stereo programs

When a stereo program is received, the “STEREO” indicator lights up in the front panel display. If there is noise in the stereo program, press AUDIO repeatedly until the “MONO” indicator disappears from the TV screen. The sound will be recorded in monaural but with less noise.

SAP (Second Audio Program)

When a SAP is received, the “SAP” indicator lights up in the front panel display. To record only SAP sound, set “Tuner Audio” of “Audio” to “SAP” in the “Setup” display (page 102).

Unrecordable pictures

Pictures with copy protection cannot be recorded on this recorder. Recording stops when a copy guard signal is detected.

Copy control signals

Copy-Free

Copy-Once

Copy-NeverNone

*The recorded disc can be played only on CPRM

compatible equipment (page 30).

Recordable discs

RWVR-RWVideo

RVR

RWVR

Ver.1.1 with CPRM* Ver.1.2 with CPRM*

RVR

Ver.2.0 with CPRM* Ver.2.1 with CPRM*

RVideo

Formatting a new disc

New, unformatted discs are automatically formatted when first inserted in the recorder. For DVD-RWs/DVD-Rs, you can select a recording format (VR mode or Video mode) according to your needs (page 30).

•Unused DVD-RWs are automatically formatted according to the setting of “Format DVD-RW” in “Features” setup (page 105).

•Unused DVD-Rs are automatically formatted in Video mode. To format in VR mode, change the recording format using the “Disc Setting” display (page 70).

Notes

•You cannot mix VR mode and Video mode on the same DVD-RW or DVD-R.

•You can change the recording format on DVD-RWs by reformatting (page 70).

•You cannot change the recording format on used DVDRs.

•The recorder records on new DVD-Rs in Video mode unless you first format the discs in VR mode.

DVD Recording Without the Timer

RWVR-RWVideo

Z OPEN/

DISPLAY

H PLAY

z REC

REC MODE

Press DVD to operate the DVD recorder.

1 2 Press Z OPEN/CLOSE, and place a

recordable disc on the disc tray.

Recording side facing down

3 Press Z OPEN/CLOSE to close the disc

tray.

Wait until “LOAD” disappears from the front panel display. Unused discs are automatically formatted. For the DVD-RW/DVD-R’s recording format (VR mode or Video mode), see “Formatting a new disc” on page 49.

4 Press CH +/– or INPUT SELECT repeatedly

to select the channel or input source you want to record.

RVR-RVideo

TV/DVD·VIDEO switch

VIDEODVD CH +/–

INPUT SELECT TV/VIDEO

x STOP X PAUSE

,continued

DVD Recording

5 Press REC MODE repeatedly to select the

recording mode.

The display changes on the TV screen as follows:

HQ SPHSP LSP

SLP LPEP ESP

For details about the recording mode, see page 48.

6 Press z REC.

Recording starts. Recording continues until you stop the recording or the disc is full.

To stop recording

Press x STOP. Note that it may take a few seconds for the recorder to stop recording.

To pause recording

Press X PAUSE. To restart recording, press X PAUSE again.

To watch another TV program while recording

1 Slide the TV/DVD·VIDEO switch to TV. 2 Press TV/VIDEO to set the TV to the TV

input.

3 Select another channel on the TV.

To watch a VHS tape while recording

Press VIDEO to operate the VCR, insert a tape, then press H PLAY.

z Hints

•To play a disc recorded with this recorder on other equipment, finalize the disc (page91).

•You can use the number buttons for channel selection. Enter the channel number, and press SET.

•You can select a video source from the LINE 1 IN or LINE 2 IN jacks using the INPUT SELECT button.

•You can turn off the TV during recording. If you are using a cable box or a satellite receiver, make sure to leave it on.

Notes

•Recording may not start immediately after z REC is pressed.

•You cannot change the recording mode during recording or recording pause.

•If there is a power failure, the program you are recording may be erased.

•You cannot change the channel or input source during recording.

Recording using the Quick Timer (One-touch Timer Recording)

You can set the recorder to record in 30-minute increments.

1 Press DVD to operate the DVD recorder. 2 Press z REC repeatedly to set the

duration.

Each press increases the time by 30 minutes, up to eight hours*.

0:30 1:00 7:30 8:00

“c” and “OTR” light up, and the remaining recording time appears in the front panel display. When the counter reaches “0:00,” the recorder stops recording and turns off.

*12 hours 30 minutes for DVD+R DL (Double Layer)/

DVD-R DL (Dual Layer) discs.

To cancel the Quick Timer

Press z REC repeatedly until the counter appears in the front panel display. The recorder returns to normal recording mode.

To stop recording

Press x STOP twice. Note that it may take a few seconds for the recorder to stop recording.

Checking the disc status while recording

You can check the recording information such as recording time or disc type.

Press DISPLAY during recording.

The information display appears. Press the button repeatedly to change the display (page 46).

(Normal recording)

1-11

Record

0:00:03

Rem 00:59

Ch 1

A Disc type B Recording status C Recording time D Recording mode E Remaining disc space F Channel or input source

z Hint

You can view the information also in the front panel display. Press TIME/TEXT repeatedly to change the display. Note that TIME/TEXT does not work during One-touch Timer Recording.

Creating chapters in a title

The recorder will automatically divide a recording (a title) into chapters by inserting chapter marks at 5 or 15-minute intervals during recording. Select the interval, “5 Min” (default) or “15 Min” in “DVD Auto Chapter” of “Features” in the “Setup” display (page 104). If you do not want to divide titles, select “Off.”

z Hint

You can create chapters manually when playing DVD+RWs, DVD-RWs (VR mode), or DVD-Rs (VR mode) (page 62).

DVD Timer Recording

RWVR-RWVideo

You can set the timer for a total of 12 programs together with DVD and VCR timer recording, up to one month in advance. Note that the maximum continuous recording time for a single title is 12 hours. Contents beyond this time will not be recorded. Follow the steps below to set each timer recording item.

Note

Do not operate your cable box or satellite receiver just before or during a timer recording. This may prevent the accurate recording of a program.

Z OPEN/

DVD

SYSTEM

RVR-RVideo

TIMER M/m/</,,

ENTER

x STOP

1 Press DVD to operate the DVD recorder. 2 Press Z OPEN/CLOSE, and place a

recordable disc on the disc tray.

DVD Recording

3 Press Z OPEN/CLOSE to close the disc

tray.

4 Press TIMER.

Timer – Standard

No Rec To Date Start End Source Mode Edit

No.01

01 DVD 04/15 09:00PM 10:00PM CH8 02 DVD 04/30 09:15PM 09:45PM CH11

Media Date Start Stop Ch Mode

03 --- --/-- --:-- --:-- ---- ---

DVD

Today 09 00 10 00 Ch 8 SP

: PM

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

12 3 4 56

5 Select an item using </, and adjust

using M/m.

A “Media”: Select “DVD.” B “Date”: Sets the date using M.

To record the same program every day or the same day every week, press m. The item changes as follows: Today y Sun-Sat (Sunday to Saturday) y Mon-Sat (Monday to Saturday) y Mon-Fri (Monday to Friday) y Sun (every Sunday) y Mon (every Monday) y … y Sat (every Saturday) y 1month later y … y Today

C “Start”: Sets the start time. D “Stop”: Sets the stop time. E “Ch”: Selects the channel or input

source.

F “Mode”: Selects the recording mode

(page 48).

To use the Rec Mode Adjust function (page 53), select “AUTO.”

If you make a mistake, select the item and change the setting.

10:10 AM

6 Press ENTER.

The Timer List menu (page 55) appears. The c indicator lights up in the front panel display, and the recorder is ready to start recording. If the c indicator flashes in the front panel display, check that a recordable disc is inserted and that there is enough disc space for the recording. There is no need to turn off the recorder before the timer recording starts. If timer settings overlap, a message appears. To change or cancel a timer recording, select “Edit” from the Timer List (page 55).

7 Press SYSTEM MENU to turn off the menu.

To stop recording

Press x STOP twice. Note that it may take a few seconds for the recorder to stop recording.

If timer settings overlap

The program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority. If the end time of one setting and the start time of another timer setting is the same, the beginning of the program that starts later will be cut.

7:00 8:00 9:00 10:00

Program 1

Program 2

will be cut off

7:00 8:00 9:00 10:00

Program 1

Program 2

will be cut off

To change or cancel timer recording

See “Changing or Canceling DVD Timer Settings (Timer List)” on page 55.

To use the Rec Mode Adjust function

If the remaining disc space is not enough for the current recording, the recorder automatically adjusts the recording mode. Select “AUTO” for “Mode” when setting the timer.

z Hints

•You can play the recorded program by selecting the program title in the Title List menu.

•When the start time and the channel or input source to be recorded are the same but the “Media” setting differs, the program is recorded to both the DVD disc and the VHS tape.

•You can also turn on the timer programming menu from the System Menu. Press SYSTEM MENU to select “Timer,” and select “Timer-Standard.”

Notes

•To record a cable or satellite program without using cable box/satellite receiver control, turn on the cable box or satellite receiver and select the program you want to record. Leave the cable box or satellite receiver turned on until the recorder finishes recording.

•Even when correctly set, the program may not be recorded if another recording is underway, or other prioritized timer setting overlaps.

•Before the timer recording starts, “TIMER REC” flashes in the front panel display.

•The recorder automatically turns off when a timer recording finishes, even if the recording started with the recorder turned on.

•The recorder does not record programs with CopyNever signals. Such recordings stop after a few seconds.

Recording side facing down

,continued

Recording From Connected Equipment With a Timer (Synchro Rec)

RWVR-RWVideo

You can set the recorder to automatically record programs from connected equipment that has a timer function (such as a satellite tuner). Connect the equipment to the LINE 1 IN jacks on the rear of the recorder (page 13). When the connected equipment turns on, the recorder starts recording a program from the LINE 1 IN jacks.

DVD

SYSTEM

REC MODE

SYNCHRO

REC

RVR-RVideo

M/m/</,, ENTER

x STOP

1 Press DVD to operate the DVD recorder. 2 Insert a recordable disc. 3 Select the line input audio.

Set “Line Audio Input” of “Audio” to “Stereo” or “Main/Sub” in the “Setup” display (page 104).

DVD Recording

4 Press REC MODE repeatedly to select the

recording mode.

The display changes on the TV screen as follows:

HQ SPHSP LSP

SLP LPEP ESP

For details about the recording mode, see page 48.

5 Press SYSTEM MENU while the recorder is

in stop mode.

6 Select “Setup,” and press ENTER. 7 Select “Features,” and press ENTER.

The “Features” setup appears.

8 Select “Synchro Recording,” and press

ENTER.

9 Select “to DVD,” and press ENTER. 10

Press SYSTEM MENU to turn off the menu.

Set the timer on the connected equipment to the time you want to record, and turn it off.

Press SYNCHRO REC.

The SYNCHRO REC indicator lights up on the front panel and the recorder stands by for Synchro-Rec. The recorder starts recording when a signal is received from the connected equipment. When the connected equipment turns off, the recording stops and the recorder turns off.

To stop recording

Press x STOP twice.

To cancel a Synchro-Rec function

Press SYNCHRO REC before recording starts. The SYNCHRO REC indicator on the recorder turns off. If you press SYNCHRO REC during SynchroRec, the recording stops, the SYNCHRO REC indicator turns off, and the recorder turns off.

If the timer settings of a Synchro-Recording and another timer recording overlap

Regardless of whether or not the program is a Synchro-Rec program, the program that starts first has priority. The recorder starts recording the second program about ten seconds after the first program has finished. If the end time of one setting and the start time of another timer setting is the same, the beginning of the program that starts later will be cut.

7:00 8:00 9:00 10:00

Program 1

Program 2

Notes

•The reco rd er sta rt s recording only after detecting the video signal from the connected equipment. Th e beginning of the program may not be recorded regardless of whether or not the recorder’s power is on or off.

•To use the connected equipment during Synchro-Rec standby, cancel the standby mode by pressing SYNCHRO REC. To return to standby mode again, be sure to turn off the equipment and press SYNCHRO REC, before Synchro-Rec starts.

•The Synchro-Rec function does not work with some tuners. For details, see the tuner’s operating instructions.

•During Synchro-Rec standby, the Auto Clock Set function does not work (page 99).

•After a recording has finished, the recorder enters the Synchro-Rec standby mode until the SYNCHRO REC indicator turns off.

•If Synchro-Rec starts with the recorder turned on, the recorder will turn off when the recording ends.

•The recorder does not record programs with CopyNever signals. Such recordings stop after a few seconds.

will be cut off

,continued

1-12

Changing or Canceling DVD Timer Settings (Timer List)

RWVR-RWVideo

You can change or cancel timer settings using the Timer List menu.

SYSTEM

O RETURN

1 Press SYSTEM MENU.

The System Menu appears.

RVR-RVideo

M/m/</,, ENTER

2 Select “Timer,” and press ENTER. 3 Select “Timer List,” and press ENTER.

Timer List

No. Media Date Start Stop Ch ModeEdit

01 DVD 04/15 09:00PM 10:00PM Ch8 02 DVD 04/30 09:15PM 09:45PM Ch11

03 --- --/-- --:-- --:-- ---- ---

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

Timer information displays the recording date, time, recording mode, etc. If there are more than six timer settings, press m to display the next page.

10:10 AM

SP SP

4 Select the timer setting you want to change

or cancel, and press ENTER.

The sub-menu appears.

Timer List

No. Media Date Start Stop Ch ModeEdit

01 DVD 04/15 09:00PM 10:00PM Ch8 02 DVD 04/30 09:15PM 09:45PM Ch11

03 --- --/-- --:-- --:-- ---- ---

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

5 Select one of the options, and press

ENTER.

“Edit”: Changes the timer setting. Select an item using </, and adjust using M/m. Press ENTER.

Timer – Standard

No Rec To Date Start End Source Mode Edit

No.01

01 DVD 04/15 09:00PM 10:00PM CH8 02 DVD 04/30 09:15PM 09:45PM CH11

Media Date Start Stop Ch Mode

03 --- --/-- --:-- --:-- ---- ---

DVD

04/15 09 00 10 00 Ch 8 SP

: PM

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

“Delete”: Erases the timer setting. Select “OK” and press ENTER when asked for confirmation.

Timer List

No Media Date Start End Source Mode Edit

01 DVD 04/15 09:00PM 10:00PM CH8 02 DVD 04/30 09:15PM 09:45PM CH11

Do you want to erase ‘‘No.01’’?

03 --- --/-- --:-- --:-- ---- ---

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

6 Press SYSTEM MENU to turn off the Timer

List.

To return to the previous display

Press O RETURN.

Notes

•Even when correctly set, the program may not be recorded if another recording is underway, or other prioritized timer setting overlaps. For priority, see page 52.

10:10 AM

Edit Delete

10:10 AM

Cancel

,continued

DVD Recording

•You cannot change the timer settings for a recording currently underway.

•The Timer List displays both the DVD recorder and VCR timer settings.

Recording From Connected Equipment Without a Timer

RWVR

You can record from a connected VCR or similar device. For connection details, see “Connecting Another VCR or Similar Device” on page 28. Use the DV IN jack on the front panel if the equipment has a DV/D8 output jack (i.LINK jack). To record from a digital video camera connected to the DV IN jack, see page 93.

DVD

z REC

REC MODE

RWVideo

RVR-RVideo

INPUT SELECT

x STOP

1 Press DVD to operate the DVD recorder. 2 Insert a recordable disc. 3 Press INPUT SELECT repeatedly to select

an input source according to the connection you made.

The front panel display changes as follows:

Channel

*Does not appear when the cable box is connected

to the LINE 1 or LINE 2 jacks and “Set Top Box Control” is set to “On.”

LINE2 DVLINE1

4 Press REC MODE repeatedly to select the

recording mode.

The display changes on the TV screen as follows:

HQ SPHSP LSP

SLP LPEP ESP

For details about the recording mode, see page 48.

5 Select the line input audio.

Set “Line Audio Input” of “Audio” to “Stereo” or “Main/Sub” in the “Setup” display (page 104).

6 Insert the source tape into the connected

equipment and set to playback pause.

7 Press z REC on this recorder and the

pause or play button on the connected equipment at the same time.

Recording starts. To stop recording, press x STOP on this recorder.

Notes

•A video game image may not be recorded clearly.

•The recorder does not record programs with CopyNever signals. Such recordings stop after a few seconds.

•During recording or recording pause, you cannot change the recording mode.

•You cannot change the channel or input source during recording.

DVD Recording

DVD Editing

Before Editing

This recorder offers various edit options for various disc types. Before you edit, check the disc type in the front panel display, and select the option available for your disc (page 30).

Notes

•You may lose the edited contents if you remove the disc or a timer recording starts while editing.

•You cannot edit recordings on DVD-RWs (Video mode) or DVD-Rs (Video mode) recorded on other DVD equipment.

Edit options for DVD+RWs/DVD-RWs (Video mode)/DVD+Rs/DVD-Rs (Video mode)

You can perform simple edits. Since Video mode titles are actual recordings on the disc, you cannot undo any edits you make. The edit functions available for Video mode titles are: –Renaming a title (page 63). –Erasing a title (page 59). –Setting protection against erasure (DVD+RWs

only) (page 59).

–Erasing a section of a title (A-B Erase)

(DVD+RWs only) (page 60).

–Dividing a title (DVD+RWs only) (page 61).

Notes

•Once the disc is finalized, you cannot edit or record on the disc (except for DVD+RWs).

•If a message appears and indicates that the disc’s control information is full, erase unnecessary titles.

RWVideo

RVideo

Edit options for DVD-RWs (VR mode)/ DVD-Rs (VR mode)

RWVR-RVR

You can enjoy advanced edit functions. First you have two options for a DVD-RW (VR mode) and DVD-R (VR mode): editing either the original recording (called the “original”), or the playback information created from the original (called a “Playlist”). Since each is different in nature and offers different merits, read the following and select the one that better suits your needs.

To edit original titles

Edits made to the original titles are final. If you plan to retain an unaltered original recording, create and edit a Playlist (see below). The edit functions available for original titles are: –Renaming a title (page 63). –Erasing a title (page 59). –Erasing a chapter (page 60). –Setting protection against erasure (page 59). –Erasing a section of a title (A-B Erase) (page 60). –Dividing a title (page 61).

To create and edit Playlist titles

A Playlist is a group of Playlist titles created from the original title for editing purposes. When you create a Playlist, only the control information necessary for playback, such as the playback order, is stored on the disc. Since the original titles are left unaltered, Playlist titles can be re-edited. If you erase an original title used in a Playlist, that Playlist is also erased.

Example: You have recorded the final few matches of a soccer tournament on a DVD-RW (VR mode). You want to create a digest with the goal scenes and other highlights, but you also want to keep the original recording.

1-13

In this case, you can compile highlight scenes as a Playlist title. You can even rearrange the scene order within the Playlist title. See “Editing a Playlist” on page 66. The advanced edit functions available for Playlist titles are: –Renaming a title (page 63). –Erasing a title (page 59). –Erasing a chapter (page 60). –Erasing a section of a title (A-B Erase) (page 60). –Editing a Playlist scene (page 66). –Dividing a title (page 61). –Combining titles (page 67).

z Hint

You can switch the Title List to show original or Playlist. While the Title List menu is turned on, press ORIGINA L/ PLAYLIST repeatedly.

Notes

•You cannot protect Playlist titles.

•If a message appears and indicates that the disc’s control information is full, erase unnecessary titles .

•Once the disc is finalized, you cannot create or edit Playlist titles on the disc.

Editing a Title

RWVR

This section explains the basic edit functions. Note that editing is irreversible. To edit a DVD-RW (VR mode) or DVD-R (VR mode) without changing the original recordings, create a Playlist title (page 64).

DVD

ORIGINAL/

PLAYLIST

TITLE LIST

O RETURN

./>

X PAUSE

RWVideo

RVideo

RVR

M/m/</,, ENTER

H PLAY x STOP

1 Press DVD to operate the DVD recorder. 2 Press TITLE LIST.

When editing a DVD-RW (VR mode) or DVD-R (VR mode), press ORIGINAL/ PLAYLIST to switch to the “Title List (Original),” if necessary.

Title List (Original)

1/4

May/02/2006 08:00 PM

3 Select a title, and press ENTER.

The sub-menu appears.

10:10 AM

No. Title Length Edit

01 Ch 23 01:29:03 02 Ch 66 00:31:23 03 Ch 95 >01:59:00 04 Ch 97 >00:58:56

> >

DVD Editing

4 Select an option, and press ENTER.

You can select from the following: “Title Erase”: Erases the selected title. Select “OK” when asked for confirmation. “Chapter Erase” chapter in the title and erase it (see below). “Protect” when the Protection display appears. “ ” appears for the protected title. To cancel the protection, select “Off.” “ ” changes to “.” “Title Name”: Allows you to rename the title (page 63). “A-B Erase” (see below). “Divide Title” (page 61).

About freeing up disc space

Erasing titles, chapters, or scenes: –frees up disc space on a DVD-RW (VR mode). –frees up disc space on a DVD+RW/DVD-RW

(Video mode) only when you erase the last title or chapter.

–cannot free up disc space on a DVD+R/DVD+R

DL/DVD-R/DVD-R DL.

z Hint

You can also rename a disc (page 70).

Notes

•When editing a DVD-RW (Video mode), DVD+R, or DVD-R, finish all editing before finalizing the disc. You cannot edit a finalized disc.

•You cannot erase protected titles or erase chapters from a protected title.

•If you erase an original title used in a Playlist, that Playlist is also erased.

: Allows you to select a

: Protects the title. Select “On”

: Erases a section of the title

: Divides a title into two

DVD-RWs (VR mode) and DVD-Rs (VR mode) only DVD+RWs, DVD-RWs (VR mode), and DVD-R (VR mode) only

Erasing a chapter (Chapter Erase)

RWVR-RVR

You can select a chapter within a title and erase it. Note that erasing chapters from original titles cannot be undone.

1 Press TITLE LIST.

Press ORIGINAL/PLAYLIST to switch to the “Title List (Original),” if necessary.

2 Select a title, and press ENTER.

The sub-menu appears.

3 Select “Chapter Erase,” and press ENTER.

The display for erasing chapters appears.

Chapter Erase (Original)

Chapter 1 / 3 Title No.01

4 Select the chapter you want to erase, and

press ENTER.

“Check” is selected. To preview the chapter, press ENTER. When playback finishes or when you press O RETURN, the display returns to “Chapter Erase (Original).”

5 Select “Erase,” and press ENTER.

The display asks for confirmation.

6 Select “OK,” and press ENTER.

The selected chapter is erased from the title. To erase other chapters, repeat from step 4.

z Hint

You can also erase chapters from a Playlist title (page 66).

Note

If you erase an original title used in a Playlist, that Playlis t is also erased.

10:10 AM

Check

Erase

Modify

03 00:04:2002 00:00:1001 00:00:34

Move

Add

Copy

Erasing a section of a title (A-B Erase)

RWVR-RVR

You can select a section (scene) within a title and erase it. Note that erasing scenes from original titles cannot be undone.

1 Press TITLE LIST.

When editing a DVD-RW (VR mode) or DVD-R (VR mode), press ORIGINAL/ PLAYLIST to switch to the “Title List (Original),” if necessary.

2 Select a title, and press ENTER.

The sub-menu appears.

3 Select “A-B Erase,” and press ENTER.

The display for setting point A and B appears. “Start” is selected.

A-B Erase

00:00:07

Title No.01 May/02/2006 08:00 PM

4 Press ENTER at the start point of the

section to be erased (point A).

You can use H PLAY, , ./>, x STOP, and X PAUSE to find

the point. “End” is selected.

A-B Erase

00:00:10

Title No.01 May/02/2006 08:00 PM

5 Press ENTER at the end point of the section

(point B).

“Erase” is selected. To reset the start or end point, select “Start” or “End” and repeat from step 4 or 5.

6 Press ENTER.

The display asks for confirmation.

7 Select “OK,” and press ENTER.

The scene is erased. To continue, repeat from step 4. To finish, select “Finish,” and press ENTER.

Start 00:00:00

End 00:00:00

Start 00:00:10

End 00:00:00

Title No.01

10:10 AM

Start

End

Erase

Finish

10:10 AM

Start

End

Erase

Finish

,continued

z Hints

•A chapter mark is inserted after the scene was erased. The chapter mark divides the title into separate chapters on either side of the mark.

•You can also erase a section of a Playlist title (page66).

Notes

•Images or sound may be momentarily interrupted at the point where you erase a section of a title.

•Sections shorter than five seconds may not be erased.

•The start and end points of a title may be different from what you have set.

•The total playing time of the title does not change even if a scene was erased.

•If you erase an original title used in a Playlist, that Playlist is also erased.

Dividing a title into two (Divide Title)

RWVR

You can divide a title into two. Note that dividing original titles cannot be undone.

1 Press TITLE LIST.

2 Select a title, and press ENTER.

3 Select “Divide Title,” and press ENTER.

RVR

When editing a DVD-RW (VR mode) or DVD-R (VR mode), press ORIGINAL/ PLAYLIST to switch to the “Title List (Original),” if necessary.

The sub-menu appears.

The display for setting the dividing point appears. “Point” is selected.

Divide Title (Original)

Title No. 01 May/02/2006 08:00 PM

00:00:07

Start 00:00:00

End 00:00:00

Title No.01

10:10 AM

Point

Divide

DVD Editing

4 Press ENTER at the point where you want to

divide the title.

You can use H PLAY, , ./>, x STOP, and X PAUSE to find

the point. “Divide” is selected.

Divide Title (Original)

00:00:10

Title No. 01 May/02/2006 08:00 PM

5 Press ENTER.

The display asks for confirmation. To reset the dividing point, select “No” and press ENTER, then repeat from step 4.

6 Select “Yes,” and press ENTER.

The display asks whether to rename the title. To use the same name as before, select “No” and press ENTER to finish.

7 Select “Yes,” and press ENTER.

The “Title Name” display appears.

8 Follow steps 5 to 7 of “Changing the Name

of a Title” (page 63) to complete renaming.

The divided title appears in the Title List with the new name.

z Hint

You can also divide a Playlist title (page66).

Start 00:00:00

End 00:00:10

Title No.01

10:10 AM

Point

Divide

Creating chapters manually

RWVR

RVR

CHAPTER MARK ERASE

CHAPTER MARK

Marking...VR

You can manually insert a chapter mark at any point you like during playback.

Press CHAPTER MARK at the point where you want to divide the title into chapters.

Each time you press the button, “Marking...” appears on the screen, and the scenes before and after the mark become separate chapters.

To erase chapter marks

You can combine two chapters by erasing the chapter mark during playback. During playback, press CHAPTER MARK ERASE. The current chapter combines with the previous chapter.

,continued

1-14

Notes

•If a message appears and indicates that no more chapter marks can be added, you may not be able to record or edit.

•You cannot add or erase chapter marks on protected titles or discs.

Changing the Name of a Title

RWVR-RWVideo

You can enter a title name of up to 32 characters. Since the displayed number of characters is limited, their appearance in menus such as Title List may be different. When the display for entering characters appears, follow the steps below.

DVD

ORIGINAL/

PLAYLIST

TITLE LIST

O RETURN

RVR-RVideo

M/m/</,, ENTER

1 Press DVD to operate the DVD recorder. 2 Press TITLE LIST.

When editing a DVD-RW (VR mode) or DVD-R (VR mode), press ORIGINAL/ PLAYLIST to switch to the “Title List (Original),” if necessary.

3 Select a title, and press ENTER.

The sub-menu appears.

4 Select “Title Name,” and press ENTER.

The “Title Name” display appears.

Cursor

Title Name

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Backspace Space Delete Clear Finish

a b c d e

f g h i j k l m n o p q r s t u v w x y z

Input row

1 2 3 4 5 6 7 8 9 0

- _ + = .

%^& ( )

Character paletteSetting buttons

10:10 AM

@ # $

DVD Editing

5 Select the character you want to enter

using M/m/</,, and press ENTER.

The selected character appears in the input row. You can only enter characters and symbols that are displayed.

•To change the cursor position, select the input row using M, and press </,.

•To erase a character, select either of the following setting buttons and press ENTER. “Backspace”: Erases the character to the left of the cursor. “Delete”: Erases the character at the cursor position. “Clear”: Erases all the characters in the input row.

•To insert a space, move the cursor to the desired position, select “Space,” and press ENTER.

•To insert a character, move the cursor to the desired position, select the character, and press ENTER.

6 Repeat step 5 to enter the remaining

characters.

To return to the Title List without renaming the title, press O RETURN.

7 Select “Finish,” and press ENTER.

z Hint

You can also rename a disc (page 70). Follow steps 5 to 7 above when the “Disc Name” display appears.

Creating a Playlist

RWVR

RVR

Playlist titles allow you to edit without changing the original recordings (see “Edit options for DVD-RWs (VR mode)/DVD-Rs (VR mode)” on page 58). You can create a Playlist title by combining up to 99 sections (scenes) from original titles.

Notes

•If you erase an original title used in a Playlist, that Playlist is also erased.

•Once the disc is finalized, you cannot create Playlist titles on the disc.

DVD

ORIGINAL/

PLAYLIST

SYSTEM

./>

X PAUSE

TITLE LIST M/m/</,, ENTER

H PLAY x STOP

1 Press DVD to operate the DVD recorder. 2 Press SYSTEM MENU while the recorder is

in stop mode.

Title List (Original)

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

Press ENTER :

Title Menu for DVD Title List.

10:10 AM

3 Select “Edit,” and press ENTER.

Edit

Title List

Create Playlist Edit Playlist

Timer

Edit

Dubbing

Disc Setting

Setup

4 Select “Create Playlist,” and press ENTER.

The display for creating a Playlist appears. “Start” is selected.

Create Playlist

00:00:07

Playlist No. 01

---/--/---- --:--

5 Press ENTER at the start point.

You can use H PLAY, , ./>, x STOP, and X PAUSE to find

the point. “End” is selected.

Create Playlist

00:00:10

Playlist No. 01

---/--/---- --:--

6 Press ENTER at the end point.

“Make” is selected. To reset the start or end point, select “Start” or “End” and repeat step 5 or 6.

7 Press ENTER.

The selected section is captured as a scene. To continue, repeat from step 5.

8 When you finish capturing scenes, select

“Finish” and press ENTER.

Start 00:00:00

End 00:00:00

Start 00:00:10

End 00:00:00

Scene No.01

10:10 AM

Start

End

Make

Finish

10:10 AM

Start

End

Make

Finish

,continued

Playing a Playlist title

1 Press TITLE LIST. 2 Press ORIGINAL/PLAYLIST to switch to the

“Playlist” Title List.

3 Select a Playlist title, and press ENTER.

The sub-menu appears.

4 Select “Play,” and press ENTER.

z Hint

When a Playlist title is created, the start and end points will become chapter marks, and each scene will become a chapter.

Notes

•The picture may pause when an edited scene is played.

•The start and end points in a title may be different from what you have set.

DVD Editing

Editing a Playlist

RWVR

RVR

You can edit Playlist titles or scenes within them, without changing the actual recordings.

DVD

SYSTEM

O RETURN

./>

X PAUSE

M/m/</,, ENTER

H PLAY x STOP

1 Press DVD to operate the DVD recorder. 2 Press SYSTEM MENU while the recorder is

in stop mode.

Title List (Original)

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

Press ENTER :

Title Menu for DVD Title List.

10:10 AM

3 Select “Edit,” and press ENTER.

Edit

Title List

Create Playlist Edit Playlist

Timer

Edit

Dubbing

Disc Setting

Setup

10:10 AM

4 Select “Edit Playlist,” and press ENTER.

The “Playlist” Title List appears.

Playlist

Ch 32

May/02/2006 03:25 PM

5 Select a Playlist title, and press ENTER.

The sub-menu appears.

6 Select an option, and press ENTER.

Select from the following options. For details, see the pages in parentheses.

“Title Erase”: Erases the title. Select “OK” when asked for confirmation. “Chapter Erase”: Allows you to select chapters in the Playlist title to erase (page 60). “Title Name”: Allows you to rename the title (page 63). “A-B Erase”: Allows you to select sections in the title to erase (page 60). “Edit Scene”: Allows you to re-edit scenes in the Playlist title. Go to step 7. “Divide Title”: Divides the title in two at a desired point (page 61). “Combine Titles”: Allows you to combine two titles into one (page 67).

7 Select “Edit Scene,” and press ENTER.

The display for editing scenes appears.

Edit Scene

Scene No.1 / 3 Playlist No.01

“Check”: Allows you to preview a scene. Starts playback of the selected scene when you press ENTER. The display returns to the “Edit Scene” display when the playback finishes or when you press O RETURN. “Erase”: Erases a scene (page 67). “Modify”: Allows you to change the start and end point of a scene (page 67).

No. Title Length Edit1/2

01 Ch 32 >00:05:04 02 Ch 96 >00:00:51

03 00:04:2002 00:00:1001 00:00:34

10:10 AM

Check

Erase

Modify

Move

Add

Copy

1-15

“Move”: Allows you to change scene order (page 68). “Add”: Allows you to add other scenes before a selected scene (page 68). “Copy”: Allows you to copy a scene (page 69).

To return to the previous display

Press O RETURN.

To turn off the display

Press SYSTEM MENU.

z Hint

The Resume Play function will work for scene playback.

Note

Once the disc is finalized, you cannot edit Playlist titles on the disc.

Combining two titles into one (Combine Titles)

RVR

RWVR

You can select a Playlist title and combine it with another Playlist title.

1 Follow steps 1 to 5 of “Editing a Playlist”

(page 66) to select a Playlist title.

The sub-menu appears.

2 Select “Combine Titles,” and press

ENTER.

The next title below is also selected.

Ch 32

May/02/2006 03:25 PM

Playlist

1/4

10:10 AM

No. Title Length Edit

01 Ch 32 00:05:04 02 Ch 96 00:00:51 03 Ch 95 >01:59:00 04 Ch 97 >00:58:56

> >

3 Select a Playlist title to be combined.

Playlist

3/4

Ch 95

May/15/2006 11:30 PM

4 Press ENTER.

The display asks for confirmation.

5 Select “Yes,” and press ENTER.

The display asks whether to rename the title. To use the same name as before, select “No” and press ENTER to finish.

6 Select “Yes,” and press ENTER.

The “Title Name” display appears.

7 Follow steps 5 to 7 of “Changing the Name

of a Title” (page 63) to complete renaming.

The two Playlist titles become one Playlist title with the new name.

Erasing a scene (Erase)

RWVR

RVR

You can erase a selected scene.

1 Follow steps 1 to 7 of “Editing a Playlist”

(page 66).

The “Edit Scene” display appears.

2 Select the scene you want to erase, and

press ENTER.

3 Select “Erase,” and press ENTER.

The display asks for confirmation.

4 Select “OK,” and press ENTER.

The selected scene is erased. To erase other scenes, repeat from step 2.

Modifying a scene (Modify)

RVR

RWVR

You can change the start and end point of the selected scene.

10:10 AM

No. Title Length Edit

01 Ch 32 00:05:04 02 Ch 96 00:00:51 03 Ch 95 >01:59:00 04 Ch 97 >00:58:56

> >

,continued

DVD Editing

1 Follow steps 1 to 7 of “Editing a Playlist”

(page 66).

The “Edit Scene” display appears.

2 Select the scene you want to modify, and

press ENTER.

3 Select “Modify,” and press ENTER.

“Start” is selected.

Modify

00:00:07

Playlist No. 01

May/02/2006 03:25 PM

4 Press ENTER at the start point.

You can use H PLAY, , ./>, x STOP, and X PAUSE to find

the point. “End” is selected.

Modify

00:00:10

Playlist No. 01

May/02/2006 03:25 PM

5 Press ENTER at the end point.

“Change” is selected. To reset the start or end point, select “Start” or “End” and repeat step 4 or 5.

6 Press ENTER.

The display returns to the “Edit Scene” display. The re-selected section is captured as a scene. To modify other scenes, repeat from step 2.

To cancel modifying

Select “Cancel,” and press ENTER.

Note

The start and end point of a scene may be different from what you have set.

Start 00:00:00

End 00:00:00

Start 00:00:10

End 00:00:00

Scene No.01

10:10 AM

Start

End

Change

Cancel

10:10 AM

Start

End

Change

Cancel

Moving a scene (Move)

RVR

RWVR

You can change the scene order within the Playlist title.

1 Follow steps 1 to 7 of “Editing a Playlist”

(page 66).

The “Edit Scene” display appears.

2 Select the scene you want to move, and

press ENTER.

3 Select “Move,” and press ENTER.

Edit Scene

Scene No. 2 / 3

4 Select a new location using </,, and

press ENTER.

The selected scene moves to the new location. To move other scenes, repeat from step 2.

Edit Scene

Scene No. 3 / 3

02 00:04:20 03 00:00:1001 00:00:34

Adding a scene (Add)

RVR

RWVR

You can add a scene before the selected scene.

1 Follow steps 1 to 7 of “Editing a Playlist”

(page 66).

The “Edit Scene” display appears.

2 Select the location where you want to add,

and press ENTER.

A new scene will be added before the selected scene.

10:10 AM

Playlist No.01

Check

Erase

Modify

03 00:04:2002 00:00:1001 00:00:34

Move

Add

Copy

10:10 AM

Playlist No.01

Check

Erase

Modify

Move

Add

Copy

3 Select “Add,” and press ENTER.

“Start” is selected.

Add

00:00:07

Playlist No. 01

May/02/2006 03:25 PM

4 Press ENTER at the start point.

You can use H PLAY, , ./>, x STOP, and X PAUSE to find

the point. “End” is selected.

Add

00:00:10

Playlist No. 01

May/02/2006 03:25 PM

5 Press ENTER at the end point.

“Add” is selected. To reset the start or end point, select “Start” or “End” and repeat step 4 or 5.

6 Press ENTER.

The display returns to the “Edit Scene” display. The selected section is added before the scene selected in step 2. To add other scenes, repeat from step 2.

To cancel adding

Select “Cancel,” and press ENTER.

Note

The start and end point of a scene may be different from what you have set.

Start 00:00:00

End 00:00:00

Start 00:00:10

End 00:00:00

Scene No.01

10:10 AM

Start

End

Add

Cancel

10:10 AM

Start

End

Add

Cancel

Copying a scene (Copy)

RVR

RWVR

You can copy and add a selected scene.

1 Follow steps 1 to 7 of “Editing a Playlist”

(page 66).

The “Edit Scene” display appears.

2 Select the scene you want to copy, and

press ENTER.

3 Select “Copy,” and press ENTER.

Edit Scene

Scene No. 2 / 3

4 Select a location to copy to using </,

and press ENTER.

The scene is copied to the selected location. To copy other scenes, repeat from step 2.

Edit Scene

Scene No. 1 / 4

04 00:04:20

10:10 AM

Playlist No.01

Check

Erase

Modify

03 00:04:2002 00:00:1001 00:00:34

Move

Add

Copy

10:10 AM

Playlist No.01

Check

Erase

Modify

03 00:00:1002 00:00:3401 00:00:10

Move

Add

Copy

DVD Editing

Formatting/Renaming/ Protecting a Disc

RWVR-RWVideo

The “Disc Setting” display allows you to check the disc information or change the disc name. Depending on the disc type, you can also format or set protection.

DVD

SYSTEM

O RETURN

RVideo

RVR

M/m/</,, ENTER

1 Press DVD to operate the DVD recorder. 2 Press SYSTEM MENU while the recorder is

in stop mode.

3 Select “Disc Setting,” and press ENTER.

The “Disc Setting” display appears.

1 2 3 4

5 6

Disc Setting

Title List

Disc Name : Disc Protect : Not Protected

Timer

Disc Format : VR Mode

Edit

Disc Finalize : Unfinalized

Dubbing

Disc Information

Disc Setting

Erase All Titles

Setup

10:10 AM

4 Select an option, and press ENTER.

A “Disc Name”: Allows you to rename a

disc. For details on how to enter characters, see page 63.

B “Disc Protect” (DVD+RWs/DVD-RWs

(VR mode)/DVD-Rs (VR mode) only): Protects all titles on the disc when “Protected” is selected. To cancel the protection, select “Not Protected.”

C “Disc Format” (DVD+RWs/DVD-

RWs/DVD-Rs only): Erases all contents of the disc, including protected titles, and makes a blank disc (except DVD-Rs). For DVD-RWs, select a recording format (“VR Mode” or “Video Mode”) according to your needs. To format unused DVD-Rs in VR mode, select “VR Mode” and then “OK.”

D “Disc Finalize”: Finalizes a disc. See

page 91 for details.

E “Disc Information”: Displays the

following information.

•Disc name

•Disc type (and recording format for a DVD-RW (VR mode)/DVD-R (VR mode))

•Total number of titles

•Protect setting

•The oldest and most recent recording date

•The total available recording time in each recording mode

Disc Information

Disc Name

Disc 1

Media

DVD-RW VR ModeFormat

Title No.

Original 6 / Playlist 1

Protected

Not Protected

Date

4/05/2006 ~ 4/30/2006

Remainder

HQ : 0H 57M LSP : 2H 23M EP : 5H 46M

F “Erase All Titles” (DVD+RWs/DVD-

RWs/DVD-Rs (VR mode) only): Erases all titles on the disc (except protected titles). Select “OK” when asked for confirmation. For DVD-RWs (VR mode)/DVD-Rs (VR mode), Playlist titles created with protected titles are also erased.

HSP : 1H 26M ESP : 2H 52M SLP : 7H 40M

10:10 AM

SP : 1H 55M LP : 3H 50M

4.4/4.7GB

1-16

To return to the previous display

Press O RETURN.

z Hints

•You can set protection for individual titles (page 59).

•By reformatting, you can change the recording format on DVD-RWs, or record again on DVD-RWs (Video mode) that have been finalized.

Notes

•You can label a disc using up to 32 characters; however, the name may not display on other DVD equipment.

•You cannot label an unused DVD-R (Video mode) disc. Label the disc after you first record on it.

•You cannot mix VR mode and Video mode on the same DVD-RW or DVD-R.

•You cannot change the recording format on used DVDRs.

•The recorder records on new DVD-Rs in Video mode unless you first format the discs in VR mode (page 49).

DVD Editing

VCR Playback

Playing

Z OPEN/

CLEAR

DISPLAY

H PLAY

"/1

VIDEO TRACKING +/–

x STOP

1 Press VIDEO to operate the VCR. 2 Insert a tape.

Playback starts automatically if you insert a tape with its safety tab removed.

3 Press H PLAY.

The front panel display shows the playing time. When the tape reaches the end, it will rewind automatically.

To stop playback

Press x STOP.

To eject the tape

Press Z OPEN/CLOSE.

To turn off the power while rewinding (Rewind Shut Off)

Press "/1 while the tape is rewinding. The power will turn off but the tape will keep rewinding until it reaches the end.

To use the time counter

Press CLEAR at the point where you want to find later. The counter in the front panel display resets to “0:00:00.” To search for the 0:00:00 point automatically, see page 75. To display the counter on the TV screen, press DISPLAY.

Notes

•During playback, the VCR automatically detects the recording system (S-VHS/VHS) and the recording mode (SP or EP) from the tape. LP mode recordings made on other equipment will play, but picture quality is not guaranteed.

•The counter resets to “0:00:00” whenever a tape is reinserted.

•The counter stops counting when it comes to a portion with no recording.

•The counter resets to “0:00:00” after ten hours, and starts recounting.

•When playback does not start even if you insert a tape with its safety tab removed, set “VCR Function” – “Auto Play” of “Features” to “On” in the “Setup” display (page 105).

•If you switch to the VCR while playing a disc, DVD playback stops.

•The VCR does not record in S-VHS format, but will play S-VHS tapes by automatically detecting the format, but picture quality will be lower than usual SVHS. Image may be unclear if playback options such as slow-motion, etc., are used.

•Playback of S-VHS tapes recorded in EP (3x) mode is not guaranteed.

•The VCR is not compa t ib le with the PAL or SECAM color system. Only NTSC tapes can be played.

•For simultaneous VHS and DVD operation, see page 9.

Adjusting the picture (tracking)

You can manually adjust tracking if the recording quality is too poor to be remedied by the VCR’s automatic tracking (a tracking meter appears during the automatic tracking).

Press TRACKING +/–.

The tracking meter appears. Press TRACKING +/– repeatedly until the distortion disappears.

Tracking

Tracking meter

To resume automatic tracking

Press TRACKING + and TRACKING – on the recorder at the same time for more than ten seconds. Or, eject the tape and reinsert it.

Playback Options

VCR Playback

REPLAY/ ADVANCE

. PREV

Button Operation

(fast reverse/fast forward)

(slow)

ADVANCE • Advances one frame for each press in pause mode.

REPLAY Replays the previous scene when pressed during playback.

. PREV/ NEXT >

X PAUSE Pauses playback.

Can be pressed up to four times to forward about two minutes.

For 10 seconds in SP or LP mode/for 15 seconds in EP mode.

•Fast reverses or fast fo rwards when pressed during stop mode. When you hold down during fast reverse or fast forward, you can view the picture.

•Plays at high speed when briefly pressed during playback. When you hold down the button during playback, the high-speed play continues until you release the button.

Plays in slow motion when pressed in pause mode.

•Fast forwards the current scene for 30 seconds when pressed during playback.

Press during playback. Playback speed changes with each press: –×7 y –×5 y –×3 y PAUSE y SLOW y

If you pause playback for more than five minutes, playback starts automatically.

To resume normal playback, press H PLAY.

> NEXT H PLAY

X PAUSE

PLAY y

×2 y ×3 y ×5 y ×7

Notes

•The sound is muted during playback at various speeds.

•The picture may show noise during high-speed reverse play.

1-17

Searching Using Various Functions

The VCR automatically marks the tape with an index signal at the point where each recording begins. You can easily find a specific point using various search functions.

Note

During DVD recording, you cannot use VCR search functions.

VIDEO

CLEAR

M/m/</,, ENTER

TOOLS

H PLAY

1 Press VIDEO to operate the VCR. 2 Press TOOLS. 3 Select a search method from the TOOLS

menu, and press ENTER.

Go To Zero

End Search

Forward Intro Scan

Reverse Intro Scan

ENTER

Move

Enter

“Go To Zero”: Searches for the 0:00:00 point on the tape counter. To reset the counter to 0:00:00, press CLEAR.

Go to Zero

0:00:00

“End Search”: Searches for the beginning of a blank space. If no blank space is found, the tape will reach the end.

End search

0:00:13

“Forward Intro Scan”/“Reverse Intro Scan”: Searches for an index mark and plays back for about five seconds at that point. Press H PLAY to view that program. If you do not press H PLAY, the VCR automatically searches for the next index mark, or until it reaches the end of the tape.

Scan and play

–0:00:01

Notes

•The VCR may not recognize the end of a blank space depending on its length.

•No index signal is marked if you pause a recording and then keep recording the same program. To mark an index, press x STOP or change the channel once during recording pause.

Viewing information on the front panel display

You can view the information on the front panel display.

Press TIME/TEXT repeatedly.

The displays differ depending on the status.

Example: When playing a tape

Elapsed time

Remaining tape length

Clock

Example: When a tape is in stop mode

Clock

Elapsed time

Remaining tape length

Channel or input source

VCR Playback

Displaying the Playing Time and Play Information

You can check playback information, such as elapsed or remaining time, recording mode, etc., on the TV screen.

DISPLAY TIME/TEXT

Press DISPLAY during playback.

The information display appears. Each time you press the button, the display changes as follows:

Tape and disc information/date and time

Tape information only

No display

Stop

0:05:30

Rem 00:25

Original

Tue May 02. 2006 10:10 AM

Play

0:30:00

Rem 01:30

Ch 110

A Playing status B Time counter (elapsed time) C Recording mode D Remaining tape length E Channel or input source F Date and time

Selecting the Sound During Playback

AUDIO

Press AUDIO repeatedly during playback.

To listen to On-screen

Stereo Hi-Fi STEREO

Left channel Left STEREO

Right channel Right STEREO

Monaural sound on the normal audio track

*No indicator appears in the front panel display when

you play a tape without Hi-fi recording.

How sound is recorded on a video tape

The VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape.

Normal audio track

Hi-fi audio track (main track)

display

Mono STEREO*

Front panel display

Monaural sound

Stereo sound (left/right channels)

Notes

•To play a tape in stereo, you must use the A/V connections.

•When you play a tape recorded in monaural, the sound is heard in monaural regardless of the AUDIO setting.

VCR Playback

VCR Recording

Before Recording

Before you start recording…

•This VCR records in VHS format, not S-VHS format.

•Check that the tape is longer than the recording time (page 76).

Notes

•Timer recordings will start with or without the recorder turned on. Once started, the recorder cannot be turned off. The recorder automatically turns off after a recording has finished.

•This recorder shares a single tuner for both the DVD recorder and the VCR. You cannot record different programs to a DVD and a VHS tape at the same time.

•This recorder has the copy guard function. Programs that contain a Copy-Never copy guard signal cannot be correctly recorded on the VCR.

To save a recording

To prevent accidental erasure, break off the safety tab as illustrated. To record on the tape again, cover the tab hole with adhesive tape.

Safety tab

Recording mode

“EP” (Extended Play) and “SP” (Standard Play) is available for recording mode (tape speed). “EP” provides recording time three times as long as “SP.” However, “SP” produces better picture and audio quality.

Maximum recording time

Tape Length SP EP

T-120 2 hrs6 hrs T-160 2 hrs 40 mins 8 hrs T-180 3 hrs9 hrs

Notes

•Tapes recorded in EP (×3) mode by this VCR cannot be played back on VHS video decks with SP mode only.

•Noise may appear in the image when tapes recorded in EP (×3) mode by this VCR are played back on other VHS video decks with EP mode.

Recording a stereo/SAP program

The recorder can receive and record stereo/SAP programs.

Stereo programs

SAP (Second Audio Program)

1-18

VCR Recording Without the

12 3 4 56

Timer

TV/DVD·VIDEO switch

DVD

DISPLAY

H PLAY

z REC

REC MODE

VIDEO CH +/–

INPUT SELECT TV/VIDEO

x STOP X PAUSE

1 Press VIDEO to operate the VCR. 2 Insert a tape with its safety tab in place.

3 Press CH +/– or INPUT SELECT repeatedly

to select the channel or input source you want to record.

4 Press REC MODE repeatedly to select the

recording mode, “SP” or “EP.”

For details about the recording mode, see page 78.

5 Press z REC.

“REC” appears in the front panel display, and recording starts.

To stop recording

Press x STOP.

To pause recording

Press X PAUSE. To restart recording, press X PAUSE again. If you pause recording for more than five minutes, recording stops automatically.

To watch another TV program while recording

1 Slide the TV/DVD·VIDEO switch to TV. 2 Press TV/VIDEO to set the TV to the TV

input.

3 Select another channel on the TV.

To watch a DVD while recording

Press DVD to operate the DVD recorder, insert a disc, and press H PLAY.

z Hints

•To select a channel, you can use the number buttons. Enter the channel number, and press SET.

•You can select a video source from the LINE 1 IN or LINE 2 IN jacks using the INPUT SELECT button.

•Tape information displayed on the TV screen will not be recorded on the tape.

•You can turn off the TV during recording. If you are using a cable box or a satellite receiver, make sure to leave it on.

Notes

•You cannot change the recording mode, channel, or input source while recording.

• If you insert a tape with its safety tab removed, the tape is ejected when you press z REC.

Recording using the Quick Timer (One-touch Timer Recording)

You can set the recorder to record in 30-minute increments.

1 Press VIDEO to operate the VCR. 2 Press z REC repeatedly to set the

duration.

Each press increases the time by 30 minutes, up to six hours.

0:30 1:00 5:30 6:00

“c” and “OTR” light up, and the remaining recording time appears in the front panel display.

(Normal recording)

,continued

VCR Recording

When the counter reaches “0:00,” the recorder stops recording and turns off.

To cancel the Quick Timer

Press z REC repeatedly until the counter appears in the front panel display. The recorder returns to normal recording mode.

To stop recording

Press x STOP twice.

Checking the remaining tape length

You can check recording information, such as remaining tape length or recording mode, etc.

Press DISPLAY while recording.

The information display appears. Press the button repeatedly to change the display (page 76).

Record

0:30:00

Rem 01:30

Ch 110

A Recording status B Time counter C Recording mode D Remaining tape length E Current channel

To check the remaining tape length, set “VCR Function” – “Tape Length” of “Features” in the “Setup” display correctly (page 105).

z Hint

You can view the information also in the front panel display. Press TIME/TEXT repeatedly to change the display. Note that TIME/TEXT does not work during One-touch Timer Recording.

Notes

•The remai ning tape length may not be indicated accurately for short tapes such as T-20 or T-30, or tapes recorded in LP mode.

•After DISPLAY is pressed, it may take one minute for the remaining tape length to appear.

VCR Timer Recording

You can set the timer for a total of 12 programs together with DVD and VCR timer recording, up to one month in advance. Follow the steps below to set each timer recording items.

Note

Do not operate your cable box or satellite receiver just before or during a timer recording. This may prevent the accurate recording of a program.

VIDEO

SYSTEM

TIMER M/m/</,,

ENTER

x STOP

1 Press VIDEO to operate the VCR. 2 Insert a tape with its safety tab in place.

3 Press TIMER.

Timer – Standard

No Rec To Date Start End Source Mode Edit

No.01

01 VHS 4/15 09:00PM 10:00PM CH8 02 VHS 4/30 09:15PM 09:45PM CH11

Media Date Start Stop Ch Mode

03 --- --/-- --:-- --:-- ---- ---

VCR

Today 09 00 10 00 Ch 8 SP

: PM

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

4 Select an item using </, and adjust

using M/m.

A “Media”: Select “VCR.” B “Date”: Sets the date using M.

C “Start”: Sets the start time. D “Stop”: Sets the stop time. E “Ch”: Selects the channel or input

source.

F “Mode”: Selects the recording mode;

“SP” or “EP.” To use the Rec Mode Adjust function (page 82), select “AUTO.”

If you make a mistake, select the item and change the setting.

5 Press ENTER.

The Timer List menu (page 84) appears. The c indicator lights up in the front panel display, and the recorder is ready to start recording. If the c indicator flashes in the front panel display, check that a tape with its safety tab in place is inserted. There is no need to turn off the recorder before the timer recording starts. If timer settings overlap, a message appears. To change or cancel a timer recording, select “Edit” from the Timer List (page 84).

10:10 AM

VCR Recording

6 Press SYSTEM MENU to turn off the menu.

To stop recording

Press x STOP twice.

If timer settings overlap

7:00 8:00 9:00 10:00

Program 1

Program 2

will be cut off

7:00 8:00 9:00 10:00

Program 1

Program 2

will be cut off

To change or cancel timer recording

See “Changing or Canceling VCR Timer Settings (Timer List)” on page 84.

To use the Rec Mode Adjust function

If the remaining tape length is too short for the current recording, the VCR automatically changes the recording mode from SP to EP. When setting the timer, select “AUTO” in “Mode,” and check that the “Tape Length” setting is correct for the inserted tape (“VCR Function” “Tape Length” of “Features” in the “Setup” display (page 105)).

z Hints

•When the start time and the channel or input source to be recorded are the same but the “Media” setting differs, the program is recorded to both the DVD disc and the VHS tape.

•You can also turn on the Timer programming menu from the System Menu. Press SYSTEM MENU to select “Timer,” and select “Timer-Standard.”

Notes

•Even when correctly set, the program may not be recorded if another recording is underway, or other prioritized timer setting overlaps.

•You cannot record on a tape with its safety tab removed.

•Before the timer recording starts, “TIMER REC” flashes in the front panel display.

•The recorder automatically turns off when a timer recording finishes, even if the recording started with the recorder turned on.

,continued

1-19

Recording From Connected Equipment With a Timer (Synchro Rec)

VIDEO

SYSTEM

REC MODE

SYNCHRO

REC

M/m/</,, ENTER

x STOP

1 Press VIDEO to operate the VCR. 2 Insert a tape with its safety tab in place. 3 Press REC MODE repeatedly to select the

recording mode, “SP” or “EP.”

4 Press SYSTEM MENU while the recorder is

in stop mode.

5 Select “Setup,” and press ENTER. 6 Select “Features,” and press ENTER.

The “Features” setup appears.

7 Select “Synchro Recording,” and press

ENTER.

8 Select “to VIDEO,” and press ENTER. 9 Press SYSTEM MENU to turn off the menu. 10

Set the timer on the connected equipment to the time of the program you want to record, and turn it off.

Press SYNCHRO REC.

To stop recording

Press x STOP twice.

To cancel Synchro-Rec function

If the timer settings of a Synchro-Recording and another timer recording overlap

Regardless of whether or not the program is a Synchro-Rec program, the program that starts first has priority and the second program starts recording only after the first program has finished. If the end time of one setting and the start time of another timer setting is the same, the beginning of the program that starts later will be cut.

7:00 8:00 9:00 10:00

Program 1

Program 2

will be cut off

,continued

VCR Recording

Notes

•The recorder starts recording only after detecting the video signal from the connected equipment. The beginning of the program may not be recorded regardless of whether or not the recorder’s power is on or off.

•The Synchro-Rec function does not work with some tuners. For details, see the tuner’s operating instructions.

•During Synchro-Rec standby, the Auto Clock Set function does not work.

•After a recording has finished, the recorder enters the Synchro-Rec standby mode until the SYNCHRO REC indicator turns off.

•You cannot record on a tape with its safety tab removed.

• If Synchro-Rec starts with the recorder turned on, the recorder will turn off when the recording ends.

Changing or Canceling VCR Timer Settings (Timer List)

You can change or cancel timer settings using the Timer List menu.

SYSTEM

O RETURN

1 Press SYSTEM MENU.

The System Menu appears.

M/m/</,, ENTER

2 Select “Timer,” and press ENTER. 3 Select “Timer List,” and press ENTER.

Timer List

No. Media Date Start Stop Ch ModeEdit

01 VCR 04/15 09:00PM 10:00PM Ch8 02 VCR 04/30 09:15PM 09:45PM Ch11

03 --- --/-- --:-- --:-- ---- ---

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

Timer information displays the recording date, time, recording mode, etc. If there are more than six timer settings, press m to display the next page.

10:10 AM

SP SP

4 Select the timer setting you want to change

or cancel, and press ENTER.

The sub-menu appears.

Timer List

No. Media Date Start Stop Ch ModeEdit

01 VCR 04/15 09:00PM 10:00PM Ch8 02 VCR 04/30 09:15PM 09:45PM Ch11

03 --- --/-- --:-- --:-- ---- ---

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

5 Select one of the options, and press

ENTER.

“Edit”: Changes the timer setting. Select an item using </, and adjust using M/m. Press ENTER.

Timer – Standard

No Rec To Date Start End Source Mode Edit

No.01

01 DVD 04/15 09:00PM 10:00PM CH8 02 DVD 04/30 09:15PM 09:45PM CH11

Media Date Start Stop Ch Mode

03 --- --/-- --:-- --:-- ---- ---

VCR

04/15 09 00 10 00 Ch 8 SP

: PM

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

“Delete”: Erases the timer setting. Select “OK” and press ENTER when asked for confirmation.

Timer List

No Rec To Date Start End Source Mode Edit

01 VHS 4/15 09:00PM 10:00PM CH8 02 VHS 4/30 09:15PM 09:45PM CH11

Do you want to erase “No.01”?

03 --- --/-- --:-- --:-- ---- ---

--- --/-- --:-- --:-- ---- ---04

--- --/-- --:-- --:-- ---- ---05

--- --/-- --:-- --:-- ---- ---06

6 Press SYSTEM MENU to turn off the Timer

List.

To return to the previous display

Press O RETURN.

Notes

•Even when correctly set, the program may not be recorded if another recording is underway, or other prioritized timer setting overlaps. For priority, see page 82.

10:10 AM

Edit Delete

10:10 AM

Cancel

•You cannot change the timer settings for a recording currently underway.

•The Timer List displays both the DVD recorder and VCR timer settings.

VCR Recording

Recording From Connected Equipment Without a Timer

You can record from a connected VCR or similar device. For connection details, see “Connecting Another VCR or Similar Device” on page 28.

VIDEO

INPUT SELECT

z REC

REC MODE

x STOP

1 Press VIDEO to operate the VCR. 2 Insert a tape with its safety tab in place. 3 Press INPUT SELECT repeatedly to select

an input source according to the connection you made.

The front panel display changes as follows:

Channel

*Does not appear when the cable box is connected

to the LINE 1 or LINE 2 jacks and “Set Top Box Control” is set to “On.”

4 Press REC MODE repeatedly to select the

recording mode, “SP” or “EP.”

5 Insert the source tape into the connected

equipment and set to playback pause.

LINE2LINE1

6 Press z REC on this recorder and the

pause or play button on the connected equipment at the same time.

Recording starts. To stop recording, press x STOP on this recorder.

Notes

•A video game image may not be recorded clearly.

•You cannot record on a tape with its safety tab removed.

•During recording or recording pause, you cannot change the recording mode.

•You cannot change the channel or input source during recording.

1-20

Dubbing (TAPE y DVD)

Dubbing From a VHS Tape to a DVD

RWVR-RWVideo

You can easily record (dub) a VHS tape to a disc. Before dubbing, make the necessary audio settings on the VCR.

◆How titles and chapters are created

The recorder takes each recording on the VHS tape and automatically divides them into titles as they are dubbed to a disc. These titles are then further divided into chapters at either 5 or 15-minute intervals, according to the “DVD Auto Chapter” setting of “Features” in the “Setup” display.

DVD

AUDIO

SYSTEM

X PAUSE

REC MODE

TVIDEO

RVR-RVideo

VIDEO

M/m/</,, ENTER

H PLAY x STOP

1 Press DVD and insert a recordable disc.

To select the recording mode, press REC MODE repeatedly (see page 48).

2 Insert a source VHS tape. 3 Press VIDEO to operate the VCR. 4 Start playing the VHS tape, and then press

x STOP or X PAUSE at the point where you want to start dubbing.

To select VCR sound, press AUDIO during playback (see page 77).

5 Press T VIDEO on the recorder.

Dubbing starts.

To stop dubbing

Press x STOP. Note that it may take a few seconds for the recorder to stop dubbing.

To play discs recorded with this recorder on other DVD equipment

Finalize the disc (see page 91).

To dub using the on-screen menu

1 After step 4 above, press SYSTEM MENU. 2 Select “Dubbing” from the System Menu, and

press ENTER.

Dubbing

Title List

Simple Dubbing Program Dubbing

Timer

DV/D8 Dubbing

Edit

Dubbing

Disc Setting

Setup

3 Select “Simple Dubbing,” and press ENTER.

Dubbing

Title List

Simple Dubbing Program Dubbing

Timer

DV/D8 Dubbing

Edit

Dubbing

Disc Setting

Setup

4 Select “VIDEO t DVD,” and press ENTER.

The display asks for confirmation.

10:10 AM

VIDEO --> DVD DVD --> VIDEO

,continued

Select “Yes,” and press ENTER.

Dubbing starts.

z Hints

•A black (no signal) screen at the end of the dubbed disc is not a malfunction. This screen is recorded if a time discrepancy exists between the disc and tape when the recording is stopped.

•When dubbing a VHS tape to a DVD, the VHS tape counter value may differ slightly from the DVD recording time.

•VCR playback sound is output during dubbing.

Notes

•Dubbing cannot be made when: –using a non-recordable DVD. –using VHS software with copy guard functions.

•Dubbing st ops when: –the VHS tape reaches the end and stops. –the VHS video deck or the DVD deck is stopped. –the disc remaining time runs out.

•The System Menu, TOOLS menu, and information display are not displayed during dubbing.

•Copyrights –Recordings made from VHS tapes and other

copyrighted material are solely for individual

Dubbing (TAPE y DVD)

enjoyment, and other unauthorized use is prohibited under copyright law.

–Unauthorized editing of copyrighted material is

prohibited under copyright law.

Dubbing From a DVD to a VHS Tape

RWVR-RWVideo

RAM

DVD

You can record (dub) a DVD title to a VHS tape. Note that when you record copy-protected software to a tape, picture may appear disrupted when you play back the tape. You can also select titles or scenes and dub them all at once. See “Dubbing selected titles and scenes (Program Dubbing)” on page 89. Before dubbing, make the necessary audio settings on the DVD recorder.

DVD

SUBTITLE

AUDIO

SYSTEM

TOP MENU

O RETURN

H PLAY

X PAUSE

REC MODE

1 Press VIDEO and insert a VHS tape with its

safety tab in place.

To select the recording mode, SP or EP, press REC MODE repeatedly (see page 78).

DVDt

RVR-RVideo

VIDEO

TITLE LIST M/m/</,,

ENTER

./>

x STOP

2 Insert a source disc. 3 Press DVD to operate the DVD recorder. 4 Press TOP MENU or TITLE LIST to select a

title.

5 Start playing the DVD, and then press x

STOP or X PAUSE at the point where you want to start dubbing.

To select DVD sound, language, or subtitle, press AUDIO or SUBTITLE during playback (see page 36).

6 Press DVD t on the recorder.

Dubbing starts.

To stop dubbing

Press x STOP. Note that it may take a few seconds for the recorder to stop dubbing.

To dub using the on-screen menu

1 After step 5 above, press SYSTEM MENU. 2 Select “Dubbing” from the System Menu, and

press ENTER.

Dubbing

Title List

Simple Dubbing Program Dubbing

Timer

DV/D8 Dubbing

Edit

Dubbing

Disc Setting

Setup

3 Select “Simple Dubbing,” and press ENTER.

Dubbing

Title List

Simple Dubbing Program Dubbing

Timer

DV/D8 Dubbing

Edit

Dubbing

Disc Setting

Setup

4 Select “DVD t VIDEO,” and press ENTER.

The display asks for confirmation.

5 Select “Yes,” and press ENTER.

Dubbing starts. If the disc’s menu appears when DVD playback finishes, press x STOP to stop

10:10 AM

VIDEO --> DVD DVD --> VIDEO

dubbing. Otherwise the disc’s menu is recorded until the tape reaches its end.

z Hints

•The brightness of the playback picture may differ from normal DVD playback picture.

•The DVD playback time may differ slightly from the VHS tape counter value.

•The sound being played back (main, sub, etc.) is the dubbed sound.

Notes

•Dubbing cannot be made when “Progressive” of “Video” is set to “On” in the “Setup” display.

•Dubbing stops when: –the DVD is played back to the end and stops. –the DVD deck or the VHS video deck is stopped. –the tape remaining time runs out.

•The System Menu, TOOLS menu, and information display are not displayed during dubbing.

•Copyrights –Recordings made from discs and other copyrighted

material are solely for individual enjoyment, and other unauthorized use is prohibited under copyright law.

–Unauthorized editing of copyrighted material is

prohibited under copyright law.

Dubbing selected titles and scenes (Program Dubbing)

You can select titles or scenes from a DVD, and dub the contents to a VHS tape all at once.

1 Press VIDEO and insert a VHS tape with its

safety tab in place.

To select the recording mode, SP or EP, press REC MODE repeatedly (see page 78).

2 Press DVD and insert a source disc.

To select DVD sound, language, or subtitle, press AUDIO or SUBTITLE during playback (see page 36).

3 Press SYSTEM MENU.

The System Menu appears.

4 Select “Dubbing,” and press ENTER.

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

Dubbing

Simple Dubbing Program Dubbing DV/D8 Dubbing

10:10 AM

,continued

5 Select “Program Dubbing,” and press

ENTER.

Program Dubbing

Title List

Create Dubbing List Program Dubbing List

Timer

Edit

Dubbing

Disc Setting

Setup

6 Select “Create Dubbing List,” and press

ENTER.

If you have performed Program Dubbing before, the display asks for confirmation. To continue, select “Yes” and press ENTER. The display for selecting titles appears.

Create Dubbing List

1/2

Dubbing (TAPE y DVD)

Ch 32

May/02/2006 03:25 PM

7 Select the title you want to dub, and press

ENTER.

The sub-menu appears. To dub the entire title, select “Title Dubbing” and press ENTER. The Program Dubbing List appears with the selected title. Go to step 13. To select a scene to dub, go to step 8.

8 Select “Scene Dubbing,” and press

ENTER.

The display for setting a scene appears. “Start” is selected.

Scene Dubbing

00:00:07

Dubbing List No. 01

---/--/---- --:--

10:10 AM

No. Title Length Edit

01 Ch 32 00:05:04 02 Ch 96 00:00:51

10:10 AM

Scene No.01

Start

Start 00:00:00

Make

Finish

End 00:00:00

> >

End

9 Press ENTER at the start point.

You can use H PLAY, , ./>, x STOP, and X PAUSE to find

the point. “End” is selected.

Scene Dubbing

00:00:10

Dubbing List No. 01

---/--/---- --:--

Press ENTER at the end point.

“Make” is selected. To reset the start or end point, select “Start” or “End” and repeat from step 9 or 10.

Press ENTER.

To continue, repeat from step 9.

Select “Finish,” and press ENTER.

The Program Dubbing List appears with the selected scene.

Program Dubbing List

No. Title Length Edit

01 Ch 32 00:05:04

Ch 32

May/02/2006 03:25 PM

Select an option and press ENTER, if necessary.

To add other titles or scenes, select “Addition” and press ENTER, and repeat from step 7. To cancel the selected title or scene, select “Erase” and press ENTER. When asked for confirmation, select “OK” and press ENTER. To view the selected title or scene, select “Check” and press ENTER. To cancel dubbing, press O RETURN.

Select “Dubbing,” and press ENTER.

Dubbing starts.

Start 00:00:10

End 00:00:00

Scene No.01

10:10 AM

Start

End

Make

Finish

10:10 AM

Addition

Erase

Check

Dubbing

1-21

To stop dubbing

Press x STOP. Note that it may take a few seconds for the recorder to stop dubbing.

z Hints

•The brightness of the playback picture may differ from normal DVD playback picture.

•The DVD playback time may differ slightly from the VHS tape counter value.

•The sound being played back (main, sub, etc.) is the dubbed sound.

Notes

•Dubbing cannot be made when “Progressive” of “Video” is set to “On” in the “Setup” display.

•Dubbing stops when: –the DVD is played back to the end and stops. –the DVD deck or the VHS video deck is stopped. –the tape remaining time runs out.

•The System Menu, TOOLS menu, and information display are not displayed during dubbing.

•Copyrights –Recordings made from discs and other copyrighted

material are solely for individual enjoyment, and other unauthorized use is prohibited under copyright law.

–Unauthorized editing of copyrighted material is

prohibited under copyright law.

•Once you eject the disc, the Program Dubbing List is erased.

Finalizing a Disc (Preparing a Disc for Playback on Other Equipment)

RWVR-RWVideo

Finalizing is necessary in order to play discs recorded with this recorder on other DVD equipment. When you finalize a DVD+RW/DVD-RW (Video mode)/DVD+R/DVD-R (Video mode), a DVD menu will be automatically created, which can be displayed on other DVD equipment. Before finalizing, check the differences between the disc types in the table below.

Differences between the disc types

Discs are automatically finalized when

removed from the recorder. If you want to record on it again, reformat the disc (page 70). Note however, that reformatting a disc erases all its contents.

Finalizing is unnecessary when playing a

RWVR

disc on VR format compatible equipment. Even if your other DVD equipment is VR format compatible, you may need to finalize the disc, especially if the recording time is short. After finalizing, you cannot edit or record on the disc. If you want to edit or record on it again, unfinalize or reformat the disc (page 70). Note however, that reformatting a disc erases all its contents.

Finalizing is necessary in order to play

RWVideo

on equipment other than this recorder. After finalizing, you cannot edit or record on the disc. If you want to edit or record on it again, unfinalize or reformat the disc (page 70). Note however, that reformatting a disc erases all its contents.

Finalizing is necessary in order to play

RVR

on equipment other than this recorder. The finalized discs can be played on other VR mode compatible players. After finalizing, you cannot further edit or record on the disc.

Finalizing is necessary in order to play

on equipment other than this recorder.

RVideo

After finalizing, you cannot further edit or record on the disc.

RVR-RVideo

,continued

DVD

SYSTEM

M/m/</,, ENTER

1 Press DVD to operate the DVD recorder. 2 Insert a disc. 3 Press SYSTEM MENU while the recorder is

in stop mode.

The System Menu appears.

4 Select “Disc Setting,” and press ENTER.

Dubbing (TAPE y DVD)

The “Disc Setting” display appears.

Disc Setting

Title List

Disc Name : Disc Protect : Not Protected

Timer

Disc Format : VR Mode

Edit

Disc Finalize : Unfinalized

Dubbing

Disc Information

Disc Setting

Erase All Titles

Setup

5 Select “Disc Finalize,” and press ENTER.

The display asks for confirmation.

Do you want to finalize this disc ?

UnfinalizeFinalize

6 Select “Finalize,” and press ENTER.

The display asks for confirmation again.

10:10 AM

7 Select “OK,” and press ENTER.

To turn off the display

Press SYSTEM MENU.

To unfinalize a DVD-RW (VR mode)

If you cannot record or edit on a DVD-RW (VR mode) that has been finalized, unfinalize the disc by selecting “Unfinalize” in step 6 above.

z Hints

•You can check whether the disc has been finalized or

•To check the disc information, select “Disc

•Depend in g on th e condition of the disc, the recording,

•The recorder may not be able to finalize a disc if it wa s

Disc will be finalized.

Do you want to continue ?

CancelOK

The recorder starts finalizing the disc.

not. If you cannot select “Finalize” in step 6 above, the disc has already been finalized.

Information” in the “Disc Setting” display and press ENTER. See page 70 for details.

Notes

or the DVD equipment, discs may not play even if the discs are finalized.

recorded on another recorder.

DV/D8 Dubbing (DV/D8 t DVD)

Before DV/D8 Dubbing

This section explains dubbing with a digital video camera via the DV IN jack on the front panel. If you want to dub by way of the LINE IN jacks, see “Recording From Connected Equipment With a Timer (Synchro Rec)” on page 53.

To record from the DV IN jack

The DV IN jack on this recorder conforms to the i.LINK standard. You can connect any other equipment that has an i.LINK (DV) jack, and record digital signals. Follow the instructions in “Connecting a Digital Video Camera to the DV IN Jack,” and then move on to the section on dubbing. For more information about i.LINK, see “About i.LINK” on page 117.

z Hint

If you plan to do additional editing on a disc after the initial dub, use the DV IN jack and record on a DVD-RW (VR mode) or DVD-R (VR mode). Note that erasing unwanted scenes does not free up disc space for DVD-Rs (VR mode).

Connecting a Digital Video Camera to the DV IN Jack

You can connect a digital video camera to the DV IN jack on the recorder to record or edit from a DV/D8 format tape. Operation is straightforward because the DVD recorder will fast forward and rewind the tape for you – you do not need to operate your digital video camera. Do the following to start using the “DV/D8 Edit” functions of this recorder. See the instruction manual supplied with the digital video camera as well before connecting.

Notes

•The DV IN jack is for input only. It will not output signals.

•You cannot use the DV IN jack when: –your digital video camera does not work with this

recorder. Connect the camera to the LINE IN jack and follow the instructions of “Recording From Connected Equipment Without a Timer” on page 56.

–the input signal is not in DVC-SD format. Do not

connect a MICRO MV format digital video camera even if it has an i.LINK jack.

–the images on the tape contain copy protection

signals, which limit recording.

Hookups

VCR-DVD recorder

DV IN

to DV IN

i.LINK cable (not supplied)

to DV output

Dubbing From a DV/D8 Format Tape to a DVD

RWVR-RWVideo

You can record a DV/D8 format tape onto a disc. The recorder controls the digital video camera. You can fast forward, rewind, play in slow motion, and stop the tape to select the scenes using the onscreen menu. To simply dub the entire contents of a DV/D8 format tape (One Touch Dubbing), see page 96.

◆How titles and chapters are created

The dubbed contents on the disc become one title, and the title is then divided into chapters at either 5 or 15-minute intervals, according to the “DVD Auto Chapter” setting of “Features” in the “Setup” display.

Z OPEN/

DVD

DV/D8 Dubbing (DV/D8 t DVD)

SYSTEM

O RETURN

REC MODE

RVR-RVideo

CH +/–

INPUT SELECT

M/m/</,, ENTER

1 Press DVD to operate the DVD recorder. 2 Press Z OPEN/CLOSE, and place a

recordable disc on the disc tray.

3 Press Z OPEN/CLOSE to close the disc

tray.

4 Insert the source DV/D8 format tape into

your digital video camera.

For the recorder to record or edit, your digital video camera must be set to video playback mode.

5 Press INPUT SELECT repeatedly to select

“DV.”

6 Press REC MODE repeatedly to select the

recording mode.

For details about the recording mode, see page 48.

7 Press SYSTEM MENU while the recorder is

in stop mode.

The System Menu appears.

8 Select “Setup,” and press ENTER.

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

Tuner Preset Clock Set Video Audio Features Options Easy Setup

10:10 AM

9 Select “Audio,” and press ENTER.

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

Audio

Tuner Audio Digital Out Downmix Audio DRC Scan Audio DV/D8 Audio Input Line Audio Input

: Main

: Dolby Surround : Standard : On : Stereo 1 : Stereo

10:10 AM

Digital video camera

: Signal flow

Recording side facing down

1-22

Select “DV/D8 Audio Input,” and press ENTER.

Audio

Title List

Tuner Audio Digital Out

Timer

Downmix

Edit

Audio DRC

Dubbing

Scan Audio

Disc Setting

DV/D8 Audio Input Line Audio Input

Setup

“Stereo 1”: Records original sound only. Normally select this when dubbing a DV format tape. “Stereo 2”: Records additional audio only. “Mix”: Records original and additional sounds. Select “Stereo 2” or “Mix” if you have added a second audio channel when recording with your digital video camera. For the details, see page 104.

Select an option, and press ENTER.

Press O RETURN twice.

Select “Dubbing,” and press ENTER.

Dubbing

Title List

Simple Dubbing Program Dubbing

Timer

DV/D8 Dubbing

Edit

Dubbing

Disc Setting

Setup

Select “DV/D8 Dubbing,” and press ENTER.

DV/D8 Dubbing

Title List

DV/D8 Simple Dubbing DV/D8 One Touch Dubbing

Timer

Edit

Dubbing

Disc Setting

Setup

Select “DV/D8 Simple Dubbing,” and press ENTER.

The following display appears.

: Main

: Dolby Surround : Standard : On :

Stereo 1

Stereo 2 Mix

10:10 AM

DV Tape Mode

If “DV” or “DV Camera Mode” is displayed instead of “DV Tape Mode,” check that the digital video camera is correctly connected and its power turned on, and that its mode is set for dubbing.

Find the dubbing start point on the tape, and stop or pause playback.

Press </, to select m, x, X, y, H, or M on the TV screen and press ENTER to find the point, and stop or pause with x or X.

Press , to select z on the TV screen, and press ENTER.

Dubbing starts.

To stop recording

Select x on the TV screen, and press ENTER. Note that it may take a few seconds for the recorder to stop recording.

To turn off the display for DV/D8 dubbing

Press INPUT SELECT or CH +/–.

z Hint

If “DV Camera Mode” appears on the screen, you can use z on the TV screen to record the camera image directly on the recorder.

Notes

•If you want to play the disc on other DVD equipment, finalize the disc (page 91).

•You cannot connect more than one piece of digital video equipment to the recorder.

•You cannot record the date, time, or contents of a DV/ D8 format tape onto the disc.

•If you record from a DV/D8 format tape with a soundtrack that is recorded in multiple sampling frequencies (48 kHz, 44.1 kHz, or 32 kHz), no sound, or an unnatural sound will be output when playing back the sampling frequency switch point on the disc.

•The recorded picture may be momentarily affected if the picture size of the source image changes, or if there is nothing recorded on the tape.

•Noise may occur when you switch the audio sampling mode (48 kHz/16 bits t 32 kHz/12 bits).

,continued

Dubbing an entire DV/D8 format tape to a DVD (One Touch Dubbing)

RWVR-RWVideo

You can record the entire contents of a DV/D8 format tape onto a disc with a single press of the ONE TOUCH DUBBING button. The recorder controls the digital video camera for the whole process, and completes the recording.

ONE-TOUCH DUBBING

RVR-RVideo

1 Follow steps 1 to 11 of “Dubbing From a

DV/D8 Format Tape to a DVD” (page 94), and press SYSTEM MENU to turn off the display.

2 Press ONE TOUCH DUBBING.

The recorder rewinds the tape in the digital video camera and then starts recording the tape contents from the beginning. When playback of the tape stops, One Touch Dubbing ends automatically.

To stop recording

Press x STOP. Note that it may take a few seconds for the recorder to stop recording.

z Hint

You can also perform One Touch Dubbing when you select “DV/D8 One Touch Dubbing” and press ENTER in step 15 of “Dubbing From a DV/D8 Format Tape to a DVD” on page 94. Follow the instructions appearing on the TV screen.

DV/D8 Dubbing (DV/D8 t DVD)

x STOP

ONE TOUCH DUBBING

Settings and Adjustments

Using the Setup Displays

By using the setup displays, you can make various adjustments to items such as picture and sound, as well as select a language for the subtitles. The setup displays are used in the following way.

Note

Playback settings stored on the disc take priority ov er the setup display settings, and not all of the functions described may work.

SYSTEM

O RETURN

1 Press SYSTEM MENU while the recorder is

in stop mode.

The System Menu appears.

Title List (Original)

Title List

Press ENTER :

Timer

Edit

Title Menu for DVD Title List.

Dubbing

Disc Setting

Setup

M/m/</,, ENTER

10:10 AM

2 Select “Setup,” and press ENTER.

The “Setup” display appears.

Setup

Title List

Tuner Preset Clock Set

Timer

Video

Edit

Audio

Dubbing

Features

Disc Setting

Options Easy Setup

Setup

3 Select “Tuner Preset,” “Clock Set,”

“Video,” “Audio,” “Features,” “Options,” or “Easy Setup,” and press ENTER.

The selected setup display appears. Example: “Video” setup

Video

Title List

TV Type Black Level

Timer

Picture Control

Edit

Progressive

Dubbing

Disc Setting

Setup

4 Select the item you want to set up, and

press ENTER.

Available options for the item appear. Example: “TV Type”

Video

Title List

TV Type Black Level

Timer

Picture Control

Edit

Progressive

Dubbing

Disc Setting

Setup

: 4:3 Letter Box : On : Standard : Off

: 4:3 Letter Box

16:9 4:3 Letter Box

: On

4:3 Pan Scan

: Composite : Off

10:10 AM

,continued

Some items display a dialog box that requires additional settings. Example: When “Parental” in “Options” setup is selected.

Create the password

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

5 Select an option, and press ENTER.

The currently selected option is displayed next to the setup item. Example: When “16:9” is set.

Video

Title List

TV Type Black Level

Timer

Picture Control

Edit

Progressive

Dubbing

Disc Setting

Setup

To return to the previous display

Settings and Adjustments

Press O RETURN.

To turn off the display

Press SYSTEM MENU.

Create the password.

: 16:9 : On : Standard : Off

10:10 AM

Antenna Reception Setting (Tuner Preset)

The “Tuner Preset” setup allows you to make tuner settings for the recorder.

1 Press SYSTEM MENU while the recorder is

in stop mode.

2 Select “Setup,” and press ENTER. 3 Select “Tuner Preset,” and press ENTER.

The “Tuner Preset” setup appears with the following options.

Tuner Preset

Title List

Antenna/Cable Auto Preset

Timer

Manual Set

Edit

Dubbing

Disc Setting

Setup

Notes

•You cannot preset channels for a connected cable box or satellite receiver.

•You cannot select “Tuner Preset” when you set “Set Top Box Control” of “Features” to “On” in the “Setup” display.

Auto Preset

Automatically presets the receivable channels. The recorder can receive VHF channels 2 to 13, UHF channels 14 to 69, and unscrambled CATV channels 1 to 125. First, we recommend that you preset the receivable channels in your area using automatic presetting methods.

: Cable

10:10 AM

1 Select “Antenna/Cable,” and press ENTER.

Tuner Preset

Title List

Antenna/Cable Auto Preset

Timer

Manual Set

Edit

Dubbing

Disc Setting

Setup

“Antenna”: Presets VHF and UHF channels. “Cable”: Presets cable TV channels.

: Antenna

Antenna Cable

10:10 AM

1-23

2 Select an option, and press ENTER. 3 Select “Auto Preset,” and press ENTER.

All receivable channels are preset in numerical sequence.

Auto Preset

Title List

Searching for receivable channels: 3

Timer

Edit

Scanning... Please wait.

Dubbing

Disc Setting

Setup

Manual Set

Presets or disables channels manually. If some channels could not be set using the “Auto Preset” or “Easy Setup” function, you can set them manually.

10:10 AM

Stop

1 Select “Antenna/Cable,” and press ENTER.

Tuner Preset

Title List

Antenna/Cable Auto Preset

Timer

Manual Set

Edit

Dubbing

Disc Setting

Setup

“Antenna”: Presets VHF and UHF channels. “Cable”: Presets cable TV channels.

: Antenna

Antenna Cable

10:10 AM

2 Select an option, and press ENTER. 3 Select “Manual Set,” and press ENTER. 4 Select the channel you want preset using CH

+/–, or disable using M/m, and press ENTER.

Select a channel:

EraseAdd

Exit

5 Select “Add” or “Erase” using </,, and

press ENTER. To cancel the setting, select “Exit” and press ENTER.

6 To preset or disable another channel, repeat

steps 4 and 5.

Clock Setting (Clock Set)

The “Clock Set” setup allows you to make clock settings for the recorder.

1 Press SYSTEM MENU while the recorder is

in stop mode.

2 Select “Setup,” and press ENTER. 3 Select “Clock Set,” and press ENTER.

The “Clock Set” setup appears with the following options.

Clock Set

Title List

Auto Manual

Timer

Edit

Dubbing

Disc Setting

Setup

Auto (Auto Clock Set)

Turns on the Auto Clock Set function when a channel in your local area broadcasts a time signal.

1 Select “Auto,” and press ENTER.

Auto Clock Set

Title List

Clock Set CH Time Zone

Timer

Daylight Saving

Edit

Dubbing

Disc Setting

Setup

2 Select “Clock Set CH,” “Time Zone,” or

“Daylight Saving” and press ENTER.

3 Adjust these settings by pressing M/m and

ENTER.

◆ Clock Set CH

Select a channel that carries a time signal using M/m. Use this option if you know of a channel that carries a time signal. Most PBS member stations broadcast a time signal. For the fastest response, select your local PBS station. Leave the setting at “Auto” to have the recorder

10:10 AM

: Auto : Auto : Auto

,continued

automatically search for a channel that carries a time signal.

Clock Set CH

Title List

Timer

Edit

Select a Channel:

Dubbing

Disc Setting

Setup

◆ Time Zone

Select the time zone for your area, or select “Auto” to have the recorder automatically set your time zone. The options are: Auto y Atlantic y Eastern y Central y Mountain y Pacific y Alaska y Hawaii y Auto

◆ Daylight Saving

Select “On” or “Off” (standard time), or select “Auto” to have the recorder automatically set the daylight saving time.

Note

If “Set Top Box Control” of “Features” is set to “On,” the channel on the cable box or satellite receiver changes when the recorder searches for a channel that carries a time signal and sets your time zone.

Settings and Adjustments

Manual

If the Auto Clock Set function did not set the clock correctly for your local area, set the clock manually.

10:10 AM

Auto

1 Select “Manual,” and press ENTER.

Clock Set

Title List

Set the time and date.

Month Day Year

Timer

Edit

Dubbing

Hour Min

Disc Setting

10 : 10

Setup

2 Press M/m to set the month, and press ,.

Set the day, year, hour, minutes, and AM/PM in sequence. Press </, to select the item to be set, then press M/m to set the item. The day of the week is set automatically.

AM/PM

10:10 AM

2006 Sun01 01

Video Settings (Video)

The “Video” setup allows you to adjust items related to the image, such as size and color. Choose the settings according to the type of TV, tuner, or decoder connected to the recorder.

1 Press SYSTEM MENU while the recorder is

in stop mode.

2 Select “Setup,” and press ENTER. 3 Select “Video,” and press ENTER.

The “Video” setup appears with the following options. The default settings are underlined.

Video

Title List

TV Type Black Level

Timer

Picture Control

Edit

Progressive

Dubbing

Disc Setting

Setup

TV Type

Selects the aspect ratio of the connected TV (4:3 standard or wide).

16:9 Select this when connecting to a

4:3 Letter Box

4:3 Pan Scan

wide-screen TV or TV with a wide mode function.

Select this when connecting to a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.

Select this when connecting to a 4:3 screen TV. Automatically displays a wide picture on the entire screen and cuts off the portions that do not fit.

: 4:3 Letter Box : On : Standard : Off

10:10 AM

3 Press ENTER to start the clock.

100

16:9

4:3 Letter Box

4:3 Pan Scan

Note

Depending on the disc, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan Scan” or vice versa.

Black Level

Selects the black level (setup level) for the video signals output from the LINE OUT jacks (page 16). This setting is not effective when the PROGRESSIVE indicator lights up in the front panel and the recorder outputs progressive signals.

On Raises the standard black level.

Select this when the picture appears too dark.

Off Sets the black level of the output

signal to the standard level.

Picture Control

You can adjust the video signal of DVD or VIDEO CD (with PBC function off) from the recorder to obtain the picture quality you want. Select the setting that best suits the program you are watching.

Dynamic 1 Produces a bold dynamic picture

by increasing the picture contrast and the color intensity.

Dynamic 2 Produces a more dynamic picture

than “Dynamic 1” by further increasing the picture contrast and the color intensity.

Standard Off

Cinema 1 White colors become brighter

Cinema 2 Enhances details in dark areas by

Personal Adjusts “Contrast,” “Brightness,”

z Hint

When you watch a movie, “Cinema 1” or “Cinema 2” is recommended.

Progressive

If your TV accepts progressive (480p) format signals, you will enjoy accurate color reproduction and high quality image.

Displays a standard picture.

and black colors become richer, and the color contrast is increased.

increasing the black level.

“Color,” and “Hue” using M/m/ </,.

1 Select “Progressive,” and press ENTER. 2 Select “On,” and press ENTER. 3 Follow the instructions appearing on the TV

screen.

Video

Progressive Scan Output

Title List

TV Type

1) Ensure your TV is (480P) progressive scan capable.

Black Level

Timer

2) Connect with component video output jacks.

Picture Control

(red/green/blue connections)

Edit

3) Select [OK] to test your video signal.

Progressive

4) If video signal appears OK,

Dubbing

video connection is complete.

Disc Setting

OK Cancel

Setup

1Ensure your TV is (480p) progressive scan

capable.

2Connect with component video output jacks.

(red/green/blue connections) See “If your TV has component video input jacks” on page 17.

3Select [OK] to test your video signal. 4If video signal appears OK, video

connection is complete.

4 Select “OK” and press ENTER.

The PROGRESSIVE indicator on the recorder lights up. If picture is distorted, press O RETURN. Check the connection (page 17).

: 4:3 Pan Scan : On : Standard : Off

10:10 AM

z Hint

To cancel the “Progressive” setting, select “Off” in step 2 above. Or, press DVD to operate the DVD recorder, and then hold down X PAUSE on the recorder for five seconds or more.

Note

If you select progressive signals when you connect the recorder to a TV that cannot accept the signal in progressive format, the image quality will deteriorate. In this case, set “Progressive” to “Off.”

Audio Settings (Audio)

The “Audio” setup allows you to adjust the sound according to the playback and connection conditions.

1 Press SYSTEM MENU while the recorder is

in stop mode.

2 Select “Setup,” and press ENTER. 3 Select “Audio,” and press ENTER.

The “Audio” setup appears with the following options. The default settings are underlined.

Audio

Title List

Tuner Audio Digital Out

Timer

Downmix

Edit

Audio DRC

Dubbing

Scan Audio

Disc Setting

DV/D8 Audio Input Line Audio Input

Setup

Tuner Audio

Selects the sound to be recorded.

Settings and Adjustments

SAP Records only the SAP

If no SAP sound is received, the main sound is recorded regardless of the setting.

Digital Out

The following setup items switch the method of outputting audio signals when you connect a component such as an amplifier (receiver) with a digital input jack. For connection details, see “Connecting to Your AV Amplifier (Receiver)” on page 18. Press ENTER, and select “Dolby Digital” or “DTS.”

Main Records only the main

Note

sound.

(Second Audio Program) sound.

: Main

: Dolby Surround : Standard : On : Stereo 1 : Stereo

10:10 AM

,continued

101

102

1-24

Digital Out

Title List

Dolby Digital DTS

Timer

Edit

Dubbing

Disc Setting

Setup

If you connect a component that does not accept the selected audio signal, a loud noise (or no sound) will come out from the speakers, and may affect your ears or cause speaker damage.

◆ Dolby Digital (DVDs only)

Selects the type of Dolby Digital signal.

D-PCM Select this when the recorder

is connected to an audio component lacking a built-in Dolby Digital decoder. You can select whether the signals conform to Dolby Surround or not by making adjustments to the “Downmix” item in “Audio” setup (page 103).

Dolby

Select this when the recorder

Digital

is connected to an audio component with a built-in Dolby Digital decoder.

◆ DTS (DVD VIDEOs only)

Selects whether or not to output DTS signals.

On Select this when the recorder

is connected to an audio component with a built-in DTS decoder.

Off

Select this when the recorder is connected to an audio component without a built-in DTS decoder.

: 4:3 Letter Box

D-PCM Dolby Digital

10:10 AM

Downmix (DVDs only)

Switches the method for mixing down to two channels when you play a DVD which has rear sound elements (channels) or is recorded in Dolby Digital format. For details on the rear signal components, see “A Connecting to audio L/R jacks” on page 19. This function affects the output of the following jacks: –LINE OUT (AUDIO L/R) jacks –AUDIO OUT L/R jacks –DIGITAL AUDIO OUT (OPTICAL or

COAXIAL) jack when “Dolby Digital” is set to “D-PCM” (page 102).

Dolby Surround

Normal Multi-channel audio signals

Audio DRC (Dynamic Range Control) (DVDs only)

Makes the sound clear when the volume is turned down when playing a DVD that conforms to “Audio DRC.” This affects the output from the following jacks: –LINE OUT (AUDIO L/R) jacks –AUDIO OUT L/R jacks –DIGITAL AUDIO OUT (OPTICAL or

COAXIAL) jack only when “Dolby Digital” is set to “D-PCM” (page 102).

Standard

TV Mode Makes low sounds clear

Wide Range

Normally select this position. Multi-channel audio signals are output to two channels for enjoying surround sounds.

are downmixed to two channels for use with your stereo.

Normally select this position.

even if you turn the volume down.

Gives you the feeling of being at a live performance.

Scan Audio (DVDs only)

On Outputs audio signals during

Off No sound is output during

Sound will be interrupted during Scan Audio.

Note

FF1 fast-forward of a DVD disc with Dolby Digital soundtracks.

FF1 fast-forward.

DV/D8 Audio Input

Stereo 1

Stereo 2 Records additional audio

Mix Records both original and

Select “Stereo 2” or “Mix” if you have added a second audio channel when recording with your digital video camera.

Line Audio Input

Settings and Adjustments

When recording from equipment connected to the LINE 1 IN or LINE 2 IN jack to a DVD disc in this recorder, select line input audio.

Stereo

Main/Sub Records the two different

z Hint

Audio selected with the connected equipment is recorded on a disc other than DVD-RWs (VR mode)/DVD-Rs (VR mode).

Note

Records original sound only. Normally select this when dubbing a DV format tape.

only.

additional sounds.

Records stereo sound only. Select this for discs other than DVD-RWs (VR mode)/ DVD-Rs (VR mode).

soundtracks on DVD-RWs (VR mode)/DVD-Rs (VR mode). You can select either soundtrack when playing back the disc.

Recording, Set Top Box Control, and VCR Settings (Features)

The “Features” setup allows you to make set top box control settings or change the tape length, auto play and auto repeat settings.

1 Press SYSTEM MENU while the recorder is

in stop mode.

2 Select “Setup,” and press ENTER. 3 Select “Features,” and press ENTER.

The “Features” setup appears with the following options. The default settings are underlined.

Features

Title List

DVD Auto Chapter Format DVD-RW

Timer

VCR Function

Edit

Synchro Recording

Dubbing

Set Top Box Control

Disc Setting

Setup

DVD Auto Chapter

Automatically divides a recording (a title) into chapters by inserting chapter markings at specified intervals. The markings are inserted while the recording is being made.

Off No chapter mark is inserted. 5 Min

Inserts chapter marks at approximately 5 minute intervals.

15 Min Inserts chapter marks at

approximately 15 minute intervals.

Note

Actual intervals may differ depending on the size of the recording. The selected setting should be regarded as an approximate chapter interval.

: 5 Min : VR

: to DVD

10:10 AM

Format DVD-RW (DVD-RWs only)

Selects the recording format for an unused DVDRW, when first inserted.

VR Automatically formats the disc in

VR mode.

Video Automatically formats the disc in

Video mode.

VCR Function

Press ENTER and select “Tape Length,” “Auto Play,” or “Auto Repeat.”

◆ Tape Length

T120

For T-120 or shorter length tapes.

T160 For T-160 length tapes. T180 For T-180 or longer length tapes.

◆ Auto Play

Starts playback automatically, when you insert a tape with its safety tab removed.

Off Turns off Auto Play. You need to

press H PLAY to start playback, even if you insert a tape with its safety tab removed.

◆ Auto Repeat

On Plays back a tape repeatedly. The

VCR rewinds the tape to the beginning and restarts playback automatically.

Off

Turns off Auto Repeat.

Synchro Recording

Sets the recorder to record

to DVD

programs from connected equipment that has a timer function (such as a satellite tuner) to a DVD disc.

to VIDEO Sets the recorder to record

programs from connected equipment that has a timer function (such as a satellite tuner) to a VHS tape.

,continued

Set Top Box Control

You can control your cable box/satellite receiver using the supplied set top box controller. See “Step 7: Easy Setup” for details. Press ENTER, and select “On” or “Off.”

On Turns on the cable box/satellite

Off

When “Set Top Box Control” is set to “On,” you can make the following settings. Note that when you change “Set Top Box Control” to “On” or “Off,” all timer recording settings will be canceled.

◆ Brand Code

See “Cable Box/Satellite Receiver Brand Code” (page 125) for the brand code for your cable box or satellite receiver, and enter the code using the number buttons and ENTER.

◆ Connections

Selects the connection you used for your cable box or satellite receiver. When the cable box or satellite receiver is connected to the recorder’s LINE IN jacks, select the connection from “Line1” or “Line2.” When the cable box or satellite receiver is connected to the recorder’s VHF/UHF IN jack, select the output channel, “Ch3” or “Ch4.”

◆ Ch. Digit lock

Allows you to select whether to fix the digits for your cable box or satellite receiver.

Off

Lock to 2 digits

receiver control function. See “Using the cable box/satellite receiver control function” (page 12).

Turns off the cable box/satellite receiver control function. Select this if you do not want to use the supplied set top box controller.

Select this when your cable box or satellite receiver only accepts a three or more digit channel number. Normally select this.

Select this only when your cable box or satellite receiver only accepts a two digit channel number.

,continued

103

105

104

◆ Mode for SET button

Select “Mode 1” or “Mode 2” if your cable box or satellite receiver requires pressing an ENTER button or a SET button etc., after entering the channel number. If “Mode 1” does not work, try “Mode 2.” If your cable box or satellite receiver does not respond to either setting, contact the manufacturer of the cable box or satellite receiver.

Off No code is sent when SET is

pressed. Normally select this.

Mode 1 Sends the channel number you

entered.

Mode 2 Sends the channel number you

entered.

Settings and Adjustments

Language, Parental Control Settings/Factory Settings (Options)

The “Options” setup allows you to set up other operational settings.

1 Press SYSTEM MENU while the recorder is

in stop mode.

2 Select “Setup,” and press ENTER. 3 Select “Options,” and press ENTER.

The “Options” setup appears with the following options. The default settings are underlined.

Options

Title List

Language Parental

Timer

Front Display

Edit

Command Mode

Dubbing

Factory Setting

Disc Setting

Setup

Language

◆ OSD (On-Screen Display)

Switches the display language on the screen.

◆ Disc Menu (DVD VIDEOs only)

Switches the language for the DVD menu.

◆ Audio (DVD VIDEOs only)

Switches the language of the soundtrack. When you select “Original,” the language given priority in the disc is selected.

◆ Subtitle (DVD VIDEOs only)

Switches the language of the subtitles recorded on the disc. When you select “Auto,” the subtitle language changes according to the language you selected for the soundtrack. See page 124 for an explanation of the language abbreviations.

Note

If you select a language in “Disc Menu,” “Subtitle,” or “Audio” that is not recorded on the DVD VIDEO, one of the recorded languages will be automatically selected.

: Auto : DVD 3

10:10 AM

106

1-25

Parental (DVD VIDEOs only)

Playback of some DVD VIDEOs can be limited according to a predetermined level, such as the age of the users. Scenes may be blocked or replaced with different scenes.

1 After step 3 above, select “Parental,” and

press ENTER.

• If you have not entered a password, the display for registering a new password appears. Enter a 4-digit password using the number buttons.

Create the password

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

The display for confirming the password appears. Re-enter the password.

Create the password

Title List

Timer

Confirm the password.

Edit

Dubbing

Disc Setting

Setup

•When you have already registered a password, the display for entering the password appears. Enter a 4-digit password using the number buttons.

Enter the password

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

10:10 AM

Create the password.

10:10 AM

Enter the password.

2 Select “Rating Level,” and press ENTER.

The selection items for “Rating Level” are displayed.

Title List

Timer

Edit

Dubbing

Disc Setting

Setup

Parental

Rating Level Change Password

10:10 AM

: On: Level 8 (Adults)

Off Level 8 (Adults) Level 7 Level 6 Level 5 Level 4 Level 3 Level 2

The lower the value, the stricter the limitation.

3 Select the level, and press ENTER.

The Parental setting is complete.

•To cancel the Parental setting for the disc, set “Rating Level” to “Off” in step 3.

•To change the password, select “Change Password” in step 2, and press ENTER. When the display for registering a password appears, enter a new four-digit password using the number buttons.

Notes

• If you forget your password, select “Factory Setting” of “Options” in the “Setup” display.

•Playback of discs without the Parental Control function cannot be limited on this recorder.

•Depending on the disc, you may be asked to change the Parental Control level while playing the disc. In this case, enter your password, then change the level.

Front Display

Adjusts the lighting of the front panel display.

Auto Adjusts to low lighting when

Bright Maintains bright lighting

Dimmer Maintains low lighting

Off Turns off the lighting when

power is off.

when power is off.

regardless of whether power is on or off.

power is off. Maintains the lighting when power is on.

Command Mode

Changes the command mode of this recorder if other DVD equipment is assigned the same command mode. Be sure to match the COMMAND MODE switch on the remote to the setting made here. For details, see “If you have a Sony DVD player or more than one Sony DVD recorder” on page 26.

DVD 1 Select this if the default

command mode conflicts with other DVD equipment.

DVD 2 Select this if the default

command mode conflicts with other DVD equipment.

DVD 3

The default command mode of the recorder.

Factory Setting

Allows you to return the setup settings to their default settings. Note that all of your previous settings will be lost.

1 After step 3 above, select “Factory Setting,”

and press ENTER.

2 Select “Start,” and press ENTER.

The setup settings return to their default settings.

3 Press ENTER when “Finish” appears.

Settings and Adjustments

The power automatically turns off and then on again, and the recorder is reset to the factory settings. When the “Easy Setup” display appears, follow the instructions for Easy Setup (page 23) from step 4.

Easy Setup (Resetting the Recorder)

Select this to run the Easy Setup program.

1 Press SYSTEM MENU while the recorder is

in stop mode.

2 Select “Setup,” and press ENTER. 3 Select “Easy Setup,” and press ENTER.

Easy Setup

Follow the guide to make initial settings.

Before you start,

check that you have made all necessary connections.

Start Cancel

10:10 AM

4 Select “Start,” and press ENTER. 5 Follow the instructions for Easy Setup

(page 23) from step 5.

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the recorder, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

Power

The power does not turn on.

, Check that the AC power cord is connected

securely.


There is no picture.

, Re-connect all connecting cords securely. , The connecting cords are damaged. , Check the connection to your TV (page 12). , Switch the input selector on your TV (such as to

“VIDEO”) so that the signal from the recorder appears on the TV screen.

Picture noise appears.

, Check the connection to your TV (page 12) and

switch the input selector on your TV so that the signal from the recorder appears on the TV screen.

, If the picture output signal from your recorder

passes through your VCR to get to your TV, or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience this problem even when you connect your recorder directly to your TV, try connecting your recorder to your TV’s S VIDEO input.

, You have set the recorder to progressive format

(the PROGRESSIVE indicator lights up) even though your TV cannot accept the progressive signal. In this case, set “Progressive” to “Off” in “Video” setup (page 101).

, Even if your TV is compatible with progressive

format (480p) signals, the image may be affected when you set the recorder to progressive format. In this case, set “Progressive” to “Off” in “Video” setup (page 101).

,continued

TV program reception does not fill the screen.

, Set the channel manually in “Tuner Preset” setup

(page 98).

, Select the correct source using the INPUT

SELECT button, or select a channel of any TV program using the CH +/– buttons.

TV program pictures are distorted.

, Reorient the TV antenna. , Adjust the picture (see the TV’s instruction

manual).

, Place the recorder and TV farther apart. , Place the TV and any bunched antenna cables

farther apart.

The channel on the cable box/satellite receiver has been changed.

, The set top box controller is connected and “Set

Top Box Control” is set to “On.” Check the “Set Top Box Control” settings in “Features” setup (page 105).

TV channels cannot be changed.

, The channel is disabled (page 99). , A timer recording started, which cause the

channels to change.

The picture from equipment connected to the recorder’s input jack does not appear on the screen.

, If the equipment is connected to the LINE 1 IN

jack, select “LINE1” in the front panel display by pressing INPUT SELECT. If the equipment is connected to the LINE 2 IN jacks, select “LINE2” in the front panel display by pressing INPUT SELECT.

The playback picture or TV program from the equipment connected through the recorder is distorted.

, If the playback picture output from a DVD

player, VCR, or tuner goes through your recorder before reaching your TV, the copy-protection signal applied to some programs could affect picture quality. Disconnect the playback equipment in question and connect it directly to your TV.

The picture does not fill the screen.

, Set “TV Type” in “Video” setup to fit the aspect

ratio of your TV (page 100).

,continued

107

108

Additional Information

109

110

The picture does not fill the screen, even though the aspect ratio is set in “TV Type” in “Video” setup.

, The aspect ratio of the disc is fixed on your DVD.

Sound

There is no sound.

, Re-connect all connections securely. , The connecting cord is damaged. , The input source setting on the amplifier or the

connection to the amplifier is incorrect.

, The recorder is in reverse play, fast-forward,

slow motion, or pause mode.

, If the audio signal does not come through the

DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack, check the “Audio” setup settings (page 102).

Sound is noisy.

, When playing a CD with DTS soundtracks, noise

will come from the LINE OUT (AUDIO L/R) or AUDIO OUT L/R jacks (page 38).

The sound volume is low.

, The sound volume is low on some DVDs.

The sound volume may improve if you set “Audio DRC” in “Audio” setup to “Wide Range” (page 103).

An alternate audio track cannot be recorded or played.

, Second Audio Program (SAP) is not available

for all programs. The program you are recording does not have a second audio program.

, You have set “Tuner Audio” in “Audio” setup to

“Main” (page 102). Select “SAP” to record alternate audio programs.

, If you have connected an AV amplifier to the

DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack and want to change the audio track for a DVD-RW (VR mode)/DVD-R (VR mode) during playback, set “Dolby Digital” in “Audio” setup to “D-PCM” (page 102).

, When recording to a disc other than DVD-RWs

(VR mode)/DVD-Rs (VR mode), set “Line Audio Input” in “Audio” setup to “Stereo.”

DVD Playback

The disc does not play.

, The disc is upside down. Insert the disc with the

labeled side facing up.

, The disc is not correctly inserted. , Moisture has condensed inside the recorder.

Remove the disc and leave the recorder turned on for about half an hour until the moisture evaporates.

, If the disc was recorded on another recorder, the

recorder cannot play the disc if it was not finalized (page 91).

The disc does not start playback from the beginning.

, Resume play was activated (page 39). , You have inserted a disc whose Title menu or

DVD menu automatically appears on the TV screen when it is first inserted. Use the menu to start playback.

The recorder starts playing the disc automatically.

, The DVD VIDEO features an auto playback

function.

Playback stops automatically.

, If the disc has an auto pause signal, the recorder

stops playback at the auto pause signal.

Some functions such as Stop, Search, or Slowmotion Play cannot be performed.

, Depending on the disc, you may not be able to do

some of the operations above. See the instruction manual supplied with the disc.

, While the recorder is reading disc information,

playback operations will not work.

The language for the soundtrack cannot be changed.

, Multilingual tracks are not recorded on the disc

being played.

, The DVD VIDEO prohibits the changing of the

language for the soundtrack.

, Try changing the language using the DVD

VIDEO’s menu.

1-26

The subtitle language cannot be changed or turned off.

, Multilingual subtitles are not recorded on the

DVD VIDEO.

, The DVD VIDEO prohibits changing of the

subtitles.

, Try changing the subtitle using the DVD

VIDEO’s menu.

, The subtitles cannot be changed for the titles

recorded on this recorder.

The angles cannot be changed.

, Multi-angles are not recorded on the DVD

VIDEO being played.

, You are trying to change the angles when “ ”

does not appear in the front panel display (page 36).

, The DVD VIDEO prohibits changing angles. , Try changing the angle using the DVD VIDEO’s

menu.

, The angles cannot be changed for the titles

recorded on this recorder.

The MP3 audio track cannot be played.

, The DATA CD is not recorded in the MP3

format that conforms to ISO9660 Level 1/ Level 2.

, The MP3 audio track does not have the extension

“.MP3.”

, The data is not formatted in MP3 even though it

has the extension “.MP3.”

, The data is not MPEG1 Audio Layer 3 data. , The recorder cannot play audio tracks in

MP3PRO format.

, When playing a disc containing JPEG image

files, “Photo” is selected (page 43).

The JPEG image file cannot be played.

, The DATA CD is not recorded in a JPEG format

that conforms to ISO9660 Level 1/Level 2.

, The JPEG image file does not have the extension

“.JPG” or “.JPEG.”

, The data is not formatted in JPEG even though it

has the extension “.JPG” or “JPEG.”

, The length or width of the image is more than

4,720 dots.

, When playing a disc containing MP3 audio

tracks, “Music” is selected (page 44).

The title of the MP3 audio album/ track or JPEG image folder/file is not correctly displayed.

, The recorder can only display numbers and

alphabet. Other characters are displayed as asterisks.

DVD Recording/Timer recording/ Editing

The channel cannot be changed from the channel you are recording.

, Set the TV’s input source to “TV.”

Recording does not start immediately after z REC is pressed.

, Operate the recorder only after “LOAD,”

“FORMAT,” or “INF WRITE” disappears from the front panel display.

Nothing was recorded even though the timer setting is set correctly.

, There was a power failure during recording. , Disconnect the AC power cord from the AC

outlet, and connect it again.

, The program contains copy protection signals

that restrict copying.

, The program that starts first has priority and the

second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority (page 52).

, There is no DVD inserted in the recorder. , There is not enough disc space for the recording. , The cable box/satellite receiver was turned off. , The set top box controller was incorrectly

connected (page 12).

, The settings in “Set Top Box Control” in

“Features” setup have been changed (page 105).

Recording does not stop immediately after x STOP is pressed.

, It will take a few seconds for the recorder to input

disc data before recording can stop.

Timer recording is not complete or did not start from the beginning.

, There was a power failure during recording. , The recorder’s internal clock stopped due to a

, The program that starts first has priority and the

, There is not enough disc space for the recording.

The c indicator flashes after timer recording is set.

, Insert a recordable disc (page 30). , Insert a disc with enough space for the recording. , The disc has 99 or more titles, which prevents

, The disc is protected (page 70).

The SYNCHRO REC indicator flashes after Synchro-Recording is set.

, Insert a recordable disc (page 30). , Insert a disc with enough space for the recording. , The disc has 99 or more titles, which prevents

, The disc is protected (page 70).

Contents previously recorded were erased.

Additional Information

, Data that has been recorded on a DVD with a PC

VCR Playback

The playback picture does not appear on the TV screen.

power failure. The clock is automatically set by EDS, but it is reset during a power failure when the EDS signal cannot be received (page 99). Reset the clock (page 99).

second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority (page 52).

further recording.

will be erased from the disc when the disc is inserted.

Make sure the TV is set to the channel for the VCR. If a monitor is used, set it to video input.

The picture is not clear.

, Adjust the tracking by the TRACKING +/–

buttons.

, The video heads are dirty (see page 11 5) . Clean

the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads.

, The video heads may have to be replaced.

Consult your local Sony dealer for more information.

, The tape is defective.

The picture rolls vertically during picture search.

, Adjust the vertical hold control on the TV or

monitor.

The picture has no sound.

, The tape is defective. , Check the audio cord connection.

A tape cannot be inserted.

, Check that a tape is not already in the tape

compartment.

VCR Recording

The channel cannot be changed from the one you are recording.

, Set the TV’s input source to “TV.”

No TV program appears on the TV screen.

Make sure the TV is set to the channel for the VCR. If a monitor is used, set it to video input.

Select the correct source with the CH +/– or INPUT SELECT buttons. Select a channel number when recording TV programs; select “LINE1” or “LINE2” when recording from other equipment.

TV reception is poor.

, Adjust the TV antenna.

The tape starts playing as soon as it is inserted.

, The safety tab has been removed. To record on

this tape, cover the tab hole.

The tape is ejected when z REC is pressed.

, Check that the safety tab has not been removed.

Nothing happens when z REC is pressed.

, Make sure the tape is not at its end.

VCR Timer recording

The timer does not operate.

, Check that the clock is set. , Make sure a tape has been inserted. , Check that the safety tab has not been removed. , Make sure the tape is not at its end. , Make sure a program has been set for timer

recording.

, Make sure the timer settings are set for a future

time.

, Check that the cable box is turned on. , “- -:- -” appears in the front panel display if the

recorder is disconnected from the wall outlet for more than one minute. Reset the clock and timer.

, Turn the power off and unplug the AC power

cord.

, The program that starts first has priority and the

second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority (page 82).

The c indicator flashes after timer recording is set.

, Check that the safety tab has not been removed.

The SYNCHRO REC indicator flashes after Synchro-Recording is set.

, Check that the safety tab has not been removed.

Display

Menus or displays do not appear on the screen.

, While the recorder is reading disc information,

the System Menu, TOOLS menu, or information display will not appear.

“- -:- -” appears in the front panel display.

, Set the clock again (page 99).

The c indicator is flashing.

, The disc does not have enough space. , Insert a recordable disc or a tape with its safety

tab in place inside the recorder.

,continued

Remote control

The remote does not function.

, Batteries are weak. , The remote is too far from the recorder. , The remote’s manufacturer code returned to the

default setting when you replaced the batteries. Reset the code (page 21).

, Turn on the recorder. , The remote is not pointed at the remote sensor on

the recorder.

, Different command modes are set for the

recorder and remote. Set the same command mode (page 26).

, Slide the TV/DVD·VIDEO switch to

DVD·VIDEO (page 21).

Other Sony equipment responds to the remote.

, The same command mode is set for both the

Sony DVD equipment. Set a different command mode for the recorder (page 26).

Others

The recorder does not operate properly.

, Restart the recorder. Press down "/1 on the

recorder for more than ten seconds until “SONY DVD” appears in the front panel display.

, When static electricity, etc., causes the recorder

to operate abnormally, turn off the recorder and wait until the clock appears in the front panel display. Then, unplug the recorder and after leaving it off for a while, plug it in again.

The disc tray does not open after you press Z OPEN/CLOSE.

, It may take a few seconds for the disc tray to

open after you have recorded or edited a disc. This is because the recorder is adding disc data to the disc.

“CAN NOT RECORD BECAUSE OF HIGH TEMP.” appears in the front panel display.

, Check that the vent on the rear of the recorder is

not blocked. Then, turn off the recorder, wait until the clock appears in the front panel display, and disconnect the AC power cord. Leave the recorder off for a while, then re-connect the power cord, and press "/1 on the recorder.

,continued

111

112

Additional Information

113

114

“CHILD LOCK” appears in the front panel display.

, The recorder is locked. Cancel the Child Lock

(page 40).

Control by AV mouse is not possible.

, Some satellite receivers may not support AV

mouse.

The Set Top Box Control function does not work.

, Turn on the recorder.

Notes About This Recorder

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/lens cleaners

Do not use a commercially available cleaning disc or disc/lens cleaner (wet or spray type). These may cause the apparatus to malfunction.

Notes about the discs

•To keep the disc clean, handle the disc by its edge. Do not touch the surface. Dust, fingerprints, or scratches on the disc may cause it to malfunction.

•Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

•After playing, store the disc in its case.

•Clean the disc with a cleaning cloth. Wipe the disc from the center out.

•Do not use solvents such as benzine, thinner, commercially available disc/lens cleaners, or anti-static spray intended for vinyl LPs.

•Do not use the following discs. –A disc that has a non-standard shape (e.g.,

card, heart).

–A disc with a label or sticker on it.

1-27

–A disc that has cellophane tape or sticker

adhesive on it.

Symptoms caused by contaminated video heads

initial contamination

When the video heads are dirty, clean the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads.

terminal

About i.LINK

The DV IN jack on this recorder is an i.LINKcompliant DV IN jack. This section describes the i.LINK standard and its features.

What is i.LINK?

i.LINK is a digital serial interface for handling digital video, digital audio and other data in two directions between equipment having the i.LINK jack, and for controlling other equipment. i.LINK-compatible pieces of equipment can be connected by a single i.LINK cable. Possible applications are operations and data transactions with various digital AV equipment. When two or more i.LINK-compatible equipment are connected to this recorder in a daisy chain, operations and data transactions are possible with not only the equipment that this recorder is connected to but also with other devices via the directly connected equipment. Note, however, that the method of operation sometimes varies according to the characteristics and specifications of the equipment to be connected, and that operations and data transactions are sometimes not possible on some connected equipment.

Note

Normally, only one piece of equipment can be connected to this recorder by the i.LINK cable (DV connecting cable). When connecting this recorder to i.LINKcompatible equipment having two or more i.LINK jacks

Additional Information

(DV jacks), see the instruction manual of the equipment to be connected.

About the name “i.LINK”

i.LINK is a more familiar term for IEEE 1394 data transport bus proposed by SONY, and is a trademark approved by many corporations. IEEE 1394 is an international standard standardized by the Institute of Electrical and Electronics Engineers.

i.LINK baud rate

i.LINK’s maximum baud rate varies according to the equipment. Three maximum baud rates are defined:

S100 (approx. 100 Mbps*) S200 (approx. 200 Mbps) S400 (approx. 400 Mbps)

The baud rate is listed under “Specifications” in the instruction manual of each equipment. It is also indicated near the i.LINK jack on some equipment. The maximum baud rate of equipment on which it is not indicated such as this unit is “S100.” When units are connected to equipment having a different maximum baud rate, the baud rate sometimes differs from the indicated baud rate.

*What is Mbps?

Mbps stands for megabits per second, or the amount of data that can be sent or received in one second. For example, a baud rate of 100 Mbps means that 100 megabits of data can be sent in one second.

i.LINK functions on this recorder

For details on how to dub when this recorder is connected to other video equipment having DV jacks, see page 93. The DV jack on this recorder can only input DVCSD signals. It cannot output signals. The DV jack will not accept MICRO MV signals from equipment such as a MICRO MV digital video camera with an i.LINK jack. For further precautions, see the notes on page 93. For details on precautions when connecting this recorder, also see the instruction manuals for the equipment to be connected.

Required i.LINK cable

Use the Sony i.LINK 4-pin-to-4-pin cable (during DV/D8 dubbing).

i.LINK and are trademarks.

Additional Information

,continued

Guide to Parts and Controls

For more information, see the pages in parentheses.

Front panel

Buttons on the recorder have the same function as the buttons on the remote if they have the same or similar names.

Open the cover

A "/1 (on/standby) button (23) B Disc tray (35, 49, 94) C A (open/close) button (35, 49, 94) D DVD t button (88)

T VIDEO button (87)

E Tape compartment (72, 79) F A (eject) button (72) G z REC (record) button (49, 79) H m/M (rewind/fast-forward) buttons

(38)

I H (play) button (35, 72)

X (pause) button (36, 49, 74, 79) x (stop) button (35, 49, 72, 79)

J SELECT DVD/VIDEO buttons (35, 49, 72,

79)

K (remote sensor) (20) L Front panel display (47, 76) M PROGRESSIVE indicator (17, 101) N SYNCHRO REC indicator (53, 83) O CHANNEL/TRACKING +/– buttons* (21,

49, 73, 79)

P ONE-TOUCH DUBBING button (96) Q DV IN jack (93) R LINE 2 IN (S VIDEO/VIDEO/AUDIO L

(MONO)/R) jacks (28)

*The CHANNEL + button has a tactile dot. Use the

tactile dot as a reference.

115

Remote

For DVD functions

Slide the cover

Buttons with an orange dot next to them can be used with your TV when the TV/DVD·VIDEO switch is set to TV.

A TV/DVD·VIDEO switch (21) B Z OPEN/CLOSE button (35, 49, 94) C DVD button (35, 49) D Number buttons* (21, 36)

SET button (21)

E CLEAR button (42) F AUDIO button* (36)

SUBTITLE button (36)

G ORIGINAL/PLAYLIST button (40, 59) H DISPLAY button (46)

TIME/TEXT button (47)

I TOP MENU button (35) J M/m/</,/ENTER button (23) K O RETURN button (23) L . PREV (previous)/> NEXT

buttons (36)

M m / M (search) buttons (36) N ZOOM button (36) O z REC (record) button (49) P REC MODE button (49, 94) Q SYNCHRO REC button (53) R ANGLE button (36) S REPEAT button (36) T MARKER button (42) U SEARCH button (42)

*Number 5 and AUDIO buttons hav e a tac til e dot . Use

the tactile dot as a reference.

117

Additional Information

118

1-28

,continued

119

Slide the cover

V ?/1 (on/standby) button (23) W CH (channel) +/– buttons* (21, 49) X VOL (volume) +/– buttons (21) Y TV/VIDEO button (21) Z INPUT SELECT button (49, 56, 94)

wj SUR (surround) button (36) wk SYSTEM MENU button (10)

TITLE LIST button (40, 59) TIMER button (51)

wl MENU button (35) e; TOOLS button (41) ea REPLAY/ ADVANCE buttons

(36)

es H PLAY button* (35) ed x STOP button (35, 49) ef X PAUSE button (49) eg CHAPTER MARK/CHAPTER MARK

ERASE buttons (62)

eh WIDE MODE button (21) ej ONE TOUCH DUBBING button (96) ek COMMAND MODE switch (DVD 1, 2, 3)

(26)

*CH + and H PLAY buttons have a tactile dot. Use the

tactile dot as a reference.

For VCR functions A TV/DVD·VIDEO switch (21)

B Z OPEN/CLOSE (eject) button (72) C Number buttons* (21)

SET button (21)

D CLEAR button (72) E AUDIO button* (77) F DISPLAY button (76)

TIME/TEXT button (76)

G SYSTEM MENU button (10) H O RETURN button (23) I . PREV (previous)/> NEXT

buttons (74)

J (search) buttons (74) K z REC (record) button (79) L REC MODE button (79) M SYNCHRO REC button (83) N ?/1 (on/standby) button (23) O VIDEO button (72, 79) P CH (channel)/TRACKING +/– buttons*

(21, 73, 79)

Q VOL (volume) +/– buttons (21) R TV/VIDEO button (21) S INPUT SELECT button (79) T TIMER button (81) U M/m/</,/ENTER button (23) V TOOLS button (75) W REPLAY/ ADVANCE buttons

Slide the cover

(74)

X H PLAY button* (72) Y x STOP button (72, 79) Z X PAUSE button (74, 79)

wj WIDE MODE button (21) wk COMMAND MODE switch (DVD 1, 2, 3)

(26)

*Number 5, AUDIO, CH +, and H PLAY buttons have

a tactile dot. Use the tactile dot as a reference.

Additional Information

120

Front panel display

DVD

A DVD playing/recording status B Disc type/recording format C Audio signal indicators D STEREO indicator (48, 78) E SAP (Second Audio Program) indicator

(48, 78)

F VIDEO playing/recording status G Tape indicator

Rear panel

A AUDIO OUT L/R jacks (18) B SET TOP BOX CONTROL jack (13, 14) C DIGITAL AUDIO OUT (COAXIAL/

OPTICAL) jacks (18)

D COMPONENT VIDEO OUT (Y, P

jacks (17)

E S VIDEO OUT jack (16)

VCD SAP

STEREO

H Timer indicator I Displays the following (47, 76):

•Playing time/remaining time

•Current title/chapter/track/index number

•Recording time/recording mode

•Clock

•Channel

J (angle) indicator (36) K Disc indicator

SET TOP BOX

F LINE 1 IN (VIDEO/AUDIO L/R) jacks

(29)

G LINE OUT (VIDEO/AUDIO L/R) jacks

(16, 17)

H VHF/UHF IN/OUT jacks (14)

B, PR)

CONTROL

AUDIO OUT S VIDEO OUT

OPTICAL COAXIAL

DIGITAL AUDIO OUT

COMPONENT

VIDEO OUT

,continued

121

Glossary

Chapter (page 41)

Sections of a picture or a music feature that are

VIDEO

VHF/UHFLINE OUT

LINE 1 IN

VIDEO

OUT

AUDIO

smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded.

Copy protection signals (page 49)

Copy restriction set by copyright owners, etc. These signals are included in some software or TV programs and restrict recording on this recorder.

Dolby Digital (page 102)

Digital audio compression technology developed by Dolby Laboratories. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same discrete channels of high quality digital audio found in “Dolby Digital” theater surround sound systems. Good channel separation is realized because all of the channel data is recorded discretely, and little deterioration occurs because all channel data processing is digital.

DTS (page 102)

Digital audio compression technology by Digital Theater Systems, Inc. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely, and little deterioration occurs because all channel data processing is digital.

DVD+RW (page 30)

A DVD+RW (read “plus RW”) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format.

DVD-RW (page 30)

A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVDRW has two different modes: VR mode and Video mode. DVDs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.

DVD+R (page 30)

A DVD+R (read “plus R”) is a recordable disc that is the same size as a DVD VIDEO. Contents can be recorded only once to a DVD+R, and will have the same format as a DVD VIDEO.

DVD-R (page 30)

A DVD-R is a recordable disc that is the same size as a DVD VIDEO. Contents can be recorded only once to a DVD-R. The DVD-R has two different modes: VR mode and Video mode. DVDs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.

DVD VIDEO (page 33)

A disc that contains up to eight hours of moving pictures on a disc the same diameter as a CD. The data capacity of a single-layer and singlesided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a doublelayer and single-sided DVD is 8.5 GB, a singlelayer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17 GB. The picture data uses the MPEG 2 format, which is a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more real audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided on the DVD.

Additional Information

122

1-29

,continued

123

Interlace format

Interlace format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image.

Original (page 58)

Titles actually recorded on a DVD-RW (VR mode) or DVD-R (VR mode). Erasing original titles frees up disc space on DVD-RWs.

Playlist (page 58)

Playback information created from the actual recordings on a DVD-RW (VR mode) or DVD-R (VR mode). A Playlist leaves the original titles as they are, and contains only the information needed to control playback. A Playlist title takes up very little disc space.

Progressive format (page 101)

Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames/60 fields in one second, the Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper.

Title (page 41)

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.

Track (page 41)

Sections of a music feature on a CD (the length of a song).

124

DVD Audio/Subtitle Language

When you play a DVD VIDEO, the language of the selected audio track or subtitle is abbreviated as follows. See page 106 to change the audio track or subtitle.

Abbreviation Language

ARA Arabic BUL Bulgarian CHI Chinese CRO Croatian CZE Czech DAN Danish DEU German ENG English ESP Spanish FINFinish FRA French GREGreek HUN Hungarian IDN Indonesian IND Hindi ISL Icelandic ITAItalian IWR Hebrew JPN Japanese KOR Korean MALMalay NLD Dutch NOR Norwegian POLPolish POR Portuguese RUS Russian SVE Swedish THA Thai

Abbreviation Language

TUR Turkish VIE Vietnamese ZAF Afrikaans

Cable Box/Satellite Receiver Brand Code

If more than one code number is listed, try entering them one at a time until you find the one that works with your cable box/satellite receiver.

Cable box brand Code number

3M 0033 ABC 0003, 0007, 0011, 0017,

Accuphase 0003, 0007, 0013, 0047,

Acorn 1102, 0237 Action 0237 Active 0237, 1102 Aim 0015 Allegro 0315, 0153 Amark 0008, 0277, 0144, 0056 American 0060 Americast 0899 Antronix 0207, 0022 Anvision 0211, 0111 Apache 0770 Arbatron 0014, 0011, 0003, 0476 Archer 0153, 0022, 0207, 0039,

ASE 1080 Auna 1269 BBT 0267 BCC 0276 Belcor 0056, 0022 Bell & Howell 0014 Bell Atlantic 0641 Bell South 0899 Bestlink 0303 Betavue 0022 British Telecom 0003

0008, 0014, 0001, 0013, 0206, 0047, 0237, 0033

0001, 0011, 0017, 0014, 0206

0797, 0237, 0260

,continued

Additional Information

125

Cable box brand Code number

BVS 0641 Cable Healthcare 0769, 0058 Cable Star 0056 Cabletenna 0022, 0039 Cableview 0022 Century 0153, 0618, 0008, 0315 Citation 0017 Citizen 0153, 0315, 0078, 0242 Clearmaster 0883 ClearMax 0883, 1247 Colour Voice 0031, 0025 Comband 0233, 0232 Comtec 0274 Comtronics 0060, 0040 Comtronics Eagle 0040, 0060 Contec 0019 Coolmax 0883 Curtis Mathes 0015, 0242 Dae Ryung Eagle 0008 Daeryung 0008, 0877, 0477, 0277,

Diamond 0035 Digeo 1476 Digi 0637 Director 0476 Dumont 0637 Eagle Comtronics 0060, 0028 Eastern 0002, 0274, 0418 Electricord 0078 Emerson 0797, 0303, 0015, 0014 Everquest 0040, 0015 Focus 0400 Fosgate 0276 Fujitsu 0246 Funai 0248, 0019 FutureVision 0649 Garrard 0153 Gateway 0764

1877

126

Cable box brand Code number

GC Electronics 0207, 0056, 0330, 0016,

GE 0232, 0233, 0144, 0021 Gemini 0015, 0070, 0057, 0242,

General Instrument 0476, 0011, 0014, 0098,

GHZ 0078 Gibraltar 0003 Global 1327 GMI 0069, 0057, 0015, 0797 GoldStar 0144, 0040 Goodmind 0770, 0797 Gradiente 1136 Hamlin 0020, 0009, 0034, 0259,

Healthway Interactive 0058, 1020, 1015, 0769 Hitachi 0011, 0154, 0009, 0008,

Houston Tracker 0011 Hwalin 0303 Hytek 0007 IBM 0670 IEEC 1018 Interbuy 0274 IPC Guest Services 0893 Jasco 0315, 0153, 0015 Jebsee 0014, 0400 Jerrold 0003, 0014, 0276, 0011,

Kuang Yu 0024 Leon 0069, 0015 LG 0040, 0144 Linsay 0440 Macom 0033 Maestro 0812

0040, 0077, 0030

0014, 0797, 0013, 0400

0810, 0024, 0003, 0015, 0276

0015, 0273, 0206

0003, 0033, 0014, 0255

0012, 0020, 0024, 0015, 0047, 0098, 0476, 0031, 0029, 0111, 0032, 0054, 0810, 0028

Cable box brand Code number

Magnavox 0797, 0027, 0032, 0334,

Millennium 0618, 0153 Memorex 0000 Mitsubishi 0003 Motorola 0476, 0276, 1476, 0810,

Movie Time 0156, 0078, 0063, 0203 MS 0069, 0015, 1018, 0303 MultiVision 0012 Myrio 1117 NET 0274 Next Level 0764, 1316, 1315, 1314 Nexus 0770 Northcoast 0671, 0314 Nova Vision 0277, 0008 Novabeam 0277 Novaplex 0618, 0277, 0017, 0008 NSC 0156, 0070, 0203, 0063,

Oak 0007, 0019, 0303, 0248,

Omega 0015 Omniview 0371 Optimus 0021 Pace 0237 Pacific Bell 0843 Panasonic 0107, 0021, 0144, 0008,

Panther 0637 Paragon 0000, 0525, 0008 Penney 0637, 0000 Philips 0025, 0031, 0290, 0027,

Pioneer 0144, 0023, 0533, 1877,

Popular Mechanics 0400

0069

1376, 1254, 0400, 1106

0400, 0012, 0618, 0022, 0637, 0010, 0044

0017

0124, 0307, 0000, 0040

0030, 0153, 0060, 0242, 0028, 0334, 0211, 0029, 0259, 0307, 0652, 0013, 0069, 0649, 0255, 0305, 0032, 0111, 0317

0877, 0260

Cable box brand Code number

Prelude 0770 Prism 0012, 0013, 0059 Protelcon 0786 Pulsar 0000, 0040 Quasar 0000 Quest 0144, 0020 R Line 0040 RadioShack 0883, 0015, 0315, 0303,

Rampage 0255 Ranger 1247 RCA 0021, 0060, 0797, 0047,

Realistic 0207, 0153 Recoton 0153, 0400 Regal 0259, 0020, 0273, 0279,

Regency 0002, 0020, 0682 Rembrandt 0070, 0153, 0040, 0022,

RK 0304, 0306, 0479 Runco 0000 Samsung 0040, 0144, 0023, 0003,

Sasktel 1737 Scientific Atlanta 0008, 0277, 0017, 0006,

Seam 0510 Sears 0510 Sejin 1265 Siemens 0246 Sigma 0019 Signal 0040, 0015, 0011, 0035 Signature 0011 SkyCable 0112 Skygiant 1091 SL Marx 0040 Sony 1006

0797

1256, 0843

0276

0011

0070, 0000

0237, 0025, 0477, 0207, 0877, 0003, 0012, 0000, 0021, 1877

,continued

Additional Information

127

1-30

Cable box brand Code number

Spectradyne 0769, 0058 Spectravision 0058 Sprucer 0021, 0307, 0010, 0144 Standard Components 0203, 0096, 0155 Starcom 0003, 0015, 0047, 0014,

Stargate 0015, 0040, 0770, 0865,

Starquest 0015 StarSight 0542, 0422 Stealth 0274 Stellar One 0807 Storm 1018, 0637 Suena Madritel 1230 Supercable 0276 Supermax 0883 Sylvania 0001 Tandy0258 Tatung 0097 Teac 1018 Technics 0029 Teknika 0146 Teleavia 0040 TeleCaption 0221 Teleview 0063, 0040 Texscan 0001, 0096, 0010 TFC 0310 Thomson 1256 Timeless 0418, 0274, 0040 Tocom 0012, 0013, 0029, 0019,

Torx 0003 Toshiba 0000 Trans PX 0303, 0276, 0153, 0315 Trinity 1248 Tristar 0883 TS 0255, 0024, 1018, 0003,

Tusa 0015

0098, 0305

0797, 0305, 0014

0059, 0017

0303

128

Cable box brand Code number

TV COMM 0035, 0019 TV Guide 1476 TV86 0063, 0040 Uniden 0022, 0225 Unika 0207, 0153, 0022 United Artists 0007 United Cable 0003, 0014, 0011, 0276 Universal 0191, 0078, 0207, 0056,

US Electronics 0276, 0008, 0003, 0017 V2 0883 Verizon 0246 Videoway 0250, 0000 VideoWorks 0124 Vidtech 0244 Viewmaster 0883, 0770 Viewstar 0258, 0289, 0060, 0063,

Vision 0883 Visionetics 1264 Vortex View 0883 WaveMaster 0565 Wiso 0078 Zenith 0000, 0525, 0054, 0017,

Zentek 0400

0022, 0039, 0153, 0077, 0322, 0315

0211, 0027, 0111, 0030, 0121

0039, 0153, 0060, 0315, 0191, 0899

Satellite receiver brand

AlphaStar 0772 Atlantic Telephone 1333 Bell ExpressVu 0775 Century 0856 Chaparral 0216 Crossdigital 1109 DirecTV 0749, 0566, 0392, 1749,

Dish Network System 0775, 1005, 1170 Dishpro 0775, 1005 Echostar 0775, 1170, 1005 Expressvu 0775 Galaxis 0863 GE 0566 General Instrument 0361, 0869, 0627 GOI 0775 Gradiente 0856 Hitachi 0819, 0749 Houston Tracker 0775 HTS 0775 Hughes Network Systems 0749, 1749, 1442, 1142 Humax 1176, 1359, 1048, 0863,

Innova 0099 Jerrold 0361, 0036, 0627 JVC 0775, 1170 Magnavox 0722, 0724 McIntosh 0869 Memorex 0724 Mitsubishi 0749 Motorola 0869 NEC 1270, 0496, 0499, 0507,

Netsat 0099 Next Level 0869 Optimus 0724 Panasonic 0247, 0701

Code number

0099, 1109, 1076, 1442, 1856, 0247, 1142, 1639, 0724, 0639, 0819

0283

0508

Satellite receiver brand

Paysat 0724 Philips 1076, 0099, 1142, 0724,

Primestar 0361, 0627, 0869 Proscan 0392, 0566 QNS 1367 RadioShack 0869 RCA 0566, 0392, 0143, 0855 Samsung 1109, 1276 Sky 0856, 0099, 1856 Sony 0639, 1639 Star Choice 0869 Star Trak 0869, 0772 Thomson 0566, 0392 Tivo 1142, 1442 Toshiba 0790, 0749, 1749, 1285 UEC 1333, 1358 Uniden 0724, 0722 Video Cipher II Plus 0361 Zenith 0856, 1856

Code number

0722, 0749, 1442, 1749, 0856, 0775

Additional Information

129

Index

Words in quotations appear in the on-screen displays.

Numerics

16:9 25, 100 4:3 Letter Box 4:3 Pan Scan

25, 100

“A-B Erase” 60

67, 68

“Add”

37, 74

ADVANCE ANGLE 36

14, 15

Antenna AUDIO

36, 77

106

“Audio”

Audio cords “Audio DRC” 103 Audio settings 102 Auto Clock Set “Auto Play”

105

“Auto Preset” “Auto Repeat”

Batteries 20 “Black Level” 101 Bookmark “Brand Code”

Cable box 13, 14 Cable box brand Cable box brand code 125 “Ch. Digit lock” Changing or canceling timer settings (Timer List) Chapter “Chapter Erase” CHAPTER MARK CHAPTER MARK ERASE 62 “Check” 66 Child Lock Cleaning discs

130

123

25, 100

105

125 105

114

55, 84

(receiver)

105

102

70 70, 92

61, 66

103

27, 108

49, 123

51, 62

115

122

95,

Cleaning the video heads CLEAR

“Clock Set CH” Clock Set settings “Combine Titles” “Command Mode” COMPONENT VIDEO OUT 17 Connecting

the antenna cable to your AV/amplifier

to your TV 16

“Connections” Controlling TVs with the remote

“Copy” Copy protection Copy-Free

Copy-Never Copy-Once 49

Counter

CPRM “Create Dubbing List” 90 “Create Playlist” Creating chapters

“Daylight Saving” 100 “Delete”

55, 85

“Digital Out” “Disc Finalize” 70, 92 “Disc Format” 70 “Disc Information” “Disc Menu” 106 “Disc Name” “Disc Protect” “Disc Setting” Disc types 30 Display

front panel display Setup Display

“Divide Title” Dolby Digital 25, 103, 123 “Downmix”

25, 38, 103, 123

DTS “Dubbing”

87, 89

“DV/D8 Audio Input” 104

30, 123

37, 74

107

49, 79, 94

124

104

105

122

“DV/D8 Dubbing” “DV/D8 One Touch Dubbing” “DV/D8 Simple Dubbing” “DVD Auto Chapter” DVD Editing DVD VIDEO 33, 123 DVD+R DVD+R DL 30 DVD+RW DVD-R DVD-RAM DVD-RW 30, 123

Easy Setup 108 “Edit” 55, 85 “Edit Playlist” “Edit Scene” Enter characters 63 EP mode 79 “Erase” “Erase All Titles” 70

“Factory Setting” 108 Fast forward Fast reverse 37, 74 Feature settings 104 Finalizing “Format DVD-RW” Formatting 49, 70 “Front Display” Front panel 118 Front panel display

Handling discs 114

i.LINK 93, 117 INPUT SELECT Interlace format

JPEG image files 44

Playback

“Language” 106

Language abbreviation LINE 1 IN LINE 2 IN “Line Audio Input” 53, 57, 104

Manual Clock Set 100 “Manual Set” MARKER 42

MENU Menu

Top menu

“Mode for SET button” “Modify” 67 “Move” 68 MP3 audio tracks

NEXT 37, 74 Number buttons

One Touch Dubbing 96 On-screen display

Setup Display 97 Sub-menu System Menu 10 TOOLS menu

Options settings Original 41, 124 ORIGINAL/PLAYLIST 59 “OSD” language

“Parental” 107 Parental Control Parts and controls PAUSE 37, 50, 74, 79

PBC “Picture Control”

35, 72

PLAY Playable discs

124 29 28

106

21, 41

106

41,

23, 106

118

101

35, 72

JPEG image files MP3 audio tracks

Repeat Play

Resume Play Slow-motion play

Playlist 41, 64, 124

Power cord PREV 37, 74 Program Dubbing “Progressive” Progressive format “Protect” 60

Quick Timer 50, 79

Rear panel 122 REC REC MODE Recording 48, 78

Recording mode Recording time Region code 34 Remaining time Remote 20, 119 REPEAT Repeat A-B Play REPLAY 37, 74 Resetting 108 Resume Play Rotate

Safety tab 78 SAP (Second Audio Program) 49, 78 Satellite receiver Satellite receiver brand code 129 “Scan Audio”

101

124

50, 79

recordable discs recording format recording mode 48

tape speed while watching another

program 79

48, 78

48, 51

47, 80

39, 104

36, 74

50,

“Scene Dubbing” 90 Searching

Set top box control 12, 24, 105 Set top box controller 12, 26 Settings Setup Display “Simple Dubbing” Slide show 44, 45 SP mode Stereo programs STOP 35, 50, 72, 79 Sub-menu SUBTITLE “Subtitle” SUR (surround) SYNCHRO REC 54, 83 “Synchro Recording” 105 System Menu 10

“Tape Length” 105 Tape speed “Time Zone” TIME/TEXT TIMER Timer List 55, 84 Timer recording 51, 81

Title 124 “Title Dubbing” “Title Erase” TITLE LIST Title List 40 “Title Name” TOOLS 11 TOP MENU Track TRACKING 73 Tracking adjustment Troubleshooting “Tuner Audio” Tuner Preset Tuner Preset settings

for “Chapter”

for “Title”

for “Track”

Time Search

48, 78

106

100 47, 76

52, 81

change or cancel

60, 66

40, 59

60, 66

124

109

102

54, 83,

55, 84

,continued

131

1-31

“TV Type” 100 TV/DVD·VIDEO 21

50, 79

TV/VIDEO

“Unfinalize” 92 Unrecordable pictures

“VCR Function” 105 VIDEO CD 33

Video mode Video settings 100 VR mode 30

ZOOM 36 Zoom

Sony Corporation Printed in China AK68-00986A

1-32E

2. DISASSEMBLY AND REASSEMBLY

2-1 CABINET AND PCB

RDR-VX521/VX530

2-1-1 Cabinet Top Removal

1 REMOVE 1 SCREW

3 Lift up the Cabinet Top

in the direction of arrow

2 REMOVE

3 SCREWS

Fig. 2-1 Cabinet Top Removal

2-1-3 Ass’y Front Panel Removal

1 REMOVE

1 SCREW

1 RELEASE 3 HOOKS

(Top View)

2-1-2 Bottom Cover Removal

1 REMOVE 8 SCREWS

(Bottom View)

Fig. 2-2 Bottom Cover Removal

2 RELEASE 2 HOOKS

2 RELEASE 3 HOOKS

(Bottom View)

Fig. 2-3 Ass’y Front Panel Removal

2-1-4 Function Timer PCB Removal

1 RELEASE 2 HOOK

2-1

Fig. 2-4 Function Timer PCB Removal

2-1-5 Chassis Removal

3 REMOVE 4 SCREWS

2 REMOVE 4 SCREWS

DVD DECK

DVD JACK MAIN PCB

FRONT JACK PCB

4 REMOVE 6

SCREWS

1 REMOVE 2 SCREWS

VCR DECK

5 REMOVE

5 SCREWS

VCR MAIN PCB

2-1-6 VCR Main PCB Removal

DV JACK PCB

FUNCTION TIMER PCB

Fig. 2-5 Chassis Removal

1 REMOVE 4 SCREWS

Fig. 2-6 VCR Main PCB Removal

2-2

2-2 CIRCUIT BOARD LOCATIONS

DVD JACK MAIN PCB

VCR MAIN PCB

FRONT JACK PCB

FUNCTION TIMER PCB

Fig. 2-7 Circuit Board Locations

2-3

2-3 VCR DECK PARTS LOCATIONS

2-3-1 Top View

1 GEAR FL CAM 2 ASS’Y MOTOR LOADING 3 ASS’Y LEVER ARM 4 ASS’Y HOLDER CASSETTE 5 LEVER FL DOOR 6 SLIDER FL DRIVE

Fig. 2-8 Top parts Location-1

2-4

1 FE HEAD 2 ASS’Y CYLINDER 3 ASS’Y ACE HEAD 4 ASS’Y LEVER UNIT PINCH 5 ASS’Y LEVER #9 GUIDE 6 ASS’Y LEVER TENSION 7 ASS’Y BAND BRAKE

789 qa0qs

Fig. 2-9 Top Parts Location-2

8 DISK S REEL 9 ASS’Y LEVER S BRAKE 0 GEAR IDLE qa LEVER IDLE qs ASS’Y LEVER T BRAKE qd DISK T REEL

2-5

2-3-2 Bottom View

1 GEAR JOINT 1 2 GEAR JOINT 2 3 BRAKET GEAR 4 ASS’Y MOTOR CAPSTAN 5 ASS’Y LEVER T LOAD 6 GEAR LOADING DRIVE 7 ASS’Y LEVER S LOAD 8 ASS’Y CLUTCH 9 BELT PULLEY 0 SLIDER CAM

Fig. 2-10 Bottom Parts Location

2-6

2-4 VCR DECK

HOLE "A"

1 ASS'Y LEVER ARM

"C"

"B"

2-4-1 Ass’y Holder Cassette Removal

1) Pull the Ass’y Holder Cassette 1 to the eject position.

2) Pull the Ass’y Holder Cassette 1 as grasping the Ass’y Holder Cassette 1 and Lever Lock2 in the same time to release hooking from Main Base until the Boss [A] of Ass’y Holder Cassette 1 is taken out from the Rail [B].

3) Lift the Ass’y Holder Cassette 1, in this time, you have to grasp the Lever Lock 2 Continuously until the Ass’y Holder Cassette 1 is taken out completely.

Note: Be sure to insert Lever Lock 2 in the direction of “A” to

prevent separation and breakage of the Lever Lock 2 at disassembling and reassembling.

1 ASS'Y HOLDER

CASSETTEE

BOSS [A]

2 LEVER LOCK

"A"

RAIL [B]

2-4-2 Ass’y Lever Arm Removal

1) Push the hole “ A” in the direction of arrow “B” use the pin.(about Dia. 2.5)

2) Pull out the Ass’y Lever Arm 1 from the Boss of Main Base.

3) Remove the Ass’y Lever Arm 1 in the direction of arrow “C”.

Fig. 2-12 Ass’y Lever Arm Removal

Fig. 2-11 Ass’y Holder Cassette Removal

2-7

2-4-3 Lever Door Removal

2-4-4 Slider FL Drive, Gear FL Cam Removal

1) Release the Hook 2 and Remove the Lever Door 1 in the direction of arrow “A”.

2 LEVER FL DOOR

"B"

1 SLIDER FL DRIVE

"C"

"A"

Fig. 2-13 Lever Door Removal

1) Pull the Slider FL Drive 1 to the front direction.

2) Remove the Slider FL Drive 1 in the direction of arrow. (Refer to Fig. 2-14)

3) Remove the Gear FL cam 2.

Note: When reinstalling be sure to reassemble Slider FL drive 1 after you insert the Boss of Lever ARM-R in Groove of Slider FL drive 1.

Assembly: Align the Gear FL Cam 1 with the Gear worm wheel Post as shown drawing. (Refer to Timing point)

2 GEAR FL CAM

Fig. 2-14 Slider FL Drive Removal

2 GEAR FL CAM

GEAR WORM WHEEL

POST

TIMING POINT

Fig. 2-15 Gear FL Cam, Gear Worm

1 SLIDER FL DRIVE

2-8

3 CONNECTOR

WAFER

1 CABLE FLAT

2 CONNECTOR W AFER

2-4-5 Gear Worm Wheel Removal

2-4-6 Cable Flat Removal

1) Remove the Gear Worm wheel 1.

Fig. 2-16 Gear Worm Wheel Removal

1) Remove the Drum connecting part of Cable Flat 1 from Connector W af fer 2, 3.

1 GEAR WORM WHEEL

Fig. 2-17 Cable Flat Removal

2-9

2-4-7 Ass’y Motor Loading Removal

2-4-8 Bracket Gear, Gear Joint 2, 1 Removal

1) Remove the Screw 1.

2) Remove the Ass’y Motor Loading 2.

1 SCREW

Fig.2-18 Ass’y Motor Loading Removal

ASS'Y MOTOR

1) Remove the Screw 1.

2) Remove the Bracket Gear 2.

3) Remove the Gear Joint 2 3.

4) Remove the Gear Joint 1 4.

Assembly:

1) Be sure to align dot mark of Gear Joint 1 1 with dot mark of Gear Joint 2 2 as shown Fig 2-20. (Refer to Timing point1)

2) Confirm the Timing Point 2 of the Gear Joint 2 2 and Slider Cam 3.

3 GEAR JOINT 2

4 GEAR

JOINT 1

1 SCREW

2 BRAKET GEAR

1 GEAR JOINT1

TIMING POINT 1

Fig. 2-19 Bracket Gear, Gear Joint 1, 2 Removal

2 GEAR JOINT2

3 SLIDER CAM

TIMING POINT 2

Fig. 2-20 Gear Joint 1, 2 Assembly

2-10

2-4-9 Gear Loading Drive, Slider Cam,

2 LEVER LOAD S

1 LEVER LOAD T

PIN A

PIN C

PIN B

PIN D

3 SLIDER CAM

TIMING POINT 2

TIMING POINT 1

TIMING POINT 3

Ass’y Lever Load S, T Removal

2-4-10 Gear Loading Drive, Slider Cam,

Ass’y Lever Load S, T Assembly

1) Remove the Belt Pulley. (Refer to Fig. 2-38)

2) Remove the Gear Loading Drive 1 after releasing Hook [A] in the direction arrow as shown in detail drawing.

3) Remove the Slider Cam 2.

4) Remove the Ass’y Lever Load S 3 & Ass’y Lever Load T 4.

HOOK(A)

1 GEAR LOADING DRIVE

2 SLIDE CAM

4 ASS'Y LEVER LOAD T

3 ASS'Y LEVER

LOAD S

1) When reinstalling, be sure to align dot of Ass’y Lever Load T 1 with dot of Ass’y Lever Load S 2 as shown in drawing, (Refer to Timing Point 1).

2) Insert the Pin A,B,C,D into the Slider Cam 3 hole,

3) Be sure to align dot of Ass’y Lever Load T 1 and dot of Gear Loading Drive 4, (Refer to Timing Point 2).

4) Aline dot of Gear Loading drive 4 with mark of Slider Cam 3 as shown in drawing (Refer to Timing Point 3).

Fig. 2-21 Gear Loading Drive, Slider Cam,

Ass’y Lever T, S Load Removal

Fig. 2-22 Gear Loading Drive, Slider Cam,

Ass’y Lever Load S, T Assembly

2-11

2-4-11 Lever Pinch Drive,

Lever Tension Drive Removal

2-4-12 Ass’y Lever Tension,

Ass’y Band Brake Removal

1) Remove the Lever Pinch Drive 1, Lever Tension Drive 2.

1 LEVER PINCH DRIVE

2 LEVER TENSION

DRIVE

Fig. 2-23 Lever Pinch Drive,

Lever Tension Drive Removal

1) Remove the Ass’y Lever Brake S (Refer to Fig 2-25).

2) Remove the Spring Tension Lever 1.

3) Rotate stopper of Main Base in the direction of arrow “A”.

4) Lift the Ass’y Lever Tension 2 & Ass’y Band brake 3.

Note:

1) When replacing the Ass’y Lever Tension 2, be sure to apply Grease on the post,

2) T ake care not to touch stain on the felt side, and not to be folder and broken Ass’y Band brake

3) After Ass’y Le ver Tension seated, Rotate stopper of Main Base to the Mark[B].

3 ASS'Y BAND

BRAKE

2 ASS'Y LEVER

TENTION

1 SPRING TENTION

LEVER

STOPPER

"A"

MARK[B]

Fig. 2-24 Ass’y Lever Tension,

Ass’y Band Brake Removal

2-12

2-4-13 Ass’y Lever Brake S, T Removal

2-4-14 Ass’y Gear Idle Removal

1) Release the Hook [A] and the Hook [B], [C] in the direction of arrow as shown in Fig 2-25.

2) Lift the Ass’y Lever S, T Brake 1, 2 with spring brake 3.

Assembly:

1) Assembly the Ass’y Lever S Brake 1 on the Main Base.

2) Assembly the Ass’y Lever T Brake 2 with spring brake 3.

Note: Take extreme care not to be folded and transformed Spring Brake at removing or reinstalling.

HOOK(A)

3 SPRING BRAKE

1 ASS'Y

LEVER S BRAKE

HOOK(C)

HOOK(B)

2 ASS'Y LEVER T

BRAKE

1) Push the Lever Idle 1 in the direction of arrow “A”, “B”.

2) Lift the Lever Idle 1.

Assembly:

1) Apply oil in two Bosses of Lever Idle 1.

2) Assemble the Gear Idle 2 with the Lever Idle 1.

Note: When replacing the Gear Idle 2, be sure to add oil in the boss of Lever Idle 1.

"A"

1 LEVER IDLE

2 GEAR IDLE

HOOK "C"

"B"

2 GEAR IDLE

Fig. 2-25 Ass’y Lever Brake S, T Removal

Fig. 2-26 Ass’y Gear Idle Removal

2-13

2-4-15 Disk S, T Reel Removal

2-4-16 Ass’y Holder Clutch Removal

1) Lift the Disk S, T Reel 1, 2.

1 REEL S

Fig. 2-27 Disk S, T Reel Removal

2 REEL T

1) Remove the Washer Slit 1.

2) Lift the Ass’y Holder Clutch 2.

Note: When you reinstall Ass’y Holder Clutch.

1) Check the condition of spring as shown in detail A.

2) Don't push Ass’y Holder Clutch down with e xcessiv e force Just insert Holder Clutch Ass’y into post center with dead force and Rotate it smoothly. Be sure to confirm that spring is in the slit of Ass’y Gear Center as shown in detail B.

1 WASHER SLIT

2 ASS'Y CLUTCH

DETAIL A

<BAD> SPRING <GOOD>

DETAIL B

SPRING

<BAD>

Fig. 2-28 Ass’y Holder Clutch Removal

<GOOD>

2-14

2-4-17 Ass’y Lever Up Down, Ass’y Gear

Center Removal

1) Remove the 2 hooks in the direction of arrow as shown Fig. 229 and lift the Ass’y Lever Up Down 1.

2) Lift the Ass’y Gear Center 2.

Assembly:

1) Insert the Ass’y Lever Up Down 1 in the rectangular holes on Main Base as shown in Fig 2-30.

2) Lift the Lever Ass’y Up Down 1 about 35°.

(Refer to Fig 2-30)

3) Insert Ring of the Ass’y Gear Center 2 in the Guide of the Ass’y Lever Up Down 1.

4) Insert the Ass’y Gear Center 2 in the post on Main Base.

5) Push down the Ass’y Lever Up Down 1 for locking of the Hook.

Note:

1) Take care not to separate and sentence does not mark sense.

2) Be sure to confirm that Ring of the Ass’y Gear Center 2 is in the Guide of the Ass’y Lever Up Down 1 after finishing assembly of Ass’y Lever Up Down 1 and Ass’y Gear Center

1 ASS'Y LEVER UP DOWN

2-4-18 Guide Cassette Door Removal

1) Lift the Hook [A].

2) Rotate the Guide Cassette Door 1 in the direction of arrow.

Note: After reinstalling the Guide Cassette Door 1 sure the Hook [A].

1 GUIDE CASSETTE DOOR

HOOK [A]

ASS'Y GEAR CENTER

RING GEAR

POST

2 ASS'Y GEAR CENTER

Fig. 2-29 Ass’y Lever Up Down Removal

GUIDE

ASS'Y LEVER UP DOWN

HOOK

Fig. 2-31 Guide Cassette Door Removal

Fig. 2-30 Ass’y Lever Up Down Removal

MAIN BASE

2-15

2-4-19 Ass’y Lever Unit Pinch, Plate Joint,

Spring Pinch Drive Removal

1) Lift the Ass’y Unit Pinch 1.

2) Remove the Plate Joint 2 from Lever Pinch Drive.

3) Remove the Spring Pinch Drive 3.

Note:

1) Take extreme care not to touch the grease on the Roller Pinch.

2) When reinstalling, be sure to apply grease on the post pinch roller.

2-4-20 Ass’y Lever #9 Guide Removal

1) Remove the Spring #9 Guide 1.

2) Lift the Ass’y Spring #9 Guide 2 in the direction of arrow “ A”.

Note:

1) Take extreme care not to get grease on the tape Guide Post.

2) After reinstalling, check the bottom side of the Post #9 Guide to the top side of Main Base.

"A"

ASS'Y LEVER

UNIT PINCH

PLATE JOINT

3 SPRING PINCH

DRIVE

1 SPRING #9 GUIDE

2 ASS'Y LEVER #9 GUIDE

"B"

Fig. 2-32 Ass’y Lever Unit Pinch, Plate Joint,

Spring Pinch Drive Removal

Fig. 2-33 Ass’y Lever #9 Guide Removal

2-16

2-4-21 FE Head Removal

2-4-22 Ass’y ACE Head Removal

1) Remove the FE Head 1 in the direction of arrow to lift up.

1 FE HEAD

Fig. 2-34 FE Head Removal

1) Pull out the FPC from connector of Ass’y ACE Head 2.

2) Remove the screw 1.

3) Lift the Ass’y ACE Head 2.

SCREW

2 ASS'Y HEAD ACE

Fig. 2-35 Ass’y ACE Head Removal

2-17

2-4-23 Ass’y Slider S, T Removal

1) Move the Ass’y Slider S, T 1, 2 to slot, and then lift it to remove. (Refer to arrow)

ASS'Y

SLIDER S

2 ASS'Y

SLIDER T

2-4-24 Plate Ground Deck, Ass’y Cylinder Re-

moval

1) Remove the 3 Screws 1.

2) Lift the Plate Ground Deck 2.

3) Lift the Ass’y Cylinder 3.

Assembly:

1) Match the 3 holes in the bottom of Ass’y Cylinder 3 to the 3 holes of Main Base as attending not to drop or knock the Ass’y Cylinder 3.

2) Tighten the 1 Screw 1.

3) Match the Plate Ground Deck 2 to the Hole of Base Main.

4) Tighten the other 2 Screws 1.

Note:

1) T ake care not to touch the Ass’y Cylinder 3 and the tape guide post at reinstalling.

2) When reinstalling, Don't push down too much on Screw Dri ver.

1 3 SCREWS

PLATE GROUND

DECK

Fig. 2-36 Ass’y Slider S, T Removal

3 ASS'Y CYLINDER

Fig. 2-37 Plate Ground Deck, Ass’y Cylinder Removal

2-18

2-4-25 Hook Capstan, Belt Pulley Removal

2-4-26 Ass’y Motor Capstan Removal

1) Remove the Hook Capstan 1 after realeasing Hook in the direction arrow as shown in detail drawing.

2) Remove the Belt Pulley 2.

Note: Take extreme care not to get grease on Belt Pulley 2 at assembling or reassembling.

HOOK

2 BELT PULLEY

1 HOOK CAPSTAN

1) Remove the 3 Screws 1.

2) Remove the Ass’y Motor Capstan 2.

Assembly:

1) Match the 3 holes of Ass’y Motor Capstan 2 to the 3 holes of Main Base. Be careful not to drop or knock the Ass’y Motor Capstan 2.

2) Tighten the 3 Screws 1 in the direction of arrow as sho wn detail drawing.

Note: After tightening screws, check if there is gap between the head of screws and the top side of Main Base. There should hav e no gap between the head of screws and the top side of Main Base. After reinstalling, adjusting the tape transport system again.

1 3 SCREWS

Fig. 2-38 Belt Pulley Removal

2 ASS'Y MOTOR

CAPSTAN

Fig. 2-39 Ass’y Motor Capstan Removal

2-19

2-4-27 Ass’y Post #8 Guide Removal

1) Rotate the Ass’y Post #8 Guide 1 in the direction of arrow to lift up.

1 ASS'Y POST #8 GUIDE

2-4-29 How to Eject the Cassette Tape (If the tape is stuck in the unit)

1) Turn the Gear worm 1 clockwise with screw driver.(Refer to arrow) (Other method: Remove the Screw of Ass’y Motor Load, Separate the Ass’y Motor Load)

1 GEAR WORM

Fig. 2-40 Ass’y Post #8 Guide Removal

2-4-28 Ass’y Level Head Cleaner Removal

1) Release the Hook 1.

2) Lift the Ass’y Lever Head Cleaner 2.

2 LEVER HEAD CLEANER ASS'Y

1 HOOK

Fig. 2-42

2) When Slider S,T are approched in the position of unloading, rotate holder Clutch counterclockwise after inserting screw driver in the hole of frame's bottom in order to wind the unwinded tape. (Refer to Fig.2-43) (If you rotate Gear Worm 1 continuously when tape is in state of unwinding, you may cause a tape contamination by grease and tape damage. Be sure to wind the unwinded tape in the state of set horizently.)

3) Rotate Gear Worm 1 clockwise using screw dri v er again up to the state of eject mode and then pick out the tape.(Refer to Fig.2-

42)

FRAME

Fig. 2-41 Ass’y Lever Head Cleaner Removal

Fig. 2-43

2-20

2-5 THE TABLE OF CLEANING, LUBRICATION AND REPLACEMENT TIME ABOUT PRINCIPAL

PARTS

1) The replacement time of parts is not life of parts.

2) The table 2-1 is that the VCR Set is in normal condition (normal temperature, normal humidity). The checking period may be changed owing to the condition of use, runtime and environmental conditions.

3) Life of the Cylinder Ass’y is depend on the condition of use.

4) See exploded view for location of each parts.

* Parts Name

POST TENSION ∆∆∆∆∆∆∆∆∆∆

SLANT POST S, T ∆∆∆∆∆∆∆∆ ∆∆

T A P E

P A T H

S Y S T E

#8 GUIDE SHAFT ∆∆∆∆∆∆∆ ∆∆∆

CAPSTAN SHAFT ∆∆∆∆∆∆∆ ∆∆∆

#9 GUIDE POST ∆∆∆∆∆∆∆∆ ∆∆ #3 GUIDE POST ∆∆∆∆∆∆∆∆ ∆∆

GUIDE ROLLER S, T ∆∆∆OOOOOOO

CYLINDER ASS’Y ∆ OOOOOOOOO

FE HEAD ∆∆∆OOOOOOO

ACE HEAD ∆ OOOOOOOOO

PINCH ROLLER ∆ OOOOOOOOO

POST REEL S, T ◆◆◆◆◆

SLEEVE TENSION ◆◆◆◆◆

POST CENTER ◆◆◆◆◆

LEVER IDLE BOSS (2Point)

D R

I N G

B R A K E

CAPSTAN MOTOR PULLEY

S Y S T E

BELT PULLEY O O O O O O O

HOLDER CLUTCH ASS’Y

GEAR CENTER ASS’Y O O O O O O O O O

GEAR IDLE (2Point) O O O O O O O O O

LOADING MOTOR O O O O O O O O O

S Y

BAND BRAKE ASS’Y O O O O O O O O O

T E

BRAKE T ASS’Y O O O O O O O O O

500 1000 1500 2000 2500 3000 3500 4000 4500 5000

◆◆◆◆◆

∆∆∆ ∆∆ OOOOO

∆ OOOOOOOOO

Checking Period

Remark

-To clean the parts, use patch and alcohol (solvent).

-After cleaning, use the video tape after alcohol is gone away completely.

-We recommend to use oil [EP-50] or solvent.

-One or two drops of oil should be applied after cleaning with

alcohol.

-Periodic time of applying oil (Apply oil after cleaning)

- The excessive applying oil may be the cause of malfunction.

∆ : Cleaning O : Check and replacement in necessary ◆ : Add Oil

2-21

MEMO

2-222-22E

3. Block Diagram

RDR-VX521/VX530

VHF/UHF

STB OUT

(US, Canadian)

LINE1 IN(REAR)

LINE2 IN(FRONT)

SUPER IN

DV IN

RF Out(Splitter)

TM BLOCK

SIF

SAA7137

DECORDER

Audio

ADC

CVBS

MTS

(BTSC)

VIDEO

MUX

Audio

DAC

RF IC2

S3C80F9B

DVD V IN

VIDEO DIGITAL DATA (TIU656) AUDIO DIGITAL DATA (I VCR VIDEO

VCR AUDIO

6CH AMP

LA73054

IEEE1394PHY

TSB41AB1

C DATA CLK

EEPROM

24LC32

4MB FLASH

K8D3216UBM

(8bit)

DECORDER

MS8202

VCR MICOM

MN 101D10F

AV I-CHIP

LA71207

4MB(x2) SDRAM

(32bit)

ENCORDER

MS2686

DVD-Rewritable Drive

TS-P532B

2MB(x4) SDRAM

(64bit)

VCR DECK

(DX-13A New Slim)

VIDEO

SUPER OUT

COAXIAL

OPTICAL

DIGITAL AUDIO OUT

IEC958

LA72670

Front Panel

VFD DRIVE, KEY CONTROL

PT6315

HI-FI

Key Input

Remocon

Notes:

DVD JACK MAIN BOARD must be replaced if EEPROM is damaged or not functioning.

The old DVD J ACK MAIN BOARD must be completely disposed.

3-23-1

MEMO

3-4E

4. PCB Diagrams

4-1 VCR Main PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-3

4-2 DVD Jack Main PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-7

4-3 DV Jack PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-11

4-4 Front Jack PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-11

4-5 Function Timer PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-13

RDR-VX521/VX530

4-24-1

4-1 VCR Main PCB

COMPONENT SIDE

4-44-3

CONDUCTOR SIDE

4-64-5

4-2 DVD Jack Main PCB

COMPONENT SIDE

4-84-7

CONDUCTOR SIDE

4-104-9

4-3 DV Jack PCB

COMPONENT SIDE

CONDUCTOR SIDE

4-4 Front Jack PCB

COMPONENT SIDE

CONDUCTOR SIDE

4-124-11

4-5 Function Timer PCB

COMPONENT SIDE

CONDUCTOR SIDE

4-144-13

MEMO

4-16E

5. Schematic Diagrams

RDR-VX521/VX530

5-1 S.M.P.S (VCR Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-3

5-2 Power (VCR Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-5

5-3 Logic (VCR Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-7

5-4 A/V (VCR Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-9

5-5 Hi-Fi (VCR Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-11

5-6 Function Timer (Function Timer PCB) - - - - - - - - - - - - - - - - - - - - - - - - - 5-13

5-7 Encoder (DVD Jack Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-15

5-8 Decoder (DVD Jack Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-17

5-9 Video Decoder and Connector (DVD Jack Main PCB) - - - - - - - - - - - - - - 5-19

5-10 DV Interface and 1394 Connector (DVD Jack Main PCB) - - - - - - - - - - - - 5-21

Note

For schematic Diagram

- Resistors are in ohms, 1/8W unless otherwise noted.

Special note :

Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques described under the “electrostatically sensitive (ES) devices” section of this service manual.

Important safety notices :

Components identified with the mark 0 have the special characteristics for safety. When replacing any of these components. Use only the same type.

5-11 Component/Super Out (Front Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - 5-23

5-25-1

5-1 S.M.P.S. (VCR Main PCB)

5-45-3

5-2 Power (VCR Main PCB)

5-65-5

5-3 Logic (VCR Main PCB)

5-85-7

5-4 A/V (VCR Main PCB)

5-105-9

5-5 Hi-Fi (VCR Main PCB)

5-125-11

5-6 Function Timer (Function Timer PCB)

5-145-13

5-7 Encoder (DVD Jack Main PCB)

5-165-15

5-8 Decoder (DVD Jack Main PCB)

5-185-17

5-9 Video Decoder and Connector (DVD Jack Main PCB)

5-205-19

5-10 DV Interface and 1394 Connector (DVD Jack Main PCB)

5-225-21

5-11 Component/Super Out (Front Jack PCB)

5-24E5-23

RDR-VX521/VX530

6. ALIGNMENT AND ADJUSTMENTS

6-1 VCR ADJUSTMENT

6-1-1 Reference

1) X-Point (Tracking center) adjustment, “Head switching adjustment” can be adjusted with remote control.

2) When replacing the Main PCB Micom (IC601) and NVRAM (IC603: EEPROM) be sure to adjust the “Head switching adjustment”.

3) When replacing the cylinder ass’y, be sure to adjust the “X-Point” and “Head switching adjustment”.

4) How to adjust.

- Intermittently short-circuit the Test Point on Function Timer PCB with pincers to the adjustment mode.

- If the corresponding adjustment button is pressed, the adjustment is performed automatically.

- When the adjustment is completed, be sure to turn the power off.

6-1-1(a) Location of adjustment button of remote control

X-Point (Tracking Center) Adjustment ;

Head Switching Adjustment ;

Fig. 6-1

6-1

6-1-1(b) TEST location for adjustment mode setting

Short-Circuit for few seconds and release.

(Just one time)

Fig. 6-2 Function Timer PCB (Top View)

6-2

6-1-2 Head Switching Point Adjustment

1) Playback the alignment tape.

2) Intermittently short-circuit the two Test Points on Function Timer PCB while setting the adjustment mode. (See Fig. 6-2)

3) Press the “1, 0” buttons ; remote control adjustment operates automatically. (See Fig. 6-1)

6-3

6-2 VCR MECHANICAL ADJUSTMENT

6-2-1 Tape Transport System and Adjustment Locations

The tape transport system has been adjusted precisely in the factory. Alignment is not necessary except for the following :

1) Noise observed on the screen.

2) Tape damage.

3) Parts replacement in the tape transport system.

Lower flange height of tape guide is used as the reference for the transport adjustment. To maintain the height of the tape guide and prevent damage, do not apply excessive force onto the main base.

CYLINDER ASS' Y

FULL ERASE HEAD

#3 GUIDE POST TENSION POST

GUIDE ROLLER "S"

GUIDE ROLLER "T"

TILT SCREW X-POSITION

ADJUST SLIT

AZIMUTH SCREW

#8 GUIDE POST

SUPPLY REEL DISK

Fig. 6-3 Location of Tape Transport Adjustment

TAKE UP REEL DISK

HIGH T SCREW

PINCH ROLLER

#9 GUIDE POST

CAPSTAN

POST TENSION

#3 GUIDE POST

FE HEAD CYLINDER ASS'Y

GUIDE ROLLER "S" GUIDE ROLLER "T"

Fig. 6-4 Tape Travel Diagram

6-4

PINCH ROLLER

#8 GUIDE POST #9 GUIDE POST

ACE HEAD

CAPSTAN SHAFT

MAIN BASE

6-2-2 Tape Transport System Adjustment

When parts are replaced, perform the required adjustments by referring to procedures for the tape transport system. If there are any changes to the tape path, first run a T-120 tape and make sure excessive tape wrinkle does not occur at the tape guides.

◆ If tape wrinkle is observed at the guide roller S, T, turn the guide roller S, T until wrinkle disappears.

◆ If the tape wrinkle is still observed at the tape guide, perform the tilt adjustment of the ACE head.

(1) ACE Head Assembly Adjustment

a. ACE HEAD HEIGHT ADJUSTMENT

1) Run the alignment tape (Color bar) in the playback mode.

2) Observe surface of the audio head using a dental mirror.

3) Turn screw (C) clockwise or counterclockwise until the ga p of lo wer tape edge and the lo wer edge of the control head is about 0.25mm. (Refer to Fig. 6-5 and 6-6)

SCREW (C)

SCREW (A)

TILT SCREW

X-POSITION ADJUST SLIT

HIGHT SCREW

SCREW (D)

X-POSITION LOCKING

SCREW (B)

AZIMUTH ADJUST

VIDEO HEAD

Fig. 6-5 Location of ACE Head Adjustment Screw

AUDIO HEAD

0 ~ 0 .25 mm

CONTROL HEAD

Fig. 6-6 ACE Head Height Adjustment

6-5

b. ACE HEAD TILT ADJUSTMENT

1) Playback a blank tape and observe the position of the tape at the lower flange of tape guide.

2) Confirm that there is no curl or wrinkle at the lower flange of tape guide as shown in Fig. 6-7 (B).

3) If a curl or wrinkle of the tape occurs, slightly turn the screw (A) tilt adjust on the ACE head ass’y.

4) Reconfirm the ACE head height.

(A) (B)

WRINKLE

(BAD)

Fig. 6-7 Tape Guide Check

c. AUDIO AZIMUTH ADJUSTMENT

1) Load alignment tape (Mono scope) and playback the 7KHz signal.

2) Connect channel-1 scope probe to audio output.

3) Adjust screw (B) to achieve maximum audio level. (See Fig. 6-5)

(GOOD)

6-6

d. ACE HEAD POSITION (X-POINT) ADJUSTMENT

1) Playback the alignment tape (Color bar)

2) Intermittently short-circuit the two Test Points on Function Timer PCB. (See Fig. 6-2)

3) Press the “0, 5” remote control buttons, then adjustment is operates automatically. (See Fig. 6-1)

4) Connect the CH-1 probe to “Envelope” the CH-2 probe to “H’D switching pulse” and then trigger to CH-1.

5) Insert the (-) driver into the X-Point adjustment hole and adjust it so that envelope waveform is maximum.

Test point: TP2 (Audio Output)

TP3 (Envelope) TP4 (H’D S/W -Trigger) TP5 (Control Pulse)

CONTROL PULSE

iew)

HEAD SWITCHING

ENVELOPE

AUDIO OUTPUT

Fig. 6-8 Location of Test point (VCR Main PCB-Top View)

6-7

(2) Linearity adjustment (Guide roller S, T adjustment)

1) Playback the Mono Scope alignment tape (SP mode).

2) Observe the video envelope signal on an oscilloscope (triggered by the video switching pulse).

3) Make sure the video envelope waveform (at its minimum) meets the specification shown in Fig. 6-9. If it does not, adjust as follows :

Note:

a=Maximum output of the video RF envelope. b=Minimum output of the video RF envelope at the entrance side. c=Minimum output of the video RF envelope at the center point. d=Maximum output of the video RF envelope at the exit side.

4) If the section A in Fig. 6-10 does not meet the specification, adjust the guide roller S up or down.

5) If the section B in Fig. 6-10 does not meet the specification, adjust the guide roller T up or down.

H'D SWITCHING PULSE

a b c d c,b,d/a

63%

Fig. 6-9 Envelope Waveform Adjustment

A B

ENVELOPE

Fig. 6-10 Adjustment Points

6-8

6) Play back the Mono Scope alignment tape (SP mode).

7) Connect an oscilloscope CH-1 to the “Envelope” and CH-2 to the “H’D SW Pulse” for triggering.

8) Turn the guide roller heads with a flat head ( ) driver to obtain a flat video RF envelope as shown in Fig. 6-11.

IDEAL ENVELOPE

S HEIGHT TOO HIGH

GUIDE ROLLER S

S HEIGHT TOO LOW

T HEIGHT TOO HIGH

T HEIGHT TOO LOW

GUIDE ROLLER T

Fig. 6-11 Guide Roller S, T Height Adjustment

(3) Check Transitional Operation from RPS to Play

Check transition from RPS mode to play mode : Using a pre-recorded SP tape, make sure the entry side of envelope comes to an appropriate steady state within 3 seconds (as shown in Fig. 6-12). If the envelope waveform does not reach specified peak-to peak amplitude within 3 seconds, adjust as follows :

1) Make sure there is no gap between the supply roller lower flange and the tape. If there is a gap, adjust the supply guide roller again.

2) Change operation mode from the RPS to the play mode (again) and make sure the entry side of envelope rises within 3 second.

ENTRANCE SIDE ENVELOPE

Fig. 6-12 Video Envelope Rising when Operation mode Changes from RPS to Play Mode

6-9

(4) Envelope Check

1) Make recordings on T-120 (E-120) and T-160 (E-180) tape.

Make sure the playback output envelope meets the specification as shown in Fig. 6-13.

2) Play back a self recorded tape (recording made on the unit using with T-120 (E-120).

The video envelope should meet the specification as shown in Fig. 6-13. In SP mode, (A) should equal (B). If the head gap is wide, upper cylinder should be checked.

Fig. 6-13 Envelope Input and Output Level

(5) T ape Wrinkle Check

1) Run the T-160 (E-180) tape in the playback, FPS, RPS and Pause modes and observe tape wrinkle at each guide.

2) If excessive tape wrinkle is observed, perform the following adjustments in Playback mode :

◆ Tape wrinkle at the guide roller S, T section : Linearity adjustment.

◆ Tape wrinkle at tape guide flange : ACE head assembly coarse adjustment.

6-2-3 Reel Torque

1) The rotation of the capstan motor causes the holder clutch ass’y to rotate through the belt pulley.

2) The spring wrap PLAY/REV of holder clutch ass’y drives the disk reel S, T through gear idler by rotation of gear center ass’y.

3) Brake is operated by slider cam at FF/REW mode.

4) Transportation of accurate driving force is done by gears. (Gear Center Ass’y)

Note: If the spec. does not meet the followings specifications, replace the holder clutch ass’y and then recheck.

< Table 6-1 >

MODE TORQUE g/cm GAUGE

PB 42 ± 11 Cassette Torquemeter

RPS 145 ± 30 Cassette T orquemeter

6-10E

7. TROUBLESHOOTING

No Power Detected

RDR-VX521/VX530

F1S01

YES

BD01~04, ZD1S01~2

SHORT and OPEN

YES

Voltage at

Collector of

Q1S01

YES

Change fuse

Change short or opened parts

Check the voltage f RIS02, RIS03, and DIS05

Operation of

Q1S01

YES

Check feedback IC1S01

Replace Q1S01

7-1

Key Operation or

Remote Control Error

Voltage on the Function Display Ass’y?

YES

XT601 14.318MHz

oscillation

YES

Check the circuit

around IC601 reset?

YES

Check power of front connector (CN704 Pin 11)

Check the circuit around the clock

Check the circuit around IC601 reset

Key operation such

as STOP,PLAY,OPEN

YES

Check RM701 (Remocon module)

and IC601 (Pin 5)

Check the circuit around the swith. check the condition of commmunication with Main Micom (IC601 83~86, VFD STB, CLOCK DATA-IN,DATA-OUT)

STOP,PLAY,OPEN

Key operation are

normal?

YES

Change IC701

7-2

PLAY MODE

INOPERATIVE

(VCR Section)

EE-VIDEO

YES

INSERT THE CASETTE TAPE RECORDED BY ANOTHER VCR AND PRESS PLAY BUTTON

PLAY

INDICATOR

IN THE DISPLAY

YES

SEE (VIDEO MISSING IN EE MODE)

NO NO

PRESS PLAY KEY

IN REMOTE

CONTROL

YES

CHECK PLAY Button

and Pattern

CHECK IC601, XT601

MECHANISM

OPERATION

YES

DOES NOT OPERATE OR OPERATES BUT STOP SOON

PB-VIDEO

YES

SEE (PB VIDEO) AUDIO MISSING IN PLAY MODE

SEE (MECHANISM DOES NOT OPERATE IN PLAY MODE)

SEE VIDEO MISSING IN PLAY MODE

7-3

MECHANISM DOESN'T

OPERATE IN PLAY MODE

TURN VCR POWER ON

LOAD A TAPE AND

PRESS PLAY BUTTON

(VCR Section)

TAPE LOADING

OPERATION

YES

CYLINDER ROTATION

YES

SW 30Hz IC601-23

YES

NO NO

CHECK CYLINDER

CYL FG.PG IC601-65

(LOAD)

IC601-59:HIGH

IC601-58:LOW

YES

CHECK CN604

8pin 12V

CHECK START (S601) IC601

7-4

Sony RDRVX-521, RDRVX-530 Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY CHECK-OUT

TABLE OF CONTENTS

PRECAUTIONS
