To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To avoid electrical shock, do not open
the cabinet. Refer servi cing to qualified
personnel only.
Batteries or batteries installed
apparatus shall not be exposed to
excessive heat such as sunshine, fire or
the like.
This appliance is classified as a
CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT
MARKING is located on the rear of the
unit.
CAUTION
The use of optical instruments with this
product will increase eye hazard. As
the laser beam used in this DVD
recorder is harmful to eyes, do not
attempt to disassemble the cabinet.
Refer servicing to qualified personnel
only.
CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
CAUTION
AVOID EXPOSURE TO THE BEAM.
KLASSE 3B SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING.
ADVARSEL
UNDGÅ UDSAETTELSE FOR STRÅLING.
KLASSE 3B
SYNLIG
OG USYNLIG
ADVARSEL
UNNGÅ EKSPONERING FOR STRÅLEN.
KLASS 3B SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR
VARNING
ÖPPNAD. STRÅLEN ÄR FARLIG.
AVATTAESSA OLET ALTTIINA LUOKAN 3B NÄKYVÄÄ JA NÄKYMÄTÖNT
VARO
LASERSÄTEILYLLE VARO ALTISTUMISTA SÄTEELLE.
SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG KLASSE 3B, WENN
VORSICHT
ABDECKUNG GE
LASERSTRÅLING NÅR DEKSEL ÅPENS.
Ö
FFNET. NICHT DEM STRAHL AUSSETZEN.
Ä
Notice for customers in the
United Kingdom and Republic of
Ireland
A molded plug complying with
BS1363 is fitted to this equipment for
your safety and convenience.
Should the fuse in the plug supplied
need to be replaced, a 5 AMP fuse
approved by ASTA or BSI to BS1362,
(i.e., marked with or mark)
must be used.
If the plug supplied with this
equipment has a detachable fuse cover,
be sure to attach the fuse cover after
you change the fuse. Never use the
plug without the fuse cover. If you
should lose the fuse cover, please
contact your nearest Sony service
station.
Precautions
• This unit operates on 220 – 240 V
AC, 50/60 Hz. Check that the unit’s
operating voltage is identical with
your local power supply.
• To prevent fire or shock hazard, do
not place objects filled with liquids,
such as vases, on the apparatus.
• Install this system so that the mains
lead (the power cord) can be
unplugged from the wall socket
immediately in the event of trouble.
Disposal of Old Electrical &
Electronic Equipment
(Applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the product or on its
packaging indicates that this product
shall not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative
consequences for the environment and
human health, which could otherwise
be caused by inappropriate waste
handling of this product. The recycling
of materials will help to conserve
natural resources. For more detailed
information about recycling of this
product, please contact your local
Civic Office, your household waste
disposal service or the shop where you
purchased the product.
This label is located on the laser
protective housing inside the
enclosure.
2
Disposal of waste batteries
(applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the battery or on the
packaging indicates that the battery
provided with this product shall not be
treated as household waste.
By ensuring these batteries are
disposed of correctly, you will help
prevent potentially negative
consequences for the environment and
human health which could otherwise
be caused by inappropriate waste
handling of the battery. The recycling
of the materials will help to conserve
natural resources.
In case of products that for safety,
performance or data integrity reasons
require a permanent connection with an
incorporated battery, this battery
should be replaced by qualified service
staff only.
To ensure that the battery will be
treated properly, hand over the pr oduct
at end-of-life to the applicable
collection point for the recycling of
electrical and electronic equipment.
For all other batteries, please view the
section on how to remove the battery
from the product safely. Hand the
battery over to the applicable collection
point for the recycling of waste
batteries.
For more detailed information about
recycling of this product or battery,
please contact your local Civic Office,
your household waste disposal service
or the shop where you purchased the
product.
The manufacturer of this
product is Sony C orporation,
1-7-1 Konan Minato-ku
Tokyo, 108-0075 Japan. The
Authorized Representative
for EMC and product safety
is Sony Deutschland GmbH,
Hedelfinger Strasse 61,
70327 Stuttgart, Germany.
For any service or guarantee
matters please refer to the
addresses given in separate
service or guarantee
documents.
Precautions
On safety
Should any solid object or liquid fall
into the cabinet, unplug the recorder
and have it checked by qualified
personnel before operating it any
further.
On power sources
• The recorder is not disconnected
from the AC power source (mains)
as long as it is connected to the
wall outlet, even if the recorder
itself has been turned off.
• If you are not going to use the
recorder for a long time, be sure to
disconnect the recorder from the
wall outlet. To disconnect the AC
power cord (mains lead), grasp the
plug itself; never pull the cord.
On placement
• Place the recorder in a location with
adequate ventilation to prevent heat
build-up in the recorder.
• Do not place the recorder on a soft
surface such as a rug that might
block the ventilation holes.
• Do not place the recorder in a
confined space such as a b ookshelf
or similar unit.
• Do not place the recorder in a
location near heat sources, or in a
place subject to direct sunlight,
excessive dust, or mechanical
shock.
• Do not place the recorder in an
inclined position. It is designed to
be operated in a horizontal
position only.
• Keep the recorder and discs away
from equipment with strong
magnets, such as microwave
ovens, or large loudspeakers.
• Do not place heavy objects on the
recorder.
• To prevent fire or shock ha zard, do
not place objects filled with
liquids, such as vases, on the
apparatus.
On recording
Make trial record ings before making
the actual recording.
,continued
3
On compensation for lost
recordings
Sony is not liable and will not
compensate for any lost recordings
or relevant losses, including when
recordings are not made due to
reasons including recorder failure,
or when the contents of a recording
are lost or damaged as a result of
recorder failure or repair undertaken
to the recorder. Sony will not
restore, recover, or replicate the
recorded contents under any
circumstances.
Copyrights
• Television programmes, films,
video tapes, discs, and other
materials may be copyrighted.
Unauthorized recording of such
material may be contrary to the
provisions of the copyright laws.
Also, use of this recorder with
cable television transmission may
require authorization from the
cable television transmitter and/or
programme owner.
• Recording equipment should be
used only for lawful copying and
you are advised to check carefully
what is lawful copying in the area
in which you are making a copy.
Copying of copyright material
such as films or music is unlawful
unless permitted by a legal
exception or consented to by the
rights owner.
• This product incorporates
copyright protection technology
that is protected by U.S. patents
and other intellectual property
rights. Use of this copyright
protection technology must be
authorized by Macrovision, and is
intended for home and other
limited viewing uses only unless
otherwise authorized by
Macrovision. Reverse engineering
or disassembly is prohibited.
Copy guard function
Since the recorder has a copy guard
function, programmes received
through an external tuner (not
supplied) may contain copy
protection signals (copy guard
function) and as such may not be
recordable, depending on t he type of
signal.
IMPORTANT NOTICE
Caution: This recorder is
capable of holding a still
video image or on-screen
display image on your
television screen
indefinitely. If you leave the
still video image or onscreen display image
displayed on your TV for an
extended period of time you
risk permanent damage to
your television screen.
Plasma display panels and
projection televisions are
especially susceptible to this.
If you have any questions or
problems concerning your recorder,
please consult your nearest Sony
dealer.
About this manual
• In this manual, “disc” is used as a
general reference for DVDs or
CDs unless otherwise specified by
the text or illustrations.
• Icons, such as , listed at
the top of each explanation
indicate what kind of med ia can be
used with the function being
explained. For details, see
“Recordable and Playable Discs”
on page 79.
• Instructions in this manual
describe the controls on the
remote. You can also use the
controls on the recorder if they
have the same or similar names as
those on the remote.
• The on-screen display il lustrations
used in this manual may not match
the graphics displayed on your TV
screen.
• The explanations rega rding DVDs
in this manual refer to DVDs
created on this recorder. The
explanations do not apply to
DVDs that are created on other
recorders and played back on this
recorder.
For more information, see the pages in parentheses.
Remote
123
456
789
0
A [/1 (on/standby) (20)
Turns the recorder on or off.
B PROG (programme) +/– (29)
The + button has a tactile dot*.
C INPUT (input select) (43)
Selects an input source.
D CLEAR (40)
E TV/DVD (18)
Switches between TV mode and DVD mode.
F SYSTEM MENU (27)
TOP MENU (45)/TITLE LIST (30)
TIMER (38)
G DISPLAY (32)
Displays the playing status or disc
information.
H ./> (previous/next) (47, 51)
c/C(instant replay/instant
advance/freeze frame) (47)
m/M (search/slow) (47)
H (play) (45, 50, 52)
X (pause) (47, 51, 52)
x (stop) (45, 50, 52)
The H button has a tactile dot*.
I z REC (41)
x REC STOP (38, 41)
CHAPTER MARK (59)
Creates chapters within a title.
REC MODE (29, 37, 41)
Selects the recording mode.
J TV [/1 (on/standby) (18)
TV t (input select) (18)
2 (volume) +/– (18)
TV
TV PROG (programme) +/– (18)
The + button has a tactile dot*.
K SEARCH (50)
Displays the Marker Search display.
L MARKER (50)
Marks the desired point during playback.
MENU (45)
Displays the disc’s menu.
</M/m/,/ENTER (20)
Selects a desired item.
O RETURN (20)
,continued
7
M SUBTITLE (47)
Selects a subtitle language.
ANGLE (47)
Changes the angles or rotates an image during
slideshow.
PLAY MODE (49, 51)
ZOOM (48)
Zooms an image during playback or pause
mode.
N AUDIO (47)
The AUDIO button has a tactile dot*.
O Number buttons (49)
The number 5 button has a tactile dot*.
P Z (open/close) (28)
Opens or closes the disc tray.
* Use the tactile dot as a reference when operating the
recorder.
8
Front panel
A [/1 (on/standby) (20)
Turns the recorder on or off.
B Disc tray (28)
C Front panel display
Shows the current status of the recorder.
REC: Indicates when recording is in progress.
TV: Indicates when the recorder is in TV
tuner mode.
PM: Indicates afternoon.
: Indicates when the recorder is in timer
recording or a timer recording is programmed.
: Shows the current status of the
recorder (clock, programme number, etc.).
D (remote sensor) (18)
E Z (open/close) (28)
Opens or closes the disc tray.
F N (play) (45, 50, 52)
The N button has a tactile dot*.
G x (stop) (45, 50, 52)
H z REC (41)
I PROGRAM +/– (29)
The + button has a tactile dot*.
J RESOLUTION button (14)
Selects the resolution according to your TV.
K DV IN jack (62)
Connect a DV camcorder to this jack.
L USB jack (type A) (26)
Connect a USB device to this jack.
M LINE 2 IN (VIDEO/L(MONO) AUDIO R)
jacks (23)
Connect a VCR or similar recording device to
these jacks.
* Use the tactile dot as a reference when operating the
recorder.
,continued
9
Rear panel
A AC IN terminal (17)
B COMPONENT VIDEO OUT
(Y, PB/CB, PR/CR) jacks (13)
C LINE 3/DECODER jack (22, 24)
D AERIAL IN/OUT jacks (12)
E HDMI OUT (high-definition
multimedia interface out) jack (13)
F LINE 1-TV jack (13)
G AUDIO OUT (L/R) jacks (16)
H DIGITAL OUT (COAXIAL) jack (16)
10
Hookups and Settings
Hooking Up the Recorder
Follow steps 1 to 5 to hook up the recorder, and step 6 to make the initial settings for the recorder
(page 20). Do not connect the mains lead (the power cord) until you reach “Step 4: Connecting the Mains
Lead (Power Cord)” (page 17).
b Notes
• See “Specifications” (page 86) for a list of supplied accessories.
• Plug cords securely to prevent unwanted noise.
• Refer to the instructions supplied with the components to be connected.
• You cannot connect this recorder to a TV that does not have a SCART or video input jack.
• Be sure to disconnect the mains lead (the power cord) of each component before connecting.
Hookups and Settings
11
Step 1: Connecting the Aerial Cable
Connect the aerial cable by following the steps below.
TV
to AERIAL
OUT
Aerial cable (supplied)
to aerial input
: Signal flow
to AERIAL IN
DVD recorder
1 Disconnect the aerial cable from your TV and connect it to AERIAL IN on the rear panel of the
recorder.
2 Connect AERIAL OUT of the recorder to the aerial input of your TV, using the supplied aerial
cable.
12
Step 2: Connecting the Video Cords/HDMI Cord
Select one of the following patterns, A through C, according to the input jack on your TV monitor,
projector, or audio component such as an AV amplifier (receiver). This will enable you to view pictures.
A
TV
SCART cord (not supplied)
to LINE 1-TV
DVD recorder
(green)
(red)(blue)
to HDMI OUT
Hookups and Settings
to COMPONENT
VIDEO OUT
(green)
B
TV, projector, or audio
component
: Signal flow
Component video
cord (not supplied)
(red)(blue)
HDMI cord
(not supplied)
TV, projector, or
audio component
C
,continued
13
A SCART input jack
When setting [Video output format] to [RGB] in
the [General] setup (page 68), use a SCART cord
that conforms to the selected signal.
B Component video input jacks (Y, PB/CB, PR/
R)
C
You will enjoy accurate colour reproduction and
high quality images.
If your TV accepts progressive 576p format
signal, use this connection and set the
RESOLUTION button on the front panel to
“576p” (page 9). Then set [Video output format]
to [YP
BPR] in the [General] setup to send
progressive video signals (page 68).
C HDMI input jack
Use a certified HDMI cord (not supplied) to enjoy
high quality digital picture and sound through the
HDMI OUT jack. Then while watching the
pictures, adjust the video output resolution by
pressing the RESOLUTION button on the
recorder. The indicator on the front panel display
changes with each press:
576i t 576p t 720p
R
1080p T 1080i
R
To see the signals from the connected set top box
receiver when the set top box receiver is
connected to the recorder using a SCART cord
only, turn the recorder on.
When connecting to the HDMI OUT jack
Follow the steps below. Improper handling may
damage the HDMI OUT jack and the connector.
1 Carefully align the HDMI OUT jack on the
rear of the recorder and the HDMI connector
by checking their shapes.
Make sure the connector is not upside down or
tilted.
HDMI O
down
UT
HDMI O
UT
Not straightConnector is upside
2 Insert the HDMI connector straight into the
HDMI OUT jack.
Do not bend or apply pressure to the HDMI
connector.
UT
HDMI O
b Notes
• Be sure to disconnect the HDMI cord when moving the
recorder.
• Do not apply too much pressure to the cabinet wall, if
you place the recorder on the cabinet with the HDMI
cord connected. It may damage the HDMI OUT jack or
the HDMI cord.
• Do not twist the HDMI connector while connecting to
or disconnecting from the HDMI OUT jack to avoid
damaging the HDMI OUT jack and connector.
14
When playing “wide screen” images
Some recorded images may not fit your TV
screen. To change the picture size, see page 68.
If you are connecting to a VCR
Connect your VCR to the LINE 3/DECODER
jack on the recorder (page 22).
b Notes
• Do not connect more than one type of video cord
between the recorder and your TV at the same time.
• Do not make connections A and C at the same time.
• Consumers should note that not all High Definition
television sets are fully compatible with this product
and may cause artifacts to be displayed in the picture.
In case of 625 progressive scan picture problems, it is
recommended that the user switch the connection to the
‘Standard Definition’ output. If there are questions
regarding our TV set compatibility with this model
625p DVD recorder, please contact our customer
service center.
• When you connect the recorder to your TV via the
SCART jack, the TV’s input source is set to the
recorder automatically when you turn on the recorder.
If necessary, press the TV t button on the remote to
return the input to the TV.
• You cannot connect the HDMI OUT jack (connection
C) to DVI jacks that are not HDCP compliant (e.g.,
DVI jacks on PC displays).
• When your TV accepts progressive video signals, the
COMPONENT VIDEO OUT jacks output progressive
576p format signals, even if 720p, 1080i or 1080p is
selected by the RESOLUTION button.
• When connecting to the HDMI OUT jack with output
resolution 720p, 1080i, or 1080p, aspect ratio is
automatically set to 16:9. To watch the picture in 4:3,
set the output res olution to 576i or 576p by pressing the
RESOLUTION button on the recorder, and set the
aspect ratio of the connected TV to 4:3.
* This DVD recorder incorporates High-Definition
Multimedia Interface (HDMI™) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
Hookups and Settings
15
Step 3: Connecting the Audio Cords/HDMI Cord
Select one of the following patterns, A or B, according to the input jack on your TV monitor, projector,
or audio component such as an AV amplifier (receiver). This will enable you to listen to sound.
[Speakers]
Rear (L)
Front (L)
Centre
Coaxial digital
cord (not supplied)
PCM/DTS/
MPEG/
DOLBY DIGITAL
DIGITAL OUT
: Signal flow
Audio component with
a decoder
to DIGITAL OUT (COAXIAL)
COAXIAL
to AUDIO OUT (L/R)
(red)(white)
(white)
or
Audio cord (not
supplied)
[Speakers]
Rear (R)
Front (R)
Subwoofer
to coaxial/HDMI digital input
HDMI cord
(not supplied)
to HDMI OUT
HDMI OUT
DVD recorder
INPUT
L
AUDIO
R
(red)
TV, projector, or
audio component
A
B
A Digital audio input jack
If your audio component has a Dolby*1 Digital,
*2
DTS
, or MPEG audio decoder and a digital
input jack, use this connection. You can enjoy
Dolby Digital (5.1ch), DTS (5.1ch), and MPEG
audio (5.1ch) surround effects.
16
B Audio L/R (left/right) input jacks
This connection will use your TV’s or audio
component’s two speakers for sound.
z Hint
For correct speaker location, refer to the operating
instructions supplied with the connected components.
b Notes
• Do not connect your TV’s audio output jacks to the
LINE 2 IN (R-AUDIO-L) jacks at the same time. This
will cause unwanted noise to come from your TV’s
speakers.
• With connection B, do not connect the LINE 2 IN (R-
AUDIO-L) and AUDIO OUT (L/R) jacks to your TV’s
audio output jacks at the same time. This will cause
unwanted noise to come from your TV’s speakers.
• With connection A, after you have completed the
connection, make the appropriate settings in the
[Audio] setup (page 69). Otherwise, no sound or a loud
noise will come from your speakers.
• When you connect the recorder to an audio component
using an HDMI cord, you will need to do one of the
following:
– Connect the audio component to the TV with the
HDMI cord, or
– Connect the recorder to the TV with a component
video cord.
*1
*2
Step 4: Connecting the
Mains Lead (Power Cord)
Connect the supplied mains lead (the power cord)
to the AC IN terminal of the recorder. Then plug
the recorder and TV mains leads (AC power
cords) into the mains. After you connect the mains
lead (the power cord), you must wait for a short while before operating the recorder.
You can operate the recorder once the front panel
display lights up and the recorder enters standby
mode.
If you connect additional equipment to this
recorder (page 22), be sure to connect the mains
lead (the power cord) after all connections are
complete.
~
AC IN
to AC IN
1
2
to mains
Hookups and Settings
17
Step 5: Preparing the
Remote
You can control the recorder using the supplied
remote. Insert two R6 (size AA) batteries by
matching the 3 and # ends on the batteries to the
markings inside the battery compartment. When
using the remote, point it at the remote sensor
on the recorder.
Controlling TVs with the remote
You can adjust the remote’s signal to control your
TV.
b Notes
• Depending on the connected unit, you may not be able
to control your TV with some or all of the buttons
below.
• If you enter a new code number, the code number
previously entered will be erased.
b Notes
• If the supplied remote interferes with your other Sony
DVD recorder or player, change the command mode
number for this recorder (page 19).
• Use the batteries correctly to avoid possible leakage
and corrosion. Should leakage occur, do not touch the
liquid with bare hands. Observe the following:
– Do not use a new battery with an old battery, or
batteries of different manufacturers.
– Do not attempt to recharge the batteries.
– If you do not intend to use the remote for an extended
period of time, remove the batteries.
– If battery leakage occurs, wipe out any liquid inside
the battery compartment, and insert new batteries.
• Do not expose the remote sensor (marked on the
front panel) to strong light, such as direct sunlight or a
lighting apparatus. The recorder may not respond to the
remote.
• When you replace the batteries of the remote, the code
number and Command Mode may be reset to the
default setting. Set the appropriate code number and
Command Mode again.
Number
buttons
TV 2 +/–
TV PROG
+/–
123
456
789
0
TV/DVD
DISPLAY
TV [/1
TV t
1 Hold down TV [/1 located at the bottom of
the remote.
Do not press the [/1 button at the top of the
remote.
2 With TV [/1 pressed down, enter the TV’s
manufacturer code using the number
buttons.
For instance, to enter “09,” press “0” then “9.”
After you enter the last number, release the
TV [/1 button.
18
Code numbers of controllable TVs
If more than one code number is listed, try
entering them one at a time until you find the
one that works with your TV.
ManufacturerCode number
Sony01 (default)
Hitachi24
JVC33
LG/Goldstar76
Panasonic17, 49
Philips06, 08, 72
Samsung71
Sharp29
Toshiba38
The remote performs the following:
ButtonsOperations
TV [/1Turns your TV on or
off.
TV 2 (volume) +/–Adjusts the volume of
your TV.
TV PROG +/–Selects the programme
position on your TV.
TV t (input select) Switches your TV’s
input source.
If you have a Sony DVD player or
more than one Sony DVD recorder
If the supplied remote interferes with your other
Sony DVD recorder or player, set the command
mode number for this recorder and the supplied
remote to one that differs from the other Sony
DVD recorder or player after you have completed
“Step 6: Initial Setup.”
The default command mode setting for this
recorder and the supplied remote is “3.”
The remote does not function if different
command modes are set for the recorder and
remote. Set the same command mode.
x
PROGRAM +/–
Number
buttons
123
456
789
0
Hookups and Settings
To operate the TV/DVD button
(for SCART connections only)
The TV/DVD button switches between TV mode
and DVD mode. Press the TV/DVD button when
in stop mode or no menu appears on the TV
screen. Point your remote at the recorder when
using this button.
TV mode: switch to this when you use the TV’s
tuner mainly. When you start playback, the input
source for the TV is set to the recorder
automatically.
DVD mode: switch to this when you use the
recorder’s tuner mainly.
To check the current mode, press DISPLAY
(page 32).
</M/m/,,
ENTER
1 Turn off the recorder.
2 Hold down x on the recorder until “codE”
appears on the front panel display.
3 Press PROGRAM +/– on the recorder to
select the command mode (1, 2, or 3).
The selected command mode appears on the
front panel display.
4 Hold down the remote’s ENTER and 1, 2,
or 3 of the number buttons corresponding
to the command mode selected in step 3,
for more than three seconds.
,continued
19
Changing programme positions of
the recorder using the remote
You can change programme positions of the
recorder using the number buttons.
Example: for channel 50
Press “5,” “0,” then press ENTER.
Step 6: Initial Setup
Make the basic adjustments by following the onscreen instructions in “Initial Setup.”
Be careful not to disconnect the cables or exit the
“Initial Setup” function during this procedure.
[/1
123
456
789
0
</M/m/,,
O
RETURN
ENTER
TV [/1
1 Turn on the recorder and your TV. Then
switch the input selector on your TV so that
the signal from the recorder appears on
your TV screen.
The [LANGUAGE] display appears.
2 Select a language for the on-screen
displays using M/m, and press ENTER.
3 Check the antenna connection according to
the display, and press ENTER.
4 While [Start] is selected, press ENTER.
The Auto Channel Setting starts.
To cancel the Auto Channel Setting, select
[Cancel] and press ENTER.
To set the programme positions manually, see
page 67.
When the Auto Channel Setting finishes, the
[Clock Setting] display appears.
20
5 Select [Auto] and press ENTER.
The Auto Clock Set function is not available
for Russian model.
To set the clock manually, see page 67.
6 When the Initial Setup is completed, select
[Exit] and press ENTER.
To return to the previous step
Press O RETURN or < according to the
display.
z Hint
If you want to run “Initial Setup” again, select the
relevant setup items from the Setup menu (page 65).
Hookups and Settings
21
Connecting a VCR or Similar Device
After disconnecting the recorder’s mains lead (the power cord) from the mains, connect a VCR or similar
recording device to the LINE IN jacks of this recorder.
Use the DV IN jack on the front panel if the equipment has a DV output jack (i.LINK jack) (page 62).
See also the operating instructions supplied with the connected equipment.
To record on this recorder, see “Recording From Connected Equipment” (page 43).
Connecting to the LINE 3/DECODER jack
Connect a VCR or similar recording device to the LINE 3/DECODER jack of this recorder.
VCR
to SCART input
to LINE 1-TV
TV
SCART cord
(not supplied)
to LINE 3/
DECODER
DVD recorder
b Notes
• Pictures containing copy protection signals that prohibit any copying cannot be recorded.
• If you pass the recorder signals via the VCR, you may not receive a clear image on your TV screen.
VCRDVD recorderTV
Be sure to connect your VCR to the DVD recorder and your TV in the order shown below. To watch video tapes,
watch the tapes through a second line input on your TV.
Line input 1
VCRDVD recorderTV
Line input 2
• When you record to a VCR from this DVD recorder, do not switch the input source to TV by pressing the TV/DVD
button on the remote.
• To watch the connected VCR or similar device’s pictures through the recorder while the recorder is in standby mode,
set [Power Save] to [Off] (default) in the [General] setup (page 68).
• If you disconnect the recorder’s mains lead (the power cord), you will not be able to view the signals from the
connected VCR.
22
Connecting to the LINE 2 IN jacks
Connect a VCR or similar recording device to the LINE 2 IN jacks of this recorder.
VCR, etc.
OUTPUT
VIDEO
AUDI O
LR
Audio/video cord
(not supplied)
Hookups and Settings
to LINE 2 IN
: Signal flow
DVD recorder
z Hint
When the connected equipment outputs only monaural sound, use audio cords that distribute monaural sounds to left/
right channels (not supplied).
b Notes
• Do not connect the output jack of this recorder to another equipment’s input jack with the other equipment’s output
jack connected to the input jack of this recorder. This may cause noise (feedback).
• Do not connect more than one type of video cord between the recorder and your TV at the same time.
23
Connecting to a Satellite or Digital Tuner
Connect a satellite or digital tuner to this recorder using the LINE 3/DECODER jack. Disconnect the
recorder’s mains lead (the power cord) from the mains when connecting the tuner.
TV
to SCART input
Satellite tuner,
CanalSat, etc.
to LINE 3/
DECODER
z Hint
You do not need to turn on the recorder to view the signals from the connected tuner on your TV.
SCART cord
(not supplied)
to
LINE 1-TV
DVD recorder
b Notes
• If you are using a B Sky B tuner, be sure to connect the tuner’s VCR SCART jack to the LINE 3/DECODER jack.
• If you disconnect the recorder’s mains lead (the power cord), you will not be able to view the signals from the
connected tuner.
24
Connecting a PAY-TV/Canal Plus Decoder
You can watch or record PAY-TV/Canal Plus programmes if you connect a decoder (not supplied) to the
recorder. Disconnect the recorder’s mains lead (the power cord) from the mains when connecting the
decoder.
To watch or record PAY-TV/Canal Plus programmes, set your recorder to receive the channels using the
Setup Display. See [Manual CH Setting] in the [General] setup (page 66).
TV
Aerial cable (supplied)
to AERIAL IN
to SCART input
Hookups and Settings
PAY-TV/Canal
Plus decoder
to LINE 3/
DECODER
z Hint
You do not need to turn on the recorder to view the signals from the connected tuner on your TV.
SCART cord
(not supplied)
SCART cord
(not supplied)
to
LINE 1-TV
to AERIAL
OUT (TO TV)
DVD recorder
b Notes
• To watch or record PAY-TV/Canal Plus programmes from the LINE 1-TV jack, set [Line 3 In] in the [General] setup
to [Decoder] (page 68).
• If you disconnect the recorder’s mains lead (the power cord), you will not be able to view the signals from the
connected decoder.
• To watch the connected external decoder (PAYTV/Canal Plus analogue decoder) programmes while the recorder is
in standby mode, set “Power Save” in the [General] setup to [Off] (default) (page 68).
25
Connecting the USB Device
You can connect a USB memory to the USB jack on the recorder to play the MP3 audio tracks, JPEG
image files, or DivX video files. Refer to the operating instructions supplied with the USB memory before
connecting.
For details about playing the inserted USB memory, see “Playing from the USB memory” on page 46.
DVD recorder
to USB jack
USB memory
b Notes
• This recorder supports only USB memory with FAT16
or FAT32 format.
• USB memory that requires additional program
installation when you have connected it to a PC is not
supported.
• This recorder is compatible with USB memory that
supports USB 1.1.
• Some USB memory may not work with this recorder.
26
Basic Operation
Using the System Menu
The System Menu appears when you press
SYSTEM MENU, and provides entries to the
recorder’s functions.
Select an option by pressing M/m and ENTER. If
necessary, select a sub option and press ENTER.
123
456
789
0
SYSTEM
MENU
</M/m/,,
ENTER
System Menu
Media
Timer Record
Setup
Video(Title)
Video(DivX)
Music
[Media] (page 45)
Displays the contents of a disc or USB memory.
[Video (Title)]: Displays the Title List.
[Video (DivX)]: Displays the Movie List on
DATA DVD or USB memory.
[Photo]: Displays the Photo Album on DATA
DVD, DATA CD, or USB memory.
[Music]: Displays the Music Jukebox on DATA
DVD, DATA CD, or USB memory.
You can select DivX video files, JPEG image
files, or MP3 audio tracks on a DATA CD/DATA
DVD or USB memory.
Select a file type and press ENTER. Then select a
media type, [Disc] or [USB].
[Timer Record] (page 38)
Displays the Timer List.
Used to set a new timer recording for a disc, as
well as change or cancel timer recordings you set.
Basic Operation
[Setup] (page 65)
Displays the Setup menu for setting up the
recorder to suit your preferences.
27
Inserting and Formatting a
Disc
+
-
RWVR-RW
RW
When you first insert a new disc, the recorder will
ask you to format the disc. Follow the steps below
to format the disc. You can also reformat a
DVD+RW or DVD-RW to create a blank disc.
Video
+
-
R
R
6 Press ENTER while [OK] is selected.
The recorder starts formatting the disc.
The display shows the approximate time
required.
• For a DVD-RW, the recorder automatically
formats in Video mode. To format in VR
mode, see “Reformatting a disc” below.
z Hint
For a formatted disc, you can use the disc after “REAd”
disappears from the front panel display in step 5 above.
Z
123
456
789
0
SYSTEM
MENU
"/1
</M/m/,,
ENTER
1 Turn on the TV.
2 Press &/1.
The recorder turns on.
3 Switch the input selector on your TV so that
the signal from the recorder appears on the
TV screen.
4 Press Z (open/close), and place a disc on
the disc tray.
Labelled side facing up
5 Press Z (open/close) to close the disc
tray.
After “REAd” disappears from the front panel
display, the display asks for confirmation.
• For a DVD-R, the recorder automatically
formats.
Reformatting a disc
+
-
RWVR-RW
RW
You can erase all contents of a disc to create a
blank disc. To format a new DVD-RW in VR
mode, reformat the disc.
Video
1 Insert a disc.
2 Press SYSTEM MENU to turn on the System
Menu.

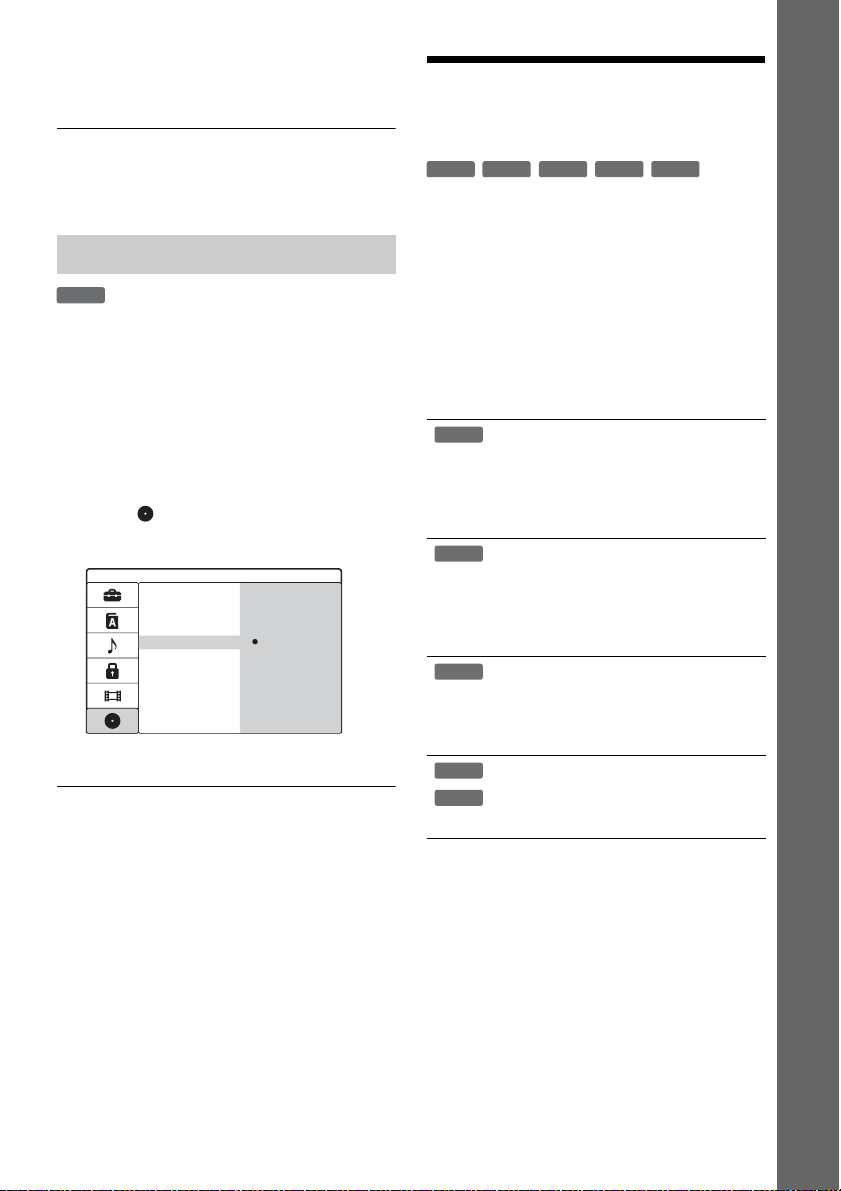

3 Select [Setup] and press ENTER.
The Setup display appears.

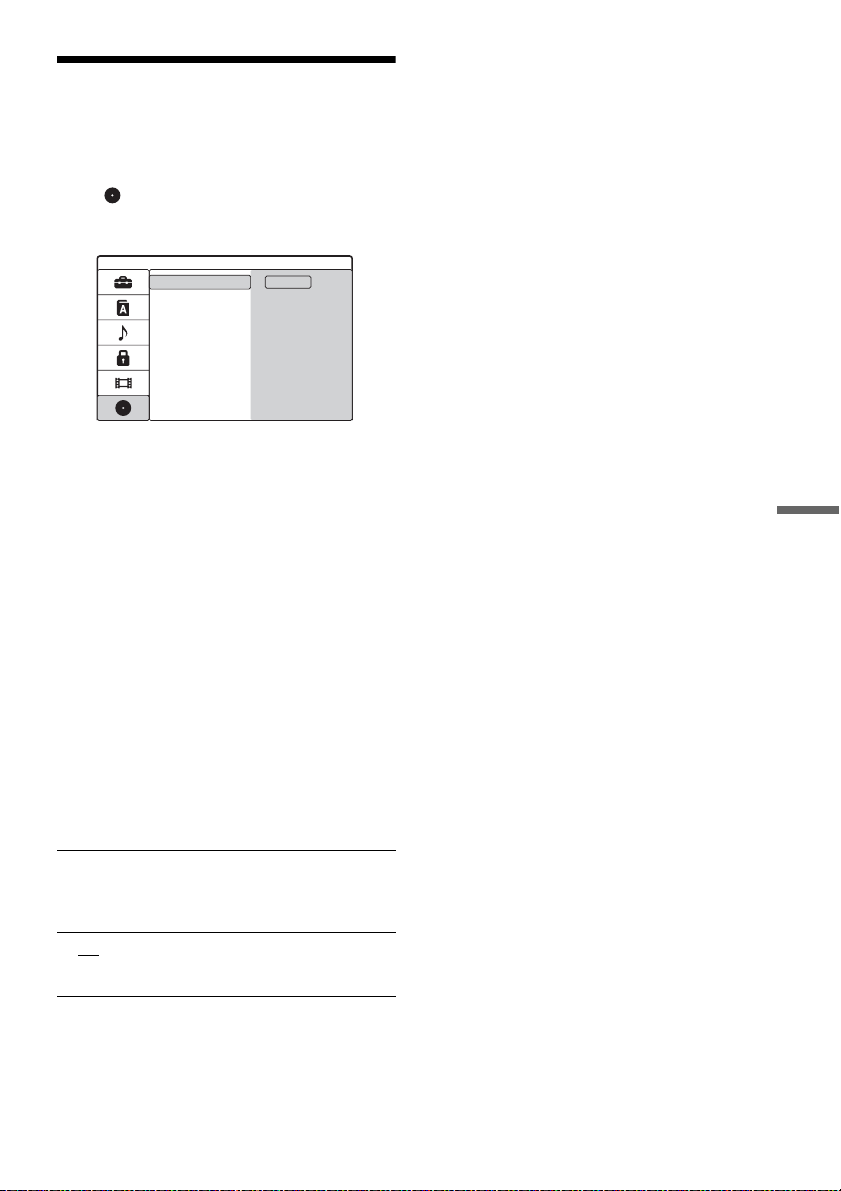

4 Select [Disc] and press ENTER.
5 Select [Format DVD] and press ENTER.
Format DVD
Finalize
Input Disc Name
Protect Disc
PBC
DivX
Start
6 While [Start] is selected, press ENTER.
The display asks for confirmation.
• For DVD-RWs, select a recording format
(VR mode or Video mode) and press
ENTER.
7 Select [OK] and press ENTER.
Formatting starts.
