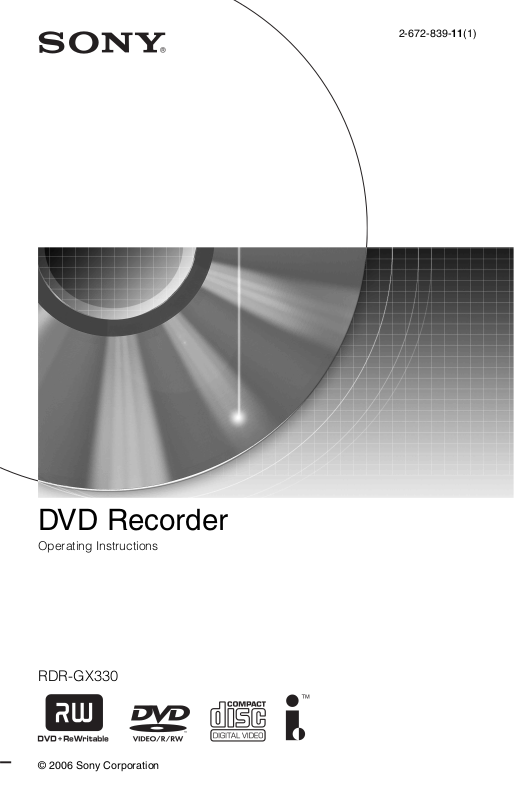

Page 1

2-672-839-11(1)

DVD Recorder

Operating Instructions

RDR-GX330

Page 2

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer serv icing to qualified personnel only. The AC power cord must be changed only at a qualified service shop.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD recorder is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This label is located on the laser protective housing inside the enclosure.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

For customers in the U.S.A

Owner’s Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. RDR-GX330 Serial No.______________

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

b Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the

receiving antenna.

– Increase the separation between

the equipment and receiver.

– Connect the equipment into an

outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an

experienced radio/TV technician for help.

Precaution

Install this system so that the AC power cord can be unplugged from the wall socket immediately in the event of trouble.

Page 3

Precautions

This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection cable shorter than 3 meters.

On safety

Should any solid object or liquid fall into the cabinet, unplug the recorder and have it checked by qualified personnel before operating it any further.

On power sources

• The recorder is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the recorder itself has been turned off.

• If you are not going to use the recorder for a long time, be sure to dis connect the recorder from the wall outlet. To disconnect the AC power cord, grasp the plug i tself; never pull the cord.

On placement

• Place the recorder in a location with adequate ventilation to prevent heat build-up in the recorder.

• Do not place the recorder on a soft surface such as a rug that might block the ventilation holes.

• Do not place the recorder in a confined space such as a bookshelf or similar unit.

• Do not place the recorder in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.

• Do not place the recorder in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the recorder and discs away from equipment with strong magnets, such as microwave ovens, or large loudspeakers.

• Do not place heavy objects on the recorder.

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

On recording

Make trial recordings before making the actual recording.

On compensation for lost recordings

Sony is not liable and will not compensate for any lost recordings or relevant losses, including when recordings are not made due to reasons including recorder failure, or when the contents of a recording are lost or damaged as a result of recorder failure or repair undertaken to the recorder. Sony will not restore, recover, or replicate the recorded contents under any circumstances.

Copyrights

• Television programs, films, video tapes, discs, and other materials may be copyrighted. Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmitter and/or program owner.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Copy guard function

Since the recorder has a copy guard function, programs received through an external tuner (not supplied) may contain copy protection signals (copy guard function) and as such may not be recordable, depending on the type of signal.

IMPORTANT NOTICE

Caution: This recorder is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or onscreen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panels and projection televisions are especially susceptible to this.

If you have any questions or problems concerning your recorder, please consult your nearest Sony dealer.

,continued

Page 4

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus

near water.

6) Clean only with dry cloth.

7) Do not block any ventilation

openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat

sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety

purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the thir d prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from

being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/

accessories specified by the manufacturer.

12) Use only with the cart, stand,

tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-o ver.

14) Refer all servicing to

qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plu g is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

About this manual

• In this manual, “disc” is used

as a general reference for the DVDs or CDs unless otherwise specified by the text or illustrations.

• Icons, such as , listed

at the top of each explanation indicate what kind of media can be used with the function being explained.

• Instructions in this manual

describe the controls on the remote. You can also use the controls on the recorder if they have the same or similar names as those on the remote.

• The on-screen display

illustrations used in this manual may not match the graphics displayed on your TV screen.

• The explanations regarding

DVDs in this manual refer to DVDs created on this recorder. The explanations do not apply to DVDs that are created on other recorders and played back on this recorder.

DVD

13) Unplug this apparatus during

lightning storms or when unused for long periods of time.

Page 5

Table of Contents

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Quick Guide to Disc Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Recordable and playable discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Playable discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Hookups and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Hooking Up the Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Step 1: Connecting the Antenna Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

A: Cable box or satellite receiver with a video/audio output . . . . . . . . . .13

B: Cable box with an antenna output only. . . . . . . . . . . . . . . . . . . . . . . . 14

C: Cable without cable box, or antenna only (no cable TV) . . . . . . . . . . 15

Step 2: Connecting the Video Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Step 3: Connecting the Audio Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Step 4: Connecting the AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Step 5: Preparing the Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Controlling TVs with the remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

If you have a Sony DVD player or more than one

Sony DVD recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing channels of the recorder using the remote . . . . . . . . . . . . . . . 22

Step 6: Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Connecting a VCR or Similar Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Connecting to the LINE 1 IN jacks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Connecting to the LINE 2 IN jacks on the front panel . . . . . . . . . . . . . . . 25

Connecting to a Satellite or Digital Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Eight Basic Operations — Getting to Know Your DVD Recorder

1. Inserting a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

2. Recording a Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Checking the disc status while recording . . . . . . . . . . . . . . . . . . . . . . . . 28

3. Playing the Recorded Program (Title List) . . . . . . . . . . . . . . . . . . . . . . . .28

4. Displaying the Playing/Remaining Time and Play Information . . . . . . . . . 30

Checking the playing/remaining time. . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Checking the remaining disc space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5. Changing the Name of a Recorded Program . . . . . . . . . . . . . . . . . . . . . . 33

6. Labeling and Protecting a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Labeling a disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Protecting a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

7. Playing the Disc on Other DVD Equipment (Finalize) . . . . . . . . . . . . . . .35

Finalizing the disc using Z OPEN/CLOSE button. . . . . . . . . . . . . . . . . . 36

Finalizing the disc using “Disc Information” display. . . . . . . . . . . . . . . . .36

Unfinalizing a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

8. Reformatting a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

,continued

Page 6

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Before Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Recording mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Recording a stereo/SAP program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Unrecordable pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Using the Quick Timer function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Adjusting the recording picture quality and size . . . . . . . . . . . . . . . . . . . 42

Creating chapters in a title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Checking/Changing/Canceling Timer Settings (Timer List) . . . . . . . . . . . . . 44

Changing the priority of overlapped settings. . . . . . . . . . . . . . . . . . . . . . 45

Recording From Connected Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Recording from connected equipment with a timer (Synchro Rec) . . . . . 47

Recording from connected equipment without a timer . . . . . . . . . . . . . . 48

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Playback options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Adjusting the picture quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Adjusting the delay between the picture and sound (AV SYNC) . . . . . . 53

Playing from the beginning of the program you are recording

(Chasing Playback). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Playing a previous recording while making another

(Simultaneous Rec and Play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Searching for a Title/Chapter/Track, etc. . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Playing MP3 Audio Tracks or JPEG Image Files . . . . . . . . . . . . . . . . . . . . . 55

About MP3 audio tracks and JPEG image files . . . . . . . . . . . . . . . . . . . 56

MP3 audio tracks or JPEG image files that the recorder can play . . . . . 57

About playback order of albums, tracks, and files. . . . . . . . . . . . . . . . . . 57

Erasing and Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Before Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Erasing and Editing a Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Erasing multiple titles (Erase Titles) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Erasing a section of a title (A-B Erase) . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Creating chapters manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Creating and Editing a Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Moving a Playlist title (Change Order) . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Combining multiple Playlist titles (Combine Titles) . . . . . . . . . . . . . . . . . 64

Dividing a Playlist title (Divide Title) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

DV/Digital8 Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Before DV/Digital8 Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Preparing for DV/Digital8 dubbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Recording an Entire DV Format Tape (One Touch Dubbing) . . . . . . . . . . . 68

Program Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Page 7

Settings and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Antenna Reception and Language Settings (Basic) . . . . . . . . . . . . . . . . . . . 71

Tuner Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

OSD (On-Screen Display) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Video Settings (Video) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Audio Settings (Audio) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Recording Settings (Recording) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Disc Settings (DVD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Remote Control Settings/Factory Settings (Others) . . . . . . . . . . . . . . . . . . . 81

Easy Setup (Resetting the Recorder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Self-diagnosis Function (When letters/numbers appear in the display) . . . . 88

Notes About This Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

About i.LINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Area Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Page 8

Quick Guide to Disc Types

Recordable and playable discs

Type Disc Logo

DVD+RW

VR mode

DVDRW

Video mode

DVD+R

DVD+R DL

VR mode

DVD-R

Icon used in this manual

RWVR

Video

RVR

Formatting (new discs)

Automatically formatted in +VR mode (DVD+RW VIDEO)

Format in VR mode (page 27)

Format in Video mode (page 27)

Automatically formatted in +VR mode (DVD+R VIDEO)

Format in VR mode (page 27)

Formatting is performed using the “Disc Information” display.

Compatibility with other DVD players (finalizing)

Playable on DVD+RW compatible players (automatically finalized)

Playable only on VR mode compatible players (finalization unnecessary)

Playable on most DVD players (finalization necessary) (page 35)

Playable only on DVD-R in VR mode compatible players (finalization necessary) (page 35)

Video mode

Automatically

Video

formatted in Video mode

Playable on most DVD players (finalization necessary) (page 35)

Page 9

Usable disc versions (as of March 2006)

• 8x-speed or slower DVD+RWs

• 6x-speed or slower DVD-RWs (Ver.1.1, Ver.1.2 with CPRM

)

• 16x-speed or slower DVD+Rs

• 16x-speed or slower DVD-Rs (Ver.2.0, Ver.2.1 with CPRM

)

• 8x-speed or slower DVD+R DL (Double Layer) discs

“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD+R DL,” and “DVD-R” are trademarks.

When an unformatted DVD-R is inserted into this recorder, it is automatically formatted in Video mode. To format a new DVD-R in VR mode, format using the “Disc Information” display (page 27).

CPRM (Content Protection for Recordable Media) is a coding technology that protects copyrights for images.

Discs that cannot be recorded on

• 8 cm discs

• DVD-R DL (Dual Layer) discs

,continued

Page 10

Playable discs

Type Disc Logo

DVD VIDEO

VIDEO CD

DATA DVD —

DATA CD —

8 cm DVD+RW/ DVD-RW/DVD-R

——

Icon used in this manual

DVD

VCD

DATA DVD

DATA CD

Characteristics

Discs such as movies that can be purchased or rented This recorder also recognizes DVD-R Dual Layer (Video mode) discs as DVD Video compatible discs.

VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD/Super VIDEO CD format

Music CDs or CD-Rs/CD-RWs in music CD format

DVD+RWs/DVD+Rs/DVD-RWs/ DVD-Rs/DVD-ROMs containing JPEG image files

CD-ROMs/CD-Rs/CD-RWs containing either MP3 audio tracks or JPEG image files

8 cm DVD+RW, DVD-RW, and DVD-R recorded with a DVD video camera (Still images recorded with a DVD video camera cannot be played.)

“DVD VIDEO” and “CD” are trademarks.

Discs that cannot be played

• PHOTO CDs

• CD-ROMs/CD-Rs/CD-RWs that are

recorded in a format different from the formats mentioned in the table above.

• Data part of CD-Extras

• DVD-ROMs/DVD+RWs/DVD-RWs/

DVD+Rs/DVD-Rs that do not contain DVD Video or JPEG image files.

• DVD Audio discs

• DVD-RAMs

• HD layer on Super Audio CDs

• DVD VIDEOs with a different region code

(page 11).

• DVDs that were recorded on a different recorder and not correctly finalized.

• A disc recorded in a color system other than NTSC, such as PAL

Page 11

Maximum recordable number of titles

Disc Number of titles*

DVD-RW/DVD-R 99

DVD+RW/DVD+R 49

DVD+R DL 49

* The maximum length for one title is eight hours.

Note on playback operations of DVD VIDEOs/VIDEO CDs

Some playback operations of DVD VIDEOs/ VIDEO CDs may be intentionally set by software producers. Since this recorder plays DVD VIDEOs/VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. See the instructions supplied with the DVD VIDEOs/VIDEO CDs.

Region code (DVD VIDEO only)

Your recorder has a region code printed on the rear of the unit and will only play DVD VIDEOs (playback only) labeled with identical region codes. This system is used to protect copyrights. DVD VIDEOs labeled will also play on

ALL

this recorder. If you try to play any other DVD VIDEO, the message “Playback prohibited by region code.” will appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be labeled even though playing the DVD VIDEO is prohibited by area restrictions.

Note on DualDiscs

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.

b Notes

• Some DVD+RWs/DVD+Rs, DVD-RWs/DVDRs, or CD-RWs/CD-Rs cannot be played on this recorder due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more in formation, see the ope rating instructions for the recording device.

• You cannot m ix VR mode and Video mode on the same DVD-RW. To change the disc’s format, reformat the disc (page 37). Note that the disc’s contents will be erased after reformatting.

• You cannot shorten the time required for recording even with high-speed discs.

• It is recommended that you use discs with “For Video” printed on their packaging.

• You cannot add new recordings to DVD+Rs, DVD-Rs, or DVD-RWs (Video mode) that contain recordings made on other DVD equipment.

• In some cases, you may not be able to add new recordings to DVD+RWs that contain recordings made on other DVD equipment. If you do add a new recording, note that this recorder will rewrite the DVD menu.

• You cannot edit recordings on DVD+RWs, DVD-RWs (Video mode), DVD+Rs, or DVD-Rs that are made on other DVD equipment.

• If the disc contains PC data unrecognizable by this recorder, the data may be erased.

• You may not be able to record on some recordable discs, depending on the disc.

Region code

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are being marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Page 12

Hookups and Settings

Hooking Up the Recorder

Follow steps 1 through 6 to hook up and adjust the settings of the recorder. Do not connect the AC power cord until you reach “Step 4: Connecting the AC Power Cord” on page 19.

b Notes

• See “Specifications” (page 89) for a list of supplied accessories.

• Plug in cords securely to prevent unwanted noise.

• Refer to the instructions supplied with the components to be connected.

• You cannot connect this recorder to a TV that does not have a video input jack.

• Be sure to disconnect the AC power cord of each component before connecting.

Step 1: Connecting the Antenna Cable

Select one of the following antenna hookups.

If you have Hookup

A: Cable box or satellite receiver with a video/audio output A (page 13)

B: Cable box with an antenna output only B (page 14)

C: Cable without cable box, or antenna only (no cable TV) C (page 15)

NOTE TO CATV SYSTEM INSTALLER (IN USA)

This reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

b Notes

• If your antenna is a flat cable (300-ohm twin lead cable), use an external antenna connector (not supplied) to connect the antenna to the recorder.

• If you have separate cables for VHF and UHF antennas, use a UHF/VHF band mixer (not supplied) to connect the antenna to the recorder.

Page 13

A: Cable box or satellite receiver with a video/audio output

With this hookup, you can record any channel on the cable box or satellite receiver. Be sure that the satellite receiver or cable box is turned on. To watch cable or satellite channel, you need to match the channel on the recorder (L1) to the input jack connected to the cable box or satellite receiver (LINE 1 IN).

Wall

Hookups and Settings

Cable box/satellite receiver

Audio/video cord (not supplied)

to LINE 1 IN

AUDIO

OUT

VIDEO

OUT

S VIDEO

ANT IN

TO TV

S-video cord (not supplied)

Antenna cable (supplied)

to antenna input

DVD recorder

: Signal flow

z Hints

• If your cable box or satellite receiver has an S-video jack, you can use an S-video cord (not supplied) instead of the audio/video cord.

• If you connect an S-video cord to the LINE 1 IN jack, set “Line1 Input” of the “Line Input” to “S Video” in the “Video” setup (page 75).

,continued

Page 14

B: Cable box with an antenna output only

With this hookup, you can record any channel on the satellite receiver or cable box. Be sure that the satellite receiver or cable box is turned on. To watch cable programs, you need to match the channel on the recorder (2ch, 3ch, or 4ch) to the antenna output channel on the cable box (2ch, 3ch, or 4ch).

Wall

Cable box

ANT IN

TO TV

Antenna cable (supplied)

to VHF/UHF IN

DVD recorder

to VHF/UHF OUT

to antenna input

: Signal flow

b Note

When using this connection, set “Antenna / Cable” of the “Tuner Preset” to “Antenna” in the “Basic” setup (page 71).

Page 15

C: Cable without cable box, or antenna only (no cable TV)

Use this hookup if you watch cable channels without a cable box. Also use this hookup if you are using a VHF/UHF antenna or separate VHF and UHF antennas. With this hookup, you can record any channel by selecting the channel on the recorder.

Wall

to VHF/UHF IN

DVD recorder

Hookups and Settings

to VHF/UHF OUT

Antenna cable (supplied)

: Signal flow

to antenna input

Page 16

Step 2: Connecting the Video Cords

Select one of the following patterns, A through C, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). This will enable you to view pictures.

INPUT

TV, projector, or AV amplifier (receiver)

(green)

(blue)

(red)

VIDEO

AUDI O

COMPONENT

VIDEO IN

TV, projector, or AV amplifier (receiver)

Audio/video cord (supplied)

to LINE OUT (VIDEO)

(green)

(blue)

S-video cord (not supplied)

(yellow)

to LINE OUT (S VIDEO)

to COMPONENT VIDEO OUT

(red)

Component video cord (not supplied)

INPUT

S VIDEO

TV, projector, or AV amplifier (receiver)

DVD recorder

: Signal flow

A Video input jack

Step 3: Connecting the Audio Cords

Select one of the following patterns, A or B, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). This will enable you to listen to sound.

[Speakers]

Rear (L)

Front (L)

Center

: Signal flow

AV amplifier (receiver) with a decoder

to DIGITAL OUT (COAXIAL)

to LINE OUT (R-AUDIO-L)

Audio/video cord

(white)

(red)

(yellow)*

(supplied)

[Speakers]

Rear (R)

Front (R)

Subwoofer

to coaxial digital input

Coaxial digital cord (not supplied)

DVD recorder

INPUT

(yellow)

(white)

(red)

AUDIO

TV, projector, or AV amplifier (receiver)

VIDEO

* The yellow plug is used for video signals (page 16).

A Digital audio input jack

If your AV amplifier (receiver) has a Dolby*1 Digital or DTS

decoder and a digital input jack, use this connection. You can enjoy Dolby Digital (5.1ch) and DTS (5.1ch) surround effects.

B Audio L/R (left/right) input jacks

This connection will use your TV’s or stereo amplifier’s (receiver’s) two speakers for sound.

Page 19

z Hint

For correct speaker location, see the operating instructions supplied with the connected components.

b Notes

• Do not connect your TV’s audio output jacks to the LINE IN (R-AUDIO-L) jacks at the same time. This will cause unwanted noise to come from your TV’s speakers.

• With connection B, do not connect the LINE IN (R-AUDIO-L) and LINE OUT (R-AUDIO-L) jacks to your TV’s audio output jacks at the same time. This will cause unwanted noise to come from your TV’s speakers.

• With connectio n A, after you have complete d the connection, make the appropriate settings under “Easy Setup - Audio Connection” (page 23). Otherwise, no sound or a loud noise will come from your speakers.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Step 4: Connecting the AC Power Cord

Connect the supplied AC power cord to the AC IN terminal of the recorder. Then plug the recorder and TV power cords into the AC outlet. After you connect the AC power cord,

you must wait for a short while before operating the recorder. You can operate

the recorder once the front panel display lights up and the recorder enters standby mode. If you connect additional equipment to this recorder (page 24), be sure to connect the AC power cord after all connections are complete.

to AC IN

to AC outlet

Hookups and Settings

Page 20

Step 5: Preparing the Remote

You can control the recorder using the supplied remote. Insert two Size AA (R6) batteries by matching the 3 and # ends on the batteries to the markings inside the battery compartment. When using the remote, point it at the remote sensor on the recorder.

b Notes

• If the supplied remote interferes your other Sony

DVD recorder or player, change the command mode number for this recorder (page 21).

• Use the batteries correctly to avoid possible

leakage and corrosion. Should leakage occur, do not touch the liquid with bare hands. Observe the following: – Do not use a new battery with an old battery, or

batteries of different manufacturers. – Do not attempt to recharge the batteries. – If you do not intend to use the remote for an

extended period of time, remove the batteries. – If battery leakage occurs, wipe out any liquid

inside the battery compartment, and insert new

batteries.

• Do not expose the remote sensor (marked on the front panel) to strong light, such as direct sunlight or a lighting ap paratus. The recorder may not respond to the remote.

Controlling TVs with the remote

You can adjust the remote’s signal to control your TV.

b Notes

• Depending on th e connected unit, you may not be able to control your TV with some or all of the buttons below.

• If you enter a new code number, the code number previously entered will be erased.

• When you replace the batteries of the remote, the code number may be reset to the default setting. Set the appropriate code number again.

Number buttons

TV VOL +/–

TV CH +/–

TV [/1

TV/VIDEO

1 Hold down the TV [/1 button located

at the bottom of the remote.

Do not press the [/1 button at the top of the remote.

2 With the TV [/1 button pressed down,

enter the TV’s manufacturer code using the number buttons.

For instance, to enter “09,” press “0” then “9.” After you enter the last number, release the TV [/1 button.

Page 21

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer Code number

Sony 01 (default)

Hitachi 02

MGA/Mitsubishi 13

NEC 04

Panasonic 19

Philips 21

Pioneer 16

RCA 10

Samsung 20

Sharp 18

Toshiba 07

The remote performs the following:

Buttons Operations

TV [/1 Turns your TV on or

off

TV VOL +/– Adjusts the volume

of your TV

TV CH +/– Selects the channel

on your TV

TV/VIDEO Switches your TV’s

input source

If you have a Sony DVD player or more than one Sony DVD recorder

If the supplied remote interferes with your other Sony DVD recorder or player, set the command mode number for this recorder and the supplied remote to one that differs from the other Sony DVD recorder or player after you have completed “Step 6: Easy Setup.” The default command mode setting for this recorder and the supplied remote is DVD3.

Number buttons

SYSTEM MENU

M/m, ENTER

1 Check that “Easy Setup” (page 23)

has been finished. If “Easy Setup” has not been finished, first perform “Easy Setup.”

2 Press SYSTEM MENU.

The System Menu appears.

3 Select “SETUP,” and press ENTER.

Hookups and Settings

,continued

Page 22

4 Select “Others,” and press ENTER.

5 Select “Command Mode,” and press

ENTER.

To check the Command Mode for the recorder

Press x STOP on the recorder when the recorder is turned off. The Command Mode for the recorder appears in the front panel display.

If the Command Mode for the recorder has not been changed, set the Command Mode for the remote to the default setting of DVD3. If the Command Mode for the remote is changed to DVD1 or DVD2, you will be unable to operate this recorder.

Changing channels of the recorder using the remote

You can change channels of the recorder using the number buttons.

6 Select a Command Mode (DVD1,

DVD2, or DVD3), and press ENTER.

7 Set the Command Mode for the remote

so it matches the Command Mode for the recorder you set above.

Follow the steps below to set the Command Mode on the remote.

1 Hold down ENTER. 2 While holding down ENTER, enter

the Command Mode code number using the number buttons.

Command Mode Code number

DVD1 number button 1

DVD2 number button 2

DVD3 number button 3

3 Hold down both the number and

ENTER buttons at the same time for more than three seconds.

Number buttons, SET

Example: for channel 50 Press “5,” “0,” then press SET.

Page 23

Step 6: Easy Setup

Make the basic adjustments by following the on-screen instructions in “Easy Setup.”

[/1

</M/m/,,

RETURN

ENTER

TV [/1

1 Turn on the recorder and your TV.

Then switch the input selector on your TV so that the signal from the recorder appears on your TV screen.

The initial settings message appears.

• If this message does not appear, select “Easy Setup” from “SETUP” in the System Menu (“Settings and Adjustments” on page 71).

2 Press ENTER.

Follow the on-screen instructions to make the following settings.

Easy Setup - OSD

Select a language for the on-screen displays.

Easy Setup - Clock

Select “Manual” and set the clock using </M/m/,, then press ENTER. The day of the week is set automatically. If you used antenna hookup C (page 15), you can select “Auto.” The recorder will automatically search for a channel that carries a time signal when you turn off the recorder after finishing Easy Setup.

Easy Setup - Tuner Preset

Select whether or not you have a cable connection. The Tuner Preset function automatically searches for a ll of the receivable chan nels and presets them. To set the channels manually, see page 71.

Easy Setup - TV Type (page 74)

If you have a wide-screen TV, select “16:9.” If you have a standard TV, select either “4:3 Letter Box” (shrink to fit) or “4:3 Pan Scan” (stretch to fit). This will determine how “wide-screen” images are displayed on your TV.

Easy Setup - Audio Connection

If you connected an AV amplifier (receiver) using a coaxial cord, select “Yes : DIGITAL OUT” and set the digital output signal (page 76).

3 Press ENTER when “Finish” appears.

“Easy Setup” is finished.

To return to the previous step

Press O RETURN.

z Hint

If you want to run “Easy Setup” again, select “Easy Setup” from “SETUP” in the System Menu (page 82).

b Notes

• If you use an S-video cord to connect your cable box or satellite receiver, set “Line1 Input” of the “Line Input” to “S Video” in the “Video” setup (page 75).

• If there are only a few channels in your area that carry time signals, setting the clock automatically may take up to about 20 minutes a fter the recorder turns off. If nothing happens even after you wait about 20 minutes, set the clock manually in “Clock” of “Basic” (page 72).

Hookups and Settings

Page 24

Connecting a VCR or Similar Device

After disconnecting the recorder’s AC power cord from the AC outlet, connect a VCR or similar recording device to the LINE IN jacks of this recorder. Use the DV IN jack on the front panel if the equipment has a DV output jack (i.LINK jack) (page 66). For details, refer to the instruction manual supplied with the connected equipment. To record on this recorder, see “Recording from connected equipment without a timer” on page 48.

Connecting to the LINE 1 IN jacks

Connect a VCR or similar recording device to the LINE 1 IN of this recorder. If the equipment has an S-video jack, you can use an S-video cord instead of an audio/video cord.

VIDEO

OUTPUT

AUDI O

S VIDEO

VCR, etc.

Audio/video cord

(not supplied)

to LINE 1 IN

: Signal flow

S-video cord (not supplied)

DVD recorder

Page 25

b Notes

• Pictures containing copy protection signals that prohibit any copying cannot be recorded.

• If you pass the recorder signals through a VCR, you may not receive a clear image on your TV screen.

VCRDVD recorder TV

Be sure to connect your VCR to the DVD recorder and to your TV in the order shown below. To watch video tapes, watch the tapes through a second line input on your TV.

Line input 1

VCR TV

DVD recorder

Line input 2

• If you disconnect the recorder’s AC power cord, you will not be able to view the signals from the connected VCR.

Connecting to the LINE 2 IN jacks on the front panel

Connect a VCR or similar recording device to the LINE 2 IN jacks of this recorder. If the equipment has an S-video jack, you can use an S-video cord instead of an audio/video cord.

VCR, etc.

S VIDEO

OUTPUT

VIDEO

AUDI O

Hookups and Settings

S-video cord

(not supplied)

to LINE 2 IN

Audio/video cord (not supplied)

DVD recorder

: Signal flow

z Hint

When the connected equipment outputs only monaural sound, connect to just the L(MONO) and VIDEO input jacks on the front of the recorder. Do not connect the R input jack.

b Notes

• Do not connect the yellow LINE IN (VIDEO) jack when using an S-video cord.

• Do not connect the output jack of this recorder to another equipment’s input jack with the other equipment’s output jack connected to the input jack of this recorder. This may cause noise (feedback).

• Do not connect more than one type of video cord between the recorder and your TV at the same time.

Page 26

Connecting to a Satellite or Digital Tuner

Connect a satellite or digital tuner to this recorder using the LINE 1 IN jacks. Disconnect the recorder’s AC power cord from the AC outlet when connecting the tuner. To use the Synchro-Rec function, see below.

Audio/video cord (supplied)

to LINE OUT

to LINE 1 IN

INPUT

VIDEO

AUDIO

DVD recorder

Audio/video cord (not supplied)

: Signal flow

If you want to use the Synchro Rec function

This connection is necessary to use the Synchro-Recording function. See “Recording from c onnected equipment with a timer (Synchro Rec)” on page 47.

Satellite tuner, etc.

VIDEO

AUDIO

OUTPUT

b Notes

• Synchro-Recording does not work with some tuners. For details, see the tuner’s operating instructions.

• If you disconnect the recorder’s AC power cord, you will not be able to view the signals from the connected tuner.

Page 27

Eight Basic Operations

— Getting to Know Your DVD Recorder

1. Inserting a Disc

2. Recording a Program

Video

RWVR-RW

Video

RVR

Video

DATA CD

Z OPEN/ CLOSE

RWVR-RW

DVD

VCD CD

Video

RVR

DATA DVD

1 Press Z OPEN/CLOSE, and place a

disc on the disc tray.

Recording/playing side facing down

2 Press Z OPEN/CLOSE to close the

disc tray.

Wait until “LOAD” disappears from the front panel display. Unused DVDs are formatted automatically.

• For DVD-RW discs DVD-RWs are formatted in the recording format (VR mode or Video mode) set by “Format DVD-RW” in the “DVD” setup.

• For DVD-R discs DVD-Rs are automatically formatted in Video mode. To format an unused DVD-R in VR mode, format the disc using the “Disc Information” display (page 37) before you make a recording.

If the disc is recordable on this recorder, you can manually re-format the disc to make a blank disc (page 37).

This section introduces the basic operation to record a current TV program to a disc (DVD). For an explanation of how to make timer recordings, see page 39.

CH +/–

DISPLAY

z REC x REC

STOP

REC MODE

TV/VIDEO

1 Insert a recordable DVD. 2 Press CH +/– to select the channel or

input source you want to record.

3 Press REC MODE repeatedly to select

the recording mode.

Each time you press the button, the display on the TV screen changes as follows:

For more details about the recording mode, see page 39.

4 Press z REC.

Recording starts. Recording stops automatically after 8 hours of continuous recording or when the DVD is full.

Eight Basic Operations — Getting to Know Your DVD Recorder

,continued

Page 28

To stop recording

Press x REC STOP. Note that it may take a few seconds for recorder to stop recording.

3. Playing the Recorded Program (Title List)

To watch another TV program while recording

Set your TV to the TV input using the TV/ VIDEO button (page 20).

z Hint

If you do not want to watch TV while recording, you can turn off the TV. When using a decoder, make sure to leave it on.

b Notes

• After pressing z REC, it may take a short while

to start recording.

• You cannot change the recording mode while recording.

• If there is a power failure, the program you are recording may be erased.

Checking the disc status while recording

You can check the recording information such as recording time or disc type.

Press DISPLAY during recording.

The recording information appears.

Video

RWVR-RW

Video

RVR

To play a recorded title, select the title from the Title List.

TITLE LIST

</M/m/,, ENTER

OPTIONS

CM x STOP

1 Insert a DVD.

See “1. Inserting a Disc” on page 27. Playback starts automatically depending on the disc.

A Disc type/format B Recording status C Recording mode D Recording time

Press DISPLAY to turn off the display.

Page 29

2 Press TITLE LIST.

To show the extended Title List, press OPTIONS to select “Display List,” and press ENTER. Title List with Thumbnail Images (Example: DVD+RW)

3 Select a title, and press ENTER.

The sub-menu appears. The sub-menu displays options applicable only to the selected item. The displayed options differ depending upon the model, situation, and disc type.

Eight Basic Operations — Getting to Know Your DVD Recorder

Extended Title List

A Title type:

Displays the title type (Original or Playlist) for DVD-RWs/DVD-Rs (VR mode).

B Disc space (remainder/total) C Title information:

Displays the title number, title name, and recording date. Title size is shown in the Thumbnail title list. z (red): Indicates that the title is currently being recorded.

: Indicates the protected title.

D Scroll bar:

Appears when all of the titles do not fit on the list. To view the hidden titles, press M/m.

E Title’s thumbnail picture:

The still images for each title are displayed.

Sub-menu

4 Select “Play,” and press ENTER.

Playback starts from the selected title.

To stop playback

Press x STOP.

To scroll the list display by page (Page mode)

Press REPLAY/ADVANCE while the list display is turned on. Each time you press REPLAY/ADVANCE , the entire Title List changes to the next/previous page of titles.

About the Title List for DVD-RWs/DVD-Rs (VR mode)

You can switch the Title List to show Original or Playlist titles. While the Title List menu is turned on, press </,.

To change the title order (Sort)

While the Title List menu is turned on, press OPTIONS to select “Sort Titles.” Press M/m to select the item, and press ENTER.

Order Sorted

By Date In order of when the titles

were recorded. The title that is recorded most recently is listed at the top.

By Title In alphabetical order.

By Number In order of recorded title

number.

,continued

Page 30

To change a title thumbnail picture (Thumbnail) (DVD-RW/DVD-R in VR mode only)

You can select a favorite scene for the thumbnail picture shown in the Title List menu.

1 Press TITLE LIST.

Press </, to switch the Title Lists, if necessary.

2 Select a title, and press ENTER.

The sub-menu appears.

3 Select “Set Thumbnail,” and press

ENTER. The display for setting the thumbnail point appears and the title starts to play.

4 While watching the playback picture,

press m/M to select the scene you want to set for a thumbnail picture, and press ENTER. Playback pauses.

5 Press ENTER if the scene is correct.

If the scene is incorrect, press c/C to select the scene you want to set for a thumbnail picture, and press ENTER. The display asks for confirmation.

• To change the thumbnail, press M.

6 Select “OK,” and press ENTER.

The scene is set for the title’s thumbnail picture.

To turn off the Title List

Press TITLE LIST.

4. Displaying the Playing/Remaining Time and Play Information

Video

DATA CD

RWVR-RW

DVD

Video

VCD

You can check the playing time and remaining time of the current title, chapter, track, or disc. Also, you can check the disc name recorded on the DVD/CD.

DISPLAY

TIME/TEXT

Press DISPLAY.

The displays differ depending on the disc type or playing status.

RVR

DATA DVD

ENTER

OPTIONS

z Hints

• After recording, the first scene of the recording (the title) is automatically set as the thumbnail picture.

• You can select “TITLE LIST” from the System Menu.

b Notes

• The title names may not appear for DVDs created on other DVD recorders.

• It may take a few seconds for the thumbnail pictures to be displayed.

• After editing, the title thumbnail picture may change to the first scene of the recording (title).

A Title number/name

(Shows either track number, track name, scene number, or file name for CDs, VIDEO CDs, DATA DVDs, or DATA CDs.)

Page 31

B Available functions for DVD VIDEOs

( angle/ audio/ subtitle, etc.), or playback data for DATA DVDs and DATA CDs

C The current selected function or audio

setting (appears only temporarily) Example: Dolby Digital 5.1 ch

Rear (L/R)

Front (L/R) + Center

LFE (Low Frequency Effect)

D The current selected angle

E Disc type F Title type (

/format (page 8)

only appears for Playlists)

G Play mode H Recording mode (page 39) I Playing status bar

J Title number (chapter number*3)

(page 54) (Shows either track number, scene number, album number

, or file number for CDs, VIDEO CDs, DATA DVDs, or DATA CDs.)

K Album name appears for DATA DVDs

or DATA CDs. For CDs with CD text, press TIME/ TEXT.

L Playing time (remaining time

Displays Super VIDEO CDs as “SVCD,” DATA CDs as “CD” and DATA DVDs as “DVD.”

Does not appear with VIDEO CDs, DATA DVDs, and DATA CDs.

Displayed when you press TIME/TEXT repeatedly.

)

z Hints

• If “D TS” of “Audio Connection” is set to “Off” in the “Audio” setup, the DTS track selection option will not appear on the screen even if the disc contains DTS tracks (page 76).

• When “Auto Display” is set to “On” (default) in the “Video” setup (page 75), information automatically appears on the screen when the recorder is operated.

b Note

Playing time of MP3 audio tracks may not be displayed correctly.

Checking the playing/ remaining time

You can view the playing or time information displayed on the front panel display.

Press TIME/TEXT repeatedly.

The displays differ depending on the disc type or playing status.

Example: When playing a DVD

Playing time and number of the current title

Remaining time of the current title

Playing time and number of the current chapter

Remaining time of the current chapter

Example: When playing a VIDEO CD

Playing time and number of the current scene or track

Eight Basic Operations — Getting to Know Your DVD Recorder

,continued

Page 32

Example: When playing a CD

Track playing time and the current track/index number

Remaining time of the current track

Playing time of the disc

Remaining time of the disc

CD text (when available)

Example: When playing an MP3 audio track

Playing time and number of the current track

Current album number

Example: When viewing a JPEG image

Current file number and total number of files in the current album

Current album number and total number of albums

Checking the remaining disc space

You can check the remaining disc space using the “Disc Information” display.

1 Insert a disc.

See “1. Inserting a Disc” on page 27.

2 Press OPTIONS to select “Disc

Information,” and press ENTER.

The “Disc Information” display appears. Available settings differ depending on the disc type. Example: When a DVD+RW is inserted.

b Notes

• The recorder can only display the first level of a CD’s text, such as the disc name.

• The letters or symbols that cannot be displayed are replaced with “*.”

• Playing time of MP3 audio tracks may not be displayed correctly.

“Remainder” (approximate)

• The remaining recording time in each of the recording modes

• Disc space bar

• Remaining disc space/total disc space

z Hint

To increase disc space, see “To open up disc space” (page 59).

Page 33

5. Changing the Name of a Recorded Program

RWVR-RW

Video

You can label a DVD, title, or program by entering characters. You can enter up to 64 characters for a title or disc name, but the actual number of characters displayed in the menus such as the Title List will vary. The steps below explain how to change the name of the recorded program.

Number buttons, SET

TITLE LIST

Video

RVR

INPUT SELECT

</M/m/,, ENTER

5 Press </M/m/, to select the

character you want to enter, and press ENTER.

The selected character appears at the top of the display. Example: Input Title Name

Eight Basic Operations — Getting to Know Your DVD Recorder

The type of characters will change according to the language you select in “Easy Setup.” Some languages allow you to enter an accent mark. To enter a letter with an accent mark, select an accent followed by the letter. Example: Select “ ` ” and then “a” to enter “à.” To insert a space, select “Space.”

6 Repeat steps 4 and 5 to enter the

remaining characters.

Input row

1 Press TITLE LIST. 2 Select a title, and press ENTER.

The sub-menu appears.

3 Select “Title Name,” and press

ENTER.

The display for entering characters appears.

4 Press </M/m/, to move the cursor

to the right of the display and select “A” (upper-case), “a” (lower-case), or “Symbol,” and press ENTER.

The characters for the selected type are displayed.

To erase a character, move the cursor to the right of the character at the input row. Select “Back” and press ENTER. To insert a character, move the cursor to the right of the point where you want to insert the character. Select the character and press ENTER. To erase all of the characters, select “Clear All” and press ENTER.

7 Select “Finish,” and press ENTER.

To cancel the setting, select “Cancel.”

,continued

Page 34

To use the number buttons

You can also use the number buttons to enter characters. Refer to the number next to each row of letters on your TV screen.

1 In step 5 above, press a number button

repeatedly to select a character. Example: Press the number 3 button once to enter “D.” Press the number 3 button three times to enter “F.”

2 Press ENTER or SET and select the next

character.

3 Select “Finish” and press ENTER.

z Hint

You can switch between “A” (upper-case), “a” (lower-case), or “Symbol” by pressing INPUT SELECT.

6. Labeling and Protecting a Disc

You can execute options effective for the entire disc using the “Disc Information” display.

</M/m/,, ENTER OPTIONS

Labeling a disc

Video

RWVR-RW

Video

RVR

1 Insert a disc.

See “1. Inserting a Disc” on page 27.

2 Press OPTIONS to select “Disc

Information,” and press ENTER.

The “Disc Information” display appears. Available settings differ depending on the disc type. Example: When the inserted disc is a DVD+RW.

3 Select “Disc Name,” and press

ENTER.

Enter the disc name in the “Input Disc Name” display (page 33).

Page 35

b Note

You can enter up to 64 characters for a DVD’s disc name. The disc name may not appear when the disc is played on other DVD equipment.

7. Playing the Disc on Other DVD Equipment

Protecting a disc

RWVR

RVR

1 Insert a disc.

See “1. Inserting a Disc” on page 27.

2 Press OPTIONS to select “Disc

Information,” and press ENTER.

The “Disc Information” display appears. Available settings differ depending on the disc type. Example: When the inserted disc is a DVD-RW (VR mode).

A “On”/“Off”: Indicates whether

protection is set (DVD-RW/DVDR in VR mode only)

B “Protect Disc”

3 Select “Protect Disc,” and press

ENTER.

4 Select “Protect,” and press ENTER.

To cancel the protection

Select “Unprotected” in step 4.

z Hint

You can set protection for individual titles (page 60).

(Finalize)

RWVR-RW

Video

Finalizing is necessary when you play discs recorded with this recorder on other DVD equipment. When you finalize a DVD+RW, DVD-RW (Video mode), DVD+R, or DVD-R (Video mode), a DVD menu will be automatically created, which can be displayed on other DVD equipment. Before finalizing, check the differences between the disc types in the table below.

Differences between the disc types

Discs are automatically finalized

when removed from the recorder. However, you may need to finalize the disc for certain DVD equipment, or if the recording time is short. You can edit or record on the disc even after finalizing.

Finalizing is unnecessary when

RWVR

playing a disc on VR format compatible equipment. Even if your other DVD equipment is VR format compatible, you may need to finalize the disc, especially if the recording time is short. You can edit or record on the disc even after finalizing.

Finalizing is necessary when

Video

playing on any equipment other than this recorder. After finalizing, you cannot edit or record on the disc. If you want to record on it again, unfinalize (page 37) or reformat the disc (page 37). However, if you reformat the disc, all recorded contents will be erased.

Finalizing is necessary. The disc

RVR

can be played only on equipment that supports DVD-R in VR mode. After finalizing you cannot edit or record on the disc using this recorder.

Video

RVR

Eight Basic Operations — Getting to Know Your DVD Recorder

,continued

Page 36

Video

Z OPEN/ CLOSE

Finalizing is necessary when playing on any equipment other than this recorder. After finalizing, you cannot edit or record on the disc.

</M/m/,, ENTER OPTIONS

Finalizing the disc using “Disc Information” display

1 Insert a disc.

See “1. Inserting a Disc” on page 27.

2 Press OPTIONS to select “Disc

Information,” and press ENTER.

The “Disc Information” display appears.

3 Select “Finalize,” and press ENTER.

The display shows the approximate time required for finalizing and asks for confirmation.

Finalizing the disc using Z OPEN/CLOSE button

1 Make a recording.

See “2. Recording a Program” on page 27.

2 Press Z OPEN/CLOSE.

The display shows the approximate time required for finalizing and asks for confirmation. For DVD+RWs, the recorder automatically starts finalizing the disc. After finalizing, the disc will be ejected automatically.

3 Select “OK,” and press ENTER.

The recorder starts finalizing the disc. After finalizing, the disc will be ejected automatically.

4 Select “OK,” and press ENTER.

The recorder starts finalizing the disc.

z Hint

You can check whether the disc has been finalized or not. If you cannot select “Finalize” in step 3 above, the disc has already been finalized.

b Notes

• Depending on the condition of the disc, recording, or the DVD equipment, discs may not play even if the discs are finalized.

• The recorder may not be able to finalize the disc if it was recorded on another recorder.

Page 37

Unfinalizing a disc

RWVR-RW

For DVD-RWs (Video mode)

DVD-RWs (Video mode) that have been finalized to prohibit additional recording or editing can be unfinalized to allow further recording or editing.

For DVD-RWs (VR mode)

If you cannot record or edit on a DVD-RW (VR mode) that has been finalized with other DVD equipment, unfinalize the disc.

b Note

The recorder is not able to unfinalize DVD-RWs (Video mode) that have been finalized on another recorder.

Video

1 Insert a disc.

See “1. Inserting a Disc” on page 27.

2 Press OPTIONS to select “Disc

Information,” and press ENTER.

The “Disc Information” display appears.

3 Select “Unfinalize,” and press

ENTER.

The recorder starts unfinalizing the disc. Unfinalizing may take several minutes.

8. Reformatting a disc

RWVR-RW

New discs are automatically formatted when inserted. If necessary, you can manually reformat a DVD+RW or DVD-RW disc to make a blank disc. For DVD-RWs, you can select a recording format (VR mode or Video mode) according to your needs (page 59).

Video

</M/m/,, ENTER OPTIONS

1 Insert a disc.

See “1. Inserting a Disc” on page 27.

2 Press OPTIONS to select “Disc

Information,” and press ENTER.

Example: When a DVD+RW is inserted.

Eight Basic Operations — Getting to Know Your DVD Recorder

3 Select “Format,” and press ENTER. 4 Select “OK,” and press ENTER.

For DVD-RWs and unrecorded DVD-Rs (Video mode), select “VR” or “Video,” and press ENTER. All contents on the disc are erased.

,continued

Page 38

z Hint

By reformatting, you can change the recording format on DVD-RWs, or record again on DVDRWs that have been finalized.

b Note

On this model, 1 GB (read “gigabyte”) is equivalent to 1 billion bytes. The larger the number, the larger the disc space.

Page 39

Timer Recording

Before Recording

Before you start recording…

• Check that the disc has enough available space for the recording (page 32). For DVD+RWs and DVD-RWs, you can free up disc space by erasing titles (page 59).

• Adjust the recording picture quality and picture size if necessary (page 42).

z Hint

Timer recordings will be made regardless whether or not the reco rder is turned on. You can turn off the recorder without affecting the recording even after recording starts.

b Note

To play a recorded disc on other DVD equipment, finalize the disc (page 35).

Recording mode

Like the standard ×3 recording modes of video tapes, you can select the desired recording mode using the REC MODE button. Recording modes with higher quality provide a more beautiful recording, but the large data volume also results in a shorter recording time. Conversely, a longer duration provides a longer recording time, but the lower data volume results in a coarser picture quality.

Press REC MODE repeatedly to switch the recording modes.

Approx. recording

Recording mode

HQ (High quality) 1 1 hr.

HSP R 1hr.

SP (Standard mode) 2 3 hr.

LSP r 2hr.

ESP r 35hr.

LP r 47hr.

EP r 610hr.

SLP (Long duration) 8 14 hr.

time (hours)

DVD DVD+R

30 min.

48 min.

2hr. 42 min.

37 min.

4hr. 31 min.

25 min.

14 min.

51 min.

28 min.

b Notes

• The maximum continuous recording time for a single title is eight hours.

• Situations below may cause slight inaccuracies with the recording time. – Recording a program with poor reception, or a

program or video source of low picture quality – Recording on a disc that has already been edited – Recording only a still picture or just sound

Timer Recording

,continued

Page 40

Recording a stereo/SAP program

The recorder can receive and record stereo/ SAP programs.

Recording stereo programs

If there is noise in the stereo program, set “Auto Stereo” in the “Audio” setup to “Off” (page 76). The sound will be recorded in monaural but with less noise.

SAP (Second Audio Program)

When a SAP (Second Audio Program) is received, the “SAP” indicator lights up on the front panel display. To record only SAP sound, set “Tuner Audio” in the “Audio” setup to “SAP” (page 76).

Timer Recording

RWVR-RW

Video

You can set the timer for a total of 40 programs, up to 30 days in advance. Set the date, time, and channel of the program manually.

b Note

Do not operate your cable box or satellite receiver just before or during a timer recording. This may prevent the accurate recording of a program.

Video

RVR

Unrecordable pictures

Pictures with copy protection cannot be recorded on this recorder. When the recorder receives a copy guard signal, the recorder continues to record but only a blank, grey colored screen will be recorded.

Copy control signals

Copy-Free

Copy-Once

Copy-Never None (a blank screen is

* The recorded disc can be played only on CPRM

compatible equipment (page 8).

Recordable discs

RWVR

RVR-R

(CPRM*)

RWVR

RVR

recorded)

Video

TIMER

</M/m/,, ENTER

OPTIONS

z REC x REC

STOP

1 Press TIMER.

2 Press M/m to select the “Day and

Time” or “Mode” row. Then press ENTER.

Page 41

3 Select an item using </, and

adjust using M/m. Then press ENTER.

To make additional changes to items in different rows, return to step 2. The adjustable items are listed below. “Day and Time”: Sets the date, start time, and stop time, and selects the channel or input source. The date item changes as follows: Today y …… y Sat 12/2 (30 days later) y Sun (every Sunday) y …… y Sat (every Saturday) y Mon - Fri (Monday to Friday) y Mon - Sat (Monday to Saturday) y Daily y Today “Mode”: Selects the recording mode (page 39). “Extend Time”: Sets the duration in increments of 10 minutes, for a maximum of 60 minutes when a timer recording is in progress. If the program set to be recorded daily or weekly is extended, the manually extended time set here will be added to the subsequent timer recording times.

• If you make a mistake, select the item and change the setting.

4 Select “OK,” and press ENTER.

The “TIMER LIST” display (page 44) appears. The TIMER REC indicator lights up on the front panel and the recorder is ready to start recording. Unlike a VCR, there is no need to turn off the recorder before the timer recording starts.

If the timer settings overlap

Overlapped timer settings are shown as follows.

Timer Recording

To store the setting as shown, select “OK.” The program that does not have a mark next to it has priority and the overlapped programs start recording only after the first program has finished. To cancel the overlapped setting, select “Cancel.”

To confirm, change, or cancel a timer recording

See “Checking/Changing/Canceling Timer Settings (Timer List)” on page 44.

To extend the recording duration time while recording

1 Press OPTIONS during recording to

select “Extend Rec Time,” and press ENTER.

To stop recording during timer recording

Press x REC STOP. Note that it may take a few seconds for the recorder to stop recording.

Rec Mode Adjust

If there is not enough available disc space for the recording, the recorder automatically adjusts the recording mode to enable the entire program to be recorded. Set “Rec Mode Adjust” of the “Timer Settings” to “On” in the “Recording” setup (page 78).

2 Press M/m to select the duration time.

You can set the duration in increments of 10 minutes, for a maximum of 60 minutes.

3 Select “OK” and press ENTER.

z Hint

If you are recording to a DVD-RW (VR mode) at a recording mode that is SP or lower and is a 2x speed or higher disc, you can play the title as it is being recorded by selecting the program title on the Title List (page 53).

,continued

Page 42

b Notes

• If a message indicating that the disc is full appears on the screen, change the disc, or make available space for the recording (DVD+RW/DVD-RW only) (page 60).

• Check that the clock is correctly set before setting the timer recording. If not, the timer recording cannot be made.

• To record a satellite program, turn on the satellite tuner and select the satellite program you want to record. Leave the satellite tuner turned on until the recorder finishes recording. If you connect equipment with a timer function, you can use the Synchro Rec function (page 47).

• Even if the timer is set for the same daily or weekly program, the timer recording cannot be made if it overlaps with a program that has priority. “ ” will appear next to the overlapped setting in the Timer List. Check the priority order of the settings.

• Even if t he timer is set, timer recor dings cannot be made while recording a program that has priority.

• The Rec Mode Adjust function only works with a timer recording. It does not function with Quick Timer or Synchro Rec.

Using the Quick Timer function

You can set the recorder to record in 30 minute increments.

Adjusting the recording picture quality and size

You can adjust the recording picture quality and picture size.

</M/m/,, ENTER

OPTIONS

1 Before recording starts, press

OPTIONS to select “Rec Settings,” and press ENTER.

Press z REC repeatedly to set the duration.

Each press advances the time in 30 minute increments. The maximum duration is six hours.

(normal recording)

The time counter decreases minute by minute to 0:00, then the recorder stops recording (the power does not turn off). Even if you turn off the recorder during recording, the recorder continues to record until the time counter runs out.

To cancel the Quick Timer

Press z REC repeatedly until the counter appears in the front panel display. The recorder returns to normal recording mode.

2 Select the item you want to adjust,

and press ENTER.

The adjustment display appears.

Example: Rec NR

“Rec Mode”: Selects the recording mode for the desired recording time and picture quality. For more information, see “Recording mode” on page 39.

Page 43

“DVD Rec. Picture Size”: Sets the picture size of the program to be recorded.

• 4:3 (default): Sets the picture size to 4:3.

• 16:9: Sets the picture size to 16:9 (wide mode).

“DVD Rec. Picture Size” works with DVD-RWs/DVD-Rs (Video mode) when the recording mode is set to HQ, HSP, SP, LSP, or ESP. For all other recording modes, the screen size is fixed at “4:3.” For DVD-Rs/DVD-RWs (VR mode), the actual picture size is recorded regardless of the setting. For example, if a 16:9 size picture is received, the disc records the picture as 16:9 even if “DVD Rec. Picture Size” is set to “4:3.” For DVD+RWs/DVD+Rs, the screen size is fixed at “4:3.”

“Rec NR” (noise reduction): Reduces noise contained in the video signal.

“Rec Video Equalizer”: Adjusts the picture in greater detail. Press M/m to select the item you want to adjust, then press ENTER.

• Contrast: Changes the contrast.

• Brightness: Changes the overall brightness.

• Color: Makes the colors deeper or lighter.

• Hue: Changes the color balance.

3 Adjust the setting using </M/m/,,

and press ENTER.

The default setting is underlined. “Rec NR”: (weak) Off 1 ~ 2 ~ 3 (strong) “Rec Video Equalizer”:

• Contrast: (weak) –3 ~ 0

• Brightness: (dark) –3 ~ 0

• Color: (light) –3 ~ 0

• Hue: (red) –3 ~ 0 ~ 3 (green)

Repeat steps 2 and 3 to adjust any other items.

~ 3 (strong)

~ 3 (bright)

~ 3 (deep)

b Notes

• When playing a 16:9 size picture recorded as 4:3, the image is fixed to 4:3 Letter Box regardless of the setting in “TV Type” of “Video” setup (page 74).

• Remnants of images may appear on your screen when using “Rec NR.”

• “Rec Video Equalizer” does not affect the input of the DV IN jack.

Timer Recording

Creating chapters in a title

The recorder can automatically divide a recording (a title) into chapters by inserting chapter marks at approximately 6 minute intervals during recording. To disable this function, set “Auto Chapter” in the “Recording” setup to “Off” (page 78). When recording to a DVD-R (VR mode) or DVD-RW (VR mode), you can insert and erase chapter marks manually (page 62).

Page 44

Checking/Changing/ Canceling Timer Settings (Timer List)

RWVR-RW

Video

You can check, change, or cancel timer settings using the Timer List.

RETURN

Video

RVR

TIMER LIST </M/m/,,

ENTER

1 Press TIMER LIST.

The Timer List appears.

: Indicates that the timer recording cannot be recorded as set, such as for a timer recording that cannot be recorded in the selected Rec mode.

When all of the timer settings do not fit on the list, the scroll bar appears. To view the hidden timer settings, press M/m.

2 Select the timer setting you want to

check/change/cancel, and press ENTER.

The sub-menu appears.

3 Select one of the options, and press

ENTER.

“Modify”: Changes the timer setting. Select an item using </, and adjust using M/m. Select “OK,” and press ENTER.

Timer information displays the recording date, time, recording mode, etc.

: Indicates that the setting is overlapped by another setting.

(red):

Indicates the setting is currently being recorded.

“Erase”: Erases the timer setting. Select “OK,” and press ENTER.

Page 45

“Check Overlap”: Checks for overlapped settings. The timer setting without the mark has priority over the other settings.

To change the priority of a program, press </, to select “Change.” For details, see “Changing the priority of overlapped settings” on page 45.

Select “Close” to return to the Timer List. To change or cancel the setting, repeat steps 2 and 3 above.

To scroll the list display by page (Page mode)

Press REPLAY/ADVANCE while the list display is turned on. Each time you press

REPLAY/ADVANCE , the

entire Timer List changes to the next/ previous page of timer settings.

Changing the priority of overlapped settings

If the timer settings overlap, the program that was set last has priority and will be recorded. A timer recording of lower priority may be canceled, start from the middle or stop midway through the program. You can change the priority of a program if necessary.

When the timer settings overlap

The program set last has priority.

Example: You set the timer in order of A, B, and C (setting C has first priority)

will be cut off

Actual recording

Timer Recording

To turn off the Timer List

Press TIMER LIST or O RETURN.

z Hint

While recording, you cannot modify the timer setting for the curre nt recording, but you can extend the duration of the recording time (page 41).

b Notes

• Even if the timer is set, timer recordings cannot be made while recording a program that has priority.

If you give setting B priority over setting C, all of program B will be recorded and program C is recorded only after program B has ended.

If the end time of one recording and the start time of another are the same

If program B has priority, the end of program A will be cut off.

,continued

Page 46

If program A has priority, recording of program B may be delayed.

1 Press TIMER LIST.

The Timer List appears.

2 Select an overlapped timer setting,

and press ENTER.

indicates that the timer setting is

overlapped by another timer setting.

3 Select “Check Overlap,” and press

ENTER.

z Hint

You can change the priority of a timer setting while recording.

4 Select “Change,” and press ENTER.

5 Press M/m to change the timer

setting’s priority, and press ENTER.

The setting moves to its new location in the list. A timer setting higher up in the list has higher priority. To return to the Timer List, select “Cancel.”

Page 47

Recording From Connected Equipment

Video

RWVR-RW

Video

RVR

INPUT SELECT

4 Set the timer on the connected

equipment to the time of the program you want to record, and turn it off.

5 Press c z SYNCHRO REC.

The SYNCHRO REC indicator lights up on the front panel. The recorder is ready to start Synchro-Recording. The recorder automatically starts recording when it receives an input signal from the connected equipment. The recorder stops recording when the connected equipment turns off.

To stop recording

Press x REC STOP or c z SYNCHRO REC.

To cancel Synchro Rec

Press c z SYNCHRO REC. The SYNCHRO REC indicator on the recorder turns off.

Timer Recording

z REC x REC

STOP

REC MODE c z

SYNCHRO REC

Recording from connected equipment with a timer (Synchro Rec)

You can set the recorder to automatically record programs from connected equipment that has a timer function (such as a satellite tuner). Connect the equipment to the LINE 1 IN jacks of the recorder (page 26). When the connected equipment turns on, the recorder starts recording a program from the LINE 1 IN jacks.

1 Insert a recordable DVD.

See “1. Inserting a Disc” on page 27.

2 Press INPUT SELECT repeatedly to

select “L1.”

3 Press REC MODE repeatedly to select

the recording mode.

For details about the recording mode, see page 39.

b Notes

• The recorder starts recording only after detecting a video signal from the connected equipment. The beginning of the program may not be recorded regardless of whether or not the recorder’s power is on or off.

• During Synchro-Recording, other operations, such as normal recording, cannot be performed.

• To use the connected equipment while the recorder is standing by for Synchro-Recording, cancel Synchro-Recording by pressing c z SYNCHRO REC. Be sure to turn off the connected equipment and press c z SYNCHRO REC to reset Synchro-Recording before the timer recording starts.

• The Synchro Rec function does not work with some tuners. For details, see the tuner’s operating instructions.

• While the recorder is standing by for SynchroRecording, the Auto Clock Set function (page 72) does not work.

• To use the Synchro Rec function, you must first set the recorder’s clock correctly.

,continued

Page 48

If the timer settings of a SynchroRecording and another timer recording overlap

Regardless of whether or not the program is a Synchro Rec program, the program that starts first has priority and the second program starts recording only after the first program has finished.

6 Press the pause (or play) button on the

connected equipment to cancel the playback pause status.

The connected eq uipment starts playback and the playback image is recorded by this recorder. To stop recording, press x REC STOP on this recorder.

First program

Second program

will be cut off

Recording from connected equipment without a timer

You can record from a connected VCR or similar device. To connect a VCR or similar device, see “Connecting a VCR or Similar Device” on page 24. Use the DV IN jack on the front panel if the equipment has a DV output jack (i.LINK jack).

1 Insert a recordable DVD.

See “1. Inserting a Disc” on page 27.

2 Press INPUT SELECT to select an input

source according to the connection you made.

The front panel display changes as follows:

channel

If you connect a digital video camera with a DV IN jack

See “DV/Digital8 Dubbing” on page 66 for an explanation of how to record from the DV IN jack.

z Hint

You can adjust the settings for the recording picture before recording. See “Adjusting the recording picture quality and size” on page 42.

b Notes

• When recording a video game image, the screen

may not be clear.

• Any program that contains a Copy-Never copy

guard signal cannot be recorded. The recorder continues to record, but a blank screen will be recorded.

3 Press REC MODE repeatedly to select

the recording mode.

For details about the recording mode, see page 39.

4 Insert the source tape into the

connected equipment and set to playback pause.

5 Press z REC.

This recorder starts recording.

Page 49

Playback

Playing

3 Select the title, and press ENTER.

The sub-menu appears.

4 Select “Play,” and press ENTER.

Playback starts from the selected title.

Video

DATA CD

Z OPEN/ CLOSE

Number buttons

AUDIO

TOP MENU

TITLE LIST

. PREV

H PLAY

X PAUSE

RWVR-RW

VCD

DVD

Video

DATA DVD

1 Insert a disc.

• See “1. Inserting a Disc” on page 27.

• If you insert a DVD VIDEO, VIDEO CD, CD, DATA DVD, or DATA CD, press H PLAY. Playback starts.

2 Press TITLE LIST.

For details about the Title List, see “3. Playing the Recorded Program (Title List)” on page 28. Example: DVD+RW

RVR

SUBTITLE

</M/m/,, ENTER

OPTIONS NEXT >

x STOP

To use the DVD’s Menu

When you play a DVD VIDEO, or a finalized DVD+RW, DVD-RW (Video mode), DVD+R, or DVD-R (Video mode), you can display the disc’s menu by pressing TOP MENU or MENU.

To play VIDEO CDs with PBC functions

PBC (Playback Control) allows you to play VIDEO CDs interactively using the menu on your TV screen. When you start playing a VIDEO CD with PBC functions, the menu appears. Select an item using the number buttons and press ENTER. Then, follow the instructions in the menu (press H PLAY when “Press SELECT” appears). The PBC function of Super VIDEO CDs does not work with this recorder. Super VIDEO CDs are played in continuous play mode only.

To change the angles

If various angles (multi-angles) for a scene are recorded on the disc, “ ” appears in the front panel display. Press OPTIONS during playback to select “Change Angle,” and press ENTER.

To stop playback

Press x STOP.

Playback

,continued

Page 50

To resume playback from the point where you stopped (Resume Play)

When you press H PLAY again after you stop playback, the recorder resumes playback from the point where you pressed x STOP. To start from the beginning, press OPTIONS to select “Play Beginning,” and press ENTER. Playback starts from the beginning of the title/track/scene.

The point where you stopped playing is cleared when: – you open the disc tray. – you play another title. – you switch the Title List menu to Original

or Playlist (DVD-RWs/DVD-Rs in VR

mode only). – you edit the title after stopping playback. – you change the settings on the recorder. – you turn off the recorder (VIDEO CD/CD/

DATA DVD/DATA CD only). – you make a recording (except for DVD-

RWs/DVD-Rs in VR mode). – you disconnect the AC power cord.

To play restricted DVDs (Parental Control)

If you play a restricted DVD, the message “Do you want to temporarily change the Parental Control level to *?” appears on your TV screen.

1 Select “OK” and press ENTER.

The display for entering your password appears.

2 Enter your four-digit password using the

number buttons.

3 Press ENTER to select “OK.”

The recorder starts playback.

To lock the disc tray (Child Lock)

You can lock the disc tray to prevent children from ejecting the disc. When the recorder is turned on, hold down x STOP until “LOCKED” appears in the front panel display. The Z OPEN/CLOSE button does not work while the Child Lock is set.

To unlock the disc tray, hold down x STOP until “UNLOCKED” appears in the front panel display when the recorder is turned on.

z Hints

• You can also use the H PLAY button in step 3

(page 49) to start playback.

• Even if you select “Factory Setup” in the “Others” setup (page 81), the Child Lock remains set.

To register or change the password, see “Parental Control (DVD VIDEO only)” on page 79.

Page 51

Playback options

To check the position of the buttons below, see the illustration on page 49. For MP3 or JPEG operations, see “Playing MP3 Audio Tracks or JPEG Image Files” on page 55.

Buttons

Operations

AUDIO Selects one of the audio tracks recorded on the disc when pressed

RWVR

CDVCD

RVR

DVD

repeatedly in normal playback mode.

: Selects the language.

DVD

RWVR

VCD

: Selects the main or sub sound.

RVR

: Selects stereo or monaural audio tracks.

SUBTITLE Selects a subtitle language when pressed repeatedly.

DVD

REPLAY/

Replays the scene/briefly fast forwards the scene. ADVANCE (instant replay/instant advance)

RWVR-RW

RVR

Video

DVD

. PREV/NEXT > Goes to the beginning of the previous/next title/chapter/scene/

track.

(fast reverse/fast forward)

Fast reverses/fast forwards the disc when pressed during

playback.

Search speed changes as follows:

fast reverse fast forward

m1 T t 1M

m2 T T t t 2M

T T T t t t 3M

When you press and hold the button, fast forward/fast reverse

continues at the selected speed until you release the button.

m3 and 3M are only available for DVDs.

(slow, freeze frame)

RWVR

RVR

DVD

VCD

Video

Plays in slow motion when pressed for more than one second in

pause mode.

Plays one frame at a time when pressed briefly in pause mode.

Playback

* Playback direction only

X PAUSE Pauses playback.

To resume normal playback, press H PLAY.

,continued

Page 52

b Notes

• Angles and s ubtitles cannot be changed with titles

recorded on this recorder.

• Slideshows made with a DVD camcorder can

only be played. Other play functions, such as fast forward, cannot be used.

Notes on playing DTS sound tracks on a CD

• When playing DTS-encoded CDs, excessive

noise will be heard from the analog stereo jacks. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo jacks of the recorder are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external DTS decoder must be connected to the DIGITAL OUT jack of the recorder.

• Set the sound to “Stereo” using the AUDIO

button when you play DTS sound tracks on a CD (page 51).

Notes on playing DVDs with a DTS sound track

DTS audio signals are output only through the DIGITAL OUT (COAXIAL) jack. When you play a DVD with DTS sound tracks, set “DTS” to “On” in the “Audio” setup (page 76).

Adjusting the picture quality

Video

RWVR-RW

DVD

VCD

Video

RVR

1 Press OPTIONS during playback to

select “Video Settings,” and press ENTER.

2 Select an item, and press ENTER.

The adjustment display appears. “FNR” (frame noise reduction): Reduces noise contained in the luminance element of the video signal. “BNR” (block noise reduction): Reduces “block noise” or mosaic like patterns in the picture. “MNR” (mosquito noise reduction): Reduces the faint noise appearing around the outlines of the images. The noise reduction effects are automatically adjusted within each setting range according to the video bit rate and other factors. “Sharpness”: Sharpens the outlines of the images. “PB Video Equalizer” (Playback video equalizer): Adjusts the picture in greater detail. Select an item and press ENTER.

• Contrast: changes the contrast.

• Brightness: changes the overall brightness.

• Color: makes the colors deeper or lighter.

• Hue: changes the color balance.

3 Press </, to adjust the setting, and

press ENTER.

The default settings are underlined. “FNR”: (weak) Off 1 2 “BNR”: (weak) Off 1 2 3 (strong) “MNR”: (weak) Off 1 2 “Sharpness”*: (weak) Off (strong) “PB Video Equalizer”:

• Contrast: (weak) –3 ~ 0

• Brightness: (dark) –3 ~ 0 ~ 3 (bright)

• Color: (light) –3 ~ 0

• Hue: (red) –3 ~ 0

Repeat steps 2 and 3 to adjust any other items.

* “1” softens the outlines of the images. “2”

enhances the outlines and “3” enhances them more than “2.”

3 (strong)

1 2 3

~ 3 (strong)

~ 3 (deep)

~ 3 (green)

Page 53

b Notes

• If the outlines of the images on your screen become blurred, set “BNR” and/or “MNR” to “Off.”

• Depending on the disc or the scene being played, the above BNR, MNR, or FNR effects may be hard to discern. And, these functions may not work with some screen sizes.

• When using the “Sharpness” function, noise found in the title may become more apparent. In this case, it is recommended that you use the BNR function with the “Sharpness” function. If the condition still does not improve, set the “Sharpness” level to “Off.”

Adjusting the delay between the picture and sound (AV SYNC)

Video

RWVR-RW

DVD

VCD

Video

RVR

1 Press OPTIONS during playback to

select “Audio Settings,” and press ENTER.

2 Select “AV SYNC”, and press ENTER.

“AV SYNC”: When the video is delayed, this function delays the audio for synchronization with the video (0 to 120 milliseconds). Larger numbers indicate a longer audio delay for synchronization with the video. When dubbing to a VCR or other video recording equipment, be sure to return this setting to 0 ms (default).

3 Press </, to adjust the setting, and

press ENTER.

Playing from the beginning of the program you are recording (Chasing Playback)

RWVR

“Chasing Playback” allows you to view the recorded part of a program while the recording is being made. You do not need to wait until the recording finishes.

Press OPTIONS while recording to select “Chasing Playback,” and press ENTER.

Playback starts from the beginning of the program you are recording. When you fast forward to the point that you are recording, Chasing Playback returns to normal playback.

b Notes

• For DVD-RWs (VR mode), this function does not work when recording: – on a 1x-speed DVD-RW. – in the HQ or HSP recording mode.

• The DVD’s picture on your TV screen freezes for a few seconds when you fast forward/fast reverse or instant replay/advance the recording.

• Chasing Playback is possible from one minute or more after recording starts.

• Even if you fast forward the recorded program, there will always be a time difference of about one minute or more between the recorded program and the current TV broadcast.

Playback

,continued

Page 54

Playing a previous recording while making another (Simultaneous Rec and Play)

RWVR

You can play a previously recorded program while recording another on the same disc. Playback continues even if the recording is a timer recording.

1 While recording, press TITLE LIST.

The Title List appears.

2 Select the title you want to play, and

press ENTER.

The sub-menu appears.

3 Select “Play”, and press ENTER.

Playback starts from the selected title.

b Notes

• This function does not work when recording: – on a 1x-speed DVD-RW. – in the HQ or HSP recording mode.

• When playing a title recorded in the HQ or HSP recording mode, picture noise may appear depending upon the condition of the recording.

• Picture noise may appear depending upon the condition of the recording, or when playing a title recorded in the HQ or HSP recording mode. The picture freezes for a few seconds when you use fast forward/fast reverse or instant replay/ advance.

Searching for a Title/ Chapter/Track, etc.

RWVR-RW

Video

DVD

VCD

DATA CD

You can search a disc by title, chapter, scene or track. As titles and tracks are assigned individual numbers, select the title or track by entering its number. You can also search for a scene using the time code.

Number buttons, SET

Video

RVR

DATA DVD

ENTER

OPTIONS

1 Press OPTIONS during playback to

select a search method, and press ENTER.

“Title Search” (for DVDs) “Chapter Search” (for DVDs) “Track Search” (for CDs/DATA CDs) “Search” (for VIDEO CDs) “Album Search” (for DATA DVDs/ DATA CDs) “Time Search” (for DVDs): Searches for a starting point by entering the time code. “File Search” (for DATA DVDs/DATA CDs)

Page 55

The display for entering the number appears. Example: Title Search

The number in parentheses indicates the total number of titles, tracks, etc.

2 Press the number buttons to select the

number of the title, chapter, track, time code, etc., you want.

For example: Time Search To find a scene at 2 hours, 10 minutes, and 20 seconds, enter “21020.” If you make a mistake, select another number.

3 Press ENTER or SET.

The recorder starts playback from the selected number.

Playing MP3 Audio Tracks or JPEG Image Files

DATA DVD

DATA CD

You can play MP3 audio tracks and JPEG image files on DATA CDs (CD-ROMs/CDRs/CD-RWs) or JPEG image files on DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/ DVD-RWs/DVD-Rs).

AUDIO

DISPLAY

</M/m/,, ENTER

. PREV

H PLAY

TIME/TEXT

OPTIONS

x STOP X PAUSE

Playback

1 Insert a disc.

See “1. Inserting a Disc” on page 27.

2 Press H PLAY.

For MP3 discs, playback starts from the first MP3 audio track on the disc. For JPEG files, a slideshow of the pictures on the disc begins. If the disc contains MP3 audio tracks and JPEG image files, only the JPEG image files are played back when H PLAY is pressed.

To stop playback or slideshow

Press x STOP.

To pause playback or slideshow

Press X PAUSE.

,continued

Page 56

To play the beginning of the track

Press OPTIONS to select “Play Beginning,” and press ENTER.

To fast forward or review a track

Press m/M during playback.

To go to the next or previous MP3 audio track or JPEG image file

Press . PREV or NEXT > during playback. If you repeatedly press . PREV or NEXT >, you will go to the next or previous album. (MP3 audio track only)

To go to the next or previous album

Press REPLAY/ADVANCE during playback or slideshow.

To rotate a picture

Press OPTIONS while the JPEG image is displayed to select “Rotate Right” or “Rotate Left,” and press ENTER.

About MP3 audio tracks and JPEG image files

MP3 is an audio compression technology that satisfies certain ISO/MPEG regulations. JPEG is an image compression technology. You can play MP3 (MPEG1 Audio Layer 3) format audio tracks and JPEG image files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs) or JPEG image files on DATA DVDs (DVDROMs/DVD+RWs/DVD+Rs/DVD-RWs/ DVD-Rs). DATA CDs must be recorded according to ISO9660 Level 1, Level 2 or Joliet format for the recorder to recognize the MP3 tracks. You can also play discs recorded in MultiSession/Border. See the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format.

z Hints

• Press the AUDIO button

stereo or monaural audio tracks.

• You can rotate a JPEG image by using the </, buttons when the image is displayed.

• Press DISPLAY repeatedly to show information about the JPEG album or image on your TV screen. Then press TIME/TEXT to toggle between the current selected image number and album number.

to switch between

b Notes

• Some JPEG files, especially files of three million pixels or more, may lengthen the slideshow interval.

• Rotated JPEG images will not be saved when you switch to another folder.

• Images larger than 720 × 480 will be reduced to 720 × 480 when displayed.

• The following images are not displayed: – progressive JPEG image files – grayscale JPEG image files – 4:1:1 JPEG image files

• When you attempt to play a broken file or a file that does not satisfy the play conditions, appears but the recorder cannot play the file.

Note on MultiSession/Border discs

If audio tracks and images in Music CD format or Video CD format are recorded in the first session/border, only the first session/ border will be played back.

b Note

The recorder may not be able to play some DATA CDs created in the Packet Write format.

Page 57

MP3 audio tracks or JPEG image files that the recorder can play

The recorder can play the following tracks and files: – MP3 audio tracks with the extension

“.mp3.”

– JPEG image files with the extension “.jpeg”

or “.jpg.”

– JPEG image files that conform to the DCF*

image file format.

* “Design rule for Camera File system”: Image

standards for digital cameras regulated by JEITA (Japan Electronics and Information Technology Industries Association).

b Notes

• The recorder will play any data with the extension “.mp3,” “.jpeg,” or “.jpg,” even if they are not in MP3 or JPEG format. Playing these data may generate a loud noise which could damage your speaker system.

• The recorder does not conform to audio tracks in mp3PRO format.

• Some files cannot be played.

• The letters that cannot be displayed are replaced with “*.”

About playback order of albums, tracks, and files

Albums play in the following order:

Structure of disc contents

Tree 1 Tree 2 Tree 3 Tree 4 Tree 5

ROOT

Playback

Album

MP3 audio track/ JPEG image file

When you insert a DATA CD/DATA DVD and press H PLAY, the numbered tracks (or files) are played sequentially, from 1 through 7. For JPEG image files, press ADVANCE to go to the next album. (For instance, when you want to go from 1 to

2.) Any sub-albums/tracks (or files) contained within a currently selected album take priority over the next album in the same tree. (Example: C contains D so 4 is played before 5.)

z Hints

• If you add numbers (01, 02, 03, etc.) to the front of the track/file names when you store the tracks (or files) in a disc, the tracks and files will be played in that order.

• Since a disc with many trees takes longer to start playback, it is recommended that you create albums with no more than two trees.

,continued

Page 58

b Notes

• Depending on the software you use to create the DATA DVD/DATA CD, the playback order may differ from the above illustration.

• No more than a total of 999 individual folders can be played. (Folders that do not contain JPEG/ MP3 files are counted as well.)

• No more than a total of 999 folders and 9999 files can be played. (Files other than JPEG/MP3 files, and folders that do not contain JPEG/MP3 files are counted as well.)

• No more than 999 folders and files can be recognized in a single folder. (Folders that do not contain JPEG/MP3 files are counted as well.)

• Proceeding to the next or another album may take some time.

• This recorder supports MP3 audio bit rates up to 320 kbps.

Page 59

Erasing and Editing

Before Editing

This recorder offers various edit options for various disc types.

b Notes

• You may lose the edited contents if you remove the disc or a timer recording starts while editing.

• DVD discs created by DVD video cameras cannot be edited on this recorder.

• If a message appears and indicates that the disc’s control information is full, erase or edit unnecessary titles.

• When editing a DVD+R or DVD-R, finish all editing before finalizing the disc. You cannot edit a finalized disc.

Edit features

Erase (page 60)

Protect Title (page 60)

Title Name (page 60)

A-B Erase (page 61)

Erase Titles (page 60)

Divide Title (page 65)

Set Thumbnail (page 60)

Chapter mark (page 62)

Playlist creation (page 62)

Change Order (page 64)

Combine Titles (page 64)

* DVD+RW only

RWVR

RVR

Original title

Playlist title

Yes Yes Yes

Yes No Yes

Yes Yes Yes

Yes Yes Yes*

Yes Yes Yes

No Yes No

Yes Yes No

No Yes No

Video

To open up disc space

To open up disc space on a DVD+RW or DVD-RW (Video mode), erase the title with the largest number in the title list.

Largest title number

For the DVD-RWs (VR mode), you can erase any title. For DVD-Rs and DVD+Rs, the available disc space does not increase even if you erase titles. See “Erasing and Editing a Title” on page 60 or “Erasing multiple titles (Erase Titles)” on page 60.

To switch between the Playlist and Original Title List

You can display the Playlist titles in the Title List (Playlist), or the Original titles in the Title List (Original). To switch the two Title Lists, press

</, while a Title List is

displayed. To create and edit a Playlist, see page 62.

Erasing and Editing

Page 60

Erasing and Editing a Title

Video

RWVR

Video

This section explains the basic edit functions. Note that editing is irreversible. To edit DVD-RWs/DVD-Rs (VR mode) without changing the original recordings, create a Playlist title (page 62).

CHAPTER MARK

RETURN

. PREV

RVR

CHAPTER MARK ERASE

TITLE LIST

</M/m/,, ENTER OPTIONS

NEXT >

X PAUSE

1 Press TITLE LIST.

For DVD-RWs/DVD-Rs in VR mode, press

</, to switch the Title Lists, if

necessary.

2 Select a title, and press ENTER.

The sub-menu appears.

3 Select an option, and press ENTER.

You can make the following edits to the title. “Erase”: Erases the selected title. Select “OK” when asked for confirmation. “Protect Title”: Protects the title. “ ” appears next to the protected title. “Title Name”: Allows you to enter or reenter a title name (page 33). “A-B Erase”: Erases a section of the title (page 61).

“Set Thumbnail”: Changes the title’s thumbnail picture that appears in the Title List (page 30). “Make a Playlist”: Adds the entire title to the Playlist title as one scene (page 64).

z Hints

• You can erase multiple titles at one time (page 60).

• You can label or re-label DVDs (page 34).

b Note

DVD-RW/DVD-R (VR mode) playlist titles cannot be protected.

Erasing multiple titles (Erase Titles)

RWVR-RW

Video

You can select and erase more than one title at one time using the OPTIONS menu.

Video

RVR

1 Press TITLE LIST.

For DVD-RWs/DVD-Rs in VR mode, press

</, to switch the Title Lists, if

necessary.

2 Press OPTIONS to select “Erase

Titles,” and press ENTER.

The display for selecting titles to be erased appears.

3 Select a title, and press ENTER.

A check mark appears in the check box next to the selected title.

• To clear the check mark, press ENTER again.

• To clear all of check marks, select “Reset.”

4 Repeat step 3 to select all of the titles

you want to erase.

Page 61

5 When you finish selecting titles,

select “OK,” and press ENTER.

The list of the titles to be erased appears for confirmation.

• To change the selection, select “Change,” and repeat from step 3.

6 Select “OK” and press ENTER.

The titles are erased.

To erase all titles on the disc

You can reformat a DVD+RW or DVD-RW to make the disc blank. See “8. Reformatting a disc” on page 37.

Erasing a section of a title (A-B Erase)

You can select a section (scene) in a title and erase it. Note that erasing scenes in a title cannot be undone.

RWVR

RVR

1 After step 2 of “Erasing and Editing a

Title,” select “A-B Erase” and press ENTER.

The display for setting point A appears. The title starts to play.

• To return to the beginning of the title, press X PAUSE and then press . PREV.

4 Select point B using m/M, and

press ENTER.

Playback pauses.

5 Press ENTER if point B is correct.

If point B is incorrect, select point B using c/C, and press ENTER. The display asks for confirmation.

• To reset point A, press M and

O RETURN, and go to step 2.

• To reset point B, press M and repeat

step 4.

• To preview the title without scenes to be erased, select “Preview” (except for DVD+RWs).

6 Select “OK,” and press ENTER.

The scene is erased. The display for setting point A appears.

• To continue, go to step 2.

• To finish, select “Quit.”

z Hint

A chapter mark is inserted after the scene was erased. The chapter mark divides the title into separate chapters on either side of the mark.

b Notes

• Images or sound may be momentarily interrupted at the point where you erase a section of a title.

• Sections shorter than five seconds may not be erased.

• For DVD+RWs, the erased section may be slightly different from the points you selected.

Erasing and Editing

Playback point

2 Select point A using m/M, and

press ENTER.

Playback pauses.

3 Press ENTER if point A is correct.

If point A is incorrect, select point A using c/C, and press ENTER. The display for setting point B appears.

,continued

Page 62

Creating chapters manually

RWVR-RVR

You can manually insert a chapter mark at any point you like during playback or recording.

Press CHAPTER MARK at the point where you want to divide the title into chapters.

Each time you press the button, “Marking ...” appears on the screen and the scenes to the left and right of the mark become separate chapters.

To erase chapter marks

You can combine two chapters by erasing the chapter mark during playback. Press . PREV/NEXT > to search for a chapter number, and while displaying the chapter containing the chapter mark you want to erase, press CHAPTER MARK ERASE. The current chapter combines with the previous chapter.

b Note

To insert a chapter mark manually during recording, set “Auto Chapter” to “Off” in the “Recording” setup.

Creating and Editing a Playlist

RWVR-RVR

Playlist edit allows you to edit or re-edit without changing the actual recordings. You can create up to 97 Playlist titles.

Example: You have recorded the final few matches of a football tournament on a DVDRW/DVD-R (VR mode). You want to create a digest with the goal scenes and other highlights, but you also want to keep the original recording.

Original

Playlist

In this case, you can compile highlight scenes as a Playlist title. You can even rearrange the scene order within the Playlist title. The Playlist title calls up data from the original titles for playback. When an original title is used for a Playlist title, the original title cannot be edited and erased.

1 Press TITLE LIST.

If the Title List (Original) appears, press <.

2 Press OPTIONS to select “Create a

Playlist,” and press ENTER.

Page 63

3 Select “Select,” and press ENTER.

4 Select the title you want to include in

the Playlist title, and press ENTER.

The display for setting the start point (IN) appears. The title starts to play.

• To return to the beginning of the title,

press X PAUSE and then press . PREV.

5 Select the IN point using m/M,

and press ENTER.

Playback pauses.

6 Press ENTER if the IN point is correct.

If the IN point is incorrect, select the IN point using c/C, and press ENTER. The display for setting the end point (OUT) appears.

7 Select the OUT point using m/M,

and press ENTER.

Playback pauses.

8 Press ENTER if the OUT point is

correct.

If the OUT point is incorrect, select the OUT point using c/C, and press ENTER. The selected scene is added to the scene list.

• To add more scenes, go to step 5.

9 When you finish adding scenes, press

A Total duration of the selected

scene

B Total number of scenes C Selected scene

Select the scene you want to re-edit, and press ENTER.

The sub-menu appears. “Move”: Changes the scene order using </, and press ENTER. “Erase”: Erases the scene. When asked for confirmation, select “OK.”

• To add more scenes, press M and go to

step 5.

• To add more scenes from another title, select “Select” and go to step 4.

• To preview all of the captured scenes in the listed order, select “Preview.”

When you finish editing the scene list, select “OK,” and press ENTER.

The title of the created Playlist is added to the Title List (Playlist). The title name is the title name of the first scene.

z Hint

When a Playlist title is created, the IN and OUT points will become chapter marks, and each scene will become a chapter.

b Note

The picture may pause when the edited scene is played.

Erasing and Editing

,continued

Page 64

To add the entire title to the Playlist title as one scene (Make a Playlist)

1 Press TITLE LIST. If the Title List

(Playlist) appears, press ,.

2 Select the title and press ENTER.

The sub-menu appears.

3 Select “Make a Playlist,” and press

ENTER. The selected title is added to the Title List (Playlist). The title name is the same as the Original title name.

To play the Playlist title

1 Press TITLE LIST. If the Title List

(Original) appears, press <.

2 Select a title, and press ENTER.

The sub-menu appears.

3 Select “Play,” and press ENTER.

Moving a Playlist title (Change Order)

RWVR-RVR

You can change the Playlist title order within the Title List (Playlist).

1 Press TITLE LIST.

If the Title List (Original) appears, press

2 Press OPTIONS to select “Change

Order,” and press ENTER.

Combining multiple Playlist titles (Combine Titles)

RWVR-RVR

1 Press TITLE LIST.

If the Title List (Original) menu appears, press

2 Press OPTIONS to select “Combine

Titles,” and press ENTER.

The display for selecting titles appears.

3 Select a title, and press ENTER.

A number indicating the order in which you selected the title appears. To cancel the selection, press ENTER again.

4 Repeat step 3 to select all of the titles

you want to combine.

To cancel all of the selections, select “Reset.”

5 Select “OK,” and press ENTER.

The list of titles to be combined appears. To change the selection, select “Change” and go to step 3.

3 Select the title you want to move, and

press ENTER.

4 Select a new location for the title

using M/m, and press ENTER.

The title moves to the new location.

• To move more titles, go to step 3.

• To finish, select “Quit,” and press ENTER.

6 Select “OK,” and press ENTER.

The titles are combined.

z Hint

After titles are combined, the title name is the title name of the first title prior to combination.

b Note

When the number of chapters in the title to be combined exceeds the limit, the chapters at the end are combined into a single chapter.

Page 65

Dividing a Playlist title (Divide Title)

RWVR-RVR

You can divide a Playlist title.

1 Press TITLE LIST.

If the Title List (Original) appears, press

2 Select a title, and press ENTER.

The sub-menu appears.

3 Select “Divide Title,” and press

ENTER.

The display for setting the dividing point appears, and the title starts to play.

• To return to the beginning of the title,

press X PAUSE and then press . PREV.

Erasing and Editing

4 Select the dividing point by pressing

m/M, and press ENTER.

Playback pauses.

5 Press ENTER if the dividing point is

correct.

If the dividing point is incorrect, select the dividing point using c/C, and press ENTER. The display asks for confirmation.

• To change the dividing point, press M.

6 Select “OK,” and press ENTER.

The title is divided in two.

z Hint

After a title is divided, the title name prior to division is assigned to both the first and second parts.

Page 66

DV/Digital8 Dubbing

Before DV/Digital8 Dubbing

This section explains dubbing with a digital video camera via the DV IN jack on the front panel. If you want to dub by way of the LINE IN jacks, see “Recording from connected equipment without a timer” on page 48. The DV IN jack on this recorder conforms to the i.LINK standard. Follow the instructions in “Preparing for DV/ Digital8 dubbing,” and then move on to the section on dubbing. For more information about i.LINK, see “About i.LINK” on page 90.

Preparing for DV/Digital8 dubbing

You can connect a digital video camera to the DV IN jack on the recorder to record or edit from a DV/Digital8 format tape. Operation is straightforward because the recorder will fast forward and rewind the tape for you – you do not need to operate your digital video camera. Do the following to start using the “DV/D8 Edit” functions of this recorder. See the instruction manual supplied with the digital video camera as well before connecting.

z Hint

If you plan to do additional editing on a disc after the initial dub, use the DV IN jack and record on a DVD-RW/DVD-R (VR mode).

b Notes

• You cannot make a recording while DV dubbing.

• The DV IN jack is for input only. It will not output signals.

• You cannot use the DV IN jack when: – s ignal input to the DV IN jack on the front panel

or recorder operation cannot be performed correctly when using a digital video camera (see “About i.LINK” on page 90). Connect the camera to the LINE IN jack and follow the instructions of “Recording from connected equipment without a timer” on page 48.

– the input signal is not in DVC-SD format. Do

not connect a MICRO MV format digital video camera even if it has an i.LINK jack.

– the images on the tape contain copy protection

signals, which limit recording.

• If you want to play the disc on other DVD equipment, finalize the disc (page 35).

Hookups

DVD recorder

to DV IN

i.LINK cable (not supplied)

DV output

Digital video camera

: Signal flow

1 Insert a disc.

See “1. Inserting a Disc” on page 27.

2 Insert the source DV/Digital8 format

tape into your digital video camera.

For the recorder to record or edit, your digital video camera must be set to video playback mode.

Page 67

3 Press INPUT SELECT on the remote

repeatedly to select “DV.”

The front panel display changes as follows:

channel

4 Press REC MODE on the remote

repeatedly to select the recording mode.

The recording mode changes as follows:

For details about the recording mode, see page 39.

5 Press OPTIONS on the remote to

select “DV / D8 Audio Input,” and press ENTER. Then, select the setting for the audio input.

“Stereo1” (default): Records original sound only. Normally select this when dubbing a DV format tape. “Mix”: Records both stereo 1 and 2. “Stereo2”: Records additional audio only. Select “Mix” or “Stereo2” only if you have added a second audio channel when recording with your digital video camera. You are ready to start dubbing. Select one of the dubbing methods on the following pages.

6 Adjust the dubbing picture quality and

size.

Before dubbing starts, press OPTIONS to select “Rec Settings,” and adjust the recording settings (page 42).

b Notes

• You cannot connect more than one piece of digital video equipment to the recorder.

• You cannot control the recorder using another device or another recorder of the same model.

• You cannot record date, time, or the contents of the cassette memory onto the disc.

• If you record from a DV/Digital8 format tape that is recorded in multiple sound tracks, such as a tape with multiple sampling frequencies (48 kHz,

44.1 kHz, or 32 kHz), no sound or an unnatural sound will be output when playing back the sampling frequency switch point on the disc.

• In order to use this recorder’s “Auto Chapter” setting (page 68), be sure to correctly set the clock on your digital video camera before shooting.

• The recorded picture may be momentarily affected or the start and end points of a program may be different from what you have set if the source DV/Digital8 format tape is in any of the following conditions. In this case, see “Recording from connected equipment without a timer” (page 48). – There is a blank space in the recorded portion of

the tape. – The tape’s time code is not sequential. – If the picture size or the recording mode on the

tape being dubbed changes.

DV/Digital8 Dubbing

z Hint

You can turn off the recorder during dubbing. The recorder completes dubbing even after being turned off.

Page 68

Recording an Entire DV

Program Edit

Format Tape (One Touch Dubbing)

RWVR-RW

Video

You can record the entire contents of a DV/ Digital8 format tape onto a disc with a single press of the ONE-TOUCH DUB button on the recorder. The recorder controls the digital video camera for the whole process, and completes the recording.

How chapters are created

The contents dubbed to DVD become a single title. When “Auto Chapter” is set to “On” in the “Recording” setup, this title is divided into chapters. When dubbing a DVDRW/DVD-R (VR mode), each shooting session on the tape becomes a chapter on the disc. For other discs, the recorder divides the title into chapters at approximately 6 minute intervals.

Follow steps 1 to 6 of “Preparing for DV/ Digital8 dubbing” on page 66, and press ONE-TOUCH DUB on the recorder.

The recorder rewinds the tape and then starts recording the tape contents. When the recording is finished, the recorder rewinds the tape in the digital video camera.

To stop during recording

Press x REC STOP. Note that it may take a few seconds for the recorder to stop recording.

z Hint

If you set “Finalize Disc” of “One Touch Dubbing” to “Auto” in the “DVD” setup (page 80), the recorded disc (except DVD-RW (VR mode)) will automatically be finalized after recording is finished.

b Notes

• When a blank space between the recordings on the tape continues for more than five minutes, One Touch Dubbing ends automatically.

• The recorder records a blank for five minutes before it stops dubbing. To stop the blank recording, press x REC STOP.

Video

RVR

Video

RWVR-RW

Video

RVR

You can select scenes from a DV/Digital8 format tape, and then automatically record selected scenes to a DVD. To use this function, do the following:

Connect your digital video camera and prepare for recording

Select and edit the scenes you want to dub

Using the recorder’s remote control, fast forward or rewind the tape to select the scenes. At this point, the selected scenes are not copied to the disc. The recorder only remembers the IN and OUT points of the scenes that you selected for dubbing. You can also erase or change the order of the scenes.

Dub the selected scenes

After you have selected the scenes, the recorder will fast forward and rewind the tape automatically and record the scenes to a DVD.

How chapters are created

The contents dubbed to DVD become a single title. When “Auto Chapter” is set to “On” in the “Recording” setup, this title is divided into chapters. When dubbing to a DVD-RW/DVD-R (VR mode), each shooting session on the tape and each selected scene becomes a chapter on the disc. For other discs, the recorder divides the title into chapters at approximately 6 minute intervals.

1 Follow steps 1 to 6 of “Preparing for

DV/Digital8 dubbing” on page 66, and press SYSTEM MENU.

Page 69

2 Select “DV / D8 EDIT,” and press

ENTER.

The display asks if you want to start selecting scenes.

• If you have previously saved a program, the display asks if you want to edit an existing program or to create a new program. To resume editing the existing program, select “Saved Data,” and go to step 9.

3 Select “Start,” and press ENTER.

The display for setting the IN point (start of the scene) appears. The scene starts to play.

4 Select the IN point using m/M,

and press ENTER.

Playback pauses.

5 Press ENTER if the IN point is correct.

If the IN point is incorrect, select the IN point using c/C, and press ENTER. The display for setting the OUT point (end of the scene) appears.

6 Select the OUT point using m/M,

and press ENTER.

Playback pauses.

7 Press ENTER if the OUT point is

correct.

If the OUT point is incorrect, select the OUT point using c/C, and press ENTER. The selected scene is added to the scene information block.

• To add more scenes, go to step 4.

8 When you finish adding scenes, press

The scene list is displayed.

A Total duration of the program B Total number of scenes C Scene information block

9 Select the scene information block

you want to edit using </,, and press ENTER.

The sub-menu appears. “Move”: Changes the scene order using </, and ENTER. “Erase”: Erases the scene. When asked for confirmation, select “OK.” “Preview”: Plays the selected scene.

• To add more scenes, press M and go to

step 4.

When you finish editing the scene list, select “OK,” and press ENTER.

The display for entering the title name appears. To enter a new name, select “Enter,” and follow the explanations on page 33.

,continued

DV/Digital8 Dubbing

Page 70

Select “OK,” and press ENTER.

The title name is fixed, and the display asks if you want to start recording. To change the dubbing mode, select “Dub Mode” and press M/m.

Data capacity required for the dubbing. This is displayed in red when the size exceeds the available space on the dubbing target media.

Select “Start,” and press ENTER.

The recorder starts recording the tape contents as programmed.

To stop during recording

Press x REC STOP. Note that it may take a few seconds for the recorder to stop recording.

To automatically adjust the dubbing mode

If there is not enough available space on the target disc, the recorder automatically selects a dubbing mode with lower picture quality according to the available space. The same dubbing mode is set for all of the titles. If disc space is insufficient for the selected dubbing mode, the following display appears after step 12.

b Notes

• If you set the beginning of the tape as the IN point and the end point as the OUT point, the IN and OUT points may move slightly during dubbing.

• You cannot set a scene to be shorter than one second.

Select “OK” and go to step 12. If you do not want to change the dubbing mode, select “Cancel.” However, note that dubbing will end before the program is finished.

Page 71

Settings and Adjustments

Antenna Reception and Language Settings (Basic)

1 Select “Tuner Preset” in “Basic,” and

press ENTER.

The “Basic” setup helps you to make tuner, clock, and channel settings for the recorder.

1 Press SYSTEM MENU while the

recorder is in stop mode.

2 Select “SETUP,” and press ENTER. 3 Select “Basic,” and press ENTER.

The options for “Basic” appear. The default settings are underlined. To turn off the display, press SYSTEM MENU repeatedly.

Tuner Preset

b Note

You cannot preset channels for the connected cable box or satellite receiver.

Auto Preset

Automatically presets the receivable channels. The recorder can receive VHF channels 2 to 13, UHF channels 14 to 69, and unscrambled CATV channels 1 to 125. First, we recommend that you preset the receivable channels in your area using automatic presetting methods.

2 Select “Antenna / Cable,” and press

ENTER.

Antenna Presets VHF and UHF

Cable

channels.

Presets cable TV channels.

3 Select an option, and press ENTER. 4 Select “Auto Preset,” and press ENTER.

All receivable channels are preset in numerical sequence.

Manual Channel Setup

Presets or disables channels manually. If some channels could not be set using the “Auto Preset” or “Easy Setup” function, you can set them manually.

1 Select “Tuner Preset” in “Basic,” and

press ENTER.

Settings and Adjustments

,continued

Page 72

Select “Antenna / Cable,” and press

ENTER.

8 Press , to select “AFT.”

Antenna Presets VHF and UHF

Cable

channels.

Presets cable TV channels.

3 Select an option, and press ENTER. 4 Select “Manual Channel Setup,” and

press ENTER.

5 Press M/m to select the channel you want

to activate, and press ENTER.

6 Press </, to select “Activate

Channel,” and press ENTER. The disabled channel will be skipped when you press CH +/–.

On Turns on the Auto Fine

Tuning function. Normally, select this.

Off Allows you to adjust the

picture manually.

9 Select “On” to turn on AFT, and press

ENTER.

• If the Auto Fine Tuning function does not work effectively, select “Off” in step 8 and press ,. Press M/m to obtain a clearer picture, and press ENTER.

10 To preset or disable another channel,

repeat from step 5.

Clock

Auto (Auto Clock Set)

Turns on the Auto Clock Set function when a channel in your local area broadcasts a time signal.

1 Select “Clock” in “Basic,” and press

ENTER.

2 Select “Auto,” and press ENTER.

Yes

No Disables the channels.

Activates the channels.

7 Press M/m to select “Yes” to activate the

channel.

Page 73

3 Select “Full Auto,” and press ENTER.

Yes Automatically sets your

time zone and Daylight Saving Time (if applicable).

No Allows you to adjust

your time zone and Daylight Saving Time manually, without turning off the Auto Clock Set function.

4 Select “Yes,” and press ENTER.

The recorder automatically sets the clock by searching for a channel that carries a time signal and sets your time zone and Daylight Saving Time (if applicable).

• If the clock does not activate, your clock setting is incorrect. After repeating steps 1 to 3 above, select “No” in step 4 and press ENTER. Then select “Clock Set CH,” “Time Zone,” or “Daylight Saving” and press ENTER. Adjust these settings by pressing M/m and ENTER.

Clock Set CH

Select a channel that carries a time signal using the number buttons. Use this option if you know of a channel that carries a time signal. Most PBS member stations broadcast a time signal. For the fastest response select your local PBS station. Leave the setting at “--” to have the recorder automatically search for a channel that carries a time signal. To return to “--,” enter “0.”

Daylight Saving

Select “On” or “Off” (standard time), or select “Auto” to have the recorder automatically set the daylight saving time.

z Hint

If you set “Full Auto” to “Yes,” the Auto Clock Set function is activated whenever the recorder is turned off.

Manual (Manual Clock Set)

If the Auto Clock Set function did not set the clock correctly for your local area, set the clock manually.

1 Select “Clock” in “Basic,” and press

ENTER.

2 Select “Manual,” and press ENTER.

Settings and Adjustments

3 Press M/m to set the month, and press

,. Set the day, year, hour, and minutes in sequence. Press </, to select the item to be set, then press M/m to set the numbers. The day of the week is set automatically.

4 Press ENTER to start the clock.

z Hint

To change the numbers in step 3, press < to return to the item to be change d, and select the numbers by pressing M/m.

Time Zone

Select the time zone for your area, or select “Auto” to have the recorder automatically set your time zone. The options are: Auto y Atlantic y Eastern y Central y Mountain y Pacific y Alaska y Hawaii y Auto

OSD (On-Screen Display)

Switches the display language on the screen.

Page 74

Video Settings (Video)

Video settings will adjust items related to the image, such as size and color. Choose the settings according to the type of TV, tuner, or decoder connected to the DVD recorder.

1 Press SYSTEM MENU while the

recorder is in stop mode.

2 Select “SETUP,” and press ENTER. 3 Select “Video,” and press ENTER.

The “Video” setup appears with the following options. The default settings are underlined.

16:9

4:3 Letter Box

4:3 Pan Scan

b Note

Depending on the disc, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan Scan” or vice versa.

Y/Pb/Pr Out Black Level

Selects the black level (setup level) for the video signals output from the

COMPONENT VIDEO OUT jacks

(page 16). This setting is not effective when the recorder outputs progressive signals.

Video Output

TV Type

Sets the picture size when playing back a title recorded from 16:9 size video (page 42) or a 16:9 size commercial DVD video. Select the playback picture size according to the type of connected TV (wide-screen/wide mode TV or conventional 4:3 screen TV).

16:9 Select this when connecting

4:3 Letter Box

4:3 Pan Scan

to a wide-screen TV or TV with a wide mode function.

Select this when connecting to a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.

Select this when connecting to a 4:3 screen TV. Automatically displays a wide picture on the entire screen and cuts off the portions that do not fit.

On Raises the standard black

Off

Progressive Output

If your TV accepts progressive (480p) format signals, set “Progressive Output” to “On.” You will enjoy accurate color reproduction and high quality images.

level. Select this when the picture appears too dark.

Sets the black level of the output signal to the standard level. Normally, select this.

1 Select “Progressive Output,” and press

ENTER.

2 Select “On,” and press ENTER.

The display asks for confirmation.

3 Select “Start,” and press ENTER.

The video switches to a progressive signal for 5 seconds.

4 If video signal appears OK, select “Yes,”

and press ENTER. If picture is distorted, select “No,” and press ENTER.

Page 75
