digital
voltmeter
100 kΩ
TP (VT)
)
PMC-20
SERVICE MANUAL
Ver 1.0 2000. 02
Model PMC-20 is almost same as PMC-107 US model.
This manual contains only the points which differ from PMC-107 US model.
For the information not contained in this manual, please refer to PMC-107 service manual (9-924-914-S).
( ) : Refer to page of this manual (PMC-20)
(( )): Refer to page of PMC-107

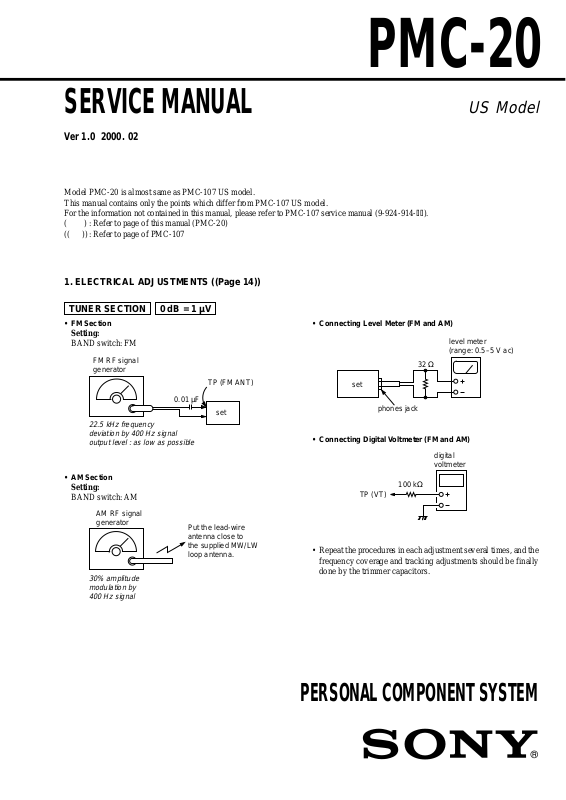

1. ELECTRICAL ADJUSTMENTS ((Page 14))
TUNER SECTION 0 dB = 1 µV
• FM Section
Setting:
BAND switch: FM
FM RF signal
generator
TP (FM ANT)
0.01 µF
set
22.5 kHz frequency
deviation by 400 Hz signal
output level : as low as possible
• Connecting Level Meter (FM and AM)
32 Ω
set
phones jack
• Connecting Digital Voltmeter (FM and AM)
US Model
level meter
(range: 0.5–5 V ac
• AM Section
Setting:
BAND switch: AM
AM RF signal
generator
30% amplitude
modulation by
400 Hz signal
Put the lead-wire
antenna close to
the supplied MW/LW
loop antenna.
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
PERSONAL COMPONENT SYSTEM
– 1 –
FM FREQUENCY COVERAGE
CHECK
Frequency Display 87.6 MHz 108 MHz
Reading on Digital voltmeter 1.55 ± 0.2 V 4.0 ± 0.2V
Adjustment Part <confirmation> <confirmation>
FM TRACKING CHECK
Adjust for a maximum reading on level meter.
<confirmation> <confirmation>
87.6 MHz 108 MHz
AM FREQUENCY COVERAGE
ADJUSTMENT
Frequency Display 530 kHz 1,710 kHz
Reading on Digital voltmeter 0.75 ± 0.05 V 5.4 ± 0.2V
Adjustment Part L2 CT2
AM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L9 CT4
620 kHz 1,400 kHz
Adjustment Location: main board
– MAIM BOARD (COMPONENT SIDE) –
TP (VT)
TU1
R31
AM
TRACKING
ADJUSTMENT
AM
FREQUENCY
COVERAGE
ADJUSTMENT
TP
(FM ANT)
L9
CT4
L2
CT2
– 2 –
2. DIAGRAMS
2-1. BLOCK DIAGRAM — MAIN SECTION — ((Page 25))
PMC-20
ANTENNA
AM
ANTENNA
FM
04
CNP1
LOOP
FM
LEAD
HRP301
RECORD/PLAYBACK
L-CH
R-CH
CAPSTAN /REEL
S301
(MD POWER)
S302
(MD PLAY)
D302
PON+B
AM
HEAD
LPF
Q11
REG
Q12
M301
MOTOR
M
R-CH
VREF
CT4, L9
AM
TRACKING
CT4
3
4
8
((Page 24))
CD SECTION
T301
REC
BIAS
VREF
Q301, 316
+8V
FREQUENCY
COVERAGE
D5
L9
(AM ANT)
OSCOUT
VT
RFIN
RFPUT
VDD
TUNER PACK
TU1
SW301-2
PB REC
62
T-PLAY
CT2, L2
AM
CT2
CD L-CH
1
VREF
SW301-1
PB REC
BIAS
OSC
55
23–20
+8V
1
5
Q303
REC
COM0
LCD801
+5V
REC
REC/PB
CONTROL
Q302, 315
COM3
19–1, 80–78 30•31 35–38
L2
AMP
Q1
PB
SEG0
SEG21
70 69 68 57
4 5 6 7
PD1
21
AM RF
24 3 7
FM
RF
1
CDIN1
22
PBIN1
5
REC1
4
P/R
21
6
VREFVREF
R-CE
R-CLK
R-DATA
R-COUNT
CE
CK
DA
CD
AM IN
FM IN
17 16 1 2 8
FM
MIX
FM
OSC
OSC
2123
AM
OSC
AM
MIX
PRE-AMP
IC301
ALC AMP
RAIN1
24
TEX
TX
X802
32.768KHz
PLL
IC2
XOUT
X1
75KHz
FM/AM FRONT-END, IF DET,
FM STEREO DEMODULATOR
OUT1
20 31 24 2
TU 5V
CONTROL
CLOCK
SHIFT
Q804
XIN
IC1
CFT1
Q20
SEL
17
TAPE
15
52
TAPE
72 74 76 32 58 6167
SYSTEM CONTROL/LCD DRIVE
EXTAL
XTAL
X801
4.19MHz
CLOCK
SHIFT
Q803
MO/ST
9 14
Q10
14 181922
IF
MO/ST
BUFFER
6
CF2CF1
5V REG
Q2
IC801 (2/2)
SHIFT-CLK
IF IN
AM
DET
FM
DET
AUDIO 8V
RESET
IC804
COM 5V
FM
15 10
BAND
QUAD
VOLUME/SOUND CONTROL
IC302
IN2
SURROUND TONE VOL
CONTROL
PORT2
PORT1CKDATA
13 12 20 19 18
RST
R-ST
R-MUTE
Q15
Q8
ST-IND
AF
BUFFER
17 16
OUT2
VC
23
Q304
BC
LATCH
21
MUTE
CONTROL
Q305, 317
49 48 50 47
V-CE
V-CLK
V-DATA
KEY1
KEY4
WP
Q805
D806, 807
SW801
|
SW819
H. FREQ.
CUT
Q7
IF CUT
CF4CF3
AUDIO 8V
FM
MPX
13
VCO
H. FREQ.
POWER AMP
POWER AMP
CONTROL
Q313, 314
A-MUTE
MUTE
189
IF CUT
Q9
IC303
STBY
5
60
RECEIVER
R
L
PA-CON
28
SIRCS
IC803
12
11
RMC
R-CH
R-CH
12
RADIO
53
CD
54
REG-CON
REG-CHK
42
51
COM 5V
VDD 5V
+5V
TU 5V
CD 5V
+8V
D802
D805
D804
J302
PHONES
SP301
SPEAKER
(L-CH)
TUNER 5V
SWITCH
Q306
CD 5V
SWITCH
Q307
LED/LAMP
B+ SWITCH
DRIVE
Q806
Q801, 802
D801
OPERATION
VCC
5V REG
Q308
8V REG
Q309, 310
POWER ON
SWITCH
Q311, 312
+5V REG
IC802
RECT
D901–904
D905
T901
POWER
TRANSFORMER
AC IN
Signal path
: FM
R-CH
: AM
: PLAY
Q13
: REC
: CD
R-ch : same as L-ch.
– 4 –– 3 –
PMC-20
2-2. PRINTED WIRING BOARD — MAIN BOARD — ((Page 32))
