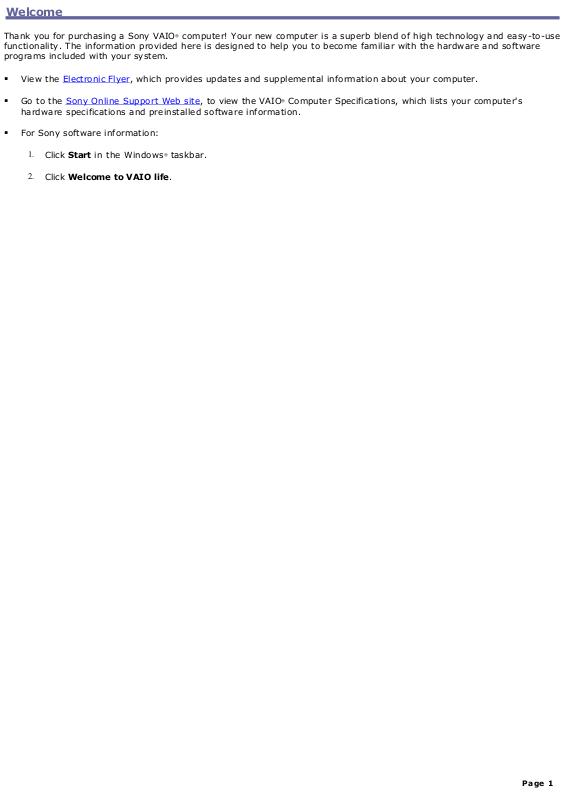

Welcome

Thank you for purchasing a Sony VAIO® computer! Your new computer is a superb blend of high technology and easy-to-use functionality. The information provided here is designed to help you to become familiar with the hardware and software programs included with your system.

View the Electronic Flyer, which provides updates and supplemental information about your computer.



Go to the Sony Online Support Web site, to view the VAIO® Computer Specifications, which lists your computer's



hardware specifications and preinstalled software information.

For Sony software information:



Click Start in the Windows® taskbar.

Click Welcome to VAIO life.

Page 1

Getting Started

Congratulations on your purchase of the Sony VAIO® computer! Your new, high-performance, multimedia computer combines state-of-the-art computer functionality with the latest audio, video and information technology features.

Unpacking Your Computer



Planning an Ergonomic Work Space



Page 2

Unpacking Your Computer

Your computer may not be supplied with all of the accessories shown, depending on the system configuration purchased. For details on the accessories supplied with your computer, see the online Specifications sheet.

Your VAIO® computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery utility to recover your computer's operating system and preinstalled software.

Computer and supplied accessories

Giga Pocket Personal Video Recorder accessories (For models equipped with Giga Pocket features)

Manuals

VAIO® Computer Quick Start — Provides basic information on setting up and registering your computer. The Quick



Start also provides resources for technical support, safety guidelines, and owner's information.

Online Documentation

VAIO® Computer User Guide — Contains information on the hardware and preinstalled software applications



included with your system.

To access the online manual:

Page 3

Click Start in the Windows taskbar, then click Help and Support.

From the VAIO Help And Support Center menu, click VAIO User Guide.

Specifications — This online specifications sheet describes the hardware and software configuration of your VAIO



computer.To access this online information, go to the Specifications sheet.

VAIO Software — Provides specific information on the preinstalled software on your computer.



To access this online software information:

Click Start in the Windows® taskbar.

Click Welcome to VAIO life.

Hard Disk Drive Recovery

Your computer is equipped with the VAIO Recovery Wizard, a utility program that recovers your computer's operating system and preinstalled software.

For more information about hard disk recovery

Click Start in the Windows® taskbar, then click Help and Support.

From the VAIO Help And Support Center menu, click VAIO Recovery Options.

Other

A software library, containing the Microsoft® software and Sony® end-user license agreements.

Page 4

Planning an Ergonomic Work Space

Before you set up your new computer, find the best location for your new computer and plan your work space. There are several ergonomic factors to consider when you arrange your work space:

Stable work surface — Use a stable work surface large enough to support the computer and other peripheral



equipment.

Ventilation — Leave at least eight inches of space on the left and back sides of your computer to enable proper



ventilation.

Placement of the keyboard, mouse, and other input devices — Place your keyboard, mouse, and other input



devices so that your arms and hands are in a relaxed, comfortable position. The keyboard should be directly in front of you. Adjust the level of the keyboard so that your lower arms are parallel to the floor. Keep your wrists in a relaxed position when you are using the keyboard — not angled up or down. Use the palmrest only briefly, for resting. While typing, never use the palmrest or rest your hands on the table. Position the mouse at the same level as the keyboard. Hold the mouse with a relaxed hand, and use your whole arm to move it. Take breaks during sessions with your computer. Excessive use of the mouse or a joystick may strain muscles or tendons.

Furniture and posture — Sit in a chair with good back support and armrests. Adjust the level of the chair so your



feet are flat on the floor. A footrest may make you more comfortable. Sit with relaxed, upright posture — avoid slouching forward or leaning far backward.

Viewing angle of the display — Position the display 18 to 26 inches directly in front of you, with the top of the



screen at or a little below eye level. Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by placing the display in the proper position.

Lighting — Choose a location where windows and lights do not create glare and reflection on the display. Use



indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare. Proper lighting adds to your comfort and work effectiveness.

Page 5

Locating Controls And Ports

This section is intended to familiarize you with the controls, ports and jacks on your computer. Your computer may not be equipped with all of these hardware features, and the location of the controls, ports, and jacks may vary from the illustrations shown in this section. To view the specific connection capabilities for your system, see the online specifications sheet.

About the Front Panel



About the Back Panel



About the Keyboard



About the Remote Control



Page 6

About the Front Panel

The front panel of your VAIO® computer enables access to the optical and floppy disk drives. On certain models, the front panel also provides access to a Memory Stick® media slot, Giga Pocket® Personal Video Recorder features, SmartMedia , CompactFlash®/Microdrive media card slot, Universal Serial Bus (USB) and i.LINK® ports that enable you to connect compatible peripheral devices. System configuration may vary, depending on the model purchased. See the online specifications sheet for details.

Front panel

1 Optical drive 1

See the online specifications sheet for optical drive information.

2 Optical drive 21

See the online specifications sheet for optical drive information.

3 Floppy disk drive

Reads and writes data from and to a 3.5-inch floppy disk.

4 Floppy disk drive access indicator

Light is green while reading and writing data from and to a floppy disk.

5 Power button

The power button turns the computer on/off.

Page 7

6 Standby indicator

Light is amber when the computer is in Stand by mode.

7 Memory Stick media slot and access indicator2

Reads and writes data from and to a Memory Stick® media. The access indicator is amber when reading or writing data to a Memory Stick media.

8 Media access indicator3

Light is amber when reading or writing data.

9 S-video In jack1

Connection for an S-video cable (optional).

Composite video In jack1

Connection for a video cable (optional).

Composite audio L In jack1

Connection for an audio cable (optional).

Composite audio R In jack1

Connection for an audio cable (optional).

10 Optical drive 1 eject button

Ejects a disc from Optical drive 1.

11 Optical drive 2 eject button

Ejects a disc from Optical drive 2.

12 Floppy disk eject button

Ejects a floppy disk.

13 Power indicator (VAIO)

Light is blue when the computer is on. The light turns off when the computer is in Standby mode or turned off.

14 Hard disk drive and optical disc drive access indicator

Light is amber while reading and writing data.

Page 8

15 CompactFlash/Microdrive media card slot1

Reads and writes data from and to CompactFlash or Microdrive media.

16 SmartMedia card slot1

Reads and writes data from and to a SmartMedia media.

17 Universal Serial Bus (USB 2.0) ports4

Connections for compatible high/full/low-speed USB devices.

18 i.LINK 4-pin S400 port (IEEE 1394)

Connection for a compatible digital device.

A s econd optical drive may not be available on your V A IO® c omputer. See the s pecifications s heet for details on your c omputer's hardware c onfiguration.

Not available on all models. See your online specifications s heet for details.

O n models equipped with these hardware features, the media access indic ator light is amber when reading or writing data to the SmartM edia or

C ompactFlash®/Microdrive slots.

T he number of U SB ports may vary depending on the model purc has ed.

For your convenience, your computer includes USB and i.LINK ports on both the front and back panels. The 4-pin i.LINK port is located on the front panel and the 6-pin i.LINK port is located on the back.

Additional information

Your computer is equipped with one or more optical disc drives that have a drive eject button on the drive door.

After pushing the eject button, wait for the drive to stop reading the CD. It may take a few moments for the drive



tray to eject.

Gently push the drive tray in, when closing the optical drive door. Do not force the door or handle roughly.



After closing the drive door, wait a few moments for the drive to begin reading the CD.



Page 9

About the Back Panel

The back panel of your computer contains the ports for supplied and optional accessories. The icons on the back panel locate and identify the ports and jacks on your computer.

Your configuration may vary based on the system you purchased.

Back panel

1 AC Input port

Connection for the supplied power cord.

2 Mouse port

Connection for a PS/2® mouse.

3 Keyboard port

Connection for a PS/2® keyboard.

4 Printer port

Connection for a parallel device, such as a printer or scanner.

5 Monitor port1

Connection for a standard display.

6 i.LINK 6-pin S400 port (IEEE 1394)

Connection for a compatible digital device.

Page 10

7 Universal Serial Bus (USB 2.0) ports (4)

Connections for compatible high/full/low-speed USB devices.

8 Microphone jack

Connection for a microphone (optional).

Headphones jack

Connection for the supplied speakers or optional headphones.

Line In jack

Connection for an audio device.

9 Monitor port1

Connection for a standard display.

10 Composite audio R In jack2

Connection for an audio cable (optional).

Composite audio L In jack2

Connection for an audio cable (optional).

Composite video In jack2

Connection for a video cable (optional).

S-video In jack2

Connection for an S-video cable (optional).

11 Modem line jack

Connection for the modem cable (supplied) to the wall jack.

12 S/P DIF Optical Out port

Connection for a digital audio or optical device.

13 Ethernet port

Connection for a 10BASE-T/100BASE-TX Ethernet interface.

Page 11

(The port marked with (Network) is for LAN connections only.)

14 Monitor (DVI) port1

Connection for a DVI monitor.

15 TV Out (S-Video/video) jack2

Connection for an S-video cable (optional).

16 VHF/UHF port2

Connection for a TV coaxial cable (supplied).

T his monitor port is not available on all models and monitor port locations may vary. For details about your computer's hardware configuration, see the

online specific ations s heet.

Giga Pocket® P ers onal V ideo Recorder features are not available on all models. For details about your c omputer's hardware c onfiguration, s ee the online

specific ations s heet.

i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other.

Refer to the documentation that came with your compatible i.LINK device for information on operating conditions and proper connection. Before connecting compatible i.LINK devices to your system, such as an optical or hard disk drive, confirm their operating system compatibility and required operating conditions.

Page 12

About the Keyboard

Your VAIO® keyboard uses a standard key arrangement with additional keys that perform specific functions.

VAIO Keyboard

KEY DESCRIPTION

Function The 12 function keys along the top of the keyboard are used to perform certain tasks. The task

associated with each function key may vary from one application to the next.

Volume Control Press a button to increase (+) or decrease (-) the volume of the speakers.

Mute Press the button to turn off the speaker sound. Press the Mute button again to restore sound.

Standby Press the button to place the computer in Standby mode. Press the Power button or any key

briefly, to resume normal operation.

Numeric keypad Use the numeric keypad area to type numbers or to perform basic math calculations. Press the Num Lock key to activate the numeric keypad. (The Num Lock indicator lights.) Press the Num Lock key again to deactivate the numeric keypad.

Directional Arrows The Up, Down, Left, and Right arrow keys move the pointer on the screen.

Applications

The Applications key displays a shortcut menu in certain software applications. Pressing this key

is equivalent to clicking the right mouse button.

Windows

The key with the Microsoft® Windows® logo, displays the Start menu. Pressing this key is

equivalent to clicking Start on the taskbar.

INDICATORS FUNCTION

Num Lock The Num Lock indicator lights when the numeric keypad is activated. When the indicator is off, the directional

arrow and correction keys on the numeric keypad area are active.

Page 13

Caps Lock The Caps Lock indicator lights up to advise you that the keyboard is set to type letters in uppercase. When

the indicator is off, the letters appear in lower case as you type. Scroll Lock The Scroll Lock indicator lights up to advise you that your screen's scrolling pattern has changed. When the indicator is off, the screen scrolls normally. This function is not available with all software applications.

Page 14

About the Remote Control

The remote control is supplied with VAIO® computers that are equipped with Giga Pocket® Personal Video Recorder features . The remote control can start and stop video recording and playback, select channels, and set viewing preferences. This section describes the basic functions of your remote control.

Remote control

1 MUTE button

Press to turn off the sound. Press again to restore the sound.

2 Channel number buttons (0-9)

Press to select specific channels.

(Press the ENT button to activate channel selection.)

JUMP button

Press to go to the previous channel. Press again to return to the current channel.

ENTER button

Press to activate channel selection. See Channel number buttons.

Page 15

3 REC STOP button

Press to stop recording.

(Note: The REC STOP function is only available for the Giga Pocket® Personal Video Recorder software program.)

4 REC button

Press to begin recording.

(Note: The REC function is only available for the Giga Pocket software program.)

5 TV button

Press to change from the on-screen image to the TV/Recording deck.

VIDEO button

Press to change to the external video equipment, such as your VCR.

(Note: You cannot change the input source while recording.)

DVD button

Press to change to an external DVD device, such as a DVD player.

MUSIC button

Press to launch the SonicStage software program.

HOME NETWORK button

Press to launch the VAIO Media software program.

6 Direction and ENTER buttons

Press a direction arrow to navigate. Press ENTER to select.

7 BACK button

Press to return to the previous screen.

(Note: This function is not available for the Giga Pocket® software program.)

8 APPLICATION START button

Press to launch the Giga Pocket software program.

Page 16

9 VOLUME button

Press to raise or lower the volume.

10 STANDBY button

Press to place the system into Stand by mode.

(Note: You cannot place the computer into Stand by mode when certain Giga Pocket software program functions are running.)

11 AUDIO button

Press to view available sound mode options on the monitor/display.

TV/VIDEO button

Press to change the on-screen image from the TV/Recording deck to external video equipment, such as your VCR.

(Note: You cannot change the input source while recording.)

DISPLAY button

During DVD playback in full screen mode, press to show the settings window. When using the Giga Pocket software program, press to display the TV/Recording deck and playback deck screens. Press again to hide these views.

SIZE button

Press to view the current software program in full-screen size. Press again to return the view to its original size.

12 FUNCTION button

When the Giga Pocket software program is selected, using the MENU button, press the Function button to switch from the TV/recording deck to the playback deck.

When using the SonicStage software program, press to change from the music drive (hard disk drive) to the CD.

13 REW and FF buttons

Press to rewind or fast-forward.

PREV and NEXT buttons

Press to move back to the previous screen or forward to the next screen.

STOP button

Press to stop playback.

Page 17

PLAY button

Press to begin playback.

PAUSE button

Press to pause playback.

14 MENU button

Press to view a shortcut menu of available software programs. Press again to hide this menu.

(Note: For the Giga Pocket® software program, the Select Video Capsules window displays. Press the button again to hide this window.)

15 TOOLS button

The function of this button may vary between DVD media. See the DVD player software program instructions for details.

16 APPLICATION CLOSE button

Press to close the Giga Pocket software program.

17 CHANNEL button

Press to change channels automatically (no number input required).

(Note: This function is only available for the Giga Pocket software program.)

For more details about the function buttons on your remote control, see Giga Pocket Help.

To set up the remote control

Insert two AA batteries (supplied) into the remote control as shown.

Inserting batteries into the remote control

If your remote control does not operate properly, the batteries may need to be replaced. When your remote control is not being used for extended periods of time, remove the batteries to avoid possible damage from battery leakage.

See the online specific ations s heet for information about your computer's hardware configuration.

Page 18

Setting Up Your Computer

Your computer may not be equipped with all of the hardware features described in the section. The location of the controls, ports, and jacks may vary from the illustrations shown. See the online specifications sheet for your system's specific hardware configuration.

Connecting a Display (Monitor)



Connecting the Speakers



Connecting the Keyboard and Mouse



Connecting the Telephone and Modem Cables



Connecting the Power Cords



Turning On your Computer



Registering your Computer



Turning Off your Computer



Page 19

Connecting a Display (Monitor)

Plug the display's cable into the appropriate monitor port. If necessary, plug the display's cable into the back of the display.

The location and availability of the monitor ports may vary, depending on the model purchased. For details about your computer's hardware configuration, see the online specifications sheet.

To connect a display

To connect a DVI display

Install your equipment so that you can easily reach the power outlet in the event of an emergency.

Page 20

Connecting the Speakers

The right and left speakers are attached. The right speaker has a speaker wire with a jack connector and an AC power cord that supplies power to both speakers.

From the right speaker, plug the jack connector into the Headphones jack located on the back panel of your computer.

From the right speaker, plug the AC power cord into a grounded AC wall outlet or surge suppressor.

To connect the speakers

Page 21

Connecting the Keyboard and Mouse

Plug the keyboard cable into the keyboard port on the back of the computer.

Plug the mouse cable into the mouse port on the back of the computer.

To connect the keyboard and mouse

To use an optical mouse

An optical mouse requires an ideal surface in order to provide proper pointing and tracking.

Use surfaces such as plain paper, card stock, or fabric that have minimal repetitive patterning.



Avoid surfaces such as mirrors, smooth glass, or magazines that have half- tone printing.



Page 22

Connecting the Telephone and Modem Cables

Your computer is equipped with a single modem line jack to connect the supplied modem cable to your telephone wall jack. To use your wall jack for your telephone and modem lines, purchase a "1-to-2" jack adapter device (splitter).

To connect the modem cable

Unplug your telephone from the wall jack.

Plug the modem cable (supplied) into the modem line jack located on the back panel of your computer

Plug the other end of the modem cable into the wall jack.

To connect the telephone and modem cables

Unplug your telephone cable from the wall jack.

Insert the telephone cable into one of the RJ-11 jacks on an optional "1-to-2" jack adapter device (splitter).

Insert one end of the modem cable (supplied) into the other RJ-11 jack on the splitter device.

Insert the plug end of the splitter device into the wall jack.

Plug the modem cable into the modem line jack located on the back panel of the computer.

To connect the telephone and modem cables

Your computer has a protective sticker covering the Ethernet port located on the rear panel. Connect only

Page 23

10BASE-T and 100BASE-TX cables to the Ethernet port. Using other cables or a telephone cable may result in an electric current overload that can cause a malfunction, excessive heat, or fire in the Ethernet port. For help on connecting to a network, see your network administrator.

Page 24

Connecting the Power Cords

Plug the power cord into the AC Input port, located on the back panel of the computer.

Plug both the display and computer power cords into a grounded AC wall outlet or a power strip.

To connect the power cords

Page 25

Turning On your Computer

When you start your system for the first time, your computer may detect new equipment and display a dialog box that prompts you to restart your computer. Respond to this prompt immediately.

Press the power button on the computer to turn on the power.

Press the power button on the display to turn on the power.

Press the power button, located on the side of the right speaker, to turn on the power.

To turn on your computer

Page 26

Registering your Computer

Take advantage of Sony's commitment to quality customer support and receive these benefits by registering your computer:

Sony Customer Support — Communicate with a Support Representative to troubleshoot problems you may be



having with your computer.

Limited warranty — Protect your investment. See the Limited Warranty Card for more details.



You are prompted to register your computer the first time you turn on the unit. Follow the on-screen instructions to complete the registration process. If you are not able to register your computer during the first session, you are provided with additional registration opportunities later.

Page 27

Turning Off your Computer

Follow these steps when you are ready to turn off your computer for an extended period of time.

To avoid loss of data, do not use the Power button to turn off the computer.

To turn off your computer

Click Start in the Windows taskbar, then select Turn Off Computer.

The Turn Off Computer dialog box appears.

Select the Turn Off option.

Respond to any prompts about saving your documents.

Wait for your computer to turn off automatically—the power indicator light turns off.

Turn off any peripheral devices connected to your computer.

If you plan to stop using your computer for a short period of time, use Stand by mode.

About the power button

If your system stops responding, press and hold the Power button for more than six seconds to force your system to shut down. You may need to repeat this procedure if your system does not shut down on the first attempt.

Page 28

Giga Pocket Personal Video Recorder

Giga Pocket® Personal Video Recorder is a suite of interactive Sony audio and video components that are designed to create, capture, and play back video files derived from television and your personal videos.1

Giga Pocket Personal Video Recorder hardware and software applications are not available on all VAIO® computers. See your computer's online specifications sheet for details on your system configuration.

About Giga Pocket Personal Video Recorder



Setting Up Giga Pocket Personal Video Recorder



Setting Up Giga Pocket Software



Giga Pocket



Timer Recording Wizard



Timer Recording Manager



Giga Pocket Explorer



CLIÉ Converter



Glossary



Internet Electronic Program Guide Service



U nauthorized duplication of audio or video files is a violation of applicable laws.

Page 29

About Giga Pocket Personal Video Recorder

Giga Pocket Personal Video Recorder is a unique set of tools that enhance your VAIO® computer's capabilities. Giga Pocket gives you a wide range of video viewing, recording, and playback capabilities, such as:

Watching and recording television programs from your computer.



Viewing and recording TV programming simultaneously.



Setting and managing daily/weekly timer recording schedules.



Managing Video Capsules (recorded video contents) on your computer.



Recording personal video content from a videotape.



Playing your Video Capsules on other computers.



Operating Giga Pocket functions with a remote control device.



Sharing Giga Pocket features and functions with other computers on a network.



Transforming Video Capsules into gMovie format for viewing on your CLIÉ handheld.



For an explanation of Giga Pocket terms, see the Glossary.

Page 30

Giga Pocket Personal Video Recorder includes:

Giga Pocket — This application enables you to watch TV programs on your computer's display and record them onto



the hard disk drive as Video Capsules for later playback.

Timer Recording Manager — The Timer Recording Manager keeps track of all TV program recordings you have



scheduled. This program also enables you to modify timer recordings.

Timer Recording Wizard — The Wizard interface guides you through setting up a timer recording schedule. You can



program one-time recordings and set up daily or weekly recurring recording schedules.

Giga Pocket Explorer — The Giga Pocket Explorer program functions as your video file management system, and



stores recorded Video Capsules as well as modified Playlists. Giga Pocket Explorer contains export/import functions for file format conversions.

Giga Pocket Server — The Giga Pocket Server enables multiple computers on a network to use certain Giga Pocket



software functions.

CLIÉ Converter — The CLIÉ Converter is a plug-in application that enables the conversion of Video Capsules into



gMovie format. You can change the format your Giga Pocket® contents and transfer them onto a Memory Stick media for viewing with your Sony CLIÉ Handheld.

Accessing the Giga Pocket Help

For more information about Giga Pocket Personal Video Recorder, follow these steps:

Click Start in the Windows® taskbar and select All Programs.

Select Giga Pocket, Help, and click Giga Pocket Help.

Giga Pocket Personal Video Recorder maintains information about the software and Video Capsules on your

computer's drive D, in a folder named D:\Giga Pocket V5. This folder and its contents are not designed for your direct maintenance. Please do not move, modify or delete the Giga Pocket Folder or any of its contents. Any alteration to this folder or its contents may cause your Giga Pocket software and Video Capsules to stop working properly.

Page 31

Setting Up Giga Pocket Personal Video Recorder

This section illustrates how to set up the cables and connections for your Giga Pocket® Personal Video Recorder system.

The hardware configuration of your computer may vary from the illustrations shown. To view the specific hardware configuration for your computer, see the online specifications sheet.

Page 32

To set up TV connections

The best method of connecting your computer system, TV monitor or display, and cable service access, depends on the type of cable connection available in your home.

Your VAIO® Computer is supplied with an antenna cable. Depending on your in-home cable access, you may require extra cables, adapters or connection equipment not supplied with your computer.

Connecting to standard cable access (CATV)

Option 1

Connect one end of the TV coaxial cable (supplied) to your cable service access.

Connect the other end of the TV coaxial cable to the VHF/UHF port on the back panel of your computer.

To connect in CATV mode (Option 1)

Option 2

Connect one end of a TV coaxial cable (optional) to your cable service access. Connect the other end to the single-connection end of a splitter adapter.

Connect the TV coaxial cable (supplied) to the double-connection end of the splitter adapter. Connect the other end to the VHF/UHF port on the back panel of your computer.

Connect a third TV coaxial cable (optional) to the double-connection end of the splitter adapter. Connect the other end to the VHF/UHF port on the rear of your TV monitor or display.

To connect in CATV mode (Option 2)

Connecting to a standard antenna (air)

Page 33

You can connect your Giga Pocket system to an indoor/outdoor antenna system, using Option 1 or 2 from the previous section, Connecting to standard cable access (CATV). Depending on the type of antenna system in your home, your connection may require a VHF/UHF RF combiner/transformer (optional) to connect your computer and the indoor/outdoor antenna system.

If you are connecting to an indoor/outdoor antenna, you may need to reorient the antenna for best reception.

Option 1

Connect one end of a TV coaxial cable (optional) to your antenna outlet. Connect the other end to a VHF/UHF RF combiner/transformer (optional).

Connect the TV coaxial cable (supplied) from the combiner/transformer to the VHF/UHF port on the back panel of your computer.

Option 2

Connect both ends of the antenna's twin lead cable to the screw-type grips on the combiner/transformer.

Connect the TV coaxial cable (supplied) from the combiner/transformer to the VHF/UHF port on the back panel of your computer.

To connect in standard antenna mode (air)

Your VAIO® Computer is supplied with an antenna cable. Depending on your in-home cable access, you may require extra cables, adapters or connection equipment not supplied with your computer.

Connecting with a cable or satellite set-top box (STB)

You can connect your Giga Pocket system to cable service access that uses a set-top box (cable or satellite).

Option 1

Connect one end of a TV coaxial cable (optional) to your cable service access. Connect the other end to the In jack on the back panel of your set-top box (STB).

Connect a second TV coaxial cable (optional) to the Out jack on your STB. Connect the other end to the single-connection end of a splitter adapter (optional).

Connect a third TV coaxial cable (supplied) to the double-connection end of the splitter adapter. Connect the other end to the VHF/UHF port on the back panel of your computer.

Page 34

Connect a fourth TV coaxial cable (optional) to the double-connection end of the splitter adapter. Connect the other end to the VHF/UHF port on the rear of your TV monitor or display.

To connect in STB mode (Option 1)

Option 2

Connect one end of the TV coaxial cable (supplied) to your cable service access. Connect the other end to the In jack on the back panel of your set-top box (STB).

Connect a second TV coaxial cable (optional) to the Out jack on your STB unit. Connect the other end to the VHF/UHF port on the rear of your TV monitor or display.

Connect one end of the stereo A/V dubbing cables with triple RCA jacks (optional) to the Video Out and Audio-OUT (L/R) jacks on the back panel of your STB unit, matching the plug and jack colors.

Connect the other RCA jacks of the stereo dubbing cable into the Audio-R (IN), Audio-L (IN), and Composite video (IN) jacks on the back panel of your computer, matching the plug and jack colors.

To connect in STB mode (Option 2)

Page 35

Page 36

To set up additional equipment

This section illustrates how to set up additional equipment with the Giga Pocket Personal Video Recorder System.

Your VAIO® computer has both audio and video connection capability. The connections are located behind the bottom panel on the front of the system unit. You can connect a compatible VCR, camcorder or other digital video device, using the audio jacks and video ports.

Connecting a device using an audio cable

Connect a dual audio cable (optional) to the composite audio L and R jacks, located on the either the front or back panels of your computer.

Connect the other ends of the dual audio cable to your device.

Connecting a device using an S-video or video cable

Your device may have either standard video or S-video connection capability.

Option 1

Connect an S-video cable (optional) directly into the S-video jack on either the front or back panel of your computer.

Connect the other end of the S-video cable into the appropriate port on your compatible device.

Connect an audio cable with double RCA plugs at each end (optional) into the composite audio L and R jacks.

Option 2

Connect a stereo A/V dubbing cable with triple RCA plugs at each end (optional) directly into the composite video port, composite audio L and R jacks, located on either the front or back panel of your computer.

Connect the other ends of the stereo A/V dubbing cable into the appropriate jacks on your compatible device.

To connect a VCR or camcorder (Option 1)

Connecting the infrared receiver

Connect the infrared receiver cable to a USB port located on either the front or back panel of your computer. Place the infrared receiver unit in a position that enables it to communicate with your remote control.

The infrared receiver must be visible in a line-of-sight with your remote control in order to function properly.

Page 37

Connecting the infrared receiver (back panel)

Page 38

Setting Up Giga Pocket Software

Giga Pocket® Personal Video Recorder software features and functions are detailed in this section, enabling you to begin viewing or recording TV programs.

Page 39

To set up TV viewing

When you start Giga Pocket Personal Video Recorder for the first time, you are automatically prompted to set the video input source for watching TV or cable TV (CATV) programs on your computer.

Starting Giga Pocket for TV Setup (For first time setup)

Verify that the computer time and date settings as displayed in the taskbar are correct.

To adjust these settings:

Right-click with your mouse. A shortcut menu appears.

Select Adjust Date/Time, and a dialog box appears.

Correct the date and time, if necessary.

Click Start in the Windows taskbar, point to All Programs, point to Giga Pocket, point to All Software, and then click TV Setup.

The TV Setup Wizard appears.

TV Setup Wizard

Depending on your cable service access, select Standard CATV, Standard antenna, or set-top box (STB).

Standard CATV (C1-C125) without STB — For this connection, you must use a coaxial cable directly (without an STB) to your computer. The default setting for this connection option is STD. Depending on your local connection requirements, HRC and IRC are also available.

Standard antenna (2-69) — Select this option if you connect an aerial antenna's coaxial cable directly to your computer for watching TV programs.

STB (Set top box) — Select this option if the broadcast signal is received from a set top box (STB) such as a digital cable box or a satellite cable box. Make sure that the Input channel on your STB (Ch. 3, Ch. 4, etc.) matches the Input channel listed in the Giga Pocket TV Setup dialog box.

If you are not sure of the type of cable connection to use (Standard, HRC, or IRC), contact your cable provider for information.

Page 40

Click Next. The wizard displays a dialog box that enables you to customize the channel listings.

Click Auto Scan.

You can view the channel reception in the pop-up TV Setup - Monitor window.

TV Setup Wizard - Customize the channel listing

If your computer is connected to the Internet, you can click Go to Web Site... and download channel listings from the iEPG listing site.

Connect to the Internet.

Click Go to Web Site... and download channel listings by clicking Download all Channel Settings.

Click Next. For the first time setup, you are prompted to set your Giga Pocket Server password.

TV Setup Wizard - Giga Pocket Server password

Page 41

Type in a password and click Finish.

Setting up your display (monitor)

When using Giga Pocket® Personal Video Recorder, set your display settings as follows:

Colors — Use the default factory settings (32-bit).



Screen area — Use the default video resolution.



If you change the default settings, you may experience poor image quality on your display.

Microsoft® Windows® XP operating system supports a single Giga Pocket user at any given time. Even if a different user logs on using the fast switch feature, Giga Pocket is not available to any other user account. For more information, see Giga Pocket Help.

Page 42

Giga Pocket

Giga Pocket® enables you to watch a TV program on your computer display while recording it onto your hard disk drive. Using the Giga Pocket Slip Play feature, you can view a program from the beginning even while it is being recorded.

Page 43

Starting Giga Pocket

Click Start in the Windows® taskbar, point to All Programs, point to Giga Pocket, then click Giga Pocket. The Giga Pocket window appears.

Giga Pocket window

The current television broadcast is displayed, based on the selected channel.

Page 44

Using the TV/Recording deck and Playback deck

Giga Pocket® features two decks on the main interface window: the TV/Recording deck and the Playback deck.

TV/Recording deck (detail)

Use the TV/Recording deck to view programs and record Video Capsules. You can use the Playback deck of your Giga Pocket to play back a prerecorded Video Capsule.

Playback deck (detail)

Page 45

Recording a Video Capsule

Giga Pocket stores recorded images as Video Capsules. The Video Capsules provide file recording information, which can be viewed through Giga Pocket Explorer. Manage your Video Capsules with Giga Pocket Explorer.

You cannot record a program into a previously recorded Video Capsule. All new content is recorded into a new Video Capsule.

Select your program by switching to the appropriate channel. Use the channel buttons located at the bottom of the Giga Pocket window, or use the right and left direction arrows on your keyboard.

Click Record , located at the bottom of the window, to begin recording your Video Capsule.

When your program has completed or you wish to end the Video Capsule, click Stop .

To pause your recording session, click Pause . Click on it again to resume recording.

Using the Slip Play feature

While a program is being recorded on the TV/Recording deck, you can watch that same program from the beginning, using the Playback deck. You can begin using Slip Play to view your recording, beginning approximately ten seconds after your recording session begins.

From the menu bar, click Functions.

Select Start Slip Play.

Additional information about Giga Pocket

Giga Pocket® can be used for external video recording. Depending on conditions, not all video images can be



recorded or displayed.

Video input from game consoles may not be recorded or displayed in Giga Pocket.



When you input an image from a video player device, such as a VCR that is connected to your computer, the



following images may not record or display:

The still images of a paused playback screen.



A screen without images, such as a blue screen.



The menu screens of the attached video player device.



The Giga Pocket software's displayed image or images from a prerecorded Video Capsule may be interrupted or



distorted under the following circumstances:

If you change the channel on an attached video player device.



If you switch input during the analog input from an attached video player device.



If you attempt to play back a damaged video tape.



If you press Pause during the recording process.



When you play a Video Capsule for a few seconds from the end of the film roll using the scroll bar, you may not be



able to see a displayed image.

The computer's response may decrease when you attempt to play a Video Capsule while recording a TV program



using Giga Pocket.

Giga Pocket may interrupt or stop playback to allocate system resources for the timer recording event, if there are other applications running simultaneously. If this occurs, wait until Giga Pocket finishes recording before playing the Video Capsule.

The timer recording may fail due to an "Event buffer of audio overflow" error in the following circumstances:



The input cable (coaxial or video cable) is disconnected after recording starts.



Page 46

You record a TV channel that has no broadcast content.



You record video content from an old video tape with poor signal quality.



The on-screen display may shift and split under some circumstances. If this occurs, switch the TV/Recording deck



and the playback deck, or switch the channel. The recording proceeds even if the on-screen display shifts.

Giga Pocket® does not operate properly if used concurrently with other video applications, such as DVgate or



MovieShaker software.

Page 47

Using the TV Program Web site

Click Start in the Windows taskbar, point to All Programs, point to Giga Pocket, and then select Zap2it.

You can also go directly to the Web site at http://www.sony.com/vaiotv.

Timer Recording requires an Internet connection. See the section, Setting up your Internet Electronic Program Guide

service, for information on setting up for first-time use.

Internet Electronic Program Guide (iEPG) Web site

The appearance of the online channel guide Web site, its contents, and the accuracy of the TV listings are controlled by the TV listing provider and may change without notice. Pay-per-view channels can be accessed when making payments directly to the appropriate TV program provider.

You can schedule up to 100 timer recordings using Giga Pocket® Personal Video Recorder.

From the online channel guide, click on the REC icon to select the program you wish to record. The Timer Recording Wizard begins and the New Timer Recording - Set Channel and Start Date and Time window appears.

Timer recordings create virtual containers for the recorded content that are called Video Capsules.

Accessing Giga Pocket Help

For more information about Giga Pocket Personal Video Recorder, follow these steps:

Click Start in the Windows® taskbar and select All Programs.

Select Giga Pocket, Help, and click Giga Pocket Help.

Page 48

Timer Recording Wizard

With the Timer Recording Wizard, you can set, adjust, and cancel the timer recording settings.

Page 49

Using the Timer Recording Wizard

Click Start in the Windows taskbar, select All Programs, then select Giga Pocket.

Select Timer Recording Wizard. The Timer Recording Wizard dialog box appears.

Timer Recording Wizard

Select the desired option from the Select Timer Recording Settings menu and click Next. Follow the on-screen instructions. Click Help if you need more information about selecting timer recording settings.

New Timer Recording - Set Channel, Start Date and Tim e

Verify that the information is correct and click Next. The programming station and time information is

Page 50

automatically programmed into the appropriate Timer Recording Wizard fields.

You can set the stop time for your timer recording and select the recording mode. The stop time is automatically programmed into the Timer Recording Wizard. Verify the stop time, choose a recording mode, and then click Next .

Recording Mode Description

Standard Play (SP) Standard recording mode (MPEG-2).

High Quality (HQ) Image quality is improved, but recording requires more space on the hard disk drive as compared to using SP or LP recording modes (MPEG-2).

Long Play (LP) Image quality is reduced, but recording requires less space on the hard disk drive as compared to using HQ recording mode (MPEG-1).

New Timer Recording - Set Stop Tim e and Recording Mode

From the New Timer Recording - Set Details dialog box, you can customize the timer recording schedule. Select how often you want to record the program.

New Timer Recording - Set Details

Page 51

Select a date for the recorded program to be automatically deleted from your hard disk drive, using the Expiration date of Video Capsule drop-down list.

To maintain adequate space on your hard disk drive, Giga Pocket® Personal Video Recorder enables you to set an expiration date for your Video Capsules to be automatically deleted.

Click Decide to review your setting preferences. The New Timer Recording - Confirm dialog box appears. Click Next.

New Timer Recording - Confirm

The New Timer Recording - Completed dialog box appears. Click Finish.

New Timer Recording - Com pleted

Page 52

Additional information about the Timer Recording Wizard

Timer recording requires approximately 30 seconds (pre-recording) preparation time prior to beginning each



recording session. Please keep this in mind when setting up multiple, back-to-back recording sessions. Giga Pocket software stops the current timer recording, pauses to prepare, and then begins the next timer recording according to the set start time. The length of your first Video Capsule is approximately 30 seconds shorter than the actual time set.

You may experience some timing problems with multiple recording sessions when the second timer recording is preset as a daily or weekly recorded event. The first timer recording may end as early as 60 seconds sooner than the set stop time.

Scheduled daily or weekly timer recording sessions do not occur if your hard disk drive does not have sufficient



space. Giga Pocket software does not allow a new Video Capsule to be created if there is less than 100 MB of free space on the hard disk drive. These scheduled events resume at their scheduled time, as hard disk drive space becomes available.

Approximately three minutes before Giga Pocket begins a timer recording and during a timer recording, you must



avoid:

Starting up or using other software applications.



Setting up, changing, or deleting timer recordings.



All activities that may access the hard disk drive, such as copying files.



Accessing Giga Pocket Help

For more information about Giga Pocket Personal Video Recorder, follow these steps:

Click Start in the Windows® taskbar and select All Programs.

Select Giga Pocket, Help, and click Giga Pocket Help.

Page 53

Timer Recording Manager

The Timer Recording Manager keeps track of all scheduled TV recordings. Your computer settings, by default, are set to start Timer Recording Manager automatically when the computer is turned on.

Timer recordings are being performed when the Timer Recording Manager icon (Timer Recording Manager) is visible in the Windows taskbar. The timer recording does not start unless the Timer Recording Manager application is available. For the Timer Recorder Manager application to be available, your computer should be in Stand by or Hibernate mode, if the system is not in active use. You can schedule up to 100 programs at a time, for timer recording with the Timer Recording Manager.

Microsoft® Windows® XP operating system supports a single Giga Pocket user at any given time. If a different user logs on using the fast switch feature, the Timer Recording feature is not available to another user account. The Timer Recording Manager icon appears in the taskbar of the first user to log on.

Page 54

Using the Timer Recording Manager

Click Start in the Windows® taskbar, select All Programs, select Giga Pocket, and then click All Software.

Click Timer Recording Manager.

The Timer Recording Manager window appears.

Timer Recording Manager

Windows Stand by — Places the Windows operating system into Stand by mode when the preset timer



recording is set to begin, or if a Video Capsule is set to expire. Windows automatically starts and performs the appropriate action.

Interrupt Current Recording — Stops the current timer recording. Use this option when you wish to end



the current recording session.

Timer Recording List — Displays a list of timer recordings that have been performed, as well as pending



timer recordings. If a daily/weekly timer recording is set, only the current recording session is shown.

The total number of timer recordings displayed does not exceed 100.

Double-click on a recorded timer recording to start playback in Giga Pocket.

Click Hide to restore Timer Recording Manager to the taskbar.

If you turn off your computer, the timer recording function is disabled.

Page 55

Viewing your selected program recording schedule

You can easily view the programs you have selected to record, using Giga Pocket® Personal Video Recorder. The Timer Recording Manager feature enables you to change or cancel your timer recording at any time.

To view your scheduled timer recordings, follow these steps:

Double-click on the Timer Recording Manager icon , located in the Windows® taskbar.

Review your scheduled timer recordings and make any desired changes or cancellations.

Click Hide to return the icon to the taskbar.

You do not have to be connected to the Internet to use the Timer Recording Manager feature.

Additional information about the Timer Recording Manager

When creating a timer recording, it is important to remember the following information:



The timer recording function is disabled if you turn your computer off.



Your computer should be in Stand by or Hibernate mode, if the system is not in active use.



Disable screensavers and any other applications that may access your computer's hard disk drive during the



timer recording.

If you are using a set-top box (STB), make sure it is turned on and set to the channel you want to record.



When you set up a timer recording using Giga Pocket software, always use the Timer Recording Manager. If the



Timer Recording Manager is not set up, the recording does not start, even if you set the timer recording settings with the Timer Recording Wizard.

Your computer's default setting enables Timer Recording Manager to start automatically when the computer is started.

The timer recording starts a few seconds earlier than the specified recording start time.



Under certain circumstances, a daily or weekly timer recording may not be executed the second and subsequent



times.

A timer recording may fail if the computer's clock setting is changed right before the preset recording time. Before



changing the computer's clock setting, verify that there are no timer recordings set to begin.

Close the Time Recording Manager before changing the computer's clock setting. Restart Timer Recording Manager after you have changed the time setting.

If a different user logs on, using the fast switch or switch user features, the Timer Recording feature is not available



to another user account. The Timer Recording Manager icon appears in the taskbar of the first user to log on.

Accessing Giga Pocket Help

For more information about Giga Pocket Personal Video Recorder, follow these steps:

Click Start in the Windows® taskbar and select All Programs.

Select Giga Pocket, Help, and click Giga Pocket Help.

Page 56

Giga Pocket Explorer

The Giga Pocket Explorer application serves as a file manager for your Video Capsules. Video Capsules and saved Playlists are managed in Cabinets.

Giga Pocket Explorer enables you to play back Video Capsules using Giga Pocket. You can import MPEG files, that were created with compatible Sony applications, and export Video Capsules as AVI or MPEG files.

Using Giga Pocket Explorer

Click Start in the Windows taskbar, point to All Programs, point to Giga Pocket, point to Giga Pocket Explorer.

The Giga Pocket Explorer main window appears.

Click on the desired Cabinet to see a list of saved Video Capsules and Playlists.

Giga Pocket Explorer

Using the Giga Pocket Explorer Toolbar functions

From the Giga Pocket Explorer toolbar, you can:

Start Giga Pocket to play a selected Video Capsule or Playlist.



Start Timer Recording Wizard to set up timer recordings.



Start Click to DVD software to burn Video Capsules to DVD recordable media. See Click to DVD software Help



for more details.

Start DVgate Plus software to edit your Video Capsules.



Start Giga Pocket Help to obtain further assistance.



Change the display views for your video contents, and edit recording information.



Accessing Click to DVD Help

For additional information about using Click to DVD software features, follow these steps to access the Help.

Click Start in the Windows® taskbar and point to All Programs.

Point to Click to DVD and click Click to DVD Help.

Page 57

Accessing DVgate Plus Help

For additional information about using DVgate Plus software features, follow these steps to access the Help.

Click Start in the Windows taskbar and point to All Programs.

Point to DVgate Plus and click DVgate Plus Help.

Page 58

Recording Video Capsules onto recordable DVD media

You can record Video Capsules to DVD-R/DVD-RW media with the Make DVD feature.

The Click to DVD software must be installed in order to burn Video Capsules to recordable DVD media.

From the Giga Pocket Explorer main window, select the Video Capsules you want to burn onto a DVD.

On the Giga Pocket Explorer Toolbar, click Make DVD.

The Click to DVD software starts. Follow the on-screen instructions.

Page 59

Exporting Video Capsules

You can export your Video Capsules as MPEG-1, MPEG-2, or AVI file formats for viewing on external media.

In the list area, right-click the Video Capsule you want to export. A shortcut menu appears.

Select Export. The Export dialog box appears.

Export

Enter an output name for the file you want to export and specify the location for the exported file.

You can select the option, Delete Video Capsule after export. If you do not want to delete the Video Capsule after export, leave the option disabled.

In the section, Export Video Capsule As:, select to convert to an AVI, MPEG-1, or MPEG-2 format.

Click Run to begin exporting.

Some conversion formats may not be available, depending on the recording mode that was used to create the Video Capsule.

Additional information about using Giga Pocket Explorer

Video Capsules that are recorded using High Quality (HQ) or Standard Play (SP) mode can be converted and



exported as MPEG-1, MPEG-2, and AVI files.

MPEG-2 files need a specific system environment for playback:

A VAIO® computer that has Giga Pocket® Personal Video Recorder installed.



A VAIO computer that has a DVD-ROM or DVD-RW drive.



If you wish to play your Video Capsule in a different system environment, you can convert and export your Video Capsule using MPEG-1 format.

Video Capsules that are recorded using Long Play (LP) mode can be converted and exported as MPEG-1 files.



You can convert an imported MPEG file into a Video Capsule, only if the file was created using DVgate Assemble or



other VAIO AV applications.

Page 60

Using Network Cabinets

Giga Pocket Explorer enables you to connect to Video Capsules in network cabinets located on other computers in a network. These network cabinets can be accessed through the Giga Pocket Explorer main window when you are connected to the network.

Connecting to Network Cabinets

On the Giga Pocket Explorer menu, select Network, and then Connect/Disconnect. The Connect/Disconnect Server dialog box appears.

Connect/Disconnect Server

Select the server you want to connect to from the Server list.

Click Connect to add the selected server to the Connected Server list, then click OK. The server is connected.

To disconnect, repeat step 1, then select the server you want to disconnect from the Connected Server list.

Click Disconnect, then click OK. The server is disconnected.

Accessing Giga Pocket Help

For more information about Giga Pocket Personal Video Recorder, follow these steps:

Click Start in the Windows® taskbar and select All Programs.

Select Giga Pocket, Help, and click Giga Pocket Help.

Page 61

CLIÉ Converter

The CLIÉ® Converter is a plug-in application that enables the conversion of Video Capsules into gMovie format. You can convert your Giga Pocket® Video Capsules, and then HotSync® onto a Memory Stick® media for viewing with your Sony® CLIÉ Handheld. In order to use the CLIÉ Converter plug-in application, make sure you have installed all required software for the CLIÉ handheld.

The Sony CLIÉ Handheld personal entertainment organizers provide a rich and compelling handheld computing experience. Powered by the Palm operating system, the CLIÉ handheld is ready to deliver music and video with amazing clarity. For more information on this exciting device, go to the Sony Style Web site at http://sonystyle.com/vaio/clie.

Page 62

Starting CLIÉ Converter

Click Start in the Windows taskbar and point to All Programs.

Point to Giga Pocket, point to Plug-ins, and then click CLIÉ Converter. The Giga Pocket -> CLIÉ Converter main window appears.

Giga Pocket -> CLIÉ Converter

Page 63

Converting Video Capsules

From the Giga Pocket -> CLIÉ Converter window, click the Setting... button. The Settings dialog box appears. Enter your desired settings and click OK.

Start Giga Pocket Explorer as follows:

Click Start in the Windows taskbar, and then select All Programs.

Select Giga Pocket, and then click Giga Pocket Explorer.

Resize the Giga Pocket Explorer window so that the Giga Pocket -> CLIÉ Converter window is visible.

Click on the Cabinet icon to display the contents in the list area.

Drag the Video Capsule from the Giga Pocket Explorer window and drop it in the list area of the Giga Pocket -> CLIÉ Converter window. The Video Capsule automatically converts into a video file.

During conversion, the Convert to CLIÉ window appears, displaying the conversion status. When conversion is complete, the window automatically closes.

To convert multiple Video Capsules:

Hold down the Ctrl key while selecting Video Capsules in Giga Pocket Explorer.

Drag all selected Video Capsules to the Giga Pocket -> CLIÉ Converter window.

The conversion process may take time, depending on the settings selected.

Page 64

Transferring converted video files to a Memory Stick media

Insert a Memory Stick® media into the Memory Stick media slot on your computer.

From the Giga Pocket -> CLIÉ Converter main window, click to select the videos you want to transfer to the Memory Stick media.

Click Send To. The Send To dialog box appears.

Select Using Memory Stick as the transfer destination. Click OK.

During transfer, the Forwarding dialog box appears, displaying the transfer status. When transfer is complete, the GP2CLIE window appears. Click OK.

Your converted video files can be played back on CLIÉ Handhelds that support the use of a Memory Stick media.

Transferring converted video files using the HotSync® operation

You can transfer your converted video files directly to your CLIÉ Handheld, when you start a HotSync operation.

From the Giga Pocket -> CLIÉ Converter main window, click to select the videos you want to transfer using the HotSync operation.

Click Send To. The Send To dialog box appears.

Select Using HotSync as the transfer destination. Designate a user name, if applicable to your handheld's configuration. Click OK.

The Send to HotSync dialog box appears. Follow the on-screen instructions and click OK.

For more information about the HotSync operation, see the information supplied with your CLIÉ Handheld.

Accessing CLIÉ Converter Help

For more information about using the CLIÉ Converter plug-in application, follow these steps:

Click Start in the Windows taskbar and point to All Programs.

Point to Giga Pocket, point to Help, and then click CLIÉ Converter Help.

Page 65

Glossary

The most common terms for Giga Pocket Personal Video Recorder software are defined below.

Cabinet A cabinet acts as a container for Video Capsules in Giga Pocket Explorer. A network cabinet is located on other computers in a network environment.

CATV Refers to Community Access Television, otherwise known as cable television.

Clip A clip is a Video Capsule when it is stored in a Playlist.

Cut A cut is a selected scene taken from a previously recorded Video Capsule.

Expiration date A Video Capsule is stored on the hard disk drive for a preset period of time. When this time has expired,

the Video Capsule is automatically deleted.

Film roll During Video Capsule playback, a snapshot view of the scenes are captured on a film roll. You can scroll freely through the film roll to view different scenes.

GOP Group of Pictures (GOP) are the smallest unit of measure for the images captured on a Video Capsule. A single GOP is approximately 0.5 to 1 second in length.

HotSync® Registered trade name for the method of linking between a handheld device and a larger computer, such

as a desktop or notebook computer.

Management information Management information contains the creation date of Video Capsules and their thumbnails. This information is required for preview.

MPEG file A file that contains compressed moving pictures using the MPEG standard, with.mpg as the file name extension.

Safety Tab Removing the safety tab from a Video Capsule prevents accidental erasing of your video data.

Slip play This feature allows you to view delayed video playback. While your recording is in progress, you are able

to view the recording from the beginning.

Snapshot A snapshot is a miniature view displayed on the film roll in Giga Pocket®, Playlist Builder, and the preview monitor in Giga Pocket Explorer.

Stand by mode Stand by mode is a power saving mode that is set up by using the Windows® operating system. Your computer stays in this power saving mode until approximately 5 minutes before the timer recording is due to begin.

STB Refers to set-top box, otherwise known as a cable box.

Thumbnail A thumbnail is a miniature view on recorded Video Capsules or in playback by Giga Pocket. The main

thumbnail is displayed in calendar view or in the Giga Pocket Explorer list area.

Timer recording A timer recording is a preset video recording event.

Video Capsule A Video Capsule is a virtual container that holds the video images recorded with Giga Pocket Recorder. A

Video Capsule is created on your computer hard disk drive and managed with Giga Pocket Explorer.

Page 66

Accessing Giga Pocket Help

For more information about Giga Pocket, follow these steps:

Click Start in the Windows taskbar and point to All Programs.

Point to Giga Pocket, point to Help, and then select Giga Pocket Help.

Page 67

Internet Electronic Program Guide Service

Internet Electronic Program Guide is a free, online service that enables quick and easy access to your local TV listings. You can use the Internet Electronic Program Guide service with your Giga Pocket® Personal Video Recorder for a "one-click" set up of timer recordings and record your favorite TV programs1.

Giga Pocket Personal Video Recorder must be set up and configured correctly before you can use the Internet Electronic Program Guide service.

You must read and accept the User Agreement before accessing the Internet Electronic Program Guide Web site (first time only).

The Internet Electronic Program Guide service is available only to users in the United States.

U nauthorized duplication of audio or video files is a violation of applicable laws.

Page 68

Setting up your Internet Electronic Program Guide service

You must be connected to the Internet, before setting up your Internet Electronic Program Guide service.

Sony recommends using Microsoft® Internet Explorer as your Web browser to access the Internet Electronic Program Guide service.

To set up Internet Electronic Program Guide service, follow these steps:

Click Start in the Windows® taskbar and point to All Programs.

Point to Giga Pocket, then click TV Program Web site. Microsoft® Internet Explorer starts, and you are directed to the Internet Electronic Program Guide Web site.

The Terms of Use window appears. Click I accept, to continue.

The Welcome and Registration window appears.

Internet Electronic Program Guide Welcome and Registration

In the Welcome! section, enter your 5-digit zip code and click Continue. The Choose Your Provider window appears, listing all TV providers or TV services available in your area.

Select your TV provider and then click Confirm Channel Lineup. The Confirm Lineup window appears, listing available channels by number and name.

Click Yes if the channel lineup is correct. If channel lineup is incorrect, click No and repeat steps 3 and 4 until you locate the correct channel lineup.

Your TV listings appear in table format, organized by time and channel. Click Download All Channel Settings to set your channels. The Channel Information Converter window appears, if this is the first time you have used this download feature. Click OK.

Close all Giga Pocket® applications before downloading your TV listings.

If you are using set-top box (STB) mode, you do not need to click Download All Channel Settings.

Verify the channel settings and click OK.

Your personal channel settings appear whenever you access the Internet Electronic Program Guide Web site.

If your TV provider adds new channels or changes existing channels, an Update icon appears next to Download All Channel Settings. Click Update to add the new or updated channels to your personal channel setting.

Page 69

Configuring Your VAIO Computer

This section provides basic information about managing your computer's supplied hardware components. Your computer may not be equipped with all of the hardware features described in this section, depending on the system configuration purchased. To view the specific hardware configuration for your computer, see the online Specifications sheet.

About the Memory Stick Media Slot



About the SmartMedia Card Slot



About the CompactFlash/Microdrive Media Slot



About i.LINK Compatibility



Page 70

About the Memory Stick Media Slot

Your VAIO® computer is equipped with a Memory Stick® slot that supports certain types of Memory Stick media.Your computer may not be supplied with a Memory Stick slot, depending on the model purchased. For details on the specific hardware configuration for your system, see the online Specifications sheet.

About Memory Stick media

Memory Stick® media are a compact, portable, and versatile data storage media designed for exchanging and sharing digital data with compatible devices. The following types of Memory Stick media are available, but compatibility with your computer can vary.

MagicGate Memory Stick® media — Provides copyright protection with authentication and encryption, using Sony



MagicGate technology. Authentication ensures that protected content is only transferred between compliant devices and media. Protected content can be recorded and transferred in an encrypted format that prevents unauthorized duplication or playback. You can store different data formats on a single Memory Stick media.

Memory Stick PRO media — Provides MagicGate copyright protection and high-speed data transfer features



when used with compatible Memory Stick PRO devices. VAIO® computers support Memory Stick PRO media for data storage purposes only. Currently, high-speed data transfer and the MagicGate technology features, such as authentication and encryption, are not available. You can store different data formats on a single Memory Stick media.

Memory Stick® media — Provides data storage only. The Memory Stick media does not provide MagicGate



technology or high-speed data transfer. You can store different data formats on a single Memory Stick media.

Currently, Sony® SonicStage and OpenMG software are not compatible with the new Memory Stick PRO media. Sony suggests using only MagicGate Memory Stick media to store and transfer any data created with SonicStage or OpenMG software.

Visit the Sony Online Support Web site at http://www.sony.com/pcsupport regularly for the latest information on Memory Stick® media.

Memory Stick media do not support video file playback directly from the media. Copy the video file to your hard disk drive and then play back the file.

Inserting a Memory Stick media

Use your fingertip to pull open the lower front panel cover.

Insert the Memory Stick® media into the Memory Stick media slot.

If the media does not insert easily, remove it from the slot and verify that it is not upside-down or backwards. Carefully reinsert the Memory Stick media, but do not force it into the slot.

Removing a Memory Stick media

A small portion of the Memory Stick media remains extended when it is inserted into the Memory Stick media slot.

Press the extended portion of the Memory Stick media to release it from the Memory Stick slot. The media extends further, enabling you to grasp it.

Remove the Memory Stick media from the slot carefully.

Do not remove the Memory Stick media while the media access indicator light is on. The media or its data may

become damaged.

Protecting data on Memory Stick media

Memory Stick media contain a write-protect tab. The write-protect tab prevents accidental changes to information recorded on your Memory Stick media. When you slide the write-protect tab to the LOCK position, your Memory Stick media is write-protected. You cannot delete, copy, or save information on the media while the write-protect tab in the LOCK position. When you slide the tab to the un-LOCK position, you can write to or modify your Memory Stick media's contents.

Locking the Memory Stick Media

Page 71

Additional information about Memory Stick media

If your computer does not recognize your Memory Stick® media, you may have removed the media from the Memory Stick slot before data access had completed. If this occurs, follow these steps:

Remove the Memory Stick media from the slot.

Shut down your computer by closing any open software programs, and then turn off your computer.

Wait approximately 30 seconds, and then restart your computer.

Your computer recognizes the Memory Stick media, when you insert it into the Memory Stick slot again.

Page 72

About the SmartMedia Card Slot

Your VAIO® computer may be equipped with a SmartMedia card slot that supports SmartMedia cards. For details on the specific hardware configuration for your system, see the online Specifications sheet.

Inserting a SmartMedia card

Insert a SmartMedia card into the SmartMedia card slot.

Always insert a SmartMedia card into the SmartMedia card slot for proper operation. Do not insert any

other type of card into the SmartMedia slot.

Inserting a SmartMedia card

If the media does not insert easily, remove it from the slot and verify that it is not upside-down or backwards. Carefully reinsert the SmartMedia card, but do not force it into the slot.

Removing a SmartMedia card

Carefully pull the extended portion of the SmartMedia card to remove it from the SmartMedia slot.

Remov ing a Sm artMedia card

Do not remove the SmartMedia card while the media access indicator light is on. The media or its data

Page 73

may become damaged.

Additional information about SmartMedia cards

If you plan to share your media card between your VAIO® computer and devices such as a digital camera or music player, the media must be formatted properly.

Format the media card by using it in the device first. See the information supplied with the device for details on



formatting media.

If your device does not recognize the media that has been formatted by your computer:



Save the media contents to your hard disk drive.

Reformat the media with the device.

Page 74

About the CompactFlash/Microdrive Media Slot

Your VAIO® computer may be equipped with a CompactFlash®/Microdrive media slot that supports CompactFlash and Microdrive media. For details on the specific hardware configuration for your system, see the online Specifications sheet.

Inserting a CompactFlash or Microdrive media card

Insert a CompactFlash or Microdrive media card into the media card slot.

Always insert the appropriate media card into the CompactFlash/Microdrive media card slot for proper

operation. Do not insert any other type of media card into the CompactFlash/Microdrive media slot.

Inserting a CompactFlash or Microdrive m edia card

If the media does not insert easily, remove it from the slot and verify that it is not upside-down or backwards. Carefully reinsert the media card, but do not force it into the slot.

Removing a CompactFlash or Microdrive media card

Press the media card eject button to extend the button out from the computer.

Press the eject button again to release the media card. The media extends, enabling you to grasp it.

Remov ing a Com pactFlash or Microdrive m edia card

Carefully grasp the media card and remove it from the slot.

Do not remove the media card while the media access indicator light is on. The media or its data may become

damaged.

Additional information about CompactFlash and Microdrive media cards

If you plan to share your media card between your VAIO® computer and devices such as a digital camera or music player, the media must be formatted properly.

Format the media card by using it in the device first. See the information supplied with the device for details on



Page 75

formatting media.

If your device does not recognize the media that has been formatted by your computer:



Save the media contents to your hard disk drive.

Reformat the media with the device.

Page 76

About i.LINK Compatibility

Your VAIO® computer may be equipped with a 4-pin and/or a 6-pin i.LINK® port, depending on the system configuration purchased. A 4-pin i.LINK port cannot supply power to a connected i.LINK device. A 6-pin i.LINK port can supply power (10V to 12V) to a connected i.LINK device, if the device is equipped with a 6-pin connector.

See the specifications sheet for your computer on the Sony Online Support Web site at http://www.sony.com/pcsupport, for details about your computer's hardware configuration.

The total power supplied by the 6-pin i.LINK port cannot exceed 6 watts.

For PCV-V and PCV-W series models

Your PCV-V / PCV-W series computers have one 4-pin i.LINK port available to connect your digital devices. A 4-pin i.LINK port cannot supply power to a connected i.LINK device.

i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software programs, operating system and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other.

Refer to the documentation supplied with your compatible i.LINK device for information on operating conditions and proper connection. Before connecting compatible i.LINK devices to your system, such as an optical or hard disk drive, confirm their operating system compatibility and required operating conditions.

Connecting an i.LINK (IEEE 1394) device

Use the symbol to locate the i.LINK port on your compatible i.LINK device and on your computer. Plug the i.LINK cable connector into this port.

Plug the other end of the cable into the corresponding 4- or 6-pin i.LINK port on your computer.

See the instructions supplied with your i.LINK device for more information on installation and use.

Page 77

Upgrading and Maintaining your VAIO Computer

In the future you may want to increase the functionality of your VAIO® computer. This section describes how to perform basic upgrades and maintenance on your system. To view the specific connection capabilities for your system, see the online specifications sheet. For detailed information about upgrading your computer, see your model's System Reference Manual. You can download the System Reference Manual from the Sony Online Support Web site at

http://www.sony.com/pcsupport.

Overview



About Opening the System Unit



About Add-on Card Installation



About Installing Memory



About the Lithium Battery



About Hard Disk Drive Installation



Page 78

Overview

The upgrading procedures described in this section assume that you are familiar with the general terminology associated with personal computers, safety practices, required regulatory compliances, and the modification of electronic equipment.

Before upgrading your computer

Disconnect the computer from its power source and from telecommunications links, networks, or modems before you open the unit or follow any procedures described in this section.

Failure to disconnect your computer from its power source may result in personal injury or equipment damage.

Always turn the power off before you open the system or connect your computer to peripheral equipment. Otherwise, damage may occur to the integrated circuits in your computer.

Your computer may not be equipped with all of the hardware features mentioned in this section. The interior hardware configuration of your system may vary from the illustrations, depending on the computer purchased. To view the specific hardware configuration for your system, see the online specifications sheet.

You may need to temporarily remove add-on cards or other components that may be near the slot cover you plan to remove.

Electrostatic discharge (ESD) can damage disk drives, add-on cards, and other components. Follow the

procedures described here only at an ESD workstation. If such a station is not available, do not work in a carpeted area and do not handle materials that produce or hold static electricity (for example, cellophane wrappers). Ground yourself by maintaining continuous contact with an unpainted metal portion of the chassis while performing the procedure.

Page 79

About Opening the System Unit

Removing the cover

Shut down your computer and turn off all peripheral devices, such as your printer.

Unplug your computer and disconnect any peripheral devices.

Position the system unit so that the back panel is facing you.

Unscrew the three cover release screws located on the edges of the back panel and set aside.

Remov ing the release screws

When the screws are removed, the cover is released. Slide the cover towards the back of the unit to remove it.

Remov ing the cov er

If you remove the cover immediately after you shut down your computer, the components may be too hot to touch. Wait until the internal parts of the system unit cool down before you attempt to remove the cover.

Page 80

Replacing the cover

Carefully align the cover to the chassis frame. The cover should align evenly against the chassis.

Slide the cover firmly onto the unit, sliding it forward until the cover snaps into place.

Replace the release screws.

Replacing the cover

Page 81

About Add-on Card Installation

Your computer may have one or more open expansion slots, depending on the model configuration. An expansion slot enables you to install add-on cards to expand the functionality of your system. The length of the add-on card should not exceed 9.05 inches.

Add-on card configuration varies by model. Some models, such as Configure-to-Order (CTO) systems, may contain preinstalled add-on cards.

Observe the proper safety precautions when you add cards to your Sony computer. See Before upgrading your

computer.

Installing an add-on card

Shut down your computer and turn off all peripheral devices, such as your printer.

Unplug your computer and any peripheral devices.

Remove the cover. See Removing the cover.

Locate an available expansion slot. Remove the slot cover's screw, and then remove the slot cover.

When removing a slot cover, be careful not to damage components on the system board or add-on

cards. You may need to temporarily remove add-on cards or other components that may be next to the slot cover you want to remove.

Remov ing/installing the slot cov er

Install the add-on card by inserting it into the expansion slot and securing it with the screw from the expansion slot cover.

Installing an add-on card

Page 82

Attach any internal cables that the card requires. See the instructions supplied with the add-on card.

Replace the cover. See Replacing the cover.

Reconnect the power cord and all peripheral devices.

Turn on the computer.

Page 83

About Installing Memory

The amount of preinstalled memory may vary, depending on the system configuration you purchased. Your computer may ship with all available memory slots filled. For memory replacement or upgrades, use the correct memory module for your computer's configuration. See the online Specifications sheet for details about the amount and type of memory installed in your computer.

You can purchase additional memory modules, accessories, and peripheral equipment from your local retailer.

Observe the proper safety precautions when you add or remove the memory in your computer. See Before

upgrading your computer.

Removing a memory module

Shut down your computer and turn off all peripheral devices, such as your printer.

Unplug your computer and any peripheral devices.

Remove the cover. See Removing the cover.

Gently place the unit on its side. If necessary, remove any cables, add-on cards, or other components to access the memory module slots.

Locate the memory module(s) you wish to remove.

Push down on the latches, located on both sides of the module, to gently eject it from the slot.

Grasp one edge of the module and lift it out. Store the module in a static-free bag.

Remov ing/Installing m emory

Installing a memory module

Page 84

Shut down your computer and turn off all peripheral devices, such as your printer.

Unplug your computer and any peripheral devices.

Remove the cover. See Removing the cover.

Gently place the unit on its side. If necessary, remove any cables, add-on cards, or other components to access the memory module slots.

Remove the memory module from its anti-static package, handling it by the the edges.

Locate the notch on the bottom edge of the module to align it over the open memory slot.

Firmly insert the bottom edge of the memory module into the slot.

Press down evenly against the module's upper corners. The latches snap into position, holding the module in place.

To avoid damaging a memory module slot, move the end latches slightly outward to relieve

pressure. The module clicks into place.

Reinstall any components or add-on cards you may have removed.

10.

Replace the cover. See Replacing the cover.

Page 85

About the Lithium Battery

The lithium battery starts to weaken after several years and the system settings, such as the date and time stored in CMOS RAM, may become inaccurate. Replace the lithium battery when this occurs.

There is danger of the battery exploding if it is replaced incorrectly. Replace the battery only with a

CR2032-type lithium battery.

Replacing the lithium battery

Write down any changes you may have made to the settings in the BIOS Setup utility.

Shut down your computer and turn off all peripheral devices, such as your printer.

Unplug your computer and any peripheral devices.

Remove the cover. See Removing the cover.

If necessary, remove any cables, add-on cards, or other components to access the lithium battery.

Gently push the battery holder's tab away from the battery and remove the battery from the holder.

Install the new battery with the plus (+) side facing the battery holder tab.

Replacing a lithium battery

Replace the cover. See Replacing the cover.

The values stored in the CMOS memory are now reset to the factory default values. Run the Setup utility to reset the date, time, passwords, and other changes you may have made to the BIOS settings. If you do not wish to customize your BIOS settings, do not run the Setup utility.

Dispose of the lithium battery properly. In some areas, the disposal of lithium batteries in household or

business trash may be prohibited. You can return your unwanted lithium batteries to your nearest Sony Service Center or Factory Service Center. To locate a Service Center near you, visit the Sony Online Support Web site at

http://www.sony.com/pcsupport.

Page 86

Resetting the computer's date and time

Double-click on the time readout displayed in the Windows® tasktray. The Date and Time Properties window appears.

From the Date & Time tab, change the settings as desired. Click Apply, then click OK.

Page 87

About Hard Disk Drive Installation

Your computer comes with an available internal bay to hold a second standard 3.5-inch hard disk drive. Some models, such as Configure-to-Order (CTO) systems, may already have a second hard disk drive installed. Your system can support ATA-33, ATA-66, or ATA-100 hard disk drives. Sony recommends using an ATA-100 hard disk drive to take full advantage of your system's features.

The hard disk drive access indicator is lit when either internal hard disk drive is active.

Replacing the original hard disk drive

If you replace the original, factory-installed hard disk drive, you may need to correct your drive mapping, create a VAIO Recovery Media Kit, or visit the Sony Online Support Web site for more information.

Drive Mapping

When a new hard disk drive is installed, the original drive mapping1 may be changed. The identified drives, including those for removable media2, may not reflect correct drive/icon associations. For more information on how to correct your drive mapping, visit the Sony Online Support Web site at http://www.sony.com/pcsupport.

Hard disk drive recovery

When you replace the original hard disk drive, the preinstalled VAIO Recovery Wizard utility program cannot restore the drive partitions, operating system, or original software programs. Before replacing the hard disk drive, create a VAIO Recovery Media Kit or purchase a kit from Sony.

Your VAIO® computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery Wizard utility to recover your computer's operating system and preinstalled software programs.

For more information about the VAIO Recovery Wizard utility program:

Click Start from the Windows® taskbar, and then click Help and Support.

From the VAIO Help and Support Center, click VAIO Recovery Options.

Using the Sony Online Support Web site

For detailed information about installing additional hard disk drives, see the System Reference Manual.3 You can download the System Reference Manual from the Sony Online Support Web site at http://www.sony.com/pcsupport.

Your computer must have an active Internet connection to access the Sony Online Support Web site.

Make sure you observe the proper safety precautions when you upgrade your Sony computer. See Before

upgrading your computer.

Installing an additional hard disk drive

Shut down your computer and turn off all peripheral devices, such as your printer.

Unplug your computer and any peripheral devices.

Remove the cover. See Removing the cover.

Configure the jumpers on the new drive as a slave. See the configuration instructions supplied with your drive.

Detach the power and drive cables from the original hard disk drive that is preinstalled in your computer.

Release the drive holder from the chassis by removing the drive holder screw.

Slide the drive holder out.

Remov ing the driv e holder

Page 88

Slide the new drive into the drive holder and align the holes on each side of the drive to the holes in the drive holder.

Secure the drive to the drive holder with screws, through the holes on each side of the drive holder.

Attaching the drive screws

Your new hard disk drive is supplied with the necessary screws. Do not overtighten these screws when securing the new drive to the drive holder.

10.

Realign the drive holder with the tracks on the inside of the chassis and slide the drive holder in completely.

11.

Reinsert the drive holder screw and tighten to lock the drive holder back into position.

12.

Reconnect the IDE and power connectors to the original drive.

13.

Connect the second drive connector to the new drive. Orient the connector to align pin 1 on the red side of the ribbon cable with pin 1 on the new drive.

14.

Connect the second power connector to the new drive, following the instructions supplied with the drive.

Replacing the drive holder

Page 89

15.

Replace the cover. See Replacing the cover.

16.

Reconnect the power cord to your computer.

Identifying the additional hard disk space

When you initialize the new hard disk, it must be configured as an extended partition in Windows NT file system (NTFS) format.

Log on to Windows® as Administrator.

Click Start in the Windows taskbar, then right-click My Computer. A shortcut menu appears.

Select Manage. The Computer Management window appears.

Under the file directory, go to Storage and then select Disk Management.

Right-click on the newly installed, unformatted hard disk (Disk label identified with red marking). From the shortcut menu, select Initialize Disk.

Click on the Unallocated area of the disk and then right-click to display a shortcut menu.

Select New Partition. The New Partition wizard appears.

Follow the wizard's on-screen instructions to complete the process.

The Windows® XP operating system recognizes the new hard disk drive and applies the NTFS format.

Drive mapping refers to the assignment of an identifying letter to a specific drive, s uc h as Drive C or Drive D which identify the original hard disk drive.

Y our c omputer may be equipped with removable media drives , s uch as a M emory Stick®, SmartMedia , C ompactFlash®, or Microdrive media slot. See the

online Specifications s heet for more information about your c omputer's hardware c onfiguration.

A System Referenc e M anual is not available for all V A I O® c omputer models.

Page 90

Troubleshooting

This section describes how to troubleshoot common problems. You can also find helpful information on how to use your computer's hardware features and preinstalled software. Your computer may not be equipped with all of the features or software discussed in this section, depending on the system configuration purchased.

About VAIO Computer Functions



About Giga Pocket Personal Video Recorder



About Using the Optical Disc Drive(s)



About the Mouse and Keyboard



About the Modem



About the Speakers



About Using a Microphone



About Using Peripheral Equipment



Page 91

About VAIO Computer Functions

My computer does not start.

Verify that the computer is plugged into a power source and that it is turned on. Check that the power indicator is lit



on the front panel of the computer.

Confirm that a disk is not in the floppy disk drive1 (unless you are using a bootable floppy disk).



Confirm that a CD is not in an optical drive (unless you are using a bootable CD).



Confirm that the power cord and all cables are connected firmly.



If you plugged the computer into a power strip or Uninterruptible Power Supply (UPS), make sure the power strip or



UPS is turned on and working.

Verify that the monitor is plugged into a power source and turned on.



If your system has a built-in monitor, confirm that it is plugged into an appropriate power source and that the system is turned on.

Verify that the brightness or contrast control dials are adjusted correctly. (See the manual supplied with your



display for details.)

Confirm that the computer is not in Stand by mode by pressing any key on the keyboard.



C ertain V A I O c omputers are not equipped with a floppy dis k drive. Y ou c an purc has e this equipment s eparately.

Page 92

About VAIO Computer Functions

My computer does not start.

Verify that the computer is plugged into a power source and that it is turned on. Check that the power indicator is lit



on the front panel of the computer.

Confirm that a disk is not in the floppy disk drive1 (unless you are using a bootable floppy disk).



Confirm that a CD is not in an optical drive (unless you are using a bootable CD).



Confirm that the power cord and all cables are connected firmly.



If you plugged the computer into a power strip or Uninterruptible Power Supply (UPS), make sure the power strip or



UPS is turned on and working.

Verify that the monitor is plugged into a power source and turned on.



If your system has a built-in monitor, confirm that it is plugged into an appropriate power source and that the system is turned on.

Verify that the brightness or contrast control dials are adjusted correctly. (See the manual supplied with your



display for details.)

Confirm that the computer is not in Stand by mode by pressing any key on the keyboard.



C ertain V A I O c omputers are not equipped with a floppy dis k drive. Y ou c an purc has e this equipment s eparately.

Page 93

What can I do if my computer or software stop responding?

You can try to locate and close the software program that has stopped responding.

Press the Ctrl+Alt+Delete keys. The Windows Task Manager window appears.

From the Applications tab, locate the software program that has the status message, "Not responding."

Select the software program that has a Not Responding status and click End Task. Windows attempts to close the program.

If your computer does not respond or the software program does not close, try the following steps:

Save and close any open files, if possible.

Press the Alt+F4 keys. The Turn Off Computer window appears.

If the Turn Off Computer window does not appear, press Ctrl+Alt+Delete.

Click Restart.

If your computer still does not respond and you cannot restart, shut down your computer by pressing and holding the power button for more than six seconds.

If the software program continues to stop responding or causes your computer to stop responding, contact the software publisher or designated technical support provider.

Pressing and holding the power button for more than six seconds may result in the loss of data from files that

are currently open.

Page 94

Why does the Windows operating system stop responding during shutdown?

The Windows operating system may not shut down properly for many reasons, including incompatible or conflicting drivers, damaged files, or non-responsive hardware. For troubleshooting information, you can search Windows Help.

Click Start in the Windows taskbar and select Help and Support. The VAIO Help And Support Center menu appears.

Select Fixing a Problem and then select Startup and Shut Down problems. A list of specific problem topics appears on the right side of the window.

Select Startup and Shutdown Troubleshooter. Follow the on-screen instructions according to your specific situation.

Page 95

Why is my system running slowly?

The system responsiveness varies depending with the number of software programs that are open and running.



Close any programs that you are not currently using.

Increasing the system memory may also help. For information on installing memory, please see the online VAIO User



Guide.

To access the online User Guide:

Click Start in the Windows taskbar, and then click Help and Support.

From the VAIO Help And Support Center menu, click VAIO User Guide.

Page 96

How do I change the video resolution of my display?

Click Start in the Windows taskbar, and then select Control Panel.

Select Appearance and Themes, and then select Change the screen resolution.

Click the Settings tab.

Change the Screen resolution and Color quality to the desired levels.

Click Apply and then click OK.

Page 97

Why doesn't my computer resume normal operation from Stand by mode?

If your keyboard has a Stand by key , press it briefly to resume normal operation.



If your keyboard is not equipped with a Stand by key, press any key to resume normal operation.



For troubleshooting information, you can search Windows Help.



Click Start in the Windows taskbar and select Help and Support. The VAIO Help And Support Center menu appears.

Select Fixing a Problem and then select Startup and Shut Down problems. A list of specific problem topics appears on the right side of the window.

Select Startup and Shutdown Troubleshooter. Follow the on-screen instructions according to your specific situation.

Page 98

About Giga Pocket Personal Video Recorder

Why can't I see an image or an image that is displayed properly when I am using a VCR?

Some images from an externally-connected video player device or a video game console, may not display or are not displayed correctly. These images include:

Images from a playback screen that is in pause mode.



Menu screens of the connected video player device.



The end of the film roll being played back using the scroll bar.



Video output from a video game console.



Video output from a VCR, using a coaxial cable.



Giga Pocket® cannot record or display all video images from this source.

Page 99

About Giga Pocket Personal Video Recorder

Why can't I see an image or an image that is displayed properly when I am using a VCR?

Some images from an externally-connected video player device or a video game console, may not display or are not displayed correctly. These images include:

Images from a playback screen that is in pause mode.



Menu screens of the connected video player device.



The end of the film roll being played back using the scroll bar.



Video output from a video game console.



Video output from a VCR, using a coaxial cable.



Giga Pocket® cannot record or display all video images from this source.

Page 100

Sony PCV-RS520 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Welcome

Getting Started

Unpacking Your Computer

Planning an Ergonomic Work Space

Locating Controls And Ports

About the Front Panel

About the Back Panel

About the Keyboard

About the Remote Control

Setting Up Your Computer

Connecting a Display (Monitor)

Connecting the Speakers

Connecting the Keyboard and Mouse

Connecting the Telephone and Modem Cables

Connecting the Power Cords

Turning On your Computer

Registering your Computer

Turning Off your Computer

Giga Pocket Personal Video Recorder

About Giga Pocket Personal Video Recorder

Giga Pocket Personal Video Recorder includes:

Setting Up Giga Pocket Personal Video Recorder

To set up TV connections

To set up additional equipment

Setting Up Giga Pocket Software

To set up TV viewing

Giga Pocket

Starting Giga Pocket

Using the TV/Recording deck and Playback deck

Recording a Video Capsule

Using the TV Program Web site

Timer Recording Wizard

Using the Timer Recording Wizard

Timer Recording Manager

Using the Timer Recording Manager

Viewing your selected program recording schedule

Giga Pocket Explorer

Recording Video Capsules onto recordable DVD media

Exporting Video Capsules

Using Network Cabinets

Converting Video Capsules

Transferring converted video files to a Memory Stick media

Glossary

Accessing Giga Pocket Help

Internet Electronic Program Guide Service

Setting up your Internet Electronic Program Guide service

Configuring Your VAIO Computer

About the Memory Stick Media Slot

About the SmartMedia Card Slot

About the CompactFlash/Microdrive Media Slot

About i.LINK Compatibility

Upgrading and Maintaining your VAIO Computer

Overview

About Opening the System Unit

About Add-on Card Installation

About Installing Memory

About the Lithium Battery

About Hard Disk Drive Installation

Troubleshooting

About VAIO Computer Functions

My computer does not start.

What can I do if my computer or software stop responding?

Why does the Windows operating system stop responding during shutdown?

Why is my system running slowly?

How do I change the video resolution of my display?

Why doesn't my computer resume normal operation from Stand by mode?

About Giga Pocket Personal Video Recorder

Why can't I see an image or an image that is displayed properly when I am using a VCR?
