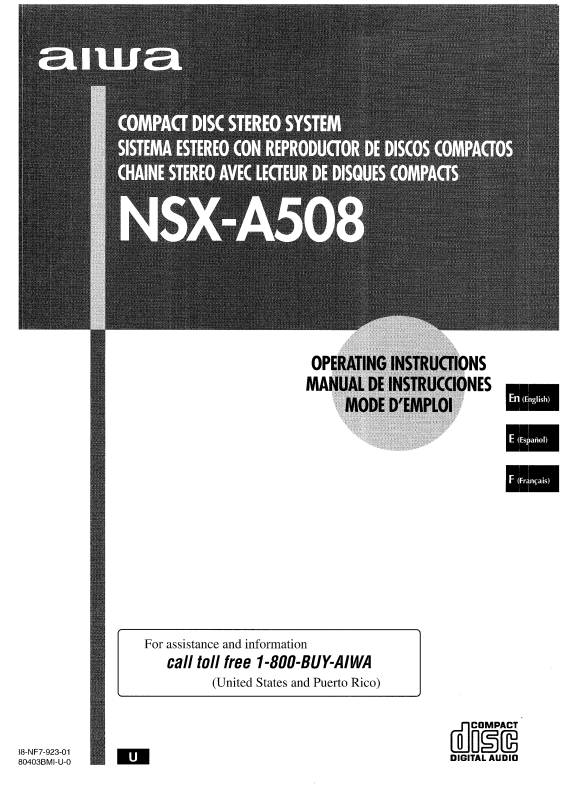

Sony NSXA508 Operating manual

K9NF7-923-01 80403 BMI-U-O

For assistance and information

call toll free I=800=BUY=AIWA

(United States and Puerto Rico)

“CAUTION:TO REDUCE THE RISK OF

ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.”

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Installation

Water and moisture — Do not use this unitnear water, such as near a bathtub, washbowl, swimming pool, or the like.

Heat —

heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41 ‘F) or greater than 35°C (95”F).

Mounting surface — Place the unit on a flat, even surface. Ventilation — The unit should be situated with adequate

space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from each side.

- Do not place the unit on a bed, rug, or similar surface that

- Do not install the unit in a bookcase, cabinet, or airtight rack

Objects and liquid entry — Take care that objects or liquids

do not get inside the unit through the ventilation openings.

Carts and stands ——When placed

or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.

Condensation — Moisture may form on the CD pickup lens

Do not use this unit near sources of heat, including

may block the ventilation openings.

where ventilation may be impeded.

A-.

when:

The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

Wall or ceiling mounting —The unit should not be mounted

on a wall or ceiling, unless specified in the Operating

Instructions.

Owner’s record

For your convenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

I Model No, I Serial No. (Lot No.) \ I CX-NA508

SX-NA502 SX-R275

1 ENGLISH

I I

Electric Power 1 Power sources — Connect this unit only

specified in the Operating Instructions, and as marked on the unit.

Polarization — As a safety feature, some unitsare equipped with polarized AC power

one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet,

AC power cord

plugs which can only be inserted

- When disconnecting the AC power cord,

AC power plug. Do not pull the cord itself.

- Never handle the AC power plug with wet hands, as this could result in fire or shock.

- Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power outlet.

- Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.

to power sources

pull it out by the

Extension cord —To help prevent electric shock, do not use

a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.

When not in use— Unplug the AC power cord from the power

outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Outdoor Antenna

Power lines — When connecting an outdoor antenna, make

sure it is located away from power lines,

Outdoor antenna grounding — Be surethe antenna system

is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANS1/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves.

Antenna Grounding According to the National Electrical Code

PRECAUTIONS ................................................................... 1

PREPARATIONS

CONNECTIONS ................................................................. 3

REMOTE CONTROL ...........................................................5

BEFORE OPERATION ......................s.................................5

SOUND

AUDIO ADJUSTMENTS .................................................... 6

GRAPHIC EQUALIZER .......................................................7

RADIO RECEPTION

MANUAL TUNING ...............................................................8

PRESETTING STATIONS ...................................................8

CD PLAYING

BASIC OPERATIONS ........................................................ 9

PROGRAMMED PLAY ..................................................... 10

~ ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNI1 (NEC SECTION 810-20)

ELECTRIC

WE?

NEC-NATIONAL ELECTRICAL CODE

Maintenance Clean the unit only as recommended in the Operating Instructions.

Damaae Requiring Service Have the units serviced by a qualified service technician if:

- The AC power cord or plug has been damaged.

- Foreign objects or liquid have gotten inside the unit,

- The unit has been exposed to rain or water,

- The unit does not seem to operate normally.

- The unit exhibits a marked change in performance,

- The unit has been dropped, or the cabinet has been damaged, DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

ELECTRODE SYSTEM (NEC ART 250 PART H)

TAPE PLAYBACK

BASIC OPERATIONS ...................................................... 1I

RECORDING

BASIC

RECORDING ........................................................ 12

DUBBING A TAPE MANUALLY ....................................... 13

DUBBING THE WHOLE TAPE ......................................... 13

Al EDIT RECORDING ...................................................... 14

PROGRAMMED EDIT RECORDING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

KARAOKE

MICROPHONE MIXING ................................................... 16

KARAOKE PROGRAM .................................................... 17

CLOCK AND TIMER

SETTINGTHIE

SETTING T14ESLEEP TIMER ......................................... 18

SETTING THE TIMER ...................................................... 19

CLOCK ..................................................... 18

OTHER CONNECTIONS

CONNECTING OPTIONAL EQUIPMENT ....................... 20

LISTENING TO EXTERNAL SOURCES ......................... 20

GENERAL

CARE

AND MAINTENANCE ........................................... 21

TROUBLESHOOTING GUIDE ......................................... 21

SPECIFICATIONS ............................................................ 22

❑

PARTS INDEX ...................................................

Back cover

ENGLISH .2

Check your system and accessories

CX-NA508 Compact disc stereo cassette receiver SX-NA502 Front speakers SX-R275 Surround speakers

Remote control

AM antenna

FM antenna

7 Connect the right and left speakers to the main

unit.

Connect the right speaker cord to SPEAKERS R terminals,

and left to SPEAKERS L terminals.

The speaker cord with the white stripe should be connected to 0 terminal and the black cord to O terminal.

2 Connect the surround speakers to the main unit.

There are no differences between the surround speakers. Connect each surround speaker cord to SURROUND

SPEAKERS R or L terminal.

t,4

,.0

,’

Operating Instructions, etc

Before connecting the AC cord

The rated voltage of your unit shown on the rear panel is 120 V AC, Check that the rated voltage matches your local voltage.

IMPORTANT

Connect the speakers, antennas, and all optional equipment first.

Then connect the AC cord in the end.

nlyll( q.xdwf

■

Ill!

3 ENGLISH

Surround ;peaker cord

34Connect the supplied antennas.

Connect the FM antenna to FM 75 Q terminals and the AM antenna to AM

~q FMa~a

LOOP terminals.

AM antenna

Ill

Connect the AC cord to an AC outlet.

Position the speakers to make the most of the SURROUND effect,

@ Front speaker (Right) @ Front speaker (Left)

@ Surround speakers

Place the surround speakers behind the listeningarea.

TCIposition the antennas

FM feeder antenna:

Extend this antenna horizontally in a T-shape and fix its ends to

the wall.

AM antenna: Positionto find the best possible reception.

To stand the AM antenna on a surface

Fix the claw to the slot,

● Be sure to connect the speaker cords correctly. Improper

connections can cause short circuits in

SPEAKERS terminals.

To mount the surround speakers on the wall

Mount each speaker on a s~ot that can hold its weiaht,

,,, ,,

.!! “C-

ONNECTING AN OUTDOOR ANTENNA

For better FM reception, recommended, Connect the outdoor antenna to FM 75 Q terminals.

use of an outdoor antenna is

● Do not leave objects generating magnetism, such as credit

cards, near the speakers, as these objects may be damaged.

* Do not bring the FM antenna near metal objects or curtain rails.

● Do not bring the AM antenna near other optional equipment,

the stereo system itself, the AC cord or speaker cords, since noise will be picked up.

o Do not unwind the AM antenna wire.

I To connect other optional equipment+ page 20. I

ENGLISH ~

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.

R6(AA)

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters

(16 feet). When this distance decreases, replace the batteries

with new ones.

To use SHIFT on the remote control

Buttons @ have two different functions. One of these functions

is indicated on the button, and the other on the plate above the button. To use the function on the button, simply press the button. To use the function on the plate above the button, press the button while pressing

SHIFT.

To use FUNCTION on the remote control The FUNCTION substitutesforthe functionbuttons(TAPE DECK 1/2, TUNER, VIDEO/AUX, CD, MD)

Each time

FUNCTION is pressed, the next function is selected

cyclically.When tapes are inserted

selected with

FUNCTION.

on the main unit.

in both decks, each deck is

<>/F PRESET on the remote control

The function is same as that of 4> on the main unit.

,— ___

—

\—

_—— —-i

Ii. --

To turn the power on

one of the function buttons (TAPE, TUNER, VIDEO/AUX,

Press

CD, MD). Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function), POWER is also available. When the unit is turned on, the disc compartment may open and close to reset the unit.

turn the power off

Press POWER.

Flash windows

The windows on the top of the unit and the cassette decks light up or flash while the unit is being powered on. To turn off the light of the top window, press 9 while pressing CD. To turn back on, repeat the above.

Game Demo

When the AC cord is connected, the display window demonstrates the game Demo. When the power is turned on, the game Demo is overridden by the operation display. When the power is turned off, the game Demo is restored.

SHIFT

FUNCTION

4 blb PRESET

● If the remote control is not going to be used for an extended

period of time, remove the batteries to prevent possible electrolyte leakage.

● The remote control may not operate correctly when:

- The line of sight between the remote control and the remote sensor inside the display window is exposed to intense light, such as direct sunlight

- Other remote controls are used nearby (those of a television, etc.)

5 ENGLISH

cancel the game Demo

Press DEMO. To re-activate the game Demo, press DEMO

again.

To play the the game Demo

1 Press DEMO so that the game Demo displays, 2 Press 4>,

Three numbers on the display start to run.

3 Press

■ once.

The number on the left side stops.

Press ■ twice to stop the remaining two numbers.

Scoring: 20

points are given to start the game. If all the numbers are equal, 50 points are added to the score If not eaual, one point is subtracted. If the gained points reach 9999, you win. If the gained points fall to O, you lose.

To reset the game Demo

Press DEMO twice, then press +-. The game starts again.

● During playing the game Demo, ■ and <E are available

only for the game Demo, Cancel the game Demo to use these buttons for the functions such as CD playing, etc.

● During the game Demo, some indicators unrelated with the

actual operation light up on the display.

vowl,~

T-BASS SHIFT

VOLUME

Turn VOLUME on the main unit, or press VOLUME on the remote control. The volume level isdisplayed as a number from Oto

The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.

MAX (50).

The T-BASS system enhances the realism of low-frequency sound.

Press T-BASS. Each time it is pressed, the level changes. Select one of the three levels, or the off positionto suityour preference.

T-BASS

● Low frequency sound may be distorted when the T-BASS

system is used for a disc or tape in which low frequency sound is originally emphasized. In this case, cancel the T-BASS system.

●When playing back a tape recorded with BBE, it IIS

recommended that BBE be set to off to avoid distorted high frequency sound.

BBE SYSTEM

The BBE system enhances the clarity of high-frequency sound.

It also enriches the Karaoke function to make your voice sound clear and pleasant. Press BBE. Each time it is pressed, the level changes. Select one of the

three levels, or the off position to suit your preference.

BBE

To dim the illumination of the display

1 Press DISP

2 Within 4 seconds, turn

as follows,

DIMMER O+ DIMMER 1 + DIMMER 2+ DIMMER 3

DIMMER O:The normal display DIMMER 1: The illumination of the display is dimmer than usual. DIMMER 2:

DIMMER 1,

DIMMER 3: The illumination of the display is dimmer than

DIMMER 2, and the spectrum analyzer and the illumination on the buttons light off.

twice so that “DIMMER” is displayed,

MULTI JOG toselect thedimmer mode

The illumination of the display is dimmer than

Using the headphones

Connect headphones to the PHONES jack with a standard stereo plug (@6.3 mm, ‘/, inch). No sound is output from the speakers while the headphones are plugged in.

Sound adjustment during recording

The output volume and tone (except BBE) of the speakers or headphones are freely varied without affecting the level of the recording.

ENGLISH 6

GEQ

SHIFT

3,EIMIIS-=4Sw cl”s%w3!?-

SELECTING

*,”..,,.,:.!. ~ *“, g, ,:,, .,_. #j,, ,, -,.,, ~~ .4 .: L“ _ ‘, .’ ,, = ‘;=. ;- : .! _ ,.- ; ,- = i- ,--

THE

PROGRAMMED

EQUALIZATION CURVE

This unit provides the following 5 different programmed equalization curves.

ROCK: Powerful sound emphasizing treble and bass POP: More presence in the vocals and midrange

JAZZ: Accented lower frequencies for jazz-type music

CLASSIC: Enriched sound with heavy bass and fine treble. LATIN: JAZZ- type equalization curve with higher frequencies

Press GEQ, and turn MULTI JOG to select one of the programmed equalization curve within 4 seconds.

GRAPHIC EQUALIZER

SETTING A NEW EQUALIZATION CURV-E MANUALLY

The equalization curve can be customized to suit your preference.

Press LOW.

The lowest level frequency indicator flashes for 4 seconds.

Within 4 seconds, turn MULTI JOG to adjust the level of the lowest frequency.

Press HIGH.

The highest level frequency indicator flashes for 4 seconds.

Within 4 seconds, turn MULTI JOG to adjust the

level of the highest frequency.

The frequency level indicators of between the lowest and the

highest are adjusted accordingly.

------- :

- ---- -.”-i< *.”:- = -~V?G3.=’,..

MEMORIZlN6 ‘tHE ‘NE-W EQUALIZATlON CURVES

Up to 4 customized equalization curves can be stored as the manual modes Ml - M4.

“GRAPHIC EQUALIZER appears (except “GEQ OFF”) and the GEQ mode is displayed cyclically as follows.

~ ROCK+ POP -JAZZ+ CLASSIC e LATIN 1

~---------- Progra:med mode ----------:

GEQOFF— M4— M3— M2— Ml

(cancel) t

To display the current GEQ mode Press GEQ.

To cancel the selected mode

Press GEQ, and turn MULTI JOG to select” GEQ OFF within 4 seconds. “GRAPHIC EQUALIZER disappears.

To select with the remote control Press GEQ repeatedly while pressing SHIFT.

displayed cyclically as above.

To change the spectrum analyzer display 3 patterns of spectrum analyzer display can be shwon. Press DISP once, and turnMULTI JOG within4 secondstoselect the desired spectrum analyzer display.

The current mode is displayed for 4 seconds.

.------ Manual mode -----:

The GEQ mode is

Set a new equalization curve with HIGH, LOW and MULTI JOG. See

“SETTING A NEW EQUALIZATION CURVE MANUALLY”.

The created curve is displayed for 4 seconds.

Within 4 seconds, press ENTER.

“M 1“ flashes on the display for 4 seconds.

● If this step is not completed within 4 seconds, press GEQ

first to display “GEQ ON”. Then press ENTER wtihin 4

seconds.

Within 4 seconds, turn MULTI

JOG to select one

of the manual modes Ml - M4 to store the curve.

Within 4 seconds, press ENTER.

The new equalization curve is stored.

7 ENGLISH

select the stored equalization curve

Press GEQ, and turn MULTI JOG to select one of the manual modes Ml - M4 within 4 seconds.

RADIO RECEPTION

0-9,+10

BAND

SHIFT

12Press

TUNER BAND repeatedly to select the

desired band.

~FM— AMT

When TUNER BAND is pressed while the power is off, the power is turned on directly.

select a band with the remote control

Press BAND while pressing SHIFT.

Press < DOWN or > UP to select a station.

Each time the button is pressed, the frequency changes. When a station is received, “TUNE” is displayed for 2 seconds, During FM stereo reception, (I(O)}] is displayed,

[(1011]

To search for a station quickly (Auto Search)

Keep - DOWN or * UP

to change rapidly. After tuning in to a station, the search stops. To stop the Auto Search manually, press+

● The Auto Search may not stop at stations with very weak signals.

When an FM stereo broadcast contains noise

Press MONOTUNER on the remote control while pressing SHIFT

so that “MONO” appears on the display.

MONO

TUNE

pressed until the frequency starts

DOWN or - UP.

The unit can store a total of 32 preset stations. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

1 Press TUNER BAND to select a band, and press

< DOWN or > UP to select a station.

2 Press II SET to store the station.

A preset number beginning from 1 in consecutive order for each band is assigned to the station.

Preset number

3 Repeat steps 1 and 2.

The next station will not be stored if a total of 32 preset stations for all the bands have already been stored.

PRESET NUMBER TUNING” ‘“

Use the remote control to select the preset number directly,

12Press BAND while pressing SHIFT to select a

band. Press numbered buttons O-9 and +10 to select a

preset number.

Example: To select preset number 20, press +10, +10 and O. To select preset number 15, press +10 and 5.

Noise is reduced, although reception is monaural. To restore stereo reception, press these buttons so that “MONO” disappears.

change the AM tuning interval

The default setting of the

you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval.

Press

POWER while pressing TUNER BAND.

AM tuning interval is 10 kHz/step. If

To reset the interval, repeat this procedure.

Selecting a preset number on the main unit PressTUNER f3ANDto select a band.Then, press4>

repeatedly or turn MULTI JOG, Each time is selected.

● > PRESET is pressed, the next ascending number

PRESET

To clear a preset station

Select the preset numberofthe stationto be cleared. Then, press

❑ CLEAR, and press II SET within

The preset numbers of all other stations in the band with higher

numbers are also decreased by one.

When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.

4 seconds,

ENGLISH ~

DISC CHANGE

EDIT/CHECK

caoo .. OOQ 00

3: z

< RANDOM/

REPEAT

-0-9,+10

SHIFT

play one disc only, press DISC DIRECT PLAY 1-3.

To The selected disc is played once.

stop play, press ■ .

pause play, press Il. To resume play, press again.

To search for a particular point during playback,

or - pressed and release it at the desired point.

To skip to the beginning of a track during playback, press

< or - repeatedly or turn MULTI JOG.

To remove discs,

start play when the power is off (Direct Play Function)

Press CD, The power is turned on and play of the loaded disc(s) begins. When 4 OPEN/CLOSE is pressed, the power is also turned on and the disc compartment is opened.

check the remaining time

During play, press EDIT/CHECK on the remote control while pressing SHIFT. The amount of time remaining until all tracks finish playing is displayed. To restore the playing time display, repeat the above.

*CD

EDIT/CHECK on the unit is also available instead of EDIT

CHECK on the remote control.

press A OPEN/CLOSE.

keep -

Press CD, then press A OPEN/CLOSE to open the disc compartment. Load disc(s) with the label side up.

To ~lav one or two discs, placethe discsontray1 and2.

To ~lav three discs, pressDISC CHANGE to rotatethe trays

after placing two discs. Place the third disc on tray 3. Close the disc compartment by pressing A OPEN/CLOSE.

~@$~

,,!,..-

Tray 1

Tray number of the disc to be played Total playing time

Total number of tracks

DISC CHANGE

Selecting a track with the remote control

Press DISC DIRECT PLAY 1-3 to select a disc.

Press numbered buttons O-9 and

Example: To select the 25th track, press +10, +10 and 5. To select the 10th track, press +10 and O. The selected track starts to play and continues to the end of that disc.

Replacing discs during play

While one disc is playing, the other discs can be replaced without interrupting play. 1 Press DISC CHANGE. 2 Remove the discs and replace with other discs. 3 Press A OPEN/CLOSE to close the disc compartment.

● When loading an 8-cm (3-inch) disc, put it onto the inner circle

of the tray.

● Do not place more than one compact disc on one disc tray.

● Do not tilt the unit with discs loaded. Doing so may cause

malfunctions.

+1Oto select a track.

Load discs.

To dav all discs in the disc compartment, press 4>. Play begins with

Number of track being played

the disc on tray 1.

Elapsed playing time

9 ENGLISH

RANDOM /REPEAT PLAY

Use the remote control,

RANDOM play

All the tracks on the selected disc or all the discs can be played randomly.

REPEAT pkly A single

disc or all the discs can be played repeatedly.

Press numbered buttons O-9 and +10 to program e

a track.

Example:

To select the 25th track, press +10, +10 and 5, To select the 10th track, press

Selected track number

+10 and O.

Total number of selected tracks

:::ik’:” ~#

;* ‘,,>

‘!&

Press RANDOM/REPEAT while pressing SHIFT .

Each time it is pressed, the function can be selected cyclically.

RANDOM play — RANDOM lightsup on the display. REPEAT play — ~ lights up on the display.

RANDOM/REPEAT play — RANDOM and C& light upon the display, Cancel — RANDOM and CL disappear from the display.

To plav all discs, press F to start play. To play a single disc, press one of DISC DIRECT PLAY 1-3 to

start play.

During random play it is not possible to skip to the previously played track with 44.

Up to 30 tracks can be programmed from any of the inserted

discs,

Program number

Repeat steps 2 and 3 to program other tracks.

Press 4 b- to start play.

To check the program

Each time + or b> is pressed in stop mode, a disc number, track number, and program number will be displayed,

To clear the program

Press ❑ CLEAR in stop mode,

To add tracks to the program

Repeat steps 2 and 3 in stop mode. The track will be programmed after the last track.

To change the programmed tracks

Clear the program and repeat all the steps again.

To play the programmed tracks repeatedly

After programming the tracks, press RAN DOM/REF’EAlr repeatedly until % appears on the display.

Total playing time of the selected tracks

During programmed play, you cannot perform random play, checking the remaining time, and selecting a disc or track.

❑

Use the remote control.

1 Press PRGM twice while pressing SHIFT in stop

mode.

“PRGM” appears.

PRGM

* When

PI?GM is pressed once in step 1, the unit enters the

KARAOKE PROGRAM (page 17).

2 Press DISC DIRECT PLAY 1-3 to select a disc.

to the next step when the tray stops rotating.

ENGLISH

1()

Use Type I (normal) tapes only.

Press TAPE and press A

cassette holder.

EJECT to open the

To select a playing deck

When tapes are loaded in both decks, press TAPE first to select a deck. The selected deck number is displayed.

To stop play, press ■ . To pause play (deck 2 only), press 1I. To resume play, press

again.

To change the playback side (deck 1 only), press <> in play

or pause mode.

To fast forward or rewind, press < or -. Then press W

to stop the tape.

To start play when the power is off (Direct Play Function)

Press TAPE. The power is turned on and play of the inserted tape begins.

To set the tape counter to 0000

Press S CLEAR in stop mode. The counter is also set to 0000 when the cassette holder is opened.

When tapes are loaded in both decks

After playback of both side (front and back) on deck 1 finishes, the tape in the deck 2 will start to play without interruption and will stop at the end of the front side of the tape. (Continuous play)

A EJECT

Insert a tape with the exposed side down. Push the cassette holder to close.

2 Press 4>

The selected deck number The tape counter indicates

-: The front side is being played (forward).

<: The back side is being played (reverse).

to start play.

the tape running length.

Playback side indicator

.,--,,,,,;.: ... .-i=-

.. . ~--~-:=%.==-..,..:

!?,!,: w *,’ ,, L *W

MUSIC SENSOR “(deck-l-only)

If there is a 4-second or longer blank between each track, a search for the beginning of the current or next track during playback can be done easily. Press + or - during playback referring to the playback side indicator (< or E) on the display, For example, when - is pressed while P is displayed, playback of the next track starts after searching.

Music sensor function may not be able to detect tracks under the following conditions:

● Blanks of less than 4 seconds between tracks

● Noisy blanks

● Long passages of low-end sound

● Low overall recording levels

11 ENGLLSH

This section explains how to record from the tuner, CD player, or external equipment.

Preparation

● Use Type I (normal) tapes only.

● Set the tape to the point where recording will start.

● Note that recording is done on only one side of the tape

,-, ,.! ,. ..,, ,. .,.. ,,. ,,. ,,,

INSERTING BLANK SPACES

Insertion of 4-second blank spaces enables you to activate the Music Sensor function, (Applicable when the source is TUNER, VIDEO/AUX or MD.) 1

Press ‘@ REC/REC MUTE during recording or while in recording pause mode.

on the display flashes for4 seconds and 4-second blank

space is made. Then, the deck enters the recording pause mode.

Press II to resume recording.

To insert a blank space of less than 4 seconds,

REC/REC MUTE again while ~ is flashing.

To insert blank s~aces of more than 4 seconds,

enters recording pause mode, press @

Each time the button is pressed,

added

REC/REC MUTE again. ~

a 4-second blank space is ‘~

About cassette tapes * To prevent accidental erasure,

on the cassette tape after recording with a screwdriver or other pointed tool.

break off the plastic tabs

press @

after the deck

:;$

.-m:

-g

●

‘~

‘“E ::f,+;

Insert the tape to be recorded on into deck 2.

Insert

the tape with the side to be recorded on first facing out

from the unit.

Press function (CD, TUNER, VIDEO/AUX or MD)

and prepare the source to be recorded. To record from a

To record from a radio broadcast, press

in to a station.

record from a connected source, press VIDEO/AUX or

MD,

Press @ REC/REC MUTE to start recording.

CD, press CD and load the disc(s).

TUNER and tune

Side A

To record on the tape again, cover the tab openings with adhesive tape, etc.

* 120-minute or longer tapes are extremely thin and easily

deformed or damaged. They are not recommended.

● Take up any slack in the tape with a pencil orsimilartool

ab for side A

before use. Slacktape may breakorjam in the mechanism.

When the selected function is CD, playback and recording start simultaneously.

When recording from a connected source, start playback of

the source.

To stop recording, press 9. To

pause recording, press II. (Applicable when the source is

TUNER, VIDEO/AUX or MD) To resume recording, press it again.

Sound adjustment during recording

The output volume and tone (except BBE) of the speakers or

headphones are freely varied without affecting the level of the recording.

To erase a recording

Make sure the microphone is not connected to this unit.

1 Insert the tape to be erased into deck 2 and press TAPE DECK

to display ‘(TP 2“.

1/2

2 Set the tape to the point where the erasure is to be started. 3 Press @

REC/REC MUTE to start the erasure.

ENGL/SH I

6--–

.—____

●

~ .—==+

—.—.———-,

.-—.—. ———-,

,,1

—2

● Set the tape to the point where recording will start.

● Note that recording will be done cm one side of the tape only.

Press TAPE.

Insert the original tape into deck 1 and the tape

to be recorded on into deck 2.

Insert the tapes with the sides to be played back or recorded

on facing out from the unit.

Press TAPE DECK 1/2 to select deck 1.

“TP 1” is displayed.

Press ● REC/REC MUTE to start recording.

Playing and recording start simultaneously.

To stop dubbing

Press

■ .

This function allows you to make exact copies of the original tape.

● Dubbing does not start from a point halfway in the tape.

● Note that recording will be done on one side of the tape only.

Press TAPE.

Insert the original tape into deck 1 and the tape

to be recorded on into deck 2.

Insert each tape with the side to be played back or recorded

on facing out from the unit.

Press SYNCHRO DUBBING to start recording.

The tapes are rewound to the beginning of the front sides, and recording starts.

To stop dubbing

Press

■ .

13 ENGLISH

--r

The Al edit recording function enables CD recording without worrying about tape length and track length. When a CD is inserted, the unit automatically calculates the total track length.

If necessary, the order of tracks is rearranged so that no track is cut short. (Al: Artificial Intelligence)

m Al edit recording will not start from a point halfway into the tape. The tape must be recorded from the beginning of either side.

3,7

6 Press ● REC/REC MUTE to start recording on

the first side.

The tape is rewound to the beginning of the first side, the

lead segment is played through for 10 seconds, and recording starts. When the last track programmed for side A is finished, deck 2 enters the recording stop mode. After entering the recording stop mode, go to step

7 Press EDIT/CHECK while pressing SHIFT on the

remote control to display the program for the second recording.

“B” is displayed.

8 Turn over the tape in deck 2 and press O REC/

REC MUTE to start recording on the second side.

To stop recording

Press ■ . Recording and CD play stop simultaneously,

To clear the edit program

Press ■ CLEAR twice so that “EDIT disappears on the display.

To check the order of the programmed track numbers

Before recording, press EDIT/CHECK while pressing SHIFT on the remote control to select side A or B, and press < or ~ repeatedly.

Programmed

Track number track numbers

Insert the tape into deck 2.

Insert the tape with the side to be recorded on first facing out

from the unit,

Press CD and load the disc(s).

Press EDIT/CHECK once while pressing SHIFT

on the remote control.

“EDIT appears,

EDIT

● When “PRGM” is displayed, press EDIT/CHECK

pressing SHIFT again,

Press DISC DIRECT PLAY 1-3 to select a disc. Press numbered buttons O-9 on the remote

control to designate the tape length.

10 to 99 minutes can be specified. Example: When using a 60-minute tape, press 6 and O. In a few seconds, the tracks to be recorded on each side of

the tape are determined.

● +, - or MULTI JOG are also available to designate

the tape length.

Tape length

Remaining time Programmed of recording tracks for side A

while

Program number

To add tracks “from other discs to the edit program

If there is any time remaining on the tape after step 5, you can add tracks from other discs in the CD compartment 1 Press

EDIT/CHECK while pressing SHIFT on the remote

controlto select side A or B.

2 Press DISC DIRECT PLAY 1-3 to select a disc.

Press numbered buttons on the remote control to select tracks.

A track whose playing time is longer than the remaining time cannot be programmed.

4 Repeat steps 2 and 3 to add more tracks.

Time on cassette tapes and editing time

The actual cassette recording time is usually a little longer than the specified recording time printed on the label. This unit can program tracks to use the extra time. When the total recording time is a little longer than the tape’s specified recording time after editing, the display shows the extra time (without a minus mark), instead of the time remaining on the tape (with the minus mark),

The Al edit recording function cannot be used with discs containing 31 tracks or more.

‘

CD EDIT/CHECK on the unit is also available instead of EDIT CHECK on the remote control.

Tape side A: First recording side B: Second recording side

ENGLISH 14

E ;

c)=;~

o’

3,7,8,9

4,5

3,7,8,9

Repeat step 5 for the rest of the tracks for side

A track whose playing time is longer than the remaining time cannot be programmed.

Press EDIT/CHECK while pressing SHIFT on the remote control to select side B and program the tracks for side B.

After confirming “Bon the display, repeat step 5.

Tape side B (reverse side)

l. —._ _

In the programmed edit recording function the tracks can be programmed while checking the remaining time on each side of

the tape.

The programmed edit recording will not start from a point halfway

in the tape. The tape must be recorded on from the beginning of either side.

Insert the tape into deck 2.

Insert the tape with the side to be recorded on first facing out

from the unit.

Press CD and load the disc(s). Press EDIT/CHECK twice while pressing SHIFT

on the remote control.

“EDIT” and “PRGM” appear.

● When “AI” is displayed, press EDIT/CHECK while pressing

SHIFT again.

Press numbered buttons on the remote control

to designate the tape length.

10 to 99 minutes can be specified.

c The +, - or MULTI JOG are also available to designate

the tape length.

Tape length

Press DISC DIRECT PLAY 1-3 to select a disc. Then, press numbered buttons O-9 and + 10 on the remote control to program a track.

Example:To select the 10th track of disc 2, press DISC

DIRECT PLAY2, then

press +10 and O.

Tape side A (front side)

Maximum recording

time for side A

Remaining time Programmed

on side A

tracks

Press EDIT/CHECK while pressing SHIFT to

select side A and press start recording.

CD play and recording of edited tracks for the first side start simultaneously. When the last track programmed for side A is finished, deck 2 enters the recording stop mode. After entering the recording stop mode, go to step 9.

Press EDIT/CHECK while pressing SHIFT on the

remote control for recording of the second side.

“B” is displayed.

10 Turn over the tape in deck 2 and press ● REC/

REC MUTE to start recording.

Recording starts.

To stop recording

Press ■ . Recording and CD play stop simultaneously.

To check the order of the programmed track numbers

Beforerecording,pressEDIT/CHECKwhilepressingSHIFT on

the remotecontroltoselectsideA orB,and press- or *

repeatedly.

Disc number Track number Program number

Tape side

To change the program of each side

Press EDIT/CHECK while pressingSHIFT on the remote control

to select side A or B, and press ■ CLEAR to clear the program on the selected side. Then program tracks again.

To clear the edit program

Press ■ CLEAR twice so that “EDIT” disappears on the display.

‘ CD EDIT/CHECK on the unit is also available instead of EDIT CHECK

on the remofe control.

● REC/REC MUTE to

Programmed track numbers

7 ~ ENGLISH

,,, ,. .,..,,, ,-.

VOCAL FADER/MU-LTIPLEX FUNCTIONS #

This unit can use discs or tapes as Karaoke sources. Use the vocal fader function for ordinary discs or tapes, Use the multiplex function for multi audio discs or tapes,

Press KARAC)KE repeatedly to select the vocal fader or multiplex function.

;,’J:

E’ g;

‘1!

A microphone (not supplied) can be connected allowing you to sing along to music sources,

Use a microphone with mini plugs (03,5 mm, 1/8 inch).

Connect your microphone to the MIC jack.

Press one of function to select the source to be

to this unit,

MIC 1

mixed, and play the source.

Adjust the volume and tone of the source.

3 4

Turn the MIC VOLUME control to adjust the

microphone volume.

To record microphone sound mixed with source sound

Follow the procedure for recording from the sound source (see page 12). SYNCHRO DUBBING cannot be used for mixing recording.

When not using the microphone

Set the microphone volume to MIN and remove the microphone

from the

* If a microphone is held too near the speakers, a howling sound

● [f sound through the microphone is extremely loud, it may be

MIC jack.

may be produced. In this case, hold the microphone away

from the speakers, or decrease the microphone volume.

distorted, In this case, decrease the microphone volume.

@ Vocal Fader

The singer’s voice becomes softer than the accompaniment.

@ Auto Vocal Fader

The singer’s voice becomes softer only while there is audio input through a microphone.

@ Multiplex

The sound on the left channel is heard from both speaker:;

and the sound on the rightchannel is muted.

To hear

the sound on the right channel, see below,

@ Auto Multiplex

The sound on the left channel is heard from both speakers,

and the sound on the right channel is muted only while there is audio input through a microphone.

To hear the sound on the right channel, see below.

@ Cancel

To change the time lag setting in Auto Vocal Fader

Auto Multiplex function

The muted original singer’s voice can be turned faster to the

normal level. When Auto Vocal Fader or Auto Multiplex is selected, “A-W” or “A-MPX is displayed for 3 seconds and changes to the selected function name. After the selected function name is displayed,

kee~

pressing

To returnto the initialsetting, select

When the power is turned off, SLOW is restored.

To change the audible channel in Multiplex function

When Multiplex is selected, “MPX -L” is displayed for 3 seconds and changes to the selected function name. After the selectec~ function name is displayed, kee~ ~ressinq KARAOKE until “MPX-

R“ is displayed. To return to the initial setting, select MPX-L, When the power is turned off, MPX-L is restored,

KARAOKE until “FAST”is displayed.

SLOW.

❑

olr

Recommended microphone

The use of unidirectional type microphone is recommended to

prevent howling, Contact your local Aiwa dealer for details,

● The Karaoke functions may not operate correctly with the

following kinds of CDs or tapes,

- Those with monaural sound

- Those recorded with strong echoes

- Those with the vocal part recorded on the right or left side of the sound width

● While the Karaoke function is on, the sound is output as

monaural.

● When the function is changed, the Karaoke function is canceled,

i3fGL/SH

Before or during CD play, you can reserve up to 15 tracks to be played after the current track. Each reservation is cleared when it finishes playing.

Use the remote control.

12Press PRGM u while pressing SHIFT.

Press one of DISC DIRECT PLAY 1-3 to select a disc. Then, press the numbered buttons and the + 10

button to program a track.

To add a reservation during play

Repeat step 2.

check the reserved tracks

Press CD EDIT/CHECK on the main unit or EDIT CHECK while pressing SHIFT on the remote control repeatedly. Each time it is pressed, the disc number and track number are displayed in the reserved order.

To stop play

Press ■ . When 4> is pressed, the play starts from the last track again.

To skip a current track Press -. The skipped track is cleared from the program.

To clear all the reservations

Press > repeatedly until “K - POO is displayed.

Press it once more to cancel the Karaoke programs. The display returns to that of CD play.

● If the reserved track number does not exist on the selected

disc, the unit stops playing and the display flashes.

In this case, press

to start play with the next reserved track.

● When PRGM is pressed repeatedly in step 1, “PRGM” is

displayed and the unit enters CD program play mode (page

lo).

To cancel

➤P to skip the error track. Then press <~

program play, press ■ CLEAR.

Reserved disc number Reserved track number

3 Repeat step 2 to reserve other tracks. 4 Press +- to start play.

Aftera trackisplayed,it isclearedfromtheprogram.

Currently playing disc

Disc number of the Number of remaining last reservation ,

Track number of the last reservation

reserved tracks

Currently playing track number flashes

17 ENGLISH

,—.-___

--du

Press CLOCK, then press II SET within 4

seconds.

When using the remote control

Press CLOCK while pressingSHIFT, then press II SET-

4 seconds,

Press -44 DOWN or - UP to designate the hour, then press 11 SET.

The hour stops flashing and the minute starts flashing,

Press -d< DOWN or > UP to designate the

minute, then press 11 SET.

The minulestopsflashingonthe displayandtheclockstarts

from 00 seconds,

To display the current time

Press CLOCK. The time is displayed for 4 seconds, However, the time cannot be displayed during recording,

To switch to the 24-hour standard

Press the CLOCK and then press Repeat the same procedure to restore the 12-hour standard.

❑ within 4 seconds,

The unit can be turned off automatically at a specified time,

Use the remote control,

Press SLEEP while pressing SHIFT.

2 Within 4 seconds, press + or > to specify

the time until the power is turned off.

Each time the button is pressed, the time changes between 5 and 240 minutes in 5-minute steps.

Specified time

To check the time remaining until the power is turned off

Press SLEEP once while pressing SHIFT. The remaining time

is displayed

To cancel the sleep timer

Press SLEEP twice while pressing SHIFT so that “SLEEP oFF”

appears on the display,

for 4 seconds.

This is caused by a power interruption. The current time needs

If power is interrupted for more than approximately 24 hours, all settings stored in memory after purchase need to be reset.

~’

‘

ENTER is ako avai/ab/e instead of II SET.

* MULTI JOG is also available instead of 44 and W.

‘ MULTI JO,G is also available instead of M and W.

ENGLISH

2,3,4

I ,. .

The unit can be turned on at a specified time every day with the

built-in timer.

Preparation

Make sure the clock is set correctly

Press TIMER repeatedly to display@, then press

II SET within 6 seconds.

is displayed and the hour flashes.

Select the duration for the timer-activated period

with + DOWN or _ UP, then press II SET.

The duration for the timer-activated period can be set between

5 and 240 minutes in 5-minute steps.

Prepare the source.

To listen to a CD, load the disc to be played first on tray 1.

To listen to a ta~e, insert the tape into deck 1 or 2. To listen to the radio, tune in to a station.

Press POWER to turn the unit off after adjusting the volume and tone. ~

remains on the display after the power is turned off (timer

standby mode).

the timer-on time is reached, the unit turns on and

When begins play with the selected source. The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.

To check the specified time and source

Press TIMER. The timer-on time, the selected source name and the duration for the timer-activated period are displayed for 4 seconds.

If you press II SET after 6 seconds, another operation may

start.

Designate the hour of the timer-on time pressing < DOWN or > UP, then press II

SET.

Repeat to designate the minute of the timer-on

time.

After you designate the timer-on time, one of the source names flashes on the display.

Press + DOWN or - UP to select a source,

then press II SET.

● If TUNER (AM or FM) is selected, the band cannot be

selected in this step.

To cancel timer standby mode temporarily

Press TIMER repeatedly until @ or OREC disappears on the display. To restore the timer standby mode, press TIMER once or twice to display@ or

OREC.

Using the unit while the timer is set

You can use the unit normally after setting the timer. Before turning the power off, carry out step 5 to prepare the source, and adjust the volume and tone.

● Timer playback and timer recording will not begin unless the

power is turned off.

● Connected equipment cannot be turned on and off by the built-

in timer of this unit. Use an external timer.

TIMER ‘RECORDING “-“‘-”””‘ ‘=:-”’”-”““-’--”””“’”’--‘‘

Timer recording is applicable for TUNER and VIDEO/AUX (with an external timer) sources only.

Press TIMER repeatedly until OREC appears, then press II SET within 6 seconds.

TIMER from step 2 and insert the tape to be recorded on into deck 2 after step 5.

Carry out the steps of “SETTING THE

I 9 ENGLISH

‘

ENTER is also available instead of // SET.

* MULTI JOG k also available instead of 44 and W.

OTHER CONNECTIONS

OUT

Refer to the operating instructions of the connected equipment

for details.

c The connecting cords are not supplied. Obtain the necessary

connecting cords.

s Consult your local Aiwa dealer for optional equipment.

VIDEO/AIJX JACKS, MD JACKS

This unit can input analog sound signals through these jacks.

Use a cable with RCA phono plugs to connect audio equipment (turntables, LD players, MD players, VCRs, TV, etc.). Connect the red plug to the

Rjack, and the white plug to the L jack.

When connecting a turntable

Use an Aiwa turntable equipped with a built-in equalizer amplifier.

This unit can output analog sound signal through these jacks.

Use a cable with RCA phono plugs to connect audio equipment with LINE

IN (analog input) jacks.

Do not connect an equipment to the LINE OUT terminals and

VIDEO/AUX terminals simultaneously. Otherwise, noise is

generated and malfunction occurs.

CD DIGITAL OUT (OPTICAL) JACK

This unit can output CD digital sound signals through this jack.

Use an optical cable to connect digital audio equipment (DAT

deck, MD recorder, etc.).

Remove the dust cap @ from the CD DIGITAL OUT (OPTICAL)

jack. Then, connect an optical cable plug to the CD DIGITAL

OUT (OPTICAL) jack.

,—--—_—

To play equipment connected to the VIDEO/AUX or MD jacks

proceed as follows,

Press VIDEO/AUX or MD.

When a equipment connected to the VIDEO/AUX jacks is

played: press VIDEO/AUX.

When a equipment connected to the MD jacks is played:

press MD,

Play the connected equipment.

To change a source name in the display

When VIDEO/AUX is pressed, ‘(VIDEO” is displayed initially. It can be changed to “AUX or “TV”. With the power on, press

Repeat the procedure to select one of the names.

To adjust the sound level of the external When the sound level of the external source is much higher or

much lower than that of other function sources, adjust it as follows. 1 Press

2 Press 4+ or ›~ so that the sound level becomes the same

B%%H During recording, the sound level can not be adjusted.

VIDEO/AUX or MD and play the equipment.

as that of other function sources.

POWER while pressing VIDEO/ALfX.

source

When the CD DIGITAL OUT (OPTICAL) jack is not being used

Attach the supplied dust cap.

SUPER WOOFERS ~ JACKS

Connect optional powered sub woofers with built-in-amplifiers to the jacks.

ENGLISH 20

+ 47 hidden pages
