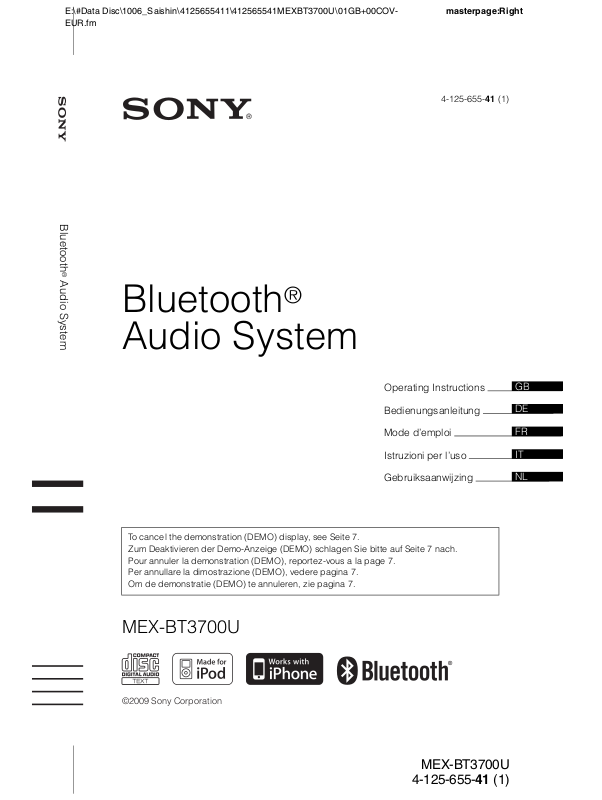

SONY MEX-BT3700 User Manual [fr]

System Audio ®Bluetooth

4-125-655-41 (1)

Bluetooth®

Audio System

Operating Instructions						GB
Bedienungsanleitung
						DE
Mode d’emploi
						FR
Istruzioni per l’uso
						IT
Gebruiksaanwijzing
						NL

To cancel the demonstration (DEMO) display, see Seite 7.

Zum Deaktivieren der Demo-Anzeige (DEMO) schlagen Sie bitte auf Seite 7 nach. Pour annuler la demonstration (DEMO), reportez-vous a la page 7.

Per annullare la dimostrazione (DEMO), vedere pagina 7. Om de demonstratie (DEMO) te annuleren, zie pagina 7.

MEX-BT3700U

©2009 Sony Corporation

Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/ connections manual.

This label is located on the bottom of the chassis.

Hereby, Sony Corp., declares that this MEXBT3700U is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For details, please access the following URL: http://www.compliance.sony.de/

Use of this radio equipment is not allowed in the geographical area within a radius of 20 km from the centre of Ny-Alesund, Svalbard in Norway.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Applicable accessory: Remote commander

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Note on the lithium battery

Do not expose the battery to excessive heat such as direct sunlight, fire or the like.

2

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license.

Other trademarks and trade names are those of their respective owners.

ZAPPIN is a trademark of Sony Corporation.

Windows Media, and the

Windows logo are trademarks

or registered trademarks of

Microsoft Corporation in the

United States and/or other countries.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Content providers are using the digital rights management technology for Windows Media contained in this device (“WM-DRM”) to protect the integrity of their content (“Secure Content”) so that their intellectual property, including copyright, in such content is not misappropriated.

This device uses WM-DRM software to play Secure Content (“WM-DRM Software”). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (“Secure Content Owners”) may request that Microsoft revoke the WM-DRM Software’s right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Software’s ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners.

Warning if your car’s ignition has no ACC position

Be sure to set the Auto Off function (page 22). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain.

If you do not set the Auto Off function, press and hold (OFF) until the display disappears each time you turn the ignition off.

3

Table of Contents

Getting Started

Playable discs on this unit . . . . . . . . . . . . . . . . . 6 Notes on Bluetooth . . . . . . . . . . . . . . . . . . . . . . 6 Resetting the unit . . . . . . . . . . . . . . . . . . . . . . . . 6 Canceling the DEMO mode . . . . . . . . . . . . . . . 7 Preparing the card remote commander . . . . . . . 7 Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . 7 Detaching the front panel . . . . . . . . . . . . . . . . . 7

Attaching the front panel . . . . . . . . . . . . . . . 7

Location of controls and basic operations

Main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Card remote commander RM-X304 . . . . . . 10 Searching for a track . . . . . . . . . . . . . . . . . . . . 11

Searching a track by name

— Quick-BrowZer . . . . . . . . . . . . . . . . . . . 11 Searching a track by listening to track passages

— ZAPPIN™ . . . . . . . . . . . . . . . . . . . . . . . 12

Radio

Storing and receiving stations . . . . . . . . . . . . . 12 Storing automatically — BTM . . . . . . . . . . 12 Storing manually. . . . . . . . . . . . . . . . . . . . . 12 Receiving the stored stations . . . . . . . . . . . 12 Tuning automatically . . . . . . . . . . . . . . . . . 12

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Setting AF and TA . . . . . . . . . . . . . . . . . . . 13 Selecting PTY . . . . . . . . . . . . . . . . . . . . . . . 14 Setting CT . . . . . . . . . . . . . . . . . . . . . . . . . . 14

CD

Display items . . . . . . . . . . . . . . . . . . . . . . . 14 Repeat and shuffle play. . . . . . . . . . . . . . . . 14

USB devices

Playing back a USB device . . . . . . . . . . . . . . . 15 Display items . . . . . . . . . . . . . . . . . . . . . . . 15 Repeat and shuffle play. . . . . . . . . . . . . . . . 15

iPod

Playing back iPod . . . . . . . . . . . . . . . . . . . . . . 16 Display items . . . . . . . . . . . . . . . . . . . . . . . 16 Setting the play mode . . . . . . . . . . . . . . . . . . . 17 Repeat and shuffle play. . . . . . . . . . . . . . . . 17

Operating an iPod directly

— Passenger control . . . . . . . . . . . . . . . . . . . . 17

Bluetooth (Handsfree calling and Music streaming)

Bluetooth operations . . . . . . . . . . . . . . . . . . . . 18 Pairing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 About Bluetooth icons . . . . . . . . . . . . . . . . 18 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

To switch the Bluetooth signal output of this unit to on . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Connecting a cellular phone. . . . . . . . . . . . 19 Connecting an audio device . . . . . . . . . . . . 19

Handsfree calling . . . . . . . . . . . . . . . . . . . . . . 19 Receiving calls . . . . . . . . . . . . . . . . . . . . . . 19 Making calls . . . . . . . . . . . . . . . . . . . . . . . . 20 Call transfer . . . . . . . . . . . . . . . . . . . . . . . . 20 Voice Dial Activation . . . . . . . . . . . . . . . . 20

Music streaming . . . . . . . . . . . . . . . . . . . . . . . 20 Listening to music from an audio

device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Operating an audio device with this

unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Deleting registration of all paired

devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Other functions

Changing the sound settings . . . . . . . . . . . . . . 21 Adjusting the sound characteristics . . . . . . 21 Customizing the equalizer curve

— EQ3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Adjusting setup items — SET . . . . . . . . . . . . 22 Using optional equipment. . . . . . . . . . . . . . . . 23 Auxiliary audio equipment. . . . . . . . . . . . . 23 CD changer. . . . . . . . . . . . . . . . . . . . . . . . . 23 Rotary commander RM-X4S . . . . . . . . . . . 24 External microphone XA-MC10 . . . . . . . . 24

Additional Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Notes on discs . . . . . . . . . . . . . . . . . . . . . . 25 Playback order of MP3/WMA/AAC

files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 About iPod . . . . . . . . . . . . . . . . . . . . . . . . . 25 About Bluetooth function. . . . . . . . . . . . . . 26 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Removing the unit. . . . . . . . . . . . . . . . . . . . . . 27 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 28 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 29 Error displays/Messages. . . . . . . . . . . . . . . 31

4

Support site

If you have any questions or for the latest support information on this product, please visit the web site below:

http://support.sony-europe.com/

Provides information on:

•Models and manufacturers of compatible digital audio players

•Supported MP3/WMA/AAC files

•Models and manufacturers of compatible cellular phones and the FAQ about Bluetooth function

5

Getting Started

Playable discs on this unit

This unit can play CD-DA (also containing CD TEXT) and CD-R/CD-RW (MP3/WMA/AAC files (page 25)).

Type of discs

Label on the disc

CD-DA

MP3

WMA

AAC

Notes on Bluetooth

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.

IMPORTANT NOTICE!

Safe and efficient use

Changes or modifications to this unit not expressly approved by Sony may void the user’s authority to operate the equipment.

Please check for exceptions, due to national requirement or limitations, in usage of Bluetooth equipment before using this product.

Driving

Check the laws and regulations on the use of cellular phones and handsfree equipment in the areas where you drive.

Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require.

Connecting to other devices

When connecting to any other device, please read its user guide for detailed safety instructions.

Radio frequency exposure

RF signals may affect improperly installed or inadequately shielded electronic systems in cars, such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems or air bag systems. For installation or service of this device, please consult with the manufacturer or its representative of your car. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to this device.

Consult with the manufacturer of your car to ensure that the use of your cellular phone in the car will not affect its electronic system.

Check regularly that all wireless device equipment in your car is mounted and operating properly.

Emergency calls

This Bluetooth car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies).

Remember, in order to make or receive calls, the handsfree and the electronic device connected to the handsfree must be switched on in a service area with adequate cellular signal strength.

Emergency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use.

Check with your local service provider.

Resetting the unit

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit.

Detach the front panel (page 7) and press the RESET button (page 8) with a pointed object, such as a ball-point pen.

Note

Pressing the RESET button will erase the clock setting and some stored contents.

6

Canceling the DEMO mode

You can cancel the demonstration display which appears during turning off.

1Press and hold the select button.

The setup display appears.

2Press the select button repeatedly until “DEMO” appears.

3Rotate the control dial to select “DEMO-OFF.”

4Press and hold the select button.

The setup is complete and the display returns to normal play/reception mode.

Detaching the front panel

You can detach the front panel of this unit to prevent theft.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

1Press (OFF).

The unit is turned off.

2Press , then pull it off towards you.

Preparing the card remote commander

Remove the insulation film.

Tip

For how to replace the battery, see page 26.

Notes

•Do not drop or put excessive pressure on the front panel and display window.

•Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

•Do not detach the front panel during playback of the USB device, otherwise USB data may be damaged.

Setting the clock

The clock uses a 24-hour digital indication.

1Press and hold the select button.

The setup display appears.

2Press the select button repeatedly until “CLOCK-ADJ” appears.

3Press (SEEK) +.

The hour indication flashes.

4Rotate the control dial to set the hour and minute.

To move the digital indication, press (SEEK) +/–.

5After setting the minute, press the select button.

The setup is complete and the clock starts.

To display the clock, press (DSPL). Press (DSPL) again to return to the previous display.

Tip

You can set the clock automatically with the RDS feature (page 14).

Attaching the front panel

Engage part A of the front panel with part B of the unit, as illustrated, and push the left side into position until it clicks.

A

B

Note

Do not put anything on the inner surface of the front panel.

7

Location of controls and basic operations

Main unit

12345		6			7				89
OFF
SEEK
SOURCE
		ZAPAFTATPREGLOUDDISCALBMARTISTRACK				SHUF DM+
MODE
BLUETOOTH		PTY	ALBM		REP	SHUF	MIC	PAUSE	SCRL	AUX
BT
SEEK	ZAP	AF/TA	1	2	3	4	5	6	DSPL
PUSH ENTER / SELECT /

q; qa		qs	qd qf qg			qh	qj qk
Front panel removed					This section contains instructions on the location
ql			w;		of controls and basic operations. For details, see
					the respective pages.
					The corresponding buttons on the card remote
					commander control the same functions as those
					on the unit.
					A OFF button
RESET						To power off; stop the source.
					B	(BACK)/MODE button page 11, 12,
						16, 17
						Press to: Return to the previous display/
						select the radio band (FM/MW/LW)*1/select
						the play mode of iPod.
						Press and hold to: Enter/cancel the passenger
						control.
					C SOURCE button
						To power on; change the source (Radio/CD/
						USB/AUX/Bluetooth audio/Bluetooth
						phone)*1.
					D	(BROWSE) button page 11
						To enter the Quick-BrowZer mode.

E Control dial/select/ (handsfree) button

To adjust volume/select search category (rotate); select setup items (press and rotate); receive/end a call (press).

F Disc slot

Insert the disc (label side up), playback starts.

G Display window

H Z (eject) button

To eject the disc.

8

IUSB terminal page 15

To connect to the USB device.

JSEEK +/– buttons

CD/USB:

To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fastforward a track (press and hold).

Radio:

To tune in stations automatically (press); find a station manually (press and hold).

Bluetooth audio device*2: To skip tracks (press).

K (front panel release) button page 7

LBT (BLUETOOTH) button page 18

For Bluetooth signal on/off, pairing.

MReceptor for the card remote commander

NZAP button page 12

To enter ZAPPIN™ mode.

OAF (Alternative Frequencies)/TA (Traffic Announcement)/PTY (Program Type) button page 13, 14

To set AF and TA (press); select PTY (press and hold) in RDS.

PNumber buttons

CD/USB:

(1)/(2): ALBM –/+ (during MP3/WMA/ AAC playback)

To skip albums (press); skip albums continuously (press and hold).

(3): REP page 14, 15, 17

(4): SHUF page 14, 15, 17

(6): PAUSE

To pause playback. To cancel, press again.

Radio:

To receive stored stations (press); store stations (press and hold).

Bluetooth audio device*2:

(6): PAUSE

To pause playback. To cancel, press again.

Bluetooth phone:

(5): MIC page 19

QDSPL (display)/SCRL (scroll) button page 13, 14, 15, 16, 17

To change display items (press); scroll the display item (press and hold).

RAUX input jack page 23

To connect a portable audio device.

S RESET button page 6

T Microphone page 19

Note

Do not cover the microphone, the handsfree function may not work properly.

*1 In the case of a CD changer being connected; when (SOURCE) is pressed, “CD” and the unit number will appear in the display. Furthermore, if (MODE) is pressed, you can switch the changer.

*2 When a Bluetooth audio device (supports AVRCP of Bluetooth technology) is connected. Depending on the device, certain operations may not be available.

Notes

•When ejecting/inserting a disc, keep any USB devices disconnected to avoid damage to the disc.

•If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless (SOURCE) on the unit is pressed, or a disc is inserted to activate the unit first.

9

Card remote commander RM-X304

	1	OFF		ATT	6
					7
	2
		SOURCE	SEL	MODE	8
	3
			+
					9
			–
	4	DSPL		SCRL 0
		1	2	3	qa
		4	5	6

5	+
	VOL
	–

GMODE button

Press to: Select the radio band (FM/MW/ LW)/select the play mode of iPod.

Press and hold to: Enter/cancel the passenger control.

HSEL (select)/ (handsfree) button

The same as the select button on the unit.

IM (+)/m (–) buttons

To control CD/USB, the same as (1)/(2) (ALBM –/+) on the unit.

Setup, sound setting, etc., can be operated by

M m.

JSCRL (scroll) button

To scroll the display item.

KNumber buttons

To receive stored stations (press); store stations (press and hold).

Some of the following buttons on the card remote commander have different functions, or are different from the unit. Remove the insulation film before use (page 7).

AOFF button

To power off; stop the source.

BSOURCE button

To power on; change the source (Radio/CD/ USB/AUX/Bluetooth audio/Bluetooth phone).

C< (.)/, (>) buttons

To control radio/CD/USB/Bluetooth audio, the same as (SEEK) –/+ on the unit.

Setup, sound setting, etc., can be operated by

< ,.

DDSPL (display) button

To change display items.

EVOL (volume) +/– button

To adjust volume.

FATT (attenuate) button

To attenuate the sound. To cancel, press again.

10

Searching for a track

Searching a track by name

— Quick-BrowZer

You can search for a track in a CD or USB device easily by category.

(BROWSE) Control dial/ select button

OFF

SEEK

SOURCE

MODE

BLUETOOTH

BT

SEEK

PUSH ENTER / SELECT /

(BACK)

SEEK +/–

1 Press (BROWSE).

The unit enters the Quick-BrowZer mode, and the list of search categories appears.

2Rotate the control dial to select the desired search category, then press it to confirm.

3Repeat step 2 until the desired track is selected.

Playback starts.

To return to the previous display

Press (BACK).

To exit the Quick-BrowZer mode

Press (BROWSE).

Note

When entering the Quick-BrowZer mode, the repeat/ shuffle setting is canceled.

Searching by skip items

— Jump mode

When many items are in a category, you can search the desired item quickly.

1Press (SEEK) + in Quick-BrowZer mode. The following display appears.

A Current item number

B Total item number in the current layer

Then the item name will appear.

2Rotate the control dial to select the desired item, or one near the desired item.

It skips in steps of 10% of the total item number.

3Press the select button.

The display returns to the Quick-BrowZer mode and the selected item appears.

4Rotate the control dial to select the desired item and press it.

Playback starts if the selected item is a track.

To cancel Jump mode

Press (BACK) or (SEEK) –.

11

Searching a track by listening to track passages — ZAPPIN™

While playing back short track passages in a CD or USB device in sequence, you can search for a track you want to listen to.

ZAPPIN mode is suitable for searching for a track in shuffle or shuffle repeat mode.

Select button

Radio

Storing and receiving stations

Caution

When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

	Storing automatically — BTM
OFF	1 Press (SOURCE) repeatedly until
SEEK	“TUNER” appears.
SOURCE
	To change the band, press (MODE)
MODE	repeatedly. You can select from FM1, FM2,
BLUETOOTH	FM3, MW or LW.
BT
SEEK	ZAP

PUSH ENTER / SELECT /				2	Press and hold the select button.
					The setup display appears.
ZAP				3	Press the select button repeatedly
1 Press (ZAP) during playback.					until “BTM” appears.
				4	Press (SEEK) +.
After “ZAPPIN” appears in the display,					The unit stores stations in order of frequency
playback starts from a passage of the next					on the number buttons.
track.					A beep sounds when the setting is stored.
The passage is played for the set time, then a
click sounds and the next passage starts.

Storing manually

Track

1			2				3				4

ZAP

The part of each track to playback in ZAPPIN mode.

2Press the select button or (ZAP) when a track you want to listen is played back.

The track that you select returns to normal play mode from the beginning.

To search a track by ZAPPIN mode again, repeat steps 1 and 2.

Tips

•You can select the playback time from about 6 seconds/9 seconds/30 seconds (page 22).You cannot select the passage of the track to playback.

•Press (SEEK) –/+ or (1)/(2) (ALBM –/+) in ZAPPIN mode to skip a track or album.

1While receiving the station that you want to store, press and hold a number button ((1) to (6)) until

“MEM” appears.

Note

If you try to store another station on the same number button, the previously stored station will be replaced.

Tip

When an RDS station is stored, the AF/TA setting is also stored (page 13).

Receiving the stored stations

1Select the band, then press a number button ((1) to (6)).

Tuning automatically

1Select the band, then press (SEEK) +/– to search for the station.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

Tip

If you know the frequency of the station you want to listen to, press and hold (SEEK) +/– to locate the approximate frequency, then press (SEEK) +/– repeatedly to fine adjust to the desired frequency (manual tuning).

12

RDS

Overview

FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

Display items

A TA/TP*1

B Radio band, Function

CFrequency*2 (Program service name), Preset number, Clock, RDS data

*1 “TA” flashes during traffic information. “TP” lights up while such a station is received.

*2 While receiving the RDS station, “ *” is displayed on the left of the frequency indication.

To change display items C, press (DSPL).

RDS services

This unit automatically provides RDS services as follows:

AF (Alternative Frequencies)

Selects and retunes the station with the strongest signal in a network. By using this function, you can continuously listen to the same program during a long-distance drive without having to retune the same station manually.

TA (Traffic Announcement)/TP (Traffic Program)

Provides current traffic information/programs. Any information/program received, will interrupt the currently selected source.

PTY (Program Types)

Displays the currently received program type. Also searches your selected program type.

CT (Clock Time)

The CT data from the RDS transmission sets the clock.

Notes

•Depending on the country/region, not all RDS functions may be available.

•RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data.

Setting AF and TA

1Press (AF/TA) repeatedly until the desired setting appears.

Select	To
AF-ON	activate AF and deactivate TA.
TA-ON	activate TA and deactivate AF.
AF, TA-ON	activate both AF and TA.
AF, TA-OFF	deactivate both AF and TA.

Storing RDS stations with the AF and TA setting

You can preset RDS stations along with the AF/ TA setting. If you use the BTM function, only RDS stations are stored with the same AF/TA setting.

If you preset manually, you can preset both RDS and non-RDS stations with the AF/TA setting for each.

1Set AF/TA, then store the station with BTM or manually.

Receiving emergency announcements

With AF or TA on, the emergency announcements will automatically interrupt the currently selected source.

Tip

If you adjust the volume level during a traffic announcement, that level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.

Staying with one regional program

— REG

When the AF function is on: this unit’s factory setting restricts reception to a specific region, so you will not be switched to another regional station with a stronger frequency.

If you leave this regional program’s reception area, set “REG-OFF” in setup during FM reception (page 22).

Note

This function does not work in the UK and in some other areas.

continue to next page t

13

Local Link function (UK only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons.

1During FM reception, press a number button ((1) to (6)) on which a local station is stored.

2Within 5 seconds, press again a number button of the local station.

Repeat this procedure until the local station is received.

Selecting PTY

1Press and hold (AF/TA) (PTY) during

FM reception.

The current program type name appears if the station is transmitting PTY data.

2Press (AF/TA) (PTY) repeatedly until the desired program type appears.

3Press (SEEK) +/–.

The unit starts to search for a station broadcasting the selected program type.

Type of programs

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP M (Popular Music), ROCK M (Rock Music), EASY M (Easy Listening), LIGHT M (Light Classical), CLASSICS (Classical), OTHER M (Other Music Type), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children’s Programs), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Note

You cannot use this function in countries/regions where no PTY data is available.

Setting CT

1 Set “CT-ON” in setup (page 22).

Notes

•The CT function may not work even though an RDS station is being received.

•There might be a difference between the time set by

14 the CT function and the actual time.

CD

Display items

A Source

BTrack name*1, Disc/artist name*1, Artist name*1, Album number*2, Album name*1, Track number/Elapsed playing time, Clock

*1 The information of a CD TEXT, MP3/WMA/AAC is displayed.

*2 Album number is displayed only when the album is changed.

To change display items B, press (DSPL).

Tip

Displayed items will differ depending on the disc type, recording format and settings.

Repeat and shuffle play

1During playback, press (3) (REP) or

(4) (SHUF) repeatedly until the desired setting appears.

Select	To play
TRACK	track repeatedly.
ALBUM*	album repeatedly.
SHUF ALBUM*	album in random order.
SHUF DISC	disc in random order.

* When an MP3/WMA/AAC is played.

To return to normal play mode, select “ OFF” or “SHUF OFF.”

USB devices

For details on the compatibility of your USB device, visit the support site.

Support site

http://support.sony-europe.com/

•MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard can be used.

•Corresponding codec is MP3 (.mp3), WMA (.wma) and AAC (.m4a).

•Backup of data in a USB device is recommended.

Note

Connect the USB device after starting the engine. Depending on the USB device, malfunction or damage may occur if it is connected before starting the engine.

Playing back a USB device

1Connect the USB device to the USB terminal.

When using a cable, use the one supplied with the USB device to connect.

Playback starts.

If a USB device is already connected, to start playback, press (SOURCE) repeatedly until “USB” appears.

Press (OFF) to stop playback.

Removing the USB device

1Stop the USB device playback.

2Remove the USB device.

If you remove your USB device during playback, data in the USB device may be damaged.

Notes

•Do not use USB devices so large or heavy that they may fall down due to vibration, or cause a loose connection.

•Do not detach the front panel during playback of the USB device, otherwise USB data may be damaged.

•This unit cannot recognize USB devices via a USB hub.

Display items

A Source

BTrack name, Artist name, Album number*, Album name, Track number/Elapsed playing time, Clock

*Album number is displayed only when the album is changed.

To change display items B, press (DSPL).

Notes

•Displayed items will differ, depending on the USB device, recorded format and settings. For details, visit the support site.

•The maximum number of displayable data is as follows.

–folders (albums): 128

–files (tracks) per folder: 500

•Do not leave a USB device in a parked car, as malfunction may result.

•It may take time for playback to begin, depending on the amount of recorded data.

•DRM (Digital Rights Management) files may not be played.

•During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3/WMA/AAC file, elapsed playing time may not display accurately.

•Playback of the following MP3/WMA/AAC files is not supported.

–lossless compression

–copyright-protected

Repeat and shuffle play

1During playback, press (3) (REP) or

(4) (SHUF) repeatedly until the desired setting appears.

Select	To play
TRACK	track repeatedly.
ALBUM	album repeatedly.
SHUF ALBUM	album in random order.
SHUF DEVICE	device in random order.

After 3 seconds, the setting is complete.

To return to normal play mode, select “ OFF” or “SHUF OFF.”

15

iPod

For details on the compatibility of your iPod, see “About iPod” on page 25 or visit the support site. In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on the iPod and iPhone, unless otherwise specified by the text or illustrations.

Support site

http://support.sony-europe.com/

Playing back iPod

Before connecting the iPod, turn down the volume of the unit.

1Connect the iPod to the USB terminal via the dock connector to USB cable.

MENU

The iPod will turn on automatically, and the display will appear on the iPod screen as below.*

Tip

We recommend the RC-100IP USB cable (not supplied) to connect the dock connector.

The tracks on the iPod start playing automatically from the point last played. If an iPod is already connected, to start

playback press (SOURCE) repeatedly until “USB” appears. (“IPD” appears in the display when iPod is recognized.)

*If the iPod was played back in the passenger control last time, this will not appear.

2Press (MODE) to select the play mode.

The mode changes as follows:

RESUMING t ALBUM t TRACK t PODCAST* t GENRE t PLAYLIST t ARTIST

* May not appear depending on iPod setting.

3 Adjust the volume.

Press (OFF) to stop playback.

Removing the iPod

1Stop the iPod playback.

2Remove the iPod.

Caution for iPhone

When you connect an iPhone via USB, telephone volume is controlled by iPhone itself. In order to avoid sudden loud sound after a call, do not increase the volume on the unit during a telephone call.

Notes

•Do not detach the front panel during playback of the iPod, otherwise data may be damaged.

•This unit cannot recognize iPod via a USB hub.

Tips

•When the ignition key is turned to the ACC position, and the unit is on, the iPod will be recharged.

•If the iPod is disconnected during playback, “NO DEV” appears in the display of the unit.

Resume mode

When the iPod is connected to the dock connector, the mode of this unit changes to resume mode and playback starts in the mode set by the iPod.

In resume mode, the following buttons do not function.

–(3) (REP)

–(4) (SHUF)

Display items

A Source (iPod) indication

BTrack name, Artist name, Album name, Track number/Elapsed playing time, Clock

To change display items B, press (DSPL).

Tip

When album/podcast/genre/artist/playlist is changed, its item number appears momentarily.

Note

Some letters stored in iPod may not be displayed correctly.

16

Setting the play mode

1During playback, press (MODE).

The mode changes as follows:

ALBUM t TRACK t PODCAST* t GENRE t PLAYLIST t ARTIST

* May not appear depending on iPod setting.

Skipping albums, podcasts, genres, playlists and artists

To	Press
Skip	(1)/(2) (ALBM –/+)
	[press once for each]
Skip	(1)/(2) (ALBM –/+)
continuously	[hold to desired point]

Repeat and shuffle play

1During playback, press (3) (REP) or

(4) (SHUF) repeatedly until the desired setting appears.

Select	To play
TRACK	track repeatedly.
ALBUM	album repeatedly.
PODCAST	podcast repeatedly.
ARTIST	artist repeatedly.
PLAYLIST	playlist repeatedly.
GENRE	genre repeatedly.
SHUF ALBUM	album in random order.
SHUF PODCAST	podcast in random order.
SHUF ARTIST	artist in random order.
SHUF PLAYLIST	playlist in random order.
SHUF GENRE	genre in random order.

SHUF DEVICE device in random order.

After 3 seconds, the setting is complete.

To return to normal play mode, select “ OFF” or “SHUF OFF.”

Operating an iPod directly

— Passenger control

You can operate an iPod connected to the dock connector directly.

1During playback, press and hold

(MODE).

“MODE IPOD” appears and you will be able to operate the iPod directly.

To change the display items

Press (DSPL).

The display items change as follows:

Track name t Artist name t Album name t MODE IPOD t Clock

To exit the passenger control

Press and hold (MODE).

Then “MODE AUDIO” will appear and the play mode will change to “RESUMING.”

Notes

•The volume can be adjusted only by the unit.

•If this mode is canceled, the repeat setting will be turned off.

17

Bluetooth (Handsfree calling and Music streaming)

Bluetooth operations

To use the Bluetooth function, the following procedure is necessary.

1Pairing

When connecting Bluetooth devices for the first time, mutual registration is required. This is called “pairing.” This registration (pairing)

is required only for the first time, as this unit and the other devices will recognize each other automatically from the next time. You can pair up to 8 devices. (Depending on the device, you may need to input a passcode for each connection.)

2Connection

To use the device after pairing is made, start the connection. Sometimes pairing allows to connect automatically.

3Handsfree calling/Music streaming

You can talk handsfree and listen to music when the connection is made.

Support site

http://support.sony-europe.com/

Pairing

First, register (“pair”) a Bluetooth device (cellular phone, etc.) and this unit with each other. You can pair up to 8 devices. Once pairing is established, there is no need for pairing again.

1Place the Bluetooth device within 1 m (3 ft) of this unit.

2Press and hold (BT) until “ ” flashes

(about 5 seconds).

The unit enters pairing standby mode.

flashing

3Set the Bluetooth device to search for this unit.

A list of detected devices appears in the display of the device to be connected. This unit is displayed as “XPLOD” on the device to be connected.

DR-BT30Q

XPLOD

XXXXXXX

4If Passcode* input is required on the display of the device to be connected, input “0000.”

Input passcode.

XXXX “0000”

This unit and the Bluetooth device memorize each other’s information, and when pairing is made, the unit is ready for connection to the device.

“ ” flashes and then stays lit after pairing is complete.

5Set the Bluetooth device to connect to this unit.

“” or “” appears when the connection is made.

*Passcode may be called “passkey,” “PIN code,” “PIN number” or “Password,” etc., depending on the device.

Note

Pairing standby mode is not released until the connection is made.

About Bluetooth icons

The following icons are used by this unit.

	lit:	Bluetooth signal on
	flashing:	Pairing standby mode
	off:	Bluetooth signal off
	lit:	Connection successful
	flashing:	Connecting
	off:	No connection
	lit:	Connection successful
	flashing:	Connecting
	off:	No connection

18

Connection

If pairing has already been achieved, start operation from here.

To switch the Bluetooth signal output of this unit to on

To use the Bluetooth function, switch the Bluetooth signal output of this unit to on.

1Press and hold (BT) until “ ” lights

(about 3 seconds).

Bluetooth signal is switched to on.

Connecting a cellular phone

1Be sure that both this unit and the cellular phone are switched to Bluetooth signal on.

2Connect to this unit using the cellular phone.

“”appears when the connection is made.

Connecting an audio device

1Be sure that both this unit and the audio device are switched to Bluetooth signal on.

2Connect to this unit using the audio device.

“” appears when the connection is made.

Connecting the last-connected audio device from this unit

1Be sure that both this unit and the audio device are switched to Bluetooth signal on.

2Press (SOURCE) repeatedly until “BT AUDIO” appears.

3Press (6).

“” flashes while the connection is being made. And then “” stays lit when the connection is made.

Handsfree calling

Check that the unit and cellular phone are connected beforehand.

Connecting the last-connected cellular phone from this unit

1Be sure that both this unit and the cellular phone are switched to Bluetooth signal on.

2Press (SOURCE) repeatedly until “BT PHONE” appears.

3Press (handsfree).

“” flashes while the connection is being made. And then “” stays lit when the connection is made.

Note

While streaming Bluetooth audio, you cannot connect from this unit to the cellular phone. Connect from the cellular phone to this unit instead. A connecting noise may be heard over playback sound.

Tip

With Bluetooth signal on: when the ignition is switched to on, this unit reconnects automatically to the lastconnected cellular phone. But automatic connection also depends on the cellular phone’s specification. If this unit does not reconnect automatically, connect manually.

Receiving calls

When receiving a call, a ring tone is output from your car speakers.

1Press (handsfree) when a call is received with a ring tone.

The phone call starts.

To end a call

Press (handsfree) again, or (OFF).

To reject an incoming call, press and hold (handsfree) for 2 seconds.

Mic Gain adjustment

You can switch between two volume levels (“LOW” or “HI”) to set a suitable level for the other party during a call.

1 Press (5) during a call.

The item changes as follows:

MIC-LOW y MIC-HI

Note

The microphone of this unit is located on the rear of the front panel (page 8). Do not cover the microphone with tape, etc.

19

Making calls

In the case of making calls from this unit, redial is used.

1Press (SOURCE) repeatedly until “BT

PHONE” appears.

2Press and hold (handsfree) for 3 seconds or more.

The phone call starts.

To end a call

Press (handsfree) again, or (OFF).

To call another phone, use your cellular phone, and then transfer the call.

For call transfer details, check the following.

Call transfer

In order to activate/deactivate the appropriate device (this unit/cellular phone), check the following.

1Press and hold (handsfree) or use your cellular phone.

For details on cellular phone operation, refer to your cellular phone manual.

Note

Depending on the cellular phone, handsfree connection may be cut off when call transfer is attempted.

Voice Dial Activation

You can activate voice dialing with a cellular phone connected to this unit by saying the voice tag stored on the cellular phone, then make a call.

1Press (SOURCE) repeatedly until “BT

PHONE” appears.

2Press (handsfree).

The cellular phone enters voice dialing mode.

3Say the voice tag stored on the cellular phone.

Your voice is recognized, and the call is made.

Notes

•Check that unit and cellular phone are connected beforehand.

•Store a voice tag on your cellular phone beforehand.

•If you activate voice dialing with a cellular phone connected to this unit, this function may not always work in some cases.

•Noises such as the engine running may interfere with sound recognition. In order to improve recognition, operate under conditions where noise is minimized.

•Voice dialing may not work in some situations, depending on the effectiveness of the cellular phone’s recognition function. For details, see the support site (page 29).

Tips

•Speak in the same way as you did when you stored the voice tag.

•Store a voice tag while seated in the car, via this unit with “BT PHONE” source selected.

Music streaming

Listening to music from an audio device

You can listen to music of an audio device on this unit if the audio device supports A2DP (Advanced Audio Distribution Profile) of Bluetooth technology.

1Turn down the volume on this unit.

2Press (SOURCE) repeatedly until “BT

AUDIO” appears.

3Operate the audio device to start playback.

4Adjust the volume on this unit.

Adjusting the volume level

The volume level is adjustable for any difference between the unit and the Bluetooth audio device.

1Start playback of the Bluetooth audio device at a moderate volume.

2Set your usual listening volume on the unit.

3Press the select button repeatedly until “BTA” appears, and rotate the volume control dial to adjust the input level (–8 dB to +18 dB).

20

Operating an audio device with this unit

You can perform the following operations on this unit if the audio device supports AVRCP (Audio Video Remote Control Profile) of Bluetooth technology. (The operation differs depending on the audio device.)

To	Press
Play	(6) (PAUSE)* on this unit.
Pause	(6) (PAUSE)* on this unit.
Skip tracks	SEEK –/+ (./>) [once for
	each track]

*Depending on the device, it may be necessary to press twice.

Operations other than the above should be performed on the audio device.

Notes

•During audio device playback, information such as track number/time, playback status, etc., of a connected audio device is not displayed on this unit.

•Even if the source is changed on this unit, playback of the audio device does not stop.

Tip

You can connect a cellular phone that supports A2DP (Advanced Audio Distribution Profile) as an audio device and listen to music.

Deleting registration of all paired devices

1Press (OFF).

This unit is turned off.

2If “ ” lights, press and hold (BT) until “ ” turns off.

3Press and hold the select button.

4Press the select button repeatedly until “BT INIT” appears.

5Press (SEEK) +.

Initializing starts.

It takes 3 seconds to cancel all registration. Do not turn off the power while “INITIAL” is flashing.

Other functions

Changing the sound settings

Adjusting the sound characteristics

1Press the select button repeatedly until the desired item appears.

2Rotate the control dial to adjust the selected item.

3Press (BACK).

The setting is complete and the display returns to normal play/reception mode.

The following items can be set (follow the page reference for details):

EQ3

Selects an equalizer curve from 7 music types.

LOW*1, MID*1, HI*1 (page 22)

BAL (Balance)

Adjusts the sound balance between the left and right speakers.

FAD (Fader)

Adjusts the relative level between the front and rear speakers.

SUB (Subwoofer volume) Adjusts the subwoofer volume. (“ATT” is the lowest setting.)

AUX*2 (AUX level)

Adjusts the volume level for each connected auxiliary equipment: “+18 dB” – “0 dB” – “–8 dB.”

This setting negates the need to adjust the volume level between sources.

BTA*3 (BT-Audio level)

Adjusts the volume level for each connected Bluetooth audio device: “+18 dB” – “0 dB” – “–8 dB.”

This setting negates the need to adjust the volume level between sources (page 20).

*1 When EQ3 is activated.

*2 When AUX source is activated.

*3 When Bluetooth audio source is activated (page 20).

21

Customizing the equalizer curve

— EQ3

“CUSTOM” of EQ3 allows you to make your own equalizer settings.

1Select a source, then press the select button repeatedly to select “EQ3.”

2Rotate the control dial to select “CUSTOM.”

3Press the select button repeatedly until “LOW,” “MID” or “HI” appears.

4Rotate the control dial to adjust the selected item.

The volume level is adjustable in 1 dB steps, from –10 dB to +10 dB.

Repeat steps 3 and 4 to adjust the equalizer curve.

To restore the factory-set equalizer curve, press and hold the select button before the setting is complete.

5Press (BACK).

The setting is complete and the display returns to normal play/reception mode.

Tip

Other equalizer types are also adjustable.

Adjusting setup items — SET

1Press and hold the select button.

The setup display appears.

2Press the select button repeatedly until the desired item appears.

3Rotate the control dial to select the setting (example “ON” or “OFF”).

4Press and hold the select button.

The setup is complete and the display returns to normal play/reception mode.

Note

Displayed items will differ, depending on the source and setting.

The following items can be set (follow the page reference for details):

CLOCK-ADJ (Clock Adjust) (page 7)

CT (Clock Time) (page 13, 14)

BEEP

Activates the beep sound: “ON,” “OFF.”

AUX-A*1 (AUX Audio)

Activates the AUX source display: “ON,” “OFF” (page 23).

A.OFF

Shuts off automatically after a desired time when the unit is turned off: “NO,” “30S (seconds),” “30M (minutes),” “60M (minutes).”

MIC*1

–“EXT”: to automatically switch to the external microphone when it is connected.

–“INT”: to select only the internal microphone.

DEMO (Demonstration)

Activates the demonstration: “ON,” “OFF.”

DIM (Dimmer)

Changes the display brightness: “ON,” “OFF.”

A.SCRL*2 (Auto Scroll)

Scrolls long items automatically: “ON,” “OFF.”

LOCAL*3 (Local Seek Mode)

–“ON”: to only tune into stations with stronger signals.

–“OFF”: to tune normal reception.

MONO*3 (Monaural Mode)

Selects monaural reception mode to improve poor FM reception: “ON,” “OFF.”

REG*3 (Regional) (page 13)

Z.TIME*2 (Zappin Time)

Selects the playback time for the ZAPPIN function.

–“Z.TIME-1 (about 6 seconds),” “Z.TIME-2 (about 9 seconds),” “Z.TIME-3 (about

30 seconds).”

LPF (Low Pass Filter)

Selects the subwoofer cut-off frequency: “OFF,” “80Hz,” “100Hz,” “120Hz,” “140Hz,” “160Hz.”

LPF NORM/REV (Low Pass Filter Normal/

Reverse)

Selects the phase when the LPF is on: “NORM,”

“REV.”

HPF (High Pass Filter)

Selects the front/rear speaker cut-off frequency: “OFF,” “80Hz,” “100Hz,” “120Hz,” “140Hz,” “160Hz.”

LOUD (Loudness)

Reinforces bass and treble for clear sound at low volume levels: “ON,” “OFF.”

BTM (page 12)

DM+*2

To set the DM+ function: “ON,”“OFF.”

BT INIT*1 (page 21)

*1 When the unit is turned off.

*2 When CD/USB source is activated.

*3 When FM is received.

22

Using optional equipment

Auxiliary audio equipment

By connecting an optional portable audio device to the AUX input jack (stereo mini jack) on the unit and then simply selecting the source, you can listen on your car speakers. The volume level is adjustable for any difference between the unit and the portable audio device. Follow the procedure below:

Connecting the portable audio device

1Turn off the portable audio device.

2Turn down the volume on the unit.

3Connect to the unit.

AUX

AUX

Connecting cord*

(not supplied)

* Be sure to use a straight type plug.

Adjust the volume level

Be sure to adjust the volume for each connected audio device before playback.

1Turn down the volume on the unit.

2Press (SOURCE) repeatedly until “AUX” appears.

“AUX FRONT IN” appears.

3Start playback of the portable audio device at a moderate volume.

4Set your usual listening volume on the unit.

5Adjust the input level (page 21).

CD changer

Selecting the changer

1Press (SOURCE) repeatedly until “CD” appears.

2Press (MODE) repeatedly until the desired changer appears.

Unit number Disc number

Playback starts.

Skipping albums and discs

1 During playback, press (1)/(2) (ALBM –/+).

To skip	Press (1)/(2) (ALBM –/+)
album	and release (hold for a
	moment).
album	within 2 seconds of first
continuously	releasing.
discs	repeatedly.
discs	then, press again within 2
continuously	seconds and hold.

Repeat and shuffle play

1During playback, press (3) (REP) or (4) (SHUF) repeatedly until the desired setting appears.

Select	To play
DISC	disc repeatedly.
SHUF	tracks in the changer in random
CHANGER	order.

To return to normal play mode, select “ OFF” or “SHUF OFF.”

23

Rotary commander RM-X4S

Attaching the label

Attach the indication label depending on how you mount the rotary commander.

SEL	DSPL
MODE	MODE
DSPL	SEL

Location of controls

The corresponding buttons on the rotary commander control the same functions as those on this unit.

SEL

PRESET/

DISC

SOURCE

ATT

MODE

DSPL	OFF

VOL SEEK/AMS

OFF

The following controls on the rotary commander require a different operation from the unit.

•ATT (attenuate) button

To attenuate the sound. To cancel, press again.

•SEL (select) button

The same as the select button on the unit.

•PRESET/DISC control

CD/USB: The same as (1)/(2) (ALBM –/+) on the unit (push in and rotate).

Radio: To receive stored stations (push in and rotate).

•VOL (volume) control

The same as the control dial on the unit (rotate).

•SEEK/AMS control

The same as (SEEK) +/– on the unit (rotate, or rotate and hold).

•DSPL (display) button

To change display items.

•MODE button

Press to: Select the radio band (FM/MW/LW)/ select the play mode of iPod.

Press and hold to: Enter/cancel the passenger control.

Changing the operative direction

The operative direction of the controls is factoryset as shown below.

To increase

To decrease

If you need to mount the rotary commander on the right hand side of the steering column, you can reverse the operative direction.

1While pushing the VOL control, press and hold (SEL).

External microphone XA-MC10

By connecting an optional external microphone to the microphone input connector, you can improve audio quality while talking thorough this unit.

External microphone

Connecting cord

Clamps

Tip

You can set the priority of the microphones (page 22).

Note

Connect XA-MC10 as the external microphone. You may not be able to call or malfunction may occur if another device is connected.

24

Additional Information

Precautions

•Cool off the unit beforehand if your car has been parked in direct sunlight.

•Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on discs

•Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.

•Before playing, wipe the discs

with a cleaning cloth from the center out. Do not use solvents

such as benzine, thinner, commercially available cleaners.

• This unit is designed to playback discs that conform to

the Compact Disc (CD)

standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.

•Discs that this unit CANNOT play

–Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc.

–Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit.

–8 cm (3 1/4 in) discs

Notes on CD-R/CD-RW discs

•The maximum number of: (CD-R/CD-RW only)

–folders (albums): 150 (including root folder)

–files (tracks) and folders: 300 (may less than 300 if folder/file names contain many characters)

–displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo)

•If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played back.

•Discs that this unit CANNOT play

–CD-R/CD-RW of poor recording quality.

–CD-R/CD-RW recorded with an incompatible recording device.

–CD-R/CD-RW which is finalized incorrectly.

–CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

Playback order of MP3/WMA/AAC files

	MP3/WMA/AAC	Folder
		(album)
		MP3/WMA/
		AAC file
		(track)

About iPod

•You can connect to the following iPod models. Update your iPod devices to the latest software before use.

–iPod touch

–iPod classic

–iPod with video*

–iPod nano (3rd generation)

–iPod nano (2nd generation)

–iPod nano (1st generation)*

–iPhone and iPhone 3G

*Passenger control is not available for iPod nano (1st generation) or iPod with video.

•“Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

•“Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.

•Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

25

About Bluetooth function

What is Bluetooth technology?

•Bluetooth wireless technology is a short-range wireless technology that enables wireless data communication between digital devices, such as a cellular phone and a headset. Bluetooth wireless technology operates within a range of about 10 m (about 33 feet). Connecting two devices is common, but some devices can be connected to multiple devices at the same time.

•You do not need to use a cable for connection since Bluetooth technology is a wireless technology, neither is it necessary for the devices to face one another, such is the case with infrared technology. For example, you can use such a device in a bag or pocket.

•Bluetooth technology is an international standard supported by millions of companies all over the world, and employed by various companies worldwide.

On Bluetooth communication

•Bluetooth wireless technology operates within a range of about 10 m.

Maximum communication range may vary depending on obstacles (person, metal, wall, etc.) or electromagnetic environment.

•The following conditions may affect the sensitivity of Bluetooth communication.

–There is an obstacle such as a person, metal, or wall between this unit and Bluetooth device.

–A device using 2.4 GHz frequency, such as a wireless LAN device, cordless telephone, or microwave oven, is in use near this unit.

•Because Bluetooth devices and wireless LAN (IEEE802.11b/g) use the same frequency, microwave interference may occur and result in communication speed deterioration, noise, or invalid connection if this unit is used near a wireless LAN device. In such as case, perform the following.

–Use this unit at least 10 m away from the wireless LAN device.

–If this unit is used within 10 m of a wireless LAN device, turn off the wireless LAN device.

–Install this unit and Bluetooth device as near to each other as possible.

•Microwaves emitting from a Bluetooth device may affect the operation of electronic medical devices. Turn off this unit and other Bluetooth devices in the following locations, as it may cause an accident.

–where inflammable gas is present, in a hospital, train, airplane, or petrol station

–near automatic doors or a fire alarm

•This unit supports security capabilities that comply with the Bluetooth standard to provide a secure connection when the Bluetooth wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using Bluetooth wireless technology.

•We do not take any responsibility for the leakage of information during Bluetooth communication.

•Connection with all Bluetooth devices cannot be guaranteed.

–A device featuring Bluetooth function is required to conform to the Bluetooth standard specified by Bluetooth SIG, and be authenticated.

–Even if the connected device conforms to the above mentioned Bluetooth standard, some devices may not be connected or work correctly, depending on the features or specifications of the device.

–While talking on the phone hands free, noise may occur, depending on the device or communication environment.

•Depending on the device to be connected, it may require some time to start communication.

Others

•Using the Bluetooth device may not function on cellular phones, depending on radio wave conditions and location where the equipment is being used.

•If you experience discomfort after using the Bluetooth device, stop using the Bluetooth device immediately. Should any problem persist, consult your nearest Sony dealer.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the card remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.)

When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

+ side up

2 c

1

Notes on the lithium battery

•Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.

•Wipe the battery with a dry cloth to assure a good contact.

•Be sure to observe the correct polarity when installing the battery.

26

•Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of in fire.

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the

original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement,

there may be an internal

malfunction. In such a case,

Fuse (10 A)

consult your nearest Sony dealer.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 7) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Main unit	Back of the front
	panel

Notes

•For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.

•Never touch the connectors directly with your fingers or with any metal device.

Removing the unit

1Remove the protection collar.

1Detach the front panel (page 7).

2Pinch both edges of the protection collar, then pull it out.

x

2Remove the unit.

1Insert both release keys simultaneously until they click.

Hook facing inwards.

2Pull the release keys to unseat the unit.

3Slide the unit out of the mounting.

27

Specifications

CD Player section

Signal-to-noise ratio: 120 dB Frequency response: 10 – 20,000 Hz

Wow and flutter: Below measurable limit

Tuner section

FM

Tuning range: 87.5 – 108.0 MHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 150 kHz

Usable sensitivity: 10 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 70 dB (mono)

Separation: 40 dB at 1 kHz

Frequency response: 20 – 15,000 Hz

MW/LW

Tuning range:

MW: 531 – 1,602 kHz

LW: 153 – 279 kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 25 kHz

Sensitivity: MW: 26 µV, LW: 45 µV

USB Player section

Interface: USB (Full-speed)

Maximum current: 500mA

Wireless Communication

Communication System:

Bluetooth Standard version 2.0

Output:

Bluetooth Standard Power Class 2 (Max. +4 dBm)

Maximum communication range:

Line of sight approx. 10 m (33 ft)*1

Frequency band:

2.4 GHz band (2.4000 – 2.4835 GHz)

Modulation method: FHSS Compatible Bluetooth Profiles*2:

A2DP (Advanced Audio Distribution Profile) AVRCP (Audio Video Remote Control Profile) HFP (Handsfree Profile) 1.5

HSP (Headset Profile)

*1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna’s perfomance, operating system, software application, etc.

*2 Bluetooth standard profiles indicate the purpose of Bluetooth communication between devices.

Power amplifier section

Output: Speaker outputs (sure seal connectors)

Speaker impedance: 4 – 8 ohms

Maximum power output: 52 W × 4 (at 4 ohms)

General

Outputs:

Audio outputs terminal (front/rear) Subwoofer output terminal (mono)

Power antenna (aerial) relay control terminal Power amplifier control terminal

Inputs:

Remote controller input terminal Antenna (aerial) input terminal Telephone ATT control terminal BUS control input terminal BUS audio input terminal

AUX input jack (stereo mini jack) USB signal input terminal

Tone controls:

Low: ±10 dB at 60 Hz (XPLOD)

Mid: ±10 dB at 1 kHz (XPLOD)

High: ±10 dB at 10 kHz (XPLOD)

Power requirements: 12 V DC car battery (negative ground (earth))

Dimensions: Approx. 178 × 50 × 179 mm (7 1/8 × 2 × 7 1/8 in) (w/h/d)

Mounting dimensions: Approx. 182 × 53 × 162 mm (7 1/4 × 2 1/8 × 6 1/2 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz)

Supplied accessory:

Card remote commander: RM-X304

Parts for installation and connections (1 set)

Optional accessories/equipment:

Rotary commander: RM-X4S

BUS cable (supplied with an RCA pin cord): RC-61 (1 m), RC-62 (2 m)

CD changer (6 discs): CDX-T69 Source selector: XA-C40

USB connection cable for iPod: RC-100IP External microphone: XA-MC10

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

•Halogenated flame retardants are not used in the certain printed wiring boards.

•Halogenated flame retardants are not used in cabinets.

•Packaging cushions are made from paper.

28

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

If the problem is not solved, visit the following support site.

Support site

http://support.sony-europe.com/

General

No power is being supplied to the unit.

•Check the connection or fuse.

•If the unit is turned off and the display disappears, it cannot be operated with the remote commander. t Turn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

No sound.

•The ATT function is activated, or the Telephone ATT function (when the interface cable of a car telephone is connected to the ATT lead) is activated.

•The position of the fader control “FAD” is not set for a 2-speaker system.

•The Bluetooth audio device is in pause.

t Cancel pause.

No beep sound.

•The beep sound is canceled (page 22).

•An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

•The RESET button has been pressed. t Store again into the memory.

•The power supply lead or battery has been disconnected or it is not connected properly.

Stored stations and correct time are erased. The fuse has blown.

Makes noise when the position of the ignition is switched.

The leads are not matched correctly with the car’s accessory power connector.

During playback or reception, demonstration mode starts.

If no operation is performed for 5 minutes with “DEMO-ON” set, demonstration mode starts. t Set “DEMO-OFF” (page 22).

The display disappears from/does not appear in the display window.

•The dimmer is set “DIM-ON” (page 22).

•The display disappears if you press and hold (OFF).

tPress and hold (OFF) on the unit until the display appears.

•The connectors are dirty (page 27).

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates after turning off the unit.

t Turn off the unit.

CD playback

The disc cannot be loaded.

•Another disc is already loaded.

•The disc has been forcibly inserted upside down or in the wrong way.

The disc does not playback.

•Defective or dirty disc.

•The CD-Rs/CD-RWs are not for audio use (page 25).

MP3/WMA/AAC files cannot be played back.

The disc is incompatible with the MP3/WMA/AAC format and version. For details on playable discs and formats, visit the support site.

MP3/WMA/AAC files take longer to play back than others.

The following discs take a longer time to start playback.

–a disc recorded with a complicated tree structure.

–a disc recorded in Multi Session.

–a disc to which data can be added.

The display items do not scroll.

•For discs with very many characters, those may not scroll.

•“A.SCRL” is set to “OFF.”

tSet “A.SCRL-ON” (page 22).

tPress and hold (DSPL) (SCRL).

The sound skips.

• Installation is not correct.

tInstall the unit at an angle of less than 45° in a sturdy part of the car.

•Defective or dirty disc.

The operation buttons do not function. The disc will not eject.

Press the RESET button (page 6).

Radio reception

The stations cannot be received.

The sound is hampered by noises.

The connection is not correct.

tConnect a power antenna (aerial) control lead (blue) or accessory power supply lead (red) to the power supply lead of a car’s antenna (aerial) booster (only when your car has built-in FM/ MW/LW antenna (aerial) in the rear/side glass).

tCheck the connection of the car antenna (aerial).

tIf the auto antenna (aerial) will not go up, check the connection of the power antenna (aerial) control lead.

Preset tuning is not possible.

•Store the correct frequency in the memory.

•The broadcast signal is too weak.

continue to next page t

29

Automatic tuning is not possible.

•Setting of the local seek mode is not correct. t Tuning stops too frequently:

Set “LOCAL-ON” (page 22). t Tuning does not stop at a station:

Set “LOCAL-OFF” (page 22).

•The broadcast signal is too weak.

t Perform manual tuning.

During FM reception, the “ST” indication flashes.

•Tune in the frequency accurately.

•The broadcast signal is too weak. t Set “MONO-ON” (page 22).

An FM program broadcast in stereo is heard in monaural.

The unit is in monaural reception mode. t Set “MONO-OFF” (page 22).

RDS

The SEEK starts after a few seconds of listening.

The station is non-TP or has weak signal. t Deactivate TA (page 13).

No traffic announcements.

•Activate TA (page 13).

•The station does not broadcast any traffic announcements despite being TP.

t Tune in another station.

PTY displays “- - - - - - - -.”

•The current station is not an RDS station.

•RDS data has not been received.

•The station does not specify the program type.

USB playback

You cannot play back items via a USB hub.

This unit cannot recognize USB devices via a USB hub.

Cannot play back items.

A USB device does not work. t Reconnect it.

The USB device takes longer to play back.

The USB device contains files with a complicated tree structure.

A beep sounds.

During playback, the USB device has been disconnected.

tBefore disconnecting a USB device, make sure to stop playback first for data protection.

The sound is intermittent.

The sound may be intermittent at a high-bit-rate of more than 320 kbps.

Bluetooth function

The connecting device cannot detect this unit.

•Before the pairing is made, set this unit to pairing standby mode.

•While connected to a Bluetooth device, this unit cannot be detected from another device. Disconnect the current connection and search for this unit from another device.

•When the device pairing is made, set the Bluetooth signal output to on (page 19).

Connection is not possible.

•Connect to this unit from a Bluetooth device or vice versa. The connection is controlled from one side (this unit or Bluetooth device), but not both.

•Check the pairing and connection procedures in the manual of the other device, etc., and perform the operation again.

The talker’s voice volume is low.

Adjust the volume level.

A call partner says that the volume is too low or high.

Adjust the volume accordingly using Mic Gain adjustment (page 19).

Echo or noise occurs in phone call conversations.

•Lower the volume.

•If the ambient noise other than the phone call sound is loud, try reducing this noise.

E.g.: If a window is open and road noise, etc., is loud, shut the window. If the air conditioner is loud, lower the air conditioner.

The phone is not connected.

When the Bluetooth audio is played back, the phone is not connected even if you press (handsfree).

t Connect from the phone.

The phone sound quality is poor.

Phone sound quality depends on reception conditions of cellular phone.

tMove your car to a place where you can enhance the cellular phone’s signal if the reception is poor.

The volume of the connected audio device is low (high).

Volume level will differ depending on the audio device.

tAdjust the volume of the connected audio device or this unit.

The sound skips during playback of a Bluetooth audio device.

•Reduce the distance between the unit and the Bluetooth audio device.

•If the Bluetooth audio device is stored in a case which interrupts the signal, remove the audio device from the case while using.

•Several Bluetooth devices or other devices which emit radio waves are used nearby.

t Turn off the other devices.

t Reduce the distance from the other devices.

•The playback sound stops momentarily when the connection between this unit and the cellular phone is being made. This is not a malfunction.

30
