Sony KV-32FV310 User Manual
KV-32FV310
MODEL:
DESCRIPTION:
DESCRIPTION:
DIMENSIONS
DIMENSIONS
(WHD):
(WHD):
WEIGHT:
WEIGHT:
35 3/8 "x 26 7/8" x 23"
32" Wega
®
Monitor/Receiver
171 lbs 15 oz
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
120VAC
60Hz
200w
1w(stby)
S
P
E
A
K
E
R
S

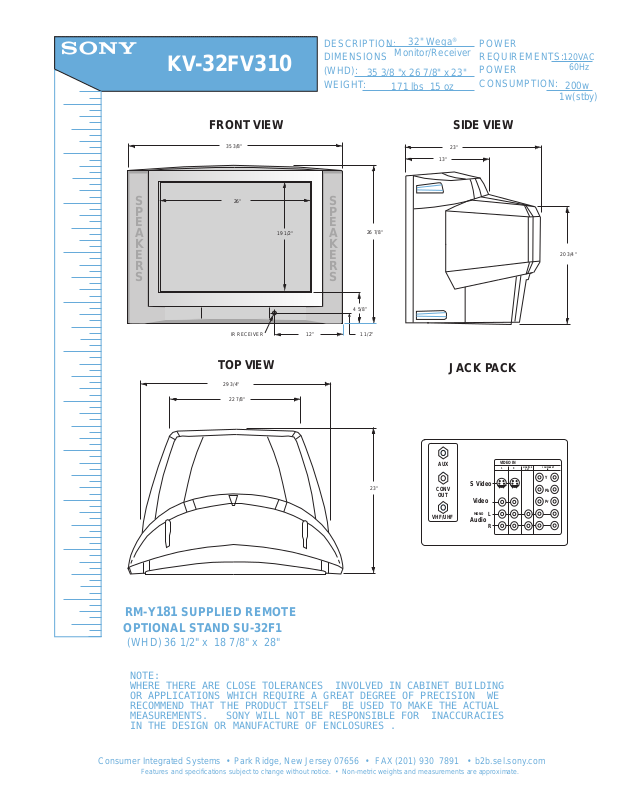

FRONT VIEW
35 3/8"
26"
IR RECEIVER
TOP VIEW
29 3/4"
22 7/8"
19 1/2"
SIDE VIEW
23"
13"
S
P
E
A
26 7/8"
K
E
20 3/4 "
R
S
4 5/8”
12”
1 1/2”
JACK P ACK
AUX
23"
CONV
OUT
VHF/UHF
S Video
Video
MONO
Audio
RM-Y181 SUPPLIED REMOTE
OPTIONAL STAND SU-32F1
(WHD) 36 1/2" x 18 7/8" x 28"
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
VIDEO IN
MONITOR
1
L
R
COMPONENT
3
IN
OUT
Y
Pb
Pr
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930 7891 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
