LCD Color TV

Operating Instructions

2-630-164-11(1)

KLV-S15G10 KLV-S20G10

Owner’s Record

The model and serial numbers are located at the rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No.

Serial No.

Contacting Sony

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE,

NE PAS OUVRIR

PRECAUCION

RIESGO DE CHOQUE ELECTRICO

NO ABRIR

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

For Safety

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

To prevent electric shock, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

Note on Caption Vision

This TV provides display of TV closed captioning in accordance with §15.119 of the FCC rules.

NOTIFICATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

s Reorient or relocate the receiving

antenna.

s Increase the separation between the

equipment and receiver.

s Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

s Consult the dealer or an experienced

radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Safety

s Operate the TV only on 120 V AC. s Use the AC power cord specified by Sony

and suitable for the voltage where you use it.

s The plug is designed, for safety purposes,

to fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.

s If any liquid or solid object should fall

inside the cabinet, unplug the TV immediately and have it checked by qualified service personnel before operating it further.

s If you will not be using the TV for several

days, disconnect the power by pulling the plug itself. Never pull on the cord.

s For details concerning safety precautions,

see “Important Safety Instructions” on page 4 and “Important Safeguards” on page 5.

Installing

s The TV should be installed near an easily

accessible power outlet.

s To prevent internal heat buildup, do not

block the ventilation openings.

s Do not install the TV in a hot or humid

place, or in a place subject to excessive dust or mechanical vibration.

s Avoid operating the TV at temperatures

below 5°C (41°F).

s If the TV is transported directly from a

cold to a warm location, or if the room temperature changes suddenly, the picture may be blurred or show poor color due to moisture condensation. In this case, please wait a few hours to let the moisture evaporate before turning on the TV.

s To obtain the best picture, do not expose

the screen to direct illumination or direct sunlight. It is recommended to use spot lighting directed down from the c eiling or to cover the windows that face the screen with opaque drapery. It is desirable to install the TV in a room where the floor and walls are not of a reflective material.

CAUTION

Use the following Sony appliance only with the following WALL-MOUNT BRACKET.

Use with other WALL-MOUNT BRACKET may cause instability and possibly result in injury.

SONY APPLIANCE MODEL NO. KLV-S20G10

SONY WALL-MOUNT BRACKET MODEL NO. SU-WL11 (KLV-S20G10)

To Customers

Sufficient expertise is required for installing the specified product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay adequate attention to safety during the installation.

(Continued)

For Customers in the United States

This product contains mercury. Disposal of this product may be regulated if sold in the United States. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance (http://www.eiae.org).

To Sony Dealers

For installation of SONY WALL-MOUNT BRACKET, be sure to read and follow the instructions supplied with those optional products.

Trademark Information

WOW, SRS and symbol are trademarks of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.

Licensed by BBE Sound, Inc. under USP4638258, 4482866. “BBE” and BBE symbol are trademarks of BBE Sound, Inc. BBE High Definition Sound is fully activated maximi zing the sound effect in the WOW mode.

Wega, Steady Sound and CineMotion are registered trademarks of Sony Corporation.

“PlayStation” is a trademark of Sony Computer Entertainment, Inc.

As an ENERGY STAR determined that this product mee ts the ENERGY STAR guidelines for energy efficiency.

ENERGY STAR

Partner, Sony Corporation has

is a U.S. registered mark.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Important Safeguards

Before using your TV, please read these instructions completely, and keep this manual for future reference.

Carefully observe and comply with all warnings, cautions and instructions placed on the unit or described in the operating instructions or service manual.

WARNING

To guard against injury, the following basic safety precautions should be observed in the installation, use and servicing of the unit.

Use

Power Sources

This unit should be operated only from the type of power source indicated on the information label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company.

Grounding or Polarization

This unit is equipped with a polarized AC power cord plug (a plug having one blade wider than the other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow the instructions below:

For the unit with a polarized AC power cord plug

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.

If the plug still fails to fit, cont act your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.

Wall outlet

Do not use a poor fitting outlet. Insert the plug fully into the outlet. If it is loose, it

may cause arcing and result in fire. Contact your electrician to have the outlet

changed.

Wiring

For your safety, unplug the AC power cord when wiring cables.

Electric shock

Do not touch the AC power cord or the unit with a wet hand. If you plug/unplug the AC power cord from the unit with a wet hand, it may ca use electric shock.

Cleaning

s Clean the AC power plug regularly.

If the plug is covered with dust and it p icks up moisture, its insulation m ay deteriorate and result in fire. Unplug the AC power plug and clean it regularly.

s Unplug the AC power cord when

cleaning this unit. If not, it may result in electric shock.

s Clean the cabinet of the TV with a dry soft cloth. To remove dust

from the screen, wipe it gently with a soft cloth. Stubborn stains may be removed with a cloth slightly dampened with a solution of mild soap and warm water. Never use cloth or strong solvents such as thinner or benzine for cleaning.

s If using a chemically pretreated cloth, please follow the

instruction provided on the package.

s If the picture becomes dark after using the TV for a long period of

time, it may be necessary to clean the inside of the TV. Consult qualified service personnel.

Overloading

Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

Power

Always turn the unit off when it is not being used. When the unit is left unattended and unused for long periods of time, unplug it from the wall outlet as a precaution against the possibility of an internal malfunction that could create a fire hazard.

Sound

If a snapping or popping sound from the TV is continuous or frequent while the TV is operating, unplug the TV and consult your dealer or service technician. It is normal for TV’s to make occasional snapping or popping sounds, particularly when being turned on or off.

AC Power Cord

If you damage the AC power cord, it may result in fire or electric shock. s Do not pinch, bend, or twist the cord excessively. The core lines

may be bared and cut, and cause short-circuit, resulting in fire or electric shock.

s Do not convert or damage the AC power cord. s Do not put anything heavy on the AC power cord. Do not pull the

AC power cord.

s Keep the AC power cord away from heat sources. s Be sure to grasp the plug when disconnecting the AC power cord.

If the AC power cord is damaged, stop using it and ask your dealer or Sony service center to exchange it.

Batteries

Do not dispose of batteries in a fire. Do not short circuit, disassemble or overheat the batteries.

Disposal of used batteries

To preserve our environment, dispose of used batteries according to your local laws or regulations.

Ventilation holes

Never push objects of any kind into the unit through the cabinet slots as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind on the unit.

Object and Liquid Entry

Do not place any objects on the unit. The apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Attachments

Do not use attachments which are not recommended by the manufacturer, as they may cause hazards.

(Continued)

Medical institution

Do not place this unit in a place where medical equipment is in use.

It may cause malfunction of medical ins truments.

Moisture and flammable objects

s Do not use plugged sets near

water — for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. It may result in fire or electric shock.

s Do not let this unit get wet. Neve r spill liquid

of any kind on the unit. If any liquid or solid object does fall through, do not operate the unit. It may result in electric shock or damage to the unit. Have it checked immediately by qualified personnel.

s To prevent fire, keep flammable objects or open flame (e.g.

candles) away from the unit.

Accessories

Use only accessories recommended by Sony for the specific model of TV. Do not place the unit on an unstable cart, stand, table or shelf. The unit may fall, causing serious injury to a child or an adult and serious damage to the unit. No part of the TV should overhang any edge of the TV cart or stand; any overhanging edge is a safety hazard. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Broken pieces

Do not throw anything at the unit. The screen glass may break by the impact and cause serious injury.

Cable wiring

Take care not to catch your feet on the cables. It may damage the unit.

Heat

Do not touch the surface of the TV. It remains hot, even for some time after the TV is turned off.

Volume adjustment

s Adjust the volume so as not to trouble your neighbors. Sound

carries very easily at night time. Therefore, closing the windows or using headphones is suggested.

s When using headphones, adjust the volume so as to avoid

excessive levels, as hearing damage may result.

Disposal of the TV

s Do not dispose the TV with general household waste. s The LCD contains a small amount of liquid crystal. The

fluorescent tube used in this display contains mercury. Follow your local ordinances and regulations for disposal.

Handling of broken glass and liquid crystal leakage

If the LCD panel gets damaged, crystalline liquid leakage may occur, or scattered broken glass may result. Do not touch broken glass or crystalline liquid (which is toxic), with bare hands as cuts or poisoning/ skin irritation may occur. Also, do not let glass fragments or leaked crystalline liquid get into your eyes or mouth. Should either contact your eyes or mouth, rinse the contacted area thoroughly with water and consult your doctor.

LCD screen

s Although the LCD screen is made with high-precision technology

and has effective pixels of 99.99% or more, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.

s Do not expose the LCD screen surface to the sun. Doing so may

damage the screen surface.

s Do not push or scratch the LCD screen, or place objects on top of

the TV. The image may be uneven or the LCD panel may be damaged.

s If the TV is used in a cold place, a smear may occur in the picture

or the picture may become dark. This does not indicate a failure. These phenomena improve as the temperature rises.

s Ghosting may occur when still pictures are displayed

continuously. It may disappear after a few moments.

s The screen and cabinet get warm when the TV is in use. This is not

a malfunction.

s Avoid spraying insect repellent with volatile material to the

screen.

s Avoid prolonged contact with rubber or plastic made material.

Fluorescent lamp

This TV uses a special fluorescent lamp as its light source. If the screen image becomes dark, flickers, or does not appear, the fluorescent lamp has run down and should be replaced. For replacement, consult qualified service personnel.

Installation

s When installing or removing the TV

on the wall, be sure to use qualified contractors. Wall mount installation requires the use of a wall-mount bracket. If the TV is installed or removed from the wall by a person other than a qualified contractor, the unit may fall and cause serious injury if the unit is not installed securely.

s To prevent injury, this apparatus must be securely attached to the

stand/wall in accordance with the installation instructions.

Placement for viewing

It is recommended to watch the TV at a distance of 3 to 7 times that of the screen height, and in moderate brightness. Watching the TV for too long or in a dark room will cause eye fatigue.

Optional accessories

Observe the following when installing the TV using a wall-mount bracket. If the TV is not secured properly, it may fall and cause injury. s Be sure to follow the operating instructions

supplied with the wall-mount bracket when installing the unit.

s Be sure to attach the brackets supplied with the

wall-mount bracket.

Protruding location

Do not install the TV in protruding locations. If you install the unit in the following locations, injury may result. s Do not install the unit in a location where the unit protrudes, such

as pillars.

s Do not install the unit in a location that may cause injury.

Oils

Do not install this unit in restaurants where oily vapors occur. Dust absorbing oil may enter into the unit and damage the unit.

Corrosion

Use of this TV near the seashore may subject the set to excessive salt, corrosion and internal damage and result in deterioration of the TV’s performance. If the set will be subjec ted to these conditions, steps should be taken to reduce the humidity and temperature of the area where the TV is located.

Ventilation

The slots and openings in the TV are provided for necessary ventilation. To ensure reliable operation of the unit, and to protect it from overheating, these slots and openings must never be blocked or covered.

Unless proper ventilation is provided, the unit may gather dust and get dirty. For proper ventilation, observe the following:

s Do not install the unit turned backward or

sideways.

s Do not install the unit turned over or upside

down.

s Never cover the slots and openings with a

cloth or other materials.

KLV-S15G10 only

When installing the AC power adaptor, allow this much space.

10 cm

(4 inches)

10 cm (4 inches)

s Never block the slots and openings by

placing the unit on a bed, sofa, rug or other similar surface.

s Never place the unit in a confined space, such

as a bookcase or built-in cabinet, unless proper ventilation is provided.

s Leave some space around the unit and the AC

power adaptor. Otherwise, adequate air-circulation may be blocked causing overheating and cause fire or damage the unit.

When installing the unit on the wall, allow this much space.

30 cm

(11

/8 inches)

10 cm (4 inches)

10 cm(4 inches)

10 cm (4 inches)

When installing the unit using a stand, allow this much space.

30 cm

(11

/8 inches)

10 cm (4 inches)

Never install the unit as follows:

Air circulation is blocked. Air circulation is blocked.

Outdoor use

Do not install this unit outdoors. If the unit is exposed to rain, it may result in fire or electric shock. If the unit is exposed to direct sunlight, the unit may heat up and cause damage to the unit.

Vehicle and ceiling

Do not install this unit in a vehicle or hung from the ceiling.

Bumping of the vehicle may cause the uni t to fall down and cause injury.

Ship and vessel

Do not install this unit in a ship or vessel. If the unit is exposed to seawater, it may cause fire or damage the unit.

Preventing the TV from toppling over

Take measures to prevent the unit from toppling over and causing injury. To prevent the unit from toppling over, secure the unit to the wall or pillar.

Installing on a level surface

If you install the unit on a non-level surface, the unit may fall or drop and cause injury or damage.

(Continued)

Placing on a stable surface

If you place the unit on an unstable surface, the unit may fall and cause injury or damage.

Fall

Do not hang anything on the unit. The unit may fall from the stand or wall-mount bracket, causing damage or serious injury.

AC power cord

Unplug the AC power cord when moving the unit. Do not move the unit with the AC power cord plugged in. It may damage the AC power cord and result in fire or electric shock. Do not allow anything to rest on or roll over the power cord, and do not place the unit where the power cord is subject to wear or abuse.

Antennas

Outdoor Antenna Grounding

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits.

WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in USA and Section 54 of the Canadian Electrical Code in Canada provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National Electrical Code, ANSI/NFPA 70

Antenna lead-in wire

Ground clamps

Antenna discharge unit

Electric service equipment

NEC: National Electrical Code

Lightning

For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the receiver due to lightning and power-line surges.

(NEC Section 810-20)

Grounding conductors (NEC Section 810-21)

Ground clamps

Power service grounding electrode system (NEC Art 250 Part H)

Service

Damage requiring service

Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

s When the power cord or plug is

damaged or frayed.

s If liquid has been spilled into the unit.

s If the surface of the TV cracks, do not touch it, unplug the AC

power cord.

s If the unit has been exposed to rain or

water.

s If the unit has been subjected to excessive

shock by being dropped, or the cabinet has been damaged.

s If the unit does not operate normally when

following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to normal operation.

s When the unit exhibits a distinct change in

performance, it indicates need for service.

Servicing

Do not attempt to service the unit yourself since opening the cabinet may expose you to dangerous voltages or other hazards. Refer all servicing to qualified service personnel.

Replacement parts

When replacement parts are required, be sure the service technician certifies in writing that he/she has used replacement parts specified by the manufacturer that have the same characteristics as the original parts.

Unauthorized substitutions may result in fire, electric shock or other hazards.

Safety check

Upon completion of any service or repairs to the unit, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the unit is in safe operating condition, and to so certify. Ask a qualified service technician to dispose of the unit.

Contents

Introducing the TV

Welcome..............................................................10

Package Contents..........................................10

Features......................................................... 10

Installing the TV..................................................11

Removing the rear cover................................11

Attaching the rear cover................................. 12

Attaching the VESA adaptor (KLV-S15G10

only) ...............................................................13

Adjusting the Viewing Angle of the TV........... 14

TV Controls and Connectors............................. 15

Front and Top Panel......................................15

Side Panel......................................................16

Rear Panel..................................................... 17

Connecting the TV

Making Video and Audio Connections........... 19

Basic Connections .............................................20

Cable System or VHF/UHF Antenna

System...........................................................20

Cable Box/Digital Cable Box..........................20

Satellite Receiver and Cable/Antenna ...........21

HD Equipment................................................23

Connecting Optional Equipment....................... 25

VCR, Cable and Antenna...............................25

DVD Player ....................................................28

Camcorder or “PlayStation” ........................... 30

Setting Up the Channel List...............................31

Using Initial Setup..........................................31

Using the Menus

Overview of the Menus.......................................40

Navigating through Menus.................................41

Using the Video Menu.........................................42

Selecting Video Options.................................42

Using the Audio Menu........................................43

Selecting Audio Options.................................43

Using the Channel Menu....................................45

Selecting Channel Options.............................45

Using the Parent Menu.......................................47

Selecting Parent Options................................47

US Models: Selecting Custom Rating

Options...........................................................48

Viewing Blocked Programs ............................48

Canadian Models: Selecting Custom Rating

Options...........................................................49

Viewing Blocked Programs ............................49

Using the Setup Menu ........................................50

Selecting Setup Options.................................50

Other Information

Troubleshooting..................................................53

Trouble Symptoms and Remedies.................53

Contacting Sony..................................................55

Specifications......................................................56

Index.....................................................................57

Watching the TV

Button Descriptions ...........................................32

Programming the Remote Control....................34

Using Other Equipment with Your Remote

Control ..........................................................36

Special Buttons on the Remote Control...........37

Using Favorite Channels................................37

Using the Jump Function ...............................38

Using the Freeze Function............................. 38

Using the Sleep Function...............................39

Introducing the TV

Welcome

Thank you for purchasing this Sony LCD TV. This manual is for models KLV-S15G10 and KLV-S20G10.

Package Contents Along with your new TV, the packaging box contains a remote control, size

AA batteries, 75-ohm coaxial cable (ferrite core attached), AC power cord, AC power adaptor (KLV-S15G10 only), VESA adaptor (bracket A and B) (KLV-S15G10 only), screws for bracket B (KLV-S15G10 only), Operating Instructions, Quick Setup Guide, Leaflet (Installing the Wall-Mount Bracket to the TV, KLV-S20G10 only) and warranty card. See page 56 for the quantity of each supplied accessory.

Features Some of the features that you will enjoy with your new TV include:

s CineMotion

detecting film content and applying a reverse 3:2 pulldown process. Moving pictures will appear clearer and more natural-looking.

s Favorite Channels: Allows you to preview and select from 8 of your

favorite channels.

s Steady Sound

between programs and commercials.

s Component Video Input: Offers the best video quality for DVD (480p

and 480i), and digital set-top box (480p and 480i) connections.

s Parental Control: V-Chip technology allows parents to block

unsuitable programming from younger viewers.

s Caption Vision/ Info Banner: Allows Closed Caption and/or Channel

Programming Information to be displayed.

: Provides an optimized display by automatically

: Equalizes volume levels so there is consistent output

Introducing the TV

Installing the TV

Removing the rear cover

z The rear cover has tabs

on the lower right and left sides. To remove the rear cover easily, grasp one side and pull out while stabilizing the other side with your other hand.

Introducing the TV

Before connecting the TV, you need to remove the rear cover from the TV as illustrated below.

KLV-S15G10

1 Hold the stand of the TV. 2 Pull the rear cover down slowly, being careful not to catch your hand.

KLV-S20G10

1 Pull the rear cover out from the bottom. 2 Then, remove from the top.

Do not carry the TV holding the rear cover only as the rear cover is easily removed.

Introducing the TV

Attaching the rear cover

After connecting the cables, attach the rear cover to the TV as illustrated below.

1 Insert the two tabs of the upper side of the rear cover into the square

holes of the TV.

KLV-S15G10 KLV-S20G10

2 Push the two tabs of the lower side of the rear cover into the square

holes of the TV.

KLV-S15G10 KLV-S20G10

Introducing the TV

Attaching the VESA adaptor (KLVS15G10 only)

z Put soft cloth under the

TV so as not to damage the LCD screen’s surface.

If screw holes are required, attach the supplied VESA adaptor (brackets A and B) to the TV when you attach the TV to the FDMI (Flat Display Mount Interface) of VESA.

1 Remove the four screws illustrated below and remove the TV stand.

If you put the TV and TV stand on the same level surface, it may affect stability and could present danger. Place the TV on a level surface as illustrated above.

When removing the TV stand from the TV, firmly grasp the TV stand with both hands.

2 Attach bracket A (supplied) to the TV with four screws removed from

the TV stand.

Bracket A

3 Put the tabs of bracket B (supplied) into the square holes of bracket A. 4 Slide bracket B towards the TV to fit the tabs into the square holes.

(Continued)

Introducing the TV

5 Screw bracket B to bracket A with two screws (supplied).

3,4

Bracket B

Adjusting the Viewing Angle of the TV

This TV can be adjusted within the angles shown below.

Adjust the angle back and forth (tilt)

Right view

Front

When adjusting the angle, hold the stand with one hand to avoid slipping or tipping the stand.

10°

Adjust the angle left and right (swivel)

Top view

75° 75°

Front

Introducing the TV

TV Controls and Connectors

Front and Top Panel

12 3 5

FREEZE TV/VIDEO VOLUME CHANNEL

Introducing the TV

POWER

TIMER

Item Description

1 FREEZE Press to freeze the picture. The current program appears in the sub screen when freeze is

selected. Press again to restore the picture. You can use this feature to write down information such as phone numbers, recipes, etc. For details, see page 38.

2 TV/VIDEO Press repeatedly to cycle through the video equipment connected to the TV’s video inputs. 3 – VOLUME + Press to adjust the volume. 4 – CHANNEL + Press to scan through channels. To scan quickly through channels, press and hold down either

CHANNEL.

5 POWER Press to turn on and off the TV. 6 POWER LED Lights up in green when the TV is turned on. The LED does not light up when the main power

is turned off.

7 TIMER LED When lit, indicates the Sleep timer is set. For details, see page 39. If the LED blinks in red

continuously, this may indicate the display unit needs servicing (see “Contacting Sony” on page 2).

8 (IR) Infrared

Receiver

Receives IR signals from the remote control.

The CHANNEL + button has a tactile dot. Use the tactile dot as a reference when operating the TV.

Introducing the TV

Side Panel

KLV-S15G10

Left side

VIDEO 2

S VIDEO

VIDEO

L-AUDIO

(MONO)

R-AUDIO

KLV-S20G10

Jack Description

1 VIDEO 2 IN

S VIDEO

2 VIDEO 2 IN

VIDEO/ AUDIO L (MONO)/ AUDIO R

3 Headphones

jack

Connects to the S VIDEO output jack on your camcorder or other video equipment that has S VIDEO. Provides better picture quality than composite video (2).

Connect to the composite video and audio output jacks on your camcorder or other video equipment.

Connects to your headphones. If your headphones do not match the jack, use a suitable plug adaptor (not supplied).

Rear Panel

KLV-S15G10

Introducing the TV

DC IN

16.5V

KLV-S20G10

AC IN

VIDEO 3 IN (480p/480i)

AUDIO OUT VHF/UHF

AUDIO

VIDEO 1 IN

S VIDEO

VIDEO 4 IN (480p/480i)

AUDIO

(MONO)

VIDEO

435612

R-AUDIO-L

PR PB Y

AUDIO OUT

VIDEO 3 IN

R-AUDIO-L

(MONO)

R-AUDIO-L

(MONO)

VIDEO 1 IN

VIDEO

VHF/UHF

S VIDEO

264

(Continued)

Introducing the TV

Jack Description

1 DC IN

(KLV-S15G10)

2 VIDEO 3 IN

(KLV-S15G10)/ VIDEO 4 IN (KLV-S20G10) (480p/480i)/ L-AUDIO-R

3 VIDEO 1 IN/

S VIDEO

4 VIDEO 1 IN/

VIDEO 3 IN (KLV-S20G10) VIDEO/ L(MONO)AUDIO-R

5 AUDIO OUT

(L/R)

6 VHF/UHF RF input that connects to your VHF/UHF antenna. 7 AC IN

(KLV-S20G10)

Connects the supplied AC power adaptor.

Connect to your DVD player’s or digital set-top box’s component video (YP (L/R) jacks. Component video provides better picture quality than the S VIDEO (3) or the composite video (4) connections.

Connects to the S VIDEO output jack of your VCR or other video equipment that has S VIDEO. S VIDEO provides better picture quality than the composite video (4).

Connect to the composite video and audio output jacks on your VCR or other video component. The other composite video and audio (VIDEO 2) is located on the left side panel of the TV.

Connect to the left and right audio input jacks of your audio or video equipment. You can use these outputs to listen to your TV’s audio through your stereo system.

Connects the supplied AC power cord.

BPR) and audio

Connecting the TV

Making Video and Audio Connections

Best Video Performance

To display clear crisp pictures, first you must connect your TV correctly and also need to choose the correct display format (see “16:9 Enhanced” in “Using the Setup Menu” on page 52). It is strongly recommended to connect the antenna using the supplied 75-ohm coaxial cable to receive optimum picture quality signal. A 300-ohm twin lead cable can be easily affected by radio noise and the like, resulting in signal deterioration. If you use a 300ohm twin lead cable, keep it as far away as possible from the TV.

Your TV includes several types of video inputs. When connecting your TV, use the inputs that are available on your devices that provide the best video performance, as described below.

Separate audio connection required

L-

AUDI O

YPB PR

S VIDEO

Connector type

Component video (480i/480p)

S VIDEO

Composite video

RF/Coaxial No

Connecting the TV

Ye s

-R

When you connect video equipment to both the VIDEO and the S VIDEO input jacks, make sure Auto YC in the Setup menu is set to On to view the S VIDEO input (see page 52).

Connecting the TV

Basic Connections

Cable System or VHF/UHF Antenna System

Cable Box/Digital Cable Box

The supplied remote control can be programmed to operate your cable box (see “Programming the Remote Control” on page 34).

z To change channels

using the cable box, set your TV to channel 3 or 4 depending on the cable box channel output.

z If you will be controlling

all channel selection through your cable box, consider using the Channel Fix feature to set your TV to channel 3 or 4 (see page 45).

Cable or VHF only or VHF/UHF

75-ohm coaxial cable

VHF/UHF jack

Rear of TV

From the Channel menu, select Cable On or Cable Off for your type of input signal.

Two ferrite cores are factory attached to the supplied 75-ohm coaxial cable. Do not detach the ferrite core from the coaxial cable.

Use this hookup if: s You subscribe to a cable TV system that uses scrambled or encoded

signals requiring a cable box to view all channels, and

s You do not intend to hook up any other audio or video equipment to

your TV.

1 Connect the coaxial connector from your cable service to the cable

box’s IN jack.

2 Using the supplied 75-ohm coaxial cable, connect the cable box’s OUT

jack to the TV’s VHF/UHF jack.

75-ohm coaxial

Cable

IN jack

Cable box

Also, set Cable to On in the Channel menu (see page 45).

cable

OUT jack

Rear of TV

VHF/UHF jack

Notes on Using This Connection

To Do This ... Do This ...

Use the cable box/digital cable box

Set up the remote control to operate the cable box/digital cable box

Activate the remote control to operate the cable box/digital cable box

Control cable box/digital cable box functions with the remote control

Prevent the accidental switching of TV channels

Tune the TV to the channel the cable box is set to and then use the cable box to switch channels.

Program the remote control. See “Programming the Remote Control” on page 34.

Press SAT/CABLE (FUNCTION).

See “Operating a Cable Box” on page 36.

When using the cable box, you need the TV to stay on the channel the cable box is set to. You can use the TV’s Channel Fix feature to lock in a specific channel. For details, see “Using the Channel Menu” on page 45.

Connecting the TV

Satellite Receiver and Cable/Antenna

If you connect the Digital Satellite Receiver with component video cables, see page 23.

KLV-S15G10

Satellite Receiver

This scenario shows a SAT Box connected through the video inputs and the Cable/Antenna connected through the VHF/UHF input. Satellite signals are selected by the SAT Box through the video inputs while TV signal is selected by the TV tuner.

To connect a satellite receiver

1 Connect the satellite antenna cable to the satellite receiver’s satellite

input jack.

2 Use A/V and S VIDEO cables to connect the satellite receiver’s AUDIO

and S VIDEO output jacks to the TV’s AUDIO and S VIDEO input jacks (VIDEO 1 IN).

3 Connect the supplied 75-ohm coaxial cable from the antenna to the

TV’s VHF/UHF input jack.

4 Run the Initial Setup program, as described in “Setting Up the Channel

List” on page 31.

If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable (yellow) instead of the S VIDEO cable.

Satellite antenna cable

Rear of TV

Connecting the TV

VIDEO 3 IN (480p/480i)

S VIDEO cable

A/V cable

AUDIO

S VIDEO

VIDEO 1 IN

S VIDEO

AUDIO

VIDEO

(MONO)

AUDIO OUT

AUDIO-R (red) AUDIO-L (white) VIDEO (yellow)

(Continued)

VHF/UHF

75-ohm coaxial cable

Connecting the TV

KLV-S20G10

Satellite Receiver

Satellite antenna cable

Rear of TV

VHF/UHF

VIDEO 4 IN (480p/480i)

R-AUDIO-L

PR PB Y

VIDEO 3 IN

R-AUDIO-L

VIDEO 1 IN

(MONO)

VIDEO

S VIDEO

75-ohm coaxial cable

A/V cable

AUDIO-R (red)

AUDIO-L (white)

S VIDEO

VIDEO (yellow)

S VIDEO cable

Notes on Using This Connection

To Do This ... Do This ...

Watch the satellite receiver Press TV/VIDEO repeatedly to select the satellite receiver input

(Video 1, 2 or 3 for KLV-S20G10).

Set up the remote control to operate the satellite receiver

Activate the remote control to operate the

You must program the remote control. See “Programming the Remote Control” on page 34.

Press SAT/CABLE (FUNCTION).

satellite receiver Control satellite receiver functions with the

See “Operating a Satellite Receiver” on page 36.

remote control Label video inputs to easily identify equipment

See the instructions for setting up Label Video Inputs on page 51.

connected to the TV

Connecting the TV

HD Equipment Disconnect all power sources before making any connections.

1 Using a component video cable, connect your equipment’s YPBPR

output jacks to the TV’s YP S15G10) or VIDEO 4 IN (KLV-S20G10) connections.

Component video (YPBPR) connection is necessary to view 480p formats. Note that this TV displays all format types of picture in a resolution of 640 dots × 480 lines.

BPR input jacks. Use the VIDEO 3 IN (KLV-

2 Using an audio cable, connect your equipment’s AUDIO output jacks to

the TV’s AUDIO input jacks.

The YPBPR jacks do not provide audio, so audio cables must be connected to provide sound.

Connecting the TV

KLV-S15G10

HD Equipment with Component Video

Rear of TV

VIDEO 3 IN (480p/480i)

Component video cable

AUDIO

VIDEO 1 IN

AUDIO

S VIDEO

VIDEO

AUDIO-R (red) AUDIO-L (white)

Audio cable

(MONO)

AUDIO OUT

(Continued)

Connecting the TV

KLV-S20G10

Audio cable

HD Equipment with Component Video

Notes on Using This Connection

Rear of TV

VIDEO 4 IN (480p/480i)

R-AUDIO-L

PR PB Y

VIDEO 3 IN

R-AUDIO-L

VIDEO 1 IN

(MONO)

VIDEO

AUDIO-L (white)

AUDIO-R (red)

Component video cable

P PR

Some of the HD equipment you can connect to receive the broadcasting signals are digital cable box, digital satellite receiver and digital TV receiver.

S VIDEO

To Do This ... Do This ...

Watch the HD equipment Press TV/VIDEO repeatedly to select the HD equipment input or Video 4. (For KLV-

S15G10 model, select Video 3.)

Set up the remote control to operate the HD equipment

Activate the remote control to

You must program the remote control. See “Programming the Remote Control” on page 34.

Press SAT/CABLE (FUNCTION).

operate the HD equipment Control HD equipment functions

See “Using Other Equipment with Your Remote Control” on page 36.

with the remote control Label video inputs to easily

See the instructions for setting up Label Video Inputs on page 51.

identify equipment connected to the TV

Connecting Optional Equipment

You can connect a variety of optional equipment to your TV. This section provides some of the individual connections you can make. For multiple connections, please refer to the Quick Setup Guide.

Connecting the TV

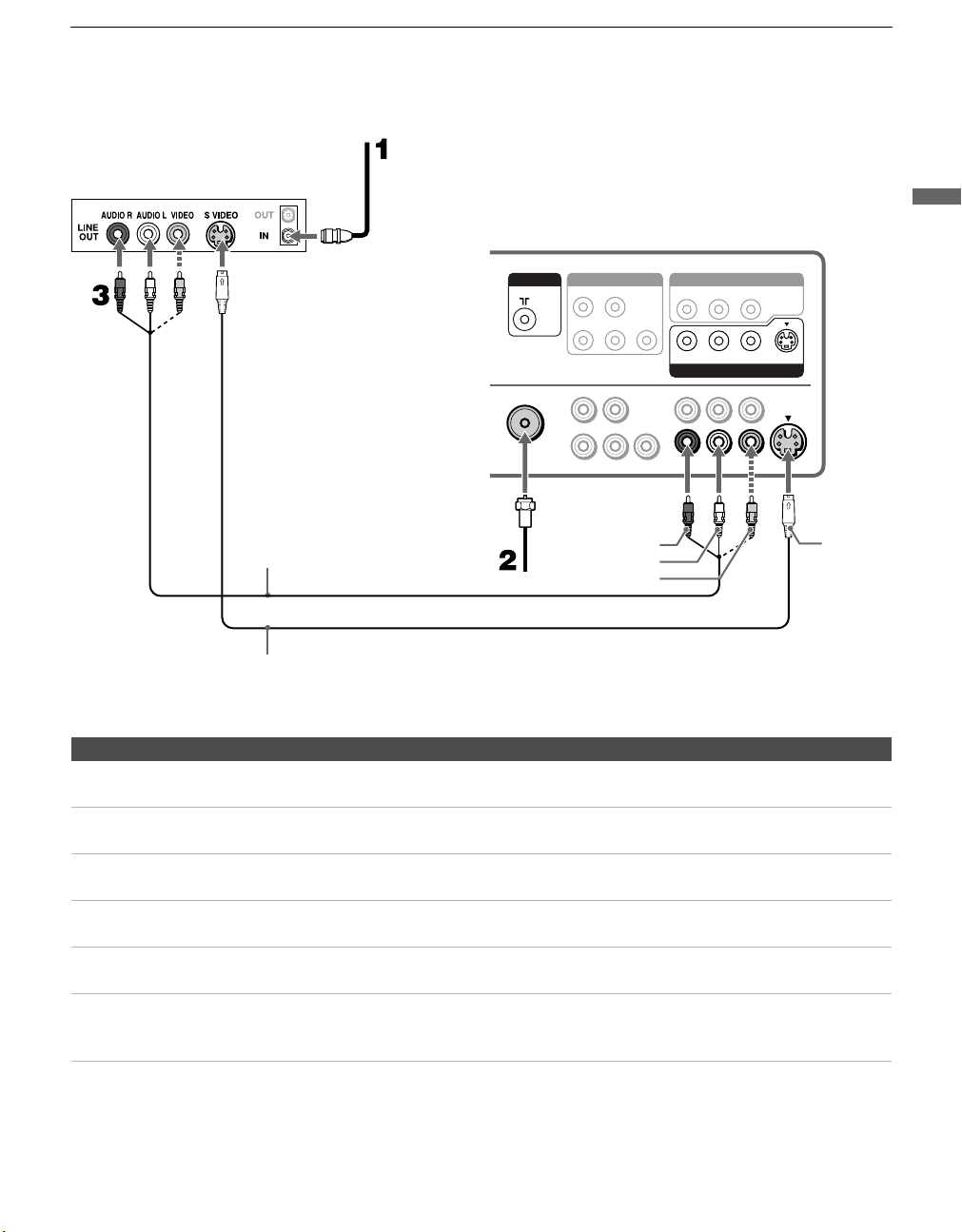

VCR, Cable and Antenna

z The most common

setup is the Cable input into the VCR Antenna IN, the VCR Antenna Out to the VHF/UHF input.

This scenario shows a VCR with Cable signals connected through the video inputs and the Antenna connected through the VHF/UHF input. The Cable or VCR signals are selected by the VCR through the video inputs while TV signal is selected by the TV tuner.

To connect the VCR and cable

1 Connect the CATV cable to the VCR’s VHF/UHF input jack. 2 Connect the supplied 75-ohm coaxial cable from the antenna to the

TV’s VHF/UHF input jack.

3 Use A/V and S VIDEO cables to connect the VCR’s AUDIO and

S VIDEO output jacks to the TV’s AUDIO and S VIDEO input jacks (VIDEO 1 IN).

4 Run the Initial Setup Program, as described in “Setting Up the Channel

List” on page 31.

If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow) instead of the S VIDEO cable.

(Continued)

Connecting the TV

KLV-S15G10

VCR

CATV cable

Rear of TV

VIDEO 3 IN (480p/480i)

S VIDEO cable

AUDIO

SVIDEO

VIDEO 1 IN

S VIDEO

AUDIO

VIDEO

(MONO)

AUDIO OUT

AUDIO-R (red) AUDIO-L (white) VIDEO (yellow)

VHF/UHF

A/V cable

75-ohm coaxial cable

Connecting the TV

KLV-S20G10

VCR

A/V cable

S VIDEO cable

CATV cable

75-ohm coaxial cable

Rear of TV

VHF/UHF

AUDIO-R (red)

AUDIO-L (white)

VIDEO (yellow)

VIDEO 4 IN (480p/480i)

R-AUDIO-L

PR PB Y

R-AUDIO-L

VIDEO 3 IN

(MONO)

VIDEO

(MONO)

VIDEO

VIDEO 1 IN

Connecting the TV

S VIDEO

SVIDEO

Notes on Using This Connection

To Do This ... Do This ...

Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (Video 1, 2 or 3 for KLV-

S20G10).

Watch cable channels Press TV/VIDEO repeatedly to select the VCR input (Video 1, 2 or 3 for KLV-

S20G10).

Set up the remote control to operate the VCR

Activate the remote control to

You must program the remote control. See “Programming the Remote Control” on page 34.

Press VCR/DVD (FUNCTION).

operate the VCR Control VCR functions with the

See “Operating a VCR” on page 36.

remote control Label video inputs to easily

See the instructions for setting up Label Video Inputs on page 51.

identify equipment connected to the TV

Connecting the TV

DVD Player For best results, use this connection if your DVD player has component

video (YP

To connect a DVD player with component video connectors

BPR) jacks.

1 Use a component video cable to connect the DVD player’s YPBPR

output jacks to the TV’s YPBPR input jacks (VIDEO 3 IN (KLVS15G10) or VIDEO 4 IN (KLV-S20G10)).

The YPBPR jacks on your DVD player are sometimes labeled Y, C

B and CR, or Y, B-Y and R-Y. If so, connect the cables to their

matching color jacks.

2 Use an audio cable to connect the DVD player’s AUDIO output jacks to

the TV’s AUDIO input jacks (VIDEO 3 IN (KLV-S15G10) or VIDEO 4 IN (KLV-S20G10)).

The YPBPR jacks do not provide audio, so audio cables must be connected to provide sound.

KLV-S15G10

Component video cable

DVD Player

Rear of TV

AUDIO OUT

VIDEO 3 IN (480p/480i)

AUDIO

VIDEO 1 IN

S VIDEO

AUDIO

(MONO)

VIDEO

AUDIO-R (red) AUDIO-L (white)

Audio cable

Connecting the TV

KLV-S20G10

AUDIO-L (white)

AUDIO-R (red)

Audio cable

DVD Player

Component video cable

Rear of TV

VIDEO 4 IN (480p/480i)

R-AUDIO-L

PR PB Y

R-AUDIO-L

Y P

VIDEO 3 IN

(MONO)

VIDEO

(MONO)

VIDEO

VIDEO 1 IN

S VIDEO

Notes on Using This Connection

To Do This ... Do This ...

Watch the DVD player Press TV/VIDEO repeatedly to select the DVD player input or Video 4. (For KLV-

S15G10 model, select Video 3.) Set up the remote control to operate the DVD player Activate the remote control to

If you have a non-Sony DVD player, you must program the remote control. See

“Programming the Remote Control” on page 34.

Press VCR/DVD (FUNCTION). operate the DVD player Control DVD functions with the

See “Operating a DVD Player” on page 36. remote control

Label video inputs to easily

See the instructions for setting up Label Video Inputs on page 51. identify equipment connected to the TV

Connecting the TV

To connect a DVD player with S VIDEO and audio connectors

If your DVD player does not have component video (YPBPR) jacks, or the

component video inputs are already connected to another device, use this

connection.

1 Use an S VIDEO cable to connect the DVD player’s S VIDEO output

jack to the TV’s S VIDEO input jack (VIDEO 1 IN).

2 Use an audio cable to connect the DVD player’s AUDIO output jacks to

the TV’s AUDIO input jacks (VIDEO 1 IN).

If your DVD player is not equipped with S VIDEO, use a VIDEO cable (yellow) instead of the S VIDEO cable.

Connecting the TV

Camcorder or “PlayStation”

Left side of TV

VIDEO 2

S VIDEO

VIDEO

L-AUDIO

(MONO)

For easy connection to a camcorder or “PlayStation”, the TV has left side

A/V input jacks. If you prefer, you can connect the camcorder or

“PlayStation” to the TV’s rear A/V input jacks.

To connect a camcorder or “PlayStation”

Use A/V and S VIDEO cables to connect the camcorder or “PlayStation”

AUDIO and S VIDEO output jacks to the TV’s AUDIO and S VIDEO input

jacks (VIDEO 2 IN) on the left side panel of the TV.

If your camcorder is not equipped with S VIDEO, use a VIDEO cable (yellow) instead of the S VIDEO cable.

If you have a mono camcorder, connect its audio output jack to the TV’s L AUDIO (MONO) input jack.

“PlayStation”

Camcorder

SVIDEO

VIDEO (yellow)

AUDIO-L

R-AUDIO

(white)

AUDIO-R (red)

Notes on Using This Connection

To Do This ... Do This ...

Watch the camcorder or

Press TV/VIDEO repeatedly to select the camcorder or game input (Video 2). “PlayStation”

Label video inputs to easily

See the instructions for setting up Label Video Inputs on page 51. identify equipment connected to the TV

To SVIDEO output jack

S VIDEO cable

A/V cable

To A/V output jack

Setting Up the Channel List

After you finish connecting your TV, you need to run Initial Setup, which

automatically sets up available channels. The Initial Setup screen appears

when you turn on your TV for the first time after hooking it up. If you do not

want to set up the channels at this time, you can do it later by selecting the

Auto Program option in the Channel menu (see page 45).

The Auto Program feature does not apply for installations that use a cable box.

The factory default setting for channel selection is Cable On. For

antenna connections, run the Auto Program again after selecting Cable Off from the menu.

Using Initial Setup To run Initial Setup the first time you turn on your TV

1 Press POWER to turn on the TV.

The Initial Setup screen appears.

2 Press V or v on the remote control to select the on-screen display

language. Then press . The message “First please connect cable/antenna” appears.

By default, Auto Program is set to scan cable TV channels.

Connecting the TV

3 Press CH + to start Auto Program.

Auto Program automatically creates a list of receivable channels. When

finished, the lowest numbered channel is displayed. When all the receivable

channels are stored, the Show/Hide Channels menu appears.

To scan available VHF/UHF antenna channels instead of the cable TV

channels

1 Press MENU, then go to Channel menu.

2 Set Cable to Off.

3 Start Auto Program by pressing .

To perform Auto Program again, follow the above instructions.

Depending on your signal source, be sure to set Cable to On or Off

accordingly (see page 45).

The Initial Setup menu will appear each time the TV is turned on until you complete the scanning for the available channels.

Watching the TV

Button Descriptions

1 MUTING Press to mute the sound. Press again or press VOL + to restore

3 4

5 6

7 8

9 0

z The 5 button, CH +

button and MTS/SAP button have a tactile dot. Use the tactile dot as a reference when operating the TV.

2 PICTURE

3 JUMP Press to jump back and forth between two channels. The TV

4 FAVO RITES Press to display the Favorite Channels list. See “Using Favorite

5 FUNCTION

qh qj

6 VCR/DVD

qk ql

w; wa

ws wd

7 FREEZE Press to freeze the picture. The current program appears in the

8 Press to select the sound effect modes: SRS WOW and Off.

9 VOL +/– Press to adjust the volume. 0 CODE SET Press to program the remote control to operate non-Sony video

Button Description

the sound. Press repeatedly to cycle through the available video picture

MODE

Buttons

Operating Buttons

TV/SAT Press to switch between the TV and the satellite receiver when

modes: Vivid, Standard, Pro. The video picture modes can also be accessed in the Video menu. See “Selecting Video Options” on page 42.

alternates between the current channel and the last channel that was selected.

Channels” on page 37. Press to have the remote control operate the equipment you

want. See “Programming the Remote Control” on page 34. When FUNCTION is switched on VCR/DVD, these buttons

operate the video equipment you have programmed into the remote control. See “Using Other Equipment with Your Remote Control” on page 36.

m Rewind N Play M Fast forward z Record (by pressing z and N) X Pause x Stop

sub screen when freeze is selected. Press again to restore the picture. You can use this feature to write down information such as phone numbers, recipes, etc. See “Using the Freeze Function” on page 38. The Freeze function may not be available in some cases.

The sound effect modes can also be accessed in the Audio menu. See “Selecting Audio Options” on page 43.

FUNCTION is switched on SAT/CABLE.

equipment. See “Programming the Remote Control” on page 34.

Watching the TV

Button Description

qa RESET Press to reset the settings to the factory default settings. See

pages 42 and 43.

qs POWER Press to turn on and off the TV.

SAT/CABLE Press to turn on and off the satellite receiver and cable box you

have programmed into the remote control. See “Programming the Remote Control” on page 34.

VCR/DVD Press to turn on and off the video equipment (VCR or DVD

player) you have programmed into the remote control. See “Programming the Remote Control” on page 34.

qd DISPLAY Press once to display the current channel number, channel

label and time. The OSD (on screen display) will be canceled after a few seconds or press again to immediately cancel the display.

qf 0 - 9 ENT Press 0 - 9 to select a channel; the channel changes after 2

seconds. Press ENT to change channels immediately.

qg MENU Press to display the Menu. Press again to exit from the Menu.

See “Using the Menus” on page 40.

qh V/v/B/b Press V/v/B/b to move the on-screen cursor. To select an item,

press .

qj SYSTEM OFF Press to turn off the TV and all other Sony equipment. qk TV/VIDEO Press repeatedly to cycle through the video equipment

connected to the TV’s video inputs.

See page 51 on setting up the video input labels, including skip function.

ql GUIDE Press to display the program guide of your satellite program

provider.

(Closed Caption)

wa CH +/– Press to scan through channels. To scan quickly through

ws MTS/SAP Press repeatedly to cycle through the Multi-channel TV Sound

wd SLEEP Press repeatedly until the TV displays the time in minutes (15,

Press repeatedly to cycle through the Caption Vision: Off, CC1 - CC4, Text1 - Text4. The Caption Vision can also be

accessed in the Setup menu. See “Selecting Setup Options” on page 50.

channels, press and hold down either CH + or CH –.

(MTS) options: Stereo, Auto SAP (Second Audio Program), and Mono. The MTS setting can also be accessed in the Audio menu. See “Selecting Audio Options” on page 43.

30, 45, 60 or 90) that you want the TV to remain on before shutting off. To cancel Sleep Timer, press SLEEP repeatedly until Sleep Off appears.

Watching the TV

TV/SAT and GUIDE buttons are functional when the SAT/CABLE function button is selected.

Watching the TV

Programming the Remote Control

The remote control is preset to operate Sony brand video equipment.

Sony Equipment Programmable Code Number

VCR/DVD 301 (Sony VCR)

SAT/CABLE 801 (Sony Satellite Receiver)

Follow the steps below to program your TV’s remote control to operate non-

Sony video equipment.

The equipment must have infrared (IR) remote capability in order to be used with this remote control.

Find the three-digit code for your equipment from the “Manufacturer’s

Codes” listed on page 35. If more than one code number is listed, try

entering from the code listed first.

1 Press CODE SET.

2 Press the or FUNCTION button you want to program on

the remote control. The selected FUNCTION button (VCR/DVD or SAT/CABLE) will

flash.

3 Enter the three-digit manufacturer’s code number using the --9

buttons while the button is lit (approximately 10 seconds).

4 Press button.

When the programming is correct, the selected FUNCTION button will flash twice slowly, and when not, flashes five times quickly.

Insert two size AA batteries (supplied) by matching the e and E on the batteries to the diagram inside the remote control’s battery compartment.

To check if the code works

Aim your TV’s remote control at the equipment, and press the VCR/DVD

and/or SAT/CABLE (POWER) button that corresponds with the equipment.

If the equipment responds, the programming is completed. If not, try the

next code listed.

If you enter a new code number, the code number you previously entered at that setting is erased.

If no code is input within the above specified time, or an invalid or incorrect code number is input, the remote control automatically goes back to the previous setting.

In some cases, you may not be able to program your remote control to operate other equipment. In such cases, use the equipment’s own remote control.

Dead batteries or removing the batteries may cause the programmable codes to be lost and revert back to factory settings. Reprogramming the codes may be necessary.

Watching the TV

Manufacturer’s Codes VCRs

Manufacturer Code

Sony 301, 302, 303, 348 Admiral (M. Ward) 327 Aiwa * 338, 344 Audio Dynamic 314, 337 Broksonic 319, 317 Canon 309, 308 Citizen 332 Craig 302, 332 Criterion 315 Curtis Mathes 304, 338, 309 Daewoo 341, 312, 309 DBX 314, 336, 337 Dimensia 304 Emerson 319, 320, 316, 317,

318, 341 Fisher 330, 335 Funai 338 General Electric 329, 304, 309 Go Video 322, 339, 340 Goldstar 332 Hitachi 306, 304, 305, 338 Instant Replay 309, 308 JC Penney 309, 305, 304, 330,

314, 336, 337 JVC 314, 336, 337, 345,

346, 347 Kenwood 314, 336, 332, 337 LXI (Sears) 332, 305, 330, 335,

338 LG 332 Magnavox 308, 309, 310 Marantz 314, 336, 337 Marta 332 Memorex 309, 335 Minolta 305, 304 Mitsubishi/MGA 323, 324, 325, 326 Multitech 325, 338, 321 NEC 314, 336, 337 Olympic 309, 308 Optimus 327 Panasonic 308, 309, 306, 307 Pentax 305, 304 Philco 308, 309 Philips 308, 309, 310 Pioneer 308 Quasar 308, 309, 306

Manufacturer Code

RCA/PROSCAN 304, 305, 308, 309,

Realistic 309, 330, 328, 335,

Sansui 314 Samsung 322, 313, 321 Sanyo 330, 335 Scott 312, 313, 321, 335,

Sharp 327, 328 Shintom 315 Signature 2000 (M.

Wa rd) SV2000 338 Sylvania 308, 309, 338, 310 Symphonic 338 Tashiro 332 Tatung 314, 336, 337 Teac 314, 336, 338, 337 Technics 309, 308 Toshiba 312, 311 Wards 327, 328, 335, 331,

Yamaha 314, 330, 336, 337 Zenith 331

311, 312, 313, 310, 329

324, 338

323, 324, 325, 326

338, 327

332

DVD Players

Manufacturer Code

Sony 751 Panasonic 753 Pioneer 752 RCA 755 Toshiba 754

Cable Boxes

Manufacturer Code

Sony 230 Hamlin/Regal 222, 223, 224, 225,

Jerrold/G. I./ Motorola

Oak 227, 228, 229 Panasonic 219, 220, 221 Pioneer 214, 215 Scientific Atlanta 209, 210, 211 Tocom 216, 217 Zenith 212, 213

226 201, 202, 203, 204,

205, 206, 207, 208, 218

Satellite Receivers

Manufacturer Code

Sony 801 General Electric 802 Hitachi 805 Hughes 804 Panasonic 803 RCA/PROSCAN 802, 808 Toshiba 806, 807

*If an Aiwa VCR does not work

even though you enter the code for Aiwa, enter the code for Sony instead.

Watching the TV

Using Other Equipment with Your Remote Control

To operate other connected equipment with your TV, first turn to page 35 and program the necessary code. For operating video equipment, press TV/VIDEO repeatedly until you see the video input on the screen for your connected equipment. Remote control operation tips are provided below.

Some functions cannot be operated depending on the equipment. In that case, use the remote control supplied with the equipment.

Operating a VCR

To Do This ... Press ... To Do This ... Press ...

Turn on/off VCR/DVD (POWER) Fast forward M Control a VCR VCR/DVD (FUNCTION) Rewind m Change channels CH +/– Pause X (press again to resume Record N while pressing z Play N Search the picture forward or Stop x

backward

Operating a DVD Player

To Do This ... Press ... To Do This ... Press ...

Turn on/off VCR/DVD (POWER) Step through different tracks of an Control a DVD player VCR/DVD (FUNCTION) Play N Step through different chapters of Stop x Pause X (press again to resume

normal playback)

audio disc

a video disc

Select a track directly 0-9 buttons Display the menu (Setup) MENU Operate the DVD menu V, v, B, b,

Operating a Cable Box

To Do This ... Press ... To Do This ... Press ...

Turn on/off SAT/CABLE (POWER) Select a channel 0-9 buttons, ENT (enter) Control a cable box SAT/CABLE

(FUNCTION)

Change channels CH +/– Go to the previous channel JUMP

normal playback)

M or m during playback (release to resume normal playback)

M to step forward or m to step backward

CH + to step forward or CH – to step backward

Operating a Satellite Receiver

To Do This ... Press ... To Do This ... Press ...

Turn on/off SAT/CABLE (POWER) Display the channel number DISPLAY Control a satellite receiver SAT/CABLE

(FUNCTION)

Select a channel 0-9 buttons, ENT (enter) Move the highlight (cursor) V, v, B, b, Change channels CH +/– Select the item Go to the previous channel JUMP

Display the DBS guide GUIDE Display the DBS menu MENU

Special Buttons on the Remote Control

Watching the TV

Using Favorite Channels

The Favorite Channels feature lets you select programs from a list of up to 8 favorite channels that you specify. You can create a list using the Add to Favorites option.

1 Press FAVO RITE S.

The Favorite Channels list appears. Make your selection.

Favorite Channels

Exit

Add to Favorites

38 : FOX

7 : ABC

4 : NBC

2 : CBS

101 : CNN

48 : TNT

120 : NICK

20 : PBS

Select: Set: Exit:

2 Press M/m to highlight the desired channel and press .

• To add the current channel to the list of Favorite Channels, highlight

Add to Favorites and press .

• When the Favorite Channels list is full, remove a channel from your

list using Favorite Channels in the Channel menu and try again (see page 45).

Watching the TV

Using the Jump Function

Using the Freeze Function

While the picture is frozen, the sound continues to be output normally.

You can change or jump between the last two channels.

JUMP

Previous channel

You can use this feature to write down information such as phone numbers, recipes, etc. When you press the button once, the current screen is frozen and the sub screen appears. When you press the button twice, only the frozen screen is displayed, when you press it a third time, the normal screen returns.

Freeze

FREEZE

Frozen pictureCurrent program

Move the sub screen with V v B b.

To cancel the Freeze function mode

Press FREEZE until the normal screen appears.

The Freeze function may not be available in some cases.

Watching the TV

Using the Sleep Function

If you turn the TV off, and then turn it on again, the Sleep timer returns to Sleep Off.

z “TV will turn off soon”

appears one minute before the TV shuts off. This message may not appear if you are performing other operations in the menu.

You can set the TV to turn off automatically after a predetermined period of time (15, 30, 45, 60, or 90 minutes).

Sleep : Off

SLEEP

Sleep : 15

Sleep : 30

Sleep : 45

Sleep : 60

Sleep : 90

While the Sleep timer is activated, the TIMER LED on the TV lights up in red.

To cancel the Sleep timer

Press SLEEP repeatedly until Sleep Off appears or turn the TV off then turn the TV on again.

Watching the TV

Using the Menus

Overview of the Menus

The Menus provide you access to the following features:

Menu Allows you to set/change

Video Picture Mode (page 42)

Video

Return Picture Mode: Vivid Reset: Picture: 50 Brightness: 25 Color: 33 Hue: 0 Sharpness: 4 Backlight: 10

Select: Exit:Back:Set:

Audio Reset (page 43)

Audio TV

Return Reset: Tre b le : 0 Bass: 0 Balance: 0 Steady Sound: Off Effect: Off MTS: Stereo Speaker: On

Audio Out

Select: Exit:Back:Set:

Channel Favorite Channels (page 45)

Channel TV

Return Favorite Channels Cable: On Channel Fix: Off Auto Program: Show/Hide Channels Label Channels

Reset (page 42) Picture (page 42) Brightness (page 42) Color (page 42) Hue (page 42) Sharpness (page 42) Backlight (page 42)

Tr eb le (page 43) Bass (page 43) Balance (page 43) Steady Sound (page 43) Effect (page 43) MTS (page 43) Speaker (page 44) Audio Out (page 44)

Cable (page 45) Channel Fix (page 45) Auto Program (page 45) Show/Hide Channels (page 46) Label Channels (page 46)

Select: Exit:Back:Set:

Parent Lock (page 47)

Parent TV

Return Lock: Off Select Country: U.S.A. Change Password

Select: Exit:Back:Set:

Select Country (page 47) Change Password (page 47)

Menu Allows you to set/change

Setup Caption Vision (page 50)

Setup TV

Return Caption Vision: Off Info Banner: On Label Video Inputs Game Picture: 0 Language: English

16:9 Enhanced: Auto YC:

Power Saving: Standard

Info Banner (page 50) Label Video Inputs (page 51) Game Picture (page 51) Language (page 51) 16:9 Enhanced (page 52) Auto YC (page 52) Power Saving (page 52)

Select: Exit:Back:Set:

Navigating through Menus

z Menus include

navigation help text that appears at the bottom of each Menu.

To Do This ... Press ...

Display the Menu Press MENU. Move through the Menus Press V v. Move through the Menu options Press V v. Select an option to change Press . Change an option’s setting Press V v B b. Select (confirm) changed setting Press . Exit the Menu Press MENU.

Using the Menus

Using the Video Menu

To select the Video menu

1. Press MENU 2. Highlight

Video

To ex it t he Video menu, press MENU.

To restore the factory default settings for the Video menu

s Press RESET on the remote control when in the Video menu.

Selecting Video Options

z To change from one

Picture Mode to another, press PICTURE MODE on the remote control.

z You can alter the Picture

Mode options (Vivid, Standard, Pro) for each video input (including the TV antenna input).

z You can alter the Video

settings (Picture, Brightness, Color, etc.) for each Mode.

3. Press

to select

The Video menu includes the following options: To highlight an option and to change settings, press V v B b. Press to confirm the selection.

Option Description

Picture Mode

Customized picture viewing

Reset Reset all settings and adjustments to the default setting for each

Picture Adjust to increase picture contrast or decrease picture contrast. Brightness Adjust to brighten or darken the picture. Color Adjust to increase or decrease color intensity. Hue Adjust to increase or decrease the green tones. Sharpness Adjust to sharpen or soften the picture. Backlight Adjust to brighten or darken the backlight.

Vivid Select for enhanced picture contrast and

Standard Select for standard picture settings.

Pro Select for professional monitor like appearance

Picture Mode (Vivid, Standard, Pro) (except for the options

grayed out).

Video

Return Picture Mode: Vivid Reset: Picture: 50 Brightness: 25 Color: 33 Hue: 0 Sharpness: 4 Backlight: 10

Select: Exit:Back:Set:

Vivid Standard Pro

sharpness.

Recommended for home entertainment.

settings.

Using the Menus

Using the Audio Menu

To select the Audio menu

1. Press MENU 2. Highlight

Audio

To ex it t he Audio menu, press MENU.

To restore the factory settings for Treble, Bass, and Balance

s Press RESET on the remote control when in the Audio menu.

Selecting Audio Options

z Treble, Bass and

Balance are adjustable when the Audio Out option is set to Variable.

z To change from one

Effect option to another, use on the remote control.

z To change from one

MTS option to another, use MTS/SAP on the remote control.

z MTS is not available

when Video or Component input is selected.

3. Press

to select

The Audio menu includes the following options: To highlight an option and to change settings, press V v B b. Press to confirm the selection.

Option Description

Reset Reset the following settings; Treble, Bass and Balance to the

default setting.

Tr e b le Adjust to increase or decrease higher-pitched sounds. Bass Adjust to increase or decrease lower-pitched sounds. Balance Adjust to emphasize left or right speaker balance. Steady Sound Auto Select to stabilize the volume.

Off Select to turn off Steady Sound.

Effect SRS WOW Provides a panoramic stereo audio image by

Off Select for normal stereo or mono reception.

MTS

Enjoy stereo, bilingual and mono programs

Stereo Select for stereo reception when viewing a

Auto SAP Select to automatically switch the TV to second

Mono Select for mono reception. Use to reduce noise

Audio TV

Return Reset: Treble: 0 Bass: 0 Balance: 0 Steady Sound: Off Effect: Off MTS: Stereo Speaker: On

Audio Out

Select: Exit:Back:Set:

SRS WOW Off

producing deep and rich bass tones and clear treble tones, enabling you to enjoy powerful sound effects like those in a movie theater.

program broadcast in stereo.

audio programs when a signal is received. If no SAP signal is present, the TV remains in Stereo mode.

during weak stereo broadcasts.

Using the Menus

(Continued)

Using the Menus

z Headphones are off

when Speaker option is set to Off.

z Variable in Audio Out is

available only when the Speaker option is set to Off.

Option Description

Speaker On Select to turn on the TV speakers.

Off Select to turn off the TV speakers and listen to

the TV’s sound only through your external audio receiver and speakers.

Audio Out

Easy control of volume adjustments

Var iable The TV’s speakers are turned off, and the audio

output from your audio system can still be controlled with the TV’s remote control.

Fixed The TV’s speakers are turned off and the audio

output of the TV is fixed. Use your audio receiver’s remote control to adjust the volume (and other audio settings) through your audio system.

Using the Menus

Using the Channel Menu

To select the Channel menu

1. Press MENU 2. Highlight

Channel

To ex it t he Channel menu, press MENU.

Selecting Channel Options

z You can access the

Favorite Channels list using FAVORITES on the remote control.

The Channel menu includes the following options: To highlight an option and to change settings, press VvB b. Press to confirm the selection.

Option Description

Favorite Channels

Cable On Select if you are receiving cable channels with a

Channel Fix

Useful when you have a cable box or a satellite receiver connected

Auto Program Automatically sets up the channel list on the TV for all

3. Press

to select

Channel TV

Return Favorite Channels Cable: On Channel Fix: Off Auto Program: Show/Hide Channels Label Channels

Select: Exit:Back:Set:

On Off

Lets you set up a list of up to 8 of your favorite channels.

1 Press to select Program. 2 Press V/v to highlight a Favorite Channel number (1-8),

then press to select it.

3 Press V/v to scroll through the channels until you find the

channel that you would like to edit and then press to select it.

4 To select other Favorite Channel numbers, repeat steps 2-3. 5 Press B to return to the Channel menu, or press MENU to

exit the menu screen.

CATV cable.

Off Select if you are using an antenna.

You should run Auto Program after changing the cable setting.

Off Turns off Channel Fix. 2-6 Select one of these channels if something is

connected to the VHF/UHF jack.

Video 1, 4 (Video 3 for KLVS15G10)

receivable channels.

Use this setting if you have connected the equipment to the A/V input jacks.

Using the Menus

(Continued)

Using the Menus

z Channels that you set to

be hidden can be accessed only with the 0-9 buttons.

Option Description

Show/Hide Channels

Allows you to show or hide channels that appear when you use the CH +/– buttons.

1 Press V/v to scroll through the channels until you find the

channel you want to show or hide. Then press to select it.

2 Press V/v to determine if the channel will be shown or

hidden.

3 To show or hide more channels, repeat steps 1-2. 4 Press B to return to the Channel menu, or press MENU to

exit the menu screen.

Label Channels Allows you to assign labels (such as station call letters) to

channel numbers.

1 Press V/v to scroll through the channel numbers. Then

press to select the channel number that you want to assign a label.

2 Press V v B b to highlight Label and press . 3 Press V/v to scroll through the label characters (A-Z, 0-9,

etc.). Then press to select the highlighted character. Repeat to add up to 5 characters to the label.

4 To assign labels to more channels, repeat steps 1-3. 5 Press B to return to the Channel menu, or press MENU to

exit the menu screen.

Using the Parent Menu

The Parent menu allows you to set up the TV to block programs according to their content and rating levels.

Using the Menus

To select the Parent menu

1. Press MENU 2. Highlight

Parent

3. Press

to select

Parent TV

Return Lock: Off Select Country: Change Password:

Use 0-9 on the remote control to enter a four-digit password. The first time you create a password, confirm the password by entering it again. The Parent menu options appear.

Select: Exit:Back:Set:

To ex it t he Parent menu, press MENU.

You need your password for any future access into the Parent menu. If you lose your password,

see “Lost password.” on page 55.

Selecting Parent Options

z If you are not familiar

with the Parental Guideline rating system, you should select Child, Youth, or Young Adult to help simplify the rating selection. To set more specific ratings, select Custom.

z For descriptions of

Child, Youth, and Young Adult ratings, see page

48.

The Parent menu includes the following options: To change settings, press VvB b. Press to confirm the selection.

Option Description

Lock

Turn ratings on/off and select a rating system

Select Country U.S.A. Select to use USA ratings (see page 48).

Change Password

Off Parental lock is off. No programs are blocked

from viewing.

Child Maximum ratings permitted are:

s US: TV-Y, TV-G, G s Canada: C, G, TV-Y, TV-G

Yo u t h Maximum ratings permitted are:

s US: TV-PG, PG s Canada: C8+, PG, 8 ans+, TV-PG

Young Adult Maximum ratings permitted are:

s US: TV-14, PG-13 s Canada: 14+, 13 ans+, TV-14

Custom Select to set ratings manually.

s US: See page 48 for details. s Canada: See page 49 for details.

Canada Select to use Canadian ratings (see page 49). For changing your password.

Off Child Youth Young Adult Custom

Using the Menus

US Models: Selecting Custom Rating Options

z The Content-Based

Ratings are linked to the level of the Age-Based Rating. For example, a program with an AgeBased Rating of TV-PG V (Violence) rating may contain moderate violence, while a TV-14 V (Violence) rating may contain more intense violence.

z To ensure maximum

blocking capability, set the Age-Based Ratings.

z If you block unrated TV

programs, be aware that the following types of programs may be blocked: programs broadcast from another country, emergency broadcasts, political programs, sports, news, public service announcements, religious programs and weather.

For US models, the Custom Rating menu includes the following options. For Canadian models, see page 49.

Option Description

Movie Rating G All children and General Audience.

PG Parental Guidance suggested. PG-13 Parental Guidance for children under 13. R Restricted viewing, parental guidance is

suggested for children under 17.

NC-17 and X No one 17 or under allowed.

TV Rating

Block programs by their rating, content or both

Unrated

Block programs or movies that are broadcast without a rating

Age-Based Ratings TV-Y All children. TV-Y7 Directed to children age 7 and older. TV-G General Audience. TV-PG Parental Guidance suggested. TV-14 Parents Strongly cautioned. TV-MA Mature Audience only. Content-Based Ratings FV Fantasy Violence. D Suggestive Dialog. L Strong Language. S Sexual situations. V Violence. Allow Allows programs and movies that are broadcast

without a rating.

Block Blocks all programs and movies that are

broadcast without a rating.

Viewing Blocked Programs

You can view blocked programs by entering the password. Press ENT when tuned to a blocked program, then enter the password. This temporarily switches off Parent. To reactivate the Parent settings, turn off the TV. When the TV is turned on again, your Parent settings are reactivated.

Using the Menus

Canadian Models: Selecting Custom Rating Options

Viewing Blocked Programs

For Canadian models, the Custom Rating menu includes the following options. For US models, see page 48

Option Description

English Rating C All children.

C8+ Children 8 years and older. G General programming. PG Parental Guidance. 14+ Viewers 14 and older. 18+ Adult programming.

French Rating G General programming.

8 ans+ Not recommended for young children. 13 ans+ Not recommended for ages under 13. 16 ans+ Not recommended for ages under 16. 18 ans+ Programming restricted to adults.

U.S.A. Rating See “US Models” on page 48 for details.

Using the Menus

Using the Setup Menu

To select the Setup menu

1. Press MENU 2. Highlight

Setup

To ex it t he Setup menu, press MENU.

Selecting Setup Options

z To change from one

Caption Vision option to another, use on the remote control.

The Setup menu includes the following options: To highlight an option and to change settings, press V v B b. Press to confirm the selection.

Caption Vision Allows you to select from several closed caption modes (for

Info Banner Set to On or Off. When on, displays the program name (if the

3. Press

to select

Option Description

programs that are broadcast with closed caption).

Off Caption Vision is turned off. CC1, CC2,

CC3, CC4

Tex t 1,Te x t2 , Tex t 3,Te x t4

broadcaster offers this service). Displays for up to four seconds when the channel is changed or the DISPLAY button is pressed.

Setup TV

Return Caption Vision: Off Info Banner: On Label Video Inputs Game Picture: Language:

16:9 Enhanced: English Auto YC: On

Power Saving: Standard

Select: Exit:Back:Set:

Off CC1 CC2 CC3 CC4 Text1 Text2 Text3 Text4

Displays a printed version of the dialog or sound effects of a program. (Should be set to CC1 for most programs.)

Displays network/station information presented using either half or the whole screen (if available).

z The Skip label is useful

for inputs to which no equipment is connected.

Using the Menus

Option Description

Label Video Inputs

Allows you to identify A/V equipment you connected to the TV, such as a VCR, DVD, etc. For example, if you have a DVD player connected to the VIDEO 3 jack, you can select the label DVD for the VIDEO 3 input. Then when you press TV/VIDEO to change inputs, the Video Label you assigned to that input appears on screen.

1 Press V/v to highlight the video input (VIDEO 1-3, or 4

(KLV-S20G10)) to which you want to assign a label. Then press to select the input.

2 Press V/v to highlight one of the displayed labels. Then

press to select the label.

You can select from the following labels for each input: Video 1-3 Model KLV-S15G10:

Use Video 1-2 for labeling Video 1-2, VHS,

DVD, Receiver, Satellite, Cable Box, 8mm, DTV, Game, LD, Beta and Skip.

Model KLV-S20G10: Use Video 1-3 for labeling Video 1-3, VHS,

DVD, Receiver, Satellite, Cable Box, 8mm, DTV, Game, LD, Beta and Skip.

Video 3 Model KLV-S15G10:

For labeling Video 3, DVD, Satellite, Cable Box, DTV, HD, Game, PVR and Skip.

Video 4 Model KLV-S20G10:

For labeling Video 4, DVD, Satellite, Cable Box, DTV, HD, Game, PVR and Skip.

If you select Skip, your TV skips this input when you press the TV/VIDEO button.

Game Picture Allows you to move the position of the picture left and right in

Language Select to display all on-screen menus in your language of

the window. This function allows for horizontal adjustment of the picture being displayed.

choice: English, Español, Français.

Using the Menus

(Continued)

Using the Menus

z The “aspect ratio” is the

ratio of width to height of the screen. 16:9 is also referred to as wide screen format.

z If the TV does not

automatically detect the 16:9 aspect ratio signal when 16:9 Enhanced is set to Auto, select On to turn on the 16:9 Enhanced feature.

z To use the 16:9

Enhanced feature with widescreen DVDs, set the TV’s aspect ratio to 16:9 on your DVD player.

Option Description

16:9 Enhanced Provides enhanced picture resolution, which allows you to

watch widescreen pictures that have been stretched in the vertical direction, such as certain DVD titles, at their original 16:9 aspect ratio.

Original Picture 16:9 Enhanced Picture

• Wide screen video camera or DVD picture

• DTV 16:9 aspect ratio picture

Auto Select to activate the 16:9 Enhanced feature

automatically when a 16:9 aspect ratio signal is received (except when receiving 480p signal).

On Select to activate the 16:9 Enhanced feature.

This setting returns to Auto automatically when you change the video input (except when receiving 480p signal).

The option is available only when the TV is set to Video 1, 2, 3 or 4 (KLV-S20G10), which you can do by pressing the TV/VIDEO.

Auto YC When connecting both VIDEO IN and S VIDEO IN, you can

select the jack from which the TV receives the input signal. The TV is factory set to receive S VIDEO input signals.

Compressed vertically and displayed on the screen at its original 16:9 aspect ratio. However, black bands appear at the top and bottom of the picture.

1 Press TV/VIDEO repeatedly until the desired video input

appears.

2 After selecting the Auto YC option, to watch the pictures

input from the S VIDEO input jack: Press V/v to select On, then press . To watch the pictures input from the VIDEO input jack: Press V/v to select Off, then press .

3 Press MENU to exit the menu screen.

Power Saving Standard Select to view picture without the benefit of

Power Saving.

Reduced Select to view picture with reduced power

consumption. It also enhances the black level.

Other Information

Troubleshooting

Trouble Symptoms and Remedies

Problem Possible Remedies

No picture (screen not lit), no sound. No picture.

Cannot receive any channels. ❑ Make sure the power cord is connected securely.

Cannot receive upper channels (UHF) when using an antenna.

TV is locked to one channel. ❑ Check your Channel Fix setting (page 45).

Cannot receive any channels when using cable TV.

Cannot receive or select channels. The TV turns off automatically. ❑ Check if the Sleep timer is activated (page 39). No picture from some video sources.

Poor picture.

Double images or ghosts. ❑ Check antenna/cable connections.

❑ If your TV does not turn on, and a red light keeps flashing, your TV may

need service. Call your local Sony Service Center.

❑ Turn on the power of the TV. ❑ Check antenna/cable connections. ❑ Set Cable to Off in the Channel menu (page 45). ❑ Perform Auto Program to add receivable channels that are not presently in

the TV’s memory (page 45).

❑ Perform Auto Program to add receivable channels that are not presently in

the TV’s memory (page 45).

❑ Perform Auto Program to add receivable channels that are not presently in

the TV’s memory (page 45).

❑ Make sure Cable in the Channel menu is set to On (page 45). ❑ Perform Auto Program to add receivable channels that are not presently in

the TV’s memory (page 45).

❑ Check the connection between the optional video equipment and the TV. ❑ Press TV/VIDEO on the remote control (page 33). ❑ If you connect video equipment to the S VIDEO input of the TV, set Auto

YC to On in the Setup menu (page 52).

❑ Check the antenna location and direction.

Other Information

(Continued)

Other Information

Problem Possible Remedies

Only snow and noise appear on the screen.

Dotted lines or stripes. ❑ Keep the TV away from noise sources such as cars, motorcycles, or hair-

No color/Dark picture/Color is not correct

The picture is too bright. ❑ Press PICTURE MODE to select the desired Picture mode (page 32). Noisy picture. ❑ Make sure that the antenna is connected using the supplied 75-ohm coaxial

No sound/Noisy sound

Good picture, no sound. ❑ Check the volume control.

Audio noise. ❑ Make sure that the antenna is connected using the supplied 75-ohm coaxial

Striped noise during playback/recording of a VCR.

Cannot operate menu item. ❑ If the option you want to select appears in a pale color, you cannot select it. Screen Mode changes automatically with 16:9

Enhanced set to Auto. The picture looks distorted, with people appearing unnaturally short and thick, with 16:9

Enhanced set to On.

Remote control does not operate. ❑ The batteries could be weak. Replace the batteries.

❑ Check if the antenna is broken or bent. ❑ Check if the antenna has reached the end of its serviceable life. (3-5 years in

normal use, 1-2 years at the seaside.)

dryers.

❑ Press PICTURE MODE to select the desired Picture mode (page 32). ❑ Adjust the Picture Mode options in the Video menu (page 42).

cable.

❑ Keep the antenna cable away from other connecting cords. ❑ Do not use 300-ohm twin lead cables as interference may occur.

❑ Press MUTING or VOL + so that “Muting” disappears from the screen

(page 32).

❑ Disconnect your headphones. ❑ Set Speaker to On in the Audio menu (page 44). If it is set to Off, sound is

not output from the TV’s speakers regardless of the TV’s volume control.

cable.

❑ Keep the antenna cable away from other connecting cords. ❑ Do not use 300-ohm twin lead cables as interference may occur. ❑ Press MTS/SAP to select Mono (page 33). ❑ This is caused by video head interference. Keep your VCR away from the

TV.

❑ Leave a space of 30 cm (11 7/8 inches) between your VCR and the TV to

avoid noise.

❑ Avoid installing your VCR in front of the TV or at the side of the TV.

❑ The TV automatically detects the aspect ratio signal transmitted with the

picture signal and displays the picture at its original aspect ratio (page 52).

❑ If you set 16:9 Enhanced to On, the picture is forcibly compressed

vertically regardless of its aspect ratio signal. Therefore, a picture in the 4:3 aspect ratio, such as a normal 4:3 broadcast, looks unnatural because of compression. This problem is more serious for a Letterbox movie because the entire picture, including its upper and lower black bands, is compressed. You can watch these pictures at their original aspect ratio by setting 16:9 Enhanced to Auto.

❑ Check the polarity of the batteries. ❑ Press the TV (FUNCTION) button first for TV operation. ❑ Point the remote control at the remote control sensor of the TV. ❑ Install the TV away from fluorescent lights. ❑ Press FUNCTION button for the device you want to control.

Other Information

Problem Possible Remedies

Cannot change channels with the remote control.

Lost password. ❑ Select the Parent menu on the menu screen, then enter the following master

❑ If you are using another device to change channels, be sure you have not

inadvertently switched your TV from channel 3 or 4 setting. Use the Channel Fix option to “fix” the channel based on the type of hookup (page 45).

❑ If you are using another device to control channels, be sure the FUNCTION

button for that device has been pressed. For example, if you are using your cable box to control channels, be sure to press SAT/CABLE (page 32).

password: 4357. The master password clears your previous password and allows you to enter a new password (page 47).

Contacting Sony

If, after reading these operating instructions, you have additional questions related to the use of your Sony TV, please call our Customer Information Services Center at 1-800-222-SONY (7669) (US residents only) or 1-877-899-SONY (7669) (Canadian residents only). Before calling Sony customer support, please write down the model and serial numbers of your TV. You’ll find this information on the front cover of this manual.

Other Information

Specifications

Television system:

American TV standard

Channel coverage:

VHF: 2-13/UHF: 14-69/CATV: 1-125

Antenna:

75-ohm external terminal for VHF/UHF

Screen size (measured diagonally):

KLV-S15G10: 15 inches KLV-S20G10: 20 inches

Panel System:

LCD (Liquid Crystal Display) Panel

Display resolution (horizontal × vertical):

640 dots × 480 lines

VIDEO 1/2 IN

S VIDEO (4-pin mini DIN):

VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative AUDIO: 500 mVrms (100% modulation)

VIDEO 3 IN (for KLV-S20G10)

VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative AUDIO: 500 mVrms (100% modulation)

VIDEO 3 IN (for KLV-S15G10): VIDEO 4 IN (for KLV-S20G10):

YPBPR (Component Video):

AUDIO: 500 mVrms (100% modulation)

AUDIO OUT:

500 mVrms (100% modulation) More than 1 Vrms at the maximum volume setting (Variable) More than 500 mVrms (Fixed)

Headphones:

Stereo mini jack Impedance: 16 ohms

Speaker:

Full range: KLV-S15G10: ø5 cm (ø2 inches) (2)

Y: 1.0 Vp-p, 75 ohms unbalanced, sync

negative

C: 0.286 Vp-p (Burst signal), 75 ohms

Impedance: 47 kilohms

Y: 1.0 Vp-p, 75 ohms unbalanced, sync

negative

B: 0.7 Vp-p, 75 ohms

R: 0.7 Vp-p, 75 ohms

P Signal format: 480i, 480p

Impedance: 47 kilohms

KLV-S20G10: 4 × 7 cm (1 oval (2)

/8 × 2 7/8 inches)

Speaker output:

KLV-S15G10: 2 W + 2 W KLV-S20G10: 3 W + 3 W

Power requirement:

KLV-S15G10: DC 16.5 V, with AC power adaptor KLV-S20G10: AC 120 V, 50/60 Hz

AC power adaptor for KLV-S15G10:

Model name: AC-FD006 Rating: Input AC 100 V-240 V

50/60 Hz, 74 W

Output DC 16.5 V 3.9 A

Power consumption:

In use: KLV-S15G10: 48 W

Power Off: KLV-S15G10: 0.9 W

Dimensions (W/H/D): KLV-S15G10: (with stand) 380 × 397 × 179 mm

KLV-S20G10: (with stand) 504 × 509 × 250 mm

KLV-S20G10: 67 W

KLV-S20G10: 0.3 W

(15 × 15

(without stand) 380 × 361 × 92 mm

(15 × 14

(19

(without stand) 504 × 467 × 110 mm

(19

/4 × 7 1/8 inches)

/4 × 3 5/8 inches)

/8 × 20 1/8 × 9 7/8 inches)

/8 × 18 1/2 × 4 3/8 inches)

Mass:

KLV-S15G10: (with stand) 4.2 kg (9 lb. 4 oz.)

KLV-S20G10: (with stand) 9.0 kg (19 lb. 14 oz.)

(without stand) 3.6 kg (7 lb. 15 oz.)

(without stand) 7.5 kg (16 lb. 9 oz.)

Supplied accessories:

Remote control RM-Y1104 (1) Size AA batteries (2) 75-ohm coaxial cable (1) AC power cord (1) AC power adaptor (1) (KLV-S15G10 only) VESA adaptor: bracket A (1), bracket B (1) and screws (2) (KLV-S15G10 only) Operating Instructions Quick Setup Guide Leaflet (Installing the Wall-Mount Bracket to the TV,

War ranty Card

KLV-S20G10 only) (1)

Optional accessories:

Headphones plug adaptor Connecting cables Wall-Mount Bracket SU-WL11 (KLV-S20G10)

Optional accessories’ availability may depend on its stock.

Design and specifications are subject to change without notice.

Index

16:9 Enhanced 52

AC IN 18 Audio menu 40, 43 Audio Out 44 AUDIO OUT jack, described 18 Auto Program 31, 45 Auto SAP, MTS setting 43 Auto YC 52

Backlight, adjusting 42 Balance, adjusting 43 Bass, adjusting 43 Bilingual audio 43 Brightness, adjusting 42

Cable

channel setting 45 with VCR, connecting 25

Cable box

using with remote control 36

Camcorder connection 30 Caption Vision 10, 50 CH buttons 15, 33 Change Password 47 Channel Fix 45 Channel menu 40, 45 Channels

creating labels 46 setting up 31

CineMotion 10

(Closed Caption) button 33 Closed caption modes 50 CODE SET button 32 Color, adjusting 42 Component video/AUDIO (L/R)

jacks, described 18

DC IN 18 DISPLAY button 33 DVD player

using with remote control 36 with A/V connectors,

connecting 29

Effect, setting 43 ENT button 33

Favorite Channels 37, 45 FAVORITES button 32 Fixed, audio setting 44 Freeze 38 FREEZE button 15, 32 FUNCTION buttons 32

Game Picture 51 GUIDE button 33

Headphones jack, described 16 Hue, adjusting 42

Info Banner 10, 50 Infrared Receiver (IR) 15

J, K

Jump 38 JUMP button 32

Label

channels 46 video inputs 51

Language, setup setting 51 Lock, parent setting 47

Audio 40, 43 Channel 40, 45 Parent 40, 47 Setup 41, 50 Video 40, 42

MENU button 33 Mono, MTS setting 43 MTS 43 MTS/SAP button 33 MUTING button 32

Off, turning off the TV 15 On, turning on the TV 15

P, Q

Parent menu 40, 47 Parental control, described 10 PICTURE MODE button 32 Picture Mode, selecting 42 Picture, adjusting 42 POWER button 15, 33 POWER LED 15 Power Saving 52 Pro mode 42 Problems, troubleshooting 53–55

Ratings, Parent setting 48–49 Ratings, viewing blocked

programs 48, 49

Reduced, power saving 52 Remote control

programming 34–35

RESET button 33

S VIDEO jack, described 16, 18

(Continued)

SAT/CABLE (FUNCTION)

buttons 32

SAT/CABLE (POWER) button

Satellite receiver

using with remote control 36

Select Country 47 Setting up Channels 31 Setup menu 41, 50 Sharpness, adjusting 42 Show/Hide Channels 46 Sleep 39 SLEEP button 33 Speaker

turning on/off 44 using external speakers 44

SRS WOW, Effect setting 43 Standard mode 42 Standard, power saving 52 Steady Sound

described 10 setting 43

Stereo, MTS setting 43 Swivel 14 SYSTEM OFF button 33

VIDEO/AUDIO (L/R) jacks,

described 16, 18 Vivid mode 42 VOL buttons 15, 32

T, U

Tilt 14 TIMER LED 15 Treble, adjusting 43 Troubleshooting 53–55 Turning on/off the TV 15 TV (FUNCTION) button 32 TV/SAT, button 32 TV/VIDEO button 15, 33

Variable, audio setting 44 VCR

using with remote control 36 with cable, connecting 25

VCR/DVD (FUNCTION) button

VCR/DVD (POWER) button 33 VESA adaptor 13 VHF/UHF jack, described 18 Video menu 40, 42

Printed in Taiwan

Sony KLV S20G10, KLV S15G10 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introducing the TV

Welcome

Package Contents Along with your new TV, the packaging box contains a remote control, size

Features Some of the features that you will enjoy with your new TV include:

Installing the TV

Removing the rear cover

Attaching the rear cover

Adjusting the Viewing Angle of the TV

TV Controls and Connectors

Front and Top Panel

Side Panel

Rear Panel

Connecting the TV

Making Video and Audio Connections

Basic Connections

Cable System or VHF/UHF Antenna System

Cable Box/Digital Cable Box

Satellite Receiver and Cable/Antenna

HD Equipment Disconnect all power sources before making any connections.

Connecting Optional Equipment

VCR, Cable and Antenna

DVD Player

Camcorder or “PlayStation”

Setting Up the Channel List

Using Initial Setup To run Initial Setup the first time you turn on your TV

Watching the TV

Button Descriptions

Programming the Remote Control

Using Other Equipment with Your Remote Control

Special Buttons on the Remote Control

Using Favorite Channels

Using the Jump Function

Using the Freeze Function

Using the Sleep Function

Using the Menus

Overview of the Menus

Navigating through Menus

Using the Video Menu

Selecting Video Options

Using the Audio Menu

Selecting Audio Options

Using the Channel Menu

Selecting Channel Options

Using the Parent Menu

Selecting Parent Options

US Models: Selecting Custom Rating Options

Viewing Blocked Programs

Canadian Models: Selecting Custom Rating Options

Viewing Blocked Programs

Using the Setup Menu

Selecting Setup Options

Other Information

Troubleshooting

Trouble Symptoms and Remedies

Contacting Sony

Specifications
