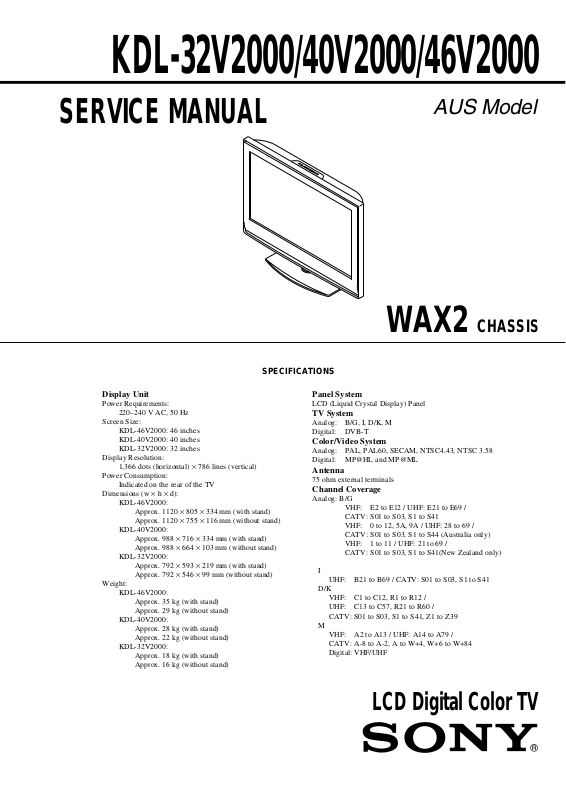

Page 1
KDL-32V2000/40V2000/46V2000
SERVICE MANUAL
AUS Model
WAX2 CHASSIS
Display Unit
Power Requirements:
220–240 V AC, 50 Hz
Screen Size:
KDL-46V2000: 46 inches
KDL-40V2000: 40 inches
KDL-32V2000: 32 inches
Display Resolution:
1,366 dots (horizontal) × 786 lines (vertical)
Power Consumption:
Indicated on the rear of the TV
Dimensions (w × h × d):
KDL-46V2000:
Approx. 1120 × 805 × 334 mm (with stand)
Approx. 1120 × 755 × 116 mm (without stand)
KDL-40V2000:
Approx. 988 × 716 × 334 mm (with stand)
Approx. 988 × 664 × 103 mm (without stand)
KDL-32V2000:
Approx. 792 × 593 × 219 mm (with stand)
Approx. 792 × 546 × 99 mm (without stand)
Weight:
KDL-46V2000:
Approx. 35 kg (with stand)
Approx. 29 kg (without stand)
KDL-40V2000:
Approx. 28 kg (with stand)
Approx. 22 kg (without stand)
KDL-32V2000:
Approx. 18 kg (with stand)
Approx. 16 kg (without stand)
SPECIFICATIONS
Panel System
LCD (Liquid Crystal Display) Panel
TV System
Analog: B/G, I, D/K, M
Digital: DVB-T
Color/Video System
Analog: PAL, PAL60, SECAM, NTSC4.43, NTSC 3.58
Digital: MP@HL and MP@ML
Antenna
75 ohm external terminals
Channel Coverage
Analog: B/G
VHF: E2 to E12 / UHF: E21 to E69 /
CATV: S01 to S03, S1 to S41
VHF: 0 to 12, 5A, 9A / UHF: 28 to 69 /
CATV: S01 to S03, S1 to S44 (Australia only)
VHF: 1 to 11 / UHF: 21 to 69 /
CATV: S01 to S03, S1 to S41(New Zealand only)
I
UHF: B21 to B69 / CATV: S01 to S03, S1 to S41
D/K
VHF: C1 to C12, R1 to R12 /
UHF: C13 to C57, R21 to R60 /
CATV: S01 to S03, S1 to S41, Z1 to Z39
M
VHF: A2 to A13 / UHF: A14 to A79 /
CATV: A-8 to A-2, A to W+4, W+6 to W+84
Digital: VHF/UHF
LCD Digital Color TV
Page 2
Terminals
S VIDEO 1/2:
S VIDEO (4-pin mini DIN):
VIDEO IN 1/2/3: t
VIDEO: t
AUDIO: o
HD/DVD IN:
Y, PB/CB, PR/CR (Component Video):
AUDIO: o
500 mVrms
Impedance: 47 kilohms
VIDEO OUT: T
VIDEO: T
AUDIO:
More than 1 Vrms at the maximum volume setting
(Variable)
More than 500 mVrms (Fixed)
S
Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75ohms
1 Vp-p, 75 ohms unbalanced, sync negative
500 mVrms
Impedance: 47 kilohms
...
Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative
PB/CB: 0.7 Vp-p, 75 ohms
PR/CR: 0.7 Vp-p, 75 ohms
Signal format: 480i, 576i, 480p, 576p, 720p, 1080i
1 Vp-p, 75 ohms unbalanced, sync negative
S
PC Input Signal Reference Chart
DIGITAL OUT (OPTICAL) (DIGITAL OUT (OPTICAL) jack)
HDMI IN
Video: 1080i, 720p, 576p, 576i, 480p, 480i
Audio: Two channel linear PCM
33, 44.1 and 48 kHz, 16, 20 and 24 bits
...
PC:
D-sub 15-pin, analog RGB, 0.7 Vp-p,
75 ohms, positive
See the PC Input Signal Reference Chart on page 38.
AUDIO:
Stereo minijack, 0.5 Vrms, 1 kilohm
Headphones i
Stereo minijack
Sound Output
10 W + 10 W
Supplied Accessories
Refer to “1: Checking the accessories” on page 4.
Optional Accessories
• Wall-Mount Bracket
SU-WL51 (for KDL-46V2000/KDL-40V2000)
SU-WL31 (for KDL-32V2000)
Design and specifications are subject to change without notice.
Signals Horizontal (Pixel) Vertical (Line)
VGA 640 480 31.5 60 VGA
640 480 37.5 75 VESA
720 400 31.5 70 VGA-T
SVGA 800 600 37.9 60 VESA Guidelines
800 600 46.9 75 VESA
XGA 1024 768 48.4 60 VESA Guidelines
1024 768 56.5 70 VESA
1024 768 60 75 VESA
WXGA 1280 768 47.4 60 VESA
1280 768 47.8 60 VESA
1360 768 47.7 60 VESA
• This TV’s PC input does not support Sync on Green or Composite Sync.
• This TV’s PC input does not support interlaced signals.
• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60 Hz vertical frequency
from a personal computer. In plug and play, signals with a 60 Hz vertical frequency will be selected automatically.
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Standard
i-Plate Display Language Code
Code Language Code Language Code Language Code Language
Af Afrikaans El Greek Ita Italian Spa Spanish
Afr Afrikaans Ell Greek Jpn Japanese Tam Tamil
Ar Arabic En English Kan Kannada Tel Telugu
Ara Arabic Eng English Kor Korean Zho Chinese
Aus Australian Fr French Mal Malayalam U1 Unknown 1
Ben Bengali Fra French Nl Dutch U2 Unknown 2
Bn Bengali Fre French Nld Dutch
Chi Chinese Gem German Pan Panjabi
De German Ger German Por Portuguese
Deu German Gre Greek Raj Rajasthani
Dut Dutch Hi Hindi Rus Russian
Egy Egyptian Hin Hindi San Sanskrit
KDL-32/40/46V2000 (AUS) 2
Page 3
SAFETY CHECK-OUT
t
l
t
µ
d
AC
)
t
Col
pe
.
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly
soldered connections. Check the entire board surface for
solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are
“pinched” or touching high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps,
and mounting hardware have been replaced. Be absolutely
certain that you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly
transistors, that were installed during a previous repair. Point
them out to the customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious
signs of deterioration. Point them out to the customer and
recommend their replacement.
6. Check the line cords for cracks and abrasion. Recommend
the replacement of any such line cord to the customer.
7. Check the antenna terminals, metal trim, “metallized”
knobs, screws, and all other exposed metal parts for AC
leakage. Check leakage as described below.
The AC leakage from any exposed metal part to earth ground
and from all exposed metal parts to any exposed metal part
having a return to chassis, must not exceed 0.5 mA (500
microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or
RCA WT-540A. Follow the manufacturers’ instructions to
use these instructions.
2. A battery-operated AC milliampmeter. The Data Precision
245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit”
indication is 0.75 V, so analog meters must have an accurate
low voltage scale.
The Simpson’s 250 and Sanwa SH-63TRD are examples of
passive VOMs that are suitable. Nearly all battery-operated
digital multimeters that have a 2 VAC range are suitable (see
Figure A).
How to Find a Good Earth Ground
A cold-water pipe is a guaranteed earth ground; the cover-plate
retaining screw on most AC outlet boxes is also at earth ground.
If the retaining screw is to be used as your earth ground, verify
that it is at ground by measuring the resistance between it and a
cold-water pipe with an ohmmeter. The reading should be zero
ohms.
Leakage Tes
.15
Exposed Meta
Parts on Se
Earth Groun
0.75V
If a cold-water pipe is not accessible, connect a 60- to 100-watt
trouble- light (not a neon lamp) between the hot side of the
receptacle and the retaining screw. Try both slots, if necessary,
to locate the hot side on the line; the lamp should light at normal
brilliance if the screw is at ground potential (see Figure B).
ouble Ligh
AC Outlet Box
Ohmmeter
d-water Pi
FigureA. Using an AC voltmeter to check AC leakage. Figure B. Checking for earth ground
KDL-32/40/46V2000 (AUS) 3
Page 4
TABLE OF CONTENTS
1. DISASSEMBLY ............................................... 1-1
1-1. KDL-32V2000 ........................................................ 1-1
1-1-1. REAR COVER REMOVAL ............................ 1-1
1-1-2. STAND ASSY AND VESA BRACKET
REMOVAL ...................................................... 1-1
1-1-3. H1 BOARD REMOVAL ................................. 1-2
1-1-4. H2 BOARD AND SIDE TERMINAL
REMOVAL ...................................................... 1-2
1-1-5. G1 BOARD REMOVAL ................................. 1-3
1-1-6. TUG BOARD REMOVAL .............................. 1-4
1-1-7. TOP SHIELD REMOVAL .............................. 1-3
1-1-8. AG BOARD REMOVAL ................................ 1-4
1-1-9. B BOARD REMOVAL ................................ 1-5
1-1-10. AC INLET REMOVAL ................................... 1-6
1-1-11. H4 BOARD AND SPEAKER REMOVAL .... 1-6
1-1-12. LCD PANEL REMOVAL ............................... 1-7
1-2. KDL-40/46V2000 .................................................. 1-8
1-2-1. REAR COVER ASSY REMOVAL ................ 1-8
1-2-2. STAND ASSY AND VESA BRACKET
REMOVAL ...................................................... 1-8
1-2-3. H1 BOARD REMOVAL ................................. 1-9
1-2-4. H2 (H46) BOARD REMOVAL ...................... 1-9
1-2-5. G2A BOARD REMOVAL ............................ 1-10
1-2-6. TUG BOARD REMOVAL ............................ 1-11
1-2-7. TOP SHIELD REMOVAL ............................ 1-10
1-2-8. AG BOARD REMOVAL .............................. 1-11
1-2-9. B BOARD REMOVAL .............................. 1-12
1-2-10. AC INLET REMOVAL ................................. 1-13
1-2-11. H4 BOARD AND SPEAKER REMOVAL .. 1-13
1-2-12. TOP FRAME REMOVAL ............................ 1-14
1-2-13. LCD PANEL REMOVAL ............................. 1-15

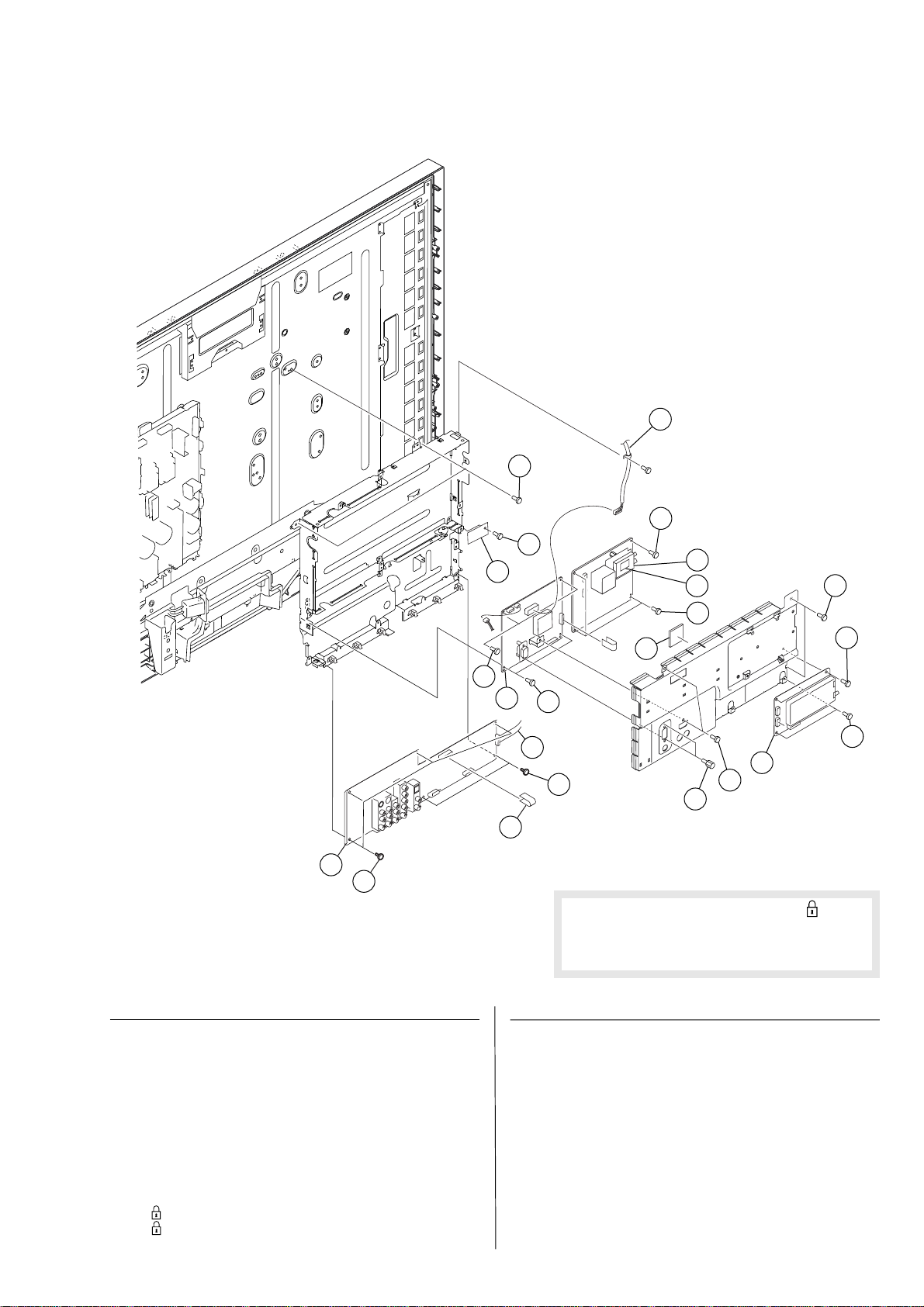

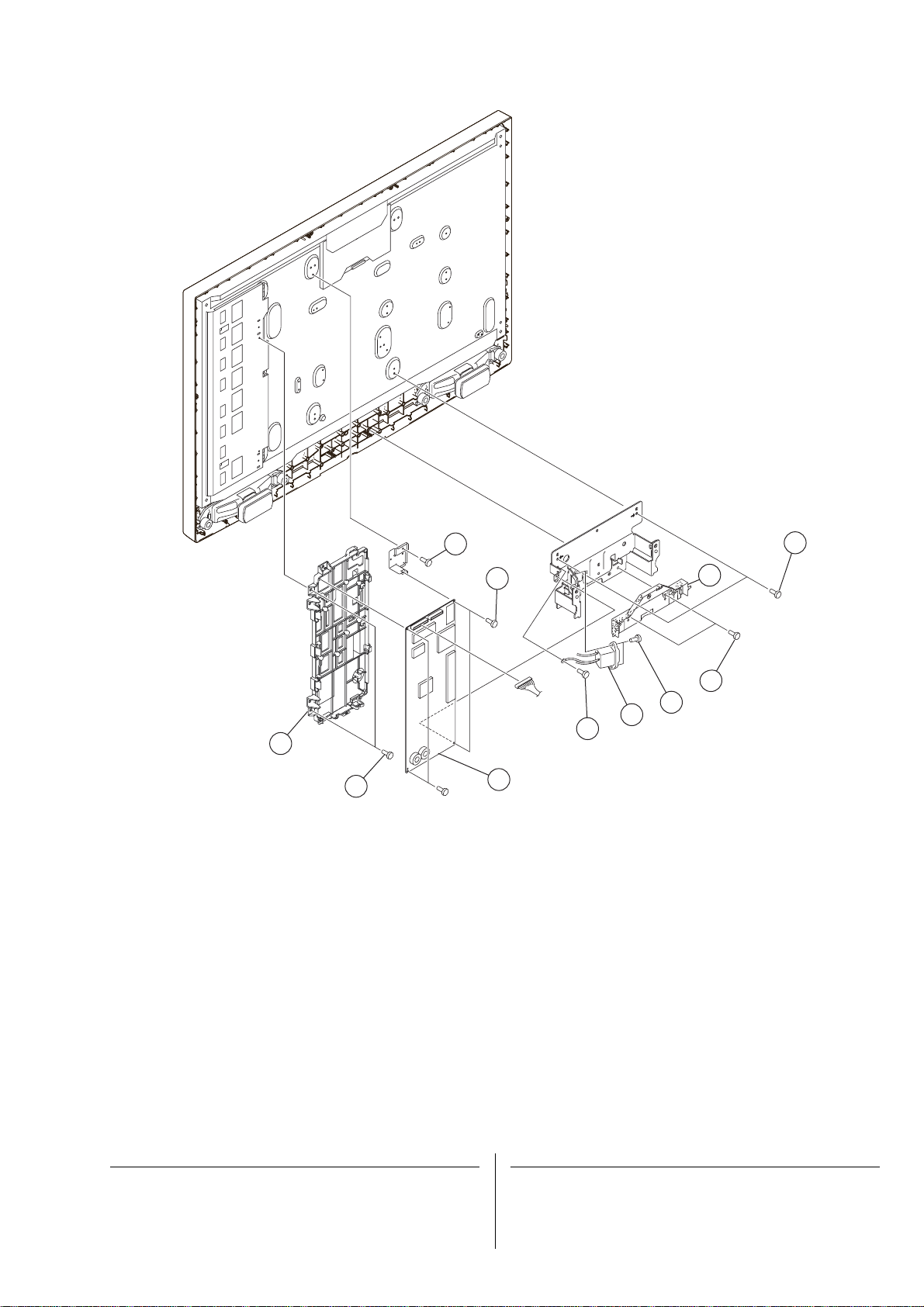

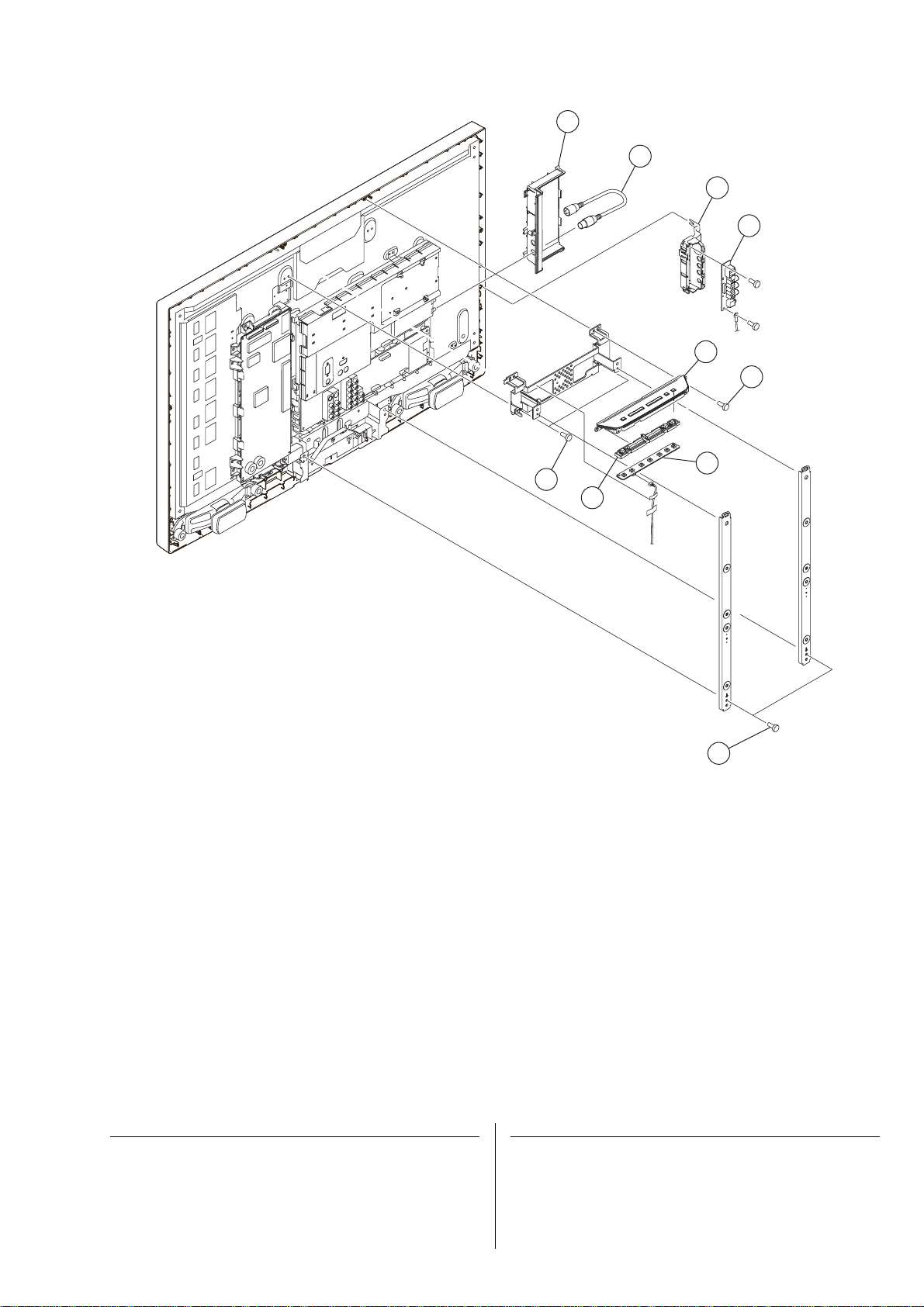

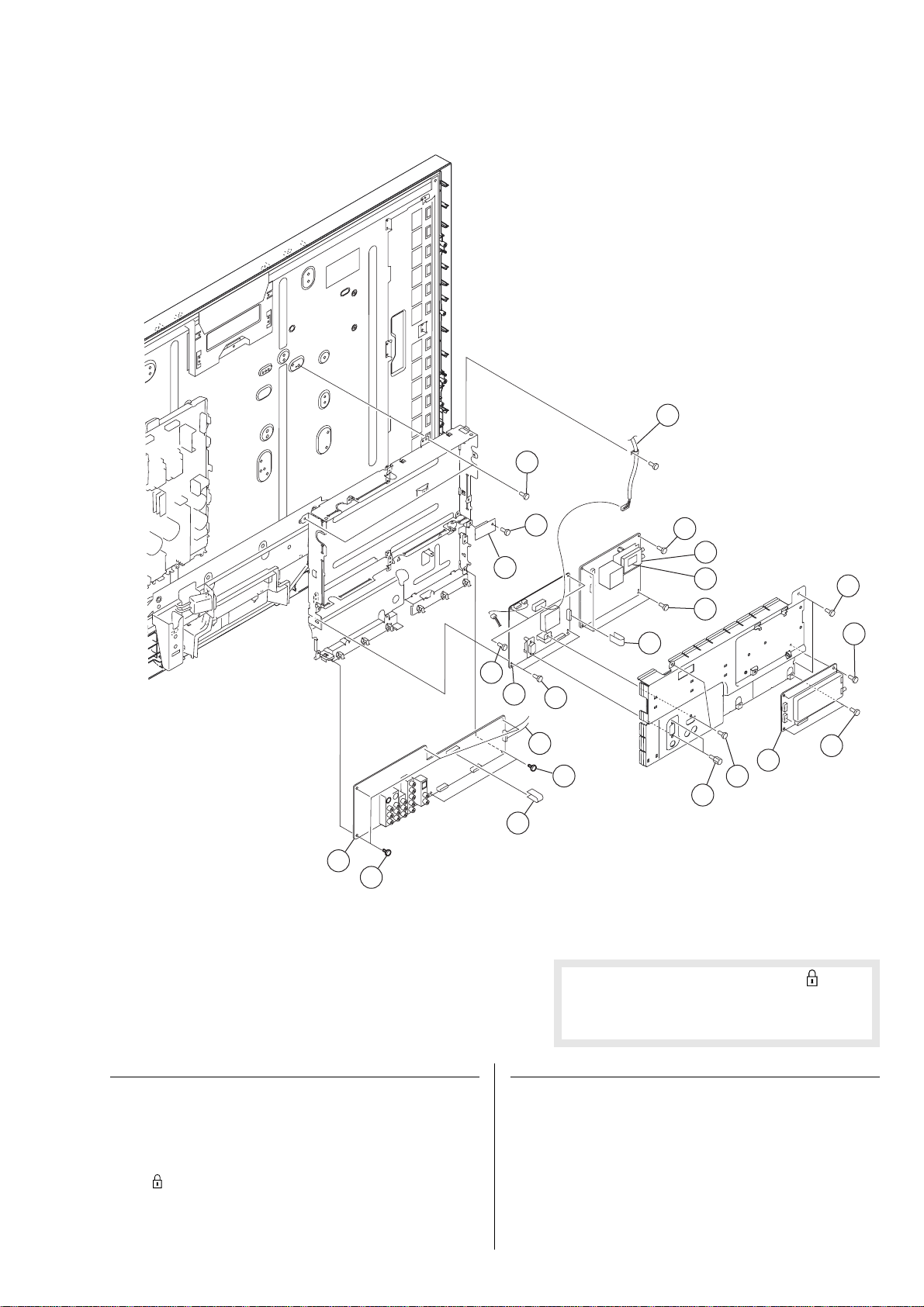

3. EXPLODED VIEWS ........................................ 3-1
3-1. KDL-32V2000 ........................................................ 3-2

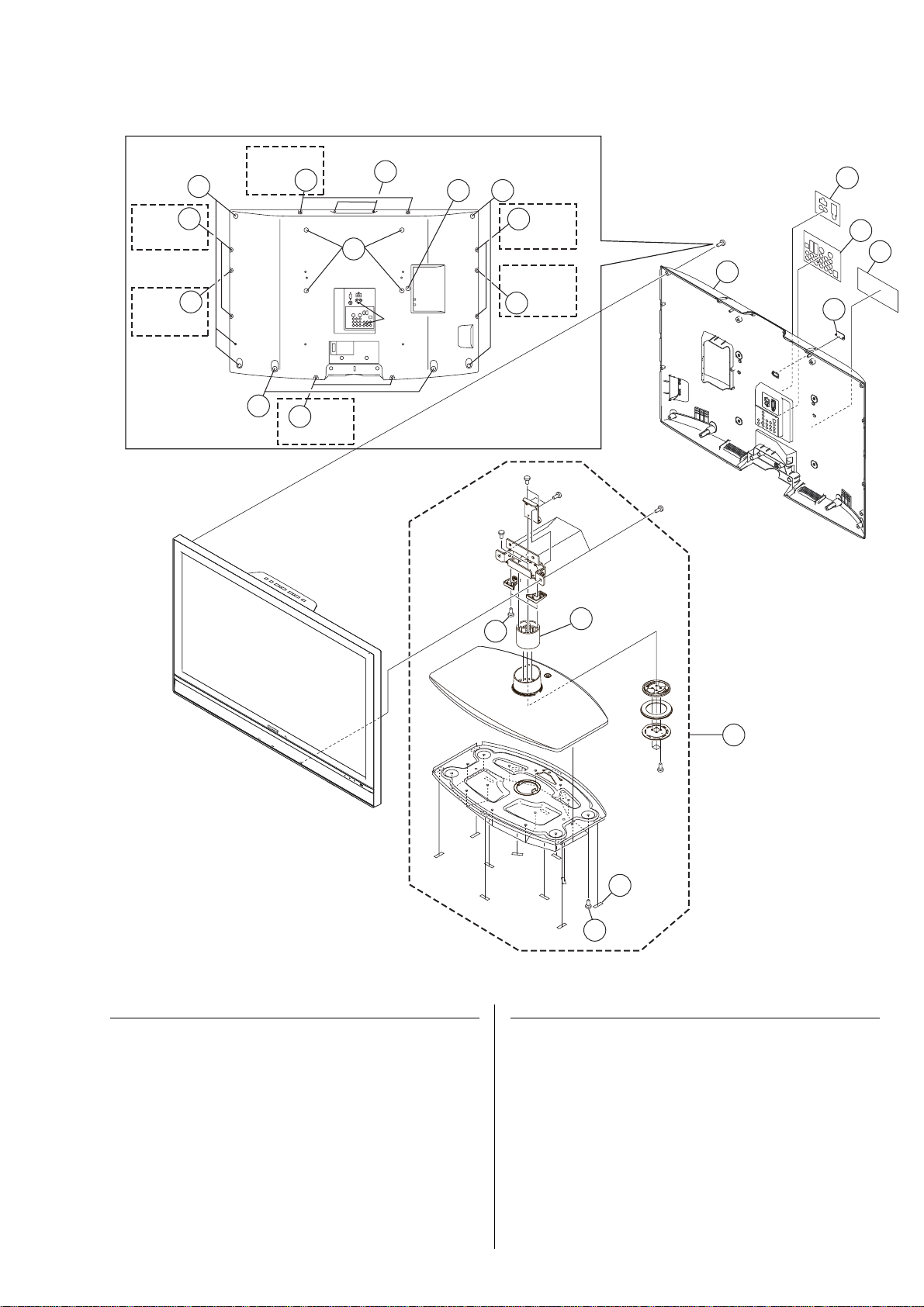

3-1-1. REAR COVER ASSY AND STAND ASSY .. 3-2

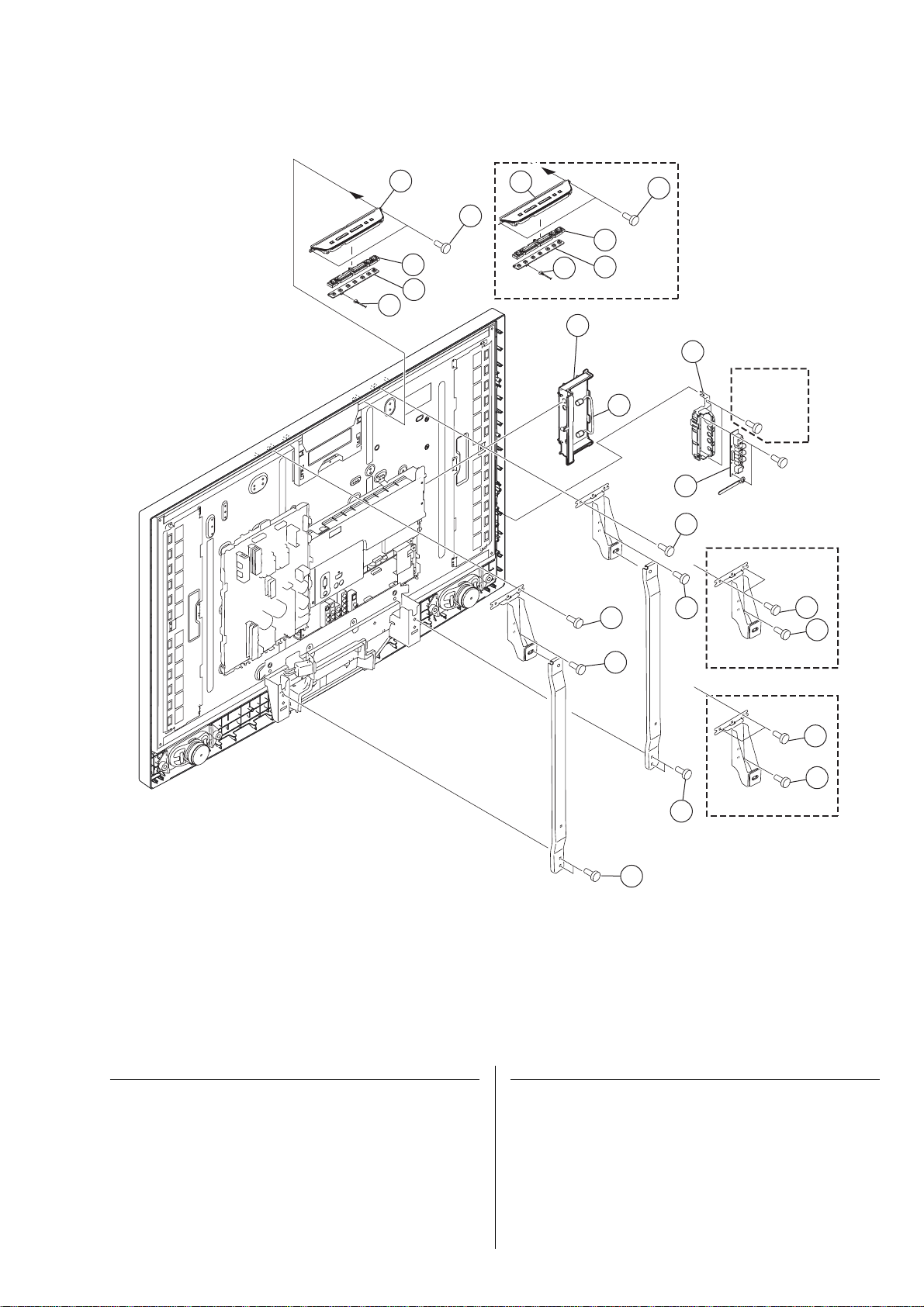

3-1-2. H1 AND H2 BOARDS AND FRAME ........... 3-3
3-1-3. CHASSIS-1 ...................................................... 3-4

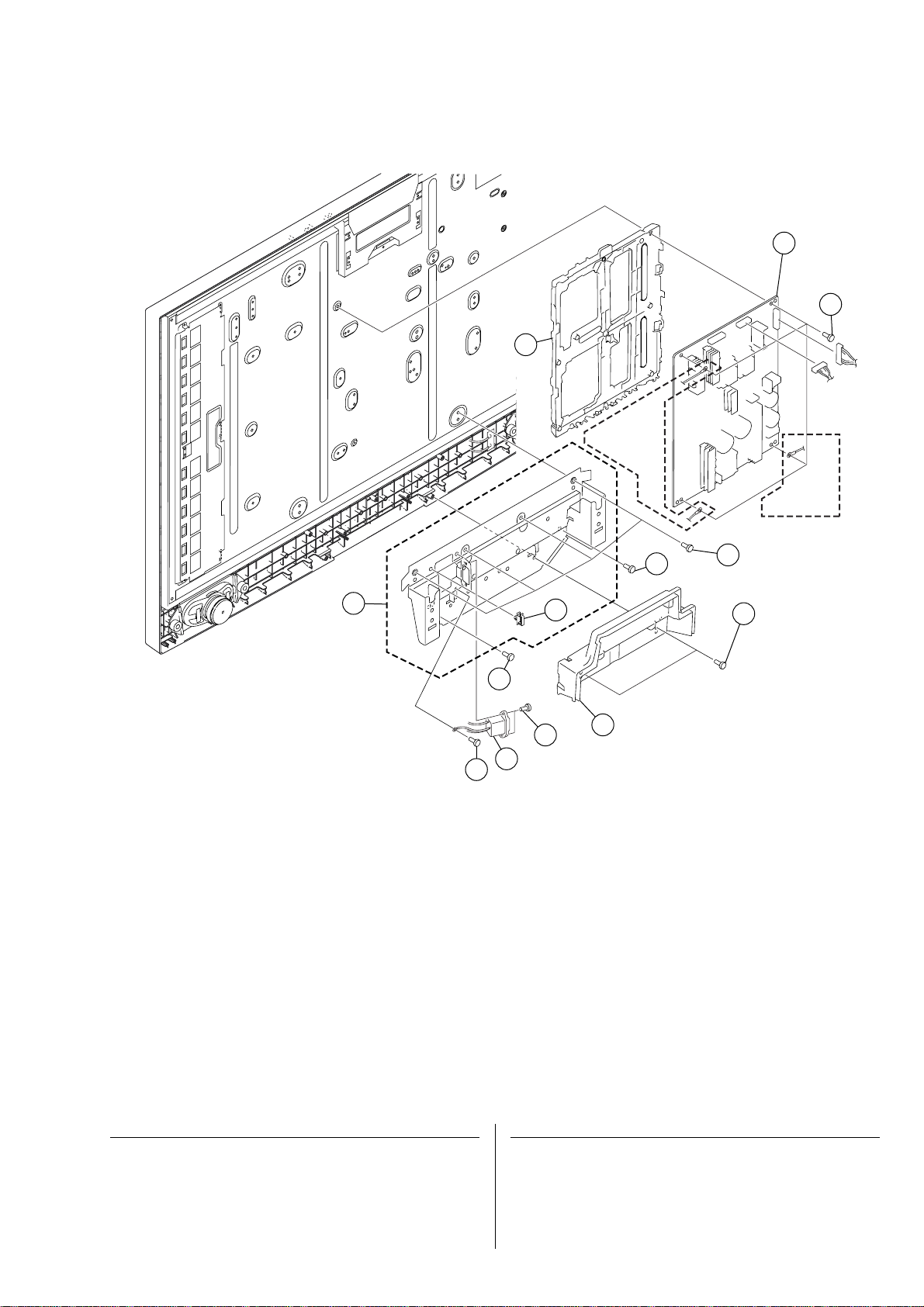

3-1-4. CHASSIS-2 ...................................................... 3-5

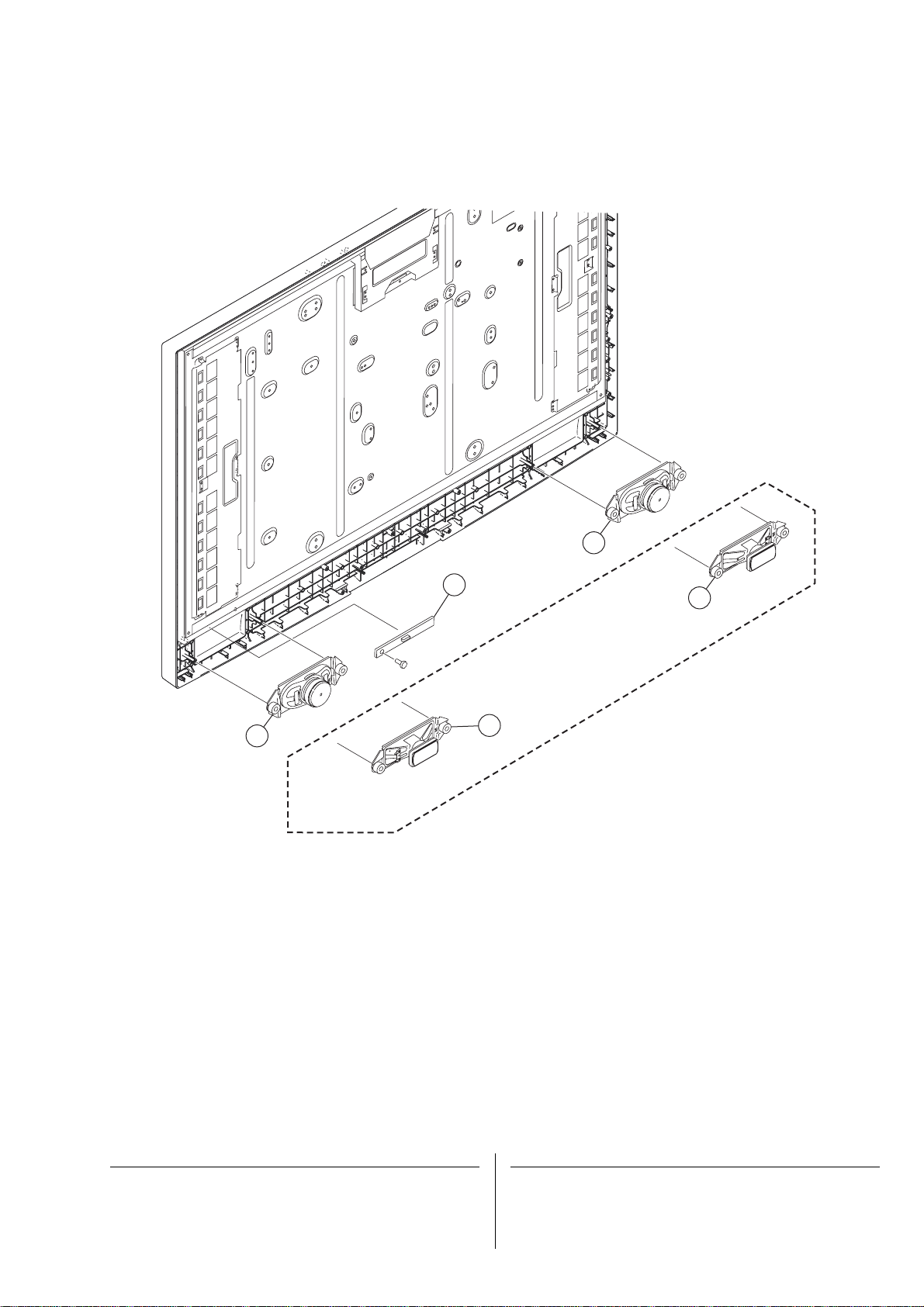

3-1-5. H4 BOARD AND SPEAKER ......................... 3-6

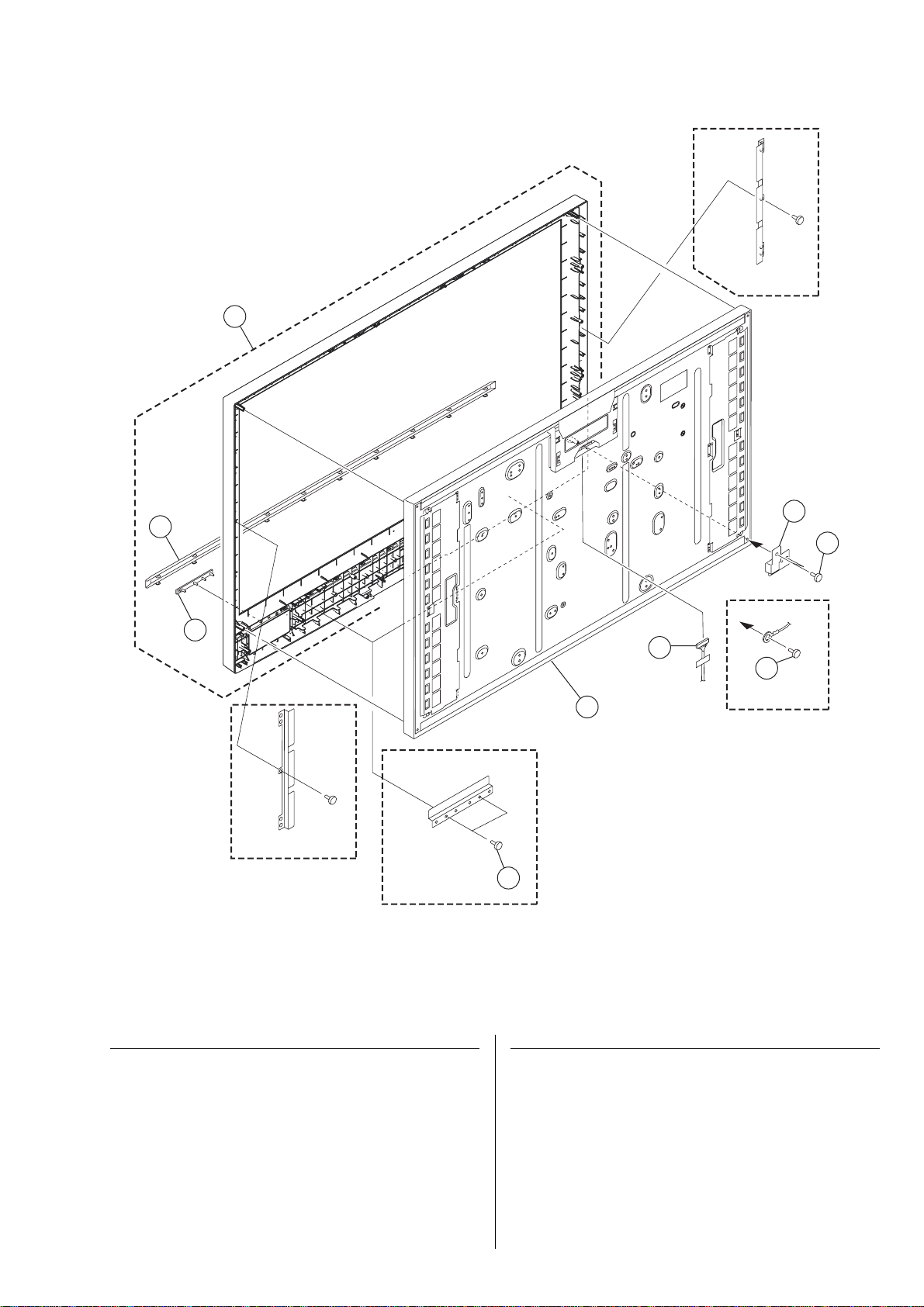

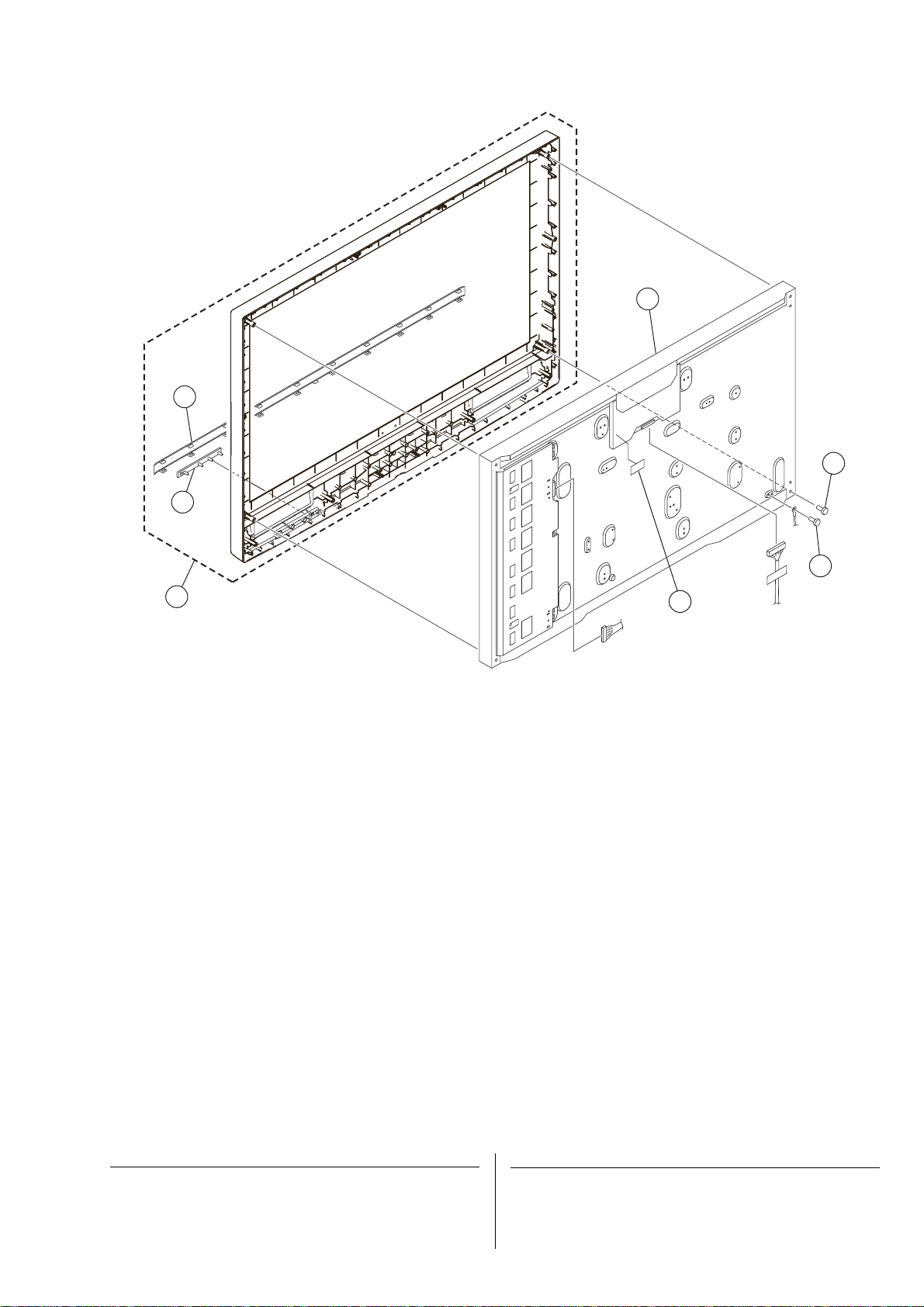

3-1-6. BEZEL ASSY AND LCD PANEL ................. 3-7
3-2. KDL-40/46V2000 .................................................. 3-8
3-2-1. REAR COVER ASSY AND STAND ASSY .. 3-8
3-2-2. H1 AND H2 BOARDS AND FRAME ........... 3-9
3-2-3. CHASSIS-1 .................................................... 3-10
3-2-4. CHASSIS-2 .................................................... 3-11
3-2-5. SPEAKER AND H4 BOARD ....................... 3-12
3-2-6. BEZEL ASSY AND LCD PANEL ............... 3-13

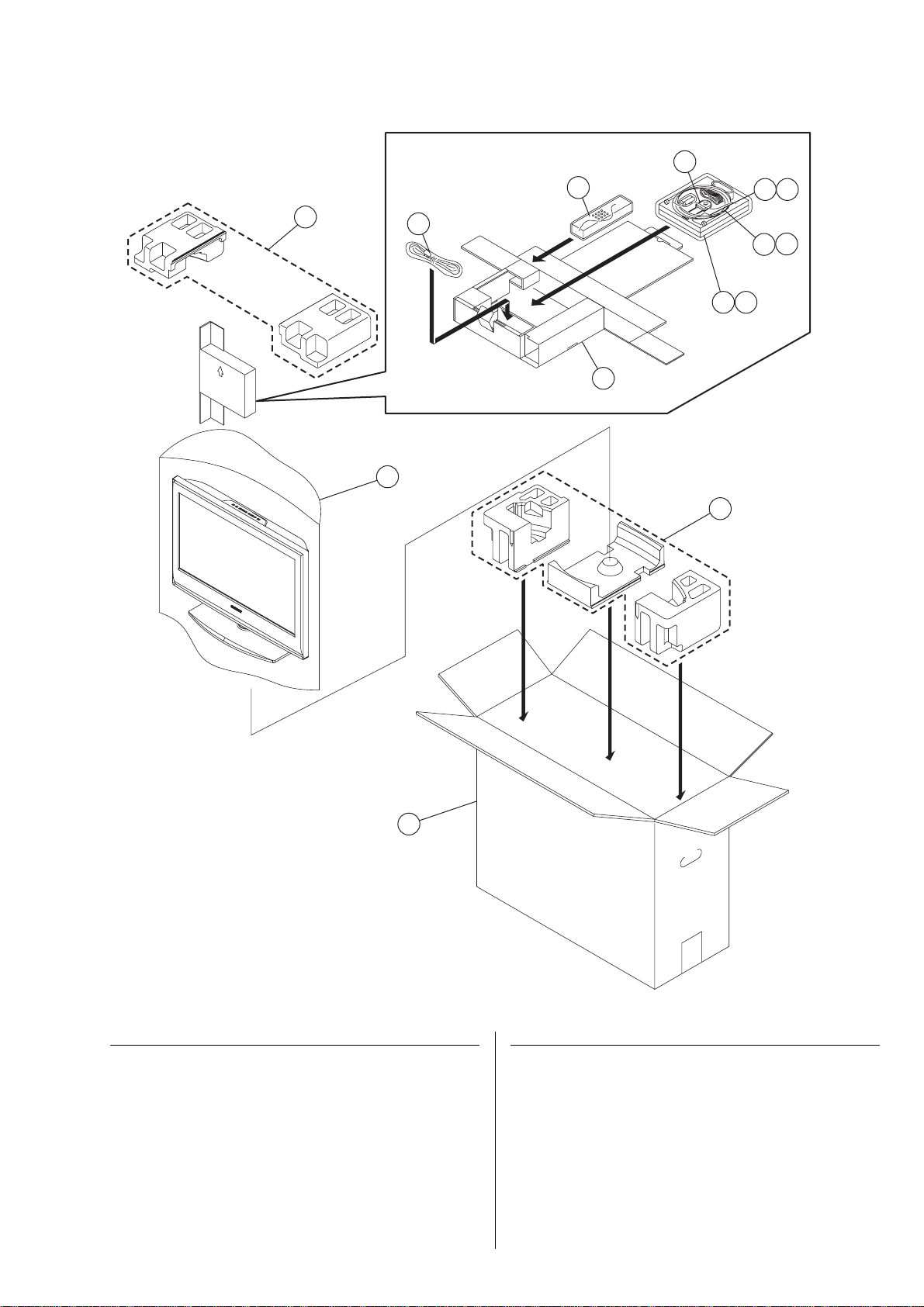

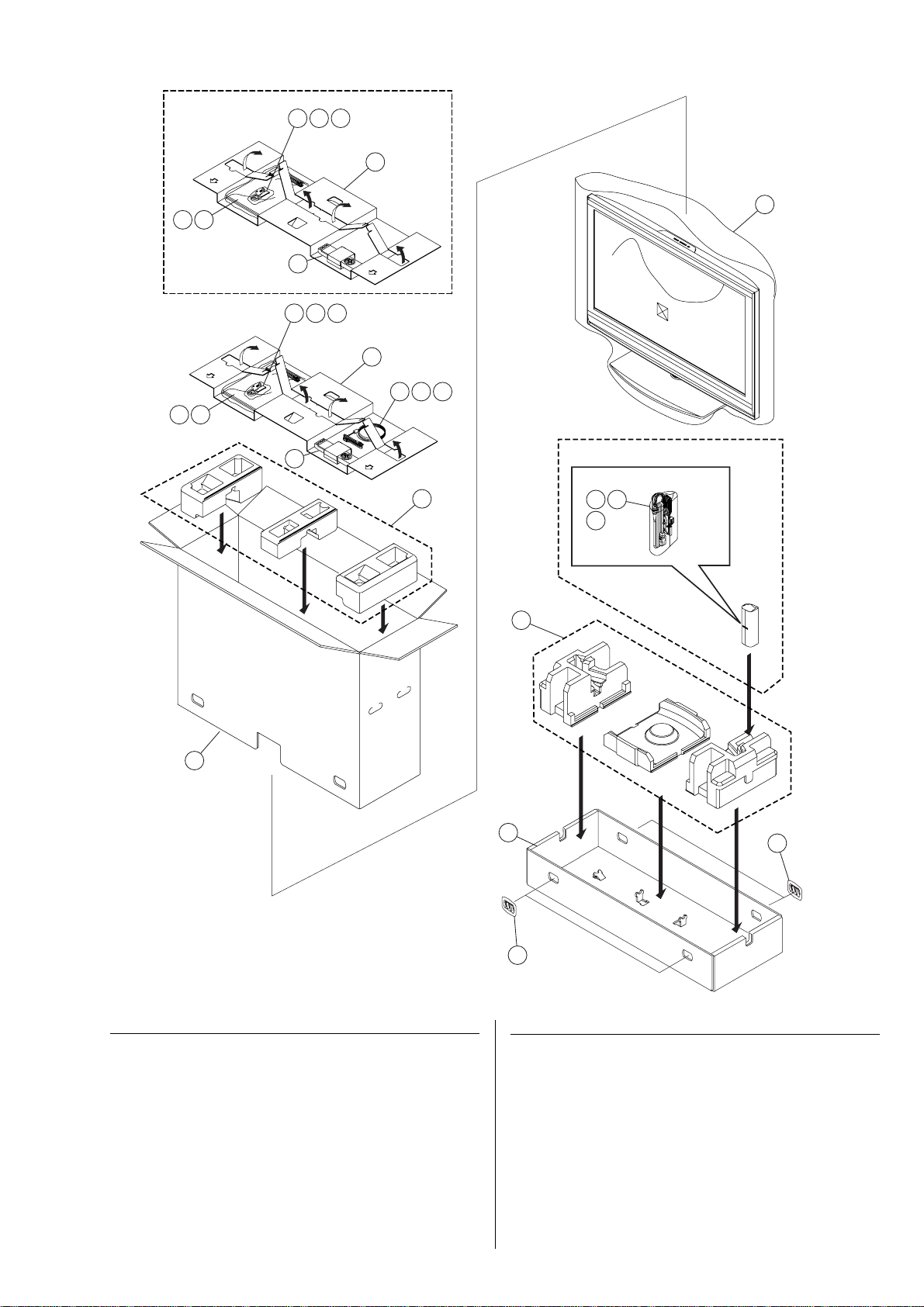

3-3. PACKING MATERIALS (KDL-32V2000) ........ 3-14
3-4. PACKING MATERIALS (KDL-40/46V2000) .. 3-15
4. ELECTRICAL PARTS LIST ............................ 4-1
2. DIAGRAMS ..................................................... 2-1
2-1. BLOCK DIAGRAMS ............................................ 2-1
(1) AG, H2 and H46 Boards .................................. 2-1
(2) B, H1, H4 and J Boards ................................... 2-2
(3) TUG Board ....................................................... 2-3
(4) G1 Board .......................................................... 2-4
(5) G2A Board ....................................................... 2-5
2-2. FRAME DIAGRAMS ............................................ 2-6
(1) KDL-32V2000 ................................................. 2-6
(2) KDL-40/46V2000 ............................................ 2-7
2-3. CIRCUIT BOARDS LOCATION ......................... 2-8

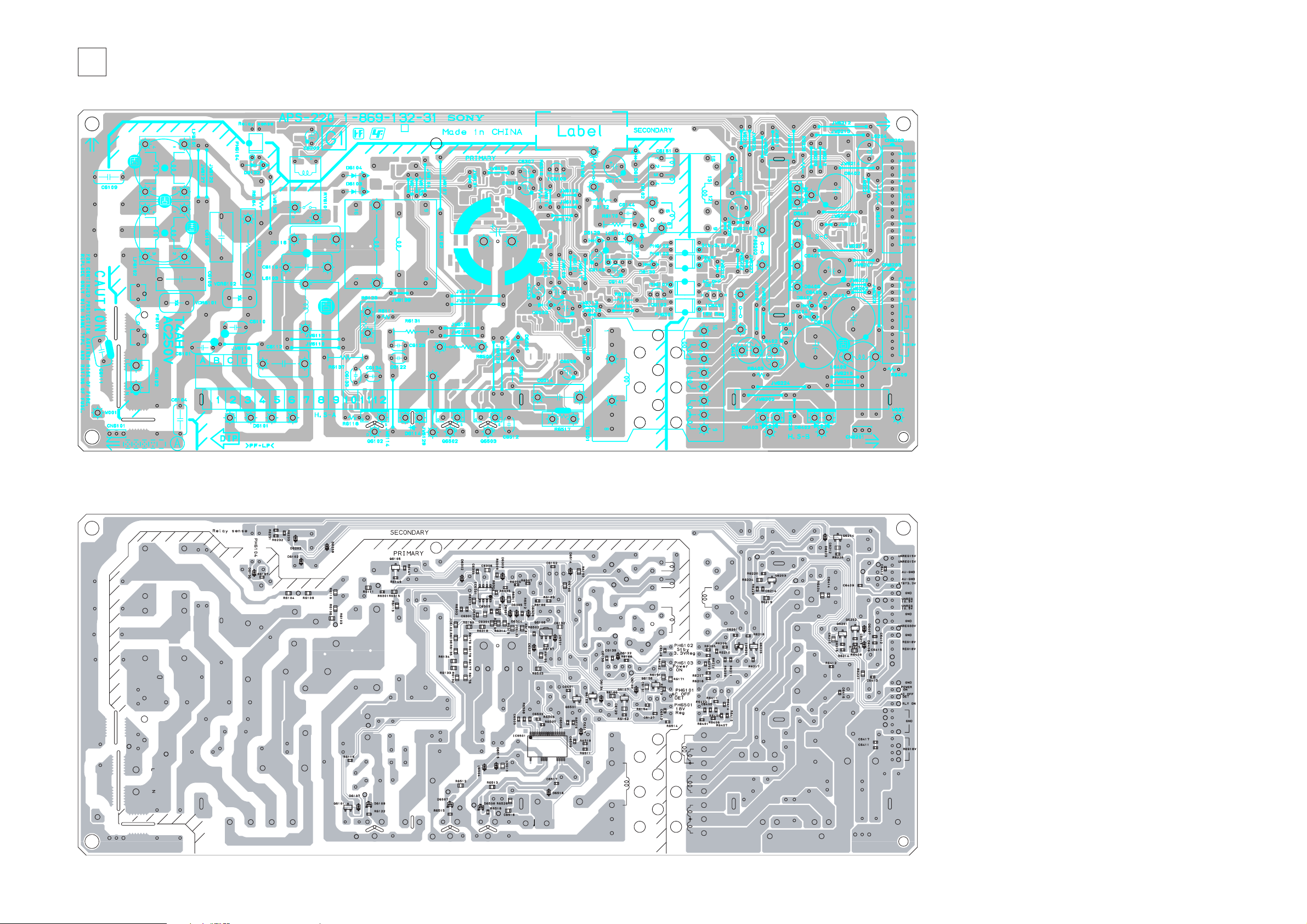

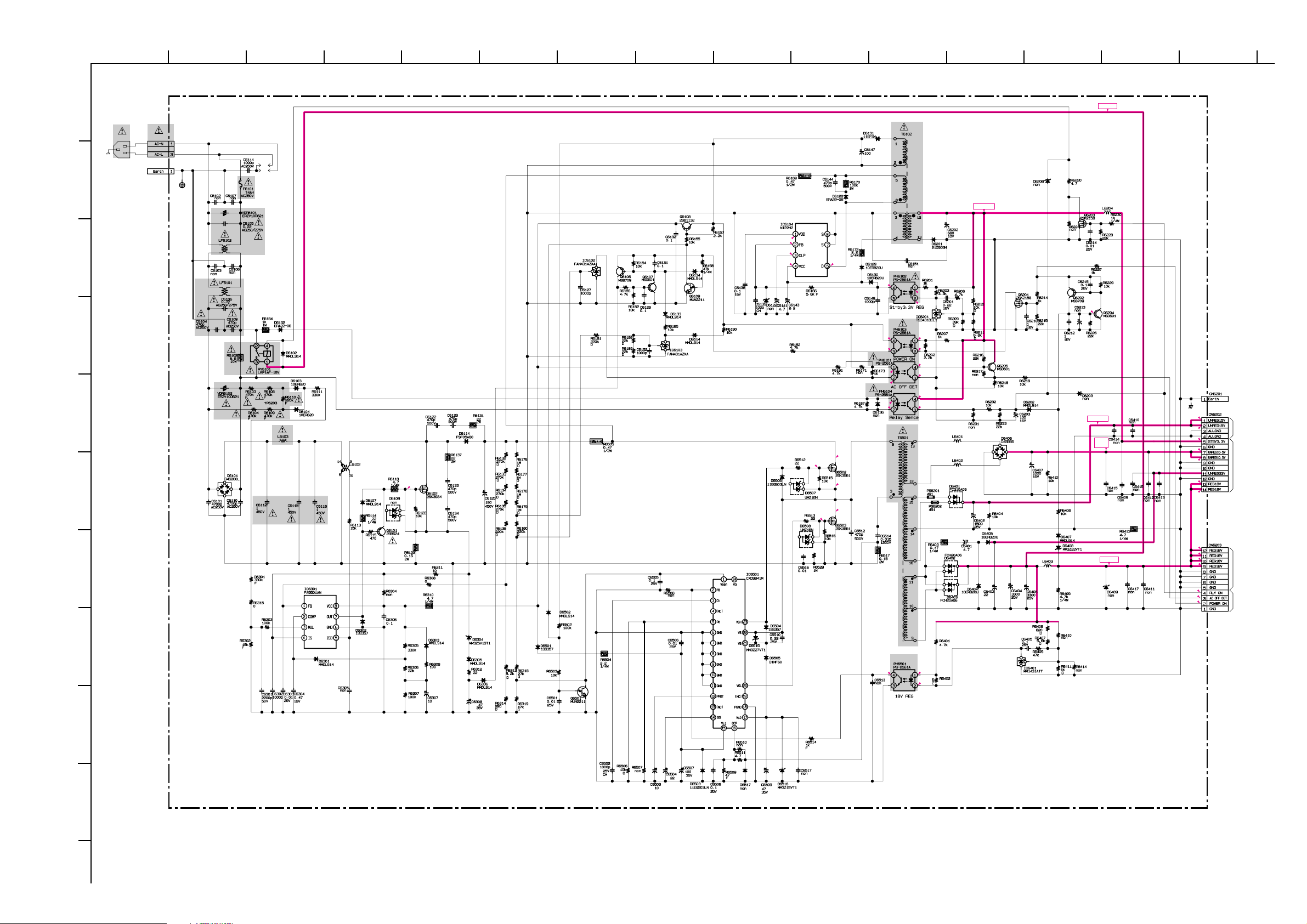

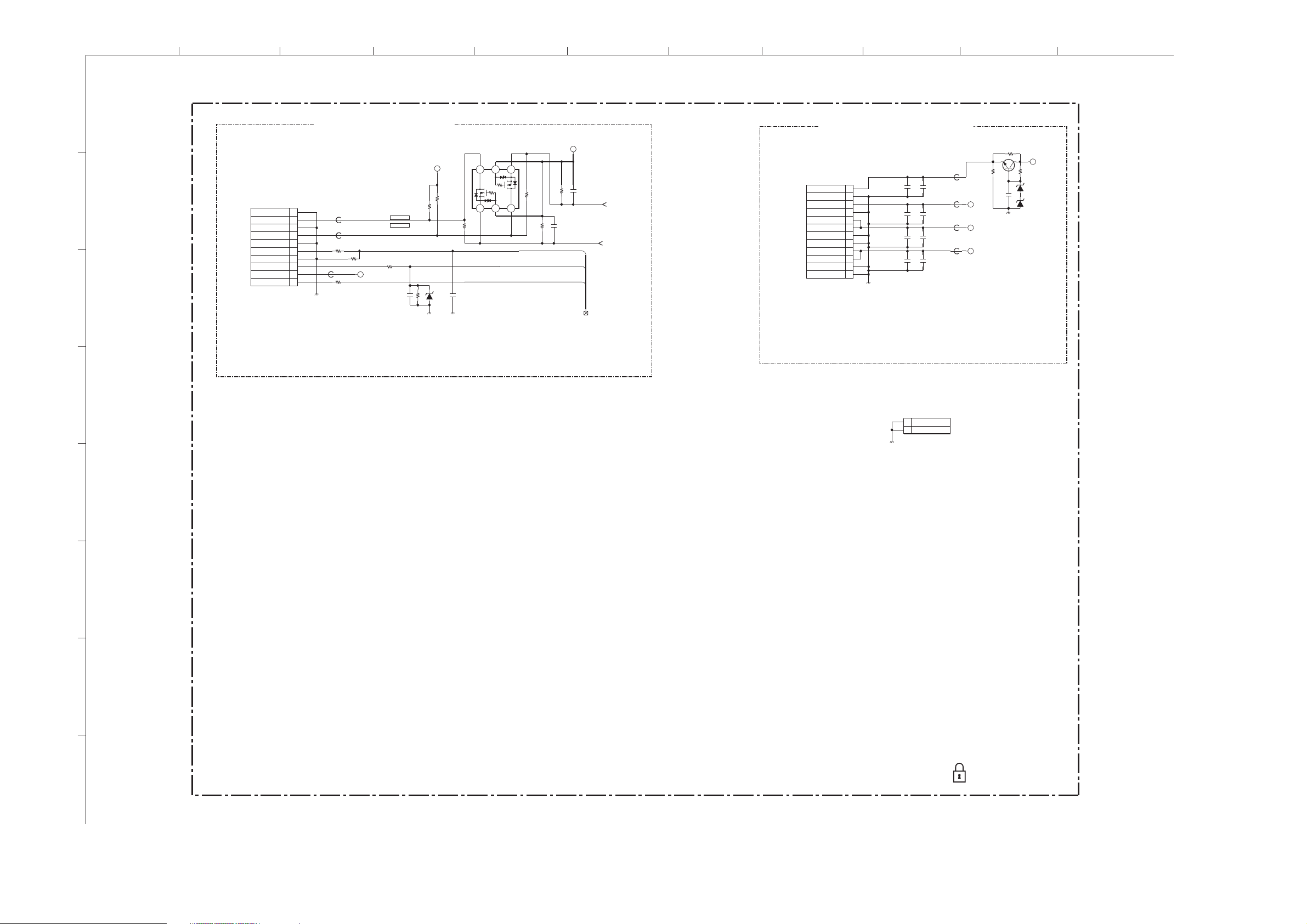

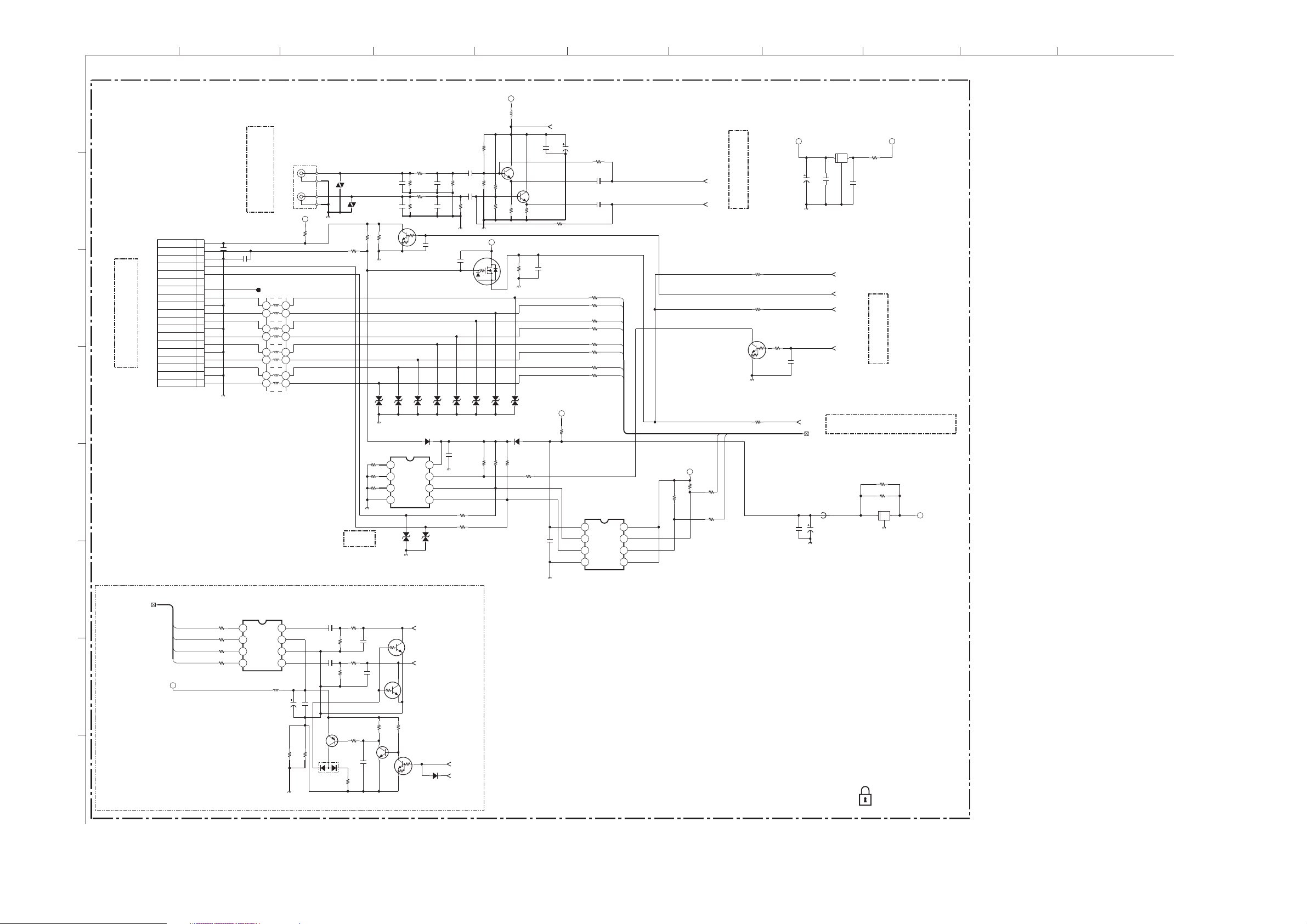

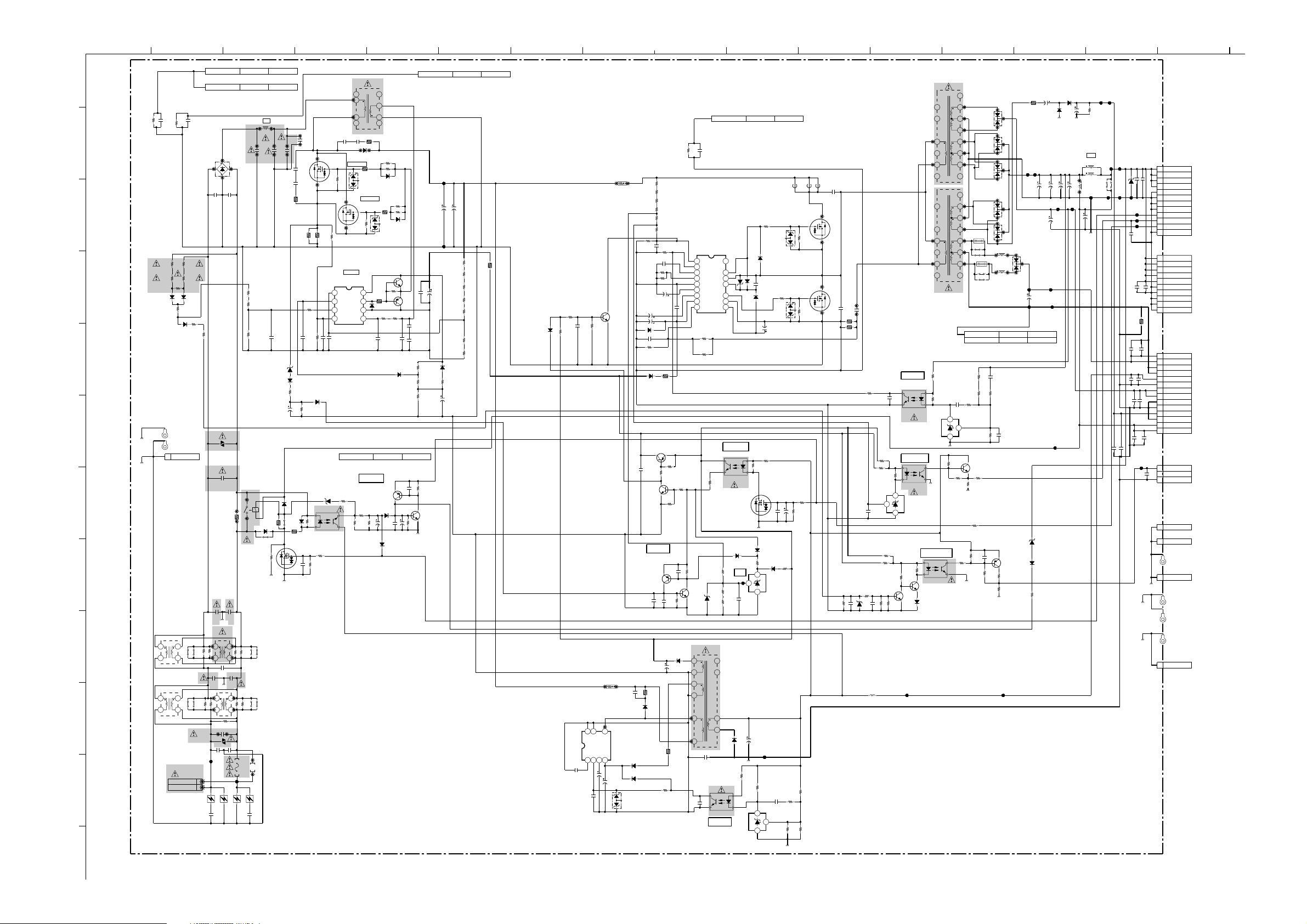

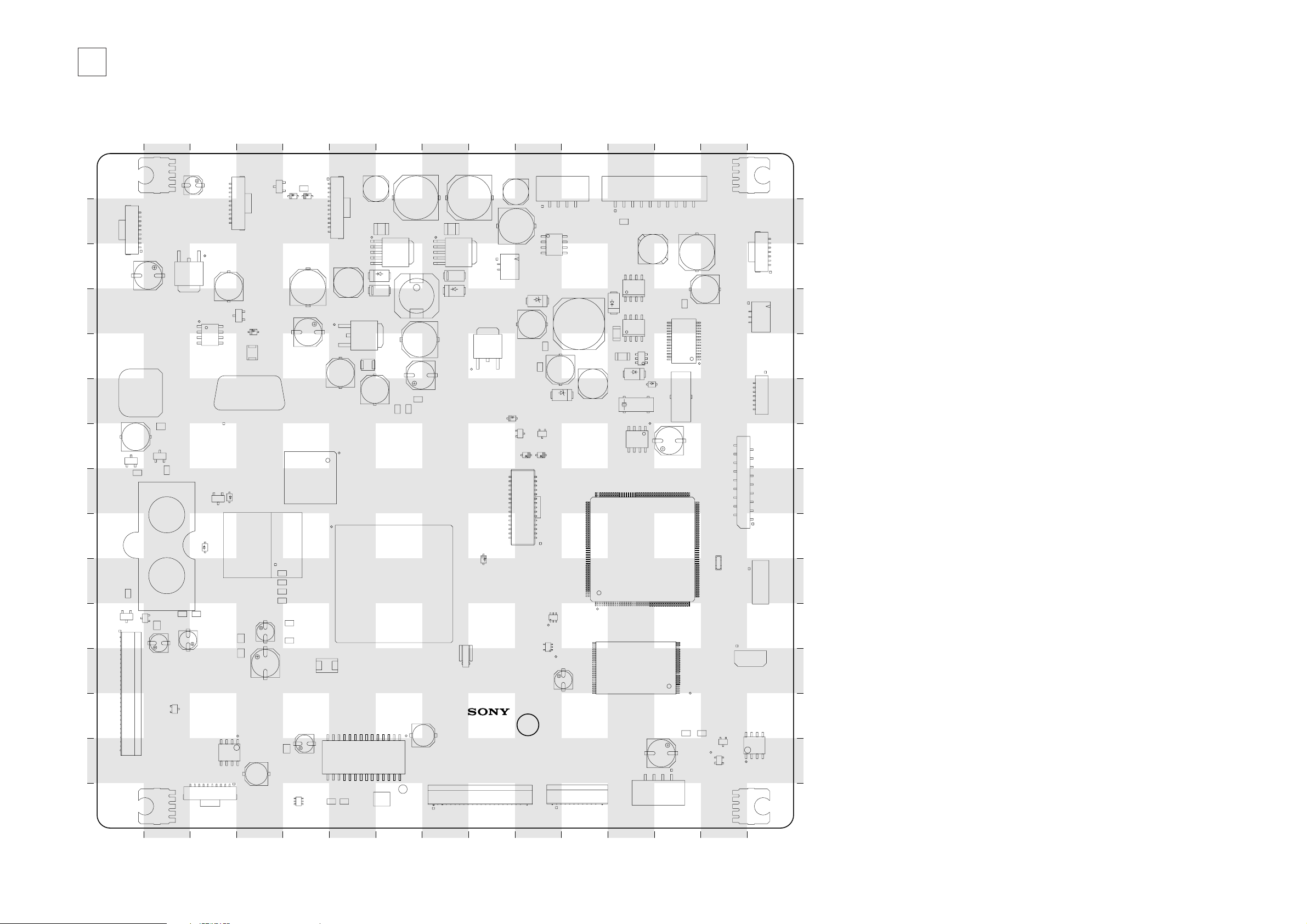

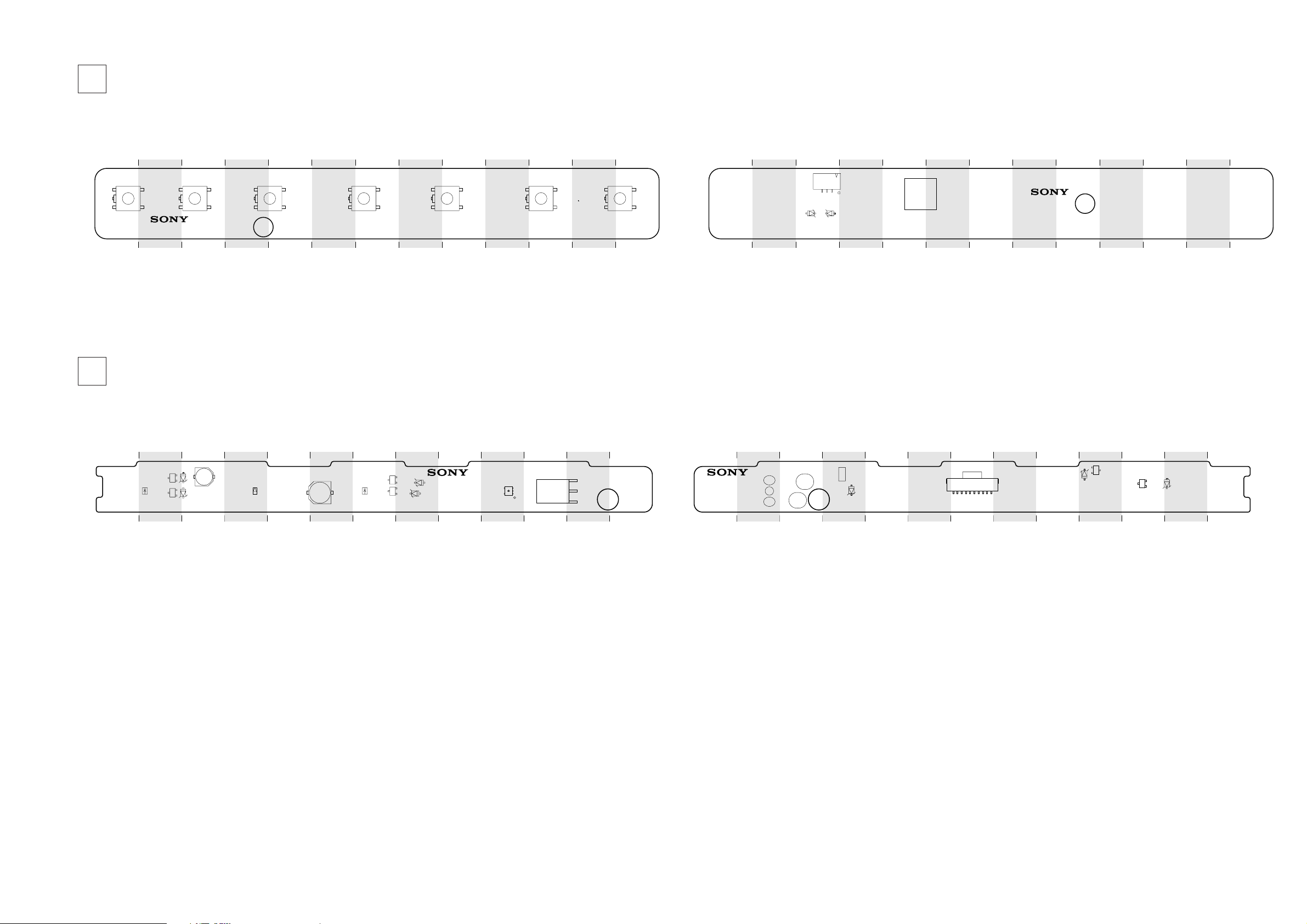

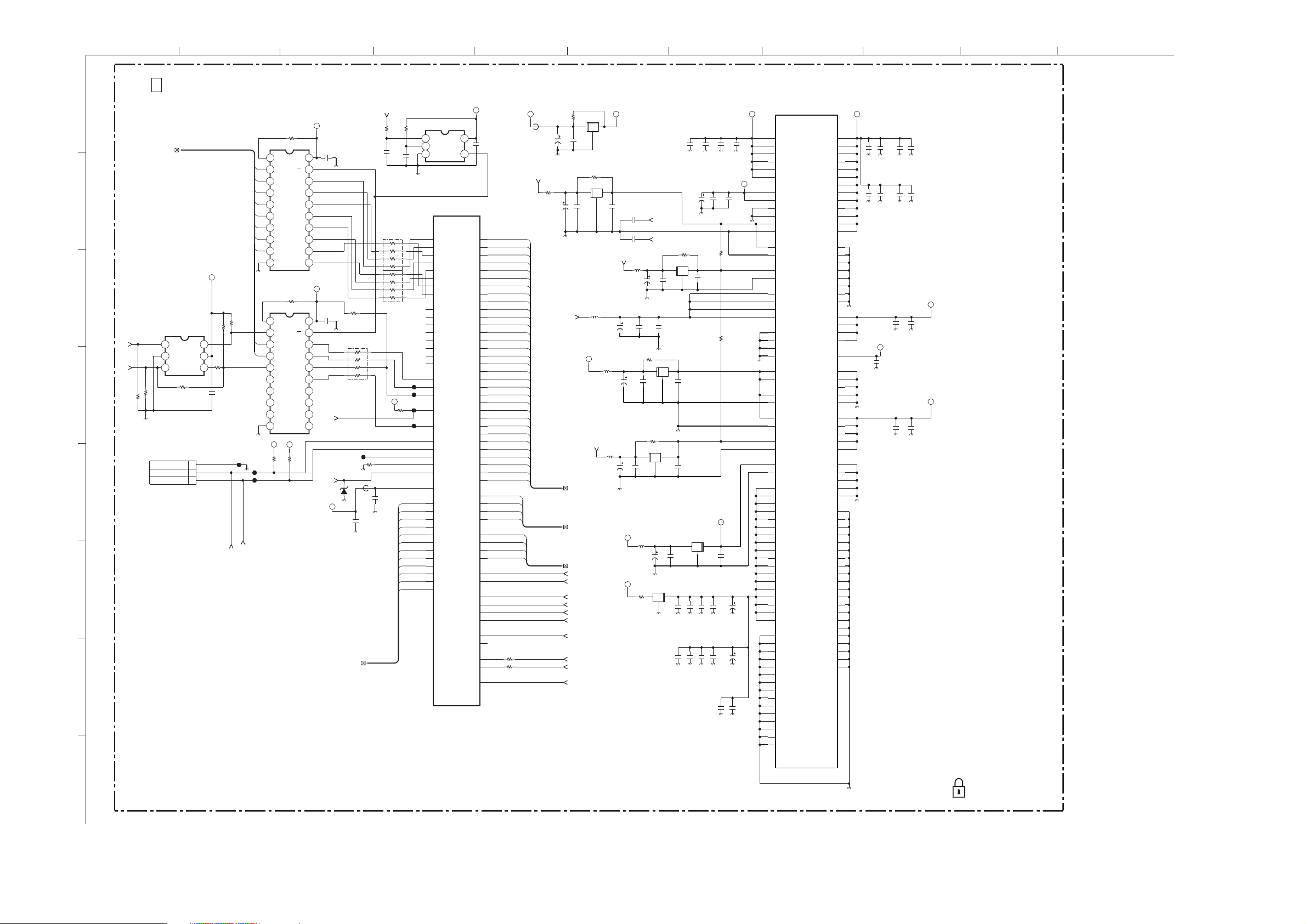

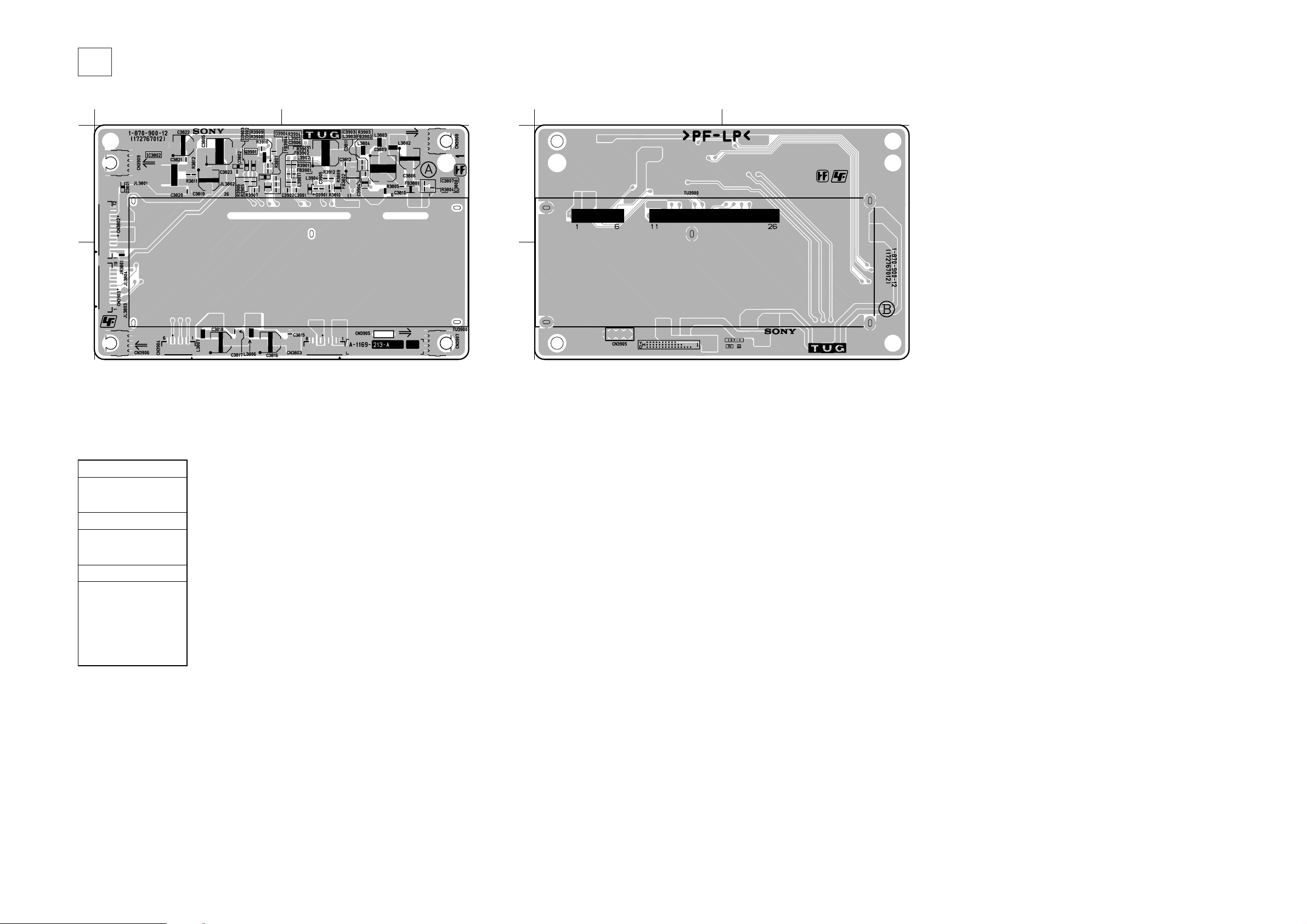

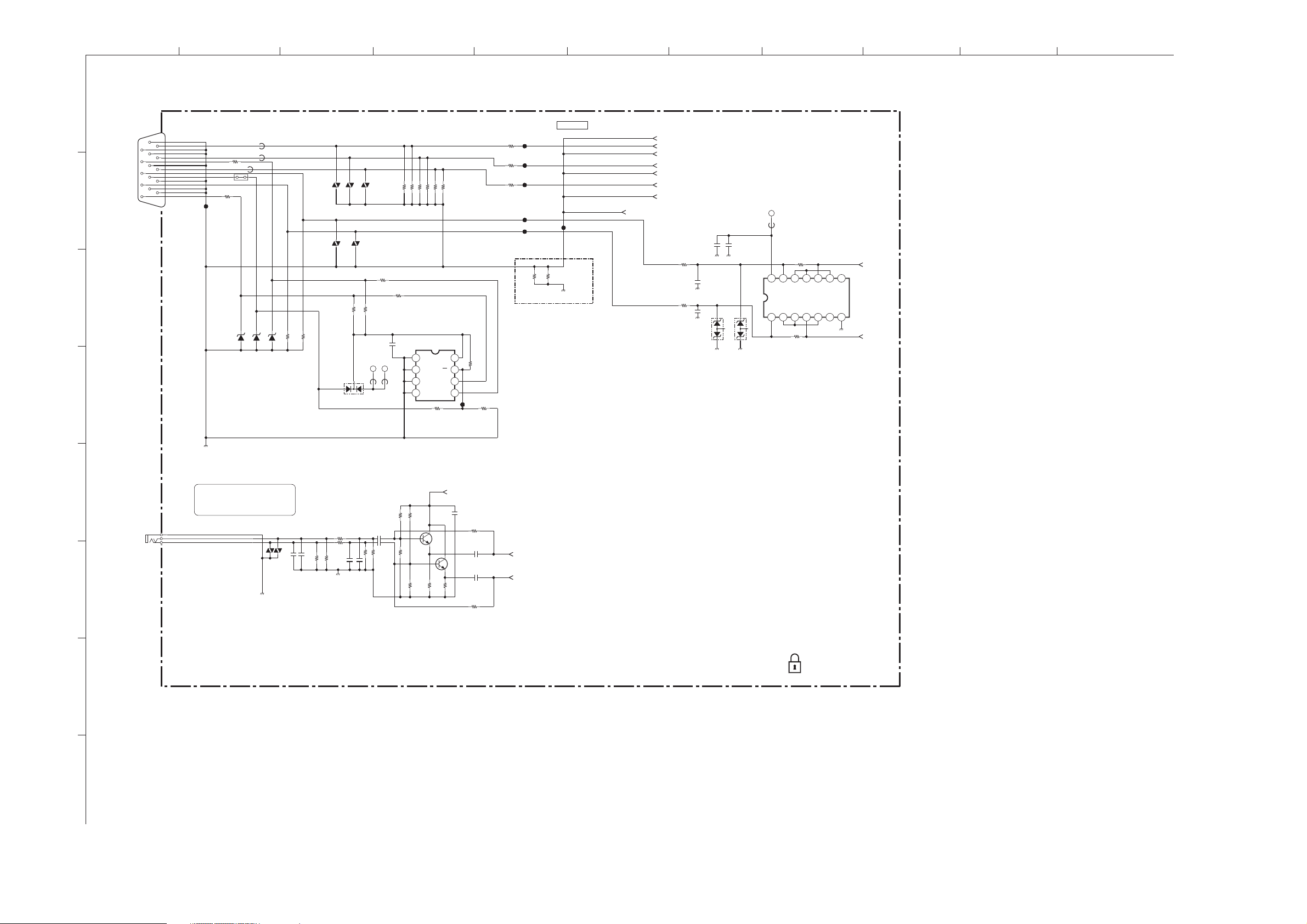

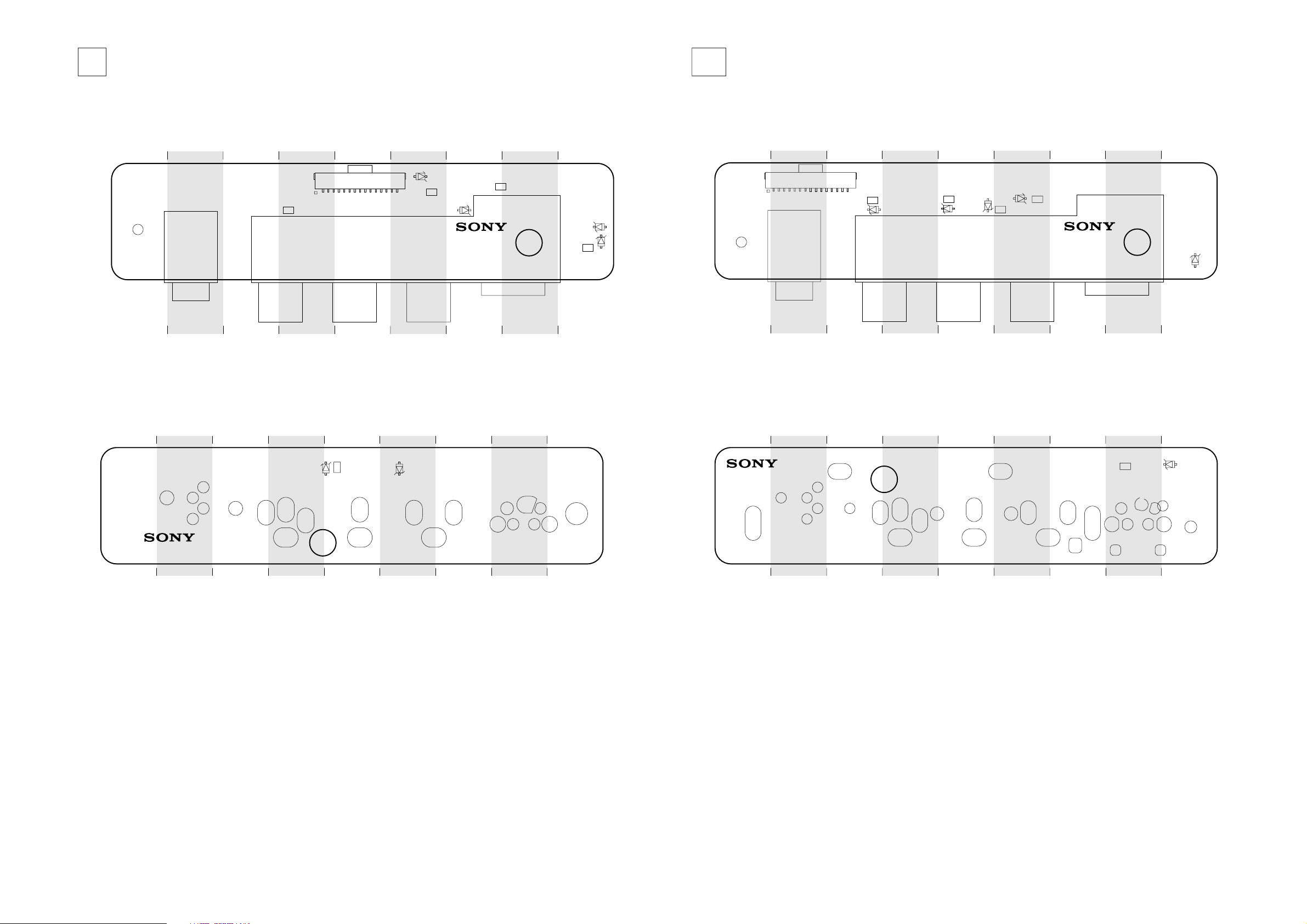

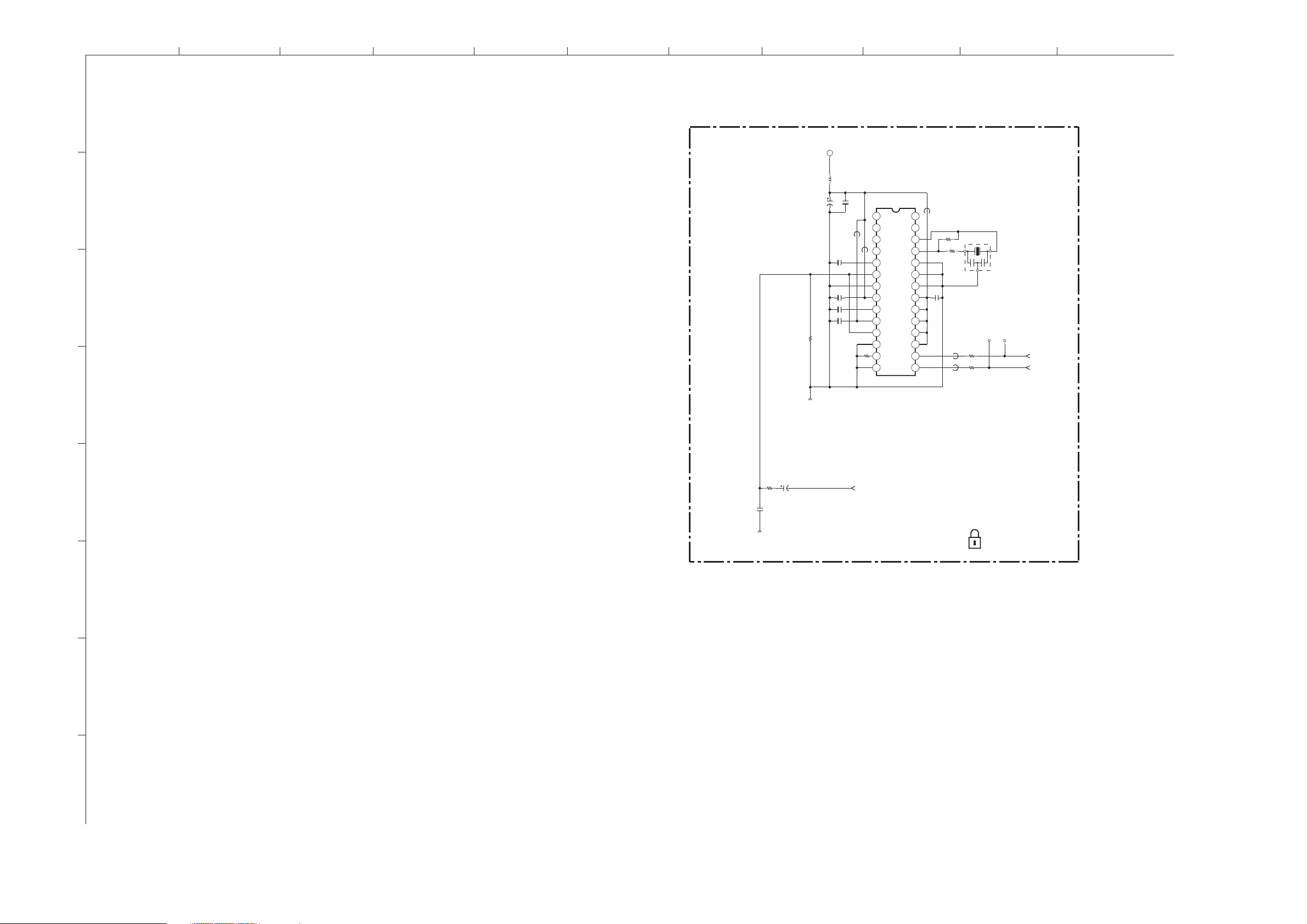

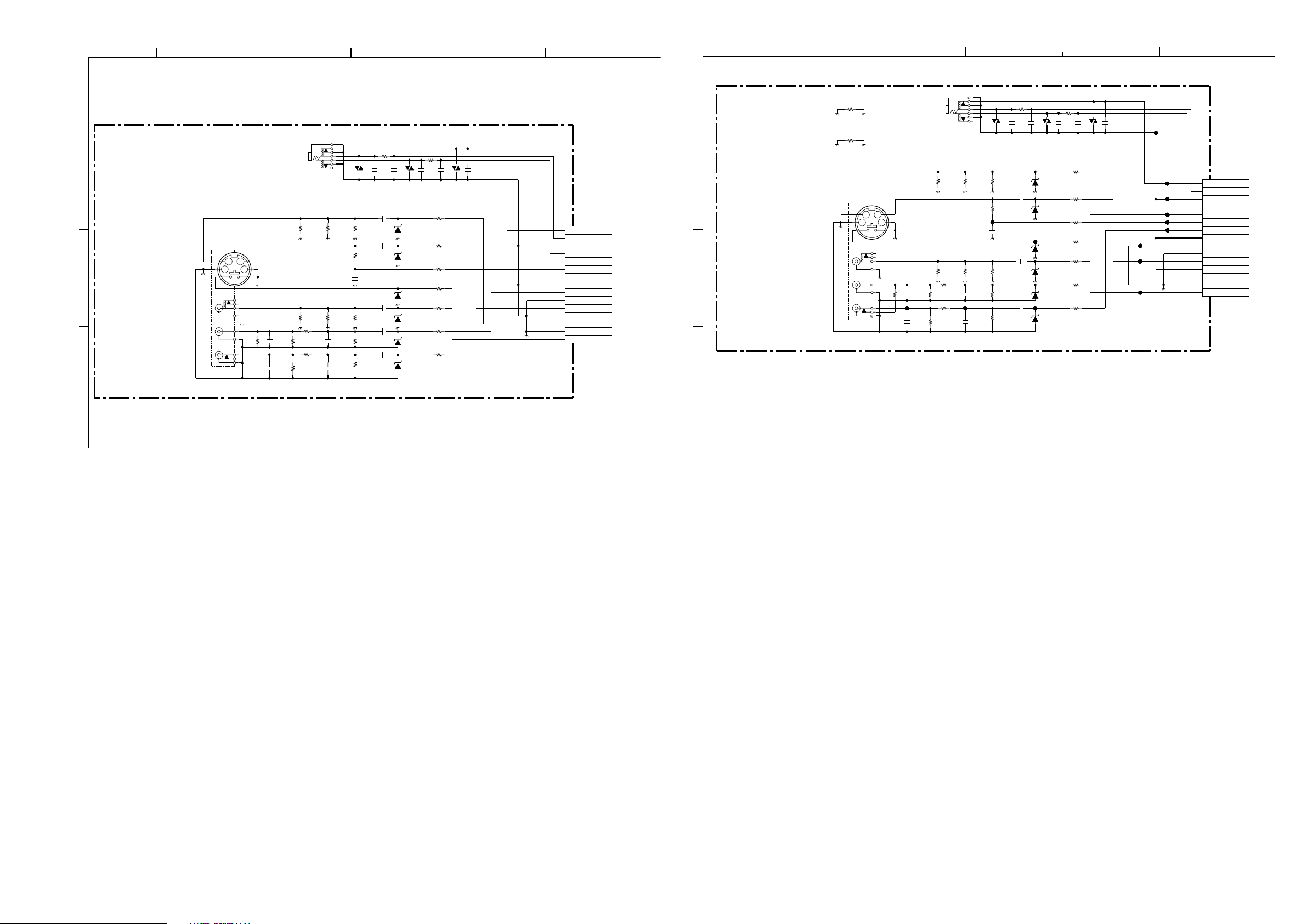

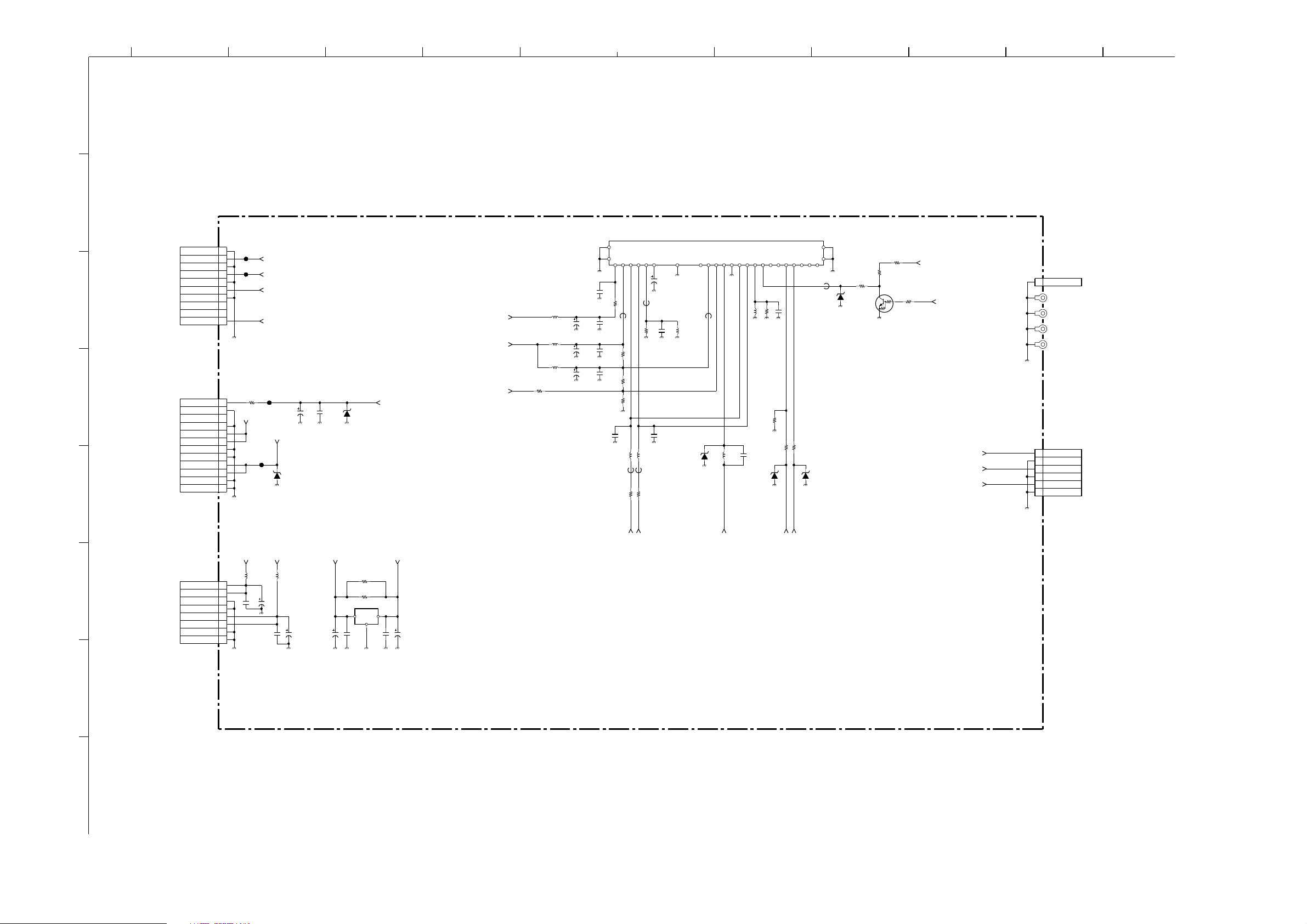

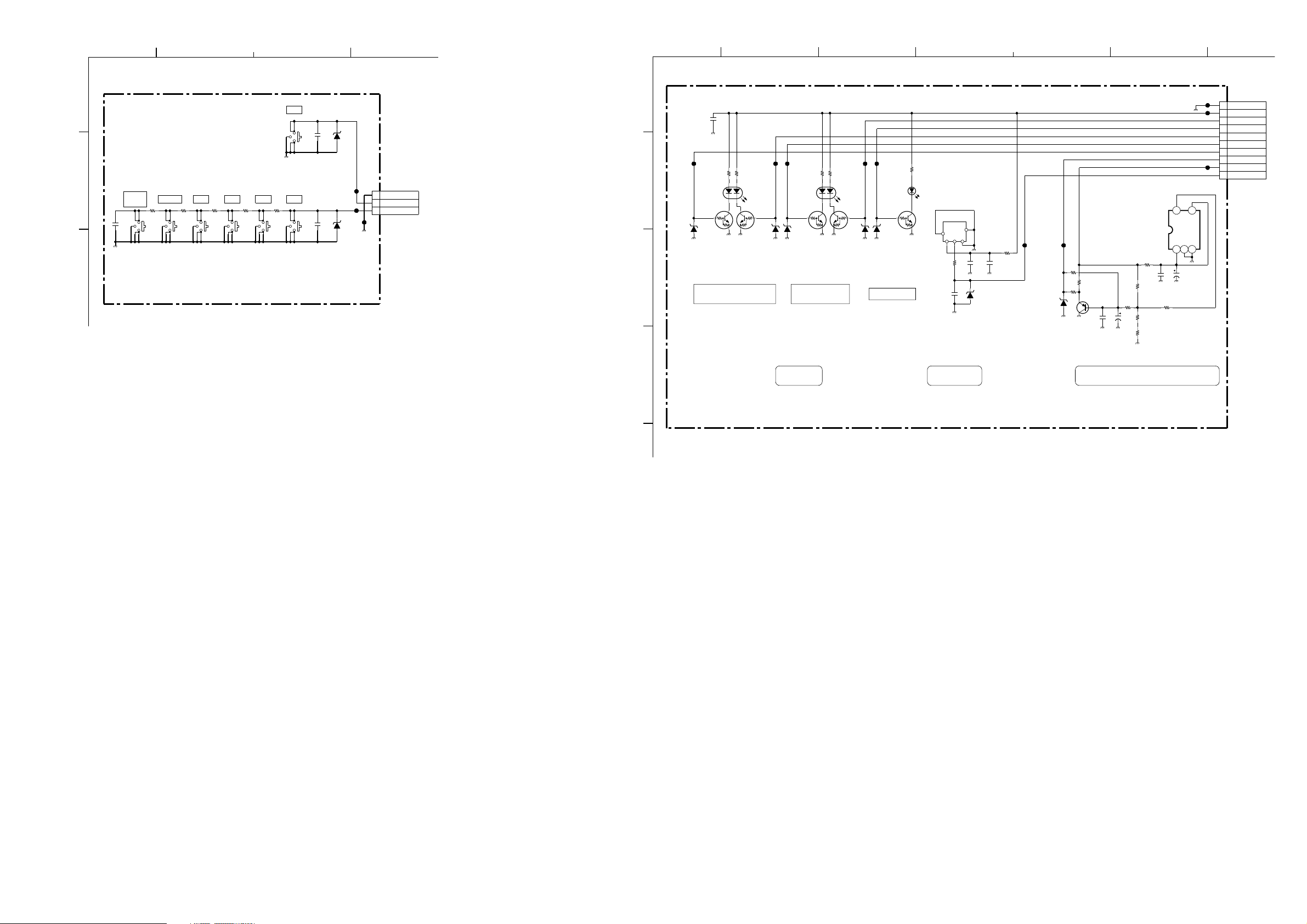

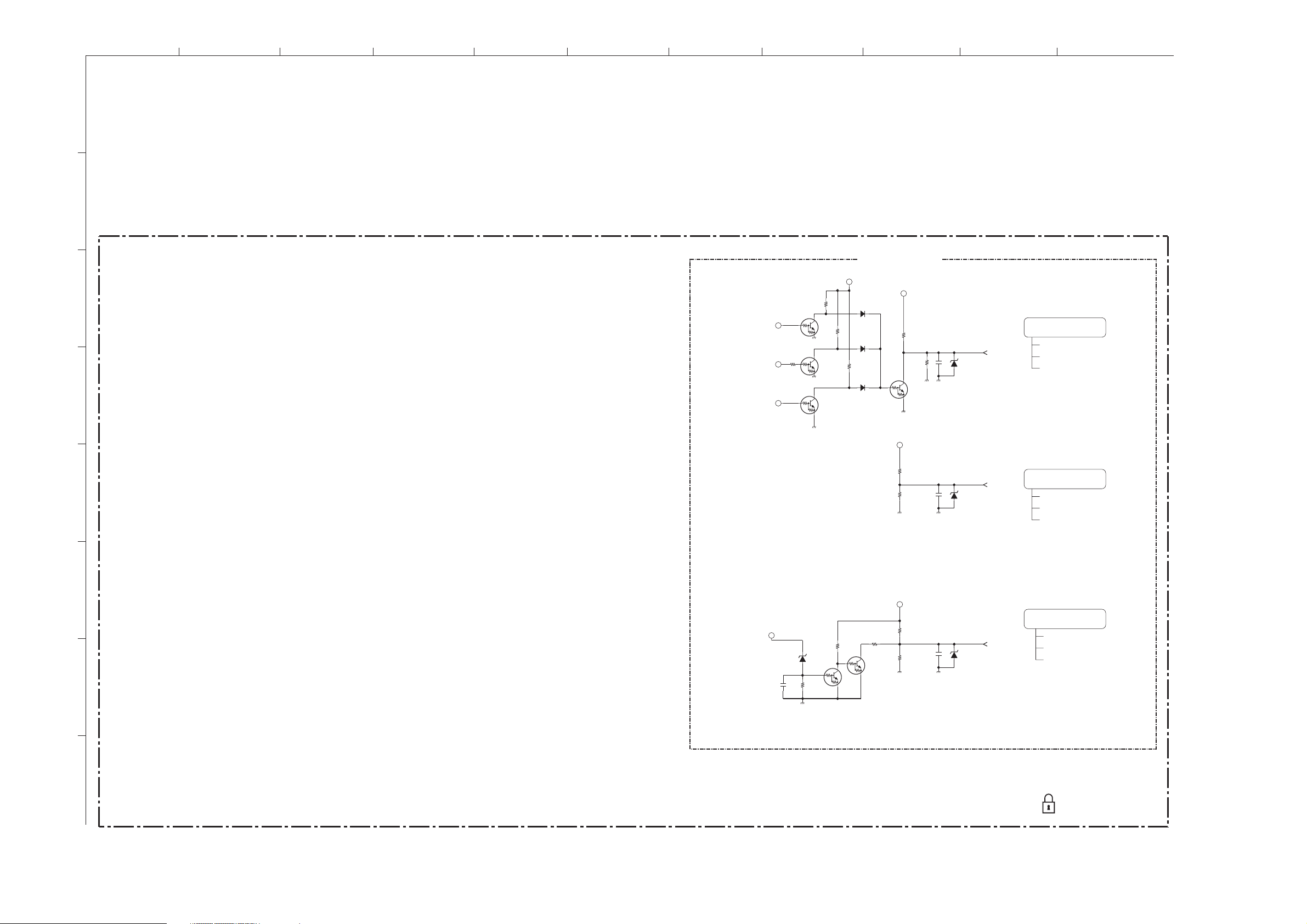

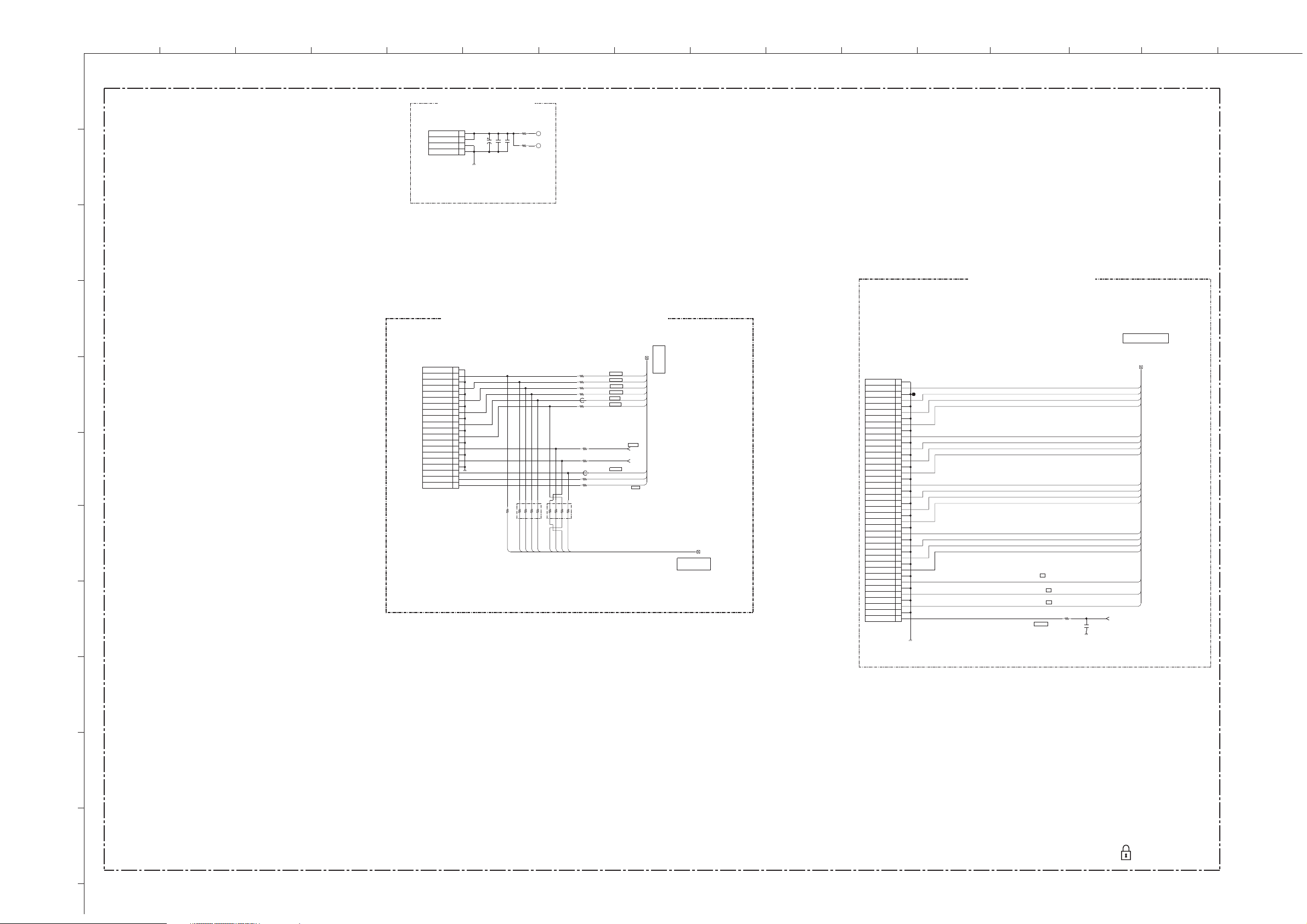

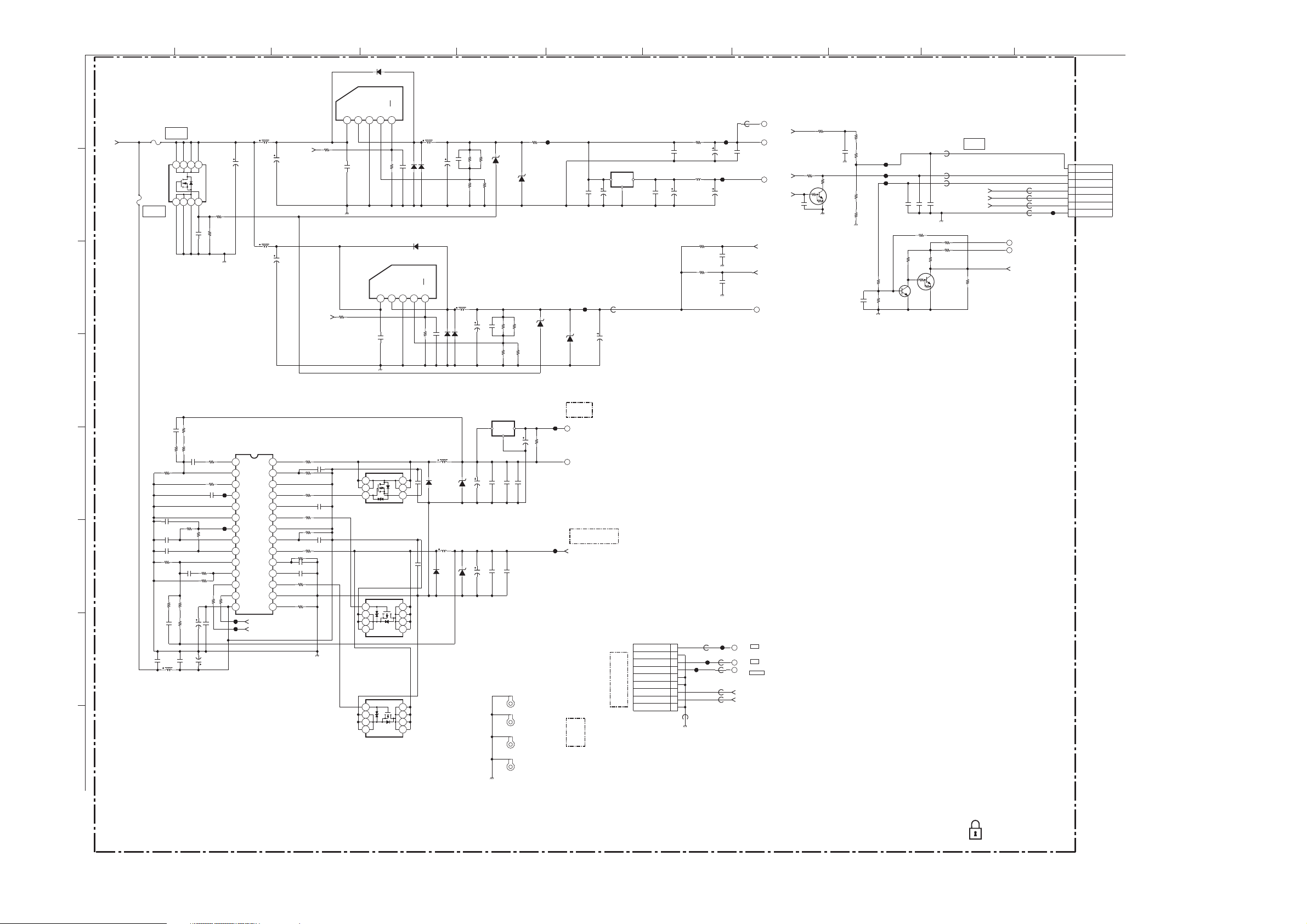

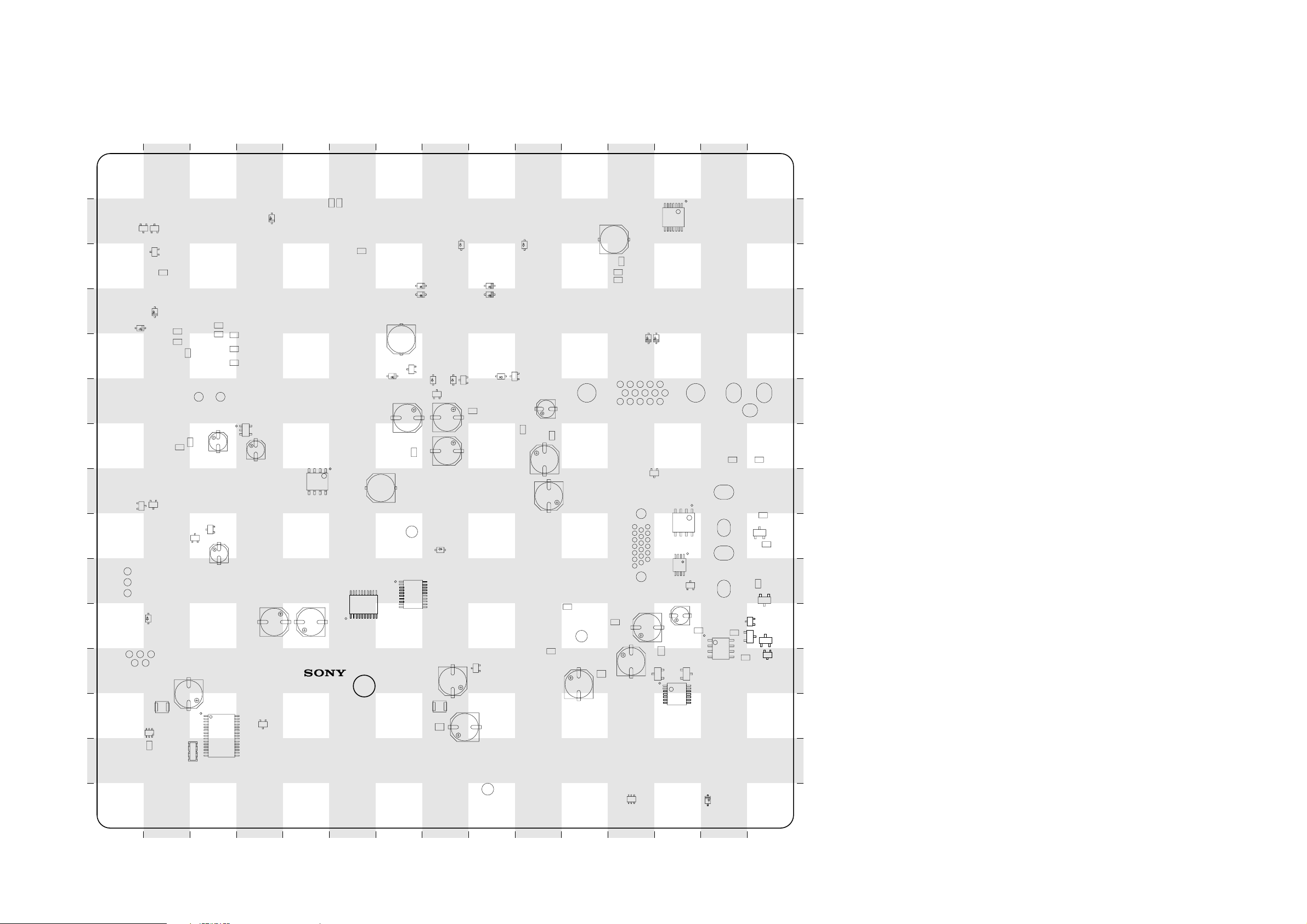

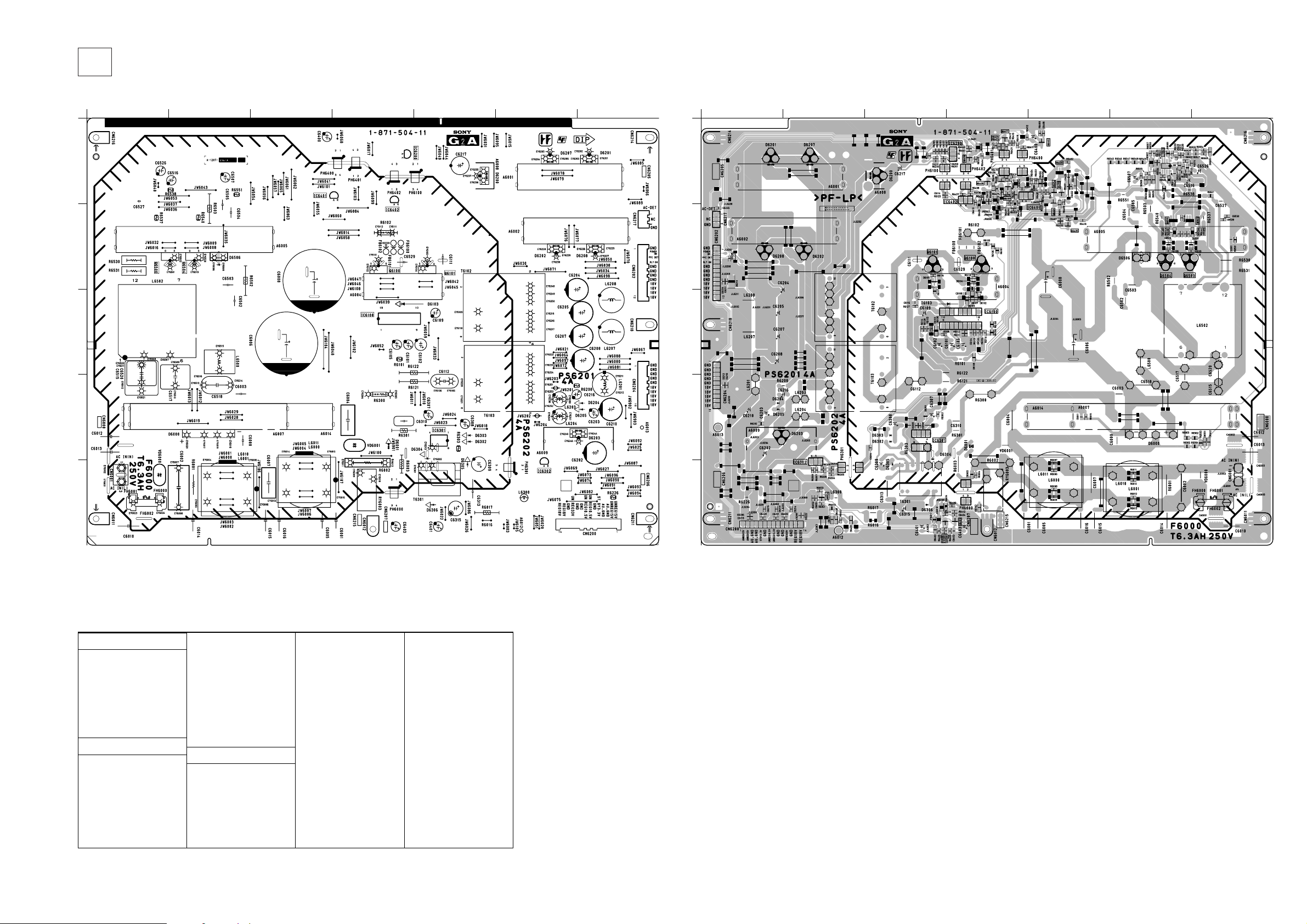

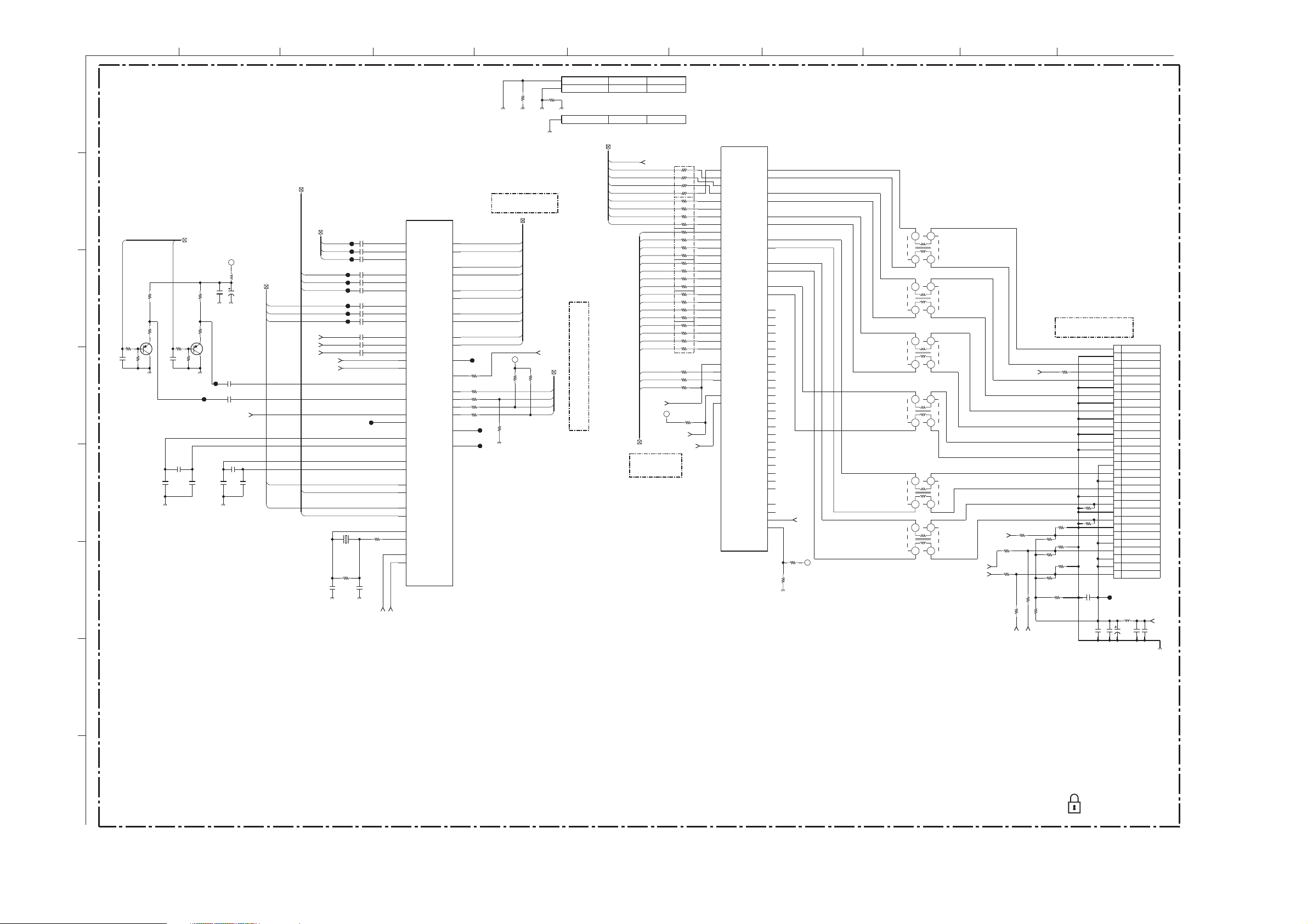

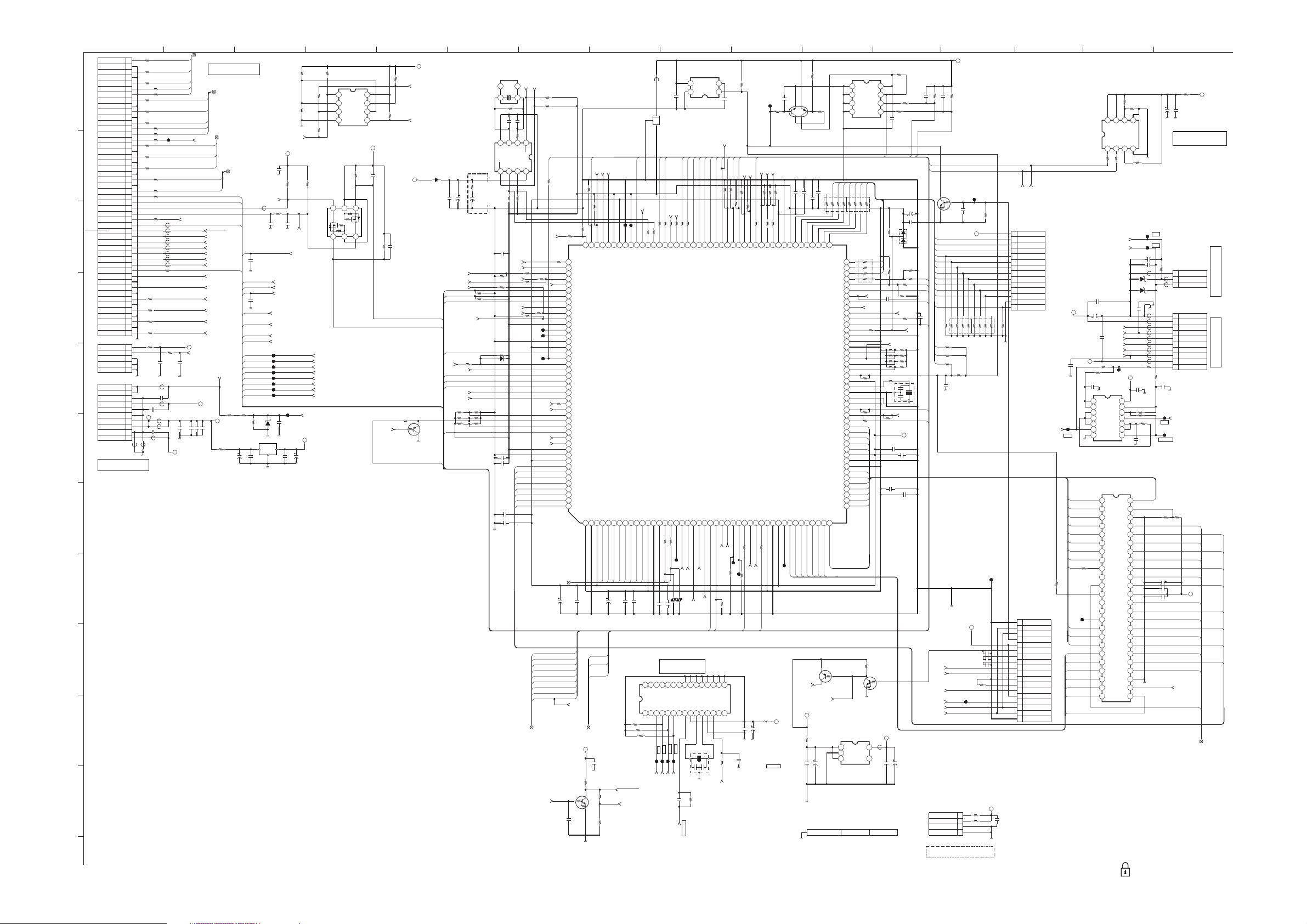

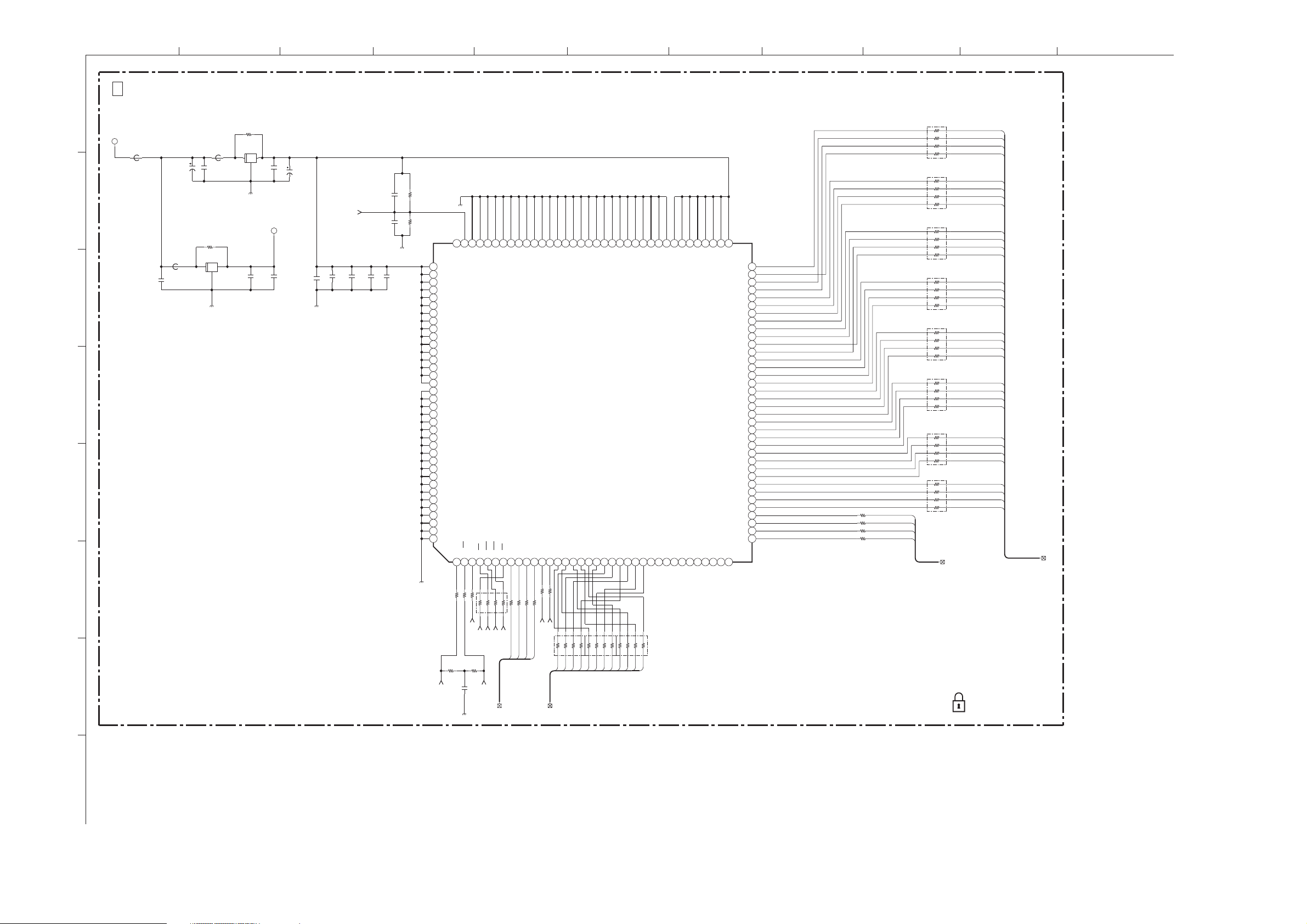

2-4. SCHEMATIC DIAGRAMS AND PRINTED
WIRING BOARDS ............................................... 2-8
(1) AG Board (1/2-2/2) .......................................... 2-9
(2) B Board (1/12-12/12) ..................................... 2-12
(3) G1 Board (KDL-32V2000) ............................ 2-26
(4) G2A Board (KDL-40/46V2000) .................... 2-28
(5) H1 and H4 Boards .......................................... 2-30
(6) H2 and H46 Boards ........................................ 2-32
(7) TUG and J Board ........................................... 2-34

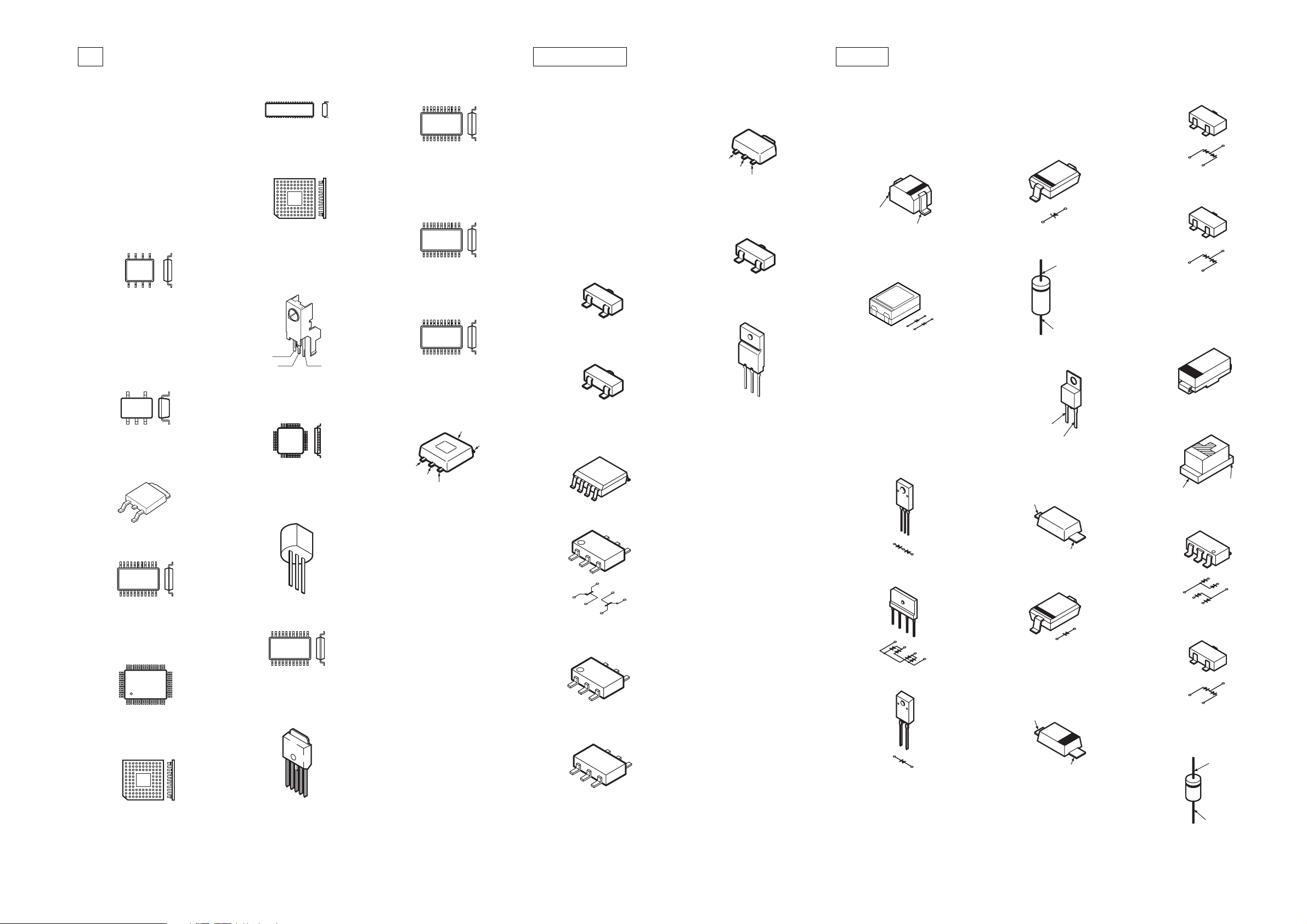

2-5. SEMICONDUCTORS ................................... 2-36
KDL-32/40/46V2000 (AUS) 4
Page 5
1-1. KDL-32V2000
1-1-1. REAR COVER REMOVAL
2 Two screws
(+PSW M6X16)
1 Twelve screws
(+BVTP2 4X16)
SECTION 1
DISASSEMBLY
3 Two screws
(+BVTP 3X12)
4 Rear cover assy
1-1-2. STAND ASSY AND VESA BRACKET REMOVAL
6 VESA bracket assy
3 One screw
(+PSW M4X16)
4 VESA bracket assy
5 One screw
(+PSW M4X16)
1 Three screws
(+PSW M5X16)
2 Stand assy
KDL-32/40/46V2000 (AUS) 1-1
Page 6
KDL-32V2000
1-1-3. H1 BOARD REMOVAL
1 Two screws
(+BVTP2 4X12)
2 Button cvover
3 H1 board
1-1-4. H2 BOARD AND SIDE TERMINAL REMOVAL
4 Side jack holder
5 Side terminal (M) assy
1 Two screws
(+BVTP 3X12)
3 H2 board
KDL-32/40/46V2000 (AUS) 1-2
Page 7
KDL-32V2000
1-1-5. G1 BOARD REMOVAL
1 Two screws
(+PSW M3X5)
2 Two screws
(+BVTP 3X12)
3 G1 board
4 Two screws
(+PSW M3X5)
5 G1 bracket
1-1-6. TUG BOARD REMOVAL
1 Four screws
(+BVST 3X8)
2 TUG board
KDL-32/40/46V2000 (AUS) 1-3
Page 8
KDL-32V2000
1-1-7. TOP SHIELD REMOVAL
4 Four screws
(+PSW M3X5)
5 Two screws
(HEX)
6 Top shield assy
1-1-8. AG BOARD REMOVAL
1 Two screws
(+BVST 3X8)
2 Four screws
(+PSW 3SG)
3 AG board
KDL-32/40/46V2000 (AUS) 1-4
Page 9
KDL-32V2000
1-1-9. B BOARD REMOVAL
7 One screw
(+PSW M3X12)
5 One screw
(+BVST 3X8)
6 J board
0 One screw
(+PSW M3X5)
8 Four screws
(+BVST 3X8)
9 Tuner
1 Harness with connector (LVDS)
3 Two screws
(+PSW 3SG)
2 Two screws
(+BVST 3X8)
4 B board
qa Bottom shield
0 One screw
(+PSW M3X5)
KDL-32/40/46V2000 (AUS) 1-5
Page 10
KDL-32V2000
1-1-10. AC INLET REMOVAL
6 Two screws
(+PSW M4X8)
7 Bottom frame
4 Two screws
(+BVTP2 4X16)
5 Under cover
2 Two screws
(+KTT 3X10)
3 AC INLET
1 One screw
(+PSW M4X8)
1-1-11. H4 BOARD AND SPEAKER REMOVAL
3 Speaker
2 H4 board
1 One screw
(+BVTP 3X10)
4 Speaker
KDL-32/40/46V2000 (AUS) 1-6
Page 11
KDL-32V2000
1-1-12. LCD PANEL REMOVAL
2 Top frame assy
1 Two screws
(+PSW M4X8)
5 One screw
(+BVTP2 4X16)
6 One screw
(+PSW M3X5)
3 One screw
(+PSW M3X5)
4 G support
7 Harness with connector(LVDS)
8 LCD panel
Bezel assy
KDL-32/40/46V2000 (AUS) 1-7
Page 12
1-2. KDL-40/46V2000
1-2-1. REAR COVER ASSY REMOVAL
KDL-40V2000
3 One screws
(+BVTP2 4X16)
3 Three screws
(+BVTP2 4X16)
4 Two screws
(+BVTP2 4X16)
KDL-46V2000
KDL-46V2000
3 Two screws
(+BVTP2 4X16)
1 Four screws
(+PSW M6X16)
4 Two screws
(+BVTP2 4X16)
2 Two screws
(+BVTP2 4X16)
6 One screws
(+PSW M3X5)
7 Two screws
(+BVTP 3X12)
5 Two screws
(+BVTP2 4X16)
KDL-46V2000
2 Two screws
(+BVTP2 4X16)
KDL-46V2000
5 Three screws
(+BVTP2 4X16)
8Rear cover assy
5 One screws
(+BVTP2 4X16)
KDL-40V2000
1-2-2. STAND ASSY AND VESA BRACKET REMOVAL
3 Two screws
4 Vesa arm (L) assy
(+BVTP2 M5X16)
6 Vesa arm (R)
assy
5 Two screws
(+BVTP2 M5X16)
1Four screws
(+PSW M5X16)
2 Stand assy
KDL-32/40/46V2000 (AUS) 1-8
Page 13
KDL-40/46V2000
1-2-3. H1 BOARD REMOVAL
2 Botton cover
1 Two screws (KDL-46V2000)
(+BVTP2 4X16)
Two screws (KDL-40V2000)
(+BVTP2 4X12)
3 H1 board
1-2-4. H2 (H46) BOARD REMOVAL
5Side terminal (M) assy
3 Two screws
(+BVTP 3X12)
(KDL-40V2000)
1 Two screws
(+BVTP 3X12)
corting grip
(KDL-46V2000)
4H2 board (KDL-40V2000)
H46 board (KDL-46V2000)
2Side jack holder (L)
KDL-32/40/46V2000 (AUS) 1-9
Page 14
KDL-40/46V2000
1-2-5. G2A BOARD REMOVAL
2 FOUR SCREWS
(+PSW 3SG)
2 G2A board
4 G2 bracket
1-2-6. TUG BOARD REMOVAL
1 Four screws
(+BVST 3X8)
2 TUG board
KDL-32/40/46V2000 (AUS) 1-10
Page 15
KDL-40/46V2000
1-2-7. TOP SHIELD REMOVAL
4 Four screws
(+PSW M3X5)
5 Two screws
(HEX)
6 Top shield assy
1-2-8. AG BOARD REMOVAL
1 Two screws
(+BVST 3X8)
2 Four screws
(+PSW 3SG)
3 AG board
KDL-32/40/46V2000 (AUS) 1-11
Page 16
KDL-40/46V2000
1-2-9. B BOARD REMOVAL
7 One screw
(+PSW M3X12)
5 One screw
(+BVST 3X8)
6 J board
0 One screw
(+PSW M3X5)
qa Bottom shield
8 Four screws
(+BVST 3X8)
9 Tuner
1 Harness with connector (LVDS)
3 Two screws
(+PSW 3SG)
2 Two screws
(+BVST 3X8)
4 B board
0 One screw
(+PSW M3X5)
KDL-32/40/46V2000 (AUS) 1-12
Page 17
KDL-40/46V2000
1-2-10. AC INLET REMOVAL
1 Four screws
(+PSW M5X8)
4 Under cover (L)
1 Two screws
(+BVTP2 4X16)
1 Two screws
(+BVTP2 4X16)
1 Two screws
(+KTT 3X10)
2 AC inlet
1 One screw
(+PSW M4X8)
5 Botton frame (L)assy
1-2-11. H4 BOARD AND SPEAKER REMOVAL
3 Speaker
3 Speaker
2 H4 board
4 Speaker
KDL-40V2000
1 One screw
(+BVTP 3X10)
4 Speaker
KDL-46V2000
KDL-32/40/46V2000 (AUS) 1-13
Page 18
KDL-40/46V2000
1-2-12. TOP FRAME REMOVAL
5 Two screws
(+BVTP2 4X12)
6 Top frame (40)
KDL-40V2000
4 One screw
(+PSW 5X8)
2 Two screws
(+BVTP2 4X12)
1 One screw
(+PSW 5X8)
3 Top frame (40)
KDL-46V2000
5 One screw
(+BVTP2 4X16)
6 Top frame (40)
4 One screw
(+PSW 5X8)
1 One screw
(+PSW 5X8)
2 One screw
(+BVTP2 4X16)
3 Top frame (40)
KDL-32/40/46V2000 (AUS) 1-14
Page 19
KDL-40/46V2000
1-2-13. LCD PANEL REMOVAL
1 One screw
(+PSW 3X5)
KDL-40V2000
6 One screw
(+BVTP 3X12)
1 Two screws
(+BVTP2 4X16)
KDL-46V2000
7 Bezel support
(L) assy
2 Panel corner bracket
3 Harness with connector (LVDS)
0 LCD panel
4 Two screws
(+BVTP2 4X16)
5 Bezel support (R) assy
KDL-46V2000
Bezel assy
KDL-46V2000
8 One screw
(+BVTP 3X12)
9 Bezel support (L) assy
KDL-46V2000
KDL-32/40/46V2000 (AUS) 1-15E
Page 20
2-1. BLOCK DIAGRAMS
(1) AG, H2 and H46 Boards
CN9702
TV_V
FM_AM(MONO)
J9001
J9002
Y
PB
PR
L
R
Y
PB
PR
L
R
QSS
34
12
VIDEO IN 1
VIDEO IN 3
HD/DVD IN 1
HD/DVD IN 2
A
TO
TUG BOARD
CN3904
AUDIO
AUDIO
AUDIO
AUDIO
S VIDEO
VIDEO
L(MONO)
R
VIDEO
L(MONO)
R
1
3
5
D1_IN_Y
D1_IN_CB
D1_IN_CR
D1_IN_AU_L
D1_IN_AU_R
D2_IN_Y
D2_IN_CB
D2_IN_CR
D2_IN_AU_L
D2_IN_AU_R
VIDEO
FM/AM
V1_IN_Y
V1_IN_C
V1_IN_S2SW
V1_IN_SSW
V1_IN_V
V1_IN_AU_L
V1_IN_AU_R
V3_IN_V
V3_IN_AU_L
V3_IN_AU_R
AUDIO
SECTION 2
DIAGRAMS
Q6002 Q6009
BUFFER
BUFFER
Q7000, 7001
BUFFER
VIDEO
63
62
3
5
6
7
1
2
4
15
16
18
29
31
59
61
8
10
12
9
11
14
13
IC2001
AV SW
TV
ANA_IN1+
Y1
C1
S2-1
S-1
V1
LV1
RV1
V3
LV3
RV3
LV5
RV5
LV6
RV6
V2
Y2
C2
LV2
RV2
S2
S2-2
V/YOUT2
COUT2
SDA
SCL
LOUT2
ROUT2
44
47
34
33
43
45
Y/CV
C
SDA_B_5V
SCL_B_5V
AUDIO L
AUDIO R
X7000
18.432MHz
SDA_B_5V
SCL_B_5V
Q7002
Q2001,2002
BUFFER
56
57
60FM/AM
71
72
21
SC1_IN_L
SC1_IN_R
SCS_IN_R
XTAL_IN
XTAL_OUT
3
I2C_DA
2
I2C_CL
RESETQ
IC7001
AUDIO DSP
SC4_IN_L
SC4_IN_R
SC3_IN_L
SC3_IN_R
SC2_IN_L
SC2_IN_R
DACM_L
DACM_R
SC1_OUT_L
SC1_OUT_R
DACA_L
DACA_R
47
48
5051DVI_L
DVI_R
PC_IN_L
53
PC_IN_R
54
AUDIO L
28
27
Q7012
37
36
25
24
AUDIO R
Q7013
Q7019
IC7601
IC7602
IC7003
BUFFER
AMP
Q7603 Q7604
HP
AMP
HDMI_L
HDMI_R
Q7011
IC7007
AUDIO AMP
IN1
OUTA1
IN2
OUTB1
OUTB2
STBY
OUTA2
Q7609-Q7611
Q7602,7605,7608
Q7606Q7607
48
43
36
31
L7009,7010
Q7014-Q7018,7021
DC DET.
Q7005,7008
BUFFER
Q6011-Q6013,6001
Q6004,6005,6007,6008
Q7010
Q7020
D7605
D7013
D7604
SYNC
SEP.
2
Y/CV
C
SDA_B_5V
SCL_B_5V
AUDIO L
AUDIO R
CN9501
22
SEL2_Y/CV
24
SEL2_C
25
V_DET
26
M_HSYNC
8
Y2
10
CB2
12
CR2
16
Y3
18
CB3
20
CR3
39
HDMI_L
41
HDMI_R
43
DVI_L
45
DVI_R
47
PC_IN_L
49
PC_IN_R
29
AU_PROT
36
SP_SD_MUTE
35
SP_MUTE
32
LINE_MUTE
37
HP_MUTE
31
AC_OFF_DET_AU
34
RESET_AUDIO
38
HP_DET
27
SDA_B_5V
28
SCL_B_5V
CN7000
1
L+
2
L-
3
R+
4
R-
J9003
L
AUDIO
R
OPTICAL OUT
F
TO
B BOARD
CN1001
SPEAKER
L
R
VIDEO IN
2
S VIDEO
VIDEO
AUDIO
J201
3
4
21
L
R
J202
15
13
11
9
7
5
6
2
4
1
V2_IN_V
V2_IN_Y
V2_IN_C
V2_IN_AU_L
V2_IN_AU_R
V2_IN_SSW
V2_IN_S2SW
HP_OUT_AU_L
HP_OUT_AU_R
HP_DET
CN9001CN201
15
13
11
9
7
5
6
2
4
1
HP_OUT_AU_L
HP_OUT_AU_R
HP_DET
A9V
D5V
D3.3V D3.3V
AU_15V
CN9502
A9V
1
D5V
3
4
CN7503
UNREG 15V1,2
G
TO
B BOARD
CN7008
H
TO G1 BOARD
CN6202
(KDL-32V2000)
TO G2A BOARD
CN6200
(KDL-40/46V2000)
AV SWITCH, INPUT TERMINAL,
(KDL-32/40V2000)
H2
(KDL-46V2000)
H46
(SIDE AV INPUT)
AG
AUDIO/FE CONNECTION
KDL-32/40/46V2000 (AUS) 2-1
Page 21
(2) B, H1, H4 and J Boards
F
TO
AG BOARD
CN9501
TO
PANEL UNIT
J
TO G1 BOARD
CN6203
( KDL-32V2000 )
TO G2 BOARD
CN6202
( KDL -40/46V2000 )
B
TO
TUG BOARD
CN3903
I
TO G1 BOARD
CN6202
( KDL-32V2000 )
TO G2 BOARD
CN6200
( KDL-40/46V2000 )
G
TO
AG BOARD
CN9502
CN1001
Y1
CB1
CR1
L3_1
FB_1(NC)
SEL2_Y/CV
SEL2_C
Y2
CB2
CR2
FB_2
Y3
CB3
CR3
L3-2
V_DET
M_HSYNC
HP_DET
REC_MUTE
SDA_B_5V
SCL_B_5V
SP_MUTE
LINE_MUTE
AU_OPT_OUT_MUTE
HP_MUTE
AU_PROT
RESET_AUDIO
PC_IN_L
PC_IN_R
DVI_L
DVI_R
HDMI_R
CN7009
DIMMER
BACKLIGHT
PANEL_DET
POWER5(NC)
POWER_ON
AC_OFF_DET
CN1004
RES
MD0
TRI-SDA
TRI-SCL
DTTLOG(NC)
BINT
RXD
TXD
VIN
CN1700
TU_I2C_SCL
TU_I2C_SDA
TV_AFT
APC
CN1002
REG18V
UNREG33V
UNREG10.5V
STBY3.3V
CN7008
A9V
D5V
D3.3V
3,16
2,17
5,14
49
47
45
44
43
28
26
42
40
38
36
34
32
30
37
25
24
12
20
23
22
14SP_SD_MUTE
15
18
17
13
21
16
19AC_OFF_DET_AU
11HDMI_L
10
13
15
1,2
7,8
10
3
1
7
5
9
1
2
3
4
6
5
4
6
9
2
4
6
10
4
1
3
4
D1_IN_Y
D1_IN_CB
D1_IN_CR
D1_IN_L3/MODE
D1_IN_SW/FB
D2_IN_Y
D2_IN_CB
D2_IN_CR
D1_IN_L3
D3_IN_Y
D3_IN_CB
D3_IN_CR
D2_IN_L3
STBY3.3V
A9V
D5V
D3.3V
B
D1
X1009
TRIDENT BUS
AD0-AD7
28
11
6
4
MUTE
Q1004
Q5001
BUFFER
Q9006,9009,9010
Q9008
MUTE
STBY3.3V
IC1004
RESET
Q1007
IC5203
1
2
8
IC9000
HDMI DAC
AOUTL
AOUTR
MUTE
CTRL
4
3
4
2
5
DIN
BCLK
LRCK
MCLK
Q5000
BUFFER
IC5202
BUS SW
IC5201
BUS SW
1
2
3
4
AFT
APC
Y/CV,C
SCL_B_5V
SDA_B_5V
Q1002
Q7007,7008
Q7006
Q1006
INV.
INV.
IC1010
9V
REG
IC1006
1.8V
REG
D2
D3
UNREG33V
UNREG10.5V
A9V
STBY3.3V
1.8VCC
Q1005
F7000
PS7000
UNREG10.5V Q7502
IC7001
3.3V
REG
IC7002
1.8V
Q7000
REG
IC7000
PWM CTRL
14
23
VCC OUT2H
25
OUT1
17
OUT2L Q7009
D3.3V
VDDMQ0
VD1_8
6.2V
Q7005
DC ALERT
Q7504-7506
Q7500
Q7001
VD1-8
VL1-8
VA1-8D7010 D7014
IC7005
REG
Q7503
IC7004
REG
PANEL5V
6.2V
D5V
Q1001
LEVEL
SHIFT
IC1007
TEMP SENSOR
SDA_DEVICE
SCL_DEVICE
REG17.5V
D3.3V
D3.3V_2
VDDMQ0
SDA
SCL
1
2
Q1003
IC1001
CPU
138
161
139
123
119
118
61
140
113
101
155
26
62
149
112
81
111
32
71
151
99
100
116
117
77
23
60
163
153
154
ICD
IC
S
21
25
165
128
141
158
133
142
120
121
66
64
A1-A20
D16-D23
18
3019ALE_PX
134
20
122
152
159
164
31
80
156
129
130
76
115
114
24
68
89-92
86-88
94
95
93
108
VBLK
INPUT_V
RESET_TR
IC1009
CLOCK OSC
1
INT1
5
INT2
6
SCL
7
SDA
X1001
IC1002
FLASH ROM
20
A
8
DQ
CE#
IC9711
CS_PX
REC_R_LED
POWER/RESERVE_LED
ON_TIMER_LED
PIC_MUTE_LED
STBY_LED
SENSOR_DET
SIRCS
CH_IRQ
POWER_KEY
KEY
IC1005
EEPROM
5
SDA_A
6
SCL_A
7
NVM_WP
POWER2
3
2
DQ
OE#
WE#
Q9007
8
(MAIN ICON, TRIDENT, DDP, CPU IF, POWER, VIDEO PROCCESSOR, DDR SDRAM,
AUTO WIDE, PC CONNECTOR, HDMI & D/A, POWER SUPPLY FOR TRIDENT,
DDR PANEL 5V & FE 5V, DC ALERT B TO FE, B TO TUNER)
AD0-7
19
17
16
18
15
19
Y/CV
C
IC5000
VIDEO PROCESSOR
Y_G2
PB_B2
PR_R2
FB1
S1
CVBS1
C
Y_G3
PB_B3
PR_B3
FB2
Y_G1
PB_B1
PR_B1
FS2
DPB_VS
DP_VS
RESET
8
AD
WR#
RD#
ALE
CPU_CS
SDO
SCK
WS
AUDIOCLK
INTN
SDA
SCL
TA1P
TA1M
TB1P
TB1M
TC1P
TC1M
TD1P
TD1M
TCLK1P
TCLK1M
XTALI
XTALO
PC_R
PC_G
PC_B
AIN_HS
AIN_VS
RX0+
RX0-
RX1+
RX1-
RX2+
RX2-
RXC+
RXC-
DSDA
DSCL
PWR5V
DREG
DQS
DQM
MVREF
MCK0
MCK0#
MD
MA
X5000
PC_R
IC6001
PC_G
INV.
PC_B
PC_H
PC_V
IC9002
3
6
LEVEL
2
7
SHIFT
MD0-31
MA0-11
DQS0-3
DQM0-3
CKE,WE#,CS#,RAS#
CAS#,BA0,BA1
MVREF
MCLK0
MCLK0#
32
12
Q9003
4
4
7
PC_H
PC_V
5
6
7
IC5500
DDR SDRAM
DQ
A
DQS
DM
VREF
CK
CK
IC9001
EDIT NVM
SDA
SCL
WP
Q9000
Q9004,9005
IC6000
NVM
SCL
SDA
IC1008
BUFFER
WC
Q9001
6
5
7
Q6000,6001
BUFFER
PANEL5V
PS6000
HDMI3.3V
D3.3V
STBY3.3V
5
3
CN1008
CN1007
5,13
28
30
24
26
20
22
12
14
16
18
6
4
1
2,3
15
7
9
4
6
1
3
10
12
16
15
19
18
3
6
5
7
4
8
9
10
2
3
9
8
7
6
12
11
10
14
2
3
4
5
CN5000
RA+
RARB+
RBRC+
RCRD+
RDRCLK+
RCLKDCC
DCC_LUT
DCC1_DCC2
VIN
CN6000
RGB
J6000
AUDIO
CN9000
D0+
D0D1+
D1D2+
D2CLK+
CLKDDC DAT
DDC CLK
HPD
DDC +5V
J9000
REC/RESERVE
PWR/RESERVE
ON_TIMER
PICTURE_OFF
STBY_LED
BL_IN
VD3.3V
SIRCS
STBY3.3V
POWER_INT2
KEY1
CN1003
ICD0
ICD1
ICD2
ICD3
ICS0
ICS1
ICS2
ICLK
XTRST
XRSTIN
XINIT
BREAK
TO
PANEL UNIT
PC IN
HDMI IN
L
AUDIO
R
CN351
3
6
5
7
4
8
9
10
2
CN101
2
3
Q353,354
Q351,352
LED SW
Q356
STBY3.3V
LED
SW
LED
SW
Q355
IC352
4
ILLUM
SENSOR
(LED/SIGNAL
KEY
D355
POWER
D352
PIC OFF
D358
STANDBY
1
IC351
SIRCS
DETECTION)
S106
POWER
S101-S105
S107
(TOP SWITCH)
H4
H1
KDL-32/40/46V2000 (AUS) 2-2
Page 22
(3) TUG Board
TU3900
SCL (TU)
SCL (IF)
SDA (TU)
SDA (IF)
AFT OUT
APC
30V
5V (IF)
5V (TU)
DET OUT
SIF OUT
DE-EmOUT
Q3901
INV.
IC3802
REG.
+10.5V
5, 6
1, 2
5,6
9,10
2
4
6
10
1
1
3
5
CN3903
TU_I2C_SCL
TU_I2C_SDA
TV_AFT
APC
CN3803
6.5V
10.5V
CN3802
33V
10.5V
5V,6V
CN3904
TV_V
QSS(SIF)
FM/AM(MONO)
(NC)
B
C
A
TO
B BOARD
CN1700
TO
B BOARD
CN1701
TO
AG BOARD
CN9702
TUG
(TUNER)
KDL-32/40/46V2000 (AUS) 2-3
Page 23
(4) G1 Board
AC INLET
AC IN(N)
AC IN(L)
CN6102
D6101
D6103
RECT
L6102
IC6301
CONVERTER
5
ZCD
3
MUL
OUT
IS
VCC
COMP
7
4
8
2
D6301
Q6101,6102
DRIVE
D6114
CONVERTER
Q6102
SW.
Q6501
SS
D6501
18V
RLYON
IC6501
DRIVE
1
VSEN
VGH
VS
15
VC1
VGL
2
FB
OCP
23
22
20
16
Q6502
CONVERTER
SW.
Q6503
CONVERTER
SW.
6
3
T6501
PH6501
MAIN FB
D6401
15
16
D6406
13
12
D6402
D6403
11
9
D6404
D6405
9 - 12
1, 2
7, 8
13,14
11
4
3
2
5
CN6203
REG18V
RLYON
ACOFFDET
POWERON
CN6202
UNREG15V
UNREG10.5V
REG18V
UNREG33V
STBY3.3V
TO PANEL UNIT
D
TO
B BOARD
CN7009
( -
6
)
4
AG BOARD
H
CN7503
E
B BOARD
CN1002
TO
TO
1
3
LF6101,6102
F6101
Q6203
RELAY
DRIVE
RY6101
D6132
PH6104
RELAY SENCE
STBY3.3V
D6104
G1
(POWER SUPPLY)
(KDL-32V2000 ONLY)
D6304
D6306
Q6101,6102
OVP
D6502
Q6109
Q6108
IC6104
CONVERTER
VCC
DRAIN
FB
IC6401
Q6201
12
13
D6201
VREF
STBY3.3V
IC6201
VREF
Q6205
INV.
Q6202,6204
PROTECT
STBY3.3V
D6407
D6202
AC OFF DET
POWER ON
D6408
18V
STBY3.3V
PH6101
AC OFF DET
IC6102
VREF
D6129
4
5
2
D6131
PH6103
POWER ON
T6102
1
4
8
5
PH6102
STBY FB
KDL-32/40/46V2000 (AUS) 2-4
Page 24
(5) G2A Board
AC INLET
AC IN(N)
AC IN(L)
CN6001
D6000
D6551
D6553
RECT
L6502
CONVERTER
5
3
IC6502
ZCD
MUL
OUT
IS
VCC
COMP
Q6501,6502
7
DRIVE
4
8
2
D6511
D6506
CONVERTER
Q6500
SW.
Q6504
D6505
D6507
D6504
Q6405
S.S
D6108
18V
RLYON
IC6100
DRIVE
1
VSEN
8
VC1
2
FB
VGH
VGL
OCP
VS
16
15
12
9
CONVERTER
Q6100
SW.
CONVERTER
Q6101
SW.
5
7
5
T6102
T6103
D6200
15
13
D6201
D6207
12
10
D6202
D6208
15
13
18V
9-12
4
3
2
6-10
CN6202
18V
RLYON
ACOFFDET
POWERON
CN6204
18V
TO PANEL UNIT
D
TO
B BOARD
CN7009
1
3
L6000 RY6003
F6000
Q6051
RELAY
DRIVE
PH6000
RELAY
SENCE
STBY3.3V
D6552
G2A
(POWER SUPPLY)
(KDL-40/46V2000 ONLY)
Q6408,6409
SWITCH
PH6401
D6401
Q6401
Q6400
Q6454,6455
IC6401
OVP
IC6301
CONVERTER
4
VCC
5
DRAIN
2
FB
D6452
IC6402
VREF
D6302
D6305
7
PH6100
MAIN FB
PH6402
PFC DET
PH6400
POWER ON
T6301
1
2
3
4
6
8
PH6301
STBY FB
12
10
Q6402
10
9
STBY3.3V
D6306
D6203
D6204
D6205
IC6200
VREF
Q6406
INV.
Q6403,6404
IC6302
VREF
PROTECT
STBY3.3V
D6408
D6402
AC OFF DET
POWER ON
D6407
18V
STBY3.3V
1,2
13,14
7,8
11
5
1
CN6200
UNREG15V
REG18V
UNREG10.5V
UNREG33V
STBY3.3V
CN6417
AC_DET
H
E
TO
AG BOARD
CN7503
TO
B BOARD
CN1002
KDL-32/40/46V2000 (AUS) 2-5
Page 25
2-2. FRAME DIAGRAMS
(1) KDL-32V2000
43
L
R
R
R
R
Y
CB
CR
L
R
R
21
J201
34
12
J9001
J9004
J9301
1
L+
2
L-
3
R-
4
R+
VIN
VCC
GND
J9003
1
1
1
HP_DETHP_DET
123456789
CN7000
4P
CN9521
CN9522
CN9523
CN9700
8P
DTV_Pb
GND
DTV_Y
GND
1
HP_OUT_AU_L
HP_OUT_AU_L
GND
VIDEO IN 2
VIDEO IN
1/3
COMPONENT
INPUT 1
VIDEO OUT
AUDIO
VIDEO
AUDIO
AUDIO
AUDIO
SPEAKER
OPTICAL
OUT
AUDIO OUT
S VIDEO
VIDEO
L/MONO
AUDIO
S VIDEO
VIDEO
L/MONO
L/MONO
VIDEO
L/MONO
H2
HP_OUT_AU_R
AU_IN_GND
AU_IN_GND
HP_OUT_AU_R
GND
DTV_Pr
CN201
V2_IN_S2SW
V2_IN_SSW
V2_IN_SSW
V2_IN_S2SW
CN9001
GND
8765432
15P
V2_IN_AU_L
AU_IN_GND
V2_IN_AU_R
987654321
AU_IN_GND
V2_IN_AU_R
V2_IN_AU_L
15P
CN7503
UNREG15V
UNREG15VNCAU_GND
12345
V2_IN_C
GND
10
1011121314
GND
V2_IN_C
5P
GND
GND
AU_GND
GND
V2_IN_Y
GND
V2_IN_Y
J202
V2_IN_V
1514131211
15
V2_IN_V
AG
GND
SPDIF
TO JIG
321
GND
LOG_RXD
LOG_TXD
CN401
H4 H1
MAIN_UFE
TU3900
30V
5V (TU)
SCL (TU)
SDA (TU)
AS (TU)
RF AGC
CN101
3P
WHT
GND
123
123
GND
CN1007
3P
WHT
POWER INT
POWER_INT
KEY1
KEY1
33V
GND
17.5V
123456789
GND
33V
17.5V
GND
GND
CN1701
12P
10.5V
10.5V
10.5V
10.5V
CN3802
12P
GND
GND
5V/6V
987654321
GND
GND
5V/6V
12345
678910
11 12 13 14 15
CN6000
15P
BLK
5V/6V
GND
GND
101112
121110
GND
GND
5V/6V
PC INPUT HDMI INPUT
AUDIO IN
LRAUDIORGB
J6000
1
J9000
123456789
D2+ED2-
D1+ED1-
CN70021CN70031CN70041CN7005
B
CN4700
20P
M_RST
TV_REC_ON
RESET/DY0
GND
AC_DET/DY1
GND
U2_TX/DY2
GND
U_ACT/DY3
GDN
SPI_STATUS/DY4
GND
U_CE/DY5
GND
U_CLK/DY6
GND
U_DOUT/DY7
GND
U_DIN/DCLK
123456789
1011121314151617181920
GND
101112131415161718
D0+EDO-
CLK+ECLK-
CN9000
19P
CEC
NC
DDC CLK
DDC DATEDDC +5V
19
HPD
NC NC
123456789
UVCC
XTRST
XRSTIN
XINIT
BREAK
ICD3
ICD2
CN1003
14P
ICD1
1011121314
ICD0
ICS2
GND
ICS1
ICS0
ICLK
123456789
GND
TXD
RXD
RES
VIN
MD0
MD1
MD2
TRI-SDA
CN1004
18P
CN351
10P
GND
STBY3.3V
REC/RESERVE
STBY_LED
ON_TIMER
PWR/RESERVE
PICTURE_OFF
BL_IN
VD3.3V
STBY_LED
ON_TIMER
CN1008
10P
GND
GND
BL_IN
PWR/RESERVE
PIC_MUTE_LED
CN1700
TU_I2C_SDA
GND
TU_ISC_SCL
GND
TU_I2C_SDA
TU_I2C_SCL
CN3903
SIRCS
10
10
D3_3V
SIRCS
10P
APC
D3.3V
TV_AGC_M
GND
TV_AFT
GND
987654321
10
987654321
10
NC
APC
GND
GND
TV_AFT
TV_AGC_M
10P
WHT
123456789
123456789
CN1001
49P
WHT
CN7008
9P
CN3904
6P
GND
STBY3.3V
REC/RESEAVE
49
N.C
1
Y1
48
GND
2
GND
47
N.C
3
CB1
46
GND
4
GND
45
N.C
5
CR1
44
L3_1
6
L3_1
43
N.C
7
N.C.
42
Y2
8
Y2
41
GND
9
GND
40
CB2
10
CB2
39
GND
11
GND
38
CR2
12
CR2
37
L3_2
13
L3_2
36
N.C.
14
N.C.
35
N.C.
15
N.C.
34
Y3
16
Y3
33
GND
17
GND
32
CB3
18
CB3
31
GND
19
GND
30
CR3
20
CR3
29
GND
21
GND
28
SEL2_Y
22
SEL2_Y
27
GND
23
GND
26
SEL2_C
24
CN9501
49P
WHT
AC_OFF_DET_AU
AU_OPT_OUT_MUTE
CN9502
9P
CN9702
6P
CN9701
20P
GND
DTV_R
GND
DTV_L
GND
DTV_CVBS/Y
GND
DTV_C
GND
DTV_SUBPr
GND
N.C
GND
N.C
GND
N.C
GND
N.C
987654321
2019181716151413121110
V_DET
M_HSYNC
SDA_B_5V
SCL_B_5V
AU_PROT
REC_MUTE
LINE_MUTE
RESET_AUDIO
SP_MUTE
SP_SD_MUTE
HP_MUTE
HP_DET
HDMI_L
AU_GND
HDMI_R
AU_GND
DVI_L
AU_GND
DVI_R
AU_GND
PC_IN_L
AU_GND
PC_IN_R
A9V
GND
D5V
D3.3V
GND
GND
DTT_LOG
AV_MOUSE
GND
TV_V
GND
QSS(SIF)
GND
FM_AM(MONO)
GND
25
25
24
26
23
27
22
28
21
29
20
30
19
31
18
32
17
33
16
34
15
35
14
36
13
37
12
38
11
39
10
40
9
41
8
42
7
43
6
44
5
45
4
46
3
47
2
48
1
49
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
1
1
2
2
3
3
4
4
5
5
6
6
SEL2_C
V_DET
M_HSYNC
SDA_B_5V
SCL_B_5V
AU_PROT
REC_MUTE
AC_OFF_DET_AU
LINE_MUTE
AU_OPT_OUT_MUTE
RESET_AUDIO
SP_MUTE
SP_SD_MUTE
HP_MUTE
HP_DET
HDMI_L
AU_GND
HDMI_R
AU_GND
DVI_L
AU_GND
DVI_R
AU_GND
PC_IN_L
AU_GND
PC_IN_R
A9V
GND
D5V
D3.3V
GND
GND
DTT_LOG
AV_MOUSE
GND
TV_V
GND
QSS(SIF)
GND
FM/AM(MONO)
GND
3P
CN400
J
3P
LOG_RXD
LOG_TXD
101112131415161718
VIN
RXD
TXD
B INT
DTTLOG
TRI-SCL
TRI-GND
NC(P-RES)
CN5000
30P
CN7009
7P
CN1002
10P
GND
321
GND
DCC1_DCC2
DCC_LUT
BACKLIGHT
PANEL_DET
AC_OFF_DET
POWER_ON
UNREG33V
UNREG10.5V
UNREG10.5V
STBY3.3V
NC/RE+
NC/RE-
RCLK+
RCLK-
DIMMER
POWER5
REG18V
REG18V
VIN
VIN
VIN
DCC
GND
GND
GND
RD+
VIN
RD-
VIN
GND
GND
RC+
GND
RC-
GND
RB+
GND
RB-
RA+
GND
RA-
GND
GND
GND
GND
GND
NC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
TO PANEL UNIT
TO PANEL UNIT
AC INLET
1
VIF
5V (IF)
987654321
1413121110
GND
GND
GND
GND
AU_GND
AU_GND
STBY3.3V
UNREG15V
UNREG15V
UNREG10.5V
AC-N
AC-L
EARTH
EARTH
CN6102
3P
WHT
CN6201
CN6101
CN6202
14P
G1
REG 18V
REG 18V
1
3
1
1
UNREG10.5V
CN6203
REG 18V
REG 18V
GND
101112
TO
PANEL
UNIT
UNREG33V
12P
GND
REG18V
REG18V
TUG
GND
POWER ON
PFC DET
RLY ON
GND
GND
123456789
AFT OUT
DET OUT
GND
SCL (IF)
SDA (IF)
AS (IF)
APC
NC
NC
SIF OUT
DE-Em OUT
NC
NC
NC
CN3803
10.5V
2
10.5V
3
GND
4
8P
GND
5
6.5V
6
6.5V
7
GND
8
GND
KDL-32/40/46V2000 (AUS) 2-6
Page 26
(2) KDL-40/46V2000
43
L
R
R
R
R
Y
CB
CR
L
R
R
21
J201
34
12
J9001
J9004
J9301
1
L+
2
L-
3
R-
4
R+
VIN
VCC
GND
J9003
1
1
1
VIDEO IN 2
VIDEO IN
1/3
COMPONENT
INPUT 1
VIDEO OUT
AUDIO
VIDEO
AUDIO
AUDIO
AUDIO
SPEAKER
OPTICAL
OUT
AUDIO OUT
S VIDEO
VIDEO
L/MONO
AUDIO
S VIDEO
VIDEO
L/MONO
L/MONO
VIDEO
L/MONO
(KDL-40V2000)
H2
(KDL-46V2000)
H46
CN201
15P
V2_IN_C
GND
V2_IN_AU_L
AU_IN_GND
V2_IN_AU_R
V2_IN_S2SW
V2_IN_SSW
HP_OUT_AU_R
AU_IN_GND
HP_OUT_AU_L
HP_DETHP_DET
123456789
CN7000
4P
CN9521
CN9522
CN9523
CN9700
8P
DTV_Pb
GND
DTV_Y
GND
1
HP_OUT_AU_L
GND
AU_IN_GND
HP_OUT_AU_R
GND
DTV_Pr
V2_IN_SSW
V2_IN_S2SW
CN9001
GND
8765432
987654321
AU_IN_GND
V2_IN_AU_R
V2_IN_AU_L
15P
CN7503
UNREG15V
UNREG15VNCAU_GND
12345
10
1011121314
GND
V2_IN_C
5P
GND
GND
AU_GND
GND
V2_IN_Y
GND
V2_IN_Y
J202
V2_IN_V
1514131211
15
V2_IN_V
AG
GND
SPDIF
TO JIG
321
GND
LOG_RXD
LOG_TXD
CN401
H4 H1
MAIN_UFE
TU3900
30V
5V (TU)
SCL (TU)
SDA (TU)
AS (TU)
RF AGC
CN101
3P
WHT
GND
123
123
GND
CN1007
3P
WHT
POWER INT
POWER_INT
KEY1
KEY1
33V
GND
17.5V
123456789
GND
33V
17.5V
GND
GND
CN1701
12P
10.5V
10.5V
10.5V
10.5V
CN3802
12P
GND
GND
5V/6V
987654321
GND
GND
5V/6V
12345
678910
11 12 13 14 15
CN6000
15P
BLK
5V/6V
GND
GND
101112
121110
GND
GND
5V/6V
PC INPUT HDMI INPUT
AUDIO IN
LRAUDIORGB
J6000
1
J9000
123456789
D2+ED2-
D1+ED1-
CN70021CN70031CN70041CN7005
B
CN4700
20P
M_RST
TV_REC_ON
RESET/DY0
GND
AC_DET/DY1
GND
U2_TX/DY2
GND
U_ACT/DY3
GDN
SPI_STATUS/DY4
GND
U_CE/DY5
GND
U_CLK/DY6
GND
U_DOUT/DY7
GND
U_DIN/DCLK
123456789
1011121314151617181920
GND
101112131415161718
D0+EDO-
CLK+ECLK-
CN9000
19P
CEC
NC
DDC CLK
DDC DATEDDC +5V
19
HPD
NC NC
123456789
UVCC
XTRST
XRSTIN
XINIT
BREAK
ICD3
ICD2
CN1003
14P
ICD1
1011121314
ICD0
ICS2
GND
ICS1
ICS0
ICLK
123456789
GND
TXD
RXD
RES
VIN
MD0
MD1
MD2
TRI-SDA
CN1004
18P
CN351
10P
GND
STBY3.3V
REC/RESERVE
STBY_LED
ON_TIMER
PWR/RESERVE
PICTURE_OFF
BL_IN
VD3.3V
STBY_LED
ON_TIMER
CN1008
10P
GND
GND
BL_IN
PWR/RESERVE
PIC_MUTE_LED
CN1700
TU_I2C_SDA
GND
TU_ISC_SCL
GND
TU_I2C_SDA
TU_I2C_SCL
CN3903
SIRCS
10
10
D3_3V
SIRCS
10P
APC
D3.3V
TV_AGC_M
GND
TV_AFT
GND
987654321
10
987654321
10
NC
APC
GND
GND
TV_AFT
TV_AGC_M
10P
WHT
123456789
123456789
CN1001
49P
WHT
CN7008
9P
CN3904
6P
GND
STBY3.3V
REC/RESEAVE
49
N.C
1
Y1
48
GND
2
GND
47
N.C
3
CB1
46
GND
4
GND
45
N.C
5
CR1
44
L3_1
6
L3_1
43
N.C
7
N.C.
42
Y2
8
Y2
41
GND
9
GND
40
CB2
10
CB2
39
GND
11
GND
38
CR2
12
CR2
37
L3_2
13
L3_2
36
N.C.
14
N.C.
35
N.C.
15
N.C.
34
Y3
16
Y3
33
GND
17
GND
32
CB3
18
CB3
31
GND
19
GND
30
CR3
20
CR3
29
GND
21
GND
28
SEL2_Y
22
SEL2_Y
27
GND
23
GND
26
SEL2_C
24
CN9501
49P
WHT
AC_OFF_DET_AU
AU_OPT_OUT_MUTE
CN9502
9P
CN9702
6P
CN9701
20P
GND
DTV_R
GND
DTV_L
GND
DTV_CVBS/Y
GND
DTV_C
GND
DTV_SUBPr
GND
N.C
GND
N.C
GND
N.C
GND
N.C
987654321
2019181716151413121110
V_DET
M_HSYNC
SDA_B_5V
SCL_B_5V
AU_PROT
REC_MUTE
LINE_MUTE
RESET_AUDIO
SP_MUTE
SP_SD_MUTE
HP_MUTE
HP_DET
HDMI_L
AU_GND
HDMI_R
AU_GND
DVI_L
AU_GND
DVI_R
AU_GND
PC_IN_L
AU_GND
PC_IN_R
A9V
GND
D5V
D3.3V
GND
GND
DTT_LOG
AV_MOUSE
GND
TV_V
GND
QSS(SIF)
GND
FM_AM(MONO)
GND
25
25
24
26
23
27
22
28
21
29
20
30
19
31
18
32
17
33
16
34
15
35
14
36
13
37
12
38
11
39
10
40
9
41
8
42
7
43
6
44
5
45
4
46
3
47
2
48
1
49
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
1
1
2
2
3
3
4
4
5
5
6
6
SEL2_C
V_DET
M_HSYNC
SDA_B_5V
SCL_B_5V
AU_PROT
REC_MUTE
AC_OFF_DET_AU
LINE_MUTE
AU_OPT_OUT_MUTE
RESET_AUDIO
SP_MUTE
SP_SD_MUTE
HP_MUTE
HP_DET
HDMI_L
AU_GND
HDMI_R
AU_GND
DVI_L
AU_GND
DVI_R
AU_GND
PC_IN_L
AU_GND
PC_IN_R
A9V
GND
D5V
D3.3V
GND
GND
DTT_LOG
AV_MOUSE
GND
TV_V
GND
QSS(SIF)
GND
FM/AM(MONO)
GND
3P
CN400
J
3P
LOG_RXD
LOG_TXD
101112131415161718
VIN
RXD
TXD
B INT
DTTLOG
TRI-SCL
TRI-GND
NC(P-RES)
CN5000
30P
CN7009
7P
CN1002
10P
GND
321
GND
DCC1_DCC2
DCC_LUT
BACKLIGHT
PANEL_DET
AC_OFF_DET
POWER_ON
UNREG33V
UNREG10.5V
UNREG10.5V
STBY3.3V
NC/RE+
NC/RE-
RCLK+
RCLK-
DIMMER
POWER5
REG18V
REG18V
VIN
VIN
VIN
DCC
GND
GND
GND
RD+
VIN
RD-
VIN
GND
GND
RC+
GND
RC-
GND
RB+
GND
RB-
RA+
GND
RA-
GND
GND
GND
GND
GND
NC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
TO PANEL UNIT
TO PANEL UNIT
AC INLET
1
3
1
AC IN<N>
AC IN<L>
EARTH
CN6001
3P
WHT
CN6000
GND
AU_GND
AU_GND
STBY3.3V
UNREG15V
UNREG15V
UNREG10.5V
CN6200
14P
G2A
CN6202
12P
GND
POWER ON
PFC DET
RLY ON
GND
GND
GND
123456789
TO
PANEL
UNIT
987654321
GND
GND
UNREG10.5V
18V
18V
GND
101112
GND
UNREG33V
18V
18V
REG18V
1413121110
REG18V
CN6217
3P
AC-DET
N.C
CN6204
10P
GND
321
1
VIF
5V (IF)
AFT OUT
DET OUT
GND
SCL (IF)
SDA (IF)
AS (IF)
APC
1
GND
2
GND
3
GND
4
GND
5
GND
NC
6
18V
7
18V
8
18V
9
18V
10
18V
TUG
NC
NC
SIF OUT
DE-Em OUT
NC
NC
NC
CN3803
10.5V
2
10.5V
3
GND
4
8P
GND
5
6.5V
6
6.5V
7
GND
8
GND
KDL-32/40/46V2000 (AUS) 2-7
Page 27
2-3. CIRCUIT BOARDS LOCATION
G
D
S
B1 E1
C2
B2 C1
E2
2
3
4
5
6
7
8
9
0
!¡
!™
!¢
!§
!¶
!•
–
1
G
D
S
B2 E2
C1
B1 C2
E1
B2 E2
C1
B1 C2
E1
B2 E2
C1
B1 C2
E1
!ª
B1 E1
E2
C1(B2)
C2
@º
B1
E2
C1
C2
@™
@£
(B2)
E1
(B2)
E1
E2
B1
C2
C1
@¡
B1
E1
C2
B2
C1
E2
G
S
S
D
G
D
B1
E1
C2
B2
C1
E2
B1
E2
C2C1(B2)
E2
B1
C1
C2E1(B2)
C2
B1
C1
E2E1(B2)
C2
B1
C1
E2
B2
E1
C2
Ver.1.6
Transistor
(FET)
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Discrete semiconductot
(Chip semiconductors that are not actually used are included.)
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Source
Source
Anode
Anode
(NC)
(NC)
Cathode
Anode
Cathode
Common
Cathode
Cathode
Common
Cathode
Cathode
Common
Common
Common
Common
Cathode
Anode
Base
Emitter
Collector
Base
Emitter
Collector
Drain
Gate
Gate
Drain
Device Printed symbol Terminal name
Circuit
Terminal name of semiconductors in silk screen
printed circuit ( )
Anode
Anode
Anode Cathode
Anode Anode
Cathode
!£
Transistor
(FET)
Transistor
(FET)
!∞
Emitter
Collector
Base
Transistor
Source
Gate
Drain
Cathode
Anode
Anode
Cathode
Anode
Anode
*
TUG Board
J Board
H2 Board (KDL-32/40V2000)
H46 Board (KDL-46V2000)
AG Board
H1 Board
B Board
G1 Board (KDL-32V2000)
G2A Board (KDL-40/46V2000)
H4 Board
2-4. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS
Note:
• Schematic diagrams and printed wiring boards of the specified boards for
board replacement service are not included in this section.
See Appendix of this manual if you need them.
• All capacitors are in µF unless otherwise noted. (pF: µµF)
Capacitors without voltage indication are all 50 V.
• Indication of resistance, which does not have one for rating electrical
power, is as follows.
Pitch: 5 mm
Rating electrical power 1/4 W (CHIP : 1/10 W)
• All resistors are in ohms.
• : nonflammable resistor.
• : fusible resistor.
• : internal component.
• : panel designation, and adjustment for repair.
• All variable and adjustable resistors have characteristic curve B, unless
otherwise noted.
• : earth-ground.
• : earth-chassis.
• When replacing the part in below table, be sure to perform the related
adjustment.
• All voltages are in V.
• Readings are taken with a 10 MΩ digital multimeter.
• Readings are taken with a color-bar signal input.
• Voltage variations may be noted due to normal production tolerances.
•
•
• Circled numbers are waveform references.
•
•
• : Signal path.
Note: The components identified by shading and
Note: The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
: Names and values of parts depend on models.
*
: Can not be measured.
*
:B + bus.
:B – bus.
mark ! are critical for safety. Replace only
with part number specified.
KDL-32/40/46V2000 (AUS) 2-8
Page 28
(1) AG Board (1/2-2/2)
1
A
B
VideoInput1
VideoInput3
C
D
ComponentInput1
*J9004
XX
GRN
1
J9301
2
BLU
3
4
RED
5
6
WHT
7
8
RED
9
10
GRN
11
12
BLU
13
14
RED
15
16
WHT
17
18
RED
19
20
*J9002
V
L
R9330
0
CHIP
R
1608
E
ComponentInput1
F
ComponentInput2
G
H
I
J
K
Video OUT
L
VD9303
VD9304
VD9305
J9001
C9312
C9314
100
16V
R6030
C6018
4.7k
2.2
1/10W
16V
RN-CP
C
5%
2012
1608
1k
R6031
XX
5%
C6023
100
10V
2SC3052EF-T1-LEF
R6032
1M
1/10W
RN-CP
5%
TV_R_GA
002:8F
TV_L_GA
002:8F
V_AVSW
001:12A
13
R6033
4.7k
1/10W
RN-CP
R6051
5%
1M
1608
2SC3052EF-T1-LEF
Q6008
C6020
0.22
16V
B
1608
Q6007
R6034
R6037
1/10W
RN-CP
1410
D3.3V
C6015
C6017
0.1
47
16V
16V
B
1608
0
M_HSYNC
TO B
1511
1612
TO B
N.C
1
GND
1k
5%
V_DET
C6022
TO B
D1_IN_CB,D1_IN_CR,D1_IN_Y
4.7
6.3V
B
2012
D2_IN_CB,D2_IN_CR,D2_IN_Y
DigUC:39K
AnaCM:27K
GA :12K
GAHFR:8.2K
KOREA:6.8K
001:6D
D1_IN_Y
D1_IN_CB
D1_IN_CR
001:6E;002:4H
D2_IN_Y
D2_IN_CB
D2_IN_CR
001:12H
SEL2_C,SEL2_Y/CV
AC_OFF_DET_AU
001:10L;002:11F;002:11G;002:13K;002:16I
RESET_AUDIO
SP_SD_MUTE
V_DET
001:9H;002:4G;003:12H
001:14C
M_HSYNC
R9501
001:9H;002:4G;003:12H
001:14B
SDA_B_5V
R9502
002:17C
SCL_B_5V
001:10L
AU_PROT
REC_MUTE
LINE_MUTE
002:13K
002:5H
SP_MUTE
002:11G
002:11F
HP_MUTE
002:16I
HP_DET
001:8D
HDMI_L
002:5B
HDMI_R
002:5C
DVI_L
002:7D
DVI_R
002:7D
PC_IN_L
002:7D
PC_IN_R
002:7D
D5V
D3.3V
D3.3V
C9501
1000p
25V
1608
SEL2_Y/CV
SEL2_C
A9V
D5V
CH
0CHIP
CHIP
0
JL9506
C9503
C9504
A9V
JL9501
JL9502
JL9503
C9502
1000p
25V
1608
2
N.C
3
GND
4
N.C
5
JL9507
L3_1/MODE_1
6
N.C
7
Y2/G2
8
GND
9
CB2/B2
10
GND
11
CR2/R2
12
JL9509
L3_2/MODE_2
13
JL9510
N.C./FB_2
14
N.C./AVLINK(AEP)
15
Y3
16
GND
17
CB3
18
GND
19
CR3
20
GND
21
SEL2_Y/CV
22
GND
23
SEL2_C
24
V_DET
25
M_HSYNC
26
XX
XX
CH
JL9511
L9503
0uH
L9504
0uH
L95050uH
R9506
12k
RN-CP
1/10W
0.5%
1608
SDA_B_5V
27
SCL_B_5V
28
AU_PROT
29
REC_MUTE/TV_L(AEP)
30
AC_OFF_DET_AU/TV_R_(AEP)
31
LINE_MUTE
32
AU_OPT_OUT_MUTE
33
RESET_AUDIO
34
SP_MUTE
35
SP_SD_MUTE
36
HP_MUTE
37
HP_DET
38
HDMI_L
39
AU_GND
40
HDMI_R
41
AU_GND
42
DVI_L
43
AU_GND
44
DVI_R
45
AU_GND
46
PC_IN_L
47
AU_GND
48
PC_IN_R
49
CN9501
49P
WHT
A9V
1
GND
2
D5V
3
D3.3V
4
GND
5
GND
6
DTT_LOG
7
AV_MOUSE
8
GND
9
CN9502
9P
AG(1/2)
762
*J9003
C9032
1000p
25V
CH
HP_DET
1
HP_OUT_AU_L
2
AU_IN_GND
3
HP_OUT_AU_R
4
V2_IN_SSW
5
V2_IN_S2SW
6
V2_IN_AU_R
7
AU_IN_GND
8
V2_IN_AU_L
9
GND
10
V2_IN_C
11
GND
12
V2_IN_Y
13
GND
14
V2_IN_V
15
FB9003
CN9001
15P
CHIP
G
*R9545
0
*R9546
XX
DDigital
CHIP
1608
RECOUT BUFFER
R9319
2.2k
C9309
10
C9310
10
R9318
REC/MON_OUT_AU_L
47k
R9322
2.2k
Q9301
R9321
2.2k
REC/MON_OUT_AU_R
R9320
47k
R9323
2.2k
Q9302
VIN
VCC
GND
R9150
CHIP
R9151
CHIP
R9152
R9153
R9154
R9155
R9158
0
C9026
*R9549
10k
RN-CP
REC/MON_OUT_CV
8
D3.3V
SPDIF
002:8K
VD9025
VD9026
AU_PRE_GND
0
HP_DET
001:15F
HP_OUT_AU_L
0
HP_OUT_AU_R
JL9005
0 CHIP
V2_IN_SSW
JL9001
0 CHIP
V2_IN_S2SW
JL9007
0 CHIP
V2_IN_AU_R
0 CHIP
0 CHIP
R9156
JL9006
R9086
0
CHIP
R9087
0 CHIP
R9157
0
CHIP
0 CHIP
A9V
*L9506
10uH
XX
*R9548
10k
*Q9308
*R9547
*R9550
XX
470
CHIP
5%
1/10W
1608
1608
1/10W
D1_IN_AU_L,D1_IN_AU_R
SCL_B_5V
IIC
SDA_B_5V
001:4K
001:4K
REC/MON_OUT_AU_L,REC/MON_OUT_AU_R
REC_MON_OUT
R9324
22k
Q9303
R9325
1M
D9305
V2_IN_C
*C9509
0.1
001:5I
Q2003
R2051
R2052
R2053
C9316
C9318
R9555
CHIP
C9311
XX
XX
V2_IN_Y
V2_IN_V
0
Q9304
10
R9333
0
CHIP
R9334
0
CHIP
V2_IN_AU_R
V2_IN_AU_L
D1_IN_AU_L
D1_IN_AU_R
470
470
470
R2050
9
AUOUT_AU_L
002:13J
R9088
220k
C9317
1/10W
XX
RN-CP
5%
AUOUT_AU_R
002:11K
R9089
220k
C9319
1/10W
XX
RN-CP
5%
V2_IN_C,V2_IN_S2SW,V2_IN_SSW,V2_IN_V,V2_IN_Y
001:11E
V2_IN_AU_L,V2_IN_AU_R
001:11F
001:6C
002:8I
001:12H
0.1
A9V_B
A9V
R9328
RN-CP
1/10W
100
R2006
RN-CP
1/10W
100
R2007
47k
Q9305
20
21
22
23
24
25
26
27
28
29
30
31
32
SEL3_AU_L,SEL3_AU_R
AUS_C,AUS_L,AUS_R,AUS_V,AUS_Y
AUS_V
AUS_L
AUS_Y
AUS_R
AUS_C
C2030
100
R9326
47k
Video3
C2040
XX
V3_IN_AU_L,V3_IN_AU_R
V3_IN_AU_L
V3_IN_AU_R
191817161514131211109
C3
RV3Y3LV3V3S-2
S2-3
S-3
V4
LV4
Y4
RV4
C4
S2-4
S-4
LV5
V5
RV5
ADR
SDA
SCL
AGND
DC OUT
001:5J
R9329
10k
001:15E
REC_MUTE
AC_OFF_DET_AU
D9306
A9V
C2011
V3_IN_V
COUT3
XX
A9V
R6001
2.2k
1/10W
RN-CP
5%
L6001
10uH
V2_IN_SSW
SEL3_AU_L
C2013
0.22
16V
1608
2SA1235TP-1EF
001:5C
LOUT3
L2002
22uH
B
C6001
0.1
16V
B
1608
Q6001
V_IN
C6003
100
16V
Video2
V2_IN_Y
V2_IN_C
V2_IN_S2SW
C2041
XX
V2_IN_AU_L
V2_IN_AU_R
C2
RV2Y2LV2
S2-2
AV SW
90HEX
CXA2069Q-TL
IC2001
VCC
LOUT2
VOUT3
ROUT3
YOUT3
43 42 41 40 39 38 37 36 35 34 33
C2016
2012
SEL3_AU_R
C2015
16V
100
R6004
R6010
2.2k
XX
5%
1/10W
1/10W
RN-CP
RN-CP
R6006
XX
1/10W
5%
R6003
RN-CP
0
CHIP
002:3B
R6002
Q6002
100
2SA1235TP-1EF
1/10W
RN-CP
5%
Q6011
2SC3052EF-T1-LEF
R6007
C6026
47k
0.1
1/10W
16V
RN-CP
B
0.5%
1608
R6008
C6006
0.1
16V
B
1608
V2_IN_C,V2_IN_S2SW,V2_IN_SSW,V2_IN_V,V2_IN_Y
001:9D
V2_IN_V
V1_IN_C
V1_IN_SSW
V1_IN_S2SW
001:9D
V2_IN_AU_L,V2_IN_AU_R
87654321
C1
V2
S-1
S2-1
COUT2
TRAP2
ROUT2
V/YOUT2
C2017
1
1
16V
16V
B
B
2012
2SC3052EF-T1-LEF
R6052
22k
C6005
0.022
100
C6009
2.2
16V
C
2012
25V
B
1608
1/10W
RN-CP
0.5%
1608
Video1
V1_IN_C,V1_IN_S2SW,V1_IN_SSW,V1_IN_V,V1_IN_Y
001:5A
C2042
XX
V1_IN_V
V1_IN_Y
001:6B
V1_IN_AU_R
V1_IN_AU_L
V1_IN_AU_L,V1_IN_AU_R
V1
RV1Y1LV1
MUTE
C2018
0.22
1608
R2019
1/10W
RN-CP
R2020
1/10W
RN-CP
SEL2_AU_R
002:5D
SEL2_AU_L
COUT1
VGND
YOUT1
TRAP1
ROUT1
VOUT1
LOUT1
CIN1
BIAS
YIN1
51 50 49 48 47 46 45 44
C2019
C2020
0.22
10
16V
16V
16V
B
B
1608
100
5%
Q2001
Q2002
100
2SC3052EF-T1-LEF
5%
64
RTV
63
TV
62
LTV
61
RV6
60
V6
59
LV6
58
57
56
55
54
53
52
R2037
470
1/10W
RN-CP
5%
AV SW
CXA2069Q I/O list
VideoSystem
TV : AnalogTuner
IN1: Video1
IN2: Video2
IN3: Video3
IN4: DigitalTuner
IN5:
IN6:
OUT1:
OUT2: C-Video
OUT3: VideoOutput
C6013
XX
Q6009
2SC3052EF-T1-LEF
C6007
XX
Q6012
2SC3052EF-T1-LEF
R6013
2.2k
1/10W
RN-CP
5%
R6012
470
1/10W
RN-CP
5%
R6009
4.7k
1/10W
RN-CP
5%
Q6004
2SA1235TP-1EF
C6011
2SA1235TP-1EF
R6017
1M
1/10W
RN-CP
5%
0.1
16V
B
1608
R6039
1/10W
RN-CP
V_AVSW
R6040
0
001:13G
CHIP
1608
330
5%
R6014
C6025
56k
0.1
1/10W
16V
B
RN-CP
0.5%
1608
1608
Q6013
R6020
10k
C6016
1/10W
0.022
RN-CP
25V
0.5%
B
1608
C6014
4700p
50V
B
1608
R6021
4.7k
1/10W
RN-CP
5%
AV SW
R2023
1k
RN-CP
1/10W
C2024
1
16V
B
2012
R2024
1k
RN-CP
1/10W
C2025
1
16V
B
2012
100
R2030
1/10W
C2022
C2021
0.22
R2038
1/10W
RN-CP
XX
10uH
L2003
16V
B
1608
470
5%
D2_IN_AU_L,D2_IN_AU_R
D2_IN_AU_R
001:5H
D2_IN_AU_L
A9V_B
001:9H
A9V
001:16E
SEL2_C,SEL2_Y/CV
C2023
100
16V
SEL2_C
SEL2_Y/CV
AudioSystem
TV : AnalogTuner
IN1: Video1
IN2: Video2
IN3: Video3
IN4: DigitalTuner(RECOUT)
IN5: Component1
IN6: Component2
OUT1:
OUT2: C-Video(to Trident)
OUT3: VideoOutput
R6029
3.9k
1/10W
RN-CP
0.5%
2SC3052EF-T1-LEF
R6026
1k
1/10W
RN-CP
5%
R6028
3.9k
1/10W
RN-CP
0.5%
R6025
2.7k
1/10W
RN-CP
0.5%
C2026
2.2
10V
B
2012
C6027
C6024
1000p
25V
CH
1608
Q6005
R6023
1/10W
RN-CP
1608
D6001
RB501V-40TE-17
C6019
2200p
50V
B
1608
0
0
220
*R9016
1/10W
RN-CP
C9001
C9002
XX
R9041
R9032
220
220
1/10W
1/10W
RN-CP
RN-CP
0.5%
0.5%
R9039
75
1/10W
RN-CP
5%
1608
B
10V
0.47
C9016
R9040
220
1/10W
RN-CP
0.5%
C9014
1
R9342
16V
XX
B
2012
C9015
R9341
1
XX
16V
B
2012
R9033
R9042
220
220
1/10W
1/10W
RN-CP
RN-CP
0.5%
0.5%
C9017
XX
R9340
C9018
R9339
XX
C9322
XX
C9325
XX
R9025
220
1/10W
RN-CP
0.5%
R9067
220
R9017
1/10W
220
RN-CP
1/10W
0.5%
RN-CP
0.5%
*R9026
*R9018
220
220
1/10W
1/10W
RN-CP
RN-CP
0.5%
0.5%
1608
1608
*R9069
*R9027
220
220
220
1/10W
1/10W
RN-CP
RN-CP
0.5%
0.5%
0.5%
1608
1608
1608
*C9006
1
16V
B
2012
MM3Z10VT1
R9338
XX
XX
*C9007
1
16V
B
2012
R9337
XX
XX
MM3Z10VT1
C9008
1
16V
B
2012
R9336
MM3Z10VT1
XX
C9005
1
16V
B
2012
D9004
R9335
XX
MM3Z10VT1
4
R9057
1/10W
MM3Z10VT1
MM3Z10VT1
MM3Z10VT1
MM3Z10VT1
D9012
MM3Z10VT1
MM3Z10VT1
MM3Z10VT1
R9036
R9034
22
22
1/10W
1/10W
RN-CP
RN-CP
5%
5%
D1_IN_CR
D1_IN_CB
*R9035
220
1/10W
RN-CP
0.5%
1608
220
1/10W
RN-CP
0.5%
1608
D2_IN_AU_R
1k
5%
1608
D2_IN_AU_L
1k
5%
1608
D1_IN_AU_R
1k
D1_IN_AU_L
1k
SEL3_AU_L,SEL3_AU_R
D9013
D9014
D9015
D9016
D9017
D9018
R9037
22
1/10W
RN-CP
5%
D1_IN_Y
VD9001
MM3Z10VT1
VD9002
MM3Z10VT1
VD9003
MM3Z10VT1
C9328
C9331
RN-CP
MM3Z10VT1
MM3Z10VT1
C9327
XX
XX
C9330
XX
XX
C9019
2.2
10V
B
2012
C9020
2.2
10V
B
2012
C9021
2.2
10V
B
2012
D9008
MM3Z10VT1
D9009
MM3Z10VT1
C9022
2.2
10V
B
2012
C9023
1
16V
B
XX
2012
C9024
1
16V
XX
B
2012
C9320
XX
C9321
XX
C9323
XX
C9324
XX
*R9070
220
*R9028
1/10W
RN-CP
0.5%
1608
*R9099
1/10W
RN-CP
*D9001
*R9100
1/10W
RN-CP
*D9002
R9101
1/10W
RN-CP
D9003
R9102
1/10W
RN-CP
001:10I
REC/MON_OUT_AU_L,REC/MON_OUT_AU_R
001:8J
3
R9062
220
1/10W
RN-CP
0.5%
43
43
21
21
65
7
R9045
8
0
CHIP
1608
R9019
9
1/10W
10
RN-CP
11
13
12
R9020
470k
14
1/10W
RN-CP
15
16
17
R9046
0
CHIP
18
1608
20
19
R9021
470k
1/10W
RN-CP
R9022
1/10W
RN-CP
R9004
470k
1/10W
RN-CP
R9304
220k
R9331
0
C9313
XX
XX
R9332
0
C9315
XX
XX
R9063
R9029
220
220
1/10W
1/10W
RN-CP
RN-CP
0.5%
0.5%
R9023
0
C9339
470k
470k
R9305
R9306
C9012
XX
XX
CHIP
R9024
C9013
0
C9338
XX
CHIP
XX
R9064
220
1/10W
RN-CP
0.5%
R9030
C9337
XX
CHIP
R9031
C9336
XX
CHIP
R9065
220
1/10W
RN-CP
0.5%
R9009
R9014
220
220
1/10W
1/10W
RN-CP
RN-CP
0.5%
0.5%
R9008
R9066
R9015
220
220
1/10W
1/10W
1/10W
RN-CP
RN-CP
RN-CP
0.5%
0.5%
0.5%
*R9068
220
1/10W
RN-CP
0.5%
1608
*R9012
0
CHIP
C9335
XX
*R9007
470k
1/10W
RN-CP
*R9013
0
CHIP
C9334
*R9006
470k
XX
1/10W
RN-CP
R9010
0
CHIP
C9003
C9333
XX
XX
R9005
470k
1/10W
RN-CP
R9011
0
C9332
CHIP
XX
C9004
C9302
470
REC/MON_OUT_CV
001:8H
REC/MON_OUT_AU_L
REC/MON_OUT_AU_R
R9309
75
XX
XX
5
V1_IN_C,V1_IN_S2SW,V1_IN_SSW,V1_IN_V,V1_IN_Y
100
5%
V1_IN_Y
R9058
100
1/10W
RN-CP
5%
V1_IN_C
R9059
1k
1/10W
RN-CP
5%
V1_IN_S2SW
V1_IN_SSW
V1_IN_V
V1_IN_AU_L
V1_IN_AU_R
V3_IN_V
001:10E
V3_IN_AU_L
V3_IN_AU_R
D1_IN_CB,D1_IN_CR,D1_IN_Y
D2_IN_Y
D2_IN_CB
D2_IN_CR
*R9043
XX
*R9044
*R9038
22
22
*VD9007
MM3Z10VT1
XX
*VD9008
MM3Z10VT1
*VD9009
MM3Z10VT1
D2_IN_AU_L,D2_IN_AU_R
D1_IN_AU_L,D1_IN_AU_R
V1_IN_AU_L,V1_IN_AU_R
001:16C
D2_IN_CB,D2_IN_CR,D2_IN_Y
22
*VD9010
MM3Z10VT1
*VD9011
MM3Z10VT1
*VD9012
MM3Z10VT1
R9060
1k
1/10W
RN-CP
5%
R9061
100
1/10W
RN-CP
5%
R9095
1k
1/10W
RN-CP
5%
R9096
1k
1/10W
RN-CP
5%
R9078
100
1/10W
RN-CP
5%
R9097
1k
1/10W
RN-CP
5%
R9098
1k
1/10W
RN-CP
5%
VD9004
MM3Z10VT1
VD9005
VD9006
C9326
C9329
SEL3_AU_L
SEL3_AU_R
001:11E
V3_IN_AU_L,V3_IN_AU_R
001:16D;002:4H
R9317
XX
Q9306
Q9307
R9316
XX
Opt/Audio Output
VideoInput2
Analog A
GNDterminal
EARTH TERMINAL
E
CN9521
EARTH TERMINAL
E
CN9522
EARTH TERMINAL
E
CN9523
R9312
2.2k
Mount Mecha
Mount Mecha
Mount Mecha
Mount Mecha
Mount Mecha
1
2.2k
R9315
A9521
A9522
A9523
A9525
A9526
TAB (CONTACT)
CN9531
XX
A9V
10uH
L9301
0.1
47
C9308
C9307
410268311
410268311
410268311
410314301
410314301
XX
XX
KDL-32/40/46V2000 (AUS) 2-9
Page 29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
A9V
R7062
1/10W
8.2k
RN-CP
5678
B-IN
B+INGND
BOUTPUT
A+IN
A-IN
R7063
1/10W
8.2k
RN-CP
R7064
10k
1/10W
RN-CP
B
0.1
25V
1608
C7039
AHVSS
AHVSS
SC3_OUOT_L
I2S_DA_IN4
I2S_DA_IN3
RESETQ
C7040
0.1
25V
B
2012
C7041
XX
*FB9700
0uH
*R9705
XX
*C9701
*C9702
XX
*FB9705
0uH
*FB9706
0uH
*R9708
XX
*FB9701
0uH
VCC
AOUTPUT
1234
CAPL_M
SC3_OUT_R
AHVSUP
CAPL_A
SC1_OUT_L
SC1_OUT_R
VREF1
SC2_OUT_L
SC2_OUT_R
DACM_SL
DACM_SR
DACM_SUB
DACM_C
DACM_L
DACM_R
VREF2
DACA_L
DACA_R
242322212019
*R9700
*R9701
*C9700
XX
R9709
XX
5%
*R9710
L7012
AU_PRE_GND
C7042
2200p
50V
B
1608
XX
XX
XX
R9711
XX
5%
Q9700
XX
XX
5%
321
C7043
0.1
16V
B
1608
PC_IN_R
001:15G
PC_IN_L
001:15G
DVI_R
001:15F
DVI_L
001:15F
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
*IC9700
R9716
*R9702
*R9703
*R9706
XX
C7044
47
16V
C7045
2200p
XX
5%
XX
5%
XX
5%
A9V
*L9700
*R9712
XX
C7051
C7052
16V
10
C7053
C7054
C7049B2200p
50V
1608
C7046B2200p
50V
B
1608
XX
C9703
XX
XX
5%
*C9704
XX
*Q9701
XX
654
*C9706
XX
*C9707
XX
1
16V
B
2012
1
16V
B
2012
16V
47
C7057
C7055
0.1
25V
B
1608
16V
10
50V
1608
C7048B2200p
50V
C7056B2200p
50V
1608
50V
1608
C7050B2200p
50V
1608
C7047B2200p
002:4F;002:8E;002:11B
R9713
XX
5%
*R9714
XX
5%
D3.3V
XX
D7003
FIX/VAR_L_IN
002:9J
FIX/VAR_R_IN
002:9K
1608
TV_L_GA
001:13F
TV_R_GA
001:13F
HP_L_IN
002:13H
HP_R_IN
002:13G
AU_+8V
AUS_C,AUS_L,AUS_R,AUS_V,AUS_Y
AUS_L
AUS_R
AUS_C
AUS_V
AUS_Y
*R9717
XX
001:8A
5%
L7005
AU_+8V
10uH
002:4F;002:7H;002:11B
001:9F
SPDIF
2SA1235TP-1EF
5%
D7004
M1MA152WA-T1
5%
RN-CP
1/10W
47k
R7004
Q7007
RT1N441M-TP-1
FIX/VAR_L_IN
002:8F
FIX/VAR_R_IN
002:8F
AU_PRE_GND
Q7005
A
HDMI_L
47k
10k
1/10W
R7045
RN-CP
R7047
R7046
XX
R7048
XX
B
16V
2012
C7035
SC3_IN_R
SC3_IN_L
DVSS
DVSS
C7030
0.1
25V
B
1608
C7028
47
16V
AU_PRE_GND
DTV_CVBS/Y
002:2D
IC7003
NJM4558V-TE2
R7054
47k
1/10W
RN-CP
C7034
10
16V
5%
4.7k
R7050
RN-CP
1/10W
10k
R7056
15k
R7057
15k
R7059
1
C7036
B
1
16V
2012
C7037
10
16V
C7038
46 45 44 43 42 41
ASG
SC4_IN_R
SC4_IN_L
NC
I2S_DA_IN2
DVSS
18171615141312
R7055
100k
1/10W
RN-CP
D7002
002:2E
DTV_L
002:2E
DTV_R
002:2E
DTV_C
*R9704
XX
002:2E
*R9707
XX
C9705
R9715
XX
XX
0.5%
R7061
1/10W
RN-CP
0.5%
4.7k
1/10W
B
16V
1
16V
NC
I2S_CL3
XX
10k
0.5%
RN-CP
2012
B
2012
AGNDC
I2S_WS3
C7024
HDMI_L
001:15F
HDMI_R
001:15F
0
CHIP
R7025
R7028
XX
XX
R7030
B
1
16V
C7021
1
16V
C7018
VREFTOP
SC5_IN_L
I2S_DA_IN1
I2S_DATA_OUT
XX
5%
XX
*Q9702
5%
XX
5%
XX
5%
XX
16V
2012
C7025
16V
2012
HDMI_R
0.5%
RN-CP
1/10W
12k
R7039
0.5%
RN-CP
1/10W
15k
R7040
0.5%
4.7k
R7031
1/10W
RN-CP
4.7k
R7033
1/10W
RN-CP
R7032
15k
1/10W
R7034
15k
1/10W
RN-CP
0.5%
1608
B
1
16V
2012
C7027
B
B
1
16V
2012
C7023
B
0.1
25V
1608
C7020
ASG
SC1_IN_R
SC1_IN_L
MSP4410K-QA-D6-501
I2S_DEL_WS
I2S_DEL_OUT
I2S_DEL_IN
111098765
R7018
0
CHIP
R7019
0
CHIP
L7004
2SC3052EF-T1-LEF
R7035
100k
1/10W
RN-CP
XX
*Q9703
XX
1
B
1
B
R7049
1/10W
RN-CP
AU_PRE_GND
0.5%
5%
10k
1/10W
R7037
RN-CP
10k
R7041
R7038
XX
R7042
XX
B
1
2012
16V
2012
C7033
1
2012
C7029
53 52 51 50 49 48 47
ASG
SC2_IN_R
SC2_IN_L
IC7001
DVSUP
DVSUP
I2S_DEL_WS
C7015
220p
50V
B
1608
Q7002
DTV_SPDIF
TO FE
D5V
R7013
XX
SCL_B_5V
SDA_B_5V
L7002
C7060
1000p
C7011
25V
1608
R9730
47
16V
CH
X7000
18.432MHz
XX
R9731
C7014
XX
C7010
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
470p
50V
1608
0.1
25V
B
SEL2_AU_L
SEL2_AU_R
B
AVSUP
AVSUP
ANA_IN1+
ANA_IN-
ANA_IN2+
TESTEN
XTAL_IN
XTAL_OUT
TP
AUD_CL_OUT
NC
SPDIF_OUT
D_CTR_I/O_1
D_CTR_I/O_0
ADR_SEL
STANDBYQ
FB7004
FB7005
R9732
XX
*FB9702
0uH
*FB9703
0uH
*FB9704
AU_15V
001:11I
001:11I
002:3B
FM/AM
0uH
0uH
*C9708
XX
0uH
1
C7017
64 63 62 61
NC
NC
I2C_CL
NC
*C9709
*R9728
*R9724
XX
5%
JL7003
B
16V
2012
10
16V
C7019
60 59 58 57 56 55 54
AVSS
AVSS
SC5_IN_R
I2S_WS
I2S_CL
I2C_DA
4321
001:15F
RESET_AUDIO
A9V
*L9701
XX
*R9729
XX
*R9725
*R9726
*R9727
XX
5%
*Q9704
TV_V
1
GND
2
QSS(SIF)
3
GND
4
FM_AM(MONO)
5
GND
B
C
D
E
F
G
H
I
J
K
L
CN9702
6P
DTV_Y
DTV_Pb
DTV_Pr
*CN9700
XX
SPDIF
DTV_SUBPr
DTV_C
DTV_CVBS/Y
DTV_L
DTV_R
*CN9701
XX
GND
GND
GND
GND
GND
GND
N.C
GND
N.C
GND
N.C
GND
N.C
GND
GND
GND
GND
GND
GND
6
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
DTV_PB,DTV_PR,DTV_Y
DTV_Y
DTV_PB
DTV_PR
DTV_SPDIF
002:6K
DTV_C
002:6I
DTV_CVBS/Y
002:6J
DTV_L
002:6I
DTV_R
002:6I
001:11B
002:4D
002:5D
DTV_PB,DTV_PR,DTV_Y
002:4I
V_IN
QSS
FM/AM
UNREG15V
UNREG15V
NC
AU_GND
AU_GND
CN7503
5P
AU_PRE_GND
2SA1235TP-1EF
C7002
R7002
2SC3052EF-T1-LEF
AU_+8V
1
2
3
4
5
AU_GND
QSS
002:3B
R7021
10k
RN-CP
R7022
Q7001
RN-CP
R7001
1k
R7007
1/10W
47
RN-CP
1/10W
RN-CP
R7003
0
XX
C7006
XX
R7009
XX
XX
Q7000
C7001
XX
C7013
100p
50V
CH
1608
C7004
1.5p
R7011
100k
C7005
R7000
1.5p
0
CHIP
002:7H;002:8E;002:11B
R7012
CHIP
002:2C
DTV_PB,DTV_PR,DTV_Y
DTV_Y
*R9718
XX
1/10W
RN-CP
1608
DTV_PR
*R9719
XX
1/10W
RN-CP
1608
DTV_PB
*R9720
XX
1/10W
RN-CP
1608
10k
5%
RN-CP
1/10W
1k
R7010
C7007
4700p
50V
B
1608
C7012
100p
50V
CH
1608
0
001:9H;001:16E;003:12H
001:9H;001:16E;003:12H
001:6E;001:16D
D2_IN_CB,D2_IN_CR,D2_IN_Y
D2_IN_CB
D2_IN_CR
D2_IN_Y
*R9721
XX
1/10W
RN-CP
1608
*R9722
XX
1/10W
RN-CP
1608
*R9723
XX
1/10W
RN-CP
1608
R7088
1/10W
22k
5%
R7087
1/10W
1M
C7600
C7065
1000p
25V
CH
1608
AU_PRE_GND
C7076
1
25V
2012
2SC3052EF-T1-LEF
XX
C7071
100
25V
C7072
2SA1235TP-1EF
R7603
12k
1/10W
RN-CP
0.5%
10
16V
AU_PRE_GND
A9V
A9V
L9606
C7075
1
25V
2012
D7006
MMDL914T1
Q7009
R7604
1/10W
RN-CP
C7603
16V
2012
C7604
16V
2012
CHIP
Q7008
15k
0.5%
1
B
1
B
0
R7102
1/10W
RN-CP
AU_15V
L7011
FB9101
0
0
CHIP
CHIP
C7063
1000p
25V
CH
1608
C9512
1000p
25V
CH
R7103
1/10W
RN-CP
25V
5.6k
B
AU_HP9V
CHIP
0
R7112
R7620
1/10W
RN-CP
10k
D7007
5678
1608
R7114
2.2k
1/10W
RN-CP
0.5%
R7113
47k
1/10W
RN-CP
0.5%
2SC3624A-T1L15L16
R7116
2.2k
1/10W
RN-CP
0.5%
R7115
47k
1/10W
RN-CP
0.5%
2SC3624A-T1L15L16
R7111
1/10W
MMDL914T1
RT1N441M-TP-1
Q7011
RT1N441M-TP-1
Q7019
RT1N441M-TP-1
L7013
R7621
1/10W
4.7k
RN-CP
0.5%
VCC
B-IN
B+INGND
BOUTPUT
A+IN
A-IN
AOUTPUT
1234
R7622
1/10W
4.7k
RN-CP
RN-CP
1/10W
0.5%
10k
0.5%
R7623
R7118
1/10W
Q7012
Q7013
47k
5%
Q7010
R7015
47k
1/10W
RN-CP
5%
A9V
C7613
10
16V
1608
B
16V
0.1
C7612
C7614
10
16V
L7006
16V
47
C7073
R7093
47k
5%
1/10W
RN-CP
1/10W
5%
XX
100k
C7078
R7101
A9V
R7105
XX
C7083
0.22
C7082
1000p
2012
25V
CH
1608
10k
C7605
47
16V
R7606
R7605
47k
47k
1/10W
1/10W
RN-CP
RN-CP
5%
5%
IC7601
NJM4558V-TE2
AU_+8V
D7005
MMDL914T1
R7120
0
2.2k
CHIP
5%
R7122
R7119
0
2.2k
1/10W
CHIP
5%
XX
XX
R7123
R7121
AU_15V_M
002:11A;002:16B
R7117
10k
1/10W
RN-CP
SP_SD_MUTE
001:15F
AC_OFF_DET_AU
D7008
001:10L;001:15E;002:11G;002:13K;002:16I
XX
R7014
47k
1/10W
RN-CP
5%
Q7020
RT1N441M-TP-1
R7017
1/10W
RN-CP
D7013
MMDL914T1
R7634
2.2k
1/10W
RN-CP
0.5%
R7632
47k
1/10W
R7641
RN-CP
0.5%
1/10W
RN-CP
Q7603
2SC3624A-T1L15L16
R7635
2.2k
1/10W
LINE_OUT
RN-CP
0.5%
R7633
47k
1/10W
RN-CP
R7642
0.5%
2.2k
1/10W
RN-CP
Q7604
2SC3624A-T1L15L16
C7086
1
25V
2012
R7020
47k
1/10W
RN-CP
5%
C7087
1
25V
2012
10k
5%
2.2k
5%
AUOUT_AU_R
001:10B
5%
PS7001
4A
25V
SP_MUTE
001:15F
AC_OFF_DET_AU
FB9100
0uH
AU_GND
R7124
6.8k
1/10W
RN-CP
0.5%
R7125
6.8k
1/10W
RN-CP
0.5%
R7127
22k
1/10W
RN-CP
0.5%
L7007
10uH
R7130
6.8k
1/10W
RN-CP
0.5%
R7131
6.8k
1/10W
RN-CP
0.5%
2SA1235TP-1EF
D7603
M1MA152WA-T1
R7126
10k
1/10W
RN-CP
0.5%
R7128
180k
1/10W
RN-CP
0.5%
R7129
10k
1/10W
RN-CP
0.5%
Q7609
C7092
1500p
C7094
C7099
1500p
1608
C7089
R7657
1/10W
RN-CP
50V
B
1608
150p
50V
CH
1608
16V
C7091
C7096
1500p
50V
1608
50V
B
10
16V
22k
5%
R7658
1/10W
RN-CP
C7100
0.1
25V
B
C7088
10
2012
16V
C7093
150p
50V
CH
1608
C7095
1500p
50V
B
1608
0.5%
RN-CP
1/10W
100k
R7132
C7101
0.1
25V
B
2012
C7102
C7090
0.1
10
25V
16V
B
2012
C7103
0.1
10
25V
B
2012
RN-CP
1/10W
10k
R7158
0.5%
RN-CP
1/10W
100k
R7133
B
C7097
150p
50V
CH
1608
C7098
150p
50V
CH
1608
C7104
0.1
25V
B
2012
1M
2SC3052EF-T1-LEF
5%
C7062
C7061
1000p
1000p
25V
25V
CH
CH
1608
1608
M61571AFP
IC7007
12345
HBA1
DVDD1
VDA1
DGND1
VSA1
PWM2A1
VSA1
PWM1A1
OUTA1
PWM1B1
6789101112
OUTA1
PWM2B1
VDB1
OP1O
VSB1
IN1
VSB1
STBY/MUTE
OUTB1
MUTEC
SUB
OUTB1
VCOR
13 14 15 16 17 18 19
HBB1
AGND
HBB2
VREF
OUTB2
AVCC
SUB
OUTB2
CLK
VSB2
CLKCTRL
VSB2
IN2
VDB2
OP2O
OUTA2
PWM2B2
OUTA2
PWM1B2
VSA2
PWM1A2
VSA2
PWM2A2
VDA2
DGND2
26252423222120
HBA2DVDD2
R7660
47k
1/10W
RN-CP
5%
XX
C7620
Q7610
R7134
0
CHIP
R7135
0
CHIP
R7136
0
CHIP
R7137
0
CHIP
SUB
SUB
AUOUT_AU_L
A9V
R7661
R7662
47k
1/10W
RN-CP
5%
RT1N441M-TP-1
21
L7008
22uH
C7113
470
25V
2012
25V
1
C7118
C7105
C7114
0.1
100
25V
35V
B
C7109
330p
50V
CH
1608
D7009
P6SMBJ30A-5
C7106
C7115
0.1
100
25V
35V
B
C7110
330p
50V
CH
1608
D7010
P6SMBJ30A-5
C7119
1
25V
2012
C7120
1
25V
2012
D7011
P6SMBJ30A-5
C7111
330p
50V
CH
1608
C7116
C7107
100
0.1
35V
25V
B
2012
D7012
P6SMBJ30A-5
C7112
C7117
C7108
100
0.1
35V
25V
B
2012
C7121
25V
2012
002:7G
HP_R_IN
AU_HP9V
HP_L_IN
002:7G
R7663
10k
1/10W
RN-CP
001:15E
5%
LINE_MUTE
AC_OFF_DET_AU
001:10L;001:15E;002:11F;002:11G;002:16I
D7605
MMDL914T1
52 51 50 49 48
424344454647 41
40 39 38 37 36 35 34
33 32 31 30 29 28 27
001:10B
0
CHIP
Q7611
AU_15V_M
R7138
1/10W
RN-CP
330p
1608
50V
1
R7601
1/10W
RN-CP
R7602
1/10W
RN-CP
18
CH
4.7k
R7600
4.7k
002:11F;002:11A
TO DETECT
C7127
AU_15V_M
1
25V
C7129
XX
B
2012
R7146
R7142
100k
100k
1/10W
1/10W
RN-CP
RN-CP
R7143
100k
1/10W
RN-CP
R7144
100k
1/10W
RN-CP
R7145
100k
1/10W
RN-CP
C7123
1
25V
B
AU_PRE_GND
C7609
4
1
L7009
4
1
L7010
16V
3216
32
10uH
C7124
1
25V
B
3216
C7125
1
25V
B
3216
32
10uH
C7126
1
25V
B
3216
RN-CP
1/10W
3.3k
RN-CP
R7630
1/10W
5%
100k
5%
R7627
R7631
C7617
160k
1/10W
RN-CP
1/10W
R7626
5%
100k
RN-CP
A+INPUT
A-INPUT
HP AMP
5678
BOUTPUT
B-INPUT
B+INPUT GND
R7628
160k
1/10W
RN-CP
5%
RN-CP
1/10W
3.3k
R7629
5%
D7602
M1MA152WA-T1
5%
C7616
100p
50V
CH
1608
1234
AOUTPUT
VCC
C7615
100p
50V
CH
1608
C7618
16V
Q7602
2SA1235TP-1EF
1608
RN-CP
B
C7611
1/10W
16V
10
10k
0.1
16V
R7614
C7610
5%
10
RN-CP
1/10W
0.5%
12k
R7615
5%
R7139
18
1/10W
RN-CP
5%
R7140
18
1/10W
RN-CP
5%
R7141
18
1/10W
RN-CP
5%
C7601
0.1
16V
B
5%
1608
0
CHIP
C7602
0.1
16V
B
5%
1608
R7147
100k
1/10W
RN-CP
FB7000
0uH
FB7001
0uH
FB7002
0uH
FB7003
0uH
47
16V
RN-CP
1/10W
5%
100k
R7639
IC7602
NJM3414AV(TE2)
47
5%
R7636
22k
1/10W
RN-CP
5%
R7637
1M
1/10W
RN-CP
5%
Q7014
C7128
2SA1235TP-1EF
1
25V
B
C7130
XX
2012
Q7015
2SA1235TP-1EF
C7135
XX
C7136
XX
P_GND
R7644
220
1/10W
RN-CP
R7645
XX
5%
5%
R7646
220
1/10W
RN-CP
R7647
XX
5%
RN-CP
5%
1/10W
100k
R7643
C7619
0.1
25V
B
1608
Q7605
2SC3052EF-T1-LEF
MM3Z11VT1
2SA1235TP-1EF
Q7017
2SA1235TP-1EF
C7143
XX
1
2
3
4
C7144
XX
R7651
0
CHIP
2SC3624A-T1L15L16
R7648
XX
R7652
0
Q7607
CHIP
2SC3624A-T1L15L16
R7649
XX
A9V
R7653
CHIP
R7650
47k
R7654
1/10W
47k
RN-CP
1/10W
5%
RN-CP
5%
RT1N441M-TP-1
D7001
Q7016
R7066
6.8k
1/10W
RN-CP
2SC3052EF-T1-LEF
CN7000
4P
L+
L-
R-
R+
AU_PRE_GND
Q7606
R7655
4.7k
1/10W
RN-CP
5%
R7656
4.7k
1/10W
RN-CP
5%
0
Q7608
A9V
R7067
10k
C7064
1/10W
1000p
RN-CP
25V
CH
1608
R7154
100k
1/10W
RN-CP
Q7021
RT1N141M-TP-1
Q7022
R7155
RT1N141M-TP-1
0
CHIP
Q7018
R7152
10k
1/10W
RN-CP
R7153
1/10W
RN-CP
100k
P_GND
C7147
C7148
R7156
0.1
1
47k
16V
25V
1/10W
B
B
RN-CP
1608
2012
E
CN7001
E
CN7002
R7682
0
CHIP
1608
R7683
0
CHIP
1608
R7684
0
CHIP
1608
HP_OUT_AU_R
001:8D
HP_OUT_AU_L
001:8D
HP_OUT
R7659
10k
1/10W
RN-CP
001:15F
HP_MUTE
AC_OFF_DET_AU
5%
D7604
001:10L;001:15E;002:11F;002:11G;002:13K
MMDL914T1
AU_PROT
001:15E
AG(2/2)
KDL-32/40/46V2000 (AUS) 2-10
Page 30
AG
Text Search
[AV SW, AUDIO AMP, INPUT TERMINAL]
— AG BOARD —
AG BOARD (A)
A
B
C
D
E
F
G
H
J
CN9522
A9525
A9521
AG
1-870-445-21
A-1182-675-A
A9526
A9522
CN9521
CN9502
19
JL9503
L9505
L9504
L9503
JL9502
C9502
C9501
JL9501
R9546R9545
CN9531
A
D9014
C9020
R9058
R9039
333231302928272625242322212019181716151413121110987654321
R9501
C9503
Q6012Q6011
C6026
R6007
C6027
R6008
C6006
C6005
L6001
C9016
R9059
D9015
R9060
C6003
C6001
R6009
C6009
R6001
R6052
Q6004
C6016
Q6013
R6013 R6012
C6014
R6021
R6017
R6002
Q6002Q6001
C9321
V1
J9001
L2 V2
R1 L1
R2
R6051
C6019
C9323
VD9001
C6018
R6010
C6024
R6006
D6001
VD9003
R9015
R9025
R6030
C6013
R9065
R9009
R9014
R9017
Q6009
R9034
R6031
C9322
C9325
R6032
R9008
R9066
R9067
C6020
Q6007
R6039
R6033
R6034
C6022
R6040
C6015
Q6008
C6017
R6037
J9004
R6020
C9320
R6014
R6025
C6011
VD9005
R9036
R6028
R6003
C6025
Q6005
C6007
R9037
VD9006
VD9004
V
R6029
R6004
VD9002
C9324
J9301
RL
J9002
JL9511
49
48
CN9501
C9504
JL9506
R9502
VD9008
R9026
R9027
C9327
R9043
C9330
JL9509
1
2
JL9507
JL9510
VD9011
C9326
C9328
C9331
Q9302
R9321
R9320
C9310
J9003
R9038
C9708
VD9007
C9302
R9323
R9315
C9307
R9070
R9035
R9028
R9316
Q9307
VD9010
R9322
C9308
R9726
R9728
Q9703
Q9301
Q9704
R9729
CN9523
R9721
R9725
Q9702
FB9702
R9718
R9730
R9723
R9724
FB9704
R9720
R9732
R9727
R9722
FB9703
R9731
R9719
R9713
C9032
R9711
FB9701
R9716
C9703
R9709
C9706
C9707
Q9700
R9151
FB9705
CN9702
16
IC9700
R9717
R7684
R9700
R9701
R9703
R9702
R7682
R7683
R7636
R7650
Q7602
R7654
R7653
D7602
R7637
C7617
C7610
R7600
C7618
R7615
C7611
Q7605
C7619
C7073
C7609
R7614
C7044
R7010
C7007
C7020
JL7003
R7030
R7028
C7018
C7017
C7010
C7060
C7012
64 41
65
C7013
R7011
C7005 C7004
80
1
C7014
R7013
FB7005
FB7004
R7012
C7028
R7049
R7061
C7019
R7032
C7021
R7018
L7012
L7002
C7011
X7000
L9606
L7006
A9523
C7024
R7062
R7034
C7023
IC7001
C7043
R7038
C7027
IC7003
85
R7042
C7029
C7015
CN7503
5
R7046
C7033
41
C7038
R7048
C7035
C7025
R7063
R7057
C7036
1
R7054
R7064
C7037
C7039
R7059
24
C7057
D7003
C7053
C7055
40
C7056
C7049
C7050
C7046
25
C7047
R7137
C7045
C7042
R7135
PS7001
FB9100
2
CN9700
8
1
C9709
L9701
L2003
C2023
L2002
R2038
R2037
Q2001
Q2002
C2011
R2020
R2019
C2013
IC2001
C2041
R9555
FB9003
C9026
R9158
R9549
C2015
JL9001
R9312
R9319
R9318
C9309
R9317
Q9306
C2021
C2020
C2018
52
L9301
C2026
R2030
C2022
64
119
C2040
C2042
L9506
R9086
R9087
20
CN9701
1
19
C9705
R9715
R9705
R9704
FB9700
C9700
R9706
R2007
R2006
3351
32
20
JL9005
R9153
R9154
R9157
15 1
CN9001
R9708
FB9706
R9710
R9712
C9704
R9714
R9152
R9707
Q9701
R9150
C7054
R7136
R7134
C7061
CN7001
C7072
D7005
L7007
C7090
C7091
C7083
R7020
C7100
126
R7132
C7101
C7103 C7102
R7158
R7133
C7089 C7088
L7008
CN7002
IC7007
C7104
C7116 C7115
C7113
L7005
C7062
R7138
C7109
C7124
C7125
C7123
L7009
FB7000
C7143
FB7001
C7135
C7136
FB7002
C7144
FB7003
L7010
C7126
C7114
C7118
C7119
C7111 C7110
C7120
C7121
C7117
R7141
R7140 R7139
C7112
27 52
1
CN7000
4
A
B
C
D
E
F
G
H
J
333231302928272625242322212019181716151413121110987654321
AG BOARD (B)
A
B
C
R7156
R7155
R7154
R7067
R7147 R7146R7145 R7144 R7143 R7142
Q7018
C7127
C7128
Q7016
Q7014
Q7015
Q7017
C7148
C7147
C7129
C7130
R7153R7152
D
E
F
G
H
J
Q7022
Q7021
R7066
D7009
D7010
D7011
D7012
R7087
D7004
D7001
Q7005
C7105
C7106
C7107
C7108
R7093
R7088
C7071
Q7008
R7101
D7007
D7013
C7078
R7103
R7111
R7014
Q7010
Q7020
R7017
R7125
R7124
R7131
R7130
R7127
R7128
D7006
Q7009
C7094
C7095
C7092
C7093
C7098
C7099
C7096
C7097
Q7007
Q7011
Q7019
R7117
R7004
R7112
R7015
R7102
R7123
R7105
C7082
D7008
R7121
R7120
R7122
C7087
R7129
R7126
C7063
C7086
C7064
L7011
R7113
R7114
R7116
R7115
Q7013 Q7012
C7076
C7075
<COMPONENT SIDE>
333231302928272625242322212019181716151413121110987654321
R6026
R6023
C6023
VD9009
R9044
C9329
R9018
R9016
R9068
VD9012
R9324
R9329
R9005
R9022
R9069
C9315
R9340
R9030
R9330
R9305
C9313
C9017
C9023
R9306
R9332
C9314
R9309
R9331
VD9305
C9337
R9021
R9097
R9304
VD9303
C9312
VD9304
R9046
D9017
C7034
C7052
C7051
R7056
R7050
R7045
R7037
R7041
R7047
R7623 R7622
C7614
85
C7065
C7600
R7055
R7604
R7603
C7612
C7613
C7030
R7635R7634 R7633R7632
C7605
Q7002
R7019
R7605
41
C7048
C7604
FB9101
C7603
R7606
R7620
C9512
D7002
IC7601
R7621
C7040
C7041
R7119 R7118
R7039
Q7604
Q7603
R7040
R7035
R7001
Q7001
R7003
C7006
R7007
R7033
R7031
R7022
R9102
D9002
R9101
D9001
R9099
D9004
C9007
R9337
R9088
R9335
C9005
D9003
R9338
C9006
R9325
R9089
C9317
C9002
C9008
R9336
R9328
R9333
C9004
C9319
R9098
R9013
C9334
Q9305
Q9304
D9305
C9332
R9011
C9001
D9018
R9334
C9316
C9335
R9012
C9003
R9339
C9018
C9024
D9306
R9006
C9318
R9326
Q9303
VD9025
R9004
R9010
C9333
C9311
R9007
VD9026
R9031
C9336
L9700
C9702
C9701
C7620
D7604
Q7608
R7661
Q7610
R7601
R7602
R7658
D7603
R7657
C7601
C7602
Q7611
D7605
R7626
R7630
R7627
R7629
IC7602
R7663
R7631
C7616
41
85
R7628
C7615
R7659
R7639
R7652
R7649
R7643
R7647
R7644
R7648
R7646
R7645
R7651
Q7607
R7655
Q7606
R7656
JL9007
R9155
R7660
R7662
Q7609
L7004
R9156
R2050
C2016
JL9006
Q2003
R9547
R2051
R9548
R2053
C2017
Q9308
R9550
R2052
C2025
C2024
C2030
C9509
C2019
R2024
R2023
R9100
C7002
R7009
R7025
R7642
R7641
L7013
R7021
R7000
C7001
Q7000
R7002
R9057
D9013
R9078
C9019
D9016
C9022
R9062
R9032
R9042
R9033
R9064
R9041
C9339
R9023
R9061
R9019
C9014
R9040
R9029
R9063
C9012
D9012
C9021
R9342
R9045
R9095
R9024
D9008
R9020
1-870-445-21
A-1182-675-A
C9013
R9341
C9338
C9015
R9096
D9009
AG
R9506
B
A
B
C
D
E
F
G
H
J
333231302928272625242322212019181716151413121110987654321
<CONDUCTOR SIDE>
KDL-32/40/46V2000 (AUS) 2-11
Page 31
(2) B Board (1/12-12/12)
1 4
A
2 5
3 6 9
WAX2 B_BOARD
Page.1 001.sht Table of Contents
7
8
10
11
12
B
C
D
E
Page.2 002.sht MAIN µCON
Page.3 003.sht SVP-PX(1/2)
Page.4 004.sht SVP-PX(2/2)
Page.5 005.sht DDR SDRAM
Page.6 006.sht AUTO WIDE
Page.7 007.sht PC Connector
Page.8 008.sht HDMI & D/A
Page.9 009.sht POWER
Page.10 010.sht DC_ALERT
Page.11 011.sht B TO F/E
Page.12 012.sht B TO TUNER
ref.1001~
ref.5000~
ref.5200~
ref.5500~
ref.5700~
ref.6000~
ref.9000~
ref.7000~
ref.7500~
ref.4700~
ref.1700~
F
G
H
B(1/12)
KDL-32/40/46V2000 (AUS) 2-12
Page 32
L3_1/MODE_1
N.C./FB_1
A
L3_2/MODE_2
N.C./FB_2
N.C./AVLINK(AEP)
B
SEL2_Y/CV
REC_MUTE/TV_L(AEP)
AC_OFF_DET_AU/TV_R_(AEP)
LINE_MUTE
C
AU_OPT_OUT_MUTE
RESET_AUDIO
SP_SD_MUTE
D
*CN1009
E
UNREG10.5V
UNREG10.5V
CN1002
F
FROM G PWB
G
H
I
J
K
L
Y1/G1
CB1/B1
CR1/R1
Y2/G2
CB2/B2
CR2/R2
SEL2_C
V_DET
M_HSYNC
SDA_B_5V
SCL_B_5V
AU_PROT
SP_MUTE
HP_MUTE
HP_DET
HDMI_L
AU_GND
HDMI_R
AU_GND
DVI_L
AU_GND
DVI_R
AU_GND
PC_IN_L
AU_GND
PC_IN_R
CN1001
49P
WHT
STBY3.3V
TILT_DET
XX
5P
REG18V
REG18V
UNREG33V
STBY3.3V
10P
002:16C
CH_IRQ
POWER_KEY
1/16W
3.3k
R1101
PA3/INT3
PA2/INT2
PA1/INT1
D24
VDDI
VSS
AD0
C1024
100
6.3V
AGC
AFT
TUNER_SW
TUNER_CONTROL
C1030
XX
GND
R1047
10k
1/10W
RN-CP
0.5%
R1048
10k
1/10W
RN-CP
0.5%
002:16F
V_BLK
PA0/INT0
D25
AD1
004:3E
AD2
*R1096
NMIX
D26
AD3
C1027
0.1
25V
B
1608
XX
1/10W
RN-CP
R1098
XX
002:2D;009:11F;
009:13L;009:16I
AC_OFF_DET_AU
002:3J;002:4D
8
JL1026
JL1025
VSS
VDDI
D28
D27
AD4
AD5
VDDE
D29
REC_MUTE
P97/SDA4
D30
AD6
AD7
C1029
1000p
50V
B
1608
G
REC_R_LED
002:15E
1/16W
100
R1107
P96/SCL4
P95/SDA3
VDDE
D31
L1002
EMI
1/16W
100
R1108
P94/SCL3
VSS
C1033
1000p
50V
1608
SDA_DEVICE
R1109 1001/16W
B
<< STBY3.3V >>
C1087
0.1
16V
1608
0uH
FL1001
SCL_DEVICE
R1110 1001/16W
P93/SDA2
VDDI
1/16W
22 5%CHIP
R1111
RD#
C1035
0.1
16V
B
1608
AV MOUSE
30 29 28 27 26 25 24 23 22 21 20 19 18 17
IC2
POD1
POD0
POC3
XX
*IC1500
SCLK_0
INT_1
PDD3
PDD2
UPD17240MC-166-5A4-E1-A
*R1100
XX
1/10W
RN-CP
M CS
M CLK
JL1022
JL1061
002:7D
002:10C
MOUSE_CS
MOUSE_CLOCK
S1_OFF
B
002:7J
1/16W
SDA_TUNER
100
R1112
P92/SCL2
P91/SDA1
WR0X/DQMUU
RDX
5%
CHIP
1/16W
JL1013
R1113 22
WR#
VD1101
POC2
SD_I
M MOSI
JL1024
002:7D
002:10C
MOUSE_MOSI
*C1028
XX
50V
B
1608
SDA_EEPROM
SCL_EEPROM
002:7J
1/16W
1/16W
1/16W
SCL_TUNER
100
R1117100
R1119100
R1115
P90/SCL1
P84/SDA0
CS0X/P31
WR1X/DQMUL/P30
CS_PX
002:16J
CS_FRASH
XX
XX
VD1102
POC1
POC0
POB3
REM
POE3
BUSY_0
M BUSY
JL1053
MOUSE_BUSY
CPU&PWROM
MOUSE_CTL
21
GND
LINE_MUTE
P83/SCL0
P82/SCK4
CS4X/P33
CS1X/P32
HDMI_RST
POB2
VDD
*X1002
*R1106
XX
1/10W
RN-CP
5%
1608
9
IC1004
PST3629UL
POWER5
BACKLIGHT
P80/SIN4
P81/SOUT4
IC1001
MB91305
CS6X/P35
CS5X/P34
DCC
MOUSE_RST
POB1
POB0
XIN
XOUT
XX
GND
RESET
OUT
POWER4
AGC
POA3
GND
CVDD
POWER3
P75/SCK3
CS7X/P36
EEPROM_WP
POA2
SYS_RST
3
4
POWER2
P73/SIN3
P74/SOUT3
P40/BGRNTX
RDY/P37
DCC_LUT
R1139
XX
R1132
XX
16
POA1
WDOUT
151413121110987654321
*R1114
CHIP
MOUSE_RST
002:10B
C1036
1
10V
B
1608
POWER2
DTT_BUS_SCK
DTT_BUS_MOSI
DTT_BUS_MISO
XX
XX
*R1138
*R1134
CHIP1/16W
P72/SCK2
P71/SOUT2
SYSCLK/P42
P41/BRQ
AU_PROT
JL1030
JL1080
POA0IC1
*C1038
XX
25V
B
1608
XX
002:8K
XX
*R1142
XX
R1145
CHIP1/16W
P70/SIN2
MCLKE/P43
DTT_BUS_CS
GND
C1037
XX
GND
2.2k
R1144
1/16W
MOUSE_CLOCK
P65/SCK1
MCLK/P44
1/16W
100
R1147
R1146
XX
10
0.5%
RN-CP
C1044
25V
2012
JL1033
R1162
47k
RESET
1/16W
CHIP
5%
HN1B01FU-TE85R
002:8K
DTT_RST
002:13J
ECS_TXD
002:13J
ECS_RXD
AU_OPT_OUT_MUTE
MOUSE_MOSI
XX
R116110k1/16W
R1159
XX
*R1149
1/16W
1/16W
100
100
XX
R1160
R1163
R1006
P63/SIN
P60/SIN0
P62/SCK0
P64/SOUT1
P61/SOUT0
VSS
VDDE
P47/SWRX/WRX
P46/SCASX/BAAX
P45/SRASX/LBAX/ASX
1/16W
R1158100
ALE_PX
002:15E
STBY_LED
POWER1
*L1003
XX
*C1039
XX
6.3V
GND
3.3V 0.03A
1/16W
10k
R1164
1
B
VDDI
VVDI
JL1035
D3.3V
Q1004
VSS
15
R1228
XX
R1235
0
CHIP
C1081
47
6.3V
567
8
A0A1A2GND
VCC
IC1007
O.S.
SCL
SDA
TMP75AIDR
1234
R1225
R1227
47
47
1/16W
CHIP
*D1020
BYTE#
DQ14
DQ13
DQ12
DQ11
DQ10
5%
KEY
C1076
1
10V
B
1608
C1077
*D1021
STBY3.3V
14
8910111213
A16
VSS
DQ7
DQ6
DQ5
DQ4
VCC
DQ3
DQ2
DQ9
DQ1
DQ8
DQ0
OE#
VSS
CE#
A0A1
GND
5%
CHIP
XX
R1241
JL1060
PINT
JL1046
KEY1
XX
R1267
0uH
R1255
R1256
GND
C1084
1000p
GND
25V
CH
1608
0uH
R1257
R1258
0uH
R1259
0uH
0uH
R1260
R1261
0uH
R1262
0uH
R1263
0uH
R1264
0uH
R1265
0uH
R1266
0
CHIP
R1242
1/16W
5%
C1074
0.1
GND
25V
B
1608
XX
CHIP
R1238
CHIP
R1239
0
R1240
220k
1/10W
RN-CP
C1075
2200p
50V
GND
B
1608
48
A17
46
43
40 39 38 374142444547
35 34 33 32 3136
GND
252627282930
1/16W
CHIP
POWER_KEY
MM3Z5V6ST1
0.1
MM3Z5V6ST1
25V
B
C1073
6.3V
22
REC_R_LED
STBY_LED
C1095
ON_TIMER_LED
XX
POWER/RESERVE_LED
PIC_MUTE_LED
SENSOR_DET
R1249
XX
JL1045
R1226
220
1/10W
RN-CP
GND
VCC
1A
4B
1B
4A
1Y
4Y
2A
3B
2B
6543217
3A
2Y
3YGND
IC1008
SN74LV132APWR
*IC1002
1234
A15
A14
A13
DQ15/A-1
A12
5
A11
6
A10
789 1110 12
A9
A8
A19
NC
WE#
RESET#
13 14 15 16 17 18
NC
NC
RY/BY#
A18
A17
A7
19 20 21 22 23 24
A6
A5
A4
A3
A2
100
CHIP
C1078
JL1047
JL1048
SIRCS IRQ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
UVCC
XTRST
XRSTIN
XINIT
BREAK
ICD3
ICD2
ICD1
ICD0
ICS2
ICS1
ICS0
GND
ICLK
*CN1003
SDA_DEVICE
SCL_DEVICE
14P
GND
TXD
RXD
RES
VIN
MD0
MD1
MD2
TRI-SDA
TRI-SCL
TRI-GND
NC(P-RES)
DTTLOG
VIN
B INT
RXD
TXD
GND
CN1004
18P
14
SIRCS
C1070
1608
R1224
25V
JL1043
SIRCS
0
STBY3.3V
B0.01
GND
A16
A15
A14
A13
A12
A11
A10
A9
A20
CHIP
A19
A18
A8
A7
A6
A5
A4
A3
A2
A1
D3.3V
C1071
100p
50V
1608
JL1044
RY/BY#
C1072
1608
CH
GND
R1290
0
CHIP
1005
R1211
10k
5%
1/16W
CHIP
Q1007
RB1007
2
1/16W
470 5%
R1208
0
CHIP
R1212 470
1/16W
GND
GND
0.1
10.5V
10.5V
GND
GND
C1067
C1068
25V
1
2
3
4
STBY3.3V
5%
JL1040
JL1041
C1066
0.1
25V
B
1608
10k
7856341
CHIP
5%CHIP
STBY3.3V
1608
B
1608
B0.1 25V
C1069
*R1295
39k
1/16W
RN-CP
*R1280
*R1281
13
LEVEL SHIFT
R1218
4.7k
1/16W
5%
CHIP
STBY3.3V
10k
RB1008
2
1608
B0.1 25V
CHIPXX
XX
CHIP
10.5V
7856341
JL1042
1
2
3
4
5
6
7
8
9
10
11
12
13
14
XX
R1219
GND
C1101
XX
GND
Q1006
0.1
25V
B
1608
8
567
EEPROM_WP
C1110
0.1
10V
1005
R1252
C1054
1.8VCC
C1056
1608
1608
B
0.1
16V
0.1
16V
R1190
910
1/16W
RN-CP
D1007
1PS302
22k
*R1191
FR_MD2
002:13I
R1188
CHIP
XX
B
B
R1193
10k
1/16W
CHIP
5%
R1199
100 CHIP
C1057
0.1
25V
B
1608
*R1200
*R1202
PANEL_FAIL
LVDS_CONT
R1291
0
SP_SD_MUTE
1.8VCC
C1060
1000p
50V
1608
C1053
10
16V
R1192
1/16W
0.5%
B
C1061
1000p
1608
100
CHIP
*R1203
1/16W
50V
1/16W
5%
CHIP
R1205
XX
B
12
C1064
5%
1608
SCL_EEPROM
C1062
10
16V
C1063
0.1
25V
B
1608
XX
0
DTT_BUS_ST
MIPS_RST_IN
XX
XX
KEY
XX
R1184
XX
R1185
R1186
0
XX
AUDIO_RESET
TUNER_SW
XX
50V
B
SDA_EEPROM
S1_OFF
XX
C1097
AFT
R1195
10k
R1196
R1197
XX
R1198R1187
0
X1001
16.5MHz
002:6E
002:11B
002:11B
R1206
1/16W
CHIP
0
10k
ICD3ICD3
ICD2ICD2
ICD1
ICD0ICD0
004:2E
TRI-SDA
TRI-SCL
004:2E
DTTLOG
B_INT
ECS_RXD
ECS_TXD
C1065
50V
1608
SDA_DEVICE
SCL_DEVICE
TRSTX
XRSTIN
INITX
IBREAK
ICS2ICS2
ICS1ICS1
ICS0ICS0
ICLK
470
R1210
TRSTX
R1207
XRSTIN
INITX
C1089
*CN1020
XX
B
RT1N141M-TP-1
5%
CHIP
1/16W
R1209
0
CHIP
XX
4P
XX
11
5%
ICLK
TRSTX
543
7
8
6
ICD1
ICD0
ICD2
ICS2
ICS1
ICS0
AN9/PF7
AN8/PF6
AN7/PF5
AN6/PF4
AN5/PF3
AN4/PF2
AN3/PF1
AN2/PF0
AN1
AN0
AVSS
AVRH
AVCC
MD3
MD2
MD1
MD0
INTX
VDDI
X1
VSS
X0
VDDE
A23/P57
A22/P56
A21/P55
A20/P54
A19/P53
A18/P52
A17/P51
A16/P50
VDDI
VSS
VDDE
A15
A14
A13
A12
A11
A10
A9
A8A7A6A5A4A3A2A1A0
444342414039383736353433323130292827262524232221201918171615141312111098765432
A8
A7
Q1005
DTA114TUA-T106
12345
10
*A1001
M24256-BWMN6TP(A)
*IC1005
1234
E0
E1
E2
ICD1
ICD2
ICD3
543
7
1
IBREAK
8
2
6
100
RB1006
RB1005
88
1
87
3
86
5
85
7
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
R1250
68
67
66
65
64
63
R1251
1005
62
61
XX
*R1183
60
A20
59
A19
58
A18
57
A17
56
A16
55
54
53
52
A15
51
A14
50
A13
49
A12
48
A11
47
A10
46
45
IC1006
S-1132B18-M5T1
VOUT
VIN
VSS
NCON/OFF
404240802
EEPROM
VCC
NVM_WP
SCL_A
SDA_AGND
ICD0
1
2
100
ICS2
2
ICS1
4
ICS0
6
8
DC_DET
002:5F
SENSOR_DET
002:15E
100R1270
1/16W
CHIP
5%
1005
XX
XX
1/16W
CHIP
A9
10k
R1180
DTC123JUA-T106
GND
R1170
C1052
XX
R1167
10k
1/16W
CHIP
R1168
10k
3
6
1/16W
CHIP
2
5
4
1
5%
C1046
C1050
C1049
C1047
1000p
0.1
1000p
0.1
50V
16V
16V
B
B
B
B
50V
1608
1608
1608
1608
RB1004
100
VDDE
ICLK
ICD3
TRSTX
IBREAK
A6A5A4A3A2
A1
002:12E
FR_MD2
INV_MD0
STBY3.3V
R1169
0
CHIP
C1048
C1051
0.1
B
25V
16V
1608
GND
Mount Mecha
GND
16
0
CHIP
R1247
C1083
0.1
25V
B
1608
GND
GND
Temp Sensor
R1243
100
1/10W5%
KEY/LED/SIRCS
RN-CP
GND
1
POWER_INT
2
0uH
KEY1
3
CN1007
0uH
3P
WHT
GND
1
STBY3.3V
2
REC/RESEAVE
3
STBY_LED
4
ON_TIMER
5
PWR/RESERVE
6
PIC_MUTE_LED
7
BL_IN
8
D3_3V
9
SIRCS
10
CN1008
10P
GND
XX
CH_IRQ
CHIRQ
R1245
R1246
10k
XX
AD7
1/16W
AD6
AD5
16V
10
AD4
C1082
STBY3.3V
C1079
0.1
AD3
16V
B
1608
C1080
1000p
50V
B
AD2
1608
AD1
AD0
RD#
CS_FRASH
002:9H
WR#
D3.3V
FOR H1 PWB
FOR H3 PWB
D23
D22
D21
D20
D19
D18
D17
D16
TRIDENT_BUS
002:8H;004:2C
1
49
R1021
22
48
GND
1/10W
RN-CP
47
R1022
22
46
GND
1/10W
RN-CP
45
R1023
22
1/10W
RN-CP
44
0
CHIP
R1011
43
R1012
CHIP
0
42
R1024
22
41
GND
1/10W
RN-CP
40
R1013
22
39
GND
1/10W
RN-CP
38
R1014
R1025
0
22
37
1/10W
RN-CP
R1015 0
36
35
34
Y3
33
GND
32
CB3
31
GND
30
CR3
29
GND
28
27
GND
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
2
GND
3
GND
4
GND
5
1
2
GND
3
4
GND
5
GND
6
7
8
GND
9
10
FB1007
0uH
JL1001
CHIP
R1001
0
R1026
22
1/10W
RN-CP
R1016
22
1/10W
RN-CP
R1017
22
1/10W
RN-CP
R1018
0
CHIP
0
R1019
R1002
R1078 0
CHIP
1k
R1005
0.5%
R1122
0
CHIP
R1123
0
CHIP
R1124
0
CHIP
R1125
0
GND
CHIP
R1126
XX
*R1201
C1096
XX
CHIP
1005
GND
GND
FB1002
0uH
*C1001
1000p
10.5V
50V
FB1004
B
1608
FB1001
0uH
FB1006
0uH
GND
D1_IN_Y
D1_IN_CB
D1_IN_CR
D1_IN_L3/MODE
D1_IN_SW/FB
CHIP
CHIP
CHIP
CHIP
0
AU_PROT
0uH
R1079
0uH
R1027
0uH
R1080
0uH
R1081
0uH
R1082
0uH
R1083
0uH
R1084
0uH
R1085
1/16W
RN-CP
XX
GND
C1002
2012
XX
*FB1003
0uH
0uH
C1004
0.01
FB1005
50V
0uH
1608
C1003
1000p
50V
B
GND
1608
STBY3.3V
D1
003:4B
D2_IN_Y
D2_IN_CB
D2_IN_CR
D2_IN_L3/MODE
D2_IN_SW/FB
AVLINK
D3_IN_Y
D3_IN_CB
D3_IN_CR
1005
STBY3.3V
TILT_DET
C1090
XX
F
XX
XX
C1103
C1102
2
FROM A PWB
D2
003:3B
D3
002:5A
SEL2_C&Y/C
003:2C
Y/CV
C
V_DET
M_HSYNC
REC_MUTE
AC_OFF_DET_AU
009:11F;009:13L;
LINE_MUTE
009:16I;009:9B
AU_OPT_OUT_MUTE
AUDIO_RESET
SP_MUTE
SP_SD_MUTE
HP_MUTE
HP_DET
HDMI_L
HDMI_R
DVI_L
DVI_R
PC_IN_L
PC_IN_R
REG17.5V
UNREG33V
UNREG10.5V
R1031
47k
1/10W
RN-CP
0.5%
XX
C1104
R1070
C1091
0
47
16V
CHIP
S1_OFF
DIMMER
BACKLIGHT
PANEL_FAIL
LINE_MUTE
AUDIO_RESET
HP_MUTE
SP_MUTE
DC_ALERT1
DC_ALERT2
DC_ALERT3
POWER1
POWER2
POWER3
POWER4
POWER5
R1034
4.7k
1/10W
RN-CP
0.5%
C1092
0.1
25V
B
1608
R1032
GND
C1006
GND
R1037
6.8k0.5%
1/10W
0uH
C1005
0.01
1608
0.01
1608
25V
C1013
25V
B
B
JL1003
JL1004
JL1005
JL1006
JL1008
JL1007
JL1010
VCC
XX
JL1002
3
XX
C1088
SDA_B_5V
AUDIO_RESET
SP_MUTE
GND
OUT
GND
GND
R1036
10k
1/16W
CHIP
R1035
0
CHIP
DIMMER
BACKLIGHT
PANEL_FAIL
LINE_MUTE
HP_MUTE
XX
D1001
IC1010
BA09FP-E2
*R1040
XX
1/16W
CHIP
*R1041
XX
1/16W
CHIP
GND
002:8B
AVLINK_IN
D5V
GND
C1014
XX
GNDGND
SCL_B_5V
S1_OFF
008:9D
008:9D
008:11E
009:13L
009:4H
009:16I
009:11F
JL1009
DC_DET
002:12D
C1007
0.01
25V
B
1608
GND
A9V
to A
C1093
C1094
0.1
100
16V
16V
B
1608
*R1042
XX
1/16W
CHIP
*R1043
1/10W
RN-CP
R1038
10k
1/16W
CHIP
XX
*R1044
XX
1/16W
CHIP
DC_ALERT1
DC_ALERT2
DC_ALERT3
POWER1
POWER2
POWER3
POWER4
POWER5
4
LM393DT (A)
1234
<< VD3_3V >>
D1
Q1001
SSM6N16FU
S1 G1 D2
*IC1003
XX
OUT1
-IN1
+IN1
R1045
10k
1/16W
CHIP
8
VCC
OUT2
-IN2
567
+IN2VSS
D3.3V
C1008
XX
50V
1608
S2G2
R1049
10k
1/16W
CHIP
B
INV_MD0
DTA114TUA-T106
*R1050
XX
1/16W
CHIP
C1009
XX
50V
1608
B
*R1051
1/16W
CHIP
Q1003
5
STBY3.3V
XX
AVLINK
002:2B
AVLINK_OUT
002:7D
D1002
RB501V-40TE-17
STBY3.3V
C1010
0.1
25V
B
1608
<< STBY3.3V >>
002:5B
V_DET
HP_DET
SP_MUTE
SCL_DEVICE
SDA_DEVICE
DIMMER
002:11B
B_INT
POWER/RESERVE_LED
DC_ALERT2
DC_ALERT3
HP_MUTE
HDMI_HPG_DET1
R1052
100
DC_ALERT1
GND
M_HSYNC
C1011
100
6.3V
002:9K
MOUSE_BUSY
AVLINK_OUT
INPUT_H
R1060
AVLINK_IN
002:15F
SIRCS
010:13D
R1053
R1054
R1055
R1223
1/16W
XX
XX
6
X1009
32.768kHz
4
3
1
2
R1030XX
XX
C1019
7p
50V
CH
C1020
1608
0
R1010
VSS
XIN
XOUT
IC1009
INT2
SCL
SDA
567
S-35390A-J8T1G
1608
*R1020
220
5%
1/10W
RN-CP
*C1085
XX
5.5V
C1012
XX
R1061
10k
1/16W
CHIP
1005
220
CHIP
XX
R1056
0
R1057
XX
R1058
0
C1015
1000p
50V
B
1608
ONLY AEP
1
25V
B
2012
R1062
R1071
R1165
1/16W
C1016
1608
GND
1/16W
10k
0.1
16V
R1065
CHIP
B
C1017
1000p
C1018
10k
50V
1608
0.1
16V
1608
XX
XX
B
B
R1064
1/16W
T_ALART
WRT_PRT
*R1069
MOUSE_CS
INPUT_V
T_ALERM2
*R1066
D1006
MMDL914T1
D16
D17
D18
D19
D20
D21
D22
D23
10k
CHIP
002:7A
T_ALART
T_ALERM2
R1075
R1076
1234
INT1
VDD
8
DTT_RST
DTT_MUTE
006:6C
*R1077
XX
XX
TILT_DET
XX*R1072
R1073
CHIP
0
10k
JL1019
JL1020
JL1011
004:3E
RESET_TR
ON_TIMER_LED
PIC_MUTE_LED
DCC1_DCC2
C1022
100
6.3V
<<VD3_3V >>
DTT_BUS_MOSI
DTT_BUS_MISO
DTT_BUS_SCK
DTT_BUS_INT
DTT_BUS_ST
DTT_BUS_CS
DTT_RST
MIPS_RST_IN
SYS/SD_VIDEO
008:9D
AC_OFF_DET
7
10k
1/16W
10k
1/16W
R1007
0
1608
CHIP
*R1099
1/16W
*R1094
*R1087
0
1608
CHIP
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
R1116
159
0
CHIP
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
002:17J;004:2C
TRIDENT_BUS
C1023
1608
POWER2
Q1002
DTC115EUA-T106
C1100
1000p
50V
B
1608
DTT_BUS_INT
XX
CHIP
*R1095
XX
1/16W
CHIP
CHIPXX
132 131 130129 128127 126 125124 123 122121 120 119118 117 116115 114113 112 111110 109 108107 106 105104 103 102101 100 99 98 97 96 95 94 93 92 91 90 89
PA5/INT5
PA4/INT4
PA6/INT6
PA7/INT7
PB0/INT8
PB1/INT9
PB2/INT10/ATRG
PB3/INT11/FRCK
PB4/INT12/ICU0
PB5/INT13/ICU1
PB6/INT14/ICU2
PB7/INTY15/ICU3
VDDE
UDP
UDM
VSS
VDDI
PC0/PPG0
DTT_RST (FROM 11/7Mt)
PC1/PPG1
PC2/PPG2
PC3/PPG3
PC4/TOUTT0
PC5/TOUT1
PC6/TOUT2/IOWARK
PC7/RIN/IORDX
PD0/DREG
PD1/DACK0X
PD2/DEOP0X
PD3/DREQ1
PD4/DACK1X/INT
PD5/DEOP1X/INT2
PE0/DREQ2/TRG1
PE1/DACK2X/TRG2
PE2/DEOP2X/TRG
VDDE
VSS
VDDI
D16/P20
D17/P21
D18/P22
D19/P23
D20/P24
D21/P25
D22/P26
D23/P27
VDDE
1
0.1
25V
B
POWER2
A9V
RN-CP
1/10W
10k
R1046
GND
TO HFR PWB
B(2/12)
KDL-32/40/46V2000 (AUS) 2-13
Page 33
3
4
5
6
7
81
92
10
11
Mount Mecha
R5027
0
A
CHIP
GND
GND
R5026
0
CHIP
GND
GND
Mount Mecha
GND
D1
D2_IN_Y
D2_IN_CB
D2_IN_CR
002:2A
D1_IN_Y
D1_IN_CB
D1_IN_CR
007:7B
PC_G
007:6B
PC_B
007:6B
PC_R
007:8F
007:8F
D3
002:2A
D3_IN_Y
D3_IN_CB
D3_IN_CR
JL5005
JL5006
JL5007
JL5002
JL5003
JL5004
PC_H
PC_V
D1_IN_SW/FB
D1_IN_L3/MODE
*X5000
R5009
*C5009
1/16W
1p
50V
CK
1608
GND
JL5008
JL5009
JL5010
1M
CHIP
C5010
C5011
C5012
C5013
C5014
C5015
C5016
C5017
C5018
GND
0.1
0.1
0.1
C5019
C5020
0.1
C5021
0.1
JL5011
*C5022
1p
50V
CK
1608
B
B0.1
B
B
25V
0.1
0.1
B
0.1 25V
B
B0.1 25V
B0.1
B
25V
25V
25V
R5010
33
1/16W
CHIP
004:6B
25V
25V
25V
25V
25V
25V
1608
B0.1
B
B
1608
1608
1608
1608
1608
1608
1608
1608
1608
1608
1608
PX_MLF1
V6
W9
Y8
W6
Y9
W8
Y6
Y10
V8
Y7
W10
U8
V10
U10
Y4
V9
W2
V2
W5
V5
W7
V7
U4
Y5
W4
V4
W1
Y1
U2
R4
PX_PLF2
Y_G1
PB_B1
PB_R1
Y_G2
PB_B2
PR_R2
Y_G3
PB_B3
PR_R3
PC_G
PC_B
PC_R
AIN_HS
AIN_VS
CVBS1
C
CVBS_OUT1
CVBS_OUT2
VREFP_1
VREFN_1
VREFP_2
VREFN_2
FB2
FB1
FS2
FS1
XTALI
XTALO
MLF1
PLF2
IC5000
CXD9199GG-D
RX0-
RX0+
RX1-
RX1+
RX2-
RX2+
RXC-
RXC+
DSDA
DSCL
ANTSTO
PWR5V
AUDIOCLK
SCK
SD0
SPDIF
SCDT
TO HDMI
HDMI
010:13G
CHIP
0
100
100
100
100
JL5013
JL5014
CHIP
CHIP
CHIP
CHIP
TMDS_RX0-
TMDS_RX0+
TMDS_RX1-
TMDS_RX1+
TMDS_RX2-
TMDS_RX2+
TMDS_CLK-
TMDS_CLK+
DDC_SDA
DDC_SCL
R5042
4.7k
CHIP
GND
D3.3V-2
R5043
4.7k
CHIP
PLUG_DET
R5044
4.7k
CHIP
HDMI_MCLK
HDMI_SCK
HDMI_WS
HDMI_SDO
HDMI_I2S
009:2A
M2
M1
N2
N1
P2
P1
L2
L1
U11
T11
JL5012
M5
R5025
T10
R5011
W11
R5012
Y11
R5013
U12
WS
R5014
V12
W12
V11
B
C
C
R5003
0
CHIP
R5000
2.2k
1/16W
CHIP
R5046
C5030
2.2k
XX
1/16W
CHIP
Q5000
2SA1602TP-1EF
D
E
F
R5002
470
1/16W
CHIP
GND
C5000
0.1
25V
1608
Y/CV
2.2k
C5031
XX
2SA1602TP-1EF
C5001
B
002:2B
R5004
CHIP
R5047
2.2k
1/16W
CHIP
XX
R5007
1/16W
R5008
CHIP
1/16W
Q5001
SEL2_C&Y/CV
470
CHIP
0
GND
JL5000
C5002
0.1
25V
B
1608
C5032
0.22
16V
1608
JL5001
B
C5003
0.1
25V
B
1608
A9V
L5006
100uH
C5033
GNDGND
C5006
0.1
C5007
0.1
AUTO_WIDE
C5004
XX
GNDGND
D2
16V
100
25V
B
25V
006:8C
C5005
1608
B
0.1
25V
1608
B
002:2A
1608
D2_IN_SW/FB
D2_IN_L3/MODE
267488102
A5000
169497421
A5001
SD_VIDEO
DCLK_AEP
DY1_AEP
DY2_AEP
*RB5000
XX
DY3_AEP
DY0_AEP
DY4_AEP
*RB5001
DY5_AEP
XX
DY6_AEP
DY7_AEP
TO AUDIO BLOCK
DCLK_AEP
*RB5002
22
*RB5003
22
*RB5004
22
*RB5005
22
TO S1
IC5000
DT_C_DY0
DT_C_DY1
DT_C_DY2
DT_C_DY3
DT_C_DY4
DT_C_DY5
DT_C_DY6
DT_C_DY7
DT_C_DC0
DT_C_DC1
DT_C_DC2
DT_C_DC3
DT_C_DC4
DT_C_DC5
DT_C_DC6
DT_C_DC7
DT_C_HS
DT_C_VS
DT_C_CLK
DCLK_AEP
D3.3V
MAIN_DIN
006:6B
7
5
3
1
1
3
5
7
*R4711
*R4712
*R4713
INPUT_H
47
47
22
R5045
4.7k
CHIP
INPUT_V
8
W19
DPA_0
6
V18
DPA_1
4
W18
DPA_2
2
Y18
DPA_3
Y17
DPA_4
2
W17
DPA_5
4
V17
DPA_6
6
U17
DAP_7
8
U16
DPA_8
V16
DPA_9
W16
DPA_10
Y16
DPA_11
W15
DPA_12
V15
DPA_13
U15
DPA_14
U14
DPA_15
V14
DPA_16
W14
DPA_17
Y14
DPA_18
Y13
DPA_19
W13
DPA_20
V13
DPA_21
U13
DPA_22
Y12
DPA_23
Y15
DPA_CLK
Y19
DPA_HS
Y20
DPA_VS
L20
DP_HS
K17
DP_VS
CXD9199GG-D
IC5000
TA1M
TA1P
TB1M
TB1P
TC1M
TC1P
TD1M
TD1P
TE1M
TE1P
TCLK1M
TCLK1P
DPB_0
DPB_1
DPB_2
DPB_3
DPB_4
DPB_5
DPB_6
DPB_7
DPB_8
DPB_9
DPB_10
DPB_11
DPB_12
DPB_13
DPB_14
DPB_15
DPB_16
DPB_17
DPB_18
DPB_19
DPB_20
DPB_21
DPB_22
DPB_23
DPB_CLK
DPB_HS
DPB_VS
DPB_DE
B14
A14
B15
A15
B16
A16
B18
A18
B19
A19
B17
A17
L19
L18
L17
M17
M18
M19
M20
N20
N19
N18
N17
P17
P20
R20
R19
R18
R17
T17
T18
T19
T20
U20
U19
U18
P19
V19
V20
W20
R5028
XX
GND
R5029
10k
1/16W
CHIP
002:8B
V_BLK
D3.3V
3
21
0uH
L5000
4
3
21
0uH
L5001
4
3
21
0uH
L5002
4
3
21
0uH
L5003
4
3
21
0uH
L5004
4
3
21
XX
*L5007
4
DCC_LUT
DCC1_DCC2
DCC
*R5031
100
*R5017
100
1/16W
CHIP
*R5051
1/16W
CHIP
XX
LVDS_CONT
R5016
100
1/16W
CHIP
*R5050
XX
1/16W
CHIP
SCL_DEVICE
TO PANEL
*R5036
XX
1/16W
CHIP
*R5040
0
CHIP
0
CHIP
*R5039
R5032
XX
XX
R5038
R5030
R5037
XX
R5034
XX
R5041
XX
R5033
XX
R5035
XX
SDA_DEVICE
RA-
30
GND
29
RA+
28
NC/12V_CONT(HFR)
27
RB-
26
GND
25
RB+
24
GND
23
RC-
22
GND
21
RC+
20
GND
19
RCLK-
18
GND
17
RCLK+
16
VIN
15
RD-
14
VIN
13
RD+
12
GND
11
NC/RE-
10
GND
9
NC/RE+
8
GND
7
DCC/HF_CONT(HFR)
6
VIN
0.01
25V
B
1608
C5024
0.01
25V
1608
5
DCC_LUT/I2C_DATA(HFR)
4
VIN
3
VIN
2
DCC1_DCC2/I2C_CLK(HFR)
1
CN5000
30P
JL5019
L5005
0uH
PANEL5V
C5025
1000p
50V
1608
XX
C5026
C5027
50V
1608
GND
0.01
CH
470p
25V
B
1608
C5028
B
B
XX
C5023
G
TRIDENT
H
B(3/12)
KDL-32/40/46V2000 (AUS) 2-14
Page 34
3
4
5
6
7
81
92
10
11
A
D3.3V
R5209
XX
R5203
XX
TRI-SCL
SN74CBTLV3245APWR
12345678910
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
GND
SN74CBTLV3245APWR
12345678910
WR#
RD#
GND
GND
JL5202
JL5203
002:14J
NC
A1
A2
A3
A4
A5
A6
A7
A8
NC
A1
A2
A3
A4
A5
A6
A7
A8
R5225
10k
1/16W
CHIP
5%
IC5202
R5208
XX
IC5201
D3.3VD3.3V
TRIDENT_BUS
B
D3.3V
C
SN74LVC2G04DCKR
ALE_PX
CS_PX
D
R5201
R5202
XX
E
F
G
IC9711
1
1A
GND
32
R5224
0
CHIP
1005
GND
XX
CN5201
XX
GND
SDA
SCL
654
1Y
VCC
2Y2A
1
2
3
R5230
R5204
XX
C5201
0.1
25V
1608
XX
B
JL5201
002:14I
TRI-SDA
VCC
VCC
R5226
10k
1/16W
CHIP
5%
OE
B1
B2
B3
B4
B5
B6
B7
B8GND
OE
B1
B2
B3
B4
B5
B6
B7
B8GND
C5281
0.1
25V
1608
20
111213141516171819
D3.3V
20
INTN
111213141516171819
002:9H
RESET_TR
D5210
D5V
SVP-PX
B
GND
C5280
0.1
25V
1608
GND
XX
R5205
XX
B
RB5201
100
8
6
4
2
R5210
4.7k
1/16W
CHIP
GND
GND
JL5204
GND
FB5201
C5217
0.1
25V
B
1608
005:5G
MA[0-11]
R5211
CHIP
C5203
XX
7
5
3
1
0
R5212
47k
1/16W
CHIP
5%
1005
C5202
0.1
25V
1608
GND
2
4
6
8
2
4
6
8
RB5203
B
POWER2
R5223
1/16W
100
RB5202
100
D3.3V
10k
CHIP
5%
C5279
6.3V
1608
1
B
MA[11]
MA[10]
MA[9]
MA[8]
MA[7]
MA[6]
MA[5]
MA[4]
MA[3]
MA[2]
MA[1]
MA[0]
GND
1
3
5
7
1
3
5
7
JL5206
JL5207
JL5208
JL5209
TC7SH86FU(T5RSOYJF)
IC5203
12345
Exclusive
H18
AD_0
H19
AD_1
H20
AD_2
G20
AD_3
G19
AD_4
G18
AD_5
G17
AD_6
F20
AD_7
K18
ADDR0
K19
ADDR1
K20
ADDR2
J20
ADDR3
J19
ADDR4
J18
ADDR5
J17
ADDR6
H17
ADDR7
F17
ALE
F18
WR#
F19
RD#
C20
INTN
E20
CPU_CS
E19
SDA
D20
SCL
B20
PWM0
F16
TESTMODE
D19
RESET
A20
V5SF
F1
MA11
F2
MA10
F3
MA9
F4
MA8
G4
MA7
G3
MA6
G2
MA5
G1
MA4
H1
MA3
H2
MA2
H3
MA1
H4
MA0
(3/4)
DDR & CPU I/F
OR
IC5000
CXD9199GG-D
MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
DQS3
DQS2
DQS1
DQS0
DQM3
DQM2
DQM1
DQM0
BA0
BA1
CAS#
RAS#
WE#
CLKE
CS0#
CS1#
MCK0
MCK0#
MVREF
D3.3V
C5278
0.1
25V
1608
C13
B13
A13
D12
C11
B11
A11
A10
B10
C10
D10
D9
A8
B8
C8
D8
D7
C7
B7
A7
D6
A5
B5
A4
C5
A3
A2
A1
C1
C2
C3
D3
B2
B6
B9
B12
B1
A6
A9
A12
K3
K4
J1
J2
K1
K2
J4
J3
D1
E1
E3
D3.3V
L5201
B
VL1_8
MD[0]
MD[1]
MD[2]
MD[3]
MD[4]
MD[5]
MD[6]
MD[7]
MD[8]
MD[9]
MD[10]
MD[11]
MD[12]
MD[13]
MD[14]
MD[15]
MD[16]
MD[17]
MD[18]
MD[19]
MD[20]
MD[21]
MD[22]
MD[23]
MD[24]
MD[25]
MD[26]
MD[27]
MD[28]
MD[29]
MD[30]
MD[31]
DQS[3]
DQS[2]
DQS[1]
DQS[0]
DQM[3]
DQM[2]
DQM[1]
DQM[0]
R5214
22
1/16W
5%CHIP
R5215
22
1/16W
5%CHIP
6.3V
R5216
XX
100
C5204
C5206
XX
005:10F
005:4G
005:4G
005:4G
005:4G
005:4G
005:4B
GND
GND
005:8F
005:4G
005:4G
MCLK0#
005:4G
XX
R5213
C5205
VA1_8
MD[0-31]
DQS[0-3]
DQM[0-3]
005:5G
BA0
BA1
005:5G
CAS#
RAS#
WE#
CKE
CS#
MCLK0
MVREF
1608
VDDH VDDH
0uH
B
25V
0.1
C5207
FL5201
R5217
XX
EMI
G
XX
XX
FL5202
EMI
L5202
2.2uH
D3.3V-2
VL1_8
G
L5203
2.2uH
C5209
100
6.3V
L5204
XX
C5213
2700p
50V
1608
C5208
1000p
1608
B
50V
GND
B
VL1_8
C5210
D3.3V-2
VD1_8
C5212
2700p
50V
1608
C5211
100
6.3V
XX
B
L5205
2.2uH
L5206
2.2uH
R9944
PX_MLF1
003:4F
PX_PLF2
003:4F
GND
C5216
0.1
25V
B
1608
R5218
CHIP
C5218
1608
R5219
XX
C5215
0
0
0.1
25V
B
XX
XX
FL5204
EMI
GND
FL5203
100
C5219
FL5205
G
C5224
0uH
EMI
G
GND
6.3V
EMI
100
6.3V
GND
XX
C5225
220p
50V
1608
G
1608
B
25V
0.1
C5226
B
R5220
FL5206
GND
C5231
0.1
25V
B
1608
C5221
0.1
B
25V
1608
GND GND
C5222
0.1
25V
B
1608
XX
0uH
EMI
C5234
1000p
C5220
1000p
G
50V
B
1608
C5230
1000p
50V
1608
C5227
C5228
50V
1608
GND
B
GNDGND
B
XX
XX
C5241
100
6.3V
0uH
FL5207
EMI
G
C5236
1000p
50V
1608
C5237
1000p
50V
1608
C5229
XX
GND
C5246
1000p
1608
GND
R5221
CHIP
C5240
1000p
50V
B
1608
R5222
CHIP
GND GND
C5242
B
C5243
B
C5239
0.1
25V
1608
GND GND
50V
B
0
0
HDMI_33A
XX
GNDGND
XX
GND GND
C5214
XX
B
C5252
0.1
25V
1608
C5250
1000p
50V
1608
C5253
C5254
6.3V
C5238
C5245
B
B
GND
100
6.3V
GND
100
XX
XX
VDDMQ
GND
L16
VDDH
M16
VDDH
N16
VDDH
P16
VDDH
T12
VDDH
T13
VDDH
E2
VDDR
E8
VDDR
E4
VSSR
E7
VSSTR
T3
PAVDD1
T2
PAVSS1
T4
PAVDD2
R3
PAVSS2
U1
AVDDAPLL
V1
AVSSAPLL
U5
AVDD_ADC1
U7
AVDD_ADC2
T8
AVDD_ADC3
U6
AVDD_ADC4
T5
AVSS_ADC1
T7
AVSS_ADC2
T9
AVSS_ADC3
T6
AVSS_ADC4
GND
Y3
AVDD3_ADC1
U9
AVDD3_ADC2
V3
AVDD3_BG_ASS
W3
AVSS_BG_ASS
U3
AVDD3_OUTBUF
Y2
AVSS_OUTBUF
R2
AVDDLLPLL
T1
AVSSLLPLL
R5
REGVCC
P5
DGND
C14
VDD
C15
VDD
D13
VDD
D14
VDD
D15
VDD
E13
VDD
E14
VDD
E15
VDD
G16
VDD
H5
VDD
H16
VDD
J5
VDD
J16
VDD
K5
VDD
K16
VDD
R16
VDD
T14
VDD
T15
VDD
H8
VSS
H9
VSS
H10
VSS
H11
VSS
H12
VSS
H13
VSS
J8
VSS
J9
VSS
J10
VSS
J11
VSS
J12
VSS
J13
VSS
K8
VSS
K9
VSS
K10
VSS
TDMS_GND
TDMS_GND
TDMS_GND
TDMS_GND
TDMS_GND
LVDS_VDDP
LVDS_VDDO
LVDS_VDDO
LVDS_VDDA
LVDS_VDDD
LVDS_VSSP
LVDS_VSSO
LVDS_VSSO
LVDS_VSSA
LVDS_VSSD
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
AVCC
AVCC
AVCC
AVCC
PVCC
VDDMQ
B4
C4
D4
D5
D11
E5
E6
E9
E10
E11
E12
F5
G5
B3
VSS
C6
VSS
C9
VSS
C12
VSS
D2
VSS
L5
VSS
P18
VSS
T16
VSS
M4
N4
N5
P4
L4
L3
M3
N3
P3
R1
D18
C17
D17
E17
D16
E18
C18
C19
E16
C16
K11
VSS
K12
VSS
K13
VSS
L8
VSS
L9
VSS
L10
VSS
L11
VSS
L12
VSS
L13
VSS
M8
VSS
M9
VSS
M10
VSS
M11
VSS
M12
VSS
M13
VSS
N8
VSS
N9
VSS
N10
VSS
N11
VSS
N12
VSS
N13
VSS
C5258
C5255
0.1
25V
B
1608
GND GND
C5259
C5256
0.1
25V
B
1608
GND
HDMI_33A
GND
GND
GND
POWER/GROUND
C5270
C5273
1000p
1000p
0.1
25V
50V
B
B
1608
1608
1608
GND GND
C5271
C5274
1000p
0.1
1000p
25V
50V
B
B
1608
1608
1608
C5262
0.1
25V
B
1608
C5260
0.1
25V
B
1608
C5257
0.1
25V
B
1608
GND
SVP-PX
(4/4)
GNDGNDGNDGND
50V
B
50V
B
D3.3V-2
C5269
1000p
50V
B
GNDGND
1608
VDDH
C5265
1000p
50V
B
1608
GND
TRIDENT
SVP-PX(2/2) DDR & CPU I/F, POWER & GND
IC5000
H
CXD9199GG-D
GND
B(4/12)
KDL-32/40/46V2000 (AUS) 2-15
Page 35
3
4
5
6
7
81
92
10
11
A
B
C
D
E
F
G
DDR_SDRAM 128Mbit
R5502
XX
L5500
C5501
XX
C5502
1608
25V
0.01
B
R5501
FL5500
C5504
1608
B
FL5501
25V
0.01
0uH
C5503
0.1
25V
B
1608
EMI
G
GND
VDDMQ
XX
C5505
C5506
100
6.3V
C5507
4700p
50V
B
1608
VDDQ
L5501
XX
0uH
EMI
G
GND
VDDMQO
R5500
C5500
XX
8
7
6
5
4
3
2
1
RB5504
22
8
7
6
0.1
25V
B
1608
C5512
MVREF
004:5G
C5508
1608
B
25V
0.01
GND
C5509
XX
1608
C5510
100p
50V
1608
B
25V
0.1
C5513
C5511
XX
CH
GND
0.5%
1/10W
R55031kRN-CP
0.5%
1/10W
R55041kRN-CP
GND
GND
108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73
L5 VSS
K9 VSS
K8 VSS
K7 VSS
K6 VSS
E8 VSS
E7 VSS
L6 A10
2
1
MA[4]
E10 VSS
C4 NC
M7 A11
22
RB5503
C11 NC
E5 VSS
H4 NC
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
C3 VDDQ
C5 VDDQ
C7 VDDQ
C8 VDDQ
C10 VDDQ
C12 VDDQ
E3 VDDQ
E12 VDDQ
F4 VDDQ
F11 VDDQ
G4 VDDQ
G11 VDDQ
J4 VDDQ
J11 VDDQ
K4 VDDQ
K11 VDDQ
B4 VSSQ
B11 VSSQ
D4 VSSQ
D5 VSSQ
D6 VSSQ
D9 VSSQ
D10 VSSQ
D11 VSSQ
E6 VSSQ
E9 VSSQ
F5 VSSQ
F10 VSSQ
G5 VSSQ
G10 VSSQ
H5 VSSQ
H10 VSSQ
J5 VSSQ
J10 VSSQ
K5 VSSQ
K10 VSSQ
0.5%
RN-CP
1/10W
51
R5506
C5514
0.01
004:5G
1608
MCLK0
CHIP
R5505 0
25V
1
B
M13 MCL
N13 VREF
M12 CK
M11 CK
CHIP
0
R5507
GND
RN-CP
1/10W
R5509
J9 VSS_THERMAL
J8 VSS_THERMAL
J7 VSS_THERMAL
M2 RAS
N2 CS
N12 CKE
1/16W
1
22
R5508
2
22
RB5500
CKE
004:5G
CS#
WE#
004:5G
0.5%
51
004:5G
MCLK0#
004:5F
J6 VSS_THERMAL
H9 VSS_THERMAL
H8 VSS_THERMAL
B2 DQS0
L3 WE
L2 CAS
543
7
1/16W
22
8
6
R5510
CAS#
RAS#
004:5G
004:5F
004:5G
DQS[1]
DQS[0-3]
H7 VSS_THERMAL
H6 VSS_THERMAL
G9 VSS_THERMAL
B13 DQS3
H2 DQS2
H13 DQS1
1/16W
1/16W
1/16W
22
22
22
R5514 221/16W
R5513
R5512
R5511
DQS[2]
DQS[0]
DQS[3]
004:2F
G8 VSS_THERMAL
G7 VSS_THERMAL
G6 VSS_THERMAL
F9 VSS_THERMAL
N6 A1
N5 A0
M5 BA1
N4 BA0
1/16W
22
R5515
BA1
BA0
004:5F
004:5F
6
8
7
543
MA[7]
MA[6]
MA[0-11]
L10 VSS
F8 VSS_THERMAL
F7 VSS_THERMAL
F6 VSS_THERMAL
IC5500
EM6A9320BI-5MGN
N9 A6
M9 A5
N8 A4
N7 A3
M6 A2
22
RB5501
6
2
8
7
1
543
MA[10]
MA[11]
MA[0]
MA[8]
MA[9]
N10 A7
22
RB5502
2
1
MA[5]
N11 A8/AP
6
8
7
543
MA[2]
M8 A9
MA[1]
MA[3]
L8 VDD
L11 VDD
L12 NC
H11 NC
L7 VDD
L13 NC
L4 VDD
M3 NC
E4 VDD
E11 VDD
N3 NC
M4 NC
D8 VDD
D7 VDD
B8 DQ31
C9 DQ30
B9 DQ229
B10 DQ28
C13 DQ27
D12 DQ26
D13 DQ25
E13 DQ24
K3 DQ23
K2 DQ22
J2 DQ21
J3 DQ20
G2 DQ19
G3 DQ18
F2 DQ17
F3 DQ16
F12 DQ15
F13 DQ14
G12 DQ13
G13 DQ12
J12 DQ11
J13 DQ10
K12 DQ9
K13 DQ8
E2 DQ7
D2 DQ6
D3 DQ5
C2 DQ4
B5 DQ3
B6 DQ2
C6 DQ1
B7 DQ0
B12 DM3
H3 DM2
H12 DM1
B3 DM0
M10 RFU2
L9 RFU1
36353433323130292827262524232221201918171615141312111098765432
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
1/16W
1/16W
1/16W
1/16W
22
R5516
R5517
22
R5518
22
R5519
22
DQM[2]
DQM[0]
DQM[3]
DQM[1]
4
2
RB5505
8
6
4
2
RB5506
8
6
4
2
RB5507
8
6
4
2
RB5508
8
6
4
2
RB5509
8
6
4
2
RB5510
8
6
4
2
RB5511
22
22
22
22
22
22
22
DQM[0-3]
5
3
1
7
5
3
1
7
5
3
1
7
5
3
1
7
5
3
1
7
5
3
1
7
5
3
1
004:5F
MD[19]
MD[16]
MD[18]
MD[17]
MD[20]
MD[21]
MD[22]
MD[23]
MD[0]
MD[1]
MD[3]
MD[2]
MD[4]
MD[5]
MD[6]
MD[7]
MD[24]
MD[25]
MD[26]
MD[27]
MD[29]
MD[28]
MD[30]
MD[31]
MD[9]
MD[8]
MD[10]
MD[11]
MD[13]
MD[12]
MD[14]
MD[15]
MD[0-31]
004:5E
B(5/12)
H
KDL-32/40/46V2000 (AUS) 2-16
Page 36
3
A
B
C
D
4
5
6
7
81
*C5704
*C5705
0.01
*C5706
*C5707
0.01
*R5703
XX
GND
11
XX
*TP5700
XX
*TP5701
10
SDA_B_5V
SCL_B_5V
92
D5V
*L5701
10uH
*C5709
10
1000p
*FB5700
XX
*FB5701
0uH
0.1
*C5708
0.1
*R5705
10k
*IC5700
28
OLBX
O169
XRST
*FB5702
0uH
XI
XO
VSS
VSS
VSS
VDD
VDD
VDD
SDA
SCLTST
*R5709
47k
RN-CP
1005
1/16W
*R5710
0
222324252627
*C5710
0.01
19 18 17 162021
*FB5703
0uH
15
*FB5704
0uH
1234567
OAW1
OAW2
OED
OWSS
VRB
ADIN
AVSS
AVDD
9810111213
VRT
AVDD
IO
I2CAD
AVSS
ISET
14
*X5700
*R5711
47
*R5712
47
E
*C5700
XX
50V
B
1608
*R5700
1/16W
CHIP
GND
XX
*C5701
XX
6.3V
5%
002:16B
AUTO_WIDE
B(6/12)
F
AUTO WIDE
G
H
KDL-32/40/46V2000 (AUS) 2-17
Page 37
3
A
4
5
6
7
81
92
10
11
BLK
15P
*CN6000
GND
B
JIG25
*JL6000
R6000
47
1/10W
RN-CP
5%
R6001
47
1/10W
RN-CP
5%
PS6000
0.4A
FB6000
FB6001
FB6002
0uH
0uH
0uH
PC-R
PC-G
PC-B
PC-H
PC-V
VD6003
VD6002
VD6004
VD6005
VD6006
RN-CP
0.5%
1/10W
150
R6012
RN-CP
0.5%
1/10W
150
R6013
RN-CP
0.5%
1/10W
150R6014
RN-CP
1/10W
150
R6015 0.5%
RN-CP
1/10W
150
R6017 0.5%
RN-CP
0.5%
1/10W
150
R6018
R6021
22
1/10W
RN-CP
R6022
22
1/10W
RN-CP
5%
R6023
22
1/10W
RN-CP
5%
JL6007
5%
JL6008
JL6009
JL6010
JL6011
PC-SDA
*R6024
XX
R6010
47
D6003
FB6005
0uH
R6009
10k
1/10W
RN-CP
5%
D3.3V
1/10W
RN-CP
5%
C6002
0.1
25V
1608
D5V
B
R6011
1/10W
RN-CP
FB6003
XX
47
5%
M24C02-WMN6T(B)
IC6000
1234
8
VCC
E0
WC
E1
SCL
E2
567
SDAVSS
R6016
1k
1/10W
RN-CP
5%
*JL6006
R6019
100k
1/10W
RN-CP
5%
*R6020
XX
5%
*R6002
XX
5%
PC-SCL
*R6003
XX
R6006
10k
1/10W
RN-CP
5%
M1MA152WK-T1
C
*D6002
*D6001
*D6000
MM3Z5V6ST1
D
MM3Z5V6ST1
MM3Z5V6ST1
5%
CHIP
1608
*R6025
XX
CHIP
1608
TO Trident
GND
PC_R
PC_G
PC_B
*JL6012
GND
007:6B;007:6B;
GND
007:6B;007:6C
PC_R
003:3C
007:6B;007:6B;
GND
007:6B;007:6C
003:3C
PC_G
007:6B;007:6B;
GND
007:6B;007:6C
PC_B
003:3C
007:6B;007:6B;
GND
GND
GND
007:6B;007:6B;
007:6B;007:6B
007:6B;007:6C
R6029
22
1/16W
CHIP
C6005
100p
50V
CH
GND
1608
R6030
22
1/16W
CHIP
GND
C6006
100p
50V
CH
1608
C6008
1
10V
B
1608
D6004
XX
C6009
0.01
25V
1608
B
GNDGND
GNDGND
D6006
XX
D3.3V-2
FB6004
0uH
R6038
XX
14
Vcc
1A
12345
6A6Y5A
2A
1Y
R6037
XX
10111213
5Y
3A
2Y
89
4A
4YGND
3Y
67
GND
PC_H
IC6001
SN74LVC14APWR
PC_V
GND
E
*R6040
XX
1/10W
RN-CP
5%
1608
*C6001
1000p
50V
B
1608
C6003
1
16V
B
2012
C6004
16V
2012
*R6039
1/10W
RN-CP
1608
1
B
XX
5%
R6041
150k
1/10W
RN-CP
R6042
2SC3052EF-T1-LEF
150k
1/10W
RN-CP
R6043
150k
1/10W
RN-CP
R6044
150k
1/10W
RN-CP
PC_LR IN
*R6004
470k
*R6005
470k
R6007
1k
1/10W
RN-CP
R6008
1k
1/10W
RN-CP
GND
*C6000
1000p
50V
B
1608
*C6011
VD6000
VD6001
*C6010
XX
XX
*J6000
F
GND
Q6000
R6045
1k
1/10W
RN-CP
PC_AU_9V
C6012
0.1
25V
B
1608
R6047
XX
C6013
1
16V
B
2012
Q6001
2SC3052EF-T1-LEF
C6014
R6046
1
1k
16V
1/10W
B
RN-CP
2012
R6048
XX
PC_IN_L
009:5D
PC_IN_R
009:5C
B(7/12)
G
H
KDL-32/40/46V2000 (AUS) 2-18
Page 38
3
4
5
6
7
81
92
10
11
A
R9062
150k
1/10W
RN-CP
C9007
*R9054
XX
*C9004
1000p
50V
B
1608
*C9006
1000p
50V
B
1608
B
C9031
1000p
50V
B
1005
VD9006
PGB0010603NR
C9005
0.1
10V
B
GND
R9017
R9018
VD9013
PGB0010603NR
HDMI_MUTE
INTN
1
16V
B
2012
R9063
C9008
150k
1
1/10W
16V
RN-CP
B
2012
*R9055
XX
GND
Q9001
2SK1828TE85L
VD9007
PGB0010603NR
R9019
4.7k
100
100
R9016
1k
L
B
CN9000
HPD
DDC +5V
E
DDC DAT
DDC CLK
NC
C
HDMI INPUT_1
D
E
CEC
CLK-
E
CLK+
DO-
E
D0+
D1-
E
D1+
D2-
E
D2+
XX
19
C9000
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
GND
AUDIO IN
C9001
XX
JL9000
CEC
1
2
L9000
1
2
L9001
1
2
L9002
1
2
L9003
R
J9000
D5V
XX
R9000
4
3
4
3
4
3
4
3
VD9001
SIGN8240
R9007
0
CHIP
R9008
0
CHIP
R9009
0
CHIP
R9006
1/16W
RN-CP
R9005
10
1/16W
CHIP
VD9002
1k
0.5%
GND
GND
GND
GND
EDID
F
HDMI_I2S
003:6C
HDMI_SDO
HDMI_SCK
HDMI_WS
HDMI_MCLK
G
H
D5V
R9002
1/10W
RN-CP
R9003
47
1/10W
RN-CP
5%
R9001
47
1/10W
RN-CP
5%
47
5%
R9004
47
1/10W
RN-CP
5%
HDMI_D/A
CS4335-KSZR
IC9000
1234
DIN
BCLK
LRCLK
AOUTL
AOUTRMCLK
VDD
GND
L9004
10uH
8
567
16V
10
C9002
CHIP
C9003
0.1
16V
1608
0
CHIP
R9010
GND
B
0
R9014
C9037
2.2
10V
X7R
2012
C9038
2.2
10V
X7R
2012
Q9009
2SA1235TP-1EF
D9014
M1MA152WA-T1
R9072
1/16W
CHIP
R9073
47k
1/16W
CHIP
5%
R9075
1/16W
CHIP
47k
5%
1M
5%
R9060
2.2k
1/16W
CHIP
5%
R9061
1/16W
R9074
22k
1/16W
CHIP
5%
2.2k
CHIP
C9039
5%
R9076
47k
1/16W
CHIP
680p
25V
CH
1608
C9040
680p
25V
CH
1608
Q9008
DTC614TUT106
5%
C9041
XX
1/10W
RN-CP
*C9015
*R9011
XX
470k
1/10W
RN-CP
R9015
1k
*C9016
1/10W
XX
RN-CP
*R9012
470k
1/10W
RN-CP
R9013
10k
1/16W
RN-CP
Q9000
RT1N141M-TP-1
VD9004
VD9003
PGB0010603NR
PGB0010603NR
D9004
MMDL914T1
BR24L02F-WE2
IC9001
1234
VCC
A1
WP
A0
SCL
A2
SDAE
VD9012
GND
PGB0010603NR
HDMI_L
010:13C
Q9007
DTC614TUT106
HDMI_R
010:13C
R9071
47k
1/16W
CHIP
5%
2SC3052EF-T1-LEF
Q9010
Q9006
RT1N141M-TP-1
C9030
1000p
50V
1608
VD9005
PGB0010603NR
8
567
D9015
MMDL914T1
10uH
L9005
R9065
150k
1/10W
RN-CP
R9066
150k
1/10W
RN-CP
GND
HDMI3.3V
S
VD9008
PGB0010603NR
R9020
4.7k
5%
1/16W
CHIP
A9V
Q9004
2SC3052EF-T1-LEF
2SC3052EF-T1-LEF
R9067
R9064
1k
1k
1/10W
1/10W
RN-CP
RN-CP
R9022
47k
GND
VD9011
VD9010
PGB0010603NR
PGB0010603NR
D9013
MMDL914T1
R9021
XX
R9025
100
C9042
1005
0.1
10V
C9009
B
Q9005
0.01
25V
B
1005
PC_AU_9V
1608
B
25V
0.1
C9033
R9069
HDMI3.3V
XX
GND
16V
47
C9034
XX
R9031
1/16W
R9032
1/16W
R9033
1/16W
R9034
1/16W
R9035
1/16W
R9036
1/16W
R9037
1/16W
R9038
1/16W
R9028
R9068
XX
C9035
1
16V
B
2012
C9036
1
16V
B
2012
TMDS_CLK-
10
TMDS_CLK+
5%
CHIP
10
CHIP
5%
TMDS_RX0-
10
TMDS_RX0+
5%
CHIP
10
CHIP
5%
TMDS_RX1-
10
5%
CHIP
TMDS_RX1+
10
CHIP
5%
TMDS_RX2-
10
5%
TMDS_RX2+
CHIP
10
CHIP
5%
PCA9517DP
IC9002
1234
VCCB
VCCA
SCLB
SCLA
SDAB
SDAA
ENGND
TO AUDIO
DVI_L
009:5D
DVI_R
009:5D
R9070
1k
1/16W
CHIP
5%
R9048
47
Q9003
RT1N141M-TP-1
GND
5%
1/16W
47
R9046
DDC_SDA
DDC_SCL
HDMI3.3V
R9041
10k
1/16W
CHIP
5%
R9040
R9044
10k
47
1/16W
CHIP
1/16W
5%
5%
8
567
R9045
47
1/16W
5%
R9051
47
C9013
0.1
10V
D3.3V-2
C9032
1000p
B
50V
B
1005
PLUG_DET
003:6B
0uH
FL9000
EMI
G
C9011
0.1
C9010
10V
XX
B
50V
1608
1005
GND
HDMI_MUTE
HDMI_RST
HDMI_HPG_DET1
002:6F
WRT_PRT
HDMI
TO SVP-PX(HDMI)
0uH
FB9000
10
16V
C9014
GND
HDMI3.3V
R9047
0
CHIP
C9012B1000p
TO µCON
R9052
XX
R9053
XX
EMI
FL9001
G
0uH
GND
D5V
B(8/12)
KDL-32/40/46V2000 (AUS) 2-19
Page 39
C7041
0.1
25V
B
1608
JL7006
D7015
6
MM1662FTRE
IC7004
OI
G
C7042
100
6.3V
R7041
C7040
100
6.3V
XX
C7047
0.1
25V
B
1608
C7050
XX
C7051
100
6.3V
7
FB7011
JL7010
R7048
0
C7070
XX
CHIP
L7006
4.7uH
R7045
R7046
0
0
C7102
XX
C7105
JL7009
C7052
56
10V
XX
C7104
GND
XX
GND
VA1_8
VL1_8
VD1_8
D3.3V-2
D3.3V
VDDMQO
81
DIMMER
002:4D
BACKLIGHT
002:4D
AC_OFF_DET
009:9B
C7100
1000p
50V
1608
B
R7051
470
1/10W
RN-CP
0.5%
R7050
2.2k
1/10W
RN-CP
DTC115EUA-T106
R7052
GND
XX
C7054
0.1
25V
1608
Q7006
JL7019
11
DIMMER
1
2
BACKLIGHT
3
PANEL_DET
4
POWER5
5
AC_OFF_DET
6
POWER_ON
7
GND
CN7009
7P
LFBK1608HS601
0uH
FB7001
FB7002
0uH
LFBK1608HS601
FB7003
0uH
GND
R7064
0
CHIP
R7065
XX
Q7008
10
TO G
POWER5
AC_OFF_DET
POWER1
R7066
15k
1/10W
RN-CP
002:4D
R7080
R7081
R7082
R7083
0uH
0uH
0uH
0uH
D5V
D3.3V
PANEL_FAIL
92
R7053
3.3k
1/10W
RN-CP
0.5%
R7054
3.3k
1/10W
B
RN-CP
JL7012
0.5%
GND
JL7013
JL7014
R7055
XX
C7055
6.8k
1/10W
RN-CP
R7056
1/10W
RN-CP
GND
0.5%
6.8k
0.5%
R7057
68k
1/10W
RN-CP
R7058
1/10W
RN-CP
330k
Q7007
2SC4154TP-1EF
GND
C7056
0.01
25V
1608
B
R7060
10k
1/10W
RN-CP
C7057
4.7
6.3V
B
2012
R7062
XX
C7058
0.01
1608
25V
LFBK1608HS601
B
R7063
10k
1/10W
RN-CP
RT1N141M-TP-1
16V
470
R7032
680
1/10W
RN-CP
0.5%
R7033
XX
R7034
XX
C7033
XX
5
*D7010
MM3Z6V8ST1
R7035
1k
1/10W
RN-CP
0.5%
R7036
820
1/10W
RN-CP
0.5%
R7037
XX
R7067
22k
1/10W
RN-CP
0.5%
R7040
CHIP
D7011
XX
0
JL7005
MM3Z6V8ST1
*D7014
ON/OFF
0ADJ
54321
R7029
47k
1/10W
RN-CP
5%
SI8008TM-TL
IC7002
VOUT
VIN
GND
4
D7001
C7023
0.01
25V
B
1608
D7003
MMDL914T1
0ADJ
COM
5%
RSX201L-30TE25
L7002
47uH
C7029
XX
16V
470
C7028
XX
D7002
ON/OFF
54321
D7006
1608
RN-CP
B
1/10W
25V
47k
0.01
R7030
C7027
R7031
2.2k
1/10W
RN-CP
0.5%
RSX201L-30TE25
L7005
47uH
XX
C7030
D7007
3
A
REG17.5V
002:3F
B
C
D
F7000
3.15A
24V
PS7000
3.15A
24V
3.15A
3.15A
8
D4 D3 D2 D1
Q7000
FDS6690A
1234
2012
L7000
10uH
POWER2
R7027
1k
C7011
100
R7017
330
1/10W
RN-CP
5%
R7016
1k
1/10W
5%
RN-CP
25V
GND
567
GS3S2S1
16V
C7010 1
L7007
10uH
002:9I;008:4D
25V
220
C7012
25V
220
C7101
1/10W
RN-CP
5%
002:9I;008:4B
POWER2
R7028
1/10W
RN-CP
XXC7019
1k
5%
SI8008TM-TL
IC7001
VOUT
VIN
GND
D7000
MMDL914T1
COM
XX
C7022
*IC7005
*C7031
22
20V
*D7008
56
10V
*C7032
*D7009
PTZ-TE25-6.2A
BA50BC0FP-E2
OUT
VCC
GND
*C7045
C7034
C7036
0.1
0.01
25V
25V
B
B
2012
1608
C7037
C7035
0.1
25V
B
2012
E
E
E
E
GND
100
C7103
0.01
25V
1608
10V
XX
B
CN7002
CN7003
CN7004
CN7005
*R7007
C7004
27k
470p
1/10W
50V
RN-CP
CH
0.5%
1608
1608
R7003
*R7008
6.8k
68k
50V
*R7005
1/10W
RN-CP
*R7006
C7021
XX
4.7k
68k
1/10W
RN-CP
0.5%
C7006
2200p
1608
R7004
47k
1/10W
RN-CP
B
C7007
25V
50V
10
1608
B
2200p*C7005
C7009
22k
100
C7018
XX
R7009
1/10W
RN-CP
R7011
1/10W
RN-CP
R7014
1/10W
5%
RN-CP
47k
CH
R7012
15k
1/10W
RN-CP
5%
1608
1/10W
100p
15k
C7008
0.1
25V
2012
R7013
1608
R7010
RN-CP
B
1/10W
RN-CP
5%
1608
*R7000
10k
1/10W
C7001
2.2
10V
X7R
2012
C7002
2.2
10V
X7R
2012
C7024
RN-CP
C7000
1
25V
2012
B
*R7001
18k
1/10W
RN-CP
*R7002
6.8k
1/10W
RN-CP
C7003
470p
50V
CH
1608
XX
L7001
10uH
E
F
G
H
IC7000
BD9775FV
12345
FB1
INV1
30k
0.5%
RT
JL7002
CT
50V
FIN
67
GND
JL7003
VREF
DTC1
9810111213
DTC2
INV2
1/10W
FB2
CTL1
R7015
100
1/10W
RN-CP
CTL2
14
JL7001
POWER3
POWER4
JL7000
PVCC1
OUT1
VREGB
OUT2H
PVCC2
VREGA
OUT2L
PGND
SYNCVCC
R7020
R7018
R7024
22k
1/10W
RN-CP
R7026
0
CHIP
0.1C7015
25V
2012
B
22kR7021
RN-CP
1/10W
5%
R7022
0
C7016
CHIP
R7023
R7025
XX
0
R7019
15k
1/10W
RN-CP
CHIP
CHIP
CHIP
1
25V
B
0
2012
C7017
0.1
25V
B
2012
0
C7013
1
25V
B
2012
C7014
1
25V
B
2012
GND
Q7001
RSQ035P03TR
123
GDD
GS3S2S1
1234
GS3S2S1
1234
Q7009
RSS100N03TB
6
DDS
45
C7025
1
25V
B
3216
C7026
3216
567
8
D4 D3 D2 D1
567
8
D4 D3 D2 D1
L7003
D7004
RB050L-40TE25
1
25V
B
L7004
Q7005
RSS050P03FTB
22uH
PTZ-TE25-13A
22uH
D7005
RB050L-40TE25
28
VS1
CL1
24252627
2223
CL2
VS2
19 18 17 162021
SCP
15
D5V
JL7007
*R7049
D5V
XX
FE5/6.2/10.5V
(AEP/JPN/U/C)
PANEL5V
JL7011
PANEL5V
003:12G
GND
A9V
GND
D5V
D3.3V
GND
GND
DTT_LOG
AV_MOUSE
TO A_PWB
CN7008
9P
GND
JL7015
FB7006
GND
0uH
FB7005
0uH
JL7017
JL7018
FB7008
*FB7009
*FB7010
0uH
XX
1
2
3
4
5
6
7
8
9
FB7007
XX
0uH
A9V
D5V
D3.3V
DTTLOG
MOUSE_CTL
A9V
D5V
D3.3V
POWER SUPPLY
For Trident & DDR
PANEL5V & FE5V
B(9/12)
KDL-32/40/46V2000 (AUS) 2-20
Page 40
3
A
B
4
5
6
7
81
92
10
11
DC_ALERT
D5V
STBY3.3V
RT1N141M-TP-1
GND
FE5/6.2/10.5V
R7541
XX
Q7503
100k5%CHIP
1/16W
R7545
GND
C7501
XX
25V
1608
GND
B
D7505
MM3Z5V6ST1
XX
DC_ALERT1
004:5B
DCALERT1
D3.3V
D2.5V(=VDDMQO)
D1.8V
Q7504
RT1N141M-TP-1
5%
Q7505
RT1N141M-TP-1
Q7506
RT1N141M-TP-1
5%
CHIP
1/16W
10k
R7542
GND
GND
GND
5%
CHIP
1/16W
10k
R7543
5%
CHIP
1/16W
10k
R7544
D7508
MMDL914T1
D7509
MMDL914T1
D7510
MMDL914T1
C
D3.3V
R7546
10k
1/16W
CHIP
VDDMQO
D
VD1_8
R7515
100k
1/10W
RN-CP
5%
R7510
CHIP
*R7516
C7502
39k
XX
1/10W
25V
RN-CP
B
5%
1608
C7503
XX
25V
1608
GND
B
GNDGND
GND
PANEL5V
R7517
100k
1/10W
RN-CP
5%
0
*R7518
150k
1/10W
RN-CP
5%
E
F
UNREG10.5V
R7507
6.8k
1/10W
RN-CP
5%
D7500
UDZSTE-177.5B
C7500
R7506
XX
G
H
1608
25V
B
6.8k
1/10W
RN-CP
5%
RT1N141M-TP-1
Q7500
GND
Q7502
RT1N141M-TP-1
D7506
MM3Z5V6ST1
XX
D7507
MM3Z5V6ST1
XX
DC_ALERT2
004:6B
DC_ALERT3
004:6B
DCALERT2
FE5/6V
DCALERT3
PANEL5V
UNREG10.5V
B(10/12)
KDL-32/40/46V2000 (AUS) 2-21
Page 41
1
A
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
TO F/E POWER(J&U/C)
10.5V
1
*C4700
10.5V
2
100
GND
3
GND
4
B
C
*CN4701
GND
*C4701
0.01
*C4702
100p
*R4701
XX
*R4715
0
UNREG10.5V
FE5/6.2/10.5V
FROM F/E HD VIDEO(DIGITAL)
D
SYSTEM(J)/SD_VIDEO(UK)
INPUT TO Trident
SYS/SD_VIDEO
DTTLOG
S1_OFF
POWER2
RESET
FOR J
FOR UK
SD_VIDEO
DT_DHS
DT_DVS
DT_MUTE
*CN4702
40
GND
39
DY0
JL4710
38
GND
37
DY1
36
GND
35
DY2
34
GND
33
DY3
32
GND
31
DY4
30
GND
29
DY5
28
GND
27
DY6
26
GND
25
DY7
24
GND
23
DC0
22
GND
21
DC1
20
GND
19
DC2
18
GND
17
DC3
16
GND
15
DC4
14
GND
13
DC5
12
GND
11
DC6
10
GND
9
DC7
8
GND
7
6
GND
5
4
GND
3
DCLK
2
GND
1
DT_C_DY4
DT_C_HS
DT_C_VS
DT_C_CLK
GND
HS
DTT MUTE
VS
CLK
*R4714
47
C4703
XX
DT_C_DY6
DT_C_DY7
GND
DT_C_DY0
DT_C_DC0
DT_C_DC4
GND
20
U_DIN/DCLK
19
GND
18
U_DOUT/DY7
17
GND
E
F
G
H
U_CLK/DY6
GND
U_CE/DY5
GND
SPI_STATUS/DY4
GDN
U_ACT/DY3
GND
U2_TX/DY2
GND
AC_DET/DY1
GND
RESET/DY0
TV_REC_ON
M_RST
*CN4700
XX
16
15
14
13
12
11
10
9
8
7
6
5
4
GND
3
2
1
DY6_AEP
DY5_AEP
DY4_AEP
2
XX
*RB4701
DY3_AEP
*R4700
1/16W
RN-CP
XX
0.5%
DCLK_AEP
XX
*RB4700
DY7_AEP
DY2_AEP
DY1_AEP
7856341
DY0_AEP
*R4702
*R4703
*R4704
*R4705
1608
1608
1608
*FB4700
*R4706
*R4707
1608
*R4708
1608
*R4709
*R4710
1608
XX
XX
XX
XX
XX
XX
XX
XX
*FB4701
XX
XX
CHIP
1/10W
CHIP
1/10W
1/10W
DTT_BUS_MOSI
BUSMOSI
BUSMISO
DTT_BUS_MISO
RN-CP
DTT_BUS_SCK
BUS SCK
DTT_BUS_INT
BUS INT
RN-CP
BUS ST
DTT_BUS_ST
DTT_BUS_CS
BUS CS
RN-CP
CHIP
CHIP
CHIP
CHIP
DTTLOG
MIPSRST
MIPS_RST_IN
XX
DTT_RST
DT_C_DC2
DT_C_DC6
DTT_MUTE
DT_C_DY1
DT_C_DY2
DT_C_DY3
DT_C_DY5
DT_C_DC1
DT_C_DC3
DT_C_DC5
DT_C_DC7
003:7D
MAIN_DIN
I
J
K
B(11/12)
L
KDL-32/40/46V2000 (AUS) 2-22
Page 42
3
A
4
5
6
7
81
92
10
11
TUNER_CONTROL
D3.3V
D5V
*R1706
XX
*R1702
RN-CP
SCL_TUNER
SDA_TUNER
100
1/10W
1608
C1700
XX
*R1705
XX
1/16W
5%
CHIP
1005
*R1704
XX
0.5%
1/16W
CHIP
1005
AGC
D1700
XX
GND
B
GND
1
TU_ISC_SCL
2
GND
3
TU_I2C_SDA
4
GND
5
TV_AFT
6
GND
7
CN1700
10P
D3.3V
8
9
10
TV_AGC_M/GR_RESET(J)
TV_DEM_SEL/I2C_SW/APC
C
D
GND
FB1720
FB1721
*R1701
*FB1714
XX
0uH
0uH
1608
*R1703
180k
XX
*R1711
330k
1/16W
CHIP
1005
D3.3V
CHIP
5%
*R1707
0
C1701
1000p
GND
50V
1608
XX
B
D1
*Q1700
SSM6N16FU
S1 G1 D2
S2G2
C1703
R1710
XX
10k
50V
1/16W
B
CHIP
0
5%
C1702
XX
50V
B
1608
TUNER_SW
AGC
AFT
1608
SDA_TUNER
002:9C
SCL_TUNER
002:9C
TUNER_CONTROL
*R1708
R1709
10k
1/16W
CHIP
5%
POWER TO TUNER
*CN1701
XX
33V
GND
17.5V
GND
10.5V
10.5V
GND
GND
5V/6V
5V/6V
GND
GND
*C1704
1
2
3
4
5
6
7
8
9
10
11
12
50V
1608
*C1705
25V
1608
*C1706
25V
1608
*C1707
25V
1608
GND
GND
*C1708
XX
XX
XX
XX
XX
CH
B
B
B
CH
50V
1608
*C1709
XX
50V
1608
*C1710
XX
50V
1608
*C1711
XX
50V
1608
1
GND
GND
2
CN1702
XX
R1723
XX
*Q1701
XX
5%
XX
*R1722
*FB1711
XX
XX
*C1712
REG17.5V
*FB1712
XX
CH
CH
CH
*FB1713
XX
*FB1715
XX
UNREG10.5V
FE5/6.2/10.5V
UNREG33V
5%
XX
*R1721
XX
*D1701
*D1702
XX
GND
E
F
G
H
B(12/12)
KDL-32/40/46V2000 (AUS) 2-23
Page 43
B
Text Search
— B BOARD —
B BOARD (A)
151413121110987654321
JL6006
VD6004
R6014
R6015
D6001
PS6000
FB6002
R6022
JL6008
JL9000
C1081
R1247
C1703
R1723
C7102
C5512
R5503
R5504
C5513
CN9000
L9000
L9001
L9002
L9003
C5210
C5219
R1710
R1709
R1045
C1702
Q1701
D1701
R1721
C5215
C5226
C1008
C5230
FL5204
R5219
FL5206
R5220
L5701
FB1711
R1722
C1712
FB1713
C7042
RB5506
IC5500
R5507
R5505
RB5509
R5222
C5240
C5709
C5704
Q1001
C7028
R5512
C1009
C1708C1706
D1702
RB5507
R5511
R1049
C1704
C1710
RB5508
R5518
R5214
R5215
R9031
R9032
R9033
R9034
R9035
R9036
R9037
R9038
C5213
C5212
C5009
X5000
FB5702
C5710
CN1701
C7041
C7051
R5009
C5022
R5010
FB5700
R5705
FB5703
FB5704
R5712 R5711
TP5701TP5700
L7002
RB5510
R5510
RB5511
RB5504
R5513
RB5505
C5708
IC5700
JL7009
R5500
C5707
IC7004
C7047
L7006
R5516
C5013
JL5005
C5706
FB5701
L7000
D7001
D7002
C7052
C5016
JL5002
R5710
C7019
C5019
C5705
X5700
IC7001
JL7006
R7041
R7046
R5519
IC5000
C5021
C5015
C5014
JL5007
JL5006
R5709
A1001
R5517
C5020
C7012
R9944
R5700
C5700
JL4710
C7030
C7040
R7045
L7005
R5012
C5701
JL5013
R5014
R5011
R5013
R4700
R6025
R4713
C7101
C7022
IC7002
D7007
D7006
IC7005
R7049
D5210
RB5001
RB5000
R5029
R5028
R4712
R4711
A5001
B
1-869-852-13
A-1179-059-A
CN4702
C7104
R5032
R5038
R5016
R5031
R5037
RB5203
RB5202
L5000
L5001
L5003 L5002
L5004
L5007
R5030
L7007
C7011
CN1702
D7500
C7500
R7506
D7506
JL5203
JL5202
A
D7009
C7032
C7037
C7036
Q7502
R7515
Q7500
R7510
C7502
R7518
R7516
CN5000
CN1020
Q7000
C7035
C7034
R7507
R7517
D7507
C7503
R1005
R5203R5202
IC9711
C5201
R5223
C5279
IC5203
C5203
C5278
F7000
C7031
D7008
JL1025
R1073
R1071
JL1020
JL1011
JL1003
JL1004
R1116
R5204
R5230
R5224
R5211
C1082
RB4701 RB4700
CN4700
L7004
R1062
R1069
JL1019
JL1002
C1079
R1246
R1094
C1080
R1245
L7003
R1095
R1099
JL1026
R1101
1
C1020
FB1002
C1002
PS7000
C7024
D7005
C7026
C7025
C1019
R1075
R1076
R1065
R1107
R1111
Q7009
Q7005
D7004
X1009
R1030
IC1009
C1010
R1064
R1117
R1108
IC1001
R1113
R5201
CN1002
C1001
FB1003
R7026
R7025
R7023
R7022
R7020
Q7001
D1002
R1010
JL1008
R1119
JL1007
JL1006
JL1010
R1132
IC1002
CN4701
L7001
R1134
JL1030
R7019
R1020
R1139
C4700
C1011
R1146
R1159
R1158
JL1080
R1147
FB1004
C7021
+
R1160
RB1004
JL1035
FB1005
C7008
IC7000
C1085
R1163
RB1006 RB1005
JL1005
JL1044
R1224
R4715
C4702
C4701
10
FB1001
C7018
R7012
R1290
R4701
C7007
C1110
JL7001
JL7002
C7006
R1203
R1191
R1200
R1202
C1005
R1291
R1184
R1185
R1188
R1183
R7015
R7010
C7005
C7009
R7013
R7000
R1205
C1104
C1087
JL7000
R7014
R7011
R7001
R7008
R7007
C1097
R1186
R1187
R1144
R7003
C7004
R1295
X1001
R1252
Q1007
IC1004
C7003
R7002
R1251
C1036
R7006
R7005
R1250
R7083
R7082
R7081
R7080
JL7019
R1267
R1219
CN1004
JL5201
CN1009
R1193
IC1005
C1057
CN7005 CN7004
42
CN7009
CN1007
CN1003
JL1042
CN5201
51
R1192
R1199
A
B
C
D
E
F
R1210
G
H
J
K
L
M
N
P
R
C7510
C7520
C7530
C7540
C9010
C1073
R9047
C9012
C1072
R1259
R1260
C1084
R1261
R1262
R1263
R1264
C1070
C1092
C6002
IC6000
R6003 R6002
VD6003
R9048
C9009
R9022
Q9001
R9070
R9046
VD9012
VD9013
R9017
R9020
R9019
D9013
R9028
R5042
R1257
R1258
R9018
R9021
R1265
JL6010
FB6000
VD6006
R6018
R6017
R6023
C1095
R1070
C1091
R6011
R6010
JL6011
CN1008
D6003
R6020
R6016
VD6005
CN6000
FB6001
VD6002
R6012
R6013
R6021
JL6009
JL6007
D9004
JL6000
L5204
L5205
A
B
C
D
E
F
G
R6043
R6044
CN7008
C7560
C7561
C7562
C7563
C7564
C9034
Q6001
C6014
R6048
C7517
C7527
C7537
C7547
J6000
R6046
C1094
C7516
C7526
C7536
C7546
R6041
R6042
FB7008
JL7015
JL7018
C7515
C7525
C7535
C7545
L9005
C6012
Q6000
C7513
C7523
C7533
C7543
R6047
C1093
C7512
C7522
C7532
C7542
R6045
C6013
IC1010
C7511
C7521
C7531
C7541
H
J
J9000
R1125
R1124
K
L
R9063
R9068
R1122
Q9010
R9064
C9035
R9071
R9076
Q9006
L9004
C9002
R9014
R9010
FL9000
C9011
M
C1014
C1013
C5031
R1019
CN1001
R1018
R5004
R1017
Q5001
R5007
R5047
R1016
N
P
R
R1026
R1014
R1013
R1024
R1023
R1022
R1021
R5008
CN7003 CN7002
FB1714
CN1700
R1241
R1228
IC1007
R1235
C1083
R1225
R1227
151413121110987654321
<COMPONENT SIDE>
KDL-32/40/46V2000 (AUS) 2-24
Page 44
— B BOARD —
Text Search
B BOARD (B)
151413121110987654321
FB7006
R6040
R9012
C9004
R9062
C9041
R1085
R1083
R1081
C9016
R9055
C9033
R9067
A
B
C
D
E
F
G
H
J
K
L
M
N
P
A
R1226
C1075
D6000
R6000
Q9000
R9013
R9006
R9000
R1249
JL1047
R6001
C9031
R5216
R6037
JL1043
R1240
JL1048
D6002
R6006
R6009
C9000
R9005
D6004
JL1045
IC1008
R1239
R6019
C9001
C9013
L5206
R1238
R1242
IC9001
IC9002
R6030
C6006
C1071
C1078
R9009
R9041R9040
R9045
R9044
C9014
FB9000
R5044
R5043
R6029
C6005
IC6001
C1074
R9008
R9025
Q9003
R9051
C9032
D6006
R9007
C9005
C9042
R9052
R9053
FL9001
R9001
R9002
R9003
R9004
FB6004
C6008
C6009
R6038
FB7011
C1088
JL7017
FB7007
FB7005
C6011 C6010
VD6001
C6001
R6007
R6005
C6003
C9039
R9072
C9037
IC9000
R1035
R1038
R1036
R6039
R9060
C9003
C9038
R1015
FB7010
FB7009
R1011
VD6000
R6004
C6004
R9066
Q9005
Q9007
R9074
Q9009
R9075
R9073
R9061
R1084
R1082
R1080
R1079
JL1001
R6008
VD9002
R9015
C9006
C9008
R9065
C9036
R9069
R1123
C9015
VD9001
R9011
R9016
C9007
Q9004
D9014
C9040
R1027
R1002
R1001
R1025
R1012
C6000
R9054
Q9008
R1032
R1078
C1705
C5500
C5262
C5005
C5011
JL5009
R7546
L5500
C5503
C5505
C5270
C5273
C5259
C5237
C5216
C5001
FL5500
C5002
C5000
C5012
JL5010
D7000
R5501
C5260
JL5012
C5208
C5006
JL5001
C5501
L5501
R5502
C5246
C5269
C1709
FB1712
C5502
C5506
C5241
C5252
C5250
JL5011
FL5205
C5218
FL5501
RB5501
R5515
C5234
R5508
R5514
R5218
JL7005
C5504
C5508
C5511
RB5502
RB5503
RB5500
FL5202
C5507
C1707
C1711
FB1715
R5217
C5211
C5510
C5509
R5221
R5506
C5514
VD9011
VD9010
VD9006
VD9005
L5203
R5509
VD9008
VD9007
VD9004
VD9003
JL6012
R5026
C7070
FL5207
C7050
R7040
JL7010
R7048
C5231
C5207
C5206
FB6003
FB6005
C5224
R1266
C9030
C1101
R1281
IC1003
R1050
R1040
R1061
R1066
R1007
R1165
R1052
B
R4706
FB4700
R1051
R1060
R4707
R4708
R1043R1042
R1044
FB4701
R1280
C5028
C5027
R4709
JL7011
R5036
R5209
R4710
C7010
R7016
R7017
C5023
C5024
C5025
R5017
C5281
IC5202
B
L5005
JL5019
R5041
R5034 R5033
R5051
C5026
R5040
R5039
R5035
R7541
C7501
D7505
R5050
C7105
R5208
C7045
R7545
L5201
C5204
C5205
R5027
R7028
C7033
R7035
R7037
D7014
D7015
JL7007
Q7503
R5213
FL5201
D9015
C5280
IC5201
R5045
RB5004
C1030
R7067
R7030
Q7504
R5212
R5205
RB5005
C7103
D7508
JL5208
L5202
L5006
R7036
C7027
R7542
C5254
C5253
FB5201
JL5206
JL5207
RB5201
JL5209
C5202
R7544
JL5204
C5257
RB5002
RB5003
D7510
C5217
C5265
C5209
C5221
C5220
C5245
C5229
C5243
C5033
Q7506
C5032
D7003
FL5203
C5214
C5242
C5228
C5238
R5210
C5227
C5236
C5030
R5002
R5003
Q5000
R5046
C5222
JL5014
R5000
R7027
C7029
R7031
R7033
C5239
JL5000
C5274
C5007
D7010
D7011
D7509
C5271
C5255
R6024
C5017
JL5003
R7032
R7029
R5025
R7034
C7023
C5258
C5018
JL5008
JL5004
R7543
Q7505
C5256
C5225
C5004
C5003
C5010
FB1006
FB1007
R7050
D1020
C7100
JL7013
C7002
C7001
R7009
R7004
C7000
C1003
JL7003
C7014
C7013
R7018
C1004
C7017
R7024
C7016
R7021
C7015
R7064
B
R7065
Q7008 Q7007
R7060
R7058
R7063 R7062
C7055
R7057
R7066
FB7003
JL7014
Q7006
C7056
R7052
R7056R7055
C
D
C7058
C1102
D1021
R7054
JL7012
R7053
R1256
C1077
FB7001
R1255
JL1046
FB7002
C7054
R7051
JL1060
C7057
R1243
C1076
E
R1207
R1208
R1212
R1209
JL1009
C1007
D1001
R1037
R1034
R1031
F
R1195
R1198 R1197
L1002
R1201
FL1001
C1006
R1196
C1096
R1126
C1090
C1012
R1270
Q1003
C1039
R1096
R1098
R1100
C1038
C1056
C1054
X1002
R1169
C1049
R1190
C1061
JL1024
JL1061
C1037
R1164
D1007
C1060
C1063
JL1053
JL1022
C1051
C1052
R1161
C1046
R1138
R1149
R1145
C1062
IC1500
R1114
C1048
R1006
R1142
R1106
C1028
R1115
IC1006
R1112
R1170
C1053
VD1102
C1100
Q1002
JL1013
C1035
C1033
R1046
C1050
C1029
C1022
VD1101
R1047
R1048
C1047
R1109
R1110
C1023
R1041
R1087
R1072
R1077
C1015
C1017
R1056
R1058
C1016
R1053
R1055
R1054
R1057
C1018
C1027
C1024
1-869-852-13
A-1179-059-A
R4705
R4704
R4703
R4702
RB1008
RB1007
G
JL1040
H
J
C1069
C1068
C1067
R1218
C1066
JL1041
C1103
C1089
Q1006
R1180
Q1005
K
R5225
R5226
D1006
L
R1223
M
R1206
JL1033
R1168
Q1004
R1162
L1003
R1167
C1044
R1211
N
C1065 C1064
P
R
C4703
R4714
<CONDUCTOR SIDE>
Q1700
R1707
R1708
FB1720
FB1721
R1706 R1705
R1711
R1704
C1701
R1703
R1701
R1702
C1700
D1700
R
151413121110987654321
KDL-32/40/46V2000 (AUS) 2-25
Page 45
O
B
(3) G1 Board (KDL-32V2000)
1
2
43
98765
10
11
12
13
14
15
A
B
C
D
E
F
AC INLET
CN6102
CN6101
REG18V
STBY3.3V
6.0
1.8
0
12.5 0
1.5
51.2
50.9
394.1
248.7
12.4
265.5
265.5
4.3
3.2
2.2
18.9
18.8
1.1
0
0.1
0
3.6
2.8
3.4
0
3.3
UNREG15V
UNREG
10.5V
14.7
14.7
3.4
13.7
13.7
18.4
18.4
TO
(2/2) B
CN7503
TO
(7/7)B
CN7009
G
H
18.4
18.4
REG18V
3.0
13.7
12.8
18.4
18.4
3.3
0
3.3
TO
PANEL
UNIT
TO
BU(7/7)
CN7009
I
(POWER SUPPLY )
G1
J
(KLV-32V2000 ONLY )
B-SS13354<WB.>-G1
KDL-32/40/46V2000 (AUS) 2-26
Page 46
G1
[POWER SUPPLY]
— G1 BOARD —
<COMPONENT SIDE>
<CONDUCTOR SIDE>
<CONDUCTOR SIDE>
KDL-32/40/46V2000 (AUS) 2-27
Page 47
(4) G2A Board (KDL-40/46V2000)
1
3
4
5
762
8
9
13
1410
1511
1612
Mount Mecha
A
C6011
XX
R6015
XX
R6501
XX
C6501
XX
Mount Mecha
A6007
A6014
B
D6000
EY6020
D15XB60
3
EY6017
EY6019
~
~
2
1
4
EY6018
C6003
C6000
4700p
4700p
250V
250V
F
F
C
R6563
R6565
220k
220k
1/10W
1/10W
RN-CP
RN-CP
2012
2012
R6562
R6564
220k
220k
R6553
1/10W
1/10W
100k
RN-CP
RN-CP
1/10W
RN-CP
2012
D
D6551
MA111-TX
R6560
1/10W
RN-CP
470k
0.5%
1608
2012
D6553
MA111-TX
2012
D6552
MA111-TX
R6554
470k
1/10W
RN-CP
0.5%
1608
R6555
1/10W
RN-CP
47k
0.5%
1608
E
F
G
E
CN6012
GND_1
1
GND_2
XX
E
CN6011
FASTON
1
CN6000
VD6001
C6004
0.22
275V
PT
EY6012
R6002
6.8
10W
RB
EY6011
H
C6005
C6001
470p
470p
1
250V
250V
B
B
GND_2
L6000
EY6015
EY6016
R6006
XX
1
C6002
XX
XX
EY6004
1
275V
PT
C6013
EY6001
3
1
EY6002
C6012
1000p
250V
23
EY6014
C6015
1000p
250V
E
EY6005
XX
XX
R6011
R6010
XX
EY6007
XX
JL6002
3.2mm
CA6002
E
C6007
XX
GND_2
VD6000
6.2mm
R6001
4
R6009
XX
EY6013
C6016
1
1000p
250V
E
EY6006
XX
4321
XX
EY6008
JL6001
6.2mm
CA6000
L6011
L6010
4321
R6007
XX
JW6005XXJW6004
XX
4321
10
10
JW6001
JW6000
XX
3P
WHT
3P
CN6001
AC IN<L>
AC IN<N>
I
J
K
263406601
214976671
RY6003
R6008
XX
L6001
XX
XX
R6013
EY6003
XX
C6014
XX
FH6000
F6000
6.3A
250V
FH6001
CA6003
C6010
1000p
250V
E
EY6513
R6527
1/10W
RN-CP
EY6010
EY6009
XX
R6012
3.2mm
EY6516
560k
0.5%
R6529
CHIP
R6528
1/10W
RN-CP
0.5%
0
22k
1
234
EY6024
FH6002
EY6023
*C6518
EY6514
10
XX
XX
XX
CA6001
XX
L6500
100uH
XX
D6001
XX
JW6901
R6053
JW6007XXJW6006
JW600310JW6002
D6000
D6000
OH8
EY6515
EY6509
EY6511
C6520
1
450V
PT
EY6510
EY6512
C6519
6800p
25V
B
1608
D6505
MA8043-M(TX)
D6507
MA111-TX
D6002
MA111-TX
R6017
XX
5
XX
GND_1
XX
C6517
450V
R6503
22
2W
RS
C6507
47
25V
R6016
7.5
2SK2158-T2B
S
GND_1
EY6522
1
PT
EY6521
C6504
R6515
100
1/10W
RN-CP
0.5%
1608
D6003
MA111-TX
R6003
1k
1/2W
FPRD
Q6051
XX
470p
C6505
2kV
470p
2kV
R6530
C6521
0.33
0.47
2012
C6051
1608
C6515
XX
B
B
5W
RB
16V
B
R6566
10k
1/10W
RN-CP
R6004
1/10W
RN-CP
0.5%
0.01
25V
B
XX
EY6501
S
EY6502
R6532
0
CHIP
R6526
68
1/10W
RN-CP
0.5%
D6504
MA111-TX
PC123Y22JOOF
2
1
330
R6052
22k
1/10W
RN-CP
5%
*Q6500
XX
R6533
10k
1/10W
RN-CP
R6531
R6534
0.33
5W
1/10W
RB
RN-CP
0.5%
1234
C6523
0.01
25V
B
1608
C6522
1000p
50V
B
1608
D6404
XX
PH6000
R6051
1k
1/10W
RN-CP
5%
1
2
EY6508
5
EY6507
6
C6503
C6502
XX
XX
EY6505
2SK3687
D6501
XX
EY6519
*Q6504
XX
R6535
10k
S
1/10W
RN-CP
EY6520
100
FA5501AN
IC6502
FA5501AN-D1-TE1
VCC
FB
OUT
COMP
GND
MUL
ZCDIS
Mount Mecha
R6406
XX
R6405
4.7k
1/10W
RN-CP
3
R6404
XX
4
L6502
175uH
R6502
XX
EY6506
D6506
FSF05A60
R6537
4.7
1/4W
FPRD
2SK3687
D6510
BAT54HT1
5678
A6012
PROTECT
R6407
22k
1/10W
RN-CP
C6401
12
10
8
7
R6544
200
1/10W
RN-CP
0.5%
D6509
EP05FA20
R6540
4.7
1/4W
FPRD
R6536
200
1/10W
RN-CP
0.5%
EP05FA20
D6513
XX
Q6501
2SD1621ST-TD-E
R6538
100
R6504
1/4W
XX
FPRD
2SB1122-ST-TD-E
R6541
R6542
33k
22k
1/10W
1/10W
RN-CP
RN-CP
C6524
XX
C6527
D6511
MA111-TX
404240802
D6402
MA111-TX
C6402
100
16V
16V
2012
D6403
XX
R6539
200
1/10W
RN-CP
0.5%
R6543
200
1/10W
RN-CP
0.5%
D6508
Q6502
C6528
C6530
XX
R6512
330k
1/10W
RN-CP
0.5%
R6513
22k
1/10W
RN-CP
0.5%
R6514
100k
1/10W
RN-CP
0.5%
C6404
0.1
16V
B
1608
Q6403
2SA1235TP-1EF
C6403
XX
R6409
10k
1
1/10W
RN-CP
B
Mount Mecha
C6008
180
450V
JL6004
C6525
0.1
50V
B
2012
C6516
XX
XX
XX
R6552
100
1/10W
RN-CP
C6526
10
50V
R6412
10k
1/10W
RN-CP
Q6404
2SC3052EF-T1-LEF
GND_1
A6005
JL6003
400 400
400
C6006
180
450V
D6512
MA111-TX
234990061
400
R6545
1/10W
RN-CP
R6546
560k
1/10W
RN-CP
R6547
1/10W
RN-CP
R6549
1/10W
RN-CP
R6550
1/10W
RN-CP
R6557
1/10W
RN-CP
560k
560k
R6548
470k
1/10W
RN-CP
390k
15k
0.5%
1.5k
0.5%
R6551
10
1/4W
FPRD
Q6500,Q6504,D6506
400
D6401
MA111-TX
R6418
1/10W
RN-CP
R6419
22k
1/10W
RN-CP
5%
100k
5%
C6305
Q6405
2SC3052EF-T1-LEF
C6407
R6420
0.01
10k
25V
1/10W
B
RN-CP
1608
5%
SOURCE
SOURCE
IC6301
MIP2H2
1234
C6307
2.2
0.1
50V
16V
B
1608
C6306
100p
50V
CH
1608
OLPFBVDD
EY6304
578
R6300
1/2W
EY6313
DRAINVCC
C6308
EY6112
10
RF
3.3
50V
EY6111
R6102
0.1
1/2W
RF
C6102
100
35V
C6100
0.01
25V
B
1608
EY6303
C6310
0.001
630V
PP
ERA22-08KFLB
10ERB20-TB3
10ERB20-TB3
D6301
D6302
D6303
XX
C6405
0.1
50V
2012
D6304
400
B
400
400
400
R6106
1M
1/10W
RN-CP
R6107
1/10W
RN-CP
R6108
1M
1/10W
RN-CP
R6110
R6104
47k
1/10W
1/10W
RN-CP
RN-CP
0.5%
C6104
1000p
50V
CH
1608
R6111
12k
1/10W
RN-CP
0.5%
R6112
C6105
10
50V
C6101
4.7
50V
D6106
M1FM3
R6103
100
1/10W
RN-CP
0.5%
D6108
MA113-(TX)
Q6400
2SB1122-ST-TD-E
R6400
10k
1/10W
RN-CP
SIGN784
PROTECT
Q6454
2SA1235TP-1EF
C6454
2.2
10V
B
2012
C6309
100
50V
R6301
100k
1W
RS
R6303
1/4W
FPRD
R6127
1M
1/10W
RN-CP
R6105
1M
1/10W
RN-CP
1M
R6109
240k
1/10W
RN-CP
27k
0.5%
C6103
0.1
16V
B
R6113
XX
XX
C6106
XX
R6101
2.2
1/4W
FPRD
R6402
10k
1/10W
RN-CP
Q6401
2SC3052EF-T1-LEF
R6403
47k
1/10W
RN-CP
0.5%
R6401
4.7k
1/10W
RN-CP
0.5%
C6451
0.1
16V
B
1608
C6452
R6461
XX
10k
1/10W
RN-CP
D6305
10ERB20-TB3
EY6302
2.2
R6302
5.6k
1/10W
RN-CP
0.5%
Mount Mecha
C6116
0.01
50V
B
2012
CXD9841P
IC6100
123456789
VD
VSEN
FB
VGH
CT
VS
RT
VB
GND
PROT
VGL
SS
PGND
VC1
10111214151618
VC2OCP
R6114
47
1/10W
RN-CP
0.5%
R6128
XX
POWER ON
4
32
PC123Y22JOOF
R6454
4.7k
1/10W
RN-CP
5%
R6462
R6455
10k
220k
1/10W
1/10W
RN-CP
RN-CP
0.5%
Q6455
2SC3052EF-T1-LEF
R6456
3.3k
1/10W
RN-CP
0.5%
R6459
D6453
39k
1/10W
XX
RN-CP
0.5%
16
1
1
15
2
15
2
14
12
3
3
4
11
4
10
6
9
8
610
9
D6306
8
D1NS4-TR2
T6301
EY6301
C6313
XX
4
32
C6314
1000p
PH6301
50V
PC123Y22JOOF
B
1608
STBY FB
A6004
400
D6109
MA8160-M-TX
PH6400
Q6402
2SK2158-T2B
D6456
MA111-TX
OVP
JL6402
C6406
1000p
50V
1608
R6304
1/10W
RN-CP
1
IC6302
MM1530ATT
234990031
D6102
BAT54HT1
1
R6453
10k
1/10W
RN-CP
1
B
C6315
GND_1
1k
5%
R6116
22
1/10W
CHIP
5%
D6107
M1FM3
C6108
0.22
25V
B
2012
D6103
UF4005PKG23
R6410
1k
1/10W
RN-CP
5%
R6417
1k
1/10W
RN-CP
5%
S
GND_1
D6455
XX
3
2
MM1431ATT(CN)
470
16V
JL6302
R6305
3.3k
1/10W
RN-CP
5%
3
1
2
Q6100,Q6101
C6109
47
25V
C6408
0.47
10V
B
1608
D6452
MA111-TX
IC6401
C6316
0.1
16V
B
1608
FB6102
XX
D6104
UMZ16NT106
R6117
22
1/10W
CHIP
5%
UMZ16NT106
C6400
XX
R6451
10k
1/10W
RN-CP
400
400
400
FB6100
0uH
400
400
400 400
Q6100
2SK3568(LBS2SONY1Q)
3
R6118
10k
1
1/10W
RN-CP
5%
2
Q6101
2SK3568(LBS2SONY1Q)
3
R6119
1
10k
1/10W
RN-CP
5%
2
D6105
R6452
1k
1/10W
RN-CP
0.5%
R6408
22k
1/10W
RN-CP
0.5%
R6308
R6306
10k
47
1/10W
1/10W
RN-CP
RN-CP
0.5%
5%
R6309
R6307
6.8k
47k
1/10W
1/10W
RN-CP
RN-CP
0.5%
0.5%
GND_1
FB6101
0uH
400
EY6101
S
EY6102
EY6103
S
EY6104
C6529
C6111
R6208
C6216
EY6235
EY6237
EY6236
EY6201
EY6202
EY6203
EY6204
EY6205
EY6225
EY6227
EY6226
EY6228
EY6230
EY6229
L6203
1uH
LHL08
EY6241
L6204
1uH
LHL08
407727701
XX
C6227
Q6407
R6423
JL6330
D10SC6M-4012
EY6239
XX
XX
XX
JL6201
D6202
EY6244
D10SC6M-4012
EY6246
EY6245
JL6204
0.47
1/4W
FPRD
JL6231
D6203
C6202
1500
JL6205
D6203
MA8220-TX
C6204
25V
MA111-TX
R6442
1/10W
RN-CP
4.7
100V
D6204
10ERB20-TB3
C6205
1500
1500
25V
25V
C6217
1500
16V
JL6234
JL6235
JL6303
D6407
D6408
10k
5%
10ERB20-TB3
GND_1
C6207
1500
25V
JL6202
D6205
C6208
XX
JL6232
GND_1
C6203
50V
EY6211
EY6212
C6210
22
L6201
XX
LHL13
XX
JL6233
JL6203
R6202
220k
1/10W
CHIP
5%
SBC8
L6208
4.7uH
L6207
4.7uH
XX
JW6903
10
XX
JL6206
GND_1
JL6210
JL6207
C6214
C6211
XX
JL6211
D6210
XX
JW6902
10
JL6209
JL6208
JL6005
JL6401
C6225
XX
C6218
XX
R6226
4.7
1/4W
FPRD
C6206
XX
C6220
C6215
XX
XX
C6213
XX
C6209
XX
C6223
XX
C6224
GND_1
JL6301
C6221
XX
JL6400
C6226
XX
CN6202
12P
XX
12
18V
11
18V
10
18V
9
18V
8
GND
7
GND
6
GND
5
GND
4
RLY ON
3
PFC DET
2
POWER ON
1
GND
CN6204
10P
10
18V
9
18V
8
18V
7
18V
6
18V
5
GND
4
GND
C6212
3
XX
GND
2
GND
1
GND
C6219
XX
CN6200
14P
1
UNREG15V
2
UNREG15V
3
AU_GND
4
AU_GND
5
STBY3.3V
6
GND
7
UNREG10.5V
8
UNREG10.5V
9
GND
10
GND
11
XX
UNREG33V
12
GND
13
REG18V
14
REG18V
C6222
XX
AC-DET
1
N.C
2
GND
3
CN6217
3P
FASTON
1
CN6207
FASTON
1
CN6206
E
CN6211
FASTON
1
CN6205
GND_1
XX
E
CN6214
GND_1
E
CN6218
XX
E
CN6216
GND_1
FASTON
1
CN6215
XX
16
2
15
EY6248
D6200
14
3
5
EY6109
6
7
EY6110
PH6100
MM1431ATT(CN)
PFC DET
PH6402
IC6402
R6415
10k
1/10W
RN-CP
5%
2SC3052EF-T1-LEF
8
2
5
EY6220
6
7
EY6221
8
R6200
1k
1/10W
RN-CP
5%
1
R6201
1k
1/10W
RN-CP
5%
IC6200
4
32
AC OFF DET
1
2
PH6401
PC123Y22JOOF
Q6408
D6406
MA111-TX
XX
EY6105
C6112
0.018
470p
800V
2kV
PP
EY6106
R6122
0.22
2W
RS
R6121
0.22
2W
RS
C6114
XX
4
32
R6438
XX
1
R6437
R6436
1k
4.7k
1/10W
1/10W
RN-CP
RN-CP
5%
5%
3
1
2
R6414
10k
1/10W
RN-CP
5%
R6411
XX
R6426
220k
1/10W
RN-CP
5%
R6427
56k
1/10W
R6428
RN-CP
0.5%
XX
Q6409
2SC3052EF-T1-LEF
10uH
MAIN FB
PC123Y22JOOF
PC123Y22JOOF
MM1431ATT(CN)
JL6300
R6468
220k
1/10W
RN-CP
R6123
1k
1/10W
RN-CP
0.5%
C6413
1000p
50V
B
1608
R6422
47k
1/10W
C6412
RN-CP
0.47
0.5%
10V
B
C6409
1000p
50V
B
0.5%
1608
D6405
XX
L6300
*T6102
*T6103
C6200
0.022
25V
B
3
1
2
R6441
47k
1/10W
RN-CP
R6440
XX
R6421
4
3
D10SC6M-4012
EY6249
13
EY6250
12
EY6215
D10SC6M-4012
11
EY6216
10
EY6217
D10SC6M-4012
9
16
15
EY6222
D10SC6M-4012
14
EY6223
134
EY6224
12
EY6251
PS6201
JW6201
11
EY6253
JW6203
10
EY6252
9
Mount Mecha
R6204
680
1/10W
RN-CP
0.5%
R6205
5.6k
1/10W
RN-CP
0.5%
R6203
4.7k
1/10W
RN-CP
5%
Q6406
2SC3052EF-T1-LEF
R6443
R6444
10k
10k
1/10W
1/10W
RN-CP
RN-CP
R6413
4.7k
1/10W
RN-CP
0.5%
R6416
0
22k
1/10W
CHIP
RN-CP
5%
R6425
1/10W
RN-CP
D6201
D6207
D6208
XX
5
5
PS6202
JW6202
JW6204
100
5%
R6207
1/10W
RN-CP
EY6206
EY6238
XX
EY6240
5
5
A6009
C6201
R6206
XX
1k
0.5%
C6410
XX
R6424
XX
G2A
L
KDL-32/40/46V2000 (AUS) 2-28
Page 48
G2A
C6011
C6051
C6100
C6103
C6104
C6106
C6108
C6114
C6116
C6200C6201
C6206
C6209
C6211
C6212
C6213
C6214
C6215
C6218
C6219 C6220 C6221
C6222
C6223
C6224
C6225
C6226
C6227
C6305
C6306
C6314
C6316
C6402
C6404
C6405
C6406
C6407
C6408
C6409
C6410
C6412
C6413
C6451
C6452
C6454
C6501
C6519
C6521
C6522
C6523
C6524
C6525
C6528
C6530
CA6000
CA6001
CA6002
CA6003
D6002
D6003
D6102
D6104D6105
D6106
D6107
D6108
D6109
D6210
D6301
D6401
D6402
D6403
D6404
D6405
D6406
D6407
D6408
D6452
D6453
D6455
D6456
D6501
D6504
D6505
D6507
D6508
D6509
D6510
D6511
D6512
D6513
D6551
D6552
D6553
IC6502
JR6001
JR6002
JR6004
JR6005
JR6006
JR6007
JR6008
JR6009
JR6010
JR6011
JR6012
JR6013
JR6014
Q6051
Q6400
Q6401
Q6402
Q6403
Q6404
Q6405
Q6406
Q6407
Q6408
Q6409
Q6454
Q6455
Q6501 Q6502
R6004
R6006
R6007
R6008
R6009
R6010
R6011
R6012
R6013
R6015
R6051
R6052
R6053
R6103
R6104
R6105
R6106
R6107
R6108R6109
R6110
R6111
R6112
R6113
R6114
R6116
R6117
R6118R6119
R6123
R6127
R6128
R6200 R6201
R6202
R6203
R6204
R6205
R6206
R6207
R6302
R6304
R6305
R6306
R6307
R6308
R6309
R6400
R6401
R6402
R6403
R6404
R6405
R6406
R6407
R6408
R6409
R6410
R6411
R6412
R6413
R6414R6415
R6416
R6417
R6418
R6419
R6420
R6421
R6422
R6423
R6424
R6425
R6426
R6427
R6428
R6436R6437
R6438
R6440
R6441
R6442
R6443
R6444
R6451
R6452
R6453
R6454
R6455
R6456
R6459
R6461
R6462
R6468
R6501
R6504
R6512
R6513
R6514
R6515
R6526
R6527
R6528
R6529
R6532
R6533
R6534
R6535
R6536
R6539
R6541
R6542
R6543
R6544
R6545 R6546 R6547 R6548 R6549
R6550
R6552
R6553
R6554R6555
R6557
R6560
R6562R6563
R6564R6565
R6566
1 2 3 4 5 67
A
B
C
D
E
[POWER SUPPLY]
—G2A BOARD —
1 2 3 4 5 67
JW6095
JW6015
JW6024
JW6023
T6301
C6315
R6303
C6217
C6308
JW6018
D6305
JW6086
D6303
D6302
JW6026
EY6237
EY6109
EY6110
EY6220
EY6221
C6313
R6017
R6016
JW6031
A6008
EY6235
D6200
EY6236
T6102T6103
C6309
JW6021
JW6064
JW6097
JW6072
JW6078
JW6079
JW6076
R6208
D6203
JW6077
EY6246
JW6069
C6204
C6216
EY6202
D6201
EY6201
EY6203EY6204
A6002
D6208
EY6225EY6226
EY6227
L6208
C6205
L6207
C6207
JW6088
C6208
JW6080
JW6081
L6201
EY6211EY6212
D6204
D6205
C6203
EY6244EY6245
C6202
JW6027
JW6073
JW6096
JW6074
JW6090
JW6082
R6226
JW6075
C6210
JW6050
JW6038
JW6034
JW6091
CN6200
JW6098
JW6092
JW6025
JW6070
JW6067
JW6902
JW6903
JW6089
A6013
JW6087
JW6093
JW6094
JW6085
CN6205
JW6066
CN6217
CN6202CN6204
CN6218
CN6206
CN6211 CN6214
KDL-32/40/46V2000 (AUS) 2-29
EY6205
D6207
EY6206
A6001
D6202
EY6228 EY6229
EY6230
JW6030
JW6071
EY6248
EY6249
EY6250
EY6215
EY6216
EY6217
EY6222
EY6223
EY6224
JW6203
EY6251
PS6201
JW6201
EY6253
EY6238 EY6239
L6203
EY6252
PS6202
JW6202
EY6240 EY6241
L6204
JW6204
A6009
IC6302
PH6301
L6300
JW6083
JW6105
A6012
JW6020
JW6051
CN6216
A
B
C6527
R6530
R6531
C6526
C6516
JW6040
R6538
JW6053
R6537
JW6032
JW6016
Q6500 Q6504
EY6502 EY6505EY6506
EY6501
JW6037
JW6036
EY6519
JW6009
JW6008
EY6520
R6540
R6503
JW6043
D6506
C6507
C6505
JW6035
JW6054
R6551
C6504
R6502
C6503
C6502
C
L6502
EY6522
EY6521
D
CN6000
C6012
C6013
EY6002
CN6001
EY6001
FH6002
CN6011
EY6023 EY6024
C6010
E
C6515
EY6511EY6512
C6520
EY6508
F6000
VD6000
FH6000FH6001
EY6507
EY6509
EY6510
C6517
EY6007
EY6008
C6002
• G2A BOARD SEMICONDUCTOR LOCATION
IC
Component
()
IC6100 C-4 IC6200 A-4 IC6301 D-5 IC6302 E-6 IC6401 A-3 IC6402 A-4 IC6502 A-6 -
Conductor
()
Side
Side
EY6515
EY6516
L6500
C6518
EY6513 EY6514
C6003
JW6029
JW6012
JW6013
JW6028
JW6019
D6000
EY6017
EY6018
EY6019
EY6020
C6000
L6010
EY6003 EY6004
JW6001
JW6000
JW6003
JW6002
L6001
EY6005EY6006
R6001
C6014
Q6405 B-5 1
Q6406 A-4 1
Q6407 A-4 1
Q6408 A-4 1
Q6409 A-4 1
Q6454 A-5 1
Q6455 A-5 1
Q6500 B-1 Q6501 B-6 2
Q6502 B-6 2
Q6504 B-2 -
JW6106
C6015
JW6056
A6005
C6007
JW6057
JW6065
C6006
C6016
JW6061
JW6063
A6007
EY6013 EY6014
JW6062
TRANSISTOR
Component
()
Conductor
()
Side
Side
*
Q6051 E-2 1
Q6100 B-4 Q6101 B-5 Q6400 A-5 2
Q6401 A-5 1
Q6402 A-5 1
Q6403 E-4 1
Q6404 E-3 1
: Refer to Terminal name of semiconductors in silk screen printed circuit (see page 2-8)
*
D6000 D-2 D6001 D-4 D6002 E-4 3
D6003 E-4 3
D6102 C-4 3
D6103 C-5 D6104 B-4 qa
DIODE
Component
()
Conductor
()
Side
Side
*
C6400
JW6068
PH6400
JW6041
JW6101
IC6401
JW6055
JW6060
JW6014
JW6058
C6008
JW6104
JW6048
A6014
L6011
JW6107
JW6005
L6000
JW6004
EY6015EY6016
JW6007
JW6006
C6001
C6005
<COMPONENT SIDE> <CONDUCTOR SIDE>
JW6017
PH6401
JW6103
JW6099
JW6084
R6102
EY6102
JW6047
JW6046
A6004
JW6039
IC6100
JW6102
R6300
EY6304
C6004
VD6001
JW6100
EY6011 EY6012
R6002
EY6009
EY6010
RY6003
CN6215
CN6012
PH6402
IC6402
EY6111EY6112
FB6100
FB6101
FB6102
EY6101
C6529
Q6100 Q6101
JW6108
JW6052
C6105
R6101
EY6303
C6310
D6001
JW6901
R6003
PH6000
CN6207
C6403
D6105 B-3 qa
D6106 C-3 3
D6107 C-4 3
D6108 C-4 3
D6109 C-4 3
D6200 A-5 D6201 A-7 D6202 B-6 D6203 D-6 D6204 D-7 D6205 D-7 D6207 A-6 D6208 B-7 D6210 B-1 3
D6301 D-3 qa
D6302 D-5 D6303 D-5 D6304 D-5 D6305 E-5 D6306 E-5 D6401 B-5 3
D6402 E-3 3
D6403 E-2 3
JW6049
PH6100
EY6103
EY6104
JW6042
JW6045
D6103
C6109
JW6059
JW6033
C6102
C6112
JW6010
JW6011
C6307
IC6301
EY6313
D6304
EY6301
EY6302
D6306
C6401
JW6044
C6111
EY6105EY6106
JW6022
IC6200
C6101
R6122
R6121
R6301
D6404 E-3 3
D6405 B-4 3
D6406 A-4 3
D6407 E-2 3
D6408 E-2 3
D6452 A-4 3
D6453 B-4 3
D6455 A-5 3
D6456 A-5 3
D6501 B-6 3
D6504 A-6 3
D6505 A-6 3
D6506 B-2 D6507 A-6 3
D6508 B-6 3
D6509 B-7 3
D6510 A-6 3
D6511 A-6 3
D6512 A-6 3
D6513 B-6 3
D6551 D-7 3
D6552 D-7 3
D6553 A-7 3
Page 49
(5) H1 and H4 Boards
H4
LED Sircs Optical Sensor
STANDBY[RED]
TIMER[RED]
POWER[GREEN]
PICTURE OFF[RED&GREEN]
Low: LED off
High: LED on
R358
XX
C351
XX
R362
XX
R357
47
RN-CP
1/10W
1
C355
B
10V
1608
0
R365
CHIP
10k
R361
RN-CP
1/10W
3.3k
R366
RN-CP
1/10W
R356
470
RN-CP
1/10W
C354
XX
1k
R360
RN-CP
1/10W
33k
R359
RN-CP
1/10W
C352
B
220p
50V
1608
C353
F
22
10V
3216
0.1
C357
B
16V
1608
D
7
C
6
B
A
53421
R355
2.7k
RN-CP
1/10W
R354
680
RN-CP
1/10W
R352
680
RN-CP
1/10W
820
R353
RN-CP
1/10W
R351
820
RN-CP
1/10W
220k
R364
RN-CP
1/10W
1/10W
220k
R363
RN-CP
SIRCS
VD3.3V
BL_IN
PICTURE_OFF
PWR/RESERVE
ON_TIMER
STBY_LED
REC/RESERVE
STBY3.3V
GND
CN351
10P
10
9
8
7
6
5
4
3
2
1
Q356
2SA1602TP-1EF
D358
SML-512UW
4
G
3
2
R
1
D355
CL-165HR/SYG-D-T
4
G
3
2
R
1
D352
CL-165HR/SYG-D-T
5
4
321
IC351
GP1UE26RK0VF
GND
OUT
VCC
OUT
5
V STBY
4
N.C.3GND2VCC
1
IC352
TPS853(SONY)
123
45
JL356
JL357
JL355
JL354
JL353
JL352
JL351
JL359
JL358
JL360
Q353
RT1N141M-TP-1
Q352
RT1N141M-TP-1
Q354
RT1N141M-TP-1
Q351
RT1N141M-TP-1
XX
D360
MM3Z5V6ST1
XX
D354
47
C358
6.3V
XX
D357
Q355
RT1N141M-TP-1
XX
D353
XX
D356
XX
D351
XX
D359
XX
C356
A
B
HOME
INPUT SEL VOL+ VOL-
MENU
WEGAGATE
3
3
S101
C101
XX
16V
B
1608
C
54
21
R101
1.1k
1/10W
RN-CP
0.5%
54
21
S102
R102
560
1/10W
RN-CP
0.5%
21
3
54
21
S103
R103
330
1/10W
RN-CP
0.5%
3
54
S104
21
S105
R104
220
1/10W
RN-CP
0.5%
POWER
CH+ CH-
3
54
21
S107
R105
150
1/10W
RN-CP
0.5%
3
3
54
21
S106
3
54
21
C102
C103
4
D101
XX
XX
JL101
XX
GND
1
POWER INT
2
KEY1
3
JL102
XX
D102
XX
XX
JL103
CN101
3P
WHT
XX
H1
KDL-32/40/46V2000 (AUS) 2-30
Page 50
H1
AA
B
H1
JL101
JL103
JL102
1 2 3 45
D102
C103 C102
D101
6 7 8 9 10 11 12
A-1183-737-A
1-870-446-21
13
54
321
1
3
CN101
1211109876 13
H1 BOARD (B)
H4
1-870-449-21
A-1202-988-A
1
A
1
C354
B
2 3 546
C352
JL356
D359
R356
JL353
JL358
C351
R354
R353
JL354
23 5
C353
JL359
R357
4 6
7 8
CN351
1 10
JL360
10911
JL352
JL351
R355
JL357
D357
R362
R364
R363
C355 R358
R361
Q356
R360
7
JL355
8
Q355
910
R359
11
12 13
D360
R351
R352
A
12
13
H4 BOARD (B)
Text Search
— H1 BOARD —
H1 BOARD (A)
1 2
3 4 65
7
8 9 10 11
12 13
A
S101
R101
C101
H1
1 2
H4
— H4 BOARD —
H4 BOARD (A)
21 43 65
A
1 2
D352
S102
R102 R103
1-870-446-21
A-1183-737-A
S104
A
3 465
353
356
C
352
D
Q
351
351
D
Q
358
D
3 4 5 6
S103
R104
7
S107
R105
S105
8 91011
S106
12 13
A
<COMPONENT SIDE> <CONDUCTOR SIDE>
7
365
R
358
C
355
D
7
8 1110 12 13
356
D
354
Q
354
D
353
Q
1-870-449-21
A-1202-988-A
8
9
H4
C357
R366
9 10 11
352
IC
IC351
O
12 13
A
A
<COMPONENT SIDE> <CONDUCTOR SIDE>
KDL-32/40/46V2000 (AUS) 2-31
Page 51
(6) H2 and H46 Boards
H46
HP
Video IN 2
*D206
MM3Z10VT1
*D205
MM3Z10VT1
*D204
MM3Z10VT1
*D203
MM3Z10VT1
*D202
MM3Z10VT1
*D201
MM3Z10VT1
XX
*C202
B
50V
1608
XX
*C201
B
50V
1608
GND_1
GND_3
1
XX
*R226
JL213
JL212
JL211
JL210
JL209
JL214
JL208
JL207
JL206
JL205
JL204
JL203
JL202
JL201
GND_2
1
GND_1
XX
*R201
XX
*C209
CH
50V
1608
*R212
0
CHIP
C
6
B
A
53421
XX
*C210
B
25V
1608
XX
*C212
B
25V
1608
*R220
0
CHIP
XX
*C211
CH
50V
1608
V2_IN_V
GND
V2_IN_Y
GND
V2_IN_C
GND
V2_IN_AU_L
AU_IN_GND
V2_IN_AU_R
V2_IN_S2SW
V2_IN_SSW
HP_OUT_AU_R
AU_IN_GND
HP_OUT_AU_L
HP_DET
CN201
15P
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
J201
S
V
R
L
21
43
1000p
C215
CH
25V
1608
R225
220
0.5%
RN-CP
1/10W
R224
220
0.5%
RN-CP
1/10W
J202
XX
*R223
RN-CP
1/10W
1608
XX
*R222
RN-CP
1/10W
1608
*C214
XX
*C213
XX
R219
100
RN-CP
1/10W
C208
B
2.2
10V
2012
*R204
470k
*R205
0
CHIP
*R206
0
CHIP
R208
220
RN-CP
1/10W
R214
1k
RN-CP
1/10W
C206
B
2.2
10V
2012
R211
220
RN-CP
1/10W
C204
B
1
16V
2012
R207
220
RN-CP
1/10W
C207
B
2.2
10V
2012
C203
B
1
16V
2012
R218
1k
RN-CP
1/10W
*R203
470k
R215
100
RN-CP
1/10W
R213
1k
RN-CP
1/10W
0
*R202
CHIP
C205
B
0.47
10V
1608
R210
220
RN-CP
1/10W
R217
1k
RN-CP
1/10W
R216
100
RN-CP
1/10W
R209
75
RN-CP
1/10W
VD201
VD202
VD203
A
*J202
53421
6
B
Video IN 2
C
D
R211
220
1/10W
RN-CP
R209
75
1/10W
RN-CP
R210
220
1/10W
RN-CP
*R222
470k
*R223
470k
*R212
10
1/10W
RN-CP
*C210
*C209
0.022
100p
C206
2.2
10V
B
2012
C207
2.2
10V
B
2012
PDZ10B-115
*D206
PDZ10B-115
C208
2.2
10V
B
2012
C203
1
16V
2012
B
C204
1
16V
B
2012
*D205
*C201
1000p
1608
*C202
1000p
1608
R208
220
1/10W
RN-CP
R207
220
1/10W
RN-CP
C205
0.47
10V
1608
VD201
B
HP
R225
220
1/10W
RN-CP
0.5%
S
43
21
V
R224
220
1/10W
RN-CP
L
R
J201
*R202
0
CHIP
*C214
XX
*C213
XX
*R203
XX
1/10W
RN-CP
5%
*R204
XX
1/10W
RN-CP
5%
0.5%
*R205
1k
1/10W
RN-CP
*R206
1k
1/10W
RN-CP
*C211
VD202
100p
*D204
PDZ10B-115
*D203
PDZ10B-115
*D201
PDZ10B-115
*D202
PDZ10B-115
*R220
10
1/10W
RN-CP
*C212
0.022
R215
100
1/10W
RN-CP
R216
100
1/10W
RN-CP
R217
1k
1/10W
RN-CP
R218
1k
1/10W
RN-CP
R219
100
1/10W
RN-CP
R213
1k
1/10W
RN-CP
R214
1k
1/10W
RN-CP
VD203
C215
1000p
25V
CH
1608
H2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
HP_DET
HP_OUT_AU_L
AU_IN_GND
HP_OUT_AU_R
V2_IN_SSW
V2_IN_S2SW
V2_IN_AU_R
AU_IN_GND
V2_IN_AU_L
GND
V2_IN_C
GND
V2_IN_Y
GND
V2_IN_V
CN201
15P
KDL-32/40/46V2000 (AUS) 2-32
Page 52
5
5
R209
A201
12
R201
C215
VD203
J202
34
R
L
CN201
A
C209
VD201 R212
C212C210 R220
1
12
R222
C211
VD202
R213
D201
C203
C213
R205
R202
C201
R203
D205
R216
C207
15
3 4
H46
A
R226
67
V
J201
A-1192-085-B
1-870-784-12
89
R218
D206
R224
R215
D203
R219
C208
R210
R207
D204
C206
R225
R208
R211
67
A
8
9
H46 BOARD (A)
AA
1-870-784-12
A-1192-085-B
12
JL205
3 456 789
JL214
H46
21
JL209
JL211
C205
R217
B
JL204
3 54
JL201
JL202
JL207
JL208
JL206
JL210
C214
R204
R206
R223
C202
C204
6 87
JL212
JL213
JL203
R214
9
D202
H46 BOARD (B)
H2
Text Search
H46
— H2 BOARD —
H2 BOARD (A)
12
A
A201
12
VD201
C209
J202
R212
C210
3
C215
VD203
C212
R206 C204 R214
R220
C211
VD202
R
34
4
1
5
CN201
R213
R205
15
L
5
<COMPONENT SIDE>
6
D203
R219
C208
R216
7
D205
H2
J201
67
1-870-447-21
A-1183-738-A
V
8 9
R209
C207
A
89
R215
C206
R211
R218
R208
D206
— H46 BOARD —
A
D204
<COMPONENT SIDE>
H2 BOARD (B)
1 2
A
R217
C205
R225
H2
1-870-447-21
A-1183-738-A
21
3
R210
354
4 5
R224
R207
D201
C203
C201
R222
C213
B
<CONDUCTOR SIDE>
6 78A9
R203
R202
D202
R223
C202
C214
R204
6 87 9
<CONDUCTOR SIDE>
KDL-32/40/46V2000 (AUS) 2-33
Page 53
(7) TUG and J Board
1 4
A
B
C
D
E
2 5
1
GND
JL3803
2
TU_I2C_SCL
3
GND
JL3804
4
TU_I2C_SDA
5
GND
6
TV_AFT
7
GND
8
TV_AGC_M
9
NC
10
APC
CN3903
10P
WHT
33V
1
GND
2
17.5V
3
GND
4
10.5V
5
10.5V
6
GND
7
GND
8
5V/6V
9
5V/6V
10
GND
11
GND
12
CN3802
12P
WHT
3 6 9
SCL
SDA
AFT
APC
JR3801
0
CHIP
JL3802
C3805
47
50V
6.5V
JL3801
D3801
XX
C3823
XX
D3802
XX
+33V
+33V
7
TU3900
5V (IF)
VIF
DET OUT
FB3802
0uH
D3901
XX
AFT OUT
L3904
SCL (TU)
5V (TU)
RF AGC
AS (TU)
SDA (TU)
30V
C3904
10
0uH
100nH
L3902
R3902
100
1/10W
RN-CP
FB3903
R3903
XX
100nH
0uH
FB3902
0uH
16V
C3902
68p
50V
CH
1608
C3903
XX
L3903
100nH
C3808
33p
50V
CH
1608
R3804
0
CHIP
L3802
C3806
10uH
10
50V
FE5
AFT
R3912
CHIP
L3803
C3809
10uH
470
16V
L3804
C3811
XX
XX
0
C3807
4700p
50V
1608
C3810
33p
50V
1608
C3812
FB3801
0uH
B
R3805
0
2012
CH
R3809
22k
XX
1/10W
RN-CP
0.5%
R3810
10k
1/10W
RN-CP
0.5%
C3901
68p
50V
CH
1608
L3901
FB3901
R3901
100
1/10W
RN-CP
8
R3807
0
NC
C3906
R3905
XX
CHIP
NCNCSIF OUTNCDE-Em OUT
R3908
CHIP
FB3904
D3904
0uH
XX
R3906
0
0
CHIP
D3903
XX
AS (IF)
APC
GND
SDA (IF)
SCL (IF)
R3904
XX
L3905
100nH
R3907
330k
1/10W
RN-CP
0.5%
1608
C3905
33p
1uH
50V
CH
D3902
1608
XX
NC
R3909
22k
0
1/10W
RN-CP
Q3901
DTC114EKA-T146
CHIP
R3910
10k
1/10W
RN-CP
5%
10
FE5
APC
CVBS_RF
QSS
FM/AM
GND
1
E
E
E
E
TV_V
1
GND
2
QSS(SIF)
3
GND
4
FM/AM(MONO)
5
GND
6
11
CN3906
CN3907
CN3908
CN3909
CN3904
6P
12
XX*CN3905
SCL
SDA
*IC3802
XX
OUT
*C3821
XX
25V
B
1608
FE5
*C3822
XX
*C3819
XX
6.5V
*C3820
XX
*R3811
*R3812
VCC
0
0
BA50BC0FP-E2
GND
6.5V
10.5V 10.5V
*L3807
*L3806
10.5V
*CN3803
XX
10.5V
6.5V
6.5V
1
2
GND
GND
GND
GND
*C3815
3
4
1608
5
6
7
8
F
XX
XX
*C3816
XX
XX
25V
B
*C3818
1608
XX
XX
25V
B
*C3817
CVBS_RF
QSS
FM/AM
G
TUG
H
KDL-32/40/46V2000 (AUS) 2-34
Page 54
TUG
[TUNER]
—TUG BOARD —
A
B
CN3909
CN3802
CN3903
CN3906
D3801
JR3801
12
L3802
IC3802
C3822
C3821
R3811
C3820
CN3904
R3812
L3807
C3805
C3819
C3818
D3802
C3823
C3817
D3903
R3906
R3907
L3806
D3902
R3905
<COMPONENT SIDE>
R3910
Q3901
R3909
R3908
D3904
R3807
R3904
FB3904
L3905
C3906
C3816
R3901
R3902
FB3901
FB3902
L3901
L3902
C3901C3902
C3815
D3901
L3904
C3811
R3912
C3905
R3810
R3809
FB3802
CN3803
C3812
C3903
L3903
C3904
L3804
R3903
FB3903
L3803
R3805
CN3905
C3809
C3810
FB3801
C3806
C3807
R3804
C3808
TU3900
CN3907CN3908
12
A
B
<CONDUCTOR SIDE>
• TUG BOARD SEMICONDUCTOR LOCATION
IC
Component
()
IC3802 A-1 -
Conductor
()
Side
Side
TRANSISTOR
Component
()
Q3901 A-1 1
Conductor
()
Side
Side
*
DIODE
Component
()
D3801 A-1 3
D3802 A-1 3
D3901 A-2 3
D3902 A-1 3
D3903 A-1 3
D3904 A-1 3
: Refer to Terminal name of semiconductors in
*
silk screen printed circuit (see page 2-8)
Conductor
()
Side
Side
*
KDL-32/40/46V2000 (AUS) 2-35
Page 55
2-5. SEMICONDUCTORS
4
T
CATHODE
ANODE
4
3
2
4
2
1
3
1
L234
~
~
+
_
~
~
+
–
1
2
3
1
2
3
1
2
3
1
2
3
ANODE
CATHODE
CATHODE
ANODE
5
1
2
3
4
6
5
1
2
3
4
6
1
2
3
1
2
3
CATHODE
ANODE
IC
ADT75ARZ-REEL
BR24L02F-WE2
CS4335-KSZR
FA5501AN-D1-TE1
LM75BIMX-3/NOPB
M24256-BWMN6TP(A)
M24C02-WMN6T(B)
MIP2H2
MM1662FTRE
NJM3414AV(TE2)
NJM4558V-TE2
PCA9517DP.118
S-35390A-J8T1G
SN74LVC14APWR
SN74LVC2G04DCKR
SN74LVC2G34DCKR
TMP75AIDR
1
TOP VIEW
8Pin SOP
BA09FP-E2
MM1431ATT (CN)
MM1530ATT
PST3629UL
S-1132B18-M5T1G
TC7SH86FU(T5RSOYJF)
5
4
23
1
5Pin CHIP
BA50BC0FP-E2
2
1
3
C431
BD9775FV
1
TOP VIEW
28Pin SOP
CXA2069Q
CXA2069Q-TL
TOP VIEW
C133
3351
32
20
191
52
64
CXD9199GG-D
A
1 BOTTOM VIEW
336Pin PGA
TRANSISTOR
CXD9841P
1
TOP VIEW
18Pin DIP
EM6A9320BI-5MG
SN74CBTLV3245APWR
1
TOP VIEW
20Pin SOP
SN74LV132APWR
TC74LCX14FT(EKJ)
A
1 BOTTOM VIEW
144Pin PGA
GP1UE26RK0VF
TC74LCX14FT(EL)
1
TOP VIEW
14Pin SOP
S29AL016D70TFI010-WAX2AU1
VOUT
VCC
GND
C439
MB91305PMC-G-BNDE1
1
TOP VIEW
TPS853(SONY)
176Pin QFP
2
1
1
2
TOP VIEW
48Pin SOP
5
3
MM1431ATT
3
2
1
M61571AFP-DF0T
1
TOP VIEW
32Pin SOP
SI8008TM-TL
DTA114TUA-T106
DTC114EUA-T106
DTC115EUA-T10?
§TC144EUA-T106
DTC614TUT106
RT1N141M-TP-1
RT1N441M-TP-1
2SA1037AK-T146-QR
2SA1037AK-T146-R
2SA1235-F
2SA1235TP-1EF
2SA1577-QR
2SA1602-F
2SA1602TP-1EF
2SC1623-L5L6
2SC2412K-T-146-QR
2SC3052EF-T1-LEF
2SC3624A-T1L15L16
2SC4154-F
2SC4154TP-1EF
C
B
E
DTC114EKA-T146
DTC123JUA-T106
IN
GND
FDS6690A
RSS050P03FTB
RSS100N03TB
D
S
S
S
G
HN1B01FU-TE85R
6
1
2
3
6
1
2
3
RSQ035P03TR
D
D
D
G
SSM6N16FU
2SB1122-S
2SB1122-ST-TD-E
2SD1621ST-TD-E
B
C
E
2SK1828
2SK1828TE85L
2SK2158-T2B
D
G
S
2SK3568(LBS1SONY.Q
2SK3797(LBS1SONY.Q)
OU
G
D
S
D
D
D
5
4
5
4
D
S
DIODE
BAT54HT1
DTZ10B
HZU16B2TRF-E
MA111-TX
MA113-(TX)
RD5.6SB-T1
UDZ-TE-17-6.8B
UDZ-TE-17-7.5B
CL-165HR/SYG-D-T
D1NS4
D1NS4-TR2
D026
D10SC6M-4012
1
2
3
1
2
D15XB60
D5L60
D
EP05FA20
M1MA152WA-T1
MM3Z10VT1
MM3Z11VT1
MM3Z16VST1
MM3Z22VT1
MM3Z4V3ST1
MM3Z6V8ST1
2
M1MA152WK-T1
1
2
1
ERA22-08KFLB
CATHODE
P6SMBJ30A-5
PTZ-TE25-6.2A
PTZ-TE25-6.8B
ANODE
RB050L-40TE25
RSX201L-30TE25
FSF05A60
CATHODE
ANODE
SML-512UWT86
MA8160-M
MA8160-M-TX
MA8220-TX
ANODE
UMZ16NT106
3
CATHODE
MMDL914T1
2
1
2
1
1PS302
M1FM3
MA8043-M
MA8043-M(TX)
RB501V-40TE-17
UDZSTE-177.5B
ANODE
10ERB20-TB3
D1
G2
S2
S1
G1
D2
1
2
1
2
CATHODE
UF4005/23
KDL-32/40/46V2000 (AUS) 2-36E
Page 56
SECTION 3
EXPLODED VIEWS
NOTE: • Items with no part number and no description are
not stocked because they are seldom required for
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Note: The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
roution service.
• The construction parts of an assembled part are
indicated with a collation number in the remark
colum.
• Items marked " * " are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
KDL-32/40/46V2000 (AUS) 3-1
Page 57
3-1. KDL-32V2000
3-1-1. REAR COVER ASSY AND STAND ASSY
1
1
2
1
5
6
3
#1
4
7
1
8
11
9
10
REF. No. PART No. DESCRIPTION MARK REF. No. PART No. DESCRIPTION MARK
1 2-580-640-01 SCREW, +BVTP2 4X16
2 2-580-611-01 SCREW, +PSW M6X16
3 2-672-438-23 COVER , REAR (32)
4 2-887-476-11 LABEL, INFORMATION
5 2-668-389-61 LABEL, TERMINAL REAR
6 2-696-269-31 LABEL, HDMI
7 2-664-636-01 COVER, ECS
8 X-2148-379-1 ASSY, STAND (M) B 9, 10, 11
9 2-675-191-02 FOOT
10 2-580-644-01 SCREW, +KTP2 3X8
11 2-580-602-01 SCREW, +PSW M4X12
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
KDL-32/40/46V2000 (AUS) 3-2
Page 58
KDL-32V2000
3-1-2. H1 AND H2 BOARDS AND FRAME
51
60
52
53
#1
#1
54
56
55
59
58
57
REF. No. PART No. DESCRIPTION MARK REF. No. PART No. DESCRIPTION MARK
51 X-2176-136-1 SIDE, TERMINAL (M) ASSY
52 X-2176-139-1 HOLDER, SIDE JACK (M-AUS) ASSY
53 A-1211-877-A H2 MOUNT
54 2-663-978-31 COVER, BUTTON
55 A-1211-876-A H1 MOUNT
56 2-580-639-01 SCREW, +BVTP2 4X12
57 2-580-603-01 SCREW, +PSW M4X16
58 2-663-977-01 BUTTON, MULTI
59 2-580-600-01 SCREW, +PSW M4X8
60 1-833-150-11 ANTENNA CABLE
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
KDL-32/40/46V2000 (AUS) 3-3
Page 59
KDL-32V2000
3-1-3. CHASSIS-1
110
109
101
102
108
107
106
103
107
104
102
107
105
111
112
113
107
114
109
107
107
115
109
Note: The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
REF. No. PART No. DESCRIPTION MARK REF. No. PART No. DESCRIPTION MARK
101 A-1183-647-A AG MOUNT
102 2-674-965-11 SCREW, +PSW 3SG
103 1-910-024-83 FFC CONNECTOR ASSY 49P
104 1-910-030-24 SP CONNECTOR ASSY 4P
105 1-910-030-48 FFC CONNECTOR ASSY 20P
106 A-1203-529-B B MOUNT
107 2-580-629-01 SCREW, +BVST 3X8
108 A-1193-318-A J MOUNT
109 2-580-591-01 SCREW, +PSW M3X5
110 1-832-470-11 HERNESS WITH CONNECTOR (LVDS)
111 2-580-595-01 SCREW, +PSW 3X12
112 1-693-720-21 TUNER
113 2-586-175-01 SHEET B, RADIATION
114 2-580-626-01 SCREW, SP4-40 UNC (HEX)
115 A-1183-902-A TUG MOUNT
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
KDL-32/40/46V2000 (AUS) 3-4
Page 60
KDL-32V2000
3-1-4. CHASSIS-2
158
157
157
#1
157
156
152
155
152
151
153
154
REF. No. PART No. DESCRIPTION MARK REF. No. PART No. DESCRIPTION MARK
151 2-660-802-01 COVER, UNDER (M)
152 2-580-600-01 SCREW, +PSW M4X8
153 2-580-640-01 SCREW, +BVTP2 4X16
154 2-596-649-01 +KTT 3X10 (S TYPE)
155 ! 1-819-729-14 INLET, AC (WITH NOISE FILTER)
156 1-468-980-13 G1 MOUNT
157 2-580-591-01 SCREW, +PSW M3X5
158 X-2109-589-2 BRACKET, G1 ASSY (A) 159
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
KDL-32/40/46V2000 (AUS) 3-5
Page 61
KDL-32V2000
3-1-5. H4 BOARD AND SPEAKER
201
#2
201
202
REF. No. PART No. DESCRIPTION MARK
201 1-826-363-11 LOUDSPEAKER (4.2X15CM)
202 A-1211-878-A H4 MOUNT
#2 7-685-647-79 SCREW, +BVTP 3X10
REF. No. PART No. DESCRIPTION MARK
KDL-32/40/46V2000 (AUS) 3-6
Page 62
KDL-32V2000
3-1-6. BEZEL ASSY AND LCD PANEL
253
252
254
256
251
255
257
REF. No. PART No. DESCRIPTION MARK
251 X-2109-500-6 BEZEL (32ST) ASSY 252, 253
252 X-2176-252-1 GUIDE, LIGHT ASSY
253 2-679-403-41 ORNAMENTAL PANEL (32VJ)
254 1-802-135-51 LCD PANEL (32INCH WXGA+TFT)
255 2-580-591-01 SCREW, +PSW M3X5
REF. No. PART No. DESCRIPTION MARK
256 2-580-646-01 SCREW, +BVTP 4X16
257 * 4-092-814-02 CUSHION D
KDL-32/40/46V2000 (AUS) 3-7
Page 63
3-2. KDL-40/46V2000
3-2-1. REAR COVER ASSY AND STAND ASSY
301
301
KDL-46V2000
301
KDL-40V2000
KDL-46V2000
301
301
301
KDL-46V2000
302
301
#1
301
301
301
KDL-46V2000
KDL-40V2000
301
306
307
305
304
308
REF. No. PART No. DESCRIPTIONRE MARK
301 2-580-640-01 SCREW, +BVTP2 4X16
302 2-580-611-01 SCREW, +PSW M6X16
304 X-2109-842-2 COVER (40VJ), REAR ASSY
(KDL-40V2000)
X-2148-061-1 COVER (46V), REAR ASSY
(KDL-46V2000)
305 2-887-476-01 LABEL,INFORMATION (KDL-40V2000)
2-887-476-21 LABEL,INFORMATION (KDL-46V2000)
313
310
309
311
312
REF. No. PART No. DESCRIPTIONRE MARK
311 2-675-191-02 FOOT
312 2-580-647-01 SCREW, +KTP2 4X12
313 2-580-602-01 SCREW, +PSW M4X12
314 2-580-608-01 SCREW, +PSW M5X16
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
306 2-696-269-31 LABEL, HDMI
307 2-668-389-61 LABEL, TERMINAL REAR
308 2-664-636-01 COVER, ECS
309 X-2148-378-2 STAND ASSY (L) B 310, 311, 312,
313
310 * 2-687-400-01 NECK (L)
KDL-32/40/46V2000 (AUS) 3-8
Page 64
KDL-40/46V2000
3-2-2. H1 AND H2 BOARDS AND FRAME
360
357
361
358
362
360
357
KDL-40V2000
352
361
358
353
362
355
359
354
356
362
355
KDL-40V2000
KDL-40V2000
#1
#1
359
355
REF. No. PART No. DESCRIPTIONRE MARK
351 2-580-608-01 SCREW, +PSW M5X16
352 X-2176-194-1 SIDE,TERMINAL (M) ASSY
353 1-833-150-11 ANTENNA CABLE
354 2-663-986-32 HOLDER, SIDE JACK (L)
(KDL-40V2000)
X-2176-195-1 HOLDER, SIDE JACK (L-AUS) ASSY
(KDL-46V2000)
355 2-580-606-01 SCREW, +PSW M5X8
359
355
KDL-40V2000
351
351
REF. No. PART No. DESCRIPTIONRE MARK
356 A-1211-877-A H2 MOUNT (KDL-40V2000)
A-1211-879-A H46 MOUNT (KDL-46V2000)
357 1-910-024-91 CONNECTOR ASSY 3P
358 A-1211-876-A H1 MOUNT
359 2-580-639-01 SCREW, +BVTP2 4X12 (KDL-40V2000)
360 2-663-978-31 COVER, BOTTON
361 2-663-977-01 BOTTON, MULTI
362 2-580-640-01 SCREW +BVTP2 4X16
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
KDL-32/40/46V2000 (AUS) 3-9
Page 65
KDL-40/46V2000
3-2-3. CHASSIS-1
405
402
404
401
412
414
413
402
404
407
404
404
409
403
416
404
415
404
402
406
411
410
403
Note: The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
REF. No. PART No. DESCRIPTIONRE MARK REF. No. PART No. DESCRIPTIONRE MARK
401 1-832-470-21 HARNESS WITH CONNECTOR (LVDS)
(KDL-40S200A)
1-832-469-12 HARNESS WITH CONNECTOR (LVDS)
(KDL-46S200A)
402 2-580-591-01 SCREW, +PSW M3X5
403 2-674-965-11 SCREW, +PSW 3SG
404 2-580-629-01 SCREW, +BVST 3X8
405 A-1193-318-A J MOUNT
411 1-910-024-83 FFC CONNECTOR ASSY 49P
412 2-580-595-01 SCREW, +PSW M3X12 (KDL-40V2000)
413 2-586-175-01 SHEET B, RADIATION
414 1-693-720-21 TUNER
415 A-1183-902-A TUG MOUNT
416 1-910-030-31 SP CONNECTOR ASSY 40P
(KDL-40V2000)
406 2-580-626-01 SCREW, SP 4-40 UNC (HEX)
407 * 4-092-814-02 CUSHION D
408 1-910-030-48 FFC CONNECTOR ASSY 20P
409 A-1203-527-B B MOUNT (KDL-46V2000)
A-1203-528-B B MOUNT (KDL-40V2000)
410 A-1183-647-A AG MOUNT
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
KDL-32/40/46V2000 (AUS) 3-10
Page 66
KDL-40/46V2000
3-2-4. CHASSIS-2
461
452
451
KDL-46V2000
KDL-46V2000
459
458
454
457
460
456
455
454
453
454
REF. No. PART No. DESCRIPTIONRE MARK
451 2-664-617-01 BRACKET, G2
452 2-674-965-01 SCREW, +PSW 3SG
453 2-580-606-01 SCREW, +PSW M5X8
454 2-580-640-01 SCREW, +BVTP2 4X16
455 2-687-624-01 COVER, UNDER (L)
REF. No. PART No. DESCRIPTIONRE MARK
456 2-596-649-01 +KTT 3X10 (S TYPE)
457 ! 1-819-729-14 INLET, AC (WITH NOISE FILTER)
458 2-580-600-01 SCREW, +PSW M4X8
459 X-2109-168-4 FRAME, BOTTOM (L) ASSY 461
460 2-650-770-21 SLIDE, CLAMP
461 * A-1184-357-B G2A MOUNT
KDL-32/40/46V2000 (AUS) 3-11
Page 67
KDL-40/46V2000
3-2-5. SPEAKER AND H4 BOARD
501
501
502
501
#2
501
KDL-40V2000
REF. No. PART No. DESCRIPTIONRE MARK REF. No. PART No. DESCRIPTIONRE MARK
501 1-826-362-11 LOUDSPEAKER (5.5X15.5CM)
(KDL-40V2000)
1-826-435-11 LOUDSPEAKER (13X7CM)
(KDL-46V2000)
502 A-1211-878-A H4 MOUNT
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
KDL-32/40/46V2000 (AUS) 3-12
Page 68
KDL-40/46V2000
3-2-6. BEZEL ASSY AND LCD PANEL
551
#1
KDL-46V2000
552
553
KDL-46V2000
#1
KDL-46V2000
556
554
555
556
558
557
KDL-40V2000
REF. No. PART No. DESCRIPTIONRE MARK
551 X-2109-501-3 BEZEL (40VJ) ASSY (KDL-40V2000)
X-2109-502-4 BEZEL (46VJ) ASSY (KDL-46V2000)
552 2-679-404-31 ORNAMENTAL PANEL (40VJ)
(KDL-40V2000)
552 2-679-405-31 ORNAMENTAL PANEL (46VJ)
(KDL-46V2000)
553 2-671-016-02 GUIDE, LIGHT
554 1-802-133-41 LCD PANEL (46INCH WXGA+TFT)
(KDL-46V2000)
1-802-267-11 LCD PANEL (40INCH WXGA+TFT)
(KDL-40V2000)
555 * 2-682-132-01 BRACKET, PANEL CORNER
(KDL-46V2000)
REF. No. PART No. DESCRIPTIONRE MARK
556 2-580-640-01 SCREW, +BVTP2 4X16
557 2-580-591-01 SCREW, +PSW M3X5 (KDL-40V2000)
558 1-832-469-12 HARNESS WITH CONNECTOR (LVDS)
(KDL-46V2000)
1-832-470-21 HARNESS WITH CONNECTOR (LVDS)
(KDL-40V2000)
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
KDL-32/40/46V2000 (AUS) 3-13
Page 69
3-3. PACKING MATERIALS (KDL-32V2000)
602
603
605 606
614
604
601
611
609 610
612
607
608
613
REF. No. PART No. DESCRIPTION MARK
601 1-833-177-11 POWER-SUPPLY CORD SET
602 1-479-685-21 REMOTE COMMANDER (RE-ED005)
603 X-2102-511-2 BAG ASSY, RUDDER LOCK
604 4-377-015-01 BAG, PROTECTION
605 2-580-663-01 SCREW, WOOD 3.8X20
606 2-593-320-02 SCREW, CION (M6X18)
607 1-769-175-21 ANTENNA CABLE
608 1-831-554-11 CABLE ASSY
(15P DSUB CONNECTOR)
609 2-888-034-11 MANUAL, INSTRUCTION
610 2-888-626-11 MANUAL, INSTRUCTION
(WALL MOUNT)
REF. No. PART No. DESCRIPTION MARK
611 * 2-664-322-04 BOX, ACCESSORY
612 * 2-664-321-03 CUSHION (LOWER)
613 * 2-888-549-01 INDIVIDUAL CARTON
614 * 2-664-320-02 CUSHION (UPPER)
KDL-32/40/46V2000 (AUS) 3-14
Page 70
3-4. PACKING MATERIALS (KDL-40/46V2000)
653 654 655
666
652
651
(KDL-46V2000)
652
651
660
653 654 655
660
666
657 658 659
662
661
(KDL-46V2000)
658657
659
664
663
REF. No. PART No. DESCRIPTIONRE MARK
651 2-888-034-11 MANUAL, INSTRUCTION
652 2-888-037-11 MANUAL, INSTRUCTION
(WALL MOUNT)
653 X-2102-511-2 BAG ASSY, RUDDER LOCK
654 2-580-663-01 SCREW, WOOD 3.8X20
655 2-593-320-02 SCREW, CION (M6X18)
656 * 2-663-245-01 TRAY (KDL-40V2000)
* 2-670-489-01 TRAY (KDL-46V2000)
657 1-831-554-11 CABLE ASSY
(15P DSUBCONNECTOR)
658 1-769-175-22 ANTENNA CABLE
659 ! 1-833-117-11 POWER-SUPPLY CORD SET
660 1-479-685-21 REMOTE COMMANDER (RM-ED005)
656
665
665
REF. No. PART No. DESCRIPTIONRE MARK
661 2-653-465-01 BAG, PROTECTION
662 * 2-663-102-02 CUSHION (UPPER) (KDL-40V2000)
* 2-670-491-02 CUSHION (UPPER) (KDL-46V2000)
663 * 2-888-550-01 INDIVIDUAL CARTON (KDL-40V2000)
* 2-888-551-01 INDIVIDUAL CARTON (KDL-46V2000)
664 * 2-663-103-02 CUSHION (LOWER) (KDL-40V2000)
* 2-670-492-04 CUSHION (LOWER) (KDL-46V2000)
665 3-674-673-01 STOPPER (A)
666 * 2-663-164-02 BOARD, TOP (KDL-40V2000)
* 2-670-490-03 BOARD, TOP (KDL-46V2000)
(KDL-40V2000)
KDL-32/40/46V2000 (AUS) 3-15E
Page 71
SECTION 4
ELECTRICAL PARTS LIST
NOTE:
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
When indicating parts by reference number,
please include the board name.
Note: The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
• All variable and adjustable resistors have characteristic
curve B, unless otherwise noted.
• Items marked " * " are not stocked since they are seldom
required for routine service. Some delay should be
anticipated when ordering these items.
RESISTORS
• All resistors are in ohms
•F : nonflammable
KDL-32/40/46V2000 (AUS) 4-1
Page 72
Note: The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
B
B
B
1BCAPACITOR C1001 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
2BCAPACITOR C1003 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
3BCAPACITOR C1004 1-162-974-11 CERAMIC CHIP 0.01UF 50V
4BCAPACITOR C1005 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
5BCAPACITOR C1006 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
6BCAPACITOR C1007 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
7BCAPACITOR C1010 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
8BCAPACITOR C1011 1-126-206-11 ELECT CHIP 100UF 20.00% 6.3V
9BCAPACITOR C1012 1-100-591-91 CERAMIC CHIP 1UF 10% 25V
10 B CAPACITOR C1015 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
11 B CAPACITOR C1016 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
12 B CAPACITOR C1017 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
13 B CAPACITOR C1018 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
14 B CAPACITOR C1019 1-162-912-11 CERAMIC CHIP 7PF 0.50PF 50V
15 B CAPACITOR C1022 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
16 B CAPACITOR C1023 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
17 B CAPACITOR C1024 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
18 B CAPACITOR C1027 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
19 B CAPACITOR C1029 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
20 B CAPACITOR C1033 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
21 B CAPACITOR C1035 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
22 B CAPACITOR C1036 1-165-908-11 CERAMIC CHIP 1UF 10% 10V
23 B CAPACITOR C1044 1-100-591-91 CERAMIC CHIP 1UF 10% 25V
24 B CAPACITOR C1046 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
25 B CAPACITOR C1047 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
26 B CAPACITOR C1048 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
27 B CAPACITOR C1049 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
28 B CAPACITOR C1050 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
29 B CAPACITOR C1051 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
30 B CAPACITOR C1052 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
31 B CAPACITOR C1053 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
32 B CAPACITOR C1054 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
33 B CAPACITOR C1056 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
34 B CAPACITOR C1057 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
35 B CAPACITOR C1060 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
36 B CAPACITOR C1061 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
37 B CAPACITOR C1062 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
38 B CAPACITOR C1063 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
39 B CAPACITOR C1066 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
40 B CAPACITOR C1067 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
41 B CAPACITOR C1068 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
42 B CAPACITOR C1069 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
43 B CAPACITOR C1070 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
44 B CAPACITOR C1071 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
45 B CAPACITOR C1072 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
46 B CAPACITOR C1073 1-126-390-11 ELECT CHIP 22UF 20.00% 6.3V
47 B CAPACITOR C1074 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
48 B CAPACITOR C1075 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
49 B CAPACITOR C1076 1-165-908-11 CERAMIC CHIP 1UF 10% 10V
50 B CAPACITOR C1079 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
51 B CAPACITOR C1080 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
52 B CAPACITOR C1081 1-126-391-11 ELECT CHIP 47UF 20.00% 6.3V
53 B CAPACITOR C1082 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
54 B CAPACITOR C1083 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
55 B CAPACITOR C1084 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
56 B CAPACITOR C1085 1-115-456-21 DOUBLE LAYER 0.22F 5.5V
57 B CAPACITOR C1087 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
58 B CAPACITOR C1091 1-126-396-11 ELECT CHIP 47UF 20.00% 16V
59 B CAPACITOR C1092 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
60 B CAPACITOR C1093 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
61 B CAPACITOR C1094 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
62 B CAPACITOR C1100 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
63 B CAPACITOR C1110 1-125-777-11 CERAMIC CHIP 0.1UF 10.00% 10V
64 B CAPACITOR C1701 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
65 B CAPACITOR C1704 1-100-831-91 CERAMIC CHIP 0.001UF 2% 50V
66 B CAPACITOR C1706 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
A-1203-529-A MOUNT, B 32V2000
A-1203-528-A MOUNT, B 40V2000
A-1203-527-A MOUNT, B 46V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-2
Page 73
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
67 B CAPACITOR C1707 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
68 B CAPACITOR C1708 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
69 B CAPACITOR C1710 1-100-831-91 CERAMIC CHIP 0.001UF 2% 50V
70 B CAPACITOR C1711 1-100-831-91 CERAMIC CHIP 0.001UF 2% 50V
71 B CAPACITOR C1712 1-100-162-91 CERAMIC CHIP 1UF 50V
72 B CAPACITOR C5000 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
73 B CAPACITOR C5002 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
74 B CAPACITOR C5003 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
75 B CAPACITOR C5005 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
76 B CAPACITOR C5006 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
77 B CAPACITOR C5007 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
78 B CAPACITOR C5009 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V
79 B CAPACITOR C5010 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
80 B CAPACITOR C5011 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
81 B CAPACITOR C5012 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
82 B CAPACITOR C5013 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
83 B CAPACITOR C5014 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
84 B CAPACITOR C5015 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
85 B CAPACITOR C5016 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
86 B CAPACITOR C5017 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
87 B CAPACITOR C5018 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
88 B CAPACITOR C5019 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
89 B CAPACITOR C5020 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
90 B CAPACITOR C5021 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
91 B CAPACITOR C5022 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V
92 B CAPACITOR C5023 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
93 B CAPACITOR C5024 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
94 B CAPACITOR C5025 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
95 B CAPACITOR C5027 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
96 B CAPACITOR C5028 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
97 B CAPACITOR C5032 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
98 B CAPACITOR C5033 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
99 B CAPACITOR C5201 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
100 B CAPACITOR C5202 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
101 B CAPACITOR C5204 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
102 B CAPACITOR C5205 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
103 B CAPACITOR C5208 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
104 B CAPACITOR C5209 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
105 B CAPACITOR C5211 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
106 B CAPACITOR C5212 1-162-979-11 CERAMIC CHIP 0.0027UF 10.00% 50V
107 B CAPACITOR C5213 1-162-979-11 CERAMIC CHIP 0.0027UF 10.00% 50V
108 B CAPACITOR C5216 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
109 B CAPACITOR C5217 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
110 B CAPACITOR C5218 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
111 B CAPACITOR C5219 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
112 B CAPACITOR C5220 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
113 B CAPACITOR C5221 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
114 B CAPACITOR C5222 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
115 B CAPACITOR C5224 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
116 B CAPACITOR C5225 1-162-960-11 CERAMIC CHIP 220PF 10.00% 50V
117 B CAPACITOR C5226 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
118 B CAPACITOR C5230 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
119 B CAPACITOR C5231 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
120 B CAPACITOR C5234 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
121 B CAPACITOR C5236 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
122 B CAPACITOR C5237 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
123 B CAPACITOR C5239 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
124 B CAPACITOR C5240 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
125 B CAPACITOR C5241 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
126 B CAPACITOR C5246 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
127 B CAPACITOR C5250 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
128 B CAPACITOR C5252 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
129 B CAPACITOR C5253 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
130 B CAPACITOR C5254 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
131 B CAPACITOR C5255 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
132 B CAPACITOR C5256 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
133 B CAPACITOR C5257 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
134 B CAPACITOR C5258 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
135 B CAPACITOR C5259 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
136 B CAPACITOR C5260 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
137 B CAPACITOR C5262 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
138 B CAPACITOR C5265 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
139 B CAPACITOR C5269 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
140 B CAPACITOR C5270 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
Remarks-2
KDL-32/40/46V2000 (AUS) 4-3
Page 74
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
141 B CAPACITOR C5271 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
142 B CAPACITOR C5273 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
143 B CAPACITOR C5274 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
144 B CAPACITOR C5278 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
145 B CAPACITOR C5279 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
146 B CAPACITOR C5280 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
147 B CAPACITOR C5281 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
148 B CAPACITOR C5502 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
149 B CAPACITOR C5503 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
150 B CAPACITOR C5504 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
151 B CAPACITOR C5506 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
152 B CAPACITOR C5507 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
153 B CAPACITOR C5508 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
154 B CAPACITOR C5510 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
155 B CAPACITOR C5512 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
156 B CAPACITOR C5513 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
157 B CAPACITOR C5514 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
158 B CAPACITOR C6002 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
159 B CAPACITOR C6003 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
160 B CAPACITOR C6004 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
161 B CAPACITOR C6005 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
162 B CAPACITOR C6006 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
163 B CAPACITOR C6008 1-165-908-11 CERAMIC CHIP 1UF 10% 10V
164 B CAPACITOR C6009 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
165 B CAPACITOR C6012 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
166 B CAPACITOR C6013 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
167 B CAPACITOR C6014 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
168 B CAPACITOR C7000 1-100-591-91 CERAMIC CHIP 1UF 10% 25V
169 B CAPACITOR C7001 1-112-064-11 CERAMIC CHIP 2.2UF 10% 10V
170 B CAPACITOR C7002 1-112-064-11 CERAMIC CHIP 2.2UF 10% 10V
171 B CAPACITOR C7003 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
172 B CAPACITOR C7004 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
173 B CAPACITOR C7005 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
174 B CAPACITOR C7006 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
175 B CAPACITOR C7007 1-100-552-21 ELECT CHIP 10UF 20% 25V
176 B CAPACITOR C7008 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
177 B CAPACITOR C7009 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
178 B CAPACITOR C7010 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
179 B CAPACITOR C7011 1-128-536-11 ELECT CHIP 100UF 20.00% 25V
180 B CAPACITOR C7012 1-110-648-11 ELECT CHIP 220UF 20.00% 25V
181 B CAPACITOR C7013 1-100-591-91 CERAMIC CHIP 1UF 10% 25V
182 B CAPACITOR C7014 1-100-591-91 CERAMIC CHIP 1UF 10% 25V
183 B CAPACITOR C7015 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
184 B CAPACITOR C7016 1-100-591-91 CERAMIC CHIP 1UF 10% 25V
185 B CAPACITOR C7017 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
186 B CAPACITOR C7023 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
187 B CAPACITOR C7025 1-125-827-91 CERAMIC CHIP 1UF 10.00% 25V
188 B CAPACITOR C7026 1-125-827-91 CERAMIC CHIP 1UF 10.00% 25V
189 B CAPACITOR C7027 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
190 B CAPACITOR C7028 1-112-794-11 ELECT CHIP 470UF 20% 16V
191 B CAPACITOR C7030 1-112-794-11 ELECT CHIP 470UF 20% 16V
192 B CAPACITOR C7031 1-165-673-21 ELECT CHIP 56UF 20% 10V
193 B CAPACITOR C7032 1-165-673-21 ELECT CHIP 56UF 20% 10V
194 B CAPACITOR C7034 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
195 B CAPACITOR C7035 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
196 B CAPACITOR C7036 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
197 B CAPACITOR C7037 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
198 B CAPACITOR C7040 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
199 B CAPACITOR C7041 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
200 B CAPACITOR C7042 1-126-392-11 ELECT CHIP 100UF 20.00% 6.3V
201 B CAPACITOR C7045 1-131-661-21 ELECT CHIP 100UF 20% 10V
202 B CAPACITOR C7047 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
203 B CAPACITOR C7051 1-135-595-11 ELECT CHIP 100UF 20% 6.3V
204 B CAPACITOR C7052 1-165-673-21 ELECT CHIP 56UF 20% 10V
205 B CAPACITOR C7054 1-100-597-91 CERAMIC CHIP 0.1UF 10% 25V
206 B CAPACITOR C7056 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
207 B CAPACITOR C7057 1-127-760-11 CERAMIC CHIP 4.7UF 10% 6.3V
208 B CAPACITOR C7058 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
209 B CAPACITOR C7100 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
210 B CAPACITOR C7101 1-110-648-11 ELECT CHIP 220UF 20.00% 25V
211 B CAPACITOR C7525 1-164-937-11 CERAMIC CHIP 0.001UF 10.00% 50V
212 B CAPACITOR C7545 1-164-937-11 CERAMIC CHIP 0.001UF 10.00% 50V
213 B CAPACITOR C9002 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
214 B CAPACITOR C9003 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
Remarks-2
KDL-32/40/46V2000 (AUS) 4-4
Page 75
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
215 B CAPACITOR C9005 1-125-777-11 CERAMIC CHIP 0.1UF 10.00% 10V
216 B CAPACITOR C9007 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
217 B CAPACITOR C9008 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
218 B CAPACITOR C9009 1-100-567-81 CERAMIC CHIP 10000PF 10% 25V
219 B CAPACITOR C9011 1-125-777-11 CERAMIC CHIP 0.1UF 10.00% 10V
220 B CAPACITOR C9012 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
221 B CAPACITOR C9013 1-125-777-11 CERAMIC CHIP 0.1UF 10.00% 10V
222 B CAPACITOR C9014 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
223 B CAPACITOR C9030 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
224 B CAPACITOR C9031 1-164-937-11 CERAMIC CHIP 0.001UF 10.00% 50V
225 B CAPACITOR C9032 1-164-937-11 CERAMIC CHIP 0.001UF 10.00% 50V
226 B CAPACITOR C9033 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
227 B CAPACITOR C9034 1-126-396-11 ELECT CHIP 47UF 20.00% 16V
228 B CAPACITOR C9035 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
229 B CAPACITOR C9036 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
230 B CAPACITOR C9037 1-112-064-11 CERAMIC CHIP 2.2UF 10% 10V
231 B CAPACITOR C9038 1-112-064-11 CERAMIC CHIP 2.2UF 10% 10V
232 B CAPACITOR C9039 1-115-412-11 CERAMIC CHIP 680PF 5.00% 25V
233 B CAPACITOR C9040 1-115-412-11 CERAMIC CHIP 680PF 5.00% 25V
234 B CAPACITOR C9042 1-125-777-11 CERAMIC CHIP 0.1UF 10.00% 10V
235 B CONNECTOR CN1001 1-819-390-51 FFC/FPC CONNECTOR (ZIF) 49P
236 B CONNECTOR CN1002 1-819-447-11 HEADER ASSEMBLY FOR PWB 10P
237 B CONNECTOR CN1003 1-779-331-51 CONNECTOR, FFC/FPC 14P
238 B CONNECTOR CN1004 1-779-936-51 CONNECTOR, FFC/FPC 18P
239 B CONNECTOR CN1007 1-819-336-11 HEADER ASSEMBLY FOR PWB 3P
240 B CONNECTOR CN1008 1-820-187-11 HEADER ASSEMBLY (PRINT PWB)10P
241 B CONNECTOR CN1700 1-820-187-11 HEADER ASSEMBLY (PRINT PWB)10P
242 B CONNECTOR * CN1701 1-820-189-11 HEADER ASSEMBLY (PRINT PWB)12P
243 B CONNECTOR CN4700 1-820-255-51 FFC/FPC CONNECTOR (ZIF) 20P
244 B CONNECTOR * CN5000 1-820-235-11 HEADER ASSEMBLY 30P
245 B CONNECTOR CN6000 1-818-937-11 D SUB CONNECTOR 15P
246 B CONNECTOR CN7002 1-780-336-11 EARTH TERMINAL
247 B CONNECTOR CN7003 1-780-336-11 EARTH TERMINAL
248 B CONNECTOR CN7004 1-780-336-11 EARTH TERMINAL
249 B CONNECTOR CN7005 1-780-336-11 EARTH TERMINAL
250 B CONNECTOR CN7008 1-820-186-11 HEADER ASSEMBLY (PRINT PWB) 9P
251 B CONNECTOR CN7009 1-820-184-11 HEADER ASSEMBLY (PRINT PWB) 7P
252 B CONNECTOR CN9000 1-818-737-11 HDMI CONNECTOR
253 B DIODE D1002 8-719-058-24 DIODE RB501V-40TE-17
254 B DIODE D1006 8-719-081-97 DIODE MMDL914T1
255 B DIODE D1007 8-719-077-59 DIODE 1PS302
256 B DIODE D1020 8-719-036-94 DIODE RD5.6SB-T1
257 B DIODE D1021 8-719-036-94 DIODE RD5.6SB-T1
258 B DIODE D1701 8-719-064-03 DIODE HZU16B2TRF-E
259 B DIODE D1702 8-719-064-03 DIODE HZU16B2TRF-E
260 B DIODE D6000 8-719-036-94 DIODE RD5.6SB-T1
261 B DIODE D6001 8-719-036-94 DIODE RD5.6SB-T1
262 B DIODE D6002 8-719-036-94 DIODE RD5.6SB-T1
263 B DIODE D6003 8-719-050-38 DIODE M1MA152WK-T1
264 B DIODE D7000 8-719-081-97 DIODE MMDL914T1
265 B DIODE D7001 6-501-336-01 DIODE RSX201L-30TE25
266 B DIODE D7003 8-719-081-97 DIODE MMDL914T1
267 B DIODE D7004 8-719-072-43 DIODE RB050L-40TE25
268 B DIODE D7005 8-719-072-43 DIODE RB050L-40TE25
269 B DIODE D7006 6-501-336-01 DIODE RSX201L-30TE25
270 B DIODE D7008 6-500-579-01 DIODE PTZ-TE25-6.8B
271 B DIODE D7009 8-719-073-69 DIODE PTZ-TE25-6.2A
272 B DIODE D7010 8-719-056-83 DIODE UDZ-TE-17-6.8B
273 B DIODE D7014 8-719-056-83 DIODE UDZ-TE-17-6.8B
274 B DIODE D7500 8-719-056-84 DIODE UDZ-TE-17-7.5B
275 B DIODE D7508 8-719-081-97 DIODE MMDL914T1
276 B DIODE D7509 8-719-081-97 DIODE MMDL914T1
277 B DIODE D7510 8-719-081-97 DIODE MMDL914T1
278 B DIODE D9004 8-719-081-97 DIODE MMDL914T1
279 B DIODE D9013 8-719-081-97 DIODE MMDL914T1
280 B DIODE D9014 8-719-050-37 DIODE M1MA152WA-T1
281 B DIODE D9015 8-719-081-97 DIODE MMDL914T1
282 B FUSE ! F7000 1-576-603-21 FUSE 3.15A 24V
283 B FERRITE BEAD FB1001 1-414-227-11 FERRITE 0UH
284 B FERRITE BEAD FB1002 1-400-110-21 FERRITE 0UH
285 B FERRITE BEAD FB1003 1-414-227-11 FERRITE 0UH
286 B FERRITE BEAD FB1004 1-400-110-21 FERRITE 0UH
287 B FERRITE BEAD FB1005 1-400-110-21 FERRITE 0UH
288 B FERRITE BEAD FB1006 1-400-110-21 FERRITE 0UH
Remarks-2
KDL-32/40/46V2000 (AUS) 4-5
Page 76
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
289 B FERRITE BEAD FB1007 1-400-110-21 FERRITE 0UH
290 B FERRITE BEAD FB1711 1-500-113-22 FERRITE 0UH
291 B FERRITE BEAD FB1712 1-400-110-21 FERRITE 0UH
292 B FERRITE BEAD FB1713 1-400-110-21 FERRITE 0UH
293 B FERRITE BEAD FB1715 1-400-110-21 FERRITE 0UH
294 B FERRITE BEAD FB1720 1-400-141-22 FERRITE 0UH
295 B FERRITE BEAD FB1721 1-400-141-22 FERRITE 0UH
296 B FERRITE BEAD FB4701 1-400-851-11 FERRITE 0UH
297 B FERRITE BEAD FB5201 1-400-794-21 FERRITE 0UH
298 B FERRITE BEAD FB6000 1-469-100-21 FERRITE 0UH
299 B FERRITE BEAD FB6001 1-469-100-21 FERRITE 0UH
300 B FERRITE BEAD FB6002 1-469-100-21 FERRITE 0UH
301 B FERRITE BEAD FB6004 1-469-100-21 FERRITE 0UH
302 B FERRITE BEAD FB6005 1-400-141-22 FERRITE 0UH
303 B FERRITE BEAD FB7001 1-414-445-11 FERRITE 0UH
304 B FERRITE BEAD FB7002 1-414-445-11 FERRITE 0UH
305 B FERRITE BEAD FB7003 1-414-445-11 FERRITE 0UH
306 B FERRITE BEAD FB7005 1-400-110-21 FERRITE 0UH
307 B FERRITE BEAD FB7006 1-400-110-21 FERRITE 0UH
308 B FERRITE BEAD FB7007 1-400-110-21 FERRITE 0UH
309 B FERRITE BEAD FB7008 1-400-110-21 FERRITE 0UH
310 B FERRITE BEAD FB7011 1-400-794-21 FERRITE 0UH
311 B FERRITE BEAD FB9000 1-469-094-21 FERRITE 0UH
312 B FILTER FL1001 1-234-177-21 FERRITE 0UH
313 B FILTER FL5201 1-234-177-21 FERRITE 0UH
314 B FILTER FL5203 1-234-177-21 FERRITE 0UH
315 B FILTER FL5206 1-234-177-21 FERRITE 0UH
316 B FILTER FL5207 1-234-177-21 FERRITE 0UH
317 B FILTER FL5500 1-234-177-21 FERRITE 0UH
318 B FILTER FL5501 1-234-177-21 FERRITE 0UH
319 B FILTER FL9000 1-234-177-21 FERRITE 0UH
320 B FILTER FL9001 1-234-177-21 FERRITE 0UH
321 B IC IC1001 6-708-219-01 IC MB91305PMC-G-BNDE1
322 B IC IC1002 6-806-969-01 IC S29AL016D70TFI010-WAX2AU1
323 B IC IC1004 6-703-175-01 IC PST3629UL
324 B IC IC1005 6-710-121-01 IC M24256-BWMN6TP(A)
325 B IC IC1006 6-709-512-01 IC S-1132B18-M5T1G
326 B IC IC1007 6-706-815-01 IC TMP75AIDR
327 B IC IC1008 8-759-549-03 IC SN74LV132APWR
328 B IC IC1009 6-709-517-01 IC S-35390A-J8T1G
329 B IC IC1010 8-759-460-79 IC BA09FP-E2
330 B IC IC5201 8-759-651-59 IC SN74CBTLV3245APWR
331 B IC IC5202 8-759-651-59 IC SN74CBTLV3245APWR
332 B IC IC5203 6-706-491-01 IC TC7SH86FU(T5RSOYJF)
333 B IC IC5500 6-707-822-01 IC EM6A9320BI-5MG
334 B IC IC6000 6-704-600-01 IC M24C02-WMN6T(B)
335 B IC IC6001 8-759-679-54 IC SN74LVC14APWR
336 B IC IC7000 6-707-927-01 IC BD9775FV
337 B IC IC7001 6-709-441-01 IC SI8008TM-TL
338 B IC IC7002 6-709-441-01 IC SI8008TM-TL
339 B IC IC7004 6-708-862-01 IC MM1662FTRE
340 B IC IC7005 6-705-469-01 IC BA50BC0FP-E2
341 B IC IC9000 6-704-819-01 IC CS4335-KSZR
342 B IC IC9001 6-704-001-01 IC BR24L02F-WE2
343 B IC IC9002 6-708-758-01 IC PCA9517DP.118
344 B IC * IC9711 6-703-108-01 IC SN74LVC2G04DCKR
345 B JACK J6000 1-750-925-11 JACK (SMALL TYPE)
346 B COIL L1002 1-400-794-21 FERRITE 0UH
347 B COIL L5000 1-456-984-11 INDUCTOR 0UH
348 B COIL L5001 1-456-984-11 INDUCTOR 0UH
349 B COIL L5002 1-456-984-11 INDUCTOR 0UH
350 B COIL L5003 1-456-984-11 INDUCTOR 0UH
351 B COIL L5004 1-456-984-11 INDUCTOR 0UH
352 B COIL L5005 1-400-177-21 FERRITE 0UH
353 B COIL L5006 1-469-561-21 INDUCTOR 100UH
354 B COIL L5201 1-400-794-21 FERRITE 0UH
355 B COIL L5202 1-412-054-21 INDUCTOR 2.2UH
356 B COIL L5203 1-469-551-21 INDUCTOR 2.2UH
357 B COIL L5205 1-469-551-21 INDUCTOR 2.2UH
358 B COIL L5206 1-469-551-21 INDUCTOR 2.2UH
359 B COIL L5500 1-400-794-21 FERRITE 0UH
360 B COIL L5501 1-400-794-21 FERRITE 0UH
361 B COIL L7000 1-416-740-11 INDUCTOR 10UH
362 B COIL L7001 1-457-041-21 INDUCTOR 10UH
Remarks-2
KDL-32/40/46V2000 (AUS) 4-6
Page 77
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
363 B COIL L7002 1-481-081-11 INDUCTOR 47UH
364 B COIL L7003 1-481-080-11 INDUCTOR 22UH
365 B COIL L7004 1-481-083-11 INDUCTOR 22UH
366 B COIL L7005 1-456-786-21 INDUCTOR 47UH
367 B COIL L7006 1-412-056-11 INDUCTOR 4.7UH
368 B COIL L7007 1-416-740-11 INDUCTOR 10UH
369 B COIL * L9000 1-813-308-11 INDUCTOR 0UH
370 B COIL * L9001 1-813-308-11 INDUCTOR 0UH
371 B COIL * L9002 1-813-308-11 INDUCTOR 0UH
372 B COIL * L9003 1-813-308-11 INDUCTOR 0UH
373 B COIL L9004 1-469-555-21 INDUCTOR 10UH
374 B COIL L9005 1-469-555-21 INDUCTOR 10UH
375 B IC LINK ! PS6000 1-576-122-21 IC LINK 0.4A 72V
376 B IC LINK ! PS7000 1-576-603-21 FUSE 3.15A 24V
377 B TRANSISTOR Q1001 6-551-387-01 TRANSISTOR SSM6N16FU
378 B TRANSISTOR Q1002 8-729-029-00 TRANSISTOR DTC115EUA-T106
379 B TRANSISTOR Q1003 8-729-028-74 TRANSISTOR DTA114TUA-T106
380 B TRANSISTOR Q1004 8-729-013-28 TRANSISTOR HN1B01FU-TE85R
381 B TRANSISTOR Q1005 8-729-028-74 TRANSISTOR DTA114TUA-T106
382 B TRANSISTOR Q1006 8-729-029-04 TRANSISTOR DTC123JUA-T106
383 B TRANSISTOR Q1007 8-729-028-96 TRANSISTOR DTC114EUA-T106
384 B TRANSISTOR Q1700 6-551-387-01 TRANSISTOR SSM6N16FU
385 B TRANSISTOR Q1701 8-729-120-28 TRANSISTOR 2SC1623-L5L6
386 B TRANSISTOR Q5000 8-729-602-36 TRANSISTOR 2SA1602-F
387 B TRANSISTOR Q5001 8-729-602-36 TRANSISTOR 2SA1602-F
388 B TRANSISTOR Q6000 8-729-120-28 TRANSISTOR 2SC1623-L5L6
389 B TRANSISTOR Q6001 8-729-120-28 TRANSISTOR 2SC1623-L5L6
390 B TRANSISTOR Q7000 8-729-046-04 TRANSISTOR FDS6690A
391 B TRANSISTOR Q7001 6-550-828-01 TRANSISTOR RSQ035P03TR
392 B TRANSISTOR Q7005 6-550-851-01 TRANSISTOR RSS050P03FTB
393 B TRANSISTOR Q7006 8-729-029-00 TRANSISTOR DTC115EUA-T106
394 B TRANSISTOR Q7007 8-729-602-21 TRANSISTOR 2SC4154-F
395 B TRANSISTOR Q7008 8-729-028-96 TRANSISTOR DTC114EUA-T106
396 B TRANSISTOR * Q7009 6-550-663-01 TRANSISTOR RSS100N03TB
397 B TRANSISTOR Q7500 8-729-028-96 TRANSISTOR DTC114EUA-T106
398 B TRANSISTOR Q7502 8-729-028-96 TRANSISTOR DTC114EUA-T106
399 B TRANSISTOR Q7503 8-729-028-96 TRANSISTOR DTC114EUA-T106
400 B TRANSISTOR Q7504 8-729-028-96 TRANSISTOR DTC114EUA-T106
401 B TRANSISTOR Q7505 8-729-028-96 TRANSISTOR DTC114EUA-T106
402 B TRANSISTOR Q7506 8-729-028-96 TRANSISTOR DTC114EUA-T106
403 B TRANSISTOR Q9000 8-729-028-96 TRANSISTOR DTC114EUA-T106
404 B TRANSISTOR Q9001 8-729-025-28 TRANSISTOR 2SK1828
405 B TRANSISTOR Q9003 8-729-028-96 TRANSISTOR DTC114EUA-T106
406 B TRANSISTOR Q9004 8-729-120-28 TRANSISTOR 2SC1623-L5L6
407 B TRANSISTOR Q9005 8-729-120-28 TRANSISTOR 2SC1623-L5L6
408 B TRANSISTOR Q9006 8-729-028-96 TRANSISTOR DTC114EUA-T106
409 B TRANSISTOR Q9007 6-551-364-01 TRANSISTOR DTC614TUT106
410 B TRANSISTOR Q9008 6-551-364-01 TRANSISTOR DTC614TUT106
411 B TRANSISTOR Q9009 8-729-600-22 TRANSISTOR 2SA1235-F
412 B TRANSISTOR Q9010 8-729-120-28 TRANSISTOR 2SC1623-L5L6
413 B RESISTOR R1001 1-216-864-11 SHORT CHIP 0
414 B RESISTOR R1002 1-218-990-81 SHORT CHIP 0
415 B RESISTOR R1005 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
416 B RESISTOR R1007 1-216-864-11 SHORT CHIP 0
417 B RESISTOR R1010 1-218-990-81 SHORT CHIP 0
418 B RESISTOR R1011 1-216-864-11 SHORT CHIP 0
419 B RESISTOR R1012 1-216-864-11 SHORT CHIP 0
420 B RESISTOR R1013 1-216-801-11 METAL CHIP 22 5% 1/10W
421 B RESISTOR R1014 1-216-801-11 METAL CHIP 22 5% 1/10W
422 B RESISTOR R1015 1-216-864-11 SHORT CHIP 0
423 B RESISTOR R1016 1-216-801-11 METAL CHIP 22 5% 1/10W
424 B RESISTOR R1017 1-216-801-11 METAL CHIP 22 5% 1/10W
425 B RESISTOR R1018 1-216-864-11 SHORT CHIP 0
426 B RESISTOR R1019 1-216-864-11 SHORT CHIP 0
427 B RESISTOR R1020 1-216-813-11 METAL CHIP 220 5% 1/10W
428 B RESISTOR R1021 1-216-801-11 METAL CHIP 22 5% 1/10W
429 B RESISTOR R1022 1-216-801-11 METAL CHIP 22 5% 1/10W
430 B RESISTOR R1023 1-216-801-11 METAL CHIP 22 5% 1/10W
431 B RESISTOR R1024 1-216-801-11 METAL CHIP 22 5% 1/10W
432 B RESISTOR R1025 1-216-864-11 SHORT CHIP 0
433 B RESISTOR R1026 1-216-801-11 METAL CHIP 22 5% 1/10W
434 B RESISTOR R1027 1-400-591-22 FERRITE 0UH
435 B RESISTOR R1031 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
436 B RESISTOR R1032 1-400-807-21 FERRITE 0UH
Remarks-2
KDL-32/40/46V2000 (AUS) 4-7
Page 78
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
437 B RESISTOR R1034 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
438 B RESISTOR R1035 1-216-864-11 SHORT CHIP 0
439 B RESISTOR R1036 1-218-965-11 RES-CHIP 10K 5% 1/16W
440 B RESISTOR R1037 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
441 B RESISTOR R1038 1-218-965-11 RES-CHIP 10K 5% 1/16W
442 B RESISTOR R1045 1-218-965-11 RES-CHIP 10K 5% 1/16W
443 B RESISTOR R1046 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
444 B RESISTOR R1047 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
445 B RESISTOR R1048 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
446 B RESISTOR R1049 1-218-965-11 RES-CHIP 10K 5% 1/16W
447 B RESISTOR R1052 1-218-941-81 RES-CHIP 100 5% 1/16W
448 B RESISTOR R1053 1-218-990-81 SHORT CHIP 0
449 B RESISTOR R1058 1-218-990-81 SHORT CHIP 0
450 B RESISTOR R1061 1-218-965-11 RES-CHIP 10K 5% 1/16W
451 B RESISTOR R1064 1-218-965-11 RES-CHIP 10K 5% 1/16W
452 B RESISTOR R1065 1-218-965-11 RES-CHIP 10K 5% 1/16W
453 B RESISTOR R1066 1-218-965-11 RES-CHIP 10K 5% 1/16W
454 B RESISTOR R1070 1-216-864-11 SHORT CHIP 0
455 B RESISTOR R1073 1-218-990-81 SHORT CHIP 0
456 B RESISTOR R1075 1-218-965-11 RES-CHIP 10K 5% 1/16W
457 B RESISTOR R1076 1-218-965-11 RES-CHIP 10K 5% 1/16W
458 B RESISTOR R1078 1-218-990-81 SHORT CHIP 0
459 B RESISTOR R1079 1-400-807-21 FERRITE 0UH
460 B RESISTOR R1080 1-400-807-21 FERRITE 0UH
461 B RESISTOR R1081 1-400-807-21 FERRITE 0UH
462 B RESISTOR R1082 1-400-807-21 FERRITE 0UH
463 B RESISTOR R1083 1-400-807-21 FERRITE 0UH
464 B RESISTOR R1084 1-400-807-21 FERRITE 0UH
465 B RESISTOR R1085 1-400-807-21 FERRITE 0UH
466 B RESISTOR R1087 1-216-864-11 SHORT CHIP 0
467 B RESISTOR R1101 1-218-959-11 RES-CHIP 3.3K 5% 1/16W
468 B RESISTOR R1107 1-218-941-81 RES-CHIP 100 5% 1/16W
469 B RESISTOR R1108 1-218-941-81 RES-CHIP 100 5% 1/16W
470 B RESISTOR R1109 1-218-941-81 RES-CHIP 100 5% 1/16W
471 B RESISTOR R1110 1-218-941-81 RES-CHIP 100 5% 1/16W
472 B RESISTOR R1111 1-218-933-11 RES-CHIP 22 5% 1/16W
473 B RESISTOR R1112 1-218-941-81 RES-CHIP 100 5% 1/16W
474 B RESISTOR R1113 1-218-933-11 RES-CHIP 22 5% 1/16W
475 B RESISTOR R1115 1-218-941-81 RES-CHIP 100 5% 1/16W
476 B RESISTOR R1116 1-218-990-81 SHORT CHIP 0
477 B RESISTOR R1117 1-218-941-81 RES-CHIP 100 5% 1/16W
478 B RESISTOR R1119 1-218-941-81 RES-CHIP 100 5% 1/16W
479 B RESISTOR R1122 1-216-864-11 SHORT CHIP 0
480 B RESISTOR R1123 1-216-864-11 SHORT CHIP 0
481 B RESISTOR R1124 1-216-864-11 SHORT CHIP 0
482 B RESISTOR R1125 1-216-864-11 SHORT CHIP 0
483 B RESISTOR R1138 1-218-965-11 RES-CHIP 10K 5% 1/16W
484 B RESISTOR R1142 1-218-965-11 RES-CHIP 10K 5% 1/16W
485 B RESISTOR R1144 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
486 B RESISTOR R1147 1-218-941-81 RES-CHIP 100 5% 1/16W
487 B RESISTOR R1158 1-218-941-81 RES-CHIP 100 5% 1/16W
488 B RESISTOR R1160 1-218-941-81 RES-CHIP 100 5% 1/16W
489 B RESISTOR R1161 1-218-965-11 RES-CHIP 10K 5% 1/16W
490 B RESISTOR R1162 1-218-973-11 RES-CHIP 47K 5% 1/16W
491 B RESISTOR R1163 1-218-941-81 RES-CHIP 100 5% 1/16W
492 B RESISTOR R1164 1-218-965-11 RES-CHIP 10K 5% 1/16W
493 B RESISTOR R1165 1-218-965-11 RES-CHIP 10K 5% 1/16W
494 B RESISTOR R1167 1-218-965-11 RES-CHIP 10K 5% 1/16W
495 B RESISTOR R1168 1-218-965-11 RES-CHIP 10K 5% 1/16W
496 B RESISTOR R1169 1-216-864-11 SHORT CHIP 0
497 B RESISTOR R1170 1-400-794-21 FERRITE 0UH
498 B RESISTOR R1180 1-218-965-11 RES-CHIP 10K 5% 1/16W
499 B RESISTOR R1183 1-218-941-81 RES-CHIP 100 5% 1/16W
500 B RESISTOR R1186 1-218-990-81 SHORT CHIP 0
501 B RESISTOR R1188 1-218-990-81 SHORT CHIP 0
502 B RESISTOR R1190 1-208-886-81 METAL CHIP 910 0.5% 1/16W
503 B RESISTOR R1191 1-218-969-11 RES-CHIP 22K 5% 1/16W
504 B RESISTOR R1192 1-218-941-81 RES-CHIP 100 5% 1/16W
505 B RESISTOR R1193 1-218-965-11 RES-CHIP 10K 5% 1/16W
506 B RESISTOR R1195 1-218-990-81 SHORT CHIP 0
507 B RESISTOR R1196 1-218-965-11 RES-CHIP 10K 5% 1/16W
508 B RESISTOR R1198 1-218-990-81 SHORT CHIP 0
509 B RESISTOR R1199 1-218-941-81 RES-CHIP 100 5% 1/16W
510 B RESISTOR R1200 1-218-990-81 SHORT CHIP 0
Remarks-2
KDL-32/40/46V2000 (AUS) 4-8
Page 79
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
511 B RESISTOR R1202 1-218-965-11 RES-CHIP 10K 5% 1/16W
512 B RESISTOR R1205 1-218-990-81 SHORT CHIP 0
513 B RESISTOR R1206 1-218-965-11 RES-CHIP 10K 5% 1/16W
514 B RESISTOR R1207 1-218-949-11 RES-CHIP 470 5% 1/16W
515 B RESISTOR R1208 1-218-990-81 SHORT CHIP 0
516 B RESISTOR R1209 1-218-990-81 SHORT CHIP 0
517 B RESISTOR R1210 1-218-949-11 RES-CHIP 470 5% 1/16W
518 B RESISTOR R1211 1-218-965-11 RES-CHIP 10K 5% 1/16W
519 B RESISTOR R1212 1-218-949-11 RES-CHIP 470 5% 1/16W
520 B RESISTOR R1218 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
521 B RESISTOR R1223 1-218-945-11 RES-CHIP 220 5% 1/16W
522 B RESISTOR R1224 1-218-990-81 SHORT CHIP 0
523 B RESISTOR R1225 1-218-937-11 RES-CHIP 47 5% 1/16W
524 B RESISTOR R1226 1-216-813-11 METAL CHIP 220 5% 1/10W
525 B RESISTOR R1227 1-218-937-11 RES-CHIP 47 5% 1/16W
526 B RESISTOR R1235 1-216-864-11 SHORT CHIP 0
527 B RESISTOR R1239 1-216-864-11 SHORT CHIP 0
528 B RESISTOR R1240 1-216-849-11 METAL CHIP 220K 5% 1/10W
529 B RESISTOR R1242 1-218-941-81 RES-CHIP 100 5% 1/16W
530 B RESISTOR R1243 1-216-809-11 METAL CHIP 100 5% 1/10W
531 B RESISTOR R1246 1-218-965-11 RES-CHIP 10K 5% 1/16W
532 B RESISTOR R1247 1-216-864-11 SHORT CHIP 0
533 B RESISTOR R1255 1-400-591-22 FERRITE 0UH
534 B RESISTOR R1256 1-400-591-22 FERRITE 0UH
535 B RESISTOR R1257 1-400-591-22 FERRITE 0UH
536 B RESISTOR R1258 1-400-591-22 FERRITE 0UH
537 B RESISTOR R1259 1-400-591-22 FERRITE 0UH
538 B RESISTOR R1260 1-400-591-22 FERRITE 0UH
539 B RESISTOR R1261 1-400-591-22 FERRITE 0UH
540 B RESISTOR R1262 1-400-591-22 FERRITE 0UH
541 B RESISTOR R1263 1-400-591-22 FERRITE 0UH
542 B RESISTOR R1264 1-400-591-22 FERRITE 0UH
543 B RESISTOR R1265 1-400-591-22 FERRITE 0UH
544 B RESISTOR R1266 1-216-864-11 SHORT CHIP 0
545 B RESISTOR R1267 1-400-591-22 FERRITE 0UH
546 B RESISTOR R1270 1-218-941-81 RES-CHIP 100 5% 1/16W
547 B RESISTOR R1290 1-218-990-81 SHORT CHIP 0
548 B RESISTOR R1295 1-208-909-11 METAL CHIP 8.2K 0.5% 1/16W
549 B RESISTOR R1701 1-216-864-11 SHORT CHIP 0
550 B RESISTOR R1702 1-216-809-11 METAL CHIP 100 5% 1/10W
551 B RESISTOR R1703 1-216-864-11 SHORT CHIP 0
552 B RESISTOR R1705 1-218-965-11 RES-CHIP 10K 5% 1/16W
553 B RESISTOR R1706 1-218-965-11 RES-CHIP 10K 5% 1/16W
554 B RESISTOR R1709 1-218-965-11 RES-CHIP 10K 5% 1/16W
555 B RESISTOR R1710 1-218-965-11 RES-CHIP 10K 5% 1/16W
556 B RESISTOR R1721 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
557 B RESISTOR R1722 1-216-853-11 METAL CHIP 470K 5% 1/10W
558 B RESISTOR R4702 1-216-864-11 SHORT CHIP 0
559 B RESISTOR R4703 1-216-817-11 METAL CHIP 470 5% 1/10W
560 B RESISTOR R4710 1-216-864-11 SHORT CHIP 0
561 B RESISTOR R5000 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
562 B RESISTOR R5002 1-218-949-11 RES-CHIP 470 5% 1/16W
563 B RESISTOR R5003 1-218-990-81 SHORT CHIP 0
564 B RESISTOR R5004 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
565 B RESISTOR R5007 1-218-949-11 RES-CHIP 470 5% 1/16W
566 B RESISTOR R5008 1-218-990-81 SHORT CHIP 0
567 B RESISTOR R5009 1-218-989-11 RES-CHIP 1M 5% 1/16W
568 B RESISTOR R5010 1-218-935-11 RES-CHIP 33 5% 1/16W
569 B RESISTOR R5011 1-218-941-81 RES-CHIP 100 5% 1/16W
570 B RESISTOR R5012 1-218-941-81 RES-CHIP 100 5% 1/16W
571 B RESISTOR R5013 1-218-941-81 RES-CHIP 100 5% 1/16W
572 B RESISTOR R5014 1-218-941-81 RES-CHIP 100 5% 1/16W
573 B RESISTOR R5016 1-218-941-81 RES-CHIP 100 5% 1/16W
574 B RESISTOR R5017 1-218-941-81 RES-CHIP 100 5% 1/16W
575 B RESISTOR R5025 1-218-990-81 SHORT CHIP 0
576 B RESISTOR R5026 1-216-864-11 SHORT CHIP 0
577 B RESISTOR R5027 1-216-864-11 SHORT CHIP 0
578 B RESISTOR R5029 1-218-965-11 RES-CHIP 10K 5% 1/16W
579 B RESISTOR R5031 1-218-941-81 RES-CHIP 100 5% 1/16W
580 B RESISTOR R5039 1-218-990-81 SHORT CHIP 0
581 B RESISTOR R5040 1-218-990-81 SHORT CHIP 0
582 B RESISTOR R5042 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
583 B RESISTOR R5043 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
584 B RESISTOR R5044 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
Remarks-2
KDL-32/40/46V2000 (AUS) 4-9
Page 80
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
585 B RESISTOR R5045 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
586 B RESISTOR R5046 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
587 B RESISTOR R5047 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
588 B RESISTOR R5210 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
589 B RESISTOR R5211 1-218-990-81 SHORT CHIP 0
590 B RESISTOR R5212 1-218-973-11 RES-CHIP 47K 5% 1/16W
591 B RESISTOR R5214 1-218-933-11 RES-CHIP 22 5% 1/16W
592 B RESISTOR R5215 1-218-933-11 RES-CHIP 22 5% 1/16W
593 B RESISTOR R5218 1-216-864-11 SHORT CHIP 0
594 B RESISTOR R5221 1-216-864-11 SHORT CHIP 0
595 B RESISTOR R5222 1-216-864-11 SHORT CHIP 0
596 B RESISTOR R5223 1-218-965-11 RES-CHIP 10K 5% 1/16W
597 B RESISTOR R5224 1-218-990-81 SHORT CHIP 0
598 B RESISTOR R5225 1-218-965-11 RES-CHIP 10K 5% 1/16W
599 B RESISTOR R5226 1-218-965-11 RES-CHIP 10K 5% 1/16W
600 B RESISTOR R5500 1-400-794-21 FERRITE 0UH
601 B RESISTOR R5503 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
602 B RESISTOR R5504 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
603 B RESISTOR R5505 1-218-990-81 SHORT CHIP 0
604 B RESISTOR R5506 1-211-986-11 METAL CHIP 51 0.5% 1/10W
605 B RESISTOR R5507 1-218-990-81 SHORT CHIP 0
606 B RESISTOR R5508 1-218-933-11 RES-CHIP 22 5% 1/16W
607 B RESISTOR R5509 1-211-986-11 METAL CHIP 51 0.5% 1/10W
608 B RESISTOR R5510 1-218-933-11 RES-CHIP 22 5% 1/16W
609 B RESISTOR R5511 1-218-933-11 RES-CHIP 22 5% 1/16W
610 B RESISTOR R5512 1-218-933-11 RES-CHIP 22 5% 1/16W
611 B RESISTOR R5513 1-218-933-11 RES-CHIP 22 5% 1/16W
612 B RESISTOR R5514 1-218-933-11 RES-CHIP 22 5% 1/16W
613 B RESISTOR R5515 1-218-933-11 RES-CHIP 22 5% 1/16W
614 B RESISTOR R5516 1-218-933-11 RES-CHIP 22 5% 1/16W
615 B RESISTOR R5517 1-218-933-11 RES-CHIP 22 5% 1/16W
616 B RESISTOR R5518 1-218-933-11 RES-CHIP 22 5% 1/16W
617 B RESISTOR R5519 1-218-933-11 RES-CHIP 22 5% 1/16W
618 B RESISTOR R6000 1-216-805-11 METAL CHIP 47 5% 1/10W
619 B RESISTOR R6001 1-216-805-11 METAL CHIP 47 5% 1/10W
620 B RESISTOR R6004 1-216-853-11 METAL CHIP 470K 5% 1/10W
621 B RESISTOR R6005 1-216-853-11 METAL CHIP 470K 5% 1/10W
622 B RESISTOR R6006 1-216-833-11 METAL CHIP 10K 5% 1/10W
623 B RESISTOR R6007 1-216-821-11 METAL CHIP 1K 5% 1/10W
624 B RESISTOR R6008 1-216-821-11 METAL CHIP 1K 5% 1/10W
625 B RESISTOR R6009 1-216-833-11 METAL CHIP 10K 5% 1/10W
626 B RESISTOR R6010 1-216-805-11 METAL CHIP 47 5% 1/10W
627 B RESISTOR R6011 1-216-805-11 METAL CHIP 47 5% 1/10W
628 B RESISTOR R6012 1-218-827-11 METAL CHIP 150 0.5% 1/10W
629 B RESISTOR R6013 1-218-827-11 METAL CHIP 150 0.5% 1/10W
630 B RESISTOR R6014 1-218-827-11 METAL CHIP 150 0.5% 1/10W
631 B RESISTOR R6015 1-218-827-11 METAL CHIP 150 0.5% 1/10W
632 B RESISTOR R6016 1-216-821-11 METAL CHIP 1K 5% 1/10W
633 B RESISTOR R6017 1-218-827-11 METAL CHIP 150 0.5% 1/10W
634 B RESISTOR R6018 1-218-827-11 METAL CHIP 150 0.5% 1/10W
635 B RESISTOR R6019 1-216-845-11 METAL CHIP 100K 5% 1/10W
636 B RESISTOR R6021 1-216-801-11 METAL CHIP 22 5% 1/10W
637 B RESISTOR R6022 1-216-801-11 METAL CHIP 22 5% 1/10W
638 B RESISTOR R6023 1-216-801-11 METAL CHIP 22 5% 1/10W
639 B RESISTOR R6029 1-218-933-11 RES-CHIP 22 5% 1/16W
640 B RESISTOR R6030 1-218-933-11 RES-CHIP 22 5% 1/16W
641 B RESISTOR R6041 1-216-847-11 METAL CHIP 150K 5% 1/10W
642 B RESISTOR R6042 1-216-847-11 METAL CHIP 150K 5% 1/10W
643 B RESISTOR R6043 1-216-847-11 METAL CHIP 150K 5% 1/10W
644 B RESISTOR R6044 1-216-847-11 METAL CHIP 150K 5% 1/10W
645 B RESISTOR R6045 1-216-821-11 METAL CHIP 1K 5% 1/10W
646 B RESISTOR R6046 1-216-821-11 METAL CHIP 1K 5% 1/10W
647 B RESISTOR R7000 1-218-877-11 METAL CHIP 18K 0.5% 1/10W
648 B RESISTOR R7001 1-218-877-11 METAL CHIP 18K 0.5% 1/10W
649 B RESISTOR R7002 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
650 B RESISTOR R7003 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
651 B RESISTOR R7004 1-216-841-11 METAL CHIP 47K 5% 1/10W
652 B RESISTOR R7005 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
653 B RESISTOR R7006 1-218-891-11 METAL CHIP 68K 0.5% 1/10W
654 B RESISTOR R7007 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W
655 B RESISTOR R7008 1-218-894-11 METAL CHIP 91K 0.5% 1/10W
656 B RESISTOR R7009 1-216-841-11 METAL CHIP 47K 5% 1/10W
657 B RESISTOR R7010 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
658 B RESISTOR R7011 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
Remarks-2
KDL-32/40/46V2000 (AUS) 4-10
Page 81
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
659 B RESISTOR R7012 1-216-835-11 METAL CHIP 15K 5% 1/10W
660 B RESISTOR R7013 1-218-882-11 METAL CHIP 30K 0.5% 1/10W
661 B RESISTOR R7014 1-216-809-11 METAL CHIP 100 5% 1/10W
662 B RESISTOR R7015 1-216-809-11 METAL CHIP 100 5% 1/10W
663 B RESISTOR R7016 1-216-821-11 METAL CHIP 1K 5% 1/10W
664 B RESISTOR R7017 1-216-815-11 METAL CHIP 330 5% 1/10W
665 B RESISTOR R7019 1-216-835-11 METAL CHIP 15K 5% 1/10W
666 B RESISTOR R7020 1-216-864-11 SHORT CHIP 0
667 B RESISTOR R7021 1-216-837-11 METAL CHIP 22K 5% 1/10W
668 B RESISTOR R7022 1-216-864-11 SHORT CHIP 0
669 B RESISTOR R7023 1-216-864-11 SHORT CHIP 0
670 B RESISTOR R7024 1-216-837-11 METAL CHIP 22K 5% 1/10W
671 B RESISTOR R7025 1-216-864-11 SHORT CHIP 0
672 B RESISTOR R7026 1-216-864-11 SHORT CHIP 0
673 B RESISTOR R7027 1-216-821-11 METAL CHIP 1K 5% 1/10W
674 B RESISTOR R7028 1-216-821-11 METAL CHIP 1K 5% 1/10W
675 B RESISTOR R7029 1-216-841-11 METAL CHIP 47K 5% 1/10W
676 B RESISTOR R7030 1-216-841-11 METAL CHIP 47K 5% 1/10W
677 B RESISTOR R7031 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
678 B RESISTOR R7032 1-218-843-11 METAL CHIP 680 0.5% 1/10W
679 B RESISTOR R7035 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
680 B RESISTOR R7036 1-218-845-11 METAL CHIP 820 0.5% 1/10W
681 B RESISTOR R7040 1-216-295-91 SHORT CHIP 0
682 B RESISTOR R7041 1-400-794-21 FERRITE 0UH
683 B RESISTOR R7045 1-216-295-91 SHORT CHIP 0
684 B RESISTOR R7046 1-216-295-91 SHORT CHIP 0
685 B RESISTOR R7048 1-216-295-91 SHORT CHIP 0
686 B RESISTOR R7050 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
687 B RESISTOR R7051 1-218-839-11 METAL CHIP 470 0.5% 1/10W
688 B RESISTOR R7053 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
689 B RESISTOR R7054 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
690 B RESISTOR R7055 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
691 B RESISTOR R7056 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
692 B RESISTOR R7057 1-216-843-11 METAL CHIP 68K 5% 1/10W
693 B RESISTOR R7058 1-216-851-11 METAL CHIP 330K 5% 1/10W
694 B RESISTOR R7060 1-216-833-11 METAL CHIP 10K 5% 1/10W
695 B RESISTOR R7063 1-216-833-11 METAL CHIP 10K 5% 1/10W
696 B RESISTOR R7064 1-216-864-11 SHORT CHIP 0
697 B RESISTOR R7066 1-216-835-11 METAL CHIP 15K 5% 1/10W
698 B RESISTOR R7067 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
699 B RESISTOR R7080 1-400-591-22 FERRITE 0UH
700 B RESISTOR R7081 1-400-591-22 FERRITE 0UH
701 B RESISTOR R7082 1-400-591-22 FERRITE 0UH
702 B RESISTOR R7083 1-400-591-22 FERRITE 0UH
703 B RESISTOR R7506 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
704 B RESISTOR R7507 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
705 B RESISTOR R7510 1-216-864-11 SHORT CHIP 0
706 B RESISTOR R7515 1-216-845-11 METAL CHIP 100K 5% 1/10W
707 B RESISTOR R7516 1-216-844-11 METAL CHIP 82K 5% 1/10W
708 B RESISTOR R7517 1-216-845-11 METAL CHIP 100K 5% 1/10W
709 B RESISTOR R7518 1-216-847-11 METAL CHIP 150K 5% 1/10W
710 B RESISTOR R7542 1-218-965-11 RES-CHIP 10K 5% 1/16W
711 B RESISTOR R7543 1-218-965-11 RES-CHIP 10K 5% 1/16W
712 B RESISTOR R7544 1-218-965-11 RES-CHIP 10K 5% 1/16W
713 B RESISTOR R7545 1-218-977-11 RES-CHIP 100K 5% 1/16W
714 B RESISTOR R7546 1-218-965-11 RES-CHIP 10K 5% 1/16W
715 B RESISTOR R9001 1-216-805-11 METAL CHIP 47 5% 1/10W
716 B RESISTOR R9002 1-216-805-11 METAL CHIP 47 5% 1/10W
717 B RESISTOR R9003 1-216-805-11 METAL CHIP 47 5% 1/10W
718 B RESISTOR R9004 1-216-805-11 METAL CHIP 47 5% 1/10W
719 B RESISTOR R9005 1-218-929-11 RES-CHIP 10 5% 1/16W
720 B RESISTOR R9006 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
721 B RESISTOR R9007 1-218-990-81 SHORT CHIP 0
722 B RESISTOR R9008 1-218-990-81 SHORT CHIP 0
723 B RESISTOR R9009 1-218-990-81 SHORT CHIP 0
724 B RESISTOR R9010 1-216-864-11 SHORT CHIP 0
725 B RESISTOR R9011 1-216-853-11 METAL CHIP 470K 5% 1/10W
726 B RESISTOR R9012 1-216-853-11 METAL CHIP 470K 5% 1/10W
727 B RESISTOR R9013 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
728 B RESISTOR R9014 1-216-864-11 SHORT CHIP 0
729 B RESISTOR R9015 1-216-821-11 METAL CHIP 1K 5% 1/10W
730 B RESISTOR R9016 1-216-821-11 METAL CHIP 1K 5% 1/10W
731 B RESISTOR R9017 1-218-941-81 RES-CHIP 100 5% 1/16W
732 B RESISTOR R9018 1-218-941-81 RES-CHIP 100 5% 1/16W
Remarks-2
KDL-32/40/46V2000 (AUS) 4-11
Page 82
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
733 B RESISTOR R9019 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
734 B RESISTOR R9020 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
735 B RESISTOR R9022 1-218-973-11 RES-CHIP 47K 5% 1/16W
736 B RESISTOR R9025 1-218-941-81 RES-CHIP 100 5% 1/16W
737 B RESISTOR R9031 1-218-929-11 RES-CHIP 10 5% 1/16W
738 B RESISTOR R9032 1-218-929-11 RES-CHIP 10 5% 1/16W
739 B RESISTOR R9033 1-218-929-11 RES-CHIP 10 5% 1/16W
740 B RESISTOR R9034 1-218-929-11 RES-CHIP 10 5% 1/16W
741 B RESISTOR R9035 1-218-929-11 RES-CHIP 10 5% 1/16W
742 B RESISTOR R9036 1-218-929-11 RES-CHIP 10 5% 1/16W
743 B RESISTOR R9037 1-218-929-11 RES-CHIP 10 5% 1/16W
744 B RESISTOR R9038 1-218-929-11 RES-CHIP 10 5% 1/16W
745 B RESISTOR R9040 1-218-965-11 RES-CHIP 10K 5% 1/16W
746 B RESISTOR R9041 1-218-965-11 RES-CHIP 10K 5% 1/16W
747 B RESISTOR R9044 1-218-937-11 RES-CHIP 47 5% 1/16W
748 B RESISTOR R9045 1-218-937-11 RES-CHIP 47 5% 1/16W
749 B RESISTOR R9046 1-218-937-11 RES-CHIP 47 5% 1/16W
750 B RESISTOR R9047 1-216-295-91 SHORT CHIP 0
751 B RESISTOR R9048 1-218-937-11 RES-CHIP 47 5% 1/16W
752 B RESISTOR R9051 1-218-937-11 RES-CHIP 47 5% 1/16W
753 B RESISTOR R9060 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
754 B RESISTOR R9061 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
755 B RESISTOR R9062 1-216-847-11 METAL CHIP 150K 5% 1/10W
756 B RESISTOR R9063 1-216-847-11 METAL CHIP 150K 5% 1/10W
757 B RESISTOR R9064 1-216-821-11 METAL CHIP 1K 5% 1/10W
758 B RESISTOR R9065 1-216-847-11 METAL CHIP 150K 5% 1/10W
759 B RESISTOR R9066 1-216-847-11 METAL CHIP 150K 5% 1/10W
760 B RESISTOR R9067 1-216-821-11 METAL CHIP 1K 5% 1/10W
761 B RESISTOR R9070 1-218-953-11 RES-CHIP 1K 5% 1/16W
762 B RESISTOR R9071 1-218-973-11 RES-CHIP 47K 5% 1/16W
763 B RESISTOR R9072 1-218-973-11 RES-CHIP 47K 5% 1/16W
764 B RESISTOR R9073 1-218-973-11 RES-CHIP 47K 5% 1/16W
765 B RESISTOR R9074 1-218-969-11 RES-CHIP 22K 5% 1/16W
766 B RESISTOR R9075 1-218-989-11 RES-CHIP 1M 5% 1/16W
767 B RESISTOR R9076 1-218-973-11 RES-CHIP 47K 5% 1/16W
768 B RESISTOR R9944 1-216-295-91 SHORT CHIP 0
769 B NETWORK RB1004 1-234-372-11 RES, NETWORK 100 (1005X4)
770 B NETWORK RB1005 1-234-372-11 RES, NETWORK 100 (1005X4)
771 B NETWORK RB1006 1-234-372-11 RES, NETWORK 100 (1005X4)
772 B NETWORK RB1007 1-234-378-21 RES, NETWORK 10K (1005X4)
773 B NETWORK RB1008 1-234-378-21 RES, NETWORK 10K (1005X4)
774 B NETWORK RB5201 1-234-372-11 RES, NETWORK 100 (1005X4)
775 B NETWORK RB5202 1-234-372-11 RES, NETWORK 100 (1005X4)
776 B NETWORK RB5203 1-234-372-11 RES, NETWORK 100 (1005X4)
777 B NETWORK RB5500 1-234-370-21 RES, NETWORK 22 (1005X4)
778 B NETWORK RB5501 1-234-370-21 RES, NETWORK 22 (1005X4)
779 B NETWORK RB5502 1-234-370-21 RES, NETWORK 22 (1005X4)
780 B NETWORK RB5503 1-234-370-21 RES, NETWORK 22 (1005X4)
781 B NETWORK RB5504 1-234-370-21 RES, NETWORK 22 (1005X4)
782 B NETWORK RB5505 1-234-370-21 RES, NETWORK 22 (1005X4)
783 B NETWORK RB5506 1-234-370-21 RES, NETWORK 22 (1005X4)
784 B NETWORK RB5507 1-234-370-21 RES, NETWORK 22 (1005X4)
785 B NETWORK RB5508 1-234-370-21 RES, NETWORK 22 (1005X4)
786 B NETWORK RB5509 1-234-370-21 RES, NETWORK 22 (1005X4)
787 B NETWORK RB5510 1-234-370-21 RES, NETWORK 22 (1005X4)
788 B NETWORK RB5511 1-234-370-21 RES, NETWORK 22 (1005X4)
789 B VARISTOR VD6000 1-802-078-11 VARISTOR (SMD)
790 B VARISTOR VD6001 1-802-078-11 VARISTOR (SMD)
791 B VARISTOR VD6002 1-802-078-11 VARISTOR (SMD)
792 B VARISTOR VD6003 1-802-078-11 VARISTOR (SMD)
793 B VARISTOR VD6004 1-802-078-11 VARISTOR (SMD)
794 B VARISTOR VD6005 1-802-078-11 VARISTOR (SMD)
795 B VARISTOR VD6006 1-802-078-11 VARISTOR (SMD)
796 B VARISTOR VD9001 1-802-078-11 VARISTOR (SMD)
797 B VARISTOR VD9002 1-802-078-11 VARISTOR (SMD)
798 B VARISTOR VD9003 6-500-701-01 DIODE PGB1010603NR
799 B VARISTOR VD9004 6-500-701-01 DIODE PGB1010603NR
800 B VARISTOR VD9005 6-500-701-01 DIODE PGB1010603NR
801 B VARISTOR VD9006 6-500-701-01 DIODE PGB1010603NR
802 B VARISTOR VD9007 6-500-701-01 DIODE PGB1010603NR
803 B VARISTOR VD9008 6-500-701-01 DIODE PGB1010603NR
804 B VARISTOR VD9010 6-500-701-01 DIODE PGB1010603NR
805 B VARISTOR VD9011 6-500-701-01 DIODE PGB1010603NR
806 B VARISTOR VD9012 6-500-701-01 DIODE PGB1010603NR
Remarks-2
KDL-32/40/46V2000 (AUS) 4-12
Page 83
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
807 B VARISTOR VD9013 6-500-701-01 DIODE PGB1010603NR
808 B CRYSTAL X1001 1-813-070-21 PIEZOELECTRIC OSCILLATOR
809 B CRYSTAL X1009 1-813-784-21 VIBRATOR, CRYSTAL
810 B CRYSTAL X5000 1-813-773-11 VIBRATOR, CRYSTAL
811 TUG CAPACITOR C3805 1-128-407-11 ELECT CHIP 47UF 20% 50V
812 TUG CAPACITOR C3806 1-126-197-11 ELECT CHIP 10UF 20.00% 50V
813 TUG CAPACITOR C3807 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
814 TUG CAPACITOR C3808 1-162-921-11 CERAMIC CHIP 33PF 5.00% 50V
815 TUG CAPACITOR C3809 1-127-931-21 ELECT CHIP 470UF 20% 16V
816 TUG CAPACITOR C3810 1-162-921-11 CERAMIC CHIP 33PF 5.00% 50V
817 TUG CAPACITOR C3815 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
818 TUG CAPACITOR C3816 1-128-992-21 ELECT CHIP 47UF 20% 25V
819 TUG CAPACITOR C3817 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
820 TUG CAPACITOR C3818 1-128-992-21 ELECT CHIP 47UF 20% 25V
821 TUG CAPACITOR C3819 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
822 TUG CAPACITOR C3820 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
823 TUG CAPACITOR C3821 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
824 TUG CAPACITOR C3822 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
825 TUG CAPACITOR C3901 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V
826 TUG CAPACITOR C3902 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V
827 TUG CAPACITOR C3904 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
828 TUG CAPACITOR C3905 1-162-921-11 CERAMIC CHIP 33PF 5.00% 50V
829 TUG CONNECTOR CN3802 1-819-339-11 HEADER ASSEMBLY FOR PWB 12P
830 TUG CONNECTOR CN3803 1-819-476-11 HEADER ASSEMBLY FOR PWB 8P
831 TUG CONNECTOR CN3903 1-819-337-11 HEADER ASSEMBLY FOR PWB 10P
832 TUG CONNECTOR CN3904 1-819-474-11 HEADER ASSEMBLY FOR PWB 6P
833 TUG CONNECTOR CN3905 1-695-915-11 TAB (CONTACT)
834 TUG CONNECTOR CN3906 1-780-336-11 EARTH TERMINAL
835 TUG CONNECTOR CN3907 1-780-336-11 EARTH TERMINAL
836 TUG CONNECTOR CN3908 1-780-336-11 EARTH TERMINAL
837 TUG CONNECTOR CN3909 1-780-336-11 EARTH TERMINAL
838 TUG FERRITE BEAD FB3801 1-469-775-21 FERRITE 0UH
839 TUG FERRITE BEAD FB3802 1-469-775-21 FERRITE 0UH
840 TUG FERRITE BEAD FB3901 1-414-760-21 FERRITE 0UH
841 TUG FERRITE BEAD FB3902 1-414-760-21 FERRITE 0UH
842 TUG FERRITE BEAD FB3903 1-469-324-21 FERRITE 0UH
843 TUG FERRITE BEAD FB3904 1-469-324-21 FERRITE 0UH
844 TUG IC IC3802 6-705-469-01 IC BA50BC0FP-E2
845 TUG JUMPER READ JR3801 1-216-295-91 SHORT CHIP 0
846 TUG COIL L3802 1-412-058-11 INDUCTOR 10UH
847 TUG COIL L3803 1-412-058-11 INDUCTOR 10UH
848 TUG COIL L3806 1-412-052-21 INDUCTOR 1UH
849 TUG COIL L3807 1-412-052-21 INDUCTOR 1UH
850 TUG COIL L3901 1-414-580-21 INDUCTOR 100NH
851 TUG COIL L3902 1-414-580-21 INDUCTOR 100NH
852 TUG COIL L3903 1-414-580-21 INDUCTOR 100NH
853 TUG COIL L3904 1-412-979-21 INDUCTOR 1UH
854 TUG COIL L3905 1-414-580-21 INDUCTOR 100NH
855 TUG TRANSISTOR Q3901 8-729-027-43 TRANSISTOR DTC114EKA-T146
856 TUG RESISTOR R3804 1-216-864-11 SHORT CHIP 0
857 TUG RESISTOR R3805 1-216-295-91 SHORT CHIP 0
858 TUG RESISTOR R3807 1-216-864-11 SHORT CHIP 0
859 TUG RESISTOR R3809 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
860 TUG RESISTOR R3810 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
861 TUG RESISTOR R3901 1-216-809-11 METAL CHIP 100 5% 1/10W
862 TUG RESISTOR R3902 1-216-809-11 METAL CHIP 100 5% 1/10W
863 TUG RESISTOR R3905 1-216-864-11 SHORT CHIP 0
864 TUG RESISTOR R3906 1-216-864-11 SHORT CHIP 0
865 TUG RESISTOR R3907 1-218-907-11 METAL CHIP 330K 0.5% 1/10W
866 TUG RESISTOR R3908 1-216-864-11 SHORT CHIP 0
867 TUG RESISTOR R3909 1-216-837-11 METAL CHIP 22K 5% 1/10W
868 TUG RESISTOR R3910 1-216-833-11 METAL CHIP 10K 5% 1/10W
869 TUG RESISTOR R3912 1-216-864-11 SHORT CHIP 0
870 TUG TUNER TU3900 8-597-536-01 TUNER, FSS BTF-BG413Z
871 G2A CAPACITOR C6000 1-161-964-91 CERAMIC 0.0047UF 250V 40/46V2000
872 G2A CAPACITOR ! C6001 1-119-892-51 CERAMIC 470PF 10.00% 250V 40/46V2000
873 G2A CAPACITOR ! C6002 1-165-531-11 MYLAR 1UF 10 275V 40/46V2000
874 G2A CAPACITOR C6003 1-161-964-91 CERAMIC 0.0047UF 250V 40/46V2000
875 G2A CAPACITOR ! C6004 1-165-529-11 MYLAR 0.22UF 10 275V 40/46V2000
876 G2A CAPACITOR ! C6005 1-119-892-51 CERAMIC 470PF 10.00% 250V 40/46V2000
877 G2A CAPACITOR C6006 1-135-361-11 ELECT(BLOCK) 180UF 20% 450V 40/46V2000
878 G2A CAPACITOR C6008 1-135-361-11 ELECT(BLOCK) 180UF 20% 450V 40/46V2000
879 G2A CAPACITOR C6010 1-113-889-11 CERAMIC 0.001UF 20.00% 250V 40/46V2000
880 G2A CAPACITOR C6012 1-113-889-11 CERAMIC 0.001UF 20.00% 250V 40/46V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-13
Page 84
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
881 G2A CAPACITOR ! C6015 1-113-889-11 CERAMIC 0.001UF 20.00% 250V 40/46V2000
882 G2A CAPACITOR ! C6016 1-113-889-11 CERAMIC 0.001UF 20.00% 250V 40/46V2000
883 G2A CAPACITOR C6051 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V 40/46V2000
884 G2A CAPACITOR C6100 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V 40/46V2000
885 G2A CAPACITOR C6101 1-107-905-11 ELECT 4.7UF 20% 50V 40/46V2000
886 G2A CAPACITOR C6102 1-107-910-11 ELECT CHIP 100UF 20% 50V 40/46V2000
887 G2A CAPACITOR C6103 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V 40/46V2000
888 G2A CAPACITOR C6104 1-100-831-91 CERAMIC CHIP 0.001UF 2% 50V 40/46V2000
889 G2A CAPACITOR C6105 1-107-906-11 ELECT 10UF 20% 50V 40/46V2000
890 G2A CAPACITOR C6108 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V 40/46V2000
891 G2A CAPACITOR C6109 1-107-888-11 ELECT 47UF 20% 25V 40/46V2000
892 G2A CAPACITOR C6111 1-162-134-11 CERAMIC 470PF 10.00% 2KV 40/46V2000
893 G2A CAPACITOR C6112 1-100-310-11 FILM 18000PF 3% 800V 40/46V2000
894 G2A CAPACITOR C6116 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 40/46V2000
895 G2A CAPACITOR C6200 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V 40/46V2000
896 G2A CAPACITOR C6202 1-112-242-21 ELECT 1500UF 20% 25V 40/46V2000
897 G2A CAPACITOR C6203 1-107-907-11 ELECT 22UF 20% 50V 40/46V2000
898 G2A CAPACITOR C6204 1-112-242-21 ELECT 1500UF 20% 25V 40/46V2000
899 G2A CAPACITOR C6205 1-112-242-21 ELECT 1500UF 20% 25V 40/46V2000
900 G2A CAPACITOR C6207 1-112-242-21 ELECT 1500UF 20% 25V 40/46V2000
901 G2A CAPACITOR C6216 1-107-928-11 ELECT 4.7UF 20% 100V 40/46V2000
902 G2A CAPACITOR C6217 1-112-229-21 ELECT 1500UF 20% 16V 40/46V2000
903 G2A CAPACITOR C6305 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V 40/46V2000
904 G2A CAPACITOR C6306 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V 40/46V2000
905 G2A CAPACITOR C6307 1-107-903-11 ELECT 2.2UF 20% 50V 40/46V2000
906 G2A CAPACITOR C6308 1-107-904-11 ELECT 3.3UF 20% 50V 40/46V2000
907 G2A CAPACITOR C6309 1-107-910-11 ELECT 100UF 20% 50V 40/46V2000
908 G2A CAPACITOR C6310 1-100-139-31 FILM 0.001UF 5% 630V 40/46V2000
909 G2A CAPACITOR C6314 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V 40/46V2000
910 G2A CAPACITOR C6315 1-165-729-31 ELECT 470UF 20% 16V 40/46V2000
911 G2A CAPACITOR C6316 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V 40/46V2000
912 G2A CAPACITOR C6401 1-107-882-91 ELECT 100UF 20% 16V 40/46V2000
913 G2A CAPACITOR C6402 1-127-573-11 CERAMIC CHIP 1UF 10% 16V 40/46V2000
914 G2A CAPACITOR C6404 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V 40/46V2000
915 G2A CAPACITOR C6405 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V 40/46V2000
916 G2A CAPACITOR C6406 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V 40/46V2000
917 G2A CAPACITOR C6407 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V 40/46V2000
918 G2A CAPACITOR C6408 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V 40/46V2000
919 G2A CAPACITOR C6409 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V 40/46V2000
920 G2A CAPACITOR C6412 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V 40/46V2000
921 G2A CAPACITOR C6413 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V 40/46V2000
922 G2A CAPACITOR C6451 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V 40/46V2000
923 G2A CAPACITOR C6454 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V 40/46V2000
924 G2A CAPACITOR C6504 1-162-134-11 CERAMIC 470PF 10.00% 2KV 40/46V2000
925 G2A CAPACITOR C6505 1-162-134-11 CERAMIC 470PF 10.00% 2KV 40/46V2000
926 G2A CAPACITOR C6507 1-107-888-11 ELECT 47UF 20% 25V 40/46V2000
927 G2A CAPACITOR ! C6517 1-117-227-11 MYLAR 1UF 10.00% 450V 40/46V2000
928 G2A CAPACITOR ! C6518 1-112-744-52 MYLAR 1UF 10% 450V 40/46V2000
929 G2A CAPACITOR C6519 1-162-969-11 CERAMIC CHIP 0.0068UF 10.00% 25V 40/46V2000
930 G2A CAPACITOR ! C6520 1-117-227-11 MYLAR 1UF 10.00% 450V 40/46V2000
931 G2A CAPACITOR C6521 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V 40/46V2000
932 G2A CAPACITOR C6522 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V 40/46V2000
933 G2A CAPACITOR C6523 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V 40/46V2000
934 G2A CAPACITOR C6525 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V 40/46V2000
935 G2A CAPACITOR C6526 1-107-906-11 ELECT 10UF 20% 50V 40/46V2000
936 G2A CONNECTOR CN6000 1-695-915-11 TAB (CONTACT) 40/46V2000
937 G2A CONNECTOR !* CN6001 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P 40/46V2000
938 G2A CONNECTOR CN6011 1-537-770-21 TERMINAL BOARD, GROUND 40/46V2000
939 G2A CONNECTOR * CN6200 1-793-236-11 PIN, CONNECTOR (PC BOARD) 14P 40/46V2000
940 G2A CONNECTOR * CN6202 1-785-708-11 PIN, CONNECTOR (PC BOARD) 12P 40/46V2000
941 G2A CONNECTOR * CN6204 1-785-706-11 PIN, CONNECTOR (PC BOARD) 10P 40/46V2000
942 G2A CONNECTOR CN6206 1-695-915-11 TAB (CONTACT) 40/46V2000
943 G2A CONNECTOR CN6207 1-695-915-11 TAB (CONTACT) 40/46V2000
944 G2A CONNECTOR CN6211 1-537-770-21 TERMINAL BOARD, GROUND 40/46V2000
945 G2A CONNECTOR CN6214 1-537-770-21 TERMINAL BOARD, GROUND 40/46V2000
946 G2A CONNECTOR CN6216 1-537-770-21 TERMINAL BOARD, GROUND 40/46V2000
947 G2A CONNECTOR * CN6217 1-785-701-11 PIN, CONNECTOR (PC BOARD) 3P 40/46V2000
948 G2A DIODE D6000 8-719-054-89 DIODE D15XB60 40/46V2000
949 G2A DIODE D6002 8-719-404-50 DIODE MA111-TX 40/46V2000
950 G2A DIODE D6003 8-719-404-50 DIODE MA111-TX 40/46V2000
951 G2A DIODE D6102 6-500-137-01 DIODE BAT54HT1 40/46V2000
952 G2A DIODE D6103 8-719-979-64 DIODE UF4005/23 40/46V2000
953 G2A DIODE D6104 6-501-043-01 DIODE UMZ16NT106 40/46V2000
954 G2A DIODE D6105 6-501-043-01 DIODE UMZ16NT106 40/46V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-14
Page 85
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
955 G2A DIODE D6106 8-719-081-67 DIODE M1FM3 40/46V2000
956 G2A DIODE D6107 8-719-081-67 DIODE M1FM3 40/46V2000
957 G2A DIODE D6108 8-719-041-97 DIODE MA113-(TX) 40/46V2000
958 G2A DIODE D6109 8-719-022-90 DIODE MA8160-M 40/46V2000
959 G2A DIODE D6200 8-719-057-96 DIODE D10SC6M-4012 40/46V2000
960 G2A DIODE D6201 8-719-057-96 DIODE D10SC6M-4012 40/46V2000
961 G2A DIODE D6202 8-719-057-96 DIODE D10SC6M-4012 40/46V2000
962 G2A DIODE D6203 8-719-057-96 DIODE D10SC6M-4012 40/46V2000
963 G2A DIODE D6204 6-500-567-31 DIODE 10ERB20-TB3 40/46V2000
964 G2A DIODE D6205 6-500-567-31 DIODE 10ERB20-TB3 40/46V2000
965 G2A DIODE D6207 8-719-057-96 DIODE D10SC6M-4012 40/46V2000
966 G2A DIODE D6208 8-719-057-96 DIODE D10SC6M-4012 40/46V2000
967 G2A DIODE D6302 6-500-567-31 DIODE 10ERB20-TB3 40/46V2000
968 G2A DIODE D6303 6-500-567-31 DIODE 10ERB20-TB3 40/46V2000
969 G2A DIODE D6304 6-500-849-01 DIODE ERA22-08KFLB 40/46V2000
970 G2A DIODE D6305 6-500-567-31 DIODE 10ERB20-TB3 40/46V2000
971 G2A DIODE D6306 8-719-510-02 DIODE D1NS4 40/46V2000
972 G2A DIODE D6401 8-719-404-50 DIODE MA111-TX 40/46V2000
973 G2A DIODE D6402 8-719-404-50 DIODE MA111-TX 40/46V2000
974 G2A DIODE D6406 8-719-404-50 DIODE MA111-TX 40/46V2000
975 G2A DIODE D6407 8-719-018-01 DIODE MA8220-TX 40/46V2000
976 G2A DIODE D6408 8-719-404-50 DIODE MA111-TX 40/46V2000
977 G2A DIODE D6452 8-719-404-50 DIODE MA111-TX 40/46V2000
978 G2A DIODE D6456 8-719-404-50 DIODE MA111-TX 40/46V2000
979 G2A DIODE D6504 8-719-404-50 DIODE MA111-TX 40/46V2000
980 G2A DIODE D6505 8-719-421-82 DIODE MA8043-M 40/46V2000
981 G2A DIODE D6506 8-719-054-59 DIODE FSF05A60 40/46V2000
982 G2A DIODE D6507 8-719-404-50 DIODE MA111-TX 40/46V2000
983 G2A DIODE D6508 6-500-108-01 DIODE EP05FA20 40/46V2000
984 G2A DIODE D6509 6-500-108-01 DIODE EP05FA20 40/46V2000
985 G2A DIODE D6510 6-500-137-01 DIODE BAT54HT1 40/46V2000
986 G2A DIODE D6511 8-719-404-50 DIODE MA111-TX 40/46V2000
987 G2A DIODE D6512 8-719-404-50 DIODE MA111-TX 40/46V2000
988 G2A DIODE D6551 8-719-404-50 DIODE MA111-TX 40/46V2000
989 G2A DIODE D6552 8-719-404-50 DIODE MA111-TX 40/46V2000
990 G2A DIODE D6553 8-719-404-50 DIODE MA111-TX 40/46V2000
991 G2A FUSE ! F6000 1-576-233-51 FUSE 6.3A 250V 40/46V2000
992 G2A FERRITE BEAD FB6100 1-412-911-11 FERRITE 0UH 40/46V2000
993 G2A FERRITE BEAD FB6101 1-412-911-11 FERRITE 0UH 40/46V2000
994 G2A IC IC6100 6-707-749-01 IC CXD9841P 40/46V2000
995 G2A IC IC6200 6-709-368-01 IC MM1431ATT (CN) 40/46V2000
996 G2A IC IC6301 6-708-801-01 IC MIP2H2 40/46V2000
997 G2A IC IC6302 6-709-442-01 IC MM1530ATT 40/46V2000
998 G2A IC IC6401 6-709-368-01 IC MM1431ATT (CN) 40/46V2000
999 G2A IC IC6402 6-709-368-01 IC MM1431ATT (CN) 40/46V2000
1000 G2A IC IC6502 6-709-192-01 IC FA5501AN-D1-TE1 40/46V2000
1001 G2A JUMPER READ JR6001 1-216-295-91 SHORT CHIP 0 40/46V2000
1002 G2A JUMPER READ JR6002 1-216-296-11 SHORT CHIP 0 40/46V2000
1003 G2A JUMPER READ JR6004 1-216-295-91 SHORT CHIP 0 40/46V2000
1004 G2A JUMPER READ JR6005 1-216-296-11 SHORT CHIP 0 40/46V2000
1005 G2A JUMPER READ JR6006 1-216-296-11 SHORT CHIP 0 40/46V2000
1006 G2A JUMPER READ JR6007 1-216-296-11 SHORT CHIP 0 40/46V2000
1007 G2A JUMPER READ JR6008 1-216-296-11 SHORT CHIP 0 40/46V2000
1008 G2A JUMPER READ JR6009 1-216-296-11 SHORT CHIP 0 40/46V2000
1009 G2A JUMPER READ JR6010 1-216-296-11 SHORT CHIP 0 40/46V2000
1010 G2A JUMPER READ JR6011 1-216-295-91 SHORT CHIP 0 40/46V2000
1011 G2A JUMPER READ JR6012 1-216-295-91 SHORT CHIP 0 40/46V2000
1012 G2A JUMPER READ JR6013 1-216-296-11 SHORT CHIP 0 40/46V2000
1013 G2A JUMPER READ JR6014 1-216-296-11 SHORT CHIP 0 40/46V2000
1014 G2A COIL ! L6000 1-456-856-21 LINE FILTER COIL 40/46V2000
1015 G2A COIL L6203 1-414-487-41 INDUCTOR 1UH 40/46V2000
1016 G2A COIL L6204 1-414-487-41 INDUCTOR 1UH 40/46V2000
1017 G2A COIL L6207 1-457-239-11 INDUCTOR 4.7UH 40/46V2000
1018 G2A COIL L6208 1-457-239-11 INDUCTOR 4.7UH 40/46V2000
1019 G2A COIL L6300 1-414-183-41 INDUCTOR 10UH 40/46V2000
1020 G2A COIL L6500 1-457-218-11 INDUCTOR 100UH 40/46V2000
1021 G2A COIL ! L6502 1-457-141-21 INDUCTOR 175UH 40/46V2000
1022 G2A PHOTO COUPLER ! PH6000 6-600-187-01 PHOTO COUPLER PC123Y22JOOF 40/46V2000
1023 G2A PHOTO COUPLER ! PH6100 6-600-187-01 PHOTO COUPLER PC123Y22JOOF 40/46V2000
1024 G2A PHOTO COUPLER ! PH6301 6-600-187-01 PHOTO COUPLER PC123Y22JOOF 40/46V2000
1025 G2A PHOTO COUPLER ! PH6400 6-600-187-01 PHOTO COUPLER PC123Y22JOOF 40/46V2000
1026 G2A PHOTO COUPLER ! PH6401 6-600-187-01 PHOTO COUPLER PC123Y22JOOF 40/46V2000
1027 G2A PHOTO COUPLER ! PH6402 6-600-187-01 PHOTO COUPLER PC123Y22JOOF 40/46V2000
1028 G2A TRANSISTOR Q6051 8-729-045-62 TRANSISTOR 2SK2158-T2B 40/46V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-15
Page 86
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1029 G2A TRANSISTOR Q6100 6-551-297-01 TRANSISTOR 2SK3568(LBS1SONY.Q 40/46V2000
1030 G2A TRANSISTOR Q6101 6-551-297-01 TRANSISTOR 2SK3568(LBS1SONY.Q 40/46V2000
1031 G2A TRANSISTOR Q6400 8-729-804-41 TRANSISTOR 2SB1122-S 40/46V2000
1032 G2A TRANSISTOR Q6401 8-729-120-28 TRANSISTOR 2SC1623-L5L6 40/46V2000
1033 G2A TRANSISTOR Q6402 8-729-045-62 TRANSISTOR 2SK2158-T2B 40/46V2000
1034 G2A TRANSISTOR Q6403 8-729-600-22 TRANSISTOR 2SA1235-F 40/46V2000
1035 G2A TRANSISTOR Q6404 8-729-120-28 TRANSISTOR 2SC1623-L5L6 40/46V2000
1036 G2A TRANSISTOR Q6405 8-729-120-28 TRANSISTOR 2SC1623-L5L6 40/46V2000
1037 G2A TRANSISTOR Q6406 8-729-120-28 TRANSISTOR 2SC1623-L5L6 40/46V2000
1038 G2A TRANSISTOR Q6408 8-729-120-28 TRANSISTOR 2SC1623-L5L6 40/46V2000
1039 G2A TRANSISTOR Q6409 8-729-120-28 TRANSISTOR 2SC1623-L5L6 40/46V2000
1040 G2A TRANSISTOR Q6454 8-729-600-22 TRANSISTOR 2SA1235-F 40/46V2000
1041 G2A TRANSISTOR Q6455 8-729-120-28 TRANSISTOR 2SC1623-L5L6 40/46V2000
1042 G2A TRANSISTOR Q6500 6-551-403-01 TRANSISTOR 2SK3797(LBS1SONY. 40/46V2000
1043 G2A TRANSISTOR Q6501 8-729-820-90 TRANSISTOR 2SD1621-ST 40/46V2000
1044 G2A TRANSISTOR Q6502 8-729-804-41 TRANSISTOR 2SB1122-S 40/46V2000
1045 G2A TRANSISTOR Q6504 6-551-403-01 TRANSISTOR 2SK3797(LBS1SONY. 40/46V2000
1046 G2A RESISTOR R6002 1-240-251-11 METAL 6.8 5% 10W 40/46V2000
1047 G2A RESISTOR R6003 1-247-752-11 CARBON 1K 5% 1/2W 40/46V2000
1048 G2A RESISTOR R6004 1-218-835-11 METAL CHIP 330 0.5% 1/10W 40/46V2000
1049 G2A RESISTOR R6051 1-216-821-11 METAL CHIP 1K 5% 1/10W 40/46V2000
1050 G2A RESISTOR R6052 1-216-837-11 METAL CHIP 22K 5% 1/10W 40/46V2000
1051 G2A RESISTOR R6101 1-249-385-11 CARBON 2.2 5% 1/4W 40/46V2000
1052 G2A RESISTOR R6102 1-202-933-61 À’-Ωfi 0.1 10% 1/2W 40/46V2000
1053 G2A RESISTOR R6103 1-218-823-11 METAL CHIP 100 0.5% 1/10W 40/46V2000
1054 G2A RESISTOR R6104 1-218-887-11 METAL CHIP 47K 0.5% 1/10W 40/46V2000
1055 G2A RESISTOR R6105 1-208-854-11 METAL CHIP 1M 0.5% 1/10W 40/46V2000
1056 G2A RESISTOR R6106 1-208-854-11 METAL CHIP 1M 0.5% 1/10W 40/46V2000
1057 G2A RESISTOR R6107 1-208-854-11 METAL CHIP 1M 0.5% 1/10W 40/46V2000
1058 G2A RESISTOR R6108 1-208-854-11 METAL CHIP 1M 0.5% 1/10W 40/46V2000
1059 G2A RESISTOR R6109 1-218-761-11 METAL CHIP 240K 0.5% 1/10W 40/46V2000
1060 G2A RESISTOR R6110 1-218-881-11 METAL CHIP 27K 0.5% 1/10W 40/46V2000
1061 G2A RESISTOR R6111 1-218-873-11 METAL CHIP 12K 0.5% 1/10W 40/46V2000
1062 G2A RESISTOR R6114 1-211-985-11 METAL CHIP 47 0.5% 1/10W 40/46V2000
1063 G2A RESISTOR R6116 1-216-009-91 RES-CHIP 22 5% 1/10W 40/46V2000
1064 G2A RESISTOR R6117 1-216-009-91 RES-CHIP 22 5% 1/10W 40/46V2000
1065 G2A RESISTOR R6118 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1066 G2A RESISTOR R6119 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1067 G2A RESISTOR R6121 1-216-361-00 METAL OXIDE 0.22 5% 2W 40/46V2000
1068 G2A RESISTOR R6122 1-216-361-00 METAL OXIDE 0.22 5% 2W 40/46V2000
1069 G2A RESISTOR R6123 1-218-847-11 METAL CHIP 1K 0.5% 1/10W 40/46V2000
1070 G2A RESISTOR R6127 1-216-857-11 METAL CHIP 1M 5% 1/10W 40/46V2000
1071 G2A RESISTOR R6200 1-216-821-11 METAL CHIP 1K 5% 1/10W 40/46V2000
1072 G2A RESISTOR R6201 1-216-821-11 METAL CHIP 1K 5% 1/10W 40/46V2000
1073 G2A RESISTOR R6202 1-216-105-91 RES-CHIP 220K 5% 1/10W 40/46V2000
1074 G2A RESISTOR R6203 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 40/46V2000
1075 G2A RESISTOR R6204 1-218-843-11 METAL CHIP 680 0.5% 1/10W 40/46V2000
1076 G2A RESISTOR R6205 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W 40/46V2000
1077 G2A RESISTOR R6207 1-218-847-11 METAL CHIP 1K 0.5% 1/10W 40/46V2000
1078 G2A RESISTOR R6208 1-249-377-11 CARBON 0.47 5% 1/4W 40/46V2000
1079 G2A RESISTOR R6226 1-249-389-11 CARBON 4.7 5% 1/4W 40/46V2000
1080 G2A RESISTOR R6300 1-212-958-00 FUSIBLE 10 5% 1/2W 40/46V2000
1081 G2A RESISTOR R6301 1-243-725-71 METAL OXIDE 100K 5% 1W 40/46V2000
1082 G2A RESISTOR R6302 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W 40/46V2000
1083 G2A RESISTOR R6303 1-249-385-11 CARBON 2.2 5% 1/4W 40/46V2000
1084 G2A RESISTOR R6304 1-216-821-11 METAL CHIP 1K 5% 1/10W 40/46V2000
1085 G2A RESISTOR R6305 1-216-827-11 METAL CHIP 3.3K 5% 1/10W 40/46V2000
1086 G2A RESISTOR R6306 1-216-805-11 METAL CHIP 47 5% 1/10W 40/46V2000
1087 G2A RESISTOR R6307 1-218-887-11 METAL CHIP 47K 0.5% 1/10W 40/46V2000
1088 G2A RESISTOR R6308 1-218-871-11 METAL CHIP 10K 0.5% 1/10W 40/46V2000
1089 G2A RESISTOR R6309 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W 40/46V2000
1090 G2A RESISTOR R6400 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1091 G2A RESISTOR R6401 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W 40/46V2000
1092 G2A RESISTOR R6402 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1093 G2A RESISTOR R6403 1-218-887-11 METAL CHIP 47K 0.5% 1/10W 40/46V2000
1094 G2A RESISTOR R6405 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 40/46V2000
1095 G2A RESISTOR R6407 1-216-837-11 METAL CHIP 22K 5% 1/10W 40/46V2000
1096 G2A RESISTOR R6408 1-218-879-11 METAL CHIP 22K 0.5% 1/10W 40/46V2000
1097 G2A RESISTOR R6409 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1098 G2A RESISTOR R6410 1-216-821-11 METAL CHIP 1K 5% 1/10W 40/46V2000
1099 G2A RESISTOR R6412 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1100 G2A RESISTOR R6413 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W 40/46V2000
1101 G2A RESISTOR R6414 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1102 G2A RESISTOR R6415 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-16
Page 87
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1103 G2A RESISTOR R6416 1-216-837-11 METAL CHIP 22K 5% 1/10W 40/46V2000
1104 G2A RESISTOR R6417 1-216-821-11 METAL CHIP 1K 5% 1/10W 40/46V2000
1105 G2A RESISTOR R6418 1-216-845-11 METAL CHIP 100K 5% 1/10W 40/46V2000
1106 G2A RESISTOR R6419 1-216-837-11 METAL CHIP 22K 5% 1/10W 40/46V2000
1107 G2A RESISTOR R6420 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1108 G2A RESISTOR R6421 1-216-864-11 SHORT CHIP 0 40/46V2000
1109 G2A RESISTOR R6422 1-218-887-11 METAL CHIP 47K 0.5% 1/10W 40/46V2000
1110 G2A RESISTOR R6425 1-216-809-11 METAL CHIP 100 5% 1/10W 40/46V2000
1111 G2A RESISTOR R6426 1-216-849-11 METAL CHIP 220K 5% 1/10W 40/46V2000
1112 G2A RESISTOR R6427 1-218-889-11 METAL CHIP 56K 0.5% 1/10W 40/46V2000
1113 G2A RESISTOR R6436 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 40/46V2000
1114 G2A RESISTOR R6437 1-216-821-11 METAL CHIP 1K 5% 1/10W 40/46V2000
1115 G2A RESISTOR R6441 1-216-841-11 METAL CHIP 47K 5% 1/10W 40/46V2000
1116 G2A RESISTOR R6442 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1117 G2A RESISTOR R6443 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1118 G2A RESISTOR R6444 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1119 G2A RESISTOR R6451 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1120 G2A RESISTOR R6452 1-218-847-11 METAL CHIP 1K 0.5% 1/10W 40/46V2000
1121 G2A RESISTOR R6453 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1122 G2A RESISTOR R6454 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 40/46V2000
1123 G2A RESISTOR R6455 1-218-903-11 METAL CHIP 220K 0.5% 1/10W 40/46V2000
1124 G2A RESISTOR R6456 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W 40/46V2000
1125 G2A RESISTOR R6459 1-218-885-11 METAL CHIP 39K 0.5% 1/10W 40/46V2000
1126 G2A RESISTOR R6461 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1127 G2A RESISTOR R6462 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1128 G2A RESISTOR R6468 1-218-903-11 METAL CHIP 220K 0.5% 1/10W 40/46V2000
1129 G2A RESISTOR R6503 1-215-882-00 METAL OXIDE 22 5% 2W 40/46V2000
1130 G2A RESISTOR R6512 1-218-907-11 METAL CHIP 330K 0.5% 1/10W 40/46V2000
1131 G2A RESISTOR R6513 1-218-879-11 METAL CHIP 22K 0.5% 1/10W 40/46V2000
1132 G2A RESISTOR R6514 1-218-895-11 METAL CHIP 100K 0.5% 1/10W 40/46V2000
1133 G2A RESISTOR R6515 1-218-823-11 METAL CHIP 100 0.5% 1/10W 40/46V2000
1134 G2A RESISTOR R6526 1-211-989-11 METAL CHIP 68 0.5% 1/10W 40/46V2000
1135 G2A RESISTOR R6527 1-218-913-91 METAL CHIP 560K 0.5% 1/10W 40/46V2000
1136 G2A RESISTOR R6528 1-218-879-11 METAL CHIP 22K 0.5% 1/10W 40/46V2000
1137 G2A RESISTOR R6529 1-216-864-11 SHORT CHIP 0 40/46V2000
1138 G2A RESISTOR R6530 1-219-729-61 METAL 0.33 10% 5W 40/46V2000
1139 G2A RESISTOR R6531 1-219-729-61 METAL 0.33 10% 5W 40/46V2000
1140 G2A RESISTOR R6532 1-216-864-11 SHORT CHIP 0 40/46V2000
1141 G2A RESISTOR R6533 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1142 G2A RESISTOR R6534 1-218-823-11 METAL CHIP 100 0.5% 1/10W 40/46V2000
1143 G2A RESISTOR R6535 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1144 G2A RESISTOR R6536 1-218-830-11 METAL CHIP 200 0.5% 1/10W 40/46V2000
1145 G2A RESISTOR R6537 1-249-389-11 CARBON 4.7 5% 1/4W 40/46V2000
1146 G2A RESISTOR R6538 1-249-405-11 CARBON 100 5% 1/4W 40/46V2000
1147 G2A RESISTOR R6539 1-218-830-11 METAL CHIP 200 0.5% 1/10W 40/46V2000
1148 G2A RESISTOR R6540 1-249-389-11 CARBON 4.7 5% 1/4W 40/46V2000
1149 G2A RESISTOR R6541 1-208-818-11 METAL CHIP 33K 0.5% 1/10W 40/46V2000
1150 G2A RESISTOR R6542 1-208-814-91 METAL CHIP 22K 0.5% 1/10W 40/46V2000
1151 G2A RESISTOR R6543 1-218-830-11 METAL CHIP 200 0.5% 1/10W 40/46V2000
1152 G2A RESISTOR R6544 1-218-830-11 METAL CHIP 200 0.5% 1/10W 40/46V2000
1153 G2A RESISTOR R6545 1-208-848-11 METAL CHIP 560K 0.5% 1/10W 40/46V2000
1154 G2A RESISTOR R6546 1-208-848-11 METAL CHIP 560K 0.5% 1/10W 40/46V2000
1155 G2A RESISTOR R6547 1-208-848-11 METAL CHIP 560K 0.5% 1/10W 40/46V2000
1156 G2A RESISTOR R6548 1-208-846-11 METAL CHIP 470K 0.5% 1/10W 40/46V2000
1157 G2A RESISTOR R6549 1-208-844-11 METAL CHIP 390K 0.5% 1/10W 40/46V2000
1158 G2A RESISTOR R6550 1-218-875-11 METAL CHIP 15K 0.5% 1/10W 40/46V2000
1159 G2A RESISTOR R6551 1-249-393-11 CARBON 10 5% 1/4W 40/46V2000
1160 G2A RESISTOR R6552 1-216-809-11 METAL CHIP 100 5% 1/10W 40/46V2000
1161 G2A RESISTOR ! R6553 1-208-830-11 METAL CHIP 100K 0.5% 1/10W 40/46V2000
1162 G2A RESISTOR R6554 1-218-911-11 METAL CHIP 470K 0.5% 1/10W 40/46V2000
1163 G2A RESISTOR R6555 1-218-887-11 METAL CHIP 47K 0.5% 1/10W 40/46V2000
1164 G2A RESISTOR R6557 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W 40/46V2000
1165 G2A RESISTOR R6560 1-218-911-11 METAL CHIP 470K 0.5% 1/10W 40/46V2000
1166 G2A RESISTOR ! R6562 1-218-760-11 METAL CHIP 220K 0.5% 1/10W 40/46V2000
1167 G2A RESISTOR ! R6563 1-218-760-11 METAL CHIP 220K 0.5% 1/10W 40/46V2000
1168 G2A RESISTOR ! R6564 1-218-760-11 METAL CHIP 220K 0.5% 1/10W 40/46V2000
1169 G2A RESISTOR ! R6565 1-218-760-11 METAL CHIP 220K 0.5% 1/10W 40/46V2000
1170 G2A RESISTOR R6566 1-216-833-11 METAL CHIP 10K 5% 1/10W 40/46V2000
1171 G2A RELAY ! RY6003 1-755-579-11 RELAY, POWER 40/46V2000
1172 G2A TRANSFORMER ! T6102 1-443-983-11 CONVERTER TRANSFORMER (PIT) 40/46V2000
1173 G2A TRANSFORMER ! T6103 1-443-982-11 CONVERTER TRANSFORMER (PIT) 40/46V2000
1174 G2A TRANSFORMER ! T6301 1-443-984-11 CONVERTER TRANSFORMER (SBT) 40/46V2000
1175 G2A VARISTOR ! VD6000 1-804-996-21 VARISTOR 40/46V2000
1176 G2A VARISTOR ! VD6001 1-804-996-21 VARISTOR 40/46V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-17
Page 88
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1177 AG CAPACITOR C2013 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
1178 AG CAPACITOR C2015 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
1179 AG CAPACITOR C2016 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1180 AG CAPACITOR C2017 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1181 AG CAPACITOR C2018 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
1182 AG CAPACITOR C2019 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
1183 AG CAPACITOR C2020 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
1184 AG CAPACITOR C2021 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
1185 AG CAPACITOR C2023 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
1186 AG CAPACITOR C2024 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1187 AG CAPACITOR C2025 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1188 AG CAPACITOR C2026 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V
1189 AG CAPACITOR C2030 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1190 AG CAPACITOR C6001 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1191 AG CAPACITOR C6003 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
1192 AG CAPACITOR C6005 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
1193 AG CAPACITOR C6006 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1194 AG CAPACITOR C6009 1-100-743-91 CERAMIC CHIP 2.2UF 20% 16V
1195 AG CAPACITOR C6011 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1196 AG CAPACITOR C6014 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
1197 AG CAPACITOR C6015 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1198 AG CAPACITOR C6016 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
1199 AG CAPACITOR C6017 1-126-204-11 ELECT CHIP 47UF 20.00% 16V
1200 AG CAPACITOR C6018 1-100-743-91 CERAMIC CHIP 2.2UF 20% 16V
1201 AG CAPACITOR C6019 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
1202 AG CAPACITOR C6020 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
1203 AG CAPACITOR C6022 1-127-760-11 CERAMIC CHIP 4.7UF 10% 6.3V
1204 AG CAPACITOR C6023 1-128-995-21 ELECT CHIP 100UF 20% 10V
1205 AG CAPACITOR C6024 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1206 AG CAPACITOR C6025 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1207 AG CAPACITOR C6026 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1208 AG CAPACITOR C6027 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
1209 AG CAPACITOR C7004 1-162-906-11 CERAMIC CHIP 1.5PF 0.25PF 50V
1210 AG CAPACITOR C7005 1-162-906-11 CERAMIC CHIP 1.5PF 0.25PF 50V
1211 AG CAPACITOR C7007 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
1212 AG CAPACITOR C7010 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1213 AG CAPACITOR C7011 1-126-396-11 ELECT CHIP 47UF 20.00% 16V
1214 AG CAPACITOR C7012 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
1215 AG CAPACITOR C7013 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
1216 AG CAPACITOR C7014 1-162-962-11 CERAMIC CHIP 470PF 10.00% 50V
1217 AG CAPACITOR C7015 1-162-960-11 CERAMIC CHIP 220PF 10.00% 50V
1218 AG CAPACITOR C7017 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1219 AG CAPACITOR C7018 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1220 AG CAPACITOR C7019 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
1221 AG CAPACITOR C7020 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
1222 AG CAPACITOR C7021 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1223 AG CAPACITOR C7023 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1224 AG CAPACITOR C7024 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1225 AG CAPACITOR C7025 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1226 AG CAPACITOR C7027 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1227 AG CAPACITOR C7028 1-126-396-11 ELECT CHIP 47UF 20.00% 16V
1228 AG CAPACITOR C7029 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1229 AG CAPACITOR C7030 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
1230 AG CAPACITOR C7033 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1231 AG CAPACITOR C7034 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
1232 AG CAPACITOR C7035 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1233 AG CAPACITOR C7036 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1234 AG CAPACITOR C7037 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1235 AG CAPACITOR C7038 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
1236 AG CAPACITOR C7039 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
1237 AG CAPACITOR C7040 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1238 AG CAPACITOR C7042 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
1239 AG CAPACITOR C7043 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1240 AG CAPACITOR C7044 1-126-204-11 ELECT CHIP 47UF 20.00% 16V
1241 AG CAPACITOR C7045 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
1242 AG CAPACITOR C7046 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
1243 AG CAPACITOR C7047 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
1244 AG CAPACITOR C7048 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
1245 AG CAPACITOR C7049 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
1246 AG CAPACITOR C7050 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
1247 AG CAPACITOR C7051 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1248 AG CAPACITOR C7052 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1249 AG CAPACITOR C7053 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
1250 AG CAPACITOR C7054 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
Remarks-2
KDL-32/40/46V2000 (AUS) 4-18
Page 89
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1251 AG CAPACITOR C7055 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
1252 AG CAPACITOR C7056 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
1253 AG CAPACITOR C7057 1-126-396-11 ELECT CHIP 47UF 20.00% 16V
1254 AG CAPACITOR C7060 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1255 AG CAPACITOR C7061 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1256 AG CAPACITOR C7062 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1257 AG CAPACITOR C7063 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1258 AG CAPACITOR C7064 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1259 AG CAPACITOR C7065 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1260 AG CAPACITOR C7072 1-128-536-11 ELECT CHIP 100UF 20.00% 25V
1261 AG CAPACITOR C7073 1-126-396-11 ELECT CHIP 47UF 20.00% 16V
1262 AG CAPACITOR C7075 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
1263 AG CAPACITOR C7076 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
1264 AG CAPACITOR C7082 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1265 AG CAPACITOR C7083 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
1266 AG CAPACITOR C7086 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
1267 AG CAPACITOR C7087 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
1268 AG CAPACITOR C7088 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
1269 AG CAPACITOR C7089 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
1270 AG CAPACITOR C7090 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
1271 AG CAPACITOR C7091 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
1272 AG CAPACITOR C7092 1-162-965-11 CERAMIC CHIP 0.0015UF 10.00% 50V
1273 AG CAPACITOR C7093 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V
1274 AG CAPACITOR C7094 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V
1275 AG CAPACITOR C7095 1-162-965-11 CERAMIC CHIP 0.0015UF 10.00% 50V
1276 AG CAPACITOR C7096 1-162-965-11 CERAMIC CHIP 0.0015UF 10.00% 50V
1277 AG CAPACITOR C7097 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V
1278 AG CAPACITOR C7098 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V
1279 AG CAPACITOR C7099 1-162-965-11 CERAMIC CHIP 0.0015UF 10.00% 50V
1280 AG CAPACITOR C7100 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1281 AG CAPACITOR C7101 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1282 AG CAPACITOR C7102 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1283 AG CAPACITOR C7103 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1284 AG CAPACITOR C7104 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1285 AG CAPACITOR C7105 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1286 AG CAPACITOR C7106 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1287 AG CAPACITOR C7107 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1288 AG CAPACITOR C7108 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
1289 AG CAPACITOR C7109 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V
1290 AG CAPACITOR C7110 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V
1291 AG CAPACITOR C7111 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V
1292 AG CAPACITOR C7112 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V
1293 AG CAPACITOR C7113 1-112-797-11 ELECT CHIP 470UF 20% 25V
1294 AG CAPACITOR C7114 1-112-800-11 ELECT CHIP 100UF 20% 35V
1295 AG CAPACITOR C7115 1-112-800-11 ELECT CHIP 100UF 20% 35V
1296 AG CAPACITOR C7116 1-112-800-11 ELECT CHIP 100UF 20% 35V
1297 AG CAPACITOR C7117 1-112-800-11 ELECT CHIP 100UF 20% 35V
1298 AG CAPACITOR C7118 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
1299 AG CAPACITOR C7119 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
1300 AG CAPACITOR C7120 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
1301 AG CAPACITOR C7121 1-100-912-11 CERAMIC CHIP 1UF 10% 25V
1302 AG CAPACITOR C7123 1-125-827-91 CERAMIC CHIP 1UF 10.00% 25V
1303 AG CAPACITOR C7124 1-125-827-91 CERAMIC CHIP 1UF 10.00% 25V
1304 AG CAPACITOR C7125 1-125-827-91 CERAMIC CHIP 1UF 10.00% 25V
1305 AG CAPACITOR C7126 1-125-827-91 CERAMIC CHIP 1UF 10.00% 25V
1306 AG CAPACITOR C7127 1-100-591-91 CERAMIC CHIP 1UF 10% 25V
1307 AG CAPACITOR C7128 1-100-591-91 CERAMIC CHIP 1UF 10% 25V
1308 AG CAPACITOR C7147 1-100-591-91 CERAMIC CHIP 1UF 10% 25V
1309 AG CAPACITOR C7148 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1310 AG CAPACITOR C7600 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
1311 AG CAPACITOR C7601 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1312 AG CAPACITOR C7602 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1313 AG CAPACITOR C7603 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1314 AG CAPACITOR C7604 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1315 AG CAPACITOR C7605 1-126-204-11 ELECT CHIP 47UF 20.00% 16V
1316 AG CAPACITOR C7609 1-126-394-11 ELECT CHIP 10UF 20.00% 16V
1317 AG CAPACITOR C7610 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1318 AG CAPACITOR C7611 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
1319 AG CAPACITOR C7612 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1320 AG CAPACITOR C7613 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
1321 AG CAPACITOR C7614 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
1322 AG CAPACITOR C7615 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
1323 AG CAPACITOR C7616 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
1324 AG CAPACITOR C7617 1-126-396-11 ELECT CHIP 47UF 20.00% 16V
Remarks-2
KDL-32/40/46V2000 (AUS) 4-19
Page 90
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1325 AG CAPACITOR C7618 1-126-396-11 ELECT CHIP 47UF 20.00% 16V
1326 AG CAPACITOR C7619 1-100-597-91 CERAMIC CHIP 0.1UF 10% 25V
1327 AG CAPACITOR C9005 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1328 AG CAPACITOR C9008 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1329 AG CAPACITOR C9014 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1330 AG CAPACITOR C9015 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1331 AG CAPACITOR C9016 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V
1332 AG CAPACITOR C9019 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V
1333 AG CAPACITOR C9020 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V
1334 AG CAPACITOR C9021 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V
1335 AG CAPACITOR C9022 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V
1336 AG CAPACITOR C9023 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1337 AG CAPACITOR C9024 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1338 AG CAPACITOR C9032 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1339 AG CAPACITOR C9302 1-128-396-11 ELECT CHIP 470UF 20% 10V
1340 AG CAPACITOR C9307 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1341 AG CAPACITOR C9308 1-126-204-11 ELECT CHIP 47UF 20.00% 16V
1342 AG CAPACITOR C9309 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
1343 AG CAPACITOR C9310 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
1344 AG CAPACITOR C9311 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
1345 AG CAPACITOR C9501 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1346 AG CAPACITOR C9502 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1347 AG CAPACITOR C9512 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1348 AG CAPACITOR C9700 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V
1349 AG CAPACITOR C9701 1-126-204-11 ELECT CHIP 47UF 20.00% 16V
1350 AG CAPACITOR C9702 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1351 AG CAPACITOR C9704 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V
1352 AG CAPACITOR C9706 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1353 AG CAPACITOR C9707 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
1354 AG CAPACITOR C9708 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1355 AG CAPACITOR C9709 1-126-204-11 ELECT CHIP 47UF 20.00% 16V
1356 AG CONNECTOR CN7000 1-819-461-11 HEADER ASSEMBLY FOR PWB 4P
1357 AG CONNECTOR CN7001 1-780-148-11 CLIP, SHIELD
1358 AG CONNECTOR CN7002 1-780-148-11 CLIP, SHIELD
1359 AG CONNECTOR CN7503 1-820-211-11 HEADER ASSEMBLY FOR PWB 5P
1360 AG CONNECTOR CN9001 1-820-192-11 HEADER ASSEMBLY (PRINT PWB)15P
1361 AG CONNECTOR CN9501 1-819-390-51 FFC/FPC CONNECTOR (ZIF) 49P
1362 AG CONNECTOR CN9502 1-820-186-11 HEADER ASSEMBLY (PRINT PWB) 9P
1363 AG CONNECTOR CN9521 1-780-336-11 EARTH TERMINAL
1364 AG CONNECTOR CN9522 1-780-336-11 EARTH TERMINAL
1365 AG CONNECTOR CN9523 1-780-336-11 EARTH TERMINAL
1366 AG CONNECTOR CN9700 1-819-476-11 HEADER ASSEMBLY FOR PWB 8P
1367 AG CONNECTOR * CN9701 1-818-714-21 HEADER ASSEMBLY 20P
1368 AG CONNECTOR CN9702 1-820-183-11 HEADER ASSEMBLY (PRINT PWB) 6P
1369 AG DIODE D6001 8-719-058-24 DIODE RB501V-40TE-17
1370 AG DIODE D7001 6-500-551-01 DIODE MM3Z11VT1
1371 AG DIODE D7004 8-719-050-37 DIODE M1MA152WA-T1
1372 AG DIODE D7005 8-719-081-97 DIODE MMDL914T1
1373 AG DIODE D7006 8-719-081-97 DIODE MMDL914T1
1374 AG DIODE D7007 8-719-081-97 DIODE MMDL914T1
1375 AG DIODE D7009 6-500-884-01 DIODE P6SMBJ30A-5
1376 AG DIODE D7010 6-500-884-01 DIODE P6SMBJ30A-5
1377 AG DIODE D7011 6-500-884-01 DIODE P6SMBJ30A-5
1378 AG DIODE D7012 6-500-884-01 DIODE P6SMBJ30A-5
1379 AG DIODE D7013 8-719-081-97 DIODE MMDL914T1
1380 AG DIODE D7602 8-719-050-37 DIODE M1MA152WA-T1
1381 AG DIODE D7603 8-719-050-37 DIODE M1MA152WA-T1
1382 AG DIODE D7604 8-719-081-97 DIODE MMDL914T1
1383 AG DIODE D7605 8-719-081-97 DIODE MMDL914T1
1384 AG DIODE D9003 8-719-977-28 DIODE DTZ10B
1385 AG DIODE D9004 8-719-977-28 DIODE DTZ10B
1386 AG DIODE D9008 8-719-977-28 DIODE DTZ10B
1387 AG DIODE D9009 8-719-977-28 DIODE DTZ10B
1388 AG DIODE D9012 8-719-977-28 DIODE DTZ10B
1389 AG DIODE D9013 8-719-977-28 DIODE DTZ10B
1390 AG DIODE D9014 8-719-977-28 DIODE DTZ10B
1391 AG DIODE D9015 8-719-977-28 DIODE DTZ10B
1392 AG DIODE D9016 8-719-977-28 DIODE DTZ10B
1393 AG DIODE D9017 8-719-977-28 DIODE DTZ10B
1394 AG DIODE D9018 8-719-977-28 DIODE DTZ10B
1395 AG DIODE D9305 8-719-050-37 DIODE M1MA152WA-T1
1396 AG DIODE D9306 8-719-081-97 DIODE MMDL914T1
1397 AG FERRITE BEAD FB7000 1-400-089-21 FERRITE 0UH
1398 AG FERRITE BEAD FB7001 1-400-089-21 FERRITE 0UH
Remarks-2
KDL-32/40/46V2000 (AUS) 4-20
Page 91
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1399 AG FERRITE BEAD FB7002 1-400-089-21 FERRITE 0UH
1400 AG FERRITE BEAD FB7003 1-400-089-21 FERRITE 0UH
1401 AG FERRITE BEAD FB7004 1-400-040-22 FERRITE 0UH
1402 AG FERRITE BEAD FB7005 1-400-040-22 FERRITE 0UH
1403 AG FERRITE BEAD FB9003 1-216-864-11 SHORT CHIP 0
1404 AG FERRITE BEAD FB9100 1-400-089-21 FERRITE 0UH
1405 AG FERRITE BEAD FB9101 1-216-295-91 SHORT CHIP 0
1406 AG FERRITE BEAD FB9700 1-216-864-11 SHORT CHIP 0
1407 AG FERRITE BEAD FB9701 1-216-864-11 SHORT CHIP 0
1408 AG FERRITE BEAD FB9702 1-216-864-11 SHORT CHIP 0
1409 AG FERRITE BEAD FB9703 1-216-864-11 SHORT CHIP 0
1410 AG FERRITE BEAD FB9704 1-216-864-11 SHORT CHIP 0
1411 AG FERRITE BEAD FB9706 1-216-864-11 SHORT CHIP 0
1412 AG IC IC2001 8-752-089-33 IC CXA2069Q-TL
1413 AG IC IC7001 6-709-191-01 IC MSP4410K-QA-D6-501
1414 AG IC IC7003 8-759-278-58 IC NJM4558V-TE2
1415 AG IC IC7007 6-709-285-01 IC M61571AFP-DF0T
1416 AG IC IC7601 8-759-278-58 IC NJM4558V-TE2
1417 AG IC IC7602 8-759-359-49 IC NJM3414AV(TE2)
1418 AG IC IC9700 6-704-353-01 IC SN74LVC2G34DCKR
1419 AG JACK J9001 1-780-271-11 S CONNECTOR BLOCK
1420 AG JACK J9003 1-780-373-11 TERMINAL BOARD
1421 AG JACK J9004 1-819-354-11 PHONO JACK 5P
1422 AG JACK J9301 1-819-387-11 PHONO JACK 3P
1423 AG COIL L2002 1-469-557-21 INDUCTOR 22UH
1424 AG COIL L2003 1-469-555-21 INDUCTOR 10UH
1425 AG COIL L6001 1-469-555-21 INDUCTOR 10UH
1426 AG COIL L7002 1-400-794-21 FERRITE 0UH
1427 AG COIL L7004 1-400-794-21 FERRITE 0UH
1428 AG COIL L7005 1-469-555-21 INDUCTOR 10UH
1429 AG COIL L7006 1-400-794-21 FERRITE 0UH
1430 AG COIL L7007 1-469-555-21 INDUCTOR 10UH
1431 AG COIL L7008 1-481-083-11 INDUCTOR 22UH
1432 AG COIL L7009 1-457-191-11 INDUCTOR 10UH
1433 AG COIL L7010 1-457-191-11 INDUCTOR 10UH
1434 AG COIL L7011 1-216-864-11 SHORT CHIP 0
1435 AG COIL L7012 1-400-794-21 FERRITE 0UH
1436 AG COIL L7013 1-400-794-21 FERRITE 0UH
1437 AG COIL L9301 1-469-555-21 INDUCTOR 10UH
1438 AG COIL L9503 1-400-178-21 FERRITE 0UH
1439 AG COIL L9504 1-400-178-21 FERRITE 0UH
1440 AG COIL L9505 1-400-178-21 FERRITE 0UH
1441 AG COIL L9606 1-216-295-91 SHORT CHIP 0
1442 AG COIL L9700 1-469-555-21 INDUCTOR 10UH
1443 AG COIL L9701 1-469-555-21 INDUCTOR 10UH
1444 AG IC LINK ! PS7001 1-576-958-21 FUSE 4A 24V
1445 AG TRANSISTOR Q2001 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1446 AG TRANSISTOR Q2002 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1447 AG TRANSISTOR Q2003 8-729-600-22 TRANSISTOR 2SA1235-F
1448 AG TRANSISTOR Q6001 8-729-600-22 TRANSISTOR 2SA1235-F
1449 AG TRANSISTOR Q6002 8-729-600-22 TRANSISTOR 2SA1235-F
1450 AG TRANSISTOR Q6004 8-729-600-22 TRANSISTOR 2SA1235-F
1451 AG TRANSISTOR Q6005 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1452 AG TRANSISTOR Q6007 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1453 AG TRANSISTOR Q6008 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1454 AG TRANSISTOR Q6009 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1455 AG TRANSISTOR Q6011 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1456 AG TRANSISTOR Q6012 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1457 AG TRANSISTOR Q6013 8-729-600-22 TRANSISTOR 2SA1235-F
1458 AG TRANSISTOR Q7000 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1459 AG TRANSISTOR Q7001 8-729-600-22 TRANSISTOR 2SA1235-F
1460 AG TRANSISTOR Q7002 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1461 AG TRANSISTOR Q7005 8-729-600-22 TRANSISTOR 2SA1235-F
1462 AG TRANSISTOR Q7007 8-729-029-14 TRANSISTOR DTC144EUA-T106
1463 AG TRANSISTOR Q7008 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1464 AG TRANSISTOR Q7009 8-729-600-22 TRANSISTOR 2SA1235-F
1465 AG TRANSISTOR Q7010 8-729-029-14 TRANSISTOR DTC144EUA-T106
1466 AG TRANSISTOR Q7011 8-729-029-14 TRANSISTOR DTC144EUA-T106
1467 AG TRANSISTOR Q7012 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
1468 AG TRANSISTOR Q7013 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
1469 AG TRANSISTOR Q7014 8-729-600-22 TRANSISTOR 2SA1235-F
1470 AG TRANSISTOR Q7015 8-729-600-22 TRANSISTOR 2SA1235-F
1471 AG TRANSISTOR Q7016 8-729-600-22 TRANSISTOR 2SA1235-F
1472 AG TRANSISTOR Q7017 8-729-600-22 TRANSISTOR 2SA1235-F
Remarks-2
KDL-32/40/46V2000 (AUS) 4-21
Page 92
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1473 AG TRANSISTOR Q7018 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1474 AG TRANSISTOR Q7019 8-729-029-14 TRANSISTOR DTC144EUA-T106
1475 AG TRANSISTOR Q7020 8-729-029-14 TRANSISTOR DTC144EUA-T106
1476 AG TRANSISTOR Q7021 8-729-028-96 TRANSISTOR DTC114EUA-T106
1477 AG TRANSISTOR Q7022 8-729-028-96 TRANSISTOR DTC114EUA-T106
1478 AG TRANSISTOR Q7602 8-729-600-22 TRANSISTOR 2SA1235-F
1479 AG TRANSISTOR Q7603 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
1480 AG TRANSISTOR Q7604 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
1481 AG TRANSISTOR Q7605 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1482 AG TRANSISTOR Q7606 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
1483 AG TRANSISTOR Q7607 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
1484 AG TRANSISTOR Q7608 8-729-029-14 TRANSISTOR DTC144EUA-T106
1485 AG TRANSISTOR Q7609 8-729-600-22 TRANSISTOR 2SA1235-F
1486 AG TRANSISTOR Q7610 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1487 AG TRANSISTOR Q7611 8-729-029-14 TRANSISTOR DTC144EUA-T106
1488 AG TRANSISTOR Q9301 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
1489 AG TRANSISTOR Q9302 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16
1490 AG TRANSISTOR Q9303 8-729-600-22 TRANSISTOR 2SA1235-F
1491 AG TRANSISTOR Q9304 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1492 AG TRANSISTOR Q9305 8-729-029-14 TRANSISTOR DTC144EUA-T106
1493 AG TRANSISTOR Q9306 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1494 AG TRANSISTOR Q9307 8-729-120-28 TRANSISTOR 2SC1623-L5L6
1495 AG TRANSISTOR Q9701 8-729-600-22 TRANSISTOR 2SA1235-F
1496 AG TRANSISTOR Q9702 8-729-922-10 TRANSISTOR 2SA1577-QR
1497 AG TRANSISTOR Q9703 8-729-922-10 TRANSISTOR 2SA1577-QR
1498 AG TRANSISTOR Q9704 8-729-922-10 TRANSISTOR 2SA1577-QR
1499 AG RESISTOR R2006 1-216-809-11 METAL CHIP 100 5% 1/10W
1500 AG RESISTOR R2007 1-216-809-11 METAL CHIP 100 5% 1/10W
1501 AG RESISTOR R2019 1-216-809-11 METAL CHIP 100 5% 1/10W
1502 AG RESISTOR R2020 1-216-809-11 METAL CHIP 100 5% 1/10W
1503 AG RESISTOR R2023 1-216-821-11 METAL CHIP 1K 5% 1/10W
1504 AG RESISTOR R2024 1-216-821-11 METAL CHIP 1K 5% 1/10W
1505 AG RESISTOR R2030 1-216-809-11 METAL CHIP 100 5% 1/10W
1506 AG RESISTOR R2037 1-216-817-11 METAL CHIP 470 5% 1/10W
1507 AG RESISTOR R2038 1-216-817-11 METAL CHIP 470 5% 1/10W
1508 AG RESISTOR R2050 1-216-809-11 METAL CHIP 100 5% 1/10W
1509 AG RESISTOR R2051 1-216-817-11 METAL CHIP 470 5% 1/10W
1510 AG RESISTOR R2052 1-216-817-11 METAL CHIP 470 5% 1/10W
1511 AG RESISTOR R2053 1-216-817-11 METAL CHIP 470 5% 1/10W
1512 AG RESISTOR R6001 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1513 AG RESISTOR R6002 1-216-809-11 METAL CHIP 100 5% 1/10W
1514 AG RESISTOR R6003 1-216-864-11 SHORT CHIP 0
1515 AG RESISTOR R6004 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
1516 AG RESISTOR R6007 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
1517 AG RESISTOR R6008 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
1518 AG RESISTOR R6009 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
1519 AG RESISTOR R6012 1-216-817-11 METAL CHIP 470 5% 1/10W
1520 AG RESISTOR R6013 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1521 AG RESISTOR R6014 1-218-889-11 METAL CHIP 56K 0.5% 1/10W
1522 AG RESISTOR R6017 1-216-857-11 METAL CHIP 1M 5% 1/10W
1523 AG RESISTOR R6020 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
1524 AG RESISTOR R6021 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
1525 AG RESISTOR R6023 1-216-821-11 METAL CHIP 1K 5% 1/10W
1526 AG RESISTOR R6025 1-218-857-11 METAL CHIP 2.7K 0.5% 1/10W
1527 AG RESISTOR R6026 1-216-821-11 METAL CHIP 1K 5% 1/10W
1528 AG RESISTOR R6028 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W
1529 AG RESISTOR R6029 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W
1530 AG RESISTOR R6030 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
1531 AG RESISTOR R6032 1-216-857-11 METAL CHIP 1M 5% 1/10W
1532 AG RESISTOR R6033 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
1533 AG RESISTOR R6034 1-216-864-11 SHORT CHIP 0
1534 AG RESISTOR R6037 1-216-821-11 METAL CHIP 1K 5% 1/10W
1535 AG RESISTOR R6039 1-216-815-11 METAL CHIP 330 5% 1/10W
1536 AG RESISTOR R6040 1-216-864-11 SHORT CHIP 0
1537 AG RESISTOR R6051 1-216-857-11 METAL CHIP 1M 5% 1/10W
1538 AG RESISTOR R6052 1-216-809-11 METAL CHIP 100 5% 1/10W
1539 AG RESISTOR R7000 1-216-864-11 SHORT CHIP 0
1540 AG RESISTOR R7001 1-216-821-11 METAL CHIP 1K 5% 1/10W
1541 AG RESISTOR R7003 1-216-864-11 SHORT CHIP 0
1542 AG RESISTOR R7004 1-216-841-11 METAL CHIP 47K 5% 1/10W
1543 AG RESISTOR R7007 1-216-805-11 METAL CHIP 47 5% 1/10W
1544 AG RESISTOR R7010 1-216-821-11 METAL CHIP 1K 5% 1/10W
1545 AG RESISTOR R7011 1-216-845-11 METAL CHIP 100K 5% 1/10W
1546 AG RESISTOR R7012 1-216-864-11 SHORT CHIP 0
Remarks-2
KDL-32/40/46V2000 (AUS) 4-22
Page 93
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1547 AG RESISTOR R7014 1-216-841-11 METAL CHIP 47K 5% 1/10W
1548 AG RESISTOR R7015 1-216-841-11 METAL CHIP 47K 5% 1/10W
1549 AG RESISTOR R7017 1-216-833-11 METAL CHIP 10K 5% 1/10W
1550 AG RESISTOR R7018 1-216-864-11 SHORT CHIP 0
1551 AG RESISTOR R7019 1-216-864-11 SHORT CHIP 0
1552 AG RESISTOR R7020 1-216-841-11 METAL CHIP 47K 5% 1/10W
1553 AG RESISTOR R7021 1-216-833-11 METAL CHIP 10K 5% 1/10W
1554 AG RESISTOR R7022 1-216-833-11 METAL CHIP 10K 5% 1/10W
1555 AG RESISTOR R7025 1-216-864-11 SHORT CHIP 0
1556 AG RESISTOR R7031 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
1557 AG RESISTOR R7032 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
1558 AG RESISTOR R7033 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
1559 AG RESISTOR R7034 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
1560 AG RESISTOR R7035 1-216-845-11 METAL CHIP 100K 5% 1/10W
1561 AG RESISTOR R7037 1-216-833-11 METAL CHIP 10K 5% 1/10W
1562 AG RESISTOR R7039 1-218-873-11 METAL CHIP 12K 0.5% 1/10W
1563 AG RESISTOR R7040 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
1564 AG RESISTOR R7041 1-216-833-11 METAL CHIP 10K 5% 1/10W
1565 AG RESISTOR R7045 1-216-833-11 METAL CHIP 10K 5% 1/10W
1566 AG RESISTOR R7047 1-216-833-11 METAL CHIP 10K 5% 1/10W
1567 AG RESISTOR R7049 1-216-841-11 METAL CHIP 47K 5% 1/10W
1568 AG RESISTOR R7050 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
1569 AG RESISTOR R7054 1-216-841-11 METAL CHIP 47K 5% 1/10W
1570 AG RESISTOR R7055 1-216-845-11 METAL CHIP 100K 5% 1/10W
1571 AG RESISTOR R7056 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
1572 AG RESISTOR R7057 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
1573 AG RESISTOR R7059 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
1574 AG RESISTOR R7061 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
1575 AG RESISTOR R7062 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W
1576 AG RESISTOR R7063 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W
1577 AG RESISTOR R7064 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
1578 AG RESISTOR R7066 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
1579 AG RESISTOR R7067 1-216-833-11 METAL CHIP 10K 5% 1/10W
1580 AG RESISTOR R7087 1-216-857-11 METAL CHIP 1M 5% 1/10W
1581 AG RESISTOR R7088 1-216-837-11 METAL CHIP 22K 5% 1/10W
1582 AG RESISTOR R7093 1-216-841-11 METAL CHIP 47K 5% 1/10W
1583 AG RESISTOR R7101 1-216-845-11 METAL CHIP 100K 5% 1/10W
1584 AG RESISTOR R7102 1-216-833-11 METAL CHIP 10K 5% 1/10W
1585 AG RESISTOR R7103 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W
1586 AG RESISTOR R7111 1-216-841-11 METAL CHIP 47K 5% 1/10W
1587 AG RESISTOR R7112 1-216-864-11 SHORT CHIP 0
1588 AG RESISTOR R7113 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
1589 AG RESISTOR R7114 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
1590 AG RESISTOR R7115 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
1591 AG RESISTOR R7116 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
1592 AG RESISTOR R7117 1-216-833-11 METAL CHIP 10K 5% 1/10W
1593 AG RESISTOR R7118 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1594 AG RESISTOR R7119 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1595 AG RESISTOR R7120 1-216-864-11 SHORT CHIP 0
1596 AG RESISTOR R7122 1-216-864-11 SHORT CHIP 0
1597 AG RESISTOR R7124 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
1598 AG RESISTOR R7125 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
1599 AG RESISTOR R7126 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
1600 AG RESISTOR R7127 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
1601 AG RESISTOR R7128 1-218-901-11 METAL CHIP 180K 0.5% 1/10W
1602 AG RESISTOR R7129 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
1603 AG RESISTOR R7130 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
1604 AG RESISTOR R7131 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
1605 AG RESISTOR R7132 1-218-895-11 METAL CHIP 100K 0.5% 1/10W
1606 AG RESISTOR R7133 1-218-895-11 METAL CHIP 100K 0.5% 1/10W
1607 AG RESISTOR R7134 1-216-296-11 SHORT CHIP 0
1608 AG RESISTOR R7135 1-216-296-11 SHORT CHIP 0
1609 AG RESISTOR R7136 1-216-296-11 SHORT CHIP 0
1610 AG RESISTOR R7137 1-216-296-11 SHORT CHIP 0
1611 AG RESISTOR R7138 1-216-800-11 METAL CHIP 18 5% 1/10W
1612 AG RESISTOR R7139 1-216-800-11 METAL CHIP 18 5% 1/10W
1613 AG RESISTOR R7140 1-216-800-11 METAL CHIP 18 5% 1/10W
1614 AG RESISTOR R7141 1-216-800-11 METAL CHIP 18 5% 1/10W
1615 AG RESISTOR R7142 1-216-845-11 METAL CHIP 100K 5% 1/10W
1616 AG RESISTOR R7143 1-216-845-11 METAL CHIP 100K 5% 1/10W
1617 AG RESISTOR R7144 1-216-845-11 METAL CHIP 100K 5% 1/10W
1618 AG RESISTOR R7145 1-216-845-11 METAL CHIP 100K 5% 1/10W
1619 AG RESISTOR R7146 1-216-845-11 METAL CHIP 100K 5% 1/10W
1620 AG RESISTOR R7147 1-216-845-11 METAL CHIP 100K 5% 1/10W
Remarks-2
KDL-32/40/46V2000 (AUS) 4-23
Page 94
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1621 AG RESISTOR R7152 1-216-833-11 METAL CHIP 10K 5% 1/10W
1622 AG RESISTOR R7153 1-216-845-11 METAL CHIP 100K 5% 1/10W
1623 AG RESISTOR R7154 1-216-845-11 METAL CHIP 100K 5% 1/10W
1624 AG RESISTOR R7155 1-216-864-11 SHORT CHIP 0
1625 AG RESISTOR R7156 1-216-841-11 METAL CHIP 47K 5% 1/10W
1626 AG RESISTOR R7158 1-216-833-11 METAL CHIP 10K 5% 1/10W
1627 AG RESISTOR R7600 1-216-864-11 SHORT CHIP 0
1628 AG RESISTOR R7601 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
1629 AG RESISTOR R7602 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
1630 AG RESISTOR R7603 1-218-873-11 METAL CHIP 12K 0.5% 1/10W
1631 AG RESISTOR R7604 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
1632 AG RESISTOR R7605 1-216-841-11 METAL CHIP 47K 5% 1/10W
1633 AG RESISTOR R7606 1-216-841-11 METAL CHIP 47K 5% 1/10W
1634 AG RESISTOR R7614 1-216-833-11 METAL CHIP 10K 5% 1/10W
1635 AG RESISTOR R7615 1-218-873-11 METAL CHIP 12K 0.5% 1/10W
1636 AG RESISTOR R7620 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
1637 AG RESISTOR R7621 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
1638 AG RESISTOR R7622 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
1639 AG RESISTOR R7623 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
1640 AG RESISTOR R7626 1-216-845-11 METAL CHIP 100K 5% 1/10W
1641 AG RESISTOR R7627 1-216-845-11 METAL CHIP 100K 5% 1/10W
1642 AG RESISTOR R7628 1-218-745-11 METAL CHIP 160K 0.5% 1/10W
1643 AG RESISTOR R7629 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
1644 AG RESISTOR R7630 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
1645 AG RESISTOR R7631 1-218-745-11 METAL CHIP 160K 0.5% 1/10W
1646 AG RESISTOR R7632 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
1647 AG RESISTOR R7633 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
1648 AG RESISTOR R7634 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
1649 AG RESISTOR R7635 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
1650 AG RESISTOR R7636 1-216-837-11 METAL CHIP 22K 5% 1/10W
1651 AG RESISTOR R7637 1-216-857-11 METAL CHIP 1M 5% 1/10W
1652 AG RESISTOR R7639 1-216-845-11 METAL CHIP 100K 5% 1/10W
1653 AG RESISTOR R7641 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1654 AG RESISTOR R7642 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1655 AG RESISTOR R7643 1-216-845-11 METAL CHIP 100K 5% 1/10W
1656 AG RESISTOR R7644 1-216-813-11 METAL CHIP 220 5% 1/10W
1657 AG RESISTOR R7646 1-216-813-11 METAL CHIP 220 5% 1/10W
1658 AG RESISTOR R7650 1-216-841-11 METAL CHIP 47K 5% 1/10W
1659 AG RESISTOR R7651 1-216-864-11 SHORT CHIP 0
1660 AG RESISTOR R7652 1-216-864-11 SHORT CHIP 0
1661 AG RESISTOR R7653 1-216-864-11 SHORT CHIP 0
1662 AG RESISTOR R7654 1-216-841-11 METAL CHIP 47K 5% 1/10W
1663 AG RESISTOR R7655 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
1664 AG RESISTOR R7656 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
1665 AG RESISTOR R7657 1-216-837-11 METAL CHIP 22K 5% 1/10W
1666 AG RESISTOR R7658 1-216-857-11 METAL CHIP 1M 5% 1/10W
1667 AG RESISTOR R7659 1-216-833-11 METAL CHIP 10K 5% 1/10W
1668 AG RESISTOR R7660 1-216-841-11 METAL CHIP 47K 5% 1/10W
1669 AG RESISTOR R7661 1-216-864-11 SHORT CHIP 0
1670 AG RESISTOR R7662 1-216-841-11 METAL CHIP 47K 5% 1/10W
1671 AG RESISTOR R7663 1-216-833-11 METAL CHIP 10K 5% 1/10W
1672 AG RESISTOR R7682 1-216-864-11 SHORT CHIP 0
1673 AG RESISTOR R7683 1-216-864-11 SHORT CHIP 0
1674 AG RESISTOR R7684 1-216-864-11 SHORT CHIP 0
1675 AG RESISTOR R9004 1-216-853-11 METAL CHIP 470K 5% 1/10W
1676 AG RESISTOR R9005 1-216-853-11 METAL CHIP 470K 5% 1/10W
1677 AG RESISTOR R9008 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1678 AG RESISTOR R9009 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1679 AG RESISTOR R9010 1-216-864-11 SHORT CHIP 0
1680 AG RESISTOR R9011 1-216-864-11 SHORT CHIP 0
1681 AG RESISTOR R9014 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1682 AG RESISTOR R9015 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1683 AG RESISTOR R9017 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1684 AG RESISTOR R9019 1-216-853-11 METAL CHIP 470K 5% 1/10W
1685 AG RESISTOR R9020 1-216-853-11 METAL CHIP 470K 5% 1/10W
1686 AG RESISTOR R9021 1-216-853-11 METAL CHIP 470K 5% 1/10W
1687 AG RESISTOR R9022 1-216-853-11 METAL CHIP 470K 5% 1/10W
1688 AG RESISTOR R9023 1-216-864-11 SHORT CHIP 0
1689 AG RESISTOR R9024 1-216-864-11 SHORT CHIP 0
1690 AG RESISTOR R9025 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1691 AG RESISTOR R9029 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1692 AG RESISTOR R9030 1-216-864-11 SHORT CHIP 0
1693 AG RESISTOR R9031 1-216-864-11 SHORT CHIP 0
1694 AG RESISTOR R9032 1-218-831-11 METAL CHIP 220 0.5% 1/10W
Remarks-2
KDL-32/40/46V2000 (AUS) 4-24
Page 95
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1695 AG RESISTOR R9033 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1696 AG RESISTOR R9034 1-216-801-11 METAL CHIP 22 5% 1/10W
1697 AG RESISTOR R9036 1-216-801-11 METAL CHIP 22 5% 1/10W
1698 AG RESISTOR R9037 1-216-801-11 METAL CHIP 22 5% 1/10W
1699 AG RESISTOR R9039 1-218-285-11 METAL CHIP 75 5% 1/10W
1700 AG RESISTOR R9040 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1701 AG RESISTOR R9041 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1702 AG RESISTOR R9042 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1703 AG RESISTOR R9045 1-216-864-11 SHORT CHIP 0
1704 AG RESISTOR R9046 1-216-864-11 SHORT CHIP 0
1705 AG RESISTOR R9057 1-216-809-11 METAL CHIP 100 5% 1/10W
1706 AG RESISTOR R9058 1-216-809-11 METAL CHIP 100 5% 1/10W
1707 AG RESISTOR R9059 1-216-821-11 METAL CHIP 1K 5% 1/10W
1708 AG RESISTOR R9060 1-216-821-11 METAL CHIP 1K 5% 1/10W
1709 AG RESISTOR R9061 1-216-809-11 METAL CHIP 100 5% 1/10W
1710 AG RESISTOR R9062 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1711 AG RESISTOR R9063 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1712 AG RESISTOR R9064 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1713 AG RESISTOR R9065 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1714 AG RESISTOR R9066 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1715 AG RESISTOR R9067 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1716 AG RESISTOR R9078 1-216-809-11 METAL CHIP 100 5% 1/10W
1717 AG RESISTOR R9086 1-216-864-11 SHORT CHIP 0
1718 AG RESISTOR R9087 1-216-864-11 SHORT CHIP 0
1719 AG RESISTOR R9088 1-216-849-11 METAL CHIP 220K 5% 1/10W
1720 AG RESISTOR R9089 1-216-849-11 METAL CHIP 220K 5% 1/10W
1721 AG RESISTOR R9095 1-216-821-11 METAL CHIP 1K 5% 1/10W
1722 AG RESISTOR R9096 1-216-821-11 METAL CHIP 1K 5% 1/10W
1723 AG RESISTOR R9097 1-216-821-11 METAL CHIP 1K 5% 1/10W
1724 AG RESISTOR R9098 1-216-821-11 METAL CHIP 1K 5% 1/10W
1725 AG RESISTOR R9101 1-216-821-11 METAL CHIP 1K 5% 1/10W
1726 AG RESISTOR R9102 1-216-821-11 METAL CHIP 1K 5% 1/10W
1727 AG RESISTOR R9150 1-216-864-11 SHORT CHIP 0
1728 AG RESISTOR R9151 1-216-864-11 SHORT CHIP 0
1729 AG RESISTOR R9152 1-216-864-11 SHORT CHIP 0
1730 AG RESISTOR R9153 1-216-864-11 SHORT CHIP 0
1731 AG RESISTOR R9154 1-216-864-11 SHORT CHIP 0
1732 AG RESISTOR R9155 1-216-864-11 SHORT CHIP 0
1733 AG RESISTOR R9156 1-216-864-11 SHORT CHIP 0
1734 AG RESISTOR R9157 1-216-864-11 SHORT CHIP 0
1735 AG RESISTOR R9158 1-216-864-11 SHORT CHIP 0
1736 AG RESISTOR R9304 1-216-849-11 METAL CHIP 220K 5% 1/10W
1737 AG RESISTOR R9309 1-218-285-11 METAL CHIP 75 5% 1/10W
1738 AG RESISTOR R9312 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1739 AG RESISTOR R9315 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1740 AG RESISTOR R9318 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
1741 AG RESISTOR R9319 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
1742 AG RESISTOR R9320 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
1743 AG RESISTOR R9321 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
1744 AG RESISTOR R9322 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1745 AG RESISTOR R9323 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1746 AG RESISTOR R9324 1-216-837-11 METAL CHIP 22K 5% 1/10W
1747 AG RESISTOR R9325 1-216-857-11 METAL CHIP 1M 5% 1/10W
1748 AG RESISTOR R9326 1-216-841-11 METAL CHIP 47K 5% 1/10W
1749 AG RESISTOR R9328 1-216-841-11 METAL CHIP 47K 5% 1/10W
1750 AG RESISTOR R9329 1-216-833-11 METAL CHIP 10K 5% 1/10W
1751 AG RESISTOR R9330 1-216-864-11 SHORT CHIP 0
1752 AG RESISTOR R9331 1-216-864-11 SHORT CHIP 0
1753 AG RESISTOR R9332 1-216-864-11 SHORT CHIP 0
1754 AG RESISTOR R9333 1-216-864-11 SHORT CHIP 0
1755 AG RESISTOR R9334 1-216-864-11 SHORT CHIP 0
1756 AG RESISTOR R9501 1-216-864-11 SHORT CHIP 0
1757 AG RESISTOR R9502 1-216-864-11 SHORT CHIP 0
1758 AG RESISTOR R9506 1-218-873-11 METAL CHIP 12K 0.5% 1/10W
1759 AG RESISTOR R9546 1-216-864-11 SHORT CHIP 0
1760 AG RESISTOR R9547 1-216-864-11 SHORT CHIP 0
1761 AG RESISTOR R9555 1-216-295-91 SHORT CHIP 0
1762 AG RESISTOR R9700 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1763 AG RESISTOR R9701 1-127-573-11 CERAMIC CHIP 1UF 10% 16V
1764 AG RESISTOR R9702 1-216-809-11 METAL CHIP 100 5% 1/10W
1765 AG RESISTOR R9703 1-216-809-11 METAL CHIP 100 5% 1/10W
1766 AG RESISTOR R9704 1-216-811-11 METAL CHIP 150 5% 1/10W
1767 AG RESISTOR R9705 1-216-811-11 METAL CHIP 150 5% 1/10W
1768 AG RESISTOR R9706 1-216-809-11 METAL CHIP 100 5% 1/10W
Remarks-2
KDL-32/40/46V2000 (AUS) 4-25
Page 96
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1769 AG RESISTOR R9707 1-216-811-11 METAL CHIP 150 5% 1/10W
1770 AG RESISTOR R9708 1-216-811-11 METAL CHIP 150 5% 1/10W
1771 AG RESISTOR R9710 1-216-809-11 METAL CHIP 100 5% 1/10W
1772 AG RESISTOR R9712 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1773 AG RESISTOR R9714 1-216-809-11 METAL CHIP 100 5% 1/10W
1774 AG RESISTOR R9717 1-216-801-11 METAL CHIP 22 5% 1/10W
1775 AG RESISTOR R9718 1-216-811-11 METAL CHIP 150 5% 1/10W
1776 AG RESISTOR R9719 1-216-811-11 METAL CHIP 150 5% 1/10W
1777 AG RESISTOR R9720 1-216-811-11 METAL CHIP 150 5% 1/10W
1778 AG RESISTOR R9721 1-216-811-11 METAL CHIP 150 5% 1/10W
1779 AG RESISTOR R9722 1-216-811-11 METAL CHIP 150 5% 1/10W
1780 AG RESISTOR R9723 1-216-811-11 METAL CHIP 150 5% 1/10W
1781 AG RESISTOR R9724 1-216-809-11 METAL CHIP 100 5% 1/10W
1782 AG RESISTOR R9725 1-216-809-11 METAL CHIP 100 5% 1/10W
1783 AG RESISTOR R9726 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1784 AG RESISTOR R9727 1-216-809-11 METAL CHIP 100 5% 1/10W
1785 AG RESISTOR R9728 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1786 AG RESISTOR R9729 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
1787 AG VARISTOR VD9001 8-719-977-28 DIODE DTZ10B
1788 AG VARISTOR VD9002 8-719-977-28 DIODE DTZ10B
1789 AG VARISTOR VD9003 8-719-977-28 DIODE DTZ10B
1790 AG VARISTOR VD9004 8-719-977-28 DIODE DTZ10B
1791 AG VARISTOR VD9005 8-719-977-28 DIODE DTZ10B
1792 AG VARISTOR VD9006 8-719-977-28 DIODE DTZ10B
1793 AG VARISTOR VD9025 1-802-082-11 VARISTOR (SMD)
1794 AG VARISTOR VD9026 1-802-082-11 VARISTOR (SMD)
1795 AG VARISTOR VD9303 1-802-082-11 VARISTOR (SMD)
1796 AG VARISTOR VD9304 1-802-082-11 VARISTOR (SMD)
1797 AG VARISTOR VD9305 1-802-082-11 VARISTOR (SMD)
1798 AG CRYSTAL X7000 1-795-612-11 VIBRATOR, CRYSTAL
1799 J CONNECTOR * CN400 1-820-180-11 HEADER ASSEMBLY (PRINT PWB) 3P
1800 J CONNECTOR CN401 1-691-550-11 PIN, CONNECTOR (1.5MM)(SMD) 3P
1801 J RESISTOR R400 1-216-809-11 METAL CHIP 100 5% 1/10W
1802 J RESISTOR R401 1-216-809-11 METAL CHIP 100 5% 1/10W
1803 J RESISTOR R402 1-216-833-11 METAL CHIP 10K 5% 1/10W
1804 J RESISTOR R403 1-216-833-11 METAL CHIP 10K 5% 1/10W
1805 H2 CAPACITOR C203 1-127-573-11 CERAMIC CHIP 1UF 10% 16V 32/40V2000
1806 H2 CAPACITOR C204 1-127-573-11 CERAMIC CHIP 1UF 10% 16V 32/40V2000
1807 H2 CAPACITOR C205 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V 32/40V2000
1808 H2 CAPACITOR C206 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V 32/40V2000
1809 H2 CAPACITOR C207 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V 32/40V2000
1810 H2 CAPACITOR C208 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V 32/40V2000
1811 H2 CAPACITOR C215 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V 32/40V2000
1812 H2 CONNECTOR CN201 1-820-192-11 HEADER ASSEMBLY (PRINT PWB)15P 32/40V2000
1813 H2 DIODE D201 8-719-083-79 DIODE MM3Z10VT1 32/40V2000
1814 H2 DIODE D202 8-719-083-79 DIODE MM3Z10VT1 32/40V2000
1815 H2 DIODE D203 8-719-083-79 DIODE MM3Z10VT1 32/40V2000
1816 H2 DIODE D204 8-719-083-79 DIODE MM3Z10VT1 32/40V2000
1817 H2 DIODE D205 8-719-083-79 DIODE MM3Z10VT1 32/40V2000
1818 H2 DIODE D206 8-719-083-79 DIODE MM3Z10VT1 32/40V2000
1819 H2 JACK J201 1-780-368-11 S TERMINAL BLOCK (RIGHT ANGLE) 32/40V2000
1820 H2 JACK J202 1-568-267-11 JACK 32/40V2000
1821 H2 RESISTOR R202 1-216-864-11 SHORT CHIP 0 32/40V2000
1822 H2 RESISTOR R203 1-216-853-11 METAL CHIP 470K 5% 1/10W 32/40V2000
1823 H2 RESISTOR R204 1-216-853-11 METAL CHIP 470K 5% 1/10W 32/40V2000
1824 H2 RESISTOR R205 1-216-864-11 SHORT CHIP 0 32/40V2000
1825 H2 RESISTOR R206 1-216-864-11 SHORT CHIP 0 32/40V2000
1826 H2 RESISTOR R207 1-218-831-11 METAL CHIP 220 0.5% 1/10W 32/40V2000
1827 H2 RESISTOR R208 1-218-831-11 METAL CHIP 220 0.5% 1/10W 32/40V2000
1828 H2 RESISTOR R209 1-218-285-11 METAL CHIP 75 5% 1/10W 32/40V2000
1829 H2 RESISTOR R210 1-218-831-11 METAL CHIP 220 0.5% 1/10W 32/40V2000
1830 H2 RESISTOR R211 1-218-831-11 METAL CHIP 220 0.5% 1/10W 32/40V2000
1831 H2 RESISTOR R212 1-216-864-11 SHORT CHIP 0 32/40V2000
1832 H2 RESISTOR R213 1-216-821-11 METAL CHIP 1K 5% 1/10W 32/40V2000
1833 H2 RESISTOR R214 1-216-821-11 METAL CHIP 1K 5% 1/10W 32/40V2000
1834 H2 RESISTOR R215 1-216-809-11 METAL CHIP 100 5% 1/10W 32/40V2000
1835 H2 RESISTOR R216 1-216-809-11 METAL CHIP 100 5% 1/10W 32/40V2000
1836 H2 RESISTOR R217 1-216-821-11 METAL CHIP 1K 5% 1/10W 32/40V2000
1837 H2 RESISTOR R218 1-216-821-11 METAL CHIP 1K 5% 1/10W 32/40V2000
1838 H2 RESISTOR R219 1-216-809-11 METAL CHIP 100 5% 1/10W 32/40V2000
1839 H2 RESISTOR R220 1-216-864-11 SHORT CHIP 0 32/40V2000
1840 H2 RESISTOR R224 1-218-831-11 METAL CHIP 220 0.5% 1/10W 32/40V2000
1841 H2 RESISTOR R225 1-218-831-11 METAL CHIP 220 0.5% 1/10W 32/40V2000
1842 H2 VARISTOR VD201 1-802-082-11 VARISTOR (SMD) 32/40V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-26
Page 97
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1843 H2 VARISTOR VD202 1-802-082-11 VARISTOR (SMD) 32/40V2000
1844 H2 VARISTOR VD203 1-802-082-11 VARISTOR (SMD) 32/40V2000
1845 H4 CAPACITOR C352 1-162-960-11 CERAMIC CHIP 220PF 10.00% 50V
1846 H4 CAPACITOR C353 1-119-667-11 CERAMIC CHIP 22UF 10V
1847 H4 CAPACITOR C355 1-165-908-11 CERAMIC CHIP 1UF 10% 10V
1848 H4 CAPACITOR C357 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
1849 H4 CAPACITOR C358 1-126-205-11 ELECT CHIP 47UF 20.00% 6.3V
1850 H4 CONNECTOR CN351 1-820-187-11 HEADER ASSEMBLY (PRINT PWB)10P
1851 H4 DIODE D352 8-719-085-26 DIODE CL-165HR/SYG-D-T
1852 H4 DIODE D355 8-719-085-26 DIODE CL-165HR/SYG-D-T
1853 H4 DIODE D358 6-500-817-01 DIODE (LED) SML-512UWT86
1854 H4 IC IC351 6-600-502-01 HIC GP1UE26RK0VF
1855 H4 IC IC352 6-600-447-01 IC TPS853(SONY)
1856 H4 TRANSISTOR Q351 8-729-028-96 TRANSISTOR DTC114EUA-T106
1857 H4 TRANSISTOR Q352 8-729-028-96 TRANSISTOR DTC114EUA-T106
1858 H4 TRANSISTOR Q353 8-729-028-96 TRANSISTOR DTC114EUA-T106
1859 H4 TRANSISTOR Q354 8-729-028-96 TRANSISTOR DTC114EUA-T106
1860 H4 TRANSISTOR Q355 8-729-028-96 TRANSISTOR DTC114EUA-T106
1861 H4 TRANSISTOR Q356 8-729-602-36 TRANSISTOR 2SA1602-F
1862 H4 RESISTOR R351 1-216-820-11 METAL CHIP 820 5% 1/10W
1863 H4 RESISTOR R352 1-216-819-11 METAL CHIP 680 5% 1/10W
1864 H4 RESISTOR R353 1-216-820-11 METAL CHIP 820 5% 1/10W
1865 H4 RESISTOR R354 1-216-819-11 METAL CHIP 680 5% 1/10W
1866 H4 RESISTOR R355 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
1867 H4 RESISTOR R356 1-216-817-11 METAL CHIP 470 5% 1/10W
1868 H4 RESISTOR R357 1-216-805-11 METAL CHIP 47 5% 1/10W
1869 H4 RESISTOR R359 1-216-839-11 METAL CHIP 33K 5% 1/10W
1870 H4 RESISTOR R360 1-216-821-11 METAL CHIP 1K 5% 1/10W
1871 H4 RESISTOR R361 1-216-833-11 METAL CHIP 10K 5% 1/10W
1872 H4 RESISTOR R363 1-216-849-11 METAL CHIP 220K 5% 1/10W
1873 H4 RESISTOR R364 1-216-849-11 METAL CHIP 220K 5% 1/10W
1874 H4 RESISTOR R365 1-216-864-11 SHORT CHIP 0
1875 H4 RESISTOR R366 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
1876 H1 CONNECTOR CN101 1-819-445-11 HEADER ASSEMBLY FOR PWB 3P
1877 H1 RESISTOR R101 1-218-848-11 METAL CHIP 1.1K 0.5% 1/10W
1878 H1 RESISTOR R102 1-218-841-11 METAL CHIP 560 0.5% 1/10W
1879 H1 RESISTOR R103 1-218-835-11 METAL CHIP 330 0.5% 1/10W
1880 H1 RESISTOR R104 1-218-831-11 METAL CHIP 220 0.5% 1/10W
1881 H1 RESISTOR R105 1-218-827-11 METAL CHIP 150 0.5% 1/10W
1882 H1 SWITCH S101 1-572-595-11 SWITCH, TACTIL (REFLOW TYPE)
1883 H1 SWITCH S102 1-572-595-11 SWITCH, TACTIL (REFLOW TYPE)
1884 H1 SWITCH S103 1-572-595-11 SWITCH, TACTIL (REFLOW TYPE)
1885 H1 SWITCH S104 1-572-595-11 SWITCH, TACTIL (REFLOW TYPE)
1886 H1 SWITCH S105 1-572-595-11 SWITCH, TACTIL (REFLOW TYPE)
1887 H1 SWITCH S106 1-572-595-11 SWITCH, TACTIL (REFLOW TYPE)
1888 H1 SWITCH S107 1-572-595-11 SWITCH, TACTIL (REFLOW TYPE)
1889 H46 CAPACITOR C203 1-127-573-11 CERAMIC CHIP 1UF 10% 16V 46V2000
1890 H46 CAPACITOR C204 1-127-573-11 CERAMIC CHIP 1UF 10% 16V 46V2000
1891 H46 CAPACITOR C205 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V 46V2000
1892 H46 CAPACITOR C206 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V 46V2000
1893 H46 CAPACITOR C207 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V 46V2000
1894 H46 CAPACITOR C208 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V 46V2000
1895 H46 CAPACITOR C215 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V 46V2000
1896 H46 CONNECTOR CN201 1-820-192-11 HEADER ASSEMBLY (PRINT PWB)15P 46V2000
1897 H46 DIODE D201 8-719-977-28 DIODE DTZ10B 46V2000
1898 H46 DIODE D202 8-719-977-28 DIODE DTZ10B 46V2000
1899 H46 DIODE D203 8-719-977-28 DIODE DTZ10B 46V2000
1900 H46 DIODE D204 8-719-977-28 DIODE DTZ10B 46V2000
1901 H46 DIODE D205 8-719-977-28 DIODE DTZ10B 46V2000
1902 H46 DIODE D206 8-719-977-28 DIODE DTZ10B 46V2000
1903 H46 JACK J201 1-780-368-11 S TERMINAL BLOCK (RIGHT ANGLE) 46V2000
1904 H46 JACK J202 1-815-325-11 JACK 46V2000
1905 H46 RESISTOR R202 1-216-864-11 SHORT CHIP 0 46V2000
1906 H46 RESISTOR R203 1-216-853-11 METAL CHIP 470K 5% 1/10W 46V2000
1907 H46 RESISTOR R204 1-216-853-11 METAL CHIP 470K 5% 1/10W 46V2000
1908 H46 RESISTOR R205 1-216-864-11 SHORT CHIP 0 46V2000
1909 H46 RESISTOR R206 1-216-864-11 SHORT CHIP 0 46V2000
1910 H46 RESISTOR R207 1-218-831-11 METAL CHIP 220 0.5% 1/10W 46V2000
1911 H46 RESISTOR R208 1-218-831-11 METAL CHIP 220 0.5% 1/10W 46V2000
1912 H46 RESISTOR R209 1-218-285-11 METAL CHIP 75 5% 1/10W 46V2000
1913 H46 RESISTOR R210 1-218-831-11 METAL CHIP 220 0.5% 1/10W 46V2000
1914 H46 RESISTOR R211 1-218-831-11 METAL CHIP 220 0.5% 1/10W 46V2000
1915 H46 RESISTOR R212 1-216-864-11 SHORT CHIP 0 46V2000
1916 H46 RESISTOR R213 1-216-821-11 METAL CHIP 1K 5% 1/10W 46V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-27
Page 98
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1917 H46 RESISTOR R214 1-216-821-11 METAL CHIP 1K 5% 1/10W 46V2000
1918 H46 RESISTOR R215 1-216-809-11 METAL CHIP 100 5% 1/10W 46V2000
1919 H46 RESISTOR R216 1-216-809-11 METAL CHIP 100 5% 1/10W 46V2000
1920 H46 RESISTOR R217 1-216-821-11 METAL CHIP 1K 5% 1/10W 46V2000
1921 H46 RESISTOR R218 1-216-821-11 METAL CHIP 1K 5% 1/10W 46V2000
1922 H46 RESISTOR R219 1-216-809-11 METAL CHIP 100 5% 1/10W 46V2000
1923 H46 RESISTOR R220 1-216-864-11 SHORT CHIP 0 46V2000
1924 H46 RESISTOR R224 1-218-831-11 METAL CHIP 220 0.5% 1/10W 46V2000
1925 H46 RESISTOR R225 1-218-831-11 METAL CHIP 220 0.5% 1/10W 46V2000
1926 H46 VARISTOR VD201 1-802-082-11 VARISTOR (SMD) 46V2000
1927 H46 VARISTOR VD202 1-802-082-11 VARISTOR (SMD) 46V2000
1928 H46 VARISTOR VD203 1-802-082-11 VARISTOR (SMD) 46V2000
1929 G1 CAPACITOR C6101 1-161-964-91 CERAMIC 4700PF F 32V2000
1930 G1 CAPACITOR ! C6104 1-117-697-41 CERAMIC 470PF B 32V2000
1931 G1 CAPACITOR ! C6105 1-165-529-11 PETP FILM 0.22MF 32V2000
1932 G1 CAPACITOR C6106 1-165-529-11 PETP FILM 0.22MF 32V2000
1933 G1 CAPACITOR ! C6109 1-117-697-41 CERAMIC 470PF B 32V2000
1934 G1 CAPACITOR C6110 1-161-964-91 CERAMIC 4700PF F 32V2000
1935 G1 CAPACITOR C6111 1-113-915-91 CERAMIC 1000PF E 32V2000
1936 G1 CAPACITOR ! C6112 1-112-744-52 METALIZED PET FILM 1MF 32V2000
1937 G1 CAPACITOR ! C6115 1-112-744-52 METALIZED PET FILM 1MF 32V2000
1938 G1 CAPACITOR ! C6116 1-112-744-52 METALIZED PET FILM 1MF 32V2000
1939 G1 CAPACITOR C6122 1-165-127-91 CERAMIC 470PF 32V2000
1940 G1 CAPACITOR C6123 1-165-127-91 CERAMIC 470PF 32V2000
1941 G1 CAPACITOR C6125 1-114-134-11 ELECT 180MF 32V2000
1942 G1 CAPACITOR C6127 1-162-964-91 CERAMIC CHIP 1000PF B 1608 32V2000
1943 G1 CAPACITOR C6129 1-115-339-91 CERAMIC 0.1MF B (2012) 32V2000
1944 G1 CAPACITOR C6131 1-115-339-91 CERAMIC 0.1MF B (2012) 32V2000
1945 G1 CAPACITOR C6132 1-115-339-91 CERAMIC 0.1MF B (2012) 32V2000
1946 G1 CAPACITOR C6133 1-165-127-91 CERAMIC 470PF 32V2000
1947 G1 CAPACITOR C6134 1-165-127-91 CERAMIC 470PF 32V2000
1948 G1 CAPACITOR C6138 1-107-826-91 CERAMIC CHIP 100000PF B 32V2000
1949 G1 CAPACITOR C6139 1-162-927-91 CERAMIC CHIP 100PF CH 1608 32V2000
1950 G1 CAPACITOR C6141 1-107-905-91 ELECT 4.7MF 32V2000
1951 G1 CAPACITOR C6143 1-107-903-91 ELECT 2.2MF 32V2000
1952 G1 CAPACITOR C6144 1-165-127-91 CERAMIC 470PF 32V2000
1953 G1 CAPACITOR C6147 1-137-807-31 ELECT 100MF 32V2000
1954 G1 CAPACITOR C6149 1-162-964-91 CERAMIC CHIP 1000PF B 1608 32V2000
1955 G1 CAPACITOR C6152 1-162-964-91 CERAMIC CHIP 1000PF B 1608 32V2000
1956 G1 CAPACITOR C6201 1-127-715-91 CERAMIC CHIP 0.22MF B 1608 32V2000
1957 G1 CAPACITOR C6202 1-112-218-21 ELECT 680MF 32V2000
1958 G1 CAPACITOR C6203 1-107-882-91 ELECT 100MF 32V2000
1959 G1 CAPACITOR C6210 1-127-573-91 CERAMIC CHIP 1MF B (2012) 32V2000
1960 G1 CAPACITOR C6212 1-127-573-91 CERAMIC CHIP 1MF B (2012) 32V2000
1961 G1 CAPACITOR C6214 1-162-970-91 CERAMIC CHIP 10000PF B 1608 32V2000
1962 G1 CAPACITOR C6215 1-100-597-91 CERAMIC CHIP 0.1MF B 1608 32V2000
1963 G1 CAPACITOR C6301 1-162-966-91 CERAMIC CHIP 2200PF B 1608 32V2000
1964 G1 CAPACITOR C6302 1-162-964-91 CERAMIC CHIP 1000PF B 1608 32V2000
1965 G1 CAPACITOR C6303 1-162-970-91 CERAMIC CHIP 10000PF B 1608 32V2000
1966 G1 CAPACITOR C6304 1-107-823-91 CERAMIC 470000PF B (2012) 32V2000
1967 G1 CAPACITOR C6306 1-115-339-91 CERAMIC 0.1MF B (2012) 32V2000
1968 G1 CAPACITOR C6307 1-107-906-91 ELECT 10MF 32V2000
1969 G1 CAPACITOR C6308 1-104-962-91 ELECT 47MF 32V2000
1970 G1 CAPACITOR C6401 1-107-905-91 ELECT 4.7MF 32V2000
1971 G1 CAPACITOR C6402 1-112-242-21 ELECT 1500MF 32V2000
1972 G1 CAPACITOR C6403 1-107-907-91 ELECT 22MF 32V2000
1973 G1 CAPACITOR C6404 1-112-835-11 ELECT 3300MF 32V2000
1974 G1 CAPACITOR C6405 1-100-597-91 CERAMIC CHIP 0.1MF B 1608 32V2000
1975 G1 CAPACITOR C6406 1-112-835-11 ELECT 3300MF 32V2000
1976 G1 CAPACITOR C6407 1-112-228-21 ELECT 1000MF 32V2000
1977 G1 CAPACITOR C6501 1-162-970-91 CERAMIC CHIP 10000PF B 1608 32V2000
1978 G1 CAPACITOR C6502 1-115-416-91 CERAMIC CHIP1000PF CH 1608 32V2000
1979 G1 CAPACITOR C6503 1-107-906-91 ELECT 10MF 32V2000
1980 G1 CAPACITOR C6504 1-107-907-91 ELECT 22MF 32V2000
1981 G1 CAPACITOR C6505 1-100-597-91 CERAMIC CHIP 0.1MF B 1608 32V2000
1982 G1 CAPACITOR C6506 1-162-970-91 CERAMIC CHIP 10000PF B 1608 32V2000
1983 G1 CAPACITOR C6507 1-107-893-91 ELECT 100MF 32V2000
1984 G1 CAPACITOR C6508 1-100-597-91 CERAMIC CHIP 0.1MF B 1608 32V2000
1985 G1 CAPACITOR C6509 1-104-962-91 ELECT 47MF 32V2000
1986 G1 CAPACITOR C6510 1-115-340-91 CERAMIC 0.22MF B (2012) 32V2000
1987 G1 CAPACITOR C6512 1-165-127-91 CERAMIC 470PF 32V2000
1988 G1 CAPACITOR C6514 1-128-984-11 METALIZED FILM 0.015MF 32V2000
1989 G1 CAPACITOR C6516 1-163-021-91 CERAMIC 10000PF B (2012) 32V2000
1990 G1 CONNECTOR CN6101 1-695-915-21 TAB CONTACT 32V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-28
Page 99
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
1991 G1 CONNECTOR ! CN6102 1-691-960-11 PIN, CONNECTOR 3P 32V2000
1992 G1 CONNECTOR CN6201 1-695-915-21 TAB CONTACT 32V2000
1993 G1 CONNECTOR CN6202 1-793-236-11 PIN, CONNECTOR 14P 32V2000
1994 G1 CONNECTOR CN6203 1-785-708-11 PIN, CONNECTOR 12P 32V2000
1995 G1 DIODE D6101 8-719-510-53 DIODE D4SB60L 32V2000
1996 G1 DIODE D6102 8-719-081-97 DIODE MMDL914T1 32V2000
1997 G1 DIODE D6103 6-500-567-01 DIODE 10ERB20-TA1B2 32V2000
1998 G1 DIODE D6104 6-500-567-01 DIODE 10ERB20-TA1B2 32V2000
1999 G1 DIODE D6107 8-719-081-97 DIODE MMDL914T1 32V2000
2000 G1 DIODE D6114 8-719-054-59 DIODE FSF05A60 32V2000
2001 G1 DIODE D6128 8-719-055-18 DIODE ERA22-08TP3 32V2000
2002 G1 DIODE D6129 6-500-567-01 DIODE 10ERB20-TA1B2 32V2000
2003 G1 DIODE D6130 6-500-567-01 DIODE 10ERB20-TA1B2 32V2000
2004 G1 DIODE D6131 6-501-450-01 DIODE 11EFS4-TA1B2 32V2000
2005 G1 DIODE D6132 8-719-938-81 DIODE ERA22-06TP5 32V2000
2006 G1 DIODE D6133 8-719-081-97 DIODE MMDL914T1 32V2000
2007 G1 DIODE D6134 8-719-081-97 DIODE MMDL914T1 32V2000
2008 G1 DIODE D6201 8-719-070-51 DIODE 21DQ06-TA2B1 32V2000
2009 G1 DIODE D6202 8-719-081-97 DIODE MMDL914T1 32V2000
2010 G1 DIODE D6301 8-719-081-97 DIODE MMDL914T1 32V2000
2011 G1 DIODE D6302 8-719-027-76 DIODE 1SS357-TPH3 32V2000
2012 G1 DIODE D6303 8-719-081-97 DIODE MMDL914T1 32V2000
2013 G1 DIODE D6304 6-500-022-01 DIODE MM3Z5V1ST1 32V2000
2014 G1 DIODE D6305 8-719-081-97 DIODE MMDL914T1 32V2000
2015 G1 DIODE D6306 8-719-081-97 DIODE MMDL914T1 32V2000
2016 G1 DIODE D6401 6-501-319-01 DIODE FCQ10A06 32V2000
2017 G1 DIODE D6402 8-719-074-59 DIODE FCH20A06 32V2000
2018 G1 DIODE D6403 8-719-074-59 DIODE FCH20A06 32V2000
2019 G1 DIODE D6404 6-500-567-01 DIODE 10ERB20-TA1B2 32V2000
2020 G1 DIODE D6405 6-500-567-01 DIODE 10ERB20-TA1B2 32V2000
2021 G1 DIODE D6406 8-719-060-88 DIODE D4SBS6 32V2000
2022 G1 DIODE D6407 8-719-081-97 DIODE MMDL914T1 32V2000
2023 G1 DIODE D6408 8-719-082-04 DIODE MM3Z22VT1 32V2000
2024 G1 DIODE D6501 8-719-027-76 DIODE 1SS357-TPH3 32V2000
2025 G1 DIODE D6502 8-719-081-97 DIODE MMDL914T1 32V2000
2026 G1 DIODE D6503 8-719-077-66 DIODE 11EQS03LN-TA1B2 32V2000
2027 G1 DIODE D6504 8-719-027-76 DIODE 1SS357-TPH3 32V2000
2028 G1 DIODE D6505 6-500-448-11 DIODE D1NF60-TA 32V2000
2029 G1 DIODE D6506 8-719-077-66 DIODE 11EQS03LN-TA1B2 32V2000
2030 G1 DIODE D6507 6-501-043-01 DIODE UMZ16NT106 32V2000
2031 G1 DIODE D6508 6-501-043-01 DIODE UMZ16NT106 32V2000
2032 G1 DIODE D6514 8-719-081-97 DIODE MMDL914T1 32V2000
2033 G1 DIODE D6515 6-500-555-01 DIODE MM3Z27VT1 32V2000
2034 G1 DIODE D6516 8-719-082-03 DIODE MM3Z15VT1 32V2000
2035 G1 FUSE ! F6101 1-576-231-51 FUSE, H.B.C. 32V2000
2036 G1 FUSE HOLDER FH6101 1-533-217-41 FUSE HOLDER 32V2000
2037 G1 IC IC6102 6-709-368-01 IC MM1431ATT (CN) 32V2000
2038 G1 IC IC6103 6-709-368-01 IC MM1431ATT (CN) 32V2000
2039 G1 IC IC6104 6-708-801-01 IC MIP2H2 32V2000
2040 G1 IC IC6201 6-709-155-01 IC TS3431BILT 32V2000
2041 G1 IC IC6301 6-709-192-01 IC FA5501AN-D1-TE1 32V2000
2042 G1 IC IC6401 6-709-368-01 IC MM1431ATT (CN) 32V2000
2043 G1 IC IC6501 6-706-852-01 IC CXD9841M 32V2000
2044 G1 INDUCTOR L6102 1-481-065-11 INDUCTOR (CH CHP32A012) 330UH 32V2000
2045 G1 INDUCTOR ! L6103 1-400-876-21 INDUCTOR (CH ALS050100) 100UH 32V2000
2046 G1 INDUCTOR L6204 1-412-521-41 INDUCTOR 4.7UH 32V2000
2047 G1 INDUCTOR L6401 1-400-596-21 INDUCTOR (SL810C1R0) 1.0UH 32V2000
2048 G1 INDUCTOR L6402 1-400-596-21 INDUCTOR (SL810C1R0) 1.0UH 32V2000
2049 G1 INDUCTOR L6403 1-400-597-11 INDUCTOR (CH STP-01090) 2.2UH 32V2000
2050 G1 TRANSFORMER ! LF6101 1-443-947-31 LINE FILTER (RBIA-883225NP) 32V2000
2051 G1 TRANSFORMER ! LF6102 1-443-947-31 LINE FILTER (RBIA-883225NP) 32V2000
2052 G1 PHOTO COUPLER ! PH6101 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W 32V2000
2053 G1 PHOTO COUPLER ! PH6102 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W 32V2000
2054 G1 PHOTO COUPLER ! PH6103 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W 32V2000
2055 G1 PHOTO COUPLER ! PH6104 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W 32V2000
2056 G1 PHOTO COUPLER ! PH6501 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W 32V2000
2057 G1 IC LINK ! PS6201 1-533-597-32 IC LINK 32V2000
2058 G1 IC LINK ! PS6202 1-533-597-32 IC LINK 32V2000
2059 G1 TRANSISTOR Q6101 8-729-141-50 TRANSISTOR 2SB624T1-BV345 32V2000
2060 G1 TRANSISTOR Q6102 6-551-303-01 TRANSISTOR 2SK3683-01MR-F111 32V2000
2061 G1 TRANSISTOR Q6106 8-729-620-33 TRANSISTOR 2SA1235TP-1EF 32V2000
2062 G1 TRANSISTOR Q6107 8-729-010-25 TRANSISTOR MSD601-RT1 32V2000
2063 G1 TRANSISTOR Q6108 8-729-920-79 TRANSISTOR 2SB1132-T100-QR 32V2000
2064 G1 TRANSISTOR Q6109 8-729-038-23 TRANSISTOR RT1N141C-TP-1 32V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-29
Page 100
No. # Board Type !/* Ref. No. Part No. Description Remarks-1
2065 G1 TRANSISTOR Q6201 8-729-045-62 TRANSISTOR 2SK2158-T2B 32V2000
2066 G1 TRANSISTOR Q6202 8-729-620-33 TRANSISTOR 2SA1235TP-1EF 32V2000
2067 G1 TRANSISTOR Q6203 8-729-045-62 TRANSISTOR 2SK2158-T2B 32V2000
2068 G1 TRANSISTOR Q6204 8-729-010-25 TRANSISTOR MSD601-RT1 32V2000
2069 G1 TRANSISTOR Q6205 8-729-010-25 TRANSISTOR MSD601-RT1 32V2000
2070 G1 TRANSISTOR Q6501 8-729-038-23 TRANSISTOR RT1N141C-TP-1 32V2000
2071 G1 TRANSISTOR Q6502 6-551-465-01 TRANSISTOR 2SK3561(SONY,Q 32V2000
2072 G1 TRANSISTOR Q6503 6-551-465-01 TRANSISTOR 2SK3561(SONY,Q 32V2000
2073 G1 RESISTOR ! R6102 1-240-251-91 METAL CEMENT 6.8 32V2000
2074 G1 RESISTOR ! R6103 1-240-576-21 RES-CHIP 470K (2012) 32V2000
2075 G1 RESISTOR ! R6104 1-240-576-21 RES-CHIP 470K (2012) 32V2000
2076 G1 RESISTOR ! R6108 1-240-576-21 RES-CHIP 470K (2012) 32V2000
2077 G1 RESISTOR ! R6109 1-240-576-21 RES-CHIP 470K (2012) 32V2000
2078 G1 RESISTOR ! R6110 1-240-572-21 RES-CHIP 220K (2012) 32V2000
2079 G1 RESISTOR R6111 1-216-109-91 CHIP 330K (2012) 32V2000
2080 G1 RESISTOR R6113 1-216-077-91 CHIP 15K (2012) 32V2000
2081 G1 RESISTOR R6114 1-249-397-61 CARBON 22 32V2000
2082 G1 RESISTOR R6115 1-216-817-91 CHIP 470 (1608) 32V2000
2083 G1 RESISTOR R6118 1-249-389-61 CARBON 4.7 32V2000
2084 G1 RESISTOR R6122 1-216-833-91 CHIP 10K (1608) 32V2000
2085 G1 RESISTOR R6123 1-246-028-31 METAL 0.15 32V2000
2086 G1 RESISTOR R6131 1-215-882-51 METALIZED FILM 22 32V2000
2087 G1 RESISTOR R6132 1-208-840-91 CHIP 270K (2012) 32V2000
2088 G1 RESISTOR R6133 1-208-840-91 CHIP 270K (2012) 32V2000
2089 G1 RESISTOR R6134 1-208-840-91 CHIP 270K (2012) 32V2000
2090 G1 RESISTOR R6135 1-208-840-91 CHIP 270K (2012) 32V2000
2091 G1 RESISTOR R6136 1-208-838-91 CHIP 220K (2012) 32V2000
2092 G1 RESISTOR R6137 1-215-882-51 METALIZED FILM 22 32V2000
2093 G1 RESISTOR R6152 1-216-833-91 CHIP 10K (1608) 32V2000
2094 G1 RESISTOR R6154 1-216-833-91 CHIP 10K (1608) 32V2000
2095 G1 RESISTOR R6155 1-216-073-91 CHIP 10K (2012) 32V2000
2096 G1 RESISTOR R6157 1-216-825-91 CHIP 2.2K (1608) 32V2000
2097 G1 RESISTOR R6158 1-247-871-91 CARBON 47K 32V2000
2098 G1 RESISTOR R6162 1-216-065-91 CHIP 4.7K (2012) 32V2000
2099 G1 RESISTOR R6166 1-245-185-21 CHIP 5.6K (1608) 32V2000
2100 G1 RESISTOR R6169 1-220-926-21 FUSIBLE RESISTOR 0.47 32V2000
2101 G1 RESISTOR R6170 1-218-642-51 METALIZED FILM 100K 32V2000
2102 G1 RESISTOR R6172 1-249-385-61 CARBON 2.2 32V2000
2103 G1 RESISTOR R6173 1-216-821-91 CHIP 1.0K (1608) 32V2000
2104 G1 RESISTOR R6176 1-208-854-91 CHIP 1M (2012) 32V2000
2105 G1 RESISTOR R6177 1-208-854-91 CHIP 1M (2012) 32V2000
2106 G1 RESISTOR R6178 1-208-854-91 CHIP 1M (2012) 32V2000
2107 G1 RESISTOR R6179 1-208-854-91 CHIP 1M (2012) 32V2000
2108 G1 RESISTOR R6180 1-208-838-91 CHIP 220K (2012) 32V2000
2109 G1 RESISTOR R6181 1-208-838-91 CHIP 220K (2012) 32V2000
2110 G1 RESISTOR R6184 1-215-869-81 METALIZED FILM 1K 32V2000
2111 G1 RESISTOR R6185 1-216-073-91 CHIP 10K (2012) 32V2000
2112 G1 RESISTOR R6186 1-216-065-91 CHIP 4.7K (2012) 32V2000
2113 G1 RESISTOR R6187 1-216-829-91 CHIP 4.7K (1608) 32V2000
2114 G1 RESISTOR R6188 1-218-879-91 CHIP 22K (1608) 32V2000
2115 G1 RESISTOR R6189 1-218-879-91 CHIP 22K (1608) 32V2000
2116 G1 RESISTOR R6190 1-216-073-91 CHIP 10K (2012) 32V2000
2117 G1 RESISTOR R6191 1-216-065-91 CHIP 4.7K (2012) 32V2000
2118 G1 RESISTOR R6201 1-216-821-91 CHIP 1.0K (1608) 32V2000
2119 G1 RESISTOR R6202 1-216-825-91 CHIP 2.2K (1608) 32V2000
2120 G1 RESISTOR R6203 1-216-827-91 CHIP 3.3K (1608) 32V2000
2121 G1 RESISTOR R6207 1-216-821-91 CHIP 1.0K (1608) 32V2000
2122 G1 RESISTOR R6208 1-216-829-91 CHIP 4.7K (1608) 32V2000
2123 G1 RESISTOR R6209 1-218-885-91 CHIP 39K (1608) 32V2000
2124 G1 RESISTOR R6210 1-218-871-91 CHIP 10K (1608) 32V2000
2125 G1 RESISTOR R6211 1-218-867-91 CHIP 6.8K (1608) 32V2000
2126 G1 RESISTOR R6214 1-216-821-91 CHIP 1.0K (1608) 32V2000
2127 G1 RESISTOR R6215 1-216-837-91 CHIP 22K (1608) 32V2000
2128 G1 RESISTOR R6216 1-216-837-91 CHIP 22K (1608) 32V2000
2129 G1 RESISTOR R6218 1-216-833-91 CHIP 10K (1608) 32V2000
2130 G1 RESISTOR R6219 1-216-073-91 CHIP 10K (2012) 32V2000
2131 G1 RESISTOR R6220 1-216-793-91 CHIP 4.7 (1608) 32V2000
2132 G1 RESISTOR R6226 1-216-837-91 CHIP 22K (1608) 32V2000
2133 G1 RESISTOR R6227 1-216-049-91 CHIP 1.0K (2012) 32V2000
2134 G1 RESISTOR R6228 1-216-837-91 CHIP 22K (1608) 32V2000
2135 G1 RESISTOR R6229 1-216-833-91 CHIP 10K (1608) 32V2000
2136 G1 RESISTOR R6230 1-247-831-91 CARBON 1.0K 32V2000
2137 G1 RESISTOR R6232 1-216-833-91 CHIP 10K (1608) 32V2000
2138 G1 RESISTOR R6233 1-216-837-91 CHIP 22K (1608) 32V2000
Remarks-2
KDL-32/40/46V2000 (AUS) 4-30
Loading...
