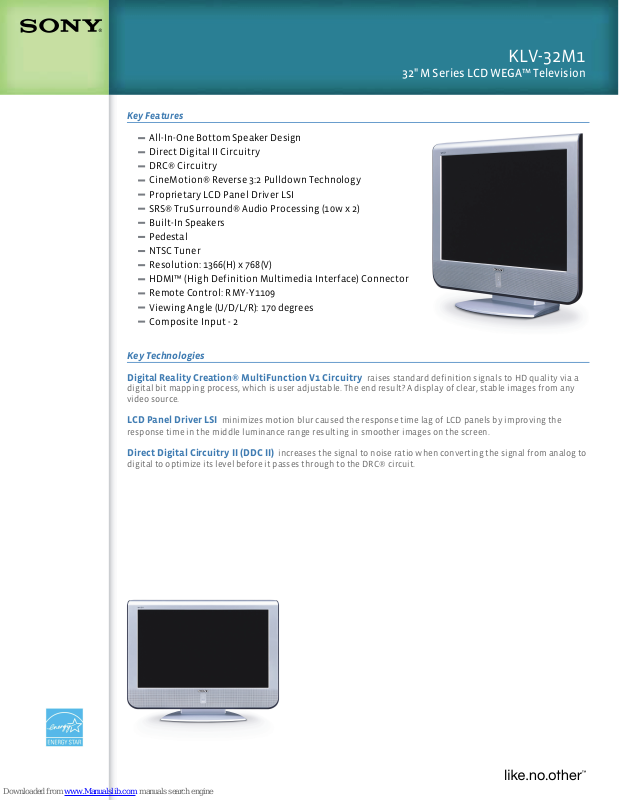

Sony KLV-32M1 Marketing Specifications

KLV-32M1

32" M Series LCD WEGA™

Television

Key Features

All-In-One Bottom Speaker Design

Direct Digital II Circuitry

DRC® Circuitry

CineMotion® Reverse 3:2 Pulldown Technology

Proprietary LCD Panel Driver LSI

SRS® TruSurround® Audio Processing (10w x 2)

Built-In Speakers

Pedestal

NTSC Tuner

Resolution: 1366(H) x 768(V)

HDMI™ (High Definition Multimedia Interface) Connector

Remote Control: RMY-Y1109

Viewing Angle (U/D/L/R): 170 degrees

Composite Input - 2

Key Technologies

Digital Reality Creation® MultiFunction V1 Circuitry

raises standard definition signals to HD quality via a
digital bit mapping process, which is user adjustable. The end result? A display of clear, stable images from any

video source.

LCD Panel Driver LSI

minimizes motion blur caused the response time lag of LCD panels by improving the

response time in the middle luminance range resulting in smoother images on the screen.

Direct Digital Circuitry II (DDC II)

increases the signal to noise ratio when converting the signal from analog to

digital to optimize its level before it passes through to the DRC®

circuit.

Sony Electronics Inc. • 16530 Via Esprillo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com

Last Updated: 04/27/2006

KLV-32M1

32" M Series LCD WEGA™

Television

Please visit the Dealer Network for current

information at www.sony.com/dn

Features

General

Auto SAP: Yes
Channel Fix: Yes
Closed Caption (CC): Yes
ID1 Detection:

Yes

Video Label: Yes
XDS (Extended Data Service):

Yes

Video

Screen or Display Technology: LCD
Tuner: Analog
Video Processing: Yes
Color Temperature: Cool, Neutral, Warm
Dynamic Picture™ Processor Circuitry: Yes
Noise Reduction: Yes
CineMotion® Reverse 3:2 Pulldown

Technology: Yes

Direct Digital II Circuitry:

Yes

Wide Mode (16:9): Wide Zoom, Full, Zoom
Wide Mode (4:3): Wide Zoom, Normal, Full,

Zoom

Mild Mode: Yes
Comb Filter: 3D Digital Comb Filter
DRC® Mode: Yes
Vertical Correction: Yes
Picture Modes: Vivid, Standard, Pro
Color System: NTSC

Audio

Tone Control(s): Treble and Bass
MTS Stereo Decoder:

Yes

Audio Mute: Yes
Speaker On/Off:

Yes

SRS

® TruSurround® Audio Effect: Yes

Convenience

Channel Caption: Yes
Channel Label: Yes
Channel Skip/Add: Yes
Channel Jump: Yes
Favorite Channel: Yes
Speed Surf™ Channel Selection: Yes
Program Guide Access: Yes
Auto Channel Programming: Yes
Multiple Language Display:

English, Español

Parental Control (V-Chip): Yes
Info Banner: Yes
Sleep Timer:

15, 30, 45, 60, 90, Off

Caption Vision: Yes
Built

-in AC Adaptor: Yes

Picture Freeze:

Yes

Specifications

General

Aspect Ratio: 16:9
Screen Size:

32"

Video

Native Resolution: 720p
Contrast Ratio: TBD
Display Resolution: 1366 x 768 (WXGA)
Viewing Angle:

Right/Left: 170°, Up/Down: 170

°

Display Response Time: TBD
Vertical Center:

Yes

Audio

Speaker Type:

TBD

Speakers (Total):

4

Woofer Size: 70 mm (Round)
Full Range Speaker Size:

70 mm Round

Audio Power Output: 20W Total (10W x 2)

Inputs and Outputs

Analog Audio Input(s): 5 (1 Front/4 Rear)
Audio Out (Variable/Fixed):

1 (Rear)

Component Video (Y/Pb/Pr ) Input(s): 1 (Rear)
Composite Video Input(s): 3 (1 Front/2 Rear)
HDMI™ Connection Input(s): 1 (Rear) with

Audio Input

RF Connection Input(s): 1 (Rear)
S

-Video Input(s): 3 (1 Front / 2 Rear)
Center Channel Speaker Input: 1 (Rear)
Headphone Output(s): 1 (Front)

Power

Internal Power Supply: Yes
Power Consumption (in Operation): 155W
Power Consumption (in Standby): Less than

1W

Power Requirements: AC 120V, 60Hz

Regulation and Standard Compliance

Energy Star

® Compliant: Yes

VESA: Yes

Service and Warranty Information

Limited Warranty:

1 Year Parts / 1 Year Labor

Dimensions

Weight:

43 lbs. 7 oz. (19.7 kg) including stand

38 lbs. 6 oz. (17.4 kg) not including stand

Measurements: 32 7/8" x 26 3/8" x 11 5/16" (835 x

670.5 x 287.5 mm) w/stand 32 7/8" x 23 11/16"
x 4 3/8" (835 x 603.5 x 110 mm) w/out stand 39
3/8" x 15 3/4" x 30 7/8" (1,000 x 400 x 784 mm)
carton dimensions

Operating Conditions

Colors: TBD

1

Optional Accessories

Wall Mount Bracket: SU-LW1

UPC Code: 0272426456840

Confidential Sony Information. For Internal Use Only.

1. Screen Size measured diagonally.

©2005 Sony Electronics Inc. All rights reserved.
Sony, DRC, Cinemotion and Remote Commander are trademarks of Sony.
SRS and the SRS symbol, TruSurround are trademarks of SRS Labs, Inc. This
TV incorporates High-Definition Multimedia Interface (HDMI™) technology.
HDMI, the HMDI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC. All other
trademarks are property of their respective owners.
Features and specifications are subject to change without notice. Non

-

metric weights and measures are approximate.
