Sony KDL-32R300C Schematic

HISTORY INFORMATION FOR THE FOLLOWI NG MANUAL:

SERVICE MANUAL

Chassis Name :GN1TP

ORIGINAL MANUAL ISSUE D ATE: 8/2015

Segment Name :

Version Date Subject

1.0 8/2015 Original manual issue.

MB2

LCD Digital Color TV

9-888-186-01

MODEL LIST

MODEL COLOR COMMANDER DEST.
KDL-32R300C U2 Black RM-YD092 NAFTA

MODEL COLOR COMMANDER DEST.

KDL-32R300C U2

2

Table of content

Description Page

WARNINGS AND CAUTIONS………………………………………… 4
USE CAUTION WHEN HANDLING THE LCD PANEL…………… 5
SAFETY CHECK-OUT………………………………………………… 6
SELF DIAGNOSIS FUNCTION……………………………………… 8
SERVICE POSITION…………………………………………………… 9
SEC 1. DISASSEMBLY AND PARTS LIST…………………………… 10
1-1. KDL-32R300C …………………………………………………… 11
1-1-1. BASE STAND……………………………………………… 11
1-1-2. REAR COVER ……………………………………………… 12
1-1-3. POWER BOARD, A BOARD AND SPEAKER ………… 13
1-1-4. LCD PANEL, DECO and COVER, BOTTOM ………… 14
1-1-5. MISCELLANEOUS………………………………………… 15
1-5. How to disassemble rear cover [KDL-32R300C ]…………….. 16

1-6. How to disassemble Deco………………………………….…… 17
1-6-1. How to disassemble Deco [KDL-32R300C]……………. 17
1-7. How to disassemble LVDS cable [KDL-32R300C]…………… 18
1-7-1. How to disassemble LVDS cable [KDL-32R300C]……… 18
1-8. How to disassemble IR Board[KDL-32R300C ]………………. 19
1-9. How to assy the LED lens [KDL-32R300C]…………………. 20
SEC 2. ADJUSTMENT…………………………………………………… 21
SEC 3. DIAGRAMS AND CHASSIS STRUCTURE………………… 23
3-1. BLOCK DIAGRAM……………………………………………… 23
3-2. CONNECTOR DIAGRAM……………………………………… 24
3-3. CIRCUIT BOARDS LOCATION……………………………… 25
3-4. Tape location……………………………………………………… 26
APPENDIX-1 Trouble analysis flow…………………………………… 28
APPENDIX-2 Software data update…………………………………… 29
APPENDIX-3 Operation Time, Boot Count, Panel Operation Time 33
APPENDIX-4 Reset and Edit Serial Number………………………… 34

KDL-32R300C U2

Description Page

3

WARNINGS AND CAUTIONS - ENGLISH

CAUTION

These servicing instructions are for use by qualified service personnel only.
To reduce the ri sk o f el ec tr ic s hoc k, d o not per for m any s er vic ing other than tha t c ont ai ned in t he o p er at ing ins tr uct io ns unless you are qualified to do so.

WARNING!!

An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis.
The chassis of this receiver is directly connected to the ac power line.

CARRYING THE TV

Be sure to follow these guidelines to protect your property and avoid causing serious injury.

• Carry the TV with an adequate number of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very important for safety and to avoid damages.

SAFETY-RELATED COMPONENT WARNING!!

Components identified by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace these components with Sony
parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that are critical for safe operation are identified in this manual.
Follow these procedures whenever critical components are replaced or improper operation is suspected.

KDL-32R300C U2

4

USE CAUTION WHEN HANDLING THE L CD PANEL

When repair ing t he LCD p a nel , b e sure you ar e gro und ed b y using a wrist b and .
When repair ing t he LCD p a nel on the wall , the LCD panel must b e secur e d usi ng the 4 mounting holes on the re ar c o ver .

1) Do not press on the panel or frame edge to avoid the risk of electric shock.

2) Do not scratch or press on the panel with any sharp objects.

3) Do not leave the modul e in high tempera ture s or in areas o f high humidity for an extende d pe rio d of time.

4) Do not expose the LCD panel to direct sunlight.

5) Avoid contact with water. It may cause a short circuit within the module.

6) Always clean the LCD panel with a soft cloth material.

7) Use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.

8) Protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).

9)It is recommended not to exceed 1 hour of Power-On nor Burn-in period with LCD panel face down condition, in repair activity.

10)Disconnect the AC power when replacing the parts.(FFC cable etc.).

WARNINGS AND CAUTIONS

KDL-32R300C U2

5

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” o r touching high-wattage resistors.

3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.

4. Look for unauthorize d replacement parts, pa r ticularly transistors, tha t were installed during a p revious repair. Po int them out to the customer and recommend their replacement.

5. Look for parts which, though functi oni n g, show obvi ous signs o f d et er io r ati o n. P o int them out to the cust o mer a nd re c ommend their replacement.

6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.

7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.

8. For safety reasons, repairing the Power board and/or Inverter board is prohibited.

KDL-32R300C U2

6

Leakage Test

The AC leakage from any exposed metal part to earth ground and from all exposed m etal parts to any exposed
metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three method s.

1. A commercial leak ag e tester, such as the Simpson 22 9 or RC A WT-540A. Follow the manufacturers’
instructions to use these instructions.

2. A battery-operated AC milliampmeter. The Data Precision 245 digital multimeter is suitable for this job.

3. Measuring the v oltage d rop across a resistor by means o f a VOM or battery-operated AC voltmeter. The
“limit” indication is 0.75 V, so analog m eters must have an accurate low voltag e scale.
The Simpson’s 250 and Sanwa SH-63TRD are examples o f passiv e VO Ms that are suitabl e. Nearly all
battery-operated digital multimeters that have a 2 VAC range are suitable (see Figure A).

How to Find a Good Earth Ground

A cold-water pipe is a guaranteed earth ground; the cover-plate retaining screw on most AC outlet box es is also
at earth ground.
If the retaining screw is to be used as y our earth g round , v erify that it is at ground by measuring the resistan ce
between it and a cold-water pipe with an ohmmeter. The reading should be zero ohms.
If a cold-water pipe is not accessible, connect a 60- to 100-watt trouble- light (not a neon lamp) between the hot
side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side on the line; the
lamp should light at normal brilliance if the screw is at ground potential (see Figure B).

SAFETY CHECK-OUT

KDL-32R300C U2

7

SELF DIAGNOSIS FUNCTI ON

This model doesn’t support Self Diagnosis Function.

KDL-32R300C U2

8

SERVICE POSITION

As for this model, the bottom of rear cover is installed between the stand assy and the panel.
Therefore according to the following procedure when performing adjustment and operation check after the part replacement.

<KDL-32R300C>

1. Remove all screws on the Stand
to main unit (4 screws)

2. Remove all screws on the Rear Cover to
Bezel & Main Board & Bracket (13 screws)

3. Afte r removing rear cover , lie down the main unit
to a surface for foll o wing test/repair.

2-580-603-01 SCREW, +PSW M4X16

2-345-219-11 SCREW , 3X6

7-682-903-19 SCREW , M3X6

7-685-660-79 SCREW, Q4X10

KDL-32R300C U2

Attention: This photo is based on Sony criteria for appearing standing the

main unit after removing back cover and assembling the stand. But
considerin g m ech a n ical desig n of MB2 models a n d n orm al service p rocess,
it is not recommended to keep main unit standing by this status for
repairing/testing at repair center. Please pay attention for avoiding
possible scra t ch / d ef orm ation occurred.

Note: Remove rear cover, then assemble the stand to main unit. This

will cause the stand with main unit fit closely, scratch or deformation
may occurred easily on the stand or bezel deco.

9

SEC 1. DISASSEMBLY AND PARTS LIST

• Items with no part number and no description are not stocked because they are seldom required for roution service.

• The construction parts of an assembled part are indicated with a collation number in the remark colum.

• Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

KDL-32R300C U2

10

REF. No . PART No . DESCRIPTION MARK

1 4-571-382-01 STAND (32)

1-1. KDL-32R300C

1-1-1. BASE STAND

DISASSEMBLY AND PARTS LIST

1

2-580-603-01 SCREW, +PSW M4X16

KDL-32R300C U2

11

REF. No . P ART No . DESCRIPTION MARK

2 4-538-442-11 REAR COVE R 32

1-1. KDL-32R300C

1-1-2. REAR COVER

DISASSEMBLY AND PARTS LIST

2

2-345-219-11 SCREW , Q3X6

7-682-903-19 SCREW , M3X6

7-685-660-79 SCREW, Q4X10

KDL-32R300C U2

12

REF. No . P ART No . DESCRIPTION MARK

3 1-895-863-11 MO UNTED P WB P OW E R UNIT
4 1-895-864-11 M O UNTED PWB A
5 1-895-804-11 M O UNTED PWB H
6 1-910-110-56 CONNECTOR ASSY 14P-to-9P (MB-IR)
7 1-910-109-64 CONNE CTO R ASSY 4 P
8 1-910-110-55 CONNE CTO R ASSY 1 6P

9 1-910-110-57 LVDS CABLE 30P
10 4-571-386-01 SHEET, INSULATI O N (32)
11 4-538-884-01 BRACKET, SI DE
12 4-542-280-01 BKT _ CONNECTO R S GCC
13 1-859-127-11 LOUDSPEAKER (11W)

1-1. KDL-32R300C

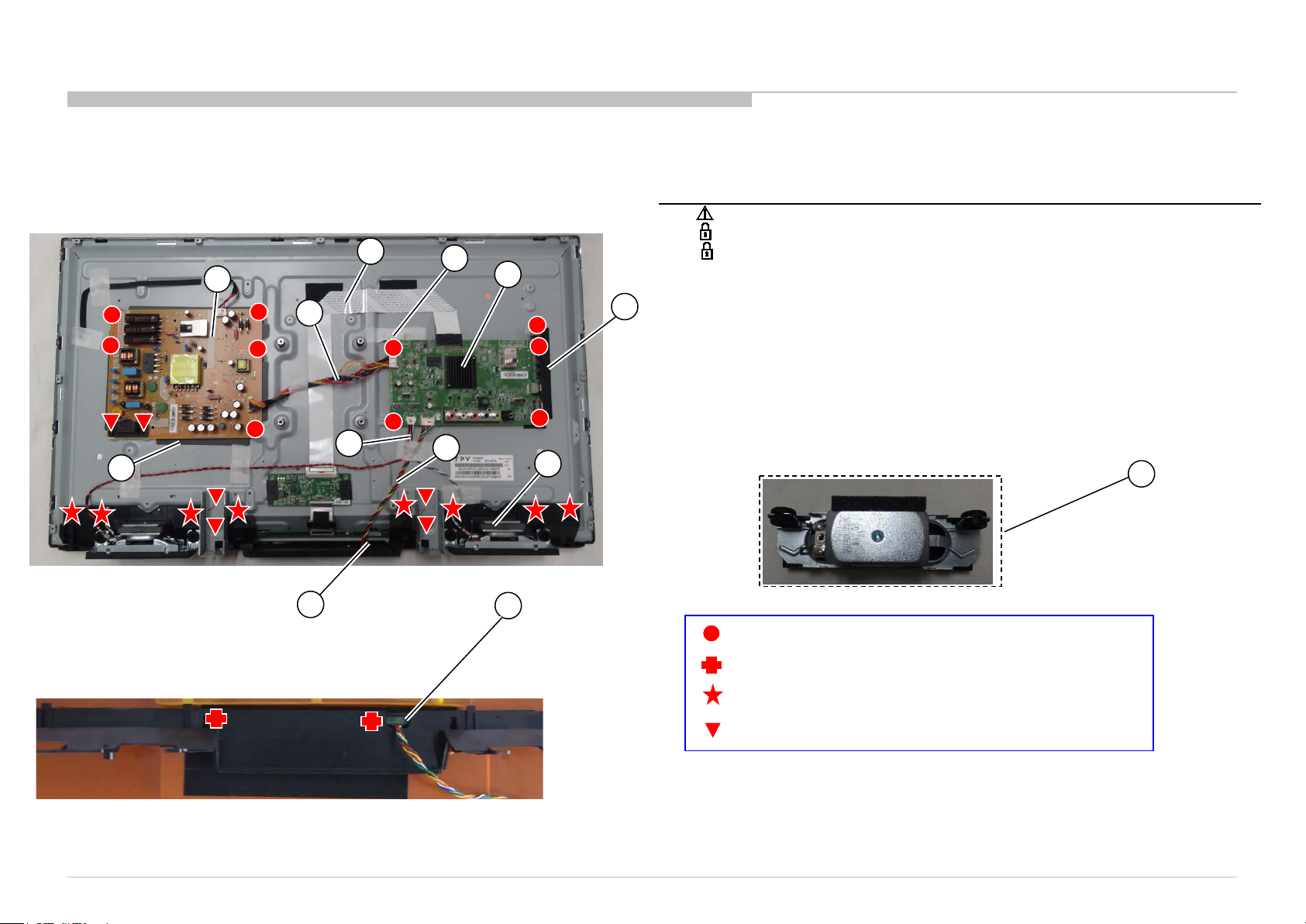

1-1-3. POWER BOARD, A BOARD AND SPEAKER

DISASSEMBLY AND PARTS LIST

9

3

8

7

10

5

12

4

6

13

5

KDL-32R300C U2

11

13

4-679-053-01 SCREW, M3X6
7-685-245-14 SCREW 3*6mm
7-682-903-19 SCREW +PWH 3X6

2-580-592-01 SCREW, +PSW M3X8

13

REF. No. PART No.

DESCRIPTION

MARK

14

A-2087-944-A LCM ASSY (32 ) TPT315B5-DXJSF E SE1N

15 4-571-384-01

BRACKET, STAND R

16

4-571-383-01 BRACKET, STAND L

17

4-570-410-01 DECO

18

4-571-381-01

COVER, BOTTOM (32)

1-1. KDL-32R300C

1-1-4. LCD PANEL, DECO and COVER, BOTTOM

DISASSEMBLY AND PARTS LIST

14

17

KDL-32R300C U2

16

18

4-542-283-01 BOLT, M3

15

14

PART No.

DESCRIPTION MARK

1-492-065-21

REMO TE COMMANDER (RM- YD092)

1-846-425-43

CORD SET, POWER-SUPPLY

1-1. KDL-32R300C

1-1-5. MISCELLANEOUS

DISASSEMBLY AND PARTS LIST

KDL-32R300C U2

15

1-5. How to disassemble rear cover [KDL-32R300C U2]

PROCEDURE TO REMOVAL OF REAR COVER

1. Remove all screws on Rear Cover and AC Cover.

2. Open Rear Cover in order as below.

Hold the panel from the middle of bezel, and lif t r ear cover in the direc tion of the arrow.

KDL-32R300C U2

16

1-6. How to disassemble Deco

1-6-1. How to disassemble Deco[KDL-32R300C U2]

PROCEDURE TO REMOVAL OF DECO

Remove screw from bezel

Remove deco from bezel

KDL-32R300C U2

17

1-7. How to disassemble LVDS Cable

1-7-1. How to disassemble LVDS Cable[KDL-32R300C]

1-7-1-1. PROCEDURE OF REMOVING LVDS CABLE ON KDL-32R300C

Remove the PIN

KDL-32R300C U2

18

1-8. How to disassemble IR Board[KDL-32R300C]

PROCEDURE TO REMOVAL OF IR Board

Release hook from IR Board

Hook

KDL-32R300C U2

19

1-9. How to ass’y the LED lens[KDL-32R300C]

The LED lens is installed in the hole.
As shown in the picture.

4-570-411-01 LENS

KDL-32R300C U2

20

SEC 2. ADJUSTMENT

HOW TO ENTERING SERVICE MODE

1) standby mode
a.Turn on the main power switch to place this set in standby mode.
b.Press the buttons on the remote commander as follows, and entering service mode.

2) power on mode
a.Turn on the main power switch to place this set in Power on mode.
b.Press the buttons on the remote commander as follows, and entering service mode.

service mode displ ay

Service Mode
Wide Band Turning >>
Range Scan… >>
Self diagnosis history >>
Status Information >>
LVDS Spectrum(%) <[ 32 ]>
STATUS DIGITAL RF INFORMATION >>
Low of HPD <[ 5 ]>
Panel Selection <[ 20_TPT315B5-DX SFE1 ]>
TEST RESET <[ OFF ]>
UART Selection <[ Factory ]>
SERIAL NUMBER EDIT 3230016
MODEL NAME EDIT KDL-32R300C
MHL TMDS Termination <[ 0 ]>

[</>Set[Home]Exit

KDL-32R300C U2

When replace Main Board or panel, please confirm " SERIAL NUMBER
EDIT " and "MODEL NAME EDIT" in service mode.
If they are different, please select a suitable thing.

21

3) How to use the remote commander.

Function The flow of control

ADJUSTMENT

Service mode on

2)<Left><Right><Mute><Ok><Mute><VOL+>

Service mode off <RETURN>/<Power off-on>

Adjustment Item up / down /

Data Value up / down /

4) After entering service mode, then turn off the power switch.

1)<DISPLAY><5><VOL+><Power>

KDL-32R300C U2

22

SEC 3. DIAGRAMS AND CHASSIS STRUCTURE

3-1. BLOCK DIAGRAM

3-1-1. KDL-32R300C U2

Tuner

(RA231TN)

Component

/ CVBS

HDMI-1

USB

HDMI-2

Keypad * 4

Side I/O

(ARC)

AIF /DIF

SCALER
MT5560

(DDR 2Gb)

LVDS

EEPROM
(128Kb)

NAND

Flash(1Gb)

L / R

Audio AMP

(ESMT AD52580)

Pre-AMP

(MAX 9728)

SPDIF

32”(HD)

LED

IR

LED/IR Board

Headphone
/ Audio out

KDL-32R300C U2

23

3-2. CONNECTOR DIAGRAM

3-2-1. KDL-32R300C U2

CN8601

DIAGRAMS

Panel

CN403(32 inch)

CN9101

CN701

KDL-32R300C U2

Power Board

T-Con Board

CN601

CN404

Main Board

CN202

IR Board

24

3-3. CIRCUIT BOARDS LOCATION

3-3-1. KDL-32R300C U2

POWER UNIT Board

DIAGRAMS

A Board

KDL-32R300C U2

H Board

25

3-4. Tape location

3-4-1. KDL-32R300C U2

DIAGRAMS

TAPE SIZE:

KDL-32R300C: 25MM*50MM

20MM*80MM

The purpose for the tape stick is to make the cables fixed.

KDL-32R300C U2

26

END

9-888-186-01

KDL-32R300C U2

Sony Corporation

27

APPENDIX-1 Trouble analysis flow

Return Set

NG

Check IR Cable

Connection

NG

Reinstall

IR Cable

Check TV Function

OK

NG

Power On Key

Function check

OK

NG

Exchange
IR board

OK

Check TV Function

LED Indicator

Function check

OK

Exchange

PSU board

No

OK

OK

Does Backlight

Power Cable

connection Check

Reinstall

Power Cable

NG

Check TV Function

turn On?

NG

OK

Yes

Yes

V-Line/H-Line

Abnormal?

Yes

Does Picture

appear?

No

Exchange

Main board

Check TV Function

No

OK

Panel Cable(FFC)

Connection Check

NG

Reinstall

Panel Cable

NG

Check TV Function

OK

OK

Yes or OK

No or NG

Finish R ep a ir

KDL-32R300C U2

NG

Exchange

Main board

OK

Check TV Function

OK

Check TV Function

Finish R ep a ir

Exchange

Panel

NG

Exchange

Panel

OK

Check TV Function

Finish R ep a ir

28

APPENDIX-2 Software data update

Software data update for Engineering PKG

The confirmat ion of the softwar e ve rsion of t he T V set.

product information of setting menu.

[HOME] , [Settings] , [Customer Support]
Please use the latest s oft ware.

1: KDL-32R300C U2
2: V2.501

1. Model Name

2. Software Version

Software Download

store the software P ac kage to U SB m emory.

If the software file is compressed(.zip), please unzip it.

For USB, please store only one file for software update.

KDL-32R300C U2
sony_fw_2015_XXXX_tnus2.pkg

(Applicable U SB m emory : Format by FAT32, USB 2.0 type )

KDL-32R300C U2

29

Software update by USB memory

1. T urn on the TV.

2. Unplug the AC power cord.

3. Connect USB memory .

2) Starting update

Orange LED is flushing. (1~2min)

Note: During the upgrade period, please do not disturb or lost power.

Or some damage might cause to the unit and can not boot up later.

3) Finish update
Lights up Green LED again and TV is turned on.

4. Plug the AC power cord , RC power on TV,then start
update automatically .

1) Lights up Green LED. (no picture)

KDL-32R300C U2

5. Unplug AC power cord and disconnect USB memory .

6. Plug the AC power cord then turn on the TV.

Confirm Software vers ion

Please confirm whether i t is the latest so f t ware.
product information of setting menu.

[HOME] , [Settings] , [Customer Support]

30

Software update by OSD USB memory

1. Turn off the TV.

2. Connect USB memory.

3. Turn on the TV.

4. Press [Home], [Se ttings] , [C ustom er S uppor t],
and will see the below figure, press [Software Upgrade]

KDL-32R300C U2

Follow below step

1）Press “Ok”

31

Software update by OSD USB memory

2) TV scan the software

3） Press “Ok”

Note: During the upgrade period, please do not disturb or lost power. Or some

damage might cause to the unit and can not boot up later.

5） Finish update.
When finished software update, the TV will restart
automatically.

4） Start software update.

Orange LED is flushing when software is updating.

KDL-32R300C U2

5. Unplug AC power cord and disconnect USB memory .

6. Plug the AC power cord then turn on the TV.

Confirm Software vers ion

Please confirm whether i t is the latest so f t ware.
product information of setting menu.

[HOME] , [Settings] , [Customer Support]

32

APPENDIX-3 Operation Time, Boot Count, Panel Operation Time

[To Bring Up Self Dia gnostic(SELF CHECK)]

In standby mode, press buttons on

Or in power on , press buttons on

the remote commander sequentially in rapid succession as shown below:

[Operation Time, Boot Count, Panel Operation Time Screen]

Service Mode
Wide Band Turning >>
Range Scan… >>
Self diagnosis history >>
Status Information >>
LVDS Spectrum(%) <[ 32 ]>
STATUS DIGITAL RF INFORMATION >>
Low of HPD <[ 5 ]>
Panel Selection <[ 20_TPT315B5-DX SFE1 ]>
TEST RESET <[ OFF ]>
UART Selection <[ Factory ]>
SERIAL NUMBER EDIT 3230016
MODEL NAME EDIT KDL-32R300C

SELF CHECK

BACK <<

00000-00012-00000
[Home] Exit

MHL TMDS Termination <[ 0 ]>

[</>Set[Home]Exit

You can check the TV set operation time, boot count and panel operation time in service menu although this model doesn’t support self-diagnostics.
After you have completed the repairs, clear the result display to “0”.

Clearing the Self Check Diagnostic List

• Panel operation time :
Press the Channel 7 and then press the Channel 0 to clean the Panel operation time.

Exiting the Self-diagnostic screen

To exit the Self Diagnostic screen, turn off the power to the TV by pressing the POWER button on the remote or the POWER button on the TV.

KDL-32R300C U2

Panel operation time by hour
Boot count

Total operation time by hour

33

APPENDIX-4 Edit MODEL NAME and Serial Number

Edit: MODEL NAME

If the user select this menu, the below editi ng menu is appeared and adjusting it like " Program L a bels" editing way.
XXX-XXXXXXX,
"X" part can change in below way by Remote Commander. Press up/down arrow key to scroll character ( "A-Z","0-9","_") and press right arrow key to move the next position.
These number should be affected to "Product Information" in Setting Menu
* After user input data , press <Enter> will pop dialog to inform user to confirm data (Input data correct ?)
* Once data confirm and save into EEPROM , gray out this item , user will not able to adjust

Edit: Serial Number

When you select the SERIAL NUMBER EDIT item in the service mode, use right key to enter edit mode.
SERIAL NUMBER EDI T 0000001
Use the up and down key to edit the first bit of the SERIAL NUMBER （0~9）。
Use the left and right key to switch bit.
SERIAL NUMBER EDI T 0000001

* After user input data , press <Enter> will pop dialog to inform user to confirm data (Input data correct ?)
* Once data confirm and save into EEPROM , gray out this item , user will not able to adjust

KDL-32R300C U2

34
