Sony HXD790, HXD795, HXD890, HXD895, HXD990 Schematic

RDR-HXD790/HXD795/HXD890/HXD895/

HXD990/HXD995/HXD1090/HXD1095

SERVICE MANUAL

Ver. 1. 20.1

Photo: RDR-HXD1095

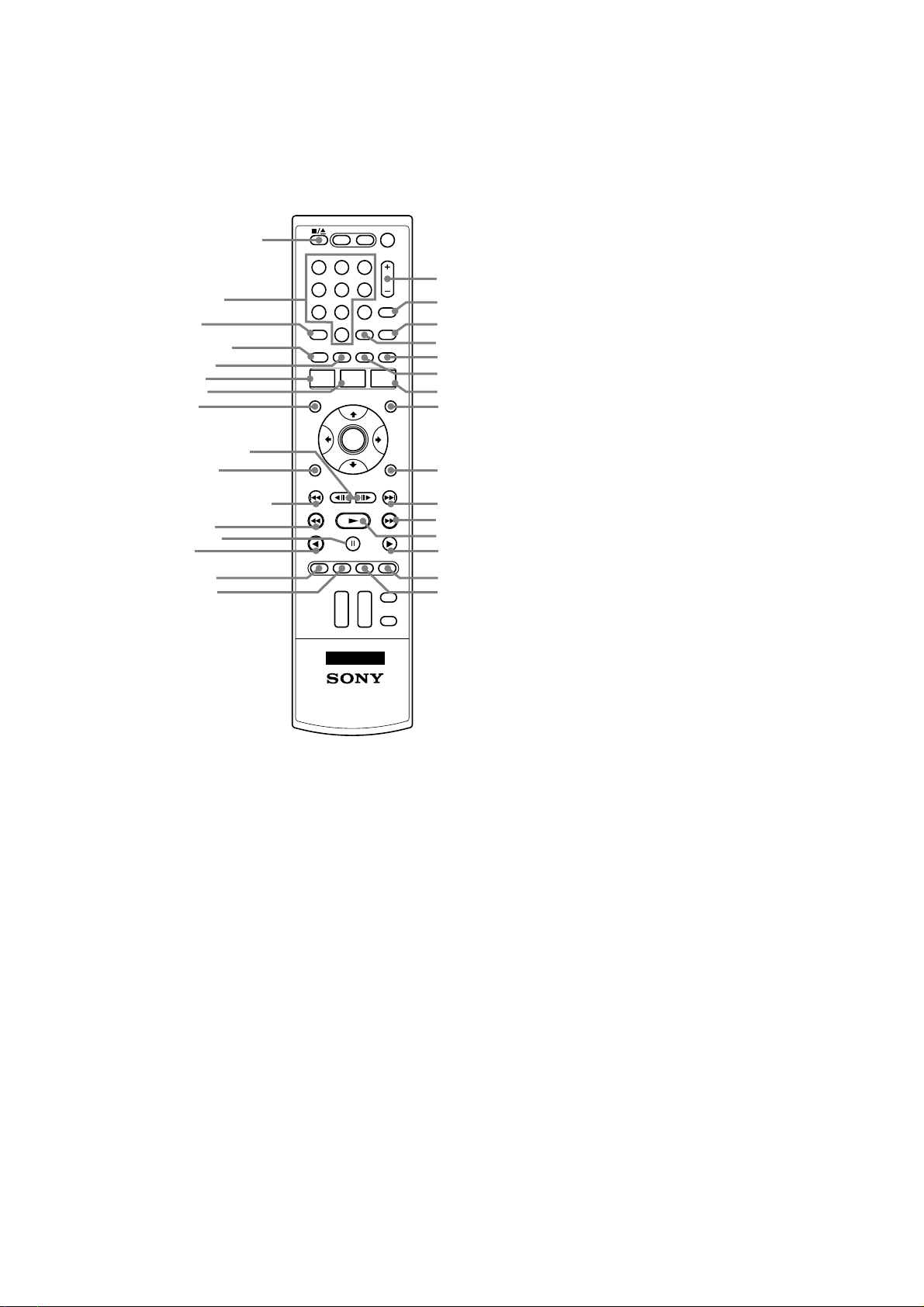

RMT-D251P

SPECIFICATIONS

System

Laser: Semiconductor laser Transmssion standards (Digital

broadcasting): DVB-T

Channel coverage (Analogue

broadcasting):

VHF: 170 MHz to 230 MHz UHF: 470 MHz to 862 MHz

Channel coverage:

PAL (B/G, D/K, I)/SECAM (L) VH

F: E2 to E12, R1 to R12, F2 to F10, Italian A to H, Ireland A to J, South Africa 4 to 11, 13 UHF: E21 to E69, R21 to R69, B21 to B69, F21 to F69 CATV: S01 to S05, S1 to S20, France B to Q HYPER: S21 to S41

The above channel coverage merely ensures the channel reception within these ranges. It does not guarantee the ability to receive signals in all circumstances. The channels that can be received differ depending on the country/region.

Video reception: Frequency

synthesizer system

Audio reception: Split carrier system Aerial out:

75-ohm asymmetrical aerial

Timer: Clock: Quartz locked/Timer

indication: 24-hour cycle (digital)

Video recording format: MPEG-2,

MPEG-1

Audio recording format/applicable

bit rate: Dolby Digital 2 ch

256 kbps/128 kbps (in EP, SLP, and SEP mode), PCM

socket

Inputs and outputs

LINE 2 OUT (AUDIO): Ph (VIDEO): Phono jack/1.0 Vp-p (S VIDEO): 4-pin mini DIN/Y: 1.0 Vp-p,

C: 0.3 Vp-p (PAL)

LINE 2 IN (AUDIO): Phono jack/2 Vrms/more than

22 kilohms

(VIDEO): Phono jack/1.0 Vp-p (S VIDEO): 4-pin mini DIN/Y: 1.0 Vp-p,

C: 0.3 Vp-p (PAL)

LINE 3 – TV: 21-pin

CVBS OUT S-Video/RGB OUT (upstream)

LINE 1/DECODER: 21-pin

CVBS IN/OUT S-Video/RGB IN Decoder

DV IN: 4-pin/i.LINK S100 DIGITAL OUT (COAXIAL): Phono

jack/0.5 Vp-p/75 ohms

COMPONENT VIDEO OUT

(Y, P

Phono jack/Y: 1.0 Vp-p,

B/CB

P

G-LINK*: mini jack HDMI OUT: HDMI™ Connector

USB:

USB jack Type A (For connecting digital still camera, Memory card reader, USB memory and HDD camcorder) USB jack Type B (For connecting PictBridge-compatible printers)

ono jack/2

B/CB

, PR/CR):

: 0.7 Vp-p, PR/CR: 0.7 Vp-p

Vrms/10 kilohms

RMT-D251O/D251P

AEP Model

UK Model

RDR-HXD790/HXD795/

HXD890/HXD895/ HXD990/HXD995/

HXD1090/HXD1095

Australian Model

RDR-HXD890/HXD990

Conditional access module (RDR-

HXD795/HXD895/HXD995/ HXD1095 only): CAM (Conditional

Access Module) slot

General

Power requirements: 220-240 V AC,

50/60 Hz

Power consumption:

RDR-HXD790/HXD890/HXD990/ HXD1090: 47W (AEP, UK) RDR-HXD890/HXD990: 47W (AUS) RDR-HXD795/HXD895/HXD995/ HXD1095: 49W (AEP,UK)

AEP, UK Model: With CI card slot

Dimensions (approx.):

430 x 76.5 x 288 mm (width/height/ depth) incl. projecting parts

Hard disk drive capacity:

RDR-HXD790/HXD795: 120 GB RDR-HXD890/HXD895: 160 GB RDR-HXD990/HXD995: 250 GB RDR-HXD1090/HXD1095: 500 GB

Mass (approx.): 4.7 kg Operating temperature: 5ºC to 35ºC Operating humidity: 25% to 80% Supplied accessories:

Mains lead (1) Aerial cable (1)* Remote commander (remote) (1) Set top box controller (1) R6 (size AA) batteries (2)

*

Two aerial cable are supplied for some models.

Specifications and design are subject to change without notice.

43 W

Refer to the SERVICE MANUAL of "RW6G/7G TRAVERSE MECHANISM REPAIR MANUAL" for Traverse Mechanism exchange.

Sony Corporation

9-883-981-1

Home Electronics Network Company

DVD RECORDER

2008F1600-1

Published by Quality Assurance Dept.

TABLE OF CONTENTS

1. SERVICE NOTE

1. DISK REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION) ········· 1-1

2. BOARD CONNECTION, SERVICE REMOTE CONTROLLER ······························································· 1-1

3. MODEL NAME SETTING METHOD WHEN ENGINE IS REPLACED ································································ 1-2

4. HOW TO DIAGNOSE HDD FAILURE ·························1-3

4-1. Defective HDD ································································ 1-3 4-2. HDD Recognition status ·················································· 1-3 4-3. Display [E01] on FLD with unrecognized HDD ············· 1-4 4-4. Display [E02] on FLD ·····················································1-5 4-5. When playing a video, MP3, or JPG, the contents freeze1-5 4-6. Factory Check ·································································· 1-6 4-7. Final Check ······································································ 1-6

5. NOTICE OF TRAVERSE MECHA (TM) EXCHANGE1-8

2. DISASSEMBLY

2-1. UPPER CASE ································································· 2-2 2-2. TRAY COVER ASSEMBLY ·········································· 2-2 2-3. FRONT PANEL BLOCK ················································2-3 2-4 FR-291 BOARD, FL-184 BOARD ································· 2-3 2-5. DVD UNIT ······································································ 2-4 2-6. DC FAN ···········································································2-5 2-7. HDD UNIT ······································································2-5 2-8. BRACKET, DT ·······························································2-6 2-9. AV-133 BOARD ······························································2-6 2-10. DT-124 BOARD ······························································2-7 2-11. SWITCHING REGULATOR ··········································2-7 2-12. CIRCUIT BOARDS LOCATION ···································2-8

3. BLOCK DIAGRAMS

3-1. OVERALL BLOCK DIAGRAM ····································3-1 3-2. AV-133 BLOCK DIAGRAM ·········································· 3-3 3-3. DT-124 BLOCK DIAGRAM ·········································· 3-5 3-4. RD-066 BLOCK DIAGRAM ········································· 3-7 3-5. FR-291, FL-184 BLOCK DIAGRAM ···························· 3-9 3-6. POWER BLOCK DIAGRAM ······································ 3-11

4. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS

4-1. FRAME SCHEMATIC DIAGRAM ································ 4-1 4-2. SCHEMATIC DIAGRAMS ············································4-3

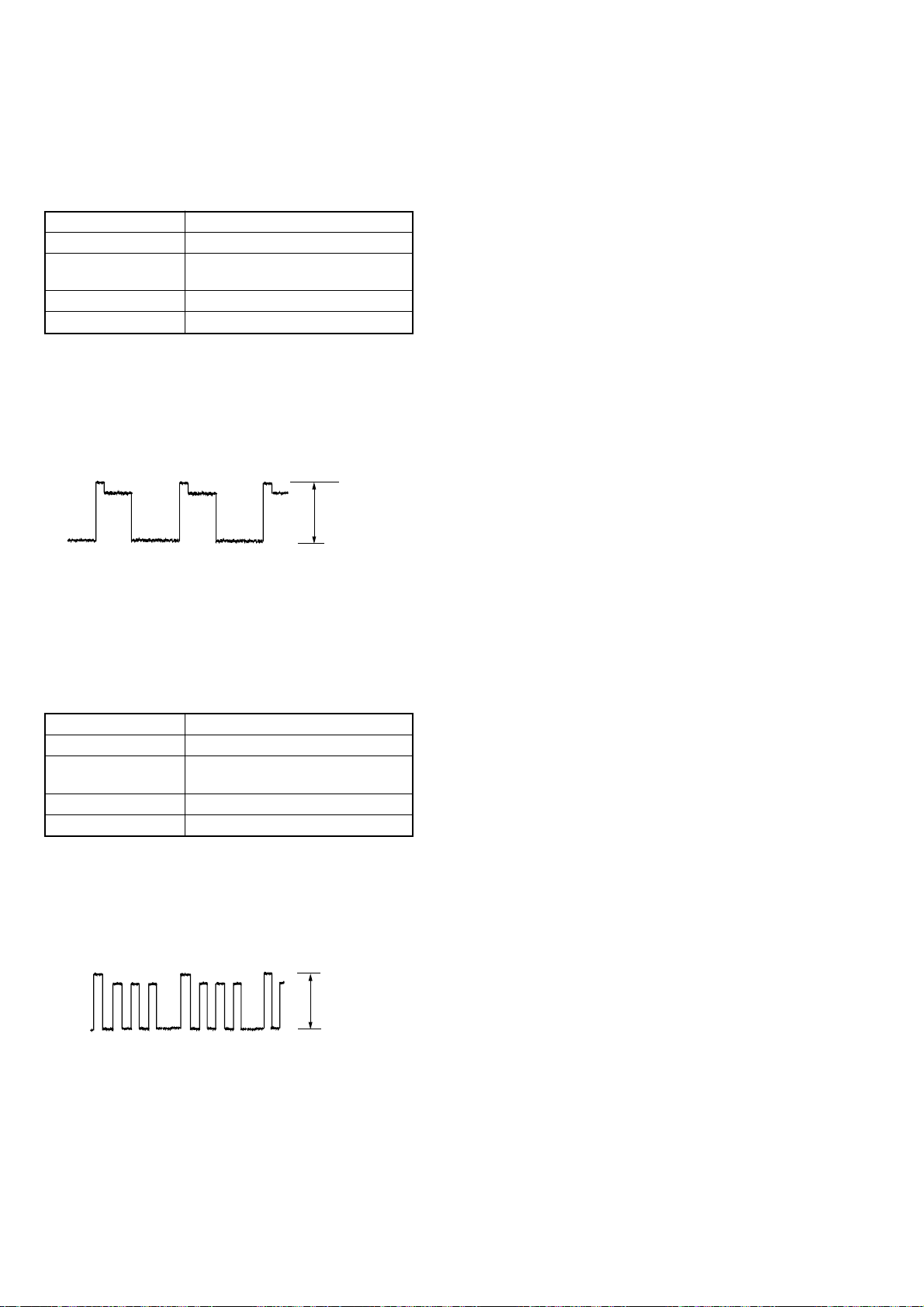

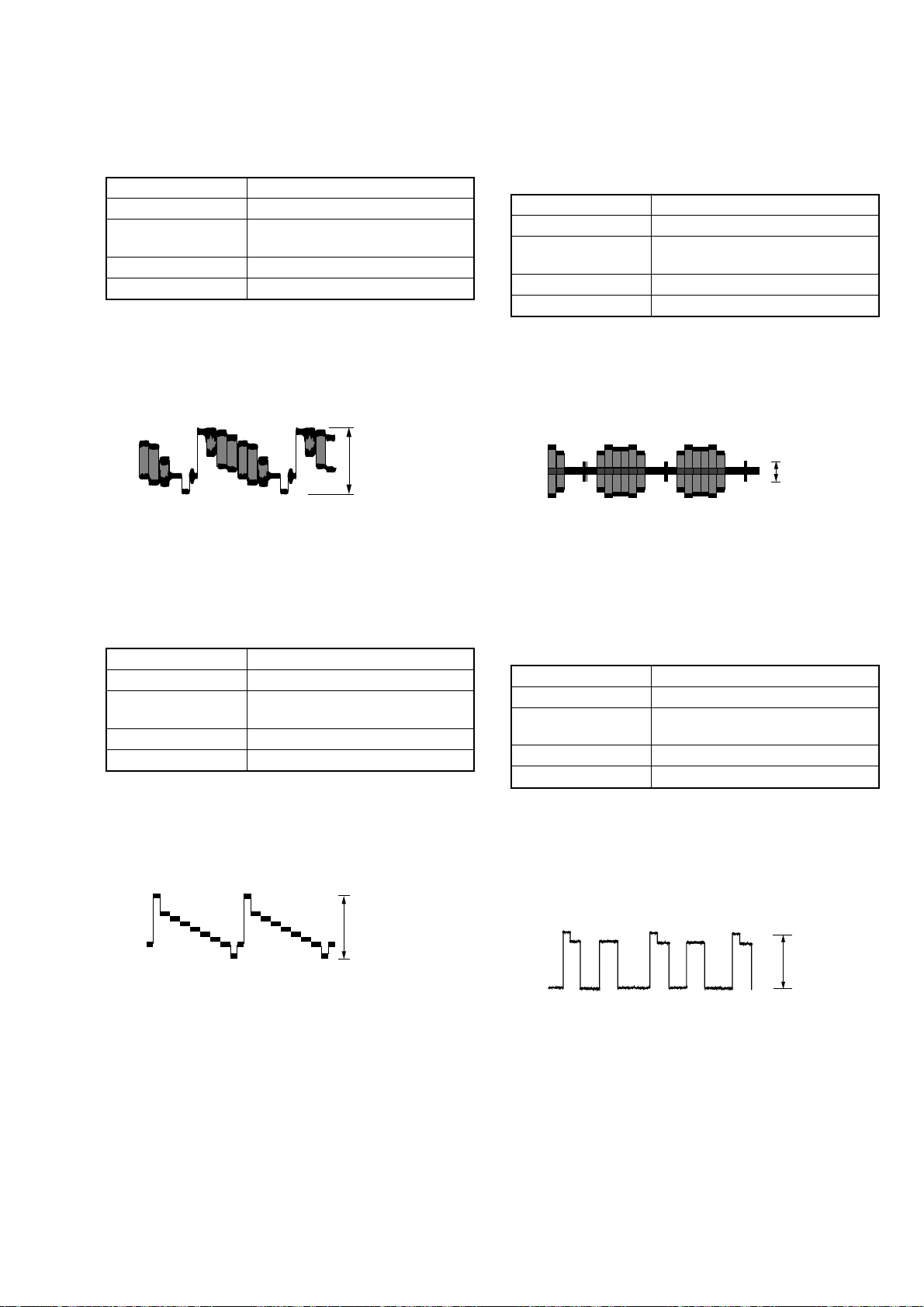

WAVEFORMS ································································ 4-3

• AV-133 (1/5) (IT CONTROLLER, IR) SCHEMATIC DIAGRAM ······························4-5

• AV-133 (2/5) (POWER/FAN CONT.) SCHEMATIC DIAGRAM ······························4-7

• AV-133 (3/5) (VIDEO/AUDIO) SCHEMATIC DIAGRAM ······························ 4-9

• AV-133 (4/5) (EURO) SCHEMATIC DIAGRAM ···························· 4-11

• AV-133 (5/5) (TUNER) SCHEMATIC DIAGRAM ····························4-13

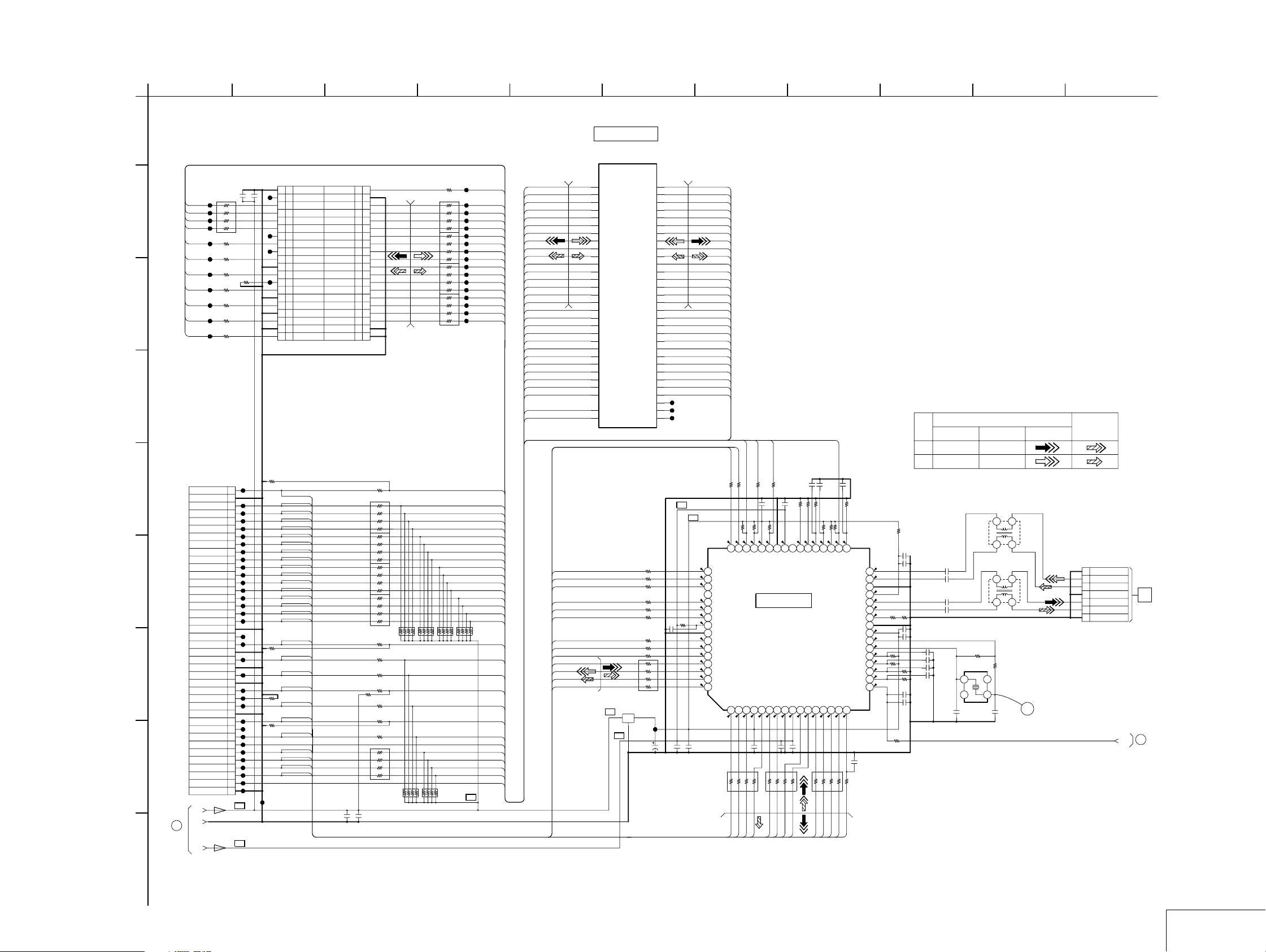

• DT-124 (1/3) (EMMA2LL) SCHEMATIC DIAGRAM ····························4-15

• DT-124 (2/3) (CI) SCHEMATIC DIAGRAM ····························4-17

• DT-124 (3/3) (DIGITAL TUNER) SCHEMATIC DIAGRAM ····························4-19

• FR-291 (FL DRIVER, LINE 2 IN, FUNCTION SW) SCHEMATIC DIAGRAM ····························4-21

• FL-184 (DV, USB, REMOCON RECEIVER,

POWER SW)

SCHEMATIC DIAGRAM ····························4-23

• RD-066 (1/7) (POWER BLOCK) SCHEMATIC DIAGRAM ····························4-25

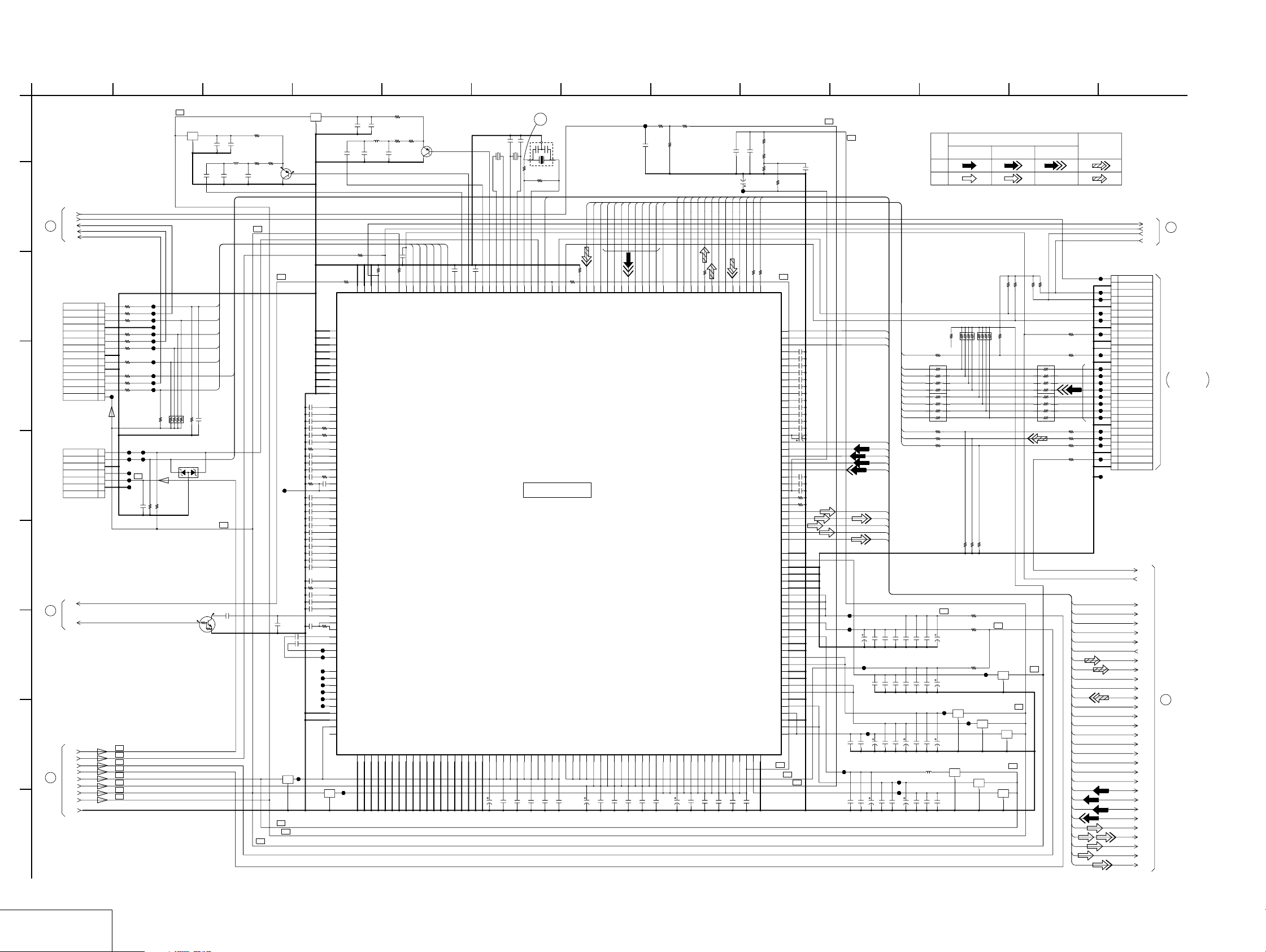

• RD-066 (2/7) (EMMA BLOCK) SCHEMATIC DIAGRAM ····························4-27

• RD-066 (3/7) (VIDEO/AUDIO BLOCK) SCHEMATIC DIAGRAM ····························4-29

• RD-066 (4/7) (MEMORY BLOCK) SCHEMATIC DIAGRAM ····························4-31

• RD-066 (5/7) (SATA/IDE IF) SCHEMATIC DIAGRAM ····························4-33

• RD-066 (6/7) (HDMI/DV/USB BLOCK) SCHEMATIC DIAGRAM ····························4-35

• RD-066 (7/7) (DVD DRIVE) SCHEMATIC DIAGRAM ····························4-37

• SWITCHING REGULATOR (SRV-2100EK) SCHEMATIC DIAGRAM ····························4-39

• SWITCHING REGULATOR (SRV-2057EK) SCHEMATIC DIAGRAM ····························4-41

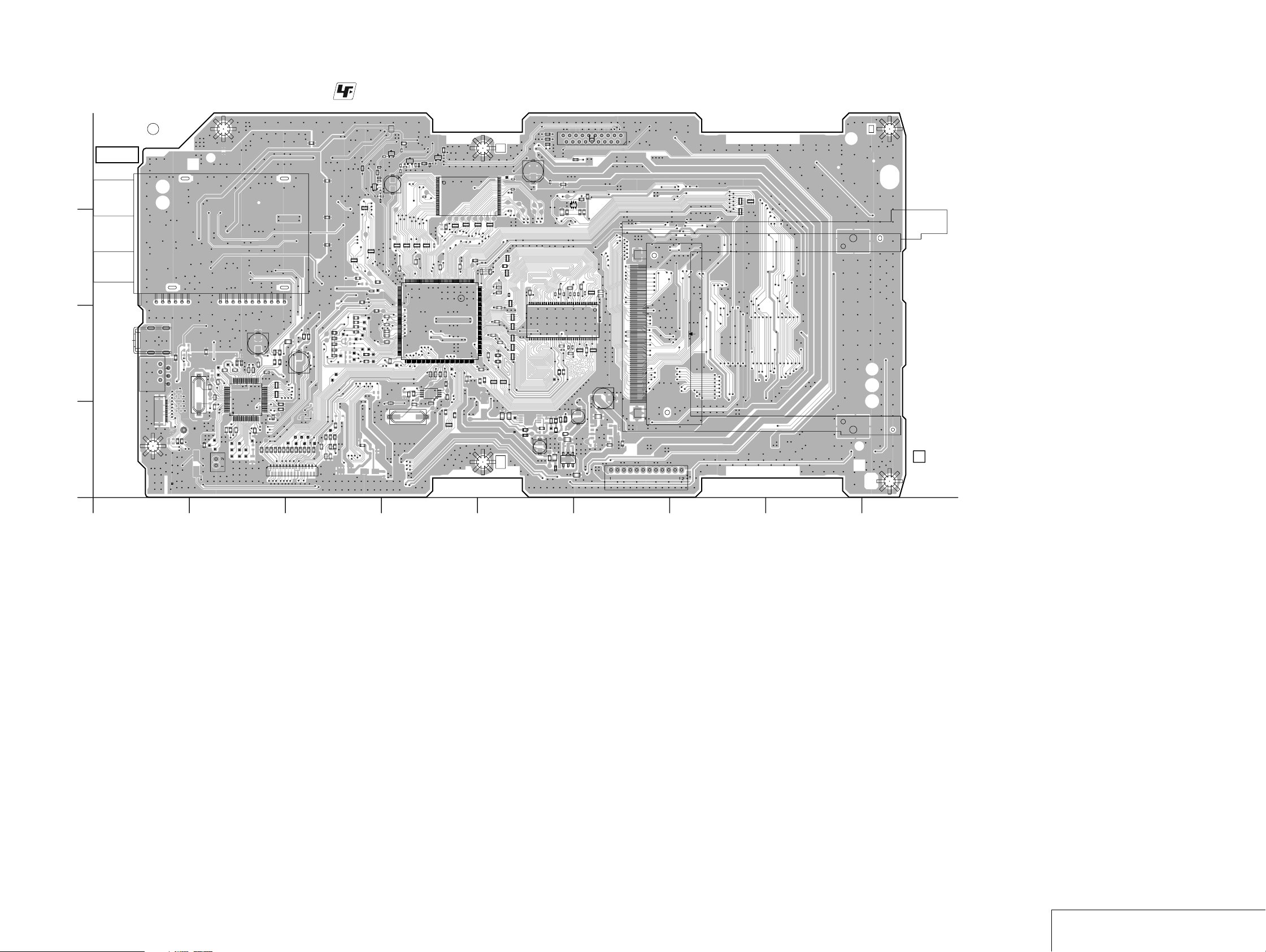

4-3. PRINTED WIRING BOARDS ·····································4-43

• FR-291 (FL DRIVER, LINE 2 IN, FUNCTION SW) PRINTED WIRING BOARD ·······················4-43

• AV-133 (IT CONTROLLER, IR, POWER/FAN CONT.,

VIDEO/AUDIO, EURO, TUNER)

PRINTED WIRING BOARD ·······················4-45

• DT-124 (EMMA2LL, CI, DIGITAL TUNER) PRINTED WIRING BOARD ·······················4-49

• RD-066 (POWER BLOCK, EMMA BLOCK, VIDEO/

AUDIO BLOCK, MEMORY BLOCK, SATA/IDE IF, HDMI/DV/USB BLOCK, DVD DRIVE)

PRINTED WIRING BOARD ·······················4-53

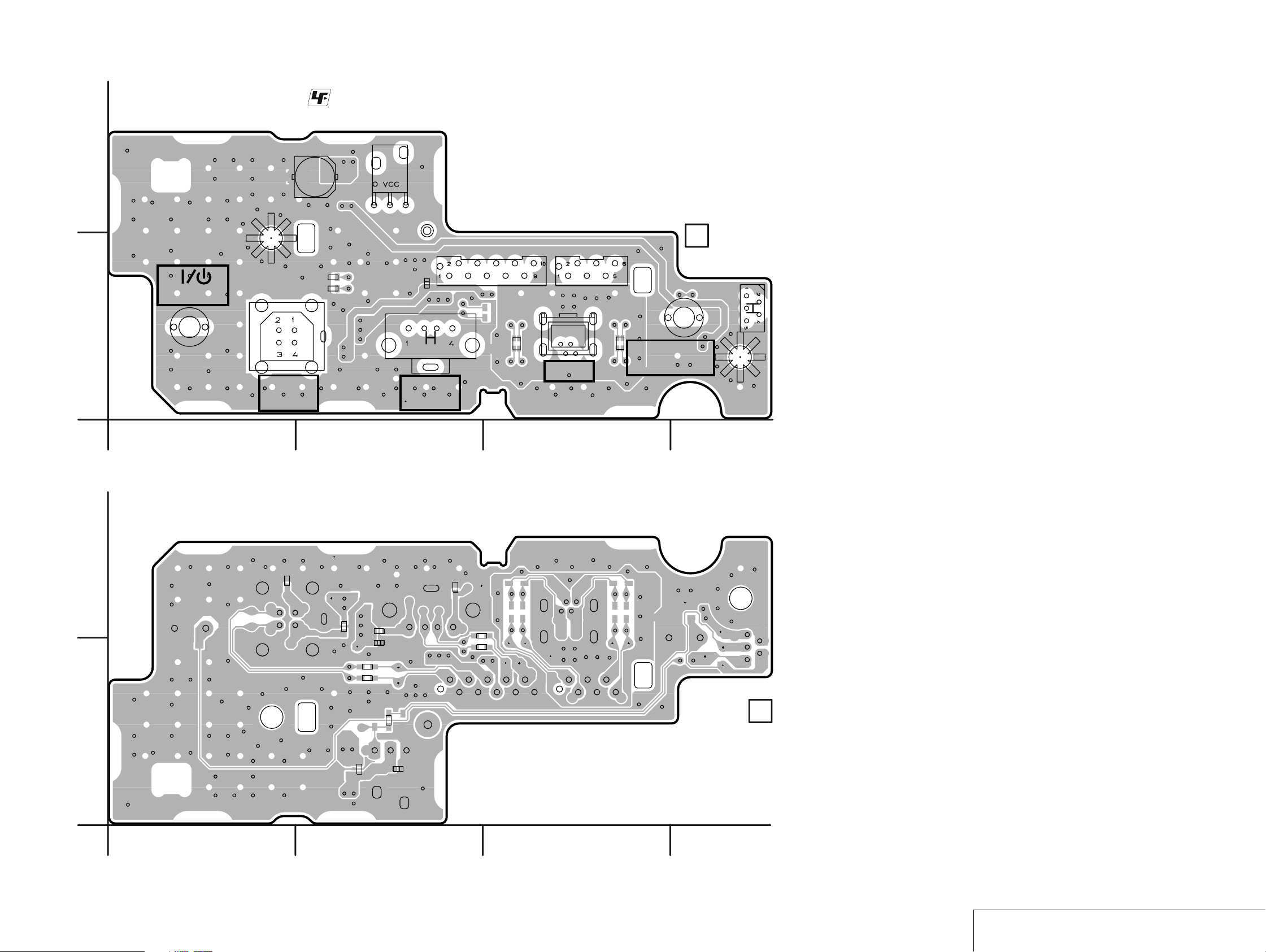

• FL-184 (DV, USB, REMOCON RECEIVER,

POWER SW)

PRINTED WIRING BOARD ·······················4-57

5. IC PIN FUNCTION DESCRIPTION

5-1. IT CONTROL IC

(IC101:LC87F06J2A-F59P6-E (AV-133 BOARD)) ··························································5-1

5-2. AV ENCODER/DECODER IC

(IC1001:MC10050F1-505-LU1-A (RD-066 BOARD)) ·························································5-3

6. SERVICE MODE

6-1. SERVICE MODE MAP ·················································· 6-2 6-2. Diagnostic Mode ····························································· 6-3 6-2-1. Model Setting ·································································· 6-3 6-2-2. Service Mode ··································································· 6-4 6-2-3. Version Information and Other Information

(First screen) ···································································· 6-4 6-2-4. RF Level Simplified Diagnosis (Subscreen1) ·················6-5 6-2-5. HDD Information for the HDD return sheet

(Simplified measurement mode) ····································· 6-6 6-2-6. Cautions for handling the HDD ······································· 6-7 6-2-7. HDD Error Logging ························································ 6-9 6-2-8. ATA/ATAPI History - ERR ·········································· 6-10 6-2-9. How to confirm HDD Access Flow ······························· 6-10 6-2-10. ATA/ATAPI Debugging Screen Second Screen and LD

Deterioration Judgment (for writer) ···························· 6-11 6-2-11. History of VR Recording-related Errors ····················· 6-13 6-2-12. DV Service Mode ······················································· 6-17 6-2-13. EPG Service Mode ······················································ 6-19 6-2-14. Aging Mode ································································ 6-21 6-2-15. HDD Check Mode ······················································ 6-22 6-3. Setup Related Menu ······················································ 6-23 6-3-1. Firmware Downloading ················································· 6-23 6-3-2. Area-Specific Channel Setting ······································ 6-23 6-3-3. OSD Filter Setting ·························································6-24

— 3 —

7. ADJUSTMENTS

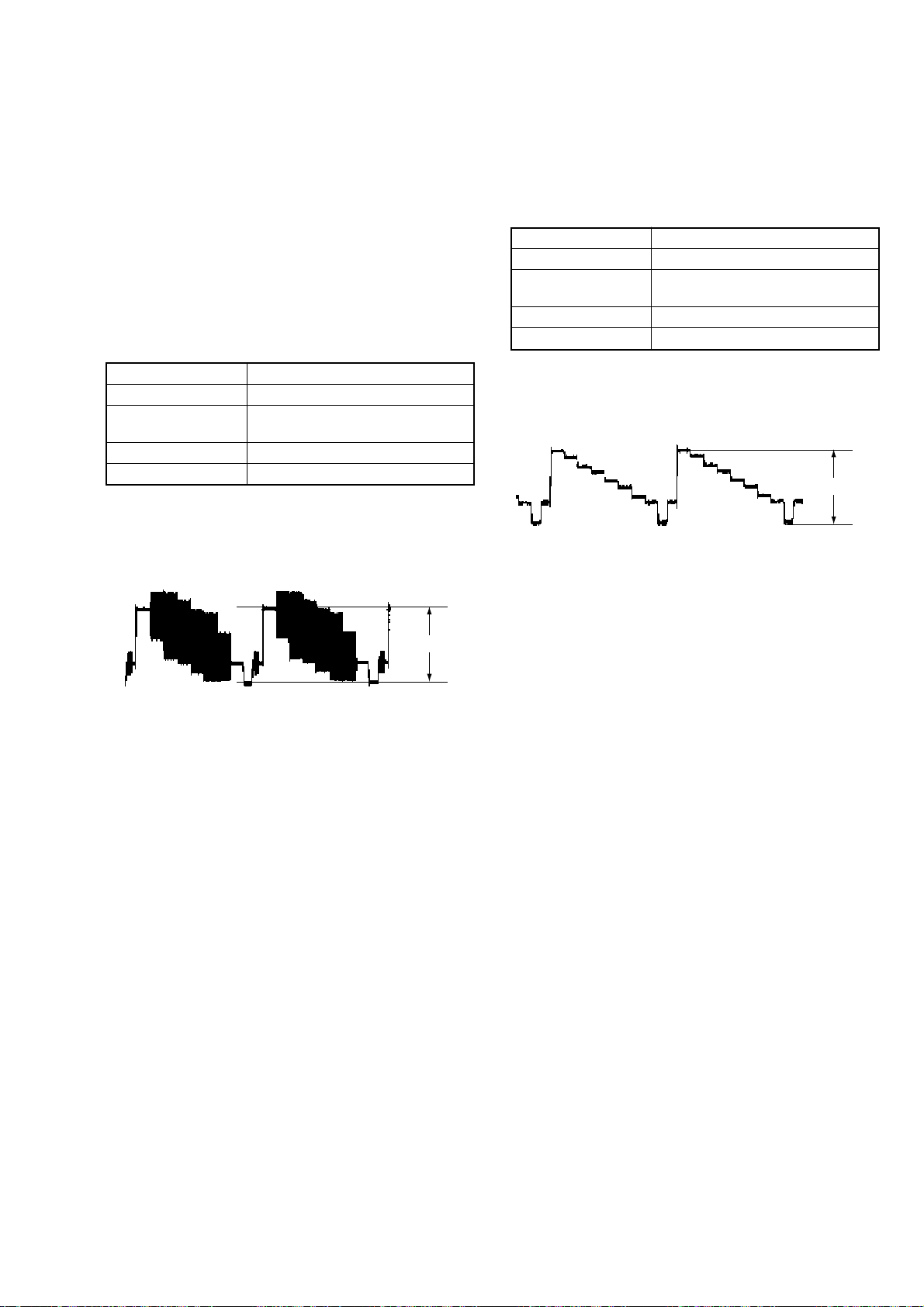

7-1. Video System Adjustment ··············································· 7-1

8. REPAIR PARTS LIST

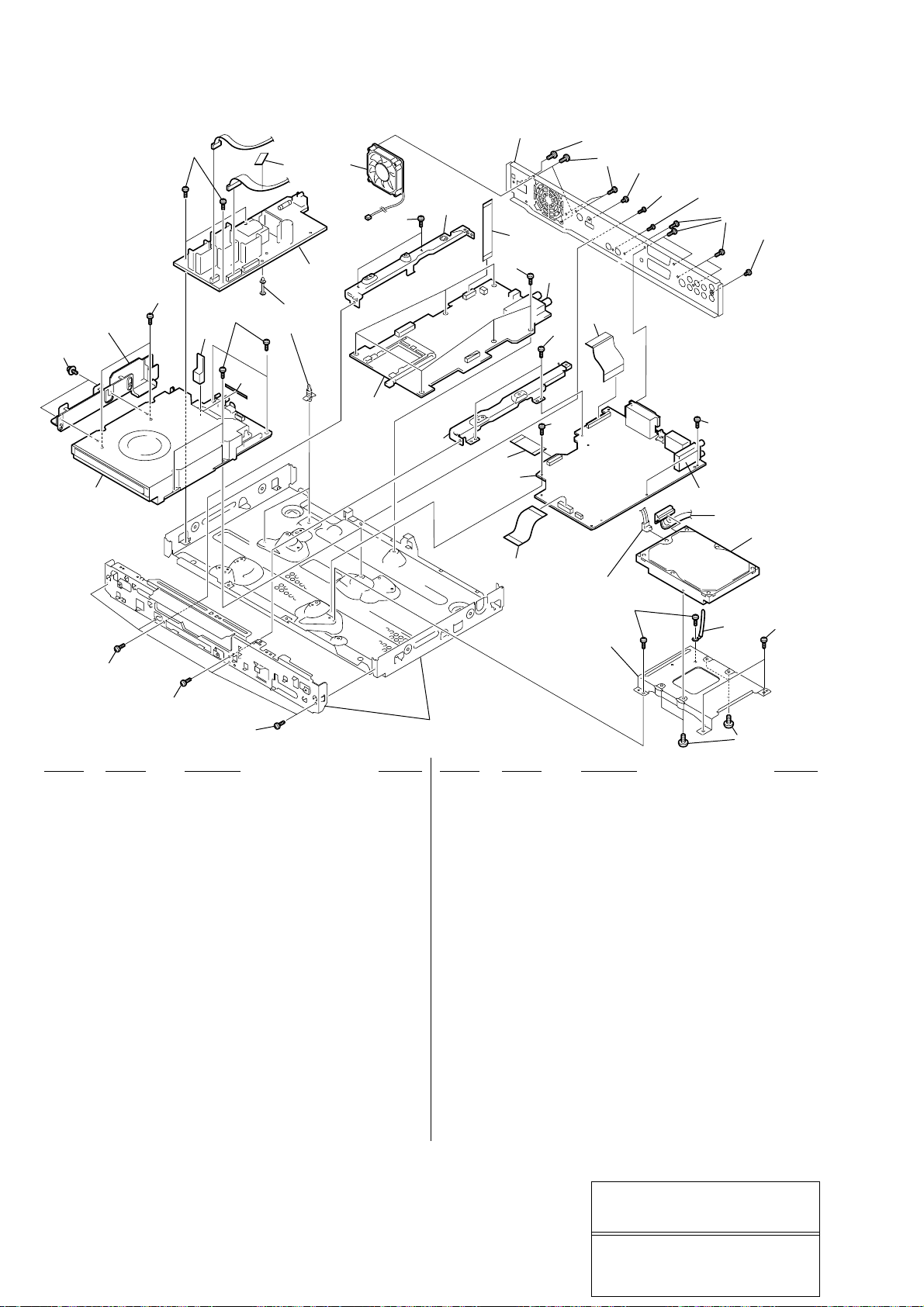

8-1. EXPLODED VIEWS 8-1-1.OVERALL SECTION ····················································· 8-1 8-1-2.CHASSIS SECTION ······················································· 8-2 8-2. ELECTRICAL PARTS LIST ·········································· 8-3

— 4 —

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

SECTION 1

SERVICE NOTE

1. DISK REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION)

1. Remove the upper case.

2. Insert the stiff wire in the hole and eject the tray.

Hole

1

The stiff wire

2

Open the tray

NOTES DURING THE FORCED EJECTION

1. If the forced ejection is executed while a blank disc media (DVD±RW, ±R) exists on the tray

• Insert a DVD-ROM (DVD test disc, DVD software available on the market, or the like) in the tray and then close the tray.

Note1: If you close the tray while it is empty, ejection of the tray becomes impossible. Note2: If you close the tray with a CD disc inserted in it, the CD can be ejected. However, if you close the tray while it is empty, there can be a case that

ejection of the tray becomes impossible.

Note3: Even if you replace the DVD drive unit while the tray remains under the state as described above, the situation cannot be improved.

2. If the tray cannot be ejected while the disc is not inserted

• Execute the forced ejection.

• Insert a DVD-ROM (DVD test disc, DVD software available on the market, or the like) on the tray and try to close the tray. (There are cases that it recovers the trouble.)

3. Contents of forcedly ejected blank disc media (DVD±RW, ±R) can be damaged. (There can be a case that initialization is also impossible.)

2. BOARD CONNECTION, SERVICE REMOTE CONTROLLER

Extension cable 28pin 0.5pitch

(Between CN4701 on RD-066 and CN102 on DT-124.)

Extension cable (J-6090-201-A)

RD-066 board : CN2301(40core)

SERVICE REMOTE CONTROLLER (J-6090-203-A)

AV-133 board : CN101(40core)

1-1

3. MODEL NAME SETTING METHOD WHEN ENGINE IS REPLACED

Required equipment:

• Remote controller (RMT-D251O/D251P)

• Service remote controller (Part code: J-6090-203-A)

•Monitor

Model name delete method

1. Turn the main POWER ON.

2. Press the following buttons on the service remote controller in this order.:

“ESC” k “CHAP” k “1”

* Confirm that the above operation is performed in the state that the screen has exited all settings such as “Home Menu” or “Simple

Setting”.

3. Turn the main POWER OFF.

4. Turn the main POWER ON.

5. Find out the tentative model name from the Correspondence Table (Table 1) for the client machine. Then, enter the 4-digit “Input No.” on the screen using the service remote controller.

6. The model name setting method is complete. (Screen disappears.) * Upon completion of the model name setting, be sure to press both “ENTER” and “3” simultaneously on the service remote controller

without fail. It sets the remote control code “3”.

Table1 Correspondence table between tentative model name and final product name

Model name

RDR-HXD790 MRX-1740/EC1 — MRX-1740/EC1 MRX-1740/CEK —

RDR-HXD795 — MRX-1745/EC2 — — —

RDR-HXD890 MRX-1760/EC1 — MRX-1760/EC1 MRX-1760/CEK MRX-1760/AU2

RDR-HXD895 — MRX-1765/EC2 — — —

RDR-HXD990 MRX-1770/EC1 — MRX-1770/EC1 — MRX-1770/AU2

RDR-HXD995 — MRX-1775/EC2 — MRX-1775/CEK —

RDR-HXD1090 MRX-1780/EC1 — — — —

RDR-HXD1095 — MRX-1785/EC2 — MRX-1785/CEK —

[Symptom]

If the following operation is performed, set won’t be able to be restored.

[Remedy]

Must not be performed the following operation using service remote. If it is performed, set won’t be able to be restored. And if set is broken by the operation, we can’t guarantee the set when pressing in order of the following button.

* [ESC]--> [STEREO]

([ESC]--> [Any button which is not described in SM])

AEP1 AEP2 AEP3 UK AUS

Tentative model name

Service remote controller (Part code: J-6090-203-A)

1-2

4. HOW TO DIAGNOSE HDD FAILURE

MRX-1635/EC1 VERSION : 1.01

: RELEASE 104

Rev. 1. 5895 : 1.178 OK : DVD-RW DVR-L12X OK

1.00 OK : 000800004940 : XXXXXXXXXXXXXXXX 250 :

250

DEVICE : E2R-FEx1.0 FLASH : 64M REGION : 2 C : 0000400259

HDCP : 0000400259

SYSCON

TUNERCON

DRIVE

PIC SERIAL

HDD INT

HDD USE

• Details on HDD data are described below:

Sample 1: (For the DVD recorder of 120GB) HDD INT: XXXXXXXXXXXXXXXX 160 HDD USE: 120 Sample 2: (For the DVD recorder of 160GB) HDD INT: XXXXXXXXXXXXXXXX 160 HDD USE: 160 Sample 3: (For the DVD recorder of 250GB) HDD INT: XXXXXXXXXXXXXXXX 250 HDD USE: 250 Sample 4: (For the DVD recorder of 500GB) HDD INT: XXXXXXXXXXXXXXXX 500 HDD USE: 500

The item [HDD USE] indicates the HDD capasity of the DVD recorder specifications. Check if the valeus match with the specifications of the DVD recorder.

Service remote controller (Part code: J-6090-203-A)

4-1. Defective HDD

There are four symptoms of defects in the HDD.

1. “E01” is displayed on the FLD.

(The HDD is unauthorized.)

2. “E02” is displayed on the FLD.

3. When playing a video, MP3, or JPG, contents freeze.

4. Irregular noises from the HDD

4-2. HDD Recognition status

How to enter Recognition status and sub screen mode.

• While the GUI screen is not displayed, use the service remote controller and press “ESC” key followed by “DISP” key.

• While the first screen is displayed, press “DIG/ANA” key repeatedly until the desired subscreen is displayed. The subscreens change.

FL Display

OS Display

“Repaining the HDD”.

REPAIR

r “HDD repair is complete”.

An error occurred. Please consult your nearest Sony dealer.

E01

Note that contents on the HDD may be erased when servicing this unit.

E02

Normal

The Hard Disk Drive info is incorrect. Use the Disk Setup menu to reformat.

HDD identification

conditions

Details on HDD data

are described below.

Failure to physically identify the HDD (no connection, defective

Blank space

HDD, interface error).

Physical identification of HDD possible, but not

WDC 10234564 # 160

identified

Physical identification of HDD possible, HDD identified, but failure in logical formatting.

Physical identification of HDD possible, HDD identified, and correct logical formatting (HDD correctly identified).

1-3

WDC 10234564 ! 160

WDC 10234564 160

Remarks

Check the connection to the SATA cable and power cable. Replace the SATA cable or power cable. Replace the HDD. Replace the FE or part in the SATA/ATA communication.

“#” indicates that the HDD is unauthorized.

“!” indicates an HDD authorization error. Initialize the HDD.

4-3. Display [E01] on FLD with unrecognized HDD

E01

Is the HDD free from

abnormal noises?

YES

Is not “#” displayed?

YES

Reconnect the SATA

cable. Does the problem

still occur?

YES

Replace the SATA cable.

Does the problem

still occur?

YES

NO

Unauthorized HDD

Replace the SATA Cable

Refer to “Note”.

Replace the HDD

Note: Write down the HDD information on the HDD

return sheet before replacing the HDD. Note the information on pages 6-6, 6-7, 6-9, and 6-10 of Chapter 6, “SERVICE MODE”.

For information about replacing the HDD, see page 2-5 of Chapter 2, “DISASSEMBLY”. After replacing the HDD, perform “Factory Check” on “SERVICE NOTE” , page 1-6.

When performing “Factory Check”, the data saved to the HDD by the customer is erased. Obtain customer consent before performing “Factory Check”.

*

Replace the HDD with a new one and perform Factory Check.

Does the problem

still occur?

Refer to “Note”.

*

NO

YES

There may be a problem with the Engine.

Therefore, put the original HDD back in the unit. Then, follow the procedure to replace the Engine. After replacing the Engine, perform “Setting the Model Name” on “Service Note”, page 6.

Does the problem

still occur?

NO

Final check

Note: Performing “Final Check” will not erase the HDD data.

YES

END

Note: Write down the HDD information on the HDD

return sheet before replacing the Engine. For information about replacing the Engine, see page 2-4 of Chapter 2, “DISASSEMBLY”.

When performing “Factory Check”, the data saved to the HDD by the customer is erased. Obtain customer consent before performing “Factory Check”.

Another defect

has occurred.

1-4

4-4. Display [E02] on FLD

E02

Is the HDD free from

abnormal noises?

YES

Factory check

Final check

Has the Final check ended

with success?

YES

Note: When E02 is displayed, the user data has

already broken due to system DATA Error.

NO

Note: Performing “Final Check” will not erase the HDD data.

NO

Replace the HDD

Refer to “Note”.

*

Refer to “Note”.

*

END

4-5. When playing a VIDEO, MP3, or JPG, the contents freeze

When playing a VIDEO, MP3, or JPG, the contents freeze. (Any error is not displayed on the FLD.)

Is the HDD free from

abnormal noises?

NO

YES

Display the ATA/ATAPI history by using “HDD Access Flow” on page 6-10.

Does the history show

no errors?

NO

YES

Final check

Note: Performing “Final Check”

will not erase the HDD data.

Has the Final check ended

with success?

YES

END

1-5

NO

Replace the HDD

Refer to “Note”.

*

4-6. Factory Check

1. Pull out and then reconnect the AC cable.

2. Press “ESC” key followed by “P.RUN” key to start Formatting.

3. When “B COMPLETE” appears, the Factory Check is complete.

4. Press “Power” button. The unit starts normally.

When “Factory Check” has finished completely without error , reset “Recording Error History” and “A TA/ATAPI History Error” with the Clear key.

Recording Error History Display

07-03-19 12:36:06 ESFSYS INIT 07-03-19 12:36:06 HDD Zero MR 07-03-19 12:36:06 HDD Initialze 07-03-19 12:36:06 HDD Zero MR 07-03-19 12:27:27 Status NG

Note: Write down the HDD information on the HDD return sheet before

replacing the HDD. Note the information on pages 6-6, 6-7, 6-9, and 6-10 of Chapter 6, “SERVICE MODE”.

When performing “Factory Check”, the data saved to the HDD by the customer is erased. Obtain customer consent before performing “Factory Check”.

“Recording Error History” and “ATA/ATAPI History Error”, see pages 6-9, 6-10 of Chapter 6, “SERVICE MODE”.

4-7. Final Check

4-7-1. SELF TEST (SMART TEST)

This is a simplified diagnosis for the HDD. A serious failure in the HDD can be detected with this test. Time required for testing: Approx. 60 sec.

How to start/terminate the diagnostic program

Use the remote control unit for servicing.

• How to start: Press the following keys in this order; “ESC”, “CX”, “0”, and “1” keys. (refer to 6-2-15)

• How to terminate: Press “ESC” key.

HDD CHECK MODE [1-4]

1 HDD Information 2 S.M.A.R.T Attribute Information 3 S.M.A.R.T DST 4 HDD R/W Check

Execute Self-Test.

• Press “3” key on the remote control unit for servicing while the menu screen is displayed.

• When the following screen is displayed, press “1” key to start the Self-Test.

Note: Performing “Self Test” will not erase the HDD data.Note: “2. Exe Ext Self Test” is not used.

1-6

Diagnosis results

•Without an error: “. . . Completed” is displayed. Then, proceed to the Extended Self-Test.

•With an error: “. . . Error” is displayed. Look at the number in Test Result. If the place value for tens is 1 or 2, execute the Self-Test again. If it is from 3 to 7, the HDD must be replaced.

Note: If the result of the second test is the same, replacement of the HDD is required.

Example: No error Example: With an error

4-7-2. Performance Check

Press “ESC” key, then “A.MON” key.

This is a reading test across all sectors of the HDD. Data recorded on the HDD will not be erased, because no writing operation is performed. Time required for testing: Approx. 45 min/160 G

75 min/250 G 130 to 150 min/500 G

When “Performance Check” finishes completely without error, reset “ATA/ATAPI History Error” with the Clear key.

FL display specification

HDD factory Check HDD performance Check

aNormal display aError display

0:Factory Check start 0 0 000000

Power On

1:Power ON Test

2:

Random Write/Read/Compare Test

3:ID Sequential Read Verify Test

4:

OD Sequential Read Verify Test

5:Format

6:Power OFF Test

Power off

Power On15s

20s

Power off

Power On

15s

20s

Power off

15s

1 0 000000 81 0 00000

2 0 000000

3 **

*****

H M S

4 **

*****

H M S

5 FM

*****

H M S

6 0 000000

7 0 000000

8 0 000000

9 0 000000

A 0 000000

B COMPLETE

HDD ERR 01

HDD ERR 02

HDD ERR 03

HDD ERR 04

HDD ERR 05

HDD ERR 07

HDD ERR 09

80:Performance Check start

Power On

81:Power ON Test

all Sequential Read Verify Test

82:

83:Power OFF Test

Power off

15s

84:Complete

7:Power ON Test 8:Power OFF Test 9:Power ON Test a:Power OFF Test b:Complete

aNormal display

80 0 00000

82**

*****

H M S

83 0 00000

H M S

84 COMPLETE

aError display

HDD ERR 81

HDD ERR 82

Fig 1. FL Display Flow

* The logo for “Factory Check” and “Performance Check” is recorded in “ATA/ATAPI History Error”.

1-7

5. Notice of traverse mecha (TM) exchange.

Distinguish the symptom according to the following procedure

Defective set

Mechanical symptoms

Not read the disc

Noise appears on recording Then disc was scratched after taking out.

Tray doesn’t open

Can’t take out the disc Keeping Load screen

Check again at the service

Check Symptom Customer mentioned

Appeaｒed Not Appeaｒed

Electrical symptoms

READ WRITE

Sound and picture interrupt On playing back DVD and CD.

After recording, when taking out the disc and inserting, the disc can’t be read.

When inserting/taking out the disc as soon as it is initialized, the disc can’t be read. (Can’t read are a information)

Can’t playback after recording. (LPP leaking)

Check again at the service Check again at the service

Check error rate (Refer to service manual)

Normal

No problem TM

Can’t initialize the disc.

After completed the recording,

Error message appears on finalizing and writing information

Can read disc, but can’t record.

Can’t dub/record to DVD. (HDD works correctly)

The power turns off automatically during doing the format.

Can record only for **min.

Check the recording/playback using the same kind disc as user is.

Check the recording/playback of each media. (DVD-Video, ±RW,±R･･･）

Exchange TM

For TM exchange, refer to SM below. Service manual:RW6G/７G TRAVERSE MECHANISM REPAIR MANUAL(9-885-951-1*) How to get it: 1.Open Service manual home page of ESI.

2.Input RW6G into ”Model Name”.

3.Click “Search” button.

Change

to new disc

Check the playback of each media (DVD-Video, ±RW,±R･･･)

Check the dust and scratch if disc of user is enclosed.

Disc problem

Ask user that exercise care In the handling of disc.

Appeaｒed Not Appeaｒed

Exchange TM

Change

to new disc

1-8E

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

SECTION 2

DISASSEMBLY

NOTE: The following flow chart shows the disassembly procedure.

Set

Upper case

(Page 2-1)

Tray cover assembly

(Page 2-2)

Front panel block

(Page 2-3)

FR-291 board,

FL-184 board

(Page 2-4)

Switching regulator

(Page 2-11)

HDD unit

(Page 2-7)

DVD unit

(Page 2-5)

DC fan

(Page 2-6)

Bracket, DT

(Page 2-8)

2-1

DT-124 board

(Page 2-10)

AV-133 board

(Page 2-9)

NOTE: Follow the disassembly procedure in the numerical order given.

)

2-1. UPPER CASE

4

Upper case

2

Tapping screw

3

Three screws

(special front point screw

1

Tapping screw

2-2. TRAY COVER ASSEMBLY

3

Two claws

2

4

Tray cover assembly

Open the tray

1

The stiff wire

Hole

2-2

2-3. FRONT PANEL BLOCK

s

1

Three claws

2

Four claws

3

Front panel block

2-4. FR-291 BOARD, FL-184 BOARD

2

RU-001 harness

(10p) (CN102)

5

FL-184 board

4

Two screws

(+BV3)

1

FLR-010 or FLR-012 flexible

flat cable (5core)

(CN201)

(CN106)

6

Three screws

(+BV3)

8

FR-291 board

3

RV-003 harnes

(6p) (CN101)

7

FAR-008 flexible flat cable

(24core) (CN202)

2-3

2-5. DVD UNIT

1

RU-001 harness

(10p) (CN102)

2

RV-003 harness

(6p) (CN101)

3

PH-080 harness

(4p) (CN203)

Switching regulator

4

PR-078 harness

(13p) (CN201)

7

Screw (+P3)

6

(CN2301)

5

RH-059 harness

(7p) (CN5604)

8

Two screws (+BV3)

9

Two screws (+P3 × 4)

0

Screw (+BV3)

qa

Screw (+P3 × 4)

A

qf

Remove the rear panel in

the direction of the arrow

FRA-006 Flexible flat cable (40core)

qs

Five screws (+BV3)

qd

Screw (+P3 × 4)

A

.

wa

Two screws

(+PSW3

wg

Holder

wh

Remove the DVD unit in

the direction of the arrow

wf

RU-001 harness

(10p) (CN5201)

B

qk

Remove the flexible flat cable.

qj

FVR-001 Flexible flat cable (28core)

ws

RP-078 harness

(13p) (CN4501)

×

6)

(CN4701)

qg

Four screws

(+BV3)

qh

Two screws

(+BV3)

ql

Remove the harness.

.

B

wd

RV-003 harness

(6p) (CN5101)

2-4

w;

Remove the PH-080

harness (4p)

2-6. DC FAN

4

DC fan

3

Two screws

(+BV3)

1

The wire pin that holds

the harness is set up.

2

Fan harness

(2p) (CN203)

2-7. HDD UNIT

5

(7pin) (power)

4

PH-080 harness

(4pin) (data)

Air flow

RH-059 harness

3

Screw (+BV3)

and wire clamp

1

Two screws (+BV3)

2

Screw (+BV3)

2-5

8

7

Two screws

6

Two screws

6-32UNCX4 (SG)

HDD unit

2-8. BRACKET, DT

)

4

Screw

(+BV3)

5

Two screws

(+BV3)

6

BRACKET, DT(L)

2

Two screws

(+BV3)

3

BRACKET, DT(R

2-9. AV-133 BOARD

6

FAD-010 flexible flat cable

(19core) (CN302)

1

Screw

(+BV3)

5

FRA-006 flexible flat cable

(40core) (CN101)

7

Three screws

(+BV3)

8

AV-133 board

4

FAR-008 flexible flat cable

(24core) (CN105)

2-6

2-10.DT-124 BOARD

1

PD-142 harness

(12p) (CN202)

2

FVR-001 Flexible flat cable (28core)

(CN102)

4

Six screws

(+BV3)

5

DT-124 board

3

FAD-010 flexible flat cable

(19core) (CN103)

2-11. SWITCHING REGULATOR

1

PD-142 harness

(12p) (CN202)

2

Three screws (+BV3)

5

Switching regulator

4

Spacer

3

Two board holders

2-7

2-12.CIRCUIT BOARDS LOCATION

RD-066 board POWER, EMMA, VIDEO/AUDIO, MEMORY, SATA/IDE IF, HDMI/DV/USB, DVD DRIVE

Switching Regulator

FL-184 board DV, USB, REMOCON RECEIVER

FR-291 board FL DRIVER, LINE 2 IN FUNCTION SW

AV-133 board IT CONTROLLER, IR, POWER, FAN CONT, VIDEO/AUDIO, EURO, TUNER

DT-124 board DIGITAL TUNER, EMMA, OFDM DEMODULATOR

2-8E

3-1. OVERALL BLOCK DIAGRAM

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

SECTION 3

BLOCK DIAGRAMS

JA501(2/2)

LINE 3/DECODER

JA501(1/2)

LINE 1-TV

AEP, UK only

JA751

G LINK

AERIAL

OUT

AERIAL

OUT

DT-124 BOARD

X300

U301

DTT

TUNER

IN

20MHz

IF

IC313

SDA SCL

OFDM

DEMODULATOR

AV-133 BOARD

41

R,G,B R,G,B

V/Y,C L,R L,R

FUNCTION

N-LINK

22

IC406

20

R,G,B V/Y,C

V/Y,C L,R L,R

FUNCTION N-LINK

1

U601

SDA

UHF/VHF

SCL

TUNER

IN

X601

18.432MHz

AGC

LINE2 IN

AVLTH SW

XRST1

TU_V

TU_L

IC601

SIF

J201

S VIDEO

VIDEO

AUDIO L (MONO)

AUDIO R

EURO MSP

Y

C

V

L

R

TU_R

MSPSTAT

FR-291 BOARD

RDR-HXD795/HXD895/HXD995/HXD1095 model only

MODATA0-7

TS1 MCLK TS1 MVAL TS1 MSTRT

RDR-HXD890/HXD990/HXD1090 model only

R,G,B

DTTY DTTC

TU_V

TU_L TU_R

SDA SCL

IC101 VDD

IC101 VDD DET

V+5V

POWER FAIL

S201-210

FUNCTION

SWITCH

D212,214 HDD,DVD

ND201

FLUORESCENT

DISPLAY

Y,C V L,R

FUNCTION

SW

N-LINK

15MHz

IC103

IC102

DET

AGC, MSPSTAT

KEY1-3

IC3004 IC3005

VIDEO AUDIO

SELECTER

X101

MIDATA0-7

BUFFER

IC3006 IC3007 IC3008

MULTIPLEXER

IC401

2

KEY1-3

SEG1-16 GRD1-12

F1,F2

YP,CR,,CB

Y,C

L,R

IC101

IT

CONTROLLER

IC201

FL DRIVE

VEE

Q201,202

T201

DC/AC

CONVERTER

CN201

CAM

X100

V+1R5_IN

27MHz

IC104

27MHz

VCXO

SPDIF

TDXA,RDXA

VCLK

XRESET

IC3702

STREAM_0-7VDATA0 0-7

DS only

IC3203

AUDIO LPF

JA5701

DIGITAL

OUT

L.P.F

FAN

RD-066 BOARD

YP,CR,,CB

Y,C

IC3101

L,R

AUDIO ADC

L,R

IC3201

AUDIO DAC

X5101

24.576MHz

4 7

MDC0,MDC11

MADRS0-14

IC3009 IC3010

BUFFER

4 7

B, G

R

R/C

C

Y

Y,C

V

PY,PB,PR

IC402

BUFFER

SDA SCL

P-CONT

FANCTL

MRST

CEC, HPD

6 4

X102

32.768KHz

IC3002 IC3003

BUFFER

CI TPS DATA 0-7

VAY VAC

FAN

DRIVE

L,RL,R

L,R

IC104

DDC SW

JA401

Y

C

V

L

R

PY

PB

PR

JA402

IC3001

BUS

BUFFER

EADRS 1-22

S VIDEO

VIDEO

AUDIO L

AUDIO R

Y

CB

CR

MDATA0-7

IC3011 IC3015

GATE

EDATA 0-15

LINE2 OUT

COMPONENT

VIDEO

OUT

IC205

32M Bit

FLASH ROM

SDA SCL

I2C SCL DTBR I2C SDA DTBR

EV+5.8V

IC3707

RESET

IC5204

5V REG

IC101

256M Bit

DDR SDRAM

IC106

EMMA

FL-184 BOARD

S101

KEY1,3

POWER

FLDATA FLCLK FLSTB

V+12V

ATYPE

CN105

BTYPE

CN104

USB

CN103

DV

S102

ONE TOUCH DUB

IR

USBDM2 USBDP2

V+5USB

USBDM1 USBDP1

USBVFB

TPAP,TPAN

IN

TPBP,TPBN

IC101

REMOTE

COMMANDER

RECEIVER

IC5701

SPDIF SEL

2

IC3701

IC201

64Mbit SDRAM

IC5103

DV PHY

IC5203

VIOD0-VIOD7

16.9344MHz

24.576MHz

X5201 48MHz

XTAL OSC

X101

X1001

X1002 27MHz

SPDIF

SPDIFO_LL

ABCKI ALRCKI ADATA

G,B,R/C

4

AIBD0

AOD0

5

XRESETXRST1

MD0-15

MA0-11

PHY D0-7

P-CONT

EV+12V

EV+5.8V

SW+12V

SWITCHING

SW+5V

REGULATOR

SW+3.3V

SW+1.5V

TX1 RX1

SO, SI, SCLK

W2EN+,W2EN-, W3EN+,W3EN-, W1EN+,W1EN-, OSCEN+,OSCEN-

FMO+, FMO-

IC1001

AV ENC/DEC

Y

FDRV

MDRV XDMUTE1 XDMUTE2

FG

SL1,SL2

LD

OPEN

CLOSE

DDATA0-31

DADRS0-12

8

7

HDATA0-15

HADRS1-22

RF+,RF-

A, B, C, D, S1, S2, S3, S4

IC501

TRACKING COIL DRIVE

FOCUS COIL DRIVE

SPINDLE MOTOR DRIVE

SLED MOTOR DRIVE

LOADING MOTOR DRIVE

13

IC1201 IC1221

512Mbit x2

DDR SDRAM

17

IC1102

FLASH ROM

3

13

XRESET

64Mbit

TXD,RXD

SI, SCLK

5

4

XRESET

T+,T-TDRV

F+,F-

U,V,W

HU+,HUHV+,HVHW+,HW-

ST1+,ST1-, ST2+,ST2-

LDO+,LDO-

AT0DAT10-15 AT0DAT10-15

AT1DAT10-15 AT1DAT10-15

XRESET

X5602 25MHz

AT1DAT10-15

DVD OPTICAL PICK-UP

BLOCK

LD

DRIVER

LASER FRONT

MONITOR


DETECTOR

TRACKING

COIL

FOCUS

COIL

M

XRESET

SPINDLE

MOTOR

H

SLED

M

MOTOR

LOADING

M

MOTOR

OPEN

CLOSE

IC5602

SATA

BRIDGE

13

IC5801

15

IC5803 IC5804

SW

D101-104

RECT

SWITCHING REGULATOR

CN3801

IDE I/F

13

TXP,TXN RXP,RXN

HDD UNIT

2

CN3802

IDE HDD

13

JA5801

FU101

AC IN

Note1: The HDMI block is highly confidential, and prohibited from releasing to public. Note2: The components identified by mark 9 contain confidential information.

Strictly follow the instructions whenever the components are repaired and/or replaced.

3-1 3-2

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

3-2. AV-133 BLOCK DIAGRAM

AERIAL

IN

AERIAL

OUT

TO/FROM FR-291 BOARD (CN202)

(SEE PAGE 3-9)

JA501 (2/2)

LINE3-DECODER

JA501 (1/2)

LINE1-TV

AV-133 BOARD

U601

UHF/VHF

TUNER

VIDEO OUT

SIF OUT

AGC OUT

SDA

SCL

2Y

Y2 IN

21

2C

C2 IN

24

SDET2

23

2V

2VIN

19

2L

L2_LIN

17

2R

L2_RIN

15

CN105 (1/2)

V/Y IN

41

R/C IN

36

G IN

32

B IN/C OUT

28

V/Y OUT

40

BLANK

37

N-LINK

31

FUNCTION

29

L IN

27

R IN

23

L OUT

24

R OUT

22

20

V/Y_IN

20

19

V/Y_OUT

15

R/C_OUT

11

G_OUT

7

B_OUT

16

BLANK

10

N-LINK

8

FUNCTION

6

L_IN

2

R_IN

3

L_OUT

1

R_OUT

1

Q506

Q507

BUFFER

X601

18.432MHz

Q601

Q606

AMP

Q602

BUFFER

2

5

6

22

2

1

Q508

SAMUTE

Q505

SW

Q503,504

SW

Q501,502

FUNCTION

SW

AIN1+

XIN

XOUT

RESETQ

IC601

EURO MSP

4

DACML

DACMR

SDA

SCL

DC01

XRST1

AGC

SDET2

BLANK

FUNC_IN

IC406

AVLTH SW

AVLTH

SAMUTE

AVLOUT

AVLIN

FUNC_ON

SQU

(5/5)

27

26

13

12

8

MSPSTAT

(4/5)

Q604

BUFFER

Q605

BUFFER

TU_VIN

TU_LIN

TU_RIN

AV2_V/Y_IN

R/CIN

GIN

BIN

AV2_V/YOUT

BLANK

AV2_L_IN

AV2_R_IN

AV2_L_OUT

AV2_R_OUT

AV1_V/Y_IN

AV1_V/Y_OUT

R/COUT

GOUT

BOUT

RGBOUT

AV1_L_IN

AV1_R_IN

AV1_L_OUT

AV1_R_OUT

Q402

BUFFER

DTTY

DTTC

L2 LIN

L2 RIN

Q509

BUFFER

Q510

BUFFER

Q511

BUFFER

BTOMAIN

GTOMAIN

RTOMAIN

BS IN

18

A TUNER IN(L)

87

A TUNER IN(R)

86

SEP Y1 IN

3

SEP C1 IN

5

SEP Y2 IN

7

SEP C2 IN

9

VIDEO L2 IN

14

A L2 IN(L)

92

A L2 IN(R)

91

VIDEO L3 IN

12

RorC IN

49

G IN

48

B IN

50

AV2 OUT

22

60

PAL SCART IN

A L3 IN(L)

90

A L3 IN(R)

89

A AV2/OUT(L)

72

A AV2/OUT(R)

71

VIDEO L1 IN

16

Y1 OUT

30

Pr(Cr)/RorC OUT

45

PY(Y)G OUT

46

Pb(Cb)/B OUT

44

RGB M OUT

54

A L1 IN(L)

94

A L5 IN(R)

93

A AV1/OUT(L)

74

A AV1/OUT(R)

73

(3/5)

IC401

VIDEO/AUDIO SELECTOR

DVD C OUT

PY(Y) OUT

Pb(Cb) OUT

Pr(Cr) OUT

F DVD PY (G)

F DVD PR (R)

F DVD PB (B)

F DVD Y

F DVD C

DVD VorY OUT

F A DVD (L)

F A DVD (R)

TO DVD (L)

TO DVD (R)

V C&S C3 IN

Y2 OUT

C2 OUT

V2 OUT

SYNC

DTTY

VAY

6

VAC

DTTC

4

CN101 (1/2)

Q403

BUFFER

2

4

6

8

10

12

18

16

14

20

22

26

24

TEXTVIN

CN302

(1/2)

JA401

B_IN

G_IN

C/R_IN

JA402

YP_OUT

CR_OUT

CB_OUT

Y_OUT

C_OUT

Y_IN

L_OUT

R_OUT

L_IN

R_IN

Q408

Q411

59

Q413

36

34

32

40

38

39

51

52

53

55

57

61

77

76

80

79

1

41

42

SDA

43

SCL

BUFFER

D420

RCSEL1

Q410

BUFFER

RCSEL2

AMUTE1

XAMUTE2

Q401

P_SAVE

SW

CSYNCIN

IC402

BUFFER

C/R IN

Q406

Q404

MUTE

Q801

BUFFER

3

+

2

_

5

+

6

_

Q407

BTOMAIN

GTOMAIN

C/R IN

1

7

(3/5)

S VIDEO

VIDEO

AUDIO L

AUDIO R

CB

CR

Y

FROM DT-124 BOARD (CN103(2/2))

(SEE PAGE 3-6)

LINE2 OUT

COMPONENT

VIDEO

OUT

TO/FROM RD-066 BOARD (CN2301)

(SEE PAGE 3-7)

IC104

14

13

11

10

5

6

DDC SW

(1/5)

IC101

IT CONTROLLER

AEP, UK only

(1/5)

IC103

IC101 VDD DET

IC101 VDD

IN

OUT

(1/5)

IC102

POWER FAIL DET

V+5V

IN

OUT

SDET2

XAMUTE2

RCSEL1

RCSEL2

P_SAVE

CSYNCIN

BLANK

FUNC_ON

SQU

FUNC_IN

AVLOUT

AVLTH

AVLIN

MSPSTAT

AGC

(1/5)

SDA0

12

SCL0

CEC0

9

7

1

SAMUTE

AMUTE1

XRST1

V+5R8E

Q103-105

SAMUTE

CONTROL

Q108

Q110-112

Q101

RESET

Q102

BUFFER

EQ

AEP, UK only

AMUTE1

X101

15MHz

X102

32.768kHz

4312

512

12

13

9

10

24

33

34

35

46

67

72

41

42

22

26

48

70

71

20

81

59

27

28

69

38

47

58

8

CAPACITOR

CF1

CF2

TX1

TX2

CVBSIN

EPGEQ

XSCMUTE

MUTECTL

RESET

ACDET

SDET2

XAMUTE2

RCSEL1

RCSEL2

P_SAVE

CSYNCIN

BLANK

FUNC_ON

SQUEEZE

FUNC

AVLOUT

AVLTH

AVLIN

MSPSTAT

AGC

SDA

SCL

CEC0

DDC_SW2

BLAIR

RFTHRU

FANCTL

SWVION9V

P_CONT

SWVION5V

TU_DCCON

DTBON

ANT5V_SW

DET_ANT

FLDATA

FLCLK

FLSTB

P_CONT2

MRST

XRST

DAM_TO_T

HSM_TO_T

DAT_TO_M

ASCK

HST_TO_M

DDC_SW1

HOTPLUG

TUON

FLON

KEY1

KEY2

KEY3

IR

45

RFTHRU

52

FANCTL

54

TUON

60

SWVION9V

61

P_CONT

62

SWVION5V

64

TU_DCCON

74

(SEE "POWER BLOCK DIAGRAM")

DTBON

85

86

87

63

49

51

50

17

18

19

7

57

65

29

99

6

98

100

79

37

73

Q751,752

SW

FLPON

FLDATA

FLCLK

FLSTB

KEY1

KEY2

KEY3

IR

CN302(2/2)

CN105 (2/2)

CN101 (2/2)

13

28

29

30

31

32

33

34

35

39

40

36

38

37

23

JA751

G LINK

DT_TUON

3

ANT5V_SW

4

DET_ANT

5

9

7

5

2

3

6

4

P_CONT2

MRST

XRST1

DAM_TO_T

HSM_TO_T

DAT_TO_M

ASCK

HST_TO_M

DDC_SW1

HPD

DSDA

DSCL

CEC

AMUTE1

TO DT-124 BOARD (CN103(1/2))

(SEE PAGE 3-5)

TO/FROM FR-291 BOARD (CN202)

(SEE PAGE 3-9)

TO/FROM RD-066 BOARD (CN2301)

(SEE PAGE 3-7)

3-3 3-4

3-3. DT-124 BLOCK DIAGRAM

DT-124 BOARD

X300

20MHz

DIGITAL

AERIAL

(SEE PAGE 3-4)

CN201

CAM

IN

OUT

TO AV-133 BOARD (CN302)

U301

DTT

TUNER

15

16

17

62 63 57

64-66, 37-41

20 19 46

47-50, 53-56

30-32,

2-6

29-22,

12,11, 8,10, 21,13,

14

9

17,51

36

67

61,58, 15,45, 44,42,

7

60,59, 43,16

ANT POWER

CN103 (1/2)

DET_ANT

ANT5V_SW

DT_TOUN

MOVAL MOSTRT MOCLK

MICLK MIVAL MISTRT

MDC3 ENABLE

PC VCC

MDC0

MDC11

MDC10 MDC8 RESET MDC6 ENABLE MDC5 MDC4 MDC2 ENABLE MDC1 ENABLE

INPACK MDC9 VS1# MDC7

IF OUT1

IF OUT2

IF AGC

B1(+5V)

SDA

SCL

TU

Q306,307,309,310

7

4

56

57

IC313

39

DEMODULATOR

38

AGC

63

SDF

33

SCL

34

V+5VT

V+32VT

IC309

+5V SW

1 5

3

ON

4

PROTECT

DETECT

MODATA 0-7

MIDATA 0-7

MDATA 0-7

MADRS 0-14

RDR-HXD795/HXD895/HXD995/HXD1095 model only

OFDM

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

IC106

XCOFDM_RESET

2

25

|

32

TS1_MCLK TS1_MVAL

17

MS1_MSTRT 21 18

I2C_SDA_DTBR

16

I2C_SCL_DTBR

15

IC312

+5V REG

VOUT VIN

ON/OFF

Q308

V +5.8E

51

4

RDR-HXD790/HXD890/HXD990/HXD1090 model only

MOCLK

MOVAL

MOSTRT

TS1 MCLK TS1 MVAL TS1 MSTRT

321B

6

5

10

11

13

14

321B

6

5

10

11

13

14

231A

5

6

10

11

2 | 9

2 | 4

TS1 DATA 0-7

IC3006

1A

2B

2A

3A

3B

4A

4B

IC3007

1A

2B

2A

3A

3B

4A

4B

IC3008

1B

2A

2B

3A

3B

IC3004

IC3005

SELECT

IC104

(32Mbit)

27MHz

VCXO

DQ0

DQ15

A0

A12

BA0, BA1

LDM, UDM

LDQS, UDQS

A0-A20 25-18, 8-1,48, 17,16,

9,10

|

CK, /CK

2,4,5,7,8,10, 11,13,54,56, 57,59,60,62,

/WE /CAS /RAS

/CS

CKE

CO

VC

63,65

29-32, 35-40,

28,41,42

26, 27 45, 46

20, 47 16, 51

26 28 11

5

3

DATAQ 0-15

DADRSDD 0-12

21 22 23 24 44

ENABLEC6 ENABLEC7 ENABLEC8

27MHz

DATA 0

1Y

4

DATA 1

2Y

7

DATA 2

3Y

9

DATA 3

4Y

12

1

DATA 4

1Y

4

DATA 5

2Y

7

DATA 6

3Y

9

DATA 7

4Y

12

1

CI TPS MCLK

1Y

4

CI TPS MVAL

2Y

7

CI TPS MSTRT

3Y

9

1

18

|

11

XRESET

18 17 16

CI TPS DATA 0-7

12

XT

8

IC101

DDR SDRAM

(256Mbit)

RESET

DQ0-15

29,31,33,35, 38,40,42,44, 30,32,34,36, 39,41,43,45

IC205

FLASH ROM

XTB

1

X100

I2C SCA DTBR

I2C SDL DTBR

CI TPS MCLK CI TPS MVAL CI TPS MSTRT

13

TPS CI CTRL

105

117

118

137

141

5-10,

14,15

212-208, 204-202, 166,165, 159-154

190-187, 183-178, 191,174,

173

193,192 171,170

199 198 197 196

172 200,169 201,167

116

64

62

63

IC3001

EDATA 1-15

EADRS 2-22

Q202-204

CI BUF OEB

EC9

CI IORDY

EDATA 0-15

EADRS 1-22

Q205

XCI_VCC_5V

16-26, 29-33

34-41, 45-52,

55-61

113

102

CI FWEB

13

12

3

6

IC3015

IC3002,3003

18

|

12

11

1

2

4

5

CI CD1B

11

2

|

9

2

|

8

9

CI FOEB

911

1

ENABLEC8

ENABLEC6

18

|

EDATA 8A-16A

11

OE

DIR

191

V+5CI

IC207

5V SW

3

5

INOUT

4

2

1

IC3011

8

2

4

5

EMMA

PPORT20 SDA0

SCL0

CLK27IN

PWMOUT

PPORT30

PPORT4

|

PPORT11

PPORT0

1

PPORT3

4

PPORT1

2

DQ0

|

DQ15

DADD0

|

DADD12

DBA0,DBA1 DCLK,DCLKB DWEB DCASB DRASB DCSB DCKE DQM0,DQM1 DQS0,DQS1

PPORT29

FCSB0 FOEB FWEB

RDATA00

RDATA015

RADD0

|

RADD21

PPORT26

PPORT27

|

119-124,

PPORT35,

127,128

PPORT38, PPORT39

PPORT40

129

ADO

72

ABCK

70

ALRCK

73

RXD1B

145

TXD1B

146

ATX

71

RSTSWB

143

VAY

76

VAPB

89

PPORT24

GRDYB

PPORT19

PPORT15

PPORT25

PPORT23

PPORT22

PPORT21

PPORT18

|

QCCB0

INPACKB

111

EC10

74

CI VS1

104

CI REQB

100

CI REGB

112

CI RESET

108

107

106

103

65

CI IOWRB

CI IORDB

CI CE2B0

EC9

CI FWEB

Q802,804

BUFFER

Q801,803

BUFFER

VDATAO 0-7

IC3009

15

16

17

18

IC3010

2

3

4

5

6

7

8

VAY

VAC

OE1

1

CI BUF OEB

5

4

3

2

18

17

16

15

14

13

12

VCLK

ADATA

ABCK

ALRCK

RDXA

TDXA

SPDIF

XRESET

MDC10

MDC8 RESET

MDC6 ENABLE

MDC5

MDC4

MDC2 ENABLE

MDC1 ENABLE

INPACK

MDC9

MDC7

VS1#

CN102

CN103 (2/2)

VDO 0-7

21

|

14

12

TO RD-066 BOARD

24

25

23

27

(CN4701)

(SEE PAGE 3-7)

7

6

9

1

TO AV-133 BOARD (CN302 (1/2))

(SEE PAGE 3-4)

3

3-5 3-6

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

3-4. RD-066 BLOCK DIAGRAM

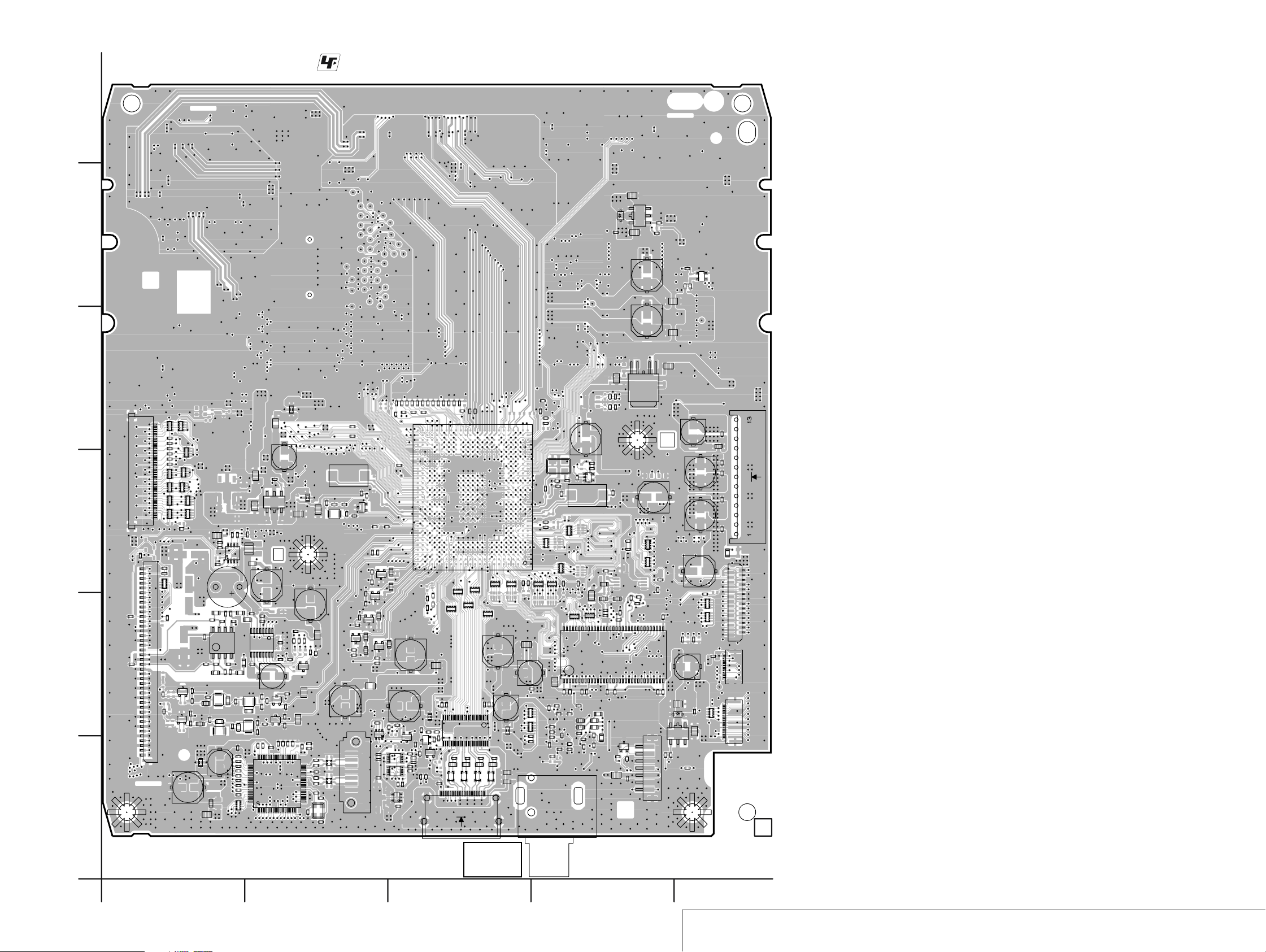

RD-066 BOARD

TO/FROM

DT-124 BOARD

(CN102)

(SEE PAGE 3-6)

TO/FROM

AV-133 BOARD

(CN101(1/2))

(SEE PAGE 3-4)

TO/FROM

AV-133 BOARD

(CN101(2/2))

(SEE PAGE 3-4)

JA5701

DIGITAL

OUT

VDO 0-7

CN4701

8

STREAM0-7

|

15

VCLKI

17

ADATA

5

ABCKI

4

ALRCKI

6

TXI

23

RXI

22

SDA_VDEC

26

SCL_VDEC

25

AT/XDT

28

SPDIF_LL

2

XRESET

20

CN2301

29

27

25

23

39

37

33

31

35

15

17

21

19

18

10

9

8

7

6

40

5

3

2

1

4

13

12

11

Q3301, 3302

YIN YI

YP_OUT

Y_OUT

CB OUT

LCHIN

RCHIN

IC3202

L_OUT

R_OUT

AMUTE1

DAM_TO_T

HSM_TO_T

DAT_TO_M

ASCK

HST_TO_M

X525P

DSDA

DSCL

DDC_SW1

HDP

CEC

P_CONT2

MRST

XRST1

Y EQ

C/R_IN

Q3305, 3306

G_IN

G EQ

B_IN

Q2503

BUFFER

CR_OUT

Q2501

BUFFER

C_OUT

Q2504

BUFFER

AINL

2

IC3101

AINR

1

(3/7)

AUDIO LPF

AUDIO DAC

2

_

7

+

3

1

6

_

8

+

5

7

11

D3201

IC3701

TU_DSDA

TU_DSCL

DDC_SW1

TU_HPD

TU_CEC

IC3702

1

4

2

Q5701

8

BUFFER

IC3707

12

RESET

(3/7)

AUDIO ADC

(3/7)

IC3201

VOUTL

VOUTR

ZEROR

17

35

IC5701

SPDIF SELECT

(3/7)

Q3303, 3304

C/R EQ

Q3307, 3308

B EQ

Q2505

BUFFER

Q2502

BUFFER

DATA

BCKIN

LRCKIN

MCLK

MD

MC

ML

SMDOUT

HSMTOT

SMDIN

SMCKOUT

HSTTOM

X525P

(3/7)

1

V+1R5_IN

SDTO

LRCK

MCLK

SCLK

PON

16

13

14

15

(3/7)

2

1

3

5

13

C/RI

GI

BI

9

10

11

12

13

(3/7)

AIBD0

AILRCK0

ADCCLKO

AIBCK0

ADPOW

AOD0

AOBCK

AOLRCK

DACCLKO

SMDOUT

SMCKOUT

NSCS

AMUTE

X101

16.9344MHz

X1001

24.576MHz

XRESET

X1002 27MHz

SPDIFO

SPDIFSEL

AF24,AE24, AE21,AD24, AF23,AD23,

AC24,AC22

(not use)

DQ0

|

DQ15

A0

|

A12

IC201

64Mbit SDRAM

DQ0

|

DQ15

A0

|

A11

IC1102

128Mbit FLASH ROM

DQ0

|

DQ15

A0

|

A21

24,26,28,30, 32,34,36,38, 37,35,33,31, 29,27,25,23

2,4,5,7,8,10, 11,13,54,56, 57,59,60,62,

63,65

29-32, 35-40,

28,41,42

VREF

(4/7)

2,4,5,7,8,10, 11,13,42,44, 45,47,48,50,

51,53

23-26, 29-34, 22,35

(4/7)

35,37,39,41, 44,46,48,50, 36,38,40,42, 45,47,49,51

31,26-20,

10-3,54,19,

18,11,12,

15,2

6, 8, 5

4

3 20 18 16 40

14 12 10

49

CN3801

(4/7)

HADRS5-7,13

AT0DATA0-15

AT0ADR0-2

AT0CS0 AT0CS1 AT0DMARQ AT0DIOW AT0DIOR AT0RESET

AT0IORDY AT0DMACK AT0INTRQ

DDATA0-7,16-23 DDATA8-15,24-31

MD2 MD5 MD1 MD0

HDATA0-15

HADRS1-23

(2/7,4/7 to 7/7 )

IC1001

AV ENC/DEC

PKPULSEP1P,

AH2, AH1

PKPULSEP1M

VIOD0

PKPULSEP2P,

AJ4, AJ3

PKPULSEP2M

|

VIOD7

WRPULSEP,

AH4, AH3

WRPULSEM

FPDVI, PDIN

RFP, RFN

A1,B1,C1,D1

G1,H1,F1,E1

GPI046

GPI044

VREFIO

PLED

P2LD

WLD

RFP3

SDRV1

SDRV2

DAOUT

GPI045

TXD1B

RXD1B

PB4

RLD

PA3

PB3

PB5

PB0

PB1

PA2

TDRV

FDRV

REF16

MDRV

FSCO

HLCO

RFP1

RFP2

SFSCK

FSCI

HLCI

PA7

PA6

SFSO

SFSI

FG

AH5, AJ5

AE6

AE11

AF11

AE9

AF8

AG9, AG8

AG6

AG1

AF6

AH12, AJ12

AJ11,AJ10,

AJ9,AJ8

AH9,AH8,

AH10,AH11

AG4

AE7

AJ23

AH7

AI8

BI8

AF10

AH20

AH21

AF9

AJ22

AG21

AH22

AG20

AJ21

AJ20

AJ19

AH6

AJ7

E17

AD8

AD10

AD9

AG23

AG22

K23

J24

K20

H21

XDMUTE1

XDMUTE2

SL1

SL2

LD

SO

SI

SCLK

HFONP,HFONM

VIOCLK

AB20

AIOBD

AB22

AIOBCK

AA20

AIOLRCK

AE20

TXD0B

AF21

RXD0B

AF22

SDA0

L19

SCL0

M19

GPIO6

T19

SDA1

C18

SCL1

D17

AYI

E24

ACI

G24

ABI

D23

ARI

F23

VAG

B23

VAR

A22

A20

VAY

B21

VAC

A24

VAB

AIBD0

E20

AILRCK0

F19

AIOMCK0

C20

AIBCK0

E19

GPIO37

U19

AOD0

E18

AOBCK

C19

AOLRCK

D20

AIOMCK1

E21

SMDOUT

L4

SMCKOUT

K5

GPIO62

L3

GPIO54

F17

GPIO04

P19

SMDIN

L5

GPIO03

N19

GPIO41

AB19

XA1

AE1

XA2

AF1

CLK24IN

M24

CLK24OUT

L24

RSTSWB

L21

CLK27AIN

L1

CLK27AOUT

K2

ATX

D19

GPIO36

V19

Q1811

FSC BPF

Q1801

HCL BPF

4

5

42

47

26

34

35

43

29

30

46

W2EN+. W2EN-

W3EN+, W3EN-

W1EN+, W1EN-

OSCEN+, OSCEN-

LDDEN

W3SET

W2SET

W1SET

APCV

FMO+, FMO-

DVD/CD

HFGAIN

OSCNT

RF+, RF-

A, B, C, D

S1-S4

ACTIN1

ACTIN2

VC

ACTIN3

SPIN

CTL1

CTL2

FG

SL1IN

SL2IN

LDIN

TRACKING

COIL DRIVE

FOCUS

COIL DRIVE

IC501

(7/7)

SPINDLE

MOTOR

DRIVE

SLED

MOTOR

DRIVE

LOADING

MOTOR

DRIVE

26

IC3701

(3/7)

ACO1+

ACO1-

ACO2+

ACO2-

SLO1+

SLO1-

SLO2+

SLO2-

24, 23

2

22, 21

2

20, 19

2

18, 17

2

16

15

14

13

RSET

12

34, 33

2

31

30

27

44, 42

2

4

SW1

SW2

TEMP

LCDS

SI

SCLK

VRPD

XRESET

V+5L

V+3A

54

53

52

51

U

11

V

13

W

16

HU+

20

HU-

21

HV+

22

HV-

23

HW+

24

HW-

25

HB

19

40

39

38

37

LDO+

2

LDO-

1

T+

T-

F+

F-

V+5M

ST1+

ST1-

ST2+

ST2-

LDO+

LDO-

CLOSE

OPEN

TXD

RXD

V+5D

39, 38,

37, 40

48, 47,

46, 49

35, 45

50

36

11

41

10

12

11

10

7

6

5

9

3

4

1

2

4

3

2

9

8

7

6

5

1

2

4

3

1

2

4

5

1

2

5

M3,M4,M1,M2

CN101

U

V

W

VCC

HU+

HU-

HV+

HV-

HW+

HW-

HB

CN501

CN502

RED

BLACK

LPS1

LPS2

CN601

CN1402

FOR CHECK

SEN

SDIO

SCLK

VREFPD

RESET

VA5V

VD3V

TR

TD

FR

FD

DVD OPTICAL PICK-UP

BLOCK

LD

DRIVER

LASER FRONT

MONITOR

DBA0, DBA1 DCLKO, DCLKNO

(IC1201)

(IC1221)

DWE DCAS DRAS DCS0B DCKE DDM0, DDM2 DDQS0, DDQS2 DDM1, DDM3 DDQS1, DDQS3

SPINDLE

MOTOR


DETECTOR

TRACKING

COIL

FOCUS

COIL

M

V+3D

10

PW

1

D5(AG)

3

D1(SL)

4

D0(MA)

5

H

SLED

M

MOTOR

LOADING

M

MOTOR

CLOSE

OPEN

CN201

FOR CHECK

CN1401 Not use

TX_FE

8

RX_FE

9

XRESET

7

A9(ATA)

2

HADRS13

HADRS5

JTSEL

HADRS6

DINTEN

3 9

13

12

6

10

8

14

2

4

1

EJSNGEN

TDI

TCK

TDO

TMS

TRST

DINT

RST

HADRS7

3

V+3D

LDQM UDQM MBA WEZ CASZ RASZ MCLK MCKE

4

HCS0 HDOE HWS0

XRESET

JTDI

JTCL

JTDO

JTMS

JTMRST

EDINT

IC1201,1221

512Mbit X 2 DDR SDRAM

26, 27

BA0, BA1

45, 46

CK, /CK

21

/WE

22

/CAS

23

/RAS

24

CS

44

CKE

20, 47

LDM, HDM

16, 51

LDQS, UDQS

15

LDQM

39

UDQM

20

BA0

16

/WE

17

/CAS

18

/RAS

38

CLK

37

CKE

32

CE

34

OE

13

WE

14

RESET

17

(IC1201)

(IC1221)

DADRS0-12

VREFD

8

MD0-15

4

MA0-11

3

4

Q102

SW

V14,U11,U12,W15,

V11,T12,P13,R15, R13,V10,P15,U13, R14,U15,W13,T14

3

6

3

F5,F4,G5,G4,J4,J5,H4,H5, A8,B8,C8,A7,B6,A6,C7,B7, G1,G2,G3,F1,H3,H2,H1,J3, D9,E9,D8,E8,D7,E7,D6,E6

AE4,AD2,AD1,AC5,

REMO

REMI

W21,Y21,AA21,U23, V22,T24,U24,N23,R23, M22,T22,T21,P21,N22,

Y20,Y24,AA22,W23,

Y22,P22,U22,P23,U21,

U20,AB24,R24,M21,

N21,T23,R22,M20,W20,

AT0DA0

W14 U10

AT0DA2

U14

AT0CS0B

W12

AT0CS1B

W11

AT0DMARQ

T15

AT0DIOWB

P14

AT0DIORB

R12

AT0RESETB

V13

T13

AT0IORDY

V15

AT0DMACKB

V12

AT0INTRQ

B3, A3, C1, B1, C2, B2, A2, C3,

D5, F3, J1, F2, J2, A5, B9, C6, C9

B4,A4,C5,B5, E1,E2,D1,D2,

D3,E4,C4,D4,E5

F6

DVREF

AA2 AB2 AD5 AF2 AE2 AF4 AB4 AC4

Y3,AA4,AB1,AA5, AB3,AA3,W4,Y4,

W5,W3,Y5,Y2,

AC2,AB5,AA1,Y1

AE3,AD3,AF3,AE5,

AD4,AC1,AC3

PB7

AF7

PB6

AG5

V24

FCSB0

W22

FOEB

AA24

FWEB

N20,R21

V23,Y23,V21,AA23,

P24

JTDI

F21

JTCL

J19

JTDO

G19

JTMS

G20

JTRST

H20

EDINT

H19

AJ2

OFPULSE

AJ14

FCEFM1

AT0D00

|

AT0D015

|

DBA0, DBA1, DCLKO, DCLKNO, DWEB, DCASB, DRASB, DCS0B, DCKE, DDQM0, DDQM2, DDQS0, DDQS2, DDQM1, DDQM3, DDQS1, DDQS3

DADD00

DADD12

LDQM UDQM MBA WEB CASB RASB MCLKOUT MCKE

MD0

MD15

MA11

RDATA00

RDATA015

RADD01

RADD23

17,15,13,11,

X5502

25MHz

PDIAG#

DASP#

XRESET

L5201

L5202

TXP

TXN

RXN

RXP

CN5604

4,6,8,10,

12,14,16,18

+5V

9,7,5,3,

35, 33,

36

37 38 21 23 25

1

27 29 31

34

39

2

3

5

6

USBDM2

USBDP2

USBDM1

USBDP1

USBVFB

V+5USB

TPAP

TPAN

TPBP

TPBN

CN3802

IDE HDD

10

8

3

1

5

6

1

2

5

6

CN5201

CN5101

HDD

UNIT

TO/FROM FL-184 BOARD (CN102)

(SEE PAGE 3-9)

TO/FROM FL-184 BOARD (CN101)

(SEE PAGE 3-9)

JA5801

DD0-15AT1DATA0-15

XRESET

DET

3

6

3

PDIAGn

24.576MHz

L5001

L5002

L5003

L5004

DASPn

TXP

TXN

RXN

RXP

XTALI

XTALO

PORn

X5101

Q5802,5804

Q5808

34

46

32

31

28

27

22

23

17

V+3HD

DA0-2

CS0# CS1# DMRQ DIOW# DIOR# RESET#

IORDY DMACK# INTRQ

AT1ADR0-2

AT1CS0 AT1CS1 AT1DMARQ AT1DIOW AT1DIOR AT1RESET

AT1IORDY AT1DMACK AT1INTRQ

X5201

48MHz

XTAL OSC

8,9,11,

12,14,15,

17,18

5

6

2

63

59

58

55

IC5203

EV+5.8V

D0

|

D7

CTL0

CTL1

SCLK

LREQ

LPS

LKON

RESETB

62,64,2,5 7,11,13,15 14,12,10,6

3,1,63,61

3

6

3

IC5103

50 51 49

48 47 60 59 58 16

55 54 53

43

45

DV PHY

(6/7)

DD15

DA0

|

DA2

CS0n CS1n DMARQ DIOWn DIORn RESETn

IORDY DMACKn INTRQ

UAI

UAO

(6/7)

IC5204

+5V REG

VIN VO

DD0

|

IC5602

SATA BRIDGE

(5/7)

1

4

2

(6/7)

31

VC

2

V+3D

TPA0p

39

TPA0n

38

TPB0p

37

TPB0n

36

X0

22

X1

23

M4,R1,R4,R2,

AT1D00

N5,R3,P4,T1,

|

T2,P5,T3,R5,

AT1D015

U1,N4,U2,W1

AT1DA0

DQ00

|

DQ31

|

MA0

|

AT1DA2

AT1CS0B AT1CS1B

AT1DMARQ

AT1DIOWB AT1DIORB

AT1RESETB

AT1IORDY

AT1DMACKB

AT1INTRQ

USB_DN0

USB_DP0

USB_D_CONEECT

USB_D_DN0

USB_D_DP0

USB_D_VBUS

USB_CLKI

PHY_D0

|

PHY_D7

LINKON

GPIO52

|

TXD2B

RXD2B

E13,D13,E12, D12,E11,D11,

E10,D10

CTL0

CTL1

SCLK

LREQ

LPS

AT1DATA0-15

U3

AT1ADR0-2

W2

3

T5

AT1CS0 AT1CS1

T4

AT1DMARQ

V3

AT1DIOW

V5

AT1DIOR

U5

AT1RESET

V1

6

AT1IORDY

V4

AT1DMACK

U4

AT1INTRQ

V2

3

M5

TXD2_BRIDGE

AJ24

RXD2_BRIDGE

AH23

USB_DN0

M1

USB_DP0

M2

USB_D_CONEECT

P3

USB_D_DN0

P1

USB_D_DP0

P2

USB_D_VBUS

N3

USB_CLKI

N1

PHY_D0-7

PHYCTL0

E14

PHYCTL1

D14

PHYSCLK

D15

PHYLREQ

E15

PHYLPS

D16

PHYLINKON

E16

PHY_XRST

F20

IC5801

Q5809,5811

SW

Q5810

LEVEL SHIFT

TU_DSDA

TU_DSCL

DDC_SW1

TU_HPD

TU_CEC

IC5803,5804

V+5VHD

(6/7)

Q5801,5805

Note: The HDMI block is highly confidential, and prohibited from releasing to public.

3-7 3-8

The components identified by mark 9 contain confidential information. Strictly follow the instructions whenever the components are repaired and/or replaced.

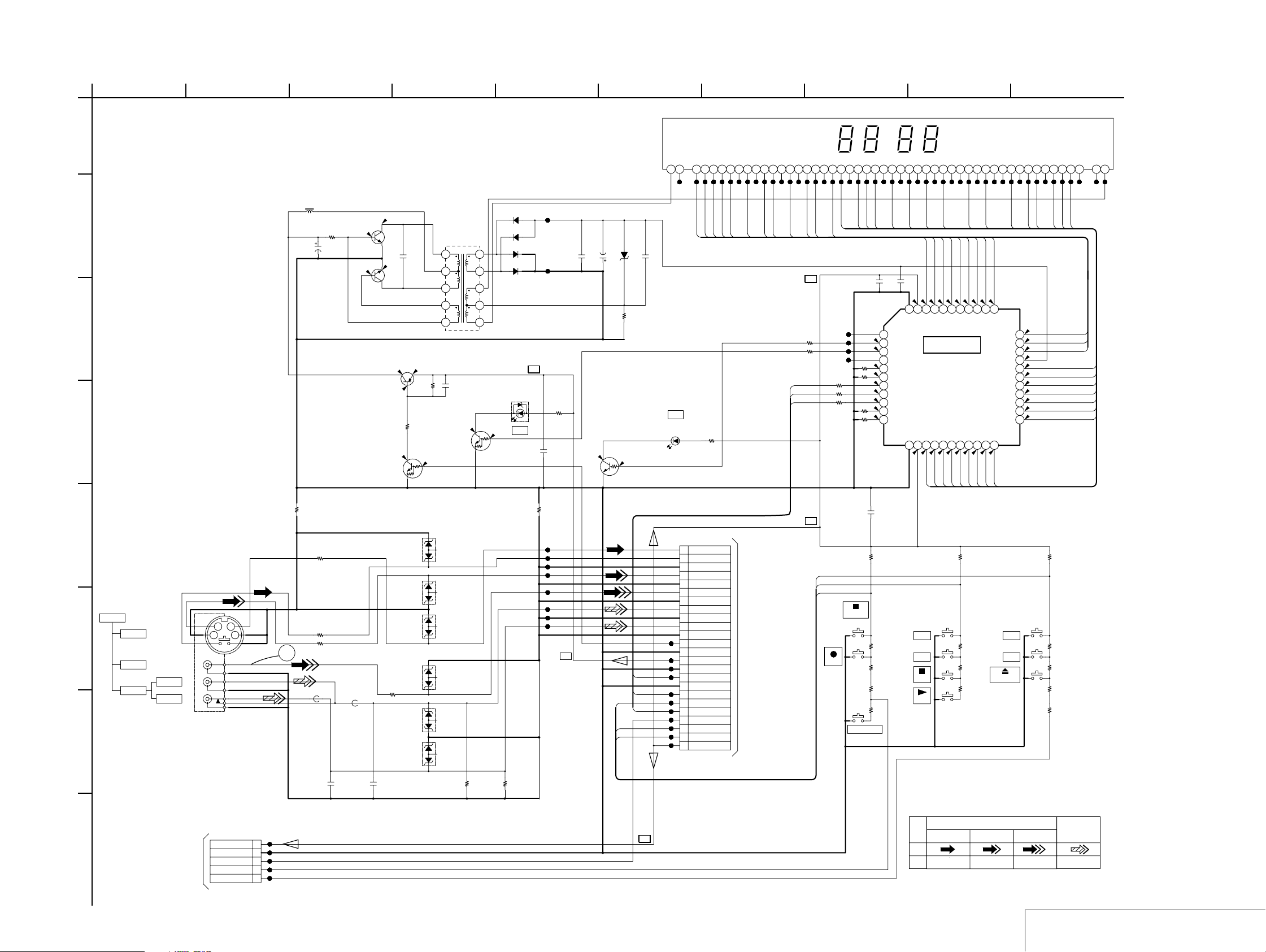

3-5. FR-291, FL-184 BLOCK DIAGRAM

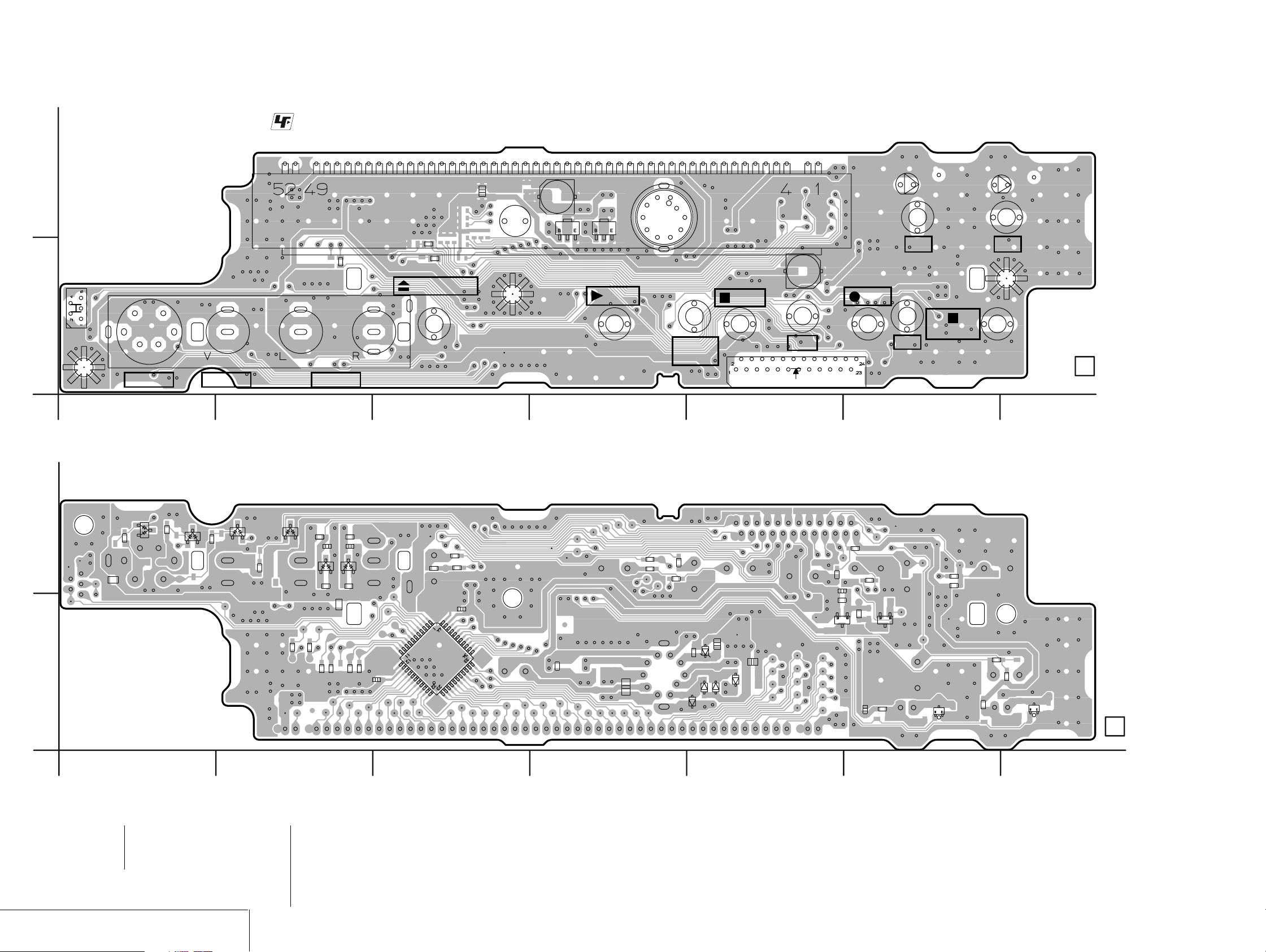

FR-291 BOARD

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

TO/FROM

AV-133 BOARD

(CN105(2/2))

(SEE PAGE 3-4)

Q206

LED2

LED3

IC201

FL DRIVER

SG1

FLDATA

16

FLCLK

18

FLSTB

20

Q203,204

V+12RIE

FLPON

12

Q201,202

DC/AC

CONVERTER

7

8

9

DIN

CLK

STB

DC/AC CONVERTER

TRASFORMER

2

3

4

5

6

SG16

GR1

GR12

VEE

T201

10

1

7

8

9

LED DRIVE

2

Q205

LED DRIVE

3

SEG1

|

D208-211

|

SEG16

16

GRD1

|

GRD12

12

FLUORESCENT

F2

F1

14

|

29

42

|

31

30

ND201

DISPLAY

D214

DVD

D212

HDD

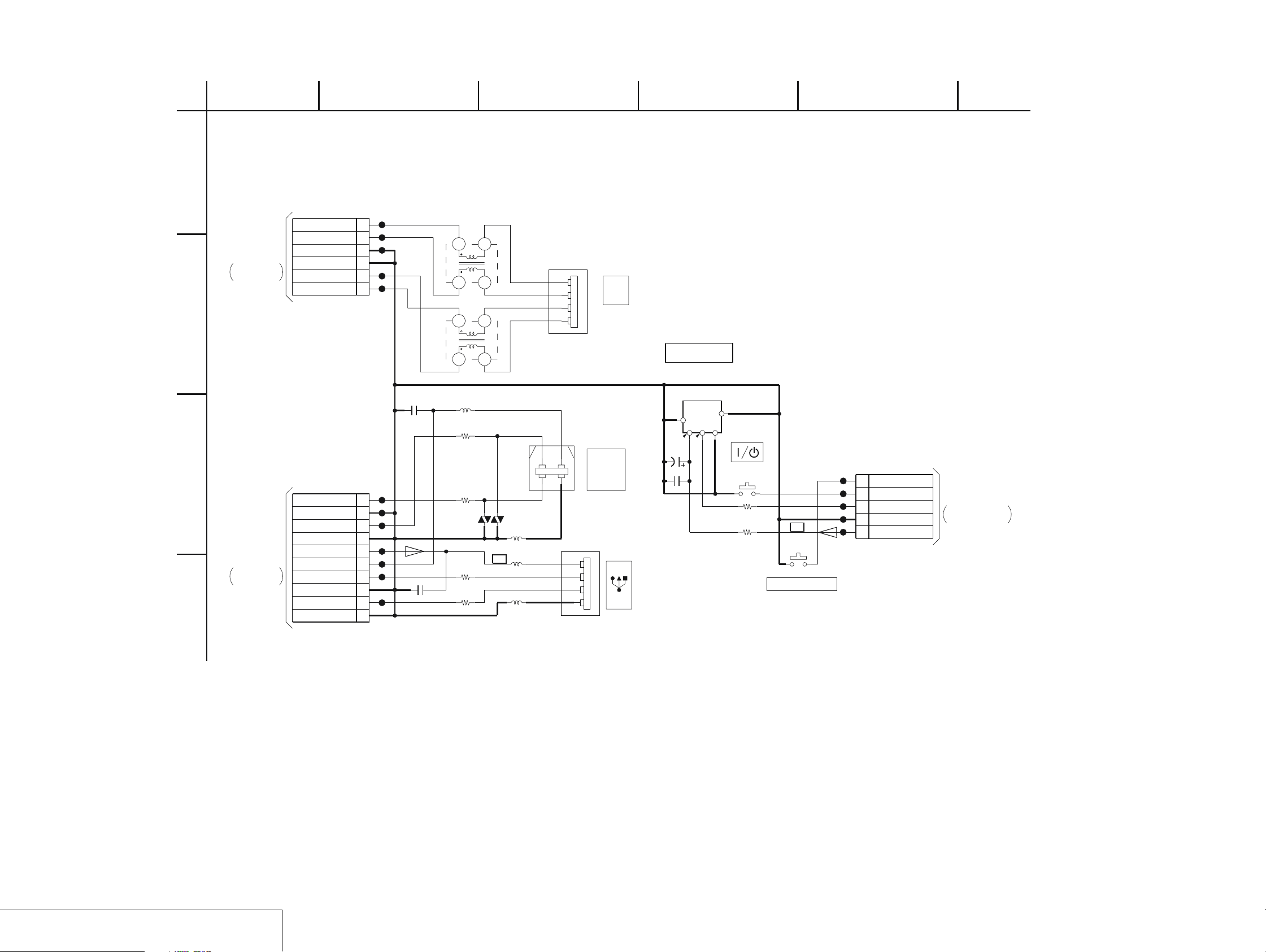

FL-184 BOARD

KEY3

19

KEY1

23

KEY2

22

IR

21

S209,210,208

OPEN/CLOSE,

HDD, DVD

S201-203

REC STOP,

INPUT SELECT,

REC

S204-207

CH+, CH-,

PLAY, STOP

CN201

5

4

3

TO/FROM RD-066 BOARD (CN5201)

(SEE PAGE 3-8)

KEY3

1

KEY1

2

IR

3

CN106

USBDM2

7

USBDP2

9

USBDM1

3

USBDP1

1

USBVFB

6

V+5USB

5

CN102

S102

S101

IC101

REMOTE CONTROL

RECEIVER

ONE TOCH DUB

POWER

2 1

3 4

1

CN104

2

3

USB

A TYPE

4

CN105

USB

B TYPE

TO/FROM

AV-133 BOARD

(CN105(1/2))

(SEE PAGE 3-3)

LINE2 IN

S VIDEO

VIDEO

AUDIO L

(MONO)

AUDIO R

2R

10

2L

8

2V

6

SDET2

2

2C

1

2Y

4

CN202

J201

3

4

5

7

9

11

TO/FROM RD-066 BOARD (CN5101)

(SEE PAGE 3-8)

2

1

5

6

CN101

TPAP

TPAN

TPBP

TPBN

FL102

FL101

4

TPA+

TPA-

TPB+

TPB-

CN103

3

2

DV

IN

1

3-9 3-10

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

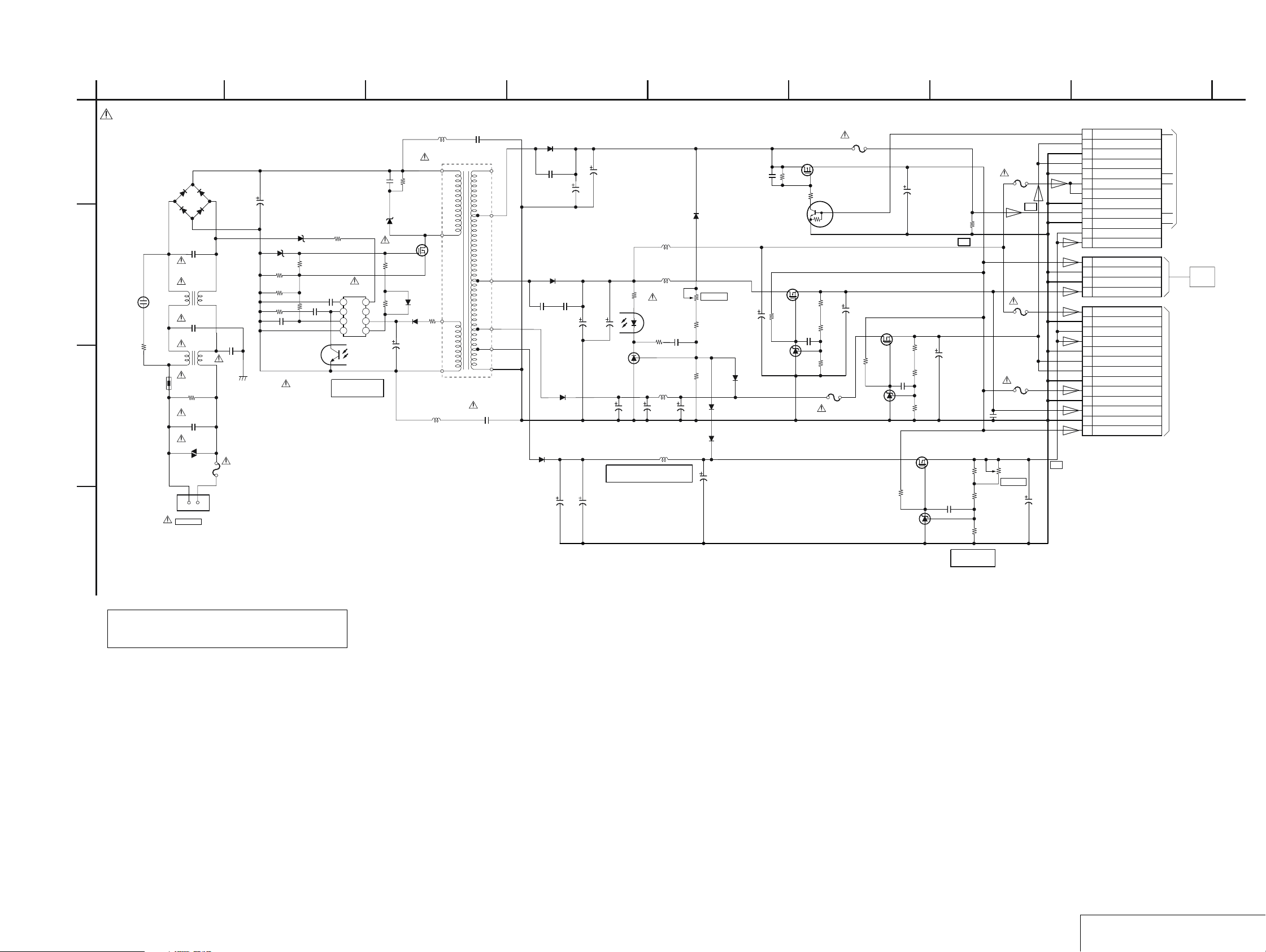

3-6. POWER BLOCK DIAGRAM

DT-124 BOARD

RDR-HXD795/HXD895/ HXD995/HXD1095 model only

IC3015

OR GATE

IC3009 IC3010

BUFFER

IC3006 IC3007 IC3008

MULTIPLEXER

IC3004 IC3005

BUFFER

IC3002 IC3003

BUFFER

IC3011

NAND GATE

IC3001

BUS BUFFER

V+1.5V

XCI_VCC_5V

VREF

V+5CI

Q202-204

IC106

113

IC101

DDR SDRAM

IC104

IC205

FLRASH ROM

IC306

5V REG

VOUT VIN

ON/OFF

IC207

5V SW

3 4

AC IN

EMMA

256Mbit

27MHz

VCXO

32Mbit

2

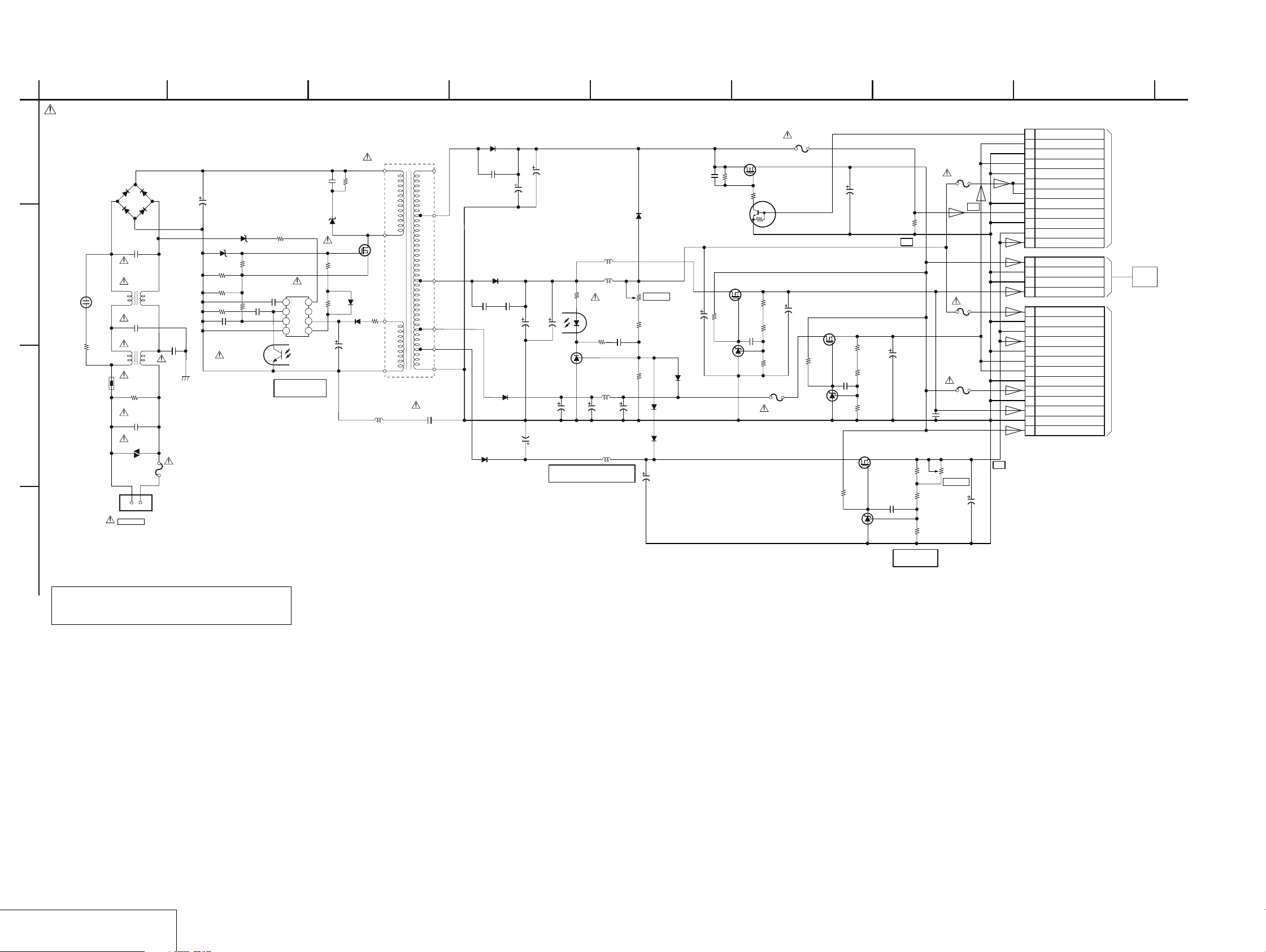

SWITCHING REGULATOR

FU101

T3.15A/250V

L

N

CN101

V+2.5D

F300

L3001

F108

VA+3.3A

VD+3.3D

F314

D+2.5V

F202

(4/5)

V+5.8E

45

1

P-CONT2

F314

VCC

17,51

CN201

CAM

L101,102

V+5.8E

LPF

V+3.3SW

P-CONT2

VOUT VIN

EV+12.1V

D101-104

D109

IC300

2.5V REG

ON/OFF

1

VIN1

4

VIN2

3

IC304

5V REG

VIN VOUT

ON/OFF

IC312

5V REG

VIN VOUT

CONT

IC309

5V SW

IC307

REG

PS1

3

4

2

45

VO1

VO2

PS2

3

DT_TUON

IC101

SWITCHING

REGULATOR

(4/5)

V+3.3SW

5

6

15

4

V+3.3SW

V+3.3DT

V+3.3A

V+3.3D

V+5VA

V+5T

ANT POWER

58

SWITCHING

3

6

D105

F302

F301

IC313

OFDM

DEMODULATOR

U301

DTT

TUNER

Q101

COUPLER

PC101


DT_TUON

AN5V_SW DT TOUN

CN202

SWITCHING

TRANSFORMER

IC201

SHUNT REG

11,12

9

6,7

2,4

1

EV+12.1V

V+5.8E

P-CONT

P-CONT2

F309

CN203

CN103

T101

SW+1.5V

EV+12.1V

V+5.8E

SW+3.3V

P-CONT

D401

D402

D201

D501

D601

VR201

5.8V ADJ

L201

L501

L601

P501

D502

Q401,402

D603

D604

P401

EV+12V

SW+12V

EV+5.8V

IC202

SHUNT REG

IC501

SHUNT REG

IC601

SHUNT REG

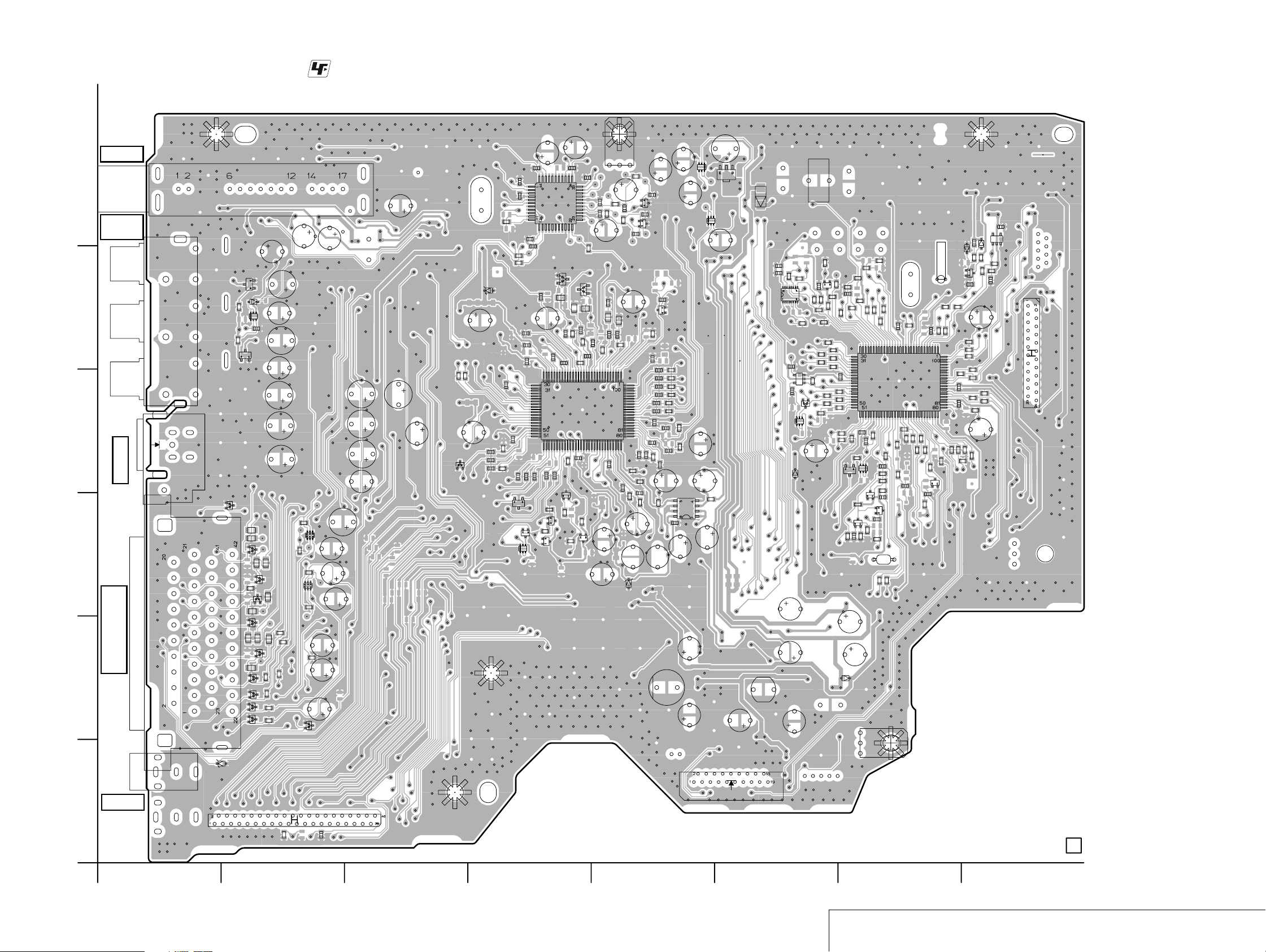

AV-133 BOARD

CN302

12,10

EV+12.1V

14

EV+5.8V

P-CONT

15

P-CONT2

6

FAN-

1

SWVION5V

TUON

SWVION9V

IC317

V+32V

8

DT_TUON

3

ANT5V_SW

4

DET ANT

5

FAN

6

8,10

5

14

19

12

17

16

15

2

1

FAN DRIVE

RFTHRU

Q201

Q301,302

Q305,306

Q303,304

Q307,308

9V REG

TU_DDCON

Q309-311

DC/DC CONV.

V+12R1

V+5R8E

V+5BB

V+5TU

V+9V

FANCTL

V+5VD

V+32V

Q201

5V REG

Q501

3.3V REG

Q601

1.5V REG

IC150

D103

D104

C118

BACK-UP

IC401

VIDEO/AUDIO

SELECTOR

(3/5)

U601

UHF/VHF

TUNER

(5/5)

IC601

EURO MSP

(5/5)

IC402

BUFFER

(3/5)

CN105

SW+5V

SW+3.3V

SW+1.5V

VR601

1.5V ADJ

SW+12V(H)

1

SW+5V(H)

4

IC101

(1/5)

IC102

(1/5)

IC103

IC101 VDD DET

(1/5)

IC104

DDC SW

(1/5)

IC406

AVLTH SW

(4/5)

V+5F

Q203,204

11,12

CN203

9

6,7

2,4

1

CN202

EV+5.8V

1

SW+1.53V

3,4

SW+3.33V

6,7

V+12V

9

V+5M

11

V12M

13

CN201

CN101

Q201,202

CONVERTER

SW+1.5V(T)

EV+12V(T)

EV+5.8V(T)

P201

SW+3.3V(T)

P_ON/OFF

P204

EV+5.8V(M)

SW+1.5V(M)

SW+3.3V(M)

SW+12V

P402

SW+5V(W)

SW+12V(W)

V+5V

P_CONT

62

P_CONT2

57

FLPON

24

14

12

CN202

54

52

60

61

64

74

85

86

87

63

V+12RIE

FLPON

IT CONTROLLER

POWER FAIL DET

FANCTL

RFTHRU

TUON

SWVION9V

SWVION5V

TU_DCCON

DT TOUN

ANT5V_SW

DET ANT

11311

HDD

UNIT

RD-066 BOARD

EV+5.8V

1

V+1R5_IN

3,4

V+3D

6,7

V+12V

9

V+5M

11

V12M

13

CN4501

P_CONT2

13

28

CN2301

T201

F1,F2

DC/AC

ND201

FLUORESCENT

DISPLAY

EV5.8V

V+1R5_IN

EV5.8V

IC4502

IC4501

V+3D

EV5.8V

P_CONT2

V+3D

D208-211

RECT

SPINDLE MOTOR

CN501

IC4511

3V REG

VIN VOUT

ON/OFF

1

IC4521

2.5V REG

VIN VOUT

ON/OFF

1

IC4531

1V REG

VIN VOUT

CONT

5

IC4541

3V REG

VIN VO

CONT

5

IC4552

5V REG

VIN VOUT

ON/OFF

1

IC4561

5V REG

VIN VOUT

CONT

1

IC4562

3V REG

VIN VOUT

CONT

1

IC4571

1.8V REG

VIN VOUT

ON/OFF

4

IC5204

5V REG

VIN VOUT

NC

3

DVD

OPTICAL PICK-UP BLOCK

CN101

6,16

IC201

FL DRIVE

VA5V VD3V

41

L4551

(7/7)

IC501

TRACKING COIL DRIVE

FOCUS COIL DRIVE

SPINDLE MOTOR DRIVE

SLED MOTOR DRIVE

LOADING MOTOR DRIVE

V+2R5

V+1R5_IN VREF_D

V+3V

V+3D

V+2R5

V+1R0

V+3A

V+3D

V+5AO

V+5A IN

V+5D

V+12VA

V+3D

IC3707

MRST

(3/7)

IC1001

AV ENC/DEC

(2/7,4/7 to 7/7)

IC201

64Mbit SDRAM

(4/7) (4/7)

IC3701

BUFFER

IC3201

AUDIO DAC

IC3202

AUDIO LPF

IC5803 IC5804

(6/7)

L5601

V+3DS

EMI

L5101

L5122

EMI

FR-291

V+3V_A

V+3V_D

CN201

IC5602

SATA BRIDGE

(5/7)

IC5103

DV PHY

(6/7)

1

CN106

5

IC101

REMOTE

COMMANDER

V+5F

RECEIVER

IC1201 IC1221

512Mbit X 2 DDR SDRAM

(4/7)

IC1102

64Mbit FLASH ROM

IC3702

AND GATE

IC3101

AUDIO ADC

IC5801

(6/7)

IC5701

SPDIF SELECT

(3/7)

IC5203

AND GATE

(6/7)

(3/7)(3/7)

(3/7)(3/7)(3/7)

FL-184 BOARD

R223

V+5USB

CN5201

V+5USB

CN102

CN1401

1

FOR CHECK

10

CN201

FOR CHECK

CN1402

5

FOR CHECK

18

JA5801

6

5

CN104

USB

1

ATYPE

12

(1/7)

V+3V

54

(1/7)

V+2R5

54

(1/7)

V+1R0

18

(1/7)

V+3A

17

(1/7)

V+5L

54

(1/7)

V+5HD

45

(1/7)

V+3HD

45

(1/7)

V+1R8

15

(6/7)

5V

54

VEE

BOARD

3-11 3-12E

Note1: The HDMI block is highly confidential, and prohibited from releasing to public. Note2: The components identified by mark 9 contain confidential information.

Strictly follow the instructions whenever the components are repaired and/or replaced.

SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS

4-1. FRAME SCHEMATIC DIAGRAM

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

SECTION 4

1

A

B

POWER BLOCK

SWITCHING

( )

REGULATOR

CN201 13P

CN202 12P

EV+5.8V(M )

SW+1.5V(M )

SW+3.3V(M )

SW+12V

SW+5V(W )

GND(W)

SW+12V(W)

P_ON/OF F

SW+3.3V(T )

EV+5.8V(T )

EV+12V

SW+1.5V(T )

1

2

GND

3

4

5

GND D

6

7

8

GND

9

10

GND(J)

11

12

13

1

2

3

GND

4

5

GND

6

7

8

GND

9

GND

10

11

12

2

PH-080

HARNESS

4P

5V

4

GND

3

GND

2

12V

1

7P

1

GND

2

HT+

3

HT-

4

GND

5

HA-

6

HA+

7

GND

C

1

EV+5.8 V

2

GND D

3

CN203 4P

SW+5V(H)

4

GND

3

GND

2

SW+12.1V(H)

1

D

PR-078

HARNESS

4

5

GND D

6

7

8

GND D

9

10

11

12

GND M

13

10

9

8

7

6

5

4

3

2

1

SW+1.53V

SW+3.33V

V+12V

GND

V+5M

V12M

CN5201 10P

USBDM2

GND

USBDP2

GND

V+5USB

USBVFB

GND

USBDM1

GND

USBDP1

E

F

PD-142

HARNESS

CN103

DV IN

CN105

PICT BRIGE USB B TYPE

G

CN04

USB A TYPE

10

GND

USBDP2

RU-001

HARNESS

6

789

GND

USBVFB

V+5USB

USBDM2

CN102 10P

USBDM1

12345

GND

USBDP1

RV-003

HARNESS

FL-184 BOARD

3 4 5 6 7 8 9 10

CN4501 13P

6

TPBN

TPBP

6

TPBP

TPBN

RH-059

HARNESS

CN5101 6P

A_GN D

1

2

3

4

5

6

7

8

9

10

11

12

GND

CN101 6P

TPAN

TPAP

12345

CN202 12P

P_CONT

SW+3.3V

GND

SW+3.3V

GND

V+5.8E

GND

EV+12.1V

GND

SW+1.5V

12345

TPAP

TPAN

HDD UNIT

1234567

TXP

GND

CN5604 7P

GND

AT/XD T

GND

AT/XDT

DIGITAL TUNER

CN106 5P

RXP

TXN

RXN

GND

RD-066 BOARD

XRESET

GND

RX1

TX1

GND

SCL_VDEC

SDA_VDEC

987654321

GND

TDXA

RDXA

SDA_VDEC

XRESET

SCL_VDE C

KEY3

KEY1

2

IR

3

GND

4

V+5F

5

CN4701 28P

STREAM_4

STREAM_5

STREAM_6

STREAM_7

GND

VCLKI

GND

GND(RFE/XLL)

FVR-001

FLEXIBLE

FLAT CABLE

10

GND

VD07

VD04

VD06

VD05

VCLK

GND(REF/LL)

CN102 28P

DT-124 BOARD

CN203 2P

FAN-

1

2 FAN+

GND

STREAM_0

STREAM_1

STREAM_2

STREAM_3

10111213141516171819202122232425262728

191817161514131211

GND

VD01

VD02

VD00

VD03

FLR-010 or FLR-012

COMPONENT

VIDEO OUT

G-LINKLINE 2 OUT

ANALOG

TUNER

AEP,UK only

CN2301 40P C N101 40P

40

X525P

39

YP_OUT

38

GND

FRA-006

37

CR_OUT

FLEXIBLE

36

GND

FLAT CABLE

35

CB_OUT

34

GND

33

Y_OUT

32

GND

31

C_OUT

30

GND

29

Y_IN

28

GND

27

C/R_IN

26

GND

25

G_IN

24

GND

23

B_IN

22

GND

21

L_OUT

20

GNDA

19

R_OUT

18

AMUTE

17

R_IN

16

GND

15

L_IN

14

GND

13

P_CONT2

12

MRST

11

XRST1

10

DAM_TO_T

9

HSM_TO_T

8

DAT_TO_M

7

ASCK

6

HST_TO_M

5

DSDA

4

CEC

3

DSCL

2

DDC_SW1

1

HDP

GND

SPDIF

GND

ABCKI

ADATA

ALRCKI

123456789

282726252423222120

GND

ABCK

SPDIF

ADATA

ALRCK

CN103 19P

19

FAN-

18

GND

17

DT_TUON

16

ANT5V_SW

15

DET_ANT

14

P_CONT2

13

GND

FAD-010

12

V+32V

11

GND

FLAT CABLE

10

V+5.8E

9

GND

8

V+5.8E

7

GND

6

EV+12.1V

5

P_CONT

4

GND

3

VAC

2

GND

VAY

1

FAN

FLEXIBLE

FLAT CABLE

FLEXIBLE

:19pin

10

11

12

13

14

15

16

17

18

19

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

2

3

4

5

6

7

8

9

HPD

DDC_SW 1

DSCL

CEC

DSDA

HST_TO_M

ASCK

DAT_TO_M

HSM_TO_T

DAM_TO_T

XRST1

MRST

P_CONT2

GND

L_IN

GND

R_IN

AMUTE1

R_OUT

GNDA

L_OUT

GND

B_IN

GND

G_IN

GND

C/R_IN

GND

Y_IN

GND

C_OUT

GND

Y_OUT

GND

CB_OUT

GND

CR_OUT

GND

YP_OUT

X525P

CN302 19P

B_IN

GND

Y_IN

GND

DT_TUON

ANT5V_SW

DET_ANT

P_CONT2

V+32V

GND

EV+12.1V

GND

EV+5.8V

GND

EV+5.8V

P_CONT

GND

FAN-

GND

AV-133 BOARD

CN105 24P

+5F V+5F

IR

2L

GND

2Y2CGND

SDET2

GND

2V

17

18192021222324

1234567

2C

CN201 5P

KEY3

51

KEY1

4

IR

3

GND

2

V+5F

1

SDET2

FR-291 BOARD

8

2L

2V

GND

GND2YGND

GND

FLPON

GND

FLDATA

GND2RGND

V+12R1E

10111213141516

FAR-008

FLEXIBLE

FLAT CABLE

9

101112131415161718192021222324

GND

GND2RGND

FLPON

FLDATA

V+12R1E

CN202 24P

KEY1

KEY3

KEY2

FLSTB

GND

FLCLK

GND

FLCLK

123456789

IR

KEY2

KEY1

KEY3

V+5F

FLSTB

CN101 50P 50P

W1SET

W2SET

W3SET

LDDEN

OSCEN-

OSCEN+

W1EN-

W1EN+

W3EN-

W3EN+

W2EN-

W2EN+

OSCNT

HFGAIN

DVD/CD

VREFPD

CN502 4P 4P

CN601 5P 5P

BLACK

CN501 12P 12P

DVD-UNIT

50

FR

FD

TR

TD

SCLK

SDIO

SEN

VPP

RESET

VD3V

TEMP

RSET

VO5V

GNDO

GNDA

FMO-

FMO+

VA5V

SW2

M3

M2

M1

M4

RF+

GNDA

RF-

VA5V

S3

S2

S1

S4

ST2+

ST2-

ST1-

ST1+

LPS2

GNDD

LPS1

RED

VCC

HU+

HU-

HV+

HV-

HW+

HW-

HB

U

V

W

GNDD

FR1

49

FD

2

48

TR

3

47

TD

4

46

SCLK

5

45

SDIO

6

44

SEN

7

43

VPP

8

42

RESET

9

41

VD3V

10

40

TEMP

11

39

RSET

12

38

W1SET

13

37

W2SET

14

36

W3SET

15

35

LDDEN

16

34

OSCEN-

17

33

OSCEN+

18

32

W1EN-

19

31

W1EN+

20

30

W3EN-

21

29

W3EN+

22

28

W2EN-

23

27

W2EN+

24

26

VO5V

25

VO5V

26

24

OSCNT

27

23

GNDO

28

22

GNDO

29

21

HFGAIN

30

20

DVD/CD

31

19

GNDA

32

18

FMO-

33

17

FMO+

34

16

VA5V

35

15

SW2

36

14

M3

37

13

M2

38

12

M1

39

11

M4

40

10

VREFPD

41

9

RF+

42

8

GNDA

43

7

RF-

44

6

VA5V

45

5

S3

46

4

S2

47

3

S1

48

2

S4

1

SW1

5049SW1

ST2+

4

ST2-

3

ST1-

2

ST1+

1

LPS2

5

GNDD

4

LPS1

3

BLACK

2

RED

1

VCC

12

HU+

11

HU-

10

HV+

9

HV-

8

HW+

7

HW-

6

HB

5

U

4

V

3

W

2

GNDD

1

J201

LINE 2 IN

H

4-1 4-2

FRAME SCHEMATIC DIAGRAM

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

4-2. SCHEMATIC DIAGRAMS

THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block)

(For printed wiring boards)

• : Uses unleaded solder.

• : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated)

• Through hole is omitted.

• There are a f ew cases that the par t printed on diag ram

isn’t mounted in this model.

• C : panel designation

(For schematic diagrams)

• All capacitors are in µF unless otherwise noted. pF : µµF.

50V or less are not indicated e xcept for electrolytics and tantalums.

• All resistors are in ohms, 1/4 W (Chip resistors : 1 /10 W) un-less

otherwise specified.

kΩ=1000Ω, MΩ=1000kΩ.

• Caution when replacing chip parts.

New parts must be attached after removal of chip. Be careful not to heat the minus side of tantalum capacitor, be-

cause it is damaged by the heat.

• All variable and adjustable resistors have characteristic curve B,

unless otherwise noted.

• 2 : non flammable resistor

• 5 : fusible resistor

• C : panel designation

• f : internal component

• C : adjustment for repair

• G : IN/OUT direction of (+/–) B line

• U : B+ Line

• V : B– Line

• Circled numbers refer to waveforms.

•Voltages are dc between measurement point and ground.

• Readings are taken with a color-bar signals on DVD reference disc.

• Readings are taken with a digital multimeter (DC 10MΩ).

•Voltage variations may be noted due to normal production tolerances.

Note : The components identified b y mark 0 or dotted

When indicating parts by reference number, please include the board name.

• Chip parts. Tr ansistor Diode

C

EB

line with mark 0 are critical for safety. Replace only with part number specified.

5

5246

654

45

123

31

21

345

312

43

12

534

3

54

21

34

5

1 3

21321

64

4

1

123

43

12

3

43

12

3

12

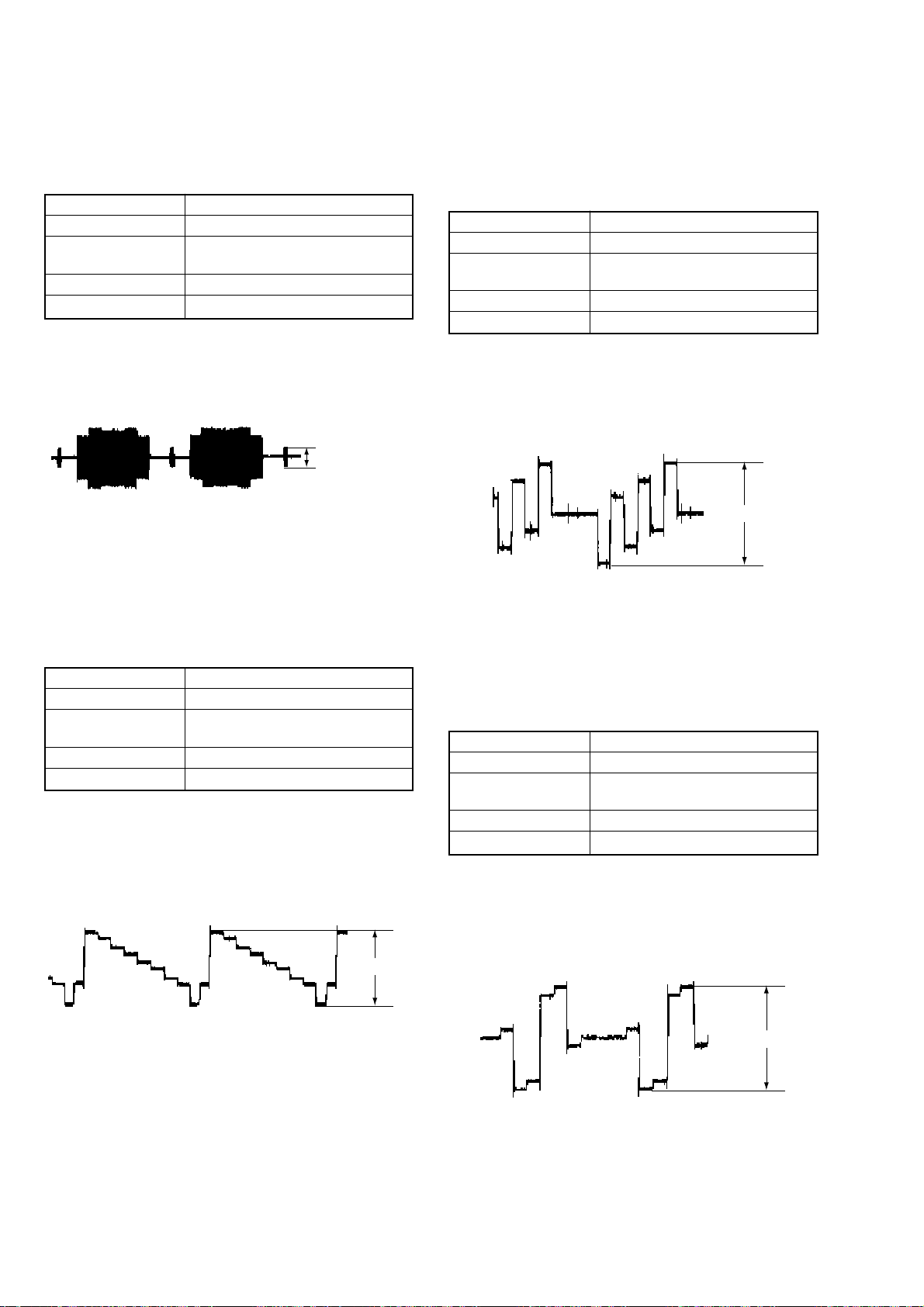

AV-133

1

IC101

4

JA401

31

4625

4

3

12

7

JA402 Pr OUT

H

BOARD

qd

66.6 ns

3

(X101)

5.0 Vp-p

1.8 Vp-p

1.0 Vp-p

2

IC101

30.5 ns

5

JA401

8

JA402 V OUT

q;

4

(X102)

H

5.0 Vp-p

1.4 Vp-p

2.1 Vp-p

3

IC601

54.2 ns

6

JA402 Pb OUT

H

9

JA402 Y OUT

6

(X601)

4.0 Vp-p

1.0 Vp-p

1.7 Vp-p

H

WAVEFORMS

RD-066 BOARD

1 IC1001 (AF1) 2 IC5103 wd (X5101)

3.7 Vp-p

59 ns

FR-291

1 J201 VIDEO IN

BOARD

7

H

1.0 Vp-p

40.7 ns

DT-124

1

IC104 8 (X100)

BOARD

37 ns

3.2 Vp-p

3 IC5602 wd (X5502)

40 ns

2

IC313

2.2 Vp-p

50 ns

tj

2.1 Vp-p

(X300)

2.3 Vp-p

q;

qd

JA501

7

qg

B OUT

H

R OUT

H

1.2 Vp-p

qa

qf

JA501

qg

ql

C OUT

H

V OUT

H

1.4 Vp-p

2.2Vp-p

qs

qg

JA501

qa

ql

G OUT

1.2 Vp-p

H

Y OUT

1.8Vp-p

H

WAVEFORMS

AV-133 DT-124 FR-291 RD-066

4-44-3

For Schematic Diagram

• Refer to page 4-4 for waveforms.

• Refer to page 4-43 for printed wiring board.

1

2

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

3 4 5 6 7 8 9 10 11 12

B+

A

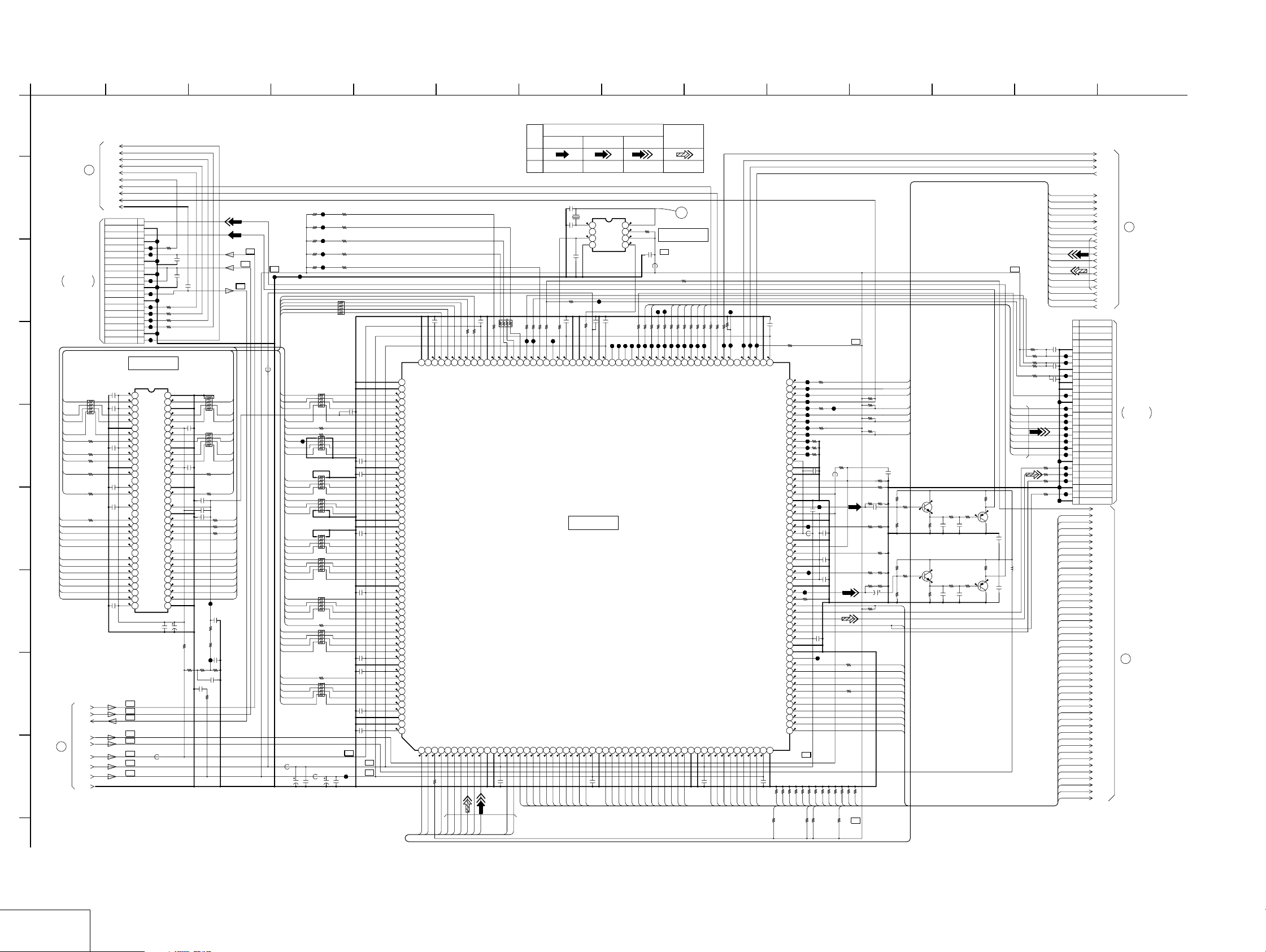

AV-133 BOARD(1/5)

IT CONTROLLER, IR

-REF.NO.: 10,000 SERIES-

B

SWVION9V

P_CONT2 DET_ANT

ANT5V_SW

SWVION5V TU_DCCON

CSYNCIN

XAMUTE2

FUNC_ON

MSPSTAT

100k

P_CONT

DTBON FANCTL RFTHRU

TUON

P_SAVE

SCL

SDA RCSEL1 RCSEL2

BLANK

AMUTE1

SAMUTE FUNC_IN

BLANK AVLTH

AVLIN

AVLOUT

SQU

AFT

AGC

SCL

SDA

XRST1

DBGP2

DBGP1

DBGP0

B+

L_IN

R_IN R_OUT L_OUT

Y_IN C_OUT Y_OUT

CB_OUT CR_OUT YP_OUT TEXTVIN

L2_RIN L2_LIN

2VIN

Y2IN

C2IN C/R_IN

B+

BTOMAIN GTOMAIN

(V+12R1E)

V+12R1

(V+5VI)

V+5VV

GND

V+5R8E

SWVION9V

P_CONT

P_CONT2

1

DET_ANT

ANT5V_SW

T0 (2/5)

C

D

E

F

T0 (3/5)

T0 (4/5)

T0 (5/5)

DTBON FANCTL RFTHRU

TUON

SWVION5V

TU_DCCON

V+5V

P_SAVE

CSYNCIN

SCL

SDA RCSEL1 RCSEL2

BLANK

XAMUTE2

AMUTE1

L_IN R_IN

R_OUT

2

L_OUT

Y_IN C_OUT Y_OUT

CB_OUT CR_OUT YP_OUT TEXTVIN

L2_RIN

L2_LIN

2VIN

Y2IN

C2IN C/R_IN

GND

V+5V

SAMUTE

FUNC_IN FUNC_ON

BLANK

3

AVLTH

AVLIN AVLOUT

SQU BTOMAIN GTOMAIN

AFT

AGC

4

SCL SDA

XRST1

MSPSTAT

R193

R194

R195

G

R130

0

D103

H

1SS355TE-17

D104

1SR154-400TE-25

C120

0.1

JL109

C122

1

JL270

C118

0.22F

5.5V

I

DTBON

ANT5V_SW

DET_ANT

DBGP2

DBGP1

DBGP0

DAT_TO_M

DAM_TO_T

ASCK

B+

C121

R177

100

R178

100

R179

100

R233 100k R180

100

R181

100

R182

100

R188

330

R189

470

R200

330

1

JL113

R176

1k

C139

C138

2.2

0.1

50V

C140

0.1

IC102

ACDET

D101

1SS355TE-17

2.0

2.9

4.9

4.8

0

4.9

0

3.2

B+

C104

25V

BD4846G-TR

C110

1

B

D102

22

IC102

100

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

C106

0.1

R113

0

BLANK

CVBSIN

GND

FILTSLC

VDDVCO

DTBON

ANT5V_SW

DET_ANT

GND

VDD3

DBGP2

DBGP1

DBGP0

LED_PLTV

LED_DIVX

LED_D_TV

LED_A_TV

LED_HDD2

DAT_TO_M

DAM_TO_T

ASCK

R104 47k

0

Q108

DTC124EUA-T106

BLANK SW

HST_TO_M

330

R174

R175

R173

100k

4.9

4.900

RXD2

VDDDDA

HST_TO_M

NC

0

R107

10k

JL272

4.9

321

NC GND

R112

10k

R106

IN

OUT

NC

C105

0.1

54

JL273

4.9

0

DTC124EUA-T106

C752 100p

JL705

R753

4.7k

R755

4.7k

R169 10k

4.9

C135

0.1

RXD1

TXD1

TU_DCCON

100

180

R199

R171

100

R168

R172

100k

JL132

4.8

3.004.904.9

TXD1

RXD1

TXD2

TU_DCCON

WDT

ACDET

HSM_TO_TIRRESET

4.9

3.2

4.9

100

330

100

R105

R109

R110

0

HSM_TO_T

Q101

RESET

R751

JL707

0

JL706

Q752

2SC4154TP-1EF

IR I/F SW

C134

0.1

MRST

HOTPLUG

MSPSTAT

100

R1670R159

JL140

BLANK

HOTPLUG

TX1

1.6

2.5

JL152

JL155

C107

100

R111

JL156

C1119pC112

8p

C109

0.1

R701

1k

4.9

JL708

100

R165

MSPSTAT

TX2

330p

R116

0

X102

32.768kHz

R752

4.7k

R161

0

CEC0

AVLIN

CSYNCIN

0

R160

3.600

AVLIN

100

JL149

CEC

R156

R158

R157 100k

100k

NC(IN)

CSYNCIN

XCHECKER

4.8

100

R155

MRST

IC101

IT CONTROLLER

IC101

LC87F06J2A-F59P6-E

12

GND

CF1

CF2

VDD1

MODEL1

MODEL2

2.204.9

4.904.9

JL166

JL168

R226 15k

1

C113

1M

R117

0

JL162

JL160

C114 10p

220k

C753 100p

ISA1602AM1TP-1EF

R118

0

JL163

X101

15MHz

C115

10p

JL709

4.9

Q751

IR I/F SW

R228

JL710

R123

FLPON

SWVION5V

100

R154

R153

100

4.8

4.7

FLON

SWVION5V

KEY1

KEY2

4.9

330

R124

R129

KEY1

KEY2

4.9

0

R754

150

R756

1k

P_CONT

KEY3

330

KEY3

TUON

EPGEQ

P_CONT2

SWVION9V

0.1

C133

JL167

R125

R151

0

100

4.8

4.804.8

4.7

TUON

EPGEQ

P_CONT2

MUTECTL

SWVION9V

AGC

BATTDET

FUNC

SDET3

SDET2

4.4

4.904.9

4.9

JL176

R133 100k

R135

C124

100k

0.1 R134

1k

R131

4.7k

100

R126

R132

R127

6.8k

10k

0

FUNC_IN

AGC

C751

0.1

AVLOUT

JL711 JL712

L751 0uH

C754 100p

C132

0.1

4.9

GND

AVLOUT

SDET1

470

R138

0

FANCTL

R150

0.1

C131

2.7

VDD2

FANCTL

SDA

SCL

4.9

R139

6.8k

100

R137

R140

JL212

4.9

SDA0

SCL0

C141

10V

IC104

DDC SW

JL714

0

R141

0

1

F

NC

6.8k

RFTHRU

R149

4.8

515253545556575859606162636465666768697071727374757677787980

RFTHRU

CAPACITOR

XRST

NC

4.7

0

R143

R142

XRST1

JA751

0

R103

100

FLCLK

FLSTB

FLDATA

AVLTH

XSCMUTE

P_SAVE

BLAIR

NC

SQUEEZE

FUNC_ON

VDD4

GND

DDCSW2

DDCSW1

NC

RCSEL2

RCSEL1

XAMUTE2

NC

AFT

C125

0.1

100

Q102

2SC4154TP-1EF

RESET

CEC0

C142 1000p

50V

G-LINK

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

DDC_SW2

D106

1SS355TE-17

D108

DAP202UT106

RESET

R102

4.9

100

R101

0

100

R148

0

100

R146

4.8

100

R152

0

R201

0

4.8

AEP, UK only

0

C126

4.9

0.1

R205

4.9

100

R204

4.7

100

R202

0

R203

4.9

0

R144

4.9

0

R222

0

B+

SDA

DDC_SDA

R255

R224

100

0

4.9

4.3

16 15 14 13 12 11 10 9

IC104

TC7MB3257FK(EL)

4.9

AEP, UK only

JL192

4.9

3.6

SDA0

R223

0

R221

C127

100 16V

SCL

DDC_SCL

R256 100

4.9

4.3

3.6

100

FLCLK

FLSTB

FLDATA

AVLTH

P_SAVE

FUNC_ON

DDC_SW2

DDC_SW1

RCSEL2

RCSEL1

XAMUTE2

SCL0

4.9

87654321

J

5.2

SQU

AFT

5.3

0

Q103

UMD2N-TR

11.7

SAMUTE

B+

R145

10k

C156

0.1

4.9

2.5

C152

1

10V

JL280

F

0

4.9

BU4220G-TR

OUT

IN

321

GNDCTNC

Q104

UMD2N-TR

IC103

IC101 VDD DET

AEP, UK only

Q110

EPGEQ

DTA143EVA-T106

EPGEQ

0

4.9

3.2

Q112

2SC4154TP-1EF

CV I/F

R217

1k

0

AMUTE1

2.5

54

JL215

4.9

C149

10p 50V

R207

R208

470

0

R210

820

0.5%

Q111

2SC4154TP-1EF

3.2

CV I/F

JL279

2.4

1.7

R216

R215

680

750

C157

0.1 B

C150

L102 47uH

1

10V

F

R147

1k

4.8

11.7

R209

3.3k

R214

3.3k

Q103 - Q105

SAMUTE CONTROL

0

Q105

2SD2114KT146

B+

TEXTVIN

JL218

KEY1

KEY2

FLSTB

KEY3

FLCLK

FLDATA

IC150

FLPON

L2_RIN

L2_LIN

2VIN

Y2IN

C2IN

HOTPLUG

DDC_SW1

DDC_SCL

DDC_SDA

HST_TO_M

ASCK

DAT_TO_M

HSM_TO_T

DAM_TO_T

XRST1

MRST

P_CONT2

L_IN

R_IN AMUTE1

R_OUT

L_OUT

BTOMAIN

GTOMAIN

C/R_IN

Y_IN

C_OUT

Y_OUT

CB_OUT

CR_OUT

YP_OUT

0.5A 32V

JL238

R197

0

JL236

JL237

Note : The components identified b y mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

SIGNAL PATH

R242

0

R241

0

JL275

JL224

JL223

JL234

JL230

JL222

JL231

JL232

JL233

JL235

R240

JL239

JL240

JL241

JL242

JL243

JL244

JL245

JL246

JL247

JL248

JL249

JL250

JL251

JL252

JL253

JL254

JL255

JL256

JL257

JL258

JL259

JL260

JL261

JL262

JL263

JL264

JL265

JL266

JL267

JL268

JL269

REC

0

PB

CN105

24P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

CN101

40P

401234567891011 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

V+5F

KEY1

KEY2

IR

FLSTB

KEY3

FLCLK

GND

FLDATA

GND

V+12R1E

GND

FLPON

GND

2R

GND

2L

GND

2V

GND

2Y

GND

SDET2

2C

HPD

DDC_SW1

DSCL

CEC

DSDA

HST_TO_M

ASCK

DAT_TO_M

HSM_TO_T

DAM_TO_T

XRST1

MRST

P_CONT2

GND

L_IN

GND

R_IN

AMUTE1

R_OUT

GNDA

L_OUT

GND

B_IN

GND

G_IN

GND

C/R_IN

GND

Y_IN

GND

C_OUT

GND

Y_OUT

GND

CB_OUT

GND

CR_OUT

GND

YP_OUT

X525P

EE

KN101 KN102

VIDEO SIGNAL

Y/CHROMAYCHROMA

TO FR-291

BOARD

CN202 THROUGH THE FAR-008 FFC

(SEE PAGE 4-22)

TO RD-066

BOARD(3/7)

CN2301 THROUGH THE FRA-006 FFC

(SEE PAGE 4-30)

AUDIO

SIGNAL

IT CONTROLLER, IR

4-5 4-6

AV-133 (1/5)

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

For Schematic Diagram

• Refer to page 4-43 for printed wiring board.

1

2

AV-133 BOARD(2/5)

A

B

C

D

E

F

G

H

POWER/FAN CONT.

-REF.NO.: 10,000 SERIES-

V+5VV

(V+5VI)

6

V+12R1

TO (4/5)

V+5R8E

V+12R1

(V+12R1E)

P_CONT

P_CONT2

DET_ANT

ANT5V_SW

DTBON

FANCTL

GND

V+5VV

(V+5VI)

1

TO (1/5)

RFTHRU

SWVION5V

TUON

SWVION9V

TU_DCCON

JL301

JL302

B+

IC317

L304

0.5A 330uH

32V

R311

820

0.2

Q310

2SC4154TP-1EF

JL307

L303

0uH

JL308

JL309

R310

C322 100p

0.6

R312 10k

4.7k

0.2

50V

C206 470p

50V

R219

3.3k

R304

100

C305

0.1 25V

F

R305

33

C309

0.1 25V

F

JL314

C202

C204

0.1

100

25V

16V

F

JL311

2SD2114KT146

R220

2.2k

JL312

5.5

4.8

Q301

UMD2N-TR

+5V REG

JL313

5.6

4.8

Q303

UMD2N-TR

+5V REG

D303

1SS355TE-17

11.5

Q309

2SC5876T106QR

3 4 5 6 7

SIGNAL PATH

VIDEO SIGNAL

Y/CHROMAYCHROMA

5.5

C315

D304

100 16V

11.6

C318

0.1 25V

F

4.8

C316

9.6

100 16V

REC

PB

JL341

C319

100 16V

B+

JL331

JL332

JL333

B+

8.9

C320

100 16V

B+

JL346

JL329

JL343

JL344

JL345

JL347

CN302

19P

DTT_Y

19

GND

18

DTT_C

17

GND

16

P_CONT

15

EV+12.1V

14

GND

13

EV+5.8V

12

GND

11

10

EV+5.8V

GND

9

V+32V

8

GND

7

P_CONT2

6

DET_ANT

5

ANT5V_SW

4

DT_TUON

3

GND

2

1

FAN-

V+5VV

(V+5VO)

V+5VV

(V+5VI)

DTT_C

DTT_Y

V+9V

B+

V+5BB

V+5TU

V+32V

GND

JL319

D201

1SS355TE-17

C205

L201

1mH

0

Q201

FAN DRIVE

5.6

JL315

5.5

0

C306

C307

0.1

100

25V

16V

F

5.6

JL316

5.5

0

C310

C311

0.1

220 16V

25V

F

R314

22k

C323

5.6

1

50V

F

C324

2012

0.1 25V

F

Q309 - 311

+32V SWITCHING

C303 100 16V

UDZSNTPE-1715B

C301

0.1 25V

C302

0.1 25V

F

22

25V

4.8

Q302

2SC4154TP-1EF

+5V REG

C308

100 16V

4.9

2SD2153T100V

JL320

C329

C312

0.1

100

25V

16V

F

Q311

HN1A01FU-TE85R

R313

6.1

180k

0.6

REG

D301

JL330

F

JL326

C208

0.1

16V

B

Q304

+5V REG

5.7

R306

33

Q305

UMD2N-TR +5V REG

R309

1.5k

Q307

UMD2N-TR

+9V REG

JL327

R315 100k

0.5%

R316

22k

0.5%

JL328

5.5

4.7

JL338

2SC2411K-T-146-CQ

0

9.6

4.7

UDZSNTPE-179.1B

L305

0uH

C326

10

50V

Q306

2SC2411K-T-146-CQ

+5V REG

5.6

0

C314

0.1 25V

F

Q308

+9V REG

1SS355TE-17

0

D302

C328

0.1 50V

F

AUDIO

SIGNAL

TO DT-124

BOARD(1/3)

CN103

THROUGH THE

FAD-010 FFC

(SEE PAGE 4-15)

5

TO (3/5)

7

TO (5/5)

Note : The components identified b y mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

POWER/FAN CONT.

AV-133 (2/5)

4-84-7

For Schematic Diagram

• Refer to page 4-4 for waveforms.

• Refer to page 4-43 for printed wiring board.

1

2

AV-133 BOARD(3/5)

VIDEO/AUDIO

A

-REF.NO.: 10,000 SERIES-

B

R_IN

L_IN

C

D

E

8

TO (4/5)

9

TO (5/5)

AV2_V/YIN

AV1_V/YIN

AV2_V/YOUT

AV1_V/YOUT

RTOMAIN

RGBOUT

AV1_LOUT

AV1_ROUT

AV2_LOUT

AV2_ROUT

AV2_RIN AV2_LIN AV1_RIN

AV1_LIN

TU_RIN

TU_LIN

TU_VIN

F

G

(V+5VO)

5

(V+5VI)

TO (2/5)

H

I

BIN

R/CIN

GIN

GOUT

R/COUT

BOUT

GND

V+9V

V+5VV

DTT_Y

DTT_C

AV2_V/YIN

AV1_V/YIN

AV2_V/YOUT

AV1_V/YOUT

RTOMAIN RGBOUT

AV1_LOUT

AV1_ROUT

AV2_LOUT

AV2_ROUT

BIN

R/CIN

GIN

GOUT

R/COUT

BOUT

B+

R408

470

R413

470

R414

470

R415

470

R416

L2_RIN

470

R417

L2_LIN

470

R418

470

R419

470

P_SAVE

DTC124EUA-T106

B+

C475

10

50V

C472

10

50V

C497

0.1

Q401

SW

C414

0.1 C415

0.1

R422

10k

C468

0.1

C469

0.1

C411

1

C412

1

C419

1

C420

1

C421

1

C422

1

C423

1

C424

1

4.4

JL4423

R454

10k

0.5%

C455

50V

4.7

C418

1

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

3 4 5 6 7 8 9 10 11 12 13

R453

8.2k

0.5%

4321

0

C498

C429

C452

100 10V

0.1

1

10V

B

C430

0.1 16V

B

IC402

C471

50V

BUFFER

IC402

BA4558F-E2

--+

+

C474

10

50V

C401

1

10V

C402

F

100p

50V

4.4

81

4.4

82

0

83

4.4

84

4.4

85

4.4

86

4.4

87

4.4

88

4.4

89

4.4

90

4.4

91

4.4

92

4.4

93

4.4

94

95

96

97

98

99

1.7

100

2.2

A HIFI IN(R)

A HIFI IN(L)

V DVD M C

A L4 IN(R)

A L4 IN(L)

A TUNER IN(R)

A TUNER IN(L)

VREF(9V/2)

A L3 IN(R)

A L3 IN(L)

A L2 IN(R)

A L2 IN(L)

A L5 IN(R)

A L5 IN(L)

GND

A AV1 R OUT(R)

A AV1 R OUT(L)

RF-C A OUT

A AGC D

VTR VorV&S V3 IN

JL402

L_OUT

R_OUT

BLANK

C_OUT

Y_OUT

CB_OUT

B+

AV1_LOUT

AV1_ROUT

AV2_ROUT

8.9

4.4

VCC

AV2_LOUT

4.4

A AV2/OUT(L)

A AV1/OUT(L)

A AV1/OUT(R)

D401

AEP, UK only

A AV2/OUT(R)

A AV1/OUT2(L)

A HorHDD/OUT(L)

A HorHDD/OUT(R)

C453

C404

100 10V

10V

C413

0.1 16V

UDZSNPTE-1711B

B

2.1

4.9

VCC

MAIN C D

MAIN C IN

VIDEO AGC

A AV1/OUT2(R)

RTOMAIN

1

F

2.202.2

SLICER OUT

DVD VorY OUT

R460

0

C406

0.1 16V

B

2.2

F DVD C

DVD C OUT

PAL SCART IN

PAL SCART D2

C407

C409

C408

1

10V

B

2.202.2

F DVD Y

RGB M OUT

F DVD Pb(B)

PAL SCART D1

C464

0.1

C473

25V

100

8.9

16V

F

8765

4.4

C451

C450

4.7

4.7 50V

R462

10k

0.5%

4.4

To DVD(L)

50V

JL4424

R402

R403

560

4.4

To DVD(R)

F A DVD(L)

A DVD M C

560

4.4

F A DVD(R)

R463

8.2k

0.5%

C403 100p

50V

IC401

VIDEO/AUDIO

SELECTOR

IC401

HA118326APFR-E

V C&S C3 IN

DL3 DRIVE

SEP Y1 IN

SYNC DET

SEO C1 IN

SYNC DET OUT

SEP Y2 IN

SYNC DET

SEP C2 IN

S1/S2 B OUT

59/61PIN

VIDEO L3 IN

GND

VIDEO L2 IN

VIDEO L1 INBGBS IN

RS IN D OUT

TUNER IN

FBCD

AV2 OUT

GND

VTR OUT

FBCD

V1 OUT

1.7

R431

C444

1

10V

B

D421

NNCD3.9F-T1B

AV2_V/YIN

2.1

1M

2VIN

R432 1M

R447

75

2012

2.6

C428

0.1 16V

FBC

1.8

2.8

R421

1.8M

C446

1

B

AV1_V/YIN

1.8

C457

10

50V

C445

1

D422

1.7

2.6

2.4

C496

C434

0.1

25V

16V

F

B

NNCD3.9F-T1B

AV2_V/YOUT

R420

1.8M

123456789101112131415161718192021222324252627282930

2.2

1.7

2.2

1.7

C443

1

C456

R802

1

1M

50V

Y2IN

R445

75

2012

0.5

R425 100k

R430

0

2.2

C431

0.1

R428

0

C432

C447

10V

1M

0.01

R444

75

2012

C2IN

2.6

C440

0.1 16V

B

2.3

C441

1

10V

F

C1 OUT

VCC

4.9

CR_OUT

YP_OUT

C410

1

10V

B

2.2

515253545556575859606162636465666768697071727374757677787980

F dvd Pr(R)

F DVD PY(G)

SCART B IN

SCART RorC IN

SCART G IN

PY(Y)G OUT

Pr(Cr)/RorC OUT

Pb(Cb)/B OUT

Pb(Cb)/OUT

S1/S2 B OUT

Y1 OUT

VCC

4.9

2.4

C442

0.1 25V

F

AV1_V/YOUT

RCSEL1

RCSEL2

RGBOUT

R810

47

2SC4154TP-1EF

BUFFER

0

50

49

48

VCC

47

46

45

44

SCL

43

SDA

42

SYNC

41

PY(Y)OUT

40

Pr(Cr)/OUT

39

38

GND

37

V2 OUT

36

FBCD

35

C2 OUT

34

33

V2 OUT

32

GND

31

C458

100 10V

R465

470

D420

DAP202UT106

JL487

2.2

Q801

1.7

2.2

1.7

4.9

0.4

0.3

4.4

4.5

0.3

2.4

2.7

2.4

2.3

4.9

1.5

R811 470

4.9

Q402

2SD2114KT146

0

BUFFER

R436

100

R437

100

R439

1.8M

DTC124EUA-T106

B+

D402

UDZSNPTE-176.8B

AEP, UK only

Q410

2SC4154TP-1EF

BUFFER

2.2

0

Q413

SW

B+

C454

100 10V

R433

1M

R435

1M

C438

1

10V

F

B+

4.9

1.6

R461

680

1.5

R455

47

Q403

ISA1602AM1TP-1EF

BUFFER

D801

UMZ6.8N-T106

C435

1

C436

1

C437

1

C439

0.1 16V

B

Q411

UMD2N-TR

0

SW

R458

470

2.2

BIN

R/CIN

GIN

GOUT

R/COUT

BOUT

4.8

4.9

SCL

SDA

CSYNCIN

4.8

0

Q408

2SC4154TP-1EF

BUFFER

470

L_OUT

R_OUT

AMUTE1

V+5V

XAMUTE2

C489

6.3V

4.9

1.6

C487 470

6.3V

C488 470

6.3V

C490 470

6.3V

C463

0.1 25V

F

L_OUT

R_OUT

2VIN C2IN

Y2IN

L2_RIN

L2_LIN R_IN

L_IN

SCL

SDA

CSYNCIN RCSEL1 RCSEL2 P_SAVE

AMUTE1 V+5V XAMUTE2

BLANK

C_OUT

Y_OUT CB_OUT

CR_OUT

YP_OUT

C486

470

6.3V

C476

0.01 16V

B

R472

68

R476

68

R474

68

R478

68

2012

R468

68

2012

JL4419JL4420 JL4421

R470

75

2012

JL4407

JL4408

JL4409

JL4410

R480

3.9

2012

C481

0.1 25V

F

JL4418

R473

3.9

R477

3.9

R475

3.9

0

B+

R471

0

2012

R469

3.9

2012

C493

16V

L_OUT

R_OUT

2VIN C2IN

Y2IN

L2_RIN

L2_LIN R_IN

L_IN

C/R_IN

SCL

SDA

CSYNCIN RCSEL1 RCSEL2 P_SAVE

TEXTVIN

AMUTE1 V+5V XAMUTE2

Y_IN

BLANK

C_OUT

Y_OUT CB_OUT

CR_OUT

YP_OUT

GND

UMZ6.8N-T106

6

JL4414

8

C491

R485

47

16V

R487

47

JL494

4.9

D409

JL4413

D416

22k

0

4.9

C492

220 10V

TO (1/5)

5

D413

2

JL4422

UMZ6.8N-T106

JL495

R479

470

0

R484

1k

0

R486

1k

JL4406

R488

470

D419

1SS355TE-17

4.9

Q404

UMD2N-TR

MUTE

D418

1SS355TE-17

SIGNAL PATH

REC

PB

4

D410

D414

JL4412

D415

UMZ6.8N-T106

JL4411

9

7

Q406

2SD2114KT146

SW

0

R482

100

Q407

2SD2114KT146

SW

0

R490

100

C482 470p

50V

C484 470p

50V

VIDEO SIGNAL

1

3

4

2

JA401

L801

0uH

L802

0uH

Y/CHROMAYCHROMA

G

S VIDEO

JA402

V

L

R

VIDEO

PR/C

AUDIO L

PB/C

AUDIO R

Y

AUDIO

SIGNAL

R

B

LINE 2 OUT

COMPONENT VIDEO OUT

4-9 4-10

VIDEO/AUDIO

AV-133 (3/5)

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

For Schematic Diagram

• Refer to page 4-4 for waveforms.

• Refer to page 4-43 for printed wiring board.

1

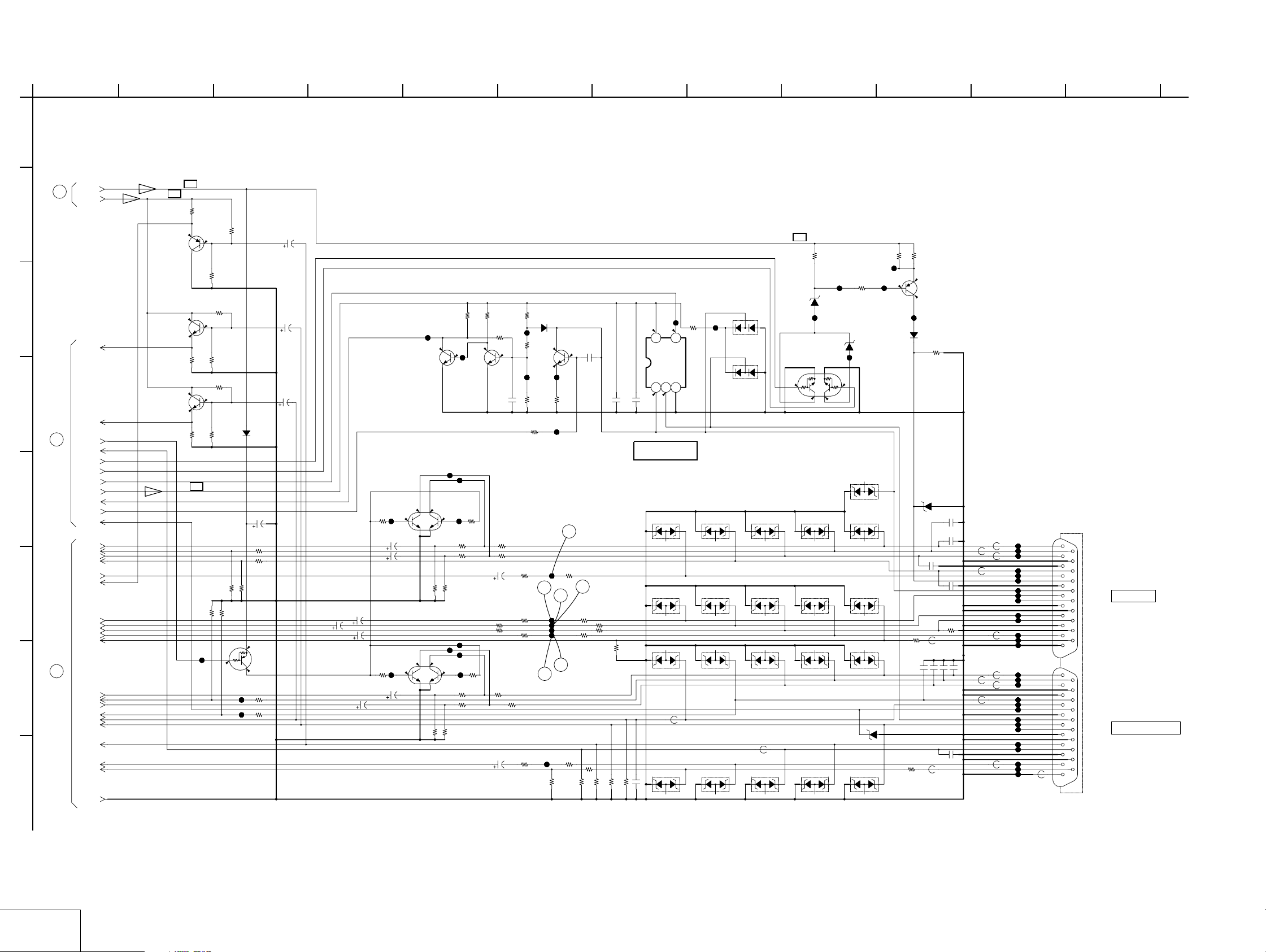

AV-133 BOARD(4/5)

A

EURO

2

-REF.NO.: 10,000 SERIES-

6

TO (2/5)

V+12R1

(V+5VI)

V+5VV

B+

B

0

Q511

ISA1602AM1TP-1EF

BUFFER

C

GTOMAIN

D

BTOMAIN

SAMUTE

3

TO (1/5)

E

BLANK

SQU

FUNC_ON

AVLTH

V+5V

AVLIN

AVLOUT

FUNC_IN

AV1_ROUT

AV1_RIN

AV1_LOUT

AV1_LIN

BOUT

RTOMAIN

4.8

Q510

2SC4154TP-1EF

BUFFER

2.1

R565

680

4.8

Q509

2SC4154TP-1EF

BUFFER

2.1

R561

680

F

GOUT

R/COUT

RGBOUT

AV1_V/YOUT

AV1_V/YIN

8

TO (3/5)

G

AV2_ROUT

AV2_RIN

AV2_LOUT

AV2_LIN

BIN GIN

R/CIN

AV2_V/YOUT

AV2_V/YIN

H

GND

B+

R569

1k

R548 100k

JL501

1.7

2.8

• Abbreviation AUS : Australian model

R566

22k

R568

12k

R562

10k

R564

15k

R558

10k

R560

15k

1SS355TE-17

R542

R543

R547

R546

100k

R549 100k

11.5

11.4

0.3

Q508

DTA124EUA-T106

R544

SA MUTE

JL502

JL503

3 4 5 6 7 8 9 10 11 12 13

C551

22

D528

C550

22

25V

C547

22

25V

JL514

4.9

Q504

2SC4154TP-1EF

Q503 - Q505

AV IN,OUT

SWITCH

R508

R507

47k

4.7k

R510

2.2M

0

JL515

Q503

2SC4154TP-1EF

C511 220p

0.5

R509

27k

JL516

D527

1SS355TE-17

R511 220k

4.2

0

JL517

R512 100k

R513 100k

JL526

Q505

2SC4154TP-1EF

0

C517 220p

JL525

R520

220

C515

0.1

JL527

4.9

0

54

VCC

CONT

IC406

TC7S66FU(TE85R)

OUT/IN

IN/OUT

GND

321

4.2

0.3

C510

0.1

R506

0

JL528

D523

DAN217UT106

D524

DAN217UT106

B+

Q501

UMH1NTN

SWITCH

4.8

2

5

R517

1.5k

R518

10

D501

UDZSNPTE-175.1B

JL529

UDZSNPTE-175.1B

JL530

3

6

0

5

4

1

0

D502

R515

2012

JL532JL531

560

JL533

10.1

R516

1.2k

Q502

10.8

ISA1602AM1TP-1EF

SWITCH

10.8

JL534

D526

1SS355TE-17

R519 56k

IC406

R532

75

R501

75

AV LTH SW

UMZ6.8N-T106

D503

NNCD3.9F-T1B

C552 100p

50V

D513

D518

NNCD3.9F-T1B

D508

R573

0uH

UMZ6.8N-T106

D504

UMZ6.8N-T106

D514

D519

UMZ6.8N-T106

D505

D509

D515

UMZ6.8N-T106

D520

UMZ6.8N-T106

L862

0uH

D510

NNCD3.9F-T1B

D516

UMZ6.8N-T106

D521

UMZ6.8N-T106

D506

UMZ6.8N-T106

D511

UMZ6.8N-T106

D531

UMZ6.8N-T106

D517

UMZ6.8N-T106

D522

UMZ6.8N-T106

D507

UMZ6.8N-T106

D529

UDZSNPTE-1713B

D512

NNCD3.9F-T1B

D530

UDZSNPTE-1713B

C518 1000p

C516 470p

C519 470p

C520 1000p

R529 100k

R563

L501

0

0uH

C505

1000p

C507

C506

1000p

470p

C503 100p

50V

R559

0

L502

0uH

C508 470p

L852

0uH

L857

0uH

L854

L859

L851

0uH

L855

0uH

L856

0uH

L860

0uH

L853

L858

0uH

JL549 JL550 JL551

JL552 JL553 JL554

JL555 JL556 JL557

JL558 JL559

JL560 JL561 JL562

JL535 JL536 JL537

JL538 JL539 JL540

JL541 JL542 JL543

JL544 JL545

JL546 JL547 JL548

L861

0uH

JA501

42P

1

3

5

791113151719

21

22

24

26

28

30

32

34

36

38

40

42

1.ROUT

2.RIN

2468101214161820

3.LOUT

4.GNDA

5.GNDV

6.LIN

7.BOUT

8.FUNCTION

9.GNDV

10.N-LINK

11.GOUT

12.NC

13.GNDV

14.GNDV

15.R/COUT

16.BLANK

17.GNDV

18.GNDV

19.V/YOUT

20.V/YIN

21.GNDV

22.ROUT

23.RIN

23

24.LOUT

25.GNDA

25

26.GNDV

27.LIN

27

28.BIN

29.FUNCTION

29

30.GNDV

31.N-LINK

31

32.GIN

33.NC

33

34.GNDV

35.GNDV

35

36.R/CIN

37.BLANK

37

38.GNDV

39.GNDV

39

40.V/YOUT

41.V/YIN

41

42.GNDV

LINE 3 / TV

LINE 1 / DECORDER

100

R545

100

C545

100 16V

C531

470

6.3V

HN1C03FU-TE85R

JL505

R534

3.9k

C530

470

6.3V

C532

470

6.3V

HN1C03FU-TE85R

MUTE SW

JL504

R557

C544

3.9k

4.7 50V

Q506

MUTE SW

0

C541

4.7 50V

C542

4.7 50V

Q507

0

C543

4.7 50V

JL508

JL513

0

JL509

0

R535

3.9k R537

R536

100

470

R538

470

R540

R541

100k

JL510

JL506

JL511

0

R554 100k

0

R552

R555 100k

JL507

R550

470

R556

3.9k

R539

100

R525

68

2012

R527

0

2012

R551

100

C528

470

6.3V

C529

470

6.3V

R523

2012

R530

2012

R553 100

R504

*

AEP, UK: 68 AUS: 0

R521

2012

68

75

*

10

R522

68

JL519

12

JL520 JL521

JL522 JL523

3.9

2012

13

11

R524

R526

3.9

2012

R531

R528

0

75

2012

14

15

R505

*

R505

*

AEP, UK: 3.9 AUS: 75

L803

0

R514

75

2012

R503

75

2012

R502

75

2012

JL518

R571

75

2012

EURO

AV-133 (4/5)

4-11 4-12

For Schematic Diagram

• Refer to page 4-4 for waveforms.

• Refer to page 4-43 for printed wiring board.

1

A

B

C

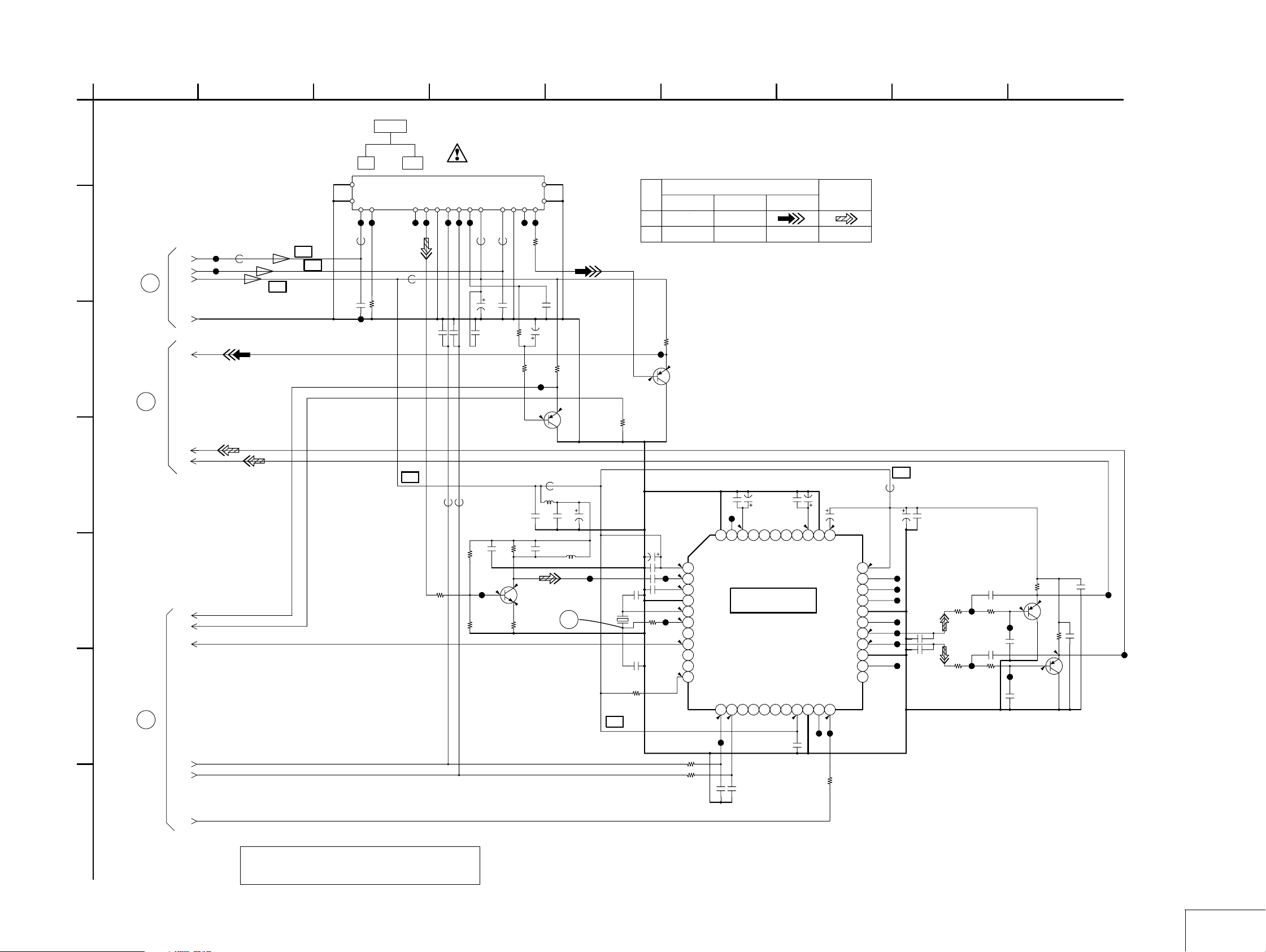

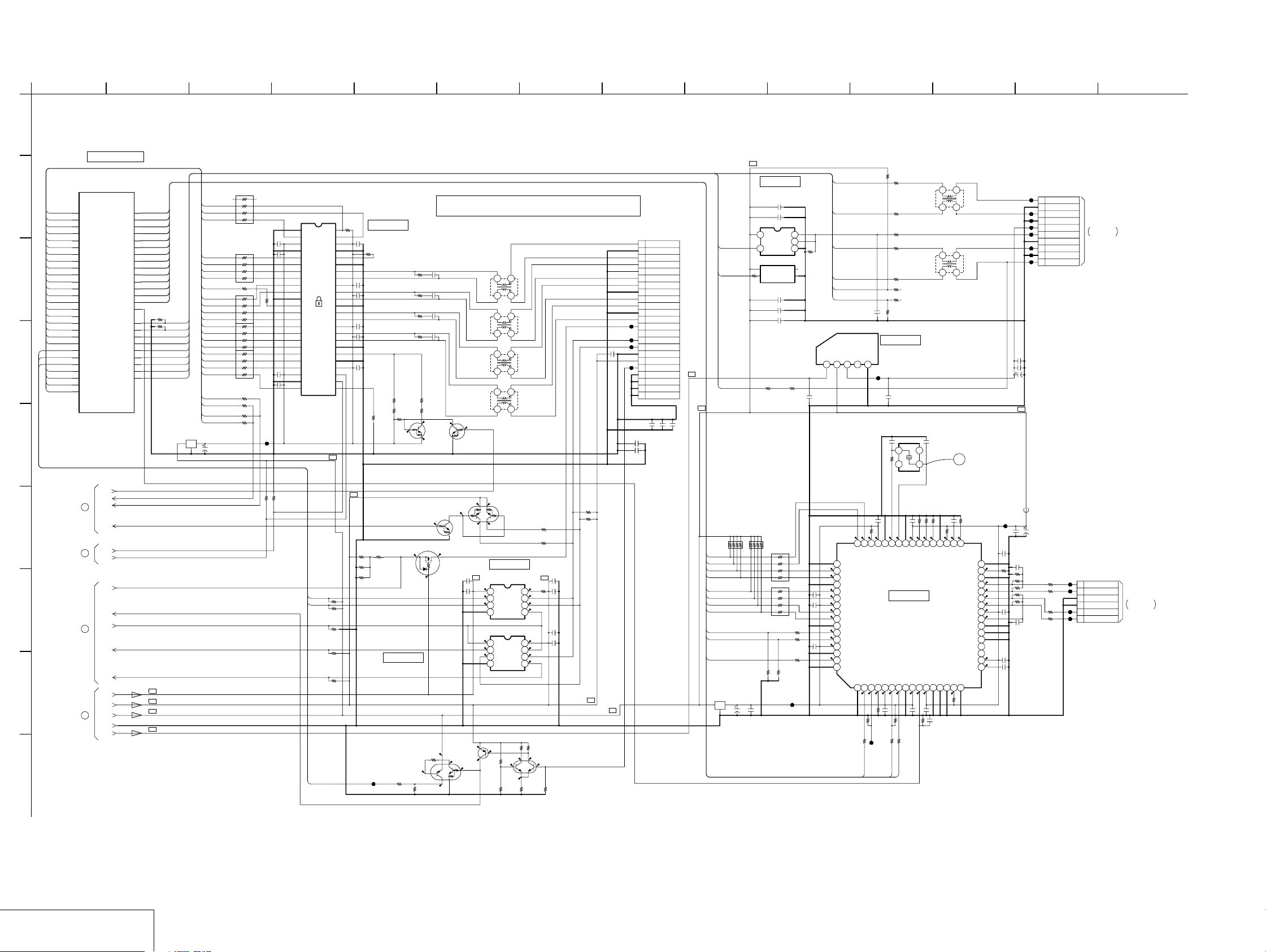

AV-133 BOARD(5/5)

TUNER

-REF.NO.: 10,000 SERIES-

L601

0uH

2012

JL601

V+5BB

JL602

V+32V V+5TU

7

TO (2/5)

GND

TU_VIN

9

TO (3/5)

TU_RIN

TU_LIN

D

E

AGC

AFT

MSPSTAT

F

4

TO (1/5)

SCL

SDA

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

2

B+

3 4 5 6 7 8 9

AERIAL

IN OUT

BB

GND

JL603

JL605

R635

0uH

C602

R609

2200p

50V

B

JL604

0

B+

AUDIO OUT

JL608

JL609

L602

0uH

2012

U601

SIF OUT

GND

C605

10p 50V

L604

0uH

R632

22

SCL

JL610

JL611

C606

10p 50V

SDA

AGC OUTMBTU

JL612

R637

R636

0uH

C609

100

10V

C603

2200p

50V

B

L605

0uH

C616

0.01 16V

B

R631

4.7k

1.4

JL614

Q606

2SC4154TP-1EF

SIF AMP

R634

2.2k

GND

AFT OUT

VIDEO OUT

JL616

JL617

R638

100

C608

0.47 10V

C604 100p

50V

B

C611

R603

47

0

16V

R607

1k

JL618

3.8

Q602

ISA1602AM1TP-1EF

AGC

C613

C614

0.1

25V

F

R630

330

C615 100p

50V

4.7

0.8

R633

100

R605

10k

4.4

L606

0uH

2012

L607

100uH

C640

100 10V

L609 10uH

3

JL619

X601

18.432MHz

B+

SIGNAL PATH

REC

PB

R602

1k

JL620

2.2

1.6

ISA1602AM1TP-1EF

R606 10k

C643

100 10V

C620

1

C621

56p

C623

3p

C624

3p

R619

10k

R616

0

JL621

C622

56p

JL623

4.8

1.4

2.3

4.9

Q601

BUFFER

1234567891011

0

R622

VIDEO SIGNAL

C617

C638

0.1 10

25V

50V

F

2.5

JL632

40

41

42

43

44

SC1R

VREFTOP

MONOIN

AVSS

AVSUP

AIN1+

AIN1-

100

TESTEN

XIN

XOUT

TP

DCO1

DCO0

ADSEL

STBYQ

R621

100

IC601

EURO MSP

MSP3417G-QG-B8V3

SCL

SDA

TP

1213141516171819202122

4.3

JL631

TPTPTP

4.4

Y/CHROMAYCHROMA

39

NC

NC/ASG

IC601

38

NC

TP

C625

1

10V

F

C618

0.1 25V

F

37

NC

DVSUP

4.9

AUDIO

SIGNAL

C639

3.3 50V

C641

10

50V

2.5

0

34

35

36

CAPLM

AHVSS

AGNDC

AHVSUP

NC

SCOL

SCOR

VREF1

TP

DACML

DACMR

VREF2

TP

DVSSTPRESETQ

4.7

JL644

JL645

R620

0

B+

L608

0uH

2012

C619

C642

0

JL647

JL648

JL649

JL650

0

JL651

JL652

0

JL653

2324252627282930313233

100 10V

C629 3900p

50V

B

C632 3900p

50V

B

0.1 25V

F

R624

3.3k

R627

3.3k

JL656

JL657

C628

0.01 16V

B

R625

3.3k

C631

0.01 16V

B

R628

3.3k

Q604

ISA1602AM1TP-1EF

BUFFER

0.2

JL661

C630 560p

JL658

C633

50V

560p

50V

R623

1k

C626

0.1 25V

0.9

R626

0.9

0.2

F

C627

0.1 25V

1k

F

ISA1602AM1TP-1EF

BUFFER

JL659

JL660

Q605

C635

C636

22p

50V

G

XRST1

50V

Note : The components identified b y mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

TUNER

4-13 4-14

AV-133 (5/5)

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

For Schematic Diagram

• Refer to page 4-3 for waveforms.

• Refer to page 4-47 for printed wiring board.

1

2

3 4 5 6 7 8 9 10 11 12 13 14

DT-124 BOARD(1/3)

EMMA

A

-REF.NO.: 40,000 SERIES-

B

C

(SEE PAGE 4-8)

D

E

F

G

H

TO (3/3)

I

J

FAN-

DT_TUON

ANT5V_SW

DET_ANT

4

P_CONT2

TO (3/3)

P_CONT

I2C_SCL_DTBR

I2C_SDA_DTBR

XCOFDM_RESET

GNDT

CN103

19P

1

VAY

2

GND

3

VAC

TP513

4

TO AV-133

BOARD(2/5)

CN302 THROUGH THE FAD-010 FFC

GND

P_CONT

EV+12.1V

GND

V+5.8E

GND

V+5.8E

GND

V+32V

GND

P_CONT2

DET_ANT

ANT5V_SW

DT_TUON

GND

FAN-

R623

TP506

0

5

TP505

6

7

8

9

TP514

10

11

TP512

12

13

TP504

14

TP503

15

TP502

16

TP501

17

18

TP584

19

TP525

TP524

TP523

TP522

TP521

C524

0.1 25V

F

C522

0.1 25V

F

1608

C528

0.022 25V

R530

B

0

R529

0

R528

0

R527

0

IC101

256M Bit DDR SDRAM

C101

1

10V

2468

R696

33

R704

33

R705

33

R706

33

R707

33

R698

33

R701

33

V+12.1EV

V+5.8E

V+32VT

VA+3.3A

V+5VA

V+2.5D

V+1.5V

VD+3.3D

GNDD

C102

357

0.1

1

25V

F

C103

1000p

50V B

C104

0.1 25V

F

C119

1

10V

F

C121

1

10V

F

DATAQ0

DATAQ1

DATAQ2

DATAQ3

DATAQ4

DATAQ5

DATAQ6

DATAQ7 DATAQ8

DQS0

DQM0

DWENABLEB

DCASB

DRASB

DCSB

DBADRS0

DBADRS1

DADRSDD10

DADRSDD0

DADRSDD1

DADRSDD2

DADRSDD3 DADRSDD4

3

IC101

HYB25DC256160CE-6

2.4

1

VSS3

VDD1

0

2

2.4

345678

0

0.4

2.4

9

0

10

0

11 12 13 14 15

0.6

2.4

0.9

16 17 18 19 20 21 22

2.4

0

2.4

2.3

2.4

2.3

0

1.3

2.1

0

2.3

1.3

2.4

3323 24 3225 31302926 27 28

B+ B+ B+

B+ B+

B+

DQ0

DQ15

VDDQ1

VSSQ5

DQ1

DQ14

DQ2

DQ13

VSSQ1

VDDQ5

DQ3

DQ12

DQ4

DQ11

VDDQ2

VSSQ4

DQ5

DQ10

DQ6

DQ9

VSSQ2

VDDQ4

DQ7

DQ8

NC1

NC6

VDDQ3

VSSQ3

LDQS

UDQS

NC2

NCS

VREF

VDD2

NC

VSS2

UDM

LDM

/CK

/WE

/CAS

CK

/RAS

CKE

/CS

NC4

NC3

A12

BA0

A11

BA1

A9

A8

A10/AP

A0

A7

A1

A6

A2

A5

A3

A4

VDD3 VSS1

F108

0.7

0

2.4

0.4

0

57585960616263646566

0

2.4

55 54 52

0

5356

1.0

1.2

495051

48

0

47

1.3

46 45 44 43 42

1.5

2.4

0

41 40 39 38 37 36 35

0

1.1

0.9

0.6

1.4

2.3

34

C144C620

100

10

16V

10V

C

R1057

2012

0

0uH

B+

DATAQ15

R694

DATAQ14

33

DATAQ13

C105 1000p

DATAQ12

DATAQ11

R695

DATAQ10

33

DATAQ9

C106

0.1 R699

25V

33

F

R700

33

DQS1

C192

0.1

C122

0.1

C191

1

R702

33

R197

0

R199

DCKENABLE

0

DADRSDD12

DADRSDD11

DADRSDD9

DADRSDD8

DADRSDD7

DADRSDD6

DADRSDD5

TP599

C618

10

10V

C

R662

2012

0

R604

0

C615

1608

0.1 25V

F

TP600

R651

0

R661

R660

1k

C614

0.1

C616

2.2

R666

0

DQM1

SDCLKB

SDCLK

SIGNAL PATH

VIDEO SIGNAL

Y/CHROMAYCHROMA

REC

PB

100

R5700R10933R114

TP103

3.2

TXD1B

RXD1B

RDATA1

RDATA2

EDATA2

3.2

NMI

RDATA3

EDATA3

3.2

RSTSWB

RDATA4

EDATA4

TP578

RSTOUT

RDATA5

EDATA5

C149

2p

C148

2p

10k

R101

1.6

3.2

PWMOUT

RDATA6

3.203.2

EDATA6

EDATA7

X100

27MHz

C131

0.1 25V

R182

C117

1

10V

F

VDD3_4

RDATA7

F

0

EDATA8

1.6

R170

1.6

GND_11

GND_10

IC106

RDATA9

RDATA8

0

EDATA9

IC104

KA5SDKAS01TSN

XT

XTB

NC

STB

VC

VDD

4321

VSS

O0

TP126

C128

C127

33

0.1

0.1 25V

25V

F

TP101

TP123

1.5

1.4

CLK27IN

PAVDD

PAGND

VDD1_4

PPORT44

PPORT43

EMMA

IC106

UPD61111GM-200-UEV-A

VDD3_1

GND_3

RDATA10

RDATA13

RDATA12

RDATA11

0

3.2

C124

0.1 25V

F

EDATA10

EDATA11

EDATA12

EDATA13

1.6

8765

3.2

1.2

TP141

TP132

TP142

1.5

PPORT42

PPORT41

RDATA15

RDATA14

000000000

EDATA14

EDATA15

EADRS1

R155

R643

TP160

47k

0

R154

R531

TP161

47k

0

R151

R532

TP159

47k

0

R153

R534

TP157

47k

B+

TP166

B+

TP167

DATAQ15 DATAQ14 DATAQ13 DATAQ12 DATAQ11 DATAQ10

F106

0uH

DATAQ9

DATAQ8

DQS1

DQM1

SDCLKB

SDCLK

TP602

DCKENABLE

DADRSDD12

DADRSDD11

DADRSDD9

DADRSDD8

DADRSDD7

DADRSDD6

DADRSDD5

DADRSDD4

DADRSDD3

DADRSDD2

DADRSDD1

DADRSDD0

DADRSDD10

DBADRS1

DBADRS0

DCSB

DRASB

DCASB

DWENABLEB

DQM0

DQS0

DATAQ7

DATAQ6

DATAQ5

DATAQ4

DATAQ3

DATAQ2

DATAQ1

DATAQ0

F103

0uH

C118

C115 220

0.1

4V

25V

F

0

R149

R644

TP162

47k

0

R194

56

C120

0.1

2.500

GND_14

GND_13

VDD2_2

GND_15

163

GND_16

164

0

DQ9

165

0

DQ8

166

0

DQS1

R193

56

R598

R192

100

R191 100

R190 100

R189 100

R188 100

R187 150

R595

56

1005

R186

56

R594

56

R185

56

C193

1

68 R597

68

C114

0.1

C113

1

C155

0.1

C112

0.1 25V

F

C111

1

10V

F

C110

0.1 25V

F

C109

0.1 25V

F

C108

0.1 25V

F

B+

F102

0uH

TP580

C129

C147

47

1

10V

16V

F

167

1.2

DVREFDVREF

168

0

DQM1

169

1.2

DCLKBDCLKB

170

1.4

DCLK

171

2.5

DCKE

172

0.1

DADD12

173

0.1

DADD11

174

2.5

VDD2_3

175

GND_17

176

1.4

VDD1_5

177

0

DADD9

178

1.2

DADD8

179

1.2

DADD7

180

1.2

DADD6

181

1.4

DADD5

182

1.2

DADD4

183

GND_18

184

GND_19

185

2.5

VDD2_4

186

1.4

DADD3

187

2.3

DADD2

188

0

DADD1

189

0

DADD0

190

2.2

DADD10

191

1.4

DBA1

192

1.1

DBA0

193

GND_20

194

2.5

VDD2_5

195

2.3

DCSB

196

2.4

DRASB

197

2.3

DCASB

198

2.5

DWEB

199

0

DQM0

200

1.0

DQS0

201

1.1

DQ7

202

0

DQ6

203

0

DQ5

204

2.5

VDD2

205

GND_21

206

1.4

VDD1_6

207

0.2

DQ4

208

0

DQ3

209

0

DQ2

210

0

DQ1

211

0

DQ0

212

2.5

VDD2_6

213

GND_22

214

GND_23

215

3.2

VDD3_

216

PPORT0

PPORT1

PPORT2

123456789

0

B+

3.201.6

R116

10k

CI_TPS_MVAL

CI_TPS_MCLK

0.200.1

DQ10

DQ11

DQ12

PPORT3

PPORT4

PPORT5

00000

CI_TPS_DATA1

CI_TPS_DATA0

CI_TPS_MSTRT

56

R11056R111

C116

0.1 R642

25V

F

0.9

2.5

VDD2_1

GND_12

DQ13

DQ15

DQ14

GND_1

PPORT7

PPORT6

PPORT8

PPORT9

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54

0

CI_TPS_DATA5

CI_TPS_DATA4

CI_TPS_DATA3

CI_TPS_DATA2

0

3.2

JTRST

GND_2

3.2

1.4

C107

10V

3.203.2

JTCK

JTMS

VDD1_1

PPORT10

0

1

F

CI_TPS_DATA6

R569

R641

0

TP102

3.2

JTDO

JTDI

RDATA0

PPORT11

0

00000

3.2

EDATA0

EDATA1

CI_TPS_DATA7

F101

VDATAO7

TP140

1.203.2

PPORT40

RADD0

EADRS2

0uH

PPORT39

RADD1

R107

0

C130

0.1 25V

F

B+

VDATAO6

TP124

TP122

0

56

R5710R572

R17556R17456R173

TP139

TP566

TP567

0.301.20000

PPORT38

PPORT37

RADD3

RADD2

EADRS3

EADRS4

EADRS5

AUDIO

SIGNAL

1

IC104

27MHz VCXOa

R183

0

VDATAO3

VDATAO4

VDATAO5

56

R62056R619

TP137

TP136

TP135

PPORT34

PPORT33

PPORT36

PPORT35

RADD7

RADD6

RADD5

RADD4

0

EADRS6

EADRS7

EADRS8

VDATAO2

TP134

PPORT32

GND_4

VDATAO1

R17856R61856R18056R617

TP133

PPORT31

GND_5

1.4

C125

0.1 25V

VDATAO0

TP121

TP579

56

100

R159

R160

R3111

R146 10k

TP116

TP118

3.2

3.203.2

SCL0

SDA0

PPORT30

PPORT28

PPORT29

VDD1_2

RADD9

RADD8

RADD11

RADD10

0000000

F

EADRS9

EADRS10

EADRS11

EADRS12

PPORT27

RADD12

EADRS13

TP117

TP146

3.203.2

113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156157158159160161162

PPORT26

RADD13

EADRS14

EADRS15

TP120

PPORT25

RADD14

0

EADRS16

110 109112 111

GND_9

PPORT24

VDD3_2

RADD15

3.2

C126

1

10V

F

C194

VDD3_3

PPORT23

PPORT22

PPORT21

PPORT20

PPORT19

PPORT18

PPORT17

PPORT16

PPORT15

PPORT14

PPORT13

PPORT12

DVDD_2

DGND_3

DGND_2

REF1

RSET1

AVDD_4

AGND_4

VAPB

AVDD_3

AGND_3

VAPR

DVDD_1

DGND_1

REF0

RSET0

AVDD_2

AGND_2

VACVBS

AVDD_1

AGND_1

VAY

TEST

GRDYB

ALRCK

ADO

ATX

ABCK

VDD1_3

GND_8

GND_7

AMCK

GCCB0

FCSB0

FWEB

FOEB

RADD22

RADD21

RADD20

RADD19

RADD18

RADD17

RADD16

GND_6

EDATA0

1

10V

F

R538 22k

EDATA1

R535 22k

R540

22k

EDATA2

R542

R3108

108

107

106

105

104

103

102

101

100

56

55

22k

10k

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

80

79

78

77

76

75

74

73

72

71

70

69

68

67

66

65

64

63

62

61

60

59

58

57

EDATA3

0

3.3

3.3 0

0

0 0

1.4

1.3

0

3.3

0

3.2

0

1.4

1.3 0

3.2

0

3.2

0

1.6

0

1.6

1.4

3.2

3.2 0

0 0 0

0

0 0

R544

22k

EDATA4

F105

0uH

R546

R547

TP104

TP105

TP114

TP106

TP107

TP108

TP109

TP110

TP111

TP153

TP154

TP155

C137

TP115

TP119

TP507

B+

22k

EDATA5

22k

1

R104 10k

R550 22k

EDATA7

EDATA6

R589

R198 10k

TP581

R554

22k

EDATA9

EDATA8

R551

0

TP508

22k

R577

0

R141

10k

R148

10k

R179

10k

C140

0.1 25V

F

R556 22k

EDATA10

C134

0.1 25V

F

R558 22k

EDATA11

TP147

C138

0.1 25V

C136

10V

C135

0.1 25V

F

1

F

R560 22k

EDATA12

R561

22k

R168

220

F104 0uH

R564

22k

EDATA14

EDATA13

R566

22k

EDATA15

R3110

R100

TPS_CI_CTRL

XCI_VCC_5V

CI_REGB

INPACKB

CI_RESET

CI_IOWRB

CI_IORDB

CI_VS1

CI_CE2B0

CI_CD1B

CI_REQB

CI_TPS_DATA0

CI_TPS_DATA1

CI_TPS_DATA2

CI_TPS_DATA3

B+

CI_RESET

CI_IOWRB

CI_IORDB

R575 10k

R3055

CI_VS1

10k

CI_CE2B0

R3112

CI_CD1B

10k

R145

CI_REQB

10k

C142

0.1

R169

25V

150

F R167 910

R805

R121

R122

10k

100

R809

C803

1k

0.1 10V

B

R123

R124

100

R806 10k

R166 910

R807

R125

R126

100

10k

R810

R128

R127

100

C804

47

6.3V

0

R568

22k

SPDIF

1k

100

R808 10k

R580

EC10

10k

SPDIF

EC9

ENABLEC7

ENABLEC6

ENABLEC8

LLA22

EADRS22

EADRS21

EADRS20

EADRS19

EADRS18

EADRS17

Q803

BUFFER

R813 470

C805 100p

Q804

2SC4154TP-1EF

ISA1602AM1TP-1EF

BUFFER

R814

470

C806 100p

Q801

ISA1602AM1TP-1EF

BUFFER

R801 1k

1.8

C807

22p

Q802

BUFFER

R803

1.8

1k

C808

22p

2SC4154TP-1EF

5

2.4

1.8

R811

1k

5

2.4

1.8

R812

1k

VDATAO7

VDATAO6

VDATAO5

VDATAO4

VDATAO3

VDATAO2

VDATAO1

VDATAO0

R802

680

2.4

C801

1

10V

F

R804

L801

680

10uH

2.4

C802

1

10V

F

CI_TPS_DATA4

CI_TPS_DATA5

CI_TPS_DATA6

CI_TPS_DATA7

CI_TPS_MCLK

CI_TPS_MVAL

CI_TPS_MSTRT

C591

10p

R621

50V

22k

R605

TP543

0

R606

TP544

0

C592

R622

10p

TP547

22k

50V

R607

0

C590

10p 50V

TP557

TP571

TP558

TP559

TP560

TP561

TP562

TP563

TP564

TP565

TP568

R610

TP555

47

R608

TP553

47

R609

TP554

47

TP570

R616

TP545

47

TP569

EDATA0

EDATA1

EDATA2

EDATA3

EDATA4

EDATA5

EDATA6

EDATA7

EDATA8

EDATA9

EDATA10

EDATA11

EDATA12

EDATA13

EDATA14

EDATA15

ENABLEC6

ENABLEC7

ENABLEC8

EC9

EC10

EADRS1

EADRS2

EADRS3

EADRS4

EADRS5

EADRS6

EADRS7

EADRS8

EADRS9

EADRS10

EADRS11

EADRS12

EADRS13

EADRS14

EADRS15

EADRS16

EADRS17

EADRS18

EADRS19

EADRS20

EADRS21

EADRS22

LLA22

CN102

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

28P

GND

TDXA

RDXA

GND

XRESET

GND(RFE/LL)

GND

VCLK

GND

VDO7

VDO6

VDO5

VDO4

VDO3

VDO2

VDO1

VDO0

GND

ALRCK

ADATA

ABCK

GND

SPDIF

GND

CI_RESET

CI_IOWRB

CI_IORDB

CI_VS1

CI_CE2B0

CI_CD1B

CI_REQB

CI_TPS_DATA0

CI_TPS_DATA1

CI_TPS_DATA2

CI_TPS_DATA3

CI_TPS_DATA4

CI_TPS_DATA5

CI_TPS_DATA6

CI_TPS_DATA7

CI_TPS_MCLK

CI_TPS_MVAL

CI_TPS_MSTRT

XRESET_FLASH

EDATA0

EDATA1

EDATA2

EDATA3

EDATA4

EDATA5

EDATA6

EDATA7

EDATA8

EDATA9

EDATA10

EDATA11

EDATA12

EDATA13

EDATA14

EDATA15

ENABLEC6

ENABLEC7

ENABLEC8

EC9

EC10

EADRS1

EADRS2

EADRS3

EADRS4

EADRS5

EADRS6

EADRS7

EADRS8

EADRS9

EADRS10

EADRS11

EADRS12

EADRS13

EADRS14

EADRS15

EADRS16

EADRS17

EADRS18

EADRS19

EADRS20

EADRS21

EADRS22

LLA22

1

TO (2/3)

TO RD-066

BOARD(2/7)

CN4701 THROUGH THE FVR-001 FFC

(SEE PAGE 4-28)

2

TO (2/3)

B+

EMMA2LL

DT-124 (1/3)

4-15 4-16

For Schematic Diagram

• Refer to page 4-47 for printed wiring board.

1

2

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

3 4 5 6 7 8 9 10 11 12 13 14

A

B

C

TO (1/3)

D

E

F

G

H

I

J

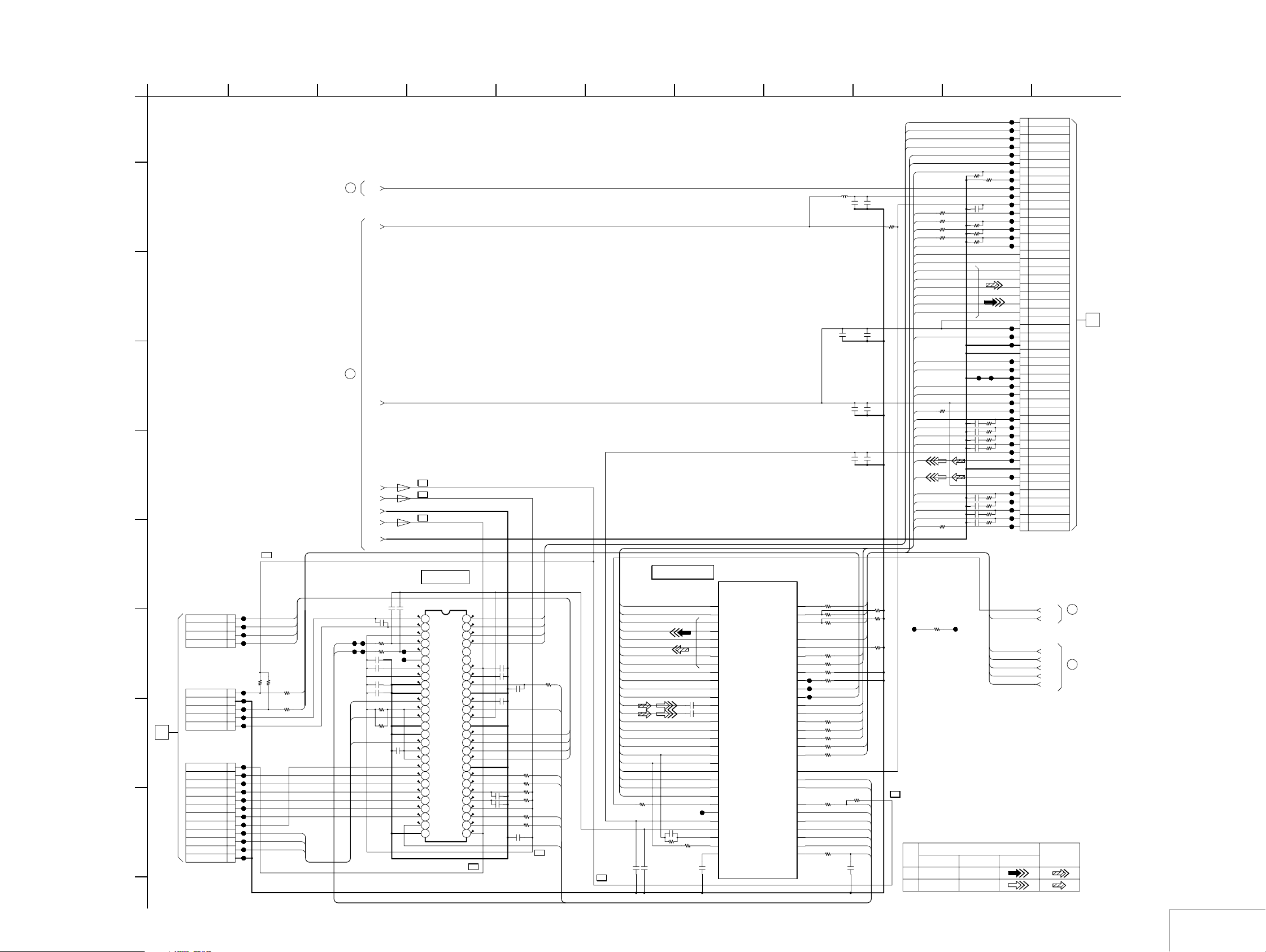

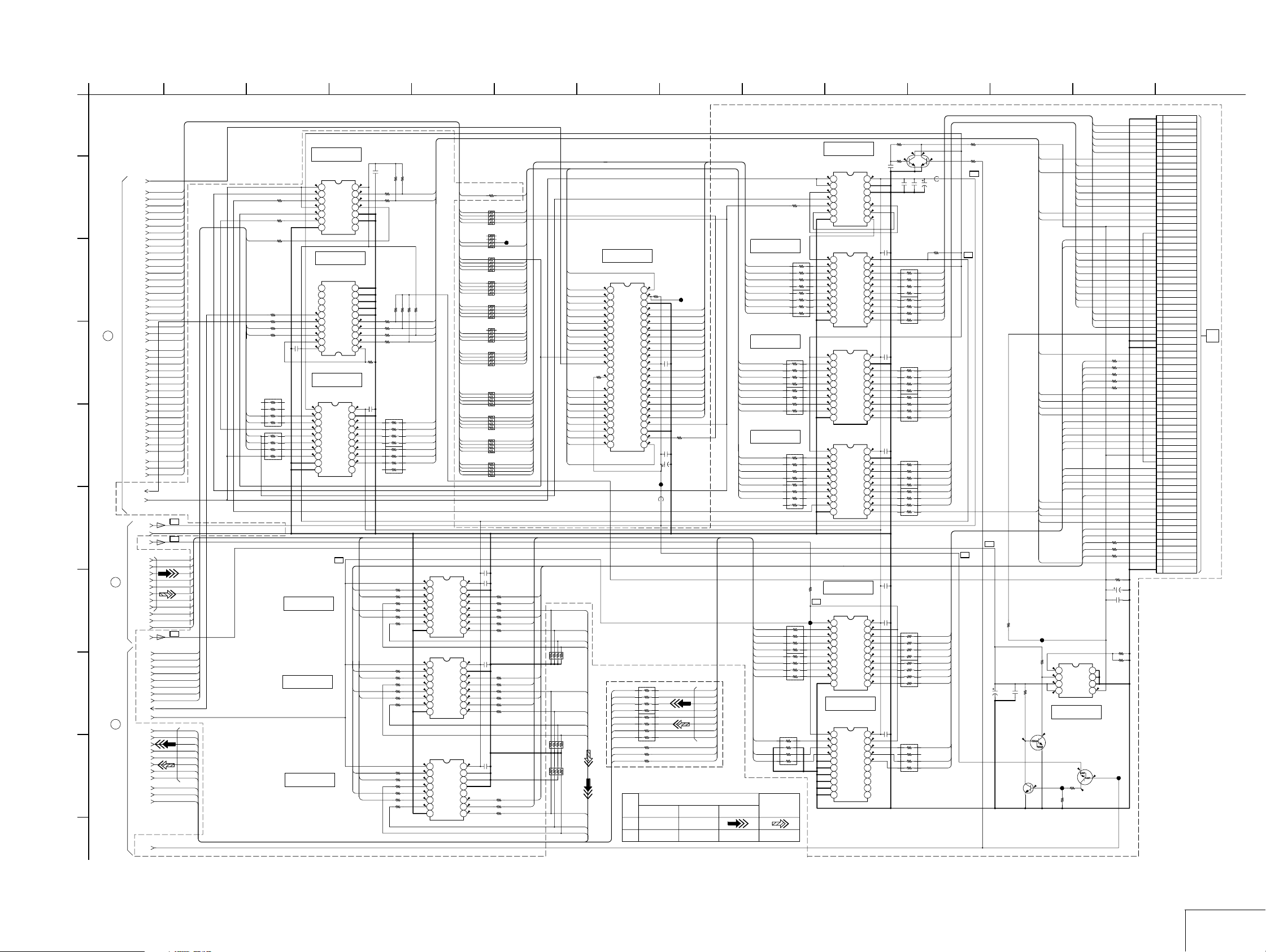

DT-124 BOARD(2/3)

CI

-REF.NO.: 40,000 SERIES-

XRESET_FLASH

EADRS1

EADRS2

EADRS3

EADRS4

EADRS5

EADRS6

EADRS7

EADRS8

EADRS9

EADRS10

EADRS11

EADRS12

EADRS13

EADRS14

EADRS15

EADRS16

EADRS17

EADRS18

EADRS19

EADRS20

EADRS21

EADRS22

2

LLA22

EDATA0

EDATA1

EDATA2

EDATA3

EDATA4

EDATA5

EDATA6

EDATA7

EDATA8

EDATA9

EDATA10

EDATA11

EDATA12

EDATA13

EDATA14

EDATA15

ENABLEC6

ENABLEC7

ENABLEC8

EC10

EC9

V+3.3DT

GNDD

VD+3.3D

TS1_DATA0

TS1_DATA1

TS1_DATA2

TS1_DATA3

5

TS1_DATA4

TO (3/3)

TS1_DATA5

TS1_DATA6

TS1_DATA7

TS1_MCLK

TS1_MVAL

TS1_MSTRT

V+5CI

CI_CD1B

CI_VS1

CI_REQB

CI_REGB

CI_RESET

CI_IOWRB

CI_IORDB

CI_CE2B0

INPACKB

TPS_CI_CTRL

1

CI_TPS_DATA0

TO (1/3)

CI_TPS_DATA1

CI_TPS_DATA2

CI_TPS_DATA3

CI_TPS_DATA4

CI_TPS_DATA5

CI_TPS_DATA6

CI_TPS_DATA7

CI_TPS_MCLK

CI_TPS_MVAL

CI_TPS_MSTRT

XCI_VCC_5V

EADRS1

EADRS2

EADRS3

EADRS4

EADRS5

EADRS6

EADRS7

EADRS8

EADRS9

EADRS10

EADRS11

EADRS12

EADRS13

EADRS14

EADRS15

EADRS16

EADRS17

EADRS18

EADRS19

EADRS20

EADRS21

EADRS22

LLA22

EDATA0

EDATA1

EDATA2

EDATA3

EDATA4

EDATA5

EDATA6

EDATA7

EDATA8

EDATA9

EDATA10

EDATA11

EDATA12

EDATA13

EDATA14

EDATA15

ENABLEC6

ENABLEC7

ENABLEC8

B+

TS1_DATA0

TS1_DATA1

TS1_DATA2

TS1_DATA3

TS1_DATA4

TS1_DATA5

TS1_DATA6

TS1_DATA7

TS1_MCLK

TS1_MVAL

TS1_MSTRT

CI_CD1B

CI_VS1

CI_REQB

CI_REGB

CI_RESET

CI_IOWRB

CI_IORDB

CI_CE2B0

CI_TPS_DATA0

CI_TPS_DATA1

CI_TPS_DATA2

CI_TPS_DATA3

CI_TPS_DATA4

CI_TPS_DATA5

CI_TPS_DATA6

CI_TPS_DATA7

CI_TPS_MCLK

CI_TPS_MVAL

CI_TPS_MSTRT

RDR-HXD795/HXD895/HXD995/HXD1095

R3124

47

R3123

47

R3067

47

CI_CD1B

R3107

47

R3013

47

CI_VS1

CI_REQB

R3063

R3064

47

3.2

C3008

0.1

R3034

CI_REGB

CI_RESET

CI_IOWRB

CI_IORDB

CI_CE2B0

47

R3035

47

3.2

IC3006

MULTIPLEXER

IC3007

MULTIPLEXER

IC3008

MULTIPLEXER

IC3015

GATE

IC3015

TC74LCX32FT(EKJ)

3.2

3.1

3.2

7123456

IC3009

BUFFER

IC3009

TC74LCX541FT(EKJ)

Y8

Y7

12 11

Y6

Y5

0

Y4

0

Y3

Y2

0

Y1

0

OE2

VCC

20 19 18 17 16 15 14 13

IC3010

BUFFER

IC3010

TC74LCX541FT(EKJ)

123456789

OE1

VCC

A1

OE2

0

A2

Y1

A3

Y2

A4

Y3

A5

Y4

A6

Y5

A7

Y6

A8

Y7

10

GND

Y8

C3023

0.1 R3060

R3059

10k

3.2

14 13 12 11 10

R3065

3.2

47

R3066

3.2

47

3.2

98

GND

10 9

A8

A7

A6

A5

0

A4

0

A3

3.2

A2

0

A1

0

12345678

OE1

3.2

20 19 18 17 16 15 14 13 12 11

0.2

0.1

0.2

C3009

0.1

R3106

R3019

R3061

R3062

R3017

R3012

R3014

10k

R259

10k

47

0

R3004

47

R3009

47

B+

MODATA0 TS1_DATA0

MODATA1 TS1_DATA1

MODATA4 TS1_DATA4

MODATA5 TS1_DATA5

MOCLK TS1_MCLK

MOVAL TS1_MVAL

R3072

47

R3075

22 R3078 150 R3073

47 R3074

22 R3079 150

R3082

47 R3087

22 R3090 150 R3083

47 R3086

22 R3091 150

R3095

47 R3098

22 R3100 150 R3096

47 R3097

22 R3101 150

MDC0

MDC11

R3024

10k

INPACK

MDC9

VS1#

MDC7

MDC10

MDC8_RESET

MDC6_ENABLE

MDC5

MDC4

MDC2_ENABLE

MDC1_ENABLE

3.2

0.2 0 0

87654321

3.2 0 0 0 0 0 0

87654321

3.2

0.4

1.5

0.4 0 0

87654321

EADRS1

EADRS2 ENABLEC7 ENABLEC8 EADRS18

LLA22 EADRS22

ENABLEC6 EADRS21 EADRS20 EADRS19

EADRS10 EADRS9 EADRS8 EADRS7

EADRS6 EADRS5 EADRS4 EADRS3

EADRS17 EADRS16 EADRS15

EADRS14 EADRS13 EADRS12 EADRS11

EDATA0 EDATA8 EDATA1 EDATA9

EDATA4 EDATA12 EDATA5 EDATA13

EDATA2 EDATA10 EDATA3 EDATA11

EDATA6 EDATA14 EDATA7 EDATA15

IC3006

TC74LCX257FT(EL)

16 15 14 13 12 11 10

SELECT

VCC

1A

ST

1B

4A

1Y

4B

2A

4Y

2B

3A

2Y

3B

9

GND

3Y

IC3007

TC74LCX257FT(EL)

16 15 14 13 12 11 10

SELECT

VCC

1A

ST

1B

4A

1Y

4B

2A

4Y

2B

3A

2Y

3B

9

GND

3Y

IC3008

TC74LCX257FT(EL)

16 15 14 13 12 11 10

SELECT

VCC

1A

ST

1B

4A

1Y

4B

2A

4Y

2B

3A

2Y

3B

9

GND

3Y

*CN201

MDATA3

MDATA4

MDATA5

MADRS10

MADRS11

MADRS9

MADRS8

MADRS13

MADRS14

MIVAL

MICLK

MADRS12

MADRS7

MADRS6

MADRS5

MADRS4

MADRS3

MADRS2

MADRS1

MADRS0

MODATA3

MODATA4

MODATA5

MODATA6

MODATA7

MISTRT

MIDATA0

MIDATA1

MIDATA2

MIDATA3

MIDATA4

MIDATA5

MIDATA6

MIDATA7

MOCLK

MOVAL

MOSTRT

MODATA0

MODATA1

MODATA2

IC207

AAT4610AIJS-1-T1

8765

SET

GND

ON

GND

IN

GND

IN

OUT

5V SW

3.2

R271 22k

DTA143EUA-T106

0

MDATA6

MDATA7

MDATA0

MDATA1

MDATA2

0

3.1

Q202

SWITCH

R231 820

C209

0.1

TP217

R3046

33

R3047

33

R3048

33

R3049

33

R3050

33

R3051

33

R3052

33

R3053

33

R270 10k

R269

5.6k

MADRS0

MADRS1

MADRS2

MADRS3

MADRS4

MADRS5

MADRS6

MADRS7

MADRS8

MADRS9

MADRS10

MADRS11

MADRS12

MADRS13

MADRS14

R3119

4.7k

R3118

2.2k

B+

MDC1_ENABLE

MDC3_ENABLE

MDC6_ENABLE

MDC7

B+

MDC0

MDC2_ENABLE

VS1#

MDC4

MDC5

MDC8_RESET

MDC9

MDC3_ENABLE

INPACK

MDC10

R3121

1k

IC3011

GATE

IC3011

TC74VHC00FT(EKJ)

3.2

R3011

R3038

R3039

R3044

0

3.2

3.2 0

0

R3015

0

3.2 0 0 0 0

3.2 0 0

R3016

0

3.2

0

0 0 0 0 0 0 0 0

0

3.2

0

0 0 0 0 0 0 0

3.2

R254

47

EADRS1A

R239

150

EADRS2A

EADRS18A

R240

150

TP857

LLA22A

EADRS22A

R241

150

EADRS21A EADRS20A EADRS19A

R242

150

EADRS10A

EADRS9A EADRS8A EADRS7A

R243

150

EADRS6A EADRS5A EADRS4A EADRS3A

R244

150

EADRS17A EADRS16A EADRS15A

R245

150

EADRS14A EADRS13A EADRS12A EADRS11A

R246

47

EDATA0A EDATA8A EDATA1A EDATA9A

R247

47

EDATA4A

EDATA12A

EDATA5A

EDATA13A

R248

47

EDATA2A

EDATA10A

EDATA3A

EDATA11A

R249

47

EDATA6A

EDATA14A

EDATA7A

EDATA15A

EADRS18A

EADRS17A

EADRS16A

EADRS15A

EADRS14A

EADRS13A

EADRS12A

EADRS11A

EADRS10A

EADRS21A

EADRS22A

ENABLEC6A

EADRS20A

EADRS19A

EADRS9A

EADRS8A

EADRS7A

EADRS6A

EADRS5A

EADRS4A

EADRS3A

EADRS2A

IC205

32M Bit FLASH ROM

IC205

S29GL032A90TFIR30H

0

1234567

A15

A16

0

BYTE#

A14

0

A13

VSS1

0

A12

DQ15

0

A11

DQ7

0

A10

DQ14

0 0

8

0

9

0

3.2

R250 10k

0

16151413121110

0

17 18 19 20 21 22 23

0 0 0 0 0 0 0

24

A9

A8

A19

A20

#WE

RESET

A21

ACC

BY#

A18

A17

A7

A6

A5

A4

A3

A2

A1 A0

DQ13

DQ12

DQ11

DQNP#

DQ1RY

VSS2

42434445464748 41 40 39 38 37 36 35 34 33

DQ6

DQ5

DQ4

VCC

DQ2

32 31 30 29 28 27 26

DQ9

DQ1

DQ8

DQ0

OE#

CE#

25

0

3.2

R251

TP826

10k

0 0 0

3.2

3.2 0 0 0

3.2 0 0 0 0 0 0

3.2

3.1

3.2 0

C211

TP825

F202

EDATA15A

EDATA7A

EDATA14A

EDATA6A

EDATA13A

EDATA5A

EDATA12A

EDATA4A

C213

0.1 16V

EDATA11A

F

EDATA3A

EDATA10A

EDATA2A

EDATA9A

EDATA1A

EDATA8A

EDATA0A

R253

47

C212

1

6.3V X6S

47

16V

0uH

EDATA8A

EDATA9A

EDATA10A

EDATA11A

EDATA12A

EDATA13A

EDATA14A

EDATA15A

EADRS1A

EADRS2A

EADRS3A

EADRS4A

EADRS5A

EADRS6A

EADRS7A

EADRS8A

EADRS9A

EADRS10A

EADRS11A

EADRS12A

EADRS13A

EADRS14A

EADRS15A

IC3001

BUS BUFFER

IC3002

BUFFER

IC3003

BUFFER

R3045

0

14 13 12 11 10

1A

VCC

1B

4B

1Y

4A

2A

4Y

2B

3B

98

2Y

3A

7123456

GND

3Y

IC3001

TC74LCX245FT(EKJ)

20 19 18 17 16 15 14 13 12 11

123456789

DIR

VCC

A1

OE

A2

B1

A3

B2

A4

B3

A5

B4

A6

B5

A7

B6

A8

B7

10

GND

B8

IC3002

TC74LCX541FT(EKJ)

20 19 18 17 16 15 14 13 12 11

123456789

OE1

VCC

A1

OE2

A2

Y1

A3

Y2

A4

Y3

A5

Y4

A6

Y5

A7

Y6

A8

Y7

10

GND

Y8

IC3003

TC74LCX541FT(EKJ)

20 19 18 17 16 15 14 13 12 11

123456789

OE1

VCC

A1

OE2

A2

Y1

A3

Y2

A4

Y3

A5

Y4

A6

Y5

A7

Y6

A8

Y7

10

GND

Y8

3.2 0

0

C3010

0.1

0.7

Q205

HN1C01FU-TE85R

SWITCH

L3001

0uH

C30171C3006

47

R3120

10k

MDATA0

R3036

MDATA1

47

MDATA2

MDATA3

MDATA4

R3037

MDATA5

47

MDATA6

MDATA7

R3040

47

R3041

47

R3042

47

R3043

47

C3022

R3122

2.2

2.2k

3.2

0 0

3.2

C3011

0.1

3.2

0.2

C3012

0.1

3.2

0

0.2 0

0.2

0.2 0 0

0.2

C3013

0.1

3.2

0.2

B+

C3016

1

3.2

C3003

0.1

R3070

0.2 0 0

C3004

0.1

3.2

0.4 0 0

0.3 0 0

C3005

0.1

3.2

0.4 0 0

R3077

R3080

R3071

R3076

R3081

R3085

R3089

R3092

R3084

R3088

R3093

R3094

R3099

R3102

MODATA3

47

TS1_DATA3

22

150

MODATA2

47

TS1_DATA2

22

150

MODATA7

47

TS1_DATA7

22

150

MODATA6

47

TS1_DATA6

22

150

MOSTRT

47

TS1_MSTRT

22

150

CI_TPS_DATA3

CI_TPS_DATA2

CI_TPS_DATA1 CI_TPS_DATA0

R3001

10k

CI_TPS_DATA7

CI_TPS_DATA6

CI_TPS_DATA5

CI_TPS_DATA4

R3002

10k

R3003

10k

CI_TPS_MSTRT

CI_TPS_MVAL

CI_TPS_MCLK

RDR-HXD790/HXD890/HXD990/HXD1090

CI_TPS_DATA0

CI_TPS_DATA1

CI_TPS_DATA2

CI_TPS_DATA3

CI_TPS_DATA4

CI_TPS_DATA5

CI_TPS_DATA6

CI_TPS_DATA7

CI_TPS_MCLK

CI_TPS_MVAL

CI_TPS_MSTRT

R3103

R3104

R3105

R3056

220

R3057

220

0

SIGNAL PATH

VIDEO SIGNAL

REC

PB

TS1_DATA0

TS1_DATA1

TS1_DATA2

TS1_DATA3

TS1_DATA4

TS1_DATA5

TS1_DATA6

TS1_DATA7

TS1_MCLK

TS1_MVAL

TS1_MSTRT

TS1_DATA0

TS1_DATA1

TS1_DATA2

TS1_DATA3

TS1_DATA4

TS1_DATA5

TS1_DATA6

TS1_DATA7

TS1_MCLK

TS1_MVAL

TS1_MSTRT

Y/CHROMAYCHROMA

AUDIO

SIGNAL

R3023

R3054

IC3004

10k

47

R3025

47

R3026

22

BUFFER

B+

TP1022

IC3004

TC74LCX541FT(EKJ)

3.2

123456789

OE1

0

A1

0

A2

0

A3

0

A4

0

A5

0

A6

0

A7

0

A8

10

GND

IC3005

BUFFER

IC3005

TC74LCX541FT(EKJ)

3.2

123456789

OE1

1.5

A1

0

A2

0

A3

A4

A5

A6

A7

A8

10

GND

C3007

1

C3001

0.1

3.2

20 19 18 17 16 15 14 13 12 11

VCC

3.2

OE2

0.3

Y1

0.3

Y2

0.3

Y3

0.3

Y4

0.3

Y5

0.3

Y6

0.3

Y7

0.3

Y8

C3002

0.1

3.2

20 19 18 17 16 15 14 13 12 11

VCC

3.2

OE2

0.3

Y1

0.3

Y2

0.3

Y3

Y4

Y5

Y6

Y7

Y8

R3005

MIDATA0

R3006

MIDATA1

22

MIDATA2

MIDATA3

MIDATA4

R3007

MIDATA5

22

MIDATA6

MIDATA7

22

MICLK

MIVAL

MISTRT

C221

100 16V

Q203

2SC4154TP-1EF

SWITCH

MDC11

R258 10k

TP216

R275 10k

0 0

2.5

4321

R272 10k

C222

2.5

1

1.8

0

Q204

DTC124EUA-T106

SWITCH

0

IC207

TP868

R273 10k

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

C210 100 16V

CAM

4-17 4-18

CI

DT-124 (2/3)

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

For Schematic Diagram

• Refer to page 4-3 for waveforms.

• Refer to page 4-47 for printed wiring board.

1

2

3 4 5 6 7 8 9 10 11

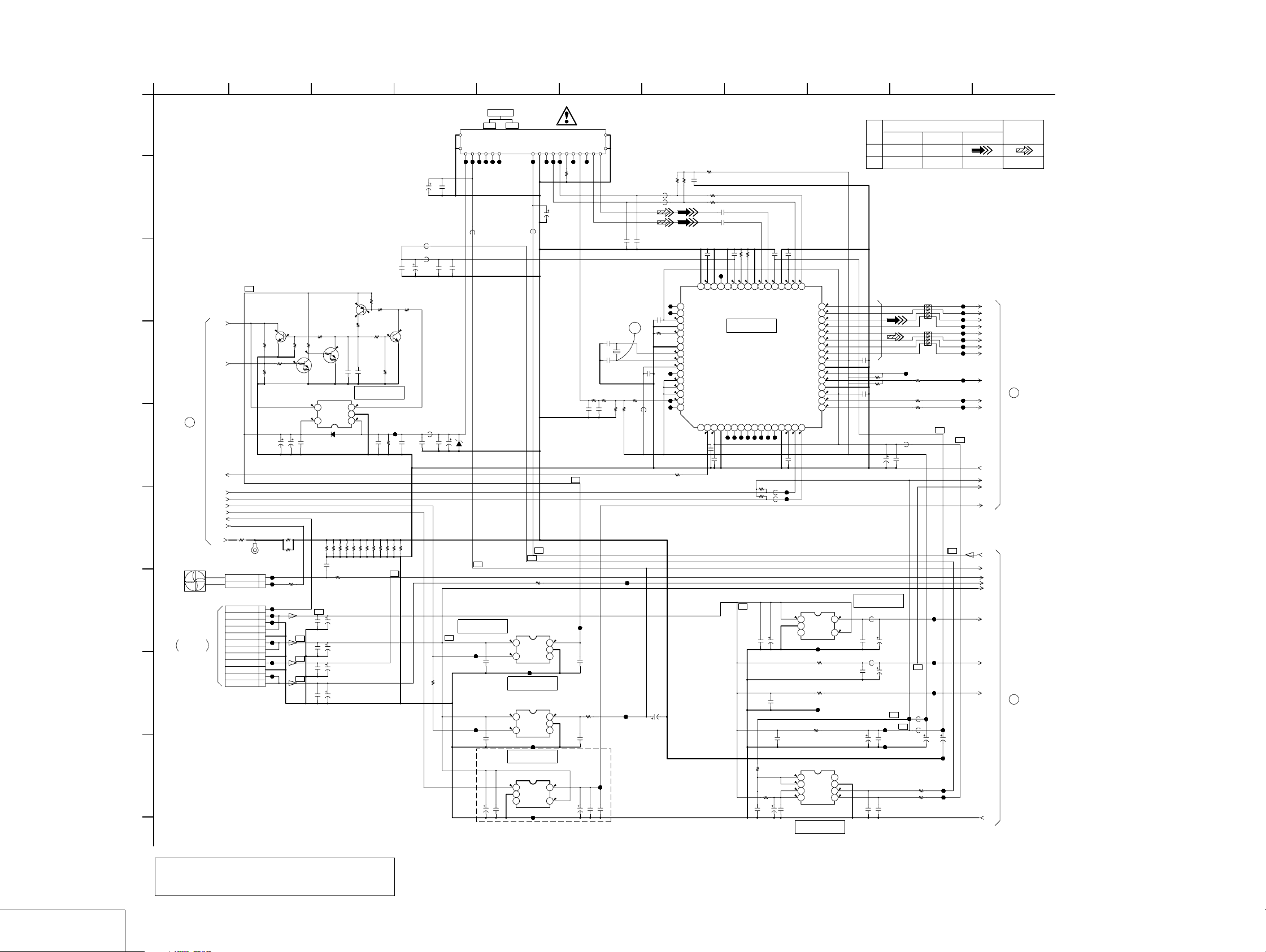

DT-124 BOARD(3/3)

DIGITAL TUNER

A

-REF.NO.: 40,000 SERIES-

B

C

D

E

F

G

(SEE PAGE 4-40) (SEE PAGE 4-42)

H

I

J

4

TO (1/3)

FAN

TO

POWER BLOCK

CN202 THROUGH THE PD-142 HARNESS

DET_ANT

ANT5V_SW

XCOFDM_RESET

I2C_SCL_DTBR

I2C_SDA_DTBR

DT_TUON P_CONT2

P_CONT

FAN-

GNDT

R348

0

SW+3.3V

EV+12.1V

SW+1.5V

B+

FAN+

FAN-

P_CONT

V+5.8E

KN301

GND

E

CN203

2P

CN202

12P

1

2

1

2

3

4

5

6

7

8

9

10

11

12

2SC4154TP-1EF

PROTECT DET

0

R321

4.7k

R363

10k

R319 47k

DTC143EUA-T106

PROTECT DET

C382

100 16V

R349

R350

TP582

TP626

TP577

TP574

TP576

TP573

TP572

TP575

Q308

R359 10k

Q310

0

C381

C380

100

0.1

16V

25V

0

R703

0

2012

B+

R358

22k

R315 10k

1.9

Q309

DTC143EUA-T106

PROTECT DET

0

ON

5

54

VIN

1SS355TE-17

F

R3117

0

C600

0.1

B+

C594

0.1

C598

0.1

C593

0.1

C596

0.1

5

Q306

ISA1602AM1TP-1EF

PROTECT DET

0

R351 10k

0

C313

C320

4.7

6.3V

6.3V B

B

2012

IC309

FLAGB

VOUT

IC309

4.9

321

GND

0

FPF2007

D303

R31160R31150R31140R6910R692

R6890R690

0

R650

0

2012

C595

220

4V

C599

100 16V

C601

100 16V

C597

220

4V

R313

4.7k

R326

5

4.7k

R353

22k

5V SW

C372

0.1 25V

F

R6930R347

0

C383

0

R352 10k

TP300

R311

680

R345

R343

0

B+

C368

100 16V

F313 0uH

L314

0uH

C385

0.1

47

25V

16V

F

R314

4.7k

4.9

Q307

2SC4154TP-1EF

PROTECT DET

C359

0.1

C370

25V

100p

F

50V

0

DIGITAL AERIAL

IN OUT

ANT POWER

N/C(RF AGC)

N/C

B1(+5V)

N/C

TP330

TP334

TP336

TP337

TP329

C364

0.1 25V

F

F310

0uH

C393

C391

2.2

0.01 10V

25V

B

2012

D302

SM15T6V8A

F306

0uH

C353

C354

10

1

16V

10V

B

B+

IC312

B+

5V REG

TP339

C388

1

10V

TP340

B

C309

1 B

C318

100 16V

R307

0

U301 DTT TUNER

N/C

TU

N/C

SCL

SDAASX-TAL OUT

IF OUT2

IF OUT1

IF AGC

TP1023

GND

TP335

F309

0uH

TP333

TP331

C367

10

50V

TP332

TP1024

R316

0

N/C

TP1025

R325

R327

18k

10k

C396

C400

0.022

25V

B

B+

0

R356

IC312

S-1132B50-U5T1G

5.6

Vout

Vin

5

4.8

ON/OFF

43

TP531

TP301

5

1

GND

2

NC

C404

2.2 10V

B

2012

IC304

5V REG

IC304

S-1132B50-U5T1G

5.6

Vout

Vin

5

1

GND

4.8

2

NC

ON/OFF

43

TP532

R306

4.9

0

C332

2.2 B

2012

IC306

5V REG

IC306

S-1170B50UC-OUJTFG

4.7

ON/OFF

VSS

321

NC

C314

4.7

6.3V B

2012

54

VOUT

VIN

TP533

2.4

5.6

TP317

C334

C423

4.7

C329

0.1

6.3V

100

25V

B

16V

F

2012

C361

22p 50V

C402

12p 50V

X300

1608

20MHz

C397 10p 50V

R331

R672

3.3k

560

TP326

TP315

RDR-HXD795/HXD895 /HXD995/HXD1095

C373

2.2 10V

R312

B

R309

100

2012

2.2k

R310

2.2k

F397

0uH

F398

0uH

C356

22p 50V

TP612

C399

49

0.1

TP613

25V

50

F

1.7

51

2

R668

C398

0.1 25V

F

R687 390

F321 0uH

52

0

53

0

54

55

1.6

56

1.6

57

3.2

58

TP614

59

3.2

60

3.2

61

3.2

62

2

63

TP618

64

TP619

R333

100

C339

100 16V

R336

0

R337

0

C409

0.1

C413

0.1 16V

C406

C408

B

1

0.1

10V

25V

TP611

F

1.800

R6730R674

0

F

1.8

C415

C412

0.1

0.1 25V

25V

F

1.8

3.2

1.8

3.2

33343536373839404142434445464748

IC313

OFDM

DEMODULATOR

IC313

DRX3975D

123456789

0.3

3.2

TP610

C416

0.1 25V

F

C417

1

10V

F

TP609

TP608

B+

10 11 12 13 14 15 16

TP607

TP606

TP605

R342

3.9k R341

3.9k

C433

4.7 B

2012

R304

10k

R305

0

C303 100p 50V

TP604

3.2

TP603

C418

1

F317

TP302

0uH F318

TP303

0uH

S-1170B25UC-OTKTFG

3.2

ON/OFF

VSS

321

NC

C302 100 16V

C301

1 B

C304

1

10V

B

MM1689FHBE

3.1

PS2

3.1

PS1

3.2

VIN2

3.2

4321

VIN1

C431

2.2 10V

B

2012

C319

100 16V

IC307

0

32

0

31

0

30

0

29

0

28

0

27

0

26

0

25

3.2

24

23

0

22

0

21

20

1.7

19

0

18

1.6

17

IC300

54

VOUT

VIN

TP535

R303

0

R300

0

TP536

R357

0

IC307

8765

NC

GND

VO2

VO1

REG

2.4

3.2

C315

4.7 B

2012

C602

4.7

B

2012

1.7

SIGNAL PATH

REC

PB

C421

1

10V

F

R686

10k

R685

C422

10k

0.1 25V

F

C392

C395

2.2

47

10V

16V

IC300

2.5V REG

F300

0uH

C324

22

6.3V

F314

C603

0uH

22

6.3V

B+

TP338

B+

TP537

C312

C307

100

10

16V

2012

C341

C340

1

10V

B

TP322

TP342

L315 0uH

VIDEO SIGNAL

R678

75

R679

75

R680

33

R681

33

R682

33

B+

TP520

TP585

B+

TP325

F301

0uH

TP323

F302

C342

0uH

47

16V

R355

TP328

0

TP327

R354

0

TP538

TP324

C343

TS1_DATA7

TS1_DATA6

TS1_DATA5

TS1_DATA4

TS1_DATA3

TS1_DATA2

TS1_DATA1

TS1_DATA0

TS1_MSTRT

TS1_MVAL

TS1_MCLK

AUDIO

SIGNAL

5

TO (2/3)

TP314

TP304

TP305

TP313

TP312

TP311

TP310

TP309

TP308

TP307

TP306

Y/CHROMAYCHROMA

B+

GNDD

V+3.3DT

VD+3.3D

V+5CI

B+

47

16V

V+32VT

V+5VA

V+12.1EV V+1.5V V+5.8E

V+2.5D

VD+3.3D

VA+3.3A

GNDD

3

TO (1/3)

DIGITAL TUNER

DT-124 (3/3)

Note : The components identified b y mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

4-19 4-20

For Schematic Diagram

• Refer to page 4-3 for waveforms.

• Refer to page 4-41 for printed wiring board.

1

2

FR-291 BOARD

A

FL DRIVER, LINE 2 IN, FUNCTION SW

-REF.NO.: 30,000 SERIES-

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

3 4 5 6 7 8 9 10

ND201

FLUORESCENT TUBE DISPLAY

F1

1G2G3G4G5GIC6G7G8G9GICIC10G

F1

17891011 1256 14 19181713 16 2015 23 24 2721 28262522 31 33 3530 32 363429 42 44434037 3938 41 46 5248474524 49 51

IC

11G

12G

P16ICP15

P14

IC

P13ICP12ICP11

P10ICP9P8ICICIC

IC

P7

IC

P4ICP5

IC

P3P2P1

P6

IC

F2

JL235

JL236

JL237

JL238

JL240

JL239

JL241

JL243

JL242

GRD7

GRD6

TO AV-133 BOARD(1/5) CN105

THROUGH THE

(

FAR-008 FFC

(SEE PAGE 4-6)

10k

Q201

2SD1898T100R

DSC

0.2

UN2213 SWITCH

11.5

2SA1365-T112-1EF

12V SWITCH

11.6

10.9

R215

5.6k

0

Q204

C207

2700p

250V U2J

Q203

11.6

R217

10k

T201

2

3

4

5

6

C211

0.1 16V

B

Q205

DTC124EUA-T106

LED DRIVE

4.7

D210

1SS355TE-17

10

1SS355TE-17

1

7

8

9

D211

D208

D209

JL223

JL224

C215

0.1 50V

2012

C216

22

35V

B

D216

UDZ-TE-17-6.2B

R227

27k

LED3

B+

D212

SDPB31H3C0100

9.6

HDD

0

R222

2012

R223

2.7k

Q206

DTC143TUA-T106

C213

0.1 50V

F

0

LED DRIVE

0

3.4

L201

100uH

B

C201

100 16V

2SD1898T100R

R209

Q202

DSC

C

D

R201

0

2012

E

R205

0

J201

LINE IN 2

F

S VIDEO

VIDEO

AUDIO

L(MONO)

R

3

1

5

4

34

2

12

6

7

8

9

10

11 13 12

R206

0

R207

FB201

0uH

0

R213

0

FB202

0uH

D206

STZ6.8N-T146

1

D202

STZ6.8N-T146

D203

STZ6.8N-T146

D204

STZ6.8N-T146

D205

STZ6.8N-T146

2C

SDET2

2Y

2V

2L

2R

G

D207

STZ6.8N-T146

JL225 JL226

JL227 JL228

JL230

JL231 JL232 JL233

B+

FLDT

FLCK

KEY3

FLSTB

KEY2

KEY1

C217

0.1 50V

2012

B

JL234

DVD

D214

SLI-343YC

CN202

JL206

JL208

JL210

JL211

JL212

JL222

JL213

JL207

JL221

JL220

JL209

GRD1

24P

1

2C

2

SDET2

3

GND

4

2Y

5

GND

6

2V

7

GND

8

2L

9

GND

10

2R

11

GND

12

FLPON

13

GND

14

V+12RIE

15

GND

16

FLDATA

17

GND

18

FLCLK

19

KEY3

20

FLSTB

21

IR

22

KEY2

23

KEY1

24

V+5F

GRD2

R225

270

GRD3

GRD4

LED2

GRD5

JL244

GRD8

)

JL245

JL246

GRD9

JL247

R231

2.2k

R232

FLDT

FLCK

FLSTB

JL248

JL249

JL251

JL250

GRD11

GRD10

GRD12

B+

0

R250

47

R251

47

R252

47

B+

KEY3

KEY2

KEY1

REC

JL252

SEG16

JL254

JL255

JL256

JL257

JL253

JL258

SEG15

R233

100k

R235

0

R236

10k

R237

10k

REC_STOP

S201

S203

S202

INPUT_SELECT

JL259

SEG14

4.8

2.8

4.8

0

0 0

JL260

SEG13

C222

0.01 16V

C221

0.01 16V

R228

10k

R210

2.2k

R216

2.2k

R229

3.3k

R230

5.6k

B

JL261

1234567891011

JL262

SEG12

C223

50V

2012

LED1

LED2

LED3

LED4

OSC

DOUT

DIN

CLK

STB

K1

K2

JL263

0.1

B

JL264

JL265

SEG11

4.9

43

44

VDD

VSS

VDD

121314

4.9

CH+

CH-

STOP

PLAY

JL266

SEG10

GRD1

22.0

42

19.7

SEG1

GR1

SG1

JL267

GRD2

22.0

41

15

23.8

SEG2

JL271

JL269

JL268

JL270

SEG8

SEG9

GRD3

GRD4

GRD5

GRD6

22.0

373839

40

GR6

GR5

GR4

GR3

GR2

IC201

FL DRIVE

IC201

PT6315

SG3

SG4

SG5

SG6

SG2

16171819202122

21.7

17.8

23.8

13.8

SEG4

SEG3

SEG5

SEG6

R238

10k

S204

R239

S205

2.2k

R240

S206

2.2k

R241

S207

3.3k

JL272

GRD7

GR7

SG7

SEG7

JL273

SEG7

GRD8

22.1

13.8

SEG8

JL274

GRD9

22.0

343536

GR9

GR8

SG8

SG9

21.8

SEG9

OPEN/CLOSE

JL275

GR10

GR11

GR12

VEE

SG16

SG15

SG14

SG13

SG12

SG11

SG10

SEG6

HDD

DVD

JL276

JL277

2324252627282930313233

JL278

SEG5

22.0

22.1

24.3

21.8

23.8

21.8

23.8

21.8

S210

S208

S209

JL279

SEG4

JL280

JL281

SEG3

R243

10k

R242

2.2k

R244

2.2k

R245

3.3k

R246

5.6k

JL282

SEG2

JL283

SEG1

GRD10

GRD11

GRD12

JL284

SEG16

SEG15

SEG14

SEG13

SEG12

SEG11

SEG10

JL285

JL286

C204 220p

50V

C206 220p 50V

R218 220k

R220 220k

SIGNAL PATH

CN201

5P

TO

H

FL-184

BOARD

CN106

THROUGH THE

(

FLR-010 or FLR-012 FFC

)

V+5F

GND

KEY1

KEY3

JL204

1

JL205

2

JL203

3

IR

JL202

4

JL201

5

B+

REC

PB

VIDEO SIGNAL

Y/CHROMAYCHROMA

(SEE PAGE 4-24)

AUDIO

SIGNAL

FL DRIVER, LINE 2 IN, FUNCTION SW

4-21

4-22

FR-291

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

For Schematic Diagram

• Refer to page 4-55 for printed wiring board.

1

2

3 4 5 6

FL-184 BOARD

DV,USB,REMOCON RECEIVER,POWER,SW

A

-REF.NO.: 30,000 SERIES-

TO

RD-066

BOARD(6/7)

CN5101

THROUGH THE

RV-003 HARNESS

(SEE PAGE 4-36)

TPB N

TPBP

GND

TPAP

TPAN

CN101

6P

JL101

6

JL102

5

JL103

4

3

JL104

2

JL105

1

FL101

0uH

4

1

23

2

1

TPB-

TPB+

TPA-

TPA+

CN103

4P

1

DV IN

2

3

4

B

3

4

FL102

0uH

C102

1

CN102

C

TO

RD-066

BOARD(6/7)

CN5201

THROUGH THE

RU-001 HARNESS

(SEE PAGE 4-36)

USBDP 1

GND

USBDM 1

GND

V+5USB

USBVFB

USBDM 2

GND

USBDP 2

GND

10P

JL108

1

JL107

2

JL106

3

4

JL110

5

JL109

6

JL112

7

8

9

10

C101 1

JL111

L104

0uH

R109

33

R105

33

VDR102 VDR104

R108

33

R104

33

L105

0uH

L102

0uH

B+

L103

0uH

D-

2

3

D+ GND

V+5

D-

D+

GND

VFB

1

4

CN105

4P

Pict Bridge

USB

B type

CN104

1

2

3

USB

4

A type

4P

C111

C107

0.01

100

16V

IC101

REMOTE CONTROL

RECEIVER

IC101

GP1UM27XK0SF

VCC

OUT

4.9

4.8

GND

(POWER)

S101

R113

R112

0

B+

S102

ONE_TOUCH_DUB

JL117

JL118

JL119

JL121

JL120

CN106

5P

KEY3

1

KEY1

2

IR

3

GND

4

V +5F

5

TO

FR-291

BOARD CN201

THROUGH THE

FLR-010 or FLR-012 FFC

(SEE PAGE 4-21)

D

DV, USB, REMOCON RECEIVER, POWER SW

FL-184

4-23 4-24

For Schematic Diagram

• Refer to page 4-51 for printed wiring board.

1

2

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

3 4 5 6 7 8 9 10 11 12 13

A

B

C

D

E

F

G

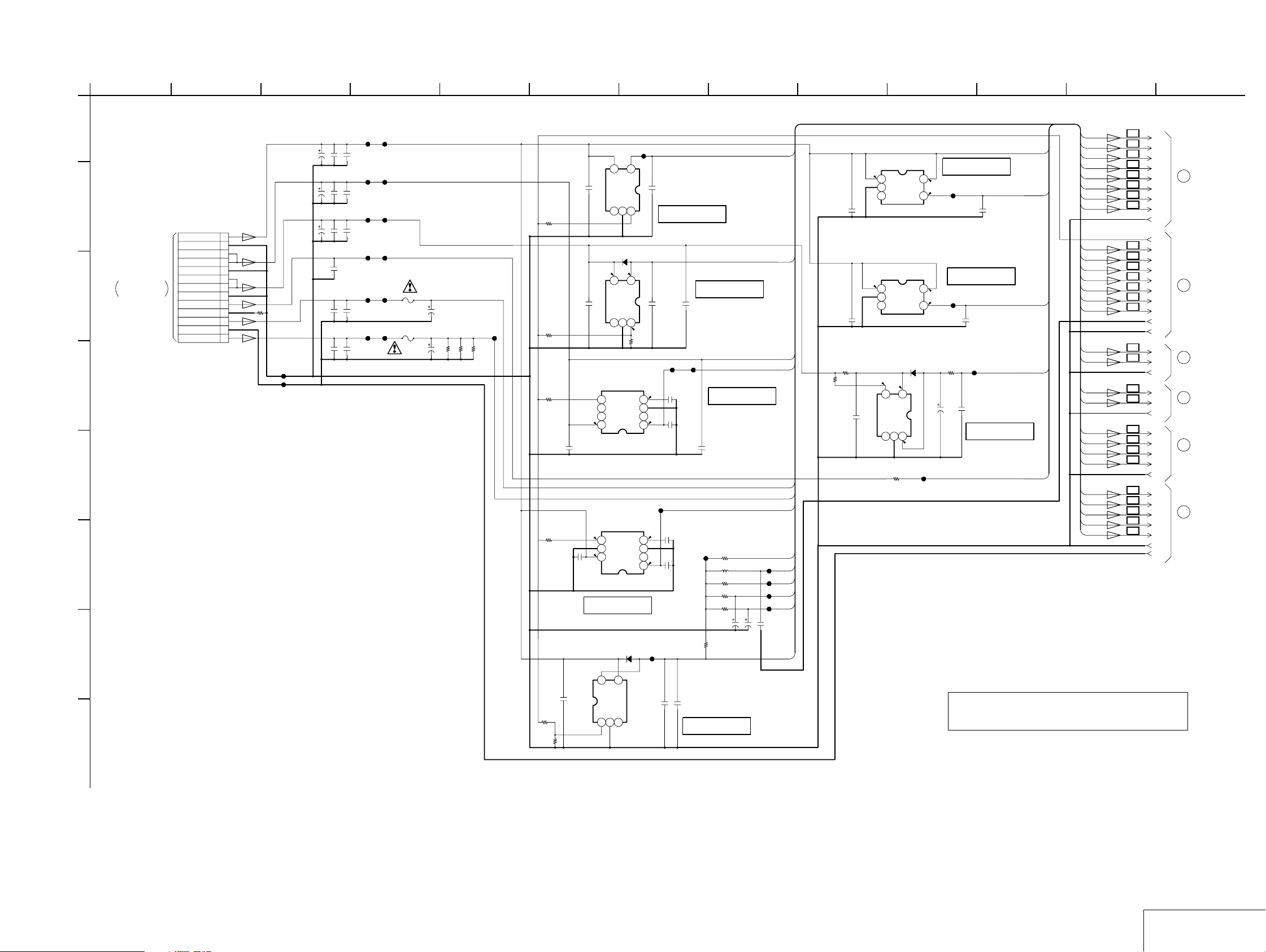

RD-066 BOARD(1/7)

POWER BLOCK

-REF.NO.: 20,000 SERIES-

TO

POWER BLOCK

CN201

THROUGH THE

PR-078 HARNESS

(SEE PAGE 4-40) (SEE PAGE 4-42)

CN4501

13P

EV+5.8V

GNDD

SW+1.53V

GNDD

SW+3.33V

GNDD

V+12V

GND

V+5M

GNDM

V12M

TP4502

TP4503

TP4515

TP4516

TP4517

TP4518

C4553 1000p

50V

B

1608

V+3V

V+2R5

V+1R5_IN

V+1R0

V+5M

V+12M

V+3A

V+5D

V+5_AO

V+5_AIN

V+5_VI

V+5_VO

V+5L

R4573

0

C4562

6.3V X6S

C4567

6.3V

R4574

0

C4571

4.7

6.3V B

2012

X6S

1

IC4561

NJM2878F3-05(TE2)

5.8

CONT

GND

321

NC VOUT

IC4562

NJM2878F3-33(TE2)

5.8

CONT

GND

321

NC VOUT

3.3

IC4571

VSS

NC ON/OFF

S-1132B18-U5T1G

321

R4582

0

2012

54

VIN

5.8

5.0

54

VIN

5.8

3.3

D4571

RB501V-40TE-17

54

C4572

VIN

220 4V

VOUT

1.8

TP4570

IC4561

5V REG

TP4565

IC4562

3.3V REG

TP4566

C4570

1

6.3V X6S

R4575

0

TP4569

C4573

4.7

6.3V B

C4563

1

6.3V X6S

IC4571

1.8V REG

C4535

C4501

C4507

1000p

1

100

50V

6.3V

16V

C4508

220 4V

1

2

3

4

5

6

7

8

9

10

11

12

13

R4501

0

2012

TP4501

TP4514

C4509

220 4V

X6S

C4502

1

6.3V X6S

C4537 1000p

50V

B

C4539 1000p

50V

B

C4540 1000p

50V

B

C4536

1000p

C4503

6.3V X6S

C4504

0.1 16V

F

C4505

6.3V

C4506

50V

X6S

0.1 16V

B

1

F

TP4504 TP4505

TP4507

TP4506

TP4508

TP4509

TP4510

TP4511

TP4513

TP4512

IC4502

2.5A 32V

IC4501

2.5A 32V

V+3D

C4515

6.3V

C4516

16V

C4511

4.7

6.3V B

IC4511

2012

C4524

4.7

6.3V B

2012

C4541

1

6.3V X6S

IC4521

1.5

3.6

5.8

S-1170B33UC-OTSTFG

R4511

0

47

R4504

10

2.7k 2012

R4505

2.7k 2012

R4507

2.7k 2012

TP4571

R4521

6.8k

R4531

0

R4541

0

C4531

1

6.3V X6S

IC4541

TP4608

54

C4513

VOUT

4.7

6.3V B

2012

ON/OFF

VSS

NC VIN

321

D4521

RB501V-40TE-17

3.3 2.5

54

VOUT

C4525

4.7

6.3V B

ON/OFF

VSS

NC VIN

S-1170B25UC-OTKTFG

321

IC4531

MM1701WHBE

NC2

NC3

8765

VIN

IC4541

MM1563DFBE

SUB

765

VIN

3V REG

RB501V-40TE-17

C4526

15k

CNCONT

GND

NC1

VOUT

CNCONT

GND

NC

VO

D4552

2012

2.5

0.3

4321

1.1

TP4610

1.9

4321

3.3

TP4568

IC4511

3.3V REG

C4522

1

6.3V X6S

TP4572 TP4609

C4532

0.01 16V

B

C4533

1

6.3V

X6S

C4543 1000p

50V

B

C4542

2.2 10V

B

2012

IC4521

2.5V REG

C4534

10

10V

C

2012

TP4567

R4552

0

2012

R4554

0

2012

R4553

0

2012

R4556

0

2012

IC4531

1.0V REG

R5445

0

2012

L4551 10uH

C4559

C4558

100

16V

EV+5.8V

V+5HD

V+3HD

V+1R8

V+12A

V+1R0

V+1R5_IN

V+2R5

V+3A

V+3D

V+3V

V+3HD

V+5D

V+12A

V+1R5_IN

V+3D

V+5_AO

V+5_AIN

V+5_VI

V+5_VO

V+3D

V+2R5

V+3D

V+1R8

V+3D

EV+5.8V

V+5HD

V+3HD

V+3A

V+3D

V+5L

V+5M

V+12M

B+

V+1R0

B+

V+1R5_IN

B+

V+2R5

B+

V+3A

B+ B+ B+ B+

B+

B+ B+ B+ B+ B+ B+

B+ B+

B+ B+ B+ B+

B+ B+ B+ B+ B+

V+3D

V+3V

V+3HD

V+5D

GNDD

P_CONT2

V+12A

V+1R5_IN

V+3D

V+5_AO

V+5_AIN

V+5_VI

V+5_VO

GNDA

GNDD

V+3D

V+2R5

GNDD

V+3D

V+1R8

GNDD

V+3D

EV+5.8V

V+5HD

V+3HD

GNDD

V+3A

V+3D

V+5L

V+5M

V+12M

GNDD

GNDM

1

TO (2/7)

2

TO (3/7)

3

TO (4/7)

4

TO (5/7)

5

TO (6/7)

6

TO (7/7)

C4555

4.7

6.3V B

2012

R4559

0

R4558

H

22k

54

VOUT

IC4552

ON/OFF

VSS

NC VIN

S-1170B50UC-OUJTFG

321

C4556

4.7

6.3V B

2012

C4557

0.01 16V

B

IC4552

Note : The components identified b y mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

5V REG

POWER BLOCK

4-264-25

RD-066 (1/7)

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

For Schematic Diagram

• Refer to page 4-3 for waveforms.

• Refer to page 4-51 for printed wiring board.

1

2

3 4 5 6 7 8 9 10 11 12 13

RD-066 BOARD(2/7)

EMMA BLOCK

A

-REF.NO.: 20,000 SERIES-

B

8

TO (4/7)

VREF_D

AT/XDT

HADRS7

HADRS6

HADRS5

C

(FOR CHECK)

D

(FOR CHECK)

E

F

BECS

10

TO (7/7)

IC1001-AJ2

G

H

V+3HD

V+1R5_IN

1

V+1R0

V+2R5

TO (1/7)

GNDD

I

V+5D

V+3A

V+3D

V+3V

TRST

EJSNGEN

TDI

GND

TDO

DINTEN

TMS

GND

TCK

GND

RST

JTSEL

DINT

V+3

TXD

RXD

DTR

CTS

V+5D

GNDD

XRESET

14

13

12

11

10

9

8

7

6

5

4

3

2

1

CN1402

7P

1

2

3

4

5

6

7

CN1401

14P

TP1414

B+

L1821

I

O

EMI

G

C1805

0.047 10V

B

C1802

2012

C1801

R1802

1

2.2 10V

B

C1804

330p

50V

L1801 39uH

220

6.3V X6S

2.2

R1804

R1803

C1803

33

330

220p 16V CH

L1831

O

EMI

Q1801

2SA1576A-T106-QR

HCL BPF

1.6

I

C1812

C1811

L1811 15uH

R1812

1

220

6.3V X6S

R1814

33

C1813

100p

50V

R1813

330

Q1811

2SA1576A-T106-QR

FSC BPF

X1001

24.576MHz

2.2

G

10V

B

2012

C1815

C1814

0.047 150p

10V

50V

B

C1045

1p

50V

CK

27MHz

X1002

C1044

1p 50V CK

R193

0

1

X101

16.9344MHz

R114

33k

RXD1

AIOBD

AIOBCK

VIOD7

AIOLRCK

VIOD6

VIOD5

VIOD4

VIOD3

TP1202

VIOD2

B+

R5856

B+

R1401

TP1401

22

R1414

TP1402

22

R1402

TP1403

22

TP1430

R1403

TP1429

22

R1415

TP1406

22

R1404

TP1404

22

R1405

TP1405

22

R1406

TP1407

22

R1416

TP1408

22

R1407

TP1409

22

R1411

10k

R1412 10k

TP1411

TP1410

TP1413

TP1412

TP1425

B+

TP1426

TP1427

C1421

1

R1421

6.3V

10k

X6S

R1422

10k

B+ B+ B+ B+ B+

B+ B+ B+

C1401

R1413

47k

3.1

Q102

RT1N141U-TP-1

SWITCH

JTMRST

JTDI

JTDO

JTMS

JTCL

EDINT

0.01 16V

B

D1401

UMZ6.8N-T106

0

JTRST

C121

2200p

50V

C122 2200p

C125

50V

1

6.3V

C127

X6S

0.047 10V

C128

B

0.1 10V

C129

1

6.3V

R109

X6S

6.2k

C130

RXD

B+

C116

0.1 10V

B

4.7

6.3V

C131

2012

0.068 10V

C133

B

0.1

10V

C134

B

0.1 10V

B

R110

1k

TP131

C136

0.1 10V

C137

B

6800p

16V

C144

0.01 16V

C145

B

0.01 C146

16V

10

B

10V

C

C147

2012

0.33

6.3V

C148

B

0.33

6.3V

C155

B

0.47

6.3V

C156 1800p

B

50V

C157

0.01

16V

C158

0.01

B

16V

B

C107 680p

50V

R104

B

12k

C113 4700p

50V

C114

4700p

50V

C115

0.01 16V

B

C120

C117

0.1 10V

1000p

B

50V

B

C100

1000p

50V

B

C101

1000p

50V

B

L1002

TP1013

EMI

OI

G

B+

R1061

0

AB23

SP1STRT/SS1STRT/GPIO10

W19

SP1REQB/SS1ERRB/GPIO11

AH24

SP1DAT0/SS1DAT/GPIO12

AG24

SP1DAT1/SS0CLK/GPIO13

AC21

SP1DAT2/SS0EN/GPIO14

AE22

SP1DAT3/SSOSTRT/GPIO15

AE23

SP1DAT4/SS0ERRB/GPIO16

AD22

SP1DAT5/SS0DAT/GPIO17

AD21

SP1DAT6/GPIO18

AC23

SP1DAT7GPIO19

AF15

CBPD

AG15

CBBD

AF18

CEQDC

R116

AH19

3.3k CDEF2

R119

AG19

0

CDEF

AJ17

CEQ

AJ18

REQ

AF16

CAGC

AF17

CAGC2

AG14

CMIRR

R124

AF14

0

CAMIRR

C135

AH18

0.01 AGCIN

AG18

RFO

AE17

CRC

AE16

CTEC

AE18

CBHLPP/CRAPC

AF13

CBHWBL/CID

AG11

CREG

AE15

CBC

AE14

CAD

AE12

CWAGC

AE13

CWHP

AF12

CADO

AG12

CBCO

AG13

WALPF

AJ16

EXTR

AH15

PCEFM2

AJ15

PCEFM1

AH14

FCEFM2

AJ14

FCEFM1

AH13

ASY

AJ13

EFM

R105

0

AH17

RFI_P

AH16

RFI_M

TP117

AG16

RFEQOM

TP118

AG17

RFEQOP

TP119

AF20

TEO/LE/SWRF1/SWRF3/RFP6

TP122

AF19

FEO/LE/SWRF2/SWRF4/RFP5

TP123

AE19

ADIN/LE/RFP4

TP128

AD18

MONI1/RFPM1

TP6119

AD19

MONI2/RFPM2

TP6120

AC19

MONI3/SWRF4/RFPM3

M10

TEST_MODE

M11

FPIND

M12

LVSPOWD

AD17

TEST1

TP1012

EMI

OI

G

L1001

AD20

10k

R1013

10k

K4

AB21

AC20

SP1ERRB/GPIO20

SP1EN/SS1EN/GPIO09

SP1CLK/SS1CLK/GPIO08

CLKPWM1/VIFLD/GPIO61

DGNDA1DGND

DGND

F12

F13

F14

C1058

0.01 16V

B

R1001

10k

NMI

K3

L20

NMI

CLKPWM0/GPIO60

DGND

F15

F16

K10

L21

RSTSWB

DGND

K11

EDINT

H19

L10

EDINT

DGND

JTMRST

H20

JTRST

DGNDN6DGND

C1027

JTMS

JTCL

JTDO

JTDI

F21

J19

G19

G20

JTDI

JTCL

JTDO

JTMS

DGNDP6DGNDR6DGNDT6DGNDU6DGNDV6DGND

N24

C1028

0.1

0.1 10V

10V

B

L1

K2

M24

L24

K23

J24

J22

K20

H21

J21

FSCI

HLCI

FCBP

FSCO

HLCO

HCBP

CLK24IN

CLK24OUT

AF1

CLK27AIN

CLK27AOUT

AE1

XA1

XA2

IC1001

DGND

DVDD10(1.0V)

W10

Y10

Y11

N10

N11

C1009

220

4V

DVDD10(1.0V)

N12

N13

P10

P11

P12

C1063

C1062

C1010

1

6.3V

6.3V X6S

X6S

D18

AG22

AG23

AF21

TXD1B/GPIO39

RXD1B/GPIO38

DCD0B/SS0SB/GPIO47

AV ENC/DEC

IC1001

MC10050F1-505-LU1-A

DVDD10(1.0V)

R10

R11

T10

T11

C1064

0.1 1000p

16V

50V

F

R1068

R1181

47k

10k

Y19

AF22

TXD0B

RXD0B

SP0REQB/GPIO33

(1/5)

DVDD10(1.0V)

DVDD15(1.5V)W6DVDD15(1.5V)Y6DVDD15(1.5V)

AA6

C1065 1000p

50V

AC24

AC22

AE20

AA20

AB22

VIOD6/SP0DAT6/GPIO28

VIOD7/SP0DAT7/GPIO29

AIOBD/SP0STRT/GPIO32

AIOBCK/SP0CLK/GPIO31

AIOLRCKSP0ERRB/GPIO30

DVDD15(1.5V)

DVDD25(2.5V)F7DVDD25(2.5V)F8DVDD25(2.5V)F9DVDD25(2.5V)

AB6

F10

C1008

C1059

C1007

1

220

6.3V

4V

X6S

AE21

AD24

AF23

AD23

VIOD2/SP0DAT2/GPIO24

VIOD3/SP0DAT3/GPIO25

VIOD4/SP0DAT4/GPIO26

VIOD5/SP0DAT5/GPIO27

DVDD25(2.5V)

DVDD25(2.5V)G6DVDD25(2.5V)G7DVDD25(2.5V)H6DVDD25(2.5V)J6DVDD25(2.5V)K6DVDD33(3.3V)

F11

C1060

C1061

0.1

1

1000p

16V

50V

F

X6S

B+

R1315

0

1608

C1316

R1313

10

1k

10V

0.5%

C

1608

2012

VIOD0

VIOD1

VIOCLK

L3

AB20

AF24

AE24

CLK27BIN/GPIO62

VIOCLK/SP0EN/GPIO21

VIOD0/SP0DAT0/GPIO22

VIOD1/SP0DAT1/GPIO23

DVDD33(3.3V)

K12

K13

K14

C1014 1000p

50V

R1312

1k

0.5% 1608

NSCS

SMDOUT

SMCKOUT

R1029

L5

L4

K5

SMDIN/SS0DIN

SMDOUT/SS0DOUT

SMCKOUT/SS0CKIN

DVDD33(3.3V)

K15

L11

L12

C1013

C1012

1

100

6.3V

4V

X6S

SMDIN

SPDIFO

82

D19

ATX

DVDD33(3.3V)

L13

C1066

6.3V X6S

C1301

2.2 10V

2012

AOD0

AOBCK

C19

E18

AOD0

AOBCK

DVDD33(3.3V)

L14

L15

C1067

1

0.1 16V

B

C1304

47

6.3V

TP1201

AIBD0

AOLRCK

E20

D20

AIBD0

AOLRCK

DVDD33(3.3V)

M13

M14

C1068 1000p

50V

F

C1302

0.1 16V

F

AIBCK0

R1030

47

F19

E19

AIBCK0

AILRCK0

DVDD33(3.3V)

M15

N14

R1301

470

0.5% 1608

R1302

1k

0.5% 1608

R1303

1k

R1305

0.5% 0

1608

AILRCK0

DACCLKO

ADCCLKO

R1031

150

C20

E21

AIOMCK0

AIOMCK1

VIVSB/RTS0B/GPIO36

VIHSB/CTS0B/GPIO37

CSYNC/GPIO54

VRBB

VCOMB

VRTB

VRBR

VCOMR

VRTR

VRBC

VCOMC

VRTC

VRBY

VCOMY

VRTY

VCLY

CTS1B/TTXRQ/GPIO41

ABI

ARI

ACI

AYI

COMP1

COMP0

VREF

RSET1

RSET0

VAB

VAG

VAR

VAC

VAY

DGNDR

DVDD33R

AGND

AVDD33

AVDD15

DLL_GND

DLL_VDD

DA2_GND

DA1_GND

DA2_VDD3

DA1_VDD3

AD2_GND

AD1_GND

AD2_VDD3

AD1_VDD3

PH_GND

PH_VDD1

HC_VDD3

PF_GND

PF_VDD1

FC_VDD3

PLL_VDDK1PLL_GND

L2

C1011 1000p

50V

B+

C1303

0.1 16V

F

B+

TP1006

TP1007

C1026 1000p

50V

C1049 1000p

50V

C1025

6.3V

C1048

6.3V

1

X6S

1

X6S

C103

220

4V

TP1008

TP1001

C1050

100

4V

C104

6.3V X6S

1005

C1051

10V

2012

C1024

100

1

10

C

4V

SPDIFSEL

ADPOW

AMUTE

X525P

GI

BI

C/RI

YI

PB/BOUT

Y/GOUT

PR/ROUT

COUT

YOUT

C106

0.1 16V

C1052

6.3V X6S

C1041 1000p

50V

C1038 1000p

50V

C105 1000p

50V

F

B

C1053

1

1000p

50V

C1040

1

6.3V X6S

TP1002

TP1015

C1037

1

6.3V X6S

V19

U19

F17

C1017

D24

0.1 10V

C1016

C23

B

0.1 10V

C1015

C24

F24

G21

F22

G23

H22

G22

E22

D21

D22

E23

AB19

D23

F23

G24

E24

B20

B24

B22

A21

A23

A24

B23

A22

B21

A20

K19

N15

Y15

Y14

Y13

Y12

AD16

AD15

AD14

AD13

AD12

A19

C22

B19

C21

H24

M23

H23

L23

L22

J20

K21

J23

K24

K22

B+

B

0.1 10V

C1035

B

0.1 10V

C1033

B

0.1 10V

C1032

B

0.1 10V

C1029

B

0.1 10V

C1030

B

0.1 10V

C1031

B

0.1 10V

C1047

B

0.1 10V

C1034

B

0.1 10V

C1018

B

0.1 10V

C1019

B

0.1 10V

B

16V10C1020

C1001

0.1 10V

C1002

B

0.1

10V

B

C1006

1

6.3V

R1003

X6S

680

1005

R1004

470

M6

L6

B+

TP1014

VIOCLK

VIOD7

VIOD6

VIOD5

VIOD4

VIOD3

VIOD2

VIOD1

VIOD0

AIOLRCK

AIOBD

AIOBCK

C152

1000p

50V

B

C164

1000p

50V

B

C1039

100

4V

C1036

100

4V

C159

0.1 16V

C167

0.1 16V

C1005 1000p

50V

C1023 1000p

50V

F

SIGNAL PATH

REC

PB

R4709

R4713

10k

R4723

0

R4721

0

R4722

0

R4725

0

R4724

0

R4726

R4712

10k

B+

C153

C154

10

1

16V

6.3V X6S

C162

C163

1

220

6.3V

4V

X6S

L1024

TP1010

EMI

OI

G

C1004

C1003

1

100

6.3V

4V

X6S

L1003

EMI

OI

L1005

G

15uH

C1021

C1022

10

1

10V

6.3V

C

X6S

2012

VIDEO SIGNAL

R4710

R4711

10k

R274

0

2012

R273

0

2012

R271

0

2012

TP1011

L1023

TP1009

EMI

OI

G

L1022

EMI

OI

G

R4727

R4728

10k

R4708

R4707

10k

B+

L1004

EMI

OI

G

B+

L1025

EMI

OI

G

B+

L1021

EMI

OI

G

R4731

4.7k

R4704

100

R4705

100

R4706

33

R4714

AUDIO

SIGNAL

1080P

9

HDMI/XDVI SCL_VDEC

TO (6/7)

SDA_VDEC

CN4701

28p

TP6123

AT/XDT

28

GND

27

TP6124

SDA_VDEC

26

TP6125

SCL_VDEC

25

GND

24

TP6045

TX1

23

TP6048

RX1

TP6103

TP6063

TP6056

TP6057

TP6058

TP6059

TP6060

TP6061

TP6069

TP6062

TP6066

TP6067

TP6068

TP6104

TP6065

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

RXD

JTRST

NSCS

SMCKOUT

SMDOUT

SMDIN

SPDIFO

AOD0

AOBCK

AOLRCK

AIBD0

AIBCK0

AILRCK0

DACCLKO

ADCCLKO

RXD1

SPDIFSEL

ADPOW

AMUTE

X525P

GI

BI

C/RI

YI

PB/BOUT

Y/GOUT

PR/ROUT

COUT

YOUT

GND

XRESET

GND(RFE/XLL)

GND

VCLKI

GND

STREAM_7

STREAM_6

STREAM_5

STREAM_4

STREAM_3

STREAM_2

STREAM_1

STREAM_0

GND

ALRCKI

ADATA

ABCKI

GND

SPDIF

GND

SPDIFO_LL

XRESET

RXD

JTRST

NSCS

SMCKOUT

SMDOUT

SMDIN

SPDIFO

AOD0

AOBCK

AOLRCK

AIBD0

AIBCK0

AILRCK0

DACCLKO

ADCCLKO

RXD1

SPDIFSEL

ADPOW

AMUTE

X525P

GI

BI

C/RI

YI

PB/BOUT

Y/GOUT

PR/ROUT

COUT

YOUT

TO (3/7)

TO DT-124

BOARD(1/3)

CN102

THROUGH THE

FVR-001 FFC

(SEE PAGE 4-16)

7

R4729

0

R4703

10

0

Y/CHROMAYCHROMA

R4732

4.7k

R4701

56

R4702

56

B+

EMMA BLOCK

RD-066 (2/7)

4-27 4-28

For Schematic Diagram

• Refer to page 4-51 for printed wiring board.

1

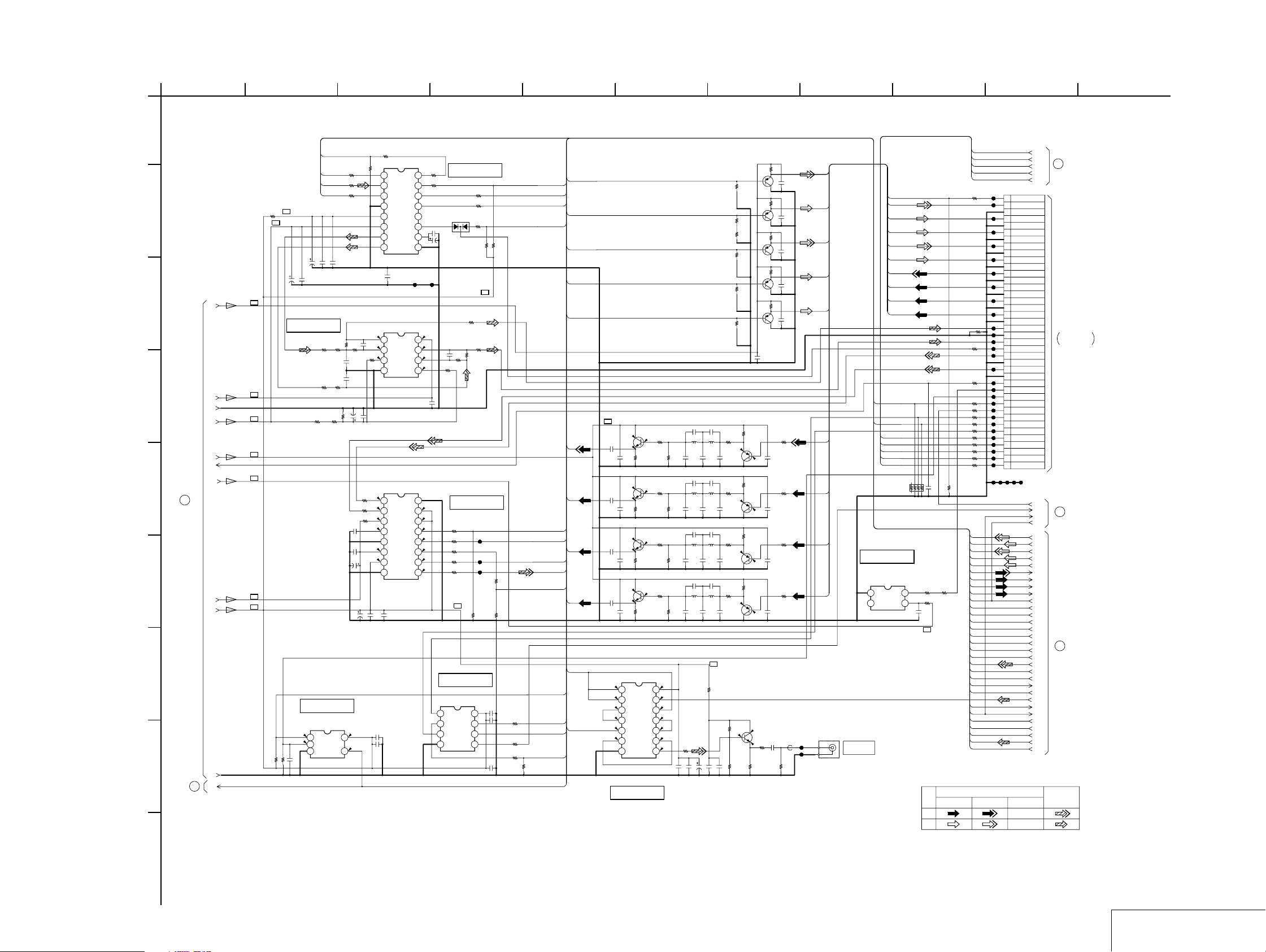

RD-066 BOARD(3/7)

A

VIDEO/AUDIO BLOCK

-REF.NO.: 20,000 SERIES-

B

C

D

E

(1/7)

V+5_VO

V+12A

GNDA

V+5_AO

V+5_VI

P_CONT2

V+1R5_IN

2

TO

F

V+5_AIN

V+3D

G

H

12

TO

(5/7,7/7)

GNDD

XRESET

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

2

DACCLKO

R3201

AOBCK

R3202

AOD0

R3203

AOLRCK

R3230

0

2012

B+

C3202

0.1

C3203

C3220

C3219

16V

1

1000p

220

F

6.3V

4V

50V

X6S

C3201 1000

R3737

10k

R3738

10k

6.3V

IC3202

AUDIO LPF

3.3

4.7

C3701

0.01 16V

B

321

R3218

22k

0.5% 1608

R3211

R3210

10k

1.2k

0.5%

0.5% 1608

1608

R3217

R3216

10k

1.2k

0.5%

0.5% 1608

1608

R3215

22k

R3213

R3214

680

6.8k

C3105

0.1 16V

F

C3104

1

6.3V X6S

C3103

100 16V

IC3702

AND GATE

IC3702

TC7SH08FU(T5RSOYJF)

54

B+

3 4 5 6 7 8 9 10 11

47

R3219

6.8k

C3213

560p

C3214

560p

50V

C3211

100 16V

3.3

50V

C3108

220

4V

C3216

82p 50V

C3212

0.1 16V

R3101

R3102

R3113

R3209 100k

F

0

10k

R3220

2.5

3.3

C3107

1

6.3V X6S

C3204

330p

6.1

3.7

100

5

C3707

6.3V X6S

50V

1

R3234

87654321

4321

87654321

C3106 1000p

50V

0

C3706 1000p

50V

B

IC3201

PCM1742KE

BCKIN

DATA

LRCKIN

GND

VDD

VCC

VOUTL

VOUTR AGND

IC3202

UPC4558G2-E1

R3233

0

16 15 14 13 12 11 10 9

MCLK

R3206

47

ML

MC

MD

ZEROL

ZEROR

VCOM

C3207

47

6.3V

TP3201 TP3202

12

8765

6.1

3.7

C3217

0.1

16V

F

IC3101

AK5358AET-E2

16 15 14 13 12 11 10 9

AINR

CKS0

CKS2

DIF

PDN

SCLK

MCLK

LRCK

3.3

1.6

1.2

AINL

CKS1

VCOM

AGND

VA

VD

DGND SDTO

IC3201

AUDIO DAC

D3201

DAN202UT106

C3206

0.1 16V

F

R3224

100

R3223

22k

C3215

82p

0.5% 1608

50V

R3222

6.8k

R3221

100

IC3101

AUDIO ADC

R3103

0

R3107

47

R3104

0

R3108

47

R3109

47

B+

IC3701

BUFFER

IC3701

TC7WH34FU(TE12R)

1A

VCC

3Y

1Y

2A

3A

4321

GND 2Y

R3207

47

R3208

47

R3204

0

R3228

R3229

10k

B+

R3227

100

TP3101

TP3102

TP3103

R3111

0

R3105

R3106

1M

10k

C3703

1

6.3V X6S

C3705

8765

1000p

50V

B

R3704

100

R3705

100

C3704

R3703

10

R3708

100

10V

10k

C

2012

NSCS

SMCKOUT

SMDOUT

AMUTE

ADPOW

AIBCK0

AILRCK0

AIBD0

ADCCLKO

JTRST

SMDIN

RXD

RXD1

XRESET

YOUT

COUT

Y/GOUT

PB/BOUT

PR/ROUT

YI

C/RI

GI

BI

SPDIFSEL

SPDIFO_LL

B+

C3313

C3319

C3325

3.3

C3307

10

10V

C

2012

C3332

6.3V X6S

10

10V

C

C3333

6.3V X6S

10

10V

C

2012

C3334

10

10V

C

2012

C3335

6.3V

X6S

0

1

6.3V X6S

1

7654321

IC5701

Q3302

2SC4081T106R

5

Y EQ

2.1

1.7

R3308

10

R3309

R3307

680

5.6k

0.5%

Q3304

2SC4081T106R

5

2.1

1.7

R3314

10

R3313

R3315

5.6k

680

0.5%

Q3306

2SC4081T106R

5

2.6

2.3

R3319

10

R3320

R3324

680

5.6k

0.5%

Q3308

2SC4081T106R

5

2.6

2.3

R3326

10

R3327

R3325

680

5.6k

0.5%

IC5701

TC74VHC00FT(EKJ)

14 13 12 11 10 9 8

1A

VCC

1B

4B

1Y

4A

2A

4Y

2B

3B

2Y

3A

GND 3Y

SELECT

Q2501 - Q2505 VIDEO BUFFER

R2501

680

R2502

150

0.5% 1608

R2504

680

R2505

150

0.5% 1608

R2506

0

R2507

1608

680

R2508

150

0.5% 1608

R2510

680

R2511

150

0.5% 1608

R2513

680

R2514

150

0.5% 1608

L3301 18uH

C3304

50V

L3303

C3330

L3305

18uH

L3307 18uH

68p

18uH

68p

50V

C3317

C3323

C3301

7p

50V

1608

R3306

L3302

2.3

470

10uH

0.5%

C3305

1608 15p 50V

C3311

7p

50V

1608

L3304

R3312

2.3

10uH

470

0.5%

C3331

15p

C3315

7p

50V

1608

L3306

R3318

2.8

10uH

470

0.5%

C3318

15p

68p

50V

C3321

7p 50V 1608

L3308

R3323

2.9

10uH

470

0.5%

C3324

15p

68p

B+

R5705

0

1608

C3302

7p

50V

1608

C3303

5p

50V

C3312

7p

50V

1608

C3329

5p

50V

C3314

7p

50V

1608

C3316

5p 50V

C3320

7p

50V

1608

C3322

5p

50V

3.3

1.6

3.3

1.6

3.3

R5701

470

1.7

C5705

C5707

1

1000p

6.3V X6S

R5702

470

1.8

C5706

C5702

C5708

1

R5703

1000p

220

50V

680

6.3V

50V

4V

B

X6S

B

Q2505

2SA1576A-T106-QR

C2506

10

10V

C

2012

R3305

330

C3342

6.3V X6S

1.6

2SA1576A-T106-QR

R3344

330

C33392012

1

6.3V X6S

1.6

Q3303

2SA1576A-T106-QR

R3317

330

C3340

6.3V X6S

2.2

Q3305

2SA1576A-T106-QR

R3322

330

C3341

1

6.3V X6S

2.2

Q5701

2SC4081T106R

DIGITAL OUT

C5709

3.3

10V

1608

1.2

R5706

75

0.5% 1608

R5704 150

R3301

1

47

Q3301

Y EQ

R3302

47

R3336

1

47

R3341

47

Q3307

2SA1576A-T106-QR

1

B

R5707 100k

C2501

1

6.3V X6S

2SA1576A-T106-QR

C2502

1

6.3V X6S

2SA1576A-T106-QR

C2503

1

6.3V X6S

2SA1576A-T106-QR

C2504

1

6.3V

X6S

2SA1576A-T106-QR

C2505

1

6.3V X6S

L5701

0uH

TP6094

TP6095

Q2501

Q2502

Q2503

Q2504

Y_OUT

C_OUT

YP_OUT

CB_OUT

CR_OUT

Y_IN

C/R_IN

G_IN

B_IN

JA5701

DIGITAL OUT COAXIAL

X525P

YP_OUT

CR_OUT

CB_OUT

Y_OUT

C_OUT

Y_IN

C/R_IN

G_IN

B_IN

SMDOUT

SMCKOUT

TU_DSDA

TU_CEC

TU_DSCL

DDC_SW1

TU_HPD

IC3707

MRST

IC3707

PST3813UL

OUT

GND

4

VDDNC

3

R3005

10k

1

2

C3738

1

6.3V X6S

C2305

1

6.3V X6S

R3720

R3716

33

R3715

0

B+

SIGNAL PATH

REC

PB

0

R2316

10k

TU_DSDA

TU_CEC

TU_DSCL

DDC_SW1

TU_HPD

R2304

0

R3232

0

1005

R2302

0

R2301

3.3k

R3002

68

R3004

82

R3006

0

R3003

82

R3007

0

R3008

0

R3009

0

R3010

0

R3011

0

R3012

0

YOUT

COUT

Y/GOUT

PB/BOUT

PR/ROUT

YI

C/RI

GI

BI

SPDIFSEL

SPDIFO_LL

NSCS

SMCKOUT

SMDOUT

AMUTE

ADPOW

AIBCK0

AILRCK0

AIBD0

ADCCLKO

JTRST

SMDIN

RXD

RXD1

XRESET

X525P

DACCLKO

AOBCK

AOD0

AOLRCK

VIDEO SIGNAL

TP2304

TP2301

TP2302

TP2303

TP2305

TP2306

TP2307

TP2308

TP2309

TP2310

TP2311

TP2312

TP2313

TP2314

TP2315

TP2317

TP2319

TP2320

TP2321

TP2322

TP2323

TP2324

TP2325

TP2326

TP6105

TP6106

TP6107

TP6100

TP6108

TP2327

TP2328

CN2301

40P

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

TP2329

X525P

YP_OUT

GND

CR_OUT

GND

CB_OUT

GND

Y_OUT

GND

C_OUT

GND

Y_IN

GND

C/R_IN

GND

G_IN

GND

B_IN

GND

L_OUT

GNDA

R_OUT

AMUTE

R_IN

GND

L_IN

GND

P_CONT2

MRST

XRST1

DAM_TO_T

HSM_TO_T

DAT_TO_M

ASCK

HST_TO_M

DSDA

CEC

DSCL

DDC_SW1

HDP

TP2330

Y/CHROMAYCHROMA

TP2331

TU_DSDA

TU_CEC

TU_DSCL

DDC_SW1

TU_HPD

HSMTOT

HSTTOM

XRESET

SPDIFSEL

YOUT

COUT

Y/GOUT

PB/BOUT

PR/ROUT

YI

C/RI

GI

BI

SPDIFSEL

SPDIFO_LL

NSCS

SMCKOUT

SMDOUT

AMUTE

ADPOW

AIBCK0

AILRCK0

AIBD0

ADCCLKO

JTRST

SMDIN

RXD

SPDIFO

RXD1

XRESET

X525P

DACCLKO

AOBCK

AOD0

AOLRCK

13

TO

(6/7)

(SEE PAGE 4-6)

11

TO

(4/7)

TO

(2/7)

AUDIO

SIGNAL

TO AV-133

BOARD (1/5)

CN101

THROUGH THE

FRA-006 FFC

7

I

VIDEO/AUDIO BLOCK

4-304-29

RD-066 (3/7)

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

For Schematic Diagram

• Refer to page 4-51 for printed wiring board.

1

2

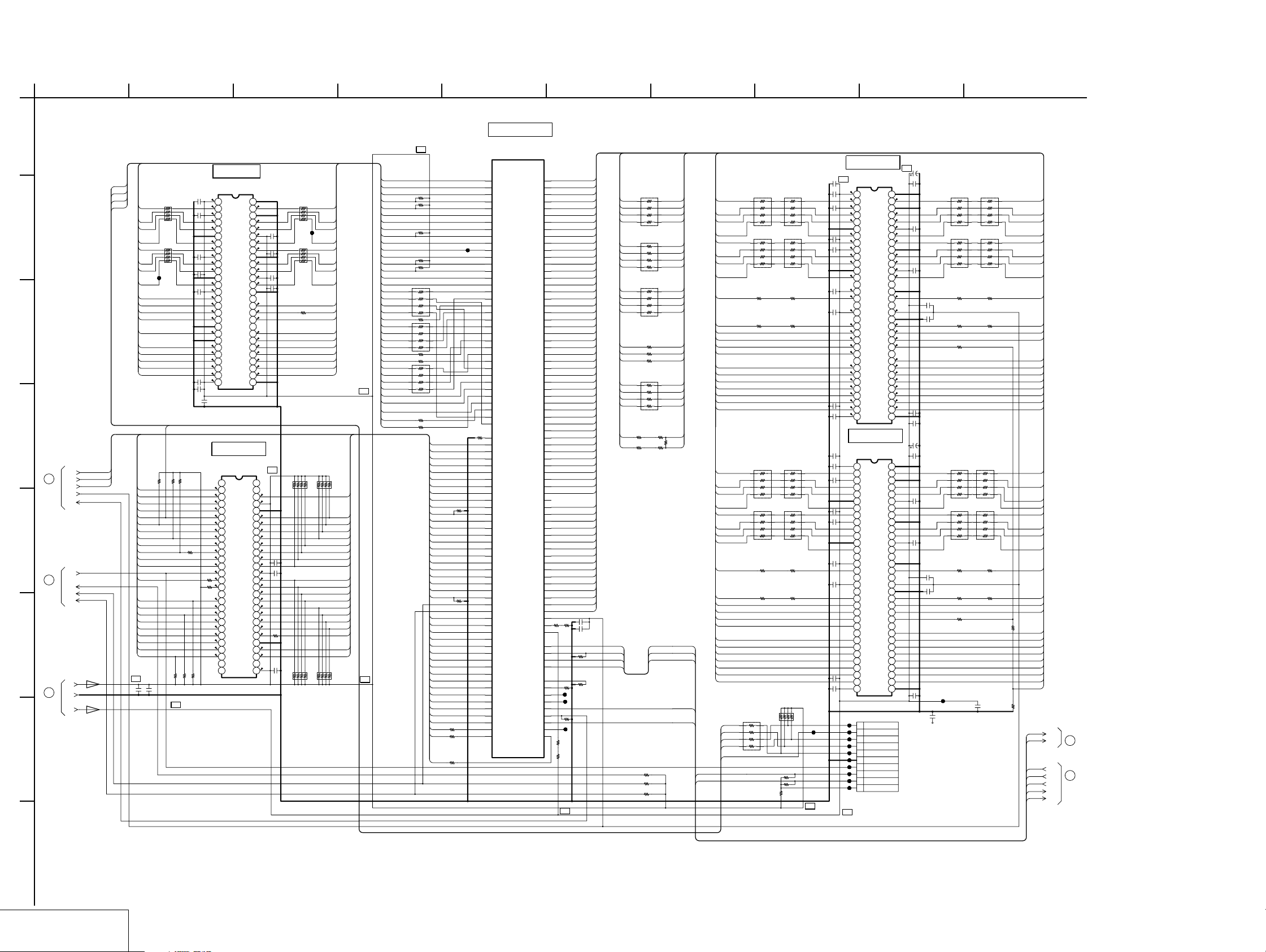

RD-066 BOARD(4/7)

MEMORY BLOCK

A

B

C

D

E

F

-REF.NO.: 20,000 SERIES-

HADRS5

8

HADRS6

HADRS7

TO (2/7)

VREF_D

AT/XDT

XRESET

11

SPDIFSEL

TO (3/7)

HSTTOM

HSMTOT

V+3D

3

GNDD

TO (1/7)

V+2R5

HADRS5

HADRS6

HADRS7

IC201

MD0

MD1

MD2

MD5

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

LDQM

WEZ

CASZ

RASZ

MBA

MA10

MA0

MA1

MA2

MA3 MA4

HADRS23

HADRS16 HADRS17

HADRS15

HADRS14

HADRS13

HADRS12

HADRS11

HADRS10

HADRS9

HADRS20

HADRS21

HWS0

HADRS22

HADRS19

HADRS18

HADRS8

HADRS7

HADRS6

HADRS5

HADRS4

HADRS3

HADRS2

B+

C1104

C1105

1

0.1

6.3V

16V

X6S

F

R1191

4.7k

R319

33

R320

33

TP212

HADRS13

R1163

4.7k

B+

R1153

4.7k

C280

6.3V

C287

6.3V

C281

6.3V X6S

C288

0.1 16V

C283

6.3V

X6S

R1197

4.7k

R1161

1

X6S

1

X6S

1

F C282

1

6.3V X6S

1

R1107

4.7k

FLASH ROM

IC201

W9864G6GH-6-ER10(T&R)

3.3

VSS3

VDD1

1.6

DQ15

DQ0

3.3

VSSQ4

VDDQ1

1.8

DQ14

DQ1

1.8

DQ13

DQ2

VDDQ4

VSSQ1

1.6

DQ12

DQ3

1.6

DQ11

DQ4

3.3

VSSQ3

VDDQ2

1.8

10123456789

DQ10

DQ5

0

R1195

4.7k

C286

10

10V

C

2012

R1110

0

R1103

1.6

3.3

2.4

3.3

3.2

0.1

2.5

3.3

C289

1000p

50V

3.3

0

DQ9

DQ6

VDDQ3

VSSQ2

13 17

DQ8

DQ7

VSS2

VDD2

N.C/RFU

LDQM

UDQM

WE

CLK

CAS

CKE

RAS

19181611 12 14 15

N.C

CS

20

A11

BA0

21 22 23 24 25 26 27

BA1

A9

A10/AP

A8

0

A0

A7

0

A1

A6

0

A2

A5

0

A3

A4

VDD3 VSS1

B

IC1102

FLASH ROM

IC1102

S29GL128N90TFIR20

1

A23

NC5

0

2

A22

NC4

0

345678

A15

A16

0

A14

BYTE#

0

A13

VSS2

0

A12

DQ15/A-1

0

A11

DQ7

0

A10

DQ14

0

9

A9

DQ6

0

10

A8

DQ13

0

11 12 13 14 15

A19

DQ5

0

A20

DQ12

WE#

DQ4

RESET#

VCC

0

A21

DQ11

16 17 18 19 20 21 22

WP#/ACC

DQ3

RY/BY#

DQ10

0

A18

DQ2

0

A17

DQ9

0

A7

DQ1

0

A6

DQ8

0

A5

DQ0

0

23 24

A4

OE#

0

A3

VSS1

0

25

A2

CE#

0

26 27 28

A1

A0

NC1

NC3

NC2 VIO

G

3 4 5 6 7 8 9 10

IC1001 (2/5)

R1071

10k

Y3

MD0

AA4

MD1

AB1

MD2

AA5

MD3

AB3

MD4

AA3

MD5

W4

MD6

Y4

MD7

W5

MD8

W3

MD9

Y5

MD10

Y2

MD11

AC2

MD12

AB5

MD13

AA1

MD14

Y1

MD15

AE3

MA0

AD3

MA1

AF3

MA2

AE5

MA3

AE4

MA4

AD2

MA5

AD1

MA6

AC5

MA7

AD4

MA8

AC1

MA9

AC3

MA10

AF5

(PB2)

AD5

MBA

AB2

UDQM

AA2

LDQM

AB4

MCLKOUT

AC4

MCKE

AF2

WEB

AF4

RASB

AE2

CASB

P20

RADD00/GPIO01

Y20

RADD01

Y24

RADD02

AA22

RADD03

W23

RADD04

V23

RADD05

Y23

RADD06

V21

RADD07

AA23

RADD08

Y22

RADD09

P22

RADD10

U22

RADD11

P23

RADD12

U21

RADD13

U20

RADD14

AB24

RADD15

R24

RADD16

M21

RADD17

N21

RADD18

T23

RADD19

R22

RADD20

W20

RADD21

P24

RADD22

M20

RADD23/GPIO02

N19

RADD24/GPIO03

P19

RADD25/GPIO04

W21

RDATA00

Y21

RDATA01

AA21

RDATA02

U23

RDATA03

V22

RDATA04

T24

RDATA05

U24

RDATA06

N23

RDATA07

R23

RDATA08

M22

RDATA09

T22

RDATA10

T21

RDATA11

P21

RDATA12

N22

RDATA13

N20

RDATA14

R21

RDATA15

W22

FOEB/GOEB

AA24

FWEB/GWED

AV ENC/DEC

IC1001

MC10050F1-505-LU1-A

DADD00

DADD01

DADD02

DADD03

DADD04

DADD05

DADD06

DADD07

DADD08

DADD09

DADD10

DADD11

DADD12

SFCS0B

IR_OUT/GPIO53

FB/TTX/RTS1B/GPIO40

GCSB2/GPIO5

GCSB3/GPIO6

GRDYB/GPIO7

B+

MD0

MD1

MD2

R256

54 45

1.0

0

1.6

3.3

1.7

1.4

4647484950515253 35

1.8

1.7

44 43 41 39 38 37 36

3.3

2.0

4042

2.4

1.6

1.1

0 0

34 282930313233

0.4

0.4 0

0

55 54 52

3.3

5356

3.3

495051

3.3

48

3.3

47

3.3

46 45 44 43 42

3.3

41 40 39 38 37 36 35

3.3

34 33

3.3

32

0

31 30 29

3.3

R318

33

MD15

MD14

R1034

10k

R1033

10k

TP6121

R317

33

R281

0

1005

R1035

10k

R1032

10k

MD13

MD12

MD11

MD10

MD9

MD8

UDQM

MCLK

MCKE

MA11

MA9

MA8

MA7

MA6

MA5

HDATA15

HDATA7

HDATA14

HDATA6

HDATA13

HDATA5

HDATA12

HDATA4

HDATA11

HDATA3

HDATA10

HDATA2

HDATA9

HDATA1

HDATA8

HDATA0

HDOE

HCS0

HADRS1

C285

1

6.3V X6S

C290

0.1

16V

F

C284

1

6.3V X6S

C291

1000p

50V

B

B+

C1101 1000p C1113

1

6.3V X6S

R1132

47

C1102

1

6.3V X6S

MD3

10k

R257

MD4

10k

MD5

MD6

MD7

R248

MD8

10k

MD9

MD10

MD11

R252

MD12

10k

R253

MD13

10k

MD14

MD15

MA0

R206

CASZ

33

MA11

RASZ

R210

MA2

33

MA5

R205

MA6

33

MA3

MA4

R202

MA7

33

R203

MA10

33

MA9

R204

MBA

33

MA8

MA1

B+

UDQM

LDQM

MCKE

R211

WEZ

0

R117

MCLK

68

B+

HADRS1

HADRS2

HADRS3

HADRS4

HADRS5

HADRS6

HADRS7

HADRS8

HADRS9

HADRS10

HADRS11

HADRS12

HADRS13

HADRS14

HADRS15

HADRS16

HADRS17

HADRS18

HADRS19

HADRS20

HADRS21

HADRS22

HADRS23

HDATA0

HDATA1

HDATA2

HDATA3

HDATA4

HDATA5

HDATA6

HDATA7

HDATA8

HDATA9

HDATA10

HDATA11

HDATA12

HDATA13

HDATA14

HDATA15

HDOE

HWS0

HCS0

R1199

10k

R1165

4.7k

R1018

R1019

R1017

TP160

0

DQ00

DQ01

DQ02

DQ03

DQ04

DQ05

DQ06

DQ07

DQ08

DQ09

DQ10

DQ11

DQ12

DQ13

DQ14

DQ15

DQ16

DQ17

DQ18

DQ19

DQ20

DQ21

DQ22

DQ23

DQ24

DQ25

DQ26

DQ27

DQ28

DQ29

DQ30

DQ31

DCS0B

DCS1B

DRASB

DCASB

DWEB

DDQM0

DDQM1

DDQM2

DDQM3

DDQS0

DDQS1

DDQS2

DDQS3

DBA0

DBA1

DCKE

DCLK

DCLKB

DVREF

DIHM

DILM

SFSCK

SFSI

SFSO

GCSB0

GCSB1

FCSB1

FCSB0

AD10

AD11

AA19

5960616263646566

5758

55 54 52

5356

495051

48

47

46 45 44

43 42

41 40 39 38 37 36 35

34

5960616263646566

5758

55 54 52

5356

495051

48

47

46 45 44

43 42

41 40 39 38 37 36 35

34

B+

C1204

1

6.3V X6S

0

2.5

1.4

0

2.5 0

1.0

1.3

0.7

0

0 0

0

C1211

0.1 16V

F

C1223

1

6.3V X6S

(FOR CHECK)

C1215

100

4V

C1205

0.01

C1210 1000p

50V

B

C1218

6.3V

C1236

100

4V

C1224

C1229 1000p

50V

B

C1230

0.1 16V

F

C1291

0.1 16V

16V

B

1

X6S

0.01 16V

B

F

C1294

0.1 16V

C1213

0.1 16V

C1295

0.1 16V

C1214

0.1 16V

F

TP614

R1248

R1255

22

R1256

R1249

22

R1257

R1250

22

R125833R1251

22

R1252

33

R1268

R1273

0

22

R1269

R1274

0

22

R1275

R1270

22

R1271

R1276

33

22

R1272

33

C1212

0.1 16V

F

0

R1219

0

R1205

DDATA23

DDATA22

DDATA21

DDATA20

DDATA19

DDATA17

DDATA16

DDQS2

DDM2

TCLKNO

TCLKO

TADRS12

TADRS11

TADRS9

TADRS8

TADRS7

TADRS6

TADRS5

TADRS4

DDATA31

DDATA30

DDATA29

DDATA28

DDATA27

DDATA26

DDATA25

DDATA24

DDQS3

TCLKNO

TCLKO

TADRS12

TADRS11

TADRS9

TADRS8

TADRS7

TADRS6

TADRS5

DCKE

10k

SCL_GP

SDA_GP

15

TO (6/7)

SCLK

SI

SO

REMO

REMI

SI

SO

REMO

REMI

16

TO (7/7)

IC1201

C1235

10

10V

DDR SDRAM

TP211

B+

C

2012

B+

C1202

1

6.3V X6S

C1203

0.1 16V

C1216

1

6.3V X6S

C1206

0.01 16V

F

B

HYB25DC512160CE-6

2.5

1

0

2

2.5

345678

1.0

1.3

1.4

1.3

2.5

9

1.3

10

1.3

11 12 13 14 15

0

C1207

2.5

1000p

50V

1.0

16 17 18 19 20 21 22

B

C1208

2.5

1

6.3V X6S

0.8

2.4

23

2.3

24 3225 31302926 27 28

1.3

1.2

2.2

0

C1217

1.9

1

0.9

2.5

33

C1209 1000p

50V

B

IC1221

C1231

10

10V

HYB25DC512160CE-6

C

2012

C1221

1

6.3V

X6S

2

C1222

345678

0.1 16V

F

C1219

1

6.3V

X6S

C1225

9

0.01 16V

10

B

11 12 13 14 15

C1226 1000p

50V

16 17 18 19 20 21 22

B

C1227

1

6.3V X6S

23

24 3225 31302926 27 28

C1220

1

33

C1228 1000p

50V

B

TP201

1

TP202

2

TP203

3

TP204

4

TP205

5

TP206

6

TP210

7

TP207

8

TP208

9

TP209

10

B+

IC1201

VDD1

DQ0

VDDQ1

DQ1

DQ2

VSSQ1

DQ3

DQ4

VDDQ2

DQ5

DQ6

VSSQ2

DQ7

NC1

VDDQ3

LDQS

NC2

VDD2

NC

LDM

/WE

/CAS

/RAS

/CS

NC3

BA0

BA1

A10/AP

A0

A1

A2

A3

VDD3

DDR SDRAM

IC1221

VDD1

DQ0

VDDQ1

DQ1

DQ2

VSSQ1

DQ3

DQ4

VDDQ2

DQ5

DQ6

VSSQ2

DQ7

NC1

VDDQ3

LDQS

NC2

VDD2

NC

LDM

/WE

/CAS

/RAS

/CS

NC3

BA0

BA1

A10/AP

A0

A1

A2

A3

VDD3

PW

A9(ATA)

D5(AG)

D1(SL)

D0(MA)

GND

XRESET

TX_FE

RX_FE

V+3D

VSSQ5

VDDQ5

VSSQ4

VDDQ4

VSSQ3

VSSQ5

VDDQ5

VSSQ4

VDDQ4

VSSQ3

CN201

10P

VSS3

DQ15

DQ14

DQ13

DQ12

DQ11

DQ10

DQ9

DQ8

NC6

UDQS

NC5

VREF

VSS2

UDM

/CK

CK

CKE

NC4

A12

A11

A9

A8

A7

A6

A5

A4

VSS1

VSS3

DQ15

DQ14

DQ13

DQ12

DQ11

DQ10

DQ9

DQ8

NC6

UDQS

NC5

VREF

VSS2

UDM

/CK

CK

CKE

NC4

A12

A11

A9

A8

A7

A6

A5

A4

VSS1

R1037

100

0.5% 1608

TP6037

TP6043

TP6042

R1040

R1039

R1111

100

0.5% 1608

43

0.5% 1608

R1036

43

0.5% 1608

100k

DADRS10

DADRS11

DADRS12

DDATA10

DDATA11

DDATA12

DDATA13

DDATA14

DDATA15

DDATA16

DDATA17

DDATA18

DDATA19

DDATA20

DDATA21

DDATA22

DDATA23

DDATA24

DDATA25

DDATA26

DDATA27

DDATA28

DDATA29

DDATA30

DDATA31

C1056

1

6.3V X6S

R1016

10k

R1182

10k

DADRS0

DADRS1

DADRS2

DADRS3

DADRS4

DADRS5

DADRS6

DADRS7

DADRS8

DADRS9

DDATA0

DDATA1

DDATA2

DDATA3

DDATA4

DDATA5

DDATA6

DDATA7

DDATA8

DDATA9

DCS0B

DRAS

DCAS

DWE

DDM0

DDM1

DDM2

DDM3

DDQS0

DDQS1

DDQS2

DDQS3

DBA0

DBA1

DCKE

DCLKO

DCLKNO

R107

47k

C1057

0.1 16V

F

SCLK

CSOZ

SI

SO

DADRS5

DADRS9

DADRS0

DADRS1

DADRS4

DADRS6

DADRS10

DADRS3

DADRS11

DADRS2

DADRS7

DADRS8

DADRS12

DBA0

DBA1

DWE

DCS0B

DRAS

DCAS

DCLKO

DCLKNO

R1021

10k

R1027

10k

R1028

10k

R1281

R1282

R1283

R1287

R1288

22

R1289

22

R1241

R1245

0

R1242

0

33

R1261

R1262

R1263

R1264

22

R1246

22

0

R1247

22

R1240

22

R1265

22

0

R1266

0

22

R1267

22

0

R1260

22

33

R220

4.7k

R221

47k

R222

47k

R223

22

47

TADRS5

TADRS9

TADRS0

TADRS1

47

TADRS4

TADRS6

TADRS10

TADRS3

47

TADRS11

TADRS2

TADRS7

TADRS8

R1284

TADRS12

47

R1285

TBA0

47

R1286

TBA1

47

TWE

TCS

TRAS

TCAS

R1277

0

TCLKO

R1279

390

TCLKNO

R1278

0

SCLK

SI

SO

SCL_GP

SDA_GP

DDATA0

DDATA1

DDATA2

DDATA3

DDATA4

DDATA5 DDATA18

DDATA6

DDATA7

MD0

MD1

MD2

MD5

HADRS13

R219

4.7k

R1243

R1244

DDQS0

DDM0

TWE

TCAS

TRAS

TCS

TBA0

TBA1

TADRS10

TADRS0

TADRS1

TADRS2

TADRS3

DDATA8

DDATA9

DDATA10

DDATA11

DDATA12

DDATA13

DDATA14

DDATA15

DDQS1

DDM1 DDM3

TWE

TCAS

TRAS

TCS

TBA0

TBA1

TADRS10

TADRS0

TADRS1

TADRS2

TADRS3 TADRS4

REMO

REMI

B4

A4

C5

B5

E1

E2

D1

D2

D3

E4

C4

D4

E5

F5

F4

G5

G4

J4

J5

H4

H5

A8

B8

C8

A7

B6

A6

C7

B7

G1

G2

G3

F1

H3

H2

H1

J3

D9

E9

D8

E8

D7

E7

D6

E6

C3

E3

A2

B2

C2

F3

A5

J1

B9

F2

C6

J2

C9

B3

A3

D5

C1

B1

F6

A9

C10

AD9

AD8

F18

V20

T20

R19

T19

R20

W24

V24

B+

H

MEMORY BLOCK

RD-066 (4/7)

4-31 4-32

For Schematic Diagram

• Refer to page 4-3 for waveforms.

• Refer to page 4-51 for printed wiring board.

1

RD-066 BOARD(5/7)

SATA/IDE IF

A

-REF.NO.: 20,000 SERIES-

C3802

1

6.3V X6S

TP3828

AT0CS1

TP3827

B

C

AT0CS0

TP3826

AT0ADR2

TP3825

AT0ADR0

TP3824

AT0ADR1

TP3823

AT0INTRQ

TP3822

AT0DMACK

TP3821

AT0IORDY

TP3820

AT0DIOR

TP3819

AT0DIOW

TP3818

AT0DMARQ

R3823

82

R3821

22

R3820

82

R3818

22

R3817

82

R3816

82

R3814

22

R3824

R3862

82

0

D

CN3802

40P

E

F

(FOR CHECK)

G

H

V+3D

GNDD

4

TO (1/7)

V+1R8

Reset#

GND

DD7

DD8

DD6

DD9

DD5

DD10

DD4

DD11

DD3

DD12

DD2

DD13

DD1

DD14

DD0

DD15

GND

KEYPIN

DMARQ

GND

DIOW#

GND

DIOR#

GND

IORDY

CSEL

DMACK#

GND

INTRQ

RESERVED

DA1

PDIAG#

DA0

DA2

CS0#

CS1#

DASP#

GND

TP3836

1

2

TP3837

3

TP3838

4

TP3839

5

TP3840

6

TP3841

7

TP3842

8

TP3843

9

TP3844

10

TP3845

11

TP3846

12

TP3847

13

TP3848

14

TP3849

15

TP3850

16

TP3851

17

TP3852

18

19

TP3853

20

TP3854

21

22

TP3855

23

24

TP3856

25

26

TP3857

27

TP3858

28

TP3859

29

30

TP3860

31

TP3861

32

TP3862

33

TP3863

34

TP3864

35

TP3865

36

TP3866

37

TP3867

38

TP3868

39

TP3869

40

B+

I

C3801

6.3V X6S

1

TP3831

TP3830

TP3829

TP3832

TP3870

R3871

22k

R3842

5.6k

R3849

10k

2

R3857

0

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

CN3801

(FOR CHECK)

HRESET

GND

HDB7

HDB8

HDB6

HDB9

HDB5

HDB10

HDB4

HDB11

HDB3

HDB12

HDB2

HDB13

HDB1

HDB14

HDB0

HDB15

GND

C3803

1

6.3V X6S

1

2

XDASP

3

XCS3FX

4

XCS1FX

5

HA2

6

HA0

7

XPDIAG

8

HA1

9

XIOCS16

10

INTRQ

11

GND

12

XDMACK

13

HCSEL

14

IORDY

15

GND

16

XDIOR

17

GND

18

XDIOW

19

GND

20 21

QMARQ

B_AT1RESET

B_AT1DATA7

B_AT1DATA8

B_AT1DATA6

B_AT1DATA9

B_AT1DATA5

B_AT1DATA10

B_AT1DATA4

B_AT1DATA11

B_AT1DATA3

B_AT1DATA12

B_AT1DATA2

B_AT1DATA13

B_AT1DATA1

B_AT1DATA14

B_AT1DATA0

B_AT1DATA15

B_AT1DMARQ

B_AT1DIOW

B_AT1DIOR

B_AT1IORDY

B_AT1DMACK

B_AT1INTRQ

B_AT1ADR1

B_AT1ADR0

B_AT1ADR2

B_AT1CS0

B_AT1CS1

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

3 4 5 6 7 8 9 10 11

40GND

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

C3804

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

R3837

R3838

33

R3839

33

R3840

R3846

10k

R3851

1

6.3V X6S

IC1001

R3808

TP3801

TP3802

TP3803

TP3804

TP3805

TP3806

TP3807

TP3808

TP3809

TP3810

TP3811

TP3812

TP3813

TP3814

TP3815

TP3816

TP3817

R3831

47K

B+

AT0RESET

AT0DATA7

AT0DATA8

AT0DATA6

AT0DATA9

AT0DATA5

AT0DATA10

AT0DATA4

AT0DATA11

AT0DATA3

AT0DATA12

AT0DATA2

AT0DATA13

AT0DATA1

AT0DATA14

AT0DATA0

AT0DATA15

AT1RESET

AT1DATA7

AT1DATA8

AT1DATA6

AT1DATA9

AT1DATA5

AT1DATA10

AT1DATA4

AT1DATA11

AT1DATA3

AT1DATA12

AT1DATA2

AT1DATA13

AT1DATA1

AT1DATA14

AT1DATA0

AT1DATA15

AT1DMARQ

AT1DIOW

AT1DIOR

AT1IORDY

AT1DMACK

AT1INTRQ

AT1ADR1

PDIAG

AT1ADR0

AT1ADR2

AT1CS0

AT1CS1

DASP

12

3

5

7

9

R3835

33

R3841

82

R3828

R3843

22

R3844

22

R3845

82

R3847

22

R3848

82

R3850

33

R3832

22k

100

R3810

33

R3811

33

R3812

33

R3813

33

R3829

47K

R3830

47K

R3833

22k

AT1DATA0

AT1DATA1

AT1DATA2

AT1DATA3

AT1DATA4

AT1DATA5

AT1DATA6

AT1DATA7

AT1DATA8

AT1DATA9

AT1DATA10

AT1DATA11

AT1DATA12

AT1DATA13

AT1DATA14

AT1DATA15

AT1ADR0

AT1ADR1

AT1ADR2

AT1DIOW

AT1DIOR

AT1INTRQ

AT1DMACK

AT1DMARQ

AT1CS0

AT1CS1

AT1IORDY

AT1RESET

RXD2_BRIDGE

TXD2_BRIDGE

B_AT1ADR2

B_AT1ADR0

B_AT1ADR1

B_AT1INTRQ

B_AT1DMACK

B_AT1IORDY

B_AT1DIOR

B_AT1DIOW

B_AT1DMARQ

B_AT1DATA15

B_AT1DATA0

B_AT1DATA14

B_AT1DATA1

M4

R1

R4

R2

N5

R3

P4

T1

T2

P5

T3

R5

U1

N4

U2

W1

U3

W2

T5

U5

V1

M5

V2

V5

T4

V3

U4

V4

AH23

AJ24

(3/5)

AV ENC/DEC

IC1001

MC10050F1-505-LU1-A

AT0D00/HDD0

AT1D00

AT0D01/HDD1

AT1D01

AT0D02/HDD2

AT1D02

AT0D03/HDD3

AT1D03

AT0D04/HDD4

AT1D04

AT0D05/HDD5

AT1D05

AT0D06/HDD6

AT1D06

AT0D07/HDD7

AT1D07

AT0D08/HDD8

AT1D08

AT0D09/HDD9

AT1D09

AT0D10/HDD10

AT1D10

AT0D11/HDD11

AT1D11

AT0D12/HDD12

AT1D12

AT0D13/HDD13

AT1D13

AT0D14/HDD14

AT1D14

AT0D15/HDD15

AT1D15

AT0DA0/HDA0

AT1DA0

AT0DA1/HDA1

AT1DA1

AT0DA2/HDA2

AT1DA2

AT0DIOWB/DIOWB

AT1DIOWB

AT0DIORB/DIORB

AT1DIORB

AT0INTRQ/HINTRQ

AT1INTRQ

AT0DMACKB/HDMACKB

AT1DMACKB

AT0DMARQ/HDMARQ

AT1DMARQ

AT0CS0B/HCS0B

AT1CS0B

AT0CS1B/HCS1B

AT1CS1B

AT0IORDY/IORDY

AT1IORDY

AT0RESETB/HRSTB

AT1RESETB

RXD2B/GPIO42

TXD2B/GPIO43

HIOCS16B

PDIAGB

DASPB

R5622

82

R5623

82

R5624

82

R5626

22

R5627

82

R5628

22

R5629

82

R5630

82

R5631

22

R5632

L5601

B+

EMI

OI

G

TP5601

B+

33

C5613

100 4V

V14

U11

U12

W15

V11

T12

P13

R15

R13

V10

P15

U13

R14

U15

W13

T14

W14

U10

U14

P14

R12

V12

V15

T15

W12

W11

T13

V13

AD7

AC6

AD6

C5606

0.01 16V

B

TP1005

TP1003

TP1004

R5664

0

C5603

AT0DATA0

AT0DATA1

AT0DATA2

AT0DATA3

AT0DATA4

AT0DATA5

AT0DATA6

AT0DATA7

AT0DATA8

AT0DATA9

AT0DATA10

AT0DATA11

AT0DATA12

AT0DATA13

AT0DATA14

AT0DATA15

AT0ADR0

AT0ADR1

AT0ADR2

AT0DIOW

AT0DIOR

AT0INTRQ

AT0DMACK

AT0DMARQ

AT0CS0

AT0CS1

AT0IORDY

AT0RESET

SIGNAL PATH

VIDEO SIGNAL

Y/CHROMAYCHROMA

C5632

0.01 16V

B

10k

1k

R5613

0

FXDMA

DD5

000

3.3

B_AT1DATA9

C5631

0.01 16V

B

1k

R5614

R5617

1k

R5615

1k

3.2

CLKSEL0

CLKSEL1

DD9

DD6

B_AT1DATA6

B_AT1DATA8

DASP

C5630

0.01 16V

B

R5619

R5618

10k

3.2

3.3

33343536373839404142434445464748

DASPn

SSCEN

DD8

DD7

3.3

R5646

33

B_AT1DATA7

B_AT1RESET

1k

MSSEL

TXP

TXN

AGND2

AVDDL

RXN

RXP

REXT

AGND1

AVDDH

XTALO

XTALI

ATAIOEN

MODE2

MODE1

MODE0

PORn

RESETn

C5610

0.01

R5650

82

REC

PB

L5603

0

R5688

1M

X5502 25MHz

3

4

12

L5602

0

3

4

12

R5689

1k

2

C5641

15p

3

R5672

0

C5615

0.1

C5614

C5622

R5651

12k

R5690

0

R5652

100

R5661

R5657

1k

R5659

1k

C5612

0.1

10V

B

0.01

C5616

0.1

C5617

0.01

R5658

1k

C5611

0.01 16V

B

C5629

0.01 16V

B

C5623

C5624

0.01

C5625

0.01

C5627

0.01 16V

B

0.01

C5626

C5628

0.01 16V

B

1

B

C5640

15p

0.3

32

0.3

31

30

3.3

29

0.3

28

0.3

27

0.3

26

25

3.3

24

1.1

23

1.1

22

3.2

21

3.2

20

0

19

0

18

3.3

17

16V B

PDIAG

TXD2_BRIDGE

RXD2_BRIDGE

B_AT1CS0

B_AT1CS1

R5607

R5606

82

B+

3.3

DA2

49

0

DA0

50

3.3

DA1

51

SP

52

0

INTRQ

53

3.3

DMACKn

54

3.3

IORDY

55

1.8

VCCK3

56

DGND3

57

3.3

DIORn

58

3.3

DIOWn

59

0

DMARQ

60

0

DD15

61

0

DD0

62

0

DD14

63

0

DD1

64

C5602

0.1

1

6.3V

16V

F

R5638

X6S

33

R5692

82

10k

R5608

3.303.3

CS1n

CS0n

DD13

DD2

12345678910111213141516

000

B_AT1DATA2

B_AT1DATA13

0

C5604

0.01

10k

R5609

R5610

3.3

UAO

VCCO2

PDIAGn

DD12

VCCO1

DD3

0

3.3

C5607

0.01 16V

B

B_AT1DATA3

B_AT1DATA12

R5693

0

R5612

C5605

0.01

16V

B

1k

1.800

UAI

PMEN

VCCK2

DGND2

PHYRDY

IC5602

SATA BRIDGE

IC5602

88SA8040-TBC1C000

DD11

DD4

DGND1

VCCK1

DD10

0

3.3

1.8

C5609

0.01 16V

B

C5608

0.01 16V

B

R5642

33

B_AT1DATA4

B_AT1DATA5

B_AT1DATA10

B_AT1DATA11

AUDIO

SIGNAL

CN5604

1

2

3

4

5

6

7

7P

GND

TXP

TXN

GND

RXN

RXP

GND

XRESET

HDD UNIT

12

TO (3/7)

4-33 4-34

SATA/IDE IF

RD-066 (5/7)

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

For Schematic Diagram

• Refer to page 4-3 for waveforms.

• Refer to page 4-51 for printed wiring board.

1

RD-066 BOARD(6/7)

HDMI/DV/USB BLOCK

A

-REF.NO.: 20,000 SERIES-

2

3 4 5 6 7 8 9 10 11 12 13 14

IC1001 (4/5)

AV ENC/DEC

IC1001

B

C

D

E

F

G

H

MC10050F1-505-LU1-A

LREQ/AILRCK1

SCLK/VICLK

CTL0/AIBCK1

CTL1/AIBD1

PHY_D0/VID0

PHY_D1/VID1

PHY_D2/VID2

PHY_D3/VID3

PHY_D4/VID4

PHY_D5/VID5

PHY_D6/VID6

PHY_D7/VID7

IR_IN/GPIO52

USB_CLKI/GPIO55

USB_H_OCI0/GPIO56

USB_H_PPON0/GPIO57

USB_D_VBUS/GPIO58

USB_D_CONNECT/GPIO59

1080P

SCL_VDEC

SDA_VDEC

9

TO (2/7)

HDMI/XDVI

SDA_GP

15

SCL_GP

TO (4/7)

TU_CEC

TU_HPD

DDC_SW1

13

TO (3/7)

TU_DSCL

TU_DSDA

V+3HD

V+5HD

5

V+3D

TO (1/7)

GNDD

EV+5.8V

LINKON

LPS

USB_DP0

USB_DN0

USB_D_DP0

USB_D_DN0

USB_DP0

USB_DN0

USB_CLKI

USB_D_DP0

USB_D_DN0

L5805

EMI

G

HTX_RSEN

HTX_PDB

HTX_CTL2

HTX_D11

HTX_D10

HTX_D9

HTX_D8

HTX_CLK

HTX_D7

HTX_D6

HTX_D5

HTX_D4

HTX_D3

HTX_D2

HTX_D1

HTX_D0

HTX_DE

HTX_HSYNC

HTX_VSYNC

HTX_CTL3

SDA0

SCL0

SDA1

SCL1

C5809

220

4V

OI

PHYLINKON

E16

PHYLPS

D16

PHYLREQ

E15

PHYSCLK

D15

PHYCTL0

E14

PHYCTL1

D14

PHY_D0

E13

PHY_D1

D13

PHY_D2

E12

PHY_D3

D12

PHY_D4

E11

PHY_D5

D11

PHY_D6

E10

PHY_D7

D10

F20

R1006

15k

M2

M1

R1005

N1

15k

USB_H_OCI0

M3

USB_H_PPON0

N2

P2

P1

USB_D_VBUS

N3

USB_D_CONEECT

P3

B+

I

R5827

22

R5828

22

R5855

10

R5831

R5833

22

R5834

22

0

R5837

0

R5829

56

R5825

22

R5826

22

R5865

0

C5807

TP5801

C5808

6.3V X6S

C5821 1000p

6.3V X6S

R5836

10k

Note: The HDMI block is highly confidential, and prohibited from releasing to public.

The components identified by mark 9 contain confidential information.

IC5801

1

C5822 1000p

50V

B

B+

R5852

10k

R5822

HTX_DSCL

4.7k

HTX_DSDA

R5821

4.7k

R5859

10k

R5817

2.7k

R5818

2.7k

HTX_HPD

B+

R5846

4.7k

R5867

R5868

R5869

IC5801

C5801

1

6.3V X6S

R5857

10k

C5802 1000p

50V

B

C5803

1

C5804 1000p

50V

B

C5805

1

C5806

1

6.3V X6S

R5854

DTA124EUA-T106

R5870

560

27k

2.2k

4.7k

TP5806

10k

Q5811

SWITCH

R5838

33

R5839

470

R5861

10k

IC5804

DDC SW

R5853

10k

R5842

330

R5843

330

R5844

330

R5845

330

3.3

3.6

2.8

R5848

4.7k

Strictly follow the instructions whenever the components are repaired and/or replaced.

C5815

0.1

C5816

0.1

C5817

0.1

C5818

0.1

R5863

680

R5862

4.7k

3.3

Q5804

DTC124EUA-T106

SWITCH

3.3

S

2SK2034-TE85L

3.3

R5864

1k

2

0

3.3

0

C5819

Q5808

1000p

50V

SWITCH

B

C5820

1

6.3V X6S

Q5805

2SA1576A-T106-QR

2.8

4

3

0

5

1

6

Q5810

UMF21NTR

0

Q5809

DTC124EUA-T106

SWITCH

5.0

B+

5.0

0

1

23

L5801

0

4

1

23

L5802

0

4

1

23

L5803

0

4

1

23

L5804

0

4

5.0

Q5802

RN2903(T5RSONY,D,F)

SWITCH

5.0

IC5802

DDC SW

IC5803

TC7WPB306FK(5RSO,F)

3.3

VL

3.3

4.7

5.0

VH

A1

B1

A2

B2

4321

GND OE

IC5804

TC7WB125FK(TE85R)

OE1

VCC

A1

OE2

B2

B1

4321

GND A2

R5808

4.7k

5.0

1.5

R5809

2.1

2.7k

1.5

R58071kR5806

5.6k

R5815

2.7k

R5813

2.7k

C5830 1000p

50V

B

B+

C5831

R5880

4.7

100k

8765

R5805

4.7k

5.0

4.7

5.0

4.7

5.0

Q5801

UMX1N-TN

0

R5804

47k

6.3V

C5832 1000p

50V

B

C5833

6.3V

Q5801 , Q5805 , Q5810

HOT PLUG DET

JA5801 23P

Not open to public

1

Not open to public

2

Not open to public

3

Not open to public

4

Not open to public

5

Not open to public

6

Not open to public

7

Not open to public

8

Not open to public

9

10

Not open to public

11

Not open to public

12

Not open to public

TP5802

13

Not open to public

14

Not open to public

TP5803

15

Not open to public

TP5804

16

Not open to public

17

Not open to public

18

TP5805

R5824

0.1

R5803

0.1

19

20

21

22

23

Not open to public

C5813

0.1

C5812

0.1

C5814

0.1

B+

PHY_D7

PHY_D6

PHY_D5

PHY_D4

PHY_D3

PHY_D2

PHY_D1

PHY_D0

PHYCTL1

PHYCTL0

PHYSCLK

L5122

C5601

1

6.3V X6S

R5812

4.7k

R5814

4.7k

1

X6S

1

X6S

B+

USB_CLKI

USB_D_CONEECT

R5101

100k

EMI

OI

G

C5122

100 4V

B+

IC5203

AND GATE

C5211

1000p

50V

B

C5213

1

IC5203

TC7SH08FU(T5RSOYJF)

54

VCC

OUT

R5205

68

X5201 48MHz

C5223

1000p

C5222

0.1

C5205

1

R5207

0

R5102

100k

R5105

68

R5106

68

R5104

R5103

100k

C5123

1

6.3V X6S

100k

INB

INA

GNDOUTY

STANDBYVDD GND

R5220

1.5k

R5107

68

R5108

68

TP5107

USB_DN0

USB_DP0

321

C5217

2012

USB_D_DN0USB_D_VBUS

R5221

47k

USB_D_DP0

USB_H_OCI0

USB_H_PPON0

IC5204

PQ050DNA1ZPH

VINVCVONCGND

12345

10

B

0.1

DGND

0.1

D5

0.1

D4

DGND

0.1

D3

0.1

D2

3.3

DVDD

0.1

D1

0.1

D0

DGND

0

CTL1

0

CTL0

3.3

DVDD

IC(DL)

0.2

SCLK

12345678910111213141516

DGND

R5129

R5109

47

C5104

C5105

6.3V X6S

C5106

6.3V

0.1

1

X6S

R5215

47k

C5216

1000p

50V

B

TP5209

C5116

1

6.3V X6S

R5110

10k

0.1

3.3

1718192021

D6

D7

DVDD

SUS/RES

APD/BDB

FNSEL

LREQ

DGND

64

0

0.6

R5127

10k

R5125

1k

82

TP5105

PHYLREQ

R5201

0

R5202

0

R5222

10

R5216

0

R5217

0

R5213

0

R5212

0

R5214

47k

IC5204

5V REG

C5212

10 B

2012

C5117

12p 50V

1

R5111

1k

X5101

24.576MHz

C5115

1

6.3V X6S

1.5

3.30003.3

22

X0

X1

DGND

AGND

IC5103

DV PHY

IC5103

UPD72852AGB-8EU-A

AGND

LKON

LPS

DVDD

0

3.3

C5107

C5108

R5124

1

10k

6.3V

6.3V X6S

X6S

R5141

R5130

0

PHYLPS

PHYLINKON

R5113

AVDD

DVDD

0.4

2

10k

C5110

C5118

12p 50V

R5114

10k

PC0

RESETB

3.3

1

R5140

10k

4

1

23

4

1

23

2

C5133

1

6.3V

R5115

X6S

10k

R5116

10k

3.3

0

29282726252423

303132

PC1

PC2

CMC

AVDD

IC(AL)

DIRECT

IC(AL)

AGND

AVDD

3.3

R5123

10k

C5109

0.1 16V

F

L5201

0uH

L5202 0uH

R5117

100k

CPS

TpB0n

TpB0p

TpA0n

TpA0p

TpBias0

TpB1n

TpB1p

TpA1n

TpA1p

TpBias1

AGND

495051525354555657585960616263

AGND

RI1

AGND

AVDD

AGND

AVDD

CN5201

10P

TP5202

USBDM2

10

GND

9

TP5203

USBDP2

8

TP5204

GND

7

TP5201

V+5USB

6

TP5205

USBVFB

5

GND

4

TP5206

USBDM1

3

TP5208

GND

2

TP5207

USBDP1

1

C5219

1000p 50V

B

C5209

0.1 16V

F

C5210

100 16V

B+

L5101 0uH

TP5106

C5120

C5121

1

100

6.3V

0.1 16V

F

R5118

9.1k

C5132

6.3V X6S

C5111

6.3V X6S

4V

X6S

C5119 270p

50V

R5131

5.1k R5119

R5135

56

0

R5134

R5120

0

56

R5121

56

R5122

56

C5113

0.1 16V

F

C5112

1

6.3V X6S

1

R5132

R5133

0

C5114

33343536373839404142434445464748

1.2

0

0 0

0

3.3 0

TP5103

TP5104

TP5102

TP5101

TO FL-184

THROUGH THE

RU-001 HARNESS

(SEE PAGE 4-23)

6P

CN5101

TPBN

6

TPBP

5

A_GND

4

A_GND

3

TPAN

2

TPAP

1

BOARD

CN102

TO FL-184

BOARD

CN101

THROUGH THE

RV-003 HARNESS

(SEE PAGE 4-23)

HDMI/DV/USB BLOCK

RD-066 (6/7)

4-364-35

For Schematic Diagram

• Refer to page 4-51 for printed wiring board.

1

A

RD-066 BOARD(7/7)

DVD DRIVE

-REF.NO.: 20,000 SERIES-

B

C

D

E

F

CN502

4P

TP503

4

ST2+

TP504

3

ST2-

TP505

2

ST1-

TP506

1

ST1+

G

CN601

5P

TP612

5

LPS2

TP611

4

GNDD

TP610

3

LPS1

TP607

2

BLACK

TP605

1

DVD UNIT

H

I

RED

CN501

VCC

HU+

HU-

HV+

HV-

HW+

HW-

HB

U

V

W

GNDD

12P

TP518

12

TP517

11

TP516

10

TP515

9

TP514

8

TP513

7

TP512

6

TP511

5

TP510

4

TP509

3

TP508

2

TP507

1

J

R601 10k

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

2

B+

ST2+

ST2-

ST1-

ST1+

R602

10k

R603

OPEN

1k

R604

CLOSE

1k

U

V

W

3 4 5 6 7 8 9 10 11

CN101

R313

47k

C197

0.1

R172

3.3k

R171

3.3k

R170

3.3k

TP145TP144

R115

0

BECS

REMI

REMO

SCLK

SI

SO

R135

220

R133

220

R132

220

R136

220

R137

220

R131

220

R130

220

R139

220

TP171

TP173

TP175

TP177

TP187

TP183

TP184

TP182

TP181

TP179

TP193

TP150

TP140

TP141

TP142

TP101

TP136

TP102

TP6110

TP103

TP143

TP146

TP151

TP154

TP163

TP190

TP162

TP100

TP194

TP105

TP6109

TP165

TP170

TP161

TP195

TP192

TP148

TP200

Y/CHROMAYCHROMA

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

TDRV

FDRV

12

TO (3/7)

6

TO (1/7)

TP523

TP521

C515

0.1 25V

C501

0.1 16V

B

F U

V

W

TP522

C503 470p

50V

1608

C502

10

B

2012

XRESET

V+3A

V+5L

V+3D

V+5M

GNDM

V+12M

GNDD

C508

1000p

50V

B

TP520

R502

0.33 3216

C509

33p 50V

R515

33k

R516

12k

R501

0.47

C511

16V

2012

F+

F-

T+

T-

SCLK

SI

LCDS

L105

10uH

C194

C171

4.7

0.1 10V

B

C189

1000p

50V

C180

10

10V

C

2012

C188

0.01 16V

B

R174

4.7k

6.3V B

C182

10

10V

C

C187

0.01

16V

B

C181

4.7

6.3V

B+

2012

B

B+

IC1001

MC10050F1-505-LU1-A

VOFLD/SSODOUT/DSR0B/GPIO46

HFONM

VOHSB/SS0DIN/DTR0B/GPIO45

HFONP

VOVSB/SS0CKIN/RIB0B/GPIO44

WRPULSEM

WRPULSEP

PKPULSE2/NRZIM

PKPULSE2/NRZIP

PKPULSE1M

PKPULSE1P

A1

D1

C1

B1

RFP

RFN

F1

H1/FOM

G1/FOP

E1

RLD

WLD

PLED

P2LD

FPDVI

PDIN

OFPULSE/WRCKM

OFPULSE/WRCKP

VREFIO

REF16

RLDM

WLDM

FPDVO

A18

E17

B18

AG2

PA0

AJ6

PA1

AH7

PA2

AG6

PA3

AG3

PA4

TP120

AG7

PA5

TP121

AJ7

PA6

TP139

AH6

PA7

AG4

PB0

AE7

PB1

AG1

PB3

AE6

PB4

AF6

PB5

AG5

PB6

AF7

PB7

AJ23

WRFM/SWRF3/RFP3

AG21

RFT1/SWRF1/RFP1

AH22

RFT2/SWRF2/RFP2

AG20

FG

AJ19

DAOUT

AJ20

SDRV2

AJ21

SDRV1

AH20

TDRV

AH21

FDRV

AJ22

MDRV

R1062

0

R1063

0

R1060

0

R312

R314

R134

R138

R234

R233

R230

R129

R128

1k

47k

R311

R108

6.8k

R1069

SI

47k

SO

SCLK

R1067

47k

R192

BECS

10k

1608

LCDS

DVD/CD

OPEN

CLOSE

SW1

SW2

HFGAIN

0

LDDEN

0

OSCNT

0

REMI

0

REMO

0

XDMUTE1

XDMUTE2

R301

47k

1k

C124

0.1 10V

B

FG

LO SL2

SL1

TDRV

FDRV

MDRV

B+

OSCEN-

OSCEN+

W1EN-

W1EN+

W3EN-

W3EN+

W2EN-

W2EN+

A

D

C

B

RF+

RF-

S3

S2

S1

S4

APCV

W1SET

W3SET

W2SET

FMO+

FMO-

R310

1k

IC1001

C149

0.01 16V

IC501

DVD DRIVER

C510

68p 50V

TP519

TP501

1

B

IC501

BD7956FS-E2

0

LDO-

0

LDO+

11.9

VCC

1.7

ACTIN1

1.7

ACTIN2

TJMON

11.1

BTHC

11.9

SPVM_S

0

PGND1

10123456789

PGND2

0

U

11.9

SPVM1

0

13 17

V

FIN1

PGND3

0

W

11.9

SPVM2

11.9

SPRNF

5.0

19181611 12 14 15

HB

5.0

20

HU+

5.0

21 22 23 24 25 26 27

HU-

5.0

HV+

5.0

HV-

5.0

HW+

5.0

HW-

1.7

SPIN

DGND DVCC

ACO1+

ACO1-

ACO2+

ACO2-

ACO3+

ACO3-

AVM

ACTIN3

LDIN

AGND

SPCNF

FG

VC

FIN2

SLO1+

SLO1-

SLO2+

SLO2-

SLGND

CTL2

CTL1

SLRNF2

SLRNF1

SLVDD

SLIN2

SLIN1

0

54 45

0

C505

0.1 25V

B

1608

5.0

1.7

4647484950515253 35

0

44 43 41 39 38 37 36

3.3

1.7

0

4042

0 0

0

34 282930313233

11.9

1.9

1.5

5.0

C504

0.1 10V

B

C514

0.1 25V

1608

C516

0.1 10V

B

C532

0.1

10V

B

R504

1k

R503

1k

C513

0.1

C512

0.1 R507

1k

R506

1k

B

T+

T-

F+

F-

R511

1.8

2012 R510

1.8

2012

LO

R505

12k

FG

ST1+

ST1-

ST2+

ST2-

XDMUTE2

XDMUTE1

SL2

SL1

MDRV

B+

C142

B+

10

10V

2012

C143

10

10V

C

2012

B

AV ENC/DEC

R111 470k

C140

0.47

C141

0.47

R112

470k

(5/5)

TP127

C169

0.1 10V

B

AJ5

AH5

AH3

AH4

AJ3

AJ4

AH1

AH2

AJ11

AJ8

AJ9

AJ10

AH12

AJ12

AH10

AH8

AH9

AH11

AF8

AE9

AE11

AF11

AG9

AG8

AJ2

AJ1

AF10

AF9

AE8

AE10

AG10

R168

APCV

0

R167

W1SET

820 R166

W2SET

820 R165

W3SET

820

LDDEN

OSCEN-

OSCEN+

W1EN-

W1EN+

W3EN-

W3EN+

W2EN-

W2EN+

OSCNT

HFGAIN

DVD/CD

FMO-

FMO+

R306

SW2

2.2k

A

D

C

B

RF+

RF-

S3

S2

S1

S4

R307

SW1

2.2k

TP6001 TP6002

R6001

0

SIGNAL PATH

REC

PB

C173

47p

C172

47p

C170

47p

C174

47p

C176

22p

C166

22p

C165

22p

C177

22p

VIDEO SIGNAL

4-37 4-38

50P

FR

FD

TR

TD

SCLK

SDIO

SEN

VPP

RESET

VD3V

TEMP

RSET

W1SET

W2SET

W3SET

LDDEN

OSCEN-

OSCEN+

W1EN-

W1EN+

W3EN-

W3EN+

W2EN-

W2EN+

VO5V

OSCNT

GNDO

HFGAIN

DVDCD

GNDA

FMO-

FMO+

VA5V

SW2

M3

M2

M1

M4

VREFPD

RF+

GNDA

RF-

VA5V

S3

S2

S1

S4

SW1

BECS

REMI

REMO

SCLK

SI

SO

IC1001-AJ2

AUDIO

SIGNAL

10

TO (2/7)

16

TO (2/7)

DVD UNIT

DVD DRIVE

RD-066 (7/7)

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

1

2

3 4 5 6 7 89

SWITCHING REGULATOR (SRV-2100EK)

A

B

AR101

DSP-501N

R116

220

1/2W

TH101

C

D103

LT1505

D104

LT1505

L102

C133

250V

L101

L.P.F

R101

2.2M 1/2W

C101

0.22u 275V

Z101

S10K300

CN101 AC-INLET

C102

0.1u 275V

L.P.F

100p

D101-104 RECT

LT1505

D102

LT1505

LN

D101

C132 100p

250V

FU101

T3.15A/250V

C103 120u

400V

D107

NTZJ27B

R103

0.39 2W

R104

0.39 2W

R1071kR105

C106

6800P

PHOTO COUPLER

D109

IN4005L

100

PC101(1/2)

PC123

R113

10K

C107

4700P

C105

0.22u

R111

15K

IC101

FA5518N

1

2

3

4

OSC

C111

2200p/1kV

D108

PR1007L

8

7

6

5

Q101

STP5NK80ZFP

R112

22

R110

220

R115 100k

D105

PR1003L

C108

47u 35V

2W

D106

ISS133

T101

SWITCHING TRANSFORMER

R108

33

L104

C131

1000p

250V

SF5LC20U

FCH20A06

C207

1500p

D601

SB360

D401

C407

1000p

1kV

D201

C401 470u

35V

1500p

D501

SB360

C208

C201 470u

Q401

MPA2733GR

STP22NF03L

R206 620

IC202 TL431

R401

100k

Q201

5V REG

12V REG

R406 100k

C205

4700p

DTC114EKA

C402

470u

35V

D402

ISS133

L205

L201

10uH

R202

680

PC101(2/2)

IC201 TL431

C501 470u

35V

PC123

C507 470u

35V

R203

1k

L501 10uH

L601 10uH

C502

47u 35V

C202 470u

35V

C601 470u

35V

IC201,IC202

SHUNT

C203

5.8V ADJ VR201

5k

R204

18k

0.1u

R205

15k

D604

ISS133

D603

ISS133

C602

100u

16V

C204

D502

ISS133

C405

0.1u

47u

35V

REGULATOR

Q402

SWITCH

R208 100

R209 10k

R210 10k

3.15A/24V

P501

P401

1.6A/32V

C206

47u 35V

STP22NF03L

R501

1.2k

IC501

TL431

Q501

3.3V REG

C503

0.01u

IC601

HA17L431

C404

47u 35V

STP22NF03L

1.5V REG

R601

1.8k

R503

4.7

R504 47

R505 150

Q601

C603 470P

R405

12k

C504

P201

2A/32V

B+

P204

2A/32V

47u 35V

P402

0.63A/32V

C220

0.1u

C604

B+

47u 35V

R603

3.3k

R604

2.2k

R605 10k

VR601 5k

1.5V ADJ

1 P-CONT

2 SW +3.3V

3GND

SW +3.3V

4

5

GND

6

EV +5.8V

7

EV +5.8V

8

GND

9

EV +12V

10

GND

11

SW +1.5V

12

SW +1.5V

1SW +12V

2 GND

3 GND

4SW +5V

1 EV +5.8V

2GND

3SW +1.5V

4SW +1.5V

GND

5

6SW +3.3V

7SW +3.3V

8GND

SW +12V

9

10 GND

SW +5V

11

GND

12

13 SW +12V

CN202 12P

CN203 4P

CN201 13P

TO DT-124 BOARD(3/3) CN202

THROUGH THE PD-142 HARNESS

(SEE PAGE 4-19)

HDD UNIT

TO RD-066 BOARD (1/7) CN4501

THROUGH THE PR-078 HARNESS

(SEE PAGE 4-25)

)(

D

IC601

SHUNT

REGULATOR

Note : The components identified b y mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

SWITCHING REGULATOR

SRV-2100EK

4-404-39

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

1

2

SWITCHING REGULATOR (SRV-2057EK) (Australian model)

A

B

AR101

DSP-501N

R116

220

1/2W

TH101

C

D103

LT1505

D104

LT1505

L101

R101

2.2M 1/2W

0.22u

S10K300

CN101 AC-INLET

C102

0.1u

275V

L102 L.P.F

C133 100p

250V

L.P.F

C101

275V

Z101

D101-104 RECT

LT1505

D102

LT1505

LN

D101

C132 100p

250V

FU101

T3.15A/250V

C103 120u

400V

D107

NTZJ27B

R103

0.39 2W

R104

0.39 2W

R1071kR105

C106

6800P

PHOTO COUPLER

D109

IN4005L

100

PC101(1/2)

R113

PC123

C111

2200p/1kV

D108

R111

10K

C105

0.22u

C107

4700P

PR1007L

15K

IC101

FA5518N

1

2

3

4

8

7

6

5

Q101

STP5NK80ZFP

R112

47

R110

220

IC101

OSC

3 4 5 6 7 89

R115

100k

D105

PR1003L

C108

47u 35V

2W

ISS133

D106

L105

T101

SWITCHING TRANSFORMER

R108

33

L104

C134 220p 250V

C131 680p 250V

SF5LC20U

C207

1500p

D601

SB360

D401

C407

1000p

1kV

D201

FCH20A06

SB360

C401

470u

D501

35V

C208

1500p

C201 470u

P401

1.6A/32V

Q401

uPA2733GR

IC202

TL431

R401

100k

STP22NF03L

5V REG

R206 620

Q201

12V REG

R406 100k

C205

4700p

Q402

DTC114EKA

SWITCH

R208 470

R209 10k

R210 10k

P501

2.5A/32V

C206

P201

2A/32V

C404

47u 35V

R405 12K

B+

P204

C220

0.1u

VR601 5k

1.5V ADJ

2A/32V

P402

0.63A/32V

C604

47u 35V

B+

47u 35V

Q501

STP22NF03L

3.3V REG

R503

C504

4.7

R504 47

R505 150

Q601

1.5V REG

C603 470P

47u 35V

R603

3.3k

R604

1.5k

R605 10k

IC501

TL431

R501

1.2k C503

0.01u

IC601

HA17L431

STP22NF03L

R601

1.8k

C402

470u

35V

D402

ISS133

L201

10uH

L205

R202

680

PC101(2/2)

IC201 TL431

C501 470u

PC123

R203

1k

L501

10uH

C502

47u 35V

C507 470u

35V

L601 10uH

C202

470u

35V

IC201,IC202

C601 470u

35V

C607

470u

35V

SHUNT

REGULATOR

C203

5.8V ADJ VR201

5k

R204

18k

0.1u

R205

15k

D604

ISS133

D603

ISS133

C602 100u

16V

D502

ISS133

C204

47u 35V

C405

0.1u

1 P-CONT

2 SW +3.3V

3GND

SW +3.3V

4

5

GND

6

EV +5.8V

7

EV +5.8V

8

GND

9

EV +12V

10

GND

11

SW +1.5V

12

SW +1.5V

1SW +12V

2 GND

3 GND

4SW +5V

1 EV +5.8V

2 GND

3SW +1.5V

4SW +1.5V

GND

5

6SW +3.3V

7SW +3.3V

8 GND

SW +12V

9

10 GND

SW +5V

11

GND

12

13 SW +12V

CN202 12P

CN203 4P

CN201 13P

TO DT-124 BOARD(3/3) CN202

THROUGH THE PD-142 HARNESS

(SEE PAGE 4-19)

HDD UNIT

TO RD-066 BOARD (1/7) CN4501

THROUGH THE PR-078 HARNESS

(SEE PAGE 4-25)

)(

D

IC601

SHUNT

REGULATOR

Note : The components identified b y mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

4-424-41

SRV-2057EK

SWITCHING REGULATOR

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

4-3. PRINTED WIRING BOARDS

FR-291 BOARD(SIDE A)

A

B

16

CN201

S VIDEO VIDEO AUDIO

123 4 5 67

• : Uses unleaded solder.

R252

J201

R251

R250

OPEN/CLOSE

S209

C223

L201

C201

Q201

ND201

Q202

PLAY

S207

T201

A201

S202

INPUT SELECT

STOP

S206

C216

S205

CH -

CN202

REC

S203

D212

S210

HDD DVD

S204

REC STOP

CH +

1-875-776-

D214

S208

S201

11

FR-291 BOARD(SIDE B)

R201

R205

D204

R206

A

JL205

JL202

JL204

JL203

B

16

123 4 5 67

D202

R207

JL201

D203

R213

D205

JL286

JL255

R231

JL285

FB202

C206

R232

D206

R218

JL256

R233

JL284

R220

R222

R235

JL283

JL282

FB201

R236

JL281

C204

D207

JL280

R237

C221

JL279

JL278

JL254

JL257

JL277

JL276

JL275

JL274

JL273

JL272

JL227

R245

IC201

R244

C222

R246

JL271

JL270

JL269

JL268

JL267

JL266

JL265

JL264

JL263

JL262

JL260

JL261

JL232

R209

JL259

JL231

JL233

JL258

JL230

JL253

JL228

JL252

JL226

JL251

JL225

R229 R241

JL250

C207

JL249

JL211

JL248

JL212

R240

R230

R227

D209

D216

D211

C217

D210

JL223

C215

D208

JL247

JL246

JL245

JL244

JL243

JL242

JL241

JL240

JL239

JL208

JL237

JL235

C211

JL238

JL236

JL234

R239

R217

Q203

R238

JL213

R216

R215

JL207

Q204

R223

C213

JL210

JL206

JL221

JL222

Q205

JL209

JL220

JL224

R210 R228

R225

R242

R243

Q206

1-875-776-

11

FR-291BOARD (SIDE A)

CN201 B-1 CN202 B-5

D212 A-6 D214 A-7

Q201 B-4 Q202 B-4

FR-291 BOARD (SIDE B)

D202 A-1 D203 A-2 D204 A-1 D205 A-2 D206 A-2 D207 A-2 D208 B-5 D209 B-5 D210 B-5

FL DRIVER, LINE 2 IN, FUNCTION SW

FR-291

D211 B-5 D216 B-5

IC201 B-3

Q203 B-5 Q204 B-6 Q205 B-6 Q206 B-7

4-43

4-44

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

AV-133 BOARD(SIDE A)

TUNER

A

LINE 2

OUT

B

C

D

E

S VIDEO

LINE 1/TV

LINE 3/DECODER

JA402

JA401

D522

JA501

R486

R484

Q406

R529

R524

U601

Q407

D419

Q404

R530

D521

R526

C481

R531

R528

D519

JL521

JL519

R522

JL523

JL520

D518

R523

D514

D516

R537

D517

R539

D515

• : Uses unleaded solder.

C611

C609

C492

C487

C493

C488

C491

C529

C531

C530

C544

C528

C543

C542

C541

JL522

D520

D513

C489

C490

C486

R527

R525

R547

R521

R543

R542

R546

R553

R556

JL510

R557

JL505

R549

Q507

JL504

R535

Q506

R534

D531

JL507

JL509

C551

C550

C547

C640

C532

C545

D801

R436

R437

C454

X601

C458

D402

C437 C436 C435

R433

R622

C439

R435

R619

R621

Q402

C620C622

C438

C410

Q411

JL631

C496

C441

C442

C409

Q408

C617

C635

C408

C636

C445

R461

Q410

C638

C457

C407

R465

Q413

IC601

C440

C406

JL644

D422

C434

Q403

R455

C618

R532

C446

R460

R811

C639

JL645

R447

R432

R421

IC401

C404

C619

D421

C444

R431

C428

R810

Q801

JL647

JL649

JL650

JL653

R620

R571

C432

JL648

C632

C452

C473

JL651

C629

C643

R624

R627

R428

C401

KN101

JL656

C641

JL652

C447

R444

C431

R430

JL657

C456

R445

C443

R454

D401

R625

C628

R628

C631

C403

C453

JL661

JL658

R462

C402

R403

C414

C630

C633

Q605

R802

C497

C420 C419

C418

C469

C415

R402

C642

Q604

Q401

C424 C423 C422 C421

C450C451

C498

C412

R422

C474

L201

R419 R418 R417

R416 R415 R414

C411

C468

R463

C464

C475

C312

IC402

C308

R413

R408

C204

C205

Q303

JL315

C455

C471

JL316

C472

Q301

C307

R453

C311

Q304

C326

D104

L304

C142 C141

R223

IC104

JL215

C156

C157

C320

C319

C303

R224

IC103

Q103

D106

R221

D108

C118

R142

R140

R145

C127

C125

R143

R203

R204

R102

R138

Q102

R141

R222

R152 R148

JL212

R135

R139

R144 R202

R205

R201 R146 R101

R103

R149

R131

R137

C124

R132

R134

C126

Q105

C316

D103

R133

R150

R147

R209

Q111

R214

C315

R127

C131

C150

R225

R126

C132

Q110

R215

Q104

R228

R151

R216

L102

KN102

R129

R153

C152

R217

R125

R123

R124

C133 R210 R208

R207 C149

Q112

R155

C113

IC101

R156

R158

R157

X101

R117

R161

C134

R159

R160

C135

R169

R165

R167

R199

Q108

C107

X102

R111

R110

R168

R105

R109

R171

R181

C140

C139

R174

D102

R113

Q101

R172

C109

R178

R173

C110

R200 R189

R188

R176

C104

R182 R180

C138

R175

D101

R112

R106

R179 R177

IC102

R107

C106

R104

C105

CN105

AV-133 BOARD (SIDE A)

CN101 F-2 CN105 B-8 CN302 F-6

D101 B-8 D102 B-8 D103 E-7 D104 A-6 D106 C-6 D108 C-6 D401 D-5 D402 B-4 D419 B-2 D421 B-4 D422 B-4 D513 E-2 D514 E-2 D515 E-2 D516 E-2 D517 E-2 D518 E-2 D519 D-2 D520 D-2 D521 D-2 D522 D-2 D530 F-2 D531 E-2 D801 C-3

IC101 C-7 IC102 A-1 IC103 C-6 IC104 B-6 IC401 C-5 IC402 D-5 IC601 A-4

Q101 B-8 Q102 B-6 Q103 C-6 Q104 C-7 Q105 C-7 Q108 C-7 Q110 D-7 Q111 D-7 Q112 D-7 Q301 A-5 Q303 A-5 Q304 A-6 Q401 B-5 Q402 D-4 Q403 D-4 Q404 B-2 Q406 B-2 Q407 B-2 Q408 D-4 Q410 D-4 Q411 D-4 Q413 D-4 Q506 D-2 Q507 D-2 Q604 A-5 Q605 A-5 Q801 D-5

16

F

G LINK

D530

JA751

CN101

R197

C463

1 234567

CN302

1-875-793-

8

11

IT CONTROLLER, IR, POWER/FAN CONT, VIDEO/AUDIO, EURO, TUNER

4-45

AV-133

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

AV-133 BOARD (SIDE B)

D201 E-4 D301 F-3 D302 E-3 D303 E-3 D304 E-3 D409 C-8 D410 C-7 D413 B-8 D414 B-8 D415 B-8 D416 C-8 D418 B-7 D420 D-5 D501 D-6 D502 D-6 D503 E-7 D504 E-7 D505 E-7 D506 E-7 D507 E-7 D508 D-7 D509 D-7 D510 D-7 D511 D-7 D512 E-7 D523 E-6 D524 F-7 D526 D-6 D527 E-6 D528 C-6 D529 E-7

IC150 C-1 IC317 E-3 IC406 E-6

Q201 E-4 Q302 A-3 Q305 E-3 Q306 E-2 Q307 E-3 Q308 E-3 Q309 E-3 Q310 E-3 Q311 E-3 Q501 D-6 Q502 D-6 Q503 E-6 Q504 E-6 Q505 E-6 Q508 C-6 Q509 E-7 Q510 E-6 Q511 E-6 Q601 A-6 Q602 A-7 Q606 A-6 Q751 F-7 Q752 F-7

AV-133 BOARD(SIDE B)

A

R194

R195

R193

R130

C121

B

IC150

R242

R241

C

R240

D

E

R233

C111

C112

R116

• : Uses unleaded solder.

C122

C114

C115

R118

R154

Q306

R306

C314

Q305

C302

R255

C301

R256

Q308

R309

D301

D304

Q307

C318

D302

R314

IC317

Q311

R313

C324

R315

C310

C309

C120

R316

D303

Q309

C323

L305

L303

C306

R311

R312

Q310

R310

R305

C322

Q302

C328

R304

C305

C208

C329

L608

C202

Q201

R626

R220

D201

C627

C206

R219

C626

C430

C429

R623

C613

R425

L803

L606

R458

C625

C413

R420

D420

R439

R616

C623

C624

L609

Q508

Q501

C621

R630

C615

L607

R507

Q503

R512

R511

R508

Q606

D528

C511

L602

R605

D502

R517

R510

R515

R516

Q504

R631

D501

Q505

R509

C616

C614

R606

R633

R520

C515

Q502

R513

R632

R634

R518

R519

D527

R555

C517

R506

D526

R568

C510

D523

R569

R566

R564

R562

R552

R565

R561

IC406

R638

Q601

Q511

Q510

R560

Q509

R558

D524

R602

C604

Q602

R701

R501

R755

R637

R554

R538

R753

R607

R550

C552

R536

C752

R636

R541

C608

C603

R603

R504

R573

Q752

R485

R514

R540

R503

R502

R551

D418

R487

R505

L862

R545

C606

D505

D507

R548

C751

L605

D509

D510

D511

D512

D503

D504

R544

R752

R751

C605

L604

R488

R474

R479

R476 R477

R478

C476

R468

D508

L860

C503

L859

C505

C506

L858

C508

L856

D506

C753

Q751

R559

D529

R469

R756

R471

D410

R472

C507

R482

R470

L855

C520

L857

R480

L502

L861

R490

R475

C482

R754

D409

C516

C484

L801

L851

L751

L601

R473

L802

R563

L501

C519

R609

C754

C602

D415

D414

D416

C518

L852

R635

D413

L854

L853

F

16

IT CONTROLLER, IR, POWER/FAN CONT, VIDEO/AUDIO, EURO, TUNER

AV-133

1234567

4-48

1-875-793-

8

11

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

DT-124 BOARD(SIDE A)

TUNER

A

B

KN301

CN104

CN101

TP166

R691

LP001

R534

R532

C

D

U301

TP167

X300

R689

R343

TP618

C402

TP614

TP619

TP612

TP613

C399

C398

CN203

C408

C397

TP611

C416

TP610 TP609 TP608

C406

R333

TP607 TP606 TP605

R674

R673

IC313

C417

TP604 TP603

C413

TP342

C343

C412

C409

C418

C415

R616

R609

R309

R337

R608

R678R679

R610

R682

R178

C373

R310

R336

C421 C422

R618

CN102

TP134

R617

• : Uses unleaded solder.

C342

TP135

TP136

R180

R619

F302

TP137

R620

TP139

R345

TP140

R175

R174

F301

TP141

R173

R3115

R3112 R3055

C590

R3114

R690

R580 R145

R575

R607

C592

R606

R622

TP133

TP126

TP121

C591

R182

R605

R621

TP111

TP106

R179 R148 R141 R198

R239

R3110

R304

TP114

TP105

R307

R568

TP109

R577

Q803

R240

TP110

TP147

R589

TP153TP154

R813

C805 R811

R805

R241

TP155

TP108

R809

R104

R801

C807

R100

C803

TP581

C142 C136

C138 C140

TP107

TP104

R806

C135

L801

C801

Q801

R802

Q804

R807

R810

R808

C804

C126

C129

TP579

F101

C149

X100

C130

DT-124 BOARD (SIDE A)

CN102 D-3 CN103 A-6 CN201 C-6 CN202 D-6 CN203 D-2

IC101 C-5 IC104 C-4 IC106 C-4 IC205 A-4 IC300 D-5 IC313 C-2

Q205 A-6 Q801 A-4 Q802 A-4 Q803 A-3 Q804 A-4

C191

C615

R702

R701

IC101

TP602

C315

R199

R661

F202

C3022

C119

R660

C602

R303

C614

R698

C106

IC300

C104

Q205

R3122

R707

R700

R197

F300

R706

R651

R530

C433

R3118

C324

R695

R699

R705

R3121

C103

CN103

R696

R704

R3119

C105

R3120

R694

C312

C307

C101 C102

C304

R357

CN202

CN201

R3001

R3003

R3002

A001

1-875-795-

11

R529 R527

R185

R253

C213

R594

R595

TP601

R251

C616

R186

R662

TP585

R666

R187

R188

R189

R190

R191R192

C211

C121

C603

R604

R528

C212

TP600

F314

C802

Q802

R814

R804

C808

R812

C806

R803

C128

IC106

R641

C127

C124

R254

R170

C131

C117

R561

R109

IC205

R249

C107

TP578

R101

R642

R250

R242 R243R244 R245

C125

R107

IC104

C148

C116

R116

C120

R111

C108

TP826

R246R247 R248

C109

C110 C111

C112

C155

C113

C114

R597

C193

R598

R193

R194

R110

C618

16

123 4 567

8 9

4-49

4-50

EMMA2LL, CI, DIGITAL TUNER

DT-124

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

DT-124 BOARD (SIDE B)

D302 B-9 D303 B-8

IC207 B-4 IC304 A-6 IC306 D-2 IC307 D-7 IC309 B-8 IC312 A-7 IC3001 B-4 IC3002 A-4 IC3003 A-4 IC3004 C-3 IC3005 C-3 IC3006 C-2 IC3007 C-2 IC3008 C-3 IC3009 B-2 IC3010 B-3 IC3011 B-3 IC3015 B-3

Q202 A-4 Q203 A-4 Q204 A-4 Q306 B-7 Q307 B-7 Q308 B-7 Q309 B-7 Q310 B-7

DT-124 BOARD(SIDE B)

A

B

C

D

16

123 4 567

TP525

C318

TP533

C3016

C3003

R3070

R3072

R3077

IC3006

R3075

R3078

C314

IC306

R3080

R3073

R3071

R3074

C3008

R3017

R3076

R3079

R3081

C3004

TP521

R3062

R3085

R3082

C334

IC3009

R3024

R3089

IC3007

R3087

C3017

R3064

R3092

R3090

C423

R3063

R3061

R3084

R3083

R3013

R3019

R3088

R3086

TP317

• : Uses unleaded solder.

R628

TP506

TP523

TP524

R3107

R3093

R3091

R3009

C3005

L3001

R3095

IC3010

IC3008

R3098

C329

R3004

R3100

R3034R3035

TP305

R3094

R3099

R3096

R3102

R3097

C3009

R3101

C3007

C3001

TP314 TP304

TP568

R3023

R356

R3123

R3124

IC3015

R3066

IC3005

IC3004

R3059

R3005

R3067

R3060

R3026

R3025

C597

C3023

R3065

C596

R3011

R3106

TP306

IC3011

C3002

TP310

Q203

TP307

C593

R273

R272

TP311

TP575

R3050 R3049 R3048 R3047 R3046

TP312

TP308

C601

R3053

R3052

R3051

R3006

TP313

TP309

C598

TP572

C3010

C222

R275

R3007

C3006

TP513

IC207

TP573

C221

R269

C210

R231

C209

C599

R258

Q204

C524

R270

R259

TP216

R3014

R1057

TP505

TP574

C594

Q202

R3012

TP522

TP514

C522

C620

TP576

C595

TP868

F108

R271

TP217

TP577

C3013

C3012

TP535

R3042 R3043

R3040 R3041

R3036 R3037

C3011

C144

TP326

TP512

TP520

TP322

TP338

TP504

C122

C302

TP502

IC3003

IC3002

IC3001

TP584

C192

TP503

TP501

R3045

R3044

R3038 R3039

R3015 R3016

TP570

R535

R551

R538

R554

R540

R556

R542

TP580

TP599

TP146

R558

C194

R544

R560

C147

F102

TP1022

R546

R3054

R547

R564

R569

C115

C118

R183

TP102

R570

TP825

R566

R550

R127 R128

F103

R114

TP101

TP103

F106

R571

TP123

R159

R3111

TP536

R167

TP132

TP142

C134

TP566

R160

R125R126 R166 R123R124 R121R122

TP567

R572

TP340

TP569

C309

TP507

TP119

TP115

C137

TP120

C301

TP508

R300

F104

TP118

F105

IC304

TP325

TP116

R146

TP571

TP339

TP117

C332

R168 R169

R306

C388

TP857

R3108

R305

TP315

IC312

TP531

TP537

C339

C404

C431

Q310

C303

C313

Q309

C320

C319

R363

R315

IC307

R359

R358

C341

R341 R342 F317

F318

R319

R353

R352

R3117

TP544

R321

Q308

R355

TP543

R347

R351

Q307

R354

TP557

TP547

L315

TP327

Q306

R326

R312

C340

TP559

TP538

TP558

TP301

R313

R314

TP561

R680

R681

TP560

TP563

TP562

R331

TP565

C381

R685

TP564

TP324

R3116

TP555

C400

R327

TP1025

TP553

TP554

R325

R316

TP1024

TP328

R686

TP303

TP302

TP545

C396

F313

R692

C382

F397

F398

C380

C528

F309

C367 C368

C356 C361

TP331TP332

TP333

C391

C383

C392

F321

R672

C395

TP323

TP335

C393

IC309

D303

L314

R668

R687

8 9

C385

TP626 TP582

TP532

C372

R693

R703

C370

TP300

F306

R311

F310

TP329

TP1023

R350

R349

R348

TP113

TP122

TP124

R155 R154

C600

R650

1-875-795-

C359

C364

TP337

TP162

TP336

TP159 TP168

D302

C353

TP334

TP164TP165 TP157

C354

TP163 TP158

TP330

R151

TP160TP161

R153

R149

11

EMMA2LL, CI, DIGITAL TUNER

DT-124

4-524-51

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

RD-066 BOARD(SIDE A)

A

B

C

R3833

R3851

R3850 R3848 R3847

R3832

R3844 R3843 R3841

CN3802

D

R3738

C3701

R3232

E

F

R5859

R3005

CN2301

R3302

R3301

R3837 R3838 R3839 R3840

R3011

R3720

R3831

R3830

C3804

Q3303

Q3301

C4572

R3829

R3828

C3342

C3339

R3344

R3306

R3305

C3331

L5601

C3217

R3224

R3312

C4573

C3705

R3113

R3227

C3305

R4575

C3704

R3223

C3216

R3218

L3304

C3301

C5613

C3215

IC3202

L3302

C3703

C3201

R3222

R3220

IC3701

C3214

R3221

R3219

C3311

C3304

C5602

R3704

R3211

C3213

R5622

R5632

R3705

R3217

R3210

C3330

C3302

R5623 R5624 R5626 R5627 R5628

R5629 R5630

R5631

R3703

L4551

R3216

L3303

C3312

L3301

C4553

C3202

C3203

C3206

C3329

R4556

C4511

R3313

R3314

R3307

C3211

C3220

IC3201

R3308

C3303

R5606

C3207

R5607

C5604

IC5602

R4511

IC4511

R3233

Q3304

Q3302

• : Uses unleaded solder.

TP3801

TP3802TP3803

TP3804

TP3805

TP3806

TP3807

TP3808

TP3810

TP3809

TP3811

TP3813

TP3826

C1811

R2510

C2504

TP3821

Q1811

R2507

C2503

Q2505

R2506

R4554

TP3828

R1812

C1028

C1035

Q2504

R2505

R2501 C2501

C5820

TP3819

TP3825

TP3827

C1047

Q2503

R2514

Q2501

R5864

R5848

Q5810

C5819

C4570

TP3812

TP3815TP3816

C1030

R2508

R2502

L1005

C3204

R5612

C1050

C3333

R5613

L1003

R3209

C3332

R3309

C5632

R3229

R3206

R3315

R5614

C4513

R3207

C3307

C3219

D3201

R5617

L1831

R3208

C3313

C5622 C5623

C5624 C5625

C5640

R3230

R3204

C5630 R5619

C5615

R5688

R5689

X5502

C1812

R3228

C5641

C1813

R1814

L1811

L5603

L5602

TP3832

TP3829

TP3830

TP3831

X1001

R1813

C4559

TP3817

TP3818

TP3820

TP3822 TP3823

TP3824

R1019

R1017

C1814

C1815

R2513

C2505

Q2502

R2504

C2502

CN5604

TP3814

R108

TP6119

R1018

TP6042

R2511

C5809

R5853

IC5803

IC5804

R5817

IC4562

C4567

C124

C128

R311

C4558

Q5805

R5880

C5832

C5833

C127

R119

R5804

R5818

R109

C129

R116

R5862

R5806

C5831 C5830

R104

R5863

R5814

C122

R5831

R5833

L5805

Q5811

Q5809

R5812

R4553

R5838

C5601

C113

R5837

R5834

R5861

C114

R5839

C133

R5855

C5807

C115

C5822

R5845

C5818

L5804

C107

R5828

IC5801

C120

R105

IC1001

R5827

R5844

C5817

L5803

JA5801

C140

R5826

C5816

C141

L5802

R5825

C5821

R1261

C5708

C5808

R5842R5843

C5815

L5801

C5122

L5122

R5803

C5814

R1262

R1263

C5121

C5120

R1061 R234

R1281

R1264

L5101

R5101

R5102

R5103 R5104

C169

R5205

R1250

R1251

R1249

C5123

C5104 R5124

R5127

R134

R1282

C5116

C5105

C5106

X5201

C5222

C5205

R1287

C1231

R5110

R5125

JA5701

C5223

R1286

C1221

R5130

C1044

R1248

C1222

R5118

R5131 C5119

R5140

C5109

R5221

R1273

R5116

R5113

C5113

R5123

X1002

R1285

TP212

C5210

R1274

C1219

C1225

C5213 C5211

R1315

C1316

R5119

D4552

C4557

C5212

R5213

R5215

R5214

R5212

IC5203

C1045

C1210

R1312

R1313

C1218

C1211

C1214

IC1221

C1227

C1226

R5120

R5121

C5112

R5122

C5111

D1401

R1421

R5445

1-874-972-

C4555

C1204

C1205

C1295

R1422

C1421

C4556

cam4

R1279

IC4552

IC5204

R1278

R1277

C103

C163

R1245

R1246

CN1402

C1007

R4558

R4559

R1247

C1230

C1228

C5217

R1240

C1220

D4521

R273

R271

R4521

C4525

IC4521

C4526

R3716

R3715

R4712

C1236

R6001

C3738

C4515

C4507

C4522

TP6121

C4509

C4508

R4711

C4524

IC3707

R4729

R223

R1411

R4709

R4708

TP211

C4505

IC4502

C4504

C4503

C4502

C4501

R192

CN4701

CN201

CN1401

CN4501

11

RD-066 BOARD (SIDE A)

CN1401 E-5 CN1402 F-4 CN201 E-5 CN2301 E-1 CN3802 D-1 CN4501 D-5 CN4701 E-5 CN5604 F-2

D1401 F-4 D3201 E-2 D4521 E-5 D4552 B-4

IC1001 D-3 IC1221 E-4 IC3201 E-2 IC3202 E-1 IC3701 D-1 IC3707 B-5 IC4502 C-5 IC4511 D-2 IC4521 E-5 IC4552 B-4 IC4562 F-3 IC5203 D-4 IC5204 C-4 IC5602 F-2 IC5801 E-3 IC5803 F-3 IC5804 F-3

Q1811 D-2 Q2501 E-2 Q2502 E-2 Q2503 D-2 Q2504 E-2 Q2505 E-2 Q3301 E-1 Q3302 E-2 Q3303 E-1 Q3304 E-2 Q5805 F-3 Q5809 F-3 Q5810 E-2 Q5811 F-3

16

DIGITAL OUT

123 4 5

POWER BLOCK, EMMA BLOCK, VIDEO/AUDIO BLOCK, MEMORY BLOCK, SATA/IDE IF, HDMI/DV/USB BLOCK, DVD DRIVE

4-53

RD-066

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

RD-066 BOARD (SIDE B)

CN101 A-3 CN501 A-4 CN502 B-4 CN5101 E-1 CN5201 D-2 CN601 A-5

D4571 F-4

IC1102 C-4 IC1201 D-1 IC201 B-1 IC3101 D-4 IC3702 D-5 IC4501 C-1 IC4531 B-1 IC4541 B-1 IC4561 F-3 IC4571 F-4 IC501 B-5 IC5103 E-2 IC5701 E-3

Q102 C-3 Q1801 D-3 Q3305 E-5 Q3306 E-4 Q3307 E-5 Q3308 E-4 Q5701 E-2 Q5801 F-3 Q5802 F-3 Q5804 E-3 Q5808 F-3

RD-066 BOARD(SIDE B)

A

TP4606

TP4607

C4534

C4531

TP4609

IC4531

C4533

TP4572

R4531

C4532

TP199

C4543

R4541

B

R281

C284

R248

R317

C291

R252

C285

R318

R253

C290

R4728

TP6048

TP6056

TP6059

TP6061

TP6066

TP6104

R4714

TP4571

TP6123

TP6045

TP6103

TP6057

TP6060

TP6062

TP6068

TP208

TP210

TP205

TP203

R1401 R1414 R1402 R1403 R1415 R1404 R1405 R1406 R1416 R1407

R4706

TP209

TP207

TP204

TP201

TP1401

TP1403

TP1406

TP1405

TP1408

R4707

R4727

R4704

TP206

TP202

TP1402

TP1429

TP1404

TP1407

TP1409

IC4501

C4540

R4703

TP6063

TP6058

TP6069

TP6067

TP6065

R222

R221

C1401 R1413

TP4512

TP4513

C4506

C4539

TP4511

TP4508

TP4509

C4537

TP4507

TP4506

C4536

TP4505

TP4504

TP4501

TP4503

TP4502

R4721

R4723

R4713

R4701

R4702

R4725

R4705

R4710

R220

TP1430

TP6124

TP6125

R4731

R4732

R1412

TP1414

TP6001 TP6002

C4516

C4535

R4726

TP4510

R4724

TP4603

TP4602

R4501

R4722

C1217 C1209

C1215

C1202 C1203

C1235

C1212

TP4514

C1216 C1206

C1207

C1208

TP614

TP5103

TP5104

TP5102

TP5101

TP1202

CN5101

C

D

E

F

TP198

TP1425

TP1427

TP197

IC4541

IC201

L1021

R1272

TP5201

TP1015

TP4573

TP1413

TP1426

TP1428

C4541

IC1201

R5135

R5134

R5132

R5133

TP1411

C4542

C286

TP5209

TP5206

C5219

TP5204

R1276

R1260

TP5208

TP5207

TP5205

C5209

TP5203

TP5202

R1013

R1267

TP5107

• : Uses unleaded solder.

TP196

TP191

TP148

TP192

TP195

TP200

R139

R307

R130

R131

C177

C166

TP4610

C282

R320 C288 C281

C287

C5132

TP5106

C283 C289

C280

C1213

R1275

R5117

R319

CN5201

R1255

R1256

R1257

R1258

R1252

R219

R138

C1229

R1266

C1294

R5115

C5133

R256

TP120

R257

R205

R5222

R1265

C5110

R5207

C5216

R1283

C5118

R5114

C5114

C5115

IC5103

L5201

C1224

C5108

R206

R204

R5220

L5202

C1021

C1223

X5101

R5141

R1241

R1284

C5107

TP6122

R5201

R1243

R5129

C165

TP194

TP162

TP100 TP101

TP105

R133

R136

R135

R132

C172

C174

C170

TP1007

TP1008

R230

R128

R233

R129

R314

TP127

R210

R1005

R5105

R5106

R5107

R5108

R5109

TP5105

TP6095

R117

R1242

R1268

TP160

R1219

R5704

R5706

L5701

TP139

TP1005

TP1004

C149 R111

TP1003

C167

C162

C1049

R1205

R1269

R5846

C1059

C1056

R5707

C1057

R5703

Q5701

R5824

X101

R203

R5216

R5202

R1006

C1022

R1244

C5117

R5111

R211

R202

R193

R114

R5217

C1023

R1288

R1289

TP6094

TP161

R137

C176

C173

R312

TP121

C143

R1063

C1010

C1062

C1008

TP146

TP190

R306

C142

R1060

C164

C1048

C1063

C1068

C1061

C1060

R1270

R5702

C5705

C5709

TP5801

R5857

C5813

TP170

R112

R107

C1014

R1271

C1291

C5706

R5705

C5801

C104

C1064

C1066

R1039 R1040

R5701

C5802

TP165

C106

C1065

R1069

R1037

C5702

C5707

R5865

C188

C181

TP144

TP154

TP151

C117

C105

C1013

C1067

R1067

R1036

C5803

C5812

TP6109

C146

C116

R124

R5829

C5804

C152

C154

C1053

C1052

C1011

R1068

IC5701

C5805

TP163

C158

Q102

C159

R1111

TP5802

C187

C180

C157

C100

TP117

C101

R1182

R1199

C1031

TP5803

TP6110

C155

R1181

R1027

R1016

C1038

R1062

C5806

TP5804

TP102TP103

C145

R310

TP128

TP118

C135

TP131

TP123

TP6120

R1001

C1025

R1031

R1029

C1005

R5854

R5852

R5836

TP5805

TP136

C189

C182

C156

C121

C1001

CN101

R165

C148

C134

R110

TP119

C1058

C1027

R3201

C1004

R1003

R5856

Q5804

R5813

C147

C130

C131 C125

C1029

R1030

Q5802

R5815

R170

C137

C144

TP122

TP6037

TP6043

C1026

C1033

R3203

C1006

R5805

Q5801

R166

C136

C1040

R3202

TP1201

R5808

C4563

TP141TP142TP143

R171

C1105 C1113 C1101

R301

R1021

C1037

C1041

C1002

R1004

R5809

R167

C3801

R1071

C1019

C1018

C1016

R5807

Q5808

R5822

R5821

TP179

TP140

R172

C3802

R1032

R1035

R1028

C1032

C1015

IC4561

C171

C194

L105

TP150

R168

R174

C1034

TP4565

TP182

C197

C1102

R1132

R1033

R1034

C1020

C1017

TP5806

TP4566

R5870

R5867

C4562

R115

TP193

R313

Q1801

C1805

TP4518

C1104

TP1006

R5869

R5868

TP181

R3814 R3816 R3817 R3818 R3820 R3821 R3823

C153

R1802

C1804

TP175

R3810

R3811R3812

R3813

C1801

R1803

C2506

TP184

R1804

C1304

TP171

TP173

TP177

R3808

R3862

C1803

TP145

R274

C1039

L1801

TP183

R3824

R1302

TP518

TP517

R1305

R1303

TP187

IC1102

TP1013

C1802

R1301

C1303

C3325

TP4517

TP516

TP515

C1009

TP514

TP513

TP1009

L1023

L1821

C5626

C5610

C3319

R5672

R5661

R5658

C5612

R5690

TP512

TP511

TP1014

C1302

R3105

R3327

C5614

C5616

C5617

CN501

L1002

TP1012

TP1001

C1301

Q3308

C3335

R5618

R5615

R5657

C5628

C5611

R5646

R5650

TP509

TP4608

R3111

R5651

C5629

TP508

TP510

C1024

L1025

R3234

C3322

R3326

R3325

R3320

C5631

C5627

R5659

C1012

C3334

C5605

R5652

R5642

C1003

TP1010

TP3102

C3320

Q3306

R5610

R5693

R5664

C5608 C5609

R4505

R4507

R4504

TP506

TP505

TP504

TP503

TP3101

R3213

R3214

L3307

R3319

R5609

R5638

R501

C502

R1110

R1107

L1024

R3109 R3108 R3104 R3107 R3103

R5608

R5692

C5606

C5607

C515

C514

C505

R1153

TP4568

L1001

TP1011

C1051

R3106

TP4515

R3215

C3323

C3316

R3324

C511

R502

R1165

R3708

TP3103

C3212

TP5601

R604

R603

TP507

R506

CN502

R1161

R1195 R1103 R1197 R1163

R1191

TP1002

TP4567

L3308

C3321

L3305

C3314

R507

C3108

R602

R601

C512

R510

L1022

IC3101

C3324

C3317

TP4604

C513

L1004

C3106C3107

TP3201

TP3202

R3323

D4571

IC4571

C5603

TP4605

TP610

TP612

R503

R511

C1036

R4552

L3306

C3315

TP4569

R504

C3103

C3104

C3105

R3322

C3341

C3318

R3102

R3101

TP4570

Q3307

R3318

C4571

TP1412

CN601

IC501

TP521

R3849

R4574

R4573

C516

TP520

TP522TP523

TP501

R3842

TP4516

R3317

C3340

TP1410

R4582

R2302

Q3305

R3846

TP4601

C504

R516

R515

R3845

R3341

C503

C532

C510

C509

C3803

TP3867

TP3863

R3857

TP3851

TP3847

TP3843

TP3839

R3007 R3003 R3006 R3004 R3002

TP2331

TP2314

R3336

TP611

TP605

TP607

R505

TP519

R3737

TP6100

TP6106

C2305

TP2312

TP2310

TP2309

TP2308

TP2307

TP2306

TP2305

TP2303

TP2302

TP2301

R2304 R2316

TP4600

C501

TP3870

TP3865

TP3861

TP3858

TP3853

TP3849

TP3845

TP3841

TP3837

TP3869

C3706

IC3702

TP6108

TP6107

TP6105

TP2325

TP2323

TP2321

TP2319

R2301

TP2317

TP2315

TP2313

TP2311

TP2330

TP2329

TP2328

TP2327

TP2304

TP3866

TP3862

TP3859

TP3856

TP3854

TP3850

TP3846

TP3842

TP3838

R3871

C508

R3835

C3707

R3012

R3010 R3009 R3008

TP3868

TP3864

TP3860

TP3857

TP3855

TP3852

TP3848

TP3844

TP3840

TP3836

TP2326

TP2324

TP2322

TP2320

16

12345

POWER BLOCK, EMMA BLOCK, VIDEO/AUDIO BLOCK, MEMORY BLOCK, SATA/IDE IF, HDMI/DV/USB BLOCK, DVD DRIVE

RD-066

1-874-972-

11

4-56

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

FL-184 BOARD(SIDE A)

A

(POWER)

B

S101

• : Uses unleaded solder.

C111

VDR102

VDR104

CN105

USB

B TYPE

IC101

LP101

C102

CN104

USB

A TYPE

CN102

FL102

CN103

DV IN

1-875-775-

CN101

FL101

S102

ONE TOUCH DUB

11

CN106

FL-184 BOARD (SIDE A)

CN101 B-3 CN102 B-3 CN103 B-3 CN104 B-2 CN105 B-1 CN106 B-4

IC101 A-2

16

1234

FL-184 BOARD(SIDE B)

A

B

L105

JL109

L104

JL110

R109

R105

R112

L102

C101

JL106

JL108

R113

C107

L103

JL107

R104

R108

JL105

JL112

JL104

JL111

JL103

JL101

JL102

1-875-775-

JL121

JL120

JL119

JL117

JL118

11

16

1234

DV, USB, REMOCON RECEIVER, POWER SW

4-57 4-58E

FL-184

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

SECTION 5

IC PIN FUNCTION DESCRIPTION

5-1. IT CONTROL IC

(IC101:LC87F06J2A-F59P6-E (AV-133 BOARD))

Pin No. Pin Name

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

NC

WDT

ACDET

HSM_TO_T

IR

RESET

TX1

TX2

GND

CF1

CF2

VDD1

MODEL1

MODEL2

KEY1

KEY2

KEY3

AGC

BATTDET

FUNC

SDET3

SDET2

SDET1

AVLOUT

SDA

SCL

XRST

NC

AFT

NC

XAMUTE

RCSEL1

RCSEL2

NC

DDCSW1

DDCSW2

GND

VDD4

FUNC ON

SQUEEZE

CAPACTIOR

NC

BLAIR

P_SAVE

XSCMUTE

AV LT H

FLDATA

FLSTB

I/O

—

Not used

—

Not used

—

Not used

—

Fixed at “H”

I

Input of IC’s VDD detect signal

I

Input of ROM/GIO address signal for IC1001 (RD-066 board)

I

Input of remote control receive signal

I

Input of system reset signal

I

Input of sub-clock (32.768KHz)

O

Output of sub-clock (32.768KHz)

—

Analog GND

I

Input of main-clock (15MHz)

O

Output of main-clock (15MHz)

—

Power supply input

—

Fixed at “H”

—

Fixed at “GND”

I

Input of function key signal [1]

I

Input of function key signal [2]

I

Input of function key signal [3]

I

Input of auto gain control signal

—

Fixed at “H”

I

Input of detection signal for euro-scart

—

Fixed at “H”

I

Input of line 2 S-video detection signal

—

Fixed at “H”

O

Output of n-link switch signal

I/O

Input/output of IIC data signal

O

Output of IIC clock signal

O

Output of system reset signal for EURO MSP

—

Not used

I

Input of tuner AFT control signal

—

Not used

I

Input of audio muting signal

O

Output of R/C select signal [1]

O

Output of R/C select signal [2]

—

Not used

O

Output of DDC IC switching signal [1]

O

Output of DDC IC switching signal [2]

—

Analog GND

—

Power supply input

O

Output of detection signal for euro-scart

O

Output of detection signal for euro-scart

I

Input of IC’s VDD detect signal

—

Not used

O

Output of transmission pulse for G-Link

O

Output of power save signal for AV select IC’s

O

Output of SA mute control signal

O

Output of N-link switch drive signal

O

Output of data signal for FLD drive

O

Output of strove signal for FLD driver

Function

5-1

Pin No. Pin Name I/O Function

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

FLCLK

RFTHRU

NC

FANCTL

VDD2

GND

P_CONT2

MUTECTL

EPGEQ

TUON

SWVION9V

P_CONT

FLON

SWVION5V

MRST

NC(IN)

CSYNCIN

XCHECKER

CEC

AVLIN

MSPSTAT

BLANK

HOTPLUG

TU_DCCON

TXD1

RXD1

TXD2

RXD2

HST_TO_M

VDDODA

CVBSIN

GND

FILTSLC

VDDVCO

DTBON

ANT5V_SW

DET_ANT

GND

VDD3

DBGP2

DBGP1

DGBP0

LED_PLTB

LED_DIVX

LED_D_TV

LED_A_TV

LED_HDD2

DAT_TO_M

DAM_TO_T

ASCK

O

Output of clock signal for FLD driver

O

Output of tuner power supply control signal

—

Not used

O

Output of fan direction speed switching signal

—

Power supply input

—

Analog GND

O

Output of system power supply control signal [2]

O

Output of SA mute control signal

O

Output of equalizer switching signal (AEP/UK model only)

O

Output of tuner block power supply control signal

O

Output of system power supply control signal

O

Output of switching regulator control signal

O

Output of FLD grid power supply on signal

O

Output of system power supply control signal

I

Input of system reset signal

—

Fixed at “L”

I

Input of C-synchronization/composite video signal

—

Not used

I

Input of CEC signal

I

Input of n-link switching signal

I

Input of starting signal for euro SMP IC’s

I

Input of blanking signal for euro scart

O

Output of hot plug detect signal

O

Output of tuner power supply control signal

O

Output of serial TXD signal [1] (Not used)

I

Input of serial RXD signal [1] (Not used)

—

Not used

—

Fixed at “L”

O

Output of ROM/GID address signal to IC1001 (RD-066 board)

—

Power supply input

I

Input of composite video signal

—

Analog GND

—

Fixed at “L”

—

Power supply input

O

Output of tuner power supply control signal

O

Output of system power supply control signal

O

Output of tuner on detect signal

—

Analog GND

—

Power supply input

I

Checking terminal [2] (Fixed at “H”)

I

Checking terminal [1] (Fixed at “H”)

I

Checking terminal [0] (Fixed at “H”)

—

Not used

—

Not used

—

Not used

—

Not used

—

Not used

O

Output of serial data signal to ENC/DEC IC’s

I

Input of serial data signal from ENC/DEC IC’s

I

Input of serial clock signal from ENC/DEC IC’s

5-2

5-2. AV ENCODER/DECODER IC (IC1001:MC10050F1-505-LU1-A (RD-066 BOARD))

Pin No. Pin Name

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

AA1

AA2

AA3

AA4

AA5

AA6

AA19

AA20

AA21

AA22

AA23

AA24

AB1

AB2

AB3

AB4

AB5

AB6

AB19

AB20

AB21

AB22

AB23

AB24

AC1

AC2

AC3

AC4

AC5

DGND

DRASB

DBA1

DADD01

DDQM1

DQ13

DQ11

DQ08

DIHM

Not open to public

SS0DOUT

DA2_GND

VAY

RSET1

VA R

RSET0

VA B

MD14

LDQM

MD5

MD1

MD3

DVDD15(1.5V)

GPIO40

AIOBCK

RDATA02

RADD03

RADD08

FWEB/GWEB

MD2

UDQM

MD4

MCLKOUT

MD13

DVDD15(1.5V)

CTS1B

VIOCLK

SP1CLK

AIOBD

SP1STRT

RADD15

MA9

MD12

MA10

MCKE

MA7

I/O

—

Digital GND

O

Output of RAS signal

O

Output of bank address [1]

O

Output of DDRSDRAM address [1]

O

Output of data mask [1]

I/O

Input/output of DDRSDRAM data [13]

I/O

Input/output of DDRSDRAM data [11]

I/O

Input/output of DDRSDRAM data [8]

—

Fixed at “L”

O

Output of power down

O

Output of data [10]

O

Output of data [7]

O

Output of l clock

O

Output of data [3]

O

Output of data [0]

O

Output of vertical synchronization

I/O

Input/output of DDC data

O

Output of serial data

—

GND (for DAC)

O

Output of DA converter for analog video signal Y

—

Fixed at “L”

O

Output of DA converter for analog video signal red

—

Fixed at “L”

O

Output of DA converter for analog video signal blue

I/O

Input/output of buffer memory interface data bus [14]

O

Output of lower byte data I/O mask control

I/O

Input/output of buffer memory interface data bus [5]

I/O

Input/output of buffer memory interface data bus [1]

I/O

Input/output of buffer memory interface data bus [3]

—

Power supply input

—

Fixed at “L”

I/O

Input/output of audio data clock

I/O

Input/output of ROM/GIO data [2]

O

Output of ROM/GIO address [3]

O

Output of ROM/GIO address [8]

O

Output of ROM/GIO write enable

I/O

Input/output of buffer memory interface data bus [2]

O

Output of upper byte data I/O mask control

I/O

Input/output of buffer memory interface data bus [4]

O

Output of clock for SDRAM

I/O

Input/output of buffer memory interface data bus [13]

—

Power supply input

I

Input of clear to send

O

Output of video pixel clock

—

Fixed at GND

I/O

Input/output of audio bitstream data

—

Fixed at GND

O

Output of ROM/GIO address [15]

O

Output of buffer memory interface address bus [9]

I/O

Input/output of buffer memory interface data bus [12]

O

Output of buffer memory interface address bus [10]

O

Output of SDRAM clock enable control

O

Output of buffer memory interface address bus [7]

Function

5-3

Pin No. Pin Name I/O Function

AC6

AC19

AC20

AC21

AC22

AC23

AC24

AD1

AD2

AD3

AD4

AD5

AD6

AD7

AD8

AD9

AD10

AD11

AD12

AD13

AD14

AD15

AD16

AD17

AD18

AD19

AD20

AD21

AD22

AD23

AD24

AE1

AE2

AE3

AE4

AE5

AE6

AE7

AE8

AE9

AE10

AE11

AE12

AE13

AE14

AE15

AE16

AE17

AE18

AE19

AE20

AE21

AE22

PDIAGB

MONI3

SP1EN

SP1DAT2

VIOD7

SP1DAT7

VIOD6

MA6

MA5

MA1

MA8

MBA

DASPB

HIOCS16B

SFSO

SFSCK

SFSI

SFCS0B

AVDD15

AVDD33

TEST1

MONI1

MONI2

SP1ERRB

SP1DAT6

SP1DAT5

VIOD5

VIOD3

XA1

CASB

MA0

MA4

MA3

PB4

PB1

RLDM

WLD

WLDM

PLED

CWAGC

CWHP

CAD

CBC

CTEC

CRC

CBHLPP/CRAPC

ADIN

AIOLRCK

VIOD2

SP1DAT3

—

Not used

—

Not used

—

Fixed at GND

—

Fixed at GND

I/O

Input/output of digital video data [7]

—

Fixed at GND

I/O

Input/output of digital video data [6]

O

Output of buffer memory interface address bus [6]

O

Output of buffer memory interface address bus [5]

O

Output of buffer memory interface address bus [1]

O

Output of buffer memory interface address bus [8]

O

Output of buffer memory interface bank address

—

Not used

—

Not used

O

Output of serial flash interface data

O

Output of serial flash interface clock

I

Input of serial flash interface data

O

Output of serial flash command (address)

—

Power supply input (Analog 1.5V)

—

Power supply input (Analog 3.0V)

—

Power supply input (Analog 3.0V)

—

Power supply input (Analog 3.0V)

—

Power supply input (Analog 3.0V)

—

Not used

—

Not used

—

Not used

—

Fixed at GND

—

Fixed at GND

—

Fixed at GND

I/O

Input/output of digital video data [5]

I/O

Input/output of digital video data [3]

I

Input of clock 16.9344MHz

O

Output of buffer memory interface column address strove control

O

Output of buffer memory interface address bus [0]

O

Output of buffer memory interface address bus [4]

O

Output of buffer memory interface address bus [3]

O

Output of LDD signal

I

Input of 3 value control switch

I

Input of laser driver control amplifier (-) for read

O

Output of laser driver control for write

I

Input of laser driver control amplifier (-) for write

O

Output of peak power signal

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Not used

I/O

Input/output of audio L/R clock

I/O

Input/output of digital video data [2]

—

Fixed at GND

5-4

Pin No. Pin Name I/O Function

AE23

AE24

AF1

AF2

AF3

AF4

AF5

AF6

AF7

AF8

AF9

AF10

AF11

AF12

AF13

AF14

AF15

AF16

AF17

AF18

AF19

AF20

AF21

AF22

AF23

AF24

AG1

AG2

AG3

AG4

AG5

AG6

AG7

AG8

AG9

AG10

AG11

AG12

AG13

AG14

AG15

AG16

AG17

AG18

AG19

AG20

AG21

AG22

AG23

AG24

AH1

AH2

AH3

SP1DAT4

VIOD1

XA2

WEB

MA2

RSAB

(PB2)

PB5

PB7

RLD

REF16

VREFIO

P2LD

CADO

CBHWBL/CID

CAMIRR

CBPD

CAGC

CAGC2

CEQDC

FE0

TE0

TXD0B

RXD0B

VIOD4

VIOD0

PB3

PA 0

PA 4

PB0

PB6

PA 3

PA 5

PDIN

FPDVI

FPDVO

CREG

CBCO

WALPF

CMIRR

CBBD

REFQOM

REFQOP

RFO

CDEF

FG

RFP1

RXD1B

TXD1B

SP1DAT1

PKPULSE1M

PKPULSE1P

WRPULSEM

—

Fixed at GND

I/O

Input/output of digital video data [1]

I/O

Input/output of clock 16.9344MHz

O

Output of buffer memory interface write enable

O

Output of buffer memory interface address bus [2]

O

Output of buffer memory interface row address strove control

O

Output of buffer memory interface bank address [MA11]

O

Output of DDO

I

Input of DMS

O

Output of laser driver control for read

O

Output of internal reference voltage

O

Output of pick-up reference voltage

O

Output of peak power signal 2

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Not used

—

Not used

O

Output of transfer data [0]

I

Input of receive data [0]

I/O

Input/output of digital video data [4]

I/O

Input/output of digital video data [0]

O

Output of RAMWR signal

O

Output of data carrier detect signal to D18

—

Fixed at “L”

I

Input of 3 value control switch

O

Output of RXDA2 signal

O

Output of RCCK signal

—

Fixed at “L”

I

Input of laser moniter signal

I

Input of reference voltage for front moniter

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

O

Output of differential RF signal (-) to AH16 pin

O

Output of differential RF signal (+) to AH17 pin

—

Fixed at “L”

—

Fixed at “L”

I

Input of FG signal

O

Output of RF digital signal

I

Input of receive data [1]

O

Output of transfer data [1]

—

Fixed at GND

O

Output of peak pulse (laser drive control signal for write)

O

Output of peak pulse (laser drive control signal for write)

O

Output of write pulse (laser drive control signal for write)

5-5

Pin No. Pin Name I/O Function

AH4

AH5

AH6

AH7

AH8

AH9

AH10

AH11

AH12

AH13

AH14

AH15

AH16

AH17

AH18

AH19

AH20

AH21

AH22

AH23

AH24

AJ1

AJ2

AJ3

AJ4

AJ5

AJ6

AJ7

AJ8

AJ9

AJ10

AJ11

AJ12

AJ13

AJ14

AJ15

AJ16

AJ17

AJ18

AJ19

AJ20

AJ21

AJ22

AJ23

AJ24

B1

B2

B3

B4

B5

B6

B7

B8

WRPULSEP

HFONP

PA 7

PA 2

H1

G1/FOP

F1

E1

REP

ASY

FCEFM2

PCEFM2

RFI_M

RFI_P

AGCIN

CDEF2

TDRV

FDRV

RFP2

RXD2B

SP1DAT0

OFPULSE

PKPULSE2

HFONM

PA 1

PA 6

D1

C1

B1

A1

RFN

EFM

FCEFM1

PCEFM1

EXTR

CEQ

REQ

DAOUT

SDRV2

SDRV1

MDRV

RPF3

TXD2B

DCLKB

DCASB

DBA0

DADD00

DADD03

DQ12

DQ15

DQ09

O

Output of write pulse (laser driver control signal for write)

O

Output of laser driver high frequency superposition control signal

I

Input of RXDA2 signal

O

Output of RCDT signal

I

Input of sub beam signal H1

I

Input of sub beam signal G1

I

Input of sub beam signal F1

I

Input of sub beam signal E1

I

Input of RF differential signal (+)

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

I

Input of differential RF signal (-) from AG16 pin

I

Input of differential RF signal (+) from AG17 pin

—

Fixed at “L”

—

Fixed at “L”

O

Output of tracking drive signal (D/A converter)

O

Output of Focuse drive signal (D/A converter)

O

Output of RF digital signal

I

Input of receive data

—

Fixed at GND

—

Not used

O

Output of off pulse signal

O

Output of peak pulse

O

Output of peak pulse

O

Output of laser drive high frequency superposition control signal

O

Fixed at “L”

I

Input of RCDT signal

I

Input of main beam signal D1

I

Input of main beam signal C1

I

Input of main beam signal B1

I

Input of main beam signal A1

I

Input of RF differential signal (-)

—

Fixed at “L”

I

Read channel frequency comparator

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

O

Output of general-purpose D/A converter

O

Output of sled drive signal (D/A converter)

O

Output of sled drive signal (D/A converter)

O

Output of spindle drive signal (D/A converter)

I

Input of RF digital signal

O

Output of transfer data

O

Output of negative clock for DDRSDRAM

O

Output of CAS signal

O

Output of bank address [0]

O

Output of DDRSDRAM address [0]

O

Output of DDRSDRAM address [3]

I/O

Input/output of DDRSDRAM data [12]

I/O

Input/output of DDRSDRAM data [15]

I/O

Input/output of DDRSDRAM data [9]

5-6

Pin No. Pin Name I/O Function

B9

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

C1

C2

C3

C4

C5

C6

C7

C8

C9

C10

C11

C12

C13

C14

C15

C16

C17

C18

C19

C20

C21

C22

C23

C24

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

D11

D12

D13

DDQM3

Not open to public

SS0CKIN

DA2_VDD3

COMP1

VA C

VREF

VA G

COMP0

DCLK

DWEB

DCS0B

DADD10

DADD02

DDQS1

DQ14

DQ10

DDQS3

DILM

Not open to public

SDA1

AOBCK

AIOMCK0

DA1_VDD3

DA1_GND

VCOMB

VRTB

DADD06

DADD07

DADD08

DADD11

DCKE

DQ30

DQ28

DQ26

DQ24

PHY_D7

PHY_D5

PHY_D3

PHY_D1

O

Output of data mask [3]

I

Input of monitor sense

O

Output of data [11]

O

Output of data [8]

O

Output of data [5]

O

Output of data [2]

O

Output of data enable

O

Output of CTL signal [3]

I/O

Input/output of DDC clock

I

Input of serial clock signal

—

Power supply input (3.0V for DAC)

—

Fixed at “L”

O

Output of DA converter for video signal chrominance

I

Input of DA converter for reference voltage

O

Output of DA converter for analog video signal green/Y

—

Fixed at “L”

O

Output of positive clock for DDRSDRAM

O

Output of command write enable

O

Output of DDRSDRAM chip select [0]

O

Output of DDRSDRAM address [10]

O

Output of DDRSDRAM address [2]

I/O

Input/output of data strobe [1]

I/O

Input/output of DDRSDRAM data [14]

I/O

Input/output of DDRSDRAM data [10]

I/O

Input/output of data strobe [3]

—

Fixed at “H”

O

Output of CTL signal [2]

O

Output of data [9]

O

Output of data [6]

O

Output of data [4]

O

Output of data [1]

O

Output of horizontal synchronization

I

Input of hot plug detect

I/O

Input/output of serial data

O

Output of audio data clock

I/O

Input/output of audio master clock [0]

—

Power supply input (3.0V for DAC)

—

GND (for DAC)

—

Fixed at “L”

—

Fixed at “L”

O

Output of DDRSDRAM address [6]

O

Output of DDRSDRAM address [7]

O

Output of DDRSDRAM address [8]

O

Output of DDRSDRAM address [11]

O

Output of clock enable

I/O

Input/output of DDRSDRAM data [30]

I/O

Input/output of DDRSDRAM data [28]

I/O

Input/output of DDRSDRAM data [26]

I/O

Input/output of DDRSDRAM data [24]

I/O

Input/output of PHY-link data [7] for PHY

I/O

Input/output of PHY-link data [5] for PHY

I/O

Input/output of PHY-link data [3] for PHY

I/O

Input/output of PHY-link data [1] for PHY

5-7

Pin No. Pin Name I/O Function

D14

D15

D16

D17

D18

D19

D20

D21

D22

D23

D24

E1

E2

E3

E4

E5

E6

E7

E8

E9

E10

E11

E12

E13

E14

E15

E16

E17

E18

E19

E20

E21

E22

E23

E24

F1

F2

F3

F4

F5

F6

F7

F8

F9

F10

F11

F12

F13

F14

F15

F16

F17

F18

CTL1

SCLK

LPS

SCL1

DCD0B

AT X

AOLRCK

VCOMY

VRTY

ABI

VRBB

DADD04

DADD05

DCS1B

DADD09

DADD12

DQ31

DQ29

DQ27

DQ25

PHY_D6

PHY_D4

PHY_D2

PHY_D0

CTL0

LREQ

LINKON

SS0DIN

AOD0

AIBCK0

AIBD0

AIOMCK1

VRBY

VCLY

AY I

DQ19

DDQS0

DDQM0

DQ01

DQ00

DVREF

DVDD25(2.5V)

DGND

GPIO54

IR_OUT

I/O

Input/output of PHY/link control [1] for PHY

I

Input of link control clock for PHY

O

Output of link power status

I/O

Input/output of serial clock

I

Input of data carrier detect from AG2 pin

O

Output of digital audio

O

Output of audio L/R clock

—

Fixed at “L”

—

Fixed at “L”

I

Input of AD converter for analog video signal green

—

Fixed at “L”

O

Output of DDRSDRAM address [4]

O

Output of DDRSDRAM address [5]

—

Not connected

O

Output of DDRSDRAM address [9]

O

Output of DDRSDRAM address [12]

I/O

Input/output of DDRSDRAM data [31]

I/O

Input/output of DDRSDRAM data [29]

I/O

Input/output of DDRSDRAM data [27]

I/O

Input/output of DDRSDRAM data [25]

I/O

Input/output of PHY-link data [6] for PHY

I/O

Input/output of PHY-link data [4] for PHY

I/O

Input/output of PHY-link data [2] for PHY

I/O

Input/output of PHY-link data [0] for PHY

I/O

Input/output of PHY/link control [0] for PHY

O

Output of link request for PHY

I

Input of LINK on

I

Input of serial data

O

Output of audio bitstream data L/R

I

Input of audio data clock

I

Input of audio bitstream data [0]

I/O

Input/output of audio master clock [1]

—

Fixed at “L”

—

Fixed at “L”

I

Input of AD converter for analog video signal Y

I/O

Input/output of DDRSDRAM data [19]

I/O

Input/output of data strobe [0]

O

Output of data mask [0]

I/O

Input/output of DDRSDRAM data [1]

I/O

Input/output of DDRSDRAM data [0]

—

Input of reference voltage from DDRSDRAM

—

Power supply input

—

Power supply input

—

Power supply input

—

Power supply input

—

Power supply input

—

Digital GND

—

Digital GND

—

Digital GND

—

Digital GND

—

Digital GND

O

Output of audio mute

O

Output of IR transmitter

5-8

Pin No. Pin Name I/O Function

F19

F20

F21

F22

F23

F24

G1

G2

G3

G4

G5

G6

G7

G19

G20

G21

G22

G23

G24

H1

H2

H3

H4

H5

H6

H19

H20

H21

H22

H23

H24

J1

J2

J3

J4

J5

J6

J19

J20

J21

J22

J23

J24

K1

K2

K3

K4

K5

K6

K10

K11

K12

K13

AILRCK0

IR_IN

JTDI

VRTR

ARI

VRBR

DQ16

DQ17

DQ18

DQ03

DQ02

DVDD25(2.5V)

JTDO

JTMS

VCOMR

VRTC

VRBC

ACI

DQ22

DQ21

DQ20

DQ06

DQ07

DVDD25(2.5V)

EDINT

JTRST

HLCI

VCOMC

AD2_VDD3

AD2_GND

DDQM2

DDQS2

DQ23

DQ04

DQ05

DVDD25(2.5V)

JTCL

PH_VDD1

HCBP

FCBP

PF_GND

FSCI

PLL_VDD

CLK27AOUT

CLKPWM0

CLKPWM1

SMCKOUT

DVDD25(2.5V)

DGND

DVDD33(3.3V)

I

Input of audio L/R clock [0]

I

Input of IR receiver

I

Input of EJTAG data

—

Fixed at “L”

I

Input of AD converter for analog video signal blue

—

Fixed at “L”

I/O

Input/output of DDRSDRAM data [16]

I/O

Input/output of DDRSDRAM data [17]

I/O

Input/output of DDRSDRAM data [18]

I/O

Input/output of DDRSDRAM data [3]

I/O

Input/output of DDRSDRAM data [2]

—

Power supply input

—

Power supply input

O

Output of EJTAG data

I

Input of EJTAG mode set

—

Fixed at “L”

—

Fixed at “L”

—

Fixed at “L”

I

Input of AD converter for analog video signal chrominance or red

I/O

Input/output of DDRSDRAM data [22]

I/O

Input/output of DDRSDRAM data [21]

I/O

Input/output of DDRSDRAM data [20]

I/O

Input/output of DDRSDRAM data [6]

I/O

Input/output of DDRSDRAM data [7]

—

Power supply input

I

Input of EJTAG DINT

I

Input of EJTAG reset

I

Input of H lock clock for video decoder

—

Fixed at “L”

—

Power supply input (3.0V for ADC)

—

GND (for ADC)

O

Output of data mask [2]

I/O

Input/output of data strobe [2]

I/O

Input/output of DDRSDRAM data [23]

I/O

Input/output of DDRSDRAM data [4]

I/O

Input/output of DDRSDRAM data [5]

—

Power supply input

I

Input of EJTAG clock

—

Power supply input (1.0V for V DEC)

—

Fixed at “L”

—

Fixed at “L”

—

GND (for V DEC)

I

Input of FSC for video decoder

—

Power supply input (1.0V for PLL)

O

Output of 27MHz clock A

O

Output of PWM for 27MHz VCXO [0]

O

Output of PWM for 27MHz VCXO [1]

O

Output of serial clock

—

Power supply input

—

Digital GND

—

Digital GND

—

Power supply input

—

Power supply input

5-9

Pin No. Pin Name I/O Function

K14

K15

K19

K20

K21

K22

K23

K24

L1

L2

L3

L4

L5

L6

L10

L11

L12

L13

L14

L15

L19

L20

L21

L22

L23

L24

M1

M2

M3

M4

M5

M6

M10

M11

M12

M13

M14

M15

M19

M20

M21

M22

M23

M24

N1

N2

N3

N4

N5

N6

N10

N11

N12

DVDD33(3.3V)

DGNDR

HLCO

HC_VDD3

FC_VDD3

FSCO

PF_VDD1

CLK27AIN

PLL_GND

CLK27BIN

SMDOUT

SMDIN

DLL_VDD

DGND

DVDD33(3.3V)

HXT_CSDA

NMI

RSTSWB

PH_GND

AD1_VDD3

CLK24OUT

USB_DN0

USB_DP0

USB_H_OCI0

AT1D00

AT1INTRQ

DLL_GND

TEST_MODE

FPIND

LVSPOWD

DVDD33(3.3V)

SCL0

RADD23

RADD17

RDATA09

AD1_GND

CLK24IN

USB_CLKI

USB_H_PPON0

USB_D_VBUS

AT1D13

AT1D04

DGND

DVDD10(1.0V)

—

Power supply input

—

Power supply input

—

GND (for RF)

O

Output of H lock clock for video decoder

—

Power supply input (3.0V for V DEC)

—

Power supply input (3.0V for V DEC)

O

Output of FSC for video decoder

—

Power supply input (1.0V for V DEC)

I

Input of 27MHz clock A

—

GND (for PLL)

I

Input of 27MHz clock B

O

Output of serial data

I

Input of serial data

—

Power supply input (1.0V for DLL)

—

Digital GND

—

Power supply input

—

Power supply input

—

Power supply input

—

Power supply input

—

Power supply input

I/O

Input/output of serial data for HDMI debug

—

Fixed at “H”

I

Input of system reset

—

GND (for V DEC)

—

Power supply input (3.0V for ADC)

O

Output of 24MHz clock

I/O

Input/output of USB D-

I/O

Input/output of USB D+

I

Input of USB over-current status

I/O

Input/output of IDE I/F data [0]

I

Input of IRQ signal

—

GND (for DLL)

—

Fixed at GND

—

Fixed at GND

—

Fixed at “H”

—

Power supply input

—

Power supply input

—

Power supply input

I

Input of serial clock

—

Fixed at “L”

O

Output of ROM/GIO address [17]

I/O

Input/output of ROM/GIO data [9]

—

GND (for ADC)

I

Input of 24MHz clock

I

Input of USB clock

O

Output of USB power control

I

Input of USB VBUS

I/O

Input/output of IDE I/F data [13]

I/O

Input/output of IDE I/F data [4]

—

Digital GND

—

Power supply input

—

Power supply input

—

Power supply input

5-10

Pin No. Pin Name I/O Function

N13

N14

N15

N19

N20

N21

N22

N23

N24

P1

P2

P3

P4

P5

P6

P10

P11

P12

P13

P14

P15

P19

P20

P21

P22

P23

P24

R1

R2

R3

R4

R5

R6

R10

R11

R12

R13

R14

R15

R19

R20

R21

R22

R23

R24

T1

T2

T3

T4

T5

T6

T10

T11

DVDD10(1.0V)

DVDD33(3.3V)

AVDD33R

RADD24

RDATA14

RADD18

RDATA13

RDATA07

DGND

USB_D_DN0

USB_D_DP0

USB_D_CONNECT

AT1D06

AT1D09

DGND

DVDD10(1.0V)

AT0D06

AT0DIOWB

AT0D10

RADD25

RADD00

RDATA12

RADD10

RADD12

RADD22

AT1D01

AT1D03

AT1D05

AT1D02

AT1D11

DGND

DVDD10(1.0V)

AT0DIORB

AT0D08

AT0D12

AT0D07

GCSB2

GRDYB

RDATA15

RADD20

RDATA08

RADD16

AT1D07

AT1D08

AT1D10

AT1CS0B

AT1DA2

DGND

DVDD10(1.0V)

—

Power supply input

—

Power supply input

—

Power supply input (3.0V for RF)

I

Input of ROM/GIO address [24]

I/O

Input/output of ROM/GIO data [14]

O

Output of ROM/GIO address [18]

I/O

Input/output of ROM/GIO data [13]

I/O

Input/output of ROM/GIO data [7]

—

Digital GND

I/O

Input/output of USB D-

I/O

Input/output of USB D+

O

Connection control of the pull-up resistance of D+

I/O

Input/output of IDE I/F data [6]

I/O

Input/output of IDE I/F data [9]

—

Digital GND

—

Power supply input

—

Power supply input

—

Power supply input

O

Output of data [06] for IDE I/F

O

Output of DIOW signal for IDE I/F

O

Output of data [10] for IDE I/F

O

Output of ROM/GIO address [25]

—

Fixed at “L”

I/O

Input/output of ROM/GIO data [12]

O

Output of ROM/GIO address [10]

O

Output of ROM/GIO address [12]

O

Output of ROM/GIO address [22]

I/O

Input/output of IDE I/F data [1]

I/O

Input/output of IDE I/F data [3]

I/O

Input/output of IDE I/F data [5]

I/O

Input/output of IDE I/F data [2]

I/O

Input/output of IDE I/F data [11]

—

Digital GND

—

Power supply input

—

Power supply input

O

Output of DIOR signal for IDE I/F

O

Output of data [08] for IDE I/F

O

Output of data [12] for IDE I/F

O

Output of data [07] for IDE I/F

O

Output of GIO chip select [2]

I

Input of GIO READY

I/O

Input/output of ROM/GIO data [15]

O

Output of ROM/GIO address [20]

I/O

Input/output of ROM/GIO data [8]

O

Output of ROM/GIO address [16]

I/O

Input/output of IDE I/F data [7]

I/O

Input/output of IDE I/F data [8]

I/O

Input/output of IDE I/F data [10]

O

Output of chip select [0] for HDD

O

Output of IDE I/F address [2]

—

Digital GND

—

Power supply input

—

Power supply input

5-11

Pin No. Pin Name I/O Function

T12

T13

T14

T15

T19

T20

T21

T22

T23

T24

U1

U2

U3

U4

U5

U6

U10

U11

U12

U13

U14

U15

U19

U20

U21

U22

U23

U24

V1

V2

V3

V4

V5

V6

V10

V11

V12

V13

V14

V15

V19

V20

V21

V22

V23

V24

W1

W2

W3

W4

W5

W6

W10

AT0D05

AT0IORDY

AT0D15

AT0DMARQ

GCSB3

GCSB1

RDATA11

RDATA10

RADD19

RDATA05

AT1D12

AT1D14

AT1DA0

AT1IORDY

AT1DIOWB

DGND

AT0DA1

AT0D01

AT0D02

AT0D11

AT0DA2

AT0D13

GPIO37

RADD14

RADD13

RADD11

RDATA03

RDATA06

AT1DIORB

AT1DMACKB

AT1CS1B

AT1RESETB

AT1DMARQ

DGND

AT0D09

AT0D04

AT0INTRQ

AT0RESETB

AT0D00

AT0DMACKB

GPIO36

GCSB0

RADD07

RDATA04

RADD05

FCSB0

AT1D15

AT1DA1

MD9

MD6

MD8

DVDD15(1.5V)

DGND

O

Output of data [05] for IDE I/F

O

Output of IORDY signal for IDE I/F

O

Output of data [15] for IDE I/F

O

Output of DMARQ signal for IDE I/F

O

Output of GIO chip select [3]

—

Not used

I/O

Input/output of ROM/GIO data [11]

I/O

Input/output of ROM/GIO data [10]

O

Output of ROM/GIO address [19]

I/O

Input/output of ROM/GIO data [5]

I/O

Input/output of IDE I/F data [12]

I/O

Input/output of IDE I/F data [14]

O

Output of IDE I/F address [0]

I

Input of I/O ready

O

Output of IDE I/F I/O write for HDD

—

Digital GND

O

Output of address [1] for IDE I/F

O

Output of data [01] for IDE I/F

O

Output of data [02] for IDE I/F

O

Output of data [11] for IDE I/F

O

Output of address [2] for IDE I/F

O

Output of data [13] for IDE I/F

I

Input of clear to send

O

Output of ROM/GIO address [14]

O

Output of ROM/GIO address [13]

O

Output of ROM/GIO address [11]

I/O

Input/output of ROM/GIO data [3]

I/O

Input/output of ROM/GIO data [6]

O

Output of IDE I/F I/O read for HDD

O

Output of ACK signal

O

Output of chip select [1] for HDD

O

Output of HDD I/F reset

I

Input of REQ signal

—

Digital GND

O

Output of data [09] for IDE I/F

O

Output of data [04] for IDE I/F

O

Output of INTRQ signal for IDE I/F

O

Output of reset signal for IDE I/F

O

Output of data [00] for IDE I/F

O

Output of DMC ACK signal for IDE I/F

O

Output of select signal for SPDIF

—

Not used

O

Output of ROM/GIO address [7]

I/O

Input/output of ROM/GIO data [4]

O

Output of ROM/GIO address [5]

O

Output of ROM chip select

I/O

Input/output of IDE I/F data [15]

O

Output of IDE I/F address [1]

I/O

Input/output of buffer memory interface data bus [9]

I/O

Input/output of buffer memory interface data bus [6]

I/O

Input/output of buffer memory interface data bus [8]

—

Power supply input

—

Digital GND

5-12

Pin No. Pin Name I/O Function

W11

W12

W13

W14

W15

W19

W20

W21

W22

W23

W24

Y1

Y2

Y3

Y4

Y5

Y6

Y10

Y11

Y12

Y13

Y14

Y15

Y19

Y20

Y21

Y22

Y23

Y24

AT0CS1B

AT0CS0B

AT0D14

AT0DA0

AT0D03

SP1REQB

RADD21

RDATA00

FOEB/GOEB

RADD04

FCSB1

MD15

MD11

MD0

MD7

MD10

DVDD15(1.5V)

DGND

AGND

GPIO33

RADD01

RDATA01

RADD09

RADD06

RADD02

O

Output of chip select signal [1] for IDE I/F

O

Output of chip select signal [0] for IDE I/F

O

Output of data [14] for IDE I/F

O

Output of address [0] for IDE I/F

O

Output of data [03] for IDE I/F

—

Fixed at GND

O

Output of ROM/GIO address [21]

I/O

Input/output of ROM/GIO data [0]

O

Output of ROM/GIO enable

O

Output of ROM/GIO address [4]

—

Not used

I/O

Input/output of buffer memory interface data bus [15]

I/O

Input/output of buffer memory interface data bus [11]

I/O

Input/output of buffer memory interface data bus [0]

I/O

Input/output of buffer memory interface data bus [7]

I/O

Input/output of buffer memory interface data bus [10]

—

Power supply input

—

Digital GND

—

Digital GND

—

GND (Analog)

—

GND (Analog)

—

GND (Analog)

—

GND (Analog)

—

Fixed at “L”

O

Output of ROM/GIO address [1]

I/O

Input/output of ROM/GIO data [1]

O

Output of ROM/GIO address [9]

O

Output of ROM/GIO address [6]

O

Output of ROM/GIO address [2]

5-13E

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

Prepairing for Service tool

• Color monitor

• Service remote controller (Part code: J-6090-203-A)

SECTION 6

SERVICE MODE

OPEN/CLOSE button

Number button

+10 button

FRM/TIM button

CHAP button ESC button

DISP button CX button

STILL STEP button

SIDE A button

CHAPTER SKIP button

SCAN button PAUSE button X3 button

REP.A button REP.B button

123

456

7809

ESC

CX

SIDE A

CHAPTER SKIP

SCAN PLAY

X3

REP.A REP.B A.MON

SERVICE

DISP

STILL STEP

PAU SE

SPEED

TV/LDP

STEREOCLEAR+10

SEARCHCHP/TIMFRM/TIM CHAP

DIG

/ANA

TEST

SIDE B

CHAPTER SKIP

SCAN

X3

P. R U N

SPEED button

TV/LDP button

STEREO button CLEAR button

SEARCH button CHP/TIM button DIG/ANA button TEST button

SIDE B button

CHAPTER SKIP button SCAN button PLAY button X3 button

P. RU N button A.MON button

DVD

J-6090-203-A

6-1

6-1. SERVICE MODE MAP

ESC

[Operation] [Mode / Name]

DISP

3 times

DIG/ANA

< First screen >

Version info, etc

< First screen subscreen 3 >

HDD information

< First screen subscreen 4 >

OSD Filter setting

2

DIG/ANA

2 times

SEARCH

DIG/ANA

SEARCH

3

4

DIG/ANA

3 times

< Second screen subscreen 3 >

writer maintenance information of

ATA/ATAPI DEBUG OSD

< Second screen subscreen 4 >

LD degration judgement of

ATA/ATAPI DEBUG OSD

DV Service Mode

< Fouth screen subscreen 4 >

VR-Recording-Related Error Logs

DISP

CHP/TIM

CX

Load the

Recordable

Disc

Load the

DL Disc(*1)

to tray

*1 DL Disc : Download Disc *2 Key on the front panel

Recordable Input

DIG/ANA

0

Select the

Function

HDD/DVD

Recording stop(*2) , then press Play (*2)

ESC

DVD

REP.B

HDD

REP.B

Open/Close(*2)

7

DIG/ANA

1

PLAY

EPG Service Mode

EPG Detail Screen

Video Adjustment For Specific Area

1

2

1 General Setting mode

2 Specific-channel Setting mode

HDD Check mode

Aging mode (DVD)

Aging mode (HDD)*3

Firmware Download

1 Holding user setting V data 2 Shipping mode

1

2

6-2

6-2. Diagnostic Mode

6-2-1. Model Setting

1) Turn of the main power ON.

2) On the screen after exiting all menu screen’s, press the following buttons “ESC” k “CHAP” k “1” on the service remote controller.

3) Turn of the main power OFF.

4) Turn of the main power ON.

5) Press four digits properly (Refer to page 5 service remote controller.) by using the according to the screen information.

6) Press the following buttons “ESC” k “CHAP” k “1” on the service remote controller.

[Recorder's Model Setting] Input the number using the remote for Service.

>---

Input No. Manufacturer [ 0101 : ] [ 0201 : ] [ 0102 : ] [ 0202 : ] [ 0103 : ] [ 0203 : ]

7) Disconnect then reconnect the AC power cord of the unit. Be careful not to impart vibration to the unit immediately after the AC power cord is disconnected.

8) Reset the recorder to all its factory settings. (Make sure that the recorder is on. Press and hold “x” (STOP) key and press “1” (STANDBY/ON) key on the front panel.) The recorder turns off with all settings reset.

9) Turn of the main power ON.

10) Press “ESC” then “DISP” keys by using the service remote controller and then confirm each Model Name.

---- VERSION : --- SYSCON : RELEASE_100

TUNERCON : 198.000 OK DRIVE : DVD-RW DVR-L11X OK

PIC SERIAL : ---- HDD INT : -----

DEVICE : ----- FLASH : 64M REGION : 2 C : *********

Rev :1.******

1.00 OK

HDCP : -----

11) Press “ESC”. (Returns to the original screen)

6-3

6-2-2. Service Mode

1) Turn of the main power ON.

2) On the screen after exiting all menu screen’s, press “ESC” on the service remote controller.

3) Press “DISP”.

4) Press “DIG/ANA”.

Overview and purposes

To be used to check the status of the product and to collect the information for failure diagnosis. The following information to be used for servicing is displayed: [1] First screen : Version, HDD information, etc. [2] Second screen : ATA/ATAPI debug screen (Writer information) [4] Fourth screen : VR-recording-related error logs

Each screen has sublevel screens.

Note: After entering any Service mode screen, to shift to another Service mode screen, first quit that Service mode screen then enter another Service mode

screen.

5) Press “ESC”. (Returns to the original screen)

6-2-3. Version Information and Other Information (First screen)

1) Turn of the main power ON.

2) On the screen after exiting all menu screens, press “ESC” on the service remote controller.

3) Press “DISP”. * Checking the respective software version numbers and other HDD

information.

---- 2 VERSION : 1.**

1 3

SYSCON : RELEASE_100

TUNERCON : 198.000 OK

4

DRIVE : DVD-RW DVR-L11X OK

5

1.00 OK

6

HDD INT : WDC WD1600AAJS-9 160 HDD USE : 160

7

DEVICE : E2R-FEx1.1 8 FLASH : 64M REGION : 2 0 C : ************

9

DTB H : 455 DTB S : 107 OK

Ver: 1.10034

HDCP :

DTB B : 107D OK

4) Press “ESC”. (Returns to the original screen)

OK : Appropriate version compared with that of the firmware of

the system control computer.

NG- : The version of the TUNER microcomputer is older.

Measures to be taken:

• Download the firmware.

OK : The appropriate drive is mounted. NG : An inappropriate drive is mounted.

Measures to be taken: Download the firmware.

OK : Appropriate version compared with that of the firmware of

the system control computer.

NG- : The version of the drive microcomputer is older.

Measures to be taken: Download the firmware.

1 Model name/destination 2 Version of the recorder software 3 Revision No. of the system-control computer software 4 Version No. of the tuner microcomputer

Result of the combination check with system microcomputer

5 Information on the built-in drive

(Model name, version No., model type)

6 Data of the built-in HDD, capacity of the HDD 7 DEVICE information (EMMA type, ES No.) 8 FLASH ROM information 9 Region No. 0 CPRM information (CPRM key No.)

6-4

6-2-4. RF Level Simplified Diagnosis (Subscreen1)

1) Turn of the main power ON.

2) On the screen after exiting all menu screens, press “ESC” on the service remote controller.

3) Press “DISP”.

4) Press “DIG/ANA”.

---- VERSION : 1.** SYSCON : RELEASE_***

TUNERCON : 198.000 OK DRIVE : DVD-RW DVR-L11X OK

1.00 OK

HDD INT : WDC WD1600AAJS-9 HDD USE : 160 DEVICE : E2R-FE FLASH : 64M REGION : 2 C : ************

Input CH : ** ch Freq Diff : Low 1 AGC Volt : **** mV

Rev :1.******

160

*1) Frequency Difference (Freg Diff)

How much tuning is off is monitored, as shown below:

Input Frequency

Faraway

High

(within 200kHz)

Just Tune

within

Low

200kHz over 200kHz

Display

High 7

High 1-5

Center

Low 1-5

Low 7

* The RF signal status can be obtained from the input frequency

deviation information and the AGC voltage.

Input channel Input frequency difference AGC voltage

2)

*

1)

*

*2) AGC voltage (AGC Volt)

The gain controlled by the tuner is monitored to infer the input electric field intensity. (The accuracy of inference differs depending on the product.)

Field Intensity

Intense field area (Clear image)

Less intense field area (Noise may be generated.)

Weak field area (Much noise. EPG/VPS/PDC sometimes cannot be obtained.)

Very weak field area (Image damaged. EPG/VPS/PDC cannot be obtained.)

70 dBµ or more 50 dBµ or more

70 dBµ or less 30 dBµ or more

50 dBµ of less

30 dBµ or less

[Tips]

For good reception, the field intensity must be 50 dBµ or more (AGC Volt 4400 mV or less).

For accurate measurement, use a field intensity meter.

5) Press “ESC”. (Returns to the original screen)

AGC Volt

3100 mV or less

3100 – 4400mV

4400 mV or more (It is unable to discriminate under the weak field area.)

4400 mV or more (It is unable to discriminate.)

6-5

6-2-5. HDD Information for the HDD return sheet (Simplified measurement mode)

HDD Information

• How to start/terminate the diagnostic program

Use the remote control unit for servicing. How to start: Press the following keys in this order; “ESC”, “CX”, “0”, and “1” keys: (refer to 6-2-15). How to terminate: Press “ESC” key. Do not perform other operations on the unit while HDD diagnosis is in progress. Although the diagnostic program is designed to function independently from the unit’s functions, operations on the unit during a diagnosis may cause a malfunction. The following status is recommended during diagnosis: All stop, no timer recording (including auto-recording)

A) Display the menu on the screen.

The menu shown below is displayed when the diagnostic program is started. To enter each mode, press the corresponding key “1” – “4” on the remote control unit for servicing.

Tests to be executed

HDD CHECK MODE [1-4]

1 HDD Information 2 S.M.A.R.T Attribute Information 3 S.M.A.R.T DST 4 HDD R/W Check

1 HDD Information:

Checks the HDD information.

2 S.M.A.R.T. DST:

Executes a simplified test or a reading test for all data.

3 HDD R/W Check:

Executes a writing/reading test for all data. All data on the HDD will be erased if this test is executed.

Note: “2. S.M.A.R.T. Attribute....” is not used.

B) Check the HDD information.

Press “1” key on the remote control unit for servicing. Check the following data: Model: Is the correct model name of the HDD displayed ? Recog. No: Is a positive value displayed ? SMART threshold: Is “not exceeded” displayed ?

HDD Information<SND_MS>[clear] Cylinders : 0x3FFF Heads: 0x0010

A

D

E B C

Sec/Track : 0x003F Model : Maxtor 4R080L0 Firmware : RAMC1TU0 SN : R22RRL2SE Major No : ATA/ATAPI-7 Life Time : 7h 18m 45s Recog. No : 1 SMART threshold : not exceeded

Detailed description

1 Model:

For the correct model name, refer to the display of the unit.

2 Recog No:

Positive value : The HDD has been recognized. Negative value : The HDD has not been recognized.

3 SMART threshold:

exceeded : The has come near the end of its service life. not exceeded : The HDD has not reached the end of its

service life.

4 Check HDD SN.

To return to the menu screen, press “Clear” key.

C) How to check the HDD return sheet.

Symptom ************************************* k Enter a symptom.

1 MODEL :***************** not recognize or recognize k Enter a model name. Refer to “A” of the above screen.

When the model name is recognized, circle “recognize”.

2 RECOG NO:Positive or Negative k Check whether “Recog No” is positive or negative.

Refer to “B” of the above screen.

3 SMART threshold: exceeded or not exceeded k Check whether “SMART threshold” is “exceeded” or “not exceeded”.

Refer to “C” of the above screen.

Note: If the HDD model name and serial number cannot be read, check the

HDD label.

4 Check HDD SN:*********** not recognize or recognize k Enter the HDD SN. Refer to “D” of the above screen.

Check whether the HDD SN is recognized.

5 HDD Life Time: ****h** m ** s k Enter the Life Time. Refer to “E” of the above screen.

Note: If the HDD life time is not found, check it on page 6-7 of Chapter 6,

“SERVICE MODE”.

6 HDD Status: # / ! / Blank / No Model Name k Check “HDD Status”. Refer to “SERVICE NOTE”, page 1-3. 7 FL Display E01 / E02 / No Problem k Check “FL Display”. 8 Recording Error history :************************ k Refer to “SERVICE MODE”, page 6-9. 9 ATA/ATAPI History ERR :********************* k Refer to “SERVICE MODE”, page 6-10.

6-6

HDD Information (Simplified measurement mode)

1) Turn on the main power.

2) Press “ESC”.

3) Press “DISP”.

4) Press “DIG/ANA” three times.

HDD Info Life Time : --h --m --s

* Checks the HDD power-on time.

[Tips]

• How the cumulative HDD-on time data is processed in memory

Storage place:

FLASH ROM

Timing for referring to the cumulative HDD-on time data:

If the power attempts to turn on but fails, the unit refers to the FLASH ROM.

Timing for updating the cumulative HDD-on time data:

While the HDD is on, the cumulative HDD-on time data in the RAM is updated every 3 seconds, and the data is stored in the Backup SRAM every update. When the power is turned off, the data is stored in the FLASH ROM.

• How to clear the cumulative HDD-on time data

FLASH ROM:

When the HDD Identification Setting is configured, the cumulative HDD-on time data is automatically cleared. The HDD Identification Setting is automatically configured when the CPRM setting is configured on the CPRM setting screen. (To display the CPRM setting screen, press the “ESC” key, then the “STEREO” key.)

Note: The cumulative HDD-on time data is not cleared when resetting to default values.

The cumulative HDD-on time data is not cleared when the system-control computer software is downloaded.

5) Press “ESC”. (Returns to the original screen)

6-2-6. Cautions for handling the HDD

(1) Cautions for handling the HDD

• The HDD is very sensitive to shocks and vibrations. Care must be taken especially during operation (when the power is on).

• The HDD is very sensitive to electrostatic charges.

• Rapid change in temperature or humidity may cause deterioration of the HDD.

Note: After receiving damage caused by any above-mentioned factors, the HDD may operate normally for dozens or hundreds of hours, but then suddenly

crash. If you are certain you have damaged a new repair part (HDD) while making repairs, do not use the part.

Reference: Main specifications for damage to the HDD

During operation

Shock G (acceleration)

Approx. 20 G or more Approx. 200 G or more

Temperature change 15 °C/hour or more

Moisture change 20%/hour or more

During nonoperation

The HDD is about 10 times as sensitive to shock during

T

operation compared to nonoperation.

Reference: Estimated value of falling distance vs. shock (G) when the HDD is dropped without protection

Landing Falling surface distance

0.5 inch / 12.7 mm

1.0 inch / 25.4 mm

2.0 inch / 50.8 mm

4.0 inch / 101.6 mm

Granite surface

387

595

1133

1795

Concrete

floor

217

457

600

1040

Synthetic-resin-

coated table

200

310

680

1050

Antistatic

sponge

26

37

70

267

6-7

(2) Cautions for handling and examples of dangerous handling for the product that the HDD is mounted on or the

HDD repair part

[Cautions for handling the product that the HDD is mounted on]

• The HDD is always in operation while the unit is turned on. Do NOT to apply shock to the unit.

Examples of dangerous handling: while the power is on

• Bumping the case

• Dropping an object, such as a small screwdriver or remote control unit, onto the case or bumping an object against the cabinet

• Physically dragging the unit

• Stacking another product on the unit

Note: Do NOT to apply shock, such as bumping or hitting a screwdriver against the HDD, during diagnosis with the case open.

Examples of dangerous handling: while the power is off

• Applying strong shock, although the HDD is more resistant to shock when the power is off

• Dropping the unit from a height of several centimeters, or lifting one side of the unit and letting it drop

• Do NOT move the unit immediately after the power is turned of f. Wait at least 30 seconds after the indication on the FL display changes from POWER OFF to the clock indication before moving the unit. If the AC power cable is accidentally disconnected before turning the unit off, wait at least for one minute before moving the unit. In this case, damage to the HDD caused by sudden shutoff may be small because the emergency relief mechanism is activated. However, if sudden shutoff occurrs during recording or playback, recorded data may be damaged. Be sure to check the operations.

[Caution for handling the HDD repair part]

1. Handle the HDD in a safe environment:

• Handle the HDD over an antistatic pad that can also absorb shock.

•Wear wrist bands to prevent electrostatic charges generated in your body from affecting the HDD.

2. Observe the following rules when handling the HDD:

• Handle one HDD at a time. Do NOT hold several HDDs at the same time.

• Grip the HDD on both sides so that you do not touch its terminals or circuit boards.

• Do NOT stack one HDD onto another HDD (even if the HDDs are protected by antistatic bags).

• Do NOT bump the HDDs against one another.

• Do NOT bump any tool, such as a screwdriver, or other hard object against the HDD.

• When a repair part (HDD) is transported and there is a large temperature difference between the outside and inside temperature, leave the HDD in its package for about half a day after it is moved inside to gradually cool or warm it to room temperature before unpacking.

6-8

6-2-7. HDD Error Logging

Use the following operations to display “Recording Error History”. Press “ESC”, “DSP”, and “4” keys, followed by “DIG/ANA” key three times.

Recording Error History Display

07-01-01 00:00:00 HDD Destroy 07-01-01 00:00:00 Mech No Res 07-01-01 00:00:00 Mech No Res

Recording Error History Display

Error related to HDD

Error Message

Buf over flow

ESFSYS CORUPT

ESFSYS INIT

HDD Aging NG

HDD DEF DONE

HDD DEF ERR

HDD DEL OC TT

HDD DEL PL

HDD DEL TT

HDD Destroy

HDD INFO BAD

HDD Initialize

HDD IRRG POFF

HDD MBR NG

HDD SIG NG

HDD SMART NG

HDD unauthor

HDD Zero WR

HDD Reset Done

irr astion

Mech No Res

STATUS NG

Task No Activ

TT Rec Over

Overflow of the Stream Buffer

easyfsys error

easyfsys initializing

HDD Aging Command failed

HDD defrag finished

HDD defrag error

Title imported to the HDD deleted

Dubbing list deleted by HDD recovery

Title deleted by HDD recovery

HDD is not recognized on the bus

Incorrect HDD Management Data

HDD initialized

Abnormal power off

Incorrect MBR data

Incorrect HDD Management Data Magic

Incorrect HDD SMART

Incorrect HDD serial No.

Incorrect MBR data

HDD Reset executed

Incorrect action

No response from the mechanical-control computer

Abnormal status change

Task has not been activated

Title recording time full

Description

The error display appears in the underlined location.

*

Note: Not only the HDD error history, but also the error recovery history are logged in “Recording Error History”.

6-9

6-2-8. ATA/ATAPI History - ERR

Use the following operations to display “ATA/ATAPI Error History”. Press “ESC” key, followed by “DSP”, “2”, “DIG/ANA”, and “FRM/TIM” key.

ATA/ATAPI History - ERR 0223 151843> C8 00013 09387FC4 40FC4051 2B 3C 01 0000 000000 00 00000 00000000 00000000 00 00 00 0000 000000 00 00000 00000000 00000000 00 00 00 0000 000000 00 00000 00000000 00000000 00 00 00 0000 000000 00 00000 00000000 00000000 00 00 00 0000 000000 00 00000 00000000 00000000 00 00 00

HDD ERR is Selected.

x ATA/ATAPI ERR History display specification

Command CommandError register Status register

EXECUTE DEVICE DIAGNOSTIC 90 FLUSH CACHE E7 IDENTIFY DEVICE EC IDLE E3 READ DMA C8

READ DMA EXT 25

SET FEATURES EF SMART B0 STANDBY E2 STANDBY IMMEDIATE E0 WRITE DMA CA

WRITE DMA EXT 35

IDLE IMMEDIATE E1

Read Verify EXT 42

Only use performance and factory check

Note: **EXT: 48bit command

6-2-9. How to confirm HDD Access Flow

Use the following operations to display “ATA/ATAPI History - All”. Press “ESC” key, followed by “DSP”, “2”, and “FRM/TIM” key. Confirm whether the result is OK or NG in the screen below. If it is NG, check the error in the command table to the lower right.

OK NG

EXECUTE DEVICE DIAGNOSTIC 90 FLUSH CACHE E7 IDENTIFY DEVICE EC IDLE E3

READ DMA C8

READ DMA EXT 25

SET FEATURES EF SMART B0 STANDBY E2 STANDBY IMMEDIATE E0

WRITE DMA CA

WRITE DMA EXT 35

IDLE IMMEDIATE E1

No problem

2B 3540C6E16F6000

Command

READ DMA Error Occurred (NG)

Command

6-10

6-2-10. ATA/ATAPI Debugging Screen (Second Screen) and LD Deterioration Judgment (for writer)

1. Writer maintenance information of ATA/ATAPI DEBUG OSD (Subscreen3)

1) Turn of the main power ON.

2) On the screen after exiting all menu screens, press “ESC” on the service remote controller.

3) Press “DISP”.

4) Press “2”.

ATA/ATAPI History-ALL

1E -------------------------------- 1E --------------------------------> 60 -------------------------------- 1E -------------------------------- 60 -------------------------------- 1E -------------------------------- 1E -------------------------------- 1E -------------------------------- 1E ---------------------------------

Writer is selected.

Update the display by pressing the “SEARCH” key while subscreen 3 is displayed.

* Simplified judgment method of optical pickup quality

1. Stains on pickup lens

2. Deterioration of CD-R/DVD-RW laser diode

* Screens are switched when “DIG/ANA” is pressed two times or

three times to select the desired menu. Press “SEARCH” to start measurement.

ATA / ATAPI Writer MaintenanceInfo

1

Power ON 00 0 0 00 0000 00000000 0102 : 56 01 0 0 00 0000 00000000 DVD 02 00 00 0000 00000000 R0053 : 48 03 00 00 0000 00000000

2

W0022 : 16 04 00 0 0 0000 00000000

3

CD 05 00 00 0000 00000000 R0034 : 04 06 00 00 0000 00000000

4

W0000 : 00 07 00 0 0 0000 00000000

5

00-00

Error log for the Writer (Not for Service)

1 Power-on time/cumulative power-on time 2 Duration of emission of the laser diode (LD) for DVD-R/DVD

while reading

3 Duration of emission of the LD for DVD-W/DVD while writing 4 Duration of emission of the LD for CD-R/CD while reading 5 Duration of emission of the LD for CD-W/CD while writing

(This function is not used for this model.)

2 If the total hours of duration of emission of the laser diode (LD) for DVDs while reading 2 and that of emission of the LD for DVDs

while writing 3 exceed 4,700 hours, the LDs may be degraded. Perform an LD degradation judgment, using subscreen 4.

[Tips]

MTTF hours for each LD DVD : 4,700 hours CD : 11,000 hours The ATA/ATAPI Writer Maintenance Info is obtained each time the power is turned on. Thereafter, the data on the subscreen is updated each time the “SEARCH” key is pressed (the updating command is sent) while this subscreen is displayed. Care must be taken when updating this subscreen, because an undesired command is inserted if it is executed while recording, etc.

[Note on lighting time data for each LD]

Since data on lighting time of each laser diode (LD) are stored in the flash ROM on the MAIN Assy, after the MAIN Assy is replaced, the data will be cleared. However, after the LOADER Assy is replaced, data on lighting time of each LD will be retained in the MAIN Assy. Therefore, before either the MAIN Assy or LOADER Assy is to be replaced, it is recommended that you write down the lighting time data.

5) Press “ESC”. (Returns to the original screen)

6-11

2. LD degration judgment of ATA/ATAPI DEBUG OSD (Subscreen 4)

1) While the User Operation screen is being displayed, press “ESC” on the service remote controller.

2) Press “DISP” on the service remote controller.

3) Press “2” on the service remote controller.

4) Press “DIG/ANA” three times.

Note: For correct measurement of items 1 to 4 indicated in the display below, leave the unit at room temperature (25°C) for a while before turning it on,

and do not load a disc.

To update the value for each item, press the “SEARCH” key while subscreen 4 is displayed. For details on each item and the conditions of updating the values, see table below.

ATA / ATAPI - LD Degrade

CD : 0070 104% OK

1

DVD : 0068 96% OK

2

TMP : 00A3 41 C

3

ADJ : 0067 26 C

4

TLT : FFD5

5

o

Description of each item and conditions for updating data

No.

1

2

Item

CD

DVD

Description

Degradation judgment of LD for CD. Regarded as NG when the value is 120% or higher (same standard as for the PC drive)

Degradation judgment of LD for DVD. Regarded as NG when the value is 120% or higher (same standard as for the PC drive)

Conditions for updating by

pressing the SEARCH key

No disc inserted in the disc tray

3

4

5

TMP

ADJ

TLT

Current temperature inside the Writer

Temperature (approx. 25°C) inside the Writer during adjustment

Writer adjustment data for straight (non-HDD) model (FFFF is diplayed when the writer is not adjusted.)

If the results of degradation of the LDs for CDs and DVDs are both NG, replace the drive.

5) Press “ESC”. (Returns to the original screen)

No disc inserted in the disc tray

No condition

6-12

6-2-11. History of VR Recording-related Errors

1) Turn of the main power ON.

2) On the screen after exiting all menu screens, press “ESC” on the service remote controller.

3) Press “DISP”.

4) Press “4”.

RunFnc : ---- Ecl : STDBY Rate : 21 VID : 1000 enVobu : ----- Rem Sec : ----- ChgAtr : ----WorkSt : ----- EmgTyp : ------ ProtF : -----Rec Err : ----- TrmStp : Normal

LastRecMsg : PARAMCHG

LyrOrem : ------ LyrBndLSN : SglLayer Drv Err : ------- ErrAdr : ---- Pause : ----DscSt1 : ------- DscSt2 : ------- DscSt3 : ------LastLSN : ------ NWA : --------- WrtSpd : ------BrdNum : --- DV : --- RzNum : --- Format : --- tvSys : PAL RemMemo : ----- RMDn : ------ LstErr : ------

5) Press “ESC”. (Returns to the original screen)

Error Message Check Method

1) Turn of the main power ON.

2) On the screen after exiting all menu screens, press “ESC” on the service remote controller.

3) Press “DISP”.

4) Press “4”.

5) Press “DIG/ANA” 12 times. (Select the desired screen.)

RunFnc : ---- Ecl : STDBY Rate : 21 VID : 1000

--------------------------------

* Used for broadly dividing the poorly-reproducible trouble

phenomena.

* Press “DIG/ANA” three times to browse the error log.

* Used for localizing the cause of trouble to an approximate area

from the error message information.

Recording-related errors are displayed.

Press “DIG/ANA” three times on the above screen to select the desired screen.

Recording Error History Display

1

01-06-01 20:05 30 No SysHdr IN 01-06-02 00:22 10 Write Error

Error message display screen

1 There are two error-log screens, and up to 9 logs are displayed per screen.

(generation time [year-month-day, hour: minute: second], error data in simplified description.)

[Tips]

• The two error-log screens can be switched by pressing the “SPEED+” or “SPEED–” key.

• For details on error messages, see table “Description of VR-recording-related errors” (page 6-14 to 6-16).

6) Subscreen 5 to 11 (These subscreens are not for service use.)

7) Press “ESC”. (Returns to the original screen)

6-13

Error Message Contents

Abbreviations

ECC : 4-byte Code for Error Correction UDF : Universal Disc Format PCA : Power Calibration Area OPC : Optical Power Control NWA : Next Writable Address VMG : Video Manager RMA : Recording Management Area MKB : Media Key Block TMP_VMGI : Temporary Video Manager Information Border : from Lead-in to Lead-out

MPEG Encoder-Related Errors

ERROR MESSAGE DESCRIPTION

AVEnc Hang AVEncoder failed

IN Encode* Changes cannot be made in process of

encoding

No SysHdr IN System packet is not input

periodically

Stm Start NG Failure to start encoding (reasons not

clear)

Stream NG Inappropriate input stream data

Strm Start NG Timeout waiting for system packet

input at the beginning

Note: Any error message with “*” is displayed “RecErr: –––––––”

on the Subscreen1 of the forth screen.

Drive System-Related ErrorsDescription of VR-recording-related errors

ERROR MESSAGE DESCRIPTION

Bdr Cls NG Close Border failed

Bdr Opn NG Open Border failed

BUF Overflow Overflow of the Stream Buffer

CLS Rzon Fail Video mode Close Rzone failure

Drive Hang The Drive is hang up

Drv Err General error of the Drive

Drv Hard Err Abnoemality in the drive hardware or

filmware

Drv Timeout Timeout waiting for drive operation

Fail Repair Repair failed

Format NG Format failed

Mey Be V mode Although TMP_VMGI is not written,

it may be Video mode disc

Mech No Res No response from the mechanical-

control computer

MKB invalid Media Key Block reading error

NWA Exhaust Next Writable Address surpassed and

impossible to use

OPC NG Optical Power Control failed

PCA Full Power Calibration Area has been used

up.

Read Err Reading failed, ECC (4 byte Code for

Error Correction) failed, etc

Read Only Disc* Because some data are invalid , data

cannot be written

RMA Full Recording Management Area has

been used up

Rzn Cls NG Close Rzone failed

Rzn Rpr NG Repair Rzone failed

Rzn Rsv NG Reserve RZone failed

TMP-VMG WrErr Video mode TMP VMGI Write Error

VTSI_B Wr Err Video mode VTSI BUP Write Error

VTSI_B2 Wr Err Video mode VTSI BUP Write Error

(After Layer Change)

VTSI Wr Err Video mod VTSI Write Error

VTSI2 Wr Err Video mod VTSI Write Error (After

Layer Change)

Write Err The Drive failed to write and could

not be recovered

May Be PVR May be +VR disc, but no RSAT

V Final fail Abnormal process occurred when

finalizing Video mode

DLVR trace NG Close Rzone failed at dual layer disc

6-14

Dubbing-Related Errors

ERROR MESSAGE DESCRIPTION

H2D CP SomeNG Other NG HDD → DVD copy

Mem get NG Video Mode Copy Memory has noe

ensured

Strm TransfNG Video Mode Copy Stream Transefer

NG

Tracon Tm NG Video Mode Copy Tracon tranfer has

not been completed

VC Cell Max Maximum number for Video Mode

Copy Cells exceeded

VC CopyCancel Video Mode Copy Copy Cancel

VC FlushC NG Video Mode Copy Flush Cache NG

VC HDD C Err Obtaining Video Mode Copy HDD

Cell information failed

VC HDD Inf NG No information on Video Mode Copy

HDD

VC HDD Info NG Format failed

VC Idling NG Video Mode Copy idling NG

VC Pck Anl NG Analizing Video Mode Copy Pack

failed

VC Transf Stp Video Mode Copy Transfer Stop

VC TSO BLK NG Video Mode Copy TSOBlock transfer

has not benn completed

VC VOBU SizeE Video Mode Copy VOBU Size NG

V Rsv RzoneNG Video Mode Copy Reserve Rzone

failed

V2H APP FL NG VR→HDD APP FLG is OFF

V2H Aud Ch NG VR→HDD Audio Channel NG

V2H Aud Md NG VR→HDD Audio mode NG

V2H Aud Stm N VR→HDD Audio Stream Number

NG

V2H SRC Prot VR→HDD Copy prohibitted material

V2H Unknown VR→HDD Other NG

V2H VOBU TMNG VR→HDD Play back time of each

VOBU is different

V2H V Reso NG VR→HDD Video resolution NG

H2D CP NoSpec HDD→DVD insufficient free space

for copy

H2D TO HDDRD HDD→DVD(VR) Timeout at HDD

playing side

H2D TO SPRP HDD→DVD(VR) Timeout at internal

processing

H2D TO DVDWR HDD→DVD(VR) Timeout at HDD

recording side

C2H LOG (XXX) HDD CAM→HDD opration log

(XXX indicates process code.)

C2H NG (XXX) HDD CAM→NG

(XXX indicates process code.)

HDD-Related Errors

ERROR MESSAGE DESCRIPTION

Do nothing Do nothing for demand

ESFSYS CORUPT easyfsys error

ESFSYS INIT easyfsys initializing

HDD Buff High High-level process executed for the

HDD Buffer

HDD DEF DONE HDD deflag finished

HDD DEF ERR HDD deflag error

HDD Destroy HDD is not recognized on bus

HDD INFO BAD Inconsintent HDD Management Data

HDD Initialize HDD initialized

HDD IRRG POFF Abnormal Power off

HDD MBR NG Inconsistent MBR data

HDDReset Done HDD Reset executed

HDD ROMSUM NG Rom-code check sum NG

HDD SIG NG Inconsistent HDD Management Data

magic

HDD SMART NG Inappropriate HDD SMART

HDD Trans Err DMA error in HDD copy transfer

HDD unauthor Inconsistent HDD serial No

HDD Zero WR MBR was written

Task No Activ Task has not been activated

TT Rec Over Title recording time full

HDD WRONG TGT Invalid HDD target No is directed

extHDD lgnore External HDD is dismounted

HDD PFile NG Program file installed in HDD is NG

HDD DEL TT Delete the title by HDD recovery

HDD DEL PT Delete the dubbing list by HDD

recovery

HDD Del OC TT Delete the title moving on the way

inside HDD

6-15

Other Errors

ERROR MESSAGE DESCRIPTION

Abort Cancellation

Already open Extension file is already opened

BK BATT Down Backup RAM Data has been erased

BK FSYS Dirty Backup RAM Data has not been

written on the File Sys

BUG some Bugs

BusReset Done Bus Reset has been excecuted

Cell Close NG Cell Close NG

CPRM IC NG Inappropriate CPRM IC

Dir Depth Err Tree of Directory is too deep

Disc Fll* No further data can be written

because the disc is full

DRAM CLR Err Video Mode DRAM (Stream Buffer)

Clear failure

DRAM NG Abnormality in access to the Work

DRAM

Drive Destroy The Drive has crashed

EncModul Hang Encorder routine is hung up

F Alrdy Exst Extension file is already exist

File cansel Extension file is canseled

FileNot Exist Extension file is not exist

Format Excec Formatting has been executed

Invalid Disc* The disc cannot be recognized

Invalid Param* Invalid parameter

Invalid TMVMG Invalid TMP VMGI content

Invalid UDF* Invalid UDF content

Invalid VMG* Invalid VMG content

Invalid VTSI VTSI information of +VR is unusual

Irr Action* Incorrect action

MKB REVOKED Error is gaining data

limit Over* Standard maximum limit exceeded

No More Info* No more space in the internal work-

management area

No Permission* No permossopn to write to the disc

No Video No Video input (not locked)

Now busy* In the process of the emergency

processing

NV Pck DMA Er Inappropriate NaviPack DMA

NV Pck MK Err Error in creating NaviPack

Ourob Strm NG Inappropriate Stream data to the

Ouroboros input

Over Heat Abnormal temperature

PARAM NO ACCP Recording parameter is not matched

Process Over Process is overfull

Protect Scr* Source to be recorded is copy-

protected

Rec Pause* No operation permitted during

recording pause

Relocation Do VR-recording data was relocated

Repair Excec Repairing has been executed

Something* Undetermined error

SRAM NG Abnormality in access to the backup

Work SRAM

Status NG* Abnormality in change of statuses

ERROR MESSAGE DESCRIPTION

SW PVR Switch to +VR playback process

SW Vpb mode* Switching to video playback routine is

required

SW Vrec mode* Switching to video recording routine

is required

Unmatch Stamp* Impossible to modify because of

nonmatching time stamp

VBR-SRAM NG Abnormality in VBR SRAM

V Categ ID NG Inappropriate category ID

V Cate Inf NG Inappropriate category information

V Ext MAX Ovr Count Max exceeded

V ExtToo Big The extension file is too large

V Ext TY NG Type NG

Virgin Disc Virgin Disc

VOBU Info NG Inapporopriate VOBU information

WaterMark Det Watermark detected

WM Cracked WM Cracked

Param Short Editting Error (Clear A-B)

Invalid VRMI Information of +VR is NG (VRMI)

Heap Mem NG Failed acquive memory

Heap Mem RETY Retry has occurred during acquisition

of memory

No Error

ERROR MESSAGE DESCRIPTION

Non Err* Normal

6-16

6-2-12. DV Service Mode

1. DV debug

1) Turn of the main power ON.

2) On the screen after exiting all menu screens, press “ESC” on the service remote controller.

3) Press “DISP”.

4) Press “3”.

(DV/1394) Init : NG AV : 02 DV : 01

1

[Recorder] GUID : 0000000000000000 IRM

2

iPCR : C03F0000

3

[DV] GUID : 0080880303480E96

4

VN : VICTOR MN : GR-D50K

5

TM : C3 TS : 75 CT : 32 WP : 01 PS : FF OS : 00

6

CA : A000002020 MD : VTR

7

[DVdecode : Yes] LineSys : 625-50

8

TC : 00h20m35s RD : 02/02/05 RT : 10h34m50s

9

ASPECT : 4 : 3 CGMS : 000000 APSTB : 00 DEC : 525-60

0

SF : 32KHz QU : 12bit AMODE : 4) Stereo

qa

No.

1

2

3

4

5

6

7

8

9

0

qa

Item

InitDV

InitVE

AV

DV

GUID

iPCR

oPCR

GUID

VN

MN

TM

TS

CT

WP

PS

OS

CA

CV

MD

[DVdecode:

XXX]

LineSys

TC

RD

RT

ASPECT

CGMS

APSTB

DEC

SF

QU

AMODE

Description

Whether the initialization of UPD72893B (1394 LINK and DV codec IC) has been completed (OK) or not (NG).

Whether the initialization of ADV7172 (Video Encoder for DV specific) has been completed (OK) or not (NG).

Number of AV devices recognizing connection

Number of DV devices recognizing connection

GUID set in ConfigROM of the unit.

iPCR value of the unit

oPCR value of the unit

GUID set in ConfigROM of the connected DV device.

Vendor name set in ConfigROM of the connected DV device.

Model name set in ConfigROM of the connected DV device.

Transport Mode data obtained from the DV device.

Transport State data obtained from the DV device.

Cassette Type data obtained from the DV device.

Write-protection data obtained from the DV device.

Power-state data obtained from the DV device.

Output signal mode data obtained from the DV device.

Connect AV data obtained from the DV device.

Camera/Vtr mode data obtained from the DV device.

DV device mode

Whether Yes (in the process of requesting DV input) or No is indicated in XXX.

Input Line System setting

Time-code data of the DVdecode Stream, or response data of the Time Code command

Rec Date of DVdecode Stream

Rec Time of DVdecode Stream

Aspect Ratio of DVdecode Stream

CGMS of DVdecode Stream (from left to right, CGMS data of bits 5-4: Audio ch 2, bits 3-2: Audio ch 1, and bits 1-0: Video)

APS trigger bit of DV decode stream

With/without DVdecode stream input

Sampling Frequency of DVdecode Stream

QUANTIZATION of DVdecode Stream

AUDIO MODE of DVdecode Stream

* Used when an error exists in connection with the DV equipment.

Boldface alphanumerics : Fixed indications Nonboldface alphanumerics : Variable indications

If NG is displayed, it is considered the communication failure to UPD72893B.

If NG is displayed, it is considered the communication failure to ADV7172.

Identification number of AV devices including D-VHS, Digital Tuner, etc other than DV devices.

If the number does not become 01 even if a DV device is connected, identification of that device fails.

GUlD : Global Unique ID (Specific ID for DV devices) If the unit is ROOT (IRM), IRM is displayed at the side position of GUID display .

Data are displayed only if one DV device is identified. If the connected DV device is ROOT (IRM), IRM is displayed at the side position of GUlD display.

Data are displayed only if one DV device is identified. (Depending on the device, the vendor name may not be set in ConfigROM.)

Data are displayed only if one DV device is identified. (Depending on the device, the model name may not be set in ConfigROM.)

Data are displayed only if one DV device is identified.

Camera or VTR is displayed only if one DV device is identified.

Normally, Yes is indicated only when CH is set to DV.

Stream time-code data are obtained when the tape is played in forward direction. Otherwise, time-code data are obtained through an AV/C command.

*CGMS (Copy Generation Management System): The two-digit codes added to broadcast programs represent the following: 00: Copy freely, 10: Once copy, 11 : Never copy

With input: Signal type (525-60, 625-50, 1125-60, 1250-50, or Invalid) is indicated, Without input: “No” is indicated.

If SF is 44 kHz, it is considered that 44.1-kHz audio is input, and sound is muted on the unit.

5) Press “ESC”. (Returns to the original screen)

6-17

Remarks

Possible causes

Defective IC102 (1394Link & DVcodec)/

IC108 (1394PHY), improper connection between IC102 /

IC108, defective soldering, defective power supply, etc.

Defective DV terminals, improper connection of the DV-

terminal board, defective IC108 (1394PHY), defective

cables, an IEEE 1394 device other than the DV device

connected.

setting and the actual input signal system do not match, no

picture appears.

Defective IC102 (1394Link & DVcodec), defective

soldering, defective power supply, etc.

Defective DV terminals, improper connection of the DV-

terminal board, defective source device

defective IC102 (1394Link & DVcodec), IC108 (1394PHY)

Note: As to a model having the Input Line System setting, if the

Recording cannot be performed for a copy-protected

source.

An audio signal with 44.1-kHz sampling frequency is

muted.

Defective IC101 (DV specific VideoEncoder), defective

soldering, defective power supply, etc.

Items to be Checked, and Conditions

Check the initDV indication:

DV1

Debug Screen

Location in the

1

Symptoms

2. Simple Diagnosis of DV

No operation for

properly. Defective communication with DV related LSI (IC102, IC108)

and Host u-com. (IC1001)

OK: Initialization of DV related LSI (IC102, IC108) appropriately completed.

NG: Initialization of DV related LSI (IC102, IC108) has not been completed

DV input

Check the number of DV devices when one DV device is connected to the

recorder:

01 : The connected DV device is correctly identified.

Other than 01 : The connected DV device is not correctly identified.

Check of DV decoding when the recorder channel is set to DV:

Ye s: The recorder is in the process of a DV input operation.

No : The recorder is not executing a DV input operation.

DV1

2

DV8

1

No picture nor

sound for DV

input

Check DEC:

525-60 : An NTSC DV signal is input from the DV device.

625-50 : A PAL DV signal is input from the DV device.

No : No DV signal is input from the DV device.

DV0

2

6-18

Check CGMS:

DV0

1

DV input

Check SF:

DVqa

1

recording

impossible

No sound for

completed.

HOST u-com (IC1001).

Initialization of DV specific VideoEncoder (IC101) has not been

completed properly.

32 kHz: An audio signal with 32-kHz sampling frequency is being input.

48 kHz: An audio signal with 48-kHz sampling frequency is being input.

44 kHz: An audio signal with 44.1-kHz sampling frequency is being input.

Check the initVE indication:

OK: Initialization of DV specific VideoEncoder (IC101) appropriately

NG: Defective communication with DV specific VideoEncoder (IC101) and

DV1

1

DV input

No picture for

DV input

6-2-13. EPG Service Mode

1. Summary screen

1) Turn of the main power ON.

2) On the screen after exiting all menu screens, press “ESC” on the service remote controller.

3) Press “DISP”.

4) Press “7”.

01234 012345678901234567890123456789012345678901234567

00

(EPG EURO)

01

Next Data Download Time : 14:00 02 03

Gemstar Data Fail Count : 00 04 05 06 07

EPG Data Receive Err Summary 08

Data Start END MD CH RcvPkt TotalErr 09

03/31 13:00 13:30 DL 03 001853 000000 10

03/31 09:00 11:00 DL 03 001192 000000 11

03/31 08:00 08:05 HS -- 000654 000000 12

03/31 00:00 00:00 000000 000000 13

03/31 00:00 00:00 000000 000000 14

03/31 00:00 00:00 000000 000000

Duration : 01h30m

The next download starting time for the EPG data is displayed.

Lines 01-02

Next Data Download Time: Starting time Duration: Duration required for acquiring the EPG data

The Gemster EPG data cannot be found.

Lines 03

Number times of Host Scan and Schedule Download, DT models only (Always 00 except DT model)

Lines 09-14

The 6 latest error logs when EPG data were received are displayed, with the latest one at the top.

Data : Month/day when reception started

Start : Time when reception started

End : Time when reception ended

MD : Method for acquiring the EPG data (HS: Host scanning process, DL:Downloading

process of the EPG data)

CH : Data-receiving channel

RcvPkt : Total number of received packages.

A number 999,999 or greater is displayed as “999999”.

Total Err : Total errors during reception.

The sum of Hamming Err, Trans Err InvLine Err numbers indicated on the Detail screen. A number 999,999 or greater is displayed as “999999”.

* Used when the EPG data cannot be acquired. * The detailed screen appears every time when “DIG/ANA” is

pressed.

[Tips]

In a case where only “HS” is displayed in the MD column of the logs, the host channel has not been found. It is necessary to check the country and postal-code settings in the user settings.

5) Press “ESC”. (Returns to the original screen)

6-19

2. Detail screens

1) Press the “DIG/ANA” key while the Summary screen is being displayed. (Refer to page 6-19)

2) Each time the “DIG/ANA” key is pressed, the Detail screen scrolls maximum six-Detail screens (1 to 6). Each Detail screen of 1 to 6 corresponds to the EPG reception error logs from the top of the Summary screen.

01234 012345678901234567890123456789012345678901234567

00

(EPG EURO)

01

EPG Data Receive Err Details - 1 02 03

Data : 03/31 04

Start Time : 13:00 END Time : 13:30 05

Host CH : 03 P-ON Kind : Download 06 07

Data Receive Info Total Err : 000000 08

Pkt Rcv Num : 001853 Pkt Snd Num : 001853 09

Inv Line Err : 000000 10

Slice Cont : Auto EQ : OFF LV : -h 11 12

Temporary Buffer Information 13

Pool Num : 000000 Max Store : 000000 14

Discard Pkt : 000000

Line

Line 01

Lines 03-05, Reception conditions

Lines 07-10, details on errors during reception

Display item

EPG Data Receive Err Details-X

Data Start Time END Time Host CH P-ON Kind

Total Err

Pkt Rcv Num

Pkt Snd Num

InvLine Err

Slice Cont

EQ

Description

The rightmost figure represents the number of the current detail screen. This number corresponds to the order of the EPG reception error log from the top.

: Month/day when reception started :Time when reception started :Time when reception ended : Data-receiving channel : Methods for acquiring the EPG data

(host scanning and downloaing)

:Total numbers of errors during reception.

The total number of Hamming Err, Trans Err and InvLine Err indicated on the Detail screen. A number 999,999 or greater is displayed as “999999”.

:Total number of received packages. A

number 999,999 or greater is displayed as “999999”.

:Total number of packages that were sent

to the application program among all the received packages. A number 999,999 or greater is displayed as “999999”.

:Total number of errors that were

generated by receiving data from invalid lines. A number 999,999 or greater is displayed as “999999”.

: Slice level control

Auto-Tu Con, Manual - Syscon.

: Equalizer setting (ON, OFF)

Remarks

Only during initialization, host scanning is automatically executed to find the host broadcast.

Total Errors: If the total number of errors reaches two digits or greater, it is likely that EPG data acquisition failed. Display subscreen 1 of the first screen and check the electric field intensity from the AGC level.

If the total numbr of received packages is 0, it is likely that the country and postal-code settings are wrong.

LV

: Slice level (10-30 hex)

(Only when the slice Cont is Manual.)

Note: The data on lines 12-14 are for software development, not for service use.

5) Press “ESC”. (Returns to the original screen)

6-20

6-2-14. Aging Mode

1. Aging for the DVD-RW/DVD-R

1) Turn of the main power ON.

2) Press the “DVD” key to switch to DVD.

3) Load a recordable disc.

4) Select the input function of a recordable source.

5) After disc detection is confirmed, exit all menu screens.

6) Press “ESC” on the service remote controller.

7) Press “REP.B” on the service remote controller.

8) Press “PLAY” to enter the Aging mode.

If symptoms regarding recording/playback of discs and/or the HDD that your customer claimed are dif ficult to reproduce, they ca n be reproduced with a long-time test in Aging mode.

Note: • When aging for the DVD-RW/+RW/-RAM and HDD is executed, a recorded data on them will be erased.

• Commands from the remote control unit are accepted during Aging mode.

• If Aging mode is quit using the “ESC” key, indications on the FL display will return to normal display.

• Cancel timer settings before entering Aging mode.

• Set the recording rate beforehand. It cannot be changed during Aging mode.

Aging for the DVD-RW/+RW/-RAM

During Aging mode, the following operations are repeated in the order shown below.

1 The tray opens. 2 The tray closes. 3 Initialization 4 Recording for 60 minutes 5 Playback for 45 minutes

<DVD-RW>

The initialization process in step 3 follows the setting specified in “Setting of the main unit--Recording-Auto initialization of a DVD-RW”.

<DVD+RW>

The initialization process in step 3 is the same as that described in “Disc setting--Initialization-Initialization of a DVD+RW”.

<DVD-RAM>

In the initialization process in step 3, physical formatting is performed, if required.

During Aging, the number of loops is indicated on the FL display, as shown below.

[AGING 0001]

If an error is generated, the aging operation stops.

Note: Indications on the FL display are retained, and this

information is also retained as an OSD.

Aging for the DVD-R/+R

During Aging mode, the following operations are repeated in the order shown below.

1 The tray opens. 2 The tray closes. 3 Recording for 1 minute 4 Recording pause for 6 minutes 5 Recording stops. 6 Playback for 1 minute 7 Playback pause for 6 minutes 8 Playback stops.

Note: A continuous test of the above operations is possible for approximately 23

hours.

After 2 the tray closes, disc detection is performed,

<DVD-R>

In step 2, if the disc is judged to have recorded up to 99 titles, the operation stops at that point.

<DVD+R>

If the disc is judged to have recorded up to 49 titles, the operation stops at that point. On the FL display, the number of loops is retained. On the OSD display, the error indication is retained.

During Aging, the number of loops is indicated on the FL display, as shown below.

[AGING 0001]

If an error is generated, the aging operation stops.

Note: Indications on the FL display are retained, and this information is also retained

as an OSD.

Note: Recording time depends on the recording rate set. For example, if the

recording rate is MN32, only up to 60 titles can be registered. Check the setting for recording rate before performing aging.

9) Press the “ESC” key on the service remote controller to quit Aging mode and return to Normal mode.

Note: • If during recording: Recording is stopped.

• If during playback: Playback is paused.

• If during initialization: The unit stops after initialization is finished.

• If the tray is being opened/closed: The unit stops after the tray is opened/closed.

(aging for ±RW/-RAM only)

6-21

2. Aging for the HDD Caution: Take caution as the all recorded data of HDD is deleted.

1) Turn of the main power ON.

2) Press the “HDD” key to switch to HDD.

3) Press “ESC” on the service remote controller.

4) Press “REP.B” on the service remote controller.

5) Press “PLAY” to the Aging mode.

During Aging mode, the following operations are repeated in the order shown below.

1 Erasure of all the memory data from the HDD 2 Recording for 60 minutes 3 Playback for 60 minutes

[Tips]

During Aging, the number of loops is indicated on the FL display, as shown below.

[AGING 0001]

If an error is generated, the aging operation stops.

Note: Indications on the FL display are retained, and this information is also retained as an OSD.

6) Press the “ESC” key on the service remote controller to quit Aging mode and return to Normal mode.

Note: • If during recording: Recording is stopped.

• If during playback: Playback is paused.

• If during erasure of all memory data from the HDD, the unit stops after all memory data have been erased.

6-2-15. HDD Check Mode

1) Turn of the main power ON.

2) On the screen after exiting all menu screens, press “ESC” on the service remote controller.

3) Press “CX”.

4) Press “0”.

5) Press “1”.

HDD CHECK MODE

1 HDD Information [----]

2 S.M.A.R.T. Attribute Information

3 S.M.A.R.T. DST

4 HDD R/W Check

* Used to check if the HDD has an error or not. * Press the number of the item you want to check.

###HDD[INT] is selected ###change[SCAN FWD]

6) Press “ESC”. (Returns to the original screen)

6-22

6-3. Setup Related Menu

6-3-1. Firmware Downloading

In case of any event as described below, be sure to download the software using the Version Upgrade CD Disc by following the So ftware Download Method shown below.

1. When engine (RD board or drive) is replaced, or when the AV board is replaced.

2. When HDD is replaced.

3. When the message “NG” is displayed on the Version Information in the Service Mode.

Software Download Method

1) Eject the tray.

2) Place the Version Upgrade disc on the tray.

3) Press “Rec Stop” and “EJECT” key at the same time to start version upgrade.

6-3-2. Area-Specific Channel Setting

When the following trouble symptom is displayed, set the broadcast reception channels as described below.

• When flickering is visible as if horizontal synchronization or vertical synchronization is lost on the broadcast reception screen.

[Entry]

Entry from the normal operating mode <Record/Play, Stop>

1) Turn of the main power ON.

2) Press “ESC” on the service remote controller.

3) Press “CHP/TIM”.

Setting screen

VDEC Specific Area Mode Ver 2.00

Input - [LINE] Sync ACC : ON H Threshold Level : 12 V Threshold Level : 10

4) Press “ESC”. (Returns to the original screen)

[Entry from the individual setting mode]

1) Upon completion of the above operation, press “DIG/ANA”.

Setting screen

VDEC Specific Area Mode Ver 2.00

Input - [LINE] Sync ACC : ON H Threshold Level : 12 V Threshold Level : 10

Individual setting state

Input Channell - [L2] Sync AGC : - H Threshold Level : - V Threshold Level : --

2) Press “ESC”. (Returns to the original screen)

6-23

6-3-3. OSD Filter Setting (Subscreen 4)

When the following trouble symptom occurs, correct it by setting the OSD filter as described below.

• Characters on the OSD screen flicker depending on the monitor connected.

[Entry]

1) Turn of the main power ON.

2) Press “ESC” on the service remote controller.

3) Press “DISP”.

4) Press “DIG/ANA” four times.

OSD Filter Setting

OSD Filter : --

5) Press “ESC”. (Returns to the original screen)

[Tips]

As the setting value becomes greater, jitter is reduced on a CRT display. However, as lines for characters appear thick, complex characters may become difficult to read. On the contrary, as the setting value becomes smaller, jitter increases on a CRT display. However, as lines for characters become sharper, complex characters become more legible.

Note1: A new setting becomes active as soon as it is made. As a new setting is stored in nonvolatile memory, it will be retrieved when the unit it turned

on the next time.

Note2: After the factory-preset values are downloaded, the setting value for the OSD Filter will be the default Value (4).

[Key operation of OSD Filter setting]

Key

Operation

Satting value

Remarks

“Rev x 3”, “SPEED+”

“ x 3 Fwd”, “SPEED–”

Changing the setting value for the OSD Filter

0 – 4 (Default value: 4)

: The setting value increases by1.

“ x 3 Fwd”, “SPEED–”

: The setting value decreases by1.

“CLEAR”

“ESC”

The setting value is reset to default.

To exit the OSD Filter Setting and clear the screen (Appears the tuner screen.)

—

6-24E

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

p

SECTION 7

ADJUSTMENTS

7-1. Video System Adjustment

Preparing for Adjustment

1. Equipments

• Oscilloscope

• Reference Disk HLX-507 (PAL single layer disc) J-6090-077-A HLX-506 (PAL dual layer disc) J-6090-078-A

1. Video Output Level Check

This check is made to satisfy the PAL signal standard, If it is adjusted incorrectly, brightness will be too bright or too dark.

Mode PLAY

Signal 100% Color bars

Test point Output (VIDEO) connector

(terminated in 75Ω)

Instrument Oscilloscope

Specification 1.0 V± 0.07 Vp-p

Check method:

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the video level is 1.0 V±0.07 Vp-p.

2. S-Video Output S-Y Check

This check confirms that the S-video Y-signal output has the rated amplitude. If it adjusted incorrectly, the playback video signal will not be displayed corrected even when the S-video cable is connected.

Mode PLAY

Signal 100% Color bars

Test point S-VIDEO OUTPUT (S-Y) connector

(terminated in 75Ω)

Instrument Oscilloscope

Specification 1.0 V±0.07 Vp-p

Check method:

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the video level is 1.0 V±0.07 Vp-p.

1.0 ± 0.07Vp-

Fig. 7-2

Fig. 7-1

1.0 ±0.07 Vp-

7-1

3. S-Video Output S-C Check

This check confirms that the S-video output S-C conforms to the PA L standard. If it adjusted incorrectly, the playback color will not be too dark or too thin.

Mode PLAY

Signal 100% Color bars

Test point S-VIDEO OUTPUT (S-C) connector

(terminated in 75Ω)

Instrument Oscilloscope

Specification PAL: 300 mV±30 mVp-p

Check method:

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the burst signal level is 300 mV±30 mVp-p.

300 mV±30 mVp-p

This check confirms that the B-Y signal of the component video conforms to the P AL standard. If this signal level is not correct, color of the video signal will have dif ferent color when the COMPONENT connector output signal is connected to a projector having COMPONENT input.

Mode PLAY

Signal 100% Color bars

Test point COMPONENT VIDEO OUT (Pb)

connector (terminated in 75Ω)

Instrument Oscilloscope

Specification 700 mV±50 mVp-p

Check method:

Note 1: Do not set RGB OUT to ON. Note 2: Do not connect the HDMI OUT.

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the burst signal level is 700 mV±50 mVp-p.

Fig. 7-3

4. Component Video Output Y Check

This check confirms that the component Y signal output has the rated amplitude. If this signal level is not correct, brightness of the video signal will not be too dark or too thin when the COMPONENT connector output signal is connected to a projector having COMPONENT input.

Mode PLAY

Signal 100% Color bars

Test point COMPONENT VIDEO OUT (Y)

connector (terminated in 75Ω)

Instrument Oscilloscope

Specification 1.0 V±0.07Vp-p

Check method:

Note 1: Do not set RGB OUT to ON. Note 2: Do not connect the HDMI OUT.

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the Y signal level is 1.0 V±0.07 Vp-p.

1.0 ± 0.07Vp-p

700 ± 50 mVp-p

Fig. 7-5

6. Component Video Output R-Y (Pr) Check

This check confirms that the R-Y signal of the component video conforms to the P AL standard. If this signal level is not correct, color of the video signal will have dif ferent color when the COMPONENT connector output signal is connected to a projector having COMPONENT input.

Mode PLAY

Signal 100% Color bars

Test point COMPONENT VIDEO OUT (Pr)

connector (terminated in 75Ω)

Instrument Oscilloscope

Specification 700 mV±50 mVp-p

Check method:

Note 1: Do not set RGB OUT to ON. Note 2: Do not connect the HDMI OUT.

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the burst signal level is 700 mV±50 mVp-p.

Fig. 7-4

5. Component Video Output B-Y (Pb) Check

700 ± 50 mVp-p

Fig. 7-6

7-2

7. Scart Video Output Level Check

p

300 ± 30 mVp-p

p

This check is made to satisfy the PAL signal standard, If it is adjusted incorrectly, brightness will be too bright or too dark.

Mode PLAY

Signal 100% Color bars Test point Scart Video output connector pin-ql

(terminated in 75Ω)

Instrument Oscilloscope

Specification 1.0 V± 0.07 Vp-p

Check method:

Note: SCART OUT should be set to “Video”.

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the video level is 1.0 V±0.07 Vp-p.

1.0 ± 0.07 Vp-

9. Scart Video Output S-C Check

This check confirms that the Scart output S-C conforms to the PAL standard. If it adjusted incorrectly , the playback color will not be too dark or too thin.

Mode PLAY

Signal 100% Color bars Test point Scart Video output connector pin-qg

(terminated in 75Ω)

Instrument Oscilloscope

Specification 300 mV±30 mVp-p

Check method:

Note: SCART OUT should be set to “S-Video”.

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the burst signal level is 300 mV±30 mVp-p.

Fig. 7-7

8. Scart Video Output S-Y Check

This check confirms that the Scart Y-signal output has the rated amplitude. If it adjusted incorrectly, the playback video signal will not be displayed corrected even when the Scart cable is connected.

Mode PLAY

Signal 100% Color bars Test point Scart Video output connector pin-ql

(terminated in 75Ω)

Instrument Oscilloscope

Specification 1.0 V±0.07 Vp-p

Check method:

Note: SCART OUT should be set to “S-Video”.

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the video level is 1.0 V±0.07 Vp-p.

1.0 ± 0.07 Vp-

Fig. 7-9

10. Scart Video RGB Output R Check

This check confirms that the RGB R signal output has the rated amplitude. If this signal level is not correct, brightness of the video signal will not be too dark or too thin when the Scart connector output signal is connected to a projector having Scart input.

Mode PLAY

Signal 100% Color bars Test point Scart Video output R connector pin-qg

(terminated in 75Ω)

Instrument Oscilloscope

Specification 700 mV±50 mVp-p

Check method:

Note 1: RGB OUT should be set to ON. Note 2: Do not connect the HDMI OUT.

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the R signal level is 700 mV±50 mVp-p.

700 ± 50 mVp-

Fig. 7-8

Fig. 7-10

7-3

11. Scart Video RGB Output G Check

p

This check confirms that G signal of the RGB video conforms to the PAL standard. If this signal level is not correct, color of the video signal will have different color when the Scart connector output signal is connected to a projector having Scart input.

Mode PLAY

Signal 100% Color bars Test point Scart Video output G connector pin-qa

(terminated in 75Ω)

Instrument Oscilloscope

Specification 700 mV±50 mVp-p

Check method:

Note 1: RGB OUT should be set to ON. Note 2: Do not connect the HDMI OUT.

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the G signal level is 700 mV±50 mVp-p.

700 ± 50 mVp-p

Fig. 7-11

12. Scart Video RGB Output B Check

This check confirms that the B signal of the RGB video conforms to the PAL standard. If this signal level is not correct, color of the video signal will have different color when the Scart connector output signal is connected to a projector having Scart input.

Mode PLAY

Signal 100% Color bars Test point Scart Video output B connector pin-7

(terminated in 75Ω)

Instrument Oscilloscope

Specification 700 mV±50 mVp-p

Check method:

Note 1: RGB OUT should be set to ON. Note 2: Do not connect the HDMI OUT.

1) Insert the PAL reference disc and play back the 100% color bars.

2) Confirm that the B signal level is 700 mV±50 mVp-p.

700 ± 50 mVp-

Fig. 7-12

7-4E

RDR-HXD790/HXD795/HXD890/HXD895/HXD990/HXD995/HXD1090/HXD1095

8-1. EXPLODED VIEWS

NOTE:

• -XX, -X mean standardized parts, so they may have some differences from the original one.

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• The mechanical parts with no reference number in the exploded views are not supplied.

8-1-1. OVERALL SECTION

SECTION 8

REPAIR PARTS LIST

• Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED)

• Abbreviation AUS : Australian model

6

5

8

not supplied

↑ ↑

Parts Color Cabinet’s Color

The components identified b y mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

The components identified by mark 9 contain confidential information. Strictly follow the instr uctions whenever the components are repaired and/or replaced.

7

5

9

4

2

1

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

1 X-2187-503-1 COVER ASSY (DT), TRAY 2 A-1526-898-A PANEL BLOCK ASSY, FRONT (BLACK)

2 A-1526-918-A PANEL BLOCK ASSY, FRONT (SILVER)

2 A-1526-934-A PANEL BLOCK ASSY, FRONT (BLACK)

2 A-1526-959-A PANEL BLOCK ASSY, FRONT (SILVER)

2 A-1527-003-A PANEL BLOCK ASSY, FRONT (BLACK)

2 A-1527-007-A PANEL BLOCK ASSY, FRONT (SILVER)

2 A-1527-023-A PANEL BLOCK ASSY, FRONT (BLACK)

2 A-1527-031-A PANEL BLOCK ASSY, FRONT (SILVER)

2 A-1527-063-A PANEL BLOCK ASSY, FRONT (BLACK)

2 A-1527-086-A PANEL BLOCK ASSY ,FRONT (BLACK)

2 A-1527-109-A PANEL BLOCK ASSY, FRONT (BLACK)

2 A-1527-121-A PANEL BLOCK ASSY, FRONT (BLACK)

2 A-1528-248-A PANEL BLOCK ASSY, FRONT (BLACK)

2 A-1528-249-A PANEL BLOCK ASSY, FRONT (SILVER)

3

4

(HXD895)

(HXD890: AEP, UK)

(HXD790)

(HXD795)

(HXD995)

(HXD990: AEP, UK)

(HXD1095)

(HXD1090)

(HXD890: AUS)

10

11

2 A-1528-355-A PANEL BLOCK ASSY, FRONT (BLACK)

3 1-834-076-21 CABLE, FLEXIBLE FLAT (FLR-010)

3 1-834-077-21 CABLE, FLEXIBLE FLAT (FLR-012)

4 3-077-331-01 +BV3 (3-CR) 5 3-070-883-41 SCREW, TAPPING (SILVER)

5 3-070-883-71 SCREW, TAPPING (BLACK) 6 2-899-646-01 CASE, UPPER (BLACK) (AEP, UK) 6 2-899-646-21 CASE, UPPER (SILVER) (AEP, UK) 6 A-1550-899-A CASE BLOCK ASSY(SERVICE USE) (SILVER)

6 A-1554-331-A CASE BLCOK ASSY(SERVICE USE) (BLACK)

7 3-076-563-11 SCREW, SPECIAL FRONT POINT 8 1-480-698-11 REMOTE COMMANDER (RMT-D251P)

8 1-480-700-11 REMOTE COMMANDER (RMT-D251O)(AUS) 9 A-1520-886-A FL-184 (AG) COMPL (AEP, UK) 9 A-1543-613-A FL-184 (AS) COMPL (AUS)

10 A-1520-888-A FR-291 (AG) COMPL (AEP, UK) 10 A-1543-615-A FR-291 (AS) COMPL (AUS)

* 11 3-087-319-01 CUSHION, FOOT

Chassis section

(HXD990: AUS)

(HXD790/HXD890/HXD990/HXD1090)

(HXD795/HXD895/HXD995/HXD1095)

(AUS)

(AEP, UK)

8-1

8-1-2. CHASSIS SECTION

d

51

62

56

51

not supplied

67

not supplied

58

not supplied

58

not supplied

58

not supplied

53

63

51

65

51

64

51

55

not supplied

66

not supplied

68

51

61

59

U301

57

51

not supplied

51

U601

51

60

54

52

51

not supplie

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

51 3-077-331-01 +BV3 (3-CR) 52 A-1544-210-A HDD (SG-SUPERHAWK-S (250GB)-GA)

(HXD990: AUS)

52 A-1556-069-A HDD (SG-NIGHTHAWK-S (160GB)-E) A

(HXD790/HXD795/HXD890: AEP, UK/HXD895)

52 A-1556-070-A HDD (SG-SUPERHAWK-S (250GB)-E)

(HXD990: AEP, UK/HXD995)

52 A-1556-071-A HDD (HG-GEMINI-S (500GB)-E) A

(HXD1090/HXD1095)

52 A-1556-072-A HDD (SG-NIGHTHAWK-S (160GB)-GA)

(HXD890: AUS) 53 7-682-947-01 SCREW +PSW 3X6 54 4-237-065-01 CLAMP (L35)

055 1-474-047-11 REGULATOR,SWITCHING(SRV2057EK) (AUS) 055 1-474-047-42 REGULATOR,SWITCHING(SRV2100EK)

(AEP, UK)

56 1-787-624-11 FAN, DC 57 1-834-075-21 CABLE, FLEXIBLE FLAT (FRA-006) 58 3-077-331-31 +BV3 (3-CR)

* 59 1-835-081-11 CABLE, FLEXIBLE FLAT (FAR-008)

60 1-965-191-21 HARNESS (RH-059)

61 A-1520-892-A AV-133 (CG) COMPL (AEP, UK) 61 A-1550-351-A AV-133 (AS) COMPL (AUS) 62 3-087-220-01 TAPE, NON-HALOGENE

9 63 A-1543-920-A DVR-U13HDD ASSY S COMPL (Note)

64 2-684-970-01 SHIELD TAPE 1 (A) 65 3-268-333-02 SHIELD, GASKET 66 A-1520-890-A DT-124 (AG) COMPL

66 A-1520-894-A DT-124 (BG) COMPL

66 A-1550-357-A DT-124 (AS) COMPL (AUS)

* 67 1-834-168-21 CABLE, FLEXIBLE FLAT (FVR-001) * 68 1-835-082-11 CABLE, FLEXIBLE FLAT (FAD-010)

0U301 1-693-772-11 TUNER (TDQD5) (AEP, UK) 0U301 1-693-772-21 TUNER (TDQD5) (AUS) 0U601 1-693-741-11 TUNER (TMFE2-407A) (AUS)

0U601 1-693-753-21 TUNER (TMFE2-408B) (AEP, UK)

8-2

(HXD790/HXD890: AEP, UK/HXD990: AEP, UK/HXD1090)

(HXD795/HXD895/HXD995/HXD1095)

Note: When exchanging Traverse Mechanism in Ref No.63, please refer to the SERVICE MANUAL of "RW6G/7G TRAVERSE MECHANISM REPAIR MANUAL"

The components identified by ma rk 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

The components identified by mark 9 contain confidential information. Strictly follow the instr uctions whenever the components are repaired and/or replaced.

AV-133

8-2. ELECTRICAL PARTS LIST

NOTE:

• Due to standardization, replacements in the parts list may be dif ferent from the parts specified in the diagrams or the components used on the set.

• -XX, -X mean standardized parts, so they may have some difference from the original one.

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• CAPACITORS:

uF: µF

• COILS

uH: µH

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

A-1520-892-A AV-133 (CG) BOARD, COMPLETE (AEP, UK) A-1550-351-A AV-133 (AS) BOARD, COMPLETE (AUS)

********************

< CAPACITOR >

C104 1-104-662-91 ELECT 22uF 20% 25V C105 1-164-156-11 CERAMIC CHIP 0.1uF 25V C106 1-164-156-11 CERAMIC CHIP 0.1uF 25V C107 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C109 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C110 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C111 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C112 1-162-914-11 CERAMIC CHIP 9PF 0.5PF 50V C113 1-115-156-11 CERAMIC CHIP 1uF 10V C114 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

C115 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C118 1-115-456-21 DOUBLE LAYER 0.22F 5.5V C120 1-164-156-11 CERAMIC CHIP 0.1uF 25V C121 1-115-156-11 CERAMIC CHIP 1uF 10V C122 1-115-156-11 CERAMIC CHIP 1uF 10V

C124 1-164-156-11 CERAMIC CHIP 0.1uF 25V C125 1-164-156-11 CERAMIC CHIP 0.1uF 25V C126 1-164-156-11 CERAMIC CHIP 0.1uF 25V C127 1-126-933-11 ELECT 100uF 20% 16V C131 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C132 1-164-156-11 CERAMIC CHIP 0.1uF 25V C133 1-164-156-11 CERAMIC CHIP 0.1uF 25V C134 1-164-156-11 CERAMIC CHIP 0.1uF 25V C135 1-164-156-11 CERAMIC CHIP 0.1uF 25V C138 1-126-961-11 ELECT 2.2uF 20% 50V

C139 1-164-156-11 CERAMIC CHIP 0.1uF 25V C140 1-164-156-11 CERAMIC CHIP 0.1uF 25V C141 1-115-156-11 CERAMIC CHIP 1uF 10V C142 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V C149 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

C150 1-115-156-11 CERAMIC CHIP 1uF 10V C152 1-115-156-11 CERAMIC CHIP 1uF 10V C156 1-164-156-11 CERAMIC CHIP 0.1uF 25V C157 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C202 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C204 1-126-933-11 ELECT 100uF 20% 16V C205 1-104-662-91 ELECT 22uF 20% 25V C206 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C208 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C301 1-164-156-11 CERAMIC CHIP 0.1uF 25V

• RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable

• SEMICONDUCTORS

In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD...

• Abbreviation AUS : Australian model

(REF. NO.; 10,000 SERIES)

C302 1-164-156-11 CERAMIC CHIP 0.1uF 25V C303 1-126-933-11 ELECT 100uF 20% 16V C305 1-164-156-11 CERAMIC CHIP 0.1uF 25V C306 1-164-156-11 CERAMIC CHIP 0.1uF 25V C307 1-126-933-11 ELECT 100uF 20% 16V

C308 1-126-933-11 ELECT 100uF 20% 16V C309 1-164-156-11 CERAMIC CHIP 0.1uF 25V C310 1-164-156-11 CERAMIC CHIP 0.1uF 25V C311 1-126-934-11 ELECT 220uF 20% 16V C312 1-126-933-11 ELECT 100uF 20% 16V

C314 1-164-156-11 CERAMIC CHIP 0.1uF 25V C315 1-126-933-11 ELECT 100uF 20% 16V C316 1-126-933-11 ELECT 100uF 20% 16V C318 1-164-156-11 CERAMIC CHIP 0.1uF 25V C319 1-126-933-11 ELECT 100uF 20% 16V

C320 1-126-933-11 ELECT 100uF 20% 16V C322 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C323 1-100-162-91 CERAMIC CHIP 1uF 50V C324 1-164-156-11 CERAMIC CHIP 0.1uF 25V C326 1-126-964-11 ELECT 10uF 20% 50V

C328 1-165-621-91 CERAMIC CHIP 0.1uF 50V C329 1-164-156-11 CERAMIC CHIP 0.1uF 25V C401 1-115-156-11 CERAMIC CHIP 1uF 10V C402 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C403 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C404 1-115-156-11 CERAMIC CHIP 1uF 10V C406 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C407 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C408 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C409 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C410 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C411 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C412 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C413 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C414 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C415 1-164-156-11 CERAMIC CHIP 0.1uF 25V C418 1-115-156-11 CERAMIC CHIP 1uF 10V C419 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C420 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C421 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C422 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C423 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C424 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C428 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C429 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

When indicating parts by reference number, please include the board name.

The components identified b y mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

8-3

AV-133

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

C430 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C431 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C432 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C434 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C435 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C518 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V C519 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C520 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V C528 1-104-655-91 ELECT 470uF 20% 6.3V C529 1-104-655-91 ELECT 470uF 20% 6.3V

C436 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C437 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C438 1-115-156-11 CERAMIC CHIP 1uF 10V C439 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C440 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C441 1-115-156-11 CERAMIC CHIP 1uF 10V C442 1-164-156-11 CERAMIC CHIP 0.1uF 25V C443 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C444 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C445 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C446 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C447 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C450 1-107-713-11 ELECT 4.7uF 20% 50V C451 1-107-713-11 ELECT 4.7uF 20% 50V C452 1-104-658-91 ELECT 100uF 20% 10V

C453 1-104-658-91 ELECT 100uF 20% 10V C454 1-104-658-91 ELECT 100uF 20% 10V C455 1-126-963-11 ELECT 4.7uF 20% 50V C456 1-126-960-11 ELECT 1uF 20% 50V C457 1-126-964-11 ELECT 10uF 20% 50V

C458 1-104-658-91 ELECT 100uF 20% 10V C463 1-164-156-11 CERAMIC CHIP 0.1uF 25V C464 1-164-156-11 CERAMIC CHIP 0.1uF 25V C468 1-164-156-11 CERAMIC CHIP 0.1uF 25V C469 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C530 1-104-655-91 ELECT 470uF 20% 6.3V C531 1-104-655-91 ELECT 470uF 20% 6.3V C532 1-104-655-91 ELECT 470uF 20% 6.3V C541 1-126-963-11 ELECT 4.7uF 20% 50V C542 1-126-963-11 ELECT 4.7uF 20% 50V

C543 1-126-963-11 ELECT 4.7uF 20% 50V C544 1-126-963-11 ELECT 4.7uF 20% 50V C545 1-126-933-11 ELECT 100uF 20% 16V C547 1-104-662-91 ELECT 22uF 20% 25V C550 1-104-662-91 ELECT 22uF 20% 25V

C551 1-104-662-91 ELECT 22uF 20% 25V C552 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C602 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C603 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C604 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C605 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C606 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C608 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C609 1-104-658-91 ELECT 100uF 20% 10V C611 1-126-947-11 ELECT 47uF 20% 35V

C613 1-164-156-11 CERAMIC CHIP 0.1uF 25V C614 1-164-156-11 CERAMIC CHIP 0.1uF 25V C615 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C616 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C617 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C471 1-126-964-11 ELECT 10uF 20% 50V C472 1-126-964-11 ELECT 10uF 20% 50V C473 1-126-933-11 ELECT 100uF 20% 16V C474 1-126-964-11 ELECT 10uF 20% 50V C475 1-126-964-11 ELECT 10uF 20% 50V

C476 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C481 1-164-156-11 CERAMIC CHIP 0.1uF 25V C482 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C484 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C486 1-104-655-91 ELECT 470uF 20% 6.3V

C487 1-104-655-91 ELECT 470uF 20% 6.3V C488 1-104-655-91 ELECT 470uF 20% 6.3V C489 1-104-655-91 ELECT 470uF 20% 6.3V C490 1-104-655-91 ELECT 470uF 20% 6.3V C491 1-126-947-11 ELECT 47uF 20% 35V

C492 1-126-923-91 ELECT 220uF 20% 10V C493 1-126-947-11 ELECT 47uF 20% 35V C496 1-164-156-11 CERAMIC CHIP 0.1uF 25V C497 1-164-156-11 CERAMIC CHIP 0.1uF 25V C498 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C503 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C505 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V C506 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C507 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V C508 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C510 1-164-156-11 CERAMIC CHIP 0.1uF 25V C511 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C515 1-164-156-11 CERAMIC CHIP 0.1uF 25V C516 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C517 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

C618 1-164-156-11 CERAMIC CHIP 0.1uF 25V C619 1-164-156-11 CERAMIC CHIP 0.1uF 25V C620 1-115-156-11 CERAMIC CHIP 1uF 10V C621 1-162-924-11 CERAMIC CHIP 56PF 5% 50V C622 1-162-924-11 CERAMIC CHIP 56PF 5% 50V

C623 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C624 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C625 1-115-156-11 CERAMIC CHIP 1uF 10V C626 1-164-156-11 CERAMIC CHIP 0.1uF 25V C627 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C628 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C629 1-164-173-11 CERAMIC CHIP 0.0039uF 10% 50V C630 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C631 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C632 1-164-173-11 CERAMIC CHIP 0.0039uF 10% 50V

C633 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C635 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C636 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C638 1-126-964-11 ELECT 10uF 20% 50V C639 1-126-962-11 ELECT 3.3uF 20% 50V

C640 1-104-658-91 ELECT 100uF 20% 10V C641 1-126-964-11 ELECT 10uF 20% 50V C642 1-104-658-91 ELECT 100uF 20% 10V C643 1-104-658-91 ELECT 100uF 20% 10V C751 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(AEP, UK)

C752 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(AEP, UK)

C753 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(AEP, UK)

C754 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(AEP, UK)

8-4

AV-133

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

< DIODE >

D101 8-719-081-97 DIODE MMDL914T1 D102 8-719-081-97 DIODE MMDL914T1 D103 8-719-081-97 DIODE MMDL914T1 D104 8-719-053-18 DIODE 1SR154-400TE-25 D106 8-719-081-97 DIODE MMDL914T1

IC101 6-712-674-01 IC LC87F06J2A-F59P6-E

* IC102 6-711-071-01 IC BD4846G-TR * IC103 6-711-072-01 IC BU4220G-TR * IC104 6-711-188-01 IC TC7MB3257FK (EL) * IC401 6-711-073-01 IC HA118326APFR-E

IC402 8-759-909-71 IC BA4558F

< IC >

D108 8-719-941-09 DIODE DAP202U D201 8-719-081-97 DIODE MMDL914T1 D301 8-719-083-83 DIODE UDZSNPTE-1715B D302 6-500-028-01 DIODE MM3Z9V1ST1 D303 8-719-081-97 DIODE MMDL914T1

D304 8-719-081-97 DIODE MMDL914T1 D409 8-719-081-42 DIODE UMZ6.8N-T106 D410 8-719-081-42 DIODE UMZ6.8N-T106 D413 8-719-081-42 DIODE UMZ6.8N-T106 D414 8-719-081-42 DIODE UMZ6.8N-T106

D415 8-719-081-42 DIODE UMZ6.8N-T106 D416 8-719-081-42 DIODE UMZ6.8N-T106 D418 8-719-081-97 DIODE MMDL914T1 D419 8-719-081-97 DIODE MMDL914T1 D420 8-719-941-09 DIODE DAP202U

D421 6-501-486-01 DIODE NNCD3.9F-T1B D422 6-501-486-01 DIODE NNCD3.9F-T1B D501 8-719-976-99 DIODE DTZ5.1B D502 8-719-976-99 DIODE DTZ5.1B D503 6-501-486-01 DIODE NNCD3.9F-T1B

D504 8-719-081-42 DIODE UMZ6.8N-T106 D505 8-719-081-42 DIODE UMZ6.8N-T106 D506 8-719-081-42 DIODE UMZ6.8N-T106 D507 8-719-081-42 DIODE UMZ6.8N-T106 D508 6-501-486-01 DIODE NNCD3.9F-T1B

D509 8-719-081-42 DIODE UMZ6.8N-T106 D510 6-501-486-01 DIODE NNCD3.9F-T1B D511 8-719-081-42 DIODE UMZ6.8N-T106 D512 6-501-486-01 DIODE NNCD3.9F-T1B D513 8-719-081-42 DIODE UMZ6.8N-T106

D514 8-719-081-42 DIODE UMZ6.8N-T106 D515 8-719-081-42 DIODE UMZ6.8N-T106 D516 8-719-081-42 DIODE UMZ6.8N-T106 D517 8-719-081-42 DIODE UMZ6.8N-T106 D518 8-719-081-42 DIODE UMZ6.8N-T106

D519 8-719-081-42 DIODE UMZ6.8N-T106 D520 8-719-081-42 DIODE UMZ6.8N-T106 D521 8-719-081-42 DIODE UMZ6.8N-T106 D522 8-719-081-42 DIODE UMZ6.8N-T106 D523 6-500-319-01 DIODE BAV99WT1

D524 6-500-319-01 DIODE BAV99WT1 D526 8-719-081-97 DIODE MMDL914T1 D527 8-719-081-97 DIODE MMDL914T1 D528 8-719-081-97 DIODE MMDL914T1 D529 8-719-083-63 DIODE UDZSNPTE-1713B

IC406 8-759-082-60 IC TC7S66FU IC601 6-702-714-01 IC MSP3417G-QG-B8V3

< JACK >

JA401 1-794-198-11 CONNECTOR, S TERMINAL (LINE2 OUT) JA751 1-764-188-31 JACK (SMALL TYPE) (DIA. 3.5) (G-LINK)

(AEP, UK)

< TERMINAL >

KN101 1-537-771-21 TERMINAL BOARD, GROUND KN102 1-537-771-21 TERMINAL BOARD, GROUND

< COIL >

L102 1-410-517-11 INDUCTOR 47uH L201 1-412-549-31 INDUCTOR 1mH L303 1-500-245-11 INDUCTOR, FERRITE BEAD L304 1-408-621-31 INDUCTOR 330uH L305 1-500-245-11 INDUCTOR, FERRITE BEAD

L501 1-414-594-11 INDUCTOR, FERRITE BEAD L502 1-414-594-11 INDUCTOR, FERRITE BEAD L601 1-500-245-11 INDUCTOR, FERRITE BEAD L602 1-500-245-11 INDUCTOR, FERRITE BEAD L604 1-414-760-21 INDUCTOR, FERRITE BEAD

L605 1-414-760-21 INDUCTOR, FERRITE BEAD L606 1-500-245-11 INDUCTOR, FERRITE BEAD L607 1-412-963-11 INDUCTOR 100uH L608 1-500-245-11 INDUCTOR, FERRITE BEAD L609 1-412-951-11 INDUCTOR 10uH

L751 1-414-760-21 INDUCTOR, FERRITE BEAD (AEP, UK) L801 1-414-228-11 INDUCTOR, FERRITE BEAD L802 1-414-228-11 INDUCTOR, FERRITE BEAD L803 1-216-864-11 SHORT CHIP 0 L851 1-414-228-11 INDUCTOR, FERRITE BEAD

L852 1-414-228-11 INDUCTOR, FERRITE BEAD L853 1-414-228-11 INDUCTOR, FERRITE BEAD L854 1-414-228-11 INDUCTOR, FERRITE BEAD L855 1-500-283-11 INDUCTOR, FERRITE BEAD L856 1-414-228-11 INDUCTOR, FERRITE BEAD

L857 1-414-228-11 INDUCTOR, FERRITE BEAD L858 1-414-228-11 INDUCTOR, FERRITE BEAD L859 1-414-228-11 INDUCTOR, FERRITE BEAD L860 1-500-283-11 INDUCTOR, FERRITE BEAD L861 1-469-876-11 INDUCTOR, FERRITE BEAD

L862 1-469-796-21 FERRITE, CHIP

D530 8-719-083-63 DIODE UDZSNPTE-1713B D531 8-719-081-42 DIODE UMZ6.8N-T106 D801 8-719-081-42 DIODE UMZ6.8N-T106

< FUSE >

0IC150 1-576-796-11 FUSE 0.5A 32V 0IC317 1-576-796-11 FUSE 0.5A 32V

Note : The components identified b y mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

< TRANSISTOR >

Q101 8-729-029-06 TRANSISTOR DTC124EUA-T106 Q102 8-729-620-13 TRANSISTOR 2SC4154TP-1EF Q103 6-550-375-01 TRANSISTOR UMD2N-TR Q104 6-550-375-01 TRANSISTOR UMD2N-TR Q105 8-729-023-22 TRANSISTOR 2SD2114K

8-5
