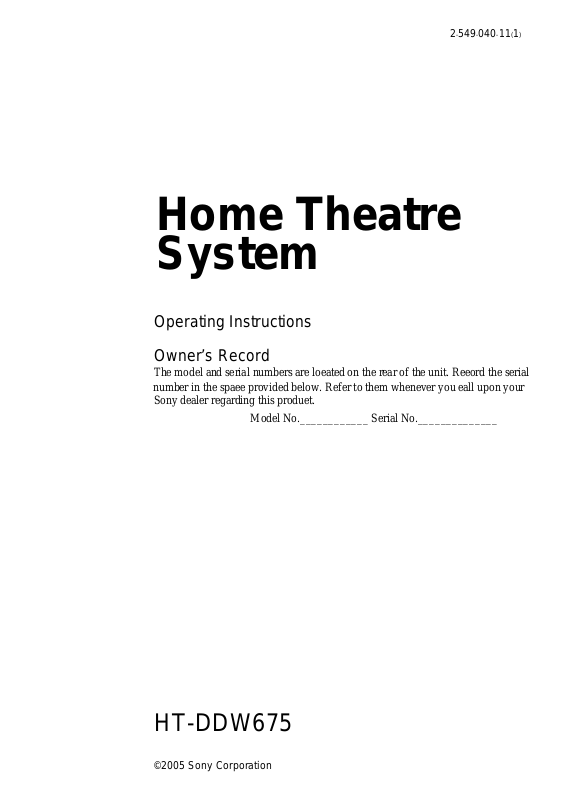

Sony HT-DDW675 User Manual

2-549-040-11(1)

Home Theatre System

Operating Instructions Owner’s Record

The model and serial numbers are loeated on the rear of the unit. Reeord the serial number in the spaee provided below. Refer to them whenever you eall upon your Sony dealer regarding this produet.

Model No.____________ Serial No.______________

HT-DDW675

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent fire, do not cover the ventilation of the apparatus with newspapers, table-cloths, curtains, etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Don’t throw away batteries with general house waste; dispose of them correctly as chemical waste.

A A

CAimON: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR ВАСЮ.

NO USER-SERVICEABLE PARTS INSIDE.

REFER 8ERVICINQ TO QUAUFED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION

You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.

Note to CATV system installer:

This reminder is provided to call CATV system installer’s attention to Article 820-40 ofthe NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® partner, Sony Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

2US

About This Manual

• The instructions in this manual are for model HT-DDW675. Check your receiver’s model number by looking at the lower right corner of the front panel.

• The instructions in this manual describe the controls on the receiver. You can also use the controls on the supplied remote if they have the same or similar names as those on the receiver. For details on the use of your remote, see pages

The HT-DDW675 consists of:

• Receiver STR-K675P

• Speaker system

- Front speaker (left) SS-MSP67L

- Front speaker (right) SS-MSP67R

- Centerspeaker SS-CNP67

- Surround speaker (le^) SS-MSP67SL

- Surround speaker (right) SS-MSP67SR

- Sub woofer SA-WMSP87

About area codes

The area code of the receiver you purchased is shown on the lower portion of the rear panel (see the illustration below).

31-33.

Any differences in operation, according to the area code, are clearly indicated in the text, for example, “Models of area code AA only^’.

This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System.

* Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

**“DTS” and “DTS Digital Surround” are trademarks

of Digital Theater Systems, Inc.

3US

Getting Started

1: Check how to hookup your

components

1a: Connecting components with

1b: Connecting components with only

2: Connecting the antennas 3: Connecting speakers 4: Connecting the AC power cord

5: Setting up the speakers....................16

6: Setting up the sub woofer 7: Adjusting the speaker levels and

balance — TEST TONE

.....................................

digital audio outputjacks

analog audio jacks

..........................................

....................

.................

.......................

...............

Amplifier Operation

Selecting the component Listening to FM/AM radio Presetting radio stations Changing the display About the indications in the display

.....................

..................

......................

..........................

Enjoying Surround Sound

Using only the front speakers and sub

woofer

...........................................

— 2CH STEREO

Enjoying higher fidelity sound

— AUTO FORMAT DIRECT

Selecting a sound field

............

........................

...........

........

.....

19 19 20

Other Operations

Naming preset stations and inputs

Operations Using the Remote RM-AAU004

Before you use your remote Remote button description

Additional Information

Precautions Troubleshooting

Specifications

List ofbutton locations and reference

Index.......................................Back cover

..........................................

..................................

......................................

pages

.............................................

........

................

..................

31 31

Advanced Adjustments and Settings

Switching the audio input mode for digital

components

— INPUT MODE Customizing sound fields Adjusting the tone Advanced settings

...................................

....................

...............................

lUS

26 28 28

Getting Started

1: Check how to hookup your components

Steps lathrough lb beginning on page 7 deseribe how to hook up your eomponents to this reeeiver. Before you begin, refer to “Conneetable eomponents” below for the pages whieh deseribe how to eonneet eaeh eomponent. After hooking up all your eomponents, proeeed to “2: Conneeting the antennas” (page ll).

Connectable components

Component to be connected Page

DVD player

With digital audio output With analog audio output only

TV monitor

With eomposite video input only 10

Super Audio CD/CD player

With digital audio output With analog audio output only

VCR 7, 10

Model with a DIGITAL OPTICAL OUTPUT or DIGITAL COAXIAL OUTPUTjack, etc.

Model equipped only with AUDIO OUT L/Rjaeks, ete.

8 9

continued m

^US

Required cords

The hookup diagrams on the subsequent pages assume the use of the following optional eonneetion eords (□ to B) (not supplied unless indieated).

□ Audio cord

White (L) Red (R) ^

B Audio/video cord

Yellow (video) c=l bJfd=^ White (L/audio) c=rT31tP^~ Red (R/audio) dQJjErt/"

qffrih^

B Video cord

Yellow c=f^lp=

Notes

• Turn off the power to all eomponents before making any eonneetions.

• Be sure to make eonneetions firmly to avoid hum and noise.

• When eonneeting an audio/video eord, be s^e to mateh the eolor-eoded pins to the appropriatejaeks on the eomponents: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.

• When eonneeting optieal digital eords, insert the eord plugs straight in until they eliek into plaee.

• Do not bend or tie optieal digital eords.

D Optical digital cord

E Coaxial digital cord (supplied)

Orange e^r^llE3=

60S

1a: Connecting components with digital audio output jacks

Hooking up a DVD player and VCR

For details on the required eords (0-0), see page 6.

(fi

Notes

• If you eonneet other eomponents, use the remote and operating instruetions supplied with the eonneeted eomponents for operation.

• You ean also listen to the sound of your TV by eonneeting your TV’s audio outputjaeks to the VIDEO 2 AUDIO IN jaeks on the reeeiver. In this ease, do not eonneet the TV’s video outputjaek to the VIDEO 2 VIDEO IN jaek on the reeeiver.

continued m

7 US

Hooking up a Super Audio CD/CD player

For details on the required eords (0-0), see page 6.

Tip

All the digital audiojaeks are eompatible with 32 kHz, 44.1 kHz, 48 kHz and 96 kHz sampling frequeneies.

Note

The sound is not output when you play a Super Audio CD on the Super Audio CD player eonneeted to the SA-CD/CD OPTICAL INjaek on this reeeiver. Conneet to the analog input jaeks (SA-CD/CD IN jaeks). Refer to the operating instruetions supplied with the Super Audio CD player.

8US

1b: Connecting components with only analog audio jacks

Hooking up audio components

For details on the required eords (0-0), see page 6.

(fi

continued-

9US

Hooking up video components

If you connect your TV to the MONITOR VIDEO OUT j ack, you can watch the video from the selected input (page 19). For details on the required cords (0-0), see page 6.

OPTICAL

SAifD

DVD IM

(i|

COAXIAL

DVD player

ANTENNA

□P

]a.

'ih

FM COAXIAL

AUDIO IMi AUDIO IM

VIDEO IN VIDEO IN

AUDIO IN

IN IN

10OS

2: Connecting the antennas

Connect the supplied AM loop antenna and FM wire antenna.

Notes

• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.

• Be sure to fully extend the FM wire antenna.

• A^er connecting the FM wire antenna, keep it as horizontal as possible.

3: Connecting speakers

Connect your speakers to the receiver. This receiver allows you to use a5.1 channel speaker system. To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a center speaker, and two surround speakers) and a sub woofer (5.1 channel).

Example of 5.1 channel speaker system configuration

Center speaker

Tips

• Since the sub woofer does not emit highly directional signals, you can place it wherever you want.

• For greater flexibility in the positioning of the speakers, use the optional WS-FVll or WS-FVIOD floor stand (available only in certain countries).

• You can also install the front and surround speakers on the wall (page l4).

Note

Connect the long speaker connecting cords to the surround and surround back speaker terminals and the short speaker connecting cords to the front and center speaker terminals.

Attaching foot pads

To prevent speaker vibration or movement, attach the supplied foot pads to the speaker as shown in the illustration below.

Note

Be sure to attach the supplied foot pads to the sub woofer as well.

12US

Required cord

□ Speaker cords (supplied) (+)

(-)

Black

Monaural audio cord (supplied)

(fi

C/)

Installing the speakers on the wall

You can install your front and surround speakers on the wall.

1 Prepare screws (not supplied) that are

suitable for the hole on the back of each speaker. See the illustrations below.

f \\\\\\\\\\\\\\I>4

\J............................. f (5/32 inch) (5/32 inch)

Fasten the screws to the wall. The

screws should protrude 5 to 7 mm (7/32 to 9/32 inch).

-------------------------

------------

more than 25 mm (1 inch)

Hole on the back of the speaker

»1

4.6 mm (3/16 inch)

10 mm (13/32 inch)

than 4 r

Notes

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where reinforcement is applied.

• Contact a screw shop or installer regarding the wall material or screws to be used.

• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.

3 Hang the speakers on the screws.

Hole on the back of the speaker

14US

4: Connecting the AC power cord

Connect the AC power cord to a wall outlet.

Performing initial setup operations

Before using the receiver for the first time, initialize the receiver by performing the following procedure. This procedure can also be used to return settings you have made to their factory defaults. Use the buttons on the receiver for the operation.

1 Press 1/1 to turn off the receiver. 2 Hold down 1/1 for 5 seconds.

“PUSH” and “ENTER” appears in the display alternatingly.

3 Press ENTER.

“CLEARING” appears in the display for a while, then “CLEARED” appears. The following are reset to their factory settings.

• All settings in the SET UP, LEVEL, TONE and CUSTOMIZE menus.

• The sound field memorized for each input and preset station.

• All sound field parameters.

• All preset stations.

• All index names for inputs and preset stations.

• MASTERVOLUME-/+issetto “VOL MIN”.

continued m

5: Setting up the speakers

You can use the SET UP menu to set the distance and location of the speakers connected to this receiver.

1 Press 1/1 to turn on the receiver. 2 Press MAIN MENU repeatedly to select

^SET U^”.

3 Press< or> repeatedly to select the

parameter you want to adjust.

For details, see “Speaker setup parameters” below.

Note

Some speaker setup items may appear dimmed in the display. This means that they have been adjusted automatically due to other speaker settings or may not be adjustable.

4 Press +or-repeatedly toselectthe

setting you want.

The setting is entered automatically.

5 Repeat steps 3 and 4 until you have set

all of the items that follow.

Speaker setup parameters

The initial setting is underlined.

DIST. XX ft

(Front speaker distance)

Initial setting: 10 ft Lets you set the distance from your listening position

to the front speakers (O)- You can adjust from 3 feet to 23 feet in 1 foot steps. If both front speakers are not placed an equal distance from your listening position, set the distance to the closest speaker.

DIST. XX ft

(Center speaker distance)

Initialsetting: 10 ft Lets you set the distance from your listening position to the center speaker. Center speaker distance should

be set from a distance equal to the front speaker distance (©) to a distance 5 feet closer to your listening position (B).

Initialsetting: 10 ft Lets you set the distance from your listening position to the surround speakers. Surround speaker distance should be set from a distance equal to the front speaker distance (A) to a distance 15 feet closer to your listening position (C). If both surround speakers are not placed an equal distance from your listening position, set the distance to the closest speaker.

Tip

The receiver lets you to input the speaker position in terms of distance. However, it is not possible to set the center speaker further than the front speakers. Also, the center speaker cannot be set more than 5 feet closer than the front speakers.

Likewise, the surround speakers cannot be set further away from the listening position than the front speakers. And they can be no more than 15 feet closer.

This is because incorrect speaker placement is not conducive to the enjoyment of surround sound.

Please note that, setting the speaker distance closer than the actual location of the speakers will cause a delay in the output of the sound from that speaker. In other words, the speaker will sound like it is further away. For example, setting the center speaker distance 3-6 feet closer than the actual speaker position will create a fairly realistic sensation of being “inside” the screen. If you cannot obtain a satisfactory surround effect because the surround speakers are too close, setting the surround speaker distance closer (shorter) than the actual distance will create a larger sound stage. Adjusting these parameter while listening to the sound often results in much better surround sound. Give it a try!

DIST. XX ft

(Surround speaker distance)

■ xxxx/xx (Surround speaker position)

Lets you specify the location of your surround speakers for proper implementation of the surround effects in the Cinema Studio EX modes

(page 24).

B \ B

Nevertheless, each listening environment has many variables, such as wall reflections, and you may obtain better results using “BEHD/HI” ifyour speakers are located high above the listening position, even if they are to the immediate le^ and right.

Therefore, although it may result in a setting contrary to the above explanation, we recommend that you playback multi channel surround encoded so^ware and select the setting that provides a good sense of spaciousness and that best succeeds in forming a cohesive space between the surround sound from the surround speakers and the sound of the front speakers. If you are not sure which sounds best, select “BEHD/ EO” or “BEHD/HI” and then use the speaker distance parameter and speaker level adjustments to obtain proper balance.

(fi

Select if the l corresponds t

• SIDE/HI

Select if the l corresponds t

• BEHD/EO

Select if the l corresponds t

• BEHD/HI

Select if the l corresponds t

Tip

Surround speaker position is designed specifically for implementation of the Cinema Studio EX modes.

For other sound fields, speaker position is not so critical. Those sound fields were designed under the premise that the surround speakers would be located behind the listening position, but presentation remains fairly consistent even with the surround speakers positioned at a rather wide angle. However, ifthe speakers are pointing toward the listener from the immediate left and right of the listening position, the surround effects becomes unclear unless set to “SIDE/EO” or “SIDE/HI”.

i location of your surround speakers s to section o and e.

i location of your surround speakers s to section o and ©.

i location of your surround speakers s to section B and e.

i location of your surround speakers s to section B and B.

nus

6: Setting up the sub

7: Adjusting the speaker

woofer

Listening to the sub woofer

POWER indicator

POWER

Before playing the program souree, set the volume to minimum on the reeeiver.

Turn on the receiver.

Press input buttons (e.g., DVD) to select the program source (e.g., DVD player).

Press POWER on the sub woofer.

The POWER indieator on the sub woofer lights up.

Play the program source.

Adjusting the level

Slight adjustments to the system ean enhanee your sound enjoyment.

LEVEL

Turn LEVEL to adjust the volume.

Set the volume level to best suit your preferenee aeeording to the program souree.

Note

Do not set the volume of the sub woofer to maximum. Extraneous noise may be heard.

levels and balance

— TEST TONE

Adjust the speaker levels and balanee while listening to the test tone from your listening position. Use the remote for the operation.

Tip

The reeeiver employs a test tone with a frequeney eentered at 800 Hz.

1 Press 1/1 to turn on the receiver. 2 Press TEST TONE.

“T. TONE” appears in the display and the test tone is output from eaeh speaker in sequenee.

Front (left) —► Center —► Front (right) —► Surround (right) —t Surround (left) —t Sub woofer

Adjust the speaker levels and balance

using the LEVEL menu so that the level of the test tone sounds the same from each speaker.

For details on the LEVEL menu settings, see page 26.

Tips

• To adjust the level of all speakers at the same time, press MASTER VOL +/- on the remote or t^ MASTER VOLUME -/+ on the reeeiver.

• The adjusted value are shown in the display d^ng adjustment.

4 Press TEST TONE again after

adjustment.

The test tone turns off.

Note

Although these adjustments can also be made via the front panel using the LEVEL menu (when the test tone is output, the reeeiver switehes to the LEVEL menu automatieally), we reeommend you follow the proeedure deseribed above and adjust the speaker levels from your listening position using the remote.

Amplifier Operation

Selecting the component

1 Press input buttons to select the input.

To select the Press

VCR VIDEO 1 or

DVD player DVD Super Audio CD or SA-CD/CD

CD player Built-in tuner (FM/AM) FM or AM

The selected input appears in the display.

Turn on the component and start

playback.

Note

If you select any video components, set the TV’s video input to match the component you selected.

Turn MASTER VOLUME -/+ to adjust

the volume.

Note

To avoid damaging your speakers, make sure that you turn down the volume before you turn off the receiver.

To mute the sound

Press MUTING on the remote. The muting function will be canceled when you do the following.

• Press MUTING on the remote again.

• Turn the power off.

• Increase the volume.

To use the headphones

Connect the headphones to the PHONESjack.

• When the headphones are connected, speaker output is automatically canceled and “SP” does not light up in the display.

• When the headphones are connected, you can select only the following sound fields (page 25).

- HP2CH(HEADPHONE 2CH)

- HP THEA (HEADPHONE THEATER)

VIDEO 2

Listening to FM/AM radio

You can listen to FM and AM broadcasts through the built-in tuner. Before operation, make sure you have connected the FM and AM antennas to the receiver (

Tip

The tuning scale is: FM: 100 kHz

AM: 10 kHz* * The AM tuning scale can be changed (see page 38).

see page 11).

Automatic tuning

If you do not know the frequency of the station you want, you can let the receiver scan all available stations in your area.

1 Press FM or AM to select the FM or AM

band.

The last received station is tuned in.

2 Press TUNING + or TUNING -.

Press TUNING + to scan from low to high; press TUNING - to scan from high to low. The receiver stops scanning whenever a station is received.

Tip

If “STEREO” flashes in the display and the FM stereo reception is poor, press FM MODE to change to monaural (MONO). You will not be able to enjoy the stereo effect, but the sound will be less distorted. To return to stereo mode, press FM MODE again.

■o

<D S

19US

Direct tuning

You can enter the frequency of the station you want directly. Use the remote for the operation.

1 Press FM or AM to select the FM or AM

band.

The last received station is tuned in.

Tip

You can also use FM or AM on the receiver.

Press D.TUNING.

Press the numeric buttons to enter the

frequency.

Example 1: FM 102.50 MHz Press 1b0b2b5b0 Example 2: AM 1,350 kHz Press 1 b 3 b 5 b 0 (You do not have to enter the last “0” when

the tuning scale issetto 10 kHz) If you have tuned in an AM station, adjust the direction of the AM loop antenna for optimum reception.

If you cannot tune in a station and the entered numbers flash

Make sure you have entered the right frequency. If not, repeat steps 2 and 3. If the entered numbers still flash, the frequency is not used in your area.

Presetting radio stations

You can preset up to 30 FM or AM stations. Then you can easily tune in the stations you often listen to.

Presetting radio stations

1 Press FM or AM to select the FM or AM

band.

The last received station is tuned in.

2 Tune in the station that you want to

preset using Automatic Tuning (page 19) or Direct Tuning (page 20).

3 Press MEMORY.

“MEMORY” appears in the display for a few seconds. Do steps display goes out.

4to 5 before the

4 Press PRESET TUNING + or PRESET

TUNING - repeatedly to select a preset station number.

Each time you press the button, you can select the preset station number as follows:

■►At y—►A2<—►... y—►AG^—►Bt y—►B2<—►... y—►BGt

*C0y...yC2yClT

If “MEMORY” goes out before you select the preset station number, start again from step

Tip

You can also use the remote to select a preset station number. Press SHIFT repeatedly to select a memory page (A, B or C) and then press the numeric buttons to select a preset number.

Press MEMORY again.

The station is stored to the selected preset number. If “MEMORY” goes out before you press MEMORY, start again from step 3.

Repeat steps 2 toS to preset another

station.

20OS

Tuning to preset stations

1 Press FM or AM to select the FM or AM

band.

The last received station is tuned in.

2 Press PRESET TUNING + or PRESET

TUNING - repeatedly to select the preset station you want.

Each time you press the button, you can select the preset station as follows:

■►At y——►... y—►AG^—►Bt y—yB2y—►... y— ►BGt

♦CG—C2—Ct*

Using the remote

1 Press FM or AM to select the FM or AM

band.

2 PressCH/PRESET/TRACKING+/-

repeatedly to select the preset station you want.

To select the preset station directly

Press the numeric buttons on the remote. The preset station of the selected number in the current memory page is tuned in. Press SHIFT repeatedly on the remote to change the memory page.

Changing the display

Changing the information in the display

You can check the sound field etc. by changing the information in the display.

Press DISPLAY repeatedly.

Each time you press DISPLAY, the display will change cyclically as follows. Index name of the input —► Selected input —► Sound field currently applied

When the tuner is selected

Preset station name —t Frequency —t Sound field currently applied * Index name appears only when you have assigned

one to the input or preset station (page 30). Index name does not appear when only blank spaces have been entered, or it is the same as the input name.

Adjusting the brightness of the display

Press DIMMER repeatedly.

The brightness of the display will change in 3 steps.

■D

(D 3

21^5

A SW: Lights up when audio signal is output

irom the SUB WOOFERjack.

B LFE: Lights up when the disc being played

back contains the LFE (Low Frequency Effect) channel and the LFE channel signal is actually being reproduced.

C SP: Lights up when you turn on the receiver.

Turns off when you connect headphones to the PHONESjack.

D ; DIGITAL: Lights up when the receiver is

decoding signals recorded in the Dolby Digital format.

E ; PRO LOGIC II: PRO LOGIC” lights

up when the receiver applies Pro Logic processing to 2 channel signals in order to output the center and surround channel signals. PRO LOGIC II” lights up when the Pro Logic II Movie/Music decoder is activated.

F DTS: Lights up when DTS signals are input.

Note

When playing a DTS format disc, be sure that you have made digital connections and that INPUT MODE is not set to “ANALOG”

(page 26).

G Tuner indicators: Lights up when using the

receiver to tune in radio stations, etc. See

19-20 for tuner operations.

pages

H D.RANGE: Lights up when dynamic range

compression is activated

I COAX: Lights up when the source signal is a

digital signal being input through the COAXIAL terminal.

J OPT: Lights up when the source signal is a

digital signal being input through the OPTICAL terminal.

K Playback channel indicators: The letters

(L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound.

L (Front Left), R (Front Right), C (Center (monaural)), SL (Surround Left), SR (Surround Right), S (Surround (monaural or the surround components obtained by Pro Logic processing))

Example:

Recording format (Front /Surround): 3/2 Sound Field: A.F.D. AUTO

(page 27).

E[C[r]

22US

Enjoying Surround Sound

Using only the front speakers and sub woofer

— 2CH STEREO

In this mode, the reeeiver outputs the sound from the front left/right speakers and sub woofer. When multi ehannel surround formats are input, the signals are downmixed to 2 ehannel with bass frequeneies being output from the sub woofer. When standard 2 ehannel stereo sourees are input, the reeeiver’s bass redireetion eireuitry will be aetivated. The front ehannel bass frequeneies will be output from the sub woofer.

Press 2CH.

“2CH ST.” appears in the display and the reeeiver switehes to the 2CH STEREO mode.

Enjoying higher fidelity sound

— AUTO FORMAT DIRECT

The Auto Format Direet (A.F.D.) mode allows you to seleet the deeoding mode you want for your audio sound.

A.F.D. mode (Display)

A.F.D. AUTO (A.F.D. AUTO)

PRO LOGIC (DOLBY PL)

PRO LOGIC II MOVIE (PLII MV)

PRO LOGIC II MUSIC (PLII MS)

MULTI STEREO (MULTI ST.)

Decoding the input audio signal automatically

In this mode, the reeeiver automatieally deteets the type of audio signal being input (Dolby Digital, DTS, standard 2 ehannel stereo, ete.) and performs the proper deeoding if neeessary. This mode presents the sound as it was reeorded/ eneoded, without adding any surround effeets. However, if there are no low frequeney signals (Dolby Digital LFE, ete.) it will generate a low frequeney signal for output to the sub woofer.

Press A.F.D. repeatedly to select “A.F.D. AUTO”.

The reeeiver automatieally deteets the type of audio signal being input and performs the proper deeoding if neeessary.

Decoding mode

As encoded

Dolby Pro Logic

Dolby Pro Logic II

m о

СЛ

2305

Enjoying stereo sound in multi channel (2 channel decoding mode)

This mode lets you speeify the type of deeoding for 2 ehannel audio sourees. This reeeiver ean reproduee 2 ehannel sound in 5 ehannels through Dolby Pro Logie II or 4 ehannels through Dolby Pro Logie.

Press A.F.D. repeatedly to select the 2 channel decoding mode.

The seleeted type of deeoding appears in the display.

■ DOLBY PL (PRO LOGIC)

Performs Dolby Pro Logic decoding. The source recorded in 2 ehannel is deeoded into 4.1 ehannels.

■ PLII MV (PRO LOGIC II MOVIE)

Performs Dolby Pro Logie II Movie mode deeoding. This setting is ideal for movies eneoded in Dolby Surround. In addition, this mode ean reproduee sound in 5.1 ehannel when watehing videos of overdubbed or old movies.

■ PLII MS (PRO LOGIC II MUSIC)

Performs Dolby Pro Logie II Musie mode deeoding. This setting is ideal for normal stereo sourees sueh as CDs.

■ MULTI ST. (MULTI STEREO)

Outputs the 2 ehannel L/R signals from all speakers.

Selecting a sound field

You can take advantage of surround sound simply by selecting one of the receiver’s pre programmed sound fields. They bring the exciting and powerful sound of movie theaters and concert halls into your home.

Selecting a sound field for movies

Press MOVIE repeatedly to select the sound field you want.

The seleeted sound field appears in the display.

Sound field Display

CINEMA STUDIO EX A PIWM C.ST.EX A CINEMA STUDIO EX B PCS C.ST.EX B CINEMA STUDIO EX C PCS C.ST.EX C

About DCS (Digital Cinema Sound)

Sound fields with marks use DCS technology. DCS is the concept name of the surround technology for home theater developed by Sony. DCS uses the DSP (Digital Signal Processor) technology to reproduce the sound characteristics of an actual cinema cutting studio in Hollywood. When played at home, DCS will create a powerful theater effect that mimics the artistic combination of sound and action as envisioned by the movie director.

■ C.ST.EX A (CINEMA STUDIO EX A) PICS

Reproduces the sound characteristics of the Sony Pictures Entertainment “Cary Grant Theater^’ cinema production studio. This is a standard mode, great for watching most any type of movies.

■ C.ST.EX B (CINEMA STUDIO EX B) PICS

Reproduces the sound characteristics of the Sony Pictures Entertainment “Kim Novak Theater^’ cinema production studio. This mode is ideal for watching science-fiction or action movies with lots of sound effects.

24US

■ C.ST.EX C (CINEMA STUDIO EX C) DTCS

Reproduces the sound characteristics of the Sony Pictures Entertainment scoring stage. This mode is ideal for watching musicals or films where orchestra music is featured in the soundtrack.

About CINEMA STUDIO EX modes

CINEMA STUDIO EX modes are suitable for watching motion picture DVDs (etc.), with multi channel surround effects. You can reproduce the sound characteristics of Sony Pictures Entertainment’s dubbing studio in your home. The CINEMA STUDIO EX modes consist of the following three elements.

• Virtual Multi Dimension

Creates 5 sets of virtual speakers from a single pair of actual surround speakers.

• Screen Depth Matching

Creates the sensation that the sound is coming from inside the screen like in theaters.

• Cinema Studio Reverberation

Reproduces the type of reverberation found in

theaters. The CINEMA STUDIO EX modes integrate these three elements simultaneously.

Notes

• The effects provided by the virtual speakers may

cause increased noise in the playback signal.

• When listening with so^d fields that employ the

virtual speakers, you will not be able to hear any so^d coming directly from the s^o^d speakers.

Selecting a sound field for music

Press MUSIC repeatedly to select the sound field you want.

The selected sound field appears in the display.

Sound field Display

HALL HALL JAZZ CLUB JAZZ LIVE CONCERT CONCERT

■ HALL

Reproduces the acoustics of a classical concert hall.

■ JAZZ (JAZZ CLUB)

Reproduces the acoustics of ajazz club.

■ CONCERT (LIVE CONCERT)

Reproduces the acoustics of a 300-seat live house.

When the headphones are connected

You can select only from the following sound fields.

■ HP 2CH (HEADPHONE 2CH)

Outputs the sound in 2 channel (stereo). Standard 2 channel stereo sources completely bypass the sound field processing and multi channel surround formats are downmixed to 2 channels.

■ HP THEA (HEADPHONE THEATER)

гаян

Allows you to experience a theater-like environment while listening through a pair of headphones.

Note

If you connect a pair of headphones while a sound field is operating, the system will automatically switch to HEADPHONE 2CH if using a sound field selected with the 2CH or A.F.D. button, or to HEADPHONE THEATER if using a sound field selected with the MOVIE or MUSIC button.

To turn off the surround effect

Press 2CH to select “2CH ST.” or press A.F.D. repeatedly to select “A.F.D. AUTO”.

Tips

• The receiver lets you apply the last selected sound field to an input whenever it is selected (Sound Field Eink). For example, if you select HAEE for the SA-CD/CD input, then change to a different input and then return to SA-CD/CD, HAEE will automatically be applied again.

• You can identify the encoding format of DVD so^ware, etc. by looking at the logo on the package. ^ : Dolby Digital discs

programs

^ : DTS Digital Surround encoded programs

Note

Sound fields do not function for the signals with a sampling frequency of more than 48 kHz.

ii] : Dolby Surround encoded

m о

C/)

Advanced Adjustments and Settings

Switching the audio input mode for digital

components

— INPUT MODE

You can switch the audio input mode for components which have digital audio input

jacks.

1 Press input buttons to select the input. 2 Press INPUT MODE repeatedly to

select the audio input mode.

The selected audio input mode appears in the display.

Audio input modes

• AUTOIN Gives priority to digital signals when there are both digital and analog connections. Ifthere are no digital signals, analog is selected.

• COAXIN Specifies the digital audio signals input to the DIGITAL COAXIAL inputjack.

• OPT IN Specifies the digital audio signals input to the

DIGITAL OPTICAL inputjacks.

• ANALOG Specifies the analog audio signals input to the

AUDIO IN (L/R)jacks.

Notes

• When signals with a sampling frequency of more

than 48 kHz is input, the tone and sound field cannot be used.

• Some audio input modes may be dimmed depending

on the input. This means that the selected input is unavailable.

Customizing sound fields

By adjusting the LEVEL menu, you can customize the sound fields to suit your particular listening situation.

Note on the displayed items

The setup items you can adjust in each menu vary depending on the sound field. Certain setup parameters may be dimmed in the display. This means that the selected parameter is either unavailable or fixed and unchangeable.

Adjusting the LEVEL menu

You can adjust the balance and level of each speaker. These settings are applied to all sound fields except for effect level parameter. The effect level parameter settings are stored individually for each sound field.

1 Start playing a source encoded with

multi channel surround effects (DVD, etc.).

2 Press MAIN MENU repeatedly to select

XLEVEO-”.

3 Press< or> repeatedly to select the

parameter you want to adjust.

For details, see “LEVEL menu parameters” below.

4 While monitoring the sound, press + or

- repeatedly to select the setting you want.

The setting is entered automatically.

5 Repeat steps 3 and 4 to adjust the other

parameters.

LEVEL menu parameters

The initial setting is underlined.

BAL. L/R XX

(Front speaker balance)

Initial setting: BALANCE (0) Lets you adjust the balance between front le^ and right speakers. You can adjust in the range of BAL. L (+1 to +8), BALANCE (0), BAL. R (+1 to +8) in 17 steps.

260S

■ CTRXXXdB (Center speaker level)

■ SUR.L. XXXdB (Surround speaker (left) level)

■ SUR.R. XXXdB (Surround speaker (right) level)

■ S.W. XXX dB (Sub woofer level)

Initial setting: 0 dB You can adjust from -10 dB to +10 dB in 1 dB steps.

■

Jd*RANGE|

COMP. XXX

(Dynamic range compressor)

Lets you compress the dynamic range of the sound track. This may be useful when you want to watch movies at low volumes late at night.

• OFF

The dynamic range is not compressed.

• STD

The dynamic range is compressed as intended by the

recording engineer.

• MAX

The dynamic range is compressed dramatically.

Tip

Dynamic range compressor lets you compress the dynamic range of the soundtrack based on the dynamic range information included in the Dolby Digital signal. “STD” is the setting, but it only enacts light compression. Therefore, we recommend using the “MAX” setting. This greatly compresses the dynamic range and lets you view movies late at night at low volumes. Unlike analog limiters, the levels are predetermined and provide a very natural compression.

Note

Dynamic range compression is possible with Dolby Digital sources only.

■ EFCT. XXX (Effect level)

Initial setting: STD Lets you adjust the “presence” of the surround effect in

3 levels - MIN (minimum effect), STD (standard effect) and MAX (maximum effect).

Note

This parameter is valid only when you use a sound field selected with the MOVIE or MUSIC button.

Resetting sound fields to the initial settings

Use the buttons on the receiver for the operation.

1 Press 1/1 to turn off the power. 2 While holding down 2CH, press

1/1.

“SF. CLR.” appears in the display and all sound fields are reset to the initial setting.

(fi

< 3

(fl 3

(fl

2JUS

Adjusting the tone

Advanced settings

You can adjust the tonal quality (bass, treble level) of the front speakers using the TONE menu.

1 Start playing a source encoded with

multi channel surround effects (DVD, etc.).

Press MAIN MENU repeatedly to select

^TON^”. Press< or> repeatedly to select the

parameter you want to adjust.

For details, see “TONE menu parameters” below.

While monitoring the sound, press + or

- repeatedly to select the setting you want.

The setting is entered automatically.

Repeat steps 3 and 4 to adjust the other

items.

Note

You cannot adjust the tone when the receiver is decoding signals with a sampling frequency of more than 48 kHz.

TONE menu parameters

■ BASS XX dB (Front speaker bass level)

■ TREB. XXdB (Front speaker treble level)

Initial setting: 0 dB You can adjust from -6 dB to+6 dBin 1 dB steps.

Using the CUSTOMIZE menu

to adjust the receiver

You can adjust various receiver settings using the CUSTOMIZE menu.

Press MAIN MENU repeatedly to select

^CUSTO^”.

Press< or> repeatedly to select the parameter you want to adjust.

For details, see “CUSTOMIZE menu parameters” below.

Press + or - repeatedly to select the

setting you want.

The setting is entered automatically.

Repeat steps 2 and 3 to adjust the other items.

CUSTOMIZE menu parameters

The initial settings are underlined.

■ A.V.SYNC.X (Time alignment)

• Y (Yes) (delay time : 68 ms)

The audio output is delayed so that the time gap between the audio output and visual display is minimized.

• N (No) (delay time : 0 ms)

The audio output is not delayed.

Notes

• This parameter is useful when you use a large LCD

or Plasma monitor or projection TV.

• This parameter is only valid when you use a sound

field selected with the 2CH or A.F.D. buttons.

• This parameter is not valid when PCM 96 kHz or

DTS 2048 signals are input.

■ DEC.XXXX (Digital audio input decoding priority)

Lets you specify the input mode for the digital signal input to the DIGITAL IN jacks.

• AUTO

Automatically switches the input mode between

DTS, Dolby Digital, or PCM.

• PCM

PCM signals are given priority (to prevent the interruption when playback starts). Even when other signals are input, the sound is output. However, this

receiver cannot decode DTS-CD when set to “DEC.

PCM”.

Note

When set to “DEC. AUTO” and the sound from the digital audio jacks (for CD, etc.) is interrupted when playback starts, set to “DEC. PCM”.

■ DUAL XXX

(Digital broadcast language selection)

Lets you select the language you want to listen to during digital broadcast. This feature only functions for Dolby Digital sources.

• M/S (Main/Sub)

Sound of the main language will be output through the front left speaker and sound of the sub language will be output through the front right speaker

simultaneously.

• M (Main) Sound of the main language will be output.

• S (Sub) Sound of the sub language will be output.

• M+S (Main + Sub) Mixed sound of both the main and sub languages will

be output.

■ NAME IN

(Naming preset stations and inputs)

Lets you set the name of preset stations and inputs selected with input buttons. For details, preset stations and inputs” on page 30.

see “Naming

(fi

< 3

tii

(fl

29US

Other Operations

Naming preset stations

and inputs

You can enter a name of up to 8 characters for preset stations and inputs selected with input buttons, and display it in the receiver’s display.

To index a preset station

Press FM or AM to select the FM or AM band, then tune in the preset station

you want to create an index name for

(page 21).

To index an input

Press the input button to select the input you want to create an index name

for.

Press MAIN MENU repeatedly to select ^CUSTO^”.

3 Press< or> repeatedly to select

“NAME IN”.

4 Press ENTER.

The cursor flashes and you can select a character.

5 Use< or>and + or- to create an

index name.

Press + or - repeatedly to select a character, then press > to move the cursor to the next position.

Tips

• You can select the character type as follows by pressing + or - repeatedly.

Alphabet (upper case) —► Numbers —► Symbols

• To enter a blank space, press + or - repeatedly until a blank space appears in the display.

• If you made a mistake, press < or > repeatedly until the character you want to change flashes, then press + or - repeatedly to select the correct character.

6 Press ENTER to store the index name.

Operations Using the Remote RM-AAU004

You can use the remote RM-AAU004 to operate the components in your system.

Remote button

description Before you use your remote

Inserting batteries into the

remote

Insert R6 (size-AA) batteries with the + and properly oriented in the battery compartment. When using the remote, point it at the remote sensor® on the receiver.

Under normal conditions, the batteries should last for about 6 months. When the remote no longer operates the receiver, replace all batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not expose the remote sensor to direct sunlight or

lighting apparatuses. Doing so may cause a

malfunction.

• If you don’t use the remote for an extended period of time, remove the batteries to avoid possible damage

from battery leakage and corrosion.

■o

tii

o o

* The H, MASTER VOL +, TV CH + and

TV VOL + buttons have a tactile dot. Use the tactile dot as a reference when operating the receiver and other audio/video components.

continued m

The tables below show the settings of each button.

Remote Button

A.F.D. 6

Operations Function

Receiver Selects the decoding

mode for audio sound. AM^a Receiver To select the AM band. ANTg; DVD PLAYER/

VIDEO CASSETTE RECORDER

Selects output signal

from the antenna

terminal: TV signal or

VCR program.

(VIDEO mode)

AUDIO9DVD PLAYER/ Changes the sound to

VIDEO Multiplex or Bilingual. CASSETTE RECORDER

AVl/1 VCR/ Turns the audio and

CD PEAYER/ DVD

video components on or

off.

PEAYER CH/ Receiver Selects preset stations. PRESET/

TRACKING +/-S3

DVD PLAYER/

VIDEO

CASSETTE

Selects preset channel.

RECORDER

(VIDEO

mode)

DVD PLAYER/ Adjust the tracking

VIDEO when distortion occurs.

CASSETTE

RECORDER

(VIDEO

mode) CEEAR DVD PLAYER/Clears a mistake when SI

CD PLAYER/

VIDEO

CASSETTE

RECORDER

you press the incorrect numeric buttons or returns to continuous playback etc.

(DVD mode) DISPEAY VIDEO

CASSETTE

RECORDER/

Selects information displayed on the TV screen.

DVD PLAYER D.TUNING

dvdII Receiver To watch DVD player/

Receiver Enters direct tuning

mode.

Video cassette recorder (DVD mode).

Remote Button

ENTER Sa

Operations Function

TV/VIDEO

Enters the selection CASSETTE RECORDER/ CD PLAYER

ENTER Wf

Receiver/

Enters the selection. VIDEO CASSETTE RECORDER/ DVD PLAYER

FM ei Receiver To select the FM

band.

MAIN MENU SI

Receiver Selects the menu of

the receiver.

MENU Wf VCR/ Displays menu.

DVD PLAYER

MASTER VOE +/-

Sj MOVIE/ MUSIC 7

Receiver/TV Adjusts the master

volume of the receiver.

Receiver Selects the

preprogrammed sound fields.

MUTING SI Receiver

Mutes the sound from the receiver.

RETURN/ oWf

DVD PLAYER/ VIDEO CASSETTE

Returns to the previous menu or

exits the menu. RECORDER (DVD mode)

SCAN/ SEOWy

DVD PLAYER/ Playback in slow VIDEO motion. CASSETTE RECORDER

SET UP w; DVD PLAYER/

VIDEO

Selects the SET UP

MENU. CASSETTE RECORDER

SHIFT Wj Receiver Selects a memory

page for presetting

radio stations or

tuning to preset

stations.

SHUTTEEwmDVD PLAYER/ Changes the playback

VIDEO speed. CASSETTE RECORDER

32US

Remote Button

SYSTEM Receiver/TV/ STANDBY DVD and other Sony audio/ (Press AV PLAYER/ video components.

1/11 and

1/1 2 at the same time)

T.TONE 8 Receiver Outputs test tone. TUNER Wj Receiver To listen to radio

Additional Information

Precautions

On safety

Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further.

On power sources

• Before operating the receiver, check that the operating voltage is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the receiver.

• The receiver is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the receiver itself has been turned off.

• If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

• (Models of area code U only) One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.

• AC power cord must be changed only at the qualified service shop.

On heat buildup

Although the receiver heats up during operation, this is not a malfunction. If you continuously use this receiver at a large volume, the cabinet temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the cabinet.

On placement

• Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver.

• Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.

• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.

• Use caution when placing the receiver or speakers on surfaces that have been specially treated (with wax, oil, polish, etc.) as staining or discoloration of the surface may result.

On operation

Before connecting other components, be sure to turn off and unplug the receiver.

If you encounter color irregularity on a nearby TV screen

The front and center speakers and the sub woofer are magnetically shielded to allow it to be installed near a TV set. However, color irregularities may still be observed on certain types of TV sets. As the surround speakers are not magnetically shielded, we recommend that you place the surround speakers slightly further away from TV set

(page 12).

If color irregularity is observed...

Turn off the TV set once, then turn it on again a^er

15 to30 minutes.

If color irregularity is observed again...

Place the speaker further away from the TV set.

If howling occurs

Reposition the speakers or turn down the volume on the receiver.

On cleaning

Clean the cabinet, panel and controls with a so^ cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any question or problem concerning your receiver, please consult your nearest Sony dealer.

340s

Troubleshooting

If you experience any of the following difficulties while using the receiver, use this troubleshooting guide to help you remedy the problem.

There is no sound or only a very low-level sound no matter which component is selected.

• Check that the speakers and components are connected securely and correctly.

• Check that both the receiver and all components are turned on.

• Check that you have selected the correct component on the receiver.

• Check that MASTER VOLUME -/+ is not set at “VOL MIN”.

• Check that the headphones are not connected.

• Press MUTING on the remote to cancel the

muting function.

There is no sound from a specific component.

• Check that the component is connected correctly

to the audio inputjacks for that component.

• Check that the cord(s) used for the connection is (are) fully inserted into thejacks on both the

receiver and the component.

• Check that you have selected the correct component on the receiver.

There is no sound from one of the front speakers.

• Connect a pair of headphones to the PHONES

jack to verify that sound is output from the headphones. If only one channel is output from the headphones, the component may not be connected to the receiver correctly. Check that all the cords

are fully inserted into the jacks on both the

receiver and the component. Ifboth channels are

output from the headphones, the front speaker

may not be connected to the receiver correctly.

Check the connection of the front speaker which is

not outputting any sound.

There is no sound from analog 2 channel sources.

• Check that the INPUT MODE is not set to “COAX IN” or “OPT IN” ^age 26).

There is no sound from digital sources (from COAXIAL or OPTICAL inputjack).

• Check that the INPUT MODE is not set to “ANALOG” MODE is not set to “COAX IN” for the sources from OPTICAL inputjack, or set to “OPT IN” for

the sources from COAXIAL inputjack.

The left and right sounds are unbalanced or

reversed.

• Check that the speakers and components are connected correctly and securely.

• Adjust balance parameters in the LEVEL menu.

There is severe hum or noise.

• Check that the speakers and components are connected securely.

• Check that the connecting cords are away from a

transformer or motor, and at least 10 feet away

from a TV set or fluorescent light.

• Move your TV away from the audio components.

• The plugs andjacks are dirty. Wipe them with a cloth slightly moistened with alcohol.

There is no sound or only a very low-level sound is heard from the center/surround speakers.

• Select a CINEMA STUDIO EX mode (page 24).

• Adjust the speaker level (page 18).

There is no sound from the sub woofer.

• Check that the sub woofer is connected correctly and securely.

The surround effect cannot be obtained.

• Make sure the sound field function is on (press MOVIE or MUSIC).

• Sound fields do not function for the signals with a sampling frequency ofmore than 48 kHz.

(page 26). Check that the INPUT

Q. Q.

continued Ш

Dolby Digital or DTS multi channel sound is not reproduced.

• Check that the playing DVD, etc. is recorded in Dolby Digital or DTS format.

• When connecting the DVD player, etc. to the digital inputjacks ofthis receiver, checkthe audio setting (settings for the audio output) of the connected component.

The FM reception is poor.

• Use a 75-ohm coaxial cable (not supplied) to connect the receiver to an outdoor FM antenna as shown below. If you connect the receiver to an outdoor antenna, ground it against lightning. To

prevent a gas explosion, do not connect the ground wire to a gas pipe.

Outdoor FM antenna

Remote control

The remote does not function.

• Point the remote at the remote sensor ^ on the receiver.

• Remove any obstacles in the path between the remote and the receiver.

• Replace all the batteries in the remote with new ones, if they are weak.

• Make sure you select the correct input on the remote.

• Before you use the V/V/B/b button for receiver operation, press MAIN MENU. To operate other components, press TOP MENU or MENU after pressing the input button.

Radio stations cannot be tuned in.

• Check that the antennas are connected securely. Adjust the antennas and connect an external

antenna if necessary.

• The signal strength ofthe stations is too weak

(when tuning in with automatic tuning). Use direct

tuning.

• Make sure you set the tuning interval correctly

(when tuning in AM stations with direct tuning).

• No stations have been preset or the preset stations have been cleared (when tuning by scanning preset stations). Preset the stations

(page 20).

• Press DISPLAY repeatedly so that the frequency

appears in the display.

There is no picture or an unclear picture appears on the TV screen or monitor.

• Select the appropriate input on the receiver.

• Set your TV to the appropriate input mode.

• Move your TV away from the audio components.

Error messages

If there is a malfimetion, the display shows a message. You ean eheek the eondition of the reeeiver by the message. Refer to the following table to solve the problem.

DEC. EROR

Appears when the signal whieh the reeeiver eannot deeode (ex. DTS-CD) is input when “DEC. XXXX” is set to “DEC. PCM”. Set to “DEC. AUTO”.

PROTECT

Irregular eurrent is output from the speakers. The reeeiver will automatieally turn off a^er a few seeonds. Cheek the speaker eonneetion and turn on the power again. If this problem persists, eonsult your nearest Sony dealer.

If you are unable to remedy the

problem using the troubleshooting guide

Clearing the reeeiver’s memory may remedy the problem

(page 15). However, note that all memorized settings will be reset to their faetory settings and you will have to readjust all settings on the reeeiver.

If the problem persist

Consult your nearest Sony dealer.

Reference sections for clearing the receiver’s memory

To clear See

All memorized settings page 15 Customized sound fields page 27

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION:

With 6 ohm loads, both ehannels driven, from

120 - 20,000 Hz; rated 70 watts per ehannel minimum RMS power, with no more than 0.7% total harmonie distortion from 250 milliwatts to rated output.

Amplifier section

Power Output (6 ohms 1 kHz, THD 10%) FR0NT2): 110W/eh CENTER2): 110 W

SURR2): 110 W/eh

1) Measured under the following eonditions:

2) Depending on the sound field settings and the

souree, there may be no sound output.

Inputs (Analog)

SA-CD/CD, DVD, VIDEO 1, 2

Inputs (Digital) DVD (Coaxial) Sensitivity: -

SA-CD/CD (Optieal) Sensitivity: -

Outputs (Analog)

SUB WOOFER Voltage: 2 V

120 VAC, 60 Hz

Sensitivity: 800 mV Impedance: 50 k ohms

Impedanee: 75 ohms

Impedanee: -

Impedance: 1 kohm

Q. Q.

Reproduetion frequeney range:

28-20,000 Hz

Tone Gain levels ±6 dB, 1 dB step

continued m

FM tuner section

Tuning range Antenna Antenna terminals Intermediate frequency

AM tuner section

Tuning range With 10-kHz tuning scale: 530 - 1,710 kHz^^ With9-kHztuning scale: 531 - 1,710kHz3^ Antenna Loop antenna Intermediate Frequency 450 kHz

3) You can change the AM tuning scale to 9 kHz or 10 kHz. A^er tuning in any AM station, turn off the receiver. While holding down PRESET TUNING + or TUNING +, press 1/1. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure.

General

Power requirements 120 V AC, 60 Hz Power consumption 170 W Power consumption (during standby mode)

Dimensions (w/h/d) (Approx.)

Mass (Approx.) 6.5 kg (14 lb 6 oz)

Speaker section

87.5- 108.0 MHz FM wire antenna 75 ohms, unbalanced

10.7 MHz

0.2 W

430 X 145 x 301.5 mm

(17 X 5 6/8 X 117/8 inches) including projecting parts and controls

Front speakers (SS-MSP67L/ SS-MSP67R)

Center speaker (SS-CNP67) Surround speakers (SS-MSP67SL/

SS-MSP67SR)

Front/center speakers

Surround speakers Speaker units Enclosure type Rated Impedance Dimension (w/h/d) (Approx.) Front/surround speakers 91 x 96 x 102 mm

Center speaker

Mass (Approx.) Front speaker Center speaker Surround speaker

Full range, magnetically

shielded Full range 70 mm cone type Closed type 6 ohms

(3 1/2 x 3 3/4 x4 inches) 155 x 96.2 x 102 mm (6 1/8 x 3 3/4 x4 inches)

0.65 kg (1 lb 7 oz)

0.75 kg(1 lb 11 oz)

0.6 kg (1 lb 6 oz)

Sub woofer (SA-WMSP87)

Speaker system

Speaker unit Enclosure type

RMS output

Input

Power requirements Power consumption Dimensions (w/h/d) (Approx.)

Mass (Approx.) 9.0 kg (19 lb12 oz)

Supplied accessories

FM wire antenna (1) AM loop antenna (1) Speaker connecting cord, long (2) Speaker connecting cord, short (3) Monaural connecting cord (1) Coaxial digital cord (1) Foot pads (speakers) (20) Foot pads (subwoofer) (4) Remote commander (1) R6 (size-AA) batteries (2) Speakers

• Front speakers (2)

• Center speaker (1)

• Surround speakers (2)

• Sub woofer (1)

For details on the area code of the component you are using,

Design and specifications are subject to change without notice.

see page 3.

Active subwoofer, magnetically shielded

200 mm cone type Acoustically loaded bass reflex

155 W (5 ohms, 100 Hz, THD 10%) LINE IN (input pinjacks)

120 VAC, 60 Hz

100 W

270 x 325 x 398 mm (10 6/8 x 12 7/8 x15 1/4 inches) including front panel

List of button locations and reference pages

How to use this page

Use this page to find the loeation ofbuttons that are mentioned in the text.

Main unit

ALPHABETICAL ORDER

A-H

A.F.D. 2(23,24, 25) AM Eh (

19, 20, 30)

DIMMER 3(21) DISPLAY 2 Display 5 (21)

DVDg9]( ENTER 7 (15,30) FM 5T]( FM MODE Wg (19)

(21,36)

19)

19, 20, 30)

I-O P -z

INPUT MODE 03] (26) IR (reeeptor) 4 (31, 36) MAIN MENU 6 (16, 26, 28, 30) MASTER VOLUME -/+ 02] (15,

18, 19, 35) MEMORY Wf (20) MOVIE 0 (24, 25, 35) MUSIC 0a (25, 35)

Illustration number

DISPLAY 2(21, 36)

Name of button/part Reference page

R i

PHONES (jaek) H (19, 35) PRESET TUNING -/+ WS (20) SA-CD/CD 08] ( TUNING -/+ Wd (19) VIDEO 1 Wa(19) VIDEO 2 W|(19)

NUMBERS AND SYMBOLS

2CH 8 (23,25,27) 1/1 (power) 1 (15, 16, 19, 27) </>03(

16, 26,28,30)

+/-0g(16, 26,28,30)

19)

Q. Q.

39^^

Index

Adjusting

CUSTOMIZE parameters 28 LEVEL parameters 26 SETUP parameters 16 speaker levels and TONE parameters 28

Automatic tuning 19

balance 18

Changing

display 21 Clearing receiver’smemory 15 CUSTOMIZE menu 28

Digital Cinema Sound 24 Direct tuning 20 Dual Mono 29

Indexing. See Naming Installing the speakers 14

Labeling. See Naming LEVEL menu 26

Selecting

component 19

sound field 24—25 SETUP menu 16 Sound field

customizing 26

pre-programmed 24—25

resetting 27

selecting

24—25

Speakers

adjusting speaker levels and balance 18

connection 12

installing 14

placement Suppliedaccessories 38

Test tone 18 TONE menu 28 Tuning

automatically 19

directly 20

to preset stations 20

Naming 30

Preset stations

how to

how to tune 21

Sony Corporation Printed in Malaysia

http://www.sony.net/

Sony HT-DDW675 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

WARNING

About This Manual

Table of Contents

Getting Started

1: Check how to hookup your components

Required cords

1a: Connecting components with digital audio output jacks

Hooking up a DVD player and VCR

Hooking up a Super Audio CD/CD player

1b: Connecting components with only analog audio jacks

Hooking up video components

2: Connecting the antennas

3: Connecting speakers

Installing the speakers on the wall

Performing initial setup operations

Speaker setup parameters

Listening to the sub woofer

Adjusting the level

Amplifier Operation

Selecting the component

Listening to FM/AM radio

Automatic tuning

Direct tuning

Presetting radio stations

Tuning to preset stations

Changing the information in the display

Adjusting the brightness of the display

Enjoying Surround Sound

Using only the front speakers and sub woofer

Decoding the input audio signal automatically

Enjoying stereo sound in multi channel (2 channel decoding mode)

Selecting a sound field for movies

Selecting a sound field for music

Advanced Adjustments and Settings

Adjusting the LEVEL menu

Resetting sound fields to the initial settings

Adjusting the tone

Advanced settings

Other Operations

Operations Using the Remote RM-AAU004

Additional Information

Precautions

Main unit

Index
