Sony HT-CT780 Operating Instructions

Sound Bar

Operating Instructions

Manuel d’instructions

Manual de instrucciones

4-565-123-13(1)

HT-CT380/CT780

Owner’s Record

The model and serial numbers are located on the bottom of the Bar Speaker. Record serial numbers in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. HT-CT380/CT780

Serial No._____________________________

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.

Indoor use only.

For the Bar Speaker

The nameplate and the date of manufacture marking are located on the bottom.

For the customers in the U.S.A.

The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc. Do not expose the appliance to naked flame sources (for example, lighted candles).

To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance.

As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

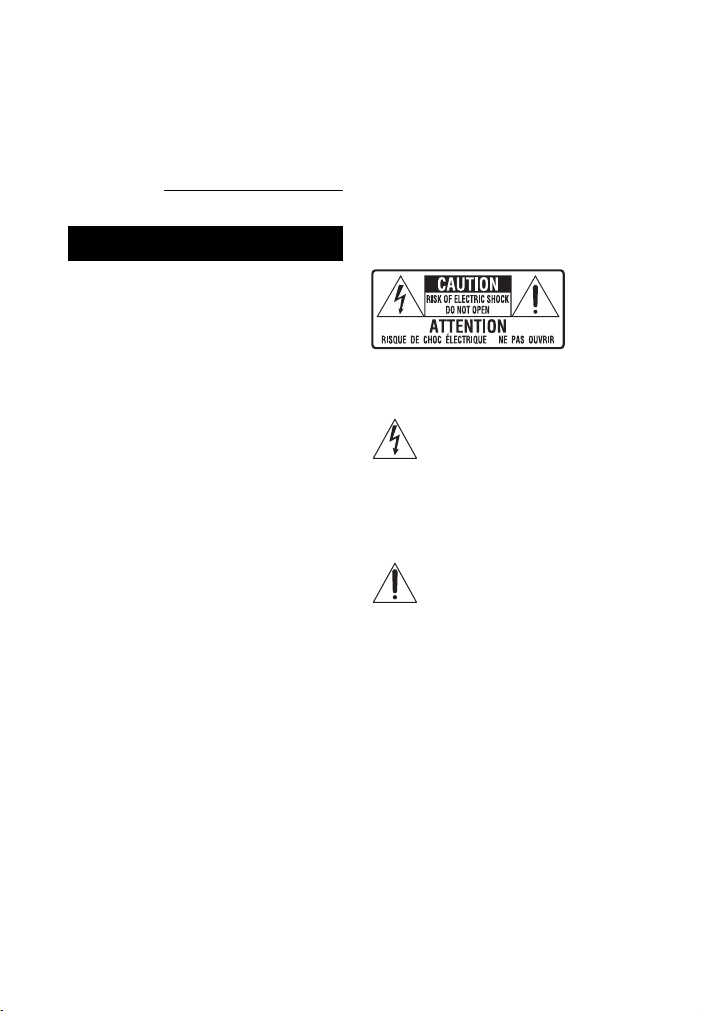

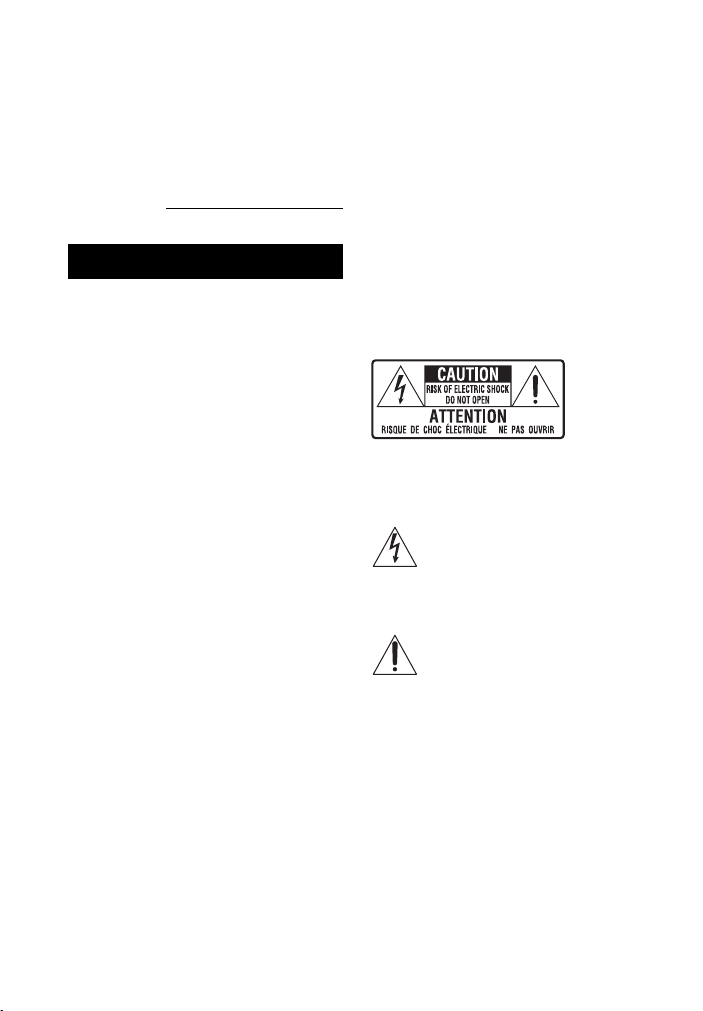

The Caution Marking is put on the Bottom Enclosure (For the Bar Speaker).

This symbol is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert

the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near

water.

6) Clean only with dry cloth.

7) Do not block any ventilation

openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources

such as radiators, heat registers,

stoves, or othe r apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The following FCC statement applies only to the version of this model manufactured for sale in the U.S.A.

Other versions may not comp ly with FCC technical regulations.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet

on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

Properly shielded and grounded cables and connectors must be used for connection to host computers and/or peripherals in order to meet FCC emission limits.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This equipment must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles).

For the customers in Canada

Properly shielded and grounded cables and connectors must be used for connection to host computers and/or peripherals.

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).

Copyrights and Trademarks

This system incorporates Dolby* Digital and the DTS** Digital Surround System. * Manufactured under license from

Dolby Laboratories. Dolby, and the double-D symbol are trademarks of Dolby Laboratories.

** For DTS patents, see http://

The BLUETOOTH are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license.

This system incorporates HighDefinition Multimedia Interface (HDMI™) technology. The terms HDMI and HDMI HighDefinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

Android™ and Google Play™ are trademarks of Google Inc.

word mark and logos

Apple, the Apple lo go, iPhone, iPod, and iPod touch are tradem arks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

“Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to con nect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

Compatible iPod/iPhone models

The compatible iPod/iPhone models are as follows. Update your iPod/iPhone with the latest software before using with the system.

BLUETOOTH technology works with: iPhone 6 Plus/iPhone 6/iPhone 5s/ iPhone 5c/iPhone 5/iPhone 4s/ iPhone 4/iPhone 3GS iPod touch (5th generation)/iPod touch (4th generation)

“PlayStation of Sony Computer Entertainment Inc.

Other trademarks and trade names are those of their respective owners.

” is a registered trademark

“BRAVIA” logo is a trademark of Sony Corporation.

“DSEE” is a trademark of Sony Corporation.

“ClearAudio+” is a trademark of Sony Corporation.

“x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation.

About these operating instructions

•The instructions in these Operating Instructions describe the controls on the remote control. You can also use the controls on the main unit if they have the same or similar names as those on the remote control.

•Some illustrations are presented as conceptual drawings, and may be different from the actual products.

Table of Contents

Connecting

About these operating

instructions .......................... 6

Startup Guide (separate document)



Listening

Listening to sound from a TV,

Blu-ray Disc™ player, cable/

satellite box, etc. ................. 8

Listening to music from a

BLUETOOTH device ............. 8

Sound Adjustment

Enjoying sound effects (Sports

mode, etc.) ..........................11

BLUETOOTH Functions

Controlling the system using a

smartphone or tablet

device (SongPal) ................. 12

Viewing Copyright-protected 4K Content (HT-CT780 only)

Connecting to a 4K TV and 4K

devices .............................14

Settings and Adjustments

Using the setup display ........ 16

Other Functions

Using the Control for HDMI

function ...............................19

Using “BRAVIA” Sync

features .............................. 20

Using the parental lock

function ............................... 21

Saving power in standby

mode ................................... 21

Mounting the Bar Speaker on

a wall ...................................22

Installing the subwoofer

horizontally (HT-CT380

only) ................................... 24

Linking the system (Link to the

subwoofer) ........................ 24

Additional Information

Precautions ...............................25

Troubleshooting ...................... 26

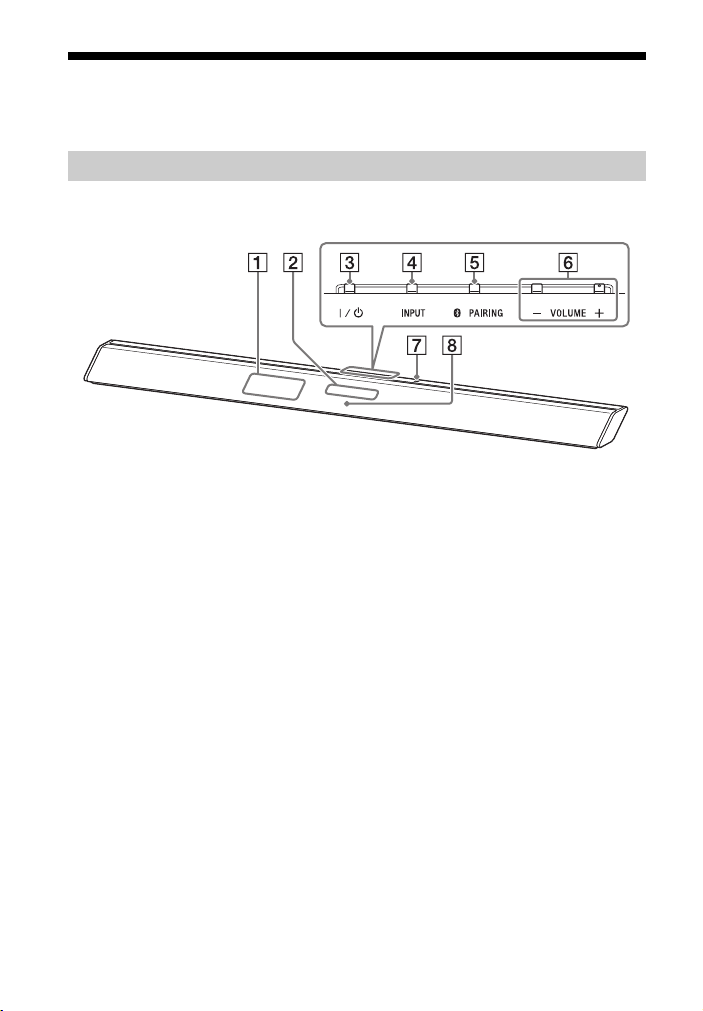

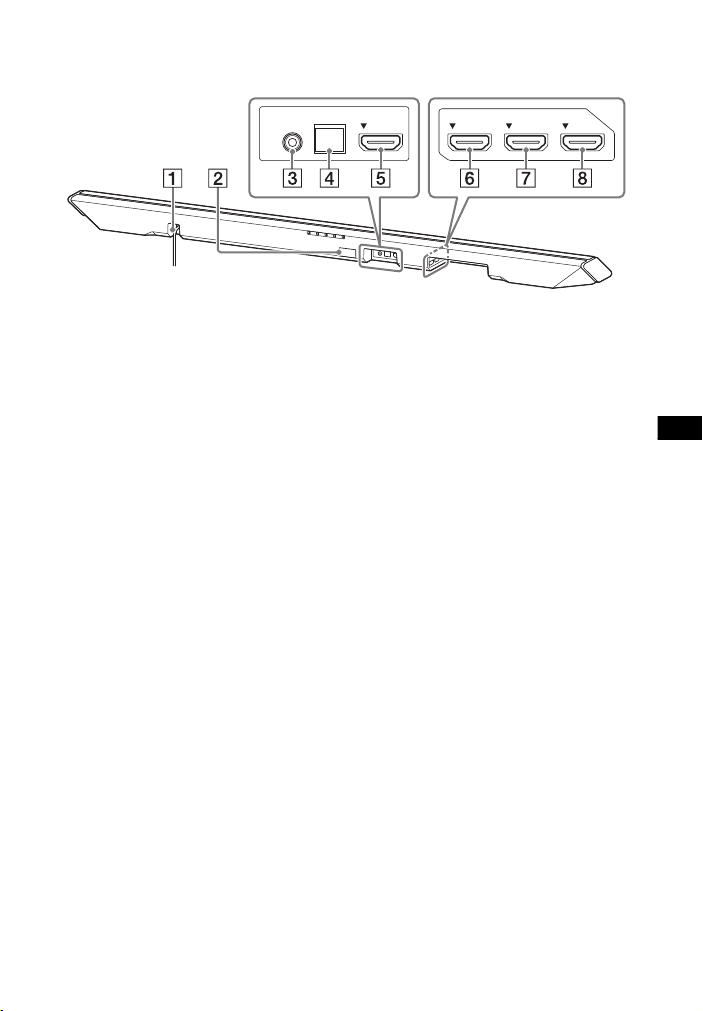

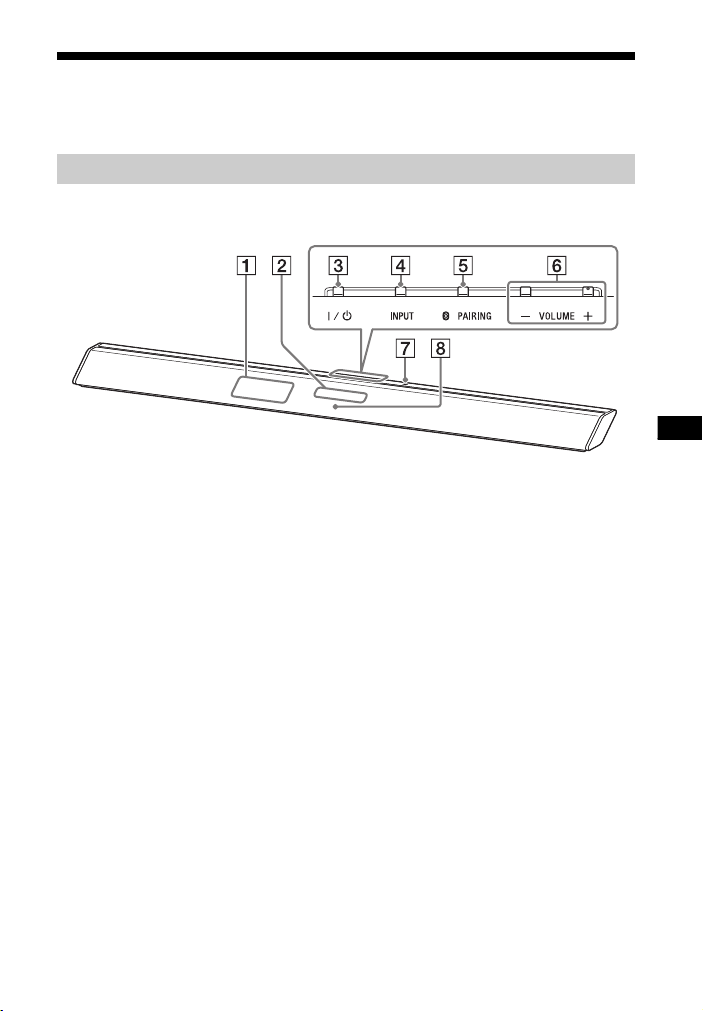

Guide to parts and controls .....31

Supported audio formats .........35

Specifications ...........................37

On BLUETOOTH

communication ................. 39

END USER LICENSE

AGREEMENT .......................40

Listening

Listening to sound from a TV, Blu-ray Disc™ player, cable/satellite box, etc.

Press INPUT repeatedly.

When you press INPUT once, the current device appears on the front display, then each time you press INPUT, the device changes cyclically as follows.

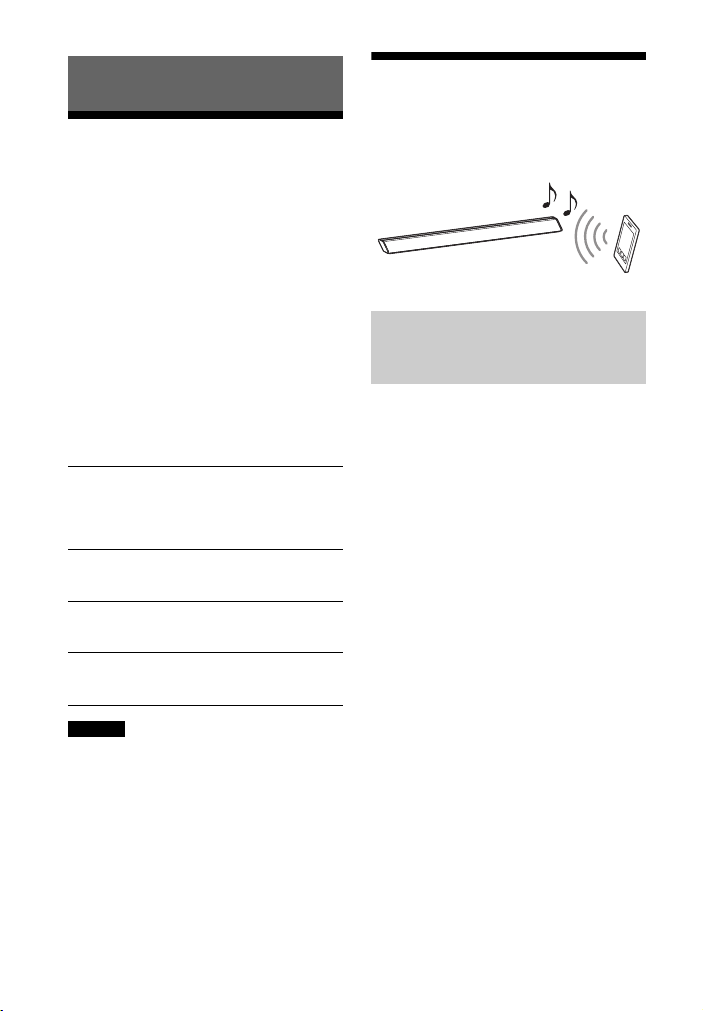

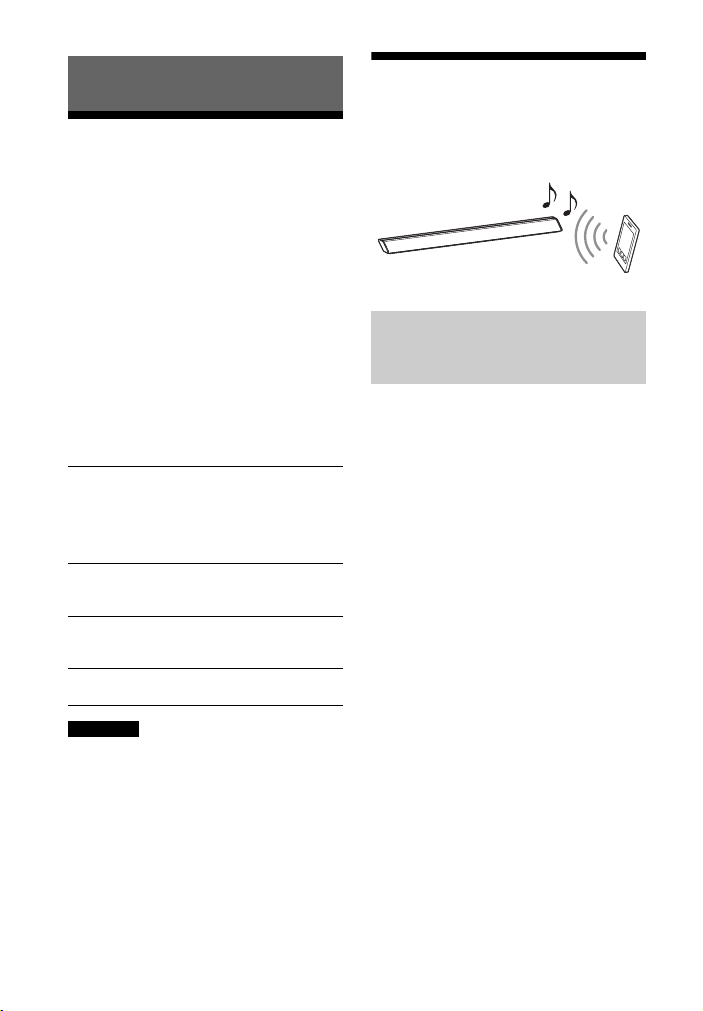

Listening to music from a BLUETOOTH device

Pairing this system with a BLUETOOTH device

[TV]  [HDMI 1]  [HDMI 2]  [HDMI 3]  [ANALOG]  [BT]

[TV]

Digital device that is connected to the DIGITAL IN (TV) jack or TV compatible with the Audio Return Channel function that is connected to HDMI OUT (ARC) jack

[HDMI 1] [HDMI 2] [HDMI 3]

Blu-ray Disc player, etc. that is connected to the HDMI IN 1, 2, or 3 jack

[ANALOG]

Analog device that is connected to the ANALOG IN jack

[BT]

BLUETOOTH device that supports A2DP

Tip

• If the BLUETOOTH functions are disabled, [BT OFF] appears instead of [BT].

Pairing is the process required to create a link between BLUETOOTH devices to allow wireless connection. You must pair a device with the system before you start using the system. Once BLUETOOTH devices are paired, there is no need to pair them again.

1 Press PAIRING on the system.

The BLUETOOTH indicator (blue) flashes quickly during BLUETOOTH pairing.

2 Turn on the BLUETOOTH function

on the BLUETOOTH device, search for devices and select this system (HT-CT380 or HT-CT780).

If a Passkey is requested, enter “0000.”

3 Make sure that the BLUETOOTH

indicator (blue) lights up.

Connection has been established.

Note

• You can pair up to 9 BLUETOOTH devices. If the 10th BLUETOOTH device is paired, the least recently connected device will be replaced by the new one.

Listening

Tip

• Once the BLUETOOTH connection is established, an indication recommending which application to download will be displayed, according to what equipment you have connected. Following the instructio ns displayed, a n application called “SongPal,” which will enable you to operate this system, can be downloaded. Refer to “Controlling the system using a smartphone or tablet device (SongPal)” (page 12).

Listening to music of the registered device

1 Press INPUT repeatedly to display

[BT].

The BLUETOOTH indicator (blue) flashes during attempting BLUETOOTH pairing.

2 On the BLUETOOTH device, select

this system (HT-CT380 or HT-CT780).

3 Make sure that the BLUETOOTH

indicator (blue) lights up.

4 Start playback on the BLUETOOTH

device.

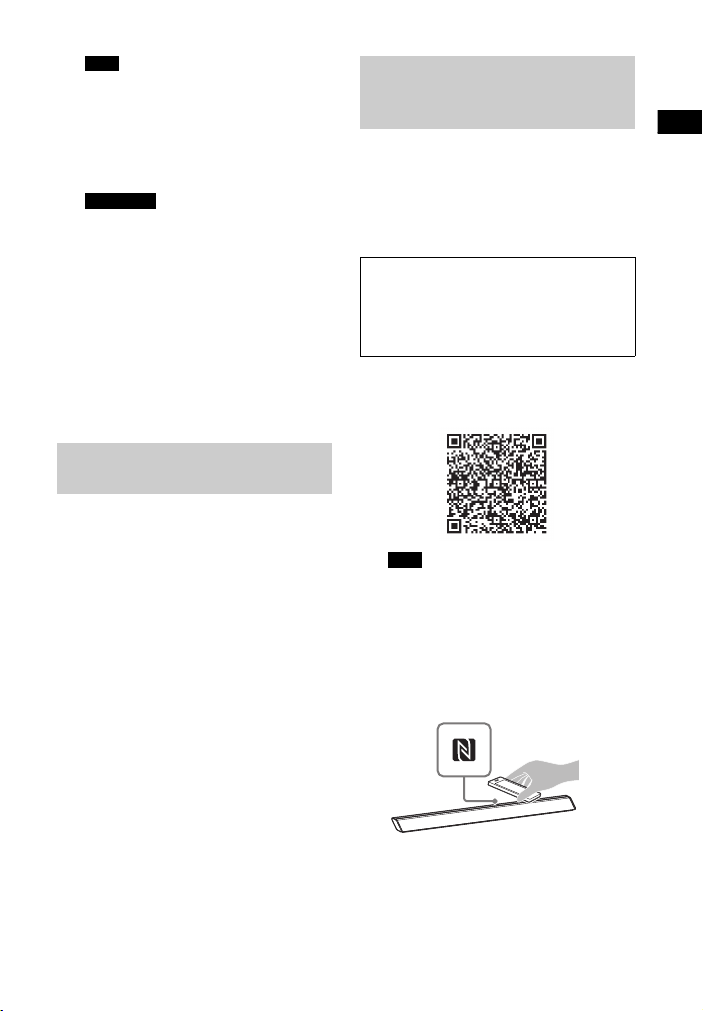

Connecting to a BLUETOOTH device by One-touch functions (NFC)

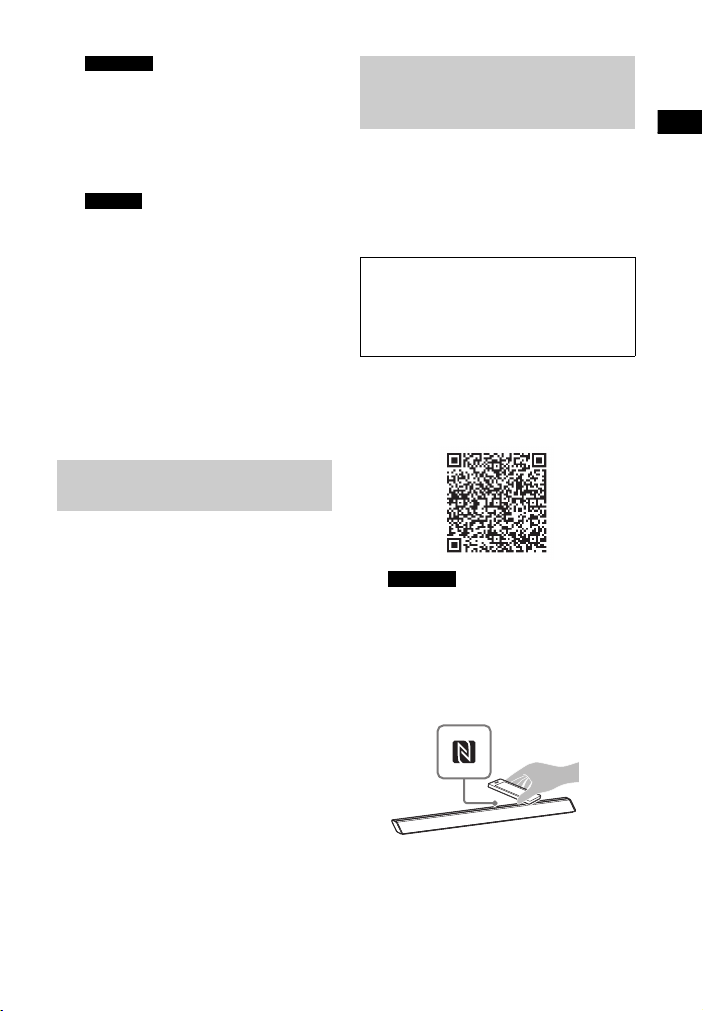

By holding an NFC-compatible remote device near to the N-Mark on the system, the system and remote device proceed to complete pairing and the BLUETOOTH connection automatically.

Compatible remote devices

Remote devices with a built-in NFC function (OS: Android 2.3.3 or later, excluding Android 3.x)

1 Download, install, and start the

“NFC Easy Connect” application.

Note

• The application may not be available in some countries/regions.

2 Hold the remote device near to

the N-Mark on the system until the remote device vibrates.

3 Make sure that the BLUETOOTH

indicator (blue) lights up.

Connection has been established.

Notes

• You can connect only one device at a time.

•Depending on a smartphone, you may need to set the NFC function to on beforehand. Refer to the operating instructions of the smartphone.

Tip

• If pairing and the BLUETOOTH connection fail, do the following. – Relaunch “NFC Easy Connect” and move

the remote device slowly over the N-Mark.

– Remove the case from the remote

device if using a commercially available remote device case.

Sound Adjustment

Enjoying sound effects (Sports mode, etc.)

You can easily enjoy pre-programmed sound fields that are tailored to different kinds of sound sources.

Setting the Night mode

Sounds are played back enhanced with sound effects and clarity of dialog.

Press NIGHT to display [N. ON].

To inactivate the Night mode, press NIGHT to display [N. OFF].

Setting the Voice mode

Selecting the sound field

Press SOUND FIELD repeatedly until the desired sound field appears on the front panel display.

[CLEARAUDIO+]

The suitable sound setting is automatically selected for the sound source.

[STANDARD]

Corresponds to every source.

[MOVIE]

Sounds are played back with surround effects, and they are realistic and powerful, making them suitable for movies.

[SPORTS]

Commentary is clear, cheers are heard as surround-sound, and sounds are realistic.

[GAME]

Sounds are powerful and realistic, suitable for game play.

[MUSIC]

Sounds are played back to suit to a music program, music Blu-ray Disc, or DVD.

[P.AUDIO (Portable audio)]

Sounds are played back to suit to a portable music player using DSEE*.

* DSEE stands for Digital Sound

Enhancement Engine, a high range compensation and fine sound restorat ion technology developed independently by Sony.

The Voice mode helps make dialogs clearer.

Press VOICE repeatedly to display the desired type.

[TYPE 1]

Dialog range is outputted directly.

[TYPE 2]

Dialog range is stressed.

[TYPE 3]

The range of dialogue is highlighted, and in treble parts with low volume difficult to be discerned by the elderly are boosted.

BLUETOOTH Functions

Controlling the system using a smartphone or tablet device (SongPal)

“SongPal” is the application to operate the system with your smartphone or tablet, etc. “SongPal” is available from either Google Play or App Store. This function is enabled by setting [BT PWR] to [ON] (page 17). The default setting is [ON].

When using an Android device

1 Press / (on/standby) on the

remote control.

The display of the B ar Speaker lights up.

2 Search for “SongPal” with the

Android device and download that application.

3 Run “SongPal” then follow the on-

screen instructions.

Tip

• If the display for NFC connection appears, see “One-Touch connection using the Android device with the NFC function built-in (NFC).”

4 After the BLUETOOTH connection

display appears on the Android device, press PAIRING.

The BLUETOOTH indicator (blue) flashes quickly during BLUETOOTH pairing.

5 Select this system (HT-CT380 or

HT-CT780) from the BLUETOOTH device list of the Android device.

When the connection has been established, the BLUETOOTH indicator (blue) lights up.

6 Operate the system with the

display of the connected Android device.

One-Touch connection using the Android device with the NFC function built-in (NFC)

1 Perform steps 1 to 3 of “When

using an Android device.”

2 After the BLUETOOTH connection

display appears on the Android device, touch the Android device with the N-Mark on the Bar Speaker.

When the connection has been established, the BLUETOOTH indicator (blue) lights up.

3 Operate the system with the

display of the Android device.

When using an iPhone/iPod touch

1 Press / (on/standby) on the

remote control.

The display of the Bar Speaker lights up.

2 Press PAIRING.

The BLUETOOTH indicator (blue) flashes quickly during BLUETOOTH pairing.

BLUETOOTH Functions

3 Set the iPhone/iPod touch to

pairing mode and select this system (HT-CT380 or HT-CT780) from the BLUETOOTH device list on the iPhone/iPod touch.

When the connection has been established, the BLUETOOTH indicator (blue) of the Bar Speaker lights up.

4 Search for “SongPal” with the

connected iP hone/iPod touch and download that application.

5 Run “SongPal” then operate the

system with the display of the iPhone/iPod touch.

Viewing Copyright-protected 4K Content (HT-CT780 only)

HDCP 2.2compatible HDMI jack

Blu-ray Disc player, cable box or satellite box, etc.

 HDMI cable (High Speed type, not

supplied)

 HDMI cable (High Speed type, not

supplied)

HDCP 2.2compatible HDMI jack

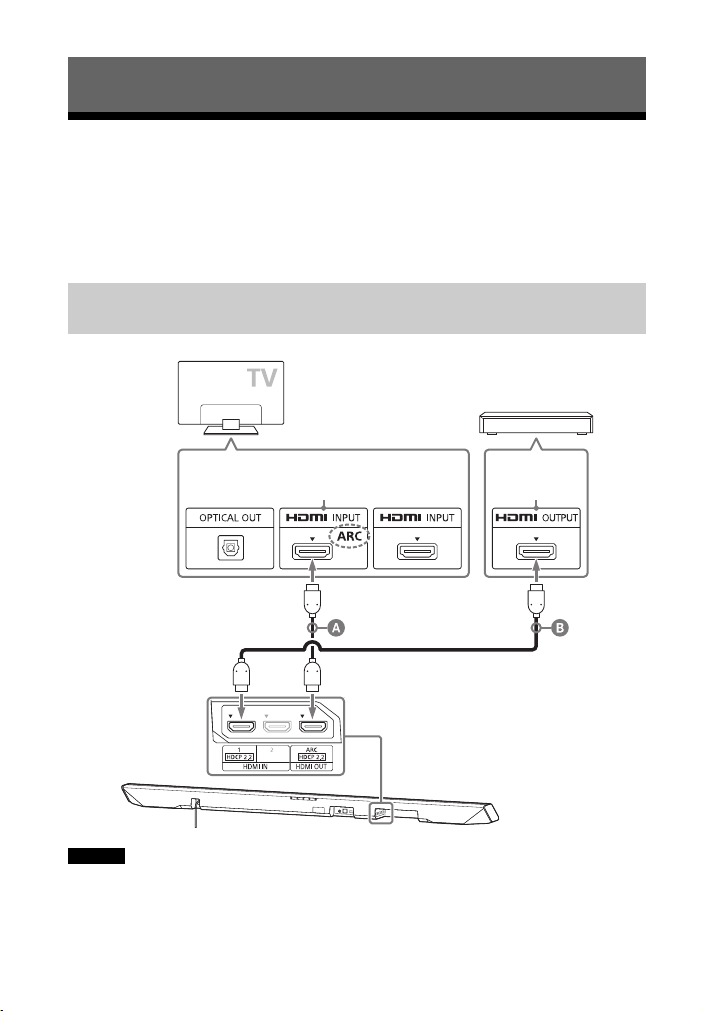

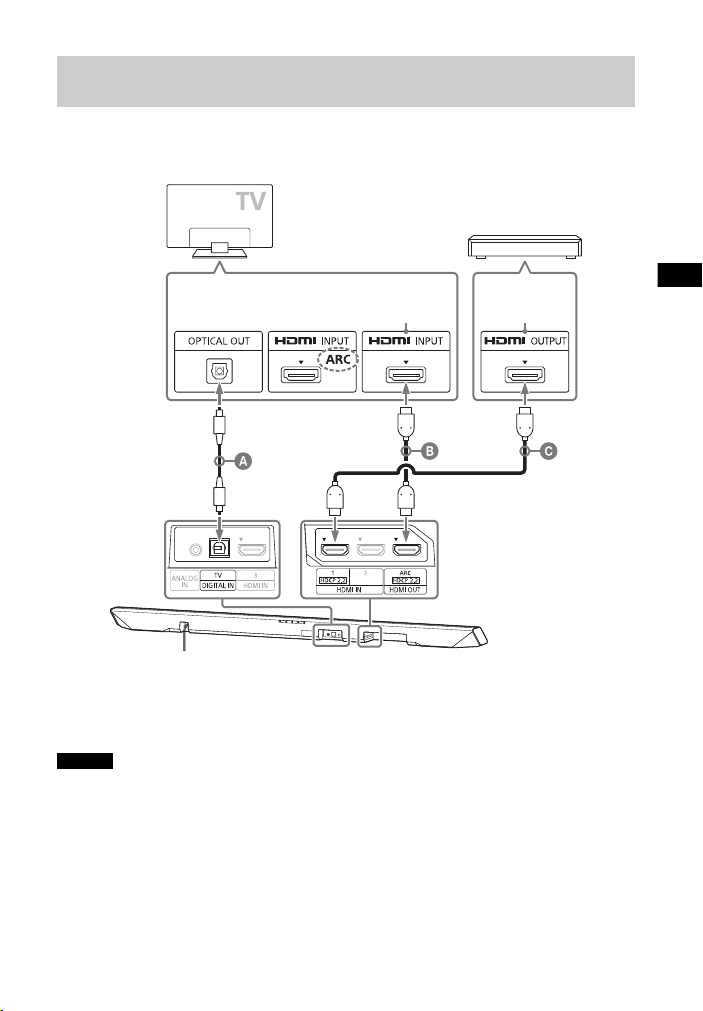

Connecting to a 4K TV and 4K devices

To view copyright-protected 4K content, connect the devices via an HDCP 2.2compatible HDMI jack on each end. Copyright-protected 4K content can be viewed only by a connection via HDCP 2.2-compatible HDMI jacks. Refer to the TV’s operating instructions as to whether or not the HDMI jack on the TV is HDCP 2.2compatible.

When the TV’s HDMI jack is HDCP 2.2-compatible and labeled with ARC

Tips

• The HDMI 1 INPUT jack of the Bar Speaker is compatible with HDCP 2.2.

• The ARC (Audio Return Channel) function sends digital sound from a TV to this system or an AV amplifier using just an HDMI cable.

Viewing Copyright-protected 4K Content (HT-CT780 only)

When the TV’s HDMI jack is HDCP 2.2-compatible and not

 Optical digital cable (supplied)  HDMI cable (High Speed type, not supplied)  HDMI cable (High Speed type, not supplied)

HDCP 2.2compatible HDMI jack

Blu-ray Disc player, cable box or satellite box, etc.

HDCP 2.2compatible HDMI jack

labeled with ARC

Connect the optical digital cable to the optical output jack of the TV, and an HDMI cable to the HDCP 2.2-compatible HDMI input jack.

Tip

• The HDMI 1 INPUT jack of the Bar Speaker is compatible with HDCP 2.2.

Settings and Adjustments

Note

Using the setup display

You can set the following items with the menu. Your settings are retained even if you disconnect the AC power cord (mains lead).

1 Press MENU to turn on the menu on the front panel display. 2 Press BACK/  (select)/ENTER repeatedly to select the item and press ENTER

to decide the setting.

3 Press MENU to turn off the menu.

Menu list

The default settings are underlined.

Menu items Function [LEVEL]

(Level)

[TONE] (Tone)

[AUDIO] (Audio)

[DRC] (Dynamic range control)

[BASS] (Bass)

[TREBLE] (Treble)

[SYNC] (AV sync) You can adjust the sound when the image and the sound

[DUAL] (Dual mono)

[EFFECT] (Sound effect)

Useful for enjoying movies at low sound volume. DRC applies to Dolby Digital sources.

• [ON]: Compresses sound in accordance with the information contained in the content.

]: Automatically compresses sound encoded in

•[AUTO Dolby TrueHD.

• [OFF]: Sound is not compressed.

Adjusts the bass level.

• The parameters range from [–6] to [+6] in 1-step increments.

Adjusts the treble level.

• The parameters range from [–6] to [+6] in 1-step increments.

are not in sync.

• [ON]: Turns on the AV Sync function.

]: Turns off the AV Sync function.

•[OFF

You can enjoy multiplex broadcast sound when the system receives a Dolby Digital multiplex broadcast signal.

• [M/S]: Main sound is output from the left speaker and sub sound is output from the right speaker.

]: Outputs only the main channel.

•[MAIN

• [SUB]: Outputs only the sub channel.

]: The sound of the selected sound field is played. It is

•[ON recommended to use this setting.

• [OFF]: The input source is down-mixed for 2 channels.

• Even if [EFFECT] is se t to [OFF], [EFFECT] is automatically set to [ON] when you change the sound field setting.

Settings and Adjustments

Menu items Function

Note

[AUDIO] (Audio)

[HDMI] [CTRL]

[STREAM] (Stream)

(Control for HDMI)

[S. THRU] (Standby-through)

Shows the current audio stream information. See page 36 on the supported audio formats.

]: Turns on the Control for HDMI function.

•[ON

• [OFF]: Turns off the function. Select this setting when you want to connect a device not compatible with the Control for HDMI function.

You can set the power saving mode of the HDMI standbythrough function.

•[AUTO system in standby mode according to the status of the TV. This setting saves power in standby mode compared with the [ON] setting.

• [ON]: Always outputs signals from the HDMI OUT jack in standby mode. If any TV other than “BRAVIA” is connected, use the system with the [ON] setting.

]: Outputs signals from the HDMI OUT jack of the

[SET BT] (Set BLUETOOTH)

[ARC] (Audio Return Channel)

[BT PWR] (BLUETOOTH power)

[BT.STBY] (BLUETOOTH standby)

[AAC] (Advanced audio coding)

• This item appears only when [CTRL] is set to [ON].

Set this item to listen to digital sound from a TV compatible with the Audio Return Channel (ARC) technology that is connected using a High Speed HDMI cable.

]: Turns on the ARC function.

•[ON

• [OFF]: Turns off the ARC function.

• This item appears only when [CTRL] is set to [ON].

Turns on or off the BLUETOOTH function of this system.

]: Turns on the BLUETOOTH function.

•[ON

• [OFF]: Turns off the BLUETOOTH function.

• If you change the setting to [OFF], the BLUETOOTH function is disabled.

When the system has pairing information, the system is in BLUETOOTH standby mode even when it is turned off.

]: BLUETOOTH standby mode is enabled.

•[ON

• [OFF]: BLUETOOTH standby mode is disabled.

• If the system does not have pairing information, BLUETOOTH standby mode cannot be set.

You can set whether or not the system uses AAC via BLUETOOTH.

]: The system uses AAC via BLUETOOTH.

•[ON

• [OFF]: The system does not use it.

• If you change the setting when the system is connected with a BLUETOOTH device, the system will be disconnected from the device.

Menu items Function [SYSTEM]

(System)

[WS] (Wireless sound)

[A. STBY] (Auto standby)

[VER] (Version) The current firmware version information appears on the

[SYS.RST] (System reset)

[UPDATE]* (Update)

[LINK] You can link the wireless sound system again (page 24). [RF CHK]

(RF check)

You can reduce power consumption. The system enters standby mode automatically when you do not operate the system for about 20 minutes and the system is not receiving an input signal.

]: Turns on the auto standby function.

•[ON

• [OFF]: Turns off the function.

front panel display. You can reset menus and settings (sound fields, etc.) of the

system to the initial status when it does not work properly (page 30).

Updates will be announced on the Sony website. Update the system following the instructions on the website.

You can check whether the wireless sound system of the system can communicate or not.

• [OK]: The wireless sound system is working.

• [NG]: The wireless sound system is not working.

*HT-CT780 only

Other Functions

Using the Control for HDMI function

By using the Control for HDMI function, and connecting a device that is compatible with the Control for HDMI function via an HDMI cable (High Speed type), operation is simplified with the features below. The Control for HDMI function is enabled by setting [CTRL (Control for HDMI)] to [ON] (page 17). The default setting is [ON].

Control for HDMI is a mutual control function standard used by HDMI CEC (Consumer Electronics Control) for HDMI (High-Definition Multimedia Interface).

System Power Off

When you turn off the TV, the system and the connected device will turn off automatically.

System Audio Control

If you turn on the system while you are watching the TV, the TV sound will be output from the speakers of the system automatically. The volume of the system will be adjusted when you adjust the volume using the TV’s remote control. If the TV sound was output from the speakers of the system the last time you watched the TV, the system will be turned on automatically when you turn on the TV again.

listen to the TV sound from the speakers of the system. The ARC function is enabled by setting [ARC (Audio return channel)] to [ON] (page 17). The default setting is [ON].

One-Touch Play

When you activate the device (Blu-ray Disc player, “PlayStation connected to the system with a High Speed HDMI cable, the connected TV is turned on automatically and the input signal of the system is switched to the appropriate HDMI input.

4,” etc.)

Home Theatre Control

If a Home Theatre Control-compatible TV is connected to the system, the system menu appears on the connected TV. You can switch an input of the system or switch sound fields by using the remote control of your TV. You can also adjust the settings of voice level, subwoofer volume, treble, bass, night mode, Dual Mono, or A/V Sync. Your TV must be able to access a broadband service to use the Home Theatre Control function.

Notes

• The above features may not operate with certain device.

•Depending on the settings of the connected device, the Control for HDMI function may not work correctly. Refer to the operating instructions of the device.

Audio Return Channel (ARC)

If the TV is compatible with the Audio Return Channel (ARC) technology, an HDMI cable connection will allow you to

Using “BRAVIA” Sync features

The original Sony functions listed below can also be used with products that are compatible with “BRAVIA” Sync.

Power save

If a “BRAVIA” Sync-compatible TV is connected to the system, the power consumption will be reduced in standby mode by stopping HDMI signal transmission when the TV is turned off with the HDMI standby-through function* of the system set to [AUTO] (page 17). The default setting is [AUTO]. If any TV other than “BRAVIA” is connected, set the item to [ON] (page 17).

* The HDMI standby-through function is

used to output the signals from the HDMI OUT jack of this system even if it is in standby mode.

Notes on HDMI connections

• Use a High Speed HDMI cable. If you use a Standard HDMI cable, 1080p, Deep Color, 3D, and 4K content may not be displayed properly.

• Use an HDMI-authorized cable. Use a Sony High Speed HDMI cable with the Cable Type Logo.

• We do not recommend using an HDMI-DVI conversion cable.

• Check the setup of the connected equipment if an image is poor or the sound does not come out of the equipment connected via the HDMI cable.

• Audio signals (sampling frequency, bit length, etc.) transmitte d from an HDMI jack may be suppressed by the connected equipment.

• Sound may be interrupted when the sampling frequency or the number of

channels of audio output signals from the playback equipment is switched.

• If the connected equipment is not compatible with copyright-protection technology (HDCP), the image and/or the sound from the HDMI OUT jack of this system may be distorted or may not be output. In such a case, check the specifications of the connected equipment.

• When “TV” is selected as the input source of the system, video signals via one of the HDMI IN 1/2/3 jacks selected last time are output from the HDMI OUT jack.

• This system supports Deep Color, “x.v.Color,” 3D, and 4K transmission.

• To enjoy 3D content, connect a 3Dcompatible TV and video equipment (Blu-ray Disc player, “PlayStation etc.) to the system using High Speed HDMI cables, put on 3D glasses, and then play back a 3D-compatible Bluray Disc, etc.

• To enjoy 4K content, the TV and players that are connected to the system must be compatible with 4K content.

4,”

Other Functions

Using the parental lock function

Saving power in standby mode

Buttons on the Bar Speaker, except for

/ (on/standby) button, will be

the disabled.

Press INPUT on the Bar Speaker for about 5 seconds when the system is on.

[LOCKED] appears on the display. To cancel the parental lock function, press INPUT again for about 5 seconds to display [UNLOCK].

Check that you have made the following settings: – [CTRL] in [HDMI] is set to [OFF]

(page 17).

– [S. THRU] in [HDMI] to [AUTO]

(page 17).

Mounting the Bar

AC power cord (mains lead)

Screw (supplied)

Wall mounting bracket (supplied)

Speaker on a wall

You can mount the Bar Speaker on a wall.

Notes

• Prepare screws (not supplied) that are suitable for the wall material and strength. As a plasterboard wall is especially fragile, attach the screws securely to two studs in the wall beam. Install the Bar Speaker horizontally, hung by screws in studs in a continuous flat section of the wall.

• Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation.

• Sony shall not be held responsible for accidents or damage caused by improper installation, insufficient wall strength, improper screw installation or natural calamity, etc.

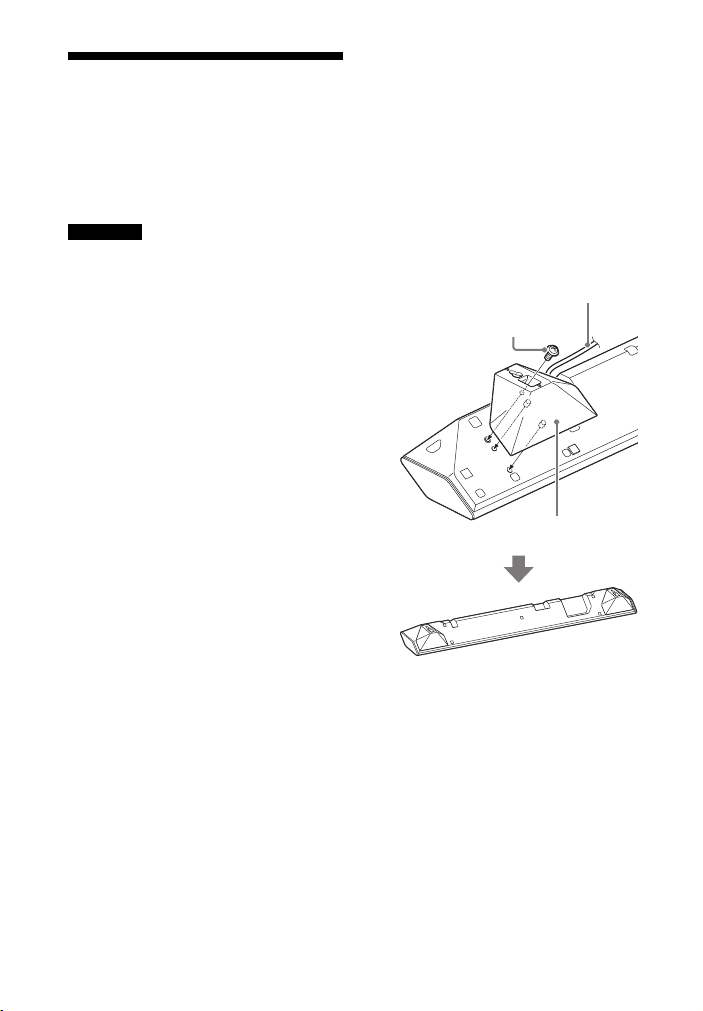

1 Fix the supplied wall mounting

brackets to the bracket fixing holes on the bottom of the Bar Speaker with the supplied screws so that the surface of each wall mounting bracket is as shown in the illustration.

Fix the two wall mounting brackets to the left and right fixing holes on the bottom of the Bar Speaker.

Illustrative example: HT-CT780

Other Functions

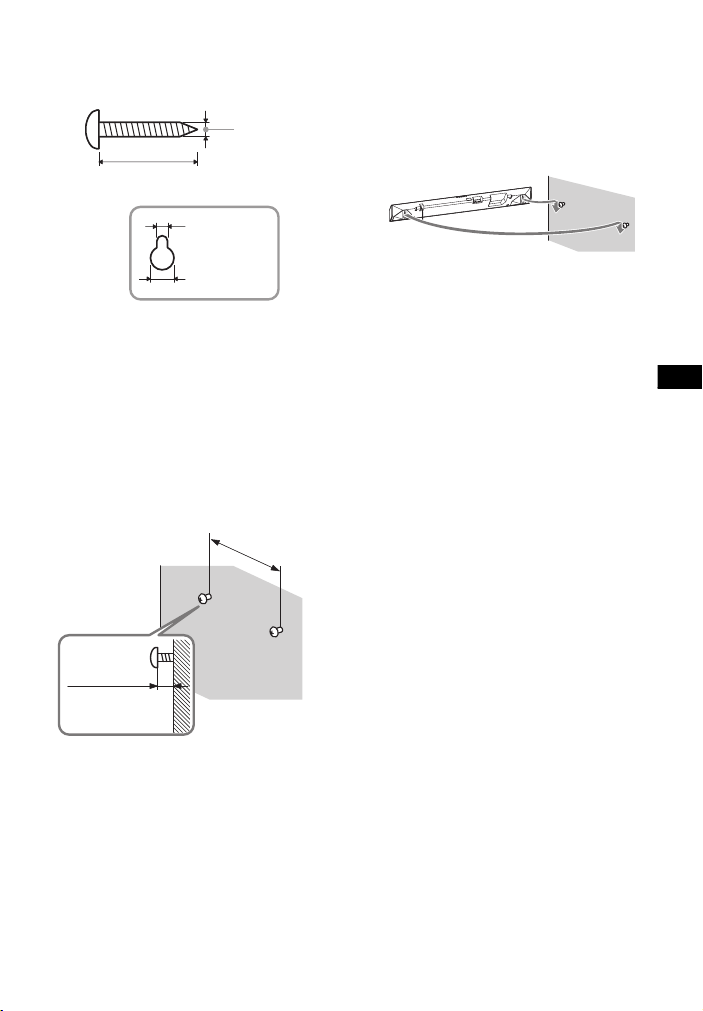

2 Prepare screws (not supplied) that

4 mm (3/16 in)

More than 30 mm (1

/16 in)

4.5 mm (

/16 in)

Hole in the bracket

10 mm (

/32 in)

777.5 mm (30 76/

125

in) (HT-CT380) 876 mm (34

/2 in)

(HT-CT780)

5 mm to 6mm

(approx.

/32 in)

are suitable for the holes in the brackets.

3 Fasten the screws to 2 studs in the

wall.

The screws should protrude by 5 mm to 6 mm (approx.

/32 in).

4 Hang the Bar Speaker on the

screws.

Align the holes in the brackets with the screws, then hang the Bar Speaker on the two screws.

Installing the subwoofer

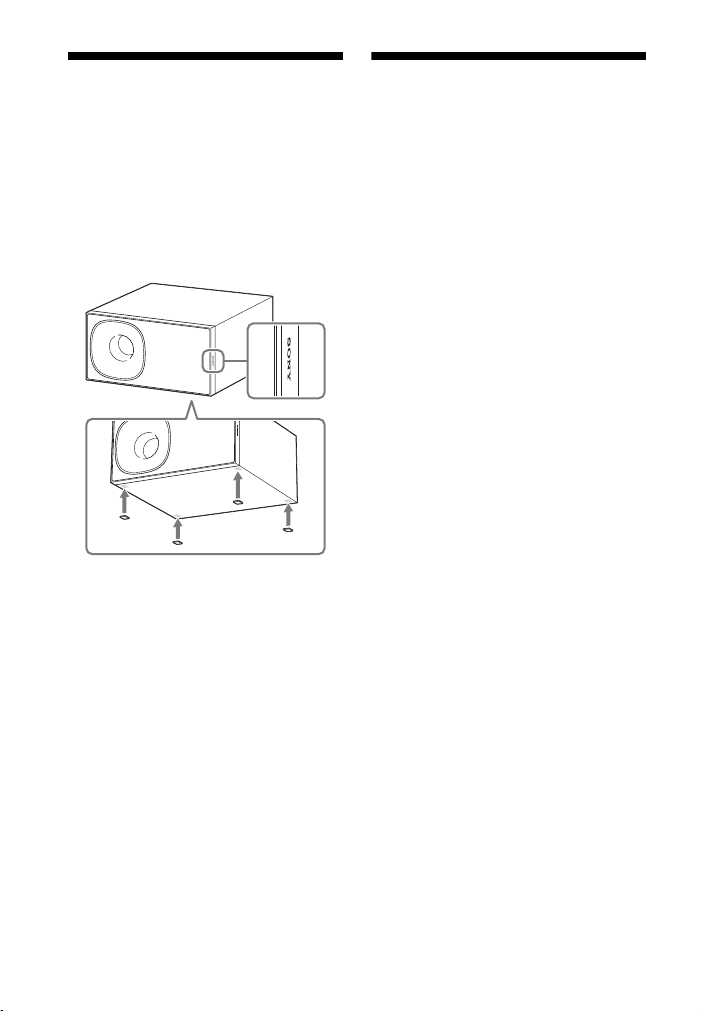

Attach the supplied speaker pads.

horizontally (HT-CT380 only)

Place the subwoofer on the right side with the “SONY” logo facing front.

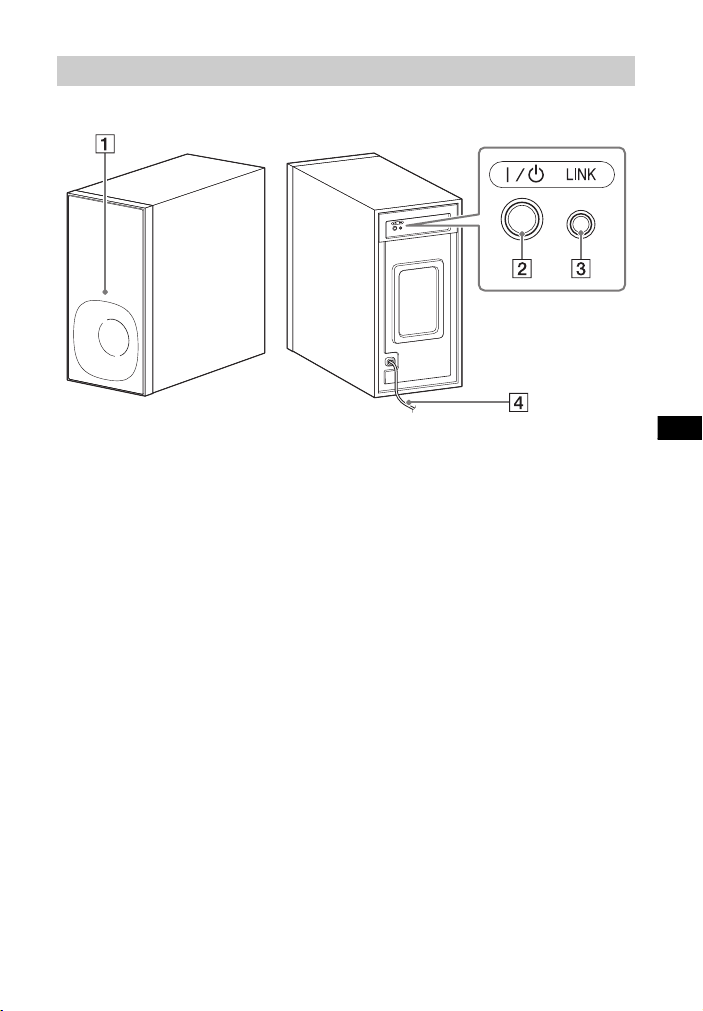

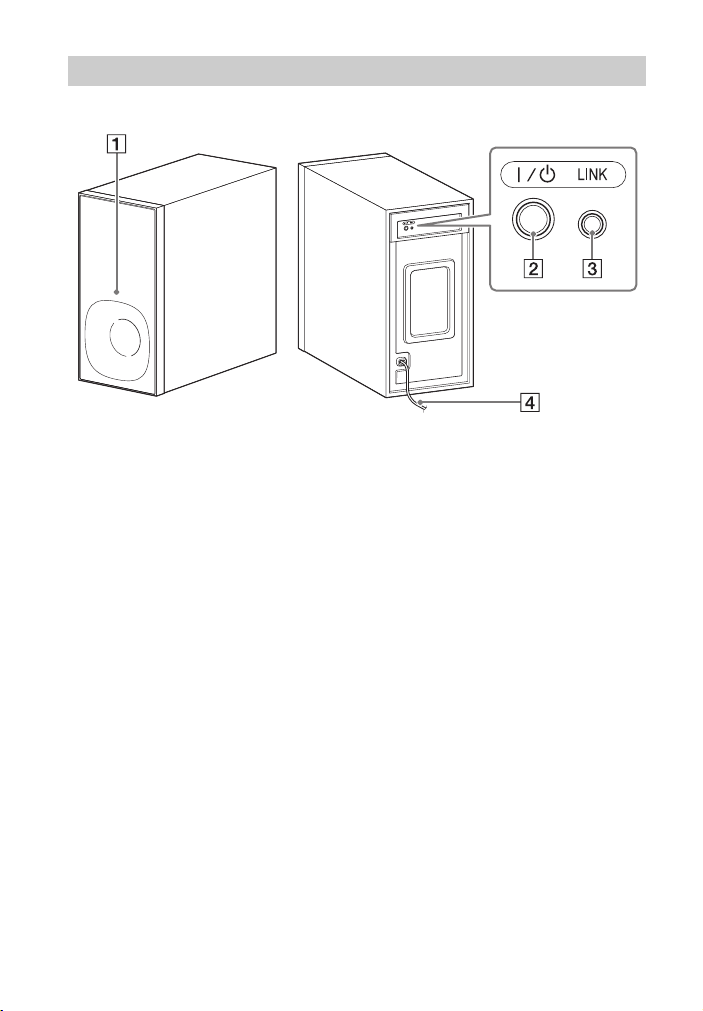

Linking the system (Link to the subwoofer)

Set up the wireless subwoofer connection again.

1 Press MENU. 2 Select [WS] with   (select), then

press ENTER.

3 Select [LINK] with   (select), then

press ENTER.

4 When [START] appears on the

display, press ENTER.

[SEARCH] appears, and the Bar Speaker searches for a device that can be used with Link. Proceed to the next step within 1 minute. To quit the Link function while searching for a device, press BACK.

5 Press LINK on the subwoofer.

The on/standby indicator on the subwoofer lights up in green. [OK] appears on the display of the Bar Speaker. If [FAILED] appears, check to ensure the subwoofer is turned on and perform the process again from step 1.

6 Press MENU.

The menu turns off.

Additional Information

Precautions

On safety

• Should any solid object or liquid fall into the system, unplug the system and have it checked by qualified personnel before operating it any further.

• Do not climb on the Bar Speaker and subwoofer, as you may fall down and injure yourself, or system damage may result.

On power sources

• Before operating the system, check that the operating voltage is identical to your local power supply. The operating voltage is indicated on the nameplate on the bottom of the Bar Speaker.

• If you are not going to use the system for a long time, be sure to disconnect the system from the wall outlet (mains). To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.

• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet (mains) only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.

• AC power cord (mains lead) must be changed only at a qualified service shop.

On heat buildup

Although the system heats up during operation, this is not a malfunction. If you continuously use this system at high volume, the system temperature at the rear and bottom rises considerably. To avoid burning yourself, do not touch the system.

On placement

• Place the system in a location with adequate ventilation to prevent heat

buildup and prolong the life of the system.

•Do not place the system near heat sources or in a place subject to direct sunlight, excessive dust, or mechanical shock.

•Do not place anything at the rear of the Bar Speaker and subwoofer that might block the ventilation holes and cause malfunctions.

• If the system is being used in combination with a TV, VCR, or tape deck, noise may result and picture quality may suffer. In such a case, place the system away from the TV, VCR, or tape deck.

• Use caution when placing the system on a surface that has been specially treated (with wax, oil, polish, etc.), as staining or discoloration of the surface may result.

•Take care to avoid any possible injury from the corners of the Bar Speaker and subwoofer.

•Keep 3 cm (1 the Bar Speaker when you hang it on a wall.

/16 in) or more space under

On operation

Before connecting other equipment, be sure to turn off and unplug the system.

If you encounter color irregularity on a nearby TV screen

Color irregularities may be observed on certain types of TV.

•If color irregularity is observed... Turn off the TV, then turn it on again after 15 to 30 minutes.

•If color irregularity is observed again... Place the system further away from the TV.

On cleaning

Clean the system with a soft, dry cloth. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.

If you have any question or problem concerning your system, please consult your nearest Sony dealer.

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

General

The power does not turn on.

 Check that the AC power cord

(mains lead) is connected securely.

The system does not work normally.

 Disconnect the AC power cord

(mains lead) from the wall outlet (mains), then reconnect after several minutes.

The system is turned off automatically.

 The auto standby function is

working. Set [A. STBY] in [SYSTEM] to [OFF] (page 18).

Sound

No TV sound is output from the system.

 Repeatedly press the INPUT button

on the remote control to display [TV] on the display (refer to the supplied Startup Guide).

 Turn on the TV first, then the

system. Set the speakers setting of the TV (BRAVIA) to Audio System. Refer to the operating instructions of the TV for the TV setting.

 Check the connection of the HDMI

cable, optical digital cable, or audio cable that is connected to the system and the TV (refer to the supplied Startup Guide).

 Increase the volume on the TV or

cancel muting.

 When a TV compatible with the

Audio Return Channel (ARC) technology is connected with an HDMI cable, make sure the cable is connected to the HDMI input (ARC) terminal of the TV. If sound is still not output or is dropped, connect the supplied optical digital cable and set [ARC] to [OFF] in the menu (page 17). (Refer to the supplied Startup Guide regarding the connection.)

 If the TV is not compatible with the

Audio Return Channel (ARC) technology, connect the optical digital cable. TV sound is not output via an HDMI connection (refer to the supplied Startup Guide).

 If no sound is output from an optical

digital output jack or the TV does not have an optical digital output jack, connect the cable box or satellite box directly to the DIGITAL IN (TV) jack of the system.

The sound is output from both the system and the TV.

 Turn off the sound of the TV.

The TV sound from this system lags behind the image.

 If [SYNC] is set to [ON], set it to [OFF]

(page 16).

 When you are watching movies, you

may hear the sound with a slight delay from the image.

No sound or only a very low-level sound of the device connected to the Bar Speaker is heard from the Bar Speaker.

 Press the

the remote control and check the volume level (page 31).

 Press the

(volume) + button on the remote control to cancel the muting function (page 31).

 (volume) + button on

 (muting) or 

Additional Information

 Make sure the input source is

selected correctly. You should try other input sources by pressing the INPUT button on the remote control several times (page 8).

 Check that all the cables and cords

of the system and the connected device are firmly inserted.

No sound or only a very low-level sound is heard from the subwoofer.

 Press the SW

 (subwoofer

volume) + button on the remote control to increase the subwoofer volume (page 31).

 Make sure that the on/standby

indicator on the subwoofer is lit in green. If not, refer to “No sound is heard from the subwoofer.” in “Subwoofer wireless sound” (page 28).

 A subwoofer is for reproducing ba ss

sound. In the case of input sources that contain very little bass sound components (i.e., a TV broadcast), the sound from the subwoofer may be difficult to hear.

 When you play content compatible

with copyright protection technology (HDCP), it is not output from the subwoofer.

The surround effect cannot be obtained.

 Depending on the input signal and

the sound field setting, surround sound processing may not work effectively. The surround effect may be subtle, depending on the program or disc.

 To play multi channel audio, check

the digital audio output setting on the device connected to the syste m. For details, refer to the operating instructions supplied with the connected device.

BLUETOOTH device

BLUETOOTH connection cannot be completed.

 Make sure that the BLUETOOTH

indicator (blue) is lit (page 31).

System status BLUETOOTH

During BLUETOOTH pairing

The system is attempting to connect with a BLUETOOTH device

The system has established connection with a BLUETOOTH device

The system is in BLUETOOTH standby mode (when the system is off)

 Make sure the BLUETOOTH device

to be connected is turned on and the BLUETOOTH function is enabled.

 Bring this system and the

BLUETOOTH device closer together.

 Pair this system and the

BLUETOOTH device again. You may need to cancel the pairing with this system using your BLUETOOTH device first.

 If [BT PWR] of the system is set to

[OFF], set to [ON] (page 17).

Pairing cannot be achieved.

 Bring this system and the

BLUETOOTH device closer together (page 8).

 Make sure this system is not

receiving interference from a wireless LAN equipment, other

2.4 GHz wireless devices, or a microwave oven. If a device that generates electromagnetic

indicator (blue)

Flashes quickly

Flashes

Lit

Unlit

radiation is nearby, move the dev ice away from this system.

No sound is output from the connected BLUETOOTH device.

 Make sure that the BLUETOOTH

indicator (blue) is lit (page 31).

 Bring this system and the

BLUETOOTH device closer together.

 If a device that generates

electromagnetic radiation, such as a wireless LAN equipment, other BLUETOOTH devices, or a microwave oven is nearby, move the device away from this system.

 Remove any obstacle between this

system and the BLUETOOTH device or move this system away from the obstacle.

 Reposition the connected

BLUETOOTH device.

 Try changing the w ireless frequency

of the Wi-Fi router, computer, etc. to 5 GHz band.

 Increase the volume on the

connected BLUETOOTH device.

The sound is not in sync with the image.

 When you are watching movies, you

may hear the sound with a slight delay from the image.

Subwoofer wireless sound

No sound is heard from the subwoofer.

 Check that the AC power cord

(mains lead) of the subwoofer is connected properly.

 The on/standby indicator does not

light.

– Check that the AC power cord

(mains lead) of the subwoofer is connected properly.

– Press the / (on/standby)

button of the subwoofer to turn on the power.

 The on/standby indicator flashes

slowly in green or lights in red.

– Move the subwoofer to a

location near the Bar Speaker so that the on/standby indicator lights in green.

– Follow the steps in “Linking the

system (Link to the subwoofer)” (page 24).

– Check the communication status

of the wireless sound system with [RF CHK] of the menu (page 18).

 The on/standby indicator flashes

quickly in green.

– Consult your nearest Sony

dealer.

 The on/standby indicator flashes in

red.

– Press the / (on/standby)

button of the subwoofer to turn off the power and check whether the ventilation opening of the subwoofer is blocked or not.

 The subwoofer is designed for

playback of bass sound. When the input source does not contain much of bass sound, as is the case with most TV programs, the bass sound may not be audible.

 Press the SW

volume) + button on the remote control to increase the volume of the subwoofer (page 34).

Sound skips or has noise.

 If there is a device nearby that

generates electromagnetic waves like a wireless LAN or a microwave oven in use, locate the system apart from it.

 If there is an obstacle between the

Bar Speaker and the subwoofer, move or remove it.

 Locate the Bar Speaker and the

subwoofer as close as possible.

 (subwoofer

Additional Information

 Switch the wireless LAN frequency

of any nearby Wi-Fi router or personal computer to 5 GHz band.

 Switch the TV, Blu-ray Disc player,

etc. from wireless LAN to wired LAN.

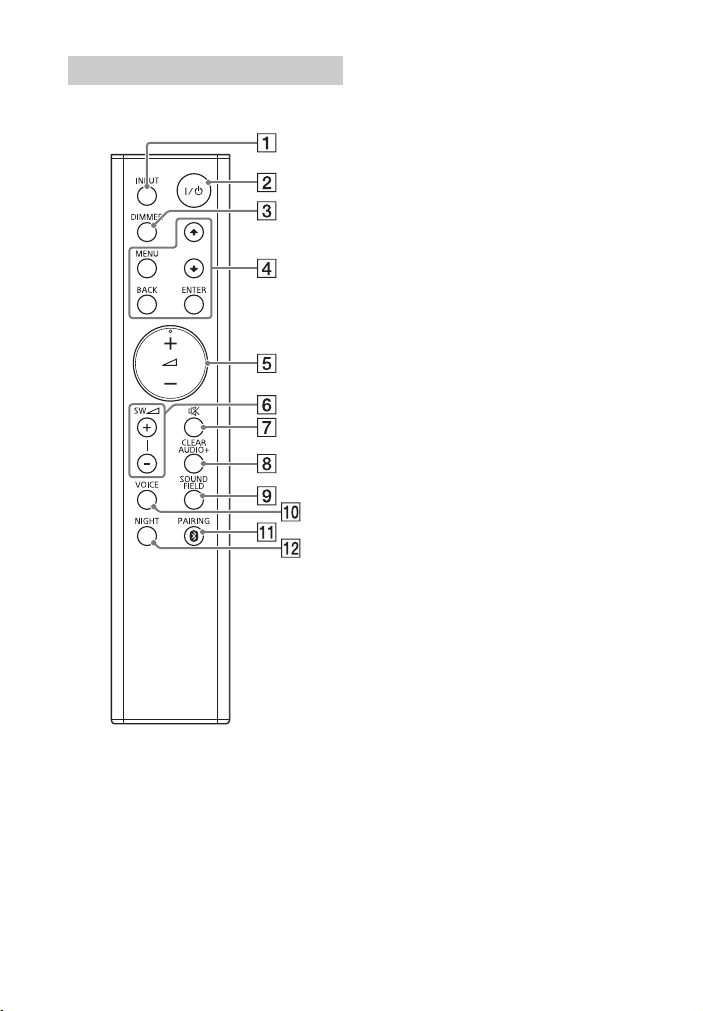

Remote control

The remote control does not function.

 Point the remote control at the

center of the front panel (remote control sensor) of the system (page 31).

 Remove any obstacles in the path

between the remote control and the system.

 Replace both batteries in the

remote control with new ones, if they are weak.

 Make sure you are pressing the

correct button on the remote control.

The TV remote control does not work.

 Install the Bar Speaker so that it

does not obstruct the remote control sensor of the TV.

Others

The Control for HDMI function does not work properly.

 Check the HDMI conn ection (refer to

the supplied Startup Guide).

 Set up the Control for HDMI function

on the TV. Refer to the operating instructions supplied with the TV for TV setting.

 If you connect/disconnect the AC

power cord (mains lead), wait more than 15 seconds before operating the system.

 Make sure that any device

connected is compatible with “BRAVIA” Sync.

 Check the Control for HDMI settings

on the connected device. Refer to

the operating instructions supplied with the connected device.

 If you connect the audio output of

video device with the system, using a cable other than an HDMI cable, no sound may be o utput because of the Control for HDMI function. In such a case, set [CTRL (Control for HDMI)] in [HDMI] to [OFF] (page 17) or connect the cable from the audio output jack of the video device directly to the TV.

 The type and number of devices

that can be controlled by the “BRAVIA” Sync feature is restricted by HDMI CEC standard as follows:

– Recording devices (Blu-ray Disc

recorder, DVD recorder, etc.): up to 3

– Playback devices (Blu-ray Disc

Player, DVD player, etc.): up to 3 – Tuner-related devices: up to 4 – Audio system (receiver/

headphone): up to 1 (including

this system)

No image is output from the TV when the Bar Speaker is in standby mode.

 Make sure [S. THRU] is set to [ON]

(page 17).

If [PRTECT (protect)] appears on the front panel display of the Bar Speaker

 Press the / (on/standby) button

on the Bar Speaker to turn off the system. After the display stops flashing, disconnect the AC power cord (mains lead) then check that nothing is blocking the ventilation holes of the Bar Speaker.

The front panel display of the Bar Speaker is not lit.

 Press DIMMER to set the brightness

to bright or dark, if set to off (page 34).

Sensors of the TV do not work properly.

 The Bar Speaker may block some

sensors (such as the brightness sensor) and the remote control receiver of your TV, or the “emitter for 3D glasses (infrared transmission)” of a 3D TV that supports the infrared 3D glass system or the wireless communication. Move the Bar Speaker away from the TV within a range that allow those parts to operate properly. For the locations of the sensors and remote control receiver, refer to the operating instructions supplied with the TV.

Reset

If the system still does not operate properly, reset the system as follows:

1 Press / (on/standby) to turn on

the system.

2 Press MENU. 3 Select [SYSTEM] with   (select),

then press ENTER.

4 Select [SYS.RST] with   (select),

then press ENTER.

5 When [START] appears on the

display of the Bar Speaker, press ENTER.

[RESET] appears on the display, and the settings of the menu and sound fields, etc. return to their initial status.

6 When [RESET] disappears,

disconnect the AC power cord (mains lead).

7 Conne ct the AC power cord (mains

lead), then press / (on/standby) to turn on the system.

8 Link the system to the subwoofer

(page 24).

+ 104 hidden pages

Sony HT-CT780 Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

About these operating instructions

Listening

Listening to sound from a TV, Blu-ray Disc™ player, cable/satellite box, etc.

Listening to music from a BLUETOOTH device

Sound Adjustment

Enjoying sound effects (Sports mode, etc.)

BLUETOOTH Functions

Controlling the system using a smartphone or tablet device (SongPal)

Viewing Copyright-protected 4K Content (HT-CT780 only)

Connecting to a 4K TV and 4K devices

Settings and Adjustments

Using the setup display

Other Functions

Using the Control for HDMI function

Using “BRAVIA” Sync features

Using the parental lock function

Saving power in standby mode

Linking the system (Link to the subwoofer)

Additional Information

Precautions

Troubleshooting
