HT-A7000

Owner’s Record

The model and serial numbers are located on the rear of the bar speaker. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding the speaker system.

Model No. HT-A7000

Serial No.

WARNING

To reduce the risk of fire or electric shock, do not expose this speaker system to rain or moisture.

The speaker system is not disconnected fr om t he ma ins a s lo ng as it i s con nect ed to the AC outlet, even if the speaker system itself has been turned off.

To reduce the risk of fire, do not cover the ventilation opening of the speaker system with newspapers, tablecloths, curtains, etc. Do not expose the speaker system to naked flame sources (for example, lighted candles).

To reduce the risk of fire or electric shock, do not expose this speaker system to dripping or splashing, and do not place objects filled with liquids, such as vases, on the speaker system.

As the mains plug is used to disconnect the speaker system from the mains, connect the speaker system to an easily accessible AC outlet. Should you notice an abnormality in the speaker system, disconnect the mains plug from the AC outlet immediately.

Do not install the speaker system in a confined space, such as a bookcase or built-in cabinet.

CAUTION

Risk of explosion if the battery is replaced by an incorrect type. Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.

Do not place this product close to medical devices.

This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device.

For the network connection of the speaker system, establish the connection via the router or LAN port with the router function. If these connections are not established, a security problem may occur.

Do not apply strong shock to the speaker system

Do not apply strong shock or excessive force to the speaker system. It may cause injury by chipping or cracking of the speaker system that is made of glass material. If chipping or cracking occurs, immediately discontinue use, and make sure not to touch the damaged part.

Indoor use only.

For customers in the U.S.A.

NOTE: This speaker system has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This speaker system generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this speaker system does cause harmful interference to radio or television reception, which can be determined by turning the speaker system off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving

antenna.

– Increase the separation between the

speaker system and receiver.

– Connect the speaker system into an

outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

Properly shielded and grounded cables and connectors must be used for connection to host computers and/or peripherals in order to meet FCC emission limits.

If you have any questions about this speaker system: Visit: https://www.sony.com/ electronics/support Contact: Sony Customer Information Service Center at 1-800-222-SONY (7669) Write: Sony Customer Information Service Center 12451 Gateway Blvd., Fort Myers, FL 33913

Supplier’s Declaration of Conformity

Trade Name: SONY Model No.: HT-A7000 Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 USA Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this speaker system.

This speaker system must not be colocated or operated in conjunction with any other antenna or transmitter.

This speaker system complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This speaker system should be installed and operated keeping the radiator at least 20 cm or more away from person’s body.

Compliance with FCC requirement

15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure.

Frequency Tolerance: ±20 ppm or less

For customers in Canada

Properly shielded and grounded cables and connectors must be used for connection to host computers and/or peripherals.

This speaker system contains licenseexempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:

(1) This speaker system may not cause

interference; and

(2) This speaker system must accept a ny

interference, including interference that may cause undesired operation of the speaker system.

This speaker system complies with ISED radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules. This speaker system should be installed and operated keeping the radiator at least 20 cm or more away from person’s body.

5.15 - 5.35 GHz band is restricted to indoor operations only.

Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure.

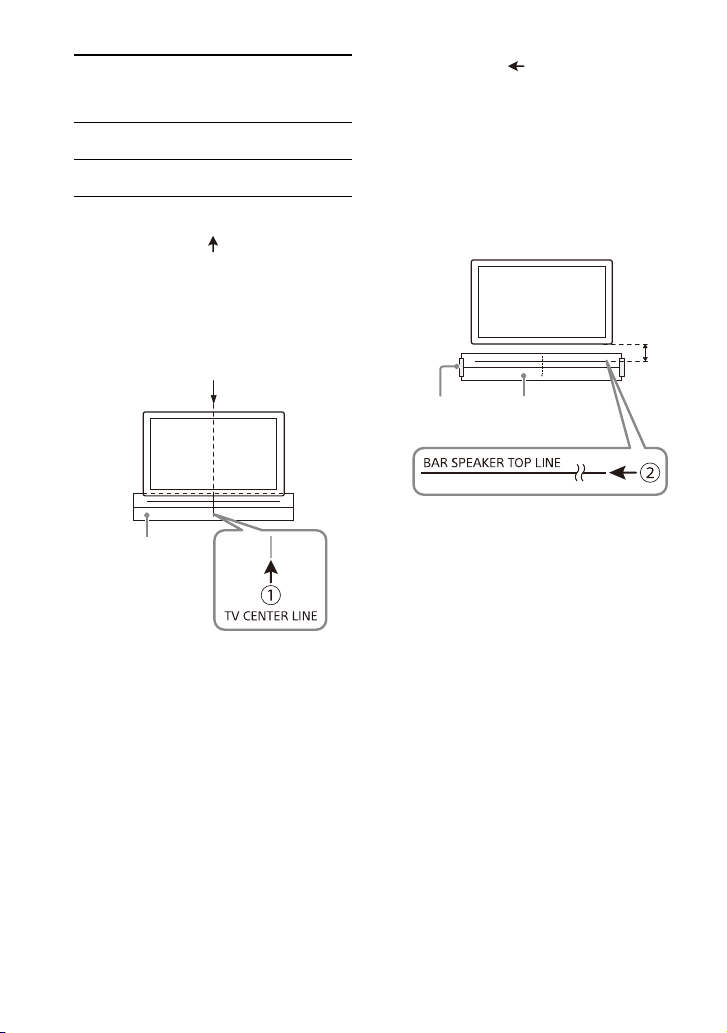

Caution for mounting the bar speaker on a wall

Make sure to use the supplied wall mounting brackets when mounting the bar speaker on a wall.

Make sure to use the supplied wall mounting brackets when mounting the bar speaker on a wall. Do not mount the bar speaker on a wall directly. The temperature inside the bar speaker rises considerably, and it may cause damage or malfunction.

Table of Contents

About Manuals of the Speaker

System ......................................7

Startup Guide

What’s in the Box

What You Can Do with the Speaker

System ..................................... 8

Guide to Parts and Controls .........10

Using the Home Menu .................14

(separate



document)

Setting Up

Installing the Speaker System ......15

Connecting to a TV .......................18

When Your TV Has the S-CENTER

SPEAKER IN Jack .....................19

Connecting an AV Device ............ 20

Connecting to the AC Outlet

(mains) ....................................22

Performing Initial Settings ...........23

Watching Images

Watching TV ................................ 24

Playing the Connected AV

Device .................................... 24

Listening to Music/Sound

Listening to Sony TV Sound with the

BLUETOOTH® Function ...........25

Listening to Music/Sound with the

BLUETOOTH Function .............27

Listening to Music on a USB

Device .................................... 29

Listening to the Device Connected

with an Analog Audio

Cable ...................................... 30

Listening to Sound of the Connected

TV or Device Using

Headphones .......................... 30

Listening to Music by Connecting to a Network

What You Can Do by Connecting the

Speaker System to a

Network ..................................33

Adjusting the Volume and Sound Quality

Adjusting the Volume ..................35

Enjoying Immersive Surround

Experience

(IMMERSIVE AE) ......................36

Setting the Sound Effect That Is

Tailored to Sound Sources

(Sound Mode) .........................37

Making Dialogs Clearer

(VOICE) ....................................38

Enjoying Clear Sound with Low

Volume at Midnight

(NIGHT) ...................................38

Adjusting the Delay Between the

Picture and Sound ..................39

Enjoying Multiplex Broadcast Sound

(AUDIO) ...................................39

Adjusting the Dialog Volume While

the DTS:X Content is Played

Back ....................................... 40

Using the Speaker System by Interlocking with a TV

Operating the Speaker System by

Interlocking with a TV (Control

for HDMI Function) .................42

Operating the Speaker System by

Interlocking with a TV Compatible with the “BRAVIA”

Sync Function .........................43

Changing the Settings

Changing the Brightness of the

Front Panel Display and

Indicators (DIMMER) ..............45

Saving Power in Standby

Mode ......................................46

Performing Easy Setup ................ 46

Performing Advanced

Settings .................................. 47

Updating the Software ................48

Troubleshooting

Troubleshooting .......................... 50

Resetting the Speaker System .... 58

Additional Information

Specifications ...............................59

Playable Types of Audio Files .......61

Supported Input Audio

Formats .................................. 62

On BLUETOOTH

Communication ..................... 63

END USER LICENSE

AGREEMENT ........................... 64

Precautions ..................................68

Copyrights and Trademarks ........ 70

Index .............................................72

About Manuals of the

Sound Bar

Startup Guide

Sound Bar

Speaker System

The information included in each manual is as shown below.

Startup Guide

Help Guide (Web manual)

For customers in Americas

https://rd1.sony.net/ help/ht/a7000/h_uc/

Introduces the initial procedures concerning installation and connection for using the speaker system, and operations until you play music.

Operating Instructions (this document)

Explains the basic operations. – Connection with a TV or other devices – Playback for music/sound of devices

connected with an HDMI cable or the BLUETOOTH function

– Sound adjustment, etc.

For customers in other countries/ regions

https://rd1.sony.net/ help/ht/a7000/h_zz/

Provides all operations including advanced usage. – Playback for music/sound with the

network function

– Details on menu items, etc.

Tips

• The instructions in these manuals describe operations using the controls on the remote control. You can use the buttons on the bar speaker if they have the same or similar names as those on the remote control.

• Characters in brackets [ ] appear on the TV screen or front panel display.

• Details are omitted from the illustrations.

What’s in the Box

Refer to Startup Guide (separate document).

What You Can Do with the Speaker System

“Listening to Music on a USB Device” (page 29)

“Playing the Connected AV Device” (page 24)

The speaker system supports object-based audio formats such as Dolby Atmos and DTS:X as well as HDR video formats such as HDR10, HLG, and Dolby Vision.

•“Watching TV” (page 24)

•“Listening to Sony TV Sound with the BLUETOOTH® Function” (page 25)

Blu-ray Disc™ player, set-top box, gaming console, etc.

USB device

“Listening to Sound of the Connected TV or Device Using Headphones” (page 30)

•“Listening to Music/Sound with the BLUETOOTH Function” (page 27)

•“Listening to the Device Connected with an Analog Audio Cable” (page 30)

Mobile device

Headphones

InternetWireless LAN router

Network

Optional subwoofer

Optional rear speakers

For the operations of the optional rear speakers and subwoofer, refer to their operating instructions. For the supported optional speakers and subwoofer, confirm on the Sony website.

For the connecting method to the network and functions enabled with the network connection, refer to Help Guide (Web manual).

For customers in Americas

https://rd1.sony.net/help/ht/a7000/h_uc/

For customers in other countries/regions

https://rd1.sony.net/help/ht/a7000/h_zz/

Optional speakers

“What You Can Do by Connecting the Speaker System to a Network” (page 33)

Guide to Parts and Controls

Bar Speaker

Front

 (power) button

Turns on the speaker system or sets it to standby mode.

 (input select) button

Selects the input for playback on the speaker system.

 BLUETOOTH button (page 25)  (MUSIC SERVICE) button

If you have previously played music on Spotify on the speaker system, you can resume playback by pressing this button. This button may not be available in some countries/regions.

 +/– (volume) buttons

 Top speakers

Output the sound upward.

Note

Do not put anything on the top speaker or touch the top speaker carelessly.

 BLUETOOTH indicator

– Flashes quickly in blue: During

pairing standby status

– Flashes in blue: BLUETOOTH

connection is being attempted.

– Lights in blue: BLUETOOTH

connection has been established.

 Front panel display  Remote control sensor

Point the remote control at the remote control sensor to operate the speaker system.

Rear

 IR repeater

Transmits the remote signal of the TV remote control to the TV.

 S-CENTER OUT jack (page 19)  (USB) port (page 29)  HDMI OUT (TV (eARC/ARC)) jack

Connect a TV that has an HDMI input jack with an HDMI cable. The speaker system is compatible with eARC and ARC. ARC is the function that sends TV sound to an AV device such as the speaker system from the TV’s HDMI jack. eARC is an extension of ARC and enables transmission of the object audio and multi-channel LPCM content that cannot be transmitted with ARC.

 HDMI IN 1 jack  HDMI IN 2 jack  AC inlet  TV IN (OPT) jack  ANALOG IN jack

Remote Control

 (power)

Turns on the speaker system or sets it to standby mode.

(MUSIC SERVICE) button

If you have previously played music on Spotify on the speaker system, you can resume playback by pressing this button. This button may not be available in some countries/regions.

BLUETOOTH (page 28) TV (page 24) HDMI1 (page 24) HDMI2 (page 24) USB (page 29) ANALOG (page 30)

 AUTO SOUND (page 37)

CINEMA (page 37) MUSIC (page 37) STANDARD (page 37) VOICE (page 38) IMMERSIVE AE (page 36) NIGHT (page 38)

 DIMMER (page 45)

DISPLAY

Displays playback information on the TV screen. Playback information is displayed in the front panel display for TV input.

 /// (page 14)

(enter) (page 14) BACK (page 14) OPTIONS (page 40)

Displays the options menu on the TV screen. The options menu is displayed in the front panel display for TV input.

HOME (page 14)

 REAR  (rear speakers volume)

+/–

Adjusts the volume of the optional rear speakers when connecting them.

 (volume) +*/–

Adjusts the volume.

SW  (subwoofer volume) +/–

Adjusts the volume of the built-in subwoofer or optional subwoofer when connecting it.

 (muting)

Turns off the sound temporarily.

 TV/AUDIO SYSTEM

Switches the output for the connected TV sound between the TV and speaker system.

Note

This button works in the following conditions. – The connected TV is compatible with

the System Audio Control function.

– The Control for HDMI function of the

speaker system is set to on (page 42).

 Playback operation buttons

/ (previous/next)

Selects the previous/next track or file. Pressing and holding it searches backward or forward (rewind/fast forward) during playback.

 (play/pause)*

Starts, pauses, or re-starts playback (resume play).

 AUDIO* (page 39)

*The AUDIO,  (play/pause), and 

(volume) + buttons have a tactile dot. Use it as a guide during operation.

About the replacement of batteries for the remote control

When the speaker system does not respond by operating with the remote control, replace two batteries with new batteries. Use R03 (size AAA) manganese batteries for replacement.

Using the Home Menu

HOME

BACK

///,

(enter)

You can display the home menu on the TV screen by connecting the speaker system and TV with an HDMI cable.

1 Press HOME.

The home menu appears on the

TV screen.

2 Press // to select the category

that you want, then press  or

(enter).

The items for the selected

category appear under the

category list on the TV screen.

Category Explanation

[Watch] Selects the input of th e

[Listen] Selects the input of the

[Setup] Performs the basic

TV or AV device that is connected to the speaker system.

audio device that is connected to the speaker system or music service for playing back on the speaker system.

initial settings by using [Easy Setup] or various advanced settings of the speaker system.

3 Press /// to select the item

that you want, then press (enter).

The selected input or setting display appears on the TV screen. To return to the previous screen, press BACK.

Setting Up

Bar speaker

Hole on the wall mounting bracket

4mm (3/16 in)

More than 30 mm (1 3/16 in)

5.0 mm (13/64 in)

10 mm (13/32 in)

Bar speaker

(A)

(B)

Installing the Speaker System

Installing the Bar Speaker

For the installation, refer to Startup Guide (separate document).

Mounting the Bar Speaker on a Wall

Notes

• Prepare screws (not supplied) that are suitable for the wall material and stability. Depending on the wall material, the wall may be damaged.

• Fasten the screws securely in the wall beam.

• Hang the bar speaker horizontally on the reinforced wall.

• Have the installation done by a Sony dealer or licensed contractor and pay special attention to safety during the installation.

• Sony shall not be held responsible for accidents or damage caused by improper installation, insufficient wall stability, improper screw installation, natural disasters, etc.

• Two or more persons are required to hang the bar speaker for safety.

1 Prepare two screws (not supplied)

that are suitable for the holes on the wall mounting bracket (supplied).

2 Measure the depth of the

mounted TV (A) and find out the required space between the bottom of the TV and the top of the bar speaker (B) in the table below.

Space is required to ensure that the TV does not interfere with the output surround sound from the bar speaker towards the ceiling.

Depth of the mounted TV (A)

Less than 110 mm (4 3/8 in)

110 mm (4 3/8 in) or more

Required space between the bottom of the TV and the top of the bar speaker (B)

120 mm (4 3/4 in) or more

200 mm (7 7/8 in) or more

3 Align the vertical line above the

Center of the TV

WALL MOUNT TEMPLATE

Adhesive tape, etc.

(B)

Marks

387 mm (15 1/4 in)

2.0 mm to

3.0 mm

Screws

387 mm (15 1/4 in)

(approx. 1/8 in)

Wall mounting bracket

“  TV CENTER LINE” printed on the WALL MOUNT TEMPLATE (supplied) with the center of the width of your TV.

4 Align the “  BAR SPEAKER TOP

LINE” printed on the WALL MOUNT TEMPLATE with the bottom of the required space between the bottom of TV and the top of the bar speaker (B) measured in step 2, then adhere the WALL MOUNT TEMPLATE on the wall with a commercially available adhesive tape, etc.

5 Fasten the screws prepared in step

1 securely into the screw marks on the “  SCREW LINE” printed on the WALL MOUNT TEMPLATE.

6 Remove the WALL MOUNT

TEMPLATE.

7 Hang the wall mounting brackets

on the screws on the wall.

8 Put the bar speaker on the wall

Screw

Wall mounting bracket

Bottom of the bar speaker

mounting brackets.

9 Align the positions of the screw

hole on the bottom of the bar speaker and hole of the wall mounting bracket, then fix the bar speaker to the wall mounting brackets by fastening the screws (supplied) securely.

Notes

• When adhering the WALL MOUNT TEMPLATE on the wall, smooth it out fully.

• Make sure to use the supplied wall mounting brackets when mounting the bar speaker on a wall. Do not mount the bar speaker on a wall directly. The temperature inside the bar speaker rises considerably, and it may ca use damage or malfunction.

Installing the Optional Speakers

Refer to the operating instruc tions of the optional speakers.

Connecting to a TV

HDMI cable

(supplied)

HDMI cable

(supplied)

Connecting a TV That Is not Compatible with ARC/eARC

Connecting a TV Compatible with ARC/eARC

1 Connect the HDMI IN jack

compatible with ARC/eARC on the TV and HDMI OUT (TV (eARC/ARC)) jack on the speaker system with the HDMI cable (supplied).

1 Connect the HDMI IN jack on the TV

and HDMI OUT (TV (eARC/ARC)) jack on the speaker system with the HDMI cable (supplied).

Note

Make sure that the connectors are firmly inserted.

2 Connect the optical digital output

Optical digital cable

(not supplied)

TV center speaker

mode cable

(supplied)

jack on the TV and the TV IN (OPT) jack on the speaker system with an optical digital cable (not supplied).

When Your TV Has the SCENTER SPEAKER IN Jack

You can output the center part of the speaker system sound from the TV by connecting the TV with the following method.

1 Connect the speaker system and

TV with the HDMI cable (supplied) (page 18).

2 Connect the S-CENTER SPEAKER IN

jack on the TV and the S-CENTER OUT jack on the speaker system with the TV center speaker mode cable (supplied).

Notes

• Make sure that the connectors are firmly inserted.

• Insert a plug of the optical digital cable in the correct direction by checking the shape of the plug and connector on the bar speaker and TV. If the plug is forcibly inserted in the wrong direction, the connector and plug may be damaged.

Note

Blu-ray Disc player, set-top box, gaming console, etc.

HDMI cable

(not supplied)

Make sure that the connectors are firmly inserted.

Tip

If the length of the TV center speaker mode cable is not sufficient, use a commercially available stereo mini cable.

Connecting an AV Device

Connecting an AV Device Compatible with the 2K/4K Video Format

You can output sound such as Dolby Atmos, Dolby TrueHD, and DTS:X in high quality by connecting an AV device to the speaker system.

1 Connect the HDMI OUT jack on the

AV device and HDMI IN 1 or HDMI IN 2 jack on the speaker system with an HDMI cable (not supplied).

Note

Make sure that the connectors are firmly inserted.

Tips

Blu-ray Disc player, set-top box, gaming console, etc.

HDMI cable

(not supplied)

Compatible with 8K video input

• If a TV is compatible with eARC, you can also output the high quality sound by connecting an AV device to the HDMI IN jack on the TV. In this case, enable the eARC function of the TV.

• Select the appropriate HDMI cable and [HDMI Signal Format] setting according to the video formats output from the device connected to the speaker system. For details, refer to Help Guide.

Connecting an AV Device Compatible with the 8K Video Format

When you connec t an AV device with the following methods, you can play 8K video and high quality sound such as Dolby Atmos, Dolby TrueHD, or DTS:X.

1 Connect the speaker system and

TV with the HDMI cable (supplied) (page 18).

2 Check that the eARC compatible

HDMI IN jack on the TV is compatible with the 8K video input.

Refer to the operating instructions of the TV.

3 Connect an AV device with one of

the following methods.

When the eARC compatible HDMI IN jack on the TV supports the 8K video input:

Connect the HDMI IN 1 or HDMI IN 2 jack on the speaker system and HDMI OUT j ack on an AV device with an HDMI cable (not supplied).

Blu-ray Disc player, set-top box, gaming console, etc.

HDMI cable (not supplied)

Compatible with 8K video input

AC power cord (mains lead) (supplied)

When the eARC compatible HDMI IN jack on the TV does not support the 8K video input:

Connect the HDMI OUT jack on an AV device to the HDMI IN jack compatible with the 8K video input on a TV with an HDMI cable (not supplied). Make sure that the eARC function of the TV is on.

Connecting to the AC Outlet (mains)

1 Connect the AC power cord (mains

lead) (supplied) to the AC inlet on the bar speaker, then connect to the AC outlet (mains).

Note

Make sure that the connectors are firmly inserted.

Tip

Select the appropriate HDMI cable and [HDMI Signal Format] setting according to the video formats output from the device connected to the speaker system. For details, refer to Help Guide.

Performing Initial

HOME

///, (enter)

PLEASE WAIT

Initial settings screen

Settings

4 Follow the instructions on the

screen displayed on the TV to perform initial settings.

If the initial setting screen is not displayed, use the TV re mote control to switch the input on the TV to the HDMI input that is connected to the speaker system, then press HOME on the remote control of the speaker system.

1 Press HOME on the remote control

supplied with the speaker system to turn on the speaker system.

Operate the remote control by pointing it toward the front of the bar speaker.

2 Wait until [PLEASE WAIT] in the

front panel display disappears and the next indication appears in the front panel display.

3 Turn on the TV.

•Press /// and (enter) to

select the item as instructed on the screen.

• If you use the optional subwoofer/ rear speakers, connect them by following the instructions on the [Checking Wireless Speaker Connection] screen.

• Once [Setup is complete.] appears, select [Learn more].

Note

Depending on the order in which you turn on the TV and the speaker system, the speaker system may be muted and [MUTING] is displayed on the front panel display of the speaker system. If this happens, turn all devices off, then turn on the speaker system after turning on the TV.

Watching Images

Watching TV

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Watch] - [TV] on the

home menu.

3 Select the program using the TV

remote control.

The selected TV program appears on the TV screen and the TV sound is output from the speaker system.

4 Adjust the volume (page 35).

Note

When the bar speaker obstructs the remote control sensor of the TV and you cannot operate the TV by the TV remote control, enable the IR repeater function of the speaker system. For details, refer to Help Guide.

Tip

You can select [TV] directly by pressing TV on the remote control.

Playing the Connected AV Device

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Watch], then select the

input ([HDMI1] or [HDMI2]) on the home menu.

• [HDMI1]: Device that is connected to the HDMI IN 1 jack

• [HDMI2]: Device that is connected to the HDMI IN 2 jack

The image of the selected device appears on the TV screen and the sound is output from the speaker system.

3 Adjust the volume (page 35).

Tip

You can select [HDMI1] or [HDMI2] directly by pressing HDMI1 or HDMI2 on the remote control.

Listening to Music/Sound

Blu-ray Disc player, set-top box, gaming console, etc.

Sony TV

 (power)

BLUETOOTH button

Listening to Sony TV Sound with the BLUETOOTH® Function

What You Can Do by Connecting a TV with the BLUETOOTH Function

When using Sony TV* with the BLUETOOTH function, you can listen to sound of the TV or device that is connected to the TV by connecting the speaker system and TV wirelessly.

* Th e T V ne ed s to be c om pat ibl e w ith A2 DP

(Advanced Audio Distribution Profile) of the BLUETOOTH profile.

Note

If connecting the speaker system and TV by using the BLUETOOTH function, you cannot display the operation screen for the speaker system such as the home menu on the TV screen, and use functions of the speaker system other than the listening function for the sound of the TV or device that is connected to the TV. To use all the functions of the speaker system, connect the speaker system and TV with the HDMI cable (supplied) (page 18).

Listening to TV Sound by Connecting the Speaker System and TV Wirelessly

You need to perform pairing of the speaker system and TV by using the BLUETOOTH function. Pairing is the process required to mutually register the information on BLUETOOTH devices to be connected wirelessly in advance.

1 Turn on the TV. 2 Press  (power) to turn on the

speaker system.

3 Press and hold the BLUETOOTH

button on the bar speaker and TV on the remote control simultaneously for 5 seconds.

4 Make sure that the BLUETOOTH

PAIRING

indicator on the bar speaker flashes quickly in blue and [PAIRING] appears in the front panel display.

The speaker system enters the BLUETOOTH pairing mode.

5 On the TV, search the speaker

system by performing the pairing operation.

The list of the BLUETOOTH devices that are detected appears on the TV screen. For the operation method to pair the BLUETOOTH device to the TV, refer to the operating instructions of the TV.

6 Pair the speaker system and TV by

selecting “HT-A7000” from the list on the TV screen.

7 Make sure that the BLUETOOTH

indicator on the bar speaker lights in blue and [TV (BT)] appears in the front panel display.

A connection between the speaker system and TV has been established.

8 Select the program or input of the

device by using the TV remote control.

The sound of the displayed image on the TV screen is output from the speaker system.

9 Adjust the volume of the speaker

system by using the TV remote control.

When pressing the muting button on the TV remote control, the sound is muted temporarily.

Notes

• If the TV sound is not output from the speaker system, press TV and check the status of the front panel display and indicators on the bar speaker. – [TV (BT)] appears in the front panel

display: The speaker system and TV are connected, and TV sound is output from the speaker system.

– The BLUETOOTH indicator flashes

quickly and [PAIRING] appears in the front panel display: Perform pairing on the TV.

– [TV] appears in the front panel display:

Perform steps from the start.

• When you connect the speaker system and TV with an HDMI cable, the BLUETOOTH connection is canceled. To connect the speaker system and TV with the BLUETOOTH function again, disconnect the HDMI cable, then perform the connecting operation from the start.

Listening to Sound of the Paired TV

1 Turn on the TV with the TV remote

control.

The speaker system is turned on by interlocking with the TV power and TV sound is output from the speaker system.

2 Select the program or input of the

device by using the TV remote control.

The sound of the displayed image on the TV screen is output from the speaker system.

3 Adjust the volume of the speaker

system by using the TV remote control.

When pressing the muting button on the TV remote control, the sound is muted temporarily.

Tip

 (power)

SW  (subwoofer volume) +/–

 (volume) +/–

 (muting)

REAR  (rear speakers volume) +/–

AUTO SOUND, CINEMA, MUSIC, STANDARD, VOICE, IMMERSIVE AE, NIGHT

BLUETOOTH

SW  (subwoofer volume) +/–

 (volume) +/–

 (play/

pause), / (previous/next)

REAR  (rear speakers volume) +/–

When the TV is turned off, the speaker system is also turned off by interlocking with the TV power.

About operations with the remote control that is supplied with the speaker system

You can use the following buttons.

Notes

• If you select the input other than TV on the remote control supplied with the speaker system, the TV sound is not output from the speaker system. To output the TV sound, press TV on the remote control to change to the TV input.

• While the TV is connected with the BLUETOOTH function, the following remote control buttons do not work. ///, (enter), BACK, HOME, DISPLAY, OPTIONS,  (play/pause), / (previous/next)

Listening to Music/Sound with the BLUETOOTH Function

Listening to Music by Pairing the Mobile Device That Is Connected for the First Time

To use the BLUETOOTH function, you need to perform pairing of the speaker system and mobile device in advance.

1 Press and hold the BLUETOOTH

button for 2 seconds.

2 Make sure that the BLUETOOTH

PAIRING

BLUETOOTH

SW  (subwoofer volume) +/–

 (volume) +/–

 (play/

pause), / (previous/next)

REAR  (rear speakers volume) +/–

indicator on the bar speaker flashes quickly in blue and [PAIRING] appears in the front panel display.

The speaker system enters the pairing mode.

3 On the mobile device, search the

speaker system by performing the pairing operation.

The list of the BLUETOOTH devices that are detected appears on the screen of the mobile device. For the operation method to pair the BLUETOOTH device to the mobile device, refer to the operating instructions of the mobile device.

4 Pair the speaker system and

mobile device by selecting “HTA7000” from the list on the screen of the mobile device.

If a passkey is requested, enter “0000.”

5 Make sure that the BLUETOOTH

indicator on the bar speaker lights in blue and [BT] appears in the front panel display.

A connection between the speaker system and mobile device has been established.

6 Start audio playback with the

music app on the connected mobile device.

Sound is output from the speaker system.

7 Adjust the volume (page 35).

You can play or pause the content by using the playback operation buttons on the remote control.

To check the connection status of the BLUETOOTH function

Status BLUETOOTH indicator During pairing

standby status Connection is

being attempted Connection has

been established

Tips

• If there is no mobile device that has been paired (ex. immediately after the purchase of the speaker system), the speaker system goes into pairing mode simply by changing the input to the BLUETOOTH input.

• Perform pairing for the second and subsequent mobile devices.

Flashes quickly in blue

Flashes in blue

Lights in blue

Listening to Music from the Paired Device

1 Turn the BLUETOOTH function of

the mobile device to on.

2 Press the BLUETOOTH button.

The speaker system automatically reconnects to the mobile device it was most recently connected to.

3 Make sure that the BLUETOOTH

indicator on the bar speaker lights in blue and [BT] appears in the front panel display.

A connection between the speaker system and mobile device has been established.

4 Start audio playback with the

music app on the connected mobile device.

Sound is output from the speaker system.

5 Adjust the volume (page 35).

You can play or pause the content by using the playback operation buttons on the remote control.

Note

If sound delay occurs, it may be improved by setting [Setup] - [Advanced Settings] - [Bluetooth Settings] - [Bluetooth Connection Quality] to [Priority on Stable Connection].

Tip

When the connection is not established, select “HT-A7000” on the mobile device.

To disconnect the mobile device

Perform any of the following items.

• Disable the BLUETOOTH function on the mobile device.

• Press the BLUETOOTH button while the [Bluetooth Audio] screen appears on the TV screen.

• Set [Setup] - [Advanced Settings] [Bluetooth Settings] - [Bluetooth Mode] to [Transmitter] or [Off].

• Turn off the speaker system or mobile device.

Listening to Music on a USB Device

You can play music files stored on a connected USB device. For playable types of files, see “Playable Types of Audio Files” (page 61).

1 Connect the USB device to the

(USB) port.

2 Press HOME.

The home menu appears on the TV screen.

3 Select [Listen] - [USB

(Connected)] on the home menu.

4 Select the folder on which songs

are stored, then select a song.

The selected song is played and sound is output from the speaker system.

5 Adjust the volume (page 35).

Note

Do not remove the USB device during operation. To avoid data corruption or damage to the USB device, turn the speaker system off before connecting or removing the USB device.

Tip

You can select the USB input directly by pressing USB on the remote control.

Listening to the Device

Smartphone, WALKMAN®, other audio devices, etc.

Analog audio cable (not supplied)

Connected with an Analog Audio Cable

Listening to Sound of the Connected TV or Device Using Headphones

You can listen to sound of an audio device such as a WALKMAN®, etc. that is connected to the ANALOG IN jack on the bar speaker.

1 Connect an audio device to the

ANALOG IN jack.

2 Press HOME.

The home menu appears on the TV screen.

3 Select [Listen] - [Analog] on the

home menu.

The [Analog] screen is displayed on the TV screen.

4 Start audio playback on the

connected audio device.

Sound is output from the speaker system.

5 Adjust the volume (page 35).

Tip

You can also select [Analog] directly by pressing ANALOG on the remote control.

Listening to Sound by Pairing with Headphones

1 Set the BLUETOOTH compatible

headphones to pairing mode.

Refer to the operating instructions of the headphones for the pairing method.

2 Press HOME.

The home menu appears on the TV screen.

3 Select [Setup] - [Advanced

Settings] on the home menu.

4 Select [Bluetooth Settings] -

[Bluetooth Mode] - [Transmitter].

The speaker system enters BLUETOOTH transmission mode.

5 Select the name of the

headphones from the [Device List] in [Bluetooth Settings].

When the BLUETOOTH connection is established, [Connected] appears. If you cannot find the name of your headphones in [Device List], select [Scan].

6 Return to the home menu, select

[Watch] or [Listen], and

select the input.

The image of the selected input appears on the TV screen, [BT TX] appears in the front panel display, then the sound is output from the headphones. Sound from the speaker system is muted at the same time.

7 Adjust the volume.

Adjust the volume level of the headphones first. Then, adjust the volume level of the headphones with +/– on the bar speaker or  (volume) +/– on the remote control.

To remove the paired headphones from the device list

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Setup] - [Advanced

Settings] on the home menu.

3 Select [Bluetooth Settings] - [Device

List].

4 Move the cursor to the name of the

headphones that you want to remove, and then press DISPLAY. To remove all the paired headphones from the device list, press AUDIO.

5 Follow the on-screen instructions to

remove the desired headphones from the device list.

Note

To display the paired headphones on the device list, Set [Setup] - [Advanced Settings] - [Bluetooth Settings] - [Bluetooth Mode] to [Transmitter].

Listening to Sound with Paired Headphones

1 Set the BLUETOOTH function of the

headphones to on.

2 Press HOME.

The home menu appears on the TV screen.

3 Select [Setup] - [Advanced

Settings] on the home menu.

4 Select [Bluetooth Settings] -

[Bluetooth Mode] - [Transmitter].

The speaker system enters BLUETOOTH transmissio n mode and the speaker system automatically reconnects to the headphones that was most recently connected to.

5 Return to the home menu, select

[Watch] or [Listen], and

select the input.

6 Adjust the volume.

Adjust the volume level of the headphones first. Then, adjust the volume level of the headphones with +/– on the bar speaker or  (volume) +/– on the remote control.

To disconnect the paired headphones

Perform any of the following items. – Disable the BLUETOOTH function on

the headphones.

– Set [Setup] - [Advanced Settings] -

[Bluetooth Settings] - [Bluetooth Mode] to [Receiver] or [Off].

– Turn off the speaker system or

headphones.

– Select the device name of the

connected headphones from

[Setup] - [Advanced Settings] [Bluetooth Settings] - [Device List]. [Connected] of the device name disappears.

About the Connection of the Headphones

• You may not be able to adjust the volume level depending on the BLUETOOTH compatible headphones.

• Input of BLUETOOTH is disabled when

[Setup] - [Advanced Settings] [Bluetooth Settings] - [Bluetooth Mode] is set to [Off] or [Transmitter].

• You can register up to 9 BLUETOOTH devices. If a 10th BLUETOOTH device is registered, the oldest connected BLUETOOTH device will be overwritten by the new one.

• The speaker system can display up to 15 detected BLUETOOTH devices in the [Device List] (page 31).

• You cannot change the sound effect or settings while transmitting sound to the BLUETOOTH compatible headphones.

• Playback of audio/music on the BLUETOOTH device is delayed compared to that on the speaker system due to the characteristics of BLUETOOTH wireless technology.

• You can enable or disable the reception of LDAC audio from the BLUETOOTH device in [Bluetooth Settings].

Listening to Music by Connecting to a Network

iOS device/smartphone/ tablet

• 360 Reality Audio

•Spotify

•Chromecast built-in

•AirPlay

•Sony | Music Center

Computer

•AirPlay

•Home Network

Speaker system

What You Can Do by Connecting the Speaker System to a Network

You can perform streaming playback of music content via the speaker system by operating a smartphone, tablet, or iOS device, or play music stored on a computer via the speaker system by connecting to the network. For details of functions and operations, refer to Help Guide.

360 Reality Audio

You can play 360 Reality Audio contents on the speaker system by selecting it on the streaming service app compatible with 360 Reality Audio.

Spotify

You can select music on the Spotify app and play it on the speaker system. Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

Chromecast built-in™

You can select music on the Chromecast-enabled app and play it on the speaker system.

AirPlay

The speaker system supports AirPlay. You can play music on the speaker system by operating an iOS device or a computer.

Sony | Music Center

You can control the speaker system wirelessly by installing the “Sony | Music Center” app on your smartphone or tablet device.

Home Network

You can play music files stored on your computer on a network location via your home network.

Adjusting the Volume and Sound

SW  (subwoofer volume) +/–

REAR  (rear speakers volume) +/–

 (volume) +/–

Quality

Adjusting the Volume

To adjust the speaker system volume

Press  (volume) +/–. The volume level appears in the front panel display.

To adjust the subwoofer volume

Press SW  (subwoofer volume) +/–. The volume level appears in the front panel display.

Note

The subwoofer is designed for playback of bass or low frequency sound. When the input source, such as in TV programs, does not contain much bass sound, the bass sound from the subwoofer may be difficult to hear.

Tip

When connecting the optional subwoofer, the optional subwoofer level is adjusted instead of the built-in subwoofer level.

The volume level appears in the front panel display.

Notes

• The optional rear speakers are designed for playback of the surround part of the multi-channel sound and surround sound that is created from the 2-channel sound using virtual processing. When the input source does not contain much surround sound, the surround sound from the optional rear speakers may be difficult to hear.

•REAR  +/– does not work when the optional rear speakers are not connected.

To adjust the optional rear speaker volume

Press REAR  (rear speakers volume) +/–.

Enjoying Immersive

IMMERSIVE AE

Surround Experience (IMMERSIVE AE)

You can feel immersed by the sound from not only the horizontal direction, but also from the upward direction by working sound modes effectively (page 37). This function also works for the 2.0 channel signal such as TV programs.

1 Press IMMERSIVE AE to set the

function on or off.

The Immersive Audio Enhancement setting appears on the TV screen.

Mode Explanation [Immersive

Audio Enhancement: On]

[Immersive Audio Enhancement: Off]

Activates the Immersive Audio Enhancement function.

Deactivates the Immersive Audio Enhancement function.

• You cannot change the setting in the following conditions even if you press IMMERSIVE AE. –The BLUETOOTH device is connected in

BLUETOOTH transmission mode (page 30).

– A test tone is emitted.

• The surround effect from all directions differs depending on the sound source.

• The Immersive Audio Enhancement setting does not appear on the TV screen while the TV input is selected. In this case, you can check the Immersive Audio Enhancement setting in the front panel display.

• Depending on the source, such as Dolby Atmos, this setting is fixed and cannot be changed.

Notes

• The Immersive Audio Enhancement function is available only when

[Setup] - [Advanced Settings] [Audio Settings] - [Sound Effect] is set to [Sound Mode On] or [Setup] [Advanced Settings] - [Audio Settings] [360 Spatia l Sound Mapping] is set to [On].

Setting the Sound Effect

CINEMA

MUSIC

AUTO SOUND

STANDARD

That Is Tailored to Sound Sources (Sound Mode)

You can easily enjoy pre-programmed sound effects that are tailored to different kinds of sound sources. This function works when [Setup] [Advanced Settings] - [Audio Settings] [Sound Effect] is set to [Sound Mode On].

1 Press AUTO SOUND, CINEMA,

MUSIC, or STANDARD to select the sound mode.

The selected sound mode appears on the TV screen.

Sound mode Explanation [Auto Sound]

[Cinema]

The appropriate sound setting is automatically selected for the sound source.

You feel immersed by the sound that travels behind you and surrounds your entire body. This mode is suitable for watching movies.

Sound mode Explanation [Music]

[Standard Surround]

Notes

• The sound mode function is disabled in the following conditions. – Chromecast built-in is used. – AirPlay is used. – The BLUETOOTH device is connected in

BLUETOOTH transmission mode (page 30).

– A test tone is emitted.

• The sound mode does not appear on the TV screen while the TV input is selected. In this case, you can check the sound mode in the front panel display.

• Depending on the combination of the sound mode setting and sound source, the effect of [Sound Field Optimization] may not be applied.

Vividness and glossiness of the sound are expressed in detail. T his mode is suitable for enjoying music in a way that moves you.

The sound of a TV program can be heard clearly.

Making Dialogs Clearer

VOICE

NIGHT

(VOICE)

1 Press VOICE to set the function on

or off.

The voice mode setting appears on the TV screen.

Mode Explanation [Voice: On] Dialog is easily heard by

[Voice: Off] Deactivates the voice

Notes

• The voice mode setting does not appear on the TV screen while the TV input is selected. In this case, you can check the voice mode setting in the front panel display.

• When the BLUETOOTH device is connected in BLUETOOTH transmission mode (page 30), the voice mode is disabled.

enhancing dialog range.

mode function.

Enjoying Clear Sound with Low Volume at Midnight (NIGHT)

1 Press NIGHT to set the function on

or off.

The night mode setting appears on the TV screen.

Mode Explanation [Night: On] Sound is output at low

[Night: Off] Deactivates the night

Notes

• When you turn the speaker system off, this setting is set to [Night: Off] automatically.

• The night mode setting does not appear on the TV screen while the TV input is selected. In this case, you can check the night mode setting in the front panel display.

• When the BLUETOOTH device is connected in BLUETOOTH transmission mode (page 30), the night mode is disabled.

volume with minimum loss of fidelity and clarity of dialog.

mode function.

Adjusting the Delay

AUDIO

Between the Picture and Sound

When the sound does not match the pictures on the TV s creen, you can adjust the delay between the picture and sound. The setting method differs depending on the input. For details, refer to Help Guide.

Enjoying Multiplex Broadcast Sound (AUDIO)

You can enjoy multiplex broadcast sound when the speaker system receives a Dolby Digital multiplex broadcast signal.

1 Press AUDIO repeatedly to select

the desired audio signal.

The audio signal appears on the TV

screen

Audio signal Explanation [Audio:

Main] [Audio: Sub] Sound of the sub

[Audio: Main/Sub]

Sound of the main language is output.

language is output. Main sound is output

from the left speaker and sub sound is output from the right speaker.

Notes

• To output Dolby Digital sound, you need to connect a TV that is compatible with eARC or ARC (page 18) to the HDMI OUT (TV (eARC/ARC)) jack with the HDMI cable (supplied), or other devices to the HDMI IN 1 o r HD MI IN 2 jac k w ith an HDM I ca bl e (n ot supplied).

• If your TV’s HDMI IN jack is not compatible with eARC or ARC (page 18), connect the TV to the TV IN (OPT) jack with an optical digital cable (not supplied) to output Dolby Digital sound.

• The audio signal does not appear on the

OPTIONS

///, (enter)

TV screen while the TV input is selected. In this case, you can check the audio signal in the front panel display.

Adjusting the Dialog Volume While the DTS:X Content is Played Back

By adjusting the dialog volume, you can easily listen to dialog since it stands out from the ambient noise. This function works while playing content that is compatible with the DTS:X dialog control function. The setting method differs depending on the input.

When Watching the TV

1 Press OPTIONS, display [DIALOG]

in the front panel display using / , then press (enter).

2 Adjust the dialog volume using /

, then press (enter).

You can adjust from 0.0 dB to 6.0 dB in 1.0 dB increments.

3 Press OPTIONS.

The options menu in the front panel display turns off.

When Playing Content on an AV Device

1 Press OPTIONS.

The options menu appears on the TV screen.

2 Select [DTS Dialog Control]. 3 Adjust the dialog volume using /

, then press (enter).

You can adjust from 0.0 dB to 6.0 dB in 1.0 dB increments.

Using the Speaker System by

TV remote control

Interlocking with a TV

Operating the Speaker System by Interlocking with a TV (Control for HDMI Function)

Connecting a TV compatible with the Control for HDMI function using an HDMI cable enables you to interlock the speaker system opera tion such as power on/off or volume adjustment with a TV.

About the Control for HDMI function

The Control for HDMI function is a function that enables operation of devices connected with an HDMI (HighDefinition Multimedia Interface) cable by interlocking them. Although this function works for devices compatible with the Control for HDMI function, it may not work if connecting devices other than those manufactured by Sony.

Preparing to Operate by Interlocking with a TV

Enable the Control for HDMI function settings of the TV connected to the speaker system with an HDMI cable. The default setting of the Control for HDMI function of the speaker system is [On].

Tips

• When connecting a device such as a Blura y D isc pl aye r to a T V w ith an H DM I ca bl e, enable its Control for HDMI function.

• To enable the Control for HDMI function of a TV or Blu-ray Disc player, refer to their operating instructions.

• If you enable the Control for HDMI (“BRAVIA” sync) function when using a TV manufactured by Sony, the Control for HDMI function of the speaker system is also enabled automatically. When the setting is complete, [DONE] appears in the front panel display.

Performing Power Operation or Volume Adjustment by a TV Remote Control

When turning the TV on/off or adjusting the volume using the TV remote control, the speaker system power operation or volume adjustment is interlocked.

Power interlocking

When you turn on or off the TV, the speaker system will turn on or off automatically.

Note

If you turn off the speaker system before turning off the TV, the speaker system may not turn on automatically even though you turn on the TV next time. In this case, perform the following operation.

– Select the speaker system for the sound

output device in the TV menu.

– When using Sony TV, turn on the

speaker system while the TV is turned on.

Volume adjustment

The sound of the TV you are watching is output from the speaker system automatically. You can adjust the speaker system volume by the TV remote control.

Other Interlocking Functions

Menu Operation by TV Remote Control

You can operate the menu of the speaker system by selec ting the name of the speaker system when changing input or operating the Sync Menu on the TV.

Note

Some Sony TVs support the Sync Menu. Refer to the operating instructions of your TV to see if your TV supports the Sync Menu.

Language Follow

When you change the language for the on-screen display of the TV, the speaker system’s on-screen display language is also changed.

Operating the Speaker System by Interlocking with a TV Compatible with the “BRAVIA” Sync Function

“BRAVIA” Sync is an extended function developed by Sony based on the Control for HDMI function. By connecting “BRAVIA” Sync-compatible devices such as a TV or a Blu-ray Disc player using an HDMI cable, you can control the devices by interlocking them with each other.

To use “BRAVIA” Sync

“BRAVIA” Sync is enabled by enabling the Control for HDMI function of the Sony device. For the operation to enable the Control for HDMI function, see “Preparing to Operate by Interlocking with a TV” (page 42).

What You Can Do with “BRAVIA” Sync

One-Touch Play Function

When you play content on a Blu-ray Disc player or “PlayStation to the TV, the speaker system and TV are turned on automatically.

Tip

You can change the Control for HDMI settings by selecting [Setup] [Advanced Settings] - [HDMI Settings] on the home menu.

4,” etc. conn ected

Control for HDMI function

•Power interlocking (page42)

• Volume adjustment (page 43)

• Menu Operation by TV Remote Control (page 43)

• Language Follow (page 43)

• One-Touch Play Function (page 43)

Sound mode/Scene Select Function

The sound mode of the speaker system is automatically switched according to the setting of the TV’s Scene Select function or sound mode. To use this function, you need to set the sound mode to [Auto Sound] (page 37).

Home Theatre Control Function

Setting the speaker system, setting the sound mode settings, input switching, etc. can be done without switching the TV input.

Changing the Settings

DIMMER

Changing the Brightness of the Front Panel Display and Indicators (DIMMER)

You can change the brightness of the front panel display and BLUETOOTH indicator. The brightness of the power indicator for the optional subwoofer and rear speakers also changes.

1 Press DIMMER repeatedly to select

the desired display mode.

The display mode appears on the TV screen.

Mode Explanation [Dimmer:

Bright]

[Dimmer: Dark]

[Dimmer: Off]

The front panel display and indicators light brightly.

The front panel display and indicators light darkly.

The front panel display and indicators are turned off.

about 10 seconds. However, in some cases, the front panel display and indicators may not turn off. In this case, the brightness of the front panel display and indicators are the same as [Dimmer: Dark].

• The display mode does not appear on the

TV screen while the TV input is selected. In this case, you can check the display mode in the front panel display.

Notes

• The front panel display and indicators are turned off when [Dimmer: Off] is se lected. They turn on automatically when you press any button, then turn off again if you do not operate the speaker system for

Saving Power in Standby Mode

Check that you have made the following settings: – [Setup] - [Advanced Settings] -

[HDMI Settings] - [Standby Through] is set to [Off].

– [Setup] - [Advanced Settings] -

[System Settings] - [Network/ Bluetooth Standby] is set to [Off].

Performing Easy Setup

You can make basic initial settings, speaker settings, and network settings for the speaker system easily by performing Easy Setup.

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Setup] - [Easy Setup]

on the home menu.

The [Easy Setup] screen appears on the TV screen.

3 Select the desired setting.

• [Easy Initial Setup]: Performs the basic initial settings including the speaker settings and network settings.

• [Easy Sound Setup]: Performs the basic speaker settings for optimizing the surround sound for your environment.

• [Easy Network Setup]: Performs the basic network settings.

4 Perform settings by following the

on-screen instructions.

Performing Advanced Settings

Using the [Advanced Settings] Menu

You can make various adjustments to items such as picture and sound on the [Advanced Settings] menu.

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Setup] - [Advanced Settings] on the home menu.

The [Advanced Settings] screen appears on the TV screen.

3 Select the setting item.

For details about the setting items, refer to Help Guide.

Setting item Explanation

[Speaker Settings]

[Audio Settings] Makes the audio output settings.

[HDMI Settings] Makes the HDMI settings.

[Bluetooth Settings]

[System Settings] Makes the speaker system-related settings.

[Network Settings] Makes detailed settings for the Internet.

[Resetting]

[Software Update]

Makes the speakers settings for installing and connections.

Makes detailed settings for the BLUETOOTH function.

Resets the speaker system to the factory default settings.

Updates the software of the speaker system or optional subwoofer/rear speakers.

Updating the Software

By updating your software to the latest version, you can take advantage of the newest functions. For information about update functions, visit the following website:

• For customers in Americas https://www.sony.com/am/support

• For customers in Europe https://www.sony.eu/support

• For customers in Asia-Pacific, Oceania, Middle East, and Africa https://www.sony-asia.com/support

Notes

• It may take up to 20 minutes for the

update to be completed.

• An Internet environment is necessary to

perform updates via the Internet.

• While the updating operation is in

progress, do not turn on or off the speaker system, disconnect the AC power cord (mains lead), disconnect/connect an HDMI cable, or operate the speaker system or TV. Wait for the software update to complete.

• Set [Setup] - [Advanced Settings] -

[Network Settings] - [Auto Update Settings] - [Auto Update] to [On] when you want to perform software updates automatically. Software update may be performed even if you select [Off] in [Auto Update] depending on the details of the updates. For details, refer to Help Guide.

1 When using the optional

subwoofer or rear speakers, make sure that they are turned on and connected to the speaker system.

The power indicator(s) of the optional subwoofer and/or rear speaker light(s) in green.

2 Press HOME.

The home menu appears on the TV screen.

3 Select [Setup] - [Advanced

Settings] on the home menu.

If the speaker system detects update information for the speaker system on the network, the update notification and [Software Update] appear on the home menu. In this case, select [Software Update] and follow the on-screen instructions.

4 Select [Software Update].

The [Software Update] screen appears on the TV screen.

5 Select the item for updating.

Select the updating item from the following items by pressing / and

, then update the software by following the on-screen instructions. When a software update starts, the speaker system automatically reboots. During a software update, [UPDATE] appears in the front panel display. After the update is complete, the speaker system automatically reboots.

[Network Update]

Updates the software using the available network. Make sure that the network is connected to the Internet.

[USB Update]

Updates the software using a USB memory. For details on updating, refer to the instructions that are displayed when downloading the update file.

[Wireless Speakers Update]

Updates the software of the optional subwoofer and rear speakers when the software of the speaker system is the latest version.

Notes

• You can perfor m [USB Update] by pressin g

and holding the BLUETOOTH and 

(power) button on the bar speaker for 7 seconds.

• If updating of the optional subwoofer or rear speakers does not work, move them to a location near the bar speaker and update.

Troubleshooting

If the speaker system does not work properly, handle it in the following order.

1 Search for the cause and

solution of the issue by referring to these Operating Instructions or Help Guide.

The troubleshooting method is listed in “Troubleshooting.” For the functions that are not mentioned in Operating Instructions, refer to Help Guide.

• For customers in Americas

https:// rd1.sony.net/help/ ht/a7000/h_uc/

2 Search for the cause and

solution of the issue on the Sony support site.

Sony support site provides latest support information and Frequently Asked Questions.

• For customers in Americas

https://www.sony.com/am/ support

• For customers in Europe

https://www.sony.eu/support

• For customers in Asia-Pacific, Oceania, Middle East, and Africa

https://www.sony-asia.com/ support

3 Reset the speaker system.

All the settings of the speaker system return to their initial status.

4 Should any problems persist,

consult your nearest Sony dealer.

• For customers in other countries/ regions

https:// rd1.sony.net/help/ ht/a7000/h_zz/

Power

The speaker system does not power up.

 Check that the AC power cord (mains

lead) is connected securely.

 Disconnect the AC power cord (mains

lead) from the wall outlet (mains), and then reconnect after several minutes.

The speaker system does not turn on even when the TV is turned on.

 Set [Setup] - [Advanced Settings]

- [HDMI Settings] - [Control for HDMI] to [On]. The TV must support the Control for HDMI function (page 42). For details, refer to the operating instructions of your TV.

 Check the speaker settings of the TV.

The speaker system power syncs with the speaker settings of the TV. For details, refer to the operating instructions of your TV.

 Depending on the TV, if the sound

was output from the speakers of the TV the previous time, the speaker system may not turn on by interlocking with the TV power even when the TV is turned on.

The speaker system turns off when the TV is turned off.

 Check the setting of [Setup] -

[Advanced Settings] - [HDMI Settings]

- [Standby Linked to TV]. When [Standby Linked to TV] is set to [On] or [Auto], the speaker system turns off automatically when you turn off the TV.

The speaker system does not turn off even when the TV is turned off.

 Check the setting of [Setup] -

[Advanced Settings] - [HDMI Settings]

- [Standby Linked to TV]. To turn the speaker system off automatically, regardless of the input when you turn off the TV, set [Standby Linked to TV] to [On]. The TV must support the Control for HDMI function (page 42).

For details, refer to the operating instructions of your TV.

The speaker system cannot be turned off.

 The speaker system may be in demo

mode. To cancel demo mode, reset the speaker system. Press and hold  (power) and – (volume) on the bar speaker for more than 5 seconds (page 58).


There is no picture or the picture is not output correctly.

 Select the appropriate input

(page 24).

 When there is no picture while the TV

input is selected, select the TV channel that you want using the TV remote control.

 When there is no picture while the

HDMI input is selected, press the playback button of the connected device.

 Disconnect an HDMI cable, then

connect it again. Make sure that the cable is firmly inserted.

 When there is no picture from the

connected device or the picture from the connected device is not output correctly, change the setting of

[Setup] - [Advanced Settings] [HDMI Settings] - [HDMI Signal Format] - [HDMI IN 1]/[HDMI IN 2]. For details, refer to Help Guide.

 The speaker system is connected to

an input device that is not HDCP (High-bandwidth Digital Content Protection) compliant. In this case, check the specifications of the connected device.

The picture on the TV screen is distorted.

 Interference of the wireless function

between the TV/other wireless devices and the speaker system may have occurred. Install the speaker

system far away from the TV/other wireless devices.

 There is an interference of the

frequency band between the wireless LAN and the wireless connection of the optional speakers. Switch the band of the wireless LAN connection of the TV or device that is playing an image to 2.4 GHz.

3D content from the HDMI IN 1/2 jack does not appear on the TV screen.

 Depending on the TV or video device,

3D content may not appear. C heck the supported HDMI video format. For details, refer to Help Guide.

High definition video signal (4K/60p 4:4:4, 4:2:2 and 4K/60p 4:2:0 10 bit, etc.) from the HDMI IN 1/2 jack does not appear on the TV screen.

 Depending on the TV or the video

device, high definition video signals such as 4K may not appear. Check the video capability and settings of your TV and video device.

 Change the setting of [Setup] -

[Advanced Settings] - [HDMI Settings]

- [HDMI Signal Format] - [HDMI IN 1]/ [HDMI IN 2] according to the video signal that is supported by a connected TV or device. For details, refer to Help Guide.

 When you play high definition video

signals such as 4K video content that is protected by copyright, connect the speaker system to the H DMI input jack that supports HDCP2.2 or HDCP2.3 on the TV. For details, refer to the operating instructions of your TV. If the HDMI input jack that supports HDCP2.2 or HDCP2.3 on the TV is not compatible with eARC or ARC, connect the optical digital output jack on the TV and the TV IN (OPT) jack on the speaker system with an optical digital cable.

An image is not displayed on the entire TV screen.

 The aspect ratio on the media is fixed.

Picture and sound of the device that is connected to the speaker system are not output from the TV when the speaker system is not turned on.

 Set [Setup] - [Advanced Settings]

- [HDMI Settings] - [Control for HDMI] to [On] on the speaker system, and then set [Standby Through] to [Auto] or [On].

 Turn on the speaker system, and then

switch the input for the device playing.

 If connected to devices other than

those manufactured by Sony that support the Control for HDMI function, set [Setup] - [Advanced Settings]

- [HDMI Settings] - [Standby Through] to [On].

HDR contents cannot be shown in high-dynamic range.

 Check the settings of the TV and

connected device. For details, refer to the operating instructions of your TV and the connected device.

 Depending on the [HDMI Signal

Format] setting, an AV device may not be able to output HDR contents in HDR format. Change the setting of

[Setup] - [Advanced Settings] [HDMI Settings] - [HDMI Signal Format] - [HDMI IN 1]/[HDMI IN 2] according to the video format that is supported by the AV device. For details, refer to Help Guide.

Sound

The speaker system cannot connect to a TV with the BLUETOOTH function.

 When you connect the speaker

system and TV with an HDMI cable, the BLUETOOTH connection is canceled.

No TV sound is output from the speaker system.

 Check the type and connection of an

HDMI cable, TV center speaker mode cable, or optical digital cable that is connected to the speaker system and the TV (page 18).

 Disconnect the cables that are

connected to the TV and the speaker system, then connect them firmly again. Disconnect the AC power cords (mains leads) of the TV and the speaker system from the AC outlets (mains), then connect them again.

 When the speaker system and TV are

connected with an HDMI cable, check the following. – Th e H DM I j ac k o f t he co nn ec te d T V is

labeled with “eARC” or “ARC.”

– The Control for HDMI function of the

TV is set to on.

– The eARC or ARC function of the TV

is enabled.

– On the speaker system, [Setup]

- [Advanced Settings] - [HDMI Settings] - [Control for HDMI] is set to [On] and [Setup] - [Advanced Settings] - [HDMI Settings] - [TV Audio Input Mode] is set to [Auto].

 If your TV is not compatible with

eARC, set [Setup] - [Advanced Settings] - [HDMI Settings] - [eARC] to [Off].

 If your TV is not compatible with eARC

or ARC, connect an optical digital cable (page 18). If the TV is not compatible with eARC or ARC, TV sound will not be output from the speaker system even if the speaker system is connected to the TV’s HDMI IN jack.

 Switch the input of the speaker

system to the TV input.

 Increase the volume on the speaker

system or cancel muting.

 If sound of a Blu-ray Disc player, set-

top box, gaming console, etc. connected to the TV is not output, connect the device to the HDMI IN 1 or HDMI IN 2 jack of the speaker system

and switch input of the speaker system to the input for the connected device ([HDMI1] or [HDMI2]) (page 20).

 Depending on the order in which you

turn on the TV and the speaker system, the speaker system may be muted and [MUTING] is displayed on the front panel display of the speaker system. If this happens, turn on the TV first, then the speaker system.

 Press TV/AUDIO SYSTEM on the

remote control to switch the output for the connected TV sound or set the speakers setting of your TV to Audio System. Refer to the operating instructions of your TV regarding how to set the TV.

Picture and sound of the device that is connected to the speaker system are not output from the TV when the speaker system is not turned on.

 Set [Setup] - [Advanced Settings]

- [HDMI Settings] - [Control for HDMI] to [On] on the speaker system, and then set [Standby Through] to [Auto] or [On].

 Turn on the speaker system, and then

switch the input for the device playing.

 If connected to devices other than

those manufactured by Sony that support the Control for HDMI function , set [Setup] - [Advanced Settings]

- [HDMI Settings] - [Standby Through] to [On].

The sound is output from both the speaker system and TV.

 Mute the sound of the spea ker system

or TV.

 When you connect the speaker

system and TV with the TV center speaker mode cable and set

[Setup] - [Advanced Settings] [Speaker Settings] - [TV Center Speaker Settings] - [TV Center Speaker Mode] to [On], the center part of the speaker system sound is output from the TV. For detail, refer to Help Guide.

The sound is interrupted while watching a TV program or content on a Blu-ray Disc, etc.

 Check the sound mode setting

(page 37). If the sound mode is set to [Auto Sound], the sound may be interrupted when the sound mode is changed automatically according to the information of the program that is being played. If you do not want to change the sound mode automatically, set the sound mode to a setting other than [Auto Sound].

The TV sound from this speaker system lags behind the image.

 Set the adjustment value of the delay

between the picture and sound to 0 msec if it is set to the range between 25 msec and 300 msec. For details, refer to Help Guide.

 A time gap between the sound and

picture may occur depending on the sound source. If your TV has a function that delays the image, use it for adjustment. For details, refer to the operating instructions of your TV.

No sound or only a very low-level sound of the device connected to the speaker system is heard.

 Press  (volume) + on the remote

control and check the volume level (page 12).

 Press  or  (volume) + on the

remote control to cancel the muting function (page 12).

 Make sure the input source is selected

correctly. You should try other input sources by pressing the input select button on the remote control (TV/ HDMI1/HDMI2/ANALOG/USB/ BLUETOOTH).

 Make sure that the connectors are

firmly inserted.

 When you play content compatible

with copyright protection technology (HDCP), sound may not be output from the speaker system.

 Change the setting of [Setup] -

[Advanced Settings] - [HDMI Settings]

- [HDMI Signal Format] - [HDMI IN 1]/ [HDMI IN 2]. For details, refer to Help Guide.

The surround effect cannot be obtained.

 Depending on the input signal and

the sound mode setting, surround sound processing may not work effectively. The surround effect may be subtle, depending on the program or disc.

 To play multi-channel audio, check

the digital audio output setting on the device connected to the speaker system. For details, refer to the operating instructions of the connected device.

No sound is output from the optional rear speakers/subwoofer.

 It may be improved by setting

[Setup] - [Advanced Settings] [Speaker Settings] - [Wireless Speaker Settings] - [Wireless Playback Quality] to [Connection].

 Refer to the operating instructions of

the optional rear speakers/ subwoofer.

Sound is not output from some speakers.

 Some speakers may not output sound

depending on the contents or sound mode.

Sound Field Optimization

Sound Field Optimization failed.

 When using the optional rear

speakers, install them upright so that the labels on the bottom of the speakers are directed downwards.

 Perform Sound Field Optimization

again in a situation where the surrounding is quiet.

 If the distance between the bar

speaker and optional rear speakers/

subwoofer is too close or far away from each other, Sound Field Optimization cannot be performed properly. Adjust the distance between speakers and perform Sound Field Optimization again.

 If there is any obstacle between

speakers or the microphone for measurement of the speaker is blocked by an obstacle, Sound Field Optimization cannot be performed properly. Remove it if there is any obstacle between speakers or in front of speakers.

USB Device Connection

The USB device is not recognized.

 Try the following:

 Turn the speaker system off.  Remove and reconnect the USB

device.

 Turn the speaker system on.

 Make sure that the USB device is

securely connected to the (USB) port (page 29).

 Check to see if the USB device is

damaged.

 Make sure that the USB device is

turned on.

 If the USB device is connected via a

USB hub or cable, disconnect it and connect the USB device directly to the speaker system.

 When connecting a WALKMAN® or

smartphone, its internal storage or external storage (such as a memory card) may not be recognized.

Mobile Device Connection

Pairing cannot be achieved.

 Bring this speaker system and the

BLUETOOTH device closer together.

 Make sure this speaker system is not

receiving interference from a wireless LAN device, other 2.4 GHz wireless devices, or a microwave oven. If a device that generates

electromagnetic radiation is nearby, move the device away from this speaker system.

BLUETOOTH connection cannot be completed.

 Make sure that the BLUETOOTH

indicator of the bar speaker is lit (page 28).

 Make sure the BLUETOOTH device to

be connected with is turned on and the BLUETOOTH function is enabled.

 Bring this speaker system and the

BLUETOOTH device closer together.

 Pair this speaker system and the

BLUETOOTH device again. You may need to cancel the pairing with this speaker system using your BLUETOOTH device first.

 Pairing information may be deleted.

Perform the pairing operation again (page 27).

Sound of the connected BLUETOOTH mob il e d ev ic e is no t o ut pu t fro m t he speaker system.

 Make sure that the BLUETOOTH

indicator of the bar speaker is lit (page 28).

 Bring this speaker system and the

BLUETOOTH device closer together.

 If a device that generates

electromagnetic radiation, such as a wireless LAN device, other BLUETOOTH devices, or a microwave oven is nearby, move the device away from this speaker system.

 Remove any obstacle between this

speaker system and the BLUETOOTH device or move this speaker system away from the obstacle.

 Reposition the connected

BLUETOOTH device.

 Switch the wireless LAN frequency of

any nearby wireless LAN router or PC to the 5 GHz range.

 Increase the volume o n the connected

BLUETOOTH device.

Headphones Connection with the BLUETOOTH Function

Pairing cannot be achieved.

 Bring this speaker system and the

BLUETOOTH headphones closer together.

 Make sure this speaker system is not

receiving interference from a wireless LAN device, other 2.4 GHz wireless devices, or a microwave oven. If a device that generates electromagnetic radiation is nearby, move the device away from this speaker system.

BLUETOOTH connection cannot be completed.

 Make sure that the BLUETOOTH

indicator of the bar speaker is lit (page 28).

 Make sure the BLUETOOTH

headphones to be connected with is turned on and the BLUETOOTH function is enabled.

 Bring this speaker system and the

BLUETOOTH headphones closer together.

 Pair this speaker system and the

BLUETOOTH headphones again. You may need to cancel the pairing for the BLUETOOTH headphones with this speaker system first. See “To remove the paired headphones from the device list” (page 31).

 Pairing information may be deleted.

Perform the pairing operation again (page 30).

No sound is output from the connected BLUETOOTH headphones.

 Make sure that the BLUETOOTH

indicator of the bar speaker is lit (page 28).

 Bring this speaker system and the

BLUETOOTH headphones closer together.

 If a device that generates

electromagnetic radiation, such as a wireless LAN device, other BLUETOOTH devices, or a microwave oven is nearby, move the device away from this speaker system.

 Remove any obstacle between this

speaker system and the BLUETOOTH headphones, or move this speaker system away from the obstacle.

 Reposition the connected

BLUETOOTH headphones.

 Switch the wireless LAN frequency of

any nearby wireless LAN router or PC to the 5 GHz range.

 Increase the volume o n the connected

BLUETOOTH headphones.

 Set [Setup] - [Advanced Settings]

- [Bluetooth Settings] - [Wireless Playback Quality] to [LDAC Stable Connection (Auto)] or [SBC Stable Connection (Auto)].

 Some content may not be output due

to content protection.

Remote Control

The remote control of this speaker system does not function.

 Point the remote control at the

remote control sensor on the bar speaker (page 10).

 Remove any obstacles in the path

between the remote control and the speaker system.

 Replace both batteries in the remote

control with new ones if they are weak.

 Make sure you are pressing the

correct button on the remote control.

TV remote control does not work.

 This problem might be solved by

enabling the IR repeater function. For details, refer to Help Guide.

Others

The Control for HDMI function does not work properly.

 Check the connection with the

speaker system (page 18).

 Enable the Control for HDMI function

on the TV. For details, refer to the operating instructions of your TV.

 Wait a while, and then try again. If you

unplug the speaker system, it will take a while before operations can be made. Wait for 15 seconds or longer, and then try again.

 Make sure the devices connected to

the speaker system support the Control for HDMI function.

 Enable the Control for HDMI function

on the devices connected to the speaker system. For details, refer to the operating instructions of your device.

 The type and number of devices that

can be controlled by the Control for HDMI function are restricted by the HDMI CEC standard as follows: – Recording devices (Blu-ray Disc

recorder, DVD recorder, etc.): up to 3 devices

– Playback devices (Blu-ray Disc

player, DVD player, etc.): up to 3 devices (this speaker system uses one of them)

– Tuner-related devices: up to 4

devices

– Audio system (receiver/

headphones): up to 1 device (used by this speaker system)

[PRTCT] flashes in the front panel display for 5 seconds and the speaker system is turned off.

 Disconnect the AC power cord (mains

lead) and make sure nothing is obstructing the ventilation holes of the speaker system.

[PRTCT], [PUSH], speaker name ([SUB], [RL], or [RR]), and [POWER] flash alternately in the front panel display.

 Press  (power) on the corresponding

speaker ([SUB]: optional subwoofer, [RL]: optional left rear speaker, [RR]: optional right rear speaker) to turn each off. For the optional rear speaker, disconnect the AC power cord (mains lead), then restart the speaker system. For the optional subwoofer, disconnect the AC power cord (mains lead) and make sure nothing is obstructing the ventilation holes of the optional subwoofer, then restart the speaker system. If they are reconnected properly, the display in the front panel display returns to the normal display.

[HIGH], [TEMP], and [ERROR] appear alternately for 2 seconds each in the front panel display, [STANDBY] appears in the front panel display, then the speaker system is turned off.

 High-temperature is detected in the

speaker system. Press  (power) to restart the speaker system.

[BT TX] appears in the front panel display.

 Set [Setup] - [Advanced Settings]

- [Bluetooth Settings] - [Bluetooth Mode] to [Receiver]. [BT TX] appears in the front panel display if [Bluetooth Mode] is set to [Transmitter].

Sensors of the TV do not work properly.

 The bar speaker may block some

sensors (such as the brightness sensor), the remote control receiver of your TV or the emitter for 3D glasses (infrared transmission) of a 3D TV that supports the infrared 3D glass sys tem, or wireless communication. Move the bar speaker away from the TV within a range that allow those parts to

operate properly. For the locations of the sensors and remote control receiver, refer to the operating instructions of the TV.

Wireless functions (wireless LAN, the BLUETOOTH function, or optional subwoofer/rear speakers) are unstable.

 Do not place metal objects other than

a TV around the speaker system.

Music that you are not familiar with suddenly plays.

 The pre-installed sample music may

have been played. Press (input select) on the bar speaker to stop playback.

The speaker system cannot be turned off or [Advanced Settings] cannot be used./When pressing  (power), [.DEMO] appears in the front panel display and the speaker system cannot be turned off.

 The speaker system may be in demo

mode. To cancel demo mode, reset the speaker system (page 58). Press and hold  (power) and – (volume) on the bar speaker for more than 5 seconds.

The speaker system restarts.

 When connecting to a TV with a

resolution that is different from that of the speaker system, the speaker system may restart to reset the picture output setting.

Resetting the Speaker System

If the speaker system still does not operate properly, reset the speaker system as follows.

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Setup] - [Advanced

Settings] on the home menu.

3 Select [Resetting]. 4 Select the menu item you want to

reset.

5 Select [Start].

To cancel resetting

Select [Cancel] in step 5.

If You Cannot Perform Resetting Using the Home Menu

1 Press and hold  (power) and –

(volume) on the bar speaker for more than 5 seconds.

The settings return to their initial status.

Note

By resetting, the link with the optional subwoofer and rear speakers may be lost. In this case, reconnect them by referring to their operating instructions.

Additional Information

Specifications

Sound Bar (HT-A7000)

Amplifier section

U.S. models: POWER OUTPUT AND TOTAL HARMONIC

DISTORTION:

(FTC)

Front L + Front R: With 6 ohms loads, both channels driven, from 20 - 20k Hz; rated 33 W per channel minimum RMS power, with no more than 1% total harmonic distortion from 250 mW to rated output.

POWER OUTPUT (reference)

Front L/Front R speaker blocks: 45.5 W (per channel at 6 ohms, 1 kHz) Front Inside L/Front Inside R speaker blocks: 45.5 W (per channel at 6 ohms, 1 kHz) Center speaker blocks: 45.5 W (at 6 ohms, 1 kHz) Top L/Top R speaker blocks: 45.5 W (per channel at 6 ohms, 1 kHz) Subwoofer blocks: 45.5 W (per channel at 6 ohms, 100 Hz) Beam Tweeter L/ Beam Tweeter R speaker blocks: 45.5 W (per channel at

6 ohms, 15 kHz) Canadian models: POWER OUTPUT (rated)

Front L + Front R speaker blocks: 33 W

+ 33 W (at 6 ohms, 1 kHz 1 %THD)

Front Inside L + Front Inside R speaker

blocks: 33 W+33 W (at 6 ohms, 1 kHz 1

%THD)

Center speaker blocks:33 W (at 6 ohms,

1 kHz 1 %THD)

Top L + Top R speaker blocks:33 W+33

W (at 6 ohms, 1 kHz 1 %THD)

Subwoofer blocks: 33 W+33 W (at 6

ohms, 100 Hz 1 %THD)

Beam Tweeter L + Beam Tweeter R

speaker blocks: 33 W+33 W (at 6 ohms, 15 kHz 1 %THD)

POWER OUTPUT (reference)

Inputs

HDMI IN* (1/2) ANALOG IN TV IN (OPT)

Outputs

HDMI OUT (TV (eARC/ARC))* S-CENTER OUT

* HDMI IN 1/2 and HDMI OUT (TV (eARC/

ARC)) jacks support HDCP2.2 and HDCP2.3 protocols. HDCP2.2 and HDCP2.3 are newly enhanced copyright protection technology that is used to protect content such as 4K movies.

HDMI Section

Connector

Type A (19pin)

USB section

(USB) port: 800 mA

Type A (For connecting USB memory)

Wireless LAN section

Communication system

IEEE 802.11 a/b/g/n/ac

Frequency band

2.4 GHz, 5 GHz

BLUETOOTH section

Communication system

BLUETOOTH Specification version 5.0

Output

BLUETOOTH Specification Power Class 1

Maximum communication range

Line of sight approx. 30 m

Maximum number of devices to be

registered 9 devices

Frequency band

2.4 GHz band (2.4000 GHz -

2.4835 GHz)

Modulation method

FHSS (Freq Hopping Spread Spectrum)

Compatible BLUETOOTH profiles

A2DP (Advanced Audio Distribution Profile) AVRCP (Audio Video Remote Control Profile)

Supported Codecs

SBC

, AAC5), LDAC

Transmission range (A2DP)

20 Hz - 40,000 Hz (LDAC sampling frequency 96 kHz with 990 kbps transmission) 20 Hz - 20,000 Hz (Sampling frequency

44.1 kHz)

The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, cordless phone use, reception sensitivity, the operating system, software applications, etc.

BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.

Codec: Audio signal compression and conversion format

Abbreviation for Subband Codec

Abbreviation for Advanced Audio Coding

Front L/Front R/Center speaker section

Speaker

46 mm × 54 mm (1 13/16 in × 2 1/4 in) cone type

Speaker system

Acoustic suspension

Built-in subwoofer section

Speaker

51 mm × 97 mm (2 1/8 in × 3 7/8 in) cone type

Speaker system

Bass reflex

Top L/Top R speaker section

Speaker

46 mm × 54 mm (1 13/16 in × 2 1/4 in) cone type

Speaker system

Acoustic suspension

Beam Tweeter section

Speaker

16mm (21/32 in) soft dome

Speaker System

Acoustic tube

General

Power requirements

120 V AC, 60 Hz

Power consumption

On: 65 W [Network/Bluetooth Standby] - [On]: Less than 2.4 W [Network/Bluetooth Standby] - [Off]: Less than 0.5 W*

* When [Standby Through] is set to

[Off], or [Standby Through] is set to [Auto] while the connected TV is turned off.

Dimensions* (approx.) (w/h/d)

1,300 mm × 80 mm × 142 mm (51 1/4 in × 3 1/4 in × 5 5/8 in)

* Not including projection portion

Mass (approx.)

8.7 kg (19 lb 2 oz)

Devices you can stream audio from

• iPhone, iPad, or iPod touch with iOS 11.4 or later

• Apple TV 4K or Apple TV HD with tvOS11.4 or later

• HomePod with iOS 11.4 or later

• Mac with either iTunes 12.8 or later or macOS Catalina

• PC with iTunes 12.8 or later

Wireless Transmitter/ Receiver Section

Communication system

Wireless Sound Specification version

4.0

Frequency band

5 GHz

Modulation method

OFDM

Supplied Accessories

• Remote control (1)

• R03 (size AAA) battery (2)

• WALL MOUNT TEMPLATE (1)

• HDMI cable (4K, 8K transmission supported) (1)

• TV center speaker mode cable (1)

• AC power cord (mains lead) (1)

• Wall mounting bracket (2), Screw (2)

•Startup Guide

• Operating Instructions (this document)

Design and specifications are subject to change without notice.

Playable Types of Audio Files

Codec Extension MP3 (MPEG-1 Audio

Layer III) AAC/HE-AAC .m4a, .aac, .mp4,

WMA9 Standard .wma LPCM .wav FLAC .flac DSF .dsf DSDIFF* .dff AIFF .aiff, .aif ALAC .m4a Vorbis .ogg Monkey’s Audio .ape

* The speaker system does not play DST

encoded files.

Notes

• Some files may not play depending on the file format, file encoding, recording condition, or other conditions.

• Some files edited on a PC may not play.

• Fast forward or fast reverse may not be available with some files.

• The speaker system does not play coded files such as DRM.

• The speaker system cannot recognize a file/folder depending on the name/metadata.

• Some USB devices may not work with this speaker system.

• The speaker system can recognize Mass Storage Class (MSC) devices (such as flash memory).

.mp3

.3gp

Supported Input Audio Formats

Supported audio formats differ depending on the input setting of the speaker system. “” indicates the supported audio format and “–” indicates the unsupported audio format in the table below.

Format HDMI 1/2

LPCM 2ch  LPCM 5.1ch  –– LPCM 7.1ch  –– Dolby Digital  Dolby TrueHD  –– Dolby Digital Plus  – Dolby Atmos  –– Dolby Atmos - Dolby TrueHD  –– Dolby Atmos - Dolby Digital Plus  – DTS  DTS-ES Discrete 6.1, DTS-ES Matrix 6.1  DTS 96/24  DTS-HD High Resolution Audio  –– DTS-HD Master Audio –– DTS:X  ––

Note

input

The HDMI IN 1/2 jack does not support audio formats that contain copy protections, such as Super Audio CD or DVD-Audio.

TV input

(eARC)

TV input

(ARC)

TV input

(OPT)

On BLUETOOTH Communication

• BLUETOOTH devices should be used within approximately 10 meters (33 feet) (unobstructed distance) of each other. The effective communication range may become shorter under the following conditions. – When a person, metal object, wall or

other obstruction is between the devices with a BLUETOOTH connection

– Locations where a wireless LAN is

installed – Around microwave ovens that are in use – Locations where other electromagnetic

waves occur

• BLUETOOTH devices and wireless LAN (IEEE 802.11 b/g/n) use the same frequency band (2.4 GHz). When using your BLUETOOTH device near a device with wireless LAN capability, electromagnetic interference may occur. This could result in lower data transfer rates, noise, or inability to connect. If this happens, try the following remedies: – Use this speaker system at least

10 meters (33 feet) away from the wireless LAN device.

– Turn off the power to the wireless LAN

device when using your BLUETOOTH device within 10 meters (33 feet).

– Install this speaker system and

BLUETOOTH device as closer to each other as possible.

• The radio waves broadcast by this speaker system may interfere with the operation of some medical devices. Since this interference may result in malfunction, always turn off the power on this speaker system and BLUETOOTH device in the following locations: – In hospitals, on trains, in airplanes, at

gas stations, and any place where flammable gasses may be present

– Near automatic doors or fire alarms

• This speaker system supports security functions that comply with the BLUETOOTH specification to ensure secure connection during communication using BLUETOOTH technology. However,

this security may be insufficient depending on the setting content and other factors, so always be careful when performing communication using BLUETOOTH technology.

• Sony cannot be held liable in any way for damages or other loss resulting from information leaks during communication using BLUETOOTH technology.

• BLUETOOTH communication is not necessarily guaranteed with all BLUETOOTH devices that have the same profile as this speaker system.

• BLUETOOTH devices connected with this speaker system must comply with the BLUETOOTH specification prescribed by the Bluetooth SIG, Inc., and must be certified to comply. However, even when a device complies with the BLUETOOTH specification, there may be cases where the characteristics or specifications of the BLUETOOTH device make it impossible to connect, or may result in different control methods, display or operation.

• Noise may occur or the audio may cut off depending on the BLUETOOTH device connected with this speaker system, the communications environment, or surrounding conditions.

If you have any questions or problems concerning your speaker system, please consult your nearest Sony dealer.

END USER LICENSE AGREEMENT

IMPORTANT:

BEFORE USING THE SOFTWARE, PLEASE READ THIS END USER LICENSE AGREEMENT (“EULA”) CAREFULLY. BY USING THE SOFTWARE YOU ARE ACCEPTING THE TERMS OF THIS EULA. IF YOU DO NOT ACCEPT THE TERMS OF THIS EULA, YOU MAY NOT USE THE SOFTWARE. This EULA is a legal agreement between you and Sony Electronics Inc. (“SONY”). This EULA governs your rights and obligations regarding the SONY software of SONY and/or its third party licensors (including SONY’s affiliates) and their respective affiliates (collectively, the “THIRD-PARTY SUPPLIERS”), together with any updates/upgrades provided by SONY, any printed, on-line or other electronic documentation for such software, and any data files created by operation of such software (collectively, the “SOFTWARE”). Notwithstanding the foregoing, any software in the SOFTWARE having a separate end user license agreement (including, but not limited to, GNU General Public license and Lesser/ Library General Public License) shall be covered by such applicab le separate end user license agreement in lieu of the terms of this EULA to the extent required by such separate end user license agreement (“EXCLUDED SOFTWARE”).

SOFTWARE LICENSE

The SOFTWARE is licensed, not sold. The SOFTWARE is protected by copyright and other intellectual property laws and international treaties.

All right and title in and to the SOFTWARE (including, but not lim ited to, any images, photographs, animation, video, audio, music, text and “applets” incorporated into the SOFTWARE) is owned by SONY or one or more of the THIRD-PARTY SUPPLIERS.

GRANT OF LICENSE

SONY grants you a limited license to use the SOFTWARE solely in connection with your compatible device (“DEVICE”) and only for your individual, noncommercial use. SONY and the THIRDPARTY SUPPLIERS expressly reserve all rights, title and interest (including, but not limited to, all intellectual property rights) in and to the SOFTWARE that this EULA does not specifically grant to you.

REQUIREMENTS AND LIMITATIONS

You may not copy, publish, adapt, redistribute, attempt to derive source code, modify, reverse engineer, decompile, or disassemble any of the SOFTWARE, whether in whole or in part, or create any derivative works from or of the SOFTWARE unless such derivative works are intentionally facilitated by the SOFTWARE. You may not modify or tamper with any digital rights management functionality of the SOFTWARE. You may not bypass, modify, defeat or circumvent any of the functions or protections of the SOFTWARE or any mechanisms operatively linked to the SOFTWARE. You may not separate any individual component of the SOFTWARE for use on more than one DEVICE unless expressly authorized to do so by SONY. You may not remove, alter, cover or deface any trademarks or notices on the SOFTWARE. You may not share, distribute, rent, lease, sublicense, assign, transfer or sell the SOFTWARE.

The software, network services or other products other than SOFTWARE upon which the SOFTWARE’S performance depends might be interrupted or discontinued at the discretion of the suppliers (software suppliers, service suppliers, or SONY). SONY and such suppliers do not warrant that the SOFTWARE, network services, contents or other products will continue to be available, or will operate without interruption or modification.

USE OF SOFTWARE WITH COPYRIGHTED MATERIALS

The SOFTWARE may be capable of being used by you to view, store, process and/ or use content created by you and/or third parties. Such content may be protected by copyright, other intellectual property laws, and/or agreements. You agree to use the SOFTWARE only in compliance with all such laws and agreements that apply to such content. You acknowledge and agree that SONY may take appropriate measures to protect the copyright of content stored, processed or used by the SOFTWARE. Such measures include, but are not limited to, counting the frequency of your backup and restoration through certain SOFTWARE features, refusal to accept your request to enable restoration of data, and termination of this EULA in the event of your illegitimate use of the SOFTWARE.

CONTENT SERVICE

PLEASE ALSO NOTE THAT THE SOFTWARE MAY BE DESIGNED TO BE USED WITH CONTENT AVAILABLE THROUGH ONE OR MORE CONTENT SERVICES (“CONTENT SERVICE”). USE OF THE SERVICE AND THAT CONTENT IS SUBJECT TO THE TERMS OF SERVICE OF THAT CONTENT SERVICE. IF YOU DECLINE TO ACCEPT THOSE TERMS, YOUR USE OF THE SOFTWARE WILL BE LIMITED. You acknowledge and agree that certain content and services available through

the SOFTWARE may be provided by third parties over which SONY has no control. USE OF THE CONTENT SERVICE REQUIRES AN INTERNET CONNECTION. THE CONTENT SERVICE MAY BE DISCONTINUED AT ANY TIME.

INTERNET CONNECTIVITY AND THIRD PARTY SERVICES

You acknowledge and agree that access to certain SOFTWARE features may require an Internet connection for which you are solely responsible. Further, you are solely responsible for payment of any third party fees assoc iated with your Internet connection, including but not limited to Internet service provider or airtime charges. Operation of the SOFTWARE may be limited or restricted depending on the capabilities, bandwidth or technical limitations of your Internet connection and service. The provision, quality and security of such Internet connectivity are the sole responsibility of the third party provi ding such service.

EXPORT AND OTHER REGULATIONS

You agree to comply with all applicable export and re-export restrictions and regulations of the area or country in which you reside, and not to transfer, or authorize the transfer, of the SOFTWARE to a prohibited country or otherwise in violation of any such restrictions or regulations.

HIGH RISK ACTIVITIES

The SOFTWARE is not fault-tolerant and is not designed, manufactured or intended for use or resale as on-line control equipment in hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life support machines, or weapons systems, in which the failure of

the SOFTWARE could lead to death, personal injury, or severe physical or environmental damage (“HIGH RISK ACTIVITIES”). SONY, each of the THIRDPARTY SUPPLIERS, and each of their respective affiliates specifically disclaim any express or implied warranty, duty or condition of fitness for HIGH RISK ACTIVITIES.

EXCLUSION OF WARRANTY ON SOFTWARE

You acknowledge and agree that use of the SOFTWARE is at your sole risk and that you are responsible for use of the SOFTWARE. The SOFTWARE is provided “AS IS,” without warranty, duty or condition of any kind. SONY AND EACH OF THE THIRD-PARTY SUPPLIERS (for purposes of this Section, SONY and each of the THIRD-PARTY SUPPLIERS shall be collectively referred to as “SONY”) EXPRESSLY DISCLAIM ALL WARRANTIES, DUTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, NONINFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. SONY DOES NOT WARRANT OR MAKE ANY CONDITIONS OR REPRESENTATIONS (A) THAT THE FUNCTIONS CONTAINED IN ANY OF THE SOFTWARE WILL MEET YOUR REQUIREMENTS OR THAT THEY WILL BE UPDATED, (B) THAT THE OPERATION OF ANY OF THE SOFTWARE WILL BE CORRECT OR ERROR-FREE OR THAT ANY DEFECTS WILL BE CORRECTED, (C) THAT THE SOFTWARE WILL NOT DAMAGE ANY OTHER SOFTWARE, HARDWARE OR DATA, (D) THAT ANY SOFTWARE, NETWORK SERVICES (INCLUDING THE INTERNET) OR PRODUCTS (OTHER THAN THE SOFTWARE) UPON WHICH THE SOFTWARE’S PERFORMANCE DEPENDS WILL CONTINUE TO BE AVAILABLE, UNINTERRUPTED OR UNMODIFIED, AND (E) REGARDING THE USE OR THE RESULTS OF THE USE OF THE SOFTWARE IN TERMS

OF ITS CORRECTNESS, ACCURACY, RELIABILITY, OR OTHERWISE. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY SONY OR AN AUTHORIZED REPRESENTATIVE OF SONY SHALL CREATE A WARRANTY, DUTY OR CONDITION OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. SHOULD THE SOFTWARE PROVE DEFECTIVE YOU ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES, SO THESE EXCLUSIONS MAY NOT APPLY TO YOU.

LIMITATION OF LIABILITY

SONY AND EACH OF THE THIRD-PARTY SUPPLIERS (for purposes of this Section, SONY and each of the THIRD-PARTY SUPPLIERS shall be collectively referred to as “SONY”) SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT LIABILITY OR UNDER ANY OTHER LEGAL THEORY RELATED TO THE SOFTWARE, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES ARISING OUT OF LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE SOFTWARE OR ANY ASSOCIATED HARDWARE, DOWN TIME AND USER’S TIME, EVEN IF ANY OF THEM HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, EACH AND ALL OF THEIR AGGREGATE LIABILITY UNDER ANY PROVISION OF THIS EULA SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID FOR THE PRODUCT. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

AUTOMATIC UPDATE FEATURE

From time to time, SONY or the THIRDPARTY SUPPLIERS may automatically update or otherwise modify the SOFTWARE, including, but no t limited to, for purposes of enhancement of security functions, error correction and improvement of functions, at such time as you interact with SONY’s or third parties’ servers, or otherwise. Such updates or modifications may delete or change the nature of features or other aspects of the SOFTWARE, including, but not limited to, functions you may rely upon. You acknowledge and agree that such activities may occur at SONY’s sole discretion and that SONY may condition continued use of the SOFTWARE upon your complete installation or acceptance of such update or modifications. Any updates/ modification s shall be deemed to be, and shall constitute part of, the SOFTWARE for purposes of this EULA. By acceptance of this EULA, you consent to such update/modification.

ENTIRE AGREEMENT, WAIVER, SEVERABILITY

This EULA and SONY’s privacy policy, each as amended and modified from time to time, together constitute the entire agreement between you and SONY with respect to the SOFTWARE. The failure of SONY to exercise or enforce any right or provision of this EULA shall not constitute a waiver of such right or provision. If any part of this EULA is held invalid, illegal, or unenforceable, that provision shall be enforced to the maximum extent permissible so as to maintain the intent of this EULA, and the other parts will remain in full force and effect.

GOVERNING LAW AND JURISDICTION

The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this EULA. This

EULA shall be governed by the laws of Japan, without regards to conflict of laws provisions. Any dispute arising out of this EULA shall be subject to the exclusive venue of the Tokyo District Court in Japan, and the parties hereby consent to the venue and jurisdiction of such courts.

EQUITABLE REMEDIES

Notwithstanding anything contained in this EULA to the contrary, you acknowledge and agree that any violation of or non-compliance with this EULA by you will cause irreparable harm to SONY, for which monetary damages would be inadequate, and you consent to SONY obtaining any injunctive or equitable relief that SONY deems necessary or appropriate in such circumstances. SONY may also take any legal and technical remedies to prevent violation of and/or to enforce this EULA, including, but not limited to, immediate termination of your use of the SOFTWARE, if SONY believes in its sole discretion that you are violating or intend to violate this EULA. These remedies are in addition to any other remedies SONY may have at law, in equity or under contract.

TERMINATION

Without prejudice to any of its other rights, SONY may terminate this EULA if you fail to comply with any of its terms. In case of such termination, you must cease all use, and destroy any copies, of the SOFTWARE.

AMENDMENT

SONY RESERVES THE RIGHT TO AMEND ANY OF THE TERMS OF THIS EULA AT ITS SOLE DISCRETION BY POSTING NOTICE ON A SONY DESIGNATED WEB SITE, BY EMAIL NOTIFICATION TO AN EMAIL ADDRESS PROVIDED BY YOU, BY PROVIDING NOTICE AS PART OF THE PROCESS IN WHICH YOU OBTAIN

UPGRADES/UPDATES OR BY ANY OTHER LEGALLY RECOGNIZABLE FORM OF NOTICE. If you do not agree to the amendment, you should promptly contact SONY for instructions. Your continued use of the SOFTWARE after the effective date of any such notice shall be deemed your agreement to be bound by such amendment.

THIRD-PARTY BENEFICIARIES

Each THIRD-PARTY SUPPLIER is an express intended third-party beneficiary of, and shall have the right to enforce, each provision of this EULA with respect to the SOFTWARE of such party. Should you have any questions concerning this EULA, you may contact SONY by writing to SONY at applicable contact address of each area or country.

Precautions

On safety

• Should any solid object or liquid fall into the speaker system, unplug the speaker system and have it checked by qualified personnel before operating it any further.

• Do not climb on the speaker system, as you may fall down and injure yourself, or speaker system damage may result.

On power sources

• Before operating the speaker system, check that the operating voltage is identical to your local power supply. The operating voltage is indicated on the nameplate on the rear of the bar speaker.

• If you are not going to use the speaker system for a long time, be sure to disconnect the speaker system from the wall outlet (mains). To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.

• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet (mains) only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.

• AC power cord (mains lead) must be changed only at a qualified service shop.

On heat buildup

Although the speaker system heats up during operation, this is not a malfunction. If you continuously use this speaker system at high volume, the speaker system temperature at the rear and bottom rises considerably. To avoid burning yourself, do not touch the speaker system.

On placement

• Do not place the speaker system near heat sources or in a place subject to direct sunlight, excessive dust, or mechanical shock.

• Do not place anything at the rear of the speaker system that might block the ventilation holes and cause malfunctions.

• Do not place metal objects other than a TV around the speaker system. Wireless functions may be unstable.

• If the speaker system is being used in combination with a TV, VCR, or tape deck, noise may result and picture quality may suffer. In such a case, place the speaker system away from the TV, VCR, or tape deck.

• Use caution when placing the speaker system on a surface that has been specially treated (with wax, oil, polish, etc.), as staining or discoloration of the surface may result.

• Take care to avoid any possible injury from the corners of the speaker system.

• Keep 3 cm (1 3/16 in) or more space under the speaker system when you hang it on a wall.

• The speakers of this speaker system are not of magnetically shielded type. Do not place magnetic cards on the speaker system or near it.

On operation

Before connecting other devices, be sure to turn off and unplug the speaker system.

If you encounter color irregularity on a nearby TV screen

Color irregularities may be observed on certain types of TV sets.

If color irregularity is observed...

Turn off the TV set, then turn it on again after 15 to 30 minutes.

Disclaimer regarding services offered by third parties

Network services, content and the (operating system and) software of this product may be subject to individual terms and conditions and changed, interrupted or discontinued at any time and may require fees, registration and credit card information.

Notes on updating

This speaker system allows you to update the software automatically when connected to the Internet via a wireless network. You can add new features and use the speaker system with more convenience and safety by updating the speaker system. If you do not want to update automatically, you can disable the function by using Sony | Music Center installed on your smartphone or tablet. However, the speaker system may update the software automatically for reasons such as safety, even if this function is disabled. You can also update the software using the settings menu when this function is disabled. For details, refer to Help Guide. You may not use the speaker system while the software is being updated.

If color irregularity is observed again...

Place the speaker system further away from the TV set.

On cleaning

Clean the speaker system with a soft, dry cloth. Do not use any type of abrasive pad, scouring powder, or solvent such as alcoho l or benzine.

If you have any question or problem concerning your speaker system, please consult your nearest Sony dealer.

Copyrights and Trademarks

This speaker system incorporates Dolby* Digital and the DTS** Digital Surround System.

* Manufactured under license from Dolby

Laboratories. Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright © 2012–2020 Dolby Laboratories. All rights reserved.

**For DTS patents, see http://

patents.dts.com. Manufactured under license from DTS, Inc. DTS, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.

The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Google, Google Play, Google Home and Chromecast built-in are trademarks of Google LLC. Google Assistant is not available in certain languages and countries.

Apple, AirPlay, iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.

“BRAVIA” logo is a trademark of Sony Corporation.

WALKMAN® and WALKMAN® logo are registered trademarks of Sony Corporation.

“PlayStation” is a registered trademark or trademark of Sony Interactive Entertainment Inc.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Wi-Fi®, Wi-Fi Protected Access® and Wi-Fi Alliance® are registered trademarks of Wi-Fi Alliance.

Wi-Fi CERTIFIED™, WPA™, and WPA2™ are trademarks of Wi-Fi Alliance.

LDAC™ and LDAC logo are trademarks of Sony Corporation. LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a Bluetooth connection. Unlike other Bluetooth compatible coding technologies such as SBC, it operates without any downconversion of the Hi-Res Audio content*, and allows approximately three times more data** than those other technologies to be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.

* excluding DSD format contents **in comparison with SBC (Subband

Coding) when the bitrate of 990 kbps (96/

48 kHz) or 909 kbps (88.2/44.1 kHz) is selected

This product contains software that is subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). These establish that customers have the right to acquire, modify, and redistribute the source code of said software in accordance with the terms of the GPL or the LGPL.

For details of the GPL, LGPL and other software licenses, please refer to [Software License Information] under [Setup] [Advanced Settings] - [System Settings] on the product.

The software included in this product contains copyrighted software that is licensed under the GPLv2 and other licenses which may require access to source code. You may find a copy of the relevant source code as required under the GPLv2 (and other licenses) at http://www.sony.net/Products/Linux/.

You may obtain the source code as required by the GPLv2 on a physical medium from us for a period of three years after our last shipment of this product by applying through the form at http://www.sony.net/Products/Linux/. This offer is valid to anyone in receipt of this information.

Please note that Sony cannot answer or respond to any inquiries regarding the content of this source code.

All other trademarks are trad emarks of their respective owners.

“TRILUMINOS” and “TRILUMINOS” logo are a registered trademark of Sony Corporation.

The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/ third-party-licenses.

Spotify and Spotify logos are trademarks of the Spotify Group.*

* Depending on the country and region,

this function may not be available.

Index

Buttons

AUDIO 39 BLUETOOTH DIMMER IMMERSIVE AE NIGHT VOICE

ARC 11 Audio files Audio format Audio Return Channel

BLUETOOTH

Function Pairing

“BRAVIA” Sync

Connection (See “Wired connection”

or “Wireless connection” in “Index”)

Control for HDMI

DTS Dialog control 40

eARC 11 Easy Setup Enhanced Audio Return Channel

Immersive Audio Enhancement 36 Initial settings Installation

Multiplex broadcast sound 39

Night mode 38

PRTCT 57

Remote control 12 Resetting

Settings

Resetting Setting item

Software update Sound Mode

USB device 29

Voice mode 38

Volume

Wall mount 15 Wired connection

AV devices

TV USB device WALKMAN®

Wireless connection

BLUETOOTH devices Headphones

Enregistrement du propriétaire

Les numéros de modèle et de série sont situés à l’arrière à l'arrière de l'enceintebarre. Notez le numéro de série dans l’espace ci-dessous. Reportez-vous à ces numéros lorsque vous contactez votre détaillant Sony à propos du système d'enceintes.

N° de modè le H T-A7 000

N° de série

AVERTISSEMENT

Pour réduire les risques d’incendie ou d’électrocution, gardez ce système d’enceintes à l’abri de la pluie et de l’humidité.

Le système d’enceintes n’est pas déconnecté du secteur tant qu’il reste branché sur la prise murale, même si le système d’enceintes proprement dit a été mis hors tension.

Pour réduire le risque d’incendie, n’obstruez pas l’orifice de ventilation du système d’enceintes avec un journal, une nappe, une tenture, etc. N’exposez pas le système d’enceintes à une source de flamme nue (par exemple, une bougie allumée).

Pour réduire le risque d’incendie ou d’électrocution, n’exposez pas ce système d’enceintes à des éclaboussures ou des gouttes d’eau et ne posez pas des objets remplis de liquides, notamment des vases, sur ce système d’enceintes.

La fiche principale étant utilisée pour débrancher le système d’enceintes du secteur, branchez le système d’enceintes sur une prise secteur facilement accessible. Si vous observez une anomalie sur le système d’enceintes, débranchez

immédiatement la fiche principale de la prise secteur.

N’installez pas le système d’enceintes dans un espace confiné, tel qu’une bibliothèque ou un meuble encastré.

ATTENTION

Risque d’explosion si la batterie est remplacée par une batterie de type non équivalent. N’exposez pas les piles ou un appareil contenant des piles à une chaleur excessive, notamment aux rayons directs du soleil ou à des flammes.

Ne placez pas ce produit près d’appareils médicaux.

Ce produit (y compris les accessoires) comporte un ou des aimants qui peuvent perturber les stimulateurs cardiaques, les valves de dérivation programmables pour le traitement de l’hydrocéphalie ou d’autres appareils médicaux. Ne placez pas ce produit près de personnes utilisant c e type d’appareil médical. Consultez votre médecin avant d’utiliser ce produit si vous utilisez ce type d’appareil médical.

Pour la connexion réseau du système d'enceintes, établissez la connexion via le routeur ou le port LAN avec la fonctionnalité du routeur. Si ces connexions ne sont pas établies, un problème de sécurité peut se produire.

Ne faites pas subir un choc violent au système d'enceintes

Ne faites pas subir un choc violent ou une force excessive au système d'enceintes. Cela peut causer des blessures en raison d'ébréchures ou fissures du système d'enceintes qui est fait à partir d'un matériau en verre. En cas d'ébréchures ou de fissures, cessez immédiatement l'utilisation et assurez-vous de ne pas toucher la partie endommagée.

Utilisation en intérieur uniquement.

Pour les clients aux États-Unis

REMARQUE : Ce système d’enceintes a été testé et s’est révélé conforme aux limites des appareils numériques de Classe B, conformément à l’alinéa 15 de la réglementation FCC. Ces limites sont conçues pour assurer une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Ce système d’enceintes génère, utilise et peut rayonner de l’énergie de fréquence radio qui, en cas d’installation et d’utilisation non conformes aux instructions, peut engendrer des interférences nuisibles avec les communications radio. Il n’est toutefois pas garanti qu’aucune interférence ne surviendra dans une installation particulière. Si ce système d’enceintes altère effectivement la réception radio ou télévisée, ce qui peut être déterminé en mettant le système d’enceintes hors tension, puis à nouveau sous tension, nous vous encourageons à essayer de remédier à la situation en prenant une ou plusieurs des mesures ci-après : – Réorientez ou repositio nnez l’antenne

de réception.

– Augmentez la distance qui sépare le

système d’enceintes du récepteur.

– Raccordez le système d’enceintes à la

prise d’un circuit différent de celui auquel le récepteur est raccordé.

– Sollicitez l’aide de votre revendeur ou

d’un technicien en radio/télévision expérimenté.

Des câbles et connecteurs correctement blindés et mis à la terre doivent être utilisés pour le raccordement à des ordinateurs hôtes ou des périphériques afin de satisfaire aux limites d’émission du FCC.

Pour toute question au sujet de ce système d'enceintes :

Visitez : https://www.sony.com/ electronics/support Contactez : Sony Customer Information Service Center au 1-800-222-SONY (7669) Écrivez : Sony Customer Information Service Center 12451 Gateway Blvd., Fort Myers, FL 33913

Déclaration de conformité du fournisseur

Nom commercial : SONY No de modèle : HT-A7000 Responsable : Sony Electronics Inc. Adresse : 16535 Via Esprillo, San Diego, CA 92127 É.-U. No de téléphone : 858-942-2230 Cet appareil est conforme à la Partie 15 de la réglementation de la FCC des ÉtatsUnis. Son utilisation est sujette aux deux conditions suivantes : (1) Cet appareil ne doit pas générer d’interférences nuisibles et (2) il doit être en mesure d’accepter toute interférence reçue, y compris les interférences pouvant générer un fonctionnement indésirable.

ATTENTION

Vous êtes prévenu que toute modification ou tout changement non expressément approuvé dans ce manuel peut annuler votre autorisation à utiliser ce système d’enceintes.

Ce système d’enceintes ne doit pas se trouver à proximité d’un autre émetteur ou d’une autre antenne, ou encore être utilisé en même temps que ceux-ci.

Ce système d’enceintes est conforme aux limites d’exposition au rayonnement du FCC déterminées pour un environnement incontrôlé et répond aux recommandations d’exposition aux radiofréquences (RF) du FCC. Ce système d’enceintes devrait être installé et utilisé en gardant l'émetteur à au moins 20 cm ou plus du corps d’une personne.

Conformité à la réglementation de la FCC 15.407(c) La transmission de données est toujours initiée par le logiciel, puis les données sont transmises par l’intermédiaire du MAC, vers la bande de base numérique et analogique et, enfin, à la puce RF. Plusieurs paquets spéciaux sont initiés par le MAC. Ce sont les seuls moyens d’activer l’émetteur RF par le biais de la partie de bande de base numérique, qui active l’émetteur RF, puis désactive celui-ci à la fin du paquet. Par conséquent, l’émetteur demeure activé uniquement lors de la transmission d’un des paquets susmentio nnés. En d’autres termes, cet appareil interrompt automatiquement la transmi ssion en cas d’absence d’information à transmettre ou en cas de panne.

Tolérance de fréquence: ±20ppm ou moins

Pour les clients au Canada

Il est impératif d’utiliser des câbles et des connecteurs correctement blindés et mis à la terre pour la connexion à des ordinateurs hôtes et/ou aux périphériques.

L’émetteur/récepteur exempt de licence contenu dans le présent système d’enceintes est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux deux conditions suivantes :

(1) le système d’enceintes ne doit pas

produire de brouillage ; et

(2) l’utilisateur du système d’enceintes

doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible de compromettre le fonctionnement du système d’enceintes.

rayonnements d’ISED énoncées pour un environnement non contrôlé et res pecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 d’ISED. Ce système d’enceintes doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain.

La bande de 5,15 à 5,35GHz est limitée à une utilisation en intérieur uniquement.

La transmission de données est toujours initiée par le logiciel, puis les données sont transmises par l’intermédiaire du MAC, vers la bande de base numérique et analogique et, enfin, à la puce RF. Plusieurs paquets spéciaux sont initiés par le MAC. Ce sont les seuls moyens d’activer l’émetteur RF par le biais de la partie de bande de base numérique, qui active l’émetteur RF, puis désactive celui-ci à la fin du paquet. Par conséquent, l’émetteur demeure activé uniquement lors de la transmission d’un des paquets susmentio nnés. En d’autres termes, cet appareil interrompt automatiquement la t ransmission en cas d’absence d’information à transmettre ou en cas de panne.

Avertissement pour la fixation de l'enceinte-barre sur un mur. Assurez-vous d'utiliser les supports de fixation murale fournis lorsque vous fixez l'enceinte-barre sur un mur.

Assurez-vous d'utiliser les supports de fixation murale fournis lorsque vous fixez l'enceinte-barre sur un mur. Ne fixez pas l'enceinte-barre directement sur un mur. La température à l'intérieur de l'enceinte-barre augmente considérablement, et pourrait entraîner des dommages ou des défaillances.

Ce système d’enceintes est conforme aux limites d’exposition aux

Table des matières

À propos des manuels du système

d’enceintes ...............................7

Guide de Contenu de l’emballage

Ce que vous pouvez faire avec le

système d’enceintes ............... 8

Guide des pièces et des

commandes ...........................10

Utilisation du menu d’accueil .....14

démarrage



(document

séparé)

Installation

Installation du système

d’enceintes .............................15

Connexion d’un téléviseur ...........18

Lorsque votre téléviseur dispose

d’une prise S-CENTER SPEAKER

IN ............................................ 20

Connexion d’un dispositif AV ....... 21

Raccordement à la prise

secteur ....................................23

Exécution des réglages initiaux ...23

Visualisation d’images

Regarder la télévision ...................25

Lecture du dispositif AV

connecté .................................25

Écoute de la musique/du son

Écoute du son d’un téléviseur Sony à

l’aide de la fonction

BLUETOOTH® ......................... 26

Écoute de la musique/du son avec la

fonction BLUETOOTH ........... 29

Écoute de la musique stockée sur un

dispositif USB ......................... 31

Écoute du dispositif connecté avec

un câble audio analogique ....32

Écoute du son du téléviseur ou du

dispositif connecté en utilisant

un casque ...............................33

Écoute de la musique par connexion à un réseau

Ce que vous pouvez faire en

connectant le système

d’enceintes à un réseau ........35

Réglage du volume et de la qualité du son

Réglage du volume ......................37

Profiter de l’expérience surround

immersive (IMMERSIVE AE) ....38

Réglage de l’effet sonore

personnalisé pour différentes sources sonores (mode

son) .........................................39

Rendre les dialogues plus audibles

(VOICE) ................................... 40

Profiter d’un son clair associé à un

niveau de volume réduit durant

la nuit (NIGHT) ....................... 40

Réglage de l’écart temporel entre

l’image et le son .....................41

Profiter d’un son de diffusion

multiplex (AUDIO) ..................41

Réglage du volume des dialogues

pendant la lecture de contenus

DTS:X ......................................42

Utilisation du système d’enceintes par interverrouillage avec un téléviseur

Commande du système d’enceintes

par interverrouillage avec un téléviseur(fonction Contrôle

pour HDMI) ............................ 44

Commande du système d’enceintes

par interverrouillage avec un téléviseur compatible avec la

fonction « BRAVIA » Sync ..... 46

Modification des réglages

Modification de la luminosité de

l’afficheur du panneau avant et

des indicateurs (DIMMER) ..... 47

Économie d’énergie en mode de

veille .......................................48

Exécution de Régl. facile ............. 48

Exécution de Réglages

avancés ..................................49

Mise à jour du logiciel ..................50

Dépannage

Dépannage .................................. 52

Réinitialisation du système

d’enceintes .............................61

Informations complémentaires

Spécifications ............................... 62

Types de fichiers audio pouvant être

lus .......................................... 64

Formats audio en entrée pris en

charge .................................... 65

Communication BLUETOOTH ...... 66

CONTRAT DE LICENCE

D’UTILISATEUR FINAL ............ 67

Précautions ...................................72

Droits d’auteur et marques

commerciales ........................ 74

Index ............................................ 76

À propos des manuels du

Sound Bar

Startup Guide

Sound Bar

système d’enceintes

Les informations incluses dans chaque manuel s’organisent comme indiqué cidessous.

Guide de démarrage

Présente les procédures initiales relatives à l’installation et à l’établissement des connexions nécessaires pour utiliser le système d’enceintes, ainsi que les opérations à effectuer avant de lire de la musique.

Mode d’emploi (ce document)

Explique les opérations de base. – Connexion à un téléviseur ou à

d’autres dispositifs

– Lecture de la musique/du son des

dispositifs connectés à l’aide d’un câble HDMI ou via la fonction BLUETOOTH

– Réglage du son, etc.

Pour les clients des Amériques

https://rd1.sony.net/ help/ht/a7000/h_uc/

Pour les clients dans les autres pays/ régions

https://rd1.sony.net/ help/ht/a7000/h_zz/

Décrit toutes les opérations, y compris l’utilisation avancée. – Lecture de la musique/du son avec la

fonction réseau

– Détails des éléments de menu, etc.

Conseils

• Les instructions figurant dans ces manuels décrivent les opérations utilisant les commandes de la télécommande. Vous pouvez utiliser les touches de l’enceinte-barre si elles portent des noms identiques ou similaires à ceux de la télécommande.

• Les caractères entre crochets [ ] apparaissent sur l’écran du téléviseur ou sur l’afficheur du panneau avant.

• Certains détails ne figurent pas sur les illustrations.

Contenu de l’emballage

Guide d’aide (manuel web)

Reportez-vous au Guide de démarrage (document séparé).

Ce que vous pouvez faire avec le système d’enceintes

« Écoute de la musique stockée sur un dispositif USB » (page 31)

« Lecture du dispositif AV connecté » (page 25)

Téléviseur

Le système d’enceintes prend en charge des formats audio basés sur des objets tels que Dolby Atmos et DTS:X ainsi que des formats vidéo HDR tels que HDR10, HLG et Dolby Vision.

•« Regarder la télévision » (page 25)

•« Écoute du son d’un téléviseur Sony à l’aide de la fonction BLUETOOTH® » (page 26)

Lecteur Blu-ray Disc™, décodeur, console de jeu, etc.

Dispositif USB

« Écoute du son du téléviseur ou du dispositif connecté en utilisant un casque » (page 33)

•« Écoute de la musique/du son avec la fonction BLUETOOTH » (page 29)

•« Écoute du dispositif connecté avec un câble audio analogique » (page 32)

Dispositif mobile

Casque

InternetRouteur LAN sans fil

Réseau

Caisson de graves en option

Enceintes arrière en option

Pour ce qui concerne les opérations relatives aux enceintes arrière et au caisson de graves en option, reportez-vous à leurs modes d’emploi. Vérifiez la prise en charge des enceintes et du caisson de graves en option sur le site web Sony.

Pour ce qui concerne la méthode de connexion au réseau et les fonctions activées avec la connexion réseau, reportez-vous au Guide d’aide (manuel web).

Pour les clients des Amériques

https://rd1.sony.net/help/ht/a7000/h_uc/

Pour les clients dans les autres pays/régions

https://rd1.sony.net/help/ht/a7000/h_zz/

Enceintes en option

« Ce que vous pouvez faire en connectant le système d’enceintes à un réseau » (page 35)

Guide des pièces et des commandes

Enceinte-barre

Avant

 Touche  (alimentation)

Met le système d’enceintes sous tension ou en mode de veille.

 Touche (sélection d’entrée)

Sélectionne l’entrée de lecture sur le système d’enceintes.

 Touche BLUETOOTH (page 26)  Touche (MUSIC SERVICE)

Si vous avez précédemment lu de la musique sur Spotify sur le système d’enceintes, vous pouvez reprendre la lecture en appuyant sur cette touche. Cette touche peut ne pas être disponible dans certains pays/ certaines régions.

 Touches +/– (volume)

 Enceintes supérieures

Reproduisent le son vers le haut.

Remarque

Ne posez rien sur les enceintes supérieures et manipulez-les avec précaution.

 Indicateur BLUETOOTH

– Clignote rapidement en bleu :

lorsque le jumelage est en mode veille

– Clignote en bleu : tentative de

connexion BLUETOOTH.

– S’allume en bleu : la connexion

BLUETOOTH a été établie.

 Afficheur du panneau avant  Capteur de la télécommande

Dirigez la télécommande vers le capteur de la télécommande afin d’utiliser le système d’enceintes.

Arrière

 IR repeater

Transmet au téléviseur le signal à distance de la télécommande du téléviseur.

 Prise S-CENTER OUT (page 20)  Port (USB) (page 31)  Prise HDMI OUT (TV (eARC/ARC))

Permet de connecter un téléviseur possédant une prise d’entrée HDMI à l’aide d’un câble HDMI. Le système d’enceintes est compatible eARC et ARC. ARC est la fonction qui envoie le son du téléviseur vers un dispositif AV tel que le système d’enceintes à partir de la prise HDMI du téléviseur. eARC est une extension d’ARC et permet la

transmission de l’objet audio et des contenus LPCM multicanal qui ne peuvent être transmis par ARC.

 Prise HDMI IN 1  Prise HDMI IN 2  Entrée secteur  Prise TV IN (OPT)  Prise ANALOG IN

Télécommande

 (alimentation)

Met le système d’enceintes sous tension ou en mode de veille.

Touche (MUSIC SERVICE)

BLUETOOTH (page 30) TV (page 25) HDMI1 (page 25) HDMI2 (page 25) USB (page 31) ANALOG (page 32)

 AUTO SOUND (page 39)

CINEMA (page 39) MUSIC (page 39) STANDARD (page 39) VOICE (page 40) IMMERSIVE AE (page 38) NIGHT (page 40)

 DIMMER (page 47)

DISPLAY

Affiche sur l’écran du téléviseur les informations de lecture. Les informations de lecture apparaissent sur l’afficheur du panneau avant pour l’entrée TV.

 /// (page 14)

(entrée) (page 14) BACK (page 14) OPTIONS (page 42)

Affiche le menu des options sur l’écran du téléviseur. Le menu des options apparaît sur l’afficheur du panneau avant pour l’entrée TV.

HOME (page 14)

 REAR  (volume des enceintes

arrière) +/–

Permet de régler le volume des enceintes arrière en option lorsque vous les raccordez.

 (volume) +*/–

Règle le volume.

SW  (volume du caisson de graves) +/–

Permet de régler le volume du caisson de graves incorporé ou d’un caisson de graves en option lorsque vous le raccordez.

 (silencieux)

Coupe temporairement le son.

 TV/AUDIO SYSTEM

Bascule la sortie du son du téléviseur connecté entre le téléviseur et le système d’enceintes.

Remarque

Cette touche fonctionne dans les conditions suivantes. – Le téléviseur connecté est

compatible avec la fonction Commande du son du système.

– La fonction Contrôle pour HDMI du

système d’enceintes est activée (page 44).

 Touches de lecture

/ (précédent/suivant)

Sélectionne la plage ou le fichier précédent/suivant. Le maintien enfoncé effectue une recherche vers l’arrière ou l’avant (retour/avance rapide) pendant la lecture.

 (lecture/pause)*

Démarre, interrompt ou redémarre la lecture (reprise).

 AUDIO* (page 41)

*Les touches AUDIO,  (lecture/pause)

et  (volume) + comportent un point tactile. Laissez-le vous guider pendant l’utilisation.

À propos du remplacement des piles de la télécommande

Lorsque le système d’enceintes ne réagit plus aux commandes de la télécommande, remplacez les deux piles par des neuves. Utilisez des piles au manganèse R03 (taille AAA) pour le remplacement.

Utilisation du menu

HOME

BACK

///,

(entrée)

d’accueil

Vous pouvez afficher le menu d’accueil sur l’écran du téléviseur en connectant le système d’enceintes et le téléviseur avec un câble HDMI.

1 Appuyez sur HOME.

Le menu d’accueil apparaît sur l’écran du téléviseur.

2 Appuyez sur // pour

sélectionner la catégorie souhaitée, puis appuyez sur  ou

(entrée).

Les éléments de la catégorie sélectionnée apparaissent dans la liste de catégorie sur l’écran du téléviseur.

Catégorie Description

[Regarder]

Sélectionne l’entrée du téléviseur ou du dispositif AV connecté au système d’enceintes.

Catégorie Description

[Écouter] Sélectionne l’entrée du

[Config.] Effectue les réglages

dispositif audio connecté au système d’enceintes ou le service de musique pour le lire sur le système d’enceintes.

initiaux de base en utilisant la fonction [Régl. facile] ou divers paramètres avancés du système d’enceintes.

3 Appuyez sur /// pour

sélectionner l’élément souhaité, puis appuyez sur (entrée).

L’entrée sélectionnée ou l’affichage de réglage apparaît sur l’écran du téléviseur. Pour revenir à l’écran précédent, appuyez sur BACK.

Installation

Enceinte-barre

Orifice du support de fixation murale

4mm (3/16po)

Plus de 30 mm (1 3/16 po)

5,0 mm (13/64 po)

10 mm (13/32 po)

Enceinte-barre

Téléviseur

(A)

(B)

Installation du système d’enceintes

Installation de l’enceintebarre

Pour l’installation, reportez-vous au Guide de démarrage (document séparé).

Fixation de l’enceinte-barre au mur

Remarques

• Préparez des vis (non fournies) convenant au matériau et à la solidité du mur. Si le matériau du mur n’est pas suffisamment résistant, le mur risque d’être endommagé.

• Fixez fermement les vis dans une poutre du mur.

• Accrochez l’enceinte-barre à l’horizontale sur le mur renforcé.

• Confiez l’installation à un revendeur Sony ou à un entrepreneur agréé et soyez particulièrement attentif à la sécurité pendant l’installation.

• Sony décline toute responsabilité en cas d’accidents ou de dommages provoqués par une installation incorrecte, la solidité insuffisante du mur, la mauvaise fixation des vis, des catastrophes naturelles, etc.

• Deux personnes ou plus sont requises pour suspendre l'enceinte-barre en toute sécurité.

1 Préparez deux vis (non fournies)

adaptées aux orifices du support de fixation murale (fourni).

2 Mesurez la profondeur du

téléviseur monté (A) et vérifiez l’espace requis entre le bas du téléviseur et le haut de l’enceintebarre (B) dans le tableau cidessous.

L’espace requis évite que le téléviseur interfère avec le son surround de sortie de l’enceintebarre vers le plafond.

Profondeur du

Centre du téléviseur

CALIBRE DE MONTAGE MURAL

Ruban adhésif, etc.

(B)

téléviseur monté (A)

Moins de 110 mm (4 3/8 po)

110 mm (4 3/8 po ) ou plus

Espace requis entre le bas du téléviseur et le haut de l’enceinte-barre (B)

120 mm (4 3/4 po) ou plus

200 mm (7 7/8 po) ou plus

3 Alignez la ligne verticale au-

dessus de la «  LIGNE CENTRALE DU TÉLÉVISEUR » imprimée du CALIBRE DE MONTAGE MURAL (fourni) avec le centre de la largeur de votre téléviseur.

4 Alignez la «  LIGNE

SUPÉRIEURE DE L’ENCEINTEBARRE » du CALIBRE DE MONTAGE MURAL avec le bas de l’espace requis entre le bas du téléviseur et le haut de l'enceinte-barre (B) calculé à l’étape 2, puis collez le CALIBRE DE MONTAGE MURAL au mur en utilisant du ruban adhésif disponible dans le commerce, etc.

5 Fixez les vis préparées à l’étape 1

Repères

387 mm (15 1/4 po)

2,0 mm à 3,0 mm

Vis

387 mm (15 1/4 po)

(env. 1/8 po)

Support de fixation murale

Vis

Support de fixation murale

Dessous de l’enceintebarre

fermement dans les repères de vis sur la «  LIGNE DE VIS » imprimée sur le CALIBRE DÉMONTAGE MURAL.

6 Retirez le CALIBRE DE MONTAGE

MURAL.

7 Suspendez les supports de

fixation murale sur les vis sur le mur.

8 Placez l’enceinte-barre sur les

supports de fixation murale.

9 Alignez les positions des trous de

vis sur le dessous de l’enceintebarre et les trous des supports de fixation murale, puis fixez l’enceinte-barre sur les supports de fixation murale en serrant fermement les vis (fournies).

Remarques

Téléviseur

Câble HDMI

(fourni)

• Lorsque vous collez le CALIBRE DE MONTAGE MURAL au mur, aplanissez-le complètement.

• Veillez à utiliser les supports de fixation murale fournis lorsque vous fixez l’enceinte-barre sur un mur. Ne fixez pas directement l’enceinte-barre sur un mur. La température à l’intérieur de l’enceintebarre augmente considérablement et peut occasionner des dommages ou des dysfonctionnements.

Installation des enceintes en option

Reportez-vous au mode d’emploi des enceintes en option.

Connexion d’un téléviseur

Connexion d’un téléviseur compatible ARC/eARC

1 Connectez la prise HDMI IN

compatible ARC/eARC du téléviseur et la prise HDMI OUT (TV (eARC/ARC)) du système d’enceintes avec le câble HDMI (fourni).

Remarque

Assurez-vous que les connecteurs sont correctement insérés.

Connexion d’un téléviseur

Téléviseur

Câble HDMI

(fourni)

Téléviseur

Câble numérique

optique (non fourni)

non compatible ARC/eARC

1 Connectez la prise HDMI IN du

téléviseur et la prise HDMI OUT (TV (eARC/ARC)) du système d’enceintes avec le câble HDMI (fourni).

2 Connectez la prise de sortie

numérique optique du téléviseur et la prise TV IN (OPT) du système d’enceintes avec un câble numérique optique (non fourni).

Remarques

• Assurez-vous que les connecteurs sont correctement insérés.

• Insérez la fiche du câble numérique optique dans le bon sens en vérifiant la forme de la fiche et celle du connecteur situé sur l’enceinte-barre et le téléviseur. Si la fiche est insérée en force dans le mauvais sens, le connecteur et la fiche peuvent être endommagés.

Lorsque votre téléviseur

Téléviseur

Câble du mode haut-

parleur central TV

(fourni)

dispose d’une prise SCENTER SPEAKER IN

Vous pouvez reproduire la partie centrale du son du système d’enceintes par le téléviseur en raccordant le téléviseur comme suit.

1 Raccordez le système d’enceintes

et le téléviseur avec le câble HDMI (fourni) (page 18).

2 Connectez la prise S-CENTER

SPEAKER IN du téléviseur et la prise S-CENTER OUT du système d’enceintes avec le câble du mode haut-parleur central TV (fourni).

Remarque

Assurez-vous que les connecteurs sont correctement insérés.

Conseil

Si la longueur du câble du mode hautparleur central TV n’est pas suffisante, utilisez un mini-câble stéréo disponible dans le commerce.

Connexion d’un dispositif

Lecteur Blu-ray Disc, décodeur, console de jeu, etc.

Câble HDMI (non fourni)

Connexion d’un dispositif AV compatible avec les formats vidéo 2K/4K

Vous pouvez reproduire du son Dolby Atmos ou Dolby TrueHD et du DTS:X en haute qualité en connectant un dispositif AV au système d’enceintes.

1 Connectez la prise HDMI OUT du

dispositif AV et la prise HDMI IN 1 ou HDMI IN 2 du système d’enceintes avec un câble HDMI (non fourni).

Remarque

Assurez-vous que les connecteurs sont correctement insérés.

Conseils

• Si le téléviseur est compatible eARC, vous pouvez également reproduire du son haute qualité en connectant un dispositif AV à la prise HDMI IN du téléviseur. Dans ce cas, activez la fonction eARC du téléviseur.

• Choisissez le câble HDMI et le réglage [Format du signal HDMI] appropriés en fonction des formats vidéo en sortie du dispositif connecté au système d’enceintes. Pour plus d’informations, reportez-vous au Guide d’aide.

Connexion d’un dispositif AV compatible avec le format vidéo 8K

Lorsque vous connectez un dispositif AV en procédant comme suit, vous pouvez lire de la vidéo 8K et du son haute qualité, tels que le Dolby A tmos, le Dolby TrueHD ou le DTS:X.

1 Raccordez le système d’enceintes

et le téléviseur avec le câble HDMI (fourni) (page 18).

2 Vérifiez que la prise HDMI IN

compatible eARC du téléviseur est compatible avec l’entrée vidéo 8K.

Reportez-vous au mode d’emploi du téléviseur.

3 Connectez un dispositif AV en

procédant comme suit, selon le cas.

Lecteur Blu-ray Disc, décodeur, console de jeu, etc.

Câble HDMI (non fourni)

Téléviseur

Compatible avec entrée vidéo 8K

Lecteur Blu-ray Disc, décodeur, console de jeu, etc.

Câble HDMI (non fourni)

Téléviseur

Compatible avec entrée vidéo 8K

Lorsque la prise HDMI IN compatible eARC du téléviseur prend en charge l’entrée vidéo 8K :

Connectez la prise HDMI IN 1 ou HDMI IN 2 du système d’enceintes et la prise HDMI OUT d’un dispositif AV avec un câble HDMI (non fourni).

Lorsque la prise HDMI IN compatible eARC du téléviseur ne prend pas en charge l’entrée vidéo 8K :

Connectez la prise HDMI OUT d’un dispositif AV à la prise HDMI IN compatible avec l’entrée vidéo 8K du téléviseur avec un câble HDMI (non fourni). Assurez-vous que la fonction eARC du téléviseur est activée.

Remarque

Assurez-vous que les connecteurs sont correctement insérés.

Conseil

Choisissez le câble HDMI et le réglage [Format du signal HDMI] appropriés en fonction des formats vidéo en sortie du dispositif connecté au système d’enceintes. Pour plus d’informations, reportez-vous au Guide d’aide.

Raccordement à la prise

Cordon d’alimentation secteur (fourni)

HOME

///, (entrée)

PLEASE WAIT

secteur

1 Raccordez le cordon

d’alimentation secteur (fourni) à l’entrée secteur de l’enceintebarre, puis raccordez à la prise secteur.

Exécution des réglages initiaux

1 Appuyez sur HOME sur la

télécommande fournie avec le système d’enceintes pour mettre le système d’enceintes sous tension.

Utilisez la télécommande en la dirigeant vers l’avant de l’enceintebarre.

2 Patientez jusqu’à ce que [PLEASE

WAIT] di sparaisse de l’ afficheur du panneau avant et que l’indication suivante apparaisse sur l’afficheur du panneau avant.

3 Mettez le téléviseur sous tension.

4 Suivez les instructions de l’écran

Écran des paramètres initiaux

affiché sur le téléviseur pour effectuer les réglages initiaux.

Si l’écran des réglages initiaux ne s’affiche pas, utilisez la télécommande du téléviseur pour basculer l’entrée du téléviseur sur l’entrée HDMI connectée au système d’enceintes, puis appuyez sur HOME sur la télécommande du système d’enceintes.

• Appuyez sur /// et

(entrée) pour sélectionner l’élément en suivant les instructions affichées à l’écran.

• Si vous utilisez le caisson de graves/les enceintes arrière en option, connectez-les en suivant les instructions de l’écran [Vérification de la connexion des enceintes sans fil].

• Une fois que [La configuration est terminée.] apparaît, sélectionnez [Pour en savoir plus].

Remarque

En fonction de l’ordre dans lequel vous mettez sous tension le téléviseur et le système d’enceintes, le système d’enceintes peut être silencieux et l’indication [MUTING] peut apparaître sur l’afficheur du panneau avant du système d’enceintes. Si cela se produit, mettez tous les dispositifs hors tension, puis, après avoir mis le téléviseur sous tension, mettez le système d’enceintes sous tension.

Visualisation d’images

Regarder la télévision

1 Appuyez sur HOME.

Le menu d’accueil apparaît sur l’écran du téléviseur.

2 Sélectionnez [Regarder] - [TV]

dans le menu d’accueil.

3 Sélectionnez le programme à

l’aide de la télécommande du téléviseur.

Le programme de télévision sélectionné apparaît sur l’écran du téléviseur et le son du téléviseur est reproduit par le système d’enceintes.

4 Réglez le volume (page 37).

Remarque

Lorsque l’enceinte-barre fait obstruction devant le capteur de télécommande du téléviseur et que vous ne pouvez pas commander le téléviseur à l’aide de la télécommande, activez la fonction IR repeater du système d’enceintes. Pour plus d’informations, reportez-vous au Guide d’aide.

Conseil

Vous pouvez sélectionner [TV] directement en appuyant sur TV sur la télécommande.

Lecture du dispositif AV connecté

1 Appuyez sur HOME.

Le menu d’accueil apparaît sur l’écran du téléviseur.

2 Sélectionnez [Regarder], puis

sélectionnez l’entrée ([HDMI1] ou [HDMI2]) dans le menu d’accueil.

• [HDMI1] : dispositif connecté à la prise HDMI IN 1

• [HDMI2] : dispositif connecté à la prise HDMI IN 2

L’image du dispositif sélectionné apparaît sur l’écran du téléviseur et le son est reproduit par le système d’enceintes.

3 Réglez le volume (page 37).

Conseil

Vous pouvez sélectionner [HDMI1] ou [HDMI2] directement en appuyant sur HDMI1 ou HDMI2 sur la télécommande.

Écoute de la musique/du son

Lecteur Blu-ray Disc, décodeur, console de jeu, etc.

Téléviseur Sony

 (alimentation)

Touche BLUETOOTH

système d’enceintes, connectez le système d’enceintes et le téléviseur avec le câble HDMI (fourni) (page 18).

Écoute du son d’un téléviseur Sony à l’aide de la fonction BLUETOOTH®

Ce que vous pouvez faire en connectant un téléviseur à l’aide de la fonction BLUETOOTH

Lorsque vous utilisez le téléviseur Sony* avec la fonction BLUETOOTH, vous pouvez écouter le son du téléviseur ou du dispositif connecté au téléviseur en connectant le système d’enceintes et le téléviseur sans fil.

* Le téléviseur doit être compatible avec le

profil A2DP (Advanced Audio Distribution Profile) du profil BLUETOOTH.

Remarque

Si vous connectez le système d’enceintes et le téléviseur à l’aide de la fonction BLUETOOTH, vous ne pouvez pas afficher l’écran de commande du système d’enceintes tel que l’écran d’accueil sur le téléviseur ; vous ne pouvez pas non plus utiliser des fonctions du système d’enceintes autres que la fonction d’écoute du son du téléviseur ou du dispositif connecté au téléviseur. Pour utiliser toutes les fonctions du

Écoute du son du téléviseur en connectant le système d’enceintes et le téléviseur sans fil

Vous devez jumeler le système d’enceintes et le téléviseur à l’aide de la fonction BLUETOOTH. Le jumelage est le pro cessus requis pour enregistrer mutuellement à l’avance les informations sur les dispositifs BLUETOOTH à connecter.

1 Mettez le téléviseur sous tension. 2 Appuyez sur  (alimentation)

pour mettre le système d’enceintes sous tension.

3 Maintenez simultanément

enfoncées la touche BLUETOOTH de l’enceinte-barre et la touche TV de la télécommande pendant 5secondes.

4 Assurez-vous que l’indicateur

PAIRING

BLUETOOTH de l’enceinte-barre clignote rapidement en bleu et que l’indication [PAIRING] apparaît sur l’afficheur du panneau avant.

Le système d’enceintes entre en mode de jumelage BLUETOOTH.

5 Sur le téléviseur, recherchez le

système d’enceintes en effectuant l’opération de jumelage.

La liste des dispositifs BLUETOOTH détectés apparaît sur l’écran du téléviseur. Pour savoir comment jumeler le dispositif BLUETOOTH au téléviseur, reportez-vous au mode d’emploi du téléviseur.

6 Jumelez le système d’enceintes et

le téléviseur en sélectionnant « HT-A7000 » dans la liste affichée sur l’écran du téléviseur.

7 Assurez-vous que l’indicateur

BLUETOOTH de l’enceinte-barre s’allume en bleu et que l’indication [TV (BT)] apparaît sur l’afficheur du panneau avant.

Une connexion entre le système d’enceintes et le téléviseur a été établie.

8 Sélectionnez le programme ou

l’entrée du dispositif avec la télécommande du téléviseur.

Le son de l’image affichée sur l’écran du téléviseur est reproduit à partir du système d’enceintes.

9 Réglez le volume du système

d’enceintes avec la télécommande du téléviseur.

Lorsque vous appuyez sur la touche Silencieux de la télécommande du téléviseur, le son est coupé temporairement.

Remarques

• Si le son du téléviseur n’est pas reproduit à partir du système d’enceintes, appuyez sur TV et vérifiez l’état de l’afficheur du panneau avant et des indicateurs sur l’enceinte-barre. – [TV (BT)] apparaît sur l’afficheur du

panneau avant : le système d’enceintes et le téléviseur sont connectés et le son du téléviseur est reproduit à partir du système d’enceintes.

–L’indicateur BLUETOOTH clignote

rapidement et [PAIRING] apparaît sur l’afficheur du panneau avant : le jumelage est en cours de réalisation sur le téléviseur.

– [TV] apparaît sur l’afficheur du panneau

avant : exécutez les étapes depuis le début.

• Lorsque vous connectez le système d’enceintes et le téléviseur avec un câble HDMI, la connexion BLUETOOTH est annulée. Pour connecter à nouveau le système d’enceintes et le téléviseur avec la fonction BLUETOOTH, débranchez le câble HDMI, puis recommencez la procédure de connexion depuis le début.

Écoute du son du téléviseur jumelé

1 Allumez le téléviseur avec la

télécommande du téléviseur.

Le système d’enceintes est mis sous tension par interverrouillage avec l’alimentation du téléviseur et le son du téléviseur est reproduit à partir du système d’enceintes.

2 Sélectionnez le programme ou

 (alimentation)

SW  (volume du caisson de graves) +/–

 (volume) +/–

 (silencieux)

REAR  (volume des enceintes arrière) +/–

AUTO SOUND, CINEMA, MUSIC, STANDARD, VOICE, IMMERSIVE AE, NIGHT

l’entrée du dispositif avec la télécommande du téléviseur.

Le son de l’image affichée sur l’écran du téléviseur est reproduit à partir du système d’enceintes.

3 Réglez le volume du système

d’enceintes avec la télécommande du téléviseur.

Lorsque vous appuyez sur la touche Silencieux de la télécommande du téléviseur, le son est coupé temporairement.

Conseil

Quand le téléviseur est mis hors tension, le système d’enceintes l’est aussi à cause de l’interverrouillage avec l’alimentation du téléviseur.

À propos des commandes de la télécommande fournie avec le système d’enceintes

Vous pouvez utiliser les touches suivantes.

Remarques

• Si vous sélectionnez une entrée autre que TV sur la télécommande fournie avec le système d’enceintes, le son du téléviseur n’est pas reproduit à partir du système d’enceintes. Pour reproduire le son du téléviseur, appuyez sur TV sur la télécommande afin de basculer sur l’entrée TV.

• Pendant que le téléviseur est connecté avec la fonction BLUETOOTH, les touches suivantes de la télécommande ne fonctionnent pas. ///, (entrée), BACK, HOME, DISPLAY, OPTIONS,  (lecture/pause), / (précédent/suivant)

Sony HT-A7000 Users guide [es, fr]

Specifications and Main Features

Frequently Asked Questions

User Manual
