Page 1
MICRO HI-FI COMPONENT SYSTEM
HM-982RW
INSTRUCTION MANUAL
KENWOOD CORPORATION
DIGITAL AUDIO
B60-4893-00 (EN)
COMPACT
TEXT
Page 2
2
Before applying power
Units are designed for operation as follows.
Europe and U.K. ........................................................... AC 230 V only
Preparation section
Caution : Read this page carefully to ensure safe operation.
Introduction
Basic section
Safety precautions
WARNING :
RISK OF ELECTRIC SHOCK
Apprication section
TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE,
IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS
VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.
The marking of products using lasers
Knowledge section
The marking is located on the rear panel and says this product
has been classified as Class 1. It means that there is no danger
of hazardous radiation outside the product
CLASS 1
LASER PRODUCT
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN. AVOID EXPOSURE
TO BEAM.
Inside this laser product, a laser diode classified as Class 3B
laser radiation is contained as alerted by the internal caution label shown above. To avoid exposure to laser beams, do not open
the cover.
Page 3
Introduction
Special features
❑
Integrated stereo system incorporating CD player + CD recorder + Cassette deck
In addition to recording and playback of CD-R (Recordable) and CD-RW (Rewritable), recording
from a cassette tape to CD-R/RW as well as simultaneous, twin recording from CD to CD-R/RW
and tape are also available.
❑
CD =CD-R/RW high-speed (2x-speed) dubbing
A convenient feature enabling dubbing from CD to CD-R/RW with simple operation and short period.
❑
Low standby power consumption
The power consumption during standby is no more than 2 W.
❑
CD-TEXT data display
When discs conforming to CD-TEXT are played with this unit, the text information recorded on the
CD (disc name or titles) is displayed automatically.
Some CDs conforming to CD-TEXT may not display text information.
Introduction
3
Preparation section
Basic section
❑
R.D.S. (Radio Data System)
The RDS data included in FM broadcasts can be used to search for the intended broadcasting
contents and for automatic reception from standby.
❑
Sampling rate converter built in
The unit incorporates a sampling rate converter to handle different kinds of digital sources (32kHz,
44.1kHz, 48kHz).
Application section
Knowledge section
Page 4
4
Introduction
Contents
Preparation section Application section
Before applying power................................ 2
Safety precautions ............................................................... 2
Introduction ........................................................ 3
Special features .......................................................................... 3
Notes on the CD recorder ................................ 7
Handling of discs and cassette tapes............ 9
Preparation section
System connection......................................... 11
1. Connection of the System Accessories ........................... 11
2. Connection of Other Accessories
(Commercially Available Parts) ....................................... 13
Controls and indicators ................................. 14
Main unit .................................................................................... 14
Remote control unit ................................................................. 16
Operation of remote control unit........................................... 17
Display ........................................................................................ 18
Clock adjustment............................................ 19
Menu mode...................................................... 20
Basic section
Operation in menu mode.......................................................... 20
Basic section
Hearing sound................................................. 22
Playback of CD................................................ 24
Playback on CD player ............................................................. 24
Playback on CD recorder......................................................... 26
Playback of TAPE ............................................ 28
Receiving broadcast station ......................... 30
Using R.D.S.
Searching for a desired program type (PTY search) ......... 34
Apprication section
Recording on CD-R/RW .................................. 36
Recording on TAPE.......................................... 40
Changing the recording input setting .......... 43
(Radio Data System) .....................................
Caution : Read the pages marked
Various playback features............................ 46
Listening in the desired sequence (Program playback) .. 47
Repeated playback .................................................................. 49
Playing tracks in a random order (Random playback) ..... 50
Registering skipping of undesired tracks in CD-R/RW
(SKIP TRACK)............................................................................. 51
Playing tracks by skipping registered tracks
(SKIP PLAY)................................................................................ 52
Convenient recording of CD player output .... 53
High-speed recording of all tracks in a CD (O.T.E.)
(High)(CD=CDR) ....................................................................... 56
High-speed recording of a single track in a CD (O.T.E.)
(High) (CD=CDR) ...................................................................... 58
One-touch edit recording (O.T.E.) (Norm) (CD=CDR)........ 60
Program recording (PGM mode + O.T.E.) (Norm)
(CD=CDR) .................................................................................. 62
One-touch edit recording (O.T.E.) (CD=TAPE).................... 64
Program recording (PGM mode + O.T.E.) (CD=TAPE)...... 65
Twin recording onto CD-R/RW and Tape (TWIN REC) ....... 66
Program twin recording onto CD-R/RW and Tape
(PGM mode + TWIN REC)......................................................... 68
Finalizing a CD-R/RW (FINALIZE) ................. 70
Unfinalizing a CD-RW (UNFINALIZE) ........... 71
Erasure of CD-RW recording ......................... 72
Listening to an AUX input source ................. 74
Timer operation............................................... 75
Simplified timer setting (O.T.T. timer) .................................. 75
Program timer playback (AI timer playback)
and timer recording.............................................................. 76
Sleep timer (SLEEP) ................................................................. 79
33
Knowledge section
Important Items............................................... 80
Maintenance ............................................................................. 80
Reference................................................................................... 81
In case of difficulty ........................................ 82
Displayed message list ................................. 85
Specifications................................................. 88
carefully to ensure safe operation.
Knowledge section
Page 5
Introduction
5
Preparation section
Unpacking
Unpack the unit carefully and make sure that all the accessories are present.
If any accessories are missing, or if the unit is damaged or fails to operate, notify your dealer immediately. If the unit was shipped to you
directly, notify your shipper immediately. Kenwood recommends that you retain the original carton and packing materials in case you need
to move or ship the unit in the future.
Keep this manual handy for future reference.
Basic section
Application section
Accessories
AM loop antenna (1)
Remote control unit (1)
FM indoor antenna (1)
Speaker cords (2)
Batteries (R6/AA) (2)
Front door (1)
Knowledge section
Page 6
6
Attaching the front door
1 Remove the protection cap from the bearing sec-
tion.
Preparation section
2 Fit the front door between two bearings by posi-
tioning the door at a position where it is opened by
more than 180° as shown below.
Introduction
CAUTION
When you use the system without attaching the
front door, be sure to leave the protection cap
attached. If the system is used without the front
panel and protection cap, you may be injured by
contacting the metallic parts around the front door
bearing.
÷ Be sure to retain the removed protection cap.
Basic section
180º or more
‘
3
3
3 Close the front door with a hand.
Apprication section
÷ If the front door is not fully opened, a clearance is produced
at the lower bearing section, making it impossible to close
the front door.
gap
3
3
0
÷ Be sure to close and open the front door with hand.
÷ When detaching the front door, open the front door by more
than 180º and lift it to disengage from the bearings.
MICRO HI-FI-COMPONENT SYSTEM
0
Knowledge section
Note
Note
When the system main unit and speakers are arranged side by side, leave
a certain space between the main unit and left speaker so that the opening
and closing of the front door is not hindered.
Page 7
Notes on the CD recorder
The CD recorder allows digital audio signals to be recorded on music CD-R and CD-RW discs without compressing
the digital signals, providing high quality equivalent to commercially-available CD (Compact Discs).
Introduction
CD-R and CD-RW
The difference between the CD-R and CD-RW discs are as follows.
7
CD-R (Compact Disc - Recordable)
A CD-R allows digital signals to be recorded additionally after previous recordings until the recordable time of the disc
is fulfilled, but the signals once recorded cannot be erased. Also, once the disc is finalized (∏), the disc can be played
on other CD players* as well as on this system, but additional recording becomes no longer possible.
* ......... Playback may be impossible with certain equipment.
CD-RW (Compact Disc - Rewritable)
A CD-RW allows digital signals to be recorded additional after previous recordings until the recordable time of the disc
is fulfilled, and the signals recorded can be erased and re-written, thereby making possible repeated recording on a disc.
Additional recording on a CD-RW is also impossible once it has been finalized (∏), but a finalized disc can be returned
to a non-finalized disc (a). This means that even a finalized CD-RW can accept additional recording when it is
unfinalized. However, a finalized CD-RW cannot be played on ordinary CD players. It can be played back only on
equipment which is compatible with CD-RW.
CD-R/RW which can be recorded and played on this system
Recordable discs
This system can record signals only on CD-R/RW discs designed for music. The music CD-R/RW discs carry the markings
as shown below. Note that the system cannot record signals on CD-R/RW discs for use with personal computers.
CD-R for music
CD-RW for music
CD-R for PC
CD-RW for PC
Preparation section
Basic section
These markings carry characters "DIGITAL
AUDIO".
This system may not be able to record signals on certain music CD-R/RW discs depending on the disc characteristics.
KENWOOD has confirmed the normal operation of the system with the CD-R/RW discs of the following manufacturers
(as of October 2000).
CD-R CD-RW
‡ TDK CORPORATION
‡ HITACHI MAXELL, LTD.
‡ MITSUBISHI CHEMICAL CORPORATION
‡ MITSUI CHEMICALS, INC.
‡ SONY CORPORATION
‡ TAIYOYUDEN CO., LTD.
‡ TDK CORPORATION
‡ MITSUBISHI CHEMICAL CORPORATION
‡ RICOH CO., LTD.
Non-recordable signals
This system cannot record and play digital signals other than audio signals.
Other data than audio signals, such as the CD-ROM signal, cannot be played and recorded with this system. When a disc
containing variety of data formats, such as a CD Graphic or CD-TEXT is used, the system cannot record or play data other than
audio data.
The system can neither record or play compressed digital audio signals such as those recorded with Dolby Digital (AC-3) or
MPEG.
Recording and playback of discs recorded on other CD recorders
Some of CD-R/RW discs recorded on other CD recorders than this system (including CD-R/RW drives of PC) may not be
recorded or played by this system due to differences in the disc characteristics and recording characteristics (pickup, etc.).
Application section
Knowledge section
Page 8
8
Notes on the CD recorder
Introduction
Finalization (FINALIZE)
Finalization is the final processing of a CD-R/RW to make it playable on the CD player*1 of this system and other
CD-R/RW compatible players.
Status after finalization
CD-R.........The finalized disc can be played on the CD player of this system as well as other CD players*2. As the disc
becomes identical to ordinary CD, additional recording is not available any more.
CD-RW ..... The finalized disc can be played on the CD player of this system as well as other CD-RW compatible
players*3. Additional recording and erasure are basically impossible like the CD-R, but the disc can be
returned to the status before finalization when it is unfinalized (a).
Preparation section
Playback on CD player of
this system
Display when the disc is
loaded
Playback on CD recorder
Basic section
of this system
Display when the disc is
loaded
Additional recording (up
to recordable limit)
Skip information registration Q
Erasure s
Before Finalization
CD-R
Impossible
NoDisc
Possible Possible Possible
UN FINALIZE D CD -R
SKIP PLAY
Possible
Possible
Impossible Possible Impossible
CD-RW
Impossible
NoDisc
UN FINALIZE D CD -R W
SKIP PLAY
Possible Impossible
Possible Impossible
SKIP PLAY
After Finalization
CD-R
Possible
UN FINALIZE D CD
CD-RW
Possible
Possible
FINALIZE D CD -R W
SKIP PLAY
Impossible*4
Impossible*4
Impossible*4
Apprication section
*1 .. The CD player of this system is compatible with playback of CD-R/RW discs.
*2 .. As the CD-R disc has lower reflectance than other music CDs, it may sometimes be unable to be played on certain
ordinary CD players. Playback may also become impossible due to disc properties, dirt, scratch, stained pickup,
condensation, etc. The CD-R disc may also be unable to be played on certain DVD players due to difference in the
pickup wavelength.
*3 .. Playback may be impossible with certain equipment.
*4 .. This becomes possible once the disc is unfinalized.
Maximum number of tracks recordable in a disc
A CD-R/RW can accept recording of up to 99 tracks. More than 99 tracks cannot be recorded even when the disc still
has a remaining capacity. The minimum recording time per track is 4 seconds.
Knowledge section
Page 9
M
y
C
D
Handling of discs and cassette tapes
Introduction
9
Disc handling precautions
Handling
Hold the discs so that you do not touch
the playing surface.
Label side
Playing side
Sticker
Sticky paste
Do not attach paper or tape to either
the playing side or the label side of the
discs.
Cleaning
If fingerprints or foreign matter become
attached to the disc, lightly wipe the disc
with a soft cotton cloth (or similar) from
the center of the disc outwards in a radial
manner.
Storage
When a disc is not to be played for a
long period of time, remove it from the
player and store it in its case.
Discs which can be played with this unit
CD (12 cm, 8 cm), and the audio part of CDV, CD-G, and CDEXTRA.
Use discs with IEC standard compliance, which is indicated by
COMPACTCOMPACT
the
CD recorder" 7.
marking. For the CD-R/RW discs, see "Notes on the
DIGITAL AUDIODIGITAL AUDIO
Never play a cracked or warped disc
During playback, the disc rotates at high speed in the player.
Therefore, to avoid danger, never use a cracked or deformed disc
or a disc repaired with tape or adhesive agent.
Please do not use discs which are not round because they may
cause a malfunction.
Disc accessories
The disc accessories (stabilizer, protection sheet, protection ring,
etc.) which are marketed for improving the sound quality or protecting discs as well as the disc cleaner should not be used with
this system because they may cause malfunction.
Preparation section
Basic section
To prevent failure, do not use a disc on which
a label or paper sheet is attached.
Do not attempt to insert a disc with peculiar
shape (star shaped, heart shaped, etc.), crack
or important warp or a stabilizer marketed for
disc protection. Otherwise malfunction may
result.
Application section
Knowledge section
Page 10
10
Notes on cassette tape
Handling of discs and cassette tapes
Introduction
Safety tab (accidental erasure prevention tab)
After an important recording has been finished, break the
safety tab, to prevent the recorded contents from being erased
or recorded on accidentally.
For A side
Preparation section
To re-record
Notes
Notes
Basic section
For B side
Apply tape only to the position where
the tab has been removed.
1. Note on long tapes
Do not use a cassette with more than 90-minute
recording time, for the tape used with such a
cassette is very thin and tends to cause troubles
such as entanglement around the pinch roller or
cutting of tape.
To store cassette tapes
Do not store the tapes in a place which is subject to direct
sunlight, or near equipment that generates heat. Keep the
cassette tapes away from any magnetic field.
N
S
When there is slack in the tape
In such a case, insert a pencil into the reel hole and wind the
reel hub to remove the slack.
2. Endless tapes
Do not use an endless tape, as this could damage the
mechanism of the unit.
Apprication section
Knowledge section
Page 11
T
T
A
T
System connection
1. Connection of the System Accessories
System connection
11
Connect the antenna as shown in the figure.
Do not plug the power cord into a wall AC outlet until
the connection has been completed.
Connection of the Accessory Antenna
AM loop antenna
The supplied antenna is for indoor use. Place it as far as
possible from the main system, TV set, speaker cords and
power cord, and set it to a direction which provides the best
reception.
1
23
ANTENNA
DIGI
OP
AM
GND
FM
Ω
75
ANTENNA
AM
GND
FM
Ω
75
Malfunction of microcomputer
If operation is not possible or erroneous display appears even though all
connections have been made properly, reset the microcomputer referring to “In case of difficulty”.
S
FM indoor antenna
The accessory antenna is for temporary indoor use only. For
stable signal reception we recommend using an outdoor
antenna.
1 Plug into the terminal.
2 Locate the position providing good recep-
tion condition.
3 Fix the antenna.
AM loop antenna
Assembling the antenna
Preparation section
Basic section
Application section
FM indoor antenna
In case of bad reception
FM outdoor antenna
Lead the 75Ω coaxial cable connected to the FM outdoor antenna into the room and connect it to the FM 75Ω terminal.
(Commercially Available Parts)
ANTENNA
DIGIT
OP
AM
GND
FM
Ω
75
ANTENNA
FM outdoor antenna
AM
(Commercially available)
(Commercially
GND
FM
Ω
75
available)
75Ω coaxial cable
(Commercially available)
Knowledge section
Page 12
12
Connection of speakers
Each speaker is destined either for the left or right. Respect this and connect them as shown below.
÷ Never short-circuit the + and – speaker cords.
The protection circuit will operate and no sound will be put out.
÷ The + and – polarity are inverted, the sound will be unnatural with unclear localization of musical instruments.
1. Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not be produced or noise
Notes
Notes
Preparation section
may interfere.
2. Before plugging or unplugging a connection cord, be sure to unplug the power cord from the wall AC outlet.
If connection cords are plugged or unplugged with the power cord left plugged in, malfunction or damage may result.
System connection
Speaker (Right)
Basic section
+
-
Apprication section
vbV^[~i
To wall AC
outlet
Main unit
1
Main unit
DIGITAL OUT
OPTICAL
3
OUT IN
L
+-+
R L
R
SUB WOOFER
SPEAKERS (
PRE OUT
AUX
ANTENNA
AM
GND
FM
Ω
75
Speaker cord (accessories)
2
Speaker rear
panel
Speaker (Left)
1
2
+
3
-
)
6-16
Ω
-
Speaker cord (accessories)
R L
+
-+-
6
- 16 Ω
)
SPEAKERS (
Installation
Do not install the system in a place subject to vibrations.
Do not install the unit on the back, on the left or right side or upside down.
CAUTION
Be sure to adhere followings. Or proper ventilation will be blocked causing damage or fire hazard.
÷ Do not place any objects impairing heat radiation onto the top of unit.
Knowledge section
÷ Leave a space around the unit (from the largest outside dimension including projection) equal or greater
than, shown below.
Top panel : 50 cm Back panel : 10 cm
Page 13
System connection
13
2. Connection of Other Accessories
When connections are to be made, make sure
that the power plug is not plugged into a wall AC
outlet. Connect the equipment as shown in the
figures.
Conection of Subwoofer (optional)
Extremely low frequency sound is played back powerfully.
L
R
DIGITAL IN
OPTICAL
OUT @ @@IN
AUX
SUB WOOFER
PRE OUT
Connection of external source component
Analog signal connection
The AUX (OUT/IN) input jacks on the rear panel can be used to connect a cassette deck, etc.
SUB WOOFER
PRE OUT
(Commercially Available Parts)
Preparation section
Subwoofer
Basic section
audio input
Cassette deck etc.
027
8
1
¶
DIGITAL IN
OPTICAL
OUT @ @@IN
AUX
L
R
SUBWOOFER
PRE OUT
OUT IN
AUX
L
audio output
R
Digital signal connection
The OPTICAL digital input jack on the rear panel can be used to connect a digital component.
For the digital signals which can be recorded and played on this system, see "Sampling frequency".A
Be sure to retain the cap removed above.
Digital component
Optical digital audio output
DIGITAL IN
OPTICAL
OUT IN
AUX
L
R
SUB WOOFER
PRE OUT
DIGITAL IN
OPTICAL
Optical fiber cable
The source connected to the DIGITAL IN OPTICAL jack cannot be recorded onto tape. To record an external source
on tape, connect the source component's output to the AUX IN jacks and select the "AUX" input source.
3
¡
Application section
Knowledge section
Notes
Notes
1.In case an associated system component is connected, also read the instruction manual of the component.
2.Insert the optical-fiber cable straight into the connector until it clicks.
3.Be sure to attach the protection cap when the connector is not used.
4.Never bend or bundle the optical-fiber cable.
Page 14
14
Controls and indicators
Main unit
CD-R /
COMPACTCOMPACT
DIGITAL AUDIODIGITAL AUDIO
TEXTTEXT
RW PLAYBACK
Controls and indicators
0
BAND
Preparation section
Basic section
Apprication section
0
!
@
#
$
%
^
&
*
(
)
¡
™
DISPLAY
CONTROL
TAPE REC
CD-R REC
FINALIZE
AUX/D-AUX
www. kenwood. com
STANDBY
TIMER
MENU
3
MULTI
3
SET
PHONES
tape loading mechnism
0
TAPE IN
3
VOLUME
1
3
£
¢
§∞
2
¢
CD-R 6 TAPE
74
23 CD 6
43
5
TUNER
6 7
Cassette deck (TAPE)
CD player (CD)
MICRO HI-FI-COMPONENT SYSTEM
9
8
CD recorder
(CDR)
CD-R IN
0
¶
•
ª
Standby mode
Knowledge section
While the standby indicator of the unit is lit, a small amount of current is flowing into the unit’s internal circuitry to back
up the memory. This condition is referred to as the standby mode of the unit. While the unit is in the standby mode, it
can be turned ON from the remote control unit.
Page 15
Controls and indicators
15
1 VOLUME keys
Press to adjust the listening volume. ™£
2 4, ¢ keys
During CD, CDR playback:
Press to skip CD, CD-R/RW tracks ∞¶
During TAPE playback:
Press to fast forward or fast reverse the tape. ª
During tuner reception:
Press to select a radio station. º
3 7 (stop) key
When power is OFF (standby) :
Press to display the time of the day for 5 seconds.
(
During CD, CDR,TAPE playback :
Press to stop playback. ∞¶ª
During CDR,TAPE recording :
Press to stop recording. °q
During tuner reception :
Press to stop auto tuning. ¤
4 CD-R 6 key
When power is ON:
Press to select the CDR input. §
When power is OFF (standby):
Press to turn the system power ON and start playback on the CD recorder. ™
When CDR input is selected:
Press to start playback or let it pause. §
5 TAPE 23 key
When power is ON:
Press to select the TAPE input. •
When power is OFF (standby):
Press to turn the system power ON and start TAPE
playback. ™
When TAPE input is selected:
Press during playback to change the tape transport
direction. •
6 CD 6 key
When power is ON:
Press to select the CD input. ¢
When power is OFF (standby):
Press to turn the system power ON and start playback on the CD player. ™
When CD input is selected:
Press to start playback or let it pause. ¢
7 TUNER/BAND key
When power is ON:
Press to select the TUNER input. º
When power is OFF (standby):
Press to turn the system power ON and start radio
reception on the tuner. ™
During tuner reception :
Press to switch the radio band. º
8 CD player cover open key (0)
Press to open a CD player cover. ¢∞
9 CD player cover
0 Character data display *
! DISPLAY key
The indications contents of the display are switched.
·w
@ MENU key
Press to switch on/off the setting selection modes .
*()
# MULTI CONTROL keys
Those keys is used in setting selection, timer reservation and clock adjustment operations.
*()£g
$ SET key
Press to set or enter a menu item. *()
% TAPE REC key/indicator
Key
Press to start recording on tape. q
Indicator
Lights during tape recording and blinks during recordpause. q
^ CD-R REC key/indicator
Key
Press to start recording on CD-R/RW. °
This key is also used in finalizing a CD-R/RW.
Indicator
Lights during CD-R/RW recording and blinks during
record-pause. °
& FINALIZE key/indicator
Key
Press to start finalizing a CD-R/RW. ∏
Indicator
Blinks during finalization. ∏
* AUX/D-AUX key
Press when playing or recording the input source connected
to the AUX or Digital AUX input. ™f
( Remote sensor &
) STANDBY/TIMER indicator
When power is ON :Goes off
When power is OFF (standby) :Lights in red.$
During timer standby :Lights in green.
(g
¡
™ PHONES jack
£ Front door 6
¢ Tape insertion slot
∞ TAPE IN indicator
§ 0 (TAPE eject) key
¶ CD-R IN indicator
• CD recorder tray open/close (0) key
ª CD recorder tray
key
Press to switch the power ON and OFF (standby).
™g
Plug headphones with a stereo mini-plug (optional).
£
Lights when a tape is loaded. •‚
This key is pressed to remove tape. ª
Lights when a disc is loaded and ready for playback or
recording. §fl
This key is pressed to remove discs. §¶
Preparation section
Basic section
Application section
Knowledge section
Page 16
16
Remote control unit
1 2 3
456
1
Preparation section
2
3
Basic section
789
REV.MODE
0 +10
AUTO/MONO ERASE
CD
6
CDR
TUNER/BAND
4¢
P.CALL
1
DISPLAY
SLEEP TIMER
MUTE
TUNING
TWIN
REC
RC-F0102E
1
DOWN
Infrared ray system
Model : RC-F0102E
1 Numeric keys
When CD, CDR input is selected :
Press to enter numbers. ∞¶
When TUNER input is selected :
Press when presetting and recalling a preset radio
station.
2 REV. MODE key
Apprication section
Press to switch the reverse mode. ª
3 Basic operation keys
CD 6 (play/pause) key ™¢∞
CDR 6 (play/pause) key ™§¶
TAPE 23 key ™•
TUNER/BAND key
Press to select the TUNER input. ™
This key is also used to switch the broadcast bands.
4,¢ keys
During CD, CDR playback :
Press to skip CD tracks ∞¶
When TAPE input is selected :
Press to fast forward or fast reverse the tape ª
Knowledge section
During tuner reception :
Press to select a radio station. º
AUX/D-AUX key
Press when playing or recording the input source connected
to the AUX or Digital AUX input. ™f
POWER
ENTER
SKIP PLAY
/PTY
DOLBY NR
CLEARPGMTIME
6
TAPE
AUX/D-AUX
7
RANDOM
REPEAT
O.T.E.
CD=CDR CD=TAPE
TONE
SOUND
UP
VOLUME
SET
23
STOP
4
5
6
5
7
8
º¤
º
Controls and indicators
7 STOP key
When power is OFF (standby) :
Press to display the time of the day for 5 seconds
During CD, CDR,TAPE playback :
Press to stop playback. ∞¶ª
During CDR,TAPE recording :
Press to stop recording. °q
During tuner reception :
Press to stop auto tuning. ¤
1,¡ keys
During CD, CDR playback :
Press to fast forward or fast reverse the disc.
∞¶
When TAPE input is selected :
Press to fast forward or fast reverse the tape. ª
During tuner reception :
Press to select radio stations. ¤
DISPLAY key
The indications contents of the display are switched.
·w
4 POWER (
5 Keys related to CD,CDR
SET key
When CD input is selected:
Press to set or enter a program. ui
ENTER key
When CDR input is selected
Press to unfinalize or erase a CD-RW.asd
During tuner reception:
Press to enter a manual preset station. ¤
SKIP PLAY/PTY key
When CD,CDR input is selected.
SKIP PLAY mode (on/off) is switched. W
When TUNER input is selected.
Used at the time of program type detection. ›
TIME key
When CD, CDR input is selected:
Press to switch the time information displayed during
CD playback. ∞¶
When TUNER input is selected:
Press to change the radio station name display or
frequency display. ‹
PGM (AUTO/MONO) key
When CD input is selected:
Press when selecting program playback. ui
When TUNER input is selected:
Press to switch the tuning mode of the tuner. ¤
CLEAR (ERASE) key
When CD input is selected:
This key is used to clear the program. i
When CDR input is selected:
This key is used to return a finalized CD-RW to the
rewritable condition (unfinalization). a
This key is also used to erase a single track or all tracks
in a CD-RW in the rewritable condition. sd
) key ™g
.(
Page 17
Controls and indicators
17
RANDOM key
Press to play the tracks in a CD in a random order.p
REPEAT key
Press for repeat playback of a CD, CD-R/RW. o
6 DOLBY NR key
Dolby NR mode (on/off) is switched. ª
7 Keys related to CDR, TAPE
TWIN REC key
Press during CD playback to record the track being
played on a CD-R/RW and tape simultaneously.
Press during CD stop mode to record all the tracks in the
disc on a CD-R/RW and tape simultaneously.
¨Ø
CD=CDR O.T.E. key
Press during CD playback to record the track being
played on a CD-R/RW with one-touch operation.
Press during CD stop mode to record all the tracks in
the disc on a CD-R/RW with one-touch operation.
YIŒ„
Operation of remote control unit
CD=TAPE O.T.E. key
Press during CD playback to record the track being played
on a tape with one-touch operation.
Press during CD stop mode to record all the tracks in the
disc on a tape with one-touch operation. ‰ˇ
8 Keys related to timer and sound
SLEEP key
Press to set the sleep timer. l
TIMER key
Press to execute or cancel a timer program.
SOUND key
Press to select S.DIRECT, N.B.1, N.B.2 or TONE.
TONE key
This key is used to adjust the response of low, medium
and high frequencies. £
MUTE key
Press to mute sound temporarily. £
VOLUME keys
Press to adjust the listening volume or tone.™£
Press to select the PTY SEARCH. ›
Preparation section
g
£
Basic section
Loading batteries
1 Remove the cover. 2 Insert batteries.
÷ Insert two R6 (“AA”-size) batteries fol-
lowing the polarity indications.
Operation
Plug the power cord into a power outlet and press
the POWER( ) key on the remote control unit to
switch the power ON. Then press the key of the
function you want to control.
÷ When pressing more than one remote control keys suc-
cessively, press the keys securely by leaving an interval of
1 second or more between keys.
3 Close the cover.
6m
30˚
Application section
tape loading mechnism
30˚
Knowledge section
¡
Notes
Notes
1. The provided batteries are intended for use in operation checking, and their service life may be short.
2. When the remote controllable distance becomes short, replace both of the batteries with new ones.
3. If direct sunlight or the light of a high- frequency fluorescent lamp (inverter type, etc.) is incident to the remote sensor,
malfunction may occur. In such a case, change the installation position to avoid malfunction.
Page 18
18
Display
1
TUNED
2
RDS
AUTO
ABCDEF
3
Preparation section
GHIJKL
4
5
6
SINGLE REMAIN
TOTAL
N.B.1 2 S.DIRECT SLEEP A.P.S.
MUTE
O.T.T. PROG.
STEREO
UN FINALIZE D CD -R W
PTY ERASE RANDOM PGM
SKIP PLAY REPEAT ONE
CDR
DIGITAL
MD DECK
NR
HIGH O.T.E.
7
8
9
0
!
@
#
$
Controls and indicators
1 MUTE indicator
2 Tuner related indicators
3 Character information display
(input display, play time, title display, etc.)
4 CD and CDR play/record time information
display
5 DIGITAL indicator
6 Tone related indicators
(N.B.1, N.B.2, S.DIRECT)
7 TIMER-related indicators
(O.T.T., PROG.1, PROG.2)
8 CD/CDR-related display
9 3(Play)/8(Pause) indicator
0 TAPE related indicators
! Recording indicators (CDR, DECK)
@ HIGH O.T.E. indicator
# A.P.S. (Auto Power Save) indicator
$ SLEEP indicator
Note
NoteNote
The "DIGITAL" indicator lights when the Rec Input for recording from the CD player to the CD recorder is set (e) to select
the digital output of the CD player.
Basic section
Display brightness adjustment (Dimmer)
The brightness of the display can be switched as
desired.
1 Press the MENU key.
2 Press the MULTI CONTROL keys to select “Dimmer
?”, then press the SET key.
3 Select “Low” or “High” by pressing the MULTI
CONTROL keys, then press the SET key.
Auto Power Save (A.P.S.)
Apprication section
When the power has been left ON for more than 30
minutes while the unit has been doing neither recording or playback in this period, the A.P.S. function switches the power OFF (standby) automatically. A.P.S. can be switched On or Off with the
following operation.
1 Press the MENU key.
2 Press the MULTI CONTROL keys to select “A.P.S.
Set ?”, then press the SET key.
3 Select “On” or “Off” by pressing the MULTI
CONTROL keys, then press the SET key.
MENU
MULTI
CONTROL
MENU
MULTI
CONTROL
SET
SET
Dimmer
?
A.P.S.
Set?
A.P.S.
«
«
A.P.S.
On
Blinks
Blinks
÷ If the current source is TUNER or D-AUX, AUX, A.P.S. is
activated when the volume is "0".
Knowledge section
÷ The display shows "A.P.S." while it is On.
A.P.S.
Lights
Page 19
Clock adjustment
This unit incorporates a clock function. Be sure to adjust the correct time before using the timer function.
If there is a power failure or the power cord is
unplugged then plugged in again while the power is
set to off (STANDBY mode) after a timer is activated,
the STANDBY/TIMER indicator blinks in green. In
this case, adjust the clock again.
Switching the power ON
Activate the clock adjustment mode.
1
Press and hold for more than 2 sec.
÷ The time display starts to blink.
Menu mode
19
Preparation section
MENU
Enter the hour.
2
1 Adjust the figure of hours by pressing the MULTI
CONTROL keys.
To advance
the time
To put back
the time
2 Press the SET key.
Enter the minute.
3
1 Adjust the figure of minute by pressing the MULTI
CONTROL keys.
To advance
the time
To put back
the time
2 Press the SET key.
#
MULTI
CONTROL
#
SET
#
MULTI
CONTROL
#
SET
TIME
Adjust
1
Setting the hour
\
0:00
Blinks
Example for adjusting at
1:30PM
13:00
Blinks
÷ Press the SET key. The hour is entered and the minute
display starts to blink.
÷ The clock shows the time of the day in the 24-hour system.
1 Setting the minute
13:30
Blinks
÷ If you pressed the SET key by mistake, press the MENU key
and restart from the beginning.
÷ To adjust correct time, press the SET key at the same
moment as a time announcement.
Basic section
Application section
Knowledge section
When power is OFF (standby) :
Pressing the 7 (stop) key on the main unit or the 7
STOP key on the remote displays the time for 5
seconds.
Page 20
20
Menu mode
Operation in menu mode
Menu mode
1 Press the MENU key.
MENU
2 Select the item to be set.
#
MULTI
CONTROL
Preparation section
3 Press the SET key.
Set other items by repeating 2 and 3 for each.
When no button is pressed for about 20 seconds during
÷
menu operation, the menu will be canceled.
÷To cancel a setting in the menu mode in the middle, press
Basic section
the MENU key again.
÷The menu mode cannot be activated during recording.
#
SET
Each press changes the displayed item.
"O.T.E. Mode ?"......................................Y‰
"O.T.E. Speed ?"............................................. Y
"Rec Input ?"
(Only when the CD input is selected) ................ e
"T.Mark ?"
(Only when the TAPE, TUNER, AUX input is selected)
.................................................................... r
"Auto Memory ?"
(Only when the TUNER input is selected) ........ ⁄
"Skip Play ?"
(Only when the CD, CDR input is selected)...... W
"Skip Track ?"
(Only when the CDR input is selected) ............ Q
"AUX Input ?"
(Only when the AUX input is selected)
................................................... ·wf
"Rec Gain ?"
(Only when the AUX input is selected) ....·w
"Bal. ?"
"Dimmer ?" ..................................................... *
"A.P.S. Set ?".................................................. *
"Timer Set ?" .......................................... gh
"TAPE RVS. ?" ................................................ ª
(Balance) .............................................. £
Display in menu mode (Display "X")
During menu mode operation in certain status, some items may be impossible to be set even when
they are displayed. In such a case, blinking marking "X" is displayed at the bottom right of the display.
When this occurs, press the SET key to display the cause, status, etc.
Example: During balance adjustment
Apprication section
Bal.
S.DIRECT
Blinks
÷ When blinking "?" is displayed, the item can be se-
lected and set.
‘
SET
Knowledge section
‘
Bal.
S.DIRE
S.DIRECT
"S.DIRECT"
is scrolled.
÷ The "Bal." adjustment is not available while
"S.DIRECT" is selected.
Page 21
Menu mode
21
Preparation section
Basic section
Application section
Knowledge section
Page 22
22
Hearing sound
Bass and treble compensation
Playback of CD
Balance adjustment
Preparation section
Muting the sound
temporarily
Basic section
Press the key.
Tone adjustment
11
tape loading mechnism
2233
11
Listening through headphones
1. Switching the power ON (OFF).
When the key is pressed while the power is ON, the power will be
switched OFF.
÷ To protect the internal circuitry, the sound is muted for about 5 seconds after the
power is switched ON.
÷ Pressing the CD 6, CD-R 6, TAPE
on the main unit switches the power ON, selects the corresponding source
component and starts playback (or reception) on it. (One-Touch Operation function)
÷ When you press the
sometimes take long time until the power is switched off. This is not malfunction;
please wait a while.
key to switch the power off (STANDBY mode), it may
2323
23, TUNER/BAND or AUX/D-AUX key
2323
Apprication section
When CD has been selected.
CD
6
Knowledge section
3
VOLUME
2. Selecting the desired output.
22
TUNER (Broadcasts) º
CD (CD player) ¢
CDR (CD recorder) §
TAPE (Cassette deck) •
AUX (Auxiliary analog source) f
D-AUX (Auxiliary digital source) f
÷ When CD 6, CD-R 6 or TAPE 23 is pressed,
playback will start when a disc or tape already has
been inserted.
When CD has been selected.
CD 01
0:00
3. Volume adjustment.
Volume display
3
33
÷ The same function is also available using the
VOLUME keys on the remote control unit.
÷ The display shows a reference value (0~40).
CD 01
Vol 17
Page 23
Hearing sound
Playback of CD
23
Muting the sound temporarily (MUTE)
Remote control unit only
Blinks
MUTE
MUTE
÷ Press again to resume the original volume.
÷ This is also cancelled when the volume is adjusted.
Listening through headphones
1 Insert the headphone plug into the PHONES jack.
PHONES
÷ Headphones with a stereo mini plug can be connected.
÷ The sounds from all speakers are cut off.
2 Adjust the volume with the VOLUME keys.
Bass and treble compensation
(N.B.: Natural Bass circuit)
Remote control unit only
SOUND
N.B.1
Lights
Each press switch the modes as follows.
“S.DIRECT”...... The source signal from a CD or
TAPE can be reproduced with high
fidelity to the original sound by
bypassing the tone control circuitry in the main unit.
Goes off ........... The source signal is processed by
the tone control circuitry before
being output from the main unit.
“N.B.1”............. The lowest and highest frequen-
cies are enhanced according to
the current volume level.
“N.B.2”............. Only the lowest frequencies are
enhanced.
Preparation section
Basic section
Tone adjustment (TONE)
Remote control unit only
The low frequencies (Bass), medium frequencies
(Mid) and high frequencies (Treble) can be adjusted
separately.
After this adjustment, the N.B. effect will be disabled.
1 Press the TONE key to select ”Bass”.
Adjust the level using the VOLUME keys.
TONE
\
\
DOWN
VOLUME
UP
Bass
0
2 Press the TONE key again while “Bass” is
displayed to select “Mid”. Adjust the level
using the VOLUME keys.
Balance adjustment (Bal.)
The balance of volumes from the left and right speakers can be adjusted as follows.
1 Press the MENU key.
MENU
2 Press the MULTI CONTROL keys to select
“Bal. ?” (Balance), then press the SET key.
#
MULTI
CONTROL
#
÷ This adjustment is not available while "S.DIRECT" is
selected. "X" is displayed to indicate this.
"Display in menu mode (Display "X")" )
3 Adjust the left and right speaker balance by press-
ing the MULTI CONTROL keys.
#
MULTI
CONTROL
#
Bal.
?
Bal.
Center
Blinks
Application section
Knowledge section
3 Press the TONE key again while “Mid” is
displayed to select “Treble”. Adjust the
level using the VOLUME keys.
4 Press the TONE key once more.
÷ The Bass, Mid and Treble can be adjusted independ-
ently in the range from –4 to +4.
%%
(up) key to shift the balance toward the Right
÷ Press the
channel or press the
Left channel. "Center" is displayed when the balance is
set to the center.
4 Press the SET key.
%
%%
fifi
fi (down) key to shift it toward the
fifi
SET
Page 24
24
Playback of CD
Playback of CD
Playback on CD player
Time display on CD
player
Playback from
desired track
Preparation section
Start playback/
To pause playback
(Playback on CD recorder
To stop playback
Skipping tracks
§
tape loading mechnism
)
Start playback/
To pause playback
To stop playback
11
22
To r e m o ve
a disc
Skipping
Basic section
The label must be on top.
tracks
Apprication section
Do not touch the played surface.
To fast forward
and backward
1. Load a disc.
1 Press the CD player cover open (0) key.
2 Place a disc.
3 Close the CD player cover with your hand.
÷ "CD Reading" is displayed for a few seconds (when the input is CD).
÷ No adapter is necessary to play an 8 cm CD.
÷ The CD player can play back finalized CD-R/RW discs but cannot play discs
containing other signals than audio signals. It may sometimes be incapable of
playing a CD-R/RW disc recorded with other equipment than this system or a PC.
2. Start playback.
(The “CD” input is selected automatically.)
CD
Knowledge section
6
22
Track No. being played
(Upper line)
Elapsed track playing time
(Lower line)
CD 01
0:07
SINGLE
Page 25
Playback of CD
Playback of CD
25
To pause playback
CD
6
÷ Each press pauses and plays the CD alternately.
To stop playback
STOP
7
Playback from desired track
Remote control unit only
Select the desired
track No.
Press the numeric keys as shown below....
To enter track No. 12 ... +10, 2
To select track No. 20 .. +10, +10, 0
12 3
456
78 9
+10
Skipping tracks
To skip backward
4¢
P.CALL
÷ The track in the direction of the key pressed is skipped,
and the selected track will be played from the beginning.
÷ When the 4 key is pressed once during playback, the
track being played will be played from the beginning.
÷ To skip further to the previous track, press the 4 key
quickly.
÷ Tracks can be skipped by pressing the 4 or ¢ key even
in stop mode. In this case, playback starts automatically
after skipping.
To skip forward
Time display on CD player
Remote control unit only
Preparation section
Basic section
To fast forward and backward
Remote control unit only
22 33
TUNING
To b a c k w a r d
÷ Playback starts from the position where the key is re-
leased.
÷ Audio is not output during the fast forward or fast backward
operation during pause.
To forward
To remove a disc
0
CD TEXT function
When discs conforming to CD-TEXT are played with
this unit, the text information recorded on the CD (disc
name or titles) is displayed automatically.
Some CDs conforming to CD-TEXT may not display
text information.The number of characters that can be
displayed is about 1000. "Text Full" is displayed if there
are more characters.
Each press of the TIME key switches the displayed
information items one after another.
Elapsed time of track
being played .........................
Remaining time of track
being played .........................
Elapsed time of
entire disc .............................
Remaining time on
entire disc .............................
CD TEXT data display
(Compatible disc only) ........
÷ When the total playing time of the tracks programmed for
program playback reaches 256 minutes or more, the
display shows “– –:– –” and the time display becomes
unavailable.
÷ When a non-CD-TEXT disc is played, the CD text informa-
tion display shows “------”.
CD 02
0:07
SINGLE
CD 02
4:53
SINGLE REMAIN
CD 02
5:07
TOTAL
CD 02
54:53
REMAIN
TOTAL
CD 02
SATISF
Application section
Knowledge section
Page 26
26
Playback of CD
Playback on CD recorder
Time display on CD recorder
Playback from
desired track
Preparation section
Start playback/
To pause playback
Skipping
tracks
To stop playback
To fast forward
and backward
To stop playback
Skipping tracks
tape loading mechnism
11
Start playback/
To pause playback
22
To eject
a disc
Basic section
The label must be on top.
Apprication section
Do not touch the played surface.
1. Load a disc.
1 Press CD recorder tray open/close (0) key.
2 Place a disc.
3 Press CD recorder tray open/close (0) key.
The CD-R IN indicator blinks first, then it lights steadily when the disc has
been identified (now the disc is ready for playback).
÷ No adapter is necessary to play an 8 cm CD.
÷ The CD recorder can play back commercially-available music CDs. Although it can
play CD-R/RW discs which have not been finalized, it cannot play discs containing
other signals than audio signals. It may sometimes be incapable of playing a CDR/RW disc recorded with other equipment than this system or a PC.
÷ If the CD-R IN indicator blinks after the tray has been closed, the disc cannot be
ejected.
When a non-used disc or a disc which has not been unfinalized is
loaded in the CD recorder, the CD-R IN indicator may sometimes blink
for a while.
"OPC (Optimum Power Control)" ‡
2. Start playback.
(The “CDR” input is selected automatically.)
CD-R IN
0
\
LightsBlinks
CD-R IN
0
Knowledge section
CD-R 6
22
Track No. being played
(Upper line)
Elapsed track playing time
(Lower line)
CD -R
CDR 02
0:07
SINGLE
Page 27
Playback of CD
Playback of CD
27
Start playback / To pause playback
CDR
6
÷ Each press pauses and plays the CD alternately.
To stop playback
STOP
7
Playback from desired track
Remote control unit only
Select the desired
track No.
12 3
456
78 9
+10
Skipping tracks
To skip backward
÷ The track in the direction of the button pressed is skipped,
and the selected track will be played from the beginning.
÷ When the 4 key is pressed once during playback, the
track being played will be played from the beginning.
÷ To skip further to the previous track, press the 4 key
quickly.
÷ Tracks can be skipped by pressing the 4 or ¢ key even
in stop mode. In this case, playback starts automatically
after skipping.
4¢
P.CALL
To skip forward
Time display on CD recorder
Preparation section
Basic section
Press the numeric keys as shown below....
To enter track No. 12 ... +10, 2
To select track No. 20 .. +10, +10, 0
To fast forward and backward
Remote control unit only
22 33
To b a c k w a r d
TUNING
÷ Playback starts from the position where the key is released.
÷ These operations cannot be started in pause mode.
To forward
To eject a disc
CD-R IN
0
CD TEXT function
When discs conforming to CD-TEXT are played with
this unit, the text information recorded on the CD (disc
name or titles) is displayed automatically.
Some CDs conforming to CD-TEXT may not display
text information.
The number of characters that can be displayed is up
to 23 per title. "XXX222" is displayed if a title has
more characters.
Remote control unit only
Each press of the TIME key switches the displayed
information items one after another.
Elapsed time of track
being played .........................
Remaining time of track
being played .........................
Elapsed time of
entire disc .............................
Remaining play time
of entire disc.........................
Remaining recordable time
of entire disc
(Displayed only with
non-finalized CD-R/RW) ......
CD TEXT data display
(Compatible disc only) ........
÷ When a non-CD-TEXT disc is played, the CD text informa-
tion display shows “------”.
CDR 02
0:07
SINGLE
CDR 02
4:53
SINGLE REMAIN
CDR 02
5:07
TOTAL
CDR 02
54:53
REMAIN
TOTAL
CDR 02
14:00
REMAIN
CDR 02
TELL M
Application section
Knowledge section
Page 28
28
Playback of TAPE
Do not use a cassette tape with more than 90-minute recording time, for the tape used with such a cassette is very
thin and tends to cause troubles such as entanglement around the pinch roller or cutting of tape.
Playback of TAPE
Preparation section
Selection of
reverse mode
To wind tape at high speed
Basic section
Selection of reverse mode
To reduce tape noise
(DOLBY NR)
Start playback
To stop playback
Ejecting
the cassette
tape
1. Insert a cassette tape.
To wind tape at high speed
To stop playback
22
tape loading mechnism
Start playback
11
In the direction of the arrow
Apprication section
TAPE
23
Direction of insertion
into main unit \
To play (record) this side, play
(record) tape by setting the tape
Knowledge section
transport direction to "3".
To play (record) the other side,
play (record) tape by setting the
tape transport direction to "2".
22
÷ The cassette deck can play back Normal (TYPE ), High-position (TYPE ) and Metal
(TYPE
÷ Remove tape slack before loading.
Insert the cassette tape straight into
the insertion slot. Just push lightly
and the cassette will be pulled automatically inside, and TAPE IN indicator lights.
The cassette tape cannot be loaded or ejected while the unit is in standby
mode. Do not force load a cassette tape in standby mode, otherwise
malfunction will result.
2. Start playback.
During playback, the tape running direction changes each time the TAPE 23
key is pressed.
Transport direction indicators
Indicates the tape transport direction
during playback or recording by lighting of 2 or 3. This direction is the direction stored in memory when the tape
was last stopped.
) tapes.
TAPE
0000
(The “TAPE” input is selected automatically.)
Tape counter
TAPE
0007
Reverse mode
indicators
Transport direction indicators
Page 29
Playback of TAPE
29
To wind tape at high speed
22 33
TUNING
Transport direction indicators
Indicator
Tape transport direction
Fast
reverse
1
Fast
forward
¡
3
Direction of insertion
into main unit \
(4)
¡
(¢)
1
2
Direction of insertion
into main unit \
÷ If you are operating the main unit, press the 4, ¢ key.
÷ Press the 7 STOP key to stop fast winding.
÷ The same function is also available using the 4, ¢ key
on the remote control unit.
(¢)
(4)
Selection of reverse mode (TAPE RVS.)
1 Press the MENU key.
2 Select “TAPE RVS. ?”.
3 Select.
1 REVERSE ( )
Both sides are played back (recorded), and then
the tape stops.
2 ENDLESS (
Both sides are played back endlessly.
(The tape stops after recording onto both sides.)
3 ONE WAY (
Only one side is played back (recorded), and
then the tape stops.
(The initial setting is "REVERSE".)
4 Set it.
#
MULTI
CONTROL
#
)
)
SET
Preparation section
Basic section
To reduce tape noise (DOLBY NR)
Remote control unit only
The Dolby Noise Reduction system reduces inherent
noise to tape playback.
Set the Dolby NR according to the Dolby NR used
when recording each cassette tape.
DOLBY NR
Each press switch the modes as follows.
“ NR” lit ................... Dolby NR is used.
“
NR” goes off ......... Dolby NR is deactivated.
To stop playback
STOP
7
Ejecting the cassette tape
0
TAPE IN
When you are operating the remote, press the
REV.MODE key to change the reverse mode.
Notes
Notes
÷When playback with the tape reverse mode of " "
(REVERSE) is started in tape transport direction "2",
playback ends after having played only the side where it
was started.
÷When recording with the tape reverse mode of "
(REVERSE) is started in tape transport direction "2",
recording ends after having recorded only the side where
it was started.
÷When recording with the tape reverse mode of "
(ENDLESS) is started in tape transport direction "2",
recording ends after having recorded only the side where
it was started.
A tip for use of the tape counter
The tape counter is set to “0000” when a cassette tape is
loaded. By writing down the counter reading in case you
want to interrupt recording (playback) in the middle of
the tape, the memo will be helpful as a reference for locating the same position when continuing the recording
(playback) the next time. The tape counter figure decrements during recording or playback of the back side (while
the 2 tape transport indicator is lit).
To reset the tape counter to "0000", eject the cassette
tape temporarily. This will reset the counter.
Application section
"
"
Knowledge section
Page 30
30
Receiving broadcast station
Receiving broadcast station
Display switching
Preparation section
Tuning a nonpreset radio
station(3)
BAND
Basic section
TUNER
One-by-one presetting(3)
One-by-one presetting(2,4)
11
Tuning a nonpreset radio station(2)
1. Select the tuner input.
Each press of the TUNER/BAND key switches the band as follows.
FM
AM
Collective presetting of stations
tape loading mechnism
33
11
Apprication section
4¢
Knowledge section
33
2. Preset a radio station in memory.
Collective presetting of stations (Auto Memory)
Follow the procedure in "Collective presetting of stations (Auto Memory)"
to preset automatically the tunable radio stations in your area. ⁄
÷ Once stations are stored by auto presetting, the present procedure is not
required from the next time, unless you move of house or re-execute presetting
of all tunable stations.
One-by-one presetting (Manual preset) ¤
A station can also be tuned even when it is not preset. For details, read
“Tuning a non-preset radio station (Auto tuning, Manual tuning)” ¤
3. Tuning (Preset Call)
If radio stations have already been stored
with auto presetting or manual presetting,
select a station using the 4,¢ key.
Press ¢ for the order of
1=2=3 ... 38=39=40=1...
Press 4 for the order of
40=39=38 ... 3=2=1=40...
÷ To select a preset station from the remote,
use the 4, ¢ key or numeric keys.
“TUNED” indicator lights
up when a station is received.
TUNED
STEREO
AUTO
FM P04
90.00
Press the numeric keys as shown below....
To select preset No. 12.... +10, 2
To select preset No. 20.... +10, +10, 0
Page 31
Receiving broadcast station
31
Collective presetting of stations
(Auto Memory)
1 Press the TUNER/BAND key to select the TUNER
input.
BAND
TUNER
2 Press the MENU key.
MENU
3 Press the MULTI CONTROL keys to select “Auto
Memory ?”, then press the SET key.
#
MULTI
CONTROL
#
\
\
SET
Up to 40 stations can be memorized.
÷ Do not perform any other operation during Auto Memory
operation.
÷ The station name is not displayed if the tuned frequency does
not have the station name setting or when the "TUNED"
indicator is not lit.
÷ When auto preset completes, the first station preset by it will
be displayed.
÷ The previously preset frequencies are overwritten.
÷ For use of the RDS function, stations must be memorized by
RDS auto presetting.
÷ RDS stations are given priority during auto presetting. If there
is memory left after presetting, the receiver continues presetting regular FM stations.
÷ For memorizing of stations other than RDS stations (FM,
AM), memorize the stations according to chapter “One-by-
one presetting (Manual preset)”.
TUNED
AUTO SKIP PLAY
¤
Auto M
90.00
Preparation section
Basic section
Application section
Knowledge section
Page 32
32
Tuning a non-preset radio station (Auto tuning, Manual tuning)
1 Press the TUNER/BAND key to select “FM” or
“AM”.
TUNER/BAND
÷ Use the manual tuning mode when reception is noisy due to
weak reception. (In the manual mode, stereo broadcasts are
received in monaural.)
Receiving broadcast station
2 Press the PGM key to select auto tuning or manual
tuning.
Normally, use the “AUTO” (Auto tuning) mode.
Preparation section
PGM
AUTO/MONO
3 Press the 1,¡ key to receive a station.
Auto tuning mode :
Each press receives a new station.
Manual tuning mode :
Press repeatedly until the desired station is received.
22 33
Basic section
To decrease
frequency
TUNING
To increase
frequency
One-by-one presetting (Manual preset)
Each press of the key alternates these tuning
modes.
Auto tuning ........... “AUTO” lit
Manual tuning ....... “AUTO” goes off
Auto tuning mode
TUNED
STEREO
AUTO
Lights
FM P--
÷ To stop auto tuning in the middle, press the 7 STOP key on
the remote or press the 7 (stop) key on the main unit.
1 Perform the procedure in “Tuning a non-preset
radio station” to receive the station you want to
preset.
2 Press the ENTER key during reception.
ENTER
Apprication section
3 Select the desired preset number between 1 and
40 using the numeric keys on the remote control
unit.
Press the numeric keys as shown below....
To enter preset No. 12..... +10, 2
To select preset No. 20.... +10, +10, 0
Knowledge section
4 Press the ENTER key.
12 3
456
78 9
+10
ENTER
TUNED
STEREO
AUTO
F M P - -
Blinks
90.00
÷ Repeat steps 1~4 to preset other stations.
÷ If several stations are preset under the same number,
the previous memory is replaced with the latest
memory contents.
TUNED
STEREO
AUTO
F M P 0 5
Blinks
90.00
The preset operation is canceled when no key has been
pressed for more than 20 seconds during operation.
Page 33
Using R.D.S.
(Radio Data System)
Receiving broadcast station
33
RDS is a system that transmits useful information (in
the form of digital data) for FM broadcasts along with
the broadcast signal. Tuners and receivers designed
for RDS reception can extract the information from
the broadcast signal for use with various functions,
such as automatic display of the station name.
This unit is equipped with the following
functions utilizing RDS data:
PS (Program Service Name) Display : (See below.)
When an RDS broadcast is received, the station name
is automatically displayed.
PTY (Program Type Identification) Search : ›
The tuner automatically searches for a station which is
currently broadcasting a specified program type (genre).
To switch the display contents
Press the TIME key.
Pressing the TIME key changes the display
contents.
TIME
For reception of RDS stations, the RDS auto presetting function must be used to preset the stations.
⁄
TUNED
STEREO
RDS
AUTO
FM P04
The “RDS” indicator lights up when
an RDS broadcast (signal) is received.
Display mode priority ranking
PS (Program Service Name) Display :
When an RDS broadcast is received, the station name
is automatically displayed.
If no PS data was sent, “No PS” is displayed.
TUNED
STEREO
RDS
AUTO
FM P04
BAYERN
Preparation section
Basic section
Frequency Display :
TUNED
STEREO
RDS
AUTO
FM P04
106.60
The frequency of the current station is displayed.
Application section
Knowledge section
Page 34
34
Receiving broadcast station
Using R.D.S.
Searching for a desired program type
By specifying the type of program (genre) you want
to listen to, the tuner automatically searches for a
station which is currently broadcasting a program of
the specified type.
Under certain receiving conditions, it may take more
than 1 minute to complete the search.
Set the reception band to FM.
Activate the PTY search mode.
1
Preparation section
Press the PTY key.
SKIP PLAY
/PTY
Select the program type you desire.
2
Use the program type table on the right for your
convenience.
To select using the VOLUME keys
Basic section
UP
Next
program type
Previous
program type
The VOLUME keys let you select from all 29
program types in the order shown at right.
Press the key and release it when the desired
type is displayed.
DOWN
VOLUME
Apprication section
For reception of RDS stations, the RDS auto presetting function must be used to preset the stations.
When an RDS broadcast is received, the program type
is shown on the display. If no PTY data is available, or
if the station is not an RDS station, “None” is displayed.
Program type table
(fi)
DOWN
5
(%)
UP
(PTY search)
TUNED
STEREO
RDS
PTY
AUTO
PTY
Pop M
Program Type Name Display
Pop Music Pop M
Rock Music Rock M
Easy Listening Music Easy M
Light Classical Light M
Serious Classical Classics
Other Music Other M
News News
Current Affairs Affairs
Information Info
5
Sport Sport
Education Educate
Drama Drama
Culture Culture
Science Science
Varied Varied
Weather Weather
Finance Finance
Children’s programs Children
Social Affairs Social
Religion Religion
Phone In Phone In
Travel Travel
Leisure Leisure
Jazz Music Jazz
Country Music Country
National Music Nation M
Oldies Music Oldies
Folk Music Folk M
Documentary Document
⁄
Knowledge section
Page 35
Start the search.
3
Press the “PTY” key.
SKIP PLAY
/PTY
Receiving broadcast station
EXAMPLE: Searching for a Rock Music broadcast.
Display while searching
TUNED
RDS
PTY
AUTO
Blinks
Using R.D.S.
Search
Rock M
Program type name display
35
Preparation section
To select another program type
Repeat steps 1, 2 and 3.
÷ No sound is heard while “Search” is blinking.
÷ If the desired program type cannot be found, “NoProg” is
displayed, then after several seconds the display returns to
the original display.
÷ If the desired program type is found, that program is re-
ceived. The program type display changes temporarily to the
frequency display, and then to the station name display.
÷ When the PTY is received, the PTY name lights and the
“Rock M” lights up.
Display when a station is received.
TUNED
STEREO
RDS
AUTO
FM P04
BAYERN
Station name display
Basic section
Application section
Knowledge section
Page 36
36
Recording on CD-R/RW
Even when the CD contains the recording of text
data, it is not copied onto the CD-R/RW.
Recording on CD-R/RW
Pause the recording
Preparation section
Basic section
Stop the recording
44
1. Load a disc.
tape loading mechnism
Stop the recording
Pause the
recording
22
11
Apprication section
The label must be on top.
Do not touch the played surface
(Loading a CD-R/RW in the CD recorder)
Blinks
1 Press CD recorder tray open/close (0) key.
2 Place a recordable CD-R or CD-RW disc.
78
3 Press CD recorder tray open/close (0) key.
÷ Ensure that the CD-R/RW has no scratch or dirt on the recording surface.
÷ If the CD-R/RW has previously been recorded, the end of the last track is searched
automatically to start recording from there.
The CD-R IN indicator blinks first, then it lights steadily when the disc has
been identified (now the disc is ready for recording).
÷ To record audio from a CD, load the source music CD in the CD player and load the
CD-R/RW in the CD recorder.
÷ If the CD-R IN indicator blinks after the tray has been closed, the disc cannot be
ejected.
÷ When "FINALIZED CD-RW" is displayed, additional recording to the disc is
possible after unfinalizing it.
CD-R IN
0
Lights
CD-R IN
0
\
a
Knowledge section
When a non-used disc or a disc which has not been unfinalized is loaded
in the CD recorder, the CD-R IN indicator may sometimes blink for a while.
"OPC (Optimum Power Control)" ‡
Page 37
Recording on CD-R/RW
37
When CD has been selected.
CD
6
22
2. Select the source to be recorded.
TUNER (Broadcasts) : Press the TUNER/BAND key
CD : Press the CD 6 key
TAPE : Press the TAPE 23 key
AUX (Auxiliary analog source)
: Press the AUX/D-AUX key repeatedly until "AUX"
is displayed.
D-AUX (Auxiliary digital source)
: Press the AUX/D-AUX key repeatedly until "D-
AUX" is displayed.
÷ When CD 6, TAPE 23 is pressed, playback
will start when a disc or tape already has been
inserted. Press the 7 STOP key to stop it.
÷ Digital signal recording is not available unless the
selected source is "CD" or "D-AUX". Note that,
even with these sources, digital signal recording
may be prohibited by the SCMS. A
÷ If "Unlock" is displayed when the "D-AUX"
source is selected, please see "Displayed mes-
sage list". G
CD 01
0:00
SINGLE
The selected recording
source is displayed.
3. Make the preparations for recording.
TUNER (Broadcasts) : Select a station
CD : Enter pause mode at the beginning of the
track to be recorded.
TAPE : Enter stop mode at the beginning of the track
to be recorded.
AUX (Auxiliary analog source)
: Make preparation for tuning or playback.f
D-AUX (Auxiliary digital source)
: Make preparation for tuning or playback.f
Preparation section
Basic section
Application section
÷ The setting of the recording input can be changed as desired. See "Changing the
recording input setting". e
÷ The input level can be varied only when the "AUX" (auxiliary analog source) input
is selected. Adjust the input level from the auxiliary source as required if it is too
small or too large. (AUX Input, Rec Gain) ·
When recording audio from a tape to CD-R/RW, track numbers may not
be marked correctly depending on the recording condition of the tape.
"Changing the recording input setting". e
Continued on next page
OPC (Optimum Power Control)
When a non-used disc or unfinalized disc is loaded in the CD recorder, the CD-R IN indicator may blink for a while. This indicates that the
OPC processing is being executed.
The OPC processing performs test writing in the disc in order to calculate the optimum laser irradiation intensity and time for the disc.
With this system, the CD recorder stores the discs subjected to OPC processing so that, when one of such discs is loaded, it can record
signals on it without OPC processing. The CD recorder stores the history of OPC processing of up to 24 discs. As a result, if the number
of processed discs exceed 24, the CD recorder may apply OPC processing to a disc which has been subjected to it. If the power cord is
unplugged from the power outlet or a power failure occurs during OPC processing, the disc data may be destroyed and the disc may become
unusable.
When the "CDR" input is selected, "OPC" is displayed (for up to 2 minutes) during OPC processing.
Knowledge section
Page 38
38
Recording on CD-R/RW
1
CD-R REC
Fast blinking
«
CD-R REC
Slow blinking
Preparation section
2
CD-R REC
Lights
44
During digital-to-digital record-
Basic section
ing, the CD recorder may encounter a track with which digital-to-digital recording is prohibited. In this case, "SCMS"(A)
is displayed and recording
pauses temporarily, but playback
of the source continues and recording restarts whenever a track
with which digital-to-digital recording is permitted is encountered. However, if "SCMS" is displayed with the first track to be
recorded, the track as well as the
subsequent tracks will not be
recorded.
Apprication section
44
4. Start recording.
1 Press the CD-R REC key.
(The CD recorder enters record-pause mode.)
÷ When the CD-R REC key is pressed, the CD-R REC indicator starts fast blinking,
then it changes to slow blinking to indicate record-pause mode.
2 When the CD-R indicator starts slow blinking, press the CD-R REC key
again (this starts actual recording).
÷ The fast blinking of the CD-R REC indicator indicates that recording is being
prepared. Press the CD-R REC key after the blinking speed becomes slow.
÷ In digital signal recording from the CD player of this system or from auxiliary digital
source, recording will not start until the operation in step 3 below is performed.
3Play (or tune) the input source to be recorded.
÷ "
÷ If you also want to record the signal on tape, press the TAPE REC key in step 2.
÷ "CDR Writing" is displayed when the recording completes.
÷ It is possible to skip tracks which failed to be recorded during playback. This
÷ Only the CD-RW discs can be erased. "Erasure of CD-RW recording"
÷ To play the recorded disc on the CD player of this system or another CD player,
" is displayed and the CD-R REC indicator starts to light steadily.
CDR
function can be registered in each disc (before it is finalized).
it is required to finalize the disc. "Finalizing a CD-R/RW (FINALIZE)"
When a message is displayed: G
Display "CDR Writing" indicates that recorded data is being written
in the CD-R/RW. Do not apply vibrations or impact during recording
and "CDR Writing" display.
If the power cord is unplugged from the power outlet or a power
failure occurs during recording, the disc data may be destroyed and
the disc may become unusable.
Q
sd
∏
Pause the recording Stop the recording
CD-R
6
÷ In record-pause mode, press the same key again to resume
recording from the same position. Note that the track
number increments at this time.
÷ The "
Knowledge section
blinks.
÷ The same function is also available using the CD-R 6 key
on the remote control unit.
" display blinks and the CD-R REC indicator also
CDR
÷ If the key is pressed during recording from a CD, the CD
playback also stops.
÷ If the key is pressed during recording from a TAPE, the
TAPE playback also stops.
÷ The same function is also available using the 7 STOP key on
the remote control unit.
7
Page 39
Switching the time display during recording
Recording on CD-R/RW
39
1 Press the DISPLAY key to switch the display to the
information on the recorder side.
DISPLAY
÷ The display can also be switched with the DISPLAY key on
the remote.
Playback side (CD player, etc.)
Recorder side (CD recorder)
Recorder side (Cassette deck)
(Displayed only in simultaneous
twin recording)
2 Press the TIME key to switch the time display
contents.
Remaining recordable
time
Elapsed time of track
being recorded
CDR 02
13:07
REMAIN
CDR
CDR 02
1:53
SINGLE
CDR
Adjusting the input level from the auxiliary analog source (AUX Input, Rec Gain)
If the audio output level of the auxiliary analog source such as a cassette deck is too low or too high, recording
at the optimum level may not be available.
In this case, perform the following adjustment before recording.
Adjusting the input level from the auxiliary analog source (AUX Input)
Adjust so that the audio from the auxiliary analog source sounds at the identical level to the audio from the internal source
such as the CD.
Preparation section
Basic section
1 Press the AUX/D-AUX key repeatedly until "AUX"
is displayed.
2 Press the MENU key.
3 Press the MULTI CONTROL keys to select “AUX
Input ?”, then press the SET key.
4 Press a MULTI CONTROL keys to adjust the record-
ing level (between -5 and +2).
5 Press the SET key to set the selection.
÷ If the input level from the auxiliary analog source is still too
low or the recorded audio level is too low even after the
input level is maximized (to +2) by this adjustment, perform
the recording input level adjustment operation (Rec Gain)
described below.
AUX
Input?
AUX In
0
Blinks
Level value
Adjusting the recording level of the input from the auxiliary analog source (Rec Gain)
1 Press the AUX/D-AUX key repeatedly until "AUX"
is displayed.
2 Press the MENU key.
3 Press the MULTI CONTROL keys to select “Rec
Gain ?”, then press the SET key.
4 Press a MULTI CONTROL keys to select "High".
5 Press the SET key to set the selection.
÷ When this is set to "High", the sound may sometimes be
distorted due to too high recording level.
Rec
Gain?
R.Gain
High
Blinks
Application section
Knowledge section
Page 40
40
Recording on TAPE
Recording on TAPE
Note
NoteNote
Do not use a cassette tape with more than 90-minute recording time, for the tape used with such a cassette is very
thin and tends to cause troubles such as entanglement around the pinch roller or cutting of tape.
This system can record signals on Normal (TYPE ) and High (TYPE ) position tapes. Remember that the Metal (TYPE ) tapes
cannot be used with this system.
Stop the recording
Pause the recording
44
Preparation section
tape loading mechnism
22
11
66
Basic section
In the direction of the arrow
Apprication section
TAPE
23
22
Stop the recording
1. Load a tape in deck.
÷ Remove tape slack before loading. 0
Insert the cassette tape straight into the insertion slot. Just push lightly
and the cassette will be pulled automatically inside, and TAPE IN indicator lights.
The cassette tape cannot be loaded or ejected while the unit is in
standby mode.
Do not force load a cassette tape in standby mode, otherwise malfunction will result.
2. Select the tape transport direction.
To reverse the transport direction
1 Press the TAPE 23 key.
2 Press the TAPE 23 key again.
3 Press the 7 STOP key to stop it.
÷ When recording is started, the tape is transported in the direction selected
in this step.“Transport direction indicators” •
÷ Wind the tape to the position where recording is to be started.“To wind
tape at high speed” ª
Knowledge section
3. Set the recording condition.
1 Select the reverse mode. ª
2 Select the Dolby NR mode.ª
Page 41
Recording on TAPE
41
When CD has been selected.
CD
6
44
The source connected to the DIGITAL
IN OPTICAL jack cannot be recorded
onto tape. To record an external
source on tape, connect the source
component's output to the AUX IN
jacks and select the "AUX" input
source.
4. Select the source to be recorded.
TUNER (Broadcasts) : Press the TUNER/BAND key
CD (CD player) : Press the CD 6 key
CDR (CD recorder) : Press the CD-R 6 key
AUX (Auxiliary analog source)
: Press the AUX/D-AUX key repeatedly until "AUX"
is displayed.
÷ When CD 6, CD-R 6 is pressed, playback will
start when a disc already has been inserted. Press
the 7 STOP key to stop it.
CD 01
0:00
SINGLE
The selected recording
source is displayed.
5. Make the preparations for recording.
TUNER (Broadcasts) : Select a station
CD : Enter pause mode at the beginning of the track
to be recorded.
CDR : Enter pause mode at the beginning of the track
to be recorded.
AUX (Auxiliary analog source)
: Make preparation for tuning or playback. f
÷ The input level can be varied only when the "AUX" (auxiliary analog source)
input is selected. Adjust the input level from the auxiliary source as required
if it is too small or too large. (AUX Input, Rec Gain) w
Preparation section
Basic section
6. Start recording.
1 When the preparation is complete, press the TAPE REC key.
TAPE REC
Lights
66
(this starts actual recording)
2 Play (or tune) the music source to be recorded.
÷ If you want to also record the input on a CD-R/RW at the same time, press the CD-
R REC key in step 1, wait until the blinking rate of the CD-R REC indicator slows
down, then press the CD-R REC key again.
÷ "
DECK
÷ Recording stops automatically when the tape side(s) to be recorded have been fully
recorded.
Pause the recording (Main unit only)
TAPE REC
÷ Press the TAPE REC key during recording. It stops after
leaving a non-recorded blank of 4 seconds. (Press the key
again to resume recording.)
÷ The "
blinks.
" display blinks and the TAPE REC indicator also
DECK
" is displayed and the TAPE REC indicator starts to light steadily.
Stop the recording
7
÷ If the key is pressed during recording from a CD, the CD
playback also stops.
÷ If the key is pressed during recording from CDR, the CDR
playback also stops.
÷ The same function is also available using the 7 STOP key on
the remote control unit.
Application section
Knowledge section
Page 42
42
Recording on TAPE
Switching the time display during recording
Press the DISPLAY key to switch the display to the
information on the recorder side.
Playback side (CD player, etc.)
DISPLAY
Recorder side (CD recorder)
(Displayed only in simultaneous
twin recording)
Recorder side (Cassette deck)
Preparation section
÷ The display can also be switched with the DISPLAY key on
the remote.
Recorder side (Cassette deck)
TAPE
0007
DECK
Adjusting the input level from the auxiliary analog source (AUX Input, Rec Gain)
If the audio output level of the auxiliary analog source such as a cassette deck is too low or too high, recording
at the optimum level may not be available.
In this case, perform the following adjustment before recording.
Adjusting the input level from the auxiliary analog source (AUX Input)
Basic section
Adjust so that the audio from the auxiliary analog source sounds at the identical level to the audio from the internal source
such as the CD.
1 Press the AUX/D-AUX key repeatedly until "AUX"
is displayed.
2 Press the MENU key.
3 Press the MULTI CONTROL keys to select “AUX
Input ?”, then press the SET key.
4 Press a MULTI CONTROL keys to adjust the record-
ing level (between -5 and +2).
5 Press the SET key to set the selection.
÷ If the input level from the auxiliary analog source is still too
low or the recorded audio level is too low even after the
input level is maximized (to +2) by this adjustment, perform
the recording input level adjustment operation (Rec Gain)
Apprication section
described below.
AUX
Input?
AUX In
0
Blinks
Level value
Adjusting the recording level of the input from the auxiliary analog source (Rec Gain)
1 Press the AUX/D-AUX key repeatedly until "AUX"
is displayed.
2 Press the MENU key.
3 Press the MULTI CONTROL keys to select “Rec
Gain ?”, then press the SET key.
4 Press a MULTI CONTROL keys to select "High".
5 Press the SET key to set the selection.
÷ When this is set to "High", the sound may sometimes be
Knowledge section
distorted due to too high recording level.
Rec
Gain?
R.Gain
High
Blinks
Page 43
Changing the recording input setting
The input setting for recording on the CD recorder can be changed according to the input source as required.
(The input setting cannot be changed for recording from "D-AUX".)
7 Switching between digital-to-digital/analog-to-digital recording ... ........................................................Rec Input
7 Switching between automatic/manual track number marking during analog-to-digital recording ... ..... T.Mark
7 Adjusting the blank detection level for analog-to-digital recording with automatic track number marking
............................................................................................................................................................................... Cut Lv.
Input Source
Setting Item
CD TAPE TUNER AUX D-AUX
Recording on TAPE
43
Preparation section
Rec Input (Digital/analog switching)
T.Mark (Auto/manual track number marking)
Cut Lv. (Blank detection level adjustment)
........ Setting possible
‡
*1 .... Fixed to analog-to-digital recording
*2 .... Fixed to digital-to-digital recording.
*3 .... Possible only in analog-to-digital recording.
*4 .... Fixed to Auto.
*5 .... Blank is not detected when recording digital input.
After selecting the input to the input source to be recorded, start setting from the appropriate step as described
below.
When recording from "CD" (Press the CD6 key) ................................................................... Go to step 1
When recording from "TAPE" (Press the TAPE23 key) ........................................................... Go to step 2
When recording from "TUNER" (Press the TUNER/BAND key) .............................................. Go to step 2
When recording from "AUX" (Press the AUX/D-AUX key repeatedly until "AUX" is displayed.) .... Go to step 2
÷ When CD 6 or TAPE 23 is pressed and the disc or tape has already been loaded, playback will start immediately. To prevent this,
press the 7 (stop) key immediately after pressing CD 6 or TAPE 23.
........ Setting impossible
–
‡ –*
3
‡*
5
–*
1
‡‡‡–*
‡‡‡–*
–*
1
–*
1
–*
2
4
5
Selecting digital-to-digital or analog-to-digital recording (Rec Input)
1
(Applicable only for recording from CD player)
Basic section
Application section
1 Press the MENU key.
MENU
2 Press a MULTI CONTROL keys to select "Rec Input
?" and press the SET key.
#
MULTI
CONTROL
#
3 Press a MULTI CONTROL keys to select "Dig."
(digital-to-digital recording) or "Ana." (analog-todigital recording) and press the SET key.
#
MULTI
CONTROL
#
When "Dig." is selected, the setting is complete.
When "Ana." is selected, go to step 2-3
\
\
\
\
SET
SET
÷ Digital-to-digital recording from CD may sometimes be pro-
hibited by the SCMS (A). In this case, select "Ana.".
Rec
Input?
DIGITAL
Blinks
Knowledge section
÷ The "DIGITAL" indicator lights when "Dig." is selected.
The "DIGITAL" indicator does not light when "Ana." is
selected.
÷ During digital-to-digital recording, the track number is
incremented automatically by "1" according to digital data, so
the blank is not detected. Note that, if the track number
changes during fast forward or backward operation, the CD
recorder may not be able to change the recorded track
number correctly. Also, when the player CD is stopped, a nosound track may sometimes be created.
Continued on next page
Page 44
44
Selecting the track number marking method (T.Mark)
2
The track numbers are used in playback for locating the beginning of a song, programming, etc.
1 Press the MENU key.
MENU
2 Press a MULTI CONTROL keys to select "T. Mark
?" and press the SET key.
Preparation section
#
MULTI
CONTROL
#
\
\
SET
Changing the recording input setting
T.Mark
Auto
Recording on TAPE
3 Press a MULTI CONTROL keys to select "Auto" or
"Manual" and press the SET key.
#
MULTI
CONTROL
#
Basic section
When "Auto" is selected:
When the input source is "CD", the setting is
complete.
When the input source is "TAPE", "TUNER" or
"AUX", go to step 3.
When "Manual" is selected, the setting is complete.
Auto:
Use this mode in usual recording.
In recording from CD :
The track number data recorded in the disc is also converted into analog signal so the track numbers are marked
automatically at the same positions as the source CD based on the converted signal.
Apprication section
In recording from TAPE, TUNER or AUX:
Track numbers are automatically incremented by "1" every time the input signal drops below a certain level (which
can be adjusted with "Cut Lv." in step 3) for more than 2 seconds and rises above the level again.
Note that, in recording from "TUNER", the track number may not be incremented correctly if the input signal does
not drop below the level due to noise, etc. Also note that, when the input level continues to be lower than the certain
level for more than 2 seconds in a pianissimo sections of classic music, etc., the track number may erroneously be
incremented.
If the above occurs, use "Manual" for recording or adjust the detection threshold level with "Cut Lv.".
\
\
SET
“Auto”............Track numbers are marked automati-
cally during recording. (Default)
“Manual” .......Track numbers are marked manually
during recording.
Manual:
Track numbers are not incremented automatically during recording, but they can be marked by the user (by pressing the
SET key on the main unit*). This mode is convenient in recording of live performance or music containing long pianissimo sections.
* Due to the restriction by the CD standard, the track number cannot be marked to a track shorter than 4 seconds in CD-R/RW discs.
Knowledge section
Page 45
Changing the recording input setting
Setting the automatic blank detection level (Cut Lv.)
3
The automatic blank detection level during analog-to-digital recording can be set by the user. If you do not
want to adjust it, simply press the SET key.
Even when the track number setting mode (T.Mark) is set to "Auto", the track numbers may not be
incremented if the level of blanks in the recording source are high. In this case, increase the blank detection
level.
On the contrary, if track numbers are incremented on other points than blanks, decrease the blank detection
level.
Recording on TAPE
45
Preparation section
1 Adjust the automatic blank detection level using
the MULTI CONTROL keys.
#
MULTI
CONTROL
#
2 Complete the setting mode.
SET
÷ The blank detection level can be adjusted in the range from
-2 to +2.
+ ...... Increases the blank detection level.
– ...... Decreases the blank detection level.
Cut
Lv. -2
Basic section
÷ Even when the blank detection level is adjusted, there may
be cases in which track number marking are not improved.
Application section
Knowledge section
Page 46
46
Various playback features
The system provides the following playback features in addition to normal playback.
and in the description text refer to sources with which the feature in question can be used (regis-
CD
tered).
CD
CDR
CDR
.....CD player
..... CD recorder
Various playback features
Listening in the desired sequence
(program playback)
Program playback
Preparation section
Desired tracks in a disc can be programmed in the desired order and played back. (Max. 32 tracks) u
CD
Playing tracks repeatedly
Repeated playback
Desired track(s) or disc can be played repeatedly. o
CD CDR
Basic section
Playing tracks in a random order
Random playback
As the titles each time are selected randomly, the music can be enjoyed without getting tired of it. p
CD
Registering skipping of undesired tracks in CD-R/RW
Registering skipping of tracks (SKIP TRACK)
CDR
Application section
When there is a track you do not to play, for example a track which failed to be recorded, you can register it in
the disc so that the track is skipped automatically in later playback (Skip Play). Q
Playing tracks by skipping registered tracks
Skipping playback (SKIP PLAY)
When a disc in which Skip Track is registered is played with Skip Play "On", Skip Play occurs whether the disc
is played with the CD player or CD recorder. W
CD CDR
Knowledge section

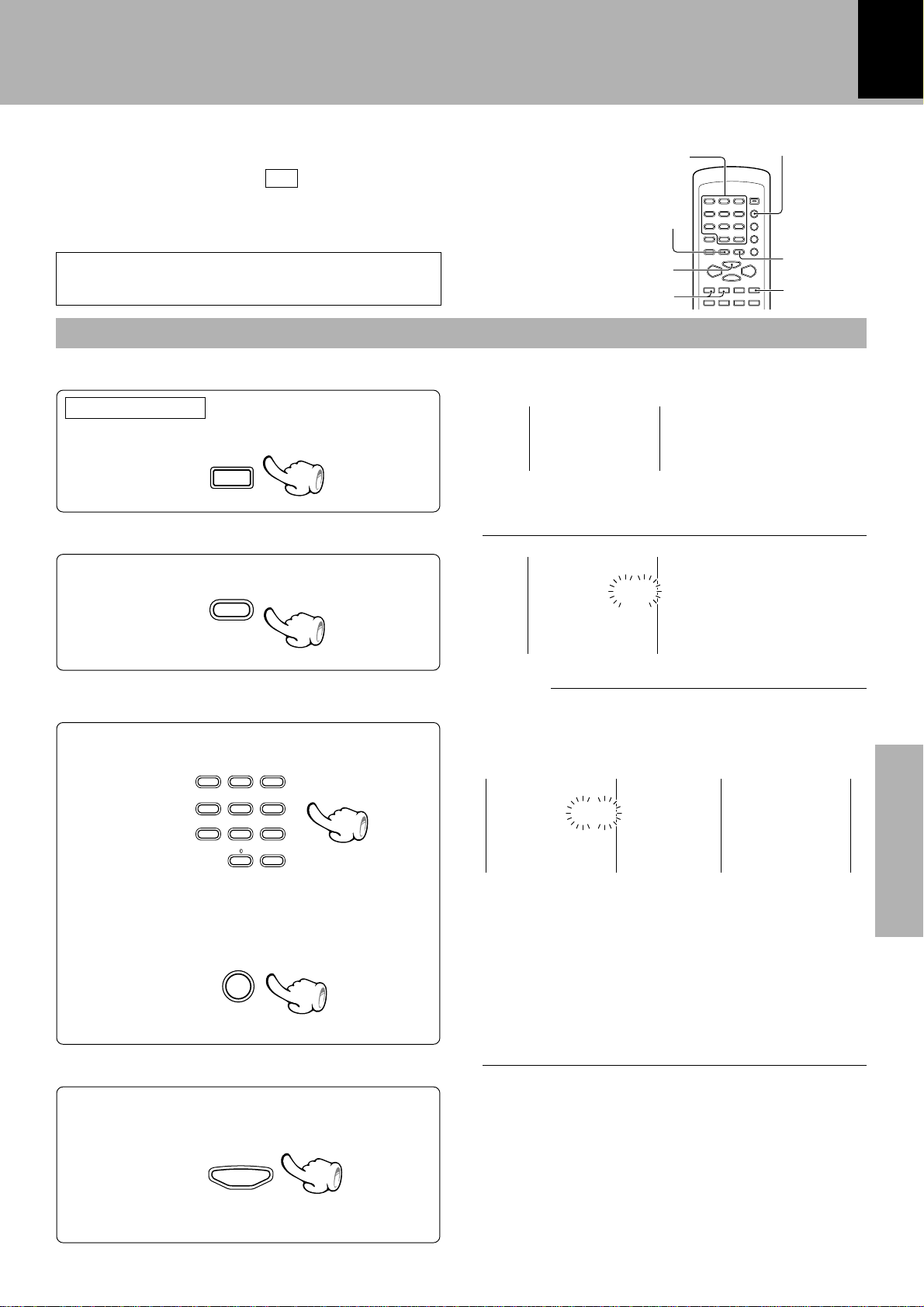

Page 47
Various playback features
47
Listening in the desired sequence
(Program playback)
Desired tracks in a disc can be programmed in the
desired order and played back. (Max. 32 tracks)
To make a CD-R/RW disc playable on a CD player, it
is required to finalize the disc. ∏
Select the “CD” input.
Check that the unit is in the stop mode.
1
If it is in play mode
Press the 7 STOP key.
7
Light the “PGM” indicator.
2
Press the PGM key.
PGM
AUTO/MONO
CD
¢
STOP
Numeric keys
CD 6
4,¢
CD 01
0:00
PGM
CD --
P-01
REMAIN
TOTAL
PGM
Blinks
SET
CLEAR
7 STOP
Preparation section
Basic section
Enter track Nos. in the order you want to play
3
them.
1 Select a track number using numeric keys.
Go to step 2
within 20 sec.
Press the numeric keys as shown below....
To enter track No. 12 .... +10, 2
To select track No. 20 ... +10, +10, 0
2 Press the SET key.
3 Repeat steps 1 and 2.
Start playback.
4
Press the CD 6 key.
12 3
456
78 9
+10
SET
CD
6
2 Programming1 Track selection
Blinks
PGM
CD 08
P-01
REMAIN
TOTAL
÷ After the adjustment, the time display appears again.
÷ The track can also be selected using the 4 or ¢ key.
÷ Up to 32 tracks can be programmed. When “PGM Full” is
displayed, no more tracks can be programmed.
÷ If you do not press the SET key before the track number
display stops blinking, the track number entry is canceled.
÷ Tracks will be played in the order they were programmed (in
order of PGM-Nos.).
÷ When the 4 or ¢ key is pressed during play, the program
will jump to the preceding or the following track respectively.
÷ When the 4 key is pressed once during playback, the play
position returns to the beginning of the current track being
played.
\
\
CD 08
P-01
REMAIN
TOTAL
PGM
Application section
Knowledge section
Page 48
48
To add a track to the program (Remote control unit only)
Preparation section
Press in stop mode
Various playback features
1 Select the track number to be added using the
numeric keys.
12 3
456
78 9
+10
Press the numeric keys as shown below....
Basic section
To enter track No. 12 ..... +10, 2
To select track No. 20 .... +10, +10, 0
÷ The track can also be selected using the 4 or ¢ key.
÷ Up to 32 tracks can be programmed. When “PGM Full” is
÷ When a track No. is entered, the track will be added to the
2 Press the SET key.
SET
To delete a programmed track (Remote control unit only)
Press the CLEAR key.
Press in stop mode
CLEAR
ERASE
Application section
÷ Each press of the CLEAR key clears the last track in the
PGM
CD 02
P-03
REMAIN
TOTAL
displayed, no more tracks can be programmed.
end of the existing program.
program.
Blinks
PGM
P-02
Clear
REMAIN
TOTAL
To quit the program mode (Remote control unit only)
Press the PGM key.
Press in stop mode
PGM
AUTO/MONO
Knowledge section
The set program mode is canceled when the power is turned off or press the 0 key.
Note
NoteNote
PGM
CD 01
62:00
REMAIN
TOTAL
Goes off
Page 49
Various playback features
49
Repeated playback
Desired track(s) or disc can be played repeatedly.
To play a CD-R/RW disc with repeated playback, it is
required to finalize the disc. ∏
Select the “CD” or “CDR” input.
CD CDR
¢§
To repeat a disc
1 Confirm that the “PGM” indicator is not lit.
2 Press the REPEAT key repeatedly until “REPEAT”
is displayed.
3 Press the 6 key.
CDR
6
REPEAT
CD
6
To repeat a single track
Numeric keys
PGM
CD 6,CDR 6
÷ If the "PGM" indicator is lit, press the PGM key to turn it off.
2 “REPEAT”
REPEAT
Lights
4,¢
REPEAT
CD 01
0:00
Preparation section
Basic section
1 Confirm that the “PGM” indicator is not lit.
2 Select the track number to be repeated using the
numeric keys or the 4 or ¢ key. The playback
of the selected track will start.
12 3
456
78 9
+10
Press the numeric keys as shown below....
To enter track No. 12 .......... +10, 2
To select track No. 20 ......... +10, +10, 0
3 During playback, press the REPEAT key repeat-
edly until “REPEAT ONE” is displayed.
REPEAT
To repeat selected tracks
1 Program the desired tracks by performing the
procedure in “Listening in the desired sequence
(Program playback)” until step 3. u
2 Press the REPEAT key repeatedly until “REPEAT”
is displayed.
3 Press the CD 6 key.
4¢
P.CALL
CD
3 “REPEAT ONE”
REPEAT ONE
Lights
CD 01
0:12
To stop repeated playback
Press the REPEAT key repeatedly until any repeatrelated indicator disappears.
÷ Normal playback will continue even after the “REPEAT”
indicators have turned off.
Application section
Knowledge section
Page 50
50
Various playback features
Playing tracks in a random order
(Random playback)
As the titles each time are selected randomly, the
music can be enjoyed without getting tired of it.
To make a CD-R/RW disc playable on a CD player, it
is required to finalize the disc. ∏
Select the “CD” input.
Confirm that the “PGM” indicator is not lit.
1
Preparation section
CD
¢
PGM
AUTO/MONO
4,¢
PGM
CD 6
7 STOP
RANDOM
÷ If the "PGM" indicator is lit, press the PGM key to turn it off.
Basic section
Start random playback.
2
Press the RANDOM key.
RANDOM
Application section
To select another track in the middle of playing one
Press the ¢ key.
4¢
P.CALL
Lights
RANDOM
CD -Random
SINGLE
÷ Playback stops after each track has been played once.
÷ When the REPEAT key is pressed to select “REPEAT”, the
random playback will be repeated.
\
\
CD 04
0:02
SINGLE
RANDOM
To cancel random playback
Press the RANDOM or 7 STOP key during random
playback.
RANDOM
or
7
STOP
÷ Pressing the 4 key once returns to the beginning of the
Knowledge section
track being played.
÷ Pressing the RANDOM key continues playback of tracks in
the order they are recorded, while pressing the 7 STOP key
stops playback.
Page 51
Registering skipping of undes-
SKIP
Skip
Track?
ired tracks in CD-R/RW
MENU
tape loading mechnism
Various playback features
SET
51
(SKIP TRACK)
When there is a track you do not to play, for example
a track which failed to be recorded, you can register
it in the disc so that the track is skipped automatically in later playback (Skip Play).
CDR
MULTI CONTROL
Select the “CDR” input. Be sure to put the CD recorder in stop mode.
1 Load a recordable CD-R/RW in the CD recorder.
78
2 Press the MENU key.
3 Press a MULTI CONTROL keys repeatedly until
"Skip Track ?" is displayed.
#
MULTI
CONTROL
#
4 Press a MULTI CONTROL keys to select the track
to be skipped, and press the SET key.
#
MULTI
CONTROL
#
\
\
\
\
SET
SET
Skip Track cannot be registered in an already finalized
disc.
If the power cord is unplugged or there is a power
failure before the data is written in the disc, the
registration data will be cleared.
Skip T
01
§
Blinks
Blinks
CD recorder
tray open/
close (0)
Preparation section
Basic section
5 Press a MULTI CONTROL keys to select "On".
6 Press the SET key. "Complete" will be displayed.
Skip Track is
registered.
To register another track for Skip Track
Repeat steps 2 to 6 above.
To cancel the Skip Track registration
1. Perform steps 1 to 3 above.
2. In step 4, select the track to be skipped.
3. In step 5, select "Off" then press the SET key.
"Complete" is displayed and the registration is
canceled.
÷ Repeat steps 1 to 3 as required.
#
MULTI
CONTROL
#
SET
SKIP
Lights
Skip01
On
Comple
To test listen to the registration contents
Playback with Skip Play can be performed before
finally writing the Skip Track registration data in the
disc. First perform steps 1 to 4 of "Playing tracks by
skipping registered tracks" (W) and press the
CD-R 6 key.
To write the Skip Track registration data in disc
Press the CD recorder tray open/close (0) key or
press the
÷ The registration or cancellation data can be written in a disc
up to 21 times. When "CDR Skip Full" is displayed, these
data can no longer written in the disc.
key to off (STANDBY).
Scrolled display
Application section
Knowledge section
Page 52
52
tape loading mechnism
Various playback features
SET
Playing tracks by skipping registered
tracks
When a disc in which Skip Track is registered is played
with Skip Play "On", Skip Play occurs whether the
disc is played with the CD player or CD recorder.
To play a CD-R/RW disc on a CD player, it is required
to finalize the disc. ∏
(SKIP PLAY)
Select the “CD” or “CDR” input. Be sure to put the CD player or CD recorder in stop mode.
Preparation section
1 Press the MENU key.
MENU
2 Press a MULTI CONTROL keys repeatedly until
"Skip Play ?" is displayed.
#
MULTI
CONTROL
#
3 Press the SET key.
Basic section
SET
CD
CDR
MENU
MULTI CONTROL
SKIP PLAY
Skip
Play?
CD-R 6
CD 6
¢§
Blinks
4 Press a MULTI CONTROL keys to select "On" and
press the SET key.
#
MULTI
CONTROL
#
5 Load a CD-R/RW with Skip Track registration.
6 Start playback.
\
\
SET
Application section
CD
CD-R
6
or
6
To cancel Skip Play
1 Perform steps 1 to 3 above.
2. In step 4, select "Off" and press the SET key.
Q
SKIP PLAY
Skip P
On
SKIP PLAY
CDR 01
0:02
Remote control operation
SKIP PLAY
/PTY
Each press switches alternately.
"SKIP PLAY" displayed (On)
"SKIP PLAY" not displayed (Off)
Knowledge section
When a disc in which Skip Track is registered with
another CD recorder is played on the CD recorder of this
Note
Note
system, Skip Play may sometimes not occur.
Page 53
Convenient recording of CD player output
In addition to ordinary recording function, this system provides the following recording features for use in recording the CD player output. Select them according to the purpose of recording.
, and in the description text refer to sources with which the feature in question can be
CD CDR
played or recorded.
TAPE
Convenient recording of CD player output
53
CD
CDR
TAPE
CD CDR
........................CD player
........................CDR recorder
........................Cassette deck
=
means playing the source disc on the CD player and recording its output on the CD recorder.
Features for use in recording from CD to CD-R/RW
To record a CD simpler and faster
One-touch edit high-speed recording (O.T.E.) (High)
All-track high-speed recording
(High)
Single-track high-speed recording
(High)
\
\
All tracks in a CD can be recorded onto CD-R/RW in
half the normal playback period. Y
Records only one CD track being played onto CD-R/
RW in half the normal playback period.
(This is convenient for recording of desired tracks
from a disc being heard for the first time.) I
CD CDR
=
Preparation section
Basic section
To record CD with a simplified method
One-touch edit recording (O.T.E.) (Norm)
All-track recording (Norm)
Single-track recording (Norm)
To record desired CD tracks by reordering them
\
\
Program recording (PGM mode + O.T.E.) (Norm)
Program recording (Norm)
\
Application section
Records all tracks in a CD onto CD-R/RW. P
Records only one CD track being played onto CD-R/
RW.
(This is convenient for recording of desired tracks
from a disc being heard for the first time.) P
Knowledge section
Recording of programmed tracks in the programmed
order.
(Convenient for recording only the desired CD tracks
in the desired order.) „
Note
Note
When recording a HDCD or DTS disc on the CD recorder, use the normal-speed recording.
Page 54
54
Features for use in recording from CD to Tape
To record CD with a simplified method
One-touch edit recording (O.T.E.)
Convenient recording of CD player output
CD TAPE
=
All-track recording
Preparation section
Single-track recording
To record desired CD tracks by reordering them
\
\
Program recording (Program playback (PGM) + O.T.E.)
Program recording
Basic section
Note
Note
With recording onto tape, the track will be interrupted for the part of the guide tape at the tape reversal, where
recording is not possible. Please use single-side recording if this is to be avoided.
\
Records all tracks in a CD onto a tape. ‰
Records only one CD track being played onto a tape.
(This is convenient for recording of desired tracks
from a disc being heard for the first time.) ‰
Recording of programmed tracks in the programmed
order.
(Convenient for recording only the desired CD tracks
in the desired order.) ˇ
Application section
Knowledge section
Page 55
Convenient recording of CD player output
Simultaneous, twin recording feature from CD to CD-R/RW and Tape
To record CD simultaneously onto an CD-R/RW and tape
55
CD CDR
Twin recording onto CD-R/RW and tape (TWIN REC)
All-track twin recording
Single-track twin recording
Reordering CD tracks in a desired sequence and recording them simultaneously onto CD-R/RW and tape
Program playback + TWIN REC
Program recording
\
\
CD CDR
=
\
Simultaneous recording of an entire CD onto an CDR/RW and tape. Á
Simultaneous recording of the CD track being played
onto an CD-R/RW and tape.
(This is convenient for recording of desired tracks
from a disc being heard for the first time.) Á
TAPE
Simultaneous recording of programmed CD tracks
onto both CD-R/RW and tape.
(Convenient for recording only the desired CD
tracks in the desired order.)
=
TAPE
Preparation section
Basic section
ˆ
Display "CDR Writing" indicates that recorded data is being written in the CD-R/RW. Do not apply vibrations or
impact during recording and "CDR Writing" display.
If the power cord is unplugged from the power outlet or a power failure occurs during recording, the disc data may
be destroyed and the disc may become unusable.
Note
Note
With recording onto tape, the track will be interrupted for the part of the guide tape at the tape reversal, where
recording is not possible. Please use single-side recording if this is to be avoided.
Application section
Knowledge section
Page 56
56
Convenient recording of CD player output
High-speed recording of all tracks in a CD
High-speed recording makes possible digital-to-digital recording from a CD to CD-R/RW at a double speed. (Highspeed recording is not available in analog-to-digital recording.)
The recording source can be a finalized CD-R, but digital-to-digital recording may not be available with certain
discs.”Digital recording and SCMS” A
(O.T.E.) (High)
CD CDR
=
Be sure to put the CD recorder in stop mode.
Make the preparations for recording.
1
Preparation section
1 Place a recordable CD-R or CD-RW disc. fl
2 Load the recording source disc in the CD player.
Select the recording speed.
2
1 Press the MENU key.
2 Press the MULTI CONTROL keys to select “O.T.E.
Speed ?”, then press the SET key.
3 Press the MULTI CONTROL keys to select “<High>”,
then press the SET key.
Basic section
#
MULTI
CONTROL
#
\
\
SET
¢
÷ When a CD-R/RW is loaded in the CD recorder, the CD-R IN
indicator may blink for a while.
“OPC (Optimum Power Control)”
÷ High-speed recording from a CD-RW is not possible. The CD-
RW should be recorded at the normal speed.
Each press switch the modes as follows.
<High> ............ (Recording at double speed)
<Norm> ..........(Recording at normal speed)
‡
P
Check the current play mode of the CD player.
3
If it is in play mode, stop it.
7
Start recording.
4
Application section
1 Press the MENU key.
2 Press the MULTI CONTROL keys to select “O.T.E.
Mode ?”, then press the SET key.
3 Press the MULTI CONTROL keys to select
“CD=CDR<High>”, then press the SET key.
#
MULTI
CONTROL
#
When you are operating the remote, press the O.T.E.
Knowledge section
CD=CDR key.
\
\
SET
Each press switch the modes as follows.
CD=CDR<High>
CD=TAPE
Twin Rec
÷ The high-speed playback sound of the CD is played at a low
volume during high-speed recording.
÷ High-speed recording starts with the first track in the CD and
continues until the last track.
÷ When either the CD playback or CDR recording operation
stops, the other operation also stops.
÷ Although high-speed recording starts digital-to-digital record-
ing automatically, this may sometimes be unavailable due to
the SCMS (A). In this case, record the analog input at the
normal speed. P
Page 57
Convenient recording of CD player output
÷ "CDR Writing" is displayed when recording completes.
57
During digital-to-digital recording, the CD recorder
may encounter a track with which digital-to-digital
recording is prohibited. In this case, "SCMS"(A) is
displayed and recording pauses temporarily, but playback of the source continues and recording restarts
whenever a track with which digital-to-digital recording is permitted is encountered. However, if "SCMS"
is displayed with the first track to be recorded, the
track as well as the subsequent tracks will not be
recorded.
Display "CDR Writing" indicates that recorded data is
being written in the CD-R/RW. Do not apply vibrations or impact during recording and "CDR Writing"
display.
If the power cord is unplugged from the power outlet
or a power failure occurs during recording, the disc
data may be destroyed and the disc may become
unusable.
High-speed recording of a disc containing a certain
track may not be able to be started within 74 minutes after the specific track was recorded at the High
speed. In this case, the time until the high-speed
recording will become ready is displayed.
Wait
74min.
If you want to record the disc immediately, use the
normal-speed recording.
This system judges whether high-speed re-
cording of each track within 74 minutes af-
Note
Note
ter its previous high-speed recording is permitted or not based on the specific data recorded for each track (ISRC: International
Standard Recording Code).
Preparation section
Basic section
To interrupt a recording
Press the 7 (stop) key on the main unit or 7 STOP
key on the remote. (This stops both recording and
playback.)
To finalize the recorded CD-R/RW
Application section
∏
Knowledge section
Page 58
58
High-speed recording of a single track in a CD
High-speed recording makes possible digital-to-digital recording from a CD to CD-R/RW at a double speed. (Highspeed recording is not available in analog-to-digital recording.)
The recording source can be a finalized CD-R, but digital-to-digital recording may not be available with certain
discs.”Digital recording and SCMS” A
Convenient recording of CD player output
CD CDR
(O.T.E.) (High)
=
Be sure to put the CD recorder in stop mode.
Make the preparations for recording.
1
1 Place a recordable CD-R or CD-RW disc. fl
2 Load the recording source disc in the CD player.
Preparation section
Select the recording speed.
2
¢
÷ When a CD-R/RW is loaded in the CD recorder, the CD-R IN
indicator may blink for a while.
“OPC (Optimum Power Control)”
÷ High-speed recording from a CD-RW is not possible. The CD-
RW should be recorded at the normal speed.
‡
P
1 Press the MENU key.
2 Press the MULTI CONTROL keys to select “O.T.E.
Speed ?”, then press the SET key.
3 Press the MULTI CONTROL keys to select
“<High>”, then press the SET key.
#
MULTI
CONTROL
Basic section
Select the desired CD track and play it.
3
1 Start playback of CD.
2 Select the desired CD track and play it.
Start recording.
4
1 Press the MENU key.
Application section
2 Press the MULTI CONTROL keys to select “O.T.E.
Mode ?”, then press the SET key.
3 Press the MULTI CONTROL keys to select
“CD=CDR<High>”, then press the SET key.
Knowledge section
When you are operating the remote, press the O.T.E.
CD=CDR key.
#
#
MULTI
CONTROL
#
\
\
CD
\
\
6
SET
SET
Each press switch the modes as follows.
<High> ............ (Recording at double speed)
<Norm> ..........(Recording at normal speed)
Each press switch the modes as follows.
CD=CDR<High>
CD=TAPE
Twin Rec
÷ Even when the recording is started in the middle of the track,
playback restarts and recording start from the beginning of
the track.
÷ The high-speed playback sound of the CD is played at a low
volume during high-speed recording.
÷ When either the CD playback or CDR recording operation
stops, the other operation also stops.
÷ Although high-speed recording starts digital-to-digital record-
ing automatically, this may sometimes be unavailable due to
the SCMS (A). In this case, record the analog input at the
normal speed. P
÷
When recording completes, the CD player enters pause mode.
If the last recorded track is the final track in the disc, the CD
player enters stop mode.
Page 59
Convenient recording of CD player output
÷ "CDR Writing" is displayed when recording completes.
59
Display "CDR Writing" indicates that recorded data is
being written in the CD-R/RW. Do not apply vibrations or impact during recording and "CDR Writing"
display.
If the power cord is unplugged from the power outlet
or a power failure occurs during recording, the disc
data may be destroyed and the disc may become
unusable.
High-speed recording of a disc containing a certain
track may not be able to be started within 74 minutes after the specific track was recorded at the High
speed. In this case, the time until the high-speed
recording will become ready is displayed.
Wait
74min.
If you want to record the disc immediately, use the
normal-speed recording.
This system judges whether high-speed recording of each track within 74 minutes after
Note
Note
its previous high-speed recording is permitted or not based on the specific data recorded
for each track (ISRC: International Standard
Recording Code).
Preparation section
Basic section
To interrupt a recording
Press the 7 (stop) key on the main unit or 7 STOP
key on the remote. (This stops both recording and
playback.)
To finalize the recorded CD-R/RW
Application section
∏
Knowledge section
Page 60
60
Convenient recording of CD player output
One-touch edit recording
Records all tracks in a CD with a simple operation. (All-track recording)
Records a single CD track being played from the beginning. (Single-track recording)
The recording source can be a finalized CD-R/RW, but digital-to-digital recording may not be available with
certain discs.”Digital recording and SCMS” A
(O.T.E.) (Norm)
CD CDR
=
Select the “CD” input. Be sure to put the CD recorder in stop mode.
Before recording
When digital-to-digital recording is not impossible
or when analog-to-digital recording is performed,
select the analog input as described in the follow-
Preparation section
ing section then start the setting from step 1
below.”Changing the recording input setting”e
Make the preparations for recording.
1
1 Place a recordable CD-R or CD-RW disc. fl
2 Load the recording source disc in the CD player.
Select the recording speed.
2
The current setting is displayed.
"DIGITAL" is lit ............. Digital-to-digital recording
"DIGITAL" not lit: ......... Analog-to-digital recording
÷ When a CD-R/RW is loaded in the CD recorder, the CD-R IN
¢
DIGITAL
indicator may blink for a while.
“OPC (Optimum Power Control)”
Basic section
1 Press the MENU key.
‡
MENU
2 Press the MULTI CONTROL keys to select “O.T.E.
Speed ?”, then press the SET key.
#
MULTI
CONTROL
#
3 Press the MULTI CONTROL keys to select “<Norm>”,
then press the SET key.
Application section
3
#
MULTI
CONTROL
#
Check the current play mode of the CD player.
If it is in play mode, stop it.
\
\
\
\
All track recording
SET
SET
Each press switch the modes as follows.
<High> ............ (Recording at double speed)
<Norm> .......... (Recording at normal speed)
Single-track recording
Select the desired CD track and play it.
Knowledge section
CD
7
÷ Even when the O.T.E. CD
of a track, recording will start from the beginning of the track.
6
==
=CDR key is pressed in the middle
==
Page 61
Start recording.
4
Convenient recording of CD player output
61
CD=CDR
÷ When either the CD playback or CDR recording operation
stops, the other operation also stops.
÷ When you are operating the main unit, select "O.T.E. Mode"
in the menu mode, then select "CD
press the SET key to start recording.
÷ "CDR Writing" is displayed when recording completes.
÷ With certain discs, digital-to-digital recording may be prohib-
ited by SCMS (A). Such a disc should be recorded using
the analog output signal.
Display "CDR Writing" indicates that recorded data is
being written in the CD-R/RW. Do not apply vibrations or impact during recording and "CDR Writing"
display.
If the power cord is unplugged from the power outlet
or a power failure occurs during recording, the disc
data may be destroyed and the disc may become
unusable.
During digital-to-digital recording, the CD recorder
may encounter a track with which digital-to-digital
recording is prohibited. In this case, "SCMS"(A) is
displayed and recording pauses temporarily, but playback of the source continues and recording restarts
whenever a track with which digital-to-digital recording is permitted is encountered. However, if "SCMS"
is displayed with the first track to be recorded, the
track as well as the subsequent tracks will not be
recorded.
==
=CDR <Norm>" and
==
e
Preparation section
Basic section
Application section
To interrupt a recording
Press the 7 (stop) key on the main unit or 7 STOP
key on the remote. (This stops both recording and
playback.)
To finalize the recorded CD-R/RW
∏
Knowledge section
Page 62
62
Convenient recording of CD player output
Program recording
The Twin Recording makes is possible to record desired CD tracks programmed in the desired order onto a CD-R/RW
simultaneously. (High-speed recording is not available.)
The recording source can be a finalized CD-R/RW, but digital-to-digital recording may not be available with certain
discs.”Digital recording and SCMS” A
(PGM mode + O.T.E.) (Norm)
CD CDR
=
Select the “CD” input. Be sure to put the CD recorder in stop mode.
Before recording
When digital-to-digital recording is not impossible
or when analog-to-digital recording is performed,
select the analog input as described in the following section then start the setting from step 1
Preparation section
below.”Changing the recording input setting”e
Make the preparations for recording.
1
1 Place a recordable CD-R or CD-RW disc. fl
2 Load the recording source disc in the CD player.
3 Make sure that the "High" (high-speed dubbing
indicator) in the display is not lit.
¢
The current setting is displayed.
"DIGITAL" is lit ............. Digital-to-digital recording
"DIGITAL" not lit: ......... Analog-to-digital recording
÷ When a CD-R/RW is loaded in the CD recorder, the CD-R IN
÷ If the "HIGH" is lit in the display, turn it on by selecting "O.T.E.
DIGITAL
indicator may blink for a while.
“OPC (Optimum Power Control)” ‡
Speed" in the menu mode, selecting "<Norm>" and press-
ing the SET key.
Basic section
Application section
Check the current play mode of the CD player.
2
If it is in play mode, stop it.
7
Program the desired sequence of CD tracks.
3
Perform steps 2 and 3 of the procedure in ”Lis-
tening in the desired sequence (Program play-
back)”. u
Start recording.
4
CD=CDR
÷ High-speed recording is not available in the PGM mode.
÷ Recording starts with the first programmed track until all the
programmed tracks have been recorded.
÷ When either the CD program playback or CDR recording
operation stops, the other operation also stops.
÷ When you are operating the main unit, select "O.T.E. Mode"
in the menu mode, then select "CD
press the SET key to start recording.
÷ With certain discs, digital-to-digital recording may be prohib-
ited by SCMS (A). Such a disc should be recorded using
the analog output signal.
==
=CDR <Norm>" and
==
e
Knowledge section
Page 63
Convenient recording of CD player output
÷ "CDR Writing" is displayed when recording completes.
63
To interrupt a recording
Press the 7 (stop) key on the main unit or 7 STOP
key on the remote. (This stops both recording and
playback.)
Display "CDR Writing" indicates that recorded data is
being written in the CD-R/RW. Do not apply vibrations or impact during recording and "CDR Writing"
display.
If the power cord is unplugged from the power outlet
or a power failure occurs during recording, the disc
data may be destroyed and the disc may become
unusable.
During digital-to-digital recording, the CD recorder
may encounter a track with which digital-to-digital
recording is prohibited. In this case, "SCMS"(A) is
displayed and recording pauses temporarily, but playback of the source continues and recording restarts
whenever a track with which digital-to-digital recording is permitted is encountered. However, if "SCMS"
is displayed with the first track to be recorded, the
track as well as the subsequent tracks will not be
recorded.
To finalize the recorded CD-R/RW
∏
Preparation section
Basic section
Application section
Knowledge section
Page 64
64
Convenient recording of CD player output
One-touch edit recording
Records all tracks in a CD with a simple operation. (All-track recording)
Records a single CD track being played from the beginning. (Single-track recording)
Do not use a cassette tape with more than 90-minute recording time, for the tape used with such a cassette is very
thin and tends to cause troubles such as entanglement around the pinch roller or cutting of tape.
(O.T.E.)
CD TAPE
=
Be sure to put the cassette deck in stop mode.
Make the preparations for recording.
1
1 Perform steps 1~3 of the procedure in ”Recording
Preparation section
on TAPE”. ‚
2 Load the recording source disc in the CD player.
Check the current play mode of the CD player.
2
All track recording
If it is in play mode, stop it.
STOP
7
¢
This system can record signals on Normal (TYPE ) and
High (TYPE
(TYPE
Select the desired CD track and play it.
) position tapes. Remember that the Metal
) tapes cannot be used with this system.
Single-track recording
CD
6
Basic section
Start recording.
3
CD=TAPE
Application section
To interrupt a recording
Press the 7 (stop) key on the main unit or 7 STOP
key on the remote. (This stops both recording and
playback.)
÷ Even when the O.T.E. CD
of a track, recording will start from the beginning of the track.
÷ When either the playback or recording operation stops, the
other operation also stops.
÷ When you are operating the main unit, select “O.T.E. Mode”
in the menu mode then select “CD
SET key to start recording.
÷ When recording completes, the tape stops after leaving a no-
sound blank of about 4 seconds.
==
=TAPE key is pressed in the middle
==
==
=TAPE“ and press the
==
Knowledge section
Page 65
Convenient recording of CD player output
65
Program recording
Desired CD tracks can be programmed in the desired sequence and recorded onto a tape.
Do not use a cassette tape with more than 90-minute recording time, for the tape used with such a cassette is very
thin and tends to cause troubles such as entanglement around the pinch roller or cutting of tape.
(PGM mode + O.T.E.)
CD TAPE
=
Be sure to put the cassette deck in stop mode.
Make the preparations for recording.
1
1 Perform steps 1~3 of the procedure in ”Recording
on TAPE”. ‚
2 Select the “CD” input. ¢
3 Load the recording source disc in the CD player.
¢
Check the current play mode of the CD player.
2
If it is in play mode, stop it.
STOP
7
This system can record signals on Normal (TYPE ) and
High (TYPE
(TYPE
) position tapes. Remember that the Metal
) tapes cannot be used with this system.
Preparation section
Basic section
Program the desired sequence of CD tracks.
3
Perform steps 2 and 3 of the procedure in ”Lis-
tening in the desired sequence (Program play-
back)”. u
Start recording.
4
CD=TAPE
To interrupt a recording
Press the 7 (stop) key on the main unit or 7 STOP
key on the remote. (This stops both recording and
playback.)
÷ Recording begins from the first track in the program and
completes when the entire program has been recorded.
÷ When either the playback or recording operation stops, the
other operation also stops.
÷ When you are operating the main unit, select “O.T.E. Mode”
in the menu mode then select “CD
SET key to start recording.
÷ When recording completes, the tape stops after leaving a no-
sound blank of about 4 seconds.
==
=TAPE“ and press the
==
Application section
Knowledge section
Page 66
66
Convenient recording of CD player output
Twin recording onto CD-R/RW and Tape
All tracks in a CD can be recorded simultaneously on a CD-R/RW and tape at the normal speed. (All-track twin
recording)
It is also possible to record only the track being played from its beginning onto a CD-R/RW and tape simultaneously. (Single-track twin recording)
The recording source can be a finalized CD-R/RW, but digital-to-digital recording may not be available with
certain discs.”Digital recording and SCMS” A
Do not use a cassette tape with more than 90-minute recording time, for the tape used with such a cassette is very
thin and tends to cause troubles such as entanglement around the pinch roller or cutting of tape.
(TWIN REC)
CD CDR
=
TAPE
Select the “CD” input. Be sure to put the CD recorder and cassette deck in stop mode.
Preparation section
Before recording
When digital-to-digital recording is not impossible
or when analog-to-digital recording is performed,
select the analog input as described in the following section then start the setting from step 1
below.”Changing the recording input setting”e
Make the preparations for recording.
1
1 CDR
........
Place a recordable CD-R or CD-RW disc.
Basic section
......
TAPE
2 Load the recording source disc in the CD player.
Perform steps 1~3 of the procedure
in”Recording on TAPE”. ‚
CDR
fl
¢
DIGITAL
The current setting is displayed.
"DIGITAL" is lit ......... Digital-to-digital recording
"DIGITAL" not lit ...... Analog-to-digital recording
÷ High-speed recording is not available in the Twin Recording
mode.
÷ When a CD-R/RW is loaded in the CD recorder, the CD-R IN
indicator may blink for a while.
“OPC (Optimum Power Control)” ‡
This system can record signals on Normal (TYPE ) and
High (TYPE ) position tapes. Remember that the Metal
(TYPE
) tapes cannot be used with this system.
Check the current play mode of the CD player.
2
All track recording
If it is in play mode, stop it.
Application section
Knowledge section
7
STOP
Single-track recording
Select the desired CD track and play it.
CD
6
÷ Even when the TWIN REC key is pressed in the middle of a
track, recording will start from the beginning of the track.
Page 67
Start recording.
3
TWIN
REC
Convenient recording of CD player output
÷ When the CD-R/RW does not have available recording time at
all or the tape has been wound till the end, recording cannot
be started.
÷ When the CD playback stops, other operations also stop
automatically.
÷ When you are operating the main unit, select “O.T.E. Mode”
in the menu mode then select “Twin Rec“ and press the SET
key to start recording.
÷ When recording completes, the tape stops after leaving a no-
sound blank of about 4 seconds.
CDR
÷ With certain discs, digital-to-digital recording may be prohib-
ited by SCMS (A). Such a disc should be recorded using
the analog output signal. e
÷ "CDR Writing" is displayed when recording completes.
67
Preparation section
Basic section
To interrupt a recording
Press the 7 (stop) key on the main unit or 7 STOP
key on the remote. (This stops both recording and
playback.)
Display "CDR Writing" indicates that recorded data
is being written in the CD-R/RW. Do not apply
vibrations or impact during recording and "CDR
Writing" display.
If the power cord is unplugged from the power outlet
or a power failure occurs during recording, the disc
data may be destroyed and the disc may become
unusable.
During digital-to-digital recording, the CD recorder
may encounter a track with which digital-to-digital
recording is prohibited. In this case, "SCMS"(A) is
displayed and recording pauses temporarily, but playback of the source continues and recording restarts
whenever a track with which digital-to-digital recording is permitted is encountered. However, if "SCMS"
is displayed with the first track to be recorded, the
track as well as the subsequent tracks will not be
recorded.
To finalize the recorded CD-R/RW
∏
Application section
Knowledge section
Page 68
68
Convenient recording of CD player output
Program twin recording onto CD-R/RW and Tape
CD CDR
=
The PGM Twin Recording makes it possible to record desired tracks programmed in the desired order on a CD-R/
RW and tape simultaneously. (High-speed recording is not available.)
The recording source can be a finalized CD-R/RW, but digital-to-digital recording may not be available with
certain discs. (CD-R/RW only)”Digital recording and SCMS” A
Do not use a cassette tape with more than 90-minute recording time, for the tape used with such a cassette is very
thin and tends to cause troubles such as entanglement around the pinch roller or cutting of tape.
TAPE
(PGM mode + TWIN REC)
Select the “CD” input. Be sure to put the CD recorder and cassette deck in stop mode.
Preparation section
Before recording
When digital-to-digital recording is not impossible
or when analog-to-digital recording is performed,
select the analog input as described in the following section then start the setting from step 1
below.”Changing the recording input setting”e
Make the preparations for recording.
1
TAPE
........
Place a recordable CD-R or CD-RW disc.
......
Perform steps 1~3 of the procedure
in”Recording on TAPE”. ‚
1 CDR
Basic section
2 Select the “CD” input. ¢
3 Load the recording source disc in the CD player.
CDR
fl
¢
DIGITAL
The current setting is displayed.
"DIGITAL" is lit ......... Digital-to-digital recording
"DIGITAL" not lit ...... Analog-to-digital recording
÷ High-speed recording is not available in the Twin Recording
mode.
÷ When a CD-R/RW is loaded in the CD recorder, the CD-R IN
indicator may blink for a while.
“OPC (Optimum Power Control)”
This system can record signals on Normal (TYPE ) and
High (TYPE ) position tapes. Remember that the Metal
(TYPE
) tapes cannot be used with this system.
‡
Check the current play mode of the CD player.
2
If it is in play mode, stop it.
Application section
7
Program the desired sequence of CD tracks.
3
Perform steps 2 and 3 of the procedure in ”Listening in the desired sequence (Program playback)”. u
Knowledge section
Page 69
Start recording.
4
TWIN
REC
Convenient recording of CD player output
÷ When the CD-R/RW does not have available recording time at
all or the tape has been wound till the end, recording cannot
be started.
÷ When the CD playback stops, other operations also stop
automatically.
÷ When you are operating the main unit, select “O.T.E. Mode”
in the menu mode then select “Twin Rec“ and press the SET
key to start recording.
÷ When recording completes, the tape stops after leaving a no-
sound blank of about 4 seconds.
CDR
÷ With certain discs, digital-to-digital recording may be prohib-
ited by SCMS (A). Such a disc should be recorded using
the analog output signal. e
÷ "CDR Writing" is displayed when recording completes.
Display "CDR Writing" indicates that recorded data
is being written in the CD-R/RW. Do not apply
vibrations or impact during recording and "CDR
Writing" display.
If the power cord is unplugged from the power
outlet or a power failure occurs during recording, the
disc data may be destroyed and the disc may become unusable.
69
Preparation section
Basic section
During digital-to-digital recording, the CD recorder
may encounter a track with which digital-to-digital
recording is prohibited. In this case, "SCMS"(A) is
displayed and recording pauses temporarily, but playback of the source continues and recording restarts
whenever a track with which digital-to-digital recording is permitted is encountered. However, if "SCMS"
is displayed with the first track to be recorded, the
track as well as the subsequent tracks will not be
recorded.
To interrupt a recording To finalize the recorded CD-R/RW
Press the 7 (stop) key on the main unit or 7 STOP
key on the remote. (This stops both recording and
playback.)
Application section
∏
Knowledge section
Page 70
70
FINALIZE CD -R W
REMAIN
SKIP PLAY
CDR
1:20
Finalizing a CD-R/RW (FINALIZE)
Finalization makes a recorded CD-R/RW playable on the CD player of this system.
Once a recorded CD-R/RW is finalized, the CD-R can be played on other CD players* and the CD-RW can be played
on CD-RW compatible components. Note that the CD-RW cannot be played back on ordinary CD players.
* .................The finalized disc may not be playable on certain CD players or DVD players because of the difference
in pickups, etc.
Note that, once a disc is finalized, additional recording on the disc becomes no longer possible.
Additional recording is also impossible when a CD-RW is finalized, but the disc can be returned to the status
before finalization when it is unfinalized.
XXXXXXXXX
Select the “CDR” input. Be sure to put the CD recorder in stop mode.
1 Load the disc to be finalized in the CD recorder.
Preparation section
2 Press the FINALIZE key to select "Finalize Ok?"
FINALIZE
Basic section
3 Press the CDR REC key to start finalization.
CD-R REC
fl
÷ Ensure that the disc has no scratch or dirt on the surface.
÷ The "CD-R" or "CD-RW" indicator lights. If the "CD" or
"FINALIZED CD-RW" indicator lights, it means that the disc
has already been finalized.
CD -R
Lights
Each press switches alternately.
"Finalize Ok ?"
Normal display
"FINALIZE" blinks.
FINALIZE
SKIP PLAY
or
CD -R W
Lights
Finali
Ok?
Blinks
Application section
Never unplug the power cord during finalization.
If the power supply is interrupted by a power failure
or unplugging the power cord during finalization, the
data may be destroyed and become unplayable.
Knowledge section
FINALIZE
Blinks
÷ The FINALIZE indicator blinks.
÷ Do not perform any other operation during finalization.
÷ The time until the finalization completes is displayed.
÷ When finalization completes, "Complete" is displayed and
the FINALIZE indicator lights.
Page 71
Unfinalizing a CD-RW (UNFINALIZE)
UN FINALIZE CD -R W
REMAIN
SKIP PLAY
CDR
1:12
Unfinalization returns a finalized CD-RW to the status before finalization so that additional recording or rewriting
is possible. Unfinalization cannot be applied to the CD-R discs.
If a disc containing the recording of text data (disc and track titles, etc.) recorded with another CD recorder or
PC is unfinalized on this system, the text data will be erased from the disc and can never be restored again.
XXXXXXXXXX
71
Select the “CDR” input. Be sure to put the CD recorder in stop mode.
1 Load the CD-RW to be unfinalized in the CD recorder.
fl
2 Press the ERASE key to select "Unfinalize Set?".
(Remote only)
CLEAR
ERASE
3 Press the SET key.
SET
÷ Ensure that the disc has no scratch or dirt on the surface.
÷ The "FINALIZED CD-RW" indicator should light. If the "CD-
RW" indicator lights, the disc is not a finalized disc.
Each press switches alternately.
"Unfinalize Set ?"
Normal display
÷ To abort unfinalization, press the ERASE key or 7 STOP key.
FINALIZE D CD -R W
"UNFINALIZE" blinks.
UN FINALIZE
SKIP PLAY
Unfina
Set?
UN FINALIZE
SKIP PLAY
Unfina
Ok?
Lights
Blinks
Blinks
Preparation section
Basic section
Application section
4 Press the ENTER key to start unfinalization.
Never unplug the power cord during unfinalization.
If the power supply is interrupted by a power failure
or unplugging the power cord during unfinalization,
the data may be destroyed and become unplayable.
The CD recorder of this system cannot unfinalize DAO*-recorded CD-R/RW discs recorded on a PC or recorder compatible with
Note
Note
DAO* method.
* DAO (Disc At Once) .............................................. One of the recording formats, with which all data are written in batch in
ENTER
Blinks
÷ Do not perform any other operation during unfinalization.
÷ The time until the unfinalization completes is displayed.
÷ When unfinalization completes, "Complete" is displayed.
Knowledge section
order of lead-in, data then lead-out. With this format, additional recording
of data (in the unused area of disc) is not possible.
Page 72
72
UN FINALIZE D CD -R W
REMAIN
SKIP PLAY
ERASE
CDR
0:08
Erasure of CD-RW recording
Recording in a recordable (i.e. non-finalized or unfinalized) CD-RW can be erased as described below.
There are two methods of erasure.
÷ Erasing only the last recorded track in a CD-RW
÷ Erasing all tracks in a CD-RW
Once erased, the tracks and data cannot be restored
to the condition before erasure.
Select the “CDR” input. Be sure to put the CD recorder in stop mode.
Erasing the last recorded track
Preparation section
Example: To erase the last track (15th track) in a disc
containing 15 tracks
÷ Ensure that the disc has no scratch or dirt on the surface.
÷ The "CD-RW" indicator should light. If the "FINALIZED CD-
RW" indicator lights, the disc is a finalized disc.
XXXXXXXXX
1 Place a recordable CD-RW disc. 78
2 Press the ERASE key repeatedly until "Erase 15 ?"
is displayed.
CLEAR
ERASE
Basic section
3 Press the SET key.
SET
Application section
CD -R W
Each press switches alternately.
"Erase 15 ?"
"Erase All ?"
Normal display
"ERASE" blinks
UN FINALIZE D
ERASE
SKIP PLAY
Lights
Erase
15?
÷ To abort unfinalization, press the ERASE key or 7 STOP key.
UN FINALIZE D
ERASE
SKIP PLAY
Blinks
Erase
Ok?
Blinks
4 Press the ENTER key to start erasure.
To repeat erasure
Repeat steps 2 to 4.
Knowledge section
÷ In step 2, select "Erase XX". Here, "XX" is the track
number of the last track in the disc.
ENTER
Blinks
÷ The time until the completion of erasure is displayed.
÷ Do not perform any other operation during erasure.
÷ "Complete" is displayed when erasure completes.
Never unplug the power cord during erasure.
If the power supply is interrupted by a power failure
or unplugging the power cord during erasure, the
data may be destroyed and become unplayable.
Page 73
UN FINALIZE D CD -R W
REMAIN
SKIP PLAY
ERASE
CDR
0:08
Erasure of CD-RW recording
CD -R W
XXXXXXXXXX
73
Select the “CDR” input. Be sure to put the CD recorder in stop mode.
Erasing all tracks
Example: To record all tracks in a disc containing 15
tracks
1 Place a recordable CD-RW disc. 78
2 Press the ERASE key repeatedly until "Erase All ?"
is displayed.
CLEAR
ERASE
÷ Ensure that the disc has no scratch or dirt on the surface.
÷ The "CD-RW" indicator should light. If the "FINALIZED
CD-RW" indicator lights, the disc is a finalized disc.
Each press switches alternately.
"Erase 15 ?"
"Erase All ?"
Normal display
"ERASE" blinks
Erase
All?
3 Press the SET key.
÷ To abort unfinalization, press the ERASE key or 7 STOP key.
SET
Erase
Ok?
UN FINALIZE D
ERASE
SKIP PLAY
UN FINALIZE D
ERASE
SKIP PLAY
Preparation section
Lights
Basic section
Blinks
Application section
Blinks
4 Press the ENTER key to start erasure.
Never unplug the power cord during erasure.
If the power supply is interrupted by a power failure
or unplugging the power cord during erasure, the
data may be destroyed and become unplayable.
ENTER
Blinks
÷ The time until the completion of erasure is displayed.
÷ Do not perform any other operation during erasure.
÷ "Complete" is displayed when erasure completes.
÷ The counts of Skip Track registrations and cancel writing are
also reset.
Knowledge section
Page 74
74
Listening to an AUX input source
Timer operation
A cassette deck, MD recorder or a similar component can be connected to the system as the auxiliary input
source.
Connect the component as described in “Connection of Other Accessories”#.
Listening to Analog equipment
1 Press the AUX/D-AUX key repeatedly until
"AUX".
AUX/D-AUX
Preparation section
2 Play the connected equipment.
3 Ajust the volume.
DOWN
VOLUME
UP
Basic section
Adjusting the input level of the auxiliary source
Listening to Digital equipment
1 Press the AUX/D-AUX key repeatedly until
"D-AUX".
÷ If "Unlock" is displayed when D-AUX is selected, see
"Displayed message list".
2 Play the connected equipment.
3 Ajust the volume.
(The input level from an auxiliary digital source cannot be adjusted.)
AUX/D-AUX
DOWN
VOLUME
G
UP
In case the input level from an auxiliary analog source is different from that from the internal source of the system such as the CD player,
the auxiliary input level can be adjusted to match the internal input level.
1 Press the MENU key.
3 Adjust to the desired input level using the
MULTI CONTROL keys.
Application section
2 Press the MULTI CONTROL keys to select
MENU
÷ The adjustment is possible in the range from -5 to +2.
4 Press the SET key.
“AUX Input?”, then press the SET key.
SET
·w
Note
Note
#
MULTI
CONTROL
#
When the input level is adjusted, the level of recording of the signals from the auxiliary input source connected to the AUX
input jacks changes.
\
\
SET
Knowledge section
Page 75
tape loading mechnism
Timer operation
Timer operation
75
The timer makes it possible to play a CD(CD-R/RW)
MENU
SET
or TAPE, receive radio or record CD or radio automatically in the specified time zone. The O.T.T. timer works
only once when it is activated, the SLEEP timer
switches power off (Standby mode) automatically
even after you fall asleep, and the PROG. timer provides two timer programs which work every day once
MULTI CONTROL
they are activated.
Be sure to adjust the clock before setting the timer.
(
Simplified timer setting (O.T.T. timer)
The desired source can be played with timer by simply setting the start time. The last source selected before the
power is turned off (STANDBY) will be played by timer. The power is turned off (STANDBY) automatically in an
hour after the start of timer playback. This timer functions only once after it is set. (The setting content is held in
memory until the next setting, even if the timer operation is canceled.)
1 Select the desired source and adjust its volume.
™
2 Press the MENU key.
MENU
3 Press the MULTI CONTROL keys to select “Timer
Set?”, then press the SET key.
#
MULTI
CONTROL
#
\
\
SET
4 Press the MULTI CONTROL keys to select
“O.T.T. ”, then press the SET key.
5 Set the timer ON time by pressing the MULTI
CONTROL keys.
To advance the
time
#
MULTI
CONTROL
#
To put back the
time
The program timer does not operate during
playback by the O.T.T. timer.
÷ A CD can be played back on either CD player or CD recorder.
3 Timer setting selection
O.T.T. PROG.
UN FINALIZE D
SKIP PLAY
Timer
Set?
5 ON time setting
O.T.T.
UN FINALIZE D
SKIP PLAY
Blinks
ON
6:30
÷ The ON time can be set in steps of 5 minutes.
Blinks
Preparation section
Basic section
Application section
6 Press the SET key.
7 Press the remote's TIMER key repeatedly until
"O.T.T." lights up.
÷ When the O.T.T. timer is set while the PROG.1 or
PROG.2 timer has been set, the reservation by the
PROG.1 or PROG.2 timer is canceled.
8 Press the
key to switch the power OFF
(standby).
(The STANDBY/TIMER indicator lights in green.)
To cancel O.T.T.
Switch the power ON and press the TIMER key repeatedly
until “O.T.T.” disappears.
÷ When the TIMER key is pressed repeatedly until “O.T.T.”
disappears after the start of O.T.T. timer playback, this
will be changed to normal playback.
After setting the timer, make sure that the power is
set to OFF (Standby).
÷ After the timer has been set and power is off (timer standby),
if there is a power failure or the power cord is unplugged from
and plugged again into the power outlet, the STANDBY/
TIMER indicator blinks in green. In this case, set the clock
again.
(
Knowledge section
Page 76
76
Timer operation
Program timer playback (AI timer playback) and timer recording
Two timer programs (PROG.1, PROG.2) are available. Both of them are 24-hour timer programs which can be
executed every day.
Each of timer reservation programs PROG.1 and PROG.2 can store the time zone and contents of timer operation,
which can be executed or deactivated as required.
÷ It is possible to execute both timer reservation programs PROG.1 and PROG.2 simultaneously.
÷ The time zones of PROG.1 and PROG.2 should be set by reserving an interval of 1 minute or more so that they are not overlapped.
Be sure to adjust the clock before setting the timer.
If it is recording that is to be activated by the timer, make preparations for recording.
1
Preparation section
÷ For recording
Make preparations for recording
CD-R/RW Step 1~3 fl
TAPE Step 1~3 ‚
Select the source to be played or recorded and set the playback audio level.
2
÷ To listen to CD (CD-R/RW)
Insert a CD
(Normal playback only)¢§
÷ To listen to or record radio broadcasting
The station should be preset prior.
Basic section
A CD can be played back on either CD
player or CD recorder. To listen to CD-R/
RW on the CD player, make sure to
finalize the disc.
÷ To listen to TAPE
Set the tape. •
(
÷ Timer recording is possible from radio broadcasting (TUNER)
or an auxiliary digital/analog source (D-AUX/AUX).
÷ Recording or playing the AUX
source component
º⁄¤
For timer playback or timer recording
of a source component connected to
the AUX jacks, connect it properly by
referring to “Connection of Other
Accessories”. #f
÷ In case an associated system compo-
nent is connected, also read the instruction manual of the component.
Select the timer reservation mode.
3
1 Press the MENU key.
2 Press the MULTI CONTROL keys to select
Application section
“Timer Set?” , then press the SET key.
#
MULTI
CONTROL
#
\
\
SET
3 Press the MULTI CONTROL keys to select
“PROG.1”, then press the SET key.
#
MULTI
CONTROL
#
\
\
SET
Knowledge section
Example for playing radio broadcast from 10:00 am to
11:00 am using PROG.1
2 Timer setting selection
O.T.T. PROG.
UN FINALIZE D
SKIP PLAY
Blinks
Timer
Set?
3 PROG.1 selection
UN FINALIZE D
SKIP PLAY
PROG.
Blinks
Timer
PROG.1
÷ If you make a mistake in the middle, press the MENU key to
cancel the operation and restart it from step 2.
÷ When a timer reservation already has been made, the con-
tents will change to the new settings.
Page 77
Be sure to adjust the clock before setting the timer.
Enter the ON time.
4
Timer operation
77
1 Set the timer ON time by pressing the MULTI
CONTROL keys.
To advance the time
To put back the time
2 Press the SET key.
3 After entering the “hour” with the procedure in
1 and 2, enter the “minute” using the same
procedure.
Enter the OFF time.
5
1 Set the timer OFF time by pressing the MULTI
CONTROL keys.
To advance the time
To put back the time
2 Press the SET key.
#
MULTI
CONTROL
#
SET
#
MULTI
CONTROL
#
SET
1 ON time setting
UN FINALIZE D
SKIP PLAY
PROG.
ON
10:00
Blinks
÷ If you make a mistake in the middle, press the MENU key to
cancel the operation and restart it from step 2.
1 OFF time setting
UN FINALIZE D
SKIP PLAY
PROG.
OFF
11:00
Blinks
Preparation section
Basic section
3 After entering the “hour” with the procedure in
1 and 2, enter the “minute” using the same
procedure.
Make the desired reservation.
6
For timer playback or AI timer playback
1 Press the MULTI CONTROL keys to select the timer
mode.
1 Select “Play” or “AI Play”.
#
MULTI
CONTROL
#
Play .......... Timer playback at the
volume used when
Rec
power was turned off
AI Play ...... Timer playback with
which the volume
\
\
increases gradually
from 0 to 20.
PROG.
Blinks
SET
UN FINALIZE D
SKIP PLAY
Mode
Play
÷ If you make a mistake in the middle, press the MENU key to
cancel the operation and restart it from step 2.
For timer recording
1 Press the MULTI CONTROL keys to select
the record mode.
#
MULTI
CONTROL
#
1 Select “Rec”.
Play
\
\
Rec
AI Play
SET
2 Press the SET key.
Application section
Knowledge section
2 Press the SET key.
Continued on next page
Continued on next page
Page 78
78
Be sure to adjust the clock before setting the timer.
Timer operation
2 Select the input source.
1 Select the source to be played.
TUNER .....Broadcasts
CD ............CD (Finalized CD-R/
RW)
#
MULTI
CONTROL
#
CDR ......... CD, CD-R/RW
TAPE ....... Tape
AUX ........ Auxiliary analog source
D-AUX ..... Auxiliary digital source
\
\
Preparation section
UN FINALIZE D
SKIP PLAY
Source
PROG.
Blinks
TUNER
SET
2 Press the SET key.
3 Select the broadcast station (only when TUNER is se-
lected).
1 Select the preset station No.
#
MULTI
CONTROL
#
Basic section
\
\
UN FINALIZE D
SKIP PLAY
FM P01
PROG.
Blinks
90.00
2 Select the input source.
#
MULTI
CONTROL
#
\
\
1 Select the source
to be recording.
TUNER.. Broadcasts
AUX ...... Auxiliary analog
source
D-AUX .. Auxiliary digital
SET
source
2 Press the SET key.
÷ If "Unlock" is displayed when D-AUX is selected, see
"Displayed message list".
G
When you select "D-AUX" or "AUX", go to step 4.
3 Select the broadcast station (only when
TUNER is selected).
#
MULTI
CONTROL
#
SET
\
\
1 Select the preset station No.
2 Press the SET key.
4 Select the recording equipment.
#
MULTI
CONTROL
#
1
CDR (CD recorder)
TAPE (Cassette deck)
\
\
÷ If you selected "D-AUX" in step 2,
TAPE cannot be selected here.
SET
Set the program.
7
1 Press the TIMER key on the remote repeatedly
Application section
2 Press the SET key.
until "PROG. 1", "PROG. 2" or "PROG.1 2" lights.
TIMER
2 Press the key to switch the power OFF
(standby).
(The STANDBY/TIMER indicator lights in green.)
Knowledge section
SET
2 Press the SET key.
Each press switch the modes as follows.
O.T.T.
PROG.1
PROG.2
PROG.1, 2
Goes off (OFF)
Now the program timer reservation is complete.
Use the same procedure as above when you want to
reserve a program timer operation in PROG.2.
Ensure that the power is OFF.
Page 79
To cancel execution of a timer program (Remote control unit only)
Press the TIMER key repeatedly until “PROG.1” or
“PROG.2” disappears.
TIMER
÷ The reservation contents are held in memory.
Goes off
UN FINALIZE D
SKIP PLAY
To set the same timer program again (Remote control unit only)
Press the TIMER key repeatedly until "PROG.1" or
"PROG.2" is displayed. To set both "PROG.1" and
"PROG.2", press the key so that "PROG.1 2" lights.
SKIP PLAY
TIMER
Lights
UN FINALIZE D
PROG.
PROG.
Timer operation
79
Preparation section
÷ Also prepare the disc and adjust the listening volume.
÷ With timer recording, the audio is muted automatically at the moment the power is switched ON by the timer. £
Note
Note
Sleep timer (SLEEP)
÷ The reservation contents cannot be cleared. The contents are cleared only when they are changed.
÷ If the STANDBY/TIMER indicator blinks in green when the power is switched OFF (Standby), the timer will not be
executed.In this case, set the clock again. (
÷ After the timer has been set and power is off (timer standby), if there is a power failure or the power cord is unplugged
from and plugged again into the power outlet, the STANDBY/TIMER indicator blinks in green. In this case, set the
clock again. (
(Remote control unit only)
The sleep timer is used to set the period after which the power will switch OFF automatically.
Press the SLEEP key during CD(CD-R/RW) or TAPE
playback or during radio reception.
SLEEP
÷ Each press increases the set time by 10 minutes. The sleep
timer can be set up to about 90 minutes.
10 =20=30 ....70 = 80= 90 = Cancel
Sleep
÷ Pressing the SLEEP key once allows you to check the
remaining time.
÷ The unit is turned OFF automatically after the set time has
elapsed.
10
SLEEP
Basic section
Application section
Knowledge section
The system has been set so that the display brightness drops automatically during the sleep timer operation. (Auto dimmer)
To cancel
Turn the power OFF or press the SLEEP key until
the sleep time is cancelled.
Page 80
80
SKIP PLAY
Important Items
Maintenance
Care of lens
When the lens in the pick-up gets dirty, malfunctions
including the impossibility of playback may occur. The
lens should be cleaned using a commercially-available
camera lens blower, etc. Do not touch the lens to prevent damaging the mechanism. Also do not use a lens
cleaner or disc cleaner product.
Preparation section
Cleaning the heads and peripheral components
In case of difficulty
For maintaining the best condition of the deck and for
longer service life, always keep the heads, capstan
and pinch roller clean. For the cleaning, use a
cleaning cassette available in audio stores. For
details, read the instruction manual of your cleaning
cassette.
Basic section
Maintenance of the unit
When the front panel or case becomes dirty, wipe with
a soft, dry cloth. Do not use thinner, benzine, alcohol,
etc. for these agents may cause discoloration.
Note related to transportation and movement
Before transporting or moving this unit, carry out
the following operations.
1 Switch the power ON.
2 Remove all discs and tape from the unit.
÷ When CD 6 , CD-R 6 ,or TAPE 23 is pressed,
Apprication section
make sure that the display becomes as shown below.
CD
NoDisc
3 Turn the power OFF.
÷ Do not unplug the power cord from the power outlet
unless the power is switched off (STANDBY mode).
Be sure to remove the front door before transport-
Note
NoteNote
ing the unit. 6
Knowledge section
CDR
NoDisc
TAPE
----
Demagnetizing the head
When the recording / playback head is magnetized,
the sound quality will deteriorate. In such a case,
demagnetize the head using a commercially available
demagnetizer (head eraser).
In regard to contact cleaner
Do not use contact cleaners because it could cause a
malfunction. Be specially careful not to use contact
cleaners containing oil, for they may deform the plastic
component.
Memory backup function
Even after the power cord is unplugged from the
wall outlet, the settings of the following items are
held in memory.
Amplifier data
"on/standby" status
(ON or STANDBY)
Last input selection
Tone control levels (Bass, Mid, Treble)
AUX input level
Balance setting
Rec Gain setting
Tuner data
Auto/Manual setting
Timer setting contents*
Auto Power Save setting
Cassette deck data
Transport direction
DOLBY NR
Reverse mode
* The Sleep timer is canceled.
Page 81
Referrence
In case of difficulty
Important Items
81
Caution on condensation
Condensation (of dew) may occur inside the unit when
there is a great difference in temperature between this
unit and the outside.
This unit may not function properly if condensation
occurs. In this case, leave the unit for a few hours and
restart the operation after the condensation has dried
up.
Be specially cautious against condensation in a
following circumstance:
When this unit is carried from a place to another across
a large difference in temperature, when the humidity in
the room where this unit is installed increases, etc
Digital recording and SCMS
Designed for copyright protection, the SCMS is
a prescription that copying of digital signals as
they are in the digital form between digital audio equipment is allowable only for one generation.
Digital recording is not available with commercially marketed music software (CD, MD, etc.)
containing the copy prohibit code.
WARNING NOTICE:
In most cases it is an infringement of copyright to make
copies of tapes or discs without the permission of the
copyright owners. Anyone wishing to copy
commercially available tapes or disc should contact the
mechanical copyright protection society limited or the
performing rights society limited.
Dolby noise reduction manufactured under license from
Dolby Laboratories. “DOLBY” and the double-D symbol are trademarks of Dolby Laboratories.
Copy using
digital input
Copy using
analog input
Copy using
digital input
Copy using
analog input
Digital copy
cannot be
repeated.
Preparation section
Basic section
Copy using
analog input
Copy using
digital input
Copy using
digital input
Sampling frequency
Three types of digital signals are usually used according to the sampling frequencies. The sampling
frequencies vary depending on the types of digital equipment as shown below.
32 kHz : Standard and long-hour modes of DAT, etc.
44.1 kHz : Standard mode of DAT, CD, MD, etc.
48 kHz : Standard mode of DAT, etc.
(DAT : Digital Audio Tape deck)
In general, high-quality recording based on digital signal transmission is not possible unless the source
and recorder components use the same sampling frequency.
This system incorporates a sampling rate converter so it can convert 32 kHz and 48 kHz digital signals
to the sampling frequency of CD.
Application section
Knowledge section
Page 82
82
In case of difficulty
In case of difficulty
What seems to be a malfunction is not always so. Before calling for service, check the following table
according to the symptom of your trouble.
Operation to reset
The microcomputer may fall into malfunction (impossibility to operate, erroneous display, etc.) when the
power cord is unplugged while unit is ON or due to
an external factor. In this case, execute the following
procedure to reset the microcomputer and return it
to normal condition.
÷ Please note that resetting the microcomputer clears
the contents stored in and it returns to condition when
it left the factory.
Preparation section
Amplifier section/Speakers
Sound is not produced.
Unplug the power cord from the power outlet then,
while holding the MENU key depressed, plug the
power cord again.
MENU
RemedySymptom
÷ Connect properly referring to “System connection”.
@#
÷ Adjust to an required volume.
÷ Switch MUTE OFF.
÷ Unplug the headphone plug.
£
The STANDBY/TIMER indicator blinks in red and no
sound is put out.
The STANDBY/TIMER indicator blinks in green.
Basic section
No sound from the headphones.
Sound is not produced from the left or right speakers.
The clock display blinks without changing the figures.
Timer operation is not possible.
Tuner section
Symptom
Radio stations cannot be received.
Apprication section
Noise interferes.
÷ A speaker cord is short-circuited. Turn power off and re-connect
the speaker cord.
÷ Adjust the present time again. (
÷ Insert correctly. £
÷ Connect properly referring to “System connection”. @
÷ Adjust the optimum left and right balance. £
÷ Adjust the present time again. (
÷ Adjust the present time referring to “Clock adjustment”.
÷ Set properly the timer ON time and OFF time. gj
÷ Press the TIMER key to set up the execution. kl
@
(
Remedy
÷ Connect antennas. !
÷ Select a band. º¤
÷ Tune to the frequency of the desired station. º¤
÷ Install the outdoor antenna in an apart position from the road.
÷ Switch the suspected electric appliance OFF.
÷ Install the TV or the system at an increased distance between
them.
A station has been preset but it cannot be received by
pressing the 4,¢ key.
Remote control unit
Symptom Remedy
Remote control operation is not possible.
Knowledge section
÷ Preset stations with tunable frequencies.
÷ Replace with new batteries. &
÷ Operate the unit inside the remote controllable range. &
⁄¤
Page 83
Cassette deck
Sound cannot be produced by pressing the play key.
In case of difficulty
RemedySymptom
÷ Clean the head referring to “Maintenance”. ;
÷ Play a recorded tape.
83
Preparation section
No operation occurs even when an operation key is
pressed.
Sound is harsh or high frequencies are not reproduced.
Sound is distorted.
Noise is noticeable.
Sound vibrates.
Recording cannot be started by pressing the record key.
CD player section
A CD is placed in the player but it cannot be played.
÷ Change the tape transport direction or reverse the tape inser-
tion orientation.
÷ Clean the head referring to “Maintenance”. ;
÷ Try another tape.
÷ Adjust the AUX input level (AUX Input, Rec Gain).
÷ Demagnetize the head referring to “Maintenance”. ;
÷ Install the system at a distance from other electric appliances
and TV.
÷ Set the "DOLBY NR" to on.
÷ Clean the head referring to “Maintenance”. ;
÷ Wind the tape again by fast forwarding, rewinding or playing
from an end to the other.
÷ Use a cassette with an unbroken recording protect tab or block
the hole.
÷ Set the input selector to the source to be recorded. q
÷ Change the tape transport direction or reverse the tape inser-
tion orientation.
•ª
w
ª
ª
0
•ª
RemedySymptom
÷ Place the disc properly, with the label side facing upward.
÷ Clean the disc referring to “Disc handling precautions”.
9
÷ Refer to “Caution on condensation” and remove the condensa-
tion by evaporation.
÷ If the disc is a CD-R/RW, finalize it. ∏
A
Basic section
Application section
Sound is not produced.
Sound skips.
÷ Press the CD 6 key.
÷ Clean the disc referring to “Disc handling precautions”.
9
÷ Clean the disc referring to “Disc handling precautions”.
9
÷ Install the unit in a place not subject to vibrations.
Knowledge section
Page 84
84
CD recorder section
A CD is placed in the player but it cannot be played.
In case of difficulty
RemedySymptom
÷ Place the disc properly, with the label side facing upward.
Sound is not produced.
Sound skips.
Preparation section
Sound is distorted.
Recording is not possible.
Basic section
The track number increments incorrectly or does not
increment (during external source recording).
÷ Clean the disc referring to “Disc handling precautions”.
9
÷ Refer to “Caution on condensation” and remove the
condensation by evaporation. A
÷ Load a recorded disc.
÷ Press the CD 6 key.
÷ Clean the disc referring to “Disc handling precautions”.
9
÷ Clean the disc referring to “Disc handling precautions”.
9
÷ Install the unit in a place not subject to vibrations.
÷ Adjust the AUX input level (AUX Input, Rec Gain). ·
÷ Clean the disc referring to “Disc handling precautions”.
9
÷ Load a recordable disc. 78
÷ Unfinalizing a disc (CD-RW only) a
÷ Adjust the AUX input level (AUX Input, Rec Gain). ·
÷ Set the input selector to the source to be recorded.
÷ Digital-to-digital recording is not possible when "SCMS"
is displayed. A
÷ Adjust the AUX input level (AUX Input, Rec Gain). ·
÷ Adjust the blank detection level (Cut Lv.). t
÷ Set track marking (T. Mark) to "Manual". r
÷ Use digital-to-digital recording if this is possible.
Noise is noticeable.
“TNO Full” is displayed while the disc still has a remaining recordable time.
The time which has been recorded on the CD-R/RW
and the remaining time do not add up to the maximum
recording time (74 min.).
The track numbers are not assigned correctly.
Apprication section
The CD-R IN indicator blinks for an abnormally long
period.
Knowledge section
÷ Install the unit at a position apart from an electric appliance
or TV set.
÷ More than 100 tracks (track No. 100 or more) cannot be
recorded. (There may be also cases in which recording is
impossible while the track number is less than 99.)
In such a case, the REMAIN time display shows “0:00”.
÷ As recording is executed with 4 sec. as the minimum unit,
the display time may not coincide.
÷ Depending on the contents of the recorded source (CD
etc.), the track numbers may not be assigned correctly.
÷ The indicator blinks for a longer period than usual when an
unused CD-R/RW or a CD-RW experiencing unfinalization
is loaded.
Page 85
Displayed message list
Common messages
Common messages
Displayed Message
Not Audio
Reading...
÷ The disc or input signal is incompat-
ible with this system.
÷ The system is reading the TOC and
other disc data.
Meaning
In case of difficulty
Action
÷ This is a normal operation.
÷ This is a normal operation.
85
Preparation section
Unlock
CD ReWritable Disc
CD player messages
Displayed Message
No Disc
--:--
CD recorder messages
Displayed Message
No Disc
Disc Full
SCMS
Writing...
÷ The auxiliary digital source is not con-
nected properly.
÷ An attempt is made to perform high-
speed recording from a CD-RW.
Meaning
÷ No disc is placed on the tray.
÷ The loaded disc is not finalized.
÷ The TOC* data cannot be read out.
Meaning
÷ No disc is placed on the tray.
÷ The disc does not have enough re-
cordable space.
÷ An attempt is made to record the
digital signal from a source the digital
copy of which is prohibited by SCMS.
÷ The system is writing data on pro-
cessing, setting, etc.
÷ Connect properly referring to “System con-
nection”. #
÷ Use the normal-speed recording.
Action
÷ Load a disc.
÷ Load a finalized disc.
÷ Play another disc.
Action
÷ Load a disc.
÷ Use a disc containing enough recording
space.
÷ Record the analog input from the source.
e
÷ This is a normal operation.
Basic section
Application section
Ok? (blinking)
Wait xx min.
Sorry Buffer Over
Pro. Disc
÷ Confirmation if "processing can be
executed".
÷ An attempt is made to record a track
in high-speed recording within 74
minutes after the last high-speed recording.
÷ An attempt is made to record more
than 200 tracks in a CD in high-speed
recording within 74 minutes after the
high-speed recording.
÷ The disc is not a CD-R/RW for music.
÷ Press the ENTER key to execute the pro-
cessing.
÷ Start high-speed recording after the dis-
played time has elapsed or record the CD
with normal-speed recording.
÷ Start high-speed recording after the dis-
played time has elapsed or record the CD
with normal-speed recording.
÷ Use a music CD-R/RW. 7
Continued on next page
* TOC ........Any CD-R/RW contains the recording of TOC (Table Of Contents) data in addition to audio signals. The
TOC contains the non-rewritable data among that on the tracks, playing time and text data.
Knowledge section
Page 86
86
CD recorder messages
Displayed Message
PCA Full
Meaning
÷ Additional recording is not available
because the disc does not contain
the PCA*1 which is the area where
OPC*1 is applied.
Action
÷ Use a recordable disc.
Displayed message list
In case of difficulty
PMA Full
Skip Full
Preparation section
TNO Full
Ready
Finalized Disc
Unfinalize Disc
Basic section
Play Only
÷ Additional recording is not available
because the disc does not contain
the PMA*3 which is the area for
temporarily writing the TOC data*2.
÷ The maximum number of skip regis-
tration writing is about to be exceeded.
÷ An attempt is made to record the
100th track in the disc.
÷ The system is entering record or
record-pause mode or is preparing for
finalization, unfinalization or erasure.
÷ An attempt is made to finalize or
record onto a finalized disc.
÷ An attempt is made to perform re-
peated playback with a non-finalized
disc.
÷ The loaded disc is a playback-only
disc.
÷ Use a recordable disc. (With a CD-RW, addi-
tional recording may become possible by
finalizing then unfinalizing the disc.)
÷ It is not permitted to write Skip Play registra-
tion for more than 22 times.
÷ It is not permitted to record 100 or more
tracks in a disc.
÷ This is a normal operation.
÷ Recording is not available with a finalized
CD-R. If additional recording on a CD-RW is
required, the disc should be unfinalized before recording. “Unfinalizing a CD-RW
(UNFINALIZE)” a
÷ Repeated playback is not available with a
non-finalized disc. Finalize the disc before
performing its repeated playback. “Finaliz-
ing a CD-R/RW (FINALIZE)” ∏
÷ Use a recordable CD-R/RW.
Rec Only
DAO Disc
*1 OPC and PCA : When a disc which has not been finalized is loaded in the CD recorder, it perform test writing
Apprication section
*2 TOC : Any CD-R/RW contains the recording of TOC (Table Of Contents) data in addition to audio
*3 PMA : With a CD-R/RW which is not finalized, the TOC data is temporarily written in a specific area in
*4 DAO : The DAO (Disc At Once) method is a recording formats with which all data are written in batch
Knowledge section
in a specific area in the disc in order to calculate the optimum laser irradiation intensity and
time for the disc. This operation is referred to as the OPC (Optimum Power Control)
processing and the area in which test writing is performed is referred to as PCA (Power
Calibration Area).
signals. The TOC contains the non-rewritable data among that on the tracks, playing time and
text data.
the disc. The area in which the temporary writing is performed is referred to as PMA (Program
Memory Area). Additional writing in the PMA is performed every time recording or Skip Play
registration is made on the disc.
in order of lead-in, data then lead-out. With this format, additional recording of data (in the
unused area of disc) is not possible.
÷ An attempt is made to erase a CD-R.
÷ An attempt is made to unfinalize a
disc which was been recorded in the
DAO*4 format on other equipment.
÷ The CD-R cannot be erased.
÷ This system cannot unfinalize such discs.
Page 87
CD recorder messages
Displayed Message
Rec Error
Meaning
÷ A trouble occurred during recording.
Recording is not possible due to a
scratch, contamination or characteristics of the disc.
Displayed message list
In case of difficulty
Action
÷ Use a recordable disc.
Take out the disc and insert it again.
Clean the disc.
87
Preparation section
Mecha Error
Disc Error
Blank Disc
OPC
OPC Error
XXX 222
÷ A mechanical trouble occurred.
Playback or recording is not possible
due to a scratch, contamination or
characteristics of the disc.
÷ Playback or recording is not possible
due to a scratch, contamination or
characteristics of the disc.
÷ The CD-R/RW with no recording is
loaded.
÷ The OPC* processing is being ex-
ecuted. ‡
÷ A trouble occurred during OPC* pro-
cessing.
Recording is not possible due to a
scratch, contamination or characteristics of the disc.
÷ A title containing 24 or more charac-
ters is input.
÷ Take out the disc and insert it again.
Clean the disc.
Change the disc.
÷ Take out the disc and insert it again.
Clean the disc.
Change the disc.
÷ If you want to play a disc, use a recorded CD-
R/RW.
÷ This is a normal operation.
÷ Take out the disc and insert it again.
Clean the disc.
Use a recordable disc.
÷ The maximum number of title or text charac-
ters that can be displayed is 23.
Basic section
* OPC and PCA : When a disc which has not been finalized is loaded in the CD recorder, it perform test writing
in a specific area in the disc in order to calculate the optimum laser irradiation intensity and
time for the disc. This operation is referred to as the OPC (Optimum Power Control)
processing and the area in which test writing is performed is referred to as PCA (Power
Calibration Area).
Application section
Knowledge section
Page 88
88
Specifications
Main unit
In case of difficulty
[Amplifier section]
Rated output power during STEREO operation
1 kHz, 1.0 % T.H.D., at 6 Ω .................. 15 W + 15 W
Effective output power during STEREO operation
1 kHz, 10 % T.H.D., at 6 Ω ................... 20 W + 20 W
Signal to noise ratio
AUX ................................................... 90 dB (IHF `66)
Input sensitivity / impedance
AUX .................................................... 180 mV/47 kΩ
Output level / impedance
AUX .................................................... 180 mV/100 Ω
Preparation section
SUB WOOFER PREOUT ....................... 1.7 V / 620 Ω
[Tuner section]
FM tuner section
Tuning frequency range.......... 87.5 MHz ~ 108 MHz
MW (AM) tuner section
Tuning frequency range
.............................................. 531 kHz ~ 1,602 kHz
[CD player section]
Basic section
Laser ..............................................Semiconductor laser
D/A Conversion ....................................................... 1 Bit
Oversampling ................................................. 8 fs (352.8 kHz)
Frequency response ............................... 20 Hz~20 kHz ± 1 dB
Wow and flutter ........... Less than unmeasurable limit
Laser wave lengh .................................... 775 to 815 nm
Laser power class................................................ Class 1
[CD recorder section]
Laser ..............................................Semiconductor laser
D/A Conversion ....................................................... 1 Bit
Oversampling ................................................. 8 fs (352.8 kHz)
Frequency response ............................... 20 Hz~20 kHz ± 1 dB
Sampling frequency .......................................... 44.1 kHz
Wow and flutter ........... Less than unmeasurable limit
Apprication section
Laser wave lengh .................................... 780 to 790 nm
Laser power class..............................................Class 3B
[Cassette deck section]
Track .......................................4-track, 2-channel stereo
Recording system ................................. AC bias system
(Frequency: 105 kHz)
Heads
Playback / recording head ...................................... 1
Erasing head ............................................................. 1
Wow and flutter ............................... 0.15 % (W.R.M.S.)
Fast winding time ....................... Approx. 110 seconds
(C-60 tape)
Dolby NR .............................................................Dolby B
[General]
Power consumption.............................................. 55 W
Dimensions ............................. W : 243 mm (9-9/16”)
H : 284 mm (11-3/16”)
D : 310 mm (12-3/16”)
Weight (net) ............................ 6.3 kg (13.9 lb)
Speakers
Enclosure ............................................. Bass-reflex type
Speaker configuration
Woofer....................................... 100 mm, cone type
Tweeter ...................................... 19 mm, dome type
Impedance ................................................................ 6 Ω
Maximum input level ............................................. 20 W
Dimensions .............................. W : 133 mm (5-1/4”)
H : 277 mm (10-7/8”)
D : 224 mm (8-13/16”)
Weight (net) .............................. 2.9 kg (6.4 lb) (1 piece)
KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be
Notes
Notes
changed without notice.
÷ Sufficient performance may not be exhibited at extremely cold locations (where water freezes).
Knowledge section
For your records
Record the serial number, found on the back of the unit, in
the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your dealer for information or service on this product.
Model Serial Number
Loading...
