DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
SERVICE MANUAL
985275811.pdf
2010A0800-1
© 2010.01
Published by Tokai TEC
The components identified
by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
—Official Release2010.011.0
9-852-758-11
Ver. 1.0 2010.01
LEVEL 3
Check the SERVICE NOTE (LEVEL 2) before the service.
US Model
Canadian Model
AEP Model
UK Model
North European Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Brazilian Model
Tourist Model
Japanese Model
Photo: HDR-CX150/BLACK
DCR-SX73E/SX83/SX83E
DIGITAL VIDEO CAMERA RECORDER
HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170
DIGITAL HD VIDEO CAMERA RECORDER
DCR-SX73E/SX83/SX83E
HDR-CX110/CX110E/CX115E/CX116E/
CX150/CX150E/CX155E/CX170
Page 2
– 2 –
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Caution
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes
and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched”
or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to
the customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs
of deterioration. Point them out to the customer and recommend
their replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270°C
during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
Unleaded solder
Boards requiring use of unleaded solder are printed with the leadfree
mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
注意
電池の交換は，正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と
交換してください。
使用済み電池は，取扱指示に従って処分してください。
1. 注意事項をお守りください。
サービスのとき特に注意を要する個所については，キャ
ビネット，シャーシ，部品などにラベルや捺印で注意
事項を表示しています。これらの注意書き及び取扱説
明書等の注意事項を必ずお守り下さい。
2. 指定部品のご使用を
セッ ト の部品は難燃性 や 耐電圧など安 全 上の特性を
持ったものとなっています。従って交換部品は，使用
されていたものと同じ特性の部品を使用して下さい。
特に回路図，部品表に0印で指定されている安全上重
要な部品は必ず指定のものをご使用下さい。
3. 部品の取付けや配線の引きまわしはもとどおりに
安全上，チューブやテープなどの絶縁材料を使用した
り，プリント基板から浮かして取付けた部品がありま
す。また内部配線は引きまわしやクランパによって発
熱部品や高圧部品に接近しないよう配慮されています
ので，これらは必ずもとどおりにして下さい。
4. サービス後は安全点検を
サービスのために取外したネジ，部品，配線がもとど
おりになっているか，またサービスした個所の周辺を
劣化させてしまったところがないかなどを点検し，安
全性が確保されていることを確認して下さい。
5. チップ部品交換時の注意
・取外した部品は再使用しないで下さい。
・タンタルコンデンサのマイナス側は熱に弱いため交
換時は注意して下さい。
6. フレキシブルプリント基板の取扱いについて
・コテ先温度を270℃前後にして行なって下さい。
・同一パターンに何度もコテ先を当てないで下さい。
（3回以内）
・パターンに力が加わらないよう注意して下さい。
サービス，点検時には次のことにご注意ください。
無鉛半田について
本機には無鉛半田が使用されています。
無鉛半田を使用している基板には，無鉛（LeadFree）を意味
するレッドフリーマークがプリントされています。
（注意： 基板サイズによっては，無鉛半田を使用していて
もレッドフリーマークがプリントされていないも
のがあります）
：レッドフリーマーク
無鉛半田には，以下の特性があります。
・
融点が従来の半田よりも約40℃高い。
従来の半田こてをそのまま使用することは可能ですが，
少し長めにこてを当てる必要があります。温度調節機能
のついた半田こてを使用する場合，約350℃に設定して
下さい。
注意：半田こてを長く当てすぎると，基板のパターン（銅
箔）がはがれてしまうことがありますので，注意
して下さい。
・
粘性が強い
従来の半田よりも粘性が強いため，IC端子などが半田ブ
リッジしないように注意して下さい。
・
従来の半田と混ぜて使用可能
無鉛半田には無鉛半田を追加するのが最適ですが，従来
の半田を追加しても構いません。
– ENGLISH – – JAPANESE –
Page 3
(ENGLISH)
NOTE:
• -XX, -X mean standardized parts, so they may have some
differences from the original one.
• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference number in the exploded
views are not supplied.
• Due to standardization, replacements in the parts list may
be different from the parts specified in the diagrams or the
components used on the set.
• CAPACITORS:
uF: μF
• COILS
uH: μH
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• SEMICONDUCTORS
In each case, u: μ, for example:
uA...: μA... , uPA... , μPA... ,
uPB... , μPB... , uPC... , μPC... ,
uPD..., μPD...
When indicating parts by reference
number, please include the board name.
The components identified by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Note1 : Be sure to read “Precautions for Replacement of
Imager” on page 6-1 when changing the imager.
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
Replace the battery holder (BH7301) together when
Note:
When mounting these parts, mount new battery
replacing the lithium ion battery (BT7301) on the
MS-431 board. (The battery holder removed once
cannot be used again.)
holder first and attach new lithium battery next.
Caution
2. REPAIR PARTS LIST
(JAPANESE)
【使用上の注意】
• ここに記載されている部品は,補修用部品であるため,回路
図及びセットに付いている部品と異なる場合があります。
• -XX,-Xは標準化部品のため, セットに付いている部品と異な
る場合があります。
• *印の部品は常備在庫しておりません。
• コンデンサの単位でuFはμFを示します。
• 抵抗の単位Ωは省略してあります。
金 被：金属被膜抵抗。
サンキン：酸化金属被膜抵抗。
• インダクタの単位でuHはμHを示します。
• 半導体の名称でuA...,uPA...,uPB...,uPC...,uPD...等はそれぞれ
μA...,μPA...,μPB...,μPC...,μPD...を示します。
お願い
図面番号で部品を指定するときは基板名又はブロック
を併せて指定してください。
印の部品，または0印付の点線で囲まれた部品は，
0
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
Note1 :
イメージャの交換時は6-1ページの“イメージャ交換
時の注意”を必ずお読みください。
電池の交換は，正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と
交換してください。
使用済み電池は，取扱指示に従って処分してください。
Note:
部品取り付けの際は，先にバッテリホルダを取り
MS-431基板のリチウム蓄電池（BT7301）を交換す
る場合はバッテリホルダ（BH7301）も同時に新品に
交換して下さい。（一度使用したバッテリホルダは
再使用できません。）
付けてからリチウム電池を装着して下さい。
注意
2-2. ELECTRICAL PARTS LIST
Ref. No. Part No. Description Ref. No. Part No. Description
A-1756-539-A CM-114 BOARD, COMPLETE
********************
(CP002(CMOS imager) is not supplied, but this is included in CM-114 complete
board.)
< CAPACITOR >
C6903 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6905 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6907 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6908 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
* C6909 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C6910 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
* C6912 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C6914 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C6915 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C6916 1-165-887-91 CERAMIC CHIP 0.22uF 10% 6.3V
* C6917 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C6920 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C6921 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6923 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C6924 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6925 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C6927 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C6928 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C6930 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6932 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
* C6933 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C6935 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C6936 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C6939 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
* C6940 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C6941 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
< CONNECTOR >
CN6901 1-822-378-11 CONNECTOR, FPC (ZIF) 33P
< COMPOSITION CIRCUIT BLOCK >
CP002 (Not supplied) IMX055CHL-13
(CP002 is supplied included in CM-114 complete board.)
< IC >
* IC6902 6-708-455-01 IC R1114Q271D-TR-FA
< LINE FILTER >
* LF6901 1-457-648-21 COMMON MODE CHOKE COIL
* LF6902 1-457-648-21 COMMON MODE CHOKE COIL
* LF6903 1-457-648-21 COMMON MODE CHOKE COIL
* LF6904 1-457-648-21 COMMON MODE CHOKE COIL
* LF6905 1-457-648-21 COMMON MODE CHOKE COIL
< RESISTOR >
R6915 1-216-864-11 SHORT CHIP 0
R6919 1-208-927-11 METAL CHIP 47K 0.50% 1/16W
R6932 1-218-953-11 METAL CHIP 1K 5% 1/16W
A-1756-550-A JK-395 BOARD, COMPLETE
(CX110/CX110E/CX115E)
A-1756-548-A JK-395 BOARD, COMPLETE
(CX150/CX150E/CX155E)
A-1756-549-A JK-395 BOARD, COMPLETE
(SX73E/SX83/SX83E)
A-1756-550-A JK-395 BOARD, COMPLETE (CX116E)
A-1761-893-A JK-395 BOARD, COMPLETE (CX170)
**********************************
(IC8701 is not supplied, but this is included in JK-395 complete board.)
< CAPACITOR >
C8701 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(EXCEPT CX110/CX110E/CX115E)
* C8702 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT CX110/CX110E/CX115E)
* C8705 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT CX110/CX110E/CX115E)
< CONNECTOR >
* CN7201 1-819-572-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 30P
CN7202 1-822-425-21 CONNECTOR, USB (MINI AB)
CN7203 1-821-166-21 HDMI CONNECTOR
(EXCEPT CX110/CX110E/CX115E)
* CN7204 1-816-647-61 FFC/FPC CONNECTOR (LIF) 18P
(EXCEPT CX110/CX110E/CX115E)
< CONTACT TERMINAL >
ET7201 1-780-638-22 CONTACT TERMINAL
< IC >
* IC8701 6-713-616-01 IC THGBM1G7D8EBAI0
(SX73E/SX83/SX83E/CX150/CX150E/CX155E)
* IC8701 6-713-703-01 IC THGBM1G6D4EBAI4 (CX116E)
IC8701 (Not supplied) IC THGBM1G8D8EBAI2 (CX170)
(IC8701 is supplied including in JK-395 complete board.)
< RESISTOR >
R7207 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT CX110/CX110E/CX115E)
R7208 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT CX110/CX110E/CX115E)
R7209 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT CX110/CX110E/CX115E)
R7210 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT CX110/CX110E/CX115E)
R7211 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT CX110/CX110E/CX115E)
R7212 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT CX110/CX110E/CX115E)
R7213 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT CX110/CX110E/CX115E)
R7214 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT CX110/CX110E/CX115E)
R7215 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT CX110/CX110E/CX115E)
R8701 1-218-990-81 SHORT CHIP 0
(EXCEPT CX110/CX110E/CX115E)
R8702 1-218-990-81 SHORT CHIP 0
(EXCEPT CX110/CX110E/CX115E)
CM-114
JK-395
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
2-1
Page 4
2-2
Ref. No. Part No. Description
Ref. No. Part No. Description
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
< COMPOSITION CIRCUIT BLOCK >
RB7201 1-234-381-11 RES, NETWORK 100K (1005X4)
(EXCEPT CX110/CX110E/CX115E)
RB8701 1-234-381-11 RES, NETWORK 100K (1005X4)
(EXCEPT CX110/CX110E/CX115E)
A-1756-546-A MS-431 BOARD, COMPLETE
**********************
(BT7301 (LITHIUM ION BATTERY) is not included in MS-431 complete board.)
< BATTERY HOLDER >
BH7301 1-756-615-61 HOLDER, BATTERY (Note)
< BATTERY >
BT7301 1-756-134-12 LITHIUM ION BATTERY (Note)
< CAPACITOR >
* C6615 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C6616 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C6617 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C6618 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C6619 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C6620 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C6621 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C6622 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C6623 1-100-611-91 CERAMIC CHIP 22uF 20% 6.3V
C6624 1-100-611-91 CERAMIC CHIP 22uF 20% 6.3V
C6625 1-114-411-21 CERAMIC CHIP 0.33uF 10% 6.3V
C6626 1-114-411-21 CERAMIC CHIP 0.33uF 10% 6.3V
* C6627 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
* C7301 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7303 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C7304 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C7306 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C7308 1-164-843-11 CERAMIC CHIP 3PF 0.25PF 50V
< CONNECTOR >
* CN7301 1-820-729-61 CONNECTOR, FPC (ZIF) 51P
CN7303 1-816-645-61 FFC/FPC CONNECTOR (LIF) 14P
CN7304 1-822-837-21 CARD CONNECTOR
< DIODE >
D7301 6-501-216-01 DIODE CL-271HR-C-TS
< FERRITE BEAD >
FB7301 1-481-377-21 FERRITE, EMI (SMD)
< IC >
IC6601 6-707-333-01 IC NJM3230SE7
* IC7301 6-714-502-01 IC BD2224G-TR
* IC7303 6-714-502-01 IC BD2224G-TR
< COIL >
L6602 1-400-588-11 INDUCTOR 10uH
< RESISTOR >
R6604 1-218-965-11 METAL CHIP 10K 5% 1/16W
R6605 1-218-965-11 METAL CHIP 10K 5% 1/16W
R6606 1-208-711-11 METAL CHIP 15K 0.50% 1/16W
R6607 1-218-985-11 METAL CHIP 470K 5% 1/16W
R6608 1-218-985-11 METAL CHIP 470K 5% 1/16W
R6609 1-208-711-11 METAL CHIP 15K 0.50% 1/16W
R7301 1-218-949-11 METAL CHIP 470 5% 1/16W
R7302 1-218-945-11 METAL CHIP 220 5% 1/16W
R7303 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R7304 1-218-963-11 METAL CHIP 6.8K 5% 1/16W
R7305 1-218-945-11 METAL CHIP 220 5% 1/16W
R7307 1-218-943-11 METAL CHIP 150 5% 1/16W
R7308 1-218-943-11 METAL CHIP 150 5% 1/16W
R7309 1-218-943-11 METAL CHIP 150 5% 1/16W
R7311 1-218-955-11 METAL CHIP 1.5K 5% 1/16W
R7320 1-218-943-11 METAL CHIP 150 5% 1/16W
R7322 1-218-954-11 METAL CHIP 1.2K 5% 1/16W
R7329 1-218-977-11 METAL CHIP 100K 5% 1/16W
R7330 1-218-977-11 METAL CHIP 100K 5% 1/16W
R7331 1-218-977-11 METAL CHIP 100K 5% 1/16W
R7332 1-218-977-11 METAL CHIP 100K 5% 1/16W
R7333 1-218-977-11 METAL CHIP 100K 5% 1/16W
R7336 1-218-941-81 METAL CHIP 100 5% 1/16W
R7337 1-218-941-81 METAL CHIP 100 5% 1/16W
R7338 1-218-941-81 METAL CHIP 100 5% 1/16W
R7339 1-218-941-81 METAL CHIP 100 5% 1/16W
R7340 1-218-953-11 METAL CHIP 1K 5% 1/16W
R7341 1-218-941-81 METAL CHIP 100 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB6601 1-234-379-21 RES, NETWORK 22K (1005X4)
RB7303 1-234-378-21 RES, NETWORK 10K (1005X4)
RB7305 1-234-381-11 RES, NETWORK 100K (1005X4)
< SWITCH >
S7302 1-798-119-11 SWITCH, TACTILE
S7304 1-798-119-11 SWITCH, TACTILE
S7305 1-798-119-11 SWITCH, TACTILE
S7306 1-798-119-11 SWITCH, TACTILE
< SENSOR >
* SE6602 1-479-022-51 SENSOR, ANGULAR VELOCITY (30.8kHz) (PITCH)
* SE6603 1-479-022-61 SENSOR, ANGULAR VELOCITY (32.2kHz) (YAW)
A-1757-118-A VC-590 BOARD, COMPLETE(SERVICE)
(CX110/CX110E/CX150/CX150E/CX170)
A-1757-119-A VC-590 BOARD, COMPLETE(SERVICE)
(SX83/SX83E)
A-1757-122-A VC-590 BOARD, COMPLETE(SERVICE)
(CX115E/CX116E/CX155E)
A-1757-123-A VC-590 BOARD, COMPLETE(SERVICE)
(SX73E)
******************************
(IC7501 and IC8101 are not supplied, but there are included in VC-590 complete
board (service).)
< CAPACITOR >
C1005 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C1008 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1011 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C1014 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
(EXCEPT CX110/CX115E)
* C1015 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT CX110/CX115E)
* C1016 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C2205 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
(EXCEPT SX73E/SX83/SX83E)
C2206 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
(EXCEPT SX73E/SX83/SX83E)
C2207 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
(EXCEPT SX73E/SX83/SX83E)
C2208 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
(EXCEPT SX73E/SX83/SX83E)
C2209 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
(EXCEPT SX73E/SX83/SX83E)
* C2210 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2211 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2212 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2216 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
C2217 1-100-611-91 CERAMIC CHIP 22uF 20% 6.3V
(EXCEPT SX73E/SX83/SX83E)
C2218 1-100-611-91 CERAMIC CHIP 22uF 20% 6.3V
(EXCEPT SX73E/SX83/SX83E)
* C2219 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2220 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2228 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2229 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2231 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2233 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2235 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2236 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2239 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2240 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2242 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
C2301 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
(EXCEPT SX73E/SX83/SX83E)
* C2302 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2303 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2304 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C2305 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
C2401 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
* C2402 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C2403 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C2404 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
* C2405 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C2406 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C2407 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C2409 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2410 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C2411 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2412 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
* C2413 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
* C2414 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
C2415 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C2416 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
* C2417 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C2420 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C2422 1-100-844-91 TANTAL. CHIP 22uF 20% 10V
C2501 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
(EXCEPT SX73E/SX83/SX83E)
C2502 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C2503 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C2504 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C2505 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
* C2506 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C2507 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
* C2508 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
C3501 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
(EXCEPT SX73E/SX83/SX83E)
C3503 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
(EXCEPT SX73E/SX83/SX83E)
* C3504 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C3505 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C3506 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
C3507 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
C3508 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
C3509 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(EXCEPT SX73E/SX83/SX83E)
C4604 1-165-875-11 CERAMIC CHIP 10uF 10% 10V
C4605 1-165-875-11 CERAMIC CHIP 10uF 10% 10V
C4606 1-165-875-11 CERAMIC CHIP 10uF 10% 10V
C4701 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4703 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4704 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4705 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4706 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4708 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4711 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4713 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4714 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4715 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
VC-590MS-431JK-395
Page 5
2-3
Ref. No. Part No. Description
Ref. No. Part No. Description
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
C4716 1-100-966-91 CERAMIC CHIP 10uF 20% 10V
C4718 1-100-591-91 CERAMIC CHIP 1uF 10% 25V
C4721 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
* C4722 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C4723 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C4724 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
* C4725 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C4726 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C4727 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C4728 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
* C4729 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C4730 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C4731 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
* C4732 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4733 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C4735 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V
C4736 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4751 1-100-611-91 CERAMIC CHIP 22uF 20% 6.3V
C4754 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
* C4755 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4756 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C4759 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4760 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4761 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4762 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4763 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4768 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4769 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
* C4770 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C4771 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
* C4772 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
* C4773 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C4901 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V
C4906 1-164-852-11 CERAMIC CHIP 12PF 5% 50V
C4907 1-164-852-11 CERAMIC CHIP 12PF 5% 50V
C4908 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
* C4909 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C4910 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C4911 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C4912 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C4913 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4917 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
* C4919 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C5310 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
* C5311 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C5312 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C5313 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V
* C5314 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C5316 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C5317 1-100-902-91 TANTAL. CHIP 10uF 20% 10V
C5318 1-100-902-91 TANTAL. CHIP 10uF 20% 10V
C5319 1-127-772-81 CERAMIC CHIP 0.033uF 10% 10V
C5320 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C5321 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C5323 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C5325 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C5326 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
* C5327 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C5328 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
* C5330 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
C5331 1-127-772-81 CERAMIC CHIP 0.033uF 10% 10V
C5332 1-100-902-91 TANTAL. CHIP 10uF 20% 10V
C7502 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
* C7505 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7508 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C7509 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C7511 1-100-611-91 CERAMIC CHIP 22uF 20% 6.3V
C7512 1-100-611-91 CERAMIC CHIP 22uF 20% 6.3V
* C7516 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7517 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7518 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7519 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7524 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7525 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7526 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7530 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7533 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7535 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7536 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7537 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7538 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7539 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7540 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
C7543 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C7544 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C7545 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C7701 1-127-895-91 TANTAL. CHIP 22uF 20% 4V
* C7702 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7703 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C7706 1-127-895-91 TANTAL. CHIP 22uF 20% 4V
* C7707 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7708 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7711 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7712 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C7715 1-127-895-91 TANTAL. CHIP 22uF 20% 4V
* C7803 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7804 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7805 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7806 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7807 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
* C7808 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7809 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7810 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C7814 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
* C7818 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C7819 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
(EXCEPT SX73E/SX83/SX83E)
* C7820 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C7821 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
C8001 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
* C8002 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8003 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C8004 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
* C8005 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8006 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8007 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C8008 1-131-862-91 TANTAL. CHIP 47uF 20% 4V
* C8009 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
* C8011 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8012 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8014 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8015 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8018 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8019 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8020 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8021 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8022 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
* C8023 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
* C8024 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8025 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8101 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8102 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8103 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8104 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
* C8105 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
C8106 1-131-862-91 TANTAL. CHIP 47uF 20% 4V
C8107 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
* C8108 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8109 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
* C8113 1-114-582-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
* CN1001 1-820-031-51 CONNECTOR, FPC (LIF (NON-ZIF))
* CN1002 1-820-857-81 CONNECTOR, FPC (ZIF) 51P
CN1003 1-816-650-51 FFC/FPC CONNECTOR (LIF) 24P
CN1004 1-822-378-11 CONNECTOR, FPC (ZIF) 33P
* CN1005 1-822-893-11 CONNECTOR, FPC (ZIF) 33P
CN1006 1-821-500-11 CONNECTOR, FPC (ZIF) 45P
(EXCEPT CX110/CX115E)
* CN1007 1-816-643-51 FFC/FPC CONNECTOR (LIF) 10P
CN1008 1-794-057-21 PIN, CONNECTOR (PC BOARD) 2P
CN1009 1-816-654-61 FFC/FPC CONNECTOR (LIF) 6P
CN1010 1-573-806-21 PIN, CONNECTOR (1.5MM) (SMD) 6P
* CN1011 1-819-572-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 30P
< DIODE >
D3501 6-501-272-01 DIODE RB520CS-30FJT2R
(EXCEPT SX73E/SX83/SX83E)
* D3502 6-502-629-01 DIODE 1SS420 (TL3SONY.F)
(EXCEPT SX73E/SX83/SX83E)
* D3503 6-502-629-01 DIODE 1SS420 (TL3SONY.F)
(EXCEPT SX73E/SX83/SX83E)
* D4604 6-502-629-01 DIODE 1SS420 (TL3SONY.F)
D5103 8-719-421-71 DIODE MA132WA
D5301 8-719-069-28 DIODE 1SS400FJTE61
D5302 8-719-069-28 DIODE 1SS400FJTE61
D7501 8-719-056-23 DIODE MA2S111-(K8).SO
D7804 8-719-056-23 DIODE MA2S111-(K8).SO
< FUSE >
*F4601 1-576-872-31 FUSE (0.25A/50V)
F4602 1-576-406-31 FUSE (1.4A/32V)
F4603 1-576-406-31 FUSE (1.4A/32V)
F4604 1-576-406-31 FUSE (1.4A/32V)
*F4605 1-576-872-31 FUSE (0.25A/50V)
< FERRITE BEAD >
FB1001 1-500-238-11 BEAD, FERRITE (CHIP) (1608)
FB1002 1-500-238-11 BEAD, FERRITE (CHIP) (1608)
FB1003 1-400-050-11 INDUCTOR, FERRITE BEAD
(EXCEPT CX110/CX115E)
FB2201 1-481-377-21 FERRITE, EMI (SMD)
(EXCEPT SX73E/SX83/SX83E)
FB7701 1-481-464-11 BEAD, FERRITE (1608)
FB7702 1-481-464-11 BEAD, FERRITE (1608)
FB7802 1-400-354-11 INDUCTOR, FERRITE BEAD (1005)
FB7803 1-400-354-11 INDUCTOR, FERRITE BEAD (1005)
FB7804 1-400-354-11 INDUCTOR, FERRITE BEAD (1005)
< IC >
* IC1001 6-708-444-01 IC R1114Q281D-TR-FA
(CX110E/CX170/CX150/CX150E/SX83/SX83E/CX116E/CX155E/SX73E)
IC1004 6-704-099-01 IC TC7WZ08FK (TE85R)
IC1005 6-704-030-01 IC TC7SA04FU (TE85R)
IC1005 8-759-592-44 IC TC7SZ04FU (TE85R)
* IC1006 6-714-833-01 IC TPS2553DBVR-1
* IC2201 8-753-335-26 IC CXD4113GG-T6
(EXCEPT SX73E/SX83/SX83E)
* IC2301 6-714-015-01 IC K4X56323PL-8GC6T
(EXCEPT SX73E/SX83/SX83E)
* IC2401 6-714-866-01 IC BU76310GU-E2
* IC2501 6-714-865-01 IC BH76095GU-E2
* IC3501 6-714-316-01 IC ADV7541BCBZ-P-1R
(EXCEPT SX73E/SX83/SX83E)
IC3502 6-705-337-01 IC TK11150CSCL-G
(EXCEPT SX73E/SX83/SX83E)
* IC4701 6-808-414-01 IC MB44C017ABGF-G-ERE1
* IC4703 6-712-910-01 IC NJM2878F4-46 (TE2)
* IC4901 6-714-858-01 IC MB95005ABGL-G-125-ERE1
* IC5306 6-712-278-01 IC BD6373GW-E2
* IC5309 6-714-440-01 IC BH72220FVM-TR
* IC5313 6-714-937-01 IC BA2904SFVM-TR
* IC5314 6-714-937-01 IC BA2904SFVM-TR
* IC5315 6-714-937-01 IC BA2904SFVM-TR
IC7501 (Not supplied) IC BCX255102A
(IC7501 is supplied included in VC-590 complete board (service).)
IC7502 6-712-850-01 IC TC7SP3125TU (5RSO, F
(EXCEPT SX73E/SX83/SX83E)
IC7505 6-705-881-01 IC HD74ALVC1G125VSE-E
IC8101 (Not supplied) IC K5R1G13ACD-AK60T
(IC8101 is supplied included in VC-590 complete board (service).)
< COIL >
L2402 1-400-588-11 INDUCTOR 10uH
L2501 1-400-588-11 INDUCTOR 10uH
L2502 1-400-588-11 INDUCTOR 10uH
L3501 1-400-588-11 INDUCTOR 10uH
(EXCEPT SX73E/SX83/SX83E)
* L4701 1-457-858-11 INDUCTOR 4.7uH
L4703 1-456-135-11 INDUCTOR 4.7uH
L4704 1-457-696-11 INDUCTOR 4.7uH
* L4705 1-457-893-11 INDUCTOR 10uH
* L4706 1-457-858-11 INDUCTOR 4.7uH
L4714 1-469-757-21 INDUCTOR 10uH
L4716 1-400-675-11 INDUCTOR 10uH
L4717 1-400-588-11 INDUCTOR 10uH
VC-590
Page 6
2-4
Ref. No. Part No. Description
Ref. No. Part No. Description
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
* L4719 1-400-674-21 INDUCTOR 4.7uH
L4721 1-400-135-11 INDUCTOR 1uH
L4722 1-400-588-11 INDUCTOR 10uH
* L4723 1-457-647-11 INDUCTOR 100uH
* L5301 1-481-425-21 INDUCTOR 10uH
* L5302 1-400-674-21 INDUCTOR 4.7uH
L7502 1-400-675-11 INDUCTOR 10uH
L7503 1-481-634-11 INDUCTOR 22uH
* L7509 1-481-425-21 INDUCTOR 10uH
* L7510 1-481-425-21 INDUCTOR 10uH
* L7511 1-481-425-21 INDUCTOR 10uH
L8001 1-400-588-11 INDUCTOR 10uH
L8002 1-400-588-11 INDUCTOR 10uH
< LINE FILTER >
LF3501 1-457-605-21 COMMON MODE CHOKE COIL
(EXCEPT SX73E/SX83/SX83E)
LF3502 1-457-605-21 COMMON MODE CHOKE COIL
(EXCEPT SX73E/SX83/SX83E)
LF3503 1-457-605-21 COMMON MODE CHOKE COIL
(EXCEPT SX73E/SX83/SX83E)
LF3504 1-457-605-21 COMMON MODE CHOKE COIL
(EXCEPT SX73E/SX83/SX83E)
< TRANSISTOR >
* Q1001 6-552-397-01 TRANSISTOR DSC300100L
* Q1006 6-552-329-01 TRANSISTOR DMC964030L
* Q1007 6-552-354-01 TRANSISTOR DRC3144E0L
* Q1008 6-552-123-01 TRANSISTOR ECH8652-S-TL-H
Q2401 8-729-056-75 TRANSISTOR MCH3211-TL-E
Q2402 8-729-054-52 TRANSISTOR UP04216008S0
* Q2403 6-551-623-01 TRANSISTOR 2SA2154MFV(TL3SONY)
* Q3501 6-552-334-01 TRANSISTOR DMG964030L
(EXCEPT SX73E/SX83/SX83E)
Q4601 8-729-043-60 TRANSISTOR CPH6102-TL-E
Q4602 6-550-119-01 TRANSISTOR DTC144EMFS6T2L
* Q4603 6-552-123-01 TRANSISTOR ECH8652-S-TL-H
Q4701 8-729-055-88 TRANSISTOR MCH3406-TL-E
* Q4702 6-552-054-01 TRANSISTOR SCH2825-TL-E
* Q4901 6-552-334-01 TRANSISTOR DMG964030L
* Q5301 6-552-326-01 TRANSISTOR DMA964060L
* Q5302 6-552-397-01 TRANSISTOR DSC300100L
* Q5303 6-552-397-01 TRANSISTOR DSC300100L
* Q7501 6-552-345-01 TRANSISTOR DRA3143X0L
< RESISTOR >
R1001 1-218-949-11 METAL CHIP 470 5% 1/16W
R1020 1-218-969-11 METAL CHIP 22K 5% 1/16W
R1021 1-218-977-11 METAL CHIP 100K 5% 1/16W
(SX73E/CX115E/CX116E/CX155E)
R1022 1-218-990-81 SHORT CHIP 0
(SX83/SX83E/CX110/CX110E/CX150/CX150E/CX170)
R1023 1-218-973-11 METAL CHIP 47K 5% 1/16W
(CX116E/CX150/CX150E/CX155E/CX170)
R1023 1-218-975-11 METAL CHIP 68K 5% 1/16W
(CX110/CX110E/CX115E)
R1023 1-218-990-81 SHORT CHIP 0
(SX73E/SX83/SX83E)
R1024 1-218-974-11 METAL CHIP 56K 5% 1/16W
(CX110/CX110E/CX115E)
R1024 1-218-977-11 METAL CHIP 100K 5% 1/16W
(CX116E/CX150/CX150E/CX155E/CX170)
R1025 1-208-918-11 METAL CHIP 20K 0.50% 1/16W
R1026 1-218-977-11 METAL CHIP 100K 5% 1/16W
R1027 1-218-977-11 METAL CHIP 100K 5% 1/16W
R1028 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1029 1-218-969-11 METAL CHIP 22K 5% 1/16W
R1038 1-218-953-11 METAL CHIP 1K 5% 1/16W
R1039 1-218-945-11 METAL CHIP 220 5% 1/16W
R1045 1-218-989-11 METAL CHIP 1M 5% 1/16W
R2218 1-218-941-81 METAL CHIP 100 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R2219 1-218-941-81 METAL CHIP 100 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R2245 1-218-953-11 METAL CHIP 1K 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R2246 1-218-953-11 METAL CHIP 1K 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R2251 1-218-935-11 METAL CHIP 33 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R2409 1-218-990-81 SHORT CHIP 0
R2410 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2411 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2412 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R2414 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2415 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2416 1-218-949-11 METAL CHIP 470 5% 1/16W
R2418 1-218-990-81 SHORT CHIP 0
R2419 1-218-977-11 METAL CHIP 100K 5% 1/16W
R2420 1-218-973-11 METAL CHIP 47K 5% 1/16W
R2421 1-218-977-11 METAL CHIP 100K 5% 1/16W
R2422 1-218-977-11 METAL CHIP 100K 5% 1/16W
R2423 1-218-973-11 METAL CHIP 47K 5% 1/16W
R2502 1-220-169-11 METAL CHIP 75 5% 1/16W
R2503 1-220-169-11 METAL CHIP 75 5% 1/16W
R2504 1-220-169-11 METAL CHIP 75 5% 1/16W
R3501 1-208-683-11 METAL CHIP 1K 0.50% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R3502 1-218-973-11 METAL CHIP 47K 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R3514 1-218-970-11 METAL CHIP 27K 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R3531 1-218-956-11 METAL CHIP 1.8K 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R3532 1-218-956-11 METAL CHIP 1.8K 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R4607 1-216-797-11 METAL CHIP 10 5% 1/10W
R4608 1-218-953-11 METAL CHIP 1K 5% 1/16W
R4609 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R4701 1-218-941-81 METAL CHIP 100 5% 1/16W
R4702 1-208-927-11 METAL CHIP 47K 0.50% 1/16W
R4703 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R4704 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R4705 1-218-965-11 METAL CHIP 10K 5% 1/16W
R4706 1-220-874-81 METAL CHIP 15 0.50% 1/16W
R4707 1-218-977-11 METAL CHIP 100K 5% 1/16W
R4715 1-218-979-11 METAL CHIP 150K 5% 1/16W
R4716 1-218-965-11 METAL CHIP 10K 5% 1/16W
R4902 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R4911 1-245-604-11 METAL CHIP 10M 5% 1/16W
R4913 1-208-893-11 METAL CHIP 1.8K 0.50% 1/16W
R4915 1-208-703-11 METAL CHIP 6.8K 0.50% 1/16W
R4916 1-218-973-11 METAL CHIP 47K 5% 1/16W
R4917 1-218-953-11 METAL CHIP 1K 5% 1/16W
R4927 1-218-973-11 METAL CHIP 47K 5% 1/16W
R4929 1-218-985-11 METAL CHIP 470K 5% 1/16W
R4930 1-218-989-11 METAL CHIP 1M 5% 1/16W
R4933 1-208-927-11 METAL CHIP 47K 0.50% 1/16W
R4934 1-208-935-11 METAL CHIP 100K 0.50% 1/16W
R4943 1-208-911-11 METAL CHIP 10K 0.50% 1/16W
R4948 1-218-949-11 METAL CHIP 470 5% 1/16W
R4950 1-218-965-11 METAL CHIP 10K 5% 1/16W
R4958 1-218-953-11 METAL CHIP 1K 5% 1/16W
R4964 1-218-953-11 METAL CHIP 1K 5% 1/16W
R5329 1-216-797-11 METAL CHIP 10 5% 1/10W
R5330 1-218-941-81 METAL CHIP 100 5% 1/16W
R5331 1-218-977-11 METAL CHIP 100K 5% 1/16W
R5332 1-218-965-11 METAL CHIP 10K 5% 1/16W
R5333 1-218-977-11 METAL CHIP 100K 5% 1/16W
R5334 1-218-962-11 METAL CHIP 5.6K 5% 1/16W
R5335 1-218-971-11 METAL CHIP 33K 5% 1/16W
R5338 1-218-980-11 METAL CHIP 180K 5% 1/16W
R5339 1-218-972-11 METAL CHIP 39K 5% 1/16W
R5340 1-218-980-11 METAL CHIP 180K 5% 1/16W
R5342 1-218-968-11 METAL CHIP 18K 5% 1/16W
R5344 1-218-962-11 METAL CHIP 5.6K 5% 1/16W
R5345 1-218-969-11 METAL CHIP 22K 5% 1/16W
R5346 1-218-980-11 METAL CHIP 180K 5% 1/16W
R5349 1-218-980-11 METAL CHIP 180K 5% 1/16W
R5350 1-218-980-11 METAL CHIP 180K 5% 1/16W
R5352 1-218-965-11 METAL CHIP 10K 5% 1/16W
R5353 1-218-969-11 METAL CHIP 22K 5% 1/16W
R5354 1-218-947-11 METAL CHIP 330 5% 1/16W
R5355 1-218-953-11 METAL CHIP 1K 5% 1/16W
R5356 1-218-965-11 METAL CHIP 10K 5% 1/16W
R5398 1-218-973-11 METAL CHIP 47K 5% 1/16W
R5399 1-218-973-11 METAL CHIP 47K 5% 1/16W
R7502 1-218-973-11 METAL CHIP 47K 5% 1/16W
R7520 1-218-941-81 METAL CHIP 100 5% 1/16W
R7521 1-218-944-11 METAL CHIP 180 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7522 1-218-944-11 METAL CHIP 180 5% 1/16W
R7526 1-218-933-11 METAL CHIP 22 5% 1/16W
R7527 1-218-941-81 METAL CHIP 100 5% 1/16W
R7540 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R7541 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R7545 1-208-883-81 METAL CHIP 680 0.50% 1/16W
R7546 1-218-935-11 METAL CHIP 33 5% 1/16W
R7547 1-218-933-11 METAL CHIP 22 5% 1/16W
R7570 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7571 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7587 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7588 1-218-977-11 METAL CHIP 100K 5% 1/16W
R7589 1-218-953-11 METAL CHIP 1K 5% 1/16W
R7590 1-218-953-11 METAL CHIP 1K 5% 1/16W
R7591 1-218-990-81 SHORT CHIP 0
(EXCEPT SX73E/SX83/SX83E)
R7820 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7821 1-218-969-11 METAL CHIP 22K 5% 1/16W
(SX83/SX83E/SX73E)
R7822 1-218-969-11 METAL CHIP 22K 5% 1/16W
(SX83/SX83E/SX73E)
R7823 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7841 1-218-935-11 METAL CHIP 33 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7843 1-218-935-11 METAL CHIP 33 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7849 1-218-937-11 METAL CHIP 47 5% 1/16W
R7850 1-218-937-11 METAL CHIP 47 5% 1/16W
R7856 1-218-990-81 SHORT CHIP 0
R7864 1-218-941-81 METAL CHIP 100 5% 1/16W
(EXCEPT CX110/CX115E)
R7868 1-218-941-81 METAL CHIP 100 5% 1/16W
R7872 1-218-941-81 METAL CHIP 100 5% 1/16W
R7881 1-218-939-11 METAL CHIP 68 5% 1/16W
R7882 1-218-937-11 METAL CHIP 47 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7883 1-218-935-11 METAL CHIP 33 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7884 1-218-935-11 METAL CHIP 33 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7885 1-218-935-11 METAL CHIP 33 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7886 1-218-935-11 METAL CHIP 33 5% 1/16W
(EXCEPT SX73E/SX83/SX83E)
R7887 1-218-937-11 METAL CHIP 47 5% 1/16W
R7888 1-218-937-11 METAL CHIP 47 5% 1/16W
R7902 1-218-935-11 METAL CHIP 33 5% 1/16W
(EXCEPT CX110/CX115E)
R7918 1-218-941-81 METAL CHIP 100 5% 1/16W
R7919 1-218-941-81 METAL CHIP 100 5% 1/16W
R7921 1-218-953-11 METAL CHIP 1K 5% 1/16W
R8044 1-218-937-11 METAL CHIP 47 5% 1/16W
R8102 1-218-935-11 METAL CHIP 33 5% 1/16W
R8103 1-218-937-11 METAL CHIP 47 5% 1/16W
R8106 1-218-953-11 METAL CHIP 1K 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB2202 1-234-371-21 RES, NETWORK 47 (1005X4)
(EXCEPT SX73E/SX83/SX83E)
RB2203 1-234-371-21 RES, NETWORK 47 (1005X4)
(EXCEPT SX73E/SX83/SX83E)
RB7504 1-234-381-11 RES, NETWORK 100K (1005X4)
RB7505 1-234-378-21 RES, NETWORK 10K (1005X4)
RB7506 1-234-375-21 RES, NETWORK 1K (1005X4)
RB7508 1-234-384-11 RES, NETWORK 1M (1005X4)
* RB7803 1-234-723-21 RES, NETWORK 75 (1005X4)
(EXCEPT CX110/CX115E)
* RB7804 1-234-723-21 RES, NETWORK 75 (1005X4)
(EXCEPT CX110/CX115E)
* RB7805 1-234-723-21 RES, NETWORK 75 (1005X4)
* RB7806 1-234-723-21 RES, NETWORK 75 (1005X4)
RB7810 1-242-963-21 RES, NETWORK 33 (1005X4)
VC-590
Page 7
Ref. No. Part No. Description
< SWITCH >
S1001 1-798-119-11 SWITCH, TACTILE
< SENSOR >
* SE1001 1-487-118-11 GMR SENSOR
< VARISTOR >
VD1001 1-802-078-11 VARISTOR (SMD)
VD1002 1-802-078-11 VARISTOR (SMD)
VD1003 1-802-078-11 VARISTOR (SMD)
VD1004 1-802-078-11 VARISTOR (SMD)
VD1005 1-802-078-11 VARISTOR (SMD)
VD1006 1-802-078-11 VARISTOR (SMD)
< VIBRATOR >
X4901 1-781-525-11 VIBRATOR, CRYSTAL (32.768kHz)
X7501 1-795-994-11 OSCILLATOR, CRYSTAL (48MHZ)
* X7504 1-813-403-81 QUARTZ CRYSTAL OSCILLATOR (12MHz)
VC-590
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
2-5E
Page 8
6-1
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3

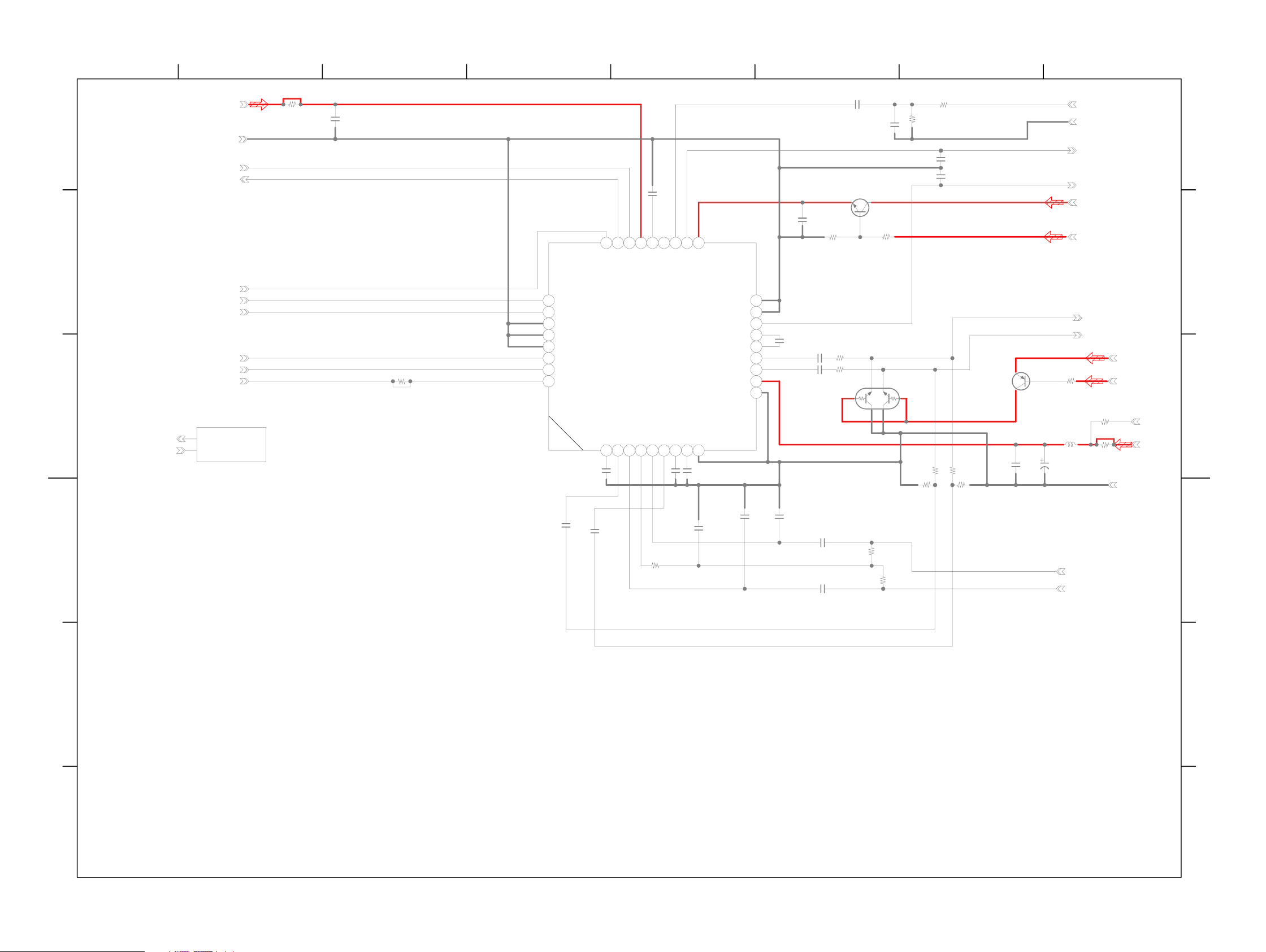

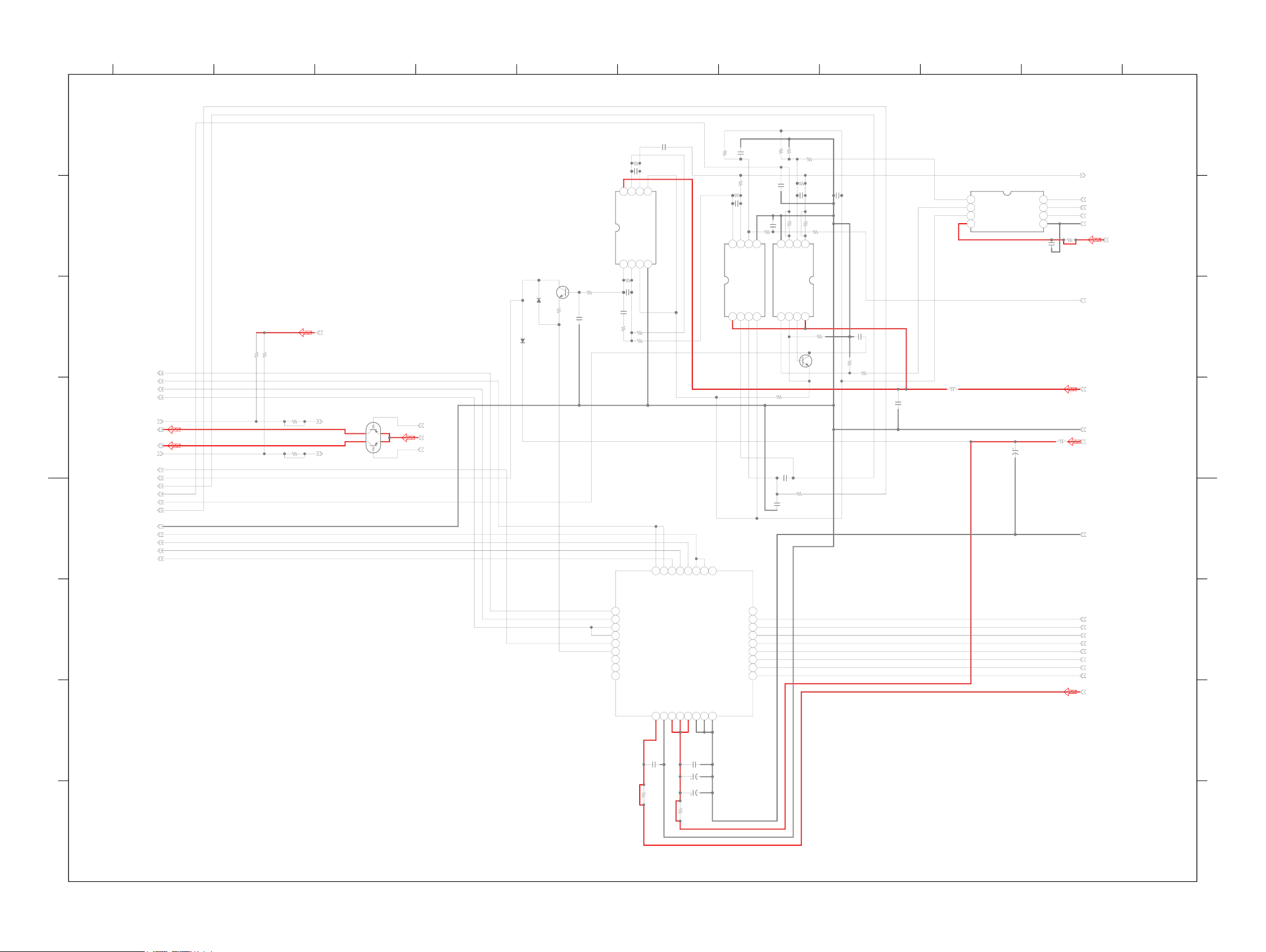

6. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS
For Schematic Diagrams
• All capacitors are in µF unless otherwise noted. pF : µ
µF. 50 V or less are not indicated except for electrolytics
and tantalums.
• Chip resistors are 1/10 W unless otherwise noted.
kΩ=1000 Ω, MΩ=1000 kΩ.
• Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum capaci-
tor, Because it is damaged by the heat.
• Some chip part will be indicated as follows.
Example C541 L452
22U 10UH
TA A 2520
Kinds of capacitor External dimensions (mm)
Case size
• Constants of resistors, capacitors, ICs and etc with XX
indicate that they are not used.
In such cases, the unused circuits may be indicated.
• Parts with differ according to the model/destination.
Refer to the mount table for each function.
• All variable and adjustable resistors have characteristic
curve B, unless otherwise noted.
• Signal name
XEDIT → EDIT PB/XREC → PB/REC
•
: non flammable resistor
•
: fusible resistor
•
: panel designation
•
: B+ Line
•
: B– Line
•
: IN/OUT direction of (+, –) B LINE.
•
: adjustment for repair.
For Printed Wiring Boards
• : Uses unleaded solder.
•
: Circuit board
: Flexible board
Pattern from the side which enables seeing.
: pattern of the rear side
(The other layers’ patterns are not indicated)
• Through hole is omitted.
• There are a few cases that the part printed on diagram
isn’t mounted in this model.
•
: panel designation
• Chip parts.
Transistor Diode
Precautions for Replacement of Imager
• If the imager has been replaced, carry out all the adjustments
for the camera section.
• As the imager may be damaged by static electricity from its
structure, handle it carefully like for the MOS IC.
In addition, ensure that the receiver is not covered with dusts
nor exposed to strong light.
2 132 132 1
3
345
21
123
654
EB
C
3152
46
123
654
3152
46
123
54
4 3
1 2
31 2
45
53 4
12
14
23
4625
31
12
43
14
23
THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS
(In addition to this, the necessary note is printed in each block)
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
Le s composan ts id ent ifi és pa r une
marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
When indicatin g parts by refe re nce
number, please include the board name.
– ENGLISH – – JAPANESE –
イメージャ交換時の注意
・イメージャを交換した場合は，カメラ部の全調整を行って
ください。
・イメージャは構造上，静電気により破壊される恐れがある
ため，MOSICと同様に注意して取り扱ってください。
また，受光部にはゴミの付着，および強い光がはいること
のないように注意してください。
2 132 132 1
3
345
21
123
654
EB
C
3152
46
123
654
3152
46
123
54
4 3
1 2
31 2
45
53 4
12
14
23
4625
31
12
43
14
23
回路図ノート
・ケミ コン，タ ン タルを 除 くコン デ ンサで， 耐 圧50V
以下のものはその耐圧を省略。単位はすべてμF（pは
pF）。
・チップ抵抗で指示のないものは，1/10W以下。
kΩ＝1000Ω，MΩ＝1000kΩ
・チップ部品交換時の注意
取り外した部品は再使用せず，未使用の部品をご使用
ください。
タンタルコンデンサのマイナス側は熱に弱いため注意
してください。
・チップ部品には下記のように表示したものがあります。
例 C541 L452
22U 10UH
TA A 2520
種類 外形寸法（mm）
ケースサイズ
・抵抗，コンデンサ，ICなど定数にXXがあるものは，使
用していない事を示しています。このため，使用して
いない回路が記載されている事があります。
・★印のある部品は，機種などにより異なりますので機
能別マウント一覧表を参照してください。
・可変抵抗と半固定抵抗で，B特性の表示を省略。
・信号名表記について，下記のような場合があります。
XEDIT → EDIT PB/XREC → PB/REC
・ は不燃性抵抗。
・ はヒューズ抵抗。
・ はパネル表示名称。
・ はB＋ライン。
・ はB－ライン。
・ はBライン（＋，－）の入出力方向を示す。
・ は調整名称。
プリント図ノート
・ ：無鉛半田を使用しています。
・ ：基板
：フレキシブル配線板
見ている面側のパターン。
：裏側のパターン
（他のパターンについては表示されていません）
・スルーホールは省略。
・プリント図には，本機で使用していない部品が記載さ
れている場合があります。
・ はパネル表示名称。
• Chipparts.
Transistor Diode
0
印の部品，または0印付の点線で囲まれた部品は，
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
図面番号で部品を指定するときは基板名又はブロック
を併せて指定してください。
お願い
回路図，プリント図共通ノート
（他に必要なノートは各セクションに記載しています）
Page 9
6-1. SCHEMATIC DIAGRAMS
5
1u
C6921
C6924
1u
2.2u
C6920
C6928
2.2u
47k
C6925
C7
VLO
C5
VBGR
IMX055CHL-13
CMOS IMAGER
C6919
XX
R6919
B5
VEXRES
CP002
2.2u
B7NCB6
VLOADLM
XX
C6
A4NCC8
VHI
VDDLCM2
A6
VSSHPX
A5
VDDHPX
A8
VSSHDA
A7
C6930
1u
A9
VDDHDA
C6935
VDDSUBA1
VDDSUBA2
C6936
0.1u
0.1u
B11
B10NCC10
B9NCA3
NC
AMON2C9AMON1
NC
A10
NC
C11
NC4
A11
VSSLCN4
E9
M10NCL10
VDDLCN4
D9
VSSHCM2
D11
VDDHCM2
E11
DODP
F10
DODM
F11
DOCP
G10
DOCM
G11
DCKP
H10
DCKM
H11
DOBP
J10
DOBM
J11
DOAP
K10
DOAM
K11
XCLR
D10
XCE
E10
SCK
F9
SDI
G9
SDO
H9
XHS
J9
XVS
K9
NC4
M11
NC
L11
NC
C6939
1u
R6909
7
A_2.7V
XX
REG_GND
8
A
B
1
2
LF6901
LF6902
LF6903
LF6904
LF6905
3
1
3
1
3
1
3
1
3
DODP
4
DODM
2
DOCP
4
DOCM
2
DCKP
4
DCKM
2
DOBP
4
DOBM
2
DOAP
4
DOAM
R6932 1k
CL6904
R6934 XX
CL6903
CL6902
CL6901
C
XCLR
XCE
SCK
SDI
XHS
XVS
D
C6922
C6923
10u
R6918
C6933
C6932
0.1u
2.2u
C6926
XX
XX
C6927
10u
R6920
XX
XX
C6940
0.1u
C6941
0.01u
E
C6910
2.2u
C6914
0.001u
C6907
C6908
C6909
4
R6916
XX
C6918
C6916
0.22u
B8
C4
B4
B3NCC3NCA2
NC
VSSLCM2
VSSLCM1
VDDLCM1
NC
B2
NC
C2
NC4
A1
NC
B1
NC
C1
NC
D2
NC
E2
VDDHCM1
1u
2.2u
0.1u
E1
D1
G1
F1
H1
H2
F3
F2
G2
G3
H3
D3
E3
K1
K2
J1
J2
J3
L1
VSSHCM1
VDDHVS
VSSHVS
VDDHCP
VSSHCP
NC
VRL
VCP
VBO
NC
VDDLCN1
VSSLCN1
VDDLPL
VSSLPL
NC
NC
INCK
NC
R6915
M1
0
Note:CP002(CMOS imager) is not supplied,
but this is included in CM-114 complete board.
NC4M2NCL3NCK3NCM3NCL2NCM4VDDLIO1M5VSSLIO1M6VDDLIO2M7VSSLIO2K5VDDLCN2K4VSSLCN2K6VDDLCN3K7VSSLCN3L5VDDLSC1L4VSSLSC1L6VDDLSC2L7VSSLSC2M8VDDSUBDL8TOUTK8TENABLEL9TSCANENM9NC
C6917
0.1u
C6915
1u
1
R6904
XX
A
D_1.8V
R6905
XX
C6902
34
IN
OUT
XX
1.8V
XX
IC6903
CE
GND
12
C6906
XX
R6907
XX
D_1.8V
3 62
B
R6901
A_2.7V
C
D
E
XX
REG_GND
CMOS_A_3.3V
LVDS_I/O_1.8V
C6903
DODM
DODP
DOCM
DOCP
DCKM
DOBM
DOAM
D_1.8V
XCLR
DCKP
DOBP
DOAP
1u
34
OUT
IC6902
2.7V REG.
CE IN
GND
R1114Q271D-TR-FA
12
C6905
1u
CN6901 33P
INCK
XCE
SCK
SDI
XHS
XVS
1 REG_GND
2 INCK
3 REG_GND
4 REG_GND
XCLR
5
XCE
6
7 SCK
8 SDI
9 XHS
10 XVS
11 REG_GND
12 REG_GND
13 DODM
14 DODP
REG_GND
15
16 DOCM
17 DOCP
18 REG_GND
19 DCKM
20 DCKP
21 REG_GND
22 DOBM
23 DOBP
24 REG_GND
25 DOAM
26 DOAP
27 REG_GND
28 REG_GND
29 REG_GND
30 CMOS_A_3.3V
31 D_1.8V/D_2.8V
32 LVDS_I/O_1.8V
33 REG_GND
R6908
XX
FP-1184
FLEXIBLE
PAGE 6-3
of LEVEL2
CMOS_A_3.3V
REG_GND
LVDS_I/O_1.8V
INCK
REG_GND
REG_GND
D_1.8V
R6912
R6914
XX
C6912
0.1u
XX
CM-114 BOARD
F
CMOS IMAGER
XX MARK:NO MOUNT
F
08
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
6-2
Page 10
6-3
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
A_2.8V
GSENS_X
R3204
XX
C3207
XX
C3208
XX
R3202
XX
REG_GND
GSENS_Y
GSENS_REF
R3203
XX
R3205
XX
C3203
XX
GSENS_Z
C3204
XX
A_2.8V
C3205
XX
C3202
XX
C3206
XX
SE3202
XX
2
STBY
3
INT2
4
INT1
5
Tout
9
Yout
8
Xout
12
Blanc11Blanc
14
Blanc
13
Blanc
1
GND
7
LCA
6
VDD
10
Zout
XX MARK:NO MOUNT
3D SENSOR
3D SENSOR
MS-431 BOARD(1/3)
B
5
D
C
B
4
E
3 62
A
7
F
8
08
A
D
E
F
C
1
Page 11
6-4
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
R6605
10k
C6618
0.1u
C6623
22u
C6627
4.7u
R6604
10k
C6626
0.33U
YAW_AD
SE6602
30.8kHz
4
OUT
1
VREF
2
GND
3
VCC
IC6601
NJM3230SE7
1
AM1
2
VREF1
3
HO1
4
HI1
5
LO1
6
LIA1
7
LIB1
8
GND
9
LIB2
10
LIA2
11
LO212HI213HO214VREF215AM2
16
OUT2
17
CRST
18
V+
19
NC
20
OUT1
R6607
470k
L6602
C6621
0.047u
C6624
22u
RB6601
22k
1
2
3
4
5
6
7
8
PITCH_AD
A_2.8V
C6620
0.047u
C6619
0.047u
C6622
0.047u
C6625
0.33U
SE6603
32.2kHz
4
OUT
1
VREF
2
GND
3
VCC
R6609
15k
R6608
470k
VST_C_RESET
R6606
15k
C6616
0.1u
C6615
0.1u
C6617
0.1u
REG_GND
R6610
XX
R6611
XX
R6612
XX
R6613
XX
PITCH
YAW
XX MARK:NO MOUNT
PITCH/YAW SENSOR
PITCH/YAW SENSOR AMP
MS-431 BOARD(2/3)
B
5
D
C
B
4
E
3 62
A
7
F
8
08
A
D
E
F
C
1
SENSOR
SENSOR
Page 12
6-5
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
MEMORY
STICK
PRO DUO
(MEMORY STICK PRO
DUO CONNECTOR)
Note:BT7301 (LITHIUM ION BATTERY) is not included in
MS-431 complete board.
REG_GND
BH7301
175661561
1
2 3
R7301
470
A_2.8V
GSENS_REF
GSENS_Z
GSENS_Y
GSENS_X
VST_C_RESET
YAW_AD
PITCH_AD
R7303
2700
R7304
6800
R7305
220
R7302
220
R7311
1500
REG_GND
R7322
1200
D_3.3V
MSX2_PWR_ON
MS_PWR_ON
VD7304
XX
VD7303
XX
CN7301
51P
1REG_GND
2XMS_ACC_LED
3KEY_AD2
4A_2.8V
5XPOWER_TACT_SW
6REG_GND
7PITCH_AD
8REG_GND
9VST_C_RESET
10REG_GND
11YAW_AD
12REG_GND
13GSENS_X
14GSENS_Y
15GSENS_Z
16GSENS_REF
17REG_GND
18MSX2_CMD
19MSX2_BIO4
20MSX2_BIO5
21MSX2_BIO6
22MSX2_BIO7
23XMSX2_INS
24MSX2_WP
25REG_GND
26MSX2_CLK
27REG_GND
28MSX_CLK
29REG_GND
30MSX_BS
31MSX_BIO1
32MSX_BIO0
33MSX_BIO2
34MSX_BIO3
35XMS_IN
36REG_GND
37D_3.3V
38D_3.3V
39MS_PWR_ON
40MSX2_PWR_ON
41BATT_LI_3V
42REG_GND
43XSTART_STOP
44XCHARGE_LED
45XCAM_LED
46XPHOTO_LED
47
EVER_3.0V
48KEY_AD1
49D_2.8V
50ZOOM_VR_AD
51REG_GND
REG_GND
REG_GND
D_2.8V
D_2.8V
D_2.8V
ZOOM_VR_AD
KEY_AD1
EVER_3.0V
XPHOTO_LED
XCAM_LED
XCHARGE_LED
XSTART_STOP
XSTART_STOP
XCHARGE_LED
XCAM_LED
XPHOTO_LED
EVER_3.0V
KEY_AD1
ZOOM_VR_AD
REG_GND
S7304
123
4
S7305
123
4
S7306
123
4
S7302
123
4
RB7303
10k
1234567
8
CN7303 14P
1 ZOOM_VR_AD
2 REG_GND
3 D_2.8V
4 PHOTO_FREEZE
5 PHOTO_REC
6 REG_GND
7 XCAM_LED
8 XPHOTO_LED
9 MODE_LED_VDD
10 MODE_SW
11 REG_GND
12 XSTART_STOP
13 CHARGE_LED_VDD
14 XCHARGE_LED
VD7301
XX
180207811
VD7302
XX
180207811
MSX2_BIO_4
C7309
XX
R7307 150
MSX_BS
R7317 XX
REG_GND
R7319 XX
MSX_BIO0
R7313
XX
MSX_CLK
R7315 XX
MSX2_WP
R7309 150
C7308
3p
R7316 XX
REG_GND
MSX2_BIO_7
MSX_BIO3
MSX2_BIO_5
MSX2_CMD
MSX_BIO2
MSX2_CLK
R7328
XX
R7308
150
XMSX2_INS
R7318 XX
XMS_IN
MSX2_BIO_6
MSX_BIO1
XXR7326
XXR7323
XXR7324
XXR7325
MSX2_BIO_4
2D
MSX_BIO1
4D
MSX2_BIO_7
2D
MSX2_WP
2D
MSX_BIO3
4D
MSX2_BIO_5
2D
MSX2_CMD
2D
MSX2_CLK
2D
MSX_BIO0
4D
MSX2_BIO_6
2D
MSX_BIO2
4D
MSX_CLK
4D
XMS_IN
4D
MSX_BS
4E
XMSX2_INS
2D
MS_VCC
MSX2_VCC
R7329 100k
R7330 100k
R7331 100k
R7332 100k
R7333 100k
R7334 XX
MSX2_VCC
C7316
XX
6.3V
RB7305
100k
1234567
8
MSX2_PWR_ON
C7306
1u
C7303
0.1u
C7304
1u
REG_GND
C7301
0.1u
MS_PWR_ON
IC7301
BD2224G-TR
1
VIN
2
GND
3EN4
/OC
5
VOUT
MS_VCC
IC7303
BD2224G-TR
1
VIN
2
GND
3EN4
/OC
5
VOUT
D_3.3V
C7315
XX
6.3V
REG_GND
XXR7335
XXR7310
XX
R7327
D7301
CL-271HR-C-TS
FB7301
R7320 150
IC7304
XX
1
OUT
2
GND
3
xFLAG
4
EN
5
IN
IC7305
XX
1
OUT
2
GND
3
xFLAG
4
EN
5
IN
CN7304
1 MSX2_BIO_6
2
N.C
3
MSX2_BIO_7
4
N.C
5
REG_GND
6 MSX2_CMD
7
MS_BS
8
MS_DATA1
9
REG_GND
10
MS_DATA0
11
MS_DATA2
12
MSX2_VCC
13
N.C
14
XMS_IN
15
MSX2_CLK
16
MS_DATA3
17
MS_CLK
18
REG_GND
19
MS_VCC
20 N.C
21
MSX2_BIO_4
22
REG_GND
23
MSX2_BIO_5
24
MSX2_INS
25
REG_GND
26
MSX2_WP
2728
R7336 100
R7337 100
R7338 100
R7339 100
D7303
XX
3
2
1
VD7305
XX
R7340
1k
R7341 100 R7314 XX
POWER
H
E
5
C
1
G
2
B
A
6
D
104 12
08
11
C
A
E
7
G
H
9
B
F
8
F
D
3
XX MARK:NO MOUNT
CONNECTORS
(ACCESS)
PAGE 6-4
LND001-LND051
FP-1185
FLEXIBLE
of LEVEL2
PAGE 6-5
of LEVEL2
CONTROL
SWITCH BLOCK
PS32800
LITHIUM
ION BATTERY
BT7301
REG.
REG.
AUTO
(VIEW IMAGES)
(DISC BURN)
(INTELLIGENT AUTO)
MS-431 BOARD(3/3)
SD
Page 13
6-6
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
EXCEPT CX110/CX110E/CX115E
EXCEPT SX73E/SX83/SX83E
EXCEPT SX73E/SX83/SX83E
TMDS_DATA1+
TMDS_DATA0+
SDA
TMDS_CLOCK+
TMDS_DATA0-
TMDS_CLOCK-
SCL
CN7203 19P
1
TMDS_DATA2_SHIELD
2
TMDS_DATA2_+
3
TMDS_DATA2_-
4
TMDS_DATA1_SHIELD
5
TMDS_DATA1_+
6
TMDS_DATA1_-
7
TMDS_DATA0_SHIELD
8
TMDS_DATA0_+
9
TMDS_DATA0_-
10
TMDS_CLOCK_SHIELD
11
TMDS_CLOCK_+
12
TMDS_CLOCK_-
13
DDC_CEC_GND
14
CEC
15
SCL
16
SDA
212220
23
17
RESERVED
18
+5V_POWER
19
HPD
TMDS_DATA2+
TMDS_DATA1-
TMDS_DATA2-
HPD
CEC
REG_GND
USB_VCC
USB_D-
REG_GND
USB_D+
USB_ID2
HPD
CN720130P
1USB_VCC
2USB_VCC
3USB_VCC
4REG_GND
5JK_GND
6JK_GND
7USB_ID2
8JK_GND
9USB_D+
10USB_D-
11JK_GND
12HPD
13+5V_POWER
14SDA
15SCL
16JK_GND
17CEC
18JK_GND
19TMDS_DATA2+
20TMDS_DATA2-
21JK_GND
22TMDS_DATA1+
23TMDS_DATA1-
24JK_GND
25TMDS_DATA0+
26TMDS_DATA0-
27JK_GND
28TMDS_CLOCK+
29TMDS_CLOCK-
30JK_GND
USB_D+
USB_D-
SDIF_DATA_7
SDIF_DATA_6
SDIF_CMD
SDIF_DATA_5
SDIF_DATA_3
SDIF_DATA_1
SDIF_DATA_4
SDIF_DATA_2
SDIF_DATA_0
MMC_VCC
REG_GND
SDIF_CLK
USB_VCC
USB_ID2
+5V_POWER
SDA
SCL
CEC
TMDS_CLOCK-
TMDS_CLOCK+
TMDS_DATA0-
TMDS_DATA0+
TMDS_DATA1-
TMDS_DATA1+
TMDS_DATA2-
TMDS_DATA2+
LF7202
XX
1
4
3
2
LF7203
XX
1
4
3
2
LF7204
XX
1
4
3
2
LF7205
XX
1
4
3
2
CN720418P
1REG_GND
2SDIF_DATA_7_CN
3SDIF_CMD
4SDIF_DATA_6_CN
5SDIF_DATA_5_CN
6SDIF_DATA_4_CN
7SDIF_DATA_3_CN
8SDIF_DATA_2_CN
9SDIF_DATA_1_CN
10SDIF_DATA_0_CN
11REG_GND
12REG_GND
13SDIF_CLK
14REG_GND
15REG_GND
16MMC_VCC
17MMC_VCC
18REG_GND
R7205
XX
R7206
XX
R7207
47
R7208
47
R7209
47
R7210
47
R7211
47
R7212
47
R7213
47
R7214
47
RB7201
100k
1234567
8
R7215
100k
RB8701
100k
1234567
8
CN7202
1 USB_VCC
2 USB_D-
3 USB_D+
4 USB_ID
5 REG_GND
7 9
6 8
LF7201
XX
3
1
2
4
REG_GND
VD7201
XX
R7216
XX
ET7201
ET7202
XX
REG_GND
+5V_POWER
H
E
5
C
1
G
2
B
A
6
D
104 12
08
11
C
A
E
7
G
H
9
B
F
8
F
D
3
XX MARK:NO MOUNT
CONNECTORS
HDMI OUT
(USB)
PAGE 6-5
LND001-LND030
of LEVEL2
FP-1191
PAGE 6-6
FLEXIBLE
of LEVEL2
FP-1192
FLEXIBLE
JK-395 BOARD(1/2)
Page 14
6-7
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
16G: SX73E/SX83/SX83E/CX150/CX150E/CX155E
32G: CX170
8G: CX116E
EXCEPT CX110/CX110E/CX115E
Note:IC8701 is not supplied for CX170.
C8705
0.1
C8702
0.1
REG_GND
SDIF_DATA_3
SDIF_DATA_2
SDIF_DATA_1
SDIF_DATA_0
SDIF_DATA_4
SDIF_DATA_5
SDIF_DATA_6
SDIF_DATA_7
SDIF_CLK
MMC_VCC
C8701
4.7u
R8701
0
R8702
0
SDIF_CMD
IC8701
W5 W6 H3 H4 H5 J2 J3 J4 J5 J6 K6 W4 Y4 AA3 AA5 M6 N5 T10 U9 K2 K4 M7 P5 R10 U8 Y2 Y5 AA4AA6 A4 A6 A9 A11 B2 B13 D1 D14 H1 H2 H6 H7 H8 H9
H10H11 H12 H13 H14 J1 J7 J8 J9 J10 J11 J12 J13 J14 K1 K3 K5 K7 K8 K9 K10 K11 K12 K13 K14 L1 L2 L3 L12 L13 L14 M1 M2 M3 M5 M8 M9 M10M12 M13M14 N1
N2N3N10N12N13N14P1P2P3P10P12P13P14R1R2R3R5R12R13R14T1T2T3T5T12T13T14U1U2U3U5U6U7U10U12U13U14V1V2V3V12V13V14
W1W2W3W7W8W9W10W11W12W13W14Y1Y3Y6Y7Y8Y9Y10Y11Y12Y13Y14AA1AA2AA7AA8AA9AA10AA11AA12AA13AA14AE1AE14AG2AG13AH4AH6AH9AH11L4
C8706
XX
H
E
5
C
1
G
2
B
A
6
D
104 12
08
11
C
A
E
7
G
H
9
B
F
8
F
D
3
XX MARK:NO MOUNT
INTERNEL MEMORY
INTERNAL MEMORY
JK-395 BOARD(2/2)
THGBM1G7D8EBA10
Page 15
57
6
81 42
10 11
123
13
14
15
169
A
EXCEPT CX110/CX110E/CX115E
REG_GND
I/O_1.8V
A_3.3V
REG_GND
SENS_DATA_P_2
SENS_DATA_M_2
SENS_DATA_P_3
SENS_DATA_M_3
SENS_CLK_P
SENS_CLK_M
SENS_DATA_P_4
SENS_DATA_M_4
SENS_DATA_P_5
SENS_DATA_M_5
SENS_VD
SENS_HD
SENSSO
SENSSCK
SENSXCS
XFLASH_RST
CLK_CMOS_IN
USB_VCC
USB_VCC
USB_VCC
REG_GND
USB_ID2
REG_GND
USB_D+
USB_D-
REG_GND
HPD
+5V_POWER
SDA
SCL
REG_GND
CEC
REG_GND
TMDS_DATA2+
TMDS_DATA2-
REG_GND
TMDS_DATA1+
TMDS_DATA1-
REG_GND
TMDS_DATA0+
TMDS_DATA0-
REG_GND
TMDS_CLOCK+
TMDS_CLOCK-
REG_GND
ZOOM_A
ZOOM_XA
ZOOM_XB
ZOOM_B
LENS_TEMP_AD
FC_SENSE_OUT
FC_SENSE_VCC
ZM_SENSE_VCC
ZM_SENSE_OUT
IRIS_DRIVE+
IRIS_DRIVE-
IRIS_BIAS+
IRIS_HALL+
IRIS_BIAS-
IRIS_HALL-
REG_GND
FOCUS_XA
FOCUS_A
FOCUS_XB
FOCUS_B
AUDIO_GND
INT_MIC_L
INT_MIC_R
R1043 XX
R1044 XX
C1002
XX
D_1.8V
A_2.8V
BL_H
BL_L
D_2.8V
TP_SEL1
TP_Y
TP_X
REG_GND
XBB_RST
XCS_LCD
BB_SO
XBB_SCK
LCD_HS
LCD_VS
LCD_CLK_OUT
LCD_PDB7
LCD_PDB6
LCD_PDB5
LCD_PDB4
LCD_PDB3
LCD_PDB2
LCD_PDB1
LCD_PDB0
PANEL_NOR/REV
HDD_UNLOAD
REG_GND
XATA_CS1
XATA_CS0
ATA_A2
ATA_A0/MMC_CLK
ATA_A1
ATA_INTRQ
XATA_DMACK
ATA_IORDY
XATA_DIOR
XATA_DIOW
ATA_DMARQ
ATA_D15
ATA_D0/MMC_BIO_0
ATA_D14
ATA_D1/MMC_BIO_1
ATA_D13
ATA_D2/MMC_BIO_2
ATA_D12
ATA_D3/MMC_BIO_3
ATA_D11
ATA_D4/MMC_BIO_4
ATA_D10
ATA_D5/MMC_BIO_5
ATA_D9
ATA_D6/MMC_BIO_6
ATA_D8/MMC_CMD
ATA_D7/MMC_BIO_7
C1016
0.1u
XATA_RESET
EVER_3.0V
REG_GND
R1041 XX
FB1003
HDD_3.3V
Note:SP901 is not included in
VC-590 complete board(service).
SP901
(SPEAKER)
C1014
FR_XRESET
USB_VBUS_LIMIT
1u
CN1008
USB_ID2
D_3.3V
REG_GND
VBUS_EN
OVC_DET
IC1001
R1114Q281D-TR-FA
2.8V REG
3
VD1007
XX
2P
1SP+
2SP-
(FOR CHECK)
8
7
6
5
CN1001
CPC
XVBUS_DET
REG_GND
CH6_5V
Q1006
DMC964030L
SWITCH
2
1CAM_UART_TXD
2CAM_UART_RXD
3CPC_CS
4CPC_O_SI
5CPC_O_SO
6CPC_O_SCK
7D_2.8V
8BOOT_MODE_PORT1
9OBERON_EXT(N.C.)
10UART0_SI
11UART0_SO
12UART1_SI
13UART1_SO
14REG_GND
6
3
1
4
CAM_UART_TXD
CAM_UART_RXD
CPC_CS
CPC_O_SI
CPC_O_SO
CPC_O_SCK
D_2.8V
BOOT_MODE_PORT1
UART0_SI
UART0_SO
UART1_SI
UART1_SO
REG_GND
SX73E/CX115E/CX116E/CX155E
SX83/SX83E/CX110/CX110E/CX150/CX150E/CX170
R1026
100k
4
5
1
C1008
IN
1u
2
GND
3
EN
IC1006
TPS2553DBVR-1
CURRENT
LIMITER
DRC3144E0L
ECH8652-S-TL-H
ILIM
X_FAULT
Q1007
SWITCH
+B SWITCH
OUT
FP-1189
FLEXIBLE
LND1101-LND-1110
PAGE 6-4
of LEVEL2
CN1007 10P
D_2.8V
R1028
10k
4.7u
0: SX73E/SX83/SX83E
R1023
68k: CX110/CX110E/CX115E
*
47k: CX116E/CX150/CX150E/CX155E/CX170
SYSTEM_AD
GENERAL_AD
XX: SX73E/SX83/SX83E
R1024
56k: CX110/CX110E/CX115E
*
100k: CX116E/CX150/CX150E/CX155E/CX170
REG_GND
R1029
22k
USB_VCC
FP-1185
FLEXIBLE
LND001-LND059
PAGE 6-4
of LEVEL2
CN1002
51P
R1021
100k
R1022
0
Q1008
3
1
R1027
100k
2
6
5
8
7
6
C1011
5
R1025
20k
4
DC jack harness
51REG_GND
50XMS_ACC_LED
49KEY_AD2
48A_2.8V
47XPOWER_TACT_SW
46REG_GND
45PITCH_AD
44REG_GND
43VST_C_RESET
42REG_GND
41YAW_AD
40REG_GND
39GSENS_X
38GSENS_Y
37GSENS_Z
36GSENS_REF
35REG_GND
34MSX2_CMD
33MSX2_BIO_4
32MSX2_BIO_5
31MSX2_BIO_6
30MSX2_BIO_7
29XMSX2_INS
28MSX2_WP
27REG_GND
26MSX2_CLK
25REG_GND
24MSX_CLK
23REG_GND
22MSX_BS
21MSX_BIO1
20MSX_BIO0
19MSX_BIO2
18MSX_BIO3
17XMS_INS
16REG_GND
15D_3.3V
14D_3.3V
13MS_PWR_ON
12MEDIA_PWR_ON2
11BATT_LI_3V
10REG_GND
9XSTART/STOP
8XCHARGE_LED
7XCAM_LED
6XPHOTO_LED
5EVER_3.0V
4KEY_AD1
3D_2.8V
2ZOOM_VR_AD
1REG_GND
BATTERY
TERMINAL
FB1001
10AUDIO_L_I/O_
FB1002
9AUDIO_R_I/O_
8LANC_SIG
7JACK_AD
6REG_GND
5REG_GND
4LANC_DC
3VIDEO/D3_PR_CN
2S_C/D3_PB_CN
1S_Y/D3_Y_CN
CN1010 6P
J901
DC IN
BT901
VD1001
VD1002
R1002
XX
R1003
XX
R1004
XX
VD1004
VD1003
Note:J901 and BT901 are included
in the DC jack hamess.
DC jack hamess is not include in
VC-590 complete board(service).
C1006
XMS_ACC_LED
KEY_AD2
A_2.8V
XPOWER_TACT_SW
PITCH_AD
VST_C_RESET
YAW_AD
GSENS_X
GSENS_Y
GSENS_Z
GSENS_REF
MSX2_CMD
MSX2_BIO_4
MSX2_BIO_5
MSX2_BIO_6
MSX2_BIO_7
XMSX2_INS
MSX2_WP
MSX2_CLK
MSX_CLK
MSX_BS
MSX_BIO1
MSX_BIO0
MSX_BIO2
MSX_BIO3
XMS_IN
D_3.3V
MS_PWR_ON
MEDIA_PWR_ON2
BATT_LI_3V
XSTART/STOP
XCHARGE_LED
XCAM_LED
XPHOTO_LED
EVER_3.0V
KEY_AD1
D_2.8V
ZOOM_VR_AD
REG_GND
XX
C1007
XX
R1038
1k
R1039
VD1006
1ACV_GND
2ACV_UNREG_CN
3BATT/XEXT_CN
4BATT_UNREG_CN
5BATT_SIG_CN
6BATT_GND
XX
VD1008
VD1005
R1040
XX
D1001
XX
220
AUDIO_L_I/O
AUDIO_R_I/O
LANC_SIG
JACK_AD
LANC_DC
VIDEO/D3_PR
S_C/D3_PB
S_Y/D3_Y
XX
XX
C1004
C1003
REG_GND
REG_GND
C1012
XX
C1013
XX
ACV_UNREG_CN
BATT/XEXT_CN
BATT_UNREG_CN
BATT_SIG
REG_GND
2.8V REG
4
VDD
VOUT
CE2GND
1
RESET
S1001
3
4
D_3.3V
C1015
0.1u
MEDIA_PWR_ON1
REG_GND
1
REG_GND
2
R1020
22k
IC1005
TC7SA04FU(TE85R)
1A
1
1B
2
2Y
3
4
GND
INVERTER
123
IC1004
TC7WZ08FK(TE85R)
AND GATE
45
VCC
1Y
2B
2A
C1005
1u
VC-590 BOARD(1/15)
SP+
SP-
CONNECTORS
XX MARK:NO MOUNT
1HDD_UNLOAD
2RESERVED
3D3.3V/MMC_VCC
4D3.3V/MMC_VCC
5D3.3V/MMC_VCC
6D3.3V/MMC_VCC
7D3.3V/MMC_VCC
8RESERVED(DASP-)
9CS1-
10CS0-
11DA2
12DA0/MMC_CLK
13DA1
14INTRQ
15DMACK-
16GND
17GND
18IORDY
19GND
REG_GND
XCS_LCD
REG_GND
LCD_PDB6
20GND
21DIOR-
22DIOW-
23GND
24GND
25DMARQ
26GND
27GND
28DD15
29DD0/MMC0
30DD14
31DD1/MMC1
32DD13
33DD2/MMC2
34DD12
35DD3/MMC3
36DD11
37DD4/MMC4
38DD10
39DD5/MMC5
40DD9
41DD6/MMC6
42DD8/MMC_CMD
43DD7/MMC7
44GND
45-RESET
45P
Q1001
DSC300100L
SWITCH
33REG_GND
32XBB_RST
31
30
BB_SO
29
28
27REG_GND
26LCD_HS
25LCD_VS
24REG_GND
23
22REG_GND
21
20LCD_PDB7
19
18LCD_PDB5
17LCD_PDB4
16LCD_PDB3
15LCD_PDB2
14LCD_PDB1
13LCD_PDB0
12REG_GND
11REG_GND
10PANEL_NOR/REV
9N.C
8D1.8V
7EP_2.8V
6BL_H
5BL_L
4D_2.8V
3TP_SEL1
2TP_Y
1TP_X
CN100533P
FP-1192
FLEXIBLE
LND001-LND045
PAGE 6-6
of LEVEL2
D_1.8V
D_2.8V
CN1006
XPANEL_POWER_ON
XBB_SCK_LCD
LCD_CLK_OUT
FP-1183
FLEXIBLE
LND001-LND033
PAGE 6-3
of LEVEL2
C1001
XX
R1045
1M
4123
SE1001
(PANEL OPEN/CLOSE)
R1001
GMR
470
24ZOOM_A
ZOOM_XA
23
22ZOOM_XB
21ZOOM_B
20REG_GND
19LENS_TEMP_AD
18FC_SENSE_OUT
B
LENS
BLOCK
C
Note:LENS BLOCK is replaced as block,
so that PRINTED WIRING BOARD and
SCHEMATIC DIAGRAM are omitted.
17FC_SENSE_VCC
16REG_GND
15ZM_SENSE_VCC
14ZM_SENSE_OUT
13REG_GND
12IRIS_DRIVE+
11IRIS_DRIVE-
10IRIS_BIAS+
9IRIS_HALL+
8IRIS_BIAS-
7IRIS_HALL-
6NC.
5REG_GND
4FOCUS_XA
3FOCUS_A
2FOCUS_XB
1FOCUS_B
CN100324P
D
CN100433P
1REG_GND
2LVDS_I/O_1.8V
3D_1.8V/D_2.8V
4CMOS_A_3.3V
5REG_GND
6REG_GND
7REG_GND
8DOAP
9DOAM
E
FP-1184
FLEXIBLE
LND001-LND033
PAGE 6-3
of LEVEL2
F
10REG_GND
11DOBP
12DOBM
13REG_GND
14DCKP
15DCKM
16REG_GND
17DOCP
18DOCM
19REG_GND
20DODP
21DODM
22REG_GND
23REG_GND
24XVS
25XHS
26SDI
27SCK
28XCE
29XCLR
30REG_GND
31REG_GND
32INCK
33REG_GND
G
H
I
J
FP-1191
FLEXIBLE
LND001-LND030
PAGE 4-XX
of LEVEL2
30USB_VCC
29USB_VCC
28USB_VCC
27REG_GND
26REG_GND
25REG_GND
24USB_ID2
23REG_GND
22USB_D+
21USB_D-
20REG_GND
19HPD
18+5V_POWER
17SDA
16SCL
15REG_GND
14CEC
13REG_GND
12TMDS_DATA2+
11TMDS_DATA2-
10REG_GND
9TMDS_DATA1+
8TMDS_DATA1-
7REG_GND
6TMDS_DATA0+
5TMDS_DATA0-
4REG_GND
3TMDS_CLOCK+
2TMDS_CLOCK-
1REG_GND
CN101130P
K
6AUDIO_GND
MIC901
MICROPHONE
UNIT
Note:MIC901 is not included in VC-590 complete board(service).
L L
5AUDIO_GND
4INT_MIC_L
3AUDIO_GND
2AUDIO_GND
1INT_MIC_R
6P
CN1009
A
B
C
D
E
F
G
H
I
J
K
08
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
6-8
Page 16
EXCEPT SX73E/SX83/SX83E
A
B
REG_GND
C
PCI_AD31
PCI_AD30
PCI_AD29
PCI_AD28
PCI_AD27
PCI_AD26
PCI_AD25
PCI_AD24
PCI_AD23
D
PCI_AD22
PCI_AD21
PCI_AD20
PCI_AD19
PCI_AD18
PCI_AD17
PCI_AD16
PCI_AD15
PCI_AD14
PCI_AD13
PCI_AD12
PCI_AD11
E
PCI_AD10
PCI_AD9
PCI_AD8
PCI_AD7
PCI_AD6
PCI_AD5
PCI_AD4
PCI_AD3
PCI_AD2
PCI_AD1
PCI_AD0
F
PCI_XBE3
PCI_XBE2
PCI_XBE1
PCI_XBE0
G
PCI_PAR
PCI_XFRM
PCI_XIRDY
PCI_XTRDY
PCI_XSTOP
PCI_XDEVSEL
H
PCI_XPERR
PCI_XINTA
PCI_XGNTTS0
PCI_XREQFS0
PCI_XRESET
PCI_CLK
I
J
CL2214
CL2215
IC_2301_DDR_BA1
IC_2301_DDR_BA0
XIC_2301_DDR_RAS
XIC_2301_DDR_CAS
XIC_2301_DDR_WE
XIC_2301_DDR_CS0
IC_2301_DDR_CKE1
IC_2301_DDR_CLK
XIC_2301_DDR_CLK
IC_2301_DDR_DQM3
IC_2301_DDR_DQM2
IC_2301_DDR_DQM1
IC_2301_DDR_DQM0
IC_2301_DDR_DQS3
IC_2301_DDR_DQS2
IC_2301_DDR_DQS1
IC_2301_DDR_DQS0
IC_2301_DDR_A13
IC_2301_DDR_A12
IC_2301_DDR_A11
IC_2301_DDR_A10
IC_2301_DDR_A09
IC_2301_DDR_A08
IC_2301_DDR_A07
IC_2301_DDR_A06
IC_2301_DDR_A05
IC_2301_DDR_A04
IC_2301_DDR_A03
IC_2301_DDR_A02
IC_2301_DDR_A01
IC_2301_DDR_A00
123
LND-S0.3-NS
LND-S0.3-NS
AC21
AB21
AB22
AA21
AA22
AA23
Y21
Y22
Y23
W21
U22
U21
U20
V23
V22
V21
W23
W22
U23
T23
R21
T22
R22
R20
P21
P20
P23
P22
N23
M23
N22
N21
M22
M21
L23
L21
L22
K23
K22
K21
J21
H20
J22
H22
H23
E21
F22
F23
F21
F20
G23
G22
PCI PROCESSOR(3/4)
CXD4113GG-T6
BMDQ00
BMDQ01
BMDQ02
BMDQ03
BMDQ04
BMDQ05
BMDQ06
BMDQ07
BMDQS0
OMDM0
BMDQ08
BMDQ09
BMDQ10
BMDQ11
BMDQ12
BMDQ13
BMDQ14
BMDQ15
BMDQS1
OMDM1
OMBA1
OMBA0
OMA02
OMA04
OMA06
OMA08
OMA10
OMA12
OMCKX
OMCK
OMCSX
OMA13
OMA00
OMA11
OMA09
OMA07
OMA05
OMA03
OMA01
OMRASX
OMCASX
OMWEX
OMCKE
OMDM2
BMDQS2
BMDQ16
BMDQ17
BMDQ18
BMDQ19
BMDQ20
BMDQ21
BMDQ22
57
R2235
XX
R2236
D_1.8V
A_1.8V
D_2.8V
D_3.3V
D_1.2V
XX
CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170
FB2201
R2238
XX
R2239
XX
C2205
10u
PCI_XINTA
PCI_XGNTTS0
PCI_XREQFS0
PCI_XRESET
PCI_CLK
PCI_XFRM
PCI_XIRDY
PCI_XTRDY
PCI_XDEVSEL
PCI_XSTOP
PCI_XPERR
PCI_PAR
D_3.3V
D_1.2V
C2209
C2208
C2207
C2206
2.2u
PCI_AD31
PCI_AD30
PCI_AD29
PCI_AD28
PCI_AD27
PCI_AD26
PCI_AD25
PCI_AD24
PCI_XBE3
PCI_AD23
PCI_AD22
PCI_AD21
PCI_AD20
PCI_AD19
PCI_AD18
PCI_AD17
PCI_AD16
PCI_XBE2
C2203
R2210
XX
XX
PCI_XBE1
PCI_XBE0
CL2201
LND-S0.3-NS
PCI_AD15
PCI_AD14
PCI_AD13
PCI_AD12
PCI_AD11
PCI_AD10
PCI_AD9
PCI_AD8
PCI_AD7
PCI_AD6
PCI_AD5
PCI_AD4
PCI_AD3
PCI_AD2
2.2u
2.2u
2.2u
IC2201
CXD4113GG-T6(1/4)
PCI PROCESSOR
A4
BHCLKRUNX
VSS
VDD_PCI_IO
VDD_PCI_IO
VDD_PCI_IO
VDD_PCI_IO
VDD_PCI_IO
VDD_PCI_IO
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
VDD_ENC
OFETCNT2
IIWINMOD2
IIWINMOD1
IIWINMOD0
OFETCNT0
OFETCNT1
IHM66EN
IIBTMOD
IICKREN
BHAD00
BHAD01
W1
VSS
R1
VSS
L1
VSS
B1
VSS
A2
VSS
A1
VSS
G1
N4
N3
F4
F3
F2
F1
VSS
J23
L4
L3
K20
J20
VSS
C18
VSS
B18
VSS
A18
D19
C19
B19
A19
VSS
B12
VSS
A12
A11
VSS
B6
VSS
A6
D5
C5
B5
A5
D16
IIPCILV
D8
C8
B8
IIPMEN
D10
A8
B9
A9
D15
C15
R2245 1k
B2D
P4
R2246 1k
B2C
R4
W4
PCI_AD0
W3
PCI_AD1
W2
B4
OHPMEX
A3
OHINTX
B3
IHGNTX
B2
OHREQX
C2
BHAD31
C3
BHAD30
C1
BHAD29
C4
BHAD28
D2
BHAD27
D4
BHAD26
D1
BHAD25
D3
BHAD24
E2
BHCBEX3
E3
IHIDSEL
E1
BHAD23
E4
BHAD22
G3
BHAD21
G4
BHAD20
G2
BHAD19
H4
BHAD18
H2
BHAD17
H3
BHAD16
J2
BHCBEX2
H1
IHRSTX
J1
IHCLK
K2
BHFRAMEX
K1
BHIRDYX
K4
BHTRDYX
L2
BHDEVSELX
K3
BHSTOPX
M2
BHPERRX
M1
OHSERRX
M4
BHPAR
M3
BHCBEX1
N2
BHAD15
N1
BHAD14
P3
BHAD13
P1
BHAD12
P2
BHAD11
R2
BHAD10
R3
BHAD09
T2
BHAD08
T3
BHCBEX0
T1
BHAD07
U3
BHAD06
U1
BHAD05
U2
BHAD04
V1
BHAD03
V2
BHAD02
D_2.8V
0.1u
C2210
0.1u
C2211
0.1u
C2212
0.1u
C2216
6
CLK_SYS_OUT
CODEC_SYSCLK
CODEC_VDATA_7
CODEC_VDATA_6
CODEC_VDATA_5
CODEC_VDATA_4
CODEC_VDATA_3
CODEC_VDATA_2
CODEC_VDATA_1
CODEC_VDATA_0
CODEC_LRCK_OUT
CODEC_MCK_OUT
CODEC_ADATA1
CODEC_ADATA0
SPDIF_O_TX
CODEC_VCLK
CODEC_FLD
CODEC_VCLKR_IN
A_1.8V
R2218
R2219
CODEC_VDATA_2
CODEC_VDATA_1
CODEC_VDATA_3
CODEC_VDATA_6
CODEC_VDATA_7
CODEC_VDATA_5
CODEC_VDATA_4
CODEC_VDATA_0
R2251 33
81 42
D_2.8V
D_3.3V
D_1.2V
D_1.2V
100
C2220
C2217
22u
0.1u
100
C2218
C2219
22u
0.1u
RB2203
47
8
7
6
5
4
3
2
1
RB2202
47
8
7
5
6
3
4
2
1
IC2201
CXD4113GG-T6(2/4)
PCI PROCESSOR
IIPKGID
VDD_AU_IO
VDD_JTG
VDD_CDC
VDD_CDC
VDD_CDC
VDD_CDC
VDD_CDC
VDD_CDC
VDD_CDC
VDD_TOP
VDD_TOP
VDD_TOP
VDD_TOP
VDD_TOP
VDD_TOP
VDD_TOP
VDD_TOP
VDD_TOP
VDD_TOP
VDD_TOP
BJBKTGX
VDD_I2C
IISYSID0
IISYSID1
IIMEMID0
IIMEMID1
D18
VSS
AC11
VSS
AC7
VSS
AC2
VSS
AC1
VSS
AB1
T4
Y16
D7
T10
Y5
Y4
Y3
Y2
Y1
N8
G21
G20
AA6
Y14
Y6
T21
T20
J4
J3
D9
C9
OADT2
AA17
OADT1
AA18
OADT0
AB17
OABC
Y18
OALR
AC17
BABC
Y17
BADT0
AA16
BADT1
Y15
IAMCK
AC16
BADT2
AA15
BALR
AB16
C16
D17
B16
A16
CL2209
D6
LND-S0.3-NS
IJTMS
CL2210
C6
LND-S0.3-NS
IJTDI
CL2211
B7
LND-S0.3-NS
IJTCK
CL2212
A7
LND-S0.3-NS
OJTDO
CL2213
C7
LND-S0.3-NS
BGPIO3
C10
BGPIO2
B10
BGPIO1
B11
BGPIO0
A10
OTPD3
D11
OTPD2
C11
AC14
VDD_PLL1
AC15
VDD_PLL2
AB14
VSS_PLL1
AB15
VSS_PLL2
AC12
IPCLK
AC13
ITCLK
AA13
IPFREQ
AB13
ITPLLBP
AA14
ICMINH
AC3
BVLDT00
AA2
BVLDT01
AB3
BVLDT02
AB2
BVLDT03
AA1
IVLCLK
AB4
BVLDT04
AC4
BVLDT05
AA3
BVLDT06
AA4
BVLDT07
AA5
IVLFRP
AC5
OVLCLK
AB5
BVHDT15
AB6
BVHDT14
AC6
BVHDT13
AB7
BVHDT12
AA7
BVHDT11
AB8
BVHDT10
Y7
BVHDT09
AA8
BVHDT08
AC8
IVHCLK
AC9
BVHDT07
AB9
BVHDT06
Y8
BVHDT05
Y11
BVHDT04
AA10
BVHDT03
AC10
OVHCLK
AB10
BVHDT02
AB11
BVHDT01
AA11
BVHDT00
AB12
IVHFRP
AA12
IVHHSN
C17
OLDT
B17
OLSN
A17
OLCK
B15
ICIRQX
B14
IQTEST
A15
IQTCK
A14
IQMCK
C14
OUTX
B13
OURTSX
C13
IURX
A13
IUCTSX
D12
OTPD0
C12
OTPD1
10 11
0.1u
C2228
0.1u
C2229
0.1u
C2231
0.1u
C2233
IC_2301_DDR_D00
IC_2301_DDR_D01
IC_2301_DDR_D02
IC_2301_DDR_D03
IC_2301_DDR_D04
IC_2301_DDR_D05
IC_2301_DDR_D06
IC_2301_DDR_D07
IC_2301_DDR_DQS0
IC_2301_DDR_DQM0
IC_2301_DDR_D08
IC_2301_DDR_D09
IC_2301_DDR_D10
IC_2301_DDR_D11
IC_2301_DDR_D12
IC_2301_DDR_D13
IC_2301_DDR_D14
IC_2301_DDR_D15
IC_2301_DDR_DQS1
IC_2301_DDR_DQM1
IC_2301_DDR_BA1
IC_2301_DDR_BA0
IC_2301_DDR_A02
IC_2301_DDR_A04
IC_2301_DDR_A06
IC_2301_DDR_A08
IC_2301_DDR_A10
IC_2301_DDR_A12
XIC_2301_DDR_CLK
IC_2301_DDR_CLK
XIC_2301_DDR_CS0
IC_2301_DDR_A13
IC_2301_DDR_A00
IC_2301_DDR_A11
IC_2301_DDR_A09
IC_2301_DDR_A07
IC_2301_DDR_A05
IC_2301_DDR_A03
IC_2301_DDR_A01
XIC_2301_DDR_RAS
XIC_2301_DDR_CAS
XIC_2301_DDR_WE
IC_2301_DDR_CKE1
IC_2301_DDR_DQM2
IC_2301_DDR_DQS2
IC_2301_DDR_D16
IC_2301_DDR_D17
IC_2301_DDR_D18
IC_2301_DDR_D19
IC_2301_DDR_D20
IC_2301_DDR_D21
IC_2301_DDR_D22
13
D_1.8V
D_1.8V
D_2.8V
D_1.2V
14
15
169
A
B
IC2201
VSS
V20
VSS
AC18
VSS
AB18
VSS
N20
VSS
AC23
VSS
AC22
VSS
AB23
VSS
R23
VSS
B23
VSS
A23
VSS
A22
VDD_VH_IO
AA9
VDD_VH_IO
Y10
VDD_VH_IO
VDD_VL_IO
VDD_VL_IO
VDD_VL_IO
VDD_IO_GPIO
VDD_IO_GPIO
VDD_IO_CLK
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DDR_IO
VDD_DEC
VDD_DEC
VDD_DEC
VDD_DEC
VDD_DEC
VDD_DEC
VDD_DEC
IMSENSE
BMDQ31
BMDQ30
BMDQ29
BMDQ28
BMDQ27
BMDQ26
BMDQ25
BMDQ24
BMDQS3
BMDQ23
Y9
V4
V3
U4
D14
D13
Y13
Y20
AC20
AB20
AA20
W20
M20
L20
H16
E20
D20
C20
B20
A20
AC19
AB19
AA19
Y19
Y12
T15
P16
A21
B21
B22
C21
C22
C23
D21
D22
D23
IC_2301_DDR_DQS3
E23
IC_2301_DDR_DQM3
OMDM3
E22
H21
C2235
C2236
C2239
C2240
C2242
IC_2301_DDR_D31
IC_2301_DDR_D30
IC_2301_DDR_D29
IC_2301_DDR_D28
IC_2301_DDR_D27
IC_2301_DDR_D26
IC_2301_DDR_D25
IC_2301_DDR_D24
IC_2301_DDR_D23
0.1u
0.1u
0.1u
0.1u
0.1u
IC_2301_DDR_D31
IC_2301_DDR_D30
IC_2301_DDR_D29
IC_2301_DDR_D28
IC_2301_DDR_D27
IC_2301_DDR_D26
IC_2301_DDR_D25
IC_2301_DDR_D24
IC_2301_DDR_D23
IC_2301_DDR_D22
IC_2301_DDR_D21
IC_2301_DDR_D20
IC_2301_DDR_D19
IC_2301_DDR_D18
IC_2301_DDR_D17
IC_2301_DDR_D16
IC_2301_DDR_D15
IC_2301_DDR_D14
IC_2301_DDR_D13
IC_2301_DDR_D12
IC_2301_DDR_D11
IC_2301_DDR_D10
IC_2301_DDR_D09
IC_2301_DDR_D08
IC_2301_DDR_D07
IC_2301_DDR_D06
IC_2301_DDR_D05
IC_2301_DDR_D04
IC_2301_DDR_D03
IC_2301_DDR_D02
IC_2301_DDR_D01
IC_2301_DDR_D00
IC2201
CXD4113GG-T6(4/4)
PCI PROCESSOR
H8
VSS
H9
VSS
H10
VSS
H11
VSS
H12
VSS
H13
VSS
H14
VSS
H15
VSS
J8
VSS
J9
VSS
J10
VSS
J11
VSS
J12
VSS
J13
VSS
J14
VSS
J15
VSS
J16
VSS
K8
VSS
K9
VSS
K10
VSS
K11
VSS
K12
VSS
K13
VSS
K14
VSS
K15
VSS
K16
VSS
L8
VSS
L9
VSS
L10
VSS
L11
VSS
L12
VSS
L13
VSS
L14
VSS
L15
VSS
L16
VSS
M8
VSS
M9
VSS
M10
VSS
VSS
T16
VSS
T14
VSS
T13
VSS
T12
VSS
T11
VSS
T9
VSS
T8
VSS
R16
VSS
R15
VSS
R14
VSS
R13
VSS
R12
VSS
R11
VSS
R10
VSS
R9
VSS
R8
VSS
P15
VSS
P14
VSS
P13
VSS
P12
VSS
P11
VSS
P10
VSS
P9
VSS
P8
VSS
N16
VSS
N15
VSS
N14
VSS
N13
VSS
N12
VSS
N11
VSS
N10
VSS
N9
VSS
M16
VSS
M15
VSS
M14
VSS
M13
VSS
M12
VSS
M11
C
D
E
F
G
H
I
J
K
VC-590 BOARD(2/15)
PCI PROCESSOR
XX MARK:NO MOUNT
L L
08
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
6-9
K
Page 17
6-10
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
EXCEPT SX73E/SX83/SX83E
C2301
10u
C2302
0.1u
C2304
0.1u
C2305
0.1u
C2303
0.1u
XIC_2301_DDR_CS0
XIC_2301_DDR_CLK
XIC_2301_DDR_CAS
IC_2301_DDR_A13
IC_2301_DDR_A03
IC_2301_DDR_BA0
IC_2301_DDR_A07
IC_2301_DDR_A00
IC_2301_DDR_A06
IC_2301_DDR_A02
XIC_2301_DDR_RAS
IC_2301_DDR_A10
IC_2301_DDR_CKE1
IC_2301_DDR_A01
IC_2301_DDR_A11
REG_GND
IC_2301_DDR_A05
D_1.8V
REG_GND
XIC_2301_DDR_WE
IC_2301_DDR_A08
IC_2301_DDR_A12
IC_2301_DDR_A04
IC_2301_DDR_BA1
IC_2301_DDR_CLK
IC_2301_DDR_A09
IC_2301_DDR_D19
IC_2301_DDR_D15
IC_2301_DDR_D28
IC_2301_DDR_D07
IC_2301_DDR_D11
IC_2301_DDR_D02
IC_2301_DDR_D00
IC_2301_DDR_D14
IC_2301_DDR_D20
IC_2301_DDR_DQS0
IC_2301_DDR_D12
IC_2301_DDR_D13
IC_2301_DDR_D09
IC_2301_DDR_D29
IC_2301_DDR_D27
IC_2301_DDR_D23
IC_2301_DDR_DQS1
IC_2301_DDR_DQM0
IC_2301_DDR_DQM1
IC_2301_DDR_D26
IC_2301_DDR_D30
IC_2301_DDR_D03
IC_2301_DDR_D08
IC_2301_DDR_D25
IC_2301_DDR_D16
IC_2301_DDR_D10
IC_2301_DDR_D31
IC_2301_DDR_D22
IC_2301_DDR_D01
IC_2301_DDR_D21
IC_2301_DDR_DQS3
IC_2301_DDR_DQM2
IC_2301_DDR_DQM3
IC_2301_DDR_D06
IC_2301_DDR_DQS2
IC_2301_DDR_D18
IC_2301_DDR_D24
IC_2301_DDR_D05
IC_2301_DDR_D04
IC_2301_DDR_D17
IC2301
K4X56323PL-8GC6T
R1
VSSF9VSSA1VSSR3VSSQP9VSSQN1VSSQM9VSSQL1VSSQE1VSSQD9VSSQC1VSSQB9VSSQA3VSSQR8DQ0P7DQ1P8DQ2N7DQ3N8DQ4M7DQ5M8DQ6L7DQ7L8DQS0
K8
DM0
L3
DQ8
M2
DQ9
M3
DQ10
N2
DQ11
N3
DQ12
P2
DQ13
P3
DQ14
R2
DQ15
L2
DQS1
K2
DM1
A8
DQ16
B7
DQ17
B8
DQ18
C7
DQ19
C8
DQ20
D7
DQ21
D8
DQ22
E7
DQ23
E8
DQS2
F8
DM2
E3
DQ24
D2
DQ25
D3
DQ26
C2
DQ27
C3
DQ28
B2
DQ29
B3
DQ30
A2
DQ31
E2
DQS3
F2
DM3
A7
VDDQ
B1
VDDQ
C9
VDDQ
D1
VDDQ
E9
VDDQ
L9
VDDQ
M1
VDDQ
N9
VDDQ
P1
VDDQ
R7
VDDQ
A9
VDDF1VDDR9VDD
F3
A13
H3
A12
H2
A11
J7
A10
H1
A9
J3
A8
J2
A7
J1
A6
K3
A5
K1
A4
K9
A3
K7
A2
J9
A1
J8
A0
H9
BA1
H8
BA0
G9
RAS2
G8
CAS2
G7
WE2
H7
CS2
G1
CKE
G2
CK
G3
CK2
F7
NC
R2301
XX
XX MARK:NO MOUNT
MOBILE-DDR SDRAM
256M
MOBILE-DDR SDRAM
VC-590 BOARD(3/15)
B
5
D
C
B
4
E
3 62
A
7
F
8
08
A
D
E
F
C
1
Page 18
6-11
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
C2407
1u
C2416
0.01u
C2405
0.1u
C2418
XX
C2415
0.01u
C2423
XX
C2424
XX
C2420
10u
C2417
0.1u
C2408
XX
C2411
0.001u
C2409
0.001u
C2404
1u
C2406
1u
C2401
1u
C2402
0.1u
C2410
1u
C2414
4.7u
C2403
0.1u
C2413
4.7u
C2412
1u
C2422
22u
10V
COM241
COMMON-GND2
1
2
BB_SO
XCS_ACO
INT_MIC_R
A_4.6V
MT_5.0V
SYS_SOUND
D_2.8V
AUDIO_GND
AUDIO_GND
MT_5.0V
A_3.3V
REG_GND
AU_2.8V
INT_MIC_L
ADA_LRCK
ADA_FCK
ADA_BCK
D_1.2V
REG_GND
XBB_SCK
ADA_SIA0
SP-
AUDIO_GND
ADA_SOA0
AUDIO_R_I/O
AUDIO_L_I/O
SP+
IC2401
BU76310GU-E2
C6
MIC_NF_RD4EX_MIC_RD3INT_MIC_RE2MIC_REGE1INT_MIC_LD5EX_MIC_LD2MIC_NF_LD1BIASC1AVSS
F1
AVSS
F2
AVDD
C5
LINE_R
F3
LINE_L
F4
EVROUT
E3
SPIN
D6
SP_-
E6
SPVSS
F6
SPVSS
E5
SPVDD
F5
SP_+
E4
BEEP_IN
B2
MCLK_O
B6
DREG
B1
DVDD
A5
DAIN
A2
ADOUT
A3
BCLK
B3
LRCK
A4
MCLK
A1
DVSS
A6
DVSS
C2
DVSS
B5
SDATA
B4
SCLK
C4
CSB
Q2403
2SA2154MFV(TL3SONY)
Q2401
MCH3211-TL-E
Q2402
RN1910FE(TPLR3)
6
2
1
3
5
4
R2422
100k
R2406
XX
R2411
1k
R2410
1k
R2419
100k
R2421
100k
R2423
47k
R2409
0
R2415
2200
R2414
2200
R2417
XX
R2418
0
R2412
4700
R2420
47k
R2416
470
R2424
XX
R2426
XX
L2402
10uH
R2425
XX
XX MARK:NO MOUNT
AUDIO I/O
AUDIO MUTE
SWITCH
AUDIO I/O
VC-590 BOARD(4/15)
B
5
D
C
B
4
E
3 62
A
7
F
8
08
A
D
E
F
C
1
Page 19
6-12
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
EXCEPT SX73E/SX83/SX83E
C2505
10u
C2507
4.7u
C2502 2.2u
C2501 2.2u
C2503 2.2u
C2506
0.1u
C2508
4.7u
C2504
10u
COM252
COMMON-GND2
1
2
COM251
COMMON-GND2
1
2
REG_GND
LINEOUT_PB/C
REG_GND
LINEOUT_Y
LINEOUT_PR
A_2.8V
STBY
SD/HD
VIDEO_GND
VIDEO_GND
CP_GND
VIDEO/D3_PR
S_Y/D3_Y
S_C/D3_PB
CP_GND
L2501
10uH
L2502
10uH
IC2501
BH76095GU-E2
A1
VEE_OUTA2C_MINUSA3CP_GNA4C_PLUSB1VEE_IN
B3
STBY
B4
CP_VCC
C1
V_VCC
C2
V_VCC
C3
V_GND
C4
Pr_IN
D1
Pr_OUT
D2
Pb/C_OUT
D3
V_GND
D4
Pb/C_IN
E1
Py/Y_OUT
E2
CVBS_OUT
E3
SD/HD
E4
Py/Y_IN
R2502
75
R2504
75
R2503
75
XX MARK:NO MOUNT
VIDEO AMP
VIDEO AMP
VC-590 BOARD(5/15)
B
5
D
C
B
4
E
3 62
A
7
F
8
08
A
D
E
F
C
1
Page 20
6-13
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
EXCEPT SX73E/SX83/SX83E
D7_HDMI
D8_HDMI
D9_HDMI
D10_HDMI
D11_HDMI
D12_HDMI
D13_HDMI
D14_HDMI
D15_HDMI
I2C_SDA
D2_HDMI
D3_HDMI
D4_HDMI
D5_HDMI
D6_HDMI
D1_HDMI
I2C_SCK
I2S0_HDMI
IDCK
I2C_SDA
SPDIF_O_TX
FS_HDMI
64FS_HDMI
CEC_SAMP_CLK
I2C_SCK
64FS_HDMI
IDCK
CEC_SAMP_CLK
SPDIF_O_TX
I2S0_HDMI
FS_HDMI
VSYNC_HDMI
HSYNC_HDMI
DE_HDMI
D0_HDMI
A_1.8_AVDD_PVDD
C3503
10u
C3501
10u
C3509
0.01u
C3510
XX
C3507
0.22u
C3506
0.1u
C3505
0.1u
C3504
0.1u
C3508
0.22u
C3511
XX
D3502
1SS420(TL3SONY.F)
D3503
1SS420(TL3SONY.F)
D3501
RB520CS-30T2R
REG_GND
I2C_SCK
D_2.8V
D_1.8V
A_1.8V
I2C_SDA
D1_HDMI
D2_HDMI
D3_HDMI
D4_HDMI
D5_HDMI
D6_HDMI
D7_HDMI
D8_HDMI
D9_HDMI
D10_HDMI
D11_HDMI
D12_HDMI
D13_HDMI
D14_HDMI
D15_HDMI
D_2.8V
CEC_SAMP_CLK
D0_HDMI
D_3.3V
I2S0_HDMI
FS_HDMI
64FS_HDMI
VSYNC_HDMI
HSYNC_HDMI
IDCK
DE_HDMI
SPDIF_O_TX
VTR3_UNREG
TMDS_DATA0+
HDMI_JACK_IN
TMDS_DATA0-
TMDS_DATA1-
TMDS_DATA1+
+5V_POWER
TMDS_DATA2-
SDA
TMDS_DATA2+
REG_GND
HPD
SCL
TMDS_CLOCK+
TMDS_CLOCK-
CEC
IC3502
TK11150CSCL-G
123
4 5
IC3501
ADV7541BCBZ-P-1R
C4
DVDDD4DED3HSYVCC2VSYNCE1CLKF1SPDIFD2I2S0D5SCLKE3LRCLKF2AVDDF3R_EXTF5AVDD
E4
HPD
G1
TXC-
G2
TXC+
G3
TX0-
G4
TX0+
G5
TX1-
G6
TX1+
G7
TX2-
F7
TX2+
E7
CEC_IO
F6
INT
D7
DDCSCL
C6
DDCSDA
C5
SCL
D6
SDA
C7
D15B6D14B7D13A7D12A6D11A5D10
B5D9A4D8B4
D7
A3
D6
B3
D5
A2
D4
A1
D3
B1
D2
C1
D1
D1
D0
B2
DVDD
E5
GND
E6
CEC_CLK
F4
GND
C3
GND
E2
GND
CL3502
CL3503
CL3501
L3501
10uH
Q3501
DMG964030L
3
5
4
6
2
1
R3532
1800
R3503
XX
R3514
27k
R3501
1k
R3502
47k
R3531
1800
LF3501
LF3502
LF3503
LF3504
SCL
SDA
+5V_POWER
AVDD PVDD
DVDD
H
E
5
C
1
G
2
B
A
6
D
104 12
08
11
C
A
E
7
G
H
9
B
F
8
F
D
3
XX MARK:NO MOUNT
HDMI TRANSMITTER
SWITCH
5V REG.
HDMI TRANSMITTER
VC-590 BOARD(6/15)
Vin
Cont
GND
NP
Vout
Page 21
6-14
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
ACV_UNREG_CN
C4605
10u
C4606
10u
C4604
10u
COM461
COMMON-GND2
1
2
D4604
1SS420(TL3SONY.F)
BATT_UNREG_CN
REG_GND
BATT_ON
INIT_CHARGE_ON
ACV_UNREG_CN
ACV_ON
VTR3_UNREG
ACV_UNREG
REG_GND
BATT_UNREG
VTR2_UNREG
MT_GND
VTR_UNREG
F4604
(1.4A/32V)
F4603
(1.4A/32V)
F4605
(0.25A/50V)
F4601
(0.25A/50V)
F4602
(1.4A/32V)
Q4603
ECH8652-S-TL-H
8
7
2
6
5
4
Q4601
CPH6102-TL-E
1
2
3
4
5
6
Q4602
DTC144EMFS6T2L
R4608
1k
R4607
10
R4609
4700
XX MARK:NO MOUNT
DC/BATTERY IN
SWITCH
SWITCH
SWITCH
VC-590 BOARD(7/15)
B
5
D
C
B
4
E
3 62
A
7
F
8
08
A
D
E
F
C
1
Page 22
6-15
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
E
E
S
S
S
S
VTR3_UNREG
VTR2_UNREG
VTR_UNREG
VLDO2_8.5V
D_1.2V
D_1.2V
D_3.3V
D_3.3V
CH6_5V
CH6_5V
CH6_5V
D_2.8V
D_2.8V
D_1.8V
BL_L
C4701
1u
C4711
10u
C4713
10u
C4703
1u
C4773
1u
C4714
10u
C4704
1u
C4715
10u
C4705
1u
C4706
1u
C4754
1u
C4772
1u
C4708
1u
XX
C4775
C4730
0.1u
C4729
0.1u
C4732
4.7u
C4728
1u
C4721
0.22u
C4722
0.1u
C4725
0.1u
C4770
0.1u
C4733
0.47u
C4731
1u
C4771
1u
C4736
0.01u
C4769
0.001u
C4723
0.1u
C4735
0.0022u
C4751
22u
C4768
10u
C4724
10u
C4716
10u
C47181uC4719
XX
C4762
10u
C4726
0.1u
C4727
4.7u
C4760
10u
C4759
10u
C4758
XX
C4761
10u
C4755
4.7u
C4756
0.1u
C4763
10u
C4734
XX
VTR_UNREG
VTR3_UNREG
BL_L
VTR2_UNREG
LDO_ON
REG_GND
ACV_UNREG
BATT_LI_3V
BATT_UNREG
LANC_SIG
MEDIA_PWR_ON1
FR_EVER_SO
FR_EVER_SCK
XCS_DD
XLANC_ON
VTR_DD_ON
PANEL_BL_ON
LANC_OUT
XLANC_PWR_ON
LANC_DC
LANC_IN
HDD_3.3V
MT_5.0V
CH6_5V
D_3.3V
EVER_3.0V
BL_H
VOUT
A_3.3V
A_1.8V
FR_XRESET
D_1.8V
A_2.8V
D_2.8V
A_2.8V
BATT_IN
FR_EVER_SI
SD_1.8V
A_1.2V
AU_2.8V
ACV_ON
BATT_ON
MT_GND
D_1.2V
A_4.6V
NJM2878F4-46(TE2)
IC4703
1
CE
2
GND
OUT
3
IN
4
CL4702
CL4701
LND-S0.5-NS
CL4703
L4704
4.7uH
L4723
100uH
L4705
10uH
L4706
4.7uH
L4703
4.7uH
L4701
4.7uH
L4716
10uH
L4714
10uH
L4721
1uH
L4711
XX
L4719
4.7uH
L4717
10uH
L4722
10uH
IC4701
MB44C017BBGF-G-N2ERE1
C9
LDO1_ON
A12
VLDO1
A11
SW_OUTB9VLDO2A9PVDD8
B10
VLDO3
A10
PVDD9
H13
DVDD1
M13
DVDD2
M12
CFP
N12
CFN
N11
DGND2
E11
BL_ON
C10
CCD_ON
C11
-IN8PWM
D13
+INA
D12
-INA
C12
-INE8
B11
FB8
C13
OUTA
B12
IN8J3DGND1
B13
OUT8
E1
PGND7
F1
LX7
G1
PVDD7
B5
PGND6b
A5
PGND6a
B4
LX6b
A4
LX6a
B3
PVDD6b
A3
PVDD6a
M10
PGND5b
N10
PGND5a
M9
LX5b
N9
LX5a
M8
PVDD5b
N8
PVDD5a
B6
PGND4b
A6
PGND4a
B7
LX4b
A7
LX4a
B8
PVDD4b
A8
PVDD4a
D2
PGND3b
D1
PGND3a
C2
LX3b
C1
LX3a
B2
PVDD3b
B1
PVDD3a
E12
PGND2b
E13
PGND2a
F12
LX2b
F13
LX2a
G12
PVDD2b
G13
PVDD2a
J12
PGND1b
J13
PGND1a
K12
LX1b
K13
LX1a
L12
PVDD1b
L13
PVDD1a
L11
IN1
G11
IN2D3IN3C8IN4
L10
IN5C5IN6G2IN7
A2
APPL_SW
F2
CH7_SWC4CH6_SW
D11
CH8_SELC3CH6_SEL
M11
CH5_SEL
F11
CH2_SEL
K11
CH1_SEL
C6
AGND1
H11
N.C
H12VBJ11
VREF
E2VRH1
AVDD1
K3
AGND4
K2
BATT_ON
J2
ACV_ON
J1
VTR_UNREG
L1
BATT_UNREG
K1
ACV_UNREG
N13
N.C
N1
TEST_MODE
A13
TEST2A1TEST1
N2
VBBIN
N3
BATT_IN_DET
N4
BATT_IN_SEL
L2
VOUT
M1
VBACKUP
M2
RST_OUT
M3
BATT_IN
L3
VRO
N5
AGND2
H2
RT
C7
DD_ON
F6
AGND1
F7
AGND1
F8
AGND1
G6
AGND1
G7
AGND1
G8
AGND1
H6
AGND1
H7
AGND1
H8
AGND1
M6
LANC_DC
L4
DATA_IN
L5
DATA_OUT
M4
LANC_OUT
L6
WAKE_UP
M5
XLANC_ON
N6
AGND3
L7
LD
L9
CLK
L8
DIN
N7
DOUT
M7
XRST
H3
XALART
E3
SCL
F3
SD1
G3
SD2
D4
N.C
Q4702
SCH2825-TL-E
123 4
5
6
Q4705
XX
Q4701
MCH3406-TL-E
Q4704
XX
Q4703
XX
R4708
XX
R4704
4700
R4709
XX
R4716
10k
XX
R4723
XX
R4722
R4705
10k
R4710
XX
R4720
XX
R4711
XX
R4729
XX
R4727
XX
R4724
XX
R4714
XX
R4728
XX
R4706
15
R4725
XX
R4715
150k
R4730
XX
R4701
100
R4703
4700
R4712
XX
R4719
XX
47k
R4702
R4707
100k
CH1
CH2
CH3
CH4
CH5
CH6
CH7
INSELPowerACV_SW
TEST
BB
ThermalGND
LANC
Serial IF
uDD
CH8
ChargePump
LDO3LDO2LDO1
VTR_UNREG
VTR2_UNREG
H
E
5
C
1
G
2
B
A
6
D
104 12
08
11
C
A
E
7
G
H
9
B
F
8
F
D
3
XX MARK:NO MOUNT
DC CONTROL
4.6V REG.
DC CONTROL
SWITCH
DC CONTROL, RESET,
LANC DRIVE
VC-590 BOARD(8/15)
Page 23
1
2
3
5
6
7
8
9
104 12
11
C4901
22u
6.3V
EVER_3.0V
VOUT
GND
32.768kHz
C4906
X4901
C4907
12p
3
4
12p
BATT_SIG
XPANEL_POWER_ON
XPOWER_TACT_SW
VOUT
47k
R4927
5
XMS_IN
1
2
3
B6
A6
C5
78_XPUI_RM1_IN
79_XPUI_RM2_IN
80_XI_LANC_JACK_IN
XFR_SCK
FR_SO
FR_SI
BATT_IN
BATT/XEXT_CN
R4948
B7
A7
C7
75_O_P67
76_I_BATT_IN
77_PUI_BATT_XEXT
XX
R4956
0.01u
C4913
470
C4919
0.1u
A8
C8
73_XODO_SYS_RST
72_XODO_FLASH_RST
74_XODO_DRIVE_RST
71_PUI_LANC_SI
70_O_LANC_SO
69_O_LOAD_ON_FR1
68_O_PULLUP_SYSSET
67_ODO_NTSCXPALDET
66_O_FLASH_PWR_ON
65_XI_RST_REQ
64_XI_POWER_OFF
63_O_FAST_CHARGE
62_O_INIT_CHARGE
61_XO_PWR_LED_ON
60_XO_CHARGE/STB_LED
59_I_GPS_SW
58_XO_GPS_RST
57_I_CHARGE_INH
56_O_P44
55_AI_JACK_AD_CRADLE
54_O_P42
53_O_P41
52_AI_GENERAL_AD
51_AI_SYSTEM_AD
50_O_P36
49_O_P35
47_AI_SYSTEM_SET_SENS
48_O_P34
J7
L7
R4953
R4954
XX
R4957
C4917
0.01u
470k
R4929
R4930
1M
R4933
R4934
XX
XX
47k
100k
FR_XRESET
C4912
0.1u
47k
R4916
J8
J3
1_RSTX
2_MOD
3_TMD
4_X0A
5_X1A
6_CPO
7_VCI
8_BRSTX
9_BDBMX
10_BSIN
11_BSOUT
12_BSOUT
13_BEXCK
14_XPUIO_BATT_SIG
15_SUBCK
16_SUBCK
17_AVCC
18_AVSS
19_AVR
20_XPUI_POWER_ON
21_XPUI_POWER_TACT
22_XPUI_EJECT_SW
23_XPUI_MODE_SW
24_XPUI_BATTINFO_SW
L11
95_NC
96_NC
25_PUI_BATT_XEXT_CR
26_XPUI_RM3_IN
B1
C2
93_VSS8J994_VSS9
27_XPUI_LANC_PWR_ON
28_PUI_DDCON_SID229_O_DDCON_SOD130_XO_DDCON_SCK
C1
C3
XLANC_PWR_ON
FR_EVER_SCK
FR_EVER_SO
FR_EVER_SI
1k
R4915
R4917
K2
K1
K3
L2
L3
6800
H1
J1
A1
L1
A11
B9
C9
A9
A4
K4
L4
0.1u
L10
L9
XX
K10
B4
1k
A3
B3
A2
B2
C4911
0.1u
12
10M
CL4901
CL4902
CL4903
CL4904
CL4906
R4911
C4908
0.01u
C4909
0.1u
CL4908
R4913
1800
C4910
R4963
R4964
CL4909
CL4910
CL4911
CL4912
CL4917
CL4918
CL4919
CL4920
A10
MB95005ABGL-G-125-ERE1
FRONT CONTROL
31_O_LDO_ONE332_O_LOAD_ON_FR2
33_XPUI_USB_VBUS
34_O_GPS_DD_ONF135_O_GPS_UPDATE
D3
E1
E2
LDO_ON
86_VSS1C687_VSS2F388_VSS3F989_VSS4G390_VSS5G991_VSS6J692_VSS7
IC4901
36_O_SYS_DD_ONG137_XO_CS_DDCON
F2
VTR_DD_ON
XMSX2_INS
D5103
1SS360-TE85L
B5
A5
C4
B11
84_VCC1J285_VCC2
81_O_P75
82_O_P76
83_O_P77
38_O_CLAMP_ONH239_XO_LANC_IC_ON
40_XI_CS_EXJ441_I_FR_SIL542_O_FR_SOK543_XI_FR_SCKJ544_AI_BATT_SENSL645_AI_ACV_SENSK646_AI_DD_SET_SENS
G2
H3
XLANC_ON
XCS_FRONT
XCS_DD
Q4901
4
1
SWITCH
3
DMG964030L
6
2
B8
B10
C10
C11
D9
D10
D11
E9
E10
E11
F10
F11
G11
G10
H11
H10
H9
J11
J10
K9
K11
K8
L8
K7
R4943
D_2.8V
10k
1k
R4902
R4958
10k
R4950
4700
ACV_UNREG
BATT_UNREG
D_2.8V
D_1.8V
XSYS_RST
XFLASH_RST
LANC_IN
LANC_OUT
XNTSCPALDET
XRESET_REQ
XPOWER_OFF
INIT_CHARGE_ON
XCAM_LED
XCHARGE_LED
GENERAL_AD
SYSTEM_AD
A
B
C
D
E
F
EVER_3.0V
A
VOUT
REG_GND
XPANEL_POWER_ON
XCAM_LED
XCHARGE_LED
R4901
VOUT
XX
B
XPOWER_TACT_SW
XMS_IN
XMSX2_INS
XPOWER_OFF
XRESET_REQ
XNTSCPALDET
C
D
E
F
XCS_FRONT
XFR_SCK
XSYS_RST
XFLASH_RST
BATT/XEXT_CN
BATT_SIG
BATT_IN
SYSTEM_AD
GENERAL_AD
VTR_DD_ON
FR_EVER_SI
FR_EVER_SO
FR_EVER_SCK
XCS_DD
LDO_ON
FR_SI
FR_SO
INIT_CHARGE_ON
FR_XRESET
G
LANC_IN
LANC_OUT
XLANC_PWR_ON
XLANC_ON
H
08
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
G
VC-590 BOARD(9/15)
FRONT CONTROL
XX MARK:NO MOUNT
H
6-16
Page 24
6-17
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
A_2.8V
C5328
4.7u
C5320
0.01u
C5314
0.1u
C5322
XX
C5321
0.47u
C5327
0.1u
C5324
XX
C5310
0.22u
C5316
0.1u
C5311
0.1u
C5323
0.01u
C5313
0.0033u
C5331
0.033u
C5330
4.7u
C5319
0.033u
C5325
0.001u
C5326
0.01u
C5312
1u
C5332
10u
10V
C5317
10u
C5318
10u
D5301
1SS400TE-61
D5302
1SS400TE-61
REG_GND
SHUTTER_ON
FC_LENSV_ENB
FC_RST_LED
DAC_STRB
FC_LENSV_DIR_B
FC_LENSV_DIR_A
D_2.8V
ZM_SENSE_OUT
FC_SENSE_OUT
IRIS_PWM
MT_GND
CAM_SO
REG_GND
MT_5.0V
ZM_ENB
D_2.8V
ZM_RST_LED
XCAM_SCK
ZM_DIR_A
A_2.8V
A_4.6V
IRIS_MD_BRAKE
D_2.8V
ZM_DIR_B
IRIS_DRIVE-
IRIS_BIAS+
IRIS_HALL+
IRIS_DRIVE+
IRIS_BIAS-
IRIS_HALL-
ZM_SENSE_VCC
FC_SENSE_VCC
FOCUS_XA
FC_SENSE_OUT
FOCUS_A
ZOOM_B
FOCUS_XB
ZOOM_XB
ZM_SENSE_OUT
FOCUS_B
ZOOM_XA
ZOOM_A
I_HALL_AD
REG_GND
IC5309
BH72220FVM-TR
1
AO1
2
AO2
3
AO3
4
VCC
5
GND
6
DI
7
CLK
8
LD
IC5314
BA2904SFVM-TR
1
A_OUT
2
A_IN-
3
A_IN+
4
GND
5
B_IN+6B_IN-7B_OUT8Vcc
IC5313
BA2904SFVM-TR
1
A_OUT2A_IN-3A_IN+4GND
5
B_IN+
6
B_IN-
7
B_OUT
8
Vcc
IC5315
BA2904SFVM-TR
1
A_OUT
2
A_IN-
3
A_IN+
4
GND
5
B_IN+6B_IN-7B_OUT8Vcc
L5302
4.7uH
IC5306
BD6373GW-E2
F3
VCCF4GNDF2VM12A2VM34F5VM56B1PGND12A5PGND34B6PGND56
D2
INPUT1
E3
INPUT2
C2
ENABLE12
B3
INPUT3
B4
INPUT4
D3
ENABLE34
C5
INPUT5
D4
BRAKE5
D5
BRAKE6
F1
OUT1AE2OUT1AE1OUT1BD1OUT2AC1OUT2BA1OUT3AB2OUT3A
E4
INPUT6
A3
OUT3B
A6
OUT4B
E6
OUT6A
B5
OUT4B
C6
OUT5A
D6
OUT5B
F6
OUT6B
E5
OUT6B
A4
OUT4A
Q5302
DSC300100L
Q5303
DSC300100L
Q5301
DMA964060L
6
2
1
3
5
4
R5342
18k
R5353
22k
R5357
XX
R5352
10k
R5337
XX
R5354
330
R5398 47k
R5320 XX
R5356 10k
R5399 47k
R5319 XX
R5330
100
R5345
22k
R5329
10
R5338
180k
R5336
XX
R5355
1k
R5331
100k
R5346
180k
R5332
10k
R5347
XX
R5335
33k
R5339
39k
R5340
180k
R5344
5600
R5334
5600
R5351
XX
R5349
180k
R5333
100k
R5350
180k
L5301
10uH
H
E
5
C
1
G
2
B
A
6
D
104 12
08
11
C
A
E
7
G
H
9
B
F
8
F
D
3
XX MARK:NO MOUNT
LENS DRIVE
FOCUS/ZOOM
MOTOR DRIVE
SENSOR
+B SWITCH
SWITCH
SWITCH
IRIS DRIVE
IRIS DRIVE,
HALL AMP
HALL BIAS,
GAIN CONTROL
EVR MODE DET
VC-590 BOARD(10/15)
Page 25
57
6
81 42
10 11
123
13
14
15
169
A
A_3.3V
D_1.8V
A_2.8V
D_2.8V
D_3.3V
B
C
XSYS_RST
XRESET_REQ
BOOT_MODE_PORT1
D
CLK_SYS_OUT
E
R7547
L7503 22uH
C7502
10u
22
C7543
X7504
12MHz
4
1
C7508
0.1u
R7548
HD74ALVC1G125VSE-E
0.01u
X7501
48MHz
4
1
C7505
0.1u
XX
IC7505
BUFFER
Vcc
XOE
o
45
Y
L7502
A_2.8V
10uH
F
CLK_CMOS_IN
G
A_1.8V
EXCEPT SX73E/SX83/SX83E
R7591
0
3
2
R7584
XX
123
A
GND
3
2
XNTSCPALDET
SYS_SOUND
CL7501
D_2.8V
D_2.8V
A_2.8V
A_2.8V
D_1.8V
A_2.8V
A_2.8V
H
LINEOUT_Y
LINEOUT_PR
LINEOUT_PB/C
EXCEPT SX73E/SX83/SX83E
I
J
REG_GND
R7528
XX
100k
R7588
R7526
22
C7511
22u
R7527
100
C7512
22u
L7509
10uH
C7518
C7519
L7510
10uH
R7520
R7521
R7522
R7540
100
R7541
180
180
AP4
XRESET
AN4
XRESET_REQ
C7546
XX
Y5
BOOT_MODE__0
Y3
BOOT_MODE__1
Y6
BOOT_MODE__2
W7
SYSTEM_VD
AG13
CAM_V
AA5
SYS_V
R1
IOVDD30_EVF
V7
A_EVF_XVD
W6
A_EVF_XHD
AC3
IC7501_SYSTEM_CLK
Y1
IOVDD1830_CLK_SYS_IN
V3
C7524
0.1u
C7516
0.1u
C7517
0.1u
C7525
0.1u
C7526
0.1u
0.1u
0.1u
C7509
0.1u
2700
IOVDD30_PLL
AB1
AVDD30_PLL_0
AB2
AVDD30_PLL_1
AB3
AVDD30_PLL_2
V2
AVDD30_PLL_3
V1
AVDD30_PLL_4
AA1
AVSS_PLL_0
AA2
AVSS_PLL_1
AA3
AVSS_PLL_2
W2
AVSS_PLL_3
W1
AVSS_PLL_4
Y2
CLK_SYS_IN
AC1
IOVDD1830_CLK_CMOS_IN
AC2
CLK_CMOS_IN
R7544
XX
AC9
BACCARAT_MODE__0
AB9
BACCARAT_MODE__1
AA9
BACCARAT_MODE__2
AE9
BACCARAT_MODE__3
AF9
BACCARAT_MODE__4
AG9
BACCARAT_MODE__5
V9
SDRCK132_X129
W9
DDRCKSEL0
Y9
DDRCKSEL1
AB35
AVDD30_AUDAC
AC27
AVSS_AUDAC
AC35
AU10_DAC_BOUT
AC34
AU10_DAC_VRP
AB34
AU10_DAC_VRN
U34
AVDD30_VDAC0_Pr
U33
AVDD30_VDAC0_Pb
U35
AVDD30_VDAC0_Y
V27
AVSS_VDAC0_Pr
U27
AVSS_VDAC0_Pb
W27
AVSS_VDAC0_Y
V33
VIHDSD_DA01_VBB
2700
W34
VIHD_DA0_BIASY
W35
VIHD_DA0_VREFY
AA35
VIHD_DA0_AOUTY
V34
VIHD_DA0_BIASP
V35
VIHD_DA0_VREFP
AA34
VIHD_DA0_AOUTPr
AA33
VIHD_DA0_AOUTPb
Y35
AVDD30_VDAC1_R
Y34
AVDD30_VDAC1_G
Y33
AVDD30_VDAC1_B
AB27
AVSS_VDAC1_R
AA27
AVSS_VDAC1_G
Y27
AVSS_VDAC1_B
T34
VISD_DA1_BIAS
T35
VISD_DA1_VREF
R34
VISD_DA1_AOUTR
R33
VISD_DA1_AOUTG
R35
VISD_DA1_AOUTB
IC7501
(1/8)
BCX255102A
VIDEO/AUDIO DEC,PLL,I/O,EMC,DDR,
I/F,PCI,ATA,MSX,LENS
RESETBOOT_MODE
SYSTEM
PLL/SYSCLK
PLL_MODE
AUDIO_DACVIDEO_DAC0_HDVIDEO_DAC0_SD
CPU A/D
USB
AVDD30_CPUADC0
AVSS_CPUADC0
CPU_ADC0_IN0
CPU_ADC0_IN1
CPU_ADC0_IN2
CPU_ADC0_IN3
CPU_ADC0_IN4
CPU_ADC0_IN5
CPU_ADC0_IN6
CPU_ADC0_IN7
CPU_ADC0_IN8
CPU_ADC0_IN9
CPU_ADC0_IN10
CPU_ADC0_IN11
AVDD30_CPUADC1
AVSS_CPUADC1
CPU_ADC1_IN0
CPU_ADC1_IN1
CPU_ADC1_IN2
CPU_ADC1_IN3
CPU_ADC1_IN4
CPU_ADC1_IN5
CPU_ADC1_IN6
CPU_ADC1_IN7
CPU_ADC1_IN8
CPU_ADC1_IN9
CPU_ADC1_IN10
CPU_ADC1_IN11
AVDD30_CPUADC2
AVSS_CPUADC2
CPU_ADC2_IN0
CPU_ADC2_IN1
CPU_ADC2_IN2
CPU_ADC2_IN3
CPU_ADC2_IN4
CPU_ADC2_IN5
CPU_ADC2_IN6
CPU_ADC2_IN7
EXTIN_CLK0
EXTIN_CLK1
EXTIN_CLK2
AVSS_PLLUSB
AVSS_PLLUSB
AVSS_USB
AVSS_USB
AVDD33_PLLUSB
AVDD33_PLLUSB
AVDD33_USB
AVDD33_USB
IOVDD33_USB
VBUS_CHG
VBUS_DISCHG
VBUS_EN
P34
C7530
T27
0.1u
R30
AB30
AB33
AC30
AC33
P31
R29
AA30
W31
T29
P30
P29
P35
R27
T30
U30
AB31
Y30
Y31
U31
R31
AC29
AC31
AA31
T31
V29
P33
P27
U29
AA29
Y29
W30
AB29
V30
V31
W29
AG10
AG11
AG12
DP
AR6
DM
AP6
RREF
AK7
VBUS
AL7
USB_ID
AN7
AJ5
AJ6
AK5
AK6
AL5
AL6
AN5
AN6
AP5
AP7
AJ8
AK8
R7546
R7545
680
33
C7533
0.1u
C7534
XX
L7511
10uH
C7540
R7502
4.7u
R7549 XX
47k
C7545
C7544
0.01u
0.01u
RB7504
RB7505
RB7508
100k
10k
1M
Q7501
2345678
2345678
2345678
1
1
R7589
1k
R7590
1k
RB7506
1k
1
2
4
3
6
5
7
8
LF7501 XX
4
2
3
1
DRA3143X0L
SWITCH
1
A_3.3V
LENS_TEMP_AD
YAW_AD
PITCH_AD
I_HALL_AD
TP_SEL2
TP_X
TP_Y
ZOOM_VR_AD
JACK_AD
KEY_AD1
KEY_AD2
GSENS_X
GSENS_Y
GSENS_Z
GSENS_REF
USB_D+
USB_D-
VBUS_EN
(CN)
(CN)
D_3.3VA_2.8V
USB_ID2
UART0_SO
UART0_SI
UART1_SO
UART1_SI
CAM_UART_TXD
CAM_UART_RXD
D_2.8V
XCAM_SCK
XCS_FRONT
CL7502
CL7503
CL7504
CL7505
CL7506
CL7507
CL7509
CL7510
CL7511
CL7512
CPC_SCK
CPC_SO
CPC_CS
CAM_SO
XFR_SCK
XBB_SCK
XCS_ACO
IOVDD33_I2C
R2
C7535
0.1u
C7536
0.1u
CPC_SI
FR_SI
FR_SO
BB_SO
XMS_IN
1SS387-TPL3
D7501
IOVDD30_JTAG
R6
TDI_0
M6
TCK_0
N5
TMS_0
R7
TDO_0
L6
RTCK_0
R5
nTRST_0
W3
DEBUG_MODE__0
V6
DEBUG_MODE__1
V5
DEBUG_MODE__2
W5
DEBUG_MODE__3
L9
ETM_RTDBG_DATA__0_nTRST_BKTG1
M9
ETM_RTDBG_DATA__1_TDO_1
N9
ETM_RTDBG_DATA__2_TCK_1
P9
ETM_RTDBG_DATA__3_TMS_1
R9
ETM_DATA__4_RTDBG_CLK_TDI_1
N7
ETM_DATA__5_RTDBG_CS_MODESW
P6
ETM_DATA__6
P7
ETM_DATA__7
L7
ETMTRACECLK
M7
ETMTRACECTL
P5
SA_TDI
N6
SA_TDO
C15
UART0_TXD
G9
UART0_RXD
E13
UART1_TXD
G13
UART1_RXD
F15
UART2_TXD
E12
UART2_RXD
G12
UART2_CTS
F13
UART2_RTS
AP26
IOVDD30_SIO
AR26
IOVDD30_SIO
AR28
SIO0_SCK
AP28
SIO0_SCS
AN29
SIO0_TXD
AN28
SIO0_RXD
AN25
SIO1_SCK
AN27
SIO1_SCS
AN26
SIO1_TXD
AP27
SIO1_RXD
AL28
SIO2_SCK
AL25
SIO2_SCS
AL27
SIO2_TXD
AL26
SIO2_RXD
AL29
SIO3_SCK
AK26
SIO3_SCS
AK28
SIO3_TXD
AK27
SIO3_RXD
AJ29
SIO4_SCK
AJ26
SIO4_SCS
AJ28
SIO4_TXD
AJ27
SIO4_RXD
AJ24
SIO5_SCK
AK25
SIO5_SCS
AK24
SIO5_TXD
AJ25
SIO5_RXD
JTAGDEBUG_MODEETM/JTAG1SA_DEBUGUARTSIO
IC7501
(2/8)
BCX255102A
VIDEO/AUDIO DEC,PLL,I/O,EMC,DDR,
I/F,PCI,ATA,MSX,LENS
I2CSIRCSTPUFRC/RTGCECGPIO_S
TPU0_INA
TPU0_INB
TPU1_OUT_INA
TPU1_INB
TPU2_OUT
TPU3_OUT
TPU4_OUT
TPU5_OUT
TPU6_OUT
TPU7_OUT
IOVDD30_FRC
IOVDD30_FRC
IOVDD30_FRC
FRC_RTG_IN0
FRC_RTG_IN1
FRC_RTG_OUT0
FRC_RTG_OUT1
FRC_RTG_OUT2
FRC_RTG_OUT3
CEC_LINE
CEC_SAMP_CLK
IOVDD30_GPIO
IOVDD30_GPIO
GPIO_S__0
GPIO_S__1
GPIO_S__2
GPIO_S__3
GPIO_S__4
GPIO_S__5
GPIO_S__6
GPIO_S__7
GPIO_S__8
GPIO_S__9
GPIO_S__10
GPIO_S__11
GPIO_S__12
GPIO_S__13
GPIO_S__14
GPIO_S__15
GPIO_S__16
GPIO_S__17
GPIO_S__18
GPIO_S__19
GPIO_S__20
GPIO_S__21
GPIO_S__22
GPIO_S__23
I2C_SCK
I2C_SDA
SIR_RXD
AR27
AH30
AH31
AK29
Y7
AB7
AC6
AE7
AB5
AB6
AC7
AC5
AA7
AA6
A14
B14
C14
G14
G11
F12
G15
G10
F14
AH29
AJ35
K34
K35
H35
H34
H33
J33
K33
L33
H31
J31
K31
L31
H30
J30
K30
L30
G28
E29
G29
H29
J29
K29
L29
F29
E28
F28
C7538
0.1u
EXCEPT SX73E/SX83/SX83E
C7537
0.1u
EXCEPT SX73E/SX83/SX83E
R7587
C7539
0.1u
EXCEPT SX73E/SX83/SX83E
4700
R7570
EXCEPT CX110/CX110E/CX115E
47
R7574
4700
R7571
D_2.8V
XX
SD/HD
IRIS_PWM
STBY
HDMI_JACK_IN
I2C_SCK
I2C_SDA
MEDIA_PWR_ON1
CL7513
XBB_RST
CEC_SAMP_CLK
D_2.8V
XSTART/STOP
OVC_DET
MEDIA_PWR_ON2
PANEL_BL_ON
MS_PWR_ON
PANEL_NOR/REV
XVBUS_DET
XMS_ACC_LED
XPHOTO_LED
XCS_LCD
XPOWER_OFF
D_2.8V
A
B
C
D
E
F
G
H
I
J
Note:IC7501 is not supplied, but this is included in VC-590 complete board (Service).
K
VC-590 BOARD(11/15)
VIDEO/AUDIO DEC,PLL,I/O
XX MARK:NO MOUNT
L L
08
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
6-18
K
Page 26
6-19
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
Note:IC7501 is not supplied, but this is included in VC-590 complete board (Service).
D_1.8V_DDR0
D_1.8V
D_1.8V
D_1.8V D_1.8V
D_1.8V_DDR1
C7712
0.1u
C7703
0.1u
C7708
0.1u
C7707
0.1u
C7711
0.1u
C7702
0.1u
C7706
22u
4V
C7715
22u
4V
C7701
22u
4V
EMC_CLK_IN_FLASH
EMC_CLK_IN_SDRAM
REG_GND
EMC_RDY0
EMC_INT
D_1.8V
EMC_ADDR_14
EMC_ADDR_12
EMC_XWE
EMC_XOE
EMC_XCS_0
EMC_XCS_1
EMC_XRAS
EMC_XCAS
EMC_CKE
EMC_DQM_0
EMC_DQM_1
EMC_DQM_2
EMC_DQM_3
EMC_CLK_OUT_SDRAM
EMC_CLK_OUT_FLASH
EMC_ADDR_15
EMC_ADDR_13
EMC_ADDR_8
EMC_ADDR_10
EMC_ADDR_11
EMC_ADDR_9
EMC_ADDR_4
EMC_ADDR_6
EMC_ADDR_1
EMC_ADDR_3
EMC_ADDR_2
EMC_ADDR_7
EMC_ADDR_5
EMC_ADDR_0
EMC_DATA_27
EMC_DATA_28
EMC_DATA_25
EMC_DATA_26
EMC_DATA_31
EMC_DATA_30
EMC_DATA_24
EMC_DATA_23
EMC_DATA_0
EMC_DATA_1
EMC_DATA_2
EMC_DATA_3
EMC_DATA_4
EMC_DATA_5
EMC_DATA_6
EMC_DATA_7
EMC_DATA_8
EMC_DATA_9
EMC_DATA_10
EMC_DATA_11
EMC_DATA_12
EMC_DATA_13
EMC_DATA_14
EMC_DATA_15
EMC_DATA_16
EMC_DATA_17
EMC_DATA_18
EMC_DATA_19
EMC_DATA_20
EMC_DATA_21
EMC_DATA_22
EMC_DATA_29
CL7701
CL7702
R7701
XX
IC7501
BCX255102A
AJ10
IOVDD18_EMC
AJ22
IOVDD18_EMC
AK10
IOVDD18_EMC
AK22
IOVDD18_EMC
AL10
IOVDD18_EMC
AL23
IOVDD18_EMC
AN10
IOVDD18_EMC
AN23
IOVDD18_EMC
AP10
IOVDD18_EMC
AP23
IOVDD18_EMC
AR10
IOVDD18_EMC
AR23
IOVDD18_EMC
AK12
EMC_ADDR__0
AJ11
EMC_ADDR__1
AL11
EMC_ADDR__2
AJ12
EMC_ADDR__3
AJ14
EMC_ADDR__4
AK11
EMC_ADDR__5
AJ13
EMC_ADDR__6
AL12
EMC_ADDR__7
AR11
EMC_ADDR__8
AN12
EMC_ADDR__9
AP13
EMC_ADDR__10
AP11
EMC_ADDR__11
AP12
EMC_ADDR__12
AR12
EMC_ADDR__13
AR13
EMC_ADDR__14
AN11
EMC_ADDR__15
AK21
EMC_DATA__0
AL18
EMC_DATA__1
AJ16
EMC_DATA__2
AL16
EMC_DATA__3
AN19
EMC_DATA__4
AN20
EMC_DATA__5
AL19
EMC_DATA__6
AK20
EMC_DATA__7
AL21
EMC_DATA__8
AL17
EMC_DATA__9
AK17
EMC_DATA__10
AJ15
EMC_DATA__11
AK19
EMC_DATA__12
AJ17
EMC_DATA__13
AK18
EMC_DATA__14
AL20
EMC_DATA__15
AG18
EMC_DATA__16
AJ20
EMC_DATA__17
AJ21
EMC_DATA__18
AJ19
EMC_DATA__19
AJ18
EMC_DATA__20
AN21
EMC_DATA__21
AN22
EMC_DATA__22
AL22
EMC_DATA__23
AN13
EMC_DATA__24
AK16
EMC_DATA__25
AL15
EMC_DATA__26
AK14
EMC_DATA__27
AK15
EMC_DATA__28
AL13
EMC_DATA__29
AK13
EMC_DATA__30
AL14
EMC_DATA__31
AR19
EMC_XOE
AR18
EMC_XWE
AR15
EMC_XCS__0
AP17
EMC_XCS__1
AN16
EMC_XCS__2
AP18
EMC_DQM__0
AP16
EMC_DQM__1
AN14
EMC_DQM__2
AR16
EMC_DQM__3
AN15
EMC_XRAS
AR17
EMC_XCAS
AP15
EMC_CKE
AP21
EMC_CLK_OUT_SDRAM
AR21
EMC_CLK_IN_SDRAM
AR22
EMC_CLK_OUT_FLASH
AP22
EMC_CLK_IN_FLASH
AN17
EMC_RDY0
AP19
EMC_XRST
AN18
EMC_INT
IC7501
BCX255102A
AD27
IOVDD18_DDR0
AD29
IOVDD18_DDR0
AD30
IOVDD18_DDR0
AD31
IOVDD18_DDR0
AD33
IOVDD18_DDR0
AD34
IOVDD18_DDR0
AD35
IOVDD18_DDR0
M29
IOVDD18_DDR0
M30
IOVDD18_DDR0
M31
IOVDD18_DDR0
M33
IOVDD18_DDR0
M34
IOVDD18_DDR0
M35
IOVDD18_DDR0
N27
IOVDD18_DDR0
AA10
DDR1_ADDR__0
AA11
DDR1_DATA__30
AA13
DDR1_ADDR__2
AA14
DDR1_ADDR__4
AA22
DDR0_DATA__2
AB10
DDR1_DQS__0
AB11
DDR1_DQM__3
AB13
DDR1_ADDR__1
AB14
DDR1_DQM__0
AB15
DDR1_DATA__9
AB16
DDR1_DATA__31
AB17
DDR1_XWE
AB21
DDR0_BA__0
AB22
DDR0_DATA__8
AC10
DDR1_CKE
AC11
DDR1_DATA__21
AC13
DDR1_DATA__19
AC14
DDR1_ADDR__8
AC15
DDR1_DATA__6
AC16
DDR1_DATA__27
AC17
DDR1_XRAS
AC19
DDR0_DATA__14
AC20
DDR0_ADDR__1
AC21
DDR0_DQS__1
AD10
DDR1_DATA__7
AD11
DDR1_DATA__1
AE10
DDR1_DATA__17
AE11
DDR1_ADDR__3
AE12
DDR1_BA__0
AE13
DDR1_DATA__23
AE14
DDR1_DQS__3
AE15
DDR1_DATA__29
AE16
DDR1_DATA__26
AE17
DDR1_DQS__2
AE19
DDR0_ADDR__10
AE20
DDR0_DATA__15
AE21
DDR0_DATA__11
AE22
DDR0_DQM__1
AF10
DDR1_DQM__2
AF11
DDR1_ADDR__10
AF12
DDR1_DATA__18
AF13
DDR1_DATA__22
AF14
DDR1_DATA__16
AF15
DDR1_DATA__28
AF16
DDR1_DATA__24
AF17
DDR1_DATA__20
AF19
DDR0_ADDR__3
AF20
DDR0_DQS__0
AF21
DDR0_DATA__6
AF22
DDR0_DATA__4
AF23
DDR0_DATA__0
AF24
DDR0_DATA__1
AG19
DDR0_DATA__10
AG20
DDR0_DQM__0
AG21
DDR0_DATA__7
AG22
DDR0_DATA__5
AG23
DDR0_DATA__3
AG24
DDR0_DATA__12
J25
DDR0_ADDR__4
J26
DDR0_DQM__3
J27
DDR0_DATA__23
K23
DDR0_DATA__28
K24
DDR0_DATA__26
AD1
IOVDD18_DDR1
AD2
IOVDD18_DDR1
AD3
IOVDD18_DDR1
AD5
IOVDD18_DDR1
AD6
IOVDD18_DDR1
AD7
IOVDD18_DDR1
AD9
IOVDD18_DDR1
U1
IOVDD18_DDR1
U2
IOVDD18_DDR1
U3
IOVDD18_DDR1
U5
IOVDD18_DDR1
U6
IOVDD18_DDR1
U7
IOVDD18_DDR1
U9
IOVDD18_DDR1
K25
DDR0_DQS__3
K26
DDR0_DATA__20
K27
DDR0_DATA__16
L23
DDR0_DATA__25
L24
DDR0_DATA__17
L25
DDR0_DATA__18
L26
DDR0_DATA__21
L27
DDR0_ADDR__11
M25
DDR0_DATA__22
M26
DDR0_CKE
M27
DDR0_ADDR__6
N16
DDR1_CLK
N17
DDR1_DATA__13
N18
DDR1_DATA__2
N19
DDR1_DATA__11
N20
DDR1_DATA__15
N21
DDR0_ADDR__0
N22
DDR0_ADDR__9
N23
DDR0_ADDR__5
N25
DDR0_DQM__2
N26
DDR0_DATA__19
P14
DDR1_DATA__12
P15
DDR1_DATA__5
P16
DDR1_DCLKN
P22
DDR0_DATA__30
P23
DDR0_DATA__29
P25
DDR0_DATA__24
P26
DDR0_DQS__2
R14
DDR1_DQM__1
R15
DDR1_DATA__10
R23
DDR0_XWE
R25
DDR0_XCS
R26
DDR0_DATA__27
T14
DDR1_DATA__0
T22
DDR0_ADDR__12
T23
DDR0_ADDR__8
T25
DDR0_DATA__31
T26
DDR0_ADDR__13
U10
DDR1_DATA__3
U11
DDR1_DATA__4
U13
DDR1_ADDR__11
U14
DDR1_DATA__8
U22
DDR0_ADDR__7
U23
DDR0_CLK
U25
DDR0_XRAS
V10
DDR1_ADDR__13
V11
DDR1_BA__1
V13
DDR1_ADDR__6
V14
DDR1_DQS__1
V22
DDR0_DCLKN
V23
DDR0_XCAS
W10
DDR1_ADDR__12
W11
DDR1_XCS
W13
DDR1_ADDR__5
W14
DDR1_ADDR__9
W22
DDR0_BA__1
W23
DDR0_ADDR__2
Y10
DDR1_DATA__25
Y11
DDR1_XCAS
Y13
DDR1_ADDR__7
Y14
DDR1_DATA__14
Y22
DDR0_DATA__9
Y23
DDR0_DATA__13
FB7701
FB7702
EMC
EMC
DDR_IF0
DDR_IF1
123
B
13
G
14
G
I
H
15
E
10 11
B
D
E
6
K
F
K
D
L L
08
A
H
A
5 7
C
J
169
I
81 42
C
F
J
XX MARK:NO MOUNT
EMC,DDR
VIDEO/AUDIO DEC,PLL,I/O,EMC,DDR,
I/F,PCI,ATA,MSX,LENS
(3/8)
(4/8)
VIDEO/AUDIO DEC,PLL,I/O,EMC,DDR,
I/F,PCI,ATA,MSX,LENS
VC-590 BOARD(12/15)
Page 27
57
6
81 42
10 11
123
13
14
15
169
A
A
Note:IC7501 is not supplied, but this is included in VC-590 complete board (Service).
D_2.8V
D_3.3V
D_1.8V
D_1.8V
B
C
D
E
F
G
H
I
J
D_2.8V
D_1.8V
D_1.8V
R7917
REG_GND
D10_HDMI
D11_HDMI
D12_HDMI
D13_HDMI
D14_HDMI
D15_HDMI
HSYNC_HDMI
VSYNC_HDMI
I2S0_HDMI
64FS_HDMI
LCD_PDB0
LCD_PDB1
LCD_PDB2
LCD_PDB3
LCD_PDB4
LCD_PDB5
LCD_PDB6
LCD_PDB7
LCD_CLK_OUT
D0_HDMI
D1_HDMI
D2_HDMI
D3_HDMI
D4_HDMI
D5_HDMI
D6_HDMI
D7_HDMI
D8_HDMI
D9_HDMI
DE_HDMI
FS_HDMI
LCD_HS
LCD_VS
XX
IC7501
(5/8)
BCX255102A
VIDEO/AUDIO DEC,PLL,I/O,EMC,DDR,
R7829 XX R7830 XX
D_1.8V
IDCK
R7828 XX
C7803
0.1u
EXCEPT SX73E/SX83/SX83E
R7820
R7823
RB7805 75
7
5
3
1
RB7806
75
7
5
3
1
R7868
100
R7887
47
R7888
47
C7804
0.1u
47
47
D_1.8V
D_1.8V
D_1.8V
8
6
4
2
8
6
4
2
AL30
AN30
AP30
AR30
AR32
AP32
AP33
AP31
AN33
AM34
AN32
AL34
AM35
AK34
AL35
AK35
AL33
AM33
AL31
AN31
AJ31
AK31
AJ33
AR31
AJ30
AK33
AJ34
AN34
AK30
G34
F30
E31
E33
F31
G30
F33
G31
G33
G35
E30
B32
C32
B33
C33
D33
C34
D34
F35
F34
C29
A30
B30
A31
B31
A32
C30
C31
D35
E34
E35
IOVDD1833_HDMI
IOVDD1833_HDMI
IOVDD1833_HDMI
IOVDD1833_HDMI
HDMI_D__0
HDMI_D__1
HDMI_D__2
HDMI_D__3
HDMI_D__4
HDMI_D__5
HDMI_D__6
HDMI_D__7
HDMI_D__8
HDMI_D__9
HDMI_D__10
HDMI_D__11
HDMI_D__12
HDMI_D__13
HDMI_D__14
HDMI_D__15
HDMI_DE
HDMI_HSYNC
HDMI_VSYNC
HDMI_SELCK
HDMI_SD0
HDMI_WS
HDMI_SCK
HDMI_MCLK
SPDIF
IOVDD1830_LCD_R
LCD_PDR__0
LCD_PDR__1
LCD_PDR__2
LCD_PDR__3
LCD_PDR__4
LCD_PDR__5
LCD_PDR__6
LCD_PDR__7
IOVDD1830_LCD_G
LCD_PDG_Y__0
LCD_PDG_Y__1
LCD_PDG_Y__2
LCD_PDG_Y__3
LCD_PDG_Y__4
LCD_PDG_Y__5
LCD_PDG_Y__6
LCD_PDG_Y__7
IOVDD1830_LCD_B
IOVDD1830_LCD_B
LCD_PDB_C_SNE__0
LCD_PDB_C_SNE__1
LCD_PDB_C_SNE__2
LCD_PDB_C_SNE__3
LCD_PDB_C_SNE__4
LCD_PDB_C_SNE__5
LCD_PDB_C_SNE__6
LCD_PDB_C_SNE__7
LCD_CLK_OUT
LCD_HS
LCD_VS
I/F,PCI,ATA,MSX,LENS
HDMI_Tx_I/FPANEL_I/F
IOVDD18_CODEC
IOVDD18_CODEC
IOVDD18_CODEC
CODEC_VDATA__0
CODEC_VDATA__1
CODEC_VDATA__2
CODEC_VDATA__3
CODEC_VDATA__4
CODEC_I/FExA-LINKAUDIO_IN/OUT
CODEC_VDATA__5
CODEC_VDATA__6
CODEC_VDATA__7
CODEC_VCLK_OUT
CODEC_VCLKR_IN
CODEC_SYSCLK_OUT
CODEC_MCK_OUT
CODEC_LRCK_OUT
CODEC_ADATA0
CODEC_ADATA1
IOVDD30_AUCODEC
SDI0_SPDIFIN
CODEC_FLD
LRCK_OUT
BCK_OUT
AU_MCK_OUT
A13
C7814
C7805
B13
0.01u
0.1u
C13
N13
N10
N14
L13
N15
L14
L15
L16
R11
P11
N11
T13
P10
R10
P13
R13
AR9
AP9
AN9
AN8
AL8
SDI1
AL9
SDO0
AJ9
SDO1
AK9
22k
R7821
C7806
0.1u
SX73E/SX83/SX83E
22k
R7822
CODEC_SYSCLK_BA
D_1.8V
D_2.8V
D_2.8V
D_1.8V
REG_GND
R7841
33
R7843
33
R7883
33
R7884
33
R7885
33
EXCEPT SX73E/SX83/SX83E
R7824
XX
R7849
47
R7850
47
CL7802
CL7804
EXCEPT SX73E/SX83/SX83E
C7818
0.1u
TC7SP3125TU (5RSO,F
1
VCCA
2
GND
3
A1
IC7502
LEVEL SHIFT
CODEC_VDATA_0
CODEC_VDATA_1
CODEC_VDATA_2
CODEC_VDATA_3
CODEC_VDATA_4
CODEC_VDATA_5
CODEC_VDATA_6
CODEC_VDATA_7
CODEC_VCLK
CODEC_VCLKR_IN
CODEC_FLD
CODEC_SYSCLK_BA
CODEC_MCK_OUT
CODEC_LRCK_OUT
CODEC_ADATA0
CODEC_ADATA1
ADA_LRCK
ADA_BCK
ADA_FCK
ADA_SOA0
ADA_SIA0
VCCB
OE
B1
R7855
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
PCI_XBE0
PCI_XBE1
PCI_XBE2
PCI_XBE3
PCI_XFRM
PCI_XTRDY
PCI_XDEVSEL
PCI_XPERR
PCI_XREQFS0
PCI_XGNTTS0
PCI_XSTOP
PCI_XIRDY
PCI_XRESET
PCI_XINTA
CODEC_SYSCLK
PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_PAR
PCI_CLK
XX
C7807
4.7u
EXCEPT SX73E/SX83/SX83E
R7882
C7808
0.1u
A6
B6
C6
E7
F7
L21
L20
L18
L19
J21
L17
K21
J17
J20
K19
J19
J18
H7
K18
C4
K16
J14
G7
K13
G5
J12
J13
J11
H5
J9
H6
J10
J7
K9
J6
K10
J5
K20
J16
G6
K6
K17
F6
K15
E6
K14
K7
K12
M10
L10
M11
L11
J15
C5
C3
B4
47
A4
K11
G8
L12
D_3.3V
C7819
6
0.1u
5
4
R7886
33
IOVDD33_PCI
IOVDD33_PCI
IOVDD33_PCI
IOVDD33_PCI
IOVDD33_PCI
PCI_AD__0
PCI_AD__1
PCI_AD__2
PCI_AD__3
PCI_AD__4
PCI_AD__5
PCI_AD__6
PCI_AD__7
PCI_AD__8
PCI_AD__9
PCI_AD__10
PCI_AD__11
PCI_AD__12
PCI_AD__13
PCI_AD__14
PCI_AD__15
PCI_AD__16
PCI_AD__17
PCI_AD__18
PCI_AD__19
PCI_AD__20
PCI_AD__21
PCI_AD__22
PCI_AD__23
PCI_AD__24
PCI_AD__25
PCI_AD__26
PCI_AD__27
PCI_AD__28
PCI_AD__29
PCI_AD__30
PCI_AD__31
PCI_XBE__0
PCI_XBE__1
PCI_XBE__2
PCI_XBE__3
PCI_PAR
PCI_XFRM
PCI_XTRDY
PCI_XDEVSEL
PCI_XPERR
PCI_XREQFS0
PCI_XGNTTS0
PCI_XREQFS1
PCI_XGNTTS1
PCI_XREQFS2
PCI_XGNTTS2
PCI_XSTOP
PCI_XIRDY
PCI_XRESET
PCI_CLKIN
PCI_CLKOUT
PCI_XINTA
PCI_XINTB
PCI_XINTC
(6/8)
IC7501
BCX255102A
VIDEO/AUDIO DEC,PLL,I/O,EMC,DDR,
I/F,PCI,ATA,MSX,LENS
PCI
CEATA_MMC_SD_DAT__0_MSX_BIO__0
CEATA_MMC_SD_DAT__1_MSX_BIO__1
CEATA_MMC_SD_DAT__2_MSX_BIO__2
CEATA_MMC_SD_DAT__3_MSX_BIO__3
CEATA_MMC_DAT__4_MSX_BIO__4
CEATA_MMC_DAT__5_MSX_BIO__5
CEATA_MMC_DAT__6_MSX_BIO__6
CEATA_MMC_DAT__7_MSX_BIO__7
CEATA/XXIO/MSX
IOVDD1833_ATA_CEATA
IOVDD1833_ATA_CEATA
ATA_ADDR__0
ATA_ADDR__1
ATA_ADDR__2
ATA_DATA__0
ATA_DATA__1
ATA_DATA__2
ATA_DATA__3
ATA_DATA__4
ATA_DATA__5
ATA_DATA__6
ATA_DATA__7
ATA_DATA__8
IOVDD33_ATA
IOVDD33_ATA
PATA/CEATAUARTAUDIO_NC
IOVDD33_ATA
ATA_DATA__9
ATA_DATA__10
ATA_DATA__11
ATA_DATA__12
ATA_DATA__13
ATA_DATA__14
ATA_DATA__15
ATA_XCS__0
ATA_XCS__1
ATA_XDMACK
ATA_XRESET
IOVDD1833_CEATA
IOVDD1833_CEATA
MSX_INS_HiZ2
CEATA_MMC_SD_CMD_MS_BS
CEATA_MMC_SD_CLK_MS_CLK
IOVDD33_MSX2
MSX2_BIO_4
MSX2_BIO_5
MSX2_BIO_6
MSX2_BIO_7
IOVDD3033_MSX
IOVDD3033_MSX
MSX
MSX_INS_HiZ1
MSX_BIO__0
MSX_BIO__1
MSX_BIO__2
MSX_BIO__3
MSX_BIO__4
MSX_BIO__5
MSX_BIO__6
MSX_BIO__7
ATA_DMARQ
ATA_IORDY
ATA_IRQ
ATA_XIORD
ATA_XIOWR
UART3_TXD
UART3_RXD
MSX2_CMD
MSX2_CLK
XMSX2_INS
MSX2_WP
MSX_CLK
MSX_BS
R7856
A21
B21
G16
G17
G18
E18
E17
E19
G19
G20
C19
C21
C20
E21
A17
B17
C17
E20
F21
F20
F19
F18
F17
F16
A20
B18
C16
A18
C18
A19
B19
E16
B20
B15
A15
MNT1
E15
MNT2
E14
A23
B23
C28
G23
E27
F26
G26
F27
G27
G25
G24
E26
F25
A25
E24
F22
G22
E23
F24
G21
F23
E25
A28
B28
C27
A26
B26
A27
B27
E22
C23
C24
C25
C26
B25
0
C7809
0.1u
R7857
XX
C7810
0.1u
8
RB7807
XX
1234567
R7916
C7821
C7820
4.7u
0.1u
FB7804
FB7803
FB7802
R7918
RB7810
8
6
4
2
R7919
R7921
R7872
CL7805
CL7806
CL7807
CL7808
R7881
XX
100
33
100
R7889
7
5
3
1
100
1k
68
XX
EXCEPT CX110/CX11E/CX115E
D7804
1SS387-TPL3
D_3.3V
EXCEPT CX110/CX11E/CX115E
R7864
R7900
R7901
RB7803
RB7804
R7902
EXCEPT CX110/CX11E/CX115E
RB7808
8
6
4
2
RB7809
8
6
4
2
R7896
R7893
R7891
R7898
R7899
R7894
R7895
R7892
R7897
R7890
XX
D_1.8V
D_2.8V
100
XX
XX
75
2
1
4
3
6
5
8
7
75
2
1
4
3
6
5
8
7
33
XX
7
5
3
1
XX
7
5
3
1
XX
XX
XX
XX
XX
XX
XX
XX
XX
ATA_A0/MMC_CLK
ATA_A1
ATA_A2
ATA_D3/MMC_BIO_3
ATA_D2/MMC_BIO_2
ATA_D1/MMC_BIO_1
ATA_D0/MMC_BIO_0
ATA_D5/MMC_BIO_5
ATA_D6/MMC_BIO_6
ATA_D7/MMC_BIO_7
ATA_D4/MMC_BIO_4
ATA_D8/MMC_CMD
ATA_D12
ATA_D11
ATA_D10
ATA_D9
ATA_D15
ATA_D14
ATA_D13
ATA_DMARQ
ATA_IORDY
ATA_INTRQ
XATA_CS0
XATA_CS1
XATA_DIOR
XATA_DIOW
XATA_DMACK
XATA_RESET
HDD_3.3V
HDD_UNLOAD
MSX2_CMD
MSX2_BIO_4
MSX2_BIO_5
MSX2_BIO_6
MSX2_BIO_7
MSX2_CLK
XMSX2_INS
MSX2_WP
MSX_BS
MSX_BIO0
MSX_BIO1
MSX_BIO2
MSX_BIO3
MSX_CLK
B
C
D
E
F
G
H
I
J
K
VC-590 BOARD(13/15)
I/F,PCI,ATA,MSX
XX MARK:NO MOUNT
L L
08
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
6-20
K
Page 28
6-21
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
Note:IC7501 is not supplied, but this is included in VC-590 complete board (Service).
A_1.8V
A_1.2V
I/O_1.8V
D_2.8V
D_2.8V
D_1.2V
D_1.8V
D_1.8V
D_1.8V
C8024
0.1u
C8005
0.1u
C8002
0.1u
C8001
10u
C8009
1u
16V
C8012
0.1u
C8025
0.1u
C8021
0.1u
C8023
4.7u
C8014
0.1u
C8015
0.1u
C8022
4.7u
C8018
0.1u
C8019
0.1u
C8011
0.1u
C8003
0.1u
C8006
0.1u
C8007
0.1u
C8020
0.1u
C8004
10u
C8008
47u
4V
A_1.8V
D_2.8V
D_2.8V
D_1.2V
SENS_DATA_P_3
SENS_DATA_M_2
SENS_DATA_P_2
SENS_DATA_M_4
SENS_DATA_P_4
SENS_DATA_M_5
D_1.8V
REG_GND
A_1.2V
VST_C_RESET
SENS_CLK_M
SENS_CLK_P
SENS_DATA_M_3
SENS_DATA_P_5
USB_VBUS_LIMIT
I/O_1.8V
REG_GND
REG_GND
FC_SENSE_OUT
TP_SEL2
IRIS_MD_BRAKE
TP_SEL1
DAC_STRB
SHUTTER_ON
FC_LENSV_DIR_A
FC_LENSV_DIR_B
ZM_RST_LED
FC_RST_LED
FC_LENSV_ENB
ZM_ENB
ZM_DIR_B
ZM_DIR_A
ZM_SENSE_OUT
L8002
10uH
L8001
10uH
R8072 XX
R8074
XX
R8073 XX
R8044
47
IC7501
BCX255102A
A12
IOVDD1830_VIN
B12
IOVDD1830_VIN
E9
VIN_Y__0
B9
VIN_Y__1
C9
VIN_Y__2
F10
VIN_Y__3
B8
VIN_Y__4
C8
VIN_Y__5
F8
VIN_Y__6
F9
VIN_Y__7
B10
VIN_C__0
C11
VIN_C__1
C12
VIN_C__2
B11
VIN_C__3
E10
VIN_C__4
C10
VIN_C__5
E11
VIN_C__6
F11
VIN_C__7
A11
VIN_FLD
A9
VIN_VD
A10
VIN_HD
A8
VIN_CLK_IN
D1
AVDD18_SUBL
D2
AVDD18_SUBL
P1
AVDD18_SUBL
P2
AVDD18_SUBL
N3
AVDD12_SUBL
P3
AVDD12_SUBL
D3
AVSS18_SUBL
E3
AVSS18_SUBL
L5
AVSS18_SUBL
M5
AVSS18_SUBL
F3
AVSS12_SUBL
G3
AVSS12_SUBL
E2
SENS_DATA_M__0
E1
SENS_DATA_P__0
F2
SENS_DATA_M__1
F1
SENS_DATA_P__1
G2
SENS_DATA_M__2
G1
SENS_DATA_P__2
H2
SENS_DATA_M__3
H1
SENS_DATA_P__3
J1
SENS_CLK_P
J2
SENS_CLK_M
K2
SENS_DATA_M__4
K1
SENS_DATA_P__4
L2
SENS_DATA_M__5
L1
SENS_DATA_P__5
M2
SENS_DATA_M__6
M1
SENS_DATA_P__6
N2
SENS_DATA_M__7
N1
SENS_DATA_P__7
R3
IOVDD18_CMOS
H3
SENS_VD
M3
SENS_HD
K3
SENSSCK
L3
SENSSO
J3
SENSXCS
AG1
IOVDD30_BEAR
AG2
IOVDD30_BEAR
AR4
IOVDD30_BEAR
AF7
MSHUT_EN
AH1
STRB_ON1
AJ1
STRB_ON2
AK1
STRB_ON3
AG5
IRIS0
AF3
IRIS1
AJ3
DIR0A
AF5
DIR0B
AG3
BRK0A_EN0
AH2
BRK0B
AH3
DIR1A
AK3
DIR1B
AK2
BRK1A_EN1
AL2
BRK1B
AJ2
DIR2A
AM1
DIR2B
AL3
BRK2A_EN2
AL1
BRK2B
AM3
SENS1A
AM2
SENS1B
AG7
SENS0
AF6
SENS2
AE6
FG1A
AG6
FG1B
IC7501
BCX255102A
AE25
VDD_CORE
AE26
VDD_CORE
AF25
VDD_CORE
AF26
VDD_CORE
AF27
VDD_CORE
AF29
VDD_CORE
AF30
VDD_CORE
AF31
VDD_CORE
AG25
VDD_CORE
AG26
VDD_CORE
AG27
VDD_CORE
AG29
VDD_CORE
AG30
VDD_CORE
AG31
VDD_CORE
AG33
VDD_CORE
AG34
VDD_CORE
AG35
VDD_CORE
AH33
VDD_CORE
AH34
VDD_CORE
AH35
VDD_CORE
V26
VSS
A3
VSS
A7
VSS
A16
VSS
A22
VSS
A29
VSS
A33
VSS
AA15
VSS
AA16
VSS
AA17
VSS
AA18
VSS
AA19
VSS
AA20
VSS
AA21
VSS
AB18
VSS
AB19
VSS
AB20
VSS
AC18
VSS
AE3
VSS
AE5
VSS
AE18
VSS
AE27
VSS
AE29
VSS
AE30
VSS
AE31
VSS
AE33
VSS
AF1
VSS
AF2
VSS
AF18
VSS
AF33
VSS
AF34
VSS
AF35
VSS
AG14
VSS
AG15
VSS
AG16
VSS
AG17
VSS
AH5
VSS
AH6
VSS
AH7
VSS
AJ23
VSS
AK23
VSS
AL24
VSS
AN1
VSS
AN2
VSS
AN3
VSS
AN24
VSS
AN35
VSS
AP2
VSS
AP3
VSS
AP14
VSS
AP20
VSS
AP24
VSS
AP29
VSS
AP34
VSS
AR3
VSS
AR5
VSS
AR7
VSS
AR14
VSS
AR20
VSS
AR24
VSS
AR29
VSS
AR33
VSS
B2
VSS
B3
VSS
B7
VSS
B16
VSS
B22
VSS
B29
VSS
B34
VSS
C1
VSS
C2
VSS
C7
VSS
C22
VSS
C35
VSS
E8
VSS
F5
VSS
J34
VSS
J35
VSS
K5
VSS
N29
VSS
N30
VSS
N31
VSS
N33
VSS
N34
VSS
N35
VSS
P17
VSS
P18
VSS
P19
VSS
P20
VSS
P21
VSS
R16
VSS
R17
VSS
R18
VSS
R19
VSS
R20
VSS
R21
VSS
R22
VSS
T5
VSS
T6
VSS
T7
VSS
T9
VSS
T10
VSS
T11
VSS
T15
VSS
T16
VSS
T17
VSS
T18
VSS
T19
VSS
T20
VSS
T21
VSS
T33
VSS
U15
VSS
U16
VSS
U17
VSS
U18
VSS
U19
VSS
U20
VSS
U21
VSS
V15
VSS
V16
VSS
V17
VSS
V18
VSS
V19
VSS
V20
VSS
V21
VSS
W15
VSS
W16
VSS
W17
VSS
W18
VSS
W19
VSS
W20
VSS
W21
VSS
W33
VSS
Y15
VSS
Y16
VSS
Y17
VSS
Y18
VSS
Y19
VSS
Y20
VSS
Y21
VSS
T3
VSS
AA23
VSS
AA25
VSS
AA26
VSS
AB23
VSS
AB25
VSS
AB26
VSS
AC22
VSS
AC23
VSS
AC25
VSS
AC26
VSS
AD25
VSS
AD26
VSS
AE23
VSS
AE24
VSS
J22
VSS
J23
VSS
J24
VSS
K22
VSS
L22
VSS
U26
VSS
V25
VSS
Y25
VSS
Y26
VSS
AJ7
VSS
W25
VSS
W26
VSS
A1
NC
A2
NC
A34
NC
A35
NC
AP1
NC
AP35
NC
AR1
NC
AR2
NC
AR34
NC
AR35
NC
B1
NC
B35
NC
A24
PoPVDD18_DDR0
AE34
PoPVDD18_DDR0
AE35
PoPVDD18_DDR0
AP25
PoPVDD18_DDR0
AR25
PoPVDD18_DDR0
B24
PoPVDD18_DDR0
L34
PoPVDD18_DDR0
L35
PoPVDD18_DDR0
A5
PoPVDD18_DDR1
AE1
PoPVDD18_DDR1
AE2
PoPVDD18_DDR1
AP8
PoPVDD18_DDR1
AR8
PoPVDD18_DDR1
B5
PoPVDD18_DDR1
T1
PoPVDD18_DDR1
T2
PoPVDD18_DDR1
SENSXCS
SENS_VD
SENSSCK
SENSSO
SENS_HD
VIN
IMAGER_IN_subLVDS
IMAGER_IN_subLVDSCMOS_HD_VD/SOBEAR/ETC
123
B
13
G
14
G
I
H
15
E
10 11
B
D
E
6
K
F
K
D
L L
08
A
H
A
5 7
C
J
169
I
81 42
C
F
J
XX MARK:NO MOUNT
LENS DATA,LENS CONTROL
VIDEO/AUDIO DEC,PLL,I/O,EMC,DDR,
I/F,PCI,ATA,MSX,LENS
(7/8)
VIDEO/AUDIO DEC,PLL,I/O,EMC,DDR,
I/F,PCI,ATA,MSX,LENS
(8/8)
VC-590 BOARD(14/15)
Page 29
6-22
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
Note:IC8101 is not supplied, but this is included in VC-590 complete board(Service).
EMC_ADDR_10
EMC_ADDR_6
EMC_ADDR_4
EMC_ADDR_15
EMC_DATA_6
EMC_XWE
EMC_XRAS
EMC_XOE
F_XRP
EMC_ADDR_13
EMC_XWE
EMC_ADDR_6
EMC_DATA_8
EMC_DATA_5
EMC_CLK_OUT_FLASH
EMC_ADDR_2
EMC_ADDR_1
EMC_INT
EMC_DATA_10
EMC_DATA_15
EMC_ADDR_3
EMC_DATA_10
EMC_DATA_3
EMC_ADDR_9
EMC_DATA_16
EMC_DATA_19
EMC_XCS_0
EMC_DATA_18
EMC_ADDR_12
EMC_DATA_6
EMC_DATA_22
EMC_RDY0
EMC_DATA_12
EMC_ADDR_10
EMC_DATA_28
EMC_XCS_1
EMC_DATA_26
EMC_DATA_14
EMC_DATA_2
EMC_DQM_3
EMC_DATA_23
EMC_DATA_31
EMC_DQM_2
EMC_DQM_0
EMC_ADDR_5
EMC_DATA_7
EMC_DATA_11
EMC_DATA_14
EMC_DATA_29
EMC_DATA_9
EMC_DATA_25
EMC_DATA_13
EMC_ADDR_14
EMC_ADDR_12
EMC_DATA_0
EMC_DATA_12
EMC_DQM_1
EMC_DATA_15
EMC_XCAS
EMC_DATA_1
EMC_DATA_9
EMC_ADDR_3
EMC_ADDR_0
EMC_ADDR_11EMC_ADDR_15
EMC_ADDR_14
EMC_DATA_20
EMC_DATA_30
EMC_DATA_3
EMC_DATA_5
EMC_DATA_0
EMC_ADDR_11
EMC_ADDR_1
EMC_ADDR_7
EMC_DATA_1
EMC_DATA_2
EMC_DATA_4
EMC_DATA_8
EMC_ADDR_5
EMC_ADDR_8
EMC_DATA_17
EMC_CKE
EMC_ADDR_2
EMC_DATA_21
EMC_DATA_7
EMC_DATA_13
EMC_ADDR_8
EMC_CLK_OUT_SDRAM
EMC_DATA_11
EMC_ADDR_0
EMC_ADDR_9
EMC_DATA_4
EMC_DATA_27
EMC_DATA_24
EMC_ADDR_4
EMC_ADDR_7
D_1.8V
C8107
2.2u
C8110
XX
C8104
4.7u
C8101
0.1u
C8105
0.1u
C8102
0.1u
C8109
0.1u
C8108
0.1u
C8103
0.1u
C8113
0.1u
C8106
47u
4V
XFLASH_RST
D_1.8V
SD_1.8V
EMC_XCS_0
EMC_XOE
EMC_DQM_3
EMC_DQM_1
EMC_CLK_OUT_FLASH
EMC_CLK_OUT_SDRAM
EMC_XCS_1
REG_GND
EMC_XRAS
EMC_DQM_0
EMC_XWE
EMC_DQM_2
EMC_XCAS
EMC_XRAS
EMC_ADDR_13
EMC_ADDR_4
EMC_ADDR_12
EMC_ADDR_3
EMC_ADDR_8
EMC_ADDR_0
EMC_ADDR_6
EMC_ADDR_15
EMC_ADDR_2
EMC_ADDR_9
EMC_ADDR_1
EMC_ADDR_14
EMC_ADDR_11
EMC_ADDR_5
EMC_ADDR_10
EMC_ADDR_7
EMC_CKE
EMC_CLK_IN_FLASH
EMC_CLK_IN_SDRAM
EMC_RDY0
EMC_INT
EMC_DATA_3
EMC_DATA_5
EMC_DATA_6
EMC_DATA_8
EMC_DATA_7
EMC_DATA_4
EMC_DATA_10
EMC_DATA_11
EMC_DATA_12
EMC_DATA_9
EMC_DATA_14
EMC_DATA_16
EMC_DATA_13
EMC_DATA_2
EMC_DATA_15
EMC_DATA_21
EMC_DATA_17
EMC_DATA_19
EMC_DATA_25
EMC_DATA_20
EMC_DATA_28
EMC_DATA_29
EMC_DATA_30
EMC_DATA_23
EMC_DATA_22
EMC_DATA_27
EMC_DATA_24
EMC_DATA_31
EMC_DATA_26
EMC_DATA_1
EMC_DATA_0
EMC_DATA_18
IC8101
K5R1G13ACD-AK60T
A2
DNU
A3
DNU
A12
DNU
A13
DNU
A14
DNU
B3
NC
B4
NC
B5
NC
B6
NC
B7
NC
B8
F_Vsso
B9
NC
B10
F_A9
B11
F_A13
B12
NC
B13
NC
C4
F_A1
C5
F_A3
C6
F_A6
C7
NC
C8
F_Vcc
C9
NC
C10
F_A8
C11
F_A12
C12
NC
D5
F_A2
D6
F_A5
D7
NC
D8
NC
D9
NC
D10
F_A10
D11
F_A14
E6
F_A4
E7
F_A7
E8
F_/RP
F_A15
E9
NC
E10
F_A0
F6
NC
F7
F_A11
F8
NC
F9
F_/OEo
N10
F_/WEo
P7
F_DQ2
P8
F_DQ3
P9
F_DQ11
P10
F_INTo
P11
F_RDY
R6
F_DQ9
R7
F_DQ10
R8
F_DQ4
R9
F_DQ5
R10
F_DQ13
R11
F_CLK
T4
F_/AVD
T5
F_DQ1
T6
F_Vccq
T7
F_Vccq
T8
F_DQ12
T9
F_Vccq
T10
F_DQ6
T11
F_DQ14
T12
F_/CEo
U3
NC
U4
NC
U5
F_DQ8
U6
NC
U7
NC
U8
NC
U9
F_Vccq
U10
F_DQ7
U11
F_DQ15
U12
DNU
V1
F_Vsso
V2
F_Vcc
V3
NC
V4
F_DQ0
V5
NC
V6
NC
V7
NC
V8
NC
V9
NC
V10
NC
V11
F_Vcc
V12
F_Vsso
V13
DNU
V14
DNU
W1
DNU
W2
DNU
W3
DNU
W12
DNU
W13
DNU
W14
IC8101
K5R1G13ACD-AK60T
A1
DNU
B1
DNU
B2
NC
B14
DNU
C1
DNU
C2
S_Vssd
C3
NC
C13
NC
C14
DNU
D2
S_Vdd
D3
S_A9
D4
S_A5
D12
NC
D13
S_DQ15
E2
S_A4
E3
S_A8
E4
S_A7
E5
S_A11
E11
NC
E12
S_DQ14
E13
S_DQ13
F2
NC
F3
S_CKE
F4
S_A6
F5
S_DQ29
F10
NC
F11
S_DQ12
F12
NC
F13
S_DQM1
G2
S_DQ30
G3
S_DQ31
G4
S_DQ28
G5
S_DQ27
G10
S_DQ11
G11
S_DQ10
S_Vssq
G12
S_Vddq
G13
S_Vssq
H2
S_Vddq
H3
S_DQ26
H4
S_DQ25
H5
S_DQ9
H10
S_DQ8
H11
S_Vddq
H12
S_Vssq
H13
DNU
J1
DNU
K1
S_Vssd
K2
S_Vdd
K3
NC
K4
S_A12
K5
S_Vssd
K10
S_CLK
K11
NC
K12
NC
K13
DNU
K14
DNU
L1
S_Vssq
L2
S_Vddq
L3
S_BA0
L4
S_BA1
L5
S_DQ6
L10
S_DQ7
L11
S_Vddq
L12
S_Vssq
L13
DNU
L14
S_Vddq
M2
S_Vssq
M3
S_DQM2
M4
NC
M5
S_DQ4
M10
S_DQ5
M11
S_Vssq
M12
S_Vddq
M13
S_DQ18
N2
S_DQ19
N3
S_DQ23
N4
S_DQ22
N5
S_DQ3
N11
NC
N12
S_DQM0
N13
S_DQ16
P2
S_DQ17
P3
S_Vddq
J2
S_Vssq
J3
S_DQ24
J4
S_DQM3
J5
S_/WE
J10
S_/CAS
J11
S_/RAS
J12
S_/CS
J13
DNU
J14
S_DQ20
P4
S_DQ21
P5
S_A10
P6
S_DQ1
P12
S_DQ2
P13
NC
R2
S_A3
R3
S_A1
R4
S_A0
R5
S_DQ0
R12
NC
R13
NC
T2
S_A2
T3
S_Vdd
T13
DNU
U1
S_Vdd
U2
S_Vssq
U13
DNU
U14
R8106
1k
R8104
XX
R8103
47
R8102
33
R8105
XX
H
E
5
C
1
G
2
B
A
6
D
104 12
08
11
C
A
E
7
G
H
9
B
F
8
F
D
3
XX MARK:NO MOUNT
ONE NAND,SDRAM
(1/2)
ONE NAND, SDRAM
(2/2)
ONE NAND, SDRAM
VC-590 BOARD(15/15)
Page 30
6-23
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
: Uses unleaded solder.
6-2. PRINTED WIRING BOARDS
A1
A2A3A4A5A6A7A8
A9
A10
B2B3B4B5B6B7B8
B9
B10
C2C3C4C5C6C7C8
C9
C10
D2
D3
D9
D10
E2
E3
E9
E10
F2
F3
F9
F10
G2
G3
G9
G10
H2
H3
H9
H10
J2
J3
J9
J10
K2K3K4K5K6K7K8
K9
K10
L2L3L4L5L6L7L8
L9
L10
M2M3M4M5M6M7M8
M9
M10
B11C11D11E11F11G11H11J11K11L11
B1C1D1E1F1G1H1J1K1L1
A11
M1
M11
3 4
2 1
34
21
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
2
1
32
33
CP002
08
CM-114 BOARD (SIDE A)
1-880-335-
11
C6902
C6903
C6905
C6906
C6907
C6908
C6909
C6910
C6912
C6914
C6915
C6916
C6917
C6918
C6919
C6920
C6921
C6922
C6923
C6924
C6925
C6926
C6927
C6928
R6901
R6904
R6905
R6907
C6930
R6908
R6909
C6932
IC6902
IC6903
C6933
C6935
C6936
C6939
R6912
R6914
R6915
R6916
C6940
R6918
C6941
R6919
R6920
R6932
R6934
LF6901 LF6902
LF6903
LF6904 LF6905
CL6901
CL6902
CL6903
CL6904
CN6901
08
CM-114 BOARD (SIDE B)
1-880-335-
11
Note: CP002(CMOS imager) is not supplied, but this is included in CM-114 complete board.
HDMI OUT
USB
1
2
7
8
423
1
1
2
4
3
1
2
4
3
1
2
4
3
1
2
4
3
1
30
7
6
9
8
1 5
1
19
23
22
21
20
118
1
2
7
8
D14
AH6
AH4
AG2
AE1
AH9
AH11
AG13
AE14
U10
U9U8U6
U7
T10R10P10N10
K2 L2
J3 K3 L3
J4 K4 L4
V2U2
A6
H5H4H3
H14
H13
V12U12T12R12P12N12M12H12
W11
W10M10H10
W9M9H9W8W5U5T5R5P5
H2
AA1
K6
K11 AA11
AA10
AA9
AA8
AA5
AA7
AA6
Y11
Y10
Y9
Y8Y5Y7
Y6
N5
J2
H11
W7M7H7
W6
T2R2P2N2M2
V3U3T3R3P3N3M3
AA2Y2W2
AA3Y3W3
AA4Y4W4
AA14Y14W14J14 K14 L14
J13 K13 L13
J12 K12 L12
AA13Y13W13
AA12Y12W12
V14U14T14R14P14N14M14
V13U13T13R13P13N13
J5
M13
Y1W1
M8H8
M6H6
V1U1T1R1P1N1M1L1K1J1H1
J10
J9J7J8
J6
J11
K5
K10
K9K7K8
M5
A4
B2
D1
A9
A11
B13
RB7201
ET7201
ET7202
C8701
C8702
C8705
C8706
LF7201
LF7202
LF7203
LF7204
LF7205
R8701
R8702
CN7201
CN7202
CN7203
CN7204
R7205
R7206
R7207
R7208
R7209
R7210
R7211
R7212
R7213
R7214
R7215
R7216
RB8701
VD7201
IC8701
JK-395 BOARD (SIDE A) JK-395 BOARD (SIDE B)
08
1-880-339-
11
08
1-880-339-
11
Page 31
6-24
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
: Uses unleaded solder.
1
2
1
2
7
8
7
8
1
2
7
8
1
2
3
4
Y25AA25AB25AC25AD25AE25AF25AG25AJ25AK25AL25AN25AP25AR25 U25 T25 R25 P25 N25 M25 L25 K25 J25 G25 F25 E25 C25 B25 A25
V26W26Y26AA26AB26AC26AD26AE26AF26AG26AJ26AK26
D34 C34 B34
B24 A24
V25W25
A34
V35W35Y35AA35AB35AC35AD35AE35AF35AG35AH35AJ35AK35AL35AM35
R10
AR17 U17 T17 R17 P17 N17 L17 K17 J17 G17 F17 E17 C17 B17 A17
V16W16Y16AA16AB16AC16AE16AF16AG16AJ16AK16AL16
M27 L27 K27 J27 G27 F27 E27 C27 B27 A27
AJ28AK28AL28AN28AP28AR28 G28
AC20AE20AF20AG20AJ20AK20AL20AN20AP20AR20 U20 T20 R20 P20 N20 L20 K20 J20 G20 F20 E20 C20 B20 A20
V21W21Y21AA21AB21AC21AE21
AF19AG19AJ19AK19AL19AN19AP19AR19 U19 T19 R19 P19 N19 L19 K19 J19 G19 F19 E19 C19 B19 A19
V20W20Y20AA20AB20
AD31AE31AF31AG31AH31AJ31AK31AL31AN31AP31AR31 U31 T31 R31 P31 N31 M31 L31 K31 J31 H31 G31 F31 E31 C31 B31 A31
AN32AP32AR32 C32 B32 A32
V33W33Y33AA33AB33AC33AD33AE33AF33AG33
J22 G22 F22 E22
AA6AB6AC6AD6AE6AF6AG6
AN16AP16AR16 U16 T16 R16 P16 N16 L16 K16 J16 G16 F16 E16 C16 B16 A16
V15W15Y15AA15AB15AC15AE15AF15AG15AJ15AK15AL15AN15AP15AR15 U15 T15 R15
AH6AJ6AK6AL6AN6AP6AR6 U6 T6
C22 B22 A22
R6 P6 N6 M6 L6 K6 J6 H6 G6 F6 E6
G15 F15 E15 C15 B15 A15
V14W14Y14AA14AB14AC14AE14AF14
C6 B6 A6
V5W5Y5AA5AB5AC5AD5AE5AF5AG5AH5AJ5AK5AL5AN5AP5AR5 U5 T5 R5 P5 N5 M5 L5 K5 J5 H5 G5 F5 C5 B5 A5
AN4AP4AR4 C4 B4 A4
V3W3Y3AA3AB3AC3AD3AE3AF3AG3AH3AJ3AK3AL3AM3AN3AP3AR3 U3 T3 R3 P3 N3 M3 L3 K3
AD11AE11AF11AG11AJ11AK11
AH33AJ33AK33AL33AM33AN33AP33AR33 U33 T33 R33 P33 N33 M33 L33 K33 J33 H33 G33 F33 E33 D33 C33 B33 A33
V34W34Y34AA34AB34AC34AD34AE34AF34AG34AH34AJ34AK34AL34AM34AN34AP34AR34 U34 T34 R34 P34
P10 N10 M10 L10 K10 J10 G10 F10 E10 C10 B10 A10
V9W9Y9AA9AB9AC9AD9AE9AF9AG9AJ9AK9AL9AN9AP9AR9 U9 T9 R9 P9 N9 M9 L9 K9 J9 G9 F9 E9 C9 B9 A9
AJ8AK8AL8AN8AP8AR8 G8 F8 E8 C8 B8 A8
V7W7Y7AA7AB7AC7AD7AE7AF7AG7AH7AJ7AK7AL7AN7
F28 E28 C28 B28 A28
V29W29Y29AA29AB29AC29AD29AE29AF29AG29AH29AJ29AK29AL29AN29AP29AR29 U29 T29 R29 P29 N29 M29 L29 K29 J29 H29 G29 F29 E29 C29 B29 A29
V30W30Y30AA30AB30AC30AD30AE30AF30AG30AH30AJ30AK30AL30AN30AP30AR30 U30 T30 R30 P30 N30
P15 N15 L15 K15 J15
C14 B14 A14
V13W13Y13AA13AB13AC13AE13AF13AG13AJ13AK13AL13AN13AP13AR13 U13 T13 R13 P13 N13 L13 K13 J13 G13 F13 E13 C13 B13 A13
AE12AF12AG12AJ12AK12AL12AN12AP12AR12 L12 K12 J12 G12 F12 E12 C12 B12 A12
V11W11Y11AA11AB11AC11
AJ24AK24AL24AN24AP24AR24 L24 K24 J24 G24 F24 E24 C24
AF21
AG14AJ14
AG21AJ21AK21AL21AN21AP21AR21 U21 T21 R21 P21 N21 L21 K21 J21 G21 F21 E21 C21 B21 A21
V22W22Y22
M30 L30 K30 J30 H30 G30 F30 E30 C30 B30 A30
V31W31Y31AA31AB31AC31
AK14AL14AN14AP14AR14 U14 T14 R14 P14 N14 L14 K14 J14 G14 F14 E14
V23W23Y23AA23AB23AC23AE23AF23AG23AJ23AK23AL23AN23AP23AR23 U23 T23 R23 P23 N23 L23 K23 J23 G23 F23 E23 C23 B23 A23
AE24AF24AG24
AA22AB22AC22AE22AF22AG22AJ22AK22AL22AN22AP22AR22 U22 T22 R22 P22 N22 L22 K22
AC1AD1AE1AF1AG1AH1AJ1AK1AL1AM1AN1AP1AR1 U1 T1 R1 P1 N1 M1 L1 K1 J1 H1 G1
B35 A35
V17W17Y17AA17AB17AC17AE17AF17AG17AJ17AL17AN17AP17
C26 B26 A26
V27W27Y27AA27AB27AC27AD27AE27AF27AG27AJ27AK27AL27AN27
AK17
AP27AR27 U27 T27 R27 P27 N27
V18W18Y18AA18AB18AC18AE18AF18AG18AJ18AK18AL18AN18AP18AR18 U18 T18 R18 P18 N18 L18 K18 J18 G18 F18 E18 C18 B18 A18
V19W19Y19AA19AB19AC19AE19
N34 M34 L34 K34 J34 H34 G34 F34 E34
B11 A11
V10W10Y10AA10AB10
F1 E1 D1 C1 B1 A1
AL26AN26AP26AR26 U26 T26 R26 P26 N26 M26 L26 K26 J26 G26 F26 E26
AN35AP35AR35 U35 T35 R35 P35 N35 M35 L35 K35 J35 H35 G35 F35 E35 D35 C35
AC10AD10AE10AF10AG10AJ10AK10AL10AN10AP10AR10 U10 T10
J3 H3 G3 F3 E3 D3 C3 B3 A3
V2W2Y2AA2AB2AC2AD2AE2AF2AG2AH2AJ2AK2AL2AM2AN2AP2AR2 U2 T2 R2 P2 N2 M2 L2 K2 J2 H2 G2 F2 E2 D2 C2 B2 A2
V1W1Y1AA1AB1
AL11AN11AP11AR11 U11 T11 R11 P11 N11 M11 L11 K11 J11 G11 F11 E11 C11
AP7AR7 U7 T7 R7 P7 N7 M7 L7 K7 J7 H7 G7 F7 E7 C7 B7 A7
V6W6Y6
1 3
45
R4T4U4V4
B5C5D5E5F5G5H5J5K5L5M5N5P5R5T5U5V5
B6C6D6E6F6P6R6T6U6V6
B7C7D7E7F7P7R7T7U7V7
B8C8D8E8F8P8R8T8U8V8
B9C9D9E9F9P9R9T9U9V9
B10C10D10E10F10G10H10J10K10L10M10N10P10R10T10U10V10
B11C11D11E11F11G11H11J11K11L11M11N11P11R11T11U11V11
A12B12C12D12E12F12G12H12J12K12L12M12N12P12R12T12U12V12W12
A13B13C13D13E13F13G13H13J13K13L13M13N13P13R13T13U13V13W13
A14B14J14K14L14U14V14W14 C14
A1B1C1J1K1L1U1V1W1
A2B2C2D2E2F2G2H2J2K2L2M2N2P2R2T2U2V2W2
A3B3C3D3E3F3G3H3J3K3L3M3N3P3R3T3U3V3W3
B4C4D4E4F4G4H4J4K4L4M4N4P4
24 1
2
1
32
33
110
16
143
6
1
4
5
8
1543
3
1
4
2
13
4 6
C
BE
C
BE
S G
D
34
21
34
21
E B
C
143
6
C
B E
A1A2A3A4A5A6A7A8A9
A10
A11
B1B2B3B4B5B6B7B8B9
B10
B11
C1C2C3C4C5C6C7C8C9
C10
C11
D1D2D3
D9
D10
D11
E1E2E3
E9
E10
E11
F1F2F3
F9
F10
F11
G1G2G3
G9
G10
G11
H1H2H3
H9
H10
H11
J1J2J3J4J5J6J7J8J9
J10
J11
K1K2K3K4K5K6K7K8K9
K10
K11
L1L2L3L4L5L6L7L8L9
L10
L11
1
4
3
6
A2
A3
A4
A5
B1
B2
B3
B4
B5
B6
C1
C2
C4
C5
C6
D1
D2
D3
D4
D5
D6
E1
E2
E3
E4
E5
E6
F2
F3
F4
F5
F1
F6 A6
A1
3
1
4
2
R8044
FB1001
CL7701
FB1002
CL7702
CL7513
R7881
R7882
R7887
R7888
R7889
R7890
R7893
R7894
R7895
R7896
RB7805RB7806
R8072
R8073
R8074
RB7810
R5398
R5399
X4901
C7502
C7505
C7508
C7509
C7701
C7702
C7703
C7706
C7707
C7708
C7516
C7517
C7711
C7712
C7715
C7526
R7502
C7530
IC7501
L4701
L4703
C7533
L4704
C7534
L4705
IC7505
R7701
FB7802
L4706
C7536
FB7803
C7537
FB7804
C7538
C7539
C7540
C7543
C7546
L4717
C8101
C8102C8103
C8104
C8105
C8106
C8107
R7528
C8108C8109
L4723
R7916
R7917
R7918
C8110
R7919
L2402
C8113
R7921
R7544
R7545
R7546
R7547
R7548
R7549
R8102
R8103
R8104
R8105
R8106
IC8101
CN1003
CN1004
CN1007
CN1008
CN1009
L8002
C1003
C1004
C1005
R7570
CL4901
R7571
CL4902
Q1006
CL4903
CL4904
R7574
CL4906
CL4908
CL4909
CL4910
CL4911
CL4912
R7584
CL4917
R7587
CL4918
CL4919
CL4920
R1001
R7591
R1002
CL7802
R1003
R1004
CL7804
CL7805
CL7806
CL7807
CL7808
IC1004
IC1005
R1020
VD1001
VD1002
R1023
VD1003
R1024
VD1004
VD1005
S1001
VD1007
VD1008
Q4702
Q4703
C4708
Q4704
Q4705
C4901
C4906
C4907
C4908
C4909
C4718
C4719
R1043
C4910
R1044
C4911
C4912
C4913
X7501
C4917
X7504
C4919
C4725
C4729
C2401
C2402
C2403
R4704
C2404
Q2401
C2405
Q2402
C2406
C7803
C2407
Q2403
R4708
C4730
C2408
C7804
C4731
C7805
C2409
C4732
C7806
C7807
C7808
C7809
R4901
C4736
R4902
C2410
C2411
C2412
C2413
C7810
C2414
IC4901
C2415 C 2416
C2417
C7814
C2418
R4911
R4913
C2420
FB7701
R4915
FB7702
R4722
R4916
C2422
R4723
R4917
C2423
C7820
C2424
C7821
Q5301
R4729
C4755
C4756
R2406
R2409
IC2401
R4927
R4929
C8002
C8003
C8004
R2410
C8005
R2411
R2412
C8007
R4930
C8008
R2414
C8009
R2415
L7502
R2416
R4933
R2417
L7503
R4934
R2418
R2419
L7509
C8011
C8012
C8014
R2420
C8015
R2421
C4772
R2422 R2423
L7510
R7820
C8018
R2424
C4775
L7511
C8019
R2425
R2426
R4943
R7823
R7824
R4948
R7828
C8020
C8021
R7829
C8022
C8023
C8024
C8025
R7830
R4950
R4953
R4954
R5319
R4956
R4957
R4958
R5320
R4963
R4964
R7849
LF7501
R7850
R7855
R7856
R7857
R7868
R7872
VC-590 BOARD (SIDE A)
08
1-880-334-
11
Note: IC7501 and IC8101 is not supplied, but this is included in VC-590 complete board (SERVICE).
RESET
Page 32
6-25
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
: Uses unleaded solder.
127
8
1
2
7
8
1
2
1
2
7
8
7
8
1
2
7
8
1
2
127
8
7
8
13
4 65
2
C
BE
1
4
58
3
1
4
2
3
1
4
2
3
1
4
2
3
1
4
2
C
B E
12
3 4
463
1
A1B1C1D1E1F1G1H1J1K1L1M1N1P1R1
A2B2C2D2E2F2G2H2J2K2L2M2N2P2R2
A3B3C3D3E3F3G3H3J3K3L3M3N3P3R3
A7B7C7D7E7F7G7H7J7K7L7M7N7P7R7
A8B8C8D8E8F8G8H8J8K8L8M8N8P8R8
A9B9C9D9E9F9G9H9J9K9L9M9N9P9R9
A1A2A3
A4
B1
B3
B4
C1C2C3
C4
D1D2D3
D4
E1E2E3
E4
1
4
3
6
114
16 15
151
250
32
2
1 33
1 6
C
B E
1 30
C
B E
1
KA
4
5 8
G7
G6
G5
G4
G3
G2
G1
F7
F6
F5
F4
F3
F2
F1
E7
E6
E5
E4
E3
E2
E1
D7
D6
D5
D4
D3
D2
D1
C7
C6
C5
C4
C3
C2
C1
B7
B6
B5
B4
B3
B2
B1
A7
A6
A5
A4
A3
A2
A1
1 2 3
45
1 2
34
127
8
1
2
7
8
1
2
1
2
7
8
7
8
S G
D
1
4
3
6
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
D1
D2
D3
D4
D11
D12
D13
E1
E2
E3
E11
E12
E13
F1
F2
F3
F6
F7
F8
F11
F12
F13
G1
G2
G3
G6
G7
G8
G11
G12
G13
H1
H2
H3
H6
H7
H8
H11
H12
H13
J1
J2
J3
J11
J12
J13
K1
K2
K3
K11
K12
K13
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
L12
L13
M1
M2
M3
M4
M5
M6
M7
M8
M9
M10
M11
M12
M13
N1
N2
N3
N4
N5
N6
N7
N8
N9
N10
N11
N12
N13
1 2
34
A23
A22
A21
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A9A8A7A6A5A4A3A2A1
B23
B22
B21
B20
B19
B18
B17
B16
B15
B14
B13
B12
B11
B10
B9B8B7B6B5B4B3B2B1
C23
C22
C21
C20
C19
C18
C17
C16
C15
C14
C13
C12
C11
C10
C9C8C7C6C5C4C3C2C1
D23
D22
D21
D20
D19
D18
D17
D16
D15
D14
D13
D12
D11
D10
D9D8D7D6D5D4D3D2D1
E23
E22
E21
E20
E4E3E2
E1
F23
F22
F21
F20
F4F3F2
F1
G23
G22
G21
G20
G4G3G2
G1
H23
H22
H21
H20
H16
H15
H14
H13
H12
H11
H10
H9
H8
H4H3H2
H1
J23
J22
J21
J20
J16
J15
J14
J13
J12
J11
J10
J9
J8
J4J3J2
J1
K23
K22
K21
K20
K16
K15
K14
K13
K12
K11
K10
K9
K8
K4K3K2
K1
L23
L22
L21
L20
L16
L15
L14
L13
L12
L11
L10
L9
L8
L4L3L2
L1
M23
M22
M21
M20
M16
M15
M14
M13
M12
M11
M10
M9
M8
M4M3M2
M1
N23
N22
N21
N20
N16
N15
N14
N13
N12
N11
N10
N9
N8
N4N3N2
N1
P23
P22
P21
P20
P16
P15
P14
P13
P12
P11
P10
P9
P8
P4P3P2
P1
R23
R22
R21
R20
R16
R15
R14
R13
R12
R11
R10
R9
R8
R4R3R2
R1
T23
T22
T21
T20
T16
T15
T14
T13
T12
T11
T10
T9
T8
T4T3T2
T1
U23
U22
U21
U20
U4U3U2
U1
V23
V22
V21
V20
V4V3V2
V1
W23
W22
W21
W20
W4W3W2
W1
Y23
Y22
Y21
Y20
Y19
Y18
Y17
Y16
Y15
Y14
Y13
Y12
Y11
Y10
Y9Y8Y7Y6Y5Y4Y3Y2Y1
AA9
AA8
AA7
AA6
AA5
AA4
AA3
AA2
AA1
AB9
AB8
AB7
AB6
AB5
AB4
AB3
AB2
AB1
AC9
AC8
AC7
AC6
AC5
AC4
AC3
AC2
AC1
AA23
AA22
AA21
AA20
AA19
AA18
AA17
AA16
AA15
AA14
AA13
AA12
AA11
AA10
AB23
AB22
AB21
AB20
AB19
AB18
AB17
AB16
AB15
AB14
AB13
AB12
AB11
AB10
AC23
AC22
AC21
AC20
AC19
AC18
AC17
AC16
AC15
AC14
AC13
AC12
AC11
AC10
C
B E
C
B E
1 2
3
A6B6C6D6E6F6
A5B5C5D5E5F5
A4B4D4E4F4
A3B3D3E3F3
A2B2C2D2E2F2
A1B1C1D1E1F1
1
4
58
6
1
4
3
1
4
5 8
1
4
58
1
4
58
1
244
45
CL7509
FB1003
CL7510
CL7511
CL7512
R7883
R7884
R7885
L3501
R7886
RB2202
RB2203
R7891
R7892
R7897
R7898
R7899
RB7803RB7804
RB7807
C4604
RB7808
Q4601
RB7809
C4605
C4606
Q4602
Q4603
LF3501LF3502LF3503LF3504
Q7501
D4604
C2301
C2302
C2303
C2304
C2305
R4607
R4608
R4609
C7511
C7512
C2501
C2502
C2503
C2504
C7518
C7519
SE1001
C2505
C2506
C2507
C2508
CL3501
CL3502
CL3503
C7524
FB2201
D7501
C7525
R2301
IC7502
C7535
IC2301
R2502
R2503
R7900
R2504
L4711
R7901
R7902
L4714
C7544C7545
IC2501
L4716
R7520
L4719
R7521
R7522
F4601
F4602
R7526
F4603
R7527
F4604
L4721
F4605
L4722
R7540
R7541
C3501
C3503
C3504
L5301
Q3501
C3505
L5302
C3506
C3507
C3508
C3509
C3510
CN1001
C3511
CN1002
CN1005
CN1006
CL4701
L8001
CL4702
CL4703
C1001
C1002
CN1010
CN1011
Q1001
C1006
C1007
C1008
D3501
D3502
D3503
Q1007
Q1008
R3501
R3502
R3503
C1011
C1012
C1013
C1014
IC3501
C1015
C1016
IC3502
CL2201
R7588
R3514
R7589
CL2209
D1001
R7590
CL2210
CL2211
CL2212
CL2213
CL2214
CL2215
IC1001
IC1006
RB7504
RB7505
RB7506
RB7508
R3531
R3532
R1021 R1022
R1025
VD1006
R1026 R1027
R1028
C4701
R1029
C4703
C4704
Q4701
C4705
C4706
R1038
C4711
Q4901
R1039
C4713
C4714
C4715
C4716
R1040
R1041
R1045
C2203
C4721
C2205
C4722
C2206
C4723
C2207
C4724
C2208
C2209
C4726
C4727
C4728
R4701
R4702
R4703
C2210
R4705
C2211
R4706
C2212
R4707
IC4701
R4709
C2216
C4733
C2217
IC4703
C4734
C2218
C4735
C2219
R4710
R4711
R4712
R4714
C2220
R4715
R4716
R4719
C2228
C7818
C7819
C2229
R4720
R4724
IC2201
R4725
C2231
Q5302
R4727
C2233
Q5303
R4728
C4751
C2235
C2236
C4754
D7804
R2210
C2239
R4730
C4758
C5310
C4759
C5311
C5312
C5313
R2218
C2240
C5314
C8001
R2219
C2242
C5316
C5317
C4760
C5318
C4761
C5319
C4762
C8006
C4763
D5103
C4768
C5320
C4769
C5321
C5322
C5323 C5324
D5301
C5325
D5302
C5326
C5327
C4770
C5328
C4771
C4773
R7821
R7822
C5330
C5331
R2235
L2501
R2236
C5332
L2502
R2238
R2239
IC5306
IC5309
R2245
R2246
IC5313IC5314IC5315
R7841
R2251
R7843
R5329
R5330
R5331
R5332
R5333
R5334
R5335
R5336
R5337
R5338
R5339
R5340
R5342
R5344
R5345
R5346
R5347
R7864
R5349
R5350
CL7501
R5351
CL7502
R5352
R5353
CL7503
R5354
CL7504
CL7505
R5355
R5356
CL7506
CL7507
R5357
VC-590 BOARD (SIDE B)
08
1-880-334-
11
Page 33
DCR-SX73E/SX83/SX83E, HDR-CX110/CX110E/CX115E/CX116E/CX150/CX150E/CX155E/CX170_L3
6-26E
: Uses unleaded solder.
SD
126
2728
2
1
50
51
1
14
1
2 3
1 2 3
45
123
4 5
1 2 3
45
123
4 5
4
3
1 2
4
3
12
1
2 3
127
8
127
8
K A
1
10
987
6
1617181920
11 12 13 14 15
5 4 3 2 1
1314
5
6
11 12
1
10
127
8
3
1
4
2
3
1
4
2
3
1
4
2
3
1
4
2
CN7304
CN7301
CN7303
L6602
C7301
C7303
C7304
C7306
C7308
C7309
C7315
C7316
D7301
D7303
R7301
R7302
R7303
R7304
R7305
R7307R7308 R7309
IC7301
IC7303
IC7304
IC7305
SE6602
(PITCH SENSOR)
SE6603
(YAW SENSOR)
R7310
R7311
R7313
R7314
R7315
R7316
R7317
R7318
R7319
R7320
VD7301
R7322
VD7302
R7323
VD7303
R7324
VD7304
R7325
VD7305
R7326
S7302
R7327
R7328
S7304
R7329
S7305
S7306
R7330
R7331
R7332
R7333
R7334
R7335
R7336
R7337
R7338
R7339
R7340
R7341
C6615
C6616
C6617
C6618
C6619
BH7301
RB7303
RB7305
C6620 C6621C6622
C6623
C6624
C6625
C6626
C6627
R6604
R6605
R6606 R6607
R6608
R6609
IC6601
R6610
R6611
R6612R6613
SE3202
(3 AXIS ACCELEROMTETOR)
FB7301
C3202
C3203
C3204
C3205
C3206
C3207
C3208
RB6601
R3202
R3203
R3204
R3205
MS-431 BOARD (SIDE A)
MS-431 BOARD (SIDE B)
08
1-880-338-
11
1-880-338-
11
1-880-338-
11
08
BT7301
(LITHIUM ION BATTERY)
Note: BT7301 is not included in MS-431 complete board.
(POWER)
INTELLIGENT
AUTO
(DISC BURN)
(VIEW IMAGE)
注意
電池の交換は，正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と交換
してください。
使用済み電池は，取扱指示に従って処分してください。
Caution
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
Note: Replace the battery holder (BH7301) together when
replacing the lithium ion battery (BT7301) on the MS-431
board. (The battery holder removed once cannot be used
again.)
When mounting these parts, mount new battery holder
first and attach new lithium battery next.
Note:
MS-431基板のリチウム電池（BT7301）を交換する場合
はバッテリホルダ（BH7301）も同時に新品に交換して
下さい。（一度使用したバッテリホルダは再使用でき
ません。）
部品取り付けの際は，先にバッテリホルダを取り付け
てからリチウム電池を装着して下さい。
Loading...
