Sony HCDRG-310, HCDRG-330, HDCGX-35 Service manual

HCD-GX35/RG310/RG330

SERVICE MANUAL

Ver 1.0 2003. 08

• HCD-GX35/RG310/RG330 is the
tuner, deck, CD and amplifier section
in MHC-GX35/RG310/RG330.

(Photo: HCD-GX35)

CD CDM74F-K6BD72
Section

Tape Deck Model Name Using Similar Machanism CX-JN3
Section Tape Transport Mechanism Type CWM43FF-13

Canadian Model

HCD-GX35

AEP Model

UK Model

HCD-RG310/RG330

E Model

HCD-RG330

Model Name Using Similar Mechanism CX-JN3

CD Mechanism Type

Base Unit Name

Optical Pick-up Name KSS-213DCP

CDM74F-K6BD71A

BU-K6BD71A
BU-K6BD72

Amplifier section

North American models:
HCD-GX35:

Continuous RMS power output (reference):

120 + 120 watts (6 ohms at
1 kHz, 10% THD)

Total harmonic distortion less than 0.07% (6 ohms at

1 kHz, 60 W)

European models:
HCD-RG330:

DIN power output (rated): 100 + 100 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (reference):

120 + 120 watts (6 ohms at
1 kHz, 10% THD)

Music power output (reference):

240 + 240 watts (6 ohms at
1 kHz, 10% THD)

HCD-RG310:

DIN power output (rated): 80 + 80 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (reference):

100 + 100 watts (6 ohms at
1 kHz, 10% THD)

Music power output (reference):

200 + 200 watts (6 ohms at
1 kHz, 10% THD)

SPECIFICATIONS

Other models:
HCD-RG330:

The following measured at AC 120, 127, 220, 240 V,
50/60 Hz
DIN power output (rated): 100 + 100 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (reference):

120 + 120 watts (6 ohms at
1 kHz, 10% THD)

Inputs
GAME INPUT AUDIO L/R (phono jacks):

voltage 250 mV,
impedance 47 kilohms

GAME INPUT VIDEO (phono jack):

1 Vp-p, 75 ohms
Outputs
PHONES (stereo mini jack):

accepts headphones of

8 ohms or more
VIDEO OUT (phono jack):max. output level

1 Vp-p, unbalanced, Sync

negative, load impedance

75 ohms
SPEAKER: accepts impedance of 6 to

16 ohms

– Continued on next page –

COMPACT DISC DECK RECEIVER

9-961-223-01

2003H04-1
© 2003. 08

Sony Corporation

Home Audio Company
Published by Sony Engineering Corporation

1

HCD-GX35/RG310/RG330

CD player section

System Compact disc and digital

audio system

Laser Semiconductor laser

(λ=780 nm)
Emission duration:

continuous
Frequency response 2 Hz – 20 kHz (±0.5 dB)
Wavelength 780 – 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB

Tape deck section

Recording system 4-track 2-channel, stereo
Frequency response 50 – 13,000 Hz (±3 dB),

using Sony TYPE I

cassettes

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range
Russian models 65.0 – 74.0 MHz

(There is no stereo effect)

87.5 – 108.0 MHz
Other models 87.5 – 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohms unbalanced
Intermediate frequency 10.7 MHz

AM tuner section

Tuning range
Pan-American models: 530 – 1,710 kHz (with the tuning

interval set at 10 kHz)
531 – 1,710 kHz (with the tuning
interval set at 9 kHz)

European, Middle Eastern and Philippine models:

531 – 1,602 kHz (with the tuning
interval set at 9 kHz)

Other models: 530 – 1,710 kHz (with the tuning

interval set at 10 kHz)
531 – 1,602 kHz (with the tuning

interval set at 9 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz

Dimensions (w/h/d) Approx. 280 × 325 × 407 mm

Mass
North American models:
HCD-GX35: Approx. 9.0 kg
European models:
HCD-RG330: Approx. 9.0 kg
HCD-RG310: Approx. 9.0 kg
Other models:
HCD-RG330: Approx. 9.0 kg

Supplied accessories: AM loop antenna (1)

Remote Commander (1)
Batteries (2)
FM lead antenna (1)
Speaker pads (8)

Design and specifications are subject to change without
notice.

MODEL IDENTIFICATION

– BACK PANEL –

PARTS No.

General

Power requirements
North American models: 120 V AC, 60 Hz
European models: 230 V AC, 50/60 Hz
Argentina model: 220 V AC, 50/60 Hz
Mexican model: 127 V AC, 60 Hz
Other models: 120 V, 220 V or 230 –

240 V AC, 50/60 Hz

Adjustable with voltage

selector

Power consumption
Canadian model:
HCD-GX35: 120 watts
European models:
HCD-RG330: 120 watts

0.35 watts (at the Power

Saving Mode)
HCD-RG310: 110 watts

0.35 watts (at the Power

Saving Mode)
Other models:
HCD-RG330: 120 watts

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY P ARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

MODEL PARTS No.

GX35: CND 4-244-697-01
RG330: E2, E51 4-244-697-11
RG310: AEP , UK
RG330: AEP, UK, AR, MX

4-244-697-21

• Abbreviation
CND : Canadian model
E2 : 120 V AC Area in E model
E51 : Chilean and Peruvian model
AR : Argentina model
MX : Mexican model

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS P AR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

HCD-GX35/RG310/RG330

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for A C leakage. Check leakage as
described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a V OM
or battery-operated A C v oltmeter. The “limit” indication is 0.75
V, so analog meters must have an accurate lo w-voltage scale. The
Simpson 250 and Sanwa SH-63Trd are examples of a passive
VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick­up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.

Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.

To Exposed Metal
Parts on Set

0.15µF

1.5k

Ω

Earth Ground

AC
voltmeter
(0.75V)

Fig. A. Using an AC voltmeter to check AC leakage.

Notes on Chip Component Replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270°C during

repairing.

• Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering

or unsoldering.

SETTING AND RELEASING THE CD DISC TRAY LOCK
FUNCTION

This set has a disc tray lock function to prevent discs for
demonstration at shops from theft. While this lock function is set,
the tray will not be delivered out even when the OPEN/CLOSE
button is pressed.

Setting method:

Press the OPEN/CLOSE button while pressing the STOP button.
After a few seconds, the message “LOCKED” will appear on the
fluorescent indicator tube with the tray locked.

Releasing method:

Just as the lock is set, press the OPEN/CLOSE button while
pressing the STOP button.
After a few seconds, the message “UNLOCKED” will appear with
the lock released.

LASER DIODE AND FOCUS SEARCH OPERATION
CHECK

Carry out the “S curve check” in “CD section adjustment” and check
that the S curve waveforms is output three times.

3

HCD-GX35/RG310/RG330

TABLE OF CONTENTS

1. GENERAL

Main Unit ................................................................................ 5

Remote Control ....................................................................... 5

2. DISASSEMBLY

2-1. Case (Top) ........................................................................... 7

2-2. CD Door .............................................................................. 7

2-3. CD Mechanism Block ......................................................... 8

2-4. Front Panel Section ............................................................. 9

2-5. Tape Mechanism Deck ...................................................... 10

2-6. Panel Board, 6 Stream Led Board, Remote Board............ 10

2-7. Game Jack Board, H/P Jack Board ................................... 11

2-8. Back Panel Section............................................................ 11

2-9. Main Board ....................................................................... 12

2-10. Power Amp Board ............................................................. 12

2-11. SW Board, Driver Board................................................... 13

2-12. Base Unit ...........................................................................13

2-13. Sensor Board ..................................................................... 14

2-14. Motor (TB) Board ............................................................. 15

2-15. Motor (LD) Board ............................................................. 15

2-16. BD Board .......................................................................... 16

3. TEST MODE ..................................................................... 17

4. ELECTRICAL ADJUSTMENTS.................................20

5. DIAGRAMS

5-1. IC Pin Descriptions ........................................................... 21

5-2. Block Diagram –CD Section–........................................... 25

5-3. Block Diagram –Tuner/Tape/Panel Section– .................... 26

5-4. Block Diagram –Amp/Power Supply Section–................. 27

5-5. Note for Printed Wiring Boards

and Schematic Diagrams .................................................. 28

5-6. Waveforms......................................................................... 28

5-7. Circuit Boards Location .................................................... 28

5-8. Printed Wiring Board –CD Mechanism Section (1/2)

(HCD-GX35/RG310/RG330:

AEP, UK, E2, E51 Model)–............................................... 29

5-9. Printed Wiring Board –CD Mechanism Section (1/2)

(HCD-RG330: Mexican, Argentina Model)– ....................30

5-10. Schematic Diagram –CD Mechanism Section (1/2)– ....... 31

5-11. Printed Wiring Boards –CD Mechanism Section (2/2)– ...32

5-12. Schematic Diagram –CD Mechanism Section (2/2)– ....... 33

5-13. Schematic Diagram –Main Section (1/4)– ........................ 34

5-14. Schematic Diagram –Main Section (2/4)– ........................ 35

5-15. Schematic Diagram –Main Section (3/4)– ........................ 36

5-16. Schematic Diagram –Main Section (4/4)– ........................ 37

5-17. Printed Wiring Board –Main Section– .............................. 38

5-18. Printed Wiring Boards and Schematic Diagram

–Jack Section– ................................................................... 39

5-19. Printed Wiring Boards –Panel Section– ............................ 40

5-20. Schematic Diagram –Panel Section– ................................ 41

5-21. Schematic Diagram –Power Amp Section (1/2)– ............. 42

5-22. Schematic Diagram –Power Amp Section (2/2)– ............. 43

5-23. Printed Wiring Board –Power Amp Section– ................... 44

5-24. Printed Wiring Board –Transformer Section– .................. 45

5-25. Schematic Diagram –Transformer Section– ..................... 46

5-26. IC Block Diagrams............................................................ 47

6. EXPLODED VIEWS

6-1. Main Section ..................................................................... 50

6-2. Front Panel Section (1)...................................................... 51

6-3. Front Panel Section (2)...................................................... 52

6-4. Front Panel Section (3)...................................................... 53

6-5. Main Board Section .......................................................... 54

6-6. CD Mechanism Deck Section (1) ..................................... 55

6-7. CD Mechanism Deck Section (2) ..................................... 56

6-8. Base Unit Section ..............................................................57

7. ELECTRICAL PARTS LIST ........................................ 58

4

SECTION 1

GENERAL

HCD-GX35/RG310/RG330

This section is extracted
from instruction manual.

5

HCD-GX35/RG310/RG330

Note : Disassemble the unit in the order as shown below.

SET

2-1. CASE (TOP)

(Page 7)

2-2. CD DOOR

(Page 7)

2-3. CD MECHANISM BLOCK

(Page 8)

2-11. SW BOARD,

DRIVER BOARD
(Page 13)

2-13. SENSOR BOARD

2-14. MOTOR (TB) BOARD

2-15. MOTOR (LD) BOARD

SECTION 2

DISASSEMBLY

(Page 14)

(Page 15)

(Page 15)

2-12. BASE UNIT

(Page 13)

2-16. BD BOARD

(Page 16)

2-4. FRONT PANEL SECTION

(Page 9)

2-6. PANEL BOARD,

6 STREAM LED BOARD,
REMOTE BOARD
(Page 10)

2-5. TAPE MECHANISM DECK

2-7. GAME JACK BOARD,

2-8. BACK PANEL SECTION

(Page 11)

2-9. MAIN BOARD

(Page 12)

2-10. POWER AMP BOARD

(Page 12)

(Page 10)

H/P JACK BOARD
(Page 11)

6

Note : Follow the disassembly procedure in the numerical order given.

)

2-1. CASE (TOP)

HCD-GX35/RG310/RG330

6

two screws (case 3 TP2)

7

screw (case 3 TP2)

9

(+BVTP 3

qf

case (side-L)

screw

case (top)

qs

×

8)

qs

8

screw

(+BVTP 3

×

q;

10)

qd

qs

qs

qa

two screws (+BVTP 3

case (side-R)

5

×

10)

3

screw

(+BVTP 3

1

two screws

(case 3 TP2)

×

10

2-2. CD DOOR

CD mechanism deck
(CDM74F-K6BD71A or CDM74F-K6BD72)

1

Turn the pulley to the direction of the arrow.

pulley

Front panel side

2

Pull-out the disc tray.

3

4

CD door

4

(+BVTP 3

2

screw (case 3 TP2)

screw

×

8)

7

HCD-GX35/RG310/RG330

)

2-3. CD MECHANISM BLOCK

MAIN board

5

3

screw

(+BVTP 3

7

CD mechanism block

1

CN701

×

10)

three

2

(+BVTP 3

screws

6

CN312
(flat type)

×

10)

MAIN board

4

screw

(+BVTP 3

×

10

8

2-4. FRONT PANEL SECTION

8

(+BVTP 3

screw

TRANS board

3

×

10)

CN311
(flat type)

1

CN003

HCD-GX35/RG310/RG330

4

CN305

0

front panel section

2

CN304
(flat type)

7

9

three screws (+BVTT 3

CN310

× 8

6

5

CN202

)

CN203

9

HCD-GX35/RG310/RG330

)

)

2-5. TAPE MECHANISM DECK

1

connector

3

tape mechanism deck

2

six

screws

(+BVTP 2.6

×

8

2-6. PANEL BOARD, 6 STREAM LED BOARD, REMOTE BOARD

5

three

(+BVTP 2.6

CN607

7

two claws

qs

REMOTE board

qa

screws

×

8)

6

two

(+BVTP 2.6

0

6 STREAM LED board

screws

×

9

two

(+BVTP 2.6

3

(+BVTP 2.6

2

three

(+BVTP 2.6

8

PANEL board

8)

screws

×

4

two

(+BVTP 2.6

two

screws

screws

8)

screws

×

8)

×

8)

×

8

10

1

volume knob

2-7. GAME JACK BOARD, H/P JACK BOARD

d

HCD-GX35/RG310/RG330

1

two

screws

×

(+BVTP 2.6

2

3

screw

(+BVTP 2.6

8)

GAME JACK boar

×

8)

2-8. BACK PANEL SECTION

6

back panel section

4

4

H/P JACK board

3

two

screws

(+BVTP 3

×

10)

5

CN303

chassis section

1

CN101
(flat type)

2

two

screws

(+BVTT 3

×

8)

11

HCD-GX35/RG310/RG330

d

d

2-9. MAIN BOARD

MAIN board

2

MAIN boar

2-10. POWER AMP BOARD

1

CN902

4

(+BVTP 3

5

screw

(+BVTP 3

screw

×

8)

×

8)

3

screw

(+BVTP 3

×

10)

1

(+BVTP 3

two claws

2

screw

(+BVTP 3

6

POWER AMP boar

two

screws

×

×

10)

8)

12

2-11. SW BOARD, DRIVER BOARD

d

2

SW board

7

CN702 (flat type)

4

CN703

HCD-GX35/RG310/RG330

6

DRIVER boar

2-12. BASE UNIT

3

1

screw

(+BTTP (M2.6))

2

qa

base unit

CN704

holder (213) assy

5

two

screws

(+BTTP (M2.6))

0

1

floating

(+PTPWH M2.6)

5

two

insulators

screw

9

two

insulators

8

three

(insulator)

7

coil springs

three stoppers (BU)

6

(BTTP M2.6)

three screws

4

coil spring

3

floating

(+PTPWH M2.6)

screw

13

HCD-GX35/RG310/RG330

2-13. SENSOR BOARD

1

(+PTPWH M2.6)

2

tray

6

floating

(+PTPWH M2.6)

7

floating

screw

8

(+BTTP (M2.6))

screw

gear (geneva)

screw

9

SENSOR board

0

CN731

3

belt (table)

4

floating

(+PTPWH M2.6)

5

screw

pulley (table)

14

2-14. MOTOR (TB) BOARD

claw

1

HCD-GX35/RG310/RG330

claw

5

table motor assy (M741)

2-15. MOTOR (LD) BOARD

4

Remove the two solderings of motor.

5

loading motor assy (M751)

3

MOTOR (TB) board

4

Remove the two solderings of motor.

2

two

screws

(+BTTP (M2.6))

2

two

screws

(+BTTP (M2.6))

3

MOTOR (LD) board

1

belt (loading)

15

HCD-GX35/RG310/RG330

)

2-16. BD BOARD

4

BD board

2

Remove the two solderings of motor.

base unit

5

1

screw

(+BTP 2.6

CN708 (flat type

×

8)

3

Remove the two solderings of motor.

16

SECTION 3

TEST MODE

HCD-GX35/RG310/RG330

[COLD RESET]

• The cold reset clears all data including preset data stored in the
RAM to initial conditions. Execute this mode when returning the
set to the customer.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press three keys of x , [GROOVE] and [POWER] simultaneously.

3. The message “COLD RESET” is displayed on the fluorescent

indicator tube momentarily, then becomes standby states.

[TUNER STEP CHANGE-OVER]

(Except AEP and UK models)

•A step of AM channels can be changed over between 9 kHz and
10 kHz.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [TUNER BAND] key to select “AM”.

3. Press the [POWER] key to turn the power OFF.

4. Press two keys of [TUNER/BAND] and [POWER] simultaneously.

5. The message “9K STEP” or “10K STEP” is displayed on the

fluorescent indicator tube, and thus the channel step is changed
over.

[CD SHIP MODE]

•This mode moves the optical pick-up to the position durable to
vibration. Use this mode when returning the set to the customer
after repair.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Press two keys of [CD] and [POWER] simultaneously.

4. The message “LOCK” is displayed on the fluorescent indicator

tube, and the CD ship mode is set.

[CD TRAY LOCK MODE]

•This mode is used to unable to take sample disc out of tray in the
shop.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Set disc on the tray.

4. While pressing the x key, press the Z key for 5 seconds.

5. The message “LOCKED” is displayed on the fluorescent

indicator tube and the tray is locked. (Even if pressing
the Z key, the message “LOCKED” is displayed on the
fluorescent indicator tube and the tray is locked)

6. To release from this mode, while pressing the x key, press

the Z key for 5 seconds.

7. The message “UNLOCKED” is displayed on the fluorescent

indicator tube and the tray is unlocked.

[AMP TEST MODE]

•This mode is used to set the parameter of AMP IC for adjustment
of tone quality and VACS level and display VACS status.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press three keys of x , [GAME EQ] and [EFFECT ON/OFF]

simultaneously.

3. When the AMP test mode is activated, the message “AMP

TEST” is displayed on the fluorescent indicator tube
momentarily.

4. Press two keys of [GAME EQ] and [DISC 2] simultaneously, mode

is changed over to parameter setting of AMP IC and display of
VACS status.

5. When the VACS status, the message VACS level, VACS signal

level, and VACS signal hold le vel is displayed on the fluorescent
indicator tube.

6. Press the [GROOVE] key, DBFB ON/OFF is changed over.

7. Press the [GAME MIXING] key, surround ON/OFF is changed

over.

8. To release from this mode, press two keys of [GAME EQ] and

[MOVIE EQ] simultaneously.

17

HCD-GX35/RG310/RG330

[AGING MODE]

• This mode can be used for operation check of CD section and
tape deck section.
CD section and tape deck section work in parallel.

If an error occurred:

The aging operation stops only an error occurred sections and
display then status.

If no error occurs:

The aging operation continues repeatedly.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Set disc on the tray and set tape into the deck.

4. Set the “ALL DISCS” mode and “REV OFF” mode.

5. Press three keys of x , [GAME EQ] and [DISC SKIP/EX-CHANGE]

simultaneously.

6. The message “AGING” is displayed on the fluorescent

indicator tube momentarily, then aging operations of CD and
tape are started at the same time.

7. To release from this mode, operate the “COLD RESET”.

1. Display at the Aging Mode

Display operating state of CD section and tape deck section
alternately.
If an error occurred, stop display which that section.

2. CD Section

The sequence during the aging mode is following as below.
Display at the aging mode is the same as the normal operation.

Aging mode sequence (CD section) :

3. Tape Deck Section

The sequence during the aging mode is following as below.
If an error occurred, stop display that step.

Aging mode sequence (tape deck section) :

Rewind the tape A and B

“AAG-1 or 2”

Shut off

FWD play the tape A

“AAG-3”

2 minutes

Fast forward the tape A

“AAG-4”

Shut off or 20 seconds

REV play the tape A

“AAG-5”

2 minutes

Rewind the tape A

“AAG-6”

Shut off

FWD play the tape B

“BAG-3”

Start (from disc 1)

Disc chucking

TOC read

Play first track for 2 seconds

Play last track for 2 seconds

EX-change open/close

Open the disc tray

Disc skip

Close the tray

Change the next disc.

2 minutes

Fast forward the tape B

“BAG-4”

Shut off or 20 seconds

REV play the tape B

“BAG-5”

2 minutes

Rewind the tape B

“BAG-6”

Shut off

Note: “*AG-*” is display of each step.

18

HCD-GX35/RG310/RG330

[GC TEST MODE]

• This mode is used to check the fluorescent indicator tube, LED
and key.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press three keys of x , [GAME EQ] and [DISC 2] simultaneously.

3. Fluorescent indicator tube and LEDs are all turned ON.

4. Press two keys of [GAME EQ] and [DISC 2] simultaneously, mode

is changed over.

5. In the key check mode, press each key, the defined key number

of every each key list is displayed on the fluorescent indicator
tube.

6. In the key count check mode, “KEYCNT 0” is displayed on the

fluorescent indicator tube. Each time a key is pressed,
“KEYCNT” value increases. Howev er , once a key is pressed , it
is no longer taken into account.

7. In the headphone input check mode, connect the headphone,

the message “H_P ON” is displayed on the fluorescent
indicator tube, and disconnect the headphone, the message “H_P
OFF” is displayed on the fluorescent indicator tube.

8. In the volume check mode, turn the [VOLUME] knob, the

display on the fluorescent indicator tube is changed over to
“VOLUME UP”, “VOLUME FLAT” or “VOLUME DOWN”

[MC TEST MODE]

•This mode is used to check operations of Amplifier.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press three keys of x , [GAME EQ] and [DISC 3] simultaneously.

3. When the MC test mode is activated, the message “TEST

MODE” is displayed on the fluorescent indicator tube
momentarily, then VACS level is displayed on the fluorescent
indicator tube.

4. Press the [MUSIC EQ] key, the display on the fluorescent

indicator tube is changed over to “GEQ MAX”, press the
[EFFECT ON/OFF] key, the display on the fluorescent indicator
tube is changed over to “GEQ FLAT”, press the [MOVIE EQ]
key, the display on the fluorescent indicator tube is changed
over to “GEQ MIN”,

5. Turn the [VOLUME] knob, the display on the fluorescent

indicator tube is changed over to “VOLUME MAX”, “V OLUME
16” or “VOLUME MIN”

6. Press the [GROOVE] key, VACS ON/OFF is changed over.

7. When the [REC PAUSE/START] ke y is pressed with a ta pe set in

the deck-B, the function is switched “MD” or “VIDEO” and
recording starts. When the m or M key is pressed during
recording, the tape is rewound back to the beginning of
recording, the function is switched to “T APE B”, then playback
starts.

8. When the [CD SYNC] key is pressed with the test tape (AMS-

100, AMS-110A) in the deck, number of space between tunes
is counted, then if AMS-110A is set, “OK” is displayed on the
fluorescent indicator tube and if AMS-100 is set, “NG” is
displayed on the fluorescent indicator tube.

9. To release from this mode, press the [POWER] key.

[MODEL, DESTINATION AND VERSION DISPLAY]

•This mode is used to check the model, destination and software
version.

Procedure:

1. Set to the standby state.

2. Press three keys of x , [GAME EQ] and [MOVIE EQ]

simultaneously.

3. When the model, destination and version display mode is

activated, the model an destination is displayed on the
fluorescent indicator tube.

4. Press two keys of [GAME EQ] and [DISC 2] simultaneously, mode

is changed over to model and destination display mode and
version display mode.

5. To release from this mode, press the two keys of [GAME EQ]

and [MOVIE EQ] simultaneously.

[CD ERROR CODE DISPLAY]

• This mode can be used for error display of CD section.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Press three keys of x , [GAME EQ] and [DISC 1] simultaneously.

Note: Error code is not displayed on the fluorescent indicator tube.

[CD SERVICE MODE]

•This mode can run the CD sled motor freely. Use this mode, for
instance, when cleaning the optical pick-up.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Press three keys of x , [GAME EQ] and Z simultaneously.

4. When the CD service mode is activated, the message

“TRA VERS ON” is displa yed on the fluorescent indicator tube.

5. Press the M key, optical pick-up move to outside track and

the message “SLED OUT” is displayed on the fluorescent
indicator tube.

6. Press the m key, optical pick-up move to inside track and

the message “SLED IN” is displayed on the fluorescent
indicator tube..

7. Press the [MOVIE EQ] key, traverse ON/OFF is changed over.

[5 REPEAT LIMIT CANCEL]

• Number of repeat for CD playback is 5 times when the repeat
mode is “REPEAT”. This mode is used to enables CD to repeat
playback for limitless times.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Press three keys of x , [GAME EQ] and G simultaneously.

19

HCD-GX35/RG310/RG330

p

p

SECTION 4

ELECTRICAL ADJUSTMENTS

CD SECTION

Note:

1. CD Block is basically designed to operate without adjustment.
Therefore, check each item in order given.

2. Use YEDS-18 (3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10MW impedance.

4. Clean the object lens by an applicator with neutral detergent
when the signal level is low than specified value with the
following checks.

S-CURVE CHECK

Oscilloscope

BD board

TP(FE)
TP(VC)

Procedure :

1. Connect an oscilloscope to TP (FE) and TP (VC).

2. Turn the power on.

3. Load a disc (YEDS-18) and actuate the focus search. (In
consequence of open and close the disc tray, actuate the focus
search)

4. Confirm that the oscilloscope waveform (S-curve) is
symmetrical between A and B. And confirm peak to peak level
within 3 ± 0.5 Vp-p.

Note: Clear RF signal waveform means that the shape “ ◊ ” can be

clearly distinguished at the center of the waveform.

RF signal waveform

VOLT/DIV : 200mV
TIME/DIV : 500ns

level : 1.3

±

0.3Vp-

Connecting Location: BD board

• HCD-RG330: Mexican, Argentina Model

– BD Board (Conductor side) –

S-curve waveform

symmetry

A

±

within 3

B

0.5Vp-

Note: •Try to measure several times to make sure than the ratio

of A : B or B : A is more than 10 : 7.

•Take sweep time as long as possible and light up the
brightness to obtain best waveform.

RF LEVEL CHECK

BD board

TP(RF)
TP(VC)

Procedure :

1. Connect an oscilloscope to TP (RF) and TP (VC).

2. Turn the power on.

3. Load a disc (YEDS-18) and playback.

4. Confirm that oscilloscope waveform is clear and check if RF
signal level is correct or not.

oscilloscope

TP (VC)

TP (FE)

TP (RF)

IC721

• HCD-GX35/RG310/RG330: AEP, UK, E2, E51 Model

– BD Board (Conductor side) –

TP (RF)

TP (VC)

IC721

20

TP (FE)

TP (TE)

HCD-GX35/RG310/RG330

SECTION 5

DIAGRAMS

5-1. IC PIN DESCRIPTIONS

• IC309 BU2099FV (MULTI CONTROLLER) (MAIN BOARD)

Pin No. Pin Name I/O Pin Description

1 VSS — Ground pin
2NC—Not used. (Open)
3DATAISerial data input from the tape mechanism controller
4 CLOCK I Serial data transfer clock signal input from the system controller
5 LCK I Serial data latch pulse clock signal input from the system controller
6 REC O Recording on/off control signal output “L”: recording
7BIAS O Recording bias on/off control signal output “L”: bias on

8A/BO

9 PB MUTE O

10 REC MUTE O

11 TUNER MUTE O Tuner muting on/off control signal output to the tuner unit “H”: muting on
12 LM-R (CD) O Loading motor drive signal output
13 LM-L (CD) O Loading motor drive signal output
14 TM-R (CD) O Table motor drive signal output
15 TM-L (CD) O Table motor drive signal output
16 SP RELAY O Front speaker on/off relay drive control signal output “L”: front speaker on
17 LINK/MATRIX O Surround speaker on/off relay drive control signal output “H”: surround speaker on
18 SO O Serial data output to the bass boost controller
19 OE — Not used. (Connect to ground.)
20 VDD — Power supply pin (+3.3 V)

Deck-A/B selection signal output to the deck-A/B select switch
“L”: deck-B, “H”: deck-A
Playback muting on/off control signal output to the recording/playback equalizer
amplifier “H”: muting on
Recording muting on/off control signal output to the recording/playback equalizer
amplifier “L”: muting on

21

HCD-GX35/RG310/RG330

• IC310 BU2099FV (BASS BOOST CONTROLLER) (MAIN BOARD) (HCD-RG310/RG330: AEP, UK MODEL)

Pin No. Pin Name I/O Pin Description

1 VSS — Ground pin
2NC—Not used. (Open)
3DATAISerial data input from the multi controller
4 CLOCK I Serial data transfer clock signal input from the system controller
5 LCK I Serial data latch pulse clock signal input from the system controller

6 to 8 NC — Not used. (Open)

9MOTOR VCC O Motor power control signal output “L”: motor power on
10 SOL A O SOL-A control signal output
11 SOL B O SOL-B control signal output
12 LINE OUT MUTE O Line out mute signal output terminal “H”: mute on Not used in this set. (Open)
13 CD MUTE O CD mute signal output terminal “H”: mute on Not used in this set. (Open)

14 to 16 CONT 1 to 3 O Bass boost control signal output “H”: bass boost Not used in this set. (Open)

17 NC — Not used. (Open)
18 SO O Serial data output Not used. (Open)
19 OE — Not used. (Connect to ground.)
20 VDD — Power supply pin (+3.3 V)

22

HCD-GX35/RG310/RG330

• IC601 LC876780B-51YO-E (SYSTEM CONTROL, FLD CONTROL) (PANEL BOARD)

Pin No. Pin Name I/O Pin Description

1 SYS MUTE O System mute signal output

2BU1924 DATA I

3 PWR DOWN I Power down signal input
4 LC78646 RESET O CD reset signal output
5 LC78646 CE O CD CE signal output
6 LC78684 CE (MP3) O CD CE (MP3) signal output
7 M61519 CLK O Clock signal output
8BU2099FV LCK O LCK signal output

9 LC72121 CE O CE signal output
10 LC78684 SYNC I SYNC signal input
11 RESET I Reset signal input from the reset IC
12 XT1 I Oscillater connect pin (32.768 kHz)
13 XT2 O Oscillater connect pin (32.768 kHz)
14 VSS1 — Ground pin
15 CF1 I Ceramic vibrator connect pin (8.64 MHz)
16 CF2 O Ceramic vibrator connect pin (8.64 MHz)
17 VDD1 — Power supply pin (+3.3 V)
18 TAPE A STAT I Tape A start signal input
19 TAPE B STAT I Tape B start signal input
20 CD ENCODER I CD encoder switch signal input
21 SW ON/OFF SENSOR I Switch control on/off signal input
22 STREAM IN I Stream in signal input
23 VACS I VACS signal input
24 KEY2 I Key signal input 2
25 KEY1 I Key signal input 1
26 KEY0 I Key signal input 0
27 PROTECTOR (HOLD) I Protector (Hold) signal input
28 REMOCON IN I Remote control signal input from the remote control receiver IC

29 BU1924 CLK I

30 to 41 G12 – G1 O FLD control signal output
42 to 45 P1 – P4 O FLD control signal output

46 VDD3 — Power supply pin (+3.3 V)

47 to 50 P5 – P8 O FLD control signal output

51 VPP —

52 to 55 P9 – P12 O FLD control signal output

56 SW1 (a) P13 O FLD control signal output
57 SW2 (b) P14 O FLD control signal output
58 SW3 (c) P15 O FLD control signal output
59 SW4 (d) P16 O FLD control signal output
60 SW5 P17 O FLD control signal output
61 SW6 P18 O FLD control signal output
62 SW7 P19 O FLD control signal output
63 SW8 P20 O FLD control signal output

64, 65 P21, P22 O FLD control signal output

66 ENTER LED O Not used in this set. (Open)
67 MD/VIDEO LED O Not used in this set. (Open)
68 GAME LED O GAME LED (LED612) drive signal output
69 TAPE LED O TAPE A/B LED (LED609) drive signal output

GX35, RG330 (except AEP, UK): Not used. (Connected to ground.)
RG310/RG330 (AEP, UK): Serial data signal input

GX35, RG330 (except AEP, UK): Not used. (Connected to ground.)
RG310/RG330 (AEP, UK): Serial clock signal input

GX35, RG330 (except AEP, UK): Ground pin
RG310/RG330 (AEP, UK): Power supply pin

23

HCD-GX35/RG310/RG330

Pin No. Pin Name I/O Pin Description

70 TUNER LED O TUNER/BAND LED (LED608) drive signal output
71 CD LED O CD LED (LED607) drive signal output
72 VDD4 — Power supply pin (+3.3 V)
73 CD VDD O CD power control signal output
74 TUNER TUNED I Tuner tuning signal input from the tuner unit
75 TUNER STEREO I Tuner stereo signal input from the tuner unit
76 CD DRF I CD DRF signal input
77 CD WRQ I CD WRQ signal input
78 CD NUMBER SENSOR I CD number sensor signal input
79 TAPE AMS IN I Tape AMS signal input
80 VR ENCODER A I VR encoder (VR601) signal input
81 VR ENCODER B I VR encoder (VR601) signal input
82 TAPE REEL A I Tape reel A signal input
83 TAPE REEL B I Tape reel B signal input
84 MODE SW IN I Mode switch signal input
85 STREAM 1 LED O Stream LED drive signal output
86 STREAM 2 LED/CD MUTE O Stream LED drive signal output/CD mute signal output
87 STREAM 3 LED O Stream LED drive signal output

88

89 VSS2 — Ground pin
90 VDD2 — Power supply pin (+3.3 V)

91

92

93 POWER LED O POWER LED (LED614) drive signal output
94 POWER RELAY O Power relay signal output

95

96 LC72121 DI I Serial data signal input
97 LC72121/BU2099FV CLK O Serial clock signal output
98 LC78646/LC78684 DO O Serial data signal output
99 LC78646/LC78684 DI I Serial data signal input

100 LC78646/LC78684 CLK O Serial clock signal output

STREAM 4 LED/

MECHA VCC

STREAM 5 LED/

TAPE SOL A

STREAM 6 LED/

TAPE SOL B

LC72121/M61529/

BU2099FV DO

O Stream LED drive signal output/Mechanism power control signal output

O Stream LED drive signal output/Tape SOL-A drive signal output

O Stream LED drive signal output/Tape SOL-B drive signal output

O Serial data signal output

24

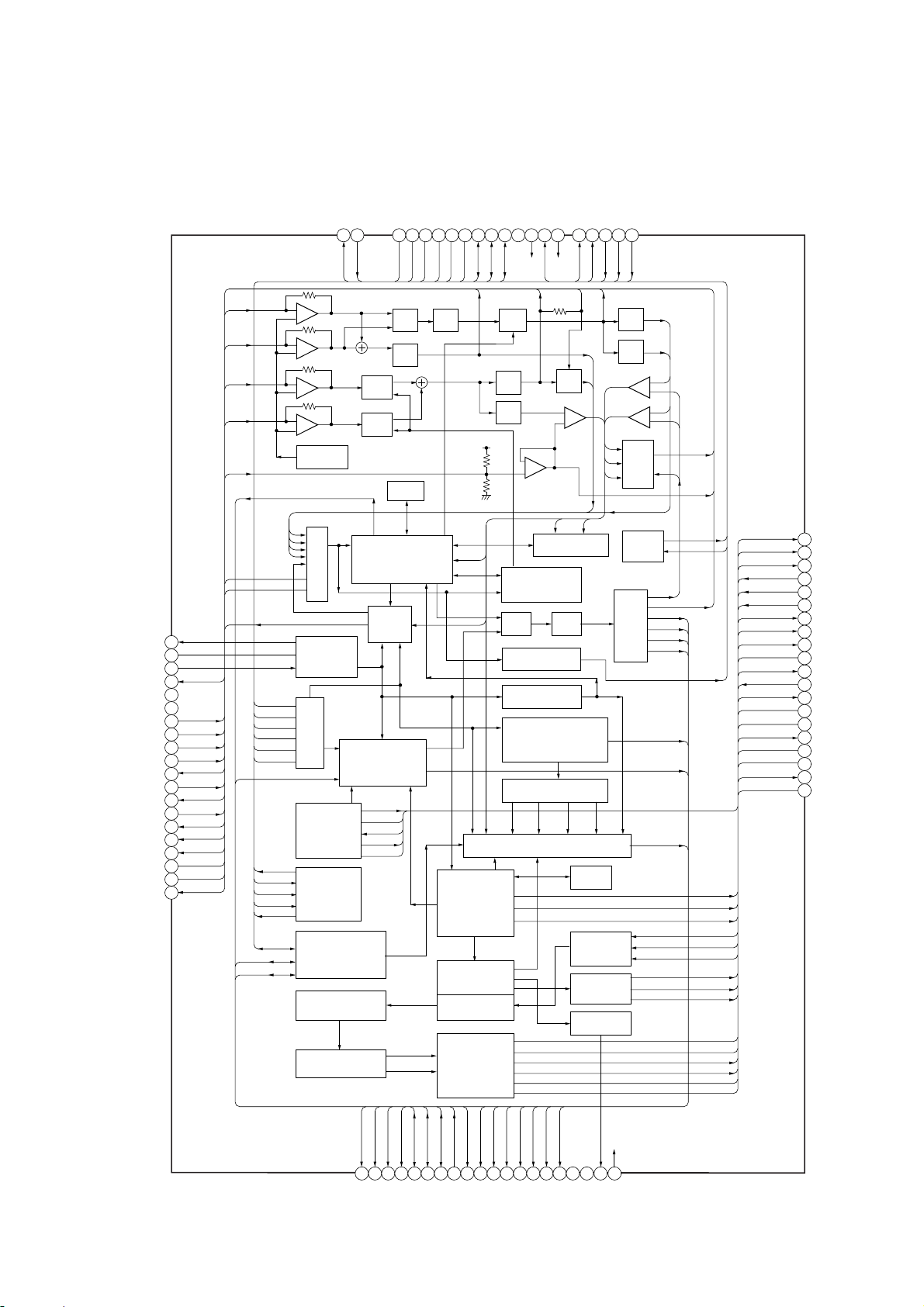

5-2. BLOCK DIAGRAM — CD SECTION —

A

DETECTOR

A

D

C

B

E

F

LASER DIODE

PD

OPTICAL PICK-UP

BLOCK

(KSS-213DCP)

D

C

I-V AMP

B

E

F

+3.3V

LD

LD

PD

AUTOMATIC

POWER CONTROL

Q701

S701

(LIMIT)

FIN2

8

FIN1

7

TIN1

9

TIN2

10

LDD

80

LDS

79

70 LIMIT SW

RF AMP

APC

TBAL

EQ,

AGC

RF

PH, BH

A/D

CONVERTER

SERVO

PROCESSOR

D/A

CONVERTER

HCD-GX35/RG310/RG330

RF AMP, FOCUS/TRACKING ERROR AMP,

DIGITAL SIGNAL PROCESSOR, DIGIRAL SERVO PROCESSOR,

4

EFMIN

3

DIGITAL FILTER, D/A CONVERTER

ERROR

CORRECT

IC721

D/A

CONVERTER

EXTERNAL

AUDIO IN

SERIAL OUT

CLOCK

GENERATOR

COMMAND
INTERFACE

LCHO

RCHO

ASDFIN
ASDACK
ASLRCK

DATA

DATACK

LRSY

EFLG

C2F

FSX/16MIN

16MOUT

XIN

XOUT

*WRQ

42

45

R-CH

57
56
55

60
59
58

53
52
50

26MP3RES

54

49

48

X701

16.9344MHz

72CD MUTE

DO

64

DI

63

CL

62

CE

61
65

67DRF
66*RES

• R-ch is omitted due to same as L-ch.

• SIGNAL PATH

: CD PLAY

(GX35/RG310/RG330:EXCEPT MX,AR)

MP3 DECODER

IC801

2 ADDATA
3 ADBCK
4 ADLRCK

79 DATAIN
80 DATACK

1 LRSY

5 C2FIN
9 CKOUT

78 RESB

7 CKIN

73 CMDOUT
74 CMDIN
75 CL

99 I-LC78646/LC78684 DI
98 O-LC78646/LC78684 DO

100 O-LC78646/LC78684 CLK

5 O-LC78646 CE

77 I-CD WRQ

76 I-CD DRF

4 O-LC78646 RESET

MDATA0

– MDATA15

MADRS0

– MADRS8

CE

FSYNC

76 66

106

O-LC78684 CE

I-LC78684 SYNC

23-30, 33-4060-53, 50

• Abbreviation
MX : Mexican model
AR : Arentin model

MEMORY

IC802

2-5, 7-10,

I/01 – I/016

35-38, 40-43

A0 – A8

18-21, 24-28

29 OE45OEB
15 WE42WEB
16 RAS41RASB
31 LCAS43CASLB
30 UCAS44CASUB

1O-SYS-MUTE
94O-POWER RELAY
27I-HOLD

11RESET

POWER DOWN

3I-POWER DOWN

MUTING CONTROL

S-MUTE

O-POWER

HOLD

RESET

MUTING

Q311

SWITCH

Q312

R-CH

CD-L

S-MUTE
O-POWER

HOLD

RESET

POWER DOWN

AMP/POWER SUPPLY

A

SECTION

(Page 27)

AMP/POWER SUPPLY

B

SECTION

(Page 27)

AMP/POWER SUPPLY

C

SECTION

(Page 27)

2-AXIS
DEVICE

(FOCUS)

(TRACKING)

M701

(SLED)

M702

(SPINDLE)

TDO

FDO23SLDO22SPDO25CONT4

20

21

FOCUS/TRACKING COIL DRIVE,

SPINDLE/SLED MOTOR DRIVE

IC722

VO3(+)

18
17 VO3(–)

11 VO2(+)
12 VO2(–)

M

M

26 VO4(+)

27 VO4(–)

2 VO1(+)

1 VO1(–)

FOIN

20TIN

10

25SLIN

3SPIN

7MUTE

SYSTEM CONTROLLER

M751

(LOADING)

M741

(TABLE)

IC601 (1/2)

M

M

I-CD ENCODER

LOADING MOTOR DRIVE

4 OUT1

2 OUT2

TABLE MOTOR DRIVE

4 OUT1

2 OUT2

78I-CD NUMBER SENS

20

IC701

IC712

LEVEL SHIFT

Q731

+

CLOSE

LM-F

7FIN

LM-R

9RIN

TM-F

7FIN

TM-R

9RIN

OPEN

ROTARY

ENCODER

RE701

TABLE ADDRESS

SENSOR

IC731

DISC TRAY

ADDRESS DETECT

S751

OPEN/CLOSE

DETECT

LM-F

LM-R

TM-F

TM-R

TUNER/TAPE/PANEL

D

SECTION

(Page 26)

25 25

HCD-GX35/RG310/RG330

5-3. BLOCK DIAGRAM — TUNER/TAPE/PANEL SECTION —

L-CH

HP1
(PB)

(DECK-A)

HRPE1

(REC/PB/ERASE)

(DECK-B)

FM 75Ω

COAXIAL

AM LOOP

R-CH R-CH

L-CH

R-CH R-CH

ERASE

ANTENNA

(Page 27)

AMP/POWER SUPPLY

SECTION

AMP/POWER SUPPLY

SECTION

E

F

VACS/STR

(Page 27)

• R-ch is omitted due to same as L-ch.

• SIGNAL PATH

: TUNER (FM/AM)

: TAPE PLAY (DECK-A)

: TAPE PLAY (DECK-B)

: REC

DECK A/B SELECT SWITCH, REC/PB EQ AMP

AIN (L)

32

BIN (L)

34

REC­OUT (L)

21

BIAS OSC

L201

REC BIAS

SWITCH

Q228

MUTING

Q219, 221

R-CH

TU901

TUNER UNIT

FM ANT

AM ANT

VACS/STR

HP

L-CH

R-CH R-CH

DI

DO

CLK

CE

TUNED

ST

TU-MUTE

RDS DATA

RDS INT

BUFFER

Q609,610

LED607

I
LED609,
LED612

FRONT PANEL KEY

REC ON/OFF

SWITCH

Q222, 225

VOLUME

LED601–606

(STREAM1–6)

BAND-PASS

FILTER

REMOTE CONTROL

RECEIVER

RM601

ROTARY

ENCODER

VR601

LED DRIVER

Q602-604,607

BIAS OSC

Q223

TUNER-L

DI

CLK

95 O-LC72121/M61529/BU2099 DO
96 I-LC72121 DI
97 O-LC72121/BU2099 CLK

9 O-LC72121 CE
74 I-TUNER TUNE
75 I-TUNER STEREO

(RG310/RG330:AEP,UK)

2 I-BU1924 DI
29 I-BU1924 CLK

22 I-STREAM-IN

23 I-VACS

21 I-SW ON/OFF SENSOR

28 I-REMOCON-IN

80 I-VR-ENCODER-A
81 I-VR-ENCODER-B

O-STREAM 1 LED

85

I

88

•

91

•

92

O-STREAM 6 LED

O-GAME LED

68

•

69

O-TAPE LED

•

70

O-TUNER LED

•

71

O-CD LED

24

I-KEY2

I

I

26

I-KEY0

J

SYSTEM CONTROLLER

IC601 (2/2)

+9V

(Page 27)

AMP/POWER SUPPLY

SECTION

I-TAPE AMS IN

O-BU2099 LCK

O-M61529 CLK

I-TAPE A STAT
I-TAPE B STAT
I-TAPE REEL A
I-TAPE REEL B

XT1

CF1

CF2

P1

P4

P5

P8

P9

P22

G1

G12

IC201

MUTE

EQOUT (L)

28 27

EQ

79

8

7

X601

32.768kHz

1312XT2

15

RES601

8.64MHz

16

93O-POWER LED

18
19
82
83

42

I

I

45

•

•
47

I

I

50

•

•
52

I

I

65

30

I

I

41

REC-IN (L)

A/B

MUTE-ON/OFF

REC MUTE-ON/OFF

AMS

Q210,211EQQ212

LED614

POWER

24

13
14
15

FLD601

FLUORESCENT

INDICATOR TUBE

TAI (L)

MULTI CONTROLLER

8

A/B

PB MUTE

9

10

REC MUTE

7 BIAS

6 REC

11 TUNER MUTE

LCK

MCLK

IC309

SP RELAY

LM-L (CD)
LM-R (CD)
TM-L (CD)
TM-R (CD)

PB-OUT (L)

16

13
12
15
14

3DATA
4CLOCK
5LCK

18SO

26

SP-F

LM-F

LM-R

TM-F

TM-R

SO

LCK

CLK

DI

MECHA-VCC

SOL-A

SOL-B

TAPE A STAT

TAPE B STAT

TAPE REEL A
TAPE REEL B

TAPE-L

REC-L

SP-F

LM-F
LM-R
TM-F
TM-R

DI
SO
CLK
MCLK
LCK
MECHA-VCC
SOL-A
SOL-B

CAPSTAN/REEL

MOTOR DRIVE

Q618

PLUNGER DRIVE

(DECK-A)

Q616

PLUNGER DRIVE

(DECK-B)

Q617

AMP/POWER SUPPLY

G

SECTION

(Page 27)

AMP/POWER SUPPLY

H

SECTION

(Page 27)

CD

D

SECTION

(Page 25)

AMP/POWER SUPPLY

K

SECTION

(Page 27)

TAPE MECHANISM

DECK BLOCK

CAPM+

(CAPSTAN/REEL)

A-SOL

(DECK-A)

B-SOL

(DECK-B)

A-MODE
A-HALF
REC (REW)

B-MODE
B-HALF
REC (FWD)
A-PHOTE
B-PHOTE

MM

2626

5-4. BLOCK DIAGRAM — AMP/POWER SUPPLY SECTION —

HCD-GX35/RG310/RG330

CD

SECTION

(Page 25)

TUNER/TAPE/PANEL

SECTION

(Page 26)

TUNER/TAPE/PANEL

SECTION

(Page 26)

AUDIO

GAME
INPUT

VIDEO

TUNER/

TAPE/

K

PANEL

SECTION

(Page 26)

CD

C

SECTION

(Page 25)

A

J

G

L

R

VIDEO

OUT

POWER DOWN

CD-L

TUNER-L

TAPE-L

REC-L

JK001

JK004

CLK

MCLK

LCK

MECHA VCC

SOL-A
SOL-B

RESET

DI

SO

R-CH

RESET SWITCH

Q601

INPUT SELECT SWITCH, TONE CONTROL,

ELECTRICAL VOLUME, BASS BOOST AMP

CD-L

40

39

38

35

36

RESET SIGNAL

TOUT2

TUNER-L

TAPE-L

RECB-2

GAME-L

SWOUT

BASS BOOST CONTROLLER

GENERATOR

IC603

+3.3V (SUB)

29

24

DATA4CLOCK

3

CLK

SO

D617

IC301

IC310

LCK

5

LCK

+4V

MOTOR VCC

SOL-A11SOL-B

9

10

MECHA VCC

SOL-A

SOL-B

+4V

REGULATOR

IC602

EVER+10V

28

VOLIN2

DATA22CLOCK

21

DI

VACS/STR

19

SAOUT

OUT2

MCLK

RECT

D902 – 905

25

MUTE

Q321

SUB POWER

TRANSFORMER

T902

VACS/STR

TUNER/TAPE/PANEL

E

(Page 26)

CENTER VOLATAGE

GENERATOR

Q324

BUFFER

IC304

MUTING

Q525

R-CH

MUTING CONTROL

SWITCH

Q527

S-MUTE

+1.8V

O-POWER

(MP3)

(GX35,RG310/RG330:EXCEPT MX,AR)

VCC

+1.8V

REGULATOR

IC803

B+ SWITCH

Q301, 302

SECTION

VM+10V

PRE DRIVE

Q517, 519

POWER OFF

MUTING DRIVER

Q529, 530

+3.3V (MAIN)

DECK+9V, M+9V

VM+9V

VM+10V

CURRENT

MIRROR

Q521, 523

P+7V

Q511, 513, 515

D313 – 315

D102

CASCADE

D513

REGULATOR

R-CH

R-CH

BIAS

Q507, 509

OVER CURRENT

DETECT

Q13

VM+10V

+4V

IC306

TO

FLUORESCENT

INDICATOR TUBE

SWITCHING

SWITCHING

Q17, 19, 22

–VP

+VP

FINAL DRIVE

Q501, 503

REGULATOR

REGULATOR

REGULATOR

POWER AMP

BLOCK

VF1

VF2

–VFL

Q18

IC305

IC308

IC313

TO

R-CH

+9V

+9V

+10V

REGULATOR

Q534 – 536

OVER LOAD

DETECT

Q505

+

+

HOLD

Q12

+VH

–VH

+VL

–VL

–30V

R-CH

+VH

+VL

–VH

–VL

DC DETECT

Q7 – 9

RELAY B++9V

OUTPUT LEVEL

DETECT
Q20, 21

OUTPUT LEVEL

DETECT
Q23, 24

+

+

Q5,6

HOLD

+

HOLD

DC DET

RECT

D301 – 304

RECT

D319 – 322

RECT

D3-6

RECT

D2

POWER ON/OFF

RELAY DRIVE

Q330, 331

+

THERMAL DETECT

Q10, 11

O-POWER

Q329

MAIN POWER

TRANSFORMER

VM

VM

VH

VH

VL

VL

(GX35,RG330:EXCEPT AEP,UK)

R-CH

R-CH

T901

RY902

R-CH

+

+

TH501,

502

FAN MOTOR

ON/OFF SWITCH

Q371,373

R-CH

RY501

S-MUTE, O-POWER, HOLD

ON/OFF RELAY DRIVE

M731

M

(FAN)

R-CH

FRONT SPEAKER

Q304

R-ch is omitted due to same as L-ch.

SIGNAL PATH

: TUNER (FM/AM)

: CD PLAY

: TAPE PLAY

: REC

: MD (VIDEO) IN

: MIC INPUT

• Abbreviation
MX : Mexican model
AR : Arentin model

(RG330:EXCEPT AEP,UK)

S901

VOLTAGE

SELECTOR

HP

SP-F

S-MUTE
O-POWER
HOLD

(AC IN)

F

JK002

PHONES

+
–

+
–

H

B

(Page 25)

TUNER/TAPE/PANEL

SECTION

(Page 26)

L

JK502

SPEAKER

R

TUNER/TAPE/PANEL

SECTION

(Page 26)

CD

SECTION

27 27

(GX35,RG310/RG330:AEP,UK,)

HCD-GX35/RG310/RG330

5-5. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 5-6. WAVEFORMS

Note on Printed Wiring Board:

• X : parts extracted from the component side.

• Y : parts extracted from the conductor side.

• : Pattern from the side which enables seeing.

(The other layer’s patterns are not indicated.)

Caution:
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.

• Indication of transistor.

C
Q

B

E

B

B

These are omitted.

Q

CE

These are omitted.

Q

CE

These are omitted.

Note on Schematic Diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.

• All resistors are in Ω and 1/
specified.

• 2 : nonflammable resistor.

• C : panel designation.

Note:

The components iden­tified by mark 0 or dot­ted line with mark 0
are critical for safety.
Replace only with part
number specified.

• A : B+ Line.

• B : B– Line.

•Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
(): CD PLAY
[]: TAPE PLAY (DECK-A)
{ } : TAPE PLAY (DECK-B)
〈〈 〉〉 : REC

•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc­tion tolerances.

•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc­tion tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F : TUNER (FM/AM)
J : CD PLAY
E : TAPE PLAY (DECK-A)
d : TAPE PLAY (DECK-B)
G : REC
j : MD (VIDEO) IN
N : MIC INPUT

• Abbreviation
CND : Canadian model
E2 : 120 V AC area in E model
E51 : Chilean and Peruvian model
MX : Mexican model
AR : Argentina model

: Impossible to measure

∗

4

W or less unless otherwise

Note:

Les composants identifiés
par une marque 0 sont cri­tiques pour la sécurité.
Ne les remplacer que par
une piéce portant le numéro
spécifié.

– BD Board –
(CD PLAY mode)

1

1.3Vp-p

4

(RF)

IC721

2

Approx.
180

mVp-p

qd

(FE)

IC721

3

Approx.
150mVp-p

qg

(TE)

IC721

4

4Vp-p

16.9344MHz

IC721 rk (XOUT)

5-7. CIRCUIT BOARDS LOCATION

TRANS board

– MAIN Board –
(REC mode)

qa

11.3µs

(Base)

Q223

qs

11.3µs

(Collector)

Q223

SW board

1.7Vp-p

15.8Vp-p

VIDEO OUT board

SENSOR board

– PANEL Board –

1

32.768kHz

IC601

qs

2

8.64MHz

IC601 qg (CF1)

BD board

1.2Vp-p

(XT1)

1Vp-p

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher than

ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to about
350 °C.
Caution: The printed pattern (copper foil) may peel away if the

heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscou-s (sticky , less prone to flo w) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may also
be added to ordinary solder.

MOTOR (LD) board

MOTOR (TB) board

PANEL board

REMOTE board

6 STREAM LED board

GAME JACK board

H/P JACK board

POWER AMP board

DRIVER board

MAIN board

2828

HCD-GX35/RG310/RG330

5-8. PRINTED WIRING BOARD — CD MECHANISM SECTION (1/2) (HCD-GX35/RG310/RG330: AEP, UK, E2, E51 MODEL) — • Refer to page 28 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

1

234567891011

BD BOARD

(SIDE A)

OPTICAL
PICK-UP

BLOCK

(KSS-213DCP)

BD BOARD

(SIDE B)

B

E

C

+

M

M702

(SPINDLE)

–

S701

(LIMIT IN)

IC722

+

7114 8

M701

M

(SLED)

22 2815 21

–

D

E

F

FB806

FB805

FB803

FB804

R806
R807

IC801

IC802

C817

C860

R860

1-688-077-

11

(11)

• Semiconductor
Location

Ref. No. Location
IC721 E-8

IC722 C-9
IC801 E-3
IC802 F-3
IC803 F-9

TP

(FE)

TP

(VC)

TP

(TE)

TP

(RF)

IC721

R747 R746

5

34

IC803

1-688-077-

11

(11)

A1

MAIN
BOARD
CN312

(Page 38)

Q701 B-7

29 29

HCD-GX35/RG310/RG330

5-9. PRINTED WIRING BOARD — CD MECHANISM SECTION (1/2) (HCD-RG330: MEXICAN, ARGENTINA MODEL) — • Refer to page 28 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

1

OPTICAL

PICK-IP

(KSS-213DCP)

BLOCK

23456789

M

S701

(LIMIT)

M701

(SLED)

M

16

15

CN708

M702

(SPINDLE)

2

1

• Semiconductor
Location

Ref. No. Location
IC721 H-5

IC722 D-5
Q701 E-2

E

F

G

H

CN710

1

2

MAIN

A2

BOARD

CN312

(Page 38)

18

19

X701

I

J

1-688-816-

14

(14)

3030

• Refer to page 28 for Waveforms.

5-10. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (1/2) — • Refer to page 47 for IC Block Diagrams.

HCD-GX35/RG310/RG330

(KSS-213DCP)

CN708

R745

C701

C702

C706

C714

C723

C705

C711

C712

R702

R703

R704

R705

R701

R706

C717

C719

C716

C715

C718

C720

C721

Q701

R709

R711

C713

R707

S701

R708C710

TP

TP

TP

C709

C746 C708 R729

C704

R727C703

TP

R738

C742

R739

R730

R740

R741

C744

R731

R732

C753

C754

C743

R725R726

C741

R728

IC721

R760

C756

R716

C722

R717

R718

R719

R720

R721

IC B/D

R722

C729

C733

C732

C731

R747

R746

R713

R823

R824

FB808

FB807

FB701

R765

C750
C751

C752

C745

R751

R752

R753

R754

R825 C825

R826

R827

R828

C830

C829

R829

C831

R715

R714

C823

C824

C734

C735

X701

C811

C810

R817

C816

C815

C837

C856

C812

R818

C814

C813

FB801

FB802

R834

C807

C844

R819R820

C802

C804

C859

C858

C857

R833 R832

IC801

R860

C860

IC803

C843

C805

C803

C806

C817

M702

M701

C707

IC722

R744

C747

C748

C835

C834

R807

FB803

FB805

R806

FB806

FB707FB708

FB804

R805

R804

R803

R801 R802

CN710

IC802

(Page 36)

31 31

HCD-GX35/RG310/RG330

5-11. PRINTED WIRING BOARDS — CD MECHANISM SECTION (2/2) — • Refer to page 28 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

1

234567891011121314

CN704

CN703

C751

R702

C737

C736

C735

R723

R722

R721

D701

R701

JW710

D711

C741

R713

CN702

R735

JW709

R734

JW708

R732

JW711

R733

JW707

JW706

JW705

CN705

JW712

R751

C752

Q731

CN741

CN742

C715

E

F

G

H

• Semiconductor
Location

Ref. No. Location
D701 D-6

D711 D-7
IC701 F-6

IC712 F-7
IC731 E-11

Q731 C-9

CN721

DISC TRAY

ADDRESS DETECT

JW713

JW714

IC701

R711

R712

JW701

IC712

JW704

JW703

JW702

R731

C731

CN701

(Page 38)

IC731

CN731

CN751

S751

OPEN/CLOSE

DETECT

3232

5-12. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (2/2) — • Refer to page 48 for IC Block Diagrams.

IC701

IC B/D

R701

R702

HCD-GX35/RG310/RG330

IC731

CN731 CN741

S751

M741

M751

CN742

CN721

CN751

CN704

C751

C752CN705

D701

IC712

R713

R712

D711

R735

C741CN702

R711

Q731

R733

R751

R732R734

R731

C715

(Page 35)

C731

CN701

RE701

CN751

CN703

R723 R721R722

C735C736C737

33 33

HCD-GX35/RG310/RG330

5-13. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 48 for IC Block Diagram.

CN101

TU901

(Page 39)

CN102

CN305

C105

C103

R101

C107

R102

JR300

D102

C300

C106

C102

C101

C310

C312

R305

C307

IC B/D

R330

C309

C431

C433

C435

C411

C313

C321

R317

C323

C317

R325

C325C319

C327

C349

C365

C331

C333

C311

R319

R321

C361

C354

Q321

C357

R324

R345

C356

R380

R397

Q311 Q310

R355 R356

C342 R354 R358

C428

R399 R398

Q312

R316

R395

R396

(Page 35)

R306

C308

C432 C434

C436

C366

JR124

IC301

C304

C303

C353

C424

C430

R329

D317

C337

R328

C350

C326

C324

C320

R318

C314C412

R326

C318

C328

C334

C332

R322 R320

Q322

R344

R323

C355

C393

C425

JR358

C362

(Page 37)

R365

(Page 36)

3434

• Refer to page 28 for Waveforms.

5-14. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) — • Refer to page 49 for IC Block Diagram.

(Page 34)

D101

R258

D210 D203

C236

R262

R263

R256 R249

C257

D204

C256

R257 R250 R261 R218

C231

R286

R216

C234

R232R234

Q210Q211

C235

R226

C228

R238R264

C230

C286

R239

C265

R233

C226

C253

R235

R225

D205

R270R282

R283

C259

R284

R287R288

C254

Q212

C233

R231

R272

C258

C206

R278

R237

R236

C285 R285

C225

C255

C250

C260

C261

R215

C249

C273

C272

C247

R271

C248

IC201

C268

C269

R265

R267

C267

R266

C266

R220

R219

IC B/D

C232

C237

C244

R268

TP60

C202

C201

C204

C203

C205

TP63

TP62

TP61

TP56

TP57

TP58

TP59

HCD-GX35/RG310/RG330

HP1

CN203

HRPE1

CN202

Q223

R251

C241

C242

R307

C239

R252

R368

C392

R369

L201

IC309

C223

C391 C390

C401

C227

Q221 Q218

R241 R242

R486

D305

Q220Q219

Q222

Q225

R245R273

D206

C221

R246

C402

IC310

R260

C240

D306

D324

R353

R352

R455

R466

R253

R269

Q228

R424

R425

R426

R406

C450

G1

CN309

(Page 33)

R430

R400 R401 R402 R404 R405

(Page 37)

R407 R408 R409 R410

35 35

HCD-GX35/RG310/RG330

5-15. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) —

CN306

(Page 42)

(Page 34)

(Page 39)

M731

(Page 31)

CN310

CN303

CN312

C378 JR344

JR333

C386

C448

C453 C449

JR343

C444

G2

JR339

JR341

Q371

R374

R373

C377

R371

D371

R372

D374

C451 JR453

C452

Q373

C398

R460 R461

D312

R421

Q304

R364

D311

C369

C370

R362

R361R480

R423 R422

R433

R363

(Page 37)

R434

(Page 41)

CN311

JR345

JR360

3636

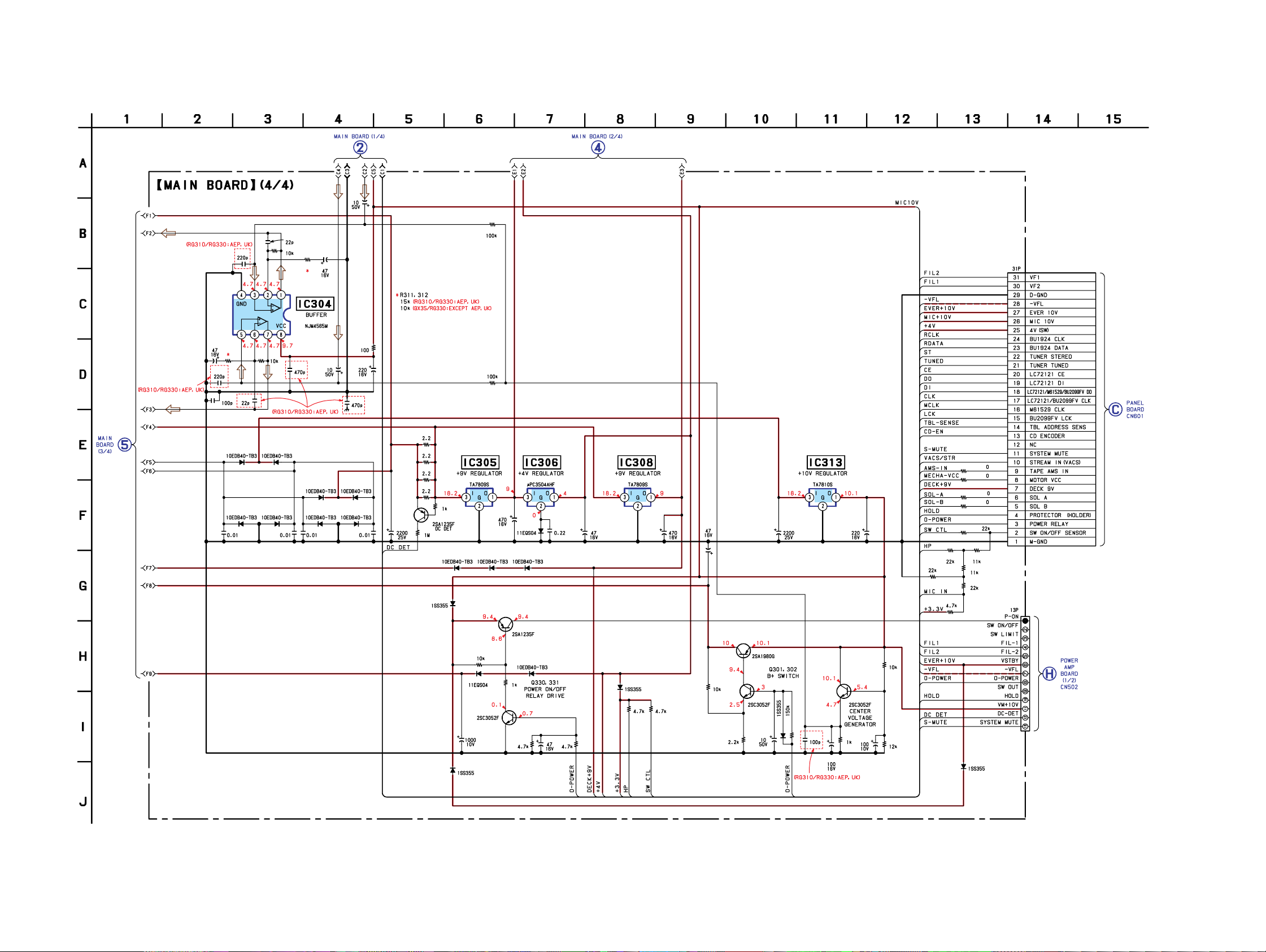

5-16. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) —

C363

HCD-GX35/RG310/RG330

(Page 34) (Page 35)

(Page 36)

C348

C438

C437

R312

C306

C429

D319 D320

D321 D322

R310

C305

R309

R311

C359

IC304

R432

D304D303

C445

C339C364

R428

R487

R488

R427

R429

C374C373

C375

Q329

R435

D315 D313

D307

C426

D301 D302

C419C418

R313

R314

IC305 IC308 IC313

C380

D314

IC306

D318 C441

C381

C399

C371

C420 C421

R465

R459

JR330

JR329

JR331

JR332

R346

R384R348

R456

R457

CN304

(Page 41)

CN307

D308

C417

R484

D323

Q330

Q331

D316

R483

C423

R482 R481

D366

R377 R360

37 37

R378

R379

Q302

Q301

C372

D364

R431

C427

C345

R388

Q324

C397

R386

(Page 42)

R387

D325

HCD-GX35/RG310/RG330

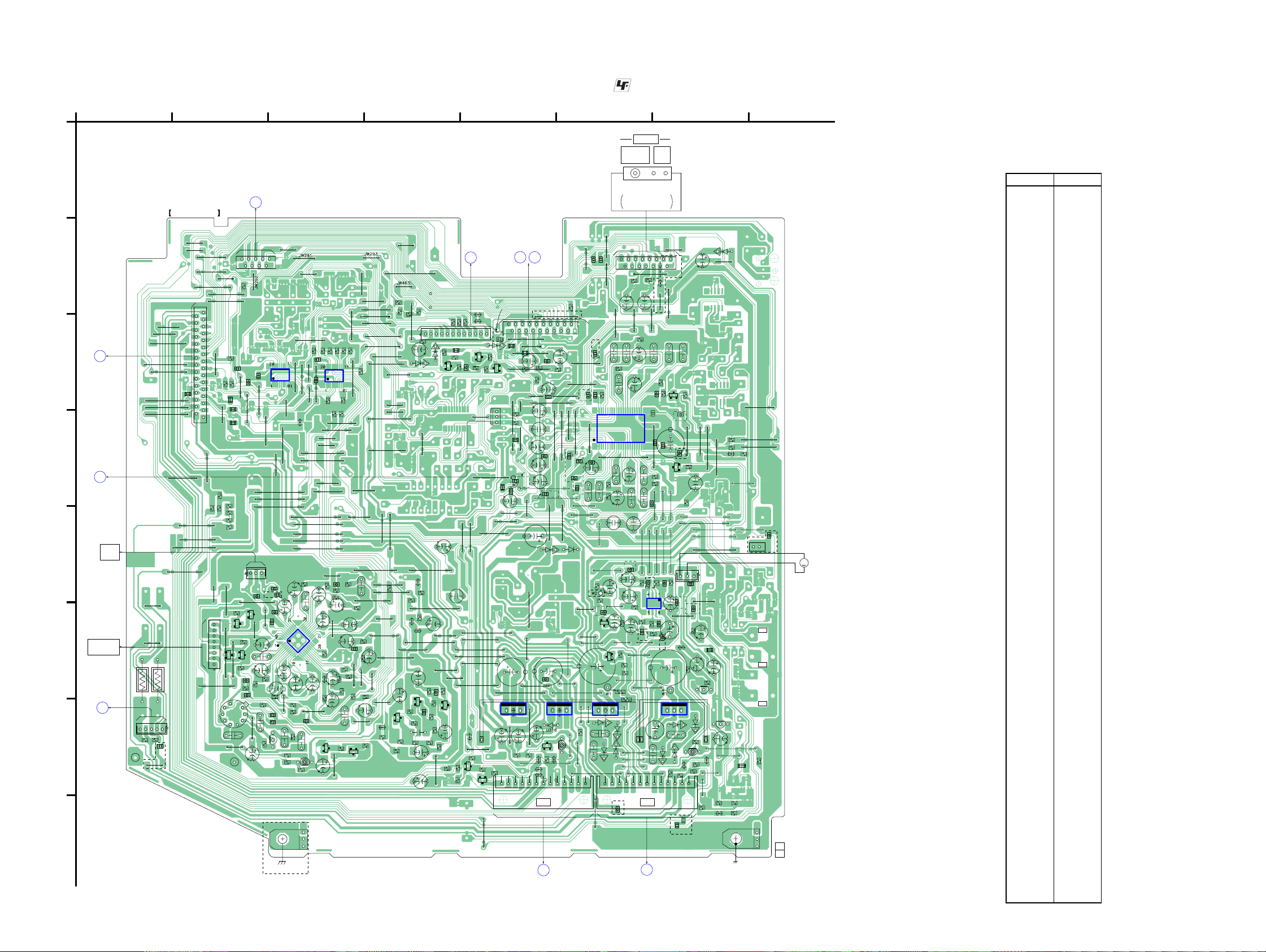

5-17. PRINTED WIRING BOARD — MAIN SECTION — • Refer to page 28 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

(Page 40)

D

(Page 39)

E

F

G

H

C

PANEL

BOARD

CN601

E

GAME JACK

BOARD

CN001

HP1

(PB)

(DECK-A)

HRPE1

(REC/PB/ERASE)

(DECK-B)

F

H/P

JACK
BOARD
CN005

(Page 39)

1

2

3

4

567

8

ANTENNA

MAIN BOARD

D

PANEL BOARD

CN602

(Page 40)

FM 75Ω

SUPPLIED WITH THE

AM

COAXIAL

TU901

TUNER UNIT

ASSEMBLED BLOCK

• Semiconductor
Location

Ref. No. Location
D101 B-7

D102 B-7
D203 F-4
D204 F-4

32)

DRIVER BOARD

D324

D315

Q311

E

R354

JW265

JW374

JW281

JW268

JW222

JW221

JW223

JW231

R483

E

Q331

D306

12

R355

JW220

JW456

(Page

29)

A1

CN701

(RG310/RG330:AEP,UK)

1

2

C453

JR343

C369

E

R395

R356

Q310

JW351

1

3

CN305

JR124

JW358

C300

JR300

C310

JW372

JW373

JW273

C399

JW392

IC308

C372

C371

JW350

R379

R484

A2

(RG310/RG330:AEP,UK)

JW337

CN312

JW338

JW339

JR341

JW341

R398

R399

C307

JW352

R305

R306

C366

(RG310/RG330:AEP,UK)

C430

(RG310/RG330:

AEP,UK)

JW371

C417

JW267

JW470

JW330

C381

JW460

D307

R378

CN307

H

30)

BD BOARD

CN710

C370

C448

JW346

R396

C311

JW351

C365

C313

JW335

C308

C312

C304

JW359

C449

JW361

JW368

D316

(RG310/RG330:AEP,UK)

(RG310/RG330:AEP,UK)

C380

C441

IC306

Q301

Q302

E

R431

D364

D308

D325

POWER AMP BOARD

JW112

JR345

19

18

(RG310/RG330:AEP,UK)

JW342

JW345

(RG310/RG330:AEP,UK)

JW349

C432

JW334

JW333

C353

C435

C433

C434

C320

C436

JW362

JW363

JW367

D323

R388

JW277

JW383

JW385

JW253

JW320

JW389

JW360

JW370

R435

JW380

E

JW430

JW398

131 131

CN502

1

CN101

2

C106

C107

C431

C321

C319

R330

42 22

JW329

121

C303

R326

R318

C324

C412

JW365

(RG310/RG330:AEP,UK)

JW376

C397

R387

JW382

C427

C345

E

Q324

(RG310/RG330:AEP,UK)

Q329

C375

D302

C374

C373

D301

JW397

(RG310/RG330:AEP,UK)

JW420

JW108

C325

IC301

JW328

C326

C318

C363

C364

JW340

R488

D303

C452

R101

C102

C101

JW107

R317

C323

C317

R325

C349

C350

C328

C332

C429

R313

(RG310/RG330:AEP,UK)

R314

C348

R312

R386

C438

R429

JW386

R487

R427

JW300

R428

JW264

IC305

D304

JW394

JW396

JW266

R102

C314

IC304

R310

JW384

JW387

JW410

CN306

G

C327

JW327

R432

C418

JW106

R322

C334

R320

C421

D101

R321

C361

C354

C355

C356

JW308

JW322

C362

JW326

C437

D321

POWER AMP BOARD

JW102

15

14

JW103

(RG310/RG330:AEP,UK)

JW105

JW104

C333

C331

R319

Q321

R345

(RG310/RG330:AEP,UK)

C424

C357

C425

(RG310/RG330:AEP,UK)

Q322

R328

JW319

JW321

JW324

JW325

JW323

CN303

1

C305

R309

C378

R311

(RG310/RG330:AEP,UK)

C428

C359

JW336

C306

C339

(RG310/RG330:AEP,UK)

C426

D312

C420

R460

IC313

13131313

D322

C419

Q304

E

D319

D374

R363

R372

JR453

C451

(RG310/RG330:AEP,UK)

CN501

JW307

C337

R365

R421

R371

D102

JW101

C103

JW301

R329(RG310/RG330:AEP,UK)

D317

JR358(GX35/RG310/RG330:
EXCEPT AEP,UK)

JW309

(RG310/RG330:AEP,UK)

JW310

C377

JW400

JW390

JR344

R364

G1

1-688-080-

(CHASSIS)

CN102

JW302

JW303

C105

1

M731

M

(FAN)

R480

13

(13)

JW306

R324

R323

JW305

JW304

R344

JW313

JW314

JW315

JW316

JW318

3

JW391

C445

C393

JR333

C398

C386

R461

E

Q373

Q371

E

D320

D371

JW393

R362

JW395

R373 R374

R361

D311

JW401

JW402

JW403

9

JW407

R346

CN202

JW436

8

1

JW239

C223

JW406

JW408

JW409

R369

JW426

R307

R368

JR329

JR331

JW427

JR332

R384

R456

R457

R348

R459

R465

(RG310/RG330:AEP, UK)

JW201

JW202

R242

E

Q220

JW205

Q219

E

E

R220

C228

R226

C226

9

JW238

CLP3

8

C392

C390

JW428

13

C202

E

R241

JW200

Q221

1

C240

JW405

31

30

JW416

JW417

JW418

JW274

JW419

JR330

JW422

JW423

JW424

2

1

CN304

JW435

JW495

JW496

JW497

JW498

JW2

JW1

R434

R433

L201

15

CN310

R422

R423

CLP2

C444

(RG310/RG330:AEP,UK)

JW290

BIAS OSC

CN311

R380

JW429

CN203

JW203

JW278

JW237

C402

Q218

C232

C248

R268

R225

C239

R251

JW270

1

2

IC310

JW432

JW442

JW433

JW439

JW438

JW484

JW485

JW486

C244

C201

C205

C203

C237

JW204

C204

C266

C272

C268

R266

R272

JW252

C227

R286

C225

C242

Q223

E

R260

R253

(RG310/RG330:AEP,UK)

G2

(CHASSIS)

JW441

D305

R271

C267

C260

R216

R252

Q228

R269

JW411

JW415

R486

JW443

JW445

JW472

JW473

IC201

C250

JW235

C286

C241

E

C401

JW444

JW487

JW488

JW489

JW490

JW491

C247

C273

JW450

R405

R407

R410

R409

R408

C391

IC309

JW446

R402

R404

R400

R401

JW469

JW471

JW474

JW475

JW482

JW483 JW276

JW492

JW206

R231

C285

R215

R285

R265

R267

C269

JW214

C253

C206

R278

R283

C258

D205

R270

R287

C259

R288

R235

R232

C234

Q222

R245

E

E

Q225

JW236

C221

JW272

R430

JW458

C233

C261

R282

R284

JW298

R234

JW234

R273

JW271

C254

JW227

JW453

JW454

JW455

JW207

JW211

JW452

JW448

R353

R455

R406

R352

JW457

JW466

JW467

JW225

R219

Q212

R258

JW462

JW494

D203

C255

R237

C450

D313

D210

R233

R263

D204

JW219

C257

Q210

R261

C230

R236

C265

R239 R264

C236

C423

1

R466

JW481

JW217

R262

JW216

JW280

R249

R250

R218

R238

JW440

JW499

JW459

JW461

JW468

JW263

JW493

JW209

JW210

JW212

JW213

JW226

JW228

C249

D206

R246

(Page

B

R424

R426

R425

CN309

JR339

D314

R358

R316

E

Q312

R397

C342

JW375

C309

C411

C256

JW218

JW282

JW283

C231

R257

E

Q211

D366

C235

R256

R377

JW251

R481

R360

E

Q330

R482

(Page

(Page 44) (Page 44)

D205 F-3
D206 G-4
D210 E-4
D301 G-6
D302 G-6
D303 G-6
D304 G-6
D305 D-3
D306 C-5
D307 G-5
D308 G-5
D311 H-7
D312 F-7
D313 C-4
D314 C-4
D315 C-5
D316 E-5
D317 D-7
D318 G-5
D319 G-7
D320 G-7
D321 G-7
D322 G-7
D323 E-6
D324 C-5
D325 G-5
D364 G-6
D366 G-5
D371 G-7
D374 G-7

IC201 F-3
IC301 D-6
IC304 F-6
IC305 G-6
IC306 G-6
IC308 G-5
IC309 C-3
IC310 C-3
IC313 G-7

Q210 G-4
Q211 G-4
Q212 G-4
Q218 F-2
Q219 F-2
Q220 F-2
Q221 F-2
Q222 G-3
Q223 G-3
Q225 G-3
Q228 G-3
Q301 G-6
Q302 G-5
Q304 G-7
Q310 C-5
Q311 C-5
Q312 C-4
Q321 C-7
Q322 D-7
Q324 F-6
Q329 F-6
Q330 G-5
Q331 G-5
Q371 G-7
Q373 F-7

3838

5-18. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAM — JACK SECTION — • Refer to page 28 for Circuit Boards Location.

HCD-GX35/RG310/RG330

A

B

C

D

E

F

1

JK001

GAME
INPUT

-1

VIDEO

-2
L

AUDIO

R

-3

2345678910

A

GAME JACK BOARD

VIDEO OUT BOARD

B

JK004

WRE004

LP002

H/P JACK BOARD

1-688-084-

12

(12)

VIDEO

OUT

C

D

E

F

1

H/P JACK BOARD

GAME JACK BOARD VIDEO OUT BOARD

234

5P

MAIN BOARD

(3/4)

F

BOARD

(Page 36)

JK002

PHONES

2P 2P

-1
VIDEO

-2

AUDIO

-3

3P

JK001

L

GAME

INPUT

R

VIDEO

OUT

G

H

MAIN BOARD

(1/4)

E

BOARD

(Page 34)

WRE001

JK002

PHONES

F

MAIN

BOARD

G

CN310

(Page 38)

1-688-086-

12

(12)

WRE003

1-688-087-

12

(12)

MAIN

E

BOARD

I

CN305

(Page 38)

39 39

HCD-GX35/RG310/RG330

5-19. PRINTED WIRING BOARDS — PANEL SECTION — • Refer to page 28 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

1

S617 DISC1

S618 DISC2

S619 DISC3

S620 DISC SKIP/
EX-CHANGE

S621 Z

C

MAIN

BOARD

CN304

(Page 38)

234567891011 12 13 14

REMOTE BOARD

PANEL BOARD

(Page 38)

MAIN BOARD CN311

D

(GX35,RG330:EXCEPT AEP,UK)

(GX35,RG310/RG330:AEP,UK)

C639

C601

(RG330:
EXCEPT AEP,UK)

(GX35,RG310/RG330:
AEP,UK)

FLD601(FLUORESCENT INDICATOR TUBE)

(GX35,RG310/RG330: AEP,UK)

D606

(GX35)

X601

RES601

C604

C602

(GX35,RG330:EXCEPT AEP,UK)

RM601

1-688-083-

(12)

12

LED614,S614

I /

LED607,S627

CD

TUNER/BAND

TAPE A/B

GAME

LED608,S628

LED609,S629

LED612,S630

E

F

G

H

(RG310/RG330:AEP,UK)

(RG330:
EXCEPT AEP,UK)

(GX35)

S616 G

M

S609

–

S608 .
S607 ALBUM –

C638

C637

C648

C649

S615 DISPLAY

1-688-085-

S612

REC PAUSE/

START

12

(12)

S634

CD SYNC

S623

MOVIE EQ

(RG310/RG330)

MIXING

S639

GROOVE

S636

EFFECT
ON/OFF

S606

GAME

S637

MUSIC EQ

S638

GAME EQ

(RG310/RG330)

3

C644

FB601

C603

C619

C611

(RG330:
EXCEPT AEP,UK)

S601 X S602 x
S603 M +
S604 >

S605 ALBUM +

(GX25)

TAPE DECK BLOCK

SUPPLIED WITH

THE ASSEMBLED

BLOCK

VR601

VR601

VOLUME

6 STREAM LED BOARD

• Semiconductor Location

Ref. No. Location
D606 B-7

D607 B-6

I

D608 B-6
D609 B-6
D610 B-6
D613 B-6
D614 F-10
D615 G-10
D616 G-11
D617 G-4
D618 G-5
D619 F-3
D620 G-11
D621 F-10

Ref. No. Location
D622 G-4

D623 F-4
D624 G-4
D625 B-5
D626 G-4
D627 E-8
D628 G-9
D629 F-6
D630 F-5
D631 G-10
D633 F-4
D634 C-5

IC601 C-7

Ref. No. Location Ref. No. Location
IC602 G-4

IC603 F-4

Q601 F-3
Q602 C-11

Q603 C-11
LED601 I-11
LED602 I-10
LED603 I-10
LED604 I-10
LED605 I-9
LED606 I-9
LED607 C-11

Q604 D-11

Q607 D-11

Q609 E-10

Q610 E-11

Q616 F-6

Q617 G-8

Q618 G-7
LED608 C-11
LED609 D-11

RM601 A-11
LED612 D-11
LED614 B-12

LED606

LED606

(STREAM6)

LED605

LED605

(STREAM5)

LED604

LED604

(STREAM4)

LED603

LED603

(STREAM3)

LED602

LED602

(STREAM2)

LED601

LED601

(STREAM1)

1-688-081-

12

(12)

4040

5-20. SCHEMATIC DIAGRAM — PANEL SECTION — • Refer to page 28 for Waveforms.

HCD-GX35/RG310/RG330

A

B

C

D

E

F

G

H

I

J

1

LED601-606

SEL5223S-TP15

234567891011121314

(Page 36)

MAIN BOARD (3/4)

CN311

D

9P

4

1006107776

99

98

(STREAM1)

(STREAM2)

(STREAM3)

(STREAM4)

(STREAM5)

(STREAM6)

6 STREAM LED BOARD

Q609, 610

BUFFER

81

18

19

82

83

4VSW

S

13P

5.7

1

4.7k

0.4

80

M9V

PANEL BOARD

LED607 – 609, 612

EFFECT
ON/OFF

3.6

3.4

3.4

HL-30105Q2AT

Q602 – 604,0607

LED DRIVE

81

82

83

86

94

95

96

97

98

99

100

m

–

1,2

0.8

0.8

0.8

0.8

3.3

8.6

3.3

3.1

3.3

3.5
0

3.3

3.6
0

(GX35,RG330:

EXCEPT AEP,UK)

3.6

1.6

-1.5

-1.5

-1.5

3.6

3.6

-1.5

3.2

76

78 77

79

80

0

0

3.3

R602 100

:AEP,UK)

(RG310/RG330

14

2

DISC SKIP/

Z

EX-CHANGE

6

.

5 S607 (RG330:EXCEPT AEP,UK)

ALBUM -

75

00000

3.4

5

6

DISC3

GAME

2

MIXING

5

73

74

0

3.2

0

3.6

3.3

9

8

7

10

DISC1

DISC2

1

3

4

GAME

1 S605 3 JR615

ALBUM +

0

IC601

IC601
LC876780B-51Y0-E

SYSTEM CONTROL,

FLD CONTROL

1.4

1.7

22p

G

>

+

(RG220)

-25.8

1.6

m

JR616
JR617

5

JR618

63

65

64

-25.8

1.7

3.33303

18

(GX35)4
(RG330:EXCEPT AEP,UK)

(GX35)6

D613

3.3

19

D606-610,613

1SS355

-25.8

-25.8

20 21

(GX35,RG310/RG330:

AEP,UK)

(RG330:EXCEPT AEP,UK)

-25.8

-25.8

-25.8

1.5

1.6

23

22

Xx

VF1

(GX35)

-25.8

3.3

5556575859606162

-25.8

3.3

61

5859

62636465

57

60

(RG330:
EXCEPT AEP,UK)

JR619

52

53

54

-25.8

-25.8

-25.8

0

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

3.3

1.9

3.3

-25.8

0

R608 100

(GX35,RG330:
EXCEPT AEP,UK)

CN604 3P

RM601
RPM7240-H4

REMOTE BOARD

4849505253545556

47

JR620

(GX35,RG310/RG330:
AEP,UK)

-25.8

50

-25.8

49

-25.8

48

-25.8

47

3.3

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

(RG310/RG330:

AEP,UK)

RESET

3.3

16V

3P

45

4243

44

30

29

Q601 RESET SWITCH

RM601

REMOTE CONTROL

RECEIVER

41

40

IC603

3.5

39 38

65

64

63

62

61

60

59

58

57

56

55

54

53

52

50

49

48

47

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

37 36 35

31

32

30

34

VF1

VF2

–VFL

(GX35,
RG310/
RG330:

AEP,UK)

4VSW

VM10V

4VSW

29

2

75

74

9

96

95

97

7

8

78

20

73

1

S

79

M9V

HOLD

94

21

C

MAIN

BOARD

(4/4)

CN304

(Page 37)

VF2

33

31P

RESET

3.4

JR626 0

1SS355

D633

1SS355

0

D634

1SS355

IC602

EVER +4V

REG

EVER4V

IC602

4

1.3

7.5

UDZS-TE17-11B

(RG330:EXCEPT AEP,UK)

D–GND

M–GND

7.5

TAPE A/BCD

TUNER

0

/BAND

0 8.6

0.7

VM10V

0

8.6

5

7P

7P

GAME

8.6

0

9.7

5.2

0.22
50V

23

22

HL-30105Q2AT

VOLUME

Q618

CAPM

DRIVE

9

9

1.2

POWER

9

0

/

1.2

9

0

1.2

Q616

Q617

TAPE SOL B

DRIVE

TAPE DECK BLOCK

SUPPLIED WITH
THE ASSEMBLED

BLOCK

TAPE SOL A

DRIVE

41 41

HCD-GX35/RG310/RG330

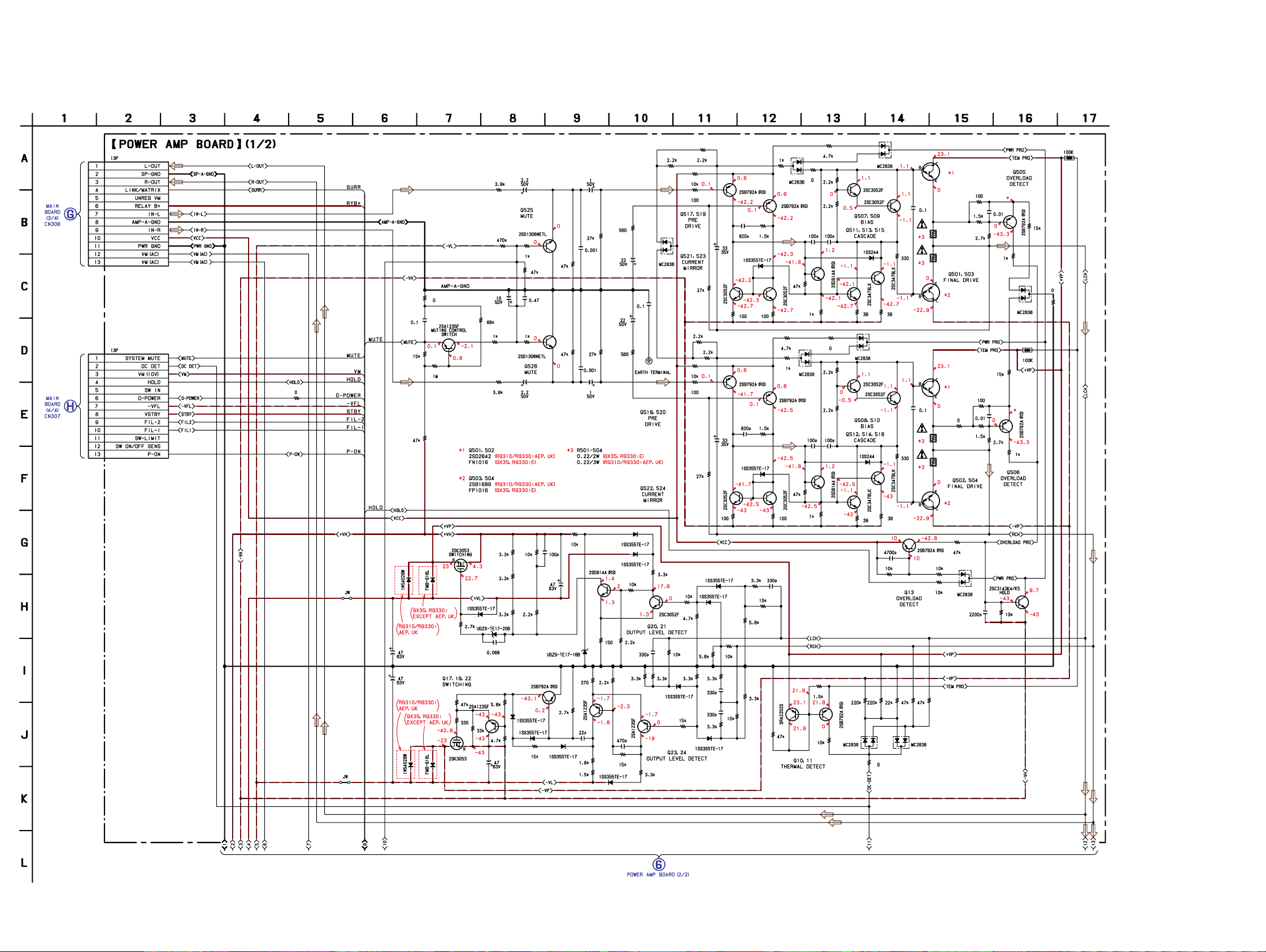

5-21. SCHEMATIC DIAGRAM — POWER AMP SECTION (1/2) —

(Page 36)

(Page 37)

CN501

CN502

JR516

C530

R592

R591

R562

Q527

C521 C517

R559

R569

C540

R561

R500

R560

R557

R558

Q525

C538JR514

Q526

R599

R555

R556

R553

C520

C518C522

C519

R554

R549

C513

C514

R550

C523

EP501

R543 R541

D510

R539

R545

R540

R546

R542

R548

R547

R544

C511

C512

Q523

Q524

C509

C510

Q519

Q520

D507

D508

R531

R533R535

R532

R537

D501

Q517 R523

R527

Q521

R530

R538

Q518

R528

Q522

R534R536

JR513

C507 C505

D502

C508 C506

R526

R529

R521

JR501

R522

R524

Q515

Q516

D503

Q507

Q509

D505

Q513

R519R525 R517

D504

Q508

Q510

D506

Q514

R520

R518

Q511

Q512

R515

R516

C503

R501

R503

C504

R502

R504

Q503

Q502

Q504

Q501

JR517

R505

R507

R509

R506

C502

R508

C501

R514

R510

R511

R512

D509

Q506

Q505

TH502

TH501

R513

JR511

JW1

Q18

D41

D26

D24

R83

D25

C33

C41

Q19

D42

D27

C35

R74

Q17

R58

R78

R81

R86

R99

R93

R92

R79

D33

R72

C34

D34

R71

R95

C36

C37

D30

Q22

R59

R60

Q23

C42

D35

R56

R55

D29

D23

Q20

R91

R75

C43

R70

D36JW2

R76

R82

R94

D32

Q21

R96

R85

C40

R69

R53

R43

Q24

R77

R41 R64

D37

R54

R62

R98

C30

C45

R27

R26

D38

C31

R61D31

R63

R97

R42

Q11

R52

R51

Q10

R50

D19 D18

R49 R48 R47

C26

R65

JR512

Q13

R67

R66

R90

D20

R45R46

Q12

C25 R68

(Page 43)

4242

5-22. SCHEMATIC DIAGRAM — POWER AMP SECTION (2/2) —

HCD-GX35/RG310/RG330

(Page 42)

(Page 46)

CN1

Q530

Q535

R568

R9

R12

R13

D13

R14

Q6

C531

R580

Q536

R581

R18

R6

D12

D514

R564

R16

Q534

R567

D515

R8

R7

R17

501

D11

D39

D40

R102

JW

R563

Q5

R73

R44

R31

R100

R29

R4

C2

C1

R105

R103

R104

R106

D6

D3

D5

D4

R109

R107

R108

R110

C11

EP01

D2

C5

C6

C13

C9

C4

C3

C10

C7

C8

C12

JR2

3

JW

R577

D513

R575

C529

R576

R19

Q7

Q8

C22

R21

D16

R32

Q529

R593

R20

R34

R33

Q9

R35

R36

R589

R594

D511

R574

R578

L501

R603

R601

R604

R602

C23

D17

R22

R23

R37

R40

R38

C24

R39

C541

C543

C542

C544

C533

R573

C525

C527

C535

R571

EP502

RY501

L502

R570

JK502

C532

R572

C524

C526

C534

43 43

HCD-GX35/RG310/RG330

5-23. PRINTED WIRING BOARD — POWER AMP SECTION — • Refer to page 28 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

E

F

G

H

1

2345678910 11 12 13

• Semiconductor Location

R67

C26

R538

C42

D35

R72

C529

R535

Q24

R75

R603

R601

C544

C523

R65

R90

JW529

R550

JW524

R540

R545

JW18

R91

R575

R546

R554

R544

JW533

C519

R93

R81

C36

Q18

JW531

JW511

Q21

R76

D30

C37

Q526

JW539

R543

C41

JW544

JW550

C513

R555

C517

R82

JW582

C521

R85

R95

C33

JW48

JW590

JW591

EP501

R560

R559

JW584

C514

R556

C518

C522

JW51

JW547

JW548

JW545

JW588

C520

C538
R599

JW64

JW42

JW546

R577

CN502

R558

JR514

JW592

JW43

JW589

JR516

JW583

C540

JW1

JW2

JW549

JW587

JW581

D513

JW579

JW580

R500

C530

Q527

R569

R589

R561

JW26

JW75

R591

R592

Q530

JW25

R593

JW58

R562

R594

JW57

JW74

C24

JW56

R39

JW577

JW578

JW60

JW37

JW61

JW34

R20

C23

Q7

R109

JW72

R19

R104

C12

Q8

JW59

C22

R108

JW30

JR2

D514

Q5

Q6

R16

Q9

R21

R107

C9

C531

JW73

R17

JW29

JW28

JW63

JW54

JW32

R105

Q536

Q535

R568

JW62

R6R7R8

D12

R9

R106

JW571

JW55

D13

R14

C10

R580

JW31

R581

Q534

LP902

D39

D40

JW53

R44

JW35

JW36

JW38

JW39

JW40

JW41

JW44

JW52

JW575

R102

R73

JW3

JW33

R40

R38

R22
R23

R13

D11

R4

R18

R110

R103

JW574

JW573

D3

JW501

R29

R563

JW77

R31

D4

D6

D5

JW69

JW68

R100

R564

JW24

JW76

R567

JW20

D2

D515

JW66

JW78

R12

C11

EP01

JW21

JW27

JW50

C13

LP903

JW70

JW67

R34

JW71

R33

C3

JW65

R32

R36

JW23

C4

D16D17

R35

R37

C1

C5

C6

C2

C8

C7

CN1

(Page 45)

R536

Q524

Q520

R530

D504

D510

JR501

D502

R542

R548

Q523

R549

Q519

R553

R539

R529

JW537

D503

Q525

R557

R537

R541

D501

R96

R94

D31

D32

R54

R41

Q20

D23

C43

D29

R92

R77

R56

D36

R99

R55

R86

C35

D25

D42

JW45

R83

D24

C34

R574

D511

R578

C541

C543

C542

JW515

JW541

R576

Q529

JW585

D20

R68

C25

Q12

JR512

Q514

R47

R50

Q512

Q11

JR517

C524

R572

JW10

JW7

JW16

JW12

R52

JW532

JW523

R508

R515

JW521

JW519

JW526

JW11

R524

C504

JW514

R510

C502

JW554

JW552

D18

JW556

R571

L501

C526

JW535

D19

R49

R46

R516

R502

Q506

R501

JW593

R520

R518

R504

R48

JW525

R503

JW520

C30

JW516

R69

C40

JW522

C508

C506

D506

JW512

R525

D505

R519

R517

R45

R62

JW513

D26

R58

R78

JW595

CN501

R51

Q10

Q504

JW534

R522

Q508

Q510

Q502

R511

R513

R505

C532

JW555

D509

R523

TH501

Q505

JW540

JW551

JW13

R514

C501

R521

C534

JW9

JW15

R512

R573

C525

C527

Q503

Q501

R507

R509

JW536

JW6

TH502

R506

JW530

JW528

Q507

Q509

C533

JR511

C503

C535

JK502

I

EP502

C510

C31

R64

R26

R60

Q22

JW517

JW543

JW542

R570

L502

JW594

R53

Q19

R526

D508

C512

D507

C507

Q513

Q511

R61

C45

R532

Q516

C509

C505

Q515

JW14

R43

D33

JW46

D27

JW586

R66

R527

R74

R531

R42

JW527

JR513

R63

R27

R70

R79

R533

JW17

D34

R71

D41

R602

R604

R59

Q23

JW8

Q13

R528

JW538

Q521

Q517

R547

C511

R97

R98

Q17

R534

Q522

Q518

D37

D38

JW47

RY501

Ref. No. Location
D2 H-10

D3 F-9
D4 F-10
D5 F-10
D6 G-10
D11 F-7
D12 F-9
D13 F-9
D16 F-11
D17 G-11
D18 B-3
D19 B-3
D20 A-4
D23 E-5
D24 G-5
D25 F-4
D26 F-4
D27 F-4
D29 E-5
D30 E-5
D31 D-4
D32 D-4
D33 E-4
D34 E-4
D35 E-4
D36 E-4
D37 D-4
D38 D-4
D39 F-7
D40 F-7
D41 F-4
D42 F-4
D501 D-4
D502 B-4
D503 C-4
D504 B-4
D505 C-4
D506 B-4
D507 C-4
D508 A-4
D509 D-3
D510 B-5
D511 G-4
D513 I-5
D514 F-8
D515 I-10

Q5 F-8

Ref. No. Location
Q6 F-8

Q7 F-7
Q8 F-8
Q9 F-8
Q10 B-3
Q11 B-3
Q12 A-3
Q13 A-4
Q17 G-4
Q18 F-5
Q19 F-4
Q20 D-4
Q21 D-5
Q22 E-4
Q23 E-4
Q24 D-4
Q501 E-3
Q502 C-3
Q503 D-3
Q504 B-3
Q505 F-3
Q506 D-3
Q507 E-3
Q508 C-3
Q509 E-3
Q510 C-3
Q511 D-4
Q512 B-3
Q513 C-4
Q514 A-3
Q515 C-4
Q516 B-4
Q517 C-4
Q518 B-4
Q519 C-4
Q520 B-4
Q521 C-4
Q522 B-4
Q523 C-4
Q524 B-4
Q525 C-4
Q526 B-5
Q527 F-6
Q529 I-4
Q530 H-6
Q534 I-9
Q535 I-9
Q536 I-9

J

(Page 38)(Page 38)

4444

5-24. PRINTED WIRING BOARD — TRANSFORMER SECTION — • Refer to page 28 for Circuit Boards Location. : Uses unleaded solder.

HCD-GX35/RG310/RG330

A

B

C

D

E

1

(CND,AEP,UK,MX)

(CND,AEP,UK,MX)

(E2,E51,AR)

S901

234567891011 12 13 14

(E2,E51,AR)

(E2,E51,AR)

JW901

JW903

D906

RY902

JW920

JW926

JW909

AC002

JW922

JW921

CN901

JW923

JW927

AC001

JW928

JW931

JW932

JW929

JW930

D901

RY901

T902

LP906

D903

JW934

D902

D905

D904

JW935

C902

F902

F905

F

G

H

JW910

JW911

JW924

JW912

JW919

JW918

JW913

JW914

(CND,AEP,UK,MX)

JW902

JW917

JW916

JW915

(CND)

JW925

T901

F903

CN902

(Page 44)

F904

F906

LP901

• Semiconductor

I

Location

Ref. No. Location

LP904

R901

D901 B-7
D902 C-11
D903 C-11

C901

D904 C-11
D905 C-11
D906 B-3

45 45

HCD-GX35/RG310/RG330

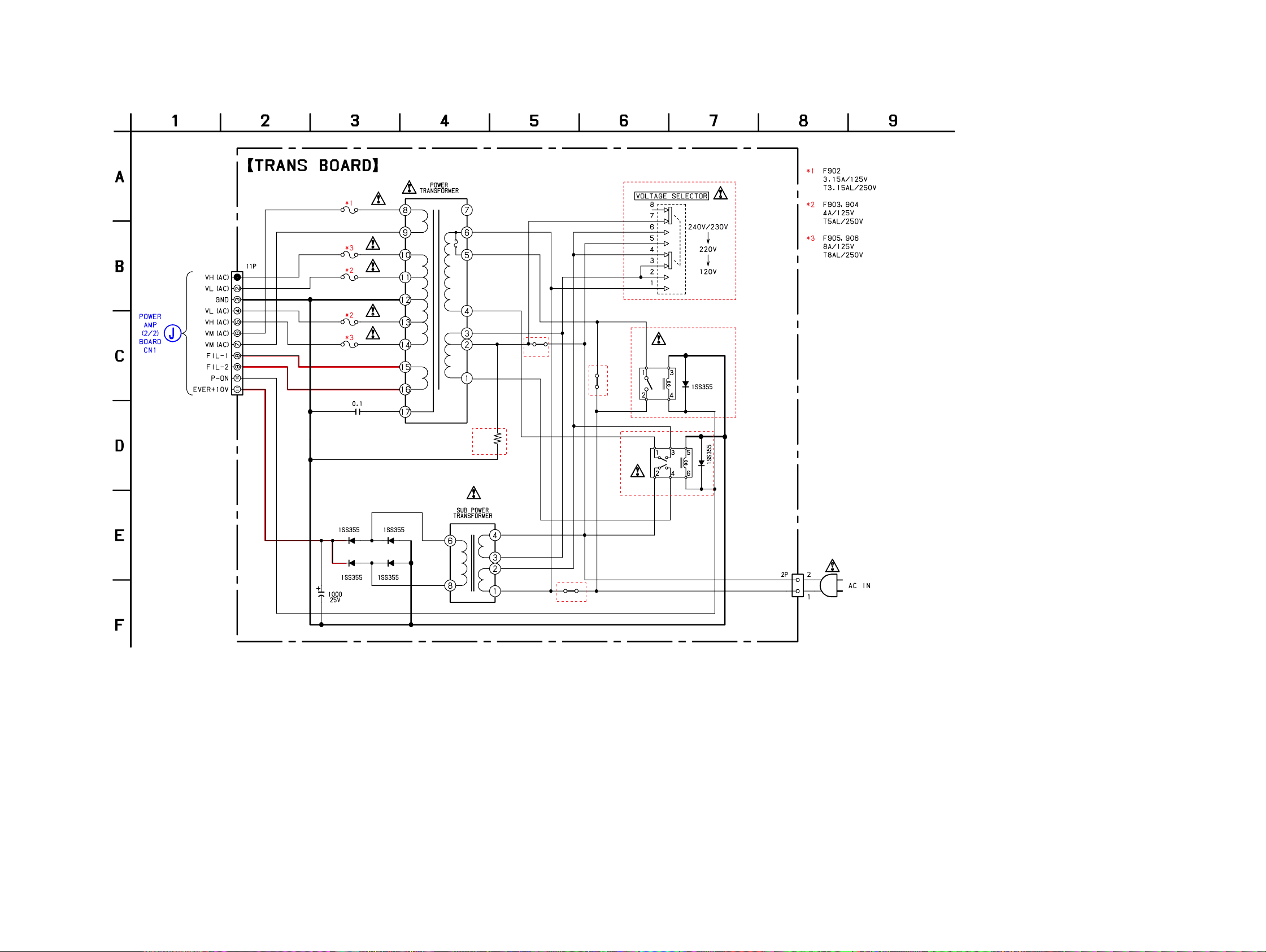

5-25. SCHEMATIC DIAGRAM — TRANSFORMER SECTION —

(Page 43)

CN902

F902

F905

F903

F904

F906

C901

T901

NOT REPLACEABLE :

*

BUILT IN TRANSFORMER

*

(CND,AEP,
UK,MX)

(CND)

R901

3.3M
1/2W

T902

JW902

JW903

(E2,E51,AR)

(E2,E51,AR)

RY902

RY901

(E2,E51,AR)

S901

(CND, AEP,UK,MX)

D906

D901

(GX35)

(GX310,RG330)

(GX35)

(GX310,RG330)

(GX35)

(GX310,RG330)

D905 D904

C902

D902D903

CN901

JW901

(CND,AEP,UK,MX)

4646

5-26. IC BLOCK DIAGRAMS

IC721 LC78646E-E (BD Board)

FIN1

FIN2

TIN1

TIN2

REFI

DEFECT

+
–

+
–

+
–

+
–

LEVEL SET

LDS80LDD

FR

VVDD

PCKIST

VVSS

VVDD

PCKIST

VVSS

PDO2

PDO2

EQ

79 78 77 76 75 74 73 72 71

LDS

LDD

FR

MIX

LPF

TBAL

TBAL

RAM

PDO1

PDO1

VSS

CONT1

CONT1

FE

VDD5

CONT270CONT3

69 68 67 66 65 64 63 62 61

CONT3

AGC

LPF

LPF

DRF

TE

–

+

CONT2

DRF

RES

SW

+

–

WRQDODICLCE

WRQDODICLCE

RF

TEC

PH

BH

HCD-GX35/RG310/RG330

+

–

+

–

MONI
CONT

RFMON

VREF

SLCO

SLCIST

EFMIN

RFVDD
RFVSS

FIN1

FIN2
TIN1
TIN2

VREF

REFI

TEC

RFMON

JITTC
ADAVDD
ADAVSS

TDO

DRF

EFLG

ASDFIN

DATA

LRSY

LVDD

LVSS
LCHO
RCHO
RVDD
RVSS

C2F

DATA
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
16MOUT
EFLG
C2F
XVSS
FSX/16MIN
XIN
XOUT
XVDD
RVDD
RCHO
RVSS
LVSS
LCHO
LVDD

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41

DATA
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
16MOUT
EFLG
C2F
XVSS
FSX/16MIN
XIN
XOUT
XVDD
RVDD
RCHO
RVSS
LVSS
LCHO
LVDD

FDO
SPDO
SLDO

GPDAC

FSEQ

V/P

LDD
LDS

TDO

FSX/16MIN

ASDACK
ASLRCK

DATACK

TRACK JUMP

AUTO ADJUST

SW

RUPTURE DEFECT

DETECT,PROTECT,INSERT,

SUBCODE DECODE CRC

D/A

DRF

FRAME SYNC

EFM DECODE

RAM

EXTERNAL

AUDIO IN

SERIAL

AUDIO OUT

PORTS

8FS

1BIT DAC

SERVO PROCESSOR

JITTER

DETECT

CLV,CAV

CONTROL

16MOUT
XVSS
XIN
XOUT
XVDD

MONITOR SIGNAL SELECTOR

ERROR

CORRECTION

AUDIO CD

INTERPOLATION

MUTE

ATTENUATION

DEEMPHASIS

LPF

ADAVDD
ADAVSS

JITTC

SLCO

1

SLCIST

2

EFMIN

3

RF

4

RF

5
6

FIN1

7

FIN2

8

TIN1

9

TIN2

10

VREF

11

REFI

12

FE

13

FE

TE

14
15
16
17
18
19
20

TEC

TE

RFMON

JITTC

ADAVDD

ADAVSS

TDO

PDO1
PDO2

FR
PCKIST
VVDD
VVSS

SBCK/FG

WRQ
CL
CE
DI
DO

CONT1-3

SBCK/CONT6
CONT4,5

A/D

SLICE LEVEL

CONTROL

PLL

VCEC

CLOCK

GENERATOR

COMMAND
INTERFACE

GENERAL PURPOSE

DIGITAL FILTER

APC

S/H

MONI1-5

OUT

FDO

SLDO

SPDO

CONT4

CONT5

GPDAC

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

FDO

SLDO

SPDO

CONT4

CONT5

GPDAC

DEFECT

SBCK/FG

SBCK/CONT6

DEFECT

SBCK/FG

SBCK/CONT6

V/P

V/P

FSEQ

FSEQ

MONI1

MONI1

MONI2

MONI3

MONI2

MONI4

MONI3

MONI4

MONI5

MONI5

VSS

39 40

DOUT

VDD(3.3V)

TEST

47

HCD-GX35/RG310/RG330

IC701, 712 BA6956AN (DRIVER Board)

TSD

CONTROL LOGIC

1 2 3 4 5 6 7 8 9

VREF

OUT2

RNF

OUT1

VM

VCC

FIN

GND

RIN

IC301 M61529FP (MAIN Board)

INPUT

ATT

INB238INC237IND2

39

RECA1/INEX235RECB2

36

SUR1/DPL141SUR2/DPL240INA2

42

+

VOCAL

CUT

+

EXTERNAL
INPUT ATT

REF

INPUT

ATT

SURROUND

OR

DPL BUFFER

TMI233TMO232TCA231TCB230TCC229TOUT2

34

TONE CONTROL

(BASS/MID/TREBLE)

TONE CONTROL

(BASS/MID/TREBLE)

+

VOLIN2

28

ELECTRICAL

TONE ATT

TONE ATT

ELECTRICAL

VOLUME

VOLUME

BB A226BB B2

27

+

BASS

BOOST

BASS

BOOST

OUT224SWOUT23GND

25

CLOCK

22

MCU

INTERFACE

48

4

1

2

REF

MIC

3

INA1

INB15INC1

6

IND1

7

RECA1/INEX1

8

RECB1

9

10

TMI1

TMO1

11

TCA112TCB113TCC1

14

TOUT1

15

VOLIN1

16

BB A117BB B1

18

OUT1

19

20

SAOUT

VCC

21

DATA

IC201 HA12237F (MAIN Board)

PB-NF2 (L)29PB-EQ (L)28EQOUT (L)27TAI (L)26PBOUT (L)25NC24RECIN (L)23ALC (L)22NC21RECOUT (L)

30

HCD-GX35/RG310/RG330

EQ

31PB-NF1 (L)

32AIN (L)

AB

33RIP

34BIN (L)

RETURN SW

35REC-RETURN

36GND

37BIN (R)

38NC

39AIN (R)

40PB-NF1 (R)

RETURN SW

AB

1

PB-NF2 (R)

93/120

(HIGH/NORM)

93/120

(HIGH/NORM)

2

PB-EQ (R)

3

EQOUT (R)

4

TAI (R)

MUTE

MUTE

5

6NC7

PBOUT (R)

8

ALC (R)

RECIN (R)

ALC

EQ

9NC10

RECOUT (R)

20 TEST MODE

19 IREF

18 GND

17 ALC DET

16 VCC

15 REC MUTE OFF/ON

14 MUTE ON/OFF

A/B

13

(REC RETURN ON/OFF)

12 HIGH/NORM

11 ALC ON/OFF

49

HCD-GX35/RG310/RG330

NOTE:

• The mechanical parts with no reference
number in the exploded views are not supplied.

• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.

• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

6-1. MAIN SECTION

SECTION 6

EXPLODED VIEWS

• Accessories are given in the last of this
parts list.

• Abbreviation
CND : Canadian model
E2 : 120 V AC area in E model
E51 : Chilean and Peruvian model
MX : Mexican model
AR : Argentina model

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

5

4

#1

1

#1

1

#3

CDM74F-K6BD71A

3

#1

CDM74F-K6BD72

not supplied

A

#1

not supplied
(VIDEO OUT board)

A

M731

#1

not supplied

6

#1

#1

#1

#2

TU901

#1

#1

#1

#1

not
supplied

front panel section

#2

Ref. No. Part No. Description Remark

1 3-363-099-31 SCREW (CASE 3 TP2)
2 4-245-184-21 CASE (SIDE-R) (GX35)
2 4-245-184-31 CASE (SIDE-R) (RG310/RG330)
3 4-245-183-21 CASE (SIDE-L) (GX35)
3 4-245-183-31 CASE (SIDE-L) (RG310/RG330)

4 4-244-662-21 CD DOOR (GX35)
4 4-244-662-31 CD DOOR (RG330)
4 4-244-662-41 CD DOOR (RG310)
5 4-244-849-01 CASE (TOP) (GX35)
5 4-244-849-11 CASE (TOP) (RG310/RG330)

50

1

#3

2

main board section

1

Ref. No. Part No. Description Remark

6 1-769-939-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP,UK)
6 1-773-003-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
M731 1-763-072-11 FAN, DC (RG310/RG330)
TU901 1-693-625-11 TUNER PACK (FM/AM) (ANTENNA) (CND)
TU901 1-693-626-11 TUNER PACK (FM/AM) (ANTENNA) (AEP,UK)

TU901 1-693-628-11 TUNER PACK (FM/AM) (ANTENNA)

(E2,E51,MX,AR)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-872-09 SCREW +BVTT 3X8 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

6-2. FRONT PANEL SECTION (1)

not supplied
(REMOTE board)

54

55

HCD-GX35/RG310/RG330

57

57

56

FLD601

58

57

57

59

51

not supplied

not supplied
(GAME JACK board)

53

not
supplied

52

57

57

not supplied
(H/P JACK board)

60

57

not
supplied

not
supplied

57

57

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51 4-244-686-01 VOLUME KNOB
52 1-796-485-51 DECK, MECHANICAL
53 1-688-081-21 6 STREAM LED BOARD
54 A-4748-555-A PANEL BOARD, COMPLETE (AEP,UK)
54 A-4748-606-A PANEL BOARD, COMPLETE (CND)

54 A-4748-677-A PANEL BOARD, COMPLETE (E2,E51,MX,AR)
55 4-244-690-01 FL HOLDER (L)

56 4-244-691-01 FL HOLDER (R)
57 4-951-620-01 SCREW (2.6X8), +BVTP
58 1-769-914-11 WIRE (FLAT TYPE) (9 CORE)
59 1-773-322-11 WIRE (FLAT TYPE) (31 CORE)
60 1-827-145-11 WIRE (FLAT TYPE) (13 CORE)

FLD601 1-518-863-11 INDICATOR TUBE, FLUORESCENT

51

HCD-GX35/RG310/RG330

6-3. FRONT PANEL SECTION (2)

110

109

108

107

106

105

102

104

111

112

113

114

112

102

103

101

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 4-244-701-01 CASS DOOR SPRING (B)
102 4-238-631-01 TAPE SPRING
103 4-244-666-01 CASS DOOR (R)
104 4-244-668-01 CASS WINDOW (R)
105 4-244-700-01 CASS DOOR SPRING (A)

106 4-244-667-01 CASS WINDOW (L)
107 4-244-663-01 CASS DOOR (L)

108 4-244-661-01 SUB PANEL
109 4-244-669-01 DISPLAY WINDOW
110 4-231-824-01 CAM (A), HEART
111 4-231-836-01 SPRING (HEART CAM-A)
112 4-224-104-41 DAMPER

113 4-231-841-01 SPRING (HEART CAM-B)
114 4-231-825-01 CAM (B), HEART

52

6-4. FRONT PANEL SECTION (3)

HCD-GX35/RG310/RG330

155

154

156

158

164

153

157

152

160

not supplied

161

162

163

159

151

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

151 4-244-660-11 FRONT PANEL (AEP,UK)
151 4-244-660-31 FRONT PANEL (CND)
151 4-244-660-41 FRONT PANEL (E2,E51,MX,AR)
152 4-225-252-01 CUSHION (FOOT)
153 4-244-680-01 GAME MIXING BUTTON

154 4-244-676-01 FUNCTION BUTTON
155 4-244-677-01 POWER LENS
156 4-244-678-01 FUNCTION LENS

157 4-244-683-01 RECORD BUTTON (A)
158 4-246-086-01 DISPLAY BUTTON (A)
159 4-244-684-01 EQ BUTTON
160 4-244-906-01 CONTROL BUTTON (B)
161 4-246-087-01 PAUSE BUTTON (A)

162 4-244-679-01 DISC BUTTON
163 4-244-687-01 GAME MIXING HOLDER
164 3-038-018-01 EMBLEM, SONY

53

HCD-GX35/RG310/RG330

6-5. MAIN BOARD SECTION

F902
F905

F903
F904

203

F906

204

#3

not supplied

#3

not supplied

207

T901

204

#3

#2

#3

#2

not supplied

208

205

206

202

201

not supplied

#3

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 A-4732-773-A MAIN BOARD, COMPLETE (CND)
201 A-4748-386-A MAIN BOARD, COMPLETE (AEP,UK)
201 A-4748-473-A MAIN BOARD, COMPLETE (E2,E51,MX,AR)
202 4-988-533-01 HOLDER, PWB
203 1-688-088-11 TRANS BOARD (GX35)

203 1-688-695-11 TRANS BOARD (RG310/RG330)
204 4-242-527-01 S-SCREW, ITC+4-8 R

0 205 1-777-071-83 CORD, POWER (AEP,UK)
0 205 1-783-532-11 CORD, POWER (CND)
0 205 1-783-941-22 CORD, POWER (AR)

0 205 1-791-901-12 CORD, POWER (E2,E51)
0 205 1-827-226-11 CORD, POWER (MX)

206 3-703-571-11 BUSHING (S) (4516), CORD (E2,MX)

* 206 3-703-244-00 BUSHING (2104), CORD (CND,AEP,UK,E51,AR)

207 3-905-609-01 SCREW (TRANSISTOR)

208 A-4732-781-A POWER AMP BOARD, COMPLETE (GX35)
208 A-4748-552-A POWER AMP BOARD, COMPLETE (RG310)
208 A-4748-609-A POWER AMP BOARD, COMPLETE

(RG330:AEP,UK)

208 A-4748-674-A POWER AMP BOARD, COMPLETE

(E2,E51,MX,AR)

0 F902 1-533-451-12 FUSE, GLASS TUBE (DIA.5) (3.15A/125V)

(GX35)

0 F903 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V) (GX35)
0 F903 1-533-472-12 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)

0 F904 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V) (GX35)
0 F904 1-533-472-12 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)

0 F905 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V) (GX35)

0 F905 1-576-655-12 FUSE, GLASS TUBE (DIA.5) (T8AL/250V)

0 F906 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V) (GX35)
0 F906 1-576-655-12 FUSE, GLASS TUBE (DIA.5) (T8AL/250V)

0 T901 1-439-805-11 TRANSFORMER, POWER (GX35)
0 T901 1-439-808-11 TRANSFORMER, POWER (RG330:AEP,UK)

0 T901 1-439-809-11 TRANSFORMER, POWER (E2,E51,AR)
0 T901 1-439-858-11 TRANSFORMER, POWER (MX)
0 T901 1-439-915-11 TRANSFORMER, POWER (RG310)

#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-872-09 SCREW +BVTT 3X8 (S)

#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

(RG310/RG330)

(RG310/RG330)

(RG310/RG330)

(RG310/RG330)

0 F902 1-533-470-12 FUSE, GLASS TUBE (DIA.5) (T3.15AL/250V)

(RG310/RG330)

54

6-6. CD MECHANISM DECK SECTION (1)

(CDM74F-K6BD71A) (GX35/RG310/RG330: AEP, UK, E2, E51 MODEL)
(CDM74F-K6BD72) (RG330: MX, AR MODEL)

256

262

HCD-GX35/RG310/RG330

255

256

257

258

254

255

256

257

258

253

251

261

251

259

264

260

266

263

264
265

M741

252

chassis assy

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

251 4-218-253-21 SCREW (M2.6), +BTTP
252 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
253 1-687-134-11 MOTOR (TB) BOARD
254 4-243-815-01 TABLE (LOADING)
255 4-245-571-02 GEAR (STOPPER)

256 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
257 4-245-570-01 GEAR (JOINT)
258 4-245-572-01 BUSHING (GEAR)
259 1-687-132-11 SENSOR BOARD

260 4-243-820-01 GEAR (TABLE)
261 4-243-819-01 GEAR (GENEVA)
262 4-243-816-01 TRAY
263 4-243-823-01 BELT (TABLE)
264 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING

265 4-243-821-01 PULLEY (TABLE)
266 3-231-598-01 SHEET (BA)
M741 A-4723-963-A MOTOR ASSY, TABLE (TURN)

55

HCD-GX35/RG310/RG330

6-7. CD MECHANISM DECK SECTION (2)

(CDM74F-K6BD71A) (GX35/RG310/RG330: AEP, UK, E2, E51 MODEL)
(CDM74F-K6BD72) (RG330: MX, AR MODEL)

305

308

M751

311

310

309

RE701

302

307

312

306

313

305

315

305

314

302

303

305

316

317

324

325

BU-K6BD71A
BU-K6BD72

301

318

320
321

322

302

320

320

321

322

319

305

321

320

321

322

326

323

304

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

301 1-687-135-11 DRIVER BOARD
302 4-218-253-31 SCREW (M2.6), +BTTP
303 1-687-669-11 SW BOARD
304 4-244-034-01 BELT (LOADING)
305 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING

306 4-225-844-01 GEAR (LOADING A)
307 4-224-613-01 GEAR (SHAFT)
308 1-687-133-11 MOTOR (LD) BOARD
309 4-244-108-01 GEAR, SWING
310 4-224-609-01 GEAR (LOADING C)

311 4-224-608-01 COLLAR, SWING
312 3-016-533-11 WASHER (FR), STOPPER
313 4-224-611-01 GEAR (LOADING B)
314 4-224-606-01 GEAR (RV)
315 4-243-818-01 GEAR (U/D)

302

316 4-243-822-01 LEVER (LIFTER)
317 1-471-035-11 MAGNET ASSY
318 4-231-189-01 PULLEY (B), CHUCKING
319 X-4955-536-1 HOLDER (213) ASSY
320 4-227-549-11 INSULATOR

321 4-227-045-31 SPRING (INSULATOR), COIL
322 4-231-151-01 STOPPER (BU)
323 1-827-146-11 WIRE (FLAT TYPE) (19 CORE)
324 4-243-817-01 CHASSIS
325 X-4955-707-1 PULLEY (A5) ASSY, CHUCKING

326 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
M751 A-4736-655-A MOTOR ASSY, LOADING (LOADING)
RE701 1-477-680-11 ENCODER, ROTARY

(DISC TRAY ADDRESS DETECT)

56

6-8. BASE UNIT SECTION

(BU-K6BD71A) (GX35/RG310/RG330: AEP, UK, E2, E51 MODEL)
(BU-K6BD72) (RG330: MX, AR MODEL)

351

HCD-GX35/RG310/RG330

353

352

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

0 351 A-4735-357-A BASE ASSY, OP (KSM-213DCP)

352 A-4732-699-A BD BOARD, COMPLETE (EXCEPT MX,AR)
352 A-4734-406-A BD BOARD, COMPLETE (MX,AR)

353 1-823-859-11 WIRE (FLAT TYPE) (16 CORE)
#4 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S

#4

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

57

HCD-GX35/RG310/RG330

SECTION 7

BD

NOTE:

• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.

• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable

• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

A-4732-699-A BD BOARD, COMPLETE (EXCEPT MX,AR)
A-4734-406-A BD BOARD, COMPLETE (MX,AR)

*******************

< CAPACITOR >

C701 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C702 1-124-584-00 ELECT 100uF 20% 10V

C702 1-126-392-11 ELECT CHIP 100uF 20% 6.3V

C703 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C704 1-124-589-11 ELECT 47uF 20% 16V

C704 1-126-391-11 ELECT CHIP 47uF 20% 6.3V

C705 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C706 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C707 1-124-584-00 ELECT 100uF 20% 10V

C707 1-126-392-11 ELECT CHIP 100uF 20% 6.3V

C708 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C709 1-124-584-00 ELECT 100uF 20% 10V

C709 1-126-392-11 ELECT CHIP 100uF 20% 6.3V

C710 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C711 1-164-156-11 CERAMIC CHIP 0.1uF 25V

ELECTRICAL PARTS LIST

• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..

• CAPACITORS
uF : µF

• COILS
uH : µH

• Abbreviation
CND : Canadian model
E2 : 120 V AC area in E model
E51 : Chilean and Peruvian model
MX : Mexican model
AR : Argentina model

C729 1-126-934-11 ELECT 220uF 20% 10V

C729 1-128-360-11 ELECT CHIP 220uF 20% 10V

C731 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C732 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C733 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(MX,AR)

(EXCEPT MX,AR)

(MX,AR)

(EXCEPT MX,AR)

(MX,AR)

(EXCEPT MX,AR)

(MX,AR)

(EXCEPT MX,AR)

C734 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C735 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C741 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C742 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C743 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C744 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V
C745 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

C746 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C747 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C748 1-126-934-11 ELECT 220uF 20% 10V

C748 1-128-360-11 ELECT CHIP 220uF 20% 10V

C750 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

C751 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

C752 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

C753 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

When indicating parts by reference
number, please include the board.

(MX,AR)

(EXCEPT MX,AR)

(MX,AR)

(MX,AR)

(EXCEPT MX,AR)

(MX,AR)

(MX,AR)

(MX,AR)

C712 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C713 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C714 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C715 1-126-160-11 ELECT 1uF 20% 50V

C715 1-126-401-21 ELECT CHIP 1uF 20% 50V

(EXCEPT MX,AR)

C716 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C717 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C718 1-115-156-11 CERAMIC CHIP 1uF 10V
C719 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C720 1-162-953-11 CERAMIC CHIP 100PF 5% 50V

C721 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C722 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C723 1-124-584-00 ELECT 100uF 20% 10V

C723 1-126-392-11 ELECT CHIP 100uF 20% 6.3V

(EXCEPT MX,AR)

58

(MX,AR)

(MX,AR)

C754 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C756 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C802 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

C803 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(EXCEPT MX,AR)

C804 1-162-945-11 CERAMIC CHIP 22PF 5% 50V

(EXCEPT MX,AR)

C805 1-126-392-11 ELECT CHIP 100uF 20% 6.3V

(EXCEPT MX,AR)

C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

C807 1-126-392-11 ELECT CHIP 100uF 20% 6.3V

(EXCEPT MX,AR)

C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

C811 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

HCD-GX35/RG310/RG330

BD

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C812 1-115-156-11 CERAMIC CHIP 1uF 10V

(EXCEPT MX,AR)

C813 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

C814 1-126-392-11 ELECT CHIP 100uF 20% 6.3V

(EXCEPT MX,AR)

C815 1-128-360-11 ELECT CHIP 220uF 20% 10V

(EXCEPT MX,AR)

C816 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

FB807 1-550-907-21 BEAD, FERRITE (CHIP) (EXCEPT MX,AR)
FB808 1-550-907-21 BEAD, FERRITE (CHIP) (EXCEPT MX,AR)

< IC >

IC721 6-701-796-01 IC LC78646E-E
IC722 6-704-220-01 IC BA5836FP
IC801 6-704-008-01 IC LC78684E-E (EXCEPT MX,AR)
IC802 6-704-009-01 IC LC32V4265CT-25-MPB-E (EXCEPT MX,AR)
IC803 6-704-007-01 IC MM1571J (EXCEPT MX,AR)

C817 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

C823 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

(EXCEPT MX,AR)

C824 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

(EXCEPT MX,AR)

C825 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

(EXCEPT MX,AR)

C829 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

(EXCEPT MX,AR)

C830 1-162-945-11 CERAMIC CHIP 22PF 5% 50V

(EXCEPT MX,AR)

C831 1-162-945-11 CERAMIC CHIP 22PF 5% 50V

(EXCEPT MX,AR)

C834 1-128-360-11 ELECT CHIP 220uF 20% 10V

(EXCEPT MX,AR)

C835 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

C837 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

C843 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

C844 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EXCEPT MX,AR)

C856 1-115-156-11 CERAMIC CHIP 1uF 10V

(EXCEPT MX,AR)

C857 1-162-945-11 CERAMIC CHIP 22PF 5% 50V

(EXCEPT MX,AR)

C858 1-162-945-11 CERAMIC CHIP 22PF 5% 50V

(EXCEPT MX,AR)

C859 1-162-945-11 CERAMIC CHIP 22PF 5% 50V

(EXCEPT MX,AR)

C860 1-162-953-11 CERAMIC CHIP 100PF 5% 50V

(EXCEPT MX,AR)

< TRANSISTOR >

Q701 8-729-054-57 TRANSISTOR KTN2907AS-RTK

< RESISTOR >

R701 1-216-841-11 METAL CHIP 47K 5% 1/10W
R702 1-216-835-11 METAL CHIP 15K 5% 1/10W
R703 1-216-835-11 METAL CHIP 15K 5% 1/10W
R704 1-216-835-11 METAL CHIP 15K 5% 1/10W
R705 1-216-835-11 METAL CHIP 15K 5% 1/10W

R706 1-216-841-11 METAL CHIP 47K 5% 1/10W
R707 1-216-797-11 METAL CHIP 10 5% 1/10W
R708 1-216-833-11 METAL CHIP 10K 5% 1/10W
R709 1-216-838-11 METAL CHIP 27K 5% 1/10W
R711 1-216-815-11 METAL CHIP 330 5% 1/10W

R713 1-216-821-11 METAL CHIP 1K 5% 1/10W
R714 1-216-809-11 METAL CHIP 100 5% 1/10W
R715 1-216-809-11 METAL CHIP 100 5% 1/10W
R716 1-216-809-11 METAL CHIP 100 5% 1/10W
R717 1-216-809-11 METAL CHIP 100 5% 1/10W

R718 1-216-809-11 METAL CHIP 100 5% 1/10W
R719 1-216-809-11 METAL CHIP 100 5% 1/10W
R720 1-216-809-11 METAL CHIP 100 5% 1/10W
R721 1-216-809-11 METAL CHIP 100 5% 1/10W
R722 1-216-809-11 METAL CHIP 100 5% 1/10W

(MX,AR)

R722 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EXCEPT MX,AR)
R725 1-216-819-11 METAL CHIP 680 5% 1/10W
R726 1-216-819-11 METAL CHIP 680 5% 1/10W
R727 1-216-809-11 METAL CHIP 100 5% 1/10W
R728 1-216-841-11 METAL CHIP 47K 5% 1/10W

< CONNECTOR >

CN708 1-793-907-11 CONNECTOR, FFC/FPC 16P (MX,AR)
CN708 1-817-244-11 CONNECTOR, FFC 16P (EXCEPT MX,AR)
CN710 1-778-874-11 CONNECTOR,FFC (LIF(NON-ZIF)) 19P

(EXCEPT MX,AR)

CN710 1-784-741-11 CONNECTOR, FFC 19P (MX,AR)

< FERRITE BEAD >

FB701 1-550-907-21 BEAD, FERRITE (CHIP)
FB707 1-550-907-21 BEAD, FERRITE (CHIP)
FB708 1-550-907-21 BEAD, FERRITE (CHIP)
FB801 1-550-907-21 BEAD, FERRITE (CHIP) (EXCEPT MX,AR)
FB802 1-550-907-21 BEAD, FERRITE (CHIP) (EXCEPT MX,AR)

FB803 1-550-907-21 BEAD, FERRITE (CHIP) (EXCEPT MX,AR)
FB804 1-550-907-21 BEAD, FERRITE (CHIP) (EXCEPT MX,AR)
FB805 1-550-907-21 BEAD, FERRITE (CHIP) (EXCEPT MX,AR)
FB806 1-550-907-21 BEAD, FERRITE (CHIP) (EXCEPT MX,AR)

R729 1-216-834-11 METAL CHIP 12K 5% 1/10W
R730 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R731 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R732 1-216-864-11 METAL CHIP 0 5% 1/10W
R738 1-218-867-11 METAL CHIP 6.8K 5% 1/10W

R739 1-216-864-11 METAL CHIP 0 5% 1/10W
R740 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R741 1-216-864-11 METAL CHIP 0 5% 1/10W
R744 1-216-845-11 METAL CHIP 100K 5% 1/10W
R745 1-216-809-11 METAL CHIP 100 5% 1/10W

R746 1-216-803-11 METAL CHIP 33 5% 1/10W
R747 1-216-803-11 METAL CHIP 33 5% 1/10W
R751 1-216-841-11 METAL CHIP 47K 5% 1/10W

(MX,AR)

R752 1-216-841-11 METAL CHIP 47K 5% 1/10W

(MX,AR)

R753 1-216-841-11 METAL CHIP 47K 5% 1/10W

(MX,AR)

59

HCD-GX35/RG310/RG330

BD DRIVER GAME JACK

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R754 1-216-841-11 METAL CHIP 47K 5% 1/10W

(MX,AR)
R760 1-216-809-11 METAL CHIP 100 5% 1/10W
R765 1-216-857-11 METAL CHIP 1M 5% 1/10W
R801 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R802 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R803 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R804 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R805 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R806 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R807 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R817 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(EXCEPT MX,AR)

R818 1-216-811-11 METAL CHIP 150 5% 1/10W

(EXCEPT MX,AR)

R819 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EXCEPT MX,AR)

R820 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EXCEPT MX,AR)

R823 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R824 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R825 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R826 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R827 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R828 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R829 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R832 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(EXCEPT MX,AR)

R833 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R834 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

R860 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT MX,AR)

< SWITCH >

S701 1-771-853-11 SWITCH, DETECTION (LIMIT)

< VIBRATOR >

C715 1-126-933-11 ELECT 100uF 20% 16V
C731 1-126-964-11 ELECT 10uF 20% 50V
C735 1-164-159-21 CERAMIC 0.1uF 50V
C736 1-164-159-21 CERAMIC 0.1uF 50V
C737 1-164-159-21 CERAMIC 0.1uF 50V

C741 1-162-306-11 CERAMIC 0.01uF 30% 16V
C751 1-162-306-11 CERAMIC 0.01uF 30% 16V
C752 1-164-159-21 CERAMIC 0.1uF 50V

CN701 1-785-338-11 PIN, CONNECTOR (LIGHT ANGLE) 12P
CN702 1-784-766-11 CONNECTOR, FFC 5P

* CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P

CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGLE) 2P

D701 8-719-921-42 DIODE MTZJ-5.1A
D711 8-719-109-69 DIODE RD3.6ES-B2

IC701 8-759-598-69 IC BA6956AN
IC712 8-759-598-69 IC BA6956AN

Q731 8-729-029-66 TRANSISTOR DTC114ESA

R701 1-249-413-11 CARBON 470 5% 1/4W
R702 1-247-807-31 CARBON 100 5% 1/4W
R711 1-249-417-11 CARBON 1K 5% 1/4W
R712 1-249-425-11 CARBON 4.7K 5% 1/4W
R713 1-249-433-11 CARBON 22K 5% 1/4W

R721 1-249-425-11 CARBON 4.7K 5% 1/4W
R722 1-249-425-11 CARBON 4.7K 5% 1/4W
R723 1-249-425-11 CARBON 4.7K 5% 1/4W
R731 1-247-807-31 CARBON 100 5% 1/4W
R732 1-249-429-11 CARBON 10K 5% 1/4W

R733 1-249-417-11 CARBON 1K 5% 1/4W
R734 1-249-430-11 CARBON 12K 5% 1/4W
R735 1-247-807-31 CARBON 100 5% 1/4W
R751 1-249-425-11 CARBON 4.7K 5% 1/4W

*************************************************************

1-687-135-11 DRIVER BOARD

*************

< CAPACITOR >

< CONNECTOR >

< DIODE >

< IC >

< TRANSISTOR >

< RESISTOR >

GAME JACK BOARD

****************

X701 1-579-280-11 VIBRATOR, CRYSTAL (16.9344MHz) (MX,AR)
X701 1-767-408-21 VIBRATOR, CRYSTAL (16.9344MHz)

(EXCEPT MX,AR)

*************************************************************

60

< CAPACITOR >

C001 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C002 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C003 1-217-715-11 CERAMIC CHIP 0.22uF 10% 16V
C004 1-217-715-11 CERAMIC CHIP 0.22uF 10% 16V

< JACK >

JK001 1-815-684-11 JACK, PIN 3P (GAME INPUT VIDEO,AUDIO L/R)

HCD-GX35/RG310/RG330

MAINH/P JACKGAME JACK

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< JUMPER RESISTOR >

JR001 1-216-864-11 METAL CHIP 0 5% 1/10W

< RESISTOR >

C240 1-126-964-11 ELECT 10uF 20% 50V
C241 1-130-479-00 MYLAR 0.0047uF 5% 50V
C242 1-130-485-00 MYLAR 0.015uF 5% 50V
C244 1-126-947-11 ELECT 47uF 20% 16V
C247 1-126-961-11 ELECT 2.2uF 20% 50V

R001 1-216-833-11 METAL CHIP 10K 5% 1/10W
R002 1-216-833-11 METAL CHIP 10K 5% 1/10W
R003 1-216-837-11 METAL CHIP 22K 5% 1/10W
R004 1-216-837-11 METAL CHIP 22K 5% 1/10W

*************************************************************

H/P JACK BOARD

**************

< CAPACITOR >

C006 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C007 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C008 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< JACK >

JK002 1-691-293-21 JACK (PHONES)

*************************************************************

A-4732-773-A MAIN BOARD, COMPLETE (CND)
A-4748-386-A MAIN BOARD, COMPLETE (AEP,UK)
A-4748-473-A MAIN BOARD, COMPLETE (E2,E51,MX,AR)

*********************

7-685-872-09 SCREW +BVTT 3X8 (S)

< CAPACITOR >

C101 1-126-963-11 ELECT 4.7uF 20% 50V
C102 1-126-963-11 ELECT 4.7uF 20% 50V
C103 1-126-933-11 ELECT 100uF 20% 16V
C105 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

(AEP,UK)

C106 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C107 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C201 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C202 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C203 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C204 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C205 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(AEP,UK)
C206 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C221 1-126-947-11 ELECT 47uF 20% 16V
C223 1-137-350-11 MYLAR 0.015uF 5% 100V
C225 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C226 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C227 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C228 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C230 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C231 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

C232 1-126-947-11 ELECT 47uF 20% 16V
C233 1-130-485-00 MYLAR 0.015uF 5% 50V
C234 1-130-485-00 MYLAR 0.015uF 5% 50V
C235 1-126-960-11 ELECT 1uF 20% 50V
C236 1-126-933-11 ELECT 100uF 20% 16V

C237 1-126-960-11 ELECT 1uF 20% 50V
C239 1-130-485-00 MYLAR 0.015uF 5% 50V

C248 1-126-961-11 ELECT 2.2uF 20% 50V
C249 1-126-961-11 ELECT 2.2uF 20% 50V
C250 1-126-961-11 ELECT 2.2uF 20% 50V
C253 1-126-933-11 ELECT 100uF 20% 16V
C254 1-126-963-11 ELECT 4.7uF 20% 50V

C255 1-126-961-11 ELECT 2.2uF 20% 50V
C256 1-126-959-11 ELECT 0.47uF 20% 50V
C257 1-126-956-11 ELECT 0.1uF 20% 50V
C258 1-126-963-11 ELECT 4.7uF 20% 50V
C259 1-128-551-11 ELECT 22uF 20% 25V

C260 1-126-959-11 ELECT 0.47uF 20% 50V
C261 1-126-959-11 ELECT 0.47uF 20% 50V
C265 1-130-489-00 MYLAR 0.033uF 5% 50V
C266 1-130-483-00 MYLAR 0.01uF 5% 50V
C267 1-130-483-00 MYLAR 0.01uF 5% 50V

C268 1-126-960-11 ELECT 1uF 20% 50V
C269 1-126-960-11 ELECT 1uF 20% 50V
C272 1-126-960-11 ELECT 1uF 20% 50V
C273 1-126-960-11 ELECT 1uF 20% 50V
C285 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C286 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C300 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C303 1-104-665-11 ELECT 100uF 20% 10V
C304 1-126-963-11 ELECT 4.7uF 20% 50V
C305 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

(AEP,UK)

C306 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

(AEP,UK)
C307 1-126-964-11 ELECT 10uF 20% 50V
C308 1-126-964-11 ELECT 10uF 20% 50V
C309 1-126-964-11 ELECT 10uF 20% 50V
C310 1-126-964-11 ELECT 10uF 20% 50V

C311 1-126-964-11 ELECT 10uF 20% 50V
C312 1-126-964-11 ELECT 10uF 20% 50V
C313 1-107-714-11 ELECT 10uF 20% 16V
C314 1-107-714-11 ELECT 10uF 20% 16V
C317 1-126-964-11 ELECT 10uF 20% 50V

C318 1-126-964-11 ELECT 10uF 20% 50V
C319 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C320 1-130-487-00 MYLAR 0.022uF 5% 50V
C321 1-130-487-00 MYLAR 0.022uF 5% 50V
C323 1-130-487-00 MYLAR 0.022uF 5% 50V

C324 1-130-487-00 MYLAR 0.022uF 5% 50V
C325 1-130-491-00 MYLAR 0.047uF 5% 50V
C326 1-130-491-00 MYLAR 0.047uF 5% 50V
C327 1-130-476-00 MYLAR 0.0027uF 5% 50V
C328 1-130-476-00 MYLAR 0.0027uF 5% 50V

C331 1-130-494-11 MYLAR 0.082uF 5% 50V
C332 1-130-494-11 MYLAR 0.082uF 5% 50V
C333 1-130-493-00 MYLAR 0.068uF 5% 50V
C334 1-130-493-00 MYLAR 0.068uF 5% 50V
C337 1-126-964-11 ELECT 10uF 20% 50V

C339 1-126-934-11 ELECT 220uF 20% 16V

61

HCD-GX35/RG310/RG330

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C342 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C345 1-126-933-11 ELECT 100uF 20% 16V
C348 1-126-947-11 ELECT 47uF 20% 16V
C349 1-126-964-11 ELECT 10uF 20% 50V

(EXCEPT AEP,UK)

C350 1-126-964-11 ELECT 10uF 20% 50V

C353 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C354 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C355 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C356 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C357 1-126-926-11 ELECT 1000uF 20% 10V

C359 1-126-947-11 ELECT 47uF 20% 16V
C361 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C362 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C363 1-126-964-11 ELECT 10uF 20% 50V
C364 1-126-964-11 ELECT 10uF 20% 50V

C365 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C366 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C369 1-126-964-11 ELECT 10uF 20% 50V
C370 1-126-964-11 ELECT 10uF 20% 50V
C371 1-126-947-11 ELECT 47uF 20% 16V

C372 1-126-964-11 ELECT 10uF 20% 50V
C373 1-130-483-00 MYLAR 0.01uF 5% 50V
C374 1-130-483-00 MYLAR 0.01uF 5% 50V
C375 1-126-943-11 ELECT 2200uF 20% 25V
C377 1-126-963-11 ELECT 4.7uF 20% 50V

C430 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(AEP,UK)

C431 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(AEP,UK)

C432 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(AEP,UK)

C433 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(AEP,UK)

C434 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(AEP,UK)

C435 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(AEP,UK)

C436 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(AEP,UK)

C437 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(AEP,UK)

C438 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(AEP,UK)

C441 1-165-128-11 CERAMIC CHIP 0.22uF 16V

C444 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

(AEP,UK)

C445 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

(AEP,UK)

C448 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(AEP,UK)

C449 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

(AEP,UK)

C450 1-126-964-11 ELECT 10uF 20% 50V

C378 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C380 1-126-935-11 ELECT 470uF 20% 16V
C381 1-126-947-11 ELECT 47uF 20% 16V
C386 1-126-947-11 ELECT 47uF 20% 16V
C390 1-162-953-11 CERAMIC CHIP 100PF 5% 50V

C391 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C392 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C393 1-126-959-11 ELECT 0.47uF 20% 50V
C397 1-104-665-11 ELECT 100uF 20% 10V
C398 1-126-964-11 ELECT 10uF 20% 50V

C399 1-126-935-11 ELECT 470uF 20% 16V
C401 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C411 1-107-713-11 ELECT 4.7uF 20% 35V
C412 1-107-713-11 ELECT 4.7uF 20% 35V

C417 1-126-926-11 ELECT 1000uF 20% 10V
C418 1-130-483-00 MYLAR 0.01uF 5% 50V
C419 1-130-483-00 MYLAR 0.01uF 5% 50V
C420 1-126-943-11 ELECT 2200uF 20% 25V
C421 1-126-934-11 ELECT 220uF 20% 16V

C423 1-126-947-11 ELECT 47uF 20% 16V
C424 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

(AEP,UK)

C425 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

(AEP,UK)

C426 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

(AEP,UK)

C427 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(AEP,UK)

C428 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(AEP,UK)

C429 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(AEP,UK)

C451 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(AEP,UK)

C452 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(AEP,UK)

C453 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(AEP,UK)

< CONNECTOR >

CN101 1-568-830-11 CONNECTOR, FFC 11P (EXCEPT AEP,UK)
CN101 1-784-776-11 CONNECTOR, FFC 15P (AEP,UK)
CN102 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P (AEP,UK)

* CN202 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P
* CN203 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P

CN303 1-564-506-11 PLUG, CONNECTOR 3P
CN304 1-784-792-11 CONNECTOR, FFC 31P

* CN305 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P

CN306 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P
CN307 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P

CN310 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P
CN311 1-568-828-11 CONNECTOR, FFC 9P
CN312 1-784-780-11 CONNECTOR, FFC 19P

< DIODE >

D101 8-719-988-61 DIODE 1SS355TE-17 (AEP,UK)
D102 6-500-522-21 DIODE 10EDB40-TB3
D203 8-719-988-61 DIODE 1SS355TE-17
D204 8-719-988-61 DIODE 1SS355TE-17
D205 8-719-988-61 DIODE 1SS355TE-17

D206 8-719-988-61 DIODE 1SS355TE-17
D210 8-719-988-61 DIODE 1SS355TE-17
D301 6-500-522-21 DIODE 10EDB40-TB3
D302 6-500-522-21 DIODE 10EDB40-TB3
D303 6-500-522-21 DIODE 10EDB40-TB3

62

HCD-GX35/RG310/RG330

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

D304 6-500-522-21 DIODE 10EDB40-TB3
D305 8-719-988-61 DIODE 1SS355TE-17
D306 8-719-988-61 DIODE 1SS355TE-17
D307 8-719-988-61 DIODE 1SS355TE-17
D308 8-719-988-61 DIODE 1SS355TE-17

L201 1-424-849-11 COIL, OSCILLATION (BIAS)

< COIL >

< TRANSISTOR >

D311 8-719-988-61 DIODE 1SS355TE-17
D312 8-719-083-63 DIODE UDZS-TE17-13B
D313 6-500-522-21 DIODE 10EDB40-TB3
D314 6-500-522-21 DIODE 10EDB40-TB3
D315 6-500-522-21 DIODE 10EDB40-TB3

D316 6-500-522-21 DIODE 10EDB40-TB3
D317 8-719-988-61 DIODE 1SS355TE-17
D318 8-719-085-36 DIODE 11EQS04-TB5
D319 6-500-522-21 DIODE 10EDB40-TB3
D320 6-500-522-21 DIODE 10EDB40-TB3

D321 6-500-522-21 DIODE 10EDB40-TB3
D322 6-500-522-21 DIODE 10EDB40-TB3
D323 8-719-085-36 DIODE 11EQS04-TB5
D324 8-719-988-61 DIODE 1SS355TE-17
D325 8-719-988-61 DIODE 1SS355TE-17

D364 8-719-988-61 DIODE 1SS355TE-17
D366 8-719-988-61 DIODE 1SS355TE-17
D371 8-719-988-61 DIODE 1SS355TE-17
D374 8-719-988-61 DIODE 1SS355TE-17

< EARTH TERMINAL >

* G1 1-537-738-21 TERMINAL, EARTH
* G2 1-537-738-21 TERMINAL, EARTH (AEP,UK)

< IC >

Q210 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q211 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q212 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q218 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q219 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q220 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q221 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q222 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q223 8-729-142-46 TRANSISTOR 2SC2001-LK
Q225 6-550-289-01 TRANSISTOR 2SA1235F

Q228 8-729-140-04 TRANSISTOR 2SB1116A-L
Q301 6-550-296-01 TRANSISTOR 2SA1980G
Q302 8-729-120-28 TRANSISTOR 2SC3052F-T1-LF
Q304 6-550-296-01 TRANSISTOR 2SA1980G
Q310 8-729-052-79 TRANSISTOR 2SD1306NETL

Q311 8-729-052-79 TRANSISTOR 2SD1306NETL
Q312 6-550-289-01 TRANSISTOR 2SA1235F
Q321 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q322 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q324 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q329 6-550-289-01 TRANSISTOR 2SA1235F
Q330 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q331 6-550-289-01 TRANSISTOR 2SA1235F
Q371 8-729-142-46 TRANSISTOR 2SC2001-LK
Q373 8-729-142-46 TRANSISTOR 2SC2001-LK

IC201 6-702-130-01 IC HA12237F
IC301 6-703-650-11 IC M61529FP-D60G
IC304 8-759-710-97 IC NJM4565M-D
IC305 8-759-701-59 IC NJM78M09FA
IC306 6-701-760-01 IC uPC3504AHF

IC308 8-759-701-59 IC NJM78M09FA
IC309 6-704-046-01 IC BU2099FV
IC310 6-704-046-01 IC BU2099FV
IC313 8-759-231-57 IC TA7810S

< JUMPER RESISTOR >

JR124 1-216-864-11 METAL CHIP 0 5% 1/10W
JR300 1-216-864-11 METAL CHIP 0 5% 1/10W
JR329 1-216-864-11 METAL CHIP 0 5% 1/10W
JR330 1-216-864-11 METAL CHIP 0 5% 1/10W
JR331 1-216-864-11 METAL CHIP 0 5% 1/10W

JR332 1-216-864-11 METAL CHIP 0 5% 1/10W
JR333 1-216-864-11 METAL CHIP 0 5% 1/10W
JR339 1-216-864-11 METAL CHIP 0 5% 1/10W
JR341 1-216-864-11 METAL CHIP 0 5% 1/10W
JR343 1-216-864-11 METAL CHIP 0 5% 1/10W

JR344 1-216-864-11 METAL CHIP 0 5% 1/10W
JR345 1-216-864-11 METAL CHIP 0 5% 1/10W
JR358 1-216-864-11 METAL CHIP 0 5% 1/10W

(EXCEPT AEP,UK)
JR360 1-216-864-11 METAL CHIP 0 5% 1/10W
JR453 1-216-864-11 METAL CHIP 0 5% 1/10W

(AEP,UK)

< RESISTOR >

R101 1-216-833-11 METAL CHIP 10K 5% 1/10W
R102 1-216-833-11 METAL CHIP 10K 5% 1/10W
R215 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R216 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R218 1-216-849-11 METAL CHIP 220K 5% 1/10W

R219 1-216-833-11 METAL CHIP 10K 5% 1/10W
R220 1-216-833-11 METAL CHIP 10K 5% 1/10W
R225 1-216-834-11 METAL CHIP 12K 5% 1/10W
R226 1-216-834-11 METAL CHIP 12K 5% 1/10W
R231 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R232 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R233 1-216-837-11 METAL CHIP 22K 5% 1/10W
R234 1-216-837-11 METAL CHIP 22K 5% 1/10W
R235 1-216-833-11 METAL CHIP 10K 5% 1/10W
R236 1-216-821-11 METAL CHIP 1K 5% 1/10W

R237 1-216-857-11 METAL CHIP 1M 5% 1/10W
R238 1-216-853-11 METAL CHIP 470K 5% 1/10W
R239 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R241 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R242 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R245 1-216-833-11 METAL CHIP 10K 5% 1/10W
R246 1-216-841-11 METAL CHIP 47K 5% 1/10W
R249 1-216-853-11 METAL CHIP 470K 5% 1/10W
R250 1-216-849-11 METAL CHIP 220K 5% 1/10W
R251 1-216-793-11 METAL CHIP 4.7 5% 1/10W

R252 1-216-838-11 METAL CHIP 27K 5% 1/10W

63

HCD-GX35/RG310/RG330

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R253 1-216-833-11 METAL CHIP 10K 5% 1/10W
R256 1-216-833-11 METAL CHIP 10K 5% 1/10W
R257 1-216-817-11 METAL CHIP 470 5% 1/10W
R258 1-216-809-11 METAL CHIP 100 5% 1/10W
R260 1-216-809-11 METAL CHIP 100 5% 1/10W

R348 1-216-837-11 METAL CHIP 22K 5% 1/10W
R352 1-218-717-11 METAL CHIP 11K 5% 1/10W
R353 1-218-717-11 METAL CHIP 11K 5% 1/10W
R354 1-216-841-11 METAL CHIP 47K 5% 1/10W
R355 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R261 1-216-817-11 METAL CHIP 470 5% 1/10W
R262 1-216-845-11 METAL CHIP 100K 5% 1/10W
R263 1-216-833-11 METAL CHIP 10K 5% 1/10W
R264 1-216-833-11 METAL CHIP 10K 5% 1/10W
R265 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R266 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R267 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R268 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R269 1-216-833-11 METAL CHIP 10K 5% 1/10W
R270 1-216-833-11 METAL CHIP 10K 5% 1/10W

R271 1-216-833-11 METAL CHIP 10K 5% 1/10W
R272 1-216-833-11 METAL CHIP 10K 5% 1/10W
R273 1-216-833-11 METAL CHIP 10K 5% 1/10W
R278 1-216-837-11 METAL CHIP 22K 5% 1/10W
R282 1-216-809-11 METAL CHIP 100 5% 1/10W

R283 1-216-833-11 METAL CHIP 10K 5% 1/10W
R284 1-216-833-11 METAL CHIP 10K 5% 1/10W
R285 1-216-833-11 METAL CHIP 10K 5% 1/10W
R286 1-216-833-11 METAL CHIP 10K 5% 1/10W
R287 1-216-833-11 METAL CHIP 10K 5% 1/10W

R288 1-216-833-11 METAL CHIP 10K 5% 1/10W
R305 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R306 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R307 1-216-809-11 METAL CHIP 100 5% 1/10W
R309 1-216-833-11 METAL CHIP 10K 5% 1/10W

R356 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R358 1-216-837-11 METAL CHIP 22K 5% 1/10W
R360 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R361 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R362 1-216-837-11 METAL CHIP 22K 5% 1/10W

R363 1-216-837-11 METAL CHIP 22K 5% 1/10W
R364 1-216-845-11 METAL CHIP 100K 5% 1/10W
R365 1-216-857-11 METAL CHIP 1M 5% 1/10W
R368 1-216-809-11 METAL CHIP 100 5% 1/10W
R369 1-216-809-11 METAL CHIP 100 5% 1/10W

R371 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R372 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R373 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R374 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R377 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R378 1-216-833-11 METAL CHIP 10K 5% 1/10W
R379 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R380 1-216-853-11 METAL CHIP 470K 5% 1/10W
R384 1-218-717-11 METAL CHIP 11K 5% 1/10W
R386 1-216-833-11 METAL CHIP 10K 5% 1/10W

R387 1-216-834-11 METAL CHIP 12K 5% 1/10W
R388 1-216-821-11 METAL CHIP 1K 5% 1/10W
R395 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R396 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R397 1-216-833-11 METAL CHIP 10K 5% 1/10W

R310 1-216-833-11 METAL CHIP 10K 5% 1/10W
R311 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EXCEPT AEP,UK)

R311 1-216-835-11 METAL CHIP 15K 5% 1/10W

(AEP,UK)

R312 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EXCEPT AEP,UK)

R312 1-216-835-11 METAL CHIP 15K 5% 1/10W

(AEP,UK)

R313 1-216-845-11 METAL CHIP 100K 5% 1/10W
R314 1-216-845-11 METAL CHIP 100K 5% 1/10W
R316 1-216-833-11 METAL CHIP 10K 5% 1/10W
R317 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R318 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R319 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R320 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R321 1-216-833-11 METAL CHIP 10K 5% 1/10W
R322 1-216-833-11 METAL CHIP 10K 5% 1/10W
R323 1-216-821-11 METAL CHIP 1K 5% 1/10W

R324 1-216-809-11 METAL CHIP 100 5% 1/10W
R325 1-216-833-11 METAL CHIP 10K 5% 1/10W
R326 1-216-833-11 METAL CHIP 10K 5% 1/10W
R328 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R329 1-216-801-11 METAL CHIP 22 5% 1/10W

(AEP,UK)

R330 1-216-833-11 METAL CHIP 10K 5% 1/10W
R344 1-216-841-11 METAL CHIP 47K 5% 1/10W
R345 1-216-841-11 METAL CHIP 47K 5% 1/10W
R346 1-216-837-11 METAL CHIP 22K 5% 1/10W

R398 1-216-833-11 METAL CHIP 10K 5% 1/10W
R399 1-216-833-11 METAL CHIP 10K 5% 1/10W
R400 1-216-833-11 METAL CHIP 10K 5% 1/10W
R401 1-216-833-11 METAL CHIP 10K 5% 1/10W
R402 1-216-833-11 METAL CHIP 10K 5% 1/10W

R404 1-216-833-11 METAL CHIP 10K 5% 1/10W
R405 1-216-833-11 METAL CHIP 10K 5% 1/10W
R406 1-216-837-11 METAL CHIP 22K 5% 1/10W
R407 1-216-833-11 METAL CHIP 10K 5% 1/10W
R408 1-216-833-11 METAL CHIP 10K 5% 1/10W

R409 1-216-833-11 METAL CHIP 10K 5% 1/10W
R410 1-216-833-11 METAL CHIP 10K 5% 1/10W
R421 1-216-833-11 METAL CHIP 10K 5% 1/10W
R422 1-216-806-11 METAL CHIP 56 5% 1/10W
R423 1-216-806-11 METAL CHIP 56 5% 1/10W

R424 1-216-837-11 METAL CHIP 22K 5% 1/10W
R425 1-216-837-11 METAL CHIP 22K 5% 1/10W
R426 1-216-837-11 METAL CHIP 22K 5% 1/10W
R427 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R428 1-216-134-00 METAL CHIP 2.2 5% 1/8W

R429 1-216-821-11 METAL CHIP 1K 5% 1/10W
R430 1-216-833-11 METAL CHIP 10K 5% 1/10W
R431 1-216-847-11 METAL CHIP 150K 5% 1/10W
R432 1-216-809-11 METAL CHIP 100 5% 1/10W

0 R433 1-215-891-11 METAL OXIDE 680 5% 2W F

0 R434 1-215-891-11 METAL OXIDE 680 5% 2W F

R435 1-216-857-11 METAL CHIP 1M 5% 1/10W
R455 1-218-717-11 METAL CHIP 11K 5% 1/10W

64

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

HCD-GX35/RG310/RG330

MAIN PANELMOTOR (LD) MOTOR (TB)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R456 1-218-717-11 METAL CHIP 11K 5% 1/10W
R457 1-216-837-11 METAL CHIP 22K 5% 1/10W
R459 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R460 1-216-821-11 METAL CHIP 1K 5% 1/10W
R461 1-216-821-11 METAL CHIP 1K 5% 1/10W

C644 1-124-234-00 ELECT 22uF 20% 16V
C646 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C647 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C648 1-124-257-00 ELECT 2.2uF 20% 50V
C649 1-124-234-00 ELECT 22uF 20% 16V

R465 1-216-837-11 METAL CHIP 22K 5% 1/10W
R466 1-216-837-11 METAL CHIP 22K 5% 1/10W
R480 1-216-833-11 METAL CHIP 10K 5% 1/10W
R481 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R482 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R483 1-216-821-11 METAL CHIP 1K 5% 1/10W
R484 1-216-833-11 METAL CHIP 10K 5% 1/10W
R486 1-216-809-11 METAL CHIP 100 5% 1/10W
R487 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R488 1-216-134-00 METAL CHIP 2.2 5% 1/8W

*************************************************************

1-687-133-11 MOTOR (LD) BOARD

*****************

*************************************************************

1-687-134-11 MOTOR (TB) BOARD

*****************

< CONNECTOR >

CN742 1-784-727-11 CONNECTOR, FFC 5P

*************************************************************

A-4748-555-A PANEL BOARD, COMPLETE (AEP,UK)
A-4748-606-A PANEL BOARD, COMPLETE (CND)
A-4748-677-A PANEL BOARD, COMPLETE (E2,E51,MX,AR)

**********************

C650 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

< CONNECTOR >

CN601 1-784-753-11 CONNECTOR, FFC 31P
CN602 1-784-731-11 CONNECTOR, FFC 9P
CN603 1-816-422-11 PIN, CONNECTOR 3P
CN605 1-784-735-11 CONNECTOR, FFC 13P

* CN607 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P

< DIODE >

D606 8-719-988-61 DIODE 1SS355TE-17 (CND)
D607 8-719-988-61 DIODE 1SS355TE-17 (CND)
D608 8-719-988-61 DIODE 1SS355TE-17 (E2,E51,MX,AR)
D609 8-719-988-61 DIODE 1SS355TE-17 (CND,AEP,UK)
D610 8-719-988-61 DIODE 1SS355TE-17

D613 8-719-988-61 DIODE 1SS355TE-17
D614 8-719-988-61 DIODE 1SS355TE-17
D615 8-719-988-61 DIODE 1SS355TE-17
D616 8-719-988-61 DIODE 1SS355TE-17
D617 8-719-988-61 DIODE 1SS355TE-17

D618 8-719-988-61 DIODE 1SS355TE-17
D619 8-719-988-61 DIODE 1SS355TE-17
D620 8-719-988-61 DIODE 1SS355TE-17
D621 8-719-988-61 DIODE 1SS355TE-17
D622 8-719-988-61 DIODE 1SS355TE-17

4-244-690-01 FL HOLDER (L)
4-244-691-01 FL HOLDER (R)

< CAPACITOR >

C601 1-124-247-11 ELECT 10uF 20% 35V
C602 1-124-247-11 ELECT 10uF 20% 35V
C603 1-124-589-11 ELECT 47uF 20% 16V
C604 1-124-261-00 ELECT 10uF 20% 50V
C611 1-126-916-11 ELECT 1000uF 20% 6.3V

C612 1-115-156-11 CERAMIC CHIP 1uF 10V
C614 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C615 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C616 1-115-156-11 CERAMIC CHIP 1uF 10V
C617 1-162-961-11 CERAMIC CHIP 330PF 10% 50V

C618 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C619 1-124-234-00 ELECT 22uF 20% 16V
C620 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C621 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C622 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C635 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C636 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C637 1-124-464-11 ELECT 0.22uF 20% 50V
C638 1-124-464-11 ELECT 0.22uF 20% 50V
C639 1-126-947-11 ELECT 47uF 20% 35V

C640 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C641 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C642 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C643 1-115-156-11 CERAMIC CHIP 1uF 10V

D623 8-719-988-61 DIODE 1SS355TE-17
D624 8-719-988-61 DIODE 1SS355TE-17
D625 8-719-988-61 DIODE 1SS355TE-17
D626 8-719-083-61 DIODE UDZS-TE17-11B (E2,E51,MX,AR)
D627 8-719-988-61 DIODE 1SS355TE-17

D628 8-719-988-61 DIODE 1SS355TE-17
D629 8-719-988-61 DIODE 1SS355TE-17
D630 8-719-988-61 DIODE 1SS355TE-17
D631 8-719-988-61 DIODE 1SS355TE-17
D633 8-719-988-61 DIODE 1SS355TE-17

D634 8-719-988-61 DIODE 1SS355TE-17

< COIL >

FB601 1-412-473-21 INDUCTOR (SMALL TYPE)

< FLUORESCENT INDICATOR >

FLD601 1-518-863-11 INDICATOR TUBE, FLUORESCENT

< IC >

IC601 6-803-327-01 IC LC876780B-51Y0-E
IC602 6-704-045-01 IC MM1574A
IC603 8-759-533-04 IC M62703ML-E1

< JUMPER RESISTOR >

JR604 1-216-864-11 METAL CHIP 0 5% 1/10W
JR605 1-216-864-11 METAL CHIP 0 5% 1/10W
JR606 1-216-864-11 METAL CHIP 0 5% 1/10W

65

HCD-GX35/RG310/RG330

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

JR607 1-216-864-11 METAL CHIP 0 5% 1/10W
JR608 1-216-864-11 METAL CHIP 0 5% 1/10W
JR609 1-216-864-11 METAL CHIP 0 5% 1/10W
JR610 1-216-864-11 METAL CHIP 0 5% 1/10W

(EXCEPT AEP,UK)

JR611 1-216-864-11 METAL CHIP 0 5% 1/10W

(EXCEPT AEP,UK)

JR613 1-216-864-11 METAL CHIP 0 5% 1/10W
JR614 1-216-864-11 METAL CHIP 0 5% 1/10W
JR615 1-216-864-11 METAL CHIP 0 5% 1/10W

(E2,E51,MX,AR)

JR616 1-216-864-11 METAL CHIP 0 5% 1/10W

(CND)

JR617 1-216-864-11 METAL CHIP 0 5% 1/10W

(E2,E51,MX,AR)

JR618 1-216-864-11 METAL CHIP 0 5% 1/10W

(CND)

JR619 1-216-864-11 METAL CHIP 0 5% 1/10W

(E2,E51,MX,AR)

JR620 1-216-864-11 METAL CHIP 0 5% 1/10W

(CND,AEP,UK)
JR621 1-216-864-11 METAL CHIP 0 5% 1/10W
JR623 1-216-864-11 METAL CHIP 0 5% 1/10W

(CND,AEP,UK)

JR625 1-216-864-11 METAL CHIP 0 5% 1/10W
JR626 1-216-864-11 METAL CHIP 0 5% 1/10W

R045 1-216-845-11 METAL CHIP 100K 5% 1/10W
R046 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R047 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R048 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R050 1-216-821-11 METAL CHIP 1K 5% 1/10W

R051 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R053 1-216-841-11 METAL CHIP 47K 5% 1/10W
R054 1-216-841-11 METAL CHIP 47K 5% 1/10W
R055 1-216-841-11 METAL CHIP 47K 5% 1/10W
R056 1-216-841-11 METAL CHIP 47K 5% 1/10W

R057 1-216-841-11 METAL CHIP 47K 5% 1/10W
R058 1-216-841-11 METAL CHIP 47K 5% 1/10W
R059 1-216-841-11 METAL CHIP 47K 5% 1/10W
R060 1-216-841-11 METAL CHIP 47K 5% 1/10W
R061 1-216-841-11 METAL CHIP 47K 5% 1/10W

R062 1-216-841-11 METAL CHIP 47K 5% 1/10W
R063 1-216-841-11 METAL CHIP 47K 5% 1/10W
R064 1-216-841-11 METAL CHIP 47K 5% 1/10W
R065 1-216-841-11 METAL CHIP 47K 5% 1/10W
R066 1-216-841-11 METAL CHIP 47K 5% 1/10W

R067 1-216-841-11 METAL CHIP 47K 5% 1/10W
R068 1-216-841-11 METAL CHIP 47K 5% 1/10W
R069 1-216-841-11 METAL CHIP 47K 5% 1/10W
R070 1-216-841-11 METAL CHIP 47K 5% 1/10W
R071 1-216-841-11 METAL CHIP 47K 5% 1/10W

< DIODE >

LED607 6-500-414-01 LED HL-30105Q2AT (CD)
LED608 6-500-414-01 LED HL-30105Q2AT (TUNER/BAND)
LED609 6-500-414-01 LED HL-30105Q2AT (TAPE A/B)
LED612 6-500-414-01 LED HL-30105Q2AT (GAME)
LED614 6-500-414-01 LED HL-30105Q2AT (POWER)

< TRANSISTOR >

Q601 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q602 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q603 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q604 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q607 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q609 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q610 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q616 8-729-140-04 TRANSISTOR 2SB1116A-L
Q617 8-729-140-04 TRANSISTOR 2SB1116A-L
Q618 8-729-116-56 TRANSISTOR 2SB1068-L

< RESISTOR >

R030 1-216-809-11 METAL CHIP 100 5% 1/10W
R031 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R032 1-216-848-11 METAL CHIP 180K 5% 1/10W
R033 1-216-837-11 METAL CHIP 22K 5% 1/10W
R034 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R035 1-216-841-11 METAL CHIP 47K 5% 1/10W
R036 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R037 1-216-817-11 METAL CHIP 470 5% 1/10W
R039 1-216-809-11 METAL CHIP 100 5% 1/10W
R040 1-216-845-11 METAL CHIP 100K 5% 1/10W

R041 1-216-845-11 METAL CHIP 100K 5% 1/10W
R043 1-216-845-11 METAL CHIP 100K 5% 1/10W
R044 1-216-845-11 METAL CHIP 100K 5% 1/10W

R072 1-216-841-11 METAL CHIP 47K 5% 1/10W
R073 1-216-841-11 METAL CHIP 47K 5% 1/10W
R074 1-216-841-11 METAL CHIP 47K 5% 1/10W
R075 1-216-841-11 METAL CHIP 47K 5% 1/10W
R076 1-216-841-11 METAL CHIP 47K 5% 1/10W

R077 1-216-841-11 METAL CHIP 47K 5% 1/10W
R078 1-216-841-11 METAL CHIP 47K 5% 1/10W
R079 1-216-841-11 METAL CHIP 47K 5% 1/10W
R080 1-216-841-11 METAL CHIP 47K 5% 1/10W
R081 1-216-841-11 METAL CHIP 47K 5% 1/10W

R082 1-216-841-11 METAL CHIP 47K 5% 1/10W
R083 1-216-841-11 METAL CHIP 47K 5% 1/10W
R084 1-216-841-11 METAL CHIP 47K 5% 1/10W
R085 1-216-841-11 METAL CHIP 47K 5% 1/10W
R086 1-216-841-11 METAL CHIP 47K 5% 1/10W

R087 1-216-820-11 METAL CHIP 820 5% 1/10W
R088 1-216-820-11 METAL CHIP 820 5% 1/10W
R089 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R090 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R601 1-216-839-11 METAL CHIP 33K 5% 1/10W

R602 1-216-809-11 METAL CHIP 100 5% 1/10W

(AEP,UK)
R604 1-216-833-11 METAL CHIP 10K 5% 1/10W
R605 1-216-833-11 METAL CHIP 10K 5% 1/10W
R606 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R607 1-216-849-11 METAL CHIP 220K 5% 1/10W

R608 1-216-809-11 METAL CHIP 100 5% 1/10W

(AEP,UK)
R609 1-216-833-11 METAL CHIP 10K 5% 1/10W
R610 1-216-835-11 METAL CHIP 15K 5% 1/10W
R611 1-216-809-11 METAL CHIP 100 5% 1/10W
R612 1-216-809-11 METAL CHIP 100 5% 1/10W

R613 1-216-821-11 METAL CHIP 1K 5% 1/10W

66

HCD-GX35/RG310/RG330

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R614 1-216-821-11 METAL CHIP 1K 5% 1/10W
R615 1-216-821-11 METAL CHIP 1K 5% 1/10W
R616 1-216-817-11 METAL CHIP 470 5% 1/10W
R623 1-216-198-11 RES-CHIP 1K 5% 1/8W
R624 1-216-835-11 METAL CHIP 15K 5% 1/10W

R684 1-216-835-11 METAL CHIP 15K 5% 1/10W
R685 1-216-837-11 METAL CHIP 22K 5% 1/10W
R686 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R687 1-216-833-11 METAL CHIP 10K 5% 1/10W
R688 1-216-835-11 METAL CHIP 15K 5% 1/10W

R625 1-216-817-11 METAL CHIP 470 5% 1/10W
R626 1-216-819-11 METAL CHIP 680 5% 1/10W
R627 1-216-821-11 METAL CHIP 1K 5% 1/10W
R628 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R629 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R630 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R631 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R632 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R633 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R634 1-216-833-11 METAL CHIP 10K 5% 1/10W

R635 1-216-198-11 RES-CHIP 1K 5% 1/8W
R638 1-216-835-11 METAL CHIP 15K 5% 1/10W
R639 1-216-817-11 METAL CHIP 470 5% 1/10W
R640 1-216-819-11 METAL CHIP 680 5% 1/10W
R641 1-216-821-11 METAL CHIP 1K 5% 1/10W

R642 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R643 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R644 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R645 1-216-198-11 RES-CHIP 1K 5% 1/8W
R646 1-216-849-11 METAL CHIP 220K 5% 1/10W

R647 1-220-397-11 METAL 4.7M 5% 1/10W
R648 1-216-819-11 METAL CHIP 680 5% 1/10W
R649 1-216-198-11 RES-CHIP 1K 5% 1/8W
R651 1-216-833-11 METAL CHIP 10K 5% 1/10W
R652 1-216-809-11 METAL CHIP 100 5% 1/10W

R689 1-216-837-11 METAL CHIP 22K 5% 1/10W
R691 1-216-833-11 METAL CHIP 10K 5% 1/10W
R692 1-216-809-11 METAL CHIP 100 5% 1/10W
R693 1-216-809-11 METAL CHIP 100 5% 1/10W
R694 1-216-809-11 METAL CHIP 100 5% 1/10W

R695 1-216-809-11 METAL CHIP 100 5% 1/10W
R696 1-216-809-11 METAL CHIP 100 5% 1/10W
R697 1-216-809-11 METAL CHIP 100 5% 1/10W
R698 1-216-809-11 METAL CHIP 100 5% 1/10W
R699 1-216-821-11 METAL CHIP 1K 5% 1/10W

R902 1-216-841-11 METAL CHIP 47K 5% 1/10W
R903 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R904 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R905 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R906 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R907 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R908 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R909 1-216-837-11 METAL CHIP 22K 5% 1/10W
R910 1-216-837-11 METAL CHIP 22K 5% 1/10W
R911 1-216-837-11 METAL CHIP 22K 5% 1/10W

R912 1-216-837-11 METAL CHIP 22K 5% 1/10W
R913 1-216-837-11 METAL CHIP 22K 5% 1/10W
R914 1-216-837-11 METAL CHIP 22K 5% 1/10W
R915 1-216-833-11 METAL CHIP 10K 5% 1/10W
R916 1-216-821-11 METAL CHIP 1K 5% 1/10W

R653 1-216-805-11 METAL CHIP 47 5% 1/10W
R654 1-216-833-11 METAL CHIP 10K 5% 1/10W
R655 1-216-841-11 METAL CHIP 47K 5% 1/10W
R656 1-216-841-11 METAL CHIP 47K 5% 1/10W
R657 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R658 1-216-833-11 METAL CHIP 10K 5% 1/10W
R659 1-216-833-11 METAL CHIP 10K 5% 1/10W
R662 1-216-819-11 METAL CHIP 680 5% 1/10W
R663 1-216-821-11 METAL CHIP 1K 5% 1/10W
R664 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R665 1-216-809-11 METAL CHIP 100 5% 1/10W
R666 1-216-841-11 METAL CHIP 47K 5% 1/10W
R667 1-216-813-11 METAL CHIP 220 5% 1/10W
R668 1-216-809-11 METAL CHIP 100 5% 1/10W
R669 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R670 1-216-845-11 METAL CHIP 100K 5% 1/10W
R671 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R672 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R673 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R675 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R676 1-216-821-11 METAL CHIP 1K 5% 1/10W
R677 1-216-851-11 METAL CHIP 330K 5% 1/10W
R678 1-216-841-11 METAL CHIP 47K 5% 1/10W
R679 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R680 1-216-809-11 METAL CHIP 100 5% 1/10W

R681 1-216-833-11 METAL CHIP 10K 5% 1/10W
R682 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R683 1-216-833-11 METAL CHIP 10K 5% 1/10W

R917 1-216-833-11 METAL CHIP 10K 5% 1/10W
R918 1-216-821-11 METAL CHIP 1K 5% 1/10W
R919 1-216-833-11 METAL CHIP 10K 5% 1/10W
R920 1-216-821-11 METAL CHIP 1K 5% 1/10W
R921 1-216-841-11 METAL CHIP 47K 5% 1/10W

R922 1-218-717-11 METAL CHIP 11K 5% 1/10W
R923 1-218-717-11 METAL CHIP 11K 5% 1/10W
R924 1-218-717-11 METAL CHIP 11K 5% 1/10W
R925 1-218-717-11 METAL CHIP 11K 5% 1/10W
R926 1-216-837-11 METAL CHIP 22K 5% 1/10W

R927 1-216-837-11 METAL CHIP 22K 5% 1/10W
R931 1-216-182-00 RES-CHIP 220 5% 1/8W
R932 1-216-182-00 RES-CHIP 220 5% 1/8W
R933 1-216-182-00 RES-CHIP 220 5% 1/8W
R934 1-216-182-00 RES-CHIP 220 5% 1/8W

R937 1-216-198-11 RES-CHIP 1K 5% 1/8W
R938 1-216-198-11 RES-CHIP 1K 5% 1/8W
R939 1-216-198-11 RES-CHIP 1K 5% 1/8W
R940 1-216-198-11 RES-CHIP 1K 5% 1/8W

< VIBRATOR >

RES601 1-795-880-11 VIBRATOR, CERAMIC (8.64MHz)

< SWITCH >

S601 1-762-875-21 SWITCH, KEYBOARD (X)
S602 1-762-875-21 SWITCH, KEYBOARD (x)
S603 1-762-875-21 SWITCH, KEYBOARD (M +)
S604 1-762-875-21 SWITCH, KEYBOARD (>)

67

HCD-GX35/RG310/RG330

PANEL POWER AMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

S605 1-762-875-21 SWITCH, KEYBOARD (ALBUM +)
S606 1-762-875-21 SWITCH, KEYBOARD (GAME MIXING)

(RG310/RG330)

S607 1-762-875-21 SWITCH, KEYBOARD (ALBUM –)
S608 1-762-875-21 SWITCH, KEYBOARD (.)
S609 1-762-875-21 SWITCH, KEYBOARD (m –)

S612 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START)
S614 1-762-875-21 SWITCH, KEYBOARD (POWER)
S615 1-762-875-21 SWITCH, KEYBOARD (DISPLAY)
S616 1-762-875-21 SWITCH, KEYBOARD (G)
S617 1-762-875-21 SWITCH, KEYBOARD (DISC 1)

C26 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C30 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C31 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C33 1-128-552-51 ELECT 47uF 20% 63V
C34 1-128-552-51 ELECT 47uF 20% 63V

C35 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V
C36 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(GX35/RG310)
C37 1-128-552-51 ELECT 47uF 20% 63V
C40 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C41 1-128-552-51 ELECT 47uF 20% 63V

S618 1-762-875-21 SWITCH, KEYBOARD (DISC 2)
S619 1-762-875-21 SWITCH, KEYBOARD (DISC 3)
S620 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP/EX-CHANGE)
S621 1-762-875-21 SWITCH, KEYBOARD (Z)
S623 1-762-875-21 SWITCH, KEYBOARD (MOVIE EQ)

S627 1-762-875-21 SWITCH, KEYBOARD (CD)
S628 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND)
S629 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B)
S630 1-762-875-21 SWITCH, KEYBOARD (GAME)
S634 1-762-875-21 SWITCH, KEYBOARD (CD SYNC)

S636 1-762-875-21 SWITCH, KEYBOARD (EFFECT ON/OFF)
S637 1-762-875-21 SWITCH, KEYBOARD (MUSIC EQ)
S638 1-762-875-21 SWITCH, KEYBOARD (GAME EQ)
S639 1-762-875-21 SWITCH, KEYBOARD (GROOVE)

< ROTARY ENCODER >

VR601 1-477-194-11 ENCODER, ROTARY (12 TYPE) (VOLUME)

< VIBRATOR >

X601 1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz)

*************************************************************

A-4732-781-A POWER AMP BOARD, COMPLETE (GX35)
A-4748-552-A POWER AMP BOARD, COMPLETE (RG310)
A-4748-609-A POWER AMP BOARD, COMPLETE

(RG330:AEP,UK)

A-4748-674-A POWER AMP BOARD, COMPLETE

(E2,E51,MX,AR)

***************************

< CAPACITOR >

C42 1-162-945-11 CERAMIC CHIP 22PF 5% 50V
C43 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C45 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C501 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C502 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V

C503 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C504 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C505 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C506 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C507 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C508 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C509 1-164-733-11 CERAMIC CHIP 820PF 10% 50V
C510 1-164-733-11 CERAMIC CHIP 820PF 10% 50V
C511 1-126-966-11 ELECT 33uF 20% 35V
C512 1-126-966-11 ELECT 33uF 20% 35V

C513 1-126-965-11 ELECT 22uF 20% 50V
C514 1-126-965-11 ELECT 22uF 20% 50V
C517 1-126-960-11 ELECT 1uF 20% 50V
C518 1-126-960-11 ELECT 1uF 20% 50V
C519 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C520 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C521 1-126-961-11 ELECT 2.2uF 20% 50V
C522 1-126-961-11 ELECT 2.2uF 20% 50V
C523 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C524 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C525 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C526 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C527 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C529 1-126-961-11 ELECT 2.2uF 20% 50V
C530 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C2 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C3 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C4 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C5 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C6 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C7 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C8 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C9 1-135-516-11 ELECT 3300uF 20% 63V
C10 1-135-516-11 ELECT 3300uF 20% 63V

C11 1-126-955-11 ELECT 4700uF 20% 35V
C12 1-126-955-11 ELECT 4700uF 20% 35V
C13 1-104-665-11 ELECT 100uF 20% 25V
C22 1-126-959-11 ELECT 0.47uF 20% 50V
C23 1-126-957-11 ELECT 0.22uF 20% 50V

C24 1-126-947-11 ELECT 47uF 20% 25V
C25 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

68

C531 1-104-665-11 ELECT 100uF 20% 10V
C532 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C533 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C534 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C535 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C538 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C540 1-126-964-11 ELECT 10uF 20% 50V
C541 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C542 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C543 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C544 1-165-319-11 CERAMIC CHIP 0.1uF 50V

< CONNECTOR >

CN501 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P
CN502 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P

HCD-GX35/RG310/RG330

POWER AMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< DIODE >

< JUMPER RESISTOR >

D2 6-500-340-01 DIODE G5SBA60L-6088
D3 6-500-378-01 DIODE 1N5402GW(F20)
D4 6-500-378-01 DIODE 1N5402GW(F20)
D5 6-500-378-01 DIODE 1N5402GW(F20)
D6 6-500-378-01 DIODE 1N5402GW(F20)

D11 8-719-988-61 DIODE 1SS355TE-17
D12 6-500-334-01 DIODE MC2836
D13 6-500-335-01 DIODE MC2838
D16 6-500-335-01 DIODE MC2838
D17 6-500-334-01 DIODE MC2836

D18 6-500-335-01 DIODE MC2838
D19 6-500-334-01 DIODE MC2836
D20 6-500-335-01 DIODE MC2838
D23 8-719-988-61 DIODE 1SS355TE-17
D24 8-719-988-61 DIODE 1SS355TE-17

D25 8-719-083-67 DIODE UDZS-TE17-20B
D26 6-500-378-01 DIODE 1N5402GW(F20)
D27 6-500-378-01 DIODE 1N5402GW(F20) (AEP,UK)
D29 8-719-988-61 DIODE 1SS355TE-17
D30 8-719-083-52 DIODE UDZS-TE17-16B

D31 8-719-988-61 DIODE 1SS355TE-17
D32 8-719-988-61 DIODE 1SS355TE-17
D33 8-719-988-61 DIODE 1SS355TE-17
D34 8-719-988-61 DIODE 1SS355TE-17
D35 8-719-988-61 DIODE 1SS355TE-17

D36 8-719-988-61 DIODE 1SS355TE-17
D37 8-719-988-61 DIODE 1SS355TE-17
D38 8-719-988-61 DIODE 1SS355TE-17
D39 8-719-988-61 DIODE 1SS355TE-17
D40 8-719-988-61 DIODE 1SS355TE-17

D41 8-719-312-08 DIODE FMB-G16L (EXCEPT AEP,UK)
D42 8-719-312-08 DIODE FMB-G16L (EXCEPT AEP,UK)
D501 6-500-334-01 DIODE MC2836
D502 6-500-334-01 DIODE MC2836
D503 6-500-335-01 DIODE MC2838

D504 6-500-335-01 DIODE MC2838
D505 8-719-970-83 DIODE HSS82-TJ
D506 8-719-970-83 DIODE HSS82-TJ
D507 8-719-988-61 DIODE 1SS355TE-17
D508 8-719-988-61 DIODE 1SS355TE-17

D509 6-500-335-01 DIODE MC2838
D510 6-500-334-01 DIODE MC2836
D511 8-719-988-61 DIODE 1SS355TE-17
D513 8-719-988-61 DIODE 1SS355TE-17
D514 8-719-988-61 DIODE 1SS355TE-17

D515 8-719-083-70 DIODE UDZS-TE17-27B

< EARTH TERMINAL >

* EP01 1-537-738-21 TERMINAL, EARTH
* EP501 1-537-738-21 TERMINAL, EARTH
* EP502 1-537-738-21 TERMINAL, EARTH

< TERMINAL BOARD >

JK502 1-694-884-11 TERMINAL BOARD (4P) (SPEAKER)

JR2 1-216-864-11 METAL CHIP 0 5% 1/10W
JR501 1-216-864-11 METAL CHIP 0 5% 1/10W
JR511 1-216-864-11 METAL CHIP 0 5% 1/10W
JR512 1-216-864-11 METAL CHIP 0 5% 1/10W
JR513 1-216-864-11 METAL CHIP 0 5% 1/10W

JR514 1-216-864-11 METAL CHIP 0 5% 1/10W
JR516 1-216-864-11 METAL CHIP 0 5% 1/10W
JR517 1-216-864-11 METAL CHIP 0 5% 1/10W

< COIL >

L501 1-422-009-13 COIL, AIR-CORE
L502 1-422-009-13 COIL, AIR-CORE

< TRANSISTOR >

Q5 6-550-289-01 TRANSISTOR 2SA1235F
Q6 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q9 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q10 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q11 8-729-055-91 TRANSISTOR SRA2202SF
Q12 6-550-645-01 TRANSISTOR 2SC3143K4-TB
Q13 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q17 6-550-289-01 TRANSISTOR 2SA1235F

Q18 6-550-040-01 FET 2SK3053
Q19 6-550-040-01 FET 2SK3053
Q20 6-550-317-01 TRANSISTOR 2SD814A(RS)
Q21 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q22 6-550-316-01 TRANSISTOR 2SB792A(RS)

Q23 6-550-289-01 TRANSISTOR 2SA1235F
Q24 6-550-289-01 TRANSISTOR 2SA1235F
Q501 6-550-291-01 TRANSISTOR FN1016 (EXCEPT AEP,UK)
Q501 6-550-311-01 TRANSISTOR 2SD2642 (AEP,UK)
Q502 6-550-291-01 TRANSISTOR FN1016 (EXCEPT AEP,UK)

Q502 6-550-311-01 TRANSISTOR 2SD2642 (AEP,UK)
Q503 6-550-292-01 TRANSISTOR FP1016 (EXCEPT AEP,UK)
Q503 6-550-309-01 TRANSISTOR 2SB1686 (AEP,UK)
Q504 6-550-292-01 TRANSISTOR FP1016 (EXCEPT AEP,UK)
Q504 6-550-309-01 TRANSISTOR 2SB1686 (AEP,UK)

Q505 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q506 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q507 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q508 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q509 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q510 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q511 6-550-696-01 TRANSISTOR 2SC3249E-TP
Q512 6-550-696-01 TRANSISTOR 2SC3249E-TP
Q513 6-550-696-01 TRANSISTOR 2SC3249E-TP
Q514 6-550-696-01 TRANSISTOR 2SC3249E-TP

Q515 6-550-317-01 TRANSISTOR 2SD814A(RS)
Q516 6-550-317-01 TRANSISTOR 2SD814A(RS)
Q517 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q518 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q519 6-550-316-01 TRANSISTOR 2SB792A(RS)

Q520 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q521 8-729-120-28 TRANSISTOR 2SC1623-L5L6

69

HCD-GX35/RG310/RG330

POWER AMP

Ref. No. Part No. Description Remark

Q522 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q523 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q524 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q525 8-729-052-79 TRANSISTOR 2SD1306NETL
Q526 8-729-052-79 TRANSISTOR 2SD1306NETL

Q527 6-550-289-01 TRANSISTOR 2SA1235F
Q529 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q530 6-550-289-01 TRANSISTOR 2SA1235F
Q534 6-550-296-01 TRANSISTOR 2SA1980G
Q535 6-550-296-01 TRANSISTOR 2SA1980G

Q536 6-550-289-01 TRANSISTOR 2SA1235F

< RESISTOR >

R4 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6 1-216-838-11 METAL CHIP 27K 5% 1/10W
R7 1-216-838-11 METAL CHIP 27K 5% 1/10W
R8 1-216-838-11 METAL CHIP 27K 5% 1/10W
R9 1-216-839-11 METAL CHIP 33K 5% 1/10W

R12 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R13 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R14 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R16 1-216-821-11 METAL CHIP 1K 5% 1/10W
R17 1-216-821-11 METAL CHIP 1K 5% 1/10W

R18 1-216-809-11 METAL CHIP 100 5% 1/10W
R19 1-216-835-11 METAL CHIP 15K 5% 1/10W
R20 1-216-833-11 METAL CHIP 10K 5% 1/10W
R21 1-216-835-11 METAL CHIP 15K 5% 1/10W
R22 1-216-839-11 METAL CHIP 33K 5% 1/10W

R23 1-216-839-11 METAL CHIP 33K 5% 1/10W
R26 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R27 1-216-833-11 METAL CHIP 10K 5% 1/10W
R29 1-216-138-00 METAL CHIP 3.3 5% 1/8W
R31 1-216-138-00 METAL CHIP 3.3 5% 1/8W

R32 1-216-840-11 METAL CHIP 39K 5% 1/10W
R33 1-216-839-11 METAL CHIP 33K 5% 1/10W
R34 1-216-843-11 METAL CHIP 68K 5% 1/10W
R35 1-216-840-11 METAL CHIP 39K 5% 1/10W
R36 1-216-839-11 METAL CHIP 33K 5% 1/10W

R37 1-216-843-11 METAL CHIP 68K 5% 1/10W
R38 1-216-833-11 METAL CHIP 10K 5% 1/10W
R39 1-216-845-11 METAL CHIP 100K 5% 1/10W
R40 1-216-833-11 METAL CHIP 10K 5% 1/10W
R41 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R42 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R43 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R44 1-216-236-11 RES-CHIP 39K 5% 1/8W
R45 1-216-841-11 METAL CHIP 47K 5% 1/10W
R46 1-216-841-11 METAL CHIP 47K 5% 1/10W

R47 1-216-837-11 METAL CHIP 22K 5% 1/10W
R48 1-216-849-11 METAL CHIP 220K 5% 1/10W
R49 1-216-849-11 METAL CHIP 220K 5% 1/10W
R50 1-216-833-11 METAL CHIP 10K 5% 1/10W
R51 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R52 1-216-841-11 METAL CHIP 47K 5% 1/10W
R53 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R54 1-216-835-11 METAL CHIP 15K 5% 1/10W
R55 1-260-330-11 CARBON 1.5K 5% 1/2W F
R56 1-249-420-11 CARBON 1.8K 5% 1/4W

Ref. No. Part No. Description Remark

R58 1-216-186-00 RES-CHIP 330 5% 1/8W
R59 1-216-184-00 RES-CHIP 270 5% 1/8W
R60 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R61 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R62 1-216-833-11 METAL CHIP 10K 5% 1/10W

R63 1-216-833-11 METAL CHIP 10K 5% 1/10W
R64 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R65 1-216-833-11 METAL CHIP 10K 5% 1/10W
R66 1-216-833-11 METAL CHIP 10K 5% 1/10W
R67 1-216-841-11 METAL CHIP 47K 5% 1/10W

R68 1-216-833-11 METAL CHIP 10K 5% 1/10W
R69 1-216-833-11 METAL CHIP 10K 5% 1/10W
R70 1-216-835-11 METAL CHIP 15K 5% 1/10W
R71 1-216-835-11 METAL CHIP 15K 5% 1/10W
R72 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R73 1-216-236-11 RES-CHIP 39K 5% 1/8W
R74 1-216-238-11 RES-CHIP 47K 5% 1/8W
R75 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R76 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R77 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R78 1-216-234-00 RES-CHIP 33K 5% 1/8W
R79 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R81 1-260-111-11 CARBON 10K 5% 1/2W F
R82 1-216-833-11 METAL CHIP 10K 5% 1/10W
R83 1-216-208-00 RES-CHIP 2.7K 5% 1/8W

R85 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R86 1-247-843-11 CARBON 3.3K 5% 1/4W
R90 1-216-222-00 RES-CHIP 10K 5% 1/8W
R91 1-216-178-00 RES-CHIP 150 5% 1/8W
R92 1-247-843-11 CARBON 3.3K 5% 1/4W

R93 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R94 1-216-833-11 METAL CHIP 10K 5% 1/10W
R95 1-260-111-11 CARBON 10K 5% 1/2W F
R96 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R97 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R98 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R99 1-247-843-11 CARBON 3.3K 5% 1/4W
R100 1-216-138-00 METAL CHIP 3.3 5% 1/8W
R102 1-216-216-00 RES-CHIP 5.6K 5% 1/8W
R103 1-216-244-00 RES-CHIP 82K 5% 1/8W

R104 1-216-244-00 RES-CHIP 82K 5% 1/8W
R105 1-216-244-00 RES-CHIP 82K 5% 1/8W
R106 1-216-244-00 RES-CHIP 82K 5% 1/8W
R107 1-216-244-00 RES-CHIP 82K 5% 1/8W
R108 1-216-244-00 RES-CHIP 82K 5% 1/8W

R109 1-216-244-00 RES-CHIP 82K 5% 1/8W
R110 1-216-244-00 RES-CHIP 82K 5% 1/8W
R500 1-216-821-11 METAL CHIP 1K 5% 1/10W

0 R501 1-245-235-21 METAL OXIDE 0.22 10% 2W F

(EXCEPT AEP,UK)

0 R501 1-245-545-11 METAL OXIDE 0.22 5% 3W F

(AEP,UK)

0 R502 1-245-235-21 METAL OXIDE 0.22 10% 2W F

(EXCEPT AEP,UK)

0 R502 1-245-545-11 METAL OXIDE 0.22 5% 3W F

(AEP,UK)

0 R503 1-245-235-21 METAL OXIDE 0.22 10% 2W F

(EXCEPT AEP,UK)

70

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

HCD-GX35/RG310/RG330

POWER AMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

0 R503 1-245-545-11 METAL OXIDE 0.22 5% 3W F

(AEP,UK)

0 R504 1-245-235-21 METAL OXIDE 0.22 10% 2W F

(EXCEPT AEP,UK)

0 R504 1-245-545-11 METAL OXIDE 0.22 5% 3W F

(AEP,UK)
R505 1-216-809-11 METAL CHIP 100 5% 1/10W
R506 1-216-809-11 METAL CHIP 100 5% 1/10W

R507 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R508 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R509 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R510 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R511 1-216-821-11 METAL CHIP 1K 5% 1/10W

R512 1-216-821-11 METAL CHIP 1K 5% 1/10W
R513 1-216-835-11 METAL CHIP 15K 5% 1/10W
R514 1-216-835-11 METAL CHIP 15K 5% 1/10W
R515 1-216-815-11 METAL CHIP 330 5% 1/10W
R516 1-216-815-11 METAL CHIP 330 5% 1/10W

R517 1-216-804-11 METAL CHIP 39 5% 1/10W
R518 1-216-804-11 METAL CHIP 39 5% 1/10W
R519 1-216-804-11 METAL CHIP 39 5% 1/10W
R520 1-216-804-11 METAL CHIP 39 5% 1/10W
R521 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R522 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R523 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R524 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R525 1-216-821-11 METAL CHIP 1K 5% 1/10W
R526 1-216-821-11 METAL CHIP 1K 5% 1/10W

R527 1-216-841-11 METAL CHIP 47K 5% 1/10W
R528 1-216-841-11 METAL CHIP 47K 5% 1/10W
R529 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R530 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R531 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R532 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R533 1-216-809-11 METAL CHIP 100 5% 1/10W
R534 1-216-809-11 METAL CHIP 100 5% 1/10W
R535 1-216-809-11 METAL CHIP 100 5% 1/10W
R536 1-216-809-11 METAL CHIP 100 5% 1/10W

R537 1-260-328-11 CARBON 1K 5% 1/2W F
R538 1-260-328-11 CARBON 1K 5% 1/2W F
R539 1-216-833-11 METAL CHIP 10K 5% 1/10W
R540 1-216-833-11 METAL CHIP 10K 5% 1/10W
R541 1-216-206-00 RES-CHIP 2.2K 5% 1/8W

R559 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R560 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R561 1-216-843-11 METAL CHIP 68K 5% 1/10W
R562 1-216-857-11 METAL CHIP 1M 5% 1/10W
R563 1-216-214-00 RES-CHIP 4.7K 5% 1/8W

R564 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R567 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R568 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R569 1-216-853-11 METAL CHIP 470K 5% 1/10W
R570 1-260-076-21 CARBON 10 5% 1/2W F

R571 1-260-076-21 CARBON 10 5% 1/2W F
R572 1-216-800-11 METAL CHIP 18 5% 1/10W
R573 1-216-800-11 METAL CHIP 18 5% 1/10W
R574 1-216-182-00 RES-CHIP 220 5% 1/8W
R575 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R576 1-216-837-11 METAL CHIP 22K 5% 1/10W
R577 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R578 1-216-182-00 RES-CHIP 220 5% 1/8W
R580 1-216-150-11 RES-CHIP 10 5% 1/8W
R581 1-216-246-00 RES-CHIP 100K 5% 1/8W

R589 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R591 1-216-841-11 METAL CHIP 47K 5% 1/10W
R592 1-216-835-11 METAL CHIP 15K 5% 1/10W
R593 1-216-833-11 METAL CHIP 10K 5% 1/10W
R594 1-216-833-11 METAL CHIP 10K 5% 1/10W

R599 1-216-841-11 METAL CHIP 47K 5% 1/10W
R601 1-216-156-00 RES-CHIP 18 5% 1/8W
R602 1-216-156-00 RES-CHIP 18 5% 1/8W
R603 1-216-156-00 RES-CHIP 18 5% 1/8W
R604 1-216-156-00 RES-CHIP 18 5% 1/8W

RY501 1-755-373-11 RELAY

TH501 1-805-217-11 THERMISTOR (1012)
TH502 1-805-217-11 THERMISTOR (1012)

*************************************************************

REMOTE SENSOR

< RELAY >

< THERMISTOR >

REMOTE BOARD

**************

< CONNECTOR >

R542 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R543 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R544 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R545 1-216-809-11 METAL CHIP 100 5% 1/10W
R546 1-216-809-11 METAL CHIP 100 5% 1/10W

R547 1-216-838-11 METAL CHIP 27K 5% 1/10W
R548 1-216-838-11 METAL CHIP 27K 5% 1/10W
R549 1-216-818-11 METAL CHIP 560 5% 1/10W
R550 1-216-818-11 METAL CHIP 560 5% 1/10W
R553 1-216-838-11 METAL CHIP 27K 5% 1/10W

R554 1-216-838-11 METAL CHIP 27K 5% 1/10W
R555 1-216-841-11 METAL CHIP 47K 5% 1/10W
R556 1-216-841-11 METAL CHIP 47K 5% 1/10W
R557 1-216-821-11 METAL CHIP 1K 5% 1/10W
R558 1-216-821-11 METAL CHIP 1K 5% 1/10W

CN604 1-816-423-11 SOCKET, CONNECTOR 3P

< IC >

RM601 6-600-174-01 IC RPM7240-H4 (IR)

*************************************************************

1-687-132-11 SENSOR BOARD

CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P

IC731 6-600-174-01 IC RPI-576

*************************************************************

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

**************

< CONNECTOR >

< IC >

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

71

HCD-GX35/RG310/RG330

SW TRANS 6 STREAM LEDVIDEO OUT

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1-687-669-11 SW BOARD

**********

1-688-081-21 6 STREAM LED BOARD

*******************

< SWITCH >

S751 1-786-514-11 SWITCH, LEVER (SLIDE)

(OPEN/CLOSE DETECT)

*************************************************************

1-688-088-11 TRANS BOARD (GX35)
1-688-695-11 TRANS BOARD (RG310/RG330)

************

* 1-533-213-31 HOLDER, FUSE

< CAPACITOR >

C901 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C902 1-126-942-61 ELECT 1000uF 20% 25V

< CONNECTOR >

CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P

* CN902 1-764-334-11 PLUG, CONNECTOR 11P

< DIODE >

D901 8-719-988-61 DIODE 1SS355TE-17 (E2,E51,AR)
D902 8-719-988-61 DIODE 1SS355TE-17
D903 8-719-988-61 DIODE 1SS355TE-17
D904 8-719-988-61 DIODE 1SS355TE-17
D905 8-719-988-61 DIODE 1SS355TE-17

< JUMPER RESISTOR >

JR002 1-216-864-11 METAL CHIP 0 5% 1/10W

< DIODE >

LED601 8-719-058-04 LED SEL5223S-TP15 (STREAM 1)
LED602 8-719-058-04 LED SEL5223S-TP15 (STREAM 2)
LED603 8-719-058-04 LED SEL5223S-TP15 (STREAM 3)
LED604 8-719-058-04 LED SEL5223S-TP15 (STREAM 4)
LED605 8-719-058-04 LED SEL5223S-TP15 (STREAM 5)

LED606 8-719-058-04 LED SEL5223S-TP15 (STREAM 6)

< RESISTOR >

R617 1-216-182-00 RES-CHIP 220 5% 1/8W
R618 1-216-182-00 RES-CHIP 220 5% 1/8W
R619 1-216-182-00 RES-CHIP 220 5% 1/8W
R620 1-216-182-00 RES-CHIP 220 5% 1/8W
R621 1-216-182-00 RES-CHIP 220 5% 1/8W

R622 1-216-182-00 RES-CHIP 220 5% 1/8W
R935 1-216-182-00 RES-CHIP 220 5% 1/8W
R936 1-216-182-00 RES-CHIP 220 5% 1/8W

*************************************************************

D906 8-719-988-61 DIODE 1SS355TE-17 (CND,AEP,UK,MX)

< RESISTOR >

0 R901 1-219-237-11 SOLID 3.3M 20% 1/2W F

< RELAY >

0 RY901 1-755-496-11 RELAY (E2,E51,AR)
0 RY902 1-755-276-11 RELAY, POWER (CND,AEP,UK,MX)

< SWITCH >

0 S901 1-786-408-11 SW, SL 1-2-3 SWS2301 (VOLTAGE SELECTOR)

< TRANSFORMER >

0 T902 1-439-734-11 TRANSFORMER, POWER (CND,MX)
0 T902 1-439-735-11 TRANSFORMER, POWER (AEP,UK)
0 T902 1-439-736-11 TRANSFORMER, POWER (E2,E51,AR)

*************************************************************

VIDEO OUT BOARD

****************

< CONNECTOR >

(CND)

(E2,E51,AR)

* CN003 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P

< JACK >

JK004 1-774-227-11 JACK, PIN 1P (VIDEO OUT)

*************************************************************

72

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

Ref. No. Part No. Description Remark

MISCELLANEOUS

***************

61-769-939-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP,UK)
61-773-003-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
52 1-796-485-51 DECK, MECHANICAL
58 1-769-914-11 WIRE (FLAT TYPE) (9 CORE)
59 1-773-322-11 WIRE (FLAT TYPE) (31 CORE)

60 1-827-145-11 WIRE (FLAT TYPE) (13 CORE)

0 205 1-777-071-83 CORD, POWER (AEP,UK)
0 205 1-783-532-11 CORD, POWER (CND)
0 205 1-783-941-22 CORD, POWER (AR)
0 205 1-791-901-12 CORD, POWER (E2,E51)

0 205 1-827-226-11 CORD, POWER (MX)

252 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
317 1-471-035-11 MAGNET ASSY
323 1-827-146-11 WIRE (FLAT TYPE) (19 CORE)

0 351 A-4735-357-A BASE ASSY, OP (KSM-213DCP)

353 1-823-859-11 WIRE (FLAT TYPE) (16 CORE)

0 F902 1-533-451-12 FUSE, GLASS TUBE (DIA.5) (3.15A/125V)

(GX35)

0 F902 1-533-470-12 FUSE, GLASS TUBE (DIA.5) (T3.15AL/250V)

(RG310/RG330)

0 F903 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V) (GX35)
0 F903 1-533-472-12 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)

(RG310/RG330)

HCD-GX35/RG310/RG330

0 F904 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V) (GX35)
0 F904 1-533-472-12 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)

0 F905 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V) (GX35)
0 F905 1-576-655-12 FUSE, GLASS TUBE (DIA.5) (T8AL/250V)

0 F906 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V) (GX35)

0 F906 1-576-655-12 FUSE, GLASS TUBE (DIA.5) (T8AL/250V)

M731 1-763-072-11 FAN, DC (RG310/RG330)
M741 A-4723-963-A MOTOR ASSY, TABLE (TURN)
M751 A-4736-655-A MOTOR ASSY, LOADING (LOADING)
RE701 1-477-680-11 ENCODER, ROTARY

(DISC TRAY ADDRESS DETECT)

0 T901 1-439-805-11 TRANSFORMER, POWER (GX35)
0 T901 1-439-808-11 TRANSFORMER, POWER (RG330:AEP,UK)
0 T901 1-439-809-11 TRANSFORMER, POWER (E2,E51,AR)
0 T901 1-439-858-11 TRANSFORMER, POWER (MX)
0 T901 1-439-915-11 TRANSFORMER, POWER (RG310)

TU901 1-693-625-11 TUNER PACK (FM/AM) (ANTENNA) (CND)
TU901 1-693-626-11 TUNER PACK (FM/AM) (ANTENNA) (AEP,UK)
TU901 1-693-628-11 TUNER PACK (FM/AM) (ANTENNA)

(RG310/RG330)

(RG310/RG330)

(RG310/RG330)

(E2,E51,MX,AR)

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

73

HCD-GX35/RG310/RG330

REVISION HISTORY

Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.

Ver. Date Description of Revision

1.0 2003. 08 New

74
