Sony HCD-GT444 Schematic

HCD-GT111/GT222/

GT444/GT555

SERVICE MANUAL

Ver. 1.4 2008.10

• HCD-GT111 is the amplifi er, USB, CD player, tape
deck and tuner section in MHC-GT111/GT111BP.

• HCD-GT222 is the amplifi er, USB, CD player, tape
deck and tuner section in MHC-GT222.

• HCD-GT444 is the amplifi er, USB, CD player, tape
deck and tuner section in MHC-GT444.

• HCD-GT555 is the amplifi er, USB, CD player, tape
deck and tuner section in MHC-GT555.

CD
Section

Tape deck
Section

Photo: HCD-GT555

HCD-GT111/GT222/GT444/GT555

Model Name Using Similar Mechanism

Mechanism Type

Optical Pick-up Block Name

Model Name Using Similar Mechanism

Tape Transport Mechanism Type

AEP Model

HCD-GT111/GT222/GT444

UK Model

HCD-GT444

E Model

Russian Model

NEW

CDM88A-K6BD93-WOD

KSM-213DCP

HCD-EC55/EC77

TCM-J1 or CS-21SC-900TP

Amplifier section

HCD-GT555

The following are measuredat AC 120, 127,
220, 230 – 240 V 50/60 Hz
Front speaker

Power output (rated): 110 W + 110 W
(at 6 Ω, 1 kHz, 1% THD)
RMS output power (reference):
200W + 200 W (per channel at 6 Ω,
1kHz,10%THD)

Subwoofer

RMS output power (reference): 190 W
(at 6 Ω,100Hz,10%THD)

HCD-GT444

The following are measured atAC 120, 127,
220, 230 – 240 V 50/60 Hz
Front speaker

Power output (rated): 90 W + 90 W
(at 6 Ω, 1 kHz, 1% THD)
RMS output power (reference):
150 W + 150 W (per channel at 6 Ω,
1 kHz, 10% THD)

Subwoofer

RMS output power (reference): 150 W
(at 6 Ω, 100 Hz, 10% THD)

HCD-GT222

The following are measured atAC 120, 127,
220, 230 – 240V 50/60 Hz

Power output (rated): 110 W + 110 W
(at 6 Ω, 1 kHz, 1% THD)
RMS output power (reference):
200 W + 200 W (per channel at 6 Ω,
1 kHz, 10% THD)

HCD-GT111

The following are measured atAC 120, 127,
220, 230 – 240V 50/60 Hz

Power output (rated): 60 W + 60 W
(at 6 Ω, 1 kHz, 1% THD)

SPECIFICATIONS

RMS output power (reference):
100 W + 100 W (per channel at 6 Ω,
1 kHz, 10% THD)

Inputs

AUDIO INPUT L/R : voltage
250 mV, impedance 47 kilohms
MIC: sensitivity 1 mV, impedance
10 kilohms

(USB) port: Type A

Outputs

PHONES: accepts headphones of 8 Ω or
more
FRONT SPEAKER: accepts impedance of
6 Ω
SUBWOOFER (HCD-GT555/
HCD-GT444 only): accepts
impedance of 6 Ω

USB section

Supported bit rate

MP3 (MPEG 1 Audio Layer-3):
32 – 320 kbps, VBR
WMA: 32 – 192 kbps, VBR
AAC: 48 – 320 kbps

Sampling frequencies

MP3 (MPEG 1 Audio Layer-3):
32/44.1/48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz

Transfer speed

Full-Speed

Supported USB device

Mass Storage Class

Maximum current

500 mA

CD player section

System: Compact disc and digital a udio
system

Laser Diode Properties

Emission Duration: Continuous
Laser Output*: Less than 44.6 μW
* This outputis the value measurement

at a distance of 200 mm from the
objective lens surface onthe Optical
Pick-up Block with 7 mm aperture.

Frequency response: 20 Hz – 20 kHz
Signal-to-noise ratio: More than 90 dB
Dynamic range: More than 88 dB

Tape deck section

Recording system: 4-track 2-channel, stereo

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range:

87.5 – 108.0 MHz (50 kHz step)
Antenna: FM lead antenna
Antenna terminals: 75 ohms unbalanced
Intermediate frequency: 10.7 MHz

AM tuner section

Tuning range

Pan American and Oceanian models:
530 – 1,710 kHz (with 10 kHz tuning
interval)
531 – 1,710 kHz (with 9 kHz tuning
interval)
European and Russian models:
531 – 1,602 kHz (with 9 kHz tuning
interval)
Other models:
530 – 1,610 kHz (with 10 kHz tuning
interval)
531 – 1,602 kHz (with 9 kHz tuning
interval)

Antenna: AMloop antenna,external antenna
terminal
Intermediate frequency: 450 kHz

General

Power requirements

European and Russian models:
AC 230 V, 50/60 Hz
Mexican model: AC 127 V, 60 Hz
Argentine model: AC 220 V, 50/60 Hz
Other models: AC 120, 220 or 230 –

240 V, 50/60 Hz, Adjustable with

voltage selector

Power consumption

HCD-GT555: 216 W
HCD-GT444: 286 W
HCD-GT222: 163 W
HCD-GT111: 150 W

Dimensions (w/h/d) (excl. speakers)

Approx. 231 × 361 × 437.5 mm
(9 1/8 × 14 1/4 × 17 1/4 inch)

Mass (excl. speakers)

HCD-GT555/GT444/GT222
(Except European model),
HCD-GT222 (European model):

9.6 kg
HCD-GT111: 8.0 kg

Design and specifications are subject to
change without notice.

9-889-112-05

2008J05-1

2008.10

©

COMPACT DISC DECK RECEIVER

Sony Corporation

Audio&Video Business Group
Published by Sony Techno Create Corporation

HCD-GT111/GT222/GT444/GT555

Ver. 1.4

TABLE OF CONTENTS

1. SERVICING NOTES ............................................. 3

2. GENERAL .................................................................. 7

3. DISASSEMBLY

3-1. Disassembly Flow ........................................................... 9

3-2. Side-L/R Case ................................................................. 10

3-3. Top Panel Block .............................................................. 10

3-4. Tape Mechanism Deck .................................................... 11

3-5. Front Panel Block ........................................................... 11

3-6. DC Fan (M102), Back Panel ........................................... 12

3-7. MAIN Board ................................................................... 12

3-8. CD Mechanism Block ..................................................... 13

3-9. DC Fan (M101), POWERAMP Board ........................... 13

3-10. Base Unit ......................................................................... 14

3-11. OP Base Assy (KSM-213D) ........................................... 14

3-12. Belt (DLM3A) ................................................................ 15

4. TEST MODE ............................................................ 16

5. MECHANICAL ADJUSTMENTS ...................... 20

6. ELECTRICAL ADJUSTMENTS ........................ 21

7. DIAGRAMS

7-1. Block Diagram - CD SERVO, USB Section - ................ 23

7-2. Block Diagram - MAIN Section - ................................... 24

7-3. Block Diagram - AMP Section - ..................................... 25

7-4. Block Diagram

- PANEL, POWER SUPPLY Section - ........................... 26

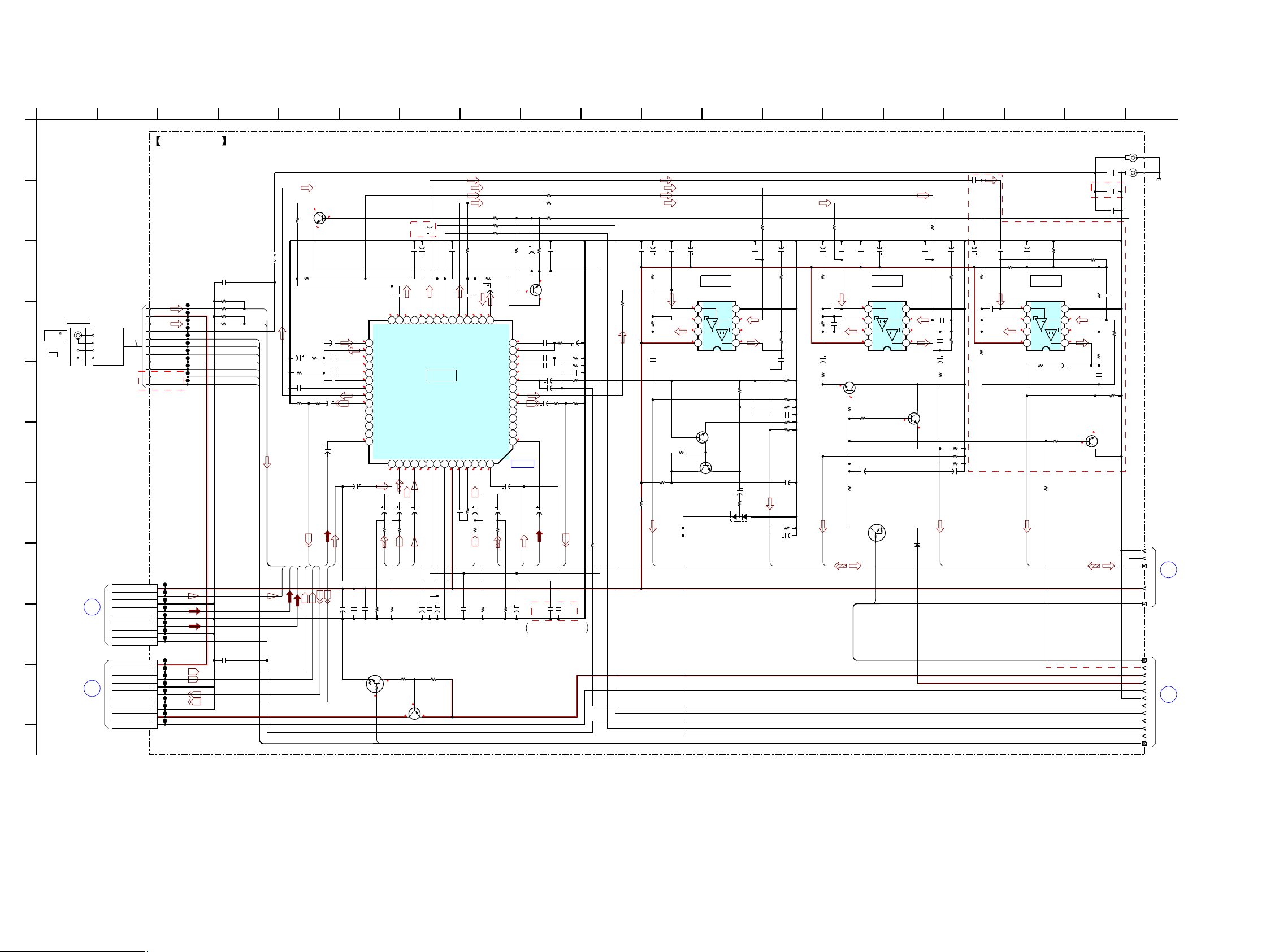

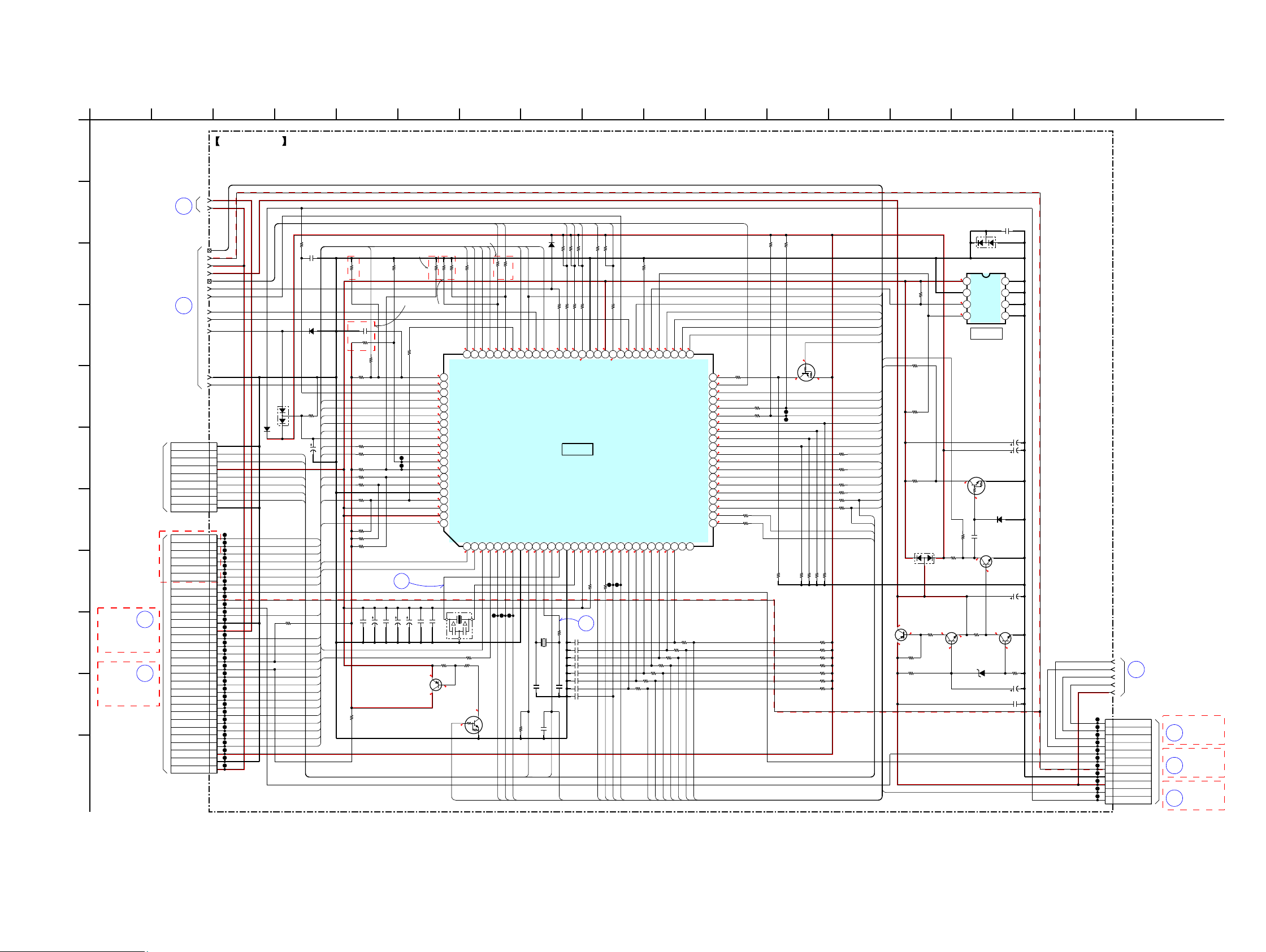

7-5. Schematic Diagram - CD Board (1/2) - .......................... 28

7-6. Schematic Diagram - CD Board (2/2) - .......................... 29

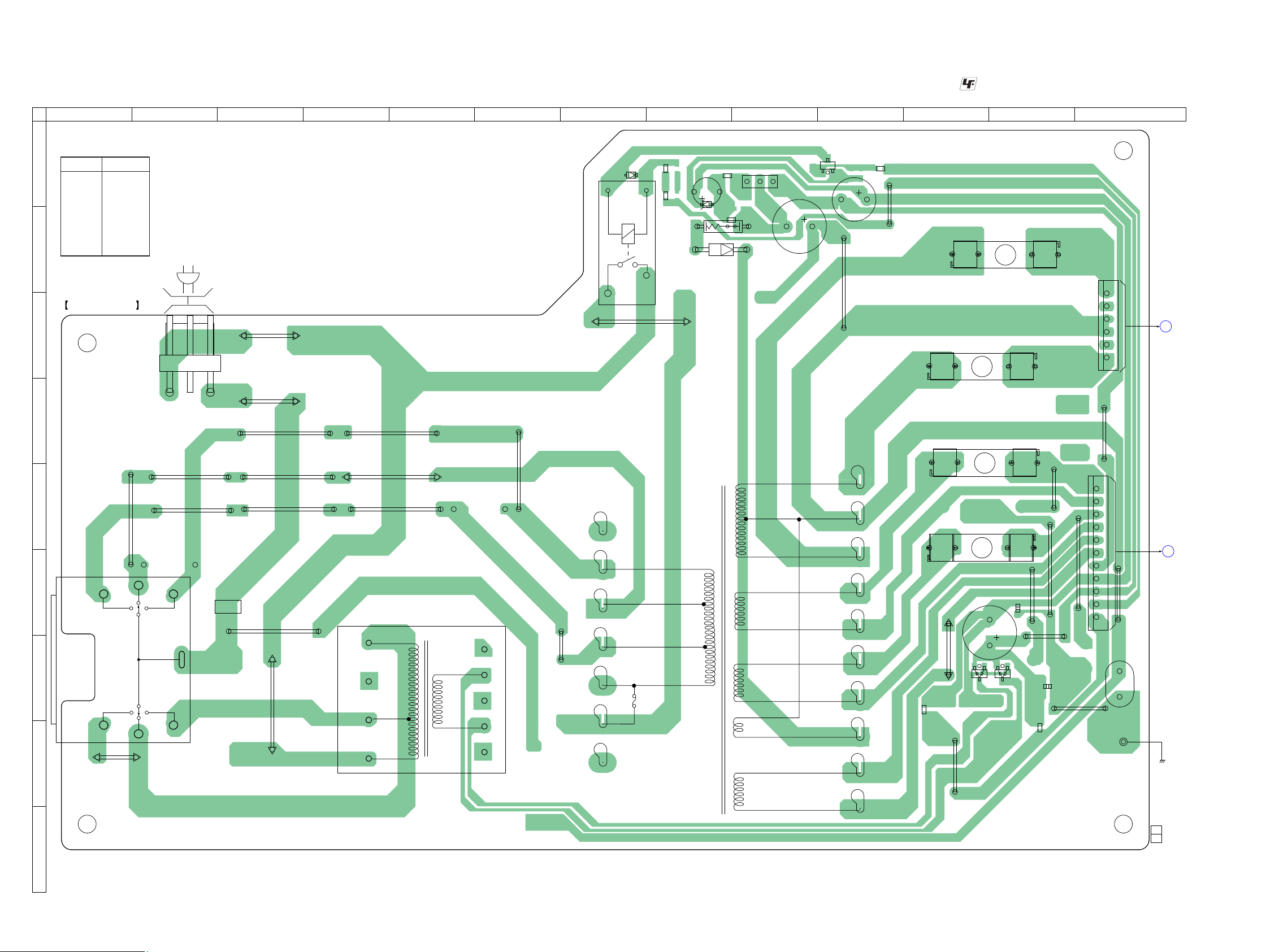

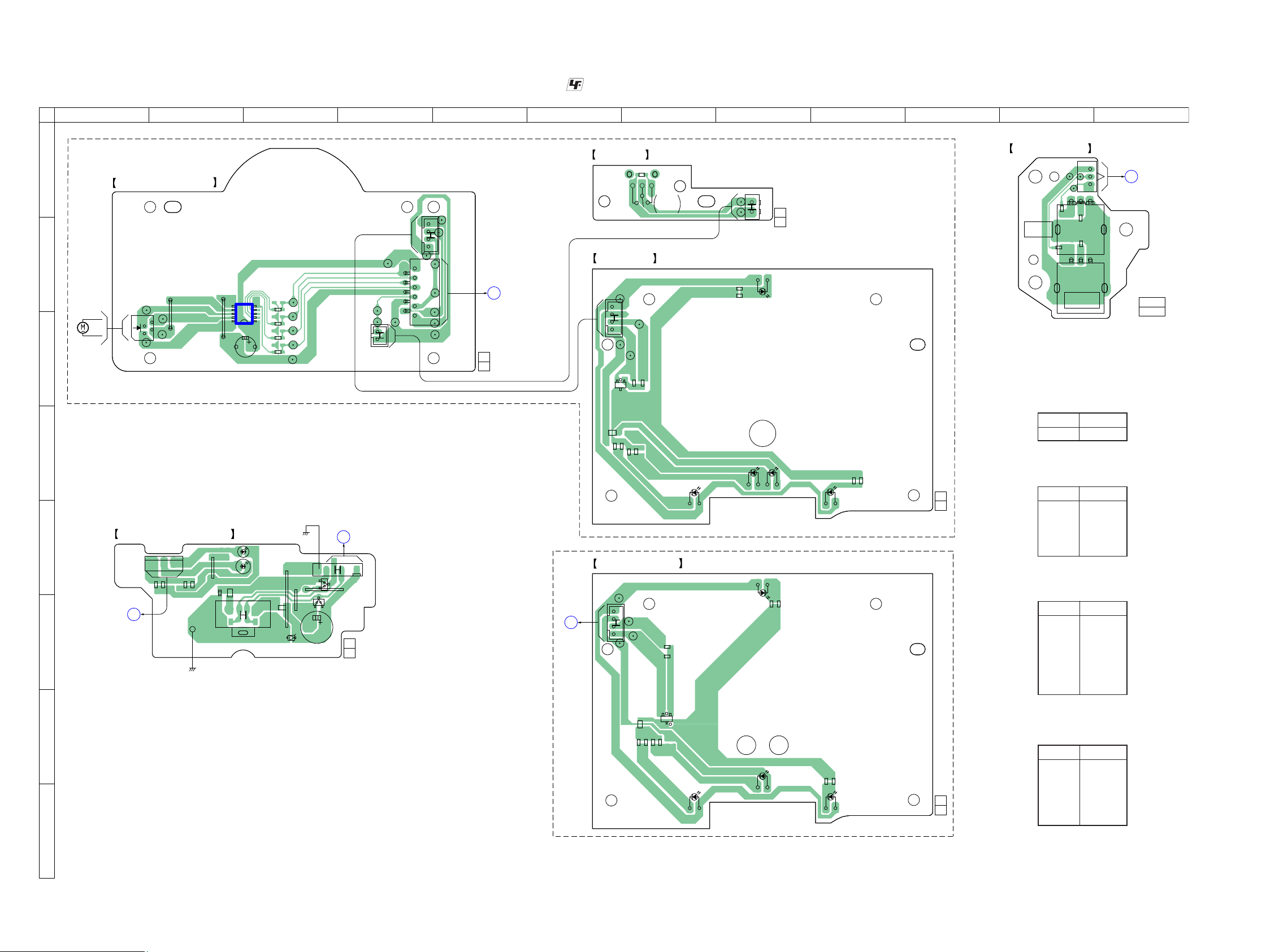

7-7. Printed Wiring Board - CD Board - ................................ 30

7-8. Printed Wiring Board - TC Board - ................................. 31

7-9. Schematic Diagram - TC Board - ................................... 31

7-10. Printed Wiring Board - USB Board - .............................. 32

7-11. Schematic Diagram - USB Board - ................................. 33

7-12. Printed Wiring Boards - REG Section - .......................... 34

7-13. Schematic Diagram - REG Section - .............................. 34

7-14. Printed Wiring Board - MAIN Board - ........................... 35

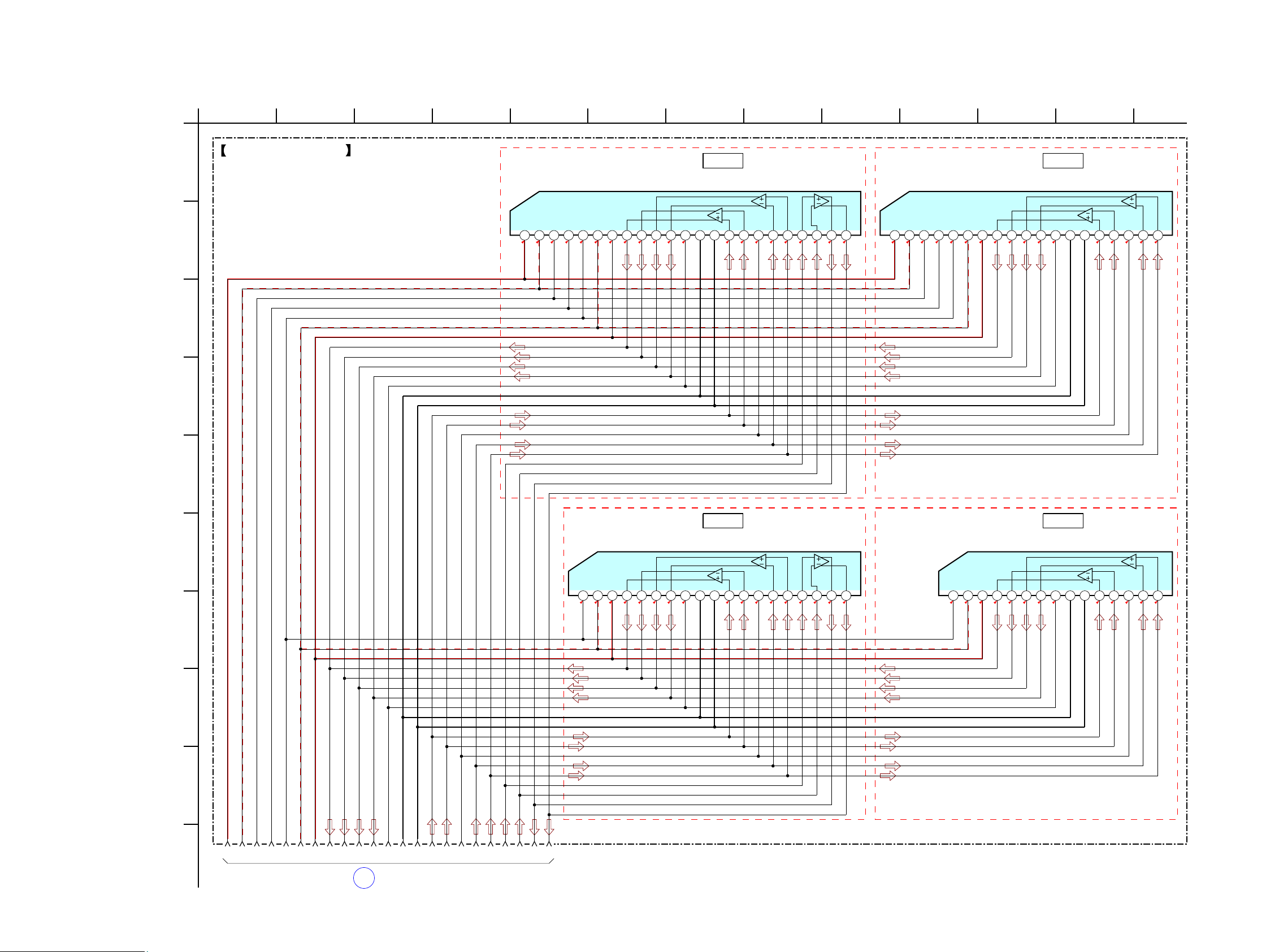

7-15. Schematic Diagram - MAIN Board (1/4) - ..................... 36

7-16. Schematic Diagram - MAIN Board (2/4) - ..................... 37

7-17. Schematic Diagram - MAIN Board (3/4) - ..................... 38

7-18. Schematic Diagram - MAIN Board (4/4) - ..................... 39

7-19. Printed Wiring Boards - JACK Section - ........................ 40

7-20. Schematic Diagram - JACK Section - ............................ 40

7-21. Printed Wiring Board - POWERAMP Board - ............... 41

7-22. Schematic Diagram - POWERAMP Board (1/2) - ......... 42

7-23. Schematic Diagram - POWERAMP Board (2/2) - ......... 43

7-24. Printed Wiring Board - DISPLAY Board - ..................... 44

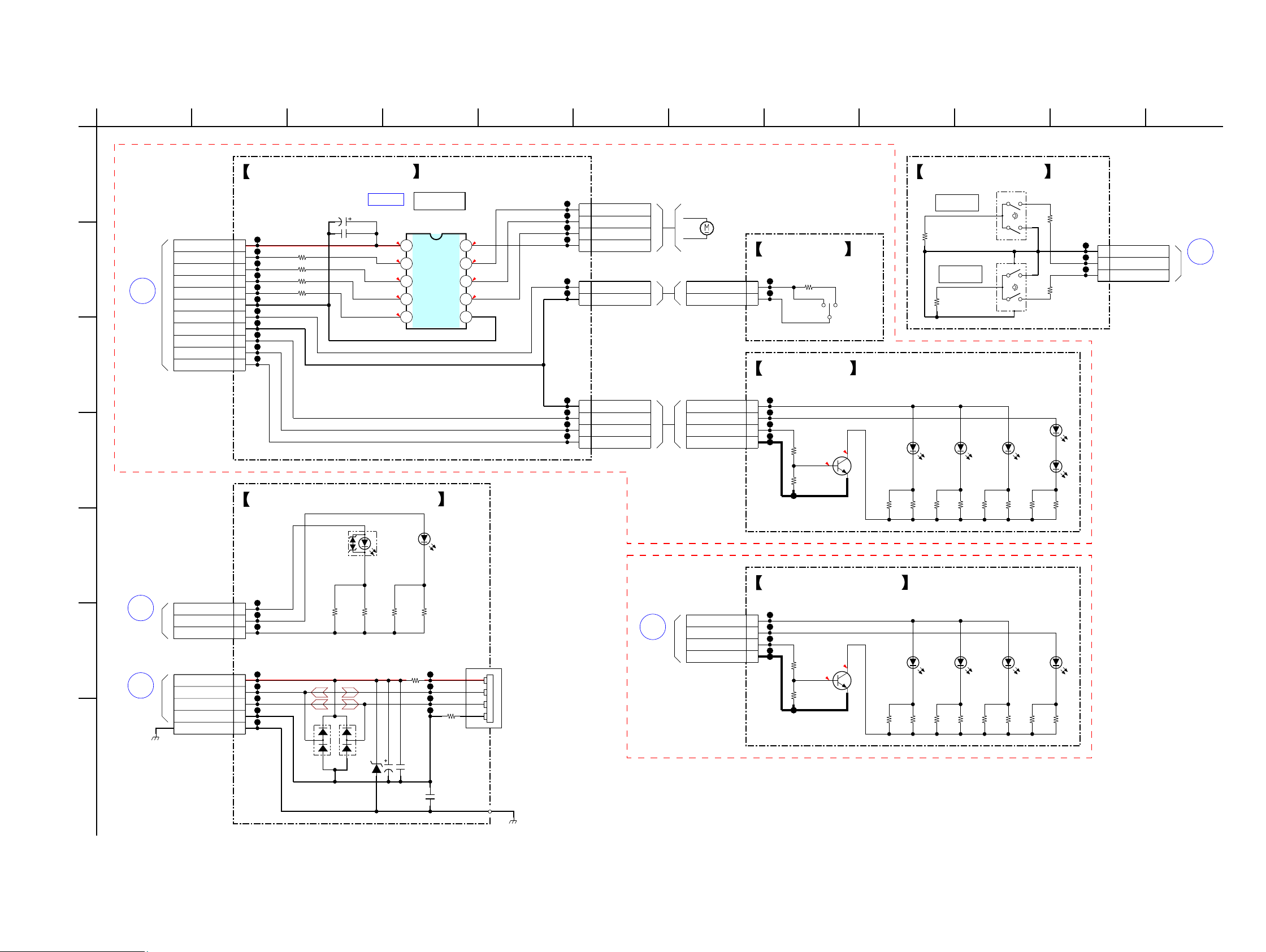

7-25. Schematic Diagram - DISPLAY Board - ........................ 45

7-26. Printed Wiring Boards - PANEL Section - ..................... 46

7-27. Schematic Diagram - PANEL Section - .......................... 47

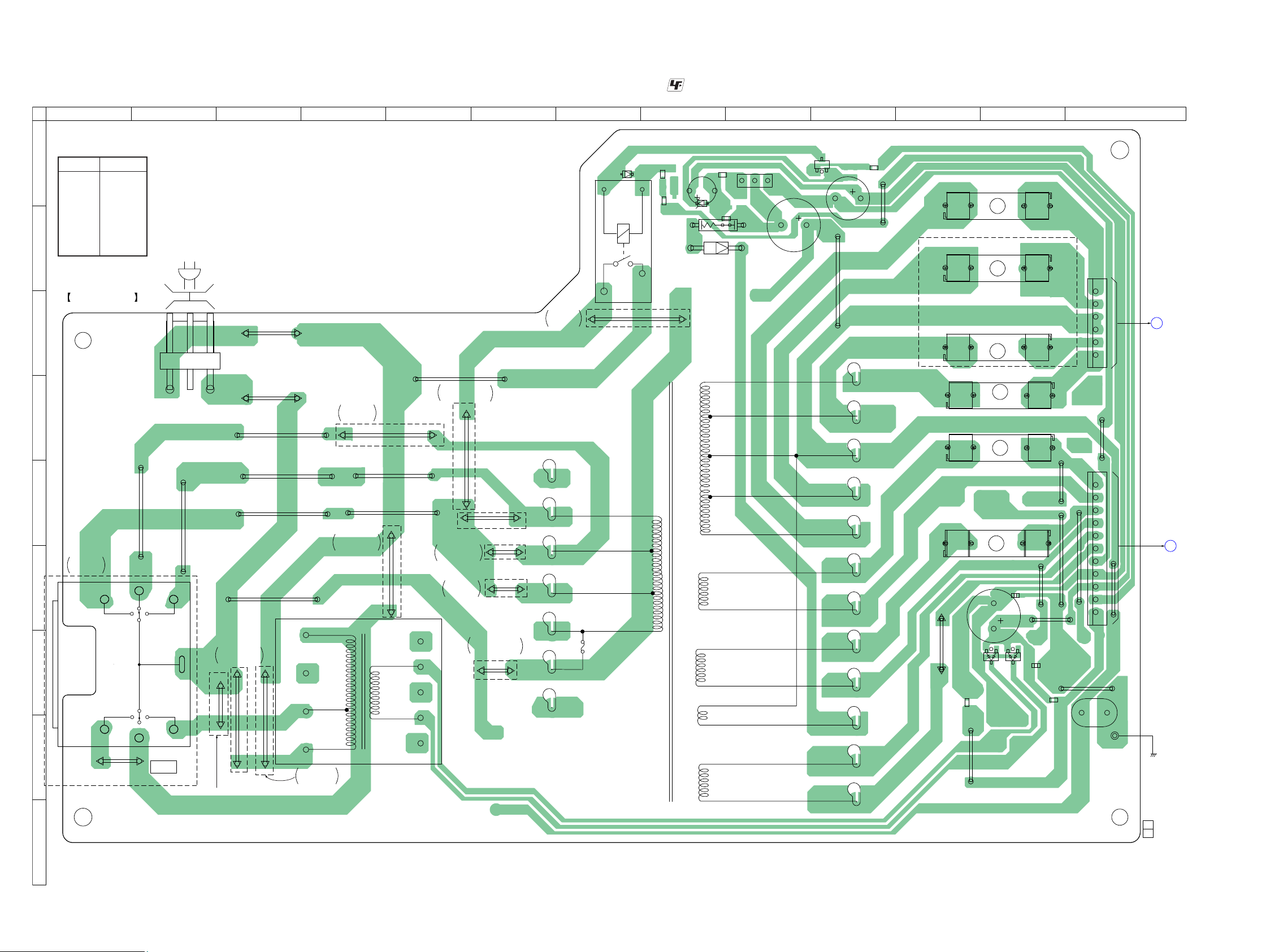

7-28. Printed Wiring Board

- TRANS1 Board (GT111: 120V AC area in E, 240V AC

area in E, Chilean and Peruvian models) - ...................... 48

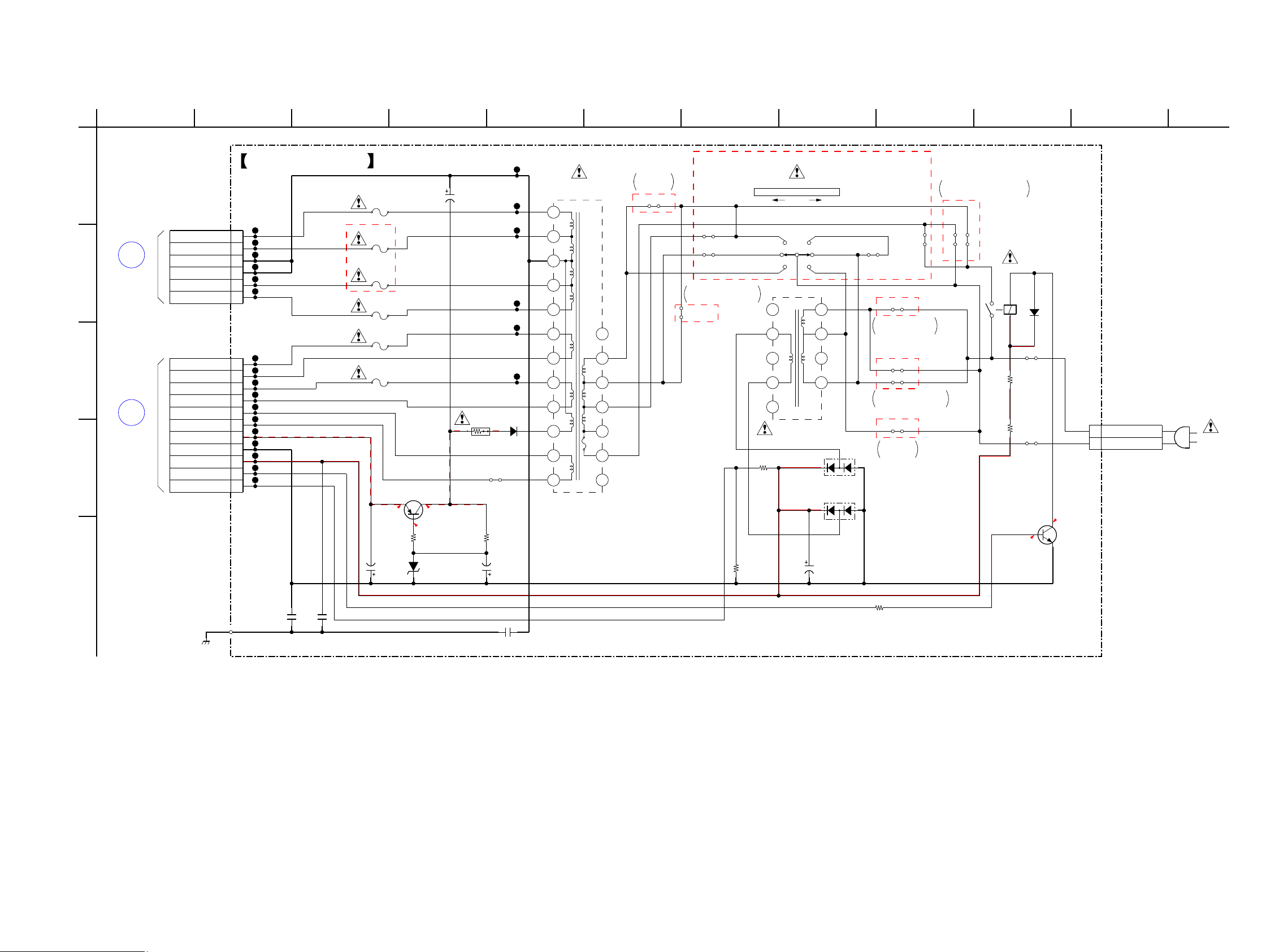

7-29. Schematic Diagram - TRANS1 Board
(GT111: 120V AC area in E, 240V AC area in E,

Chilean and Peruvian models) - ...................................... 49

7-30. Printed Wiring Board - TRANS2 Board

(GT222/GT444/GT555) - ............................................... 50

7-31. Schematic Diagram - TRANS2 Board

(GT222/GT444/GT555) - ............................................... 51

7-32. Printed Wiring Board - TRANSX Board

(GT111: AEP, Russian and Argentina models) - ............. 52

7-33. Schematic Diagram - TRANSX Board

(GT111: AEP, Russian and Argentina models) - ............. 53

8. EXPLODED VIEWS

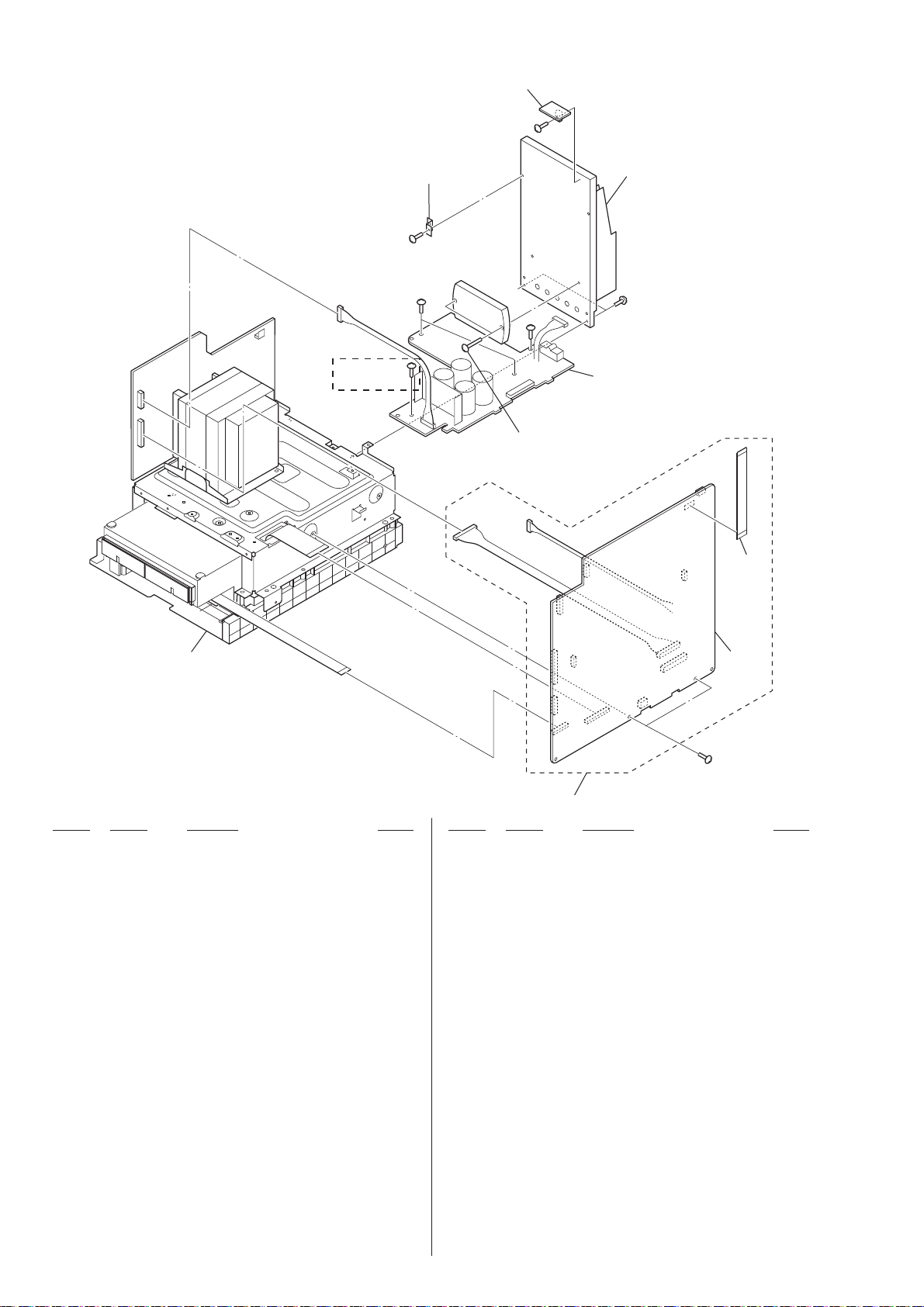

8-1. Case Section .................................................................... 63

8-2. Loading Panel Section .................................................... 64

8-3. DISPLAY Board Section ................................................ 65

8-4. Front Panel Section ......................................................... 66

8-5. Meter Display Assy ......................................................... 67

8-6. Top Panel Section ........................................................... 68

8-7. Back Panel Section ......................................................... 69

8-8. MAIN Board Section ...................................................... 70

8-9. Chassis Section ............................................................... 71

8-10. CD Mechanism Section (CDM88A-K6BD93-WOD) .... 72

9. ELECTRICAL PARTS LIST .............................. 73

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be dam­aged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270 °C during
repairing.

• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering
or unsoldering.

SAFETY-RELATED COMPONET WARNING!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

2

CAUTION

Use of controls or adjustments or performance of procedures other than
those specifi ed herein may result in hazardous radiation exposure.

This appliance is
classified as a CLASS 1
LASER product. This
marking is located on the
rear exterior.

HCD-GT111/GT222/GT444/GT555

E

SECTION 1

SERVICING NOTES

Ver. 1.4

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostat­ic break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The fl exible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused
on the disc refl ective surface by the objective lens in the optical
pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead­free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the

heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscou-s (sticky, less prone to fl ow)

than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

RELEASING THE DISC TRAY LOCK

The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.

Releasing Procedure:

1. Press [I/

] button to turn the power on.

1

2. Press the [CD] button to select CD function.

3. While pressing the [

] button, press the [Z] button for more 5

x

seconds).

4. The message “UNLOCKED” is displayed and the disc tray is
unlocked.

MODEL IDENTIFICATION
– Back Panel –

Model Part No.

GT555: E2

GT444: E2

GT222: E2

GT111: E2

GT555: MX

GT444: MX

GT222: MX

GT111: E3

GT555: AR

GT444: AR

GT222: AR

GT111: AR

GT555: E51

GT444: E51

GT222: E51

GT111: E51

GT111: AEP

GT222: AEP

GT444: AEP, UK

GT111: RU

GT222: RU

GT444: RU

GT555: RU

• Abbreviation
AR : Argentina
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model

3-287-080-0[]

3-287-080-1[]

3-287-080-2[]

3-287-080-3[]

3-287-081-0[]

3-287-081-1[]

3-287-081-2[]

3-287-082-0[]

3-287-085-0[]

3-287-085-1[]

3-287-085-2[]

3-287-085-3[]

3-287-086-0[]

3-287-086-1[]

3-287-086-2[]

3-287-086-3[]

3-287-088-0[]

3-287-088-1[]

3-287-088-2[]

3-287-090-0[]

3-287-090-1[]

3-287-090-2[]

3-287-090-3[]

model

MODEL
NUMB
LABEL

Note: When “LOCKED” is displayed, the slot lock is not released by

turning power on/off with the [I/1] button.

3

HCD-GT111/GT222/GT444/GT555

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF

lever

Turn a gear by



a driver till a lever
falls down to the
position of the figure.

Pull the tray by the hand.



hole

HOW TO REMOVE THE KNOB VOLUME

knob volume



gear

front panel block
(back view)

hole

Push the knob volume by the flat head driver.



4

CAPACITOR DISCHARGE FOR ELECTRIC SHOCK PREVENTION

In checking the MAIN board, make a capacitor discharge
of C803 and C804 for electric shock prevention.

POWERAMP board

C803

800 Ω/2W

800 Ω/2W

C804

HCD-GT111/GT222/GT444/GT555

POWERAMP board

CD MECHANISM BLOCK SERVICE POSITION

CD mechanism block

5

HCD-GT111/GT222/GT444/GT555

POWERAMP BOARD SERVICE POSITION

POWERAMP board

TRANS1 board/
TRANS2 board/
TRANSX board

MAIN board

front panel block

CD mechanism block

HOW TO DISTINGUISH TAPE MECHANISM DECK

Two kinds of tape mechanism decks installed by this set exist.

Please do the repair exchange after confi rming which tape mechanism deck set of the repair according to how to distinguish the fi gure
below.

tape deck

motor

Metal part: TCM-J1
Mold part: CS-21SC-900TP

Tape Deck Name Tape Deck Part No. Belt Part No.

TCM-J1

CS-21SC-900TP

A-1527-851-A

1-797-575-11

2-670-389-01 BELT (1)
3-214-817-01 BELT (FR)

2-688-621-01 BELT (R/F)
2-688-622-01 BELT (MAIN)

6

HCD-GT111/GT222/GT444/GT555

SECTION 2

GENERAL

This section is extracted
from instruction manual.

Guide to parts and controls

This manual mainly explains operations using the remote, but the same operations can also be performed using the buttons on the unit having the same or similar
names.

Unit
Front view

Top view






*


RB

* HCD-GT555 and HCD-GT444 only



 (on/standby)

Press to turn on the system.
The STANDBY indicator lights up when
the system is turned off.

#

DISPLAY

Press to change the information on the
display.

$

METER MODE

Press to select the preset meter display.

%

OPTIONS

Press to change the display, USB and
MP3 BOOSTER+ settings.

&

ERASE

Press to eraseaudio files andfolders from
the connected optional USB device.

'

Remote sensor

(

+/– (select folder)

Press to select a folder.

N.(rewind/fast forward)

Press to find a point in a track.

/9(play/pause)

Press to start or pause playback.

Y (stop)

Press to stop playback.

TUNING +/–

Press to tune in the station you want.







CD

TUNER/

BAND

TAPE

R
RT

RE

RH

RG

(go back/go forward)

Press to select a track or file.

)

CD

Press to select the CD function.

TUNER/BAND

Press to select the TUNER function.
Press to select the FM or AM band.

TAPE

Press to select the TAPE function.

AUDIO

Press to select the AUDIO function.

USB

Press to select the USB function.

*

HCD-GT555 and HCD-GT444 only
SUBWOOFER

Press to turn on and off the subwoofer.
The SUBWOOFER indicator lights up
when the subwoofer is turned on.

+

REC TIMER

Press to set the Recording Timer.

,

RETURN

Press to return to the parent folder.
Press to exit search mode.

-

ENTER

Press to enter the settings.

.

DISC SKIP/EX-CHANGE

Press to select a disc. Press to exchange a
disc while playing.

RKRI

XH

XI

XG



AUDIO



USB

XE
XT

XK

XB
X
RM
RL

/

PHONES jack

Connect the headphones.

0

AUDIO INPUT L/R jacks

Connect to an audio component
(Portable audio player, etc.).

1

(USB) indicator

Lights up in red when transferring to the
connected optional USB device or when
erasing audio files or folders.

(USB) port

Connect an optional USB device.

2

MIC jack

Connect an optional microphone.

MIC LEVEL

Turn to adjust the microphone volume.

3

Disc tray

4

; OPEN/CLOSE

Press to insert or eject a disc.

5

USB

REC TO

Press to transfer onto the connected
optional USB device.

6

DISC 1 – 3

Press toselect a disc.Press to switchto the
CD function from other function.

7

MASTER VOLUME

Turn to adjust the volume.

8

OPERATION DIAL

Turn to select a setting in the OPTIONS
menu.
Turn to select a track, file or folder.

9

PRESET EQ, GROOVE, SURROUND

Press to select a sound effect.

EQ BAND

Press to select the frequency band.

:

Display

;

Tape deck

XK

[ (record)

Press to record onto a tape.

# (play)

Press to start tape playback.

*The# button has a tactile dot. Use the tactile

dot as a reference when operating the system.

N.(rewind/fast forward)

Press to rewind/fast forward a tape.

Y; (stop/eject)

Press to stop tape playback.
Press to insert or eject a tape.

9 (pause)

Press to pause tape playback.

7

HCD-GT111/GT222/GT444/GT555

Remote RM-AMU006

RH
RG
RE
RT

RB

R





 (on/standby)

Press to turn on the system.



#



CLOCK/TIMER SELECT
CLOCK/TIMER SET



Press to set the clock and the timers.

$



REPEAT/FM MODE

Presstolistentoadisc,anUSBdevice,a
single track or file repeatedly.



Press to select the FM reception mode
(monaural or stereo).



%

USB



Press to select the USB function.

CD



Press to select the CD function.

TUNER/BAND



Press to select the TUNER function.
Press to select the FM or AM band.

FUNCTION

Press to select a function.

&

(go back/go forward)

Press to select a track or file.

Getting Started

Hooking up the system securely

N.(rewind/fast forward)

Press to find a point in a track or file.

+/– (tuning)

Press to tune in the station you want.

/(play)

Press to start playback.

9 (pause)

Press to pause playback.

Y (stop)

Press to stop playback.

'

ENTER

Press to enter the settings.

(

DISC SKIP

Press to select a disc.

)

+/– (select folder)

Press to select a folder.

*

VOLUME +/–*
Press to adjust the volume.

* The VOLUME + button has a tactile dot.Use

the tactile dot as a reference when operating
the system.

+

EQ

Presstoselectasoundeffect.

,

CLEAR

Press to delete the last step from the
program list.

-

TUNER MEMORY

Press to preset the radio station.

.

PLAY MODE/TUNING MODE

Press to select the play mode of an
AUDIO CD, MP3 disc or an optional
USB device.
Press to select the tuning mode.

/

DISPLAY

Press to change the information on the
display.

0

SLEEP

Press to set the Sleep Timer.




ANTENNA

a)

"

DMPORT

SUBWOOFER

c)

$

%

 To FM lead antenna
 To AM loop antenna
 To subwoofer
 To front speaker (left)
 To front speaker (right)

a)

The FM75 Ω COAXIAL jackvaries according to
models.

c)

HCD-GT555 and HCD-GT444 only.

d)

The VOLTAGE SELECTOR varies according to
models.

" Antennas

Find a location and an orientation that
provide good reception, and then set up
the antennas.

Extend the FM lead
antenna horizontally

Keep the antennas awayfrom the speaker
cords, the power cord and the USB cable
to avoid picking up noise.

FRONT SPEAKER






AM loop antenna

VOLTAGE

SELECTOR

'

&

$ Subwoofer (HCD-GT555 and

HCD-GT444 only)

Be sure to insert the connector straight
into the terminals.

SUBWOOFER

% Front speakers

d)

Be sure to insert the connector straight
into the terminals.

FRONTSPEAKER

L

R

USE6Ω

EDANCE

P

IM

& VOLTAGE SELECTOR

For models with a voltage selector, set
VOLTAGE SELECTOR to the local
power line voltage.

' Power

Connect the power cord to a wall socket.
The demonstration appears in the display.
If the plug does not fit the wall socket,
detach the supplied plug adaptor (only for
models equipped with an adaptor).

When carrying this system

Use the buttons on the unit for this
operation.

1 Remove all discs to protect the CD

mechanism.

2 Press CD to select the CD function.
3 Hold down DISC SKIP/

EX-CHANGE, and press  until
“STANDBY” appears.

4 After “MECHA LOCK” appears,

unplug the power cord.

White

Purple

Speaker pads

Attach the supplied speaker pads to the
bottom of the front speakers and
subwoofer to prevent slipping.

Front speakers:
4 pads for each speaker

Subwoofer:
4 pads (HCD-GT555 and HCD-GT444
only)

To use the remote

Slide and remove the battery
compartment lid, then, insert the two
supplied R6 (size AA) batteries, & side
first, matching the polarities shown
below.

Notes

• With normal use, the batteries should last for
about six months.

• Do not mix an old battery with a new one or
mix different types of batteries.

• If you do not use the remote for a long period
of time, remove thebatteries to avoid damage
from battery leakage and corrosion.

Setting the clock

You cannot set the clock in Power Saving
Mode.
Use the buttons on the remote for this
operation.

1 Press  to turn on the system.
2 Press CLOCK/TIMER SET.

If “PLAY SET” appears on the
display, press /

“CLOCK SET” and then press
ENTER (RM-AMU006) or
(RM-AMU008).

3 Press /repeatedly to

set the hour, and then press
ENTER.

4 Use the same procedure to set

the minutes.

The clock settings are lost when you
disconnect the power cord or if a
power failure occurs.

To display the clock when the
system is turned off

Press DISPLAYrepeatedly until the clock
is displayed. The clock is displayed for
about 8 seconds.

8

• This set can be disassembled in the order shown below.

3-1. DISASSEMBLY FLOW

SET

3-2. SIDE L/R CASE
(Page 10)

3-3. TOP PANEL BLOCK
(Page 10)

HCD-GT111/GT222/GT444/GT555

SECTION 3

DISASSEMBLY

3-5. FRONT PANEL BLOCK
(Page 11)

3-6. DC FAN (M102), BACK PANEL
(Page 12)

3-7. MAIN BOARD
(Page 12)

3-9. DC FAN (M101),
POWERAMP BOARD
(Page 13)

3-4. TAPE MECHANISM DECK
(Page 11)

3-8. CD MECHANISM BLOCK
(Page 13)

3-10. BASE UNIT
(Page 14)

3-11. OP BASE ASSY (KSM-213D)
(Page 14)

3-12. BELT (DLM3A)
(Page 15)

9

HCD-GT111/GT222/GT444/GT555

Note: Follow the disassembly procedure in the numerical order given.

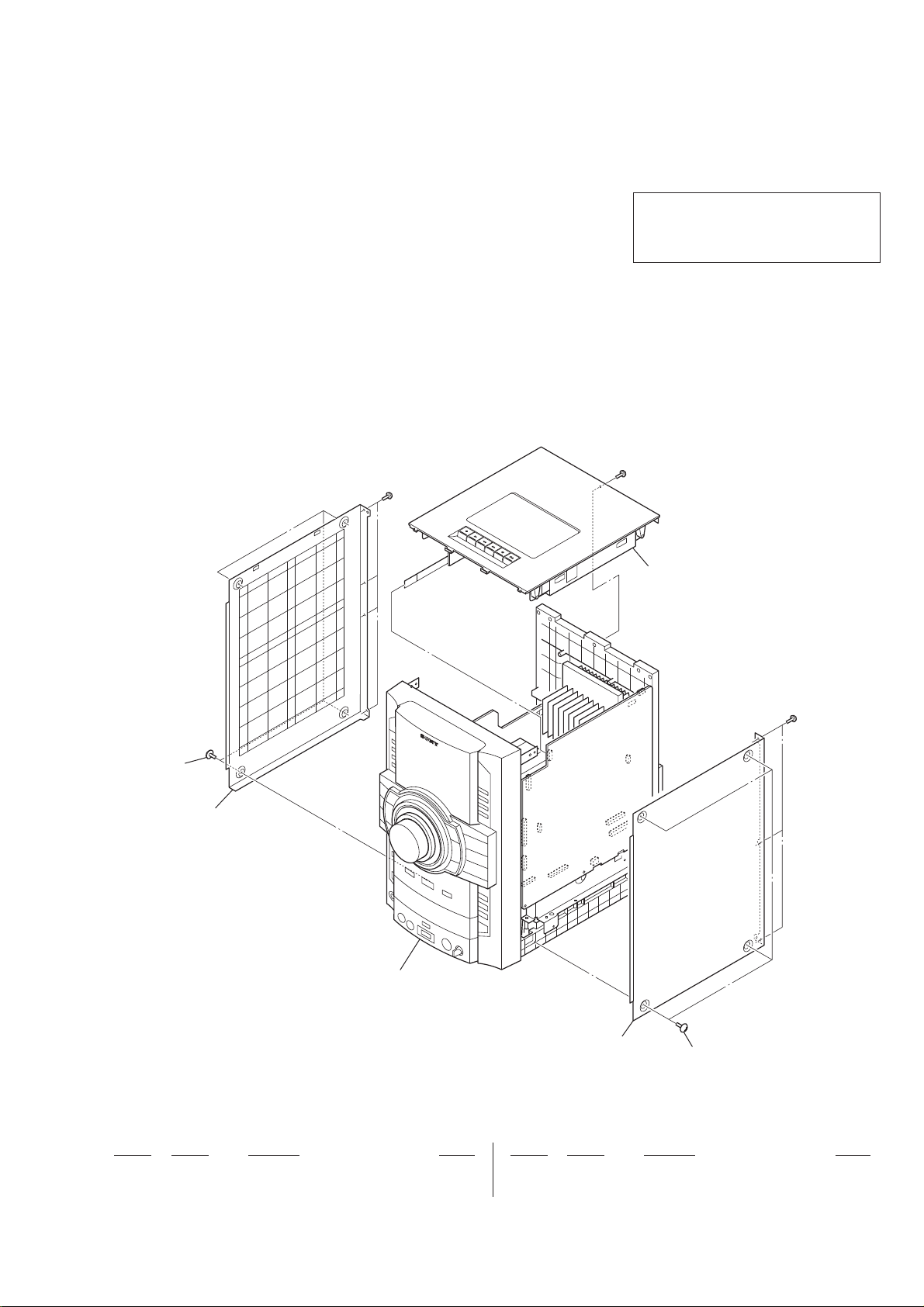

3-2. SIDE-L/R CASE

four screws



(case 3 TP2)

side-L case



four screws



(BVTP3 × 10)

three screws



(BVTP3 × 10)

3-3. TOP PANEL BLOCK

flexible flat cable



(CN450)

two claws



side-R case





four screws



(case 3 TP2)

screw



(BVTP3 × 10)

top panel block



10

3-4. TAPE MECHANISM DECK

Note: This illustration is seeing top panel block from inside.

two screws



(BVTP2.6 × 8)

two screws



(BVTP2.6 × 8)

tape mechanism deck

RB

bracket (deck)



connector (CN501)



HCD-GT111/GT222/GT444/GT555

TC board



two bracket (PWB)



TC shield board



(AEP, Russian, UK )

two screws



(BVTP3 × 12: AEP, Russian, UK)
(BVTP3 × 8: except AEP, Russian, UK)

Cut the two clamps.



Open the cassette box.



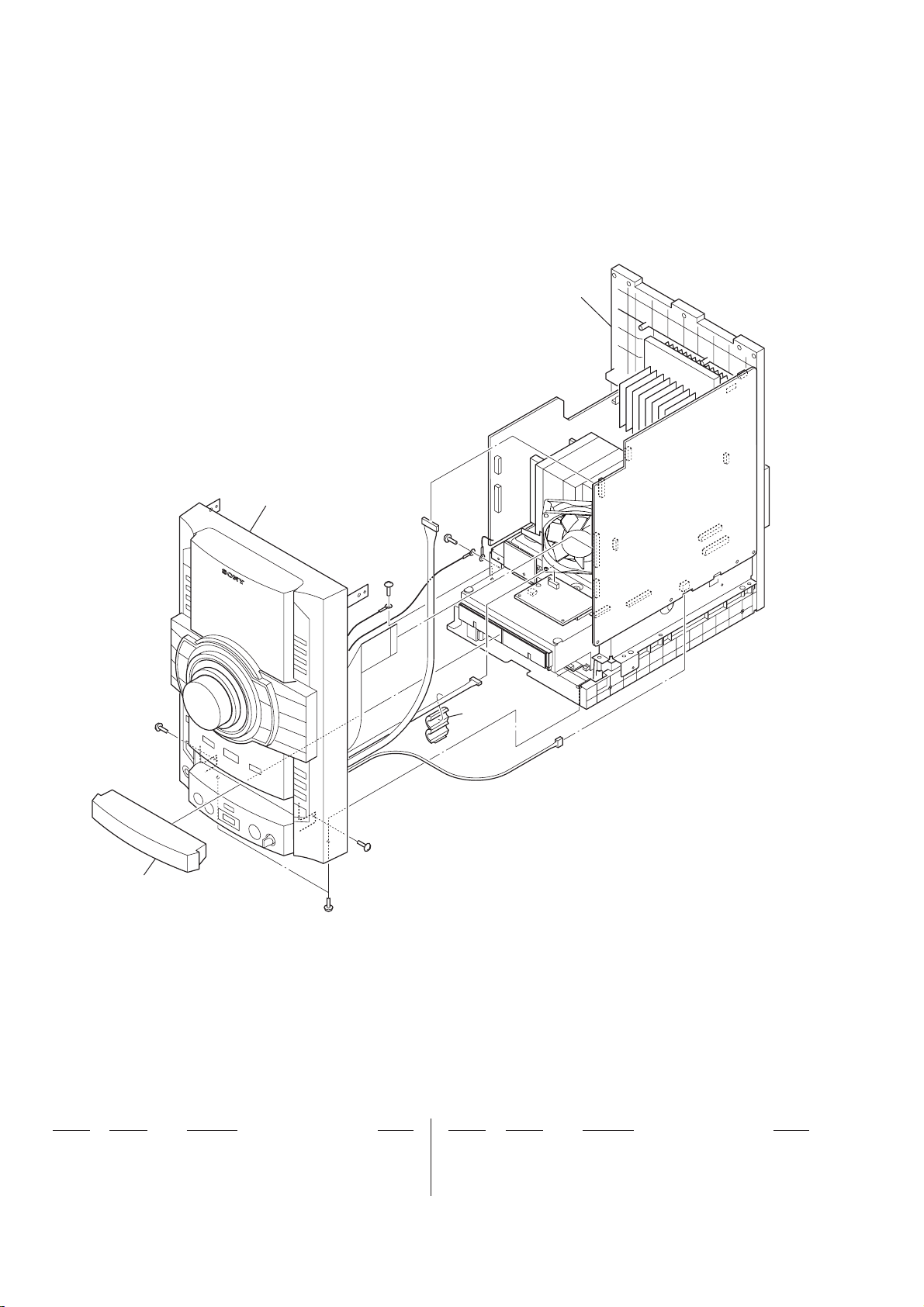

3-5. FRONT PANEL BLOCK

connector (CN470)



screw



(BVTP3 × 10)

harness

RB

screw



(BVTP3 × 10)

panel loading



screw

RT

(BVTP3 × 10)

two harnesses

RE

connector (CN488)



connector (CN903)



flexible flat cable (CN403)



top panel block

hole

Pull the



tray by hand.

Turn a gear by



a driver till a lever
falls down to the
position of the figure.

lever

two screws



(BVTP3 × 10)

screw (BVTP3 × 10)



front panel block

RG

gear

11

HCD-GT111/GT222/GT444/GT555

Ver. 1.4

3-6. DC FAN (M102), BACK PANEL

DC fan (M102)

RG

bushing bracket

two screws (BVTP3 × 10)

RM

fan connector (CN690)



screw (BVTP3 × 10)

RH

Cut the clamp.

RK

flexible flat cable



(11core (GT111: AEP/GT222: AEP/
GT444: AEP, UK)/
9 core (GT111: RU, E2, E3, E51,AR/
GT222: RU, E2, E51, MX, AR/
GT444: RU, E2, E51, MX, AR/
GT555)))

power cord connector



(CN901)

X

coating clip

RI

ferrite core

RL

tuner

RT

(FM/AM)

SW JACK



board

cord

XB

bushing



(GT444/GT555)

power cord

XT

back panel

XE

two screws

RE

(BVTP3 × 12)

screw



(BVTP3 × 8)

two screws

RB

(BVTP3 × 10)

screw



(BVTP3 × 10)

screw



(BVTP3 × 10)

five screws



(BVTP3 × 10)

3-7. MAIN BOARD

fan connector



(CN110)

connector



(CN907)

connector



(CN890)

connector



(CN055)

• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model

connector



(CN479)

12

flexible flat cable (21 core)



(CN420)

wire (flat type) (31 core)



(CN430)

wire (flat type) (13 core)



(CN410)

MAIN board



two screws



(BVTP3 × 10)



3-8. CD MECHANISM BLOCK

wire (flat type) (31 core)



(MAIN board: CN430/CD board: CN201)

CD mechanism block

RT

screw



(BVTP3 × 10)

two screws



(BVTP3 × 10)

screw



(BVTP3 × 10)

HCD-GT111/GT222/GT444/GT555

two screws



(BVTP3 × 10)

screw



(BVTP3 × 10)

three sheets

RB

wire (flat type) (13 core)



(MOTOR board/MAIN board: CN410)

3-9. DC FAN (M101), POWERAMP BOARD

RB

(BVTP3 × 10)

connector (CN903)



screw



(BVTP3 × 10)

two screws



(BVTP3 × 10)

two screws



(BVTP3 × 12)

(G T111)

four screws



two saranet cushions



Note: When installing the CD mechanism section,
install two tapes for prevention of noise.

two screws



(transistor)

three screws

(BVTP3 × 10)

chassis



heat sink block



two screws



(BVTP3 × 10)

POWERAMP board

RT

bracket (fan)



DC fan (M101)



(GT222/GT444/GT555)



13

HCD-GT111/GT222/GT444/GT555

3-10. BASE UNIT

 two screws (PTPWHM2.6)

 two springs (insulator)

 two screws (PTPWHM2.6)

 insulator

 two springs

(insulator)

 insulator

 insulator

 insulator

– Bottom view –

3-11. OP BASE ASSY (KSM-213D)



CD mechanism block

 OP base assy
(KSM-213D)

 base unit

14

 flexible flat cable (16 core)
(CD board: CN301/optical pick-up block)

 CD board

 Remove four solders.

3-12. BELT (DLM3A)

position of belt

belt



HCD-GT111/GT222/GT444/GT555

cover

belt

two belts (DLM3A)



four screws



15

HCD-GT111/GT222/GT444/GT555

SECTION 4

TEST MODE

PANEL TEST MODE

This mode is used to check the fl uorescent indicator tube, LEDs,
keys, [MASTER VOLUME] jog, [OPERATION DIAL] jog, mod­el, destination and software version.

Procedure:

1. Press [x] button, [METER MODE] button and [DISC 2] but­ton simultaneously.

2. All LEDs and segments in fl uorescent indicator tube are lighted
up. The POWER LED is lighted up in red color if the system is
turned off and POWER LED is turn off if the system is turned
on.

3. When you want to enter to the software version display mode,
press [DISC 1] button. The model information appears on
the fl uorescent indicator tube. “GSL 1R” is shown for HCD-
GT111, “GSL 2R” is shown for HCD-GT222, “GSL 2RS” is
shown for HCD-GT444 and “GSL 3RS” is shown for HCD­GT555. Press [DISC 1] button again to view the destination
information.

4. During the destination information display, press [DISC 1]
button. Each time [DISC 1] button is pressed, the fl uorescent
indicator tube shows the version of each category software in
the following sequence: SC, GC, SYS, CD, CDDM, CDMA,
CDMB, BDA, BDB, ST, TC, TA, TM, MM1, MM2 (USB
Micro computer) , MTR (METER) and return back to model
information display.

5. When [DISC 3] button is pressed while the version numbers
are being displayed except model and destination, the date
of the software creation appears. When [DISC 3] button is
pressed again, the display returns to the software version dis­play. When [DISC 1] button is pressed while the date of the
software creation is being displayed, the date of the software
creation is displayed in the same order of software version dis­play.

6. Press [DISC 2] button, the key check mode is activated.

7. In the key check mode, the fl uorescent indicator tube displays
“K 0 J0 V0”.

Each time a button is pressed, “K” value increases. However,

once a button has been pressed, it is no longer taken into ac­count.

“V” value increases in the manner of 0,1, 2, 3 ... if [MASTER

VOLUME] knob is turned clockwise, or it decreases in the
manner of 0, 9, 8,7 ... if [MASTER VOLUME] knob is turned
counterclockwise.

“J” value increases in the manner of 0,1, 2, 3 ... if [OPERA-

TION DIAL] knob is turned clockwise, or it decreases in the
manner of 0, 9, 8,7 ... if [OPERATION DIAL] knob is turned
counterclockwise.

8. When [DISC SKIP/EX-CHANGE] button is pressed after all
LEDs and segments in fl uorescent indicator tube light up, al-
ternate segments in fl uorescent indicator tube and LEDs would
light up. If you press [DISC SKIP/EX-CHANGE] button
again, another half of alternate segments in fl uorescent indica-
tor tube and LEDs would light up. Pressing [DISC SKIP/EX­CHANGE] button again would cause all segments in fl uores-
cent indicator tube and LEDs light up.

9. To release from this mode, press three buttons in the same
manner as step 1, or disconnect the power cord.

2. The CD ring indicators fl ash on the fl uorescent indicator tube.
The function is changed to AUDIO and the volume is changed
to VOLUME MIN.

Check of Amplifi er

Procedure:

1. Press [EQ BAND] button repeatedly until a message “GEQ
MAX” appears on the fl uorescent indicator tube. GEQ increas-
es to its maximum.

2. Press [EQ BAND] button repeatedly until a message “GEQ
MIN” appears on the fl uorescent indicator tube. GEQ decreas-
es to its minimum.

3. Press [EQ BAND] button repeatedly until a message “GEQ
FLAT” appears on the fl uorescent indicator tube. GEQ is set to
fl at.

4. When the [MASTER VOLUME] knob is turned clockwise
even slightly, the sound volume increases to its maximum and
a message “VOLUME MAX” appears on the fl uorescent indi-
cator tube.

5. When the [MASTER VOLUME] knob is turned counterclock­wise even slightly, the sound volume decreases to its minimum
and a message “VOLUME MIN” appears on the fl uorescent
indicator tube.

Tape function

When a tape is inserted in deck and recording is started, the func­tion is changed to AUDIO.

To release from Common Test mode

Procedure:

1. To release from this mode, press [

2. The cold reset is enforced at the same time.

?/1

] button.

COLD RESET

The cold reset clears all data including preset data stored in the
EEPROM to initial conditions. Execute this mode when returning
the set to the customer.

Procedure:

1. Press [

2. Press [x] button, [ENTER] button, and [
neously.

3. “COLD RESET” appears on the fl uorescent indicator tube.
After that, the fl uorescent indicator tube becomes blank for a
while, and the system is reset.

] button to turn on the system.

?/1

] button simulta-

?/1

VACS ON/OFF

This mode is used to switch ON and OFF the VACS (Variable At­tenuation Control System).

Procedure:

1. Press [

2. Press [x] button, [DISC 2], and [DISPLAY] button simultane­ously. The message “VACS OFF” or “VACS ON” appears on
the fl uorescent indicator tube.

] button to turn on the system.

?/1

COMMON TEST MODE

This mode is used to check operations of the respective sections of
Amplifi er and Tape.

To enter Common Test Mode

Procedure:

1. Press [x] button, [METER MODE] button and [DISC 3] but­ton simultaneously.

16

HCD-GT111/GT222/GT444/GT555

TUNER STEP CHANGE
(Except GT111: AEP, Russian/GT222: AEP, Russian/
GT444: AEP, Ruissian, UK/GT555: Russian models)

The step interval of AM channels can be toggled between 9 kHz
and 10 kHz. This mode is not available for Saudi Arabian, Euro­pean and Russian models.

Procedure:

1. Press [

] button to turn on the system.

?/1

2. Press [TUNER/BAND] button repeatedly to select the “AM”.

3. Press [

4. Press [ENTER] button and [

] button to turn off the system.

?/1

?/1

] button simultaneously. The
system turns on automatically. The message “AM 9K STEP”
or “AM 10K STEP” appears on the fl uorescent indicator tube
and thus the channel step is changed.

CD SERVICE MODE

This mode let you move the CD sled motor freely. Use this mode
when you want to clean the optical pick-up.

Procedure:

1. Press [

] button to turn on the system.

?/1

2. Press [CD] button to select CD function.

3. Press [x] button, [METER MODE] button, and [OPEN/
CLOSE] button simultaneously.

4. The CD service mode is activated. The message “SERVICE
MODE” appears on the fl uorescent indicator tube.

5. With the disc in stop status, press [M] to move the optical
pick-up to outside track, or press [m] to move to inside track.
The message “SLED OUT” or “SLED IN” appears on the fl uo-
rescent indicator tube.

6. To turn on or off the laser, press [>] button. The message
“LD ON” or “LD OFF” appears on the fl uorescent indicator
tube.

7. To release from this mode, press [

?/1

] button.

CD AGING MODE

This mode can be used for operation check of CD section.
If an error occurs, the aging operation would stops and the status is
displayed. If there were no error occurs, the aging operation would
continue repeatedly.

Procedure:

1. Press [

2. Select CD function.

3. Load three discs on the disc tray.

4. Press [PLAY MODE] button on the remote repeatedly to select
the “ALL DISCS” mode, and press the [REPEAT] button on
the remote repeatedly to select “REPEAT OFF” mode.

5. Press [x] button, [METER MODE] button and [DISC SKIP/
EX-CHANGE] button simultaneously.

6. Aging operation is started.

7. To release from this mode, press [
power cord to turn off the system.

] button to turn on the system.

?/1

] button or disconnect the

?/1

• Aging mode sequence:

START (from

Disc 1)

Disc Chucking

TOC Reading

Play first track for 2

seconds

Play last track for 2

seconds

EX-CHANGE open/

close

Open the disc tray

Disc skip

Close the disc tray

Change the disc tray

CD ERROR CODE MODE

Display the CD error code when an error occurred

Procedure:

1. Press [x] button, [METER MODE] button and [DISC 1] but­ton simultaneously to enter the error code display mode.

2. The fl uorescent indicator tube displays the number of total er-
ror.

3. Each time [m] or [M] button is pressed, display change as
below.

17

HCD-GT111/GT222/GT444/GT555

Display of
Total Error

FF button FR button

MS (+)

button

FF button

MS (+)

button

Display of

Mechanical

Errors

FR button

Display of

No Disc

Errors

4. To clear the error record, operate the cold reset. (Refer to the
“COLD RESET”)

5. To release from this mode, press the [

?/1

the power plug to turn off the system.

• Display of total error

EM**ED**

EM** : The number of mechanical errors.
ED** : The number of no disc errors after chucking the disc.

• Display of mechanical errors

M*$$%%&&##00

M* : The number of mechanical error (“0” is latest one)
(Press [>] button to display the next error)
$$ : Not used
%% : Loading related error (Second fi gure is not used)
D : Stop by the problem other than mechanical problem

while closing.

E : Stop by the problem other than mechanical problem

while opening.

C : Stop by the problem other than mechanical problem

while chucking up.

F : Stop by the problem other than mechanical problem

while chucking down.

&& : Emerging error
01 : Stop while chucking up.
02 : Stop while chucking down.
03 : Time-out of EX-CHANGE open.
05 : Time-out of EX-CHANGE close.
## : Not used

AMS (–)

button

AMS (–)

button

] button or disconnect

• Display of no disc errore

D*$$%%&&##00

D* : The number of no disc error (“0” is latest one)
(Press [>] button to display next error)
$$ : Error type
01 : Focus error
02 : GFS error
03 : Setup error
%% : Not used
&& :
00 : No disc judgment without chucking retry.
01 : No disc judgment after chucking retry.
## : The state when judged as no disc
01 : Stop
02 : Setup
03 : TOC reading
04 : Access
05 : Playback
06 : Pause
07 : Manual search (Play)
08 : Manual search (Pause)

CD REPEATS 5 LIMIT OFF MODE

The number of repeat for CD playback is 5 times when the repeat
mode is “REPEAT ALL”. This mode enables CD to repeat play­back for limitless times.

Procedure:

1. Press [

] button to turn on the system.

?/1

2. Select CD function.

3. Press [x] button, [CD] button and [DISC 1] button simultane-

ously to enter the CD repeat 5 limit off mode and the fl uores-
cent indicator tube displays “LIMIT OFF”.

4. To release from this mode, operate the cold reset. (Refer to the
“COLD RESET”)

CD SHIP MODE (WITH MEMORY CLEAR)

This mode moves the optical pick-up to the position durable to
vibration and clears all data including preset data stored in the EE­PROM to initial conditions during the next AC-In. Use this mode
when returning the set to the customer after repair.

Procedure:

1. Press [

] button to turn on the system.

?/1

2. Select CD function.

3. Press [x] button, [DISC 1] button and [

] button simultane-

?/1

ously. The system turns off automatically.

4. After the “STANDBY” blinking display fi nishes, a message
“MECHA LOCK” is displayed on the fl uorescent indicator
tube and the CD ship mode is set.

CD SHIP MODE (WITHOUT MEMORY CLEAR)

This mode moves the optical pick-up to the position durable to
vibration. Use this mode when returning the set to the customer
after repair.

Procedure:

1. Press [

2. Select CD function.

3. Press [DISC SKIP/EX-CHANGE] button and [
multaneously. The system turns off automatically.

4. After the “STANDBY” blinking display fi nishes, a message
“MECHA LOCK” is displayed on the fl uorescent indicator
tube and the CD ship mode is set.

] button to turn on the system.

?/1

] button si-

?/1

18

HCD-GT111/GT222/GT444/GT555

CD TRAY LOCK MODE

This mode let you lock the disc tray. When this mode is activated,
the disc tray will not open when [OPEN/CLOSE] button or [DISC
SKIP/EX-CHANGE] button is pressed. The message “LOCKED”
will be displayed on the fl uorescent indicator tube.

Procedure:

1. Press [

2. Select CD function.

3. Press [x] button and [OPEN/CLOSE] button simultaneously

and hold down until “LOCKED” or “UNLOCKED” displayed
on the fl uorescent indicator tube (around 5 seconds).

] button to turn on the system.

?/1

FACTORY PRESET

This mode is use to load all the factory use preset frequencies into
FM 1-FM 20 and AM 1-AM 10. Originally, frequency of FM 1­FM 20 and AM 1-AM10 are set to the minimum frequency.

Procedure:

1. Press [

2. Press [TUNER/BAND] button, [x] button, and [DISC 1] but-

ton simultaneously and the message “FACTORY” appears
on the fl uorescent indicator tube. The function is changed to
TUNER automatically.

] button to turn on the system.

?/1

VACS DISPLAY

This mode is used to check the VACS level.

Procedure:

1. Press [

2. Press [ERASE] button, [x] button and [ENTER] button si-

multaneously.

3. The fl uorescent indicator tube displays “VACSA”. “A” repre-
sents Conventional VACS (Triggered by signal level)

4. To release from this mode, do the step 2 again.

] button to turn on the system.

?/1

METER TEST MODE

This mode is used to check the meter device.

Procedure:

1. Press [

2. Press [x] button, [ENTER] button and [METER MODE] but-

ton simultaneously.

3. Meter Backlight LEDs, Meter Pointer LEDs, Power Illumina­tor LEDs and fl uorescent indicator tube are lighted up.

4. When you want to perform count total step from Initial Switch
to Max Switch operation mode, press [M] button. The me­ter pointer will move from Initial Switch to Max Switch and
fi nally move back to the middle position. The total step count
information appears on the fl uorescent indicator tube. “xxx
STP yy” is shown.

“xxx” represents the total step.
(Value of “xxx” should between 430 steps to 470 steps)
“yy” represents the status of total step count.
(If total step between 430 steps to 470 steps, “yy” is OK,
Else “yy” is NG)

5. When you want to perform count total step from Max Switch
to Initial Switch operation mode, press [m] button. The me­ter pointer will move from Max Switch to Initial Switch and
fi nally move back to the middle position. The total step count
information appears on the fl uorescent indicator tube. “xxx
STP yy” is shown.

“xxx” represents the total step.
(Value of “xxx” should between 430 steps to 470 steps)
“yy” represents the status of total step count.
(If total step between 430 steps to 470 steps, “yy” is OK, else

“yy” is NG).

6. To release from this mode, do the step 2 again. The fl uorescent
indicator tube displays “TST MODE OUT”.

] button to turn on the system.

?/1

METER SWITCH TOUCH COUNT DISPLAY

This mode is used to display the total count of meter pointer touch
initial switch and max switch.

Procedure:

1. Press [

2. Press [x] button, [ENTER] button and [DISPLAY] button si-

multaneously.

3. The fl uorescent indicator tube displays “IxxxxxMyyyyy”.
“I” represents the Initial Switch touch.
“xxxxx” represents the total count of Initial Switch touch.
(Maximum Value of “xxxxx” = 65535)
“M” represents the Max Switch touch.
“yyyyy” represents the total count of Max Switch touch.
(Maximum Value of “yyyyy” = 65535)

4. To release from this mode, do the step 2 again. The fl uorescent
indicator tube displays “MODE OUT”.

] button to turn on the system.

?/1

19

HCD-GT111/GT222/GT444/GT555

SECTION 5

MECHANICAL ADJUSTMENTS

PRECAUTION

1. Clean the following parts with a denatured-alcohol-moistened
swab :

record/playback head pinch roller
erase head rubber belts
capstan idlers

2. Demagnetize the record/playback head with a head demag­netizer. (Do not bring the head magnetizer close to the erase
head.)

3. Do not use a magnetized screwdriver for the adjustments.

4. After the adjustments, appiy suitable locking compound to the
parts adjusted.

5. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.

• Torque Measurement

Mode Torque Meter Meter Reading

FWD CQ-102AS

FWD
Back Tension

FF CQ-201AS

REV CQ-201B

CQ-102C

2.0 – 8.0 mN • m
(20 to 80 g • cm)

(0.28 – 1.12 oz • inch)

0.15 – 0.6 mN • m
(1.5 to 6 g • cm)

(0.021 – 0.083 oz • inch)

5 – 17.7 mN • m

(50 to 177 g • cm)

(0.7 – 2.48 oz • inch)

5 – 17.7 mN • m

(50 to 177 g • cm)

(0.7 – 2.48 oz • inch)

• Tape Tension Measurement

Mode Tension Meter Meter Reading

FWD CQ-403A

(more than 2.82 oz)

more than 80 g

20

HCD-GT111/GT222/GT444/GT555

SECTION 6

ELECTRICAL ADJUSTMENTS

DECK SECTION 0 dB = 0.775V

1. Demagnetize the record/playback head with a head demagne­tizer.

2. Do not use a magnetized screwdriver for the adjustments.

TEST TAPE

Tape Signal Used for

P-4-A063 6.3 kHz, -10 dB Azimuth Adjustment

RECORD/PLAYBACK HEAD AZIMUTH ADJUSTMENT

Procedure:

1. Mode: Playback

test tape
P-4-A063
(6.3 kHz, −10 dB)

set

MIC board
PHONES jack
(J702)

level meter

+
–

2. Turn the adjustment screw and check output peaks. If the peaks
do not match for L-CH and R-CH, turn the adjustment screw
so that outputs match within 1dB of peak.

Output
level

within
1 dB

L-CH
peak

R-CH
peak

within
1 dB

Screw
position

L-CH
peak

Screw
position

R-CH
peak

3. Mode: Playback

test tape
P-4-A063
(6.3 kHz, −10 dB)

set

MIC board
PHONES jack
(J702)

oscilloscope

H

V

Adjustment Location: Record/Playback/Erase Head

CD SECTION

Note:

1. CD Block is basically designed to operate without adjustment. There­fore, check each item in order given.

2. Use YEDS-18 (PART No. 3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than specifi ed value with the following checks.

TEST DISC LIST

Use the following test disc on electrical checks.
YEDS-18 (PART No. 3-702-101-01) or
PATD-012 (PART No. 4-225-203-01)

S-CURVE CHECK

oscilloscope

(DC range)

CD board

TP106 (FE)
TP124 (VC)

+
–

Procedure :

1. Connect an oscilloscope to TP106 (FE) and TP124 (VC).

2. Turn the power ON.

3. Load a disc (YEDS-18) and actuate the focus search. (In con­sequence of open and close the disc tray, actuate the focus
search)

4. Confi rm that the oscilloscope waveform (S-curve) is symmet-
rical between A and B. And confi rm peak to peak level within

1.8 ± 0.5 Vp-p.

waveform of oscilloscope

in phase 45° 90° 135° 180°

good

wrong

4. After the adjustments, apply suitable locking compound to the
pats adjusted.

S-curve waveform

symmetry

A

within 1.8 ± 0.5 Vp-p

B

Note:

• Try to measure several times to make sure than the ratio of A : B or B
: A is more than 10 : 7.

• Take sweep time as long as possible and light up the brightness to
obtain best waveform.

21

HCD-GT111/GT222/GT444/GT555

RF LEVEL CHECK

oscilloscope

CD board

TP123 (RFO)

TP124 (VC)

Procedure :

1. Connect an oscilloscope to TP123 (RFO) and TP124 (VC).

2. Turn the power ON.

3. Load a disc (YEDS-18) and playback.

4. Confi rm that oscilloscope waveform is clear and check if RF
signal level is correct or not.

Note: Clear RF signal waveform means that the shape “◊” can be clearly

distinguished at the center of the waveform.

RF signal waveform

VOLT/DIV : 200 mV
TIME/DIV : 500 ns

level : 1.3 ± 0.3 Vp-p

Connecting Location : CD board

– CD Board (Conductor Side) –

TUNER SECTION

FM TUNE LEVEL CHECK

signal

generator

set

Procedure:

1. Turn on the set.

2. Input the following signal from signal generator to FM antenna
input directly.

Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)

Note: Use 75 ohm coaxial cable to connect signal generator and the set.

You cannot use video cable for checking.

Use signal generator whose output impedance is 75 ohm.

3. Set to FM tuner function and tune A, B and C signals.

4. Confi rm “TUNED” is lit on the display for A, B and C sig-
nals.

When the selected station signal is received in good condition,
“TUNED” is displayed.

TP124 (VC)

TP123 (RFO)

TP106 (FE)

IC101

22

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

2323

SECTION 7

DIAGRAMS

7-1. BLOCK DIAGRAM - CD SERVO, USB Section -

SYSTEM CONTROLLER

IC401 (1/4)

CD-MP3 PROCESSOR

IC101

MUTE

2-AXIS

DEVICE

(TRACKING)(FOCUS)

95

89

A

+3.3V

DETECTOR

FNi1 (A)

RFo

97 FPi1 (B)

88

2

AGCi

3RFRP RFZi

76TEi TEZi

83RFEQo 81 RFi

82 RFRPi

30LO

27RO

46AoUT3 (PO4)
50PIO2

65AIN (PI4)

66BCKi (PI5)

BCK

A-IN

BUS1-U

BUS0-U

BUS2-U

BUS3-U

BUCK-U

67LRCKi (PI6)

LRCK

51PIO3

GATE

49PIO1

ST-REQ

38BUS0

R-CH

94 FNi2 (C)

96 FPi2 (D)

100 TNi (E)

98 TPi (F)

91 LDo 92MDi

2VO1+

1VO1–

13 DMo

LD

PD

LASER DIODE

OPTICAL PICK-UP

BLOCK

(KSM-213DCP)

B

C

D

E

F

12 FMo

10 TRo

9FOo

20 IO0 (/HSO)

I-V AMP

M401

(SPINDLE)

M402

(SLED)

12 VO2–

11 V O2+

18 VO3+

17 VO3–

26 VO4+

27

7

IN4’

24

IN3’

20

IN2’

9

IN1

3

BIAS 23

84 VRo

VO4–

M

M

FOCUS/TRACKING COIL DRIVE,

SLED/SPINDLE MOTOR DRIVE

IC401

S201

(LIMIT)

+3.3V

24 XO

23 XI

X102

16.9344MHz

47 CD-MMUTE

CD-L

R-CH

USB_REC-L

: CD PLAY

SIGNAL PATH

R-ch is omitted due to same as L-ch.

: TUNER (FM/AM)

: USB

VCC

A

B

C

D

E

F

LD

PD

SP+

VC

SP–

SL+

SL–

T+

T–

F+

F–

47AoUT2 (PO5)
63BCK (PO8)

CLK

DATA

2 1 41 CD BUS0

13

39BUS1 3 4 42 CD BUS1

5

40BUS2 (SO) 9 8 43 CD BUS2

45 CD CLK

6

41BUS3 (SI) 10 11 44 CD BUS3

12

BUS SWITCH

IC670

2 1

13

3 4

5

9 8

6

10 11

12

BUS SWITCH

IC672

Q671

DATA SELECTOR

IC673

SELECT

42BUCK (CLK) 4

2

3

CCE-U

46 CD CCE

43XCCE

54SBSY

48PIO0

7

40 MP3 IREQ

37 USB SEL-SW
19 SBSY

37XRST

48 CD-XRST

5

REQ-U

6

12

14

13

9

10

11

1

CLK

DATA

LB

I/O0 – I/O15

D0 – D15

S-RAM

IC921

39

UB

40

OE

41

WE

17

CE

6

79D+

80D–

77USBOC

USB CONTROLLER

IC901

CN1000

(USB)

3

2

1

D+

D–

78USBPON

70CS2
64

RD

65WR
66SRLLB
67SRLUB

VBUS

VBUS POWER

ON/OFF SWITCH

IC915

5

1

4OUT

EN

3

FLG

IN

VBUS

+5V

93

DATA

92

BCK

85 DATA
86 CLOCK

71

LRCK

94

GATE

97

ST-REQ

55 BUS0
56 BUS1

88 RXD1
87 TXD1

2DI

84 DO

1 /RESET

57 BUS2
58 BUS3
59 /BUCK
60 /CCE
96 REQ

7 – 10, 13 – 16,

29 – 32, 35 – 38

18 – 25, 28 – 35

A0 – A15

A1 – A16

44 – 42, 27 – 24,

21 – 18, 5 – 1

37 – 43, 46 – 54

73 X2

75 X1

X901

9MHz

AUTOMATIC

POWER

CONTROL

Q301

BCK

A-IN

LRCK
GATE
ST-REQ

BUS1-U

BUS0-U

BUS2-U
BUS3-U
BUCK-U
CCE-U
REQ-U

35USB TXD0
36USB RXD0

38USB RTS0
34USB CTS0
33USB RESET

A/D CONVERTER

IC501

STDO
SCLK

AINL

2

AINR

1

9

12

LRCK
MCLK

10
11

PDN

13

DATA SELECTOR

IC502

3Y

3B

10

SELECT

1

3A

11

1B

3

1A

2

2B

6

2A

5

9

1Y

4

2Y

7

A

B

CD MECHANISM

DECK

M1-

M2+
M2-

M1+

M1+

21

M1-

18

M2+

7

M2-

6

MOTOR

DRIVE
Q640, 641,
Q643 - 648

SW3

SW2
SW7-CHACK

SW1

SW1

23

SW3

22

SW2

25

SW-CHUCK

24

SW5-STOCK

SW8-OPEN

SW6-CLOSE

SW-STOCK

27

SW-CLOSE

26

SW-OPEN

28

(Page 24)

(Page 24)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

2424

7-2. BLOCK DIAGRAM - MAIN Section -

R-CH

L501

BIAS OSC

S501

(REC/PB)

PB

REC

REC AMP

IC502

PB AMP

IC501

OSC

Q501, 502

TUNER (FM/AM)

TAPE MECHANISM

DECK

AM

FM ANT

AM ANT

ST-L

ST-R

ST-DOUT

R-CH

LCH

RCH

EH

R-CH

ST-DIN

ST-CLK

ST-CE

FM75Ω

COAXIAL

ANTENNA

AUDIO INPUT

L

R

J701

TUNED

61 ST-TUNED

RDS-DATA

76 ST-RDS-DATA

RDS-INT

75 ST-RDS-INT

45 TAPE-L

43 ST-L

21

DATA22CLK

42

30

AUX-L

46 MIC

29 VOLINLTONEOUTL 26OUTL

44 CD-L

TC-TAPE STATE

67 ST-DOUT

66 ST-CLK
63 ST-CE

82

R2A15216FP-DATA

60

9

SA2POWER ILLUMINETOR

68

VACS IN

89

R2A15216FP-CLK

59

MIC/HP DET

71

23SWOUT

28BB1L

36RECBL

37RECAL

BAND-PASS

FILTER

Q115, 116

R-CH

27BB2L

BASS AGC

Q128

D630

D201

INPUT SELECTOR,

ELECTRICAL VOLUME

IC407

SYSTEM CONTROLLER

IC401 (2/4)

: TUNER (FM/AM)

: CD PLAY

SIGNAL PATH

R-ch is omitted due to same as L-ch.

: TAPE PLAY

: MIC

: TAPE REC

: AUDIO IN

(GT444/GT555)

(GT111: AEP/GT222: AEP/GT444: AEP, UK)

J700

MIC

RV700

MIC LEVEL

MIC AMP

IC700 (1/2)

MIC AMP

IC700 (2/2)

SW

C

HP IN

A

CD-L

B

USB_REC-L

E

SW OUT

F

BASS AGC

D

OUT

LINE AMP

IC251

65 ST-DIN

(Page 23)

(Page 25)

(Page 23)

(Page 25)

(Page 25)

(Page 25)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

2525

7-3. BLOCK DIAGRAM - AMP Section -

OUT

LINE AMP

IC252

D

BASS AGC

F

SW OUT

E

POWER

AMP

IC800

MUTING

Q402

OVER LOAD

DETECT

Q801

OVER LOAD

DETECT

Q802

R-CH

MUTING

Q430

LINE AMP

IC253

STANDBY SWITCH

Q813

(TYPE A)

+

R-CH

R-CH

R-CH

MUTING

CONTROL

Q670

LINE MUTE

58

STK MUTE

51

SW SPK RELAY

52

+

R-CH

PROTECT DETECT
Q806, 809 - 811 (TYPE A)
Q806, 809, 811 (TYPE B)

FAN M OTOR

DRIVE
Q690, 691,
Q693 -695,

Q697

RY800

+
–
–
+

RY890

D632

D807

M

M102
(FAN)

FAN M OTOR

DRIVE
Q110 - 113

M

M101
(FAN)

PHONES

+
–

SUBWOOFER

JK890

RELAY
DRIVE

Q805

FR SPK RELAY

53

PROTECT

50

RELAY
DRIVE

Q804

R-CH

J702

SYSTEM CONTROLLER

IC401 (3/4)

: TUNER (FM/AM)

SIGNAL PATH

R-ch is omitted due to same as L-ch.

(GT444/GT555)

(GT222/GT444/GT555)

+

OVER LOAD

DETECT

Q803

R

L

FRONT

SPEAKER

JK800

PROTECT

G

DC DETECT

H

STBY LED

J

HP IN

C

DC DETECT

Q812, 814, 815

LEVEL SHIFT

Q447

(TYPE A)

(TYPE B)

DC DETECT

Q815

(TYPE B)

(Page 24)

(Page 24)

(Page 24)

(Page 24)

(Page 26)

(Page 26)

(Page 26)

Ver. 1.2

Note: A part of circuit composition of POWERAMP board has been changed in the midway of production.

POWERAMP board that has not been changed appears as TYPE A, and the changed POWERAMP

board appears as TYPE B.

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

2626

7-4. BLOCK DIAGRAM - PANEL, POWER SUPPLY Section -

REMOTE CONTROL

RECEIVER

IC1102

FL1101

FLUORESCENT

INDICATOR

TUBE

MOTOR

ASSY

S031

(METER POSITION DETECT)

3 SW LED

AD-KEY0 ­AD-KEY2

FLUORESCENT INDICATOR

TUBE DRIVER

IC1101

SYSTEM CONTROLLER

IC401 (4/4)

F907

RECT

D911, 912

PROTECT

DETECT

Q606

RECT

D602

D006

LED-VOL1. 2 ­LED-VOL5. 6

S1165 - 1180,

S1182 - S1192,

S1193,

S1194, 1195

54STBY RELAY

20AC-CUT

RESET SWITCH

Q214, 215

D213

+3.3V

UNREG +16V

VBUS+5V

EVER +10V

83OVERVOLTAGE

12RESET

91 MASTER VOL

2 – 13,

15, 16

DR35 - DR16

38 – 19

DR0 - DR13

79 - 77

METER IN1 ­METER IN4

100, 84, 1, 2 97, 95, 94

LED DRIVE

Q1139, 1141,

Q1143

GRID DRIVE

Q1102 - 1113,

Q111 5, 1116

D1124 - 1129

(STREAM)

LED DRIVE

Q1205

70 USB-BLUE LED

LED DRIVE

Q1190

D1205

SUBWOOFER

72 STBY LED

KEY0

4 SIRCS

D1196

I/

STANDBY

ROTARY

ENCODER

MASTER

VOLUME

OPERATION

DIAL

S1052

90 OPERATION DIAL

ROTARY

ENCODER

S1051

13 X-OUT

15 X-IN

METER SW

X402

5MHz

11 XC-OUT

10 XC-IN

X401

32.768kHz

SI FL-DRIVER-DATA

49 86

SCK FL-DRIVER-CLK

48 85

EEP-SDA

55

EEP-SCL

56

CSB FL-DRIVER-CS

51 87

RSTB FL-DRIVER-RESET

52 88

74 POWER/DISPLAY-KEY

(AC IN)

RY901

RELAY
DRIVE

Q903

VO LTAGE

SELECTOR

S901

D+1.5V

+1.5V

REGULATOR

IC201

D605 D055

D623, 624

D908

A+9V

M+9V
M+7V

F906

RECT

D601

F904
F905

RECT

D801

F908
F909

RECT

D800

RECT

D812

D608

+9V

REGULATOR

IC080

+9V

REGULATOR

IC602

A/D CONVERTER +5V

+5V

REGULATOR

Q696

M+5V

+5V

REGULATOR

Q1220

+3.3V

REGULATOR

IC603

+5V

REGULATOR

IC050

+4V

REGULATOR

Q210 - 212

SEL A, SEL B

CD MECHANISM

MOTOR B+

REGULATOR

Q655 - 658

73LED CTRL

5CDM-SD

TAPE +9V

B+ SWITCH

Q681, 684

49TC_M+9V SW

JOG B+

39AD SUPPLY SW

B+ SWITCH

Q627, 628

–32V

REGULATOR

Q902

AMP

SECTION

B+

FOR

FLUORESCENT

INDICATOR

TUBE

(GT222/GT555)

(GT222/GT444/GT555)

–VFL

VF
VF

PT902

SUB POWER

TRANSFORMER

PT901

MAIN POWER

TRANSFORMER

GT111: AEP, RU, AR/

GT222: AEP, RU, MX, AR/

GT444: AEP, UK, RU, MX, AR/

GT555: RU, MX, AR

GT111: E2, E3, E51/

GT22: E2, E51/GT44: E2,

E51/GT55: E2, E51

(GT444/GT555)

(GT444/GT555)

(GT222/GT444/GT555)

45

46

XT

XTB

OSC

VDD+3.3V

D+3.3V,

VREF+3.3V

+VH
–VH

+VL
–VL

• Abbreviation

AR : Argentina model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model

D1000, 1003

(USB)

80 METER LED

LED DRIVE

Q010

D015

D011 - 014,

(ILLUMINATION)

B+ SWITCH
Q111 4, 1117 ,
Q1120, 1122

MOTOR

DRIVE

IC001

EEPROM

IC675

81

GT111: AEP, RU, AR/

GT222: AEP, RU, MX, AR/

GT444: AEP, UK, RU, MX, AR/

GT555: RU, MX, AR

PROTECT

G

DC DETECT

H

STBY LED

J

(Page 25)

(Page 25)

(Page 25)

Ver. 1.4

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

2727

For Schematic Diagrams.

Note:

• All capacitors are in μF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in Ω and 1/4 W or less unless otherwise
specifi ed.

• f : internal component.

• 2 : nonfl ammable resistor.

• 5 : fusible resistor.

• C : panel designation.

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)

• A : B+ Line.

• B : B– Line.

• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.

– CD Board –

no mark

: CD PLAY

– TC Board –

no mark

: TAPE PLAY
( ) : TAPE REC
– Other Boards –

no mark

: TUNER (FM/AM)
( ) : CD PLAY
‹‹ ›› : TAPE PLAY
{ } : TAPE REC

• Voltages are taken with a VOM (Input impedance 10

MΩ).

Voltage variations may be noted due to normal production

tolerances.

• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production

tolerances.

• Circled numbers refer to waveforms.

• Signal path.
F : TUNER (AM/FM)
J : CD PLAY
E : USB
d : TAPE PLAY
G : TAPE REC
f : AUDIO IN
N : MIC

• Abbreviation
AR : Argentina

model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model

For Printed Wiring Boards.

Note:

• X : Parts extracted from the component side.

• Y : Parts extracted from the conductor side.

• f : Internal component.

• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)

• Circuit Boards Location

The components identifi ed by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specifi ed.

Caution:

Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)

Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.

• Indication of transistor.

C

Q

B

E

CEB

These are omitted.

These are omitted.

MOTOR DRIVE board (GT222/GT444/GT555)

LED board (GT222/GT444/GT555)/
LED (GSL1) board (GT111)

SW board
(GT222/GT444/GT555)

DISPLAY board

5V REG board

DISPLAY board

TC board

USB board

TRANS1 board (GT111: E2, E3, E51)/
TRANS2 board (GT222/GT444/GT555)/
TRANSX board (GT111: AEP, RU, AR)

9V REG board

POWERAMP board

SW JACK board
(GT444/GT555)

MAIN board

VOLUME board

MIC board

USB CONNECTOR board

CD board

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

2828

7-5. SCHEMATIC DIAGRAM - CD Board (1/2) -

• See page 54 for Waveforms. • See page 57 for IC Pin Function Description.

R153

R304

R303

R111

Q301

R301

R101

R128

R143 R142

R139

R140

R151

R159

R160

R161

IC101

CN301

C302

C303 C306

C307

C309

C100

C139

C140

C141

C142

C106

C105

R144

C143

C144

C146

C145

C147

C104

C149

C148

C150

C117

C118

C120

C102

C123

C101

C122

C126

C127

C103

R104

R106

1k

C132

R154

C115

C116

C110

R110

C133

R112

R120

R121

R114

R109

C112

R118

C153

C108

C136

R135

R136 R134C138

C107

C301

C119

C113

R105

X102

16.9344MHz

C130C128R102

C137

R108

R302

R130

R129

S201

R155

TP121

TP124

TP106

TP107

1M

2.2

2.2

100

2SA2119K

100k

220

470k

47k 22k

47k

0

0

100

100

100

TC94A70FG-101

16P

10

10 100

10V

1

0.001

0.1

0.01

0.01

0.0022

0.1

100
10V

0.1
22k

0.01

0.1

470p

0.01

0.1

0.1

22p

47p

0.001

0.022

0.01

0.01

0.1

470p

0.1

470p

0.1

0.0022

0.1

0

0.1

1M

22

6.3V

0.1

0.1

10k

0.1

100

0

100

10k

100

0.1

100k

0.1

0.1

47p

470k

22k 1M470p

0.1

0.1

0.022

0.1

1M

5p5p10k

0.01

0

4.7k

1k

47

(RFI)

(VC)

TP12 3 (RFO)

(FE)

(TE)

A1

A2

A3

A4

A5

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

IPF

SBSY

RFRP

FMO

DMO

XI

XO

RO

DVR

LO

BUS0

BUS1

LDo

MDi

VCOi

TRo

FOo

TEi

TEZi

SBOK/FOK

RFZi

FEi

SFSY/LOCK

BUS2(SO)

BUS3(SI)

BUCK(CLK)

PIO0

PIO2

PIO3

PIO1

IRQ

MS

FGiN

IO0(/HSO)

IO1(/UHSO)

DOUT(PO6)

AOUT(PO7)

BCK(PO8)

LRCK(PO9)

BCKi(PI5)

AIN(PI4)

LRCKi(PI6)

AWRC

TMAX

TMAXS

PDo

LPFo

VCOF

SLCo

RFi

RFRPi

RFEQo

TESTR

AGCi

RFo

TNPC

TEST

ZDET

GPIN

RESiN

VMDiR

DVDD3

XVDD3

XVSS3

VDDP3

VSSP3

AVDD3

AVSS3

RVDD3

RVSS3

VDDM1

PVDD3

PVSS3

PVREF

VRo

VREF

XRST

SRAMSTB

SBAD/RFDC

VDD1

VSS1

DVSS3

DVSS3

VDDT3

VSS1

VDD1

XCCE

AoUT2(PO5)

AoUT3(PO4)

VSS1

VDDT3

VDD1

VSS1

LPFN

TNi(E)

TPi(F)

FPi1(B)

FPi2(D)

FNi1(A)

FNi2(C)

T+

VC

GND

LD

PD

F+

T-

F-

VCC

E

D

A

B

C

F

VR

(1/2)

(LIMIT)

AUTOMATIC

POWER

CONTROL

CD-MP3 PROCESSOR

OPTICAL

PICK-UP

BLOCK

(KSM-213DCP)

(1/2)

(Page

29)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

2929

7-6. SCHEMATIC DIAGRAM - CD Board (2/2) -

• See page 54 for IC Block Diagrams.

R201

R203

R204

R205

R206

R207

R208

R209

R210

R219

R223

R222

R221

R218

C401

R415

M402

M401

R220

IC401

R211

R212

R213

R214

CN201

IC501

IC502

R510

R509

R414

C508

C510

C511

R511

R512

R224

R502

R514

R216

R226

C207

IC201

C509

C501

C506

C507

C206

R202

C205

C204C202

C201

R513

C405 C404 C403

C124

C125

C151

C152

C217

C218

R505 R503

R225

C109

R156

R157

R402

R405

R408

C505 R508

C502

C504

0

100

100

100

100

100

100

100

100

100k

100k

100k

100k

100k

220
10V47k

100k

BA5826SFP

100

100

100

100

31P

AK5358A

TC74VHC157FT

1k

100k

4.7k

0.1

0.1

0.1

1k

1k

100

47k

0

100

100k

1

TK63115SCL-G@GT

0.1

10

16V

0.1

0.1

1

0

0.1

0.1100 10V

100 10V

100

0.1 0.1 0.1

0.0047

0.0047

0.0022

0.0022

0.1

0.1

47k 47k

100k

0.1

100

100

2.2k

10k

2.2k

2.2 47k

10 16V

100
10V

A1

A2

A3

A4

A5

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

GND

VO1+

VO1-

IN1

RESET

REGB

REGOUT

MUTE

IN2'

IN2

VO2+

VO2-

GND

OPOUT

OPIN

RESET t

VO3-

VO3+

IN3

IN3'

VCC

VCC

BIAS

IN4'

IN4

VO4+

VO4-

GND

Vcc

GND

AINR

AINL

CKS1

VCOM

AGND

VA

VD

DGND

CKS0

CKS2

DIF

PDN

SCLK

MCLK

LRCK

SELECT

1A

1B

1Y

2A

2B

2Y

ST

4A

4B

4Y

3A

3B

3Y

STDO

D-OUT

L-OUT

R-OUT

DVDD(3.3V)

AVDD(3.3V)

AGND

DGND

MGND

VM(7V)

BUS0

BUS1

BUS2

BUS3

BUCK

SBSY

DACGND

REQ

ST_REQ

GATE

VOUT

NC

VDD

CE

GND

M-MUTE

DATA

CLK

AIN

ADCGND

ADCVDD(5V)

(2/2)

DATA SELECTOR

A/D CONVERTER

+1.5V REGULATOR

MOTOR DRIVE

SLED/SPINDLE

COIL DRIVE,

FOCUS/TRACKING

(SLED)

OPTICAL

PICK-UP

BLOCK

(KSM-213DCP)

(2/2)

BCK

LRCK

/CCE

/RST

L-IN

R-IN

(SPINDLE)

(Page

28)

(Page 39)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3030

R214

R213

R155

C106

C201

R304

R302

C309

C205

C207

C307

R201

R303

C115

R211

Q301

R301

C204

C202

C206

C306

R212

C401

C405

IC201

R120

R114

C153

R415

C112

C108

IC501

IC502

C501

C502

C104

C105

C102

C101

R104

C132

C107

C507

R512

R503

R505

R511

C110

C508

R514

X102

C504

C217

C218

M401

M

M

M402

S201

R154

R153

C148

C109

C301

C303

C302

R110

C116

C404

R203

R204

R205

R206

R207

R208

R209

R210

R219

R223

R222

R221

R218

C150

C403

R202

C151

C147

C146

C145

C152

C118

C117

C144

C125

C143

C120

R144

R157

C142

C141

C140

C100

R408

R156

C124

IC401

C127

C126

CN301

R101

C119

IC101

C103

R405

C113

R102

R402

R105

R106

C138

C137

R135

R134

R136

R130

R128

R129

R143

R142

R139

C136

C149

C139

R140

R151

C122

C123

R220

R224

R109

R108

R414

R502

R508

R509

R510

R513

C505

R159

R160

R161

R226

CN201

C130

C128

C506

R112

R111

C133

R121

R225

R216

R118

C509

C510

C511

1-875-864-

11

(11)

CD BOARD (COMPONENT SIDE)

E

135

4

1-875-864-

11

(11)

CD BOARD (CONDUCTOR SIDE)

L

MAIN

BOARD

CN430

OPTICAL PICK-UP

BLOCK(KSM-213DCP)

(SLED)

(SPINDLE)

(LIMIT)

A

B

C

D

E

F

1234567891011

TP123

(RFO)

TP124

(VC)

TP106

(FE)

7-7. PRINTED WIRING BOARD - CD Board -

• See page 27 for Circuit Boards Location.

•

: Uses unleaded solder.

(Page 35)

Ref. No. Location

• Semiconductor
Location

IC101 D-8
IC201 E-1
IC401 C-9
IC501 B-5
IC502 B-5

Q301 E-4

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3131

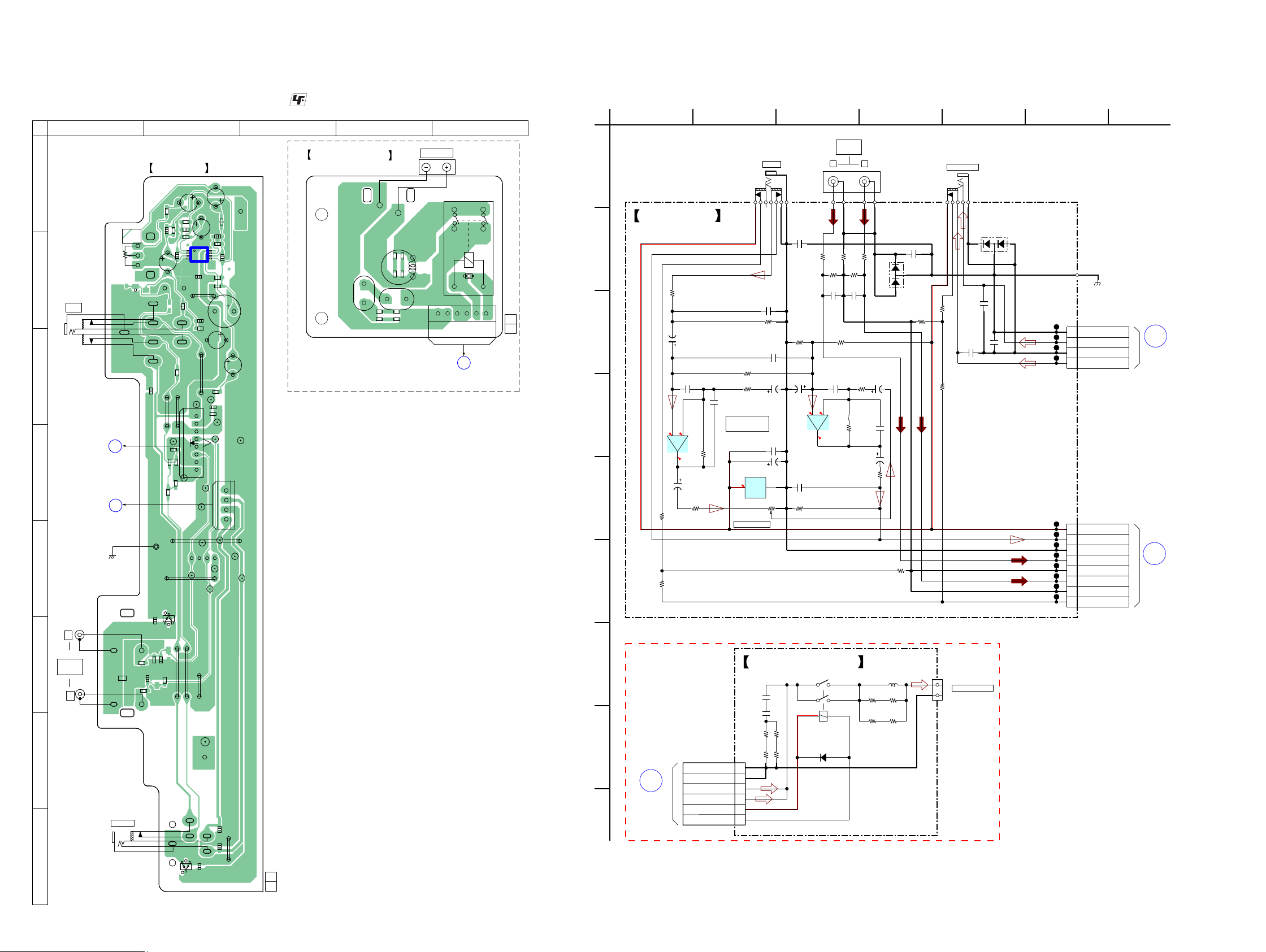

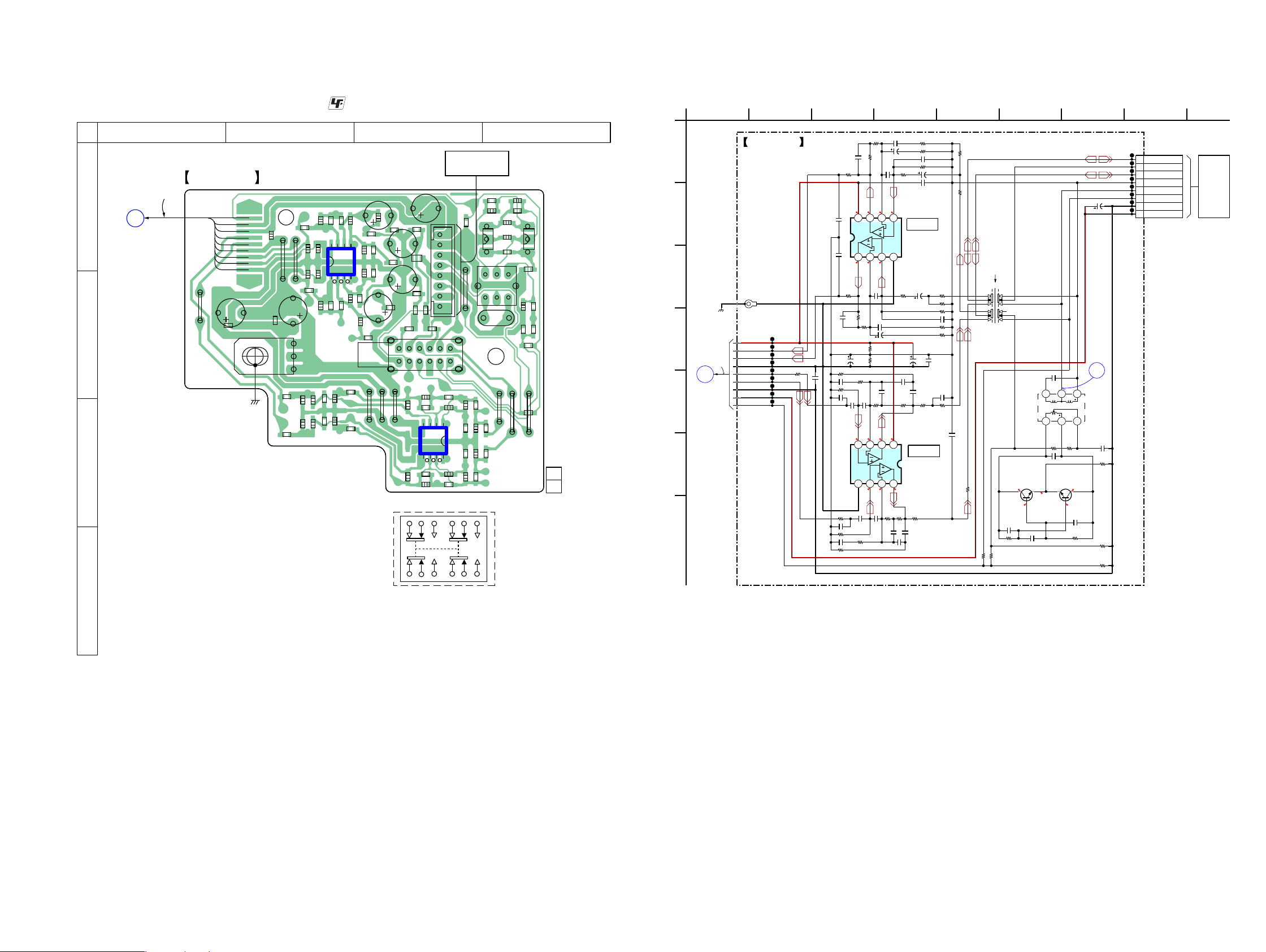

7-8. PRINTED WIRING BOARD - TC Board -

• : Uses unleaded solder.

• See page 27 for Circuit Boards Location.

7-9. SCHEMATIC DIAGRAM - TC Board -

(Page 35)

(Page 36)

1234

TC BOARD

FFC502

A

B

MAIN

BOARD

CN450

JW501

B

C501

R501

9

1

(CHASSIS)

C548

R502

R504

JW502

C502

ET501

R517

R518

R503

JW503

C504

C503

C519

C520

C521

C

C506

IC501

C543

C517

C505

R519

R520

C522

R508

8

1

R507

R506

R505

C523

C524

5

4

C509

R521

R522

C510

R544

C512

C511

C545

R543

C516

R546

R545

C515
R509

JW505

R512

R511

JW506

C546

R510

C514

C513

R515

JW507

R514

JR504

R513

JR501

(REC/PB)

PB UREC

C526 C525

C542

S501

C531

R525

4

5

R526
C532

JR502

R516

18

CN501

R527

C527

1

8

C528

R528

S501

TAPE MECHANISM

DECK

R537

C535

R535

EB

Q501

1

L501

BIAS OSC

JW504

6

C540

R529

C529

C533

R523

C534

R524

IC502

R530

C530

C537

C538

JR503

R531

R532

3

4

JW508

1-875-675-

C536
R538

Q502

R539

R536

R534

JW509

C539

B

E

R541

R533

JW510

R540

(13)

5

213

47

Q502

4

0.3
(5.3)

0.3
(0.1)

C536
2200p

R538 10k

7

21

L501

BIAS OSC

84

CN501

8P

TP517

8

RCH

TP516

7

COM

TP515

6

LCH

TP514

5

VREF

TP513

4

EH

TP512

3

TP511

TP510

SW

2

M-GND

1

9V

25V22C542

C539

1

R539

4.7

R536

4.7k

R535

4.7k

TAPE

MECHANISM

DECK

15k

2SC1740S-RT

0.3

(5.3)

C535

2200p

6

C540
4700p

6

R54047R541

C538 0.01

Q501

2SC1740S-RT

0
(0.2)

0.3

Q501, 502

(0)

OSC

2200pC537

1

A

B

C

(CHASSIS)

D

1

FFC502

B

MAIN

BOARD

(1/4)

CN450

E

F

13

G

9

2 9

C532

C525

47p

270k

R508

100p

C510

4.4

4.4

0.01

4.4

4.4

C527 470p

0.1C546

16V47C516

470R546

C543

1000p

4.3

IC501

PB AMP

IC501

NJM4558M-TE2

GND

4321

C513

1

R545

50V

470

0.1C545

16V47C515

C501

100
10V

C517

1000p

C528

C530

470p

330p

R528
330k

R530

2.2k

9

8765

IC502

VCC

REC AMP

IC502

NJM4558M-TE2

4.4

R527

R529

330k

2.2k

330k

R525

C529

0.01

330p

C531

TC BOARD

ET501

E

A+9V

PB-LCH

PB-RCH

A-GND

REC-LCH

REC-RCH

M-GND

M+9V

TP-STATE

TP501

TP502

TP503

TP504

TP505

TP506

TP507

TP508

TP509

R518 1k

2200p

1000pC548

C504

C506

R504

C503 2200p

R503

2.2k

0.01

C505

C502

100
10V

R524

C524

R520

C520

C522

R517 1k

C519 470p

R519 47k

R523 3.3k

R506 12k

0.01

2.2k

9

4.4

8765

VCC

4.4

4.4

100p

C509

270k

R507

R505

12k

R501

2.2k

R502

2.2k

3.3k

1

R522 47k

47k

470p

47p

C526

R526
330k

1

4.4

4.4

GND

4321

4.4

C521

1

R521 47k

1C523

53

220R544

270R510

R514

220pC512

100k

100kR512

50V1C514

0R516

S501

(REC/PB)

PB

R515

0

100kR513

100kR511

220pC511

220R543

270R509

C534

2200p

R532

8.2k

C533

2200p

R531

8.2k

REC

R537 10k

R534

R533 22k

D

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3232

R928

C902

C903

C904

C905

C907

R983

R901

R937

R938

C901

IC915

C916

C918

C917

R913

R915

X901

C909

R919

C910

C912

R981

R985

C908

R922

C913

R934

R986

C915

C906

C922

C921

R977

R978

R979

R932

R982

R984

R976

CN907

CN901

CN903

EP901

(CHASSIS)

RB922 RB921

IC921

RB924

RB923

R975

R974

R973

R972

R971

R970

R902

R941

R943

R904

R944

R905

R906

R903

R942

R907

C930

FB902

D901

FB901

D903

D904

R917

R916

D902

C920

R925

R926

R924

R923

C914

R920

R921

R945

R933

R947

R949

JR902

IC901

C919

K

MAIN BOARD

CN420

USB BOARD (COMPONENT SIDE)

1-872-405-

13

(13)

1-872-405-

13

(13)

USB BOARD (CONDUCTOR SIDE)

K

K

A/K

A

A

K

A

A/K

A

K

M

5V REG BOARD

NO050

31

45

A

B

C

D

12345678910

14

21

N

USB CONNECTOR BOARD

NO1001

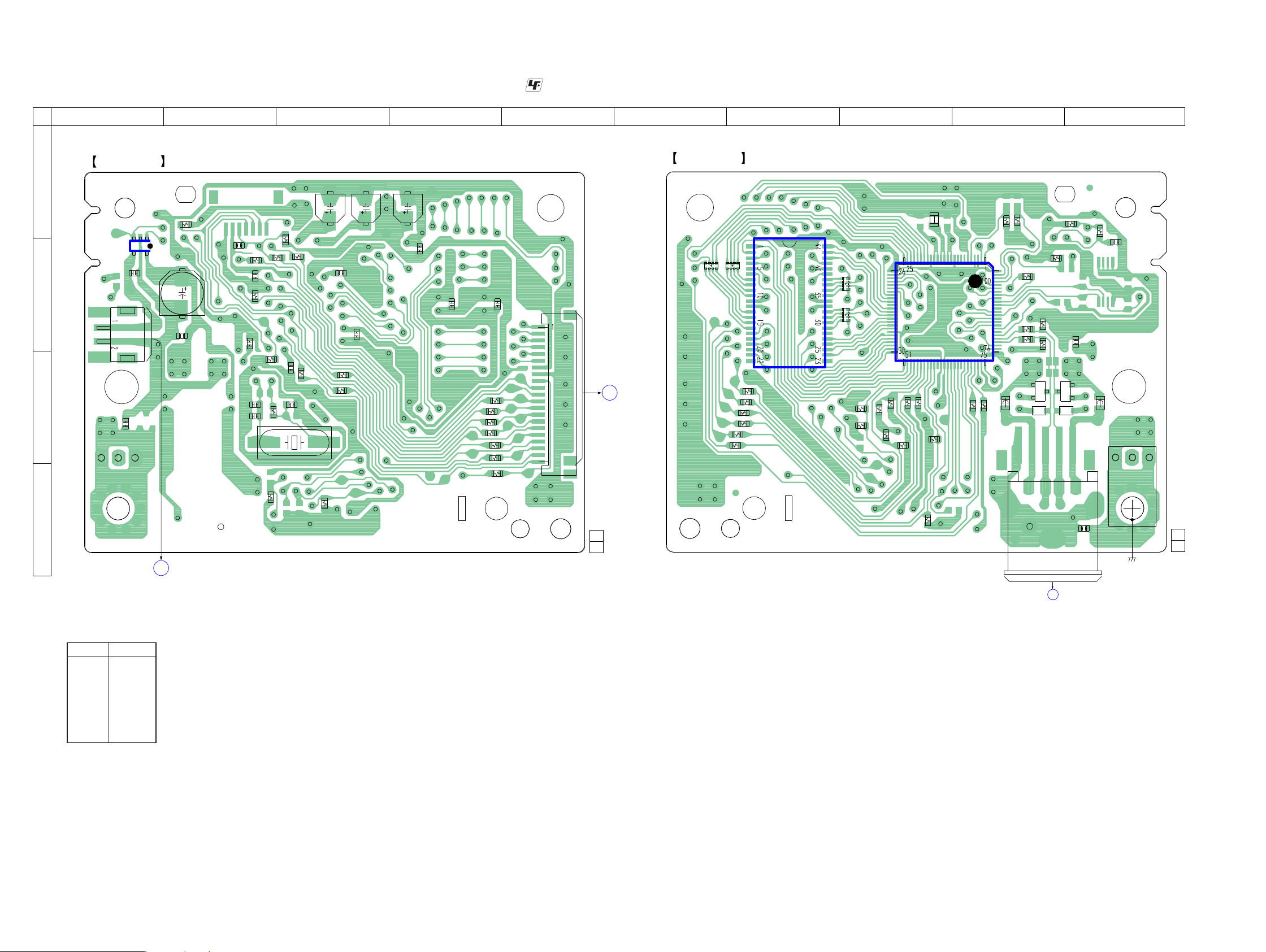

7-10. PRINTED WIRING BOARD - USB Board -

• See page 27 for Circuit Boards Location.

• : Uses unleaded solder.

Ref. No. Location

• Semiconductor
Location

D901 C-9
D902 C-10
D903 C-9
D904 C-10

IC901 B-8
IC915 B-1
IC921 B-7

(Page 34)

(Page 35)

(Page 46)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3333

M

5V REG
BOARD
NO050

N

USB

BOARD

CONNECTOR

NO1001

K

MAIN

BOARD

(4/4)

CN420

11

R986 100

DATA

R985 100

CLOCK

C930

EP901

(CHASSIS)

0.33

C919

0.1

D903

D904

MAZ8068GMLS0

MAZ8068GMLS0

CLOCK

DATA

CLK

DATA

R970

R971

R972

R973

R974

R975

R976

R977

R979

R978

R932

R982

R984

RB922

RB921

RB923

RB924

C907

C906

C921

R901

C901

R937

R983

C902

JR902

C903

C922

R907

R906

R905

R904

R903

R902

R917

R915

R913

C908

R919

C909

R916

C910C912

R944

R943

R942

R941

C905

C904

R933

R934

R938

C915

C913

C914

R981

R922

R924

R923

R921

IC921

R926

R925C920

IC915

C916

R920

CN907

CN903

CN901

FB902

FB901

D902

C917

R945

R947

IC901

R928

D901

X901

R949

100

100

100

100

100

100

100

100

100

100

100

100

100

47

47

47

47

0.1

0.1

0.1

10k

0.1

100

100

10

16V

0

10

16V

0.1

4.7k

4.7k

4.7k

4.7k

4.7k

4.7k

0

10k

100k

0.1

100

22p

0

22p10p

100k

100k

100k

100k

0.1

10

16V

0

10k

100

0.1

0.1

0.1

100

100k

27

27

100k

IS61LV6416-10T

15k

15k0.33

C918

0.33

R5523N001BTR-F

0.1

10k

21P

5P

2P

4.7k

4.7k

0

9MHz

4.7k

A13

A14

A15

D0

D1

D2

D3

D4

D5

D6

D7

RD

WR

LB

UB

SRAM-CS

A8

A9

A10

D7

D4

D5

D6

WR

D0

D1

D2

D3

SRAM-CS

A11

A12

A13

A14

A15

LB

UB

RD

A7

A8

A9

A10

A11

A12

A4

A5

A6

D12

D13

D14

D15

A4

A5

A6

D8

D9

D10

D11

D12

D13

D14

D15

BUS0

BUS1

BUS2

BUS3

BUCK

CCE

USB-SI

USB-SO

DO

USB-RST

LRCK

BCK

REQ

ST-REQ

A-IN

GATE

LRCK

CCE

BUCK

BUS3

BUS2

BUS1

BUS0

DO

DI

USB-SO

USB-SI

BCK

A-IN

GATE

REQ

ST-REQ

USB-RST

DI

A7

A16

A16

A1

A2

A3

A1

A2

A3

D11

D10

D9

D8

EN

FLG

EN

FLG

MC2837

220

6.3V

TMP92CD28AFG-7AC9 (TEM)

MC2837

D+

D-

AM0

DVSS

DVSS

RVOUT1

RVIN

RVIN

RVOUT2

DVSS

DVSS

DVSS

AM1

X2

DVSS

X1

USB+5V

DVDD+3.3V

DVSS

LRCK

CCE

BUCK

BUS3

BUS2

BUS1

BUS0

USB-RST

ST-REQ

REQ

GATE

A-IN

BCK

GND

DI(CTS)

DO(RTS)

USB-SI(RXD)

USB-SO(TXD)

NC

A6

A5

A4

A3

NC

I/O8

I/O10

I/O11

VDD

GND

I/O12

I/O13

I/O14

I/O15

A2

A1

A0

I/O9

NC

A7

A8

A9

A10

I/O7

I/O6

I/O5

I/O4

GND

VDD

I/O3

I/O2

I/O1

I/O0

A11

A12

A13

A14

A15

WE

CELB

UB

OE

A13

GND

D+

D-

VBUS

EN

GND

OUT

INFLG

(USB)

S-RAM

VBUS POWER ON/OFF SWITCH

A12

A11

A10

A9

A8

DVCC

A7

A6

A5

A4

A3

A2

A1

A0

D15

D14

D13

D12

D11

D10

D9

D8

DVCC

D7

D6

D5

D4

D3

S2

D1

D0

DVSS

DVCC

DVCC

DVSS

NO USE

NO USE

NO USE

DVCC

G-3

NO USE

NO USE

DI

G-2

G-1

ST-REQ

REQ

DVCC

GATE

DATA

BCK

SCL

SDA

NO USE

RXD1

TXD1

CLOCK

DATA

DO

NO USE

USBPON

USBOC

DVCC

BOOT

NO USE

SRLUB

SRLLB

RD

WR

CS2

DVCC

NO USE

/CCE

/BUCK

BUS3

BUS2

BUS1

BUS0

A16

A15

A14

USB CONTROLLER

LRCK

/RESET

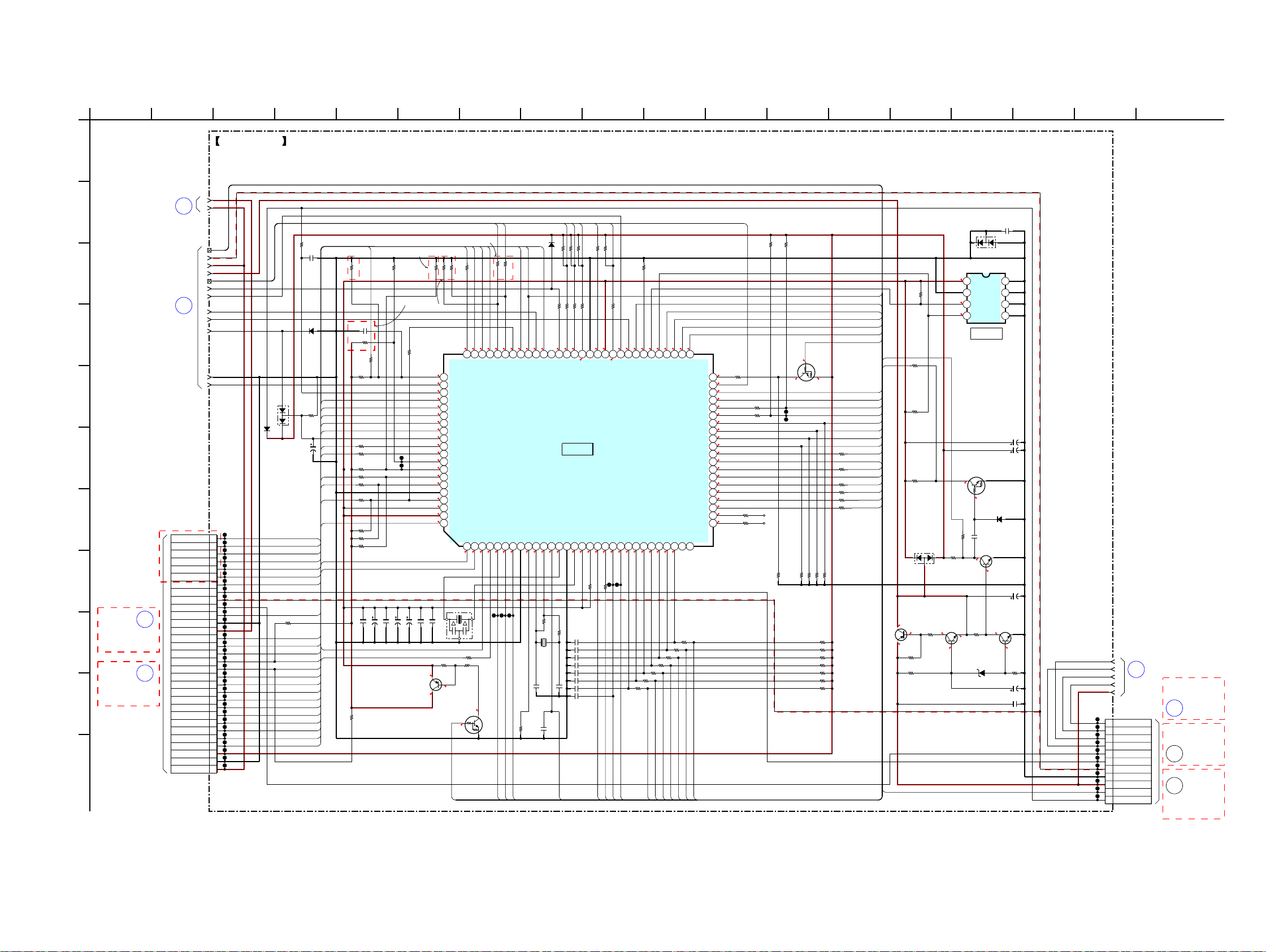

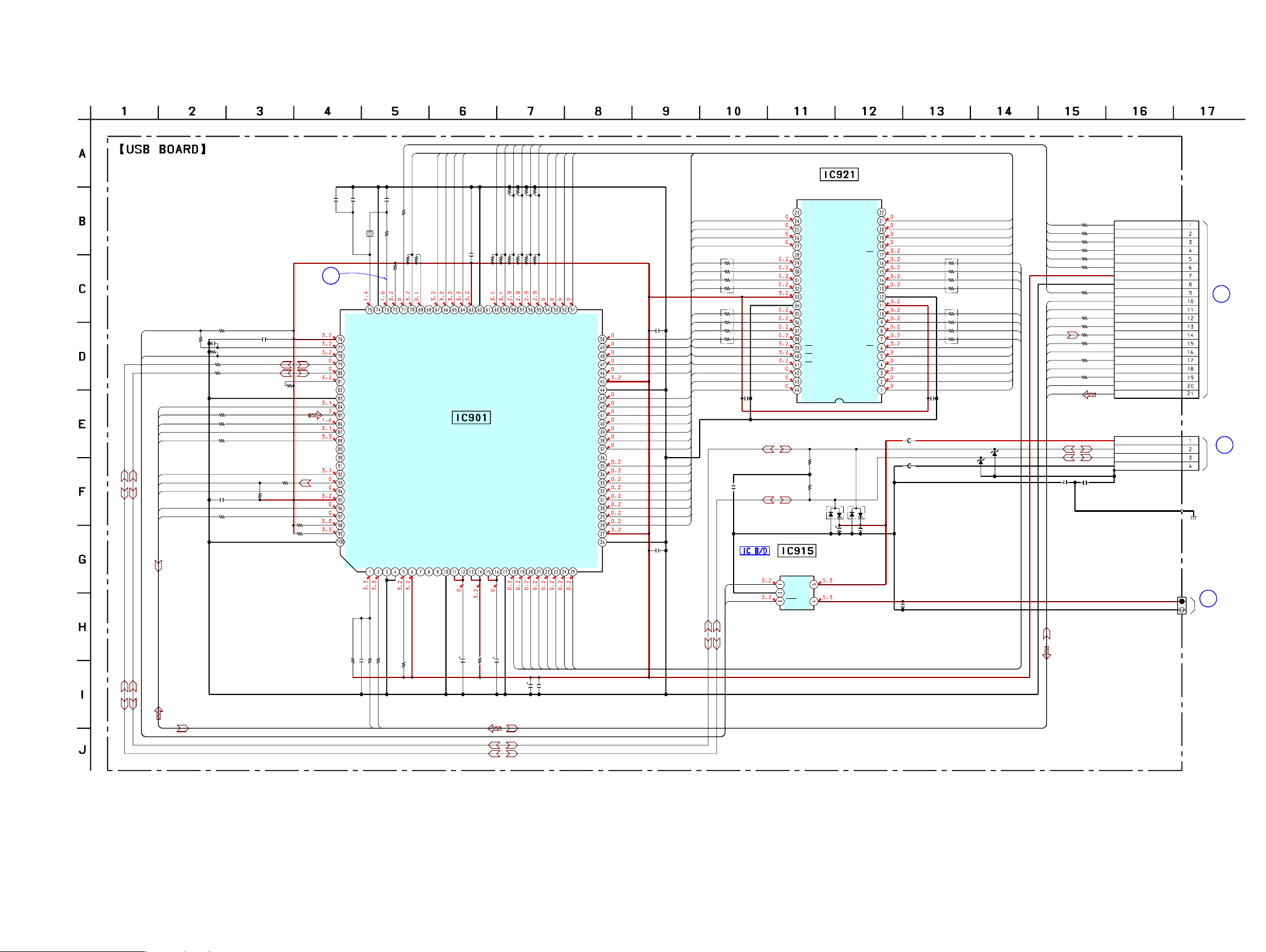

7-11. SCHEMATIC DIAGRAM - USB Board -

• See page 54 for Waveforms. • See page 54 for IC Block Diagrams. • See page 57 for IC Pin Function Description.

(Page

39)

(Page 47)

(Page 34)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3434

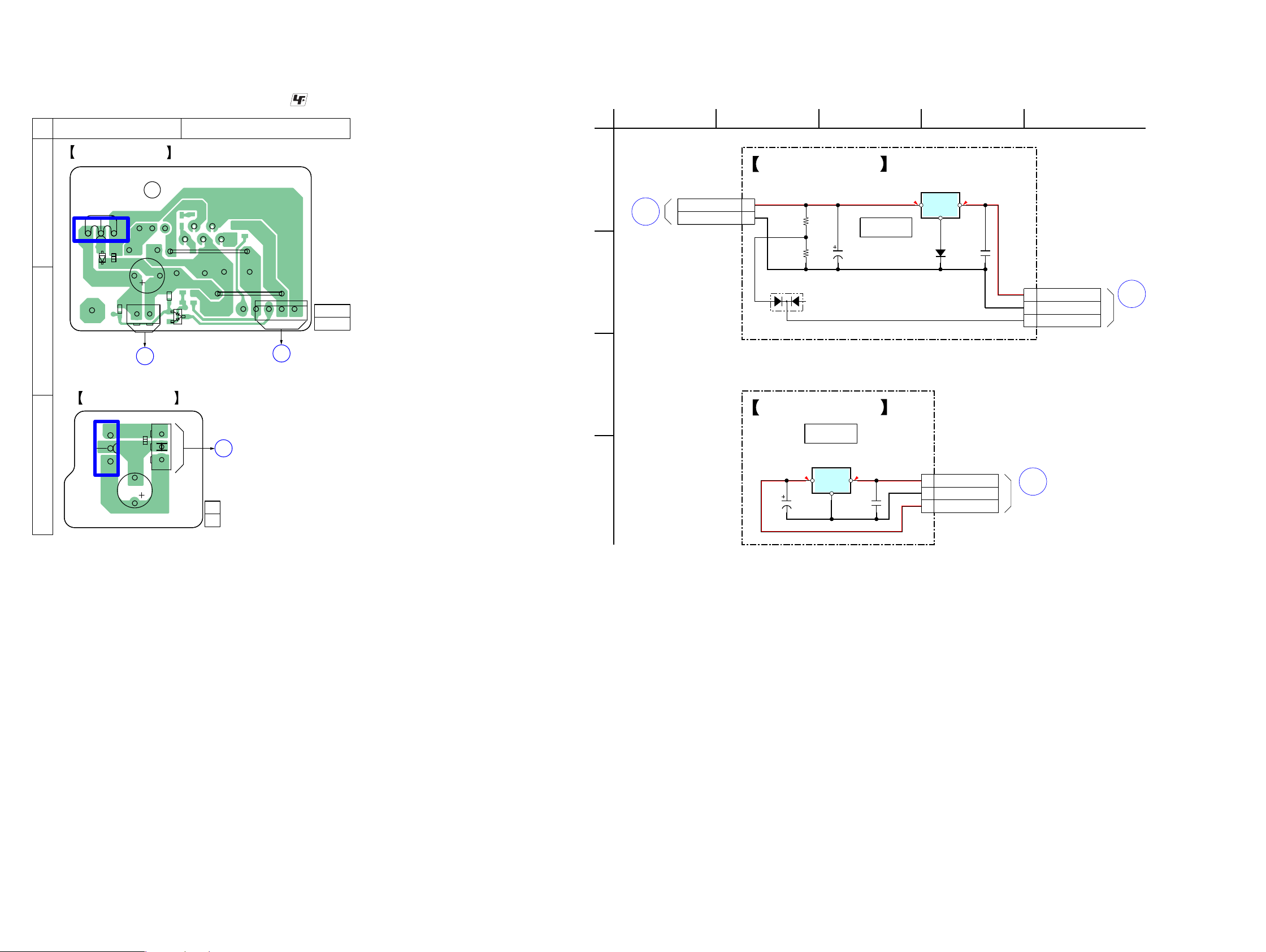

7-12. PRINTED WIRING BOARDS - REG Section -

• : Uses unleaded solder.

• See page 27 for Circuit Boards Location.

7-13. SCHEMATIC DIAGRAM - REG Section -

(Page 32)

(Page 35)

(Page 35)

MAIN

BOARD

P

(3/4)

NO458

BOARD

G

MAIN

(3/4)

CN600

M

USB

BOARD

CN901

5.2 11.9

16.89

R050

4.7k

0.1

C051

R051

10k

2P

NO050

IO

COM

13

2

3P

NO080

UNREG16V

GND

M+9V

0.1

C080

IO

COM

13

2

5V REG BOARD

UNREG

REG_PROTECT

GND

CN055

3P

9V REG BOARD

D

B

531

C

4

A

2

IC050

+5V REGULATOR

KIA7805API-U/PF

IC050

10V

470

C050

KDR357-RTK/P

D050

MC2838-T112-1

D055

USB+5V

GND

1

2

2

3

1

1

3

2

KIA7809API-U/PF

IC080

+9V REGULATOR

IC080

10V

100

C081

(Page 33)

(Page 38)

(Page 38)

Ver. 1.3

12

5V REG BOARD

A

B

IC050

C051

D050

R050

USB

BOARD

CN901

1

C050

NO050

12

M

3

9V REG BOARD

R051

JW053

D055

JW052

MAIN
BOARD
NO458

3

CN055

1-875-669-

P

1

12, 13, 14

(12, 13, 14)

C

1

IC080

3

C081

C080

1

3

1-876-329-

NO080

G

MAIN

BOARD

CN600

11

(11)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3535

1

4

5

8

1

4

5

8

1

14

15

29

28

42

43

56

1

4

5

8

14

8

1

7

14

8

17

9

16

18

BE

B

B

B

E

E

BE

BE

E

B

E

B

E

B

E

BE

BE

B

E

BE

BE

BE

BE

BE

BE

BEBE

BE

BE

BE

B

E

B

E

BE

BE

BE

B

E

B

E

BE

1

100

80

81

50

51

30

31

5

8

14

BE

BE

BE

BE

BE

BE

R404

JR362

R212

JR363

R213

R215

R409

R411

R220

R221

R222

R223

R417

R224

R225

R226

R227

R279

Q670

R228

R610

Q671

R229

R612

R614

R615

R616

R617

R428

Q681

R432

R628

R627

R434

R241

R242

C206

R243

R244

C209

Q690

R630

Q691

R631

Q693

R633

Q694

Q695

R634

R635

Q696

R636

R250

C214

R445

R639

R446

R256

R257

R258

R640

C412

R450

R644

C608

R645

C221

C222

C223

R263

C610

C612

C615

R651

R461

C427

R463

C428

R270

R465

R271

R466

R272

R467

R468

C620

R276

R277

R278

R662

R666

R668

R280

R474

R475

R669

R282

R283

R284

R285

R286

R287

R288

R670

R289

R671

R672

R673

R481

R675

R676

R483

R291

R292

C256

C640

C641

C642

C451

R681

C647

R683

C648

C649

R491

R492

D202

R493

R497

Q110

Q111

C652

Q112

C654

R690

Q115

R691

Q116

R692
R693

R694

C464

R695

C271

D213

D211

R696

C272

D212

R697

C273

R698

C275

C663

C664

C471

C665

D605

Q128

D608

C281

C671

JW622

C677

C679

C299

C566

JR112

R647

R656

Q645

Q211

Q210

Q214

Q215

Q658

Q656

Q657

Q648

Q646

R646

R654

R381

R365

R427

R440

JR628

JR624

Q447

R327

R438

R436

R435

R433

R431

R426

R425

R424

R423

R422

R419

R480

R575

R476

R576

C426

C425

C424

C423

C422

C420

C414

R490

C483

C410

C411

C496

R494

R393

D201

R391

R495

R214

R211

R210

R216

R217

R218

R648

C212

C656

JR118

JR113

JR661

R658

R657

R663

R664

R613 R655

R650

Q644

Q640

Q643

Q641

R642

R643

R649

R641

R653

R652

C698

Q647

JR114

C681

D628

JR622

C499

D630

C692

D632

C693

C697

JR441

R108

R110

R111

R112

R113

R114

R116

R117

Q178

R119

D468

R121

R122

R127

R128

R129

R322

R323

R324

R325

R326

JR623

R133

R328

R134

R135

R136

R137

D483

R138

R144

R145

C112

D110

C114

D690

D691

R345

D692

R346

C117

R153

D694

D695

R158

R159

C121

C122

C119

R165

R166

R167

C321

R361

C133

C134

C135

R366

R367

C169

R177

R178

R179

R182

R183

R184

R185

R186

R187

R188

C150

C151

C152

C153

R190

R192

R194

R195

R581

R390

R392

R394

R395

R397

JR102

JR103

JR104

JR105

JR106

JR107

JR109

Q402

D116

JR110

JR111

JR115

JR116

JR117

JR119

Q606

C183

C184

C185

JR120

JR121

JR122

JR123

C576

Q430

Q628

Q452

R200

R201

R202

R203

R204

R206

R207

R208

+

-

+

-

BE

20

21

1

2

E

B

B

E

1

3

1

2

12

13

1

2

8

9

14

E

B

2

1

30

31

1

1

1

1

1

JW157

NO458

3

3

3

3

3

30

31

1

2

2

1

8
9

1

13

1

3

E

B

B

E

1

3

8

1

111

JW371

JW373

JW181

JW182

JW183

JW188

JW380

JW192

JW387

JW193

JW388

JW194

JW389

JW195

JW198

CN403

Q212

Q655

C213

CN402

JW185

JW397

JW281

JW335

JW184

JW143

JW313

C416

X402

JW255

JW197

JW147

JW128

D651

JW179

C655

CN410

JW320

JW119

JW315

JW347

JW290

JW151

JW165

JW260

JW142

JW202

JW390

JW344

JW417

JW239

JW221

JW626

JW433

JW210

JW225

JW146

JW171

JW268

JW161

JW378

JW111

JW155

JW490

C498

JW233

JW366

JW126

JW189

JW357

JW329

JW382

JW405

JW292

JW362

JW459

JW334

Q627

JW244

JW152

JW386

JW447

JW414

JW286

JW410

JW199

JW381

JW375

JW363JW133

JW175

JW291

JW457

JW201

JW376

JW420

JW314

JW330

JW421

JW322

JW177

JW452

JW278

JW113

JW273

JW230

JW140

JW325

JW480

JW385

JW403

JW349

JW190

JW332

JW270

JW191

JW404

JW251

JW242

JW243

JW374

JW231

JW250

JW354

JW214

JW481

JW229

JW287

JW122

JW282

JW153

JW102

JW402

JW180

JW108

JW228

JW208

JW207

JW204

JW274

JW139

JW400

JW115

JW443

JW482

JW169

JW262

JW138

JW550

JW361

JW384

JW337

JW114

JW383

JW104

JW370

JW103

JW257

C124

CN470

C143

C145

C146

C147

C148

CN450

C195

C154

C192

C142

C132

C109

C179

C128

C182

C127

C193

C139

C270

C701

C380

C382

C243

C690

Q697

C696

Q113

C611

JW409

JW360

JW126

JW432

JW326

JW190

JW623

JW219

JW299

C699

ET602

JW406

JW120

JW356

JW353

JW212

JW379

JW200

JW137

JW125

JW249

JW176

JW293

JW424

JW367

JW359

JW302

JW124

D624

JW269

JW425

JW426

JW107

JW377

JW299

JW319

JW372

JW401

JW223

JW156

JW149

JW220

JW391

JW392

JW393

JW394

JW395

JW396

CN600

JW398

JW399

Q684

C201

CN420

C211

R637

R638

C215

C216

C218

C602

CN430

C604

C605

X401

C220

C609

C224

C225

C227

C616

C617

C618

NO468

JW203

C258

C242

C259

JW209

R687

R688

CN479

JW211

R689

JW407

JW213

JW408

JW215

JW216

JW217

C462

JW411

JW412

JW413

CN488

C274

JW415

JW416

C277

JW418

JW224

JW419

D601

JW226

D602

JW227

JW228

JW422

JW423

C284

JW232

C286

JW427

C287

JW428

JW234

CN690

JW235

JW236

JW237

JW238

JW621

ET601

JW430

C678

JW431

JW240

JW435

JW241

JW437

JW438

JW246

JW247

D623

JW248

C687

JW441

JW442

JW444

JW445

JW446

JW252

JW253

JW254

JW449

JW258

C694

JW450

JW451

JW453

JW454

JW261

JW456

JW263

JW458

JW264

JW265

JW267

JW461

JW462

JW463

JW464

JW271

JW275

JW277

JW280

JW283

JW284

JW285

JW289

CN110

JW294

JW295

JW296

JW297

JW298

C101

C102

C113

C118

R155

R156

R157

C123

C129

C131

A003

C137

C144

C149

JW101

JW105

JW106

JW109

JW300

JW301

JW303

JW304

JW110

JW305

JW112

JW307

JW309

JW116

JW117

JW118

JW310

JW311

JW312

JW121

JW316

JW317

JW123

C177

JW318

C178

JW127

C180

JW321

C181

JW323

JW324

JW130

JW131

JW132

C187

JW134

JW135

JW136

C383

JW331

C194

JW141

JW336

JW338

JW144

JW339

JW145

JW148

JW340

JW341

JW342

JW343

JW150

JW345

JW346

JW348

JW154

JW158

JW159

JW351

JW355

JW163

JW358

JW164

JW166

JW167

JW364

JW170

JW365

JW172

JW173

JW368

JW174

JW369

JW178

JW436

JW466

JW429

C254

C241

C293

JR626

JR627

JR621

R132

R557

JR630

JR629

IC675

IC401

IC670

IC672

IC673

IC407

IC251

IC253

IC252

IC602

IC603

MAIN BOARD

B

DISPLAY
BOARD
CN1107

DISPLAY

BOARD
CN1101

TC BOARD

V

C

MIC

BOARD

NO701

CD
BOARD
CN201

USB
BOARD
CN907

J

9V REG

BOARD

NO080

POWERAMP

BOARD
CN801

(GT222/GT444/GT555)

(GT444/GT555)

(GT444/GT555)

(GT222/GT444/GT555)

(GT444/GT555)

(GT222/GT444/GT555)

(GT111:E2,E3,E51)

(GT111:AEP,RU,AR)

(GT444/GT555)

G

5V REG

BOARD

CN055

P

TRANS1

BOARD
CN907

D

TRANS2
BOARD

CN907

E

TRANSX

BOARD
CN907

F

H

L

K

A

MIC BOARD

NO700

(GT111)

(GT222/GT444/GT555)

(GT222/GT444/GT555)

CD MECHANISM

DECK

(NC)

(CHASSIS)

(CHASSIS)

M101
(FAN)

M

M102

(FAN)

M

11

1

FFC220

ANTENNA

AM

TUNER
(FM/AM)

GT111:AEP/GT222:AEP/

(GT222/GT444/GT555)

(GT222/GT444/GT555)

GT444:AEP,UK

EXCEPT GT111:AEP/

GT222:AEP/GT444:AEP,UK

EXCEPT GT111:AEP/
GT222:AEP/GT444:AEP

GT111:AEP,RU/GT222:AEP:RU/

GT444:AEP,RU,UK/GT555:RU

GT111:AEP,RU/GT222:AEP:RU/

GT444:AEP,RU,UK/GT555:RU

A

B

C

D

E

F

G

H

I

J

1234567891011

12

K

1-875-546-

12

(12)

(GT222/GT444/GT555)

GT111:AEP/GT222:AEP

/GT444:AEP,UK

(GT222/GT444/GT555)

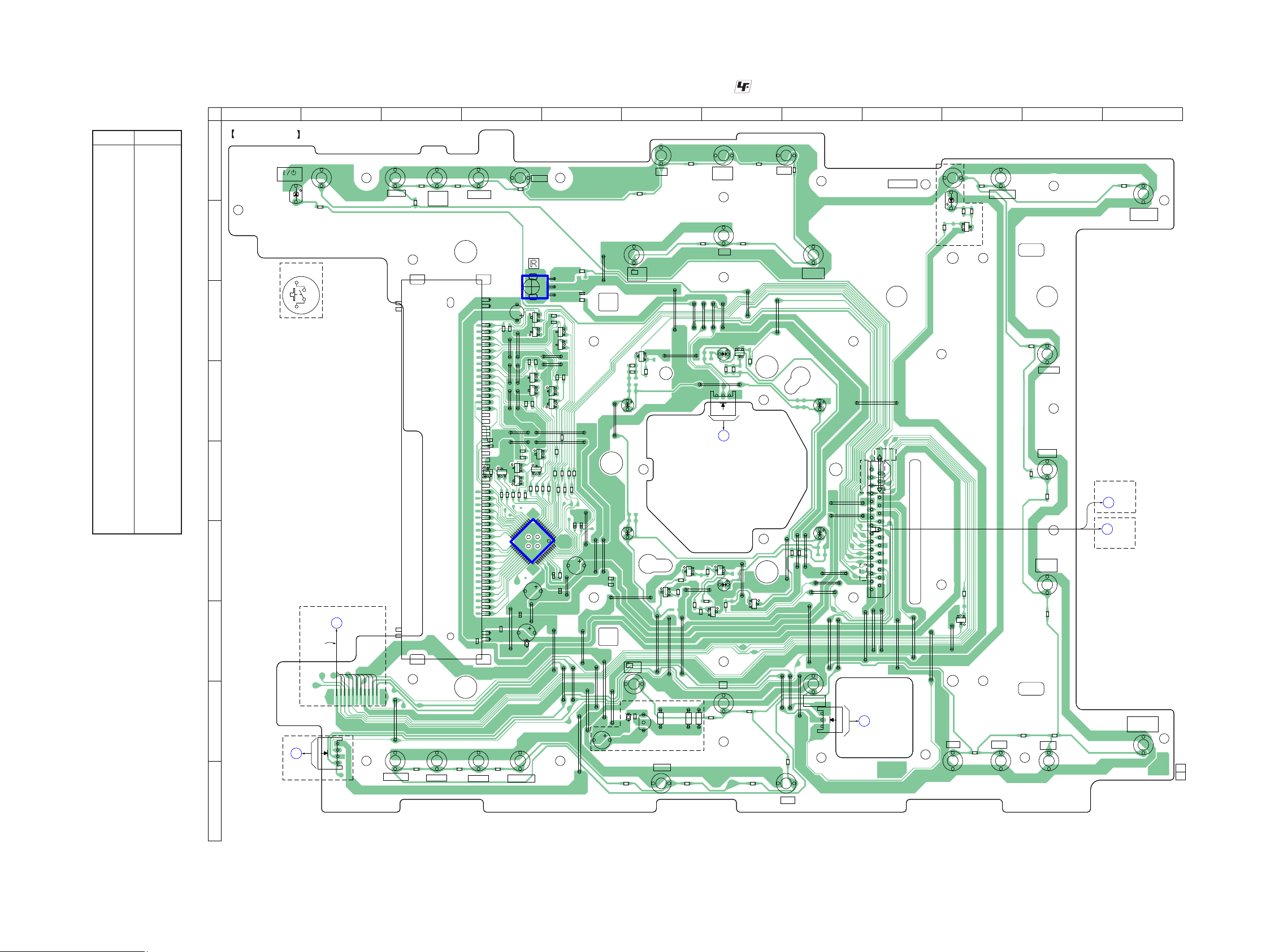

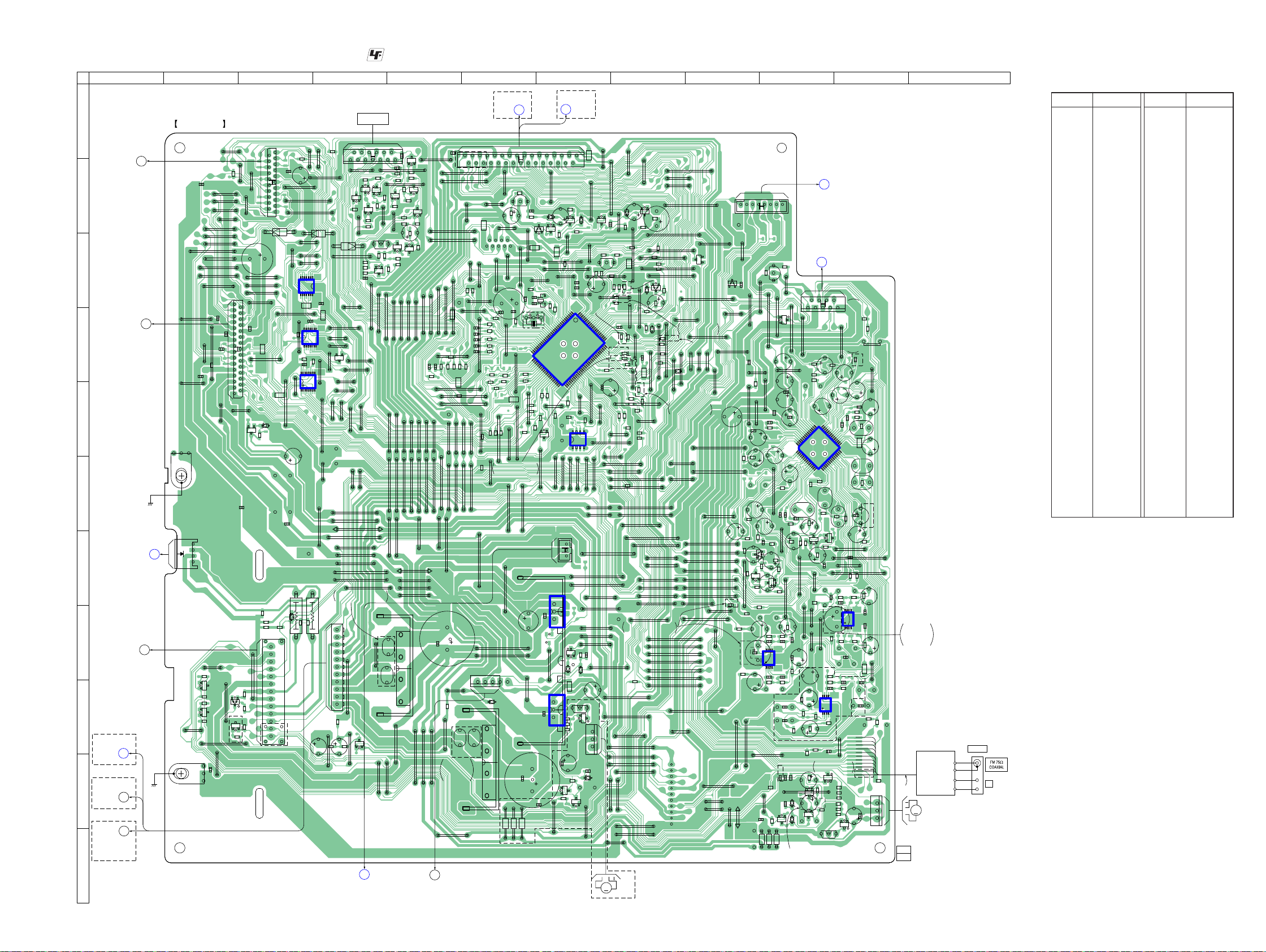

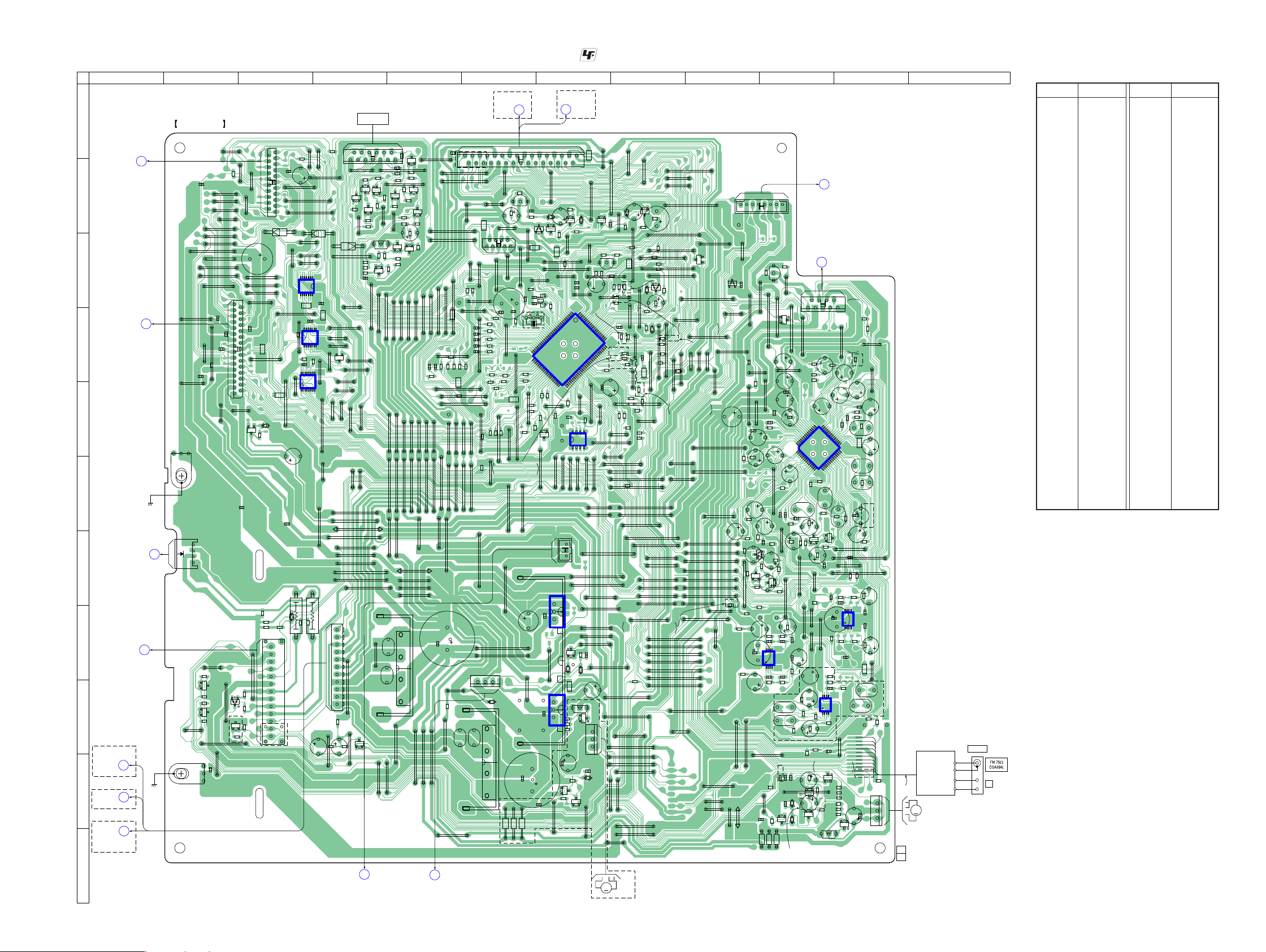

7-14. PRINTED WIRING BOARD - MAIN Board -

• : Uses unleaded solder.

• See page 27 for Circuit Boards Location.

Ref. No. Location

• Semiconductor Location

Ref. No. Location

D110 J-7
D116 G-9
D201 C-8
D202 C-8
D211 B-7
D212 B-8
D213 B-7
D468 D-8
D483 D-8
D601 H-5
D602 J-6
D605 H-7
D608 H-7
D623 C-4
D624 B-3
D628 I-6
D630 H-3
D632 I-2
D651 C-4
D690 J-10
D691 J-10
D692 E-3
D694 B-7
D695 C-9

IC251 H-11
IC252 H-10
IC253 I-10
IC401 D-7
IC407 E-10
IC602 H-7
IC603 I-7
IC670 D-3
IC672 C-3
IC673 D-3
IC675 E-7

Q110 J-7
Q111 J-7
Q112 I-7

Q113 I-7
Q115 G-10
Q116 G-9
Q128 G-10
Q178 G-10
Q210 B-7
Q211 B-7
Q212 B-6
Q214 B-7
Q215 B-8
Q402 I-2
Q430 I-2
Q447 E-7
Q452 I-2
Q606 H-7
Q627 C-7
Q628 C-9
Q640 B-4
Q641 B-4
Q643 B-4
Q644 B-4
Q645 B-5
Q646 B-5
Q647 B-5
Q648 B-5
Q655 C-4
Q656 C-5
Q657 C-5
Q658 C-4
Q670 I-4
Q671 D-4
Q681 D-10
Q684 C-10
Q690 J-10
Q691 J-10
Q693 J-11
Q694 J-10
Q695 J-10
Q696 E-3
Q697 K-10

(Page 32)

(Page 30)

(Page 40)

(Page 41)

(Page 48)

(Page

50)

(Page 52)

(Page 34)

(Page 34)

(Page 44)

(Page 44)

(Page 40)

(Page 31)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3636

7-15. SCHEMATIC DIAGRAM - MAIN Board (1/4) -

• See page 54 for IC Block Diagrams.

BOARD

B

TC

BOARD

MIC

NO700

A

BOARD

11

(3/4)

MAIN

BOARD

12

(2/4)

MAIN

IC B/D

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

0

0

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.494.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

0

3.3

99

8.3

4.4

4.4

4.4

8.9

4.4

4.4

4.4

4.4

4.4

4.4

8.9 4.4

4.4

4.4

4.3

4.3

4.3

8.9 4.4

4.4

4.4

0

2.9

2.9

0

2.9

0

470

R271

*

R272

R220

R222

10V

100

C225

2SC3052EF-T1-LEF

Q402

R670

2.2k

470

R221

R276 47k

22p

C273

C221
100p

16V

47

C220

R279

2.2k

22p

C223

R229

2.2k

1000p

C275

R270

C271
100p

47p

C272

47p

C222

R669
470k

16V

220

C154

0.1

C153

10kR153

10V

100

C148

50V

0.47

C147

50V10C146

50V

10

C145

50V

10

C144

50V

10

C143

50V

10

C142

R223

R226

50V

10

C194

50V

10

C193

50V

10

C192

50V

10

C195

*

C135

0.022C133

0.047C132

4.7k

R132

50V

2.2

C129

1.5kR127

50V1

C124

C121

330p

C122

330p

100R121

1.5k

R177

50V

2.2

C179

C185

4.7k

R182

0.047

C182

10kR134

10kR135

10kR184

10k

R185

15k

R128

15kR178

1MR190

50V

10

C137

50V

10

C187

50V10C109

47kR201

100

R202

16V

C286

47

R282
100k

R288

47k

R283

6.8k

R286

47k

C281

8p

R285

47k

R284

8.2k

R280

5.6k

50V

C287

10

R289

2.2k

2SC3052EF-T1-LEF

(GT444/GT555)

Q430

50V

C123

10

R683

1k

10k

R681

RT1N431C-TP-1

Q681

JW277

C206
470p

C209

1000p

R203

470

16V

C258

47

16V

C218

47

R256 10k

C256
470p

R206 10k

50V

C259

10

R263

470

Q684

KTA1271Y-AT

ET601

EE

ET602

9P

CN450

2SC3052EF-T1-LEF

Q128

2SC3052EF-T1-LEF

Q452

47k

R257

47k

R207

R224

R225

50V

10

C131

50V

10

C181

47kR277

47kR227

R258

27k

27k

R208

JL253

JL254

JL255

JL256

JL257

JL258

JL259

JL260

JL261

JL262

JL263

JL264

JL265

JL266

JL267

JL268

JL269

JL270

JL271

JL275

JL276

JL277

JL278

JL279

JL280

JL281

JL282

JL283

100R122

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15161718

19

20

21

22

23

24

25262728

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45 4647484950

51

52

53

54

55 56

TONEOUTR

VOLINL

TONEOUTL

BASS2L

BASS1L

MID2L

MID1L

TREL

RECBL

RECAL

INGAINOUTL

GAMEL

INFL

DMPORT-L

AUX-L

1.5k

R145

1.5k

R195

47kR138

47k

R188

1k

R278

1k

R228

56k

R192

0.047C152

0.022C184

0.1

C150

0.1

C151

R287

1k

10V

C284

100

1.2k

R144

1.2k

R194

4.7kR183

4.7k

R133

0.01C134

0.01C183

10k

R137

2.7k

R136

2.7k

R186

10k

R187

MA2J1110GLS0

D694

50V

C277

2.2
50V

C227

2.2

50V

2.2

C274

50V

2.2

C224

C178

C177

∗

C128

C127

22

R200

2.2kR179

2.2kR129

C180

220p

C648

220p

C647

470p

C117

100k

R111

50V

22

C101

680

R114

2SC3052EF-T1-LEF

Q116

100k

R110

2SC3052EF-T1-LEF

Q115

470

R112

1.8k

R113

10kR108

MC2837

D116

15k

R117

50V

2.2

C118

100

R116

100

R119

50V

4.7

C102

50V2.2C139

R291

6.8k

R292

10k

0.068

C383

0.068C701

∗

∗

C382

0.1

C380

8P

CN470

C299

220p

C471 0.1

0.1

JR123

6800p

C119

6800p

C169

C241

1000p

470p

C242

C293

1

C243

1

8

7

6

5

4

3

2

1

1

3

5

4

6

18

19

17

15

12

14

16

13

11

8

9

7

PB-L

CD_USB-R

PB-R

MIC

CD_USB-L

61

63

65

66

67

75

76

ST-L

ST-R

MIC

PB-L

PB-R

REC-R

REC-L

AUX-R

ST-R

AUX-R

REC-R

AUX-L

USB_REC-R

USB_REC-L

OUT-L

SW-OUT

49

58

AUX-L

OUT-R

REC-L

ST-L

VCC

GND GND

VCC

GND

VCC

(1/4)MAIN BOARD

(CHASSIS)

BASS AGC

(GT444/GT555)

AM

FFC220

ST-CLK

ST-DOUT

ST-CE

ST+9V

ST-DIN

TUNED

GND

1

ST-R

ST-L

RDS-INT

11 RDS-DATA

(GT111: AEP/GT222: AEP/GT444: AEP)

Q115, 116

BAND-PASS FILTER

Q402, 452

MUTING

MUTING

0.1 (GT555)

C382

0.082 (GT444)

B+ SWITCH

Q681, 684

(GT222/GT444/GT555)

4.7k (GT111/GT222)

6.8k (GT555)

∗ R220, 270

∗ C180

∗ C135, 185

8.2k (GT444)

∗ R222, 272

10k (GT111)
22k (GT222/GT444/GT555)

∗ C128, 177

0.12 (GT444/GT555)

0.15 (GT111/GT222)

0.1 (GT444)

∗ C127, 178

0.12 (GT111/GT222/GT555)

4.7 50V (GT444/GT555)

1 50V (GT111/GT222)

4700p (GT222/GT444)

0.01 (GT111/GT555)

4.7k (GT111: RU, E2/GT222: RU, E2/GT444: RU, E2/GT555: RU, E2)

∗ R225, 226

6.8k (GT111: AEP, E3, E51, AR/GT222: AEP, E51, MX, AR/GT444: AEP, UK, E51, MX, AR/GT555: E51, MX, AR)

2.7k (GT111: E3, E51, AR/GT222: E51, MX, AR/GT444: E51, MX, AR/GT555: E51, MX, AR)

∗ R223, 224

2.2k (GT111: AEP/GT222: AEP/GT444: AEP)

3.3k (GT111: RU, E2/GT222: RU, E2/GT444: RU, E2/GT555: RU, E2)

711

D

B

1669 1710

F

5 15

K

193

G

1 1812

C

E

H

8

J

4 13

A

142

I

10V

100

C149

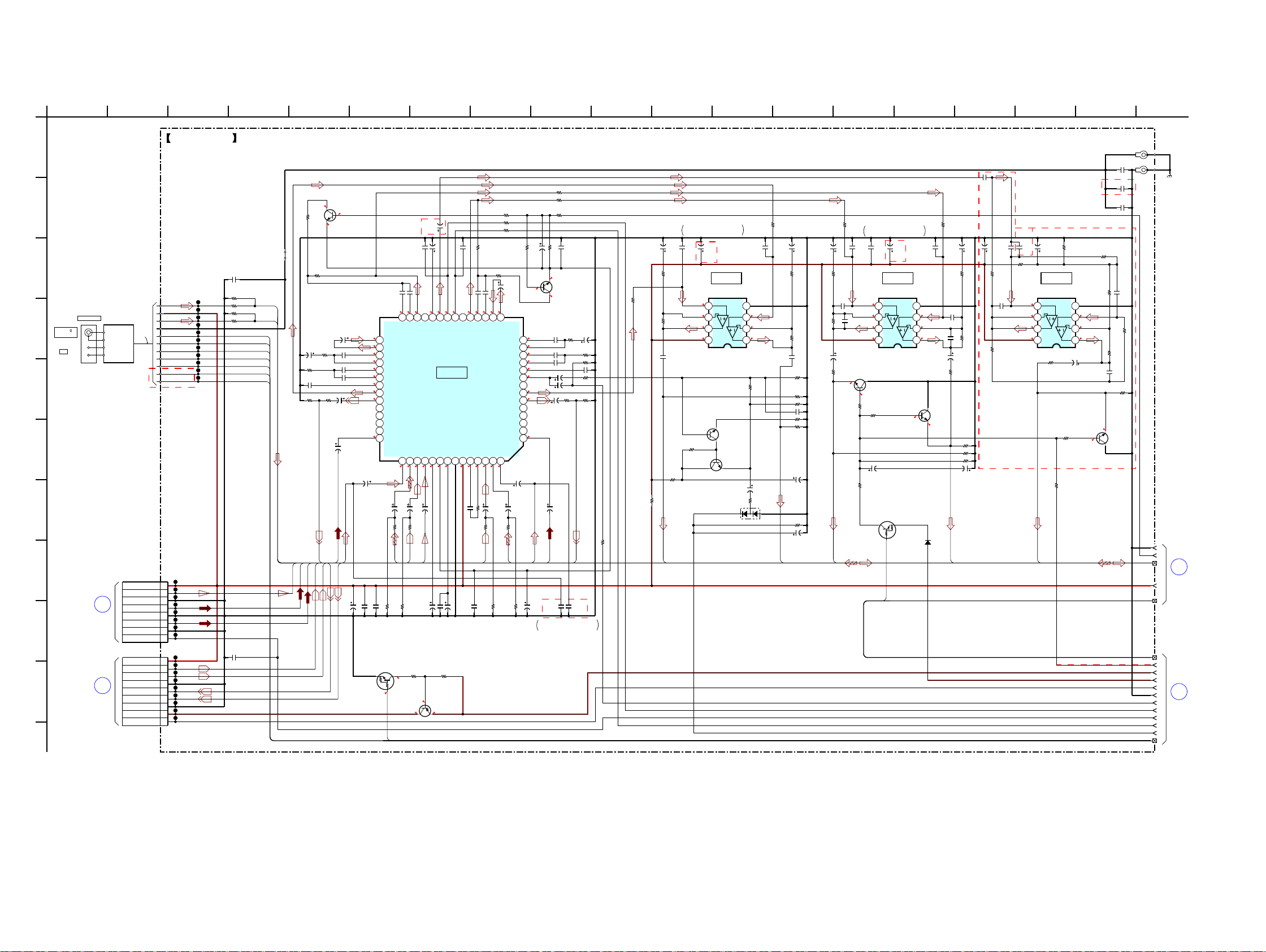

IC253

NJM4558V-TE2

LINE AMP

IC253

8

7

6

5

4

3

2

1

IC252

NJM4558V-TE2

LINE AMP

IC252

16V

47

C270

IC251

NJM4558V-TE2

LINE AMP

IC251

8

7

6

5

4

3

2

1

R2A15216FP

IC407

IC407

INPUT SELECTOR,

ELECTRICAL VOLUME

VOLINR

BB1R

BB2R

OUTR

AGCOUTR

DATA

CLK

SWOUT

AGCC

AGCOUTL

OUTL

BB2L

BB1L

AUX-R

DMPORT-R

INFR

GAMER

INGAINOUTR

RECAR

RECBR

SA1

SA2

TRER

MID1R

MID2R

BASS1R

BASS2R

ST-L

CD-L

TAPE-L

MICVCREFOUT

REFIN

GND

VCC

DPLL/SURL

DPLR/SURR

TAPE-R

CD-R

ST-R

A+9V

PB-LCH

PB-RCH

A-GND

REC-LCH

REC-RCH

M-GND

M+9V

TP-STATE

A+9V

MIC SIGNAL

MIC GND

AUX-L

AGND

AUX-R

AGND

HP/MIC DET

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

ANTENNA

COAXIAL

FM 75

TUNER

(FM/AM)

∗

∗

∗

∗

2SC3052EF-T1-LEF

Q178

BASS AGC

∗

RT1P141C-TP-1

Q670

MUTING CONTROL

∗

∗

∗

∗

∗

∗

∗

GT444: AEP, RU, UK/GT555: RU

GT111: AEP, RU/GT222: AEP, RU/

(Page 40)

(Page 31)

(Page 38)

(Page 37)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3737

7-16. SCHEMATIC DIAGRAM - MAIN Board (2/4) -

• See page 54 for Waveforms. • See page 57 for IC Pin Function Description.

D

E

F

32

31

BOARD

13

(4/4)

MAIN

(1/4)

MAIN

12

BOARD

BOARD

DISPLAY

CN1101

C

DISPLAY

BOARD

V

CN1107

BOARD

14

(3/4)

MAIN

TRANS1

CN907

BOARD

TRANS2
BOARD

CN907

TRANSX
BOARD

CN907

3.3

0

3.3

0

0

0.74.7

4.1

8.79.7

4.1

10.2

3.3

1

3.3

3.3

03.3

0

0

3.3

0 <<0>> {0} (3.3)

3.3

3.3

0

0

0

0

0

0

0

3.3

3.3

3.3

3.3

3.3

0.1

3.3

000

0

0

0

0

0.5

0.5

3.3

1.7

3.2

3.2

3.2

0

000.5

0.5

3.2

3.2

3.3

3.3

3.3

3.3

3.3

3.3

2

0

{3.3} (0)

0

3

0

0.8

3.3

3.3

3.3

3.3

0

2.8

3.3

3.3

3.3

3.3

3.3

0 <<1.3>>

0

0

3.3

000

0

0.6

1.5

3.3

3.3

1.9

1.7

3.3

3.3

3.3

3.3

3.3

3.3

000

0

0

0

0

3.3

3.3

0

3.3

3.3

0 <<3.3>> {3.3} (3.3)

0.1 <<3.3>> {3.3} (3.3)

R211
100k

R213
100k

C215

10

50V

Q215

RT1N441C-TP-1

R218

10k

C212

0.1

R210

2.2k

R217

0

R212

10k

C213

10

50V

C216
1000

6.3V

KTA1271Y-AT

Q212

R215

10k

R214

680

C576

0.1

33k

R204

MC2837

D201

50V

2.2

C201

1kR427

1kR424

R404 100

1kR428

1kR425

1kR426

10kR409

330kR411

10kR417

1kR422

100R419

1kR423

32.768kHz

X401

18p

C410

22pC411

6.3V

C416

2200

0.1

C414

0.1

C496

50V

10

C498

0.1

C499

0.1

C464

10V100

C462

470R494

470R495

470R497

100R431

100R432

100R433

100R434

100R435

100R436

100R438

100R440

100R445

100R446

220k

R483

100R490

100R491

15kR394

15kR395

100R474

15kR397

10kR361

10k

R366

100

R476

100

R475

100R467

10k

R367

10k

R346

10kR345

100k

R244

100k

R243

100k

R242

100k

R241

100R465

100R466

100R461

R391

10k

4.7k

R390

R322 22k

R323 22k

R327 22k

R324 22k

R328 22k

R325 22k

R326 22k

100

R463

R365

10k

100R480

C483

1000p

0.047

C427

0.047

C424

0.047

C428

0.047

C425

0.047

C426

0.047

C422

0.047

C423

C420

0.1

2SC3052EF-T1-LEF

Q211

2SC3052EF-T1-LEF

Q210

2SC3052EF-T1-LEF

Q214

MA2J1110GLS0

D202

MA2J1110GLS0

D483

MA2J1110GLS0

D212

R675

10k

R216

22k

*

CN403

JL223

JL224

JL225

JL226

JL227

JL228

JL229

JL230

JL231

JL232

JL233

100

R450

10kR250

R381
15k

R493

∗

R393

4.7k

R492

R392

MC2836

D213

0.047

C412

C214

0.33

MAZ8043GMLS0

D211

1

2

3

4

5

6

7

8

9

9P

CN402

MC2837

D695

12345678

91011 12 13 14 15

16 17 18 19 20 21 22 23

24 25 26 27 28 29 30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51525354555657585960616263

6465666768697071727374757677787980

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

METER-IN3

METER-IN4

SW LED

SIRCS

CDM-SD

M2-

M2+

BYTE

CNVss

XC-IN

XC-OUT

RESET

X-OUT

VSS

X-IN

VCC

NMI

M1-

SBSY

AC-CUT

M1+

SW3

SW1

SW-CHUCK

SW2

SW-CLOSE

SW-STOCK

SW-OPEN

IIC-CLK

IIC-DATA

OVERVOLTAGE

METER IN2

FL-DRIVER-CLK

FL-DRIVER-DATA

FL-DRIVER-CS

FL-DRIVER-RESET

VACS I N

OPERATION DIAL

MASTER VOL

MODEL-IN

DEST-IN

AD-KEY2

AD-KEY1

AVSS

AD-KEY0

VREF

AVCC

METER-IN1

MA2J1110GLS0

D468

C211

10

50V

220R468

0

R576

0R575

0

R581

R676

10k

JL410

JL402

JL411

JL407

JL412

JL404

JL405

JL406

JL401

JL409

JL403

JL400

JL408

JL413

JL417

JL419

JL415

JL416

JL420

JL414

JL418

JL426

JL423

JL422

JL421

JL424

JL428

JL427

JL425

JL431

JL432

RT1N431C-TP-1

Q628

R628

10k

Q627

KTA1271Y-AT

R627 47k

R481

1k

1

2

3

4

5

6

7

8

9

10

11

11P

NO468

JL005

JL006

JL007

JL020

JL021

JL045

JL046

JL092

JL093

8

7

6

5

4

3

2

1

X402

23

24

22

25

26

20

21

7

14

15

11

9

12

17

18

8

16

13

19

0

R557

R581

0.047

1

38

76

75

53

77

1

100

84

94

52

51

100

88

87

86

85

95

84

79

78

88

87

86

85

4

79

78

77

2

3

54

58

67

72

72

73

80

70

31

34

33

32

9

12

94

91

90

36

35

33

33

40

12

34

34

M1-

M1+

19

12

12

M2+

M2-

5

28272625242322

20

39

BUS1

BUS3

BUS0

BUS2

32

31

PROTECT

48

47

49

97

81

61

63

65

66

20

2

81

70

80

97

95

90

91

73

72

4

3

9

46

39

37

45

VCC

WP

SCL

SDA

A0

A1

A2

GND

5MHz

MAIN BOARD (2/4)

54

680 (GT222: MX/GT444: MX/GT555: MX)

Q627, 628

B+ SWITCH

0 (GT111: AEP/GT222: AEP/GT444: AEP)

R493

31P (GT222/GT444/GT555)

∗ CN403

25P (GT111)

(GT222/GT444/GT555)

(GT111)

(GT222/GT444/GT555)

(NC)

+4V REGULATOR

Q210-212

(GT111: E2, E3, E51)

(GT222/GT444/GT555)

(GT111: AEP, RU, AR)

Q214, 215

RESET SWITCH

(GT222/GT444/
GT555)

(EXCEPT GT111: AEP/
GT222: AEP/GT444: AEP)

(EXCEPT GT111: AEP/
GT222: AEP/GT444: AEP, UK)

(GT111)

(GT111: AEP/GT222: AEP/GT444: AEP, UK)

1k (GT111: E2, E51, AR/GT222: E2, E51, AR/GT444: E2, E51, AR/GT555: E2, E51, AR)

4.7k (GT111: E3/GT444: UK)

150 (GT111: RU/GT222: RU//GT444: RU/GT555: RU)

∗ R392

0 (GT 111)
330 (GT222)
680 (GT444)

1.5k (GT555)

150 (GT444: UK)

4.7k (GT111: RU, E2, E51, AR/GT222: RU, E2, E51, MX, AR/GT444: RU, E2, E51, MX, AR/GT555)

330 (GT111: E3)

∗ R393

711

D

B

1669 1710

F

5 15

K

3

G

1 1812

C

E

H

8

J

4 13

A

142

I

∗

∗

∗

R5F3640DDFA

IC401

IC401

SYSTEM CONTROLLER

MC TXD

MC RXD

USB RESET

USB CTS0

USB TXD0

USB RXD0

USB SEL-SW

USB RTS0

AD SUPPLY SW

MP3 IREQ

CD BUS0

CD BUS1

CD BUS2

CD BUS3

CD CLK

CD CCE

CD-MMUTE

CD-XRST

TC_M+9V SW

PROTECT

STK MUTE

SW SPK RELAY

FR SPK RELAY

STBY RELAY

EEP-SDA

EEP-SCL

DMPORT DET

LINE MUTE

R2A15216FP-CLK

R2A15216FP-DATA

ST-TUNED

VCC

ST-CE

VSS

ST-DIN

ST-CLK

ST-DOUT

POWER ILLUMINATOR

NO USE

USB-BLUE LED

MIC/HP DET

STBY LED

LED CTRL

POWER/DISPLAY-KEY

ST-RDS-INT

ST-RDS-DATA

LED-VOL5,6

LED-VOL3,4

LED-VOL1,2

METER LED

METER SW

TC-TAPE STATE

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

SW LED

METER-IN4

METER-IN3

METER-IN1

METER-IN2

METER SWITCH

USB LED CTRL

VF

-VFL

VF

METER LED

DGND

FL+3.3V

AD KEY0

AD KEY1

AD KEY2

VOL

JOG

FL-RESET

FL-CS

FL-DATA

FL-CLK

SIRCS

LED1

LED2

LED3

LED CTRL

STBY LED

EVER+3.3V

LED GND

LED+9V

DGND

TXD1

RTS1

MCU VCC

CLK1

RXD1

CN VSS

RESET

GND

IC675

EEPROM

IC675

S-24CS16A0I-J8T1G

RT1P431C-TP-1

Q447

LEVEL SHIFT

AC4

AC4

AC3

AC3

VF

VF

-VFL

DGND

EVER10V

STBY RELAY

AC CUT DETECT

(Page 39)

(Page 36)

(Page 45)

(Page 45)

(Page 38)

(Page

49)

(Page

51)

(Page

53)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3838

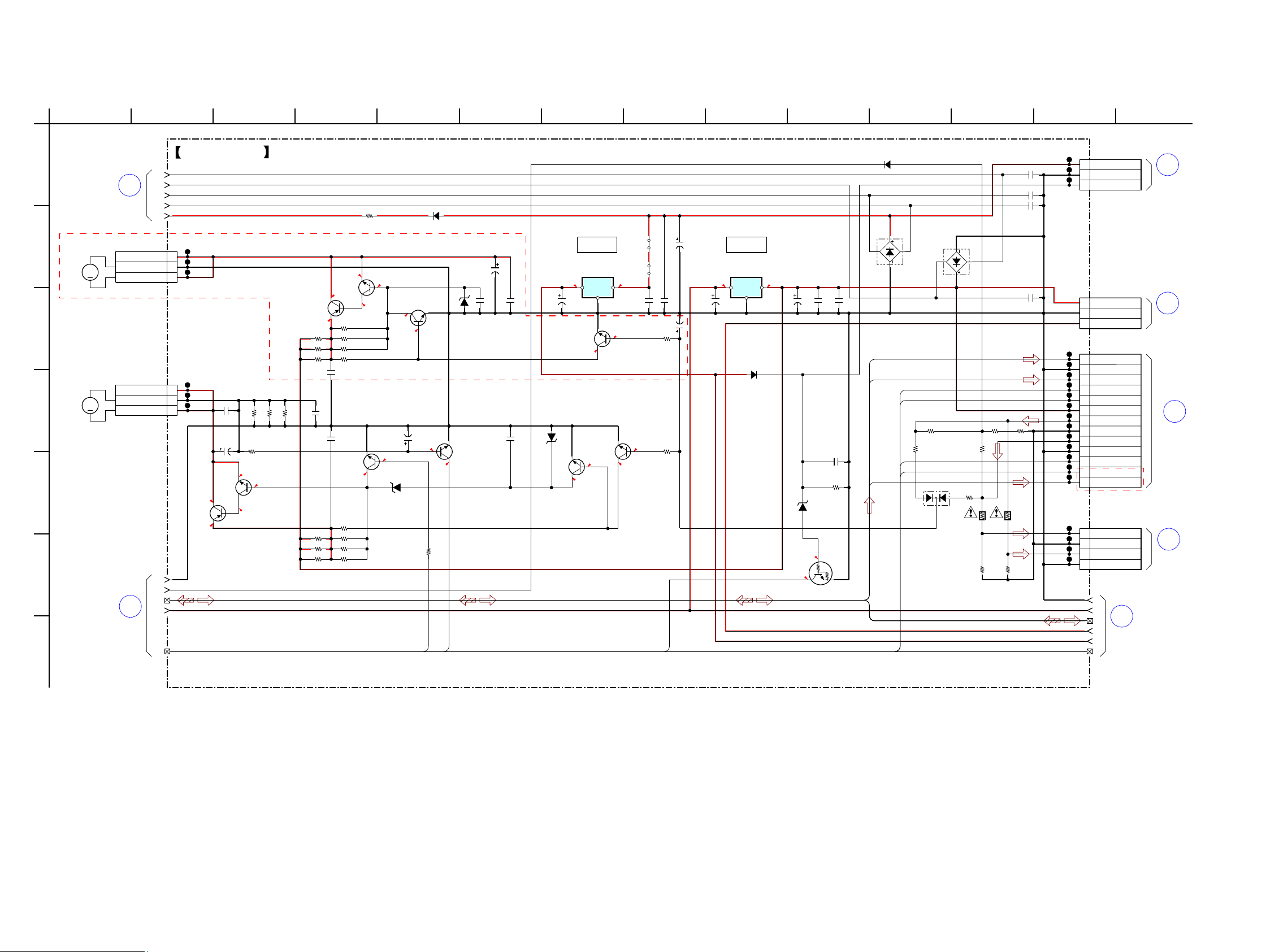

7-17. SCHEMATIC DIAGRAM - MAIN Board (3/4) -

BOARD

14

(2/4)

MAIN

(4/4)

BOARD

15

MAIN

J

NO701

MIC

BOARD

(2/2)

CN801

H

BOARD

POWERAMP

NO080

G

BOARD

9V REG

CN055

P

BOARD

5V REG

BOARD

11

(1/4)

MAIN

3.3 911.8 16.8

0.3

0.7

0.4

0.7
0

0

0.2

3.3

0.2

3.3

0.7

0

16.7

8.8

8.8

16.2

0

6.3

15

6.3

5.8

5.8

15.6

0

D3SBA20-4100

D601

D3SBA20-4100

D602

~

~

~

~

0.01C605

0.01

C604

0.01

C618

0.01C617

25V

4700

C602

25V

100

C609

C611

10V

100

0.1

C608

0.1

C610

RT1N141C-TP-1

Q606

R610

100k

C620

0.1

0.1

C693

1

2

3

3P

CN690

1k

R698

100kR697

4.7kR696

4.7kR695

4.7kR694

100k

R691

25V

C694

47

50V

22

C690

0.1

C692

1k

R690

R639

∗

∗∗

R640

22k

R634

22kR633

R635

MC2838-T112-1

D632

4.7k

R631

4.7k

R630

50V

C696

22

IO

COM

13

2

R612

22

1

2

3

4

4P

CN488

HP-L

HP GND

HP-R

CHASSIS

Q694

2SC3052EF-T1-LEF

2SC3052EF-T1-LEF

Q695

Q690

2SC3052EF-T1-LEF

2SC3052EF-T1-LEF

Q691

25V

4700

C616

MA2J1110GLS0

D628

MA2J1110GLS0

D630

2SC3052EF-T1-LEF

Q693

KTA1273-Y-AT

Q697

47R687

47R688

47R689

IO

G

13

2

JL206

JL207

JL208

JL209

JL210

JL211

JL212

JL213

JL214

JL215

JL216

JL217

JL218

JL219

JL220

JL221

JL222

JL234

JL235

JL236

JL239

JL240

JL241

R637 R638

10

R692

10

R693

MA2J1110GLS0

D605

R668

MAZ8068GMLS0

D691

MAZ8062GMLS0

D690

MAZ8047GMLS0

D608

2SC3052EF-T1-LEF

Q112

JL111

1

2

3

3P

CN110

100kR158

47R156

0.1

C114

1k

R159

JL110

2SC3052EF-T1-LEF

Q110

47R157

0.1

C112

25V

C113

47

Q111

2SC3052EF-T1-LEF

KTA1273-Y-AT

Q113

47R155

JL112

4.7kR166

4.7kR167

4.7kR165

0.1

C615

0.1

C612

0.1

C652

0.1

C654

0.1

C649

JW610 JW611

0R636

CN479

R-IN

PREGND

L-IN

STK MUTE

PROTECT

UNREG+16V

HP-R

HP GND

HP-L

POWER GND

SPK RELAY

SW ON/OFF

SW IN

1

2

3

CN600

3P

UNREG16V

GND

M+9V

MAZ8130GMLS0

D110

23

3

24

26

1

25

22

5

4

6

30

27

28

31

29

32

OUT-R

51

OUT-L

PROTECT

53

52

SW-OUT

PROTECT

72

PROTECT

MAIN BOARD (3/4)

1

GND

REG_PROTECT3

NO458

2

UNREG

3P

(GT444/GT555)

CN479
11P (GT111/GT222)
13P (GT444/GT555)680 2W (GT222/GT555)

R637, 638
470 2W (GT111/GT444)

100 (GT111/GT222/GT555)

R639, 640
47 (GT444)3.9k (GT111/GT555)

R635

4.7k (GT222)

5.6k (GT444)

PROTECT DETECT

Q110-113

FAN MOTOR DRIVE

8.2 (GT111/GT222)

R668

10 (GT444/GT555)

M

M102
(FAN)

M

M101

(FAN)

(GT222/GT444/GT555)

711

D

B

6910

F

53

G

1 12

C

E

84 13

A

142

FAN+

FAN-

FAN+

FAN-

NC

NC

∗

∗∗ ∗ ∗

∗

∗

∗

∗

FAN MOTOR DRIVE

Q690, 691, 693-695, 697

μPC3533AHF

IC603

IC603

+3.3V REGULATOR

KIA7809API-U/PF

IC602

IC602

+9V REGULATOR

1

2

3

4

5

6

7

8

9

10

11

12

13

(Page 37)

(Page 36)

(Page 34)

(Page 34)

(Page 43)

(Page 40)

(Page 39)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

3939

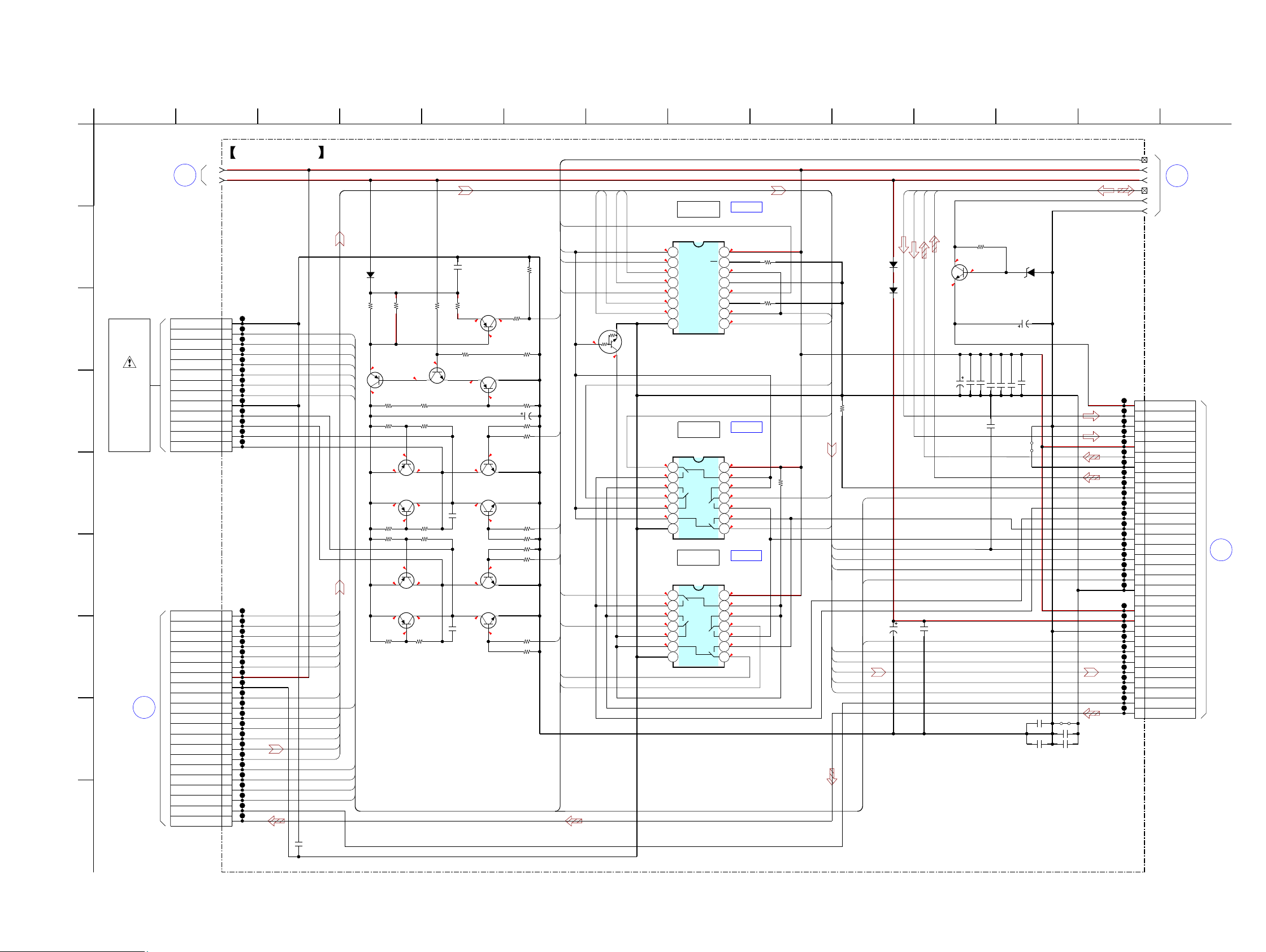

7-18. SCHEMATIC DIAGRAM - MAIN Board (4/4) -

• See page 54 for IC Block Diagrams.

USB

CN907

K

BOARD

IC B/D

IC B/D

IC B/D

CD

L

BOARD

(2/2)

CN201

MAIN

BOARD

15

(3/4)

BOARD

13

MAIN

(2/4)

3.3

0

0

0

0

0

3.3

0

0

0

0

0

0

3.3

0

0

0

0

0

0

3.3

3.3

3.3

0

0

0

0

0

0

0

0

3.3

3.3

8.3

5.5

5.2

4.7

4.7

4.7 4.7

4.7

4.74.7

4.7

4.7

0

4.9

4.7 4.7

4.7

0

4.74.7

4.7

4.7

4.7

08.5

8.5

4.6

7.9

3.7

4.2

8.5

4.7

0

0

0

3.3

3.3

3.3

3.3

10kR672

1I/O

1O/I

2O/I

2I/O

2C

3C

GND

3I/O

3O/I

4O/I

4I/O

4C

1C

VCC

1I/O

1O/I

2O/I

2I/O

2C

3C

GND

3I/O

3O/I

4O/I

4I/O

4C

1C

VCC

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

SELECT

1A

1B

1Y

2A

2B

2Y

GND

3Y

3B

3A

4Y

4B

4A

ST

VCC

0.1

C663

0.1

C665

0.1

C664

10kR673

C655 220 10V

R656

47k

R643 470

R652 47k

R664

2.2k

R642 47k

R653 470

R644

47k

R649 470

R657

2.2

R645

470

R648 47k

R646 470

R658

2.2

R654 470

R647 47k

R655 47k

Q655

KTA1273-Y-AT

R651 470

R641

470

R650 47k

21P

CN420

50V

10

C687

10V

1000

C678

10k

R671

0.1

C697

0.1

C698

1N4002B

D624

1N4002B

D623

13P

CN410

Q656

2SC3052EF-T1-LEF

31P

CN430

DATA

CLK

GATE

ST_REQ

AIN

BCK

LRCK

M-MUTE

MGND

VM(7V)

DVDD(3.3V)

D-OUT

DGND

SBSY

REQ

/CCE

BUCK

BUS3

BUS2

BUS1

BUS0

/RST

AGND

L-OUT

DACGND

R-OUT

AVDD(3.3V)

L-IN

ADCGND

R-IN

ADCVDD(5V)

1.5k

R666

50V

10

C699

0JR622

2.2k

R613

470R614

10k

R615

220

R616

0

JR661

R662

33k

R663

22k

0.1

C656

2.2k

R617

1N4002B

D651

JL142

JL150

JL153

JL161

JL162

JL176

JL177

JL183

JL184

JL185

JL186

JL187

JL188

JL190

JL192

JL194

JL196

JL197

JL198

JL199

JL200

JL201

JL202

JL203

JL204

JL205

0.1

C679

Q657

ISA1235AC1TP-1EF

Q658

ISA1235AC1TP-1EF

D692

MAZ8056GMLS0

JW626

JW623

0.1C451

JL195

JL193

JL191

JL189

JL182

JL181

JL180

JL179

JL178

JL175

JL169

JL168

JL170

JL171

JL172

JL173

JL174

JL164

JL163

JL166

JL167

JL165

JL156

JL157

JL159

JL155

JL158

JL160

JL147

JL144

JL143

JL145

JL148

JL146

JL149

JL151

JL152

JL154

C321

0.1

C566 0.1

C642 0.1

C641

0.1

C640

0.1

C677

0.1

C681

0.1

20

21

28

31

29

32

27

30

C671

1000p

BUS3_U

REQ_U

GATE

ST-REQ

AIN

BCK

LRCK

47

CD_USB-R

USB_REC-R

USB_REC-L

35

33

28

27

26

25

24

23

22

CD_USB-L

48

19

5

M2+

M2-

M1+

M1-

BUS1

BUS3

BUS2

BUS1_U

BUS0_U

BUS2_U

CCE_Z

CCE_U

40

BUCK_Z

BUCK_U

REQ_Z

CCE_Z

REQ_Z

45

46

BUS0

BUCK_Z

37

MAIN BOARD (4/4)

REGULATOR

Q655-658

711

D

B

6910

F

53

G

1 12

C

E

H

84 13

A

142

I

1

2

3

4

5

6

7

8

9

10

11

12

13

M2-

M2+

M1-

M1+

SW-COM

SW3

SW1

SW7-CHACK

SW2

SW6-CLOSE

SW5-STOCK

SW8-OPEN

NC

CD

MECHANISM

DECK

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

DATA

CLK

DO (RTS)

DI (CTS)

USB-SO (TXD)

USB-SI (RXD)

BCK

A-IN

GATE

REQ

ST-REQ

USB-RST

LRCK

DVSS

DVDD+3.3V

BUS0

BUS1

BUS2

BUS3

BUCK

CCE

7

1

2

3

4

5

6

14

13

12

11

10

9

8

7

1

2

3

4

5

6

14

13

12

11

10

9

8

TC74HC4066AFT(EL)

IC670

IC670

BUS SWITCH

TC74HC4066AFT(EL)

IC672

BUS SWITCH

IC672

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

Q696

2SC3052EF-T1-LEF

+5V REGULATOR

TC74VHC157FT(EKJ)

IC673

IC673

DATA SELECTOR

Q645

2SA1365-T112-1EF

Q646

2SA1365-T112-1EF

Q647

2SC3440-T12-1F

Q648

2SC3440-T12-1F

Q640

2SA1365-T112-1EF

Q641

2SA1365-T112-1EF

Q643

2SC3440-T12-1F

Q644

2SC3440-T12-1F

MOTOR DRIVE

Q640, 641, 643-648

CCE_U

BUCK_U

LRCK

REQ_U

GATE

AIN

BCK

ST-REQ

BUS0_U

BUS1_U

BUS2_U

BUS3_U

RT1N431C-TP-1

Q671

INVERTER

(Page 37)

(Page 33)

(Page 38)

(Page 29)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4040

7-19. PRINTED WIRING BOARDS - JACK Section -

• See page 27 for Circuit Boards Location.

• : Uses unleaded solder.

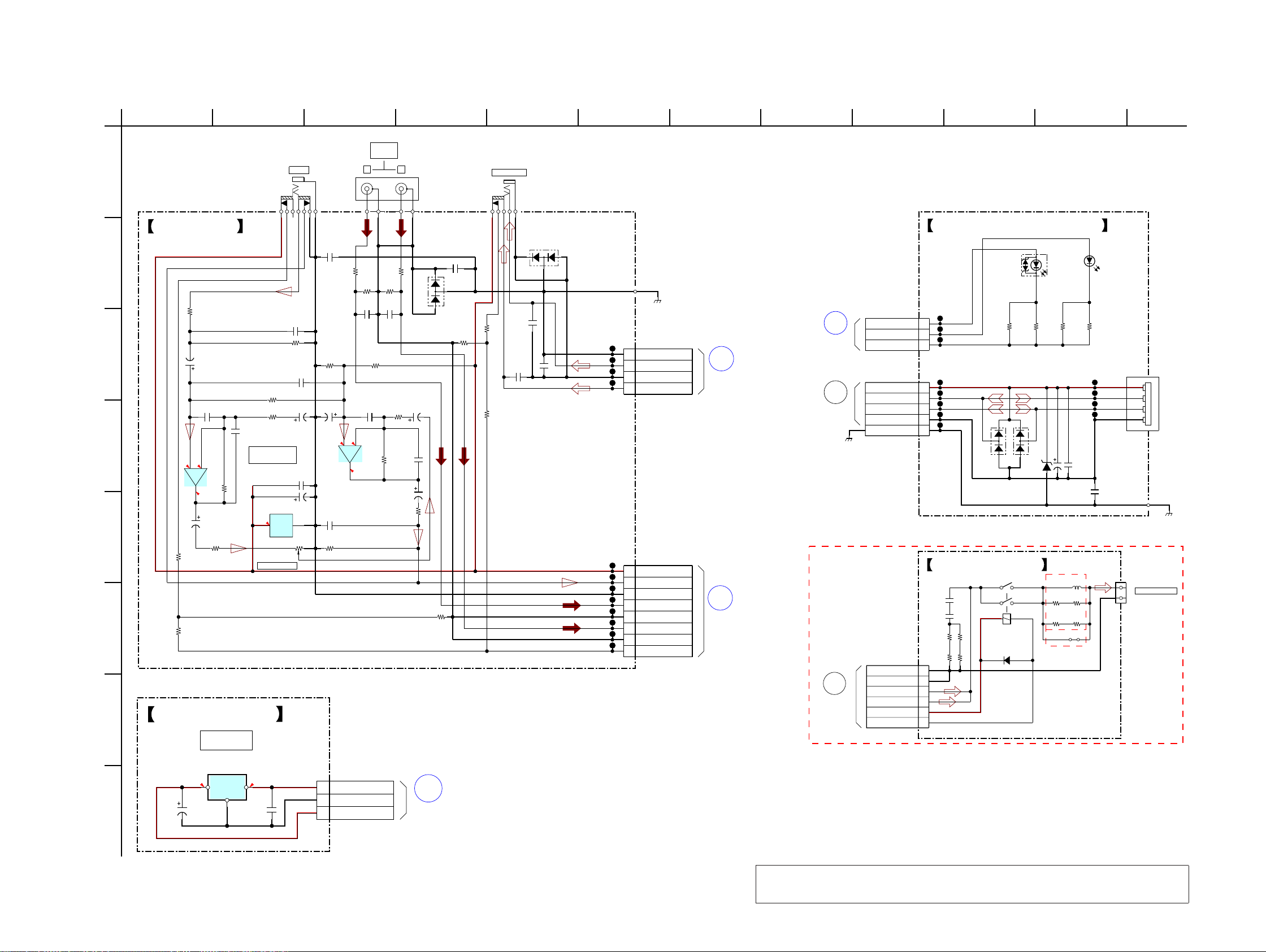

7-20. SCHEMATIC DIAGRAM - JACK Section -

(Page 35)

(Page 35)

(Page 41)

BOARD

J

CN488

(3/4)

MAIN

CN470

A

BOARD

MAIN

(1/4)

BOARD

POWERAMP

Q

(2/2)

NO800

4.4

4.4

4.4

4.4

4.5

4.4

9

IC700

4.7k

R704

50V

2.2

C720

NO701

4P

R709

1k

50V

C718

0.1

C700

0.1

50V

2.2

C713

1.5k

R706

330p

C719

+

-

56

7

180p

C722

47p

C712

C714

1000p

NJM4558V-TE2

IC700(3/3)

8

4

+

-

NJM4558V-TE2

IC700(1/3)

32

1

50V

2.2

C716

C705 0.1

C721

0.1

220k

R714

1000p

C717

18k

R712

1000p

C704

100

R715

R700

1k

100k

R716

4.7k

R705

100k

R701

100

R713

C709
220p

C715

1000p

R707
220k

L

R

R710

1k

6.3V

100

C711

10k

R711

R708
220k

16VC710 10

TP714

1000pC702

1000p

C708

1

100k

R720

18k

R718

10k

R722

47k

R721

18k

R723

TP712

C707

50V

2.2

R702

10k

10k

R719

TP707

TP706

TP705

TP704

TP703

TP702

TP701

TP700

MC2837

D702

C703

0.1

C701

0.1

TP711

TP713

D701

MC2837

NO700

8P

A+9V

MIC SIGNAL

MIC GND

AUX-L

AGND

AUX-R

AGND

HP/MIC DET

0

FB700

MIC BOARD

NO702

(CHASSIS)

RL

7

D

B

6

F

53

G

1

C

E

H

4

A

2

I

POWER

GND

NJM4558V-TE2

IC700(2/3)

MIC AMP

RV700

50k

MIC LEVEL

1

2

3

4

HP-L

HP GND

HP-R

CHASSIS

J700

MIC

J701

AUDIO

INPUT

J702

PHONES

1

2

3

4

5

6

7

8

MA2J1110GLS0

D890

RY890

1.7uH

L890

10

R894

10

R893

10

R891

10

R892

10R873

10

R880

10R87610R870

0.1

C836

0.1

C841

+

-

JK890

6P

CN890

SW JACK BOARD

(GT444/GT555)

SW-SP_GND

SW-SP_GND

SW OUT

SW OUT

RLY+

RLY-

SUBWOOFER

1

2

3

4

5

6

(Page 43)

(Page 38)

(Page 36)

12345

MIC BOARD

A

B

J700

MIC

RV700

MIC

LEVEL

C

MAIN

D

E

BOARD

CN470

MAIN

BOARD

CN488

(CHASSIS)

A

J

NO702

R

J701

AUDIO

F

INPUT

L

R710

FB700

R709

R722

R723

R708

C714

C700

R719

C703

R713

C707

C715

C708

JW700

R720

R707

R706

R721

R712

R701

C719

IC700

R718

JW705

D701

JW703

C718

C709

R700

NO700

JW707

1

C713

1
4

C701

JW701

C702

R702

JW702

8

JW708

JW706

8
5

JW704

C716

C722

R705

R704

C710

R715

R714

C711

C721

R716

R711

C712

C720

4

NO701

1

SW JACK BOARD

(GT444/GT555)

C841

R880

R876

L890

R893

R894

C836

R870

R891

R873

R892

CN890

JK890

SUB WOOFER

RY890

1

D890

Q

POWERAMP

BOARD

NO800

6

1-875-681-

11

(11)

G

J702

PHONES

H

D702

C705

C704

C717

JW711

1-875-674-

13

(13)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4141

BE

BE

BE

BE

BE

B

B

B

E

E

E

BE

BE

BE

BE

B

E

BE

R892

R805

R806

R807

R811

R812

R813

R815

R819

R820

R822

R827

R828

R829

R830

R835

R836

R837

R838

R839

R841

R846

R844

R842

C828

R845

R834

R882

R826

R891

R817

R814

R818

R804

R877

R872

R840

R810

R809

R808

R821

R816

R886

R885

Q805

R858

R856

R823

Q804

Q815

Q811

Q806

Q803

R889

R890

JW864

JW883

JW876

JR891

R883

R824

C813

C816

C817

C814

C844

C815

C812

R825

D802

R848

JW806

R850

R851

R852

R870

R857

R859

R860

R863

R864

R866

R867

R868

R869

C833

R871

C835

R874

R875

R878

R879

R881

R884

R888

R895

R896

R897

R898

R899

D803

D804

D805

D807

D808

D811

D812

Q800

Q801

Q802

Q809

Q810

Q812

Q813

Q814

1

7

3

+

-

+

-

1

23

1

13

1 73

JK800

NO800

NO801

CN801

R831

R832

R833

C801

C802

C803

C804

C805

C806

R843

C807

C808

C809

C810

C811

C818

C819

C820

R861

R862

C826

C827

R865

C829

C830

C837

C838

JW803

JW805

C839

C840

RY800

C843

JW800

JW801

JW802

JW804

JW808

JW809

D800

D801

JW810

JW811

JW812

D806

JW813

JW814

JW815

JW816

JW817

JW818

JW819

D810

JW820

JW821

JW822

JW823

JW824

JW825

JW826

JW827

JW828

JW829

HS800

JW830

JW831

JW832

JW833

JW834

JW835

JW836

JW837

JW839

JW840

JW841

JW842

JW843

JW844

JW845

JW846

JW847

JW848

JW849

JW850

JW851

JW852

JW853

JW854

JW855

JW856

JW857

JW858

JW859

JW860

JW861

JW862

JW863

JW865

JW866

JW867

JW868

JW869

JW870

JW872

JW873

JW874

JW875

JW877

JW878

JW879

JW880

EP800

L801

L802

JW871

JW838

IC800

POWERAMP BOARD

–

–

+

+

R

L

FRONT

SPEAKER

(GT111/GT444)

(GT222/GT555)

(GT111/GT222)

(GT444/GT555)

(GT222/GT555)

(TYPE B/TYPE C)

(TYPE A)

(GT444/GT555)

(TYPE B/TYPE C)

(TYPE A)

(GT444/GT555)

(GT222/GT555)

(GT111:E2,E3,E51)

(GT111:AEP,RU,AR)

(GT222/GT444/GT555)

(GT444/GT555)

(GT111/GT444)

H

Q

MAIN
BOARD
CN479

SW JACK

BOARD

CN890

(CHASSIS)

R

TRANS1 BOARD

CN903

TRANS2 BOARD

CN903

TRANSX BOARD

CN903

S

T

1-875-680-

11, 12, 13

(11, 12, 13)

A

B

C

D

E

F

G

123456789

10

(TYPE A/TYPE B/
GT111(TYPE C):AEP,RU/
GT222(TYPE C):AEP,RU/
GT444(TYPE C):AEP,RU,UK/
GT555(TYPE C):RU)

(GT111(TYPE C):E2,E3,E51,AR/
GT222(TYPE C):E2,E51,MX,AR/
GT444(TYPE C):E2,E51,MX,AR/
GT555(TYPE C):E2,E51,MX,AR)

(TYPE A/TYPE B/
GT111(TYPE C):AEP,RU/
GT222(TYPE C):AEP,RU/
GT444(TYPE C):AEP,RU,UK/
GT555(TYPE C):RU)

7-21. PRINTED WIRING BOARD - POWERAMP board -

• See page 27 for Circuit Boards Location.

• : Uses unleaded solder.

Ref. No. Location

• Semiconductor
Location

D800 E-8
D801 F-8
D802 C-4
D803 F-2
D804 B-3
D805 B-3
D806 B-3
D807 D-3
D808 A-3
D810 B-3
D811 D-4
D812 E-7

IC800 C-3

Q800 B-3
Q801 C-3
Q802 D-3
Q803 D-3
Q804 E-3
Q805 E-3
Q806 D-3
Q809 D-3
Q810 D-3
Q811 E-3
Q812 E-3
Q813 A-4
Q814 E-3
Q815 E-3

(Page 40)

(Page 35)

(Page 48)

(Page

50)

(Page 52)

Ver. 1.3

Note: A part of circuit composition of POWERAMP board has been changed in the midway of production.

POWERAMP board that has not been changed appears as TYPE A, and the changed POWERAMP

board appears as TYPE B or TYPE C.

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4242

7-22. SCHEMATIC DIAGRAM - POWERAMP Board (1/2) -

21

POWERAMP

BOARD

(2/2)

29.7

-29.7

13.5

-13.5

-58.1

-60.3

60.2

0

0

0

0

58.3

0

0

1.9

0

0

0

0

0

0

-58.1

0

29.7

0

0

0

58.3

-13.5

0

60.2

0

13.5

1.9

-60.3

0

-29.7

0

0

0

0

0

0

60.2

58.3

0

1.9

-58.1

0

-60.3

0

0

0

0

0

0

0

0

60.2

58.3

0

1.9

-58.1

0

0

0

-60.3

0

1234 567 8910

11 12 13 14 15 19181716 20 21 22 23

+VL

-VL

+OFF_SET

-OFF_SET

-PRE

-VH

+VH

+PRE SUB GND

STBY

13

21

22

11

9

23

4

8

6

18

17

20

16

14

12

3

5

15

2

10

1

19

7

1234 567 89101112131415161718

+VL

-VL

+OFF_SET

-OFF_SET

-PRE

-VH

+VH

-PRE SUB GND

STBY

19

GND

+VH

STBY

103142 8 12 13115649 15

SUB

7

-PRE

-PRE

-VH

1

GND

+VH

STBY

1031428

12 1311

5649

18 1915

SUB

7

17

-PRE

16

-PRE

-VH

1

(1/2)POWERAMP BOARD

(GT555) (GT222)

(GT444) (GT111)

711

D

B

6910

F

53

G

1 12

C

E

H

8

J

4 13

A

2

I

IC800

POWER AMP

IC800

STK415-120-E

IC800

STK433-100-E

IC800

POWER AMP

STK416-120E

IC800

POWER AMP

IC800

IC800

STK433-320-E

IC800

POWER AMP

(Page 43)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4343

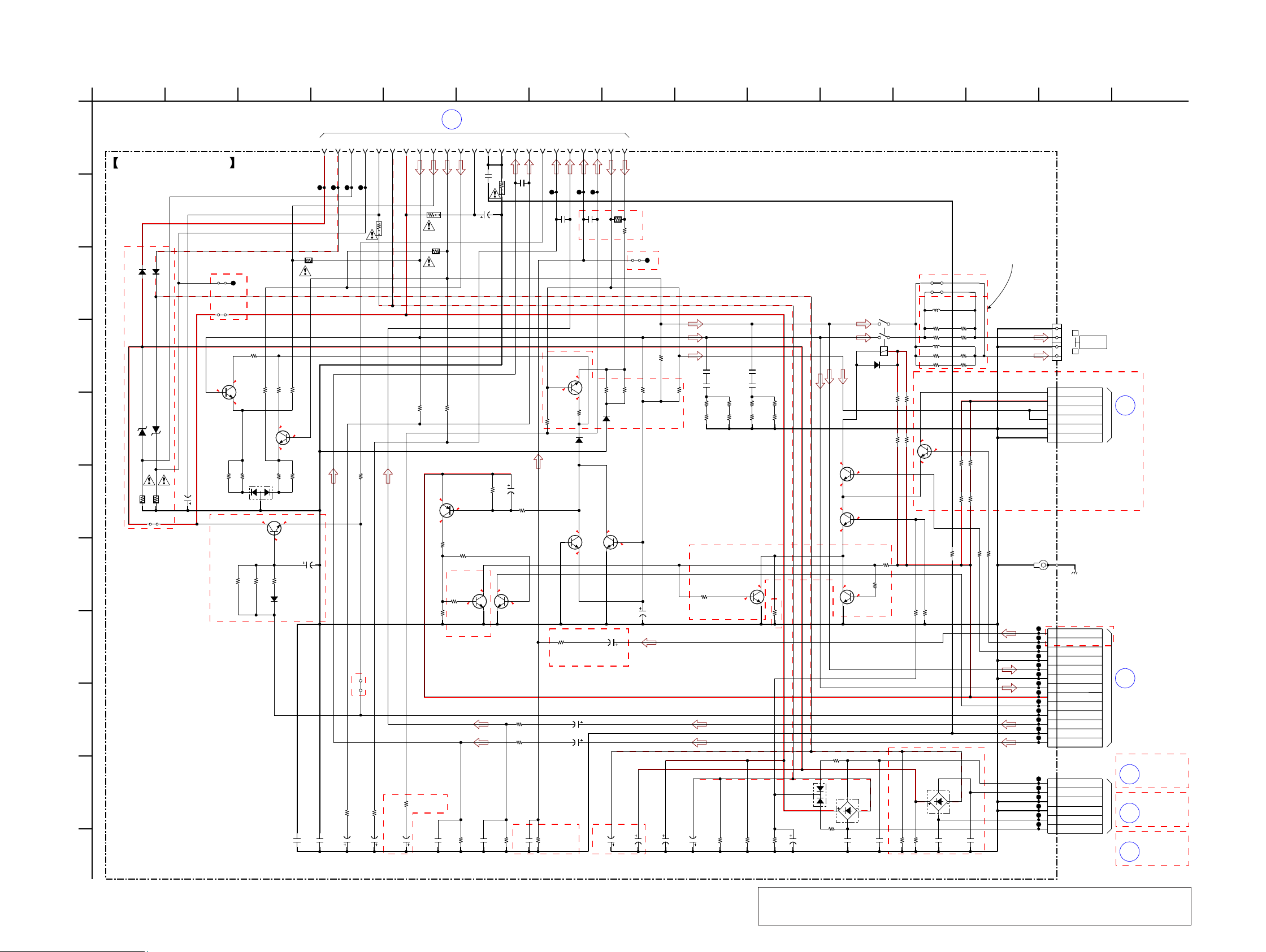

7-23. SCHEMATIC DIAGRAM - POWERAMP Board (2/2) -

R

T

S

21

TRANS2

CN903

CN903

CN903

BOARD

TRANS1

BOARD

TRANSX

BOARD

Q

CN890

JACK

SW

BOARD

MAIN

BOARD

CN479

H

(3/4)

POWERAMP

BOARD

(1/2)

0

0

0

0

0

0

0

0

0

0

0.20.2

0

0

00

0

0

00

0

0

0

0

0

16.5

0

0

30.1

16.5

0

16.5

2.8

3.3

0

0

33k

R844

22k

R857

30PRA20FC

D810

47k

R856

0.1

C840

D10XB20

D801

10

R877

50V

47

C820

JL804

2.2k

R834

2SC3052EF-T1-LEF

Q811

10

R878

1

3

4

5

6

7

7P

NO801

AC-VH

AC-VL

GND

GND

AC-VL

AC-VH

R885

100V

0.1

C802

100p

C817

33k

R860

10

R869

C826

50V

C805
3300

50V

10

C811

30PRA20FC

D806

0.1

C807

0.1

C837

1k

R863

2.2k

R883

MA2J1110GLS0

D803

C833

0.1

R826

100

R805

47k

R884

10

R872

100k

R838

100R816

JL807

100V

0.1

C801

C835

0.1

100

R815

1kR886

0.1

C839

100R819

10

R879

ISA1235AC1TP-1EF

Q809

10

R871

2SC3052EF-T1-LEF

Q806

JL802

10k

R851

0.1

C838

4.7k

R850

R848

3.3k

10

R875

10

R874

E

EP800

R845

33k

100k

R806

50V

3300

C806

50V

2.2

C830

R846

1k

R841

10

2SC3052EF-T1-LEF

Q803

50V

10

C810

D10XB20

D800

C804

R810 10

5W

0.22

R831

MA2J1110GLS0

D807

100k

R882

MC2836

D802

100k

R839

MA2J1110GLS0

D808

JW806

100p

C816

47k

R830

1R861

10V

100

C829

22k

R837

50V

10

C809

22k

R836

5W

0.22

R832

47k

R824

JL800

1000p

C814

100p

C815

33k

R859

1000p

C812

JW801

47k

R825

0.1

~

~

~

~

C808

L802 1.7uH

JL803

100

R862

50V

47

C818

L801

1.7uH

5W

0.22

R833

JL806

R808 10

C803

R840 10

R812 10

100

R865

27k

R881

R809 10

100

R804

R811 10

82R817

2.2k

R835

JL801

82R818

100

R814

R813 10

100k

R807

1000p

C813

35V

C828

22

50V

47

C819

C827

100k

R891

100k

R892

JL850

JL851

1kR888

R828

R827

R823

R821

22k

R890

33k

R889

JW802

JW800

JL852

JL853

JL854

JL855

JL856

JL857

JL858

JL859

JL860

JL861

JL862

JL863

JL864

JL865

JL866

JL867

JL868

JL869

JL870

RY800

MAZ8160GMLS0

D804

MAZ8160GMLS0

D805

JK800

7P

NO800

RLY-

RLY+

SW OUT

SW OUT

SW-SP_GND

SW-SP_GND

CN801

R-IN

PREGND

L-IN

STK MUTE

PROTECT

UNREG+16V

HP-R

HP GND

HP-L

POWER GND

SPK RELAY

SW ON/OFF

SW IN

MC2838-T112-1

D812

22k

R897

50V

10

C843

1k

R895

22k

R896

JW883

R822

33k

R868

R866

R829

15k

R898

15kR899

2SC3052EF-T1-LEF

Q814

2.2k

R858

2SC3052EF-T1-LEF

Q812

1k

R864

2SC3052EF-T1-LEF

Q810

1k

R867

15k

R820

0R870

0

JR891

C844

1000p

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

(CHASSIS)

(2/2)POWERAMP BOARD

(GT222/GT444/GT555)

(GT111: E2, E3, E51)

(GT111: AEP, RU, AR)

(GT444/GT555)

(GT111/GT444)

(GT222/GT555)

(GT111/GT222)

(GT444/GT555)

(GT444/GT555)

(TYPE B/TYPE C)

(TYPE B/TYPE C)

(TYPE A)

(TYPE A)

(TYPE A)

560 (GT555)
680 (GT444)

(GT444/GT555)

820 (GT444)
1k (GT111/GT222/GT555)

R821, 823

(GT222/GT555) C803, 804

2200 63V (GT111)
2200 70V (GT444)
2200 80V (GT222/GT555)

47k (GT444)
56k (GT555)

(GT444/GT555)

1.2k (GT222)

R827, 828
820 (GT111/GT444)
1k (GT555)

680 (GT444)

560 (GT555)

(GT444/GT555) (GT222/GT555)

13P (GT444/GT555)

CN801
11P (GT111/GT222)

R885
47k (GT444)
56k (GT555)

R866
36k (GT444/GT555)
39k (GT111/GT222)

R

L

(GT444/GT555)

711

D

B

6910

F

5 15

K

3

G

1 12

C

E

H

8

J

4 13

A

142

I

∗

1

3

4

5

6

7

2SC3052EF-T1-LEF

Q804

2SC3052EF-T1-LEF

Q815

RELAY DRIVE

DC DETECT

Q812, 814, 815

∗

1

2

3

4

5

6

7

8

9

10

11

12

13

∗∗

∗

∗∗

∗

∗

∗

C826, 827
47 63V (GT111)
47 100V (GT222/GT444/GT555)

∗

∗

∗

∗

2SC3052EF-T1-LEF

Q813

STANDBY SWITCH

1W

2.2k

R843

1W

2.2k

R842

2SC5625

Q801

OVER
LOAD

DETECT

2SC5625

Q800

OVER
LOAD

DETECT

∗

∗

2SC5625

Q802

OVER

LOAD

DETECT

∗

∗

+

-

+

-

FRONT

SPEAKER

2SC3052EF-T1-LEF

Q805

RELAY DRIVE

DETECT

LOAD

OVER

Q803

MA2J1110GLS0

D811

PROTECT

Q806, 809-811

DETECT

JW805

(GT111(TYPE C):E2,E3,E51,AR/
GT222(TYPE C):E2,E51,MX,AR/
GT444(TYPE C):E2,E51,MX,AR/
GT555(TYPE C):E2,E51,MX,AR)

(TYPE A/TYPE B/
GT111(TYPE C):AEP,RU/
GT222(TYPE C):AEP,RU/
GT444(TYPE C):AEP,RU,UK/
GT555(TYPE C):RU)

JW803

(Page 42)

(Page

40)

(Page 38)

(Page

49)

(Page

51)

(Page

53)

Note: A part of circuit composition of POWERAMP board has been changed in the midway of production.
POWERAMP board that has not been changed appears as TYPE A, and the changed POWERAMP

board appears as TYPE B or TYPE C.

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4444

BE

BE

BE

BE

BE

BE

BE

BE

BE

B

E

BE

BE

BE

BE

BE

EB

BE

BE

BE

BE

BE

E

B

BE

1

13

27

14

26

39

40

52

Q1114

Q1117

Q1120

R1102

R1103

R1105

R1106

R1107

R1108

R1109

R1110

R1111

R1112

R1113

R1114

Q1139

R1115

R1116

R1117

C1141

R1119

C1143

C1145

Q1141

C1146

Q1143

C1148

R1120

C1149

R1193

R1118

R1122

Q1122

R1203

R1202

R1130

R1131

R1136

R1137

R1139

R1141

R1143

R1145

R1146

R1147

R1148

R1149

Q1107

R1153

Q1106

R1133
R1134

D1129

R1150

R1151

R1152

R1154
R1155

R1156

R1157

R1158

R1159

R1160

R1161

R1162

D1221

R1163

R1164

Q1110

Q1115

Q1116

R1165

R1166

Q1190

R1170

R1167

R1168

R1196

R1169

R1171

R1172

R1174

R1175

R1173

R1177

R1178

R1179

R1180

R1185

R1184

S1185

R1181

R1182

R1183

R1189

R1188

R1187

R1190

R1191

R1192

R1195

R1194

D1205,S1193

R1198

Q1205

R1200

R1201

R1205

R1206

R1207

D1220

R1224

FFC001

Q1102

Q1103

Q1104Q1105

Q1108

Q1109

Q1111

Q1112

Q1113

30

31

B

E

1

1

2

3

53

5

50

31

18

1

4

2

1

24

25

1

3

1

3

C1140

C1142

D1124

JW001

JW006

JW011

JW012

JW013

JW016

JW020

S1165

JW022

S1166

JW023

S1167

S1168

S1169

JW026

JW027

JW028

JW029

D1196

S1170

S1171

S1172

S1173

JW030

S1174

S1175

JW032

S1176

JW033

S1177

JW034

S1178

JW035

S1179

JW036

JW038

JW039

S1180

S1182

S1183

S1184

S1186

S1187

JW043

S1188

JW044

S1189

JW046

JW048

JW049

S1190

S1191

S1192

S1193

S1194

S1195

JW051

JW052

JW053

JW057

JW062

JW063

JW064

JW067

JW070

JW073

JW077

JW079

JW080

JW081

JW082

C1220

Q1220

D1205

R1221

R1222

R1223

CN1101

CN1106

CN1107

C1101

C1102

JW003

JW018

JW037

JW040

JW041

JW058

JW083

JW084

JW085

JW086

JW087

CN1108

JW009

JW061

CN1102

JW017

D1126

JW068

D1127

D1125

JW025

JW024 JW074

JW056

JW015

JW076

JW075

JW004

JW005

JW071

D1128

JW031

JW007

R1104

54

IC1101

IC1102

DISPLAY BOARD

V

–

.

TUNING -



TUNING +



+

.

Y

DISC 3

DISC 1

DISC 2

STANDBY

D1196,S1165

DISPLAY

METER

MODE

OPTIONS

ERASE

S1165 – 1180, –
S1182 – 1195

SUBWOOFER

USB

AUDIO

SURROUNDEQ BAND

FL1101

FLUORESCENT

INDICATOR

TUBE

GROOVE

PRESET EQ

CD

TUNER/

BAND

TAPE

REC TIMER

DISC SKP/

EX-CHANGE

RETURN

OPEN/CLOSE

;

REC TO

USB

ENTER

(GT222/GT444/GT555)

(GT111)

(GT222/GT444/GT555)

11

1

U

MOTOR DRIVE

BOARD

CN001

Y

LED(GSL1)

BOARD

CN011

V

C

MAIN

BOARD

CN403

MAIN

BOARD

CN403

(GT111)

(GT222/GT444/GT555)

(GT111)

(GT111)

(GT222/GT444/GT555)D1124 – 1129

(STREAM)

W

USB

CONNECTOR

BOARD
NO1000

X

VOLUME

BOARD
NO1051

1-875-670-

13

(13)

A

B

C

D

E

F

G

H

I

123456789101112

(GT444/GT555)

7-24. PRINTED WIRING BOARD - DISPLAY Board -

• See page 27 for Circuit Boards Location.

• : Uses unleaded solder.

Ref. No. Location

• Semiconductor
Location

D1124 F-7
D1125 D-6
D1126 D-8
D1127 C-7
D1128 F-6
D1129 F-8
D1196 A-1
D1205 A-10
D1220 H-6
D1221 G-4

IC1101 F-4
IC1102 C-4

Q1102 C-4
Q1103 C-4
Q1104 C-5
Q1105 C-5
Q1106 D-5
Q1107 D-5
Q1108 D-4
Q1109 D-4
Q1110 E-4
Q1111 E - 4
Q1112 E-4
Q1113 E-4
Q1114 G-7
Q1115 E-4
Q1116 E-4
Q1117 F-6
Q1120 F-6
Q1122 F-7
Q1139 C-7
Q1141 C-6
Q1143 G-7
Q1190 G-10
Q1205 B-10
Q1220 H-6

(Page 46)

(Page 46)

(Page 46)

(Page 46)

(Page 35)

(Page 35)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4545

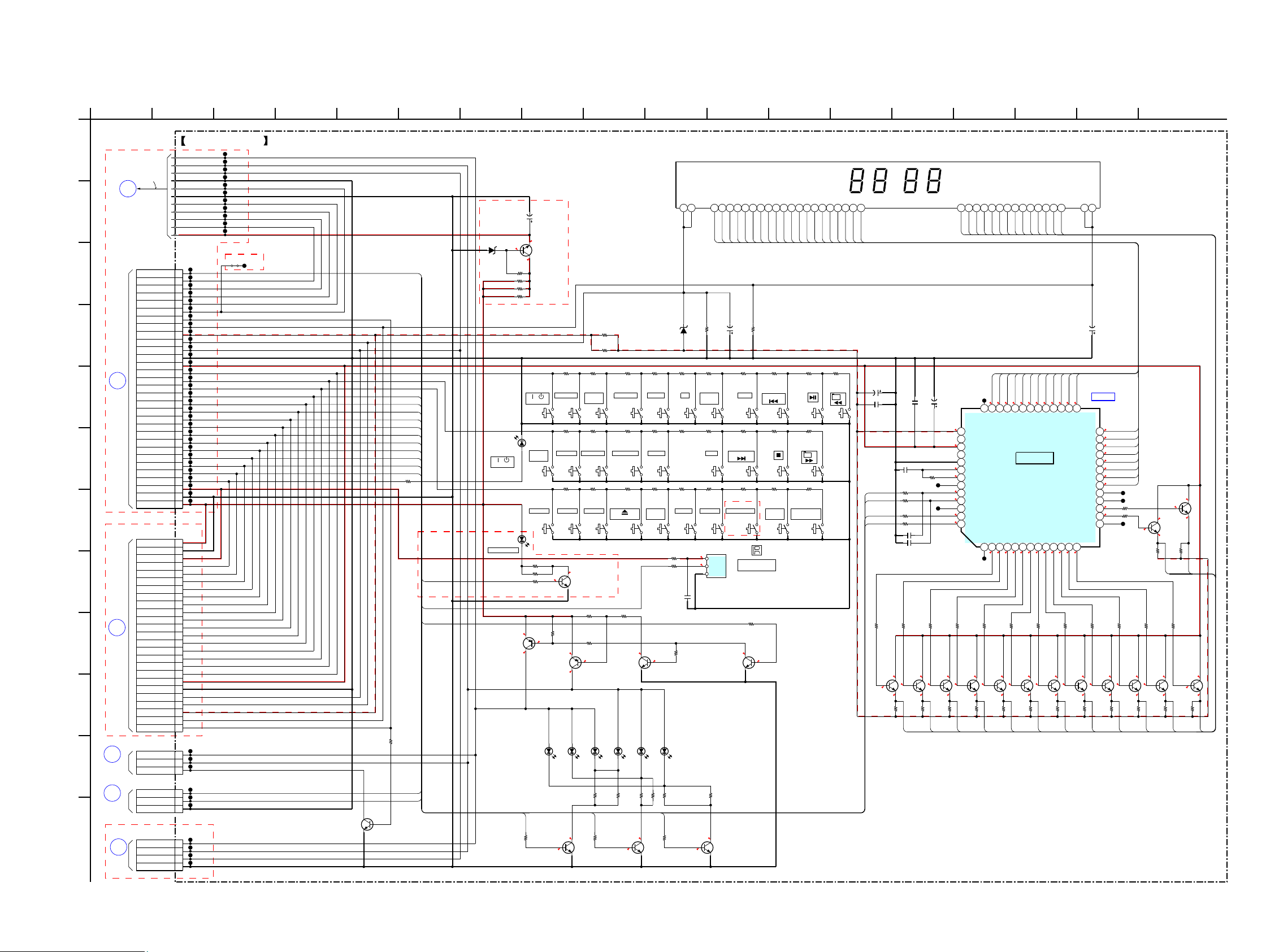

7-25. SCHEMATIC DIAGRAM - DISPLAY Board -

• See page 54 for IC Block Diagrams.

BOARD

U

MOTOR

DRIVE

CN001

C

(2/4)

MAIN

BOARD

CN403

BOARD

CN403

MAIN

V

(2/4)

NO1051

BOARD

X

VOLUME

NO1000

BOARD

USB

CONNECTOR

W

(GSL1)

CN011

LED

Y

BOARD

IC B/D

-32.1

3.3

1.7

1.7

3.3

3

0

0

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5 -31.6

-31.6

-31.6

-31.6

-31.6

-31.6

-31.6

-31.5

-31.5

-31.5

-31.5

-31.5

3.3

-31.5

-31.5

-32

3.3

-32

3.3

-31.5

-32-32

3.3

-32

3.3

-32

3.3

-32

3.3

-32

3.3

-32

3.3

-32

3.3

-32

3.3

-32

3.3

-32

3.3

-32

3.3

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

-31.5

3.3

3.3

0.7

0.1

9

8.6

5.9

8.6

5.4

9

0.3

4.4

4.2

0.3

6.7

00

6.8

0

6.7

9

5.5

5.2

50V

22

C1140

0.1

C1143

10V

47

C1142

TP1114

TP1118

TP1117

TP1150

TP1139

100p

C1145

3.3kR1145

10k

R1139

10k

R1141

10k

R1143

R1130

R1133

R1134

R1136

R1131

470R1117

10k

R1122

47k

R1155

47k

R1162

2SC3052EF-T1-LEF

Q1106

47k

R1161

2SC3052EF-T1-LEF

Q1111

47k

R1163

47k

R1160

47k

R1157

47k

R1158

2SC3052EF-T1-LEF

Q1110

47k

R1153

2SC3052EF-T1-LEF

Q1105

47k

R1154

2SC3052EF-T1-LEF

Q1109

47k

R1152

2SC3052EF-T1-LEF

Q1104

2SC3052EF-T1-LEF

Q1113

2SC3052EF-T1-LEF

Q1102

47k

R1159

2SC3052EF-T1-LEF

Q1108

2SC3052EF-T1-LEF

Q1103

2SC3052EF-T1-LEF

Q1112

47k

R1156

2SC3052EF-T1-LEF

Q1107

47k

R1165

2SC3052EF-T1-LEF

Q1116

2SC3052EF-T1-LEF

Q1115

47k

R1164

100

R1148

100R1151

100

R1149

100R1150

1k

R1147

0.22

C1146

100

R1146

TP1101

TP0014

TP0015

TP0016

TP0017

TP0018

TP0019

TP0020

TP0021

TP0022

TP0023

TP0024

TP0025

TP0026

TP0027

TP0028

TP0013

TP0012

TP0030

TP0029

TP0031

TP0011

TP0009

TP0010

TP0032

TP0034

VCC

OUT

GND

1

3

2

2SC3052EF-T1-LEF

Q1143

2SC3052EF-T1-LEF

Q1139

2SC3052EF-T1-LEF

Q1120

2SC3052EF-T1-LEF

Q1122

Q1114, 1117, 1120, 1122

B+ SWITCH

2SC3052EF-T1-LEF

Q1141

ISA1235AC1TP-1EF

Q1114

ISA1235AC1TP-1EF

Q1117

TP0033

SLR-325VCT31P

D1196

470

R1114

47k

R1201

22

R1202

22

R1203

1.5k

R1179

1k

R1167

6.8k

R1173

680

R1177

1.5k

R1180

1.5k

R1169

6.8k

R1184

2.2k

R1170

680

R1166

10k

R1174

3.3k

R1182

1.5k

R1168

4.7k

R1172

2.2k

R1181

1k

R1178

3.3k

R1171

10k

R1185

4.7k

R1183

15k

R1175

4.7k

R1107

4.7k

R1111

4.7k

R1108

4.7k

R1113

4.7k

R1112

4.7k

R1103

4.7k

R1109

4.7kR1116

4.7k

R1106

4.7k

R1105

4.7k

R1104

4.7k

R1102

4.7kR1115

4.7k

R1110

TP1147

50V

10

C1220

22R1223

22R1221

22R1222

1.5k

R1224

TP0001

TP0002

TP0003

TP0004

TP0005

TP0006

TP0007

TP0008

TP0035

TP0036

TP0037

TP0038

TP0039

TP0040

TP0041

TP0042

TP0043

TP0044

TP0045

50V

2.2

C1102

47k

R1120

12345 678910111213

2930313233343536373839 28 27

VFDP

NC

VSS

XT

XTB

NC

SCK

SI

NC

CSB

RSTB

NC

VDD

4P

CN1106

FL1101

156789101112131415161718313233343536373839404142434445464748495054 253

1kR1205

2.2k

R1191

1k

R1188

1.5k

R1190

3.3k

R1192

6.8k

R1194

1kR1206

680

R1187

4.7k

R1193

10k

R1207

2SC3052EF-T1-LEF

Q1205

1.5k

R1189

10k

R1195

TP0046

TP0047

TP0048

TP0049

31P

CN1101

25P

CN1107

JL001

50V

0.1

C1141

JW001

C1148

100p

C1149

100p

3P

CN1102

47k

R1200

50V

2.2

C1101

D1124 D1125 D1127 D1128D1126

∗∗∗∗∗

∗

∗

∗∗∗

∗

∗

D1129

TP0058

TP0060

TP0059

10kR1198

3P

CN1108

D1220

MAZ8056GMLS0

MAZ8068GMLS0

D1221

680

R1119

2.2kR111 8

R1137

P13

P14

P15

P16

P17

P18

P19

P20

P1

P2

P3

P4

P5

P6

P7

P8

P9

P10

P11

P12

1G

4G

3G

9G

8G

6G

7G

5G

11G

2G

10G

13G

FL_CLK

FL_DATA

FL_CS

FL_RESET

P1P2P3P4P5P6P7P8P9

P10

P11

P19

P20

1G2G3G4G5G6G7G8G9G

10G

11G

12G

13G

14G

SW_LED

VOL

JOG

LED1

LED2

LED3

SW_LED

SIRCS

LED_CTRL

14G

P18

P17

P16

P15

P14

P13

P12

12G

DISPLAY BOARD

LED DRIVE

Q1139, 1141, 1143

LED DRIVE

STANDBY

/

/

STANDBY

TUNING +

TUNING -

-

+

FLUORESCENT INDICATOR TUBE

Q1102-1113, 1115, 1116

GRID DRIVE

S1165

S1173

S1174 S1175

S1185S1184S1183

(GT222/GT444/GT555)

(GT444/GT555)

(STREAM)

D1124-1129

1L434FV22D0TDF01 (GT111/GT222/GT444)

∗ D1124-1129

1L034PB12E0MTTZ1 (GT555)

∗ R1130, 1131, 1133, 1134, 1136, 1137

680 (GT111/GT222/GT444)
1k (GT555)

MGND

SEL B

METER SW

1

DGND

METER LED CTRL

IND1

SEL A

IND2

IND3

11 M+5V

IND4

FFC001

(GT222/GT444/GT555)

(GT111 )

(GT111)

(GT111)

711

D

B

1669 1710

F

5 15

L

K

3

G

1 1812

C

E

H

8

J

4 13

A

142

I

SEL A

SEL B

METER LED CTRL

LED GND

VOL

JOG

DGND

LED SEL A

LED SEL B

USB LED CTRL

1

2

3

4

1

2

3

1

2

3

LED+9V

LED GND

EVER +3.3V

STBY LED

LED CTRL

LED3

LED2

LED1

SIRCS

FL-CLK

FL-DATA

FL-CS

FL-RESET

JOG

VOL

AD KEY2

AD KEY1

AD KEY0

FL +3.3V

DGND

METER LED

VF

-VFL

VF

USB LED CTRL

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

LED+9V

LED GND

EVER +3.3V

STBY LED

LED CTRL

LED3

LED2

LED1

SIRCS

FL-CLK

FL-DATA

FL-CS

FL-RESET

JOG

VOL

AD KEY2

AD KEY1

AD KEY0

FL+3.3V

DGND

METER LED

VF

-VFL

VF

USB LED CTRL

METER SWITCH

METER-IN2

METER-IN1

METER-IN3

METER-IN4

SW LED

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

2SC3052EF-T1-LEF

Q1190

LED DRIVE

1k

R1196

VOL

JOG

FL_RESET

FL_CS

FL_DA

TA

FL_CLK

SIRCS

LED1

LED2

LED3

LED_CTRL

DR24

DR26

DR27

DR28

DR29

DR30

DR31

DR32

DR33

DR34

DR35

NC

DR25

43

44

45

46

47

48

49

50

51

52

41

42

40

NC

DR0

DR1

DR2

DR3

DR4

DR5

DR6

DR7

DR8

DR9

DR10

DR11

15

16

17

18

19

20

21

22

23

24

25

26

14

DR12

DR13

DR14

DR15

DR16

DR17

DR18

DR19

DR20

DR21

DR22

DR23

NC

NJU3427FH2

IC1101

IC1101

FLUORESCENT

INDICATOR TUBE DRIVER

NJL24H400A

IC1102

IC1102

REMOTE CONTROL

RECEIVER

EX-CHANGE

DISC SKIP/

S1195

TIMER

REC

S1194

SUBWOOFER

S1193

RETURN

S1192

ENTER

S1191

REC TO

USB

S1190

OPEN/CLOSE

S1189

DISC 3

S1188

DISC 2

S1187

DISC 1

S1186

SLR-325MCT31

D1205

SUBWOOFER

Q1220

KTC3203Y-AT

+5V

REGULATOR

EQ

PRESET

S1176

GROOVE

S1177

EQ BAND

S1178

SURROUND

S1179

AUDIO

S1180

USB

S1182

TAPE

S1172

TUNER/

BAND

S1171

CD

S1170

ERASE

S1169

OPTIONS

S1168

MODE

METER

S1167

DISPLAY

S1166

(GT444/GT555)

(Page 47)

(Page

37)

(Page

37)

(Page 47)

(Page 47)

(Page 47)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4646

15

6

10

R007

C002

R008

R006

R005

M1

(METER)

R031

BE

R012

R013

R015

R014

R016

R017

R011

R010

JR101

R019

R020

Q010

BE

R019

R020

Q010

JR101

R010

R011

R012

R013

R014

R015

R016

R017

FB1000

FB1001

C1002

C1003

D1001

D1002

D1004

R1001

R1002

R1004

R1005

R1051

3

1

3

1

R1052

R1053

R1054

1

2

10

11

42

1

3

1

2

1

4

CN001

CN002

CN003

CN004

C001

JW005

JW006

1

2

CN031

S031

1

4

CN011

D012

D013

D014D015

D011

1

4

CN011

D011

D012

D013

D014

1

4

1

6

3

1

3

JW1001

JW1003

JW1004

JW1005

NO1000

NO1001

NO1002

CN1000

C1001

D1000

D1003

13

NO1051

S1051

S1052

IC001

MOTOR DRIVE BOARD

SW BOARD

LED BOARD

LED(GSL1) BOARD

USB CONNECTOR BOARD

VOLUME BOARD

U

DISPLAY

BOARD

X

Y

DISPLAY
BOARD

CN1106

DISPLAY

BOARD

CN1102

USB BOARD

CN903

N

DISPLAY

BOARD
CN1108

W

METER

POSITION

DETECT

1-875-914-

11

(12)

1-875-671-

13, 14, 15

(13, 14, 15)

1-875-915-

12

(12)

1-875-913-

11

(12)

1-875-673-

13

(13)

1-875-916-

12

(12)

D011-015

(ILLUMINATION)

D011-014

(ILLUMINATION)

(CHASSIS)

(CHASSIS)

D1000,1003

(USB)

(USB)

OPERATION

DIAL

ROTARY

ENCODER

ROTARY

ENCODER

MASTER
VOLUME

A

B

C

D

E

F

G

H

123456789101112

(GT111)

(GT222/GT444/GT555)

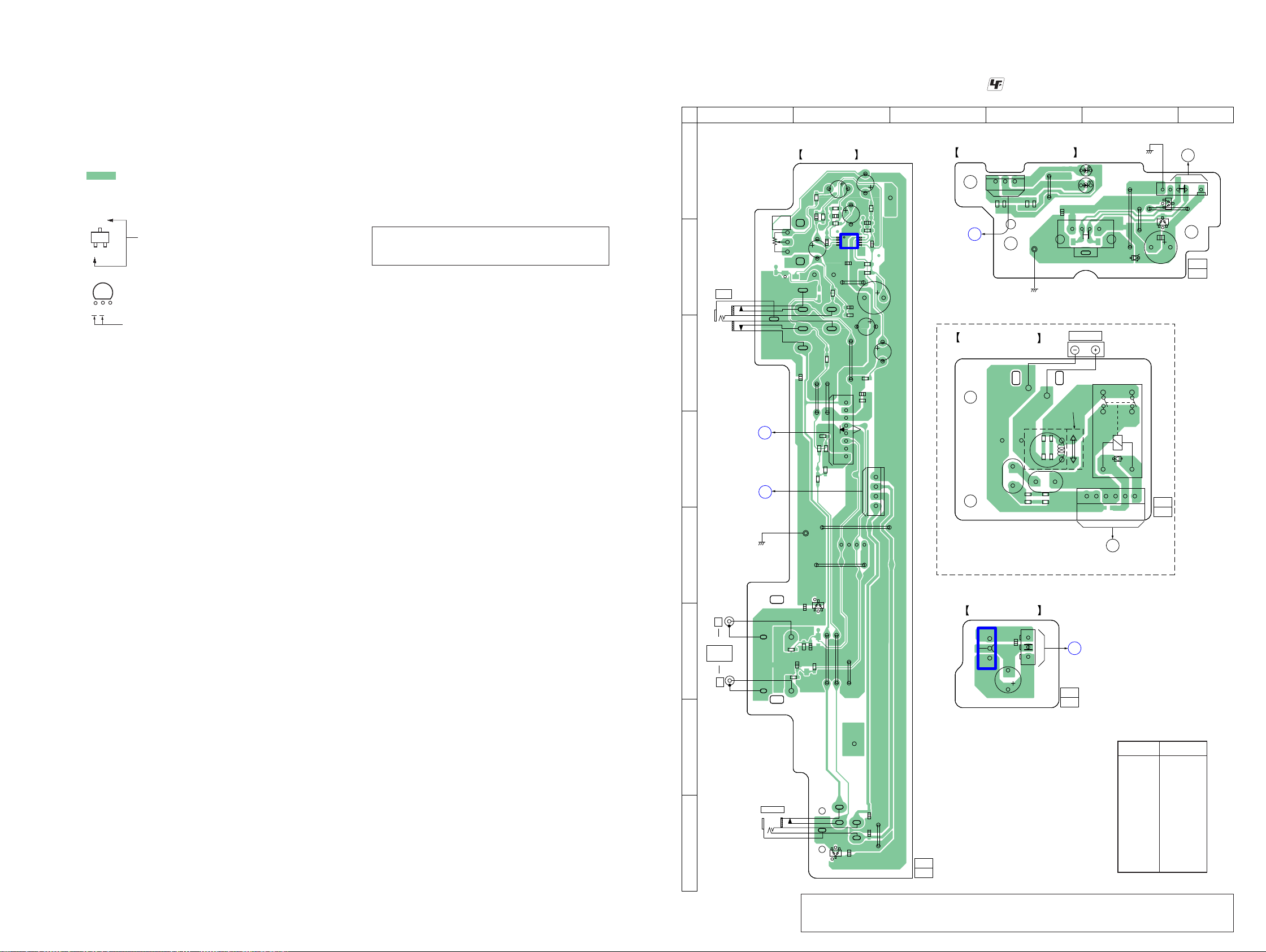

7-26. PRINTED WIRING BOARDS - PANEL Section -

• See page 27 for Circuit Boards Location.

• : Uses unleaded solder.

Ref. No. Location

• Semiconductor Location
– MOTOR DRIVE Board –

IC001 C-3

Ref. No. Location

D1000 E-2
D1001 F-3
D1002 E-3
D1003 E-2
D1004 F-3

Ref. No. Location

D011 D-7
D012 B-8
D013 D-9
D014 D-8
D015 D-8

Q010 C-6

Ref. No. Location

D011 H-7
D012 E-8
D013 H-9
D014 G-8

Q010 G-7

(Page 44)

(Page 32)

(Page 44)

(Page

44)

(Page 44)

• Semiconductor Location
– USB CONNECTOR Board –

• Semiconductor Location
– LED Board –

• Semiconductor Location
– LED (GSL1) Board –

Ver. 1.3

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4747

7-27. SCHEMATIC DIAGRAM - PANEL Section -

• See page 54 for IC Block Diagrams.

BOARD

DISPLAY

CN1106

Y

BOARD

DISPLAY

U

IC B/D

W

USB

CN1108

N

CN903

BOARD

DISPLAY

BOARD

BOARD

X

CN1102

DISPLAY

0.35.1

0 0.3

0 0.3

0 0.4

0

0.1

0.7

0.7

0.1

0.1C002

R005 10k

R006 10k

R007 10k

R008 10k

16V47C001

11P

CN001

1

2

2P

CN004

1

2

3

4

4P

CN002

10

9

8

7

65

4

3

2

1

VCC

IND4

IND3

IND1

IND2

1

2

3

4

4P

CN003

TP01

TP02

TP03

TP04

TP05

TP06

TP07

TP08

TP09

TP10

TP11

TP17

TP16

TP12

TP13

TP14

TP15

TP19

TP20

TP21

TP18

10k

R031

2P

CN031

TP40

TP41

R010

470

R012

470

TP52

R012

470

R019

1k

R014

470

TP52

R020

10k

680

R016

390

R017

R020

10k

470

R013

R014

470

TP53

TP51

4P

CN011

4P

CN011

TP51

470

R015

470

R015

TP50

470

R011

470

R011

R019

1k

390

R016

470

R013

R010

470

TP53

680

R017

TP50

SELT2WA10C-2TP8

D011

1L434FV22D0TD

D014

SELT2WA10C-2TP8

D013

1L434FV22D0TD

D015

SELT2WA10C-2TP8

D013

SELT2WA10C-2TP8

D012

SELT2WA10C-2TP8

D012

1L434FV22D0TD

D014

SELT2WA10C-2TP8

D011

2SC3052EF-T1-LEF

Q010

TP0101

1k

R1052

1k

R1054

6.8k

R1051

6.8k

R1053

TP0102

TP0103

3P

NO1051

DGND

JOG

VOL

TP1010

TP1006

TP1002

C1002

10

TP1007

1k

R1004

FB1000

0

TP1003

TP1001

TP1000

TP1008

TP1005

1k

R1002

1k

R1001

1k

R1005

TP1009

TP1004

FB1001

10V

C1001

220

C1003

0.1

TP1011

4P

CN1000

1

4

1L434FV22D0TDF01

D1003

3P

NO1000

MC2837

D1001

MC2837

D1002

1L434FB12E0MDTZ1

D1000

6P

NO1001

MAZ8068GMLS0

D1004

MOTOR DRIVE BOARD

SW BOARD

LED (GSL1) BOARD

LED BOARD

LED DRIVE

VOLUME BOARD

D1000, 1003

(USB)

USB CONNECTOR BOARD

0

NO1002

(CHASSIS)

(CHASSIS)

(USB)

711

D

B

6910

F

53

G

1

C

E

84

A

2 12

(GT222/GT444/GT555)

(GT111)

M+5V

IND4

IND3

IND1

IND2

MGND

METER SW

DGND

METER LED CTRL

SEL B

SEL A

1

2

3

4

5

6

7

8

9

10

11

LB1846M

IC001

MOTOR DRIVE

IC001

GND

OUT2

OUT1

OUT3

OUT4

METER SW

DGND

OUT4

OUT2

OUT1

OUT3

SEL A

SEL B

METER LED CTRL

GND

METER SW

DGND

SEL A

SEL B

METER LED CTRL

GND

1

2

1

2

3

4

2SC3052EF-T1-LEF

Q010

LED DRIVE

SEL A

SEL B

METER LED CTRL

GND

1

2

3

4

SEL A

SEL B

USB LED CTRL

VBUS

D-

D+

GND

SHIELD

1

2

3

1

3

4

5

6

1

1

3

2

1

3

2

2

3

S1052

ROTARY ENCODER

VOLUME

MASTER

S1051

OPERATION

ROTARY ENCODER

DIAL

(METER POSITION DETECT)

S031

(ILLUMINATION)

D011-015

D011-014

(ILLUMINATION)

M1

(METER)

(Page 45)

(Page 45)

(Page 33)

(Page 45)

(Page 45)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4848

BE

Q903

R904

R910

R911

R912

R914

R915

R952

C925

C926

D901

D911

D912

D906

CEB

1

11

1

6

1

3

W901

R908

CN901

CN907

C907

C909

FH909

C911

FH913

FH914

RY901

JW905

JW912

JW913

JW914

D908

JW916

JW917

JW919

JW921

JW922

JW923

JW924

JW925

JW931

JW932

JW933

JW934

JW935

JW936

JW937

JW938

JW940

JW941

JW942

JW943

F907

F906

F908

F909

Q902

CN903

C908

FH910

FH915

FH916

FH917

FH918

C910

JW901

JW915

JW918

JW911

JW909

11

12

13

14

16

15

17

10

9

8

6

5

4

3

2

TRANS1 BOARD

(AC IN)

PT901

PT902

MAIN POWER TRANSFORMER

SUB POWER

TRANSFORMER

∗ NOT REPLACEABLE:

BUILT IN
TRANSFORMER

VOLTA GE

SELECTOR

230V-240V 5220V U120V

S901

R

POWERAMP

BOARD
NO801

D

MAIN

BOARD

NO468

(CHASSIS)

1-875-752-

12

(12)

A

B

C

D

E

F

G

H

I

123456789101112 13

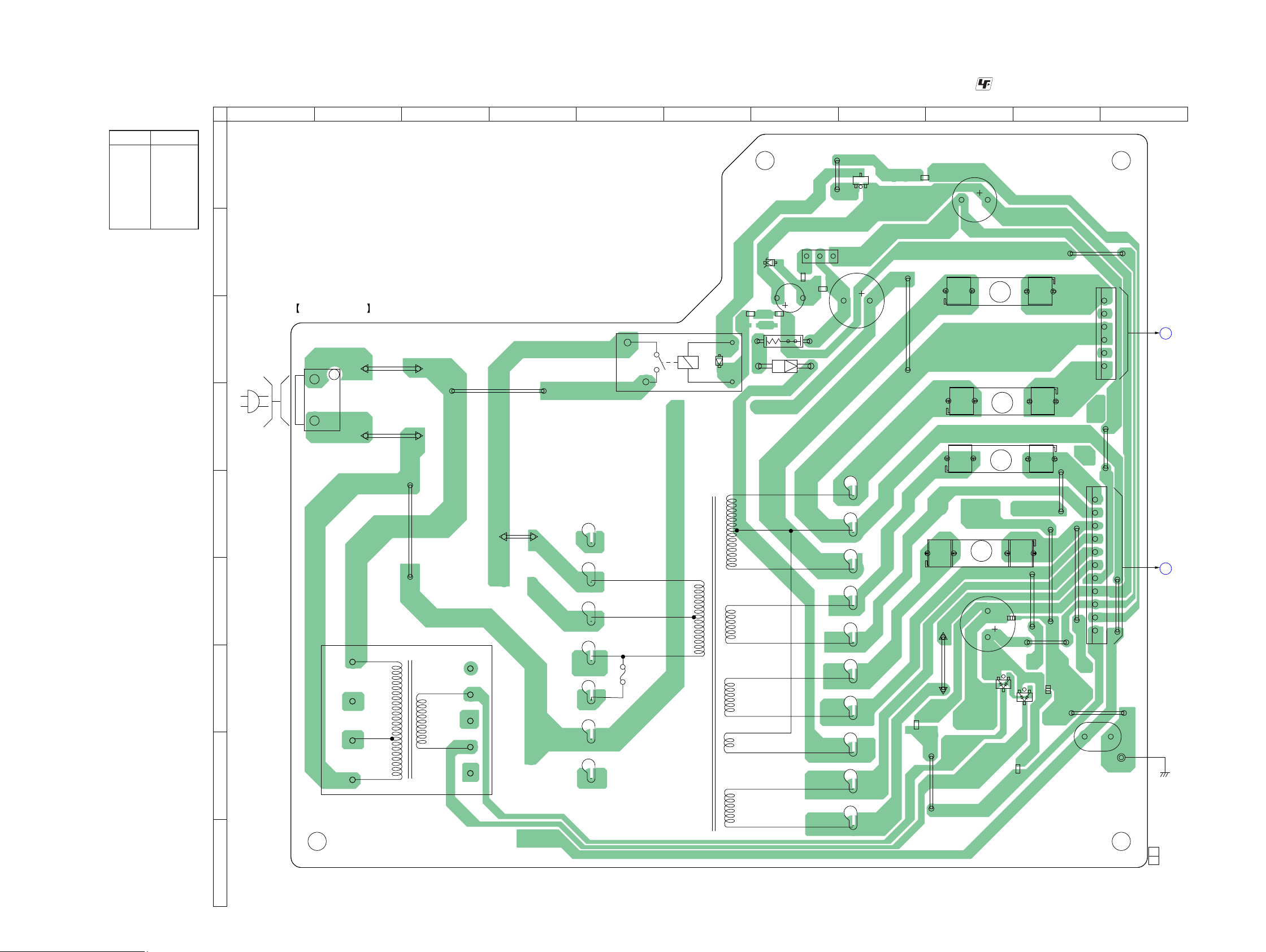

7-28. PRINTED WIRING BOARD - TRANS1 Board (GT111: 120V AC area in E, 240V AC area in E, Chilean and Peruvian models) -

• See page 27 for Circuit Boards Location.

•

: Uses unleaded solder.

Ref. No. Location

• Semiconductor
Location

D901 A-7
D906 A-8
D908 B-8
D911 G-11
D912 G-12

Q902 A-9
Q903 A-10

(Page 41)

(Page 35)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

4949

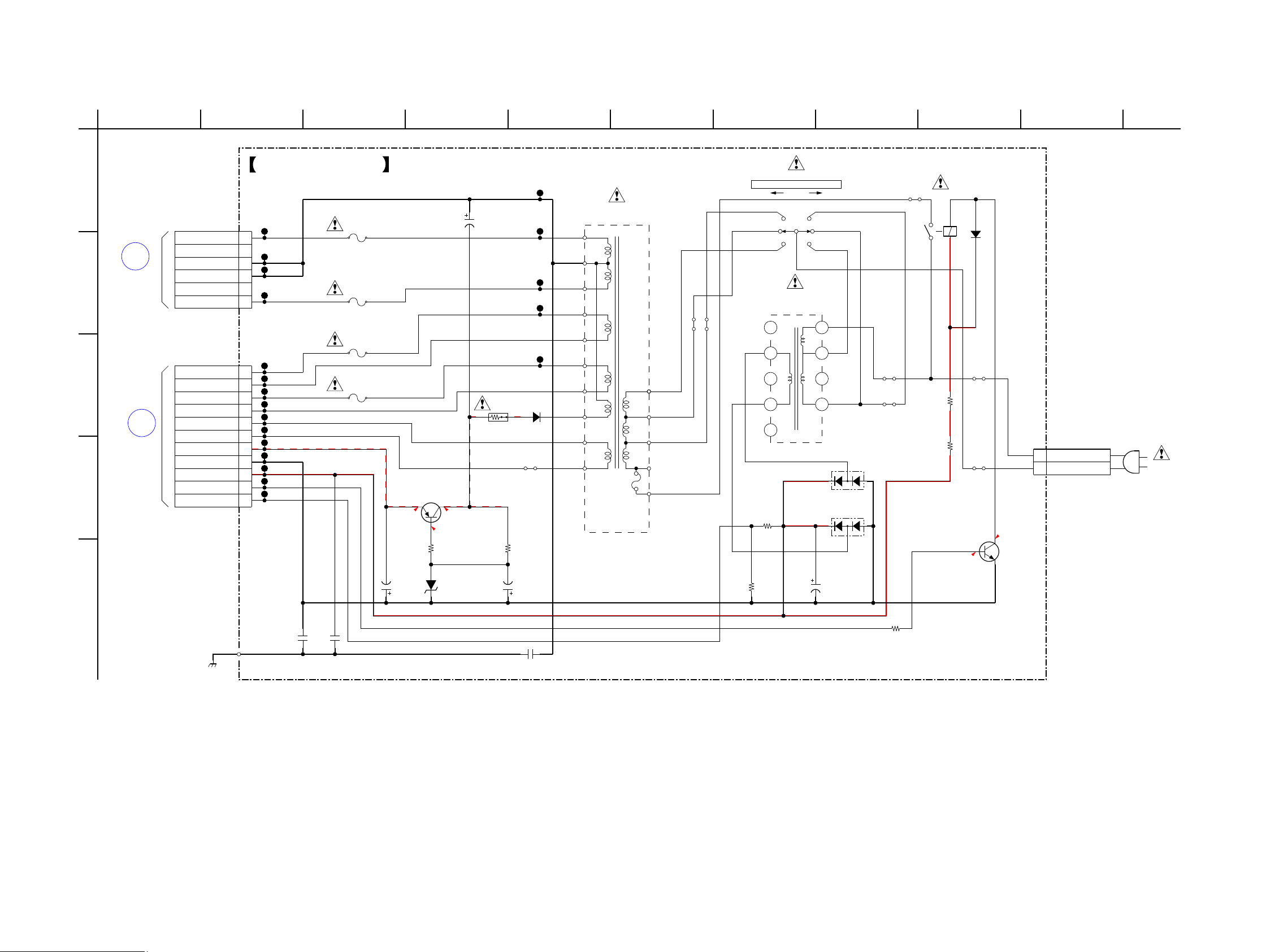

7-29. SCHEMATIC DIAGRAM - TRANS1 Board (GT111: 120V AC area in E, 240V AC area in E, Chilean and Peruvian models) -

(2/2)

BOARD

R

NO801

POWERAMP

D

BOARD

NO468

MAIN

(2/4)

-32

-38.3

-32.6

0.7

0.1

250V

F906

T3.15AL

50V

10

C909

25V

1000

C911

10k

R952

1k

R904

0.1

C907

JW917

JW912

JW909

JW905

50V

220

C908

35V

100

C910

4.7k

R915

2SC3052EF-T1-LEF

Q903

JL901

JL906

JL907

JL914

JL915

JL916

JL919

JL921

JL923

JL924

JL926

1

3

4

5

6

7

8

9

2

S901

22k

R912

1

R908

1N4002-B5

D908

MC2837

D912

MC2837

D911

6P

CN903

MA2J1110GLS0

D901

MAZ8330GMLS0

D906

11P

CN907

AC4

AC4

AC3

AC3

VF

VF

-VFL

DGND

EVER10V

STBY RELAY

AC CUT DETECT

JW933

JW932

JW901

JW925

RY901

1

3

3P

CN901

LIVE

NEUTRAL

JL927

JL928

JL929

JL930

JL931

JL932

JL933

JL934

JL935

250V

F908

T6.3AL

250V

F909

T6.3AL

250V

F907

T2AL

22

R910

0

R911

100k

R914

0.1

C926

C925

1

(CHASSIS)

W901

TRANS1 BOARD

230-240V220V120V

VOLTAGE SELECTOR

RELAY DRIVE

8

9

10

11

12

13

14

15

16

17

6

5

4

2

NOT REPLACEABLE:
BUILT IN TRANSFORMER

7

D

B

6910531

C

E

84

A

2 11

AC-VH

AC-VL

GND

GND

AC-VL

AC-VH

1

2

3

4

5

6

1

2

3

4

5

6

7

8

9

10

11

2SB1238-PQR-TV2

Q902

-32V REGULATOR

∗

∗

(AC IN)

PT902

SUB POWER

TRANSFORMER

TRANSFORMER

MAIN POWER

PT901

(Page 43)

(Page 37)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

5050

BE

Q903

R904

R911

R912

R914

R915

R952

C926

D901

D906

D911

D912

R904

R910

C

E

B

1

11

1

6

1

3

F906

F908

W901

CN903

CN907

C907

FH907

FH908

C909

FH909

FH912

FH913

FH914

JW901

JW903

JW907

JW911

JW912

JW914

D908

JW918

JW921

JW922

JW923

JW924

JW925

JW932

JW933

JW936JW937

JW939

JW941

JW943

JW940

JW942

JW938

JW935

JW934

JW919

JW916

JW915

JW910

JW909

JW908

JW905

JW902

JW917

JW906

JW904

C911

C910

RY901

FH918

FH917

FH916

FH915

FH911

FH910

C908

CN901

R908

Q902

F909

F907

F905

F904

C925

11

12

13

14

16

15

17

18

19

10

9

8

6

5

4

3

2

TRANS2 BOARD

(AC IN)

VOLTA GE

SELECTOR

230V-240V 5220V U120V

S901

S

POWERAMP

BOARD

NO801

E

MAIN

BOARD

NO468

(CHASSIS)

1-875-668-

11

(11)

PT901

MAIN POWER TRANSFORMER

∗ NOT REPLACEABLE:

BUILT IN
TRANSFORMER

PT902

SUB POWER

TRANSFORMER

GT222:E2,E51/
GT444:E2,E51/
GT555:E2,E51/

GT222:E2,E51/
GT444:E2,E51/
GT555:E2,E51

GT222:E2,E51/

GT444:E2,E51/

GT555:E2,E51/

GT222:AEP,RU,AR/
GT444:AEP,UK,RU,AR
GT555:RU,AR

GT222:AEP,RU,AR/

GT444:AEP,UK,RU,AR/

GT555:RU,AR

GT222:AEP,RU,AR/
GT444:AEP,UK,RU,AR/
GT555:RU,AR

GT222:E2,E51,MX/

(GT222:MX/GT444:MX/GT555:MX)

(GT222:MX/GT444:MX/GT555:MX)

(GT222/GT555)

GT444:E2,E51,MX/

GT555:E2,E51,MX

GT222:AEP,RU,MX,AR/

GT444:AEP,UK,RU,MX,AR/

GT555:RU,MX,AR

GT222:AEP,RU,MX,AR/

GT444:AEP,UK,RU,MX,AR/

GT555:RU,MX,AR

A

B

C

D

E

F

G

H

I

123456789101112 13

GT222:E2,E51/
GT444:E2,E51/
GT555:E2,E51

7-30. PRINTED WIRING BOARD - TRANS2 Board (GT222/GT444/GT555) -

• See page 27 for Circuit Boards Location.

• : Uses unleaded solder.

Ref. No. Location

• Semiconductor
Location

D901 A-7
D906 A-8
D908 B-8
D911 G-12
D912 G-12

Q902 A-9
Q903 A-10

(Page 41)

(Page 35)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

5151

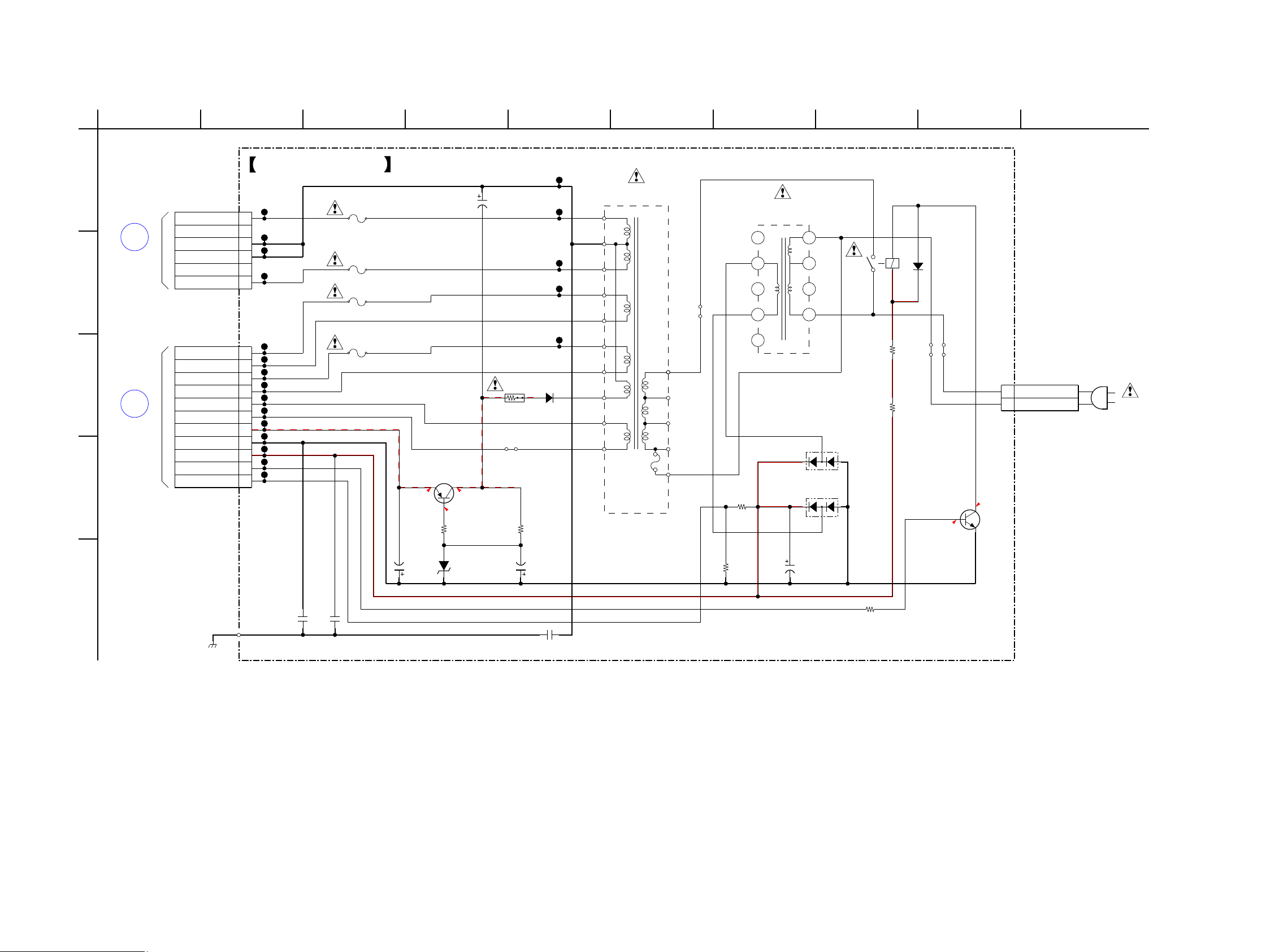

7-31. SCHEMATIC DIAGRAM - TRANS2 Board (GT222/GT444/GT555) -

NO468

S

(2/4)

BOARD

BOARD

MAIN

E

(2/2)

NO801

POWERAMP

0.1

0.7

-38.3-32

-32.6

250V

F904

T6.3AL

250V

F905

T6.3AL

250V

F908

T8AL

250V

F909

T8AL

250V

F906

T3.15AL

50V

10

C909

∗

∗

C911

C911
1000 16V (GT222: AEP, RU, MX, AR/GT444: AEP, RU, UK, MX, AR/GT555: RU, MX, AR)
1000 25V (GT222: E2, E51/GT444: E2, E51/GT555: E2, E51)

10k

R952

1k

R904

0.1C907

JW917

JW907

JW908

JW912

JW909

JW902

JW910

JW904

JW905

50V

220

C908

35V

100

C910

2SB1238-PQR-TV2

Q902

4.7k

R915

JL901

JL904

JL906

JL907

JL914

JL915

JL916

JL919

JL920

JL921

JL923

JL924

JL926

PT902

5

2

1

6

4

7

3

22k

R912

R908

1N4002-B5

D908

MC2837

D912

MC2837

D911

6P

CN903

MA2J1110GLS0

D901

MAZ8330GMLS0

D906

11P

CN907

JW933

JW932

JW901

JW925

JW906

RY901

1

3

3P

CN901

LIVE

NEUTRAL

JL927

JL928

JL929

JL930

JL931

JL932

JL933

JL934

JL935

JL936

250V

F907

T2AL

22

R910

0

R911

100k

R914

0.1

C926

JW903

C925

1

TRANS2 BOARD

W901

(CHASSIS)

(AC IN)

SUB POWER

TRANSFORMER

VOLTAGE SELECTOR

120V 220V 230-240V

PT901

MAIN POWER

TRANSFORMER

S901

-32V REGULATOR

NOT REPLACEABLE:
BUILT IN TRANSFORMER

(GT222/GT555)

(GT222: E2, E51/GT444: E2, E51/GT555: E2, E51)

GT555: RU, MX, AR

GT444: AEP, UK, RU, MX, AR/

GT222: AEP, RU, MX, AR/

GT444: MX/
GT555: MX

GT222: MX/

GT444: AEP, UK, RU, AR/
GT555: RU, AR

GT222: AEP, RU AR/

GT444: MX/
GT555: MX

GT222: MX/

GT444: AEP, UK, RU, AR/

GT222: AEP, RU AR/

GT555: RU, AR

GT444: E2, E51, MX/
GT555: E2, E51, MX

GT222: E2, E51, MX/

D

5102

A

74813

C

96

B

E

11 12

0.68 (GT222: AEP, RU/GT444: AEP, UK, RU/GT555:RU)
1 (GT222: E2, E51, MX, AR/GT444: E2, E51, MX, AR/GT555: E2, E51, MX, AR)

R908

1

2

3

4

5

6

AC-VH

AC-VL

GND

GND

AC-VL

AC-VH

∗

5

6

7

8

91

3

4

2

16

17

12

14

13

18

15

10

11

8

9

19

∗

∗

∗

AC4

AC4

AC3

AC3

VF

VF

-VFL

DGND

EVER10V

STBY RELAY

AC CUT DETECT

1

2

3

4

5

6

7

8

9

10

11

2SC3052EF-T1-LEF

Q903

RELAY DRIVE

(Page 43)

(Page 37)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

5252

C

E

B

13

1

11

1

6

R908

CN901

CN903

FH909

C910

C911

FH913 FH914

FH918

RY901

JW907

11

12

13

14

16

15

17

10

9

6

5

4

3

2

8

D908

JW917

JW921

JW922

JW924

JW931

JW932

JW933

JW934

JW935

JW936

JW937

JW938

JW939

JW940

JW941

JW942

C925

F907

F906

F908

F909

Q902

W901

CN907

C908

FH910

FH915

FH916

FH917

C909

C907

JW923

BE

Q903

R910

R911

R915

R952

C926

D901

D906

D911

D912

R904

R914

R912

TRANSX BOARD

(AC IN)

PT902

SUB POWER TRANSFORMER

PT901

MAIN POWER TRANSFORMER

NOT REPLACEABLE:
BUILT IN TRANSFORMER

MAIN

BOARD
NO468

F

T

POWERAMP

BOARD
NO801

(CHASSIS)

A

B

C

D

E

F

G

H

I

1234567891011

1-875-761-

12

(12)

∗

7-32. PRINTED WIRING BOARD - TRANSX Board (GT111: AEP, Russian and Argentina models) -

• See page 27 for Circuit Boards Location.

•

: Uses unleaded solder.

Ref. No. Location

• Semiconductor
Location

D901 C-6
D906 B-7
D908 C-7
D911 G-10
D912 G-9

Q902 B-7
Q903 A-8

(Page 41)

(Page 35)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

5353

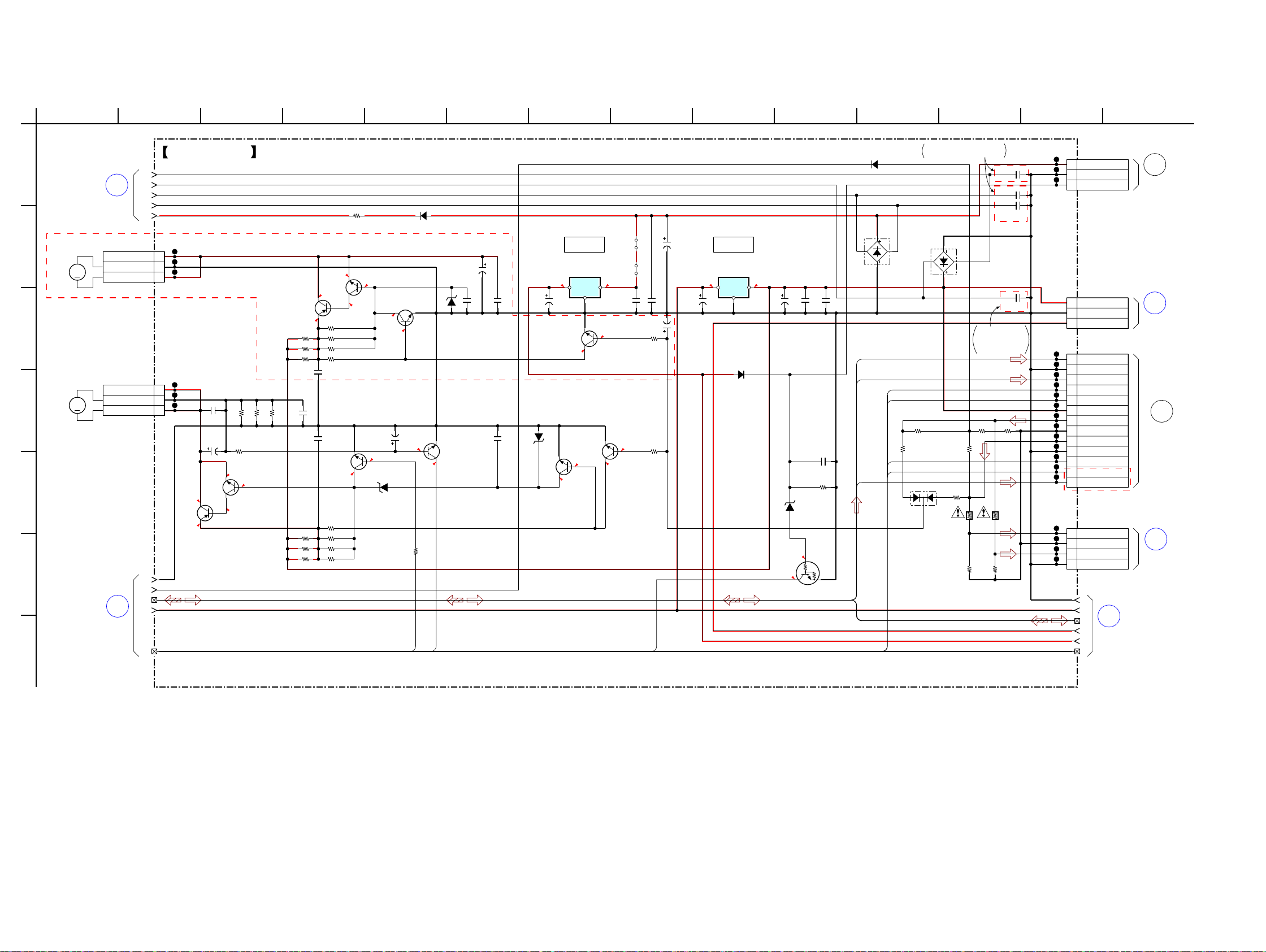

7-33. SCHEMATIC DIAGRAM - TRANSX Board (GT111: AEP, Russian and Argentina models) -

NO468

(2/4)

BOARD

MAIN

F

NO801

(2/2)

T

BOARD

POWERAMP

0.1

0.7

-32.6

-38.3-32

250V

F906

T3.15AL

50V

10

C909

16V

1000

C911

10k

R952

1k

R904

1

3

3P

CN901

LIVE

NEUTRAL

0.1C907

JW917

50V

220

C908

35V

100

C910

4.7k

R915

JL901

JL906

JL907

JL914

JL915

JL916

JL919

JL921

JL923

JL924

JL926

1

3

4

5

6

7

8

9

2

22k

R912

1

R908

1N4002-B5

D908

MC2837

D912

MC2837

D911

6P

CN903

MA2J1110GLS0

D901

MAZ8330GMLS0

D906

11P

CN907

JW933

JW932

JW907

RY901

JL927

JL928

JL929

JL930

JL931

JL932

JL933

JL934

JL935

250V

F907

T2AL

100k

R914

0

R911

22

R910

0.1

C926

250V

F909

T6.3AL

250V

F908

T6.3AL

C925

1

TRANSX BOARD

W901

(CHASSIS)

5

8

12

BUILT IN TRANSFORMER

6

11

15

17

2

10

14

16

NOT REPLACEABLE:

4

9

13

(AC IN)

3145 1087926

D

B

C

A

E

PT902

SUB POWER

TRANSFORMER

2SC3052EF-T1-LEF

Q903

RELAY DRIVE

∗

∗

PT901

MAIN POWER

TRANSFORMER

AC-VH

AC-VL

GND

GND

AC-VL

AC-VH

1

2

3

4

5

6

AC4

AC4

AC3

AC3

VF

VF

-VFL

DGND

EVER10V

STBY RELAY

AC CUT DETECT

1

2

3

4

5

6

7

8

9

10

11

2SB1238-PQR-TV2

Q902

-32V REGULATOR

(Page 43)

(Page 37)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

5454

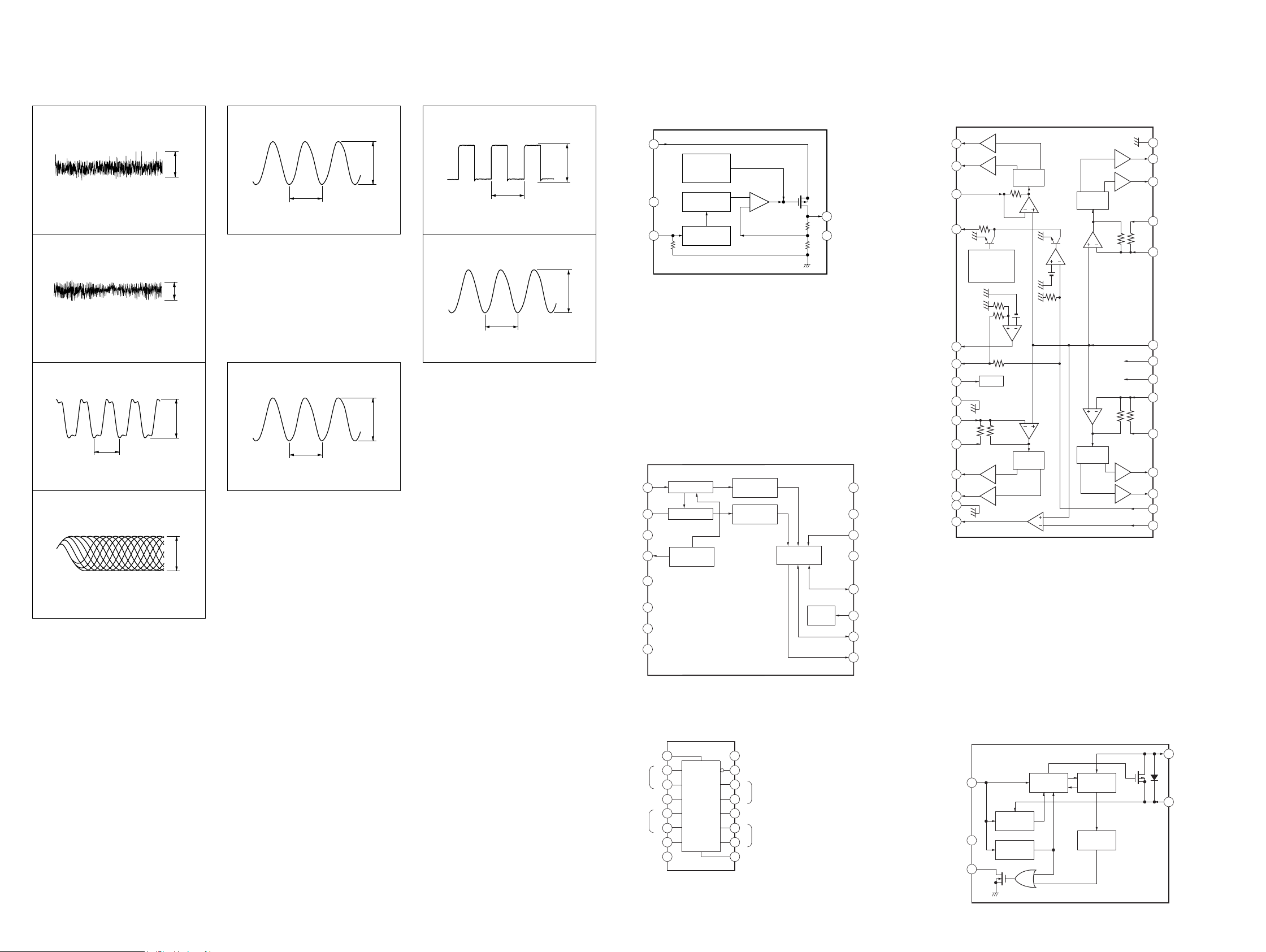

• Waveforms
– CD Board –



IC101 JB (RFi)
(CD play mode)

500 mV/DIV, 500 ns/DIV

1.2 Vp-p

RB

ICIC901 VE (X2)

1 V/DIV, 50 ns/DIV

111 n s

3.7 Vp-p

XB

L501 
(TAPE REC mode)

10 V/DIV, 5 μs/DIV

13.6 μs

56 Vp-p

FT

IC401 RE (X-OUT)

1 V/DIV, 100 ns/DIV

200 ns

3.5 Vp-p



IC101  (FEi)
(CD play mode)

200 mV/DIV, 500 ns/DIV

Approx.
400 mVp-p



IC101  (TEi)
(CD play mode)

200 mV/DIV, 500 ns/DIV

Approx.
500 mVp-p

59 ns

3.2 Vp-p



IC101 XG (XO)
(CD play mode)

1 V/DIV, 20 ns/DIV

FB

IC401 RB (XC-OUT)

1 V/DIV, 20 μs/DIV

30.5 μs

2.5 Vp-p

– USB Board –

– TC Board –

– MAIN Board –

• IC Block Diagrams
– CD Board –

IC201 TK63115SCL-G@GT

THERMAL &

OVER CURRENT

PROTECTION

VOLTAGE

REFERENCE

ON/OFF

CONTROL

VIN

1

GND

2

VCONT

3NC4

VOUT

5

+

–

IC401 BA5826SFP-E2

IC501 AK5358AET-E2

MODULATOR

DECIMATION

FILTER

1

AINR

AINL

CKS1

VCOM

AGND

VA

VD

DGND

CKSO

CKS2

DIF

PDN

SCLK

MCLK

LRCK

SDTO

MODULATOR

DECIMATION

FILTER

SERIAL I/O

INTERFACE

CLOCK

DIVIDER

2

VO LTAGE

REFERENCE

4

3

5

6

8

7

16

15

13

14

12

11

9

10

IC502 TC74VHC157FT (EKJ)

SELECT

111

1A

2

3

4

5

6

7

INPUT

INPUT

OUTPUT

OUTPUT

1A

1B

1Y

2A

2B

2Y

1B

1Y

2A

2B

2Y

GND

8

VCC

STROBE

16

4A

15

14

13

1112

11

10

INPUT

INPUT

OUTPUT

OUTPUT

G

4B

4Y

3A

4A

4B

4Y

3A

3B

9

3B

3Y

3Y

S

– USB Board –

IC915 R5523N001B-TR-F

1

VO1(–)

VO1(+)

RESET

REGB

REGOUT

MUTE

VO2(+)

VO2(–)

OPOUT

GND

IN2'

GND

D.BUFF

2

D.BUFF

3

IN1

4

THERMAL
SHUT-DOWN
REGULATOR

BIAS TRAP

5

6

MUTE

7

8

9

IN2

10

D.BUFF

11

D.BUFF

12
13

14

LEVEL
SHIFT

LEVEL
SHIFT

28

GND

27

26

25

24

23

22

21

20

19

18

17

16

15

VO4(–)

VO4(+)

IN4

IN4'

BIAS

VCC

VCC

IN3'

IN3

VO3(+)

VO3(–)

RESETt

OPIN

D.BUFF

LEVEL
SHIFT

REGULATOR

LEVEL
SHIFT

D.BUFF

VCC

VCC

D.BUFF

D.BUFF

UVLO

GATE

CONTROL

1EN

2GND

THERMAL

SHUTDOWN

3FLG

CURRENT

LIMIT

FLAG

DELAY

5OUT

4IN

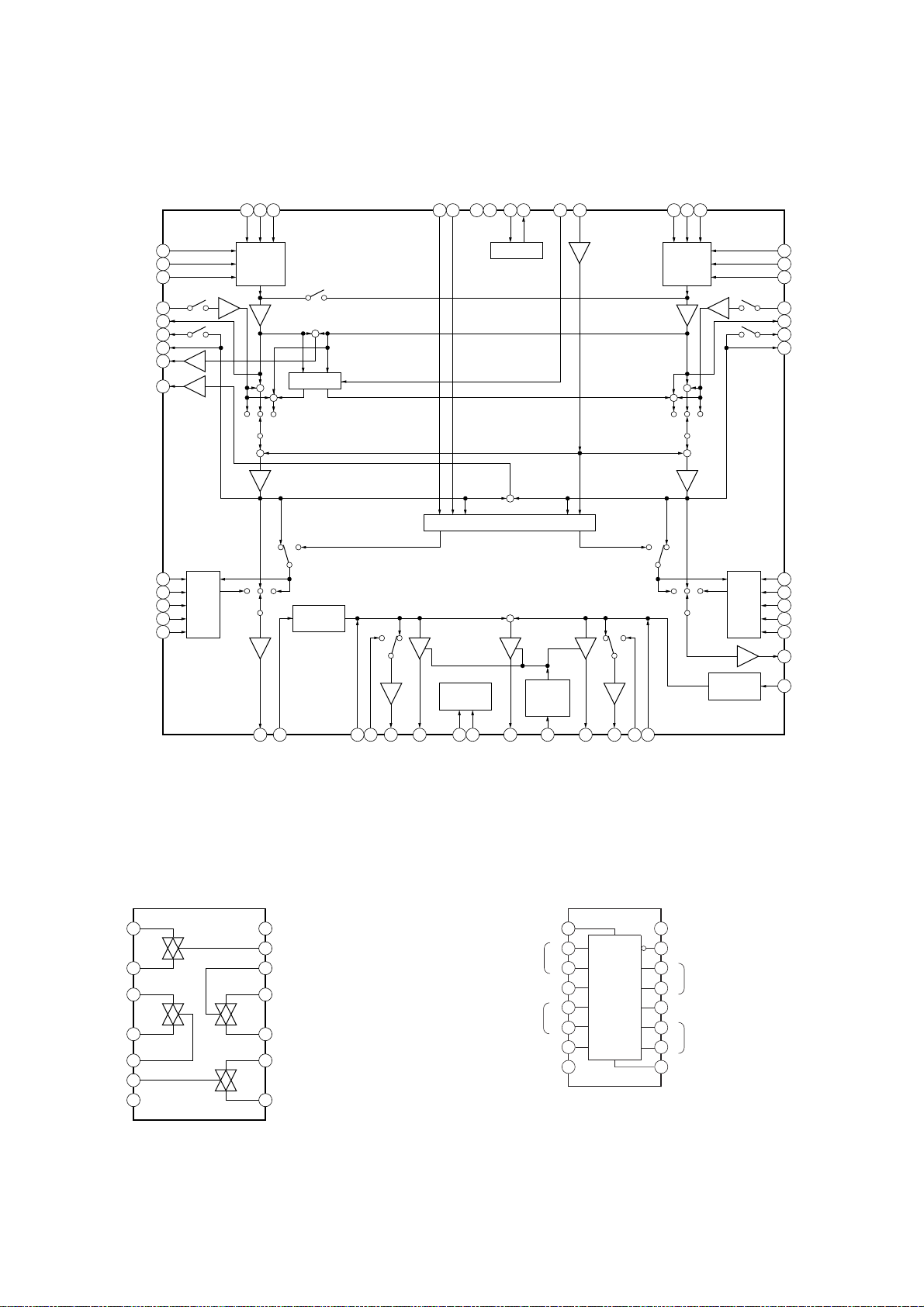

– MAIN Board –

IC407 R2A15216FP

INCR

55

INBR

54

INAR

DPLR/SURR

DPLL/SURL

52

5356

VCC

GND

REFIN

HCD-GT111/GT222/GT444/GT555

INAL

INBL

REFOUT

MIC

VC

INCL

43

4445464748495051

INDR
INER
INFR

GAMER

INGAINOUTR

RECAR
RECBR

SA1

SA2

TRER
MID1R
MID2R

BASS1R
BASS2R

1
2
3

4
5
6
7
8

9

10

TONE

11

R

(TRE,

12

MID,

13

BASS)

14

6 INPUT

SELECTOR

(R-CH)

+

VOCAL CUT

+

+

+

ELECTRICAL

VOLUME

INTERFACE

15 17 21 22 2419 20 231816 282625 27

BB1R

BB2R

VOLINR

TONEOUTR

OUTR

AGCOUTR

REFERENCE

+

SURROUND OR DPL IN

+

MCU

CLK

DATA

SWOUT

AUTO

GAIN

CONTROL

AGCC

AGCOUTL

OUTL

BB2L

SELECTOR

BB1L

6 INPUT

(L-CH)

+

+

+

TONE

L

(TRE,

MID,

BASS)

ELECTRICAL

VOLUME

42

INDL

41

INEL

40

INFL

39

GAMEL

38

INGAINOUTL

37

RECAL

36

RECBL

35

TREL

34

MID1L

33

MID2L

32

BASS1L

31

BASS2L

TONEOUTL

30

VOLINL

29

IC670, 672 TC74HC4066AFT (EL)

1I/O VCC1 14

1C

13

1O/I

2O/I

2I/O 4

2C

3C 6

GND 7

2

3

5

12

4C

11

4I/O

4O/I10

3O/I9

3I/O8

IC673 TC74VHC157FT (EKJ)

SELECT

INPUT

OUTPUT

INPUT

OUTPUT

GND

111

S

2

1A

1A

3

1B

1B

4

1Y

1Y

5

2A

2A

6

2B

2B

7

2Y

2Y

3Y

8

16

VCC

15

STROBE

G

4A

14

4A

4B

4Y

3A

3B

INPUT

4B

13

12

11

4Y

OUTPUT

3A

11

INPUT

3B

10

3Y

OUTPUT

9

55

HCD-GT111/GT222/GT444/GT555

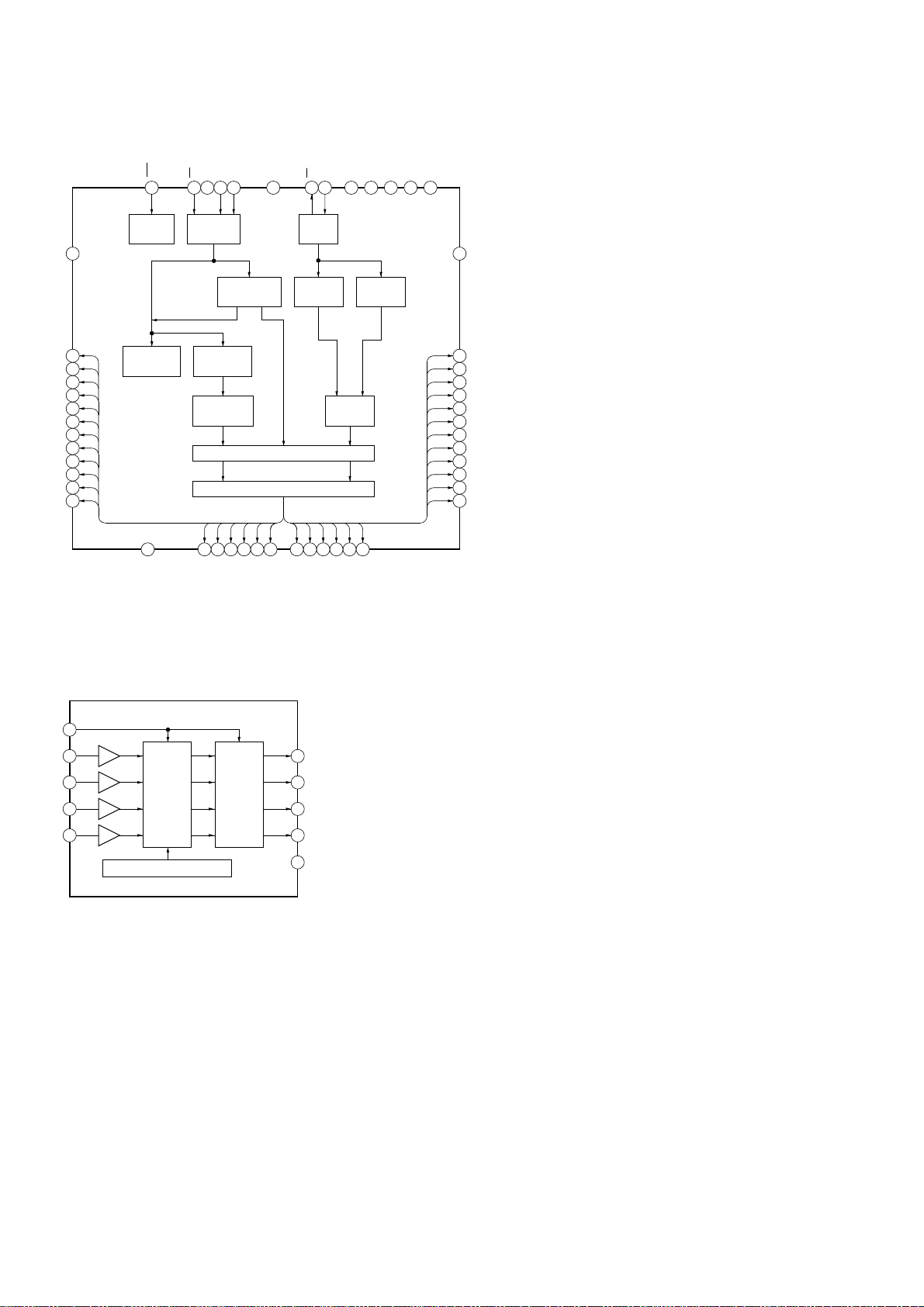

– DISPLAY Board –

IC1101 NJU3427FH2

RD0
RD1
RD2

RD3
RD4
RD5
RD6

RD7
RD8
RD9

RD10

RD11

RST

52

RESET

CIRCUIT

1NC

2
3
4
5
6
7
8
9

10

11
12
13

ADDRESS

COUNTER

14

NC

SCK47NC46XT45XT44VSS43NC42VDD41NC40VFDP

51CS50NC49SI48

SERIAL

BUFFER

INSTRUCTION

DECODER

DISPLAY

DATA RAM

SEGMENT

DATA LATCH

TIMING/SEGMENT SELECTOR

HIGH VOLTAGE DRIVER

15 16 17 18 19 20 21 22 23 24 25 26

DR12

DR13

DR14

DR15

DR16

DR17

OSC

TIMING

COUNTER

DR18

DR19

TIMING

DECODER

DR20

DR21

COUNTER

DR22

DR23

DUTY

NC

39

38

DR35
DR34

37

DR33

36

DR32

35

DR31

34

DR30

33

DR29

32

DR28

31

DR27

30

DR26

29

DR25

28

DR24

27

– MOTOR DRIVE Board –

IC001 LB1846M

1

VCC

2

IN4

3

IN3

4

IN1

5

IN2

CONTROL

LOGIC

THERMAL SHUTDOWN CIRCUIT

MOTOR

DRIVE

10

OUT4

9

OUT3

8

OUT1

7

OUT2

6

GND

56

HCD-GT111/GT222/GT444/GT555

• IC Pin Function Description
CD BOARD IC101 TC94A70FG-101 (CD-MP3 PROCESSOR)

Pin No. Pin Name I/O Description

1 AVSS3 - Ground terminal

2 RFZi I RF ripple zero crossing signal input terminal

3 RFRP O RF ripple signal output terminal

4 SBAD/RFDC O Sub beam addition signal or RF peak detection signal output terminal Not used

5 FEi O Focus error signal output terminal Not used

6 TEi O Tracking error signal output terminal

7 TEZi I Tracking error zero crossing signal input terminal

8 AVDD3 - Power supply terminal (+3.3 V)

9 FOo O Focus coil drive signal output terminal

10 TRo O Tracking coil drive signal output terminal

11 VREF I Reference voltage (+1.65V) input terminal

12 FMO O Sled motor drive signal output terminal

13 DMO O Spindle motor drive signal output terminal

14 VSSP3 - Ground terminal

15 VCOi I VCO control voltage input terminal

16 VDDP3 - Power supply terminal (+3.3 V)

17 VDD1 - Power supply terminal (+1.5 V)

18 VSS1 - Ground terminal

19 FGiN I FG signal input terminal Not used

20 IO0 (/HSO) I Disc inner position detection signal input terminal

21 IO1 (/UHSO) O Not used

22 XVSS3 - Ground terminal

23 XI I System clock input terminal (16.9344 MHz)

24 XO O System clock output terminal (16.9344 MHz)

25 XVDD3 - Power supply terminal (+3.3 V)

26 DVSS3 - Ground terminal

27 RO O Analog audio (R-ch) signal output terminal

28 DVDD3 - Power supply terminal (+3.3 V)

29 DVR O Reference voltage (+1.65V) output terminal

30 LO O Analog audio (L-ch) signal output terminal

31 DVSS3 - Ground terminal

32 VDDT3 - Power supply terminal (+3.3 V)

33 VSS1 - Ground terminal

34 VDD1 - Power supply terminal (+1.5 V)

35 VDDM1 - Power supply terminal (+1.5 V)

36 SRAMSTB I S-RAM standby mode control signal input terminal Fixed at "L" in this set

37 XRST I Reset signal input from the system controller "L": reset

38, 39 BUS0, BUS1 I Serial data input from the system controller or USB controller

40 BUS2 (SO) I Serial data input from the system controller or USB controller

41 BUS3 (SI) I Serial data input from the system controller or USB controller

42 BUCK (CLK) I Serial data transfer clock signal input from the system controller or USB controller

43 XCCE I Chip enable signal input from the system controller or USB controller

44 TEST I Setting terminal for test mode Normally fi xed at "L"

45 IRQ I Interrupt request signal input terminal

46 AoUT3 (PO4) O Clock siganl output to the A/D converter

47 AoUT2 (PO5) O Audio data output to the USB controller

48 PIO0 O Request signal output to the system controller or USB controller

49 PIO1 O Request signal output to the USB controller

50 PIO2 O Data selection signal output to the data selector/reset signal output to the A/D converter

51 PIO3 I Gate signal input from the USB controller

52 VSS1 - Ground terminal

53 VDDT3 - Power supply terminal (+3.3 V)

54 SBSY O Subcode block sync signal output to the system controller

55 SBOK/FOK O Not used

57

HCD-GT111/GT222/GT444/GT555

Pin No. Pin Name I/O Description

56 IPF O Not used

57 SFSY/LOCK O Not used

58 ZDET O Zero detection signal output terminal Not used

59 GPIN I Not used

60 MS I Microcomputer interface mode selection signal input terminal Fixed at "H" in this set

61 DOUT (PO6) O Digital audio data output terminal Not used

62 AOUT (PO7) O Audio data output terminal Not used

63 BCK (PO8) O Bit clock signal output to the USB controller

64 LRCK (PO9) O L/R sampling clock signal output terminal

65 AIN (PI4) I Digital audio data input from USB controller or A/D converter

66 BCKi (PI5) I Bit clock signal input from the USB controller or A/D converter

67 LRCKi (PI6) I L/R sampling clock signal input from the USB controller or A/D converter

68 VDD1 - Power supply terminal (+1.5 V)

69 VSS1 - Ground terminal

70 AWRC - Not used

71 PVDD3 - Power supply terminal (+3.3 V)

72 PDo O Phase error margin signal between EFM signal and PLCK signal output terminal

73 TMAXS O TMAX detection signal output terminal Not used

74 TMAX O TMAX detection signal output terminal

75 LPFN I Inverted signal input from the operation amplifi er for PLL loop fi lter

76 LPFo O Signal output from the operation amplifi er for PLL loop fi lter

77 PVREF I Reference voltage (+1.65V) input terminal

78 VCOF O VCO fi lter output terminal

79 PVSS3 - Ground terminal

80 SLCo O EFM slice level output terminal

81 RFi I RF signal input terminal

82 RFRPi I RF ripple signal input terminal

83 RFEQo O EFM slice level output terminal

84 VRo O Reference voltage (+1.65V) output terminal

85 RESiN O External resistor connection terminal

86 VMDiR O Reference voltage (+1.65V) output terminal for automatic power control circuit

87 TESTR O Low-pass fi lter terminal for RFEQO offset correction

88 AGCi I RF signal amplitude adjustment amplifi cation input terminal

89 RFo O RF signal generation amplifi cation output terminal

90 RVDD3 - Power supply terminal (+3.3 V)

91 LDo O

92 MDi I Light amount monitor input from the laser diode of optical pick-up block

93 RVSS3 - Ground terminal

94 FNi2 (C) I Main beam (C) input from the optical pick-up block

95 FNi1 (A) I Main beam (A) input from the optical pick-up block

96 FPi2 (D) I Main beam (D) input from the optical pick-up block

97 FPi1 (B) I Main beam (B) input from the optical pick-up block

98 TPi (F) I Sub beam (F) input from the optical pick-up block

99 TNPC O External capacitor connection terminal

100 TNi (E) I Sub beam (E) input from the optical pick-up block

Laser diode on/off control signal output to the automatic power control circuit
"H": laser diode on

58

HCD-GT111/GT222/GT444/GT555

USB BOARD IC901 TMP92CD28AFG-7AC9 (TEM) (USB CONTROLLER)

Pin No. Pin Name I/O Description

1 /RESET I Reset signal input from the system controller "L": reset

2 DI I Ready to send signal input from the system controller

3, 4 NO USE O Not used

5 G-3 I Function selection signal input terminal Fixed at "L" in this set

6 DVCC - Power supply terminal (+3.3 V)

7 to 9 NO USE O Not used

10 DVSS - Ground terminal

11 DVCC - Power supply terminal (+3.3 V)

12 RVOUT1 O Reference voltage (+3.3 V) output terminal

13, 14 RVIN I Reference voltage (+3.3 V) input terminal

15 RVOUT2 O Reference voltage (+3.3 V) output terminal

16 DVCC - Power supply terminal (+3.3 V)

17 DVSS - Ground terminal

18 to 25 D0 to D7 I/O Two-way data bus with the S-RAM

26 DVSS - Ground terminal

27 DVCC - Power supply terminal (+3.3 V)

28 to 35 D8 to D15 I/O Two-way data bus with the S-RAM

36 A0 O Address signal output terminal Not used

37 to 43 A1 to A7 O Address signal output to the S-RAM

44 DVSS - Ground terminal

45 DVCC - Power supply terminal (+3.3 V)

46 to 54 A8 to A16 O Address signal output to the S-RAM

55 to 58 BUS0 to BUS3 O Serial data output to the CD-MP3 processor

59 /BUCK O Serial data transfer clock signal output to the CD-MP3 processor

60 /CCE O Chip enable signal output to the CD-MP3 processor

61 NO USE O Not used

62 DVSS - Ground terminal

63 DVCC - Power supply terminal (+3.3 V)

64 RD O Output enable signal output to the S-RAM

65 WR O Write enable signal output to the S-RAM

66 SRLLB O Lower-byte control signal output to the S-RAM

67 SRLUB O Upper-byte control signal output to the S-RAM

68 NO USE O Not used

69 BOOT I Boot mode selection signal input terminal "L": boot mode

70 CS2 O Chip select signal output to the S-RAM

71 LRCK O L/R sampling clock signal output to the CD-MP3 processor

72 AM1 I Function mode selection signal input terminal Fixed at "H" in this set

73 X2 O System clock output terminal (9 MHz)

74 DVSS - Ground terminal

75 X1 I System clock input terminal (9 MHz)

76 DVCC - Power supply terminal (+3.3 V)

77 USBOC I Over current detection signal input terminal

78 USBPON O USB VBUS power on/off control signal output terminal "H": power on

79 D+ I/O Two-way data (positive) bus with the USB connector

80 D- I/O Two-way data (negative) bus with the USB connector

81 AM0 I Function mode selection signal input terminal Fixed at "H" in this set

82 NO USE O Not used

83 DVSS - Ground terminal

84 DO O Clear to send signal output to the system controller

85 DATA I Audio data input from the CD-MP3 processor

86 CLOCK I Audio data transfer clock signal input from CD-MP3 processor

87 TXD1 O Serial data output to the system controller

88 RXD1 I Serial data input from the system controller

89 NO USE O Not used

90 SDA I/O Two-way EEPROM IIC data bus terminal Not used

59

HCD-GT111/GT222/GT444/GT555

Pin No. Pin Name I/O Description

91 SCL I/O Two-way EEPROM IIC clock bus terminal Not used

92 BCK O Bit clock signal output to the CD-MP3 processor

93 DATA O Audio data output to the CD-MP3 processor

94 GATE O Gate signal output to the CD-MP3 processor

95 DVCC - Power supply terminal (+3.3 V)

96 REQ I Request signal input from the CD-MP3 processor

97 ST-REQ I Request signal input from the CD-MP3 processor

98, 99 G-1, G-2 I Function selection signal input terminal Fixed at "L" in this set

100 DVSS - Ground terminal

60

HCD-GT111/GT222/GT444/GT555

MAIN BOARD IC401 R5F3640DDFA (SYSTEM CONTROLLER)

Pin No. Pin Name I/O Description

1, 2

3 SW LED O LED drive signal output terminal for SUBWOOFER indicator (GT222/GT444/GT555)

4 SIRCS I SIRCS signal input from the remote control receiver

5 CDM-SD I CD mechanism deck protector detection signal input signal "H": protector on

6, 7 M2-, M2+ O Disc change and mode change motor drive signal output terminal

8 BYTE I External data bus width selection signal input terminal

9 CN Vss I Processor mode switch input terminal (for test)

10 XC-IN I Sub system clock input terminal (32.768 kHz)

11 XC-OUT O Sub system clock output terminal (32.768 kHz)

12 RESET I

13 X-OUT O Main system clock output terminal (5 MHz)
14 VSS - Ground terminal

15 X-IN I Main system clock input terminal (5 MHz)

16 VCC - Power supply terminal (+3.3V)

17 NMI I Non-maskable interrupt signal input terminal Not used

18 M1- O Tray/drawer transportation motor drive signal output terminal

19 SBSY I Subcode block sync signal input from the CD-MP3 processor

20 AC-CUT I AC cut on/off detection signal input terminal "L": AC cut on

21 M1+ O Tray/drawer transportation motor drive signal output terminal

22, 23 SW3, SW1 I Disc change and mode change detection signal input from CD mechanism deck

24 SW-CHUCK I Tray chuck position detection signal from CD mechanism deck

25 SW2 I Disc change and mode change detection signal input from CD mechanism deck

26 SW-CLOSE I Drawer close position detection signal input from CD mechanism deck

27 SW-STOCK I Tray stock position detection signal from CD mechanism deck

28 SW-OPEN I Drawer open position detection signal input from CD mechanism deck

29 IIC-CLK I/O Serial data transfer clock signal output terminal Not used

30 IIC-DATA I/O Serial data output terminal Not used

31 MC TXD O Serial data output terminal Not used

32 MC RXD I Serial data input terminal Not used

33 USB RESET O Reset signal output to the USB controller

34 USB CTS0 I Clear to send signal input from USB controller

35 USB TXD0 O Serial data output to the USB controller

36 USB RXD0 I Serial data input from the USB controller

37 USB SEL-SW O Bus selection signal output terminal

38 USB RTS0 O Ready to send signal to USB controller

39 AD SUPPLY SW O Power on/off control signal output terminal for the jog dail

40 MP3 IREQ I Request signal input from the CD-MP3 processor

41 to 44 CD BUS0 to CD BUS3 I/O Serial data output to the CD-MP3 processor

45 CD BUCK O Serial data transfer clock signal output to the CD-MP3 processor

46 CD CCE O Chip enable signal output to the CD-MP3 processor

47 CD-MMUTE O Muting signal output to the coil/motor driver

48 CD-XRST O Reset signal output to the CD-MP3 processor

49 TC_+9V SW O Power on/off control signal output terminal for the tape section

50 PROTECT I Speaker protect detection signal input from speaker protect circuit "H":protector on

51 STK MUTE O Power amplifi er on/off control signal output terminal "H": amplifi er on

52 SW SPK RELAY O Relay drive signal output terminal for the subwoofer "H":relay on (GT444/GT555)

53 FR SPK RELAY O Relay drive signal output terminal for the front speakers "H":relay on

54 STBY RELAY O Main power on/off control signal output terminal "H":power on

55 EEP-DATA I/O Two-way IIC data bus with the EEPROM

56 EEP-SCL I/O Two-way IIC clock bus with the EEPROM

57 DMPORT DET I DMPORT adaptor connection detection input terminal Not used

58 LINE MUTE O Line muting on/off control signal output terminal "L":muting on

59 R2A15216FP-CLK O Serial data transfer clock signal output to the electrical volume

60 R2A15216FP-DATA O Serial data output to the electrical volume

METER-IN3,

METER-IN4

O Meter motor drive signal output to the motor drive (GT222/GT444/GT555)

System reset signal input from the reset switch "L": reset For several hundreds msec.
after the power supply rises, "L" is input, then it changes to "H"

61

HCD-GT111/GT222/GT444/GT555

Pin No. Pin Name I/O Description

61 ST-TUNED O Tuned detection input from the tuner (FM/AM)

62 VCC - Power supply terminal (+3.3V)

63 ST-CE O PLL chip enable signal output to the tuner (FM/AM)

64 VSS - Ground terminal

65 ST-DIN O PLL serial data output to the tuner (FM/AM)

66 ST-CLK O PLL serial data transfer clock signal output to the tuner (FM/AM)

67 ST-DOUT I PLL serial data input from the tuner (FM/AM)

68 POWER ILLUMINATOR I Spectrum analyzer drive signal input from the electrical volume

69 NO USE - Not used

70 USB-BLUE LED O LED drive signal output terminal for the USB indicator "H": LED on

71 MIC/HP DET I Headphone/microphone connection detection signal input terminal (A/D input)

72 STBY LED O LED drive signal output terminal for STANDBY indicator "H":LED on

73 LED CTRL O Dynamic LED drive select signal output terminal

74 POWER/DISPLAY-KEY I POWER & DISPLAY key press detection signal input terminal (Interrupt input)

75 ST-RDS-INT I

76 ST-RDS-DATA I

77 to 79

80 METER LED O Dynamic LED drive signal output to the motor drive "H":LED on

81 METER SW I Meter position detection signal input terminal (A/D input) (GT222/GT444/GT555)

82 TC TAPE-STATE I Tape playback/recording/stop status detection signal input terminal (A/D input)

83 OVERVOLTAGE I Over-voltage protection detection signal input terminal "L": over-voltage detected

84 METER-IN2 O Meter motor drive signal output to the motor drive (GT222/GT444/GT555)

85 FL-DRIVER-CLK O Serial data transfer clock signal output to the fl uorescent indicator tube driver

86 FL-DRIVER-DATA O Serial data output to the fl uorescent indicator tube driver

87 FL-DRIVER-CS O Chip select signal output to the fl uorescent indicator tube driver

88 FL-DRIVER-RESET O Reset signal output to the fl uorescent indicator tube driver

89 VACS IN I VACS level detection signal input terminal (A/D input)

90 OPERATION DIAL I Jog dial pulse input from the OPERATION DIAL encoder (A/D input)

91 MASTER VOL I Jog dial pulse input from the MASTER VOLUME encoder (A/D input)

92 MODEL-IN I Model setting terminal (A/D input)

93 DEST-IN I Destination setting terminal (A/D input)

94, 95 AD-KEY-2, AD-KEY-1 I Key input terminal (A/D input)

96 AVSS I Ground terminal (for A/D conversion)

97 AD-KEY-0 I Key input terminal (A/D input)

98 VREF I A/D Converter reference voltage input terminal (+3.3V)

99 AVCC - Power supply terminal (+3.3V) (for A/D conversion)

100 METER-IN1 O Meter motor drive signal output to the motor drive (GT222/GT444/GT555)

LED-VOL5. 6 to LED-

VOL1. 2

RDS data transfer clock signal input the tuner (FM/AM)
(GT111: AEP/GT222: AEP/GT444: AEP, UK models)

RDS data input from the tuner (FM/AM)
(GT111: AEP/GT222: AEP/GT444: AEP, UK models)

O Dynamic LED drive signal output to the motor drive "H":LED on

62

Note:

• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

• Items marked “*” are not stocked since
they are seldom required for routine ser­vice.

Some delay should be anticipated when

ordering these items.

• The mechanical parts with no reference
number in the exploded views are not sup­plied.

8-1. CASE SECTION

HCD-GT111/GT222/GT444/GT555

SECTION 8

EXPLODED VIEWS

• Color Indication of Appearance Parts Ex­ample:

KNOB, BALANCE (WHITE) . . . (RED)
R R

• Accessories are given in the last of the
electrical parts list.

• Abbreviation

AR : Argentina model
E2 : 120V AC area in E model
E3 : 240V AC area in E model

#2

Parts of Color Cabinet’s Color

E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model

The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

#2

top panel section

#2

1

3

loading panel section

2

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 3-363-099-32 SCREW (CASE 3 TP2)
2 3-283-219-01 CASE, SIDE-R

3 3-283-218-01 CASE, SIDE-L
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

1

63

HCD-GT111/GT222/GT444/GT555

Ver. 1.4

8-2. LOADING PANEL SECTION

back panel section

51

DISPLAY BOARD section

#2

#2

52

#2

#2

#2

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51 3-283-215-01 PANEL, LOADING (GT111: AEP, RU, E2, E51, AR)
51 3-283-215-11 PANEL, LOADING (GT222)
51 3-283-215-21 PANEL, LOADING (GT444)
51 3-283-215-31 PANEL, LOADING (GT555)

51 3-283-215-41 PANEL, LOADING (GT111: E3)

52 1-543-793-11 FILTER, CLAMP (FERRITE CORE)
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

64

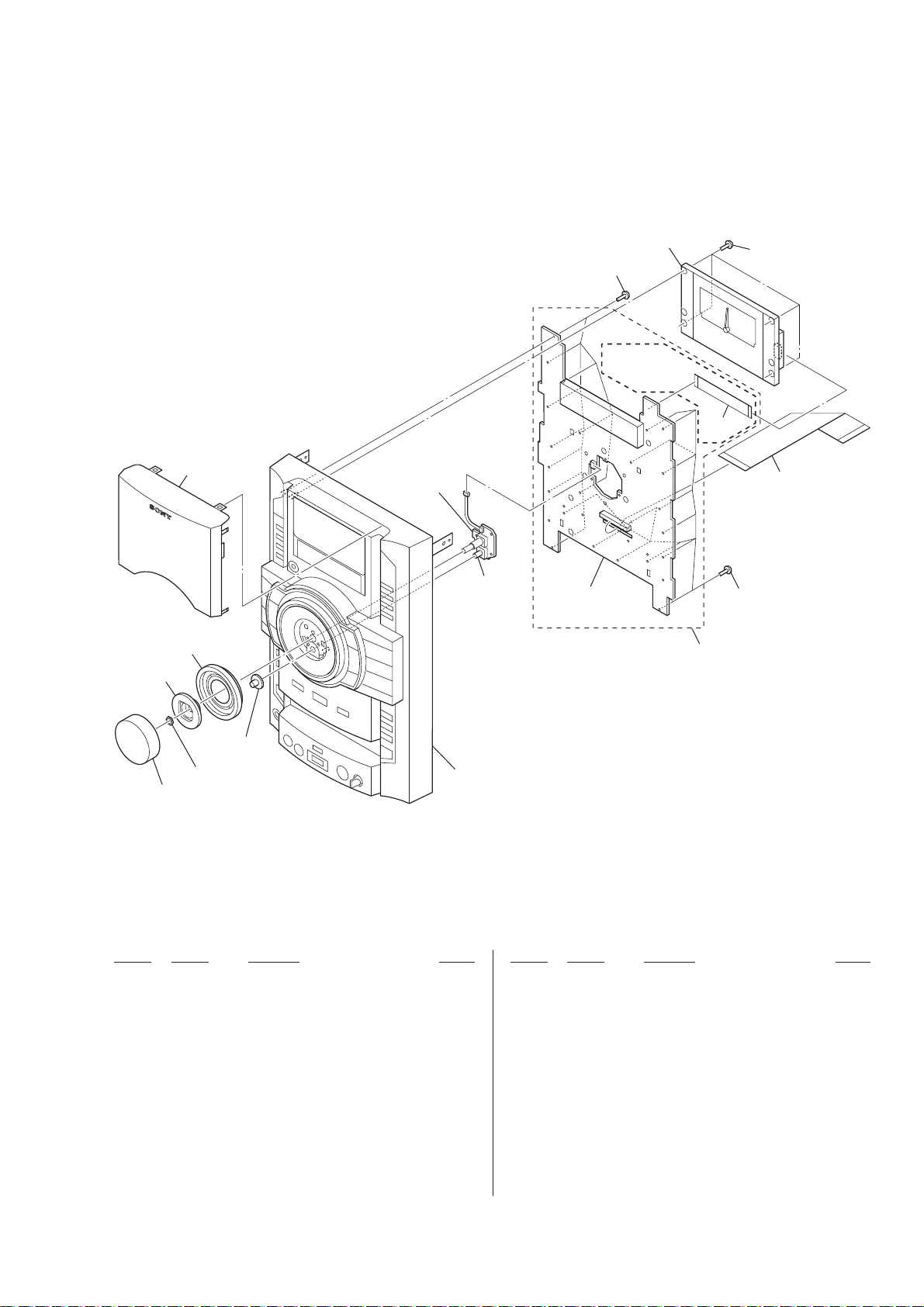

8-3. DISPLAY BOARD SECTION

HCD-GT111/GT222/GT444/GT555

Ver. 1.4

103

104

101

not supplied
(VOLUME board)

S1051

meter display panel assy

107

(GT222/
GT444/GT555)

DISPLAY board

107

FFC001

105

107

106

not
supplied

supplied with S1051

front panel section

102

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 3-283-207-01 KNOB JOG (GT111/GT222/GT444)
101 3-283-207-11 KNOB JOG (GT555)
102 3-283-205-01 KNOB VOLUME
103 3-283-206-01 HOLDER JOG
104 3-283-193-01 WINDOW FL (AEP, UK)

104 3-283-193-11 WINDOW FL (RU, E2, E3, E51, MX, AR)
105 1-832-897-21 CABLE, FLEXIBLE FLAT (25 CORE) (GT111)
105 1-835-362-21 WIRE (FLAT TYPE) (31 CORE)

(GT222/GT444/GT555)
106 A-1444-539-A DISPLAY BOARD, COMPLETE (GT111: AEP, RU)
106 A-1444-582-A DISPLAY BOARD, COMPLETE (GT222: AEP, RU)

106 A-1444-600-A DISPLAY BOARD, COMPLETE

(GT444: AEP, RU, UK)

106 A-1444-645-A DISPLAY BOARD, COMPLETE

(GT555: E2, E51, MX, AR)

106 A-1509-003-A DISPLAY BOARD, COMPLETE

(GT111: E2, E3, E51, AR)

106 A-1509-005-A DISPLAY BOARD, COMPLETE

(GT222: E2, E51, MX, AR)

106 A-1509-007-A DISPLAY BOARD, COMPLETE

(GT444: E2, E51, MX, AR)

106 A-1509-481-A DISPLAY BOARD, COMPLETE (GT555: RU)
107 3-087-053-01 +BVTP2.6 (3CR)
FFC001 1-833-945-21 CABLE, FLEXIBLE FLAT (11 CORE)

(GT222/GT444/GT555)

S1051 1-478-133-11 ENCODER, ROTARY (OPERATION DIAL)

65

HCD-GT111/GT222/GT444/GT555

Ver. 1.4

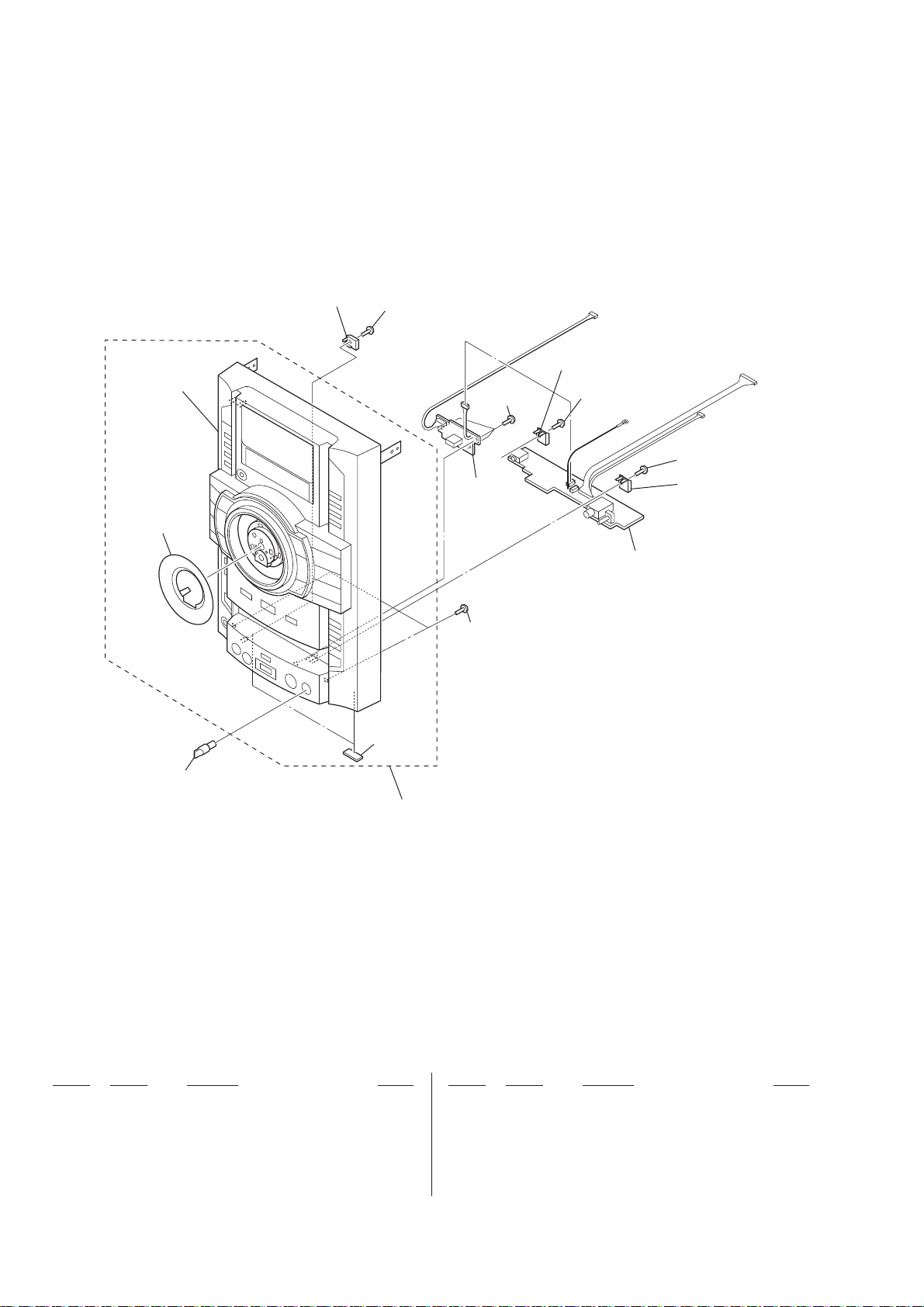

8-4. FRONT PANEL SECTION

not supplied

153

not supplied

156

152

155

156

156

not supplied

156

156

not supplied

not supplied
(MIC board)

154

151

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

151 X-2188-449-3 FRONT PANEL ASSY (GT111: AEP, RU, E2, E51,

AR/GT222: AEP, RU, E2, E51, AR)

151 X-2188-451-3 FRONT PANEL ASSY

(GT444: AEP, RU, UK, E2, E51, AR)
151 X-2188-452-2 FRONT PANEL ASSY (GT555)
151 X-2190-185-3 FRONT PANEL ASSY (GT111: E3)
151 X-2319-560-3 FRONT PANEL ASSY (GT222: MX)

151 X-2319-602-3 FRONT PANEL ASSY (GT444: MX)
152 4-225-252-01 CUSHION (FOOT)
153 3-283-208-01 INDICATOR JOG
154 2-638-220-11 KNOB (MIC)
155 A-1444-543-A USB CONNECTOR BOARD, COMPLETE

156 3-087-053-01 +BVTP2.6 (3CR)

66

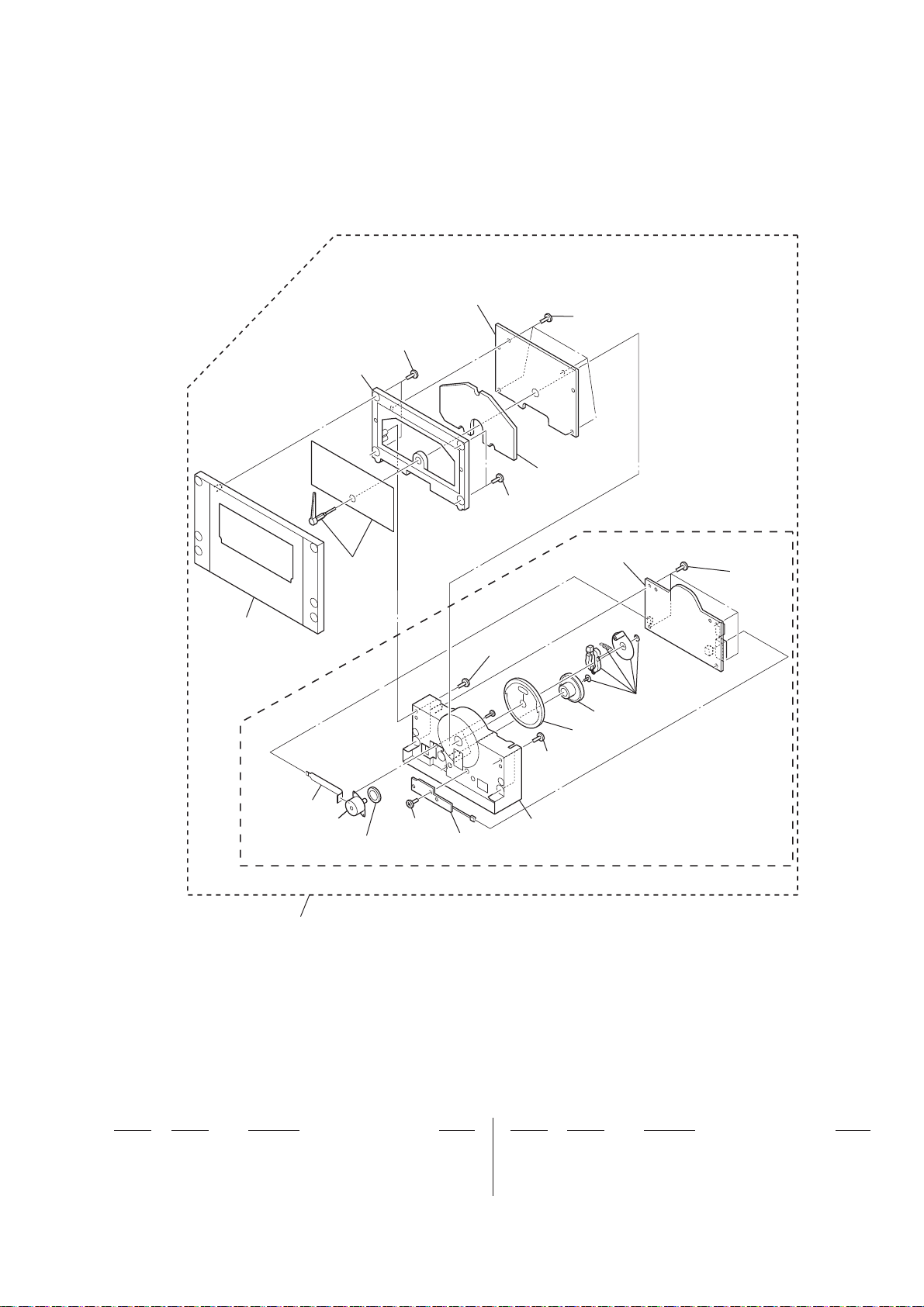

8-5. METER DISPLAY ASSY

not supplied

HCD-GT111/GT222/GT444/GT555

not supplied
(LED board: GT222/GT444/GT555,
LED (GSL1) board: GT111)

202

202

not supplied

not supplied

not supplied

201

not
supplied

M1

not supplied

202

202

202

#4

not supplied
(SW board)

not supplied
(MOTOR DRIVE board)

not
supplied

202

not supplied

203

202

not
supplied

(GT222/GT444/GT555)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 A-1433-635-B METER DISPLAY ASSY (GSL)

(GT222/GT444/GT555)
201 A-1441-018-A PANEL (GSL1) ASSY, DISPLAY (GT111)
202 4-218-253-62 SCREW (M2.6), +BTTP

203 4-245-572-01 BUSHING (GEAR)
M1 A-1486-925-A MOTOR ASSY (METER) (GT222/GT444/GT555)

#4 7-685-853-04 SCREW +BVTT 2X6 (S) (GT222/GT444/GT555)

67

HCD-GT111/GT222/GT444/GT555

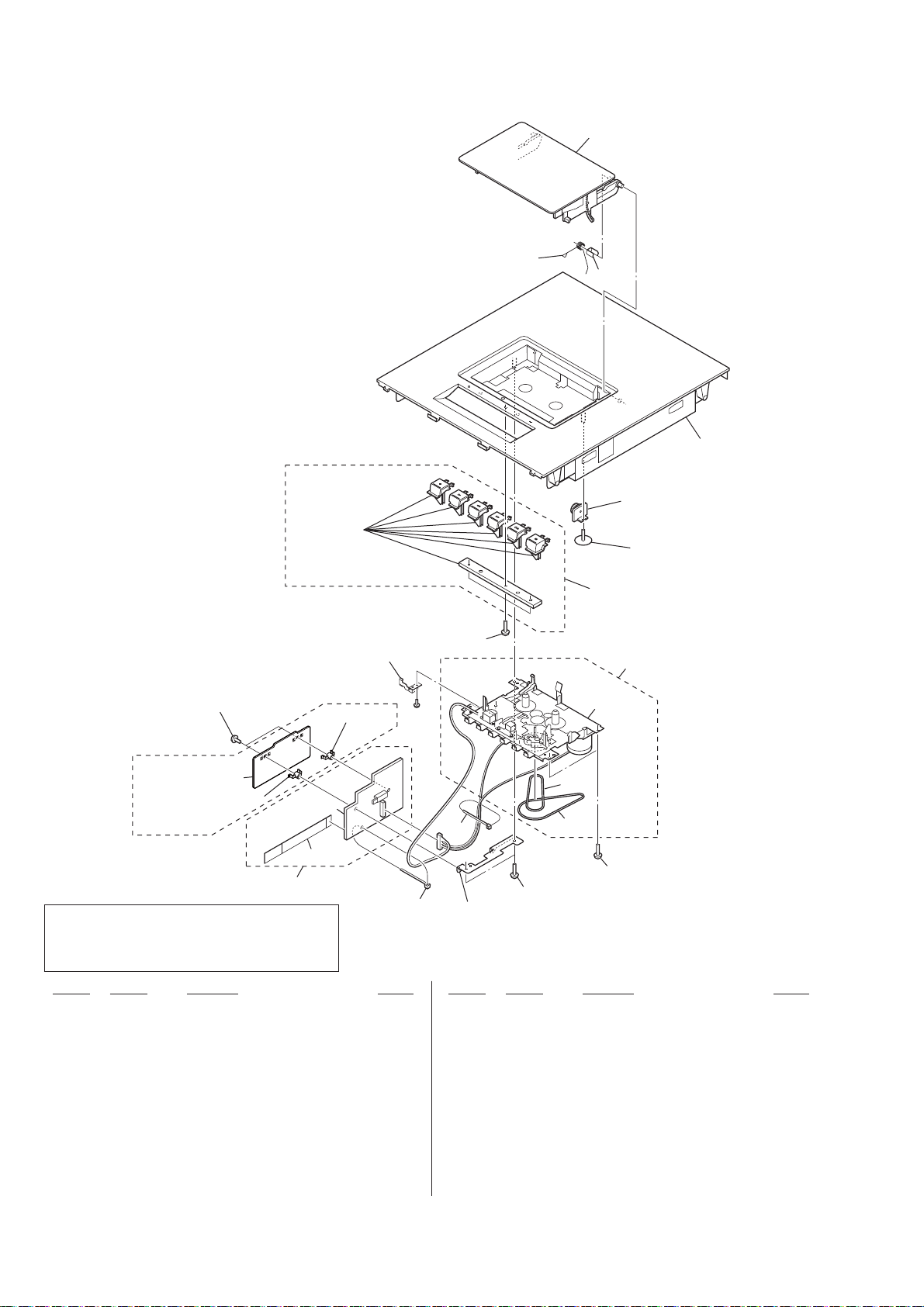

8-6. TOP PANEL SECTION

253

263

259

255

256

not supplied

264

258

not supplied

#1: except AEP, RU, UK
#3: AEP, RU, UK

not supplied
(TC SHIELD board)

not supplied

(AEP, RU, UK )

not supplied

TC board

FFC502

254

Note: When you exchange Ref .No. 260, 261 or

262, Please refer to “HOW TO DISTIN­GUISH TAPE MECHANISM DECK” of the
service note (6 page).

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

251 3-087-053-01 +BVTP2.6 (3CR)
252 3-701-748-00 CLAMP
253 2-649-131-21 BOX, CASSETTE
254 A-1444-545-A TC BOARD, COMPLETE
255 3-283-217-01 CASE, TOP

256 3-047-468-01 DAMPER
257 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
258 2-649-132-21 BUTTON (CASS) (z, B, m, M, xZ, X)
259 3-917-753-41 CUSHION (SP)
260 2-688-621-01 BELT (R/F) (for CS-21SC-900TP)

252

257

262

#5

not supplied

260

252

261

251

251

not supplied

261 2-688-622-01 BELT (MAIN) (for CS-21SC-900TP)
261 2-670-389-01 BELT (1) (for TCM-J1)
262 1-797-575-11 DECK, MECHANICAL (CS-21SC-900TP)
262 A-1527-851-A TCM-J1 (Tape mechanism deck)

263 2-649-152-02 SPRING (CASS)
264 3-921-725-01 SCREW (2.6X10), +PWH
FFC502 1-832-432-21 CABLE, FLEXIBLE FLAT (9 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3 (AEP, RU, UK)

(EXCEPT AEP, RU, UK)

260 3-214-817-01 BELT (FR) (for TCM-J1)

68

#5 7-685-850-04 SCREW +BVTT 2X3 (S)

8-7. BACK PANEL SECTION

HCD-GT111/GT222/GT444/GT555

(GT222/GT444/GT555)

#2

not supplied
(5V REG board)

IC050

#2

#3

not supplied

M101

M102

not
supplied

302

305

#2

303

#2

not
supplied

306

not supplied
(SW JACK board)

(GT444/
GT555)

304

#3

#2

#2

#2

#2

not supplied

#2

not supplied

not supplied

#2

MAIN BOARD section

not supplied
(USB board)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

301 1-832-613-21 CABLE, FLEXIBLE FLAT (21 CORE)
302 1-457-369-12 CORE, FERRITE
303 3-703-571-11 CORD BUSH (4516) (MX)
303 3-703-244-00 BUSHING (2104), CORD (EXCEPT MX)

0 304 1-829-387-11 CORD, POWER (AR)

0 304 1-829-627-11 POWER-SUPPLY CORD (MX)
0 304 1-834-966-21 CORD, POWER (AEP)
0 304 1-834-966-41 CORD, POWER (RU, E2, E3, E51)
0 304 1-835-078-21 CORD, POWER (UK)

305 3-655-653-11 BAND (TAITON), BINDING

301

306 1-693-759-11 TUNER (FM/AM) (AEP, UK)
306 1-693-760-11 TUNER (FM/AM) (RU)
306 1-693-764-21 TUNER (FM/AM) (E2, E3, E51, MX, AR)
IC050 6-713-031-01 IC KIA7805API-U/PF
M101 1-787-344-11 FAN, DC (GT222/GT444/GT555)

M102 1-787-344-11 FAN, DC
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3

69

HCD-GT111/GT222/GT444/GT555

Ver. 1.4

not supplied
(9V REG board)

8-8. MAIN BOARD SECTION

(GT111)

not supplied

#2

#2

#2

#2

354

#2

not supplied

#2

352

FFC220

chassis section

MAIN
board

#2

351

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

351 A-1444-551-A MAIN BOARD, COMPLETE (GT111: AEP)
351 A-1444-569-A MAIN BOARD, COMPLETE (GT111: E2)
351 A-1444-577-A MAIN BOARD, COMPLETE (GT111: E3)
351 A-1444-588-A MAIN BOARD, COMPLETE (GT222: AEP)
351 A-1444-596-A MAIN BOARD, COMPLETE (GT222: E2)

351 A-1444-607-A MAIN BOARD, COMPLETE (GT444: AEP)
351 A-1444-617-A MAIN BOARD, COMPLETE (GT444: E2)
351 A-1444-651-A MAIN BOARD, COMPLETE (GT555: E2)
351 A-1444-712-A MAIN BOARD, COMPLETE (GT555: RU)
351 A-1538-984-A MAIN BOARD, COMPLETE (GT111: E51, AR)

351 A-1538-986-A MAIN BOARD, COMPLETE (GT111: RU)
351 A-1538-993-A MAIN BOARD, COMPLETE (GT222: E51, AR)
351 A-1538-996-A MAIN BOARD, COMPLETE (GT222: RU)
351 A-1539-000-A MAIN BOARD, COMPLETE (GT444: E51, AR)
351 A-1539-003-A MAIN BOARD, COMPLETE (GT444: RU)

351 A-1539-007-A MAIN BOARD, COMPLETE (GT555: E51, AR)
351 A-1539-047-A MAIN BOARD, COMPLETE (GT444: UK)
351 A-1541-552-A MAIN BOARD, COMPLETE (GT555: MX)
351 A-1541-567-A MAIN BOARD, COMPLETE (GT444: MX)
351 A-1541-574-A MAIN BOARD, COMPLETE (GT222: MX)

352 A-1444-547-A POWERAMP BOARD, COMPLETE

(GT111: AEP, RU)

352 A-1444-585-A POWERAMP BOARD, COMPLETE

(GT222: AEP, RU)

352 A-1444-603-A POWERAMP BOARD, COMPLETE

(GT444: AEP, RU, UK)

352 A-1444-648-A POWERAMP BOARD, COMPLETE

(GT555: E2, E51, AR)

352 A-1545-500-A POWERAMP BOARD, COMPLETE (GT222: MX)

352 A-1545-503-A POWERAMP BOARD, COMPLETE (GT444: MX)
352 A-1545-506-A POWERAMP BOARD, COMPLETE (GT555: MX)
352 A-1545-869-A POWERAMP BOARD, COMPLETE

(GT111: E2, E51, AR)

352 A-1545-872-A POWERAMP BOARD, COMPLETE

(GT222: E2, E51, AR)

352 A-1545-875-A POWERAMP BOARD, COMPLETE

(GT444: E2, E51, AR)

352 A-1545-878-A POWERAMP BOARD, COMPLETE (GT555: RU)
352 A-1641-633-A POWERAMP BOARD, COMPLETE (GT111: E3)
354 3-905-609-31 SCREW (TRANSISTOR) (EXCEPT MX)
354 3-905-609-41 SCREW (TRANSISTOR) (MX)
FFC220 1-831-778-21 CABLE, FLEXIBLE FLAT (11 CORE)

(GT111: AEP/GT222: AEP/GT444: AEP, UK)

FFC220 1-835-392-21 WIRE (FLAT TYPE) (9 CORE) (GT111: RU, E2, E3,

E51, AR/GT222: RU, E2, E51, MX, AR/

GT444: RU, E2, E51, MX, AR/GT555)

#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

70

HCD-GT111/GT222/GT444/GT555

Ver. 1.4

8-9. CHASSIS SECTION

(GT222/GT555)

F904

F905

F907

F908

F909

F906

#2

#2

PT901

not supplied
(TRANS1 board (GT111: E2, E3, E51)/
TRANS2 board (GT222/GT444/GT555)/
TRANSX board (GT111: AEP, RU, AR))

#6

#2

#2

not supplied

#2

not supplied
(BU FFC board)

#2

not supplied

CD mechanism section

#2

405

#2

not
supplied

403

402

403

401

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

401 1-835-352-21 WIRE (FLAT TYPE) (13 CORE)
402 1-835-351-21 WIRE (FLAT TYPE) (31 CORE)
403 3-831-441-11 CUSHION, SARANET
405 4-225-252-01 CUSHION (FOOT)

0 F904 1-532-506-33 FUSE (T6.3AL/250V) (GT222/GT555)

0 F905 1-532-506-33 FUSE (T6.3AL/250V) (GT222/GT555)
0 F906 1-532-465-33 FUSE (T3.15AL/250V)
0 F907 1-532-388-33 FUSE (T2AL/250V)
0 F908 1-532-506-33 FUSE (T6.3AL/250V) (GT111)
0 F908 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (T8AL/250V)

(GT222/GT444/GT555)

0 F909 1-532-506-33 FUSE (T6.3AL/250V) (GT111)
0 F909 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (T8AL/250V)

(GT222/GT444/GT555)
0 PT901 1-445-385-11 POWER TRANSFORMER

(GT222: AEP, RU/GT555: RU)

0 PT901 1-445-386-11 POWER TRANSFORMER (GT111: AEP, RU)
0 PT901 1-445-387-11 POWER TRANSFORMER

(GT111: E2, E3, E51, AR)

0 PT901 1-445-388-11 POWER TRANSFORMER

(GT222: MX/GT555: MX)

0 PT901 1-445-390-11 POWER TRANSFORMER

(GT222: E2, E51, AR/GT555: E2, E51, AR)

0 PT901 1-445-391-11 POWER TRANSFORMER (GT444: AEP, RU, UK)
0 PT901 1-445-393-11 POWER TRANSFORMER (GT444: E2, E51, AR)
0 PT901 1-445-394-11 POWER TRANSFORMER (GT444: MX)

#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#6 7-685-880-09 SCREW +BVTT 4X6 (S)

71

HCD-GT111/GT222/GT444/GT555

8-10. CD MECHANISM SECTION (CDM88A-K6BD93-WOD)

not supplied

501

not supplied

502

502

504

503

505

spindle motor (M401)

S201

506

(including sled motor (M402),
spindle motor (M401))

504

504

sled motor (M402)

508

504

503

505

507

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

501 1-797-193-31 MECHANICAL, CD (DLM3A) (MX)
501 1-797-193-62 MECHANICAL, CD (DLM3A) (EXCEPT MX)
502 2-632-062-11 BELT (DLM3A)
503 4-227-045-31 SPRING (INSULATOR), COIL
504 4-227-549-31 INSULATOR

505 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
0 506 A-4735-357-A BASE ASSY, OP (KSM-213D)
507 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
508 A-1439-298-A CD BOARD, COMPLETE
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)

72

HCD-GT111/GT222/GT444/GT555

SECTION 9

ELECTRICAL PARTS LIST

Note:

• Due to standardization, replacements in

the parts list may be different from the
parts specifi ed in the diagrams or the com-
ponents used on the set.

• -XX and -X mean standardized parts, so

they may have some difference from the
original one.

• Items marked “*” are not stocked since

they are seldom required for routine ser­vice.

Some delay should be anticipated when

ordering these items.

• CAPACITORS
uF: μF

• COILS
uH: μH

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

5V REG BOARD
*************

< CAPACITOR >

• RESISTORS
All resistors are in ohms.
METAL: Metal-fi lm resistor.
METAL OXIDE: Metal oxide-fi lm resistor.
F: nonfl ammable

• SEMICONDUCTORS
In each case, u: μ, for example:
uA. . : μA. . , uPA. . , μPA. . ,
uPB. . : μPB. . , uPC. . , μPC. . ,
uPD. . : μPD. .

• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E51 : Chilean and Peruvian models

C112 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C113 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C115 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C116 1-164-360-11 CERAMIC CHIP 0.1uF 16V

MX : Mexican model
RU : Russian model

When indicating parts by reference num­ber, please include the board name.

The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

5V REG 9V REG

CD

C050 1-126-925-91 ELECT 470uF 20% 10V
C051 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

< CONNECTOR >

CN055 1-564-506-11 PLUG, CONNECTOR 3P

< DIODE >

D050 6-501-387-01 DIODE KDR357-RTK/P
D055 6-500-335-01 DIODE MC2838-T112-1

< RESISTOR >

R050 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R051 1-216-833-11 METAL CHIP 10K 5% 1/10W

*************************************************************

9V REG BOARD
*************

< CAPACITOR >

C080 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C081 1-104-658-91 ELECT 100uF 20% 10V

< IC >

IC080 6-713-032-01 IC KIA7809API-U/PF

*************************************************************

A-1439-298-A CD BOARD, COMPLETE
*******************

< CAPACITOR >

C117 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C118 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C119 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C120 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C122 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C123 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C124 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C125 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C127 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C128 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
C130 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
C132 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C136 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C138 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C139 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C140 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C141 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C142 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C143 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C144 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C145 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C146 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C147 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C148 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C149 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C151 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C100 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C101 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C102 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C103 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C104 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C105 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C106 1-128-995-21 ELECT CHIP 100uF 20% 10V
C107 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C108 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C109 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C110 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C152 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C201 1-128-995-21 ELECT CHIP 100uF 20% 10V
C202 1-128-995-21 ELECT CHIP 100uF 20% 10V
C204 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C205 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C206 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C207 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C217 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C218 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C301 1-164-360-11 CERAMIC CHIP 0.1uF 16V

73

HCD-GT111/GT222/GT444/GT555

CD

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C302 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
C303 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
C306 1-128-995-21 ELECT CHIP 100uF 20% 10V
C307 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C401 1-128-394-11 ELECT CHIP 220uF 20% 10V
C403 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C404 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C405 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C501 1-124-779-00 ELECT CHIP 10uF 20% 16V
C502 1-124-779-00 ELECT CHIP 10uF 20% 16V
C504 1-128-995-21 ELECT CHIP 100uF 20% 10V
C505 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C506 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C507 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C508 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C509 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C510 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C511 1-164-360-11 CERAMIC CHIP 0.1uF 16V

< CONNECTOR >

CN201 1-784-879-51 CONNECTOR, FFC (LIF (NON-ZIF)) 31P
CN301 1-770-425-51 CONNECTOR, FFC/FPC 16P

< IC >

R151 1-216-864-11 SHORT CHIP 0
R153 1-216-857-11 METAL CHIP 1M 5% 1/10W
R154 1-216-857-11 METAL CHIP 1M 5% 1/10W
R155 1-216-805-11 METAL CHIP 47 5% 1/10W
R156 1-216-809-11 METAL CHIP 100 5% 1/10W

R157 1-216-809-11 METAL CHIP 100 5% 1/10W
R159 1-216-809-11 METAL CHIP 100 5% 1/10W
R160 1-216-809-11 METAL CHIP 100 5% 1/10W
R161 1-216-809-11 METAL CHIP 100 5% 1/10W
R201 1-216-295-91 SHORT CHIP 0

R202 1-216-295-91 SHORT CHIP 0
R203 1-216-809-11 METAL CHIP 100 5% 1/10W
R204 1-216-809-11 METAL CHIP 100 5% 1/10W
R205 1-216-809-11 METAL CHIP 100 5% 1/10W
R206 1-216-809-11 METAL CHIP 100 5% 1/10W

R207 1-216-809-11 METAL CHIP 100 5% 1/10W
R208 1-216-809-11 METAL CHIP 100 5% 1/10W
R209 1-216-809-11 METAL CHIP 100 5% 1/10W
R210 1-216-809-11 METAL CHIP 100 5% 1/10W
R211 1-216-809-11 METAL CHIP 100 5% 1/10W

R212 1-216-809-11 METAL CHIP 100 5% 1/10W
R213 1-216-809-11 METAL CHIP 100 5% 1/10W
R214 1-216-809-11 METAL CHIP 100 5% 1/10W
R216 1-216-809-11 METAL CHIP 100 5% 1/10W
R218 1-216-845-11 METAL CHIP 100K 5% 1/10W

IC101 6-712-082-01 IC TC94A70FG-101
IC201 6-710-808-01
IC401 6-710-637-01 IC BA5826SFP-E2
IC501 6-710-840-01 IC AK5358AET-E2
IC502 6-707-870-01 IC TC74VHC157FT (EKJ)

< TRANSISTOR >

Q301 6-551-120-01 TRANSIST

< RESISTOR/FERRITE BEAD >

R101 1-216-813-11 METAL CHIP 220 5% 1/10W
R102 1-216-833-11 METAL CHIP 10K 5% 1/10W
R104 1-216-295-91 SHORT CHIP 0
R105 1-216-857-11 METAL CHIP 1M 5% 1/10W
R106 1-216-821-11 METAL CHIP 1K 5% 1/10W

R108 1-500-445-21 FERRITE, EMI (SMD) (2012)
R109 1-216-809-11 METAL CHIP 100 5% 1/10W
R110 1-216-833-11 METAL CHIP 10K 5% 1/10W
R111 1-216-809-11 METAL CHIP 100 5% 1/10W
R112 1-216-809-11 METAL CHIP 100 5% 1/10W

R114 1-216-833-11 METAL CHIP 10K 5% 1/10W
R118 1-216-845-11 METAL CHIP 100K 5% 1/10W
R120 1-216-864-11 SHORT CHIP 0
R121 1-216-809-11 METAL CHIP 100 5% 1/10W
R128 1-216-853-11 METAL CHIP 470K 5% 1/10W

R129 1-216-821-11 METAL CHIP 1K 5% 1/10W
R130 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R134 1-216-857-11 METAL CHIP 1M 5% 1/10W
R135 1-216-853-11 METAL CHIP 470K 5% 1/10W
R136 1-216-837-11 METAL CHIP 22K 5% 1/10W

R139 1-216-841-11 METAL CHIP 47K 5% 1/10W
R140 1-216-864-11 SHORT CHIP 0
R142 1-216-837-11 METAL CHIP 22K 5% 1/10W
R143 1-216-841-11 METAL CHIP 47K 5% 1/10W
R144 1-216-837-11 METAL CHIP 22K 5% 1/10W

IC TK63115SCL-G@GT

OR 2SA2119K

R219 1-216-845-11 METAL CHIP 100K 5% 1/10W
R220 1-216-845-11 METAL CHIP 100K 5% 1/10W
R221 1-216-845-11 METAL CHIP 100K 5% 1/10W
R222 1-216-845-11 METAL CHIP 100K 5% 1/10W
R223 1-216-845-11 METAL CHIP 100K 5% 1/10W

R224 1-216-809-11 METAL CHIP 100 5% 1/10W
R225 1-216-845-11 METAL CHIP 100K 5% 1/10W
R226 1-216-845-11 METAL CHIP 100K 5% 1/10W
R301 1-216-845-11 METAL CHIP 100K 5% 1/10W
R302 1-216-864-11 SHORT CHIP 0

R303 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R304 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R402 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R405 1-216-833-11 METAL CHIP 10K 5% 1/10W
R408 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R414 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R415 1-216-841-11 METAL CHIP 47K 5% 1/10W
R502 1-216-841-11 METAL CHIP 47K 5% 1/10W
R503 1-216-841-11 METAL CHIP 47K 5% 1/10W
R505 1-216-841-11 METAL CHIP 47K 5% 1/10W

R508 1-216-841-11 METAL CHIP 47K 5% 1/10W
R509 1-216-845-11 METAL CHIP 100K 5% 1/10W
R510 1-216-821-11 METAL CHIP 1K 5% 1/10W
R511 1-216-821-11 METAL CHIP 1K 5% 1/10W
R512 1-216-821-11 METAL CHIP 1K 5% 1/10W

R513 1-216-809-11 METAL CHIP 100 5% 1/10W
R514 1-216-864-11 SHORT CHIP 0

< VIBRATOR >

X102 1-795-101-21 VIBRATOR, CERAMIC (16.9344MHz)

*************************************************************

74

HCD-GT111/GT222/GT444/GT555

DISPLAY

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

A-1444-539-A DISPLAY BOARD, COMPLETE (GT111: AEP, RU)
A-1444-582-A DISPLAY BOARD, COMPLETE (GT222: AEP, RU)
A-1444-600-A DISPLAY BOARD, COMPLETE

(GT444: AEP, RU, UK)

A-1444-645-A DISPLAY BOARD, COMPLETE

(GT555: E2, E51, MX, AR)

A-1509-003-A DISPLAY BOARD, COMPLETE

(GT111: E2, E3, E51, AR)

< FLEXIBLE FLAT CABLE >

FFC001 1-833-945-21 CABLE, FLEXIBLE FLAT (11 CORE)

(GT222/GT444/GT555)

< FLUORESCENT INDICATOR TUBE >

FL1101 1-519-995-11 VACUUM FLUORESCENT DISPLAYS

A-1509-005-A DISPLAY BOARD, COMPLETE

(GT222: E2, E51, MX, AR)

A-1509-007-A DISPLAY BOARD, COMPLETE

(GT444: E2, E51, MX, AR)
A-1509-481-A DISPLAY BOARD, COMPLETE (GT555: RU)
***********************

< CAPACITOR >

C1101 1-124-257-00 ELECT 2.2uF 20% 50V
C1102 1-126-961-11 ELECT 2.2uF 20% 50V
C1140 1-126-965-91 ELECT 22uF 20% 50V
C1141 1-165-621-91 CERAMIC CHIP 0.1uF 50V
C1142 1-126-947-11 ELECT 47uF 20% 35V

C1143 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C1145 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C1146 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1148 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C1149 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C1220 1-126-964-11 ELECT 10uF 20% 50V

(GT222/GT444/GT555)

< CONNECTOR >

CN1101 1-784-792-11 CONNECTOR, FFC 31P (GT222/GT444/GT555)
CN1102 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P
* CN1106 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P (GT111)
CN1107 1-784-786-11 CONNECTOR, FFC 25P (GT111)
CN1108 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P

< DIODE >

D1124 6-501-691-01 LED 1L434FV22D0TDF01 (STREAM)

(GT111/GT222/GT444)
D1124 6-502-513-01 LED 1L034PB12E0MTTZ1 (STREAM) (GT555)
D1125 6-501-691-01 LED 1L434FV22D0TDF01 (STREAM)

(GT111/GT222/GT444)
D1125 6-502-513-01 LED 1L034PB12E0MTTZ1 (STREAM) (GT555)
D1126 6-501-691-01 LED 1L434FV22D0TDF01 (STREAM)

(GT111/GT222/GT444)

D1126 6-502-513-01 LED 1L034PB12E0MTTZ1 (STREAM) (GT555)
D1127 6-501-691-01 LED 1L434FV22D0TDF01 (STREAM)

(GT111/GT222/GT444)
D1127 6-502-513-01 LED 1L034PB12E0MTTZ1 (STREAM) (GT555)
D1128 6-501-691-01 LED 1L434FV22D0TDF01 (STREAM)

(GT111/GT222/GT444)
D1128 6-502-513-01 LED 1L034PB12E0MTTZ1 (STREAM) (GT555)

D1129 6-501-691-01 LED 1L434FV22D0TDF01 (STREAM)

(GT111/GT222/GT444)
D1129 6-502-513-01 LED 1L034PB12E0MTTZ1 (STREAM) (GT555)
D1196 6-501-483-01 LED SLR-325VCT31P (I/1, STANDBY)
D1205 8-719-060-27 LED SLR-325MCT31 (SUBWOOFER)

(GT444/GT555)

D1220 6-501-734-01 DIODE MAZ8056GMLS0 (GT222/GT444/GT555)

D1221 6-501-743-01 DIODE MAZ8068GMLS0

< IC >

IC1101 6-709-115-11 IC NJU3427FH2
IC1102

< TRANSISTOR >

Q1102 8-729-620-07
Q1103 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1104 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1105 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1106 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q1107 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1108 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1109 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1110 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1111 8- 729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q1112 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1113 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1114 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q1115 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1116 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q1117 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q1120 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1122 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1139 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1141 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q1143 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1190 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1205 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q1220 8-729-036-86 TRANSISTOR KTC3203Y-AT

< RESISTOR >

R1102 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1103 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1104 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1105 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1106 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R1107 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1108 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1109 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1110 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1111 1 -216-829-11 METAL CHIP 4.7K 5% 1/10W

R1112 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1113 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1114 1-216-817-11 METAL CHIP 470 5% 1/10W
R1115 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1116 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R1117 1-216-817-11 METAL CHIP 470 5% 1/10W
R1118 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1119 1-216-819-11 METAL CHIP 680 5% 1/10W
R1120 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1122 1-216-833-11 METAL CHIP 10K 5% 1/10W

6-600-349-31 IC NJL24H400A

TRANSISTOR 2SC3052EF-T1-LEF

(GT444/GT555)

(GT222/GT444/GT555)

7575

HCD-GT111/GT222/GT444/GT555

DISPLAY

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R1130 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT111/GT222/GT444)

R1130 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT555)

R1131 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT111/GT222/GT444)

R1131 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT555)

R1133 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT111/GT222/GT444)

R1133 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT555)

R1134 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT111/GT222/GT444)

R1134 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT555)

R1136 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT111/GT222/GT444)

R1136 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT555)

R1137 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT111/GT222/GT444)

R1137 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT555)
R1139 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1141 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1143 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1145 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1146 1-216-809-11 METAL CHIP 100 5% 1/10W
R1147 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1148 1-216-809-11 METAL CHIP 100 5% 1/10W
R1149 1-216-809-11 METAL CHIP 100 5% 1/10W

R1150 1-216-809-11 METAL CHIP 100 5% 1/10W
R1151 1-216-809-11 METAL CHIP 100 5% 1/10W
R1152 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1153 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1154 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1181 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1182 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1183 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1184 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1185 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1187 1-216-819-11 METAL CHIP 680 5% 1/10W
R1188 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1189 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R1190 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R1191 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R1192 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1193 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1194 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1195 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1196 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1198 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1200 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1201 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1202 1-216-801-11 METAL CHIP 22 5% 1/10W
R1203 1-216-801-11 METAL CHIP 22 5% 1/10W

R1205 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT444/GT555)

R1206 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT444/GT555)

R1207 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GT444/GT555)

R1221 1-247-791-91 CARBON 22 5% 1/4W

(GT222/GT444/GT555)

R1222 1-247-791-91 CARBON 22 5% 1/4W

(GT222/GT444/GT555)

R1223 1-247-791-91 CARBON 22 5% 1/4W

(GT222/GT444/GT555)

R1224 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

(GT222/GT444/GT555)

< SWITCH >

R1155 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1156 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1157 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1158 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1159 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1160 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1161 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1162 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1163 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1164 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1165 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1166 1-216-819-11 METAL CHIP 680 5% 1/10W
R1167 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1168 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R1169 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R1170 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1171 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1172 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1173 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1174 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1175 1-216-835-11 METAL CHIP 15K 5% 1/10W
R1177 1-216-819-11 METAL CHIP 680 5% 1/10W
R1178 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1179 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R1180 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

S1165 1-762-875-21 SWITCH, KEYBOARD (I/1, STANDBY)
S1166 1-762-875-21 SWITCH, KEYBOARD (DISPLAY)
S1167 1-762-875-21 SWITCH, KEYBOARD (METER MODE)
S1168 1-762-875-21 SWITCH, KEYBOARD (OPTIONS)
S1169 1-762-875-21 SWITCH, KEYBOARD (ERASE)

S1170 1-762-875-21 SWITCH, KEYBOARD (CD)
S1171 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND)
S1172 1-762-875-21 SWITCH, KEYBOARD (TAPE)
S1173 1-762-875-21 SWITCH, KEYBOARD (TUNING–, .)
S1174 1-762-875-21 SWITCH, KEYBOARD (u)

S1175 1-762-875-21 SWITCH, KEYBOARD (FOLDER–, m)
S1176 1-762-875-21 SWITCH, KEYBOARD (PRESET EQ)
S1177 1-762-875-21 SWITCH, KEYBOARD (GROOVE)
S1178 1-762-875-21 SWITCH, KEYBOARD (EQ BAND)
S1179 1-762-875-21 SWITCH, KEYBOARD (SURROUND)

S1180 1-762-875-21 SWITCH, KEYBOARD (AUDIO)
S1182 1-762-875-21 SWITCH, KEYBOARD (USB)
S1183 1-762-875-21 SWITCH, KEYBOARD (TUNING+, >)
S1184 1-762-875-21 SWITCH, KEYBOARD (x)
S1185 1-762-875-21 SWITCH, KEYBOARD (FOLDER+, M)

S1186 1-762-875-21 SWITCH, KEYBOARD (DISC 1)
S1187 1-762-875-21 SWITCH, KEYBOARD (DISC 2)
S1188 1-762-875-21 SWITCH, KEYBOARD (DISC 3)
S1189 1-762-875-21 SWITCH, KEYBOARD (Z, OPEN/CLOSE)
S1190 1-762-875-21 SWITCH, KEYBOARD (REC TO USB)

76

HCD-GT111/GT222/GT444/GT555

MAINDISPLAY LED LED (GSL1)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

S1191 1-762-875-21 SWITCH, KEYBOARD (ENTER)
S1192 1-762-875-21 SWITCH, KEYBOARD (RETURN)
S1193 1-762-875-21 SWITCH, KEYBOARD (SUBWOOFER)

(GT444/GT555)
S1194 1-762-875-21 SWITCH, KEYBOARD (REC TIMER)
S1195 1-762-875-21 SWITCH, KEYBOARD (DISC/EX-CHANGE)

*************************************************************

LED BOARD (GT222/GT444/GT555)
*********

< LED >

D011 6-502-522-01 LED SELT2WA10C-2TP8 (ILLUMINATION)
D012 6-502-522-01 LED SELT2WA10C-2TP8 (ILLUMINATION)
D013 6-502-522-01 LED SELT2WA10C-2TP8 (ILLUMINATION)
D014 6-501-691-51 LED 1L434FV22D0TDE01 (ILLUMINATION)
D015 6-501-691-51 LED 1L434FV22D0TDE01 (ILLUMINATION)

< JUMPER RESISTOR >

R019 1-216-821-11 METAL CHIP 1K 5% 1/10W
R020 1-216-833-11 METAL CHIP 10K 5% 1/10W

*************************************************************

A-1444-551-A MAIN BOARD, COMPLETE (GT111: AEP)
A-1444-569-A MAIN BOARD, COMPLETE (GT111: E2)
A-1444-577-A MAIN BOARD, COMPLETE (GT111: E3)
A-1444-588-A MAIN BOARD, COMPLETE (GT222: AEP)
A-1444-596-A MAIN BOARD, COMPLETE (GT222: E2)

A-1444-607-A MAIN BOARD, COMPLETE (GT444: AEP)
A-1444-617-A MAIN BOARD, COMPLETE (GT444: E2)
A-1444-651-A MAIN BOARD, COMPLETE (GT555: E2)
A-1444-712-A MAIN BOARD, COMPLETE (GT555: RU)
A-1538-984-A MAIN BOARD, COMPLETE (GT111: E51, AR)

A-1538-986-A MAIN BOARD, COMPLETE (GT111: RU)
A-1538-993-A MAIN BOARD, COMPLETE (GT222: E51, AR)
A-1538-996-A MAIN BOARD, COMPLETE (GT222: RU)
A-1539-000-A MAIN BOARD, COMPLETE (GT444: E51, AR)
A-1539-003-A MAIN BOARD, COMPLETE (GT444: RU)

JR101 1-216-295-91 SHORT CHIP 0

< TRANSISTOR >

Q010 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

< RESISTOR >

R010 1-216-817-11 METAL CHIP 470 5% 1/10W
R011 1-216-817-11 METAL CHIP 470 5% 1/10W
R012 1-216-817-11 METAL CHIP 470 5% 1/10W
R013 1-216-817-11 METAL CHIP 470 5% 1/10W
R014 1-216-817-11 METAL CHIP 470 5% 1/10W

R015 1-216-817-11 METAL CHIP 470 5% 1/10W
R016 1-216-816-11 METAL CHIP 390 5% 1/10W
R017 1-216-816-11 METAL CHIP 390 5% 1/10W
R019 1-216-821-11 METAL CHIP 1K 5% 1/10W
R020 1-216-833-11 METAL CHIP 10K 5% 1/10W

*************************************************************

LED (GSL1) BOARD (GT111)
***************

< LED >

D011 6-502-522-01 LED SELT2WA10C-2TP8 (ILLUMINATION)
D012 6-502-522-01 LED SELT2WA10C-2TP8 (ILLUMINATION)
D013 6-502-522-01 LED SELT2WA10C-2TP8 (ILLUMINATION)
D014 6-501-691-51 LED 1L434FV22D0TDE01 (ILLUMINATION)

< JUMPER RESISTOR >

JR101 1-216-295-91 SHORT CHIP 0

< TRANSISTOR >

A-1539-007-A MAIN BOARD, COMPLETE (GT555: E51, AR)
A-1539-047-A MAIN BOARD, COMPLETE (GT444: UK)
A-1541-552-A MAIN BOARD, COMPLETE (GT555: MX)
A-1541-567-A MAIN BOARD, COMPLETE (GT444: MX)
A-1541-574-A MAIN BOARD, COMPLETE (GT222: MX)
********************

7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

< CAPACITOR >

C101 1-126-965-91 ELECT 22uF 20% 50V
C102 1-126-963-11 ELECT 4.7uF 20% 50V
C109 1-126-964-11 ELECT 10uF 20% 50V
C112 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(GT222/GT444/GT555)

C113 1-126-947-11 ELECT 47uF 20% 35V

(GT222/GT444/GT555)

C114 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(GT222/GT444/GT555)
C117 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C118 1-126-961-11 ELECT 2.2uF 20% 50V
C119 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V

(GT111: AEP, RU/GT222: AEP, RU/

GT444: AEP, RU, UK/GT555: RU)

C121 1-162-961-11 CERAMIC CHIP 330PF 10% 50V

C122 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C123 1-126-964-11 ELECT 10uF 20% 50V

(GT444/GT555)
C124 1-126-960-11 ELECT 1uF 20% 50V
C127 1-136-165-00 MYLAR 0.1uF 5% 50V

(GT444)

C127 1-136-166-00 MYLAR 0.12uF 5% 50V

(GT111/GT222/GT555)

Q010 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

< RESISTOR >

R010 1-216-817-11 METAL CHIP 470 5% 1/10W
R011 1-216-817-11 METAL CHIP 470 5% 1/10W
R012 1-216-817-11 METAL CHIP 470 5% 1/10W
R013 1-216-817-11 METAL CHIP 470 5% 1/10W
R014 1-216-817-11 METAL CHIP 470 5% 1/10W

R015 1-216-817-11 METAL CHIP 470 5% 1/10W
R016 1-216-819-11 METAL CHIP 680 5% 1/10W
R017 1-216-819-11 METAL CHIP 680 5% 1/10W

C128 1-136-167-00 MYLAR 0.15uF 5% 50V

(GT111/GT222)

C128 1-136-166-00 MYLAR 0.12uF 5% 50V

(GT444/GT555)
C129 1-126-961-11 ELECT 2.2uF 20% 50V
C131 1-126-964-11 ELECT 10uF 20% 50V
C132 1-130-491-00 MYLAR 0.047uF 5% 50V

C133 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C134 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C135 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

(GT222/GT444)
C135 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

7777

HCD-GT111/GT222/GT444/GT555

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C137 1-126-964-11 ELECT 10uF 20% 50V

C139 1-126-961-11 ELECT 2.2uF 20% 50V
C142 1-126-964-11 ELECT 10uF 20% 50V
C143 1-126-964-11 ELECT 10uF 20% 50V
C144 1-126-964-11 ELECT 10uF 20% 50V
C145 1-126-964-11 ELECT 10uF 20% 50V

C146 1-126-964-11 ELECT 10uF 20% 50V
C147 1-126-959-11 ELECT 0.47uF 20% 50V
C148 1-104-658-91 ELECT 100uF 20% 10V
C149 1-104-658-91 ELECT 100uF 20% 10V
C150 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

C151 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C152 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C153 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C154 1-126-934-11 ELECT 220uF 20% 16V
C169 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V

(GT111: AEP, RU/GT222: AEP, RU/

GT444: AEP, RU, UK/GT555: RU)

C177 1-136-167-00 MYLAR 0.15uF 5% 50V

C177 1-136-166-00 MYLAR 0.12uF 5% 50V

C178 1-136-165-00 MYLAR 0.1uF 5% 50V

C178 1-136-166-00 MYLAR 0.12uF 5% 50V

C179 1-126-961-11 ELECT 2.2uF 20% 50V

C180 1-126-960-11 ELECT 1uF 20% 50V

C180 1-126-963-11 ELECT 4.7uF 20% 50V

C181 1-126-964-11 ELECT 10uF 20% 50V
C182 1-130-491-00 MYLAR 0.047uF 5% 50V
C183 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C184 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C185 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C185 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C187 1-126-964-11 ELECT 10uF 20% 50V
C192 1-126-964-11 ELECT 10uF 20% 50V

C193 1-126-964-11 ELECT 10uF 20% 50V
C194 1-126-964-11 ELECT 10uF 20% 50V
C195 1-126-964-11 ELECT 10uF 20% 50V
C201 1-126-961-11 ELECT 2.2uF 20% 50V
C206 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C209 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C211 1-126-964-11 ELECT 10uF 20% 50V
C212 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C213 1-126-964-11 ELECT 10uF 20% 50V
C214 1-128-934-11 CERAMIC CHIP 0.33uF 20% 10V

C215 1-126-964-11 ELECT 10uF 20% 50V
C216 1-126-916-11 ELECT 1000uF 20% 6.3V
C218 1-126-947-11 ELECT 47uF 20% 35V
C220 1-126-947-11 ELECT 47uF 20% 35V
C221 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C222 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C223 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C224 1-126-961-11 ELECT 2.2uF 20% 50V
C225 1-104-658-91 ELECT 100uF 20% 10V
C227 1-126-961-11 ELECT 2.2uF 20% 50V

(GT111/GT555)

(GT111/GT222)

(GT444/GT555)

(GT444)

(GT111/GT222/GT555)

(GT111/GT222)

(GT444/GT555)

(GT222/GT444)

(GT111/GT555)

C241 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C242 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C243 1-100-717-91 CERAMIC CHIP 1uF 16V
C256 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C258 1-126-947-11 ELECT 47uF 20% 35V

C259 1-126-964-11 ELECT 10uF 20% 50V
C270 1-126-947-11 ELECT 47uF 20% 35V
C271 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C272 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C273 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C274 1-126-961-11 ELECT 2.2uF 20% 50V
C275 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C277 1-126-961-11 ELECT 2.2uF 20% 50V
C281 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V

(GT444/GT555)

C284 1-104-658-91 ELECT 100uF 20% 10V

(GT444/GT555)

C286 1-126-947-11 ELECT 47uF 20% 35V

(GT444/GT555)

C287 1-126-964-11 ELECT 10uF 20% 50V

(GT444/GT555)
C293 1-100-717-91 CERAMIC CHIP 1uF 16V
C299 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C321 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C380 1-136-497-81 FILM 0.1uF 5% 50V

(GT444/GT555)
C382 1-136-164-00 FILM 0.082uF 5% 50V

(GT444)

C382 1-136-497-81 FILM 0.1uF 5% 50V

(GT555)

C383 1-136-495-11 FILM 0.068uF 5% 50V

(GT444/GT555)
C410 1-162-918-11 CERAMIC CHIP 18PF 5% 50V

C411 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C412 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C414 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C416 1-104-656-11 ELECT 2200uF 20% 6.3V
C420 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

C422 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C423 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C424 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C425 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C426 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C427 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C428 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C451 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C462 1-104-658-91 ELECT 100uF 20% 10V
C464 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

C471 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C483 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C496 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C498 1-126-964-11 ELECT 10uF 20% 50V
C499 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

C566 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C576 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C602 1-128-548-11 ELECT 4700uF 20% 25V
C604 1-130-483-00 MYLAR 0.01uF 5% 50V
C605 1-130-483-00 MYLAR 0.01uF 5% 50V

C608 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C609 1-104-665-11 ELECT 100uF 20% 25V
C610 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

78

HCD-GT111/GT222/GT444/GT555

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C611 1-104-658-91 ELECT 100uF 20% 10V
C612 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

C615 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C616 1-128-548-11 ELECT 4700uF 20% 25V
C617 1-130-483-00 MYLAR 0.01uF 5% 50V
C618 1-130-483-00 MYLAR 0.01uF 5% 50V
C620 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

C640 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C641 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C642 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C647 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C648 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(GT222/GT444/GT555)

C649 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(GT222/GT444/GT555)
C652 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C654 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C655 1-126-923-91 ELECT 220uF 20% 10V
C656 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C663 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C664 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C665 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C671 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C677 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

C678 1-126-926-11 ELECT 1000uF 20% 10V
C679 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C681 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C687 1-126-964-11 ELECT 10uF 20% 50V
C690 1-126-965-91 ELECT 22uF 20% 50V

C692 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C693 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C694 1-126-947-11 ELECT 47uF 20% 35V
C696 1-126-965-91 ELECT 22uF 20% 50V
C697 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

C698 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C699 1-124-261-00 ELECT 10uF 20% 25V
C701 1-136-495-11 FILM 0.068uF 5% 50V

(GT444/GT555)

D211 6-501-722-01 DIODE MAZ8043GMLS0

D212 6-501-817-01 DIODE MA2J1110GLS0
D213 6-500-334-01 DIODE MC2836-T112-1
D468 6-501-817-01 DIODE MA2J1110GLS0
D483 6-501-817-01 DIODE MA2J1110GLS0
D601 6-500-385-01 DIODE D3SBA20-4100

D602 8-719-028-23 DIODE D3SBA20-4101
D605 6-501-817-01 DIODE MA2J1110GLS0
D608 6-501-726-01 DIODE MAZ8047GMLS0
D623 8-719-063-79 DIODE 1N4002B
D624 8-719-063-79 DIODE 1N4002B

D628 6-501-817-01 DIODE MA2J1110GLS0
D630 6-501-817-01 DIODE MA2J1110GLS0
D632 6-500-335-01 DIODE MC2838-T112-1
D651 8-719-063-79 DIODE 1N4002B
D690 6-501-738-01 DIODE MAZ8062GMLS0

D691 6-501-743-01 DIODE MAZ8068GMLS0
D692 6-501-734-01 DIODE MAZ8056GMLS0
D694 6-501-817-01 DIODE MA2J1110GLS0
D695 6-501-579-01 DIODE MC2837

< GROUND TERMINAL >

ET601 1-537-771-21 TERMINAL BOARD, GROUND
ET602 1-537-771-21 TERMINAL BOARD, GROUND

< FLEXIBLE FLAT CABLE >

FFC220 1-831-778-21 CABLE, FLEXIBLE FLAT (11 CORE)

FFC220 1-835-392-21 WIRE (FLAT TYPE) (9 CORE)

< IC >

IC251 8-759-278-58 IC NJM4558V-TE2
IC252 8-759-278-58
IC253 8-759-278-58 IC NJM4558V-TE2 (GT444/GT555)
IC401 A-1553-565-A IC R5F3640DDFA (for SERVICE)
IC407 6-712-027-01 IC R2A15216FP

(GT111: AEP/GT222: AEP/GT444: AEP, UK)

(EXCEPT GT111: AEP/GT222: AEP/

IC NJM4558V-TE2

GT444: AEP, UK)

< CONNECTOR >

CN110 1-564-506-11 PLUG, CONNECTOR 3P (GT222/GT444/GT555)
CN402 1-779-277-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P
CN403 1-784-786-11 CONNECTOR, FFC 25P (GT111)
CN403 1-784-792-11 CONNECTOR, FFC 31P (GT222/GT444/GT555)
CN410 1-784-774-11 CONNECTOR, FFC 13P

CN420 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P
CN430 1-779-299-11 CONNECTOR, FFC (LIF (NON-ZIF)) 31P
CN450 1-784-770-11 CONNECTOR, FFC 9P
* CN470 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P
CN479 1-569-497-11 SOCKET, CONNECTOR 11P (GT111/GT222)

* CN479 1-573-094-11 SOCKET, CONNECTOR 13P (GT444/GT555)
* CN488 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P

CN600 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P
CN690 1-564-506-11 PLUG, CONNECTOR 3P

< DIODE >

D110 6-501-772-01 DIODE MAZ8130GMLS0 (GT222/GT444/GT555)
D116 6-501-579-01 DIODE MC2837
D201 6-501-579-01 DIODE MC2837
D202 6-501-817-01 DIODE MA2J1110GLS0

IC602 6-713-032-01 IC KIA7809API-U/PF
IC603 6-701-761-01 IC uPC3533AHF
IC670 8-759-523-03 IC TC74HC4066AFT (EL)
IC672 8-759-523-03 IC TC74HC4066AFT (EL)
IC673 6-707-870-01 IC TC74VHC157FT (EKJ)

IC675 (Not supplied) IC S-24CS16A0I-J8T1G

< JUMPER RESISTOR/CAPACITOR >

JR102 1-216-864-11
JR103 1-216-864-11 SHORT CHIP 0
JR104 1-216-296-11 SHORT CHIP 0
JR105 1-216-296-11 SHORT CHIP 0
JR106 1-216-296-11 SHORT CHIP 0

JR107 1-216-296-11 SHORT CHIP 0
JR109 1-216-296-11 SHORT CHIP 0
JR110 1-216-296-11 SHORT CHIP 0
JR111 1-216-296-11 SHORT CHIP 0
JR112 1-216-864-11 SHORT CHIP 0

JR113 1-216-296-11 SHORT CHIP 0
JR114 1-216-864-11 SHORT CHIP 0
JR115 1-216-296-11 SHORT CHIP 0
JR116 1-216-296-11 SHORT CHIP 0

SHORT CHIP 0

7979

HCD-GT111/GT222/GT444/GT555

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

JR117 1-216-296-11 SHORT CHIP 0

Q681 6-551-276-01 TRANSISTOR RT1N431C-TP-1

JR118 1-216-864-11 SHORT CHIP 0
JR119 1-216-296-11 SHORT CHIP 0
JR120 1-216-296-11 SHORT CHIP 0
JR121 1-216-864-11 SHORT CHIP 0
JR122 1-216-864-11 SHORT CHIP 0

JR123 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
JR362 1-216-296-11 SHORT CHIP 0
JR363 1-216-864-11 SHORT CHIP 0
JR441 1-216-864-11 SHORT CHIP 0
JR621 1-216-296-11 SHORT CHIP 0

JR622 1-216-864-11 SHORT CHIP 0
JR623 1-216-864-11 SHORT CHIP 0
JR624 1-216-864-11 SHORT CHIP 0
JR626 1-216-864-11 SHORT CHIP 0
JR627 1-216-864-11 SHORT CHIP 0

JR628 1-216-864-11 SHORT CHIP 0
JR629 1-216-864-11 SHORT CHIP 0
JR630 1-216-296-11 SHORT CHIP 0
JR661 1-216-864-11 SHORT CHIP 0

< TRANSISTOR >

Q110 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

(GT222/GT444/GT555)

Q111 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

(GT222/GT444/GT555)

Q112 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

(GT222/GT444/GT555)

Q113 8-729-040-76 TRANSISTOR KTA1273-Y-AT

(GT222/GT444/GT555)

Q115 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q116 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q128 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q178 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q210 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q211 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q212 8-729-037-13 TRANSISTOR KTA1271Y
Q214 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q215 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q402 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q430 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

(GT444/GT555)

Q447 6-551-681-01 TRANSISTOR RT1P431C-TP-1
Q452 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q606 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q627 8-729-037-13 TRANSISTOR KTA1271Y
Q628 6-551-276-01 TRANSISTOR RT1N431C-TP-1

Q684 8-729-037-13 TRANSISTOR KTA1271Y
Q690 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q691 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q693 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q694 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q695 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q696 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q697 8-729-040-76 TRANSISTOR KTA1273-Y-AT

< RESISTOR/CAPACITOR >

R108 1-216-833-11 METAL CHIP 10K 5% 1/10W
R110 1-216-845-11 METAL CHIP 100K 5% 1/10W
R111 1-216-845-11 METAL CHIP 100K 5% 1/10W
R112 1-216-817-11 METAL CHIP 470 5% 1/10W
R113 1-216-824-11 METAL CHIP 1.8K 5% 1/10W

R114 1-216-819-11 METAL CHIP 680 5% 1/10W
R116 1-216-809-11 METAL CHIP 100 5% 1/10W
R117 1-216-835-11 METAL CHIP 15K 5% 1/10W
R119 1-216-809-11 METAL CHIP 100 5% 1/10W
R121 1-216-821-11 METAL CHIP 1K 5% 1/10W

R122 1-216-821-11 METAL CHIP 1K 5% 1/10W
R127 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R128 1-216-835-11 METAL CHIP 15K 5% 1/10W
R129 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R132 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R133 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R134 1-216-833-11 METAL CHIP 10K 5% 1/10W
R135 1-216-833-11 METAL CHIP 10K 5% 1/10W
R136 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R137 1-216-833-11 METAL CHIP 10K 5% 1/10W

R138 1-216-841-11 METAL CHIP 47K 5% 1/10W
R144 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R145 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R153 1-216-833-11 METAL CHIP 10K 5% 1/10W
R155 1-249-401-11 CARBON 47 5% 1/4W

(GT222/GT444/GT555)

R156 1-249-401-11 CARBON 47 5% 1/4W

(GT222/GT444/GT555)

R157 1-249-401-11 CARBON 47 5% 1/4W

(GT222/GT444/GT555)

R158 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT222/GT444/GT555)

R159 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT222/GT444/GT555)

R165 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT222/GT444/GT555)

Q640 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF
Q641 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF
Q643 8-729-047-62 TRANSISTOR 2SC3440-T12-1F
Q644 8-729-047-62 TRANSISTOR 2SC3440-T12-1F
Q645 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF

Q646 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF
Q647 8-729-047-62 TRANSISTOR 2SC3440-T12-1F
Q648 8-729-047-62 TRANSISTOR 2SC3440-T12-1F
Q655 8-729-040-76 TRANSISTOR KTA1273-Y-AT
Q656 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q657 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q658 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q670 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q671 6-551-276-01 TRANSISTOR RT1N431C-TP-1

80

R166 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT222/GT444/GT555)

R167 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT222/GT444/GT555)
R177 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R178 1-216-835-11 METAL CHIP 15K 5% 1/10W
R179 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R182 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R183 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R184 1-216-833-11 METAL CHIP 10K 5% 1/10W
R185 1-216-833-11 METAL CHIP 10K 5% 1/10W
R186 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R187 1-216-833-11 METAL CHIP 10K 5% 1/10W
R188 1-216-841-11 METAL CHIP 47K 5% 1/10W

HCD-GT111/GT222/GT444/GT555

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R190 1-216-857-11 METAL CHIP 1M 5% 1/10W
R192 1-216-842-11 METAL CHIP 56K 5% 1/10W
R194 1-216-822-11 METAL CHIP 1.2K 5% 1/10W

R195 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R200 1-216-801-11 METAL CHIP 22 5% 1/10W
R201 1-216-841-11 METAL CHIP 47K 5% 1/10W
R202 1-216-809-11 METAL CHIP 100 5% 1/10W
R203 1-216-817-11 METAL CHIP 470 5% 1/10W

R204 1-216-839-11 METAL CHIP 33K 5% 1/10W
R206 1-216-833-11 METAL CHIP 10K 5% 1/10W
R207 1-216-841-11 METAL CHIP 47K 5% 1/10W
R208 1-216-838-11 METAL CHIP 27K 5% 1/10W
R210 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R211 1-216-845-11 METAL CHIP 100K 5% 1/10W
R212 1-216-833-11 METAL CHIP 10K 5% 1/10W
R213 1-216-845-11 METAL CHIP 100K 5% 1/10W
R214 1-216-819-11 METAL CHIP 680 5% 1/10W
R215 1-216-833-11 METAL CHIP 10K 5% 1/10W

R216 1-216-837-11 METAL CHIP 22K 5% 1/10W
R217 1-216-864-11 SHORT CHIP 0
R218 1-216-833-11 METAL CHIP 10K 5% 1/10W
R220 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT111/GT222)

R220 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

(GT555)

R220 1-216-832-11 METAL CHIP 8.2K 5% 1/10W

(GT444)
R221 1-216-817-11 METAL CHIP 470 5% 1/10W
R222 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GT111)

R222 1-216-837-11 METAL CHIP 22K 5% 1/10W

(GT222/GT444/GT555)

R223 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(GT111: AEP/GT222: AEP/GT444: AEP, UK)

R223 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

(GT111: E3, E51, AR/GT222: E51, MX, AR/

GT444: E51, MX, AR/GT555: E51, MX, AR)

R223 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(GT111: RU, E2/GT222: RU, E2/GT444: RU, E2/

GT555: RU, E2)

R224 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(GT111: AEP/GT222: AEP/GT444: AEP, UK)

R224 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

(GT111: E3, E51, AR/GT222: E51, MX, AR/

GT444: E51, MX, AR/GT555: E51, MX, AR)

R224 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(GT111: RU, E2/GT222: RU, E2/GT444: RU, E2/

GT555: RU, E2)

R225 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT111: RU, E2/GT222: RU, E2/GT444: RU, E2/

GT555: RU, E2)

R225 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

(GT111: AEP, E3, E51, AR/GT222: AEP, E51, MX,

AR/GT444: AEP, UK, E51, MX, AR/

GT555: E51, MX, AR)

R226 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT111: RU, E2/GT222: RU, E2/GT444: RU, E2/

GT555: RU, E2)

R226 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

(GT111: AEP, E3, E51, AR/GT222: AEP, E51, MX,

AR/GT444: AEP, UK, E51, MX, AR/

GT555: E51, MX, AR)

R227 1-216-841-11 METAL CHIP 47K 5% 1/10W

R228 1-216-821-11 METAL CHIP 1K 5% 1/10W

R229 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R241 1-216-845-11 METAL CHIP 100K 5% 1/10W
R242 1-216-845-11 METAL CHIP 100K 5% 1/10W
R243 1-216-845-11 METAL CHIP 100K 5% 1/10W

R244 1-216-845-11 METAL CHIP 100K 5% 1/10W
R250 1-216-833-11 METAL CHIP 10K 5% 1/10W
R256 1-216-833-11 METAL CHIP 10K 5% 1/10W
R257 1-216-841-11 METAL CHIP 47K 5% 1/10W
R258 1-216-838-11 METAL CHIP 27K 5% 1/10W

R263 1-216-817-11 METAL CHIP 470 5% 1/10W
R270 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT111/GT222)

R270 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

(GT555)

R270 1-216-832-11 METAL CHIP 8.2K 5% 1/10W

(GT444)

R271 1-216-817-11 METAL CHIP 470 5% 1/10W

R272 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GT111)

R272 1-216-837-11 METAL CHIP 22K 5% 1/10W

(GT222/GT444/GT555)
R276 1-216-841-11 METAL CHIP 47K 5% 1/10W
R277 1-216-841-11 METAL CHIP 47K 5% 1/10W
R278 1-216-821-11 METAL CHIP 1K 5% 1/10W

R279 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R280 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

(GT444/GT555)

R282 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT444/GT555)

R283 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

(GT444/GT555)

R284 1-216-832-11 METAL CHIP 8.2K 5% 1/10W

(GT444/GT555)

R285 1-216-841-11 METAL CHIP 47K 5% 1/10W

(GT444/GT555)

R286 1-216-841-11 METAL CHIP 47K 5% 1/10W

(GT444/GT555)

R287 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT444/GT555)

R288 1-216-841-11 METAL CHIP 47K 5% 1/10W

(GT444/GT555)

R289 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(GT444/GT555)

R291 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

(GT444/GT555)

R292 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GT444/GT555)
R322 1-216-837-11 METAL CHIP 22K 5% 1/10W
R323 1-216-837-11 METAL CHIP 22K 5% 1/10W
R324 1-216-837-11 METAL CHIP 22K 5% 1/10W

R325 1-216-837-11 METAL CHIP 22K 5% 1/10W
R326 1-216-837-11 METAL CHIP 22K 5% 1/10W
R327 1-216-837-11 METAL CHIP 22K 5% 1/10W
R328 1-216-837-11 METAL CHIP 22K 5% 1/10W
R345 1-216-833-11 METAL CHIP 10K 5% 1/10W

R346 1-216-833-11 METAL CHIP 10K 5% 1/10W
R361 1-216-833-11 METAL CHIP 10K 5% 1/10W
R365 1-216-833-11 METAL CHIP 10K 5% 1/10W
R366 1-216-833-11 METAL CHIP 10K 5% 1/10W
R367 1-216-833-11 METAL CHIP 10K 5% 1/10W

R381 1-216-835-11 METAL CHIP 15K 5% 1/10W

(GT222/GT444/GT555)

R390 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

8181

HCD-GT111/GT222/GT444/GT555

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R391 1-216-833-11 METAL CHIP 10K 5% 1/10W
R392 1-216-815-11 METAL CHIP 330 5% 1/10W

(GT222)

R392 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT444)

R392 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

(GT555)
R392 1-216-864-11 SHORT CHIP 0 (GT111)
R393 1-216-811-11 METAL CHIP 150 5% 1/10W

(GT444: UK)

R393 1-216-815-11 METAL CHIP 330 5% 1/10W

(GT111: E3)

R393 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT111: RU, E2, E51, AR/GT222: RU, E2, E51, MX,

AR/GT444: RU, E2, E51, MX, AR/GT555)

R394 1-216-835-11 METAL CHIP 15K 5% 1/10W
R395 1-216-835-11 METAL CHIP 15K 5% 1/10W
R397 1-216-835-11 METAL CHIP 15K 5% 1/10W
R404 1-216-809-11 METAL CHIP 100 5% 1/10W
R409 1-216-833-11 METAL CHIP 10K 5% 1/10W

R411 1-216-851-11 METAL CHIP 330K 5% 1/10W
R417 1-216-833-11 METAL CHIP 10K 5% 1/10W
R419 1-216-809-11 METAL CHIP 100 5% 1/10W
R422 1-216-821-11 METAL CHIP 1K 5% 1/10W
R423 1-216-821-11 METAL CHIP 1K 5% 1/10W

R424 1-216-821-11 METAL CHIP 1K 5% 1/10W
R425 1-216-821-11 METAL CHIP 1K 5% 1/10W
R426 1-216-821-11 METAL CHIP 1K 5% 1/10W
R427 1-216-821-11 METAL CHIP 1K 5% 1/10W
R428 1-216-821-11 METAL CHIP 1K 5% 1/10W

R431 1-216-809-11 METAL CHIP 100 5% 1/10W
R432 1-216-809-11 METAL CHIP 100 5% 1/10W
R433 1-216-809-11 METAL CHIP 100 5% 1/10W
R434 1-216-809-11 METAL CHIP 100 5% 1/10W
R435 1-216-809-11 METAL CHIP 100 5% 1/10W

R436 1-216-809-11 METAL CHIP 100 5% 1/10W
R438 1-216-809-11 METAL CHIP 100 5% 1/10W
R440 1-216-809-11 METAL CHIP 100 5% 1/10W
R445 1-216-809-11 METAL CHIP 100 5% 1/10W
R446 1-216-809-11 METAL CHIP 100 5% 1/10W

R450 1-216-809-11 METAL CHIP 100 5% 1/10W
R461 1-216-809-11 METAL CHIP 100 5% 1/10W
R463 1-216-809-11 METAL CHIP 100 5% 1/10W
R465 1-216-809-11 METAL CHIP 100 5% 1/10W
R466 1-216-809-11 METAL CHIP 100 5% 1/10W

R467 1-216-809-11 METAL CHIP 100 5% 1/10W
R468 1-216-813-11 METAL CHIP 220 5% 1/10W
R474 1-216-809-11 METAL CHIP 100 5% 1/10W
R475 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT111: AEP/GT222: AEP/GT444: AEP, UK)

R476 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT111: AEP/GT222: AEP/GT444: AEP, UK)

R480 1-216-809-11 METAL CHIP 100 5% 1/10W
R481 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT222/GT444/GT555)
R483 1-216-849-11 METAL CHIP 220K 5% 1/10W
R490 1-216-809-11 METAL CHIP 100 5% 1/10W
R491 1-216-809-11 METAL CHIP 100 5% 1/10W

R492 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT222/GT444/GT555)
R493 1-216-811-11 METAL CHIP 150 5% 1/10W

(GT111: RU/GT222: RU/GT444: RU/GT555: RU)

R493 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT222: MX/GT444: MX/GT555: MX)

R493 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT111: E2, E51, AR/GT222: E2, E51, AR/

GT444: E2, E51, AR/GT555: E2, E51, AR)

R493 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT111: E3/GT444: UK)

R493 1-216-864-11 SHORT CHIP 0

(GT111: AEP/GT222: AEP/GT444: AEP)
R494 1-216-817-11 METAL CHIP 470 5% 1/10W
R495 1-216-817-11 METAL CHIP 470 5% 1/10W
R497 1-216-817-11 METAL CHIP 470 5% 1/10W
R557 1-216-864-11 SHORT CHIP 0

R575 1-216-864-11 SHORT CHIP 0 (EXCEPT GT111: AEP/

GT222: AEP/GT444: AEP, UK)

R576 1-216-864-11 SHORT CHIP 0

(EXCEPT GT111: AEP/GT222: AEP/

GT444: AEP, UK)

R581 1-100-756-91 CERAMIC CHIP 0.047uF 50V

(GT222/GT444/GT555)
R581 1-216-864-11 SHORT CHIP 0 (GT111)
R610 1-216-845-11 METAL CHIP 100K 5% 1/10W

R612 1-216-801-11 METAL CHIP 22 5% 1/10W
R613 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R614 1-216-817-11 METAL CHIP 470 5% 1/10W
R615 1-216-833-11 METAL CHIP 10K 5% 1/10W
R616 1-216-813-11 METAL CHIP 220 5% 1/10W

R617 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R627 1-216-841-11 METAL CHIP 47K 5% 1/10W
R628 1-216-833-11 METAL CHIP 10K 5% 1/10W
R630 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R631 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R633 1-216-837-11 METAL CHIP 22K 5% 1/10W
R634 1-216-837-11 METAL CHIP 22K 5% 1/10W
R635 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

(GT111/GT555)

R635 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GT222)

R635 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

(GT444)

R636 1-216-864-11 SHORT CHIP 0
0 R637 1-215-890-51 METAL OXIDE 470 5% 2W F

(GT111/GT444)

0 R637 1-215-891-51 METAL OXIDE 680 5% 2W F

(GT222/GT555)

0 R638 1-215-890-51 METAL OXIDE 470 5% 2W F

(GT111/GT444)

0 R638 1-215-891-51 METAL OXIDE 680 5% 2W F

(GT222/GT555)

R639 1-216-805-11 METAL CHIP 47 5% 1/10W

(GT444)

R639 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT111/GT222/GT555)

R640 1-216-805-11 METAL CHIP 47 5% 1/10W

(GT444)

R640 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT111/GT222/GT555)

R641 1-216-817-11 METAL CHIP 470 5% 1/10W

R642 1-216-841-11 METAL CHIP 47K 5% 1/10W
R643 1-216-817-11 METAL CHIP 470 5% 1/10W
R644 1-216-841-11 METAL CHIP 47K 5% 1/10W
R645 1-216-817-11 METAL CHIP 470 5% 1/10W
R646 1-216-817-11 METAL CHIP 470 5% 1/10W

82

HCD-GT111/GT222/GT444/GT555

MAIN MIC

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R647 1-216-841-11 METAL CHIP 47K 5% 1/10W
R648 1-216-841-11 METAL CHIP 47K 5% 1/10W
R649 1-216-817-11 METAL CHIP 470 5% 1/10W
R650 1-216-841-11 METAL CHIP 47K 5% 1/10W
R651 1-216-817-11 METAL CHIP 470 5% 1/10W

C711 1-124-584-00 ELECT 100uF 20% 6.3V
C712 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C713 1-126-961-11 ELECT 2.2uF 20% 50V
C714 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C715 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

R652 1-216-841-11 METAL CHIP 47K 5% 1/10W
R653 1-216-817-11 METAL CHIP 470 5% 1/10W
R654 1-216-817-11 METAL CHIP 470 5% 1/10W
R655 1-216-841-11 METAL CHIP 47K 5% 1/10W
R656 1-216-841-11 METAL CHIP 47K 5% 1/10W

R657 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R658 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R662 1-216-839-11 METAL CHIP 33K 5% 1/10W
R663 1-216-837-11 METAL CHIP 22K 5% 1/10W
R664 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R666 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R668 1-216-796-11 METAL CHIP 8.2 5% 1/10W

(GT111/GT222)

R668 1-216-797-11 METAL CHIP 10 5% 1/10W

(GT444/GT555)
R669 1-216-853-11 METAL CHIP 470K 5% 1/10W
R670 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R671 1-216-833-11 METAL CHIP 10K 5% 1/10W
R672 1-216-833-11 METAL CHIP 10K 5% 1/10W
R673 1-216-833-11 METAL CHIP 10K 5% 1/10W
R675 1-216-833-11 METAL CHIP 10K 5% 1/10W
R676 1-216-833-11 METAL CHIP 10K 5% 1/10W

R681 1-216-833-11 METAL CHIP 10K 5% 1/10W
R683 1-216-821-11 METAL CHIP 1K 5% 1/10W
R687 1-249-401-11 CARBON 47 5% 1/4W
R688 1-249-401-11 CARBON 47 5% 1/4W
R689 1-249-401-11 CARBON 47 5% 1/4W

R690 1-216-821-11 METAL CHIP 1K 5% 1/10W
R691 1-216-845-11 METAL CHIP 100K 5% 1/10W
R692 1-216-797-11 METAL CHIP 10 5% 1/10W
R693 1-216-797-11 METAL CHIP 10 5% 1/10W
R694 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R695 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R696 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R697 1-216-845-11 METAL CHIP 100K 5% 1/10W
R698 1-216-821-11 METAL CHIP 1K 5% 1/10W

< VIBRATOR >

X401 1-814-067-11 OSCILLATOR, CRYSTAL (32.768kHz)
X402 1-795-058-21 VIBRATOR, CERAMIC (5MHz)

*************************************************************

MIC BOARD
**********

< CAPACITOR >

C716 1-124-257-00 ELECT 2.2uF 20% 50V
C717 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C718 1-124-463-00 ELECT 0.1uF 20% 50V
C719 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C720 1-124-257-00 ELECT 2.2uF 20% 50V

C721 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C722 1-164-218-11 CERAMIC CHIP 180PF 5% 50V

< DIODE >

D701 6-501-579-01 DIODE MC2837
D702 6-501-579-01 DIODE MC2837

< JUMPER RESISTOR >

FB700 1-216-295-91 SHORT CHIP 0

< IC >

IC700 8-759-278-58 IC NJM4558V-TE2

< JACK >

J700 1-817-629-11
J701 1-764-767-21 JACK, PIN 2P (AUDIO INPUT)
J702 1-794-702-11 JACK, HEADPHONE (PHONES)

< RESISTOR >

R700 1-216-821-11 METAL CHIP 1K 5% 1/10W
R701 1-216-845-11 METAL CHIP 100K 5% 1/10W
R702 1-216-833-11 METAL CHIP 10K 5% 1/10W
R704 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R705 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R706 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R707 1-216-849-11 METAL CHIP 220K 5% 1/10W
R708 1-216-849-11 METAL CHIP 220K 5% 1/10W
R709 1-216-821-11 METAL CHIP 1K 5% 1/10W
R710 1-216-821-11 METAL CHIP 1K 5% 1/10W

R711 1-216-833-11 METAL CHIP 10K 5% 1/10W
R712 1-216-836-11 METAL CHIP 18K 5% 1/10W
R713 1-216-809-11 METAL CHIP 100 5% 1/10W
R714 1-216-849-11 METAL CHIP 220K 5% 1/10W
R715 1-216-809-11 METAL CHIP 100 5% 1/10W

R716 1-216-845-11 METAL CHIP 100K 5% 1/10W
R718 1-216-836-11 METAL CHIP 18K 5% 1/10W
R719 1-216-833-11 METAL CHIP 10K 5% 1/10W
R720 1-216-845-11 METAL CHIP 100K 5% 1/10W
R721 1-216-841-11 METAL CHIP 47K 5% 1/10W

JACK (LARGE TYPE) (MIC)

C700 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C701 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C702 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C703 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C704 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C705 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C707 1-126-961-11 ELECT 2.2uF 20% 50V
C708 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C709 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C710 1-126-157-11 ELECT 10uF 20% 16V

R722 1-216-833-11 METAL CHIP 10K 5% 1/10W
R723 1-216-836-11 METAL CHIP 18K 5% 1/10W

< VARIABLE RESISTOR >

RV700 1-223-983-11 RES, VAR, CARBON 50K (MIC LEVEL)

*************************************************************

8383

HCD-GT111/GT222/GT444/GT555

Ver. 1.4

MOTOR DRIVE

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

MOTOR DRIVE BOARD (GT222/GT444/GT555)
******************

POWERAMP

C804 1-137-842-11 ELECT (BLOCK) 2200uF 20% 80V

(GT222/GT555)

< CAPACITOR >

C001 1-126-947-11 ELECT 47uF 20% 35V
C002 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

< CONNECTOR >

CN001 1-568-854-11 CONNECTOR, FFC 11P
CN002 (Not supplied) CONNECTOR, FFC/FPC (LIF) 4P
CN003 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P
CN004 1-564-704-41 PIN, CONNECTOR (SMALL TYPE) 2P

< IC >

IC001 6-711-976-01 IC LB1846M

< RESISTOR >

R005 1-216-833-11
R006 1-216-833-11 METAL CHIP 10K 5% 1/10W
R007 1-216-833-11 METAL CHIP 10K 5% 1/10W
R008 1-216-833-11 METAL CHIP 10K 5% 1/10W

*************************************************************

A-1444-547-A POWERAMP BOARD, COMPLETE

A-1444-585-A POWERAMP BOARD, COMPLETE

A-1444-603-A POWERAMP BOARD, COMPLETE

A-1444-648-A POWERAMP BOARD, COMPLETE

A-1545-500-A POWERAMP BOARD, COMPLETE (GT222: MX)

METAL CHIP 10K 5% 1/10W

(GT111: AEP, RU)

(GT222: AEP, RU)

(GT444: AEP, RU, UK)

(GT555: E2, E51, AR)

C805 1-127-811-11 ELECT (BLOCK) 3300uF 20% 50V

(GT222: E2, E51, MX, AR/GT555: E2, E51, MX, AR)

C805 1-135-515-21 ELECT 3300uF 20% 50V

(GT222: AEP, RU/GT555: RU)

C806 1-127-811-11 ELECT (BLOCK) 3300uF 20% 50V

(GT222: E2, E51, MX, AR/GT555: E2, E51, MX, AR)

C806 1-135-515-21 ELECT 3300uF 20% 50V

(GT222: AEP, RU/GT555: RU)

C807 1-136-497-81 FILM 0.1uF 5% 50V

(GT222/GT555)

C808 1-136-497-81 FILM 0.1uF 5% 50V

(GT222/GT555)
C809 1-126-964-11 ELECT 10uF 20% 50V
C810 1-126-964-11 ELECT 10uF 20% 50V
C811 1-126-964-11 ELECT 10uF 20% 50V

(GT444/GT555)
C812 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C813 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(GT444/GT555)
C814 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C815 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C816 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(GT444/GT555)
C817 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C818 1-126-967-11 ELECT 47uF 20% 50V
C819 1-126-967-11 ELECT 47uF 20% 50V
C820 1-126-967-11 ELECT 47uF 20% 50V

(GT444/GT555)
C826 1-128-552-51 ELECT 47uF 20% 63V

(GT111)

A-1545-503-A POWERAMP BOARD, COMPLETE (GT444: MX)
A-1545-506-A POWERAMP BOARD, COMPLETE (GT555: MX)
A-1545-869-A POWERAMP BOARD, COMPLETE

(GT111: E2, E51, AR)

A-1545-872-A POWERAMP BOARD, COMPLETE

(GT222: E2, E51, AR)

A-1545-875-A POWERAMP BOARD, COMPLETE

(GT444: E2, E51, AR)

A-1545-878-A POWERAMP BOARD, COMPLETE (GT555: RU)
A-1641-633-A POWERAMP BOARD, COMPLETE (GT111: E3)
****************

7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

< CAPACITOR >

C801 1-137-749-11 MYLAR 0.1uF 100V
C802 1-137-749-11 MYLAR 0.1uF 100V
C803 1-135-928-21 ELECT 2200uF 20% 63V

(GT111: AEP, RU, E3)

C803 1-137-840-11 ELECT (BLOCK) 2200uF 20% 63V

(GT111: E2, E51, AR)

C803 1-137-841-11 ELECT (BLOCK) 2200uF 20% 71V

(GT444)

C803 1-137-842-11 ELECT (BLOCK) 2200uF 20% 80V

(GT222/GT555)

C804 1-135-928-21 ELECT 2200uF 20% 63V

(GT111: AEP, RU, E3)

C804 1-137-840-11 ELECT (BLOCK) 2200uF 20% 63V

(GT111: E2, E51, AR)

C804 1-137-841-11 ELECT (BLOCK) 2200uF 20% 71V

(GT444)

Note: A part of circuit composition of POWERAMP board has been changed in the midway of production.
POWERAMP board that has not been changed appears as TYPE A, and the changed POWERAMP

board appears as TYPE B or TYPE C.

84

C826 1-128-562-11 ELECT 47uF 20% 100V

(GT222/GT444/GT555)

C827 1-128-552-51 ELECT 47uF 20% 63V

(GT111)

C827 1-128-562-11 ELECT 47uF 20% 100V

(GT222/GT444/GT555)

C828 1-126-965-11 ELECT 22uF 20% 50V

(TYPE A)

C829 1-104-658-91 ELECT 100uF 20% 10V

C830 1-126-961-11 ELECT 2.2uF 20% 50V
C833 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C835 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C837 1-136-497-81 FILM 0.1uF 5% 50V
C838 1-136-497-81 FILM 0.1uF 5% 50V

C839 1-136-497-81 FILM 0.1uF 5% 50V
C840 1-136-497-81 FILM 0.1uF 5% 50V
C843 1-126-964-11 ELECT 10uF 20% 50V
C844 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

< CONNECTOR >

* CN801 1-569-506-11 PIN, CONNECTOR 11P (GT111/GT222)
* CN801 1-573-087-11 PIN, CONNECTOR 13P (GT444/GT555)

< DIODE >

D800 6-500-360-01 DIODE D10XB20
D801 6-500-360-01 DIODE D10XB20 (GT222/GT555)
D802 6-500-334-01 DIODE MC2836-T112-1
D803 6-501-817-01 DIODE MA2J1110GLS0
D804 6-501-778-01 DIODE MAZ8160GMLS0 (GT222/GT555)

D805 6-501-778-01 DIODE MAZ8160GMLS0 (GT222/GT555)

HCD-GT111/GT222/GT444/GT555

Ver. 1.2

POWERAMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

D806 6-500-968-21 DIODE 30PRA20FC (GT222/GT555)
D807 6-501-817-01 DIODE MA2J1110GLS0
D808 6-501-817-01 DIODE MA2J1110GLS0 (TYPE A)
D810 6-500-968-21 DIODE 30PRA20FC (GT222/GT555)

D811 6-501-817-01 DIODE MA2J1110GLS0 (GT444/GT555)
D812 6-500-335-01 DIODE MC2838-T112-1

< EARTH TERMINAL >

EP800 1-537-771-21 TERMINAL BOARD, GROUND

< IC >

IC800 6-600-562-01 IC STK433-100-E (GT111)
IC800 6-600-675-01
IC800 6-712-280-01 IC STK415-120-E (GT222)
IC800 6-712-281-01 IC STK433-320-E (GT444)

< TERMINAL BOARD >

JK800 1-820-067-11 TERMINAL BOARD (SPEAKER)

< JUMPER RESISTOR >

JR891 1-216-864-11 SHORT CHIP 0

< COIL >

IC STK416-120-E (GT555)

(FRONT SPEAKER)

R809 1-216-797-11 METAL CHIP 10 5% 1/10W

(TYPE A/TYPE B/GT111 (TYPE C): AEP, RU/

GT222 (TYPE C): AEP, RU/GT444 (TYPE C): AEP,

RU, UK/GT555 (TYPE C): RU)

R810 1-216-797-11 METAL CHIP 10 5% 1/10W

(TYPE A/TYPE B/GT111 (TYPE C): AEP, RU/

GT222 (TYPE C): AEP, RU/GT444 (TYPE C): AEP,

RU, UK/GT555 (TYPE C): RU)

R811 1-216-797-11 METAL CHIP 10 5% 1/10W

(TYPE A/TYPE B/GT111 (TYPE C): AEP, RU/

GT222 (TYPE C): AEP, RU/GT444 (TYPE C): AEP,

RU, UK/GT555 (TYPE C): RU)

R812 1-216-797-11 METAL CHIP 10 5% 1/10W

(TYPE A/TYPE B/GT111 (TYPE C): AEP, RU/

GT222 (TYPE C): AEP, RU/GT444 (TYPE C): AEP,

RU, UK/GT555 (TYPE C): RU)

R813 1-216-797-11 METAL CHIP 10 5% 1/10W

(TYPE A/TYPE B/GT111 (TYPE C): AEP, RU/

GT222 (TYPE C): AEP, RU/GT444 (TYPE C): AEP,

RU, UK/GT555 (TYPE C): RU)

R814 1-216-809-11 METAL CHIP 100 5% 1/10W
R815 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT444/GT555)

R816 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT444/GT555)
R817 1-216-808-11 METAL CHIP 82 5% 1/10W
R818 1-216-808-11 METAL CHIP 82 5% 1/10W

L801 1-422-009-13 COIL, AIR-CORE (TYPE A/TYPE B/GT111

(TYPE C): AEP, RU/GT222 (TYPE C): AEP, RU/

GT444 (TYPE C): AEP, RU, UK/

GT555 (TYPE C): RU)

L802 1-422-009-13 COIL, AIR-CORE (TYPE A/TYPE B/GT111

(TYPE C): AEP, RU/GT222 (TYPE C): AEP, RU/

GT444 (TYPE C): AEP, RU, UK/

GT555 (TYPE C): RU)

< TRANSISTOR >

Q800 6-551-268-01 TRANSISTOR 2SC5625
Q801 6-551-268-01 TRANSISTOR 2SC5625
Q802 6-551-268-01 TRANSISTOR 2SC5625 (GT444/GT555)
Q803 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q804 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q805 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

(GT444/GT555)
Q806 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q809 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q810 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF (TYPE A)
Q811 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q812 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF (TYPE A)
Q813 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF (TYPE A)
Q814 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF (TYPE A)
Q815 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

< RESISTOR >

R819 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT444/GT555)

R820 1-216-835-11 METAL CHIP 15K 5% 1/10W

(TYPE A)

R821 1-216-820-11 METAL CHIP 820 5% 1/10W

(GT444)

R821 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT111/GT222/GT555)

R822 1-216-818-11 METAL CHIP 560 5% 1/10W

(GT555)

R822 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT444)

R823 1-216-820-11 METAL CHIP 820 5% 1/10W

(GT444)

R823 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT111/GT222/GT555)
R824 1-216-841-11 METAL CHIP 47K 5% 1/10W
R825 1-216-841-11 METAL CHIP 47K 5% 1/10W

R826 1-216-841-11 METAL CHIP 47K 5% 1/10W

(GT444)

R826 1-216-842-11 METAL CHIP 56K 5% 1/10W

(GT555)

R827 1-216-820-11 METAL CHIP 820 5% 1/10W

(GT111/GT444)

R827 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT555)

R827 1-216-822-11 METAL CHIP 1.2K 5% 1/10W

(GT222)

R804 1-216-809-11 METAL CHIP 100 5% 1/10W
R805 1-216-809-11 METAL CHIP 100 5% 1/10W

(GT444/GT555)

R806 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT222/GT555)

R807 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT222/GT555)

R808 1-216-797-11 METAL CHIP 10 5% 1/10W

(TYPE A/TYPE B/GT111 (TYPE C): AEP, RU/

GT222 (TYPE C): AEP, RU/GT444 (TYPE C): AEP,

RU, UK/GT555 (TYPE C): RU)

Note: A part of circuit composition of POWERAMP board has been changed in the midway of production.
POWERAMP board that has not been changed appears as TYPE A, and the changed POWERAMP

board appears as TYPE B or TYPE C.

R828 1-216-820-11 METAL CHIP 820 5% 1/10W

R828 1-216-821-11 METAL CHIP 1K 5% 1/10W

R828 1-216-822-11 METAL CHIP 1.2K 5% 1/10W

R829 1-216-818-11 METAL CHIP 560 5% 1/10W

R829 1-216-819-11 METAL CHIP 680 5% 1/10W

(GT111/GT444)

(GT555)

(GT222)

(GT555)

(GT444)

8585

HCD-GT111/GT222/GT444/GT555

Ver. 1.2

POWERAMP SW SW JACK

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R830 1-216-841-11 METAL CHIP 47K 5% 1/10W

0 R831 1-220-893-11 METAL 0.22 10% 5W F
0 R832 1-220-893-11 METAL 0.22 10% 5W F
0 R833 1-220-893-11 METAL 0.22 10% 5W F

(GT444/GT555)

R834 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R835 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(GT444/GT555)
R836 1-216-837-11 METAL CHIP 22K 5% 1/10W
R837 1-216-837-11 METAL CHIP 22K 5% 1/10W
R838 1-216-845-11 METAL CHIP 100K 5% 1/10W
R839 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GT444/GT555)

R840 1-216-797-11 METAL CHIP 10 5% 1/10W

(TYPE A/TYPE B/GT111 (TYPE C): AEP, RU/

GT222 (TYPE C): AEP, RU/GT444 (TYPE C): AEP,

RU, UK/GT555 (TYPE C): RU)

R841 1-216-797-11 METAL CHIP 10 5% 1/10W

(TYPE A/TYPE B/GT111 (TYPE C): AEP, RU/

GT222 (TYPE C): AEP, RU/GT444 (TYPE C): AEP,

RU, UK/GT555 (TYPE C): RU)

0 R842 1-215-871-51 METAL OXIDE 2.2K 5% 1W F

(GT222/GT555)
0 R843 1-215-871-51 METAL OXIDE 2.2K 5% 1W F

(GT222/GT555)
R844 1-216-839-11 METAL CHIP 33K 5% 1/10W

(TYPE A)

R881 1-216-838-11 METAL CHIP 27K 5% 1/10W

(GT444/GT555)

R881 1-216-841-11 METAL CHIP 47K 5% 1/10W

(GT111/GT222)

R882 1-216-845-11 METAL CHIP 100K 5% 1/10W
R883 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R884 1-216-841-11 METAL CHIP 47K 5% 1/10W
R885 1-216-841-11 METAL CHIP 47K 5% 1/10W

(GT444)

R885 1-216-842-11 METAL CHIP 56K 5% 1/10W

(GT555)

R886 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GT444/GT555)
R888 1-216-821-11 METAL CHIP 1K 5% 1/10W
R889 1-216-839-11 METAL CHIP 33K 5% 1/10W

(GT444/GT555)
R890 1-216-837-11 METAL CHIP 22K 5% 1/10W

(GT444/GT555)
R891 1-216-845-11 METAL CHIP 100K 5% 1/10W

R892 1-216-845-11 METAL CHIP 100K 5% 1/10W
R895 1-216-821-11 METAL CHIP 1K 5% 1/10W
R896 1-216-837-11 METAL CHIP 22K 5% 1/10W
R897 1-216-837-11 METAL CHIP 22K 5% 1/10W
R898 1-216-835-11 METAL CHIP 15K 5% 1/10W

R899 1-216-835-11 METAL CHIP 15K 5% 1/10W

R845 1-216-839-11 METAL CHIP 33K 5% 1/10W

(TYPE A)

R846 1-216-821-11 METAL CHIP 1K 5% 1/10W

(TYPE A)
R848 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R850 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R851 1-216-833-11 METAL CHIP 10K 5% 1/10W

R856 1-216-841-11 METAL CHIP 47K 5% 1/10W
R857 1-216-837-11 METAL CHIP 22K 5% 1/10W
R858 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(TYPE A)
R859 1-216-839-11 METAL CHIP 33K 5% 1/10W
R860 1-216-839-11 METAL CHIP 33K 5% 1/10W

0 R861 1-202-972-61 FUSIBLE 1 5% 1/4W F
0 R862 1-212-881-61 FUSIBLE 100 5% 1/4W F

R863 1-216-821-11 METAL CHIP 1K 5% 1/10W
R864 1-216-821-11 METAL CHIP 1K 5% 1/10W

(TYPE A)
0 R865 1-212-881-61 FUSIBLE 100 5% 1/4W F

R866 1-202-926-11 METAL CHIP 36K 5% 1/10W

(GT444/GT555)

R866 1-216-840-11 METAL CHIP 39K 5% 1/10W

(GT111/GT222)

R867 1-216-821-11 METAL CHIP 1K 5% 1/10W

(TYPE A)
R868 1-216-839-11 METAL CHIP 33K 5% 1/10W

(GT444/GT555)

R869 1-216-797-11 METAL CHIP 10 5% 1/10W

< RELAY >

RY800 1-755-307-21 RELAY

************************************************************

SW BOARD (GT222/GT444/GT555)
**********

< RESISTOR >

R031 1-216-833-11 METAL CHIP 10K 5% 1/10W

< SWITCH >

S031 1-786-084-11 SWITCH, DETECTION

(METER POSITION DETECT)

*************************************************************

SW JACK BOARD (GT444/GT555)
**************

< CAPACITOR >

C836 1-136-497-81 FILM 0.1uF 5% 50V
C841 1-136-497-81 FILM 0.1uF 5% 50V

< CONNECTOR >

* CN890 1-564-521-11 PLUG, CONNECTOR 6P

< DIODE >

R870 1-216-864-11 SHORT CHIP 0 (TYPE B/TYPE C)
R871 1-216-797-11 METAL CHIP 10 5% 1/10W
R872 1-216-797-11 METAL CHIP 10 5% 1/10W
R874 1-216-797-11 METAL CHIP 10 5% 1/10W
R875 1-216-797-11 METAL CHIP 10 5% 1/10W

R877 1-216-797-11 METAL CHIP 10 5% 1/10W
R878 1-216-797-11 METAL CHIP 10 5% 1/10W
R879 1-216-797-11 METAL CHIP 10 5% 1/10W

Note: A part of circuit composition of POWERAMP board has been changed in the midway of production.
POWERAMP board that has not been changed appears as TYPE A, and the changed POWERAMP

board appears as TYPE B or TYPE C.

86

D890 6-501-817-01 DIODE MA2J1110GLS0

< TERMINAL BOARD >

JK890 1-780-473-21 TERMINAL BOARD (SPEAKER) 1P

<

L890 1-422-009-13 COIL, AIR-CORE

COIL >

(SUBWOOFER)

HCD-GT111/GT222/GT444/GT555

TCSW JACK

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< RESISTOR >

R870 1-216-797-11 METAL CHIP 10 5% 1/10W
R873 1-216-797-11 METAL CHIP 10 5% 1/10W
R876 1-216-797-11 METAL CHIP 10 5% 1/10W
R880 1-216-797-11 METAL CHIP 10 5% 1/10W
R891 1-216-797-11 METAL CHIP 10 5% 1/10W

R892 1-216-797-11 METAL CHIP 10 5% 1/10W
R893 1-216-797-11 METAL CHIP 10 5% 1/10W
R894 1-216-797-11 METAL CHIP 10 5% 1/10W

< RELAY >

RY890 1-755-307-21 RELAY

*************************************************************

A-1444-545-A TC BOARD, COMPLETE
*******************

C548 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

< CONNECTOR >

CN501 1-815-449-11 PIN, CONNECTOR (PWB) 8P

< GROUND TERMINAL >

ET501 1-537-771-21 TERMINAL BOARD, GROUND

< FLEXIBLE FLAT CABLE >

FFC502 1-832-432-21 CABLE, FLEXIBLE FLAT (9 CORE)

< IC >

IC501 8-759-100-96 IC uPC4558G2
IC502 8-759-100-96 IC uPC4558G2

< JUMPER RESISTOR >

< CAPACITOR >

C501 1-104-658-91 ELECT 100uF 20% 10V
C502 1-104-658-91 ELECT 100uF 20% 10V
C503 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C504 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C505 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C506 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C509 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C510 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C511 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C512 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C513 1-126-960-11 ELECT 1uF 20% 50V
C514 1-126-960-11 ELECT 1uF 20% 50V
C515 1-126-947-11 ELECT 47uF 20% 35V
C516 1-126-947-11 ELECT 47uF 20% 35V
C517 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C519 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C520 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C521 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C522 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C523 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V

C524 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C525 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C526 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C527 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C528 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C529 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C530 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C531 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C532 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C533 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C534 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C535 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C536 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C537 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C538 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C539 1-115-156-11 CERAMIC CHIP 1uF 10V
C540 1-137-391-11 MYLAR 0.0047uF 5% 100V
C542 1-104-662-91 ELECT 22uF 20% 25V
C543 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C545 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C546 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

JR501 1-216-864-11 SHORT CHIP 0
JR502 1-216-864-11 SHORT CHIP 0
JR503 1-216-864-11 SHORT CHIP 0
JR504 1-216-295-91 SHORT CHIP 0

< TRANSFORMER >

L501 1-456-094-11 TRANSFORMER, BIAS OSCILLATION

< TRANSISTOR >

Q501 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q502 8-729-119-78 TRANSISTOR 2SC2785-HFE

< RESISTOR >

R501 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R502 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R503 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R504 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R505 1-216-834-11 METAL CHIP 12K 5% 1/10W

R506 1-216-834-11 METAL CHIP 12K 5% 1/10W
R507 1-216-850-11 METAL CHIP 270K 5% 1/10W
R508 1-216-850-11 METAL CHIP 270K 5% 1/10W
R509 1-216-814-11 METAL CHIP 270 5% 1/10W
R510 1-216-814-11 METAL CHIP 270 5% 1/10W

R511 1-216-845-11 METAL CHIP 100K 5% 1/10W
R512 1-216-845-11 METAL CHIP 100K 5% 1/10W
R513 1-216-845-11 METAL CHIP 100K 5% 1/10W
R514 1-216-845-11 METAL CHIP 100K 5% 1/10W
R515 1-216-864-11 SHORT CHIP 0

R516 1-216-864-11 SHORT CHIP 0
R517 1-216-821-11 METAL CHIP 1K 5% 1/10W
R518 1-216-821-11 METAL CHIP 1K 5% 1/10W
R519 1-216-841-11 METAL CHIP 47K 5% 1/10W
R520 1-216-841-11 METAL CHIP 47K 5% 1/10W

R521 1-216-841-11 METAL CHIP 47K 5% 1/10W
R522 1-216-841-11 METAL CHIP 47K 5% 1/10W
R523 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R524 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R525 1-216-851-11 METAL CHIP 330K 5% 1/10W

R526 1-216-851-11 METAL CHIP 330K 5% 1/10W
R527 1-216-851-11 METAL CHIP 330K 5% 1/10W
R528 1-216-851-11 METAL CHIP 330K 5% 1/10W
R529 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R530 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

8787

HCD-GT111/GT222/GT444/GT555

TRANS1 TRANS2TC

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R531 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R532 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R533 1-216-837-11 METAL CHIP 22K 5% 1/10W
R534 1-216-835-11 METAL CHIP 15K 5% 1/10W
R535 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R536 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R537 1-216-833-11 METAL CHIP 10K 5% 1/10W
R538 1-216-833-11 METAL CHIP 10K 5% 1/10W
R539 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R540 1-216-805-11 METAL CHIP 47 5% 1/10W

R541 1-216-805-11 METAL CHIP 47 5% 1/10W
R543 1-216-813-11 METAL CHIP 220 5% 1/10W
R544 1-216-813-11 METAL CHIP 220 5% 1/10W
R545 1-216-817-11 METAL CHIP 470 5% 1/10W
R546 1-216-817-11 METAL CHIP 470 5% 1/10W

< SWITCH >

S501 1-762-369-11 SWITCH, SLIDE (REC/PB)

*************************************************************

TRANS1 BOARD (GT111: E2, E3, E51)
*************

< CAPACITOR >

C907 1-136-497-81 FILM 0.1uF 5% 50V
C908 1-126-969-11 ELECT 220uF 20% 50V
C909 1-126-964-11 ELECT 10uF 20% 50V
C910 1-126-948-11 ELECT 100uF 20% 35V
C911 1-126-942-61 ELECT 1000uF 20% 25V

< RESISTOR >

R904 1-216-821-11 METAL CHIP 1K 5% 1/10W
0 R908 1-202-972-61 FUSIBLE 1 5% 1/4W F
R910 1-216-801-11 METAL CHIP 22 5% 1/10W
R911 1-216-864-11 SHORT CHIP 0
R912 1-216-837-11 METAL CHIP 22K 5% 1/10W

R914 1-216-845-11 METAL CHIP 100K 5% 1/10W
R915 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R952 1-216-833-11 METAL CHIP 10K 5% 1/10W

< RELAY >

0 RY901 1-755-334-11 RELAY, POWER

< SWITCH >

0 S901 1-786-055-31 SELECTOR, VOLTAGE (VOLTAGE SELECTOR)

*************************************************************

TRANS2 BOARD (GT222/GT444/GT555)
*************

< CAPACITOR >

C907 1-136-497-81 FILM 0.1uF 5% 50V
C908 1-126-969-11 ELECT 220uF 20% 50V
C909 1-126-964-11 ELECT 10uF 20% 50V
C910 1-126-948-11 ELECT 100uF 20% 35V
C911 1-115-466-91 ELECT 1000uF 20% 16V

(GT222: AEP, RU, MX, AR/GT444: AEP, RU,

UK, MX, AR/GT555: RU, MX, AR)

C925 1-100-717-91 CERAMIC CHIP 1uF 16V
C926 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

< CONNECTOR >

CN901 1-691-961-11 PIN, CONNECTOR (PC BOARD) 3P
CN903 1-819-134-11 PIN, CONNECTOR 6P
CN907 1-819-139-11 PIN, CONNECTOR 11P

< DIODE >

D901 6-501-817-01 DIODE MA2J1110GLS0
D906 6-501-796-01 DIODE MAZ8330GMLS0
D908 6-501-582-01 DIODE 1N4002-B5
D911 6-501-579-01 DIODE MC2837
D912 6-501-579-01 DIODE MC2837

< FUSE HOLDER >

FH909 1-533-217-31 FUSE HOLDER
FH910 1-533-217-31 FUSE HOLDER
FH913 1-533-217-31 FUSE HOLDER
FH914 1-533-217-31 FUSE HOLDER
FH915 1-533-217-31 FUSE HOLDER

FH916 1-533-217-31 FUSE HOLDER
FH917 1-533-217-31 FUSE HOLDER
FH918 1-533-217-31 FUSE HOLDER

< TRANSFORMER >

0 PT902 1-443-928-11 TRANSFORMER, POWER

C911 1-126-942-61 ELECT 1000uF 20% 25V

(GT222: E2, E51/GT444: E2, E51/GT555: E2, E51)
C925 1-100-717-91 CERAMIC CHIP 1uF 16V
C926 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

< CONNECTOR >

CN901 1-691-961-11 PIN, CONNECTOR (PC BOARD) 3P
CN903 1-819-134-11 PIN, CONNECTOR 6P
CN907 1-819-139-11 PIN, CONNECTOR 11P

< DIODE >

D901 6-501-817-01 DIODE MA2J1110GLS0
D906 6-501-796-01 DIODE MAZ8330GMLS0
D908 6-501-582-01 DIODE 1N4002-B5
D911 6-501-579-01 DIODE MC2837
D912 6-501-579-01 DIODE MC2837

< FUSE HOLDER >

FH907 1-533-217-31 FUSE HOLDER (GT222/GT555)
FH908 1-533-217-31 FUSE HOLDER (GT222/GT555)
FH909 1-533-217-31 FUSE HOLDER
FH910 1-533-217-31 FUSE HOLDER
FH911 1-533-217-31 FUSE HOLDER (GT222/GT555)

FH912 1-533-217-31 FUSE HOLDER (GT222/GT555)
FH913 1-533-217-31 FUSE HOLDER
FH914 1-533-217-31 FUSE HOLDER
FH915 1-533-217-31 FUSE HOLDER
FH916 1-533-217-31 FUSE HOLDER

< TRANSISTOR >

Q902 8-729-048-66 TRANSISTOR 2SB1238-PQR-TV2
Q903 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

88

FH917 1-533-217-31 FUSE HOLDER
FH918 1-533-217-31 FUSE HOLDER

HCD-GT111/GT222/GT444/GT555

TRANSX USBTRANS2

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< TRANSFORMER >

0 PT902 1-443-927-11 TRANSFORMER, POWER

(GT222: MX/GT444: MX/GT555: MX)

0 PT902 1-443-928-11 TRANSFORMER, POWER

(GT222: E2, E51, AR/GT444: E2, E51, AR/

GT555: E2, E51, AR)

0 PT902 1-443-929-11 TRANSFORMER, POWER

(GT222: AEP, RU/GT444: AEP, RU, UK/GT555: RU)

< TRANSISTOR >

Q902 8-729-048-66 TRANSISTOR 2SB1238-PQR-TV2
Q903 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

< RESISTOR >

R904 1-216-821-11 METAL CHIP 1K 5% 1/10W
0 R908 1-202-972-61 FUSIBLE 1 5% 1/4W F

(GT222: E2, E51, MX, AR/GT444: E2, E51, MX, AR/

GT555: E2, E51, MX, AR)

0 R908 1-219-124-11 FUSIBLE 0.68 5% 1/4W F

(GT222: AEP, RU/GT444: AEP, RU, UK/GT555: RU)
R910 1-216-801-11 METAL CHIP 22 5% 1/10W
R911 1-216-864-11 SHORT CHIP 0

R912 1-216-837-11 METAL CHIP 22K 5% 1/10W
R914 1-216-845-11 METAL CHIP 100K 5% 1/10W
R915 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R952 1-216-833-11 METAL CHIP 10K 5% 1/10W

FH910 1-533-217-31 FUSE HOLDER
FH913 1-533-217-31 FUSE HOLDER
FH914 1-533-217-31 FUSE HOLDER
FH915 1-533-217-31 FUSE HOLDER

FH916 1-533-217-31 FUSE HOLDER
FH917 1-533-217-31 FUSE HOLDER
FH918 1-533-217-31 FUSE HOLDER

< TRANSFORMER >

0 PT902 1-443-928-11 TRANSFORMER, POWER (GT111: AR)
0 PT902 1-443-929-11 TRANSFORMER, POWER (GT111: AEP, RU)

< TRANSISTOR >

Q902 8-729-048-66 TRANSISTOR 2SB1238-PQR-TV2
Q903 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

< RESISTOR >

R904 1-216-821-11 METAL CHIP 1K 5% 1/10W
0 R908 1-202-972-61 FUSIBLE 1 5% 1/4W F
R910 1-216-801-11 METAL CHIP 22 5% 1/10W
R911 1-216-864-11 SHORT CHIP 0
R912 1-216-837-11 METAL CHIP 22K 5% 1/10W

R914 1-216-845-11 METAL CHIP 100K 5% 1/10W
R915 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R952 1-216-833-11 METAL CHIP 10K 5% 1/10W

< RELAY >

0 RY901 1-755-276-11 RELAY, POWER

< SWITCH >

0 S901 1-786-055-31 SELECTOR, VOLTAGE (VOLTAGE SELECTOR)

(GT222: E2, E51/GT444: E2, E51/GT555: E2, E51)

*************************************************************

TRANSX BOARD (GT111: AEP, RU, AR)
*************

< CAPACITOR >

C907 1-136-497-81 FILM 0.1uF 5% 50V
C908 1-126-969-11 ELECT 220uF 20% 50V
C909 1-126-964-11 ELECT 10uF 20% 50V
C910 1-126-948-11 ELECT 100uF 20% 35V
C911 1-115-466-91 ELECT 1000uF 20% 16V

C925 1-100-717-91 CERAMIC CHIP 1uF 16V
C926 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V

< CONNECTOR >

* CN901 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P
CN903 1-819-134-11 PIN, CONNECTOR 6P
CN907 1-819-139-11 PIN, CONNECTOR 11P

< DIODE >

D901 6-501-817-01 DIODE MA2J1110GLS0
D906 6-501-796-01 DIODE MAZ8330GMLS0
D908 6-501-582-01 DIODE 1N4002-B5
D911 6-501-579-01 DIODE MC2837
D912 6-501-579-01 DIODE MC2837

< FUSE HOLDER >

FH909 1-533-217-31 FUSE HOLDER

< RELAY >

0 RY901 1-755-276-11 RELAY, POWER

*************************************************************

USB BOARD
**********

< CAPACITOR >

C901 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C902 1-124-779-00 ELECT CHIP 10uF 20% 16V
C903 1-124-779-00 ELECT CHIP 10uF 20% 16V
C904 1-124-779-00 ELECT CHIP 10uF 20% 16V
C905 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C906 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C907 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C908 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C909 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C910 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C912 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C913 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C914 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C915 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C916 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C917 1-100-354-21 ELECT CHIP 220uF 20% 6.3V
C918 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C919 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C920 1-165-112-11 CERAMIC CHIP 0.33uF 16V
C921 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C922 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C930 1-165-112-11 CERAMIC CHIP 0.33uF 16V

< CONNECTOR >

CN901 1-770-160-21 PIN, CONNECTOR (PC BOARD) 2P
CN903 1-779-993-11 PIN, CONNECTOR (PWB) 5P

8989

HCD-GT111/GT222/GT444/GT555

USB USB CONNECTOR VOLUME

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

CN907 1-784-833-51 CONNECTOR, FFC (LIF (NON-ZIF)) 21P

< DIODE >

D901 6-501-579-01 DIODE MC2837
D902 6-501-579-01 DIODE MC2837
D903 6-501-743-01 DIODE MAZ8068GMLS0
D904 6-501-743-01 DIODE MAZ8068GMLS0

< EARTH TERMINAL >

EP901 1-537-771-21 TERMINAL BOARD, GROUND

< FERRITE BEAD >

FB901 1-414-233-22 INDUCTOR, FERRITE BEAD
FB902 1-414-233-22 INDUCTOR, FERRITE BEAD

R973 1-216-809-11 METAL CHIP 100 5% 1/10W
R974 1-216-809-11 METAL CHIP 100 5% 1/10W
R975 1-216-809-11 METAL CHIP 100 5% 1/10W
R976 1-216-809-11 METAL CHIP 100 5% 1/10W
R977 1-216-809-11 METAL CHIP 100 5% 1/10W

R978 1-216-809-11 METAL CHIP 100 5% 1/10W
R979 1-216-809-11 METAL CHIP 100 5% 1/10W
R981 1-216-809-11 METAL CHIP 100 5% 1/10W
R982 1-216-809-11 METAL CHIP 100 5% 1/10W
R983 1-216-809-11 METAL CHIP 100 5% 1/10W

R984 1-216-809-11 METAL CHIP 100 5% 1/10W
R985 1-216-809-11 METAL CHIP 100 5% 1/10W
R986 1-216-809-11 METAL CHIP 100 5% 1/10W

< COMPOSITION CIRCUIT BLOCK >

< IC >

IC901 6-808-470-01 IC TMP92CD28AFG-7AC9 (TEM)
IC915 6-710-887-01
IC921 6-704-832-01 IC IS61LV6416-10TLT

< JUMPER RESISTOR >

JR902 1-216-295-91 SHORT CHIP 0

< RESISTOR >

R901 1-216-833-11 METAL CHIP 10K 5% 1/10W
R902 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R903 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R904 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R905 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R906 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R907 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R913 1-216-845-11 METAL CHIP 100K 5% 1/10W
R915 1-216-833-11 METAL CHIP 10K 5% 1/10W
R916 1-216-864-11 SHORT CHIP 0

R917 1-216-864-11 SHORT CHIP 0
R919 1-216-809-11 METAL CHIP 100 5% 1/10W
R920 1-216-833-11 METAL CHIP 10K 5% 1/10W
R921 1-216-845-11 METAL CHIP 100K 5% 1/10W
R922 1-216-845-11 METAL CHIP 100K 5% 1/10W

R923 1-216-802-11 METAL CHIP 27 5% 1/10W
R924 1-216-802-11 METAL CHIP 27 5% 1/10W
R925 1-216-835-11 METAL CHIP 15K 5% 1/10W
R926 1-216-835-11 METAL CHIP 15K 5% 1/10W
R928 1-216-864-11 SHORT CHIP 0

IC R5523N001B-TR-F

RB921 1-234-944-21 RES, NETWORK 47 (1005X4)
RB922 1-234-944-21 RES, NETWORK 47 (1005X4)
RB923 1-234-944-21 RES, NETWORK 47 (1005X4)
RB924 1-234-944-21 RES, NETWORK 47 (1005X4)

< VIBRATOR >

X901 1-813-931-21 VIBRATOR, CRYSTAL (9MHz)

*************************************************************

A-1444-543-A USB CONNECTOR BOARD, COMPLETE
*******************************

< CAPACITOR >

C1001 1-126-176-11 ELECT 220uF 20% 10V
C1002 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C1003 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CN1000 1-819-866-11 CONNECTOR, USB (A) (USB)

< DIODE >

D1000 6-502-517-01 LED 1L434FB12E0MDTZ1 (USB)
D1001 6-501-579-01 DIODE MC2837
D1002 6-501-579-01 DIODE MC2837
D1003 6-501-691-01 LED 1L434FV22D0TDF01 (USB)
D1004 6-501-743-01 DIODE MAZ8068GMLS0

< JUMPER RESISTOR >

FB1000 1-216-295-91 SHORT CHIP 0
FB1001 1-216-295-91 SHORT CHIP 0

R932 1-216-809-11 METAL CHIP 100 5% 1/10W
R933 1-216-864-11 SHORT CHIP 0
R934 1-216-833-11 METAL CHIP 10K 5% 1/10W
R937 1-216-809-11 METAL CHIP 100 5% 1/10W
R938 1-216-809-11 METAL CHIP 100 5% 1/10W

R941 1-216-845-11 METAL CHIP 100K 5% 1/10W
R942 1-216-845-11 METAL CHIP 100K 5% 1/10W
R943 1-216-845-11 METAL CHIP 100K 5% 1/10W
R944 1-216-845-11 METAL CHIP 100K 5% 1/10W
R945 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R947 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R949 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R970 1-216-809-11 METAL CHIP 100 5% 1/10W
R971 1-216-809-11 METAL CHIP 100 5% 1/10W
R972 1-216-809-11 METAL CHIP 100 5% 1/10W

90

< RESISTOR >

R1001 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1002 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1004 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1005 1-216-821-11 METAL CHIP 1K 5% 1/10W

*************************************************************

VOLUME BOARD
*************

< RESISTOR >

R1051 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1052 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1053 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1054 1-216-821-11 METAL CHIP 1K 5% 1/10W

HCD-GT111/GT222/GT444/GT555

Ver. 1.4

VOLUME

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< ROTARY ENCODER >

S1051 1-478-133-11 ENCODER, ROTARY (OPERATION DIAL)
S1052 1-480-136-11 ENCODER, ROTARY (12 TYPE)

(MASTER VOLUME)

*************************************************************

MISCELLANEOUS
**************

52 1-543-793-11 FILTER, CLAMP (FERRITE CORE)
105 1-832-897-21 CABLE, FLEXIBLE FLAT (25 CORE) (GT111)
105 1-835-362-21 WIRE (FLAT TYPE) (31 CORE)

(GT222/GT444/GT555)

201 A-1433-635-B METER DISPLAY ASSY (GSL)

(GT222/GT444/GT555)

201 A-1441-018-A PANEL (GSL1) ASSY, DISPLAY (GT111)

262 A-1527-851-A TCM-J1 (Tape mechanism deck)
262 1-797-575-11 DECK, MECHANICAL (CS-21SC-900TP)
301 1-832-613-21 CABLE, FLEXIBLE FLAT (21 CORE)
302 1-457-369-12 CORE, FERRITE
0 304 1-829-387-11 CORD, POWER (AR)

ACCESSORY
**********

0 1-569-008-22 ADAPTOR, CONVERSION 2P (E2, E3, E51)

0 304 1-829-627-11 POWER-SUPPLY CORD (MX)
0 304 1-834-966-21 CORD, POWER (AEP)
0 304 1-834-966-41 CORD, POWER (RU, E2, E3, E51)
0 304 1-835-078-21 CORD, POWER (UK)

306 1-693-759-11 TUNER (FM/AM) (AEP, UK)

306 1-693-760-11 TUNER (FM/AM) (RU)
306 1-693-764-21 TUNER (FM/AM) (E2, E3, E51, MX, AR)
401 1-835-352-21 WIRE (FLAT TYPE) (13 CORE)
402 1-835-351-21 WIRE (FLAT TYPE) (31 CORE)
501 1-797-193-31 MECHANICAL, CD (DLM3A) (MX)

501 1-797-193-12 MECHANICAL, CD (DLM3A) (EXCEPT MX)
0 506 A-4735-357-A BASE ASSY, OP (KSM-213)
507 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)

0 F904 1-532-506-33 FUSE (T6.3AL/250V) (GT222/GT555)
0 F905 1-532-506-33 FUSE (T6.3AL/250V) (GT222/GT555)

0 F906 1-532-465-33 FUSE (T3.15AL/250V)
0 F907 1-532-388-33 FUSE (T2AL/250V)
0 F908 1-532-506-33 FUSE (T6.3AL/250V) (GT111)
0 F908 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (T8AL/250V)

0 F909 1-532-506-33 FUSE (T6.3AL/250V) (GT111)

0 F909 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (T8AL/250V)

IC050 6-713-031-01 IC KIA7805API-U/PF

M1 A-1486-925-A MOTOR ASSY (METER) (GT222/GT444/GT555)
M101 1-787-344-1
M102 1-787-344-11 FAN, DC

1 FAN, DC (GT222/GT444/GT555)

(GT222/GT444/GT555)

(GT222/GT444/GT555)

0 PT901 1-445-385-11 POWER TRANSFORMER

(GT222: AEP, RU/GT555: RU)

0 PT901 1-445-386-11 POWER TRANSFORMER (GT111: AEP, RU)
0 PT901 1-445-387-11 POWER TRANSFORMER

(GT111: E2, E3, E51, AR)

0 PT901 1-445-388-11 POWER TRANSFORMER

(GT222: MX/GT555: MX)

0 PT901 1-445-390-11 POWER TRANSFORMER

(GT222: E2, E51, AR/GT555: E2, E51, AR)

0 PT901 1-445-391-11 POWER TRANSFORMER (GT444: AEP, RU, UK)
0 PT901 1-445-393-11 POWER TRANSFORMER (GT444: E2, E51, AR)
0 PT901 1-445-394-11 POWER TRANSFORMER (GT444: MX)

S201 1-771-853-11 SWITCH, DETECTION (LIMIT)

*************************************************************

Note: When you exchange Ref. No. 260, 261 or 262, Please refer

to “HOW TO DISTINGUISH TAPE MECHANISM DECK” of
the service note (6 page).

9191

HCD-GT111/GT222/GT444/GT555

MEMO

92

SERVICE MANUAL

HCD-GT111/GT222/

GT444/GT555

AEP Model

HCD-GT111/GT222/GT444

UK Model

HCD-GT444

E Model

Ver. 1.3 2008.09

Russian Model

HCD-GT111/GT222/GT444/GT555

SUPPLEMENT-1

File this supplement with the service manual.

Subject: Change of 9V REG (Suffi x-12/13), DISPLAY (Suffi x-

14/15), MAIN (Suffi x-13/14), MIC (Suffi x-14/15), SW
JACK (Suffi x-12/13), TC (Suffi x-14/15), TRANS1 (Suf-
fi x-13) and USB CONNECTOR (Suffi x-14/15) boards

In this set, 9V REG, DISPLAY, MAIN, MIC, SW JACK, TC, TRANS1 and
USB CONNECTOR boards have been changed in the midway of produc­tion.
Printed wiring boards, schematic diagrams and electrical parts list of new
type are described in this supplement-1.
Refer to original service manual for other information

TABLE OF CONTENTS

1. NEW/FORMER DISCRIMINATION ................. 2

2. DIAGRAMS

2-1. Printed Wiring Boards - JACK Section - ........................ 3

2-2. Schematic Diagram - JACK Section - ............................ 4

2-3. Printed Wiring Board - MAIN Board - ........................... 5

2-4. Schematic Diagram - MAIN Board (1/4) - ..................... 6

2-5. Schematic Diagram - MAIN Board (2/4) - ..................... 7

2-6. Schematic Diagram - MAIN Board (3/4) - ..................... 8

2-7. Schematic Diagram - MAIN Board (4/4) - ..................... 9

2-8. Printed Wiring Board - DISPLAY Board - ..................... 10

2-9. Schematic Diagram - DISPLAY Board - ........................ 11

2-10. Printed Wiring Board - TRANS1 Board
(GT111: 120V AC area in E, 240V AC area in E,

Chilean and Peruvian models) - ...................................... 12

2-11. Schematic Diagram - TRANS1 Board
(GT111: 120V AC area in E, 240V AC area in E,

Chilean and Peruvian models) - ...................................... 13

2-12. Printed Wiring Board - TC Board - ................................. 14

2-13. Schematic Diagram - TC Board - ................................... 14

3. ELECTRICAL PARTS LIST . ............................. 15

9-889-112-81

HCD-GT111/GT222/GT444/GT555

Ver. 1.3

1. NEW/FORMER DISCRIMINATION

– DISPLAY Board (Component Side) –

Former : 1-875-670-13
New : 1-875-670-14 or
1-875-670-15

– MAIN Board (Component Side) –

– MIC Board (Component Side) –

Former : 1-875-674-13
New : 1-875-674-14 or
1-875-674-15

Former : 1-875-546-12
New : 1-875-546-13 or
1-875-546-14

– TRANS1 Board (Component Side) –

Former : 1-875-752-12
New : 1-875-752-13

– TC Board (Component Side) –

Former : 1-875-675-13
New : 1-875-675-14 or
1-875-675-15

– USB CONNECTOR Board (Component Side) –

Former : 1-875-673-13
New : 1-875-673-14 or
1-875-673-15

– SW JACK Board (Component Side) –

Former : 1-875-681-11

16

CN890

New : 1-875-681-12 or
1-875-681-13

– 9V REG Board (Component Side) –

Former : 1-876-329-11
New : 1-876-329-12 or
1-876-329-13

2

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

33

For Schematic Diagrams.

Note:

• All capacitors are in μF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in Ω and 1/4 W or less unless otherwise
specifi ed.

• f : internal component.

• 2 : nonfl ammable resistor.

• C : panel designation.

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)

• A : B+ Line.

• B : B– Line.

• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.

– TC Board –

no mark

: TAPE PLAY
( ) : TAPE REC
– Other Boards –

no mark

: TUNER (FM/AM)
( ) : CD PLAY
‹‹ ›› : TAPE PLAY
{ } : TAPE REC

• Voltages are taken with a VOM (Input impedance 10

MΩ).

Voltage variations may be noted due to normal production

tolerances.

• Signal path.
F : TUNER (AM/FM)
J : CD PLAY
E : USB
d : TAPE PLAY
G : TAPE REC
f : AUDIO IN
N : MIC

• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model

For Printed Wiring Boards.

Note:

• X : Parts extracted from the component side.

• Y : Parts extracted from the conductor side.

• f : Internal component.

• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)

The components identifi ed by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specifi ed.

2-1. PRINTED WIRING BOARDS - JACK Section -

• : Uses unleaded solder.

(Page 5)

(Page 5)

Ref. No. Location

• Semiconductor
Location

D701 E-2
D702 H-2
D890 D-5
D1000 A-5
D1001 B-5
D1002 A-5
D1003 A-5
D1004 B-5

IC080 F-4
IC700 B-2

• Indication of transistor.

(Page 10)

(Page 5)

2. DIAGRAMS

Ver. 1.3

Note: A part of circuit composition of SW JACK board has been changed in the midway of production.

SW JACK board that has not been changed appears as TYPE A, and the changed SW JACK board

appears as TYPE B.

C

Q

B

E

CEB

These are omitted.

These are omitted.

123456

MIC BOARD

A

RV700

MIC

LEVEL

B

J700

MIC

C

MAIN

BOARD

CN470

C700

A

D

MAIN

BOARD

J

CN488

NO702

E

R

J701

AUDIO

F

INPUT

(CHASSIS)

R710

L

R709

R723

C714

R722

R708

R719

C703

C707

C715

R713

C708

JW700

R720

R707

R706

R718

R701

JW705

R721

D701

C719

C718

R712

C713

1
4

C709

IC700

C701

JW701

R700

C702

R702

1

NO700

8

JW708

JW707

JW703

JW706

JW702

8
5

C716

C722

R705

R704

C710

R715

JW704

C711

C721

R716

R711

R714

C712

C720

4

NO701

1

(GT444/GT555)

USB CONNECTOR BOARD

1

3

W

DISPLAY

BOARD
CN1108

NO1000

R1001

R1002

R1005

NO1002

R1004

JW1003

C1003

4

(CHASSIS)

SW JACK BOARD

(GT444(TYPE B):E2,E51,MX,AR/
GT555(YPE B):E2,E51,MX,AR)

(TYPE A/GT444(TYPE B):AEP,
RU,UK/GT555(TYPE B):RU)

R893

R901

L890

R894

R902

R880

R876

C836

R873

CN890

R900

(Refer to page 41 on
original service manual)

C841

9V REG BOARD

1

IC080

3

C081

C080

1

3

1-876-329-

NO080

MAIN

BOARD

CN600

12, 13

(12, 13)

CN1000

(USB)

JK890

SUB WOOFER

RY890

JW890

1

G

D1000

D1003

1

POWERAMP

BOARD

NO800

D890

Q

D1000,1003

(USB)

JW1005

D1004

(CHASSIS)

D1001

JW1001

6

6

JW1004

C1002

C1001

1-875-673-

12, 13

1-875-681-

(12, 13)

(Refer to page 32 on
original service manual)

USB BOARD

N

CN903

NO1001

1

3

D1002

14, 15

(14, 15)

G

J702

PHONES

H

D702

C705

C704

C717

JW711

1-875-674-

14, 15

(14, 15)

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

44

2-2. SCHEMATIC DIAGRAM - JACK Section -

BOARD

J

CN488

(3/4)

MAIN

CN470

A

BOARD

MAIN

(1/4)

W

USB

(Refer to page
33 on original
service manual)

(Refer to page
43 on original
service manual)

CN1108

N

CN903

BOARD

DISPLAY

BOARD

BOARD

POWERAMP

Q

(2/2)

NO800

BOARD

G

MAIN

(3/4)

CN600

4.4

4.4

4.4

4.4

4.5

4.4

9

16.89

IC700

4.7k

R704

50V

2.2

C720

NO701

4P

R709

1k

50V

C718

0.1

C700

0.1

50V

2.2

C713

1.5k

R706

330p

C719

+

-

56

7

180p

C722

47p

C712

C714

1000p

NJM4558V-TE2

IC700(3/3)

8

4

+

-

NJM4558V-TE2

IC700(1/3)

32

1

50V

2.2

C716

C705 0.1

C721

0.1

220k

R714

1000p

C717

18k

R712

1000p

C704

100

R715

R700

1k

100k

R716

4.7k

R705

100k

R701

100

R713

C709
220p

C715

1000p

R707
220k

L

R

R710

1k

6.3V

100

C711

10k

R711

R708
220k

16VC710 10

TP714

1000pC702

1000p

C708

1

100k

R720

18k

R718

10k

R722

47k

R721

18k

R723

TP712

C707

50V

2.2

R702

10k

10k

R719

TP707

TP706

TP705

TP704

TP703

TP702

TP701

TP700

MC2837

D702

C703

0.1

C701

0.1

TP711

TP713

D701

MC2837

NO700

8P

A+9V

MIC SIGNAL

MIC GND

AUX-L

AGND

AUX-R

AGND

HP/MIC DET

MIC BOARD

NO702

(CHASSIS)

RL

D

B

6531

C

E

H

F

G

4

A

2

11 1210897

POWER

GND

NJM4558V-TE2

IC700(2/3)

MIC AMP

RV700

50k

MIC LEVEL

1

2

3

4

HP-L

HP GND

HP-R

CHASSIS

J700

MIC

J701

AUDIO
INPUT

J702

PHONES

1

2

3

4

5

6

7

8

TP1010

TP1006

TP1002

C1002

10

TP1007

1k

R1004

TP1003

TP1001

TP1000

TP1008

TP1005

1k

R1002

1k

R1001

1k

R1005

TP1009

TP1004

10V

C1001

220

C1003

0.1

TP1011

4P

CN1000

1

4

1L434FV22D0TDF01

D1003

3P

NO1000

MC2837

D1001

MC2837

D1002

1L434FB12E0MDTZ1

D1000

6P

NO1001

MAZ8068GMLS0

D1004

D1000, 1003

(USB)

USB CONNECTOR BOARD

NO1002

(CHASSIS)

(CHASSIS)

(USB)

SEL A

SEL B

USB LED CTRL

VBUS

D-

D+

GND

SHIELD

1

2

3

1

3

4

5

6

MA2J1110GLS0

D890

RY890

1.7uH

L890

(TYPE A/GT444(TYPE B):AEP,
RU,UK/GT555(TYPE B):RU)

(GT444(TYPE B):E2,E51,
MX,AR/GT555(TYPE B):
E2,E51,MX,AR)

10

R894

10

R893

10

R902

10

R901

10R873

10

R880

10R87610R900

0.1

C836

0.1

C841

+

-

JK890

6P

CN890

SW JACK BOARD

(GT444/GT555)

SW-SP_GND

SW-SP_GND

SW OUT

SW OUT

RLY+

RLY-

SUBWOOFER

1

2

3

4

5

6

3P

NO080

UNREG16V

GND

M+9V

0.1

C080

IO

COM

13

2

9V REG BOARD

1

3

2

KIA7809API-U/PF

IC080

+9V REGULATOR

IC080

10V

100

C081

JW890

(Page 8)

(Page 11)

(Page 8)

(Page 6)

Note: A part of circuit composition of SW JACK board has been changed in the midway of production.
SW JACK board that has not been changed appears as TYPE A, and the changed SW JACK board

appears as TYPE B.

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

55

1

4

5

8

1

4

5

8

1

14

15

29

28

42

43

56

1

4

5

8

14

8

1

7

14

8

17

9

16

18

BE

B

B

B

E

E

BE

BE

E

B

E

B

E

B

E

BE

BE

B

E

BE

BE

BE

BE

BE

BE

BEBE

BE

BE

BE

B

E

B

E

BE

BE

BE

B

E

B

E

BE

1

100

80

81

50

51

30

31

5

8

14

BE

BE

BE

BE

BE

BE

R404

JR362

R212

JR363

R213

R215

R409

R411

R220

R221

R222

R223

R417

R224

R225

R226

R227

R279

Q670

R228

R610

Q671

R229

R612

R614

R615

R616

R617

R428

Q681

R432

R628

R627

R434

R241

R242

C206

R243

R244

Q690

R630

Q691

R631

Q693

R633

Q694

Q695

R634

R635

Q696

R636

R250

C214

R445

R639

R446

R256

R257

R258

R640

C412

R450

R644

C608

R645

C221

C222

C223

R263

C610

C612

C615

R651

R461

C427

R463

C428

R270

R465

R271

R466

R272

R467

R468

C620

R276

R277

R278

R662

R666

R668

R280

R474

R475

R669

R282

R283

R284

R285

R286

R287

R288

R670

R289

R671

R672

R673

R481

R675

R676

R483

R291

R292

C256

C640

C641

C642

C451

R681

C647

R683

C648

C649

R491

R492

D202

R493

R497

Q110

Q111

C652

Q112

C654

R690

Q115

R691

Q116

R692
R693

R694

C464

R695

C271

D213

D211

R696

C272

D212

R697

C273

R698

C275

C663

C664

C471

C665

D605

Q128

D608

C281

C283

C291

C282

C280

C294

C671

JW622

C677

C679

C299

C566

JR112

R647

R656

Q645

Q211

Q210

Q214

Q215

Q658

Q656

Q657

Q648

Q646

R646

R654

R381

R365

R427

R440

JR628

JR624

Q447

R327

R438

R436

R435

R433

R431

R426

R425

R424

R423

R422

R419

R480

R575

R476

R576

C426

C425

C424

C423

C422

C420

C414

R490

C483

C410

C411

C496

R494

R393

D201

R391

R495

R214

R211

R210

R216

R217

R218

R648

C212

C656

JR118

JR113

JR661

R658

R657

R663

R664

R613 R655

R650

Q644

Q640

Q643

Q641

R642

R643

R649

R641

R653

R652

C698

Q647

JR114

C681

D628

JR622

C499

D630

C692

D632

C693

C697

JR441

R108

R110

R111

R112

R113

R114

R116

R117

Q178

R119

D468

R121

R122

R127

R128

R129

R322

R323

R324

R325

R326

JR623

R133

R328

R134

R135

R136

R137

D483

R138

R144

R145

C112

D110

C114

D690

D691

R345

D692

R346

C117

R153

D694

D695

R158

R159

C121

C122

C119

R165

R166

R167

C321

R361

C133

C134

C135

R366

R367

C169

R177

R178

R179

R182

R183

R184

R185

R186

R187

R188

C150

C151

C152

C153

R190

R192

R194

R195

R581

R390

R392

R394

R395

R397

JR102

JR103

JR104

JR105

JR106

JR107

JR109

Q402

D116

JR110

JR111

JR115

JR116

JR117

JR119

Q606

C183

C184

C185

JR120

JR121

JR122

JR123

C576

Q430

Q628

Q452

R200

R201

R202

R203

R204

R206

R207

R208

+

-

+

-

BE

20

21

1

2

E

B

B

E

1

3

1

2

12

13

1

2

8

9

14

E

B

2

1

30

31

1

1

1

1

1

JW157

NO458

3

3

3

3

3

30

31

1

2

1

13

1

3

E

B

B

E

1

3

8

1

111

JW371

JW373

JW181

JW182

JW183

JW188

JW380

JW192

JW387

JW193

JW388

JW194

JW389

JW195

JW198

CN403

Q212

Q655

C213

JW185

JW397

JW281

JW335

JW184

JW143

JW313

C416

X402

JW255

JW197

JW147

JW128

D651

JW179

C655

CN410

JW320

JW119

JW315

JW347

JW290

JW151

JW165

JW260

JW142

JW202

JW390

JW344

JW417

JW239

JW221

JW626

JW433

JW210

JW225

JW146

JW171

JW268

JW161

JW378

JW111

JW155

JW490

C498

JW233

JW366

JW126

JW189

JW357

JW329

JW382

JW405

JW292

JW362

JW459

JW334

Q627

JW244

JW152

JW386

JW447

JW414

JW286

JW410

JW199

JW381

JW375

JW363JW133

JW175

JW291

JW457

JW201

JW376

JW420

JW314

JW330

JW421

JW322

JW177

JW452

JW278

JW113

JW273

JW230

JW140

JW325

JW480

JW385

JW403

JW349

JW190

JW332

JW270

JW191

JW404

JW251

JW242

JW243

JW374

JW231

JW250

JW354

JW214

JW481

JW229

JW287

JW122

JW282

JW153

JW102

JW402

JW180

JW108

JW228

JW208

JW207

JW204

JW274

JW139

JW400

JW115

JW443

JW482

JW169

JW262

JW138

JW550

JW361

JW384

JW337

JW114

JW383

JW104

JW370

JW103

JW257

C124

CN470

C143

C145

C146

C147

C148

CN450

C195

C154

C192

C142

C132

C109

C179

C128

C182

C127

C193

C139

C270

C243

C690

Q697

C696

Q113

C611

JW409

JW360

JW126

JW432

JW326

JW190

JW623

JW219

JW299

C699

ET602

JW406

JW120

JW356

JW353

JW212

JW379

JW200

JW137

JW125

JW249

JW176

JW293

JW424

JW367

JW359

JW302

JW124

D624

JW269

JW425

JW426

JW107

JW377

JW299

JW319

JW372

JW401

JW223

JW156

JW149

JW220

JW391

JW392

JW393

JW394

JW395

JW396

CN600

JW398

JW399

Q684

C201

CN420

C211

R637

R638

C215

C216

C218

C602

CN430

C604

C605

X401

C220

C609

C224

C225

C227

C616

C617

C618

NO468

JW203

C258

C242

C259

JW209

R687

R688

CN479

JW211

R689

JW407

JW213

JW408

JW215

JW216

JW217

C462

JW411

JW412

JW413

CN488

C274

JW415

JW416

C277

JW418

JW224

JW419

D601

JW226

D602

JW227

JW228

JW422

JW423

C284

JW232

C286

JW427

C287

JW428

JW234

CN690

JW235

JW236

JW237

JW238

JW621

ET601

JW430

C678

JW431

JW240

JW435

JW241

JW437

JW438

JW246

JW247

D623

JW248

C687

JW441

JW442

JW444

JW445

JW446

JW252

JW253

JW254

JW449

JW258

C694

JW450

JW451

JW453

JW454

JW261

JW456

JW263

JW458

JW264

JW265

JW267

JW461

JW462

JW463

JW464

JW271

JW275

JW277

JW280

JW283

JW284

JW285

JW289

CN110

JW294

JW295

JW296

JW297

JW298

C101

C102

C113

C118

R155

R156

R157

C123

C129

C131

A003

C137

C144

C149

JW101

JW105

JW106

JW109

JW300

JW301

JW303

JW304

JW110

JW305

JW112

JW307

JW309

JW116

JW117

JW118

JW310

JW311

JW312

JW121

JW316

JW317

JW123

C177

JW318

C178

JW127

C180

JW321

C181

JW323

JW324

JW130

JW131

JW132

C187

JW134

JW135

JW136

JW331

C194

JW141

JW336

JW338

JW144

JW339

JW145

JW148

JW340

JW341

JW342

JW343

JW150

JW345

JW346

JW348

JW154

JW158

JW159

JW351

JW355

JW163

JW358

JW164

JW166

JW167

JW364

JW170

JW365

JW172

JW173

JW368

JW174

JW369

JW178

JW436

JW466

JW429

C254

C241

C293

JR626

JR627

JR621

R132

R557

JR630

JR629

R410

IC675

IC401

IC670

IC672

IC673

IC407

IC251

IC253

IC252

IC602

IC603

MAIN BOARD

B

DISPLAY
BOARD
CN1107

DISPLAY

BOARD
CN1101

TC BOARD

V

C

MIC

BOARD

NO701

CD
BOARD
CN201

USB

(Refer to page 32
on original service
manual)

(Refer to page 30
on original service
manual)

(Refer to page 41
on original service
manual)

(Refer to page 34
on original service
manual)

(Refer to page 50 on
original service manual)

(Refer to page 52 on
original service manual)
(Refer to page 3
on supplement-2)

BOARD

CN907

J

9V REG

BOARD

NO080

POWERAMP

BOARD
CN801

(GT222/GT444/GT555)

(GT444/GT555)

(GT444/GT555)

(GT444)

(GT222/GT444/GT555)

(GT444/GT555)

(GT222/GT444/GT555)

(GT111:E2,E3,E51)

(GT111:AEP,RU,AR)

(GT444/GT555)

G

5V REG

BOARD

CN055

P

TRANS1

BOARD
CN907

D

TRANS2
BOARD

CN907

E

TRANSX

BOARD

CN907

F

H

L

K

A

MIC BOARD

NO700

(GT111)

(GT222/GT444/GT555)

(GT222/GT444/GT555)

CD MECHANISM

DECK

(CHASSIS)

(CHASSIS)

M101
(FAN)

M

M102

(FAN)

M

11

1

FFC220

ANTENNA

AM

TUNER
(FM/AM)

GT111:AEP/GT222:AEP/

(GT222/GT444/GT555)

(GT222/GT444/GT555)

GT444:AEP,UK

EXCEPT GT111:AEP/

GT222:AEP/GT444:AEP,UK

EXCEPT GT111:AEP/
GT222:AEP/GT444:AEP

GT111:AEP,RU/GT222:AEP:RU/

GT444:AEP,RU,UK/GT555:RU

GT111:AEP,RU/GT222:AEP:RU/

GT444:AEP,RU,UK/GT555:RU

A

B

C

D

E

F

G

H

I

J

1234567891011

12

K

1-875-546-

13, 14

(13, 14)

(GT222/GT444/GT555)

GT111:AEP/GT222:AEP

/GT444:AEP,UK

(GT222/GT444/GT555)

GT111:AEP,RU/GT222:AEP:RU/

GT444:AEP,RU,UK/GT555:RU

GT111:AEP,RU/
GT222:AEP:RU/
GT444:AEP,RU,
UK/GT555:RU

GT111:AEP,RU/
GT222:AEP:RU/
GT444:AEP,RU,
UK/GT555:RU

2-3. PRINTED WIRING BOARD - MAIN Board -

• : Uses unleaded solder.

Ref. No. Location

• Semiconductor Location

Ref. No. Location

D110 J-7
D116 G-9
D201 C-8
D202 C-8
D211 B-7
D212 B-8
D213 B-7
D468 D-8
D483 D-8
D601 H-5
D602 J-6
D605 H-7
D608 H-7
D623 C-4
D624 B-3
D628 I-6
D630 H-3
D632 I-2
D651 C-4
D690 J-10
D691 J-10
D692 E-3
D694 B-7
D695 C-9

IC251 H-11
IC252 H-10
IC253 I-10
IC401 D-7
IC407 E-10
IC602 H-7
IC603 I-7
IC670 D-3
IC672 C-3
IC673 D-3
IC675 E-7

Q110 J-7
Q111 J-7
Q112 I-7

Q113 I-7
Q115 G-10
Q116 G-9
Q128 G-10
Q178 G-10
Q210 B-7
Q211 B-7
Q212 B-6
Q214 B-7
Q215 B-8
Q402 I-2
Q430 I-2
Q447 E-7
Q452 I-2
Q606 H-7
Q627 C-7
Q628 C-9
Q640 B-4
Q641 B-4
Q643 B-4
Q644 B-4
Q645 B-5
Q646 B-5
Q647 B-5
Q648 B-5
Q655 C-4
Q656 C-5
Q657 C-5
Q658 C-4
Q670 I-4
Q671 D-4
Q681 D-10
Q684 C-10
Q690 J-10
Q691 J-10
Q693 J-11
Q694 J-10
Q695 J-10
Q696 E-3
Q697 K-10

(Page 10)

(Page 10)

(Page 3)

(Page 14)

(Page 3)

(Page 3)

(Page 12)

Ver. 1.4

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

66

2-4. SCHEMATIC DIAGRAM - MAIN Board (1/4) -

BOARD

B

TC

BOARD

MIC

NO700

A

BOARD

11

(3/4)

MAIN

BOARD

12

(2/4)

MAIN

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

0

0

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.494.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

0

3.3

99

8.3

4.4

4.4

4.4

8.9

4.4

4.4

4.4

4.4

4.4

4.4

8.9 4.4

4.4

4.4

4.3

4.3

4.3

8.9 4.4

4.4

4.4

0

2.9

2.9

0

2.9

0

470

R271

*

R272

R220

R222

10V

100

C225

2SC3052EF-T1-LEF

Q402

R670

2.2k

470

R221

R276 47k

22p

C273

C221
100p

16V

47

C220

R279

2.2k

22p

C223

R229

2.2k

1000p

C275

R270

C271
100p

47p

C272

47p

C222

R669
470k

10V

220

C154

0.1

C153

10kR153

10V

100

C148

50V

0.47

C147

50V10C146

50V

10

C145

50V

10

C144

50V

10

C143

50V

10

C142

R223

R226

50V

10

C194

50V

10

C193

50V

10

C192

50V

10

C195

*

C135

0.022C133

0.047C132

4.7k

R132

50V

2.2

C129

1.5kR127

50V1

C124

C121

330p

C122

330p

100R121

1.5k

R177

50V

2.2

C179

C185

4.7k

R182

0.047

C182

10kR134

10kR135

10kR184

10k

R185

15k

R128

15kR178

1MR190

50V

10

C137

50V

10

C187

50V10C109

47kR201

100

R202

16V

C286

47

R282

100k

R288

47k

R283

6.8k

R286

47k

C281

8p

R285

47k

R284

8.2k

R280

5.6k

50V

C287

10

R289

2.2k

2SC3052EF-T1-LEF

(GT444/GT555)

Q430

50V

C123

10

R683

1k

10k

R681

RT1N431C-TP-1

Q681

JW277

C206

470p

R203

470

16V

C258

47

16V

C218

47

R256 10k

C256

470p

R206 10k

50V

C259

10

R263

470

Q684

KTA1271Y-AT

ET601

EE

ET602

9P

CN450

2SC3052EF-T1-LEF

Q128

2SC3052EF-T1-LEF

Q452

47k

R257

47k

R207

R224

R225

50V

10

C131

50V

10

C181

47kR277

47kR227

R258

27k

27k

R208

JL253

JL254

JL255

JL256

JL257

JL258

JL259

JL260

JL261

JL262

JL263

JL264

JL265

JL266

JL267

JL268

JL269

JL270

JL271

JL275

JL276

JL277

JL278

JL279

JL280

JL281

JL282

JL283

100R122

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15161718

19

20

21

2223

24

25262728

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45 4647484950

51

52

53

54

55 56

TONEOUTR

VOLINL

TONEOUTL

BASS2L

BASS1L

MID2L

MID1L

TREL

RECBL

RECAL

INGAINOUTL

GAMEL

INFL

DMPORT-L

AUX-L

1.5k

R145

1.5k

R195

47kR138

47k

R188

1k

R278

1k

R228

56kR192

0.047C152

0.022C184

0.1

C150

0.1

C151

R287

1k

10V

C284

100

1.2k

R144

1.2k

R194

4.7kR183

4.7k

R133

0.01C134

0.01C183

10k

R137

2.7k

R136

2.7k

R186

10k

R187

MA2J1110GLS0

D694

50V

C277

2.2
50V

C227

2.2

50V

2.2

C274

50V

2.2

C224

C178

C177

∗

C128

C127

22

R200

2.2kR179

2.2kR129

C180

220p

C648

220p

C647

470p

C117

100k

R111

50V

22

C101

680

R114

2SC3052EF-T1-LEF

Q116

100k

R110

2SC3052EF-T1-LEF

Q115

470

R112

1.8k

R113

10kR108

MC2837

D116

15k

R117

50V

2.2

C118

100

R116

100

R119

50V

4.7

C102

50V2.2C139

R291

6.8k

R292

10k

0.068

C283

0.068C291

∗

∗

C282

C294

0.015

0.1

C280

8P

CN470

C299

220p

C471 0.1

0.1

JR123

6800p

C119

6800p

C169

C241

1000p

470p

C242

C293

1

C243

1

8

7

6

5

4

3

2

1

1

3

5

4

6

18

19

17

15

12

14

16

13

11

8

9

7

PB-L

CD_USB-R

PB-R

MIC

CD_USB-L

61

63

65

66

67

75

76

ST-L

ST-R

MIC

PB-L

PB-R

REC-R

REC-L

AUX-R

ST-R

AUX-R

REC-R

AUX-L

USB_REC-R

USB_REC-L

OUT-L

SW-OUT

49

58

AUX-L

OUT-R

REC-L

ST-L

VCC

GND GND

VCC

GND

VCC

(1/4)MAIN BOARD

(CHASSIS)

BASS AGC

(GT444/GT555)

AM

FFC220

ST-CLK

ST-DOUT

ST-CE

ST+9V

ST-DIN

TUNED

GND

1

ST-R

ST-L

RDS-INT

11 RDS-DATA

(GT111: AEP/GT222: AEP/GT444: AEP)

Q115, 116

BAND-PASS FILTER

Q402, 452

MUTING

MUTING

0.1 (GT555)

C282

0.068 (GT444)

B+ SWITCH

Q681, 684

GT444: AEP, RU, UK/GT555: RU

GT111: AEP, RU/GT222: AEP, RU/

(GT222/GT444/GT555)

(GT444)

4.7k (GT111/GT222)

6.8k (GT555)

∗ R220, 270

∗ C180

∗ C135, 185

8.2k (GT444)

∗ R222, 272

10k (GT111)
22k (GT222/GT444/GT555)

∗ C128, 177

0.12 (GT444/GT555)

0.15 (GT111/GT222)

0.1 (GT444)

∗ C127, 178

0.12 (GT111/GT222/GT555)

4.7 50V (GT444/GT555)

1 50V (GT111/GT222)

4700p (GT222/GT444)

0.01 (GT111/GT555)

4.7k (GT111: RU, E2/GT222: RU, E2/GT444: RU, E2/GT555: RU, E2)

∗ R225, 226

6.8k (GT111: AEP, E3, E51, AR/GT222: AEP, E51, MX, AR/GT444: AEP, UK, E51, MX, AR/GT555: E51, MX, AR)

2.7k (GT111: E3, E51, AR/GT222: E51, MX, AR/GT444: E51, MX, AR/GT555: E51, MX, AR)

∗ R223, 224

2.2k (GT111: AEP/GT222: AEP/GT444: AEP)

3.3k (GT111: RU, E2/GT222: RU, E2/GT444: RU, E2/GT555: RU, E2)

711

D

B

1669 1710

F

5 15

K

193

G

1 1812

C

E

H

8

J

4 13

A

142

I

10V

100

C149

IC253

NJM4558V-TE2

LINE AMP

IC253

8

7

6

5

4

3

2

1

IC252

NJM4558V-TE2

LINE AMP

IC252

16V

47

C270

IC251

NJM4558V-TE2

LINE AMP

IC251

8

7

6

5

4

3

2

1

R2A15216FP

IC407

IC407

INPUT SELECTOR,

ELECTRICAL VOLUME

VOLINR

BB1R

BB2R

OUTR

AGCOUTR

DATA

CLK

SWOUT

AGCC

AGCOUTL

OUTL

BB2L

BB1L

AUX-R

DMPORT-R

INFR

GAMER

INGAINOUTR

RECAR

RECBR

SA1

SA2

TRER

MID1R

MID2R

BASS1R

BASS2R

ST-L

CD-L

TAPE- L

MICVCREFOUT

REFIN

GND

VCC

DPLL/SURL

DPLR/SURR

TAPE- R

CD-R

ST-R

A+9V

PB-LCH

PB-RCH

A-GND

REC-LCH

REC-RCH

M-GND

M+9V

TP-STATE

A+9V

MIC SIGNAL

MIC GND

AUX-L

AGND

AUX-R

AGND

HP/MIC DET

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

ANTENNA

COAXIAL

FM 75

TUNER

(FM/AM)

∗

∗

∗

∗

2SC3052EF-T1-LEF

Q178

BASS AGC

∗

RT1P141C-TP-1

Q670

MUTING CONTROL

∗

∗

∗

∗

∗

∗

∗

GT444: AEP, RU, UK/GT555: RU

GT111: AEP, RU/GT222: AEP, RU/

GT444: AEP, RU, UK/GT555: RU

GT111: AEP, RU/GT222: AEP, RU/

(Page 4)

(Page 14)

(Page

8)

(Page

7)

Ver. 1.4

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

77

2-5. SCHEMATIC DIAGRAM - MAIN Board (2/4) -

D

E

F

BOARD

13

(4/4)

MAIN

(1/4)

MAIN

12

BOARD

BOARD

DISPLAY

CN1101

C

DISPLAY

BOARD

V

CN1107

BOARD

14

(3/4)

MAIN

TRANS1

(Refer to page 51 on
original service manual)

(Refer to page 4
on supplement-2)

(Refer to page 53 on
original service manual)

CN907

BOARD

TRANS2
BOARD

CN907

TRANSX
BOARD

CN907

3.3

0

3.3

0

0

0.74.7

4.1

8.79.7

4.1

10.2

3.3

1

3.3

3.3

03.3

0

0

3.3

0 <<0>> {0} (3.3)

3.3

3.3

0

0

0

0

0

0

0

3.3

3.3

3.3

3.3

3.3

0.1

3.3

000

0

0

0

0

0.5

0.5

3.3

1.7

3.2

3.2

3.2

0

000.5

0.5

3.2

3.2

3.3

3.3

3.3

3.3

3.3

3.3

2

0

{3.3} (0)

0

3

0

0.8

3.3

3.3

3.3

3.3

0

2.8

3.3

3.3

3.3

3.3

3.3

0 <<1.3>>

0

0

3.3

000

0

0.6

1.5

3.3

3.3

1.9

1.7

3.3

3.3

3.3

3.3

3.3

3.3

000

0

0

0

0

3.3

3.3

0

3.3

3.3

0 <<3.3>> {3.3} (3.3)

0.1 <<3.3>> {3.3} (3.3)

R211
100k

R213
100k

C215

10

50V

Q215

RT1N441C-TP-1

R218

10k

C212

0.1

R210

2.2k

R217

0

R212

10k

C213

10

50V

C216
1000

6.3V

KTA1271Y-AT

Q212

R215

10k

R214

680

C576

0.1

33k

R204

MC2837

D201

50V

2.2

C201

1kR427

1kR424

R404 100

1kR428

1kR425

1kR426

10kR409

220kR411

10kR417

1kR422

100R419

1kR423

32.768kHz

X401

22p

C410

22pC411

C416

0.1

C414

0.1

C496

50V

10

C498

0.1

C499

0.1

C464

10V100

C462

470R494

470R495

470R497

100R431

100R432

100R433

100R434

100R435

100R436

100R438

100R440

100R445

100R446

220k

R483

100R490

100R491

15kR394

15kR395

100R474

15kR397

10kR361

10k

R366

100

R476

100

R475

100R467

10k

R367

10k

R346

10kR345

100k

R244

100k

R243

100k

R242

100k

R241

100R465

100R466

100R461

R391

10k

4.7k

R390

R322 22k

R323 22k

R327 22k

R324 22k

R328 22k

R325 22k

R326 22k

100

R463

R365

10k

100R480

C483

1000p

0.047

C427

0.047

C424

0.047

C428

0.047

C425

0.047

C426

0.047

C422

0.047

C423

C420

0.1

2SC3052EF-T1-LEF

Q211

2SC3052EF-T1-LEF

Q210

2SC3052EF-T1-LEF

Q214

MA2J1110GLS0

D202

MA2J1110GLS0

D483

MA2J1110GLS0

D212

R675

10k

R216

22k

*

CN403

JL223

JL224

JL225

JL226

JL227

JL228

JL229

JL230

JL231

JL232

JL233

100

R450

10kR250

R381
15k

R493

∗

R393

4.7k

R492

R392

MC2836

D213

0.047

C412

C214

0.33

MAZ8043GMLS0

D211

MC2837

D695

12345678

91011 12 13 14 15

16 17 18 19 20 21 22 23

24 25 26 27 28 29 30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51525354555657585960616263

6465666768697071727374757677787980

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

METER-IN3

METER-IN4

SW LED

SIRCS

CDM-SD

M2-

M2+

BYTE

CNVss

XC-IN

XC-OUT

RESET

X-OUT

VSS

X-IN

VCC

NMI

M1-

SBSY

AC-CUT

M1+

SW3

SW1

SW-CHUCK

SW2

SW-CLOSE

SW-STOCK

SW-OPEN

IIC-CLK

IIC-DATA

OVERVOLTAGE

METER IN2

FL-DRIVER-CLK

FL-DRIVER-DATA

FL-DRIVER-CS

FL-DRIVER-RESET

VACS I N

OPERATION DIAL

MASTER VOL

MODEL-IN

DEST-IN

AD-KEY2

AD-KEY1

AVSS

AD-KEY0

VREF

AVCC

METER-IN1

MA2J1110GLS0

D468

C211

10

50V

220R468

0

R576

0R575

0

R581

R676

10k

JL410

JL402

JL411

JL407

JL412

JL404

JL405

JL406

JL401

JL409

JL403

JL400

JL408

JL413

JL417

JL419

JL415

JL416

JL420

JL414

JL418

JL426

JL423

JL422

JL421

JL424

JL428

JL427

JL425

JL431

JL432

RT1N431C-TP-1

Q628

R628

10k

Q627

KTA1271Y-AT

R627 47k

R481

1k

1

2

3

4

5

6

7

8

9

10

11

11P

NO468

JL005

JL006

JL007

JL020

JL021

JL045

JL046

JL092

JL093

8

7

6

5

4

3

2

1

X402

23

24

22

25

26

20

21

7

14

15

11

9

12

17

18

8

16

13

19

0

R557

R581

0.047

1

38

76

75

53

77

1

100

84

94

52

51

100

88

87

86

85

95

84

79

78

88

87

86

85

4

79

78

77

2

3

54

58

67

72

72

73

80

70

94

91

90

36

35

33

40

12

34

M1-

M1+

19

12

M2+

M2-

5

28272625242322

20

39

BUS1

BUS3

BUS0

BUS2

PROTECT

48

47

49

97

81

61

63

65

66

20

2

81

70

80

97

95

90

91

73

72

4

3

46

39

37

45

VCC

WP

SCL

SDA

A0

A1

A2

GND

5MHz

MAIN BOARD (2/4)

54

680 (GT222: MX/GT444: MX/GT555: MX)

Q627, 628

B+ SWITCH

0 (GT111: AEP/GT222: AEP/GT444: AEP)

R493

31P (GT222/GT444/GT555)

∗ CN403

25P (GT111)

(GT222/GT444/GT555)

(GT111)

(GT222/GT444/GT555)

+4V REGULATOR

Q210-212

(GT111: E2, E3, E51)

(GT222/GT444/GT555)

(GT111: AEP, RU, AR)

Q214, 215

RESET SWITCH

(GT222/GT444/
GT555)

(EXCEPT GT111: AEP/
GT222: AEP/GT444: AEP)

(EXCEPT GT111: AEP/

GT222: AEP/GT444: AEP, UK)

(GT111)

(GT111: AEP/GT222: AEP/GT444: AEP, UK)

1k (GT111: E2, E51, AR/GT222: E2, E51, AR/GT444: E2, E51, AR/GT555: E2, E51, AR)

4.7k (GT111: E3/GT444: UK)

150 (GT111: RU/GT222: RU//GT444: RU/GT555: RU)

∗ R392

0 (GT 111)
330 (GT222)
680 (GT444)

1.5k (GT555)

150 (GT444: UK)

4.7k (GT111: RU, E2, E51, AR/GT222: RU, E2, E51, MX, AR/GT444: RU, E2, E51, MX, AR/GT555)

330 (GT111: E3)

∗ R393

711

D

B

1669 1710

F

5 15

K

3

G

1 1812

C

E

H

8

J

4 13

A

142

I

∗

∗

∗

R5F3640DDFAR

IC401

IC401

SYSTEM CONTROLLER

MC TXD

MC RXD

USB RESET

USB CTS0

USB TXD0

USB RXD0

USB SEL-SW

USB RTS0

AD SUPPLY SW

MP3 IREQ

CD BUS0

CD BUS1

CD BUS2

CD BUS3

CD CLK

CD CCE

CD-MMUTE

CD-XRST

TC_M+9V SW

PROTECT

STK MUTE

SW SPK RELAY

FR SPK RELAY

STBY RELAY

EEP-SDA

EEP-SCL

DMPORT DET

LINE MUTE

R2A15216FP-CLK

R2A15216FP-DATA

ST-TUNED

VCC

ST-CE

VSS

ST-DIN

ST-CLK

ST-DOUT

POWER ILLUMINATOR

NO USE

USB-BLUE LED

MIC/HP DET

STBY LED

LED CTRL

POWER/DISPLAY-KEY

ST-RDS-INT

ST-RDS-DATA

LED-VOL5,6

LED-VOL3,4

LED-VOL1,2

METER LED

METER SW

TC-TAPE STATE

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

SW LED

METER-IN4

METER-IN3

METER-IN1

METER-IN2

METER SWITCH

USB LED CTRL

VF

-VFL

VF

METER LED

DGND

FL+3.3V

AD KEY0

AD KEY1

AD KEY2

VOL

JOG

FL-RESET

FL-CS

FL-DATA

FL-CLK

SIRCS

LED1

LED2

LED3

LED CTRL

STBY LED

EVER+3.3V

LED GND

LED+9V

IC675

EEPROM

IC675

S-24CS16A0I-J8T1G

RT1P431C-TP-1

Q447

LEVEL SHIFT

AC4

AC4

AC3

AC3

VF

VF

-VFL

DGND

EVER10V

STBY RELAY

AC CUT DETECT

∗

100 10V
(GT111: E2, E3, E51, AR/GT222: E2, E51, MX, AR/
GT444: E2, E51, MX, AR/GT555: E2, E51, MX, AR)

C416

2200 6.3V
(GT111: AEP, RU/GT222: AEP, RU/
GT444: AEP, RU, UK/GT555: RU)

∗

10MR410

(Page 9)

(Page 6)

(Page 11)

(Page 11)

(Page 8)

(Page 13)

Ver. 1.4

HCD-GT111/GT222/GT444/GT555

HCD-GT111/GT222/GT444/GT555

88

2-6. SCHEMATIC DIAGRAM - MAIN Board (3/4) -

BOARD

14

(2/4)

MAIN

(4/4)

BOARD

15

MAIN

J

NO701

MIC

BOARD

(2/2)

CN801

H

BOARD

POWERAMP

NO080

G

BOARD

9V REG

CN055

(Refer to page
34 on original
service manual)

(Refer to page
43 on original
service manual)

P

BOARD

5V REG

BOARD

11

(1/4)

MAIN

3.3 911.8 16.8

0.3

0.7

0.4

0.7
0

0

0.2

3.3

0.2

3.3

0.7

0

16.7

8.8

8.8

16.2

0

6.3

15

6.3

5.8

5.8

15.6

0

D3SBA20-4100

D601

D3SBA20-4100

D602

~

~

~

~

0.01C605

0.01

C604

0.01

C618

0.01C617

25V

4700

C602

10V

100

C609

C611

10V

100

0.1

C608

0.1

C610

RT1N141C-TP-1

Q606

R610

100k

C620

0.1

0.1

C693

1

2

3

3P

CN690

1k

R698

100kR697

4.7kR696

4.7kR695

4.7kR694

100k

R691

25V

C694

47

50V

22

C690

0.1

C692

1k

R690

R639

∗

∗∗

R640

22k

R634

22kR633

R635

MC2838-T112-1

D632

4.7k

R631

4.7k

R630

50V

C696

22

IO

COM

13

2

R612

22

1

2

3

4

4P

CN488

HP-L

HP GND

HP-R

CHASSIS

Q694

2SC3052EF-T1-LEF

2SC3052EF-T1-LEF

Q695

Q690

2SC3052EF-T1-LEF

2SC3052EF-T1-LEF

Q691

C616

C616
4700 16V (GT111/GT222:AEP,RU,E2,E51,AR/GT444:AEP,RU,UK,E2,E51,AR/GT555:RU,E2,E51,AR)
4700 25V (GT222:MX/GT444:MX/GT555:MX)

MA2J1110GLS0

D628

MA2J1110GLS0

D630

2SC3052EF-T1-LEF

Q693

KTA1273-Y-AT

Q697

47R687

47R688

47R689

IO

G

13

2

JL206

JL207

JL208

JL209

JL210

JL211

JL212

JL213

JL214

JL215

JL216

JL217

JL218

JL219

JL220

JL221

JL222

JL234

JL235

JL236

JL239

JL240

JL241

R637 R638

10

R692

10

10

R693

MA2J1110GLS0

D605

R668

MAZ8068GMLS0

D691

MAZ8062GMLS0

D690

MAZ8047GMLS0

D608

2SC3052EF-T1-LEF

Q112

JL111

1

2

3

3P

CN110

100kR158

47R156

0.1

C114

1k

R159

JL110

2SC3052EF-T1-LEF

Q110

47R157

0.1

C112

25V

C113

47

Q111

2SC3052EF-T1-LEF

KTA1273-Y-AT

Q113

47R155

JL112

4.7kR166

4.7kR167

4.7kR165

0.1

C615

0.1

C612

0.1

C652

0.1

C654

0.1

C649

JW610 JW611

0R636

CN479

R-IN

PREGND

L-IN

STK MUTE

PROTECT

UNREG+16V

HP-R

HP GND

HP-L

POWER GND

SPK RELAY

SW ON/OFF

SW IN

1

2

3

CN600

3P

UNREG16V

GND

M+9V

MAZ8130GMLS0

D110

23

3

24

26

1

25

22

5

4

6

30

27

28

31

29

32

OUT-R

51

OUT-L

PROTECT

53

52

SW-OUT

PROTECT

72

PROTECT

MAIN BOARD (3/4)

1

GND

REG_PROTECT3

NO458

2

UNREG

3P

(GT444/GT555)

CN479
11P (GT111/GT222)
13P (GT444/GT555)680 2W (GT222/GT555)

R637, 638
470 2W (GT111/GT444)

100 (GT111/GT222/GT555)

R639, 640
47 (GT444)3.9k (GT111/GT555)

R635

4.7k (GT222)

5.6k (GT444)

PROTECT DETECT

Q110-113

FAN MOTOR DRIVE

M

M102
(FAN)

M

M101

(FAN)

(GT222/GT444/GT555)

711

D

B

6910

F

53

G

1 12

C

E

84 13

A

142

FAN+

FAN-

FAN+

FAN-

NC

NC

∗

∗∗ ∗ ∗

∗

∗

∗

∗

FAN MOTOR DRIVE

Q690, 691, 693-695, 697

μPC3533AHF

IC603

IC603

+3.3V REGULATOR

KIA7809API-U/PF

IC602

IC602

+9V REGULATOR

1

2

3

4

5

6

7

8

9

10

11

12

13

GT444: AEP, RU, UK/GT555: RU

GT111: AEP, RU/GT222: AEP, RU/

GT555: RU

GT444: AEP, RU, UK/

GT222: AEP, RU/

GT111: AEP, RU/

(Page 7)

(Page 6)

(Page 4)

(Page 4)

(Page 9)
