Sony HCD-ESX6, HCD-ESX8, HCD-ESX9 Schematic

HCD-ESX6/ESX8/ESX9

SERVICE MANUAL

Ver. 1.1 2013.10

• HCD-ESX6 is the ampliﬁ er, USB, CD player and tuner section in MHC-ESX6.

• HCD-ESX8 is the ampliﬁ er, USB, CD player and tuner section in MHC-ESX8.

• HCD-ESX9 is the ampliﬁ er, USB, CD player and tuner section in MHC-ESX9.

“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation. MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Photo: HCD-ESX9

CD Section

E Model

Model Name Using Similar Mechanism NEW Mechanism Type CDM90-DVBU202//C Optical Pick-up Block Name CMS-S76RFS7G

Ampliﬁ er section

The following are measured at MX model: MHC-ESX9/ESX8: AC 120 V – 240 V, 60 Hz MHC-ESX6: AC 127 V, 60 Hz Other models: AC 120 V – 240 V, 50/60 Hz

MHC-ESX9

Power output (rated): High channel 140 W + 140 W (at 6 ohms, 1 kHz, 1% THD) Low channel 140 W + 140 W (at 6 ohms, 100 Hz, 1% THD) RMS output power (reference): High channel 250 W + 250 W (per channel at 6 ohms, 1 kHz) Low channel 250 W + 250 W (per channel at 6 ohms, 100 Hz)

MHC-ESX8

Power output (rated): 120 W + 120 W (at 5 ohms, 1 kHz, 1% THD) RMS output power (reference): 300 W + 300 W (per channel at 5 ohms, 1 kHz)

MHC-ESX6

Power output (rated): 100 W + 100 W (at 4 ohms, 1 kHz, 1% THD) RMS output power (reference): 180 W + 180 W (per channel at 4 ohms, 1 kHz)

SPECIFICATIONS

Inputs

DVD/PC IN L/R (audio in L/R): Voltage 2 V, impedance 47 kilohms

USB section

Supported bit rate MP3 (MPEG 1 Audio Layer-3): 32 kbps – 320 kbps, VBR WMA: 48 kbps – 192 kbps AAC: 48 kbps – 320 kbps Sampling frequencies MP3 (MPEG 1 Audio Layer-3): 32/44.1/48 kHz WMA: 44.1 kHz AAC: 44.1 kHz

(USB) port:

Maximum current: 500 mA

CD player section

System Compact disc and digital audio system Laser Diode Properties Emission Duration: Continuous Laser Output*: Less than 44.6 W * This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response: 20 Hz – 20 kHz Signal-to-noise ratio: More than 65 dB

Tuner section

FM stereo, FM/AM superheterodyne tuner Antenna: FM lead antenna AM loop antenna

FM tuner section

Tuning range:

87.5 MHz – 108.0 MHz (50 kHz step)

AM tuner section

Tuning range E2, E51, MX models: 530 kHz – 1,710 kHz (10 kHz step) 531 kHz – 1,710 kHz (9 kHz step) E4, E93 model: 531 kHz – 1,602 kHz (9 kHz step) 530 kHz – 1,610 kHz (10 kHz step)

– Continued on next page –

9-890-634-02

2013J80-1

2013.10

©

COMPACT DISC RECEIVER

Sony Corporation

Published by Sony EMCS (Malaysia) PG Tec

HCD-ESX6/ESX8/ESX9

Ver. 1.1

General

Power requirements MX model: MHC-ESX9/ESX8: AC 120 V – 240 V, 60 Hz MHC-ESX6: AC 127 V, 60 Hz Other models: AC 120 V – 240 V, 50/60 Hz Power consumption MHC-ESX9: 165 W MHC-ESX8: 100 W MHC-ESX6: 70 W Dimensions (w/h/d) (excl. speakers) (Approx.) 240 mm × 308 mm × 246 mm Mass (excl. speakers) (Approx.) MHC-ESX9: 3.0 kg MHC-ESX8: 2.9 kg MHC-ESX6: 2.8 kg Supplied accessories Remote control (1) R6 (Size AA) batteries (2) FM lead/AM loop antenna (1)

Design and speciﬁ cations are subject to change without notice.

NOTES ON CHIP COMPONENT REPLACEMENT

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be damaged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

• Keep the temperature of soldering iron around 270 °C during repairing.

• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or unsoldering.

CAUTION

The use of optical instruments with this product will increase eye hazard.

This appliance is classiﬁ ed as a CLASS 1 LASER product. This marking is located on the rear exterior.

• Abbreviation E2 : 120 V AC area in E model E4 : African model E51 : Chilean and Peruvian models E93 : 240 V AC area in E model MX : Mexican model

2

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

SERVICING NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body . During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The ﬂ exible board is easily damaged and should be handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on the disc reﬂ ective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher than ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350 °C. Caution: The printed pattern (copper foil) may peel away if

the heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscous (sticky, less prone to ﬂ ow)

than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

NOTE OF REPLACING THE IC501, IC502, IC504 AND IC851 ON THE MB BOARD

IC501, IC502, IC504 and IC851 on the MB board cannot exchange with single. When these parts on the MB board are damaged, exchange the entire mounted board.

MODEL IDENTIFICATION – Model Number Label –

Parts No.

Model Part No.

ESX6 ESX8 ESX9: E93 ESX9: E2, E51, MX

4-460-373-0[] 4-460-373-1[] 4-460-373-2[] 4-460-373-3[]

• Abbreviation

E2 : 120 V AC area in E model E4 : African model E51 : Chilean and Peruvian models E93 : 240 V AC area in E model MX : Mexican model

MB BOARD DISCRIMINATION

In this set, the MB board has been changed in the midway of production. When MB board (Sufﬁ x-11) is damaged, exchange to the MB board (Sufﬁ x-12).

– MB Board (Component Side) –

RELEASING THE DISC TRAY LOCK

The disc tray lock function for the antitheft of an demonstration disc in the store is equipped.

Releasing Procedure:

1. Press the [

] button to turn the power on.

?/1

2. Press the [FUNCTION] button to select CD function.

3. Press the [x] and [REC TO USB] button simultaneously and hold down for around 5 seconds.

4. The message “UNLOCKED” is displayed and the disc tray is unlocked.

Note: When “LOCKED” is displayed, the slot lock is not released by turn-

ing power on/off with the [

?/1

] button.

4

SUFFIX-11 : 1-887-382-11 SUFFIX-12 : 1-887-382-12

SERVICE POSITION OF CDM90-DVBU202//C

d

HCD-ESX6/ESX8/ESX9

SERVICE POSITION OF BOARDS

MS-476 board

(E93)

CD mechanism (CDM90-DVBU202//C)

stand

SMPS-300W board (ESX6) SMPS-400W board (ESX8) SMPS-600W board (ESX9)

PANEL board

MB board

REGULATOR boar

5

HCD-ESX6/ESX8/ESX9

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF

Note 1: After the side panel (L, R) and top panel is removed, this word is done. Note 2: Please prepare the thin wire (clip etc. processed to the length of 8 cm or more).

1 Remove the side case (L, R) and top case. (Illustration of disassembly is omitted.)

tray

– Side view –

hole

Insert the clip etc. processed to the length of 8 cm or more in the hole on the side of the chassis and push.

8 cm or more

Push after it inserts it in this hole well.

Note:

CD drive

2 Insert the clip etc.

tray

– Top view –

CAPACITOR DISCHARGE FOR ELECTRIC SHOCK PREVENTION

SMPS-300W BOARD (Conductor side view)

In checking the SMPS-300W board, make 3 capacitors discharge of C914, C1003 and C1004 for electrical shock prevention.

3

800 :/5 W 800 :/5 W

C914

C1004 C1003

800 :/5 W

6

HCD-ESX6/ESX8/ESX9

SMPS-400W BOARD (Conductor side view)

In checking the SMPS-400W board, make 2 capacitors discharge of C914 and C1012 for electrical shock prevention.

800 :/5 W

C914

C1012

800 :/5 W

SMPS-600W BOARD (Conductor side view)

In checking the SMPS-600W board, make 3 capacitors discharge of C914, C1000 and C1006 for electrical shock prevention.

800 :/5 W

C914

800 :/5 W

C1006

C1000

800 :/5 W

7

HCD-ESX6/ESX8/ESX9

PRECAUTION WHEN INSTALLING A NEW OP UNIT/ PRECAUTION BEFORE UNSOLDERING THE STATIC ELECTRICITY PREVENTION SOLDER BRIDGE (CDM90-DVBU202//C)

When installing a new OP unit, be sure to connect the ﬂ exible printed circuit board ﬁ rst of all before removing the static electric- ity prevention solder bridge by unsoldering. Remove the static electricity prevention solder bridge by unsoldering after the ﬂ exible printed circuit board has already been con- nected. (Do not remove nor unsolder the solder bridge as long as the OP unit is kept standalone.)

8

DISASSEMBLY

• This set can be disassembled in the order shown below.

2-1. DISASSEMBLY FLOW

SET

2-2. SIDE CASE (L), SIDE CASE (R), TOP CASE (Page 10)

2-3. LOADING PANEL (Page 10)

2-4. CD MECHANISM SECTION (CDM90-DVBU202//C) (Page 11)

HCD-ESX6/ESX8/ESX9

SECTION 2

2-5. FRONT PANEL SECTION (Page 11)

2-6. MB BOARD (Page 12)

2-7. SMPS-300W BOARD (ESX6), SMPS-400W BOARD (ESX8), SMPS-600W BOARD (ESX9) (Page 12)

2-8. SERVICE OPTICAL DEVICE, WIRE (FLAT TYPE) (Page 13)

9

HCD-ESX6/ESX8/ESX9

s

Note: Follow the disassembly procedure in the numerical order given.

2-2. SIDE CASE (L), SIDE CASE (R), TOP CASE

5 case (L), side

1 two screws

(CASE 3 TP2)

qj case, top

4 two claws

3

qh two hooks

2 two screws

(+BVTP 3 u8)

qa one screw (+BVTP 3 u8)

qd two screws (+BVTP 3 u8)

qg

qf

– Side view –

hook

Pull the hook outwards to release the groove.

Note:

Then, release the case, top.

qs one screw (+BVTP 3 u8)

9 two claws

– Top view –

7 two screws (+BVTP 3 u8)

2-3. LOADING PANEL

– Side view –

Insert the clip etc. processed to the length of 8 cm or more in the hole on the side of the chassis and push.

8

0 case (R), side

6 two screws

(CASE 3 TP2)

4 panel, loading assy

3 four claw

hole

CD drive

2

10

8 cm or more

Push after it inserts it in this hole well.

Note:

tray

1 Insert the clip etc.

– Top view –

2-4. CD MECHANISM SECTION (CDM90-DVBU202//C)

8 CD mechanism section

7 two screws

(+BVTP 3 u8)

(CDM90-DVBU202//C)

HCD-ESX6/ESX8/ESX9

Ver. 1.1

6 one screw (+BVTP 3 u8)

qd one screw (+BVTP 3 u8)

(E93)

qa cushion (H)

qf REGULATOR board

0 CDM metal, L

qs CN2000 (10P)

9 two screws

(+BVTP 3 u8)

(E93)

1 wire (flat type) (5 core) (CN681)

2 wire (flat type) (24 core) (CN801)

(E93)

3 tape

5 CN831 (7P)

0 CDM metal, R

(E93)

4 cushion (E 0.5)

2-5. FRONT PANEL SECTION

7 front panel section

4 wire (flat type)

(21 core) (CN300)

2 wire (flat type) (23 core) (CN301)

5 three screws (+BVTP 3 u8)

1 CN802 (3P)

6 claw

3 wire (flat type)

(13 core) (CN2004) (ESX6/ESX8)

3 wire (flat type) (13 core) (CN2004) (ESX9)

11

HCD-ESX6/ESX8/ESX9

Ver. 1.1

2-6. MB BOARD

8 panel, back

(ESX9: E93)

qs holder, wire

qa bushing (2104), cord

0

(ESX8/ESX9)

7 DC fan

9 CN901

(2P)

5 holder, wire

4 CN2000

(3P)

qd CN1700 (12P)

qh heat sink (DAMP)

2 two screws

(+BVTP 3 u 8)

B

qj tuner, top

(ESX8/ESX9)

6 two screws (+BVTP 3 u 8)

(ESX9)

3 one screw (+BVTP 3 u 8)

1 one screw (+BVTP 3 u 8)

B

qk tuner, bottom

ql MB board

qg two screws

(+BVTP 3 u 8)

qf two screws (+BVTP 3 u 8)

2-7. SMPS-300W BOARD (ESX6), SMPS-400W BOARD (ESX8), SMPS-600W BOARD (ESX9)

1 five screws (+BVTP 3 u8)

3 SMPS-300W board (ESX6) SMPS-400W board (ESX8) SMPS-600W board (ESX9)

2 clip, coating

12

4 chassis

HCD-ESX6/ESX8/ESX9

2-8. SERVICE OPTICAL DEVICE, WIRE (FLAT TYPE)

Note 1 : Before disconnecting the wire (ﬂ at type) (24 core) of optical pick-up block, solder the short-land.

8 four insulator screws

qs service,

optical device

3 Insert the thin wire (clip etc.).

1 six claws

qa insulator

6 belt

2 chuck holder assy (MB)

qa insulator

qj core, ferrite

qa insulator

0

9

7 connector

2 Solder the short-land.

Note 2: When assembling the optical pick-up block, remove the solder of short-land after connecting the wire (flat type) (24 core).

(E93)

qh tape

(E93)

qg

qk holder, FFC

ql wire (flat type)

(24 core)

qd loading base

4

5 tray

,QVWDOODWLRQRIZLUHIODWW\SHFRUHDQGZLUHIODWW\SHFRUH

This illustration sees the loading assy (MB) from bottom side.

Note:

1 wire (flat type) (24 core)

loading assy (MB)

terminal face

2 Through the hole

assy

qf wire (flat type) (5 core)

5 two claws

3 Through the hole

Under the guide (Fold area)

5 three claws

6 holder, FFC

4

– Bottom view –

7 wire (flat type) (24 core)

loading assy (MB)

0 wire (flat type) (5 core)

(

8 core, ferrite

9 tape

Under the guide

13

HCD-ESX6/ESX8/ESX9

SECTION 3

ESX TEST MODE

[PANEL TEST MODE]

• This mode is used t o check the l iquid cr ys tal d isplay, LEDs,

keys, [VOLUME] jog, model, destination and software version.

Procedure:

1. Press [FUNCTION] button and [BASS BAZUCA] button simultaneously and hold 3 seconds.

2. All LEDs and segments of liquid crystal display will light up.

3. In the Panel Test Mode, when you want to enter to the software version display mode, press [+] button. The model information appears on the ﬂ uorescent indicator tube.

• “ESX0” is shown for MHC-ESX6.

• “ESX1” is shown for MHC-ESX8.

• “ESX2” is shown for MHC-ESX9.

Press [+] button again to view the destination information.

4. During the destination information display, press [+] button. Each time [+] button is pressed, the ﬂ uorescent indicator t ube shows the version of each categor y software in the following sequence: SC, MTK, OPU , UI, PF, SYS, CD, CMA, CM B, ST, TA, TAS, TM and ret urn back to model information display.

5. When [FUNCTION] button is pressed while the version numbers a re being displayed except mo del and destinat ion, the date of the software creation appears. When [FUNCTION] button is pre ssed again, t he display retur ns to the soft ware version display. Press [–] button, the key check mode is activated.

6.

7. In the key check mode, the liquid crystal display will displays “K 0 V0”.

Each time a button is pressed, “K” value increases. However,

once a button has been pressed, it is no longer taken into account.

“V” value increases in the manner of 0, 1, 2, 3 ... if [MASTER

VOLUME] knob is turned clockwise, or it decreases in the manner of 0, 9, 8, 7 ... if [MASTER VOLUME] knob is turned counterclockwise.

8. When [ ] button is pres sed af t er al l LEDs a nd seg ment s in liquid cr ystal display light u p, alter nate segments in l iquid cryst al display and LEDs would l ight up. If you press [  ] button again, another half of alternate segments in liquid crystal display and LEDs would light up. Pressing [ ] button again would cau se all s egment s in l iquid cr yst al d isplay and LEDs light up. Pre ssi ng [ ] button aga in would t u rn off all segments in ﬂ uorescent indicator tube and all LEDs.

9. To release from this mode, press the buttons in the same manner as step 1, or disconnect the power cord.

[USER RESET]

• The user reset clears a ll data i ncluding p reset dat a stored i n

the data ﬂ ash to initial conditions exclude history mode data.

Procedure:

1. Press [&/1] button to turn on the system.

2. Press [FUNCTION] button and [&/1] button simultaneously for 3 seconds.

3. “R ESET” appears on the liquid cryst al display. Afte r that, the liquid c r yst al d isplay bec omes bla nk for a wh ile, a nd the system is reset.

[CD SHIP MODE (WITH MEMORY CLEAR)]

• This mode moves the optica l pick-up to the position du rable

to vibration and clears all data including preset data stored in the data ﬂ ash to initial conditions during the next AC-In. Use this mode when returning the set to the customer after repair.

Procedure:

1. Press [\/1] button to turn on the system.

2. Press [FUNCTION] button to select CD function.

3.

Press [OPTIONS] button and [TUNING –] button simultaneously for 3 seconds. The system turns off automatically.

4. A message “MECHA LOCK” is displayed on the liquid crystal display and the CD ship mode is set.

[CD TRAY LOCK MODE]

• This mode let you lock the disc tray. When this mode is

activated, the disc tray will not open when [Z] button is pressed. T he message “LOCK ED” will be d isplayed on the liquid cr ysta l display. This mode only a pplied when the re is disc(s) on the tray.

Procedure:

1. Press [\/1] button to turn on the system.

2. Press [FUNCTION] button to select CD function.

3. Press [ ] button and [REC TO USB] button simultaneously and hold down until “LOCKED” or “UNLOCKED” displayed on the liquid crystal display (around 5 seconds).

[CDM AGING MODE]

• This mode is used for CDM aging.

Procedure:

1. Press [\/1] button to turn on the system.

2. Press [FUNCTION] button to select CD function.

3. Open the disc tray, insert a disc and close the tray.

4. Press [REC TO USB ] button and [EQ +] button simultaneously for 3 seconds.

5. The liquid crystal display displays Aging Display “xxxxyyyy”.

“xxxx” represents the error counter (Maximum Value of “xxxx” = 9999) “yyyy” represents the cycle counter (Maximum Value of “yyyy” = 9999)

6. Press [

The liquid crystal display displays “Mx” for 2 seconds to

x: error history number E1: Loading sequence JCP high E2: Loading sequence JCP low E3: Loading operation JCP E4: Cam position operation JCP

7. Press [ ] to Aging Display

• To release from CDM Aging Mode.

To release from this mode, pres s [\/1] button or perform COLD RESET operation.

TUNING + M >]

search for Aging History Error Display.

indicate selected history number. Then, liquid crystal display displays “E1E2E3E4”.

or [TUNING – .m

] to

[COLD RESET]

• The cold reset clears all d ata includ ing pres et data s tored in

the data ﬂ ash to initial conditions included history mode data. Execute this mode when returning the set to the customer.

Procedure:

1. Press [&/1] button to turn on the system.

2. Press [ENTER] button and [&/1] button simultaneously for 3 seconds.

3. “COLD RST” appears on the liquid crystal display. After that, the liquid crystal display becomes blank for a while, and the system is reset.

14

[HISTORY MODE]

• This mode is used to check important data stored in the system

when PROTECTOR happen.

Procedure:

u

1. During demo mode, press [ seconds to mode in to history mode. Press the [TUNING + M >] or

2. button to check history data stored

Display on liquid crystal display Description

PCOUNT

PT

※※※※

] button and [ENTER] for 5

[TUNING – .m]

.

※※

No of time protector happen (0 ~ 99) Indication protector type (refer protector kind test mode)

Protector type Protector Error Code

AMP E03

DC E04

FAN E06

HCD-ESX6/ESX8/ESX9

1 *h*h*h*h*h*m*m

2 *h*h*h*h*h*m*m

F VOL ATT

LOW MID HIGH VACS APVACS

SURR BASS

• To release from History Mode. To release from this mode, press [\/1] button.

[PROTECT KIND CHECK TEST MODE]

• This mode is use d to check t y pe s of protect o ccu r re d du ri ng

protector on.

Procedure:

1. Dur ing protect ion on, liquid cr ystal display shows blin king message “PROTECT EXX” where “EXX” represent the error code.

2. Press [

3. Liquid crystal display will toggle between “PROTECT” message and protector kind message display.

Below table explains on protector kind.

※※※※※※

※※※

u

] button and [OPTIONS] button simultaneously.

Single Power On Time until protector happened (0~99999 hours, 0~99Min)

Total Power On Time [ no consider protector happen ] (0~99999 hours, 0~99Min)

Input Function during protector happened Volume setting (MIN / 1 - 50 / MAX) Actual attenuation (-87 … 0) Low EQ level (-6 … 0 … +6) Mid EQ level (-6 … 0 … +6) High EQ level (-6 … 0 … +6) VACS level (0 ... 5)

※

AP VACS level (0 … 7)

※

Surround setting (OFF / ON) Bass Bazuca setting (OFF / ON)

Error Code

E03 “AMP ERR” Ampliﬁ er Defect E04 “DC DET” DC different appears in

E06 “FANBLOCK” Defect of DC FAN and DC

• To release from this mode:

Press [

Protector Message Description

SPEAKER terminal due to Ampliﬁ er defect.

FAN driver circuit

u

] button and [OPTIONS] button simultaneously

again or unplug and re-plug in the power cord.

15

HCD-ESX6/ESX8/ESX9

SECTION 4

ELECTRICAL CHECK

CD SECTION

Note:

1. CD Block is basically constructed to operate without adjustment.

2. Use YEDS-18 disc (Part No. 3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10 MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent when the

signal level is low than speciﬁ ed value with the following checks.

5. Check the focus bias check when optical pick-up block is replaced.

FOCUS BIAS CHECK

oscilloscope

(DC range)

MB board

CN507 pin 6 (RFMON)

CN507 pin 3 (GND)

+ –

Procedure :

1. Connect the oscilloscope to CN507 pin 6 (RFMON) and

CN507 pin 3 (GND) on the MB board.

2. Press the [

] button to turn the power on, and press the

?/1

[FUNCTION] button to select CD function.

3. Set disc (YEDS-18) and press the [u] button to playback.

4. Conﬁ rm that oscilloscope waveform is as shown in the ﬁ gure

below (eye pattern). A good eye pattern means that the diamond shape () in the

center of the waveform can be clearly distinguished.

VOLT/DIV: 200 mV TIME/DIV: 500 ns

level:

1.0 ± 0.25 Vp-p (CD)

TUNER SECTION

0 dB = 1 V

FM AUTO STOP CHECK

signal

generator

set

+

75 :

–

Procedure:

1. Turn the power on.

2. Input the following signal from Signal Generator to FM antenna input directly.

Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz Deviation : 75 kHz Modulation : 1 kHz ANT input : 35 dBu (EMF)

Note: Please use 75 ohm “coaxial cable” to connect SG and the set. You

cannot use video cable for checking.

Please use SG whose output impedance is 75 ohm.

3. Set to FM tuner function and scan the input FM signal with automatic scanning.

4. Conﬁ rm that input Frequency of A, B and C detected and auto- matic scanning stops.

The stop of automatic scanning means “The station signal is received in good condition”.

Checking Location:

-MB Board (Component Side)-

pin 3 (GND)

CN507

pin 6 (RFMON)

16

SECTION 5

TROUBLESHOOTING

HCD-ESX6/ESX8/ESX9

1. AC Input CN901

No. Desc Ref No.

2. 6.3A/250V AC Fuse F901

3. Retiﬁ er - KBJ1006G D902

4. 0.1Ω Fuse Resistor R914

(11)

5. A931 Main Primary Heat Sink ASSY A931

6. Main Transformer T901

(9)

pin 1 to 5: V1 output (36V±1.8V)

pin 6 to 9: V1 GND

pin 10: DCDC 12.5V

pin 11: DCDC 12.5V GND

7. A932 Main Secondary Diode Heat Sink A932

8. CN4 connector CN4

(8)

(10)

(5)

pin 12: No Connect

pin 13: Fan Speed

pin 1: Thermal VACS cct 3.3V

pin 2: Thermal DET

9. CN2004 connector CN2004

(7)

(6)

pin 3: 3.3V GND

pin 4: ECO Ever 7V/12V

pin 5 to 6: DCDC 12.5V

pin 7 to 8: DCDC 12.5V GND

pin 9: Fan supply (DCDC 5.1V)

pin 10: Main On

pin 11: Fan block

pin 12: No Connect

pin 13: Fan Drive

(4)

11. JW958 for V1 GND (-)

10. JS1002 for V1 ouput (+)

(1)

(2)

(ESX6)

Switching Regulator (AMP-SMPS) Diagnosis Flow (1/4)

(3)

17

HCD-ESX6/ESX8/ESX9

1. AC Input CN901

No. Desc Ref No.

2. 10A/250V AC Fuse F901

(10)

3. Retiﬁ er - KBJ1006G D902

(12)

4. 0.1Ω Fuse Resistor R914

5. A931 Main Primary Heat Sink ASSY A931

(9)

6. Main Transformer T901

pin 1 to 5: V1 output (50V±2.5V)

pin 6 to 9: V1 GND

pin 10: DCDC 12.5V

pin 11: DCDC 12.5V GND

7. A932 Main Secondary Diode Heat Sink A932

8. CN4 connector CN4

(8)

(11)

(5)

pin 12: No Connect

pin 13: Fan Speed

pin 1: Thermal VACS cct 3.3V

pin 2: Thermal DET

9. CN2004 connector CN2004

(7)

(6)

pin 3: 3.3V GND

pin 4: ECO Ever 7V/12V

pin 5 to 6: DCDC 12.5V

pin 7 to 8: DCDC 12.5V GND

pin 9: Fan supply (DCDC 5.1V)

(4)

pin 10: Main On

pin 11: Fan block

pin 12: No Connect

pin 13: Fan Drive

11. JS1002 for V1 ouput (+)

10. Fan Connector CN2000

12. JW958 for V1 GND (-)

(1)

(2)

(ESX8)

Switching Regulator (AMP-SMPS) Diagnosis Flow (2/4)

18

(3)

HCD-ESX6/ESX8/ESX9

1. AC Input CN901

No. Desc Ref No.

2. 10A/250V AC Fuse F901

3. Retiﬁ er - D15XB60 D902

4. 0.1Ω Fuse Resistor R914

5. A931 Main Primary Heat Sink ASSY A931

6. Main Transformer T901

(14)

7. 2.2Ω Fuse Resistor R965

(16)

8. A-933 Sub Controller STR-Y6763 IC965

(5)

9. Sub Transformer T903

(12)

10. A932 Main Secondary Diode Heat Sink A932

(6)

pin 1 to 5: V1 output (50V±2.5V)

pin 6 to 9: V1 GND

pin 10: V2 output (13.5V±0.65V)

pin 11: V2 GND

11. Sub Secondary Diode D1001

12. CN4 connector CN4

(15)

(10)

pin 12: No Connect

pin 13: Fan Speed

pin 1: Thermal VACS cct 3.3V

pin 2: Thermal DET

13. CN2004 connector CN2004

(13)

(17)

(9)

(7)

(4)

pin 3: 3.3V GND

pin 4: No Connect

pin 5 to 6: V2 output (13.5V±0.65V)

pin 7 to 8: V2 GND

pin 9: Fan supply

pin 10: Main On

pin 11: Fan block

(18)

(11)

(8)

pin 12: No Connect

pin 13: No Connect

14. Fan Connector CN2000

15. JS1002 for V1 output (+)

16. JW922 for V1 GND (-)

17. JW923 for V2 output (+)

18. JS1000 for V2 output (-)

(1)

(2)

(ESX9)

Switching Regulator (AMP-SMPS) Diagnosis Flow (3/4)

(3)

19

HCD-ESX6/ESX8/ESX9

AC IN

Check whether state of cable and outlet are normal.

If there are no problem, check circumference circuit from

Main On on output of panel side

No

Hi (3.3V)

Power On

Yes

Replace SMPS parts

ESX9

Main output -> A931(Q908,Q909,D903), R914

Sub output -> A933(IC965), R965

ESX8/ESX6

Main output -> A931 -> (Q908,Q909,D901), R914

No

Power OnDemo Mode

Hi (50V±2.5V)

Low (0V)

ECO Mode

Hi (36V±1.8V)JS1002(+) + JW958(-):

Hi (36V±1.8V)

Low (7V)

Yes

END

The Power Control signal to SMPS as below voltage?

ESX9

Main on ECO Mode Demo Mode Power On

CN2004 Pin10: Low (0V) Low (0V)

ESX8

Main On ECO Mode Demo Mode

ESX6

Main On ECO Mode Demo Mode

CN2004 Pin10: Low (0V) Hi (3.3V) Hi (3.3V)

Switching Regulator (AMP-SMPS) Diagnosis Flow (4/4)

20

JW923(+) + JS1000(-): Hi (13.5V±0.65V) Hi (13.5V±0.65V) Hi (13.5V±0.65V)

ESX8

Main Output ECO Mode Demo Mode Power On

The SMPS output as below voltage?

ESX9

Main Output ECO Mode Demo Mode Power On

JS1002(+) + JW922(-): Low (0V)

Sub Output

JS1002(+) + JW958(-): Low (7V) Hi (50V±2.5V) Hi (50V±2.5V)

ESX6

Main Output ECO Mode Demo Mode Power On

§9

C

§9

E

HCD-ESX6/ESX8/ESX9



Check condition of transistor Q211, V

&KHFN,&IRU9

If there is no problem, check circumference circuit of IC2000

IRU9

&KHFN,&/'2,&IRU9

No

Yes

JL510: 1.2V

Check voltage supply to MTK IC501

JL302/CL585: 3.3V

No

Checks circumference circuit for SL+/SL- of IC851.

Checks circumference circuit of IC501 FMO Signal.

No

Yes

Does it output the signal?

Checks CN831 SL+/SL- signal (JL839/JL838).

The Sled motor has a problem.

Replaces BU.

Checks circumference circuit for FCS+/FCS- of IC851.

Checks circumference circuit for SP+/SP of IC851.

Checks circumference circuit of IC501 DMO Signal.

No

Yes

The Spindle motor has a problem.

Does it output the signal?

Checks CN831 SP+/SP- signal (JL834/JL835).

No

Replaces BU.

Checks circumference circuit of IC501 FOO Signal.

No

Yes

Does it output the signal?

Checks CN801 FCS+/FCS- signal (JL823/JL824).

No

The Optical pickup has a problem.

Replaces BU.

Yes

REMOVE CDM TOP PANEL

TURN ON

REMOVE TOP P ANEL

REMOVE SIDE PANEL

Optical Block Diagnosis Flow (1/2)

TRAY IN

Does Optical pickup move to inner circumference?

(Visual check)

Yes

Does Spindle motor rotate?

(Visual check)

Yes

Does Optical pickup do focus search?

(Visual check)

A

21

HCD-ESX6/ESX8/ESX9

Checks circumference circuit of Q881 or Q891.

Checks circumference circuit of IC501 LDO1 and LDO2.

No

Yes

The Optical pickup has a problems.

Does it output 1.8V when laser become luminous ?

Check JL806 (LD780) signal.

Does it output 2.2V when laser become luminous ?

Check JL802 (LD650) signal.

No

Replaces BU.

No

Replaces BU if it is not up to standard.

No

Yes

If it is not up to standard,

Lens cleaning is performed.

Is output level of RF signal(CN507 6pin) up to standard?

RF Level = 1.0 ±0.25 Vpp

Test CD:YEDS-18

Yes

No

The Optical pickup has a problems.

Replaces BU.

A

Optical Block Diagnosis Flow (2/2)

Does laser diode become luminous ?

22

Yes

(Visual check)

Yes

DISC IN

Yes

Test CD:YEDS-18

RF Level = 1.0 ±0.25 Vpp

Is output level of RF signal (CN507 6pin) up to standard?

Yes

Is there no problem with Long term Aging Test (60min)?

Confirms that there is no sound skip.

END

HCD-ESX6/ESX8/ESX9

Check that the voltage 12V/12.5V of MB BOARD. Make

sure L1700 is 12V.

No

Yes

Check that power voltage 3.3V of MB BOARD CN300

6PIN (SD).

Is there power voltage decrease when power on time?

No

Check that DC voltage between speaker

terminal Plus and speaker terminal Minus.

䐟 MB BOARD TB1700 for ESX6/ESX8/ESX9

Between 1PIN-2PIN

Between 3PIN-4PIN

䐠㻌MB BOARD TB1702 for ESX9 only.

Between 1PIN-2PIN

Between 3PIN-4PIN

No

Check that SD slow signal.

ESX6/ESX8/ESX9

Check that power voltage 3.3V of CN300 3PIN.

POWER ON

D-AMP Mount Diagnosis Flow (1/2)

Yes

Check that there is no “PROTECT” on LCD display.

Check that power on is available if the unit is ESX6/ESX8/ESX9

A

23

HCD-ESX6/ESX8/ESX9

Check that PANEL BOARD IC001 (SYSTEM CONTROL)

38PIN (O-AMP-RST).

Check that SMPS block power supply operation.

Refer to the Troubleshooting Power Block.

Check that power voltage of MB BOARD CN1700 13PIN,

PIN1-5 (V1)

ESX8/ESX9 50V ± 2.5V

ESX6 36V ± 1.8V

No No

ESX6/ESX8/ESX9

Yes

Check that MB BOARD C1886 voltage and peripheral

circuit.

No

Yes

Check that power voltage 12V/12.5V of MB BOARD.

Normal condition is 3.3V.

No

Check that RESET power voltage 3.3V at

MB BOARD CN300 7PIN.

Yes

ESX6/ESX8

Replace AMP IC (IC1705)

ESX9

Replace AMP IC (IC1705) for 䐟

Replace AMP IC (IC1706) for 䐠

No

Yes

JL1717 and JL1727

Check that AMP IC OUT waveform at

MB BOARD

ESX6/ESX8: JL1716 and JL1724,

JL1742 and JL1745

JL1717 and JL1727

䐠㻌JL1718 and JL1721,

ESX9: 䐟㻌JL1716 and JL1724,

Are they swing?

A

D-AMP Mount Diagnosis Flow (2/2)

24

Yes

END

PLAY MUSIC

Is signal output from speakers terminal?

HCD-ESX6/ESX8/ESX9

Reinserts the cable or Exchanges.

If there are no problems, checks output of

SMPS.

Reinserts the FFC or Exchanges.

If there are no problems, checks output of

Main on output of MB Board side.

Reinserts the cable or Exchanges.

If there are no problems, checks output of

SMPS.

NoNo

output of CN1700 10pin.

Is the power voltage OK?

Checks ESX6/ESX8: 12.5V or ESX9: 13.5V

No

Yes

Checks 3V output of CN203 2pin (PVDD_ON)

Is the power voltage OK?

No

Yes

Checks ESX6: 36V or ESX8/ESX9: 50V

output of CN1700 1pin (V1).

Is the power voltage OK?

Check circumference circuit of:

ESX6/ESX8: IC1855

ESX9: IC1856

No

Yes

Check 12V/12.5V of MB at:

ESX6/ESX8: L1700, CL1725

ESX9: L1700, CL1725 and CL1726

Is the power voltage OK?

Yes

Replaces MB Board

No

Yes

Assembles into the unit again then, checks

whether there is the audio output from

MB Board.

Yes

PLAY MUSIC

MB Mount Diagnosis Flow

Yes

END

Is there audio output from MB Board?

25

HCD-ESX6/ESX8/ESX9

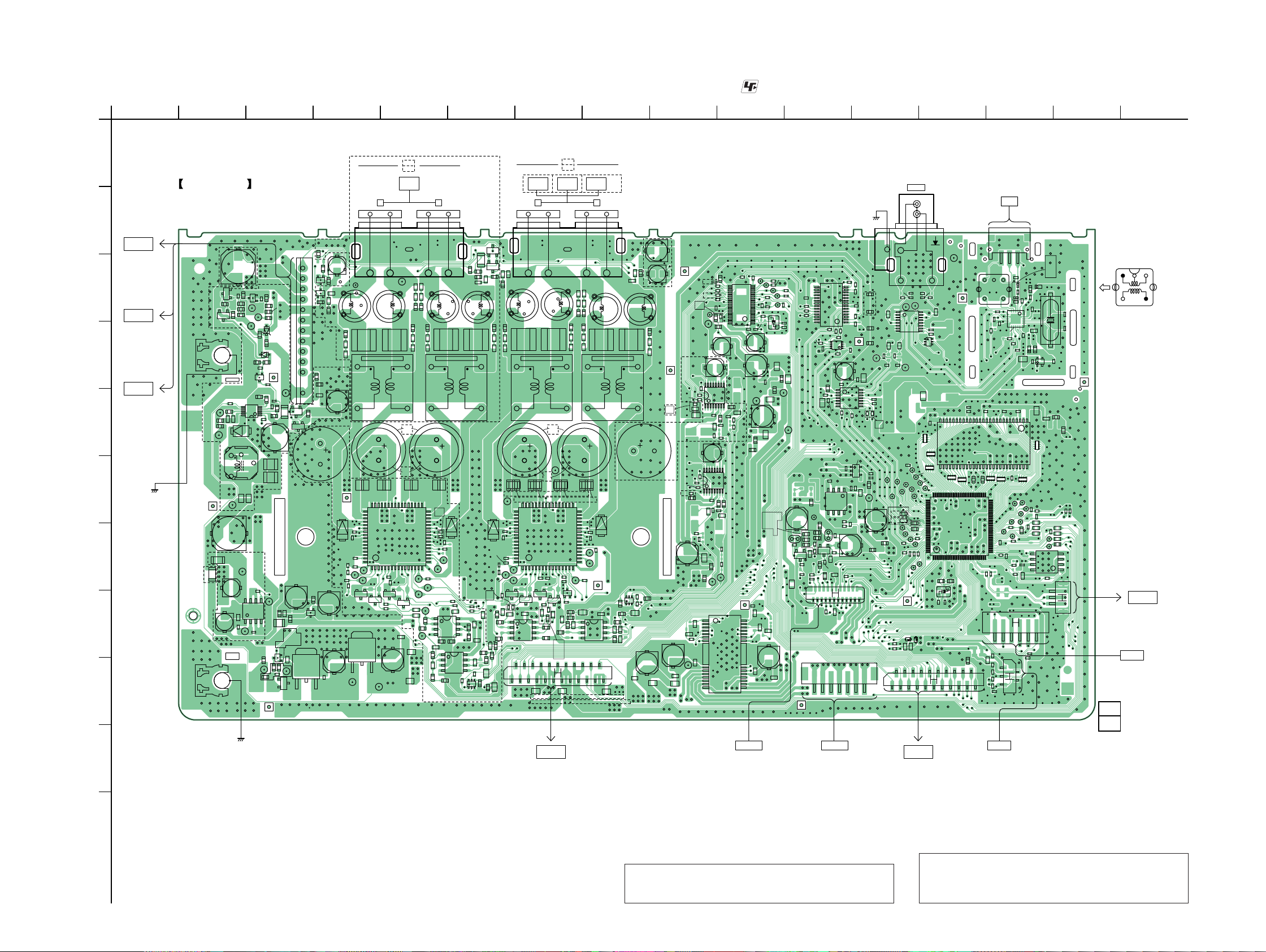

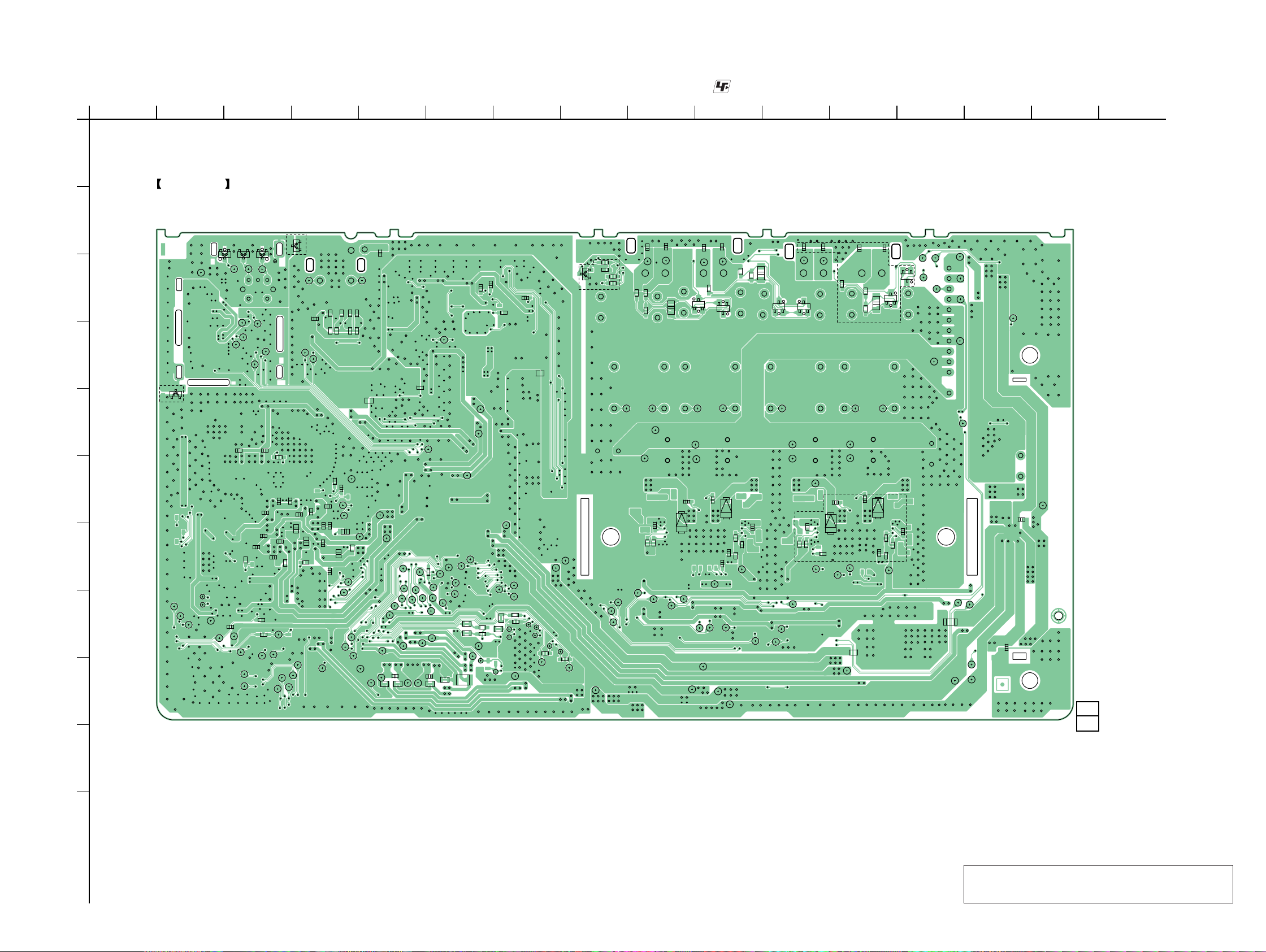

• Circuit Boards Location

REGULATOR board

PANEL board

SECTION 6

DIAGRAMS

MB board

SMPS-300W board (ESX6) SMPS-400W board (ESX8) SMPS-600W board (ESX9)

26

6-1. BLOCK DIAGRAM - CD/USB Section -

ESX9

STEREO D/A CONVERTER

IC751

SCK

16

3

LRCK DATA

2

VOUTL

VOUTR

BCK

HCD-ESX6/ESX8/ESX9

7 8 1

SW OUT L SW OUT R

>001B

AMP SECTION

(Page 29)

CONNECT TO

CDM90

VOA/A

VOB/B VOC/C VOD/D

SERVICE,

OPTICAL DEVICE

(LO:DVD,HI:CD)MSW

VR(780)

VR(650)

FCS+ FCS–

TRK+ TRK–

CN681

LOAD-

1

LOAD+

2

TRAY-IN

3

TRAY-OUT

5

RF

VC

PD

SL+ 17 SL– 18

SP+ 11 SP– 12

14 13

16 15

9

10

POWER CTRL

5CH SYSTEM

MOTOR DRIVER

VOFC+ VOFC-

VOTKVOTK+

VOLD+ VOLD-

VOSL+ VOSL-

VOTRVOTR+

AUTO

Q891

AUTO

Q881

IC851

VINFC VINTK

VINLD

VINSL+

BIAS

MUTE

X501

27MHz

1

26

23

4

CD RF AMP

FOCUS/TRACKING ERROR AMP

CD SYSTEM PROCESSOR

DIGITAL SERVO PROCESSOR

IC501

123

RFIP

RF_C1

128

RF_B

127

RF_A RF_D2 RF_F4VOE/E+G RF_E3VOF/F+H

10

V2O

MDI1

13

LDO114LD(780)

LDO215LD(650)

XTALI7

8

XTALO

MSW23

CD_VR19

DVD_VR20

FOO22 TRO21

FMO18

DMO17

V14/VREF01127

MUTE4528

ASDATA0

ADIN

ACLK

ALRCK

ABCK

USB_DP 25

USB_DM 24

SF_CS#

SF_DO

SF_DI

SF_CK

IFSDI 40

IFSDO 35

IFSCK 34 IFCS# 42

IFBSY 41

AUDIO DSP

SDOUT2

26

SDIN1

11 22

SCLKOUT1 LRCK

19 21

MCLKO

IC701

SDOUT1

SCLKOUT2

XTALI

XTALO

SDA1

SCL1

RESET

32 15 16

24 30 29

I-DSP SCL

I-DSP SDA

O-DSP-RESET

SYSTEM CONTROL

IC001 (1/4)

27 23

3

X700

12.288MHz

4

ASYNCHRONOUS SAMPLE

SIGNAL SELECTOR

IC780

SERIAL FLASH

IC502

1

_CS

2

SO

5

SI

6

SCK

52 – 55, 57 – 60,

69 - 62

RD0 – RD15

2

B

1

A

5

Y

6

SEL

64M SDRAM

A0 – A11

23 – 26,

29 – 34, 22, 35

89 - 92, 79 - 74,

88, 73

RA0 – RA11

IC504

118

106 112 117 113

30 31 32 33

DG0, DQ1 – DQ15

2, 4, 5, 7, 8, 10, 11, 13, 42,

44, 45, 47, 48, 50, 51, 53

RATE CONVERTER

SDIN

4

LRCKI

6

BCKI

5 2

RCKI

STEREO A/D CONVERTER

9

DOUT

6

SCKI

7

LRCK

8

BCK

4

USB 5V REG.

3

20

21

38

15

85

86

72

61

BA0 BA0

BA1 BA1

RCLK CLK

IC740

IC320

IC203

39

70

DQM0 LDQM

SDOUT

LRCKO

18

83

DQM1 UDQM

BCKO

RST

VINL

VINR

17

82

RAS# RAS

23 25

24 13

13

14

16

80

CAS# CAS PRST#

L-IN

>003B

MAIN

R-CH

6

RWE# WE

38

SECTION (Page 28)

86

O-VBUS-OE /I-HUB-OC-USB-A

87

O-DIGITAL-SEL

27 77

O-MTK-SDO

78

I-MTK-SDI

79

I-MTK-CLK

60

I-MTK-XIFCS O-MTK-BUSY

66

O-MTK-RESET65

I-CDM-LOAD-SW57 I-CDM-UNLOAD-SW59

STEREO D/A CONVERTER

IC750

VOUTL

DATA

2

BCK

1

VOUTR

LRCK

3

SCK

16

VBUS

7

8

CN201

3

D+

2

D-

1

 SLJQDO SDWK

: CD PLAY : AUDIO : USB

 R-FK LV RmLWWHG GXH WR VDmH DV L-FK.

AUDIO-OUTPUT-L

AUDIO-OUTPUT-R

DC OUT (USB)

5V 500mA

>002B

AMP SECTION

(Page 29)

HCD-ESX6/ESX8/ESX9

2727

HCD-ESX6/ESX8/ESX9

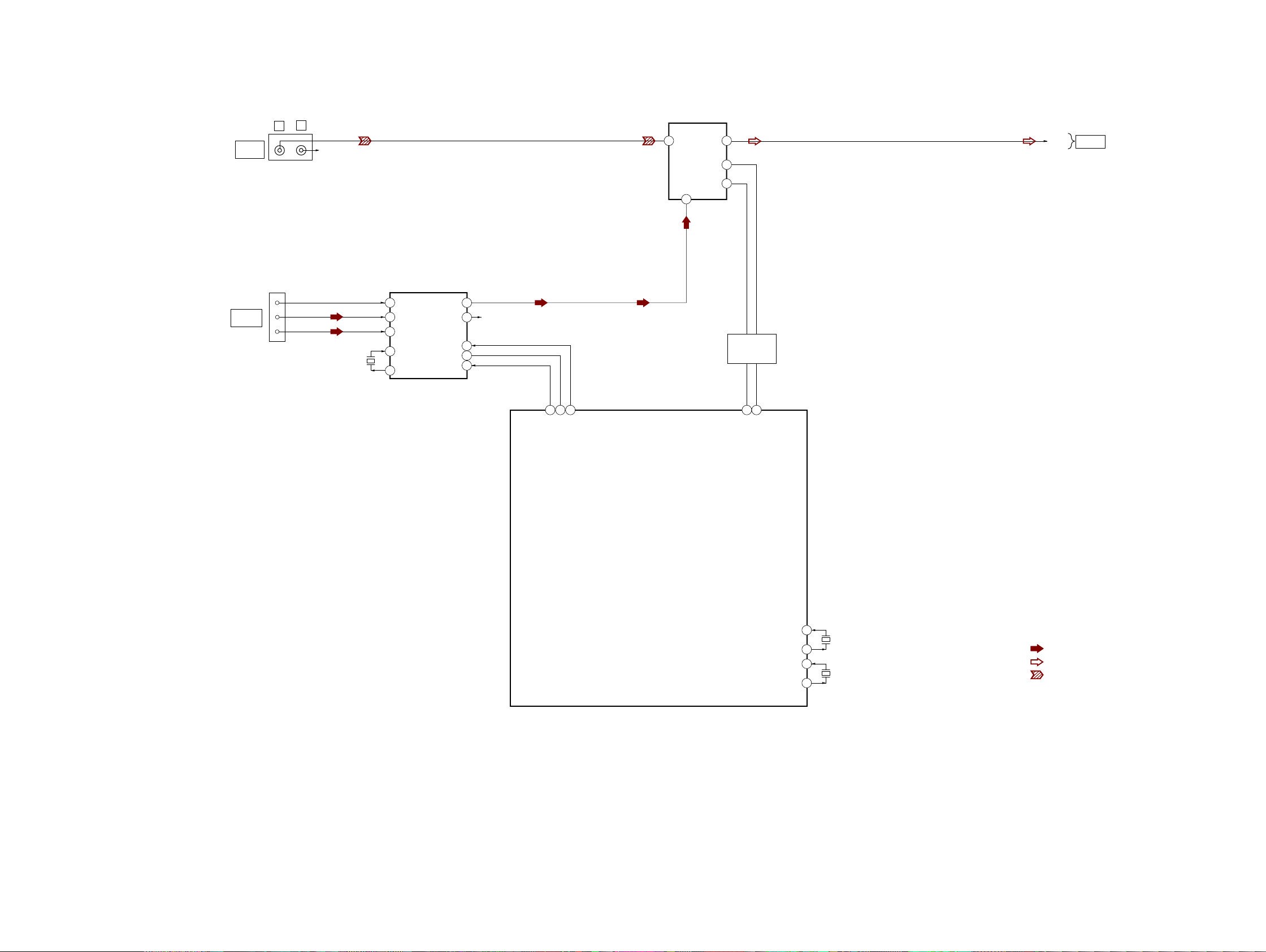

6-2. BLOCK DIAGRAM - MAIN Section -

R

J1601

DVD/PC

ANTENNA

FM/AM

L

IN

CN1950

R-CH

FM DRIVER

(FM RECEIVER)

IC1951

FM AM AM

X1950

12MHz

FRF2 ARF1 ARF2

X1

X2

L OUT

R OUT

IIC/RDSI

SIGNAL SELECTOR

IC1600

3

Y1

5

R-CH

DA CK

Y

9

B

10

A

Y2

2

SWITCH SIGNAL

SELECTOR

Q1600

L-IN

>003B

CD/USB SECTION (Page 27)

63

I-ST-RDS

48

I-ST-CLK

47

I-ST-DATA

SYSTEM CONTROL

IC001 (2/4)

26

23

O-ANALOG-ASEL

O-ANALOG-BSEL

O-XC-OUT

O-X-OUT

I-X-in

I-XC-IN

13

15 11

10

X002

8MHz

X001

32.768kHz

6LJQDOSDWK

: TUNER (AM) : TUNER (FM) : DVD/PC IN

5FKLVRPLWWHGGXHWR VDPHDV/FK

HCD-ESX6/ESX8/ESX9

2828

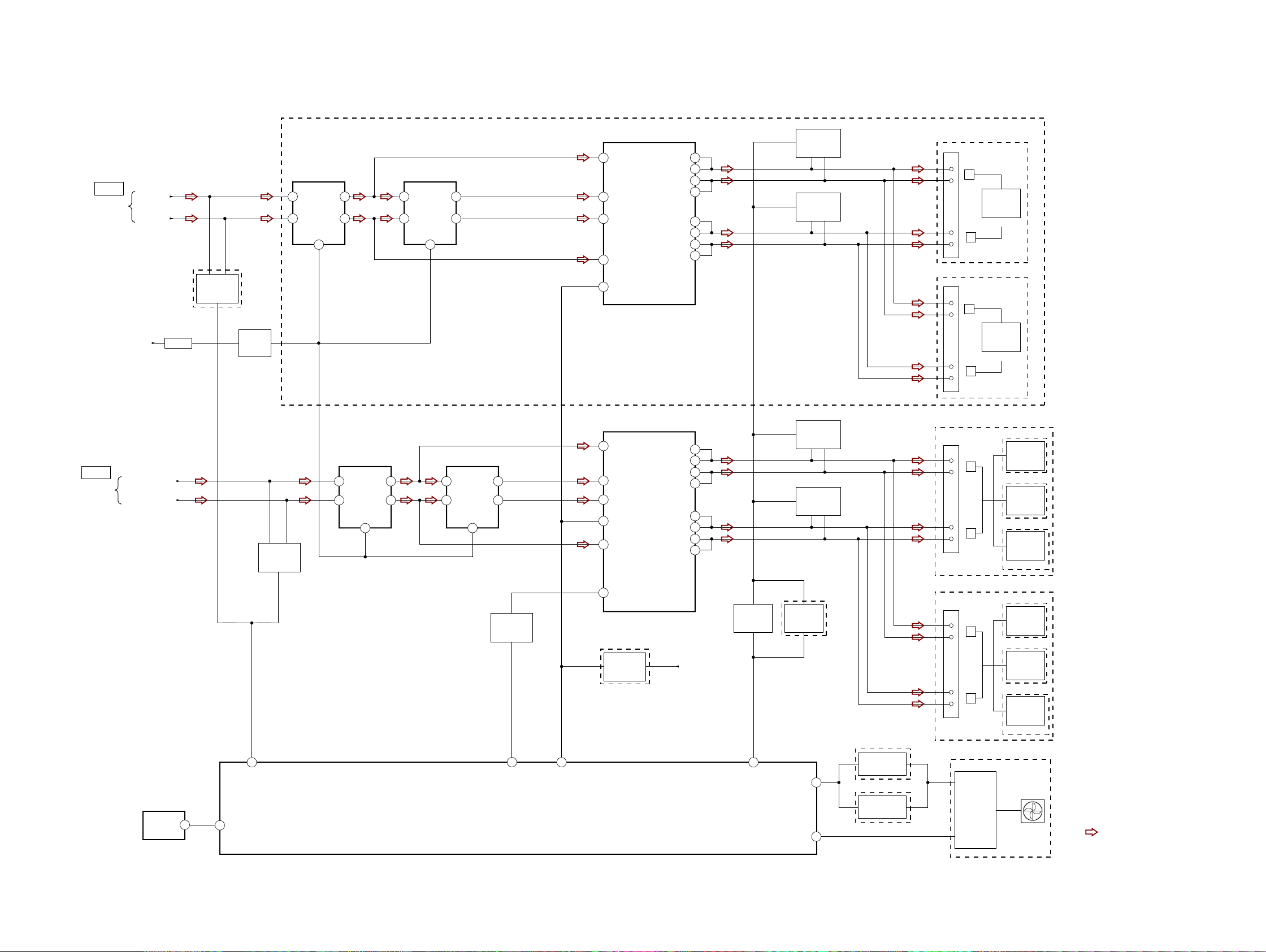

6-3. BLOCK DIAGRAM - AMP Section -

ESX9

>001B

CD/USB SECTION (Page 27)

SW OUT L

SW OUT R

ESX9

MUTE

PROTECTION

Q1701

2

6

PRE AMP

1IN-

2IN-

IC1703

8

1OUT

2OUT

VCC+

HCD-ESX6/ESX8/ESX9

POWER AMP

IC1706

4

5

11

10

2

INPUT_A

INPUT_B

INPUT_D

INPUT_C

/RESET

PRE AMP

IC1715

1OUT

1

7

1IN-

2

2IN-

6

8

2OUT

VCC+

1

7

OUT_A OUT_A OUT_B OUT_B

OUT_C OUT_C OUT_D OUT_D

52 53 44 45

36 37 28 29

DC DETECT

Q1709 ~ Q1710

DC DETECT

Q1707 ~ Q1708

EXCEPT E93

TB1702

+

-

+

-

E93

TB1703

+

-

L

IMPEDANCE

LOW CHANNEL

R

L

SPEAKERS

86(ȍ

>002B

CD/USB SECTION (Page 27)

+12V

AUDIO-OUTPUT-L

AUDIO-OUTPUT-R

THERMAL DETECT

IC1004

DOUT

L1700

SIGNAL

SWITCH

Q1718

POWER AMP

IC1705

4

INPUT_A

5

INPUT_B

11

INPUT_D

/RESET

2

10

INPUT_C

FREQ_ADJ

12

ESX6/ESX8

RESET

SWITCH

Q1719, Q1720

2

6

PRE AMP

1IN-

2IN-

IC1704

8

1OUT

2OUT

VCC+

1

7

FREQUENCY

CONTROL

Q1702

44

O-OSC-FREQ

38

O-DAMP-RESET

PRE AMP

IC1702

1OUT

1IN-

2

2IN-

6

MUTE

PROTECTION

Q1700

43

O-LINE-MUTE

4

I-SMPS-THERMAL-DETECT97

1

2OUT

7

VCC+

8

SYSTEM CONTROL

IC001 (3/4)

OUT_A OUT_A OUT_B OUT_B

OUT_C OUT_C OUT_D OUT_D

+12V

52 53 44 45

36 37 28 29

DC DETECT

Q1713

50

I-SD-SLOW

/I-FAN-BLOCK-DET

Q1711 ~ Q1712

Q1705 ~ Q1706

ESX9

DC DETECT

Q1714

O-FAN-DRIVE

DC DETECT

71

70

ESX9

FAN DRIVER Q208 ~ Q210

ESX8

FAN DRIVER

Q2001 ~ Q2003

+

-

EXCEPT E93

TB1700

+

-

+

-

E93

TB1701

+

-

+

-

ESX8/ESX9

IMPEDANCE

LOW CHANNEL

R

L

R

L

R

FAN

PROTECTION

Q2000

SPEAKERS

86(ȍ

ESX6

ESX8

ESX9

HIGH CHANNEL

ESX6

ESX8

ESX9

HIGH CHANNEL

SPEAKERS

IMPEDANCE

86(ȍ

SPEAKERS

IMPEDANCE

86(ȍ

SPEAKERS

IMPEDANCE

86(ȍ

SPEAKERS

IMPEDANCE

86(ȍ

SPEAKERS

IMPEDANCE

86(ȍ

SPEAKERS

IMPEDANCE

86(ȍ

DC FAN

6LJQDOSDWK

: AUDIO

5FKLVRPLWWHGGXHWR VDPHDV/FK

HCD-ESX6/ESX8/ESX9

2929

HCD-ESX6/ESX8/ESX9

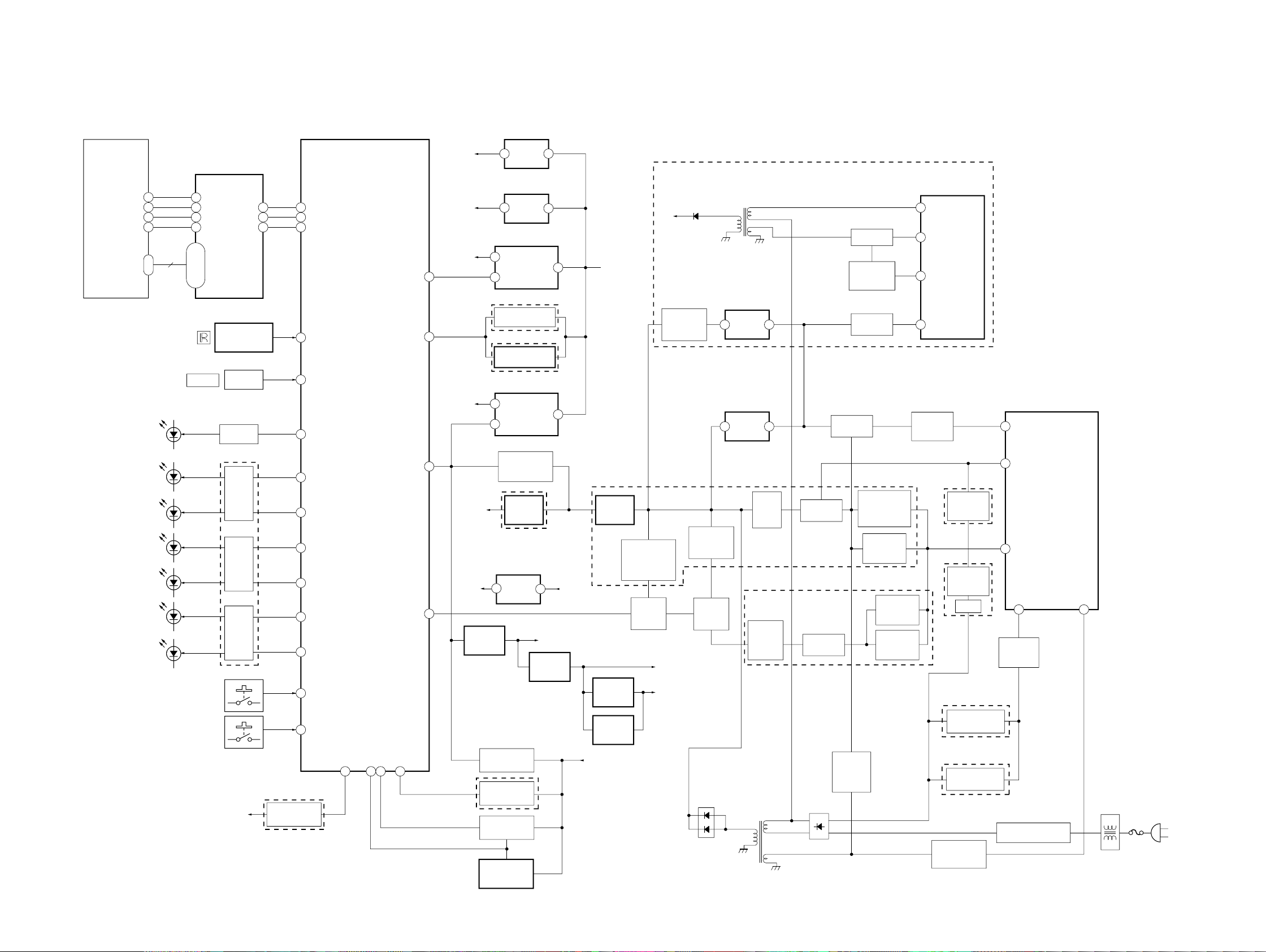

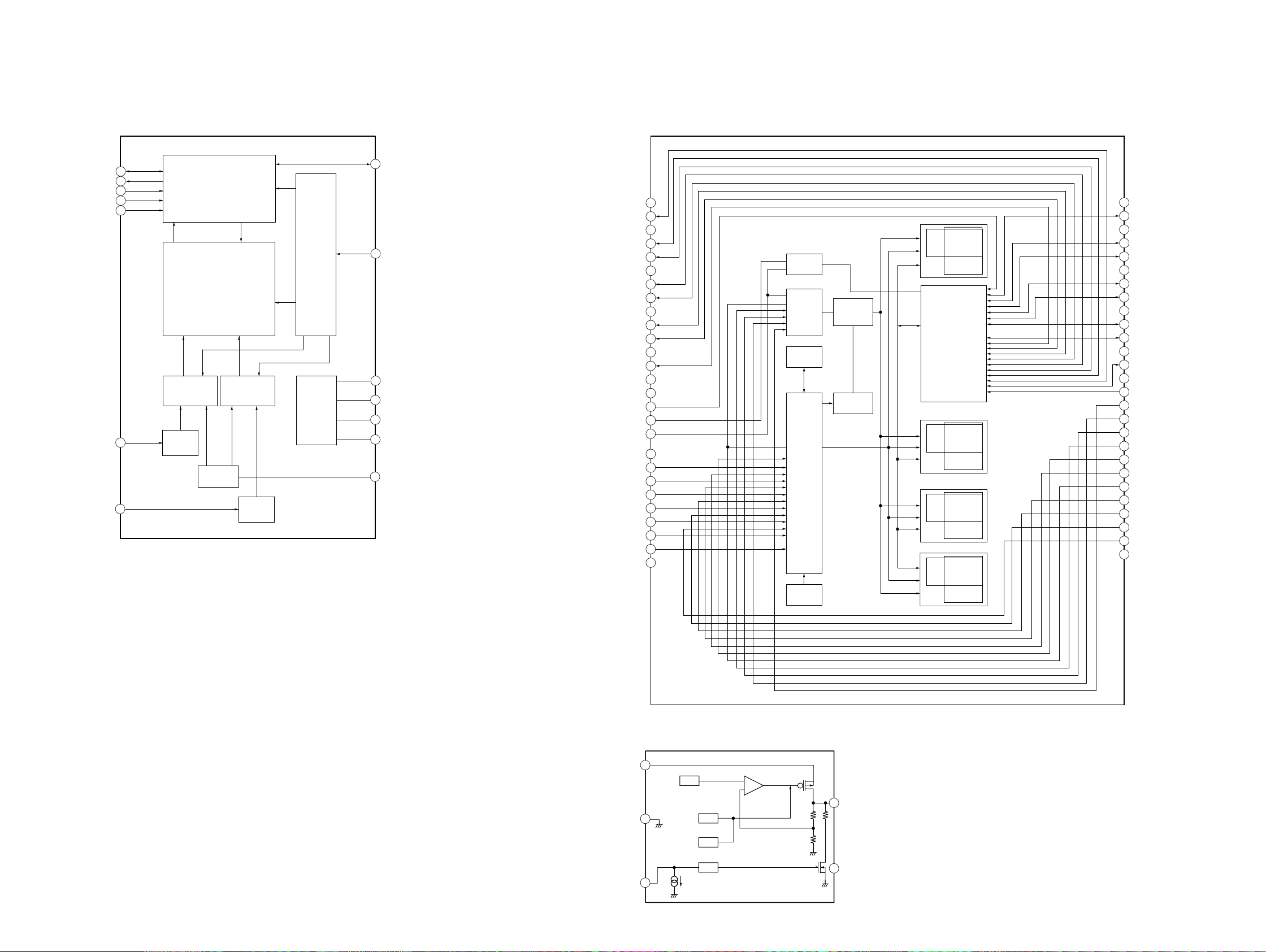

6-4. BLOCK DIAGRAM - PANEL/POWER SUPPLY Section -

LIQUID CRYSTAL

DISPLAY

ND200

1

COM0

2

COM1

3

COM2

4

COM3

5-36

32

D200

D204

D205

D206

D203

D202

D201

51

COM0

52

COM1

1

COM2

2

COM3

38-47

14-28, 30-36,

VOLUME

S200 - S206,

S216

S208 - S214

7 SEGMENT DRIVER

IC201

CSB

SCL SDA

REMOTE CONTROL

RECEIVER

IC204

S220

ROTARY

ENCODER

LED DRIVER

Q201

ESX8/ESX9

LED

DRIVER

Q207

LED

DRIVER

Q203

LED

DRIVER

Q200

+12V

8 9

10

94

22 O-BACKLIGHT-LED

56 O-VOL-LED5

55 O-VOL-LED4

54 O-VOL-LED3

53 O-VOL-LED2

52 O-VOL-LED1

51 O-VOL-LED0

67

93

ESX9: E2, E51, E93

VOLTAGE SWITCH

Q215 ~ Q216

O-LCD-DRIVER-CE

4

O-LCD-DRIVER-CLK

7 5

O-LCD-DRIVER-DATA

6 I-SIRCS

I-MASTER-VOL

I-AD-KEY0

I-AD-KEY1

SYSTEM CONTROL

IC001 (4/4)

I-V2-MONITOR

O-MTK-POWER-CTRL

O-PVDD-ESX0/1

I-AC-CUT

NO_USE

72 12 2

I-RESET

19

O-REG-ON

O-V2-SWITCH

+3.5V REG.

IC202

VCC

VO

3SW

7EN

ESX6/ESX8

ESX9

3SW

7EN

+12V

1

+9V REG.

IC1854

POWER CONTROL

Q206, Q211

VOLTAGE SWITCH

RESET SWITCH

AC CUT SWITCH

1

+4V REG.

4

VOUT

+3.6V REG.

VOLTAGE MONITOR

+ 5.2V REG.

OVER VOLTAGE

PROTECTION

Q1857 ~ Q1858

ESX9

+12V REG.

+1.2V REG.

IC651

Vo

Q204

Q202

IC200

+3.5V

+4V

+3.6V

35

3

+5.2V

88

+1.2V +3.3V

36

ESX9

IC209

IC2000

Q212

IC208

IC2001

IC1856

Vin

VIN

Vin

8

+9V

+5V REG.

IC1852

8

5

ESX6/ESX8

+12.5V REG.

+3.3V REG.

+3.3V

+12V

IC1855

IC1950

IC653

2

ESX9

+12V

OVER VOLTAGE

PROTECTION

Q1854 ~ Q1856,

Q1900

VOLTAGE

CONTROL

Q1004

+5V

+3.3V

D1001

VOLTAGE

CONTROL

Q1004 ~ Q1005

DETECTION

Q1001 ~ Q1002

D1003 (ESX9)

D1010 (ESX6/ESX8)

VOLTAGE

POWER

CONTROL

Q1003

T903

CONVERTER

TRANSFORMER

(SUB)

VOLTAGE DETECT

IC1001

4 Vref

VOLTAGE DETECT

4 Vref3K

K

IC1000

D1021, D1025, D1026,

D1027

ESX9

POWER

CONTROL

Q1006,

Q1008

T901

(ESX6/ESX9)

T902

(ESX8)

CONVERTER

TRANSFORMER

(MAIN)

DC-DC

CONVERTER

IC965

D1

D927, D972

VOLTAGE

PROTECTION

Q911

3

ISOLATION

PH931

ISOLATION

PH932

D902

ISOLATION

PH930

D908

(ESX6/ESX8)

D909

(ESX9)

PH933

VOLTAGE

PROTECTION

Q902 ~ Q904,

Q905(ESX8), Q912

PROTECTION

ON/OFF

Q911, Q913

PROTECTION

Q914 ~ Q915

VOLTAGE

PROTECTION

Q903 ~ Q905

ON/OFF

6BD

Vcc/OVP

3

5FB/OLP

FEEDBACK

SWITCH

Q910

D920(ESX6/ESX8),

ESX6/ ESX8

OVERLOAD

PROTECTION

Q914, Q1018

ESX9

OVERLOAD

PROTECTION

Q913, Q1018

TH903

ESX6 (MX)

POWER CONTROL

Q2004, Q2005

ESX6 (EXCEPT MX)/ ESX8/ESX9

POWER CONTROL

Q908 ~ Q909

D906, D918, D923(ESX9)

DC-DC

CONVERTER

IC900

4

FB

3

OLP

2VCC

DRIVE

8

VOLTAGE

DRIVER

Q906 ~ Q907

TH902 (ESX6/ESX8/ESX9)

TH904 (ESX8/ESX9)

OCP2

7

L1856 (ESX6) L1857 (ESX6:E93) L1002 (ESX8) L1003 (ESX8:E93) L903 (ESX9) L904 (ESX9:E93)

F901

(AC IN)

HCD-ESX6/ESX8/ESX9

3030

HCD-ESX6/ESX8/ESX9

Ver. 1.1

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

For Printed Wiring Boards.

Note:

• X : Parts extracted from the component side.

• : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated.)

Caution:

Pattern face side: (Conductor Side) Parts face side: (Component Side)

• Abbreviation E2 : 120 V AC area in E model E4 : African model E51 : Chilean and Peruvian models E93 : 240 V AC area in E model MX : Mexican model

Parts on the pattern face side seen from the pattern face are indicated. Parts on the parts face side seen from the parts face are indicated.

For Schematic Diagrams.

Note:

• All capacitors are in F unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in  and 1/4 W or less unless otherwise speciﬁ ed.

• f : Internal component.

• 2 : Nonﬂ ammable resistor.

• C : Panel designation.

Note: The components identiﬁ ed by mark 0 or dotted

line with mark 0 are critical for safety.

Replace only with part number speciﬁ ed.

• A : B+ Line.

• B : B– Line.

• Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions.

– BD76 Board –

no mark : CD PLAY

– Other Boards –

no mark : TUNER (FM/AM)

( ) : iPod/iPhone ( ) : DVD IN * : Impossible to measure

• Voltages are taken with VOM (Input impedance 10 M).

Voltage variations may be noted due to normal production

tolerances.

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production

tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F : TUNER (FM) f : TUNER (AM) J : CD E : USB q : DVD/PC IN

• Abbreviation

E2 : 120 V AC area in E model E4 : African model E51 : Chilean and Peruvian models E93 : 240 V AC area in E model MX : Mexican model

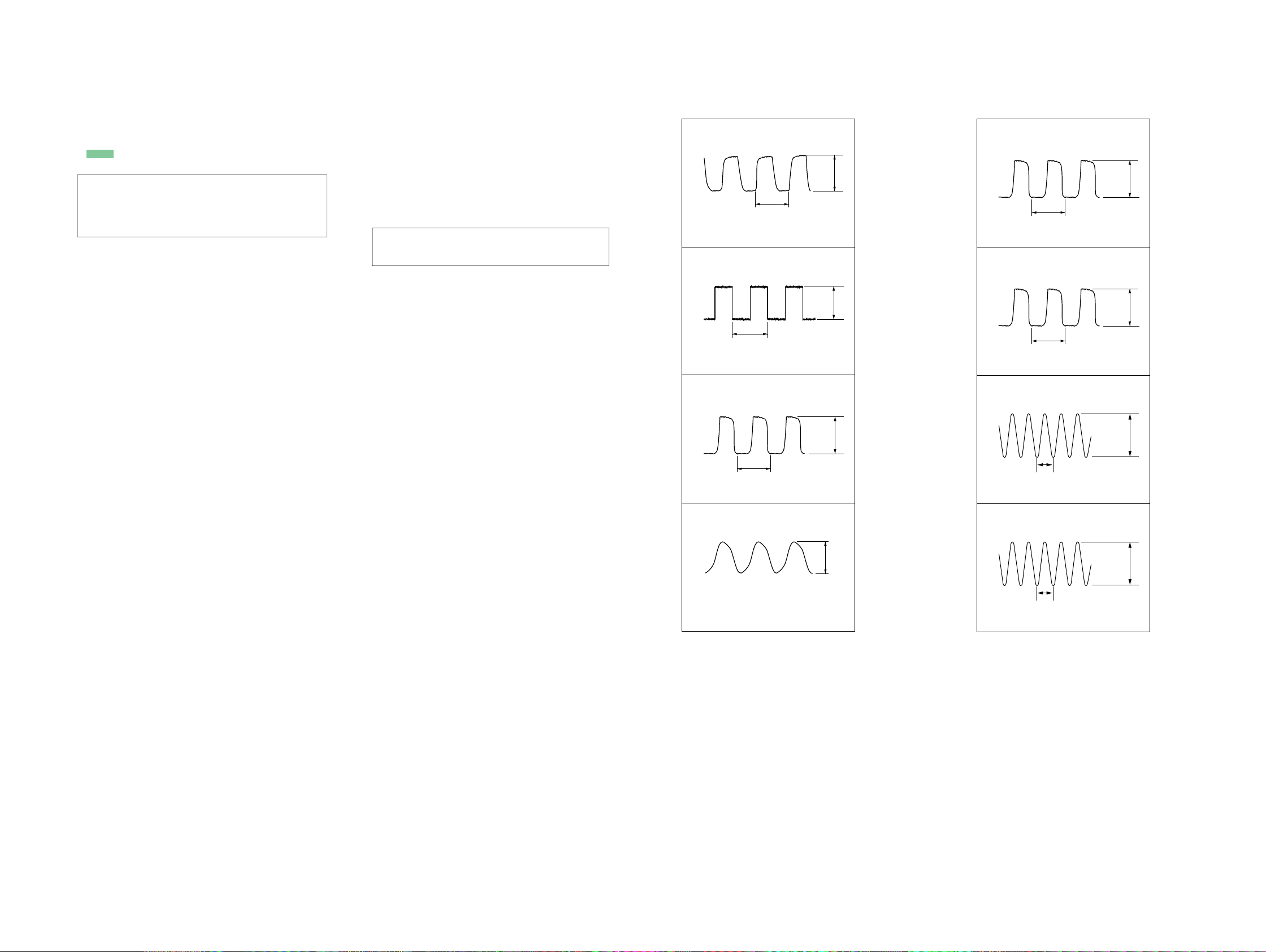

• Waveforms

– MB Board – – PANEL Board –

1 IC501 8 (XTALO)

27.0 MHz

20 mV/DIV, 10 ns/DIV

2 IC501 <zzc (ABCK)

354 ns

100 mV/DIV, 100 ns/DIV

3 IC701 4 (XTALO)

12.28 MHz

50 mV/DIV, 25 ns/DIV

4 IC1951 (X2)

32.768 kHz

200 mV/DIV, 5 Psec/DIV

94 mVp-p

464 mVp-p

152 mVp-p

0.6 Vp-p

5 IC001 q; (I-XC-IN)

32.76 kHz

50 mV/DIV, 10 Ps/DIV

6 IC001 qa (O-XC-OUT)

32.76 kHz

50 mV/DIV, 10 Ps/DIV

7 IC001 qd (O-X-OUT)

8.0 MHz

100 mV/DIV, 50 ns/DIV

8 IC001 qg (I-X-IN)

8.0 MHz

50 mV/DIV, 50 ns/DIV

180 mVp-p

316 mVp-p

244 mVp-p

HCD-ESX6/ESX8/ESX9

3131

HCD-ESX6/ESX8/ESX9

Ver. 1.1

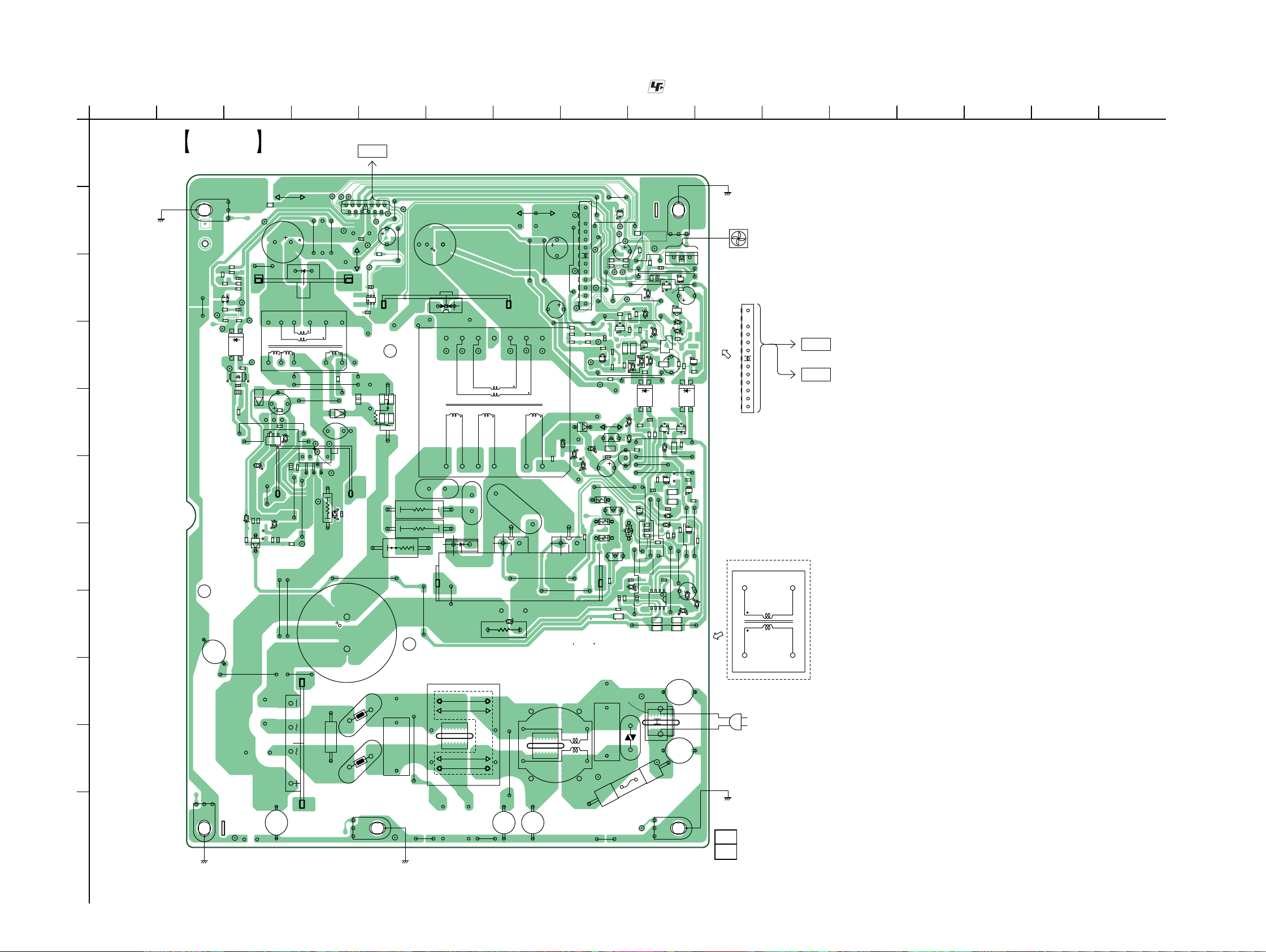

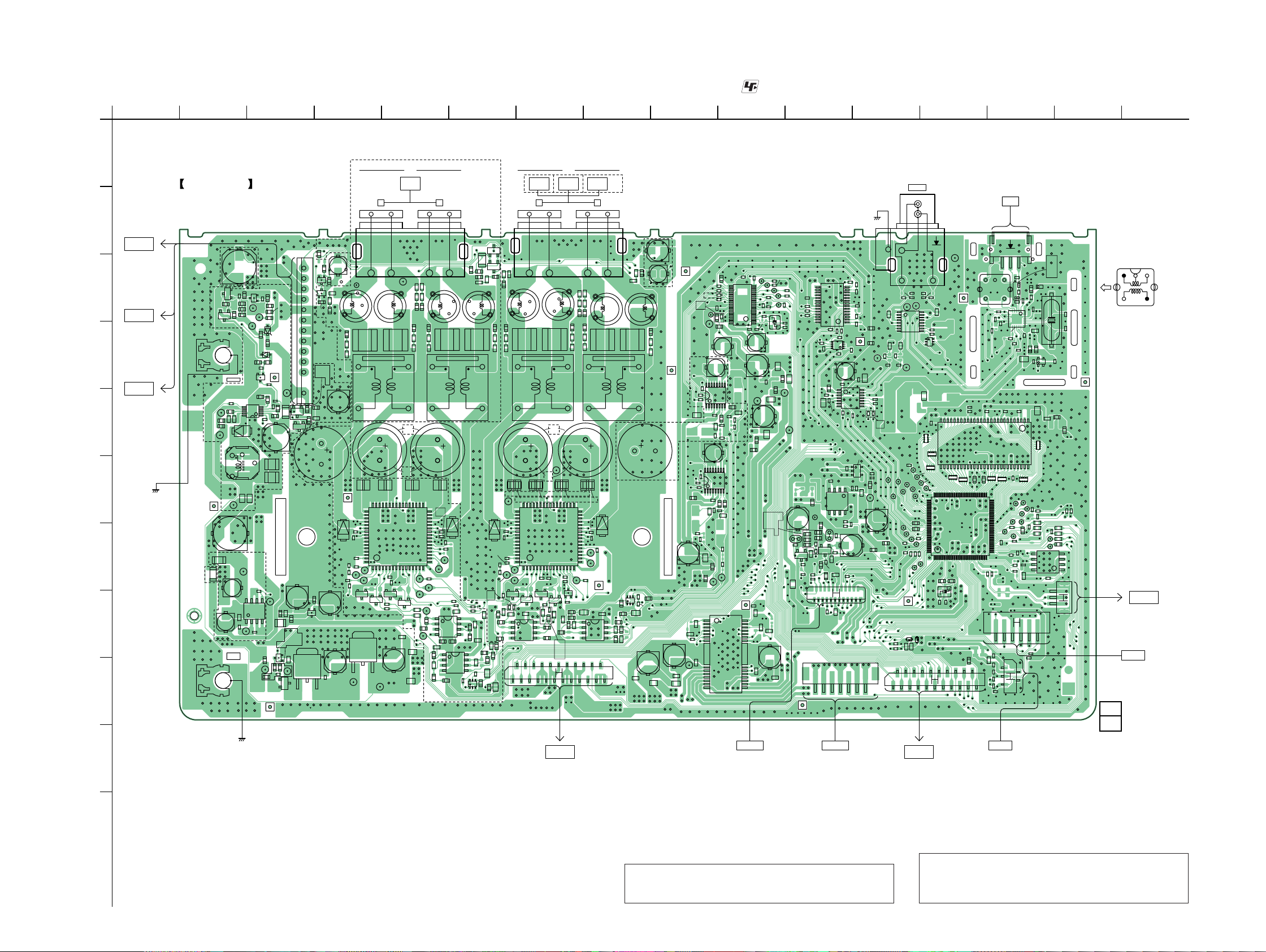

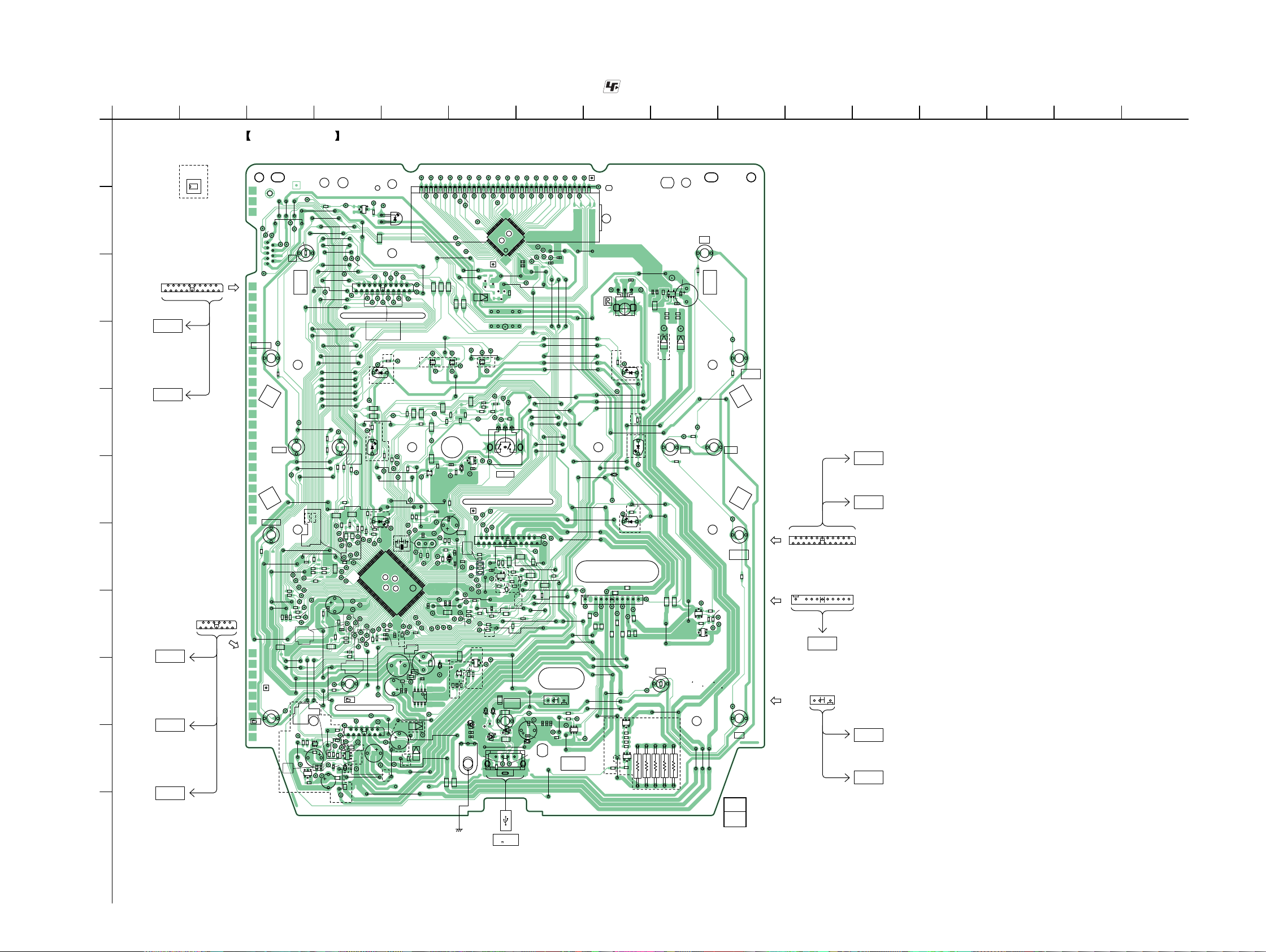

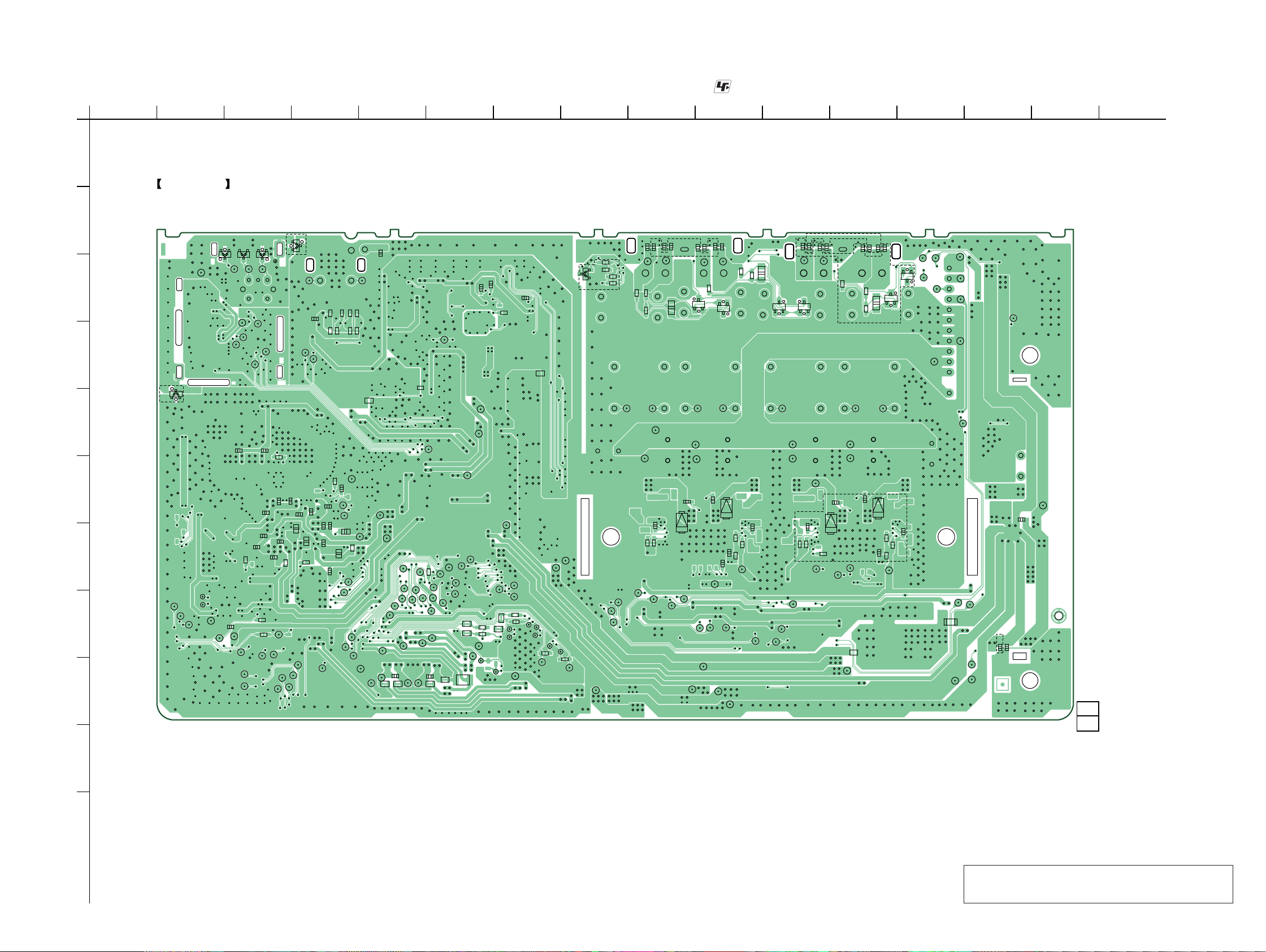

6-5. PRINTED WIRING BOARD - MB Board (Component Side) (Sufﬁ x-11) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

A

B

C

D

E

F

G

H

I

J

1

>001P

SMPS-300W

BOARD

(ESX6)

CN4

(Page 45)

>002P

SMPS-400W

BOARD

(ESX8)

CN4

(Page 47)

>003P

SMPS-600W

BOARD

(ESX9)

CN4

(Page 49)

(CHASSIS)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MB BOARD (COMPONENT SIDE)

Ú ESX6  ESX8 ¾ ESX9

¾

C1778

Ú/

E

Q1855

R1888

R1885

R1884

E

Q1854

ET1706

R1892

R1877

JL1875

R1878 R1882

C1883

JL1874

JL1898

C1896

¾

R1905

Ú/

R1906

C1897

C1886

ET1850

R1896

C1892

E

R1889

C1888

R1887

R1886

D1852

C1881

JL1891

C1887

R1880

JL1882

R1053

Q1900

R1893

IC1855

R1903

IC1856

JL1876

R1897

Q1856

JL1884

JL1890

R1890

D1854

R1909

R1902

D1851

R1966

C1019

E

R1946

JL1879

R1894 C1898

C1900

R1947

C1889

C1895

C1882

L1854

C1884

R1907

C1949

JL1878

L1700

R1881

R1901

R1900

Q1857

JL1893

¾

–

R1723

C1750

R1817

Q1713

E

R1816 Q1714 E

R1891

R1948

R1762

E

R1722

CN1700

Q1719

1 13

R1904

E

R1853 C1853

Q1720

E

C1868

R1850

C1859

C1776

E Q1718

R1761

R1895

R1898

JL1881

R1899

C1885

IC1854

OI

E

Q1858

CL1745

C1828

C1827

L1709

R1805

R1804

C1818

C1825

C1826

R1852

R1851

C1870

¾

C1807

48

49

D1722

C1809

C1810

C1811

64

R1774

116

C1786

CL1722

R1775

CL1721

C1785

CL1724

R1777

A

K

A/K

K

D1705

C1777

D1709

IC1852

C1880

C1879

OI

JL1868

L1701

C1802

IC1706

A

A/K

R1841

JL1860

TB1702

SPEAKERS

LOW

IMPEDANCE

CHANNEL

86(ȍ

RL

+

CL1734

L1708

C1817

/¾

C1789

C1790

A

K

A/K

R1840

D1731

C1871

–

+

Q1708

C1847

Q1707

R1824

E

R1825

R1826

R1811

JL1708

C1836

C1835

L1711

L1712

C1820

C1819

L1710

C1794

C1792 C1791

D1719

R1792

R1789

JL1715

JL1713

R1773

R1772 C1783

R1844

R1764

IC1703

R1802 R1803

R1845

R1836

C1782

IC1715

R1835

R1770

C1781

R1846

Q1701

JL1725

C1711

CL1723

R1728

R1729

C1784

C1860

C1780

R1771

C1779

R1848

R1847

C1823

C1831

C1824

C1832

R1807

R1809

R1806

R1808C1830

C1822

C1821

C1829

C1813

C1815

Ú

C1866

C1865

C1797

33

32

17

JL1709

R1782

D1730

JL1707

A

K

A/K

CL1742 C1861 C1862

R1839

R1838

C1867

CL1741

R1837

C1852

R1677

R1834

C1851

R1765

R1679

+

E

C1760

C1761

R1756

L1704

R1755

R1810

C1757

C1758

C1833

C1759

C1834

/¾

C1733

C1740

C1739

Ú

48

49

D1718

IC1705

C1742

C1743

C1744

64

1

CL1720

R1732

R1727

CL1719

D1701

R1734

D1707

A

K

A/K

K

A/K

C1719

C1709

C1720

R1717

R1718

R1716

R1768

IC1704

R1767

2

1

C1850

TB1700

Ú¾

SPEAKERS

IMPEDANCE

86(ȍ

86(ȍ

–

C1756

L1705

C1755

R1754

R1753

R1757

C1752

C1753

C1764

C1754

C1763

L1702

/¾

C1746

C1749

JL1726

Ú

C1864

C1863

C1725

C1729

C1730

A

R1730

C1734

C1714 C1715

D1708

K

33

32

17

16

JL1702 R1736 R1735

A

Q1702

D1704

E

A/K

A

K

A/K

R1737

C1700

R1705

C1701

R1708

C1722

R1721 R1719

R1709

C1702

R1706

R1731

C1721

R1720

CN301

R1738

C1765

C1723

SPEAKERS IMPEDANCE

+

C1766

R1758

C1726

86(ȍ

RL

C1762

C1718

JL1714 JL1712

C1706

IC1702

22

HIGH

CHANNEL

–

/¾

C1747

R1760

C1849

C1771

C1770

L1706

L1707

R1759

C1767

L1703

D1715

R1743

R1702 R1711

C1705

R1712

23

C1768 C1769

C1869

R328

R1701

Q1700

R1703

R1700

C1703

R1714

R1713

C1704

C821

C850

C822

C823 R822

R821

R736

R735 R733

¾

R732

R731

C713

R730

C714

JL705

JL302

R729

C710

¾

C719

IC751

R742

R741

R740

R329

C718

C323

C325

R322

R320

C717

IC750

R739

R738

R737

C716

R309

C312

C310

C362

R310

R312

C336

R332

R362

R335

CL1706

CL1704

R338

C851

1729814

C854

IC851

R850

C858

JL827

R727

R734

JL704

R725

R726

JL703

20

39

38

C712

R369

C375

C373

R319

R370

R372

R359

C360

R360

2822302115

IC701

R716 C706

119

C711

C337

JL304

C338

R334

R337

R878

C877

C873

C869

JL702

R724

R722 C707

R719

R728

R340

R331

R887 R888 R889

C703

R723

JL701

R715

R720

JL700

R714

R713 C705 C704

X700

R330

R339

R333

R336

JL303

JL301

R898 R897

R881 R884

SL880

R880

Q881

C876

C870

C824

28 15

R710

R709

R704

C700

R703

C304

R313

R301

C309

C308

C653

FB846

IC651

CL840

R899

C880

SL890

Q891 E

E

R882

R802

R891

C891

C881

R806

R892

R804

C811

SL561

R803

FB800

1

CN801

2

R808

CN831

1

R712

IC740

R707

114

R706

R708

R701

R702

IC780

C303

R308

R306

C659

C652

C651

R680

R690

R894

C890

R817

C812

C305

R651

23

24

R711

C702

C701

CL1651

IC653

FB652

7

R386

C306

R656

CL585

(CHASSIS)

R385

IC320

R653

R302 R304

R307

R655 C661

C522

R502

J1601

DVD/PC IN

L

R

JL1600

R1602

R1652

C1603

R1601

CL1600

C1604

C350

R350

R300

C301

C302

R305

CL557

CL556

CL559

R554

C531

R838

R840

2

1

C1653

R1651

CL1650

C1654

R1608 R1609

Q1600

C300

IC1600

CL1601

R1950

C597

RB508

RB505

RB509

R823

CL587

CL547

CL553

CL549

CL551

CL548

96

97

CL550

CL552

JL537

R551

CL558

R552

CL560

R553

CL561

128

R556

R555

C530

CL533

CL532

X501

D839

D837

C837

C839

CN300

R595

C596

28 54

RB507

RB506

IC501

132

R503

R504

C504

C505

20

CN1950

ANTENNA

FM/AM

13

R1954

L1953

C1960

C1962

R1958

R1955

C1952

C1965

IC1951

R1952

R1953

R1957

C1968

C1967

R1951

C593

C594

C595

IC504

RB504

RB503

RB502

R536

R382

21

R533

R535

65

64

33

R506

C680

C683

R685

C685

CL584

CL546

CL582

CL545

JL501

CL544

R558

R559

CL543

R523

C572

C511

R515

R512

C571

R511

R508

FB571

CN507

16

R693

C681

R695

C682

CN681

42

R683

51

L1954

C1961

L1955

L1956

L1952

C1956

C1958

X1950

C1959

C1957

L1951

R1965

C1955

C1954

IC1950

C591

127

R592

FB593

R591

RB501

CL583

R528

R529

IC502

R518

R541

FB527 FB526

FB525

CL542 CL541

R519

R601

FB522

R520

FB521 FB517

R516

R572

13

CN802

1-887-382-

(CHASSIS)

>004P

PANEL BOARD

CN200

(Page 42)

SERVICE,

OPTICAL DEVICE

SERVICE,

OPTICAL DEVICE

>005P

PANEL BOARD

CN203

(Page 42)

CONNECT TO

CDM90

S1

123

L1953

64

PANEL BOARD

(Page 42)

FLASH

POGRAMMING

11

(11)

S2

CN206

>006P

K

HCD-ESX6/ESX8/ESX9

Note 1: Refer to the servicing notes “MB BOARD

DISCRIMINATION” (page 4) for how to distinguish SUFFIX-11 and SUFFIX-12.

3232

Note 2: IC501, IC502, IC504 and IC851 on the MB board

cannot exchange with single. When these parts on the MB board are damaged, exchange the entire mounted board.

6-6. PRINTED WIRING BOARD - MB Board (Conductor Side) (Sufﬁ x-11) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

HCD-ESX6/ESX8/ESX9

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

MB BOARD (CONDUCTOR SIDE)

Ú ESX6  ESX8

B

C

D

E

F

G

H

I

¾ ESX9

Ú

D1950 D1951D1952

JL1955

D1953

JL508

JL505

JL509

JL506

JL684

JL507

JL1951 JL1952JL1953

JL1950

JL1957

JL1959

JL1960

JL1954

C599

C515

C516

C510

R510

R624

C621

CL571

R622

CL841

CL572

JL683

JL685

D1954

JL1956

JL1651

R1653

C1605

JL1958

C598

JL681

JL503

JL1603

R594

C517

C518

C519

C604

C601

C506

R505

C508

FB534

CL575

JL1657

JL682

JL502

JL1658

JL504

R1655

R1654

R1656

JL1602

R542

C524

CL580

C521

C525

C527

C528

CL581

C526

C529

C501

C503

CL891

CL892

CL588

JL1961

C1608

R1814

/¾

R1815

R1812

C708

JL1601

R1603

R1605

R1604

R1606

JL831

R314

CL577

R501

JL512

JL815

JL819

JL836

JL837

R303

JL1652

JL510

JL511

JL809

JL816

JL817

JL820

JL818

JL812

JL834

JL839

C834

R807

JL805

JL810

JL807

JL811

JL808

JL814

JL806

JL823

JL824

JL821

C833

SL831

JL835

JL838

SL832SL835SL836

C709

C715

R718

R327

JL307

JL306

JL825

JL305

JL1653

JL1654

JL801

JL802

JL829

JL803

JL804

SL872

SL873

R837

SL854

R876

SL851

R873

CL874

JL813

JL822

CL871

CL870

JL308

JL828

JL830

R854

CL875

R851

CL853

CL852

CL855

CL857

CL856

R853

JL1655

JL826

D1723

R1813

JL1717

JL309

CL1708

CL1707

CL1709

R856

JL1656

JL833

CL1702

C1775

C1774

CL1731

CL1730

R1821

R1823

C1846

R1822

JL1727

JL1729

JL1728

C1843

C1724

D1716

R1745

R1744

CL1701

JL1700

JL1701

C1773

C1772

CL1729

CL1728

R1818

Q1705

E

Q1706

JL1716

JL1724

JL1722

JL1723

C1844

D1717

C1710

CL1717

CL1712

CL1713CL1714

JL1694

JL310

JL311

JL832

C1845

R1820

R1819

C1741

R1750

C1745

R1751

R1752

CL1725

CL1711

CL1716

¾

C1841

C1842

CL1744

CL1735

Q1711

Q1712

E

JL1745

JL1743

JL1744

JL1742

¾

C1793

D1720

R1788

R1793

R1794

CL1718

CL1703

CL1715

C1839

C1840

CL1705

E

R1827

JL1721

JL1719

JL1720

C1800

JL1705

JL1706

R1676

JL1695

Q1709

R1829

Q1710

C1848

E

R1828

JL1718

C1801

D1721

C1808

R1799

C1812

R1800

R1801

CL1726

CL1727

JL1746

JL1730

JL1749

JL1751

JL1750

JL1748

JL1747

CL1746

CL1700

JL1888

R2112

JL1887

JL1691

CL586

JL1897

JL1892

C1893

C1899

11

1-887-382-

(11)

J

K

HCD-ESX6/ESX8/ESX9

Note: Refer to the servicing notes “MB BOARD DISCRIMINA-

TION” (page 4) for how to distinguish SUFFIX-11 and SUFFIX-12.

3333

HCD-ESX6/ESX8/ESX9

Ver. 1.1

6-7. PRINTED WIRING BOARD - MB Board (Component Side) (Sufﬁ x-12) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

A

B

C

D

E

F

G

H

I

J

1

>007P

SMPS-300W

BOARD

(ESX6)

CN4

(Page 45)

>008P

SMPS-400W

BOARD

(ESX8)

CN4

(Page 47)

>009P

SMPS-600W

BOARD

(ESX9)

CN4

(Page 49)

(CHASSIS)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MB BOARD (COMPONENT SIDE)

Ú ESX6  ESX8 ¾ ESX9 Ì E93

¾

C1778

Ú/

E

Q1855

R1888

R1885

R1884

E

Q1854

R1887

ET1706

R1892

R1877

JL1875

R1878 R1882

C1883

JL1874

JL1898

C1896

¾

R1905

Ú/

R1906

C1897

C1886

ET1850

C1888

R1886

D1852

C1881

JL1891

C1887

R1880

JL1876

R1889

Q1856

JL1882

R1053

C1019

Q1900

R1893

IC1855

L1854

R1903

IC1856

R1896

C1892

E

R1897

JL1884

JL1890

R1890

D1854

R1909

R1902

D1851

R1966

E

R1946

JL1879

R1894 C1898

C1900

R1947

C1889

C1882

C1884

R1907

C1949

JL1878

L1700

R1881

R1900

Q1857

JL1893

¾

R1723

C1750

R1817

Q1713

E

R1816

Q1714

C1828

E

R1891

R1904

R1948

E

Q1720

E

C1895

C1859

C1776

R1762

R1761

R1895

R1898

JL1881

R1899

R1901

C1885

E

IC1854

E

Q1858

C1827

R1722

R1805

CN1700

1 13

Q1719

E Q1718

R1804

C1825

C1826

R1852

R1853

C1853

C1870

R1851

¾

C1868

D1722

C1809

C1811

R1774

C1786

R1775

C1785

R1777

R1850

OI

D1705

C1777

C1880

C1879

JL1868

E2, E51, MX

TB1702 TB1703

Ì

SPEAKERS IMPEDANCE

CHANNEL

86(ȍ

–

+

CL1734

CL1745

L1709

C1818

L1701

C1807

48

49

C1823

C1824

L1708

R1807

R1809

R1806

C1817

C1822

C1821

/¾

C1813

C1815

Ú

C1866

C1865

C1802

C1797

33

32

IC1706

C1810

64

116

CL1722

C1789

CL1721

CL1724

K

A

K

A/K

A

K

A/K

R1840

D1709

R1841

IC1852

OI

JL1860

17

JL1709

C1790

D1730

A

JL1707

A

K

A/K

CL1742

D1731

C1861 C1862

R1838

C1867

CL1741

C1852

R1677

C1871

R1679

LOW

RL

–

+

Q1708

C1847

E

Q1707

R1824

E

C1760

C1761

R1825

R1826

R1811

JL1708

C1836

L1712

C1820

C1819

L1710

C1794

C1792 C1791

D1719

R1792

R1789

JL1715

JL1713

R1773

R1772

R1802 R1803

C1783

R1836

C1782

IC1715

R1844

R1835

R1770

C1781

R1846

R1845

R1764

IC1703

Q1701

C1831

C1832

R1808C1830

C1829

R1782

R1839

R1837

R1834

C1851

R1765

R1756

C1835

L1711

R1755

R1810

C1758

C1833

C1759

C1834

/¾

C1740

JL1725

D1718

C1742

C1743

C1711

C1744

R1732

R1727

CL1723

D1701

R1734

K

A/K

R1728

R1729

C1719

C1784

C1720

R1717

C1860

R1718

R1716

C1780

R1768

R1767

R1771

C1779

1

R1848

C1850

R1847

EXCEPT Ì

Ì

Ú¾

SPEAKERS

IMPEDANCE

86(ȍ

86(ȍ

–

+

L1705

L1704

C1752

C1757

L1702

/¾

C1746

C1749

JL1726

Ú

C1864

C1863

C1729

C1733

C1739

Ú

48

49

C1730

C1734

IC1705

64

1

CL1720

CL1719

A

2

R1736 R1735

C1714 C1715

D1708

D1707

A

K

D1704

A/K

A

K

C1709

A

K

A/K

R1730

C1722

R1721 R1719

R1706

R1731

C1721

IC1704

R1720

CN301

FB826

FB825

R826

R825 R824

TB1700 TB1701

C1701

SPEAKERS

HIGH

IMPEDANCE

CHANNEL

86(ȍ

RL

–

+

/¾

C1747

R1760

C1849

C1771

C1762

C1718

R1743

JL1714 JL1712

C1706

IC1702

22

C1770

L1706

L1707

R1759

C1767

C1768 C1769

L1703

C1869

D1715

R1701

Q1700

R1703

R1702

R1700

R1711

C1703

R1714

C1705

R1713

C1704

R1712

23

FB824

EXCEPT Ì

C822

C821

Ì

¾

R740

Ì

C331 C330

R737

Ì

C333 R328

C850

C823 R822

R821

C1765

C1756

C1755

C1766

R1754

R1758

R1753

R1757

C1753

C1764

C1754

C1763

C1725

C1726

33

32

C1723

17

16

JL1702

R1738

Q1702

E

R1737

C1700

R1705

R1708

R1709

C1702

R736

Ì

C720

R735 R733

¾

R732

R731

C713

R730

C714

JL705

JL302

R729

C710

C719

IC751

R742

R741

R329

C718

C323

C325

R322

R320

C717

IC750

R739

R738

C716

R309

C312

C310

C362

R310

R312

C336

R332

R362

R335

CL1706

CL1704

R338

C851

1729814

C854

IC851

R850

C858

JL827

R727

R734

JL704

R725

R726

JL703

20

38

C712

R369

C375

C373

R319

R370

R372

R359

C360

R360

2822302115

IC701

39

R716

C706

119

C711

C337

JL304

C338

R334

R337

R878

C877

C873

C869

JL702

R724

R722 C707

R719

R728

R340

R331

R887 R888 R889

C703

R723

JL701

R715

R720

JL700

R714

R713 C705 C704

X700

R330

R333

R336

JL303

JL301

R898 R897

R881 R884

SL880

R880

Q881

C876

C870

C824

28 15

R710

R709

R704

C700

R703

R339

E

R882

R802

C304

R313

R301

C309

C308

C653

FB846

IC651

CL840

R899

C880

SL890

Q891 E

R891

C881

R806

R892

R804

C811

SL561

R803

FB800

1

CN801

2

R808

CN831

1

R712

C701

IC740

R707

114

R706

R708

R701

R702

IC780

C303

R308

R306

C659

C652

C651

R680

R690

R894

C890

C891

R817

23

C812

R651

24

R711

C702

CL1651

C305

IC653

FB652

7

R383

R384

C306

CL585

(CHASSIS)

R385

R386

IC320

R656

R653

Ì

R302 R304

R307

R655 C661

C522

R502

J1601

DVD/PC IN

L

R

JL1600

R1602

R1652

C1603

R1601

CL1600

C1604

C350

R350

R300

C301

C302

R305

CL557

CL556

EXCEPT Ì

R551

Ì

FB551 CL558

CL559

R554

C531

R838

R840

2

1

C1653

R1651

CL1650

C1654

R1608 R1609

Q1600

C300

IC1600

CL1601

R1950

C597

RB508

RB505

RB509

R823

CL587

CL547

CL553

CL549

CL551

CL548

96

97

CL550

CL552

JL537

R595

C596

28 54

RB507

RB506

IC501

R552

CL560

R553

CL561

128

R556

132

R555

C530

CL533

CL532

R503

R504

X501

C504

C505

D839

D837

C837

C839

CN300

CN1950

ANTENNA

FM/AM

13

R1954

L1953

C1962

R1958

R1955

C1965

IC1951

R1953

R1957

C1968

C1967

R1951

C593

C594

C595

IC504

RB504

RB503

RB502

R536

R382

20

21

R533

R535

65

64

CL546

CL582

CL545

CL544

R558

R559

CL543

R523

C511

R515

33

C572

R512

C571

R511

R508

R506

CN507

16

C681

C680

C682

CN681

C683

42

R683

51

R685

C685

L1954

C1961

L1955

L1956

L1952

C1960

C1956

C1958

X1950

C1959

C1952 R1952

L1951

C1954

127

CL584

CL583

R529

JL501

R528

FB571

R693

R695

R1965

IC1950

C591

R541

FB527 FB526

FB525

CL542 CL541

IC502

C1957

C1955

R592

FB593

R591

RB501

R518

R519

R601

FB522

R520

FB521 FB517

R516

R572

13

CN802

1-887-382-

(CHASSIS)

>010P

PANEL BOARD

CN200

(Page 42)

SERVICE,

OPTICAL DEVICE

SERVICE,

OPTICAL DEVICE

>011P

PANEL BOARD

CN203

(Page 42)

CONNECT TO

CDM90

S1

123

L1953

64

PANEL BOARD

(Page 42)

FLASH

POGRAMMING

12

(12)

S2

CN206

>012P

K

HCD-ESX6/ESX8/ESX9

Note 1: Refer to the servicing notes “MB BOARD

DISCRIMINATION” (page 4) for how to distinguish SUFFIX-11 and SUFFIX-12.

3434

Note 2: IC501, IC502, IC504 and IC851 on the MB board

cannot exchange with single. When these parts on the MB board are damaged, exchange the entire mounted board.

6-8. PRINTED WIRING BOARD - MB Board (Conductor Side) (Sufﬁ x-12) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

HCD-ESX6/ESX8/ESX9

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

MB BOARD (CONDUCTOR SIDE)

Ú ESX6  ESX8 ¾ ESX9

B

C

D

E

F

G

H

I

Ì E93

CL1716

¾: Ì

¾

C1857

C1858

C1841

C1842

CL1744

CL1735

Q1711

Q1712

E

JL1745

JL1743

JL1744

JL1742

C1800

¾

C1793

D1720

R1788

R1793

R1794

CL1718

JL1706

CL1703

CL1715

JL1695

C1855

C1856

C1839

C1840

CL1705

E

R1827

JL1721

JL1719

JL1720

JL1705

R1676

Q1709

R1829

Q1710

C1848

E

R1828

JL1718

C1801

D1721

C1808

R1799

C1812

R1800

R1801

CL1726

CL1727

JL1746

JL1749

JL1730

JL1751

JL1750

JL1748

JL1747

CL1746

CL1700

JL1888

R2112

JL1887

JL1691

CL586

JL1897

JL1892

C1893

Ì

C1899

C1901

12

1-887-382-

(12)

Ú/ : Ì

D1950 D1951D1952

JL1955

Ú/ : Ì

D1953

JL508

JL505

JL509

JL506

JL684

JL507

JL1951 JL1952JL1953

JL1950

JL1957

JL1959

JL1960

JL1954

C599

C515

C516

C510

R510

R624

C621

CL571

R622

CL841

CL572

JL683

JL685

D1954

JL1956

JL1651

R1653

C1605

JL1958

C598

JL681

JL503

JL1603

R594

C517

C518

C519

C604

C601

C506

R505

C508

FB534

CL575

JL1657

JL682

JL502

JL1658

JL504

R1655

R1654

R1656

JL1602

R542

CL580

C521

C525

C527

C528

CL581

C526

C529

C501

C503

CL891

CL892

CL588

JL1961

C1608

R1814

/¾

R1815

R1812

C708

JL1601

R1603

R1605

R1604

R1606

JL831

R314

CL577

C524

R501

JL512

JL815

JL819

JL836

JL837

R303

JL1652

JL510

JL511

JL809

JL816

JL817

JL820

JL818

JL812

JL834

JL839

C834

R807

JL805

JL810

JL807

JL811

JL808

JL814

JL821

JL838

JL804

JL806

JL823

JL824

C833

SL831

JL835

SL832SL835SL836

C709

C715

R718

R327

JL307

JL306

JL825

JL305

JL1653

JL1654

JL801

JL802

JL829

JL803

SL872

SL873

R837

SL854

R876

SL851

R873

CL874

JL813

JL822

CL871

CL870

JL308

JL828

JL830

R854

CL875

R851

CL853

CL852

CL855

CL857

CL856

R853

JL1655

JL826

D1723

R1813

JL309

CL1708

CL1707

CL1709

R856

JL1656

JL833

JL1717

CL1702

Ì

C1775

C1774

C1874

CL1731

CL1730

R1821

R1823

C1846

R1822

JL1727

JL1729

JL1728

C1724

R1745

R1744

CL1701

JL1701

C1772

C1875

JL1722

JL1723

C1843

D1716

JL1700

JL310

JL1724

C1773

C1872

C1873

CL1729

CL1728

R1818

Q1705

E

Q1706

JL1716

C1844

D1717

C1710

CL1717

CL1712

CL1713CL1714

JL1694

JL311

JL832

C1845

R1820

R1819

C1741

R1750

C1745

R1751

R1752

CL1725

CL1711

J

K

HCD-ESX6/ESX8/ESX9

Note: Refer to the servicing notes “MB BOARD DISCRIMINA-

TION” (page 4) for how to distinguish SUFFIX-11 and SUFFIX-12.

3535

HCD-ESX6/ESX8/ESX9

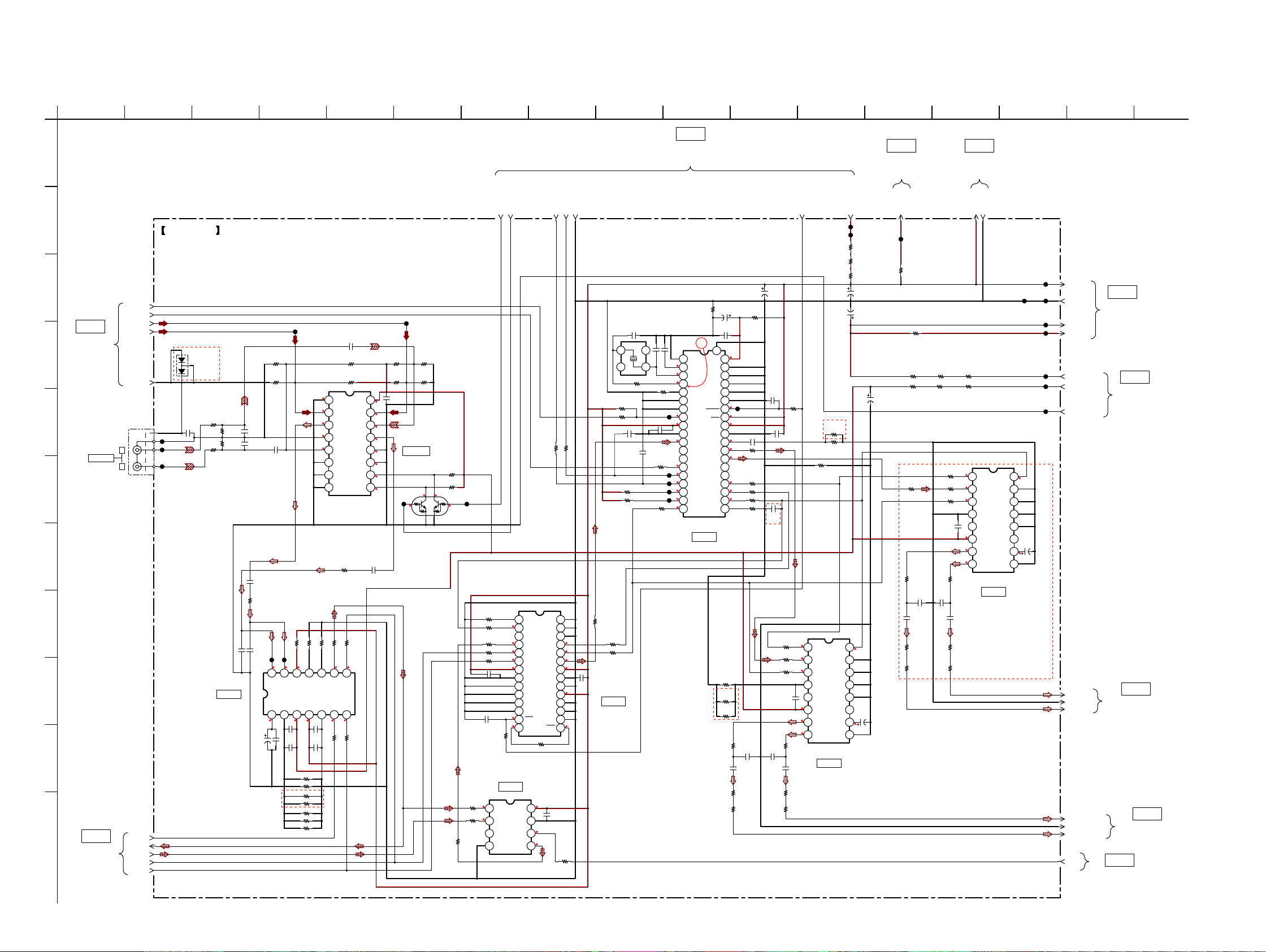

6-9. SCHEMATIC DIAGRAM - MB Board (1/6) (Sufﬁ x-11/-12) - • See page 31 for Waveforms. • See page 52 for IC Block Diagrams.

A

B

C

D

E

F

G

H

I

J

K

1

>001S

MB BOARD

(6/6)

(Page 41)

DVD/PC IN

>010S

MB BOARD

(2/6)

(Page 37)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

>002S

DSP-MUTE

R

L

DSP-INT

TUNER-R TUNER-L

RF_GND

J1601

2P

ACLK ADIN

ASDATA0

ABCK

ALRCK

MB BOARD (1/6)

ESX6/ESX8:E93

C1608

JL1600 JL1651

JL1601

1000p

G

D1954

BAV99-215

R1651

39k

R

R1601

39k

L

PCM1808PWR

IC320

STEREO A/D CONVERTER

*1 R306

10 (EXCEPT E93) 330 (E93)

R1652 R1602

IC320

MB BOARD (2/6)

(Page 37)

>003S

MB BOARD (3/6)

(Page 38)

TAS-IIC-DATA

LGAP

MODE2 MODE1

RCKI NC

MODE0

BCKO

SDIN

LRCKO

BCKI

SDOUT

LRCKI

VDD

VIO

DGND

DGND BYPAS

TDMI

IFMT0

OFMT0 OFMT1

IFMT1

OWL0

IFMT2 RST

OWL1

MUTE RDY

0

R712

3.3

8 7

3.2

6

0

C700

R724 100

0.1

TAS-IIC-CLK

R723 100

28 27 26

1.7

25

0

24

0.4

23

3.3

22 21 20

3.3

19 18 17 16

0

15

R704

100

DGND

C703

R719 10k R720 100

C708 10p

R725 10k R726 10k

R715

22

R713 10 R714 10

0.1 IC740

SRC4182

IC740

ASYNCHRONOUS

SAMPLE

RATE CONVERTER

X700

12.288MHz

C705 10p

2

R716

C709

10p

1

0

R718 0

C707 0.1

R722 100

R727 22

C704 10p

JL700

JL701 JL702 JL703 JL704

TAS-RESET

C710

10 16V

C711

R728

0

3

39

AVSS

1

0

VR_PLL

2

XTALI

3

XTALO

4

MCLKI

5

MCRCK_DV

6

CS0

7

GPIO

8

DVDD

9

DVSS

10

SDIN1

11

SDIN2

12

SDIN3

13

SDIN4

14

SDA1

15

SCL1

16

SDA2

17

SCL2

18

LRCK

19

TAS3108DCPR

AUDIO DSP

VR_DIG SDOUT1 SDOUT2 SDOUT3 SDOUT4

SCLKOUT2 SCLKOUT1

MCLKO

SCLKIN

IC701

E93

AVDD RSRV

PLL2 PLL1 PLL0

RSRV

RESET

PDN DVDD DVSS

C706 0.1

1.8

0.8

0.6

3.3

0.4

3.3

1.7

10 16V

C712

R328

C330

C331

R309

C312

4.7

R310

100

R312

R729

3.3

0.1

3.3

38 37 36 35 34 33

3.3

32

3.3

31

3.3

30 29

1.8

28

1.2

27

1.2

26 25 24

1.7

23

1.8

22

1.8

21 20

0

JL705

C715 R731 22

R733 22 R734 22 R735 22 R736 0

C310 100p

C713

0.01 R730

10k

C714

0.1

4.7

R327

C720

4.7p

E93

1.7

R737 10

R738 R739 10

C360 100p

C716

1

BCK

1.3

10

2

DATA

1.7

3

LRCK

4

DGND

5

NC

0.1

5

6

VCC

2.5

7

VOUTL

2.5

8

VOUTR

R359

0

PCM1754DBQR

C362

4.7

STEREO A/D CONVERTER

R360

100

R362

0

E93

C333

R329

0

ZEROA

IC750

0

MUTE DEMP

TEST

VCOM AGND

JL303 JL310

R336

R333

R330

C337

100

10V

C338

100

10V

SCK FMT

0

DMB-DVDD+3.3V

16

1.8

15 14 13 12 11

C717

10 16V

10

2.5

9

C336

10V

R339

0

100

FE_3.3V_1

JL301

R340 0

R3310R3340R337

R3320R3350R338

R732

22

R319

0

C323 100p

C325

4.7

R320

100

R322

0

ANALOG-ASEL

ANALOG-BSEL

5

2.5

0

5

R1654

47k

R1656

47k

C1605

0.1

IC1600

SN74LV4052APWR

IC1600

SIGNAL SELECTOR

JL1602

0

R

CL1650

R1653

47k

R1655

47k

5

Q1600

RN1902

SWITCH SIGNAL

SELECTOR

R1608

47k

5

R1609

47k

JL1603

0

R701

R706 R707

R708 R709 R710

C701

C702

R702

10

1.6

0

R703

10

22

1.8

10

0

10

1.6

10

1.6

10

3.3

0.1

3.3

0.01

0

R711

0

IC780

TC7WH157FK

IC780

SIGNAL SELECTOR

A

1

B

2

_Y

3

GND5Y

4

1 2 3 4 5 6 7 8 9

10

11 12 13 14

VCC

_ST

SEL

CL1600

R1603

47k

R1605

47k

C1653

100p

10k

C1603

100p

10k

C301 100p

C302 100p

R300

C300

100

C303 16V

C1604

4.7

CL1651

2.5

VINR

VREF

10

E93

L

0

CL1601

R302

R301

2.5 3.3 1.4 1.6

FMT

VINL

AGND

VCC

C305

0.1

C304 0.1

C306

10

R313 0 R303 0

R383 0 R384 0

R385 0 R386 0 R314 0

C308

C309

MD1

VDD

0.1

10

0

1

2.5

2

0

3

0

4

2.5

5 6 7 8

R3040R305

MD0

DGND

C1654

4.7

R1604

47k

R1606

47k

Y0 Y2 Y Y3 Y1 INH GND GND9B

R350

100

22

10

R307

891011121314

DOUT

SCKI

LRCK BCK

7654321

1.61.63.352.5

R308 10

R306 *1

VCC

16

X2

15

X1

14

X

13

X0

12

X3

11

A

10

C350

4.7

>004S

MB BOARD (2/6), (3/6)

(Page 37), (Page 38)

DGND

DVDD3.3V

0

ESX9

1.7

R740 10

R741 R742 10

R369

C373 100p

1

BCK

2

DATA

3

LRCK

4

DGND

5

NC

6

VCC

7

VOUTL

8

VOUTR

PCM1754DBQR

IC751

STEREO A/D CONVERTER

SCK

FMT MUTE DEMP

TEST

ZEROA

VCOM

AGND

IC751

1.3

10

1.7

C718

0.1

5

2.5

0

C375

4.7

R370

100

R372

0

JL302

JL304JL311

JL306 JL307

JL305 JL308

JL309

16

1.8

15 14 13 12 11 10

2.5

9

C719

10 16V

DVDD3.3V

DGND

DVDD5V FE_5V

DMB-DVDD+5V DMB-AVDD+5V

AGND

SW-OUT-R AGND SW-OUT-L

AUDIO-OUTPUT-R AGND AUDIO-OUTPUT-L

ASEL

MB BOARD (2/6)

>005S

MB BOARD

(2/6)

(Page 37)

>006S

MB BOARD

(6/6)

(Page 41)

>007S

MB BOARD (4/6)

(Page 39)

>008S

MB BOARD (5/6)

(Page 40)

>009S

(Page 37)

HCD-ESX6/ESX8/ESX9

3636

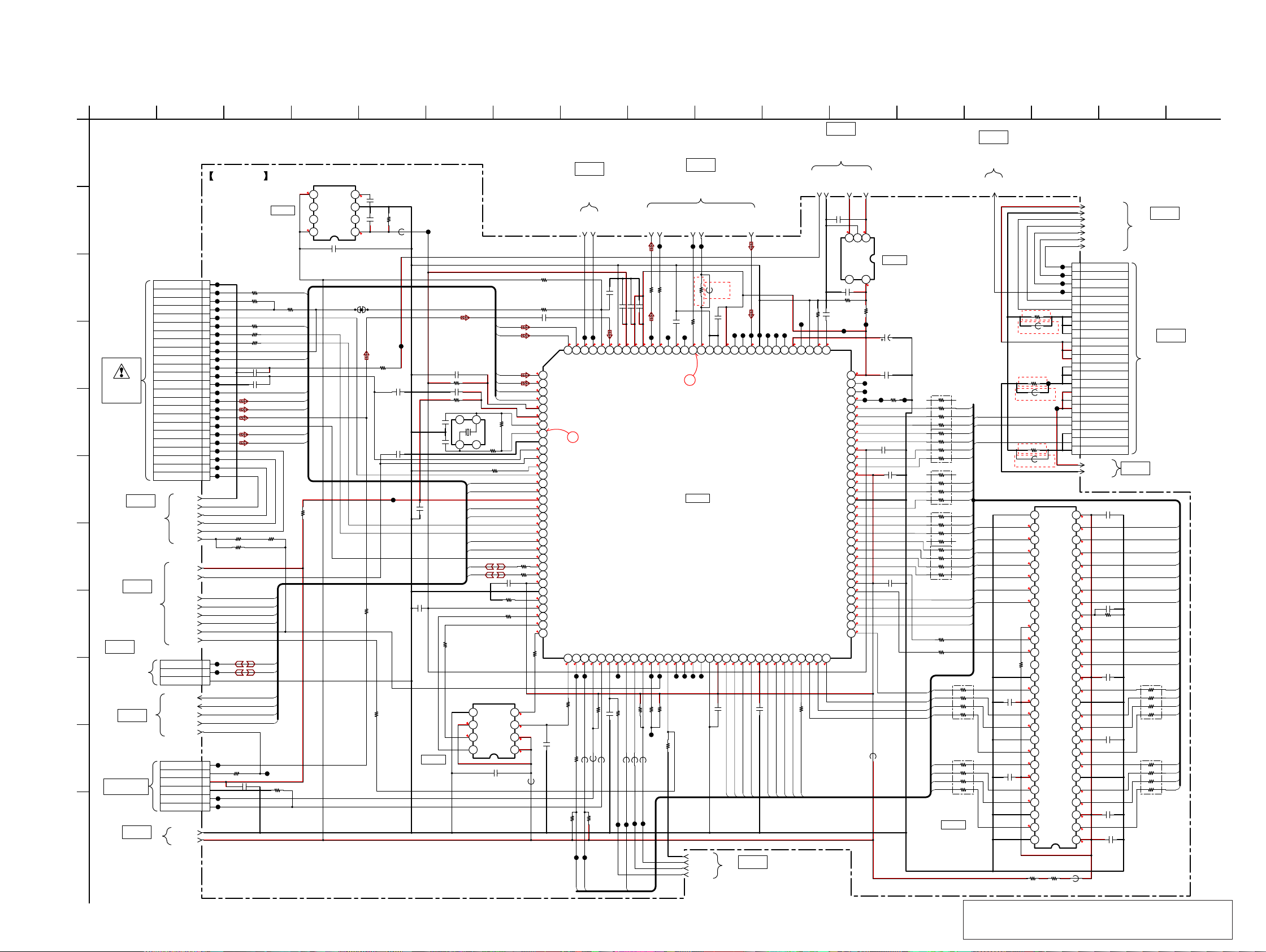

6-10. SCHEMATIC DIAGRAM - MB Board (2/6) (Sufﬁ x-11/-12) - • See page 31 for Waveforms. • See page 52 for IC Block Diagrams. • See page 61 for IC Pin Function Descriptions.

HCD-ESX6/ESX8/ESX9

1

A

B

C

D

SERVICE,

OPTICAL DEVICE

(1/2)

E

F

>014S

MB BOARD

(3/6)

(Page 38)

G

>015S

MB BOARD

(3/6)

H

(Page 38)

>016S

PANEL BOARD

(2/2)

CN206

I

(Page 44)

>017S

MB BOARD

(3/6)

J

K

(Page 38)

FLASH

PROGRAMMING

>004S

MB BOARD

(1/6), (3/6)

(Page 36), (Page 38)

HCD-ESX6/ESX8/ESX9

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

GND (LD)

LD (650)

NC(T.R)

NC(W.T)

LD (780) VR (650) VR (780)

VOE/E+G

GND (PDIC)

VOF/F+H

VOB/B VOA/A

(LO:DVD.HI:CD)MSW

VOD/D VOC/C

TRKTRK+ FCS+

FCS-

DGND FE_FCSFE_FCS+ FE_TRK+ FE_TRK-

VCTL

FE_3.3V

FE_VREFO

FE_DMO

FE_FMO

FE_TRO

FE_FOO

FE_LIMIT

FE_MUTE

USBM USBP

SHIELD-GND

FE_CD_LDD

FE_DVD_LDD

FE_LD_CD

FE_LD_DVD

FE_DVD_IOP

RFMON

DVD_IOP

+3.3V

DGND

DVDD3.3V

MB BOARD (2/6)

JL801

1

JL802

2

JL803

3

JL804

4

JL805

5

PD

JL806

6

JL807

7

JL808

8

JL809

9

NC

JL810

10

JL811

11

VCC

JL812

12

VC

JL813

13

JL814

14

JL815

15

JL816

16

JL817

17

RF

JL818

18

JL819

19

JL820

20

JL821

21

JL822

22

JL823

23

JL824

24 CN801

24P

CN802

3P

JL509

3

JL508

2 1

CN507

6P

CL588

6 5 4

GND

3

CL572

RXD

2

CL571

TXD

1

R802 R803

R806 R807 R808

C811 0.1 C812 0.1

3.3kR690

2.2kR680

FE_DVD_LDD

0R622

C621 0.01

0 10k

0 100 100

FE_DMO FE_FMO FE_TRO FE_FOO

USBM

USBP

FE_CD_LDD

FE_LD_CD

FE_LD_DVD

IC651

+1.2V REG.

FE_LD_DVD

FE_LD_CD

10kR601

CL575

100kR624

R804

4.7k

FE_VOE

FE_VOF FE_VOB FE_VOA

FE_VOD FE_VOC

R653

>005S

MB BOARD (1/6)

(Page 36)

IC651

MM1701CHBE

3.3

5

6

7

3.3

8

C651 1

0

4

Cn

Cont

GND

NC NC Vin

C653

0.1

0.01

3 2

NC

1

Vo

SL561

R651

C652

1

1k

1.2

FB652

330ohm

JL825

FB800

0

C601 10

C604 10

JL511

R817

100

R541

100

C506

0.1

C505

C510

0.01

IC502

SERIAL FLASH

JL510

C504

12p

10p

C501 10 R501 12 C503 0.1

R572

100

1

0R502

X501

27MHz

3.3

1.2

2

R503 100k

R504

330

FE_CD_LDD FE_DVD_LDD FE_DMO FE_FMO

FE_TRO FE_FOO

USBM USBP

IC502

W25Q16CVSSIG-R

4

GND5SI

3

_W SO

2

_CS

1

C571 0.1

*2 C572

10p (EXCEPT E93) 33p (E93)

FE_VOC FE_VOB

FE_VOA FE_VOD FE_VOF FE_VOE

15kR505

R506 R508 0

C508 0.01 R510 5.1k

R511

SCK

_HOLD

VCC

0

6 7 8

FB571

1kohm

R555 10k

0

1

1.3

3.3

C531

2

1

2

3

2

4

1.2

5

3.3

6

0.7

7

0.6

8 9

2

10

1.4

11

0

12

0

13

3.3

14

3.3

15

3.3

16

1.4

17

1.4

18

0

19

0

20

1.4

21

1.4

22

0

23

0

24

0

25

3.3

26 27

0.8

28

1.2

29

3.3

30

0

31

0.2

32

100R512

>011S

MB BOARD (3/6)

(Page 38)

FE_OP-

FE_OPO

100R556 1

2 2 2.4 2.4 1.60.9 1.21.2 3.33.3 3.3 0.9 1.6 1.6 1.6 3.3 1.3 1.2 03.3

RF_B

RF_C RF_D RF_E RF_F AVDD12_2 AVDD33_1 XTALI XTALO

1

AGND33 V20 V14/VREF0 REXT MDI1 LDO1 LDO2 AVDD33_2 DMO FMO CD_VR DVD_VR TRO FOO MSW USB_DM USB_DP VDD33_USB VSS33_USB PAD_VRT VDD12_USB SF_CS# SF_DO SF_DI

SF_CK

33 34

CL541

R515

100

C572

*2

R518

3.3k

JL507

IFSCK

C530 0.01

CL532

CL533

RFIP

RFIN

RF_A

IFSCK

35 36 37 38 39 40 41 42 43 44 45

R516 100

FB517 1kohm

JL506

IFSDO

SPFG/OP-

IOPMON/OPO

RX

IFSDO

CL542

4.7k

R520

FB521 1kohm

R519

3.3k

FB522 1kohm

AGND12

NC

PRST#

TX

CL543

100R523

C511 0.01

JL504

ASDATA0

100R554

0.01

0.1

1

C528

C529

C527

CL561

ASDATA0

AVDD12_1

ADACVDD1

ADACVDD2

MFISW

IFCS#

IFBSY

IFSDI

0.5 3.3 3.1 2.9 3.33.1 3 2.31.2 3.31.5 3.3 3.3 0.4 0.43.33.3 3.3 3.3 0.2 0.2 0 1.7 1.2 0.6 0.5 2.8 1.5 1.3 0

CL544

1kR558

3.3kR528

FB525 1kohm

FB526 1kohm

FB527 1kohm

JL502

JL503

JL505

IFSDI

>010S

MB BOARD (1/6)

(Page 36)

ALRCK

100R553

ALRCK

LIMITSW

4.7kR559

JL501

ABCK

ACLK

CL557

CL560

10C526

CL559

NC

FOCUS/TRACKING ERROR AMP

CD SYSTEM PROCESSOR

DIGITAL SERVO PROCESSOR

MUTE

46 47 48 495051 52 53 54 55 56 57 58 59

CL545

10kR529

CL558

AVCM

EEWP

CL582

R551 100

EXCEPT E93

47R552

NC

ABCK

2

IC501

CXD90013R

IC501

CD RF AMP

SCL

SDA

CL583

CL584

DGND XIFCS XIFBSY XSYSRST

CL556

E93

FB551

330ohm

C525 1

ACLK

AADVDD

ADACVSS2

ADACVSS1

RD0

DVDD33

DVSS33

NC

CL546

C515 0.01

RD0

MB BOARD (6/6)

CL581

RD1

CL580

NC

RD1

RD2

>018S

(Page 41)

RA10

RAS# CAS#

RA11

RCLK

RD10 RD11 RD12

1

CL585

RA3 RA2 RA1 RA0

BA1 BA0

RA4 RA5 RA6 RA7 RA8 RA9

RD8 RD9

3.3 5

3

4

NC

DVDD3.3V

2

1

CE

GND

NC5VOUT

10kR655

3.3

96 95 94

0

93

0

92

0

91

0

90

0

89

0

88

1.2

87

0

86

0

85

3.3

84

3.3

83

0

82

1.2

81

3.3

80

0.7

79

2.7

78

0

77

0

76

0

75

0

74

0

73

1.5

72

3.3

71

2.8

70

1.4

69

1

68

1.4

67

1.2

66

1.5

65

FB534

330ohm

DVDD5V

VDD

BU33TD3WG-TR

+3.3V REG.

3.3

R656

0

C522

JL512

47 10V

C521

0.1

CL549 CL548 CL547

CL587

C519 0.01

C518 0.01

C517 0.01

IC653

R823

10k

CL586

RD12 RD13 RD14 RD15

RB508

0

RB509

0

RB505

0

RB507

0

RB506

0

100R536 100R535

RD8 RD9 RD10 RD11

RD12 RD13 RD14 RD15

IC504

EM638165 TSB-6G

IC504

64M SDRAM

FE_5V

DGND

C659

ADIN

C661 1

0.1C524

560R542

JL537

CL550

CL551

CL552

CL577

CL553

979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128

NC

ADIN

CR/R

SC/CB/B

AADVSS

RD5

RD4

DVDD12

RD3

RD2

C516 0.01

RD3

RD4

RD5

RD6

CVBS

SY/Y/G

DACVSSC

DACVDDB

RD15

DQM0

RD7

RD6

60 61 62 63 64

100R533

RD7

DQM0

FS

VREF

DACVDDC

XMAMUTE

RD13

RD14

SPDIF

DVDD12

DVDD33

DVSS12

RWE#

DVDD33

DQM1

3737

>009S

MB BOARD (1/6)

(Page 36)

ASEL

RA3 RA2

IFSDI

RA1

IFSDO

RA0

RA10

IFSCK BA1 BA0

RAS CAS

RWE

RA4 RA5

RA4 RA6

RA5 RA7

RA6 RA8

RA7

RA9

RA11

RA8

RA9 RD8

RA11 RD9

RD10 RD11

RB504

RB503

C598

0

C599

0

Note 1:

DMB-DVDD+3.3V DGND ANALOG-BSEL ANALOG-ASEL TAS-IIC-CLK TAS-RESET TAS-IIC-DATA

CN301

23P

JL828

1

0

A10/AP

LDQM

VSSQ

VDDQ

VSSQ

VDDQ

VDD

BA1 BA0

RAS CAS

VDD DQ7

DQ6 DQ5

DQ4 DQ3

DQ2 DQ1

DG0 VDD

A3 A2 A1 A0

CS

WE

FB593

330ohm

I-DSP-SDA

2

O-DSP-RESET

3

I-DSP-SCL

4

O-DIGITAL-ASEL

5

O-ANALOG-ASEL

6

O-ANALOG-BSEL

7

3.3V-GND

8

3.3V-GND

9

3.3V-GND

10

3.3V-SUPPLY

11

3.3V-SUPPLY

12

3.3V-SUPPLY

13

FE-GND-M

14

FE-GND-M

15

FE-GND-M

16

5V-SUPPLY

17

5V-SUPPLY

18

5V-SUPPLY

19

O-MTK-SDO

20

O-MTK-SDI

21

MICOM-GND

22

I-MTK-CLK

23

MICOM-GND

VM5.2V FE_GND_M

27

3.3

26

1.7

25

2.6

24

2.6

23

0

22

0

21

1.5

20

1.2

19

0

18

3.2

17

3.2

16

3.2

15

2.9

14

3.3

13

0.4

12 11

0.5

10

0.5

9

3.3

8

0.6

7

0.7

6 5

0.5

4

0.4

3

3.3

2

0.6

1

3.3

C597 0.1

C596 0.01

R595

10k

C595 0.1

C594 0.1

C593 0.1

C591 10

>013S

EXCEPT E93 (SUFFIX-12)

FB825

E93

EXCEPT E93 (SUFFIX-12)

FB826

E93

EXCEPT E93 (SUFFIX-12)

E93

FB824

28

0

29

0

30

0

31

0

32

0

33

0

34

0

35 36

3.3

37

1.3

38

3.3

39

R594

40

10k

41

0

42

3.3

0.1 43

0

44

0

45 46

0

47

0

48

3.3

0.1 49

0

50

0

51 52

0

53 54

R591

0

0R825

330ohm

0R826

330ohm

JL833

0R824

330ohm

VSS A4 A5 A6 A7 A8 A9 A11 NC CLKE CLK UDQM NC VSS DQ8 VDDQ DQ9 DQ10 VSSQ DQ11 DQ12 VDDQ DQ13 DQ14 VSSQ DQ15 VSS

JL829 JL830 JL831

JL832

R592

IC501, IC502 and IC504 on the MB board cannot exchange with single. When these parts on the MB board are damaged, exchange the entire mounted board.

>002S

MB BOARD (1/6)

(Page 36)

>012S

PANEL BOARD

(2/2)

CN200

(Page 44)

MB BOARD (3/6)

(Page 38)

RA3 RA2 RA1 RA0

RA10

BA1 BA0

RAS CAS

RWE

DQM0

RD7

RB502

RD6

0

RD5 RD4

RD3

RB501

RD2

0

RD1 RD0

HCD-ESX6/ESX8/ESX9

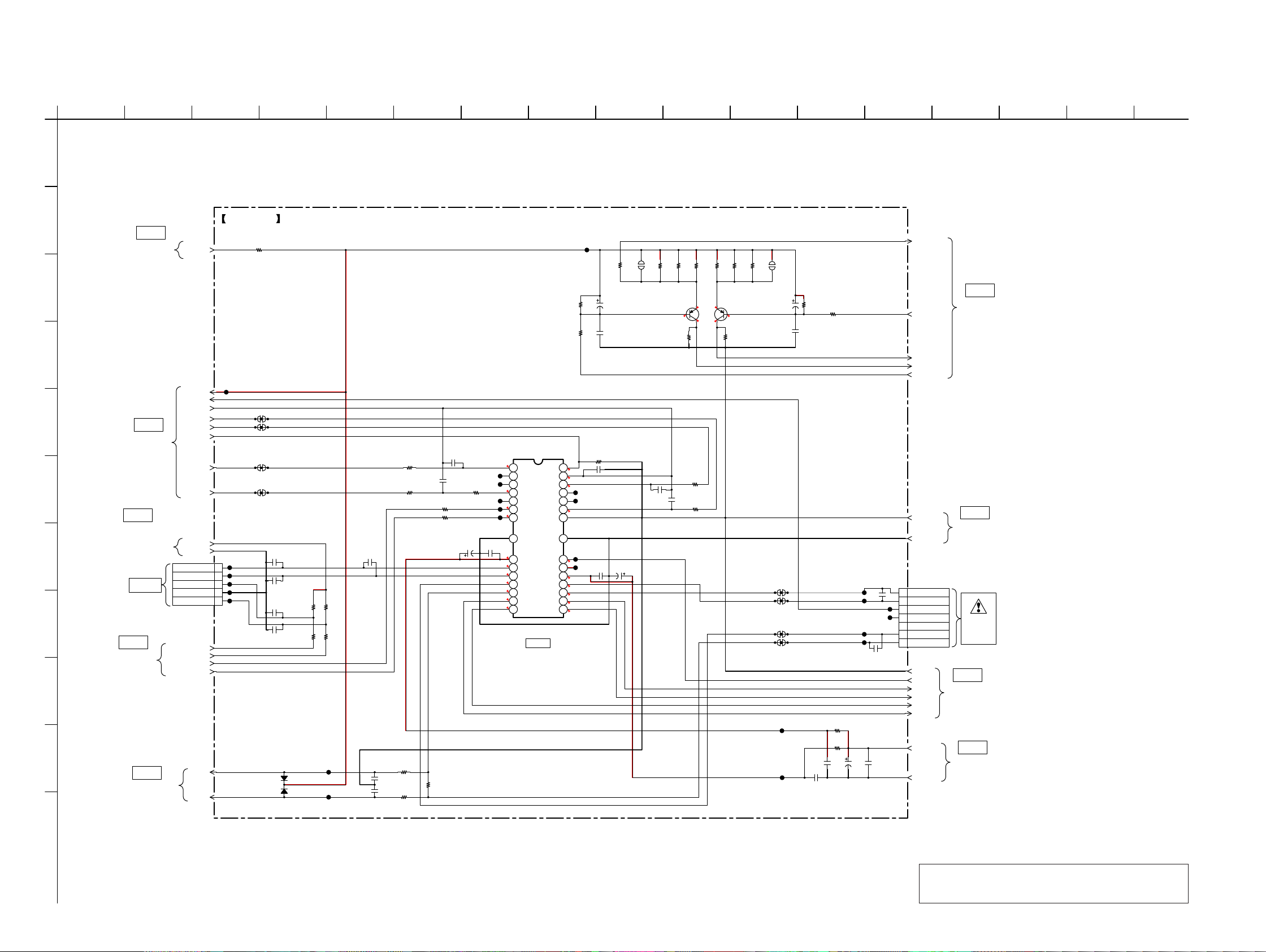

6-11. SCHEMATIC DIAGRAM - MB Board (3/6) (Sufﬁ x-11/-12) - • See page 52 for IC Block Diagrams.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

DGND

LOAD-

LOAD+

TRAY-IN

GND

FWD REV

1 2 3 4 5 CN681

5P

MB BOARD (3/6)

FB846

0

CL841

FE_SLED_IN

FE_SPDL_IN

C681 1000p

C682 1000p

C683 1000p

C685

1000p

D837

RB520S-30FJTE61

D839

RB520S-30FJTE61

JL681 JL682 JL683 JL684 JL685

SL873 SL872

SL851

SL854

FE_TRK_IN

FE_FCS_IN

R693

1k

R683

1k

CL891

CL892

R695

R685

FE_DVD_IOP

FE_CD_LDD

FE_LD_CD FE_LD_DVD FE_DVD_LDD

DGND

>017S

MB BOARD

(2/6)

(Page 37)

>020S

R851

R854

10k

CL840

SL880

R88915R88815R887

15

Q881

2SA2119K

AUTO POWER

CTRL

3.3

R882 100k

C876

C873

0.1

330p

R880

10k

C881

0.01

R878 10k C877 0.1

FE_TRK_IN

CL875 CL874

C880

100 10V

R884

47k

R881

100

C851

27k

330p

C854

0.015

1.4

1

CL852

R850

CL853

10k

0R856 0R853

CL855 CL856 CL857

VINFC

2

TRB_1

3

REGO2

1.4

4

VINSL+

5

REGO1

0

6

FWD

0

7

REV

MUTE

VINTK

TRB_2

RESET

VINLD

BIAS

GND

28

1.4

27

1.4

26

1.4

25 24 23

1.4

22

R876

R873

R897

3.33.3

0

27k

15k

R898

15

Q891

2SA2119K

AUTO POWER

CTRL

3.3

R892

100k

R899

SL890

15

C890

R894

C891

R891

47k

100

0.01

100

10V

MB BOARD

C850

100

C680

0.1

1k

C837

R838

C839

0.1

0.1 R840

R837

10k

10V

FE_LOAD-

FE_LOAD+

FE_SPDL+

FE_SPDL-

FE_FCS-

FE_FCS+

1

C858

29

PGND PGND

0.1

5.2

8

Vcc1

0

9

VOTR-

0

10

VOTR+

2.5

11

VOSL+

2.5

12

VOSL-

2.5

13

VOFC-

2.5

14

VOFC+ VOTK+

5CH SYSTEM

MOTOR DRIVER

IC851

AM5890S

IC851

VCTL

VCCD

VOLD-

VOLD+

VOTK-

Vcc2

30

CL871

21

0.9

CL870

20 19

5.2

18

2.5

17

2.5

16

2.5

15

2.5

C869

C870

100 10V

0.1

SL836

SL835

SL832

SL831

JL827

JL826

C824

0.1

C823

R822

R821

0.1

JL839

C834

0.1

JL838

JL837 JL836

JL835 JL834

C833

0.1

0

C822

C821

100

0.1

10V

CN831

7P

7 6 5 4 3 2 1

FE_GND_M

SL+ SLNC(LIMIT) NC(GND) NC SP+ SP-

DGND VCTL FE_TRK+ FE_TRK-

FE_FCS+ FE_FCS-

VM5.2V

FE_GND_M

(6/6)

(Page 41)

SERVICE,

OPTICAL DEVICE

(2/2)

>014S

MB BOARD

(2/6)

(Page 37)

>013S

MB BOARD

(2/6)

(Page 37)

B

>003S

MB BOARD

FE_3.3V_1

(1/6)

(Page 36)

C

D

FE_3.3V

FE_LIMIT

FE_VREFO

E

>015S

MB BOARD

FE_FMO

FE_TRO

FE_MUTE

(2/6)

(Page 37)

F

FE_FOO

FE_DMO

>004S

MB BOARD

(1/6), (2/6)

G

(Page 36), (Page 37)

CONNECT TO

CDM90

DVDD3.3V

TRAY-OUT

H

>019S

MB BOARD

(6/6)

(Page 41)

LOAD_END_SW

UNLOAD_END_SW

I

J

>011S

MB BOARD (2/6)

(Page 37)

FE_OP-

FE_OPO

K

HCD-ESX6/ESX8/ESX9

Note 1: IC851 on the MB board cannot exchange with single.

When this part on the MB board is damaged, exchange the entire mounted board.

3838

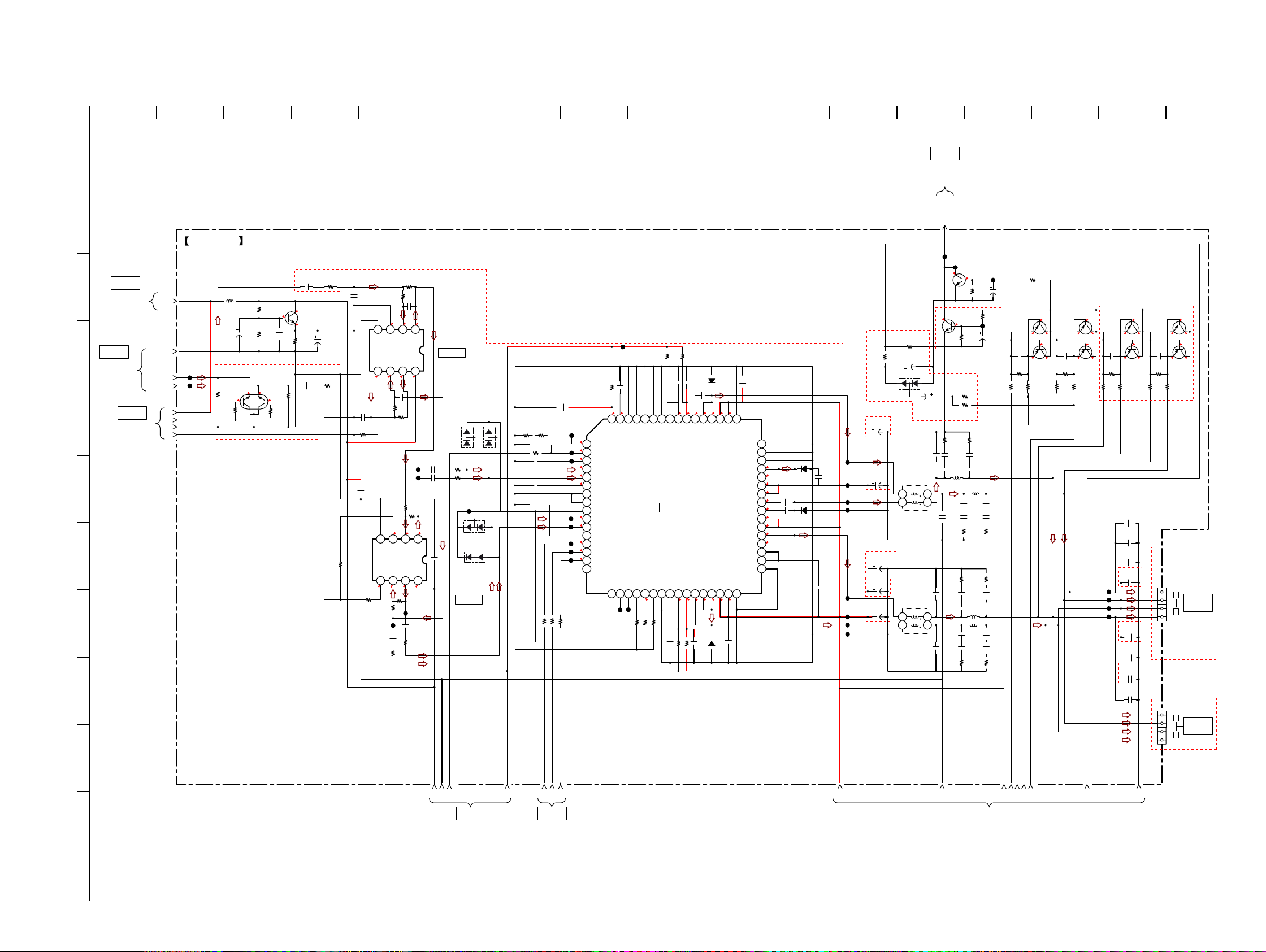

6-12. SCHEMATIC DIAGRAM - MB Board (4/6) (Sufﬁ x-11/-12) - • See page 52 for IC Block Diagrams.

HCD-ESX6/ESX8/ESX9

A

B

C

D

MB BOARD

E

F

G

H

I

J

1

>021S

MB BOARD

(6/6)

(Page 41)

>007S

(1/6)

(Page 36)

>022S

MB BOARD

(Page 40)

(5/6)

+12V

AGND

SW-OUT-L

SW-OUT-R

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

>023S

MB BOARD (6/6)

(Page 41)

/I-SD-SLOW

MB BOARD (4/6)

JL1730

3.4

3.3

C1822 2200p

C1821 2200p

L1708

0.6uH

1

3.3

0

R1813

22k

R1812

22k

0

CL1705

R1722

68k

R1804

L1712

0.6uH

L1711

0.6uH

Q1713

LSCR523UBFS8TL

DC DETECT CL1727

R1816

100k

R1723

100

C1778

470

6.3V

ESX9

R1807

3.3

C1824

0.022

C1823

0.022

L1709

0.6uH C1828

C1826

0.022

2200p

C1827

C1825

0.022

2200p

R1805

3.3

R1809

3.3

C1832

0.022 C1831

0.022

C1836

0.022

C1835

0.022

R1811

3.3

C1750

R1817

100

Q1712

R1820

220k

25

025

Q1705 ~ Q1712

2SA1162-G

DC DETECT

Q1705

C1846

47

R1822

220k

R1821

R1823

220k

SW L-

SW L+

SW R-

SW R+

Q1706

220k

25

025

CL1734 CL1745 CL1744 CL1735

C1847

R1825

220k

R1824

220k

Q1707

25

025

25

C1848

Q1708

220k

C1839 4700p

C1855 1000p

C1840 4700p

C1856 1000p

C1857 1000p

C1841 4700p

C1858

1000p

C1842

4700p

025

47

R1828

220k

R1827

220k

ESX9: E93ESX9: E93ESX9: E93ESX9: E93

4 3 2 1

47

R1826

2.2 50V

Q1711

C1845

47

R1819

220k

R1818

220k

CL1700

C1850

R1764

1

10k

C1852

R1837

2.2k

470p

C1780

470p

R1768

0

C1782

R1844

2.2k

0.1

L1700

R1761

47uH

2.2k

C1777

100 10V

CL1707

CL1709

1 2 3 4

R1847

100k

R1845

220

R1762

2.7k

MUTE PROTECTION

0

C1776

0

0.1

Q1701 XP4501

0

R1848

100k

R1846

220

6.7

12.5

Q1718

LSCR523UBFS8TL

SIGNAL SWITCH

6.8

R1850

100k

100 10V

R1767

C1779

1

C1859

10k

R1765

24k

6.3

3

4

2

VSS

1IN+

2IN+62IN-72OUT8VCC+

5

6.3

C1781

68p

R1771

24k

R1770

10k

R1838

4.7k

6.3

3

4

VSS

1IN+

2IN+62IN-72OUT8VCC+

5

6.3

R1835

4.7k

CL1716

C1784

1

R1773

100

R1834

10k

6.3

1IN-

2

12.5

6.3

1IN-

12.5

R1836

4.7k CL1715

R1772

CL1741

C1783

100

C1851

68p

6.3

1

1OUT

CL1742

R1839

1

4.7k

6.3

1OUT

C1862

C1861

1

C1860 0.1

IC1703

BA4558F

IC1703

PRE AMP

R1841

100

R1840

100

D1705, D1709

BAV99-215

D1705

CL1718

D1730

BAV99-215

D1731

BAV99-215

IC1715

BA4558F

IC1715

PRE AMP

D1709

ESX9

R1775

R1774

12k

10k

C1785 220p

100

R1777

4700p

C1786

C1789 1000p

C1790 0.1

C1812 0.1

CL1724

CL1721 CL1722

JL1705 JL1706

JL1707 JL1708 JL1709

0R1802

0R1803

1kR1782

Q1714

LSCR523UBFS8TL

ESX8/

DC DETECT

ESX9

CL1726

0R1801

330pC1811

12 2 16.312 12 27.3 16.3 32.3 32.3

64

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

OC_ADJ /RESET C_STARTUP INPUT_A INPUT_B VI_CM GND AGND VREG INPUT_C INPUT_D FREQ_ADJ OSC_IO+ OSC_IO/SD /OTW1

VDD

/OTW2

1.2

3.3

3.3 2 2 2

2 2

3.3

63

NC

PSU_REF

/CLIP

READYM1M2M3GND

0R1788

JL1713

JL1715

59NC60NC61NC62

0R1789

R1800

3.3

57

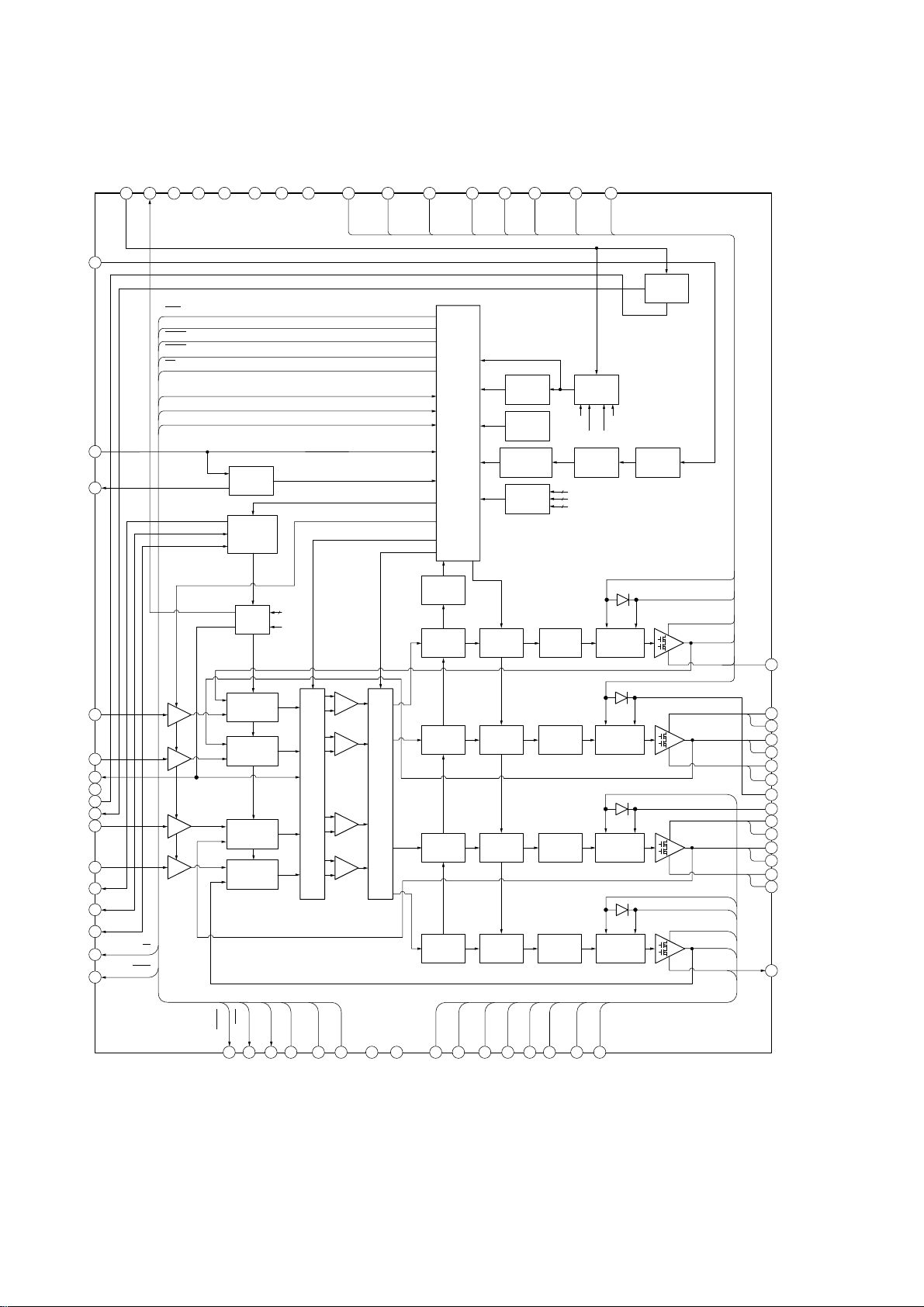

IC1706

TAS5630BPHDR

IC1706

POWER AMP

0R1792

R1799

3.3

0.1C1810

55

56

GND58GND

GVDD_B

GVDD_A

GND

GVDD_C

GVDD_D

12 27.3 16.3 16.3123.3 32.3 32.3

C1791 0.1

R1793 3.3

R1794 3.3

0.1C1809 C1808

54

C1792 0.1

0.1

BST_A

BST_D

C1793

53

OUT_A

OUT_D

0.1

D1719

D1722

51

52

OUT_A

OUT_D

SK310A-R3

50

PVDD_A

PVDD_D

C1794 2.2

49

32313029282726252423222120191817

GND_A

GND_A GND_B GND_B

OUT_B

OUT_B PVDD_B PVDD_B

BST_B

BST_C PVDD_C PVDD_C

OUT_C OUT_C GND_C GND_C GND_D

GND_D

C1807

2.2

ESX6

48 47 46

16.3

45

16.3

44

32.3

43

32.3

C1801

42

0.1

27.3

41

27.3

40

32.3

C1800

39

0.1

32.3

38

16.3

37

16.3

36 35 34 33

D1721

SK310A-R3

C1802

2.2

D1720

SK310A-R3

C1797

2.2

JL1718

JL1719

JL1721 JL1720

ESX6

JL1742

ESX8/

ESX9

JL1743 JL1745 JL1744

ESX8/ESX9

R1814

47k

C1866

470 50V

C1813

470 63V

C1869

470 63V

C1865

470 50V

C1815

470 63V

D1723

BAV99-215

R1815

10 50V

ESX9

4

100k

C1747

L1701

10uH

L1710

10uH

C1849

1 50V

C1817

C1819

C1820

3.4

R1806

1

3 21

C1818

R1808

C1830

1

2200p C1829

2200p

3 21

C1834 2200p

C1833

1

2200p

R1810

Q1709

Q1710

R1829

220k

ESX9: E2, E51, MX

TB1702

4P

L

+

R

+

TB1703

4P

L

+

R

+

ESX9

25

025

25

025

SPEAKERS IMPEDANCE

USE 6

CHANNEL

SPEAKERS IMPEDANCE

USE 6

CHANNEL

LOW

ESX9: E93

LOW

K

HCD-ESX6/ESX8/ESX9

6

5

7

>024S

MB BOARD (5/6)

(Page 40)

9

118 10

>025S

MB BOARD (5/6)

(Page 40)

12

13

15 16 17 1814

19

20

>026S

MB BOARD (5/6)

(Page 40)

3939

HCD-ESX6/ESX8/ESX9

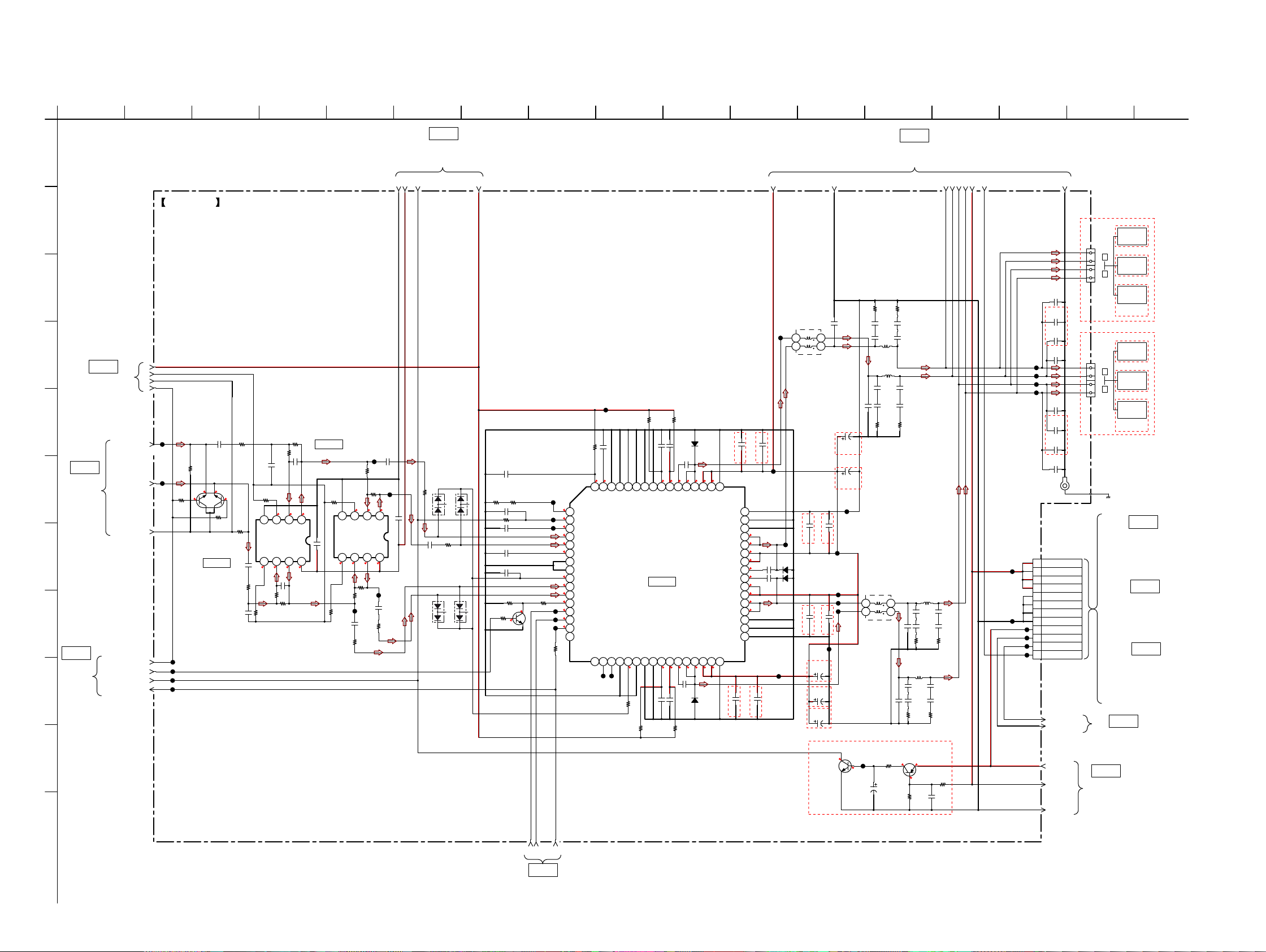

6-13. SCHEMATIC DIAGRAM - MB Board (5/6) (Sufﬁ x-11/-12) - • See page 52 for IC Block Diagrams.

A

B

C

D

E

F

G

H

I

J

K

>027S

BOARD

(Page 41)

1

>022S

MB BOARD (4/6)

(Page 39)

>008S

MB

BOARD

(1/6)

(Page 36)

MB

OSC_FREQ_CONTROL

(6/6)

AUDIO-OUTPUT-L

AUDIO-OUTPUT-R

AGND

LINE_MUTE

O-DAMP-RESET

/I-SD-FAST

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

MB BOARD (5/6)

1 4 3

2

CL1704

R1702

100k

CL1706

R1700

220

CL1708 CL1702 CL1703 CL1701

C1700

1

0

R1701

220

Q1700

XP4501

MUTE PROTECTION

IC1702

PRE AMP

>024S

MB BOARD (4/6)

(Page 39)

5 7

6

R1709

24k

C1701

470p

R1706

0

6.3

3

4

VSS

1IN+

IC1702

BA4558F

2IN+62IN-72OUT8VCC+

5

6.3

R1713

24k

R1714

R1712

10k

0

R1708

2

10k

6.3

1IN-

12.5

C1705

68p

1

C1702

68p

6.3

1OUT

IC1704

PRE AMP

R1716

2.2k

C1706 0.1

R1717

4.7k

6.3

4

3

VSS

1IN+

IC1704

BA4558F

2IN+62IN-72OUT8VCC+

5

6.3

R1721

R1720

4.7k

R1719

CL1713

2.2k C1721

R1730

100

1

CL1711

R1718

4.7k

6.3

2

1IN-

12.5

1

C1719

1

CL1712

6.3

1OUT

CL1714

C1722

R1731

100

D1701, D1707

BAV99-215

100R1728

D1701

C1709 0.1

R1729

C1720

1

D1704

D1704, D1708

BAV99-215

R1705

10k

0

R1703

100k

C1703

1

R1711

10k

C1704

470p

8

CL1725

R1751

3.3

*5 R1727

15k (ESX6) 12k (ESX8/ESX9)

*6 R1732

15k (ESX6)

C1745

0.1

10k (ESX8/ESX9)

R1727

R1732

*6

*5

D1707

100

D1708

C1710 220p R1734 100 C1711 4700p

C1714 1000p

C1715 0.1

R1737

100

LSCR523UBFS8TL

FREQUENCY

CONTROL

Q1702

CL1723

1.2

3.3

CL1719

3.3

CL1720

3.3

10kR1735

10kR1736

JL1700

0.5

JL1701

0

10 119

JL1702

R1738

3.3

1k

0R1752

330pC1744

12 2 16.312 12 27.3 16.3 32.3 32.3

NC

VDD

OC_ADJ /RESET C_STARTUP INPUT_A INPUT_B VI_CM GND AGND VREG INPUT_C INPUT_D FREQ_ADJ OSC_IO+ OSC_IO/SD /OTW1

/OTW2

PSU_REF

/CLIP

JL1712

READYM1M2M3GND

JL1714 R1743

0

1 2 3

2

4

2

5

2

6 7 8 9

2

10

2

11

1

12

2

13

2

14 15 16

C1743 0.1

GND

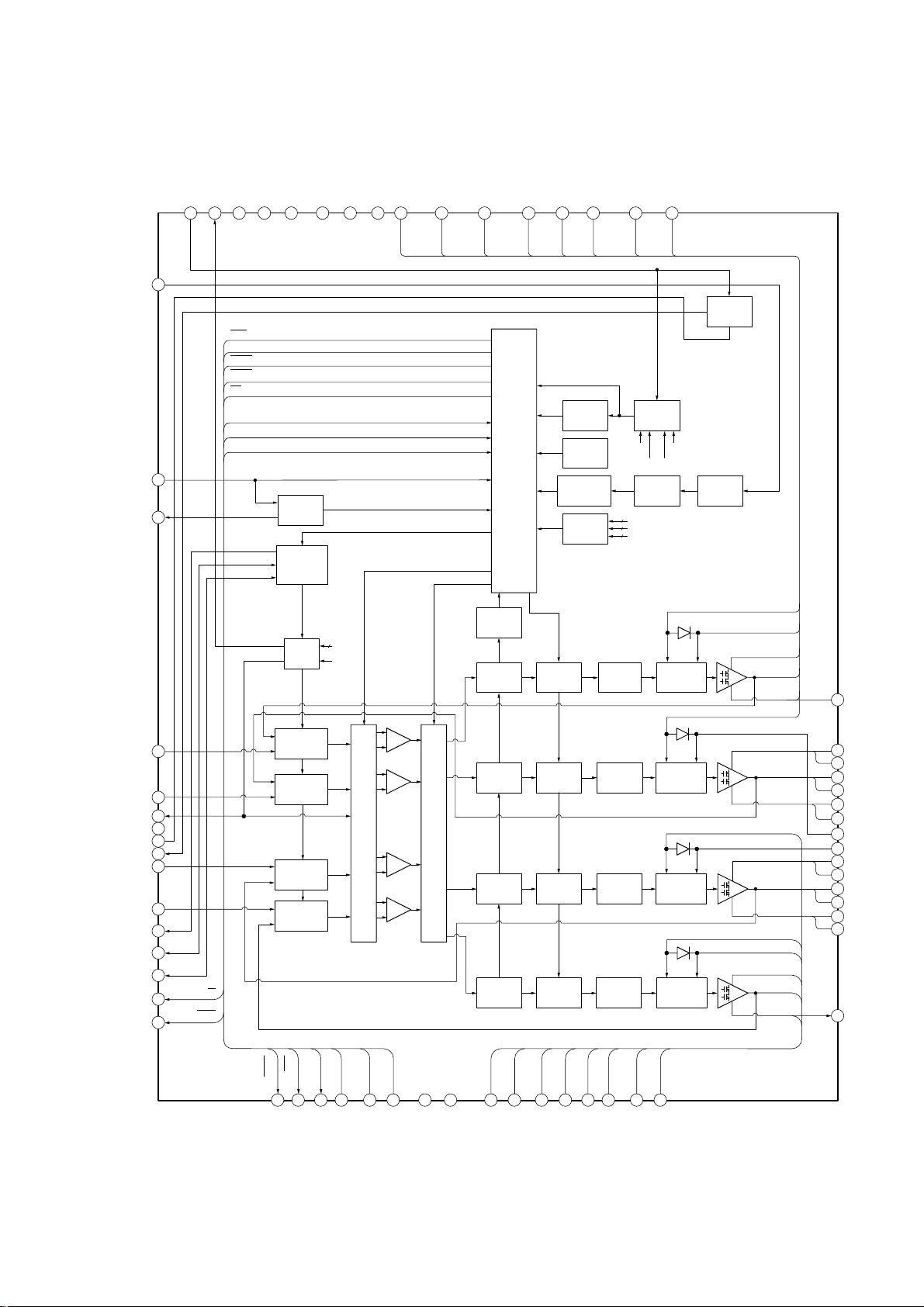

IC1705

TAS5613APHDR

(ESX6)

TAS5630BPHDR

(ESX8/ESX9)

IC1705

POWER AMP

GND

C1718 0.1

R1744

3.3

R1750

3.3

C1741

0.1

C1742 0.1

BST_A

OUT_A

GVDD_B

GVDD_A

GVDD_C

GVDD_D

BST_D

OUT_D

12 27.3 16.3 16.3123.3 32.3 32.3

C1724

0.1

C1723 0.1

R1745

3.3

OUT_A

OUT_D

D1718

SK310A-R3

PVDD_A

PVDD_D

D1715

SK310A-R3

49505152535455565758596061626364

PVDD_A

PVDD_D

32313029282726252423222120191817

GND_A

GND_A GND_B GND_B

OUT_B

OUT_B PVDD_B PVDD_B

BST_B

BST_C PVDD_C PVDD_C

OUT_C OUT_C GND_C GND_C GND_D

GND_D

ESX8/ESX9

C1725 2.2

2.2

C1740

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

ESX6

12

JL1716

4

ESX6

C1739 2.2

JL1722

16.3

JL1724

16.3

32.3

C1844

D1717

0.1

27.3

32.3

C1843

32.3

16.3

C1726 2.2

D1716 ~ D1717

D1716

0.1

ESX9

JL1729

L1702 10uH

ESX8/ESX9

C1733 2.2

SK310A-R3

ESX8/ESX9

C1729 2.2

JL1728

C1868

470 63V

C1749

470 63V

C1864

470 50V

PBSS4160T

3 21

ESX6

Q1720

RESET

SWITCH

13

C1752

1

C1757 1

ESX6

C1863

470 50V

C1746

470 63V

JL1723

C1734 2.2

JL1725

JL1726 JL1727

4

JL1717

C1730 2.2

ESX8/ ESX9

ESX6

3.5

CL1746

0.4

C1870 47 16V

>026S

MB BOARD (4/6)

(Page 39)

R1753

R1754

3.3

C1753

C1755

2200p

0.022

C1754

C1756

2200p

0.022

L1705

0.6uH L1704

0.6uH

C1759

C1761

2200p

0.022

C1758

C1760

2200p

0.022

R1755

R1756

3.3

L1703 10uH

3 21

C1762 1

C1767 1

Q1719

2SB1710TL

RESET SWITCH

0.4

R1851

4.7k

R1853

*7

*7 R1853

82k (ESX6) 47k (ESX8)

15 16 17 18 14 19 20

SP LSP L+ SP R-

SP R+

L1707

0.6uH

C1763

C1765

2200p

0.022

C1764

C1766

2200p

0.022

R1757

R1758

3.3

L1706

0.6uH

C1768

C1770

2200p

0.022

C1769

C1771

2200p

0.022

R1759

R1760

3.3

ESX6/ESX8

12.5

R1852

100k

16.5

C1853

0.1

JL1746

JL1747

JL1748 JL1749 JL1750 JL1751

CL1728 CL1729 CL1730 CL1731

CN1700

13P

C1772

C1872

C1873

C1773

C1774

C1874

C1875

C1775

ET1706

V1

1

V1

3

V1

4

V1

5

V1_GND

6

V1_GND

7

V1_GND

8

V1_GND

9

13.5V_12V

10

13.5V_12V_GND

11

EVER_OVP

12

FAN-SPEED

13

EVER_OVP

13.5V_12V_GND

13.5V_12V

PVDD

AGND

0.01

1000p

0.01

1000p

0.01

E93

E

ESX6

SPEAKERS

IMPEDANCE

TB1700

4P

4

ESX8

L

3 2 1

4 3 2 1

+

-

+

TB1701

4P

-

+

-

+

R

L

R

(CHASSIS)

SPEAKERS

IMPEDANCE

ESX9

SPEAKERS

IMPEDANCE

ESX6

SPEAKERS

IMPEDANCE

ESX8

SPEAKERS

IMPEDANCE

ESX9

SPEAKERS

IMPEDANCE

SMPS-300W BOARD

SMPS-400W BOARD

SMPS-600W BOARD

>031S

MB BOARD (6/6)

(Page 41)

>032S

MB BOARD

(6/6)

(Page 41)

EXCEPT E93

86(

86(

86(

HIGH

CHANNEL

86(

86(

86(

HIGH

CHANNEL

>028S

(ESX6)

CN4

(Page 46)

>029S

(ESX8)

CN4

(Page 48)

>030S

(ESX9)

CN4

(Page 50)

E93

HCD-ESX6/ESX8/ESX9

>025S

MB BOARD (4/6)

(Page 39)

4040

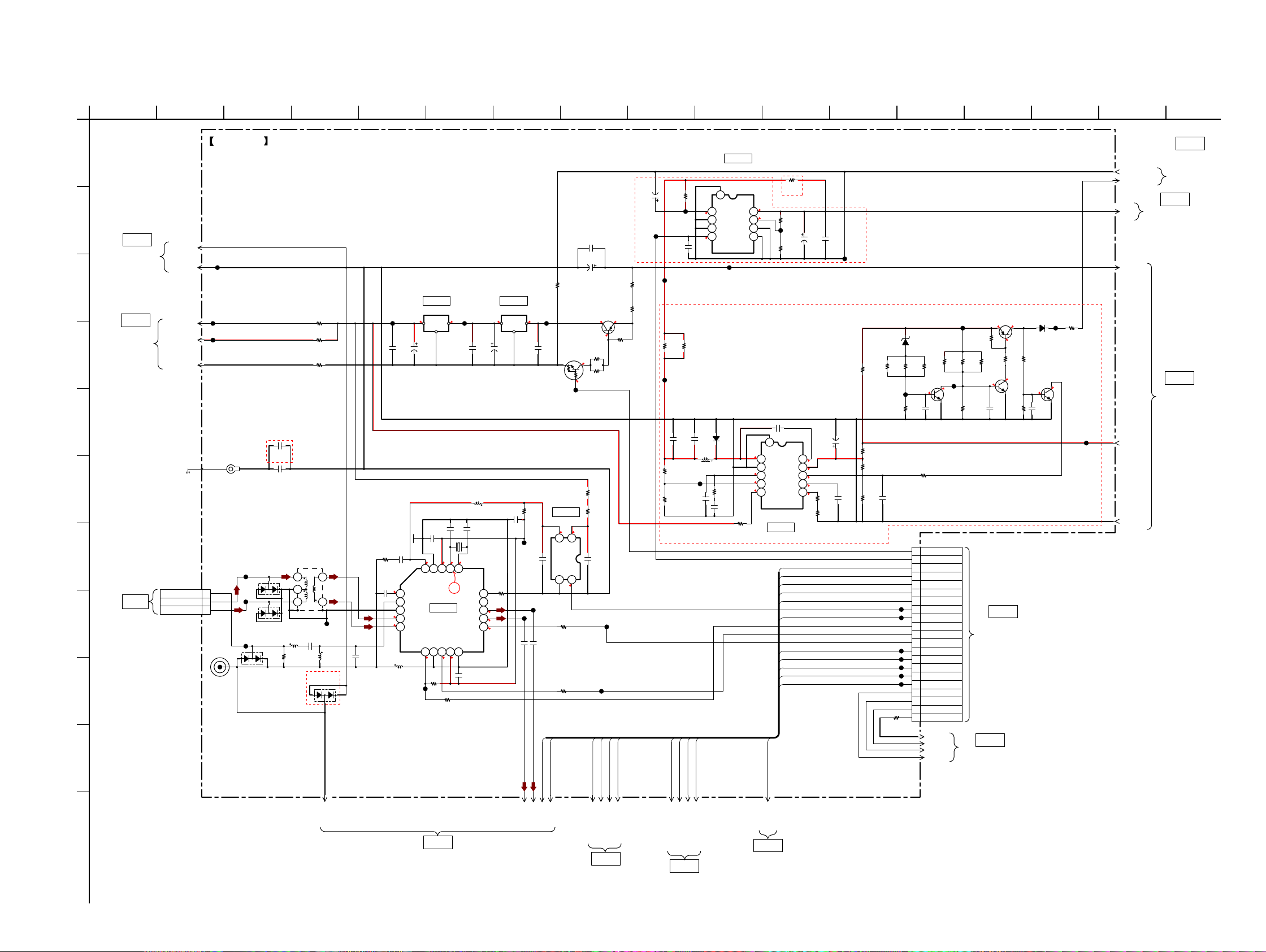

6-14. SCHEMATIC DIAGRAM - MB Board (6/6) (Sufﬁ x-11/-12) - • See page 31 for Waveforms. • See page 52 for IC Block Diagrams.

HCD-ESX6/ESX8/ESX9

Ver. 1.1

1

A

B

>020S

MB BOARD

(3/6)

(Page 38)

C

>006S

MB

BOARD

D

(1/6)

(Page 36)

E

F

G

ANTENNA

FM/AM

H

I

J

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

DGND

FE_GND_M

DMB-DVDD+5V

DMB-AVDD+5V

AGND

(CHASSIS)

MB BOARD (6/6)

JL1691

JL1695

JL1694

ET1850

CN1950

3P

FM

1

AM

2

AM

3

JL1956

E

JL1951

JL1952

JL1953

BAV99-215

D1952

E93

D1950

BAV99-215

D1951

BAV99-215

R1954

100

C1901 1000p

C1899

0.1

ESX8:E93

R1679

0

R1677

0

R1676

0

L1953

600uH 1 2 34

JL1955

C1961

68p

L1954

68nH

ESX6/

D1953

BAV99-215

ESX9

C1897

R1905

10

16V

C1893

0.1

C1896

330 25V

COM

C1952

10

JL1950

JL1959

R2112

0

JL1881

12.5

IO

C1885

0.1

Q1857

LTC014EUBFS8TL

POWER CONTROL

SWITCH

R1965

0

C1955

1

JL1960

C1968 1

C1967 1

DSP-INT

AGND

JL1887

IC1950

MM3404A33URE

IC1950

+3.3V REG.

3.3 5

4

3

Vout

GND

2

1

5

R1953

22

R1957

22

DSP-MUTE

0.1

3.1

Vdd

CE

Q1858

2SB1710TL

POWER CONTROL

SWITCH

12.5

11.8

R1895

4.7k

R1898

4.7k

R1950

0

R1951

0

C1954

1

JL1958

LOAD_END_SW

UNLOAD_END_SW

C1880

2p

100 10V

BA17809FP-E2

9

R1952

0

1.6

IC1854

+9V REG.

IC1852

BA17805FP-E2

IC1852

C1956

L1956

47nH

C1867

10p

+5V REG.

IO

COM

C1958

2p

C1959 2200p

3.3

3.3 0 0

VDD

GND

VDDRF

IC1951

RN5B801-0002

IC1951

FM DRIVER

(FM RECEIVER)

IIC/RDSILACK

R1955

10k

R1958

100

JL1868

9

C1879

0.1

L1951

2.2nH

C1957

X1950 12MHz

X1

X2

4

CP1 IISD

L OUT

R OUT

DA

VDD

GND

3.303.3

C1965

2200p

5

C1871

100

0.1

10V

CP2 FRF2 GNDRF ARF1 ARF2

JL1957

JL1860

L1952

0

6

L1955 68nH

C1962

47p

C1960

0.047

0

0.3

JL1954

REV

12.5

R1899

10k

FWD

R1900

R1901

JL1888

0

JL1891

C1949 1000p

JL1898

ESX6/ESX8

R19030R1907

0

JL1874

C1882

47

R1882

220k

JL1875

R1878

15k

/I-SD-FAST

O-DAMP-RESET

OSC_FREQ_CONTROL

13.3

C1881

220p

LINE_MUTE

3.1

C1884

L1854

47uH

47

IC1856

BD00GC0WEFJ-SE2

IC1856

+12V REG.

9

8

Vcc 7NC 6NC

JL1892

D1852

RB050LA-40TR

R1877

15k

C1883 4700p

R1892

13.5V_12V_GND

R1906

0

ESX6/ESX8

12.2

1VO

0.8

R1880

2FB

47k

3GND

JL1876

C1886

4NC5EN

R1881

3.3k

0.1

C1889

11

12.5

10

BOOT

PH

9

VIN

GND

0.9

8

EN

COMP

0.8

7

SS/TR

VSNS

5

RT/CLK

6

PWRGD

IC1855

TPS54260

IC1855

10k

+12.5V REG.

/I-SD-SLOW LINE_MUTE OSC_FREQ_CONTROL /I-SD-FAST O-DAMP-RESET

DSP-INT

DSP-MUTE REV FWD LOAD_END_SW UNLOAD_END_SW

/I-SD-SLOW

C1887

10

0.1

16V

JL1878

Q1854

2SA2166-T112-1W

OVER VOLTAGE PROTECTION

50.5

10k

0

Q1855

PBSS4160T

>033S

(1/2)

CN203

(Page 43)

>018S

50.5

R1885

2.2k

50.5

R1053

10k

0

RB501V-40TE-17

R1966

22k

JL1882

D1854

DZ2J130M0L

R1897

R1904

R1947

330k

R1948

*8

R1891

33k

JL1890

R1896

47k

0

C1898 1000p

JL1652 JL1653

JL1654 JL1655 JL1656 JL1657 JL1658

R382

R1902

0

AGND

C1895

10

63V

1

18.8

2

50.6

3

4.6

4

1.1

5

C1900

R1894

0.5

390k

R1893

22k

0.01

*8 R1948

47k (ESX6) 33k (ESX8)

R1888

R1890

68k

33k

0.7

C1892

0.1

Q1856

LSCR523UBFS8TL

OVER VOLTAGE PROTECTION

R1946

0

CN300

21P

1

MTK-CTRL PVDD-ON

2 3

SD-SLOW

4

LINE-MUTE

5

OSC-FREQ-CTRL SD-FAST

6

DAMP-RESET

7 8

ST-CE

9

DSP-INT

10

ST-RDS

11

ST-CLK

12

ST-DATA

13

DSP-MUTE

14

CD-MOTOR-

15

CD-MOTOR+

16

CDM-SW-A CDM-SW-B

17 18

O-MTK-RESET O-MTK-XIFCS

19 20

O-MTK-BUSY

0

MICOM-GND

21

DGND

XIFBSY XIFCS

XSYSRST

R1887

R1886

R1884

68k

JL1884

0

R1889

C1888

22k

0.1

OVER VOLTAGE PROTECTION

PANEL BOARD

MB BOARD (2/6)

(Page 37)

D1851

0.4

C1019

0.1

JL1897

0.7

R1909

0

Q1900

LSCR523UBFS8TL

OVER VOLTAGE

PROTECTION

JL1879

EVER_OVP

+12V

MB BOARD (4/6)

13.5V_12V

PVDD

AGND

>031S

MB BOARD

(5/6)

(Page 40)

>021S

(Page 39)

>032S

MB BOARD

(5/6)

(Page 40)

K

HCD-ESX6/ESX8/ESX9

RF_GND

>001S

MB BOARD (1/6)

(Page 36)

TUNER-L

TUNER-RTUNER-R

DSP-INT

DSP-MUTE

REV

FWD

LOAD_END_SW

UNLOAD_END_SW

>019S

MB BOARD (3/6)

(Page 38)

/I-SD-FAST

LINE_MUTE

O-DAMP-RESET

OSC_FREQ_CONTROL

>027S

MB BOARD (5/6)

(Page 40)

4141

/I-SD-SLOW

>023S

MB BOARD

(4/6)

(Page 39)

HCD-ESX6/ESX8/ESX9

Ver. 1.1

6-15. PRINTED WIRING BOARD - PANEL Board - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

1

A

B

C

D

E

2

>005P

MB

BOARD

CN300

(Page 32)

>011P

MB

BOARD

CN300

(Page 34)

F

G

H

>013P

SMPS-300W

BOARD

I

J

K

(ESX6)

CN2004

(Page 45)

>014P

SMPS-400W

BOARD

(ESX8)

CN2004

(Page 47)

>015P

SMPS-600W

BOARD

(ESX9)

CN2004

(Page 49)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

PANEL BOARD

Ú ESX6  ESX8 ¾ ESX9

Q200, Q203, Q207, Q208

B2E2C1

B1C2E1

CN203

JL234

JL232

JL236

JL238

JL240

JL235

JR

JR354

C203

C199

JR

JR220

JL237

JL1136

JR202

JL242

JL252

JW269

R024

JL1161

R012

C011

R009

X001

C010

C099

JL097

JL092

¾

IC208

1

R251

JR

JR219

(CHASSIS)

JR

JR201

R1116

JL009

JW353

C017

JR JR369

JR302

JL100

C280

JL244

JL239

JL241

JL148

JL147

JL1140

39 40

IC201

JR210 JR209

D224

JR

JR200

JL1152

JL284

JL1146

JL1150

JR283

R129

JR

R130

JR363

R030

JR

JR356

JR

JL023

Q202

JL1160

E

C202

D215

JL1159

JL1121

JL1118

JL1120

2

R107 R007 R006

R105

JR

JR373

JR

JL007

JL006

JL004

JL003

JL001

JW264

JL002

R197

R194

R094

R193

JL085

JL094

JL093

JL098

/¾

JL084

Ú/

JR288

Q212

JR

E

JR

R1109

R1107

JR372

D207

C205 C206

ET200

JL262

C291

JL230

JL159

JW298

JW293

JW256

JL118

JL117

JL120

JL122

JL121

FUNCTION

S209

JW289 JW314

JW231

S213

+

R204

JL116

S212

OPTIONS

JR226

JL221

S210

ENTER

JW249 JW201

JW279 JW271

R201

JL224

JW323

JL053

JL052

JL054 R057 R157

R159

R058

C060

R160

JR

JL225

JL1087

C283

20

211

CN204

12

2

1

13

R208

JW315

JW207 JW240

JW251

JL222

JW262

Q210

JL115

JL066

JL1173

JW306

JW364

R200

JW277 JW239 JW255

JL104

JW233 JW344

JW290

JW213

JL113

JW244 JW332

JW345 JW340

JW219

JW216 JW335

JW202 JW227 JW218 JW220 JW214 JW206

JL223

JW204

R202R203

JW211 JR224

JW212

JW209

¾

Ú/

JR

JR276

R037

R036

JL035

JL044

JL036

JL037

JL041

JL040

JL042

JL043

JL045

JL039

JW217

R049

R046

R047

R147

R150

JL065

JL067

R294

R289

R290

R295

R293

JL056

JL060

R292

R059

JW348

R1097

JL055

JL058

JL059

JL1105

R291

E

JR

JR277

JL049

R048

R148

JL050

R050

JL061

C161

JR306

R063

C066

JL068

R065

JW322

JR

JR294

R070 R071

JW292

JL1194

JW341

R205

JW310

JL210

R296

JW307

JL211

Q208

C286

JL1103

R242

C285

JL1170

JL1172

JW276

JL1174

JL119

S208

Z

JL057

R060

¾

JL1171

C282

JL112

R045

C062

JR

JL1133

R043

R067

R167

JL1132

Q201

JL1131

E

R211

JR106

JR

JR358

JL105

JL102

JL108

2

JW259

S211

REC TO

USB

R044

R038

JL038

JR269

JR

R041

R035

R136

JL046

JL047

JL048

50 51

JL051

JL062

JL064

JL069

JL071

JL072

JL075

JL070

JL073

S214

–

JL1116

JL208

CN204

2

1

JL206

JL207

/¾

R241

E

Q209

D221

C281

JL205

JW235

R1103

JL1143

R134

JL063

JW359

R033

JL034

JL076

JL1144

/¾

R034

JL202

JL103

JL1141

JL1145

/¾

JL033

JL074

C294

JR JR

JW384

JL1115

JL107

JL1106

R032

JL032

JL077

R077

JL1113

CN203

JL106

D201

JR271 JR291

R209

D202

JW342

JW200

D203

R031

IC001

JL078

R078

JW205

12

13



JL110

JL1108

JL1110

JL109

JL1109

JL111

JL1107

/¾

R207

JL1142

JL028

JW230

R212

JL025

R027

JL026

JL027

JL024

JW362 JW257

JL020

JL030 JL019

JL031

3031

80 81

JL079

JL080

R079

C077

C079

C078

Ú/

C201

C293

JW343

Ú/

D218

JW285

JL1114

JW252

JL204

R1104

JW282

D200

LIQUID CRYSTAL DISPLAY

JL1203

JL1205

20

211

JL1206

JL1204

/¾

Q200

JR287

R028

JR

R026

JL022

R021

JL246

JL021

R217

R019

JL018

X002

JL015

JL096

JL088

JL083

JL081

R185

JL082

R184

R1110

R1111

JL1198

R1105

C211

C214

C292

R250

¾

JW266

JR272 JR

JL087

JW281

JL013

1 100

D219

JL231

JW375

JL228

JR275

IC200

JL016

C116

R015

C098

JL086

C289

C204

IC202

JL203

JL233

ND200

JR204

JRJRJR

JL229

JL029

JR

JR355

JR

1

C209

JL152

R113

JL010

JL099

JW258

JL089

R1140

JL1167

JR213

JR212

JL011

JL090

JW272

Q203

R011

JR289

D223

JL303

JL1134

JR203

JR307

JL012

R112

JL095

JL1135

JR221

JR353 JR

R010

JL091

C016

JR

JL245

Q207

JL1157

JL243

JL1119

C301

R084

JL1169

D213

JL248

JL249

JL286

/¾

JL1156

R023

R029

VOLUME

JL1117

JL1122

Q204

JL005

R002

JW215

C089

R093

R085

JL1164

D212

D208

JW347

DC OUT (USB)

5V 500mA

JL257

JL269

JL271

JL274

JL276

JL270

JW308 JL261

JL1128

JW326 JW303 JW360

C297

R221

JW245

JW339 R066

JW300

JL272

JW321

JL280

JL281

136

JL275

JL277

S200

JW299

C217

JR215

JW247

JL220

JW361 JW363

JW355 JW350 JW356

143

JW311

JW242

JW248

R220

1

R206

JL288

JL199

JR214

JW324

JW346

JW354 JW327

JW246 JW328

JL200

IC203

JW365

1113

C223

JL282

VCCO

IC204

/¾

R227

JL1151

D204

JW270

JL1148

JW316 JW325 JW318

/¾

D205

JW330 JW223

D263

JL1187

R225

JL1147

D206

/¾

R1157

JL289

JL310

R1155

JL290

R1153

JW320 JW291 JW379

JW237 JW222 JW385

CN209

R1156

JL287

JL1184

JL1182

JL293

JL1181

R1150

R1154

R1148

R1151

R1149

JW208

Q215

E

R1117 R1121 R1120 R1118

Q216

E

R1113

R1106

JW386

JL283

R226

JL1149

JL209

R1146

R1147

JL311

R1145

C306

C307

IC209

JR

JR281

R1125 R1126 R1127

JL304

Ú/

JW338 JR206

JW317

JW302

JL1207

S206 EQ+

R259

¾ : E2, E51, E93

R1143

R1144

JR227

JL302

R1135

D217

JR222

JR211

R1142

&/1

R254

C303

C302

C304

R1124

JL301

D220

JL298

R257

JL296

S201

TUNING +

R255

M >

JR205

JL297

R256

S202S203

NXx

>004P

MB BOARD

CN301

(Page 32)

MB BOARD

>010P

JL299

CN200

2

S204

TUNING – . m

R258

JR223

JL279

JR

Q206

R223

B

R1112

E

JW225

JL213

R219

R222

JL260

JL1192

E Q211

1113

CN209

>016P

22

231

REGULATOR

BOARD

CN2000

CN301

(Page 34)

(Page 51)

CN206

JL300

S205

R1141

JR217

JR218

EQ–

JR216

143

MB BOARD

>006P

CN802

(Page 32)

MB BOARD

>012P

CN802

(Page 34)

JL263

2627

1

JR208

JW296

JL376

JL1153

R102

R003

BASS

BAZUCA

567

JL266

JL253

JL259

JL268

JL265

JL254

14 13

JL267

JL124

JL258

C290

JL255

C208

JL1154

R213

JR374 JR

R104

R103

R088

JR

JW268

JR273

JR284

C216

JL1138

JW301

JL1137

R1130

JW243

JW232

JW228 JW229 JW334 JW253 JW238

JW273 JW254 JW234

JL1129

22

JL1130

231

JL1127

JR

JR359

JR

JR348

JW351

JR345

JR

JR300

Ú/

R087

R1108

JW331

JR

JR282

JW357

JR225

JW226

JW210

CN206

JL1193

C296

C295

C213

JL197

C215

JL1195

D209

C212

D211

14

JL264

JW383

JL250

JL251

JL1139

52

JW250

JL1155

S220

CN200

R004

R005

¾

E

JW203

R1119

JR

S216

JR

11

1-887-162-

CN201

(11)

HCD-ESX6/ESX8/ESX9

4242

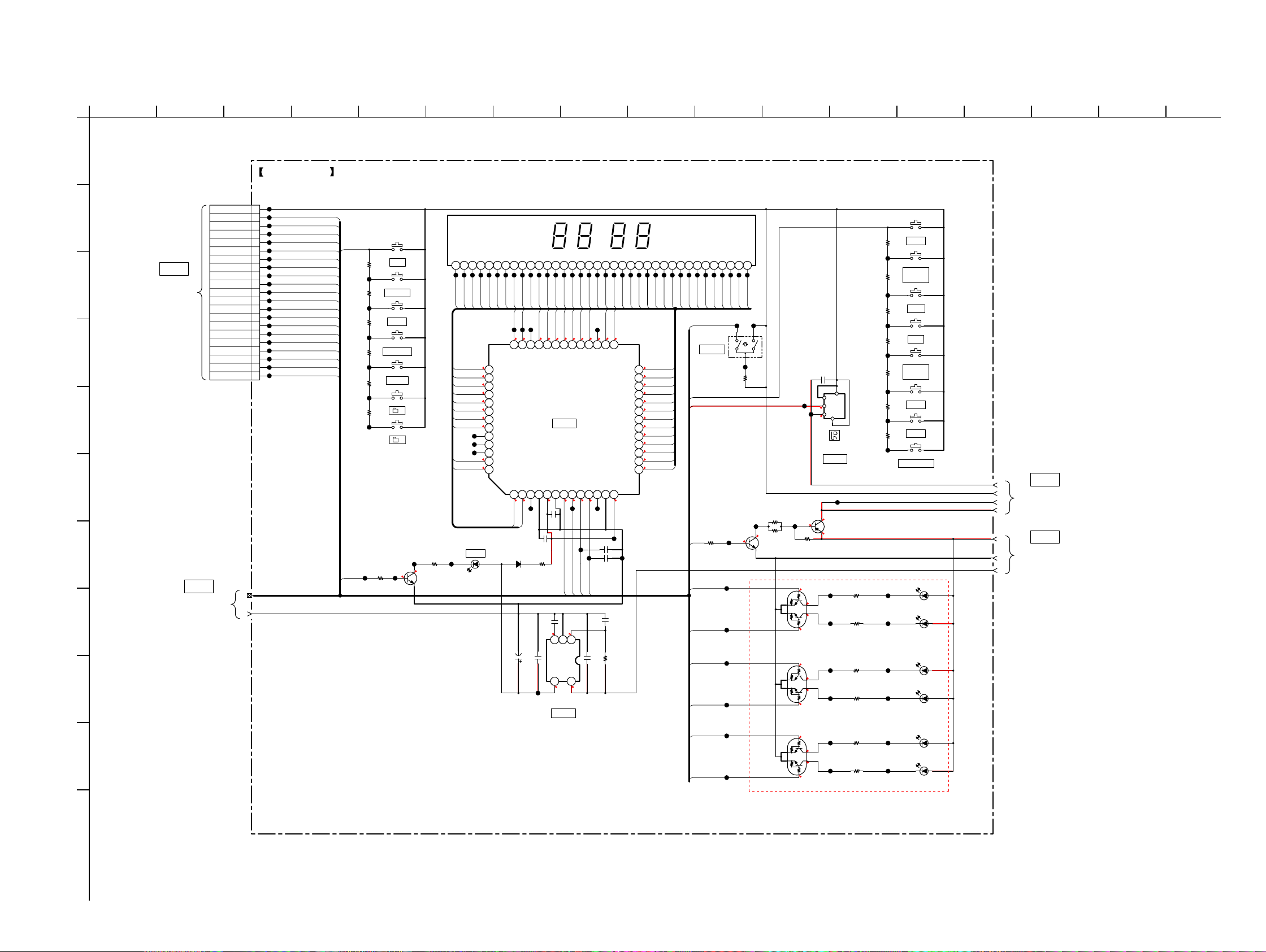

6-16. SCHEMATIC DIAGRAM - PANEL Board (1/2) - • See page 52 for IC Block Diagrams.

HCD-ESX6/ESX8/ESX9

Ver. 1.1

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

PANEL BOARD (1/2)

CN203

21P

JL1206

21

MICOM-GND

B

>033S

C

MB BOARD

(6/6)

CN300

(Page 41)

D

I-MTK-BUSY

I-MTK-XIFCS

I-MTK-RESET

CDM-SW-B

CDM-SWA

CD-MOTOR+

CD-MOTOR-

DSP-MUTE

ST-DATA

ST-CLK ST-RDS

DSP-INT

ST-CE

DAMP-RESET

SD-FAST

OSC-FREQ

LINE_MUTE

SD-SLOW

PVDD_ON

O-MTK-CTRL

E

F

G

>034S

PANEL BOARD

(2/2)

H

(Page 44)

I

JL1205

20

JL1204

19

JL1203

18

JL109

17

JL110

16

JL111

15

JL1110

14

JL1109

13

JL1108

12

JL1107

11

JL105

10

JL106

9

JL107

8

JL1106

7

JL102

6

JL103

5

JL104

4

JL112

3

JL113

2

JL108

1

2

66 60 65 59

93

57 58

R200

21

680

20

JL221

47 48

R201

63 68

JL222

49

R202

38

1.5k

45

JL223

44 43

R203

50

1.5k

36

JL224

88

R204

2.2k

JL225

R205

3.3k

JL1194

22

1k

JL159

R208

4.7k

REC TO USB

S208

Z

S209

FUNCTION

S210

ENTER

S211

S212

OPTIONS

S213

+

S214

–

Q201

2SC2712L-TE85L

LED DRIVER JL1132

0.8

JL1133

36 30 29 28 27 26 2532 31 23 18192024 21 1722 14 13 1016 9111215 6 4 275 13835 34 33

SEG19

SEG20

SEG21

SEG22

SEG31

SEG30

SEG29

SEG28

1.6

SEG24

40

1.6

SEG25

41

1.6

SEG26

42

1.6

SEG27

43

1.6

SEG28

44

1.6

SEG29

45

1.6

SEG30

46

1.6

SEG31

47

JL1134

48

JL1135

49

JL1136

50

1.6

COM0

51

1.6

COM1

52 14

D200

1L043RW32EOCI7A11

R211

33

0.1

WHITE

JL1131

SEG23

SEG27

SEG26

SEG25

SEG24

SEG19

SEG21

SEG20

JL1140

1.6 1.6 1.6 1.6 1.6 1.61.6 1.6 1.6 1.6 1.6 1.6

NC

SEG20

SEG21

SEG22

SEG23 SEG24 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33 SEG34 COM0 COM1 SEG0

COM2

1.6 3.3 3.3

COM2

D224

1SR154-400TE-25

C302

220

10V

COM3NCVLCD

COM3

JL1137

C303

0.1

JL302

BU9795AKS2

IC201

7 SEGMENT DRIVER

VDD

C290

0.1

C208

0.1

R1130

0

C304

0.1

3

4

MM1839A40NRE

IC209

+4V REG.

J

LIQUID CRYSTAL DISPLAY

SEG18

SEG17

SEG16

SEG18

SEG17

SEG16

SEG17

SEG18

SEG19

IC201

VSS

OSCIO

CSB

SCL

987654321

3.3 3.3 3.33.30

JL255

JL258

4

28

7

40

1

2

GND

NOISE

CONTROL VIN

VOUT

5

9.5

4

IC209

ND200

SEG15

SEG14

SEG13

SEG14

SEG15

JL1139

28

2930313233343536373839

NC

SEG15

SDANCTEST

10 11 12 13

JL1138

JL267

C216 220p C217 220p

JL261

5

C307

0.1

SEG12

SEG13

27

SEG14

C306

1000p

R1135

100k

SEG13

SEG12

SEG10

INHb

SEG11

SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1

SEG10

JL124

SEG9

26 25 24 23 22 21 20 19 18 17 16 15

SEG8

1.6

SEG7

SEG12 SEG11 SEG10

SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0

SEG6

SEG5

SEG4

SEG3

SEG2

94

67 6

88

56

55

54

53

52

51

SEG1

SEG0

S220

VOLUME

R223

10k

2SC2712L-TE85L

POWER CONTROL

COM3

JL1155

JL279

JL286

JL284

JL252

JL242

JL229

JL228

COM2

JL1153

Q206

COM1

(0.7)

JL213

0

COM0

JL1154

R213

10k

ESX8/ESX9

3.6

Q207

RN1905

LED

DRIVER

Q203

RN1905

LED

DRIVER

Q200

RN1905

LED

DRIVER

R219

180

R1112

1k

JL1151

JL1149

JL1147

JL1145

JL1143

JL1141

S200

"/1

S201

TUNING +

M >

S202

NX

S203

x

S204

TUNING -

. m

S205

EQ–

S206 EQ+

S216

BASS BAZUCA

D204

1L0352V22F3MIT02

D205

1L0352V22F3MIT02

D206

1L0352V22F3MIT02

D203

1L0352V22F3MIT02

D202

1L0352V22F3MIT02

D201

1L0352V22F3MIT02

3 4

PANEL BOARD

5 6

(Page 44)

7

PANEL BOARD

8 9

(Page 44)

>035S

(2/2)

>036S

(2/2)

R254

680

JL296

R255

JL297

R256

1.5k

JL298

R257

1.5k

JL299

C223

0.22

JL283

2.8

R222

10k

0.3

GND OUT

3.3

VCC

3.3

IC204

PNA4823M03S0

IC204

REMOTE CONTROL

RECEIVER

JL260

3.5

2SB1690KT146

POWER CONTROL

3.6

JL1152

2.6

JL1150

JL1148

2.6

JL1146

JL1144

2.6

JL1142

JL282

JL1192

180

Q211

R227

R226

R225

R212

R209

R207

R258

2.2k

JL300

R259

3.3k

JL311

R206

4.7k

JL1193

68

K

HCD-ESX6/ESX8/ESX9

4343

HCD-ESX6/ESX8/ESX9

Ver. 1.1

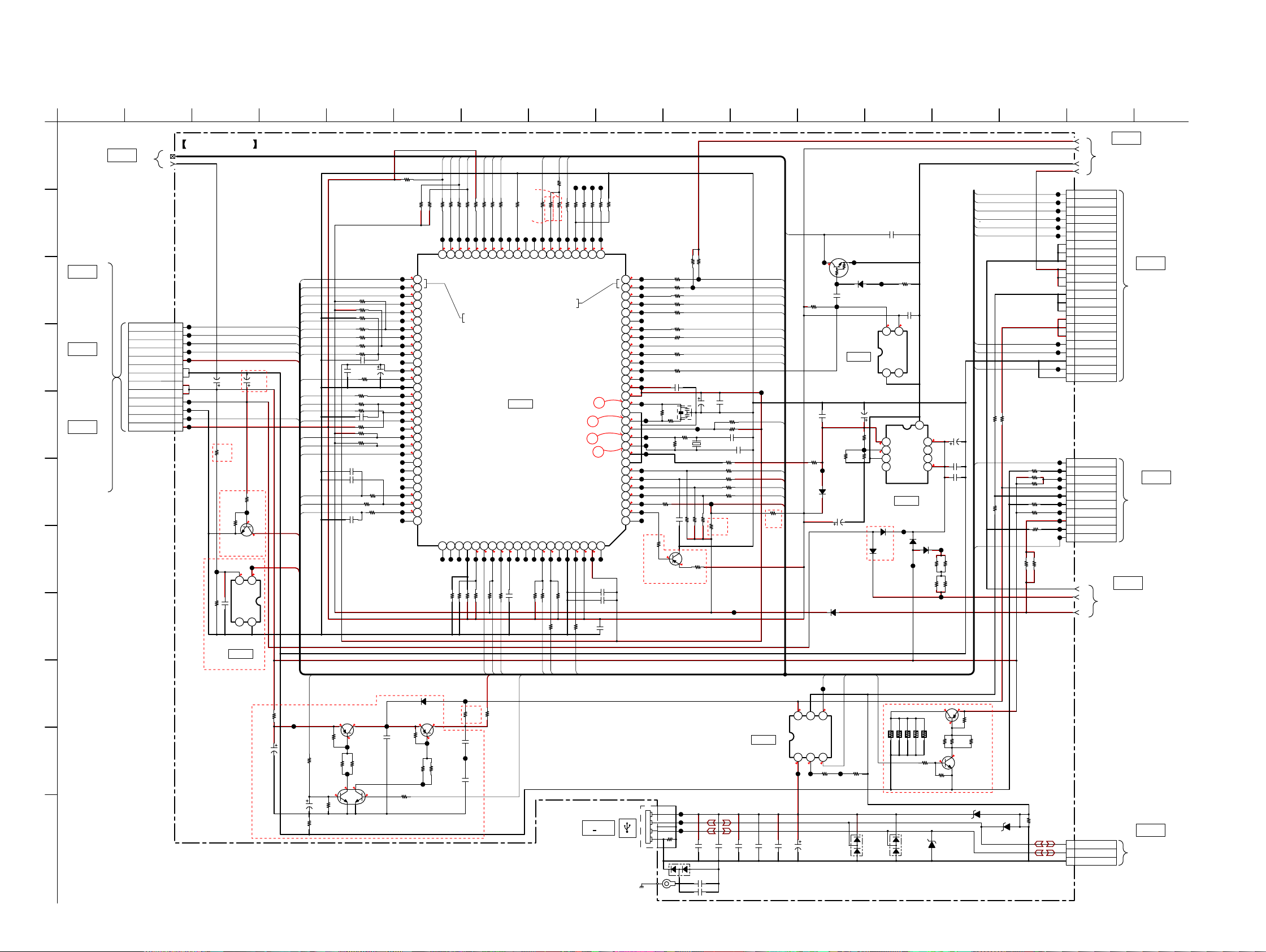

6-17. SCHEMATIC DIAGRAM - PANEL Board (2/2) - • See page 31 for Waveforms. • See page 52 for IC Block Diagrams. • See page 61 for IC Pin Function Descriptions.

A

B

SMPS-300W

C

(Page 46)

D

SMPS-400W

(Page 48)

E

SMPS-600W

(Page 50)

F

G

H

I

J

K

1

>037S

BOARD

(ESX6)

CN2004

>038S

BOARD

(ESX8)

CN2004

>039S

BOARD

(ESX9)

CN2004

>034S

PANEL BOARD

(1/2)

(Page 43)

THERMAL-DETECT

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

>035S

CN200

23P

CN209

11P

CN206

4P

5 3

4 6

1

I-DSP-DATA

2

O-DSP-RESET

3

I-DSP-CLK

4

O-DIGITAL-ASEL

5

O-ANALOG-ASEL

6

O-ANALOG-BSEL

7

3.3V-GND

8

3.3V-GND

9

3.3V-GND

10

3.3V

11

3.3V

12

3.3V

13

5.2V-GND

14

5.2V-GND

15

5.2V-GND

16

5.2V

17

5.2V

18

5.2V

19

O-MTK-SDO

20

O-MTK-SDI

21

MICOM-GND

22

I-MTK-CLK

23

MICOM-GND

1

MTK-CTRL

3

12.5/13.5V GND

4

12.5V/13.5V

5

5.2V

6

5.2V GND

7

12.5/13.5V GND

8

12.5V/13.5V

9

3.6V

10

3.6V GND

11

REG-ON

8 9

7

D-

4

D+

3

SHIELD-GND

1

PANEL BOARD

(1/2)

(Page 43)

>012S

MB BOARD

(2/6)

CN301

(Page 37)

REGULATOR

BOARD CN2000

(Page 51)

>036S

PANEL BOARD

(1/2)

(Page 43)

>016S

MB BOARD

(2/6)

CN802

(Page 37)

FAN-DRIVE FAN-SPEED FAN-BLOCK

PVDD-ON

FAN+ 12V-GND 12V-GND

MICOM_GND

EVER_3.3V

PANEL BOARD (2/2)

1 2

CN204

13P

JL211

1

JL210

2

JL207

3

JL208

4

JL206

5 6 7

12V

8

12V

9

JL1113

7V

10

JL1114

11

JL1115

12

JL1116

13

ESX9

18kR251

*1 C294

47 (ESX6/ESX8) 220 (ESX9)

ESX6/ESX8

C294

*1

ESX9

R250

47k

ESX6/ESX8

R1109

3.3k

Q212

2SC2712L-TE85L

VOLTAGE MONITOR

JL310

JL1167

12 3.6

2

Vdd

0.01C280

N.C4GND

3

IC208

BU4829F-TR

IC208

VOLTAGE MONITOR

47 16V

R1107

JL1169

3.5

1

C292

10k

OUT

ESX9

35

36

43

50

R150

10k

0.3

10kR157 10kR159 10kR160

100 100 100R059 470R060

47pC060 C062

100

0.1

6.3V 0R063

0R065 470R066

470R067 47pC066

15kR167 10kR070

10kR071

R077

470

1kR078

R079

470

*2 R084

4.7k (ESX8) 0 (ESX9)

*3 R085

680 (MX) 1k (E2, E51)

4.7k (E93, E4)

51.3

JL1172

C283

0.1

R291

3.3k

0

JL051 JL052

0.3

JL053

0.3

JL054

0.3

JL055

0.3

JL056

0.3

JL057 JL058

0.3

JL059

3.3

JL060 JL061

3.3

JL062

3.3

JL063 JL064

3.2

JL065

2.3

JL066

3.2

JL067 JL068 JL069

3.3

JL070

3.3

JL071

3.3

JL072 JL073 JL074 JL075 JL076 JL077 JL078

3.3

JL079 JL080

* 2.7 (EXCEPT MX)

2.9 (MX)

*4 R184

0 (ESX6)

1.5k (ESX8)

*5 R185

330 (E93)

680 (E4)

4.7k (E2, E51, MX)

R1097

10k

JL1173

R294

3.3k

51 52 53 54 55 56

71

57

FAN-SPEED

58

70

59

36

60

FAN+

63

65 66 67

97

68

70 71 72

77 78 79

R242

C285

3

FAN-SPEED

0

JL1170

4.7 50V

C286

10 50V

R1103

R296

12k

0

3.6

R295

R057 R058

C161

C077

47p

C078

47p

C079

47p

Q210

2SB1710TL

FAN DRIVER

R293

13.3

10k

JL1171

R292

3.3k JL1087

13.3 4.2

0

47k

Q208

XP4501

FAN DRIVER

1.5kR147

1.5kR148

51

0

52 53

O-VOL-LED2

54

O-VOL-LED3

55

O-VOL-LED4

56

O-VOL-LED5

57

I-CDM-LOAD-SW

0

58

O-CD-MOTOR +

59

I-CDM-UNLOAD-SW

60

I-MTK-XIFCS

61

NO USED

62

Vcc2

63

I-ST-RDS

64

Vss

65

O-MTK-RESET

66

O-MTK-BUSY

67

I-AD-KEY0

0

68

I-DSP-INT

0

69

NO_USE

70

/I-FAN-BLOCK-DET

71

O-FAN-DRIVE

72

NO_USE

73

NO_USE

74

NO_USE

75

NO_USE

76

NO_USE

0

77

O-MTK-SDO

0

78

I-MTK-SDI

79

I-MTK-CLK

80

NO_USE

D221

RB501V-40TE-17

4.2

JL1105

R290

3.3k

100R050

100R048

0R049

JL048

JL049

JL050

3.4 3.2 3.4 3.4 0 3.6 00 0 0 0 0 0 0 0 2.80

48

49

50

O-ST-CE

I-SD-SLOW

NO_USE82NO_USE

83

81

JL081

JL082

*4

R184

ESX8

55

Q209

2SB1710TL

FAN DRIVER

R289

3.3k

4449454847

10kR046

100R047

0R045

0R044

JL046

JL044

JL045

JL047

43

45

46

44

47

I-ST-CLK

I-ST-DATA

/I-SD-FAST

O-OSC-FREQ

CE (FLASH RECOVERY) O-VOL-LED0 O-VOL-LED1

/I-HUB-OC-USB-A

NO_USE

I-MODEL-IN85I-DEST-IN86O-VBUS-OE

87

88

84

*

3.3 3.3 3.1 0 0 3.3 3.301.7

JL086

JL087

JL083

JL084

JL085

*2

*3R085

*5R185

10kR087

R084

87

86

FAN+

JL1174

R241

R1104

*8

0

C281

0.1

JL1103

C282

0.1

0R043

JL043

O-LINE-MUTE

R5F3650KBDFA

SYSTEM CONTROL

O-MTK-POWER-CTRL

JL088

0

R088

88

38

R136

ESX6/ ESX8

10kR041

0R038

ESX9

JL041

JL040

JL042

JL038

JL039

41

42

38

39

40

NO_USE

O-DAMP-RESET

EPM(FLASH-RECOVERY)

IC001

NO_USE92NO_USE

NO_USE90NO_USE

89

JL089

0.1C089

I-AD-KEY194I-MASTER-VOL95NO_USE

91

93

JL090

JL091

JL092

JL093

470R093

15kR193

93

71

*8 R241

0 (ESX8:E2, E51, MX, E4/ESX9) 330ohm (ESX8:E93)

100

0R037

0R036

JL037

JL036

36

37

O-PVDD-ESX2

O-PVDD-ESX0/1

I-DSP-SDA

I-DSP-SCL

JL095

JL094

10kR194

R094

1k

94

100R035

100R034

100R033

100R032

JL034

JL035

JL033

JL032

32

33

34

35

O-REG-ON

I-FLASH-CLK1

I-FLASH-RTS1

I-FLASH-RXD1

O-DIGITAL-SEL

O-ANALOG-BSEL

O-DSP-RESET

O-ANALOG-ASEL

O-BACKLIGHT-LED

O-CD-MOTOR -

O-DSP-MUTE

8

7 6

5

O-LCD-DRIVER-CLK

O-LCD-DRIVER-DATA

O-LCD-DRIVER-CE

I-V2-MONITOR

AVss

AVcc

I-SMPS-THERMAL-DETECT

Vref

97

98

96

99

100

JL098

JL096

JL099

JL097

R197

100

97

DC OUT (USB)

5V 500mA

47kR134

100R031

JL031

31

I-FLASH-TXD1 NO_USE

NO_USE

I-AC-CUT

NO_USE

NMI Vcc1 I-X-in

O-X-OUT

I-RESET

O-XC-OUT

I-XC-IN CNVss

BYTE

I-SIRCS

NO_USE

JL100

0.1C099

0.1C199

C098

0.1

30 24 29 27

C293

220 16V

C211

0.1

C214 1000p

R1124

100

R1125

100

Q215

13

R1120

3.3k

0 (13.5)

2SC2712L-TE85L

13.5

VOLTAGE

SWITCH

R1117

Q216

23 26

77 78

79

0R1157

0R1156*7R1151

*7 R1151

0 (EXCEPT ESX8:E93) 330ohm (ESX8:E93)

88

35

10k

R1118

3.3k

DZ2J068M0LD211

D212

DZ2J068M0L

12

R129

R130

1.5k

0

150pC301

C291

D207

BAV99-215

E

100R030 100R029 0R028 100R027 100R026

100R024 100R023

100R021

47kR019

0.1C017 X002

8MHz

R011 220k

1kR007

1kR005

R102

0.7

JL197 JL264 JL262

0

C206 0.01 C205 0.1

JL1157

JL012

1k

1.5k

JL1156

C016

100

6.3V

X001

32.768kHz

1kR004

C213

0.1

C116

0.1

R112 10k

JL1164

R1108

15k

C297

100p

100R012

27pC011

18pC010

150kR009 100R107 100R006 100R105 100R104

ESX6/ ESX8

JL1187

NCP380HSNAJAAT1G

C296

0.01

JL152

ESX9

IC203

USB 5V REG.

C212

10

R103

30 29 28 27 26

24 23 22 21 20

12

7 6 5 4 3

10k

5 3.3

1

IN

5 0.3 3.3

JL220

JL200

C215

C295

100

1

6.3V

0

JL030

30

3.3

JL029

29

0

JL028

28

0

JL027

27

0

JL026

26

JL025

25

3.3

JL024

24

0

JL023

23

3.1

JL022

22

0

JL021

21

0

JL020

20

3.3

JL019

19

0

JL018

18

3.3

JL016

17

3.3

16

1.6

JL015

15

R015

1.8 0

0.9

0.7

3.1

3.2

3.4

3.1

0.9 0 0

ESX9

(CHASSIS)

R113

1M

JL013

JL011

R010

JL010

10M

JL009 JL007 JL006 JL005 JL004 JL003

R003

JL002

100

JL001

R002

3.3k

0.1

Q204

2SB1710TL

VOLTAGE SWITCH

CN201

4P

ET200

Vss

14 13 12

11

10

9 8 7 6 5 4 3 2O-V2-SWITCH 1NO_USE

Q202

DTC114EKA-T146

RESET SWITCH

JL243

3.3

JL1160

C203

R217

0.47

1k

JL246

AC CUT SWITCH

C204

0.1

R1140

R1111

0

33k

JL303

D223

RB501V-40TE-17

C289

*6

*6 C289

220 10V (ESX6/ESX8) 47 16V (ESX9)

D217 ~ D220

1SR154-400TE-25

D263

RB501V-40TE-17

87

86

JL199

2

3

EN

GND

/FLAG

ILIM6OUT

5

4

R220

JL1195

33k

DA2J10100L

BU4829F-TR

IC200

C201

10V

R1110

JL1198

R1105

R221

IC200

220

56k

33k

2.2k

JL1159

D215

JL1161

ESX6/ESX8

D209

BAV99-215

C202

0.1

3.3 3.3

1

2

OUT

VSS

3NC4

1VO

3.5

FB

2

0.8

3GND

NC

4

BD00GC0WEFJ-SE2

IC202

+3.5V REG.

D218

D219

D217

72

1kR1142

1kR1141

ESX9: E2, E51, E93

R1116

0

C209

VDO

IC202

JL203

JL202

1kR1143

BAV99-215

0.1

9

12.5

VCC

8

NC

7

NC

6

12.5

EN

5

D220

JL301

R1126

100

R1127

100

JL304

2SB1710TL

VOLTAGE SWITCH

13(0)

1kR1145

1kR1144

R1121

3.3k

0.7

R1113

10k

R1106

10k

D208

D213

DZ2J068M0L

JL1117 JL1118

JL1119 JL1120 JL1121 JL1122

JL1127 JL1128

JL1129

JL288

0R1155

JL290

0R1154

JL287

0R1153

JL289

JL1184

0R1150

JL293

0R1149

JL1182 JL1181

JL209

JL1207

R1146

0

0R1147

0R1148

R1119

0

>040S

HCD-ESX6/ESX8/ESX9

4444

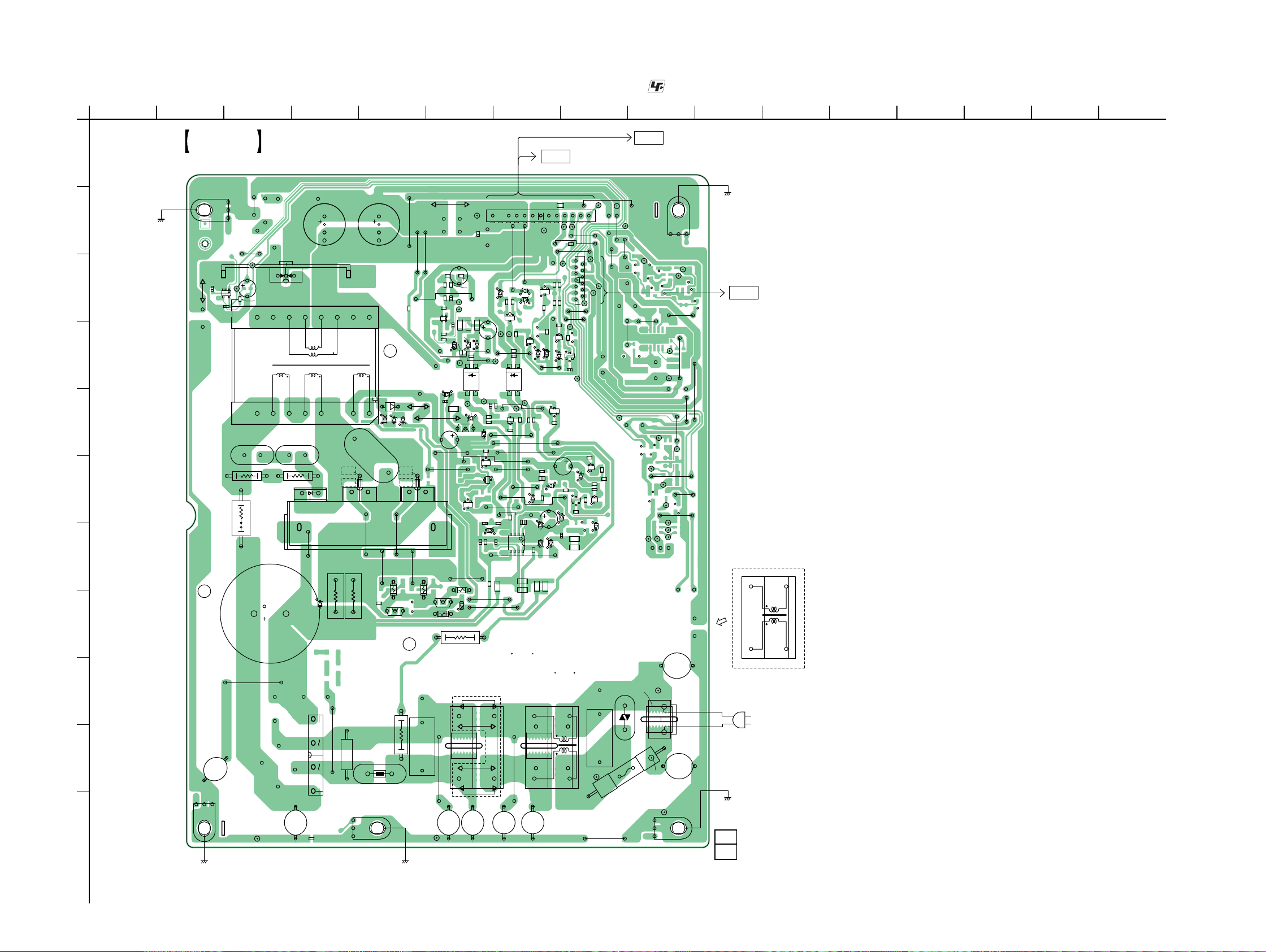

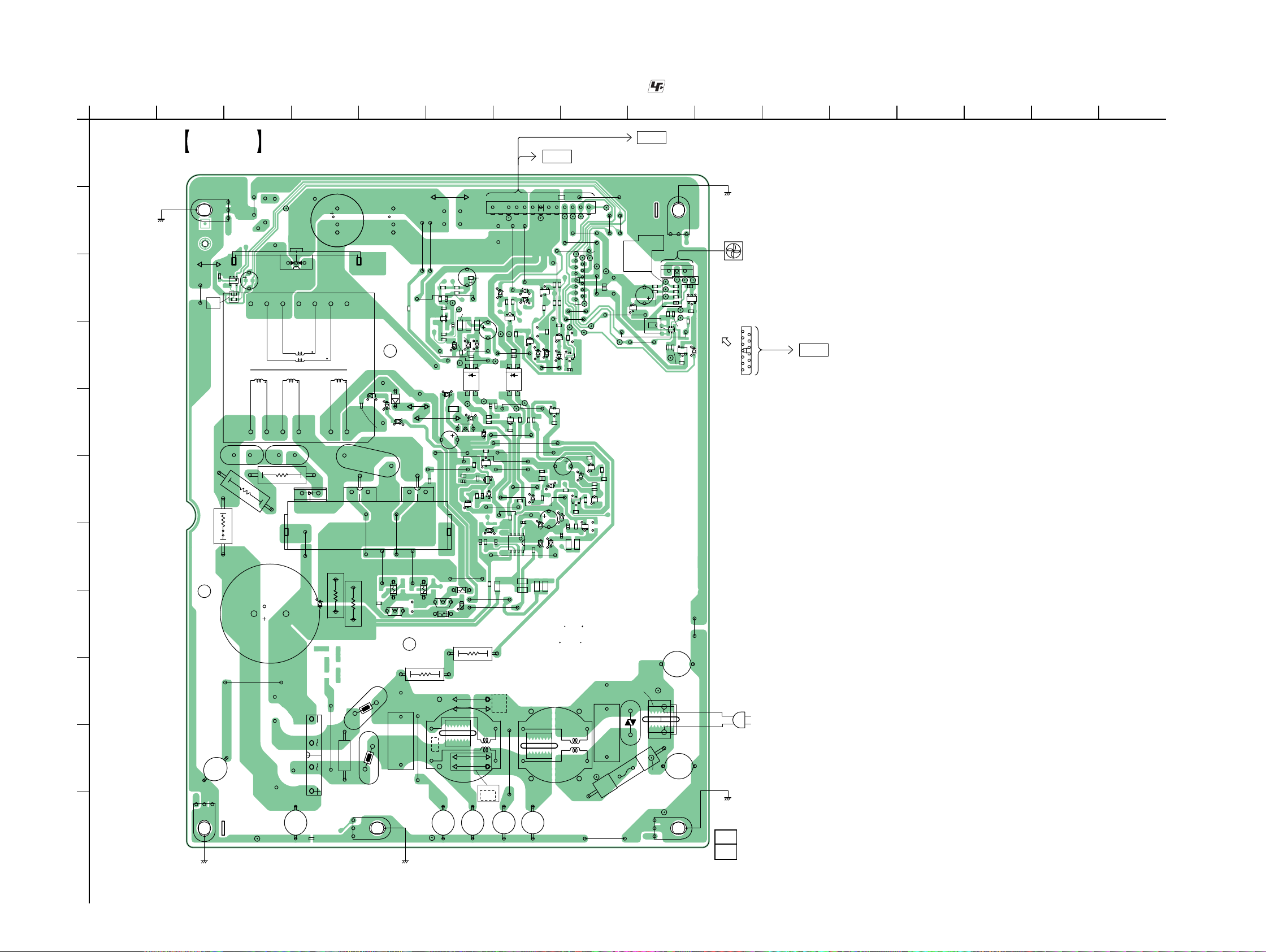

6-18. PRINTED WIRING BOARD - SMPS-300W Board (ESX6) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

HCD-ESX6/ESX8/ESX9

1

A

B

(CHASSIS)

C

D

E

F

G

H

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

>001P

JL1882

JW903

JL2008

JL1875

JL2007

JL2006

JL2005

JL916

MB BOARD

CN1700

(Page 32)

ET1000

JL1884

JW959

JL1874

JW949

JW950

JL904

JW952

JW953

JW954

JL2004 JL2003 JL2002

JL1890

JW962

JW926

(CHASSIS)

>013P

PANEL

BOARD

CN204

(Page 42)

JW951

Ì

L1857

¾ EXCEPT MX Ú MX Ì E93

SMPS-300W BOARD (ESX6)

JW931

ET999

JW960

JL912

A932

JL914

C1013

JS1003

IC1004

R925 R926

C1014

C1012

R002

T901

C917

R914

MB BOARD

D1005

D916 R932

R1043

R1044

Q1003

C922

JL919

R2126

JL921

JW946

E

D913

Q904

R933

C930

R1006

R1045

JW942 JW923

R1047

C1007

D1006

R968

D914

R937

C920

R975

CN1700

(Page 34)

JL918

JW957 JW956

JW948

1

2

CN2004

JL909

12

13

JL905

JL907

Q1004

E

JL908

R935

E

D903

Q913

Q912

R965

E

R961

JL911

JL910

JL922

R956 R957

D917

JW958

JL1896

JL913

JW944

JW947

JW961

JW943

JW934

JL906

R954

R955

Q911

JL915

>007P

JS1002

JL917

JW937

R1066

C1025

CL1003

R1048

R944

CL908

Q903

D1002

E

D907

R1017

EC

D912

E

R1064

R1016

R1002

C1008

R1008

D921

CL906

C931

R1000

D910

R924

E

C926

D1001

Q902

JW904

JW917 JW910

R939

1133

C1005

CL1000

C924

R936 R952

E

Q1018

R960

JW906

R938

R921

R958

C932

R942

D1025

R1042

AA

CL1006

JW919

Q910

JW924 JW921

K

CL1005

R1029

C1000

EC

E

JW905 JW933

JW915 JW913

JW908

R918

C935

IC900

JW945

C928

JW925

C1003

JW941

JW928

R1013

R1014R1015

JW918

R1012

R1065

IC1000

R919

D908

JS907

D906

D918

D920

Q908Q909

JW914

JW938

JW939

R946

R947

E

Q907

C1011

CL1002

1

C1010

R1011 R1009

D1007

JW920

JW912

CL1001

PH930 PH931

D911

C919

R928

JS908

C921

JW911

JW907

Q914

R945

Q906

E

R943

C1004

D1010

C2010

D901

A931

C914

¾¾

ÚÚ

Q2005 Q2004

GS GS

JW909

D949

R948

R949

JW901

D1021

CL912

D1026

R1028

JW930

JW932

R974 R941

JW927

D1027

Q1001

R1003

CL911

R959

R1067

CN4

JL920

E

Q1002

R1004

R1005

R1062

E

D1004

JW922

R923

R934

R927

C923

D915

D928

D905

R922

R920

R940

I

J

K

HCD-ESX6/ESX8/ESX9

JW902

D902

JW940

R901

C916

ET903

CL907

(CHASSIS) (CHASSIS)

C910

JR901

JR

ET931

R967

TH902

C907

CL904

JW955

EXCEPT Ì

L1857

SPARK-GAP

C2009

CAM905

PATTERN

JS905

JS902

JS904

JS901

C2008

C901

CAM902

JL903

PATTERN

SPARK-GAP

C905

JW916

F901

VDR901

CN901

13

C925

JL901

CL901

ET901

1-887-412-

~ AC IN

(CHASSIS)

11

(11)

L1856

CAM906

PATTERN

SPARK-GAP

JW929

C902

C903

JL902

4545

HCD-ESX6/ESX8/ESX9

Ver. 1.1

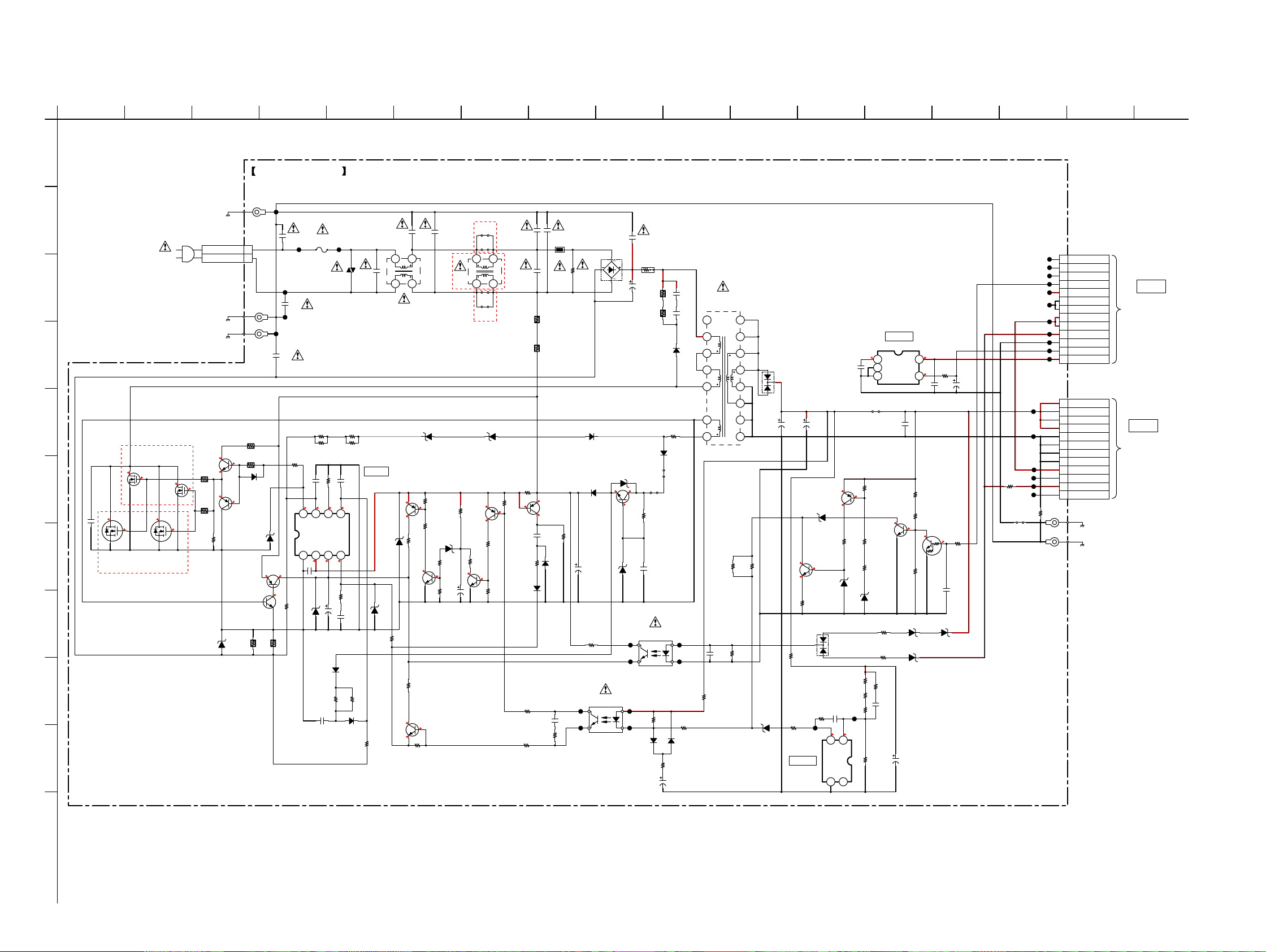

6-19. SCHEMATIC DIAGRAM - SMPS-300W Board (ESX6) - • See page 52 for IC Block Diagrams.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

SMPS-300W BOARD

(ESX6)

ET931

E

CN901

1 3

R944

47

R943

47

D907

D905

CL904

C902

C925

3P

JL903

ET901

E

CL907

E

ET903

C916 470p

*

R949

0.22

10p

JL901

C901

10p

CL901

R922

10

8

DRIVE

GND2VCC3OLP4FB

1

C935

1

R942

100

F901

6.3A 250V

VDR901

R974

470

R941

470

470pC932

150kR939

**

7

6

OCP2

*****

C922 1 50V

D914 DZ2J068M0L

C920

2700p

JL902

BURST

R920

6.8k

R940

6.8k

470pC926

5

OCP1BD

R960

1k

C931

2200p

D917

DA2J10100L

R975

2.2k

D913

DA2J10100L

C905

0.33

CONVERTER

R937

2.2k

IC900

SSC6700

IC900

DC-DC

R938

100

R918

D921

10

1000p

231

L1856 18mH

2PB709ART

OVER VOLTAGE

PROTECTION

*

D928

DZ2J330M0L

DZ2J082M0L

*

C903

1000p

4

D920

DZ2J220M0L

Q912

*

R968

1k

*

LSCR523UBFS8TL

PROTECTION

ON/OFF

R959 220k

*

R958

22k

R961

47k

R965

47k

DZ2J068M0L

*

R957

100k

Q911

LSCR523UBFS8TL

FEEDBACK SWITCH

B

~ AC IN

(CHASSIS)

NEUTRAL

LIVE

C

(CHASSIS)

D

E

EXCEPT MX

Q908 ~ Q909 FMV10N80E

POWER CONTROL Q908

*

Q909

*

S

Q2004

STF15NM65N

POWER CONTROL

MX

*

S

*

S

Q2005

STF15NM65N

POWER CONTROL

F

C928 2200p

G

H

S

KTC3209-Y-AT

VOLTAGE DRIVER

R945

56

*

R946

56

R947

10k

D949

DZ2J300M0L

Q906

*

RF05VA2STR

*

Q907

KTA1281Y-AT

VOLTAGE DRIVER

DZ2J180M0L

Q914 2PB709ART OVERLOAD

PROTECTION

Q1018

LSCR523UBFS8TL

OVERLOAD

PROTECTION

R948

0.1

I

J

D903

R956

E93

47k

C930

22

50V

Q910

EXCEPT E93

JS901

JS904

L1857 18mH

142

JS905

JS902

EXCEPT E93

DZ2J180M0L

2PB709ART

PROTECTION

R955 220k

R934 100k

R954

1k

*

Q913

LSCR523UBFS8TL

PROTECTION

ON/OFF

10

D918

Q904

VOLTAGE

*

R935

C2008

C2009

100p

C907

0.33

R967

R1066

47k

R924

*

C923

0.47

R921

R952

1k

R932

1k

47k

1k

22k

TH902

*

Q902

2PB709ART

VOLTAGE

PROTECTION

*

R927

470k

D916

C924

0.1 R936

1k

DA2J10100L

CL906

CL908

3

R933

22k

*

D915

DA2J10100L

10k

R901

1.5M

D906

RF05VA2STR

D910

DA2J10100L

Q903

KTC3209-Y-AT

VOLTAGE

PROTECTION

C921

10

50V

R923

1k

PS2561AL-1-V-F3-A

KBJ1006G

*1 C914

330 450V (EXCEPT MX) 330 250V (MX)

PH930

D902

DZ2J220M0L

*

CL911

CL912

D912

*

DA2J10100L

C910 470p

R914

0.1

C914

*1

R925

15k

R926

15k

D908

D1NL20U-TR2

JS908

*

12.5

R928

4.7k

C919

D911

100p

DZ2J24000L

PH931

PS2561AL-1-V-F3-A

CL1000

CL1001

D1002

D901

SARS10

R1008

1k

JS907

R1000

2.2k

C1005

R919

50V

4.7

5

R1048

DA2J10100L

1

C917

0.01

C2010

0.01

CL1005

CL1006

330

D1001

R1065

0

T901

CONVERTER

TRANSFORMER

6

5

4

2

1

R10171kR1002

1k

C1000

0.1

R1029

CN2004

13P

JL904

13

ET1000

ET999

FAN-DRIVE

12

N.C

11

FAN-BLOCK

10

MAIN-ON

9

5V

8

12V-GND

7

12V-GND

6

12V

5

12V

4

EVER+7V/12V

3

3.3V GND

2

THERMAL-DET

1

3.3V

CN4

13P

1

V1

3

V1

4

V1

5

V1

6

V1_GND

7

V1_GND

8

V1_GND

9

V1_GND

10

12V

11

12V

12

NC

13

FAN SPEED

EE

(CHASSIS)

>037S

PANEL BOARD

(2/2)

CN204

(Page 44)

>028S

MB BOARD

(5/6)

CN1700

(Page 40)

JL905 JL906 JL907 JL908

JL909

R2126

0

JS1003

JL917

JL918

5

JL919 JL920 JL921 JL922

R1067

JL910 JL911

JL912 JL913 JL914

0

118

127

13

14

15

D1010

16

FMX-22SL

D1007

DZ2J180M0L

C1003

680 50V

34.2

6.1

R1064

0

R1009

1k

IC1000

MM1431CURE

IC1000

VOLTAGE

DETECT

2PB709ART DETECTION

LSCR523UBFS8TL

R1003

5.6k

17

18

10k

C1004

680 50V

Q1002

VOLTAGE

D1006

DZ2J051M0L

Q1001

VOLTAGE

DETECTION

0

D1004

DZ2J068M0L

R1011

10k CL1002

36.5

D1021 BAV70

C1010

0.047

16 2.5

43

KVref

A

12

C1013 6800p

R1004

47k

PVDD OVP

EVER OVP

R1013

2.2k

R1014

10k

R1015

33k

CL1003

35.8

S-5855AACA-M5T1

THERMAL DETECT

0.5

1CF 2 VSS 3NC 4DOUT

JS1002

10

R1043

10k

Q1003 LSCR523UBFS8TL POWER CONTROL

R1044

10k

R1062

0

D1005

DZ2J24000L

R1028

100

R1042

100

R1016

10k C1011

0.1

R1012

3.3k

IC1004

C1008

0.1

30.4

R1005

DZ2J360M0L

DZ2J160M0L

C1025

50V

33k

10

D1026

D1025

3.3

5VDD

R002

3.3

2.2k C1012

C1014

22

0.1

25V

R1006

22k

R1045

Q1004

10k

PDTC114ET

0

VOLTAGE

CONTROL

0

3.1

R1047

10

C1007

0.1

D1027

DZ2J047M0L

K

HCD-ESX6/ESX8/ESX9

4646

6-20. PRINTED WIRING BOARD - SMPS-400W Board (ESX8) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

HCD-ESX6/ESX8/ESX9

Ver. 1.1

1

A

B

(CHASSIS)

C

D

E

F

G

H

I

J

K

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

>002P

JL916

JL2005

JL915

R2122 R2002 R2004 C2002

R2123

C2000

R2003

R2008

B1C2

E1

Q2003

B2E2 C1

R2009

JL2007

JL903

13

JL901

CL901

ET901

1-887-413-

MB BOARD

CN1700

(Page 32)

ET1000

CN2000

13

C2001

Q2001

E

JL2006

R2007

JL2008

R2012

R2006

Q2002

D2000

E

R2010

R2011

JW935

C901

CN901

C925

(CHASSIS)

12

(12)

DC FAN

CN2004

1

2

>014P

12

13

PANEL

BOARD

CN204

(Page 42)

~ AC IN

¾ EXCEPT E93 Ì E93

SMPS-400W BOARD (ESX8)

ET999

C1003

IC1004

C1014

R002

C916

A932

C917

R925

R914

JS1003

JW936

ET903

JW902

JW931

C1016

CL907

MB BOARD

R1043

R1044

Q1003

C922

E

R933

C930

D913

JW946

Q904E

R968

JL914

D914

C920

JL919

R1006

R1045

R1047

C1007

D1006

CN1700

(Page 34)

JL921

JL920

JW957

JW956 JW948

1

2

CN2004

12

13

JL905

JW942 JW923

JL907

JL908

E

Q1004

R935

D903

Q912

E

R961

C918

R930

E

R975

R937

JL902

JW958

JL922

JW903

JW943

JL2002

JL913

JL2003

JL911

JL2004

JL910

JL909

JW941

C2004

Q2000

E

JW953

JL906

JW952

JL904

JW950

E

R954

Q913

R955 R956 R957

R965

E

Q911

Q905

CAM902

PATTERN

SPARK-GAP

VDR901

C905

F901

JW916

>008P

IC1000

JS907

JW939

CL904

JW926

JW918

R945

R967

JW955

JW928

R1012

R1011 R1009

Ì

JS908

R1014

JW912

D911

TH903

L1003

R1015

JW911 JW907

Q906

E

R943

JS1002

JW920

C921

C2009

C1025

R1013

R1016

CL1003

CL1002

C1011

1

R1017

R1002

C1010

R1048

D1002

D1007

CL1001

PH930

EC EC

CL908

R928

D912

E

Q903

R1070 C1030

E

Q914

JW937

R944

D907

R1066

CAM905

PATTERN

SPARK-GAP

1133

JL917

JW901

R1064

D1025

R1042

AA

R1000

K

CL1006

C1005

CL1005

D1001

R1029

R1008

C1000

CL1000

R921

C924

JW919

CL906

Q910

R936

E

R952

R958

D910

JW905 JW933

R924

JW915

E

C926

R1072

¾

Q902

C900

D921

JW917 JW910

JS904 JS901

JW904

JW913 JW908

E

Q1018

JW924

D1022

R1068

JW921

R918

C935

IC900

C932

R939

JW906

R938

R942

¾

JS905 JS902

JW929

C903

R917

R1069

C2008

JL912

C1012

D1010

R1065

T902

D908

D906

D920

D918

R919

C2010

R926

D901

A931

JW909

D949

C914

D902

C910

JR901

JR

GS Q909

R948

R949

TH904

JW940

R901

C928

TH902

ET931

JW925

JW938

R947

GS Q908

JW914

R946

E

Q907

C907

(CHASSIS)(CHASSIS)

D1021

R1028

JW930

CL912

JW932

R974 R941

D1026

R1003

CN4

JW927

D1027

Q1001

E

PH931

CL911

R959

C923

SPARK-GAP

R923

R934

R922

CAM906

PATTERN

C902

R927

D928

D905

R940

E

R1004

D1004

D915

JL918

Q1002

R1062

JW922

L1002

R1067

R1005

D1005

D916 R932

R920

HCD-ESX6/ESX8/ESX9

4747

HCD-ESX6/ESX8/ESX9

Ver. 1.1

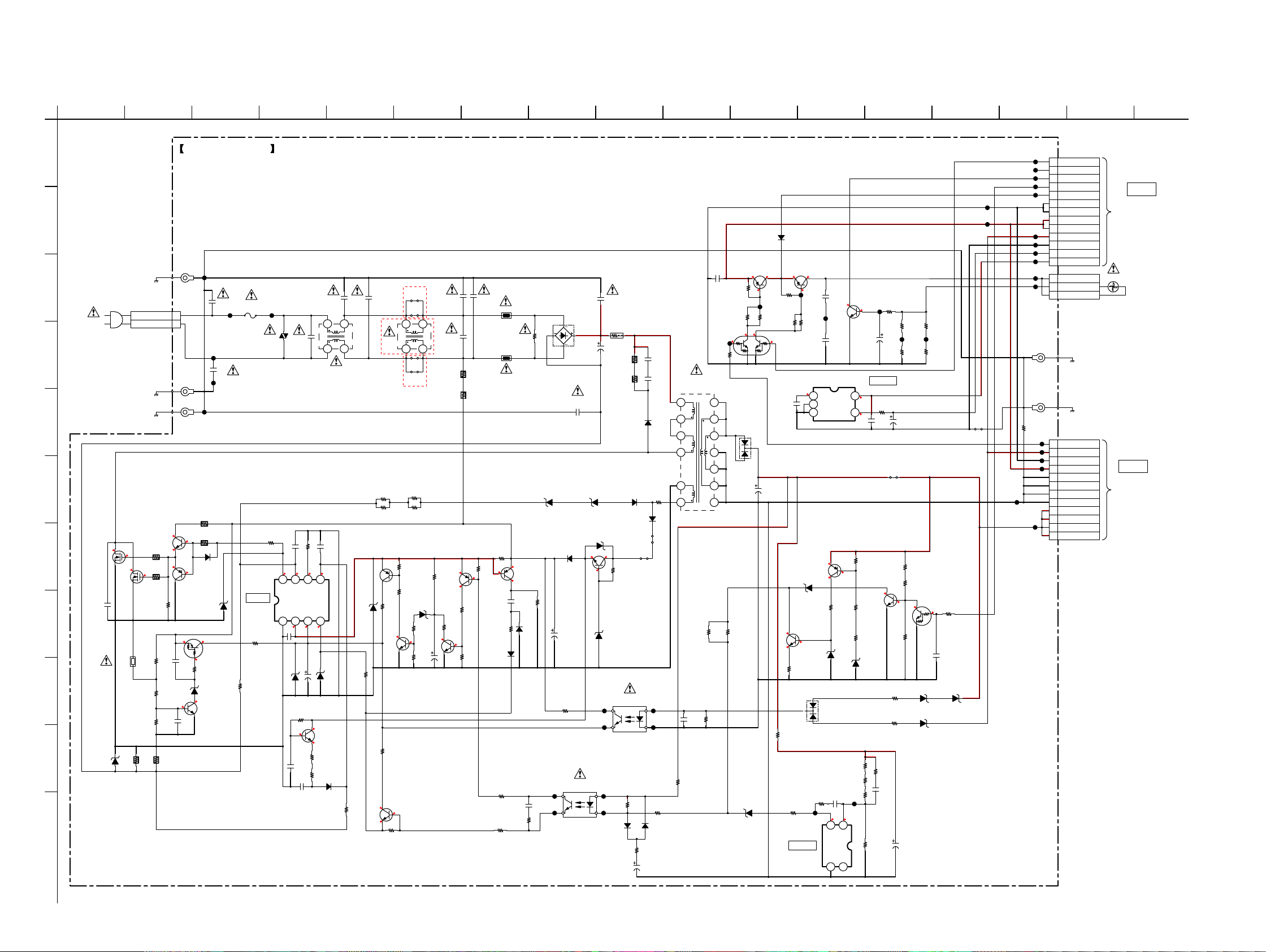

6-21. SCHEMATIC DIAGRAM - SMPS-400W Board (ESX8) - • See page 52 for IC Block Diagrams.

1

A

B

C

~ AC IN

D

E

F

POWER CONTROL

*

C928

1000p

Q908

S

G

H

I

J

D949

DZ2J300M0L

K

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

CN2004

13P

JL904

13

JL905 JL906 JL907 JL908

JL911 JL912 JL913 JL914

JL915 JL916

JL917

R1067

JL922 JL921 JL920 JL919

FAN-DRIVE

12

N.C

11

FAN-BLOCK

10

MAIN-ON

9

5V

8

12V-GND

7

12V-GND

6

12V

5

12V

4

EVER+7V/12V

3

3.3V GND

2

THERMAL-DET

1

3.3V

1

FAN+

2

FAN-

3

FAN+

CN2000

3P

ET999

(CHASSIS)

EE

(CHASSIS)

ET1000

0

13

FAN SPEED

12

NC

11

12V

10

12V

9

V1_GND

8

V1_GND

7

V1_GND

6

V1_GND

5

V1

4

V1

3

V1

1

V1

CN4 13P

Q908 ~ Q909 FMV10N80E

*

S

Q909

R917

100k

TH903

PRF18BF471QBRB

R1070

68k

R1069

33k

R948

0.1

(CHASSIS)

NEUTRAL

(CHASSIS)

R945

56

R946

56

*

R947

10k

SMPS-400W BOARD

(ESX8)

ET931

E

CN901

3P

LIVE

1 3

E

ET901

E

ET903

Q906

KTC3209-Y-AT

C900

0.01

DZ2J100M0L

C1030

0.01

R949

0.15

VOLTAGE

DRIVER

*

VOLTAGE DRIVER

*

R1072

D1022

*

R944

R943

*

RF05VA2STR

*

Q907

KTA1281Y-AT

DZ2J180M0L

*

0

*

LSCR523UBFS8TL

47

D907

D905

*

LTA014EUBFS8TL

PROTECTION

CL904

C925

10p

JL903

C901

10p

CL901

CL907

Q914

OVERLOAD

PROTECTION

Q1018

OVERLOAD

JL901

F901

10A 250V

JL902

VDR901

R922

IC900

SSC6700

IC900

DC-DC

CONVERTER

R1068

4.7k

R942

100

Q905

LSCR523UBFS8TL

VOLTAGE

PROTECTION

1

10

8

DRIVE

GND2VCC3OLP4FB

1

C935

0.1

C905

0.33

82kR939

470pC932

**

7

6

OCP2

*****

C922 1 50V

D914 DZ2J068M0L

R930

4.7k

*

C918 100p

C920

100p

BURST

*

R975

R937

C902

1000p

142

L1002 15mH

470pC926

5

OCP1BD

D921

470

D913

DA2J10100L

3

DZ2J082M0L

R938

100

C903

1000p

R918

D928

10

E93

L1003 15mH

R974

3.3k

R941

3.3k

Q912

2PB709ART

OVER VOLTAGE

PROTECTION

R968

DZ2J330M0L

LSCR523UBFS8TL

R959 220k

*

R958

EXCEPT E93

R961

47k

R965

47k

1k

*

R957

100k

Q911

PROTECTION

ON/OFF

*

FEEDBACK SWITCH

22k

JS901

10

JS904

10

3

142

JS905

10

JS902

10

R920

6.8k

R940

6.8k

D903

DZ2J068M0L

R956

47k

*

C930

22

50V

Q910

LSCR523UBFS8TL

C2008

470p

C907

0.33

R967

47k

R1066

47k

Q904

2PB709ART

VOLTAGE PROTECTION

*

R955 220k

*

R934

100k

R954

1k

*

R935

10k

Q913

LSCR523UBFS8TL

PROTECTION

ON/OFF

C2009

470p

R933

*

R924

*

22k

C923

D915

DA2J10100L

R921

R952

1k

TH902

TH904

1k

0.47

R932

22k

1k

R901

1.5M

*

Q902

2PB709ART

VOLTAGE

*

PROTECTION

R927 470k

C924

0.1

R936

1k

DZ2J300M0L

D916

DA2J10100L

D920

CL906

CL908

D902

KBJ1006G

C916 470p

D910

DA2J10100L

C921

10

50V

R923

1k

PH930

PS2561AL-1-V-F3-A

C914

330

450V

D918

DZ2J300M0L

D912

DZ2J160M0L

*

CL911

CL912

C910 470p

R914

0.1

*

Q903

KTC3209-Y-AT

VOLTAGE

PROTECTION

D911

DZ2J24000L

PS2561AL-1-V-F3-A

CL1000

CL1001

D1002

DA2J10100L

R925

15k

R926

15k

D901

SARS10

D906

RF05VA2STR

D908

D1NL20U-TR2

R928

4.7k

PH931

R1008

1k

JS908

12.5

R1000

2.2k

C1005

100V

C917

0.01

C2010

0.01

R919

JS907

R1048

DA2J10100L

1

22

5

CL1005

CL1006

0

D1001

R1065

0

T902

CONVERTER

TRANSFORMER

6

5

4

2

1

R10171kR1002

1k

C1000

0.1

R1029

C2004

10

JL2008

R2012

87

9

10

11

12

13

14

10k

JL909

JL910

D2000

RB501V-40TE-17

R2009

3.3k

C1012

1200

63V

4.8

0

2SB1710TL

FAN DRIVER

4.8

R2007

10k

R2008

3.3k

Q2003

RN1902

FAN DRIVER

C1003 6800p

LSCR523UBFS8TL

49

6.2

R1003

R1064

0

R1009

1k

MM1431CURE

IC1000

VOLTAGE

DETECT

Q2001

4.1

JL2006

R2006

3.3k

0.5

Q1002

2PB709ART

VOLTAGE

DETECTION

D1006

DZ2J051M0L

Q1001

VOLTAGE

DETECTION

6.8

D1004

DZ2J068M0L

5.6k

IC1000

4.8

C2001

0.1

JL2005

C2002

0.1

IC1004

S-5855AACA-M5T1

1CF 2 VSS 3NC 4DOUT

50.5

0

R1004

D1021

BAV70

C1010

R1011

0.047

33k CL1002

26.3 2.5

K Vref

A

R1043

47k

3.4

10k

50.5

PVDD OVP

EVER OVP

R1013

R1014

R1015

CL1003

43

12

Q2000 LSCR523UBFS8TL FAN PROTECTION

0

JL2004

C2000

4.7

50V

IC1004

THERMAL DETECTION

5VDD

3.3

R002

2.2k

3.3

C1014

0.1

Q1003

LSCR523UBFS8TL

POWER CONTROL

R1044

10k

R1062

0

D1005

DZ2J27000L

1.5k

R1016

8.2k C1011

33k

R1012

2.2k

R2004

45

12k

1000p

22k

JS1002

R1005

R1028

R1042

100

R2002

R2122

3.3

2.2

JL2003

JL2002

R2123

R2003

3.3

C1016

22

25V

10

R1006

22k

R1045

Q1004

10k

PDTC114ET

VOLTAGE CONTROL

0

3.1

33k

C1007

0.1

D1026

DZ2J27000L

100

D1025

DZ2J160M0L

C1025

10

100V

R1047

10

D1027

DZ2J30000L

JS1003

5

JL918

Q2002

2SB1710TL

FAN DRIVER

12.5

R2010

10k

12.5

JL2007

R2011

3.3k

3.112.5

0

1k

D1010

FMX-22SL

D1007

DZ2J220M0L

>038S

PANEL BOARD

(2/2)

CN204

(Page 44)

DC FAN

+-

>029S

MB BOARD

(5/6)

CN1700

(Page 40)

HCD-ESX6/ESX8/ESX9

4848

6-22. PRINTED WIRING BOARD - SMPS-600W Board (ESX9) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

HCD-ESX6/ESX8/ESX9

Ver. 1.1

1

A

B

(CHASSIS)

C

D

E

F

G

H

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

¾ EXCEPT E93

¾ EXCEPT E93 Ì E93

Ì E93

SMPS-600W BOARD (ESX9)

ET1001

R1019 R1018

C1009

R1017

R1016

R1015 R1014

IC1000

1

CL1004

R1013

C909

R1011

PH933

CL972

CL1003

D985

C970 C969

JW932

EC

JW931

R1010

R967

C1008

CL1001

D969

JW951

CL1002

CL971

R992

D972

JL905

JL907

CN2004

JW923

13

JL1003

JL904

12

C1011

JS1003

JL909

R1062

JW928

JS1000

C1006

A932

JW926

D1001

IC1004

T903

JW941

IC965

C968

R981

C972

JW924

D968

JW934

JW953 JW954

JW955

R979

62

JW933

CL966

CL970

D920

CL968

D927

C971

R970

R969

GS

Q911

JW945

R973

R974

D966

R971

R972

D967

JW925

C1035

R978

C967

CL967

A933

17

CL969

CL965

D1025

C966

R966

C914

>015P

JL911

JL910

JL914

C1033

C975

JW938

PANEL BOARD

(Page 42)

JW956

1

2

JL913

C1034

JW957

R002

A931

R965

R950

R953

R952

R957

R914

CN204

JL912

R998

R996

T901

JW936

C1003

D1003

A931

JW962

113 3

CN4

R1006

R1004

JW948

CL2020

D911

D923

TH903

JL920

C923

JL919

R944

JW952

JL2004

JW943

Q1005

CL1006

R1007

C921

R945 R946

1

R928

JL906

JW942

R1066

JS907 Q903

JW919

Q906

E

R938

JW960

C1016

R1009

Q907

E

JL908

R947

Q2000

R1039

E

D907

R942

E

C2000

JL2003

JL921

E

C1015

Q904

C926

JW912

C931 D904

JL2002

JW944

R1031

R1042

JW922

R1063

R2003

CL1000

R2004

JW959

C1027

R1054

Q1008

R1057

R1038

D1009

R1027

R1028

E

Q1004

R1025

R1020

R1000

PH930

EC EC

D912

C934

R997

R999

D910

JW906

R932

E

C918

JW913

Q1018

E

JW918

R943

R916

R1070 C1030 R1069

JW911

IC900

R939

C933

R956 R941

ET1000

R2122R2123 R2002

3

R1023

C1012

E

R1055

D1004

AA

D1010

D1002

D1011

D1005

C1010

JW940

EE

R975

Q915

D921

JW908 JW909 JW907

E

R930

Q905

R918 R937

C920

JW914

D913

D1022

R917

JW910

C913

R958 R940

CN2000

K

R933

C900

JW915

D914

E

C1014

R1056

PH932

R1072

C922

D905

D1020

D1007 D1008

R2124

JS1002

JW927

CL2014

CL2015

CL2016

CL2017

CL2018

C917

C2010

D903

JW939

C992

Q908

D901

R948

JW901

CL2019

C1019

R929

GSGS

JW905

JW904

C1018

D906

JL917

JW961

JL918

JL922

JW963

R1065

R1005 R1003

IC1001

CL1005

D918

Q909

D909

Q1003

R954

E

JW916

Q913

R1001

R2125

Q914

(CHASSIS)

DC FAN

1

JW958 JW946 JW947

113 3

MB BOARD

CN1700

(Page 32)

Q1006

CN4

E

>003P

>009P

MB BOARD

CN1700

(Page 34)

R924

Q910

R955

JW917

E

R1068

Ì

L904

D925

I

J

K

HCD-ESX6/ESX8/ESX9

JW935

ET902

CL905

(CHASSIS) (CHASSIS)

JW965

TH904

D902

C910

R901

ET931

TH902

C907

CL904

JW949

JW950

L904

¾

JS905 JS908

CAM905

PATTERN

SPARK-GAP

JS906 JS904

JW964

C903

JW929

L903

CAM904

PATTERN

SPARK-GAP

C902

JL902

JW903

C905

CAM902

PATTERN

SPARK-GAP

VDR901

F901

JL903

13

JL901

CL902

ET901

1-888-368-

C901

CN901

C919

~ AC IN

(CHASSIS)

11

(11)

4949

HCD-ESX6/ESX8/ESX9

Ver. 1.1

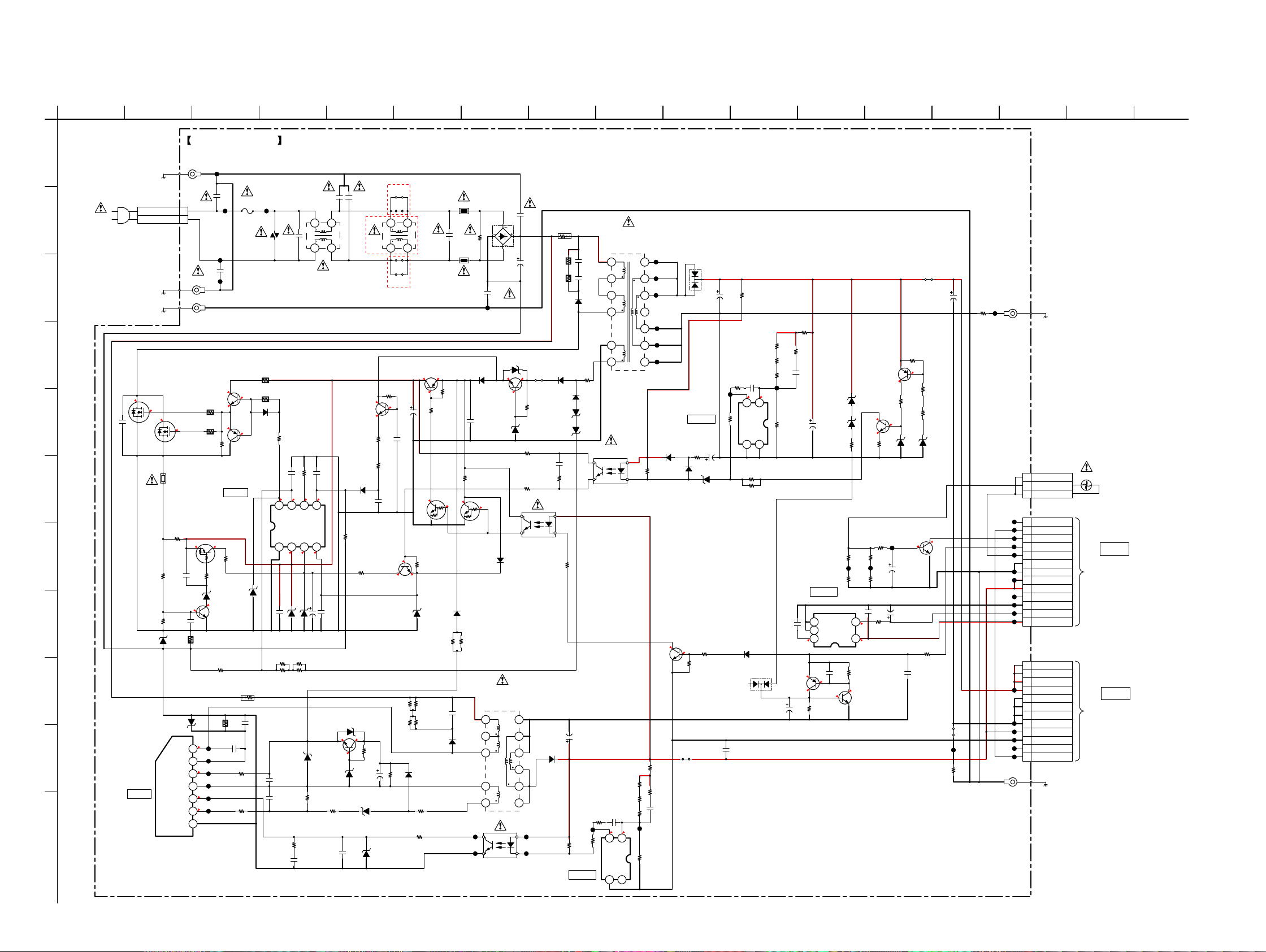

6-23. SCHEMATIC DIAGRAM - SMPS-600W Board (ESX9) - • See page 52 for IC Block Diagrams.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

SMPS-600W BOARD

(CHASSIS)

NEUTRAL

(CHASSIS)

*

S

D1025

(ESX9)

ET931

CN901

3P

LIVE

1 3

Q909

*

TH903

PRF18BF471QBRB

LTA014EUBFS8TL

R917

100k

D1022

DZ2J100M0L

C1030

0.01

D

S/GND

Vcc/OVP

GND

FB/OLP

BD NC

E

C901

10p

CL902

E

ET901

E

ET902

R945

47

R946

47

Q913

OVERLOAD

PROTECTION

*

C900

0.01

*

R948

0.05

*

1 2

*

3 4

*

5

*

6 7

CL904

C919

10p

JL901

JL903

Q906

KTC3209-Y-AT

VOLTAGE DRIVER

*

R947

10k

IC900

SSC6700

IC900

DC-DC

CONVERTER

*

R1068

4.7k

R1072

0

D905

DZ2J180M0L

*

Q1018

LSCR523UBFS8TL

OVERLOAD

PROTECTION

R942

100

C966

R966

0.1

0.82 C967

150p

CL967 CL965

CL969 CL966 CL968 CL970

F901

10A 250V

JL902

VDR901

1

R944

R943

*

D907

RF05VA2STR

*

Q907

KTA1281Y-AT

VOLTAGE DRIVER

R965

2.2

4.7R979

4.7R981

47

R956

R941

DZ2J360M0L

C968

1

C972 220p

C905

0.33

R916

10

82kR939

C933 470p

**

7

8

6

OCP2

DRIVE

BURST

GND2VCC3OLP4FB

1

*****

C913 0.1

D925 DZ2J068M0L

D914 DZ2J330M0L

R958

3.3k

6.8k

R940

3.3k

6.8k

D966

R967

47k

C969

4.7

C902

1000p

3

142

L903

15mH

C926 470p

5

OCP1BD

C931

0.022

C922 1 50V

Q911

2SC5053T100Q

VOLTAGE

PROTECTION

D968

DZ2J24000L

R972

1k

R971

15k

C903

1000p

E93

Q905

LSCR523UBFS8TL

VOLTAGE

PROTECTION

D913

DA2J10100L

R938

100

LSCR523UBFS8TL

FEEDBACK SWITCH

R955 220k

D969

DZ2J120M0L

*

D972

DZ2J220M0L

C970

4700p

L904

15mH

*

R918

470

C920 100p

Q910

R969

4.7k

C971

22

100V

PTZ-TE25-30B

EXCEPT E93

142

EXCEPT E93

R930

4.7k

C918

100p

R937

470

DZ2J082M0L

D985

*

JS906

15

JS904

15

3

JS905

15

JS908

15

KTA1266GR-AT

VOLTAGE PROTECTION

C921

10

50V

*

**

D904

R953 100k

R957 100k

R970

100k

RF101L4STE25

R978

R992

100

C907

0.33

Q904

*

R933

10k

*

Q914

PDTC114ET

PROTECTION

ON/OFF

R924

22k

R950

100k

R952

100k

D927

4.7

TH902

TH904

*

R932

4.7k

*

R97322R974

22

C975 470p

D920

RS1K

R901

1.5M

D910

DA2J10100L

C923

0.47

R954

10k

*

Q915

PDTC114ET

PROTECTION

ON/OFF

D967

D1NL20U-TR2

CL971

CL972

D902

D15XB60

C909

470p

CL905

DZ2J160M0L

*

Q903

KTC3209-Y-AT

VOLTAGE

PROTECTION

D911

DZ2J24000L

*

DA2J10100L

T903

CONVERTER

TRANSFORMER

(SUB)

6

5

4

2

1

PH933

PS2561AL-1-V-F3-A

C910 470p

C914

390

450V

D912

*

R975

1k

R999

1k

PS2561AL-1-V-F3-A

D921

12

11

10

9

8

7

CL1001

CL1002

R928

4.7k

JS907

PH932

5

R996

R998

D1NL20U-TR2

D906

RF05VA2STR

D918

DZ2J300M0L

D923

DZ2J300M0L

C934

0.1 R997

1k

R1001

3.3k

D1001

FML-G12S

R1010

R914

15k

D903

SARS10

D909

1k

0.1

MM1431CURE

IC1000

C2010

R929

C1006

2200

16V

CL1003

R1011

1k

IC1000

VOLTAGE

DETECT

C917

0.01

22

PS2561AL-1-V-F3-A

R1013

10k

CONVERTER

TRANSFORMER

6

5

4

2

1

PH930

C1008

0.047

11

K Vref

A

(MAIN)

43

12

T901

R1017

220

R1016

4.7k

R1015

4.7k

2.5

87

9

10

11

12

13

14

CL1004

R1014

2.2k

R1000

1k

R1019

R1018

C1009

10k

CL2014

CL2015

CL2016

CL2017

CL2018

CL2019

D1005

DA2J10100L

Q1006 LSCR523UBFS8TL POWER CONTROL

0.1

JS1003

0

0.01

D1003

FMX-22SL

IC1001

MM1431CURE

IC1001

VOLTAGE

DETECT

R1020

2.2k

D1002

DA2J10100L

DZ2J220M0L

R2124

47k

2.6

R2125

47k

5

D1011

C1010 100V

JS1002

10

C1003

R1066

1200

0

63V

R1065

0

R1005

1.5k

R1006

12k

R1003

8.2k C1016

R1004

1000p

C1015

R1009

33k

0.047

2.2k

26 2.5

CL1005

43

K

1kR1042

D1004

DA2J10100L

C1011

1

A

R1025

R1031

1

CL1006

Vref

R1007

2.2k

12

1k

C1035 6800p

D1020 BAV70

Q1008

2PB709ART

POWER

CONTROL

C1014

R1055

22

50V

C1019

10

100V

S-5855AACA-M5T1

IC1004

THERMAL DETECT

3NC 4DOUT 2 VSS 1

0

10k

DZ2J30000L

DZ2J27000L

IC1004

CF

3.1

D1007

D1008

JL2002

R1056

C1027

0.1

0

100

Q1005

2PB709ART

VOLTAGE

CONTROL

6.8

6.2

R1027

5.6k

LSCR523UBFS8TL

VOLTAGE CONTROL

R2004

R2122

R2002

2.2 JL2003

R2123

R2003

3.3

C1033

0.1

3.3

R002

2.2k

5VDD

3.30.5

R1054

10k

3.1

Q1003 LSCR523UBFS8TL POWER CONTROL

Q1004

22k

3.3

R1028

47k

26.8

50

JL2004

C2000

4.7 50V

C1034

22

25V

R1039

10k

50

R1038

10k

R1057

0

D1009

D1010

DZ2J068M0L

Q2000 LSCR523UBFS8TL FAN PROTECTION

0

R1023

1k

C1012

0.1

C1018

22

100V

DZ2J27000L

3.4

JS1000

7.5

JL1003

R1062

0

R1063

0

CL1000

JL904 JL905

JL906 JL907 JL908

JL909 JL910

JL911 JL912 JL913 JL914

JL917

JL918 JL919 JL920 JL921 JL922

ET1000

E

ET1001

E

CN2004

CN2000

3P

13P

CN4 13P

1 2 3

13 12 11 10

9 8 7 6 5 4 3 2 1

1 3 4 5 6 7 8

9 10 11 12 13

(CHASSIS)

FAN+ FANFAN+

N.C FAN-SPEED FAN-BLOCK MAIN-ON FAN+ 12V-GND 12V-GND 12V 12V N.C

3.3V GND THERMAL-DET

3.3V

V1 V1 V1 V1 V1_GND V1_GND V1_GND V1_GND 12V 12V NC FAN SPEED

(CHASSIS)

DC FAN +-

>039S

PANEL BOARD

(2/2)

CN204

(Page 44)

>030S

MB BOARD (5/6)

CN1700

(Page 40)

A

B

~ AC IN

C

D

Q908 ~ Q909 SPA11N80C3

POWER CONTROL

*

Q908

*

E

C992 1000p

S

F

G

R1069

68k

R1070

D901

DZ2J300M0L

33k

H

I

UDZSUSTE-1730B

J

IC965

STR-Y6763

IC965

DC-DC

CONVERTER

K

HCD-ESX6/ESX8/ESX9

5050

HCD-ESX6/ESX8/ESX9

Ver. 1.1

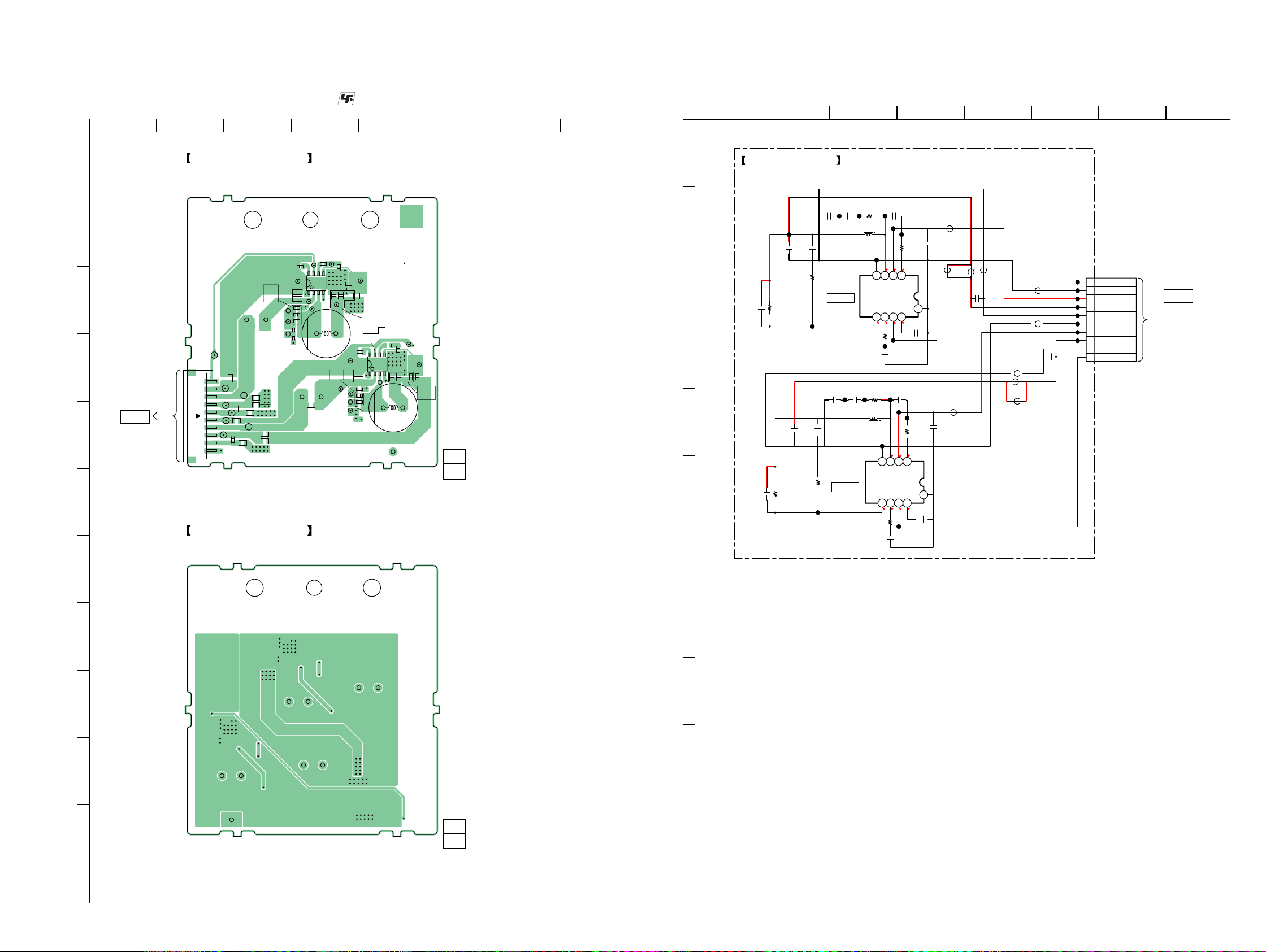

6-25. SCHEMATIC DIAGRAM - REGULATOR Board -6-24. PRINTED WIRING BOARD - REGULATOR Board -

• See page 26 for Circuit Boards Location.

1

2 3 4 5 6 7 8

•

: Uses unleaded solder.

1

2 3 4 5 6 78

A

REGULATOR BOARD (COMPONENT SIDE)

B

JL2010

R2006

JL2011

JL2014

JL2018

L2002

JL2004

JL2003

C2010 R2005

JL2007 JL2006

JL2009

C2011

JL2012

R2007

C2014

C2017

C2018

R2008

IC2000

C2002

C2006 R2004

C2008

JL2015

JL2008

C2009

R2000

L2000

JL2001

C2000

R2001

JL2000

C2003

C2005

C2004

R2002

11

1-889-246-

(11)

C2013

IC2001

JL2013

R2010 C2021 R2011

C

R2009

JL2027

D

>016P

E

PANEL

BOARD

CN209

(Page 42)

CN2000

110

JL2026

JL2022

JL2024

FB004

JL2020

FB003

JL2023

C2023

C2022

FB001

JL2025

FB002

FB006

JL2021

JL2019 JL2017

JL2016

R2014

R2013 FB005

C2015

C2020

C2019

R2003

F

REGULATOR BOARD (CONDUCTOR SIDE)

A

B

C

D

E

F

REGULATOR BOARD

JL2015

C2018

C2017

22

R2007

10k

R2008

C2014

47k

68p

JL2012

C2005

C2004

22

R2001

27k

R2002

C2003

82k

100p

JL2000

C2019

C2020

8200p

5600p

JL2016 JL2017

IC2001

BD9329AEFJ-E2

IC2001

+ 5.2V REG.

C2008 8200p

JL2006 JL2007

IC2000

BD9329AEFJ-E2

IC2000

+3.6V REG.

C2009 5600p

R2011

L2002

47uH

JL2013

10

JL2010

R2005

L2000 47uH

JL2003

R2006

C2011 4700p

5FB6

22k

10

C2000

GND

R2000

10k

0.01

JL2018

5.2

3SW4

COMP7EN8SS

1.60.9123.1

GND

5FB6

C2021

0.1

JL2014

2

Vin

JL2011

C2010

JL2008

3.6

3SW4

COMP7EN8SS

1.60.9123.1

1

0.1

JL2004

2

Vin

JL2001

JL2019 R2010

9.5

BST

2.7

1

22

C2013

JL2009 R2004

9.5

BST

2.7

0.1

22

C2002

R2009

*1

C2015

22

R2014

FB006

*1

C2022

C2006

0.1

R2003

*1

22

9

0.1

*1 FB001 ~ FB006, R2003, R2009,

R2013, R2014 330ohm (E93) 0 (EXCEPT E93)

FB002

*1

FB003 *1

FB004

FB001

*1

R2013

*1

FB005

*1

C2023

0.1

CN2000

10P

JL2027

1

JL2026 JL2025 JL2024 JL2023

*1

JL2022 JL2021 JL2020

MTK-CTRL

2

12.5/13.5 GND

3

12.5/13.5V

4

5.2V

5

5.2V GND

6

12.5V/13.5V GND

7

12.5V/13.5V

8

3.6V

9

3.6V GND

10

REG-ON

>040S

PANEL BOARD

(2/2)

CN209

(Page 44)

G

H

I

J

K

HCD-ESX6/ESX8/ESX9

1-889-246-

11

(11)

H

I

J

K

5151

HCD-ESX6/ESX8/ESX9

• IC Block Diagrams

IC320 PCM1808PWR (MB Board (1/6))

BCK

SDO

MOD0 MOD1

FMT

AIN_L

IN_R

8

9 10 11 12

Delta Sigma

Modulator

13

Antialias

LPF

14

Serial

Interface

Mode/ Format Control

x1/64

Decimation

Filter

with

High Pass Filter

Delta Sigma

Reference

Modulator

Antialias

LPF

Clock

and

Timing

Control

Power

Supply

IC504 EM638165 TSB-6G (MB Board (2/6))

7

LRCK

54VSS 53DQ15 52VSSQ 51DQ14

SCKI

6

50DQ13 49VDDQ

CLOCK

BUFFER

Row

Decoder

1M × 16

CELL ARRAY

(BANK #A)

Column Decoder

48DQ12 47DQ11 46VSSQ

COMMAND

DECODER

45DQ10 44DQ9 43VDDQ 42DQ8

5

DGND

DVDD

4

3

AVCC

AGND

2

41VSS 40NC 39UDQM 38CLK 37CLKE

COLUMN

COUNTER

36NC 35A11

VREF

1

34A9 33A8

ADDRESS

BUFFER

32A7 31A6 30A5

CONTROL

SIGNAL

GENERATOR

MODE

REGISTER

Row

Decoder

DQ Buffer

1M × 16

CELL ARRAY

(BANK #A)

Column Decoder

1M × 16

CELL ARRAY

(BANK #A)

Column Decoder

29A4 28VSS

REFRESH COUNTER

Row

Decoder

1M × 16

CELL ARRAY

(BANK #A)

Column Decoder

1VDD 2DQ0 3 VDDQ 4DQ1 5DQ2 6 VSSQ 7DQ3 8DQ4

9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 WE 17 CAS 18 RAS 19 CS 20 BA0 21 BA1 22 A10/AP 23 A0 24 A1 25 A2 26 A3 27 VDD

HCD-ESX6/ESX8/ESX9

IC653 BU33TD3WG-TR (MB Board (2/6))

VDD

GND

1

VREF

2

OCP

– +

TSD

STBY

CE

3

Discharge

5252

5VOUT

4NC

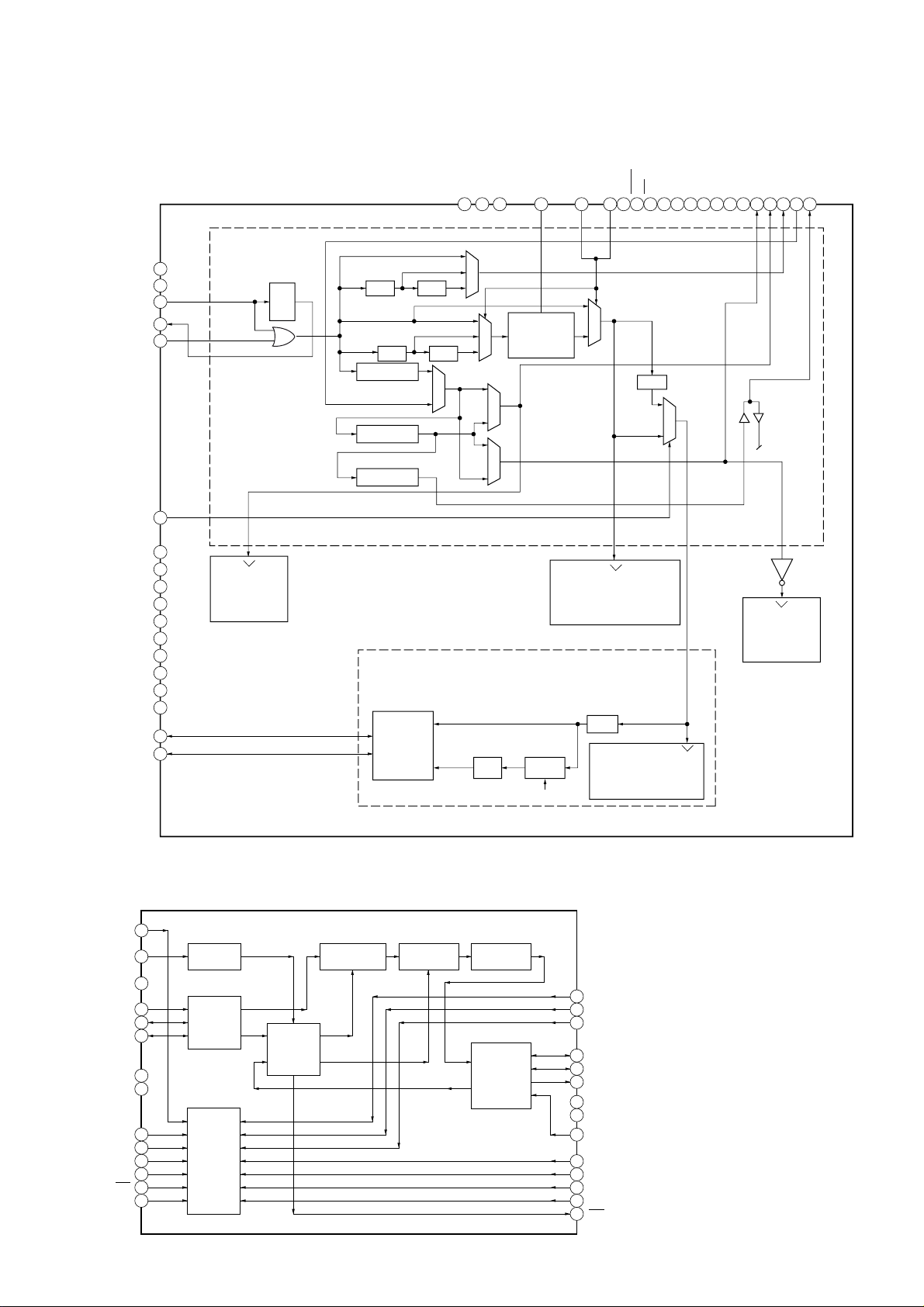

IC701 TAS3108DCPR (MB Board (1/6))

HCD-ESX6/ESX8/ESX9

SCLKIN19LRCK

GND

37

38

39

PLL134PLL0

36

35

RSRV

33

DVSS

DVDD

PDN32RESET

29

30

31

VR_DIG

28

SDOUT1

27

SDOUT2

26

SDOUT3

25

24

PLL2

RSRV

AVDD

SCLKOUT2

SDOUT4

23

MCLKO

SCLKOUT1

21

22

20

AVSS

VR_PLL

XTALI

XTALO

MCLKI

MCRCK_DV

CS0

GPIO DVDD DVSS

SDIN1 SDIN2 SDIN3 SDIN4

SDA1

SCL1

SDA2

SCL2

M U X

Oversample Clock

Master

SCL

M U X

Microprocessor

2

I

C Bus Controller

÷10 1/(M+1)

M = 8 (Default)

and

PLL

X 11

M U X

Audio DSP Core

N = 0 (Default)

N

1/2

8051 Microprocessor

8-Bit

WARP

÷4

M U

X

Output

SAP

1 2 3

4 5

6

7 8

9 10 11 12 13 14 15 16

17 18

Input

SAP

OSC

PLL and Clock Management

÷2 ÷2

MCLK

÷ Z = 2

÷ X = 1

÷ Y = 64

Master/Slave

÷2 ÷2

DEFAULT

2

C

I

Controller

IC740 SRC4182 (MB Board (1/6))

PRGL1

2RCKI

3NC

4SDIN 5BCKI 6LRCKI

7VIO 8DGND

9BYPAS 10IFMT0 11IFMT1 12IFMT2 13RST 14MUTE

REFERENCE

CLOCK

AUDIO INPUT PORT

CONTROL

LOGIC

RATE

ESTIMATOR

INTERPOLATION

FILTERS

RE-SAMPLER

DECIMATION

FILTERS

AUDIO

OUTPUT

PORT

28

MODE2

27

MODE1

26 MODE0

25 BCKO 24 LRCKO 23 SDOUT

22 VDD 21 DGND

20 TDMI

19 OFMT0 18 OFMT1 17 OWL0 16 OWL1 15 RDY

53

HCD-ESX6/ESX8/ESX9

A

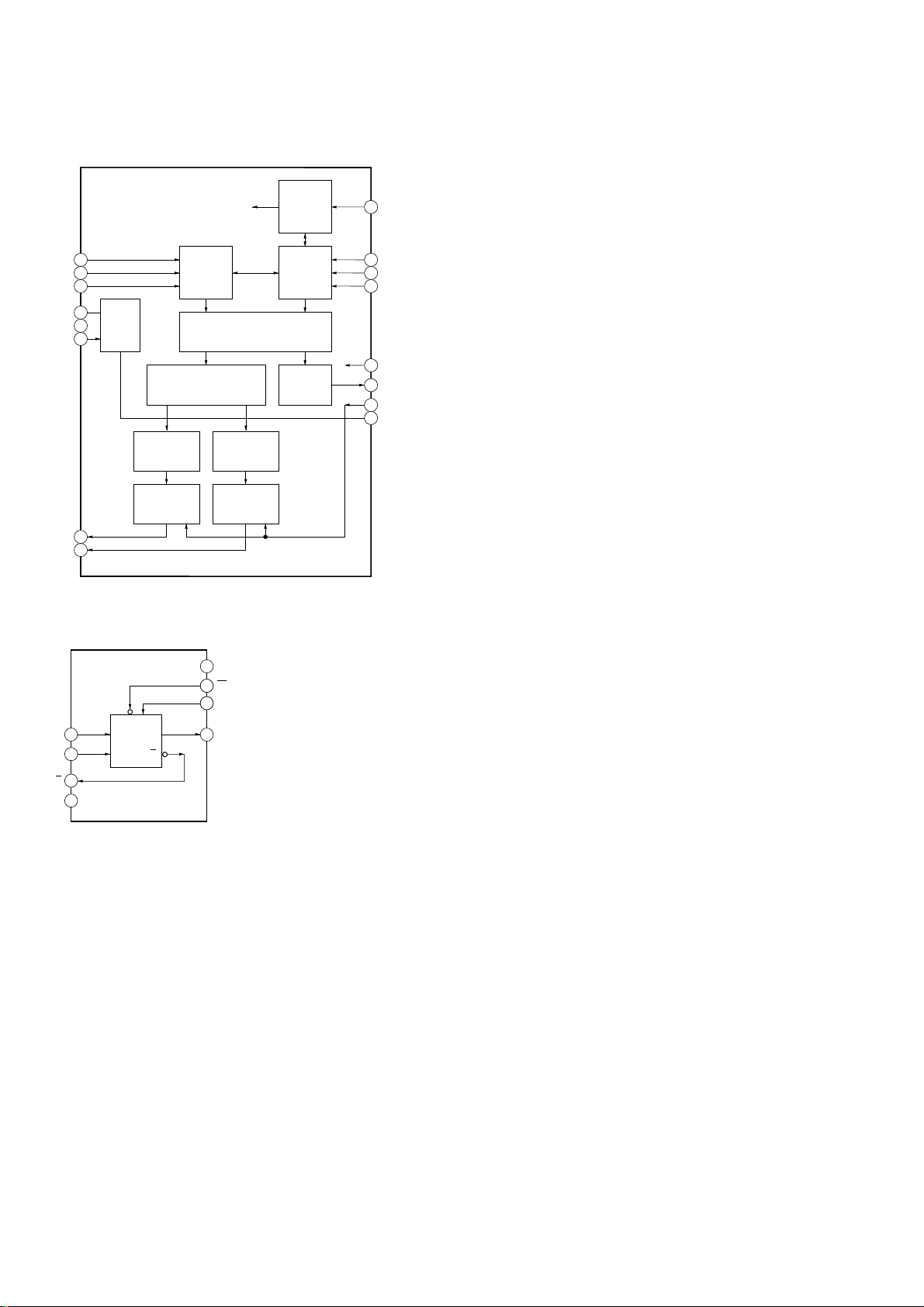

IC750 PCM1754DBQR (MB Board (1/6)) IC751 PCM1754DBQR (MB Board (1/6)) (ESX9)

SYSTEM

CLOCK

1

BCK

VLTUO

VRTUO

2DATA 3LRCK

4DGND

POWER

5NC

SUPPLY

6VCC

CONVERTER

OUTPUT AMP & LOW-PASS

7 8

AUDIO

SERIAL

PORT

4x/8x OVERSAMPLING DIGITAL

FILTER & FUNCTION CONTROL

ENHANCED MULTILEVEL

DELTA-SIGMA MODULATOR

D/A

FILTER

CONVERTER

OUTPUT AMP

& LOW-PASS

FILTER

D/A

IC780 TC7WH157FK (MB Board (1/6))

SYSTEM

CLOCK

MANAGER

SERIAL

CONTROL

PORT

ZERO

DETECT

16 SCK

15

FMT

14

MUTE

13 DEMP

12 TEST 11

ZERO VCOM

10

9

AGND

GND

8

VCC

117

ST

116

SELECT

A B

EN G

Y Y

5

Y

1

A

2

B

3

Y

4

54

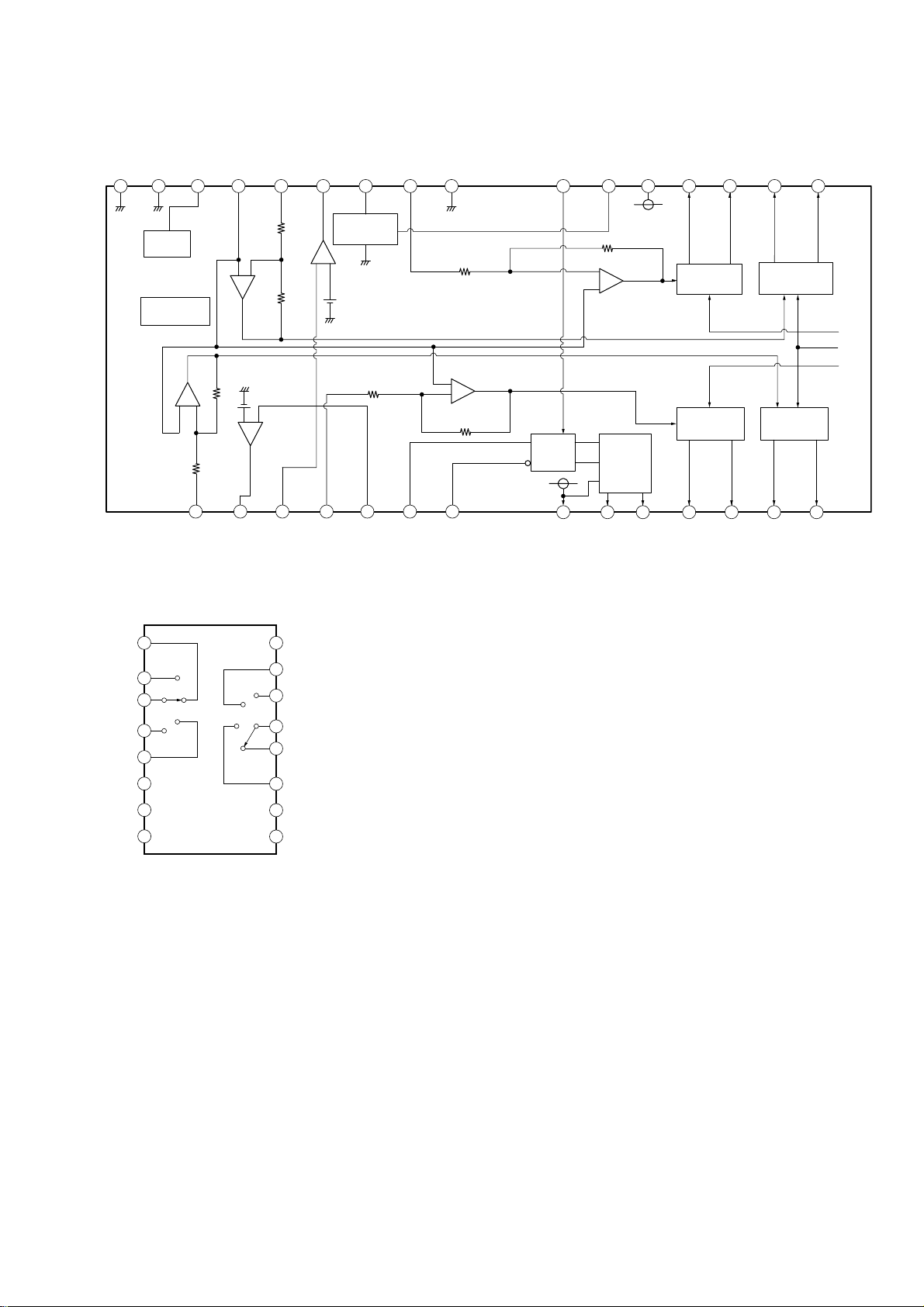

IC851 AM5890S (MB Board (3/6))

HCD-ESX6/ESX8/ESX9

PGND29PGND

30

MUTE27BIAS26VINTK25TRB_224RESET23VINLD22GND

28

MUTE

Thermal

Shut down

10K

+

-

25K

-

+

-

10K

1

2

3

VINFC

TRB_1

REGO2

-

+

4

VINSL+

Voltage

Detection

10K

5

REGO1

IC1600 SN74LV4052APWR (MB Board (1/6))

VCTL20VCCD19Vcc218VOLD-17VOLD+16VOTK-15VOTK+

21

Vcc2

15K

10K

+

-

25K

Pre-DRV

6

7

REV

FWD

-

+

TRAY

DRIVER

8

9

10

Vcc1

VOTR-

VOTR+

Spindle

Driver (4X)

Sled

Driver (4X)

11

VOSL+

12

VOSL-

Actuator

Driver (6X)

Actuator

Driver (6X)

13

VOFC-

Vcc2 Vcc2

Vcc1

14

VOFC+

2Y0

2Y2

2-COM

2Y3

GND

INH

2Y1

16

1

2 3

4

5

6

7

8

VCC

15

1Y2

1Y1

14

1-COM

13 12

1Y0

11

1Y3

A

10

9

B

55

HCD-ESX6/ESX8/ESX9

IC1705 TAS5613APHDR (MB Board (5/6)) (ESX6)

GVDD_B

GND

NC

PSU_REF

VDD

63

64

NC

60

61NC62

58

59

56

57

GVDD_A

55

54

BST_A

53

OUT_A

52

OUT_A

PVDD_A

51

PVDD_A

50

GND_A

49

OC_ADJ 1

/RESET

C_STARTUP

INPUT_A

INPUT_B

VI_CM

GND

AGND

VREG

INPUT_C

INPUT_D

FREQ_ADJ

OSC_IO+

OSC_IO-

/OTW1 16

/SD 15

BST_A

GVDD_A

GVDD_B

CLIP READY OTW1

OTW2 SD

M1 M2 M3

2

STARTUP

3

4

5 6

7 8 9

10

11

12

13

14

SD

OTW1

CONTROL

OSCILLATOR

PSU_FF

ANALOG

LOOP FILTER

ANALOG

LOOP FILTER

ANALOG

LOOP FILTER

ANALOG

LOOP FILTER

4

PVDD_X GND

-

+

-

ANALOG INPUT MUX

+

-

PWM

ACTIVITY

DETECTOR

PWM

RECEIVER

PWM

RECEIVER

ANALOG COMPARATOR MUX

PWM

RECEIVER

PWM

RECEIVER

OUT_A

PROTECTION & I/O LOGIC

OVER-LOAD

PROTECTION

CONTROL

PVDD_A

POWER-UP

RESET

TEMP

SENSE

PPSC

PVDD_A

GVDD_A

GVDD_B GVDD_D

4

PVDD_X

4

OUT_X

4

GND_X

TIMING

CONTROL

TIMING

CONTROL

TIMING

CONTROL

TIMING

CONTROL

GND_A

UVP

GVDD_C

CB3C

GATE-DRIVE

VREG

CURRENT

SENSE

GVDD_A

BST_A

PVDD_A

OUT_A

GND_A

GVDD_B

GVDD_C

GVDD_D

BST_D

PVDD_D

OUT_D

GND_D

48

47 46 45 44 43 42

41 40

39 38 37 36 35 34

33

GND_A

GND_B GND_B OUT_B OUT_B PVDD_B PVDD_B

BST_B BST_C

PVDD_C PVDD_C OUT_C OUT_C GND_C GND_C

GND_D

56

OTW2

17

/OTW2

CLIP

18

/CLIP

READY

19M120

READY

M1M3M2

BST_D

OUT_D

GVDD_C

GVDD_D

22

21

M3

M2

24

GND23GND

26

GVDD_C25GVDD_D

27 28

BST_D

PVDD_D 30

OUT_D29OUT_D

GND_D

PVDD_D

32

PVDD_D31PVDD_D

GND_D

IC1705 TAS5630BPHDR (MB Board (5/6)) (ESX8/ESX9) IC1706 TAS5630BPHDR (MB Board (4/6)) (ESX9)

GVDD_A

GVDD_B

GND

NC

PSU_REF

VDD

63

64

61

62

59

60

57

58

55

56

54

BST_A

53

OUT_A

52

OUT_A

PVDD_A

51

HCD-ESX6/ESX8/ESX9

GND_A

PVDD_A

49

50

OC_ADJ 1

/RESET

C_STARTUP

INPUT_A

INPUT_B

VI_CM

GND AGND VREG

INPUT_C

INPUT_D

FREQ_ADJ

OSC_IO+

OSC_IO-

/SD 15

/OTW1 16

BST_A

GVDD_A

GVDD_B

CLIP READY OTW1

OTW2 SD

M1 M2 M3

2

STARTUP

3

4

5 6

7 8 9

10

11

12

13

14

SD

OTW1

CONTROL

OSCILLATOR

PSU_FF

ANALOG

LOOP FILTER

ANALOG

LOOP FILTER

ANALOG

LOOP FILTER

ANALOG

LOOP FILTER

4

PVDD_X GND

+

-

ANALOG INPUT MUX

+

-

PWM

ACTIVITY

DETECTOR

PWM

RECEIVER

PWM

RECEIVER

ANALOG COMPARATOR MUX

PWM

RECEIVER

PWM

RECEIVER

OUT_A

PROTECTION & I/O LOGIC

CONTROL

PVDD_A

POWER-UP

RESET

TEMP

SENSE

OVER-LOAD

PROTECTION

PPSC

PVDD_A

GVDD_A

GVDD_B GVDD_D

4

PVDD_X

4

OUT_X

4

GND_X

TIMING

CONTROL

TIMING

CONTROL

TIMING

CONTROL

TIMING

CONTROL

GND_A

UVP

GVDD_C

CB3C

GATE-DRIVE

VREG

CURRENT

SENSE

GVDD_A

BST_A

PVDD_A

OUT_A

GND_A

GVDD_B

GVDD_C

GVDD_D

BST_D

PVDD_D

OUT_D

GND_D

48

47 46 45 44 43 42

41 40

39 38 37 36 35 34

33

GND_A

GND_B GND_B OUT_B OUT_B PVDD_B PVDD_B

BST_B BST_C

PVDD_C PVDD_C OUT_C OUT_C GND_C GND_C

GND_D

OTW2

17

/OTW2

CLIP

18

/CLIP

READY

19M120

READY

M1M3M2

BST_D

OUT_D

GVDD_C

GVDD_D

22

21

M3

M2

24

GND23GND

26

GVDD_C25GVDD_D

27 28

BST_D

PVDD_D 30

OUT_D29OUT_D

GND_D

PVDD_D

32

PVDD_D31PVDD_D

GND_D

57

HCD-ESX6/ESX8/ESX9

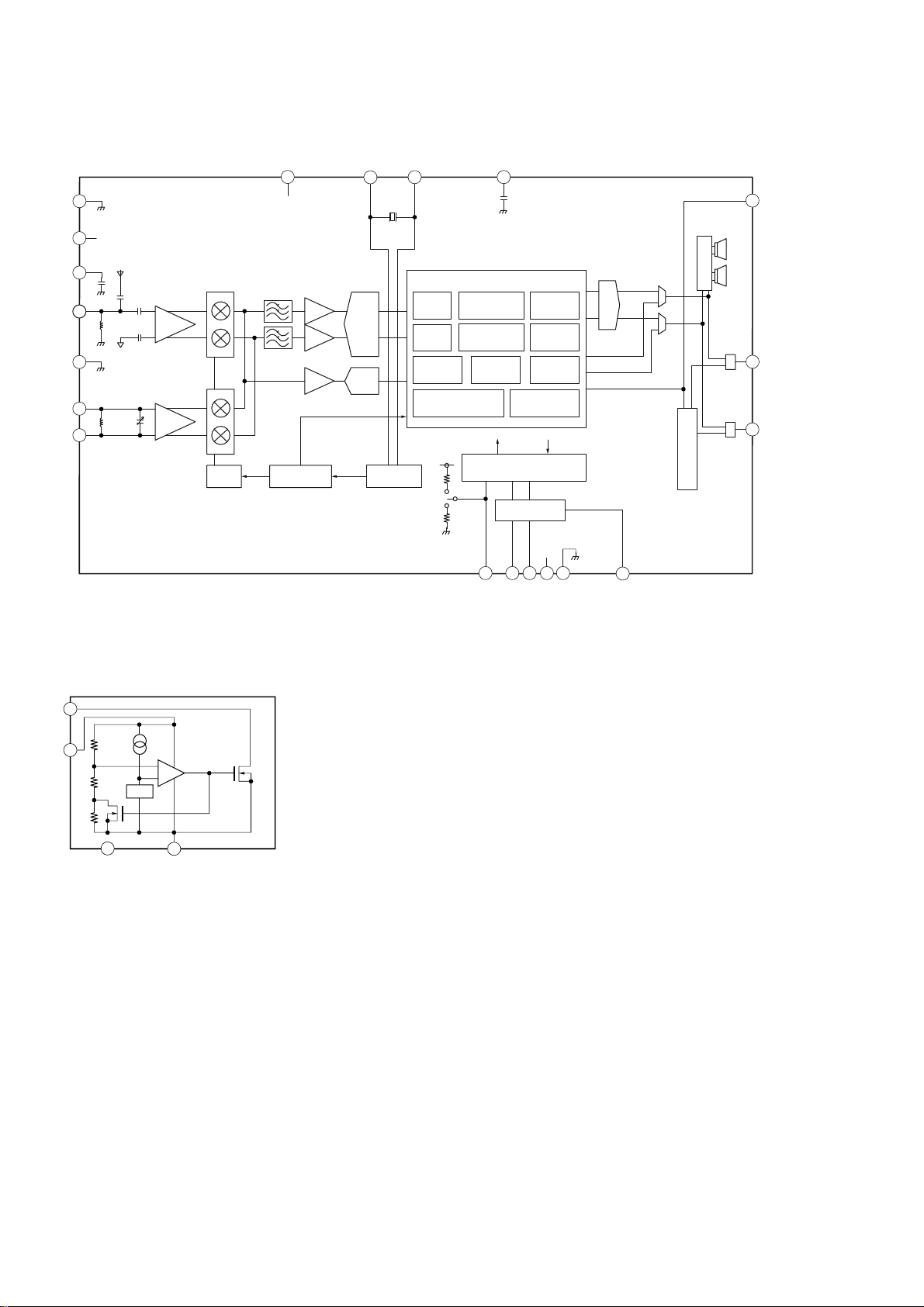

IC1951 RN5B801-0002 (MB Board (6/6))

1

GND

1

VDDRF VDD

2

3

CP2

3

FRF1

4

GNDRF

5

ARF1

6

ARF2

7

FM Antenna

AM Antenna

AM

TUNE

FM LNA

AM LNA

LOSC

Filter

VDD

20

VDD

Clock

Generator

AGC AMP

AMP

ADC

X2

X1

18

19

Digital Signal Process

Digital

MixerFMDemodulator

Digital

AGC


Control

Digital Filters

XOSC

12C

SPI

CP1

17

Decoder

AM

Demodulator

Station

Detector

Serial Interface / Registers

IIC / R

Calculation

HOST Controller

LA

CK

DSI

Decoder

Generator

RSSI

VDD

Stereo

RDS

IIS

VDD

IISD

16

Lch

Amplifier

LRCK

BCLK

IIS Controller

Rch

SW

LRCK / LOUT

15

BCLK / ROUT

14

LOUT

DAC

ROUT

LRCK BCLK IISD

12111098

GND

13

DA

IC200 BU4829F-TR (PANEL Board (2/2)) IC208 BU4829F-TR (PANEL Board (2/2)) (ESX9)

OUT

1

VDO

2

3

NC

Vref

– +

4

VSS

58

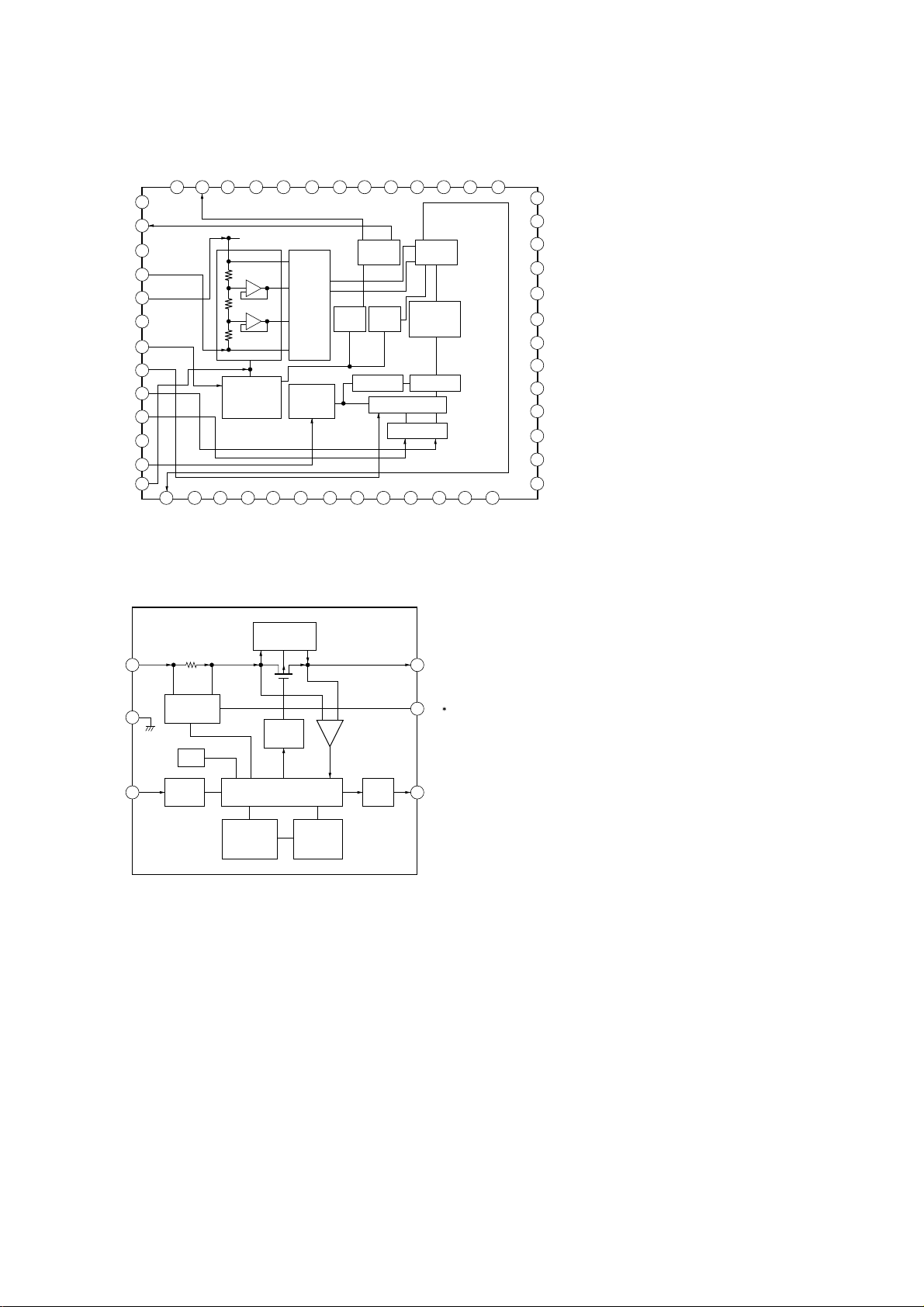

IC201 BU9795AKS2 (PANEL Board (1/2))

COM151COM050NC49NC48NC47SEG3146SEG3045SEG2944SEG2843SEG2742SEG2641SEG2540SEG24

COM2 1

COM3

NC 3

VLCD

VDD

VSS

OSCIO

CSB

SCL

SDA

NC

TEST 12

INHb

52

2

LCD voltage generator

4

5

6

+ –

LCD BIAS

SELECTOR

Common

counter

7

8

9

OSCILLATOR

Power On Reset

10

11

13

14

SEG015SEG116SEG217SEG318SEG419SEG520SEG621SEG722SEG823SEG9

Common

driver

Blink timing

generator

Command

register

Serial inter face

IF FILTER

Segment

driver

DDRAM

Command

Data Decoder

24

SEG1025SEG1126SEG12

39

38 37

36

35

34

33 32

31 30

29

28

27

HCD-ESX6/ESX8/ESX9

SEG23

SEG22 NC

SEG21

SEG20

SEG19

SEG18 SEG17

SEG16 SEG15

NC

SEG14

SEG13

IC203 NCP380HSNAJAAT1G (PANEL Board (2/2))

BLOCKING

CONTROL

GND

IN 1

EN

CURRENT

LIMITER

2

GATE

DRIVER

OSC

3

EN

BLOCK

CONTROL LOGIC

VREF

THERMAL

SHUTDOWN

AND TIMER

UNDER

VOLTAGE

LOCK OUT

FLAG

6

5

4

OUT

ILIM

/FLAG

59

HCD-ESX6/ESX8/ESX9

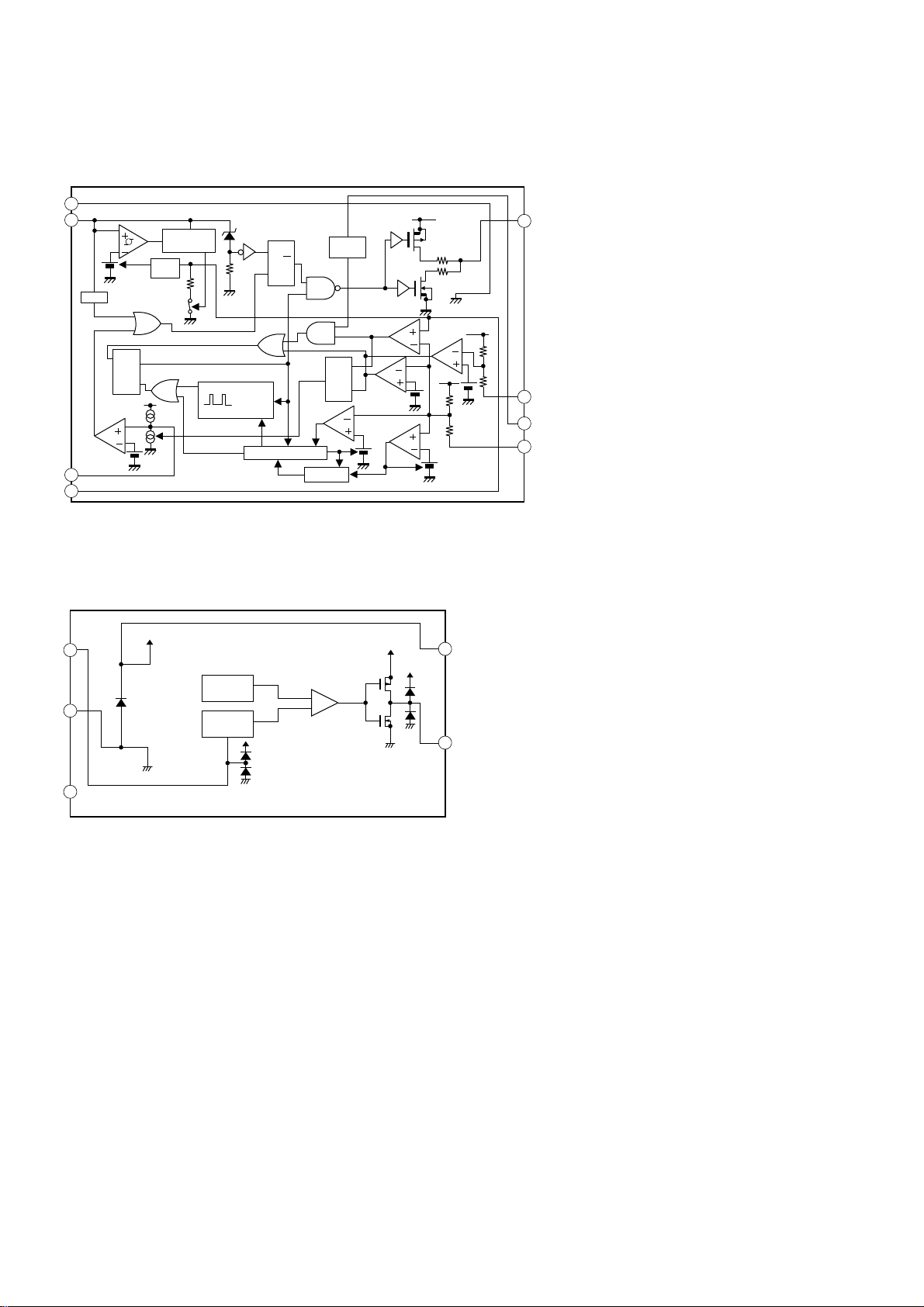

IC900 SSC6700 (SMPS-300W Board) (ESX6) IC900 SSC6700 (SMPS-400W Board) (ESX8) IC900 SSC6700 (SMPS-600W Board) (ESX9)

1

GND

2

VCC

OLP

Reg&

Iconst

Burst

Control

Start Stop Burst

OVP

R

Q

S

OLP 3 4

FB

OSC

Bottom Selector

Protection latch

R

Q

S

BSD

Counter

Ton(MIN)

Control

S

Q

R

OCP1

DRIVE Reg

FB

BD

OCP2

8

7

6

5

DRIVE

OCP2

BURST

OCP1BD

IC1004 S-5855AACA-M5T1 (SMPS-300W Board) (ESX6) IC1004 S-5855AACA-M5T1 (SMPS-400W Board) (ESX8) IC1004 S-5855AACA-M5T1 (SMPS-600W Board) (ESX9)

CF 1

Temperature

VSS

2

3

NC

*1

sensor

Triangle wave

generator

+ –

5

VDD

4

DOUT

60

HCD-ESX6/ESX8/ESX9

• IC Pin Function Descriptions PANEL BOARD (2/2) IC001 R5F3650KBDFA (SYSTEM CONTROL)

Pin No. Pin Name I/O Description

1 NO_USE - Not used 2 O-V2-SWITCH O V2 power source monitor output to activate the discharge circuit (ESX9) 3 I-V2-MONITOR I V2 power source monitor input pin 4 O-LCD-DRIVER-CE O Chip select signal output to LCD driver 5 O-LCD-DRIVER-DATA O Serial data output to the LCD driver 6 I-SIRCS I Remote control signal input 7 O-LCD-DRIVER-CLK O Serial data transfer clock signal output to the LCD driver 8 BYTE I External data bus width select input

9 CNVss I Processor mode switch 10 I-XC-IN I Sub system clock input terminal (32.768kHz) 11 O-XC-OUT I Sub system clock output terminal (32.768kHz)

12 I-RESET I 13 O-X-OUT O Main system clock output terminal (8MHz)

14 Vss - Ground terminal 15 I-X-in I Main system clock input terminal (8MHz) 16 Vcc1 - Power supply terminal (+3.3V) 17 NMI I Non-maskable interrupt input terminal 18 NO_USE - Not used 19 I-AC-CUT I AC off detection signal input from the reset signal IC "L": AC Cut detected 20 O-DSP-MUTE O DSP Mute control . "H": Mute On 21 O-CD-MOTOR - O CD motor drive (–) signal output for the CD mechanism deck 22 O-BACKLIGHT-LED O LCD back light LED ON/OFF control signal output 23 O-ANALOG-ASEL O Multiplexer selector A for Analog input 24 O-DSP-RESET O DSP reset pin 25 NO_USE - Not used 26 O-ANALOG-BSEL O Multiplexer selector B for Analog input 27 O-DIGITAL-SEL O Digital Selector Pin 28 NO_USE - Not used 29 I-DSP-SCL I DSP IC: Clock signal for IIC communication 30 I-DSP-SDA I DSP IC: Data signal for IIC communication 31 I-FLASH-TXD1 I TxD1 (for Debug) / Flash Write TxD1 32 I-FLASH-RXD1 I RxD2 (for Debug) / Flash Write RxD1 33 I-FLASH-CLK1 I On Chip Debuger / Flash Write CLK1 34 I-FLASH-RTS1 I Flash Write RTS1 35 O-REG-ON O Power on/off control signal output terminal for regulator section. "H": power on 36 O-PVDD-ESX0/1 O Main power source ON/OFF control signal output (L: Main OFF, H: Main ON) (ESX6/ESX8) 37 O-PVDD-ESX2 O Main power source ON/OFF control signal output (L: Main OFF, H: Main ON) (ESX9) 38 O-DAMP-RESET O Digital Amp Reset Pin 39 NO_USE - Not used 40 NO_USE - Not used

41 42 NO_USE - Not used

43 O-LINE-MUTE O Muting Control Switch for Speaker. "H": mute On 44 O-OSC-FREQ O Tuner AM frequency switching pin 45 /I-SD-FAST I Digital Amp Defect Protection Detection Pin. "L": Protect on

46 47 I-ST-DATA I Tuner IC: Data signal for IIC communication

48 I-ST-CLK I Tuner IC: Clock signal for IIC communication 49 O-ST-CE O Tuner IC: Tuner enable input pin 50 I-SD-SLOW I DC Detect protect pin. "L": Protect on 51 O-VOL-LED0 O Signal output to LED0 (ESX8/ESX9) 52 O-VOL-LED1 O Signal output to LED1 (ESX8/ESX9)

EPM (FLASH-

RECOVERY)

CE (FLASH

RECOVERY)

System reset signal input from the reset signal IC "L": reset After the power supply rises, "L" is input for few msec and then change to "H".

O EPM FLASH RECOVER

O FLASH RECOVER WRITE CE

61

HCD-ESX6/ESX8/ESX9

Pin No. Pin Name I/O Description

53 O-VOL-LED2 O Signal output to LED2 (ESX8/ESX9) 54 O-VOL-LED3 O Signal output to LED3 (ESX8/ESX9) 55 O-VOL-LED4 O Signal output to LED4 (ESX8/ESX9) 56 O-VOL-LED5 O Signal output to LED5 (ESX8/ESX9) 57 I-CDM-LOAD-SW I CDM LOAD SW 58 O-CD-MOTOR + O CD motor drive (+) signal output for the CD mechanism deck 59 I-CDM-UNLOAD-SW I CDM UNLOAD SW 60 I-MTK-XIFCS I MTK CHIP SELECT 61 NO_USE - Not used 62 Vcc2 - Power supply terminal (+3.3V) 63 I-ST-RDS I Input for RDS Text Detect Signal (L: RDS Detect) 64 Vss - Ground terminal 65 O-MTK-RESET O MTK Reset Pin 66 O-MTK-BUSY O BUSY Signal communication between MTK 67 I-AD-KEY0 I Key input terminal (A/D input) 68 I-DSP-INT I DSP Initialization completion interupt signal 69 NO_USE - Not used 70 /I-FAN-BLOCK-DET I Fan Block Detection Pin. "L": Block On (ESX8/ESX9) 71 O-FAN-DRIVE O Fan on/off control input signal. "H": On (ESX8/ESX9) 72 O-DEMO-SW O Switch to trigger dischange circuit during demo to AC cut (ESX9) 73 NO_USE - Not used 74 NO_USE - Not used 75 NO_USE - Not used 76 NO_USE - Not used 77 O-MTK-SDO O Data Out Signal to MTK 78 I-MTK-SDI I Data In Signal from MTK 79 I-MTK-CLK I Clock Signal from MTK 80 NO_USE - Not used 81 NO_USE - Not used 82 NO_USE - Not used 83 NO_USE - Not used 84 I-MODEL-IN I Model setting pin (A/D input) 85 I-DEST-IN I Destination setting pin (A/D input) 86 O-VBUS-OE O MTK Vbus Output enable control pin 87 /I-HUB-OC-USB-A I USB Overcurrent Detection input 88 O-MTK-POWER-CTRL O Power Control pin for MTK 89 NO_USE - Not used 90 NO_USE - Not used 91 NO_USE - Not used 92 NO_USE - Not used 93 I-AD-KEY1 I Key input terminal (A/D input) 94 I-MASTER-VOL I Jog dial pulse input from the MASTER VOLUME encoder (A/D input) 95 NO_USE - Not used 96 AVss - Ground terminal

97 98 Vref I A/D Converter reference voltage input terminal (+3.3V)

99 AVcc - Power supply terminal (+3.3V)

100 NO_USE - Not used

I-SMPS-THERMAL-

DETECT

I SMPS Thermal Detection Pin (A/D input)

62

HCD-ESX6/ESX8/ESX9

MB BOARD (2/6) IC501 CXD90013R (CD RF AMP FOCUS/TRACKING ERROR AMP CD SYSTEM PROCESSOR DIGIT AL SERVO PROCESSOR)

Pin No. Pin Name I/O Description

1 RFC I RF main beam (A) input from the optical pick-up block

2 RFD I RF main beam (D) input from the optical pick-up block

3 RFE I RF sub beam (F) input from the optical pick-up block

4 RFF I RF sub beam (E) input from the optical pick-up block

5 AVDD12_2 - Power supply terminal (+1.2V)

6 AVDD33_1 - Power supply terminal (+3.3V)

7 XTALI I System clock input terminal (27 MHz)

8 XTALO O System clock output terminal (27 MHz)

9 AGND33 - Ground terminal 10 V20 O Reference voltage (+2V) output to the optical pick-up block 11 V14 O Reference voltage (+1.4V) output terminal 12 REXT I Current reference input terminal Fixed at “L” in this set 13 MDI1 I Laser power monitor input from the optical pick-up block 14 LDO1 O Laser diode drive signal output to the optical pick-up block 15 LDO2 O Laser diode drive signal output to the optical pick-up block 16 AVDD33_2 - Power supply terminal (+3.3V) 17 DMO O Spindle motor control signal output to the motor driver 18 FMO O Sled motor control signal output to the motor driver 19 TRAY_OPEN O Muting signal output to the coil/motor driver (for spindle motor) 20 TRAY_CLOSE O CD/DVD selection signal output terminal “L”: CD, “H”: DVD 21 TRO O Tracking coil control signal output to the coil driver 22 FOO O Focus coil control signal output to the coil driver 23 FG I Thermal shut down signal input from the coil/motor driver 24 USB_DM I/O Two-way audio serial data with the USB controller 25 USB_DP I/O Two-way audio serial data with the USB controller 26 VDD33_USB - Power supply terminal (+3.3V) 27 VSS33_USB - Ground terminal 28 PAD_VRT I/O USB generating reference current terminal 29 VDD12_USB - Power supply terminal (+1.2V) 30 SF_CS_ O Chip select signal output to the ﬂ ash ROM 31 SF_DO O Serial data output to the ﬂ ash ROM 32 SF_DI I Serial data input from the ﬂ ash ROM 33 SF_CK O Serial clock signal output to the ﬂ ash ROM 34 UP1_6 O Serial data transfer clock signal output to the system controller 35 UP1_7 O Serial data output to the system controller 36 GPIO11 - Not used 37 GPIO6 - Not used 38 PRST# I Reset signal input from the system controller “L”: reset 39 IR I IR control signal input terminal Not used 40 GPIO3 I Serial data input from the system controller 41 GPIO4 I Communication initialization request signal input from the system controller 42 GPIO13 O Communication initialization request acknowledge signal output to the system controller 43 GPIO9 - Not used 44 GPIO8 - Not used 45 GPIO7 O Muting signal output to the coil/motor driver (for focus/tracking coil and sled motor) 46 GPIO29 - Not used 47 GPIO30 - Not used 48 GPIO31 - Not used 49 GPIO32 - Not used 50 DVSS33 - Ground terminal 51 DVDD33 - Power supply terminal (+3.3V) 52 RD0 I/O Two-way data bus with the SD-RAM 53 RD1 I/O Two-way data bus with the SD-RAM 54 RD2 I/O Two-way data bus with the SD-RAM

63

HCD-ESX6/ESX8/ESX9

Pin No. Pin Name I/O Description

55 RD3 I/O Two-way data bus with the SD-RAM 56 DVDD12 - Power supply terminal (+1.2V) 57 RD4 I/O Two-way data bus with the SD-RAM 58 RD5 I/O Two-way data bus with the SD-RAM 59 RD6 I/O Two-way data bus with the SD-RAM 60 RD7 I/O Two-way data bus with the SD-RAM 61 DQM0 O Data mask signal output to the SD-RAM 62 RD15 I/O Two-way data bus with the SD-RAM 63 RD14 I/O Two-way data bus with the SD-RAM 64 RD13 I/O Two-way data bus with the SD-RAM 65 RD12 I/O Two-way data bus with the SD-RAM 66 RD11 I/O Two-way data bus with the SD-RAM 67 RD10 I/O Two-way data bus with the SD-RAM 68 RD9 I/O Two-way data bus with the SD-RAM 69 RD8 I/O Two-way data bus with the SD-RAM 70 DQM1 O Data mask signal output to the SD-RAM 71 DVDD33 - Power supply terminal (+3.3V) 72 RCLK O Clock signal output to the SD-RAM 73 RA11 O Address signal output to the SD-RAM 74 RA9 O Address signal output to the SD-RAM 75 RA8 O Address signal output to the SD-RAM 76 RA7 O Address signal output to the SD-RAM 77 RA6 O Address signal output to the SD-RAM 78 RA5 O Address signal output to the SD-RAM 79 RA4 O Address signal output to the SD-RAM 80 RWE# O Write enable signal output to the SD-RAM 81 DVSS12 - Ground terminal 82 CAS# O Column address strobe signal output to the SD-RAM 83 RAS# O Row address strobe signal output to the SD-RAM 84 DVDD33 - Power supply terminal (+3.3V) 85 BA0 O Bank address signal output to the SD-RAM 86 BA1 O Bank address signal output to the SD-RAM 87 DVDD12 - Power supply terminal (+1.2V) 88 RA10 O Address signal output to the SD-RAM 89 RA0 O Address signal output to the SD-RAM 90 RA1 O Address signal output to the SD-RAM 91 RA2 O Address signal output to the SD-RAM 92 RA3 O Address signal output to the SD-RAM 93 SPDIF - Not used 94 GPIO10 - Not used 95 GPIO33 - Not used 96 DACVDDC - Power supply terminal (+3.3V) 97 VREF I Band gap reference voltage terminal 98 FS I Full scale adjustment terminal

99 DACVSSC - Ground terminal 100 CVBS O Composite video signal output terminal Not used 101 DACVDDB - Power supply terminal (+3.3V) 102 Y/G O Component video (Y) signal output terminal Not used 103 B/CB/PB O Component video (Pb/Cb) signal output terminal Not used 104 R/CR/PR O Component video (Pr/Cr) signal output terminal Not used 105 AADVSS - Ground terminal 106 AKIN2 I Audio data input from the A/D converter (for USB) 107 ADVCM - Not used 108 AKIN1 - Not used 109 AADVDD - Power supply terminal (+3.3V) 110 ADACVSS2 - Ground terminal

64

HCD-ESX6/ESX8/ESX9

Pin No. Pin Name I/O Description

111 ADACVSS1 - Ground terminal 112 ARF/LFE O Master clock signal output to the A/D converter and D/A converter 113 ARS O Bit clock signal output to the A/D converter and D/A converter 114 AR - Not used 115 AVCM I Audio D/A converter reference voltage terminal 116 AL - Not used 117 ALS O L/R sampling clock signal output to the A/D converter and D/A converter 118 ALF/CENTER O Audio data output to the D/A converter 119 ADACVDD1 - Power supply terminal (+3.3V) 120 ADACVDD2 - Power supply terminal (+3.3V) 121 AVDD12_1 - Power supply terminal (+1.2V) 122 AGND12 - Ground terminal 123 RFIP I AC coupled RF signal input from the optical pick-up block 124 RFIN I AC coupled RF signal input from the optical pick-up block 125 RFG I Power monitor terminal 126 RFH I Spindle motor hall sensor input from the motor driver 127 RFA I RF main beam (C) input from the optical pick-up block 128 RFB I RF main beam (B) input from the optical pick-up block

65

HCD-ESX6/ESX8/ESX9

Ver. 1.1

Note:

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• The mechanical parts with no reference number in the exploded views are not supplied.

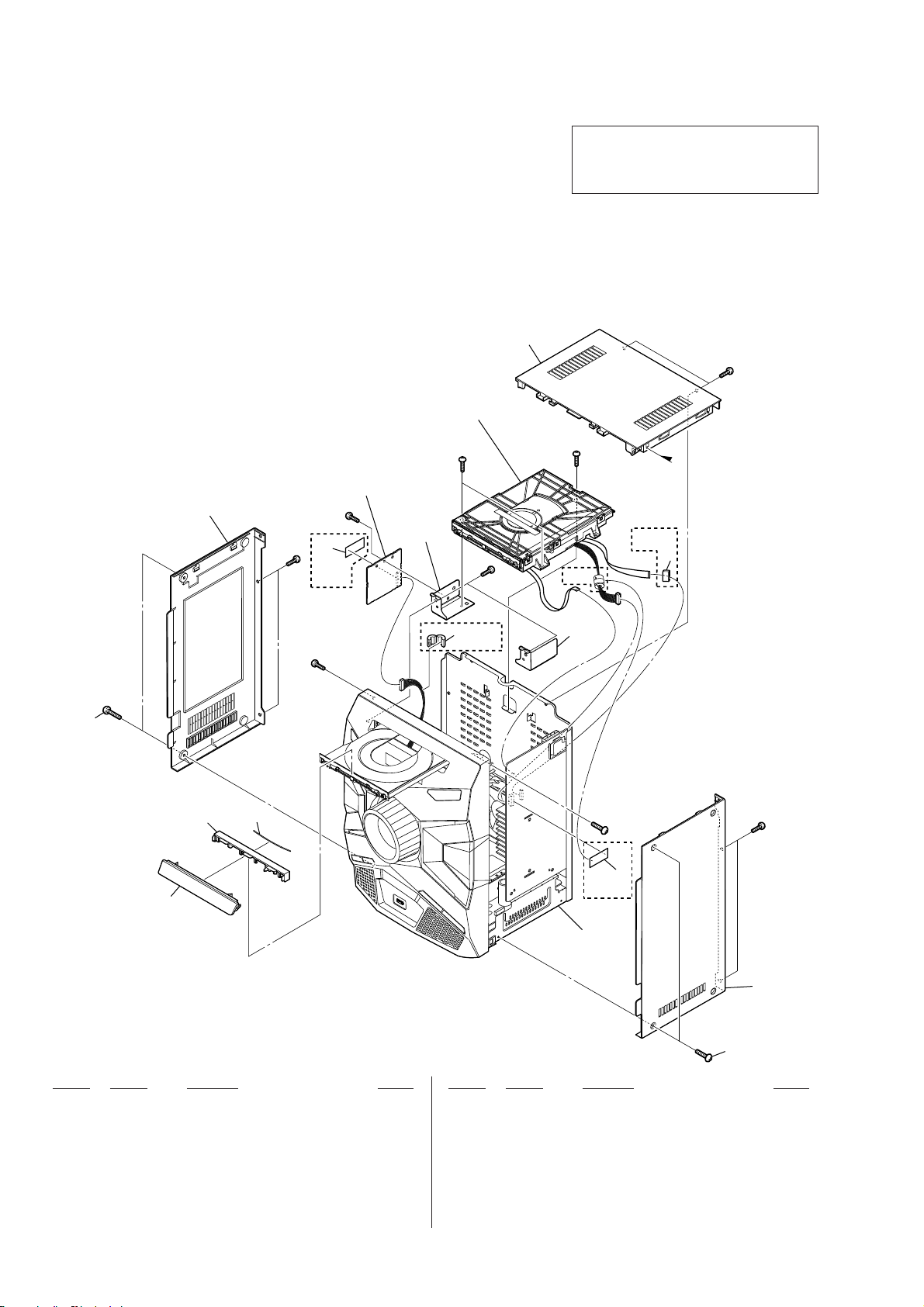

7-1. CASE SECTION

2

SECTION 7

EXPLODED VIEWS

• Color Indication of Appearance Parts Example:

KNOB, BALANCE (WHITE) . . . (RED)  

• Abbreviation

E2 : 120 V AC area in E model E4 : African model E51 : Chilean and Peruvian models E93 : 240 V AC area in E model MX : Mexican model

not supplied (REGULATOR board)

#1

10

(E93)

Parts Color Cabinet’s Color

CD MECHANISM section

#1

not supplied

#1

The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed.

4

#1

A

(E93)

8

(E93)

not supplied

#1

11

(E93)

1

A

5

6

#1

9

(E93)

7

back panel section

3

1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 3-363-099-32 SCREW (CASE 3 TP2)

2 4-460-355-01 CASE (L), SIDE 3 4-460-354-01 CASE (R), SIDE 4 4-460-353-01 CASE, TOP (ESX6) 4 4-460-353-11 CASE, TOP (ESX8/ESX9)

5 4-461-212-01 LOADING, BASE 6 4-159-522-02 SPRING (LOADING) 7 4-461-213-01 LOADING, PANEL (ESX6)

7 4-461-213-11 LOADING, PANEL (ESX8) 7 4-461-213-21 LOADING, PANEL (ESX9)

8 1-469-829-11 CORE, FERRITE (E93) 9 4-474-156-11 CUSHION (E 0.5) (E93) 10 4-474-153-51 CUSHION (H) (E93) 11 1-500-082-11 CLAMP, SLEEVE FERRITE (E93) #1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

66

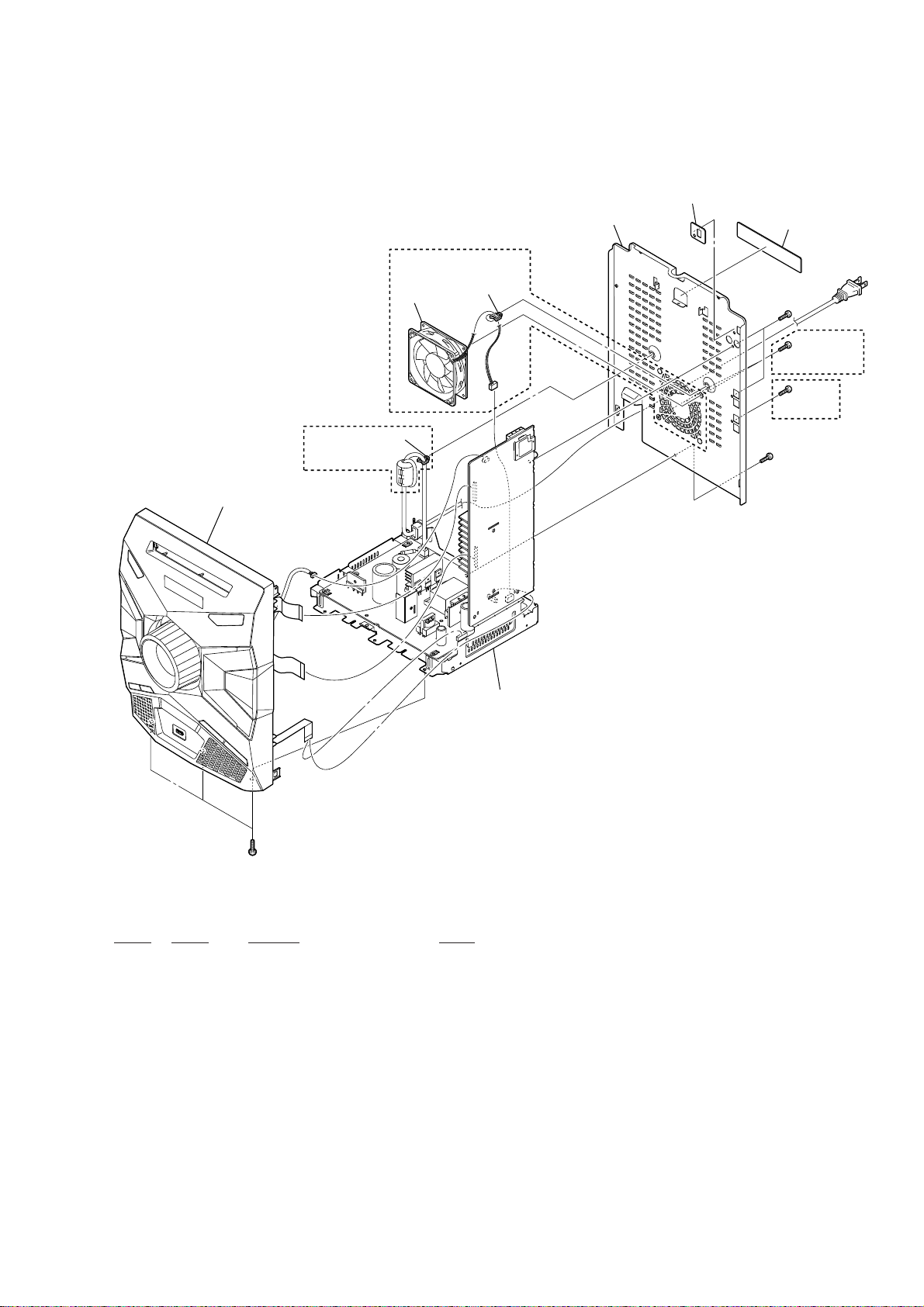

7-2. BACK PANEL SECTION

(ESX9: E93)

not supplied

(ESX8/ESX9)

not supplied

51

not supplied

HCD-ESX6/ESX8/ESX9

not supplied

#1

(ESX8/ESX9)

#1

(ESX9)

#1

front panel section

#1

Ref. No. Part No. Description Remark 0 51 1-855-307-11 DC FAN (ESX8/ESX9)

#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

chassis section

67

HCD-ESX6/ESX8/ESX9

Ver. 1.1

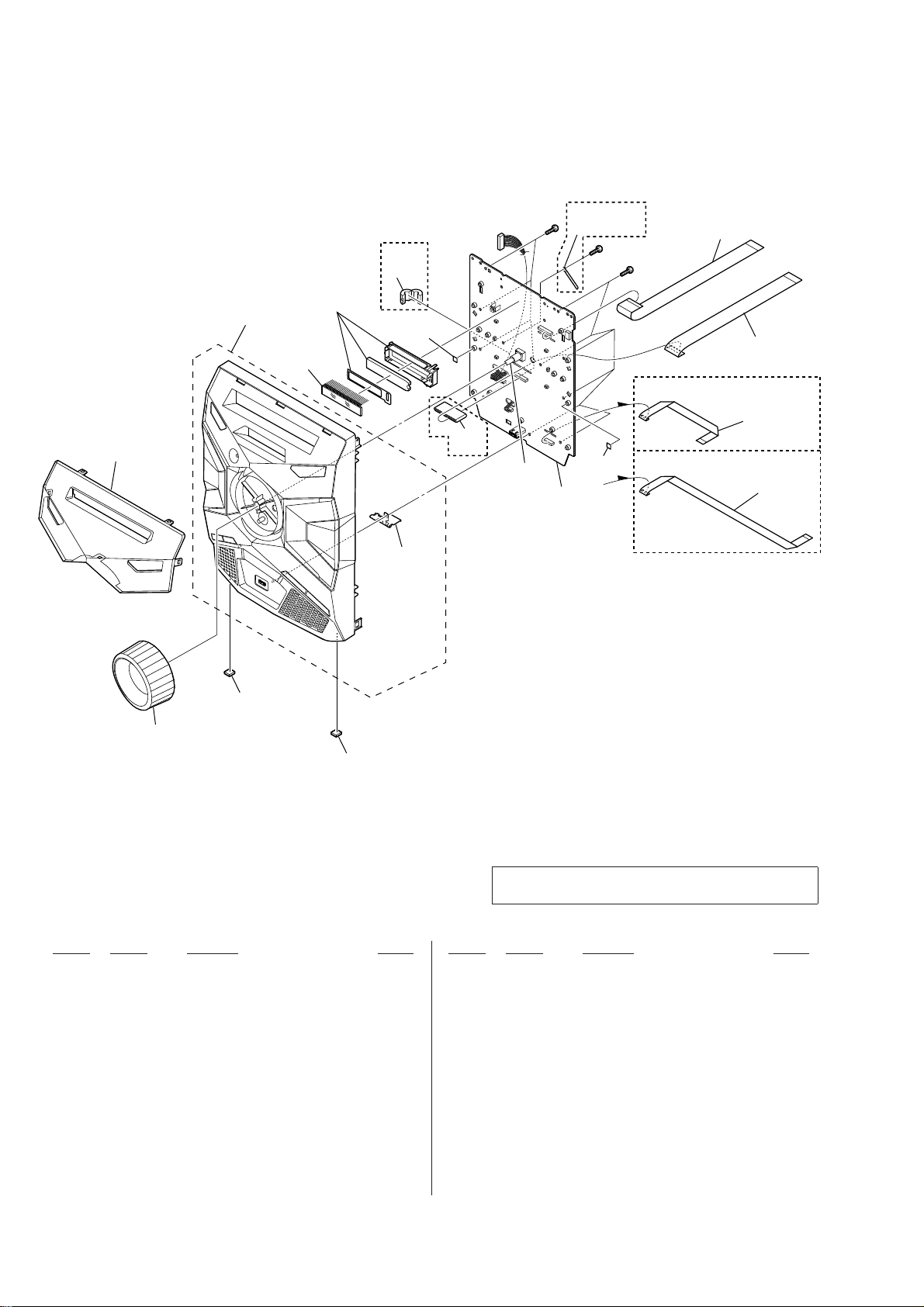

7-3. FRONT PANEL SECTION

103

104

not supplied

ND200

(E93)

105

110

not supplied

107

(E93)

S220

#1

not supplied

111

110

(E93)

#1

C

#1

106

108

(ESX9)

109

(ESX6/ESX8)

109

101

102

101

Note: If wire (ﬂ at type) is replaced, install it after bending it in the same form as that before replacement.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-264-672-01 CUSHION (FOOT)

102 4-460-347-01 KNOB, VOLUME (ESX6) 102 4-460-347-11 KNOB, VOLUME (ESX8/ESX9) 103 4-460-352-01 WINDOW, DISPLAY 104 A-1937-536-A PANEL, FRONT ASSY (ESX6)

104 A-1937-600-A PANEL, FRONT ASSY (ESX8/ESX9) 105 1-500-082-11 CLAMP, SLEEVE FERRITE (E93) 106 1-846-991-11 WIRE (FLAT TYPE) (21 CORE) 107 1-457-413-11 CORE, FERRITE (E93) 108 1-832-627-11 WIRE (FLAT TYPE) (23 CORE)

109 1-832-579-11 WIRE (FLAT TYPE) (13 CORE) (ESX6/ESX8) 109 1-846-990-11 WIRE (FLAT TYPE) (13 CORE) (ESX9) 110 3-831-441-11 CUSHION (B) 111 A-1937-292-A PANEL BOARD, COMPLETE (ESX6: E2, E51)

111 A-1937-368-A PANEL BOARD, COMPLETE (ESX6: MX) 111 A-1937-374-A PANEL BOARD, COMPLETE (ESX8: E2, E51)

111 A-1937-382-A PANEL BOARD, COMPLETE (ESX8: MX) 111 A-1937-384-A PANEL BOARD, COMPLETE (ESX6: E93) 111 A-1937-386-A PANEL BOARD, COMPLETE (ESX9: E2, E51) 111 A-1937-390-A PANEL BOARD, COMPLETE (ESX9: MX)

111 A-1937-528-A PANEL BOARD, COMPLETE (ESX8: E93) 111 A-1949-570-A PANEL BOARD, COMPLETE (ESX9: E93) 111 A-1999-746-A PANEL BOARD, COMPLETE (ESX6: E4) 111 A-1999-748-A PANEL BOARD, COMPLETE (ESX8: E4) ND200 1-811-773-21 LIQUID CRYSTAL DISPLAY

S220 1-786-417-11 ENCODER, ROTARY (VOLUME) #1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

68

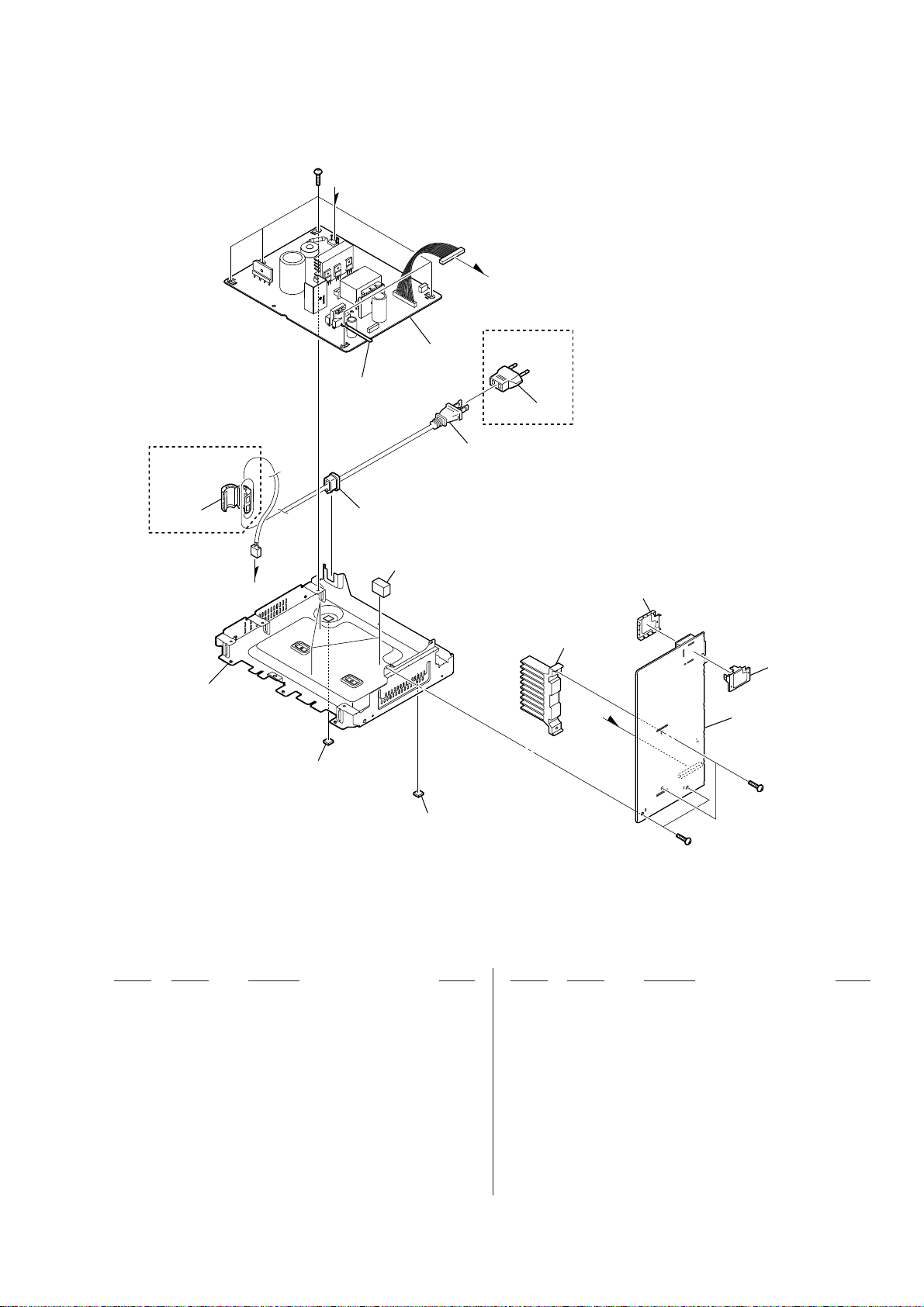

7-4. CHASSIS SECTION

HCD-ESX6/ESX8/ESX9

Ver. 1.1

#1

E

D

(ESX9: E93)

154

not supplied

E

157

not supplied

153

not supplied

152

155

(E2, E51, E4)

156

not supplied

D

not supplied

151

#1

157

#1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 A-1968-678-A MB BOARD, COMPLETE (ESX9: E2, E51, MX)

151 A-1968-679-A MB BOARD, COMPLETE (ESX8: E2, E51, MX, E4) 151 A-1968-681-A MB BOARD, COMPLETE (ESX6: E2, E51, MX, E4) 151 A-1980-787-A MB BOARD, COMPLETE (ESX6: E93) 151 A-1980-788-A MB BOARD, COMPLETE (ESX8: E93)

151 A-1980-789-A MB BOARD, COMPLETE (ESX9: E93) 152 A-1937-346-A SMPS-300W BOARD, COMPLETE

(ESX6: E2, E51, E4) 152 A-1937-370-A SMPS-300W BOARD, COMPLETE (ESX6: MX) 152 A-1937-378-A SMPS-400W BOARD, COMPLETE

(ESX8: E2, E51, MX, E4)

152 A-1937-524-A SMPS-600W BOARD, COMPLETE

(ESX9: E2, E51, MX)

152 A-1981-096-A SMPS-300W BOARD, COMPLETE (ESX6: E93) 152 A-1981-098-A SMPS-400W BOARD, COMPLETE (ESX8: E93) 152 A-1981-100-A SMPS-600W BOARD, COMPLETE (ESX9: E93) 0 153 3-703-244-00 BUSHING (2104), CORD 154 1-457-369-12 CORE, FERRITE (ESX9: E93)

0 155 1-835-706-22 CORD, POWER-SUPPLY (E51, E4) 0 155 1-837-344-11 CORD, POWER-SUPPLY (E2, MX) 0 155 1-839-999-21 POWER-SUPPLY CORD (E93) 0 156 1-569-007-31 ADAPTOR, CONVERSION 2P (E2) 0 156 1-569-008-12 ADAPTOR, CONVERSION 2P (E51, E4)

157 4-264-672-01 CUSHION (FOOT) #1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

69

HCD-ESX6/ESX8/ESX9

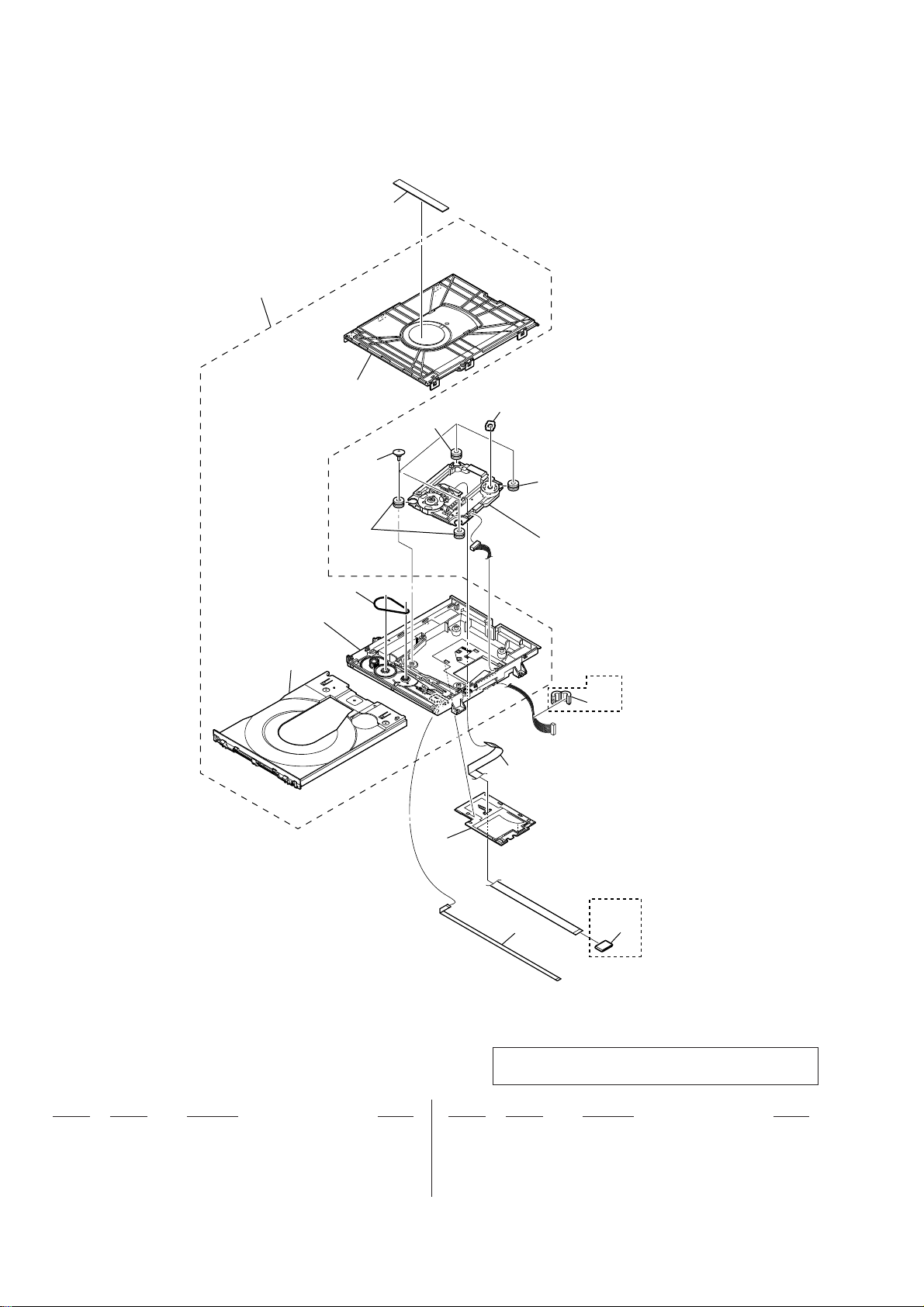

7-5. CD MECHANISM SECTION (CDM90-DVBU202//C)

201

not supplied

204

203

202

203

not supplied

203

not supplied

209

207

205

(E93)

206

(E93)

208

Note: If wire (ﬂ at type) is replaced, install it after bending it in the same form as that before replacement.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 201 A-1937-669-A CDM90 ASSY

202 3-087-599-01 INSULATOR SCREW 203 2-634-618-21 INSULATOR 204 4-418-987-01 SHEET (S76)

205 A-1940-584-A SERVICE, OPTICAL DEVICE

0

206 1-500-082-11 CLAMP, SLEEVE FERRITE (E93) 207 1-846-989-11 WIRE (FLAT TYPE) (5 CORE) 208 1-469-829-11 CORE, FERRITE (E93) 209 1-846-988-11 WIRE (FLAT TYPE) (24 CORE)

70

HCD-ESX6/ESX8/ESX9

SECTION 8

ELECTRICAL PARTS LIST

Note:

• Due to standardization, replacements in

the parts list may be different from the parts speciﬁ ed in the diagrams or the com- ponents used on the set.

• -XX and -X mean standardized parts, so

they may have some difference from the original one.

• Items marked “*” are not stocked since

they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• RESISTORS All resistors are in ohms. METAL: Metal-ﬁ lm resistor . METAL OXIDE: Metal oxide-ﬁ lm resistor. F: nonﬂ ammable

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1968-678-A MB BOARD, COMPLETE (for SERVICE)

A-1968-679-A MB BOARD, COMPLETE (for SERVICE) A-1968-681-A MB BOARD, COMPLETE (for SERVICE) A-1980-787-A MB BOARD, COMPLETE (for SERVICE) A-1980-788-A MB BOARD, COMPLETE (for SERVICE)

• CAPACITORS uF: μF

• COILS uH: μH

• SEMICONDUCTORS In each case, u: μ, for example: uA. . : μA. . , uPA. . , μPA. . , uPB. . : μPB. . , uPC. . , μPC. . , uPD. . : μPD. .

• Abbreviation E2 : 120 V AC area in E model E4 : African model E51 : Chilean and Peruvian models E93 : 240 V AC area in E model MX : Mexican model

(ESX9: E2, E51, MX) (ESX8: E2, E51, MX, E4) (ESX6: E2, E51, MX, E4)

(ESX6: E93) (ESX8: E93)

C504 1-164-852-11 CERAMIC CHIP 12PF 5% 50V C505 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V * C506 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V C508 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V

C510 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V C511 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V C515 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V C516 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V C517 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V

When indicating parts by reference number, please include the board name.

The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed.

Ver. 1.1

MB

A-1980-789-A MB BOARD, COMPLETE (for SERVICE)

(ESX9: E93)

******************* 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C300 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

C301 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C302 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C303 1-124-779-00 ELECT CHIP 10uF 20% 16V C304 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C305 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C306 1-116-717-11 CERAMIC CHIP 10uF 20% 10V C308 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C309 1-116-717-11 CERAMIC CHIP 10uF 20% 10V C310 1-164-874-11 CERAMIC CHIP 100PF 5% 50V

C312 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V C323 1-164-874-11 CERAMIC CHIP 100PF 5% 50V

C325 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V C330 1-216-864-11 SHORT CHIP 0 (E93)

C331 1-218-990-81 SHORT CHIP 0 (E93) C333 1-218-990-81 SHORT CHIP 0 (E93)

C336 1-165-492-21 ELECT CHIP 100uF 20% 10V C337 1-165-492-21 ELECT CHIP 100uF 20% 10V C338 1-165-492-21 ELECT CHIP 100uF 20% 10V C350 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

C360 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C362 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V C373 1-164-874-11 CERAMIC CHIP 100PF 5% 50V

C375 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V C501 1-116-717-11 CERAMIC CHIP 10uF 20% 10V * C503 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9) (ESX9)

C518 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V C519 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V * C521 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V C522 1-128-994-21 ELECT CHIP 47uF 20% 10V * C524 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

C525 1-118-039-11 CERAMIC CHIP 1uF 10% 25V C526 1-116-717-11 CERAMIC CHIP 10uF 20% 10V C527 1-118-039-11 CERAMIC CHIP 1uF 10% 25V C528 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V * C529 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

C530 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V C531 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C571 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C572 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V

(EXCEPT E93)

C572 1-164-862-81 CERAMIC CHIP 33PF 5% 50V (E93) C591 1-116-717-11 CERAMIC CHIP 10uF 20% 10V

C593 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C594 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C595 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C596 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V

C597 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

* C598 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V * C599 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

C601 1-116-717-11 CERAMIC CHIP 10uF 20% 10V C604 1-116-717-11 CERAMIC CHIP 10uF 20% 10V

C621 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V C651 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C652 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C653 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V C659 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

C661 1-116-737-11 CERAMIC CHIP 1uF 20% 10V * C680 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V C681 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V C682 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V C683 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V

Note: Refer to the servicing notes “MB BOARD DISCRIMINATION”

(page 4) for how to distinguish SUFFIX-11 and SUFFIX-12.

71

HCD-ESX6/ESX8/ESX9

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C685 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V

C700 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C701 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C702 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V C703 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C704 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C705 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C706 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C707 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C708 1-118-434-11 CERAMIC CHIP 10PF 50V

C709 1-118-434-11 CERAMIC CHIP 10PF 50V C710 1-124-779-00 ELECT CHIP 10uF 20% 16V C711 1-124-779-00 ELECT CHIP 10uF 20% 16V C712 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C713 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V

C714 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C715 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V C716 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C717 1-124-779-00 ELECT CHIP 10uF 20% 16V C718 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(ESX9)

C1706 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C1709 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C1710 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C1711 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V C1714 1-112-692-11 CERAMIC CHIP 1000PF 5% 50V C1715 1-107-820-81 CERAMIC CHIP 0.1uF 16V C1718 1-107-820-81 CERAMIC CHIP 0.1uF 16V

C1719 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1720 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1721 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1722 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1723 1-107-820-81 CERAMIC CHIP 0.1uF 16V

C1724 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V C1725 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(ESX8/ESX9)

C1726 1-114-817-11 CERAMIC CHIP 2.2uF 10% 50V

(ESX6)

C1729 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(ESX8/ESX9)

C1730 1-114-817-11 CERAMIC CHIP 2.2uF 10% 50V

(ESX6)

C719 1-124-779-00 ELECT CHIP 10uF 20% 16V

(ESX9)

C720 1-114-096-81 CERAMIC CHIP 4.7PF 50V (E93)

* C811 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V * C812 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V * C821 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

C822 1-165-492-21 ELECT CHIP 100uF 20% 10V

* C823 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V * C824 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V * C833 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V * C834 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

* C837 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V * C839 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

C850 1-165-492-21 ELECT CHIP 100uF 20% 10V C851 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C854 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V

* C858 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V * C869 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

C870 1-165-492-21 ELECT CHIP 100uF 20% 10V * C873 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V C876 1-162-961-11 CERAMIC CHIP 330PF 10% 50V

* C877 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V C880 1-165-492-21 ELECT CHIP 100uF 20% 10V C881 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V C890 1-165-492-21 ELECT CHIP 100uF 20% 10V C891 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V

C1733 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(ESX8/ESX9)

C1734 1-114-817-11 CERAMIC CHIP 2.2uF 10% 50V

(ESX6)

C1739 1-114-817-11 CERAMIC CHIP 2.2uF 10% 50V

(ESX6)

C1740 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(ESX8/ESX9)

C1741 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V C1742 1-107-820-81 CERAMIC CHIP 0.1uF 16V

C1743 1-107-820-81 CERAMIC CHIP 0.1uF 16V C1744 1-164-934-11 CERAMIC CHIP 330PF 10% 50V C1745 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C1746 1-128-555-91 ELECT 470uF 20% 63V

(ESX8/ESX9)

C1747 1-128-991-21 ELECT CHIP 10uF 20% 50V

(ESX8/ESX9)

C1749 1-128-555-91 ELECT 470uF 20% 63V

(ESX8/ESX9) C1750 1-126-601-11 ELECT CHIP 2.2uF 20% 50V C1752 1-116-911-21 CERAMIC CHIP 1uF 10% 250V C1753 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V

C1754 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1755 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1756 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1757 1-116-911-21 CERAMIC CHIP 1uF 10% 250V C1758 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V

C1019 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(ESX6/ESX8) C1603 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C1604 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V C1605 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C1608 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V

C1653 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C1654 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V C1700 1-100-591-91 CERAMIC CHIP 1uF 10% 25V C1701 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C1702 1-162-925-11 CERAMIC CHIP 68PF 5% 50V

C1703 1-100-591-91 CERAMIC CHIP 1uF 10% 25V C1704 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C1705 1-162-925-11 CERAMIC CHIP 68PF 5% 50V

72

C1759 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1760 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1761 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1762 1-116-911-21 CERAMIC CHIP 1uF 10% 250V C1763 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V

C1764 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1765 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1766 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1767 1-116-911-21 CERAMIC CHIP 1uF 10% 250V C1768 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V

C1769 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1770 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1771 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1772 1-162-974-11 CERAMIC CHIP 0.01uF 50V

HCD-ESX6/ESX8/ESX9

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C1773 1-162-974-11 CERAMIC CHIP 0.01uF 50V

C1774 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1775 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1776 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C1777 1-165-492-21 ELECT CHIP 100uF 20% 10V C1778 1-128-392-11 ELECT CHIP 470uF 20% 6.3V

(ESX9)

C1779 1-100-591-91 CERAMIC CHIP 1uF 10% 25V

(ESX9)

C1780 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

(ESX9)

C1781 1-162-925-11 CERAMIC CHIP 68PF 5% 50V

(ESX9)

C1782 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C1783 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

(ESX9)

C1784 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

(ESX9)

C1785 1-164-882-11 CERAMIC CHIP 220PF 5% 16V

(ESX9)

C1786 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V

(ESX9)

C1789 1-112-692-11 CERAMIC CHIP 1000PF 5% 50V

(ESX9)

C1790 1-107-820-81 CERAMIC CHIP 0.1uF 16V

(ESX9)

C1791 1-107-820-81 CERAMIC CHIP 0.1uF 16V

(ESX9)

C1792 1-107-820-81 CERAMIC CHIP 0.1uF 16V

(ESX9)

C1793 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C1794 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(ESX9)

C1797 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(ESX9)

C1800 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C1801 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C1802 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(ESX9)

C1807 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(ESX9)

C1808 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C1809 1-107-820-81 CERAMIC CHIP 0.1uF 16V

(ESX9)

C1810 1-107-820-81 CERAMIC CHIP 0.1uF 16V

(ESX9)

C1811 1-164-934-11 CERAMIC CHIP 330PF 10% 50V

(ESX9)

C1812 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

(ESX9)

C1813 1-128-555-91 ELECT 470uF 20% 63V

(ESX8/ESX9)

C1815 1-128-555-91 ELECT 470uF 20% 63V

(ESX8/ESX9)

C1817 1-116-911-21 CERAMIC CHIP 1uF 10% 250V

(ESX9)

C1818 1-116-911-21 CERAMIC CHIP 1uF 10% 250V

(ESX9)

C1819 1-116-911-21 CERAMIC CHIP 1uF 10% 250V

(ESX9)

C1820 1-116-911-21 CERAMIC CHIP 1uF 10% 250V

C1821 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1822 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1823 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1824 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1825 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V

C1826 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1827 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1828 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1829 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1830 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V

C1831 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1832 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1833 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1834 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C1835 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V

C1836 1-118-369-11 CERAMIC CHIP 0.022uF 10% 50V C1839 1-162-968-91 CERAMIC CHIP 0.0047uF 10% 50V C1840 1-162-968-91 CERAMIC CHIP 0.0047uF 10% 50V C1841 1-162-968-91 CERAMIC CHIP 0.0047uF 10% 50V C1842 1-162-968-91 CERAMIC

C1843 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V C1844 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V C1845 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V C1846 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V C1847 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V

C1848 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V C1849 1-126-193-11 ELECT CHIP 1uF 20% 50V C1850 1-100-591-91 CERAMIC CHIP 1uF 10% 25V C1851 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C1852 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C1853 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1855 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V C1856 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

CHIP 0.0047uF 10% 50V

(ESX8/ESX9)

(ESX6/ESX8)

(ESX9: E93) (ESX9: E93)

(ESX9)

(ESX9) (ESX9) (ESX9) (ESX9) (ESX9)

(ESX9)

(ESX9) (ESX9) (ESX9)

73

HCD-ESX6/ESX8/ESX9

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C1857 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

(ESX9: E93)

C1858 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

(ESX9: E93)

C1859 1-165-492-21 ELECT CHIP 100uF 20% 10V C1860 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C1861 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

(ESX9)

C1862 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

(ESX9)

C1863 1-126-971-11 ELECT 470uF 20% 50V

(ESX6)

C1864 1-126-971-11 ELECT 470uF 20% 50V

(ESX6)

C1865 1-126-971-11 ELECT 470uF 20% 50V

(ESX6)

C1866 1-126-971-11 ELECT 470uF 20% 50V

(ESX6) * C1867 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V C1868 1-128-555-91 ELECT 470uF 20% 63V

(ESX9) C1869 1-128-555-91 ELECT 470uF 20% 63V

(ESX9) C1870 1-137-765-21 ELECT CHIP 47uF 20% 16V

(ESX6/ESX8) C1871 1-165-492-21 ELECT CHIP 100uF 20% 10V C1872 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V (E93) C1873 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V (E93)

C1874 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V (E93) C1875 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V (E93) C1879 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V C1880 1-165-492-21 ELECT CHIP 100uF 20% 10V C1881 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(ESX6/ESX8) C1882 1-116-486-21 CERAMIC CHIP 47uF 20% 16V

(ESX6/ESX8) C1883 1-162-968-91 CERAMIC CHIP 0.0047uF 10% 50V

(ESX6/ESX8) C1884 1-116-486-21 CERAMIC CHIP 47uF 20% 16V

(ESX6/ESX8) * C1885 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V C1886 1-124-779-00 ELECT CHIP 10uF 20% 16V

(ESX9)

* C1887 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C1888 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(ESX6/ESX8) C1889 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(ESX6/ESX8) C1892 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(ESX6/ESX8) * C1893 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

C1901 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V (E93) C1949 1-112-692-11 CERAMIC CHIP 1000PF 5% 50V

(ESX9)

* C1952 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V * C1954 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V

* C1955 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V

C1956 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C1957 1-164-842-11 CERAMIC CHIP 2PF 0.25PF 50V C1958 1-164-842-11 CERAMIC CHIP 2PF 0.25PF 50V C1959 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V

C1960 1-114-565-81 CERAMIC CHIP 0.047uF 10% 16V C1961 1-164-870-11 CERAMIC CHIP 68PF 5% 50V C1962 1-164-866-11 CERAMIC CHIP 47PF 5% 50V C1965 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V

* C1967 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V * C1968 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V

< CONNECTOR > CN300 1-820-119-41 CONNECTOR, FFC/FPC 21P

CN301 1-820-121-41 CONNECTOR, FFC/FPC 23P CN507 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN681 1-794-362-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 5P CN801 1-843-557-11 FFC ST CONNECTOR (NON-ZIF) 24P

CN802 1-691-550-11 PIN, CONNECTOR (1.5MM) (SMD) 3P CN831 1-785-728-21 PIN (PC BOARD), CONNECTOR 7P * CN1700 1-691-774-11 PLUG (MICRO CONNECTOR) 12P CN1950 1-774-730-21 PIN, CONNECTOR (PC BOARD) 3P

(ANTENNA FM/AM) < DIODE > D837 8-719-069-29 DIODE RB520S-30FJTE61

D839 8-719-069-29 DIODE RB520S-30FJTE61 D1701 6-500-400-01 DIODE BAV99-215 D1704 6-500-400-01 DIODE BAV99-215 D1705 6-500-400-01 DIODE BAV99-215 (ESX9)

D1707 6-500-400-01 DIODE BAV99-215 D1708 6-500-400-01 DIODE BAV99-215 D1709 6-500-400-01 DIODE BAV99-215 (ESX9) D1715 6-503-732-01 DI SK310A-R3 D1716 6-503-732-01 DI SK310A-R3

D1717 6-503-732-01 DI SK310A-R3 D1718 6-503-732-01 DI SK310A-R3 D1719 6-503-732-01 DI SK310A-R3 (ESX9) D1720 6-503-732-01 DI SK310A-R3 (ESX9) D1721 6-503-732-01 DI SK310A-R3 (ESX9)

D1722 6-503-732-01 DI SK310A-R3 (ESX9) D1723 6-500-400-01 DIODE BAV99-215 (ESX8/ESX9) D1730 6-500-400-01 DIODE BAV99-215 (ESX9) D1731 6-500-400-01 DIODE BAV99-215 (ESX9) D1851 8-719-058-24 DIODE RB501V-40TE-17 (ESX6/ESX8)

C1895 1-118-614-11 ELECT CHIP 10uF 20% 63V

(ESX6/ESX8) C1896 1-112-793-11 ELECT CHIP 330uF 20% 25V C1897 1-124-779-00 ELECT CHIP 10uF 20% 16V

C1898 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V

(ESX6/ESX8) * C1899 1-118-360-11 CERAMIC CHIP 0.1uF 10% 25V

C1900 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V

(ESX6/ESX8)

74

(ESX9)

D1852 6-500-864-01 DIODE RB050LA-40TR (ESX6/ESX8) D1854 6-503-028-01 DI DZ2J130M0L (ESX6/ESX8) D1950 6-500-400-01 DIODE BAV99-215 D1951 6-500-400-01 DIODE BAV99-215 D1952 6-500-400-01 DIODE BAV99-215

D1953 6-500-400-01 DIODE BAV99-215 (ESX6/ESX8: E93) D1954 6-500-400-01 DIODE BAV99-215 (ESX6/ESX8: E93)

< FERRITE BEAD > FB517 1-414-760-21 FERRITE, EMI (SMD) (1608)

HCD-ESX6/ESX8/ESX9

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark FB521 1-414-760-21 FERRITE, EMI (SMD) (1608)

FB522 1-414-760-21 FERRITE, EMI (SMD) (1608) FB525 1-414-760-21 FERRITE, EMI (SMD) (1608) FB526 1-414-760-21 FERRITE, EMI (SMD) (1608)

L1711 1-457-077-11 AIR-CORE COIL (ESX9) L1712 1-457-078-11 AIR-CORE COIL (ESX9) L1854 1-460-646-11 INDUCTOR 47uH (ESX6/ESX8) L1951 1-414-455-11 INDUCTOR 2.2nH

FB527 1-414-760-21 FERRITE, EMI (SMD) (1608) FB534 1-469-118-21 FERRITE, EMI (SMD) (1608) FB551 1-469-118-21 FERRITE, EMI (SMD) (1608) (E93) FB571 1-414-760-21 FERRITE, EMI (SMD) (1608) FB593 1-469-118-21 FERRITE, EMI (SMD) (1608)

FB652 1-469-118-21 FERRITE, EMI (SMD) (1608) FB800 1-216-295-91 SHORT CHIP 0 FB824 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93) FB825 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93) FB826 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93)

FB846 1-216-864-11 SHORT CHIP 0 < IC > IC320 6-710-554-01 IC PCM1808PWR

IC501 (Not supplied) IC CXD90013R IC502 (Not supplied) IC W25Q16CVSSIG-R IC504 (Not supplied) IC EM638165 TSB-6G IC651 6-712-033-01 IC MM1701CHBE

IC653 6-717-694-01 IC BU33TD3WG-TR IC701 6-716-697-01 IC TAS3108DCPR IC740 6-707-800-01 IC SRC4182 IC750 6-705-973-01 IC PCM1754DBQR IC751 6-705-973-01 IC PCM1754DBQR (ESX9)

IC780 8-759-680-48 IC TC7WH157FK IC851 (Not supplied) IC AM5890S IC1600 8-759-596-39 IC SN74LV4052APWR IC1702 8-759-909-71 IC BA4558F IC1703 8-759-909-71 IC BA4558F (ESX9)

IC1704 8-759-909-71 IC BA4558F IC1705 6-716-817-01 IC TAS5630BPHDR (ESX8/ESX9) IC1705 6-716-818-01 IC TAS5613APHDR (ESX6) IC1706 6-716-817-01 IC TAS5630BPHDR (ESX9) IC1715 8-759-909-71 IC BA4558F (ESX9)

IC1852 6-720-370-01 IC BA17805FP-E2 IC1854 6-718-293-01 IC BA17809FP-E2 IC1855 6-720-441-01 IC TPS54260 (ESX6/ESX8) IC1856 6-716-739-01 IC BD00GC0WEFJ-SE2 (ESX9) IC1950 6-715-134-01 IC MM3404A33URE

IC1951 6-720-234-01 IC RN5B801-0002 < JACK > J1601 1-815-045-11 JACK, PIN 2P (DVD/PC IN R/L) < COIL > L1700 1-400-793-21 INDUCTOR 47uH

L1701 1-482-158-11 INDUCTOR 10uH (ESX9) L1702 1-482-158-11 INDUCTOR 10uH L1703 1-482-158-11 INDUCTOR 10uH L1704 1-457-078-11 AIR-CORE COIL

L1705 1-457-077-11 AIR-CORE COIL L1706 1-457-077-11 AIR-CORE COIL L1707 1-457-078-11 AIR-CORE COIL L1708 1-457-077-11 AIR-CORE COIL (ESX9) L1709 1-457-078-11 AIR-CORE COIL (ESX9)

L1710 1-482-158-11 INDUCTOR 10uH (ESX9)

Note: IC501, IC502, IC504 and IC851 on the MB board cannot

exchange with single. When these parts on the MB board are damaged, exchange the entire mounted board.

L1952 1-216-864-11 SHORT CHIP 0 L1953 1-457-998-11 COIL, AM ANTENNA L1954 1-469-187-21 INDUCTOR 68nH L1955 1-469-187-21 INDUCTOR 68nH L1956 1-414-576-41 INDUCTOR 47nH

< TRANSISTOR > Q881 6-551-120-01 TRANSISTOR 2SA2119K

Q891 6-551-120-01 TRANSISTOR 2SA2119K Q1600 6-550-978-01 TR RN1902 Q1700 8-729-427-72 TRANSISTOR XP4501 Q1701 8-729-427-72 TRANSISTOR XP4501 (ESX9)

Q1702 6-552-892-01 TR LSCR523UBFS8TL Q1705 8-729-216-22 TRANSISTOR 2SA1162-G Q1706 8-729-216-22 TRANSISTOR 2SA1162-G Q1707 8-729-216-22 TRANSISTOR 2SA1162-G (ESX9) Q1708 8-729-216-22 TRANSISTOR 2SA1162-G (ESX9)

Q1709 8-729-216-22 TRANSISTOR 2SA1162-G (ESX9) Q1710 8-729-216-22 TRANSISTOR 2SA1162-G (ESX9) Q1711 8-729-216-22 TRANSISTOR 2SA1162-G Q1712 8-729-216-22 TRANSISTOR 2SA1162-G Q1713 6-552-892-01 TR LSCR523UBFS8TL

Q1714 6-552-892-01 TR LSCR523UBFS8TL (ESX9) Q1718 6-552-892-01 TR LSCR523UBFS8TL Q1719 6-551-728-01 TRANSISTOR 2SB1710TL (ESX6/ESX8) Q1720 6-553-083-01 TR PBSS4160T (ESX6/ESX8) Q1854 6-552-137-01 TR 2SA2166-T112-1W

(ESX6/ESX8)

Q1855 6-553-083-01 TR PBSS4160T (ESX6/ESX8) Q1856 6-552-892-01 TR LSCR523UBFS8TL

(ESX6/ESX8) Q1857 6-552-936-01 TR LTC014EUBFS8TL Q1858 6-551-728-01 TRANSISTOR 2SB1710TL Q1900 6-552-892-01 TR LSCR523UBFS8TL

(ESX6/ESX8) < RESISTOR > R300 1-218-941-81 METAL CHIP 100 5% 1/16W

R301 1-218-990-81 SHORT CHIP 0 R302 1-218-990-81 SHORT CHIP 0 R303 1-216-864-11 SHORT CHIP 0 R304 1-218-990-81 SHORT CHIP 0

R305 1-218-933-11 METAL CHIP 22 5% 1/16W R306 1-218-929-11 METAL CHIP 10 5% 1/16W

(EXCEPT E93)

R306 1-218-947-11 METAL CHIP 330 5% 1/16W

(E93) R307 1-218-929-11 METAL CHIP 10 5% 1/16W R308 1-218-929-11 METAL CHIP 10 5% 1/16W

R309 1-216-864-11 SHORT CHIP 0 R310 1-218-941-81 METAL CHIP 100 5% 1/16W R312 1-218-990-81 SHORT CHIP 0 R313 1-216-864-11 SHORT CHIP 0 R314 1-216-295-91 SHORT CHIP 0

R319 1-216-864-11 SHORT CHIP 0 (ESX9) R320 1-218-941-81 METAL CHIP 100 5% 1/16W

(ESX9)

R322 1-218-990-81 SHORT CHIP 0 (ESX9)

75

HCD-ESX6/ESX8/ESX9

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R327 1-216-295-91 SHORT CHIP 0

R328 1-216-864-11 SHORT CHIP 0 R329 1-216-295-91 SHORT CHIP 0

R330 1-216-295-91 SHORT CHIP 0 R331 1-216-295-91 SHORT CHIP 0 R332 1-216-295-91 SHORT CHIP 0 R333 1-216-864-11 SHORT CHIP 0

R334 1-216-864-11 SHORT CHIP 0 R335 1-216-864-11 SHORT CHIP 0 R336 1-216-864-11 SHORT CHIP 0 R337 1-216-864-11 SHORT CHIP 0 R338 1-216-864-11 SHORT CHIP 0

R339 1-216-295-91 SHORT CHIP 0 R340 1-216-295-91 SHORT CHIP 0 R350 1-218-941-81 METAL CHIP 100 5% 1/16W R359 1-216-864-11 SHORT CHIP 0 R360 1-218-941-81 METAL CHIP 100 5% 1/16W

R362 1-218-990-81 SHORT CHIP 0 R369 1-216-864-11 SHORT CHIP 0 (ESX9) R370 1-218-941-81 METAL CHIP 100 5% 1/16W

(ESX9) R372 1-218-990-81 SHORT CHIP 0 (ESX9) R382 1-216-864-11 SHORT CHIP 0

R383 1-216-864-11 SHORT CHIP 0 (E93) R384 1-216-864-11 SHORT CHIP 0 (E93) R385 1-216-864-11 SHORT CHIP 0 R386 1-216-864-11 SHORT CHIP 0 R501 1-216-798-11 METAL CHIP 12 5% 1/10W

R502 1-216-864-11 SHORT CHIP 0 R503 1-250-664-11 METAL CHIP 100K 1% 1/10W R504 1-250-604-11 METAL CHIP 330 1% 1/10W R505 1-216-835-11 METAL CHIP 15K 5% 1/10W R506 1-218-990-81 SHORT CHIP 0

R508 1-218-990-81 SHORT CHIP 0 R510 1-250-633-11 METAL CHIP 5.1K 1% 1/10W R511 1-218-990-81 SHORT CHIP 0 R512 1-218-941-81 METAL CHIP 100 5% 1/16W R515 1-218-941-81 METAL CHIP 100 5% 1/16W

R516 1-216-809-11 METAL CHIP 100 5% 1/10W R518 1-218-959-11 METAL CHIP 3.3K 5% 1/16W R519 1-218-959-11 METAL CHIP 3.3K 5% 1/16W R520 1-218-961-11 METAL CHIP 4.7K 5% 1/16W R523 1-218-941-81 METAL CHIP 100 5% 1/16W

R528 1-218-959-11 METAL CHIP 3.3K 5% 1/16W R529 1-218-965-11 METAL CHIP 10K 5% 1/16W R533 1-218-941-81 METAL CHIP 100 5% 1/16W R535 1-216-809-11 METAL CHIP 100 5% 1/10W R536 1-216-809-11 METAL CHIP 100 5% 1/10W

R541 1-218-941-81 METAL CHIP 100 5% 1/16W R542 1-250-610-11 METAL CHIP 560 1% 1/10W R551 1-216-809-11 METAL CHIP 100 5% 1/10W

(EXCEPT E93) R552 1-216-805-11 METAL CHIP 47 5% 1/10W R553 1-218-941-81 METAL CHIP 100 5% 1/16W

R554 1-218-941-81 METAL CHIP 100 5% 1/16W R555 1-218-965-11 METAL CHIP 10K 5% 1/16W R556 1-218-941-81 METAL CHIP 100 5% 1/16W R558 1-218-953-11 METAL CHIP 1K 5% 1/16W R559 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R572 1-218-941-81 METAL CHIP 100 5% 1/16W

R591 1-216-864-11 SHORT CHIP 0 R592 1-216-864-11 SHORT CHIP 0 R594 1-216-833-11 METAL CHIP 10K 5% 1/10W R595 1-218-965-11 METAL CHIP 10K 5% 1/16W

R601 1-218-965-11 METAL CHIP 10K 5% 1/16W R622 1-216-864-11 SHORT CHIP 0 R624 1-250-664-11 METAL CHIP 100K 1% 1/10W R651 1-218-953-11 METAL CHIP 1K 5% 1/16W R653 1-216-864-11 SHORT CHIP 0

R655 1-218-965-11 METAL CHIP 10K 5% 1/16W R656 1-216-864-11 SHORT CHIP 0 R680 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R683 1-218-953-11 METAL CHIP 1K 5% 1/16W R685 1-218-953-11 METAL CHIP 1K 5% 1/16W

R690 1-218-959-11 METAL CHIP 3.3K 5% 1/16W R693 1-218-953-11 METAL CHIP 1K 5% 1/16W R695 1-218-953-11 METAL CHIP 1K 5% 1/16W R701 1-218-933-11 METAL CHIP 22 5% 1/16W R702 1-218-929-11 METAL CHIP 10 5% 1/16W

R703 1-218-929-11 METAL CHIP 10 5% 1/16W R704 1-218-941-81 METAL CHIP 100 5% 1/16W R706 1-218-990-81 SHORT CHIP 0 R707 1-218-929-11 METAL CHIP 10 5% 1/16W R708 1-218-929-11 METAL CHIP 10 5% 1/16W

R709 1-218-929-11 METAL CHIP 10 5% 1/16W R710 1-218-929-11 METAL CHIP 10 5% 1/16W R711 1-218-990-81 SHORT CHIP 0 R712 1-218-990-81 SHORT CHIP 0 R713 1-218-929-11 METAL CHIP 10 5% 1/16W

R714 1-218-929-11 METAL CHIP 10 5% 1/16W R715 1-218-933-11 METAL CHIP 22 5% 1/16W R716 1-218-990-81 SHORT CHIP 0 R718 1-216-864-11 SHORT CHIP 0 R719 1-218-965-11 METAL CHIP 10K 5% 1/16W

R720 1-218-941-81 METAL CHIP 100 5% 1/16W R722 1-218-941-81 METAL CHIP 100 5% 1/16W R723 1-218-941-81 METAL CHIP 100 5% 1/16W R724 1-218-941-81 METAL CHIP 100 5% 1/16W R725 1-218-965-11 METAL CHIP 10K 5% 1/16W

R726 1-218-965-11 METAL CHIP 10K 5% 1/16W R727 1-218-933-11 METAL CHIP 22 5% 1/16W R728 1-218-990-81 SHORT CHIP 0 R729 1-216-791-11 METAL CHIP 3.3 5% 1/10W R730 1-216-833-11 METAL CHIP 10K 5% 1/10W

R731 1-218-933-11 METAL CHIP 22 5% 1/16W R732 1-218-933-11 METAL CHIP 22 5% 1/16W

(ESX9) R733 1-218-933-11 METAL CHIP 22 5% 1/16W R734 1-218-933-11 METAL CHIP 22 5% 1/16W R735 1-218-933-11 METAL CHIP 22 5% 1/16W

R736 1-216-864-11 SHORT CHIP 0 R737 1-218-929-11 METAL CHIP 10 5% 1/16W R738 1-218-929-11 METAL CHIP 10 5% 1/16W R739 1-218-929-11 METAL CHIP 10 5% 1/16W R740 1-218-929-11 METAL CHIP 10 5% 1/16W

(ESX9) R741 1-218-929-11 METAL CHIP 10 5% 1/16W

(ESX9) R742 1-218-929-11 METAL CHIP 10 5% 1/16W

(ESX9) R802 1-218-990-81 SHORT CHIP 0

76

HCD-ESX6/ESX8/ESX9

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R803 1-218-965-11 METAL CHIP 10K 5% 1/16W

R804 1-218-961-11 METAL CHIP 4.7K 5% 1/16W R806 1-216-864-11 SHORT CHIP 0

R807 1-216-809-11 METAL CHIP 100 5% 1/10W R808 1-218-941-81 METAL CHIP 100 5% 1/16W R817 1-218-941-81 METAL CHIP 100 5% 1/16W R821 1-216-295-91 SHORT CHIP 0

R822 1-216-295-91 SHORT CHIP 0 R823 1-218-965-11 METAL CHIP 10K 5% 1/16W R824 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) (SUFFIX-12) R825 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) (SUFFIX-12) R826 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) (SUFFIX-12)

R837 1-257-362-21 METAL CHIP 1 5% 1/2W R838 1-218-965-11 METAL CHIP 10K 5% 1/16W R840 1-218-965-11 METAL CHIP 10K 5% 1/16W R850 1-218-965-11 METAL CHIP 10K 5% 1/16W R851 1-216-838-11 METAL CHIP 27K 5% 1/10W

R853 1-216-864-11 SHORT CHIP 0 R854 1-216-833-11 METAL CHIP 10K 5% 1/10W R856 1-216-864-11 SHORT CHIP 0 R873 1-216-835-11 METAL CHIP 15K 5% 1/10W R876 1-216-838-11 METAL CHIP 27K 5% 1/10W

R878 1-218-965-11 METAL CHIP 10K 5% 1/16W R880 1-218-965-11 METAL CHIP 10K 5% 1/16W R881 1-218-941-81 METAL CHIP 100 5% 1/16W R882 1-218-977-11 METAL CHIP 100K 5% 1/16W R884 1-218-973-11 METAL CHIP 47K 5% 1/16W

* R887 1-250-572-11 METAL CHIP 15 1% 1/10W * R888 1-250-572-11 METAL CHIP 15 1% 1/10W * R889 1-250-572-11 METAL CHIP 15 1% 1/10W

R891 1-218-941-81 METAL CHIP 100 5% 1/16W R892 1-218-977-11 METAL CHIP 100K 5% 1/16W

R894 1-218-973-11 METAL CHIP 47K 5% 1/16W

* R897 1-250-572-11 METAL CHIP 15 1% 1/10W * R898 1-250-572-11 METAL CHIP 15 1% 1/10W * R899 1-250-572-11 METAL CHIP 15 1% 1/10W

R1053 1-216-833-11 METAL CHIP 10K 5% 1/10W

(ESX6/ESX8)

R1706 1-216-864-11 SHORT CHIP 0 R1708 1-216-833-11 METAL CHIP 10K 5% 1/10W R1709 1-218-725-11 METAL CHIP 24K 0.5% 1/10W

R1711 1-216-833-11 METAL CHIP 10K 5% 1/10W R1712 1-216-864-11 SHORT CHIP 0 R1713 1-218-725-11 METAL CHIP 24K 0.5% 1/10W R1714 1-216-833-11 METAL CHIP 10K 5% 1/10W R1716 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R1717 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1718 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1719 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1720 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1721 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R1722 1-216-843-11 METAL CHIP 68K 5% 1/10W

(ESX9)

R1723 1-216-809-11 METAL CHIP 100 5% 1/10W

(ESX9)

R1727 1-208-709-11 METAL CHIP 12K 0.5% 1/16W

(ESX8/ESX9)

R1727 1-208-711-11 METAL CHIP 15K 0.5% 1/16W

(ESX6)

R1728 1-218-941-81 METAL CHIP 100 5% 1/16W R1729 1-218-941-81 METAL CHIP 100 5% 1/16W

R1730 1-218-941-81 METAL CHIP 100 5% 1/16W R1731 1-218-941-81 METAL CHIP 100 5% 1/16W R1732 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

(ESX8/ESX9)

R1732 1-208-711-11 METAL CHIP 15K 0.5% 1/16W

(ESX6)

R1734 1-218-941-81 METAL CHIP 100 5% 1/16W R1735 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R1736 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R1737 1-218-941-81 METAL CHIP 100 5% 1/16W R1738 1-218-953-11 METAL CHIP 1K 5% 1/16W

R1743 1-218-990-81 SHORT CHIP 0 R1744 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1745 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1750 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1751 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R1601 1-218-972-11 METAL CHIP 39K 5% 1/16W R1602 1-218-965-11 METAL CHIP 10K 5% 1/16W R1603 1-216-841-11 METAL CHIP 47K 5% 1/10W R1604 1-216-841-11 METAL CHIP 47K 5% 1/10W R1605 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1606 1-216-841-11 METAL CHIP 47K 5% 1/10W R1608 1-218-973-11 METAL CHIP 47K 5% 1/16W R1609 1-218-973-11 METAL CHIP 47K 5% 1/16W R1651 1-218-972-11 METAL CHIP 39K 5% 1/16W R1652 1-218-965-11 METAL CHIP 10K 5% 1/16W

R1653 1-216-841-11 METAL CHIP 47K 5% 1/10W R1654 1-216-841-11 METAL CHIP 47K 5% 1/10W R1655 1-216-841-11 METAL CHIP 47K 5% 1/10W R1656 1-216-841-11 METAL CHIP 47K 5% 1/10W R1676 1-216-295-91 SHORT CHIP 0

R1677 1-216-295-91 SHORT CHIP 0 R1679 1-216-295-91 SHORT CHIP 0 R1700 1-218-945-11 METAL CHIP 220 5% 1/16W R1701 1-218-945-11 METAL CHIP 220 5% 1/16W R1702 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1703 1-216-845-11 METAL CHIP 100K 5% 1/10W R1705 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1752 1-216-864-11 SHORT CHIP 0 R1753 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1754 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1755 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1756 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R1757 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1758 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1759 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1760 1-216-791-11 METAL CHIP 3.3 5% 1/10W R1761 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

R1762 1-218-857-11 METAL CHIP 2.7K 0.5% 1/10W R1764 1-216-833-11 METAL CHIP 10K 5% 1/10W

(ESX9)

R1765 1-218-725-11 METAL CHIP 24K 0.5% 1/10W

(ESX9)

R1767 1-216-833-11 METAL CHIP 10K 5% 1/10W

(ESX9)

R1768 1-216-864-11 SHORT CHIP 0 (ESX9) R1770 1-216-833-11 METAL CHIP 10K 5% 1/10W

(ESX9)

R1771 1-218-725-11 METAL CHIP 24K 0.5% 1/10W

(ESX9)

77

HCD-ESX6/ESX8/ESX9

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1772 1-218-941-81 METAL CHIP 100 5% 1/16W

(ESX9)

R1773 1-218-941-81 METAL CHIP 100 5% 1/16W

(ESX9)

R1774 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

(ESX9)

R1775 1-208-709-11 METAL CHIP 12K 0.5% 1/16W

(ESX9)

R1777 1-218-941-81 METAL CHIP 100 5% 1/16W

(ESX9)

R1782 1-218-953-11 METAL CHIP 1K 5% 1/16W

(ESX9) R1788 1-216-864-11 SHORT CHIP 0 (ESX9) R1789 1-218-990-81 SHORT CHIP 0 (ESX9)

R1792 1-218-990-81 SHORT CHIP 0 (ESX9) R1793 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1794 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1799 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1800 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1801 1-216-864-11 SHORT CHIP 0 (ESX9)

R1802 1-218-990-81 SHORT CHIP 0 (ESX9) R1803 1-218-990-81 SHORT CHIP 0 (ESX9) R1804 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1805 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1806 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1807 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1808 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1809 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1810 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1811 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(ESX9) R1812 1-216-837-11 METAL CHIP 22K 5% 1/10W

(ESX8/ESX9)

R1813 1-216-837-11 METAL CHIP 22K 5% 1/10W

(ESX8/ESX9)

R1814 1-216-841-11 METAL CHIP 47K 5% 1/10W

(ESX8/ESX9)

R1815 1-216-845-11 METAL CHIP 100K 5% 1/10W

(ESX8/ESX9)

R1816 1-216-845-11 METAL CHIP 100K 5% 1/10W R1817 1-216-809-11 METAL CHIP 100 5% 1/10W R1818 1-216-849-11 METAL CHIP 220K 5% 1/10W R1819 1-216-849-11 METAL CHIP 220K 5% 1/10W R1820 1-216-849-11 METAL CHIP 220K 5% 1/10W

R1821 1-216-849-11 METAL CHIP 220K 5% 1/10W R1822 1-216-849-11 METAL CHIP 220K 5% 1/10W R1823 1-216-849-11 METAL CHIP 220K 5% 1/10W R1824 1-216-849-11 METAL CHIP 220K 5% 1/10W

(ESX9) R1825 1-216-849-11 METAL CHIP 220K 5% 1/10W

(ESX9) R1826 1-216-849-11 METAL CHIP 220K 5% 1/10W

(ESX9)

R1827 1-216-849-11 METAL CHIP 220K 5% 1/10W R1828 1-216-849-11 METAL CHIP 220K 5% 1/10W R1829 1-216-849-11 METAL CHIP 220K 5% 1/10W R1834 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1835 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1836 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1837 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1838 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1839 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R1840 1-218-941-81 METAL CHIP 100 5% 1/16W R1841 1-218-941-81 METAL CHIP 100 5% 1/16W R1844 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1845 1-218-945-11 METAL CHIP 220 5% 1/16W R1846 1-218-945-11 METAL CHIP 220 5% 1/16W

R1847 1-216-845-11 METAL CHIP 100K 5% 1/10W R1848 1-216-845-11 METAL CHIP 100K 5% 1/10W R1850 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1851 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1852 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1853 1-216-841-11 METAL CHIP 47K 5% 1/10W R1853 1-216-844-11 METAL CHIP 82K 5% 1/10W R1877 1-216-835-11 METAL CHIP 15K 5% 1/10W R1878 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R1880 1-250-535-11 METAL CHIP 47K 1% 1/16W

* R1881 1-250-507-11 R1882 1-218-903-11 METAL CHIP 220K 0.5% 1/10W R1884 1-216-843-11 METAL CHIP 68K 5% 1/10W R1885 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1886 1-216-843-11 METAL CHIP 68K 5% 1/10W

R1887 1-216-833-11 METAL CHIP 10K 5% 1/10W R1888 1-216-843-11 METAL CHIP 68K 5% 1/10W R1889 1-216-837-11 METAL CHIP 22K 5% 1/10W R1890 1-216-839-11 METAL CHIP 33K 5% 1/10W

METAL CHIP 3.3K 1% 1/16W

(ESX9) (ESX9) (ESX9) (ESX9)

(ESX9) (ESX9) (ESX9) (ESX9) (ESX9)

(ESX9) (ESX9)

(ESX6/ESX8) (ESX6/ESX8)

(ESX8)

(ESX6) (ESX6/ESX8) (ESX6/ESX8)

(ESX9)

(ESX9) (ESX6/ESX8) (ESX6/ESX8) (ESX6/ESX8) (ESX6/ESX8)

(ESX6/ESX8) (ESX6/ESX8) (ESX6/ESX8) (ESX6/ESX8)

78

HCD-ESX6/ESX8/ESX9

Ver. 1.1

MB PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1891 1-216-839-11 METAL CHIP 33K 5% 1/10W

(ESX6/ESX8)

R1892 1-218-965-11 METAL CHIP 10K 5% 1/16W

(ESX6/ESX8)

R1893 1-216-837-11 METAL CHIP 22K 5% 1/10W

(ESX6/ESX8)

R1894 1-216-852-11 METAL CHIP 390K 5% 1/10W

(ESX6/ESX8) R1895 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1896 1-216-841-11 METAL CHIP 47K 5% 1/10W

(ESX6/ESX8)

TB1702 1-820-067-21 TERMINAL BOARD (SPEAKER)

TB1703 1-780-859-11 TERMINAL BOARD (SPEAKER)

< VIBRATOR >

USE 4Ω) (ESX6: E93)/(SPEAKERS R/L

IMPEDANCE USE 5Ω) (ESX8: E93)/

(SPEAKERS R/L IMPEDANCE USE 6Ω HIGH

CHANNEL) (ESX9: E93)

(SPEAKERS R/L IMPEDANCE USE 6Ω

LOW CHANNEL) (ESX9: E2, E51, MX)

(SPEAKERS R/L IMPEDANCE USE 6Ω

LOW CHANNEL) (ESX9: E93)

R1897 1-216-839-11 METAL CHIP 33K 5% 1/10W

(ESX6/ESX8) R1898 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1899 1-218-965-11 METAL CHIP 10K 5% 1/16W R1900 1-216-864-11 SHORT CHIP 0 R1901 1-216-864-11 SHORT CHIP 0

R1902 1-216-864-11 SHORT CHIP 0 (ESX6/ESX8) R1903 1-216-295-91 SHORT CHIP 0 (ESX6/ESX8) R1904 1-216-296-11 SHORT CHIP 0 (ESX6/ESX8) R1905 1-216-296-11 SHORT CHIP 0 (ESX9) R1906 1-216-296-11 SHORT CHIP 0 (ESX6/ESX8)

R1907 1-216-295-91 SHORT CHIP 0 (ESX6/ESX8) R1909 1-216-864-11 SHORT CHIP 0 (ESX6/ESX8) R1946 1-218-990-81 SHORT CHIP 0 (ESX6/ESX8) R1947 1-216-851-11 METAL CHIP 330K 5% 1/10W

(ESX6/ESX8) R1948 1-216-839-11 METAL CHIP 33K 5% 1/10W

(ESX8)

R1948 1-216-841-11 METAL CHIP 47K 5% 1/10W

(ESX6) R1950 1-216-295-91 SHORT CHIP 0 R1951 1-216-295-91 SHORT CHIP 0 R1952 1-218-990-81 SHORT CHIP 0 R1953 1-218-933-11 METAL CHIP 22 5% 1/16W

R1954 1-218-941-81 METAL CHIP 100 5% 1/16W R1955 1-218-965-11 METAL CHIP 10K 5% 1/16W R1957 1-218-933-11 METAL CHIP 22 5% 1/16W R1958 1-218-941-81 METAL CHIP 100 5% 1/16W R1965 1-216-864-11 SHORT CHIP 0

R1966 1-216-837-11 METAL CHIP 22K 5% 1/10W

(ESX6/ESX8)

R2112 1-216-296-11 SHORT CHIP 0 < COMPOSITION CIRCUIT BLOCK > RB501 1-234-400-21 CONDUCTOR, NETWORK (1005X4)

RB502 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB503 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB504 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB505 1-234-400-21 CONDUCTOR, NETWORK (1005X4)

RB506 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB507 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB508 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB509 1-234-400-21 CONDUCTOR, NETWORK (1005X4)

< TERMINAL BOARD >

X501 1-814-023-11 QUARTS CRYSTAL UNIT (27MHz) X700 1-814-466-11 QUARTZ CRYSTAL UNITS (12.288MHz) X1950 1-814-365-11 QUARTZ CRYSTAL UNITS (12MHz)

************************************************************

A-1937-292-A PANEL BOARD, COMPLETE (ESX6: E2, E51) A-1937-368-A PANEL BOARD, COMPLETE (ESX6: MX) A-1937-374-A PANEL BOARD, COMPLETE (ESX8: E2, E51) A-1937-382-A PANEL BOARD, COMPLETE (ESX8: MX) A-1937-384-A PANEL BOARD, COMPLETE (ESX6: E93)

A-1937-386-A PANEL BOARD, COMPLETE (ESX9: E2, E51) A-1937-390-A PANEL BOARD, COMPLETE (ESX9: MX) A-1937-528-A PANEL BOARD, COMPLETE (ESX8: E93) A-1949-570-A PANEL BOARD, COMPLETE (ESX9: E93) A-1999-746-A PANEL BOARD, COMPLETE (ESX6: E4)

A-1999-748-A PANEL BOARD, COMPLETE (ESX8: E4) ********************** < CAPACITOR > C010 1-162-918-11 CERAMIC CHIP 18PF 5% 50V

C011 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C016 1-124-584-00 ELECT 100uF 20% 6.3V C017 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C060 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C062 1-124-584-00 ELECT 100uF 20% 6.3V C066 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C077 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C078 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C079 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C089 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C098 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C099 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C116 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C161 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C199 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C201 1-126-176-11 ELECT 220uF 20% 10V C202 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C203 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C204 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C205 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C206 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C208 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C209 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C211 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

TB1700 1-780-893-11 TERMINAL BOARD (SPEAKERS R/L IMPEDANCE

USE 4Ω) (ESX6: EXCEPT E93)/(SPEAKERS R/L

IMPEDANCE USE 5Ω) (ESX8: EXCEPT E93)/

(SPEAKERS R/L IMPEDANCE USE 6Ω HIGH

CHANNEL) (ESX9: EXCEPT E93)

TB1701 1-780-932-11 TERMINAL BOARD (SPEAKERS R/L IMPEDANCE

* C212 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V C213 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C214 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C215 1-124-584-00 ELECT 100uF 20% 6.3V C216 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

79

HCD-ESX6/ESX8/ESX9

Ver. 1.1

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C217 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C223 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C280 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

(ESX9)

C281 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C282 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C283 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

(ESX9)

C285 1-126-163-11 ELECT 4.7uF 20% 50V

(ESX9)

C286 1-124-261-00 ELECT 10uF 20% 50V

(ESX9)

C289 1-124-589-11 ELECT 47uF 20% 16V

(ESX9)

C289 1-126-176-11 ELECT 220uF 20% 10V

(ESX6/ESX8)

D221 8-719-058-24 DIODE RB501V-40TE-17 (ESX9) D223 8-719-058-24 DIODE RB501V-40TE-17

D224 8-719-053-18 DIODE 1SR154-400TE-25 D263 8-719-058-24 DIODE RB501V-40TE-17

< IC > IC001 A-1968-737-A IC R5F3650KBDFA (for SERVICE)

IC200 6-718-378-01 IC BU4829F-TR IC201 6-720-239-01 IC BU9795AKS2 IC202 6-716-739-01 IC BD00GC0WEFJ-SE2 IC203 6-717-848-01 IC NCP380HSNAJAAT1G

IC204 6-600-768-01 IC PNA4823M03S0 IC208 6-718-378-01 IC BU4829F-TR (ESX9) IC209 6-719-567-01 IC MM1839A40NRE

< JUMPER RESISTOR >

C290 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C291 1-216-864-11 SHORT CHIP 0 C292 1-124-589-11 ELECT 47uF 20% 16V

C293 1-126-934-11 ELECT 220uF 20% 16V C294 1-124-589-11 ELECT 47uF 20% 16V

C294 1-126-934-11 ELECT 220uF 20% 16V C295 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C296 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C297 1-127-804-91 CERAMIC CHIP 100PF 1% 50V C301 1-164-217-11 CERAMIC CHIP 150PF 5% 50V

C302 1-126-176-11 ELECT 220uF 20% 10V C303 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C304 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C306 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C307 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

< CONNECTOR > CN200 1-779-291-11 CONNECTOR, FFC (LIF (NON-ZIF)) 23P

CN201 1-819-866-11 USB CONNECTOR (A)

(DC OUT (USB) 5V CN203 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P CN204 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P

< DIODE > D200 6-503-770-01 DI 1L043RW32EOCI7A11 (WHITE)

D201 6-503-224-02 DI 1L0352V22F3MIT02 (ESX8/ESX9) D202 6-503-224-02 DI 1L0352V22F3MIT02 (ESX8/ESX9) D203 6-503-224-02 DI 1L0352V22F3MIT02 (ESX8/ESX9) D204 6-503-224-02 DI 1L0352V22F3MIT02 (ESX8/ESX9)

D205 6-503-224-02 DI 1L0352V22F3MIT02 (ESX8/ESX9) D206 6-503-224-02 DI 1L0352V22F3MIT02 (ESX8/ESX9) D207 6-500-400-01 DIODE BAV99-215 D208 6-500-400-01 DIODE BAV99-215 D209 6-500-400-01 DIODE BAV99-215

D211 6-502-970-01 DI DZ2J068M0L D212 6-502-970-01 DI DZ2J068M0L D213 6-502-970-01 DI DZ2J068M0L D215 6-502-961-01 DI DA2J10100L D217 8-719-053-18 DIODE 1SR154-400TE-25 (ESX6/ESX8)

D218 8-719-053-18 DIODE 1SR154-400TE-25 (ESX6/ESX8) D219 8-719-053-18 DIODE 1SR154-400TE-25 D220 8-719-053-18 DIODE 1SR154-400TE-25

(ESX6/ESX8)

500mA )

(ESX9)

JR200 1-216-296-11 SHORT CHIP 0 JR201 1-216-296-11 SHORT CHIP 0 JR202 1-216-296-11 SHORT CHIP 0 JR203 1-216-296-11 SHORT CHIP 0 JR204 1-216-296-11 SHORT CHIP 0

JR219 1-216-296-11 SHORT CHIP 0 JR220 1-216-296-11 SHORT CHIP 0 JR222 1-216-296-11 SHORT CHIP 0 JR223 1-216-296-11 SHORT CHIP 0 JR225 1-216-864-11 SHORT CHIP 0

JR226 1-216-296-11 SHORT CHIP 0 JR269 1-216-296-11 SHORT CHIP 0 JR271 1-216-296-11 SHORT CHIP 0 JR272 1-216-296-11 SHORT CHIP 0 JR273 1-216-296-11 SHORT CHIP 0

JR275 1-216-296-11 SHORT CHIP 0 JR276 1-216-296-11 SHORT CHIP 0 JR277 1-216-296-11 SHORT CHIP 0 JR281 1-216-296-11 SHORT CHIP 0 JR282 1-216-864-11 SHORT CHIP 0

JR283 1-216-296-11 SHORT CHIP 0 JR284 1-216-296-11 SHORT CHIP 0 JR287 1-216-296-11 SHORT CHIP 0 JR288 1-216-296-11 SHORT CHIP 0 JR289 1-216-296-11 SHORT CHIP 0

JR291 1-216-296-11 SHORT CHIP 0 JR294 1-216-296-11 SHORT CHIP 0 JR300 1-216-296-11 SHORT CHIP 0 JR302 1-216-864-11 SHORT CHIP 0 JR306 1-216-864-11 SHORT CHIP 0

JR307 1-216-864-11 SHORT CHIP 0 JR345 1-216-296-11 SHORT CHIP 0 JR348 1-216-295-91 SHORT CHIP 0 JR353 1-216-296-11 SHORT CHIP 0 JR354 1-216-864-11 SHORT CHIP 0

JR355 1-216-296-11 SHORT CHIP 0 JR356 1-216-864-11 SHORT CHIP 0 JR358 1-216-296-11 SHORT CHIP 0 JR359 1-216-296-11 SHORT CHIP 0 JR363 1-216-864-11 SHORT CHIP 0

JR369 1-216-296-11 SHORT CHIP 0 JR372 1-216-864-11 SHORT CHIP 0 JR373 1-216-864-11 SHORT CHIP 0 JR374 1-216-296-11 SHORT CHIP 0

80

HCD-ESX6/ESX8/ESX9

Ver. 1.1

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < LIQUID CRYSTAL DISPLAY >

ND200 1-811-773-21 LIQUID CRYSTAL DISPLAY

R057 1-216-809-11 METAL CHIP 100 5% 1/10W R058 1-216-809-11 METAL CHIP 100 5% 1/10W

R059 1-216-809-11 METAL CHIP 100 5% 1/10W < TRANSISTOR > Q200 6-550-981-01 TR RN1905 (ESX8/ESX9)

Q201 8-729-200-72 TRANSISTOR 2SC2712L-TE85L Q202 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q203 6-550-981-01 TR RN1905 (ESX8/ESX9) Q204 6-551-728-01 TRANSISTOR 2SB1710TL (ESX9)

Q206 8-729-200-72 TRANSISTOR 2SC2712L-TE85L Q207 6-550-981-01 TR RN1905 (ESX8/ESX9) Q208 8-729-427-72 TRANSISTOR XP4501 (ESX9) Q209 6-551-728-01 TRANSISTOR 2SB1710TL (ESX9) Q210 6-551-728-01 TRANSISTOR 2SB1710TL (ESX9)

Q211 6-550-363-01 TRANSISTOR 2SB1690KT146 Q212 8-729-200-72 TRANSISTOR 2SC2712L-TE85L (ESX6/ESX8) Q215 6-551-728-01 TRANSISTOR 2SB1710TL

(ESX9: E2, E51, E93)

Q216 8-729-200-72 TRANSISTOR 2SC2712L-TE85L

(ESX9: E2, E51, E93) < RESISTOR > R002 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(ESX9) R003 1-216-809-11 METAL CHIP 100 5% 1/10W R004 1-216-821-11 METAL CHIP 1K 5% 1/10W R005 1-216-821-11 METAL CHIP 1K 5% 1/10W R006 1-216-809-11 METAL CHIP 100 5% 1/10W

R007 1-216-821-11 METAL CHIP 1K 5% 1/10W R009 1-216-847-11 METAL CHIP 150K 5% 1/10W R010 1-219-570-11 METAL CHIP 10M 5% 1/10W R011 1-216-849-11 METAL CHIP 220K 5% 1/10W R012 1-216-809-11 METAL CHIP 100 5% 1/10W

R060 1-216-817-11 METAL CHIP 470 5% 1/10W R063 1-216-864-11 SHORT CHIP 0 R065 1-216-864-11 SHORT CHIP 0 R066 1-216-817-11 METAL CHIP 470 5% 1/10W R067 1-216-817-11 METAL CHIP 470 5% 1/10W

R070 1-216-833-11 METAL CHIP 10K 5% 1/10W R071 1-216-833-11 METAL CHIP 10K 5% 1/10W R077 1-216-817-11 METAL CHIP 470 5% 1/10W R078 1-216-821-11 METAL CHIP 1K 5% 1/10W R079 1-216-817-11 METAL CHIP 470 5% 1/10W

R084 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(ESX8) R084 1-216-864-11 SHORT CHIP 0 (ESX9) R085 1-216-819-11 METAL CHIP 680 5% 1/10W

(MX)

R085 1-216-821-11 METAL CHIP 1K 5% 1/10W

(E2, E51)

R085 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(E93, E4)

R087 1-216-833-11 METAL CHIP 10K 5% 1/10W R088 1-216-295-91 SHORT CHIP 0 R093 1-216-817-11 METAL CHIP 470 5% 1/10W R094 1-216-821-11 METAL CHIP 1K 5% 1/10W R102 1-216-821-11 METAL CHIP 1K 5% 1/10W

(ESX9) R103 1-216-833-11 METAL CHIP 10K 5% 1/10W

(ESX9) R104 1-216-809-11 METAL CHIP 100 5% 1/10W R105 1-216-809-11 METAL CHIP 100 5% 1/10W R107 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-216-833-11 METAL CHIP 10K 5% 1/10W

R015 1-216-857-11 METAL CHIP 1M 5% 1/10W R019 1-216-841-11 METAL CHIP 47K 5% 1/10W R021 1-216-809-11 METAL CHIP 100 5% 1/10W R023 1-216-809-11 METAL CHIP 100 5% 1/10W R024 1-216-809-11 METAL CHIP 100 5% 1/10W

R026 1-216-809-11 METAL CHIP 100 5% 1/10W R027 1-216-809-11 METAL CHIP 100 5% 1/10W R028 1-216-864-11 SHORT CHIP 0 R029 1-216-809-11 METAL CHIP 100 5% 1/10W R030 1-216-809-11 METAL CHIP 100 5% 1/10W

R031 1-216-809-11 METAL CHIP 100 5% 1/10W R032 1-216-809-11 METAL CHIP 100 5% 1/10W R033 1-216-809-11 METAL CHIP 100 5% 1/10W R034 1-216-809-11 METAL CHIP 100 5% 1/10W R035 1-216-809-11 METAL CHIP 100 5% 1/10W

R036 1-216-295-91 SHORT CHIP 0 (ESX6/ESX8) R037 1-216-295-91 SHORT CHIP 0 (ESX9) R038 1-216-864-11 SHORT CHIP 0 R041 1-216-833-11 METAL CHIP 10K 5% 1/10W R043 1-216-864-11 SHORT CHIP 0

R044 1-216-864-11 SHORT CHIP 0 R045 1-216-864-11 SHORT CHIP 0 R046 1-216-833-11 METAL CHIP 10K 5% 1/10W R047 1-216-809-11 METAL CHIP 100 5% 1/10W R048 1-216-809-11 METAL CHIP 100 5% 1/10W

R049 1-216-864-11 SHORT CHIP 0 R050 1-216-809-11 METAL CHIP 100 5% 1/10W

R113 1-216-864-11 SHORT CHIP 0 R129 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R130 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R134 1-216-841-11 METAL CHIP 47K 5% 1/10W R136 1-216-809-11 METAL CHIP 100 5% 1/10W

R147 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R148 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R150 1-216-833-11 METAL CHIP 10K 5% 1/10W R157 1-216-833-11 METAL CHIP 10K 5% 1/10W R159 1-216-833-11 METAL CHIP 10K 5% 1/10W

R160 1-216-833-11 METAL CHIP 10K 5% 1/10W R167 1-216-835-11 METAL CHIP 15K 5% 1/10W R184 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

(ESX8) R184 1-216-864-11 SHORT CHIP 0 (ESX6) R185 1-216-815-11 METAL CHIP 330 5% 1/10W

(E93)

R185 1-216-819-11 METAL CHIP 680 5% 1/10W

(E4)

R185 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(E2, E51, MX) R193 1-216-835-11 METAL CHIP 15K 5% 1/10W R194 1-216-833-11 METAL CHIP 10K 5% 1/10W R197 1-216-809-11 METAL CHIP 100 5% 1/10W

R200 1-216-819-11 METAL CHIP 680 5% 1/10W R201 1-216-821-11 METAL CHIP 1K 5% 1/10W R202 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R203 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

81

HCD-ESX6/ESX8/ESX9

Ver. 1.1

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R204 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R205 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R206 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R207 1-216-807-11 METAL CHIP 68 5% 1/10W

(ESX8/ESX9) R208 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R209 1-216-807-11 METAL CHIP 68 5% 1/10W

(ESX8/ESX9) R211 1-216-803-11 METAL CHIP 33 5% 1/10W

R212 1-216-807-11 METAL CHIP 68 5% 1/10W

(ESX8/ESX9) R213 1-216-833-11 METAL CHIP 10K 5% 1/10W R217 1-216-821-11 METAL CHIP 1K 5% 1/10W R219 1-216-812-11 METAL CHIP 180 5% 1/10W

R220 1-250-652-11 METAL CHIP 33K 1% 1/10W R221 1-250-624-11 METAL CHIP 2.2K 1% 1/10W R222 1-216-833-11 METAL CHIP 10K 5% 1/10W R223 1-216-833-11 METAL CHIP 10K 5% 1/10W R225 1-216-807-11 METAL CHIP 68 5% 1/10W

(ESX8/ESX9) R226 1-216-807-11 METAL CHIP 68 5% 1/10W

(ESX8/ESX9) R227 1-216-807-11 METAL CHIP 68 5% 1/10W

(ESX8/ESX9) R241 1-216-295-91 SHORT CHIP 0 (ESX8: E2, E51, MX, E4/

ESX9) R241 1-469-670-21 FERRITE, EMI (SMD) (2012) (ESX8: E93) R242 1-216-295-91 SHORT CHIP 0 (ESX9)

R250 1-216-841-11 METAL CHIP 47K 5% 1/10W

(ESX9)

R251 1-216-836-11 METAL CHIP 18K 5% 1/10W

(ESX9) R254 1-216-819-11 METAL CHIP 680 5% 1/10W R255 1-216-821-11 METAL CHIP 1K 5% 1/10W R256 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R257 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R258 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R259 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R289 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(ESX9) R290 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(ESX9) R291 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(ESX9) R292 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(ESX9) R293 1-216-833-11 METAL CHIP 10K 5% 1/10W

(ESX9) R294 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(ESX9) R295 1-216-841-11 METAL CHIP 47K 5% 1/10W

(ESX9) R296 1-216-834-11 METAL CHIP 12K 5% 1/10W

(ESX9) R1097 1-216-833-11 METAL CHIP 10K 5% 1/10W

(ESX9) R1103 1-216-295-91 SHORT CHIP 0 (ESX9) R1104 1-216-864-11 SHORT CHIP 0 (ESX8) R1105 1-218-883-11 METAL CHIP 33K 0.5% 1/10W

R1106 1-216-833-11 METAL CHIP 10K 5% 1/10W

(ESX9: E2, E51, E93)

R1107 1-216-833-11 METAL CHIP 10K 5% 1/10W

(ESX6/ESX8)

R1108 1-216-835-11 METAL CHIP 15K 5% 1/10W R1109 1-250-628-11 METAL CHIP 3.3K 1% 1/10W R1110 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R1111 1-218-883-11 METAL CHIP 33K 0.5% 1/10W

R1112 1-216-812-11 METAL CHIP 180 5% 1/10W R1113 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1116 1-216-864-11 SHORT CHIP 0 R1117 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1118 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1119 1-216-296-11 SHORT CHIP 0

R1120 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1121 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1124 1-216-809-11 METAL CHIP 100 5% 1/10W R1125 1-216-809-11 METAL CHIP 100 5% 1/10W

R1126 1-216-809-11 METAL CHIP 100 5% 1/10W R1127 1-216-809-11 METAL CHIP 100 5% 1/10W R1130 1-216-864-11 SHORT CHIP 0 R1135 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1140 1-216-295-91 SHORT CHIP 0 R1141 1-215-869-11 METAL OXIDE 1K 5% 1W

R1142 1-215-869-11 METAL OXIDE 1K 5% 1W R1143 1-215-869-11 METAL OXIDE 1K 5% 1W R1144 1-215-869-11 METAL OXIDE 1K 5% 1W

R1145 1-215-869-11 METAL OXIDE 1K 5% 1W R1146 1-216-295-91 SHORT CHIP 0

R1147 1-216-295-91 SHORT CHIP 0 R1148 1-216-295-91 SHORT CHIP 0 R1149 1-216-295-91 SHORT CHIP 0

R1150 1-216-295-91 SHORT CHIP 0 R1151 1-216-295-91 SHORT CHIP 0 (EXCEPT ESX8: E93) R1151 1-469-670-21 FERRITE, EMI (SMD) (2012) (ESX8: E93) R1153 1-216-295-91 SHORT CHIP 0 R1154 1-216-295-91 SHORT CHIP 0

R1155 1-216-295-91 SHORT CHIP 0 R1156 1-216-295-91 SHORT CHIP 0 R1157 1-216-295-91 SHORT CHIP 0

< SWITCH > S200 1-762-875-21 SWITCH, TACTILE (I/1)

S201 1-762-875-21 SWITCH, TACTILE (TUNING + M >) S202 1-762-875-21 SWITCH, TACTILE (NX) S203 1-762-875-21 SWITCH, TACTILE (x) S204 1-762-875-21 SWITCH, TACTILE (TUNING – . m)

S205 1-762-875-21 SWITCH, TACTILE (EQ–) S206 1-762-875-21 SWITCH, TACTILE (EQ+) S208 1-762-875-21 SWITCH, S209 1-762-875-21 SWITCH, TACTILE (FUNCTION) S210 1-762-875-21 SWITCH, TACTILE (ENTER)

S211 1-762-875-21 SWITCH, TACTILE (REC TO USB) S212 1-762-875-21 SWITCH, TACTILE (OPTIONS)

TACTILE (Z)

(ESX6/ESX8) (ESX6/ESX8)

(ESX9: E2, E51, E93)

(ESX9: E2, E51, E93) (ESX9: E2, E51, E93)

(ESX9: E2, E51, E93) (ESX9: E2, E51, E93) (ESX9: E2, E51, E93) (ESX9: E2, E51, E93)

(ESX9: E2, E51, E93)

82

HCD-ESX6/ESX8/ESX9

Ver. 1.1

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark S213 1-762-875-21 SWITCH, TACTILE ( +)

S214 1-762-875-21 SWITCH, TACTILE ( S216 1-762-875-21 SWITCH, TACTILE (BASS BAZUCA)

S220 1-786-417-11 ENCODER, ROTARY (VOLUME) < VIBRATOR >

–)

< RESISTOR > R2000 1-250-640-11 METAL CHIP 10K 1% 1/10W

R2001 1-250-650-11 METAL CHIP 27K 1% 1/10W R2002 1-250-662-11 METAL CHIP 82K 1% 1/10W R2003 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) R2003 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93)

REGULATOR SMPS-300W (ESX6

)

X001 1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz) X002 1-781-472-21 VIBRATOR, CERAMIC (8MHz)

*************************************************************

REGULATOR BOARD ****************

< CAPACITOR > C2000 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

C2002 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C2003 1-127-804-91 CERAMIC CHIP 100PF 1% 50V C2004 1-116-713-11 CERAMIC CHIP 22uF 20% 10V C2005 1-116-713-11 CERAMIC CHIP 22uF 20% 10V

C2006 1-100-055-21 CERAMIC CHIP 22uF 20% 16V C2008 1-117-614-81 CERAMIC CHIP 0.0082uF 10% 16V C2009 1-100-579-81 CERAMIC CHIP 0.0056uF 10% 25V C2010 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C2011 1-162-968-91 CERAMIC CHIP 0.0047uF 10% 50V

C2013 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C2014 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C2015 1-100-055-21 CERAMIC CHIP 22uF 20% 16V C2017 1-116-713-11 CERAMIC CHIP 22uF 20% 10V C2018 1-116-713-11 CERAMIC CHIP 22uF 20% 10V

C2019 1-117-614-81 CERAMIC CHIP 0.0082uF 10% 16V C2020 1-100-579-81 CERAMIC CHIP 0.0056uF 10% 25V C2021 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C2022 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C2023 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

< CONNECTOR > CN2000 1-774-729-21 PIN, CONNECTOR (PC BOARD) 10P < FERRITE BEAD >

* R2004 1-250-576-11 METAL CHIP 22 1% 1/10W R2005 1-216-797-11 METAL CHIP 10 5% 1/10W R2006 1-250-648-11 METAL CHIP 22K 1% 1/10W R2007 1-250-640-11 METAL CHIP 10K 1% 1/10W R2008 1-250-656-11 METAL CHIP 47K 1% 1/10W

R2009 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) R2009 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93) * R2010 1-250-576-11 METAL CHIP 22 1% 1/10W R2011 1-216-797-11 METAL CHIP 10 5% 1/10W R2013 1-216-295-91 SHORT CHIP 0 (EXCEPT E93)

R2013 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93) R2014 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) R2014 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93)

*************************************************************

A-1937-346-A SMPS-300W BOARD, COMPLETE

(ESX6: E2, E51, E4) A-1937-370-A SMPS-300W BOARD, COMPLETE (ESX6: MX) A-1981-096-A SMPS-300W BOARD, COMPLETE (ESX6: E93) **************************

< CAPACITOR >

0 C901 1-118-643-51 CERAMIC 10PF 5% 250V 0 C902 1-112-870-51 CERAMIC 0.001uF 20% 250V 0 C903 1-112-870-51 CERAMIC 0.001uF 20% 250V 0 C905 1-116-397-21 FILM 0.33uF 10% 250V 0 C907 1-116-397-21 FILM 0.33uF 10% 250V

0 C910 1-112-869-51 CERAMIC 470PF 10% 250V

C914 1-114-347-22 ELECT (BLOCK) 330uF 20% 450V

(E2, E51, E4, E93)

C914 1-165-951-11 ELECT (BLOCK) 330uF 20% 250V

(MX) 0 C916 1-112-869-51 CERAMIC 470PF 10% 250V C917 1-116-033-91 FILM 0.01uF 5% 400V

FB001 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) FB001 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93) FB002 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) FB002 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93) FB003 1-216-295-91 SHORT CHIP 0 (EXCEPT E93)

FB003 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93) FB004 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) FB004 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93) FB005 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) FB005 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93)

FB006 1-216-295-91 SHORT CHIP 0 (EXCEPT E93) FB006 1-469-670-21 FERRITE, EMI (SMD) (2012) (E93)

< IC > IC2000 6-716-554-11 IC BD9329AEFJ-E2

IC2001 6-716-554-11 IC BD9329AEFJ-E2 < COIL > L2000 1-400-424-21 INDUCTOR 47uH

L2002 1-400-424-21 INDUCTOR 47uH

C919 1-127-804-91 CERAMIC CHIP 100PF 1% 50V C920 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C921 1-126-964-11 ELECT 10uF 20% 50V C922 1-126-960-11 ELECT 1uF 20% 50V C923 1-116-739-11 CERAMIC CHIP 0.47uF 10% 50V

C924 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V 0 C925 1-118-643-51 CERAMIC 10PF 5% 250V C926 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C928 1-117-824-11 FILM 2200PF 3% 1.5KV C930 1-126-965-91 ELECT 22uF 20% 50V

C931 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C932 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C935 1-116-078-11 CERAMIC CHIP 1uF 10% 50V C1000 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C1003 1-165-752-21 ELECT 680uF 20% 50V

C1004 1-165-752-21 ELECT 680uF 20% 50V C1005 1-126-960-11 ELECT 1uF 20% 50V C1007 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C1008 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1010 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V

C1011 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

83

HCD-ESX6/ESX8/ESX9

Ver. 1.1

SMPS-300W (ESX6

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C1012 1-104-662-91 ELECT 22uF 20% 25V

C1013 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C1014 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C1025 1-126-964-11 ELECT 10uF 20% 50V

)

< PHOTO COUPLER >

0 PH930 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A 0 PH931 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A

0 C2008 1-112-866-51 CERAMIC 100PF 10% 250V 0 C2009 1-112-866-51 CERAMIC 100PF 10% 250V

C2010 1-116-033-91 FILM 0.01uF 5% 400V < CONNECTOR > CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P

CN2004 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P < DIODE > D901 6-503-731-01 DI SARS10

D902 6-503-696-01 DI KBJ1006G D903 6-502-970-01 DI DZ2J068M0L D905 6-503-032-01 DI DZ2J180M0L D906 6-503-469-01 DI RF05VA2STR

D907 6-503-469-01 DI RF05VA2STR D908 8-719-063-74 DIODE D1NL20U-TR2 D910 6-502-961-01 DI DA2J10100L D911 6-503-037-01 DI DZ2J24000L D912 6-503-036-01 DI DZ2J220M0L

D913 6-502-961-01 DI DA2J10100L D914 6-502-970-01 DI DZ2J068M0L D915 6-502-961-01 DI DA2J10100L D916 6-502-961-01 DI DA2J10100L D917 6-502-961-01 DI DA2J10100L

D918 6-503-032-01 DI DZ2J180M0L D920 6-503-036-01 DI DZ2J220M0L D921 6-503-020-01 DI DZ2J082M0L D928 6-503-042-01 DI DZ2J330M0L D949 6-503-040-01 DI DZ2J300M0L

D1001 6-502-961-01 DI DA2J10100L D1002 6-502-961-01 DI DA2J10100L D1004 6-502-970-01 DI DZ2J068M0L D1005 6-503-037-01 DI DZ2J24000L D1006 6-503-015-01 DI DZ2J051M0L

D1007 6-503-032-01 DI DZ2J180M0L D1010 6-501-849-01 DIODE FMX-22SL D1021 6-500-514-01 DIODE BAV70 D1025 6-503-030-01 DI DZ2J160M0L D1026 6-503-044-01 DI DZ2J360M0L

D1027 6-502-964-01 DI DZ2J047M0L < FUSE >

< TRANSISTOR > Q902 6-553-267-01 TR 2PB709ART

Q903 6-553-069-01 TR KTC3209-Y-AT Q904 6-553-267-01 TR 2PB709ART Q906 6-553-069-01 TR KTC3209-Y-AT Q907 8-729-052-82 TRANSISTOR KTA1281Y-AT

Q908 6-552-471-01 TR FMV10N80E (E2, E51, E4, E93) Q909 6-552-471-01 TR FMV10N80E (E2, E51, E4, E93) Q910 6-552-892-01 TR LSCR523UBFS8TL Q911 6-552-892-01 TR LSCR523UBFS8TL Q912 6-553-267-01 TR 2PB709ART

Q913 6-552-892-01 TR LSCR523UBFS8TL Q914 6-553-267-01 TR 2PB709ART Q1001 6-552-892-01 TR LSCR523UBFS8TL Q1002 6-553-267-01 TR 2PB709ART Q1003 6-552-892-01 TR LSCR523UBFS8TL

Q1004 6-553-268-01 TR PDTC114ET Q1018 6-552-892-01 TR LSCR523UBFS8TL Q2004 6-553-397-01 TR STF15NM65N (MX) Q2005 6-553-397-01 TR STF15NM65N (MX)

< RESISTOR > R002 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

0 R901 1-240-938-51 METAL 1.5M 5% 0.5W R914 1-246-374-11 FUSIBLE 0.1 10% 1W R918 1-216-797-11 METAL CHIP 10 5% 1/10W R919 1-216-793-11 METAL CHIP 4.7 5% 1/10W

R920 1-216-218-91 METAL CHIP 6.8K 5% 1/8W R921 1-216-821-11 METAL CHIP 1K 5% 1/10W R922 1-216-797-11 METAL CHIP 10 5% 1/10W R923 1-216-821-11 METAL CHIP 1K 5% 1/10W R924 1-216-821-11 METAL CHIP 1K 5% 1/10W

R925 1-215-876-00 METAL OXIDE 15K 5% 1W R926 1-215-876-00 METAL OXIDE 15K 5% 1W R927 1-216-853-11 METAL CHIP 470K 5% 1/10W R928 1-216-214-00 METAL CHIP 4.7K 5% 1/8W R932 1-216-837-11 METAL CHIP 22K 5% 1/10W

R933 1-216-837-11 METAL CHIP 22K 5% 1/10W R934 1-216-845-11 METAL CHIP 100K 5% 1/10W R935 1-216-833-11 METAL CHIP 10K 5% 1/10W R936 1-216-821-11 METAL CHIP 1K 5% 1/10W

R937 1-216-206-00 METAL CHIP 2.2K 5% 1/8W 0 F901 1-523-042-51 FUSE (6.3A/250V) < IC > IC900 6-718-560-01 IC SSC6700

IC1000 6-711-947-01 IC MM1431CURE IC1004 6-720-726-01 IC S-5855AACA-M5T1

< JUMPER RESISTOR > JR901 1-216-864-11 SHORT CHIP 0 < COIL >

0 L1856 1-460-618-11 COIL, LINE FILTER 0 L1857 1-460-618-11 COIL, LINE FILTER (E93)

84

R938 1-216-809-11 METAL CHIP 100 5% 1/10W

R939 1-216-847-11 METAL CHIP 150K 5% 1/10W

R940 1-216-218-91 METAL CHIP 6.8K 5% 1/8W

R941 1-216-190-00 METAL CHIP 470 5% 1/8W

R942 1-216-174-00 METAL CHIP 100 5% 1/8W

R943 1-249-401-11 CARBON 47 5% 1/4W

R944 1-249-401-11 CARBON 47 5% 1/4W

R945 1-249-402-11 CARBON 56 5% 1/4W

R946 1-249-402-11 CARBON 56 5% 1/4W

R947 1-216-833-11 METAL CHIP 10K 5% 1/10W

R948 1-243-670-11 METAL 0.1 5% 5W

R949 1-245-308-11 METAL 0.22 5% 5W

R952 1-216-821-11 METAL CHIP 1K 5% 1/10W

R954 1-216-821-11 METAL CHIP 1K 5% 1/10W

HCD-ESX6/ESX8/ESX9

Ver. 1.1

SMPS-300W (ESX6)SMPS-400W (ESX8

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R955 1-216-849-11 METAL CHIP 220K 5% 1/10W

R956 1-216-841-11 METAL CHIP 47K 5% 1/10W R957 1-216-845-11 METAL CHIP 100K 5% 1/10W R958 1-216-837-11 METAL CHIP 22K 5% 1/10W R959 1-216-849-11 METAL CHIP 220K 5% 1/10W R960 1-216-821-11 METAL CHIP 1K 5% 1/10W

R961 1-216-841-11 METAL CHIP 47K 5% 1/10W R965 1-216-841-11 METAL CHIP 47K 5% 1/10W R967 1-215-902-11 METAL OXIDE 47K 5% 2W R968 1-216-821-11 METAL CHIP 1K 5% 1/10W R974 1-216-190-00 METAL CHIP 470 5% 1/8W

R975 1-216-206-00 METAL CHIP 2.2K 5% 1/8W R1000 1-216-206-00 METAL CHIP 2.2K 5% 1/8W R1002 1-216-198-91 METAL CHIP 1K 5% 1/8W R1003 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R1004 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1005 1-216-839-11 METAL CHIP 33K 5% 1/10W R1006 1-216-837-11 METAL CHIP 22K 5% 1/10W R1008 1-216-821-11 METAL CHIP 1K 5% 1/10W R1009 1-216-821-11 METAL CHIP 1K 5% 1/10W R1011 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R1012 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W R1013 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R1014 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R1015 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R1016 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R1017 1-216-198-91 METAL CHIP 1K 5% 1/8W R1028 1-216-809-11 METAL CHIP 100 5% 1/10W R1029 1-216-833-11 METAL CHIP 10K 5% 1/10W R1042 1-216-809-11 METAL CHIP 100 5% 1/10W R1043 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1044 1-216-833-11 METAL CHIP 10K 5% 1/10W R1045 1-216-833-11 METAL CHIP 10K 5% 1/10W R1047 1-216-797-11 METAL CHIP 10 5% 1/10W R1048 1-216-815-11 METAL CHIP 330 5% 1/10W R1062 1-216-864-11 SHORT CHIP 0

R1064 1-216-864-11 SHORT CHIP 0 R1065 1-216-864-11 SHORT CHIP 0 R1066 1-215-902-11 METAL OXIDE 47K 5% 2W R1067 1-216-295-91 SHORT CHIP 0 R2126 1-216-864-11 SHORT CHIP 0

< TRANSFORMER >

0 C902 1-112-870-51 CERAMIC 0.001uF 20% 250V 0 C903 1-112-870-51 CERAMIC 0.001uF 20% 250V 0 C905 1-116-397-21 FILM 0.33uF 10% 250V

0 C907 1-116-397-21 FILM 0.33uF 10% 250V 0 C910 1-112-869-51 CERAMIC 470PF 10% 250V

C914 1-114-347-22 ELECT (BLOCK) 330uF 20% 450V 0 C916 1-112-869-51 CERAMIC 470PF 10% 250V C917 1-116-033-91 FILM 0.01uF 5% 400V

C918 1-127-804-91 CERAMIC CHIP 100PF 1% 50V C920 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C921 1-126-964-11 ELECT 10uF 20% 50V C922 1-126-960-11 ELECT 1uF 20% 50V C923 1-116-739-11 CERAMIC CHIP 0.47uF 10% 50V

C924 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V 0 C925 1-118-643-51 CERAMIC 10PF 5% 250V C926 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C928 1-117-815-11 FILM 1000PF 3% 1.5KV C930 1-126-965-91 ELECT 22uF 20% 50V

C932 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C935 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1000 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C1003 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C1005 1-128-578-11 ELECT 1uF 20% 100V

C1007 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C1010 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V C1011 1-100-158-91 CERAMIC CHIP 1000PF 5% 100V C1012 1-165-761-21 ELECT 1200uF 20% 63V C1014 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

C1016 1-104-662-91 ELECT 22uF 20% 25V C1025 1-128-582-11 ELECT 10uF 20% 100V C1030 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C2000 1-126-963-11 ELECT 4.7uF 20% 50V C2001 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C2002 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C2004 1-116-716-11 CERAMIC CHIP 10uF 10% 16V

0 C2008 1-112-869-51 CERAMIC 470PF 10% 250V 0 C2009 1-112-869-51 CERAMIC 470PF 10% 250V

C2010 1-116-033-91 FILM 0.01uF 5% 400V < CONNECTOR > CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P

CN2000 1-564-506-11 PLUG, CONNECTOR 3P CN2004 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P

)

0 T901 1-697-277-11 TRANSFORMER, CONVERTER < THERMISTOR > 0 TH902 1-811-315-31 POWER THERMISTOR < VARISTOR > 0 VDR901 1-811-165-31 VARISTOR (TVR10471-D)

*************************************************************

A-1937-378-A SMPS-400W BOARD, COMPLETE

(ESX8: E2, E51, MX, E4) A-1981-098-A SMPS-400W BOARD, COMPLETE (ESX8: E93) **************************

< CAPACITOR > C900 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

0 C901 1-118-643-51 CERAMIC 10PF 5% 250V

< DIODE > D901 6-503-731-01 DI SARS10

D902 6-503-696-01 DI KBJ1006G D903 6-502-970-01 DI DZ2J068M0L D905 6-503-032-01 DI DZ2J180M0L D906 6-503-469-01 DI RF05VA2STR

D907 6-503-469-01 DI RF05VA2STR D908 8-719-063-74 DIODE D1NL20U-TR2 D910 6-502-961-01 DI DA2J10100L D911 6-503-037-01 DI DZ2J24000L D912 6-503-030-01 DI DZ2J160M0L

D913 6-502-961-01 DI DA2J10100L D914 6-502-970-01 DI DZ2J068M0L D915 6-502-961-01 DI DA2J10100L D916 6-502-961-01 DI DA2J10100L D918 6-503-040-01 DI DZ2J300M0L

85

HCD-ESX6/ESX8/ESX9

Ver. 1.1

SMPS-400W (ESX8

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D920 6-503-040-01 DI DZ2J300M0L

D921 6-503-020-01 DI DZ2J082M0L D928 6-503-042-01 DI DZ2J330M0L D949 6-503-040-01 DI DZ2J300M0L D1001 6-502-961-01 DI DA2J10100L

D1002 6-502-961-01 DI DA2J10100L D1004 6-502-970-01 DI DZ2J068M0L D1005 6-503-038-01 DI DZ2J27000L D1006 6-503-015-01 DI DZ2J051M0L D1007 6-503-036-01 DI DZ2J220M0L

D1010 6-501-849-01 DIODE FMX-22SL D1021 6-500-514-01 DIODE BAV70 D1022 6-503-022-01 DI DZ2J100M0L D1025 6-503-030-01 DI DZ2J160M0L D1026 6-503-038-01 DI DZ2J27000L

D1027 6-503-039-01 DI DZ2J30000L D2000 8-719-058-24 DIODE RB501V-40TE-17

< FUSE > 0 F901 1-576-395-51 FUSE (10A/250V) < IC > IC900 6-718-560-01 IC SSC6700

IC1000 6-711-947-01 IC MM1431CURE IC1004 6-720-726-01 IC S-5855AACA-M5T1

< JUMPER RESISTOR > JR901 1-216-864-11 SHORT CHIP 0 < COIL >

0 L1002 1-445-841-11 TRANSFORMER, LINE FILTER 0 L1003 1-445-841-11 TRANSFORMER, LINE FILTER (E93)

)

Q2003 6-550-978-01 TR RN1902 < RESISTOR > R002 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

0 R901 1-240-938-51 METAL 1.5M 5% 0.5W R914 1-246-374-11 FUSIBLE 0.1 10% 1W R917 1-216-845-11 METAL CHIP 100K 5% 1/10W R918 1-216-797-11 METAL CHIP 10 5% 1/10W

R919 1-216-801-11 METAL CHIP 22 5% 1/10W R920 1-216-218-91 METAL CHIP 6.8K 5% 1/8W R921 1-216-821-11 METAL CHIP 1K 5% 1/10W R922 1-216-797-11 METAL CHIP 10 5% 1/10W R923 1-216-821-11 METAL CHIP 1K 5% 1/10W

R924 1-216-821-11 METAL CHIP 1K 5% 1/10W R925 1-215-924-00 METAL OXIDE 15K 5% 3W R926 1-215-924-00 METAL OXIDE 15K 5% 3W R927 1-216-853-11 METAL CHIP 470K 5% 1/10W R928 1-216-214-00 METAL CHIP 4.7K 5% 1/8W

R930 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R932 1-216-837-11 METAL CHIP 22K 5% 1/10W R933 1-216-837-11 METAL CHIP 22K 5% 1/10W R934 1-216-845-11 METAL CHIP 100K 5% 1/10W R935 1-216-833-11 METAL CHIP 10K 5% 1/10W

R936 1-216-821-11 METAL CHIP 1K 5% 1/10W R937 1-216-190-00 METAL CHIP 470 5% 1/8W R938 1-216-809-11 METAL CHIP 100 5% 1/10W R939 1-216-844-11 METAL CHIP 82K 5% 1/10W R940 1-216-218-91 METAL CHIP 6.8K 5% 1/8W

R941 1-216-210-00 METAL CHIP 3.3K 5% 1/8W R942 1-216-174-00 METAL CHIP 100 5% 1/8W R943 1-249-401-11 CARBON 47 5% 1/4W R944 1-249-401-11 CARBON 47 5% 1/4W R945 1-249-402-11 CARBON 56 5% 1/4W

< PHOTO COUPLER >

0 PH930 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A 0 PH931 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A

< TRANSISTOR > Q902 6-553-267-01 TR 2PB709ART

Q903 6-553-069-01 TR KTC3209-Y-AT Q904 6-553-267-01 TR 2PB709ART Q905 6-552-892-01 TR LSCR523UBFS8TL Q906 6-553-069-01 TR KTC3209-Y-AT

Q907 8-729-052-82 TRANSISTOR KTA1281Y-AT Q908 6-552-471-01 TR FMV10N80E Q909 6-552-471-01 TR FMV10N80E Q910 6-552-892-01 TR LSCR523UBFS8TL Q911 6-552-892-01 TR LSCR523UBFS8TL

Q912 6-553-267-01 TR 2PB709ART Q913 6-552-892-01 TR LSCR523UBFS8TL Q914 6-552-922-01 TR LTA014EUBFS8TL Q1001 6-552-892-01 TR LSCR523UBFS8TL Q1002 6-553-267-01 TR 2PB709ART

Q1003 6-552-892-01 TR LSCR523UBFS8TL Q1004 6-553-268-01 TR PDTC114ET Q1018 6-552-892-01 TR LSCR523UBFS8TL Q2000 6-552-892-01 TR LSCR523UBFS8TL Q2001 6-551-728-01 TRANSISTOR 2SB1710TL

Q2002 6-551-728-01 TRANSISTOR 2SB1710TL

R946 1-249-402-11 CARBON 56 5% 1/4W R947 1-216-833-11 METAL CHIP 10K 5% 1/10W R948 1-243-670-11 METAL 0.1 5% 5W R949 1-245-415-11 METAL 0.15 10% 5W R952 1-216-821-11 METAL CHIP 1K 5% 1/10W

R954 1-216-821-11 METAL CHIP 1K 5% 1/10W R955 1-216-849-11 METAL CHIP 220K 5% 1/10W R956 1-216-841-11 METAL CHIP 47K 5% 1/10W R957 1-216-845-11 METAL CHIP 100K 5% 1/10W R958 1-216-837-11 METAL CHIP 22K 5% 1/10W

R959 1-216-849-11 METAL CHIP 220K 5% 1/10W R961 1-216-841-11 METAL CHIP 47K 5% 1/10W R965 1-216-841-11 METAL CHIP 47K 5% 1/10W R967 1-215-902-11 METAL OXIDE 47K 5% 2W R968 1-216-821-11 METAL CHIP 1K 5% 1/10W

R974 1-216-210-00 METAL CHIP 3.3K 5% 1/8W R975 1-216-190-00 METAL CHIP 470 5% 1/8W R1000 1-216-206-00 METAL CHIP 2.2K 5% 1/8W R1002 1-216-198-91 METAL CHIP 1K 5% 1/8W R1003 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R1004 1-216-841-11 METAL CHIP 47K 5% 1/10W R1005 1-216-839-11 METAL CHIP 33K 5% 1/10W R1006 1-216-837-11 METAL CHIP 22K 5% 1/10W R1008 1-216-821-11 METAL CHIP 1K 5% 1/10W R1009 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1011 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R1012 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

86

HCD-ESX6/ESX8/ESX9

Ver. 1.1

SMPS-400W (ESX8)SMPS-600W (ESX9

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1013 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W

R1014 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W R1015 1-218-883-11 METAL CHIP 33K 0.5% 1/10W

0 C910 1-112-869-51 CERAMIC 470PF 10% 250V C913 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C914 1-112-529-11 ELECT (BLOCK) 390uF 20% 450V

)

R1016 1-218-873-11 METAL CHIP 12K 0.5% 1/10W R1017 1-216-198-91 METAL CHIP 1K 5% 1/8W R1028 1-216-809-11 METAL CHIP 100 5% 1/10W R1029 1-216-833-11 METAL CHIP 10K 5% 1/10W R1042 1-216-809-11 METAL CHIP 100 5% 1/10W

R1043 1-216-833-11 METAL CHIP 10K 5% 1/10W R1044 1-216-833-11 METAL CHIP 10K 5% 1/10W R1045 1-216-833-11 METAL CHIP 10K 5% 1/10W R1047 1-216-797-11 METAL CHIP 10 5% 1/10W R1048 1-216-864-11 SHORT CHIP 0

R1062 1-216-864-11 SHORT CHIP 0 R1064 1-216-864-11 SHORT CHIP 0 R1065 1-216-864-11 SHORT CHIP 0 R1066 1-215-902-11 METAL OXIDE 47K 5% 2W R1067 1-216-295-91 SHORT CHIP 0

R1068 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1069 1-216-839-11 METAL CHIP 33K 5% 1/10W R1070 1-216-843-11 METAL CHIP 68K 5% 1/10W R1072 1-216-864-11 SHORT CHIP 0 R2002 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R2003 1-216-791-11 METAL CHIP 3.3 5% 1/10W R2004 1-216-837-11 METAL CHIP 22K 5% 1/10W R2006 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2007 1-216-833-11 METAL CHIP 10K 5% 1/10W R2008 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R2009 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2010 1-216-833-11 METAL CHIP 10K 5% 1/10W R2011 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2012 1-216-821-11 METAL CHIP 1K 5% 1/10W R2122 1-216-789-11 METAL CHIP 2.2 5% 1/10W

C917 1-116-033-91 FILM 0.01uF 5% 400V C918 1-127-804-91 CERAMIC CHIP 100PF 1% 50V 0 C919 1-118-643-51 CERAMIC 10PF 5% 250V C920 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C921 1-126-964-11 ELECT 10uF 20% 50V

C922 1-126-960-11 ELECT 1uF 20% 50V C923 1-100-385-91 CERAMIC CHIP 0.47uF 25V C926 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C931 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C933 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C934 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C966 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C967 1-117-220-81 CERAMIC 150PF 5% 2KV C968 1-116-078-11 CERAMIC CHIP 1uF 10% 50V C969 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V

C970 1-162-968-91 CERAMIC CHIP 0.0047uF 10% 50V C971 1-128-560-11 ELECT 22uF 20% 100V C972 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C975 1-114-918-11 CERAMIC CHIP 470PF 5% 1KV C992 1-117-815-11 FILM 1000PF 3% 1.5KV

C1003 1-165-761-21 ELECT 1200uF 20% 63V C1006 1-112-231-11 ELECT 2200uF 20% 16V C1008 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V C1009 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C1010 1-128-578-11 ELECT 1uF 20% 100V

C1011 1-112-298-91 CERAMIC CHIP 1uF 10% 16V C1012 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C1014 1-126-965-91 ELECT 22uF 20% 50V C1015 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V

C1016 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V R2123 1-216-791-11 METAL CHIP 3.3 5% 1/10W < TRANSFORMER > 0 T902 1-697-163-11 CONVERTER TRANSFORMER < THERMISTOR >

0 TH902 1-811-615-21 THERMISTOR, POWER 0 TH903 1-811-890-11 THERMISTOR, POSITIVE 0 TH904 1-811-615-21 THERMISTOR, POWER

< VARISTOR > 0 VDR901 1-811-165-31 VARISTOR (TVR10471-D)

*************************************************************

A-1937-524-A SMPS-600W BOARD, COMPLETE

(ESX9: E2, E51, MX) A-1981-100-A SMPS-600W BOARD, COMPLETE (ESX9: E93) **************************

< CAPACITOR > C900 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

0 C901 1-118-643-51 CERAMIC 10PF 5% 250V 0 C902 1-112-870-51 CERAMIC 0.001uF 20% 250V 0 C903 1-112-870-51 CERAMIC 0.001uF 20% 250V 0 C905 1-116-397-21 FILM 0.33uF 10% 250V

0 C907 1-116-397-21 FILM 0.33uF 10% 250V 0 C909 1-112-869-51 CERAMIC 470PF 10% 250V

C1018 1-128-560-11 ELECT 22uF 20% 100V C1019 1-128-582-11 ELECT 10uF 20% 100V C1027 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C1030 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C1033 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

C1034 1-104-662-91 ELECT 22uF 20% 25V C1035 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C2000 1-126-963-11 ELECT 4.7uF 20% 50V C2010 1-116-033-91 FILM 0.01uF 5% 400V

< CONNECTOR > CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P

CN2000 1-564-506-11 PLUG, CONNECTOR 3P CN2004 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P

< DIODE > D901 6-503-040-01 DI DZ2J300M0L

D902 8-719-054-89 DIODE D15XB60 D903 6-503-731-01 DI SARS10 D904 6-503-020-01 DI DZ2J082M0L D905 6-503-032-01 DI DZ2J180M0L

D906 6-503-469-01 DI RF05VA2STR D907 6-503-469-01 DI RF05VA2STR D909 8-719-063-74 DIODE D1NL20U-TR2 D910 6-502-961-01 DI DA2J10100L D911 6-503-037-01 DI DZ2J24000L

D912 6-503-030-01 DI DZ2J160M0L

87

HCD-ESX6/ESX8/ESX9

Ver. 1.1

SMPS-600W (ESX9

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D913 6-502-961-01 DI DA2J10100L

D914 6-503-042-01 DI DZ2J330M0L D918 6-503-040-01 DI DZ2J300M0L D920 6-503-844-01 DI RS1K

D921 6-502-961-01 DI DA2J10100L D923 6-503-040-01 DI DZ2J300M0L D925 6-502-970-01 DI DZ2J068M0L D927 6-502-642-01 DI RF101L4STE25 D966 6-503-044-01 DI DZ2J360M0L

)

Q1003 6-552-892-01 TR LSCR523UBFS8TL Q1004 6-552-892-01 TR LSCR523UBFS8TL Q1005 6-553-267-01 TR 2PB709ART

Q1006 6-552-892-01 TR LSCR523UBFS8TL Q1008 6-553-267-01 TR 2PB709ART Q1018 6-552-892-01 TR LSCR523UBFS8TL Q2000 6-552-892-01 TR LSCR523UBFS8TL

< RESISTOR >

D967 8-719-063-74 DIODE D1NL20U-TR2 D968 6-503-037-01 DI DZ2J24000L D969 6-503-026-01 DI DZ2J120M0L D972 6-503-036-01 DI DZ2J220M0L D985 8-719-074-75 DIODE PTZ-TE25-30B

D1001 8-719-045-48 DIODE FML-G12S D1002 6-502-961-01 DI DA2J10100L D1003 6-501-849-01 DIODE FMX-22SL D1004 6-502-961-01 DI DA2J10100L D1005 6-502-961-01 DI DA2J10100L

D1007 6-503-039-01 DI DZ2J30000L D1008 6-503-038-01 DI DZ2J27000L D1009 6-503-038-01 DI DZ2J27000L D1010 6-502-970-01 DI DZ2J068M0L D1011 6-503-036-01 DI DZ2J220M0L

D1020 6-500-514-01 DIODE BAV70 D1022 6-503-022-01 DI DZ2J100M0L D1025 8-719-083-71 DI UDZSUSTE-1730B

< FUSE > 0 F901 1-576-395-51 FUSE (10A/250V) < IC > IC900 6-718-560-01 IC SSC6700

IC965 6-714-671-01 IC STR-Y6763 IC1000 6-711-947-01 IC MM1431CURE IC1001 6-711-947-01 IC MM1431CURE IC1004 6-720-726-01 IC S-5855AACA-M5T1

< COIL >

R002 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R901 1-240-938-51 METAL 1.5M 5% 0.5W R914 1-246-374-11 FUSIBLE 0.1 10% 1W R916 1-216-797-11 METAL CHIP 10 5% 1/10W R917 1-216-845-11 METAL CHIP 100K 5% 1/10W

R918 1-216-190-00 METAL CHIP 470 5% 1/8W R924 1-216-837-11 METAL CHIP 22K 5% 1/10W R928 1-216-214-00 METAL CHIP 4.7K 5% 1/8W R929 1-216-801-11 METAL CHIP 22 5% 1/10W R930 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R932 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R933 1-216-222-00 METAL CHIP 10K 5% 1/8W R937 1-216-190-00 METAL CHIP 470 5% 1/8W R938 1-216-809-11 METAL CHIP 100 5% 1/10W R939 1-216-844-11 METAL CHIP 82K 5% 1/10W

R940 1-216-218-91 METAL CHIP 6.8K 5% 1/8W R941 1-216-210-00 METAL CHIP 3.3K 5% 1/8W R942 1-216-174-00 METAL CHIP 100 5% 1/8W R943 1-249-401-11 CARBON 47 5% 1/4W R944 1-249-401-11 CARBON 47 5% 1/4W

R945 1-249-401-11 CARBON 47 5% 1/4W R946 1-249-401-11 CARBON 47 5% 1/4W R947 1-216-833-11 METAL CHIP 10K 5% 1/10W R948 1-243-669-11 METAL 0.05 5% 5W R950 1-216-246-00 METAL CHIP 100K 5% 1/8W

R952 1-216-246-00 METAL CHIP 100K 5% 1/8W R953 1-216-246-00 METAL CHIP 100K 5% 1/8W R954 1-216-833-11 METAL CHIP 10K 5% 1/10W R955 1-216-849-11 METAL CHIP 220K 5% 1/10W R956 1-216-210-00 METAL CHIP 3.3K 5% 1/8W

0 L903 1-445-841-11 TRANSFORMER, LINE FILTER 0 L904 1-445-841-11 TRANSFORMER, LINE FILTER (E93)

< PHOTO COUPLER >

0 PH930 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A 0 PH932 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A 0 PH933 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A

< TRANSISTOR > Q903 6-553-069-01 TR KTC3209-Y-AT

Q904 8-729-037-03 TRANSISTOR KTA1266GR-AT Q905 6-552-892-01 TR LSCR523UBFS8TL Q906 6-553-069-01 TR KTC3209-Y-AT Q907 8-729-052-82 TRANSISTOR KTA1281Y-AT

Q908 6-553-076-01 TR SPA11N80C3 Q909 6-553-076-01 TR SPA11N80C3 Q910 6-552-892-01 TR LSCR523UBFS8TL Q911 8-729-056-46 TRANSISTOR 2SC5053T100Q Q913 6-552-922-01 TR LTA014EUBFS8TL

Q914 6-553-268-01 TR PDTC114ET Q915 6-553-268-01 TR PDTC114ET

88

R957 1-216-246-00 METAL CHIP 100K 5% 1/8W R958 1-216-218-91 METAL CHIP 6.8K 5% 1/8W R965 1-257-123-11 FUSIBLE 2.2 10% 1/2W R966 1-216-348-00 METAL OXIDE 0.82 5% 1W R967 1-218-887-11 METAL CHIP 47K 0.5% 1/10W

R969 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R970 1-216-845-11 METAL CHIP 100K 5% 1/10W R971 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R972 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R973 1-216-801-11 METAL CHIP 22 5% 1/10W

R974 1-216-801-11 METAL CHIP 22 5% 1/10W R975 1-216-821-11 METAL CHIP 1K 5% 1/10W R978 1-216-793-11 METAL CHIP 4.7 5% 1/10W R979 1-216-793-11 METAL CHIP 4.7 5% 1/10W R981 1-216-793-11 METAL CHIP 4.7 5% 1/10W

R992 1-216-809-11 METAL CHIP 100 5% 1/10W R996 1-215-924-00 METAL OXIDE 15K 5% 3W R997 1-216-821-11 METAL CHIP 1K 5% 1/10W R998 1-215-924-00 METAL OXIDE 15K 5% 3W R999 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1000 1-216-821-11 METAL CHIP 1K 5% 1/10W

HCD-ESX6/ESX8/ESX9

Ver. 1.1

SMPS-600W (ESX9

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1001 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R1003 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W R1004 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R1005 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W

R1006 1-218-873-11 METAL CHIP 12K 0.5% 1/10W R1007 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R1009 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R1010 1-216-821-11 METAL CHIP 1K 5% 1/10W R1011 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1013 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R1014 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R1015 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W R1016 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W R1017 1-216-813-11 METAL CHIP 220 5% 1/10W

R1018 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R1019 1-216-864-11 SHORT CHIP 0 R1020 1-216-206-00 METAL CHIP 2.2K 5% 1/8W R1023 1-216-821-11 METAL CHIP 1K 5% 1/10W R1025 1-216-198-91 METAL CHIP 1K 5% 1/8W

R1027 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R1028 1-216-841-11 METAL CHIP 47K 5% 1/10W R1031 1-216-198-91 METAL CHIP 1K 5% 1/8W R1038 1-216-833-11 METAL CHIP 10K 5% 1/10W R1039 1-216-833-11 METAL CHIP 10K 5% 1/10W

MISCELLANEOUS **************

8 1-469-829-11 CORE, FERRITE (E93) 11 1-500-082-11 CLAMP, SLEEVE FERRITE (E93) 0 51 1-855-307-11 DC FAN (ESX8/ESX9) 105 1-500-082-11 CLAMP, SLEEVE FERRITE (E93) 106 1-846-991-11 WIRE (FLAT TYPE) (21 CORE)

107 1-457-413-11 CORE, FERRITE (E93) 108 1-832-627-11 WIRE (FLAT TYPE) (23 CORE) 109 1-832-579-11 WIRE (FLAT TYPE) (13 CORE) (ESX6/ESX8) 109 1-846-990-11 WIRE (FLAT TYPE) (13 CORE) (ESX9) 154 1-457-369-12 CORE, FERRITE (ESX9: E93)

0 155 1-835-706-22 CORD, POWER-SUPPLY (E51, E4) 0 155 1-837-344-11 CORD, POWER-SUPPLY (E2, MX) 0 155 1-839-999-21 POWER-SUPPLY CORD (E93) 0 156 1-569-007-31 ADAPTOR, CONVERSION 2P (E2) 0 156 1-569-008-12 ADAPTOR, CONVERSION 2P (E51, E4)

201 A-1937-669-A CDM90 ASSY 0 205 A-1940-584-A SERVICE, OPTICAL DEVICE 206 1-500-082-11 CLAMP, SLEEVE FERRITE (E93) 207 1-846-989-11 WIRE (FLAT TYPE) (5 CORE) 208 1-469-829-11 CORE, FERRITE (E93)

209 1-846-988-11 WIRE (FLAT TYPE) (24 CORE)

)

R1042 1-216-821-11 METAL CHIP 1K 5% 1/10W R1054 1-216-833-11 METAL CHIP 10K 5% 1/10W R1055 1-216-833-11 METAL CHIP 10K 5% 1/10W R1056 1-216-809-11 METAL CHIP 100 5% 1/10W R1057 1-216-864-11 SHORT CHIP 0

R1062 1-216-295-91 SHORT CHIP 0 R1063 1-216-295-91 SHORT CHIP 0 R1065 1-216-864-11 SHORT CHIP 0 R1066 1-216-864-11 SHORT CHIP 0 R1068 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R1069 1-216-843-11 METAL CHIP 68K 5% 1/10W R1070 1-216-839-11 METAL CHIP 33K 5% 1/10W R1072 1-216-864-11 SHORT CHIP 0 R2002 1-216-791-11 METAL CHIP 3.3 5% 1/10W R2003 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R2004 1-216-837-11 METAL CHIP 22K 5% 1/10W R2122 1-216-789-11 METAL CHIP 2.2 5% 1/10W R2123 1-216-791-11 METAL CHIP 3.3 5% 1/10W R2124 1-216-841-11 METAL CHIP 47K 5% 1/10W R2125 1-216-841-11 METAL CHIP 47K 5% 1/10W

< TRANSFORMER >

0 T901 1-697-163-11 CONVERTER TRANSFORMER (MAIN) 0 T903 1-445-951-11 TRANSFORMER, CONVERTER (SUB)

< THERMISTOR >

0 TH902 1-811-615-21 THERMISTOR, POWER 0 TH903 1-811-890-11 THERMISTOR, POSITIVE 0 TH904 1-811-615-21 THERMISTOR, POWER

< VARISTOR > 0 VDR901 1-811-165-31 VARISTOR (TVR10471-D)

*************************************************************

Note: If wire (ﬂ at type) is replaced, install it after bending it in the

same form as that before replacement.

89

HCD-ESX6/ESX8/ESX9

REVISION HISTORY

Ver. Date Description of Revision

1.0 2013.07 New

1.1 2013.10 Addition of African model (HCD-ESX6/ESX8). Add C923 in SMPS-600W board. Add CLIP, COATING in pg 68 (for 240 V AC area in E model). Add CUSHION (B) in pg 68. Add CUSHION (PW) in pg 12 and 69. Add CUSHION (E 0.5) and CUSHION (H) in pg 11 and 66. Change description of C1855, C1856, C1857, C1858, C1870, C1872, C1873, C1874 and C1875 in MB board. Change P/N of R330, R331 and R332 in MB board. Change Ref. No. of CLAMP, SLEEVE FERRITE ((for 240 V AC area in E model) in pg 66 and 89). Change of SMPS-400W board (Sufﬁ x 12) (ESX8). Delete CN205 in PANEL board. Delete D1855 and D1856 in MB board. Service code changed for C1952 in MB board. Service code changed for C212 in PANEL board.

How to search for a contact point of signal lines or the like in DIAGRAMS SECTION

If a contact point of a BLOCK DIAGRAM, PRINTED WIRING BOARD or SCHEMATIC DIAGRAM is shown in a different page, use the PDF ﬁ le search function to ﬁ nd one.

e.g.) If a contact point is shown as

Procedure:

1. Press the [F] key while pressing the [Ctrl] key.

2. Input “>001Z” in the search box and press the [Enter] key.

3. The relevant part (page), where the contact point is shown, appears.

Note: If you still see the original page, press the [Enter] key again.

, follow the procedure below.

Sony HCD-ESX6, HCD-ESX8, HCD-ESX9 Schematic

TABLE OF CONTENTS

SERVICING NOTES

DISASSEMBLY

2-1. DISASSEMBLY FLOW

2-2. SIDE CASE (L), SIDE CASE (R), TOP CASE

2-3. LOADING PANEL

2-4. CD MECHANISM SECTION (CDM90-DVBU202//C)

2-5. FRONT PANEL SECTION

2-6. MB BOARD

2-7. SMPS-300W BOARD (ESX6), SMPS-400W BOARD (ESX8), SMPS-600W BOARD (ESX9)

2-8. SERVICE OPTICAL DEVICE, WIRE (FLAT TYPE)

ESX TEST MODE

ELECTRICAL CHECK

TROUBLESHOOTING

DIAGRAMS

6-1. BLOCK DIAGRAM - CD/USB Section -

6-2. BLOCK DIAGRAM - MAIN Section -

6-3. BLOCK DIAGRAM - AMP Section -

6-4. BLOCK DIAGRAM - PANEL/POWER SUPPLY Section -

6-15. PRINTED WIRING BOARD - PANEL Board - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

6-16. SCHEMATIC DIAGRAM - PANEL Board (1/2) - • See page 52 for IC Block Diagrams.

6-17. SCHEMATIC DIAGRAM - PANEL Board (2/2) - • See page 31 for Waveforms. • See page 52 for IC Block Diagrams. • See page 61 for IC Pin Function Descriptions.

6-18. PRINTED WIRING BOARD - SMPS-300W Board (ESX6) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

6-19. SCHEMATIC DIAGRAM - SMPS-300W Board (ESX6) - • See page 52 for IC Block Diagrams.

6-20. PRINTED WIRING BOARD - SMPS-400W Board (ESX8) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

6-21. SCHEMATIC DIAGRAM - SMPS-400W Board (ESX8) - • See page 52 for IC Block Diagrams.

6-22. PRINTED WIRING BOARD - SMPS-600W Board (ESX9) - • See page 26 for Circuit Boards Location. • : Uses unleaded solder.

6-23. SCHEMATIC DIAGRAM - SMPS-600W Board (ESX9) - • See page 52 for IC Block Diagrams.

6-25. SCHEMATIC DIAGRAM - REGULATOR Board -6-24. PRINTED WIRING BOARD - REGULATOR Board -

7-1. CASE SECTION

EXPLODED VIEWS

7-2. BACK PANEL SECTION

7-3. FRONT PANEL SECTION

7-4. CHASSIS SECTION

7-5. CD MECHANISM SECTION (CDM90-DVBU202//C)

ELECTRICAL PARTS LIST

MB PANEL

REGULATOR SMPS-300W (ESX6

REVISION HISTORY
