Page 1
HCD-EX660Z/EX880Z/
EX990Z
SERVICE MANUAL
Ver. 1.1 2012.08
• HCD-EX660Z is the amplifi er, USB, CD
player and tuner section in MHC-EX660.
• HCD-EX880Z is the amplifi er, USB, CD
player and tuner section in MHC-EX880.
• HCD-EX990Z is the amplifi er, USB, CD
player and tuner section in MHC-EX990.
• “WALKMAN” and “WALKMAN” logo are registered trademarks of Sony
Corporation
•
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer
IIS and Thomson
• Windows Media is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries
• This product contains technology subject to certain intellectual property
rights of Microsoft
Use or distribution of this technology outside of this product is prohibited
without the appropriate license(s) from Microsoft
Photo: HCD-EX990Z
CD Section
Russian Model
HCD-EX660Z/EX990Z
E Model
HCD-EX660Z/EX880Z/EX990Z
Mexican Model
HCD-EX880Z/EX990Z
South African Model
HCD-EX660Z
Model Name Using Similar Mechanism HCD-EX66/EX600
Mechanism Type CDM76B-D1BD76
Optical Pick-up Block Name DA11MMVGP
Amplifi er section
The following are measured at
Mexican model:
AC 120 V – 240 V, 60 Hz
Other models:
AC 120 V – 240 V, 50/60 Hz
MHC-EX990
Front Speaker:
Power output (rated):
100 W + 100 W (at 2 ohms, 1 kHz,
1% THD)
RMS output power (reference):
180 W + 180 W (per channel at
2 ohms, 1 kHz)
Subwoofer:
RMS output power (reference):
360 W (at 4 ohms, 100 Hz)
MHC-EX880
Power output (rated):
140 W + 140 W (at 3 ohms, 1 kHz,
1% THD)
RMS output power (reference):
240 W + 240 W (per channel at
3 ohms, 1 kHz)
MHC-EX660
Power output (rated):
85 W + 85 W (at 4 ohms, 1 kHz
1% THD)
RMS output power (reference):
150 W + 150 W (per channel at
4 ohms, 1 kHz)
SPECIFICATIONS
Inputs
DVD/PC IN L/R (phono jacks):
Sensitivity 700 mV, impedance
22 kilohms
Outputs
PHONES (stereo mini jack):
accepts headphones with an impedance
of 8 ohms or more
USB section
Supported bit rate:
MP3 (MPEG 1 Audio Layer-3):
32 kbps – 320 kbps, VBR
WMA: 48 kbps – 192 kbps
AAC: 48 kbps – 320 kbps
Sampling frequencies:
MP3 (MPEG 1 Audio Layer-3):
32/44 1/48 kHz
WMA: 44 1 kHz
AAC: 44 1 kHz
(USB) port:
Maximum current: 500 mA
CD player section
System
Compact disc and digital audio system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44 6 W
* This output is the value measurement
at a distance of 200 mm from the
objective lens surface on the Optical
Pick-up Block with 7 mm aperture
Frequency response: 20 Hz – 20 kHz
Signal-to-noise ratio: More than 90 dB
Dynamic range: More than 88 dB
Tuner section
FM stereo, FM/AM superheterodyne tuner
Antenna:
FM lead antenna
AM loop antenna
FM tuner section
Tuning range:
87 5 MHz – 108 0 MHz (50 kHz step)
– Continued on next page –
9-890-606-02
2012H80-1
2012.08
©
COMPACT DISC RECEIVER
Sony Corporation
Published by Sony EMCS (Malaysia) PG Tec
Page 2
HCD-EX660Z/EX880Z/EX990Z
AM tuner section
Tuning range
Latin American models:
530 kHz – 1,710 kHz (10 kHz step)
531 kHz – 1,710 kHz (9 kHz step)
Russian models:
531 kHz – 1,602 kHz (9 kHz step)
Other models:
531 kHz – 1,602 kHz (9 kHz step)
530 kHz – 1,610 kHz (10 kHz step)
General
Power requirements
Mexican model:
AC 120 V – 240 V, 60 Hz
Other models:
AC 120 V – 240 V, 50/60 Hz
Power consumption
MHC-EX990: 115 W
MHC-EX880: 85 W
MHC-EX660: 65 W
Dimensions (w/h/d) (excl. speakers)
(Approx.)
MHC-EX990/EX880: 240 mm ×
315 mm × 382 mm
MHC-EX660: 240 mm × 315 mm ×
347.8 mm
Mass (excl. speakers) (Approx.)
MHC-EX990: 4.25 kg
MHC-EX880: 4.18 kg
MHC-EX660: 3.40 kg
Quantity of the main unit: 1 piece
NOTES ON CHIP COMPONENT REPLACEMENT
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be damaged by heat.
FLEXIBLE CIRCUIT BOARD REPAIRING
• Keep the temperature of soldering iron around 270 °C during
repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specifi ed herein may result in hazardous radia-
tion exposure.
This appliance is classifi ed as
a CLASS 1 LASER product.
This marking is located on the
rear exterior.
Supplied accessories: Remote control (1),
R6 (Size AA) batteries (2), FM lead/
AM loop antenna (1)
Design and specifi cations are subject to
change without notice.
Standby power consumption: 0.5 W
SAFETY-RELATED COMPONENT WARNING!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
2
Page 3
TABLE OF CONTENTS
HCD-EX660Z/EX880Z/EX990Z
1. SERVICING NOTES
................................................. 4

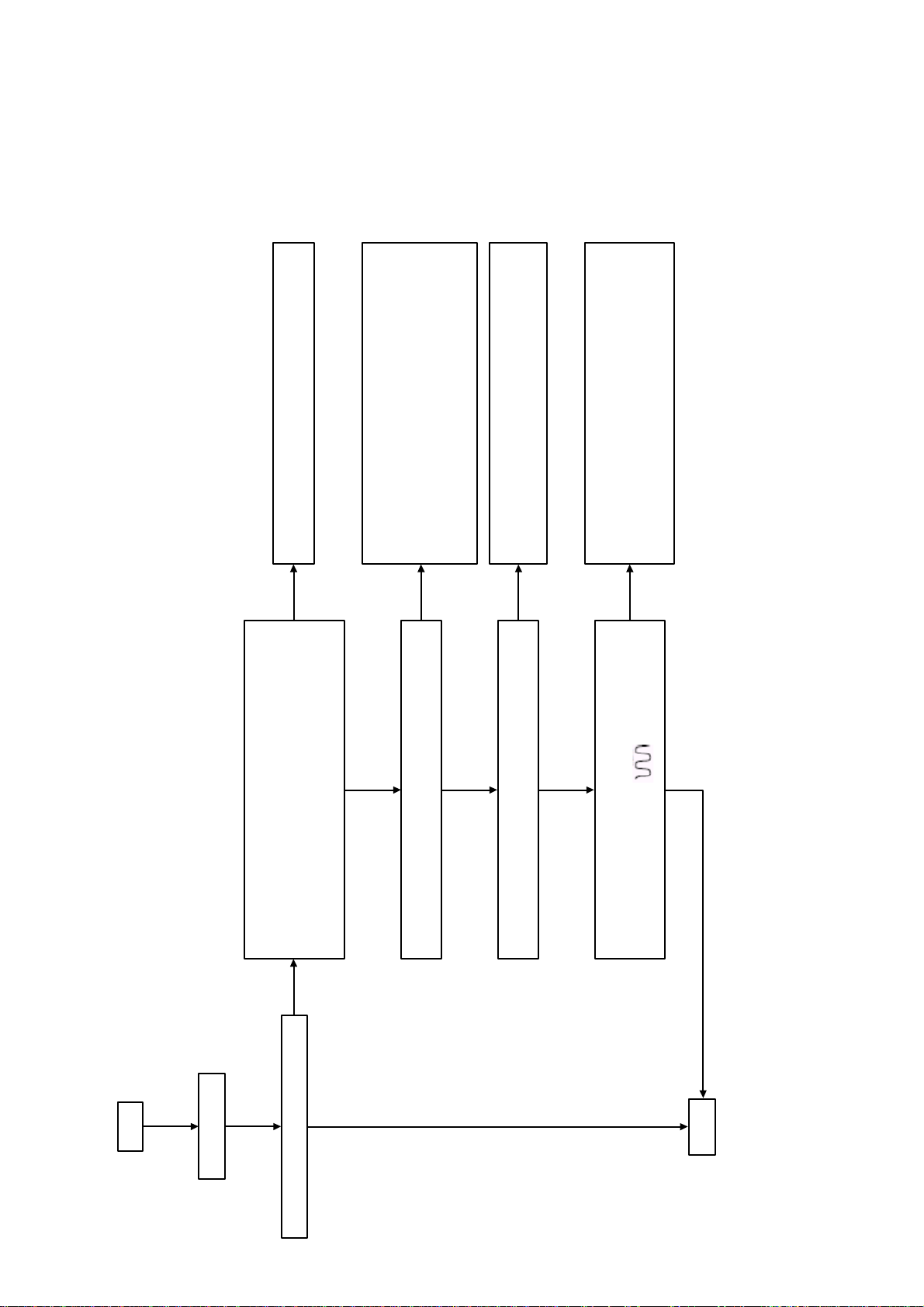

2. DISASSEMBLY
2-1. Disassembly Flow .............................................................. 7
2-2. Side Case (L), Side Case (R) .............................................7
2-3. Top Panel Section .............................................................. 8
2-4. Front Panel Section ............................................................ 8
2-5. Back Panel Section ............................................................ 9
2-6. AMP-SMPS Board (EX660Z/EX880Z),
AMP-SMPS PC Board (EX990Z) ................................... 10
2-7. Volume Knob ................................................................... 10
2-8. CD Mechanism Deck ........................................................11
2-9. Base Unit ...........................................................................11
2-10. Optical Pick-up Block (DA11MMVGP) ......................... 12
3. TEST MODE
4. ELECTRICAL ADJUSTMENTS
.............................................................. 13
.......................... 15
5. DIAGRAMS

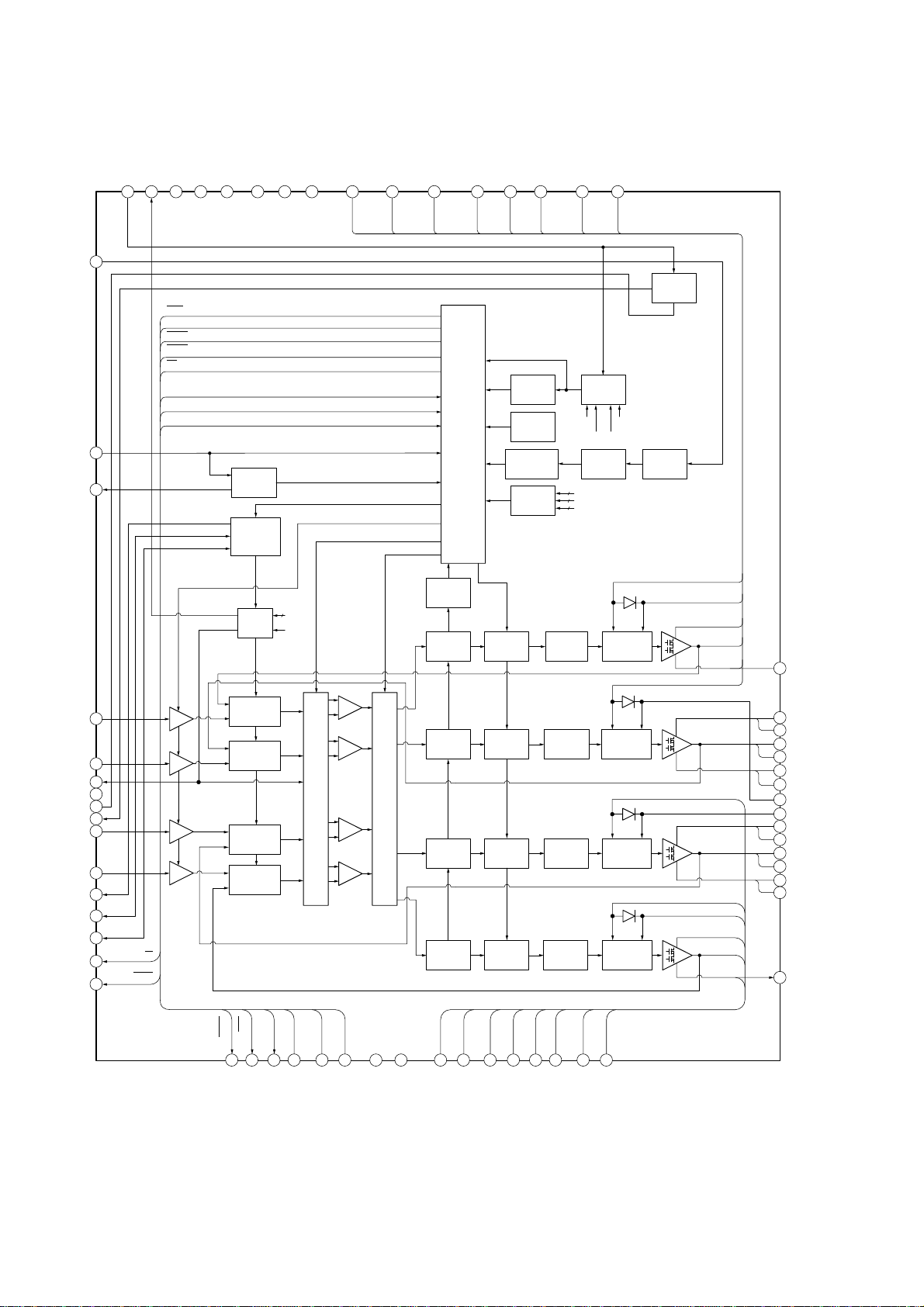

5-1. Block Diagram - CD Section - ......................................... 17
5-2. Block Diagram - TUNER/AUDIO Section - ................... 18
5-3. Block Diagram - DISPLAY/POWER Section - ............... 19

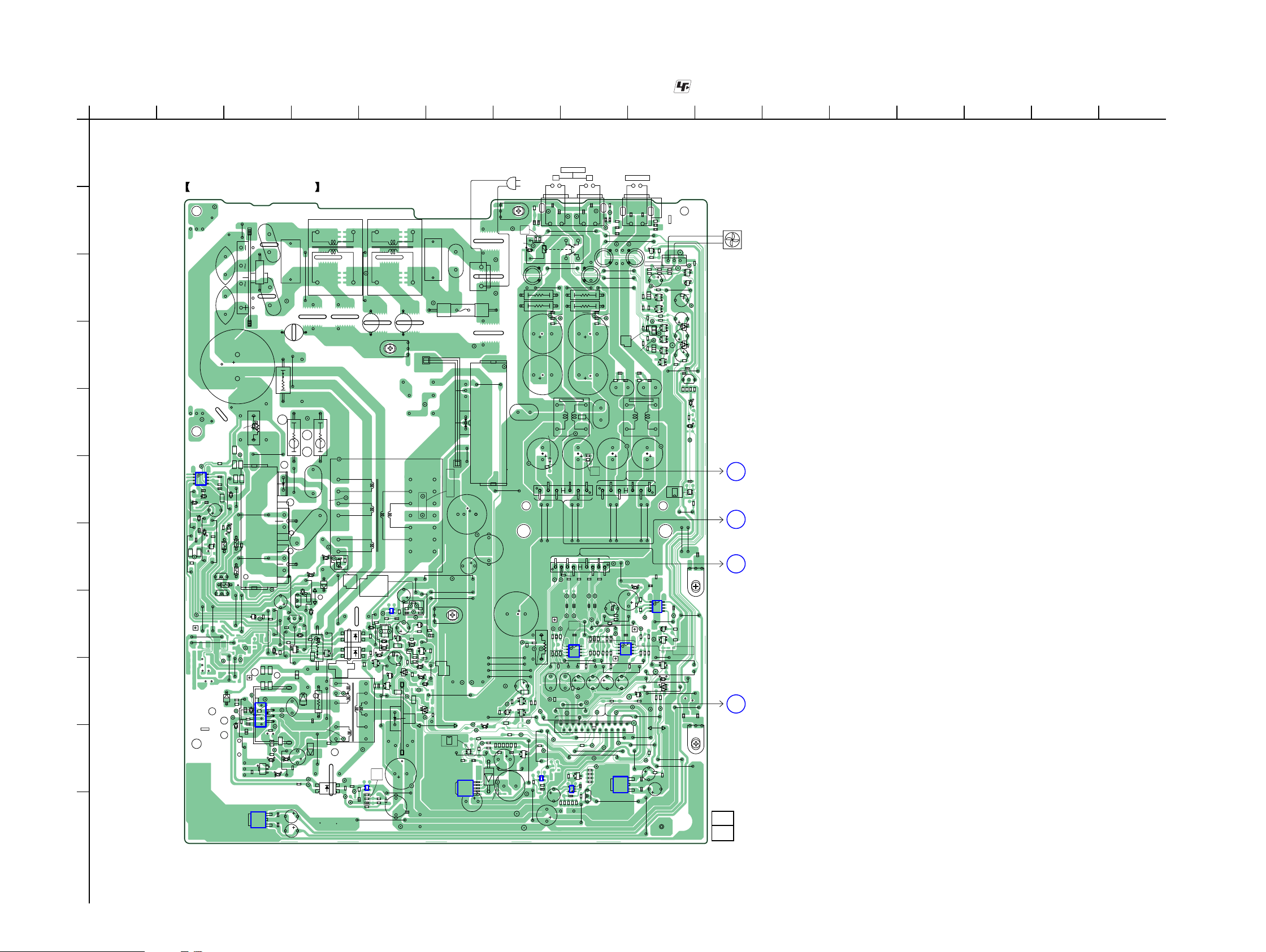

5-4. Printed Wiring Board
- AMP-SMPS Board (EX660Z) - .................................... 21

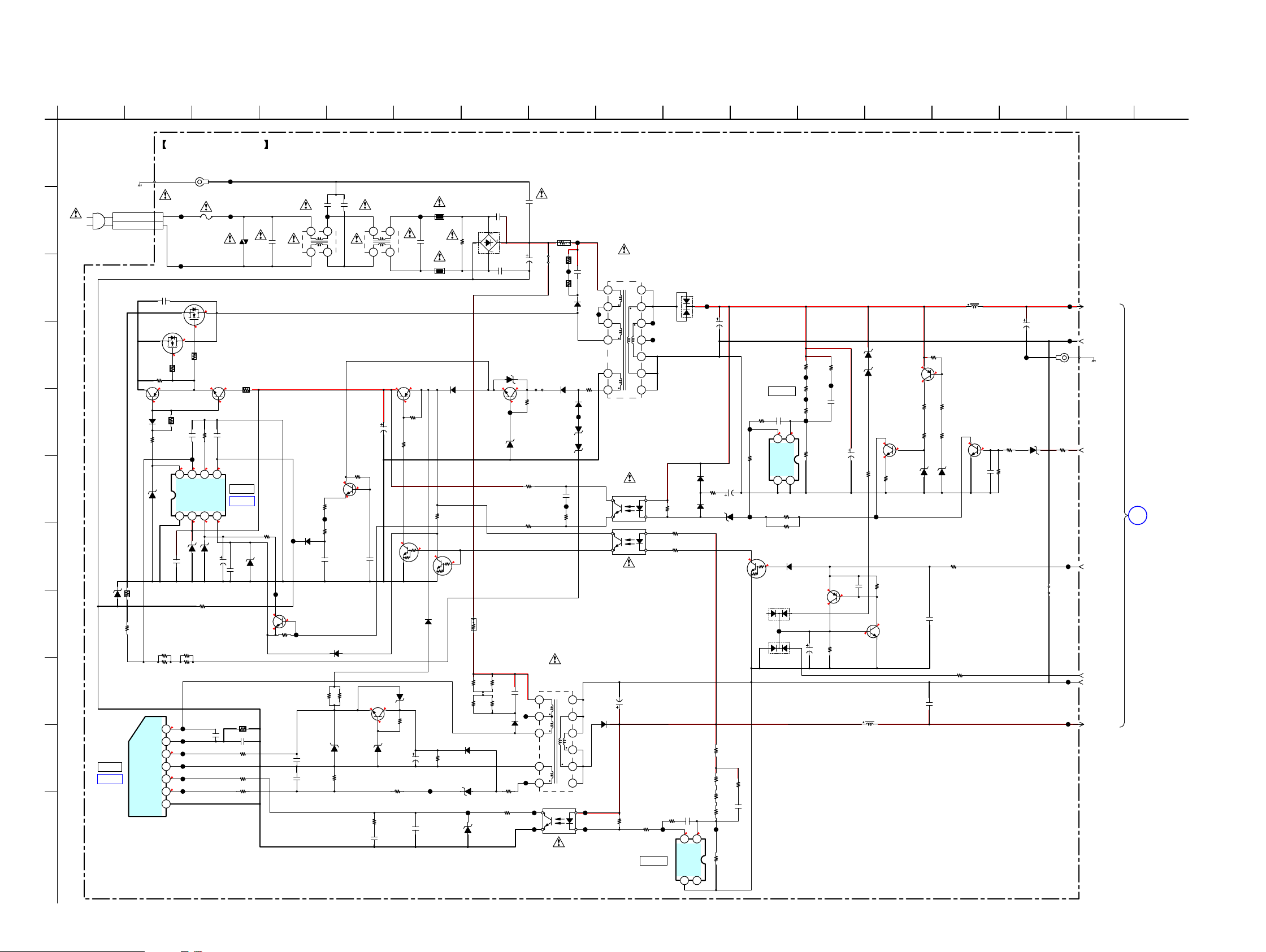

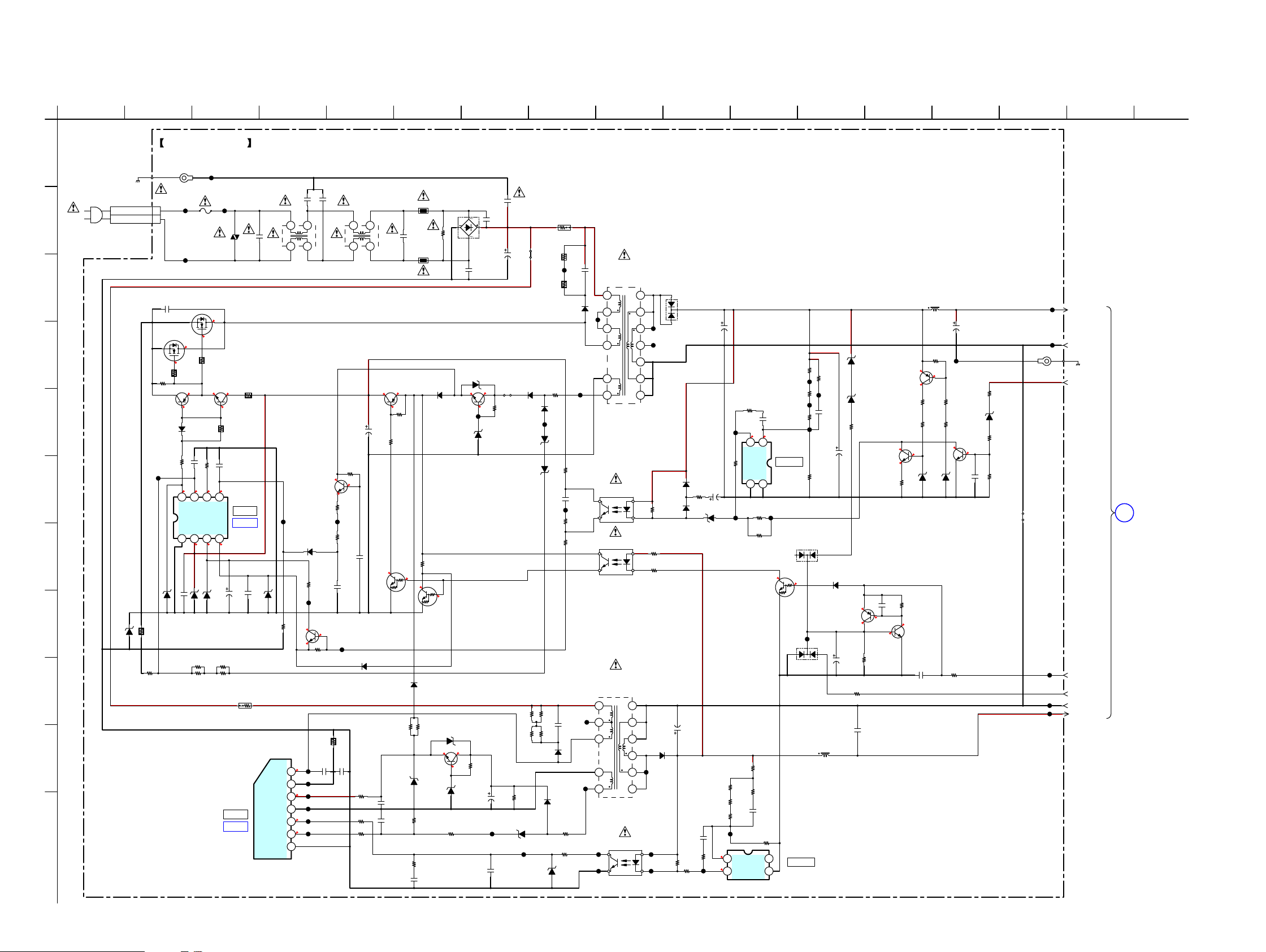

5-5. Schematic Diagram
- AMP-SMPS Board (1/3) (EX660Z) .............................. 22
5-6. Schematic Diagram
- AMP-SMPS Board (2/3) (EX660Z) .............................. 23
5-7. Schematic Diagram
- AMP-SMPS Board (3/3) (EX660Z) .............................. 24
5-8. Printed Wiring Board
- AMP-SMPS Board (EX880Z) - .................................... 25
5-9. Schematic Diagram
- AMP-SMPS Board (1/3) (EX880Z) .............................. 26
5-10. Schematic Diagram
- AMP-SMPS Board (2/3) (EX880Z) .............................. 27
5-11. Schematic Diagram
- AMP-SMPS Board (3/3) (EX880Z) .............................. 28
5-12. Printed Wiring Board
- AMP-SMPS PC Board (EX990Z) - .............................. 29
5-13. Schematic Diagram
- AMP-SMPS PC Board (1/3) (EX990Z) ........................30
5-14. Schematic Diagram
- AMP-SMPS PC Board (2/3) (EX990Z) ........................31
5-15. Schematic Diagram
- AMP-SMPS PC Board (3/3) (EX990Z) ........................32
5-16. Printed Wiring Board - PANEL Board - ..........................33

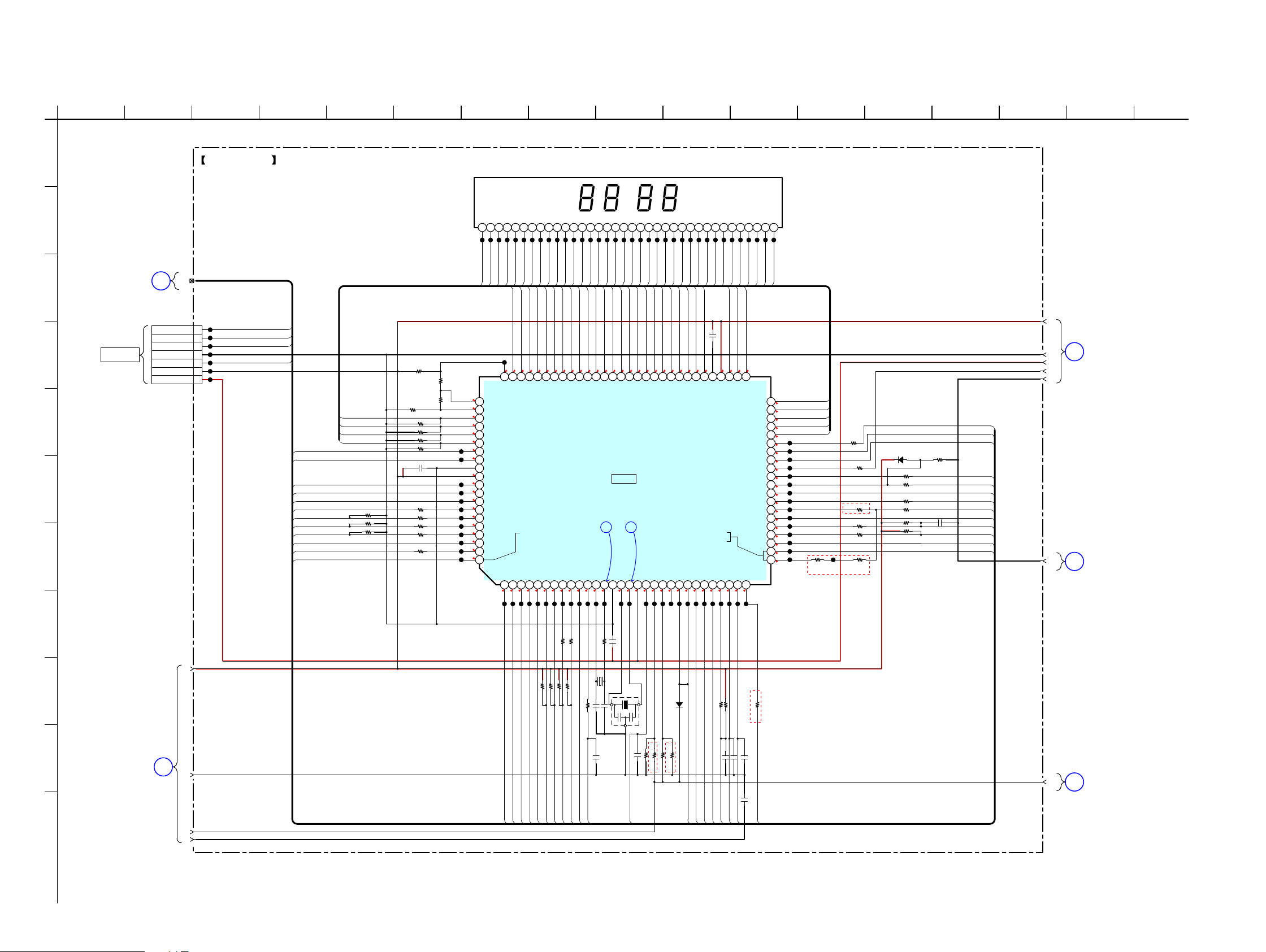

5-17. Schematic Diagram - PANEL Board (1/3) - ....................34
5-18. Schematic Diagram - PANEL Board (2/3) - ....................35
5-19. Schematic Diagram - PANEL Board (3/3) - ....................36

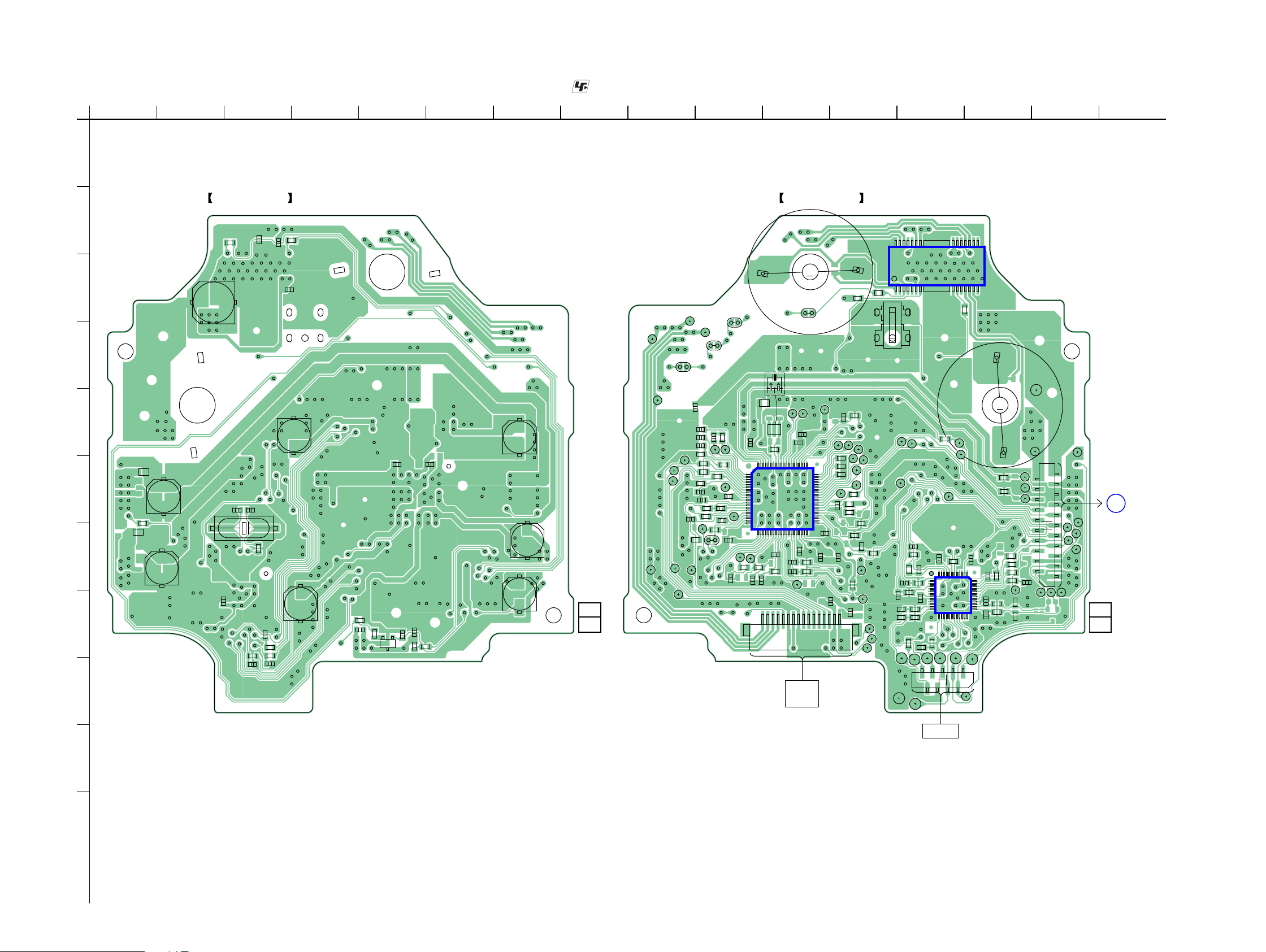

5-20. Printed Wiring Board - BD76 Board - ............................. 37
5-21. Schematic Diagram - BD76 Board (1/2) - ....................... 38
5-22. Schematic Diagram - BD76 Board (2/2) - ....................... 39

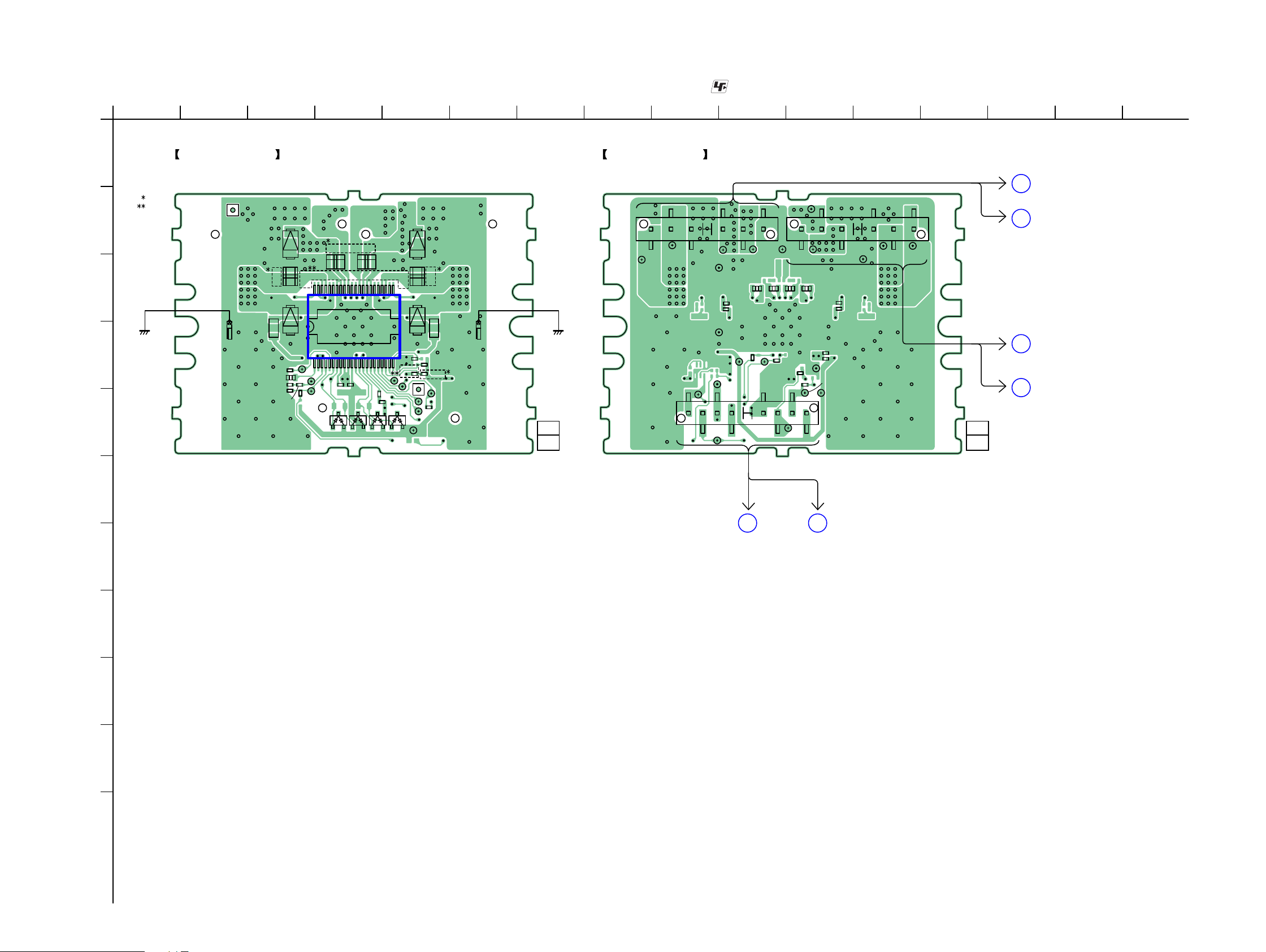

5-23. Printed Wiring Board
- MODULE PHD Board (EX660Z) - .............................. 40
5-24. Schematic Diagram
- MODULE PHD Board (EX660Z) - .............................. 41
5-25. Printed Wiring Board
- MODULE Board (EX880Z/EX990Z) - ......................... 42
5-26. Schematic Diagram
- MODULE Board (EX880Z/EX990Z) - ......................... 43

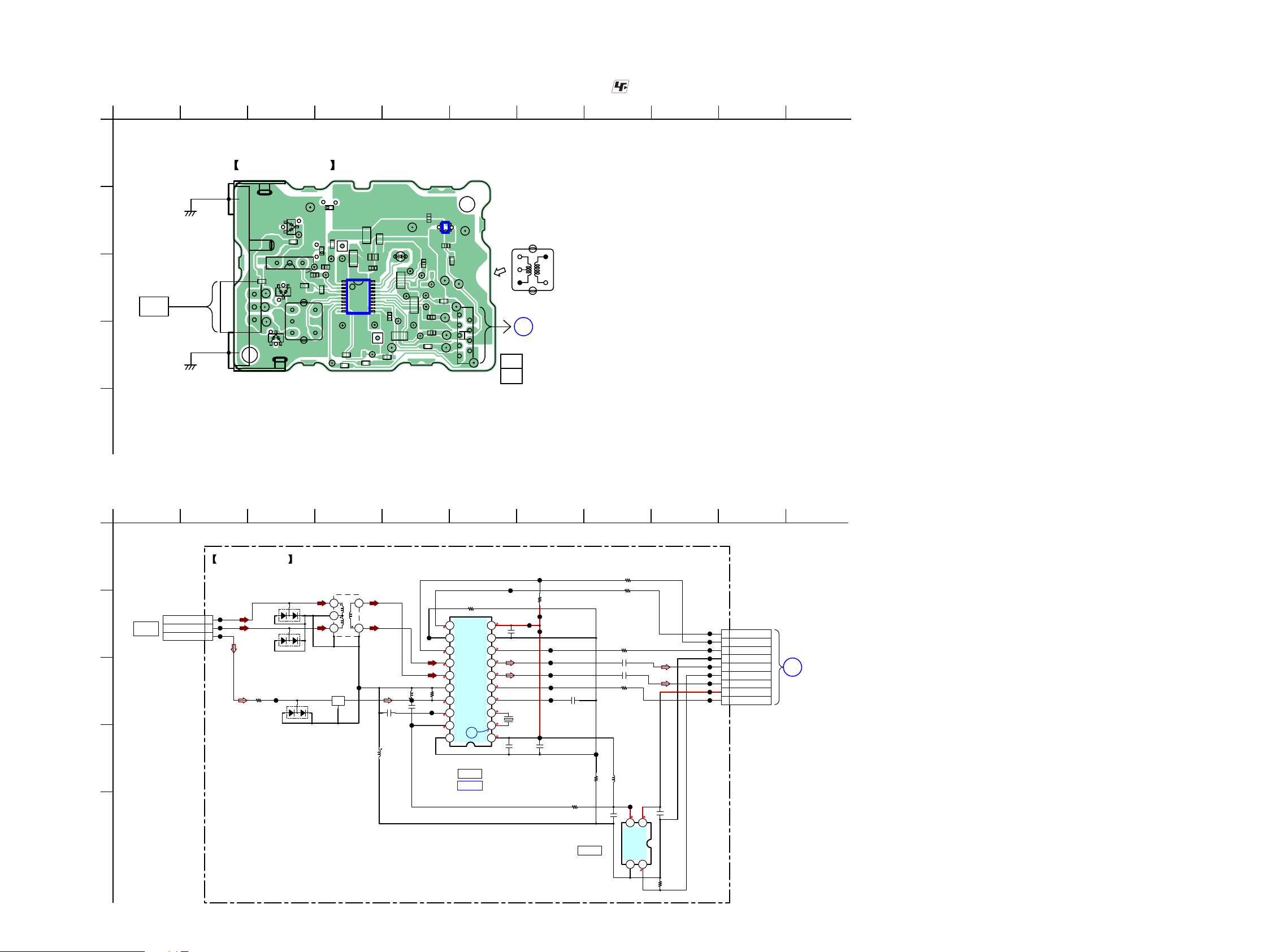

5-27. Printed Wiring Board - TUNER1 Board - .......................44
5-28. Schematic Diagram - TUNER1 Board - .......................... 44

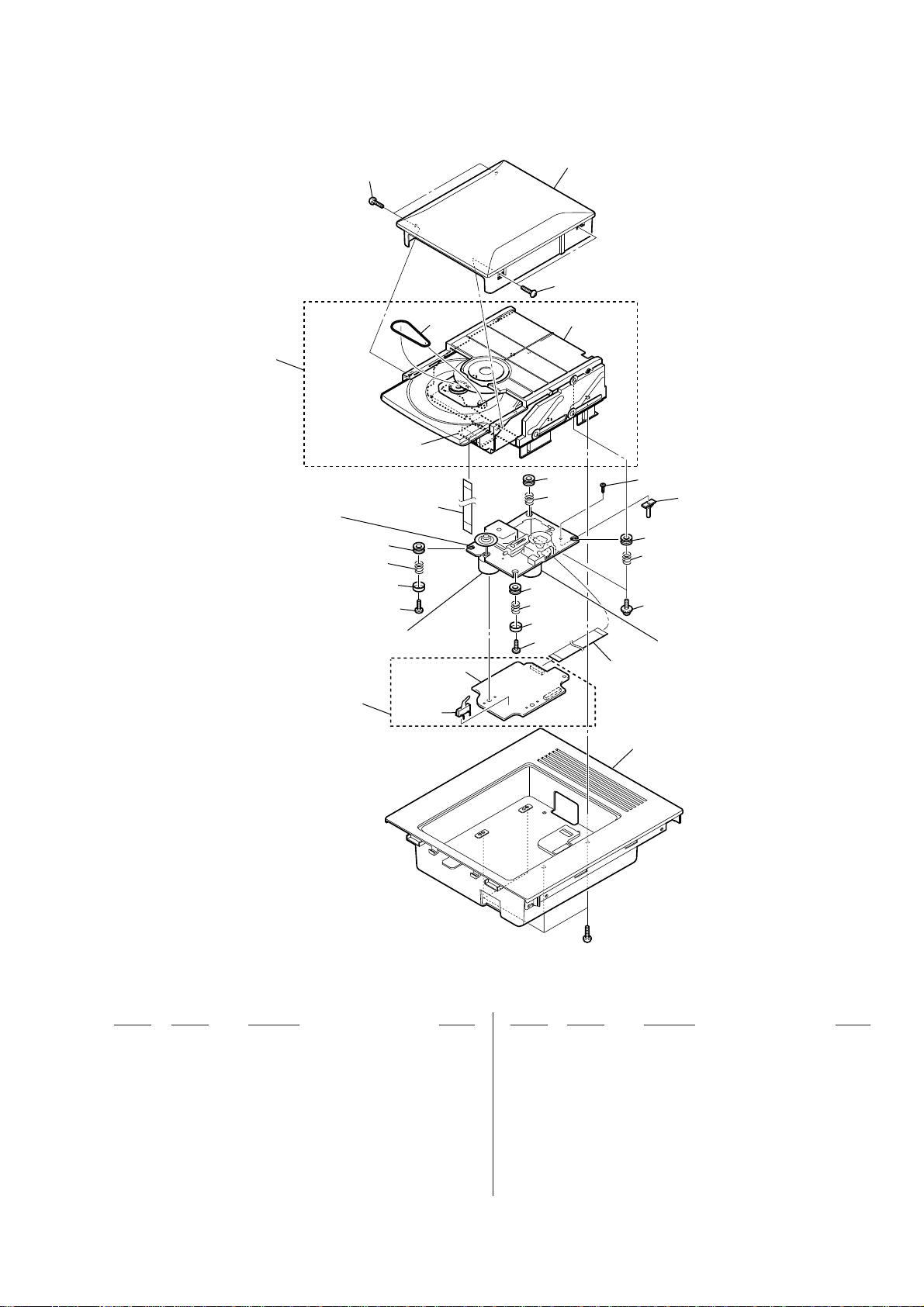

6. EXPLODED VIEWS

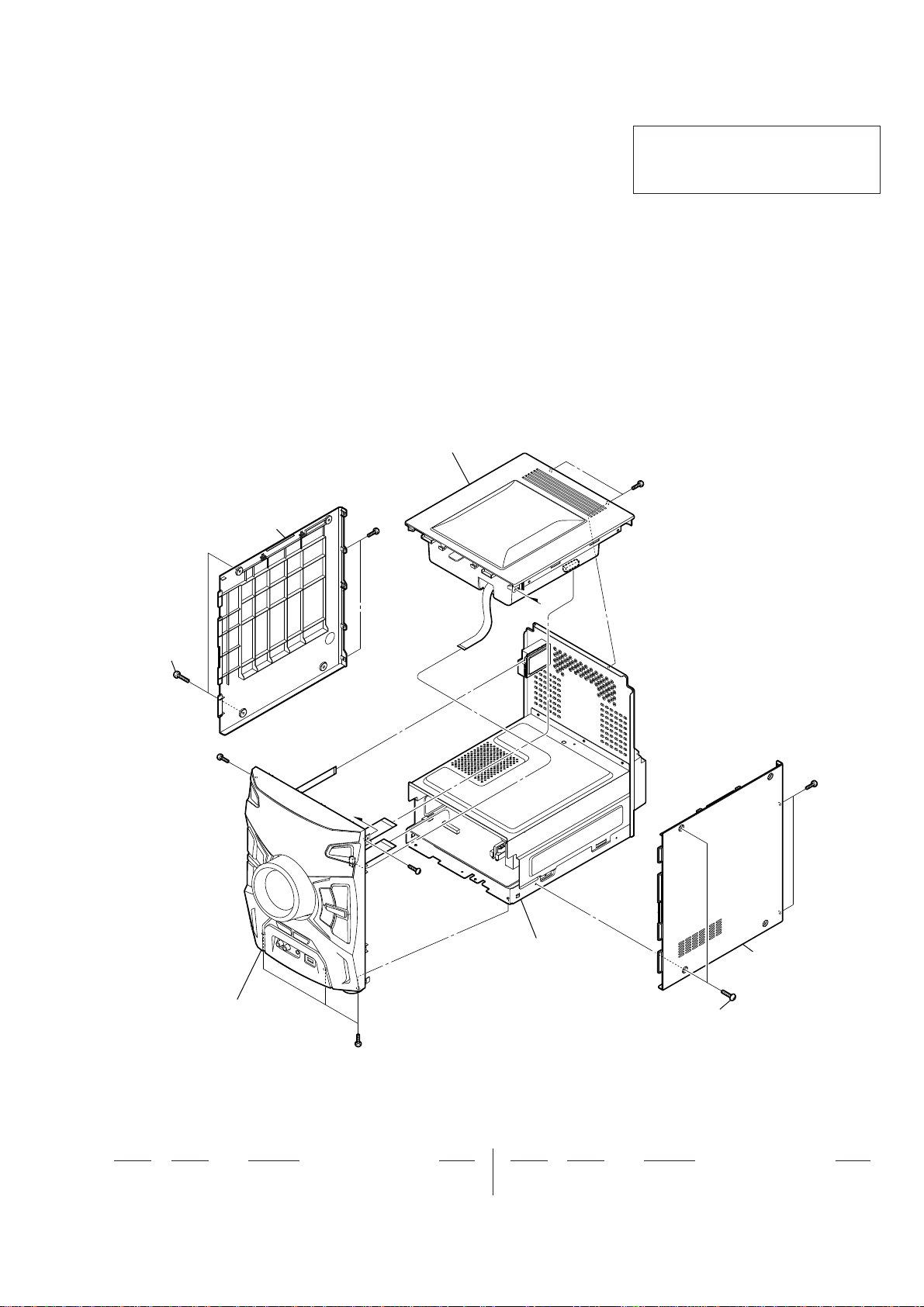

6-1. Case Section ..................................................................... 55

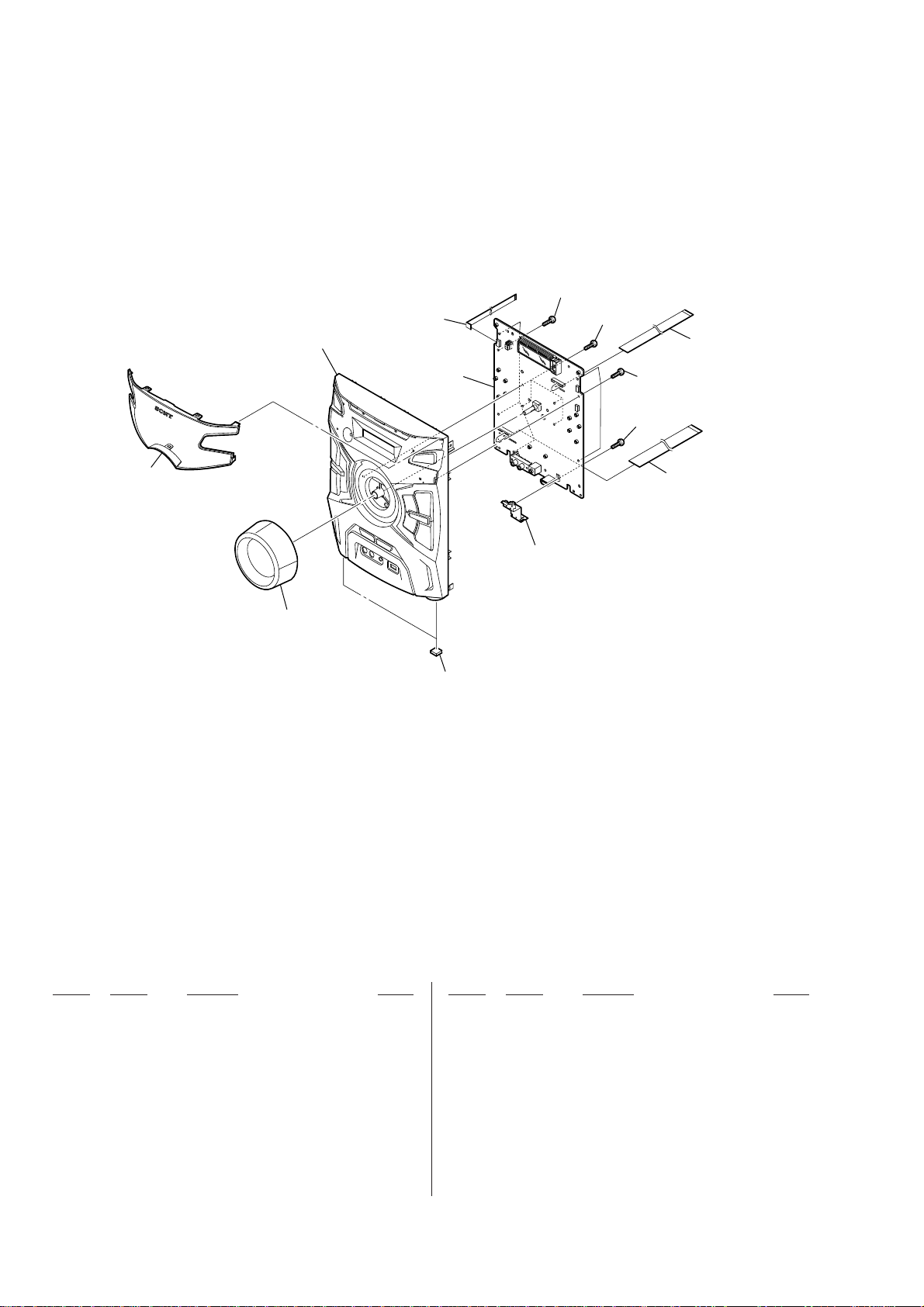

6-2. Front Panel Section .......................................................... 56

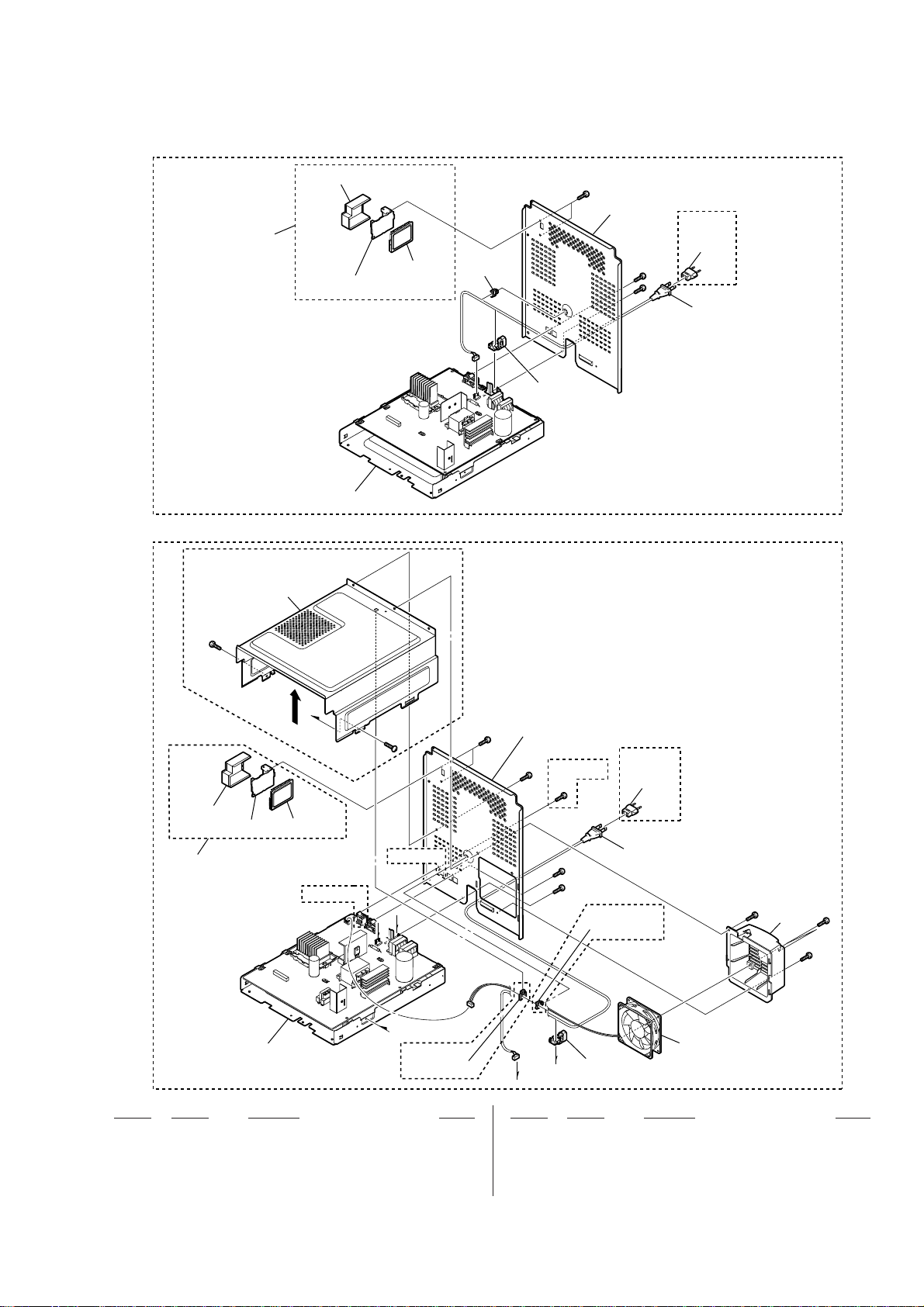

6-3. Back Panel Section ..........................................................57
6-4. Chassis Section ................................................................ 58
6-5. Top Panel Section ............................................................ 59
7. ELECTRICAL PARTS LIST
................................ 60
3
Page 4
HCD-EX660Z/EX880Z/EX990Z
Ver. 1.1
SECTION 1
SERVICING NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by
the charged electrostatic load, etc. on clothing and the human body .
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The fl exible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc refl ective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
RELEASING THE DISC TRAY LOCK
The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.
MODEL IDENTIFICATION
– Model Number Label –
Parts No.
Model Part No.
EX660Z: E2
EX660Z: E51
EX660Z: RU
EX660Z: SAF
EX880Z: E2
EX880Z: E51
EX880Z: MX
EX990Z: E2
EX990Z: E51
EX990Z: MX
EX990Z: RU
• Abbreviation
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
SAF : South African model
4-422-252-0[]
4-422-258-0[]
4-422-260-0[]
4-422-259-0[]
4-422-290-0[]
4-422-294-0[]
4-422-292-0[]
4-422-296-0[]
4-422-300-0[]
4-422-298-0[]
4-431-748-0[]
Releasing Procedure:
1. Press the [
] button to turn the power on.
?/1
2. Press the [FUNCTION] button to select CD function.
3. Press the [x] and [Z] button simultaneously and hold down
for around 5 seconds.
4. The message “UNLOCKED” is displayed and the disc tray is
unlocked.
Note: When “LOCKED” is displayed, the slot lock is not released by turn-
ing power on/off with the [
?/1
] button.
4
Note: Refer to SUPPLEMENT-1 for adding SERVICING NOTES
(TROUBLESHOOTING)
Page 5
SERVICE POSITION OF CDM76
CD mechanism deck block
HCD-EX660Z/EX880Z/EX990Z
BD76 board
SERVICE POSITION OF BOARDS
stand
PANEL board
tuner unit
AMP-SMPS board (EX660Z/EX880Z)
AMP-SMPS PC board (EX990Z)
5
Page 6
HCD-EX660Z/EX880Z/EX990Z
HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
bracket
pin
Pull the tray by the hand.
CAPACITOR DISCHARGE FOR ELECTRIC SHOCK PREVENTION
AMP-SMPS board (EX660Z/EX880Z)
AMP-SMPS PC board (EX990Z)
(Right side view)
In checking the AMP-SMPS board, make a capacitor
discharge of C624 (EX660Z) or C625 (EX880Z) or C631
(EX990Z) and C914 for electrical shock prevention.
AMP-SMPS board
(EX660Z/EX880Z)
AMP-SMPS PC board
(EX990Z)
C625 (EX880Z)
C631 (EX990Z)
800 :/2 W
800 :/2 W
C914
C624 (EX660Z)
800 :/2 W
6
Page 7
DISASSEMBLY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SET
2-2. SIDE CASE (L), SIDE CASE (R)
(Page 7)
2-3. TOP PANEL SECTION
(Page 8)
HCD-EX660Z/EX880Z/EX990Z
SECTION 2
2-4. FRONT PANEL SECTION
(Page 8)
2-7. VOLUME KNOB
(Page 10)
Note: Follow the disassembly procedure in the numerical order given.
2-5. BACK PANEL SECTION
(Page 9)
2-6. AMP-SMPS BOARD
(EX660Z/EX880Z),
AMP-SMPS PC BOARD
(EX990Z)
(Page 10)
2-2. SIDE CASE (L), SIDE CASE (R)
two claws
4 side case (L)
2 two screws
(+BVTP 3 u 10)
2-8. CD MECHANISM DECK
(Page 11)
2-9. BASE UNIT
(Page 11)
2-10. OPTICAL PICK-UP BLOCK (DA11MMVGP)
(Page 12)
1 two screws
(case 3 TP2)
3
two claws
7
8 side case (R)
6 two screws
(+BVTP 3 u 10)
5 two screws
(case 3 TP2)
7
Page 8
HCD-EX660Z/EX880Z/EX990Z
2-3. TOP PANEL SECTION
2 cable, flexible flat (5 core)
(CN201)
4 screw
(+BVTP 3 u 10)
7 two hooks
5 two screws
(+BVTP 3 u 10)
8 top panel section
6
1 cable, flexible flat (21 core)
(CN401)
3 screw
(+BVTP 3 u 10)
2-4. FRONT PANEL SECTION
4 front panel section
1 cable, flexible flat (9 core)
(CN101)
claw
claw
2 cable, flexible flat (21 core)
(CN700) (EX660Z)
cable, flexible flat (21 core)
(CN600) (EX880Z)
cable, flexible flat (23 core)
(CN600) (EX990Z)
3 three screws
(+BVTP 3 u 10)
8
Page 9
2-5. BACK PANEL SECTION
EX660Z
1 wire holder
HCD-EX660Z/EX880Z/EX990Z
4 one screw
(BVTP 3 u 10)
EX880Z/EX990Z
(EX990Z)
1 one screw
(BVTP 3 u 10)
2 CN901 (2P)
6 shield bracket
5
5 one screw
(BVTP 3 u 10)
6 back panel section
3 cord bushing
(2104)
2 one screw
(BVTP 3 u 10)
(EX880Z)
4 wire holder
(EX990Z)
4 wire holder
7 CN701 (3P)
8 CN901 (2P)
(EX990Z)
(EX990Z)
9 cord bushing
(2104)
(EX990Z)
0 one screw
(BVTP 3 u 10)
3 two screws
(BVTP 3 u 10)
qa one screw
(BVTP 3 u 10)
qs one screw
(BVTP 3 u 10)
qd back panel section
9
Page 10
HCD-EX660Z/EX880Z/EX990Z
2-6. AMP-SMPS BOARD (EX660Z/EX880Z), AMP-SMPS PC BOARD (EX990Z)
(EX660Z) (EX880Z/EX990Z)
2 one screw
(BVTP 3 u 10)
1 one screw
(BVTP 3 u 10)
F
G
4 AMP-SMPS board
3 seven screws
(BVTP 3 u 10)
E
5 chassis
F
1 one screw
(BVTP 3 u 10)
3 seven screws
(BVTP 3 u 10)
2 one screw
(BVTP 3 u 10)
E
G
F
4 AMP-SMPS board (EX880Z)
AMP-SMPS PC board (EX990Z)
G
E
2-7. VOLUME KNOB
volume knob
2
hole
front panel block
(back view)
Push the volume knob by flat-head screwdriver.
1
10
Page 11
2-8. CD MECHANISM DECK
4 two screws
(+P tapping (B2.6))
CD mechanism deck block
7
6 flexible flat cable (5 core)
2
HCD-EX660Z/EX880Z/EX990Z
4
4 two screws
(+P tapping (B2.6))
CD lid
5
top case
3
2-9. BASE UNIT
2 two screws
(+BVTP 2.6 (3CR))
3
two insulators
6
two stoppers (BU)
base unit
7
two coil springs (insulator)
4
5
1 four screws
(+BVTP 3 u 10)
1 two floating screws
(+PTPWH M2.6)
two coil springs (insulator)
4
two insulators
6
CD mechanism deck block
(bottom view)
11
Page 12
HCD-EX660Z/EX880Z/EX990Z
2-10. OPTICAL PICK-UP BLOCK (DA11MMVGP)
Note 1: When disconnecting the wire (fl at type) (16 core) of optical device, solder the short-land.
5 tapping screw (P2)
7 optical device
(DA11MMVGP)
Note 2: When assembling the optical device,
remove the solder of short-land after
connecting the wire (flat type) (16 core).
2 Solder the short-land.
6 shaft (support)
1 Remove four solders.
3 wire (flat type) (16 core) (optical device)
4 BD76 board
12
Page 13
SECTION 3
TEST MODE
HCD-EX660Z/EX880Z/EX990Z
COLD RESET
The cold reset clears all data including preset data stored in the
memory to initial conditions. Execute this mode when returning
the set to the customer.
Procedure:*
1. In standby status, press the [
2.
Press three buttons of [x], [OPTIONS] and [
] button to turn on the system.
?/1
] simultaneously.
?/1
3. When “RESET” appears, the set enters standby status.
PANEL TEST MODE
This mode is used to check the liquid crystal display, keys, [VOLUME]
knob, model, destination and software version.
Enter The Panel Test Mode
Procedure:
1. In standby status, press the [
2. Press three buttons of [x], [-] and [
] button to turn the power on.
?/1
] simultaneously.
?/1
3. All LEDs and segments of liquid crystal display will light up.
Version Check
Procedure:
1. In Panel Test Mode, press the [FUNCTION] button.
2. On the liquid crystal display panel, date and version are
displayed alternately.
3. From this status, press the [EQ] button, the destination and
model name are displayed alternately.
4. To release from this mode, press three buttons of [x], [-]
and [
] simultaneously.
?/1
Key & Encoder Test check
Procedure:
1. In Panel test mode, press the [ENTER] button.
2. The message “KEY0 0 0” displayed. Whenever any buttons
are pressed, the value is change.
3. To release from this mode, press three buttons of [x], [-]
and [
] simultaneously.
?/1
COMMON TEST MODE
This mode is used to check operations of the Amplifi er section.
Procedure:
1.
To enter Common Test Mode, press three buttons of [FUNCTION],
[OPTIONS] and [
] simultaneously.
?/1
2. “COMMON” appears on the liquid crystal display panel. The
volume is changed to VOLUME MIN.
Check of Amplifi er
1.
Press the [EQ] button repeatedly until a message “EQ MAX”
appears on the liquid crystal display panel. EQ increases
to its maximum.
2.
Press the [EQ] button repeatedly until a message “EQ MIN”
appears on the liquid crystal display panel. EQ decreases
to its minimum.
3.
Press the [EQ] button repeatedly until a message “EQ FLA T”
appears on the liquid crystal display panel. EQ is set to fl at.
4. When the [VOLUME] knob is turned clockwise even
slightly, the message “VOL 29” (for EX660Z and EX880Z)
or “VOL 31” (for EX990Z) appears on the liquid crystal
display panel. Sound is set to Standard Volume Position
(SVP).
5. When the [VOLUME] knob is turned clockwise even
slightly, the message “VOL MAX” appears on the liquid
crystal display panel. Sound is set to volume maximum.
6. When the [VOLUME] knob is turned counterclockwise
even slightly, the message “VOL MIN” appears on the
liquid crystal display panel. Sound is set to volume minimum.
3. To release from this mode, press the [
?/1
] button.
4. The cold reset is enforced at the same time.
CD THEFT PREVENTION
This mode let you lock the disc tray. When this mode is activated,
the disc tray will not open when the [
] button is pressed. The
Z
message “LOCKED” will be displayed on the liquid crystal
display panel. This mode only applied when there is disc on the
tray.
Procedure:
1. In standby status, press the [
] button to turn the power on.
?/1
2. Press the [FUNCTION] button to select CD function.
3. Press the [x] and [Z] button simultaneously and hold down
for around 5 seconds until “LOCKED” or “UNLOCKED” is
displayed on the liquid crystal display panel.
TUNER STEP CHANGE
The step interval of AM channels can be toggled between 9 kHz
and 10 kHz. This mode is not available for Saudi Arabian, European and Russian models.
Procedure:
1. Press the [
] button to turn on the system.
?/1
2. Press the [FUNCTION] button repeatedly to select the “AM”.
3. Press the [
] button to turn off the system.
?/1
4. Press the [DISPLAY] button on the remote control to enter
clock mode or demo mode, then press the
and [
] button simultaneously.
?/1
[TUNING + M L]
5. The system turns on automatically. The message “9K STEP”
or “10K STEP” appears on the liquid crystal display panel and
thus the channel step is changed.
PROTECT KIND CHECK TEST MODE
This mode is used to check type of protect occurred during
protector on.
Procedure:
1. During protection on, LCD will toggle between “PROTECT
EXX” message & protector kind message display.
Indication of display tube Breakdown of defect
PROTECT E01
PROTECT E02
OVER CURRENT
Defect of AMP circuit & SMPS
overload.
Defect of fan, output speaker,
7V regulator & 9V regulator
circuit.
Defect of power supply circuit
to 5V regulator (USB).
1. Defect of AMP circuit
1-1. If PROTECT mode is in “PROTECT ERROR 01”,
The following defect can be considered.
The kind of defect The cause is considered
OTP (Over Temperature
Protection)
Unusual output of Power
mount
Unusual heat of MOSFET by
assemble defect of heatsink
and destruction of MOSFET
etc..
The power mount is unusual
output. Please refer the point
of power mount.
13
Page 14
HCD-EX660Z/EX880Z/EX990Z
SMPS overload
Current surge to MOSFET by
MOSFET and defect of PS
output line.
1-2. If output does not come out even if the set status is
not in PROTECT mode
The following defect can be considered.
The kind of defect The cause is considered
Under Voltage
RESET defect
SMPS switching MOSFET defect.
Reset signal status from micom is not ‘H’.
2. Defect of power supply (regulator)
2-1. If the PROTECT mode is “PROTECT ERROR 02”,
The following defect can be considered.
The kind of defect The cause is considered
OCP (Over Current Protection)
Fan block
DC Detection
Unusual output voltage of 7V &
9V regulator short.
Fan supply draw current.
DC appears in SP terminal by
defect of AMP IC and MOSFET or output of short-circuit.
14
Page 15
HCD-EX660Z/EX880Z/EX990Z
SECTION 4
ELECTRICAL ADJUSTMENTS
CD SECTION
Note:
1. CD Block is basically constructed to operate without adjustment.
2. Use YEDS-18 disc (Part No. 3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10 M impedance.
4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than specifi ed value with the following checks.
5. Check the focus bias check when optical pick-up block is replaced.
FOCUS BIAS CHECK
oscilloscope
(DC range)
BD76 board
CL102 (RFOUT)
CL117 (VREF)
Procedure:
1. Connect the oscilloscope to CL102 (RFOUT) and CL117
(VREF) on the BD76 board.
2. Press the [
] button to turn the power on, and press the
?/1
[FUNCTION] button to select CD function.
3. Set disc (YEDS-18) and press the [u] button to playback.
4. Confi rm that oscilloscope waveform is as shown in the fi gure
below (eye pattern).
A good eye pattern means that the diamond shape (◊) in the
center of the waveform can be clearly distinguished.
+
–
VOLT/DIV: 200 mV
TIME/DIV: 500 ns
TUNER SECTION
0 dB = 1 V
FM AUTO STOP CHECK
signal
generator
set
+
75 :
–
Procedure:
1. Turn the power on.
2. Input the following signal from Signal Generator to FM antenna input directly.
Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)
Note: Please use 75 ohm “coaxial cable” to connect SG and the set. You
cannot use video cable for checking.
Please use SG whose output impedance is 75 ohm.
3. Set to FM tuner function and scan the input FM signal with
automatic scanning.
4. Confi rm that input Frequency of A, B and C detected and auto-
matic scanning stops.
Checking Location:
– BD76 Board (Side B) –
CL102
(RFOUT)
IC101
CL117
(VREF)
level:
1.1 ± 0.4 Vp-p
The stop of automatic scanning means “The station signal is received in good condition”.
15
Page 16
HCD-EX660Z/EX880Z/EX990Z
• Circuit Boards Location
SECTION 5
DIAGRAMS
PANEL board
LOADING board
BD76 board
TUNER1 board
MODULE PHD board (EX660Z)
MODULE board (EX880Z/EX990Z)
AMP-SMPS board (EX660Z/EX880Z)
AMP-SMPS PC board (EX990Z)
16
Page 17
5-1. BLOCK DIAGRAM - CD Section -
3
CN100
D+
2
D-
1
4
VBUS+5V
X901
12MHz
38 UHD+
37 UHD-
CF1
6
CF2
7
USB CONTROL
IC901
DBGP0
DBGP1
DBGP2 25
URX1
UTX1 45
P71
RES 2
SO0 9
SI0
SCK0 11
P16 15
P23 32
SDAT
BCLK
LRCK
P22
P24
P70
HCD-EX660Z/EX880Z/EX990Z
8
23
24
44
47
10
26
27
28
31
33
46
DBGP0
DBGP1
DBGP2
TRESET
7
5
CN901
FLASH
( )
PROGRAMMING
9
5FK LV RPLWWHG GXH WR VDPH DV /FK
6LJQDO SDWK
: CD
: USB
OPTICAL PICK-UP BLOCK
(DA11MMVGP)
A
B
C
D
E
F
LD
MD
VREF
SP+
SP-
SL+
SL-
T+
T-
F+
F-
AUTOMATIC
POWER
CONTROL
Q201
23
BIAS
VO1+
2
VO1-
1
VO2+11
VO2-
12
VO3+18
VO3-
17
VO4+26
VO4-
27
FOCUS/TRACKING COIL DRIVE,
SPINDLE/SLED MOTOR DRIVE
IC301
IN2’
IN3’
IN4’
MUTE
3
IN1
9
20
24
7
5AIN
BIN
7
6CIN
8DIN
EIN
13
FIN
14
18 LDD
19
LDS
11 VREF
25 SPDO
24 SLDO
23 TDO
22 FDO
CD-MP3 PROCESSOR
IC101
STREQ(DEFECT)
STCK(FSEQ) 34
STDATA(C2F) 35
PCMLRSY
LIMIT-SW(CONT3)
TUNER/AUDIO
LCHO CD/USB-L76
RCHO R-CH78
33
62
63PCMBCK
64PCMDATA
65PCMREQ
43CE
44CL
46DO
45DI
32
XOUT
72
XIN
73
47 O-CD-RST1
RESB
X101
16.934MHz
S001
(LIMIT)
A
SECTION
(Page 18)
O-USB-TXD93
I-USB-RXD
94
O-USB-SLEEP
92
4
O-USB-RST
3
O-CD-CE
O-CD-CL
98
99
I-CD-DO
O-CD-DI
2
100
O-CD-M-MUTE
SYSTEM CONTROL
IC200 (1/3)
O-CD-ON 91
O-CD-M- 43
O-CD-M+
I-HP/CD-SW 18
DBGP0
DBGP1
DBGP2
I-RST 11
+9V
44
+3.3V REG
2
MOTOR
CONTROL
Q200
7
9
IC202
FIN
RIN
4
1
LOADING
MOTOR
DRIVE
IC201
1
VREF
OUT2
OUT1
AVDD3.3V
DVDD3.3V
CD
MECHANISM
DECK
2
4
M+
M–
OPEN SW
CLOSE SW
TUNER/AUDIO
I-HP/CD-SW
2
95
96
97
DBGP0
DBGP1
DBGP2
RESET
3
5
CN200
FLASH
( )
PROGRAMMING
1
B
SECTION
(Page 18)
HCD-EX660Z/EX880Z/EX990Z
DISPLAY/POWER
C
SECTION
(Page 19)
I-RST
1717
Page 18
HCD-EX660Z/EX880Z/EX990Z
5-2. BLOCK DIAGRAM - TUNER/AUDIO Section -
CN103
ANTENNA
FM/AM
PHONES
CD
SECTION
(Page 17)
DVD/PC IN
FM
AM
AM
J100
B
L
R
3
2
1
9V
J102
-1
-2
I-HP/CD-SW
4
R-CH
FL101
BAND PASS
FILTER
L101
+3.3V REG
IC103
+9V
R-CH
3
HEADPHONE AMP
POWER SWITCH
R-CH
R-FK LV RPLWWHG GXH WR VDPH DV L-FK.
SLJQDO SDWK
: TUNER (FM)
: TUNER (AM)
: CD
: DVD/PC IN
CD
SECTION
(Page 17)
AM/FM-DET,OSC,MIX,PLL,IF AMP
FRF1
4
ARF1
6
ARF2
7
+3.3V
Q104
MUTE
Q105
A
IC101
HEADPHONE AMP
LOUT
ROUT
IIC/RDSI
8CK10DA13
IC100
VCC
X1
X2
8
CD/USB-L
15
14
18
19
57
HEADPHONE
MUTE SWITCH
Q100
R-CH
R-CH
R-CH R-CH
X101
32.768kHz
INPUT FUNCTION SELECTOR
IC204
CD/USB-L
8
CD/USB-R
7
PC-IN-L
10
PC-IN-R
9
TUNER-L
6
TUNER-R
5
SCLK
27
SDATA
28
OUT-L
21
SYSTEM CONTROL
IC200 (2/3)
I2C-FUNC-DATA
6
I2C-FUNC-CLK
7
I-RDSI
41
I2C-TU-CLK
9
I2C-TU-DATA
8
36 O-HP-MUTE
I-LED-LEVEL
O-SW-MUTE
O-FR-RELAY
O-AMP-RST
O-FAN-LOW-SPEED
I-PROTECT-S
OUT-R
SEL-L
SEL-R
I-VACS
25
D
DISPLAY/POWER
SECTION
(Page 19)
VACS/SIGNAL LEVEL
CONTROL
11
3 1
12
22
23
32
30
33
5
35
R-CH
PROTECT-F
IC203
D206
FAN MOTOR
DETECT
Q608 (EX880Z)
Q611 (EX990Z)
+9V
M+7V
D704
DC DETECT
Q706
FAN MOTOR
CONTROL
Q708 (EX660Z/EX880Z)
Q713 (EX990Z)
SUBWOOFER
Q211, Q212
SUBWOOFER
Q204, Q209
6 7
6 7
+13V
AMP
MUTE
PRE AMP
IC600
PRE AMP
IC600
FAN MOTOR
REG
Q704 (EX880Z/EX990Z)
FAN MOTOR
DETECT
Q705 (EX880Z/EX990Z)
PRE AMP
IC600
5 7
2
PRE AMP
IC601
5 12
7
PRE AMP
IC601
6 7
RCH+
RCH-
PRE AMP
IC601
6 7
RCH+
RCH-
RCH-
SPEAKER RELAY
+
–
DRIVER
Q608
DC FAN
6
71
13
4
17
7
6
12
13
4
17
5
4
10
11
2
15
INPUT_A
INPUT_B
INPUT_C
INPUT_D
/RESET
/SD
INPUT_B
INPUT_A
INPUT_C
INPUT_D
/RESET
/SD
INPUT_B
INPUT_A
INPUT_C
INPUT_D
/RESET
/SD
POWER AMP
IC801
DC DETECT
POWER AMP
IC801
DC DETECT
POWER AMP
IC800
OUT_A
OUT_A
OUT_B
OUT_C
OUT_D
OUT_D
Q703
OUT_A
OUT_A
OUT_B
OUT_C
OUT_D
OUT_D
Q703
OUT_A
OUT_A
OUT_B
OUT_B
OUT_C
OUT_C
OUT_D
OUT_D
EX990Z
39
40
36
31
27
28
OVERLOAD
DETECT
Q604 – Q607,
Q609, Q610
39
40
36
31
27
28
D601
OVERLOAD
DETECT
Q604-607
53
52
45
44
36
37
29
28
D601
OVERLOAD
DETECT
Q604-607
TB601
TB600
RY600
TB600
TB600
DC DETECT
Q705
–
L
+
+
R
–
+
–
+
L
–
+
R
–
–
L
+
SPEAKERS
+
R
–
SPEAKERS
D702
SUBWOOFER
SPEAKERS
EX880Z
EX660Z
+9V
M+7V
HCD-EX660Z/EX880Z/EX990Z
1818
Page 19
5-3. BLOCK DIAGRAM - DISPLAY/POWER Section -
HCD-EX660Z/EX880Z/EX990Z
D106
(WHITE)
D116,
D118 –D120
D117, D121
+3.3V
M+7V
RESET
2
VDD1OUT
S100 – S114
KEY MATRIX
REMOTE CONTROL
SIGNAL RECEIVER
IC205
IC101
ND100
LIQUID
CRYSTAL
DISPLAY
PANEL
3
LED
DRIVER
Q108
LED
DRIVER
Q107
LED
DRIVER
Q119
RESET SWITCH
Q203
I-RST
C
CD SECTION
(Page 17)
X200
32.768kHz
X201
18MHz
46
SEG0
I
53
56
SEG31
I
79
COM3
83
I
COM0
86
26
I-KEY0
I-KEY1
25
I-KEY2
24
29
I-RMC(SIRCS)
12
SUB CLOCK
13
SUB CLOCK
15
MAIN CLOCK
16
MAIN CLOCK
10
O-LCD-LED
87
O-VOL-LED1
88
O-VOL-LED2
28
I-AC-CUT
SYSTEM CONTROL
IC200 (3/3)
I
I
I-PROTECT-F
O-MAIN-ON
I-V2-MONI
O-STBY-SW
O-SUB-ON
O-VBUS-ON
I-VBUS-OCP
TUNER/AUDIO
SECTION
(Page 18)
D
PROTECT-F
27
37
34
42
38
39
40
1
OUT
STANDBY
SWITCH
Q201
MAIN SWITCH
Q602, Q603,
Q612
+4V
VDD
VBUS OPERATION
Q707 (EX880Z/EX990Z)
MAIN SWITCH
Q600, Q601
5
EN
VO
1
+12V
+4V REG
IC700
VOUT4VIN
+3.3V REG
IC603 (EX660Z)
IC603 (EX880Z)
IC603 (EX990Z)
2
V2
+3.3V
DRIVER
Q706 (EX660Z)
PVDD
OVER CURRENT
DETECT
Q1004, Q1005,
Q1017
POWER CONTROL
Q1003, Q1008
D1007 – D1008,
D1020 – D1021
POWER CONTROL
Q1006
+12V REG
IC602 (EX880Z)
IC602 (EX990Z)
5
OVER CURRENT
DETECT
Q1001 – Q1004,
Q1017
VOLTAGE
DETECT
IC1000 (EX880Z)
IC1000 (EX990Z)
POWER
CONTROL
Q1011 – Q1013,
Q1016
+9V
VBUS+5V
V2
4
VREF
K
3
+9V REG
IC701 (EX660Z)
IC701 (EX880Z)
IC701 (EX990Z)
4
VREF
K
3
4
VREF
K
3
+12V REG
IC1001
SS5Vin
D1001, D1002
VOLTAGE
DETECT
IC1000
VBUS OCP
RECT
D1000
VOLTAGE
DETECT
IC1001 (EX880Z)
IC1001 (EX990Z)
PH930
ISOLATION
PH932
ISOLATION
PH933
ISOLATION
1
VOLTAGE
DETECTION
D1020, D1021,
D1011
+13V
M+7V
DETECT
Q702
CONVERTER
TRANSFORMER (MAIN)
CONVERTER
TRANSFORMER (SUB)
RECT
D1001
D927
RECT
D1010
PH931
ISOLATION
PH930
ISOLATION
E+4V
T901
VOLTAGE
REGULATOR
D909 – D910
Q903, Q904
T903
+22V REG
Q911
T901
CONVERTER
TRANSFORMER
VOUT4VIN
POWER
CONTROL
Q700,701
5
SS
2
SW
VBUS+5V REG
IC702 (EX880Z)
IC702 (EX990Z)
IC703 (EX660Z)
D912
D972
VOLTAGE
REGULATOR
D908, D910
Q903, Q904
1
IN
POWER CONTROL
Q906 – Q909
PROTECTION
ON/OFF
Q914, Q915
VOLTAGE CONTROL
Q910
VOLTAGE DETECT
Q905
D967
POWER CONTROL
Q906 – Q909
PROTECTION
ON/OFF
Q911, Q913
VOLTAGE DETECT
Q902, Q910
+4V REG
IC700 (EX880Z)
IC700 (EX990Z)
5
+7V REG
IC703 (EX880Z)
IC703 (EX990Z)
IC705 (EX660Z)
EX880Z/
EX990Z
V2
EX660Z
PVDD
8
2
4
5
1
3
6
5
8
2
4
DRIVE
VCC
FB
OCP1BD
D
Vcc/OVP
BD
FB/OLP
DRIVE
VCC
FB
EX880Z/EX990Z
DC-DC
CONVERTER
IC900 (EX880Z)
IC900 (EX990Z)
DC-DC
CONVERTER
IC965 (EX880Z)
IC965 (EX990Z)
EX660Z
DC-DC
CONVERTER
IC900
RECT
D902
TH902 (EX660Z)
TH902, TH904
(EX880Z/EX990Z)
L901,902
F901
AC IN ~
HCD-EX660Z/EX880Z/EX990Z
1919
Page 20
HCD-EX660Z/EX880Z/EX990Z
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• : Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated.)
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
• Abbreviation
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
SAF : South African model
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
For Schematic Diagrams.
Note:
• All capacitors are in F unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in and 1/4 W or less unless otherwise
specifi ed.
• f : Internal component.
• 2 : Nonfl ammable resistor.
• C : Panel designation.
Note: The components identifi ed by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specifi ed.
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
– BD76 Board –
no mark : CD PLAY
– Other Boards –
no mark : TUNER (FM/AM)
* : Impossible to measure
• Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : TUNER (FM)
f : TUNER (AM)
J : CD
E : USB
q : DVD/PC IN
• Abbreviation
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
SAF : South African model
• Waveforms
– BD76 Board –
1 IC101 2 (RFOUT)
(CD play mode)
200 mV/DIV, 500 nsec/DIV
2 IC101 us (XOUT)
16.934 MHz
1 V/DIV, 20 nsec/DIV
3 IC901 7 (CF2)
12 MHz
1 V/DIV, 20 nsec/DIV
0.6 to 1.5 Vp-p
2.6 Vp-p
3.1 Vp-p
– PANEL Board –
4 IC200 qd (Sub Clock)
32.768 kHz
1 V/DIV, 10 Psec/DIV
5 IC200 qh (Main Clock)
18 MHz
1 V/DIV, 50 nsec/DIV
– TUNER1 Board –
6 IC101 ql (X2)
32.768 kHz
200 mV/DIV, 5 Psec/DIV
3.3 Vp-p
2.9 Vp-p
0.6 Vp-p
HCD-EX660Z/EX880Z/EX990Z
2020
Page 21
5-4. PRINTED WIRING BOARD - AMP-SMPS Board (EX660Z) - • See page 16 for Circuit Boards Location. • : Uses unleaded solder.
HCD-EX660Z/EX880Z/EX990Z
1
A
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
TB600
SPEAKERS
~ AC IN
–
+
LR
–
+
AMP-SMPS BOARD (EX660Z)
Q604Q605Q606
R636
C651
6
CL611CL612
R
IC601
R607
C607
R650
E1
C2 E2
CL710
JW617
CL708
JW615
JW625
JW636
CN604
R640
CL637
JR602
R612
R609
R604
20
CL707
C659
R643
R644
R645
R646
R648
C652
R639
R632
CL640
CL728
BEBEBEBE
R647
Q607
C660
C657
C641
C639
L612
CL727
13
CN701
D601
R641
R642
C642
C658
R631
C637
CL633
JW647
NC
MODULE PHD
BOARD
C626
JW610
JW644
JW612
CL632
JW635
C625
1
JW604
(EX660Z)
CN802
(Page 40)
A
MODULE PHD
BOARD
(EX660Z)
B
CN803
C
BOARD
(EX660Z)
CN801
(Page 40)
D
(Page 40)
PANEL
BOARD
CN205
(Page 33)
CL610
1
CL609
JW603
C668
CL607
JW616
JW632
CL608
R613
R605
R651
JW601
R602
B2C1B1
C606
JW621
Q708
C716
CL711
JW606
21
C678
C621
R621
JW609
JW611
MODULE PHD
JW607
JW645
JW619
JW622
D701
JW650
JW649
BE
ET601
C605
Q705
CL709
D702
R745
R746
C720
C721
OI
IC705
C719
R744
R747
JW624
JW655
C718
C600
ET600
C707
C708
3
IC701
12
C705
C702
11
1-885-675-
(11)
CL621
C664
R637
C653
L613
C628
JW628
R623
CL603
CL726
CL725
2
JW634
C661
R635
C649
C654
CN603
JW600
8
CL617
CL605
JW932
JR603
CL724
JW659
R701 R702
JW633
R705
R706
R759
C650
CL631
JW613
R
BE
R704
CL622
C662
CL639
CL638
L606
L608
JW620
JW640
C645
C646
CL635
CL634
C644
R633
CL636
C643
C640
C627
JW608
1
JW618
JW623
CN605
R627
CL613
JR600
R
R
R
CL614
JR601
JR605
CL615
C667
C665
C666
CL606
C615
JR
R615
R616
JW646
R611
R606
R653
C609
IC600
R608
C608
CL645
CL629
R603
R652
R618
R617
R601
R663
C604
C611
R
JR607
C603
JW642
CL722
R730
R729
CL713
CL720
CL717
CL715
CN700
CL718CL719
CL712
JW638
JS1003
Q700
JS701
R703
JW658
B
R700
Q701
E
CL623
ET901
JW901
L901L902
C905
JL902
C903
C902
F901
CL904
B
C
CL905
C911
JS900
TH902
C907
JW937
R967
D902
R901
C912
VDR901
CN901
CL901
C656
CL641
JL903
13
JL901
CL642
R638
D
ET931
JW903
JW916
CL910
D1008
JW952
R1022
JW920
C923
JS1000
R914
CL918
R925
R948
R949
CL917
D901
CL921
Q908
GSGS
Q909
JW902
Q902
R924
BE
JW913
JW956
R952
D916
R921
R927
R923
JW960
L1002
R1040
EB
Q1011
C1015
CL1009
JR911
R1035
D1012
CL1010
JW908
L1004
C917
D949
CL922
R926
R916
CL915
C928
CL914
JW909
D911
C919
C921
EB
D910
CL908
R936
PH930
ECEC
CL906
CL912
C924
CL911
CL1005
PH931
C1000
D1007
CL1012
R1009
R1016
JW941
JW950
JW946
R1036
C1021
Q1013
R1038
EB
R1041
JR
CL1008
JR
JR912
BE
Q1012
R1037
R1039
C1026
CL919
JW926
6
D1010
JW924
JW942
JW904
C1009
JW935
ET1000
D1023
JW953
IC703
15
C711
JL1001
JW959
CL729
C1004
C1003
L1001
JW641
JL1000
JW928
JW657
D700
CL731
E1
C2 E2
R718
CL730
R719
JW940
CL625
JW626
R629
JW660
CL626
JW661
R630
R610
CL602
CL604
CL627
JW639
CL721
B2C1B1
R711
Q706
C709
R725
R726
R720
R727
R721
C715
R728
R723
R724
C713
BE
JW629
L700
JW643
T901
CONVERTER
TRANSFORMER
CL920
CL1004
CL916
D906
R919
D918
D920
Q903
R928
D912
CL1000
CL1006
R1029
D1026
D1021
R1061
D1011
JW949
JW961
JL1002
C1024
R1062
R1042
R1051
D1014
CL643
JL1006
D1013
JL1005
JS908
JW943
D1024
R1013
JW948
R1008
CL1011
JL1003
12
D908
JW919
JW947
IC603
4
3
JW939
JS907
CL1001
R1048
D1002
JW922
C676
D1001
JW912
C1025
43
R1011
CL1002
R1014 R1015
D1018
JW957
R1028
D1022
JW921
R671
CL644
R670
JL1004
R1017
JW925
R1002
12
CL1013
C1005
R1012
CL1014
IC1000
R1003
CL1003
C1010
D1005
C1011
R1027
CL1016
JW938
JS1004
JL1007
JR906
JW944
D1004
R1000
CL1015
Q1003
C1007
JW930
D1020
JW931
JW945
JR
CL1017
R1060
JW934
EB
C1020
Q1017
BE
R1030
Q1001
R1004
BE
R1043
Q1002
R1044
BE
R1006
D1006
R1005
R1045
BE
JW954
R1047
Q1004
R1059
C914
E
CL907
C916
ET903
R941
R974
JW914
R935
JW927
R920
R940
R938
R942
D905
JW911
JW917
C932
R939
R945
C926
R922
JW905
D907
R943
JW918
R947
JW915
Q907
E
B
R946
Q906
E
B
R961
R944
JW910
R934
BE
Q904
CL902
A932
JW907
IC1001
C1013
24
BE
R1024
R1023
CL1007
JW951
R1026
R933
R1025
JW936
JW958
R955
R932
D915
EB
R958
Q910
C1012
C1014
15
R1021
D1009
C1017
C1016
JW923
JW955
F
C931
IC900
D921
R960
C935
D928
D914
C920
CL913
R918
C922
D913
JW605
R937
R975
D917
R968
Q912BE
R965
EB
Q911
R957
R956
D903
C930
R954
EB
Q913
CL909
JW929
R959
JR901
JR
JW933
R1053
C1019
Q1016
G
H
I
J
K
CL624
C663
C655
L607
L609
C647
C648
R634
C638
JW630
CL630
6
C624
R626
R622
EB
Q603
R624
C612
R614
EB
Q608
R619
BE
Q609
JW653
CL628
R683
R684
BE
Q612
JW631
CL723
JW614
JW654
R710
JW627
JW602
CL601
1
CL716
R722
CL714
C700
C704
IC700
C703
C701
A601
CL600
R713
Q702
HCD-EX660Z/EX880Z/EX990Z
2121
Page 22
HCD-EX660Z/EX880Z/EX990Z

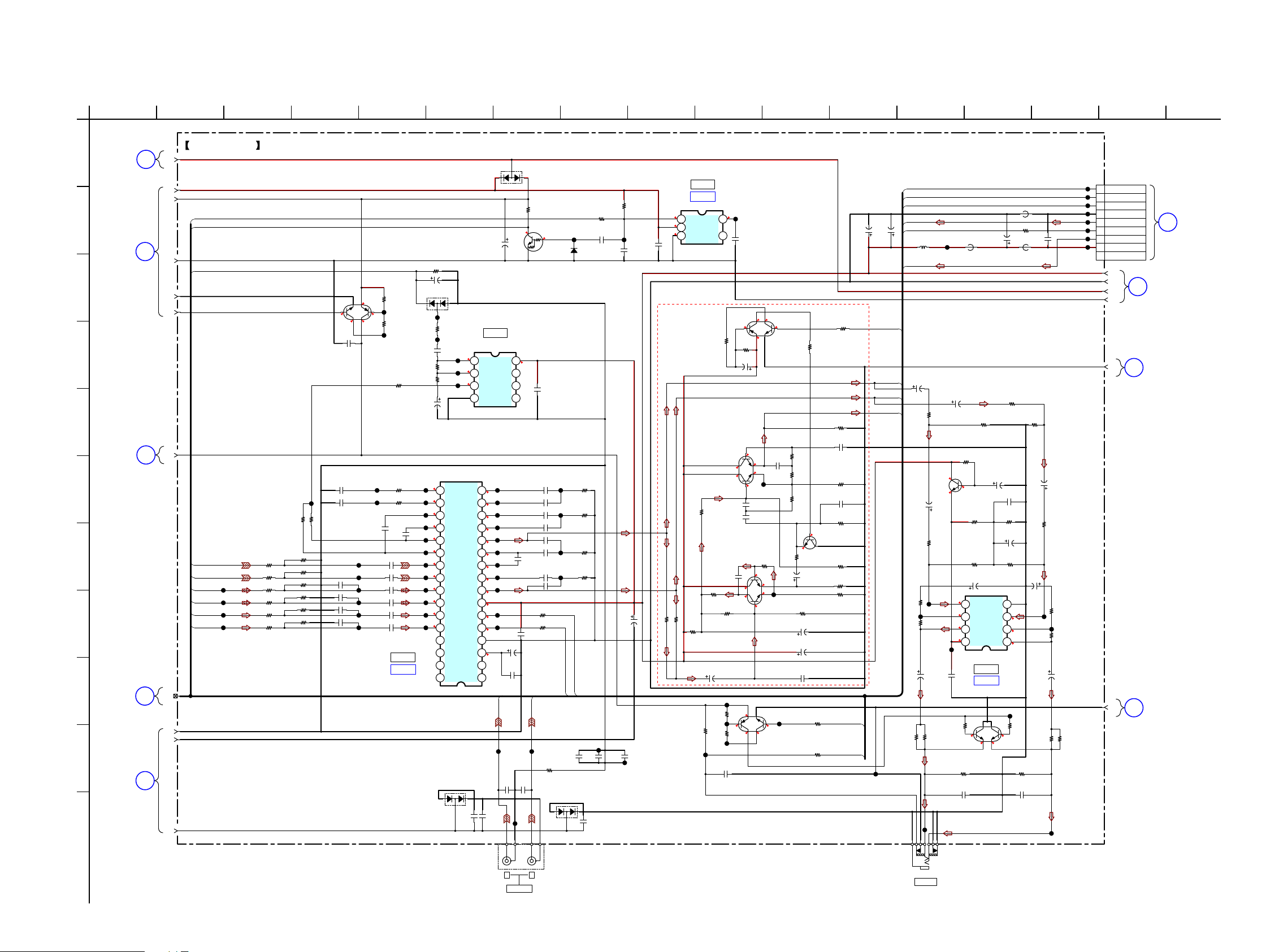

5-5. SCHEMATIC DIAGRAM - AMP-SMPS Board (1/3) (EX660Z) - • See page 45 for IC Block Diagrams.
A
B
C
D
E
F
G
H
I
J
K
1
A
PANEL
BOARD
CN205
(Page 36)
AMP-SMPS
BOARD
(2/3)
(EX660Z)
(Page 23)
AMP-SMPS
BOARD
(3/3)
(EX660Z)
(Page 24)
1
2
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
R710
10k
R759
560
(1/3)
VBUS OPERATION
R711
100k
Vbus 5V GND
C701
470
16V
Q706
RT3CLLM
DRIVER
A 9V GND
M 7V GND
TK11140CSCL-G
EVER GND
Protect/Fan GND
R713
470k
3.6
5
R702
10k
IC700
IC700
4V REG.
R701
R722
IC703
SI-8008TM-TLS
IC703
C700
35V
R706
47
4.7k
JS701
CL731
D700
RK36LF-A4
5
INSWGND
123465
513 3 0.8 3.6
C702
50V
IC B/D
VBUS 5V REG
CL729
C711
C709
5
0.7
R700
1k
R703
0.7
100k
C703
10
50V
0.1
12 13 3
12.6
R704
4.7k
0.1
5
5
VIN
ON/OFF2GND3NB
1
470
16V
Q701
KTA1273-Y-AT
9V REG DRIVER
R705
4.7k
4.7k
Q700
2SC3052EF-T1-LEF
9V REG DRIVER
4
4
VOUT
1.35
C704
0.1
10
L700
47uH
ADJ
SS
C713
680
10V
13 3
C705
0.1
ISA1235AC1-T112-1EF
VBUS DRIVER
IC701
KIA7809AF
IC701
9V REG
IO
COM
C603
0.082
R718
R719
0.7
Q702
5
R720
CL730
1k
330
470
9
C707
0.1
R606
22k
R601
CL629
22k
IC600
BA4558F
IC600
PRE AMP
R602
C606
22k
0.082
R650
220k
5
C715
0.1
R721 3.3k
R723 3.3
R724 3.3
R725 3.3
R726 3.3
R727 3.3
R744
22k
C708
10
50V
R747
22k
R652
220k
4
VSS
2IN+62IN-
5
5.8 5.8 5.8 11
C607
47p
R604
180k
22kR605
1k
R728
10k
R603
180k
R653
220k
C608
R608
47p
180k
5 8 58 5.8
2
3
1IN-
1IN+
2OUT
7
R607
180k
R651
220k
Q708
RT3CLLM
FAN MOTOR
D702
DZ2J047M0L
R663
22k
Q705
RT1N141C-TP-1
DC DETECT
0.1
CL605
CL606
CL607
CL608
C621
3.3
R621
100
470
16V
C665
C666
C667
C668
1
1
1
1
R627
10k
CL610
CL609
C678
100
16V
R730
100
IC705
BA17807FP-E2
IC705
7V REG
13.3
C718
C719
10
50V
C609
0.1
1
1OUT
VCC+
8
IO
G
0.1
R609
2.2k
7
C720
0.1
C611
R611
100
2.2k
10V
R616
4.7k
5.8 5.8 5.8
4
2
3
VSS
1IN+
2IN+62IN-
5
7
5.8 5.8 5.8 11
R612
R613
4.7k
4.7k
R615
1IN-
2OUT
R745
22k
C721
10
50V
R746
22k
D701
MC2838-T112-1
R617
2.2k
C604
R618
1000p
2.2k
C615
0.1
4.7k
1
IC601
1OUT
BA4558F
IC601
PRE AMP
VCC+
8
C716
CONTROL
3.3
3.3
0.7
R729
2.2
100k
50V
C600
0.01
CN701
3P
1
CN605
2
3
8P
1
2
3
4
5
6
7
8
FAN
FANFAN
SPK_DC_OFFSET_DET
GND
GVDD
LCH_INPUTLCH_INPUT
GND
RCH_INPUT
RCH_INPUT/RESET
/SD
(CHASSIS)
NC
3
MODULE PHD
BOARD
(EX660Z)
B
(Page 41)
0 7
CL727
CL728
CL611
CL612
CL613
CL614
CL615
CL617
E
ET600
VCC 9V
VCC-GND
M 7V
M-GND
E 4V
E-GND
VBUS_ 5V
VBUS_GND
VBUS_OCP
VBUS_ON
SUB_ON
P_CONT
PROTECT_F
PROTECT_S
V2_MONI
FAN LOW SPPED
AMP_RST
L_OUT
A_GND
R_OUT
A_GND
V2_MONI
12V
12V_GND
V1_GND
PROTECT
PROTECT
V1_GND
P_CONT
EVER_VDD
12V
12V_GND
AGND
AMP-SMPS BOARD
(EX660Z)
CN700
21P
CL707
21
CL708
20
CL709
19
CL710
18
CL711
17
CL712
16
CL713
15
CL714
14
CL715
13
CL716
12
CL717
11
CL718
10
CL719
9
CL720
8
CL721
7
CL722
6
CL723
5
CL724
4
CL725
3
CL726
2
1
V1
V1
AMP-SMPS
BOARD
(2/3)
(EX660Z)
(Page 23)
CN801
HCD-EX660Z/EX880Z/EX990Z
2222
Page 23
5-6. SCHEMATIC DIAGRAM - AMP-SMPS Board (2/3) (EX660Z) -
HCD-EX660Z/EX880Z/EX990Z
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
A
AMP-SMPS BOARD
B
(EX660Z)
C
D
MODULE PHD
BOARD
(EX660Z)
CN802
C
(Page 41)
OUT-A
PVDD-A
OUT-B
PVDD-B
GND
GND
CN604
1
2
3
4
5
6
6P
C625 470 50V
C626 470 50V
E
CN603
MODULE PHD
BOARD
(EX660Z)
F
CN803
(Page 41)
D
AMP-SMPS
BOARD
G
(3/3)
(EX660Z)
PVDD_OCP_DET
4
(Page 24)
PVDD-C
OUT-C
PVDD-D
OUT-D
GND
GND
6P
1
2
3
4
5
6
C624
2200 50V
C627 470 50V
C628 470 50V
(2/3)
CL633
CL632
CL631
CL630
CL627
C637
1
L612
10uH
43
2
1
L613
10uH
4
3
21
0.5
Q612
ISA1235AC1-T112-1EF
VDD DETECTION
3.3
R683
4.7k
3.3
C638
C639
C640
TB600
4P
4
3
2
1
GND
SPK_DC_OFFSET_DET
L
SPEAKERS
-
R
(CHASSIS)
R641
47k
D601
MC2840-T112-1
C657
50V
C641
C643
C646
C648
C642
2200p
C644
2200p
CL636CL637
CL634CL635
C645
2200p
C647
2200p
R631
2200p
3.3
R632
2200p
3.3
1
1
R633
3.3
2200p
1
R634
3.3
2200p
L606
0.6uH
L608
0.6uH
0.6uH
L607
0.6uH
L609
C650
0.022
C652
0.022
C653
0.022
C655
0.022
C649
0.022
C651
0.022
CL639
CL638
C654
0.022
CL641 CL642
C656
0.022
R635
R636
R637
R638
3.3
R639
22k
3.3
3.3
3.3
C658
R642
10
100k
50V
1
R640
22k
Q604
ISA1235AC1-T112-1EF
OVERLOAD DETECT
1.5 0
21.4
C659
47
1.5
R644
220k
ISA1235AC1-T112-1EF
OVERLOAD DETECT
R643
R645
220k
220k
CL640
Q606
ISA1235AC1-T112-1EF
OVERLOAD DETECT
R646
220k
1.5 0
C660
47
R647
220k
R648
220k
21.4
1 5
21.4
ISA1235AC1-T112-1EF
OVERLOAD DETECT
0
CL621
CL622
CL623
CL624
Q607
C661
1000p
C662 1000p
C663 1000p
C664 1000p
E
ET901
21.4
0
Q605
3
AMP-SMPS
BOARD
(1/3)
(EX660Z)
(Page 22)
H
I
J
K
HCD-EX660Z/EX880Z/EX990Z
(CHASSIS)
ET601
R684
2.2k
R623
0.05
R626
2.2k
R624
2.2k
3.3
3.3
Q603
ISA1235AC1-T112-1EF
VDD DETECTION
C605
0.01
E
0.5
R622
22k
C612
0.22
50V
R614
100k
0.5
CL626
CL625
R629
10k
R630
10k
Q608
2SC4154TP-1EF
VDD DETECTION
3.3
Q609
ISA1235AC1-T112-1EF
VDD DETECTION
CL628
R619
10k
R670
C676
0.01
R671
47k
18k
3 3
IC603
PST8229UL
IC603
3.3V REG
1
OUT
3 3
2
Vdd
4
GND
3
N.C
CL643
0R610
CL603
CL600
CL601
CL602
CL604
V1
12V
V2_MONI
12V_GND
PROTECT
V1_GND
AMP-SMPS
1
BOARD
(1/3)
(EX660Z)
(Page 22)
2323
Page 24
HCD-EX660Z/EX880Z/EX990Z
5-7. SCHEMATIC DIAGRAM - AMP-SMPS Board (3/3) (EX660Z) - • See page 45 for IC Block Diagrams.
1
A
(CHASSIS)
B
~ AC IN
C
(CHASSIS)
ET903
NEUTRAL
E
CL907
C916
470p
D
E
F
G
H
I
J
R949
R948
0.22
0.1
K
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
JL902
VDR901
-166
STP10NK80ZFP
POWER CONTROL
160
Q907
POWER
CONTROL
(3/3)
Q909
1.6
0
IC900
SSC6700
IC900
IC B/D
DC-DC
CONVERTER
D921
DZ2J082M0L
C905
0.22
160
R945
47
D907
EP05FA20
ISA1235AC1-T112-1EF
25.3
21 5
D928
DZ2J330M0L
10R918
21.5
6.1
C902
470p
L901
18mH
142
STP10NK80ZFP
POWER CONTROL
-166
CL915
Q906
KTC3209-Y-AT
POWER
CONTROL
1.2
1.6
0
R943
47
R922
10
Q912
22V REG
R961
47k
25.3
R968
R965
47k
1k
CL913
25.3
6.1
Q911
2SC4154TP-1EF
PROTECTION ON/OFF
R959
220k
CL902
6.1
2SC4154TP-1EF
VOLTAGE CONTROL
R958
22k
3
Q908
R955
220k
D903
DZ2J068M0L
R956
47k
C930
22
50V
R957
100k
Q910
C903
470p
L902
18mH
142
R944
47
R974
470
R941
470
Q904
ISA1235AC1-T112-1EF
VOLTAGE
REGULATOR
25.3
21.5
R954
R934
1k
100k
6.1
21.5
R935
Q913
2SC4154TP-1EF
PROTECTION ON/OFF
10k
3
R933
3.8
R1024
1.5k
CL1007
R1025
470
R1026
330
D1026
DA2J10100L
Q1003
Q1016
2SC4154TP-1EF
POWER CONTROL
26.4
R1053
C1019
10k
0.1
R1023
1.5k
R1022
8.2k
L1004
10uH
C1026
0.1
R1061
100
D1006
DZ2J051M0L
2.9
0
R1005
33k
R1040
R1035
R1036
R1006
R1045
0
10k
47k
22k
10k
R1062
10k
D1012
DZ2J130M0L
CL1009
C1021
0.1
2SC4154TP-1EF
D1022
DZ2J360M0L
R1028
100
D1021
MC2838-T112-1
D1011
DZ2J082M0L
Q1004
RT1N141C-TP-1
OVER CURRENT
DETECT
0
26.6
CONTROL
6.8
Q1011
POWER
JL1004
JL1016
C1007
R1047
0.1
10
R1051
10k
CL1008
5.8
DZ2J160M0L
R1042
100
ISA1235AC1-T112-1F
POWER CONTROL
CL1010
R1037
22k
Q1013
2SC4154TP-1EF
POWER CONTROL
R1038
22k
D1013
DA2J10100L
JS1004 15
D1024
JL1007
26.5
2SC4154TP-1EF
OVER CURRENT
DETECT
R1039
5.8
C1024
0.1
CL1004
JL1001
C1020
Q1017
32.3
10k
1
Q1012
0
0
16.2
R1041
2.2k
0
D1014
JS1003
JL1003
JL1002
D1023
DZ2J200M0L
R1059
10k
R1060
100k
RB501V-40TE-17
JL1005
JL1000
JL1006
ET1000
E
15
12V
12V_GND
V1
EVER_VDD
(CHASSIS)
V1_GND
AGND
PROTECT
P_CONT
PVDD_OCP_DET
IC1001
SI-8001FFEK
IC1001
12V REG
C912
D902
TH902
R967
C907
100k
JS900
7.5
25.9
Q902
ISA1235AC1-T112-1EF
VOLTAGE
6.1
CONTROL
R927
470k
D916
D915
DA2J10100L
CL909
R921
1k
R952
1k
R901
1.5M
DA2J10100L
C924
0.1
R936
1k
DA2J10100L
C921
R923
1k
0.33
R920
6.8k
R940
6.8k
R924
1k
22k
25.3
25.3
C923
0.47
CL910
R932
22k
D10XB60 F
C911
0.01
D920
DZ2J220M0L
D910
10
50V
0.01
C914
330
450V
D918
DZ2J180M0L
D912
DZ2J180M0L
25.9
CL911
CL912
CL906
CL908
R914
0.1
R925
15k
CL917 CL922
R926
15k
D906
EP05FA20
0
0.7
Q903
KTC3209-Y-AT
VOLTAGE
REGULATOR
R928
D911
DZ2J24000L
PH931
PS2561AL-1-V-F3-A
PH930
PS2561AL-1-V-F3-A
SARS10
4.7k
D901
CL918
C917
4700p
R916
1
CL921
D908
D1NL20U-TR2
JS908
12.5
C919
100p
CL1005
CL1006
CL1000
CL1001
R919
4.7
JS907
5
D1002
DA2J10100L
CL919
CL920
R1008
C1000
1k
R1000
0.1
2.2k
CL916
T901
CONVERTER
TRANSFORMER
8
7
6
4
2
1
R1017
1k
R1029
10k
R1048
330
D1001
DA2J10100L
DZ2J180M0L
C1005
1
50V
10
115
12
13
14
15
16
9
D1007
R1002
ADJ
Vin
Vout
GND
12345
C1014
C1013
1000p
C1010
0.047
11 2.5
43
KVref
A
12
1000p
R1021
CL1003
MM1431CURE
IC1000
10
L1001
2.2uH
R1003
5.6k
VOLTAGE
DETECT
C1012
JS1000
470
10
50V
D1010
FMX-22SL
C1003 680 50V
C1004 680 50V
1k
CL1013
R1011
R1009
10k
1k
CL1012CL1011
CL1002
SS
1232 3 0.8 3.8
SJPB-L6
D1009
D1008 SJPB-L6
D1018
DZ2J140M0L
C1009
22
50V
D1020
MC2838-T112-1
Q1002
ISA1235AC1-T112-1EF
OVER CURRENT
DETECT
Q1001
2SC4154TP-1EF
OVER CURRENT
0 7
DETECT
0
0
CL1014
D1004
DZ2J068M0L
R1013
R1016
3.9k
10k
R1014
680
C1011
R1015
22k
R1012
2.2k
IC1000
L1002
47uH
C1015
680
16V
32.3
0.01
C1017 1000p
C1016 0.1
R1027
100
R1043
10k
CL1015
12
0
R1004
22k
R1030
R1044
22k
10k
CL1017
2SC4154TP-1EF
POWER
CONTROL
D1005
DZ2J24000L
C1025
10
50V
AMP-SMPS BOARD
(EX660Z)
ET931
CN901
3P
JL901
LIVE
1
3
100R942
D949
DZ2J300M0L
CL904
E
F901
6.3A 250V
JL903
C928
2200p
R947
10k
D905
DZ2J180M0L
150kR939
C932 470p
* 3.4 0 0
8
7
6
OCP2
DRIVE
BURST
GND2VCC3OLP4FB
1
25 3 4.9 6.1
C935
1
D914
DZ2J068M0L
C922 1 50V
DA2J10100L
R937
R975
2.2k
C920
D913
2700p
DA2J10100L
R938
100
D917
2.2k
R946
47
C926
470p
5
OCP1BD
R960
C931
2200p
1k
KTA1281Y-AT
AMP-SMPS
2
(Page 22)
4
BOARD
(1/3)
(EX660Z)
AMP-SMPS
BOARD
(2/3)
(EX660Z)
(Page 23)
HCD-EX660Z/EX880Z/EX990Z
2424
Page 25
5-8. PRINTED WIRING BOARD - AMP-SMPS Board (EX880Z) - • See page 16 for Circuit Boards Location. • : Uses unleaded solder.
HCD-EX660Z/EX880Z/EX990Z
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
TB600
SPEAKERS
CL620
CL617
CL651
C664
C665
CL626
Jr901
JW662
R761
+
CL649
LR
–
+
C663
R634
C662
CL624
CL625
C652
C653
R633
R635
C651
C654
C650
C655
L606
L607
CL655
CL656
C647
C646
R631
R630
CL641
C629
1
6
JW633
JW639
CN605
CL615
CL614
CL616
JR602
R
R
R
R
JR605
JR600
JR601
CL618
C668
C669
C666
C667
CL652
CL653
C614
JR
IC601
R619
CL632
R618
R613
R607
CL933
JW641
R601
C609
R609
R672
IC600
CL631
C608
R673
C620
R
JW617
R603
Jr902
R622
R663
C612
C604
C605
JR603
R
CL648
R
1
JW661
2
IC700
C703
R757
JR604
R704
R758
CL644
CL646
CL706
CN600
JW657
CL601
CL711
R600
CL707
CL721
R706
Q700
R705
EB
R703
R701
CL722
C702
Q701
R700
EB
R759
R760
JW609
CL659
1
R614
R611
R608
C607
R604
JW664
JW602
C644
C628
JW608
JW606
JW643
R699
R615
R621
JW616
CN604
CL709
CL658
CL612
R602
L608
CL660
JW630
CL634
R606
CL708
3
C645
JW621
CL654
R675
R674
CL702
IC701
R641
R643
R644
C642
R629
L614
CL613
C613
R627
JW642
CL712
CL714
21
20
JW645
JW629
12
R741
R739
CL636
Q608
EB
JW614
C708
C706
R740
R642
CL661
JW612
R628
JL601
R651
R646
C627
R626
CL713
R730
JW615
C619
JW624
R702
CL717
R755
13
JL700
CN701
BE
R737
CL718
BE
R738
C722
JW649
R729
BEBE
C660
Q604Q605
C718
R637
C658
R638
BEBE
Q607
R645
C643
C638C639 C640C641
1
C709
C705
JW659
D704
JS701
D601
C661
CL701
Q606
C659
R639
R640
C721
C720
R649
BE
Q704
R743
CL723
D701
R734
D702
CL657
C719
E2
B1C2B2
E1
C1
JW607
JW667
JW668
CL639
ET601
IC602
CL638
C616
JW666
CL637
JW628
BE
R624
Q603
BE
R623
Q602
JW635
EB
Q706
JW672
JW670
JW660
D703
JW663
R745
R746
JW676
CL710
C600
CL635
ET600
JW678
JW658
R744
R747
A601
1-885-674-
CL703
CL700
CL724
DC FAN
+
–
R756
Q705
Q703
R732
R742
R733
MODULE BOARD
(EX880Z/EX990Z)
E
CN802
(Page 42)
MODULE BOARD
(EX880Z/EX990Z)
Q708
F
R731
C615
G
CN803
(Page 42)
MODULE BOARD
(EX880Z/EX990Z)
CN801
(Page 42)
PANEL
BOARD
H
C601
CN205
(Page 33)
11
(11)
~ AC IN
AMP-SMPS BOARD (EX880Z)
B
CL905
JW905
TH904
C907
C911C912
R901
D902
JW906
JW901
L901L902
C905
VDR901
CN901
C
JL902
EB
CL1009
D1007
F901
CL904
D1000
JW941
CL1016
CL1017
C1004
C1018
CL1000
JW925
ET1000
Q1017
R1060
C1022
EB
R1039
Q1005
R1065
R1028
R1062
R1038
JW944
JW924
JS1000
E1
C2 E2
JW604
JL1000JL1001
CL600
B2C1B1
CL720
Q707
R711
C710
6
IC702
15
C711
D1021
D1008
R1061
C902
PH930PH932
CL915
ECEC
R1010
CL1002
R1011
CL1003
CL1001
D906
R1025
R1031
D1002
D1005
CL1004
R929
TRANSFORMER
CL1012
R1004
R1007
C1016
CL1010
D1011
R1064
TRANSFORMER
CL1007
34
R1013
R1019
C1008
JW622
C903
T901
CONVERTER
(MAIN)
R1003
CL1013
R1005
R1006
CL1015
JW936
R1009
R1042
R1000
R1001
D1004
EB
Q1006
R1054
T903
CONVERTER
(SUB)
R1014
R1015
C1009
IC1000
21
R1016
R1018
JW927
C1027
CL1005
JW922
R1017
CL1018
34
C1015
BE
D1001
IC1001
R1020
C1014
R1055
EB
JR903
Q1008
CL1011
JR
C1006
JL1002
21
Q1003
C1010
L1000
CL1006
EB
CL1008
ET931
C1019
Q1004
C1012
R1023
R1027
D1020
JR904
C1011
JW933
CL1014
R1059
D1010
R1056
JR
JL1003
CL1019
JW929
D1009
JL1004
TH902
C910
D
C914
JW921
CL917
CL907
R955
JW928
IC900
D914
D904
R937
D925
CL908
D901
R942
CL910
R938
R941
C933
R940
R939
C913
JW902
C926
JR
C931
C918
C920
R918
JW949
JW948
D913
JW930
JW915
JW917
JR915
D905
C922
JW903
CL909
R916
JW910
D907
R945
R930
BE
R947
Q905
JW916
R943
Q907
R946
E
B
R944
E
B
Q906
JW918
JW937
JW946
CL921
CL928
JW909
JW950
R973
D967
R974
CL968
R980
CL924
C970
D985
R967
E
F
G
H
I
J
K
R956
R958
JW912
R914
JS902
R999
R950
R979
C972
Q908
Q909
C921
JW945
JW932
D921
R954
R952
CL966
62
CL970
R981
JR
JW920
D972
D968
C714
C723
R932
CL965
CL911
R996
R998
CL912
C917
D903
JW919
CL916
GSGS
C992
CL914
D918
D923
JW938
JS907
D909
CL913
D920
R997
JW939
CL920
R933
R928
D927
CL972
CL971
JW926
D912
C934
JW907
Q914
R965
BE
CL927
R966
JW908
C966
R978
JW911
CL926
PH933
EC
JW914
D911
B
Q903
E
Q904
BE
JW913
D910
R975
BE
Q915
JW952
C975
C967
JR905
C971
R970
R992
C712
C707
R948
JW923
CL919
Q910
R924
EB
CL918
JW947
CL922
R953
R957
CL969
CL967
A932
17
D966
C968
C969
IC965
R972
CL925
R971
D969
R969
GS
Q911
O
IC703
I
CL902
JL903
13
JL901
CL663
JW951
JW935
L1002
JW931
JW904
JW934
JW942
JW940
JL603
JW652
JW634
JR906
CL628
R610
JW675
R1002
D1013
R710
R713
R721
R725
R726
R727
R718
R720
R719
C715
D700
L700
CL719
CL715
ET901
BE
C625
C610
R612
Q601
Q600
CL705
R723
R724
R728
C717
JW603
CL716
–
R636
CL627
C656
C657
L609
CL642
CL643
C649
C648
R632
CL640
L613
C626
CN603
6
JW632
JW646
8
R625
R616
R620
R617
JL602
CL662
JR
R683
R684
CL650
BEBE
CL647
Q612
JW601
CL602
R722
CL645
Q702
EB
CL704
JW674
JW610
JW611
12
43
R670
IC603
R671
C700
JL600
C676
JW605
C704
HCD-EX660Z/EX880Z/EX990Z
2525
Page 26
HCD-EX660Z/EX880Z/EX990Z
5-9. SCHEMATIC DIAGRAM - AMP-SMPS Board (1/3) (EX880Z) - • See page 45 for IC Block Diagrams.
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
AMP-SMPS BOARD
A
(EX880Z)
B
C
D
E
F
G
E
H
I
J
K
HCD-EX660Z/EX880Z/EX990Z
PANEL
BOARD
CN205
(Page 36)
AMP-SMPS
BOARD
(2/3)
(EX880Z)
(Page 27)
FAN LOW SPPED
1
R700
1k
R701
4.7k
R702
10k
C704
470
16V
A 9V GND
M 7V GND
Protect/Fan GND
EVER GND
V2 GND
VCC 9V
VCC-GND
M 7V
M-GND
E 4V
E-GND
VBUS_ 5V
VBUS_GND
VBUS_OCP
VBUS_ON
SUB_ON
MAIN_ON
PROTECT_F
PROTECT_S
V2_MONI
AMP_RST
L_OUT
A_GND
R_OUT
A_GND
1
2
3
4
5
KTA1273-Y-AT
9V REG DRIVER
13.3
CL722
R703
4.7k
0.7
CL721
R704
100k
Vbus 5V GND
CN600
21P
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Q701
13.3
12.6
R705
4.7k
0.1
2SC3052EF-T1-LEF
9V REG DRIVER
CL714
CL710
CL709
CL708
CL707
CL712
CL711
CL704
CL705
CL601
CL602
CL644
CL645
CL646
CL647
CL648
CL649
CL650
(1/3)
R706
4.7k
Q700
CL706
C705
IC701
KIA7809AF
IC701
9V REG
13.3
C706
10
0.1
50V
1kR600
I
COM
M-GND
VBUS_ 5V
VBUS_OCP
VBUS_ON
M 7V
9
O
C708
0.1
CL716
C709
50V
10
CL715
JS701
CL713
C604
0.18
C605
0.18
R744
R747
22k
D703
MC2838-T112-1
CL703
RT1N141C-TP-1
4
VSS
2IN+
5
5.8 5.8 5.8 12
CL933
R611
2.2k
D704
DZ2J047M0L
0.1
Q706
DC DETECT
100 10V
R618
4.7k
2.2kR613
R619
4.7k
5.8 5.8 5.8
2
3
1IN-
1IN+
2IN-72OUT8VCC+
6
R614
4.7k
CL634
R615
4.7k
R699
3.3
3.3
10k
C612
1
1OUT
R710
10k
R711
100k
VBUS_ON
JL700
Q703
2SC3052EF-T1-LEF
DC DETECT
0
CL700
R729
100k
0.1
R651
47k
R621
2.2k
C620
1000p
IC601
BA4558F
IC601
PRE AMP
R713
470k
3.6
5
5
Q707
RT3CLLM
VBUS OPERATION
DRIVER
R730
100
C718
2.2
50V
CL702
3.2
Q608
2SC4154TP-1EF
FAN MOTOR
DETECT
R623
470k
2.9
R663
22k
R622
2.2k
0.7
CL701
R731
100
0
RT1N141C-TP-1
MAIN SWITCH
C613
100
16V
C614
0.1
10
50V
IC600
BA4558F
R602
12k
R606
12k
IC703
BA17807FP-E2
IC703
7V REG
13 3
IO
C723
0.1
5
5
VIN
ON/OFF2GND3NB
1
R603
47k
R607
12k
R601
12k
4
VSS
2IN+62IN-
5
5.8 5.8 5.8 12
C607
R604
47k
G
4
4
VOUT
1.35
47p
7
TK11140CSCL-G
IC700
C702
0.1
C608
47p
5.8 5.8 5.8
2
3
1IN+
7
R608
47k
IC700
4V REG.
R609
47k
1IN-
2OUT
C714
R745
22k
C712
10
0.1
50V
R746
22k
M 7V
C700
47
35V
1
1OUT
C609
0.1
VCC+
8
22k
5
C707
M-GND
330R757
330R758
330R759
330R760
330R761
C703
0.1
R672
1k
R673
1k
CL631
IC600
PRE AMP
R674
1k
R675
1k
R624
22k
Q602
C710
0.1
0
0
CL651
CL652
FAN MOTOR
IC702
SI-8008TM-TLS
IC702
IC B/D
VBUS 5V REG
C711
470
16V
Q708
RT3CLLM
CONTROL
0.7
0.7
13
2SC4154TP-1EF
MAIN SWITCH
CL653
CL654
RK36LF-A4
0
Q603
C666 1
C667 1
C668 1
C669 1
123465
CL719
D700
1kR732
1kR733
R734
22k
C719
0.1
CL637
CL638
INSWGND
513.3 08 3.6
1kR742
CL723
13
5
6
7
13.3
8
C616
1
ADJ
SS
L700
47uH
C715
680
10V
KTC3203Y-AT
FAN MOTOR REG
13.3
1kR743
D701
DZ2J056M0L
D702
DZ2J068M0L
IC602
BD00GC0WEFJ-SE2
IC602
12V REG
EN
NC
GND
NC
VCC
FIN
9
Q702
ISA1235AC1-T112-1EF
VBUS DRIVER
R720
1k
R718
330
R719
470
Q704
5.7
5.9
C720
0.01
NC
4
3
0.8
FB
2
12
VO
1
CL612
CL724
CL636
C619
CL720
1
C721
0.7
5
3.3
0.01
R628
12k
R722
1k
R728
10k
5
C717
0.1
3.3kR721
3.3R723
3.3R724
3.3R725
3.3R726
3.3R727
Q705
2SC3052EF-T1-LEF
FAN MOTOR DETECT
0.1
R737
120k
C722
4.7
50V
R626
R627
3.3k
33k
R625
10k
R738
R739
VBUS_OCP
VBUS_ 5V
CN701
3P
CL717
R755
0
CL718
R756
0
R740
3.3
3.3
R741
3.3
3.3
FAN
1
FAN-
2
FAN
3
6
7
DC FAN
-
AMP-SMPS
BOARD
(2/3)
2
(EX880Z)
(Page 27)
8
9
CL613CL662
CL614
CL615
CL616
CL617
CL618
CL620
CN605
8P
1
2
3
4
5
6
7
8
10
GVDD
LCH_INPUTLCH_INPUT
GND
RCH_INPUT
RCH_INPUT/RESET
/SD
MODULE
(EX880Z/EX990Z)
F
(Page 43)
BOARD
CN801
AMP-SMPS
BOARD
11
3
(2/3)
(EX880Z)
(Page 27)
2626
Page 27
5-10. SCHEMATIC DIAGRAM - AMP-SMPS Board (2/3) (EX880Z) -
HCD-EX660Z/EX880Z/EX990Z
A
B
C
D
(EX880Z/EX990Z)
E
(EX880Z/EX990Z)
F
G
1
MODULE
BOARD
CN802
(Page 43)
MODULE
BOARD
CN803
(Page 43)
AMP-SMPS
BOARD
(1/3)
(EX880Z)
(Page 26)
G
H
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
AMP-SMPS BOARD
(EX880Z)
6
7
2
8
9
10
CN604
6P
CL657
1
OUT-A
2
PVDD-A
3
OUT-B
PVDD-B
GND
PVDD-C
OUT-C
GND
PVDD-D
OUT-D
GND
GND
4
5
6
1
2
3
4
5
6
CN603
CL658
CL641
CL640
6P
(2/3)
R649
0
C626
470 50V
C627 470 50V
C628
470 50V
C629
470 50V
Q604
ISA1235AC1-T112-1EF
OVERLOAD DETECT
R639
47k
D601
MC2840-T112-1
R629
3.3
C638
1
L614
10uH
3
4
21
3
4
21
L613
10uH
C639
1
C640
C641
C642
2200p
C643
L606
2200p
0.6uH
R630
3.3
CL659
C644
2200p
CL660
C645
L608
2200p
1
1
C646
2200p
CL655
C647
2200p
CL656
R631
3.3
C648
2200p
CL643
C649
2200p
CL642
R632
3.3
0.6uH
L607
0.6uH
L609
0.6uH
C651
0.022
C653
0.022
C654
0.022
C656
0.022
C650
0.022
C652
0.022
C655
0.022
C657
0.022
R633
R634
R635
R636
3.3
3.3
R637
22k
3.3
3.3
R638
C658
22k
C659
R640
10
100k
50V
C660
47
1
50V
R641
220k
R642
220k
R643
220k
21.4
1.5
0
21.5
21.4
0
Q605
ISA1235AC1-T112-1EF
OVERLOAD DETECT
CL661
R644
220k
Q606
ISA1235AC1-T112-1EF
OVERLOAD DETECT
1.5
21.4
C661
47
ISA1235AC1-T112-1EF
OVERLOAD DETECT
R645
220k
R646
220k
CL625
CL624
CL627
CL626
21.4
21.5
Q607
0
0
C662 1000p
C663 1000p
C664 1000p
C665 1000p
ET901
TB600
4P
4
L
3
2
1
E
R
(CHASSIS)
1
2
3
4
5
SPEAKERS
1
AMP-SMPS
BOARD
(1/3)
(EX880Z)
(Page 26)
H
I
J
K
AMP-SMPS
BOARD
(1/3)
(EX880Z)
(Page 26)
HCD-EX660Z/EX880Z/EX990Z
3
(CHASSIS)
CL600
IC603
4
3
PST8229UL
IC603
3.3V REG
GND
N.C
R670
47k
3.3
1
OUT
3.3
2
Vdd
C676
R671
0.01
18k
JL635
C600
0.01
C601
1000p
0 5
3.3
R683
4.7k
R684
C625
2200
50V
C615
0.01
E
CL639
ET601
11
2.2k
R616
0.05
R620
2.2k
R617
2.2k
3.3
Q601
ISA1235AC1-T112-1EF
VDD DETECTION
Q612
ISA1235AC1-T112-1EF
VDD DETECTION
3.3
3 3
0.5
R612
CL628
22k
C610
0.22
50V
2SC4154TP-1EF
PROTECTION SWITCH
0.5
R610
100k
Q600
2.7
JL600
JL601
JL602
JL603
ET600
MAIN_ON
PVDD_OCP_DET
V2_13.4V
E
(CHASSIS)
AMP-SMPS
4
BOARD
(3/3)
(EX880Z)
GND
PVDD_50V
(Page 28)
PVDD_GND
PROTECT
2727
Page 28
HCD-EX660Z/EX880Z/EX990Z
5-11. SCHEMATIC DIAGRAM - AMP-SMPS Board (3/3) (EX880Z) - • See page 45 for IC Block Diagrams.
1
A
~ AC IN
B
C
D
E
F
G
H
D901
I
J
K
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
1.2
0
SSC6700
IC900
OCP1BD
IC B/D
CONVERTER
C931
0.022
IC965
STR-Y6763
IC965
IC B/D
DC-DC
CONVERTER
IC900
DC-DC
R965
2.2
C905
R944
(3/3)
470p
3
Q905
2SC4154TP-1EF
D913
DA2J10100L
R955
4.9
6.1
CL967
*
22.9
6.1
3.4
C903
470p
L902
25.9
XXX
R918
470
220k
CL917
Q910
2SC4154TP-1EF
VOLTAGE CONTROL
0
CL918
R924
22k
R966
0.82
C966
C967
150p
CL965
CL969
CL966
CL968
CL970
25.9
0.1
R937
470
C920
470p
R930
4.7k
C918
100p
17.2
142
C921
10
50V
D921
DA2J10100L
R979
4.7
R980
4.7
R981
4.7
3
KTA1266GR-AT
21.5
17.6
RT1N141C-TP-1
PROTECTION
ON/OFF
D1NL20U-TR2
DZ2J360M0L
C968
C972
C907
0.33
Q904
22V REG
17.6
R933
Q914
D967
D966
1
220p
R932
D910
KTC3209-Y-AT
REGULATOR
6.1
DZ2J120M0L
21.5
R971
D15XB60
Q903
VOLTAGE
RT1N141C-TP-1
PROTECTION
D969
25.3
17.6
15k
D902
C911
0.01
D912
DZ2J160M0L
25.9
Q915
ON/OFF
R969
4.7k
C970
4700p
TH902
R901
1.5M
TH904
DA2J10100L
25.3
4.7k
10k
R954
10k
6.1
6.1
R974
R973
22
22
Q911
DSC7003R0L
22V REG.
D968
DZ2J24000L
R972
1k
R967
47k
C969
4.7
23.2
0.7
CL913
DZ2J24000L
CL925
C912
0.01
D911
C914
450V
390
C971
100V
R928
22
JS907
5
4.7k
DZ2J220M0L
UDZSUSTE-1730B
C910
100p
JS902
12.5
D909
D1NL20U-TR2
D906
EP05FA20
CL915
D918
DZ2J27000L
D923
DZ2J27000L
R953
100k
R957
100k
R970
100k
D972
CL924
D985
D920
RS1K
R950
R952
CL911
100k
100k
R914
0.1
R996
15k
R998
15k
D903
SARS10
R929
47
R975
1k
C934
0.1
CL920
R997
1k
R999
1k
C975
470p
D927
RF101L4STE25
R978
4.7
R992
100
C917
4700p
CL914
CL927
CL926
CL972
CL916
PS2561AL-1-V-F3-A
PS2561AL-1-V-F3-A
TRANSFORMER
6
5
4
2
1
CL971
T901
CONVERTER
TRANSFORMER
(MAIN)
7
6
5
4
2
1
PH930
PH932
T903
CONVERTER
(SUB)
PH933
PS2561AL-1-V-F3-A
8
9
10
11
12
13
14
R1000
1k
R1064
R1001
12
11
10
9
8
7
CL1016
CL1017
DA2J10100L
DA2J10100L
1k
2.2k
D1001
FML-G12S
CL1007
CL1001
CL1002
D1005
D1002
R1010
D1000
FMX-22SL
C1004
820
50V
D1007
R1006
12k
CL1015
C1016
1000p
C1019
10
50V
D1004
DA2J10100L
Q1008
C1014
50V
22
DZ2J180M0L
DZ2J220M0L
R1056
100
2 9
0
R1061
100
ISA1235AC1-T112-1EF
OVER CURRENT
DETECT
D1008
Q1004
2SC4154TP-1EF
OVER CURRENT
DETECT
R1027
C1027
2.9
0
R1055
10k
C1011
1
Q1005
26.5
6.8k
0.1
R1005
2.2k
CL1013
R1003
C1015
0.047
MM1431CURE
IC1001
CL1011
0.1
1
2
CL1012
IC1001
VOLTAGE
DETECT
CL1008
MC2838-T112-1
SUB13.5V
MM1431CURE
IC1000
VOLTAGE
10k
R1004
33k
CL1006
R1007
D1020
MC2838-T112-1
2.5
D1021
IC1000
DETECT
3.3k
ISA1235AC1-T112-1EF
POWER CONTROL
L1000
10uH
R1009
2.2k
25.7 2.2
CL1005
43
KVref
1kR1042
2.5
11
CL1010
RT1N441C-TP-1
POWER CONTROL
R1017
220
R1016
4.7k
R1015
4.7k
CL1004
4
Vref
K
3
A
Q1006
R1025
R1031
R1019
R1018
1k
1k
0
10k
C1009
0.01
R1014
A
12
2.2k
C1010
R1020
1
50V
2.2k
D1011
DZ2J082M0L
C1006
2200
16V
C1008
0.047
R1013
10k
1k
R1011
CL1003
1k
36V
6 2
R1054
2.9
L1002
2.2uH
R1039
36.2
0
R1062
22k
R1028
22k
6 8
D1010
DZ2J068M0L
10k
Q1003
2SC4154TP-1EF
POWER
CONTROL
C1012
0.1
10k
R1065
4.7k
R1038
4.7k
D1009
35 5
C1018
22
50V
2SC4154TP-1EF
OVER CURRENT
26.5
DZ2J27000L
R1023
1k
CL1000
Q1017
DETECT
C1022
1
JL1000
JL1001
R1002
0
D1013
DZ2J330M0L
R1059
10k
0.1
R1060
100k
JS1000
15
JL1004
JL1003
JL1002
ET1000
PVDD_50V
PVDD_GND
E
(CHASSIS)
PVDD_OCP_DET
MAIN_ON
PROTECT
GND
V2_13.4V
C902
L901
0.22
47
D904
DZ2J082M0L
Vcc/OVP
R938
100
S/GND
GND
FB/OLP
D
BD
NC
142
CL909 CL908
1
2
3
4
5
6
7
(CHASSIS)
NEUTRAL
DZ2J300M0L
AMP-SMPS BOARD
(EX880Z)
ET931
CN901
3P
JL901
1
LIVE
3
JL903
C992
1000p
Q909
SPA11N80
POWER CONTROL
160
R946
R947
47
10k
Q907
KTA1281Y-AT
POWER
CONTROL
D907
EP05FA20
R916
10
CL910
8
1
C913 0.1
D905 DZ2J180M0L
R948
0.05
R942
100
CL904
E
F901
10A 250V
VDR901
Q908
SPA11N80
POWER CONTROL
-166
160
-166
R945
47
Q906
KTC3209-Y-AT
POWER
CONTROL
1.6
1 6
0
R943
47
82kR939
C933 470p
* 3.4 0 0
7
6
OCP2
DRIVE
BURST
GND2VCC3OLP4FB
22.9 4.9 6.1
C922
50V
D914 DZ2J330M0L
D925 DZ2J068M0L
R956
4.7k
R941
4.7k
JL902
C926 470p
5
1
R958
6.8k
R940
6.8k
4
AMP-SMPS
BOARD
(2/3)
(EX880Z)
(Page 27)
HCD-EX660Z/EX880Z/EX990Z
2828
Page 29
5-12. PRINTED WIRING BOARD - AMP-SMPS PC Board (EX990Z) - • See page 16 for Circuit Boards Location. • : Uses unleaded solder.
HCD-EX660Z/EX880Z/EX990Z
1
A
B
C
D
E
F
G
H
I
J
K
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
TB600
AMP-SMPS PC BOARD (EX990Z)
CL905
R955
CL917
CL907
JW921
JW928
IC900
D914
D904
R937
CL909
D925
CL908
JW945
TH904
D902
C911C912
R901
TH902
C910
C914
R948
D901
R942
CL910
R938
C933
R939
C913
C926
JR
C931
JR915
C922
JW903
R916
D913
JW910
R930
C918
C920
BE
R943
Q905
JW930
JW916
R918
Q907
EB
R944
EB
Q906
JW946
JW947
JW949
JW948
CL928
JW918
D967
CL968
CL924
JW935
R956
R941
R940
R958
JW902
JW917
D905
D907
R945
R947
R946
CL919
Q910
R924
CL918
EB
R999
JW929
JW937
CL922
JW940
R973
R974
D985
CL921
JW912
R967
JW932
JW905
D921
R950
R953
R952
R957
CL969
CL967
A932
17
R979
D966
C968
R980
C970
R981
C969
C972
IC965
R972
CL925
R971
D969
R969
GS
D968
Q911
OI
IC703
CL930
R914
Q908
GSGS
Q909
JW914
C921
JW919
R932
R975
R954
JW915
CL965
CL966
62
CL970
JR905
JR
JW920
D972
C714
C712
C707
C727
L902
C907
JW906
JS902
CL911
R996
R998
CL912
D903
C917
JW952
CL916
C992
CL914
D918
D923
CL915
D906
R929
D909
JW926
ECEC
C934
PH930PH932
Q914
JW907
EB
R1025
CL1011
CL1010
R1031
D1002
D1005
JW908
R978
CL1007
CL1002
PH933
R1011
EC
R1010
CL1003
CL1001
CL1004
Q904
JW913
JW938
JS907
D911
R928
B
Q903
E
CL913
D912
BE
JW939
R997
D910
EB
CL920
Q915
R965
R933
CL927
C975
D920
R966
C967
C966
CL926
D927
JW911
C971
CL972
R970
R992
CL971
D1011
R1004
R1013
C1008
CL1012
C1016
R1019
JW622
R1064
43
L901
JW901
CL929
C903
CONVERTER
TRANSFORMER
R1003
CL1013
R1005
R1006
CL1015
JW936
R1009
R1042
R1000
R1001
D1004
EB
Q1006
R1054
C1027
JW927
T903
CONVERTER
TRANSFORMER
(SUB)
R1014
R1015
C1009
IC1000
2
1
R1016
R1018
CL1005
R1017
(MAIN)
C1015
BE
JW922
D1001
T901
3
4
C1014
R1055
EB
JR903
R1020
IC1001
2
R1007
1
CL1006
C1010
EB
Q1003
Q1008
JR
C1006
L1000
JL1002
ET931
C1019
C902
Q1004
C1012
R1023
R1027
D1020
CL1008
C1011
CL1014
R1056
JW933
R1059
D1010
JR
JL1003
D1009
CL1019
JW942
EB
JR904
JL1004
EB
D1007
CL1009
D1021
JW925
Q1017
R1065
SPEAKERS
~ AC IN
–
R651
ET901
CL902
CL666
D603
CN901
13
JW923
JW941
JL1000JL1001
CL609
D1013
R713
R721
CL720
R718
R720
Q707
R719
C710
D700
IC702
15
CL719
C711
JW675
JL903
JL901
CL667
CL643
JW943
L1002
C631
CL621
JW951
JW950
JW652
JW634
JL601
C617
R627
CL607
Q602
BE
R620
R1002
R710
R723
R724
R725
R726
R727
C718
C715
JW618
L700
CL715
CL716
C905
VDR901
JL902
F901
CL904
D1000
CL1016
CL1017
C1003
CL1018
C1018
JW931
CL1000
JW904
JW934
ET1000
R1060
C1022
R1039
Q1005
R1028
R1062
R1038
JW909
D1008
JW924
R1061
JS1000
CL600
C1E1
B1C2B2
E2
JW604
R711
6
R668
C643
JR
BEBE
CL653
CL705
R728
Q702
CL601
C665
R669
L606
R634
R686
6
R630
R629
JL600
CL608
JR907
R683
R684
Q603
Q612
R722
EB
JW610
R670
JW605
C666
JW650 JW665
CL661
C648
C630
JW632
JW646
CL604
R628
CL658
CL655
JW619
JW627
CL704
JW623
12
43
R671
C676
C704
JL618
RY600
R637
CN603 CN604
8
CL614
CL625
R615
JW641
C606
CL654
JW674
IC603
LR
–
+
+
C673
C674
CL634
CL635
JL617
C675
C672
CL664
JW638
JW602
L608
R633
R685
C656
C655
CL660
R646
L611
CL642
R638
JR601
CL615
CL617
CL606
R616
C658
R678
R
JR604
1
222
JW661
JW662
C703
C700
R761
C635
C611
JW657
IC700
R769
JW643
CL657
R768
JW639
CN605
CL624
R679
IC601
R600
R702
CL662
C678
JR603
R767
C653
C646C647
C645
R689
C629
R636
R635
1
6
JW633
R621
RRRR
JR600
JR602
JR605
CL612
CL613
C616
C633
C618
CL623
R622
R612
R604
JW647
JW613
R676
R603
R606
JW617
JW625
R677
C609
C610
R
CL656
CL659
CL706
CN600
CL652
CL707
CL722
R706
Q700
BE
R705
R703
R704
C702
R700
Q701
EB
R760
JW626
TB601
SUBWOOFER
–
+
R650
CL665
C670
C671
C664
R649
C661
C663
C662
CL633
L605
JW631
JW603
JW673
C654
CL663
R645
C652
C642
CL641
C628
JW608
JW630
1
JL602
JW621
D604
C613
CL611
C615
R623
R663
JW642
C612
CL603
CL605
R675
R602
R609
IC600
JW611
JW620
R674
C607
C608
CL702
R666
CL708
CL711
CL709
3
IC701
JW616
JW609
JW640
CL632
R658
C668
CL644
C650C651
R643R644
CL610
C626
JW606
R673
CL712
23
12
L607
L612
CL622
JW624
CL714
JW645
JW629
JW614
R741
R743
CL646
R625
R608
CL647
JW612
R605
Q611
EB
C708
C706
EB
Q608
R755
R740
C723
R656
R654
R655
R657
R659
R665
R661
R664
C649
C640C641
C627
1
JW615
C619
R624
R626
CL637
R607
R601
R672
D704
JW660
R667
CL713
JS701
CL721
C709
C705
JW659
R648
C660
C659
R682
CL717
R681
3
1
CN701
R739
CL718
R742
BE
R730
C667
Q605
C717
BEBE
Q604
R639
C621
R647
Q607
CL645
C622
Q606
BEBEBE
Q609
C623
CL701
C669
BE
R660
R662
JW636
Q610
C721
B
Q704
R748
R736
D701
R749
D702
CL640
C720
E2
B1C2B2
E1
C1
JW607
JW667
R652
C614
IC602
JW666
CL636
JW628
B
R618
Q601
CL602
R617
EB
Q600
R611
R610
C657
JW635
JW672
BE
Q706
CL703
JW669
JW670
D703
JW663
R745
R746
JW676
CL710
C600
R701
JW678
JW658
R744
R747
A601
1-885-664-
DC FAN
+
–
JL700
R756
BE
Q705
Q703
JW649
R729
CL700
D601
D602
C722
E
R734
R735
CL723
MODULE BOARD
(EX880Z/EX990Z)
I
Q713
R731
J
JW668
C620
ET601
R613
R614
K
CN802
(Page 42)
MODULE BOARD
(EX880Z/EX990Z)
CN803
(Page 42)
MODULE BOARD
(EX880Z/EX990Z)
CN801
(Page 42)
PANEL
BOARD
L
C601
ET600
CN204
(Page 33)
11
(11)
HCD-EX660Z/EX880Z/EX990Z
2929
Page 30
HCD-EX660Z/EX880Z/EX990Z

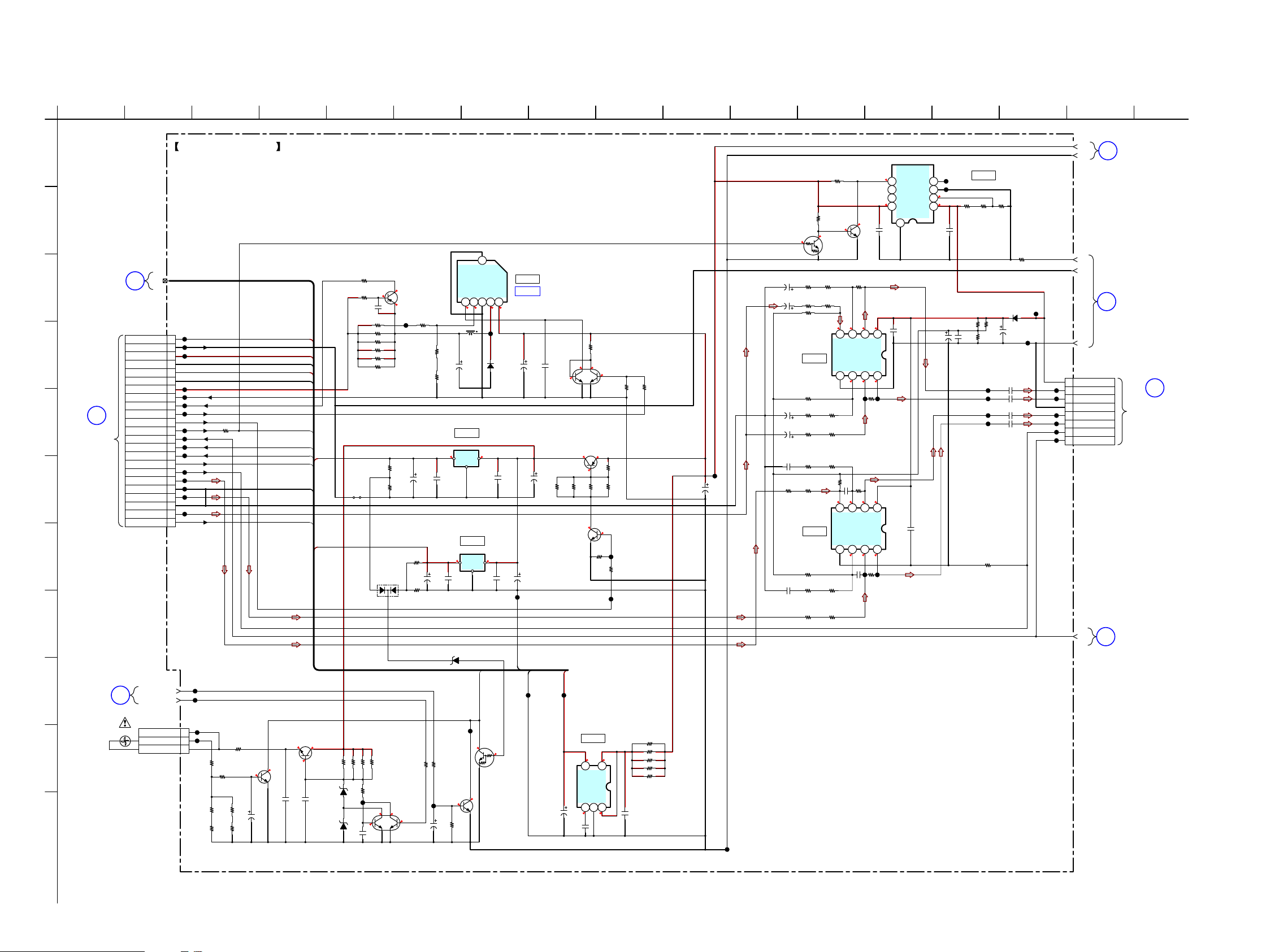

5-13. SCHEMATIC DIAGRAM - AMP-SMPS PC Board (1/3) (EX990Z) - • See page 45 for IC Block Diagrams.
A
B
C
D
E
F
G
H
AMP-SMPS PC
I
(EX990Z)
(Page 31)
J
K
1
AMP-SMPS PC
BOARD
(2/3)
(EX990Z)
(Page 31)
I
PANEL
BOARD
CN204
(Page 36)
BOARD
(2/3)
2
1
FAN LOW SPEED
DC FAN
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
CN605
51
3
50
54
56
AMP-SMPS PC
4
55
8P
GVDD
1
SW_INPUT
2
SW_INPUT-
3
GND
4
LCH_INPUT
5
RCH_INPUT
6
/RESET
7
/SD
8
AMP-SMPS PC
53
5
VCC-GND
VBUS_ 5V
VBUS_GND
VBUS_OCP
VBUS_ON
MAIN_ON
PROTECT_F
PROTECT_S
V2_MONI
/AMP_RST
SW_OUT
FR_RELAY
FAN_DET_CTRL
-
VCC 9V
M 7V
M-GND
E 4V
E-GND
SUB_ON
L_OUT
A_GND
R_OUT
A_GND
AMP-SMPS PC BOARD
(EX990Z)
35
CN600
23P
CL714
23
CL713
22
CL710
21
20
19
18
CL712
17
CL711
16
CL704
15
CL705
14
13
CL652
12
CL653
11
CL703
10
CL654
9
8
CL655
7
CL656
6
CL657
5
CL658
4
3
CL659
2
1
DC_DET
CL701
CL702
CN701
3P
CL717
FAN
1
CL718
FAN-
2
FAN
3
R755
0
R742
3.3
R743
3.3
1kR600
R756
0
Q705
2SC3052EF-T1-LEF
FAN MOTOR DETECT
R739
120k
R740
C723
3.3
4.7
50V
R741
3.3
(1/3)
IC602
R618
22k
Q601
R617
2SC4154TP-1EF
470k
2.9
R672
1.2k
R673
1.2k
R601
47k
IC600
BA4558F
IC600
PRE AMP
R602
47k
R674
1.2k
R675
1.2k
R676
1.5k
R603
8.2k
IC601
BA4558F
IC601
PRE AMP
R604
47k
R678
1.5k
R679
1.5k
MAIN SWITCH
0
R607
12k
R605
12k
5.8 5.8 5.8 12
5
2IN
R609
12k
R614
12k
R610
8.2k
C657
R606
47k
5.8 5.8 5.8 12
5
2IN
R612
8.2k
R615
8.2k
0
5.8 5.8 5.8
47p
5.8 5.8 5.8
Q600
RT1N141C-TP-1
MAIN SWITCH
IC702
INSWGND
123465
CL719
D700
RK36LF-A4
13.3
C706
0.1
13.3
IO
C727
0.1
CL709
0.1
Q706
RT1N141C-TP-1
DC DETECT
Q703
2SC4154TP-1EF
DC DETECT
SI-8008TM-TLS
VBUS 5V REG
C707
10
50V
IC702
IC B/D
C705
10
50V
M-GND
E-GND
CL707
C711
470
16V
C710
0.1
5
R706
R705
4.7k
4.7k
Q700
2SC3052EF-T1-LEF
POWER CONTROL
E 4V
CL708
C700
47
35V
uCOM GND
R713
470k
3 6
5
Q701
KTA1273-Y-AT
POWER CONTROL
13.3
13.3
12.6
R704
R703
4.7k
4.7k
0
R702
100k
R701
10k
CL706
IC700
TK11140CSCL-G
IC700
4V REG.
4
4
VOUT
GND3NB
2
51 3
C702
0.1
Q707
RT3CLLM
VBUS OPERATION
DRIVER
0.7
R700
1k
0 7
CL721
5
5
VIN
ON/OFF
1
R711
100k
C703
C607
10 50V
C608
10 50V
R710
10k
C609
10 50V
C610
10 50V
C611
C704
470
16V
A 9V GND
M 7V GND
EVER GND
CL716
CL715
V2 GND
Vbus 5V GND
330R767
330R768
330R769
330R760
330R761
0.1
Protect/Fan GND
R677
C606
0.18
1.5k
0.18
R722
1k
R728
10k
9V
M 7V
M-GND
E 4V
E-GND
MAIN_ON
PROTECT_S
V2_MONI
A_GND
FR_RELAY
Q704
KTC3203Y-AT
FAN MOTOR REG
4.5
13.3
5
DZ2J056M0L
C721
0.01
DZ2J068M0L
9V
M 7V
D701
D702
1kR748
R749
C720
JS701
1kR736
22k
0.1
5
1kR735
FAN LOW SPEED
3.2
0.1
C722
0.01
0.7
5
0.1
R744
22k
R747
22k
MC2838-T112-1
1kR734
0.7
0
RT3CLLM
3.3kR721
3.3R723
3.3R724
3.3R725
3.3R726
3.3R727
Q713
D703
0.7
ISA1235AC1-T112-1EF
CL720
C709
50V
C718
CL723
FAN MOTOR CONTROL
VBUS DRIVER
10
R745
22k
C712
50V
R746
22k
R731
100
3.2
Q702
10
R720
1k
C708
R718
R719
330
470
0.1
L700
47uH
C715
680
10V
IC701
KIA7809AF
IC701
9V REG
9
O
COM
IC703
BA17807FP-E2
IC703
7V REG
7
C714
0.1
D704 DZ2J047M0L
JL700
R730
100
CL700
0
C717
R729
2.2
100k
50V
ADJ
SS
0.83.655 13.3
I
G
PROTECT_S
3 3
3.3
13
5
NC
EN
6
GND
NC
7
NC
13 3
13
C614
1
R608
47k
7
8
6
2IN-
2OUT
VCC
1OUT
1IN-31IN4VSS
1
2
CL605
R613
47k
CL603
R611
47k
7
8
6
2IN-
2OUT
VCC
1OUT
1IN-31IN4VSS
1
2
CL604
CL606
R616
C658
47k
47p
FB
8
VCC
VO
FIN
9
C612
0.1
100 10V
C678
0.1
4
3
2
1
C618
C619
1
CL637
CL636
0 8
12
BD00GC0WEFJ-SE2
IC602
12V REG
R625
R624
33k
12k
R622
R663
2.2k
18k
C613
R623
1000p
2.2k
CL622
CL623
CL624
CL625
R621
10k
R626
3.3k
DA2J10100L
C626
C615 1
C616 1
C633 1
C635 1
R652
0
D604
JL602
330
16V
CL610
CL611
CL612
CL613
CL614
CL615
CL617
AMP-SMPS PC
BOARD
(2/3)
(EX990Z)
(Page 31)
BOARD
(2/3)
(EX990Z)
(Page 31)
J
MODULE
BOARD
(EX880Z/EX990Z)
CN801
(Page 43)
BOARD
(2/3)
(EX990Z)
(Page 31)
HCD-EX660Z/EX880Z/EX990Z
3030
Page 31

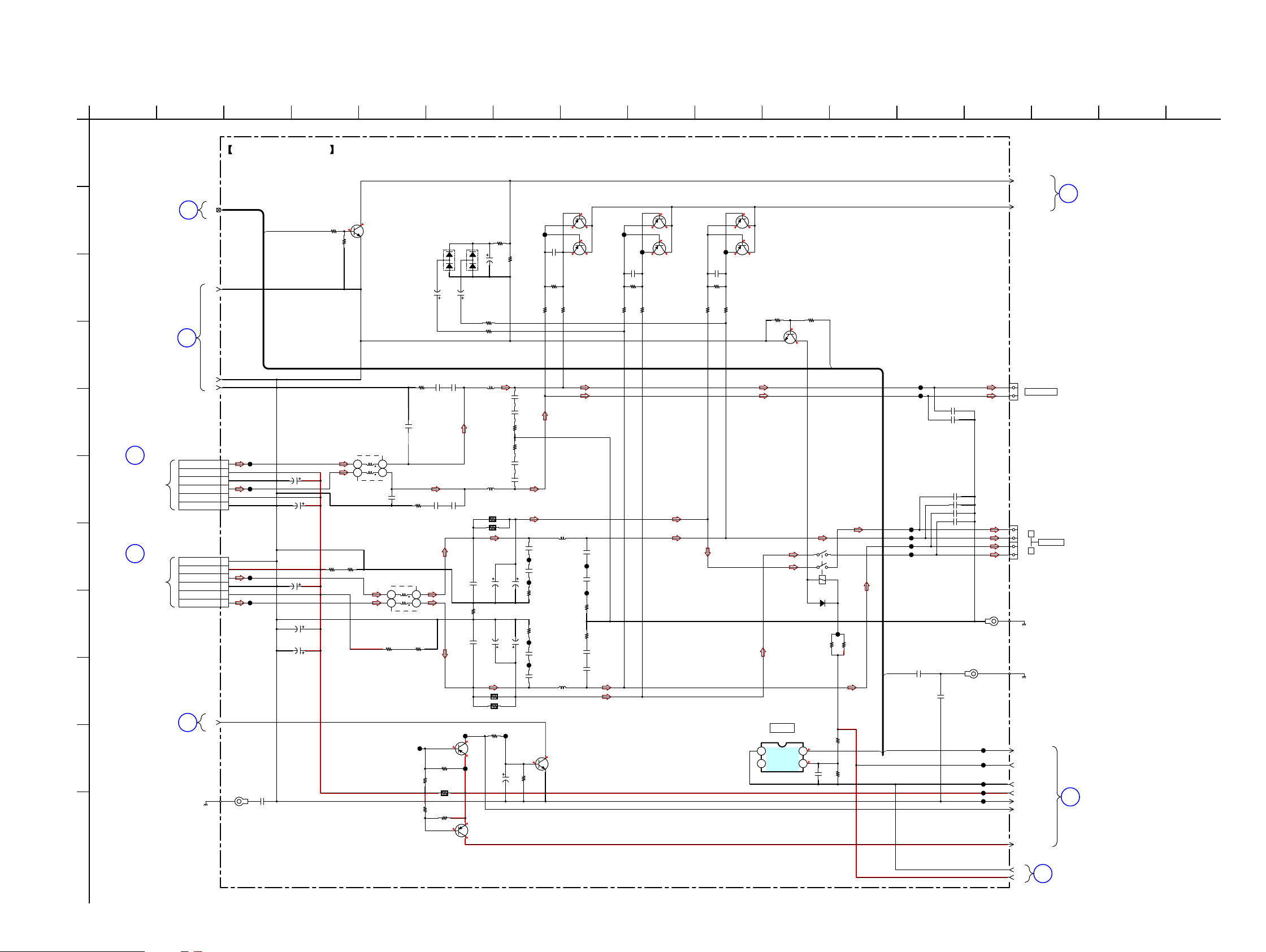

5-14. SCHEMATIC DIAGRAM - AMP-SMPS PC Board (2/3) (EX990Z) -
HCD-EX660Z/EX880Z/EX990Z
A
B
C
D
E
F
(EX880Z/EX990Z)
G
(EX880Z/EX990Z)
H
I
J
K
1
AMP-SMPS PC
BOARD
(1/3)
(EX990Z)
(Page 30)
AMP-SMPS PC
BOARD
(1/3)
(EX990Z)
(Page 30)
K
MODULE
BOARD
CN802
(Page 43)
L
MODULE
BOARD
CN803
(Page 43)
AMP-SMPS PC
BOARD
(1/3)
(EX990Z)
(Page 30)
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
R635
(2/3)
AMP-SMPS PC
BOARD
2
(EX990Z)
(Page 30)
AMP-SMPS PC
BOARD
6
(EX990Z)
(Page 32)
(1/3)
(3/3)
ET901
E
TB601
TB600
2P
4P
FAN_DET_CTRL
DC_DET
1
2
4
3
2
1
(CHASSIS)
(CHASSIS)
MAIN_ON
V2_13.4V
GND
PVDD_50V
PVDD_GND
PROTECT
PVDD_OCP_DET
SUBWOOFER
-
L
R
SPEAKERS
Q604
ISA1235AC1-T112-1EF
OVERLOAD DETECT
R666
10k
10k
R667
47k
0.1
R636
10k
3.2
2SC4154TP-1EF
FAN MOTOR DETECT
L612
10uH
4
Q611
3
21
R638
4
10k
MC2840-T1
C640
C641
1
R644
L611
10uH
ISA1235AC1-T112-1EF
CL621
R630
2.2k
R684
2.2k
D601
12-1
C621
1
50V
R643
C650
3.3
2200p
1
C652
3.3
2200p
3
21
R637
10k
Q603
VDD DETECTION
R628 0.05
C622
50V
C649
2200p
C651
2200p
3.3
2.2kR629
4.7kR683
3.3
1
D602
MC2840-T112-1
R633 330
R685 330
C642
1
R689
0
C643
1
CL609
0 5
3 3
CL608
3 3
ISA1235AC1-T112-1EF
VDD DETECTION
0 5
R660
47k
C623
10
50V
22kR647
22kR639
L607
0.6uH
L605
0.6uH
C645
1000
50V
C648
1000
50V
R634 330
R686 330
R627
22k
C617
0.22
50V
Q612
C646
1000
50V
C647
1000
CL607
R662
100k
R654
220k
C659
0.022
C660
0.022
R648
3.3
R649
3.3
C661
0.022
C662
0.022
C653
2200p
CL662
C654
2200p
CL663
R645
3.3
R646
3.3
CL660
50V
C655
2200p
CL661
C656
2200p
2.7
0.5
R620
100k
1.5
21.4
C667
47
ISA1235AC1-T112-1EF
R655
220k
R656
220k
L608
0.6uH
L606
0.6uH
Q602
2SC4154TP-1EF
PROTECTION
SWITCH
21.4
0
21.5
0
Q605
OVERLOAD DETECT
C663
0.022
CL664
C664
0.022
CL665
R650
3.3
R651
3.3
C665
0.022
C666
0.022
CL647CL646
R657
220k
ISA1235AC1-T112-1EF
OVERLOAD DETECT
21.5
21.4
C668
47
ISA1235AC1-T112-1EF
OVERLOAD DETECT
R658
220k
R659
220k
Q606
21.4
0
21.5
0
Q607
R661
220k
ISA1235AC1-T112-1EF
OVERLOAD DETECT
21.5
CL644CL645
21.4
C669
47
R664
220k
R665
220k
Q609
21.4
0
21.5
0
Q610
ISA1235AC1-T112-1EF
OVERLOAD DETECT
R682
10k
0
Q608
2SC4154TP-1EF
SPEAKER
RELAY DRIVER
IC603
PST8229UL
IC603
3.3V REG
4
OUT
GND
3
Vdd
N.C
0.1
1
2
R681
2.2k
RY600
D603
DA2J10100L
R66847R669
47
3.3
3.3
CL666
C676
0.01
FR_RELAY
CL632
CL633
C670 4700p
C671 4700p
C672 0.01
C673 0.01
C674 0.01
C600
C675 0.01
0.01
C601
1000p
ET600
CL600
CL601
CL602
JL600
JL601
E
R670
R671
CL634
JL617
JL618
CL635
A_GND
47k
18k
V2_MONI
MAIN_ON
AMP-SMPS PC BOARD
(EX990Z)
35
1
FAN LOW SPEED
56
4
54
55
CN604
6P
CL640
1
OUT-A
2
5
PVDD-A
GND
OUT
PVDD-B
GND
GND
PVDD-C
OUT-C
GND
PVDD-D
OUT-D
(CHASSIS)
3
4
-B
5
6
CN603
6P
1
2
3
4
5
6
53
ET601
C627 470 63V
CL641
C628
470 63V
CL642
C629 470 63V
CL643
C630
470 63V
C631
2200 63V
C620
0.01
E
HCD-EX660Z/EX880Z/EX990Z
50
51
AMP-SMPS PC BOARD (1/3)
3
(EX990Z)
(Page 30)
3131
Page 32
HCD-EX660Z/EX880Z/EX990Z
5-15. SCHEMATIC DIAGRAM - AMP-SMPS PC Board (3/3) (EX990Z) - • See page 45 for IC Block Diagrams.
1
A
B
~ AC IN
C
D
E
F
G
D901
DZ2J300M0L
H
R942
100
I
IC965
J
STR-Y6763
IC965
IC B/D
DC-DC
CONVERTER
K
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
R944
47
Q910
VOLTAGE
CONTROL
4.7R979
4.7R980
4.7R981
C905
0.22
R955
220k
D904
(3/3)
DZ2J082M0L
CL917
4.9
6.1
R924
22k
C968
C972
220p
0
1
L901
2SC4154TP-1EF
VOLTAGE DETECT
CL909
D913
DA2J10100L
CL918
DZ2J360M0L
C902
470p
142
Q905
R918
470
R937
470
R973
22
D966
CL929
3
CL908
C920
470p
D921
DA2J10100L
R972
1k
25.9
C903
470p
25.9
R974
22
DZ2J24000L
L902
R930
4.7k
C918
100p
D968
17 2
DSC7003R0L
21.5
R967
47k
C969
4.7
142
C921
10
50V
Q911
22V REG.
3
KTA1266GR-AT
21.5
25.3
17.6
R971
15k
C907
0.33
Q904
22V REG
25.3
17.6
R932
4.7k
R933
10k
17.6
Q914
RT1N141C-TP-1
PROTECTION
ON/OFF
D967
D1NL20U-TR2
D969
DZ2J120M0L
R969
4.7k
C971
22
100V
C970
4700p
TH902
TH904
DA2J10100L
R954
10k
RT1N141C-TP-1
PROTECTION
6.1
6.1
R970
100k
CL925
D985
UDZSUSTE-1730B
R901
1.5M
D910
Q915
ON/OFF
6.1
R953
100k
R957
100k
D927
RF101L4STE25
D972
DZ2J220M0L
CL924
D902
D15XB60
C912
0.01
C911
0.01
25.9
Q903
KTC3209-Y-AT
TAGE
VOL
REGULATOR
D911
DZ2J24000L
R965
2.2
R950
100k
R952
100k
D912
DZ2J160M0L
0.7
CL913
C975
470p
D920
RS1K
R978
4.7
R992
100
C914
390
450V
23.2
CL927
CL926
CL971
CL972
R975
R999
JS902
JS907
R928
4.7k
1k
1k
C910
100p
R914
0.1
R996
12.5
15k
CL911
R998
15k
D903
SARS10
D909
D1NL20U-TR2
5
D906
EP05FA20
D918
DZ2J300M0L
D923
DZ2J300M0L
C934
0.1
CL920
R997
1k
T903
CONVERTER
TRANSFORMER
(SUB)
6
5
4
2
1
PH933
PS2561AL-1-V-F3-A
CL915
CL912
T901
CONVERTER
C917
TRANSFORMER
4700p
12
11
10
9
8
7
R929
22
FML-G12S
CL1001
CL1002
CL916
D1001
7
6
5
4
2
1
(MAIN)
10
12
13
14
PH930
PS2561AL-1-V-F3-A
PH932
PS2561AL-1-V-F3-A
C1006
2200
16V
R1010
1k
VOLTAGE DETECT
8
9
CL1016
11
CL1017
R1000
1k
R1011
1k
IC1000
MM1431CURE
IC1000
DA2J10100L
DA2J10100L
R1064
R1001
2.2k
R1013
10k
CL1003
D1000
FMX-22SL
D1005
D1002
1k
C1008
0.047
11 2 5
K Vref
A
43
12
CL1018
C1003
1200
R1019
R1017
220
R1016
4.7k
R1015
4.7k
63V
R1020
0
2.2k
C1010
1
100V
D1011
DZ2J220M0L
R1018
10k
C1009
0.01
CL1004
R1014
2.2k
R1009
2.2k
CL1005
R1042
1k
JL1010
POWER CONTROL
0.1
IC1001
MM1431CURE
IC1001
VOLTAGE DETECT
C1015
0.047
28 2 2.2
KVref
A
Q1006
RT1N441C-TP-1
2.7
D1004
DA2J10100L
ISA1235AC1-T112-1EF
POWER CONTROL
CL1008
D1021
MC2838-T112-1
43
12
1kR1025
1kR1031
Q1008
D1020
MC2838-T112-1
SUB13.5V
R1005
1.5k
CL1013
R1003
8.2k
CL1012
R1004
33k
CL1006
R1007
2.2k
C1014
L1002
50
ISA1235AC1-T112-1EF
OVER CURRENT
DETECT
R1065
4.7k
R1038
4.7k
D1009
DZ2J27000L
R1023
1k
0.1
R1061
100
1
2.2uH
Q1005
Q1017
2SC4154TP-1EF
OVER CURRENT
DETECT
0.9
C1022
JL1000
PVDD_50V
C1018
22
100V
JL1001
PVDD_GND
JL1004
JS1000
JL1003
JL1002
ET1000
R1002
15
E
0
(CHASSIS)
PVDD_OCP_DET
MAIN_ON
PROTECT
GND
V2_13.4V
CL1000
D1013
R1059
DZ2J360M0L
10k
0.1
R1060
100k
1
50V
D1007
C1027
0
DZ2J27000L
D1008
DZ2J27000L
Q1004
2SC4154TP-1EF
OVER CURRENT
DETECT
0.9
0
R1056
0.1
100
0 7
L1000
10uH
R1027
6.8k
JL1011
R1054
10k
2 7
Q1003
2SC4154TP-1EF
POWER CONTROL
R1006
12k
CL1015
C1016
1000p
C1019
10
100V
0 7
0.7
R1055
22
10k
50V
R1039
10k
50
50
R1062
22k
R1028
22k
0 3
D1010
DZ2J068M0L
C1012
C1011
(CHASSIS)
NEUTRAL
R948
0.05
AMP-SMPS PC BOARD
(EX990Z)
ET931
CN901
3P
JL901
1
LIVE
3
C992
1000p
SPA11N80
POWER CONTROL
R947
10k
1.6
0
POWER CONTROL
R943
47
D907
EP05FA20
R916
10
D905
C913
R956
3.3k
R941
3.3k
D
S/GND
Vcc/OVP
GND
FB/OLP
BD
NC
JL903
POWER CONTROL
Q909
160
R946
47
Q907
KTA1281Y-AT
CL910
8
DZ2J180M0L
1
0.1
*
1
2
22.9
3
4
6.1
5
3.4
6
7
10A 250V
Q908
SPA11N80
160
-166
R945
C933 470p
* 3.4 0 0
7
OCP2
DRIVE
GND2VCC3OLP4FB
22.9 4.9
D925
D914
DZ2J330M0L
R938
100
R958
6.8k
R940
6.8k
CL967
CL965
CL969
CL966
CL968
CL970
CL904
E
JL902 CL930
F901
VDR901
-166
47
Q906
KTC3209-Y-AT
POWER CONTROL
1.2
1.6
0
82kR939
C926 470p
5
6
IC900
SSC6700
IC900
BURST
OCP1BD
IC B/D
DC-DC
CONVERTER
6.1
C922
1
50V
C931
0.022
DZ2J068M0L
2SC4154TP-1EF
R966 0.82
C967
150p
C966 0.1
AMP-SMPS
BOARD
6
(EX990Z)
(Page 31)
PC
(2/3)
HCD-EX660Z/EX880Z/EX990Z
3232
Page 33
5-16. PRINTED WIRING BOARD - PANEL Board - • See page 16 for Circuit Boards Location. • : Uses unleaded solder.
HCD-EX660Z/EX880Z/EX990Z
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
PANEL BOARD
A
B
C
BD76
BOARD
CN401
(Page 37)
D
E
F
G
H
I
J
K
CD
MECHANISM
DECK
M
FLASH
PROGRAMMING
EX990Z
EX880Z/EX990Z
R136
R141
R142
R325
JW270
JL239
9
8
C311
JW211
CN203
JL238
FB201
2
1
JL236
JL233
L237
JL241
JR204
R
JW341
JW264
JW228
JW343
JW288
JL248
JL250
JL245
2
1
JL249
JL251
JL262
JL260
JL258
JL256
1-885-897-
S100
&/1
S101
u
S103
FUNCTION
R151
S104
x
JW234
JL254
TUNER1
BOARD
N
CN101
(Page 44)
R150
22
23
AMP-SMPS
PC BOARD
(EX990Z)
CN600
(Page 29)
L
CN204
2
1
AMP-SMPS
BOARD
CN700
(EX660Z)
(Page 21)
D
20
21
EX660Z/EX880Z
CN205
AMP-SMPS
BOARD
CN600
(EX880Z)
(Page 25)
H
2
1
11
(11)
ND100
LIQUID CRYSTAL DISPLAY PANEL
JL389
JL387
JL391
JL390
JL395
JL388
JL386
JW297
JL392
JL381
JL393
JL382
JW290
JL383
JL384
JL400
R210
R211
80
81
JW303
R212
C206
JW378
JL358
JW385
R203
R207
R202
R206
R205
W340
R208
JL359
JL267
JL360
JL361
JL266
JW275
JW218
JW308
JW247
R214
R215
R216
JL272
JL271
JW200
JL448
JL449
JL447
JL457
R260
JL481
R258
JL489
C315
B1E1C2
B2C1
E2
JL425
C247
JW347
JW392
R145
JL428
R144
JW265
JW271
JL472
C287
JL476
C283
C284
C275
C276
C273
C288
JL471
JL470
1732
IC204
116
JL451
JL450
R134
R135
JL458
JL460
R257
R259
R133
JL459
JL484
JL482
S107
EQ
JL479
JW351
JW398
JW221
JW222
C111
D100
R118
R120
C113
R122
C336
PHONES
J100
JL380
JL376
JL378
JL379
JL385
C230
JL370
JL309
JW258
L373
JL377
JL374
R252
JW286
JL306
JL303
51 50
JL302
JL301
JL416
IC200
C219
JL279
JL277
100 1
JL363
R213
JW300
JW409
JW259
JW399
Q201
JW368
JW401
JL477
JL468
C259
R278
R132
JW318
R262
JL452
JL455
JL454
JL483
JL497
R221
JL278
JL274
X200
JL269
JL273
JL268
R217
JW359
JW202
C267
IC205
R283
C266
C290
JL422
BE
JW365
D205
JL426
JL423
R256
JW255
JW330
JL427
R146
R143
S114
VOLUME
JW253
JL473
R290
R292
C280
R289
R291
JL475
JL469
JL474
C279
JL467
C278
JL466
C277
JL465
C252
JL464
C253
R279
JL463
C306
JL453
C255
R267
R265
JL461
C305
JW266
JW304
S106
BASS BOOST
JW281
C1
B2E2
E1
B1
C2
C110
R124
Q105
R121
R123
C112
JL499
C114
C228
JW251
R273
JL405
R238
JL401
JW314
JL433
JW316
JL402
JW237
C225
R225
JW344
R227
D200
JW284
JL214
JL212
JW210
JW257
JL213
JW375
JW269
JL410
BE
JW207
R162
JL429
C237
C327
R255
R157
JW238
JR210
JR
JW267
JW296
JW295
JL286
JL435
R282
JL434
JL436
R276
D206
C256
R277
R274
C254
C281
JW254
R234
R241
C226
R201
JW312
R156
S108
Z
S109
REC TO
USB
OPTIONS
S110
ENTER
R154
R138
R139
R237
91
IC201
R222
R223
JL210
JL207
JL208
JL209
C220
5
4
CN201
2
JL411
1
JL211
R231
R229
R230
JW280
JL412
R235
R240
JL200
1
JL201
26
JL205
CN200
JL202
7
JL206
R158
S113
JW348
JL204
JL203
JW411
S112
JW412
JW219
JW287
JW262
S111
–
R155
JL432
IC203
R159
R326
JL403
JL406
JR
R327
D210
JL404
Q200
BBEE
JL407
JW315
R236
R239
JW244
JW387
JL226
R261
JL218
JL220
JL216
JL222
CN202
21
20
JL215
JL221
JL217
JL219
D118
Q107
JW332
C323
C325
15
IC202
C326
6
D117
JW231
D116
JL431
JW386
C264
JW209
JL478
R111
Q104
R127
BE
R115
R125
JL437
C115
C118
IC100
R116
JW397
JW279
JL438
JW360
R104
JL485
JW301
JL399
JR202
R161
JL398
JW215
JL397
JL396
JL394
JW400
JL367
JL368
JL308
JW329
JL307
JW285
JL413
JW321
JL351
JL415
R209
JW276
JL414
JL356
JR208
JL362
JL232
R
JW407
JL231
2
JW357
JL355
JL230
JW213
JW206
JR203
JL352
R177
JW309
JL480
C101
R105
R106
R108
R107
C105
R100
R101
D101
JW358
D102
JL492
C121
C122
R110
CN100
JW406
JW317
R204
JW384
JR
JW248
JW227
JW272
JW242
JW388
JW226
JW214
JW224
JW310
JW252
JW220
JW225
C291
C271
R294
JL443
JW216
R293
L446
JL445
JL442
JW289
JL444
JL456
C260
C263
C129
C130
C261
C262
C251
R271
C250
JW363
R266
R269
C248
JW205
C249
R270
C116
C103
C117
R112
R126
R153
C119
D104
R128
C120
R129
JL491
14
67
5
JL494
JL408
JL409
Q108
D106
JL357
JL364
JL224
JL228
JW390
JL229
JL225
JL223
JL227
JW239
JW203
JW241
Q119
BE
CL001
JW245
JW313
JW273
JW208
JW232
JW212
JW352
JW405
JW246
JW339
R
JR209
JL439
C100
R109
JW333
C102
JL440
R113
C104
JL441
R114
C2
B1E1
E2
B2
C1
JL488
R103
Q100
R102
JL487
JL486
C328
ET100
JW337
R243
R249
R253
JL304
JL305
R254
R321
JL299
JR
R324
31
JR205
JL295
30
EX660Z
JL291
C235
X201
JL284
JL283
C216
C217
JL280
C215
R220
JL276
R219
JL275
R218
R200
C265
JL424
R275
JW235
Q203
JL270
JW292
JW293
JW250
JW298
JW307
JW346
JW320
JW243
JW274
JW256
JW201
JW372
JW382
JW217
JW291
JW282
C331
JW379
B2E2C1
B1
E1
C2
R304
R309
R297
R299
Q204
Q209
BE
R310
R300
R296
R295
C293
R
JR214
JW364
JW394
JL498
R117
R119
C126
R L
DVD/PC N
JL366
JL365
R340
JR211
136
JR
JL300
C244
JL292
JW229
JW260
C1
JL496
EX660Z/
EX880Z
R301
R298
JL502
JW354
JL505
JW268
R339
R338
JW305
R148
JW294
JL419
JL418
R176
R307
IC101
R173
Q212
C131
R147
O
VCC
FB200
FB202
JL420
JL293
JL430
R171
TUNING +
> L
R174
D121
R175
C1
B2E2
E1
B1
C2
C301
C300
R306
JW283
JL242
22
20
21
23
R311
C332
C317
JW326
JL265
JL264
C330
L200
JL234
C329
C310
JL235
JW249
R137
R140
S102
R149
S105
TUNING –
l .
R152
JW204
JW223
JW263
JW327
JR207
JR
JW408
JL243
C316
JL244
JL263
R247
CN204
JL252
CN205
JL253
JL259
JL257
JL255
JL261
JW302
R246
R264
JW336
JL290
JW391
JL289
JW277
JL288
JW240
JL287
JW306
JW230
JW236
JW371
JW403
D119
R172
D120
JL503
R312
R313
R308
C298
R314
Q211
JW311
R316
R305
JL504
R303
C304
R315
C292
R248
JR200
C335
JR
JR
C334
JR201
C333
JR
JR206
JL500
JL369
R337
D204
JL371
JL372
JL375
R272
R251
R250
JW366
R323
JL298
JL297
JL296
JL294
JW355
R320
R244
C232
C234
R245
JL285
D209
R233
R228
C222
JW261
R232
R226
JL282
RU SAF
JW349
JW299
JW345
JW380
JW395
JW331
D203
JW328
JW389
JW319
C312
JW278
C302
C313
C299
R302
C296
C2
B1E1
E2
B2
JW233
JL490
JL501
C125
C123
C124
D105
J102
HCD-EX660Z/EX880Z/EX990Z
3333
Page 34
HCD-EX660Z/EX880Z/EX990Z
5-17. SCHEMATIC DIAGRAM - PANEL Board (1/3) - • See page 20 for Waveforms. • See page 52 for IC Pin Function Descriptions.
1
A
B
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
PANEL BOARD (1/3)
14 3635343332313029282726252423222120191817161598765141312111023
JL365
JL366
JL367
JL368
JL369
JL370
JL371
JL372
JL373
JL374
JL375
JL376
JL377
ND100
LIQUID CRYSTAL DISPLAY PANEL
JL378
JL379
JL380
JL381
JL382
JL383
JL384
JL385
JL386
JL387
JL388
JL389
JL390
JL391
JL392
JL393
JL394
JL395
JL396
JL397
JL398
JL399
JL400
PANEL BOARD
(2/3), (3/3)
C
D
(Page 35),
(Page 36)
FLASH
PROGRAMMING
E
F
G
1
1
CN200
7P
RESET
DGBP0
DGBP1
DGND
DGBP2
VCC
VCC
JL200
1
JL201
2
JL202
3
JL203
4
JL204
5
JL205
6
JL206
7
I-RST
DGBP0
DGBP1
DGBP2
O-VOL-LED1
O-VOL-LED2
O-CD-ON
O-USB-SLEEP
O-USB-TXD
I-USB-RXD
DGBP0
DGBP1
DGBP2
O-CD-CL
I-CD-DO
O-CD-M-MUTE
COM3
COM2
COM1
COM0
R210
1k
R211
4.7k
R212
R209
4.7k
4.7k
2.2MR337
2.2MR338
2.2MR339
2.2MR340
C206 0.1
100kR202
100kR203
100kR204
100R205
100R206
100R207
100R208
100R213
JL351
JL352
JL355
JL356
JL357
JL358
JL359
JL360
JL361
JL362
JL363
JL364
COM0
COM1
COM2
COM3
SEG0
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG31
SEG29
SEG28
SEG27
SEG26
SEG25
SEG24
SEG23
SEG22
SEG21
SEG20
SEG19
SEG18
SEG17
SEG16
SEG30
JL451
3.1 1.6 0 0 0 0 0 1.5 0 1.6 0 0 1.5 1 5 1.5 0.1 1.6 1.6 1 6 1.6 0 1 6 1.6 0 1.5 3.3 1.5 1.5 1 5
80
2.1
1
1.6
1.6
1.6
1.6
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0
0
0
1.5
1.5
0
LCD V3
81
LCD V2
82
LCD V1
83
COM3
84
COM2
85
COM1
86
COM0
87
O-VOL-LED1
88
O-VOL-LED2
89
VSS3
90
VDD3
91
O-CD-ON
92
O-USB-SLEEP
93
O-USB-TXD
94
I-USB-RXD
95
DGBP0
96
DGBP1
97
DGBP2
98
O-CD-CL
99
I-CD-DO
100
O-CD-M-MUTE
O-CD-RST2O-CD-DI3O-CD-CE4O-USB-RST5O-FAN-LOW-SPEED6I2C-FUNC-DATA7I2C-FUNC-CLK8I2C-TU-DATA9I2C-TU-CLK10O-LCD-LED11I-RST12Sub Clock(32.768kHz)
1
3.3 1.4 1.4 3.3 0 3.3 3.3 3.3 3.3 3 2 3.3 1.3 1 7 1.6 1 7 3.3 1.1 3.2 3.2 13 0 0 3 2 3.2 2.1 3.3
LC87F7DJ2CVU-QIP-H
SYSTEM CONTROL
4 5
Sub Clock(32.768kHz)
13
14
SEG15
IC200
IC200
VSS115Main Clock(18MHz)
Main Clock(18MHz)
VDD118I-HP/CD-SW19I-MODEL20I-DEST21NC22I-LED-LEVEL23I-VACS24I-KEY225I-KEY126I-KEY027I-PROTECT-F28I-AC-CUT29I-RMC(SIRCS)30O-FR-RELAY
16
17
SEG17
SEG14
SEG18
SEG13
SEG19
SEG12
60
SEG1261SEG1362SEG1463SEG1564SEG1665SEG1766SEG1867SEG1968SEG2069SEG2170SEG2271SEG2372SEG2473SEG2574SEG2675SEG2776SEG2877SEG2978SEG3079SEG31
SEG11
59
SEG20
SEG11
SEG21
SEG10
58
SEG9
SEG10
SEG22
SEG23
SEG8
56
SEG857SEG9
O-SW-MUTE
SEG24
C230 0.1
55
VSS2
O-Pcont
54
SEG25
VDD2
3.3
SEG7
SEG26
SEG6
3.1 3
SEG27
SEG28
SEG5
51
SEG552SEG653SEG7
SEG4
SEG3
SEG2
SEG1
SEG0
O-TU-CE
O-CD-M
O-CD-M-
O-STBY-SW
I-RDSI
I-VBUS-OCP
O-VBUS-ON
O-SUB-ON
O-MAIN-ON
O-HP-MUTE
I-PROTECT-S
I-V2-MONI
O-AMP-RST
SEG29
SEG30
SEG31
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
6
PANEL
3
4
BOARD
(2/3)
(Page 35)
PANEL
BOARD
(2/3)
(Page 35)
7
8
9
10
JL309
JL308
JL307
JL306
JL305
JL304
JL303
JL302
JL301
JL300
JL299
JL298
JL297
JL296
JL295
R324
EX660Z
SEG4
SEG3
SEG2
SEG1
SEG0
O-TU-CE
R243
100
EX880Z/EX990Z
JR205
JL416
0
0
10kR252
0R323
100R250
100R251
D204
RB501V-40TE-17
100R249
1kR253
100R321
100R254
10kR246
10kR264
C244 1000p
O-CD-M
O-CD-M-
10kR272
I-RDSI
I-VBUS-OCP
O-VBUS-ON
O-SUB-ON
O-MAIN-ON
O-HP-MUTE
I-PROTECT-S
I-V2-MONI
O-AMP-RST
O-SW-MUTE
11
1 6
1 6
1 6
1 6
1 6
3 2
3 3
0
3 2
3 3
0
0
3 2
3 2
3 2
3 3
3 3
3 2
0
3 3
H
I
J
PANEL
BOARD
(3/3)
(Page 36)
2
K
HCD-EX660Z/EX880Z/EX990Z
JL266
JL267
JL268
JL269
JL270
JL271
JL272
JL273
JL274
JL275
JL276
JL277
JL279
JL278
JL280
JL282
JL283
JL284
JL285
JL286
JL287
JL288
JL289
JL290
JL291
JL292
JL293
JL294
100R219
100R217
2
3
4.7kR214
4.7kR215
4.7kR216
4.7kR218
100R220
X200
C215 0.1
100kR221
C219 0.1
X201
32.768kHz
18MHz
C222 1000p
EX880Z/EX990Z
10k
R226 *
R228
D209
RB501V-40TE-17
RU, SAF
*2R233
R232 10k
C216 18p
C217 22p
100R245
10kR244
C232 1000p
C234 1000p
C235 220pC237 0.1
EX990Z
100R320
*1 R226
1k (EX660Z)
10k (EX880Z)
*2 R233
1k (E2, E51, MX)
2.2k (RU)
4.7k (SAF)
PANEL
12
BOARD
5
(2/3)
(Page 35)
O-CD-RST
O-CD-DI
O-FAN-LOW-SPEED
O-USB-RST
O-CD-CE
4
5
I2C-FUNC-DATA
I2C-FUNC-CLK
I2C-TU-DATA
O-LCD-LED
I2C-TU-CLK
I-RST
I-HP/CD-SW
I-KEY1
I-KEY0
I-RMC
I-AC-CUT
I-PROTECT-F
I-KEY2
I-VACS
O-FR-RELAY
3434
Page 35

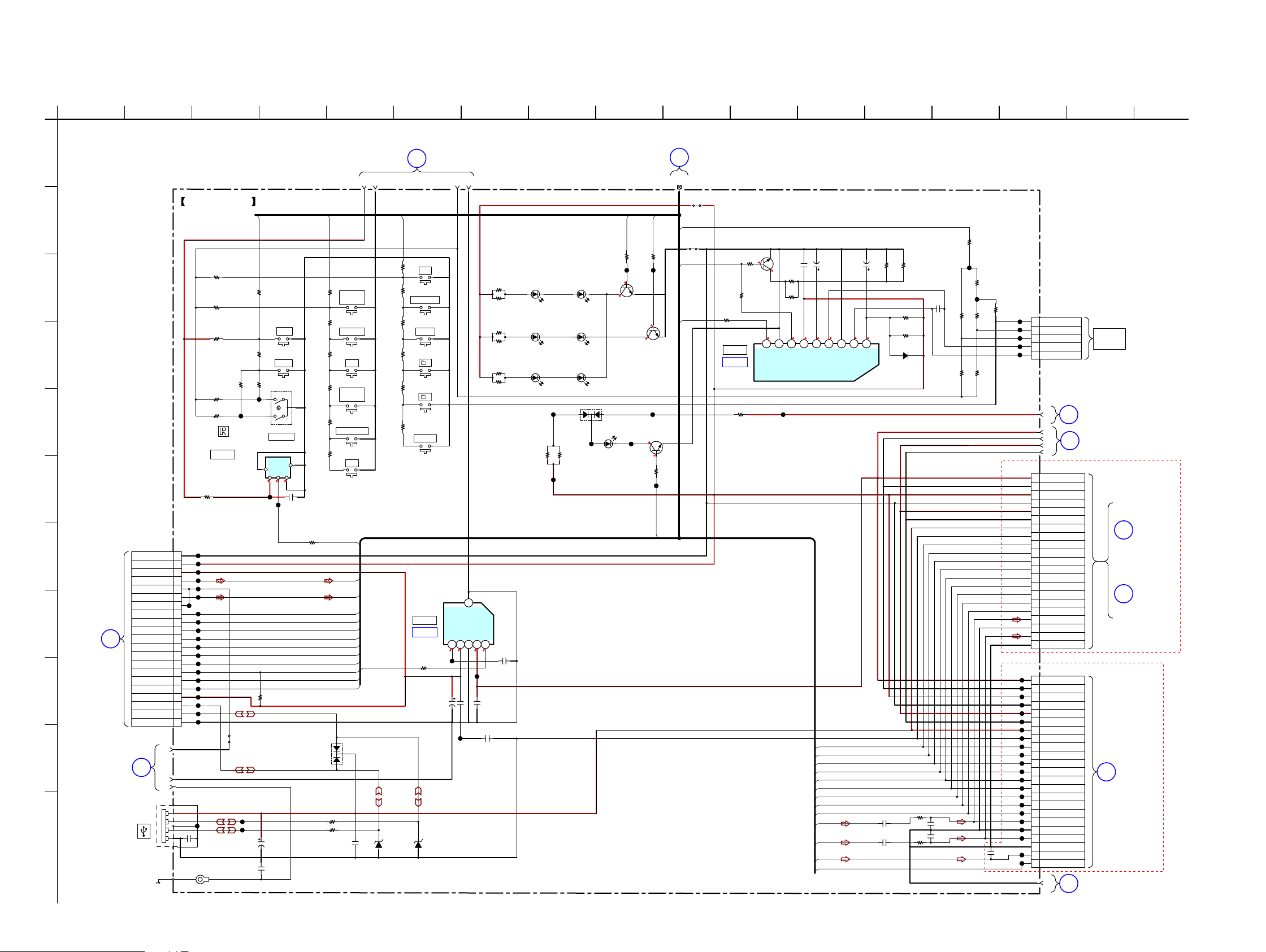

5-18. SCHEMATIC DIAGRAM - PANEL Board (2/3) - • See page 45 for IC Block Diagrams.
HCD-EX660Z/EX880Z/EX990Z
A
B
C
D
E
F
G
H
I
J
K
1
PANEL
BOARD
(3/3)
(Page 36)
PANEL
BOARD
(1/3)
(Page 34)
PANEL
BOARD
(1/3)
(Page 34)
PANEL
BOARD
(1/3), (3/3)
(Page 34),
(Page 36)
PANEL
BOARD
(3/3)
(Page 36)
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
PANEL BOARD (2/3)
13
6
6
8
I-AC-CUT
I-RST
3
10
I-VACS
JL464
JL463
JL461
JL460
JL459
JL458
JL457
JL456
3.3
2.5
3.2
C255
1
C129 1
C130 1
C262 1
C263 1
C260 1
C261 1
R262
10k
JL425
R256
4.7k
JL426
R277
1k
*4 C277 ~ C280
0.047 (EX660Z)
0.068 (EX880Z/EX990Z)
0R278
0R279
C259
1
IC204
BD3491FS-SE2
7
9
12
5
PC-IN-L
PC-IN-R
CD/USB-L
JL479
CD/USB-R
JL480
TU-AUDIO-L
JL481
TU-AUDIO-R
JL482
15kR132
15kR133
2.2kR257
2.2kR258
3.3kR259
3.3kR260
RT3WLMM-TP-1F
STANDBY SWITCH
47kR265
Q201
100kR134
100kR135
10kR269
10kR270
6.8kR266
6.8kR271
JL478
47k
R267
0.7
C315
0.1
C252 1000p
C253 1000p
C248 470p
C249 470p
C250 2200p
C251 2200p
0
IC204
IC B/D
INPUT FUNCTION
SELECTOR
1
1
14
15
C264 2.2 50V
D206
MC2840-T112-1
JL436
R276
1k
JL435
C256
1
R273
27k
R274
4.7k
C254
22
16V
4 5
JL455
4 5
JL454
4 5
JL453
4 5
JL452
4 5
JL451
4 5
JL450
4 5
JL449
4 5
JL448
4 5
JL447
4 5
JL446
4 5
JL445
4 5
JL444
68kR282
4.5
JL434
4.5
JL433
4.5
JL432
*5 C283, C284, C287, C288
0.039 (EX660Z)
0.068 (EX880Z)
0.1 (EX990Z)
TRE-R
16
BASSB-L
TRE-L
15
BASSA-L
VOL-L
14
BASSA-R
VOL-R
13
BASSB-R
SEL-R
12
OUT-L
SEL-L
11
SB-L
PC-IN-L
10
SURR
PC-IN-R
9
SB-R
CD/USB-L
8
OUT-R
CD/USB-R
7
VCC
TUNER-L
6
SCLK
TUNER-R
5
SDATA
TC-L
4
GND
TC-R
3
FIL
NC
2
NC
NC
1
NC
7
D105
MC2840-T112-1
16
C123
0.1
D203
MC2836-T112-1
C247
470
4V
IC203
BA4558F
IC203
VACS/SIGNAL LEVEL
CONTROL
1
OUTPUT
VCC
2
INPUT-
OUTPUT
3
INPUT
INPUT-
4
GND5INPUT
JL465 JL474
17
4.5
JL466
18
4.5
JL467
19
4.5
JL468
20
4.5
JL469
21
4.5
JL470
22
4.5
JL471
23
4.5
JL472
24
4.5
JL473
25
4.5
26
9
JL442
27
3.3
JL443
28
3.3
29
30
4.5
C271
100
31
10V
32
C275
1000p
PC-IN-L
JL483
C125
100p
C124
1000p
WHT
J102
2P
L
DVD/PC IN
R275
10k
3.3
Q203
RT1N141C-TP-1
RESET SWITCH
8
9
7
6
*6 R289, R291
22k (EX660Z)
15k (EX880Z)
18k (EX990Z)
C277 *4
C278
C279
C280
C283 *5
C284
C273
0.022
C287
C288
C276
3300p
PC-IN-R
JL484
C126
100p
JL500
RED
R
0
DA2J10100L
C281
0.1
*4
*4
*4
*5
*5
*5
220R293
220R294
JR206
0
D205
*7 R290, R292
27k (EX660Z)
18k (EX880Z)
12k (EX990Z)
JL475
JL476
JL477
I2C-FUNC-DATA
I2C-FUNC-CLK
C333
0.1
D100
MC2840-T112-1
JL423
R289
R291
R290
R292
*6
*6
*7
*7
JL502
C335
0.1
C114
0.1
*3 R283
1k (EX660Z)
10k (EX880Z/EX990Z)
R200
47k
C265
0.47
C266
1000p
C334
0.1
C291
IC205
PST3629NR
IC205
47kR295
3.3
3.3
0
1OUT
2Vdd
3
47kR296
IC B/D
RESET
GND4N.C
R301
100k
R302
R298
1k
C292
2.2 50V
R101
4.7k
JL489
5
Cd
R304
22k
Q212
RT3CLLM
SUBWOOFER
AMP
SUBWOOFER
C296
1
1k
R303
100k
JL486
R102
10k
JL487
R103
10k
JL488
C336
0.1
3
100 10V
9
9
C298
0.18
C299
0.18
Q211
RT3CLLM
AMP
0
JL422
C290
R297
C312
3 2
0.1
9
22k
9
9
0
2.2
3
90
9
RT3WLMM-TP-1F
1.7
1.7
JL503
R305
2.2k
2.9
2.3
2.4
2.9
0
0.7
RT3WLMM-TP-1F
HEADPHONE
MUTE SWITCH
3.3
Q204
SUBWOOFER
MUTE
C300
0.33
R300
1k
JL504
JL485
Q100
R306
18k
R307
18k
R308
10k
2.3
R316
100k
C302
220 10V
C331
220 10V
C304
0.01
C293
10 16V
R299
2.2k
0
R104
R100
10k
R309
10k
R311
1k
C301
0.018
R312
1k
C313
1000p
R310
100k
Q209
2SC3052EF-T1-LEF
SUBWOOFER MUTE
R313
100k
R314
1k
R315
1k
O-HP-MUTE
22k
I-HP/CD-SW
C329
100
10V
O-SW-MUTE
JL496
R283
*3
JL424
C267
0.1
EX990Z
100
10V
JL501
C310
220
10V
SW_OUT
L_OUT
R_OUT
I2C-TU-CLK
I-RDSI
I2C-TU-DATA
TU-AUDIO-R
O-TU-CE
TU-AUDIO-L
C100
2.2 50V
R105
4.7k
C102
50V
R109
R113
*8
JL440
C110
220
10V
R117
100
L200
220uH
2.2
4.7k
R115
J100
PHONES
JL439
*9
R119
1234567
100
JL499
JL437
C115
JL420
9
9
0.1
FB202
470ohm
C101
2.2 50V
R127
1k
8.4
Q104
2SC3052EF-T1-LEF
HEADPHONE AMP
POWER SWITCH
R125
2.2k
R111
47k
C104
10 16V
4.5
5
4.5
-
6
4.5
OUT
7
9
VCC
8
NJM3414AV (TE2)
HEADPHONE AMP
R123
1k
0 7
R121
47k
C112
0.015
C330
100 10V
R107
100k
IC100
IC100
IC B/D
0
Q105
RT3CLLM
MUTE
C118
220 10V
GND
OUT
0
FB201 600ohm
600ohm
R106
4.7k
C117
0.1
R126
2.2k
C116
10 16V
R112
47k
4
3
4.5
-
2
4.5
1
4.5
JL498
R124
1k
0 7
R122
47k
C113
0.015
FB200
0R325
R108
100k
C105
16V
JL441
C311
1
C103
2.2
50V
R110
4.7k
*8 R113, R114
6.8k (EX660Z)
8.2k (EX880Z)
1.5k (EX990Z)
*9 R115, R116
47k (EX660Z/EX880Z)
12k (EX990Z)
10
R116
*9
C111
220
10V
R118
100
R1
*8
JL438
JL497
CN203
9P
JL234
1
2
3
4
5
6
7
8
9
I2C-TU-CLK
TU-RDS
I2C-TU-DATA
GND
TU-AUDIO-R
TU-CE
TU-AUDIO-L
VDD A 9V
NC
17
18
19
20
M
PANEL BOARD
8
(Page 36)
TUNER1
BOARD
CN101
(Page 44)
(3/3)
JL233
JL235
JL236
JL237
JL239
JL241
JL238
PANEL
21
BOARD
9
(3/3)
(Page 36)
14
PANEL
11
BOARD
4
(1/3)
(Page 34)
R120
100
HCD-EX660Z/EX880Z/EX990Z
3535
Page 36
HCD-EX660Z/EX880Z/EX990Z
5-19. SCHEMATIC DIAGRAM - PANEL Board (3/3) - • See page 45 for IC Block Diagrams.
A
B
C
D
E
F
G
H
I
J
K
1
BD76
BOARD
CN401
(Page 39)
PANEL BOARD
(2/3)
(Page 35)
N
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
PANEL BOARD (1/3), (2/3)
(Page 34), (Page 35)
O-VOL-LED2
O-VOL-LED1
R162
R177
4.7k
4.7k
CL001
JL410
0.8
0.2
Q107
2SC3052EF-T1-LEF
LED DRIVER
0.8
0 2
Q119
2SC3052EF-T1-LEF
LED DRIVER
JL404
Q108
2SC3052EF-T1-LEF
LED DRIVER
JL408
0.1
D106
0.8
JL409
R161
4.7k
O-LCD-LED
1
1
JW201
12.5
I-HP/CD-SW
JW200
10
O-CD-M-
O-CD-M
R234
4.7k
IC201
IC B/D
LOADING
MOTOR DRIVE
R159
270
Q200
2SC3052EF-T1-LEF
MOTOR CONTROL
0 7
R238
4.7k
R237
4.7k
*11 C305, C306
0.082 (EX660Z)
0.18 (EX880Z/EX990Z)
C228
0.1
5
R236
22k
R239
33k
2 7 2 6 7 7 5.2 6.5 3.7
921876543
FIN
RIN
JL406
GND
VCC
IC201
BA6956AN
C225
10
16V
VM
RNF
OUT1
I-VBUS-OCP
O-VBUS-ON
O-SUB-ON
O-MAIN-ON
I-PROTECT-F
I-PROTECT-S
I-V2-MONI
O-FAN-LOW-SPEED
O-AMP-RST
L_OUT
R_OUT
SW_OUT
O-FR-RELAY
C226
22
16V
OUT2
R241
33k
VREF
C305 *11
C306 *11
R201
33k
R227
22k
R225
10k
D200
DA2J10100L
R247
R248
R240
10k
JL412
R235
10k
R222
R229
JL411
R231
CN201
22k
R230
22k
22k
R223
4.7k
4.7k
C332
470p
JL211
JL210
JL209
JL208
JL207
JL245
JL248
JL249
JL250
JL251
JL252
JL253
JL254
JL255
JL256
JL257
JL258
JL259
JL260
JL261
JL244
JL262
JL263
JL264
JL265
JL242
JL243
CN205
CN204
23P
5P
21P
1
DGND
2
CLOSE SW
3
OPEN SW
4
M-
5
M
13
17
18
19
20
1
VCC 9V
VCC_GND
2
M 7V
3
M_GND
4
5
E 4V
6
E_GND
7
VBUS_ 5V
8
VBUS_GND
VBUS_OCP
9
10
VBUS_ON
11
SUB_ON
12
MAIN_ON/P_CONT
PROTECT_F
13
14
PROTECT_S
V2_MONI
15
16
FAN LOW SPEED
17
AMP_RST
18
L_OUT
19
A_GND
R_OUT
20
21
A_GND
VCC 9V
1
VCC_GND
2
M 7V
3
4
M_GND
5
E 4V
6
E_GND
VBUS_ 5V
7
8
VBUS_GND
9
VBUS_OCP
10
VBUS_ON
11
SUB_ON
MAIN_ON
12
13
PROTECT_F
PROTECT_S
14
V2_MONI
15
16
FAN LOW SPEED
AMP_RST
17
18
L_OUT
19
A_GND
20
R_OUT
21
A_GND
22
SW_OUT
23
FR_RELAY
21
CD
MECHANISM
DECK
PANEL BOARD (2/3)
6
(Page 35)
PANEL BOARD (2/3)
8
(Page 35)
I
PANEL BOARD (2/3)
9
(Page 35)
A
E
AMP-SMPS
BOARD
(EX990Z)
CN600
(Page 30)
C220
0.1
C316
1000p
100
C317
100
1000p
CD/USB-Rch
CD/USB-Lch
CD-M-MUTE
7
CN100
CD-M-GND
CD-VM7V
AVDD3.3V
AU-GND
AGND
CD-RST
CD-DO
CD-DI
CD-CL
CD-CE
USB-SLEEP
USB-RXD
USB-TXD
USB-RST
DVDD3.3
D-GND
(CHASSIS)
PANEL BOARD (3/3)
R139
10k
R140
10k
R141
10k
R145
10k
R146
10k
IC101
PNA4823M03S0
IC101
REMOTE CONTROL
SIGNAL RECEIVER
R148
470
CN202
21P
JL212
21
JL213
20
JL214
19
JL215
18
JL216
17
JL217
16
JL218
15
JL219
14
JL220
13
JL221
12
JL222
11
JL223
10
JL224
9
JL225
8
JL226
7
JL227
6
JL228
5
JL229
4
JL230
3
D
D-
14
15
16
JL231
2
JL232
1
1
2
JL494
3
4
C122
0.1
E
ET100
R143
15k
JL427
JW206
*10
R136
R142
R144
JL428
JL491
JL492
I-KEY0
1k
S100
"/1
4.7k
S101
NX
8.2k
2
3
S114
VOLUME
VCC
OUT
3.3 3.3 0
JL419
C131
JL418
R261
10k
*10 JW206
10 (EX990Z: RU)
15 (EX660Z/EX880Z/
EX990Z: E2, E51, MX)
C120
220
10V
C121
0.1
GND
0.1
PANEL BOARD (1/3)
(Page 34)
2
2 3 4 5
I-KEY1
S102
R137
TUNING
1k
> L
R149
S103
1k
FUNCTION
R150
S104
2.2k
x
S105
R151
2.2k
TUNING–
1k
R152
R153
4.7k
10k
l .
BASS BOOST
I-RMC
CD/USB-R
CD/USB-L
O-CD-M-MUTE
O-CD-RST
I-CD-DO
O-CD-DI
O-CD-CL
O-CD-CE
O-USB-SLEEP
I-USB-RXD
O-USB-TXD
O-USB-RST
2.2R128
2.2R129
S106
S107
EQ
O-CD-ON
D104
MC2838-T112-1
C119
1
1
R147
I-KEY2
R138
1k
R154
1k
R155
2.2k
R156
2.2k
R157
4.7k
R158
10k
D101
DZ2J068M0L
S108
Z
S109
REC TO USB
S110
ENTER
S111
–
S112
S113
OPTIONS
IC202
MM1923DTRE
IC202
IC B/D
3.3V REG
R255
22k
DZ2J068M0L
JL429
D102
0.6 3.3 9 3.1
C326 1
C327 100 10V
JL490
R171
330
R172
330
R173
330
R174
330
R175
330
R176
330
123465
JL430
C325 1
C328
0.1
D119
1L0352V22F3MIT02
VOLUME RING VOLUME RING
D121
1L0352V22F3MIT02
VOLUME RING
D120
1L0352V22F3MIT02
VOLUME RING VOLUME RING
JL403
R326
270
JL405
C323
0.1
D118
1L0352V22F3MIT02
D117
1L0352V22F3MIT02
VOLUME RING
D116
1L0352V22F3MIT02
D210
MC2838-T112-1
JL407
R327
270
1L043RW32EOCI7A11
(WHITE)
EX660Z/EX880Z
AMP-SMPS
BOARD
(EX660Z)
CN700
(Page 22)
AMP-SMPS
BOARD
(EX880Z)
CN600
(Page 26)
EX990Z
PC
HCD-EX660Z/EX880Z/EX990Z
3636
Page 37
5-20. PRINTED WIRING BOARD - BD76 Board - • See page 16 for Circuit Boards Location. • : Uses unleaded solder.
HCD-EX660Z/EX880Z/EX990Z
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
BD76 BOARD (COMPONENT SIDE)
BD76 BOARD (CONDUCTOR SIDE)
B
C303
R904
C417
C304
R415
R414
C415
C302
R305
28
22 21 15
30
CL118
CL115
R124
R123
R122
CL108
C202
–
R302
R416
C418
CL114
CL112
CL110
CL109
R121
C113
R409
C126
R120
C123
C125
CL107
R117
CL119
C204
+
CL203
CL208
CL211
C107
CL207
SL302
C117
C102
C103
R102
CL205
CL212
R104
R105
SL304
C133
R108
R111
CL204
CL201
C129
C131
R202
C127
Q201
EB
C206
C208
C209
R203
CP201
C124
R201
C201
C116
C119
C207
1-883-378-
CL209
CL210
CL117
11
(11)
CL202
R109
CL102
R107
C104
C105
SL201
SL303
R417
R101
C101
CL101
R103
R106
CL103
C118
C106
C108
CL104
R112
C120
CL105
C110
X101
C132
R126
80 61
1
20
21 40
C121
CL106
R116
R113
R114
C111
C112
116
IC101
(SPINDLE)
SL301
CL121
CL116
C128
C130
C122
R405
C407
R404
C406
CL120
CN201
OPTICAL
PICK-UP
BLOCK
(DA11MMVGP)
M
M401
60
41
R118
R407
CL113
CL214
CL206
IC301
R301
S001
S001
(LIMIT)
781
29
14
R303
+
CL401
M402
M
(SLED)
CL410
R411
CL213
R910
R912
CL411
CL412
C905
R905
R906
C906
C907 R907
R908
C908
CL908
CL906
C909
R909
R911
R902
R914
CL907
CL909
91
CN901
82
CL904
CL111
R408
R406
C904
R913
CL905
12
13
24
25
CL413
IC901
R903
CL903
36
CL902
CL408
CL409
C901
1
48
37
CL901
C951C952
C405
R413
R412
R953
R954
R955
CL416
–
R403
CL405
R951R952
R924
R923
R922
CL402
CL404
CL406
C955
1-883-378-
20
2
CL419
CN401
21
1
CL420
CL421
CL414
CL415
CL403
CL407
CL417
CL418
M
PANEL
BOARD
CN202
(Page 33)
11
(11)
R304
C
C301
D
E
R402
F
R401
R901
C402
C902 C903
X901
G
C401
C953
H
R129
C416
I
J
K
HCD-EX660Z/EX880Z/EX990Z
FLASH
PROGRAMMING
3737
Page 38
HCD-EX660Z/EX880Z/EX990Z

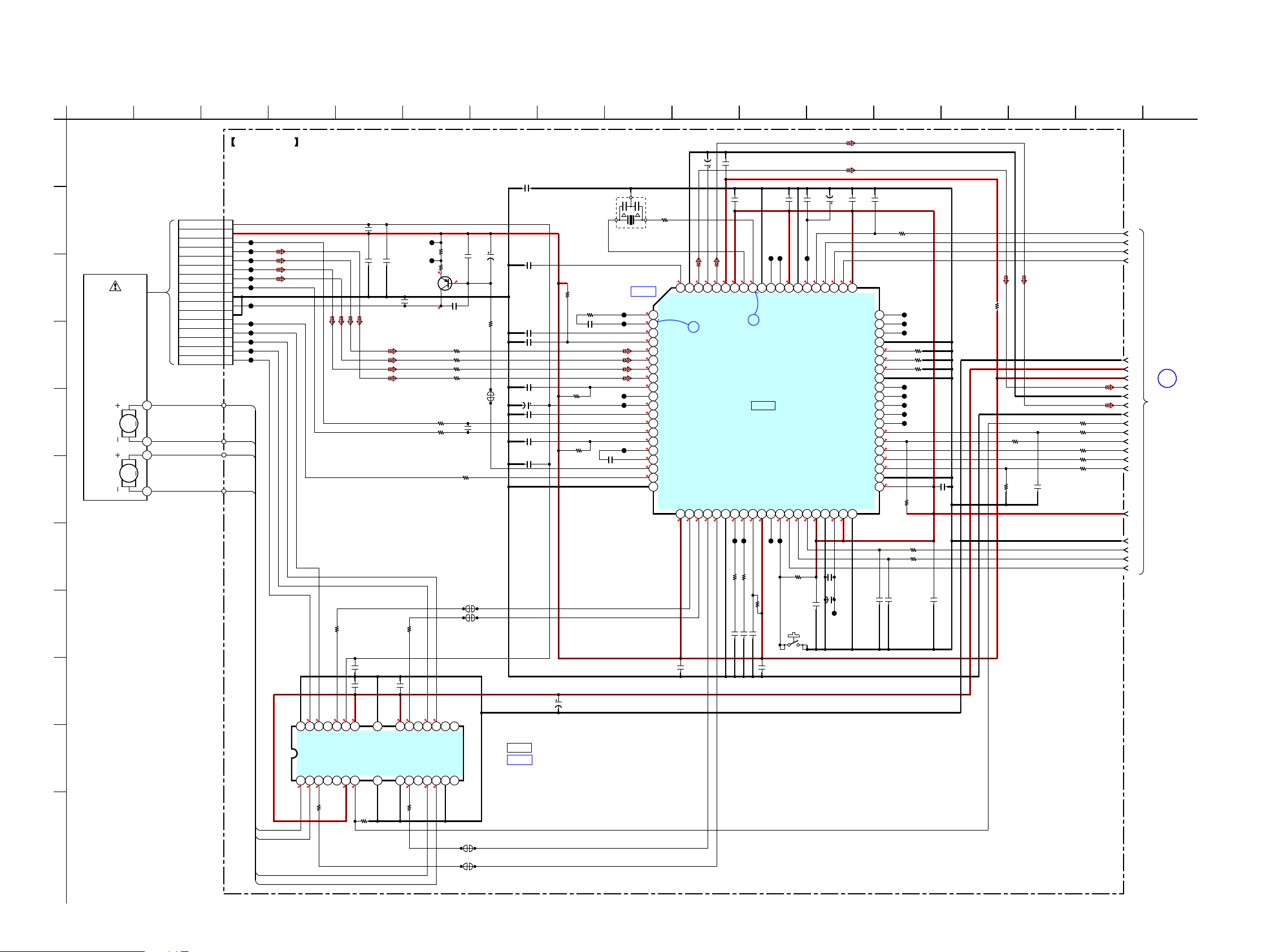

5-21. SCHEMATIC DIAGRAM - BD76 Board (1/2) - • See page 20 for Waveforms. • See page 45 for IC Block Diagrams.
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
BD76 BOARD (1/2)
A
C133
0.1
CN201
B
C
OPTICAL
PICK-UP
BLOCK
(DA11MMVGP)
D
1234
E
M401
(SPINDLE)
M402
(SLED)
MM
F
VREF
VCC
GND
16P
16
15
CL212
14
E
D
A
B
C
F
LD
VR
MD
F
T-
T
F-
CL211
13
CL210
12
CL209
11
CL208
10
CL207
9
8
CL206
7
6
CL205
5
CL204
4
CL203
3
CL202
2
CL201
1
SP
SP-
SL
SL-
C201
0.1
C202 1
C204 1
2SA2119K
AUTOMATIC
POWER CONTROL
C209
0.1
CL213
CL214
Q201
X101
R201
1
R202
3.3
2.2
3.3
1.6
C208
1000p
0R103
0R104
0R105
0R106
R108
1k
R109
1k
R112
C106
C207
C206
1
R203
0
SL201
0
C117
100
0.047
16V
R102
10k
0.01C102
0.1C103
0.1C104
C119
16V100
0.01C1053300p
0.1C107
0.1C118
68kR107
22kR111
16.934MHz
IC B/D
330R101
CL101
1.7
CL102
4700pC101
CL103
CL117
CL104
0.01C108
1
1.7
2
1.6
3
1.7
4
1.7
5
1.7
6
1.7
7
1.7
8
1.7
9
10
3.3
11
0.8
12
1.7
13
1.7
14
3.3
15
1.7
16
1.6
17
3.3
18
0
19
20
G
SL304
H
R305
8.2k
R304
10k
SL303
C116
100
16V
R126
0
1.7
SLCO
LRVSS
EFMIN
RFOUT
1
LPF
PHLPF
AIN
CIN
BIN
DIN
SLCISET
RFMON
VREF
JITTC
EIN
FIN
PCNCNT
TE
TEIN
LDD
LDS
AVSS
AVDD
FDO
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
3.3
1.7
1.7
RCHO
TDO
1.7
1.7
1.7
LCHO
LRREF
SLDO
SPDO
1.7
1.701.8
C132
0.1
C131
3.3
3.3
XVDD
LRVDD
CD-MP3 PROCESSOR
VVSS1
PDOUT1
CL105
680R113
0.22C110
0.1
1.7
1.5
XIN
XOUT
2
IC101
LC786950T-US-H
IC101
PDOUT0
PCKIST
1.1
3.3
CL106
68kR116
680R114
0.1C112
0.022C111
C130
0.1
CL116
CL121
XVSS
DOUT
CONT4
VVDD1
CONT5(M-MUTE)
LIMIT-SW(CONT3)
3.3
CL120
CL119
CL118
3.3
DVSS
DVDD
STREQ(DEFECT)
STCK(FSEQ)
000
R117
10k
C122
0.1
S001
(LIMIT)
C128
1
DVDD15
PCMREQ
STDATA(C2F)
DVDD
3.3
C129
100
16V
3.3
00001.6
6162636465666768697071727374757677787980
PCMBCK
PCMDATA
C2F(LRSY)
PCMLRSY
FSEQ(DATACK)
DEFECT(DATA)
AD_DATA(STDATA)
AD_BCK(STCK)
AD_LRCK(STREQ)
DVSS
DVDD15
VVDD3
1.6
3.3
C123
1
C124
100
16V
CL107
C127
0.1
DVDD
TEST1
TEST0
CONT0
CONT1
CONT2
INTB1
INTB0
RESB
DVSS
DVDD
VVSS3
DO
C407
47p
C418
100p
R416 100
R417
CL115
60
CL114
59
CL113
58
57
56
55
54
53
52
51
50
49
48
47
46
45
DI
44
CL
43
CE
42
41
0
0
0
3.3
3.3
3.3
3.3
0
3.3
C406
47p
CL112
CL111
CL110
CL109
CL108
R121
10k
R405 100
R404 100
C125
0.1
10kR124
10kR123
10kR122
C126
0.1
0
100R411
100R118
100R408
100R407
100R406
R120
10k
100R409
C113
0.1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
BD76
BOARD
(2/2)
(Page 39)
I
J
K
HCD-EX660Z/EX880Z/EX990Z
C304
0.1
C302
C303
0.1
0.1
3.2
3.2
1.7
3.3
VO4
IN1
R301
5.6k
IN4
RESET
IN4’
REGB
BIAS
REGOUT
7
7
0
VCC
MUTE
R302
33k
28 27 26 25 24 23 22 21 20 19 18 17 16 15
GND
VO4-
VO1-
VO1
3.2
3.2
1.7
SPSP
SL
SL-
7
1.7
3.2
VCC
GND
3.2
IN3
IN3’
VO3-
OPIN
VO3
RESETt
IN2’
IN2
VO2
VO2-
GND
OPOUT
141312111098765432129
1.7
3.2
3.2
R303
12k
SL302
SL301
IC301
BA5826HFP-E2
IC301
IC B/D
FOCUS/TRACKING COIL DRIVE,
SPINDLE/SLED MOTOR DRIVE
30
GND
GND
C301
10V
220
C120
0.1
C121
0.1
3838
Page 39

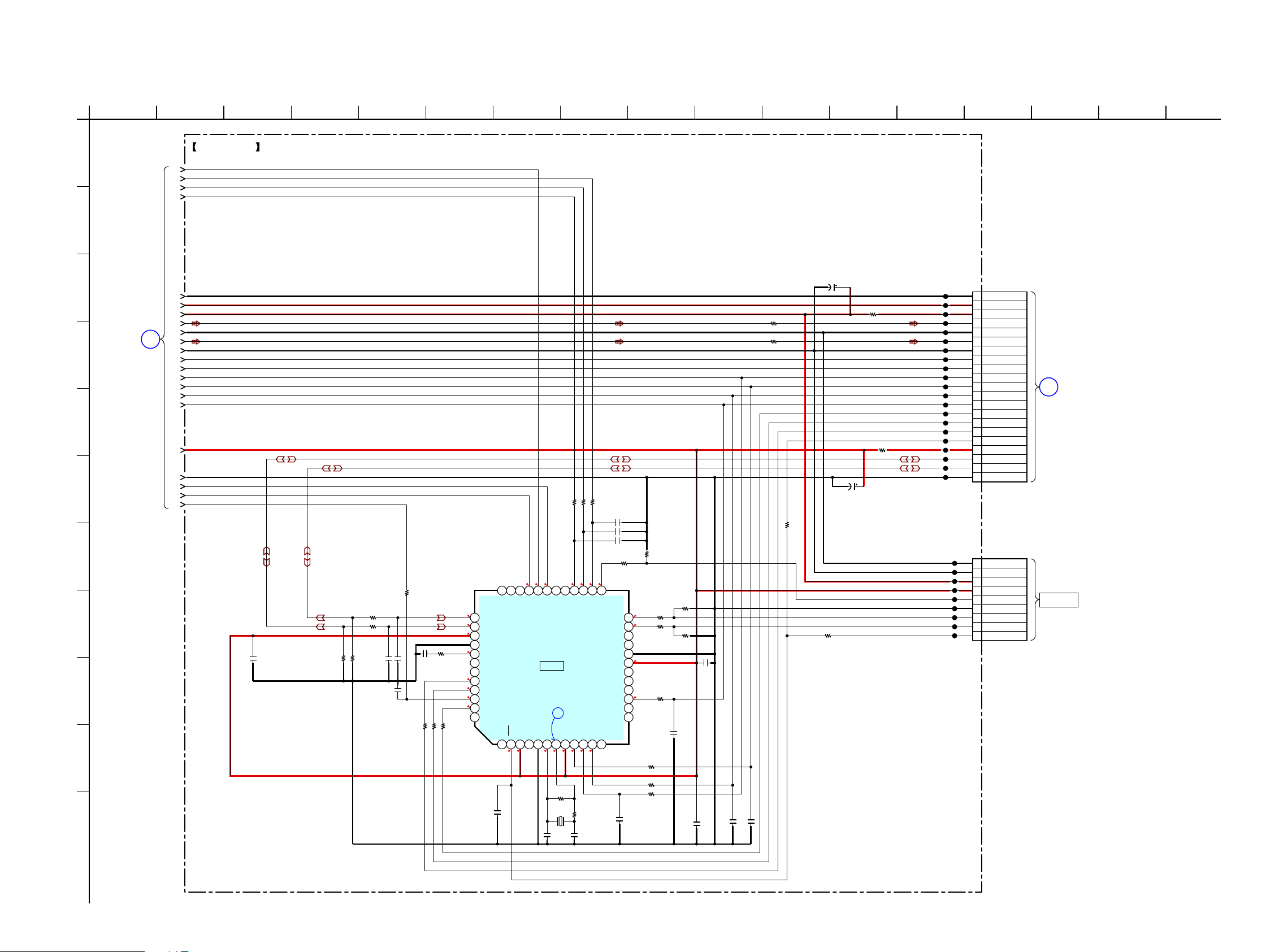

5-22. SCHEMATIC DIAGRAM - BD76 Board (2/2) - • See page 20 for Waveforms. • See page 52 for IC Pin Function Descriptions.
HCD-EX660Z/EX880Z/EX990Z
1
A
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
BD76 BOARD (2/2)
1
2
3
4
B
C402
R902
100
16V100
CL401
CL402
CL403
CL404
CL405
CL406
CL407
CL408
CL409
CL410
CL411
CL412
CL413
CL414
CL415
CL416
CL417
CL418
CL419
CL420
CL421
C401
0R402
0R401
16V100
C
BD76
BOARD
(1/2)
(Page 38)
D
5
6
7
8
9
10
1
11
12
13
14
15
16
17
0R413
0R412
E
18
19
F
G
H
I
J
K
20
21
22
R129 100
R414 100
R415 100
C953
2.2
15kR951
15kR952
C417 47p
C416 47p
C415 47p
R914
100k
R913
100
000
0
LC87F1JJ2AU-SQFP-H
USB CONTROL
3.3
000
IC901
IC901
1.5
12MHz
C902
22p
3
1.9
R903
1M
X901
26
27
28
29
3.3
25
P2030P2131P2232P2333P2434P2535P2636P27
SDAT
BCLK
LRCK
DBGP2
3.3
3.3
3.3
R904
0
C903
27p
DBGP1
DBGP0
VSS2
VDD2
MCLKO
MCLKI
SCK1
0
24
0
23
22
P01
21
P00
20
3.3
19
18
17
16
P17
0
15
P16
14
13
SI1
C906
100p
R911
100
R909
100
R908
100
100R905
100R907
100R906
R912
100k
R910
100k
C908
100p
C904
0.01
C909
0.1
100pC905
100pC907
R403
100
33R954
33R953
5pC951
5pC952
C955
2.2
C405
100p
100R922
100R923
R955
0
100R924
0
37
UHD-
0
38
UHD
3.3
39
VDD3
40
VSS3
1.8
41
UFILT
42
AFILT
43
P32
2.7
44
URX1
3
45
UTX1
0.8
46
P70
3.3
47
P71
48
P72
P732RES3XT14XT25VSS16CF17CF28VDD19SO010SI011SCK012SO1
1
3.3
C901
0.1
R901
100
CL901
CL902
CL903
CL904
CL905
CL906
CL907
CL908
CL909
CN401
21P
CN901
9P
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
CD-M-GND
CD-VM7V
AVDD3.3V
CD/USB-Rch
AU-GND
CD/USB-Lch
AGND
CD-M-MUTE
CD-RST
CD-DO
CD-DI
CD-CL
CD-CE
USB-SLEEP
USB-RXD
USB-TXD
USB-RST
DVDD3.3V
D
DD-GND
GND
GND
VDD
VDD
DBGP2
GND
DBGP1
DBGP0
TRESET
PANEL
BOARD
N
CN202
(Page 36)
FLASH
PROGRAMMING
(3/3)
HCD-EX660Z/EX880Z/EX990Z
3939
Page 40
HCD-EX660Z/EX880Z/EX990Z

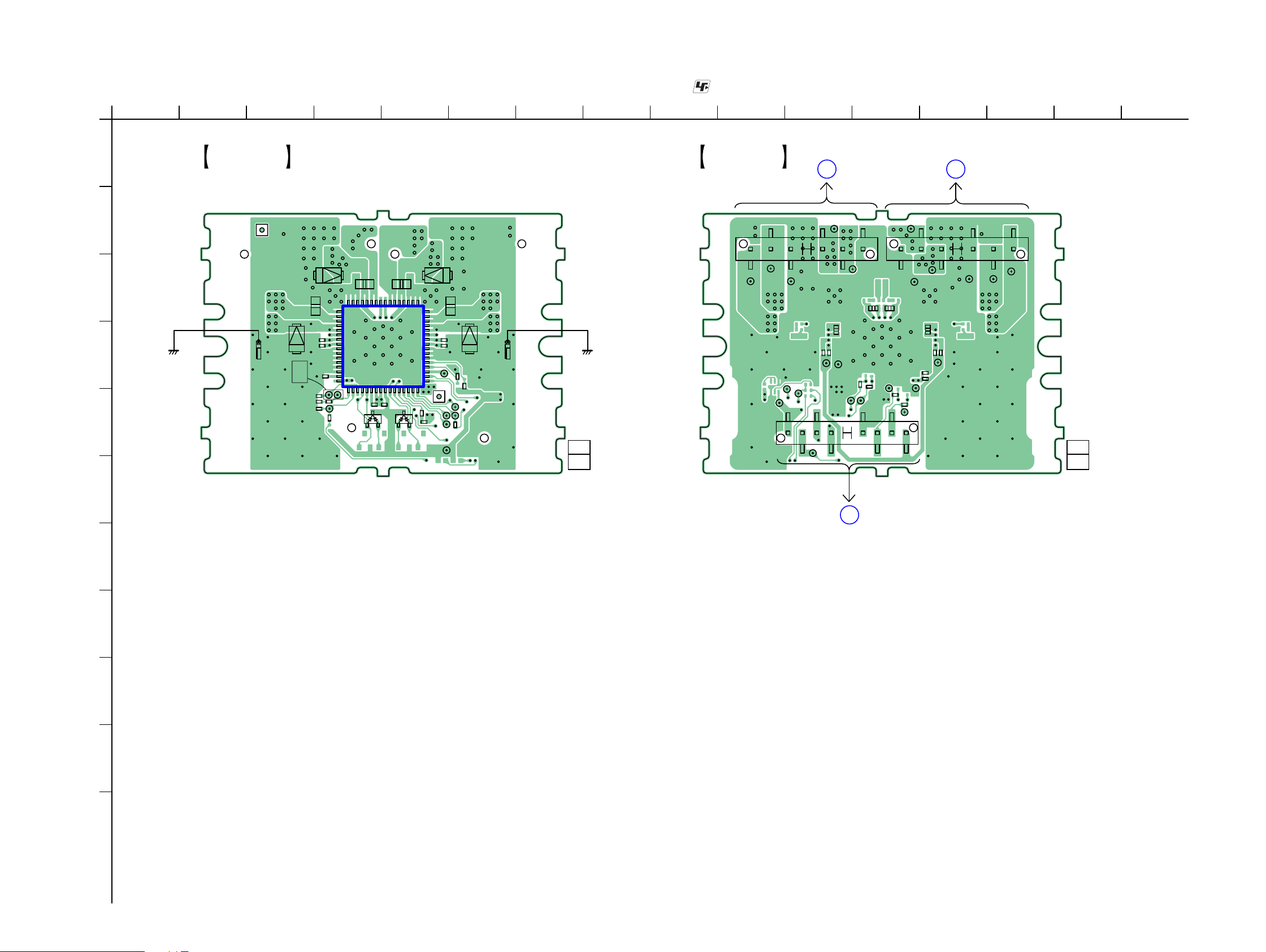

5-23. PRINTED WIRING BOARD - MODULE PHD Board (EX660Z) - • See page 16 for Circuit Boards Location. • : Uses unleaded solder.
1
A
B
C
D
(CHASSIS) (CHASSIS)
E
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
MODULE PHD
BOARD
(EX660Z)
(COMPONENT SIDE)
C816
D808
ET800
CL807
CL809
C800
R808
C807
D809
C812
C810
C809
C824 C825
3348
49
IC800
64
116
R810
C803 C804
CL808
D815 D816
R806
32
17
R809
R811
CL802
C813
C811
JL816
JL815
JL814
D810
JL813
R800
C817
R814
JL812
R815
D811
ET801
1-885-678-
11
(11)
MODULE PHD
BOARD
(EX660Z)
(CONDUCTOR SIDE)
62
CN803
JL828
JL827
JL808
JL811
JL826
JL800
JL810
CN801
7
B
JL806
JL825
R820
JL805
C814
R819
AMP-SMPS
BOARD
(EX660Z)
CN603
(Page 21)
15
JL824
C821
JL802
R825
R824
JL804
JL821
62
JL820
JL822
C820
C815
R817
CL812
C808
R823
1
R822
JL801
JL823
R812
JL803
28
A
R818
AMP-SMPS
BOARD
(EX660Z)
(Page 21)
JL819
CN604
CN802
JL818
15
JL817
1-885-678-
11
(11)
F
AMP-SMPS
BOARD
(EX660Z)
C
CN605
(Page 21)
G
H
I
J
K
HCD-EX660Z/EX880Z/EX990Z
4040
Page 41

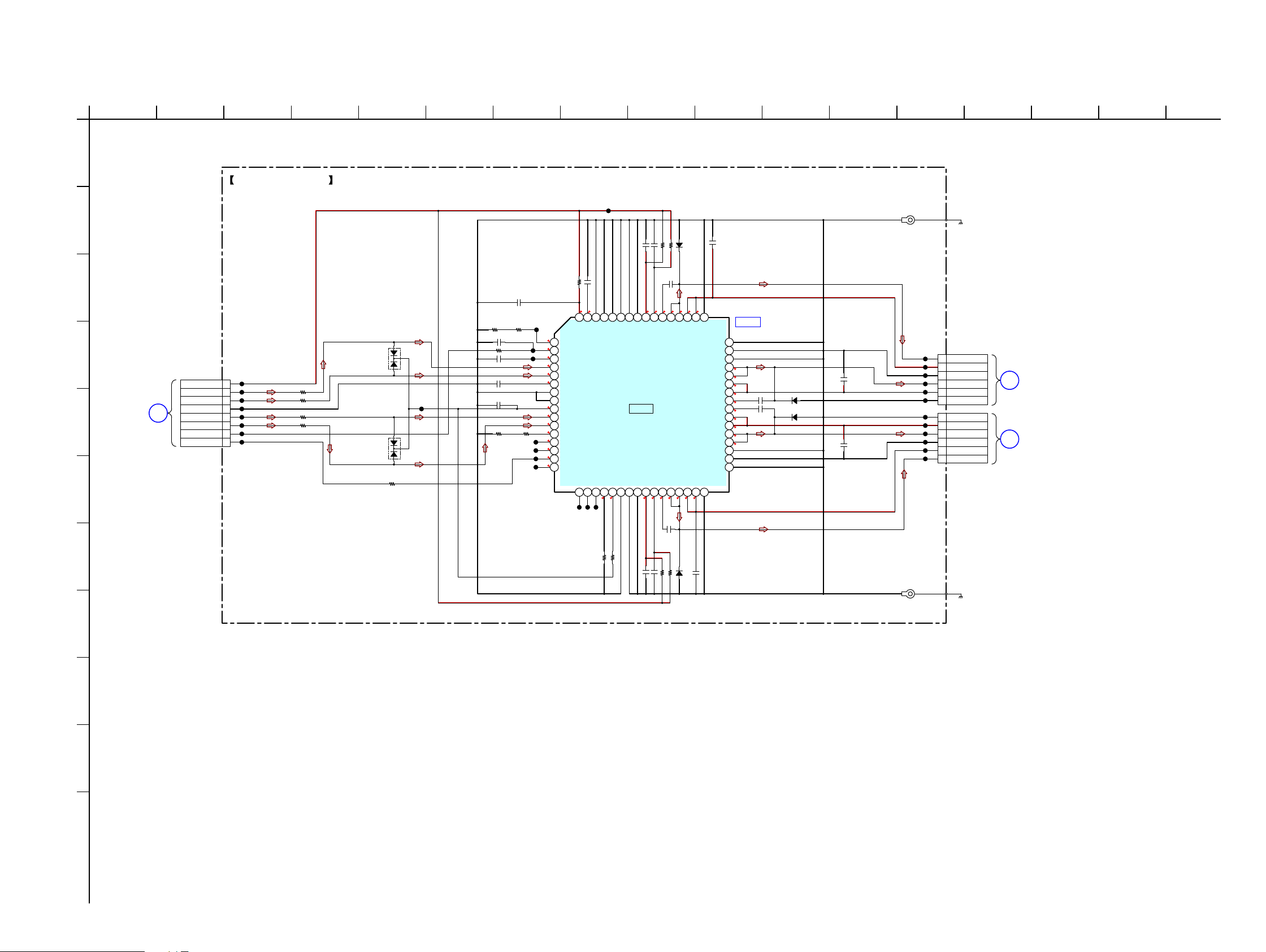

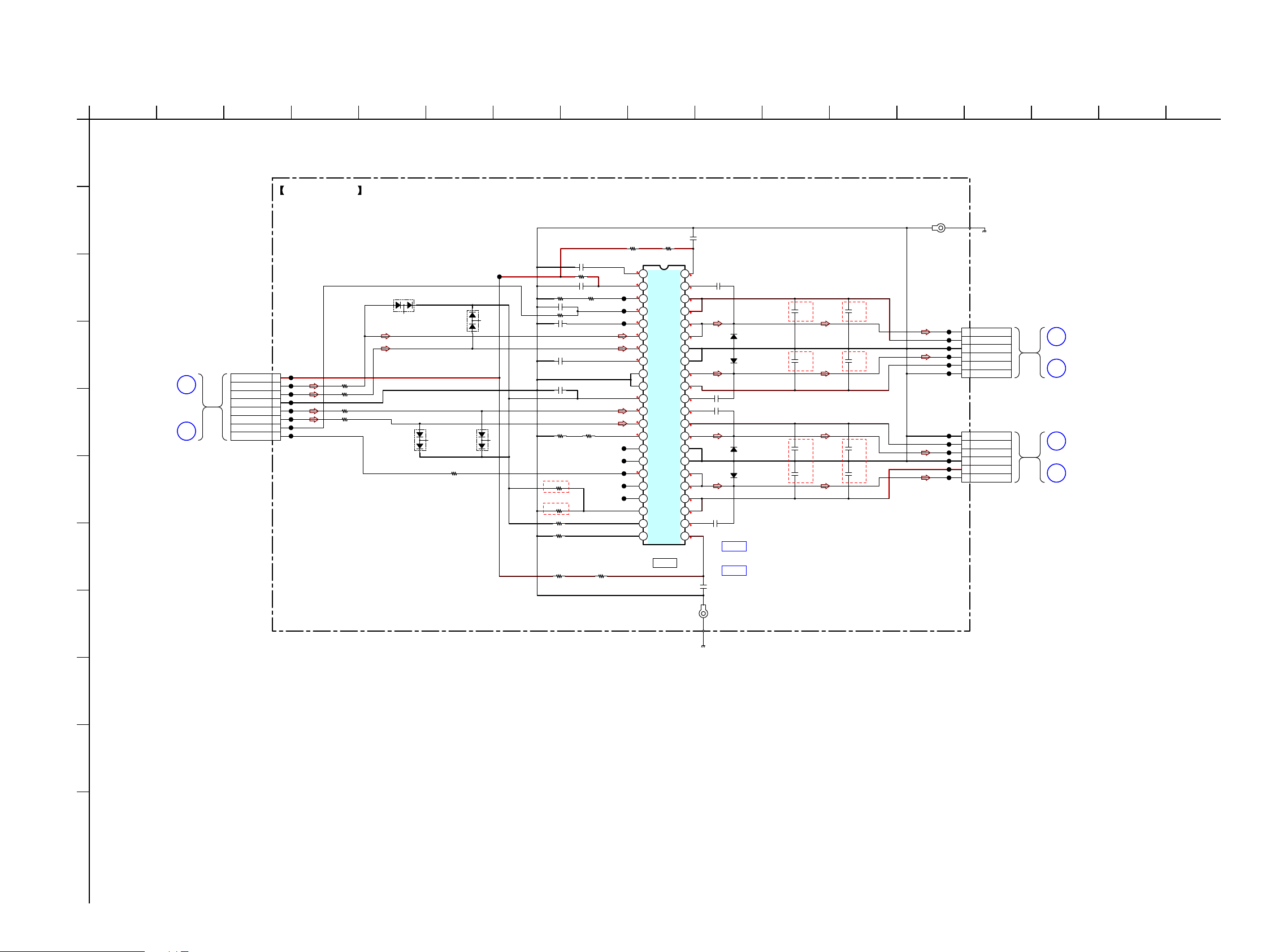

5-24. SCHEMATIC DIAGRAM - MODULE PHD Board (EX660Z) - • See page 45 for IC Block Diagrams.
HCD-EX660Z/EX880Z/EX990Z
A
B
C
D
E
F
G
1
AMP-SMPS
BOARD
(EX660Z)
CN605
(Page 22)
B
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
MODULE PHD BOARD
(EX660Z)
CL812
GVDD
INPUT-A
INPUT-B
INPUT-C
INPUT-D
RESET
GND
E
3.3R818
3.3R817
D808 SS110R3
OUT_A
OUT_D
PVDD_A
PVDD_D
30 31 32
49505152535455565758596061626364
GND_A
PVDD_A
PVDD_C
PVDD_C
PVDD_D
GND_D
C816 2.2
GND_A
GND_B
GND_B
OUT_B
OUT_B
PVDD_B
PVDD_B
BST_B
BST_C
OUT_C
OUT_C
GND_C
GND_C
GND_D
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
IC B/D
16 3
16 3
32 3
32 3
C820 0.1
27 3
C821 0.1
27 3
32 3
32 3
16 3
16 3
D809 SS110R3
D810 SS110R3
C824
C825
2.2
2.2
C812 0.1
C810 0.1
IC800
GND
GND
252423
GVDD_B
GVDD_C
BST_A
GVDD_A
GVDD_D
BST_D
C814
3.3R819
C815
0.1
OUT_A
OUT_D
0.1
3.3R820
0R812
C808
0.1
R810
R808
15k
C807
3.3V
C800 4700p
C803 1000p
C804 0.1
R809
10k
D815
CN801
8P
JL800
JL801
JL803
JL802
JL804
JL805
JL806
JL808
12V
100R822
100R823
100R824
100R825
1
2
3
4
5
6
7
/SD
8
MC2838-T112-1
D816
MC2838-T112-1
R800
CL802
1k
CL807
15k
CL808
CL809
JL814
JL815
JL812
JL813
1 2
3 3
3 3
2
2
2
3 3
2
2
1
10kR811
2
2
3 3
3 3
220p
100R806
C809 330p
12 2 12 12 27.3 163 16.3 32.3 32.3
NC
NCNCNC
1
OC_ADJ
2
/RESET
3
C_STARTUP
4
INPUT_A
5
INPUT_B
6
VI_CM
7
GND
8
AGND
9
VREG
10
INPUT_C
11
INPUT_D
12
FREQ_ADJ
13
OSC_IO
14
OSC_IO-
15
/SD
16
/OTW1
VDD
/OTW2
17
JL810
PSU_REF
/CLIP
18 19 20 21 22 29282726
JL811
GND
TAS5611APHDR
IC800
POWER AMP
READYM1M2M3GND
0 3.3 12 12 27.3 16.3 16 3 32.3 32.3
JL816
0R815
0R814
ET800
JL817
JL818
JL819
JL820
JL821
JL822
JL823
JL824
JL825
JL826
JL827
JL828
CN802
CN803
(CHASSIS)
6P
1
OUT-A
2
PVDD
3
GND
4
OUT-B
5
PVDD
6
GND
1
GND
2
PVDD
3
OUT-C
4
GND
5
PVDD
6
OUT-D
6P
AMP-SMPS BOARD
(EX660Z)
C
(Page 23)
AMP-SMPS BOARD
D
(EX660Z)
(Page 23)
CN604
CN603
C811 0.1
C813 0.1
D811 SS110R3
C817 2.2
ET801
E
(CHASSIS)
H
I
J
K
HCD-EX660Z/EX880Z/EX990Z
4141
Page 42
HCD-EX660Z/EX880Z/EX990Z
5-25. PRINTED WIRING BOARD - MODULE Board (EX880Z/EX990Z) - • See page 16 for Circuit Boards Location. • : Uses unleaded solder.
1
A
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
MODULE BOARD
(EX880Z/EX990Z)
(COMPONENT SIDE)
EX990Z
EX880Z
B
C827
C824
C803 C804
C829
C825
R809
JL816
R811
23
22
JL813
JL815
D805
C828
D804
R836
C800
R810
C816
44
IC801
1
CL809
CL807
CL808
R806
C
(CHASSIS) (CHASSIS)
ET800
D
C809
R808
C807
E
D817 D818 D819D820
C817
R814
D807
R827
R815
R813
JL814
CL802
D806
C826
R837
JL812
R800
ET801
1-885-679-
11
(11)
MODULE BOARD
(EX880Z/EX990Z)
(CONDUCTOR SIDE )
CN803
62
JL828
JL827
JL808
JL825
R819
7
JL826
C811
JL802
JL805
CN801
JL806
15
JL824
C814 C815
C821
R825
JL800
JL804
JL821
CN802
62
JL823
JL801
CL812
C808
R812
C810
R817
JL819
JL822
C820
R824
R823
JL803
JL820
R822
28
1
15
JL817JL818
1-885-679-
AMP-SMPS BOARD
(EX880Z)
CN603
(Page 25)
F
J
AMP-SMPS PC BOARD
(EX990Z)
CN603
(Page 29)
AMP-SMPS BOARD
(EX880Z)
CN604
(Page 25)
E
I
AMP-SMPS PC BOARD
(EX990Z)
11
(11)
CN604
(Page 29)
F
G K
AMP-SMPS
G
BOARD
(EX880Z)
CN605
(Page 25)
H
I
J
AMP-SMPS
PC BOARD
(EX990Z)
CN605
(Page 29)
K
HCD-EX660Z/EX880Z/EX990Z
4242
Page 43
5-26. SCHEMATIC DIAGRAM - MODULE Board (EX880Z/EX990Z) - • See page 45 for IC Block Diagrams.
HCD-EX660Z/EX880Z/EX990Z
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
A
MODULE BOARD
(EX880Z, EX990Z)
B
C
MC2840-T112-1
D817
*1 C800
0.01 (EX990Z)
0.0047 (EX880Z)
*2 C803
1 (EX990Z)
1000 (EX880Z)
*3 C809
4.7 (EX990Z)
330 (EX880Z)
D818
MC2840-T112-1
AMP-SMPS
D
E
BOARD
(EX880Z)
CN605
(Page 26)
AMP-SMPS PC
BOARD
(EX990Z)
CN605
(Page 30)
F
CN801
8P
12V
JL800
1
GVDD
INPUT-A
INPUT
GND
INPUT-C
INPUT-D
J
RESET
JL801
2
JL803
3
-B
JL802
4
JL804
5
JL805
6
JL806
7
JL808
8
/SD
100R822
100R823
100R824
100R825
D819
MC2840-T112-1
MC2840-T112-1
R800
F
G
*4 R808
12K (EX990Z)
0 (EX880Z)
*5 R810
12K (EX990Z)
22K (EX880Z)
CL812
D820
1k
C807 220p
C800 *1
C803 *2
C804 0.1
R809
10k
EX990Z
EX880Z
R837
0
C809 *3
C808 0.1
*4R808
100R806
0R813
0R814
0R815
0R827
R811
0R812
10k
*5R810
R819
R836
0
2
GVDD_AB
1
PSU_REF
12
2
VDD
1.2
CL807
3
OC_ADJ
3.2
CL808
4
/RESET
3.2
CL809
5
C_STARTUP
2
6
INPUT_A
2
7
INPUT_B
2
8
VI_CM
9
GND
10
AGND
3.3
11
VREG
2
12
INPUT_C
2
13
INPUT_D
1
14
FREQ_ADJ
15
JL814
JL815
JL812
JL813
JL816
3.3
OSC_IO
16
OSC_IO-
3.3
17
/SD
18
/OTW
19
READY
20
M1
21
M2
GVDD_CD
22
M3
IC801
POWER AMP
IC801
R817
3.3
BST_A
PVDD_A
PVDD_A
OUT_A
OUT_A
GND_A
GND_B
OUT_B
PVDD_B
BST_B
BST_C
PVDD_C
OUT_C
GND_C
GND_D
OUT_D
OUT_D
PVDD_D
PVDD_D
BST_D
C810
44
12
43
35.8
42
50.4
41
50.4
40
25
39
25
38
37
36
25
35
50.4
34
35.8
33
35.8
32
50.4
31
25
30
29
28
25
27
25
26
50.4
25
50.4
24
35.8
23
12
C811
0.1
0.1
C815 0.1
C820 0.1
C821 0.1
C814 0.1
IC B/D
TAS5613ADKDR (EX880Z)
IC B/D
TAS5630BDKDR (EX990Z)
D804
SK310A-R3
D805
SK310A-R3
D806
SK310A-R3
D807
SK310A-R3
C816
EX880Z EX990Z
2.2
C824
EX880Z
EX880Z EX990Z
C825
C817
EX990Z
2.2
2.2
2.2
C828
C827
C829
C826
2.2
2.2
2.2
2.2
ET800
JL817
JL818
JL819
JL820
JL821
JL822
JL823
JL824
JL825
JL826
JL827
JL828
E
CN802
(CHASSIS)
6P
OUT-A
1
PVDD
2
GND
3
OUT-B
4
PVDD
5
GND
6
AMP-SMPS BOARD
(EX880Z) CN604
G
K
(Page 27)
AMP-SMPS PC BOARD
(EX990Z) CN604
(Page 31)
AMP-SMPS BOARD
(EX880Z) CN603
H
L
(Page 27)
AMP-SMPS PC BOARD
(EX990Z) CN603
(Page 31)
CN803
GND
1
PVDD
2
OUT-C
3
GND
4
PVDD
5
OUT-D
6
6P
H
I
J
K
HCD-EX660Z/EX880Z/EX990Z
4343
E
(CHASSIS)
ET801
Page 44
HCD-EX660Z/EX880Z/EX990Z
5-27. PRINTED WIRING BOARD - TUNER1 Board - • See page 16 for Circuit Boards Location. • : Uses unleaded solder.
1
2 3 4 5 6 7 8 9 10 11
A
TUNER1 BOARD
(CHASSIS)
A001
B
JR106
C
CN103
ANTENNA
FM/AM
JR
13
(CHASSIS)
D
E
JL112
D103
JL135
R114
FL101
IG O
JL133
D102
JL118
R107
JL117
JL116
D101
L101
C106
C108
JR101
L104
L103
JR
JL132
R109
JL113
JL134
JL131
R104
R101
C111
JL129
JR112
JR
JL125
C105
JL127
JL126
C103
C102
R105
JL108
JL106
IC103
12
43
C112
JL109
JL128
R106
JL110
JL104
1-885-134-
R110
JL105
JL107
1
9
L101
3
S2
4
2
S1
1
2
CN101
N
6
PANEL
BOARD
CN203
(Page 33)
8
JL103
11
(11)
JL115
L105
R108
JR105
JR
JL114
R113
C110
C107
IC101
JL121
JL130
R103
JL123
C101
JR109
X101
JR102
JR
JL102
JL111
JR
JL124
JL122
5-28. SCHEMATIC DIAGRAM - TUNER1 Board - • See page 20 for Waveforms. • See page 45 for IC Block Diagrams.
1
A
B
ANTENNA
FM/AM
C
D
E
2 3 4 5 6 7 8 9 10 11
TUNER1 BOARD
JL132
ROUT
LOUT
GND
VDD
JL130
3.3
12
3.3
13
DA
1.6
14
1.6
15
0
16
IISD
0
17
CP1
0
18
X1
0
19
X2
3.3
20
JL123
C101
470p
X101
32.768kHz
C107
0.047
R113
10k
JL121
JL122
JL124
JL125
JL126
JL127
JL129
JL111
C110
10
C105
1
R108
0
R109
0
IC103
NJM2878F4-33 (TE2)
IC103
3.3V REG
L101
600uH
6
CN103
3P
JL116
1
AM
JL117
2
AM
JL118
3
FM
MC2837
MC2837
R114
0
D101
D102
JL135
D103
MC2837
1
2
34
FL101
BAND PASS
FILTER
BPF
JL112
L104
220nH
C106
0.047
L103
47nH
C108
JL131
R107
100
JL133
2.2
JL134
JL113
10
0
0
0
0
0
0
3.3
R104
CK11VDD
9
LA
8
IIC/RDSI
7
ARF2
6
ARF1
5
GNDRF
4
FRF1
3
CP2
2
VDDRF
1
GND
IC101
RZ5B801-0002E2
0
6
IC101
IC B/D
AM/FM DET, OSC,
MIX,PLL,IF AMP
JL114
C111
C102 1
C103 1
R106
1
L105
4.7uH
100R101
22R103
22R105
100
JL115
3.3 9
34
Vout
GND
3.3
C112
1
Vdd
1CE2
R110
10k
JL102
JL103
JL104
JL105
JL106
JL107
JL108
JL109
JL110
CN101
9P
CK (for IIC)
9
IIC/RDSI
8
DA (for IIC)
7
GND
6
AUDIO R/BCK
5
CE (p con)
4
AUDIO L/LRCK
3
VDD
2
IISD (data audio)
1
M
PANEL
BOARD
CN203
(Page 35)
HCD-EX660Z/EX880Z/EX990Z
4444
Page 45

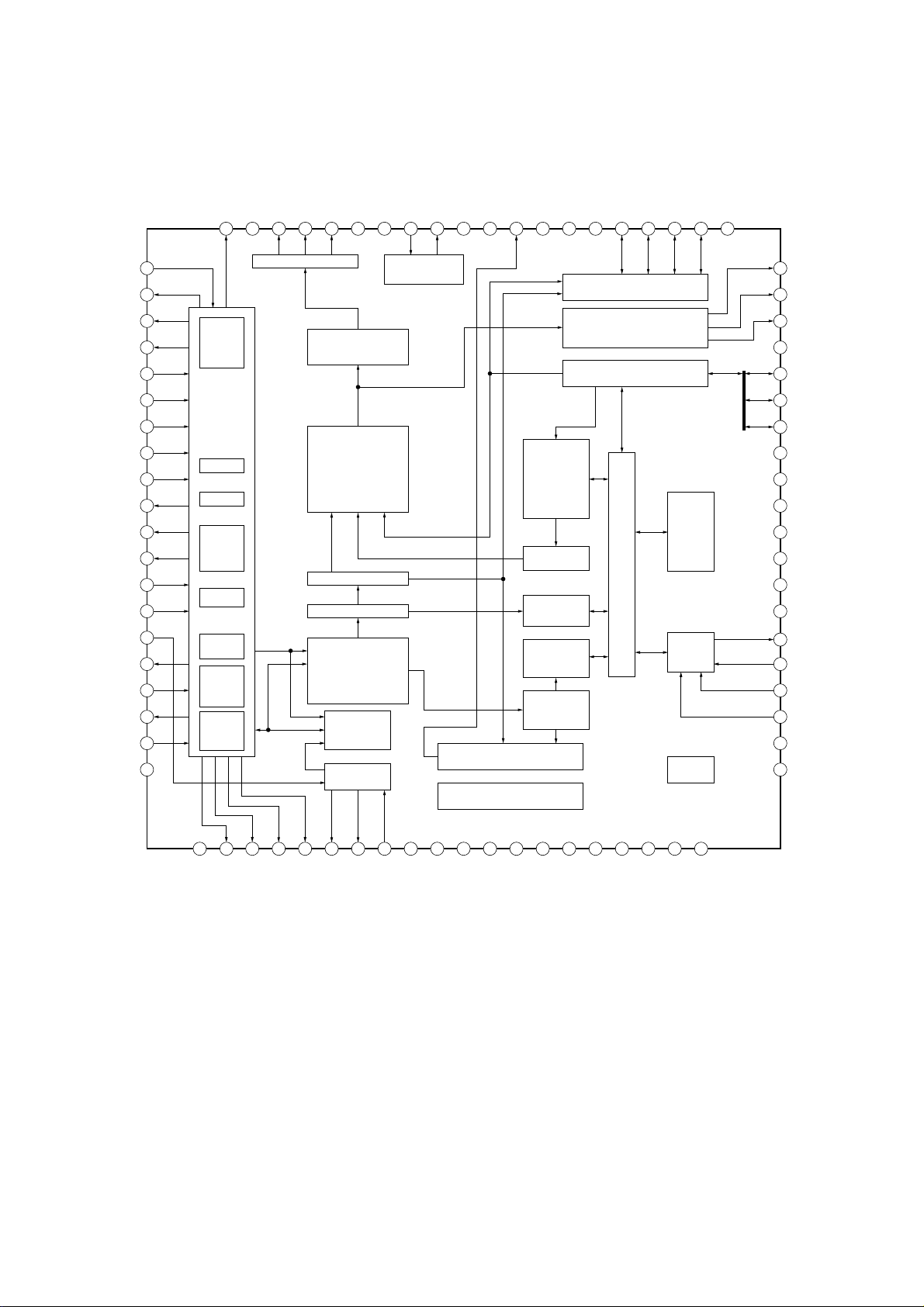

• IC Block Diagrams
IC101 LC786950T-US-H (BD76 Board (1/2))
HCD-EX660Z/EX880Z/EX990Z
EFMIN
RFOUT
LPF
PHLPF
AIN
CIN
BIN
DIN
SLCISET
RFMON
VREF
JITTC
EIN
FIN
PCNCNT
TEIN
LDD
LDS
AVSS
SLCO80LRVSS79RCHO78LRREF77LCHO76LRVDD75XVDD74XIN73XOUT72XVSS71CONT470DOUT69DVDD68DVSS67DVDD1566PCMREQ65PCMDATA64PCMBCK63PCMLRSY62DVDD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
TE
17
18
19
20
SLICE
LEVEL
CONTROL
RF
SIGNAL
PROCESSOR
MONITOR
VREF
TES, HFL,
DEFECT
JITTER
APC
D/A
A/D
LPF
8FS DIGITAL FILTER/
1BIT DAC
AUDIO CONTROL
MUTE/DE-EMPHASIS/
ATTENUATION CONTROL/
BASS/TREBLE/
HFC FILTER
INTERPOLATION MUTE
ERROR CORRECTION
SYNCHRONIZATION
DETECTION
EFM
DEMODULATION
SERVO
CONTROL
CD PLL
CLOCK
GENERATOR
MP3, WMA, AAC
DOUT CONTROL
PORT CONTROL
MP3/PCM OUTPUT CONTROL
AUDIO OUTPUT
STREAM CONTROL/AUDIO INPUT
DECODER
MP3
ENCODER
SRC
ROM
DECODER
TEXT
DECODER
SUBCODE
DECODER
CONTROL
MEMORY
MEMORY I/F
1M BIT
MCU
I/F
PLL3
61
C2F (LRSY)
60
FSEQ (DATACK)
59
DEFECT (DATA)
58
TEST157
AD_DATA (STDATA)
56
AD_BCK (STCK)
55
AD_LRCK (STREQ)54
53
TEST0
CONT0
52
CONT151
CONT250
INTB1
49
INTB0
48
RESB
47
DO
46
45
DI
44
CL
CE
43
DVSS
42
41
DVDD
22
21
23
24
25
26
FDO
AVDD
TDO
SLDO
SPDO
VVSS1
28
PDOUT127PDOUT0
29
PCKIST
30
VVDD1
31
32
CONT5 (M-MUTE)
LIMIT-SW (CONT3)
33
34
STCK (FSEQ)
STREQ (DEFECT)
35
STDATA (C2F)
36
DVDD
37
DVSS
38
DVDD15
39
VVDD3
40
VVSS3
45
Page 46
HCD-EX660Z/EX880Z/EX990Z

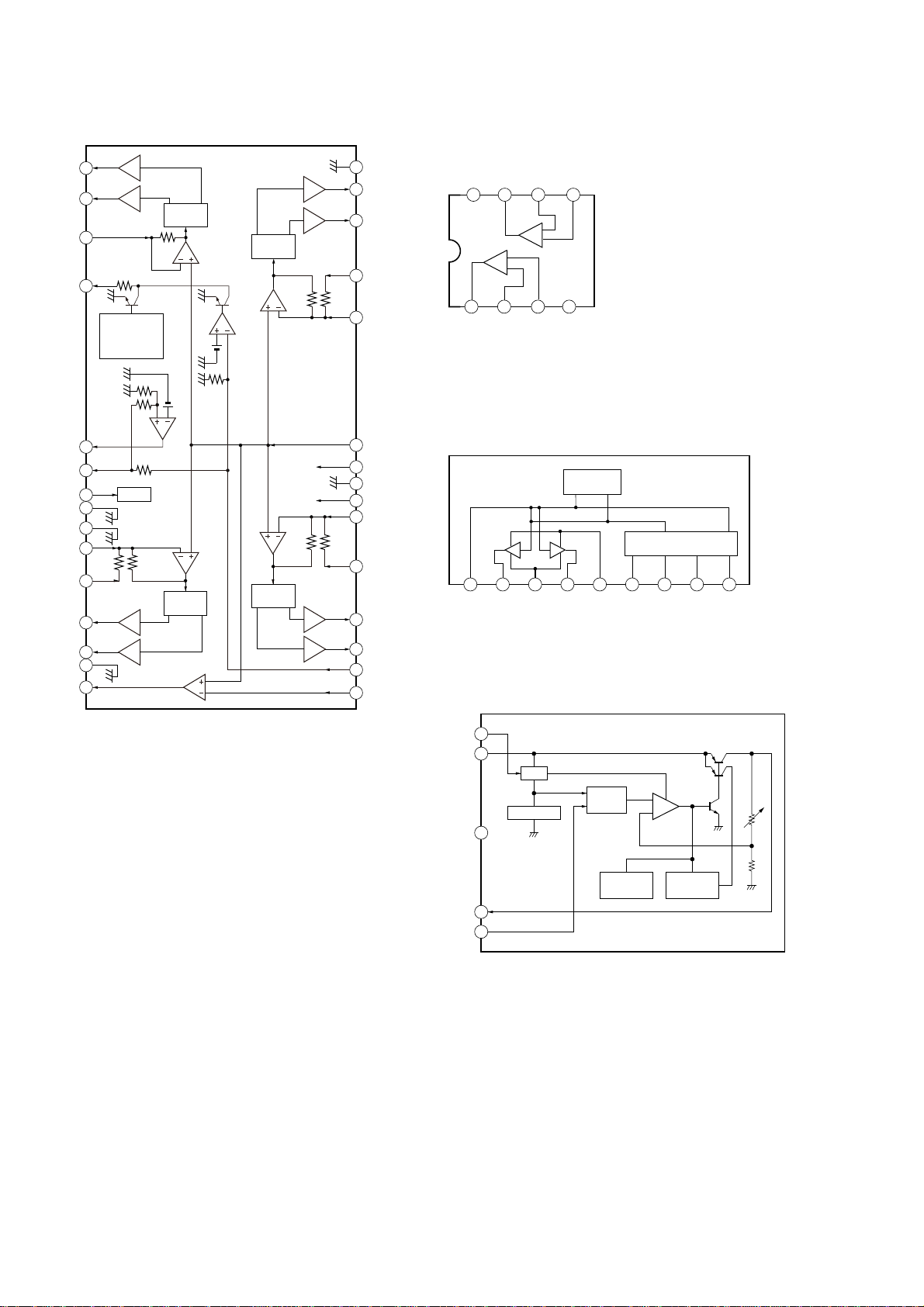

IC301 BA5826HFP-E2 (BD76 Board (1/2)) IC100 NJM3414AV (TE2) (PANEL Board (2/3))
28
VO1–
VO1+
RESET
1
D.BUFF
2
D.BUFF
3
IN1
4
THERMAL
SHUT-DOWN
REGULATOR
BIAS TRAP
LEVEL
SHIFT
LEVEL
SHIFT
D.BUFF
D.BUFF
GND
27
VO4–
26
VO4+
IN4
25
IN4’
24
V+
8
VCC
1
A OUTPUT
B OUTPUT
7
+
–
2
A- INPUT
B- INPUT
6
–
+
3
A+ INPUT
B+ INPUT
5
GND
4
V-
REGB
REGOUT
MUTE
GND
IN2’
VO2+
VO2–
GND
OPOUT
5
6
MUTE
7
29
8GND
9
IN2
10
D.BUFF
11
D.BUFF
12
13
14
REGULATOR
LEVEL
SHIFT
LEVEL
SHIFT
VCC
VCC
D.BUFF
D.BUFF
BIAS
23
22
VCC
30 GND
21
VCC
IN3’
20
19
IN3
18
VO3+
17
VO3–
16
RESETt
15
OPIN
IC201 BA6956AN (PANEL Board (3/3))
TSD
CONTROL LOGIC
1 2 3 4 5 6 7 8 9
VREF
OUT2
RNF
OUT1
VM
VCC
FIN
GND
IC202 MM1923DTRE (PANEL Board (3/3))
CONT
1
VIN
2
BIAS
SOFT
GND
3
REFERENCE
START
AMP
RIN
46
THERMAL
SHUT DOWN
VO
4
5
CS
CURRENT
LIMITER
Page 47

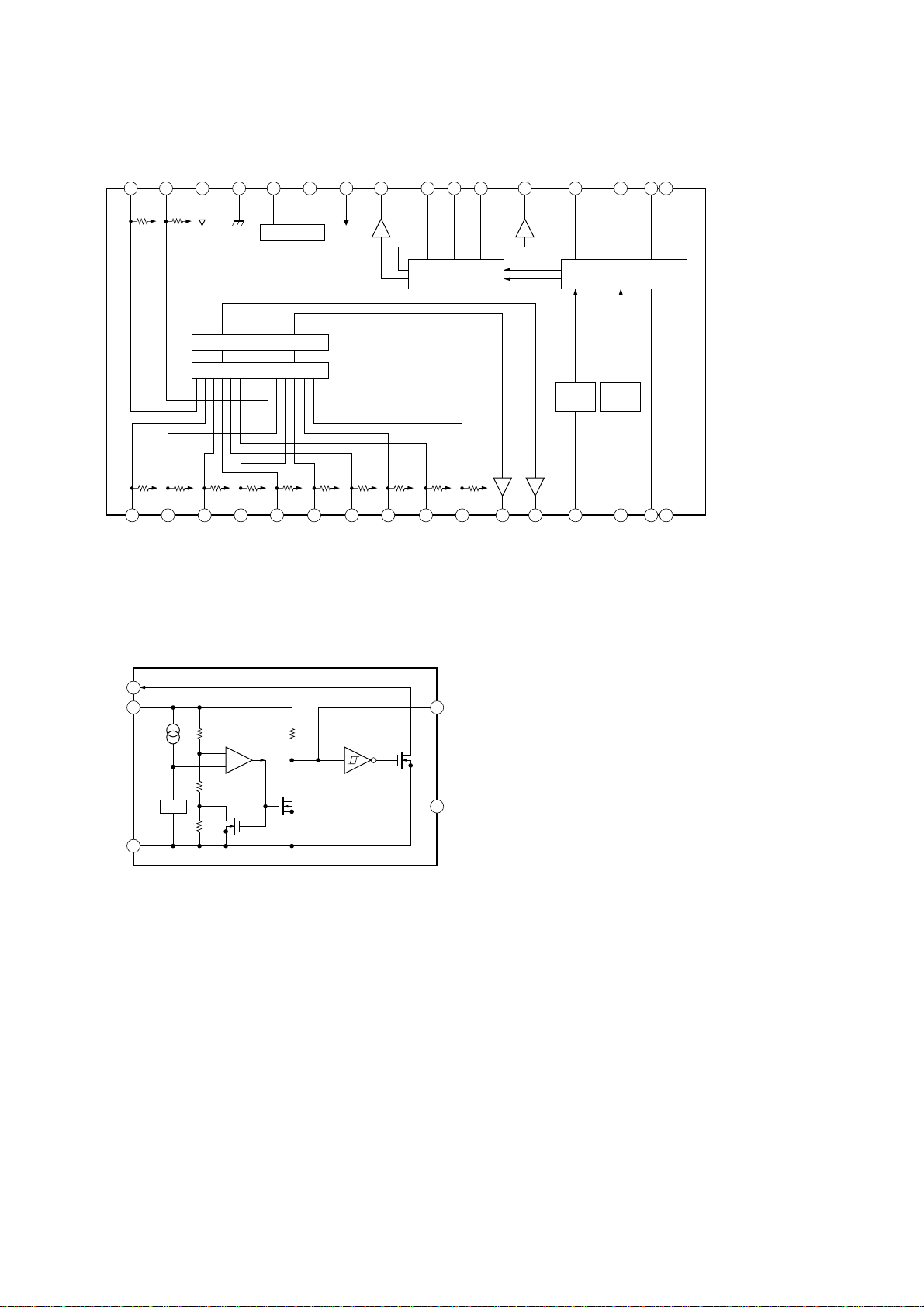

IC204 BD3491FS-SE2 (PANEL Board (2/3))
FIL30GND
A2
A1
31
32
29
SCLK27VCC
SDATA
28
26
HCD-EX660Z/EX880Z/EX990Z
SB-R24SURR
OUT-R
25
23
22
SB-L
OUT-L
21
BASSB-R
20
BASSA-R19BASSB-L
BASSA-L
17
18
6
TUNER-L
VCCVCC/2
7
I2C BUS LOGIC
INPUT GAIN
INPUT SELECTOR
2
1
B1
3
4
5
B2
TC-R
TC-L
TUNER-R
IC205 PST3629NR (PANEL Board (2/3))
CD/USB-R
8
CD/USB-L
SURROUND
9
PC-IN-R
10
PC-IN-L
11
SEL-L
VOLUME VOLUME
12
SEL-R
13
VOL-R
TREBLE/BASS
14
VOL-L
15
16
TRE-L
TRE-R
OUT
VDD 2
GND
1
CD5
–
+
VREF
3
NC
4
47
Page 48
HCD-EX660Z/EX880Z/EX990Z

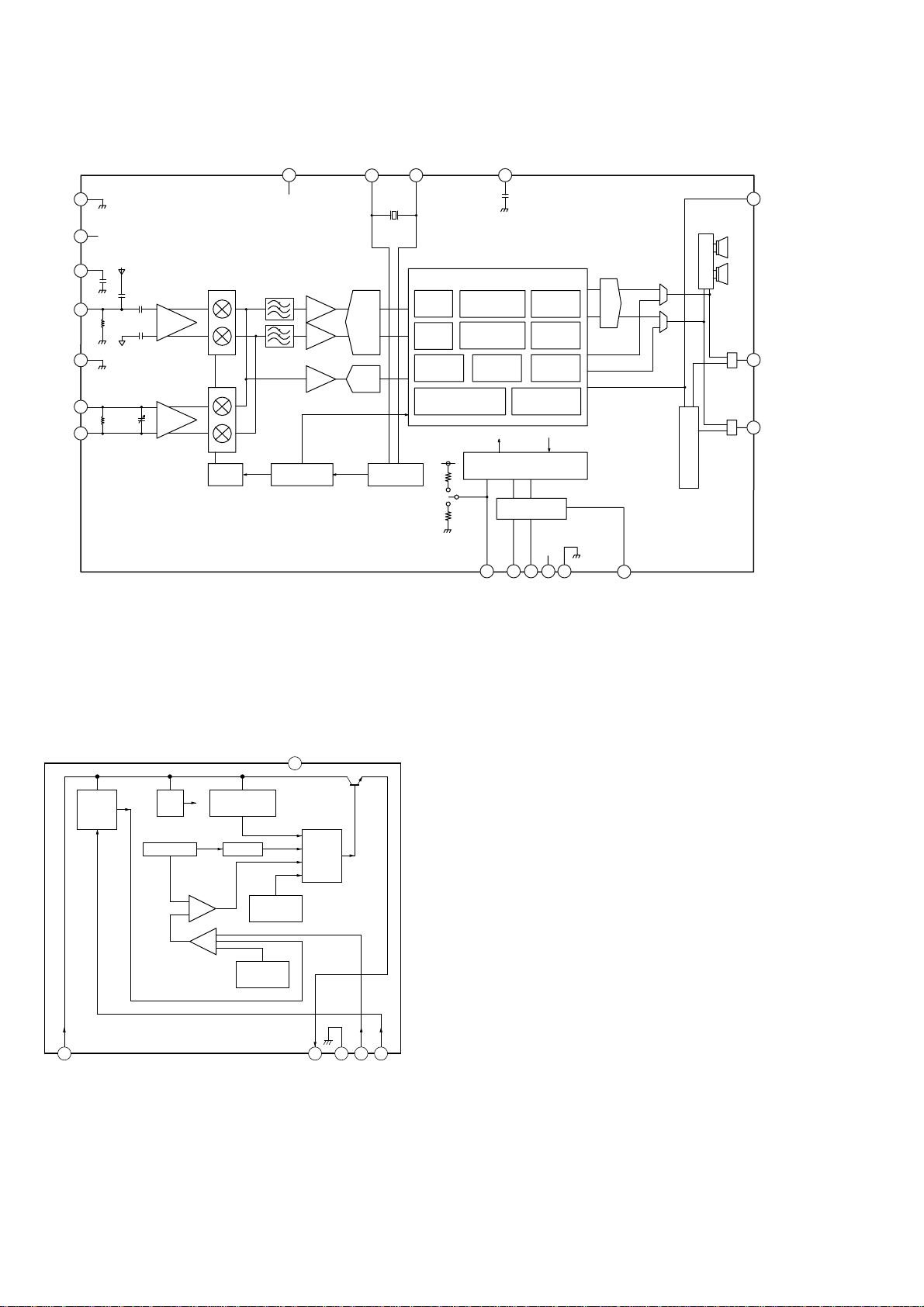

IC101 RZ5B801-0002E2 (TUNER1 Board)
GND
VDDRF
CP2
FRF1
GNDRF
ARF1
ARF2
VDD
20
1
VDD
2
3
FM Antenna
4
FM LNA
Filter
VDD
AGC
AMP
AGC
AMP
5
AMP
AM Antenna
6
7
AM
TUNE
AM LNA
LOSC
Clock
Generator
ADC
ADC
X2
X1
18
19
Digital Signal Process
Digital
Mixer
Digital
AGC
Control
Digital Filters
XOSC
12C
SPI
CP1
17
FM
Demodulator
AM
Demodulator
Station
Detector
Serial Interface / Registers
HOST Controler
LA
DSI
IIC / R
Stereo
Decoder
RDS
Decoder
Generator
RSSI
Calculation
VDD
CK
IIS
VDD
IISD
IISD
16
Lch
Amplifier
LRCK
BCLK
IIS Controller
Rch
SW
SW
LRCK / LOUT
15
BCLK / ROUT
14
LOUT
DAC
ROUT
LRCK
BCLK
IISD
12111098
GND
13
DA
IC703 SI-8008TM-TLS (AMP-SMPS Board (1/3)) (EX660Z)
IC702 SI-8008TM-TLS (AMP-SMPS Board (1/3)) (EX880Z)
IC702 SI-8008TM-TLS (AMP-SMPS PC Board (1/3)) (EX990Z)
GND
6
ON/OFF
SOFT
START
PREG
OSCILLATOR RESET
1
IN
OVERCURRENT
PROTECTION
COMPARATOR
–
+
–
+
+
ERROR AMP
THERMAL
PROTECTION
REFERENCE
VOLTAGE
LATCH
&
DRIVER
2 54
3
SW
GND
ADJ
SS
48
Page 49

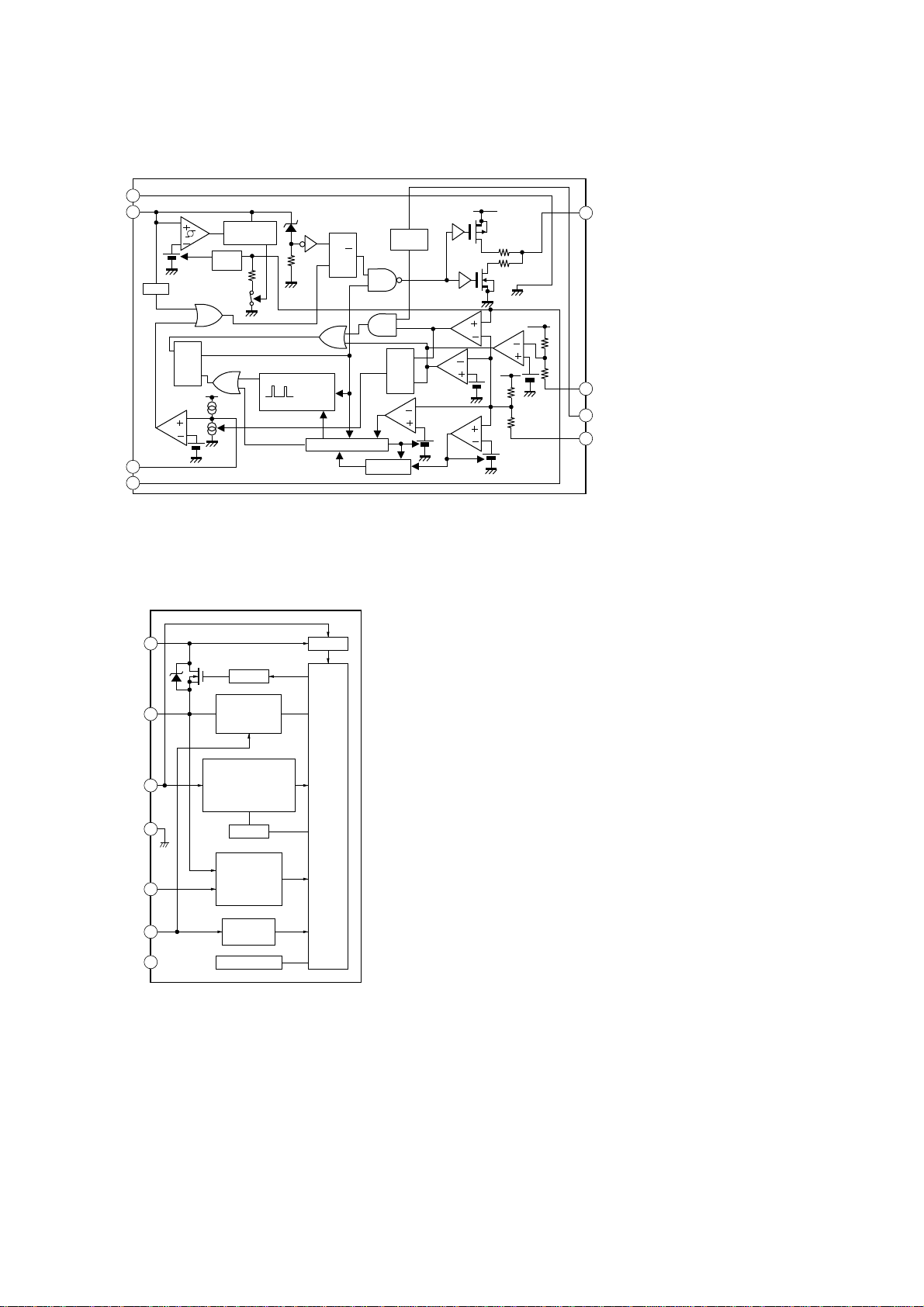

IC900 SSC6700 (AMP-SMPS Board (3/3)) (EX660Z)
IC900 SSC6700 (AMP-SMPS Board (3/3)) (EX880Z)
IC900 SSC6700 (AMP-SMPS PC Board (3/3)) (EX990Z)
1
GND
VCC
OLP
2
Reg&
Iconst
Burst
Control
Start
Stop
Burst
OVP
R
Q
S
OLP
3
4
FB
OSC
Bottom Selector
Protection
latch
R
Q
S
BSD
Counter
Ton(MIN)
Control
Q
DRIVE
Reg
S
R
OCP1
BD
HCD-EX660Z/EX880Z/EX990Z
8
DRIVE
OCP2
FB
OCP2
7
6
BURST
5
OCP1BD
IC965 STR-Y6763 (AMP-SMPS Board (3/3)) (EX880Z)
IC965 STR-Y6763 (AMP-SMPS PC Board (3/3)) (EX990Z)
D 1
S/GND
VCC/OVP 3
GND 4
FB/OLP
BD
NC 7
DRIVER
OVER CURRENT
2
5
6
PROTECTION/
BOTTOM-SKIP
UNDER VOLTAGE
LOCK OUT/
REGULATOR/
CONSTANT CURRENT
LATCH
FEEDBACK/
STANDBY
OVERLOAD
PROTECTION
BOTTOM
DETECTION
OSCILLATOR
STARTUP
LOGIC
49
Page 50
HCD-EX660Z/EX880Z/EX990Z
IC800 TAS5611APHDR (MODULE PHD Board) (EX660Z)
GVDD_A
GVDD_B
GND
GND
NC
NC
NC
NC
PSU_REF
VDD
63
64
61
62
59
60
57
58
55
56
54
BST_A
53
OUT_A
52
OUT_A
51
PVDD_A
PVDD_A
50
GND_A
49
OC_ADJ 1
/RESET
C_STARTUP
INPUT_A
INPUT_B
VI_CM
GND
AGND
VREG
INPUT_C
INPUT_D
FREQ_ADJ
OSC_IO+
OSC_IO-
/OTW1 16
/SD 15
BST_A
GVDD_A
GVDD_B
CLIP
READY
OTW1
OTW2
SD
M1
M2
M3
2
STARTUP
3
4
5
6
7
8
9
10
11
12
13
14
SD
OTW1
CONTROL
OSCILLATOR
PSU_FF
ANALOG
LOOP FILTER
ANALOG
LOOP FILTER
ANALOG
LOOP FILTER
ANALOG
LOOP FILTER
4
PVDD_X
GND
-
+
+
-
-
ANALOG INPUT MUX
+
+
-
PWM
ACTIVITY
DETECTOR
PWM
RECEIVER
PWM
RECEIVER
ANALOG COMPARATOR MUX
PWM
RECEIVER
PWM
RECEIVER
OUT_A
OUT_A
PROTECTION & I/O LOGIC
CONTROL
CONTROL
CONTROL
CONTROL
PVDD_A
POWER-UP
RESET
TEMP
SENSE
OVER-LOAD
PROTECTION
PPSC
PVDD_A
GVDD_A
GVDD_B GVDD_D
4
PVDD_X
4
OUT_X
4
GND_X
TIMING
CONTROL
TIMING
CONTROL
TIMING
CONTROL
TIMING
CONTROL
GND_A
UVP
GVDD_C
CB3C
GATE-DRIVE
GATE-DRIVE
GATE-DRIVE
GATE-DRIVE
VREG
CURRENT
SENSE
GVDD_A
BST_A
PVDD_A
OUT A
GND A
GVDD_B
GVDD_C
GVDD_D
BST_D
PVDD_D
OUT_D
GND_D
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
GND_A
GND_B
GND_B
OUT_B
OUT_B
PVDD_B
PVDD_B
BST_B
BST_C
PVDD_C
PVDD_C
OUT_C
OUT_C
GND_C
GND_C
GND_D
50
OTW2
17
/OTW2
CLIP
18
/CLIP
READY
19M120
READY
M1M3M2
BST_D
OUT_D
OUT_D
GVDD_C
GVDD_D
22
21
M3
M2
24
GND23GND
26
GVDD_C25GVDD_D
27 28
BST_D
PVDD_D
30
OUT_D29OUT_D
GND_D
PVDD_D
32
PVDD_D31PVDD_D
GND_D
Page 51

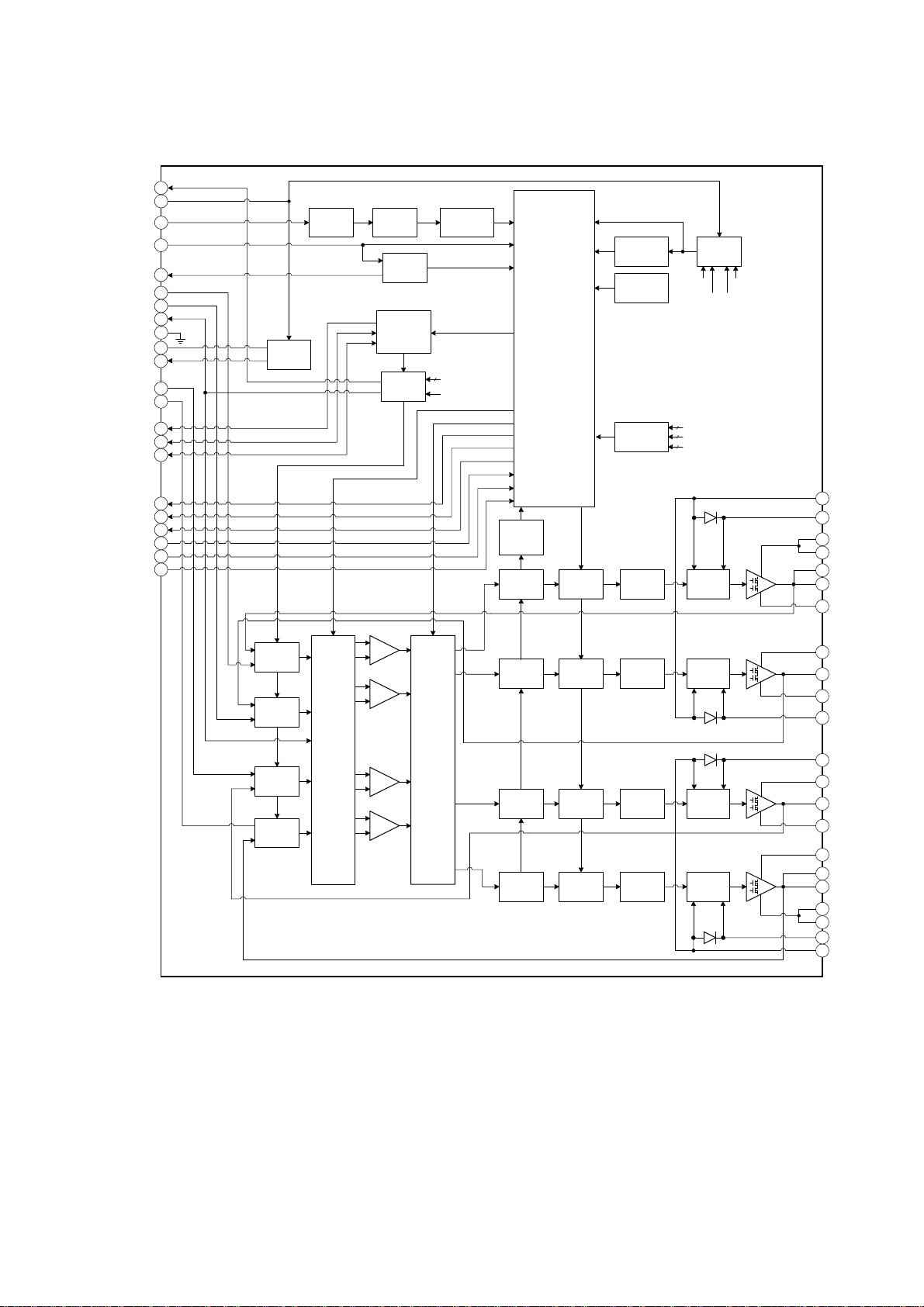

IC801 TAS5613ADKDR (MODULE Board) (EX880Z)
IC801 TAS5630BDKDR (MODULE Board) (EX990Z)
1
PSU_REF
VDD
2
OC_ADJ
/RESET
C_STARTUP
INPUT_A
INPUT_B
VI_CM
GND
AGND
VREG
INPUT_C
INPUT_D
FREQ_ADJ
OSC_IO+
OSC_IO-
VREG
CURRENT
SENSE
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CB3C
STARTUP
CONTROL
OSCILLATOR
PSU_FF
OVER-LOAD
PROTECTION
4
PVDD_X
GND
HCD-EX660Z/EX880Z/EX990Z
POWER-UP
RESET
TEMP
SENSE
PROTECTION & I/O LOGIC
PPSC
UVP
GVDD_A
GVDD_B GVDD_D
4
PVDD_X
4
OUT_X
4
GND_X
GVDD_C
/SD
/OTW
READY
GVDD_AB
17
18
19
20
M1
21
M2
22
M3
ANALOG
LOOP
FILTER
ANALOG
LOOP
FILTER
ANALOG
LOOP
FILTER
ANALOG
LOOP
FILTER
+
+
-
+
ANALOG INPUT MUX
+
-
ANALOG COMPARATOR MUX
PWM
ACTIVITY
DETECTOR
PWM
RECEIVER
PWM
RECEIVER
PWM
RECEIVER
PWM
RECEIVER
CONTROL
CONTROL
CONTROL
CONTROL
TIMING
CONTROL
TIMING
CONTROL
TIMING
CONTROL
TIMING
CONTROL
GATEDRIVE
GATEDRIVE
GATEDRIVE
GATEDRIVE
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
BST_A
PVDD_A
PVDD_A
OUT_A
OUT_A
GND_A
GND_B
OUT_B
PVDD_B
BST_B
BST_C
PVDD_C
OUT_C
GND_C
GND_D
OUT_D
OUT_D
PVDD_D
PVDD_D
BST_D
GVDD_CD
51
Page 52
HCD-EX660Z/EX880Z/EX990Z
• IC Pin Function Descriptions
BD76 BOARD (2/2) IC901 LC87F1JJ2AU-SQFP-H (USB CONTROL)
Pin No. Pin Name I/O Description
1 P73 O Not used. (Open)
2 RES — USB control reset pin
3 XT1 — Not used. (Connect to VDD)
4 XT2 O Not used. (Open)
5 VSS1 — Ground
6 CF1 I Oscillation signal input (12 MHz)
7 CF2 O Oscillation signal output (12 MHz)
8 VDD1 — Power supply pin (+3.3 V)
9 SO0 O CD digital signal processor serial data communication signal output
10 SI0 I CD digital signal processor serial data communication signal input
11 SCK0 I/O CD digital signal processor clock communication signal input/output
12 SO1 O Not used. (Open)
13 SI1 O Not used. (Open)
14 SCK1 O Not used. (Open)
15 P16 I CD digital signal processor enable communication signal input
16 P17 O Not used. (Open)
17 MCLKI O Not used. (Open)
18 MCLKO O Not used. (Open)
19 VDD2 — Power supply pin (+3.3 V)
20 VSS2 — Ground
21, 22 P00, P01 O Not used. (Open)
23 to 25 DBGP0 to DBGP2 O For debagger pin
26 SDAT I USB record MP3 serial data signal input
27 BCLK I USB record MP3 serial data shift clock signal input
28 LRCK I USB record MP3 serial data word clock signal input
29, 30 P20, P21 O Not used. (Open)
31 P22 O USB playback serial data signal output
32 P23 O USB record MP3 serial data request signal output
33 P24 O USB playback serial data communication clock signal output
34 to 36 P25 to P27 O Not used. (Open)
37 UHD– I/O USB D– serial data input/output
38 UHD+ I/O USB D+ serial data input/output
39 VDD3 — Power supply pin (+3.3 V)
40 VSS3 — Ground
41 UFILT I USB interface PLL fi lter circuit connection pin (Fixed at L in this set)
42 AFILT O Not used. (Open)
43 P32 O Not used. (Open)
44 URX1 I System controller input communication signal input
45 UTX1 O System controller output communication signal output
46 P70 I USB playback serial data request signal input
47 P71 I USB controller command processing cancel signal input
48 P72 O Not used. (Open)
52
Page 53
HCD-EX660Z/EX880Z/EX990Z
PANEL BOARD (1/3) IC200 LC87F7DJ2CVU-QIP-H (SYSTEM CONTROL)
Pin No. Pin Name I/O Description
1 O-CD-RST O System reset signal output for the CD-MP3 processor
2 O-CD-DI O Serial data output for the CD-MP3 processor
3 O-CD-CE O Chip enable signal output for the CD-MP3 processor
4 O-USB-RST O System reset signal output for the USB control
5 O-FAN-LOW-SPEED O Force fan to low speed (H: fan low speed, L: no control) (EX990Z only)
6 I2C-FUNC-DATA I/O Audio IC data signal for IIC communication
7 I2C-FUNC-CLK I/O Audio IC clock signal for IIC communication
8 I2C-TU-DATA I/O Tuner IC data signal for IIC communication
9 I2C-TU-CLK I/O Tuner IC clock signal for IIC communication
10 O-LCD-LED O LCD back light LED ON/OFF control signal output
11 I-RST I Reset signal input
12 SUB-CLK(32.768KHz) — Sub system clock terminal (32.768kHz)
13 SUB-CLK(32.768KHz) — Sub system clock terminal (32.768kHz)
14 VSS1 — Ground terminal
15 MAIN-CLK(18MHz) — Main system clock terminal (18MHz)
16 MAIN-CLK(18MHz) — Main system clock terminal (18MHz)
17 VDD1 — Power supply pin (+3.3V)
18 I-HP/CD SW I CDM Open/Close switch detection and Headphone presence detection
19 I-MODEL I Model setting pin (A/D input)
20 I-DEST I Destination setting pin (A/D input)
21 NC O Not used
22 I-LED-LEVEL I Volume LED level detection pin
23 I-VACS I VACS level detection pin
24 I-KEY2 I Key signal input (A/D input)
25 I-KEY1 I Key signal input (A/D input)
26 I-KEY0 I Key signal input (A/D input)
27 I-PROTECT-F I Fast protection detection pin (L: abnormal, H: normal)
28 I-AC-CUT I AC cut detection signal input (L: AC cut, H: AC In)
29 I-RMC I Remote control signal input from the remote control signal receiver
30 O-FR-RELAY O
31 O-P-CONT O Power cont ON/OFF control signal output (L: Pcont OFF, H: Pcont ON) (EX660Z only)
32 O-SW-MUTE O Subwoofer ON/OFF control signal output (EX990Z only)
33 O-AMP-RST O Amp reset control signal output (H: have sound, L: no sound)
34 I-V2-MONI I V2 power source monitor input pin
35 I-PROTECT-S I Slow protection detection pin (L: abnormal, H: normal)
36 O-HP-MUTE O Headphone muting ON/OFF control signal output (H: headphone mute, L: no mute)
37 O-MAIN-ON O
38 O-SUB-ON O Sub power source ON/OFF control signal output (L: Sub OFF, H: Sub ON)
39 O-VBUS-ON O VBUS power supply ON/OFF control signal output (L: VBUS off, H: VBUS on)
40 I-VBUS-OCP I VBUS overcurrent detection signal input (L: abnormal, H: normal)
41 I-RDSI I RDS Text Detection Signal input
42 O-STBY-SW O Power source control at the time of standby (L: ECO mode, H: other mode)
43 O-CD-M– O CD motor drive (–) signal output for the CD mechanism deck
44 O-CD-M+ O CD motor drive (+) signal output for the CD mechanism deck
45 O-TU-CE O Chip enable signal output for the Tuner
46 to 53 SEG0 to SEG7 O Segment drive signal output for the liquid crystal display panel
54 VDD2 — Power supply pin (+3.3V)
55 VSS2 — Ground terminal
56 to 79 SEG8 to SEG31 O Segment drive signal output for the liquid crystal display panel
80 to 82 LCD V3 to LCD V1 I Liquid crystal display bias power source
83 to 86 COM3 to COM0 O Common output for the liquid crystal display panel
87 to 88
89 VSS3 — Ground terminal
90 VDD3 — Power supply pin (+3.3V)
91 O-CD-ON O CD power supply control signal output for the CD-MP3 processor
92 O-USB-SLEEP O Sleep control signal output for the USB control
O-VOL-LED1 to
O-VOL-LED2
Speaker relay ON/OFF control signal output (L: FR RELAY off, H: FR RELAY on) (EX990Z
only)
Main power source ON/OFF control signal output (L: Main OFF, H: Main ON) (except
EX660Z)
O Volume LED ON/OFF signal output
53
Page 54
HCD-EX660Z/EX880Z/EX990Z
Pin No. Pin Name I/O Description
93 O-USB-TXD O USB TX signal output for the USB control
94 I-USB-RXD I USB RX signal input from the USB control
95 to 97 DGBP0 to DGBP2 I For Debugger
98 O-CD-CL O Clock signal output for the CD-MP3 processor
99 I-CD-DO I Serial data input from the CD-MP3 processor
100 O-CD-M-MUTE O CD motor drive ON/OFF mute control signal output for the CD motor/coil driver
54
Page 55
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine service. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
6-1. CASE SECTION
HCD-EX660Z/EX880Z/EX990Z
SECTION 6
EXPLODED VIEWS
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
• Abbreviation
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
SAF : South African model
top panel section
Parts Color Cabinet’s Color
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
#1
2
#1
A
1
#1
#1
A
#1
chassis section
3
front panel section
#1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 3-363-099-32 SCREW (CASE 3 TP2)
2 4-263-388-11 CASE (L), SIDE
3 4-263-389-11 CASE (R), SIDE
#1 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
1
55
Page 56
HCD-EX660Z/EX880Z/EX990Z
6-2. FRONT PANEL SECTION
56
53
52
54
55
51
57
56
58
56
56
59
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-264-672-01 CUSHION (FOOT)
52 4-418-949-01 KNOB, VOLUME (EX660Z/EX880Z)
52 4-418-949-11 KNOB, VOLUME (EX990Z)
53 4-418-948-01 WINDOW, DISPLAY (EX660Z)
53 4-418-948-11 WINDOW, DISPLAY (EX880Z)
53 4-418-948-21 WINDOW, DISPLAY (EX990Z)
54 X-2583-857-1 PANEL, FRONT SUB ASSY (EX660Z/EX880Z)
54 X-2584-172-1 PANEL, FRONT SUB ASSY (EX990Z)
55 1-846-143-11 CABLE, FLEXIBLE FLAT (9 CORE)
56 3-087-053-01 +BVTP2.6 (3CR)
57 A-1870-157-A PANEL BOARD, COMPLETE (EX660Z: E2, E51)
57 A-1870-166-A PANEL BOARD, COMPLETE (EX660Z: RU)
57 A-1870-167-A PANEL BOARD, COMPLETE (SAF)
57 A-1870-170-A PANEL BOARD, COMPLETE (EX880Z)
57 A-1870-186-A PANEL BOARD, COMPLETE
(EX990Z: E2, E51, MX)
57 A-1884-559-A PANEL BOARD, COMPLETE (EX990Z: RU)
58 1-846-142-11 CABLE, FLEXIBLE FLAT (21 CORE)
59 1-832-876-21 CABLE, FLEXIBLE FLAT (21 CORE)
(EX660Z/EX880Z)
59 1-832-885-21 CABLE, FLEXIBLE FLAT (23 CORE) (EX990Z)
56
Page 57
6-3. BACK PANEL SECTION
EX660Z
HCD-EX660Z/EX880Z/EX990Z
EX880Z/EX990Z
(EX990Z)
104
not supplied
not supplied
105
chassis section
not supplied
not
supplied
#1
not supplied
(E2, E51)
102
#1
#1
101
103
#1
not supplied
104
chassis section
105
B
not supplied
(EX990Z)
#1
(EX990Z)
C
D
B
(EX990Z)
not supplied
not supplied
#1
D
#1
(EX990Z)
#1
#1
#1
103
C
(E2, E51)
102
101
(EX880Z)
not supplied
106
#1
107
#1
#1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0 101 1-834-966-41 POWER-SUPPLY CORD (RU, E51, SAF)
0 101 1-837-344-11 CORD, POWER-SUPPLY (E2, MX)
0 102 1-569-007-12 ADAPTOR, CONVERSION 2P (E2)
0 102 1-569-008-33 ADAPTOR, CONVERSION (E51)
103 3-703-244-00 BUSHING (2104), CORD
104 A-1846-569-A TUNER1AM3RZ ASSY
105 A-1846-435-A TUNER1 BOARD, COMPLETE
0 106 1-855-006-11 FAN, DC (EX880Z/EX990Z)
107 4-418-958-01 COVER, FAN (EX880Z/EX990Z)
#1 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
57
Page 58
HCD-EX660Z/EX880Z/EX990Z

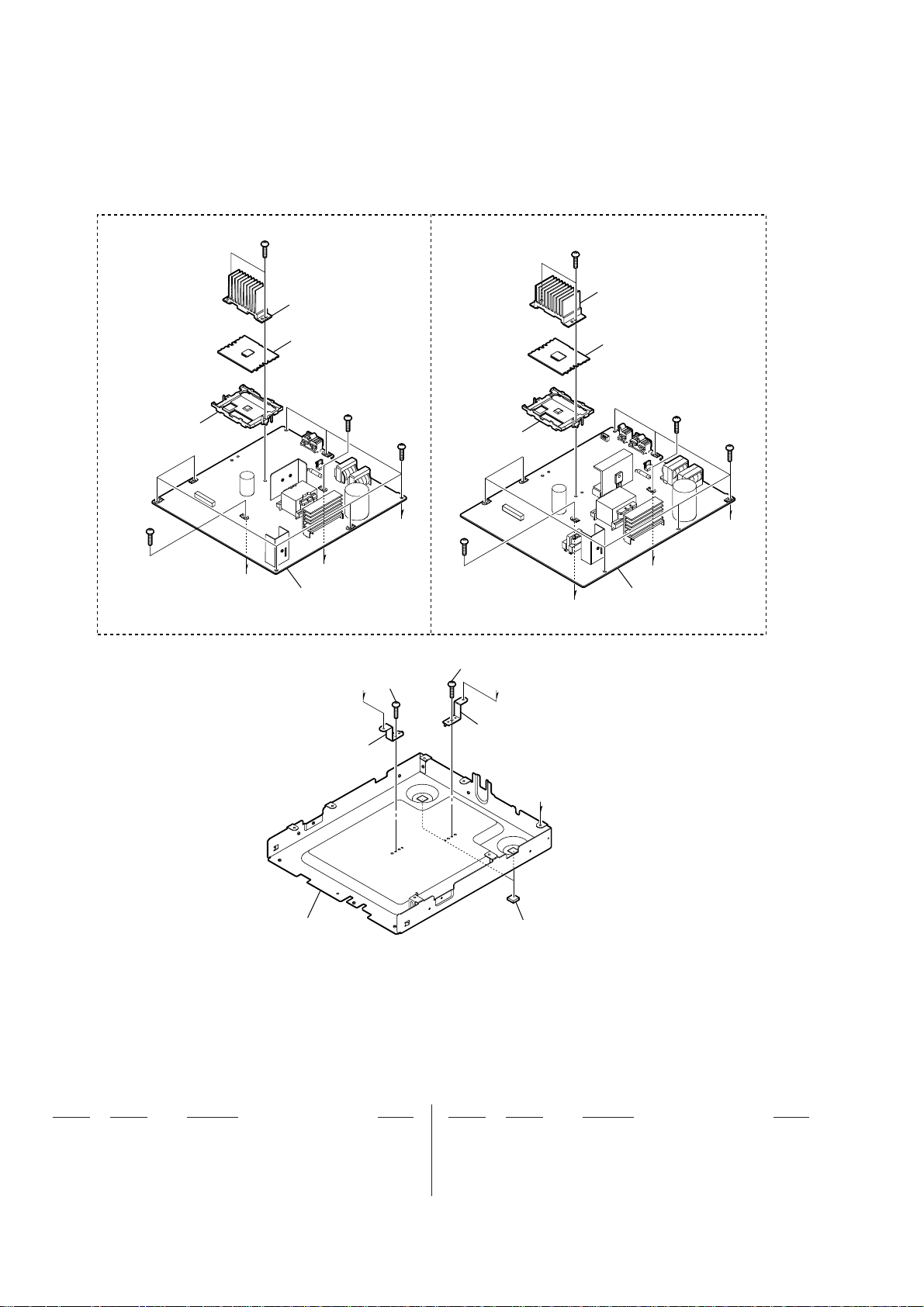

6-4. CHASSIS SECTION
(EX660Z) (EX880Z/EX990Z)
#1
not supplied
151
G
#1
#1
not supplied
E
#1
not supplied
#1
F
152
153
153
F
G
#1
F
not supplied
151
#1
#1
E
G
152
not supplied
not supplied
E
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-1870-161-A MODULE PHD BOARD, COMPLETE (EX660Z)
151 A-1870-173-A MODULE BOARD, COMPLETE (EX880Z)
151 A-1870-189-A MODULE BOARD, COMPLETE (EX990Z)
152 A-1870-162-A AMP-SMPS BOARD, COMPLETE (EX660Z)
152 A-1870-174-A AMP-SMPS BOARD, COMPLETE (EX880Z)
152 A-1870-190-A AMP-SMPS PC BOARD, COMPLETE (EX990Z)
153 3-077-331-21 +BV3 (3-CR)
154 4-264-672-01 CUSHION (FOOT)
#1 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
154
58
Page 59
6-5. TOP PANEL SECTION
HCD-EX660Z/EX880Z/EX990Z
201
205
not supplied
(LOADING board)
207
(including sled motor (M402),
spidle motor (M401))
208
209
214
included in
(spindle motor (M401))
212
204
213
207
not supplied
(BD76 board)
S001
206
202
201
not supplied
208
209
208
209
214
213
211
215
216
208
209
210
included in
(sled motor (M402))
207
203
#1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 3-253-143-01 SCREW (B2.6), (+) P TAPPING
202 4-418-954-01 CD, LID
203 4-418-953-01 CASE, TOP
204 1-846-147-11 CABLE, FLEXIBLE FLAT (5 CORE)
205 A-1800-608-A CDM76B ASSY
206 4-120-079-01 BELT (CDM76)
0 207 1-856-037-11 DEVICE, OPTICAL DA11MMVGP
208 4-227-549-11 INSULATOR
209 4-227-045-31 SPRING (INSULATOR), COIL
210 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
211 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
212 A-1853-274-A BD76 PC BOARD ASSY
213 3-087-053-01 +BVTP2.6 (3CR)
214 4-231-151-01 STOPPER (BU)
215 3-080-204-31 SCREW, TAPPING, P2
216 4-166-292-01 SHAFT (SUPPORT)
S001 1-771-853-11 SWITCH, DETECTION (LIMIT)
#1 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
59
Page 60
HCD-EX660Z/EX880Z/EX990Z
SECTION 7
AMP-SMPS (EX660Z)
Note:
• Due to standardization, replacements in
the parts list may be different from the
parts specifi ed in the diagrams or the com-
ponents used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine service. Some delay should be anticipated
when ordering these items.
• RESISTORS
All resistors are in ohms.
METAL: Metal-fi lm resistor.
METAL OXIDE: Metal oxide-fi lm resistor.
F: nonfl ammable
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-1870-162-A AMP-SMPS BOARD, COMPLETE (EX660Z)
*************************
7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
< CAPACITOR >
C600 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C603 1-136-164-00 FILM 0.082uF 5% 50V
C604 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C605 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C606 1-136-164-00 FILM 0.082uF 5% 50V
C607 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C608 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C609 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C611 1-104-658-91 ELECT 100uF 20% 10V
C612 1-126-957-11 ELECT 0.22uF 20% 50V
C615 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C621 1-126-935-11 ELECT 470uF 20% 16V
C624 1-128-550-11 ELECT 2200uF 20% 50V
C625 1-126-971-11 ELECT 470uF 20% 50V
C626 1-126-971-11 ELECT 470uF 20% 50V
C627 1-126-971-11 ELECT 470uF 20% 50V
C628 1-126-971-11 ELECT 470uF 20% 50V
C637 1-135-618-11 MYLAR 1uF 5% 63V
C638 1-135-618-11 MYLAR 1uF 5% 63V
C639 1-135-618-11 MYLAR 1uF 5% 63V
C640 1-135-618-11 MYLAR 1uF 5% 63V
C641 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C642 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C643 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C644 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C645 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C646 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C647 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C648 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C649 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C650 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C651 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C652 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C653 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C654 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C655 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C656 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C657 1-126-960-11 ELECT 1uF 20% 50V
C658 1-126-964-11 ELECT 10uF 20% 50V
C659 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V
ELECTRICAL PARTS LIST
• CAPACITORS
uF: μF
• COILS
uH: μH
• SEMICONDUCTORS
In each case, u: μ, for example:
uA. . : μA. . , uPA. . , μPA. . ,
uPB. . : μPB. . , uPC. . , μPC. . ,
uPD. . : μPD. .
• Abbreviation
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
SAF : South African model
C660 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V
C661 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C662 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C663 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C664 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C665 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C666 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C667 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C668 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C676 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C678 1-126-933-11 ELECT 100uF 20% 16V
C700 1-126-947-11 ELECT 47uF 20% 35V
C701 1-126-935-11 ELECT 470uF 20% 16V
C702 1-126-964-11 ELECT 10uF 20% 50V
C703 1-126-964-11 ELECT 10uF 20% 50V
C704 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C705 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C707 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C708 1-126-964-11 ELECT 10uF 20% 50V
C709 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C711 1-126-935-11 ELECT 470uF 20% 16V
C713 1-135-977-31 ELECT 680uF 20% 10V
C715 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C716 1-126-961-11 ELECT 2.2uF 20% 50V
C718 1-126-964-11 ELECT 10uF 20% 50V
C719 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C720 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C721 1-126-964-11 ELECT 10uF 20% 50V
0 C902 1-112-869-51 CERAMIC 470PF 10% 250V
C903 1-112-869-51 CERAMIC 470PF 10% 250V
0 C905 1-114-594-21 FILM 0.22uF 10% 250V
0 C907 1-116-397-21 FILM 0.33uF 10% 250V
C911 1-113-925-11 CERAMIC 0.01uF 20% 250V
C912 1-113-925-11 CERAMIC 0.01uF 20% 250V
C914 1-114-347-22 ELECT (BLOCK) 330uF 20% 450V
C916 1-112-869-51 CERAMIC 470PF 10% 250V
C917 1-118-264-11 FILM 0.0047uF 5% 630V
C919 1-127-804-91 CERAMIC CHIP 100PF 1% 50V
C920 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V
C921 1-126-964-11 ELECT 10uF 20% 50V
C922 1-126-960-11 ELECT 1uF 20% 50V
C923 1-116-739-11 CERAMIC CHIP 0.47uF 10% 50V
C924 1-114-868-11 CERAMIC CHIP 0.1uF 10% 50V
C926 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C928 1-117-824-11 FILM 2200PF 3% 1.5KV
When indicating parts by reference number, please include the board name.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
60
Page 61
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS (EX660Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C930 1-126-965-91 ELECT 22uF 20% 50V
C931 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C932 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C935 1-116-078-11 CERAMIC CHIP 1uF 10% 50V
C1000 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
D1008 6-503-762-01 DI SJPB-L6
D1009 6-503-762-01 DI SJPB-L6
D1010 6-501-849-01 DIODE FMX-22SL
D1011 6-503-020-01 DI DZ2J082M0L
D1012 6-503-028-01 DI DZ2J130M0L
C1003 1-165-752-21 ELECT 680uF 20% 50V
C1004 1-165-752-21 ELECT 680uF 20% 50V
C1005 1-126-960-11 ELECT 1uF 20% 50V
C1007 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1009 1-126-965-91 ELECT 22uF 20% 50V
C1010 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C1011 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1012 1-126-971-11 ELECT 470uF 20% 50V
C1013 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1014 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1015 1-137-906-31 ELECT 680uF 20% 16V
C1016 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1017 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1019 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1020 1-116-078-11 CERAMIC CHIP 1uF 10% 50V
C1021 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1024 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1025 1-126-964-11 ELECT 10uF 20% 50V
C1026 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
< CONNECTOR >
CN700 1-568-838-11 CONNECTOR, FFC 21P
0 CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< DIODE >
D601 6-500-848-01 DIODE MC2840-T112-1
D700 8-719-079-47 DIODE RK36LF-A4
D701 6-500-335-01 DIODE MC2838-T112-1
D702 6-502-964-01 DI DZ2J047M0L
D901 6-503-731-01 DI SARS10
D902 6-502-994-01 DI D10XB60 F
D903 6-502-970-01 DI DZ2J068M0L
D905 6-503-032-01 DI DZ2J180M0L
D906 6-500-108-01 DIODE EP05FA20
D907 6-500-108-01 DIODE EP05FA20
D908 8-719-063-74 DIODE D1NL20U-TR2
D910 6-502-961-01 DI DA2J10100L
D911 6-503-037-01 DI DZ2J24000L
D912 6-503-032-01 DI DZ2J180M0L
D913 6-502-961-01 DI DA2J10100L
D914 6-502-970-01 DI DZ2J068M0L
D915 6-502-961-01 DI DA2J10100L
D916 6-502-961-01 DI DA2J10100L
D917 6-502-961-01 DI DA2J10100L
D918 6-503-032-01 DI DZ2J180M0L
D920 6-503-036-01 DI DZ2J220M0L
D921 6-503-020-01 DI DZ2J082M0L
D928 6-503-042-01 DI DZ2J330M0L
D949 6-503-040-01 DI DZ2J300M0L
D1001 6-502-961-01 DI DA2J10100L
D1002 6-502-961-01 DI DA2J10100L
D1004 6-502-970-01 DI DZ2J068M0L
D1005 6-503-037-01 DI DZ2J24000L
D1006 6-503-015-01 DI DZ2J051M0L
D1007 6-503-032-01 DI DZ2J180M0L
D1013 6-502-961-01 DI DA2J10100L
D1014 8-719-058-24 DIODE RB501V-40TE-17
D1018 6-502-974-01 DI DZ2J140M0L
D1020 6-500-335-01 DIODE MC2838-T112-1
D1021 6-500-335-01 DIODE MC2838-T112-1
D1022 6-503-044-01 DI DZ2J360M0L
D1023 6-503-034-01 DI DZ2J200M0L
D1024 6-503-030-01 DI DZ2J160M0L
D1026 6-502-961-01 DI DA2J10100L
< FUSE >
0 F901 1-523-042-51 FUSE (6.3A/250V)
< IC >
IC600 8-759-909-71 IC BA4558F
IC601
IC603 6-712-722-01 IC PST8229UL
IC700 6-703-639-01 IC TK11140CSCL-G
IC701 6-713-686-01 IC KIA7809AF
IC703 6-712-617-01 IC SI-8008TM-TLS
IC705 6-718-294-01 IC BA17807FP-E2
IC900 6-718-560-01 IC SSC6700
IC1000 6-711-947-01 IC MM1431CURE
IC1001 6-713-826-01 IC SI-8001FFEK
< JUMPER RESISTOR >
JR600 1-216-864-1
JR601 1-216-864-11 SHORT CHIP 0
JR602 1-216-864-11 SHORT CHIP 0
JR603 1-216-864-11 SHORT CHIP 0
JR605 1-216-864-11 SHORT CHIP 0
JR607 1-216-864-11 SHORT CHIP 0
JR901 1-216-296-11 SHORT CHIP 0
JR906 1-216-296-11 SHORT CHIP 0
JR911 1-216-296-11 SHORT CHIP 0
JR912 1-216-296-11 SHORT CHIP 0
JW932 1-216-295-91 SHORT CHIP 0
< COIL >
L606 1-457-078-11 AIR-CORE COIL
L607 1-457-077-11 AIR-CORE COIL
L608 1-457-077-11 AIR-CORE COIL
L609 1-457-078-11 AIR-CORE COIL
L612 1-460-525-11 INDUCTOR 10uH
L613 1-460-525-11 INDUCTOR 10uH
L700 1-400-424-21 INDUCTOR 47uH
0 L901 1-456-082-11 COIL, LINE FILTER
0 L902 1-456-082-11 COIL, LINE FILTER
L1001 1-457-878-65 INDUCTOR 2.2uH
L1002 1-400-424-21 INDUCTOR 47uH
L1004 1-457-578-11 INDUCTOR 10uH
< PHOTO COUPLER >
0 PH930 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A
0 PH931 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A
8-759-909-71 IC BA4558F
1 SHORT CHIP 0
61
Page 62
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS (EX660Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< TRANSISTOR >
Q603 6-551-696-01 TR ISA1235AC1-T112-1EF
Q604 6-551-696-01 TR ISA1235AC1-T112-1EF
Q605 6-551-696-01 TR ISA1235AC1-T112-1EF
Q606 6-551-696-01 TR ISA1235AC1-T112-1EF
Q607 6-551-696-01 TR ISA1235AC1-T112-1EF
Q608 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q609 6-551-696-01 TR ISA1235AC1-T112-1EF
Q612 6-551-696-01 TR ISA1235AC1-T112-1EF
Q700 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q701 8-729-040-76 TRANSISTOR KTA1273-Y-AT
Q702 6-551-696-01 TR ISA1235AC1-T112-1EF
Q705 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q706 6-551-272-01 TRANSISTOR RT3CLLM
Q708 6-551-272-01 TRANSISTOR RT3CLLM
Q902 6-551-696-01 TR ISA1235AC1-T112-1EF
Q903 6-553-069-01 TR KTC3209-Y-AT
Q904 6-551-696-01 TR ISA1235AC1-T112-1EF
Q906 6-553-069-01 TR KTC3209-Y-AT
Q907 8-729-052-82 TRANSISTOR KTA1281Y-AT
Q908 6-553-071-01 TR STP10NK80ZFP
Q909 6-553-071-01 TR STP10NK80ZFP
Q910 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q911 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q912 6-551-696-01 TR ISA1235AC1-T112-1EF
Q913 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1001 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1002 6-551-696-01 TR ISA1235AC1-T112-1EF
Q1003 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1004 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q1011 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1012 6-551-697-01 TR ISA1235AC1-T112-1F
Q1013 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1016 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1017 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
< RESISTOR >
R626 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R627 1-216-833-11 METAL CHIP 10K 5% 1/10W
R629 1-216-833-11 METAL CHIP 10K 5% 1/10W
R630 1-216-833-11 METAL CHIP 10K 5% 1/10W
R631 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R632 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R633 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R634 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R635 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R636 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R637 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R638 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R639 1-216-837-11 METAL CHIP 22K 5% 1/10W
R640 1-216-837-11 METAL CHIP 22K 5% 1/10W
R641 1-216-841-11 METAL CHIP 47K 5% 1/10W
R642 1-216-845-11 METAL CHIP 100K 5% 1/10W
R643 1-216-849-11 METAL CHIP 220K 5% 1/10W
R644 1-216-849-11 METAL CHIP 220K 5% 1/10W
R645 1-216-849-11 METAL CHIP 220K 5% 1/10W
R646 1-216-849-11 METAL CHIP 220K 5% 1/10W
R647 1-216-849-11 METAL CHIP 220K 5% 1/10W
R648 1-216-849-11 METAL CHIP 220K 5% 1/10W
R650 1-216-849-11 METAL CHIP 220K 5% 1/10W
R651 1-216-849-11 METAL CHIP 220K 5% 1/10W
R652 1-216-849-11 METAL CHIP 220K 5% 1/10W
R653 1-216-849-11 METAL CHIP 220K 5% 1/10W
R663 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R670 1-216-841-11 METAL CHIP 47K 5% 1/10W
R671 1-216-836-11 METAL CHIP 18K 5% 1/10W
R683 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R684 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R700 1-216-821-11 METAL CHIP 1K 5% 1/10W
R701 1-216-845-11 METAL CHIP 100K 5% 1/10W
R702 1-216-833-11 METAL CHIP 10K 5% 1/10W
R703 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R704 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R705 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R601 1-216-837-11 METAL CHIP 22K 5% 1/10W
R602 1-216-837-11 METAL CHIP 22K 5% 1/10W
R603 1-216-848-11 METAL CHIP 180K 5% 1/10W
R604 1-216-848-11 METAL CHIP 180K 5% 1/10W
R605 1-216-837-11 METAL CHIP 22K 5% 1/10W
R606 1-216-837-11 METAL CHIP 22K 5% 1/10W
R607 1-216-848-11 METAL CHIP 180K 5% 1/10W
R608 1-216-848-11 METAL CHIP 180K 5% 1/10W
R609 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R610 1-216-864-11 SHORT CHIP 0
R611 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R612 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R613 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R614 1-216-845-11 METAL CHIP 100K 5% 1/10W
R615 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R616 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R617 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R618 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R619 1-216-833-11 METAL CHIP 10K 5% 1/10W
R621 1-216-809-11 METAL CHIP 100 5% 1/10W
R622 1-216-837-11 METAL CHIP 22K 5% 1/10W
R623 1-243-669-11 METAL 0.05 5% 5W
R624 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R706 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R710 1-216-833-11 METAL CHIP 10K 5% 1/10W
R711 1-216-845-11 METAL CHIP 100K 5% 1/10W
R713 1-216-853-11 METAL CHIP 470K 5% 1/10W
R718 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R719 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R720 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
R721 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R722 1-216-821-11 METAL CHIP 1K 5% 1/10W
R723 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R724 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R725 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R726 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R727 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R728 1-216-833-11 METAL CHIP 10K 5% 1/10W
R729 1-216-845-11 METAL CHIP 100K 5% 1/10W
R730 1-216-809-11 METAL CHIP 100 5% 1/10W
R744 1-216-837-11 METAL CHIP 22K 5% 1/10W
R745 1-216-837-11 METAL CHIP 22K 5% 1/10W
R746 1-216-837-11 METAL CHIP 22K 5% 1/10W
R747 1-216-837-11 METAL CHIP 22K 5% 1/10W
R759 1-257-124-11 METAL CHIP 560 5% 1/2W
0 R901 1-240-938-51 METAL 1.5M 5% 0.5W F
62
Page 63
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS (EX660Z) AMP-SMPS (EX880Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R914 1-246-374-11 FUSIBLE 0.1 10% 1W
R916 1-216-349-00 METAL OXIDE 1 5% 1W
R1021 1-216-797-11 METAL CHIP 10 5% 1/10W
R1022 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W
R918 1-216-797-11 METAL CHIP 10 5% 1/10W
R919 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R920 1-216-218-91 METAL CHIP 6.8K 5% 1/8W
R921 1-216-821-11 METAL CHIP 1K 5% 1/10W
R922 1-216-797-11 METAL CHIP 10 5% 1/10W
R923 1-216-821-11 METAL CHIP 1K 5% 1/10W
R924 1-216-821-11 METAL CHIP 1K 5% 1/10W
R925 1-215-876-00 METAL OXIDE 15K 5% 1W
R926 1-215-876-00 METAL OXIDE 15K 5% 1W
R927 1-216-853-11 METAL CHIP 470K 5% 1/10W
R928 1-216-214-00 METAL CHIP 4.7K 5% 1/8W
R932 1-216-837-11 METAL CHIP 22K 5% 1/10W
R933 1-216-837-11 METAL CHIP 22K 5% 1/10W
R934 1-216-845-11 METAL CHIP 100K 5% 1/10W
R935 1-216-833-11 METAL CHIP 10K 5% 1/10W
R936 1-216-821-11 METAL CHIP 1K 5% 1/10W
R937 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R938 1-216-809-11 METAL CHIP 100 5% 1/10W
R939 1-216-847-11 METAL CHIP 150K 5% 1/10W
R940 1-216-218-91 METAL CHIP 6.8K 5% 1/8W
R941 1-216-190-00 METAL CHIP 470 5% 1/8W
R942 1-216-174-00 METAL CHIP 100 5% 1/8W
R943 1-249-401-11 CARBON 47 5% 1/4W
R944 1-249-401-11 CARBON 47 5% 1/4W
R945 1-249-401-11 CARBON 47 5% 1/4W
R946 1-249-401-11 CARBON 47 5% 1/4W
R947 1-216-833-11 METAL CHIP 10K 5% 1/10W
R948 1-243-670-11 METAL 0.1 5% 5W
R949 1-245-308-11 METAL 0.22 5% 5W
R952 1-216-821-11 METAL CHIP 1K 5% 1/10W
R954 1-216-821-11 METAL CHIP 1K 5% 1/10W
R955 1-216-849-11 METAL CHIP 220K 5% 1/10W
R956 1-216-841-11 METAL CHIP 47K 5% 1/10W
R957 1-216-845-11 METAL CHIP 100K 5% 1/10W
R958 1-216-837-11 METAL CHIP 22K 5% 1/10W
R959 1-216-849-11 METAL CHIP 220K 5% 1/10W
R960 1-216-821-11 METAL CHIP 1K 5% 1/10W
R961 1-216-841-11 METAL CHIP 47K 5% 1/10W
R965 1-216-841-11 METAL CHIP 47K 5% 1/10W
R967 1-215-904-11 METAL OXIDE 100K 5% 2W
R968 1-216-821-11 METAL CHIP 1K 5% 1/10W
R974 1-216-190-00 METAL CHIP 470 5% 1/8W
R975 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R1000 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R1002 1-216-198-91 METAL CHIP 1K 5% 1/8W
R1003 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R1004 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1005 1-216-839-11 METAL CHIP 33K 5% 1/10W
R1006 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1008 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1009 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1011 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1012 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R1013 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W
R1014 1-218-843-11 METAL CHIP 680 0.5% 1/10W
R1015 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R1016 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1017 1-216-198-91 METAL CHIP 1K 5% 1/8W
R1023 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W
R1024 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W
R1025 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R1026 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R1027 1-216-809-11 METAL CHIP 100 5% 1/10W
R1028 1-216-809-11 METAL CHIP 100 5% 1/10W
R1029 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1030 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1035 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1036 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1037 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1038 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1039 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1040 1-216-864-11 SHORT CHIP 0
R1041 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1042 1-216-809-11 METAL CHIP 100 5% 1/10W
R1043 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1044 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1045 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1047 1-216-797-11 METAL CHIP 10 5% 1/10W
R1048 1-216-815-11 METAL CHIP 330 5% 1/10W
R1051 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1053 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1059 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1060 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1061 1-216-809-11 METAL CHIP 100 5% 1/10W
R1062 1-216-833-11 METAL CHIP 10K 5% 1/10W
< TRANSFORMER >
0 T901 1-697-162-11 CONVERTER TRANSFORMER
< TERMINAL BOARD >
TB600 1-780-893-11 TERMINAL BOARD (SPEAKERS)
< THERMISTOR >
0 TH902 1-811-315-31 POWER THERMISTOR
< VARISTOR >
0 VDR901 1-811-165-31 VARISTOR (TVR10471-D)
*************************************************************
A-1870-174-A AMP-SMPS BOARD, COMPLETE (EX880Z)
*************************
7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
< CAPACITOR >
C600 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C601 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V
C604 1-137-189-11 FILM 0.18uF 5% 50V
C605 1-137-189-11 FILM 0.18uF 5% 50V
C607 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C608 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C609 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C610 1-126-957-11 ELECT 0.22uF 20% 50V
C612 1-104-658-91 ELECT 100uF 20% 10V
C613 1-126-933-11 ELECT 100uF 20% 16V
63
Page 64
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS (EX880Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C614 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C615 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C616 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C619 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C620 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C720 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C721 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C722 1-126-963-11 ELECT 4.7uF 20% 50V
C723 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
0 C902 1-112-869-51 CERAMIC 470PF 10% 250V
C625 1-128-550-11 ELECT 2200uF 20% 50V
C626 1-126-971-11 ELECT 470uF 20% 50V
C627 1-126-971-11 ELECT 470uF 20% 50V
C628 1-126-971-11 ELECT 470uF 20% 50V
C629 1-126-971-11 ELECT 470uF 20% 50V
C638 1-116-866-51 MYLAR 1uF 10% 100V
C639 1-116-866-51 MYLAR 1uF 10% 100V
C640 1-116-866-51 MYLAR 1uF 10% 100V
C641 1-116-866-51 MYLAR 1uF 10% 100V
C642 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C643 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C644 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C645 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C646 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C647 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C648 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C649 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C650 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C651 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C652 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C653 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C654 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C655 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C656 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C657 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C658 1-126-960-11 ELECT 1uF 20% 50V
C659 1-126-964-11 ELECT 10uF 20% 50V
C660 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V
C661 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V
C662 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
0 C903 1-112-869-51 CERAMIC 470PF 10% 250V
0 C905 1-114-594-21 FILM 0.22uF 10% 250V
0 C907 1-116-397-21 FILM 0.33uF 10% 250V
0 C910 1-112-866-51 CERAMIC 100PF 10% 250V
C911 1-113-925-11 CERAMIC 0.01uF 20% 250V
C912 1-113-925-11 CERAMIC 0.01uF 20% 250V
C913 1-114-868-11 CERAMIC CHIP 0.1uF 10% 50V
C914 1-112-529-11 ELECT (BLOCK) 390uF 20% 450V
C917 1-118-264-11 FILM 0.0047uF 5% 630V
C918 1-127-804-91 CERAMIC CHIP 100PF 1% 50V
C920 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C921 1-126-964-11 ELECT 10uF 20% 50V
C922 1-126-960-11 ELECT 1uF 20% 50V
C926 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C931 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C933 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C934 1-114-868-11 CERAMIC CHIP 0.1uF 10% 50V
C966 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C967 1-117-220-81 CERAMIC 150PF 5% 2KV
C968 1-116-078-11 CERAMIC CHIP 1uF 10% 50V
C969 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C970 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C971 1-128-560-11 ELECT 22uF 20% 100V
C972 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C975 1-114-918-11 CERAMIC CHIP 470PF 5% 1KV
C992 1-117-815-11 FILM 1000PF 3% 1.5KV
C1004 1-165-753-21 ELECT 820uF 20% 50V
C1006 1-112-231-11 ELECT 2200uF 20% 16V
C1008 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C1009 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C663 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C664 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C665 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C666 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C667 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C668 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C669 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C676 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C700 1-126-947-11 ELECT 47uF 20% 35V
C702 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C703 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C704 1-126-935-11 ELECT 470uF 20% 16V
C705 1-126-964-11 ELECT 10uF 20% 50V
C706 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C707 1-126-964-11 ELECT 10uF 20% 50V
C708 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C709 1-126-964-11 ELECT 10uF 20% 50V
C710 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C711 1-126-935-11 ELECT 470uF 20% 16V
C712 1-126-964-11 ELECT 10uF 20% 50V
C714 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C715 1-135-977-31 ELECT 680uF 20% 10V
C717 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C718 1-126-961-11 ELECT 2.2uF 20% 50V
C719 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C1010 1-126-960-11 ELECT 1uF 20% 50V
C1011 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C1012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1014 1-126-965-91 ELECT 22uF 20% 50V
C1015 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C1016 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1018 1-126-965-91 ELECT 22uF 20% 50V
C1019 1-126-964-11 ELECT 10uF 20% 50V
C1022 1-116-078-11 CERAMIC CHIP 1uF 10% 50V
C1027 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
CN600 1-568-838-11 CONNECTOR, FFC 21P
* CN701 1-564-506-11 PLUG, CONNECTOR 3P
0 CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< DIODE >
D601 6-500-848-01 DIODE MC2840-T112-1
D700 8-719-079-47 DIODE RK36LF-A4
D701 6-502-966-01 DI DZ2J056M0L
D702 6-502-970-01 DI DZ2J068M0L
D703 6-500-335-01 DIODE MC2838-T112-1
D704 6-502-964-01 DI DZ2J047M0L
D901 6-503-040-01 DI DZ2J300M0L
D902 8-719-054-89 DIODE D15XB60
D903 6-503-731-01 DI SARS10
64
Page 65
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS (EX880Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D904 6-503-020-01 DI DZ2J082M0L
D905 6-503-032-01 DI DZ2J180M0L
D906 6-500-108-01 DIODE EP05FA20
D907 6-500-108-01 DIODE EP05FA20
D909 8-719-063-74 DIODE D1NL20U-TR2
D910 6-502-961-01 DI DA2J10100L
D911 6-503-037-01 DI DZ2J24000L
D912 6-503-030-01 DI DZ2J160M0L
D913 6-502-961-01 DI DA2J10100L
D914 6-503-042-01 DI DZ2J330M0L
D918 6-503-038-01 DI DZ2J27000L
D920 6-503-763-01 DI RS1K
D921 6-502-961-01 DI DA2J10100L
D923 6-503-038-01 DI DZ2J27000L
D925 6-502-970-01 DI DZ2J068M0L
D927 6-502-642-01 DI RF101L4STE25
D966 6-503-044-01 DI DZ2J360M0L
D967 8-719-063-74 DIODE D1NL20U-TR2
D968 6-503-037-01 DI DZ2J24000L
D969 6-503-026-01 DI DZ2J120M0L
D972 6-503-036-01 DI DZ2J220M0L
JR605 1-216-864-11 SHORT CHIP 0
JR901 1-216-295-91 SHORT CHIP 0
JR902 1-216-295-91 SHORT CHIP 0
JR903 1-216-296-11 SHORT CHIP 0
JR904 1-216-296-11 SHORT CHIP 0
JR905 1-216-296-11 SHORT CHIP 0
JR906 1-216-296-11 SHORT CHIP 0
JR915 1-216-296-11 SHORT CHIP 0
< COIL >
L606 1-457-078-11 AIR-CORE COIL
L607 1-457-077-11 AIR-CORE COIL
L608 1-457-077-11 AIR-CORE COIL
L609 1-457-078-11 AIR-CORE COIL
L613 1-460-525-11 INDUCTOR 10uH
L614 1-460-525-11 INDUCTOR 10uH
L700 1-400-424-21 INDUCTOR 47uH
0 L901 1-460-371-11 COIL, LINE FILTER
0 L902 1-460-371-11 COIL, LINE FILTER
L1000 1-457-578-11 INDUCTOR 10uH
L1002 1-457-878-65 INDUCTOR 2.2uH
D985 8-719-083-71 DI UDZSUSTE-1730B
D1000 6-501-849-01 DIODE FMX-22SL
D1001 8-719-045-48 DIODE FML-G12S
D1002 6-502-961-01 DI DA2J10100L
D1004 6-502-961-01 DI DA2J10100L
D1005 6-502-961-01 DI DA2J10100L
D1007 6-503-032-01 DI DZ2J180M0L
D1008 6-503-036-01 DI DZ2J220M0L
D1009 6-503-038-01 DI DZ2J27000L
D1010 6-502-970-01 DI DZ2J068M0L
D1011 6-503-020-01 DI DZ2J082M0L
D1013 6-503-042-01 DI DZ2J330M0L
D1020 6-500-335-01 DIODE MC2838-T112-1
D1021 6-500-335-01 DIODE MC2838-T112-1
< FUSE >
0 F901 1-576-395-51 FUSE (10A/250V)
< IC >
IC600 8-759-909-71 IC BA4558F
IC601
IC602 6-716-739-01 IC BD00GC0WEFJ-SE2
IC603 6-712-722-01 IC PST8229UL
IC700 6-703-639-01 IC TK11140CSCL-G
IC701 6-713-686-01 IC KIA7809AF
IC702 6-712-617-01 IC SI-8008TM-TLS
IC703 6-718-294-01 IC BA17807FP-E2
IC900 6-718-560-01 IC SSC6700
IC965 6-714-671-01 IC STR-Y6763
IC1000 6-711-947-01 IC MM1431CURE
IC1001 6-711-947-01 IC MM1431CURE
8-759-909-71 IC BA4558F
< PHOTO COUPLER >
0 PH930 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A
0 PH932 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A
0 PH933 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A
< TRANSISTOR >
Q600 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q601 6-551-696-01 TR ISA1235AC1-T112-1EF
Q602 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q603 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q604 6-551-696-01 TR ISA1235AC1-T112-1EF
Q605 6-551-696-01 TR ISA1235AC1-T112-1EF
Q606 6-551-696-01 TR ISA1235AC1-T112-1EF
Q607 6-551-696-01 TR ISA1235AC1-T112-1EF
Q608 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q612 6-551-696-01 TR ISA1235AC1-T112-1EF
Q700 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q701 8-729-040-76 TRANSISTOR KTA1273-Y-AT
Q702 6-551-696-01 TR ISA1235AC1-T112-1EF
Q703 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q704 8-729-036-86 TRANSISTOR KTC3203Y-AT
Q705 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q706 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q707 6-551-272-01 TRANSISTOR RT3CLLM
Q708 6-551-272-01 TRANSISTOR RT3CLLM
Q903 6-553-069-01 TR KTC3209-Y-AT
Q904 8-729-037-03 TRANSISTOR KTA1266GR-AT
Q905 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q906 6-553-069-01 TR KTC3209-Y-AT
Q907 8-729-052-82 TRANSISTOR KTA1281Y-AT
Q908 6-553-076-01 TR SPA11N80
< JUMPER RESISTOR >
JR600 1-216-864-11 SHORT CHIP 0
JR601 1-216-864-11 SHORT CHIP 0
JR602 1-216-864-11 SHORT CHIP 0
JR603 1-216-864-11 SHORT CHIP 0
JR604 1-216-864-11 SHORT CHIP 0
Q909 6-553-076-01 TR SPA11N80
Q910 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q911 6-552-502-01 TR DSC7003R0L
Q914 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q915 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q1003 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1004 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
65
Page 66
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS (EX880Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q1005 6-551-696-01 TR ISA1235AC1-T112-1E
Q1006 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q1008 6-551-696-01 TR ISA1235AC1-T112-1EF
Q1017 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
< RESISTOR >
R675 1-216-821-11 METAL CHIP 1K 5% 1/10W
R683 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R684 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R699 1-216-833-11 METAL CHIP 10K 5% 1/10W
R700 1-216-821-11 METAL CHIP 1K 5% 1/10W
R701 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R600 1-216-821-11 METAL CHIP 1K 5% 1/10W
R601 1-216-834-11 METAL CHIP 12K 5% 1/10W
R602 1-216-834-11 METAL CHIP 12K 5% 1/10W
R603 1-216-841-11 METAL CHIP 47K 5% 1/10W
R604 1-216-841-11 METAL CHIP 47K 5% 1/10W
R606 1-216-834-11 METAL CHIP 12K 5% 1/10W
R607 1-216-834-11 METAL CHIP 12K 5% 1/10W
R608 1-216-841-11 METAL CHIP 47K 5% 1/10W
R609 1-216-841-11 METAL CHIP 47K 5% 1/10W
R610 1-216-845-11 METAL CHIP 100K 5% 1/10W
R611 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R612 1-216-837-11 METAL CHIP 22K 5% 1/10W
R613 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R614 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R615 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R616 1-243-669-11 METAL 0.05 5% 5W
R617 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R618 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R619 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R620 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R621 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R622 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R623 1-216-853-11 METAL CHIP 470K 5% 1/10W
R624 1-216-837-11 METAL CHIP 22K 5% 1/10W
R625 1-216-833-11 METAL CHIP 10K 5% 1/10W
R626 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R627 1-218-883-11 METAL CHIP 33K 0.5% 1/10W
R628 1-218-873-11 METAL CHIP 12K 0.5% 1/10W
R629 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R630 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R702 1-216-833-11 METAL CHIP 10K 5% 1/10W
R703 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R704 1-216-845-11 METAL CHIP 100K 5% 1/10W
R705 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R706 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R710 1-216-833-11 METAL CHIP 10K 5% 1/10W
R711 1-216-845-11 METAL CHIP 100K 5% 1/10W
R713 1-216-853-11 METAL CHIP 470K 5% 1/10W
R718 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R719 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R720 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
R721 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R722 1-216-821-11 METAL CHIP 1K 5% 1/10W
R723 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R724 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R725 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R726 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R727 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R728 1-216-833-11 METAL CHIP 10K 5% 1/10W
R729 1-216-845-11 METAL CHIP 100K 5% 1/10W
R730 1-216-809-11 METAL CHIP 100 5% 1/10W
R731 1-216-809-11 METAL CHIP 100 5% 1/10W
R732 1-216-821-11 METAL CHIP 1K 5% 1/10W
R733 1-216-821-11 METAL CHIP 1K 5% 1/10W
R734 1-216-837-11 METAL CHIP 22K 5% 1/10W
R737 1-216-846-11 METAL CHIP 120K 5% 1/10W
R738 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R739 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R740 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R741 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R631 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R632 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R633 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R634 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R635 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R636 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R637 1-216-837-11 METAL CHIP 22K 5% 1/10W
R638 1-216-837-11 METAL CHIP 22K 5% 1/10W
R639 1-216-841-11 METAL CHIP 47K 5% 1/10W
R640 1-216-845-11 METAL CHIP 100K 5% 1/10W
R641 1-216-849-11 METAL CHIP 220K 5% 1/10W
R642 1-216-849-11 METAL CHIP 220K 5% 1/10W
R643 1-216-849-11 METAL CHIP 220K 5% 1/10W
R644 1-216-849-11 METAL CHIP 220K 5% 1/10W
R645 1-216-849-11 METAL CHIP 220K 5% 1/10W
R646 1-216-849-11 METAL CHIP 220K 5% 1/10W
R649 1-216-864-11 SHORT CHIP 0
R651 1-216-841-11 METAL CHIP 47K 5% 1/10W
R663 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R670 1-216-841-11 METAL CHIP 47K 5% 1/10W
R671 1-216-836-11 METAL CHIP 18K 5% 1/10W
R672 1-216-821-11 METAL CHIP 1K 5% 1/10W
R673 1-216-821-11 METAL CHIP 1K 5% 1/10W
R674 1-216-821-11 METAL CHIP 1K 5% 1/10W
R742 1-216-821-11 METAL CHIP 1K 5% 1/10W
R743 1-216-821-11 METAL CHIP 1K 5% 1/10W
R744 1-216-837-11 METAL CHIP 22K 5% 1/10W
R745 1-216-837-11 METAL CHIP 22K 5% 1/10W
R746 1-216-837-11 METAL CHIP 22K 5% 1/10W
R747 1-216-837-11 METAL CHIP 22K 5% 1/10W
R755 1-216-864-11 SHORT CHIP 0
R756 1-216-864-11 SHORT CHIP 0
R757 1-216-815-11 METAL CHIP 330 5% 1/10W
R758 1-216-815-11 METAL CHIP 330 5% 1/10W
R759 1-216-815-11 METAL CHIP 330 5% 1/10W
R760 1-216-815-11 METAL CHIP 330 5% 1/10W
R761 1-216-815-11 METAL CHIP 330 5% 1/10W
0 R901 1-240-938-51 METAL 1.5M 5% 0.5W F
R914 1-246-374-11 FUSIBLE 0.1 10% 1W
R916 1-216-797-11 METAL CHIP 10 5% 1/10W
R918 1-216-190-00 METAL CHIP 470 5% 1/8W
R924 1-216-837-11 METAL CHIP 22K 5% 1/10W
R928 1-216-214-00 METAL CHIP 4.7K 5% 1/8W
R929 1-216-805-11 METAL CHIP 47 5% 1/10W
R930 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R932 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R933 1-216-222-00 METAL CHIP 10K 5% 1/8W
R937 1-216-190-00 METAL CHIP 470 5% 1/8W
66
Page 67
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS (EX880Z) AMP-SMPS PC (EX990Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R938 1-216-809-11 METAL CHIP 100 5% 1/10W
R1028 1-216-837-11 METAL CHIP 22K 5% 1/10W
R939 1-216-844-11 METAL CHIP 82K 5% 1/10W
R940 1-216-218-91 METAL CHIP 6.8K 5% 1/8W
R941 1-216-214-00 METAL CHIP 4.7K 5% 1/8W
R942 1-216-174-00 METAL CHIP 100 5% 1/8W
R943 1-249-401-11 CARBON 47 5% 1/4W
R944 1-249-401-11 CARBON 47 5% 1/4W
R945 1-249-401-11 CARBON 47 5% 1/4W
R946 1-249-401-11 CARBON 47 5% 1/4W
R947 1-216-833-11 METAL CHIP 10K 5% 1/10W
R948 1-243-669-11 METAL 0.05 5% 5W
R950 1-216-246-00 METAL CHIP 100K 5% 1/8W
R952 1-216-246-00 METAL CHIP 100K 5% 1/8W
R953 1-216-246-00 METAL CHIP 100K 5% 1/8W
R954 1-216-833-11 METAL CHIP 10K 5% 1/10W
R955 1-216-849-11 METAL CHIP 220K 5% 1/10W
R956 1-216-214-00 METAL CHIP 4.7K 5% 1/8W
R957 1-216-246-00 METAL CHIP 100K 5% 1/8W
R958 1-216-218-91 METAL CHIP 6.8K 5% 1/8W
R965 1-257-123-11 FUSIBLE 2.2 10% 1/2W
R966 1-216-348-00 METAL OXIDE 0.82 5% 1W
R967 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
R969 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R970 1-216-845-11 METAL CHIP 100K 5% 1/10W
R971 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R972 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
R973 1-216-801-11 METAL CHIP 22 5% 1/10W
R974 1-216-801-11 METAL CHIP 22 5% 1/10W
R975 1-216-821-11 METAL CHIP 1K 5% 1/10W
R978 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R979 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R980 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R981 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R992 1-216-809-11 METAL CHIP 100 5% 1/10W
R996 1-215-924-00 METAL OXIDE 15K 5% 3W
R997 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1031 1-216-198-91 METAL CHIP 1K 5% 1/8W
R1038 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1039 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1042 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1054 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1055 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1056 1-216-809-11 METAL CHIP 100 5% 1/10W
R1059 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1060 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1061 1-216-809-11 METAL CHIP 100 5% 1/10W
R1062 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1064 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1065 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
< TRANSFORMER >
0 T901 1-697-163-11 CONVERTER TRANSFORMER (MAIN)
0 T903 1-445-951-11 TRANSFORMER, CONVERTER (SUB)
< TERMINAL BOARD >
TB600 1-780-893-11 TERMINAL BOARD (SPEAKERS)
< THERMISTOR >
0 TH902 1-811-615-21 THERMISTOR, POWER
0 TH904 1-811-615-21 THERMISTOR, POWER
< VARISTOR >
0 VDR901 1-811-165-31 VARISTOR (TVR10471-D)
*************************************************************
A-1870-190-A AMP-SMPS PC BOARD, COMPLETE (EX990Z)
****************************
7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
< CAPACITOR >
R998 1-215-924-00 METAL OXIDE 15K 5% 3W
R999 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1000 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1001 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1002 1-216-295-91 SHORT CHIP 0
R1003 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1004 1-218-883-11 METAL CHIP 33K 0.5% 1/10W
R1005 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R1006 1-218-873-11 METAL CHIP 12K 0.5% 1/10W
R1007 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R1009 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R1010 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1011 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1013 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1014 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R1015 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1016 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1017 1-216-813-11 METAL CHIP 220 5% 1/10W
R1018 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1019 1-216-864-11 SHORT CHIP 0
R1020 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R1023 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1025 1-216-198-91 METAL CHIP 1K 5% 1/8W
R1027 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
C600 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C601 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V
C606 1-137-189-11 FILM 0.18uF 5% 50V
C607 1-126-964-11 ELECT 10uF 20% 50V
C608 1-126-964-11 ELECT 10uF 20% 50V
C609 1-126-964-11 ELECT 10uF 20% 50V
C610 1-126-964-11 ELECT 10uF 20% 50V
C611 1-137-189-11 FILM 0.18uF 5% 50V
C612 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C613 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C614 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C615 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C616 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C617 1-126-957-11 ELECT 0.22uF 20% 50V
C618 1-104-658-91 ELECT 100uF 20% 10V
C619 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C620 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C621 1-126-960-11 ELECT 1uF 20% 50V
C622 1-126-960-11 ELECT 1uF 20% 50V
C623 1-126-964-11 ELECT 10uF 20% 50V
C626 1-104-661-91 ELECT 330uF 20% 16V
C627 1-128-555-91 ELECT 470uF 20% 63V
C628 1-128-555-91 ELECT 470uF 20% 63V
C629 1-128-555-91 ELECT 470uF 20% 63V
67
Page 68
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS PC (EX990Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C630 1-128-555-91 ELECT 470uF 20% 63V
C723 1-126-963-11 ELECT 4.7uF 20% 50V
C631 1-135-632-51 ELECT 2200uF 20% 63V
C633 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C635 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C640 1-135-618-11 MYLAR 1uF 5% 63V
C641 1-135-618-11 MYLAR 1uF 5% 63V
C642 1-116-866-51 MYLAR 1uF 10% 100V
C643 1-116-866-51 MYLAR 1uF 10% 100V
C645 1-128-963-11 ELECT 1000uF 20% 50V
C646 1-128-963-11 ELECT 1000uF 20% 50V
C647 1-128-963-11 ELECT 1000uF 20% 50V
C648 1-128-963-11 ELECT 1000uF 20% 50V
C649 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C650 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C651 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C652 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C653 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C654 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C655 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C656 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C657 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C658 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C659 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C660 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C661 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C662 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C663 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C664 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C665 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C666 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C667 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V
C727 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
0 C902 1-112-869-51 CERAMIC 470PF 10% 250V
0 C903 1-112-869-51 CERAMIC 470PF 10% 250V
0 C905 1-114-594-21 FILM 0.22uF 10% 250V
0 C907 1-116-397-21 FILM 0.33uF 10% 250V
0 C910 1-112-866-51 CERAMIC 100PF 10% 250V
C911 1-113-925-11 CERAMIC 0.01uF 20% 250V
C912 1-113-925-11 CERAMIC 0.01uF 20% 250V
C913 1-114-868-11 CERAMIC CHIP 0.1uF 10% 50V
C914 1-112-529-11 ELECT (BLOCK) 390uF 20% 450V
C917 1-118-264-11 FILM 0.0047uF 5% 630V
C918 1-127-804-91 CERAMIC CHIP 100PF 1% 50V
C920 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C921 1-126-964-11 ELECT 10uF 20% 50V
C922 1-126-960-11 ELECT 1uF 20% 50V
C926 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C931 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C933 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C934 1-114-868-11 CERAMIC CHIP 0.1uF 10% 50V
C966 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C967 1-117-220-81 CERAMIC 150PF 5% 2KV
C968 1-116-078-11 CERAMIC CHIP 1uF 10% 50V
C969 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C970 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C971 1-128-560-11 ELECT 22uF 20% 100V
C972 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C975 1-114-918-11 CERAMIC CHIP 470PF 5% 1KV
C992 1-117-815-11 FILM 1000PF 3% 1.5KV
C1003 1-165-761-21 ELECT 1200uF 20% 63V
C1006 1-112-231-11 ELECT 2200uF 20% 16V
C668 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V
C669 1-100-881-91 CERAMIC CHIP 47uF 20% 6.3V
C670 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C671 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C672 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C673 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C674 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C675 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C676 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C678 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C700 1-126-947-11 ELECT 47uF 20% 35V
C702 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C703 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C704 1-126-935-11 ELECT 470uF 20% 16V
C705 1-126-964-11 ELECT 10uF 20% 50V
C706 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C707 1-126-964-11 ELECT 10uF 20% 50V
C708 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C709 1-126-964-11 ELECT 10uF 20% 50V
C710 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C711 1-126-935-11 ELECT 470uF 20% 16V
C712 1-126-964-11 ELECT 10uF 20% 50V
C714 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C715 1-135-977-31 ELECT 680uF 20% 10V
C717 1-126-961-11 ELECT 2.2uF 20% 50V
C718 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C720 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C721 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C722 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1008 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C1009 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1010 1-128-578-11 ELECT 1uF 20% 100V
C1011 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C1012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1014 1-126-965-91 ELECT 22uF 20% 50V
C1015 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C1016 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1018 1-128-560-11 ELECT 22uF 20% 100V
C1019 1-128-582-11 ELECT 10uF 20% 100V
C1022 1-116-078-11 CERAMIC CHIP 1uF 10% 50V
C1027 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
CN600 1-784-784-11 CONNECTOR, FFC 23P
* CN701 1-564-506-11 PLUG, CONNECTOR 3P
0 CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< DIODE >
D601 6-500-848-01 DIODE MC2840-T112-1
D602 6-500-848-01 DIODE MC2840-T112-1
D603 6-502-961-01 DI DA2J10100L
D604 6-502-961-01 DI DA2J10100L
D700 8-719-079-47 DIODE RK36LF-A4
D701 6-502-966-01 DI DZ2J056M0L
D702 6-502-970-01 DI DZ2J068M0L
D703 6-500-335-01 DIODE MC2838-T112-1
D704 6-502-964-01 DI DZ2J047M0L
D901 6-503-040-01 DI DZ2J300M0L
68
Page 69
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS PC (EX990Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D902 8-719-054-89 DIODE D15XB60
D903 6-503-731-01 DI SARS10
D904 6-503-020-01 DI DZ2J082M0L
D905 6-503-032-01 DI DZ2J180M0L
D906 6-500-108-01 DIODE EP05FA20
D907 6-500-108-01 DIODE EP05FA20
D909 8-719-063-74 DIODE D1NL20U-TR2
D910 6-502-961-01 DI DA2J10100L
D911 6-503-037-01 DI DZ2J24000L
D912 6-503-030-01 DI DZ2J160M0L
JR604 1-216-864-11 SHORT CHIP 0
JR605 1-216-864-11 SHORT CHIP 0
JR903 1-216-296-11 SHORT CHIP 0
JR904 1-216-296-11 SHORT CHIP 0
JR905 1-216-296-11 SHORT CHIP 0
JR907 1-216-296-11 SHORT CHIP 0
JR915 1-216-296-11 SHORT CHIP 0
< COIL >
D913 6-502-961-01 DI DA2J10100L
D914 6-503-042-01 DI DZ2J330M0L
D918 6-503-040-01 DI DZ2J300M0L
D920 6-503-763-01 DI RS1K
D921 6-502-961-01 DI DA2J10100L
D923 6-503-040-01 DI DZ2J300M0L
D925 6-502-970-01 DI DZ2J068M0L
D927 6-502-642-01 DI RF101L4STE25
D966 6-503-044-01 DI DZ2J360M0L
D967 8-719-063-74 DIODE D1NL20U-TR2
D968 6-503-037-01 DI DZ2J24000L
D969 6-503-026-01 DI DZ2J120M0L
D972 6-503-036-01 DI DZ2J220M0L
D985 8-719-083-71 DI UDZSUSTE-1730B
D1000 6-501-849-01 DIODE FMX-22SL
D1001 8-719-045-48 DIODE FML-G12S
D1002 6-502-961-01 DI DA2J10100L
D1004 6-502-961-01 DI DA2J10100L
D1005 6-502-961-01 DI DA2J10100L
D1007 6-503-038-01 DI DZ2J27000L
D1008 6-503-038-01 DI DZ2J27000L
D1009 6-503-038-01 DI DZ2J27000L
D1010 6-502-970-01 DI DZ2J068M0L
D1011 6-503-036-01 DI DZ2J220M0L
D1013 6-503-044-01 DI DZ2J360M0L
D1020 6-500-335-01 DIODE MC2838-T112-1
D1021 6-500-335-01 DIODE MC2838-T112-1
< FUSE >
0 F901 1-576-395-51 FUSE (10A/250V)
< IC >
IC600 8-759-909-71 IC BA4558F
IC601
IC602 6-716-739-01 IC BD00GC0WEFJ-SE2
IC603 6-712-722-01 IC PST8229UL
IC700 6-703-639-01 IC TK11140CSCL-G
IC701 6-713-686-01 IC KIA7809AF
IC702 6-712-617-01 IC SI-8008TM-TLS
IC703 6-718-294-01 IC BA17807FP-E2
IC900 6-718-560-01 IC SSC6700
IC965 6-714-671-01 IC STR-Y6763
IC1000 6-711-947-01 IC MM1431CURE
IC1001 6-711-947-01 IC MM1431CURE
< JUMPER RESISTOR >
JR600 1-216-864-11 SHORT CHIP 0
JR601 1-216-864-11 SHORT CHIP 0
JR602 1-216-864-11 SHORT CHIP 0
JR603 1-216-864-11 SHORT CHIP 0
8-759-909-71 IC BA4558F
L605 1-457-078-11 AIR-CORE COIL
L606 1-457-078-11 AIR-CORE COIL
L607 1-457-077-11 AIR-CORE COIL
L608 1-457-077-11 AIR-CORE COIL
L611 1-460-525-11 INDUCTOR 10uH
L612 1-460-525-11 INDUCTOR 10uH
L700 1-400-424-21 INDUCTOR 47uH
0 L901 1-460-371-11 COIL, LINE FILTER
0 L902 1-460-371-11 COIL, LINE FILTER
L1000 1-457-578-11 INDUCTOR 10uH
L1002 1-457-878-65 INDUCTOR 2.2uH
< PHOTO COUPLER >
0 PH930 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A
0 PH932 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A
0 PH933 6-600-277-11 PHOTOCOUPLER PS2561AL-1-V-F3-A
< TRANSISTOR >
Q600 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q601 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q602 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q603 6-551-696-01 TR ISA1235AC1-T112-1EF
Q604 6-551-696-01 TR ISA1235AC1-T112-1EF
Q605 6-551-696-01 TR ISA1235AC1-T112-1EF
Q606 6-551-696-01 TR ISA1235AC1-T112-1EF
Q607 6-551-696-01 TR ISA1235AC1-T112-1EF
Q608 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q609 6-551-696-01 TR ISA1235AC1-T112-1EF
Q610 6-551-696-01 TR ISA1235AC1-T112-1EF
Q611 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q612 6-551-696-01 TR ISA1235AC1-T112-1EF
Q700 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q701 8-729-040-76 TRANSISTOR KTA1273-Y-AT
Q702 6-551-696-01 TR ISA1235AC1-T112-1EF
Q703 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q704 8-729-036-86 TRANSISTOR KTC3203Y-AT
Q705 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q706 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q707 6-551-272-01 TRANSISTOR RT3CLLM
Q713 6-551-272-01 TRANSISTOR RT3CLLM
Q903 6-553-069-01 TR KTC3209-Y-AT
Q904 8-729-037-03 TRANSISTOR KTA1266GR-AT
Q905 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q906 6-553-069-01 TR KTC3209-Y-AT
Q907 8-729-052-82 TRANSISTOR KTA1281Y-AT
Q908 6-553-076-01 TR SPA11N80
Q909 6-553-076-01 TR SPA11N80
Q910 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q911 6-552-502-01 TR DSC7003R0L
Q914 8-729-038-23 TRANSISTOR RT1N141C-TP-1
69
Page 70
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS PC (EX990Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q915 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q1003 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1004 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1005 6-551-696-01 TR ISA1235AC1-T112-1EF
Q1006 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q1008 6-551-696-01 TR ISA1235AC1-T112-1EF
Q1017 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
< RESISTOR >
R658 1-216-849-11 METAL CHIP 220K 5% 1/10W
R659 1-216-849-11 METAL CHIP 220K 5% 1/10W
R660 1-216-841-11 METAL CHIP 47K 5% 1/10W
R661 1-216-849-11 METAL CHIP 220K 5% 1/10W
R662 1-216-845-11 METAL CHIP 100K 5% 1/10W
R663 1-218-877-11 METAL CHIP 18K 0.5% 1/10W
R664 1-216-849-11 METAL CHIP 220K 5% 1/10W
R665 1-216-849-11 METAL CHIP 220K 5% 1/10W
R666 1-216-833-11 METAL CHIP 10K 5% 1/10W
R600 1-216-821-11 METAL CHIP 1K 5% 1/10W
R601 1-216-841-11 METAL CHIP 47K 5% 1/10W
R602 1-216-841-11 METAL CHIP 47K 5% 1/10W
R603 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R604 1-216-841-11 METAL CHIP 47K 5% 1/10W
R605 1-216-834-11 METAL CHIP 12K 5% 1/10W
R606 1-216-841-11 METAL CHIP 47K 5% 1/10W
R607 1-216-834-11 METAL CHIP 12K 5% 1/10W
R608 1-216-841-11 METAL CHIP 47K 5% 1/10W
R609 1-216-834-11 METAL CHIP 12K 5% 1/10W
R610 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R611 1-216-841-11 METAL CHIP 47K 5% 1/10W
R612 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R613 1-216-841-11 METAL CHIP 47K 5% 1/10W
R614 1-216-834-11 METAL CHIP 12K 5% 1/10W
R615 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R616 1-216-841-11 METAL CHIP 47K 5% 1/10W
R617 1-216-853-11 METAL CHIP 470K 5% 1/10W
R618 1-216-837-11 METAL CHIP 22K 5% 1/10W
R620 1-216-845-11 METAL CHIP 100K 5% 1/10W
R621 1-216-833-11 METAL CHIP 10K 5% 1/10W
R622 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R623 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R624 1-218-873-11 METAL CHIP 12K 0.5% 1/10W
R625 1-218-883-11 METAL CHIP 33K 0.5% 1/10W
R626 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R627 1-216-837-11 METAL CHIP 22K 5% 1/10W
R628 1-243-669-11 METAL 0.05 5% 5W
R629 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R630 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R667 1-216-841-11 METAL CHIP 47K 5% 1/10W
R668 1-216-805-11 METAL CHIP 47 5% 1/10W
R669 1-216-805-11 METAL CHIP 47 5% 1/10W
R670 1-216-841-11 METAL CHIP 47K 5% 1/10W
R671 1-216-836-11 METAL CHIP 18K 5% 1/10W
R672 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R673 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R674 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R675 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R676 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R677 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R678 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R679 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R681 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R682 1-216-833-11 METAL CHIP 10K 5% 1/10W
R683 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R684 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R685 1-215-889-00 METAL OXIDE 330 5% 2W
R686 1-215-889-00 METAL OXIDE 330 5% 2W
R689 1-216-296-11 SHORT CHIP 0
R700 1-216-821-11 METAL CHIP 1K 5% 1/10W
R701 1-216-833-11 METAL CHIP 10K 5% 1/10W
R702 1-216-845-11 METAL CHIP 100K 5% 1/10W
R703 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R704 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R705 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R706 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R710 1-216-833-11 METAL CHIP 10K 5% 1/10W
R711 1-216-845-11 METAL CHIP 100K 5% 1/10W
R713 1-216-853-11 METAL CHIP 470K 5% 1/10W
R633 1-215-889-00 METAL OXIDE 330 5% 2W
R634 1-215-889-00 METAL OXIDE 330 5% 2W
R635 1-216-833-11 METAL CHIP 10K 5% 1/10W
R636 1-216-833-11 METAL CHIP 10K 5% 1/10W
R637 1-216-833-11 METAL CHIP 10K 5% 1/10W
R638 1-216-833-11 METAL CHIP 10K 5% 1/10W
R639 1-216-837-11 METAL CHIP 22K 5% 1/10W
R643 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R644 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R645 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R646 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R647 1-216-837-11 METAL CHIP 22K 5% 1/10W
R648 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R649 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R650 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R651 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R652 1-216-864-11 SHORT CHIP 0
R654 1-216-849-11 METAL CHIP 220K 5% 1/10W
R655 1-216-849-11 METAL CHIP 220K 5% 1/10W
R656 1-216-849-11 METAL CHIP 220K 5% 1/10W
R657 1-216-849-11 METAL CHIP 220K 5% 1/10W
70
R718 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R719 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R720 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
R721 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R722 1-216-821-11 METAL CHIP 1K 5% 1/10W
R723 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R724 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R725 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R726 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R727 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R728 1-216-833-11 METAL CHIP 10K 5% 1/10W
R729 1-216-845-11 METAL CHIP 100K 5% 1/10W
R730 1-216-809-11 METAL CHIP 100 5% 1/10W
R731 1-216-809-11 METAL CHIP 100 5% 1/10W
R734 1-216-821-11 METAL CHIP 1K 5% 1/10W
R735 1-216-821-11 METAL CHIP 1K 5% 1/10W
R736 1-216-821-11 METAL CHIP 1K 5% 1/10W
R739 1-216-846-11 METAL CHIP 120K 5% 1/10W
R740 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R741 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R742 1-216-791-11 METAL CHIP 3.3 5% 1/10W
Page 71
HCD-EX660Z/EX880Z/EX990Z
AMP-SMPS PC (EX990Z)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R743 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R744 1-216-837-11 METAL CHIP 22K 5% 1/10W
R745 1-216-837-11 METAL CHIP 22K 5% 1/10W
R746 1-216-837-11 METAL CHIP 22K 5% 1/10W
R997 1-216-821-11 METAL CHIP 1K 5% 1/10W
R998 1-215-924-00 METAL OXIDE 15K 5% 3W
R999 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1000 1-216-821-11 METAL CHIP 1K 5% 1/10W
R747 1-216-837-11 METAL CHIP 22K 5% 1/10W
R748 1-216-821-11 METAL CHIP 1K 5% 1/10W
R749 1-216-837-11 METAL CHIP 22K 5% 1/10W
R755 1-216-864-11 SHORT CHIP 0
R756 1-216-864-11 SHORT CHIP 0
R760 1-216-815-11 METAL CHIP 330 5% 1/10W
R761 1-216-815-11 METAL CHIP 330 5% 1/10W
R767 1-216-815-11 METAL CHIP 330 5% 1/10W
R768 1-216-815-11 METAL CHIP 330 5% 1/10W
R769 1-216-815-11 METAL CHIP 330 5% 1/10W
0 R901 1-240-938-51 METAL 1.5M 5% 0.5W F
R914 1-246-374-11 FUSIBLE 0.1 10% 1W
R916 1-216-797-11 METAL CHIP 10 5% 1/10W
R918 1-216-190-00 METAL CHIP 470 5% 1/8W
R924 1-216-837-11 METAL CHIP 22K 5% 1/10W
R928 1-216-214-00 METAL CHIP 4.7K 5% 1/8W
R929 1-216-801-11 METAL CHIP 22 5% 1/10W
R930 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R932 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R933 1-216-222-00 METAL CHIP 10K 5% 1/8W
R937 1-216-190-00 METAL CHIP 470 5% 1/8W
R938 1-216-809-11 METAL CHIP 100 5% 1/10W
R939 1-216-844-11 METAL CHIP 82K 5% 1/10W
R940 1-216-218-91 METAL CHIP 6.8K 5% 1/8W
R941 1-216-210-00 METAL CHIP 3.3K 5% 1/8W
R942 1-216-174-00 METAL CHIP 100 5% 1/8W
R943 1-249-401-11 CARBON 47 5% 1/4W
R944 1-249-401-11 CARBON 47 5% 1/4W
R945 1-249-401-11 CARBON 47 5% 1/4W
R946 1-249-401-11 CARBON 47 5% 1/4W
R1001 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1002 1-216-295-91 SHORT CHIP 0
R1003 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W
R1004 1-218-883-11 METAL CHIP 33K 0.5% 1/10W
R1005 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W
R1006 1-218-873-11 METAL CHIP 12K 0.5% 1/10W
R1007 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R1009 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R1010 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1011 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1013 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1014 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R1015 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1016 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1017 1-216-813-11 METAL CHIP 220 5% 1/10W
R1018 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1019 1-216-864-11 SHORT CHIP 0
R1020 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R1023 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1025 1-216-198-91 METAL CHIP 1K 5% 1/8W
R1027 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1028 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1031 1-216-198-91 METAL CHIP 1K 5% 1/8W
R1038 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1039 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1042 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1054 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1055 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1056 1-216-809-11 METAL CHIP 100 5% 1/10W
R1059 1-216-833-11 METAL CHIP 10K 5% 1/10W
R947 1-216-833-11 METAL CHIP 10K 5% 1/10W
R948 1-243-669-11 METAL 0.05 5% 5W
R950 1-216-246-00 METAL CHIP 100K 5% 1/8W
R952 1-216-246-00 METAL CHIP 100K 5% 1/8W
R953 1-216-246-00 METAL CHIP 100K 5% 1/8W
R954 1-216-833-11 METAL CHIP 10K 5% 1/10W
R955 1-216-849-11 METAL CHIP 220K 5% 1/10W
R956 1-216-210-00 METAL CHIP 3.3K 5% 1/8W
R957 1-216-246-00 METAL CHIP 100K 5% 1/8W
R958 1-216-218-91 METAL CHIP 6.8K 5% 1/8W
R965 1-257-123-11 FUSIBLE 2.2 10% 1/2W
R966 1-216-348-00 METAL OXIDE 0.82 5% 1W
R967 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
R969 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R970 1-216-845-11 METAL CHIP 100K 5% 1/10W
R971 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R972 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
R973 1-216-801-11 METAL CHIP 22 5% 1/10W
R974 1-216-801-11 METAL CHIP 22 5% 1/10W
R975 1-216-821-11 METAL CHIP 1K 5% 1/10W
R978 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R979 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R980 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R981 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R992 1-216-809-11 METAL CHIP 100 5% 1/10W
R996 1-215-924-00 METAL OXIDE 15K 5% 3W
R1060 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1061 1-216-809-11 METAL CHIP 100 5% 1/10W
R1062 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1064 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1065 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
< RELAY >
RY600 1-755-421-11 RELAY
< TRANSFORMER >
0 T901 1-697-163-11 CONVERTER TRANSFORMER (MAIN)
0 T903 1-445-951-11 TRANSFORMER, CONVERTER (SUB)
< TERMINAL BOARD >
TB600 1-780-893-11 TERMINAL BOARD (SPEAKERS)
TB601 1-780-812-11 TERMINAL BOARD (SUBWOOFER)
< THERMISTOR >
0 TH902 1-811-615-21 THERMISTOR, POWER
0 TH904 1-811-615-21 THERMISTOR, POWER
< VARISTOR >
0 VDR901 1-811-165-31 VARISTOR (TVR10471-D)
*************************************************************
71
Page 72
HCD-EX660Z/EX880Z/EX990Z
BD76
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BD76 BOARD
***********
< CAPACITOR >
C907 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C908 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C909 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C951 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
C101 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C103 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C104 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C105 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C106 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C107 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C108 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C110 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C111 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C112 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C113 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C116 1-117-681-11 ELECT CHIP 100uF 20% 16V
C117 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C118 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C119 1-117-681-11 ELECT CHIP 100uF 20% 16V
C120 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C121 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C123 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C124 1-117-681-11 ELECT CHIP 100uF 20% 16V
C125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C127 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C128 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C129 1-117-681-11 ELECT CHIP 100uF 20% 16V
C130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C131 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C201 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C202 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C204 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C206 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C207 1-117-681-11 ELECT CHIP 100uF 20% 16V
C208 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C209 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C301 1-128-394-11 ELECT CHIP 220uF 20% 10V
C302 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C303 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C304 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C401 1-117-681-11 ELECT CHIP 100uF 20% 16V
C402 1-117-681-11 ELECT CHIP 100uF 20% 16V
C405 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C406 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C407 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C415 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C416 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C417 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C418 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C901 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C902 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C903 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C904 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C905 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C906 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C952 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
C953 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C955 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
< CONNECTOR >
CN201 1-770-425-51 CONNECTOR, FFC/FPC 16P
CN401 1-820-119-41 CONNECTOR, FFC/FPC 21P
CN901 1-820-112-41 CONNECTOR, FFC/FPC 9P
< IC >
IC101 6-713-623-01 IC LC786950T-US-H
IC301
IC901 A-1768-193-A IC LC87F1JJ2AU-SQFP-H (for SERVICE)
< TRANSISTOR >
Q201 6-551-120-01 TRANSISTOR 2SA2119K
< RESISTOR >
R101 1-216-815-11 METAL CHIP 330 5% 1/10W
R102 1-216-833-11 METAL CHIP 10K 5% 1/10W
R103 1-216-864-11 SHORT CHIP 0
R104 1-216-864-11 SHORT CHIP 0
R105 1-216-864-11 SHORT CHIP 0
R106 1-216-864-11 SHORT CHIP 0
R107 1-216-843-11 METAL CHIP 68K 5% 1/10W
R108 1-216-821-11 METAL CHIP 1K 5% 1/10W
R109 1-216-821-11 METAL CHIP 1K 5% 1/10W
R111 1-216-837-11 METAL CHIP 22K 5% 1/10W
R112 1-216-864-11 SHORT CHIP 0
R113 1-216-819-11 METAL CHIP 680 5% 1/10W
R114 1-216-819-11 METAL CHIP 680 5% 1/10W
R116 1-216-843-11 METAL CHIP 68K 5% 1/10W
R117 1-216-833-11 METAL CHIP 10K 5% 1/10W
R118 1-216-809-11 METAL CHIP 100 5% 1/10W
R120 1-216-833-11 METAL CHIP 10K 5% 1/10W
R121 1-216-833-11 METAL CHIP 10K 5% 1/10W
R122 1-216-833-11 METAL CHIP 10K 5% 1/10W
R123 1-216-833-11 METAL CHIP 10K 5% 1/10W
R124 1-216-833-11 METAL CHIP 10K 5% 1/10W
R126 1-216-864-11 SHORT CHIP 0
R129 1-216-809-11 METAL CHIP 100 5% 1/10W
R201 1-218-446-11 METAL CHIP 1 5% 1/10W
R202 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R203 1-216-864-11 SHORT CHIP 0
R301 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R302 1-216-839-11 METAL CHIP 33K 5% 1/10W
R303 1-216-834-11 METAL CHIP 12K 5% 1/10W
R304 1-216-833-11 METAL CHIP 10K 5% 1/10W
R305 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R401 1-216-295-91 SHORT CHIP 0
R402 1-216-295-91 SHORT CHIP 0
R403 1-216-809-11 METAL CHIP 100 5% 1/10W
R404 1-216-809-11 METAL CHIP 100 5% 1/10W
R405 1-216-809-11 METAL CHIP 100 5% 1/10W
R406 1-216-809-11 METAL CHIP 100 5% 1/10W
R407 1-216-809-11 METAL CHIP 100 5% 1/10W
6-710-637-01 IC BA5826HFP-E2
72
Page 73
HCD-EX660Z/EX880Z/EX990Z
MODULELOADINGBD76
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R408 1-216-809-11 METAL CHIP 100 5% 1/10W
R409 1-216-809-11 METAL CHIP 100 5% 1/10W
R411 1-216-809-11 METAL CHIP 100 5% 1/10W
R412 1-216-864-11 SHORT CHIP 0
R413 1-216-864-11 SHORT CHIP 0
R414 1-216-809-11 METAL CHIP 100 5% 1/10W
R415 1-216-809-11 METAL CHIP 100 5% 1/10W
C807 1-164-882-11 CERAMIC CHIP 220PF 5% 16V
C808 1-107-820-81 CERAMIC CHIP 0.1uF 16V
C809 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
(EX990Z)
C809 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
(EX880Z)
C809 1-164-934-11 CERAMIC CHIP 330PF 10% 50V
(EX660Z)
R416 1-216-809-11 METAL CHIP 100 5% 1/10W
R417 1-216-295-91 SHORT CHIP 0
R901 1-216-809-11 METAL CHIP 100 5% 1/10W
R902 1-216-809-11 METAL CHIP 100 5% 1/10W
R903 1-216-857-11 METAL CHIP 1M 5% 1/10W
R904 1-216-864-11 SHORT CHIP 0
R905 1-216-809-11 METAL CHIP 100 5% 1/10W
R906 1-216-809-11 METAL CHIP 100 5% 1/10W
R907 1-216-809-11 METAL CHIP 100 5% 1/10W
R908 1-216-809-11 METAL CHIP 100 5% 1/10W
R909 1-216-809-11 METAL CHIP 100 5% 1/10W
R910 1-216-845-11 METAL CHIP 100K 5% 1/10W
R911 1-216-809-11 METAL CHIP 100 5% 1/10W
R912 1-216-845-11 METAL CHIP 100K 5% 1/10W
R913 1-216-809-11 METAL CHIP 100 5% 1/10W
R914 1-216-845-11 METAL CHIP 100K 5% 1/10W
R922 1-216-809-11 METAL CHIP 100 5% 1/10W
R923 1-216-809-11 METAL CHIP 100 5% 1/10W
R924 1-216-809-11 METAL CHIP 100 5% 1/10W
R951 1-216-835-11 METAL CHIP 15K 5% 1/10W
R952 1-216-835-11 METAL CHIP 15K 5% 1/10W
R953 1-216-803-11 METAL CHIP 33 5% 1/10W
R954 1-216-803-11 METAL CHIP 33 5% 1/10W
R955 1-216-864-11 SHORT CHIP 0
< VIBRATOR >
X101 1-795-101-21 VIBRATOR, CERAMIC (16.934MHz)
X901 1-814-365-11 QUARTZ CRYSTAL UNITS (12MHz)
*************************************************************
LOADING BOARD
**************
C810 1-107-820-81 CERAMIC CHIP 0.1uF 16V
C811 1-107-820-81 CERAMIC CHIP 0.1uF 16V
C812 1-107-820-81 CERAMIC CHIP 0.1uF 16V
(EX660Z)
C813 1-107-820-81 CERAMIC CHIP 0.1uF 16V
(EX660Z)
C814 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V
C815 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V
C816 1-114-817-11 CERAMIC CHIP 2.2uF 10% 50V
(EX660Z/EX880Z)
C817 1-114-817-11 CERAMIC CHIP 2.2uF 10% 50V
(EX660Z/EX880Z)
C820 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V
C821 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V
C824 1-114-817-11 CERAMIC CHIP 2.2uF 10% 50V
(EX660Z/EX880Z)
C825 1-114-817-11 CERAMIC CHIP 2.2uF 10% 50V
(EX660Z/EX880Z)
C826 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V
(EX990Z)
C827 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V
(EX990Z)
C828 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V
(EX990Z)
C829 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V
(EX990Z)
< CONNECTOR >
CN801 1-843-277-11 HEADER, PIN 8P
CN802 1-842-458-11 PIN HEADER 6P
CN803 1-842-458-11 PIN HEADER 6P
< DIODE >
< SWITCH >
1-786-514-31 SWITCH, LEVER (SLIDE)
< CONNECTOR >
CN1 1-784-727-11 CONNECTOR, FFC 5P
*************************************************************
A-1870-161-A MODULE PHD BOARD, COMPLETE (EX660Z)
A-1870-173-A MODULE BOARD, COMPLETE (EX880Z)
A-1870-189-A MODULE BOARD, COMPLETE (EX990Z)
***********************
< CAPACITOR >
C800 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(EX990Z)
C800 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V
(EX660Z/EX880Z)
C803 1-112-692-11 CERAMIC CHIP 1000PF 5% 50V
(EX660Z/EX880Z)
C803 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
(EX990Z)
C804 1-107-820-81 CERAMIC CHIP 0.1uF 16V
D804 6-503-732-01 DI SK310A-R3 (EX880Z/EX990Z)
D805 6-503-732-01 DI SK310A-R3 (EX880Z/EX990Z)
D806 6-503-732-01 DI SK310A-R3 (EX880Z/EX990Z)
D807 6-503-732-01 DI SK310A-R3 (EX880Z/EX990Z)
D808 6-503-543-01 DI SS110R3 (EX660Z)
D809 6-503-543-01 DI SS110R3 (EX660Z)
D810 6-503-543-01 DI SS110R3 (EX660Z)
D811 6-503-543-01 DI SS110R3 (EX660Z)
D815 6-500-335-01 DIODE MC2838-T112-1 (EX660Z)
D816 6-500-335-01 DIODE MC2838-T112-1 (EX660Z)
D817 6-500-848-01 DIODE MC2840-T112-1 (EX880Z/EX990Z)
D818 6-500-848-01 DIODE MC2840-T112-1 (EX880Z/EX990Z)
D819 6-500-848-01 DIODE MC2840-T112-1 (EX880Z/EX990Z)
D820 6-500-848-01 DIODE MC2840-T112-1 (EX880Z/EX990Z)
< GROUND TERMINAL >
ET800 1-780-434-11 TERMINAL, GROUND (ON BOARD CONTACT)
ET801 1-780-434-11 TERMINAL, GROUND (ON BOARD CONTACT)
< IC >
IC800 6-716-819-01 IC TAS5611APHDR (EX660Z)
73
Page 74
HCD-EX660Z/EX880Z/EX990Z
Ver. 1.1
MODULE PANEL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
IC801 6-718-558-01 IC TAS5630BDKDR (EX990Z)
IC801 6-718-559-01 IC TAS5613ADKDR (EX880Z)
< RESISTOR >
R800 1-218-953-1
R806 1-218-941-81 METAL CHIP 100 5% 1/16W
R808 1-208-709-11 METAL CHIP 12K 0.5% 1/16W
R808 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R808 1-218-990-81 SHORT CHIP 0 (EX880Z)
R809 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R810 1-208-709-11 METAL CHIP 12K 0.5% 1/16W
R810 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R810 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R811 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R812 1-218-990-81 SHORT CHIP 0
R813 1-218-990-81 SHORT CHIP 0 (EX990Z)
R814 1-218-990-81 SHORT CHIP 0 (EX660Z/EX880Z)
R815 1-218-990-81 SHORT CHIP 0
R817 1-220-802-11 METAL CHIP 3.3 5% 1/16W
R818 1-220-802-11 METAL CHIP 3.3 5% 1/16W
R819 1-220-802-11 METAL CHIP 3.3 5% 1/16W
R820 1-220-802-11 METAL CHIP 3.3 5% 1/16W
R822 1-218-941-81 METAL CHIP 100 5% 1/16W
R823 1-218-941-81 METAL CHIP 100 5% 1/16W
1 METAL CHIP 1K 5% 1/16W
(EX990Z)
(EX660Z)
(EX990Z)
(EX660Z)
(EX880Z)
(EX660Z)
(EX660Z)
C119 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C120 1-126-176-11 ELECT 220uF 20% 10V
C121 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C123 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C124 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C125 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C126 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C129 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C130 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C131 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C206 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C215 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C216 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C217 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C219 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C220 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C222 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C225 1-126-791-11 ELECT 10uF 20% 16V
C226 1-126-514-11 ELECT 22uF 20% 16V
C228 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C230 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C232 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C234 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C235 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C237 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C244 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C247 1-126-518-11 ELECT 470uF 20% 4V
C248 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C249 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
R824 1-218-941-81 METAL CHIP 100 5% 1/16W
R825 1-218-941-81 METAL CHIP 100 5% 1/16W
R827 1-218-990-81 SHORT CHIP 0 (EX880Z/EX990Z)
R836 1-216-296-11 SHORT CHIP 0 (EX880Z/EX990Z)
R837 1-216-296-11 SHORT CHIP 0 (EX880Z/EX990Z)
*************************************************************
A-1870-157-A PANEL BOARD, COMPLETE (EX660Z: E2, E51)
A-1870-166-A PANEL BOARD, COMPLETE (EX660Z: RU)
A-1870-167-A PANEL BOARD, COMPLETE (SAF)
A-1870-170-A PANEL BOARD, COMPLETE (EX880Z)
A-1870-186-A PANEL BOARD, COMPLETE
(EX990Z: E2, E51, MX)
A-1884-559-A PANEL BOARD, COMPLETE (EX990Z: RU)
**********************
< CAPACITOR >
C100 1-124-257-00 ELECT 2.2uF 20% 50V
C101 1-124-257-00 ELECT 2.2uF 20% 50V
C102 1-124-257-00 ELECT 2.2uF 20% 50V
C103 1-124-257-00 ELECT 2.2uF 20% 50V
C104 1-126-157-11 ELECT 10uF 20% 16V
C105 1-126-157-11 ELECT 10uF 20% 16V
C110 1-126-176-11 ELECT 220uF 20% 10V
C111 1-126-176-11 ELECT 220uF 20% 10V
C112 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V
C113 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V
C114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C116 1-126-157-11 ELECT 10uF 20% 16V
C117 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C118 1-126-176-11 ELECT 220uF 20% 10V
C250 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C251 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C252 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C253 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C254 1-126-514-11 ELECT 22uF 20% 16V
C255 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C256 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C259 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C260 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C261 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C262 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C263 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C264 1-115-872-11 ELECT 2.2uF 20% 50V
C265 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C266 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C267 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C271 1-124-584-00 ELECT 100uF 20% 6.3V
C273 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C275 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C276 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C277 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
(EX880Z/EX990Z)
C277 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
(EX660Z)
C278 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
(EX880Z/EX990Z)
C278 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
(EX660Z)
C279 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
(EX880Z/EX990Z)
74
Page 75
HCD-EX660Z/EX880Z/EX990Z
Ver. 1.1
PANEL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C279 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
(EX660Z)
C280 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
(EX880Z/EX990Z)
C280 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
(EX660Z)
C281 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C283 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(EX990Z)
C283 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
(EX880Z)
C283 1-137-652-91 CERAMIC CHIP 0.039uF 10% 16V
(EX660Z)
C284 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(EX990Z)
C284 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
(EX880Z)
C284 1-137-652-91 CERAMIC CHIP 0.039uF 10% 16V
(EX660Z)
C287 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(EX990Z)
C287 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
(EX880Z)
C287 1-137-652-91 CERAMIC CHIP 0.039uF 10% 16V
(EX660Z)
C288 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(EX990Z)
C288 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
(EX880Z)
C315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C316 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C317 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C323 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C325 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C326 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C327 1-124-584-00 ELECT 100uF 20% 10V
C328 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C329 1-126-382-11 ELECT 100uF 20% 10V
C330 1-126-382-11 ELECT 100uF 20% 10V
C331 1-126-176-11 ELECT 220uF 20% 10V
C332 1-100-155-91 CERAMIC CHIP 470PF 5% 100V
C333 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C334 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C335 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C336 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
CN100 1-819-866-11 USB CONNECTOR (A) (
CN201 1-784-727-11 CONNECTOR, FFC 5P
CN202 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P
CN203 1-779-546-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P
CN204 1-784-784-11 CONNECTOR, FFC 23P (EX990Z)
CN205 1-568-838-11 CONNECTOR, FFC 21P (EX660Z/EX880Z)
)
(EX990Z)
(EX990Z)
C288 1-137-652-91 CERAMIC CHIP 0.039uF 10% 16V
(EX660Z)
C290 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C291 1-124-584-00 ELECT 100uF 20% 10V
C292 1-124-257-00 ELECT 2.2uF 20% 50V
(EX990Z)
C293 1-126-157-11 ELECT 10uF 20% 16V
(EX990Z)
C296 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
(EX990Z)
C298 1-137-189-11 FILM 0.18uF 5% 50V
(EX990Z)
C299 1-137-189-11 FILM 0.18uF 5% 50V
(EX990Z)
C300 1-165-112-11 CERAMIC CHIP 0.33uF 16V
(EX990Z)
C301 1-104-509-11 CERAMIC CHIP 0.018uF 10% 16V
(EX990Z)
C302 1-126-176-11 ELECT 220uF 20% 10V
(EX990Z)
C304 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
(EX990Z)
C305 1-136-164-00 FILM 0.082uF 5% 50V
(EX660Z)
C305 1-137-189-11 FILM 0.18uF 5% 50V
(EX880Z/EX990Z)
C306 1-136-164-00 FILM 0.082uF 5% 50V
(EX660Z)
< DIODE >
D100 6-500-848-01 DIODE MC2840-T112-1
D101 6-502-970-01 DI DZ2J068M0L
D102 6-502-970-01 DI DZ2J068M0L
D104 6-500-335-01 DIODE MC2838-T112-1
D105 6-500-848-01 DIODE MC2840-T112-1
D106 6-503-770-01 DI 1L043RW32EOCI7A11 (WHITE)
D116 6-503-224-02 DI 1L0352V22F3MIT02
D117 6-503-224-02 DI 1L0352V22F3MIT02
D118 6-503-224-02 DI 1L0352V22F3MIT02
D119 6-503-224-02 DI 1L0352V22F3MIT02
D120 6-503-224-02 DI 1L0352V22F3MIT02
D121 6-503-224-02 DI 1L0352V22F3MIT02
D200 6-502-961-01 DI DA2J10100L
D203 6-500-334-01 DIODE MC2836-T112-1
D204 8-719-058-24 DIODE RB501V-40TE-17
D205 6-502-961-01 DI DA2J10100L
D206 6-500-848-01 DIODE MC2840-T112-1
D209 8-719-058-24 DIODE RB501V-40TE-17
D210 6-500-335-01 DIODE MC2838-T112-1
< FERRITE BEAD >
FB200 1-414-445-11 FERRITE, EMI (SMD) (1608)
FB201 1-414-445-11 FERRITE, EMI (SMD) (1608)
FB202 1-469-121-21 FERRITE, EMI (SMD) (1608)
C306 1-137-189-11 FILM 0.18uF 5% 50V
(EX880Z/EX990Z)
C310 1-126-176-11 ELECT 220uF 20% 10V
C311 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C312 1-124-584-00 ELECT 100uF 20% 10V
(EX990Z)
C313 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
(EX990Z)
< IC >
IC100 8-759-359-49 IC NJM3414AV (TE2)
IC101 6-600-768-01 IC PNA4823M03S0
IC200 A-1887-086-A IC LC87F7DJ2CVU-QIP-H (for SERVICE)
IC201 8-759-598-69 IC BA6956AN
IC202 6-714-881-01 IC MM1923DTRE
IC203 8-759-909-71 IC BA4558F
75
Page 76
HCD-EX660Z/EX880Z/EX990Z
PANEL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
IC204 6-713-384-01 IC BD3491FS-SE2
IC205 6-701-680-01 IC PST3629NR
R113 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
(EX660Z)
< JACK >
J100 1-842-549-1
J102 1-842-550-11 JACK BLOCK, PIN 2P (DVD/PC IN)
< JUMPER RESISTOR >
JR200 1-216-296-11 SHORT CHIP 0
JR201 1-216-296-11 SHORT CHIP 0
JR202 1-216-296-11 SHORT CHIP 0
JR203 1-216-296-11 SHORT CHIP 0
JR204 1-216-864-11 SHORT CHIP 0
JR205 1-216-296-11 SHORT CHIP 0 (EX660Z)
JR206 1-216-296-11 SHORT CHIP 0
JR207 1-216-296-11 SHORT CHIP 0
JR208 1-216-864-11 SHORT CHIP 0
JR209 1-216-864-11 SHORT CHIP 0
JR210 1-216-296-11 SHORT CHIP 0
JR211 1-216-296-11 SHORT CHIP 0
JR214 1-216-864-11 SHORT CHIP 0
< COIL >
L200 1-414-406-11 INDUCTOR 220uH
< LIQUID CRYSTAL DISPLAY >
ND100 1-811-616-11 DISPLAY PANEL, LIQUID CRYSTAL
< TRANSISTOR >
Q100 6-551-321-01 TRANSISTOR RT3WLMM-TP-1F
Q104 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q105 6-551-272-01 TRANSISTOR RT3CLLM
Q107 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q108 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q119 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q200 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q201 6-551-321-01 TRANSISTOR RT3WLMM-TP-1F
Q203 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q204 6-551-321-01 TRANSISTOR RT3WLMM-TP-1F (EX990Z)
Q209 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF (EX990Z)
Q211 6-551-272-01 TRANSISTOR RT3CLLM (EX990Z)
Q212 6-551-272-01 TRANSISTOR RT3CLLM (EX990Z)
< RESISTOR >
R100 1-216-837-11 METAL CHIP 22K 5% 1/10W
R101 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R102 1-216-833-11 METAL CHIP 10K 5% 1/10W
R103 1-216-833-11 METAL CHIP 10K 5% 1/10W
R104 1-216-833-11 METAL CHIP 10K 5% 1/10W
R105 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R106 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R107 1-216-845-11 METAL CHIP 100K 5% 1/10W
R108 1-216-845-11 METAL CHIP 100K 5% 1/10W
R109 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R110 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R111 1-216-841-11 METAL CHIP 47K 5% 1/10W
R112 1-216-841-11 METAL CHIP 47K 5% 1/10W
R113 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
1 JACK (PHONES)
(EX990Z)
R113 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
(EX880Z)
R114 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
(EX990Z)
R114 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
(EX660Z)
R114 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
(EX880Z)
R115 1-216-834-11 METAL CHIP 12K 5% 1/10W
(EX990Z)
R115 1-216-841-11 METAL CHIP 47K 5% 1/10W
(EX660Z/EX880Z)
R116 1-216-834-11 METAL CHIP 12K 5% 1/10W
(EX990Z)
R116 1-216-841-11 METAL CHIP 47K 5% 1/10W
(EX660Z/EX880Z)
R117 1-216-174-00 METAL CHIP 100 5% 1/8W
R118 1-216-174-00 METAL CHIP 100 5% 1/8W
R119 1-216-174-00 METAL CHIP 100 5% 1/8W
R120 1-216-174-00 METAL CHIP 100 5% 1/8W
R121 1-216-841-11 METAL CHIP 47K 5% 1/10W
R122 1-216-841-11 METAL CHIP 47K 5% 1/10W
R123 1-216-821-11 METAL CHIP 1K 5% 1/10W
R124 1-216-821-11 METAL CHIP 1K 5% 1/10W
R125 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R126 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R127 1-216-821-11 METAL CHIP 1K 5% 1/10W
R128 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R129 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R132 1-216-835-11 METAL CHIP 15K 5% 1/10W
R133 1-216-835-11 METAL CHIP 15K 5% 1/10W
R134 1-216-845-11 METAL CHIP 100K 5% 1/10W
R135 1-216-845-11 METAL CHIP 100K 5% 1/10W
R136 1-216-821-11 METAL CHIP 1K 5% 1/10W
R137 1-216-821-11 METAL CHIP 1K 5% 1/10W
R138 1-216-821-11 METAL CHIP 1K 5% 1/10W
R139 1-216-833-11 METAL CHIP 10K 5% 1/10W
R140 1-216-833-11 METAL CHIP 10K 5% 1/10W
R141 1-216-833-11 METAL CHIP 10K 5% 1/10W
R142 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R143 1-216-835-11 METAL CHIP 15K 5% 1/10W
R144 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R145 1-216-833-11 METAL CHIP 10K 5% 1/10W
R146 1-216-833-11 METAL CHIP 10K 5% 1/10W
R147 1-216-821-11 METAL CHIP 1K 5% 1/10W
R148 1-216-817-11 METAL CHIP 470 5% 1/10W
R149 1-216-821-11 METAL CHIP 1K 5% 1/10W
R150 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R151 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R152 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R153 1-216-833-11 METAL CHIP 10K 5% 1/10W
R154 1-216-821-11 METAL CHIP 1K 5% 1/10W
R155 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R156 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R157 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R158 1-216-833-11 METAL CHIP 10K 5% 1/10W
R159 1-216-814-11 METAL CHIP 270 5% 1/10W
R161 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R162 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
76
Page 77
HCD-EX660Z/EX880Z/EX990Z
PANEL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R171 1-216-815-11 METAL CHIP 330 5% 1/10W
R172 1-216-815-11 METAL CHIP 330 5% 1/10W
R173 1-216-815-11 METAL CHIP 330 5% 1/10W
R174 1-216-815-11 METAL CHIP 330 5% 1/10W
R175 1-216-815-11 METAL CHIP 330 5% 1/10W
R176 1-216-815-11 METAL CHIP 330 5% 1/10W
R177 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R200 1-216-841-11 METAL CHIP 47K 5% 1/10W
R201 1-216-839-11 METAL CHIP 33K 5% 1/10W
R202 1-216-845-11 METAL CHIP 100K 5% 1/10W
R203 1-216-845-11 METAL CHIP 100K 5% 1/10W
R204 1-216-845-11 METAL CHIP 100K 5% 1/10W
R205 1-216-809-11 METAL CHIP 100 5% 1/10W
R206 1-216-809-11 METAL CHIP 100 5% 1/10W
R207 1-216-809-11 METAL CHIP 100 5% 1/10W
R208 1-216-809-11 METAL CHIP 100 5% 1/10W
R209 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R210 1-216-821-11 METAL CHIP 1K 5% 1/10W
R211 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R212 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R213 1-216-809-11 METAL CHIP 100 5% 1/10W
R214 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R215 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R216 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R217 1-216-809-11 METAL CHIP 100 5% 1/10W
R218 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R219 1-216-809-11 METAL CHIP 100 5% 1/10W
R220 1-216-809-11 METAL CHIP 100 5% 1/10W
R221 1-216-845-11 METAL CHIP 100K 5% 1/10W
R222 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R223 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R225 1-216-833-11 METAL CHIP 10K 5% 1/10W
R226 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EX660Z)
R226 1-216-833-11 METAL CHIP 10K 5% 1/10W
(EX880Z)
R227 1-216-837-11 METAL CHIP 22K 5% 1/10W
R228 1-216-833-11 METAL CHIP 10K 5% 1/10W
(EX880Z/EX990Z)
R229 1-216-837-11 METAL CHIP 22K 5% 1/10W
R230 1-216-837-11 METAL CHIP 22K 5% 1/10W
R231 1-216-837-11 METAL CHIP 22K 5% 1/10W
R232 1-216-833-11 METAL CHIP 10K 5% 1/10W
(RU, SAF)
R233 1-216-821-11 METAL CHIP 1K 5% 1/10W
(E2, E51, MX)
R233 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R233 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R234 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R235 1-216-833-11 METAL CHIP 10K 5% 1/10W
R236 1-216-837-11 METAL CHIP 22K 5% 1/10W
R237 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R238 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R239 1-216-839-11 METAL CHIP 33K 5% 1/10W
R246 1-216-833-11 METAL CHIP 10K 5% 1/10W
R247 1-216-809-11 METAL CHIP 100 5% 1/10W
R248 1-216-809-11 METAL CHIP 100 5% 1/10W
R249 1-216-809-11 METAL CHIP 100 5% 1/10W
R250 1-216-809-11 METAL CHIP 100 5% 1/10W
R251 1-216-809-11 METAL CHIP 100 5% 1/10W
R252 1-216-833-11 METAL CHIP 10K 5% 1/10W
R253 1-216-821-11 METAL CHIP 1K 5% 1/10W
R254 1-216-809-11 METAL CHIP 100 5% 1/10W
R255 1-216-837-11 METAL CHIP 22K 5% 1/10W
R256 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R257 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R258 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R259 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R260 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R261 1-216-833-11 METAL CHIP 10K 5% 1/10W
R262 1-216-833-11 METAL CHIP 10K 5% 1/10W
R264 1-216-833-11 METAL CHIP 10K 5% 1/10W
R265 1-216-841-11 METAL CHIP 47K 5% 1/10W
R266 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R267 1-216-841-11 METAL CHIP 47K 5% 1/10W
R269 1-216-833-11 METAL CHIP 10K 5% 1/10W
R270 1-216-833-11 METAL CHIP 10K 5% 1/10W
R271 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R272 1-216-833-11 METAL CHIP 10K 5% 1/10W
R273 1-216-838-11 METAL CHIP 27K 5% 1/10W
R274 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R275 1-216-833-11 METAL CHIP 10K 5% 1/10W
R276 1-216-821-11 METAL CHIP 1K 5% 1/10W
R277 1-216-821-11 METAL CHIP 1K 5% 1/10W
R278 1-216-864-11 SHORT CHIP 0
R279 1-216-864-11 SHORT CHIP 0
R282 1-216-843-11 METAL CHIP 68K 5% 1/10W
R283 1-216-821-11 METAL CHIP 1K 5% 1/10W
R283 1-216-833-11 METAL CHIP 10K 5% 1/10W
R289 1-216-835-11 METAL CHIP 15K 5% 1/10W
R289 1-216-836-11 METAL CHIP 18K 5% 1/10W
R289 1-216-837-11 METAL CHIP 22K 5% 1/10W
R290 1-216-834-11 METAL CHIP 12K 5% 1/10W
R290 1-216-836-11 METAL CHIP 18K 5% 1/10W
(RU)
R290 1-216-838-11 METAL CHIP 27K 5% 1/10W
(SAF)
R291 1-216-835-11 METAL CHIP 15K 5% 1/10W
R291 1-216-836-11 METAL CHIP 18K 5% 1/10W
R291 1-216-837-11 METAL CHIP 22K 5% 1/10W
R292 1-216-834-11 METAL CHIP 12K 5% 1/10W
(EX660Z)
(EX880Z/EX990Z)
(EX880Z)
(EX990Z)
(EX660Z)
(EX990Z)
(EX880Z)
(EX660Z)
(EX880Z)
(EX990Z)
(EX660Z)
(EX990Z)
R240 1-216-833-11 METAL CHIP 10K 5% 1/10W
R241 1-216-839-11 METAL CHIP 33K 5% 1/10W
R243 1-216-809-11 METAL CHIP 100 5% 1/10W
R244 1-216-833-11 METAL CHIP 10K 5% 1/10W
R245 1-216-809-11 METAL CHIP 100 5% 1/10W
R292 1-216-836-11 METAL CHIP 18K 5% 1/10W
(EX880Z)
R292 1-216-838-11 METAL CHIP 27K 5% 1/10W
(EX660Z)
R293 1-216-813-11 METAL CHIP 220 5% 1/10W
R294 1-216-813-11 METAL CHIP 220 5% 1/10W
77
Page 78
HCD-EX660Z/EX880Z/EX990Z
PANEL TUNER1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R295 1-216-841-11 METAL CHIP 47K 5% 1/10W
(EX990Z)
R296 1-216-841-11 METAL CHIP 47K 5% 1/10W
(EX990Z)
R297 1-216-837-11 METAL CHIP 22K 5% 1/10W
(EX990Z)
R298 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EX990Z)
R299 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
(EX990Z)
R300 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EX990Z)
S105 1-771-410-21 SWITCH, TACTILE (TUNING– l ?m)
S106 1-771-410-21 SWITCH, TACTILE (BASS BOOST)
S107 1-771-410-21 SWITCH, TACTILE (EQ)
S108 1-771-410-21 SWITCH, TACTILE (Z)
S109 1-771-410-21 SWITCH, TACTILE (REC TO USB)
S110 1-771-410-21 SWITCH, TACTILE (ENTER)
S111 1-771-410-21 SWITCH, TACTILE (–)
S112 1-771-410-21 SWITCH, TACTILE (+)
S113 1-771-410-21 SWITCH, TACTILE (OPTIONS)
S114 1-786-417-11 ENCODER, ROTARY (VOLUME)
< VIBRATOR >
R301 1-216-845-11 METAL CHIP 100K 5% 1/10W
(EX990Z)
R302 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EX990Z)
R303 1-216-845-11 METAL CHIP 100K 5% 1/10W
(EX990Z)
R304 1-216-837-11 METAL CHIP 22K 5% 1/10W
(EX990Z)
R305 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
(EX990Z)
R306 1-216-836-11 METAL CHIP 18K 5% 1/10W
(EX990Z)
R307 1-216-836-11 METAL CHIP 18K 5% 1/10W
(EX990Z)
R308 1-216-833-11 METAL CHIP 10K 5% 1/10W
(EX990Z)
R309 1-216-833-11 METAL CHIP 10K 5% 1/10W
(EX990Z)
R310 1-216-845-11 METAL CHIP 100K 5% 1/10W
(EX990Z)
R311 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EX990Z)
R312 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EX990Z)
R313 1-216-845-11 METAL CHIP 100K 5% 1/10W
(EX990Z)
R314 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EX990Z)
R315 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EX990Z)
X200 1-814-067-11 OSCILLATOR, CRYSTAL (32.768kHz)
X201 1-814-474-21 CERAMIC OSCILLATOR (18MHz)
*************************************************************
A-1846-435-A TUNER1 BOARD, COMPLETE
***********************
< CAPACITOR >
C101 1-100-155-91 CERAMIC CHIP 470PF 5% 100V
C102 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C103 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C105 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C106 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C107 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C108 1-116-729-11 CERAMIC CHIP 2.2uF 20% 10V
C110 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C111 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C112 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
< CONNECTOR >
CN101 1-779-277-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P
* CN103 1-506-680-11 PLUG, CONNECTOR (2.5MM) 3P
< DIODE >
D101 6-501-579-01 DIODE MC2837
D102
D103 6-501-579-01 DIODE MC2837
6-501-579-01 DIODE MC2837
(ANTENNA FM/AM)
R316 1-216-845-11 METAL CHIP 100K 5% 1/10W
(EX990Z)
R320 1-216-809-11 METAL CHIP 100 5% 1/10W
(EX990Z)
R321 1-216-809-11 METAL CHIP 100 5% 1/10W
R323 1-216-864-11 SHORT CHIP 0 (EX880Z/EX990Z)
R324 1-216-864-11 SHORT CHIP 0 (EX660Z)
R325 1-216-864-11 SHORT CHIP 0
R326 1-216-814-11 METAL CHIP 270 5% 1/10W
R327 1-216-814-11 METAL CHIP 270 5% 1/10W
R337 1-216-861-11 METAL CHIP 2.2M 5% 1/10W
R338 1-216-861-11 METAL CHIP 2.2M 5% 1/10W
R339 1-216-861-11 METAL CHIP 2.2M 5% 1/10W
R340 1-216-861-11 METAL CHIP 2.2M 5% 1/10W
< SWITCH >
S100 1-771-410-21 SWITCH, TACTILE ("/1)
S101 1-771-410-21 SWITCH, TACTILE (NX)
S102 1-771-410-21 SWITCH, TACTILE (TUNING+ > L)
S103 1-771-410-21 SWITCH, TACTILE (FUNCTION)
S104 1-771-410-21 SWITCH, TACTILE (x)
78
< BPF >
FL101 1-236-711-21 FILTER, BAND PASS
< IC >
IC101 6-717-981-01 IC RZ5B801-0002E2
IC103
< JUMPER RESISTOR >
JR101 1-216-864-11 SHORT CHIP 0
JR102 1-216-296-11 SHORT CHIP 0
JR105 1-216-296-11 SHORT CHIP 0
JR106 1-216-864-11 SHORT CHIP 0
JR109 1-216-296-11 SHORT CHIP 0
JR112 1-216-296-11 SHORT CHIP 0
< COIL >
L101 1-457-998-11 COIL, AM ANTENNA
L103 1-414-576-41 INDUCTOR 47nH
L104 1-481-330-21 INDUCTOR 220nH
L105 1-481-523-11 INDUCTOR 4.7uH
6-710-536-01 IC NJM2878F4-33 (TE2)
Page 79
Ref. No. Part No. Description Remark
< RESISTOR >
R101 1-216-809-11 METAL CHIP 100 5% 1/10W
R103 1-216-801-11 METAL CHIP 22 5% 1/10W
R104 1-216-864-11 SHORT CHIP 0
R105 1-216-801-11 METAL CHIP 22 5% 1/10W
R106 1-216-809-11 METAL CHIP 100 5% 1/10W
R107 1-216-809-11 METAL CHIP 100 5% 1/10W
R108 1-216-296-11 SHORT CHIP 0
R109 1-216-864-11 SHORT CHIP 0
R110 1-216-833-11 METAL CHIP 10K 5% 1/10W
R113 1-216-833-11 METAL CHIP 10K 5% 1/10W
R114 1-216-864-11 SHORT CHIP 0
< VIBRATOR >
X101 1-767-317-11 VIBRATOR, CRYSTAL (32.768kHz)
*************************************************************
MISCELLANEOUS
**************
HCD-EX660Z/EX880Z/EX990Z
TUNER1
55 1-846-143-11 CABLE, FLEXIBLE FLAT (9 CORE)
58 1-846-142-11 CABLE, FLEXIBLE FLAT (21 CORE)
59 1-832-876-21 CABLE, FLEXIBLE FLAT (21 CORE)
59 1-832-885-21 CABLE, FLEXIBLE FLAT (23 CORE) (EX990Z)
0 101 1-834-966-41 POWER-SUPPLY CORD (RU, E51, SAF)
0 101 1-837-344-11 CORD, POWER-SUPPLY (E2, MX)
0 102 1-569-007-12 ADAPTOR, CONVERSION 2P (E2)
0 102 1-569-008-33 ADAPTOR, CONVERSION (E51)
104 A-1846-569-A TUNER1AM3RZ ASSY
0 106 1-855-006-11 FAN, DC (EX880Z/EX990Z)
204 1-846-147-11 CABLE, FLEXIBLE FLAT (5 CORE)
0 207 1-856-037-11 DEVICE, OPTICAL DA11MMVGP
211 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
S001 1-771-853-11 SWITCH, DETECTION (LIMIT)
(EX660Z/EX880Z)
79
Page 80
HCD-EX660Z/EX880Z/EX990Z
MEMO
80
Page 81
SERVICE MANUAL
Ver. 1.1 2012.08
SUPPLEMENT-1
File this supplement with the service manual.
HCD-EX660Z/EX880Z/
EX990Z
Russian Model
HCD-EX660Z/EX990Z
E Model
HCD-EX660Z/EX880Z/EX990Z
Mexican Model
HCD-EX880Z/EX990Z
South African Model
HCD-EX660Z
Subject: Addition of SERVICING NOTES (TROUBLESHOOTING)
9-890-606-81
1
Page 82
HCD-EX660Z/EX880Z/EX990Z
SECTION 1
SERVICING NOTES
pin 1: GND
pin 2: OUT
pin 3: GND
pin 4:
pin 5:
pin 6:
pin 7:
pin 8: Protect S
pin 9: Protect F
pin10: P–CONT.
pin11: Sub ON
pin12:
pin13:
pin14:
pin15:
pin16: E–GND
pin17: E+4V
pin18: M–GND
pin19: M+7V
pin20: VCC–GND
pin21: VCC+9V
(1) CN901 AC Input
(2) F901 AC Fuse
(3) A930 Main Primary Heat Sink ASSY
(4) T901 Main Switching Transf orm er
(5) A931 Main Secondary Diode Heat Sink
(6) IC1001 12V DC–DC Switching IC
(7) ET1000 for PVDD(–)
(8) JW641 / JW626 / JW660 / JW661 for PVDD(+)
(9) JW634 [+12V]
(10) CN700 Connector
(9)
(6)
(10)
(7)
(8)
(3)
(4)
(5)
(EX660Z)
TROUBLESHOOTING
Switching Regulator (AMP-SMPS) Diagnosis Flow (1/3)
2
(2)
(1)
Page 83
HCD-EX660Z/EX880Z/EX990Z
otect F
pin10: Main ON
pin11: Sub ON
pin12:
pin13:
pin14:
pin15:
pin16: E–GND
pin17: E+4V
pin18: M–GND
pin19: M7V
pin20: VCC–GND
pin 1: GND
pin 2:
pin 3: GND
pin 4:
pin 5:
pin 6:
pin 7:
pin 8: Protect S
pin 9: Pr
(1) CN901 AC Input
(2) F901 AC Fuse
(3) A930 Main Primary Heat Sink ASSY
(4) T901 Main Switching Transf orm er
(5) A931 Main Secondary Diode Heat Sink
(6) IC965 Sub Primary S w itching IC
(7) T903 Sub Switching Transformer
(8) D1001 Sub Secondary Rectifier Diode
(9) ET1000 for PVDD(–)
(10) JW942 / JW940 / JW652 / JW634 for PVDD(+)
(11) C704 for Sub Output Voltage Line
(12) CN600 Connector
(11)
(12)
(6)
(7)
(8)
pin21: VCC9V
(10)
(9)
(3)
(4)
(2)
(EX880Z/EX990Z)
Switching Regulator (AMP-SMPS) Diagnosis Flow (2/3)
(5)
(1)
3
Page 84
HCD-EX660Z/EX880Z/EX990Z
Checks whether the state of a Cable and Outlet are normal.
If there are no problems, checks circumference circuit for
Main on/Sub on Output of Main mount side.
No
Hi (3V ± 0.3V)
Hi (3V ± 0.3V)
Hi (3V ± 0.3V)
Yes
AC IN
The Power Control signal to Switching regulator is checked.
Is following power voltage OK?
EX990Z
Main on Standby Demo mode Power On
CN600 :12pin Low (0V) Low (0V)
EX880Z
Main on Standby Demo mode Power On
CN600 :10pin Low (0V) Low (0V)
EX660Z
Main on Standby Demo mode Power On
CN700 :10pin Low (0V) Low (0V)
The Output from Switching regulator is checked.
Switching Regulator (AMP-SMPS) Diagnosis Flow (3/3)
Replaces Switching regulator
if it is not up to standard.
For EX660Z
Q909, Q908, D901
For EX880Z, EX990Z
Q909, Q908, D903
No
C704 + PIN :13.5V ± 0.65V 13.5V ± 0.65V 13.5V ± 0.65V
50.0V ± 2.5V
0V
JW942 í(T1000 :0V
Power On
13.5V ± 0.65V
Demo mode
13.5V ± 0.65V0VDemo mode
:13.5V ± 0.65V
Standby
EX880Z
C704 + PIN
36.0V ± 1.8V
0V
:0V
JW942 í(T1000
Is following power voltage up to standard?
Power OnDemo mode
Standby
EX990Z
Power On
12.0V ± 0.6V
7.0V ± 1.0V
:7.0V ± 1.0V
Standby
EX660Z
JW634 í(T1000
32.5V ± 1.625V
Yes
END
:0V
JW661 í(T1000
4
Page 85
HCD-EX660Z/EX880Z/EX990Z
Motor has a problem.
Replaces BU.
NG
Replaces FFC (16P)
NG
OK
FFC Check (16P)
NG
Replaces BU.
Optical pickup has a problem.
Optical pickup has a problem.
NG
Replaces BU.
Laser diode has a problem.
NG
Lens cleaning and
NG
Replaces BU.
OK
RF level check
Replaces BU.
Optical pickup has a problem.
NG
OK
SLED gear check and access check
Method: Visual check
NG
OK
SLED motor 10 䡚 ȍ
SPDL/SLED Motor Check
Method: Resistance measurement between
motor terminals (refer to next page)
䞉 Set to the service position of CDM76 (refer to service manual)
BU Check Flow for BD76
䞉 AC off
Spec: SPDL motor 10 䡚 ȍ
FCS/TRK coil Check
Method: Resistance measurement
between Check Lands (refer to next page)
Spec: FCS coil 6 䡚 ȍ
TRK coil 5 䡚 ȍ
OK
䞉 AC IN
䞉 Power ON
䞉 Insert the CD.
OK
IOP Check
Method: Voltage measurement between
CL213 and CL214 during focus search
Spec: 30mV䡚65mV
RF level Check
Method: Waveform check during CD play
(refer to service manual)
TEST CD: YEDS-18
Spec: refer to service manual
OK
OK
Access Check
0HWKRG 7U 3OD\ ĺ 7U 3OD\ ĺ 7U 3OD\
TEST CD: YEDS-18
Spec: can play each tracks
END
5
Page 86
HCD-EX660Z/EX880Z/EX990Z
CL214(IOP2)
SLED Motor terminals
SPDL Motor terminals
CL213(IOP1)
Check Lands for BD76
6
TRK Coil check lands
CL102(RF)
CL117(Vref)
FCS Coil check lands
Page 87
䐟Check that AMP-SMPS BOARD CN604 is short
out or not.
Between 1PIN (OUT-A)-2PIN (PVDD-A)
Between 1PIN (OUT-A)-3PIN (GND)
Check that AMP IC on MODULE BOARD and
EX660Z
Check that the symptom after removing AMP IC (IC800)
of MODULE PHD BOARD or MODULE PHD BOARD.
Replaces IC800 if the symptom is improved.
EX880Z, EX990Z
Check that symptom after removing AMP IC (IC801)
of MODULE BOARD or MODULE BOARD.
Replaces IC801 if the symptom is improved.
peripheral circuit if there is anomaly.
HCD-EX660Z/EX880Z/EX990Z
Check that DC voltage between speaker
䐠Check that the voltage 12V of AMP-SMPS
BOARD CN605 1PIN (GVDD).
EX660Z
Check that AMP-SMPS BOARD IC1001 and
peripheral circuit if there is anomaly.
EX880Z, EX990Z
Check that AMP-SMPS BOARD IC602 and
peripheral circuit if there is anomaly.
terminal Plus and speaker terminal Minus.
AMP-SMPS BOARD TB600
Between 1PIN-2PIN
Between 3PIN-4PIN
Check that AMP IC on MODULE
BOARD and peripheral circuit if there is
difference of voltages.
No
Yes
Check that transistor Base-Emitter voltage is increased
when power on time.
EX990Z : AMP-SMPS BOARD Q602
EX880Z : AMP-SMPS BOARD Q600
EX660Z : AMP-SMPS BOARD Q608
Note: If power voltage is increased, over current detection
is operating.
For EX660Z, in this case, cannot power on.
No
No
Yes
Check that power voltage 3.3V of AMP-SMPS BOARD CN605
8PIN (SD).
Is there power voltage decrease when power on time?
No
Check that PROTECT-S signal.
EX990Z
Check that power voltage 3.3V of CN600 10PIN.
EX880Z & EX660Z
Check that power voltage 3.3V of CN600 8PIN.
POWER ON
D-AMP Mount Diagnosis Flow (1/2)
Yes
Check that there is no “PROTECT” on LCD display.
Check that power on is available if the unit is EX660Z
A
7
Page 88
HCD-EX660Z/EX880Z/EX990Z
Check that SMPS block power supply operation.
Refer to the Troubleshooting Power Block.
No
EX990Z 50V ± 2.5V
Check that power voltage of AMP-SMPS
EX880Z 36V ± 1.8V
BOARD CN604 2PIN (PVDD-A).
No
EX660Z
Check that AMP-SMPS BOARD IC1001 and peripheral
circuit.
EX880Z, EX990Z
No
Yes
EX660Z 32.5V ± 1.625V
Check that power voltage 12V of AMP-SMPS
BOARD CN605 1PIN (GVDD).
Check that AMP-SMPS BOARD IC602 and peripheral
Yes
Check that PANEL BOARD IC200 (SYSTEM CONTROL)
33PIN (O-AMP-RST).
circuit.
Normal condition is without headphones input, 3.3V.
No
Yes
Check that RESET power voltage 3.3V at
AMP-SMPS BOARD CN605 7PIN.
EX660Z
Replaces AMP IC (IC800) of MODULE PHD BOARD.
EX880Z, EX990Z
Replaces AMP IC (IC801) of MODULE BOARD.
No
Yes
Check that AMP IC OUT waveform at
AMP-SMPS BOARD CN604 1PIN and
4PIN, CN603 3PIN and 6PIN.
Are they swing?
A
PLAY MUSIC
D-AMP Mount Diagnosis Flow (2/2)
8
Yes
END
Is signal output from speakers terminal?
Page 89
MEMO
HCD-EX660Z/EX880Z/EX990Z
9
Page 90
HCD-EX660Z/EX880Z/EX990Z
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2012.06 New
1.1 2012.08 Change P/N for C225, C226, C254, C264, C329 and C330 in PANEL board.
Adding SER
Add note in SERVICING NOTES (Page 4).
VICING NOTES (TROUBLESHOOTING) (SUPPLEMENT-1).
Loading...
