Sony FST-ZX80D, FST-ZX100D, LBT-ZX80D, LBT-ZX100D, MHC-GN1000D User Manual

2-672-140-31(1)

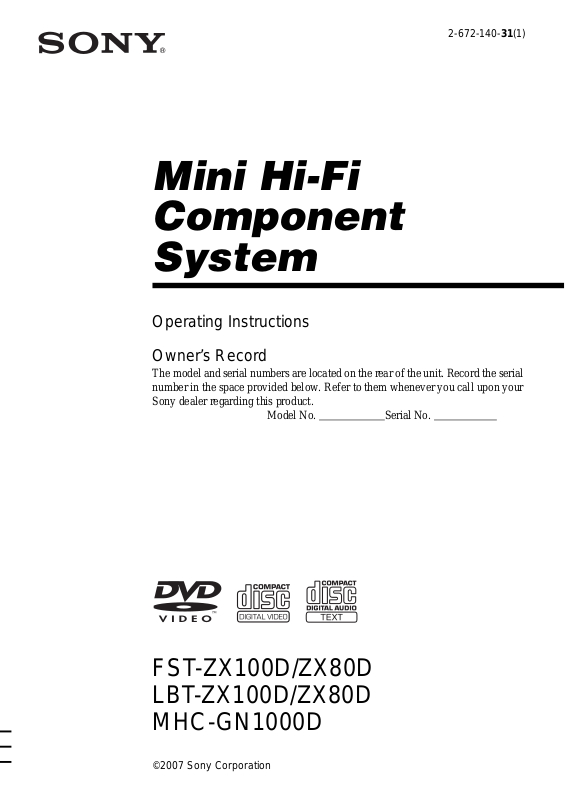

Mini Hi-Fi Component System

Operating Instructions Owner’s Record

The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No.

Serial No.

FST-ZX100D/ZX80D LBT-ZX100D/ZX80D MHC-GN1000D

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To prevent fire, do not cover the ve ntilation of the apparatus with newspapers , table-cloths, curtains, etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified perso nnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior.

Don’t throw away the battery wit h general house waste, dispose of it correctly as chemical waste.

The following caution label is located inside the apparatus.

NOTICE FOR THE CUSTOMERS IN THE U.S.A.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectio n aga in st harmful interference in a residential ins tallation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio co mmuni catio ns. H owev er, th ere is no guarantee that interfe rence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.

Note to CATV system installer:

This reminder is provided to call CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding sy stem of the building, as close to the point of cable entry as practical.

Table of Contents

About this manual...................................5

Playable discs................ ..........................6

Getting Started

Hooking up the system............................9

Positioning the speakers........................12

Setting the clock....................................13

Performing QUICK SETUP .................14

Using the THEATRE SYNC

function...........................................15

Changing the format of the video

signal from COMPONENT

VIDEO OUT jacks .........................16

Disc – Playback

Loading a disc.......................................17

Playing a disc........................................17

— Normal Play

Resuming playback from the point

you stopped the disc ........ ...............19

— Resume Play

Creating your own program..................20

— Program Play

Playing in random order........................21

— Shuffle Play

Playing repeatedly........................... ......22

— Repeat Play

Playing DVD VIDEOs using the

menu ...............................................23

Selecting “ORIGINAL” or

“PLAY LIST” on a DVD-R/

DVD-RW in VR mode ...................24

Playing VIDEO CDs with PBC

functions (Version 2.0)...................24

— PBC Playback

About MP3 audio tracks and JPEG

image files.......................................25

Playing DATA CDs or DATA DVDs

with MP3 audio tracks and JPEG

image files.......................................26

Playing MP3 audio tracks and JPEG

image files as a slide show with

sound...............................................29

Using the on-screen display to search

for a title/chapter/scene/track/

index/album/file ............................. 31

Searching by scene ............................... 33

— Picture Navigation

Disc – Various Functions

Selecting the audio format.................... 34

Changing the angles.............................. 35

Displaying the subtitles ............ ... ......... 35

Adjusting the delay between the

picture and sound ........................... 36

— A/V SYNC

Restricting playback of the disc............ 36

— CUSTOM PARENTAL CONTROL, PARENTAL CONTROL

Using the DVD setup menu......... ......... 40

Tuner

Presetting radio stations........................ 47

Listening to the radio............................ 49

Tape – Playback

Loading a tape ............... ....................... 50

Playing a tape........................................ 50

Tape – Recording

Recording your favorite disc onto

a tape .............................................. 51

— CD Synchro Recording

Recording onto a tape manually...........51

— Manual Recording

continued

Sound Adjustment

Adjusting the sound ......................... .....52

Selecting the preset effect .....................52

Adjusting the graphic equalizer and

storing the user equalizer setting....53

Selecting the sound field.......................53

Using the subwoofer .............................54

(FST-ZX100D/LBT-ZX100D/

MHC-GN1000D only)

Creating a party environment................55

— X-TRANCE/X-TRANCE PRO Listening to the sound in another

room................................................58

— Multi Room

(FST-ZX100D/LBT-ZX100D/

FST-ZX80D/LBT-ZX80D only)

Singing along: Karaoke.........................58

Mixing and recording sounds................63

Timer

Falling asleep to music..........................64

— Sleep Timer

Waking up to music ..............................64

— Play Timer

Timer recording radio programs ...........65

Display

Turning off the display................... .......66

— Power Saving Mode Changing the spectrum analyzer

display.............................................67

Adjusting the brightness of the front

panel display. ........................... .. .....67

Changing the power illuminator ...........67

Viewing information about the disc

in the front panel display ................68

Viewing information about the disc

in the on-screen display ..................69

Checking the date information of

JPEG image files ............................70

Optional Components

Hooking up optional components......... 71

Listening to audio from a connected

component...................................... 73

Recording audio signal from a

connected component..................... 73

Recording audio signal on a

connected component..................... 73

Troubleshooting

Problems and remedies......................... 74

Self-diagnosis Function........................ 79

Messages............................................... 80

Additional Information

Precautions ........................................... 81

Specifications ....................................... 82

Guide to the Control Menu display ...... 86

DVD setup menu item list.................... 89

Language code list................................ 90

Glossary................................................ 91

List of button locations and reference

pages............................................... 94

About this manual

• The instructions in this manual are for models FST-ZX100D, LBT-ZX100D, FST-ZX80D, LBT-ZX80D and MHC-GN1000D. In this manual, the LBT-ZX100D is used for illustration purposes unless stated otherwise.

The FST-ZX100D/LBT-ZX100D consists of:

– Tuner/DVD player/Stereo cassette

deck/Amplifier (unit)

HCD-ZX100D

– Speaker System

• Front speakers SS-ZX100D

• Surround speakers SS-ZX100D

• Center speaker SS-CT100D

• Subwoofer SS-WGV100D

The FST-ZX80D/LBT-ZX80D consists of:

– Tuner/DVD player/Stereo cassette

deck/Amplifier (unit)

HCD-ZX80D

– Speaker System

• Front speakers SS-ZX100D

• Surround speakers SS-ZX100D

• Center speaker SS-CT100D

The MHC-GN1000D consists of:

– Tuner/DVD player/Stereo cassette

deck/Amplifier (unit)

HCD-GN1000D

– Speaker System

• Front speakers SS-GN1000D

• Surround speakers SS-RSX1000D

• Center speaker SS-CT1000D

• Subwoofer SS-WGV1000D

• This instructions in this manual describe the controls on the remote. You can also use the controls on the unit if they have the same or similar names as those on the remote.

• The English on-screen display is used for illustration purposes only.

• The Control Menu items may be different depending on the disc.

• The following symbols are used in this manual.

Symbol Meaning

Functions available for DVD VIDEOs (including DVD-Rs/ DVD-RWs/DVD+Rs/ DVD+RWs in DVD VIDEO format and DVD-Rs/DVD-RWs in video mode).

Functions available for DVD-R s/ DVD-RWs in VR (Video Recording) mode.

Functions available for VIDEO CDs (including Super VCDs and CD-Rs/CD-RWs in VIDEO CD or Super VCD format).

Functions available for AUDIO CDs (including CD-Rs/CD-RWs in AUDIO CD format).

Functions available for DATA CDs (CD-ROMs/CD-Rs/ CD-RWs) containing MP3 audio tracks or JPEG image files.

Functions available for DATA DVDs (DVD-ROMs/DVD-Rs/ DVD-RWs/DVD+Rs/ DVD+RWs) containing MP31) audio tracks or JPEG image files.

MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data.

Playable discs

You can play back the following discs on this system. Other discs cannot be played back.

List of playable discs

Format of discs Disc logo

DVD VIDEO

DVD-RW/DVD-R

DVD+RW/ DVD+R

VIDEO CD

AUDIO CD

CD-R/CD-RW

“DVD+RW”, “DVD-RW”, “DVD+R”, “DVD VIDEO”, and the “CD” logos are trademarks.

Notes on discs

The system can play back the following disc:

• CD-ROMs/CD-Rs/CD-RWs recorded in the following formats:

– VIDEO CD format – AUDIO CD format – DATA CD format which contains MP3

audio tracks format conforming to ISO 9660 Level 2 or Joliet in expansion format

• DVD-ROMs/DVD-Rs/DVD-RWs/DVD+Rs/ DVD+RWs recorded in the following formats:

– DVD VIDEO format – DATA DVD format which contains MP3

audio tracks format conforming to UDF (Universal Disk Format)

– VR (Video Recording) format (DVD-Rs/

DVD-RWs only) The system cannot play back the following discs:

• CD-ROMs recorded in PHOTO CD format

• Data part of CD-Extras

• Data part of Mixed CDs

• Super Audio CDs

• DVD Audio discs

• DVD-RAMs

• A DVD VIDEO with a different region code.

• A disc that has a non-standard shape (e.g.,

heart, square, star).

• A disc that has the adhesive cellophane tape

or a sticker still left on it.

MP3 audio tracks must be in MPEG 1 Audio Layer 3 format.

ISO 9660 Format A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for Standardization).

CD-Extra: This format records audio (AUDIO CD data) on the tracks in session 1 and data on the tracks in session 2.

Mixed CD: This format records data on the first track

and audio (AUDIO CD data) on the second and subsequent tracks of a session.

and JPEG image files of

Level 1,

Region code of DVD VIDEOs

DVD DECK RECEIVER

HCD-ZX80D

MODEL N0.

SERIAL NO. MADE IN MALAYSIA

AC: 120 V 60 Hz 390 W

you can play back on this system

Your system has a region code printed on the back of the unit and will only play back DVD VIDEOs labeled with identical region code. DVD VIDEOs labeled will also be played

ALL

back on this system. If you try to play back any other region code DVD VIDEO, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be labeled even though playing the DVD VIDEO is prohibited by area restrictions.

Example:

Region code

Note on DualDiscs

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to Compact Disc (CD) standard, playback on this product is not guaranteed.

Notes on CD-R/CD-RW/DVD-R/ DVD-RW/DVD+R/DVD+RW

• In some cases, CD-Rs/CD-RWs/DVD-Rs/ DVD-RWs/DVD+Rs/DVD+RWs cannot be played back on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not be played back if it has not been correctly finalized. For more information, see the operation instructions for the recording device.

• Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback.

• A disc created in Packet Write format cannot be played back.

Note on playback operations of DVD VIDEOs and VIDEO CDs

Some playback operations of DVD VIDEOs and VIDEO CDs may be intentionally set by software producers. Since this system play back DVD VIDEOs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVD VIDEOs or VIDEO CDs.

Note on PBC (Playback Control) (VIDEO CDs)

This system conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD standards. You can enjoy two kinds of playback depending on the disc type.

Disc type You can

VIDEO CDs without PBC functions (Ver. 1.1 discs)

Enjoy video playback (moving pictures) as well as music.

continued

Disc type You can

VIDEO CDs with PBC functions (Ver. 2.0 discs)

Play back interactive software using menu screens displayed on the TV screen (PBC Playback), in addition to the video playback functions of Ver. 1.1 discs. Moreover, you can play back highresolution still pictures, if t hey are included on the disc.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Notes on Multi Session disc

• This system can play back Multi Session discs when an MP3 audio track is contained in the first session. Any subsequent MP3 audio tracks recorded in later sessions can also be played back.

• This system can play back Multi Session discs when a JPEG image file is contained in the first session. Any subsequent JPEG image files recorded in later sessions can also be played back.

• If the first session is recorded in AUDIO CD or VIDEO CD format, only the first session will be played back.

• The system will recognize a Multi Session disc as an AUDIO CD if there is a session recorded in AUDIO CD format on the disc. However, the system will only play back the disc if the first session is recorded in AUDIO CD format.

Copyrights

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

This system incorporates Dolby* Digital, Dolby Pro Logic (II) adaptive matrix surround decoder, and the DTS** Digital Surround System. * Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

**Manufactured under license from Digital

Theater Systems, Inc. “DTS” and “ DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

Getting Started

Hooking up the system

Do the following procedures 1 to 7 to hook up your system using the supplied cords and accessories.

AM loop antenna

Getting Started

FM lead antenna

To subwoofer To surround speaker (right)

To surround speaker (left) To subwoofer

To front speaker (right) To front speaker (left)

1 Connect the front speakers.

Connect the speaker cords of the front speakers to the FRONT SPEAKER terminals as shown below.

FRONT SPEAKER

Red

White

To center speaker

Tip

FST-ZX100D/LBT-ZX100D/FST-ZX80D/ LBT-ZX80D only

Connect the speaker cords of the front and surround speakers to the terminals on the speakers.

Black (#) Red (3)

2 Connect the surround speakers.

Connect the speaker cords of the surround speakers to the SURR SPEAKER terminals as shown below.

Blue

SURR SPEAKER

Grey

Black (#)

Front speakers only.

Surround speakers only.

Red

/Blue2) (3)

continued

3 Connect the center speaker.

Connect the speaker cord of the center speaker to the CENTER SPEAKER terminal as shown below.

Green

4 Connect the subwoofer.

(FST-ZX100D/LBT-ZX100D/ MHC-GN1000D only)

Connect the subwoofer cord to the SUBWOOFER OUT terminal and the system cord to the SYSTEM CONTROL jack as shown below.

SUBWOOFER OUT terminal

When using a TV

Turn on the TV and select the video input so that you can view the pictures from this system.

When connecting a video deck

Connect the video deck to the TV using a video cord (not supplied). However, do not connect this unit to the TV through the video deck. Otherwise, you may experience video leakage when watching video images from this system. Connect this unit directly to the TV as shown below.

Video deck

Do not connect

directly

Unit

Purple

SYSTEM CONTROL jack

SYSTEM CONTROL

5 Connect the video input jack of your

TV to the VIDEO OUT jack with the supplied video cord.

COMPONENT

VIDEO OUT

VIDEO

S VIDEO

OUT

Tip

For higher quality video images: – Use the optional component video cords to connect

the COMPONENT VIDEO input jacks on your TV to the COMPONENT VIDEO OUT jacks of this unit. If your TV is compatible with progressive format file signals, use this con nection and press PROGRESSIVE on the unit repe atedly until “P AUTO” or “P VIDEO” appears in the display (page 16).

– You can use an optional S Vide o cord to con nect the

S VIDEO input jack on your TV to the S VIDEO OUT jack of this unit.

6 Connect the FM and AM antennas.

Set up the AM loop antenna, then connect it.

Extend the FM lead antenna horizontally

AM loop antenna

7 Connect the power cord to a wall

outlet.

The demonstration appears in the display. When you press

?/1, the system turns on

and the demonstration automatically ends.

Notes

• Keep the speaker cords away from the antennas to prevent noise.

• Be sure to match the color of the speaker terminals on the unit and the connectors.

• Be sure to connect the speakers securely and correctly. When connecting speaker cords, insert the connector straight into the terminals.

To connect optional components

See “Hooking up optional components” on page 71.

Inserting two R6 (size AA) batteries into the remote

Note

If you do not use the remote for a long period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Tip

With normal use, the batteries should las t for about six months. When the remote no longer operates the system, replace both batt eries with new ones.

Attaching the speaker pads

Attach the supplied speaker pads to the bottom of the speakers to stabilize the speakers and to prevent them from slipping.

Example Front/surround speaker of FST-ZX100D

Front speaker of MHC-GN1000D

Getting Started

Operating a Sony TV

You can use the following buttons to operate a Sony TV. These buttons have been marked in orange. To use these buttons, hold down TV before pressing the button you want.

To Hold down TV and

Turn the TV on or off TV ?/1 Switch the TV’s input

source between the TV and other input sources

Select the TV channels TV CH +/– or numeric

Adjust the volume of the TV speaker(s)

* For double digit number, hold down TV and press

-/--, then press the number. (For example, hold down TV, press -/--, then 2 and 5 for entering 25.)

press

TV/VIDEO

buttons* TV VOL +/–

Subwoofer of FST-ZX100D

continued

When carrying the unit

Do the following procedure to protect the disc mechanism. Use the buttons on the unit for the operation.

1 Press ?/1 to turn on the system. 2 Press DVD. 3 Press Z OPEN/CLOSE to open the disc

tray and remove the disc. If there are more than one disc in the disc tray, press EX-CHANGE/DISC SKIP to remove the discs.

4 Press Z OPEN/CLOSE again to close

the disc tray. Wait until “DVD No Disc” appears in the display.

5 Hold down DVD and then press ?/1 until

“STANDBY” appears in the display. Then, “MECHA LOCK” appears in the display.

6 Unplug the AC power cord.

When carrying the front and surround speakers

(FST-ZX100D/LBT-ZX100D/FST-ZX80D/ LBT-ZX80D only)

Do not carry the front and surround speakers by their sub panel. Otherwise, the speakers may be damaged.

Positioning the speakers

FST-ZX100D/LBT-ZX100D/FST-ZX80D/ LBT-ZX80D only

There are 3 different ways to place the speakers. To enjoy DVD VIDEOs or to create a party environment, we recommend that you place your speakers as shown in Example 1.

Example 1

Place the speakers at an equal distance from your listening position as shown below.

Center

speaker

Unit

Front speaker (left)

Sub woofer*

Listener

Surround speaker (left)

Surround speaker (right)

* Not supplied for FST-ZX80D/LBT-ZX80D

Example 2

Place the surround speakers on top of the front speakers as shown below.

Surround speaker (left)

Surround speaker (right)

Front speaker (right)

Sub panel

Unit TV

Front speaker (left)

Center speaker

Listener

Front speaker (right)

Sub woofer*

* Not supplied for FST-ZX80D/LBT-ZX80D

Example 3

Place the front speakers in one room and the surround speakers in another room. For details, see “Listening to the sound in another room” on page 58.

MHC-GN1000D only

Place the front speakers at an angle of 45 degrees from your listening position.

Unit

Center

speaker

Listener

Front speaker (left)

Surround speaker (left)

Notes

• Do not place the surround speakers on top of a TV. This may cause distortion of th e colors in the TV screen.

• If you place the center sp eaker on th e unit, be sure to place it at the front side of the unit.

• Place the subwoofer on solid floor where resonance is unlikely to occur so that a better bass reproduction could be obtained.

• Always place the subwoofer vertically, keeping it a few centimeters/inches away from the wall.

• If the subwoofer is placed in the center of a room , the bass could be extremely weakened. This is due to the influence of the standing wav e of the room. If this happens, move the subwoofer away from the center of the room or eliminate the cause of the standing wave, by placing a bookshelf against the wall, etc.

Front speaker (right)

Sub woofer

Surround speaker (right)

Speaker settings

To enjoy DVD VIDEOs and other discs with multi-channel sound and Dolby surround effects, you need to adjust the speaker settings. For details, see “Setting the speakers” on page

44.

Setting the clock

Getting Started

1 Press ?/1 to turn on the system. 2 Press TIMER MENU.

The hour indication flashes in the display.

3 Press V or v repeatedly to set the

hour.

4 Press ENTER.

The minute indication flashes in the display.

5 Press V or v repeatedly to set the

minute.

6 Press ENTER.

The clock starts functioning.

To adjust the clock

1 Press TIMER MENU.

“PLAY SET?” flashes in the display.

2 Press V or v repeatedly to select “CLOCK

SET?”, then press ENTER.

The hour indication flashes in the display.

3 Do the same procedures as step 3 to 6

above.

Notes

• The clock settings are canceled wh en you disc onnect the power cord or if a power failure occurs.

• You cannot set the clock in Power Saving Mode (page 66).

Performing QUICK SETUP

Before using the system, you can make the minimum basic adjustments (LANGUAGE SETUP, SCREEN SETUP, SPEAKER SETUP) in QUICK SETUP. After performing QUICK SETUP, the system is ready for playback. To perform further speakers settings, see “Setting the speakers” on page 44.

1 Turn on your TV and select the video

input.

2 Press ?/1 to turn on the system.

Note

Make sure that the headphone or microphone is not connected. Otherwise, you cannot perform SPEAKER SETUP.

3 Press FUNCTION +/– repeatedly to

select “DVD” (or press DVD on the unit).

The guide message appears at the bottom of the TV screen.

4 Press ENTER.

The “LANGUAGE SETUP” display appears on the TV screen.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRENCH

SPANISH

PORTUGUESE

5 Press V or v repeatedly to select a

language, then press ENTER.

Tips

• The selected language is for “OSD”, “MENU” and “SUBTITLE ”.

• The selectable language is different depending on the area.

The setting is selected and the “SCREEN SETUP” display appears on the TV screen.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: BLACK LEVEL: BLACK LEVEL 4:3 OUTPUT: FULL

4:3 LETTER BOX 4:3 LETTER BOX

4:3 PAN SCAN

(COMPONENT OUT)

: OFF

16:9

6 Press V or v repeatedly to select the

setting that matches your TV type.

x If you have a 4:3 standard TV Select 4:3 LETTER BOX or 4:3 PAN

SCAN (page 42) x

If you have a wide-screen TV or a 4:3

standard TV with wide-screen mode

Select 16:9 (page 42)

7 Press ENTER.

The setting is selected and the “SPEAKER SETUP” display appears on the TV screen.

SPEAKER SETUP

SIZE: DISTANCE: LEVEL(FRONT): LEVEL(SURROUND): TEST TONE:

FRONT: CENTER: SURROUND:

OFF

* 10ft 3.0m

10ft 3.0m 10ft 3.0m

8 Press V or v repeatedly to select the

front speaker distance from your listening position, then press ENTER.

You can set from 3 to 23 feet (0.9 to 6.9 meters). Repeat this step to adjust the center and surround speaker distance. For the center and surround speaker distance, you can set from 0 to 23 feet (0.0 to 6.9 meters). The setting is selected and “QUICK SETUP is complete.” appears on the TV screen.

To quit QUICK SETUP

Press DISPLAY.

To change the settings of QUICK SETUP

1 Press DISPLAY when playback is

stopped. The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(SETUP), then press ENTER.

3 Press V or v repeatedly to select “QUICK”,

then press ENTER. The “LANGUAGE SETUP” display appears on the TV screen.

4 Do the same procedures as steps 5 to 8 of

“Performing QUICK SETUP”.

Notes

• The guide message appears at the bottom of the TV screen when you turn on th e system for the first time or after performing “RESET” (see “To return the DVD setup to the default settings*, perform reset as follows:” on page 79).

• If you do not want to perform QUICK SETUP, press CLEAR in step 3. The guide message will disappear from the TV screen.

• When there is a disc in the unit or the disc tray is opened, the guide message does not appear on the TV screen. To perform QUI CK SE TUP, pr ess Z OPE N/ CLOSE on the unit to remove the disc and press again to close the disc tray.

• If you want to change each setting individually, see “Using the DVD setup menu” on page 40.

Using the THEATRE SYNC function

THEATRE SYNC allows you to turn on your Sony TV and this system, changes the system’s function to “DVD” and then switches the TV’s input source you have set with just one button.

Preparing for the THEATRE SYNC function

Hold down SLEEP and press numeric buttons, CLEAR or ALBUM +/– to select the TV’s input source connected to this system.

For details, refer to the following table.

Hold down SLEEP and press

0 No input source

1VIDEO 1 2VIDEO 2 3VIDEO 3 4VIDEO 4 5VIDEO 5 6VIDEO 6 7VIDEO 7 8VIDEO 8 9 COMPONENT 1 CLEAR COMPONENT 2 ALBUM – COMPONENT 3 ALBUM + COMPONENT 4

To select the following TV’s input source

(Default)

The selected TV’s input source is memorized into the remote.

Operating the THEATRE SYNC function

Point the remote to the direction of the TV and this unit, then press THEATRE SYNC.

If this function does not work, change the transmission time. The transmission time varies depending on the TV.

To change the transmission time

Hold down > and press numeric buttons to change the transmission time.

For details, refer to the following table.

Hold down > and press

1 0.5 (Default) 21

31.5 42

52.5 63

73.5 84

The transmission time from the remote is selected.

To select the following transmission time

continued

Getting Started

Notes

• This function is only available for Sony TV series.

• If distance between the TV and this unit is too far, this function may not work. Install the unit near the TV.

• Keep the remote pointed in the direction of the TV until the TV is turned on and the input source is changed correctly.

Changing the format of the video signal from COMPONENT VIDEO OUT jacks

Progressive is the method for displaying the TV images which reduces flickering and sharpens the image. To use this method, you need to connect to a TV that can accept progressive signals. You can output video signals from COMPONENT VIDEO OUT jacks in INTERLACE or PROGRESSIVE format.

1 Press FUNCTION +/– repeatedly to

select “DVD” (or press DVD on the unit).

2 Press PROGRESSIVE on the unit

repeatedly.

Each time you press the button, the display changes cyclically as follows: P AUTO

x P AUTO (PROGRESSIVE AUTO)

Select this when your TV accepts progressive signals and the TV is connected to the COMPONENT VIDEO OUT jacks. The system automatically detects the software type and selects the appropriate conversion method.

x P VIDEO (PROGRESSIVE VIDEO)

Select this when your TV accepts progressive signals and the TV is connected to the COMPONENT VIDEO OUT jacks. The system fixes the conversion method to PROGRESSIVE VIDEO for video-based software. Select this if the image is not clear when you select “P AUTO”.

t P VIDEO t INTERLACE

x INTERLACE

Select this when your TV does not accept progressive signals or your TV is connected to the VIDEO OUT or S VIDEO OUT jack.

About DVD VIDEO software types and the conversion method

The DVD VIDEO software can be divided into 2 types:

• Film-based software Film-based software is derived from film and displays the images at 24 frames per second.

• Video-based software Video-based software is derived from TV, such as dramas and sitcoms and displays images at 30 frames or 60 fields per second.

Some DVD VIDEO contains both types of software. In order for these images to appear in your TV naturally when the video output is in progressive format, the progressive signals need to be converted to match your DVD VIDEO software.

Notes

• When you connect your TV to the COMPONENT

VIDEO OUT jacks and play back video-based software in progressive signal format, some sections of the image may appear unnatural due to the conversion process.

• The image from VIDEO OUT and S VIDEO OUT

jacks are always output in INTER LACE format even if you select “P AUTO” or “P VIDEO”.

• There would be no image on your TV or the image is

not clear if your setting does not match your TV or connection.

• “PROGRESSIVE” lights up in the display when you

select “P AUTO” or “P VIDEO”.

Disc – Playback

Loading a disc

Use the buttons on the unit for the operation.

1 Press Z OPEN/CLOSE.

The disc tray slides out.

2 Load a disc with the label side facing

up on the disc tray.

When you play back an 8 cm disc such as a CD single, place it on the inner circle of the tray

To load additional discs, press EX-CHANGE/DISC SKIP to rotate the disc tray.

3 Press Z OPEN/CLOSE to close the disc

tray.

Notes

• Do not forcibly push the disc tray to close it as this

may cause a malfunction. Pres s Z OPEN/CLOSE to close the disc tray.

• When you eject a disc, handle the disc by its edge. Do not touch the surface of the disc.

Playing a disc

—Normal Play

Before playing a DVD VIDEO, a VIDEO CD, or JPEG image files, turn on your TV and select the video input. Depending on the DVD VIDEO or VIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with the disc.

When playing a DVD VIDEO or DVD-R/ DVD-RW in VR mode:

Disc tray number

Disc playing

When playing a VIDEO CD (playback without PBC function):

Disc tray number

indicator

Title number

Disc presence indicator

Track number

Elapsed playing time

Disc – Playback

Disc playing

indicator

Disc presence indicator

continued

When playing an AUDIO CD:

Disc tray number

Disc playing

indicator

Track number

Disc presence

indicator

Elapsed playing time

When playing an MP3 audio track:

indicator

Track number

Disc presence

indicator

Elapsed playing time

Disc tray number

Disc playing

1 Press FUNCTION +/– repeatedly to

select “DVD” (or press DVD on the unit).

2 Press H (or nN on the unit). 3 Press VOLUME +/– (or turn MASTER

VOLUME on the unit) to adjust the volume.

The volume level appears on the TV screen.

Note

Depending on the system status, the volume level may not appear on the TV screen.

Other operations

To Do this

Stop playback Press x. Pause playback Press X. Press X again or H (or

Select a track1), chapter or video file

nN on the unit) to resume playback.

Press . or > repeatedly during playback. Or, press the numeric buttons when the Control Menu is turned off, then press ENTER2).

To Do this

Select an album3)Press ALBUM +/– repeatedly

during playback or when playback is paused.

Locate a point quickly in fast forward or fast reverse (Lock

4)5)

Search)

Press m or M (or m or M on the unit) during playback. Each time you press m or M (or m or M on the unit), the playback speed changes cyclically as follows: Playback direction x2B7) t 1M t 2M t

3M Opposite direction x2b9) t 1m t 2m t

To return to normal playback, press H (or nN on the unit).

Watch frame by frame (Slowmotion Play)

Press SLOW or SLOW (or

m or M on the unit )

when playback is paused. Each time you press SLOW or SLOW (or m or M on the unit), the playback speed changes as follows: Playback direction

2 y 1 Opposite direction

10)

10)11)

2 y 1 To return to normal playback, press H (or nN on the unit).

Play one frame at a time (Freeze

Frame)

Press STEP C to go to the next frame when playback is paused. Press c STEP

11)

to go to the preceding frame when playback is paused. To return to normal playback, press H (or nN on the unit).

Replay the previous scene (Instant

11)

Replay) Briefly fast

forward the

Press REPLAY during playback.

Press ADVANCE during playback.

current scene (Instant

11)

Advance) Select a disc

during playback or when playback

Press DISC SKIP on the remote (or one of the DISC 1 ~ 3 buttons on the unit).

is stopped

To Do this

Switch to DVD function from another source and start playback automatically

Exchange other discs after the disc’s TOC reading is complete

Remove the disc Press Z OPEN/CLOSE on the

You cannot select an audio track during Lock Search operation of MP3 audi o tracks.

DVD VIDEO, DVD-R/DVD-RW in VR mode, VIDEO CD and AUDIO CD only.

MP3 audio tracks and JPEG imag e files only.

Except for JPEG image files.

Depending on the disc, the actual speed may differ.

The “x2B”/“x2b” playback speed is about twice the normal speed. The “3M”/“3m” playback speed is faster than “2M”/“2m” and the “2M”/“2m” playback speed is faster than “1M”/“1m”.

DVD VIDEO and AUDIO CD only.

DVD VIDEO, DVD-R/DVD-RW in VR mode and VIDEO CD only.

DVD VIDEO only.

10)

The “2 ”/“2 ” playback speed is slower than “1 ”/“1 ”.

11)

DVD VIDEO and DVD-R/DVD-RW in VR mode only.

Notes

• You cannot search for a still picture on a DVD-R/ DVD-RW in VR mode.

• You cannot perform Instant Replay and Instant Advance in Repeat Play mode.

Tips

• The Instant Replay function is useful when you want

to review a scene or dialogue that you missed.

• The Instant Advance function is useful when you

want to pass over a scene that you do not want to watch.

• You may not be able to use the In stant Replay or Instant Advance function with some scenes.

• If you press DVD on the unit while the system is turned off, the system turns on automatically and “DVD” is selected as the function except during Power Saving Mode.

Press one of the DISC 1 ~ 3 buttons on the unit (Automatic Source Selection).

Press EX-CHANGE/DISC SKIP on the unit.

unit.

Resuming playback from the point you stopped the disc

— Resume Play

This system memorizes the point where you stopped the disc so you can resume playback from that point. Resume Play is not canceled when you turn off the system except for MP3 audio tracks and JPEG image files.

1 While playing a disc, press x to stop

playback.

“Resume” appears in the display. If “Resume” does not appear, Resume Play is not available.

2 Press H (or nN on the unit).

The system starts playback from the point you stopped the disc in step 1.

Notes

• You cannot perform Resume Play durin g Shuf f le Play or Program Play.

• This function may not work properly with some discs.

• Depending on where you stopp ed the disc, the system may not resume playback from the exact same point.

• Resume Play is canceled when you – press x when playback is stopped. – open the disc tray. – change the function. – change the settings in the Control Menu.

• If “MULTI-DISC RESUME” is set to “ON”, Resume Play is not canceled for DVD VIDEO and VIDEO CD when you open the disc tray or change the function.

Tip

To play back from the beginning of the disc, press x twice, then press H (or nN on the unit).

Disc – Playback

continued

Resuming playback of the disc that has been played back

— Multi-disc Resume

This system can store the point where you stopped the playback of the disc for up to 40 discs and resumes playback when you insert the same disc again. If you store a playback resume point for the 41st disc, the playback resume point for the first disc will be deleted. To activate this function, set “MULTI-DISC RESUME” in “CUSTOM SETUP” to “ON”. For details, see “MULTI-DISC RESUME” on page 44.

Note

If “MULTI-DISC RESUME” is set to “ON”, the system may play back the next recorded disc such as a DVD-RW from the playback resume point for the current recorded disc. To start playback from the beginning of the disc, press x twice an d then press H (or nN on the unit).

Creating your own program

— Program Play

You can make a program of up to 99 steps in the order you want them to be played back. You can only program the tracks from the current disc.

1 Press DISPLAY.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(PROGRAM), then press

ENTER.

The options for “PROGRAM” appear on the TV screen.

6 ( 14)

T OFF

OFF SET ON

2 : 5 0

PLAY

3 Press V or v repeatedly to select

“SET

t”, then press ENTER.

PROGRAM ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

–– – – – – – – – – – – – –

0 : 00 : 00 T

– –

01 02 03 04 05 06

Tracks number

4 Press b.

The cursor moves to the track row “T” (in this case, “01”).

PROGRAM

ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

–– – – – – – – – – – –

– –

0 : 00 : 00 T

– –

01 02 03 04 05 06

5 Select the track you want to program.

For example, select track “02”. Press

V or v repeatedly to select “02”

under “T”, then press ENTER.

Selected track

PROGRAM ALL CLEAR

1. TRACK 0 2

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

– – – – – – – – – – – –

Total time of the programmed tracks

0:15:30

– –

01 02 03 04 05 06

6 To program other tracks, repeat steps

4 to 5.

7 Press H (or nN on the unit).

Program Play starts. When the Program Play ends, you can

restart the same program by pressing H (or nN on the unit).

To cancel Program Play

Press CLEAR or select “OFF” in step 3. To play back the same program again, select “ON” in step 3 and press ENTER.

To change a programmed step

1 Follow steps 1 to 3 of “Creating your own

program”.

2 Press V or v repeatedly to select the

programmed step number you want to change. Then, press

3 Follow step 5 of “Creating your own

program” to program a new track.

To delete a programmed step

1 Follow steps 1 to 3 of “Creating your own

program”.

2 Press V or v repeatedly to select the

programmed step number you want to delete. Then, press CLEAR.

The selected step is deleted. The following steps are shifted up.

To delete all of the programmed steps in the program list

1 Follow steps 1 to 3 of “Creating your own

program”.

2 Press V to select “ALL CLEAR”. 3 Press ENTER.

To turn off the Control Menu

Press DISPLAY repeatedly until the Control Menu disappears from the TV screen.

Notes

• When Program Play is activated, the “REPEAT” setting is automatically changed to “ON” if the current setting is “ALL DISCS”, “ONE DISC” or “TRACK”.

• You cannot perform Program Play with VIDEO CDs during PBC playback.

Tip

The Program Play is canceled and the program list is cleared when

– you open the disc tray. – you press DISC SKIP (or one of the DISC 1 ~ 3

buttons on the unit) to select another disc. – you turn off the system. – you change the function. – you perform CD Synchro Recording.

Playing in random order

— Shuffle Play

You can play back the tracks on the current disc in random order. Each time you perform Shuffle Play, the playing order may differs.

1 Press DISPLAY during playback.

The Control Menu appears on the TV screen.

Disc – Playback

continued

2 Press V or v repeatedly to select

(SHUFFLE), then press

ENTER.

The options for “SHUFFLE” appear on the TV screen.

6 (14)

T OFF

OFF TRACK

2 : 5 0

PLAY

3 Press V or v repeatedly to select the

setting you want.

x When playing a VIDEO CD or AUDIO

• TRACK: all tracks on the current disc is played back randomly.

When Program Play is activated (see “Creating your own program” on page 20)

• ON: all tracks in the program list is played back randomly.

When playing a DATA CD or DATA DVD

• ON: all MP3 audio tracks in the selected album on the current disc is played back randomly. When no album is selected, the first album is played back randomly.

4 Press ENTER

Shuffle Play starts. “SHUF” lights up in the display.

To cancel Shuffle Play

Press CLEAR or select “OFF” in step 3.

To turn off the Control Menu

Press DISPLAY repeatedly until the Control Menu disappears from the TV screen.

Notes

• Shuffle Play is only available for the tracks on the current disc.

• You cannot perform Shuffle Play with VIDEO CDs during PBC playback.

• Shuffle Play is canceled when – you open the disc tray. – you press DISC SKIP (or one of the DISC 1 ~ 3

buttons on the unit) to select other disc. – you turn off the system. – you change the function. – you perform Track/Index Search. – you perform CD Synchro Recording.

• The same song may be played back repeatedly for MP3 audio tracks.

Tip

You can also change the Shuffle Play setting when playback is stopped.

Playing repeatedly

— Repeat Play

You can play back all the titles, tracks, files or a single title, chapter, track or file on a disc repeatedly. You can select Shuffle Play and Program Play at the same time.

1 Press DISPLAY during playback.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(REPEAT), then press ENTER.

The options for “REPEAT” appear on the TV screen.

6 (14)

2 : 5 0

OFF

OFF ALL DISCS ONE DISC TRACK

PLAY

3 Press V or v repeatedly to select the

setting you want.

The default settings are underlined.

When playing a DVD VIDEO or

DVD-R/DVD-RW in VR mode

• OFF: does not play back repeatedly.

• ALL DISCS: repeats all the titles on all the discs.

• ONE DISC: repeats all the titles on the current disc.

• TITLE: repeats the current title.

• CHAPTER: repeats the current chapter.

When playing a VIDEO CD or AUDIO

• OFF: does not play back repeatedly.

• ALL DISCS: repeats all the tracks on all the discs.

• ONE DISC: repeats all the tracks on the

current disc.

• TRACK: repeats the current track.

When playing a DATA CD or DATA DVD

• OFF: does not play back repeatedly.

• ALL DISCS: repeats all the tracks or files on all the discs.

• ONE DISC: repeats all the albums on the

current disc.

• ALBUM: repeats the current album.

• TRACK

: repeats the current track.

When Program Play or Shuffle Play is activated

• OFF: does not play back repeatedly.

• ON: repeats the Program Play or Shuffle Play.

4 Press ENTER.

Repeat Play starts.

MP3 audio tracks only.

To cancel Repeat Play

Press CLEAR or select “OFF” in step 3.

To turn off the Control Menu

Press DISPLAY repeatedly until the Control Menu disappears from the TV screen.

Notes

• You can also change the Repeat Play setting by pressing REPEAT repeatedly.

• “REPEAT” lights up in the display when Repeat Play is set to “ALL DISCS”, “ONE DISC”, “ALBUM” or “ON”.

• “REPEAT1” lights up in the display when Rep eat Play is set to “TITLE”, “CHAPTER” or “TRACK”.

• Depending on the DVD VIDEO, you cannot perform Repeat Play.

• You cannot perform Repeat Play with VIDEO CDs during PBC playback.

• When playing a DATA CD or DATA DVD which contains MP3 audio tracks and JPE G image files, the audio sound will not match the i mage if their p laying time are different.

• You cannot select “TRACK” when “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)”.

• Repeat Play is canceled when – you open the disc tray. – you press DISC SKIP (or one of the DISC 1 ~ 3

buttons on the unit) to select other disc (unless

Repeat Play is set to “ALL DISCS”). – you turn off the system – you change the function (unless Repeat Play is set

to “ALL DISCS”). – you perform CD Synchro Recording.

Tip

You can also change the Repeat Play setting when playback is stopped.

Playing DVD VIDEOs using the menu

Some DVD VIDEOs have menus to help you enjoy the DVD VIDEOs. You can play back DVD VIDEOs using these menus on the TV screen.

Using TOP MENU

A DVD VIDEO contains a lot of sections of picture or music feature called “title”. When you play back a DVD VIDEO which contains several titles, you can select the title you want using TOP MENU.

Disc – Playback

continued

Using MENU

Some DVD VIDEOs allow you to select the disc contents using a menu. When you play back these DVD VIDEOs, you can select items such as the language for the subtitles and the language for the sound using MENU.

1 Press TOP MENU or MENU.

The menu appears on the TV screen. The contents of the menu vary depending on the disc.

2 Press V and v or B and b or the

numeric buttons to select the title or item you want to play back.

3 Press ENTER.

3 Press V or v repeatedly to select the

setting you want.

• PLAY LIST: play back according to the playlist created on the disc.

• ORIGINAL: play back according to the originally recorded sequence.

4 Press ENTER.

Playing VIDEO CDs with PBC functions (Version

2.0)

— PBC Playback

Selecting “ORIGINAL” or “PLAY LIST” on a DVD-R/ DVD-RW in VR mode

You can play back DVD-Rs/DVD-RWs in VR mode either according to the originally recorded sequence or to the playlist created on the disc. This function is only available for DVD-Rs/ DVD-RWs in VR mode with a playlist created.

1 Press DISPLAY when playback is

stopped.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(ORIGINAL/PLAY LIST), then

press ENTER.

The options for “ORIGINAL/PLAY LIST” appear on the TV screen.

1 ( 4 4 ) 3 ( 2 8 ) T

1 : 3 0 : 5 0 PLAY LIST PLAY LIST ORIGINAL

DVD-VR

You can use the PBC (Playback Control) menus on your TV screen to enjoy the disc’s interactive software. The menu format and structure may differ depending on each disc.

1 Press H (or nN on the unit) to start

playing a VIDEO CD with PBC functions (Version 2.0).

The PBC menu appears on the TV screen.

2 Press the numeric buttons to select the

item number you want.

3 Press ENTER. 4 Continue playback according to the

instructions on the menus to enjoy interactive playback.

Refer to the operating instructions supplied with the VIDEO CD, as the operating procedure may differ depending on the VIDEO CD.

To return to the previous menu

Press O RETURN.

Notes

• Depending on the VIDEO CD, the menu may not appear in step 1.

• Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the operating instructions supplied with the disc. In this case, press H (or nN on the unit).

• PBC Playback is canceled when Shuffle Play, Program Play or Repeat Play is activated.

To cancel playback with PBC functions

1 Press . or > repeatedly or press the

numeric buttons to select a track when playback is stopped.

2 Press H (or nN on the unit) or

ENTER.

“Play without PBC.” appears on the TV screen and playback starts from the selected track. Still images, such as the menu screens, will not be shown.

To return to PBC playback, press x twice, then press H (or nN on the unit).

About MP3 audio tracks and JPEG image files

What is MP3/JPEG?

MP3 is an audio compression technology that satisfies the ISO/MPEG regulations. JPEG is an image compression technology.

Playback order of MP3 audio tracks or JPEG image files

The playback order of MP3 audio tracks or JPEG image files recorded on a DATA CD or DATA DVD is as follows:

x Structure of disc contents

Tree 1 Tree 2 Tree 3 Tree 4 Tree 5

ROOT

Disc – Playback

Discs that the system can play back

For details on DATA CDs (CD-ROMs/CD-Rs/ CD-RWs) or DATA DVDs (DVD-ROMs/ DVD-Rs/DVD-RWs/DVD+Rs/DVD+RWs) that the system can play back, see “Notes on discs” (page 6) and “Notes on Multi Session disc” (page 8).

MP3 audio tracks or JPEG image files that the system can play back

The system can play back MP3 audio tracks which have the extension “.MP3” and JPEG image files which have the extension “.JPG” or “.JPEG”.

Album

When you insert a DATA CD or DATA DVD and press H (or (or files) are played back sequentially, from 1 through 7. Any sub-albums or sub-files in the selected album take priority over the next album in the same tree. (Example: C contains D so 4 is played back before 5.)

When you press MENU and the list of album names appears (page 27), the album names are arranged in the following order: A t B t C t D t F t G. Albums that do not contain tracks (or files) (such as album E) do not appear in the list.

MP3 audio tracks or JPEG image files

nN on the unit), the tracks

continued

Notes

• Depending on the software you use to create the DATA CD or DATA DVD, the playback order may differ from the illustration above.

• The playback order above may not be applicable if there are more than 200 albums and 300 files in each album.

• The system can recognize up to 200 albums including albums that do not contain MP3 audio tracks and JPEG image files. The system will not play back any albums beyond the 200th album.

• The maximum number of MP3 audio tracks or JPEG image files on an album which this system can recognize is:

– 600 when “MODE (MP3, JPEG)” is set to

“AUDIO (MP3)” or “IMAGE (JPEG)”.

– 300 when “MODE (MP3, JPEG)” is set to

“AUTO”.

• The system may take a long er time t o start pl ayback, when the tracks or files in another album has just been played back.

• An album that does not contain an MP3 audio track or JPEG image file is skipped.

• The system will play back any dat a with the extension “.MP3”, “.JPG” or “.JPEG” even if they are not in MP3 or JPEG format. Playing this data may generate a loud noise which could damage your speaker system.

• The system does not support MP3PRO format.

• The system can only play back MP3 au dio tracks in MPEG 1 Audio Layer 3 format.

• Depending on the encoding/writing software, recording device, or the recording media used to record an MP3 audio track, you may encounter problems such as cannot play back, sound interruptions and noise.

• The following discs take a longer tim e to start playback:

– a disc recorded with complicated tree structure. – a disc recorded in Multi Session. – a disc to which data can be added (non finalized

disc).

• Some CD-Rs/CD-RWs/DVD-Rs/DVD-RWs/ DVD+Rs/DVD+RWs cannot be played back on the system depending on the file format.

• When playing a DATA CD (CD-ROMs/CD-Rs/ CD-RWs) or DATA DVD (DVD-ROMs/DVD-Rs/ DVD-RWs/DVD+Rs/DVD+RWs) containing both MP3 audio tracks and JPEG image files, select “MODE (MP3, JPEG)” from the Control Menu after the disc’s TOC reading is complete. If you want to play back

– both MP3 audio tracks and JPEG image files, set

“MODE (MP3, JPEG)” to “AUTO”.

– MP3 audio tracks only, set “MODE (MP3, JPEG)”

to “AUDIO (MP3)”.

– JPEG image files only, set “MODE (MP3, JPEG)”

to “IMAGE (JPEG)”.

• The system can play back to a depth of 8 folders only.

Tips

• If you add numbers (01, 02, 03, etc.) to the front of the track or file names when you store the tracks or files in a disc, the tracks and files will be played back in that order.

• Since a disc with many trees takes a longer time to start playback, it is recommended that you create albums with no more than two trees.

Playing DATA CDs or DATA DVDs with MP3 audio tracks and JPEG image files

Playing an album of MP3 audio tracks or an MP3 audio track

1 Load a DATA CD or DATA DVD on the

disc tray.

The list of albums appears on the TV screen.

(

3 0

)

ROCK BEST HIT KARAOKE MY FAVOURITE SONG R&B JAZZ CLASSIC SALSA OF CUBA BOSSA NOVA

2 Do the following steps to play back an

album of MP3 audio tracks or an MP3 audio track.

x Playing an album of MP3 audio tracks

V or v repeatedly to select the album

Press you want, then press H (or nN on the unit).

The system starts playback from the first track of the selected album.

x Playing an MP3 audio track

1 Press V or v repeatedly to select the album

you want, then press ENTER.

The list of MP3 audio tracks of the selected album appears on the TV screen.

M Y FAVOURITE SONG

1 ( 2 5 6

WALTZ FOR DEBBY MY ROMANCE MILES TONES MY FUNNY VALENTINE AUTUMN LEAVES ALL BLUES SOMEDAY MY PRINCE W..

2 Press V or v repeatedly to select the MP3

audio track you want, then press ENTER.

The system starts playing the selected MP3 audio track.

To stop playback

Press x.

To display the next or previous page of track list or album list

Press B or b repeatedly when the track list or album list is displayed.

To play back the next or previous MP3 audio track

Press . or > repeatedly during playback.

)

To play back the next album of MP3 audio tracks

You can select the next album by pressing > repeatedly until the last track of the current album, then press > once. The first track of the next album is selected. However, you cannot select the previous album by pressing . repeatedly. To select the previous album, select the album from the album list.

To return to the album list display when the track list is displayed

Press O RETURN.

To turn on or off the display of album list or track list

Press MENU repeatedly.

Notes

• You can view the disc information while playing MP3 audio tracks (page 68).

• You can select Repeat Play wh ile playing MP3 audio tracks (page 22).

• You can press AUDIO to select the audio signal you want while playing an MP3 audio track (page 34).

Playing an album of JPEG image files or a JPEG image file

1 Load a DATA CD or DATA DVD on the

disc tray.

The list of albums appears on the TV screen.

2 Do the following steps to play back an

album of JPEG image files or a JPEG image file.

x Playing an album of JPEG image files

Press

V or v repeatedly to select the album

you want, then press H (or nN on the unit).

The system starts a slide show from the first image file of the selected album.

Disc – Playback

continued

x Playing a JPEG image file

1 Press V or v repeatedly to select the album

you want, then press PICTURE NAVI.

Thumbnail picture for the first 16 JPEG image files in the selected album is displayed on the TV screen.

1234

5678

9101112

13 14 15 16

If there are more than 16 image files in the selected album, the scroll bar appears at the right. Press the thumbnail picture. Then, press The TV screen will show the thumbnail picture of the next 16 image files. To return to the thumbnail picture of the previous 16 image files, press the top row of the thumbnail picture. Then, press

v repeatedly until the bottom row of

V repeatedly until

2 Press V/v/B/b to select the image you

want to view, then press H (or nN on the unit).

The slide show starts from the selected image file.

To play back the next album of JPEG image files

You can select the next album by pressing b repeatedly until the last file of the current album, then press

b once. The first file of the next

album is selected. However, you cannot select the previous album by pressing

B repeatedly.

To select the previous album, select the album from the album list.

To turn on or off the display of album list

Press MENU repeatedly.

To rotate a JPEG image file

When a JPEG image file is displayed on the TV screen, you can rotate the image by 90 degrees. Press

V or v repeatedly while viewing an

image. Each time you press

V, the image rotates

counterclockwise by 90 degrees.

Example: When you press

V once

Rotating direction

To display the next or previous page of album list

Press B or b repeatedly when the album list is displayed.

To display the next or previous JPEG image file

Press B or b repeatedly during the slide show.

Press CLEAR to return to the original view.

To stop playback

Press x.

Notes

• When you press B or b to select the next or

previous image, the image will return to its original view even if you have rotated the image previously.

• The slide show stops when you press V or v.

• You can view the file information while playing JPEG image files (page 70).

• You can select Repeat Play while playing JPEG image files (page 22).

Tip

You can also change the slide show speed and eff

ect

(page 30) while playing JPEG image files.

(page 30)

Playing MP3 audio tracks and JPEG image files as a slide show with sound

You can play back a slide show with sound by first placing both JPEG image files and MP3 audio tracks in the same album on a DATA CD or DATA DVD.

1 Load a DATA CD or DATA DVD on the

disc tray.

The list of albums appears on the TV screen.

2 Press DISPLAY.

The Control Menu appears on the TV screen.

3 Press V or v repeatedly to select

(MODE (MP3, JPEG)), then

press ENTER.

The options for “MODE (MP3, JPEG)” appear on the TV screen.

)

( 2 7

AUTO

AUTO AUDIO (MP3) IMAGE (JPEG)

DATA CD

MP3

The default setting is underlined.

• AUTO

: play back both JPEG image files and MP3 audio tracks in the same album as a slide show with sound.

• AUDIO (MP3): play back MP3 audio tracks continuously.

• IMAGE (JPEG): play back JPEG image files as a slide show.

4 Press V or v repeatedly to select

“AUTO”, then press ENTER.

5 Press MENU.

The list of albums appears on the TV screen.

6 Press V or v repeatedly to select

the album you want, then press H (or nN on the unit).

The slide show with sound starts from the selected album.

To stop playback

Press x.

To turn on or off the display of album list

Press MENU repeatedly.

To cancel slide show with sound

Select “AUDIO (MP3)” or “IMAGE (JPEG)” in step 4.

Notes

• In some cases, y ou cannot change the “MODE (MP3, JPEG)” setting when “MODE (MP3, JPEG)” has been set to

– “IMAGE (JPEG)” and the selected disc only

contains MP3 audio tracks.

– “AUDIO (MP3)” and the selected disc only

contains JPEG image files.

• You cannot play back JPEG image files and MP3 audio tracks at the same time if they are not contained in the same album.

• When the playback duration of the JPEG image files is longer than the MP3 audio tracks, the slide show continues without sound.

• When the playback duration of the MP3 audio tracks is longer than the JPEG image files, the MP3 audio tracks are played back without the slide show.

• If there are no MP3 audio tracks in the DATA CD or DATA DVD and “MODE (MP3, JPEG)” is set to “AUDIO (MP3)”, “No audio data” appears on the TV screen and the disc cannot be played back.

• If there are no JPEG image files in the DATA CD or DATA DVD and “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)”, “No image data” appears on the TV screen and the disc cannot be played back.

• The PICTURE NAVI button does not work when “MODE (MP3, JPEG)” is set to “AUDIO (MP3)”.

• If you play back a large data size of MP3 audio tracks and JPEG image files at the same time, the sound may skip. It is recommended that you reduce the data size by creating the MP3 audio tracks with a bit rate of 128 kpbs or lower. If the skipping so und still occurs, reduce the data size of JPEG image files by creating the JPEG image files in smaller size or lower resolution.

Disc – Playback

continued

Tips

• You can also change the slide show speed and effect

• If you want to play back a slide show to the same audio track, set the track to Repeat Play (pag e 22) .

(page 30)

while playing JPEG image files.

(page 30)

Note

Some JPEG image files (especially progressive JPEG image files or JPEG image files with 3,000,000 pixels or more) may take a longer time to display than others, which may make the duration seems longer that the option you selected.

Specifying the slide show speed

(JPEG image files only)

When you play back JPEG image files as slide show, you can specify the duration for an image to appear on the TV screen.

1 Press DISPLAY repeatedly until the

Control Menu for JPEG image files appears on the TV screen.

2 Press V or v repeatedly to select

(INTERVAL), then press

ENTER.

The options for “INTERVAL” appear on the TV screen.

12)

3 (

1( 10 / 29 / 2 004 NORMAL

NORMAL FAST SLOW 1 SLOW 2

DATA C D

JPEG

3 Press V or v repeatedly to select the

setting you want.

The default setting is underlined.

• NORMAL

: Sets the duration to about 6 to 9 seconds (Images that are 4,000,000 pixels or more will lengthen the duration).

• FAST: Sets the duration shorter than NORMAL.

• SLOW 1: Sets the duration longer than NORMAL.

• SLOW 2: Sets the duration longer than SLOW 1.

4 Press ENTER.

The selected setting takes effect.

Selecting a transition effect for image files in the slide show

(JPEG image files only)

When you play back JPEG image files, you can select the transition effect to be used when viewing the slide show.

1 Press DISPLAY repeatedly until the

Control Menu for JPEG image files appears on the TV screen.

2 Press V or v repeatedly to select

(EFFECT), then press ENTER.

The options for “EFFECT” appear on the TV screen.

12)

3 (

1 0 / 2 3 / 2 0 0 4

MODE 1

MODE 1 MODE 2

MODE 3 MODE 4 MODE 5

OFF

DATA CD

JPEG

3 Press V or v repeatedly to select the

setting you want.

The default setting is underlined.

• MODE 1 to bottom of the screen.

• MODE 2: The image sweeps in from left to right of the screen.

• MODE 3: The image stretches out from the center of the screen.

• MODE 4: The image changes with MODE 1, MODE 2, MODE 3 and some other transition effect randomly.

• MODE 5: The next image slides over the current image.

• OFF: Turns off this function.

: The image sweeps in from top

4 Press ENTER.

The selected setting takes effect.

Using the on-screen display to search for a title/chapter/scene/track/ index/album/file

You can search a title (DVD VIDEO and DVD-R/DVD-RW in VR mode), chapter (DVD VIDEO and DVD-R/DVD-RW in VR mode), track (AUDIO CD, VIDEO CD and MP3 audio tracks), scene (VIDEO CD), index (VIDEO CD), album (MP3 audio tracks and JPEG image files) and file (JPEG image files). As titles, tracks, scenes, albums, chapters, indexes and files are assigned unique numbers on the disc, you can select the number you want from the Control Menu on the TV screen. You can also search for a particular point using the time code (Time Search) (DVD VIDEO and DVD-R/ DVD-RW in VR mode only).

1 Press DISPLAY. (When playing a

DATA CD or DATA DVD with JPEG image files, press DISPLAY twice.)

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select the

search item.

When playing a DVD VIDEO or

DVD-R/DVD-RW in VR mode

TITLE CHAPTER

x When playing a VIDEO CD without

PBC Playback

TRACK INDEX

x When playing a VIDEO CD or Super

VCD with PBC Playback

SCENE

x When playing an AUDIO CD

TRACK

x When playing a DATA CD or DATA

DVD (MP3 audio track)

ALBUM TRACK

x When playing a DATA CD or DATA

DVD (JPEG image file)

ALBUM FILE

Example: when you select (CHAPTER) “** (**)” is selected (** refers to a

number). The number in parentheses indicates the total number of titles, chapters, tracks, indexes, scenes, albums or files.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

DVD VIDEO

Disc – Playback

Selected row

continued

3 Press ENTER.

“** (**)” change to “– – (**)”.

)

1 2 ( 2 7

)

( 3 4

1 : 3 2 : 5 5

DVD VIDEO

4 Press V or v repeatedly or the numeric

buttons to select the title, chapter, track, index, scene, album or file number you want to search.

If you make a mistake, press CLEAR to cancel the number, then select another number.

5 Press ENTER.

The system starts playback from the selected title, chapter, track, index, scene, album or file.

To turn off the Control Menu

Press DISPLAY repeatedly until the Control Menu disappears from the TV screen.

Tip

When the Control Menu display is turned off, you can search for a chapter (DVD VIDEO and DVD-R/ DVD-RW in VR mode) or track (AUDIO CD and VIDEO CD) by pressing the numeric buttons and ENTER.

To search for a particular point using the time code

— Time Search

1 Press DISPLAY.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(TIME/TEXT).

“T **:**:**” (elapsed playing time of the current title) is selected.

3 Press ENTER.

“T **:**:**” changes to “T--:--:--”.

4 Input the time code using the numeric

buttons, then press ENTER.

For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, enter “2:10:20”. If you make a mistake, press CLEAR to cancel the number, then select another number.

Note

Depending on the disc, you cannot perform Time Search.

Tip

You can change the display to show elapsed playing time or remaining time. For details, see “Ch ecking the elapsed playing time, remaining time and titles” on page 68.

Searching by scene

— Picture Navigation

You can view the first scene of each track (VIDEO CD and Super VCD), each chapter (DVD VIDEO) or each title (DVD VIDEO) so that you can find the track, chapter or title you want quickly.

1 For DVD VIDEO, press PICTURE NAVI

repeatedly to select “CHAPTER VIEWER” or “TITLE VIEWER”. For VIDEO CD and Super VCD, press PICTURE NAVI to select “TRACK VIEWER”.

• CHAPTER VIEWER (DVD VIDEO

only): displays the first scene of each chapter.

• TITLE VIEWER (DVD VIDEO only):

displays the first scene of each title.

• TRACK VIEWER (VIDEO CD and

Super VCD only): displays the first sce ne of each track.

2 Press ENTER.

The first scene of the first 9 chapters, titles or tracks appears on the TV screen as follows:

3 Press V/v/B/b to select a chapter,

title or track, then press ENTER.

The system starts playing from the selected scene.

To cancel searching

Press O RETURN or DISPLAY.

Notes

• Depending on the disc, yo u may no t be able to select some items.

• During Picture Navigation, “VIEWER” appears in the display.

Tips

• If there are more than 9 chapters, titles, or tracks, “V” appears at the bottom right of t he screen.

• To display the remaining chapters, titles, or tracks, select a scene at the bottom row and press v. To return to the previous scene, select a scene at the top row and press V.

Disc – Playback

Disc – Various Functions

Selecting the audio format

When playing a DVD VIDEO recorded in multiple audio formats, you can select the audio format you want. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language. When playing a VIDEO CD, AUDIO CD or MP3 audio tracks, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a track with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.

Press AUDIO repeatedly during playback to select the audio signal you want.

The default setting is underlined.

x When playing a DVD VIDEO

Depending on the DVD VIDEO, the option of language and audio format varies.

When a 4-digit number is displayed, they represent a language code (see “Language code list” on page 90). When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.

x When playing a DVD-R/DVD-RW in VR

mode

The number of audio tracks recorded on a disc are displayed. Example:

•1: MAIN

• 1: SUB: the sub sound of the audio track 1.

• 1: MAIN+SUB: the main and sub sound of

• 2: MAIN: the main sound of the audio track 2.

: the main sound of the audio track 1.

the audio track 1.

• 2: SUB: the sub sound of the audio track 2.

• 2: MAIN+SUB: the main and sub sound of the audio track 2.

x When playing a VIDEO CD, AUDIO CD, or

MP3 audio track

•STEREO: the standard stereo sound.

• 1/L: the sound of the left channel (monaural).

• 2/R: the sound of the right channel

(monaural).

x When playing a Super VCD

•1: STEREO: the stereo sound of the audio

track 1.

• 1: 1/L: the sound of the left channel of the

audio track 1 (monaural).

• 1: 2/R: the sound of the right channel of the

audio track 1 (monaural).

• 2: STEREO: the stereo sound of the audio

track 2.

• 2: 1/L: the sound of the left channel of the

audio track 2 (monaural).

• 2: 2/R: the sound of the right channel of the

audio track 2 (monaural).

Notes

• While playing a DVD-R/DVD-RW in VR mode on

which only one audio str eam is recorded, “ 2: MAIN”, “2: SUB” and “2: MAIN+SUB” do not appear.

• While playing a Super VCD on which the audio track

2 is not recorded, no sound will come out when you select “2: STEREO”, “2: 1/L”, or “2: 2/R”.

• You cannot change the sound for DVD VIDEOs that

are not recorded in multiple au dio format.

• When you play back DVD VIDEOs, the sound may

change automatically.

Displaying the audio information of the disc

(DVD VIDEO only)

When you press AUDIO repeatedly during playback, the format of the current audio signal is displayed on the TV screen.

x When playing a DVD VIDEO

For example, in Dolby Digital format, multiple signals ranging from monaural to 5.1 channel signals can be recorded on a DVD VIDEO. Depending on the DVD VIDEO, the number of recorded channels may differ.

Surround (L/R)

1:ENGLISH DOLBY DIGITAL

Front (L/R) + Center

LFE (Low Frequency Effect)

3 / 2 .1

LRC

LFE

LS RS

The audio format of current track

The symbols shown on the TV screen represent the audio signal channels which are output from different speakers.

• L: Front Left

• R: Front Right

•C: Center

• LS: Surround Left

• RS: Surround Right

• S: Surround signal which is produced from Dolby Surround Sound processing or monaural surround audio signal.

• LFE: Low Frequency Effect

Example: For Dolby Digital 5.1 channel:

2 Surround components

DOLBY DIGITAL

2 Front components + 1 Center component

3 / 2 . 1

1 LFE (Low Frequency Effect) component

Changing the angles

You can change the viewing angle while playing a DVD VIDEO on which various angles (multiangles) for a scene are recorded. For example, while playing a scene of a train in motion, you can display the view from the front of the train, the left window of the train, or from the right window without having the train’s movement interrupted.

Press ANGLE repeatedly during playback.

Each time you press ANGLE, the angle changes.

Note

Depending on the DVD VIDEO, you may not be able to change the angle, even if multi-angles are recorded on the DVD VIDEO.

Displaying the subtitles

You can turn the subtitles on or off while playing a DVD VIDEO or DVD-R/DVD-RW in VR mode on which subtitles are recorded. You can also change the language of the subtitles with DVD VIDEO or DVD-R/DVD-RW in VR mode on which multilingual subtitles are recorded. For example, you can select the language you want and turn the subtitles on for better understanding.

Press SUBTITLE repeatedly during playback.

Each time you press SUBTITLE, the subtitle language changes or turns off.

Notes

• Depending on the DVD VI DEO, you may not be a ble to change the subtitles even if multilingual subtitles are recorded on the DVD VIDEO. You also may not be able to turn the subtitles off.

Disc – Various Fun ctio ns

Adjusting the delay

Restricting playback of between the picture and sound

— A/V SYNC

When the sound does not synchronize with the pictures on the screen, you can adjust the delay between the picture and sound.

1 Press DISPLAY when playback is

stopped.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(A/V SYNC), then press

ENTER.

The options for “A/V SYNC” appear on the TV screen.

)

1 ( 4 4 3 ( 2 8

OFF

OFF ON

)

1 : 3 0 : 5 0

DVD-VR

3 Press V or v repeatedly to select the

setting you want.

The default setting is underlined.

•OFF

: does not adjust.

• ON: adjusts the difference between picture and sound.

4 Press ENTER.

Note

Depending on the input stream, this function may not be effective.

the disc

— CUSTOM PARENTAL CONTROL,

PARENTAL CONTROL

You can set 2 kinds of playback restrictions for the disc you want.

• Custom Parental Control You can set playback restrictions so that the system will not play back inappropriate discs.

• Parental Control You can limit the playback of some DVD VIDEOs according to a predetermined level such as the age of the users. When a limited scene is played back, that scene may be skipped or replaced with different scenes.

The same password is used for both Custom Parental Control and Parental Control.

Preventing playback of specific discs

— CUSTOM PARENTAL CONTROL

You can set the same Custom Parental Control password for up to 40 discs. When you set the 41st-disc, the playback restriction for the first disc is canceled.

1 Insert the disc you want to set the

playback restriction.

If the disc is playing, press x to stop playback.

2 Press DISPLAY when playback is

stopped.

The Control Menu appears on the TV screen.

3 Press V or v repeatedly to select

(PARENTAL CONTROL), then

press ENTER.

The options for “PARENTAL CONTROL” appear on the TV screen.

If you make a mistake entering your password

Press B repeatedly to delete the number you have entered, then re-enter your password again.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF

ON PLAYER PASSWORD

DVD VIDEO

4 Press V or v repeatedly to select

“ON t”, then press ENTER. x If you have not entered a password

The display for registering a new password appears on the TV screen.

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press

Enter a 4-digit password using the numeric buttons, then press ENTER.

The display for confirming the password appears on the TV screen.

x When you have already registered a

password

The display for entering the password appears on the TV screen.

PARENTAL CONTROL

Enter password, then press

ENTER

To turn off the Custom Parental Control function

1 Follow steps 1 through 3 of “Preventing

playback of specific discs”.

2 Press V or v repeatedly to select “OFF t”,

then press ENTER.

3 Enter your 4-digit password using the

numeric buttons, then press ENTER.

To play back a disc for which Custom Parental Control is set

1 Insert the disc for which Custom Parental

Control is set.

The “CUSTOM PARENTAL CONTROL” display appears on the TV screen.

CUSTOM PARENTAL CONTROL

Custom parental control is already set. To play, enter your password

ENTER

and press

2 Enter your 4-digit password using the

numeric buttons, then press ENTER.

The system is ready for playback.

Tip

If you forget your password, enter the 6-digit number “199703” using the numeric buttons when the “CUSTOM PARENTAL CONTROL” display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Disc – Various Fun ctio ns

5 Enter or re-enter your 4-digit password

using the numeric buttons, then press ENTER.

“Custom parental control is set.” appears on the TV screen and the screen returns to the Control Menu.

continued

Limiting playback for children

— PARENTAL CONTROL

(DVD VIDEO only)

You can limit the playback of some DVD VIDEOs according to a predetermined level such as the age of the users. The “PARENTAL CONTROL” function allows you to set a playback limitation level.

1 Press DISPLAY when playback is

stopped.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(PARENTAL CONTROL), then

press ENTER.

The options for “PARENTAL CONTROL” appear on the TV screen.

1 2 ( 2 7 ) 1 8 ( 3 4 ) T

1 : 3 2 : 5 5

OFF ON PLAYER PASSWORD

DVD VIDEO

3 Press V or v repeatedly to select

“PLAYER t”, then press ENTER. x If you have not entered a password

The display for registering a new password appears on the TV screen.

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press

Enter a 4-digit password using the numeric buttons, then press ENTER.

The display for confirming the password appears on the TV screen.

x When you have already registered a

password

The display for entering the password appears on the TV screen.

PARENTAL CONTROL

Enter password, then press

ENTER

4 Enter or re-enter your 4-digit password

using the numeric buttons, then press ENTER.

The display for setting the playback limitation level appears on the TV screen.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

USA

5 Press V or v repeatedly to select

“STANDARD”, then press ENTER.

The options for “STANDARD” appear on the TV screen.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

USA USA

OTHERS

6 Press V or v repeatedly to select a

geographic area as the playback limitation level, then press ENTER.

The area is selected. When you select “OTHERS t”, enter the

area code for the geographic area you want according to the “Parental Control Area Code List” on page 39 by using the numeric buttons.

7 Press V or v repeatedly to select

“LEVEL”, then press ENTER.

The options for “LEVEL” appear on the TV screen.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

8: 7: 6: 5:

OFF

NC17

8 Press V or v repeatedly to select the

level you want, then press ENTER.

Parental Control setting is completed.

PARENTAL CONTROL

LEVEL: STANDARD: USA

The lower the value, the stricter the limitation.

If you make a mistake entering your password

Press B repeatedly to delete the number you have entered, then re-enter your password again.

To turn off the Parental Control function

Set “LEVEL” to “OFF” in Step 8.

To play back a disc for which Parental Control is set

1 Insert the disc and press H (or nN on

the unit).

The display for entering your password appears on the TV screen.

2 Enter your 4-digit password using the

numeric buttons, then press ENTER.

The system starts playback.

4: PG13

Notes

• The Control Menu display will show different items depending on the disc type.

• When you play back DVD VIDEOs which do not have the Parental Control function, playback cannot be limited on this system.

• Depending on the DVD VIDEO, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If Resume Play is canceled, the level returns to the original level.

Tip

If you forget your password, remove the disc and repeat steps 1 to 3 of “Limiting playback for children”. When you are asked to enter your password, enter “199703” using the numeric buttons, then press ENTER. The display will ask you to enter a new 4-digit password. After you enter a new 4-digit password, reload the disc and press H (or nN on the uni t). When the display for enter in g yo ur p assw or d ap pe ars, enter your new password.

Parental Control Area Code List

Area Code

number

Argentina 2044 Australia 2047 Austria 2046 Belgium 2057 Brazil 2070 Canada 2079 Chile 2090 China 2092 Denmark 2115 Finland 2165 France 2174 Germany 2109 India 2248 Indonesia 2238 Italy 2254 Japan 2276 Korea 2304 Malaysia 2363

Area Code

Mexico 2362 Netherlands 2376 New

Zealand Norway 2379 Pakistan 2427 Philippines 2424 Portugal 2436 Russia 2489 Singapore 2501 Spain 2149 Sweden 2499 Switzerland 2086 Thailand 2528 United

Kingdom

number

2390

2184

Disc – Various Fun ctio ns

continued

Changing the password

1 Press DISPLAY when playback is

stopped.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(PARENTAL CONTROL), then

press ENTER.

The options for “PARENTAL CONTROL” appear on the TV screen.

3 Press V or v repeatedly to select

“PASSWORD t”, then press ENTER.

The display for entering the password appears on the TV screen.

4 Enter your 4-digit password using the

numeric buttons, then press ENTER.

5 Enter a new 4-digit password using the

numeric buttons, then press ENTER.

6 To confirm your password, re-enter it

using the numeric buttons, then press ENTER.

If you make a mistake entering your password

Press B repeatedly to delete the number you have entered, then re-enter your password again.

Using the DVD setup menu

By using the DVD setup menu, you can make various adjustments to items such as picture and sound. For details on each DVD setup menu item, see pages 41–47. For an overall list of DVD setup menu items, see page 89.

Note

Playback settings stored in the disc take priority over the DVD setup menu settings. Therefore, some of the DVD setup menu settings may not be performed.

1 Press DISPLAY when playback is

stopped.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(SETUP), then press ENTER.

The options for “SETUP” appear on the TV screen.

)

1 2 ( 2 7

)

BNR

1 8 ( 3 4

QUICK

QUICK CUSTOM RESET

3 0:5 0

DVD VIDEO

3 Press V or v repeatedly to select

“CUSTOM”, then press ENTER.

The Setup menu appears on the TV screen.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

ORIGINAL

ENGLISH

4 Press V or v repeatedly to select the

setup item from the displayed list: “LANGUAGE SETUP”, “SCREEN SETUP”, “CUSTOM SETUP”, or “SPEAKER SETUP”. Then press ENTER.

The setup item is selected. Example: SCREEN SETUP

Selected item

SCREEN SETUP

TV TYPE: SCREEN SAVER: ON BACKGROUND: BLACK LEVEL:

BLACK LEVEL 4:3 OUTPUT:

Setup items

4:3 LETTER BOX

JACKET PICTURE

(COMPONENT OUT)

OFF

FULL

5 Press V or v repeatedly to select the

SCREEN SETUP

TV TYPE:

BLACK LEVEL:

4:3 LETTER BOX

BLACK LEVEL

(COMPONENT OUT)

item you want, then press ENTER.

The options for the selected item appear on the TV screen. Example: TV TYPE

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: BLACK LEVEL: BLACK LEVEL 4:3 OUTPUT: FULL

4:3 LETTER BOX 4:3 LETTER BOX

4:3 PAN SCAN

(COMPONENT OUT)

:OFF

Options

16:9

6 Press V or v repeatedly to select the

setting you want, then press ENTER.

The setting is selected and setup is completed.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: BLACK LEVEL:

BLACK LEVEL 4:3 OUTPUT:

(COMPONENT OUT)

Selected setting

JACKET PICTURE

16:9

ON ON

OFF

FULL

x OSD (On-Screen Display)

Switches the language of the on-screen display.

x MENU (DVD VIDEO only)

Select the language for the DVD menu.

x AUDIO (DVD VIDEO only)

Switches the language of the sound track. When you select “ORIGINAL”, the language given priority in the disc is selected.

x SUBTITLE (DVD VIDEO only)

Switches the language of the subtitle . When you select “AUDIO FOLLOW”, the language for the subtitles changes according to the language you selected for the sound track.

Note

When you select a language in “MENU ”, “SUBTITLE”, or “AUDIO” that is not recorded on the DVD VIDEO, one of the recorded language is automatically selected. However, depending on the disc, the language may not be selected automatically.

Tip

If you select “OTHERS t” in “MENU”, “SUBTITLE”, and “AUDIO”, enter a language code from the “Language code list” (page 90) using the numeric buttons.

Setting the TV screen

Disc – Various Fun ctio ns

Setting the language

— LANGUAGE SETUP

“LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track.

Select “LANGUAGE SETUP” in the Setup menu. For details, see “Using the DVD setup menu” (page 40).

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH

ORIGINAL

ENGLISH

— SCREEN SETUP

Choose the settings according to the TV you connected.

Select “SCREEN SETUP” in the Setup menu. For details, see “Using the DVD setup menu” (page 40). The default settings are underlined.

SCREEN SAVER: ON BACKGROUND: JACKET PICTURE

4:3 OUTPUT: FULL

OFF

continued

x TV TYPE (DVD VIDEO only)

Selects the aspect ratio of the connected TV (4:3 standard or wide). The default setting varies depending on the country.

4:3 LETTER BOX

4:3 PAN SCAN

16:9

4:3 LETTER BOX

4:3 PAN SCAN

16:9

Note

Depending on the DVD VIDEO, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN” or vice versa.

Select this when you connect a 4:3 screen TV. This setting displays a wide picture with bands on the upper and lower portions of the screen.

Select this when you connect a 4:3 screen TV. This setting displays the wide picture on the entire screen and cuts off the portions that do not fit.

Select this when you connect a wide-screen TV or a TV with a wide mode function.

x SCREEN SAVER

Turn on or off the screen saver. If you turn on the screen saver, the screen saver image appears when playback is stopped or paused for 15 minutes or when you play back an AUDIO CD or MP3 audio tracks for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press H

(or nN on the unit) to turn off the

screen saver.

ON OFF

Turns on the screen saver. Turns off the screen saver.

x BACKGROUND

Selects the background color or picture to be displayed on the TV screen. The background color or picture is displayed when playback is stopped or while playing an AUDIO CD and MP3 audio tracks.

JACKET PICTURE

GRAPHICS

BLUE BLACK

The jacket picture (still picture) appears in the background, but only when the jacket picture is already recorded on the disc (DVD VIDEO, CD-EXTRA, etc.). If the disc does n ot contain a jacket picture, the “GRAPHICS” picture appears.

A preset picture stored in the system appears in the backgroun d.

The background color is blue. The background color is black.

x BLACK LEVEL

Select the black level (setup level) for the video signals output from the video jacks other than COMPONENT VIDEO OUT jacks.

OFF

Set the black level of the output signal to the standard level.

Lower the standard black level. Use this when the picture b ecomes too white.

x BLACK LEVEL (COMPONENT OUT)

Select the black level (setup level) for the video signals output from the COMPONENT VIDEO OUT jacks. You cannot select “BLACK LEVEL (COMPONENT OUT)” when the system outputs progressive signal.

Setting playback options

— CUSTOM SETUP

Use this to set up playback related and other settings.

OFF

Set the black level of the output signal to the standard level.

Raise the standard black level. Use this when the pic ture becomes too black.

x 4:3 OUTPUT

This setting is effective only when you set “TV TYPE” in “SCREEN SETUP” to “16:9” (page 42). Change this setting to watch 4:3 aspect ratio progressive signals. If you can change the aspect ratio on your progressive format (525p/625p) compatible TV, change the setting on your TV.

Note

This setting is effective only when “P AUTO” or “P VIDEO” is selected. Press PROGRESSIVE on the unit repeatedly to select “P AUTO” or “P VIDEO”.

FULL

NORMAL

Select this when you can change the aspect ratio on your TV.

Select this when you cannot change the aspect ratio on your TV. Shows a 16:9 aspect ratio signal with black bands on left and right sides of the image.

Select “CUSTOM SETUP” in the Setup menu. For details, see “Using the DVD setup menu” (page 40). The default settings are underlined.

CUSTOM SETUP

PAUSE MODE: TRACK SELECTION: MULTI-DISC RESUME: AUDIO DRC:

AUTO

OFF

x PAUSE MODE (DVD VIDEO and DVD-R/

DVD-RW in VR mode only)

Select the picture in pause mode.

AUTO

FRAME

The picture, including subjects that move dynamically, is ou tput with no jitter. Normally select this position.

The picture, including subjects that do not move dynamically, is output in high resolution.

x TRACK SELECTION (DVD VIDEO only)

Gives priority to the sound track which contains the highest number of channels when you play back a DVD VIDEO on which multiple audio formats (PCM, DTS, MPEG audio, or Dolby Digital format) are recorded.

Disc – Various Fun ctio ns

16:9 aspect ratio TV

OFF AUTO

No priority given. Priority given.

continued

Notes

• When you set “TRACK SELECTION” to “AUTO”, the language may change. The “TRACK SELECTION” setting has higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 41). However, depending on the disc, this function may not be performed.

• If PCM, DTS, Dolby Digital, and MPEG audio sound tracks have the same number of channels, the system selects PCM, DTS, Dolby Digital, and MPEG audio sound tracks in this order.

x MULTI-DISC RESUME (DVD VIDEO and

VIDEO CD only)

Turns on and off the Multi-Disc Resume function. The resume playback point can be stored in the memory for up to 40 different DVD VIDEOs or VIDEO CDs (page 19).

OFF

Stores the resume playback point in the memory for up to 40 discs.

Does not store the resume playback point in the memory. Playback starts at the resume playback point only for the current disc in the system.

x AUDIO DRC (Dynamic Range

Compression) (DVD VIDEO and DVD-R/ DVD-RW in VR mode only)

Narrows the dynamic range of the sound track. Useful for watching movies at low volume late at night.

OFF

STANDARD

MAX

No compression of dynamic range.

Reproduces the sound track with the kind of dynamic range that the recording engineer intended.

Narrows the dynamic range fully.

Setting the speakers

— SPEAKER SETUP

To obtain the best possible surround sound, set the size of the speakers you have connected and their distance from your listening position. Then, use the test tone to adjust the level of the speakers to the same level.

Select “SPEAKER SETUP” in the Setup menu. For details, see “Using the DVD setup menu” (page 40). The default settings are underlined.

SPEAKER SETUP

SIZE: DISTANCE: LEVEL(FRONT): LEVEL(SURROUND): TEST TONE:

FRONT: CENTER: SURROUND: SUBWOOFER:

To return to the default setting when changing a setting

Press CLEAR before you press ENTER. However, note that you cannot return the setting of “SIZE” to default setting.

Note

You cannot perform SPEAKER SETUP when you connect headphones or microphones to the unit.

x SIZE

When you connect or disconnect the center speaker, surround speakers or subwoofer or when you move the surround speakers, change the setting for CENTER, SURROUND and SUBWOOFER. Since the front speaker setting is fixed, you cannot change them.

OFF

YES YES

BEHIND

YES

Note

AUDIO DRC can only be performed with Dolby Digital sources.

Position diagram

x DISTANCE

The default distance setting for the speakers in relation to the listening position is shown below. When you set the distance using QUICK SETUP (page 14), the settings are automatically displayed. The items that are set to “NONE” in “SIZE” cannot be selected.

Disc – Various Fun ctio ns

FRONT CENTER

YES YES: Normally select this.

NONE: Select this if the center speaker is not connected.

SURROUND

BEHIND: Select this if the surround speakers are located in section B.

SIDE: Select this if the surround speakers are located in section A. NONE: Select this if the surround speakers are not connected.

SUBWOOFER

YES: Normally, select this (FST-ZX100D/LBT-ZX100D/ MHC-GN1000D only). Select this if you have connected an optional sub woofer (FST-ZX80D/ LBT-ZX80D only). NONE: Select this if the subwoofer is not connected (FST-ZX100D/ LBT-ZX100D/MHC-GN1000D only). Select this if an optional sub woofer is not connected (FST-ZX80D/ LBT-ZX80D only).

Notes

• When you change the setting, the sound cuts off for a moment.

• Depending on the settings of other speakers, the subwoofer may output excessive sound.

• When you play back a DVD VIDEO that does not have subwoofer output recorded, no sound is output from the subwoofer, even if “SUBWOOFER” is set to “YES”.

10ft/3.0m 10ft/3.0m

Be sure to change the value in the Setup menu when you move the speakers.

FRONT 10ft 3.0m

CENTER 10ft 3.0m

SURROUND 10ft 3.0m

When you perform QUICK SETUP (page 14), the default settings are changed.

The setting range changes depending on the front speaker setting.

Notes

• When you adjust the speaker distance, the sound may cut off for a moment.

• If each front and surround speakers are not placed at an equal distance from your listening position, set the distance according to the closest speaker.

• Do not place the surround speakers further away from your listening position than the front speakers.

• Depending on the input stream, the “DISTANCE” setting may not be effective.

Front speaker distance from the

listening position can be set in 1 feet (0.2 meter) increments from 3 to 23 feet (0.9 to 6.9 meters).

Center speaker distance from the

1)2)

listening position can be set in 1 feet (0.2 meter) increments from 0 to 23 feet (0.0 to 6.9 meters).

Surround speaker distance from the

1)2)

listening position can be set in 1 feet (0.2 meter) increments from 0 to 23 feet (0.0 to 6.9 meters).

continued

x LEVEL (FRONT)

You can adjust the level of the front speakers, center speaker and subwoofer as follows. Be sure to set “TEST TONE” to “ON” for easy adjustment. The items that are set to “NONE” in “SIZE” cannot be selected.

0.0 dB R

0.0 dB CENTER

0.0 dB SUBWOOFER

0.0 dB

Set this between –6.0 dB and 0.0 dB in 1.0 dB increments.

Set this between –6.0 dB and +6.0 dB in 1.0 dB increments.

Set this between –6.0 dB and +6.0 dB in 1.0 dB increments (FST-ZX100D/LBT-ZX100D/ MHC-GN1000D only). Set this between –10.0 dB and +10.0 dB in 1.0 dB increments (FST-ZX80D/LBT-ZX80D only).

Depending on the sub woofer, the sound output may be smaller compared to other speakers when you adjust the “SUBWOOFER” setting during test tone.

x LEVEL (SURROUND)

You can adjust the level of each surround speakers as follows. Be sure to set “TEST TONE” to “ON” for easy adjustment. This setting cannot be selected when “SURROUND” is set to “NONE” in the “SIZE” setting.

0.0 dB R

0.0 dB

Tip

To adjust the volume of all speakers at the same time, press VOLUME +/– repeatedly (or turn MASTER VOLUME on the unit).

x TEST TONE

Set this between –6.0 dB and +6.0 dB in 1.0 dB increments.

The speakers will emit a test tone to adjust “LEVEL (FRONT)” and “LEVEL (SURROUND)”.

The test tone is emitted from each speaker in sequence (FST-ZX100D/LBT-ZX100D/ MHC-GN1000D only). The test tone is emitted from each speaker in sequence except for subwoofer (FST-ZX80D/LBT-ZX80D only). The test tone is emitted from the selected speakers when you select “LEVEL (FRONT)” or “LEVEL (SURROUND)”.

Adjusting the speaker level by using the test tone

1 Press DISPLAY when playback is

stopped.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(SETUP), then press ENTER.

The options for “SETUP” appear on the TV screen.

3 Press V or v repeatedly to select

“CUSTOM”, then press ENTER.

The Setup menu appears on the TV screen.

4 Press V or v repeatedly to select

“SPEAKER SETUP”, then press ENTER.

5 Press V or v repeatedly to select

“TEST TONE”, then press ENTER.

6 Press V or v repeatedly to select

“ON”, then press ENTER.

For FST-ZX100D, LBT-ZX100D and MHC-GN1000D, you will hear the test tone from each speaker in sequence. For FST-ZX80D and LBT-ZX80D, you will hear the test tone from each speaker in sequence except for subwoofer.

7 Press V or v repeatedly to select

“LEVEL (FRONT)”, then press ENTER.

8 Press V or v repeatedly to select the

speaker, then press ENTER.

The test tone is emitted from the selected speaker.

OFF

The test tone is not emitted from the speakers.

9 Press V or v repeatedly to adjust the

level from your listening position.

10Press ENTER when you have finished

making the adjustment.

11Repeat steps 8 to 10 to adjust the

speaker level for other speakers.

12Press B. 13Press V or v repeatedly to select

“LEVEL (SURROUND)”, then press ENTER.

14Repeat steps 8 to 11 to adjust the

speaker level for other speakers.

15Press B. 16Press V or v repeatedly to select

“TEST TONE”, then press ENTER.

17Press V or v repeatedly to select

“OFF”, then press ENTER.

Note

When you adjust the speaker settings, the sound may cut off for a moment.

Tip

To adjust the volume of all speakers at the same time, press VOLUME +/– repeatedly (or turn MASTER VOLUME on the unit).

Tuner

Presetting radio stations

You can preset up to 20 FM stations and 10 AM stations. You can then tune in any of those stations simply by selecting the corresponding preset number.

Tuner

Automatic tuning preset

You can automatically tune in all of the stations that can be received in your area and then store the frequency of your favourite stations manually.

1 Press FUNCTION +/– repeatedly to

select “TUNER FM” or “TUNER AM” (or press TUNER/BAND on the unit repeatedly to select “FM” or “AM”).

2 Press and hold TUNING +/– until the

frequency indication starts to change and then release.

“AUTO” lights up in the display. Scanning stops automatically when a station is tuned in and “TUNED” lights up in the display. When a FM stereo program is tuned in, “STEREO” lights up in the display.

If “TUNED” does not light up and the scanning does not stop

Set the frequency of the radio station you want as described in step 2 of “Manual tuning preset”.

3 Press MENU.

“Memory?” flashes in the display.

continued

4 Press ENTER.

A preset number flashes in the display. The stations are stored from preset

number 1.

Preset number

4 Press ENTER.

A preset number flashes in the display. The stations are stored from preset

number 1.

Preset number

5 Press PRESET +/– repeatedly to select

the preset number you want.

6 Press ENTER.

“Complete!” appears in the display. The station is stored.

7 Repeat steps 1 to 6 to store other

stations.

Manual tuning preset

You can manually tune in and store the frequency of your favourite stations.

1 Press FUNCTION +/– repeatedly to

select “TUNER FM” or “TUNER AM” (or press TUNER/BAND on the unit repeatedly to select “FM” or “AM”).

2 Press TUNING +/– repeatedly to tune in

the station you want.

3 Press MENU.

“Memory?” flashes in the display.

5 Press PRESET +/– repeatedly to select

the preset number you want.

6 Press ENTER.

“Complete!” appears in the display. The station is stored.

7 Repeat steps 1 to 6 to store other

stations.

Other operations

To Do this

Tune in a station with a weak signal

Stop scanning during automatic tuning

Cancel presetting Press MENU.

To change the AM tuning interval

The factory setting for AM tuning interval is 10 kHz. Use the buttons on the unit for the operation.

1 Press TUNER/BAND repeatedly to select

“AM”.

2 Press ?/1 to turn off the system. 3 Hold down ENTER and then press ?/1 to

turn on the system.

“AM 9k STEP” or “AM 10k STEP” appears in the display.

When you change the interval, all the AM preset stations are erased. To reset the interval, repeat the same procedure.

Follow the procedure described in “Manual tuning preset” (page 48).

Press x.

Note

You cannot change the AM tuning interval in Power Saving Mode (page 66).

Tips

• The preset stations are r etained f or half a day even if you unplug the power cord or if a power failure occurs.

• If you press TUNER/BAND on the unit while the system is turned off, the system turns on automatically and “TUNER” is selected as the function except during Power Saving Mode.

Listening to the radio

You can listen to a radio station either by selecting a preset station, or by manually tuning in the station.

Listening to a preset radio station

— Preset Tuning

Before tuning to preset stations, be sure to preset them first (see “Presetting radio stations” on page 47).

1 Press FUNCTION +/– repeatedly to

select “TUNER FM” or “TUNER AM” (or press TUNER/BAND on the unit repeatedly to select “FM” or “AM”).

2 Press PRESET +/– repeatedly to select

the preset station you want.

FrequencyPreset number

Listening to a non-preset radio station

— Manual Tuning

1 Press FUNCTION +/– repeatedly to

select “TUNER FM” or “TUNER AM” (or press TUNER/BAND on the unit repeatedly to select “FM” or “AM”).

2 Press TUNING +/– repeatedly to tune in

the station you want.

Tips

• For Preset Tuning, you can use the numeric buttons to select a preset station. Press the numeric button(s) to enter the preset number and then press ENTER.

• To improve broadcast reception, adjust the supplied antennas, or connect an external antenna.

• When an FM stereo program has static noise, press FM MODE repeatedly until “MONO” lights up in the display. There will be no stereo effect, but the reception will improve.

• To record the radio programs, see “Recording onto a tape manually” (page 51) or “Timer recording radio programs” (page 65).

Tuner

Tape – Playback

Loading a tape

1 Push b (Z A) or B (B Z) on the unit

according to its direction to open the selected deck.

Push here to eject the tape deck

2 Load a tape into Deck A or B.

With the side you want to play back or record facing forward

3 Push the center of the tape lid to close

the deck.

Playing a tape

You can use TYPE I (normal) tape.

1 Load a tape. 2 Press FUNCTION +/– (or TAPE A/B on

the unit) repeatedly to select “TAPE A” or “TAPE B”.

3 Press DIRECTION on the unit

repeatedly to select “g” to play back one side, “j” sides or “RELAY” back both decks in succession.

to play back both

(Relay Play) to play

4 Press H (or nN on the unit).

The tape starts playing. Press H (or nN on the unit) again to play back the reverse side.

Reverse Front side indicator

Tape presence indicator

The playback stops automatically after repeating the sequence five times.

Relay Play follows this cyclic sequence up to five times, then stops: Deck A (front side) t Deck A (reverse side) t Deck B (front side) t Deck B (reverse side)

Other operations

To Do this

Stop playback Press x. Pause playback Press X. Press X again to resume

Fast-forward or rewind

Remove a tape Push b (Z A) or B (B Z) on the

Note

Do not push b (Z A) or B (B Z) on the unit while playing a tape, otherwise the tape could be damaged.

Tips

• When a tape is inserted, the corresponding presence indicator lights up in the display.

• If you press TAPE A/B on the unit while the system is turned off, the system turns on au tomatically and “TAPE A” or “TAPE B” is selected as the function except during Power Saving Mode.

• If you press H (or nN on the unit) when the TAPE A function is selected and there is no tape in Deck A, the system automatically switches to the TAPE B function when there is a tape in Deck B and vice versa. Then, playback will start.

playback. Press m or M (or m or

M on the unit). To return to normal playback, press H (or nN on the unit).

unit according to its direction when playback is stopped.

side indicator

Tape – Recording

Recording your favorite disc onto a tape

— CD Synchro Recording

You can record a whole disc onto a tape. You can use TYPE I (normal) tape. The recording level is adjusted automatically. Use the buttons on the unit for the operation.

1 Load a recordable tape into Deck B. 2 Press DVD and load a disc you want to

record.

3 Press CD SYNC.

“SYNC” lights up in the display and “REC” flashes in the display. Deck B stands by for recording.

4 Press DIRECTION repeatedly to select

“g” to record on one side or “j” (or “RELAY”) to record on both sides.

5 Press REC PAUSE/START.

“REC” lights up in the display. Recording starts.

To stop recording

Press x.

Notes

• You cannot listen to other sources while recording.

• When you press CD SYNC, the sound field is automatically changed to LINK if the current sound field is SBS MULTI, A.F.D. AUTO, PRO LOGIC, PLII MOVIE, PLII MUSIC, V.M.DIM or 2CH STEREO and to HP 2CH if the current sound field is HP VIRTUAL.

• CD Synchro Recording stops when the current disc finishes playback.

• The CD Synchro Recording function cannot perform under the following conditions:

– During playback of the disc. – When the display for entering the password

appears on the TV screen during Cu stom Pa rent al Control function.

– Before the system finishes reading the Ta ble of

Contents (TOC) of the disc.

• When CD Synchro Recording starts, – the setting for Repeat Play changes to “REPEAT

OFF”.

– Program Play and Shuffle Play is canceled.

• When you record from a VIDEO CD, PBC playback is automatically canceled.

• If you connect or disconnect a microphone or headphone during recording, the sound may cut off for a moment.

Tips

• When recording from the reverse side: After step 1 of “Recording you r favorite disc onto a tape” (page 51), press TAPE A/B repeatedly until “TAPE B” appears in the display. Press nN repeatedly until the TAPE B reverse side in di ca t or lights up to start playback of the reverse side. Press x at the point you want to start recording.

• When recording on both sides: Be sure to start from the front side. If you start fro m the reverse side, recording stops at the end of the reverse side.

Recording onto a tape manually

— Manual Recording

You can record just the portions you like from a disc, tape or radio program onto a tape. You can also record from connected components (see “Hooking up optional components” on page 71). Use the buttons on the unit for the operation.

1 Load a recordable tape into Deck B. 2 Press DVD, TUNER/BAND, TAPE A/B,

TV/SAT or VIDEO to select the source you want to record.

3 Load the disc, tape or tune to the

station you want to record. To record from the connected component, connect the external audio sources.

4 Press REC PAUSE/START.

“REC” flashes in the display. Deck B stands by for recording.

5 Press DIRECTION repeatedly to select

“g” to record on one side or “j” (or “RELAY”) to record on both sides.

continued

Tape – Playback/Tape – Recording

6 Press REC PAUSE/START.

“REC” lights up in the display. Recording starts.

7 Start playing the source to be

recorded.

To stop recording

Press x.

Notes

• When you press REC PAUSE/START, the sound field is automatically changed to LI NK if the current sound field is SBS MULTI, A.F.D. AUTO, PRO LOGIC, PLII MOVIE, PLII MUSIC, V.M.DIM or 2CH STEREO and to HP 2CH if the current sound field is HP VIRTUAL.

• You cannot listen to other sources while recording.

Tips

• When recording from the reverse side: After step 1 of “Recording onto a tape manually” (page 51), press TAPE A/B repeatedly until “TAPE B” appears in the display. Press nN repeatedly until the TAPE B reverse side indicator lights up to start playback of the revers e side. Press x at the point you want to start recording.

• When recording on both sides: Be sure to start from the front side. If you start from the reverse side, recording stops at the end of the reverse side.

• When recording from the radio: If noise is heard while recording from the radio, move the respective antenna to reduce the noise.

• When recording from a disc onto a tape manually: You can press . or > repeatedly to select the tracks during recording pau se mode (af ter step 4 a nd before step 6 of “Recording onto a tape manually” (page 51)).

• When recording from the tape: If you set the direction to “j” (or “RELAY”) when the tapes you use have different lengths, the tape in each deck reverses independentl y.

Sound Adjustment

Adjusting the sound

You can reinforce the bass and create a more powerful sound. The GROOVE setting is ideal for music sources, and the V-GROOVE setting is ideal for video sources (movie, etc.).

Press GROOVE on the unit repeatedly.

Each time you press the button, the display changes cyclically as follows:

GROOVE ON* t V-GROOVE ON* t GROOVE OFF

* The volume switches to power mode and the

equalizer curve changes.

Tips

• The default setting is “GROOVE ON”.

• “GROOVE” lights up in the display if “GROOVE ON” is selected.

• “V-GROOVE” lights up in the display if “V-GROOVE ON” is selected.

Selecting the preset effect

Use the buttons on the unit for the operation.

Turn OPERATION DIAL clockwise or counterclockwise to select the preset effect you want.

Preset effect options

Effect Category

ROCK POP JAZZ DANCE SOUL TECHNO HIP HOP

MP3 EQ MP3 audio tracks FLAT Original music source USER EQ 1

USER EQ 2 USER EQ 3

Standard music sources

User equalizer setting

To cancel the preset effect

Turn OPERATION DIAL clockwise or counterclockwise until “FLAT” appears in the display.

Note

To store the user equalizer setting, see “Adjusting the graphic equalizer and storing the user equalizer setting” on page 53.

Adjusting the graphic equalizer and storing the user equalizer setting

You can adjust the sound by raising or lowering the level of specific frequency band, then store up to three user equalizer settings in the memory. Use the buttons on the unit for the operation.

1 Press EQ BAND repeatedly to select a

frequency band.

2 Turn OPERATION DIAL clockwise or

counterclockwise to adjust the level.

Frequency band

Frequency level

3 Repeat steps 1 and 2 to adjust the level

of other frequency bands.

4 Press ENTER.

A user equalizer number flashes in the display.

5 Turn OPERATION DIAL clockwise or

counterclockwise to select a user equalizer number (1~3) you want to store the equalizer setting.

6 Press ENTER.

This setting is automatically stored as the user equalizer setting you selected in step 5.

The previous setting stored at this memory location is erased and replaced by the new setting.

To cancel storing

Turn OPERATION DIAL clockwise or counterclockwise in step 5 to select “EXIT?”, then press ENTER.

To call up a user equalizer setting

Turn OPERATION DIAL clockwise or counterclockwise until the user equalizer setting number you want appears in the display.

Selecting the sound field

You can take advantage of the surround sound simply by selecting one of the sound fields. They bring the exciting and powerful sound of movie theaters into your home.

1 Press SOUND FIELD.

The last selected sound field appears in the display.

2 Press V/v or B/b repeatedly (or turn

OPERATION DIAL on the unit clockwise or counterclockwise) when the last selected sound field appears in the display to select the sound field you want.

The display changes as follows:

x When the headphones are not connected

SBS MULTI1) y A.F.D. AUTO1) y PRO LOGIC PLII MUSIC LINK y 2CH STEREO

x When the headphones are connected

HP 2CH y HP VIRTUAL

y PLII MOVIE1) y

y V.M.DIM.1) y

Sound Adjustment

continued

These sound fields cannot be selected when: – the system is in standby for recording or during

recording. – a microphone is connected. – the Karaoke Mode is turned on.

• SBS MULTI (Sound Broadcasting System Multi mode): Performs suitable decoding based on the source to maximize the sound field effect. This mode lets you enjoy audio playback of all types of discs from multiple speakers.

• A.F.D. AUTO (Auto Format Direct Auto): The number of sound channels depends on the source. During DVD function, when 2 channel sources such as AUDIO CD, VIDEO CD and MP3 audio tracks are played back, only 2 sound channels would be output. However, the number of sound channels output during DVD VIDEO playback would depend on the audio format selection. During other functions, the system would only output 2 sound channels. This setting is ideal when you want to listen to the original sound from the source.

• PRO LOGIC: Performs Pro Logic decoding. The source recorded in 2 channels is decoded into 4.1 channels.

• PLII MOVIE: Performs Pro Logic II Movie mode decoding. This setting is ideal for movies encoded in Dolby Surround. In addition, this mode can reproduce sound in 5.1 channels when watching videos of overdubbed or old movies. The source recorded in 2 channels is decoded into 5.1 channels.

•PLII MUSIC: Performs Pro Logic II Music mode decoding. This setting is ideal for normal stereo sources such as AUDIO CDs. The source recorded in 2 channels is decoded into 5.1 channels.

• V.M.DIM.: Performs DCS (Digital Cinema Sound) decoding. The source recorded in 2 channels is decoded into 5.1 channels.

• LINK: Reproduces the surround channels from the front channels.

• 2CH STEREO: Reproduces stereo output from multi channel sources such as DVD VIDEOs during DVD function. The system outputs the original sound during functions other than DVD and during playback of stereo sources such as AUDIO CD, VIDEO CD and MP3 audio tracks.

•HP 2CH: The normal sound field for headphones.

•HP VIRTUAL: The sound field for headphones with virtual surround effect. This sound field is only effective when you play back multi channel sources.

Notes

• Depending on the disc, the surround effect may not

be as much as expected.

• You can also press SOUND FIELD repeatedly to

select the sound field you want.

Tips

• “PRO LOGIC” lights up in the display when Pro

Logic decoding is performed.

• “PRO LOGIC II” lights up in the display when

Pro Logic II Movie/Music mode decoding is performed.

• “LINK” lights up in the display when “LINK” is

selected.

• “VIRTUAL” lights up in the display when

“HP VIRTUAL” is selected.

• “VIRTUAL” and “DCS” light up in the display when

“V.M.DIM.” is selected.

Using the subwoofer

(FST-ZX100D/LBT-ZX100D/ MHC-GN1000D only)

You can use the subwoofer to enhance the bass.

1 Press SUBWOOFER ON/OFF on the

subwoofer repeatedly until the indicator lights up.

The subwoofer is turned on. You will be able to listen to low bass frequency sound.

2 Turn SUBWOOFER LEVEL to adjust

the level.

To turn off the subwoofer

Press SUBWOOFER ON/OFF on the subwoofer again.

Tip

To adjust the volume of all speakers at the same time, press VOLUME +/– repeatedly (or turn MASTER VOLUME on the unit).

To change the sound flash speed

Hold down SOUND FLASH and turn OPERATION DIAL clockwise or counterclockwise to change the sound flash speed (1 ~ 20).

Tip

• The power illuminator will synchronize with the selected SOUND FLASH effect.

Creating a party environment

— X-TRANCE/X-TRANCE PRO

You can create a party environment by using X-TRANCE (MHC-GN1000D only) or X-TRANCE PRO (FST-ZX100D/ LBT-ZX100D/FST-ZX80D/LBT-ZX80D only). The following table shows the sound effect available for X-TRANCE and X-TRANCE PRO. Use the buttons on the unit for the operation.

Sound effect X-TRANCE X-TRANCE PRO

SOUND FLASH • FLANGER •• DELAY •• CHORUS • X-ROUND • X-BEAT •

Flashing sound effect

— SOUND FLASH

(MHC-GN1000D only) With the sound flash function, you can flash the sound output. The sound cuts off periodically.

Hold down SOUND FLASH during playback.

The flashing effect is activated.

To cancel the flashing effect

Release SOUND FLASH.

Flanging sound effect

— FLANGER

You can flange the sound output with the sound flange function.

Press FLANGER repeatedly to select the FLANGER effect you want.

The FLANGER indicator lights up.

Select To create

FLANGER 1 FLANGER ON

FLANGER 2

FST-ZX100D/LBT-ZX100D/FST-ZX80D/ LBT-ZX80D only.

MHC-GN1000 only.

To cancel the FLANGER effect

Press FLANGER repeatedly to select “FLANGER OFF”.

Notes

• You can only select the FLANGER effect in DVD function.

• The FLANGER effect is automatically se t to “FLANGER OFF” when you:

– turn off the system. – change the function. – select the DELAY or CHORUS effect.

• If you activate FLANGER d uring disc rec ording, the sound effect will be recorded onto the tape.

a deep flanging effect that is

similar to the roar of a jet plane.

a standard flanging tone.

Sound Adjustment

continued

Delaying sound effect

—DELAY

You can delay the sound output with the sound delay function.

Press DELAY repeatedly to select the DELAY effect you want.

The DELAY indicator lights up.

Select To create

DELAY 1 DELAY ON

DELAY 2

a “live” sound with full

FST-ZX100D/LBT-ZX100D/FST-ZX80D/ LBT-ZX80D only.

MHC-GN1000D only.

characteristic reverb effect . a short delay to simulate the

atmosphere of a live performance.

To cancel the DELAY effect

Press DELAY repeatedly to select “DELAY OFF”.

Notes

• You can only select the DELAY effect in DVD function.

• The DELAY effect is automatically set to “DE L AY OFF” when you:

– turn off the system. – change the function. – select the FLANGER or CHORUS effect.

• If you activate DELAY during disc recording, the sound effect will be recorded onto the tape.

Chorusing sound effect

— CHORUS

(FST-ZX100D/LBT-ZX100D/FST-ZX80D/ LBT-ZX80D only) You can add chorus effect to the sound with the sound chorus function.

Press CHORUS repeatedly to select the CHORUS effect you want.

The CHORUS indicator lights up.

Select To create

CHORUS 1 a slow and deep chorus effect. CHORUS 2 a tremolo chorus with high

speed setting.

To cancel the CHORUS effect

Press CHORUS repeatedly to select “CHORUS OFF”.

Notes

• You can only select the CHORUS effect in DVD function.

• The CHORUS effect is automatically set to “CHORUS OFF” when you:

– turn off the system. – change the function. – select the FLANGER or DELAY effect.

• If you activate CHORUS during disc recording, the sound effect will be recorded onto the tape.

Moving sound effect

—X-ROUND

(FST-ZX100D/LBT-ZX100D/FST-ZX80D/ LBT-ZX80D only) To enjoy the X-ROUND effect, place your front and surround speakers at an equal distance from your listening position (see “Positioning the speakers (Example 1)” on page 12).

Press one of the X-ROUND buttons repeatedly (WAVE, FADER, BALANCE, RANDOM) to select the X-ROUND mode you want.

“X-ROUND” lights up in the display.

Select To output sound

AUTO WAVE1), MANUAL

WAVE AUTO FADER1),

MANUAL

FADER AUTO BAL1),

MANUAL BAL RANDOM In random X-ROUND mode

In circular motion around the room

Back and forth between the front and surround speakers

Back and forth between the left

and right speakers

You can change the speed of sound movement by turning the X-ROUND JOG clockwise or counterclockwise.

You can manually change the sound movement from one speaker to another speaker by turning the X-ROUND JOG clockwise or counterclockwise.

To cancel the X-ROUND effect

Press X-ROUND OFF. “X-ROUND OFF” appears in the display.

Notes

• If you cannot get the sound effect you want, check the speaker connections.

• When the headphones are connected to the PHONES jack, X-ROUND mode automatically turns off and you cannot change the setting.

• When the X-ROUND mode is turned on, the audio output from the center speaker and subwoofer is cut off.

• When you press SOUND FIELD or turn on the test tone, X-ROUND mode automatically turns off.

• You cannot turn on the X-ROUND mode when – the headphones are connected. – “SURROUND” in “SPEAKER SETUP” is set to

“NONE”.

– test tone is performed.

Creating beat effect

—X-BEAT

(FST-ZX100D/LBT-ZX100D/FST-ZX80D/ LBT-ZX80D only)

You can create the beat effect automatically or manually.

Creating the beat effect automatically

1 Press one of the X-ROUND buttons

repeatedly (WAVE, FADER, BALANCE) to select the X-ROUND mode you want.

2 Press BEAT MAX repeatedly to select

“TEMPO B.MAX” or press BEAT JUMP repeatedly to select “TEMPO B.JUMP” as follows:

Select To

TEMPO B.MAX Enhance the sound according

to the tempo of the music.

TEMPO B.JUMP Switch the sound position to

the opposite direction instantly according to the tempo of the music.

3 Press BEAT PAD once.

“1234” appears in the display.

4 Press BEAT PAD 4 times according to the

tempo of the music.

Each time you press BEAT PAD, the number in the display is replaced with an “X”.

Creating the beat effect manually

1 Press one of the X-ROUND buttons

repeatedly (WAVE, FADER, BALANCE) to select the X-ROUND mode you want.

2 Press BEAT MAX repeatedly to select

“MANUAL B.MAX” or press BEAT JUMP repeatedly to select “MANUAL B.JUMP” as follows:

Select To

MANUAL B.MAX Enhance the sound at anytime

you like (manually).

MANUAL B.JUMP Switch the sound position to

the opposite direction instantly at anytime you like (manually).

3 Press BEAT PAD.

Notes

• If you cannot get the sound effect you want, check the speaker connections.

• You can only select the X-BEAT mode if the X-ROUND mode is turned on and you select an X-ROUND mode other than “RANDOM”.

• If you press other buttons on the unit, the X-BEAT mode may change.

Sound Adjustment

Listening to the sound in another room

— Multi Room

Singing along: Karaoke

(FST-ZX100D/LBT-ZX100D/ FST-ZX80D/LBT-ZX80D only)

You can place your front speakers in one room and your surround speakers in another room. Then, use the Multi Room function to select the speakers you want to turn on.

Press SPEAKERS on the unit.

Each time you press the button, the display changes cyclically as follows:

SPEAKERS A t SPEAKERS B t SPEAKERS A+B

To select Display

The front speakers SPEAKERS A The surround

speakers Both the front and

surround speakers

Notes

• You cannot change the setting when – the headphones are connected. – “SURROUND” in “SPEAKER SETUP” is set to

“NONE”.

– test tone is performed.

• “SPEAKERS A” lights up in the display when SPEAKERS A is selected and “SPEAKERS B” lights up in the display when SPEAKERS B is selected.

• (FST-ZX100D/LBT-ZX100D only) When you select “SPEAKERS B”, the subwoofer is turned off automatically.

• (FST-ZX80D/LBT-ZX80D only) When you select “SPEAKERS B” , the audio output of the subwoofer is cut off.

• When you press SOUND FIELD or turn on the test tone, this function is automatically turn ed off.

SPEAKERS B

SPEAKERS A+B

You can sing along with any multiplex AUDIO CD, multiplex VIDEO CD or DVD VIDEO in Dolby Digital Karaoke format. You need to connect an optional microphone.

Preparing for karaoke

(DVD VIDEO, DVD-R/DVD-RW in VR mode, VIDEO CD, AUDIO CD and MP3 audio tracks only)

1 Press FUNCTION +/– repeatedly to

select “DVD” (or press DVD on the unit).

2 Turn MIC 1 LEVEL or MIC 2 LEVEL on

the unit to “MIN” to reduce the microphone volume and turn ECHO LEVEL on the unit to “MIN” to cancel the echo effect.

3 Connect an optional microphone to

MIC 1 or MIC 2 jack on the unit.

Connect another optional microphone if you want to sing in duet. The Karaoke Mode is turned on. “KARAOKE MODE: ON” appears on the TV screen and “m” lights up in the display.

4 Start playing the music and adjust the

volume.

When Karaoke Mode is turned on during DVD VIDEO or DVD-R/DVD-RW in VR mode playback, the system outputs the audio format that you have selected. When Karaoke Mode is turned on during AUDIO CD, VIDEO CD or MP3 audio tracks playback, the audio setting automatically changes to “1/L” and the system outputs the left channel audio on both front and surround channels. If you want to hear vocal when Karaoke Mode is turned on, press AUDIO repeatedly to select another audio channel.

5 Start singing along with the music and

adjust the microphone volume by turning MIC 1 LEVEL or MIC 2 LEVEL on the unit.

To adjust the microphone echo

Turn ECHO LEVEL on the unit to adjust the echo effect. To cancel the echo effect, turn ECHO LEVEL on the unit to “MIN”.

To turn off the Karaoke Mode

Disconnect all the microphones or press KARAOKE MODE. “KARAOKE MODE: OFF” appears on the TV screen and “m” disappears from the display. You can also turn off the Karaoke Mode by pressing KARAOKE MODE even when the microphones are connected.

Notes

• If acoustic feedback (howlin g) occurs, move the microphone away from the speakers or change the direction of the microphone.

• Karaoke Mode is automatically t urned of f when you: – turn off the system. – change the function. – connect the hea dphones. – turn on the test tone.

Singing karaoke by reducing the vocal

(DVD VIDEO, DVD-R/DVD-RW in VR mode, VIDEO CD, AUDIO CD and MP3 audio tracks only)

You can enjoy karaoke with any disc, even if it is not a karaoke or multiplex disc by reducing the sound of the vocal.

1 Press DISPLAY once or twice when

Karaoke Mode is turned on while playing a disc.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(KARAOKE PON), then press

ENTER.

The options for “KARAOKE PON” appear on the TV screen.

3 Press V or v repeatedly to select

“ON”, then press ENTER.

The sound of vocal is reduced.

Notes

• The singer’s voice may not be reduced when: – only a few instruments are playing. – a duet is being played back. – the source has strong echoes or chorus. – the singer’s voice deviates from the center. – the voice on the source is singing in high soprano

or tenor.

• To cancel the “KARAOKE PON” effect, select “OFF” in step 3.

• You can also change the “KARAOKE PON” setting by pressing KARAOKE PON when the Karaoke Mode is turned on. The following display appears on the TV screen.

• The “KARAOKE PON” setting is automatically changed to “OFF” when you: – turn off the system. – change the function. – connect the headphones. – turn on the test tone. – turn off the Karaoke Mode. – open the disc tray. – change the disc. – set “VOCAL” to “ON”.

Adjusting the pitch of the music

(DVD VIDEO, DVD-R/DVD-RW in VR mode, VIDEO CD, AUDIO CD and MP3 audio tracks only)

You can adjust the pitch of the music to suit your vocal range. You can adjust the key higher or lower in 13 steps (26 – #6).

1 Press DISPLAY once or twice when

Karaoke Mode is turned on while playing a disc.

The Control Menu appears on the TV screen.

Sound Adjustment

continued

2 Press V or v repeatedly to select

(KEY CONTROL), then press

ENTER.

3 Press V or v repeatedly to select the

key you want.

The key is changed.

Notes

• You can also change the “KEY CONTR OL” set ting by pressing KEY CONTROL 2 to reduce the key and KEY CONTROL # to increase the key when the Karaoke Mode is turned on. The following display appears on the TV screen.

654321 123456

• The “KEY CONTROL” setting may automatically change to default setting when you:

– turn off the system. – change the function. – connect the headphones. – turn on the test tone. – turn off the Karaoke Mode. – open the disc tray. – change the disc. – perform Lock Search or Slow-motion Play. – change the track or title.

• Depending on the disc, you may not be able to do the above operation.

• To cancel the “KEY CONTROL” effect, select “3” in step 3.

Turning on the vocals

When Karaoke Mode is turned on and a DVD VIDEO in Dolby Digital Karaoke format is played back, you can turn on the guide vocal recorded in the tracks. When Karaoke Mode is turned on and an AUDIO CD or VIDEO CD is played back, you can turn on the vocal either by selecting “STEREO” or “L+R”.

1 Press DISPLAY once or twice when

Karaoke Mode is turned on while playing a disc.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(VOCAL), then press ENTER.

The options for “VOCAL” appear on the TV screen.

3 Press V or v repeatedly to select

“ON”, then press ENTER.

The vocal is turned on.

x During DVD VIDEO playback

You can listen to the guide vocal recorded in the Dolby Digital Karaoke format.

x During AUDIO CD or VIDEO CD

playback

When Karaoke Mode is turned on, the system outputs the left channel (accompaniment channel) from both front and surround speakers. You can listen to the vocal when you set “VOCAL” to “ON”.

Notes

• To turn off the vocal, select “OFF” in step 3.

• For DVD VIDEOs without guide vocal, you cannot turn on the vocal.

• When playing a DVD VIDEO, this function only works for Dolby Digital Karaoke format.

• The “VOCAL” setting is automatically ch ang ed to “OFF” when you:

– turn off the system. – change the function. – connect the headphones. – turn on the test tone. – turn off the Karaoke Mode. – open the disc tray. – change the disc. – set “KARAOKE PON” to “ON”.

Dolby Digital Karaoke format

Selecting the vocals

The Dolby Digital format, which reproduces surround sound using 5 channels, can also contain the “Dolby Digital Karaoke” format which is specialized for karaoke. In the Dolby Digital Karaoke format discs, guide melody and guide vocal tracks are recorded in addition to the accompaniment. You can select them when Karaoke Mode is turned on.

Speaker output in normal Dolby Digital format (5.1 channel)

Front (L)

Surround

Center Front (R)

Surround

(L)

(R)

Speaker output in Dolby Digital Karaoke format

Accompaniment

(L)

Guide melody

Guide vocal 1

You can select any of these. These are output from the front and surround speakers.

Accompaniment

Guide vocal 2

(R)

You can check the audio information by pressing AUDIO (page 34). When playing a Dolby Digital Karaoke disc, “9” appears at the current audio format (page 34). Example:

DOLBY DIGITAL

3 /

2/0:Recorded only with accompaniment. 3/0:Recorded with guide melody. 3/1:Recorded with guide melody and

one guide vocal.

3/2:Recorded with guide melody and tw

guide vocals.

After setting “VOCAL” to “ON”, you can change the vocal type.

1 Press DISPLAY once or twice when

Karaoke Mode is turned on while playing a disc.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(VOCAL SELECT), then press

ENTER.

The options for “VOCAL SELECT” appear on the TV screen.

3 Press V or v repeatedly to select the

vocal type you want, then press ENTER.

The vocal is changed.

x When playing a DVD VIDEO

t 1+2 (Guide vocal 1+2)

1 (Guide vocal 1)

2 (Guide vocal 2)

x When playing a VIDEO CD or AUDIO CD

t L+R (The same sound is output from both

speakers)

STEREO (The standard stereo sound)

x When playing a Super VCD

t 1:L+R

1:STEREO (The stereo sound of the audio track 1)

2:L+R

2:STEREO (The stereo sound of the audio track 2)

continued

Sound Adjustment

Notes

• For DVD VIDEOs with 1 guide vocal recorded, you cannot change the vocal.

• When playing a DVD VIDEO, the function only works for Dolby Digital Karaoke format.

• The “VOCAL SELECT” setting is automatically changed to default setting when you – turn off the system. – change the function. – connect the headphones. – turn on the test tone. – turn off the Karaoke Mode. – open the disc tray. – change the disc.

• Depending on the disc, you may not be able to do the above operation.

Turning on the guide melody

You can turn on the guide melody when singing with DVD VIDEO in Dolby Digital Karaoke format.

1 Press DISPLAY once or twice when

Karaoke Mode is turned on while playing a disc.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(GUIDE MELODY), then press

ENTER.

The options for “GUIDE MELODY” appear on the TV screen.

3 Press V or v repeatedly to select

“ON”, then press ENTER.

The guide melody is turned on.

Notes

• To turn off the guide melody, select “OFF” in step 3.

• When playing a DVD VIDEO, the function only works for Dolby Digital Karaoke format.

• For DVD VIDEOs without guide melody, you cannot hear the guide melody even if you set the setting to “ON”.

• The “GUIDE MELODY” setting is automatically changed to “OFF” when you:

– turn off the system. – change the function. – connect the headphones. – turn on the test tone. – turn off the Karaoke Mode. – open the disc tray. – change the disc.

Selecting the scoring mode

When Karaoke Mode is turned on, you can use the scoring mode. Your score is calculated by comparing your voice with the music source.

1 Press DISPLAY once or twice when

Karaoke Mode is turned on while playing a disc.

The Control Menu appears on the TV screen.

2 Press V or v repeatedly to select

(SCORE MODE), then press

ENTER.

The options for “SCORE MODE” appear on the TV screen.

NORMAL

NORMAL EASY DEMO

DVD VIDEO

3 Press V or v repeatedly to select the

setting you want.

The default setting is underlined.

•NORMAL level.

• EASY : Beginner or Intermediate level.

• DEMO : Demonstration mode. Consistently displays a high score for every song.

: Advance or professional

4 Press ENTER. 5 Press SCORE before singing a song in

Karaoke Mode.

The previous highest score appears on the TV screen.

6 After singing for more than a minute,

press SCORE again to view your score.

Your score is calculated from a scale of 0 to 99.

Tip

The “SCORE MODE” setting is autom atically changed to “NORMAL” when the syst em is turned off.

Notes

• The highest score is reset when the system is turned off.

• The score calculating function may be canceled when certain remote buttons are pressed .

• In some cases, you may not be able to use the scor ing mode.

Mixing and recording sounds

You can “mix” sounds from any one of the function and singing or speaking into a microphone. The mixed sound can be recorded onto a tape. Use the buttons on the unit for the operation.

1 Turn MIC 1 LEVEL or MIC 2 LEVEL to

“MIN” to turn down the microphone volume.

2 Connect an optional microphone to

MIC 1 or MIC 2 jack.

3 Prepare the music source you want to

mix. Then, insert a recordable tape into Deck B.

4 Press the function button of the source

you want to record (e.g., DVD).

If you want to record from TAPE A, press TAPE A/B repeatedly to select “TAPE A”.

5 Press REC PAUSE/START.

“REC” flashes in the display. Deck B stands by for recording.

6 Press DIRECTION repeatedly to select

“g” to record on one side. Select “j” (or “RELAY”) to record on both sides.

7 Press REC PAUSE/START.

“REC” lights up in the display. Recording starts.

8 Start playing the source to be

recorded.

Start singing along with the music.

9 Adjust the microphone volume by

turning MIC 1 LEVEL or MIC 2 LEVEL.

To stop recording

Press x.

After you have finished

Turn MIC 1 LEVEL or MIC 2 LEVEL to “MIN” and disconnect the microphone from MIC 1 or MIC 2 jack.

Note

During DVD function, the Karaoke Mode is automatically turned on when you connect an optional microphone to MIC 1 or MIC 2 jack.

Tips

• When recording from the reverse side: After step 3, press TAPE A/B repeatedly to select “TAPE B”. Press nN repeatedly until the TAPE B reverse side indicator lights up to start playback of the reverse side. Press x at the point you want to start recording.

• When recording on both sides: Be sure to start from the front side. If you start fro m the reverse side, recording stops at the end of the reverse side.

• If acoustic feedback (howling) occurs, move the microphone away from the speakers or change the direction of the microphone.

• If you want to record your voice throug h the microphone only, you can do so by selecting the TAPE A function and not playing any tape.

• When high level sound signals are input, the system automatically adjust the recording level to prevent distortion of the recorded sound signals (Auto Level Control Function).

Sound Adjustment

Timer

Falling asleep to music

— Sleep Timer

You can set the system to turn off after a certain time, so that you can fall asleep to music.

Press SLEEP repeatedly.

Each time you press the button, the minute display (the turn-off time) changes cyclically as follows: 90min t 80min t 70min t … t 10min t OFF

Other operations

To Do this

Check the remaining time

Change the time to turn off

Cancel the Sleep Timer

Note

When the Sleep Timer is activated, “SLEEP” lights up in the display.

Tip

You can use the Sleep Timer even if you have not set the clock.

Press SLEEP once.

Press SLEEP repeatedly to select

the time you want.

Press SLEEP repeatedly until

“SLEEP OFF” appears in the display.

Waking up to music

—Play Timer

You can wake up to music at a preset time. Make sure you have set the clock (see “Setting the clock” on page 13).

1 Prepare the music source you want to

playback.

• Disc: Load a disc.

• Tape: Load a tape with the side you want to play back facing forward.

• Radio: Tune in the preset station you want (see “Listening to the radio” on page 49).

2 Press VOLUME +/– (or turn MASTER

VOLUME on the unit) to adjust the volume.

3 Press TIMER MENU. 4 Press V or v repeatedly to select

“PLAY SET?”, then press ENTER.

“ON” appears and the hour indication flashes in the display.

5 Set the time to start playback.

Press V or v repeatedly to set the hour, then press ENTER.

The minute indication flashes in the display.

Press

V or v repeatedly to set the minute,

then press ENTER. “OFF” appears and the hour indication flashes in the display.

6 Set the time to stop playback following

the same procedure as step 5.

7 Press V or v repeatedly until the

music source you want appears in the display.

Each time you press the button, the display changes as follows:

TUNER y DVD PLAY

TAPE PLAY

8 Press ENTER.

The type of timer (“PLAY TIMER”), followed by the start time, the stop time and the music source appears in the display in sequence before the original display returns.

9 Press ?/1 to turn off the system.

Other operations

To Do this

Check the setting 1 Press TIMER MENU.

Change the setting Start from step 1. Cancel the Play

Timer

Notes

• You cannot select the Play Timer and the Timer Recording at the same time.

• If you use the Play Timer and the S leep Time r at t he same time, the Sleep Timer has priority.

• The Play Timer will not be ac tiva ted if th e sys tem is turned on or if “STANDBY” flashes in the display.

Tips

• The system turns on 30 seconds before the preset time.

• When Play Timer is selected, “PLAY” lights up in the display.

“TIMER SELECT?” flashes in the display.

2 Press ENTER. 3 Press V or v repeatedly to

select “PLAY SELECT?”, then press ENTER.

1 Press TIMER MENU.

“TIMER SELECT?” flashes in the display.

2 Press ENTER. 3 Press V or v repeatedly to

select “TIMER OFF?”, then press ENTER.

Timer recording radio programs

You can record from a preset radio station from a specified time. To make timer recording, you must first preset the radio station (see “Presetting radio stations” on page 47) and set the clock (see “Setting the clock” on page 13 ).

1 Tune in the preset radio station (see

“Listening to a preset radio station” on page 49).

2 Press TIMER MENU. 3 Press V or v repeatedly to select “REC

SET?”, then press ENTER.

“ON” appears and the hour indication flashes in the display.

4 Set the time to start recording.

Press V or v repeatedly to set the hour, then press ENTER.

The minute indication flashes in the display. Press

V or v repeatedly to set the minute,

then press ENTER. “OFF” appears and the hour indicator flashes in the display.

5 Set the time to stop recording following

the same procedure as step 4.

The type of timer (“REC”), followed by the start time, the stop time and the preset radio station to be recorded (e.g., “TUNER FM 5”) appears in the display in sequence before the original display returns.

6 Load a recordable tape into Deck B.

Make sure the tape is in the front side.

7 Press DIRECTION on the unit

repeatedly to select “g” to record on one side or “j” (or “RELAY”) to record on both sides.

When recording from the reverse side, press FUNCTION +/– (or TAPE A/B on the unit) repeatedly to select “TAPE B”. Then, press

(or nN on the unit) repeatedly until

the TAPE B reverse side indicator lights up to start playback of the reverse side. Press x at the point where you want to start recording. When you record on both sides, be sure to start from the front side. If you start from the reverse side, recording stops at the end of reverse side.

8 Press ?/1 to turn off the system.

continued

Timer

Other operations

To Do this

Check the setting 1 Press TIMER MENU.

Change the setting Start from step 1. Cancel the Timer

Recording

Notes

• You cannot select the Play Timer and the Timer Recording at the same time.

• If you use the Timer Recording a nd th e Sleep T ime r at the same time, the Sleep Timer has priority.

• The Timer Recording will not be activated if the system is turned on or if “STANDBY” flashes in the display.

• The volume is reduced to minimum during Timer Recording.

• Do not operate the system from the time the system turns on until the recording starts (about 30 seconds before the preset time).

Tips

• The system turns on 30 seconds be fore the preset time.

• When Timer Recording is selected, “REC” lights up in the display.

“TIMER SELECT?” flashes in the display.

2 Press ENTER. 3 Press V or v repeatedly to

select “REC SELECT?”, then press ENTER.

1 Press TIMER MENU.

“TIMER SELECT?” flashes in the display.

2 Press ENTER. 3 Press V or v repeatedly to

select “TIMER OFF?”, then press ENTER.

Display

Turning off the display

— Power Saving Mode

The demonstration display and the clock display can be turned off to minimize the amount of power consumed during standby mode (Power Saving Mode).

Press DISPLAY repeatedly while the system is turned off until the demonstration display and the clock display disappears.

To cancel Power Saving Mode

Press DISPLAY repeatedly while the system is turned off. Each time you press the button, the display changes cyclically as follows: Demonstration (Power Saving Mode)

The display changes and the indicators flash even when the system is turned off.

“– –:– –” appears in the display if you have not set the clock.

Note

You cannot perform the following operations during Power Saving Mode: – Setting the clock (page13). – Changing the AM tuning interval (page 48). – Turning on the system by pressing DVD, TUNER/

BAND, TAPE A/B, TV/SAT or VIDEO on the unit.

Tips

• The timer continues to operate in Power Saving Mode.

• The ?/1 indicator lights up in red even in Power Saving Mode.

t Clock2) t No display

Changing the spectrum

Adjusting the brightness

analyzer display

Use the buttons on the unit for the operation.

1 Press AMP MENU repeatedly to select

“SPECTRUM”.

The last selected spectrum setting appears in the display.

2 Turn OPERATION DIAL clockwise or

counterclockwise to select the setting you want.

The display changes cyclically as follows: SPECTRUM 1 y SPECTRUM 2 y SPECTRUM 3 y SPECTRUM 4 y SPECTRUM 5 y SPECTRUM OFF

3 Press ENTER.

FST-ZX100D/LBT-ZX100D/FST-ZX80D/ LBT-ZX80D only

When X-ROUND mode is selected

1 Press AMP MENU repeatedly to select

“X-POSITION”.

The last selected spectrum setting appears in the display.

2 Turn OPERATION DIAL clockwise or

counterclockwise to select the setting you want.

The display changes as follows: X-POS ON* y X-POS OFF

*The spectrum analyzer display will synchronize

with the selected X-ROUND effect.

3 Press ENTER.

of the front panel display

Use the buttons on the unit for the operation.

1 Press AMP MENU repeatedly to select

“DIMMER”.

The last selected dimmer setting appears in the display.

2 Turn OPERATION DIAL clockwise or

counterclockwise to select the setting you want.

The display changes cyclically as follows: DIMMER 1 y DIMMER 2 y DIMMER OFF

3 Press ENTER.

Changing the power illuminator

Display

Press ILLUMINATION on the unit repeatedly to select the power illuminator you want when the system is turned on.

Each time you press the button, the power illuminator changes cyclically as follows:

PATTERN 1 t PATTERN 2 t PATTERN 3 t PATTERN 4 t PATTERN OFF

FST-ZX100D/LBT-ZX100D/ FST-ZX80D/LBT-ZX80D only

When X-ROUND mode is selected

Press ILLUMINATION on the unit repeatedly to select the power illuminator you want.

Each time you press the button, the power illuminator changes as follows:

PATTERN OFF y X-PATTERN*

* The power illuminator will synchronize with the

selected X-ROUND effect.

continued

Notes

• When you press VOLUME +/– (or turn MASTER VOLUME on the unit), the power illuminator shows the current volume level.

• During the demonstration display, you can turn on or off the power illuminator by pressing ILLUMINATION on the unit.

Viewing information about the disc in the front panel display

You can check the elapsed playing time and remaining time of the current track or that of the disc. When a DVD-TEXT disc, CD-TEXT disc, DATA CD or DATA DVD is loaded, you can also check the information recorded on disc, such as the titles.

Press DISPLAY repeatedly.

Each time you press the button, the display changes cyclically as follows: Disc information t Clock display seconds) t Effect name (for 8 seconds)

Checking the elapsed playing time, remaining time and titles

Press TIME/TEXT repeatedly during playback.

Each time you press the button, the display changes cyclically as follows:

x When playing a DVD VIDEO or DVD-R/

DVD-RW in VR mode

• When the menu or the title without a chapter

is played back Elapsed playing time of the menu or the current title t Title of the disc

• When a chapter other than above condition is

played back Elapsed playing time of the current title t Remaining time of the current title t Elapsed playing time of the current chapter t Remaining time of the current chapter t Title of the disc

2)3)

(for 8

x When playing an AUDIO CD or VIDEO

CD without PBC function

Elapsed playing time of the current track t Remaining time of the current track t Elapsed playing time of the current disc time of the current disc

x When playing a VIDEO CD/Super VCD

with PBC function

Elapsed playing time of the current scene t Title of the disc

x When playing a Super VCD without PBC

function

Elapsed playing time of the current track t Title of the disc

x When playing MP3 audio tracks on a

DATA CD or DATA DVD

2)7)

2)6)

t Remaining

t Title of the disc

2)6)

Elapsed playing time of the current track t Title of the track

Checking the total playing time and titles

Press TIME/TEXT repeatedly when playback is stopped.

Each time you press the button, the display changes cyclically as follows:

x DVD VIDEO or DVD-R/DVD-RW in VR

mode

Total number of titles on the disc t Title of the disc

x VIDEO CD without PBC playback or

AUDIO CD

Total number of the tracks on the disc and the total playing time of the disc t Title of the disc

x VIDEO CD with PBC playback

Total number of scene on the disc t Title of the disc

“– –:– –” appears in the display if you have not set the clock.

“NO TEXT” appears in the display if the DVD VIDEO is not a DVD-TEXT disc, the AUDIO CD is not a CD-TEXT disc or the VIDEO CD does not have text information.

The current chapter number and the current title number is displayed for 2 seconds before the display returns to elapsed playing time when you press TIME/TEXT during display of title of the disc.

When Program Play or Shuffle Play is turned on, the elapsed playing time and the remaining time of the disc would be skipped.

The current album number and the current file number is displayed for 2 seconds before the display returns to elapsed playing time when you press TIME/TEXT during display of title of the file.

The current track number and current index number is displayed for 2 seconds before the display returns to elapsed playing time when you press TIME/ TEXT during display of the title of disc.

The current scene number is displayed for 2 seconds before the display returns to elapsed playing time when you press TIME/TEXT during display of title of the disc.

Notes

• If you play back a disc containing JPEG image files only, “JPEG” or “No Audio” appears in the display.

• When the selected disc is a DATA CD or DATA DVD with MP3 audio tracks and/or JPEG image files, the total number of albums on the disc appears in the display when playback is stopped and the list of album/title/file is not displayed on the TV screen.

• You cannot use TIME/TEXT to change the display of disc information when: – a JPEG image file is played back. – playback is stopped for DATA CD or DATA DVD

with MP3 audio tracks and/or JPEG image files.

• If the MP3 audio track title contains characters which cannot be displayed, these ch aracters will be displayed as “*”.

• The elapsed playing time of MP3 audio tracks may not be displayed correctly.

Viewing information about the disc in the on-screen display
