Before operating the unit, please read this manual thoroughly, and retain it for future
reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the serial number in
the space provided below. Refer to these numbers whenever you call upon your Sony
dealer regarding this product.
Model No. DKC-FP3
Serial No.
DKC-FP3
1999 Sony Corporation
WARNING
To prevent fire or shock hazard, do not expose the unit to rain
or moisture.
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
For the customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
–
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could
void your authority to operate this equipment.
The shielded interface cable recommended in this manual must be used with this equipment in order
to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
For the Customers in the U.S.A. and CANADA
DISPOSAL OF LITHIUM ION BATTERY.
LITHIUM ION BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted lithium ion batteries to your nearest Sony Service Center or Factory
Service Center.
Note: In some areas the disposal of lithium ion batteries in household or business trash may be
prohibited.
For the Sony Service Center nearest you call 1-800-222-SONY (United States only).
For the SONY Factory Service Center nearest you call 416-499-SONY (Canada only).
Caution: Do not handle damaged or leaking lithium ion batteries.
Declaration of Conformity
Trade Name:SONY
Model No.:DKC-FP3
Responsible Party: Sony Electronics Inc.
Address:1 Sony Drive, Park Ridge, NJ. 07656 USA
Telephone No.:201-930-6970
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
2
GB
Contents
Battery Safety Precautions ...... 5
Operation Precautions.............. 6
To Maintain the Efficiency of the
Camera ....................................... 7
Please Read This ....................... 8
Checking the Supplied
Accessories ............................. 10
Features ................................... 12
Locations and Functions of
Parts
Front ............................................................... 14
Setting the LCD Monitor Display .................. 98
Adjusting Picture Display
on the LCD Monitor ..................................... 100
Operation by Remote Control ...................... 102
Using a Wall Socket...................................... 104
Connecting to the PC.................................... 105
Menu Summary ..................... 107
Maintenance .......................... 112
Troubleshooting .................... 113
Warning Indicators................ 116
Error Messages ..................... 119
Specifications........................ 121
Index....................................... 124
GB
4
Battery Safety Precautions
Follow the safety advice below to avoid leakage, internal heating, fires, explosions or accidental
ingestion of batteries.
DANGER (This applies only to battery packs)
• Only charge the battery with the supplied charger.
• Do not put the battery into fire. Do not short it out or dissassemble it.
Do not heat in a microwave or conventional oven. If you carry or store the battery with
metal objects such as coins or hairpins, shorts may occur.
• Do not recharge or leave the battery pack near fire or under the hot sun.
• If you accidentally get liquid that has leaked from the battery in your eyes, flush with clean
water and consult a doctor immediately.
WARNINGS
• Keep the lithium button battery out of the reach of children. In the case of accidental
ingestion, consult a doctor immediately.
• Do not put the battery into fire. Do not short it out, disassemble or heat it.
• Use only the specified type of battery.
NOTES
• Be sure the + or - signs are aligned correctly when inserting the battery.
• Remove the battery when it is empty or if the camera is not used for a long time.
If battery leakage occurs, wipe the battery case dry and insert a new battery. If liquid from battery
leakage happens to get on your clothes or body, wash well with water.
Introduction
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
5
GB
Operation Precautions
Places you should not leave
your camera
Introduction
Do not operate or store your camera in places
such as those listed below.
Doing so may lead to the breakdown of your
camera.
• Unusually hot places
If left in very hot places such as under the sun
or in a car with the windows closed in
summer, warping to the body or breakdown
may occur.
• In direct sunlight or near heating
equipment
Warping or breakdown may occur.
• Places subject to strong vibrations
• Places subject to strong magnetism
• Sandy or dusty places
When using the camera at the seaside,
beaches, or otherwise sandy places,
take care to keep the camera free of sand
particles. Breakdown which might not be able
to be repaired may occur .
• Don’t keep the lens or viewfinder
pointed toward the sun.
Direct sunlight can harm the internal
components of the digital still camera. Take
care when leaving the camera outside or in a
window.
Maintenance
If dirty, wipe clean with a soft cloth.
Care of the camera body
• If the camera is very dirty, wipe with a soft
coth moistened with a thin solution of neutral
detergent. Wipe dry with a cloth.
• Do not use alcohol, thinner or benzine on the
unit. Such solvents may remove paint from
the cabinet.
• When using a chemically treated cloth, follow
the manufacturer’s instructions.
• If volatile liquids such as insecticide are left
for a long time on the rubber or plastic parts,
they may remove paint from the cabinet.
Lens care
Remove dust from the surface of the lens with a
blower or soft brush. If the lens is very dirty,
wipe with a lens cleaning tissue.
Operation
• Don’t use in places with strong
electromagnetic or radial waves.
You won’t be able to correctly record or play
back.
• Don’t use near TV, AM radio or FM
tuners.
TV, AM radio or FM tuners will interfere with
digital recording.
• Don’t connect the AC power adaptor or
battery charger to such devices as
electric transformers.
Internal heating or breakdown may occur.
GB
6
To Maintain the Efficiency of the Camera
Operating and Storage Places
To avoid possible breakdown, do not use or store the camera in the following places:
• Extremely hot or cold places (The operating temperature is 0°C to +40°C (32°F to
104°F))
• In direct sunlight for long periods or near heating equipment
• Humid or dusty places
• Where it is exposed to rain
• Places subject to strong vibrations
• Near sources of strong magnetism
• Near sources of powerful electromagnetic radiation, such as TV or radio transmitters
Heat Emission
Do not wrap the camera in cloth or other materials when operating the camera. Doing
so will raise the internal temperature and may cause breakdown.
Transportation
When transporting the camera, pack it in the original carton and packing materials, or
similar packaging, to protect it from strong shocks during transportation.
Care
• Use a blower brush to remove dirt or dust from the surface of the lens or viewfinder.
• Lightly wipe the outside surface of the camera with a dry, soft cloth to remove dirt. If
the body is very dirty, wipe it with a cloth moistened with a small amount of neutral
detergent. Wipe dry with a cloth.
• Volatile liquids such as alcohol, benzine, thinner, or insecticide will damage the
surface finish.
Introduction
7
GB
Please Read This
Test Shooting
Introduction
No Compensation for Picture Content
Copyright Laws
About the Power Adaptor and Battery Pack
Connecting to the PC
Before shooting, take a few test shots to make sure pictures are being taken normally.
If a picture is not recorded due to a problem with the digital still camera, the recording
content cannot be compensated.
Pictures that you take with your digital still camera other than for personal enjoyment
cannot be used without permission from the copyright owner in accordance with
copyright laws. Be aware that even taking pictures of events like concerts,
performances or exhibits for your personal enjoyment may be subject to the same
copyright laws.
With this unit, use the AC adaptor/charger AC-VQ800 (supplied), or the
“InfoLITHIUM” battery NP-F550 (not supplied). Other adaptors and batteries cannot be
used. Be sure to charge the battery before using it for the first time.
This unit is equipped with a PC interface (IEEE1394) terminal that supports the DCCS
(Digital Camera Command Set). You can use this terminal to connect the camera to your
PC.
When connected to a PC, this unit cannot be used while other 1394 devices are
connected. If this unit and any other IEEE1394 device are connected to a PC at the same
time, the unit may not operate normally.
“Memory Stick” and PC Card
To use a Sony “Memory Stick” MSA-8A (8 MB) with the digital still cameras, insert it
into the Memory Stick/PC Card Adaptor MSAC-PC2.
The following PC cards may be used with the digital still camera:
• PC cards that conform to PC card standard 6.1
• Flash memory card ATA Type II
• PC cards with power specifications of 5V or 3.3 V/5 V.
3-volt products cannot be used. Using incompatible cards in the camera may result in
breakdown.
GB
8
Camera Playback Data
• Picture data recorded by the camera may be played back on the camera
• Picture data that has been edited on a personal computer or processed may not be
played back by the camera even if it is recorded by the camera.
Data Recorded on the PC Card
Picture data is recorded in the following formats:
IMJP XXXX (folder name)/MVC XXXXX.jpg (file name)
(When the mode menu quality settings are High, Middle, and Low.)
IMTIXXXX (folder name)/MVCXXXXX.tif (file name)
(When the mode menu quality setting is Super.)
* Picture is only indicated as XXXX/XXXXX on the LCD monitor.
Introduction
9
GB
Checking the Supplied Accessories
Before using the camera, make sure you have the following supplied accessories.
Introduction
Lens cap (1, fitted on the camera)
Video cable (1)
AC adaptor/charger AC-VQ800
(with AC and DC power cables, 1)
Viewfinder cap (1, fitted on the camera)
Wireless remote control (1)
Remote control cable (5 meters, 1)
10
PC interface cable (1)
User’s manual (This book, 1)
TWAIN driver software on CD-ROM (1)
GB
“Memory Stick” (1)
Introduction
Memory Stick/PC Card Adaptor (1)
11
GB
Features
1/2 Inch 1,500,000 Pixel CCD
Introduction
5× Wide Zoom Lens
Two Finders: Viewfinder and Large LCD
Precision Speed Auto Focus
The digital still camera comes equipped with an all-pixel reading 1/2 inch CCD with
1,500,000 effective picture dots. The unit also uses a primary color filter and 1344 ×
1024 pixel high-resolution to reproduce the natural colors and resolution of
photographs.
To make the most of the high-resolution CCD, the camera is equipped with a 5¥ wide
zoom lens for focal distances of 28 mm to 140 mm (equivalent to 35 mm film cameras).
Use together with 2× digital zoom to reach the maximum of 10¥ zoom.
* The resolution changes to 640 × 480 pixels when using digital zoom.
The camera comes equipped with a viewfinder and a 2.5 inch low-temperature,
polysilicon TFT color LCD with CRT contrast, resolution, and response speed.
With the auto focus function, you can automatically focus on subjects. By pressing the
shutter button halfway, you can lock the focus at a fixed position and change the
composition before taking the picture.
Four Exposure Modes for Various Picture Taking Conditions
Light meter readings are first output from the CCD and then, depending on the picture
taking conditions, one of four modes is chosen: Easy Program Exposure Mode for
general picture-taking, Shutter Speed Priority Mode, Aperture Priority Mode and
Manual Mode.
Two Frames/Second High Speed Picture Taking with Buffer Memory
Loading
Equipped with a continuous picture taking mode, the camera can take 2 frames per
second of high-speed picture taking in 640 × 480 size, low mode.
Taking Pictures for a Longer Period with the “InfoLITHIUM” Battery
and Power Saving Option
Using the “InfoLITHIUM” battery, it is possible to take pictures continuously for about
two hours (with the LCD monitor off). Also, if the power is on and the camera is not
operated for approximately 1 minute, power to the camera shuts off. If the camera is not
operated for about 5 minutes, the whole unit shuts off (Auto Power Off function).
GB
12

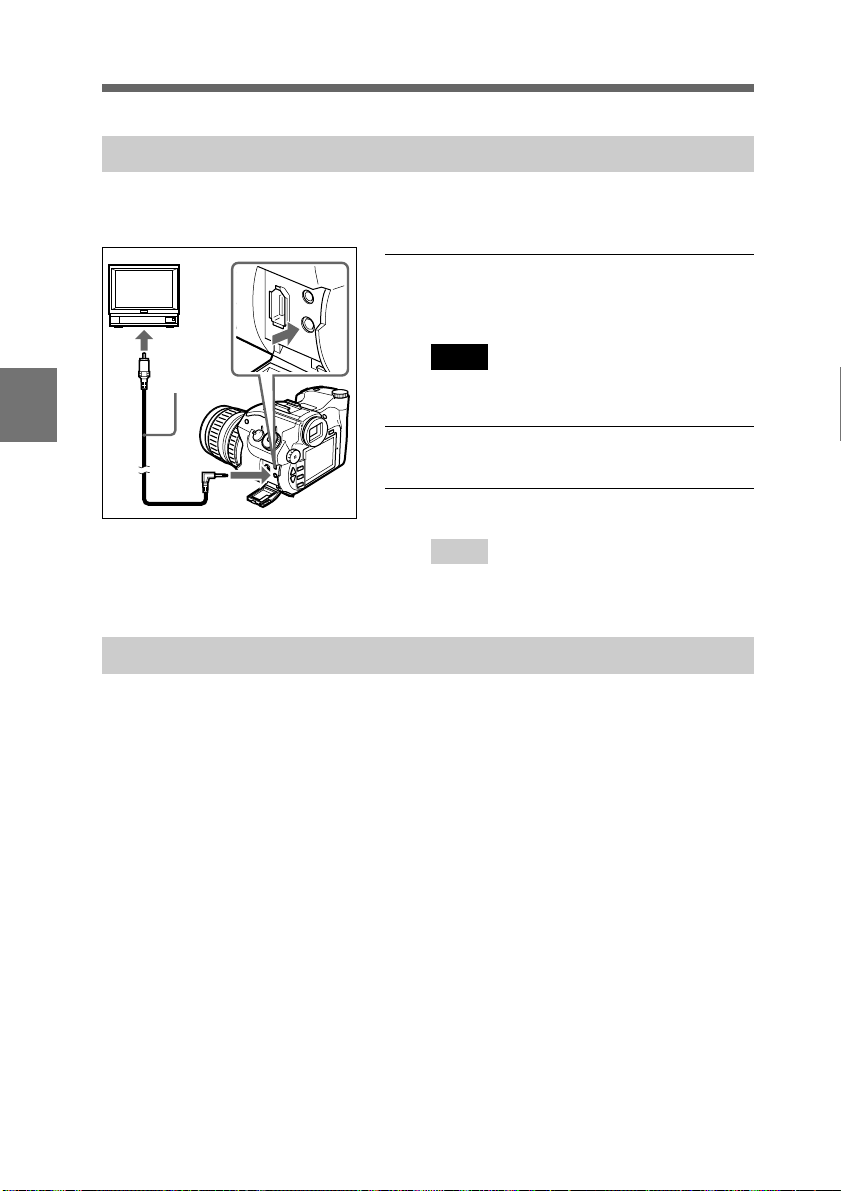

Loading to a Video Output Terminal
If the unit is connected to a television by the supplied video cable, pictures taken by the
digital still camera can easily be played back on the television. This can be a
particularly powerful display tool for presentations for meetings and such.
Using the PC Card and “Memory Stick”
The digital still camera uses the highly reliable PC card (PCMCIA ATA TYPE II) and
long-lasting “Memory Stick” (for use when inserted in the Memory Stick/PC Card
Adaptor) as the image recording medium.
PC Interface (IEEE1394) Terminal
When the unit is connected to a PC using the supplied PC interface cable, images stored
on the PC card can be digitally transferred to the PC, and the PC can be used to control
the camera.
Introduction
13
GB
Locations and Functions of Parts
Front
Locations and Functions of Parts
12
6
5
WB
4
1 Flash
The camera has a built-in Guide Number GN10 flash. To use the flash, press the flash
pop-up key. The cover will open and the flash warms up. The flash is stored when you
close the cover.
2 Flash Pop-up Key
Press the flash pop-up key to open the flash cover.
3 5× Zoom Lens
You can manually adjust the zoom lens (28 mm to 140 mm (5×) on a 35 mm film
camera) by rotating the zoom ring. After adjusting the zoom, manually adjust the focus
with the focus ring.
4 White Balance Button
When HOLD is set in the WB (white balance) mode, white balance can be adjusted by
pressing this button.
3
14
5 Self-Timer Lamp
When taking a picture with the self-timer, this lamp flashes when the release button is
pressed. As the shutter release time draws near, the intervals between flashes become
gradually shorter. The shutter is released when the light becomes constant.
6 Remote Control Signal Receiver
Receives infrared signals transmitted by the wireless remote control.
GB
Rear
1
•
PC
•
OFF
•
CAM
•
PLAY
MENU
EXCUTE
EXIT
!§ !∞!¢!¡7!™
!£890
AE-LOCK
R-REVIEW
DISPLCD
INDEX/EZ.FOCUS
52 34
6
!• !ª!¶
1 Viewfinder
Lets you frame the picture.
2 Eyesight Adjustment Le ver
Adjusts the level of the viewfinder to suit the eyesight of the picture taker.
3 Review Button
Lets you view and play back pictures during the time set in the REVIEW TIME of the
custom menu when pressed directly after taking a picture.
4 AE-LOCK Button
The exposure value is locked each time you press the AE lock button.
If the AE-LOCK button is pressed again or the release button is pressed, the lock
function is cancelled the next time the camera is used.
Locations and Functions of Parts
5 Shift Dial
Sets the picture quality and size (when the camera is in CAM mode) and changes the
pictures that are played back (when the camera is in PLAY mode).
6 Neck Strap Belt Holder
Where the neck strap belt is attached.
Caution
Don’t rotate the metal fittings on the holder.
continued on next page
15
GB
7 Access Lamp
Lights in red when a card is accessed by the camera during picture taking or playback.
Locations and Functions of Parts
Caution
When the access lamp is lit, do not eject the card or turn off the power source. The
PC Card or “Memory Stick” may be damaged.
Note
The PC Card and the “Memory Stick” installed in the Memory Stick/PC Card
Adaptor are both referred to here as CARD.
8 LCD Button
Switches the LCD monitor on and off.
9 INDEX/EZ.FOCUS button
In the PLAY mode, pressing this button switches playback of captured images to Index.
In the CAM mode, it switches to an enlargement of the image displayed on the LCD
monitor.
0 DISP (display) Button
Turns LCD monitor information display on or off.
qa LCD Monitor
Lets you read necessary picture taking information, frame shots, and view recorded
pictures.
qs MENU Button
Brings up the menu on the LCD monitor to change the settings of the camera or cards.
qd EXECUTE Button
Lets you choose items when adjusting settings in the menu.
16
qf EXIT Button
Returns you to the previous item or screen when changing settings in the menu.
qg UPv/DOWNV Button
Selects menu items and changes values.
GB
qh Power/Mode Dial
Selects camera conditions when turned while the mode lock (green) is held down.
• OFF
Turns the power off.
• CAM
Allows you to take pictures (CAM mode).
• PLAY
Allows you to play back the pictures you have taken (PLAY mode).
•PC
Allows you to connect to the PC (PC mode).
Note
LCD Monitor Display
When the power/mode dial is turned to CAM, the LCD monitor remains off. If
necessary, press the LCD button to turn the LCD monitor on.
When the power/mode dial is turned to PLAY, the LCD monitor automatically turns
on.
qj Card Cover Lock
Slide this lock to enable card insertion or ejection.
qk Card Eject Button
Press this button to eject cards.
ql Card Cover
Open or close this cover to set the card in place or to eject it.
Locations and Functions of Parts
17
GB
Top
ISO
US
SIZE
QUAL
DRIVE
WB
AE
A
Locations and Functions of Parts
231
EV
SIZE
QUAL
USER
DRIVE
ISO
WB
AE
!£!¢!∞
!™
!¡
96
1 Focus Ring
Rotate left or right to adjust the focus.
2 Zoom Ring
Rotate left or right to adjust the zoom ratio of the zoom lens.
3 Release Button
Operates the shutter when shooting.
4 [z] (Light Metering Select) Button
By turning the shift dial while pressing this button, you can choose from Spot (a Spot
light metering) or Average ([ ]: average light metering) to measure the light needed for
proper exposure.
AE-LOCK
R-REVIEW
487
50
18
GB
5 (EV) Button
By turning the shift dial while pressing this button, you can correct the exposure when
taking pictures.
6 LCD Panel
Picture taking settings, such as shutter speed and aperture, are displayed on the LCD
panel.
7 Accessory Shoe
Attach external flashes here.
8 Focus Mode Switch
Switches the focus mode between auto and manual.
9 Mode Dial
Pressing the shift button (top button) after it has been adjusted to the desired position
sets the picture size and quality (in CAM mode) and changes the picture to be played
back (in PLAY mode).
0 Shift Button
Pressing this button after moving the mode dial to the desired position sets the picture
quality or picture size (in CAM mode) or changes the picture that is played back (in
PLAY mode).
qa Connector Cover
When using the video output terminal, the i.LINK terminal, or the remote control
terminal, open this cover to connect the video cable.
qs Connector Cover Lock
Slide this lock to open the connector cover.
qd Video Output Terminal
To view pictures on a television, connect the video cable (supplied) to this terminal.
qf PC interface Terminal (6-Pin, 400 Mbps)
When operating the camera from a PC, connect the PC interface cable (supplied) here to
view pictures on the PC.
qg Remote Control Terminal
To use the remote control RM-S7D (supplied), connect it here using the remote control
cable (supplied).
Locations and Functions of Parts
19
GB
Bottom
Locations and Functions of Parts
3
2
1 Tripod Hoke
Attach a tripod here. Standards are as listed below.
ISO Standardl = 4.5mm +/- 0.2mm
ASA Standardl = 0.197 inch
2 Battery Cover
Open or close this cover to insert or take out the battery pack.
3 Battery Cover Lock
Slide this lock to insert or take out the battery pack.
1
20
GB
LCD Panel
CAM Mode/PC Mode
Shutter speed
ISO Sensitivity
Picture taking mode
Picture number
Locations and Functions of Parts
Focus mode
EV compensation
Aperture
Battery indicator
Picture size
Card indicator
Flash mode
Interval/self-timer/
single picture/continuous
picture taking indicator
In CAM mode/PC mode, when the release button is pressed while pressing the shift
button, the shutter speed indicator changes to the remaining shot number indicator
and the aperture indicator changes to remaining shooting time.
Because remaining shooting time is displayed as only two digits, any time over 99
minutes is displayed as 99.
The viewfinder display changes in the same way.
PLAY Mode
Picture number
Picture quality
WB (white balance) mode
Note
Battery indicator
Card indicator
21
GB
LCD Monitor
Locations and Functions of Parts
CAM Mode/PC Mode
Flash indicator
1
Mode*
WB (white
balance) mode
Picture folder name/
Keyword
file name
*1 The illustration above shows the monitor in CAM mode. When the monitor is in PC mode, “PC”
appears here.

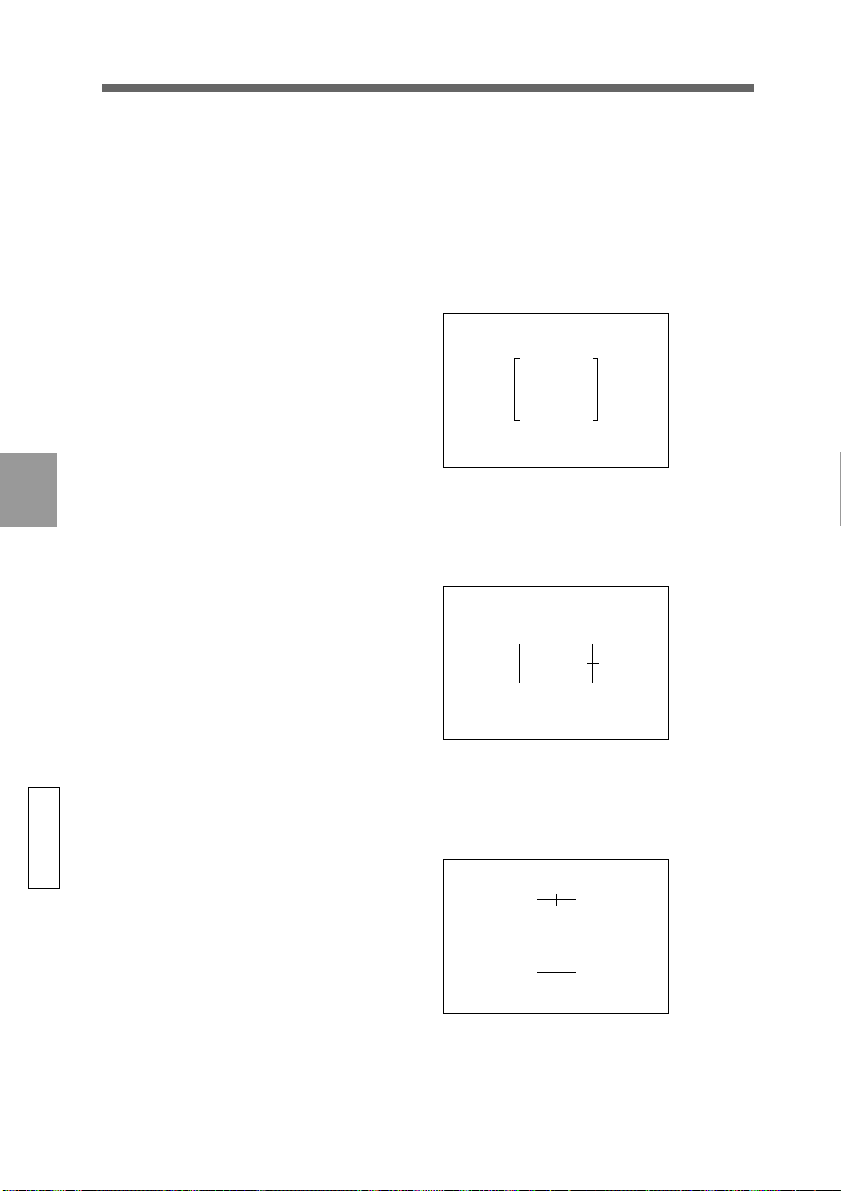

*2 The illustration above shows the monitor AE frame. You can also choose from Guide90 or Guide0
frame (page 75).
*3 Remaining shooting time is not displayed when using the AC power adaptor/charger AC-VQ800.
Ordinarily, remaining shooting time is displayed, then the battery indicator illuminates when the
battery runs low.
CAM
WB-auto
1234/12345
No.10267
1344/High
0
0.25EV 2000 F4.0
PLAY Mode
Mode
PLAY
P No.10267
1344/High/0
AF focusing indicator
Picture number
Picture size/quality
Frame (AE frame)*
Battery indicator
(/Remaining shooting
3
)
time*
Remaining shot
number
Aperture
Shutter speed
EV compensation
Protect/Picture number
Picture size/Quality/
Rotation
2
22
Picture folder name/
GB
Battery indicator
(/Remaining shooting
2
time*
Keyword
file name
* Ordinarily, remaining playback time is displayed. Then the battery indicator illuminates when the
battery runs low.
The remaining playback time is not displayed when using AC power adaptor/charger AC-VQ800.
1234/12345
1999-07-04
10:18:36
2000 F4.0
)
Date/Time
Aperture
Shutter speed
Viewfinder
AE LOCK
Shutter speed
aperture*/
EV compensation
* The EV compensation is displayed when EV Button is pressed.
5.6 2000WB [ ]
Locations and Functions of Parts
Light metering
White balance
Flash indicator
AF focusing indicator
23
GB
Preparations
Charging the Battery Pack
Charge the battery pack NP-F550 (not supplied) using AC power adaptor/charger AC-VQ800
(supplied).
Be sure to charge the battery pack before using it for the first time.
Preparations
Charge the battery pack when necessary, as indicated by the remaining shooting time on the LCD
monitor or the battery indicator on the LCD panel.
Battery Pack Charging Time
When it is time to charge the battery, the battery indicator on the LCD panel flashes. For further
reference see “Warning Indicators” (page 116).
Battery Pack Charging Time
Battery ChargerCharging time for practical use*Time for full charge
AC-VQ800Approx. 55 minutesApprox. 115 minutes
* The time needed for charging an empty NP-F550 battery pack.
* Times shown are standard values for continuous general photography at 20˚C (68˚F) with the flash
off. The time is reduced by repeatedly turning the power on and off.
Shooting time*Playback time
LCD monitor offLCD monitor onLCD monitor offLCD monitor on
24
GB
2
1Slide the AC adaptor/charger’s mode switch to the
charge position.
3
2Connect the AC power cable to the AC adaptor/
charger.
1
3Plug the AC plug of the AC power cable into a
wall socket.
4
4Set the battery pack into its receptacle on the AC
adaptor/charger as shown, making sure that the v
mark is adjacent to the notch on the lift (the L
5(a)
series side).
5(b)
5Pushing the battery pack down (a), slide it all the
way to the left (b).
When charging starts, the battery marks in the
display window light in succession and the charge
lamp lights. When the battery is charged, all of the
battery marks light (practical use charge). Further,
if you continue charging until the charge lamp
goes out and the battery mark shows FULL, you
can use the battery for a little longer than normal
(full charge).
6After charging has finished, slide the battery pack
fully to the right and remove it from the AC
adaptor/charger.
This camera operates only with the “InfoLITHIUM” battery (L series).
The “InfoLITHIUM” battery is a new type of lithium ion battery which can exchange data with
compatible video equipment about its battery consumption. The digital still camera supports the
“InfoLITHIUM” battery (L series). The “InfoLITHIUM” battery is recognized by the
mark.
“InfoLITHIUM” is a trademark of Sony Corporation.
Installation of the Battery Pack
After charging the battery, install it in the camera.
Preparations
1
•
PC
•
OFF
•
CAM
•
PLAY
AE-LOCK
R-REVIEW
•
PC
DISP LCD
INDEX/EZ.FOCUS
•
OFF
•
CAM
•
PLAY
MENU
EXCUTE
EXIT
the OFF position.
continued on next page
25
GB

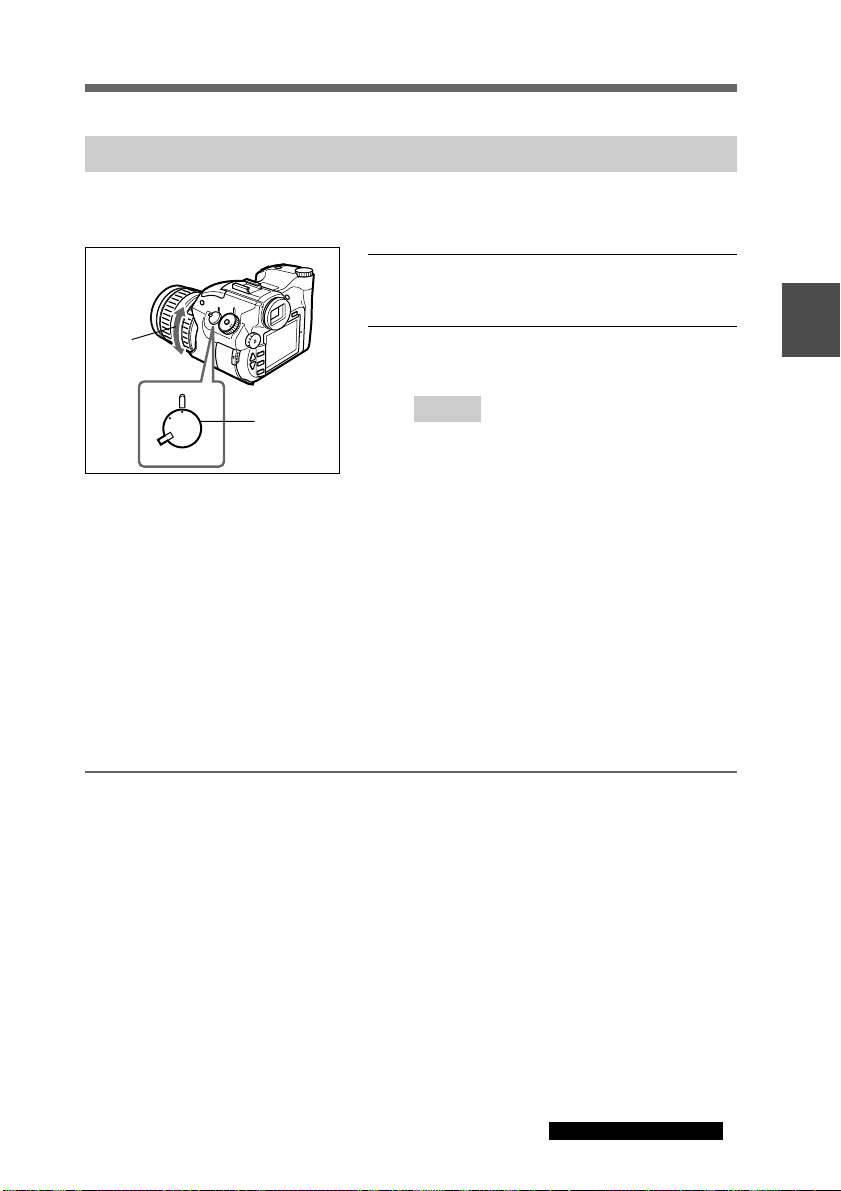

1Make sure the camera power/mode dial is set to
2(a)
2Slide the battery cover lock in the direction of the
v mark (a), and open the battery cover (b).
Preparations
2(b)
3
3
3Insert the battery v mark side first until it firmly
locks in place.
4Close the battery cover.
Removing the Battery
1Make sure the camera power/mode dial is set to
the OFF position.
2Slide the battery cover lock in the direction of the
v mark and open the battery cover.
3Rotate the battery cover lock to the outside and
remove the battery pack.
26
GB

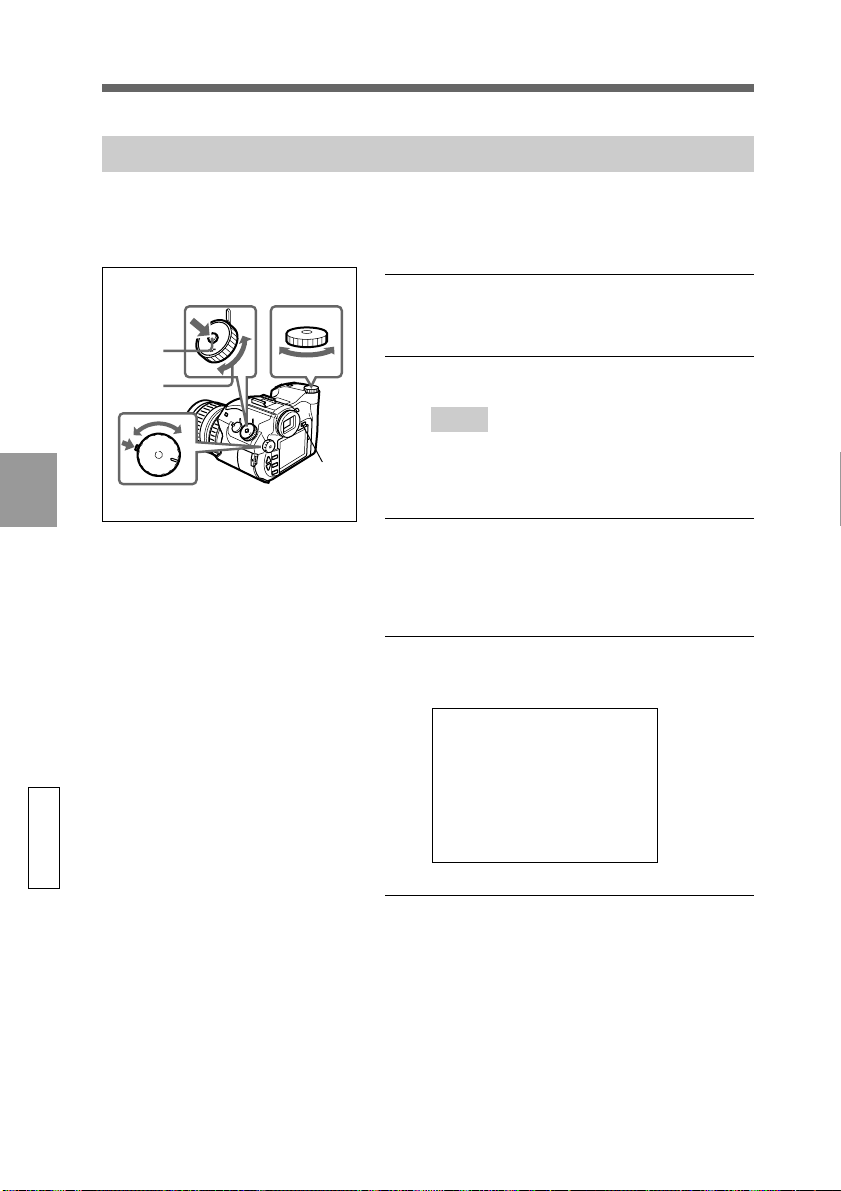

Setting the Time and Date
The shooting time and date are recorded automatically with information from the camera’s internal
clock. Set the clock to ensure the correct time and date are recorded.
3~
9
1
•
PC
•
OFF
•
CAM
•
PLAY
MENU
EXCUTE
EXIT
2
4~9

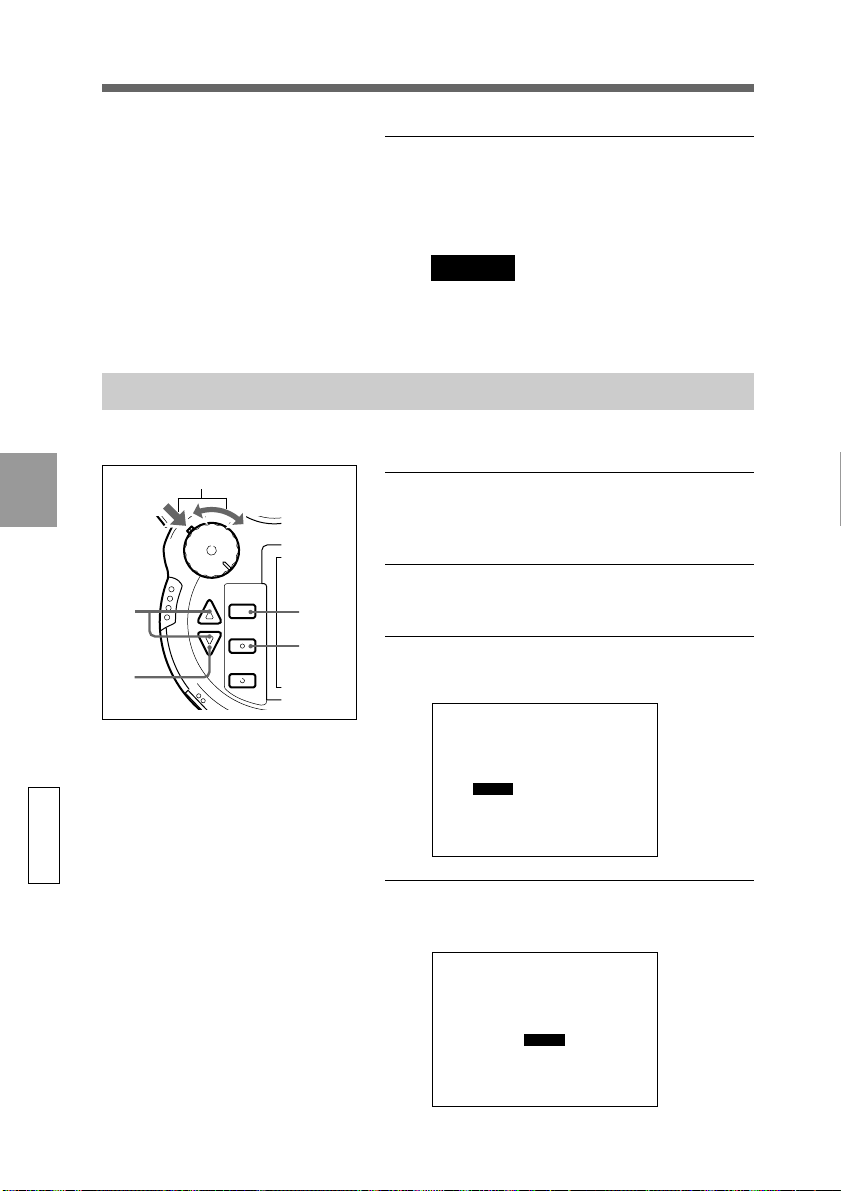

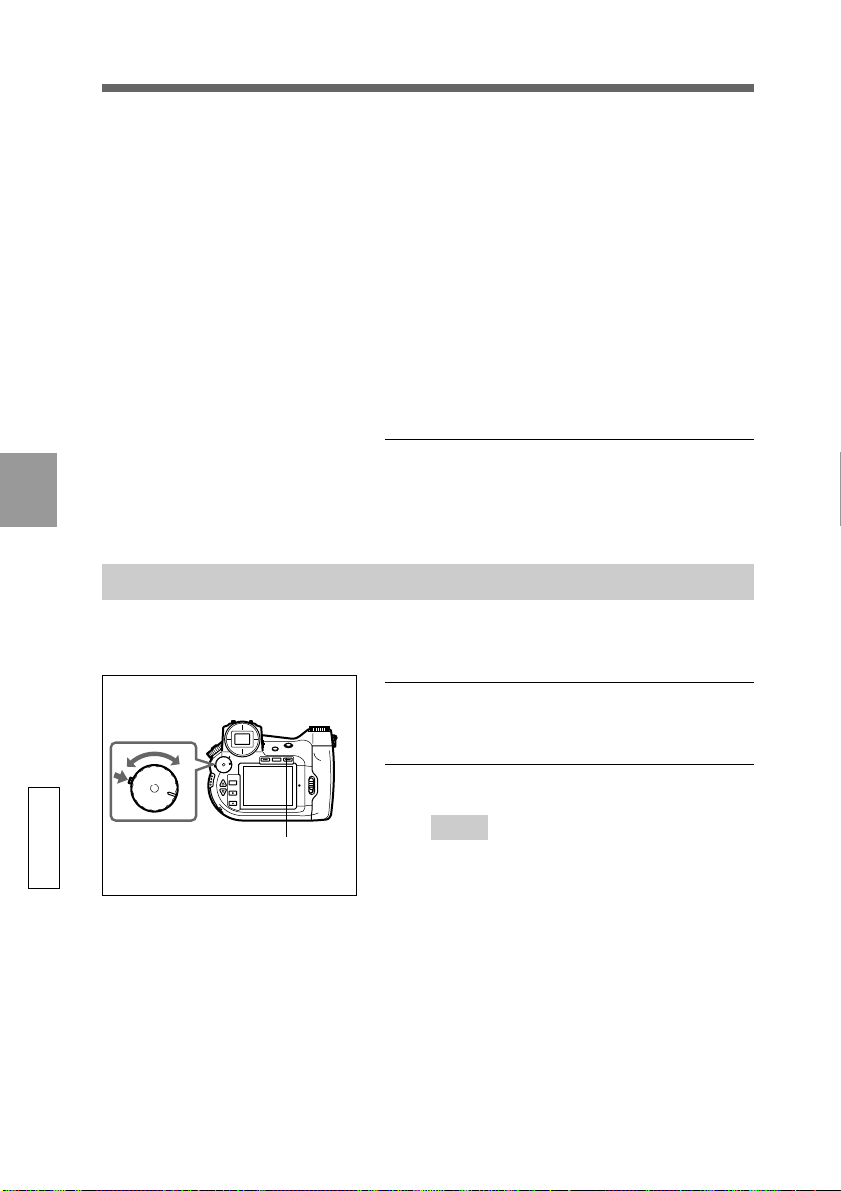

1While pressing the mode lock (green), turn the
power/mode dial to CAM mode.
2Press the MENU button.
The LCD monitor turns on and the menu is
displayed.
Preparations

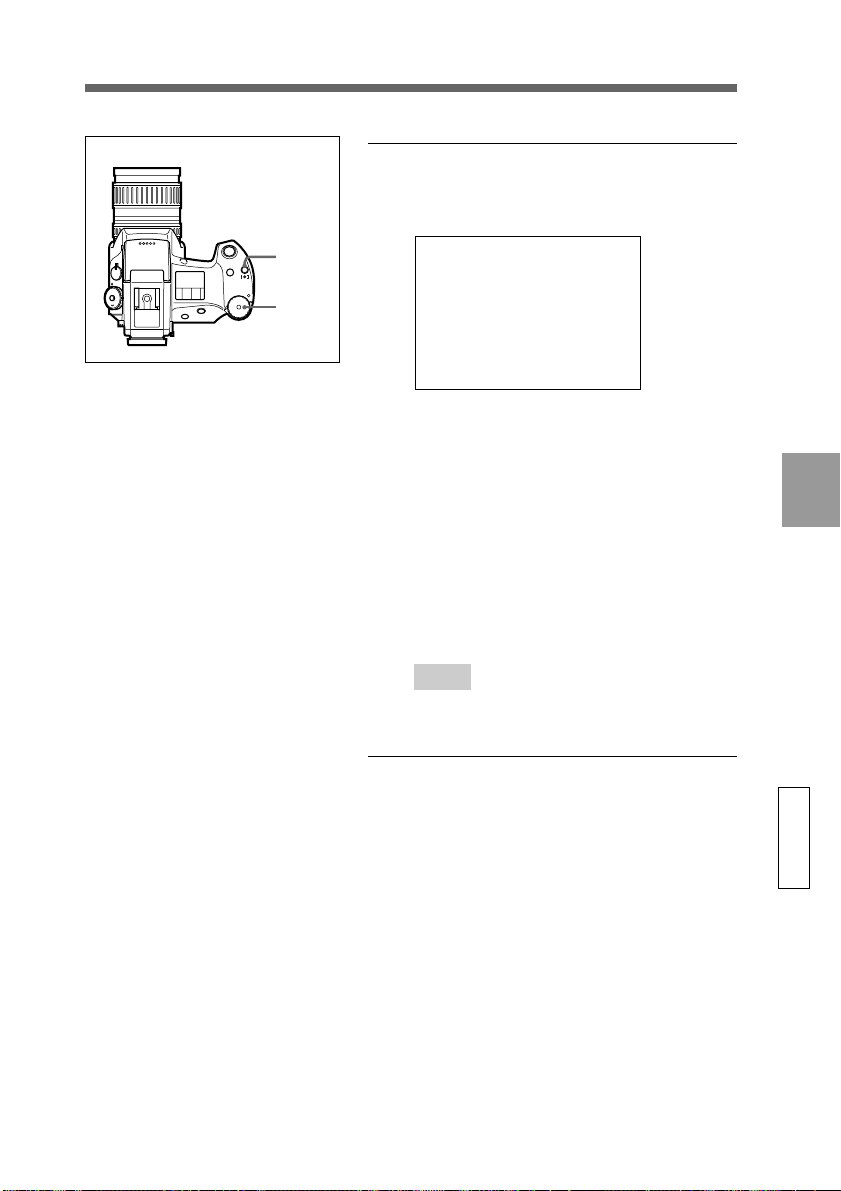

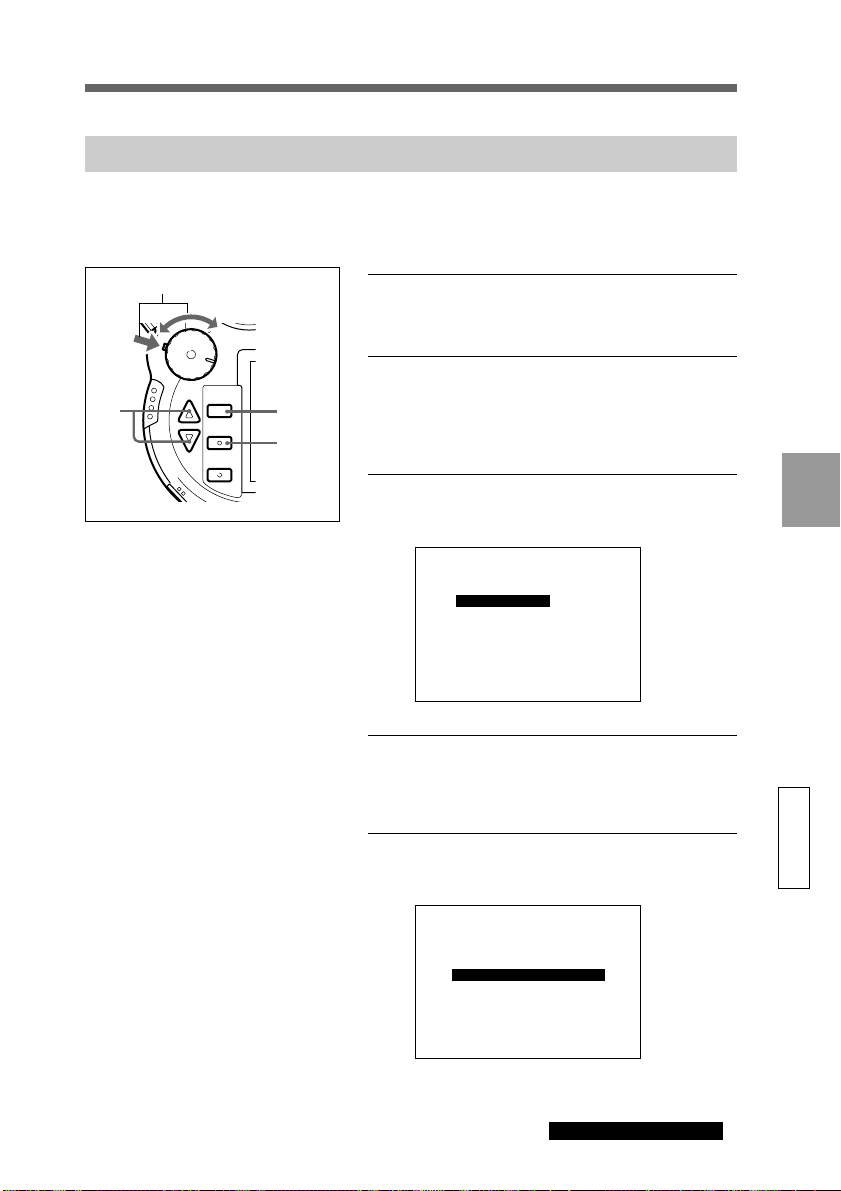

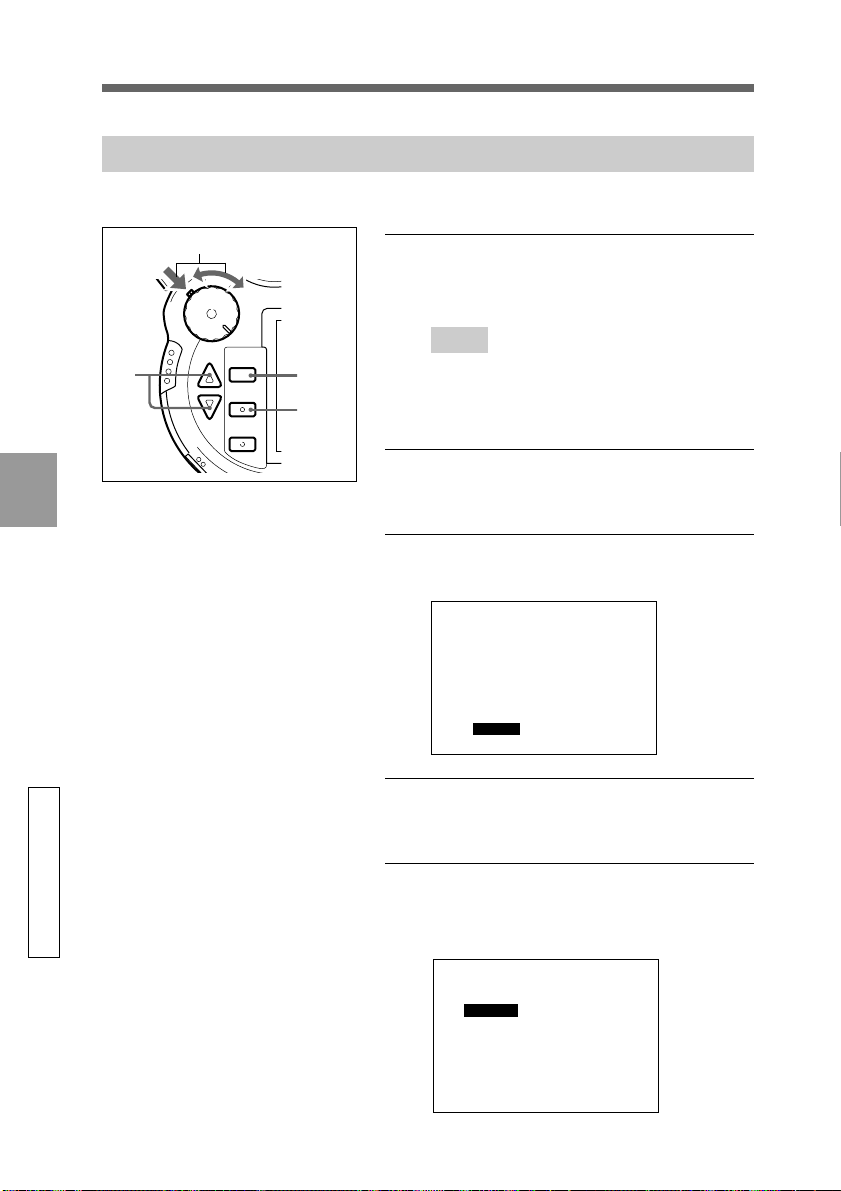

3Press the v(UP)/V(DOWN) buttons to select
“Date & Time”.
CAMERA MENU
Custom
PC Card INIT
User File Save
New Folder
ID Set
File No. Mem
WB Flash
Date & Time
LCD Set
Display Set
4Press the EXECUTE button.
The DATE & TIME menu is displayed.
5Select “Set” using the v(UP)/V(DOWN) buttons
and then press the EXECUTE button.
The year can now be set.
DATE & TIME
Set -07-04 20:45:58
Date Form yyyy-mm-dd
1999
continued on next page
27
GB

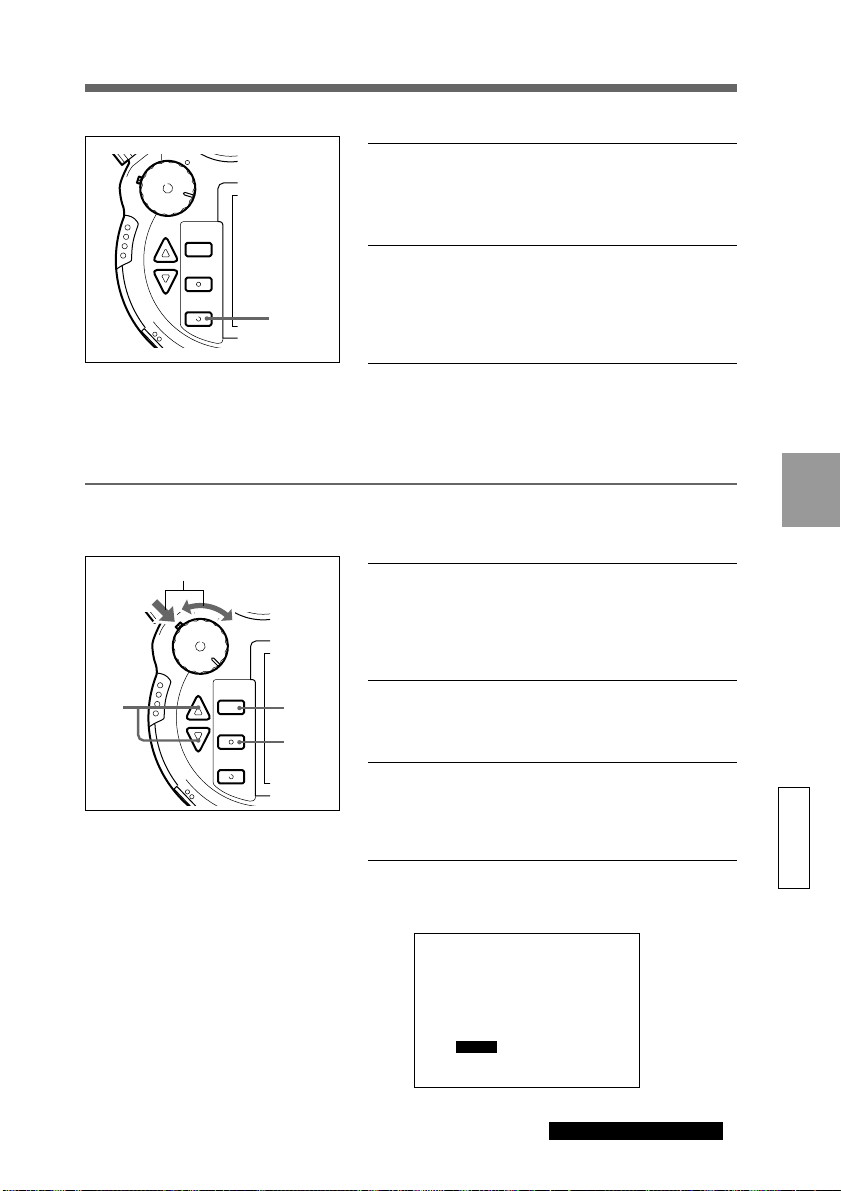

6Set the year using the v(UP)/V(DOWN) buttons
and then press the EXECUTE button.
The month can now be set.
Preparations
•
PC
•
OFF
•
CAM
•
PLAY
MENU
EXCUTE
EXIT
10,11
7Set the month, day, hour, minutes and seconds in
the same way as explained in step 5.
8Select “Date Form” using the v(UP)/V(DOWN)
buttons and then press the EXECUTE button.
You can now select the date display format.
9Select the date display format using the v(UP)/
V(DOWN) buttons and then press the EXECUTE
button.
You can choose from the following 3 date display
The time and date are set and the menu returns on
the LCD monitor.
11 Press the EXIT button.
The menu disappears from the monitor.
28
Keeping correct time
A separate lithium button battery is used by the
camera to power the internal clock. When turning
the power dial to CAM or PLAY from OFF, if the
message “Date & Time not set” appears, it is time
to charge the lithium button battery.
Inquire about charging the battery at the store
where you bought the camera or at any Sony
service center.
GB
Preparing the Card
The picture is saved on the PC Card inserted in the camera (not supplied) or on the “Memory Stick”.
Insert the “Memory Stick” in the Memory Stick/PC Card Adaptor and then insert the adaptor into the
camera.
In this guide the “Memory Stick”, when inserted in the Memory Stick/PC Card Adaptor, and the PC
Card are referred to as Card.

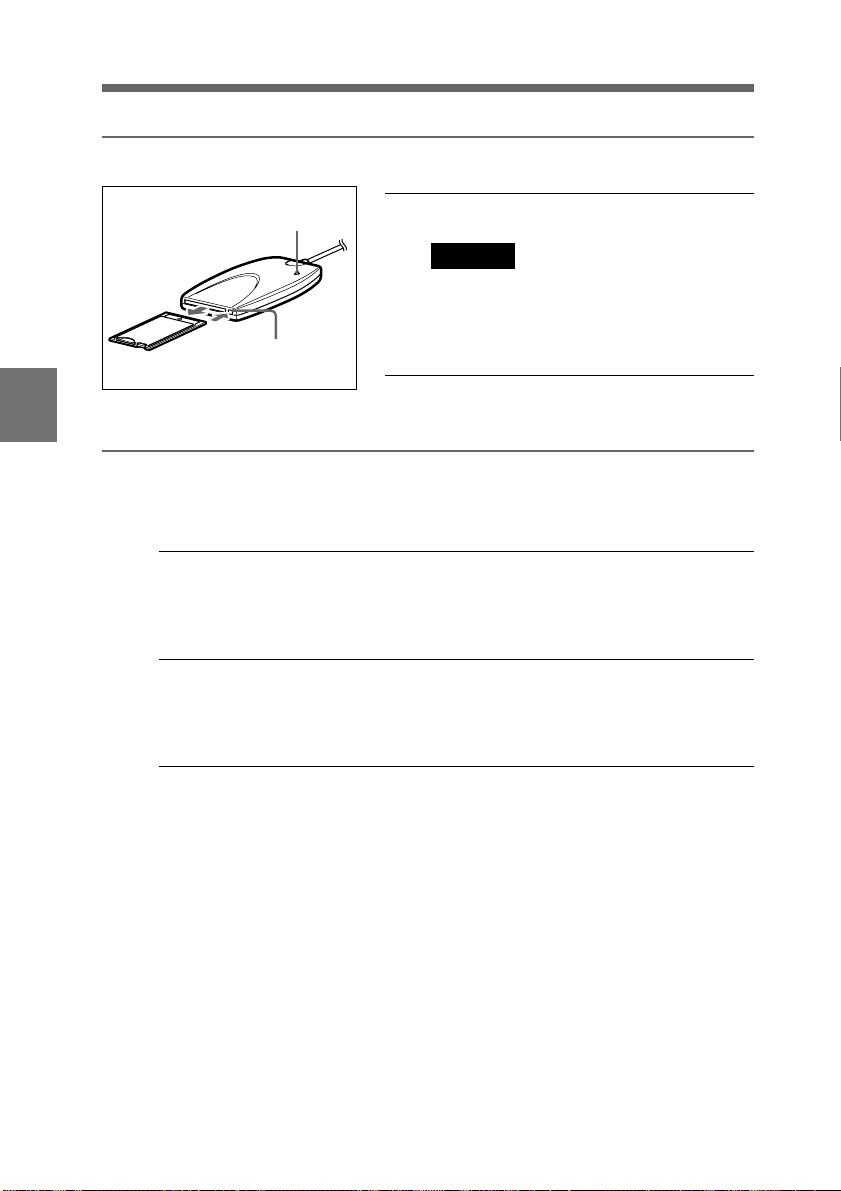

Inserting the “Memory Stick” in the Memory Stick/PC Card Adaptor
Preparations
1
1Making sure the side of the “Memory Stick” with
the v mark is facing up, insert it into the Memory
Stick/PC Card Adaptor until it is locked firml y in
place.
To Take out the “Memory Stick” from
the Memory Stick/PC Card Adaptor
1Push the EJECT button on the Memory Stick/PC
Card Adaptor.
1
2
2Pull out the “Memory Stick”.
continued on next page
29
GB
Inserting the Card
Preparations
1Slide the card cover bar lock downward (a) and
open the card cover (b).
1(b)
1(a)
2
2Insert the card in the camera.
Caution
Make sure to insert the card in the proper
direction. Forcing the card may result in
damage to the camera and/or the card.
If you insert a card that has never been
initialized, FORMAT ERROR flashes on the
LCD monitor. Initialize the card. (Page 31)
3Close the card cover.
3
30
GB
Loading...
+ 98 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
