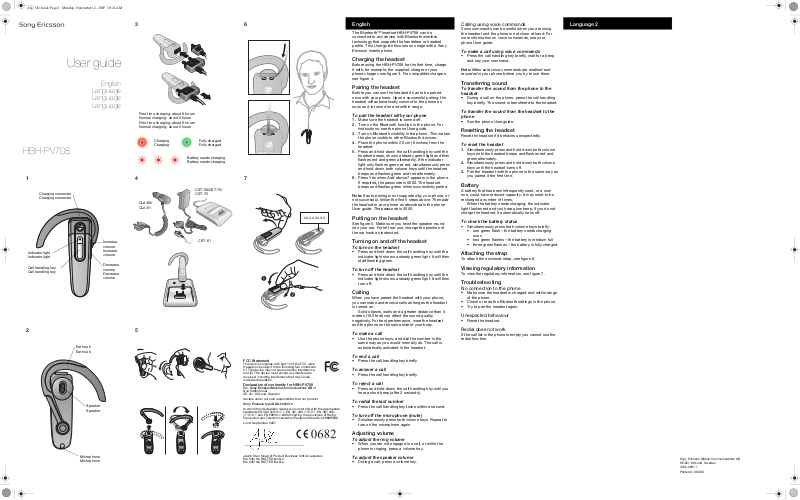

Sony DDA 2010 User Manual

Alp_UG.book Page 1 Monday, November 12, 2007 10:41 AM

HBH-PV708

Charging connector Charging connector

Indicator light Indicator light

Call handling key Call handling key

User guide

English Language Language Language

Increase volume Increase volume

Decrease volume Decrease volume

Ear hook Ear hook

Speaker Speaker

First time charging: about 8 hours Normal charging: about 2 hours First time charging: about 8 hours Normal charging: about 2 hours

Charging Charging

CLA-60/ CLA-61

Fully charged Fully charged

Battery needs charging Battery needs charging

CST-60/CST-70/ CST-75

CST-61

xxx xxx xx

FCC Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Declaration of conformity for HBH-PV708

We, Sony Ericsson Mobile Communications AB of Nya Vattentornet SE-221 88 Lund, Sweden

declare under our sole responsibility that our product

Sony Ericsson type DDA-0002010

to which this declaration relates is in conformity with the appropriate standards EN 300 328:V1.7.1, EN 301 489-7:V1.3.1, EN 301 48917:V1.2.1 and EN 60950-1:2006 following the provisions of Radio Equipment and Telecommunication Equipment directive 1999/5/EC.

Lund, September 2007

English

The Bluetooth™ headset HBH-PV708 can be connected to any device with Bluetooth wireless technology that supports the handsfree or headset profile. This User guide focuses on usage with a Sony Ericsson mobile phone.

Charging the headset

Before using the HBH-PV708 for the first time, charge it with, for example, the supplied charger or your phone charger, see figure 3. For compatible chargers, see figure 4.

Pairing the headset

Before you can use the headset it has to be paired once with your phone. Upon a successful pairing, the headset will automatically connect to the phone as soon as it is turned on and within range.

To pair the headset with your phone

1. Make sure the headset is turned off.

2. Turn on the Bluetooth function in the phone. For

instructions, see the phone User guide.

3. Turn on Bluetooth visibility in the phone. This makes the phone visible to other Bluetooth devices.

4. Place the phone within 20 cm (8 inches) from the headset.

5. Press and hold down the call handling key until the headset beeps, shows a steady green light and then flashes red and green alternately. If the indicator light only flashes green or red, simultaneously press and hold down both volume keys until the headset beeps and flashes green and red alternately.

6. Press Yes when Add device? appears in the phone. If required, the passcode is 0000. The headset beeps and flashes green when successfully paired.

Note: If auto pairing is not supported by your phone, or not successful, follow the first 5 steps above. Then add the headset to your phone as described in the phone User guide. The passcode is 0000.

Putting on the headset

See figure 5. Make sure you twist the speaker round into your ear. For left ear use, change the position of the ear hook as instructed.

Turning on and off the headset

To turn on the headset

• Press and hold down the call handling key until the indicator light shows a steady green light. It will then start flashing green.

To turn off the headset

• Press and hold down the call handling key until the indicator light shows a steady green light. It will then turn off.

Calling

When you have paired the headset with your phone, you can make and receive calls as long as the headset is turned on.

Solid objects, walls and a greater distance than 5

metres (16.5 feet) can affect the sound quality negatively. For best performance, wear the headset and the phone on the same side of your body.

To make a call

• Use the phone keys, and dial the number in the same way as you would normally do. The call is automatically activated in the headset.

To end a call

• Press the call handling key briefly.

To answer a call

• Press the call handling key briefly.

To reject a call

• Press and hold down the call handling key until you hear a short beep (after 2 seconds).

To redial the last number

• Press the call handling key twice within a second.

To turn off the microphone (mute)

• Simultaneously press both volume keys. Repeat to turn on the microphone again.

Calling using voice commands

Voice commands can be useful when you are using the headset and the phone is not close at hand. For more information on voice commands, see your phone User guide.

To make a call using voice commands

• Press the call handling key briefly, wait for a beep and say your command.

Note: Make sure voice commands are enabled and recorded in your phone before you try to use them.

Transferring sound

To transfer the sound from the phone to the headset

• During a call on the phone, press the call handling key briefly. The sound is transferred to the headset.

To transfer the sound from the headset to the phone

• See the phone User guide.

Resetting the headset

Reset the headset if it behaves unexpectedly.

To reset the headset

1. Simultaneously press and hold down both volume keys until the headset beeps and flashes red and green alternately.

2. Simultaneously press and hold down both volume keys until the headset turns off.

3. Pair the headset with the phone in the same way as you paired it the first time.

Battery

A battery that has been infrequently used, or a new one, could have reduced capacity. It may need to be recharged a number of times.

When the battery needs charging, the indicator

light flashes red and you hear a low beep. If you do not charge the headset, it automatically turns off.

To check the battery status

• Simultaneously press both volume keys briefly:

• one green flash – the battery needs charging

soon

• two green flashes – the battery is medium full

• three green flashes – the battery is fully charged

Attaching the strap

To attach the enclosed strap, see figure 6.

Viewing regulatory information

To view the regulatory information, see figure 7.

Troubleshooting

No connection to the phone

• Make sure the headset is charged and within range of the phone.

• Check or redo the Bluetooth settings in the phone.

• Try to pair the headset again.

Unexpected behaviour

• Reset the headset.

Redial does not work

If the call list in the phone is empty you cannot use the redial function.

Language 2

Microphone Microphone

Jacob Sten, Head of Product Business Unit Accessories

We fulfil the R&TTE Directive. We fulfil the R&TTE Directive.

Adjusting volume

To adjust the ring volume

• When you are not engaged in a call, or while the phone is ringing, press a volume key.

To adjust the speaker volume

• During a call, press a volume key.
