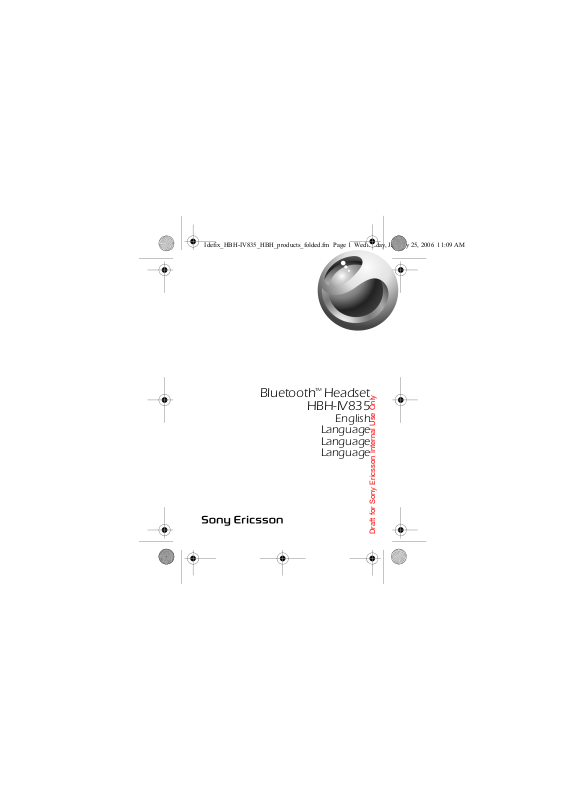

Bluetooth™
2
Headset HBH-IV835
User Guide User Guide User Guide User Guide
FCC statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Sony Ericsson HBH-IV835
This manual is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this manual. All rights reserved.
©Sony Ericsson Mobile Communications AB, 2005
Publication number: LZT 108 79 41/x P5A
Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency Number 112. Contact your network operator or service provider if you are in doubt whether you can use a particular service or not.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license.
This product is leadfree and halogenfree.
Draft for Sony Ericsson Internal Use Only
Introduction
3
Introduction Introduction Introduction
Bluetooth™ Headset HBH-IV835
The Bluetooth™ Headset HBH-IV835 can be connected to any device with Bluetooth wireless technology that supports the handsfree or headset profile. This user guide focuses on usage with a Sony Ericsson mobile phone.
Bluetooth™ Headset HBH-IV835
The Bluetooth™ Headset HBH-IV835 can be connected to any device with Bluetooth wireless technology that supports the handsfree or headset profile. This user guide focuses on usage with a Sony Ericsson mobile phone.
Bluetooth™ Headset HBH-IV835
The Bluetooth™ Headset HBH-IV835 can be connected to any device with Bluetooth wireless technology that supports the handsfree or headset profile. This user guide focuses on usage with a Sony Ericsson mobile phone.
Bluetooth™ Headset HBH-IV835
The Bluetooth™ Headset HBH-IV835 can be connected to any device with Bluetooth wireless technology that supports the handsfree or headset profile. This user guide focuses on usage with a Sony Ericsson mobile phone.
Draft for Sony Ericsson Internal Use Only
Front Front Front Front
Charging connector Charging connector Charging connector Charging connector
Call handling button Call handling button Call handling button Call handling button
Indicator light Indicator light Indicator light Indicator light
4
Draft for Sony Ericsson Internal Use Only
Back Back Back Back
Power button Power button Power button Power button
Microphone Microphone Microphone Microphone
Speaker Speaker Speaker Speaker
5
Draft for Sony Ericsson Internal Use Only
User Guide symbols User Guide symbols User Guide symbols User Guide symbols
Press and release Press and release Press and release Press and release
Press and hold Press and hold Press and hold Press and hold
Steady red light Steady red light Steady red light Steady red light
Press twice within 1/2 second Press twice within 1/2 second Press twice within 1/2 second Press twice within 1/2 second
Press and hold simultaneously Press and hold simultaneously Press and hold simultaneously Press and hold simultaneously
Steady green light Steady green light Steady green light Steady green light
6
Draft for Sony Ericsson Internal Use Only
User Guide symbols (continued) User Guide symbols (continued) User Guide symbols (continued) User Guide symbols (continued)
Red flash Red flash Red flash Red flash
Beep tone Beep tone Beep tone Beep tone
Green flash Green flash Green flash Green flash
Ring signal Ring signal Ring signal Ring signal
7
Draft for Sony Ericsson Internal Use Only
Getting started Getting started Getting started Getting started
Chargers Chargers Chargers Chargers
CST-60
CLA-60
CST-61
First time use: Charge approximately 8 hours. First time use: Charge approximately 8 hours. First time use: Charge approximately 8 hours. First time use: Charge approximately 8 hours.
8
Draft for Sony Ericsson Internal Use Only
Charging Charging Charging Charging
Charging Charging Charging Charging
Battery needs charging Battery needs charging Battery needs charging Battery needs charging
Fully charged Fully charged Fully charged Fully charged
9
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 10 Wednesday, January 25, 2006 11:09 AM
Adding the headset to the phone Adding the headset to the phone Adding the headset to the phone Adding the headset to the phone
10
20 cm
Before you can use your Bluetooth headset with your phone it has to be added once to the phone. Follow the instructions from the phone user guide on how to turn on Bluetooth in your phone.
1. Turn on Bluetooth in your phone.
2. Turn on Bluetooth visibility in your phone. This makes
your phone visible to other Bluetooth devices.
3. Prepare your headset according to page 15.
4. If your phone supports auto pairing, press YES when
Add device? appears in your phone to complete the procedure. If not, continue with step 5.
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 11 Wednesday, January 25, 2006 11:09 AM
5. Prepare your phone according to the phone’s user guide on how to add a Bluetooth device.
11
Please note that for some phones you may need to enter a passcode. The headset passcode is 0000.
After you have added the headset to the phone, it will automatically connect to the phone as soon as it is turned on and within range.
The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added
Before you can use your Bluetooth headset with your phone it has to be added once to the phone. Follow the instructions from the phone user guide on how to turn on Bluetooth in your phone.
1. Turn on Bluetooth in your phone.
2. Turn on Bluetooth visibility in your phone. This makes
your phone visible to other Bluetooth devices.
3. Prepare your headset according to page 15.
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 12 Wednesday, January 25, 2006 11:09 AM
4. If your phone supports auto pairing, press YES when Add device? appears in your phone to
12
complete the procedure. If not, continue with step
5.
5. Prepare your phone according to the phone’s user guide on how to add a Bluetooth device. Please note that for some phones you may need to enter a passcode. The headset passcode is 0000.
After you have added the headset to the phone, it will automatically connect to the phone as soon as it is turned on and within range.
The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added
Before you can use your Bluetooth headset with your phone it has to be added once to the phone. Follow the instructions from the phone user guide on how to turn on Bluetooth in your phone.
1. Turn on Bluetooth in your phone.
2. Turn on Bluetooth visibility in your phone. This makes
your phone visible to other Bluetooth devices.
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 13 Wednesday, January 25, 2006 11:09 AM
3. Prepare your headset according to page 15.
13
4. If your phone supports auto pairing, press YES when Add device? appears in your phone to complete the procedure. If not, continue with step 5.
5. Prepare your phone according to the phone’s user guide on how to add a Bluetooth device. Please note that for some phones you may need to enter a passcode. The headset passcode is 0000.
After you have added the headset to the phone, it will automatically connect to the phone as soon as it is turned on and within range.
The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added
Before you can use your Bluetooth headset with your phone it has to be added once to the phone. Follow the
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 14 Wednesday, January 25, 2006 11:09 AM
instructions from the phone user guide on how to turn on Bluetooth in your phone.
14
1. Turn on Bluetooth in your phone.
2. Turn on Bluetooth visibility in your phone. This makes
your phone visible to other Bluetooth devices.
3. Prepare your headset according to page 15.
4. If your phone supports auto pairing, press YES when
Add device? appears in your phone to complete the procedure. If not, continue with step 5.
5. Prepare your phone according to the phone’s user guide on how to add a Bluetooth device. Please note that for some phones you may need to enter a passcode. The headset passcode is 0000.
After you have added the headset to the phone, it will automatically connect to the phone as soon as it is turned on and within range.
The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added The headset beeps and flashes green when successfully added
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 15 Wednesday, January 25, 2006 11:09 AM

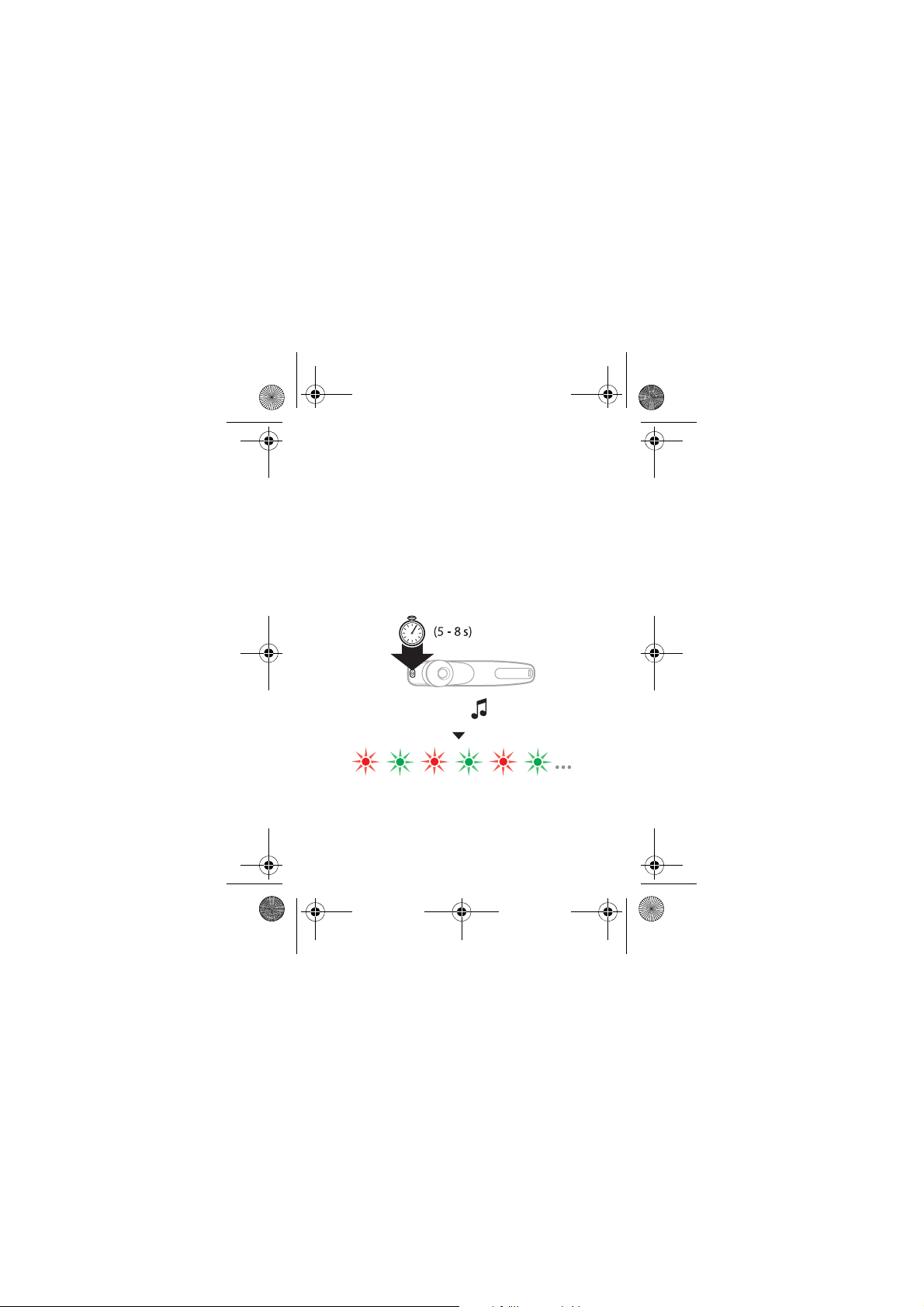

Prepare the headset Prepare the headset Prepare the headset Prepare the headset
Make sure the headset is turned off (see p.19). Make sure the headset is turned off (see p.19). Make sure the headset is turned off (see p.19). Make sure the headset is turned off (see p.19).
Make sure the indicator light flashes red/green Make sure the indicator light flashes red/green Make sure the indicator light flashes red/green Make sure the indicator light flashes red/green
15
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 16 Wednesday, January 25, 2006 11:09 AM

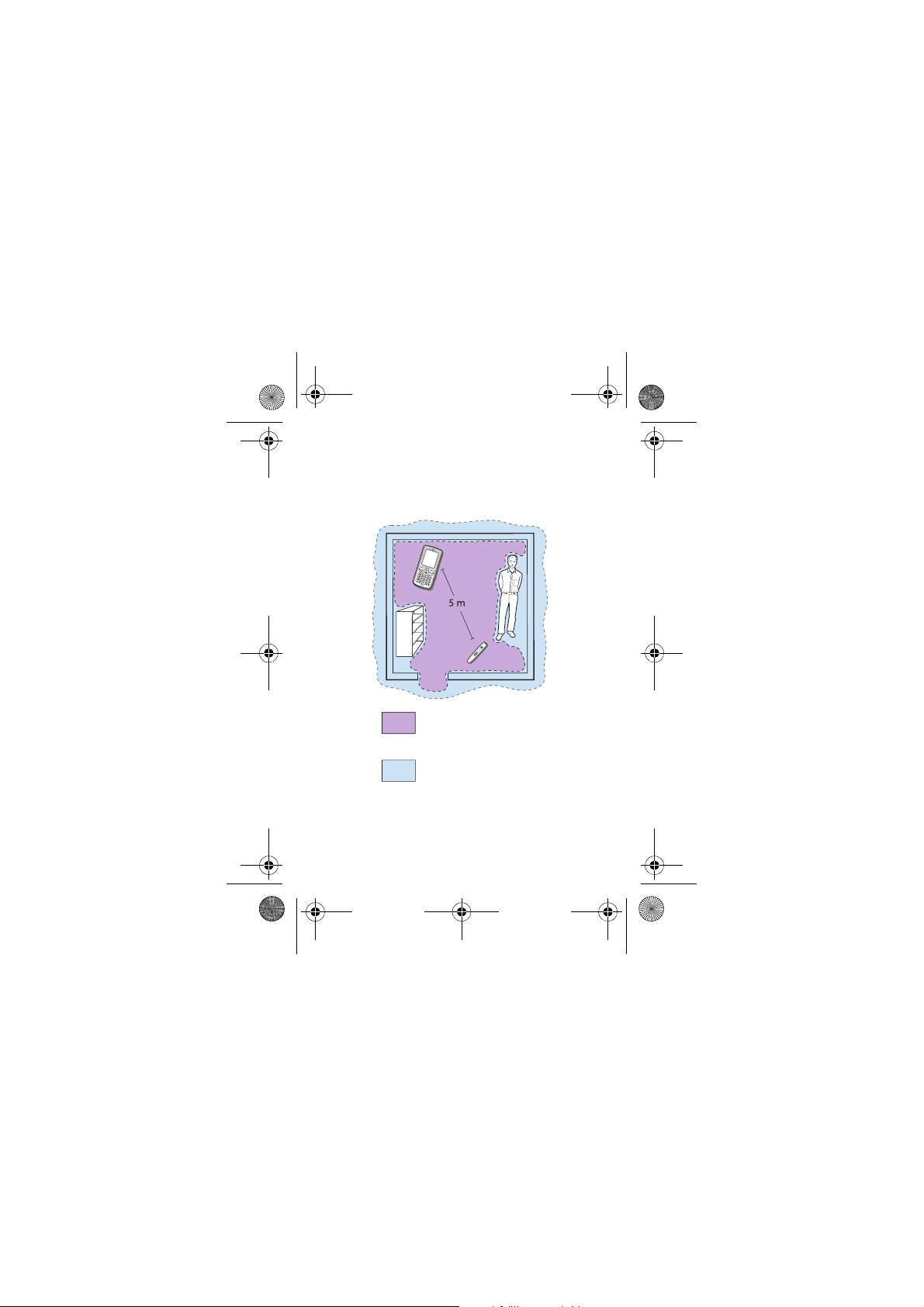

Range Range Range Range
Optimal performance Optimal performance Optimal performance Optimal performance
Limited performance Limited performance Limited performance Limited performance
Putting the headset on
16
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 17 Wednesday, January 25, 2006 11:09 AM
Putting the headset on Putting the headset on Putting the headset on Putting the headset on
Make sure you place the earpiece firmly in your ear. Make sure you place the earpiece firmly in your ear. Make sure you place the earpiece firmly in your ear. Make sure you place the earpiece firmly in your ear.
17
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 18 Wednesday, January 25, 2006 11:09 AM
www.SonyEricsson.com
Sony Ericsson Mobile Communications AB SE-221 88 Lund, Sweden
LZT 108 7941/x P5A
Printed in XXXX
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 19 Wednesday, January 25, 2006 11:09 AM
Calling Calling Calling Calling

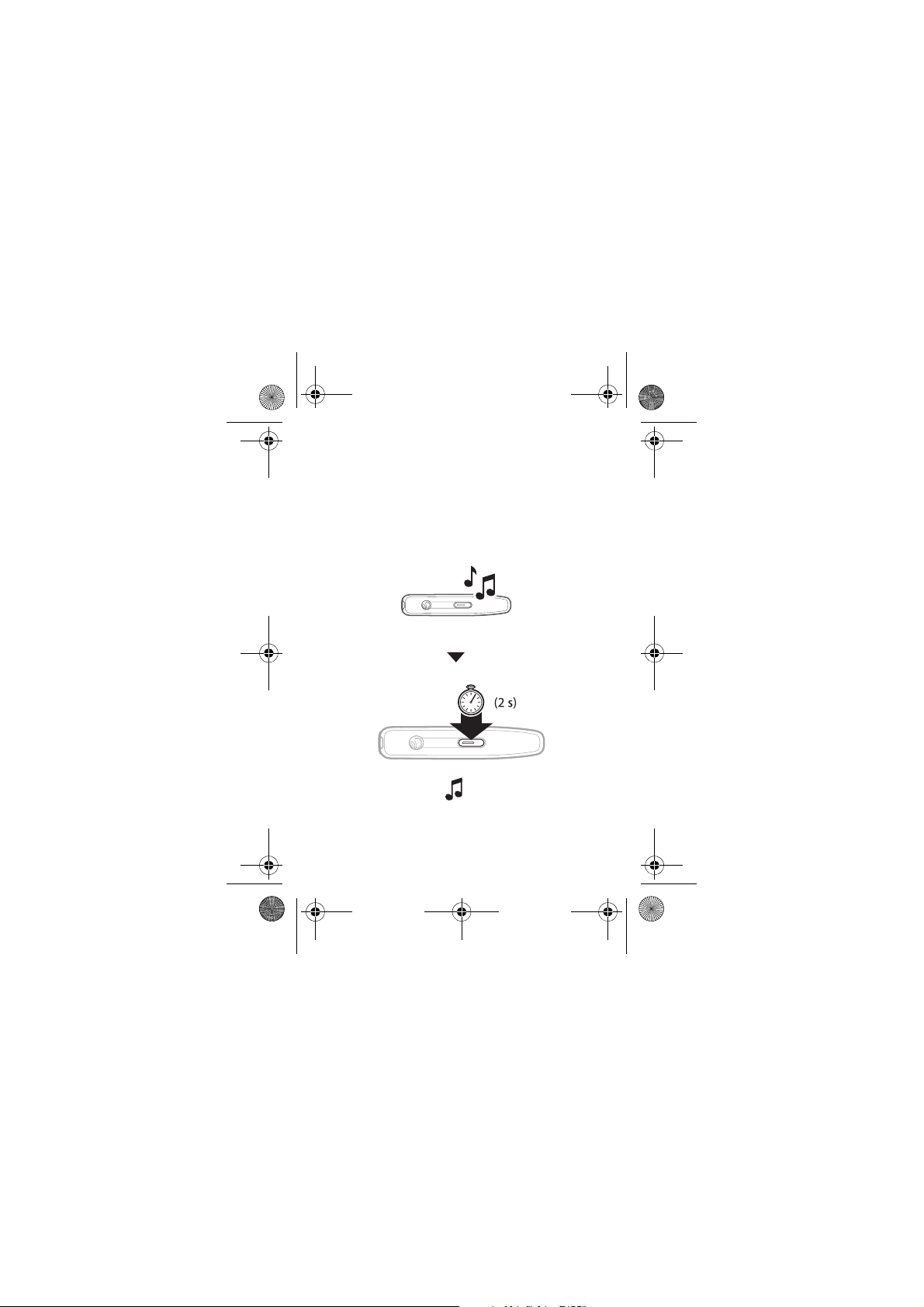

Turning the headset on (and off) Turning the headset on (and off) Turning the headset on (and off) Turning the headset on (and off)
(5 s)

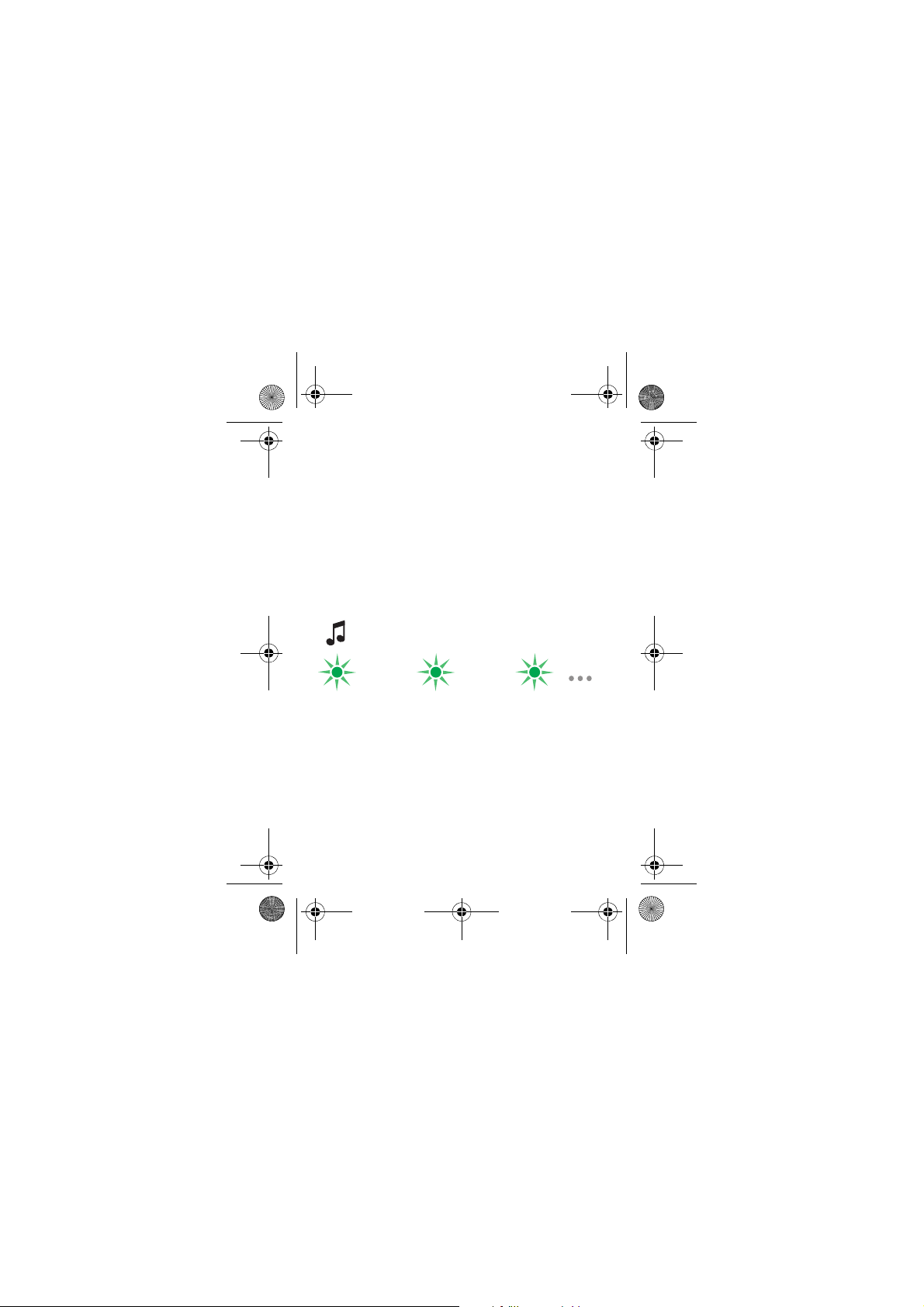

Indicator light when headset is on Indicator light when headset is on Indicator light when headset is on Indicator light when headset is on
Warning! Loud volume could damage your hearing. Warning! Loud volume could damage your hearing. Warning! Loud volume could damage your hearing. Warning! Loud volume could damage your hearing.
19
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 20 Wednesday, January 25, 2006 11:09 AM
20
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 21 Wednesday, January 25, 2006 11:09 AM

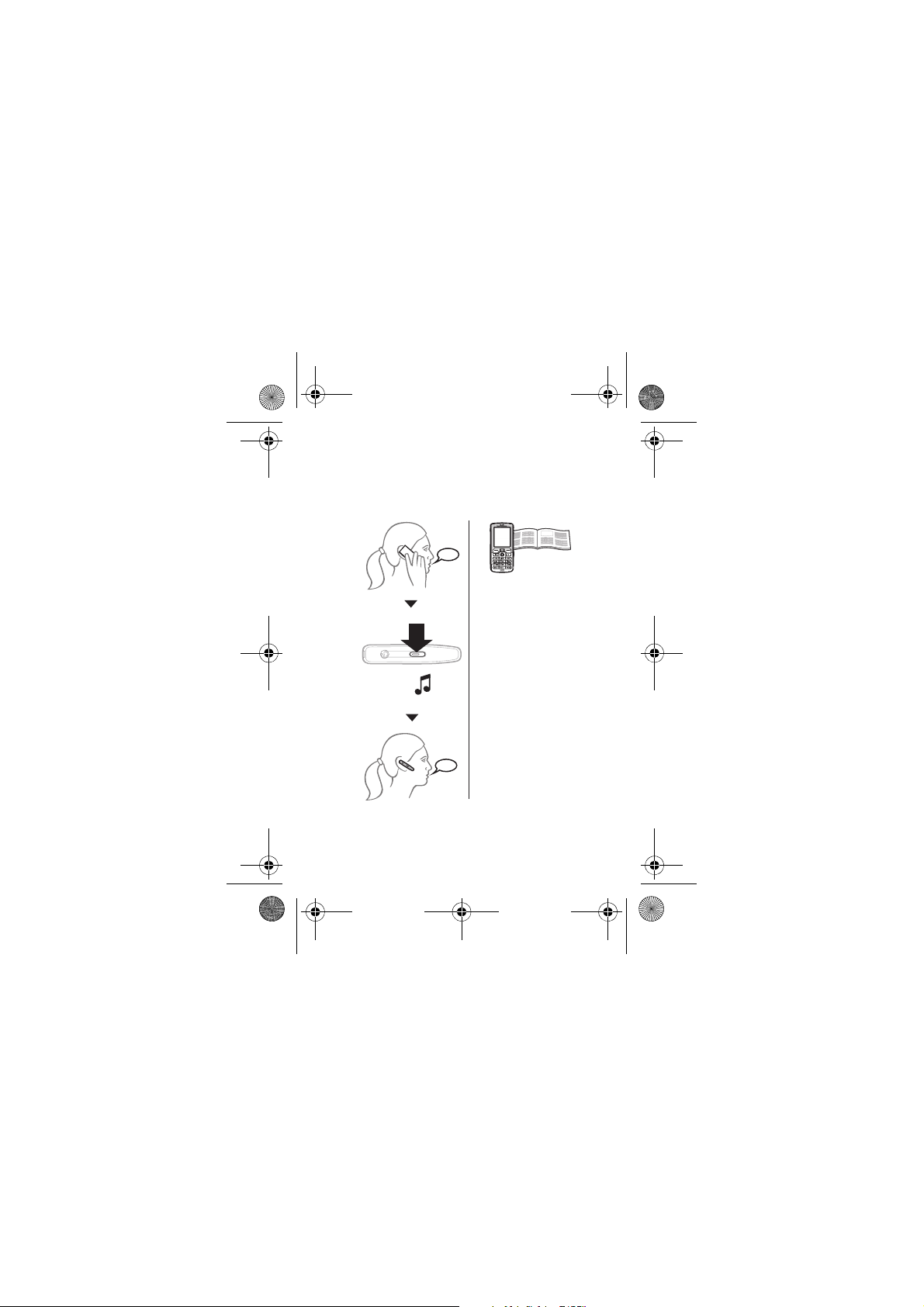

Answering a call Answering a call Answering a call Answering a call
21
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 22 Wednesday, January 25, 2006 11:09 AM

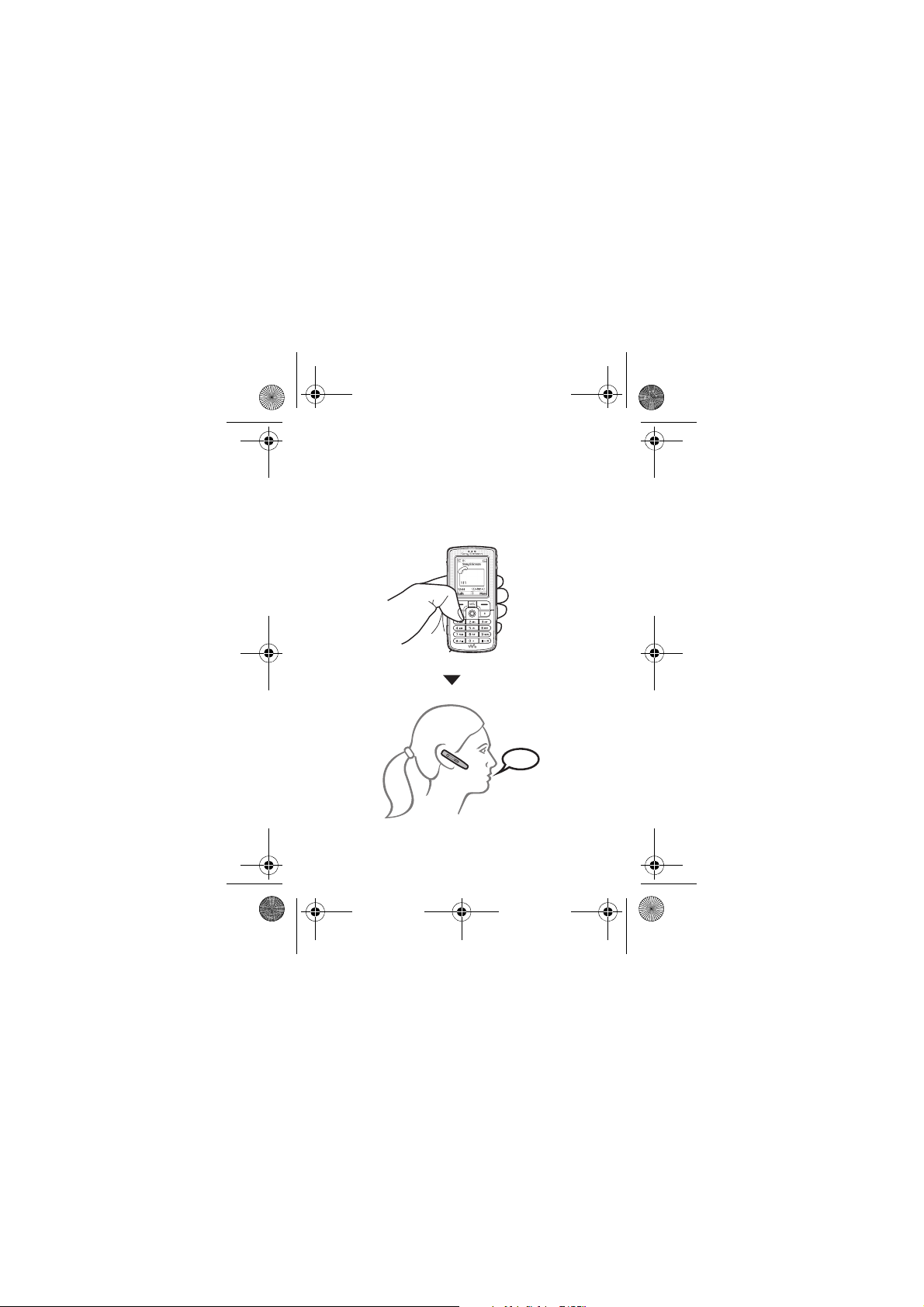

Making a call Making a call Making a call Making a call
22
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 23 Wednesday, January 25, 2006 11:09 AM

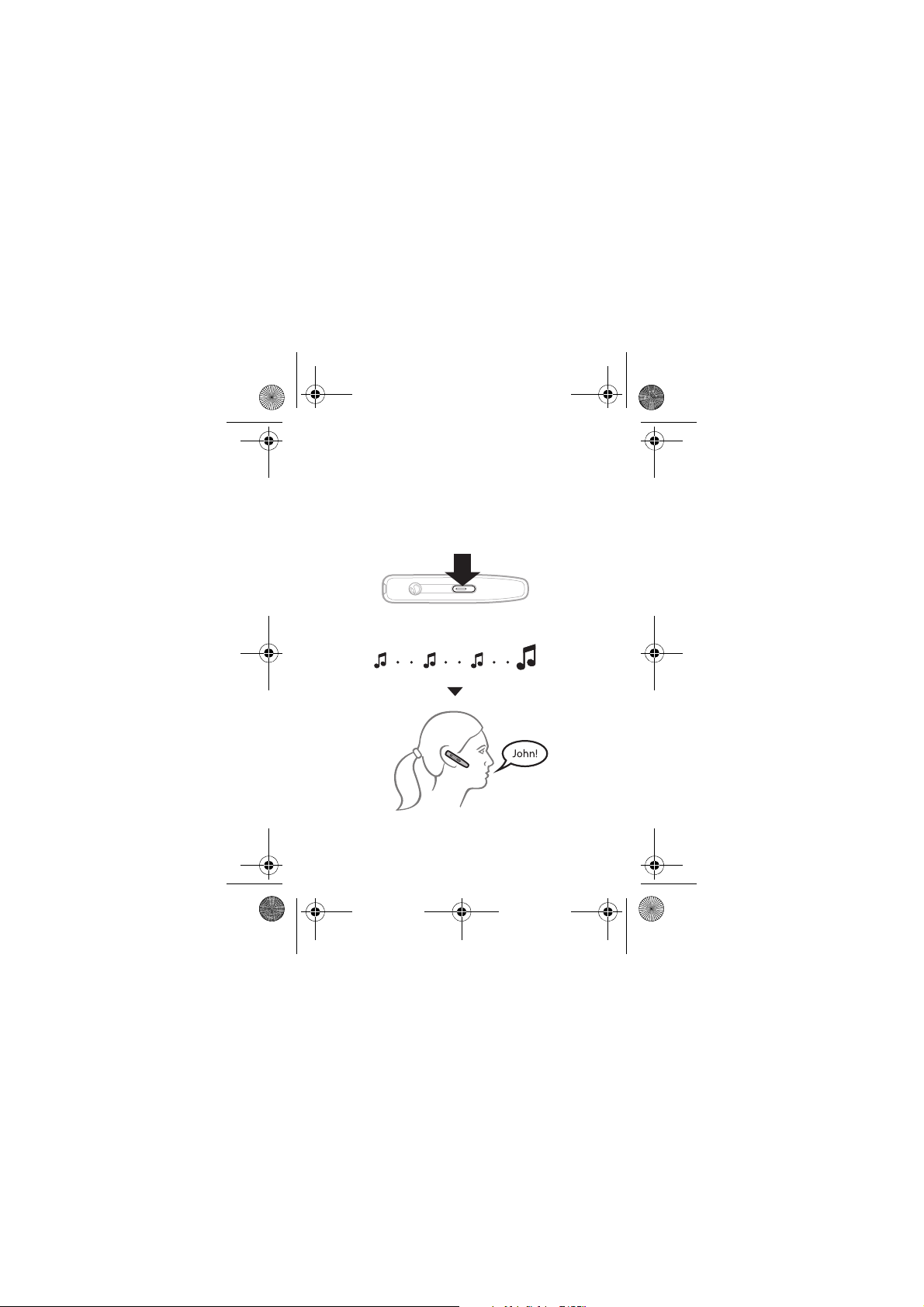

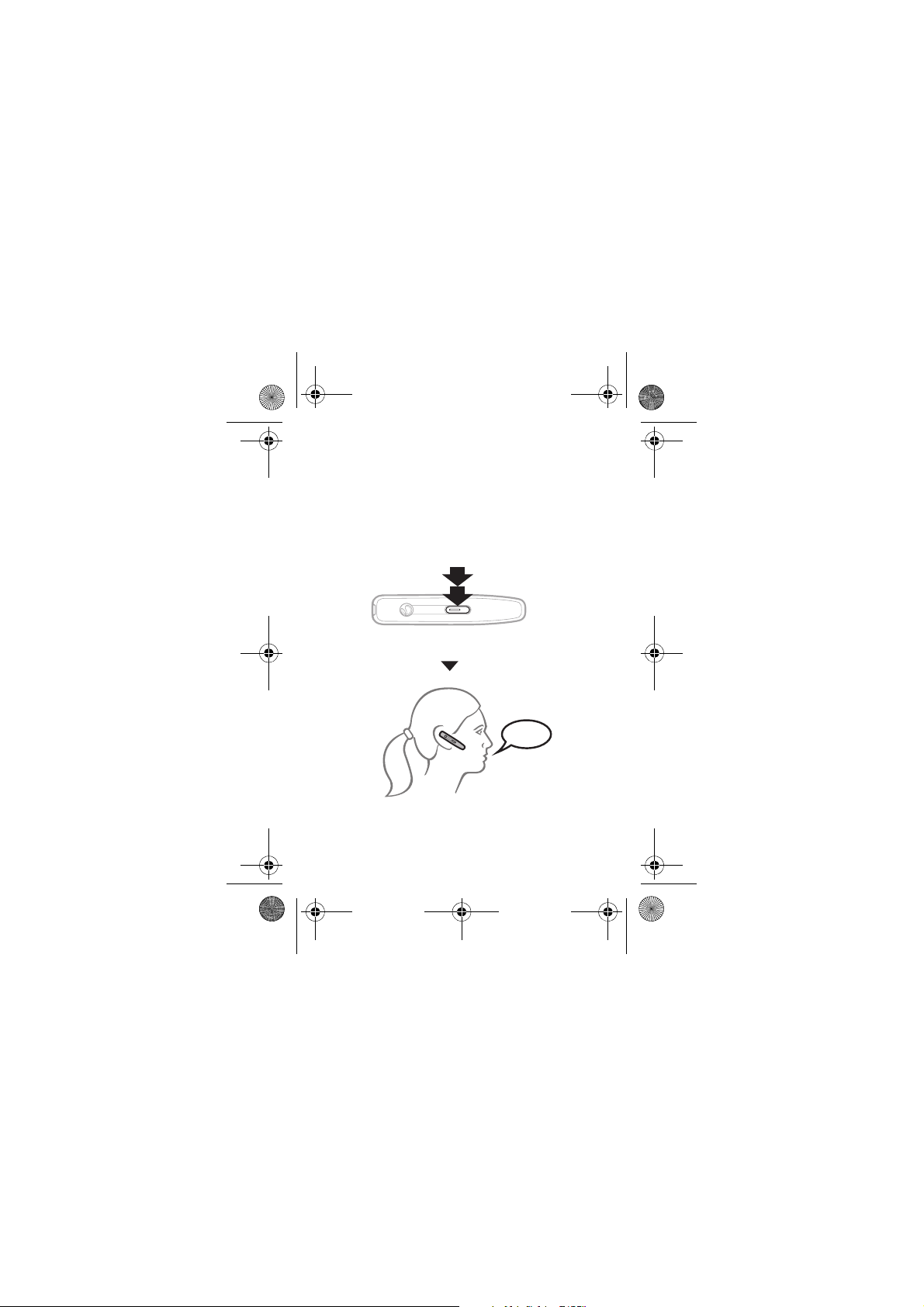

Using voice commands Using voice commands Using voice commands Using voice commands
Voice commands, such as dial, redial, answer and reject, can be useful when using the headset. For more information on voice commands, and to know if your phone supports it, refer to the phone user guide.
Voice commands, such as dial, redial, answer and reject, can be useful when using the headset. For more information on voice commands, and to know if your phone supports it, refer to the phone user guide.
Voice commands, such as dial, redial, answer and reject, can be useful when using the headset. For more information on voice commands, and to know if your phone supports it, refer to the phone user guide.
Voice commands, such as dial, redial, answer and reject, can be useful when using the headset. For more information on voice commands, and to know if your phone supports it, refer to the phone user guide.
23
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 24 Wednesday, January 25, 2006 11:09 AM

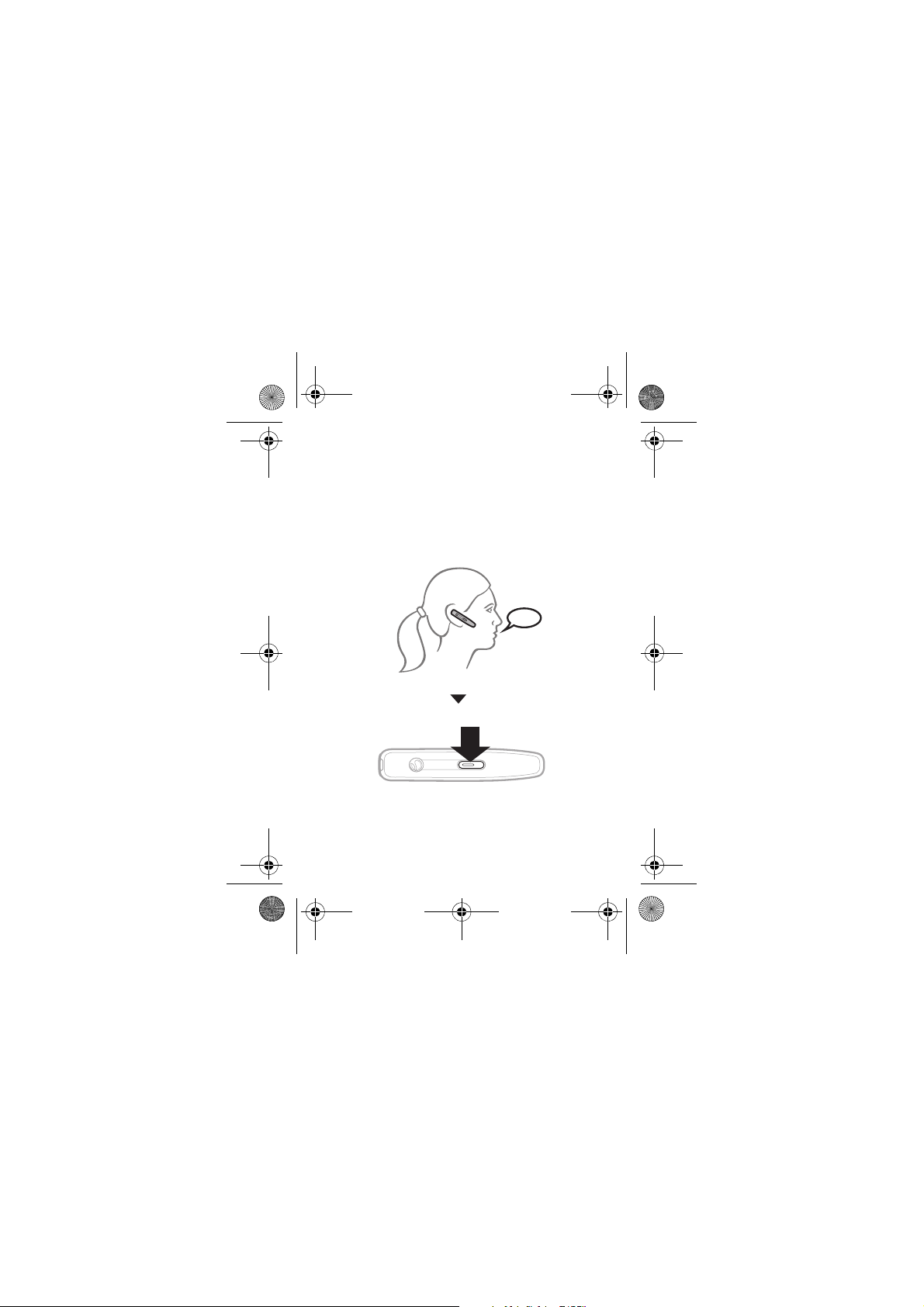

Making a call using voice commands Making a call using voice commands Making a call using voice commands Making a call using voice commands
24
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 25 Wednesday, January 25, 2006 11:09 AM
Redialling Redialling Redialling Redialling
25
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 26 Wednesday, January 25, 2006 11:09 AM
Transferring sound Transferring sound Transferring sound Transferring sound
To transfer from headset to phone, refer to the phone user guide.
To transfer from headset to phone, refer to the phone user guide.
To transfer from headset to phone, refer to the phone user guide.
To transfer from headset to phone, refer to the phone user guide.
26
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 27 Wednesday, January 25, 2006 11:09 AM

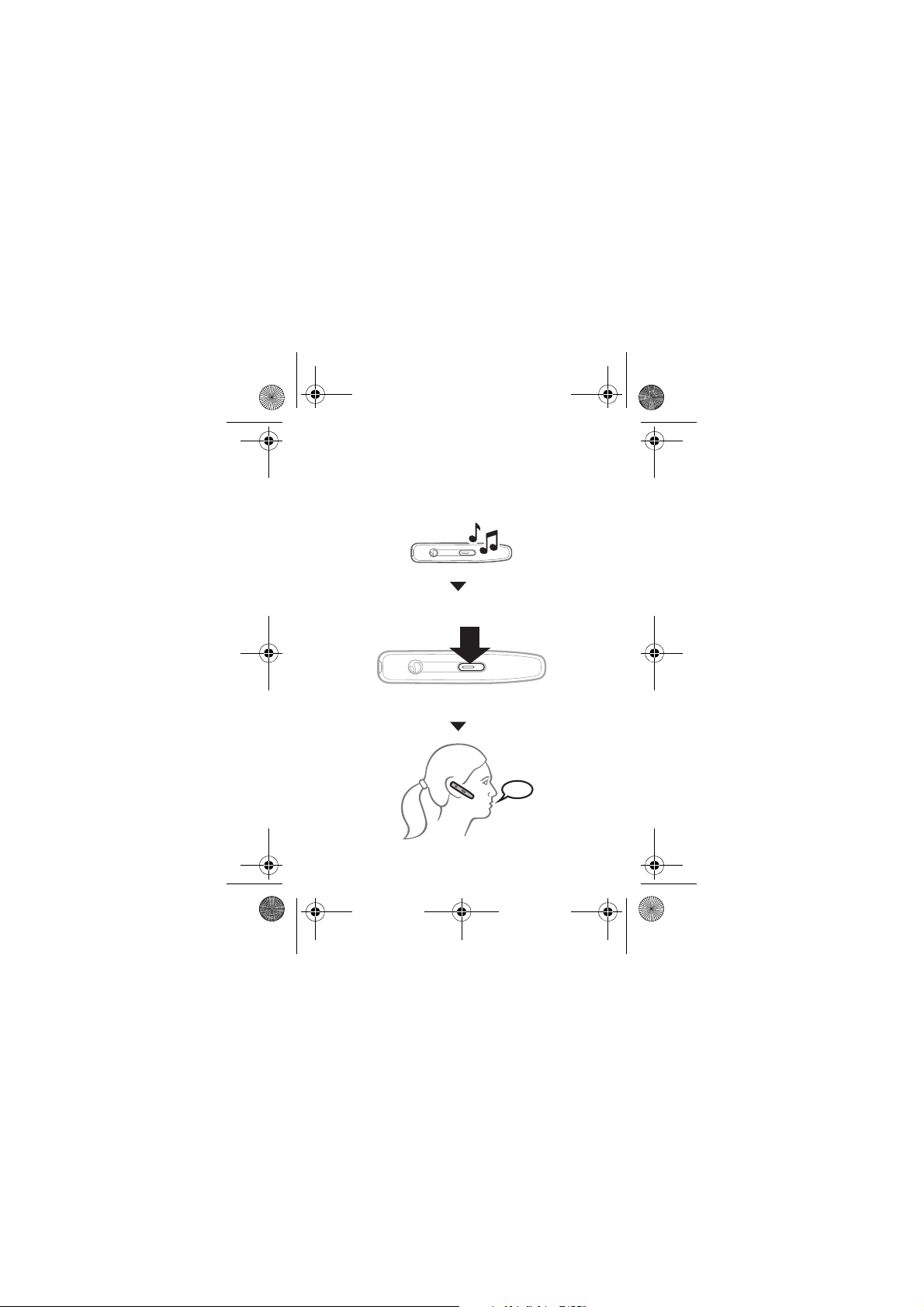

Ending a call Ending a call Ending a call Ending a call
27
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 28 Wednesday, January 25, 2006 11:09 AM
Rejecting a call Rejecting a call Rejecting a call Rejecting a call
28
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 29 Wednesday, January 25, 2006 11:09 AM
Battery status Battery status Battery status Battery status
29
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 30 Wednesday, January 25, 2006 11:09 AM
Settings Settings Settings Settings
Adjusting speaker volume Adjusting speaker volume Adjusting speaker volume Adjusting speaker volume
30
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 31 Wednesday, January 25, 2006 11:09 AM

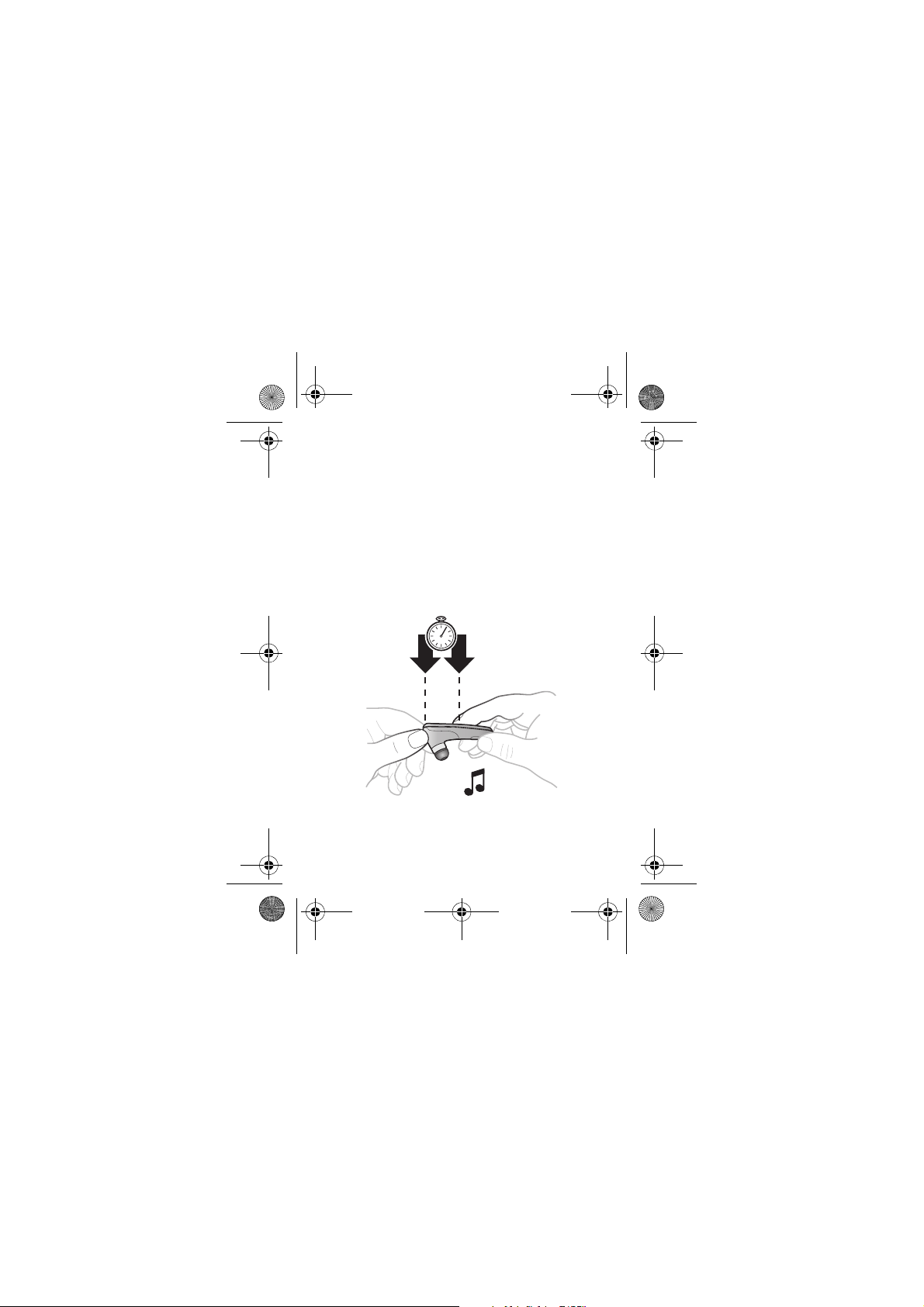

Master reset Master reset Master reset Master reset
Prepare the headset according to page 15. Prepare the headset according to page 15. Prepare the headset according to page 15. Prepare the headset according to page 15.
8
)s
(
31
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 32 Wednesday, January 25, 2006 11:09 AM
Attaching strap Attaching strap Attaching strap Attaching strap
Check for regulatory information under the cover. Check for regulatory information under the cover. Check for regulatory information under the cover. Check for regulatory information under the cover.
32
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 33 Wednesday, January 25, 2006 11:09 AM
Troubleshooting
33
Troubleshooting Troubleshooting Troubleshooting
No connection between headset and phone
Make sure the headset is charged and within range of the phone. Check or redo the Bluetooth settings in the phone. Try to pair the headset again (see p.10).
For more information on Bluetooth and pairing, go to
www.sonyericsson.com/learnabout
The headset is automatically switched off
• The battery is too low. The indicator light on the headset
flashes red and you hear a low beep.
• The headset switches off if you do not add it to the phone
within 10 minutes.
Unexpected behaviour
Reset the headset (see p.31).
Battery capacity
A battery that has been infrequently used, or a new one, could have reduced capacity. It may need to be recharged a number of times.
Redial does not work
If the call list in the phone is empty you cannot use the redial function.
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 34 Wednesday, January 25, 2006 11:09 AM
Voice commands
Make sure that voice commands are enabled and
34
recorded in your phone before you start using them.
No connection between headset and phone
Make sure the headset is charged and within range of the phone. Check or redo the Bluetooth settings in the phone.Try to pair the headset again (see p.10).
For more information on Bluetooth and pairing, go to
www.sonyericsson.com/learnabout
The headset is automatically switched off
• The battery is too low. The indicator light on the headset
flashes red and you hear a low beep.
• The headset switches off if you do not add it to the phone
within 10 minutes.
Unexpected behaviour
Reset the headset (see p.31).
Battery capacity
A battery that has been infrequently used, or a new one, could have reduced capacity. It may need to be recharged a number of times.
Redial does not work
If the call list in the phone is empty you cannot use the redial function.
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 35 Wednesday, January 25, 2006 11:09 AM
Voice commands
Make sure that voice commands are enabled and
35
recorded in your phone before you start using them.
No connection between headset and phone
Make sure the headset is charged and within range of the phone. Check or redo the Bluetooth settings in the phone. Try to pair the headset again (see p.10).
For more information on Bluetooth and pairing, go to
www.sonyericsson.com/learnabout
The headset is automatically switched off
• The battery is too low. The indicator light on the headset
flashes red and you hear a low beep.
• The headset switches off if you do not add it to the phone
within 10 minutes.
Unexpected behaviour
Reset the headset (see p.31).
Battery capacity
A battery that has been infrequently used, or a new one, could have reduced capacity. You may need to recharge it a number of times.
Redial does not work
If the call list in the phone is empty you cannot use the redial function.
Voice commands
Make sure that voice commands are enabled and recorded in your phone before you start using them.
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 36 Wednesday, January 25, 2006 11:09 AM
No connection between headset and phone
Make sure the headset is charged and within
36
range of the phone. Check or redo the Bluetooth settings in the phone. Try to pair the headset again (see p.10).
For more information on Bluetooth and pairing, go to
www.sonyericsson.com/learnabout
The headset is automatically switched off
• The battery is too low. The indicator light on the headset
flashes red and you hear a low beep.
• The headset switches off if you do not add it to the phone
within 10 minutes.
Unexpected behaviour
Reset the headset (see p.31).
Battery capacity
A battery that has been infrequently used, or a new one, could have reduced capacity. It may need to be recharged a number of times.
Redial does not work
If the call list in the phone is empty you cannot use the redial function.
Voice commands
Make sure that voice commands are enabled and recorded in your phone before you start using them.
www.sonyericsson.com/support/
Draft for Sony Ericsson Internal Use Only
Idefix_HBH-IV835_HBH_products_folded.fm Page 37 Wednesday, January 25, 2006 11:09 AM

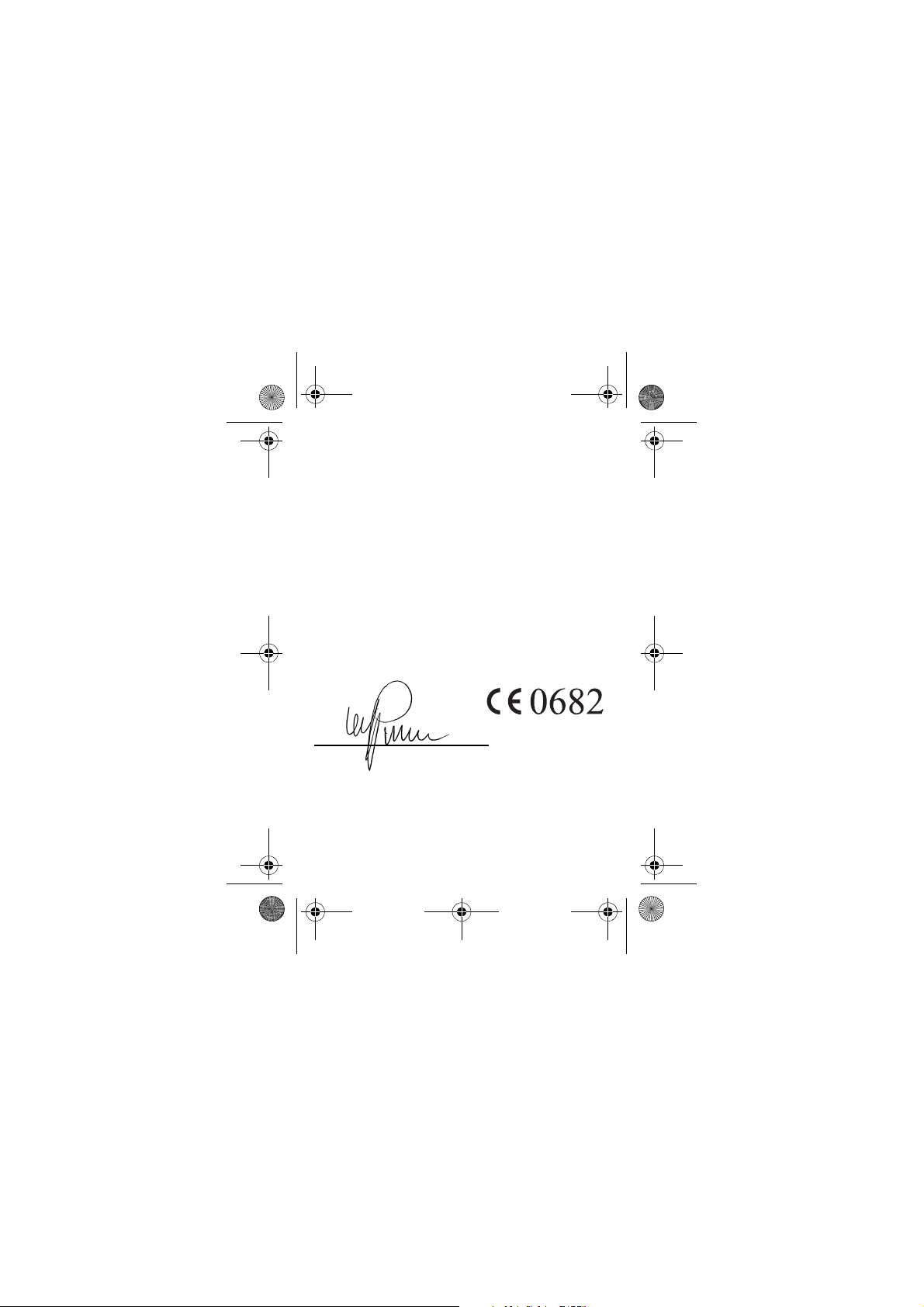

Declaration of conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet 221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony Ericsson type DDA-0002003
to which this declaration relates is in conformity with the appropriate standards EN 300 328, EN 301 489-17, EN 301 489-7 and EN 60950 following the provisions of Radio Equipment and Telecommunication Equipment directive 1999/5/EC with requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC.
Lund, November 2005
Ulf Persson, Head of Product Business Unit Accessories
We fulfill the R&TTE Directive. We fulfill the R&TTE Directive. We fulfill the R&TTE Directive. We fulfill the R&TTE Directive.
37
Draft for Sony Ericsson Internal Use Only
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
