Notice for users

• Copyright laws prohibit reproducing the software or the manual accompanying it in

whole or in part, or renting the software without the permission of the copyright holder.

• In no event will SONY be liable for any financial damage, or loss of profits, including

claims made by third parties, arising out of the use of the software supplied with this system.

• In the event a problem occurs with this software as a result of defective manufacturing,

SONY will replace it. However, SONY bears no other responsibility.

• The software provided with this system cannot be used with equipment other than that

which is so designated.

• Please note that, due to continued efforts to improve quality, the software specifications

may be changed without notice.

• Operation of this system with software other than that provided is not covered by the

warranty.

• “M-crew Server” is a trademark of Sony Corporation.

• Microsoft, Windows, Windows NT and Windows Media are trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other countries.

• IBM and PC/AT are registered trademarks of International Business Machines

Corporation.

• Macintosh is the registered trademark of Apple Computer, Inc. in the United States and/

or other countries.

• Pentium and Celeron are trademarks or registered trademarks of Intel Corporation.

• All other trademarks and registered trademarks are trademarks or registered trademarks

of their respective holders.

• ™ and ® marks are omitted in this manual.

Gracenote/CDDB

Corporate description

• Music recognition technology and related data are provided by Gracenote and the

Gracenote CDDB

Music Recognition ServiceSM. Gracenote is the industry standard in music recognition technology and related content delivery. For more information visit

www.gracenote.com.

Proprietary legends

Gracenote Software, copyright © 2000-2005 Gracenote. This product and service may practice one or more of the following U.S. Patents: #5,987,525; #6,061,680; #6,154,773, #6,161,132, #6,230,192, #6,230,207, #6,240,459, #6,330,593, and other patents issued or pending. Some services supplied under license from Open Globe, Inc. for U.S. Patent: #6,304,523.

• Gracenote and CDDB are registered trademarks of Gracenote. The Gracenote logo and

logotype and the "Powered by Gracenote" logo are trademarks of Gracenote.

OpenSSL

• “This product includes software developed by the OpenSSL Project for use in the

OpenSSL Toolkit (http://www.openssl.org/

1 Redistributions of source code must retain the above copyright notice, this list of conditions and the

following disclaimer.

2 Redistributions in binary form must reproduce the above copyright notice, this list of conditions

and the following disclaimer in the documentation and/or other materials provided with the distribution.

3 All advertising materials mentioning features or use of this software must display the following

acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/

4 The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote

products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org

5 Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in

their names without prior written permission of the OpenSSL Project.

6 Redistributions of any form whatsoever must retain the following acknowledgment: “This product

includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://

www.openssl.org/)”.

)”

• THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY

EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

1 Redistributions of source code must retain the copyright notice, this list of conditions and the

following disclaimer.

2 Redistributions in binary form must reproduce the above copyright notice, this list of conditions

and the following disclaimer in the documentation and/or other materials provided with the distribution.

3 All advertising materials mentioning features or use of this software must display the following

acknowledgement: “This product includes cryptographic software written by Eric Young (eay@cryptsoft.com being used are not cryptographic related :-).

4 If you include any Windows specific code (or a derivative thereof) from the apps directory

(application code) you must include an acknowledgement: “This product includes software written by Tim Hudson (tjh@cryptsoft.com

)”. The word 'cryptographic' can be left out if the rouines from the library

)”.

• THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS

OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

System Requirements ............................................................................. 6

Before installing the software ................................................................8

Installing

Installing M-crew Server ....................................................................... 9

Making the AUTO LINK FOLDER Settings ...................................... 13

Making the ICF Settings ...................................................................... 14

Registering the system on your computer manually ............................ 16

Making the wireless LAN function settings for connected equipment

(WLAN Setup Assistant) ................................................................ 18

Other Information

Starting up M-crew Server ................................................................... 20

Uninstalling the M-crew Server software ............................................ 21

Installed Modules ................................................................................. 23

Troubleshooting ................................................................................... 25

M-crew Server does not start up .................................................... 25

Installation was not successful ...................................................... 25

“No Server” appears on the system ............................................... 28

There is no sound from the system ................................................ 29

Cannot listen to Web Radio ........................................................... 31

task tray icon not present ........................................................ 31

task tray icon darkened ........................................................... 31

“Mcrew Folder Watcher” and “Mcrew Webradio Server” are not

present in the service ...................................................... 31

“Mcrew Folder Watcher”and “Mcrew Webradio Server” cannot be

The application does not operate correctly. Contents managed by the

Operation has become slow because many contents have been

Cannot uninstall M-crew Server .................................................... 32

Cannot play contents that contain ISO8859 characters ................. 33

uninstalled from the service ............................................ 32

application cannot be seen from the system ................... 32

registered in the application ............................................ 32

System Requirements

The following software and hardware are required in order to be able to run M-crew Server.

s A PC/AT compatible that satisfies the

performance requirements described below.

M-crew Server does not run in an Apple Macintosh environment. – CPU*: Intel Pentium III 1 GHz (1 GHz or more is

recommended) or Celeron 1 GHz (1 GHz or more is recommended) or better

* Operation is guaranteed only with Intel Pentium and Celeron CPUs.

– RAM: 256 MB or more is recommended – Video board and display driver: Must be capable of XGA (1024

× 768 pixels) display with at least 65,536 colors.

– Free space on hard disk: At least 50 MB (including M-crew

Server, help and related modules) free space on the hard disk. Of this 50 MB, 23 MB is needed on the system drive. This does not include the space for storing the database and contents. In addition, 300 MB is needed on the system drive for the Microsoft related modules, and 100 MB on the hard disk for Adobe Reader. However, these may not be necessary depending on the operating environment.

– CD-ROM or DVD drive (for software installation and CD

recording) – Available 10Base-T, 100Base-TX: At least one – Sound board

s OS: Windows XP Home Edition/Windows XP

Professional/Windows XP Media Center Edition 2004/Windows XP Media Center Edition 2005

M-crew Server does not run in a Microsoft Windows 3.1, Windows 95, Windows 98, Windows ME, Windows NT or Windows 2000 Professional environment.

When installing, log on as the administrator.

s Microsoft .NET Framework module version 1.1

Even when a version later than 1.1 is installed, version 1.1 is still necessary.

s Internet access (for Gracenote access and WEB

RADIO)

s Display: XGA (1024

× 768 pixels)

Must be able to display at least 65,536 colors.

s Used Language: English/German/French

s User privileges

– M-crew Server can be used only by users with administrator

privileges. – M-crew Server does not support the switching users function.

Notes

• When SP2 has not been applied to Windows XP, M-crew Server may not operate properly unless the latest Windows Security Update is applied. In these cases, apply the latest Windows Update (KB885835) or check the contents noted at the following website and take the necessary measures. http://www.sony.net/

Products/OpenMG/support/840987

• Operations are not guaranteed for all the recommended computer environments mentioned above.

• Operation is not assured in personally constructed PCs or operating systems and an environment upgraded to the other operating systems.

• Original brand and home_made personal computers do not apply.

• Contents that can be registered have file names ending in “.wav”, “.omg”, “.oma”, “.mp3”, “.m4a” and “.wma”. However, note that registration may not be possible in some cases.

• If you perform an operation (recording, file importing, using other applications, etc.) that places a load on the server PC while playing back a track registered to the server PC, the sound may skip. In addition, the sound may also skip depending on the network status.

Before installing the software

Do not connect the system to your computer before the installation is completed!

Close down all applications running on the computer before installing the software!

Be sure to log on through a user name which belongs to the computer’s administrator to install the software.

Note for NAS-CZ1 users

Install M-crew Server Ver. 2.0 (this software) without uninstalling M-crew Server Ver. 1.0. The contents information can be used even after installing M-crew Server Ver. 2. 0.

Installing

Installing M-crew Server

Turn on your computer and allow Windows to load.

Insert the supplied CD-ROM into the CD-ROM drive of your computer.

The “M-crew Server SETUP” dialog box appears.

Note

If the dialog box does not open, double-click CD-ROM (Setup.exe) icon.

Select the language to be used.

Click [M-crew Server setup].

The installation starts.

Note

If “.Net Framework” is not installed on your computer, “.NET Framework Installer” dialog box appears. Click [Install] to install “.Net Framework 1.1” and follow the displayed instructions.

Follow the on-screen messages.

Notes

• Installation may take some time depending on the modules to be installed. A progress bar is displayed while installation is underway, so wait until the installation is finished.

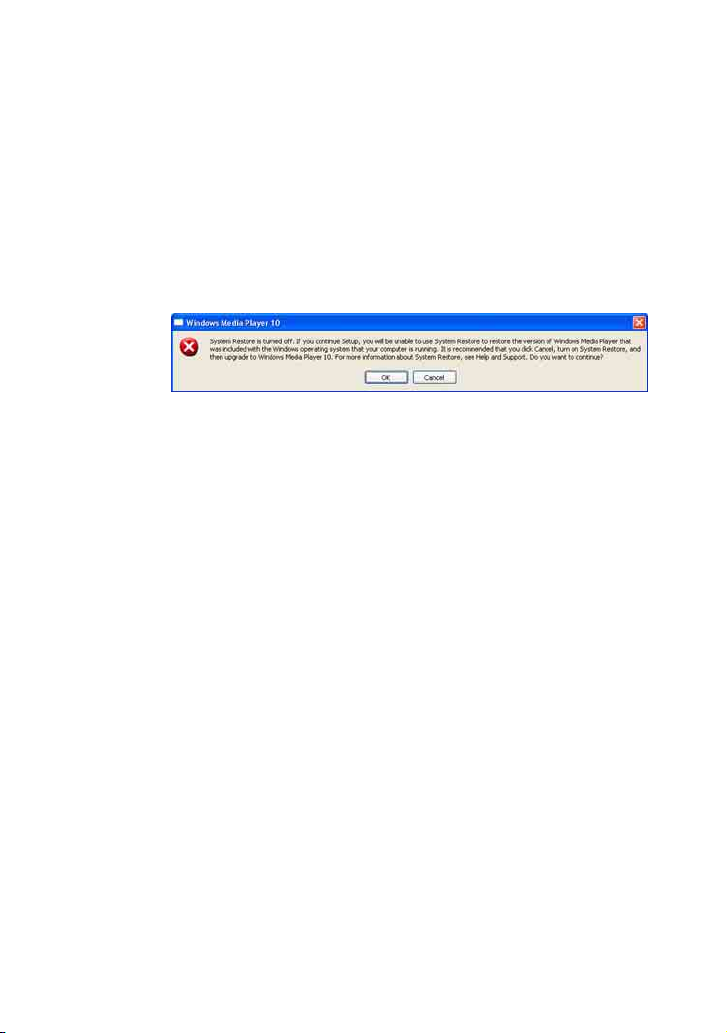

• A warning dialog may appear during installation of Windows Media Format SDK 9.5.

If you click [OK] at this time, M-crew Server is installed correctly, but Windows Media Player is not registered in the system restoration. If you click [Cancel], M-crew Server is not installed correctly. Click [Cancel] on the M-crew Server INSTALL LAUNCHER to cancel the installation, then set “System Restore” to [ON] and perform installation again.

After the installation is completed, click [Reboot] to restart your computer.

Be sure to restart your computer only after the installation has been completed. After restarting your computer, the “AUTO LINK FOLDER SETUP” dialog box appears. For details, see steps 2 and 3 of “Making the AUTO LINK FOLDER Settings” (page 13).

For Windows XP SP2

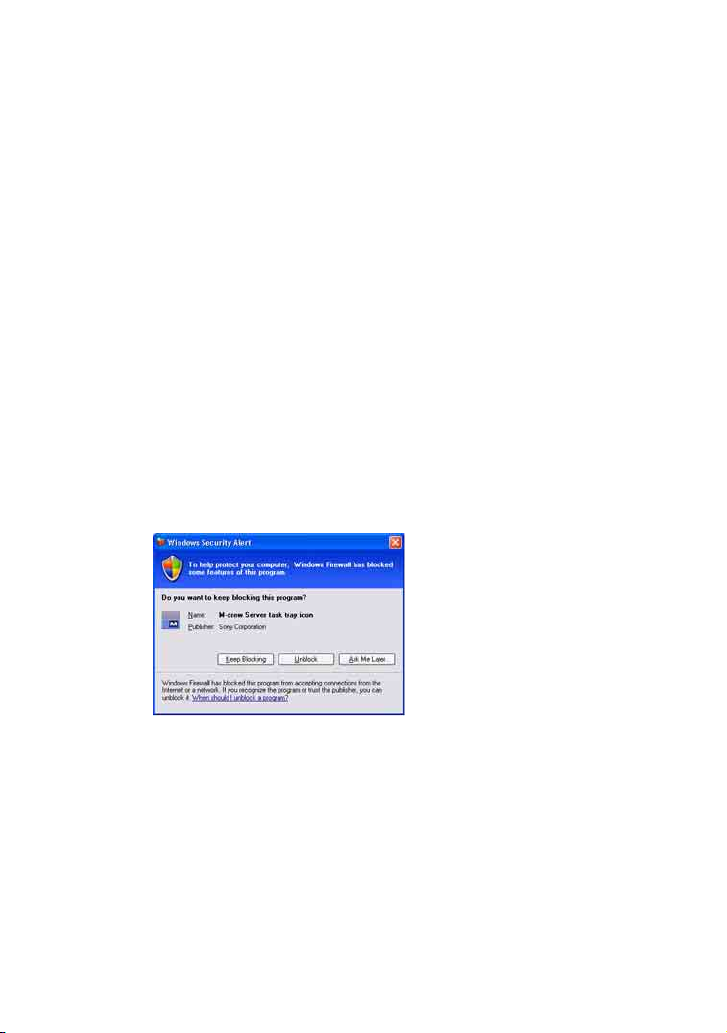

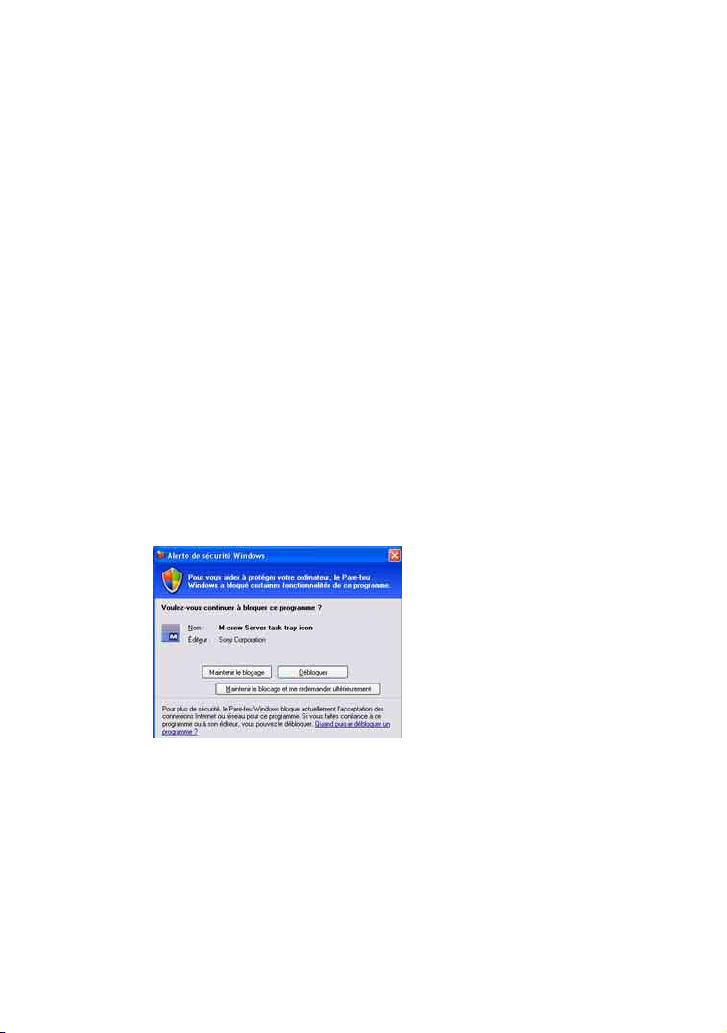

The “Windows Security Alert” dialog box appears. Click [Unblock] to unblock the program. Check that [Name] is “M-crew Server task tray icon”, then click the [Unblock] button. If you click the [Keep Blocking] button, you will be unable to use M-crew Server (page 26).

Depending on the OS settings, the “ICF SETTINGS” window

may open. In this case see steps 2 to 6 of “Making the ICF Settings” (page 14).

Turn on the system. The system is registered automatically on your computer. To register the system on your computer manually, see “Registering the system on your computer manually” (page 16).

Notes

http://www.sony.net/Products/OpenMG/support/840987/

• The M-crew Server software uses the installed folders, so do not delete, move, or edit any of the installed folders. Managing these folders like general files on Windows Explorer could cause the contents to become unstable or corrupted.

• While the installation is still in progress, do not interrupt the operation or take the CD-ROM out of the CD-ROM drive. Doing so may render it impossible to install the software thereafter.

Making the AUTO LINK FOLDER Settings

All supportable contents files that exist on the path indicated in the dialog box are automatically loaded to M-crew Server.

Click [Start] – [All Programs] – [M-crew Server] – [TOOLS] – [AUTO LINK] in that order.

“AUTO LINK FOLDER SETUP” dialog box appears.

Click to place a check in the checkbox for the path that contains the files to be loaded. Click again to remove the check from checkboxes for paths that are not to be loaded.

Tip

Sub-folders of the selected folder are also subject to the AUTO LINK function. Example: When the two paths [C:\AAA\BBB\CCC] and [C:\AAA\BBB\CCC\DDD] can be selected. When [C:\AAA\BBB\CCC] is selected, the DDD folder which is located below the CCC folder is also automatically subject to the AUTO LINK function. Therefore, the [C:\AAA\BBB\CCC\DDD] checkbox is disabled.

Click [OK] (or [Next]).

The contents located on the path set to on by the checkbox are loaded automatically. When not making this setting, click the [Cancel] (or [Skip]) button.

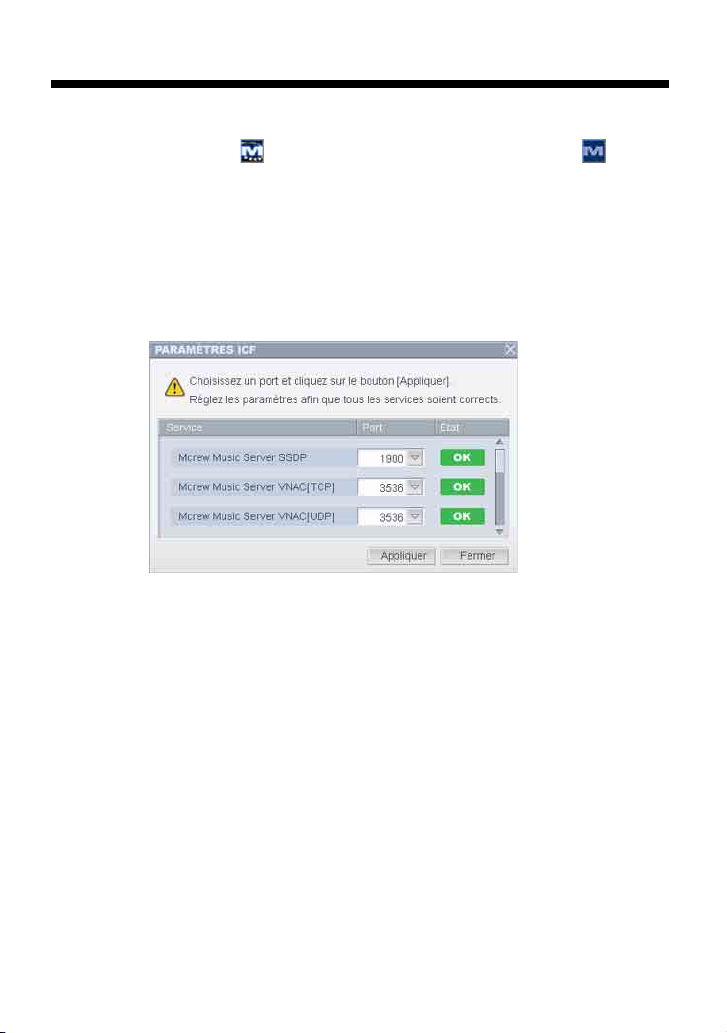

Making the ICF Settings

When task tray icon appears as , make the ICF (Internet Connection Firewall) settings.

Click [Start] – [All Programs] – [M-crew Server] – [TOOLS] – [ICF Settings] in that order.

“ICF SETTINGS” window appears.

Click the port with “NG” status.

A dropdown menu with port numbers appears. If “OK” appears for all server status items, there is no need to make the ICF settings. Click [Close] to close the window.

Select any different port number.

Click [Apply].

“OK” or “NG” appears.

Repeat steps 2 to 4 until “OK” appears for all status items.

Click [Close].

Tips

• Windows XP and later versions have a simple firewall function as a standard feature. This firewall function is called “ICF”, and lets users limit communications between home networks or small-scale office networks and the internet. When this firewall is enabled, the firewall must be set to allow communication of specific ports and programs in order to perform communication between M-crew Server and this system. These settings are made at the “ICF SETTINGS” window. However, note that making these settings may expose your computer to illicit access.

• When a check mark is placed in the “Don’t allow exceptions” checkbox under “On (recommended)” in the Windows Firewall settings, M-crew Server cannot be used even if the ICF settings are made at the “ICF SETTINGS” window. To use M-crew Server, remove the check mark from this checkbox.

• When communication is limited by firewall software other than the OS functions, enable the following .exe files. For a detailed description of the setting method, see the operation manual of the firewall software used. – McrewServer.exe – McTaskTray.exe – McService.exe – McFolderWatcher.exe – McrewHttpService.exe – McrewUPnPService.exe – McWLANSearch.exe – MCMachineRegist.exe

Registering the system on your computer manually

When the system is connected to your computer after installing the Mcrew Server, the system is registered automatically on your computer. Register the system on your computer manually for higher security.

Turn on the system.

Press NETWORK MENU (NAS-CZ1) or MENU (CPFIX001) on the remote.

Press . or > on the remote repeatedly until “REGISTRATION?” (NAS-CZ1) or “REGISTER?” (CPFIX001) appears, then press ENTER on the remote.

The count down display appears in the display of the system.

Click [Start] – [All Programs] – [M-crew Server] – [TOOLS] – [EQUIPMENT LIST] in that order.

“M-crew Server EQUIPMENT LIST” window appears on your computer screen.

Set “Equipment selection mode:” to “Manual”, and click [Add] on your computer.

The registration starts. “Complete!” appears in the display of the system when the registration is complete.

For Windows XP SP2

The “Windows Security Alert” dialog box appears. Check that [Name] is “EQUIPMENT LIST Application”, then click the [Unblock] button. If you click the [Keep Blocking] button, you will be unable to use M-crew Server (page 26).

Making the wireless LAN function settings for connected equipment (WLAN Setup Assistant)

Search for connected equipment in order to make the wireless LAN function settings for the connected equipment.

“WLAN Setup Assistant” is installed at the same time as M-crew Server, but it can also be installed independently.

For details on the wireless LAN setup, see “To make the wireless settings for the CPF-IX001 side” of the Operating Instructions supplied with the system.

Turn on the system.

Press MENU on the remote.

Press . or > on the remote repeatedly until “WLAN SETUP?” appears, then press ENTER on the remote.

The count down display appears in the display of the system.

Click [Start] – [All Programs] – [M-crew Server] – [TOOLS] – [WLAN Setup Assistant] in that order.

“WLAN Setup Assistant” window appears on your computer screen.

Click [Next]. Equipment search starts. When connected equipment is found, the wireless LAN

setup screen for that equipment is displayed. If no equipment is found, check the connection and

perform the procedure again from step 3. For details on connections, see “Connecting the CPF-IX001 to the network” of the Operating Instructions supplied with the system.

For Windows XP SP2

The “Windows Security Alert” dialog box appears. Check that [Name] is “McWLANSearch.exe”, then click the [Unblock] button. If you click the [Keep Blocking] button, you will be unable to use M-crew Server (page 26).

Other Information

Starting up M-crew Server

Click [Start] – [All Programs] – [M-crew Server] – [M-crew Server] in that order.

Or, double-click task tray icon. Or, right-click task tray icon, and select “M-crew Server”.

Uninstalling the M-crew Server software

Log on through a user name which belongs to the computer’s administrator and follow the procedures below.

Refer to the operating instructions of your computer for details on logging on as a user name which belongs to the computer’s administrator.

Stop the service from task tray icon. Right-click task tray icon, then click [Stop Music Service] in the menu.

task tray icon display becomes dim.

Hide task tray icon. Right-click task tray icon, then click [Exit] in the menu.

task tray icon display disappears.

When Windows XP is in Classic View, switch to Category View, then click [Start] – [Control Panel] – [Add or Remove Programs] in that order.

Select [M-crew Server], and click [Change/Remove].

Select [Mcrew Music Server], and click [Change/Remove].

Reboot the computer.

Notes

• When uninstalling M-crew Server, a command prompt window appears. Command prompt processing may take some time. However, the uninstall work is proceeding during this time, so do not click the [Cancel] button in the “Installsheild” dialog.

• When uninstalling “Mcrew Music Server”, the dialog indicating that uninstall is underway may be displayed for a long time. This means that the uninstall process is underway, so do not close the dialog. (Do not click the or on the dialog.)

• When “WLAN Setup Assistant” is installed separately from M-crew Server, it can be uninstalled at the “Add or Remove Programs” window.

• Even if “WLAN Setup Assistant” was installed by a separate setup dialog from M-crew Server, it is uninstalled when M-crew Server is uninstalled.

• “OpenMG Limited Patch*” and “OpenMG Secure Module*” may be used by other software (SonicStage, VAIO Media, etc.). If OpenMG SDK is not being used, uninstall “OpenMG Limited Patch*” and “OpenMG Secure Module*” in the “Add or Remove Programs” window.

* Version numbers and other information are attached to these modules and

patches.

Installed Modules

Microsoft Module .Net Framework Version1.1 This module is provided

OpenMG SDK OpenMG SDK 4.4 This module realizes the

CDDB2 CDDB2 Module This module is needed to

Music Server Mcrew Music Server 2 This module operates as a

Module name Description

Microsoft Data Access Components (MDAC) 2.8

Windows MediaFormatSDK9.5 Runtime

OpenMG Limited Patch This module is used to

by Microsoft, and is necessary in order to use this application. Refer to the Microsoft home page and other materials for a detailed description of these Microsoft Modules.

copyright protection technology used to download and manage music distribution service and music CD contents, etc. onto a computer.

modify and add OpenMG SDK functions.

use the Gracenote music information database. Refer to

www.gracenote.com

detailed description of CDDB2.

service and performs streaming of music contents to connected equipment.

for a

M-crew Server M-crew Server This module loads and

manages music contents from music CDs and PCs. It also sets and manages connected equipment.

M-crew Server related modules

* These modules are located in the folder where M-crew Server is installed.

Normally this is below C:\Program Files\Mcrewserver.

DatabaseClear.exe* This module deletes the

entire database when the contents data database managed by M-crew Server becomes corrupted and the application is unable to operate properly.

McCompactDB.exe* This module optimizes

the database to reduces the file size when the file size of the contents data database managed by Mcrew Server increases and application operation becomes slow.

FWServiceInstall.exe* This module installs the

M-crew Folder Watcher service.

FWServiceUnInstall.exe* This module uninstalls

the M-crew Folder Watcher service.

ServiceInstall.exe* This module installs the

M-crew Webradio Server service.

ServiceUnInstall.exe* This module uninstalls

the M-crew Webradio Server service.

Troubleshooting

Should you encounter a problem while installing or uninstalling Mcrew Server, use the following troubleshooting to remedy the problem. If the problem persists after checking all the below items, consult your nearest Sony dealer. In case an error message appears, it is recommended that you write it down.

M-crew Server does not start up

• The user privileges are not administrator.

M-crew Server can be used only by users with administrator privileges. To use M-crew Server, change the user privileges to administrator or logon as a user with administrator privileges.

Installation was not successful

• Be sure to close down all applications before installing the software.

If you start the installation while other programs are running, a malfunction may occur. This is especially true for programs that require large amounts of system resources, such as virus-check software.

• Make sure your computer has enough hard disk drive space.

At least 50 MB (including M-crew Server, help and related modules) free space on the hard disk. Of this 50 MB, 23 MB is needed on the system drive. This does not include the space for storing the database and contents. In addition, 300 MB is needed on the system drive for the Microsoft related modules, and 100 MB on the hard disk for Adobe Reader. However, these may not be necessary depending on the operating environment. If your computer does not have enough space, the installation may not be possible.

• The [Keep Blocking] button was clicked at the “Windows Security Alert” dialog box when using Windows XP SP2.

1 Click [Start] – [Control Panel] in that order.

“Control Panel” window appears.

2 When Windows XP is in Category View, switch to Classic View,

then click [Network Connections].

3 Click “Change Windows Firewall settings” on the left edge.

“Windows Firewall” dialog appears.

4 Click the [Exceptions] tab.

5 Click [Add Program].

“Add a program” dialog appears.

6 Select “M-crew Server task tray icon” from the “Programs” list,

then click the [OK] button. Make sure that M-crew Server task tray icon appears and is checked in the “Programs and Services” list in the “Exceptions” tab of the “Windows Firewall” dialog.

7 Click [OK].

• If the installation is still unsuccessful after all that you have done.

1 Click [Start] – [Control Panel] in that order.

“Control Panel” window appears.

2 When Windows XP is in Classic View, switch to Category View,

then click [Add or Remove Programs]. “Add or Remove Programs” window appears.

3 Select and click “M-crew Server” in the “Currently Installed

Programs” list. When “M-crew Server” does not appear in the “Currently Installed Programs” list, click [Change/Remove] and proceed to step 6.

4 Click [Change/Remove].

5 Follow the on-screen messages and restart your computer.

6 When the computer restarts, installation again. (See “Installing

M-crew Server” (page 9).)

• If the installation seems to be stopped.

The installation may take 10 minutes or more depending on your computer or CD-ROM drive. During the installation, watch out for the occurrence of any of the following problems.

• The progress bar on the display is not moving. The access lamp has not lit for a few minutes.

The installation is progressing normally. Please wait.

“No Server” appears on the system

• Check the “ICF SETTINGS” window.

1 Click [Start] – [All Programs] – [M-crew Server] – [TOOLS] –

[ICF Settings] in that order. “ICF SETTINGS” window appears.

2 Click the port with “NG” status.

A dropdown menu with port numbers appears.

3 Select any different port number.

4 Click [Apply].

“OK” or “NG” appears.

5 Repeat steps 2 to 4 until “OK” appears for all status items.

6 Click [Close].

• Check that there is no check mark in the “Don’t allow exceptions” checkbox under “On (recommended)” in the Windows Firewall settings.

• Check that the connection status information matches the system’s network settings.

1 Click [Start] – [Control Panel] – [Network Connections] in that

order.

2 Double-click [Local Area Connection].

3 Click the [Support] tab, then check the connection status.

• Restart your computer.

• M-crew Server may not be recognizing the system.

When communication is limited by firewall software other than the OS functions, enable the following .exe files. For a detailed description of the setting method, see the operation manual of the firewall software used. – McrewServer.exe – McTaskTray.exe – McService.exe – McFolderWatcher.exe – McrewHttpService.exe – McrewUPnPService.exe – MCMachineRegist.exe

There is no sound from the system

• This M-crew Server is not selected by the server selection on the system side.

For details, see “Connecting a server” of the Operating Instructions provided with the system.

• The server side system registration is not correct.

1 Check the connection between the system and your computer.

For details on connections, see “Connecting the CPF-IX001 to the network” of the Operating Instructions provided with the system.

2 Turn on the system.

The system is registered automatically on your computer.

The server side must also be set when performing system registration manually. See “Registering the system on your computer manually” (page 16).

• Make sure the system is properly connected. (For details, see “Connecting the CPF-IX001 to the network” of the Operating Instructions provided with the system. Also check your computer’s network settings.)

• Check for task tray icon.

Refer to the startup instructions. Also refer to “ task tray icon not present” (page 31).

• Make sure task tray icon is lighting.

Refer to the update instructions. Also refer to “ task tray icon darkened” (page 31).

• Make sure the system is registered in M-crew Server.

Refer to the instructions for confirming registration.

• Check the ERROR LOG VIEWER.

Start up M-crew Server, then click [ERROR LOG] in the LAUNCHER window, or right-click task tray icon and click “ERROR LOG VIEWER”. Check the contents displayed in the ERROR LOG VIEWER.

• Initialize the database.

The database has entered an illegal status, and may need to be initialized. Execute “DatabaseClear.exe” (page 24). Care should be taken when initializing the database, as the registered contents information will be initialized if you execute “DatabaseClear.exe”.

• Restart your computer.

+ 344 hidden pages

Sony CPF-IX001 User Manual [en, de, es, fr, it, pl]

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

System Requirements

Before installing the software

Installing

Installing M-crew Server

Making the AUTO LINK FOLDER Settings

Making the ICF Settings

Registering the system on your computer manually

Making the wireless LAN function settings for connected equipment (WLAN Setup Assistant)

Other Information

Starting up M-crew Server

Uninstalling the M-crew Server software

Installed Modules

Troubleshooting
