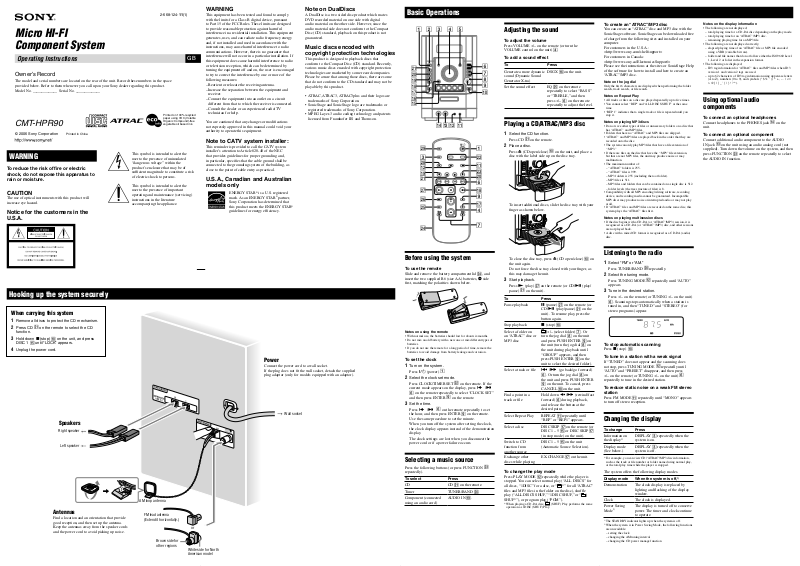

Sony CMT-HPR90 Operating Instruction
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
Notice for the customers in the
U.S.A.
2-668-124-11(1)
Micro HI-FI
Component System
Operating Instructions
GB
CMT-HPR90
© 2006 Sony Corporation Printed in China
Printed on 100% recycled
paper using VOC (Volatile
Organic Compound)-free
vegetable oil based ink.
Hooking up the system securely
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
Note to CATV system installer:
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
U.S.A., Canadian and Australian
models only
ENERGY STAR® is a U.S. registered
mark. As an ENERGY STAR® partner,
Sony Corporation has determined that
this product meets the ENERGY STAR®
guidelines for energy efficiency.
Note on DualDiscs
A DualDisc is a two sided disc product which mates
DVD recorded material on one side with digital
audio material on the other side. However, since the
audio material side does not conform to the Compact
Disc (CD) standard, playback on this product is not
guaranteed.
Music discs encoded with
copyright protection technologies
This product is designed to playback discs that
conform to the Compact Disc (CD) standard. Recently,
various music discs encoded with copyright protection
technologies are marketed by some record companies.
Please be aware that among those discs, there are some
that do not conform to the CD standard and may not be
playable by this product.
• ATRAC, ATRAC3, ATRAC3plus and their logos are
trademarks of Sony Corporation.
• SonicStage and SonicStage logo are trademarks or
registered trademarks of Sony Corporation.
• MPEG Layer-3 audio coding technology and patents
licensed from Fraunhofer IIS and Thomson.
Antennas
Find a location and an orientation that provide
good reception, and then set up the antenna.
Keep the antennas away from the speaker cords
and the power cord to avoid picking up noise.
FM lead antenna
(Extend it horizontally.)
AM loop antenna
Power
Connect the power cord to a wall socket.
If the plug does not fit the wall socket, detach the supplied
plug adaptor (only for models equipped with an adaptor).
Right speaker
Wall socket
Left speaker
Basic Operations
Before using the system
To use the remote
Slide and remove the battery compartment lid , and
insert the two supplied R6 (size AA) batteries, side
first, matching the polarities shown below.
Notes on using the remote
• With normal use, the batteries should last for about six months.
• Do not mix an old battery with a new one or mix different types of
batteries.
• If you do not use the remote for a long period of time, remove the
batteries to avoid damage from battery leakage and corrosion.
To set the clock
1 Turn on the system.
Press (power) .
2 Select the clock set mode.
Press CLOCK/TIMER SET on the remote. If the
current mode appears on the display, press /
on the remote repeatedly to select “CLOCK SET”
and then press ENTER on the remote.
3 Set the time.
Press / on the remote repeatedly to set
the hour, and then press ENTER on the remote.
Use the same procedure to set the minute.
When you turn off the system after setting the clock,
the clock display appears instead of the demonstration
display.
The clock settings are lost when you disconnect the
power cord or if a power failure occurs.
Selecting a music source
Press the following buttons (or press FUNCTION
repeatedly).
To select Press
CD
CD on the remote.
Tuner
TUNER/BAND .
Component (connected
using an audio cord)
AUDIO IN .
Adjusting the sound
To adjust the volume
Press VOLUME +/– on the remote (or turn the
VOLUME control on the unit) .
To add a sound effect
To Press
Generate a more dynamic
sound (Dynamic Sound
Generator X-tra)
DSGX on the unit.
Set the sound effect
EQ on the remote
repeatedly to select “BASS”
or “TREBLE,” and then
press +/– on the remote
repeatedly to adjust the level.
Playing a CD/ATRAC/MP3 disc
1 Select the CD function.
Press CD on the remote.
2 Place a disc.
Press (CD open/close) on the unit, and place a
disc with the label side up on the disc tray.
To insert additional discs, slide the disc tray with your
finger as shown below.
To close the disc tray, press (CD open/close) on
the unit again.
Do not force the disc tray closed with your finger, as
this may damage the unit.
3 Start playback.
Press (play) on the remote (or CD/ (play/
pause) on the unit).
To Press
Pause playback
(pause) on the remote (or
CD/ (play/pause) on the
unit). To resume play, press the
button again.
Stop playback
(stop) .
Select a folder on
an “ATRAC” disc or
MP3 disc
+/– (select folder) . Or
turn the jog dial on the unit
and press PUSH ENTER on
the unit (turn the jog dial on
the unit during playback until
“GROUP” appears, and then
press PUSH ENTER on the
unit to select the desired folder).
Select a track or file
/ (go back/go forward)
. Or turn the jog dial on
the unit and press PUSH ENTER
on the unit. To cancel, press
CANCEL on the unit.
Find a point in a
track or file
Hold down / (rewind/fast
forward) during playback,
and release the button at the
desired point.
Select Repeat Play
REPEAT repeatedly until
“REP” or “REP1” appears.
Select a disc
DISC SKIP on the remote (or
DISC 1 – 5 or DISC SKIP
(in stop mode) on the unit).
Switch to CD
function from
another source
DISC 1 – 5 on the unit
(Automatic Source Selection).
Exchange other
discs while playing
EX-CHANGE on the unit.
To change the play mode
Press PLAY MODE repeatedly while the player is
stopped. You can select normal play (“ALL DISCS” for
all discs, “1DISC” for a disc, or “ *” for all “ATRAC”
files and MP3 files in the folder on the disc), shuffle
play (“ALL DISCS SHUF,” “1DISC SHUF,” or “
SHUF*”), or program play (“PGM”).
* When playing a CD-DA disc, (SHUF) Play performs the same
operation as 1DISC (SHUF) Play.
To create an “ATRAC”/MP3 disc
You can create an “ATRAC” disc and MP3 disc with the
SonicStage software. SonicStage can be downloaded free
of charge from the following sites and installed on your
computer.
For customers in the U.S.A.:
<http://www.sony.com/shelfsupport>
For customers in Canada:
<http://www.sony.ca/ElectronicsSupport/>
Please see the instructions at the sites or SonicStage Help
of the software for how to install and how to create an
“ATRAC”/MP3 disc.
Note on the jog dial
Only the first 6 characters are displayed when performing the folder
search, track search, or file search.
Notes on Repeat Play
• All tracks or files on a disc are played repeatedly up to five times.
• You cannot select “REP” and “ALL DISCS SHUF” at the same
time.
• “REP 1” indicates that a single track or file is repeated until you
stop it.
Notes on playing MP3 discs
• Do not save other types of files or unnecessary folders on a disc that
has “ATRAC” and MP3 files.
• Folders that have no “ATRAC” and MP3 files are skipped.
• “ATRAC” and MP3 files are played back in the order that they are
recorded onto the disc.
• The system can only play MP3 files that have a file extension of
“.MP3.”
• If there are files on the disc that have the “.MP3” file extension,
but that are not MP3 files, the unit may produce noise or may
malfunction.
• The maximum number of:
– “ATRAC” folders is 255.
– “ATRAC” files is 999.
– MP3 folders is 255 (including the root folder).
– MP3 files is 511.
–
MP3 files and folders that can be contained on a single disc is 512.
– folder levels (the tree structure of files) is 8.
• Compatibility with all MP3 encoding/writing software, recording
device, and recording media cannot be guaranteed. Incompatible
MP3 discs may produce noise or interrupted audio or may not play
at all.
• If “ATRAC” files and MP3 files are recorded on the same disc, this
system plays the “ATRAC” files first.
Notes on playing multisession discs
• If the disc begins with a CD-DA (or “ATRAC”/MP3) session, it is
recognized as a CD-DA (or “ATRAC”/MP3) disc, and other sessions
are not played back.
• A disc with a mixed CD format is recognized as a CD-DA (audio)
disc.
Listening to the radio
1 Select “FM” or “AM.”
Press TUNER/BAND repeatedly.
2 Select the tuning mode.
Press TUNING MODE repeatedly until “AUTO”
appears.
3 Tune in the desired station.
Press +/– on the remote (or TUNING +/– on the unit)
. Scanning stops automatically when a station is
tuned in, and then “TUNED” and “STEREO” (for
stereo programs) appear.
To stop automatic scanning
Press (stop) .
To tune in a station with a weak signal
If “TUNED” does not appear and the scanning does
not stop, press TUNING MODE repeatedly until
“AUTO” and “PRESET” disappear, and then press
+/– on the remote (or TUNING +/– on the unit)
repeatedly to tune in the desired station.
To reduce static noise on a weak FM stereo
station
Press FM MODE repeatedly until “MONO” appears
to turn off stereo reception.
Changing the display
To change Press
Information on
the display*
DISPLAY repeatedly when the
system is on.
Display mode
(See below.)
DISPLAY repeatedly when the
system is off.
* For example, you can view CD/“ATRAC”/MP3 disc information,
such as the track or file number or folder name during normal play,
or the total play time while the player is stopped.
The system offers the following display modes.
Display mode When the system is off,
1)
Demonstration The clock display is replaced by
lighting and flashing of the display
window.
Clock The clock is displayed.
Power Saving
Mode
2)
The display is turned off to conserve
power. The timer and clock continue
to operate.
1)
The STANDBY indicator lights up when the system is off.
2)
When the system is in Power Saving Mode, the following functions
are unavailable:
– setting the clock
– changing the AM tuning interval
– changing the CD power manage function
Notes on the display information
• The following are not displayed;
– total playing time for a CD-DA disc depending on the play mode.
– total playing time for an “ATRAC”/MP3 disc.
– remaining playing time for an MP3 file.
• The following are not displayed correctly;
– elapsed playing time of an “ATRAC” file or MP3 file encoded
using a VBR (variable bit rate).
– folder and file names that do not follow either the ISO9660 Level
1, Level 2 or Joliet in the expansion format.
• The following are displayed;
– ID3 tag information for “ATRAC” files and MP3 files when ID3
version 1 and version 2 tags are used.
– up to 62 characters of ID3 tag information using uppercase letters
(A to Z), numbers (0 to 9), and symbols (" $ % ’ ( ) * + , – . / < =
> @ [ \ ] _ ` { | } ! ? ^).
Using optional audio
components
To connect an optional headphones
Connect headphones to the PHONES jack on the
unit.
To connect an optional component
Connect additional audio component to the AUDIO
IN jack on the unit using an audio analog cord (not
supplied). Turn down the volume on the system, and then
press FUNCTION on the remote repeatedly to select
the AUDIO IN function.
When carrying this system
1 Remove all discs to protect the CD mechanism.
2 Press CD
on the remote to select the CD
function.
3 Hold down (stop)
on the unit, and press
DISC 1 until “LOCK” appears.
4 Unplug the power cord.
or
Brown side for
other regions
White side for North
American model
Speakers
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record these numbers in the space
provided below. Refer to them whenever you call upon your Sony dealer regarding this product.
Model No. ______________ Serial No. ______________
Other Operations
Creating your own CD program
(Program Play)
Use buttons on the remote to create your own program.
1 Press CD
to select the CD function.
2 Press PLAY MODE
repeatedly until “PGM”
appears while the player is stopped.
3 Press DISC SKIP
to select a disc.
4 Press /
repeatedly or turn the jog
dial on the unit until the desired track number
appears.
When programming “ATRAC” files or MP3 files,
press +/– (select folder) repeatedly or turn the
jog dial on the unit to select the desired folder, and
then select the desired file.
Current disc
Loaded disc
5 Press ENTER
to add the track or file to the
program.
“– –.– –” appears when the total time exceeds 100
minutes for a CD, or when you select a CD track
whose number is 21 or over, or when you select an
“ATRAC” file or MP3 file.
6 Repeat steps 4 through 5 to program additional
tracks or files, up to a total of 25 tracks or files.
7 To play your program of tracks or files, press
(play) .
The program remains available until you open the disc
tray. To play the same program again, select the CD
function, and press (play) .
To cancel Program Play
Press PLAY MODE repeatedly until “PGM”
disappears while the player is stopped.
To delete the last track or file of the program
Press CLEAR while the player is stopped.
To view program information, such as total
track number of the program
Press DISPLAY repeatedly.
Tip
You can program additional tracks or files during playback by using
the jog dial.
Presetting radio stations
You can preset your favorite radio stations and tune
them in instantly by selecting the corresponding preset
number.
Use buttons on the remote to preset stations.
1 Tune in the desired station (see “Listening to the
radio”).
2 Press TUNER MEMORY
.
Preset number
3 Press +/–
repeatedly to select your desired
preset number.
If another station is already assigned to the selected
preset number, the station is replaced by the new
stations.
4 Press ENTER
.
5 Repeat steps 1 through 4 to store other stations.
You can preset up to 20 FM and 10 AM stations. The
preset stations are retained for about half a day even
if you disconnect the power cord or if a power failure
occurs.
6 To call up a preset radio station, press TUNING
MODE repeatedly until “PRESET” appears,
and then press +/– repeatedly to select the
desired preset number.
Using the Timers
The system offers two timer functions. If you use Play
Timer with the Sleep Timer, the Sleep Timer has priority.
Sleep Timer:
You can fall asleep to music. This function works even if
the clock is not set.
Press SLEEP on the remote repeatedly. If you select
“AUTO,” the system automatically turns off after the
current disc stops or in 100 minutes.
Play Timer:
You can wake up to CD or tuner at a preset time.
Use buttons on the remote to control the Play Timer.
Make sure you have set the clock.
1 Prepare the sound source.
Prepare the sound source, and then press VOLUME
+/– to adjust the volume.
To start from a specific CD track, “ATRAC” file or
MP3 file, create your own CD program.
2 Press CLOCK/TIMER SET
.
3 Press /
repeatedly to select “PLAY
SET” then press ENTER .
“ON” appears, and the hour indication flashes.
4 Set the time to start playing.
Press / repeatedly to set the hour,
and then press ENTER .
The minute indication flashes. Use the procedure
above to set the minute.
5 Use the same procedure as in step 4 to set the
time to stop playing.
6 Select the sound source.
Press / repeatedly until the desired
sound source appears, and then press ENTER . The
display shows the timer settings.
7 Press (power)
to turn off the system.
The system turns on 15 seconds before the preset
time. If the system is on at the preset time, the Play
Timer will not play.
To activate or check the timer again
Press CLOCK/TIMER SELECT , press /
repeatedly until “PLAY SEL” appears, and then press
ENTER .
To cancel the timer
Repeat the same procedure as above until “TIMER OFF”
appears, and then press ENTER .
To change the setting
Start over from step 1.
Tip
The Play Timer setting remains as long as the setting is not canceled
manually.
Troubleshooting
1 Make sure the power cord and speaker cords are
correctly and firmly connected.
2 Find your problem in the checklist below, and
take the indicated corrective action.
If the issue persists, contact your nearest Sony dealer.
If the STANDBY indicator flashes
Immediately unplug the power cord, and check the
following item.
• If your system has a voltage selector, is the voltage
selector set to the correct voltage?
• Are you using only the supplied speakers?
• Is anything blocking the ventilation holes on the rear
of the system?
After the STANDBY indicator stops flashing,
reconnect the power cord, and turn on the system. If
the issue persists, contact your nearest Sony dealer.
General
The display starts flashing as soon as you
plug in the power cord even though you
have not turned on the system.
• Press DISPLAY twice while the system is off. The
demonstration disappears.
Sound comes from one channel, or the left
and right volumes are unbalanced.
• Place the speakers as symmetrically as possible.
• Connect only the supplied speakers.
Severe hum or noise.
• Move the system away from sources of noise.
• Connect the system to a different wall socket.
• Install a noise filter (available separately) to the power
cord.
The remote does not function.
• Remove any obstacles between the remote and the
remote sensor on the unit, and position the unit
away from fluorescent lights.
• Point the remote at the system’s sensor.
• Move the remote closer to the system.
The STANDBY indicator remains lit after
unplugging the power cord.
• The STANDBY indicator may not turn off
immediately after unplugging the power cord. This
is not a malfunction. The indicator will turn off after
about 40 seconds.
CD/MP3 player
The sound skips, or the disc will not play.
• Wipe the disc clean, and replace it.
• Move the system to a location away from vibration (for
example, on top of a stable stand).
• Move the speakers away from the system, or place
them on separate stands. At high volume, speaker
vibration may cause the sound to skip.
Play does not start from the first track.
• Return to Normal Play by pressing PLAY MODE
repeatedly until both “PGM” and “SHUF” disappear.
Starting playback takes more time than usual.
• The following discs take a longer time to start playback.
– a disc recorded with a complicated tree structure.
– a disc recorded in multisession mode.
– a disc that has not been finalized (a disc to which data
can be added).
– a disc that has many folders.
Tuner
Severe hum or noise, or stations cannot be
received.
• Connect the antenna properly.
• Find a location and an orientation that provide good
reception, and then set up the antenna again.
• Keep the antennas away from the speaker cords and the
power cord to avoid picking up noise.
• Connect a commercially available external antenna.
• Consult your nearest Sony dealer if the supplied AM
antenna has come off the plastic stand.
• Turn off nearby electrical equipment.
To change the AM tuning interval
The AM tuning interval is factory-preset to 10 kHz.
Use buttons on the unit to change the AM tuning interval.
1 Tune in any AM station, and then turn off the
system.
2 While holding down
, press
(power) .
All the AM preset stations are erased. To reset the
interval to the factory preset, repeat the procedure.
You cannot change the AM tuning interval in Power
Saving Mode.
T
o improve tuner reception
Turn off CD player power by using the CD power
management function. By default, CD power is turned on.
You cannot change the setting in Power Saving Mode.
Use buttons on the unit to turn off CD player power.
1 Press CD/ (play/pause)
to select the CD
function.
2 Press (power)
to turn off the system.
3 After “STANDBY” stops flashing, press
(power) while holding ENTER .
“CD POWER” and “OFF” appear. With CD player
power turned off, disc access time is increased. To
turn on CD player power, repeat the procedure until
“CD POWER” and “ON” appear.
To reset the system to factory settings
If the system still does not operate properly, reset the
system to factory settings. You cannot reset the system to
factory settings in Power Saving Mode.
Use buttons on the unit to reset the unit to its factory
default settings.
1 Disconnect and reconnect the power cord, and
then turn on the system.
2 Press PLAY MODE/TUNING MODE
,
DISPLAY and (power) at the same
time.
All user-configured settings, such as preset radio
stations, timer, and the clock, are deleted.
Messages
CANT LOCK : The system cannot be locked after
you have done the procedure of “When carrying this
system.” Turn the power off and then on again by
pressing (power ) on the unit, then perform
the procedure.
CD OVER : You have reached the end of the disc while
pressing (fast forward) during playback or
pause.
COMPLETE : The preset operation ended normally.
LOCKED : The disc tray does not open. Contact your
nearest Sony dealer.
NO DISC : There is no disc in the player, or you have
loaded a disc that cannot be played.
NOT IN USE : You pressed an invalid button.
PUSH SELECT : You tried to set the clock or timer
during timer operation.
PUSH STOP : You pressed PLAY MODE during
playback.
SET CLOCK : You tried to select the timer when the
clock is not set.
SET TIMER : You tried to select the timer when the
Play Timer is not set.
STEP FULL : You tried to program more than 26 tracks
or files (steps).
TIME NG : The Play Timer start and end times are set to
the same time.
Display examples
Display indicates
2 (two)
5 (five)
6 (six)
8 (eight)
0 (zero)
A
B
D
G
H
K
M
O
Q
R
S
Z
! or |
”
$
%
,
.
?
@
^
Precautions
Discs that this system CAN play
• Audio CD
• CD-R/CD-RW (audio data/“ATRAC” files/MP3 files)
Discs that this system CANNOT play
• CD-ROM
• CD-R/CD-RW other than those recorded in music
CD format or “ATRAC” format and MP3 format
conforming to ISO9660 Level 1/Level 2, Joliet or
multisession
• CD-R/CD-RW recorded in multisession that have not
ended by “closing the session”
• CD-R/CD-RW of poor recording quality, CD-R/CDRW that have scratches or are dirty, or CD-R/CD-RW
recorded with an incompatible recording device
• CD-R/CD-RW which is finalized incorrectly
• Discs containing files other than MPEG 1 Audio Layer3 (MP3) files
• Discs of non-standard shape (for example, heart,
square, star)
• Discs that have adhesive tape, paper, or sticker attached
to them
• Rental or used discs with attached seals where the glue
extends beyond the seal
• Discs that have labels printed using ink that feels tacky
when touched
Notes on discs
• Before playing, wipe the disc with a cleaning cloth
from the center out to the edge.
• Do not clean discs with solvents, such as benzine
thinner, or commercially available cleaners or antistatic spray intended for vinyl LPs.
• Do not expose discs to direct sunlight or heat sources
such as hot air ducts, nor leave it in a car parked in
direct sunlight.
On safety
• The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall socket,
even if the unit itself has been turned off.
• Completely disconnect the power cord (mains lead)
from the wall socket (mains) if it is not going to be
used for an extended period of time. When unplugging
the unit, always grip the plug. Never pull the cord
itself.
• Should any solid object or liquid get into the system,
unplug the system, and have it checked by qualified
personnel before operating it again.
• The AC power cord can be changed only by a qualified
service facility.
On placement
• Do not place the system in an inclined position or in
locations that are extremely hot, cold, dusty, dirty, or
humid or lacking adequate ventilation, or subject to
vibration, direct sunlight or a bright light.
• Be careful when placing the unit or speakers on
surfaces that have been specially treated (for example,
with wax, oil, polish) as staining or discoloration of the
surface may result.
• If the system is brought directly from a cold to a warm
location or is placed in a very damp room, moisture
may condense on the lens inside the CD player, and
cause the system to malfunction. In this situation,
remove the disc, and leave the system turned on for
about a few hours until the moisture evaporates.
On heat buildup
• Heat buildup on the unit during operation is normal and
is not cause for alarm.
• Do not touch the cabinet if it has been used
continuously at a high volume because the cabinet may
have become hot.
• Do not obstruct the ventilation holes.
On the speaker system
This speaker system is not magnetically shielded, and
the picture on nearby TV sets may become magnetically
distorted. In this situation, turn off the TV, wait 15 to 30
minutes, and turn it back on.
If there is no improvement, move the speakers far away
from the TV.
Cleaning the cabinet
Clean this system with a soft cloth slightly moistened
with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder, or solvent, such as
thinner, benzine, or alcohol.
Specifications
Main unit
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
With 4 ohm loads, both channels driven, from 120 – 10,000 Hz; rated 85 watts
per channel minimum RMS power, with no more than 10% total harmonic
distortion from 250 milliwatts to rated output.
Amplifier section
North American model
DIN power output (rated): 68 + 68 W (4 ohms at 1 kHz, DIN)
Continuous RMS power output (reference): 85 + 85 W (4 ohms at 1 kHz,
10% THD)
Inputs
AUDIO IN: Sensitivity 250 mV, impedance of 47 kilohms
Outputs
PHONES (stereo mini jack): accepts headphones with an impedance of 8
ohms or more
SPEAKER: accepts impedance of 4 ohms
CD player section
System: Compact disc and digital audio system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 µW
* This output is the value measurement at a distance of 200 mm from the
objective lens surface on the Optical Pick-up Block with 7 mm aperture.
Frequency response: 20 Hz – 20 kHz (±2 dB)
Wavelength: 780 – 790 nm
Selected track
or file number
Total playing time of program
(including selected track or file)
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section:
Tuning range: 87.5 – 108.0 MHz
Antenna: FM lead antenna
Antenna terminals: 75 ohms unbalanced
Intermediate frequency: 10.7 MHz
AM tuner section:
Tuning range: 530 – 1,710 kHz (with 10 kHz tuning interval)
531 – 1,710 kHz (with 9 kHz tuning interval)
Antenna: AM loop antenna
Antenna terminals: External antenna terminal
Intermediate frequency: 450 kHz
Speaker
Speaker system: 2-way, bass-reflex type
Speaker units
Woofer: 13 cm dia., cone type
Tweeter: 4 cm dia., cone type
Nominal impedance: 4 ohms
Dimensions (w/h/d): Approx. 174 × 280 × 258 mm
Mass: Approx. 2.6 kg net per speaker
General
Power requirements: 120 V AC, 60 Hz
Power consumption: 45 watts
Dimensions (w/h/d) (excl. speakers): Approx. 180 × 280 × 360 mm
Mass (excl. speakers): 3.9 kg
Supplied accessories: Remote Commander (1)/R6 (Size AA) batteries (2)/AM
loop antenna (1)/FM lead antenna (1)
US and foreign patents licensed from Dolby Laboratories.
Design and specifications are subject to change
without notice.
• Standby power consumption: 0.5 W
• Halogenated flame retardants are not used in the
certain printed wiring boards.
• Lead-free solder is used for soldering certain parts.
• Halogenated flame retardants are not used in cabinets.
(Except for the United States model)
Loading...
