Sony CDX-MP70 User Manual

FM/AM
Compact Disc
Player

3-239-019-21 (1)

Operating Instructions

Mode d’emploi

Manual de instrucciones

Owner’s Record

The model and serial numbers are located on the bottom of the unit.
Record these numbers in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. CDX-MP70 Serial No.

For installation and connections, see the supplied installation/connections manual.
En ce qui concerne l’installation et les connexions, consulter le manuel
d’installation/raccordement fourni.
Para obtener información sobre la instalación y las conexiones, consulte el manual
de instalación/conexiones suministrado.

US

FR

ES

CDX-MP70

© 2002 Sony Corporation

Warning

–
–

–

–

Welcome !

This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment

and receiver.

Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.

Consult the dealer or an experienced radio/TV
technician for help.

You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.

Thank you for purchasing this Sony Compact
Disc Player. You can enjoy its various features
even more with:

• MP3 file playback.

• Non-finalized CD-R/CD-RW disc playback
capability (page 7).

• Discs recorded in Multi Session (CD-Extra,
Mixed CD, etc.) can be played, depending on
the recording method (page 8).

• Optional CD/MD units (both changers and
players)*

•ID3 tag*

1

.

2

version 1 information (displayed

when an MP3 file is played).

• CD TEXT information (displayed when a CD
TEXT disc*

3

is played).

• 7 color display (you can select from a range of
7 colors).

• Supplied controller accessory

Card remote commander RM-X112

• Optional controller accessory

Wireless rotary commander RM-X5S

*1 This unit works with Sony products only.
*2 ID3 tag is an MP3 file that contains information

about album name, artist name, track name, etc.

*3 A CD TEXT disc is an audio CD that includes

information such as the disc name, artist name,
and track names. This information is recorded on
the disc.

CAUTION

The use of optical instruments with this product
will increase eye hazard.

The “XM Ready” logo indicates that this product
will control a Sony XM tuner module (sold
separately).
Please see your nearest authorized Sony dealer
for details on the XM tuner module.
For instructions on XM tuner operation, please
refer to the XM tuner module’s included
instruction manual.

2

Table of Contents

Location of controls. . . . . . . . . . . . . . . . . . . . 4

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Notes on discs . . . . . . . . . . . . . . . . . . . . . . . . 7

About MP3 files . . . . . . . . . . . . . . . . . . . . . . 8

Getting Started

Resetting the unit . . . . . . . . . . . . . . . . . . . . . . 9

Detaching the front panel . . . . . . . . . . . . . . 10

Setting the clock . . . . . . . . . . . . . . . . . . . . . 11

CD Player
CD/MD Unit (optional)

Playing a disc. . . . . . . . . . . . . . . . . . . . . . . . 11

Display items . . . . . . . . . . . . . . . . . . . . . . . . 13

Playing tracks repeatedly

— Repeat Play . . . . . . . . . . . . . . . . . . . . 13

Playing tracks in random order

— Shuffle Play . . . . . . . . . . . . . . . . . . . . 13

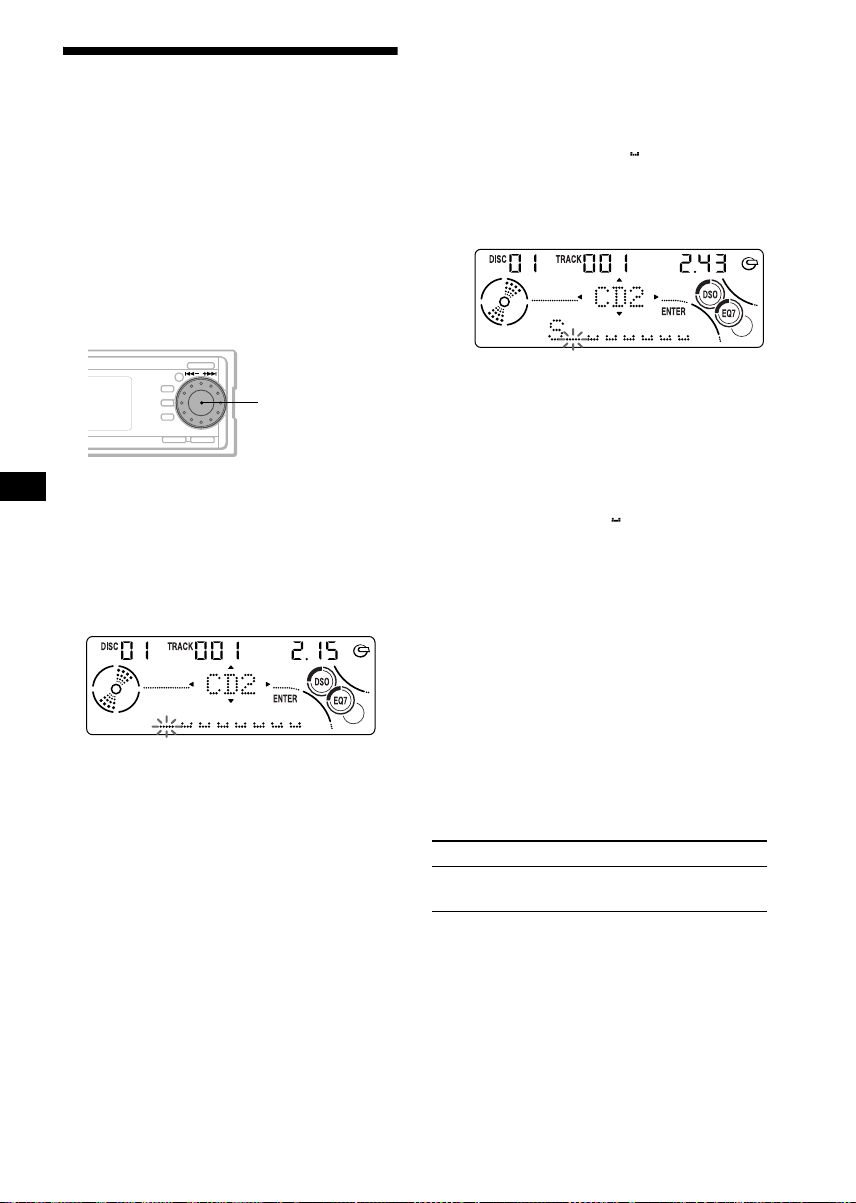

Labeling a CD

— Disc Memo*. . . . . . . . . . . . . . . . . . . . 14

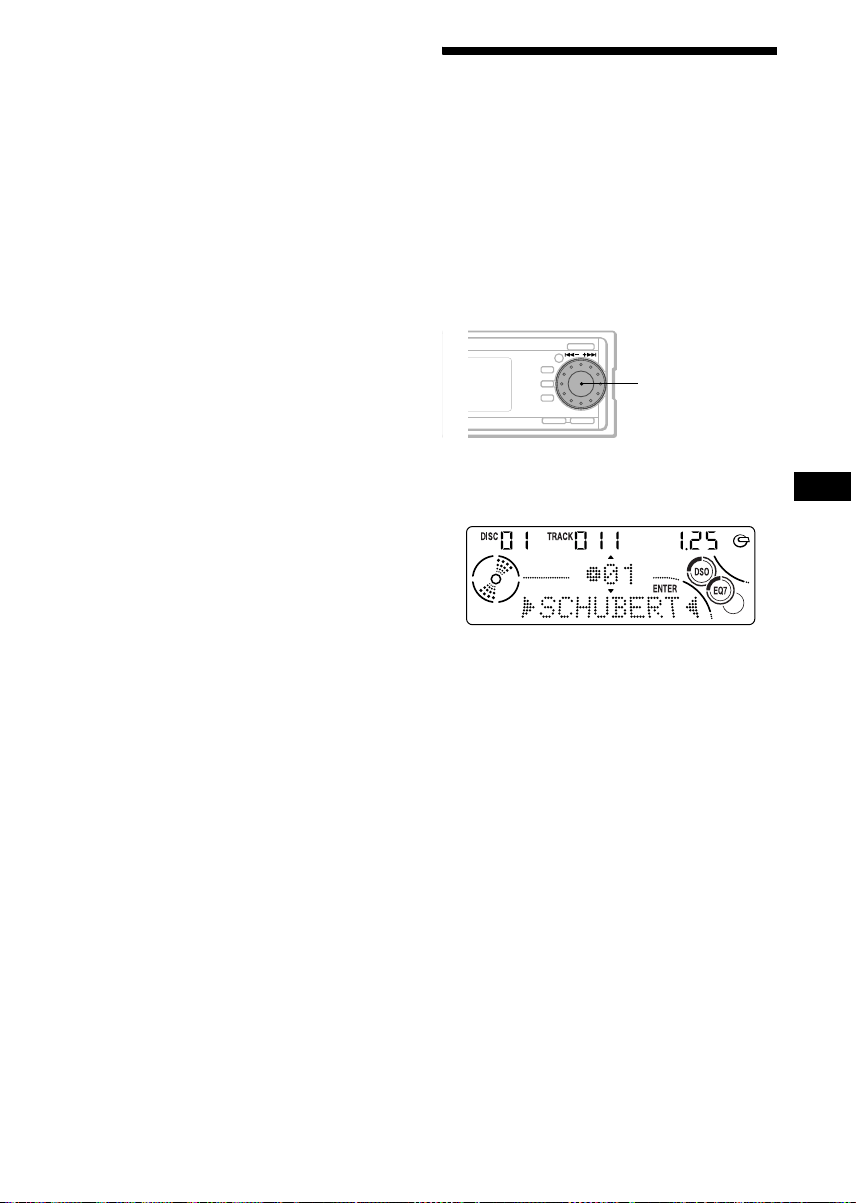

Locating a disc by name

— List-up* . . . . . . . . . . . . . . . . . . . . . . . 15

* Functions available with optional CD/MD unit

Radio

Storing stations automatically

— Best Tuning Memory (BTM) . . . . . . . 16

Receiving the stored stations . . . . . . . . . . . . 16

Storing only desired stations . . . . . . . . . . . . 17

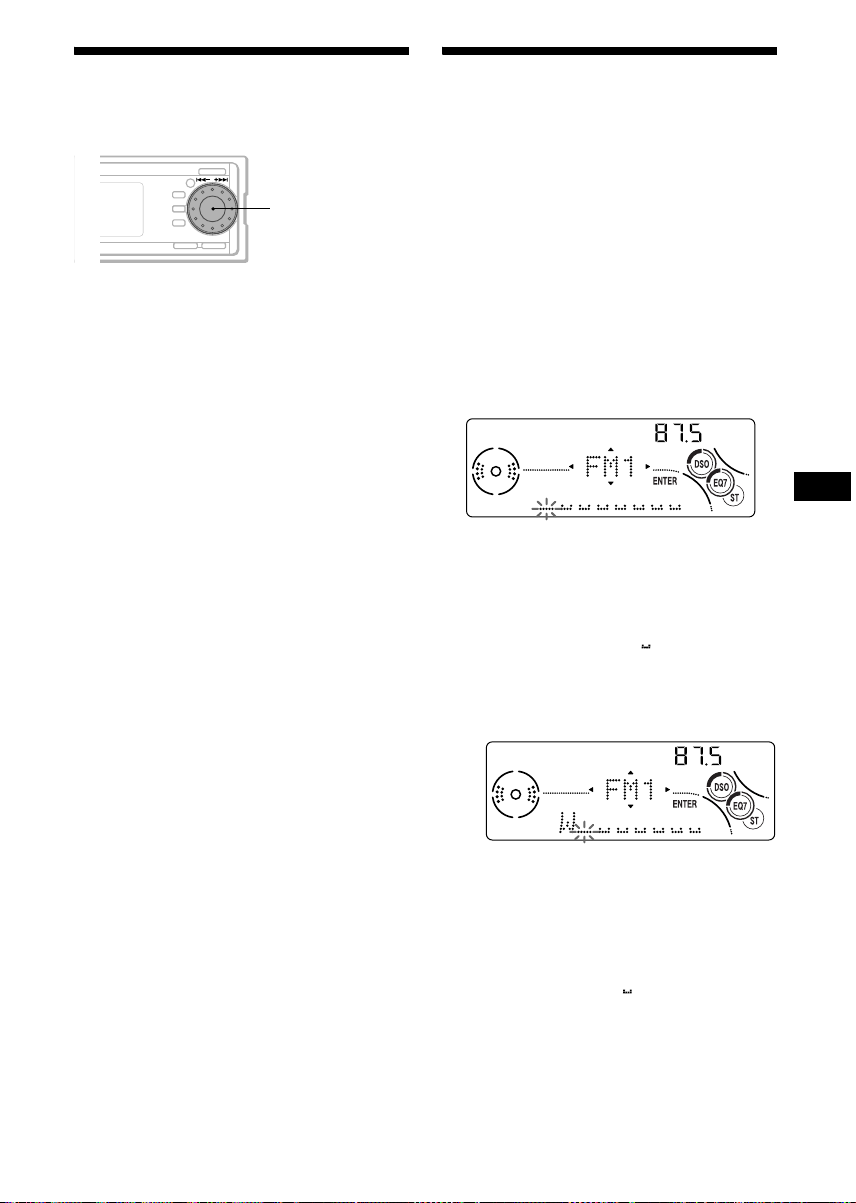

Storing station names

— Station Memo. . . . . . . . . . . . . . . . . . . 17

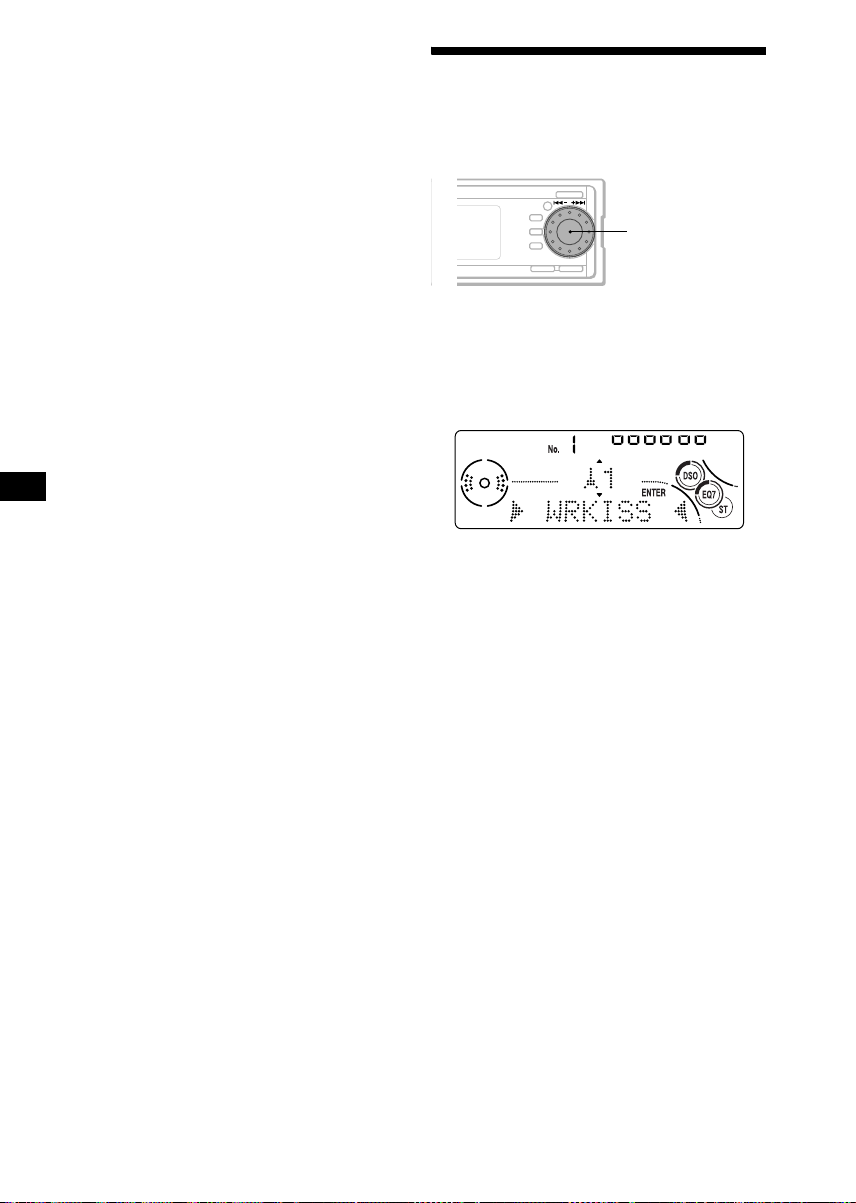

Tuning in a station through a list

— List-up . . . . . . . . . . . . . . . . . . . . . . . . 18

Other Functions

Using the rotary commander. . . . . . . . . . . . 19

Adjusting the sound characteristics . . . . . . 21

Quickly attenuating the sound . . . . . . . . . . 21

Changing the sound and display settings

— Menu . . . . . . . . . . . . . . . . . . . . . . . . . 21

Setting the Dynamic Soundstage Organizer

(DSO) . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Setting the equalizer . . . . . . . . . . . . . . . . . . 23

Adjusting the front and rear volume . . . . . . 24

Adjusting the volume of the

subwoofer(s). . . . . . . . . . . . . . . . . . . . . . 24

Selecting the spectrum analyzer . . . . . . . . . 25

Labeling a Demo display

— Appearing Characters . . . . . . . . . . . . 25

Connecting auxiliary audio equipment . . . . 26

Additional Information

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 27

Removing the unit. . . . . . . . . . . . . . . . . . . . 28

Specifications . . . . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 30

Error displays/Messages . . . . . . . . . . . . . . . 31

3

Location of controls

CDX-MP70

Behind the front panel

4

Refer to the pages listed for details.

a VOL (volume) control dial/SOUND

button

Rotate to:
– Adjust the volume.
– Adjust the sound setting.
Press to:
– Select the sound setting.

b SOURCE button

To select the source.

c MODE button

To change the operation.

d DSPL button 13, 14, 26
e Display window
f LIST button 12, 14, 15, 15 17, 18
g MENU button

To display the menus.

h Z (eject) button 11, 12, 12
i RELEASE button 10
j OFF (Stop/Power off) button* 10, 12,

25, 26

k Receptor for the card remote

commander and wireless rotary
commander

l REP button 13
m SHUF button 13
n m/M (SEEK –/+) buttons

To fast-forward, reverse a track,
tune in stations automatically,
find a station manually, and
select a setting.

o ./> (–/+) control dial

Rotate to:
– Receive preset stations.
– Skip tracks.
– Select a menu.
Press to:
– Enter a setting.

p OPEN/CLOSE button 10, 11
q N (play) button 11
r RESET button 9

* Warning when installing in a car without

an ACC (accessory) position on the
ignition switch

After turning off the ignition, be sure to press

(OFF) on the unit for 2 seconds to turn off the

clock display.

Otherwise, the clock display does not turn off
and causes battery drain.

Card remote commander RM-X112

SCRL

DSPL

REP SHUF

1

2

3

4

5

6

MODE

EQ7DSO

LIST

+

DISC

MENU

–

SEEK

SOUND

SOURCE

DISC

+

VOL

+

SEEK

–

ENTER

ATTOFF

–

The corresponding buttons of the card
remote commander control the same
functions as those on this unit.

a SCRL button
b DSPL button
c Number buttons
d DSO button
e MENU button
f SOURCE button
g SEEK (</,) buttons
h SOUND button
i OFF button
j VOL (+/–) buttons
k MODE button
l EQ7 button
m LIST button
n DISC/ALBUM (M/m) buttons
o ENTER button
p ATT button

continue to next page t

5

Note

If the unit is turned off by pressing (OFF) for
2 seconds, it cannot be operated with the card remote
commander unless (SOURCE) on the unit is pressed
to reactivate the unit first.

Tip

See “Replacing the lithium battery” on page 27 for
details on how to replace the batteries.

Selecting a disc and album with the
card remote commander

Disc and album can be skipped using the DISC/
ALBUM (M/m) buttons on the card remote
commander.

Precautions

• If your car was parked in direct sunlight, allow
the unit to cool off before operating it.

• Power antennas will extend automatically
while the unit is operating.

• Do not use the CUSTOM FILE feature while
driving, or perform any other function which
could divert your attention from the road.

If you have any questions or problems
concerning your unit that are not covered in this
manual, please consult your nearest Sony dealer.

(With this unit)

To Press

Skip albums*
– Album selection

M or m [once for each
album]
To continuously skip
albums, press and hold
either button.

(With optional unit)

To Press

Skip discs
– Disc selection

Skip albums*
– Album selection

* Available only when an MP3 file is played.

M or m [once for each disc]
To continuously skip discs,
press once and press again
within 1 second (and hold)
either button.

M or m [hold for a moment]
and release
To continuously skip
albums, press (and hold)
within 1 second of first
releasing the button.

Skipping tracks continuously

Press once either SEEK/AMS (< or ,)
button on the card remote commander, then
press again within 1 second and hold.

Moisture condensation

On a rainy day or in a very damp area, moisture
condensation may occur inside the lenses and
display of the unit. Should this occur, the unit
will not operate properly. In such a case, remove
the disc and wait for about an hour until the
moisture has evaporated.

To maintain high sound quality

Be careful not to splash juice or other soft drinks
onto the unit or discs.

Notes on CD lens

• Do not touch the lens in the disc tray.

• Do not use a commercially available lens
cleaner.

6

Notes on discs

• To keep the disc clean, do not touch the surface.
Handle the disc by its edge.

• Keep your discs in their cases or disc
magazines when not in use.
Do not subject the discs to heat/high
temperature. Avoid leaving them in parked cars
or on dashboards/rear trays.

• Do not attach labels, or use discs with sticky
ink/residue. Such discs may stop spinning
when used, causing a malfunction, or may ruin
the disc.

Notes on CD-Rs (recordable CDs)/CD­RWs (rewritable CDs)

This unit can play the following discs:

Type of discs Label on the disc

Audio CD

MP3 files

• Some CD-Rs/CD-RWs (depending on the
equipment used for its recording or the
condition of the disc) may not play on this unit.

• You can play a CD-R/CD-RW that is not
finalized*.

• You can play MP3 files recorded on CD­ROMs , CD-Rs, and CD-RWs.

* A process necessar y for a recorded CD-R/CD-RW

disc to be played on the audio CD player.

• Do not use any discs with labels or stickers
attached as this may cause inability to read
audio data correctly (e.g., playback skipping, or
no playback) due to heat shrinking of a sticker
or label causing a disc to warp.

• Discs with non-standard shapes (e.g., heart,
square, star) cannot be played on this unit.
Attempting to do so may damage the unit. Do
not use such discs.

• Before playing, clean discs with a
commercially available cleaning cloth. Wipe
each disc from the center out. Do not use
solvents such as benzine, thinner, commercially
available cleaners, or antistatic spray intended
for analog discs.

7

About MP3 files

MP3 (MPEG 1 Audio Layer-3) is a standard
technology and format for compressing a sound
sequence. The file is compressed to about 1/10 of
its original size. Sounds outside the range of
human hearing are compressed while the sounds
we can hear are not compressed.

Notes on discs

You can play MP3 files recorded on CD-ROMs,
CD-Rs, and CD-RWs.
The disc must be in the ISO 9660*
level 2 format, or Joliet or Romeo in the
expansion format.
You can use a disc recorded in Multi Session*

1

ISO 9660 Format

*

The most common international standard for
the logical format of files and folders on a
CD-ROM.
There are several specification levels. In
Level 1, file names must be in the 8.3 format
(no more than 8 characters in the name, no
more than 3 characters in the extension
“.MP3”) and in capital letters. Folder names
can be no longer than 8 characters. There can
be no more than 8 nested folder levels. Level
2 specifications allow file names up to 31
characters long.
Each folder can have up to 8 trees.
For Joliet or Romeo in the expansion format,
make sure of the contents of the writing
software, etc.

2

*

Multi Session

This is a recording method that enables
adding of data using the Track-At-Once
method. Conventional CDs begin at a CD
control area called the Lead-in and end at an
area called Lead-out. A Multi Session CD is a
CD having multiple sessions, with each
segment from Lead-in to Lead-out regarded
as a single session.
CD-Extra: The format which records audio
(audio CD data) as tracks on session 1, and
records data as tracks on session 2.
Mixed CD: In this format, data is recorded as
track 1, and audio (audio CD data) is recorded
as track 2.

1

level 1 or

2

.

Notes

• With formats other than ISO 9660 level 1 and level 2,
folder names or file names may not be displayed
correctly.

• When naming, be sure to add the file extension
“.MP3” to the file name.

• If you put the extension “.MP3” to a file other than
MP3, the unit cannot recognize the file properly and
will generate random noise that could damage your
speakers.

• The following discs take a longer time to start
playback.
– a disc recorded with complicated tree structure.
– a disc recorded in Multi Session.
– a disc to which data can be added (non-finalized

disc).

Cautions when playing a disc that is recorded in
Multi Session

• When the first track of the first session is audio CD
data:
Non-audio CD data information (track number, time,
etc.) is displayed with no sound.

• When the first track of the first session is not audio
CD data:
– If an MP3 file is in the disc, only MP3 file(s) play

back and other data is skipped. (Audio CD data is
not recognized.)

– If no MP3 file is in the disc, “NO Music” is

displayed and nothing is played back. (Audio CD
data is not recognized.)

8

The playback order of the MP3 files

The playback order of the folders and files is as
follows:

Folder (album)

1

1

MP3 file (track)

2

2

3

3

4

5

6

6

7

5

4

7

8

Getting Started

Resetting the unit

Before operating the unit for the first time, or
after replacing the car battery or changing the
connections, you must reset the unit.
Remove the front panel and press the RESET
button with a pointed object, such as a ball-point
pen.

RESET button

Note

Pressing the RESET button will erase the clock setting
and some stored contents.

8

9

Tree 1
(root)

Notes

• A folder that does not include an MP3 file is skipped.

• Maximum folder number: 255 (including root folder

and empty folders)

• The maximum number of MP3 files and folders that
can be contained in a disc: 512
When a file/folder name contains many characters,
this number may become less than 512.

• The maximum number of trees which can be played
is 8.

Tip

To specify a desired playback order, before the folder
or file name, input the order by number (e.g., “01,”
“02”), then record contents onto a disc. (The order
differs depending on the writing software.)

Tre e 2

Tree 3

Tre e 4

Tre e 5

9

Detaching the front panel

You can detach the front panel of this unit to
protect the unit from being stolen.

Caution alarm

If you turn the ignition switch to the OFF
position without removing the front panel, the
caution alarm will beep for a few seconds.

1 Press (OFF)*.

CD/MD playback or radio reception stops
(the key illumination and display remain on).

* If your car has no ACC position on the ignition

switch, be sure to turn the unit off by pressing
(OFF) for 2 seconds to avoid car battery drain.

2 Press (RELEASE) to open up the front

panel and pull it off towards you.

(RELEASE)

Notes

• If you detach the panel while the unit is still turned
on, the power will turn off automatically to prevent
the speakers from being damaged.

• Do not drop or put excessive pressure on the front
panel and its display window.

• Close the front panel before you detach it.

• Do not subject the front panel to heat/high

temperature or moisture. Avoid leaving it in parked
cars or on dashboards/rear trays.

Tip

When carrying the front panel with you, use the
supplied front panel case.

Attaching the front panel

Attach part A of the front panel to part B of the
unit as illustrated and push the left side into
position until it clicks.

A

B

Notes

• Do not put anything on the inner surface of the front
panel.

• Do not detach the front panel during the eject
operation. If the front panel is detached during eject,
operation will stop.

To eject the disc when you do not have the front
panel attached, press (OPEN/CLOSE) inside the
unit through hole C with a pointed object, such
as a ballpoint pen.

C

10

Setting the clock

The clock uses a 12-hour digital indication.

Example: To set the clock to 10:08

./> control
dial

CD Player
CD/MD Unit (optional)

In addition to playing a CD with this unit, you
can also control external CD/MD units.

Note

If you connect an optional CD unit with the CD TEXT
function, the CD TEXT information will appear in the
display when you play a CD TEXT disc.

1 Press (MENU), then rotate the

./> control dial until “Clock”
appears.

1Press the ./> control dial.

The hour indication flashes.

2Rotate the ./> control dial to

set the hour.

3Press the M+ button.

The minute indication flashes.

4Rotate the ./> control dial to

set the minute.

2 Press the ./> control dial.

The clock starts. After the clock setting is
completed, the display returns to normal play
mode.

Tip

When D.Info mode is set to on, the time is always
displayed (page 21).

Playing a disc

(With this unit)

1 Press Z.

The disc compartment slides out.

2 Place a disc on the disc tray with the

label side up.

Insert the disc until it clicks.

3 Press N.

The disc compartment closes and playback
starts.

If a disc is already inserted, press (SOURCE)
repeatedly until “CD” appears in the display, and
playback starts. (If you press (OPEN/CLOSE),
the disc compartment closes but playback does
not start.)

Notes

• Do not place more than 1 disc on the disc tray.

• The disc compartment closes automatically after 30

seconds.

continue to next page t

11

./> control
dial

(With optional unit)

1 Press (SOURCE) repeatedly to select

“CD” or “MD (MS*).”

2 Press (MODE) repeatedly until the

desired unit appears.

Playback starts.

To Do this

Stop playback Press (OFF).

Eject the disc Press Z.

Skip tracks
– Automatic

Rotate the ./>
control dial.

Music Sensor

Fast-forward/
reverse
– Manual Search

Skip albums*
– Album selection

* Available only when an MP3 file is played.

Press and hold the –m or
M+ button, and release at
the desired point.

Press (LIST), then rotate the
./> control dial.

To remove the disc, press down the center
spindle, and lift up the edge of the disc from the
relief in the disc tray.

Notes

• Depending on the recording method used on the
disc, it may take a minute or more before playing the
first track.

• Depending on the condition of the disc, it may not
play back (page 7, 8).

• Such discs should be finalized.

• While the first/last track on the disc is playing, if the

./> control dial is rotated, playback skips to
the last/first track of the disc.

• When the last track on the disc is over, playback
restarts from the first track of the disc.

• With optional unit connected, playback of the same
source will continue on to the optional CD/MD unit.

• There is a delay for a few seconds after pressing Z
before the disc tray is ejected, after reading the data
in the disc.)

* MS: MG Memory Stick System-up Player MGS-X1.

Cautions when connecting MGS-X1 and MD unit(s)

This unit recognizes MGS-X1 as an MD unit.

• When you want to play MGS-X1, press (SOURCE) to

select “MS” or “MD.” If “MS” appears in the source
display, MGS-X1 starts to play. If “MD” appears in
the source display, press (MODE) to select “MS,” to
start playback.

• When you want to play an MD unit, press (SOURCE)

to select “MD” or “MS.” If your desired MD unit
appears in the source display, it starts to play. If “MS”
or another MD unit appears in the source display,
press (MODE) to select your desired MD unit, to
start playback.

Locating a disc

— Disc selection

See “Locating a disc by name” on page 15.

12

Display items

When the disc/album/track changes, any
prerecorded title*
automatically displayed (if the Auto Scroll
function is set to “on,” names exceeding 9
characters will be scrolled (page 21)).

DISC/ALBUM
number

Displayable items

• Disc name*

• Album (folder) name*

• Track (file) name*

•ID3 tag*

To Press

Switch display
item

Scroll display item (DSPL) for 2 seconds

*1 When pressing (DSPL), “NO D.Name” or “NO

T.Name” indicates that there is no Disc Memo
(page 14) or prerecorded name to display.

*2 Only for CD TEXT discs with the artist name.
*3 Only for MP3 files.

Only track name/artist name/album name in ID3
tag is displayed.
When pressing (DSPL), “NO ID3 Tag” indicates
that there is no ID3 tag to display.

Notes

• Some characters cannot be displayed.

• For some CD TEXT discs with very many

characters, information may not scroll.

• This unit cannot display the artist name for each

track of a CD TEXT disc.

Notes on MP3

• ID3 tag applies only to version 1.

• The ID3 tag character codes comply with ASCII and

ISO 8859-1 standards. Joliet format discs can only
be displayed in ASCII. Incompatible characters will
be displayed as “ *.”

• In the following cases, elapsed playing time may not

be displayed accurately.
– when an MP3 file of VBR (variable bit rate) is

played.

– during fast-forward/reverse.

Tip

When Auto scroll is set to off and the disc/album/track
name is changed, the disc/album/track name does not
scroll.

1

of the new disc/album/track is

TRACK
number

1

3

Elapsed
playing time

/artist name*

3

1

2

(DSPL)

Playing tracks repeatedly

— Repeat Play

The disc in the main unit will repeat a track, the
entire album, or the entire disc when it reaches
the end. For repeat play, you can select:

• REP TRACK — to repeat a track.

•REP ALBUM*

•REP DISC*

*1 Available only for MP3 files.
*2 Available only when one or more optional CD/MD

units are connected.

1

— to repeat an album.

2

— to repeat a disc.

During playback, press (REP)
repeatedly until the desired setting
appears in the display.

Repeat Play starts.

To return to normal play mode, select “REP off.”

Playing tracks in random
order

— Shuffle Play

You can select:

• SHUF ALBUM*
current album in random order.

• SHUF DISC — to play the tracks on the
current disc in random order.

• SHUF CHNGR*
current optional CD (MD) unit in random
order.

• SHUF ALL*
connected CD (MD) units (including this unit)
in random order.

*1 Available only for MP3 files.
*2 Available only when one or more optional CD (MD)

units are connected.

*3 Available only when one or more optional CD units,

or two or more optional MD units are connected.

During playback, press (SHUF)
repeatedly until the desired setting
appears in the display.

Shuffle Play starts.

To return to normal play mode, select “SHUF
off.”

Note

“SHUF ALL” will not shuffle tracks between CD units
and MD units.

1

— to play the tracks in the

2

— to play the tracks in the

3

— to play all the tracks in all the

13

Labeling a CD

— Disc Memo (For a CD unit with the
CUSTOM FILE function)

You can label each disc with a custom name
(Disc Memo). You can enter up to 8 characters
for a disc. If you label a CD, you can locate the
disc by name (page 15).

Caution

Do not use the CUSTOM FILE feature while
driving, or perform any other function which
could divert your attention from the road.

./> control
dial

1 Start playing the disc you want to label

in a CD unit with the CUSTOM FILE
function.

2 Press (MENU), then rotate the

./> control dial until “Name Edit”
appears.

3 Press the ./> control dial.

The unit will repeat the disc during the
labeling procedure.

4 Enter the characters.

1Rotate the ./> control dial to

select the desired character.

A y B y C ... y 0 y 1 y 2 ... y

+

y – y

* (blank space)

2Press the M+ button after locating

the desired character.

If you press the –m button, you can
move back to the left.

3Repeat steps 1 and 2 to enter the

entire name.

... y * y A

*

5 To return to normal CD play mode,

press the ./> control dial.

Tips

• Simply overwrite or enter “ ” to correct or erase a
name.

• There is another way to start labeling a CD: Press
(LIST) for 2 seconds instead of performing steps 2
and 3. You can also complete the operation by
pressing (LIST) for 2 seconds instead of step 5.

• You can label CDs on a unit without the CUSTOM
FILE function if that unit is connected along with a
CD unit that has the function. The Disc Memo will be
stored in the memory of the CD unit with the
CUSTOM FILE function.

Note

Repeat/shuffle play is suspended until the Name Edit
is complete.

Viewing the Disc Memo

As a display item, the Disc Memo always takes
priority over any original CD TEXT information.

14

To Press

View (DSPL) during CD/CD

Tip

To find out about other items that can be displayed,
see page 13.

TEXT disc playback

Erasing the Disc Memo

1 Press (SOURCE) repeatedly to select

“CD.”

2 Press (MODE) repeatedly to select the

CD unit storing the Disc Memo.

3 Press (MENU), then rotate the

./> control dial until “Name Del”
appears.

4 Press the ./> control dial.

The stored names will appear.

5 Rotate the ./> control dial to

select the disc name you want to
erase.

6 Press the ./> control dial for

2 seconds.

The name is erased.
Repeat steps 5 and 6 if you want to erase
other names.

7 Press (MENU) twice.

The unit returns to normal CD play mode.

Notes

• When the Disc Memo for a CD TEXT disc is erased,
the original CD TEXT information is displayed.

• If you cannot find the Disc Memo you want to erase,
try selecting a different CD unit in step 2.

Locating a disc by name

— List-up (For a CD unit with the CD TEXT/
CUSTOM FILE function, or an MD unit)

You can use this function for discs that have been
assigned custom names*

2

discs*

.

*1 Locating a disc by its custom name: when you

assign a name for a CD (page 14) or an MD.

*2 Locating discs by the CD TEXT information: when

you play a CD TEXT disc on a CD unit with the CD
TEXT function.

1 Press (LIST).

The name assigned to the current disc appears
in the display.

1

or for CD TEXT

./> control
dial

2 Rotate the ./> control dial until

you find the desired disc.

3 Press the ./> control dial to play

the disc.

Note

In the case of CD TEXT discs and MDs, some letters
cannot be displayed.

Locating an album or track by name

When a name is assigned to an album*3, or

4

track*

, you can locate it by name.

1 Press (LIST) repeatedly until album/

track name appears in the display.

Each time you press (LIST), the display will
change in order of disc name, album name,
and track name.
After 5 seconds, the display returns to the
normal playback mode.

2 Rotate the ./> control dial until

you find the desired album/track.

Playback starts.

*3 Available only for MP3 files.
*4 Available only for MP3 files, CD TEXT disc, and

MD.

15

Radio

The unit can store up to 6 stations per band
(FM1, FM2, FM3, AM1, and AM2).

Caution

When tuning in stations while driving, use Best
Tuning Memory to prevent accidents.

Storing stations
automatically

— Best Tuning Memory (BTM)

The unit selects the stations with the strongest
signals within the selected band, and stores them
in the order of their frequency.

./> control
dial

1 Press (SOURCE) repeatedly to select

the radio.

2 Press (MODE) repeatedly to select the

band.

3 Press (MENU), then rotate the

./> control dial until “BTM”
appears.

4 Press the ./> control dial.

A beep sounds when the setting is stored.

Notes

• If only a few stations can be received due to weak
signals, some stored numbers will retain their former
settings.

• When a number is indicated in the display, the unit
starts storing stations from the one currently
displayed.

16

Receiving the stored stations

./> control
dial

1 Press (SOURCE) repeatedly to select

the radio.

2 Press (MODE) repeatedly to select the

band.

3 Rotate the ./> control dial until

you find the desired station.

Tip

Press the number button ((1) to (6)) on the card
remote commander to select the stored station
directly.

If preset tuning does not work

Press the –m or M+ button to
search for the station (automatic
tuning).

Scanning stops when the unit receives a
station. Repeat until the desired station is
received.

Tips

• If automatic tuning stops too frequently, turn on the
Local Seek to limit seek to stations with stronger
signals (see “Changing the sound and display
settings” on page 21).

• If you know the frequency of the station you want to
listen to, press and hold the –m or M+ button to
locate the approximate frequency, then press the
–m or M+ button repeatedly to fine adjust to the
desired frequency (manual tuning).

If FM stereo reception is poor

Select monaural reception mode

(see “Changing the sound and display
settings” on page 21).
The sound improves, but becomes monaural
(“ST” disappears).

Note

If interference occurs, this unit will automatically
narrow the reception frequency to eliminate noise (IF
Auto function). In such cases, some FM stereo
broadcasts may become monaural while in the stereo
reception mode.

Tips

• To always hear FM stereo broadcasts in stereo, you
can change the IF Auto setting and widen the
frequency signal reception (see “Changing the
sound and display settings” on page 21). Note that
some interference may occur in this setting.

• If FM broadcasts are difficult to hear, set DSO to off
(page 22).

Storing only desired stations

You can manually preset desired stations.

./> control
dial

Storing station names

— Station Memo

You can assign a name to each radio station and
store it in memory. The name of the station
currently tuned in appears in the display. You can
assign a name using up to 8 characters for a
station.

Storing the station names

1 Press (SOURCE) repeatedly to select

the radio.

2 Press (MODE) repeatedly to select the

band.

3 Press the –m or M+ button to tune

in the station that you want to store.

4 Press (MENU), then rotate the

./> control dial until “Preset
Edit” appears.

5 Press the ./> control dial.
6 Rotate the ./> control dial to

select the number that you want to
store.

7 Press the ./> control dial.

The stored station indication appears in the
display.

8 Press (MENU) twice.

Note

If you try to store another station on the same stored
number, the previously stored station will be erased.

Operating with the card remote
commander

1 Press (SOURCE) repeatedly to select

the radio.

2 Press (MODE) repeatedly to select the

band.

3 Press (SEEK -) or (SEEK +) to tune in

the station that you want to store.

4 Press the desired number button ((1)

to (6)) until “MEM” appears.

1 Tune in a station whose name you

want to store.

2 Press (MENU), then rotate the

./> control dial until “Name Edit”
appears.

3 Press the ./> control dial.

4 Enter the characters.

1Rotate the ./> control dial to

select the desired character.

A y B y C ... y 0 y 1 y 2 ... y

+

y – y

* (blank space)

2Press the M+ button after locating

the desired character.

If you press the –m button, you can
move back to the left.

3Repeat steps 1 and 2 to enter the

entire name.

... y * y A

*

5 Press the ./> control dial.

Tips

• Simply overwrite or enter “ ” to correct or erase a

name.

• There is another way to start storing station names:

Press (LIST) for 2 seconds instead of performing
steps 2 and 3. You can also complete the operation
by pressing (LIST) for 2 seconds instead of step 5.

• If no memory is remaining, “Mem Full” appears in

the display, and you cannot assign a station name.

continue to next page t

17

Erasing the station name

1 During radio reception, press (MENU),

then rotate the ./> control dial
until “Name Del” appears.

2 Press the ./> control dial.
3 Rotate the ./> control dial to

select the station whose name you
want to erase.

4 Press the ./> control dial for 2

seconds.

The name is erased.
Repeat steps 3 to 4 if you want to erase other
names.

5 Press (MENU) twice.

The unit returns to normal radio reception
mode.

Note

If you have already erased all of the station names,
“NO Data” appears in step 4.

Tuning in a station through a
list

— List-up

./> control
dial

1 During radio reception, press (LIST)

momentarily.

The frequency or the name assigned to the
current station appears in the display.
After 5 seconds, the display returns to the
normal playback mode.

2 Rotate the ./> control dial until

you find the desired station.

If no name is assigned to the selected station,
the frequency appears in the display.

3 Press the ./> control dial to tune

in the desired station.

18

Other Functions

You can also control the unit (and optional CD/
MD units) with a rotary commander (optional).

Using the rotary commander

By pressing buttons

Turn the dial to change the
direction of infrared rays.

(ATT)

(SOUND)

(SOURCE)

(MODE)

First, attach the appropriate label depending on
how you want to mount the rotary commander.
The rotary commander works by pressing
buttons and/or rotating controls.

SOUND

MODE

DSPL

MODE

SOUND

DSPL

Inserting the supplied lithium battery

+ side up

x

(DSPL)

Rotate the VOL control
to adjust the volume.

OFF

(OFF)

Press To

(SOURCE) Change source (radio/CD/

(MODE) Change operation

1

MD*

/AUX)/Power on

(radio band/CD unit/MD*

1

unit)

(ATT) Attenuate sound

2

(OFF)*

Stop playback or radio
reception/Power off

(SOUND) Select the sound menu

(DSPL) Change the display item

(For 2 seconds to scroll the
display item)

*1 Only if the corresponding optional equipment is

connected.

*2 If your car has no ACC (accessory) position on the

ignition key switch, be sure to press (OFF) for 2
seconds to turn off the clock indication after turning
off the ignition.

continue to next page t

Tip

See “Notes on lithium battery” on page 27 for
information on lithium battery.

19

By rotating the control

SEEK/AMS
control

Rotate and release to:

– Skip tracks.

To continuously skip tracks, rotate once and
rotate again within 1 second and hold the
control.

– Tune in stations automatically.

Rotate, hold, and release to:

– Fast-forward/reverse a track.
– Find a station manually.

By pushing in and rotating the control

E
C

R
U
O
S

Push in and rotate the control to:

– Receive preset stations.
– Change the disc.*
– Change the album.*

1

2

PRESET/DISC
control

(With optional unit)

To Do this

Skip discs
– Disc selection

Push in and rotate [once for
each disc] the control.
To continuously skip discs,
push in and rotate once and
rotate again within 1 second
(and hold) the control.

Skip albums
– Album selection

Push in and rotate the
control [hold for a moment]
and release.
To continuously skip
albums, push in and rotate
again (and hold) within 1
second of first releasing the
control.

Changing the operative direction

The operative direction of controls is factory-set
as shown below.

To increase

To decrease

If you need to mount the rotary commander on
the right hand side of the steering column, you
can reverse the operative direction.

*1 When an optional CD/MD unit is connected.
*2 When an MP3 file is played.

When an MP3 file is played, you can select an
album using the rotary commander.

(With this unit)

To Do this

Skip albums
– Album selection

Push in and rotate [once for
each album] the control.
To continuously skip
albums, push in and rotate
(and hold) the control.

20

Rev Nor

Set the Rev/Nor-select switch to “Rev.”

Adjusting the sound
characteristics

You can adjust the bass, treble, balance, fader,
and subwoofer volume.
The bass and treble levels and subwoofer volume
can be stored independently for each source.

VOL control dial

1 Press (SOURCE) to select a source

(radio, CD, MD, or AUX).

2 Press the VOL control dial repeatedly

to select the item you want to adjust.

Each time you press the VOL control dial, the
item changes as follows:

DSO t EQ7 t BAS (bass)

t TRE (treble) t BAL (left-right)
t FAD (front-rear)
t SUB (subwoofer volume)

3 Rotate the VOL control dial to adjust

the selected item.

Note

Adjust within 3 seconds after selecting the item.

Quickly attenuating the
sound

(With the rotary commander or the card
remote commander)

Press (ATT) on the rotary commander
or card remote commander.

“ATT on” appears in the display momentarily.

To restore the previous volume level, press
(ATT) again.

Tip

When the interface cable of a car telephone is
connected to the ATT lead, the unit decreases the
volume automatically when a telephone call comes in
(Telephone ATT function).

Changing the sound and
display settings

— Menu

The following items can be set:

Set Up

• Clock (page 11)

• Beep — to turn the beeps on or off.

• AUX-A (page 26) — to turn the AUX source

display on or off.

Display

• D.Info (Dual Information) — to display the

clock and the play mode at the same time (on).
Functions only when SA is not set to B-1 – B-5.

• SA (Spectrum Analyzer) (page 25) — to

change the display pattern of the equalizer
display.

•Demo

– Select “on” to activate the Demo display.
The Demo display will appear about 10
seconds after the unit is turned off.

• Dimmer — to change the brightness of the

display.
– Select “Auto” to dim the display only when

you turn the lights on.
– Select “on” to dim the display.
– Select “off” to deactivate the Dimmer.

• Contrast — to adjust the contrast if the
indications on the display are not recognizable
because of the unit’s installation position.

• Color — to select from a range of 7 display
colors.

• A.Scrl (Auto Scroll)
– Select “on” to scroll all automatically

displayed names exceeding 9 characters.

– When Auto scroll is set to off and the disc/

track name is changed, the disc/track name
does not scroll.

Play Mode

• Local on/off (Local seek mode) (page 16)
– Select “on” to only tune into stations with

stronger signals.

• Mono on/off (Monaural mode) (page 16)
– Select “on” to hear FM stereo broadcast in

monaural. Select “off” to return to normal
mode.

• IF Auto/Wide (page 16)

continue to next page t

21

Sound

• EQ7 Tune (page 23) — to adjust the equalizer
curve.

• HPF (High pass filter) (page 24)

• LPF (Low pass filter) (page 25)

• Loud (Loudness) — to enjoy bass and treble
even at low volumes. The bass and treble will
be reinforced.

• AUX Level (page 26) — to adjust the volume
level of connected auxiliary equipment.

./> control
dial

1 Press (MENU).

To s e t A .Scrl, pr e s s (MENU) during CD/MD
playback.

2 Rotate the ./> control dial until

the desired item appears.

3 Press the –m or M+ button to

select the desired setting (Example:
“on” or “off”).

4 Press the ./> control dial.

After the mode setting is completed, the
display returns to normal play mode.

Note

The displayed item will differ depending on the source.

Tip

You can easily switch among categories by pressing
(DISC +) or (DISC -) on the card remote commander
for 2 seconds.

Setting the Dynamic
Soundstage Organizer (DSO)

If your speakers are installed into the lower part
of the doors, the sound will come from below
and may not be clear.
The DSO (Dynamic Soundstage Organizer)
function creates a more ambient sound as if there
were speakers in the dashboard (virtual
speakers).
You can store the DSO setting for each source.

VOL control dial

1 Press (SOURCE) to select a source

(radio, CD, MD, or AUX).

2 Press the VOL control dial repeatedly

until “DSO” appears.

3 Rotate the VOL control dial to select

“DSO on” or “DSO off.”

Turn the VOL control dial clockwise for “on,”
and counterclockwise for “off.”
To cancel the DSO function, select “DSO
off.”
After 3 seconds, the display returns to the
normal playback mode.

Notes

• Depending on the type of car interior or type of
music, DSO may not have a desirable affect.

• If FM broadcasts are difficult to hear, set DSO to off.

22

Setting the equalizer

You can select an equalizer curve for 7 music
types (Xplod, Vocal, Club, Jazz, New Age, Rock,
and Custom).
You can store a different equalizer setting for
each source.

Selecting the equalizer curve

VOL control dial

1 Press (SOURCE) to select a source

(radio, CD, MD, or AUX).

2 Press the VOL control dial repeatedly

until “EQ7” appears.

3 Rotate the VOL control dial to select

the desired equalizer curve.

To cancel the equalizing effect, select “off.”
After 3 seconds, the display returns to the
normal playback mode.

Note

When DSO is set to on, equalizer settings are
automatically adjusted for best overall effect.

Adjusting the equalizer curve

You can store and adjust the equalizer settings
for frequency and level.

./> control
dial

1 Press (SOURCE) to select a source

(radio, CD, MD, or AUX).

2 Press (MENU), then rotate the

./> control dial until “EQ7 Tune”
appears.

3 Press the ./> control dial.
4 Press the –m or M+ button to

select the desired equalizer curve,
then press the ./> control dial.

Each time you press the –m or M+
button, the item changes.

5 Select the desired frequency and level.

1Press the –m or M+ button to

select the desired frequency.

Each time you press the –m or M+
button, the frequency changes.

62 Hz y 157 Hz y 396 Hz y 1.0 kHz
y 2.5 kHz y 6.3 kHz y 16 kHz

2Rotate the ./> control dial to

adjust the desired level.

The level is adjustable by 1 dB steps from
–10 dB to +10 dB.

To restore the factory-set equalizer curve,
press the ./> control dial for 2
seconds.

6 Press the ./> control dial.

After the effect setting is complete, the
display returns to the normal playback mode.

23

Adjusting the front and rear
volume

./> control
dial

VOL control dial

1 Press (SOURCE) to select a source

(radio, CD, MD, or AUX).

2 Press the VOL control dial repeatedly

until “FAD” appears.

3 Rotate the VOL control dial to adjust

the volume of front/rear speakers.

After 3 seconds, the display returns to the
normal playback mode.

Adjusting the cut-off frequency for the
front/rear speakers

To match the characteristics of the installed
speaker system, you can select the cut-off
frequency of the speakers.

Cut-off frequency

Level

off

1 During playback or radio reception,

press (MENU).

2 Rotate the ./> control dial until

“HPF” appears.

3 Press the –m or M+ button to

select the cut-off frequency.

Each time you press the –m or M+
button, the frequency changes as follows:

off (default setting) y 78 Hz y 125 Hz

4 Press the ./> control dial.

After the frequency setting is complete, the
display returns to the normal playback mode.

Adjusting the volume of the
subwoofer(s)

VOL control dial

24

Frequency (Hz)

1 Press (SOURCE) to select a source

(radio, CD, MD, or AUX).

2 Press the VOL control dial repeatedly

until “SUB” appears.

3 Rotate the VOL control dial to adjust

the volume.

After 3 seconds, the display returns to the
normal playback mode.

Tip

The volume level is adjustable from –10 dB to +10 dB.
(Below –10 dB, “–∞ dB” is displayed.)

Adjusting the cut-off frequency for the
subwoofer(s)

To match the characteristics of the connected
subwoofer(s), you can cut out the unwanted high
and middle frequency signals entering the
subwoofer(s). By setting the cut-off frequency
(see the diagram below), the subwoofer(s) will
output only low frequency signals so you can get
a clearer sound image.

Cut-off frequency

Level

off

Frequency (Hz)

./> control
dial

1 During playback or radio reception,

press (MENU).

2 Rotate the ./> control dial until

“LPF” appears.

3 Press the –m or M+ button to

select the cut-off frequency.

Each time you press the –m or M+
button, the frequency changes as follows:

off (default setting) y 125 Hz y 78 Hz

4 Press the ./> control dial.

After the frequency setting is complete, the
display returns to the normal playback mode.

Selecting the spectrum
analyzer

The sound signal level is displayed on a spectrum
analyzer. You can select a display for ten patterns
(A-1 to A-5 or B-1 to B-5), or the automatic
display mode where all the patterns appear.

./> control
dial

1 Press (SOURCE) to select a source

(radio, CD, MD, or AUX).

2 Press (MENU).
3 Rotate the ./> control dial until

“SA” appears.

4 Press the –m or M+ button to

select the desired setting.

5 Press the ./> control dial.

Labeling a Demo display

— Appearing Characters

You can label a Demo display with up to 64
characters to appear when the unit is turned off.
Labels will scroll in the display with Demo set to
“on.” (The display remains lit even when the
power is off.)

./> control
dial

1 Press (OFF).

CD/MD playback or radio reception stops
(the key illumination and display remain on).

continue to next page t

25

2 Press (MENU), then rotate the

./> control dial until “Name
Input” appears.

3 Press the ./> control dial.

4 Enter the characters.

1Press (DSPL) to select the character

type.

A t a t 0 t A

2Rotate the ./> control dial to

select the desired character.

A

y B y C y ... x y y y z y 0 y

1

y 2 ... y ! y “ y # ... y * y

*(blank space)

3Press the M+ button after locating

the desired character.

If you press the –m button, you can
move back to the left.

4Repeat steps 1 to 3 to enter the

entire sentence.

5 Press the ./> control dial.

Tips

• Simply overwrite or enter “ ” to correct or erase a
sentence.

• To erase all sentences, press the ./> control
dial for 2 seconds after step 3.

Connecting auxiliary audio
equipment

You can connect auxiliary audio equipment to
this unit with the AUX IN connector.

Selecting auxiliary equipment

Press (SOURCE) repeatedly to select
“AUX.”

Adjusting the volume level

You can adjust the volume for each connected

A

audio equipment.

./> control
dial

1 Press (MENU), then rotate the

./> control dial until “AUX Level”
appears.

2 Press the ./> control dial.
3 Rotate the ./> control dial to

select the desired volume level.

The volume level is adjustable in 1 dB steps
from –6 dB to +6 dB.

4 Press the ./> control dial.

To deactivate “AUX-A” in the music
source display

26

1 Press (OFF).

CD/MD playback or radio reception stops
(the key illumination and display remain on).

2 Press (MENU).
3 Rotate the ./> control dial until

“AUX-A

on” appears.

4 Press the M+ button to select

“AUX-A

off.”

5 Press (MENU).

To restore the indication, select “AUX-A on.”

Additional Information

Notes

• For safety, turn off the ignition before cleaning the
connectors, and remove the key from the ignition
switch.

• Never touch the connectors directly with your fingers
or with any metal device.

Maintenance

Fuse replacement

When replacing the fuse, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the power
connection and replace the fuse. If the fuse blows
again after replacement, there may be an internal
malfunction. In such a case, consult your nearest
Sony dealer.

Fuse (10 A)

Warning

Never use a fuse with an amperage rating
exceeding the one supplied with the unit as this
could damage the unit.

Cleaning the connectors

The unit may not function properly if the
connectors between the unit and the front panel
are not clean. In order to prevent this, detach the
front panel (page 10) and clean the connectors
with a cotton swab dipped in alcohol. Do not
apply too much force. Otherwise, the connectors
may be damaged.

Replacing the lithium battery

Under normal conditions, batteries will last
approximately 1 year. (The service life may be
shorter, depending on the conditions of use.)
When the battery becomes weak, the range of the
card remote commander becomes shorter.
Replace the battery with a new CR2025 lithium
battery. Use of any other battery may present a
risk of fire or explosion.

x

+ side up

Main unit

Back of the front panel

Notes on lithium battery

• Keep the lithium battery out of the reach of
children. Should the battery be swallowed,
immediately consult a doctor.

• Wipe the battery with a dry cloth to assure a
good contact.

• Be sure to observe the correct polarity when
installing the battery.

• Do not hold the battery with metallic tweezers,
otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated.
Do not recharge, disassemble, or dispose of
in fire.

27

Removing the unit

1 Remove the front cover

1Detach the front panel (page 10).
2Press the clip inside the front cover

with a thin screwdriver.

3Repeat step 2 for the other side.

2 Remove the unit

1Use a thin screwdriver to push in

the clip on the left side of the unit,
then pull out the left side of the unit
until the catch clears the mounting.

4 mm

3

/16 in.)

(

2Repeat step 1 for the right side.
3Slide the unit out of its mounting.

28

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

23 watts per channel minimum continuous average power into 4 ohms,
4 channels driven from 20 Hz to 20 kHz with no more than 5% total
harmonic distortion.

CD Player section

Signal-to-noise ratio 95 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit

Tuner section

FM

Tuning range 87.5 – 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity 8 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 66 dB (stereo),

Harmonic distortion at 1 kHz

Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz

72 dB (mono)

0.6 % (stereo),

0.3 % (mono)

AM

Tuning range 530 – 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV

Power amplifier section

Outputs Speaker outputs

Speaker impedance 4 – 8 ohms
Maximum power output 52 W × 4 (at 4 ohms)

(sure seal connectors)

General

Outputs Audio outputs (front/rear)

Subwoofer output (mono)
Power antenna relay control
terminal
Power amplifier control
terminal

Inputs Telephone ATT control

Tone controls Bass ±8 dB at 100 Hz

Loudness +8 dB at 100 Hz

Power requirements 12 V DC car battery

Dimensions

Mounting dimensions

Mass Approx. 1.6 kg

Supplied accessories Parts for installation and

Optional accessories Wireless rotary commander

Optional equipment CD changer (10 discs)

terminal
Illumination control
terminal
BUS control input terminal
BUS audio input terminal
AUX IN terminal
Remote controller input
terminal
Antenna input terminal

Treble ±8 dB at 10 kHz

+2 dB at 10 kHz

(negative ground)
Approx. 178 × 50 × 182 mm
(7 1/8 × 2 × 7 1/4 in.)
(w/h/d)
Approx. 182 × 53 × 161 mm

1

/4 × 2 1/8 × 6 3/8 in.)

(7
(w/h/d)

(3 lb 9 oz)

connections (1 set)
Front panel case (1)
Card remote commander
RM-X112

RM-X5S
BUS cable (supplied with
an RCA pin cord)
RC-61 (1 m), RC-62 (2 m)

CDX-757MX, CDX-656
CD changer (6 discs)
CDX-T70MX, CDX-T69
MD changer (6 discs)
MDX-66XLP
MG Memory Stick
system-up player
MGS-X1
Source selector
XA-C30

Note

This unit cannot be connected to a digital preamplifier
or an equalizer.

Design and specifications are subject to change
without notice.

29

Troubleshooting

The following checklist will help you remedy
problems you may encounter with your unit.
Before going through the checklist below, check
the connection and operating procedures.

General

The operation buttons do not function.

Press the RESET button.

No sound.

• Rotate the VOL control dial clockwise to
adjust the volume.

• Cancel the ATT function.

• Set the fader control to the center position for
a 2-speaker system.

The contents of the memory have been
erased.

• The RESET button has been pressed.
t Store again into the memory.

• The power cord or battery has been
disconnected.

• The power connecting cord is not connected
properly.

No beep sound.

The beep sound is canceled (page 21).

Indications disappear from/do not appear in
the display.

• The clock display disappears if you press
(OFF) for 2 seconds.
t Press (OFF) again for 2 seconds to

display the clock.

• Remove the front panel and clean the
connectors. See “Cleaning the connectors”
on page 27 for details.

Stored stations and correct time are erased.
The fuse has blown.
Makes noise when the ignition key is in the
ON, ACC, or OFF position.

The leads are not matched correctly with the
car’s accessory power connector.

No power is being supplied to the unit.

• Check the connection. If everything is in
order, check the fuse.

• The car does not have an ACC position.
t Press (SOURCE) to turn on the unit.

The power is continuously supplied to the
unit.

The car does not have an ACC position.
t Press (OFF) for 2 seconds.

The power antenna does not extend.

The power antenna does not have a relay box.

Cannot turn off the “--------” indication.

You entered the name edit mode.
t Press (LIST) for 2 seconds.

CD/MD playback

Playback does not begin.

• Defective MD or dirty CD.

• Some CD-Rs/CD-RWs may not play due to
its recording equipment or the disc
condition.

MP3 files cannot be played back.

• Recording was not performed according to
the ISO 9660 level 1 or level 2 format, or the
Joliet or Romeo in the expansion format.

• The file extension “.MP3” is not added to the
file name.

• Files are not stored in MP3 format.

MP3 files take longer to play back than
others.

The following discs take a longer time to start
playback.
– a disc recorded with complicated tree

structure.

– a disc recorded in Multi Session.
– a disc to which data can be added (non-

finalized disc).

The sound skips from vibration.

• The unit is installed at an angle of more than
30°.

• The unit is not installed in a sturdy part of
the car.

The sound skips.

• Defective or dirty disc.

• The CD-R/CD-RW has been damaged.

continue to next page t

30

Radio reception

Preset tuning is not possible.

• Store the correct frequency in the memory.

• The broadcast signal is too weak.

The stations cannot be received.
The sound is hampered by noises.

• Connect a power antenna control lead (blue)
or accessory power supply lead (red) to the
power supply lead of a car’s antenna booster.
(Only when your car has built-in FM/AM
antenna in the rear/side glass.)

• Check the connection of the car antenna.

• The auto antenna will not go up.
t Check the connection of the power

antenna control lead.

• Check the frequency.

• When the DSO mode is on, the sound is
sometimes hampered by noises.
t Set the DSO mode to off (page 22).

Automatic tuning is not possible.

• The local seek mode is set to “on.”
t Set the local seek mode to “off” (page

21).

• The broadcast signal is too weak.
t Perform manual tuning.

The “ST” indication flashes.

• Tune in the frequency accurately.

• The broadcast signal is too weak.
t Set to the monaural reception mode (page

21).

A program broadcast in stereo is heard in
monaural.

The unit is in monaural reception mode.
t Cancel monaural reception mode (page

21).

Interference occurs during FM reception.

The wide mode is selected.
t Set the IF mode to “IF Auto” (page 21).

Error displays/Messages

Error displays

(For this unit and optional CD/MD changers)

The following indications will flash for about
5 seconds, and an alarm sound will be heard.

1

Blank*

No tracks have been recorded on an MD.*
t Play an MD with recorded tracks on it.

1

Error*

• A CD is dirty or inserted upside down.*

t Clean or insert the CD correctly.

• A CD/MD cannot play because of some
problem.*

2

t Insert another CD/MD.

High Temp

The ambient temperature is more than 50°C
(122°F).
t Wait until the temperature goes down

below 50°C (122°F).

NO Disc

No disc is inserted in the CD/MD unit.
t Insert discs in the CD/MD unit.

NO Mag

The disc magazine is not inserted in the CD/
MD unit.
t Insert the magazine in the CD/MD unit.

NO Music*

1

A CD which is not a music file is inserted.
t Insert a music CD.

Not Ready

The lid of the MD unit (MDX-40) is open or
the MDs are not inserted properly.
t Close the lid or insert the MDs properly.

Push Reset

The CD/MD unit cannot be operated because
of some problem.
t Press the RESET button on the unit.

*1 When the CD/MD changer is connected to the unit,

the disc number of the CD or MD appears in the
display.

*2 The disc number of the disc causing the error

appears in the display.

2

2

If these solutions do not help improve the
situation, consult your nearest Sony dealer.

Messages

LCL Seek +/–

The Local Seek mode is on during automatic
tuning (page 16).

“” or “”

You have reached the beginning or the end of
the disc and you cannot go any further.

31

About ID3 tag version 2

Although not a malfunction, the following occurs
when an MP3 file containing ID3 tag ver.2 is
played:
– When skipping a portion of ID3 tag ver.2 (at the

beginning of the track), sound is not output.
Skip time changes depending ID3 tag ver.2
capacity.
Example: At 64 kbytes, it is about 2 seconds
(with RealJukebox).

– The displayed elapsed playing time when

skipping a portion of ID3 tag ver.2 is inaccurate.
For MP3 files of a bit rate other than 128 kbps,
time is not displayed accurately during playback.

– When an MP3 file is created with MP3

conversion software (ex. RealJukebox*), ID3 tag
ver.2 will automatically be written.
* “RealJukebox is a registered trademark of

RealNetworks, Inc.”

As of December, 2001

32

Sony Corporation Printed in Korea

3-239-032-21 (1)

FM/AM
Compact Disc
Player

Installation/Connections

Installation/Connexions

Instalación/Conexiones

3

A

SUB OUT (MONO)

B

AUDIO OUT

FRONT

AUDIO OUT

REAR

BUS AUDIO IN

CDX-MP70

Sony Corporation © 2002 Printed in Korea

121 (4 7/8)

142.5 (5

5

/8)

1

3

19 (

/4)

3

/8)

Unit: mm (in.)
Unité : mm (po.)
Unidad: mm

Dimensions include unit size, front panel and disc tray open, etc.
Les dimensions comprennent l’appareil lui-même, la façade et le plateau de disque lorsqu’ils sont

ouverts, etc.
Las dimensiones incluyen el tamaño de la unidad, el panel frontal y la bandeja de discos abierta, etc.

2

1

60 (2

TOP

Equipment used in illustrations (not supplied)
Appareils utilisés dans les illustrations (non fournis)
Equipos utilizados en las ilustraciones (no suministrados)

Front speaker
Haut-parleur avant
Altavoz delantero

Rear speaker
Haut-parleur arrière
Altavoz trasero

Active subwoofer
Caisson de graves actif
Altavoz potenciador de graves activo

18.5 (

3

/4)

3

/4)

170 (6

32

× 4 × 2

54

Power amplifier
Amplificateur de puissance
Amplificador de potencia

CD/MD changer
Changeur de CD/MD
Cambiador de CD/MD

BUS CONTROL IN

Source selector*
Sélecteur de source*
Selector de fuente*

XA-C30

Cautions

• This unit is designed for negative ground 12 V DC
operation only.

• Do not get the wires under a screw, or caught in
moving parts (e.g. seat railing).

• Before making connections, turn the car ignition
off to avoid short circuits.

• Connect the yellow and red power input leads
only after all other leads have been connected.

• Run all ground wires to a common ground

point.

• Be sure to insulate any loose unconnected wires
with electrical tape for safety.

• The use of optical instruments with this product
will increase eye hazard.

Notes on the power supply cord (yellow)

• When connecting this unit in combination with
other stereo components, the connected car
circuit’s rating must be higher than the sum of
each component’s fuse.

• When no car circuits are rated high enough,
connect the unit directly to the battery.

Before installation (1)

Do not install the unit where its operation interferes
with driving.
Example:
— Opening and closing of the front panel or disc

tray interfere with operation of the gear shift.

— With the front panel open, operation of hazard

lamps, switches etc., is impaired.

Parts Iist (2)

The numbers in the list are keyed to those in the
instructions.

Caution

Handle the bracket
1 carefully to avoid
injuring your fingers.

TO

P

Connection example (3)

Note (3-A)

Be sure to connect the ground cord before connecting
the amplifier.

Tip (3-B-

For connecting two or more CD/MD changers, the source
selector XA-C30 (optional) is necessary.

)

BUS AUDIO IN

BUS CONTROL IN

* not supplied

non fourni
no suministrados

Connection diagram (4)

1 To a metal surface of the car

First connect the black ground lead, then connect
the yellow and red power input leads.

2 To the power antenna control lead or power

supply lead of antenna booster amplifier

Notes

• It is not necessary to connect this lead if there is no
power antenna or antenna booster, or with a
manually-operated telescopic antenna.

• When your car has a built-in FM/AM antenna in
the rear/side glass, see “Notes on the control and
power supply leads.”

3 To AMP REMOTE IN of an optional power

amplifier

This connection is only for amplifiers. Connecting
any other system may damage the unit.

4 To the interface cable of a car telephone
5 To a car’s illumination signal

Be sure to connect the black ground lead to it first.

6 To the +12 V power terminal which is energized

in the accessory position of the ignition key
switch

Notes

• If there is no accessory position, connect to the +12
V power (battery) terminal which is energised at all
times.
Be sure to connect the black ground lead to it first.

• When your car has a built-in FM/AM antenna in
the rear/side glass, see “Notes on the control and
power supply leads.”

7 To the +12 V power terminal which is energised

at all times

Be sure to connect the black ground lead to it first.

Notes on the control and power supply leads

• The power antenna control lead (blue) supplies +12 V
DC when you turn on the tuner.

• When your car has built-in FM/AM antenna in the rear/
side glass, connect the power antenna control lead
(blue) or the accessory power input lead (red) to the
power terminal of the existing antenna booster. For
details, consult your dealer.

• A power antenna without relay box cannot be used
with this unit.

Memory hold connection

When the yellow power input lead is connected, power
will always be supplied to the memory circuit even when
the ignition key is turned off.

Notes on speaker connection

• Before connecting the speakers, turn the unit off.

• Use speakers with an impedance of 4 to 8 ohms, and
with adequate power handling capacities to avoid its
damage.

• Do not connect the speaker terminals to the car
chassis, or connect the terminals of the right speakers
with those of the left speaker.

• Do not connect the ground lead of this unit to the
negative (–) terminal of the speaker.

• Do not attempt to connect the speakers in parallel.

• Connect only passive speakers. Connecting active
speakers (with built-in amplifiers) to the speaker
terminals may damage the unit.

• To avoid a malfunction, do not use the built-in speaker
wires installed in your car if the unit shares a common
negative (–) lead for the right and left speakers.

• Do not connect the unit’s speaker cords to each other.

4

1

*

Supplied with XA-C30
Fourni avec le XA-C30
Suministrado con el XA-C30

2

*

from car antenna
à partir de l’antenne de la
voiture
para la antena del automóvil

Left
Gauche
Izquierdo

Right
Droit
Derecho

Left
Gauche
Izquierdo

Right
Droit
Derecho

SUB OUT (MONO)

1

*

3

*

3

BUS AUDIO IN

FRONT

REARBUS

AUDIO OUT

AUDIO IN

AUX IN

(AUDIO)*

AMP REM

Max. supply current 0.3 A
Courant max. fourni 0,3 A
Corriente máx. de alimentación de 0,3 A

AUDIO OUT REAR

4

Fuse (10 A)
Fusible (10 A)
Fusible (10 A)

Blue/white striped
Rayé bleu/blanc
Con raya azul/blanca

White
Blanc
Blanco

White/black striped
Rayé blanc/noir
Con raya blanca/negra

Gray
Gris
Gris

Gray/black striped
Rayé gris/noir
Con raya gris/negra

Green
Vert
Verde

Green/black striped
Rayé vert/noir
Con raya verde/negra

Purple
Mauve
Púrpura

Purple/black striped
Rayé mauve/noir
Con raya púrpura/negra

AUDIO OUT

FRONT

BUS

CONTROL IN

5

Black
Noir
Negro

Blue
Bleu
Azul

Light blue
Bleu ciel
Azul celeste

Orange/white striped
Rayé orange/blanc
Con raya naranja/blanca

Red
Rouge
Rojo

Yellow
Jaune
Amarillo

Corriente máx. de alimentación de 0,1 A

Source selector
Sélecteur de source
Selector de fuente

XA-C30

*1RCA pin cord (not supplied)

Cordon à broche RCA (non fourni)
Cable con clavijas RCA (no suministrado)

2

Auxiliary optional equipment such as portable DVD player DVP-FX1 (not supplied)

*

Equipement auxiliaire en option tel que le lecteur portable DVD DVP-FX1 (non fourni)
Equipo opcional auxiliar como un reproductor de DVD portátil DVP-FX1 (no suministrado)

3

supplied with the auxialiry equipment

*

fourni avec l’équipement auxiliaire
suministrado con el equipo auxiliar

4

*

Be sure to match the color-coded code for audio to the appropriate jacks from the unit.
Veillez à faire correspondre le code couleur audio aux fiches de l’appareil.
Asegúrese de hacer coincidir el código codificado con colores para audio con las tomas
apropiadas de la unidad.

Supplied with the CD/MD changer
Fourni avec le changeur de CD/MD
Suministrado con el cambiador de CD/MD

1

ANT REM

Max. supply current 0.1 A

Courant max. fourni 0,1 A

ATT

ILLUMINATION

2

4

5

6

7

Précautions

• Cet appareil est exclusivement conçu pour
fonctionner sur une tension de 12 V CC avec
masse négative.

• Evitez de fixer des vis sur les câbles ou de coincer
ceux-ci dans des pièces mobiles (par exemple,
armature de siège).

• Avant d’effectuer des raccordements, éteignez le
moteur pour éviter les courts-circuits.

• Raccordez les fils d’entrée d’alimentation jaune et
rouge seulement après avoir terminé tous les
autres raccordements.

• Rassemblez tous les fils de terre en un point de

masse commun.

• Veillez à isoler avec du chatterton tout fil lâche
non raccordé.

Remarques sur le cordon d’alimentation (jaune)

• Lorsque cet appareil est raccordé à d’autres
appareils stéréo, la valeur nominale des circuits
de la voiture raccordée doit être supérieure à la
somme des fusibles de chaque appareil.

• Si aucun circuit de la voiture n’est assez puissant,
raccordez directement l’appareil à la batterie.

Avant l’installation (1)

N’installez pas l’appareil dans un endroit où il
pourrait gêner le conducteur dans ses mouvements.
Exemple :
— dans un endroit où l’ouverture et la fermeture

de la façade ou du plateau de disque pourraient
nuire aux changements de vitesse ;

— dans un endroit où l’ouverture de la façade

pourrait bloquer l’accès à l’interrupteur de feux
de détresse et aux autres commandes.

Liste des composants (2)

Les numéros de la liste correspondent à ceux des
instructions.

Attention

Manipulez avec

TO

P

précautions le
support 1 pour
éviter de vous blesser
aux doigts.

Exemple de raccordement (3)

Remarque (3-A)

Raccordez d’abord le fil de masse avant de raccorder
l’amplificateur.

Conseil (3-B-

Dans le cas du raccordement de deux changeurs de CD/
MD ou plus, le sélecteur de source XA-C30 (en option)
est indispensable.

)

Schéma de raccordement (4)

1 À un point métallique de la voiture

Branchez d‘abord le fil de masse noir et, ensuite, les
fils d‘entrée d‘alimentation jaune et rouge.

2 Vers le fil de commande de l‘antenne électrique

ou le fil d‘alimentation de l‘amplificateur
d‘antenne

Remarques

• Il n'est pas nécessaire de raccorder ce fil s'il n'y a
pas d'antenne électrique ni d'amplificateur
d'antenne, ou avec une antenne télescopique
manuelle.

• Si votre voiture est équipée d'une antenne FM/AM
intégrée dans la vitre arrière/latérale, voir
“Remarques sur les fils de commande et
d'alimentation”.

3 Vers AMP REMOTE IN de l’amplificateur de

puissance en option

Ce raccordement s’applique uniquement aux
amplificateurs. Le branchement de tout autre
système risque d’endommager l’appareil.

4 Vers le câble d’interface d’un téléphone de

voiture

5 Au signal d’éclairage de la voiture

Raccordez d‘abord le fil de masse noir.

6 À la borne +12 V qui est alimentée quand la clé

de contact est sur la position accessoires

Remarques

• S'il n'y a pas de position accessoires, raccordez la
borne d'alimentation (batterie) +12 V qui est
alimentée en permanence.
Raccordez d‘abord le fil de masse noir.

• Si votre voiture est équipée d'une antenne FM/AM
intégrée dans la vitre arrière/latérale, voir
“Remarques sur les fils de commande et
d'alimentation”.

7

À la borne +12 V qui est alimentée en permanence

Raccordez d‘abord le fil de masse noir.

Remarques sur les fils de commande et d'alimentation

• Le fil de commande de l’antenne électrique (bleu)
fournit une alimentation de + 12 V CC lorsque vous
mettez la radio sous tension.

• Lorsque votre voiture est équipée d’une antenne FM/
AM intégrée dans la vitre arrière/latérale, raccordez le
fil de commande de l’antenne (bleu) ou le fil d’entrée
d’alimentation des accessoires (rouge) à la borne de
l’amplificateur d’antenne existant. Pour plus de détails,
consultez votre détaillant.

• Une antenne électrique sans boîtier de relais ne peut
pas être utilisée avec cet appareil.

Raccordement pour la conservation de la mémoire

Lorsque le fil d’entrée d’alimentation jaune est raccordé,
le circuit de la mémoire est alimenté en permanence
même si la clé de contact est sur la position d’arrêt.

Remarques sur le raccordement des haut-parleurs

• Avant de raccorder les haut-parleurs, mettez l’appareil
hors tension.

• Utilisez des haut-parleurs ayant une impédance de 4 à
8 ohms avec une capacité de manipulation adéquate
pour éviter de les endommager.

• Ne raccordez pas les bornes du système de haut­parleur au châssis de la voiture et ne raccordez pas les
bornes du haut-parleur droit à celles du haut-parleur
gauche.

• Ne raccordez pas le câble de masse de cet appareil à la
borne négative (–) du haut-parleur.

• N’essayez pas de raccorder les haut-parleurs en
parallèle.

• Raccordez uniquement des haut-parleurs passifs. Le
raccordement de haut-parleurs actifs (avec
amplificateurs intégrés) aux bornes des haut-parleurs
peut endommager l’appareil.

• Pour éviter tout dysfonctionnement, n’utilisez pas les
fils des haut-parleurs intégrés installés dans votre
voiture si l’appareil partage un fil négatif commun (–)
pour les haut-parleurs droit et gauche.

• Ne raccordez pas entre eux les cordons des haut­parleurs de l’appareil.

Precauciones

• Esta unidad ha sido diseñada para alimentarse
solamente con 12 V CC, negativo a masa.

• No coloque los cables debajo de ningún tornillo,
ni los aprisione con partes móviles (p.ej. los raíles
del asiento).

• Antes de realizar las conexiones, desconecte el
encendido del automóvil para evitar
cortocircuitos.

• Conecte los cables de entrada de alimentación
amarillo y rojo solamente después de haber
conectado los demás.

• Conecte todos los conductores de puesta a

masa a un punto común.

• Por razones de seguridad, asegúrese de aislar con
cinta aislante los cables sueltos que no estén
conectados.

Notas sobre el cable de suministro de
alimentación (amarillo)

• Cuando conecte esta unidad en combinación con
otros componentes estéreo, la capacidad nominal
del circuito conectado del automóvil debe ser
superior a la suma del fusible de cada
componente.

• Si no hay circuitos del automóvil con capacidad
nominal suficientemente alta, conecte la unidad
directamente a la batería.

Antes de realizar la instalación (1)

No instale la unidad en un lugar donde su
funcionamiento puede interferir con la conducción.
Ejemplo:
— La apertura y el cierre del panel frontal o de la

bandeja de discos interfieren con el
funcionamiento de la palanca del cambio de
marchas.

— Con el panel frontal abierto, se perjudica el

funcionamiento de las señales de emergencia,
los interruptores, etc.

Lista de componentes (2)

Los números de la lista corresponden a los de las
instrucciones.

Precaución

Tenga mucho

T

O

P

cuidado al manipular
el soporte 1 para
evitar posibles
lesiones en los dedos.

Ejemplo de conexiones (3)

Nota (3-A)

Asegúrese de conectar primero el cable de puesta a
masa antes de realizar la conexión al amplificador.

Consejo (3-B-

Si desea conectar dos o más cambiadores de CD/MD,
necesitará el selector de fuente XA-C30 (opcional).

)

Diagramas de conexión (4)

1 A una superficie metálica del automóvil

Conecte primero el cable de masa negro, y después
los cables amarillo y rojo de entrada de
alimentación.

2 Para conectar al cable de control de la antena

motorizada o al cable de fuente de alimentación
del amplificador de antena

Notas

• Si no se dispone de antena motorizada ni de
amplificador de antena, si utiliza una antena
telescópica accionada manualmente, no será
necesario conectar este cable.

• Si el automóvil incorpora una antena de FM/AM en
el cristal trasero/lateral, consulte “Notas sobre los
cables de control y de fuente de alimentación”.

3 Para conectar a AMP REMOTE IN del

amplificador de potencia opcional

Esta conexión es sólo para amplificadores.
La conexión de cualquier otro sistema puede dañar
la unidad.

4 Para conectar al cable de interfaz de un teléfono

para automóvil

5 A una señal de iluminación del automóvil

Asegúrese de conectar primero el cable de masa
negro.

6 Para conectar al terminal de alimentación de +12

V que recibe energía en la posición de accesorios
del interruptor de la llave de encendido

Notas

• Si no hay posición de accesorios, conéctelo al
terminal de alimentación (batería) de +12 V que
recibe energía sin interrupción.
Asegúrese de conectar primero el cable de masa
negro.

• Si el automóvil incorpora una antena de FM/AM en
el cristal trasero/lateral, consulte “Notas sobre los
cables de control y de fuente de alimentación”.

7 Para conectar al terminal de alimentación de

+12 V que recibe energía sin interrupción

Asegúrese de conectar primero el cable de masa
negro.

Notas sobre los cables de control y de fuente de
alimentación

• El conductor de control de la antena motorizada (azul)
suministrará +12 V CC cuando conecte la alimentación
del sintonizador.

• Si el automóvil dispone de una antena de FM/AM
incorporada en el cristal trasero/lateral, conecte el
cable de control de antena motorizada (azul) o el
cable de entrada de alimentación auxiliar (rojo) al
terminal de alimentación del amplificador de antena
existente. Para obtener información detallada,
consulte a su proveedor.

• Con esta unidad no es posible utilizar una antena
motorizada sin caja de relé.

Conexión para protección de la memoria

Si conecta el conductor de entrada amarillo, el circuito
de la memoria recibirá siempre alimentación, incluso
aunque ponga la llave de encendido en la posición OFF.

Notas sobre la conexión de los altavoces

• Antes de conectar los altavoces, desconecte la
alimentación de la unidad.

• Utilice altavoces con una impedancia de 4 a 8 ohmios
con la capacidad de potencia adecuada para evitar que
se dañen.

• No conecte los terminales de altavoz al chasis del
automóvil, ni conecte los terminales del altavoz
derecho con los del izquierdo.

• No conecte el cable de puesta a tierra de esta unidad
al terminal negativo (–) del altavoz.

• No intente conectar los altavoces en paralelo.

• Conecte solamente altavoces pasivos. Si conecta
altavoces activos (con amplificadores incorporados) a
los terminales de altavoz, puede dañar la unidad.

• Para evitar fallos de funcionamiento, no utilice los
cables de altavoz incorporados instalados en el
automóvil si el unidad comparte un cable negativo
común (–) para los altavoces derecho e izquierdo.

• No conecte los cables de altavoz de la unidad entre sí.

5 AB

(OFF)

(RELEASE)

A

B

6

*

234

Bend these claws outward
for a tight fit, if necessary.

Pliez ces griffes vers l’extérieur pour
assurer une prise correcte si nécessaire.

Si es necesario, doble estas uñas hacia
fuera para que encaje firmemente.

2

3

3

2

3

2

1

4

182 mm

TOP

1

with the TOP marking up
avec l’inscription TOP vers le haut
con la marca TOP hacia arriba

Dashboard
Tableau de bord
Salpicadero

1

TOP

53 mm

Precautions

•Choose the installation location carefully so
that the unit will not interfere with normal
driving operations.

•Avoid installing the unit in areas subject to
dust, dirt, excessive vibration, or high
temperatures, such as in direct sunlight or near
heater ducts.

•Use only the supplied mounting hardware for
a safe and secure installation.

Mounting angle adjustment

Adjust the mounting angle to less than 30°.

How to detach and attach the
front panel (5)

Before installing the unit, detach the front
panel.

5-A To detach

Before detaching the front panel, be sure to
press (OFF). Press (RELEASE) to open up the
front panel and pull it off towards you.

5-B To attach

Attach part A of the front panel to part B of the
unit as illustrated and push the left side into
position until it clicks.

Mounting example (6)

Installation in the dashboard

When installing this unit, be sure to close the
front panel of the unit. (6-*)

Do not hold the unit by its front panel or disc
tray when installing as this can damage the unit,
or cause malfunction.

Mounting the unit in a Japanese
car (7)

You may not be able to install this unit in some
makes of Japanese cars. In such a case, consult
your Sony dealer.

Note

To prevent malfunction, install only with the
supplied screws 2.

Warning when installing in a car
without ACC (accessory)
position on the ignition key
switch

Be sure to press (OFF) on the unit for two
seconds to turn off the clock display after
turning off the engine.

When you press (OFF) only momentarily, the
clock display does not turn off and this causes
battery wear.

RESET button

When the installation and connections are
completed, be sure to press the RESET button
with a ball-point pen, etc., after removing the
front panel.

Précautions

•Choisissez soigneusement l’emplacement
d’installation pour que l’appareil ne gêne pas
le chauffeur pendant la conduite.

•Evitez d’installer l’appareil dans un endroit
exposé à la poussière, à la saleté, à des
vibrations excessives ou à des températures
élevées comme en plein soleil ou à proximité
de conduits de chauffage.

•Pour garantir un montage sûr, n’utilisez que le
matériel fourni.

Réglage de l’angle de montage

Ajustez l’inclinaison à un angle inférieur à 30°.

Retrait et pose de la façade (5)

Avant d’installer l’appareil, retirez la façade.

5-A Pour retirer

Avant de déposer la façade, n’oubliez pas
d’appuyer sur (OFF). Appuyez sur (RELEASE)
pour ouvrir la façade, puis retirez-la en tirant
vers vous.

5-B Pour poser

Fixez la partie A de la façade sur la partie B de
l’appareil, comme indiqué sur l’illustration, puis
poussez le côté gauche pour le mettre en place
jusqu’au déclic.

Exemple de montage (6)

Installation dans le tableau de bord

Pendant l’installation de l’appareil, vérifiez
que le panneau avant de cet appareil est
fermé. (6-*)

Ne tenez pas l’appareil par la façade ou le
plateau de disque lors de l’installation, car cela
risque d’endommager l’appareil ou d’entraîner
un problème de fonctionnement.

Installation de l’appareil dans
une voiture japonaise (7)

Cet appareil ne peut pas être installé dans
certaines voitures japonaises. Consultez, dans ce
cas, votre revendeur Sony.

Remarque

Pour éviter tout dysfonctionnement, utilisez
uniquement les vis 2 pour le montage.

Avertissement en cas
d’installation dans une voiture
dont le contact ne comporte
pas de position ACC
(accessoires)

N’oubliez pas d’appuyer sur le bouton
(OFF) de l’appareil pendant deux
secondes après avoir coupé le moteur de
façon à désactiver l’affichage de l’horloge.

Si vous appuyez brièvement sur (OFF),
l’affichage de l’horloge n’est pas désactivé, ce
qui provoque une usure de la batterie.

Touche RESET

Après avoir retiré la façade, une fois que
l’installation et les raccordements sont terminés,
appuyez sur la touche RESET avec un stylo à
bille, etc.

7

TOYOTA

A

11

/32 in.)

11

/32 po.)

2

max. size
5 × 8 mm

7

(

/32 ×

Dimension
max. 5 × 8 mm

7

/32 ×

(
Tamaño máx.
5 × 8mm

to dashboard/center console
au tableau de bord/console centrale
al salpicadero/consola central

Bracket
Support
Soporte

Bracket
Support
Soporte

Existing parts supplied with your car
Pièces existantes fournies avec la voiture
Piezas existentes suministradas con su automóvil

2

max. size
5 × 8 mm

7

11

(

/32 ×

/32 in.)

Dimension
max. 5 × 8 mm

7

11

/32 ×

/32 po.)

(
Tamaño máx.
5 × 8mm

B NISSAN

11

/32 in.)

11

/32 po.)

2

max. size
5 × 8 mm

7

(

/32 ×

Dimension
max. 5 × 8 mm

7

/32 ×

(
Tamaño máx.
5 × 8mm

to dashboard/center console
au tableau de bord/console centrale
al salpicadero/consola central

Bracket
Support
Soporte

Bracket
Support
Soporte

Existing parts supplied with your car
Pièces existantes fournies avec la voiture
Piezas existentes suministradas con su automóvil

2

max. size
5 × 8 mm

7

11

(

/32 ×

/32 in.)

Dimension
max. 5 × 8 mm

7

11

/32 ×

/32 po.)

(
Tamaño máx.
5 × 8mm

Precauciones

•Elija cuidadosamente el lugar de montaje de
forma que la unidad no interfiera las funciones
normales de conducción.

•Evite instalar la unidad donde pueda quedar
sometida a altas temperaturas, como la luz
solar directa o el aire caliente de la calefacción,
o a polvo, suciedad, o vibraciones excesivas.

•Para realizar una instalación segura y firme,
utilice solamente la ferretería de montaje
suministrada.

Ajuste del ángulo de montaje

Ajuste el ángulo de montaje a menos de 30°.

Cómo extraer e instalar el panel
frontal (5)

Antes de instalar la unidad, extraiga el panel
frontal.

5-A Para extraerlo

Antes de extraer el panel frontal, asegúrese de
presionar (OFF). Presione (RELEASE) para abrir
el panel frontal y tire hacia usted.

5-B Para instalarlo

Coloque el orificio A del panel frontal en el eje
B de la unidad, como se muestra en la

ilustración, y después presione la parte
izquierda hasta que oiga un clic.

Ejemplo de montaje (6)

Instalación en el salpicadero

Montaje de la unidad en un
automóvil japonés (7)

No podrá instalar esta unidad en algunos
automóviles japoneses. En tal caso, consulte a su
proveedor Sony.

Nota

Para evitar que se produzcan fallos, realice la
instalación solamente con los tornillos suministrados

2.

Advertencia sobre la instalación
en un automóvil que no
disponga de posición ACC
(accesorios) en el interruptor de
la llave de encendido

Asegúrese de presionar (OFF) en la
unidad durante dos segundos para
desactivar la indicación del reloj después
de apagar el motor.

Si presiona (OFF) sólo momentáneamente, la
indicación del reloj no se desactivará y esto
causará el desgaste de la batería.

Botón RESET

Cuando finalice la instalación y las conexiones,
cerciórese de presionar el botón RESET con un
bolígrafo, etc. después de extraer el panel
frontal.

Cuando instale esta unidad, asegúrese de
cerrar el panel frontal de la unidad. (6-*)

No sujete la unidad por el panel frontal o la
bandeja de discos durante su instalación ya que
puede dañarla o causar un mal funcionamiento.
