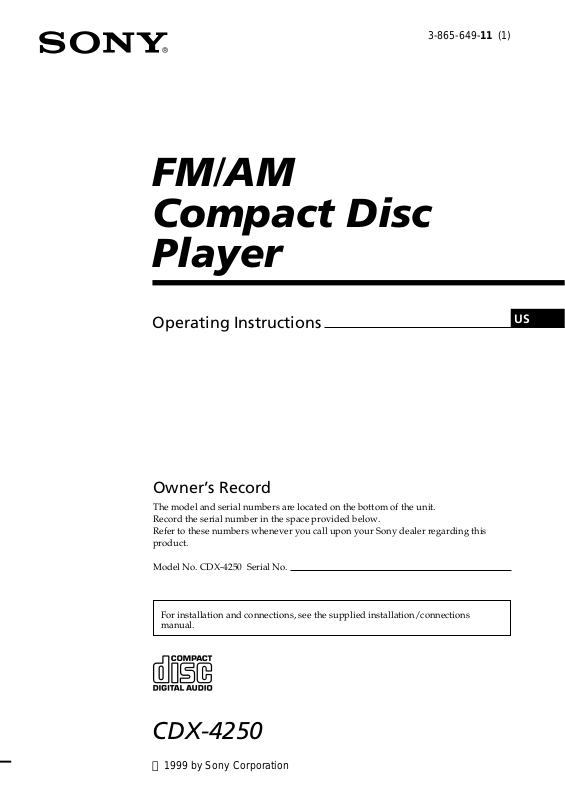

Page 1
FM/AM
Compact Disc
Player
3-865-649-11 (1)
Operating Instructions
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
Model No. CDX-4250␣ ␣ Serial No.
For installation and connections, see the supplied installation/connections
manual.
US
CDX-4250
1999 by Sony Corporation
Page 2
Warning
Welcome !
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Thank you for purchasing the Sony Compact
Disc Player. This unit lets you enjoy a variety
of features.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
2
Page 3
Table of Contents
Location of controls ................................................. 4
Getting Started
Resetting the unit ................................................ 5
Detaching the front panel .................................. 5
Setting the clock .................................................. 6
CD Player
Listening to a CD ................................................ 6
Playing a CD in various modes ........................ 7
Radio
Memorizing stations automatically
— Best Tuning Memory (BTM) ................... 7
Memorizing only the desired stations ............. 8
Receiving the memorized stations.................... 8
Other Functions
Adjusting the sound characteristics ................. 9
Turning on the clock display
— Power Select Function .............................. 9
Changing the sound and beep sound .............. 9
Additional Information
Precautions ......................................................... 10
Maintenance....................................................... 11
Dismounting the unit ....................................... 11
Specifications ..................................................... 12
Troubleshooting guide ..................................... 13
3
Page 4
Location of controls
MODE
SEEK/AMS
SOURCE
RELEASE
SOUND
OFF
REPEAT
123456
Refer to the pages for details.
1 SEEK/AMS (seek/Automatic Music
Sensor/manual search) control 7, 8
2 MODE (band select) button 7, 8
3 SOURCE (source select) button 6, 7, 8
4 Dial (volume/bass/treble/left-right/
front-rear control) 6, 9
5 SOUND button 6, 9
6 Display window
7 SENS/BTM (sensitivity adjust/Best
Tuning Memory) button 7, 8
8 6 (eject) button 6
9 DSPL (display mode change/time set)
button 6, 8
BTM
SENS DSPL
D - BASS
SHUF
CDX-4250
0 RELEASE (front panel release) button 5,
11
!¡ Reset button (located on the front side
of the unit behind the front panel) 5
!™ OFF button 5, 6, 9
!£ During radio reception:
Number buttons 8
During CD playback:
(1) REPEAT button 7
(2) SHUF button 7
!¢ D-BASS control 9
OFF
1
2
3
4
Page 5
Getting Started
Resetting the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Remove the front panel and press the reset
button with a pointed object, such as a ballpoint pen.
Notes
• Be sure not to drop the panel when detaching it
from the unit.
• If you detach the panel while the unit is still
turned on, the power will turn off automatically
to prevent the speakers from being damaged.
• When carrying the front panel with you, use the
supplied front panel case.
Attaching the front panel
Attach part a of the front panel to part b of
the unit as illustrated, and push the left side
into position until it clicks into position.
Reset button
Notes
• Pressing the reset button will erase the clock
setting and some memorized program and
memory functions.
• When you connect the power supply cord to the
unit or reset the unit, wait for about 10 seconds
before you insert a disc. If you insert a disc within
these 10 seconds, the unit will not be reset, and
you will have to press the reset button again.
Detaching the front panel
You can detach the front panel of this unit to
protect the unit from being stolen.
1 Press (OFF).
2 Press (RELEASE), then slide the front
panel a little to the left, and pull it off
towards you.
(OFF)
a
b
Notes
• Be sure not to attach the front panel upside
down.
• Do not press the front panel too hard against the
unit when attaching it.
• Do not press too hard or put excessive pressure
on the display window of the front panel.
• Do not expose the front panel to direct sunlight
or heat sources such as hot air ducts, and do not
leave it in a humid place. Never leave it on the
dashboard of a car parked in direct sunlight or
where there may be a considerable rise in
temperature.
Caution alarm
If you turn the ignition key switch to the OFF
position without removing the front panel, the
caution alarm will beep for a few seconds.
If you connect an optional power amplifier and
do not use the built-in amplifier, the beep
sound will be deactivated.
(RELEASE)
5
Page 6
Setting the clock
The clock has a 12-hour digital indication.
Example: To set the clock to 10:08
1 Press (DSPL) during operation.
If the POWER SELECT function is set to
“ON,” go to step 2. If it is set to “OFF,” set
to “ON” (page 9).
2 Press (DSPL) for two seconds.
The hour indication flashes.
1 Set the hour.
To go backward
SOURCE
To go forward
2 Press (SOUND).
The minute indication flashes.
3 Set the minute.
To go backward
SOURCE
To go forward
3 Press (DSPL).
CD Player
Listening to a CD
Insert a CD.
Playback starts automatically.
Label side up
If a CD is already inserted, press (SOURCE)
repeatedly until “CD” appears to start
playback.
Elapsed playing time
Note
To play back an 8 cm (3 in.) CD, use the optional
Sony compact disc single adapter (CSA-8).
To Press
Stop playback 6 or (OFF)
Eject the CD 6
Changing the display item
Each time you press (DSPL) during CD
playback, the item changes as follows:
z Elapsed playing time z Track number
MOTION DISPLAY* Z Clock Z
* All the above items are scrolled in the display
one by one in order.
The clock starts.
Note
If the car has no accessory position on the ignition
key switch, the clock cannot be set unless the
power is turned on. Set the clock after you have
turned on the radio, or started CD playback.
6
Page 7
Locating a specific track
— Automatic Music Sensor (AMS)
During playback, push the SEEK/AMS
control up or down and release for each
track you want to skip.
To locate succeeding
tracks
To locate preceding
tracks
SEEK/AMS
Locating a specific point in a track
— Manual Search
During playback, push the SEEK/AMS
control up or down and hold for about
two seconds. Release when you have
found the desired point.
To search forward
SEEK/AMS
Radio
Memorizing stations
automatically
— Best Tuning Memory (BTM)
This unit selects the stations with the strongest
signals and memorizes them in the order of
their frequencies. You can store up to 6 stations
on each band (FM I, FM II, FM III, and AM).
Caution
When tuning in stations while driving, use
Best Tuning Memory to prevent accidents.
To search backward
Note
If “
display, you have reached the beginning or the
end of the disc and you cannot go any further.
” or “ ” appears in the
Playing a CD in various
modes
Playing tracks repeatedly
— Repeat Play
Press (1) during playback.
“REP” appears in the display.
When the current track is over, it will play
again from the beginning.
To return to normal playback mode, press
again.
Playing tracks in random order
— Shuffle Play
Press (2) during playback.
“SHUF” appears in the display.
To return to normal playback mode, press
again.
1 Press (SOURCE) repeatedly to select the
tuner.
Each time you press (SOURCE), the mode
changes as follows:
CD ˜ TUNER
2 Press (MODE) repeatedly to select the
band.
Each time you press (MODE), the band
changes as follows:
” FM I ” FM II ” FM III ” AM
3 Press (SENS/BTM) for two seconds.
The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stoned.
Notes
• The unit does not store stations with weak
signals. If only a few stations can be received,
some number buttons will retain their former
setting.
• When a number is indicated in the display, the
unit starts storing stations from the one currently
displayed.
• If a CD is not in the unit, only the tuner band
appears even if you press (SOURCE).
7
Page 8
Memorizing only the
desired stations
You can store up to 6 stations on each band (a
total of 18 for FM I, FM II, and FM III, and 6 for
AM) in the order of your choice.
1 Press (SOURCE) repeatedly to select the
tuner.
2 Press (MODE) repeatedly to select the
band.
3 Push the SEEK/AMS control up or down
to tune in the station that you want to
store on the number button.
4 Press and hold the desired number
button ((1) to (6)) until “MEM” appears.
The number button indication appears in
the display.
Note
If you try to store another station on the same
number button, the previously stored station will
be erased.
If you cannot tune in a preset
station
Push and release the SEEK/AMS control
up or down to search for the station
(automatic tuning).
Scanning stops when the unit receives a
station. Push the SEEK/AMS control up or
down repeatedly until the desired station is
received.
Note
If the automatic tuning stops too frequently, press
(SENS/BTM) repeatedly until “LCL” (local seek
mode) is displayed. Only the stations with
relatively strong signals will be tuned in.
Tip
If you know the frequency of the station you want
to listen to push the SEEK/AMS control up or down
and hold until the desired frequency appears
(manual tuning).
If FM stereo reception is poor
— Monaural Mode
Press (SENS/BTM) repeatedly until
“MONO” appears.
The sound improves, but becomes
monaural (“ST” disappears).
To return to normal mode, press again until
“MONO” disappears.
Receiving the memorized
stations
1 Press (SOURCE) repeatedly to select the
tuner.
2 Press (MODE) repeatedly to select the
band.
3 Press the number button ((1) to (6)) on
which the desired station is stored.
8
Changing the display item
Each time you press (DSPL), the item changes
as follows:
z Frequency z Clock
MOTION DISPLAY* Z
* All the above items are scrolled in the display
one by one in order.
Page 9
Other Functions
0dB
D-BASS 3
D-BASS 2
D-BASS 1
Adjusting the sound
characteristics
You can adjust the bass, treble, balance, and
fader. You can store the bass and treble levels.
1 Select the item you want to adjust by
pressing (SOUND) repeatedly.
BAS (bass) n TRE (treble) n
BAL (left-right) n FAD (front-rear) n
VOL (volume)
2 Adjust the selected item by rotating the
dial.
Adjust within three seconds after selecting
the item. (After three seconds, the dial
function reverts to volume control.)
Changing the sound and
beep sound
Boosting the bass sound — D-bass
You can enjoy a clear and powerful bass
sound.
The D-bass function boosts the low frequency
signal with a sharper curve than conventional
bass boost.
You can hear the bass line more clearly even
while the vocal remains at the same volume.
You can emphasize and adjust the bass sound
easily with the D-BASS control. This is similar
in effect to an optional subwoofer system.
Level
Frequency (Hz)
Adjusting the bass curve
Turn the D-BASS control to adjust the
bass level (1, 2, or 3).
“D-BASS” appears in the display.
Turning on the clock
display
Only for cars with an accessory position on the
ignition key switch
— Power Select Function
To cancel, turn the control to OFF.
Note
If the bass sound becomes distorted, adjust the
D-BASS control or volume.
Cancel the beep sound
To turn the Power Select Function ON
Press (OFF) while pressing (SOUND).
The Power Select Function ties the clock
display power to the accessory position on
the ignition key switch.
To avoid battery wear, the clock is not
displayed while the unit is initializing.
Press (6) while pressing (SOUND).
To obtain the beep sound again, press these
buttons again.
Note
If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will
be deactivated.
9
Page 10
Additional
Information
Precautions
• If your car was parked in direct sunlight
resulting in a considerable rise in
temperature inside the car, allow the unit to
cool off before operating it.
• If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
• If no sound comes from the speakers of a
two-speaker system, set the fader control to
the center position.
•If your car is equipped with a power
antenna, it will extend automatically while
the unit is operating.
If you have any questions or problems
concerning your unit that are not covered in
this manual, please consult your nearest Sony
dealer.
Notes on handling CDs
A dirty or defective disc may cause sound
dropouts while playing. To enjoy optimum
sound, handle the disc by its edge. To keep the
disc clean, do not touch the surface.
Before playing, clean the discs with an optional
cleaning cloth. Wipe each disc from the center
out.
Do not use solvents such as benzine, thinner,
commercially available cleaners, or antistatic
spray intended for analog discs.
Notes on moisture condensation
On a rainy day or in a very damp area,
moisture may condense on the lenses inside
the CD player. Should this occur, the unit will
not operate properly. In this case, remove the
disc and wait for about an hour until the
moisture evaporates.
When you play 8 cm (3 in.) CDs
Use the optional Sony compact disc single
adapter (CSA-8) to protect the CD player from
damage.
Do not stick paper or tape on the labeled
surface.
Do not expose the discs to direct sunlight or
heat sources such as hot air-ducts, or leave
them in a car parked in direct sunlight where
there can be a considerable rise in temperature
inside the car.
10
Page 11
Maintenance
Fuse replacement
When replacing the fuse, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the
power connection and replace the fuse. If the
fuse blows again after replacement, there may
be an internal malfunction. In such a case,
consult your nearest Sony dealer.
Dismounting the unit
Release key
(supplied)
µ
Fuse (10 A)
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as
this could damage the unit.
Cleaning the connectors
The unit may not function properly if the
connectors between the unit and the front
panel are not clean. In order to prevent this,
open the front panel by pressing (RELEASE),
then detach it and clean the connectors with a
cotton swab dipped in alcohol. Do not apply
too much force. Otherwise, the connectors may
be damaged.
Main unit
µ
µ
Pull the unit out while the release key is inserted.
Press the clip inside the front cover with a thin
screwdriver, and gently pry the front cover free.
µ
Back of the front panel
Notes
• For safety, turn off the engine before cleaning
the connectors and remove the key from the
ignition key switch.
• Never touch the connectors directly with your
fingers or any metal device.
11
Page 12
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
17 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
1 % total harmonic distortion.
Other specifications
CD player section
System Compact disc digital audio
Signal-to-noise ratio 90 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit
Laser Diode Properties
Material GaAlAs
Wavelength 780 nm
Emission Duration Continuous
Laser output power Less than 44.6 µW*
* This output is the value measured at a distance
of 200 mm from the objective lens surface on
the Optical Pick-up Block.
system
Tuner section
FM
Tuning range 87.5 – 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 9 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),
Harmonic distortion at 1 kHz
Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz
AM
Tuning range 530 – 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.71 MHz/450 kHz
Sensitivity 30 µV
68 dB (mono)
1.0 % (stereo),
0.7 % (mono)
General
Outputs Power antenna relay
Tone controls Bass ±8 dB at 100 Hz
Power requirements 12 V DC car battery
Dimensions Approx.
Mounting dimensions Approx. 182 × 53 × 162 mm
Mass Approx. 1.2 kg (2 lb. 10 oz.)
Supplied accessories Parts for installation and
Optional accessories Cleaning cloth XP-CD1
Design and specifications are subject to change
without notice.
control
Telephone ATT control
lead
Treble ±8 dB at 10 kHz
(negative ground)
178 × 50 × 185 mm
1
/8 × 2 × 7 3/8 in.)
(7
(w/h/d)
1
/4 × 2 1/8 × 6 1/2 in.)
(7
(w/h/d)
connections (1 set)
Front panel case (1)
Compact disc single
adapter CSA-8
Power amplifier section
Outputs Speaker outputs
Speaker impedance 4 – 8 ohms
Maximum power output 40 W × 4 (at 4 ohms)
(sure seal connectors)
12
Page 13
Troubleshooting guide
The following checklist will help you remedy the problems you may encounter with your unit.
Before going through the checklist below, check the connection and operating procedures.
General
Problem
No sound.
The contents of the memory
have been erased.
Indications do not appear in
the display.
No beep sound.
CD playback
Problem
CD cannot be loaded.
Play does not begin.
CD is automatically ejected.
CD will not eject.
The operation buttons do not
function.
The sound skips due to
vibration.
Cause/Solution
•Rotate the dial in a clockwise direction to adjust the volume.
•Set the fader control to the center position for two-speaker
systems.
• The power cord or battery has been disconnected.
• The reset button has been pressed.
n Store the settings again into the memory.
Remove the front panel and clean the connectors. See “Cleaning
the connectors” (page 11) for details.
• An optional power amplifier is connected and you are not
using the built-in amplifier.
• The beep sound is cancelled (page 9).
Cause/Solution
• Another CD is already loaded.
• The CD was forcibly inserted upside down.
Dirty disc.
The ambient temperature exceeds 50°C (122°F).
Press the 6 button for two seconds.
Press the reset button.
• The unit is installed at an angle of more than 60°.
• The unit is not installed in a sturdy part of the car.
Radio reception
Problem
Preset tuning is not possible.
Automatic tuning is not
possible.
The “ST” indication flashes.
Cause/Solution
• Memorise the correct frequency.
• The broadcast signal is too weak.
The broadcast signal is too weak.
n Use manual tuning.
•Tune in the frequency accurately.
•The broadcast signal is too weak.
n Set to the MONO mode (page 8).
13
Page 14
Error displays
The following indications will flash for about five seconds.
Display
If the above-mentioned solutions do not help improve the situation, consult your nearest Sony
dealer.
Cause
A CD is dirty or inserted upside
down.
The CD player cannot be operated
because of some problem.
Solution
Clean or insert the CD correctly.
Press the reset button or 6.
14
Page 15
15
Page 16
Sony Corporation Printed in Korea
Loading...
