Sony BDP-S560 User Manual

The software of this player may be updated in the future. To find out details on any available updates, please visit: http://esupport.sony.com

4-145-643-11(1)

Printed in Malaysia

Operating Instructions

Blu-ray Disc / DVD Player

BDP-S560

4-145-643-11(1)

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer serv icing to qualified personnel only.

Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Blu-ray Disc/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This label is located on the laser protective housing inside the enclosure.

This symbol is intended to alert the user to the presence of uninsulated

within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

maintenance (servicing) instructions in the literature accompanying the appliance.

“dangerous voltage”

This symbol is intended to alert the user to the presence of important operating and

Precautions

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

• Install this unit so that the AC power cord can be unplugged from the wall socket immediately in the event of trouble.

Operation is subject to the following two conditions; (1) this device may not cause

interference, and

(2) this device must accept any

interference received, including interference that may cause undesired operation of the device.

FCC WARNING

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter.

The shielded Interface cable (LAN cable) must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of t he FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the

receiving antenna.

– Increase the separation

between the equipment and receiver.

– Connect the equipment into an

outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an

experienced radio/TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for uncontrolled equipment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).

When using the unit, use indoors.

Contains FCC ID : AK8WU600TS Contains IC : 409B-WU600TS

This class B digital apparatus complies with Canadian ICES-

003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.

Owner’s Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. BDP-S560 Serial No.______________

For customers in the USA

If this product is not working properly, please call 1-866-909-

7669.

For Customers in Canada

If this product is not working properly, please call 1-877-6022008 for Peace of Mind

Warranty Replacement service.

For other product related questions please contact our Customer Information Service Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6

Notes About the Discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface. Dust, fingerprints, or scratches on the disc may cause it to malfunction.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available disc/ lens cleaners, or anti-static spray intended for vinyl LPs.

• If you have printed the disc’s label, dry the label before playing.

• Do not use the following discs. – A lens cleaning disc. – A disc that has a non-

standard shape (e.g., card, heart).

– A disc with a label or sticker

on it.

– A disc that has cellophane

tape or sticker adhesive on it.

• Do not resurface the playing side of a disc to remove surface scratches.

Precautions

On safety

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the player, or place the player near water, such as near a bathtub or shower ro om. Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.

• Do not touch the AC power cord with wet hands. Doing so may cause an electric shock.

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug that might block the ventilation holes.

• Do not install this player in a confined space, such as a bookshelf or similar unit.

• Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.

• Do not place the player outdoors, in vehicles, on ship s, or on other vessels.

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• Do not install the player in an inclined position. It is designed to be operated in a horizontal position only.

,continued

• Keep the player and the discs away from equipment with strong magnets, such as microwave ovens, or large loudspeakers.

• Do not place metal objects in front of the front panel. It may limit reception of radio waves.

• Do not place the player in a place where medical equipment is in use. It may cause a malfunction of medical instruments.

• If you use a pacemaker or other medical device, consult your physician or the manufacturer of your medical device before using the wireless LAN function.

• Do not place heavy or unstable objects on the player.

• Do not place any objects other than discs on the disc tray. Doing so may cause damage to the player or the object.

• Take out any discs when you move the player. If you don’t, the disc may be damaged.

• Disconnect the A C power cord and all other cables from the player when you move the player.

On power sources

• The player is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the player itself has been turned off.

• Disconnect the player from the wall outlet if you are not going to use the player for a long time. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

• Observe following points to prevent the AC power cord being damaged. Do not use the AC power cord if it is damaged, as doing so may result in an electric shock or fire. – Do not pinch the AC power

cord between the player and wall, shelf, etc.

– Do not put anything heavy

on the AC power cord or pull on the AC power cord itself.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, your ears and the speakers may be damaged when a peak level section is played.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/ lens cleaners

Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction.

On replacement of parts

In the events that this player is repaired, repaired parts may be collected for reuse or recycling purposes.

Copyrights and Trademarks

• This product incorporates copyright protection technology that is protect ed by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.

• Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc.

• , “XMB,” and “xross media bar” are trademarks of Sony Corporation and Sony Computer Entertainment Inc.

• This product incorporates High-Definition Multimedia Interface (HDMI™) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• “Blu-ray Disc” is a trademark.

• “Blu-ray Disc,” “DVD+RW,” “DVD-RW,” “DVD+R,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks.

• “BD-LIVE,” “BD-LIVE” logo, and “BONUSVIEW” are trademarks of Blu-ray Disc Association.

• “x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation.

• “BRAVIA” is a trademark of Sony Corporation.

• “PhotoTV HD” and the “PhotoTV HD” logo are trademarks of Sony Corporation.

• This product meets ENERGY

guidelines for energy

STAR efficiency. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. ENERGY STAR is a registered mark owned by the U.S. government.

• The Wi-Fi CERTIFIED™ Logo is a certification mark of the Wi-Fi Alliance.

• The Wi-Fi Protected Setup™ Mark is a mark of the Wi-Fi Alliance.

• “Wi-Fi CERTIFIED™” and “Wi-Fi Protected Setup™” are trademarks of the Wi-Fi Alliance.

•DLNA

, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

• Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or onscreen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near

water.

6) Clean only with dry cloth.

7) Do not block any ventilation

openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat

sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)Only use attachments/ accessories specified by the manufacturer.

12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13)Unplug this apparatus during lightning storms or when unused for long periods of time.

14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

About this manual

• In this manual, “disc” is used as a general reference for the BDs, DVDs, or CDs unless otherwise specified by the text or illustrations.

• Icons, such as , listed at the top of each explanation indicate what kind of discs can be used with the function being explained. For details, see “Playable Discs” (page 66).

• Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the similar symbols as those on the remote.

• The on-screen display illustrations used in this manual may not match the graphics displayed on your TV screen.

• NEED-to-know information (to prevent incorrect operation) is listed under the b icon. NICE-to-know information (tips and other useful information) is listed under the z icon.

Table of Contents

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Hookups and Settings

Hooking Up the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Step 1: Connecting to Your TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Connecting to an HDMI jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

About the BRAVIA Sync features (for HDMI connections only) . . . . . . 16

Connecting to component video jacks (Y, Pb, Pr) . . . . . . . . . . . . . . . . . 17

Connecting to audio/video or S VIDEO jacks . . . . . . . . . . . . . . . . . . . . 18

Step 2: Connecting to Your AV Amplifier (Receiver) . . . . . . . . . . . . . . . . . . . 19

Connecting to an HDMI jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connecting to digital jacks (OPTICAL/COAXIAL) . . . . . . . . . . . . . . . . . 21

Connecting to audio L/R jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Step 3: Inserting the External Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Step 4: Connecting to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Step 5: Connecting the AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Step 6: Preparing the Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Controlling TVs with the remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Step 7: Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Step 8: Setting Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Setting wireless LAN (Automatic registration (WPS)) . . . . . . . . . . . . . . 30

Setting wireless LAN (Access point scan) . . . . . . . . . . . . . . . . . . . . . . 31

Playback

Playing BDs/DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the BD’s or DVD’s menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Enjoying BONUSVIEW/BD-LIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Searching for a Title/Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

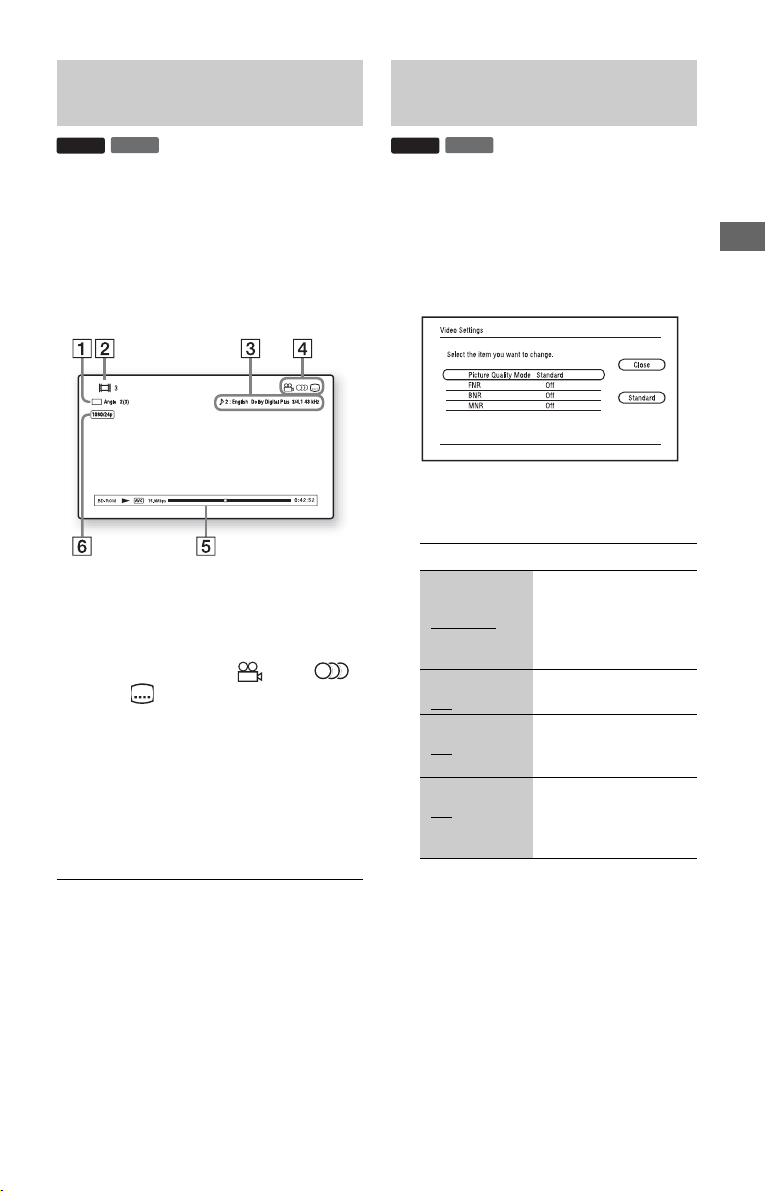

Displaying the playing time and play information . . . . . . . . . . . . . . . . . 37

Adjusting pictures and sound for videos . . . . . . . . . . . . . . . . . . . . . . . . 37

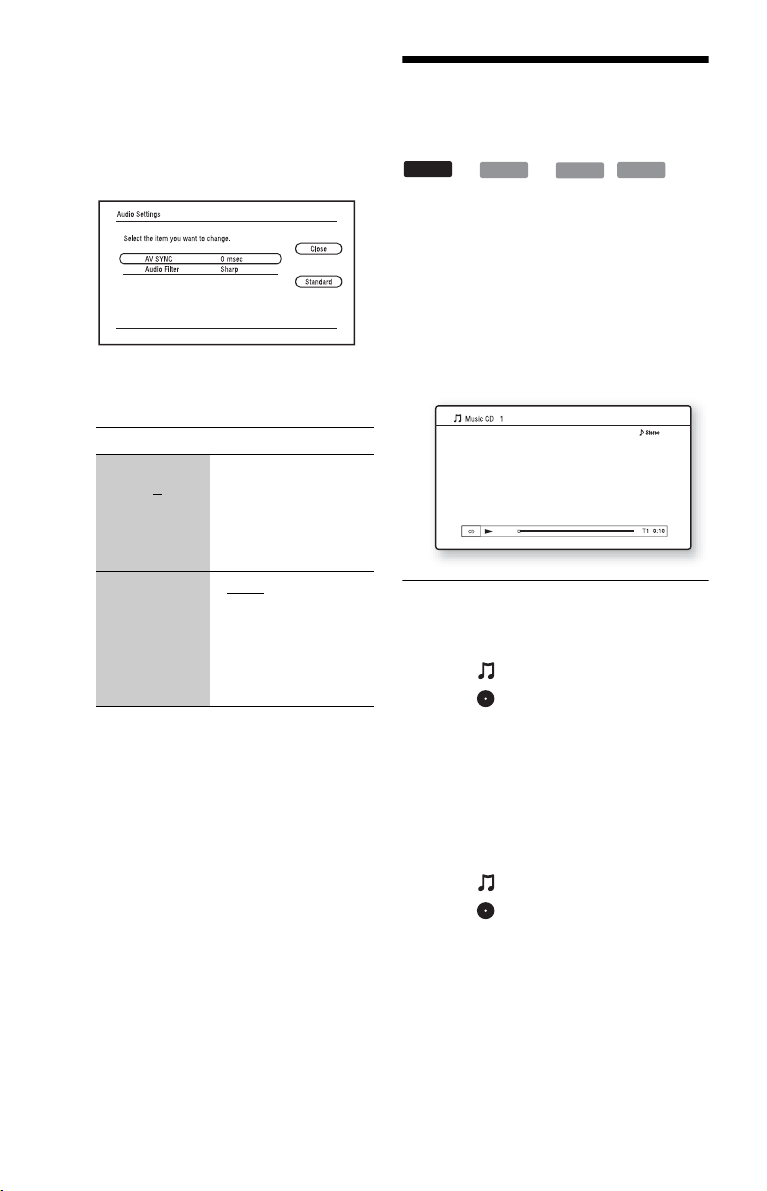

Playing Music CDs and MP3 Audio Tracks . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Playing Photo Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Playing from a USB device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Playing Photo Files via a Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Preparing for the server/player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Playing photo files on a DLNA server . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Settings and Adjustments

Using the Settings Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Network Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Video Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

BD/DVD Viewing Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Photo Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Resetting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Additional Information

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Self-Diagnosis Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Video Output Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Audio Output Signals and Player Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .69

About Wireless LAN Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Parental Control/Area Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Terms and Conditions of Use and End User License Agreement . . . . . . . . . 73

Software License Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Before operating the player, please read “Terms and Conditions of Use and End User License Agreement” (page 73).

Guide to Parts and Controls

For more information, see the pages in parentheses.

Remote

Number 5, AUDIO, VOL +, and N PLAY buttons have a tactile dot. Use the tactile dot as a reference when operating the player.

The available functions of the remote differ depending on the disc or the situation.

A THEATER (page 16)

Switches to the optimum video mode for watching movies automatically. When connected with an AV amplifier (receiver) using the HDMI cable, the speaker output also switches automatically. When connected with a Theater Modecompatible TV using the HDMI cable, the TV’s video mode switches to Theater Mode.

The THEATER button functions only when connected to a Sony Theater Mo de-compatible AV amplifier (receiver) or Sony Theater Mode-compatible TV.

TV INPUT (TV input select) (page 27)

Switches between TV and other input sources.

TV [/1 (on/standby) (page 27)

Turns on the TV, or sets to standby mode.

[/1 (on/standby) (page 28)

Turns on the player, or sets to standby mode.

B Number buttons (page 36, 57)

Enters the title/chapter numbers, etc.

VOL (volume) +/– (page 27)

Adjusts the TV volume.

TIME (page 11)

Displays the elapsed/remaining playback time in the front panel display. Each time you press the bu tton, the display switches between elapsed playback time and remaining playback time.

AUDIO (page 51)

Selects the language track when multilingual tracks are recorded on BDROMs/DVD VIDEOs. Selects the sound track on CDs.

SUBTITLE (page 51)

Selects the subtitle language when multilingual subtitles are recorded on BDROMs/DVD VIDEOs.

ANGLE

Switches to other viewing angles when multi-angles are recorded on BD-ROMs/ DVD VIDEOs.

C Color buttons (RED/GREEN/

BLUE/YELLOW)

Short cut keys for selecting items on some BD’s menus (can also be used for BD’s Java interactive operations).

D TOP MENU (page 35)

Opens or closes the BD’s or DVD’s Top Menu.

POP UP/MENU (page 35)

Opens or closes the BD-ROM’s Pop-up Menu, or the DVD’s menu.

OPTIONS (page 35, 40)

The options menu that can be selected appears on the screen.

HOME (page 33, 43)

Enters the player’s home menu. Exits the home menu when a CD is inserted.

RETURN

Returns to the previous display.

</M/m/,

Moves the highlight to select a displayed item.

Center button (ENTER)

Enters the selected item.

E . PREV/NEXT > (previous/

next)

Skips to the previous/next chapter, track, or file. To go to the beginning of the previous track, press . PREV twice.

REPLAY/ADVANCE

(instant replay/instant advance)

Replays the scene/briefly fast forwards the scene. Each time you press ADVANCE , briefly fast forwards the current scenes for 15 seconds. Each time you press REPLAY, briefly replays the current scenes for 10 seconds.

m/M (fast reverse/fast forward)

Fast reverses/fast forwards the disc when pressed during playback. Each time you press the button, search speed changes as follows*: Playback direction M1 (×10) t M2 (×30) t M3 (×120) Reverse direction

n (×1) t m1 (×10) t m2 (×30) t m3 (×120)

When you press and hold the button, fast forward/fast reverse continues at the selected speed until you release the button.

* Search speed does not change when playing

CDs and MP3 audio tracks. Speed multiple values are approximate.

– To resume normal playback, press

N PLAY.

To play in slow, freeze frame (playback direction only)

Plays BDs/DVDs in slow motion when M is pressed for more than one second in pause mode. Plays one frame at a time when M is pressed briefly in pause mode. – To resume normal playback, press

N PLAY.

N PLAY (page 33)

Starts or re-starts playback. Resumes playback from the point where you press x STOP (Resume Play). Plays a slideshow when a disc containing JPEG image files is inserted.

DISPLAY (page 37)

Displays the playback information on the screen.

X PAUSE

Pauses or re-starts playback.

x STOP

Stops playback and remembers the stop point (resume point) (page 34, 39). The resume point for a title/track is the last point you played or the last photo for a photo folder.

,continued

Front panel

The N button has a tactile dot. Use the tactile dot as a reference when operating the player.

A [/1 (on/standby) (page 28)

Turns on the player, or sets to standby mode.

B Disc tray (page 33) C Blu-ray Disc indicator

Lights up in white when the player is turned on. Lights up in blue when playing BDs.

D Front panel display (page 11) E WLAN indicator

Lights up when “Wireless” is selected as a connection method in “Internet Settings” under the “Network Settings” setup (page 55).

F Remote sensor (page 26) G N (play), x (stop) (page 33)

Starts or stops playback.

H Z (open/close) (page 33)

Opens or closes the disc tray.

I USB jack (page 41)

Connect a USB device to this jack.

To lock the disc tray (Child Lock)

You can lock the disc tray to prevent it being opened by mistake. When the player is turned on, hold down N on the player for more than 10 seconds until “LOCKED” appears in the front panel display. The disc tray is locked.

To unlock the disc tray, hold down N on the player until “UNLOCK” appears in the front panel display.

Front panel display

A N, X

Lights up during playback or pause.

B HD (page 46)

Lights up when outputting 720p/1080i/ 1080p video signals from the HDMI OUT jack or 720p/1080i video signals from the COMPONENT VIDEO OUT jacks.

C HDMI (page 15)

Lights up when an HDMI device is recognized.

D EXT (page 23)

Lights up when the external memory is recognized.

E Playback information

You can check the time information. Press TIME repeatedly during playback. The display changes as follows.

When playing a BD-ROM/DVD VIDEO

Elapsed time of the current title

Remaining time of the current title

When playing a CD

Elapsed time of the current track

Remaining time of the current track

Elapsed time of the current disc*

Remaining time of the current disc*

* Except MP3 audio tracks

F Network connection indicator

Lights up when accessing the network and downloading the player’s software. For details on downloading the player’s software, see page 44.

The network connection indicator may not light up during the network diagnostic or other operations even when accessing the network.

“T” (Title or Track), “C” (Chapter), or “D” (Disc) may be displayed depending on the disc.

,continued

Rear panel

A DIGITAL OUT (COAXIAL) jack

(page 21)

B LINE OUT (R-AUDIO-L) jacks

(page 17, 18, 22)

C LINE OUT (VIDEO) jack (page 18) D DIGITAL OUT (OPTICAL) jack

(page 21)

E Ventilation holes

The ventilation fan is inside the player.

F EXT slot (page 23) G AC IN terminal (page 26) H LINE OUT (S VIDEO) jack

(page 18)

I COMPONENT VIDEO OUT

B, PR) jacks (page 17)

(Y, P

J HDMI OUT jack (page 15, 20) K LAN (100) terminal (page 24)

Hookups and

Settings

Hooking Up the Player

Check that you have the following items.

• Audio/video cable (phono plug ×3) (1)

• AC power cord (1)

• Remote commander (remote) (1)

• Size AA (R6) batteries (2)

Follow steps 1 through 8 to hook up and adjust the settings of the player. Do not connect the AC power cord until you reach “Step 5: Connecting the AC Power Cord” (page 26).

Hookups and Settings

Step 1: Connecting to Your TV

About video/HDMI OUT jacks

The player has the following video jacks. Connect the player to your TV according to the input jacks on your TV. When connecting the player to your TV using the HDMI cable, you can enjoy high quality digital pictures and sound through the HDMI OUT jack.

Jack type Video resolution Hookup

High quality

Digital

Analog

High Definition: 1080/24p, 1080p, 1080i, 720p Standard Definition: 480p, 480i

High Definition: 1080i, 720p Standard Definition: 480p, 480i

See “Connecting to an HDMI jack” on page 15.

See “Connecting to component video jacks (Y, Pb, Pr)” on page 17.

Standard quality

• Plug in cables securely to prevent unwanted noise.

• Refer to the instruction manual supplied with the components to be connected.

• You cannot connect this player to a TV that does not have a video input jack.

• Do not apply too much pressure on the connect ing cables. Pushing against the cabinet wall, etc., may damage the cables or jacks.

Standard Definition: 480i

See “Connecting to audio/video or S VIDEO jacks” on page 18.

To connect to a TV with DVI input

Use an HDMI-DVI converter cable (not supplied). The DVI jack will not accept any audio signals, so you have to use another audio connection in addition to this connection (page 19). Furthermore, you cannot connect the HDMI OUT jack to DVI jacks that are not HDCP compliant (e.g., DVI jacks on PC displays).

Connecting to an HDMI jack

Connect the player and your TV using an HDMI cable to enjoy high quality digital pictures and sound through the HDMI OUT jack. If you connect a Sony TV that is compatible with the “Control for HDMI” function (page 16), refer to the instruction manual supplied with the TV. If you connect a 1080/24p- or 1080p-compatible TV, use a High Speed HDMI cable.

Blu-ray Disc/DVD player

HDMI cable (not supplied)

Hookups and Settings

Notes on connecting to the HDMI OUT jack

Observe the following as improper handling may damage the HDMI OUT jack and the connector.

• Carefully align the HDMI OUT jack on the rear of the player and the HDMI connector by checking their shapes. Make sure the connector is not upside down or tilted.

• Be sure to disconnect the HDMI cable when moving the player.

• Do not press the player against the cabinet wall when you place the player in a cabinet with the HDMI cable connected. It may damage the HDMI OUT jack or the HDMI cable.

• When connecting or disconnecting, do not screw in or rotate the HDMI connector.

About indicators for HDMI connection

When the connected HDMI-compatible component is recognized, the HDMI indicator lights up in the front panel display.

,continued

• Not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In the case of 480i/480p/720p/1080i/1080p scan picture problems, it is recommended that the user switch the connection to the LINE OUT VIDEO or S VIDEO jack. If there are questions regarding our TV set compatibility with this model 480i/480p/ 720p/1080i/1080p Blu-ray Disc/DVD player, please contact our customer service center.

• If the picture is not clear , not natural or not to your satisfaction, chan ge the video output resolution in step 3 of “Output Video Format” under the “Video Settings” setup (page 46).

• Be sure to use only an HDMI cable that bears the HDMI logo.

About the BRAVIA Sync features (for HDMI connections only)

By connecting Sony components that are compatible with the “Control for HDMI” function with an HDMI cable (not supplied), operation is simplified as below:

•One-Touch Play With one touch of the following buttons, the connected TV turns on and the input selector on the TV is switched to the player automatically. – [/1 – HOME: The home menu appears

automatically (page 9, 33, 43).

– N PLAY: Playback starts automatically

(page 34).

• System Power-Off When you turn off the TV using TV [/1 or the power button on the TV’s remote, the player and HDMI-compatible components turn off automatically.

• Theater When you press THEATER, the player automatically switches to the optimum video mode for watching movies. When connected with a Sony AV amplifier (receiver) using the HDMI cable, the speaker output also switches automatically. When connected with a Theater Modecompatible TV using the HDMI cable, the TV’s video mode switches to Theater Mode. Press the button again to return to the original setting.

• Language Follow When you change the language for the onscreen display on your TV, the player’s language for the on-screen display is also changed after turning the player off and on.

To prepare for the BRAVIA Sync features

Set “Control for HDMI” to “On” in the “System Settings” setup (page 53). For details on settings of your TV or other connected components, refer to the instruction manual supplied with the TV or components.

• When connecting the Sony TV that is compatible with the “Control for HDMI” Easy Setting function using the HDMI cable, the “Control for HDMI” setting of the player automatically switches to “On” if the “Control for HDMI” setting on the connected TV is set to “On.” Refer to the instruction manual supplied with the TV.

• When connecting the Sony TV that is compatible with the BRAVIA Sync features using the HDMI cable, you can control the basic functions of the player with the TV’s remote if the “Control for HDMI” setting on the connected TV is set to “On.” Refer to the instruction manual supplied with the TV.

Depending on the connected component, the “Control for HDMI” function may not work. Refer to the instruction manual supplied with the component.

Connecting to component video jacks (Y, PB, PR)

Connect the COMPONENT VIDEO OUT jacks of the player and your TV using a component video cable. You can enjoy high-quality pictures. Be sure to connect to the LINE OUT (R-AUDIO-L) jacks using the audio/video cable.

Blu-ray Disc/DVD player

(green) (red)(blue)

Component video cable (not supplied)

(green) (red)(blue) (red) (white)

Match the color of the plug to that of the jack.

(red) (white)

Audio/video cable (supplied)

Match the color of the plug to that of the jack.

Hookups and Settings

: Signal flow

When you connect the player and TV using a component video cable, disconnect the video plug (yellow) of the audio/video cable.

,continued

Connecting to audio/video or S VIDEO jacks

Connect the LINE OUT (VIDEO, R-AUDIO-L) jacks of the player and your TV using the audio/video cable. You can enjoy standard quality pictures and sound.

Blu-ray Disc/DVD player

(red) (white) (yellow)

Audio/video cable (supplied)

(red) (white) (yellow)

: Signal flow

When you connect the player and TV using an Svideo cable, disconnect the video plug (yellow) of the audio/video cable.

S-video cable (not supplied)

Match the color of the plug to that of the jack.

Step 2: Connecting to Your AV Amplifier (Receiver)

About audio/HDMI OUT jacks

The player has the following audio jacks. Connect the player to your AV amplifier (receiver) according to the input jacks on your AV amplifier (receiver).

Jack type Hookup

Digital See “Connecting to an HDMI jack” on page 20.

See “Connecting to digital jacks (OPTICAL/ COAXIAL)” on page 21.

Analog See “Connecting to audio L/R jacks” on page 22.

For correct speaker location, refer to the instruction manual supplied with the connected components.

Hookups and Settings

,continued

Connecting to an HDMI jack

If your AV amplifier (receiver) has an HDMI input, use this connection. You can enjoy higher quality sound from the connected AV amplifier (receiver). To enjoy 7.1 channel sound, use a High Speed HDMI cable. If you connect a Sony AV amplifier (receiver) that is compatible with the “Control for HDMI” function (page 16), refer to the instruction manual supplied with the AV amplifier (receiver).

Blu-ray Disc/DVD player

HDMI cable (not supplied)

AV amplifier (receiver)

1 Connect the HDMI OUT jack of the

player and your AV amplifier (receiver).

2 Set “BD Audio Setting” to “Direct” in

the “Audio Settings” setup (page 49).

To enjoy the secondary audio (commentary), set “BD Audio Setting” to “Mix.”

HDMI cable (not supplied)

Check the following settings: – “Audio Output Priority” is set to “HDMI” in the

“Audio Settings” setup (page 48).

– “Audio (HDMI)” is set to “Auto” in the “Audio

Settings” setup (page 48).

Not all HDMI-compatible AV amplifiers (receivers) accept 8ch Linear PCM signals. Refer as well to instruction manual supplied with the connected AV amplifier (receiver).

Connecting to digital jacks (OPTICAL/COAXIAL)

If your AV amplifier (receiver) has a Dolby*1 Digital, Dolby Pro Logic, or DTS*2 decoder and a digital input jack, you can enjoy Dolby Digital (5.1ch), Dolby Pro Logic (4.0ch), or DTS (5.1ch) surround effects.

Coaxial digital cable (not supplied)

Blu-ray Disc/DVD player

Hookups and Settings

Optical digital cable (not supplied)

: Signal flow

1 Connect the digital jack of the player

and your AV amplifier (receiver).

2 Set “Audio Output Priority” to

“Coaxial/Optical” in the “Audio Settings” setup (page 48).

3 Make the appropriate settings in

“Dolby Digital” and “DTS” under the “Audio Settings” setup (page 49).

Otherwise, no sound or a loud noise will come from your speakers.

AV amplifier (receiver)

,continued

Connecting to audio L/R jacks

If your AV amplifier (receiver) only has L and R audio input jacks, use this connection.

Blu-ray Disc/DVD player

(white)(red)

Audio/video cable (supplied)

(white)(red)

Match the color of t he plug to that of the jack.

AV amplifier (receiver)

: Signal flow

Step 3: Inserting the External Memory

To enjoy additional content (such as BONUSVIEW/BD-LIVE) on certain Blu-ray Disc titles, you will need to use external memory (not supplied). Insert the external memory device (1 GB or larger USB flash memory, such as Sony USM2GL, USM4GL, or USM1GH) into the EXT slot as your local storage.

The BD-LIVE function will not be available even if you insert the external memory in the USB jack on the front panel.

Insert the external memory into the EXT slot as far as it will go.

Check that the EXT indicator lights up in the front panel display when turning the player on.

Rear of the player

Sony USM2GL (not supplied)

• Insert the external memory straight. If you force the external memory into the slot, this will cause damage to both the external memory and the player.

• Keep the external memory away from small children to prevent them from accidentally swallowing the external memory.

• Do not apply too much pressure to the external memory in the slot, as it may cause a malfunction.

• We recommend use of the Sony USM2GL available as of April 2009.

• Other USB flash devices may support this function. However we cannot guarantee compatibility with all USB flash memories.

• When inserting a USB flash memory, check the insertion direction before inserting it.

• Depending on the USB flash memory, it may stick out from the EXT slot. Do not force into the slot or apply pressure to the protruding portion of the USB flash memory.

• Do not connect anything other than a USB flash memory to the EXT slot.

• To avoid data corruption or damage to the external memory, turn the player off when inserting or removing the external memory.

• When the EXT indicator does not light up, turn the player off, remove and re-insert the external memory, then turn the player on again.

• Do not insert the external memory that contains photo or music files to avoid corrupting the external memory data.

• When re-formatting the USB flash memory, use FAT16 or FAT32 format.

Hookups and Settings

With the logo side up

To remove the external memory

1 Press [/1 to turn the player off. 2 Pull out the external memory from the

EXT slot.

Step 4: Connecting to the Network

Connect the player to your Internet source. Select the connecting method, connecting via a wireless LAN router (access point) (below) or to a broadband router directly (page 25). You can enjoy the BD-LIVE function (page 35), play photo files via a network (page 42), or update the player’s software (page 44).

1 Connect the player to your Internet source via a wireless LAN router.

Blu-ray Disc/DVD player

Wireless LAN router (access point)

ADSL modem/ Cable modem

LAN cable (not supplied)

Internet

Refer also to the instruction manual supplied with the wireless LAN router.

2 Check your connection environment on your PC and make the appropriate settings.

Wireless LAN router (access point)

Security Setting Type

Security is set. Check the security setting of your connected network on your PC screen. Example: Windows XP

A message with the lock icon indicates that security is enabled.

No security is set. Check the security setting of your connected network on your PC screen. Example: Windows XP

A message indicates that no security is set.

When you use other operating systems, refer to the Help of your PC.

You can set the network settings easily with one press of the WPS button on the wireless LAN router (access point). Wi-Fi Protected Setup-compatible wireless LAN routers (access points) may have the logo (“ ”).

For details, see “No Security” on page 70.

Wi-Fi Protected

-compatible

Setup

Not Wi-Fi Protected Setup-compatible

Any type See “Setting wireless LAN

Settings

See “Setting wireless LAN (Automatic registration (WPS))” on page 30.

See “Setting wireless LAN (Access point scan)” on page 31.

(Access point scan)” on page 31.

To connect a broadband router directly

1 Connect the LAN (100) terminal of the

player to a broadband router.

Blu-ray Disc/DVD player

LAN cable (not supplied)

Broadband router

To PC

LAN cable (not supplied)

ADSL modem/ Cable modem

To update the player’s software using the network

See “Network Update” (page 44) and “Software Update Notification” (page 54).

Do not connect a phone line to the LAN (100) terminal, as it may cause a malfunction.

To enjoy the BD-LIVE function

See “Enjoying BONUSVIEW/BD-LIVE” on page 35.

To enjoy the BD-LIVE function, we recommend using an Internet connection with an effective speed of 1 Mbps or greater, depending on yo ur connection environment and network condition.

Hookups and Settings

Internet

2 Make the appropriate settings in

“Internet Settings” under the “Network Settings” setup (page 55).

• Depending on the modem or router, the type of LAN cable, straight or crossing, differs. For details on the LAN cables, refer to the instruction manual supplied with the modem or router.

• Do not connect the LAN terminal of the player to the LAN terminal of the PC.

Step 5: Connecting the

Step 6: Preparing the

AC Power Cord

After all of the other connections are complete, connect the supplied AC power cord to the AC IN terminal of the player. Then plug the player and TV AC power cords into the AC outlet.

to AC IN

to AC outlet

Remote

You can control the player using the supplied remote. Insert two Size AA (R6) batteries by matching the 3 and # ends on the batteries to the markings inside the battery compartment. When using the remote, point it at the remote sensor on the player (page 10).

• Use the batteries correctly to avoid possible leakage and corrosion. Should leakage occur, do not touch the liquid with bare hands. Observe the following: – Do not use a new battery with an old battery, or

batteries of different manufacturers. – Do not attempt to recharge the batteries. – If you do not intend to use the remote for an

extended period of time, remove the batteries. – If battery leakage occurs, wipe out any liquid

inside the battery compartment, and insert new

batteries.

• Do not expose the remote sensor (marked on the front panel) to strong light, such as direct sunlight or a lighting apparatus. The player may not respond to the remote.

Controlling TVs with the remote

You can control the volume, input source, and power switch of your Sony TV with the supplied remote.

When you replace the batteries of the remote, the code number may be reset to the default setting. Set the appropriate code number again.

TV [/1TV INPUT

Number buttons

Available buttons

Depending on the connected unit, you may not be able to control your TV with some or all of the buttons (TV [/1, TV INPUT, or VOL +/–).

Buttons Operations

TV [/1 Turns your TV on or off.

TV INPUT (TV input select)

VOL (volume) +/–Adjusts the volume of

Switches your TV’s i nput source between the TV and other input sources.

your TV.

VOL +/–

1 While holding down TV [/1, enter the

TV’s manufacturer code using the number buttons. For instance, to enter “09,” press “0” then “9.”

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer Code number

Sony 01 (default)

Hitachi 02

LG/Goldstar 04

Mitsubishi/MGA 13

NEC 04

Panasonic 19

Philips 21

Pioneer 16

RCA 10

Samsung 20

Sharp 18

Toshiba 07

2 Release TV [/1.

Hookups and Settings

To control other TVs with the remote

You can control the volume, input source, and power switch of non-Sony TVs as well. If your TV is listed in the table below, set the appropriate manufacturer’s code.

If you enter a new code number, the code number previously entered will be erased.
