Sony BDP-BX38, BDP-S280, BDP-S380, BDP-S383 Schematic
BDP-BX38/S280/S380/S383
RMT-B109A/B109P/B109C/B110A/B110P
SERVICE MANUAL
Canadian Model
Ver. 1.0 2010.12
BDP-S280/S380/BX38
Brazilian Model
Photo: BDP-S280
Remote : RMT-B109A
SPECIFICATIONS
AEP Model
UK Model
UK Model
BDP-S280/S380/S383
BDP-S280/S380/S383
US Model
BDP-S280
Argentina Model
E Model
Chinese Model
Indian Model
Middle East Model
Russian Model
Saudi Arabia Model
Singapore Model
Taiwan Model
Thailand Model
Australian /
New Zealand Model
PX Model
BDP-S380
System
Laser: Semiconductor laser
Inputs and outputs
(Jack name:
Jack type/Output level/Load impedance)
LINE OUT R-AUDIO-L::
Phone jack/2 Vrms/10 kilohms
DIGITAL OUT (COAXIAL):
Phono jack/0.5 Vp-p/75 ohms
HDMI OUT:
HDMI 19-pin standard connector
COMPONENT VIDEO OUT
(Y, P
B, P R
) :
Phono jack/Y: 1.0 Vp-p/
P
B , PR : 0.7 Vp-p/75 ohms
LINE OUT VIDEO:
Phono jack/1.0 Vp-p/75 ohms
LAN (100):
100BASE-TX Terminal
USB:
USB jack Type A (For connecting a USB memory,
memory card reader,digital stil camera and digital
video camera)
All model (REAR USB)
BDP-BX38/S380/S383 (FRONT USB)
General
Power requirements:
120V AC, 60
220 – 240V AC, 50/60Hz (AEP,UK, AUS,RUS,CN)
110 – 240V AC, 50/60Hz (PX,E,AR,BR,SP,TH,EA,KS,IN)
110V AC, 60Hz (TW)
Power consumption:
18 W (BDP-S380/S383/BX38)
16 W (BDP-S280)
Dimensions (approx.):
430 mm × 199 mm × 36mm
7 in. × 7
(1
(width/depth/height) incl. projecting parts
Mass (approx.):
Operating temperature:
5 ºC to 35 ºC(41 F to 95 F)
Operating humidity:
25 % to 80 %
Supplied accessories
• Audio/video cable (phono plug ×3) (1)
(Except AEP,UK,E,AR,SP,TH,CN,IN,TW)
LAN cable
• (1) (BDP-S380 : TW only)
• HDMI cable (1) (Except AEP,UK,AUS,US,CND,PX,RUS)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2)
Specifications and design are subject to change
without notice.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks. ENERGY STAR is a
registered mark owned by the U.S. government.
(BDP-S280:US/S380:US/BX38:US)
gk6..1
Hz (US, CND)
4
/5 in. ×
º
1
7
/16 in.)
º
TM
9-890-744-11
BLU-RAY
Sony Corporation
Home Entertainment Business Group
DISC / DVD PLAYER
2010L6900-1
© 2010.12
Published by Design Engineering Dept.
BDP-BX38/S280/S380/S383
1.5k
Ω
0.15µF
(0.75 V)
Parts on Set
Earth Ground
WARNING
To reduce the risk of re or electric
shock, do not expose this apparatus
to rain or moisture.
To avoid electrical shock, do not
open the cabinet. Refer servicing to
quali
ed personnel only.
Batteries or batteries installed
apparatus shall not be exposed to
excessive heat such as sunshine,
re or the like.
CAUTION
The use of optical instruments with
this product will increase eye
hazard. As the laser beam used in
this Blu-ray Disc/DVD player is
harmful to eyes, do not attempt to
disassemble the cabinet.
Refer servicing to quali
ed
personnel only.
Notice for customers in the
United Kingdom and
Republic of Ireland
A molded plug complying with
BS1363 is
tted to this equipment
for your safety and convenience.
Should the fuse in the plug
supplied need to be replaced, a 5
AMP fuse approved by ASTA or
BSI to BS1362, (i.e., marked with
or mark) must be used.
If the plug supplied with this
equipment has a detachable fuse
cover, be sure to attach the fuse
cover after you change the fuse.
Never use the plug without the fuse
cover. If you should lose the fuse
cover, please contact your nearest
Sony service station.
Disposal of Old Electrical
& Electronic Equipment
(Applicable in the
European Union and
other European countries
with separate collection
systems)
This symbol on the product or on
its packaging indicates that this
product shall not be treated as
household waste. Instead it shall be
Disposal of was
batteries (appli
the European Un
other Europea
with separate
systems)
This symbol on the
the packaging in
battery provided
shall not be trea
waste.
By ensuring thes
disposed of correctl
prevent potentia
consequences fo
and human heal
otherwise be cau
inappropriate wa
battery. The recyc
materials will he
natural resource
In case of product
performance or
reasons require
connection with
battery,
this batte
replaced by qua
only.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
1. Check
of your repair for unsoldered or poorly-soldered
the
area
connections. Check the entire board surface for solder splashes
and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched”
or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to
the customer and recommend their replacement.
4. Look for parts which, though functioning, show obvious signs
of deterioration. Point them out to the customer and recommend
their replacement.
5. Check the line cord for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.
6. Check the B+ voltage to see it is at the values specified.
7. Check the
antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage. Check
leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers' instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of a
passive VOM that is suitable. Nearly all battery operated digital
multimeters that have a
2V AC range are suitable. (See Fig. A)
CAUTION:
The use of optical instrument with this product will increase eye
hazard.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation exposure.
Fig. A. Using an AC voltmeter to check AC leakage.
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 ENIL DETTOD RO
WITH MARK 0 NI DNA SMARGAID CITAMEHCS EHT NO
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. RE-
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
LES CO
DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
MPOSANTS IDENTIFIÉS PAR UNE MARQUE 0
WARNING!!
À LA SÉCURITÉ!
For customers in European countries
This appliance is classied as a CLASS 1 LASER
This label is located on the laser
protective housing inside the
enclosure.
product. The CLASS 1 LASER PRODUCT
MARKING is located on the rear exterior.
Unleaded solder
Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead.
EROM FO ECNATSID A MORF EVRESBO OT ERUS EB
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
ESOHW STRAP YNOS HTIW STNENOPMOC ESEHT ECALP
RO LAUNAM SIHT NI NWOHS SA RAEPPA SREBMUN TRAP
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ETSIL AL TE SEUQITAMÉHCS SEMMARGAID SEL RUS
ED ÉTIRUCÉS AL RUOP SEUQITIRC TNOS SECÈIP SED
STNASOPMOC SEC RECALPMER EN .TNEMENNOITCNOF
TNOS SORÉMUN SEL TNOD YNOS SECÈIP SED RAP EUQ
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
– 2 –
1. SERVICE NOTE
BDP-BX38/S280/S380/S383
TABLE OF CONTENTS
egaP eltiT noitceS egaP eltiT noitceS
1-1. Disc Removal Procedure If The Tray Cannot Be
Ejected (Forced Ejection) ............................................. 1-1
1-2. Work when optical device are replaced ........................ 1-1
1-3. Test Disc ....................................................................... 1-2
1-3-1. Operation and Display ............................................. 1-2
1-3-2. Main functions ......................................................... 1-9
1-4. Drive Repairing............................................................. 1-15
1-4-1. Preparation .............................................................. 1-15
1-4-2. Checking Flow ~ Drive (BU) section ~ .................... 1-15
1-4-3. BU Check Flow [zz] ~ .............................................. 1-16
1-4-4. BU (Optical Block) Repair Guide ............................. 1-16
1-4-5. BU Adjustment Flow [yy] ~ ...................................... 1-17
1-4-6. KEM-470AAA/C2RP Packing Spec. ....................... 1-17
1-4-7. KEM-470AAA/C2RP Packing .................................. 1-18
1-4-8. BU Data Decode Jig ................................................ 1-19
1-4-9.
1-4-10. Laser Caution Label ................................................ 1-20
Loading For Service
1-5. Rear Panel Assembly Caution...................................
.........................................
1-20
1-23E
2. DISASSEMBLY

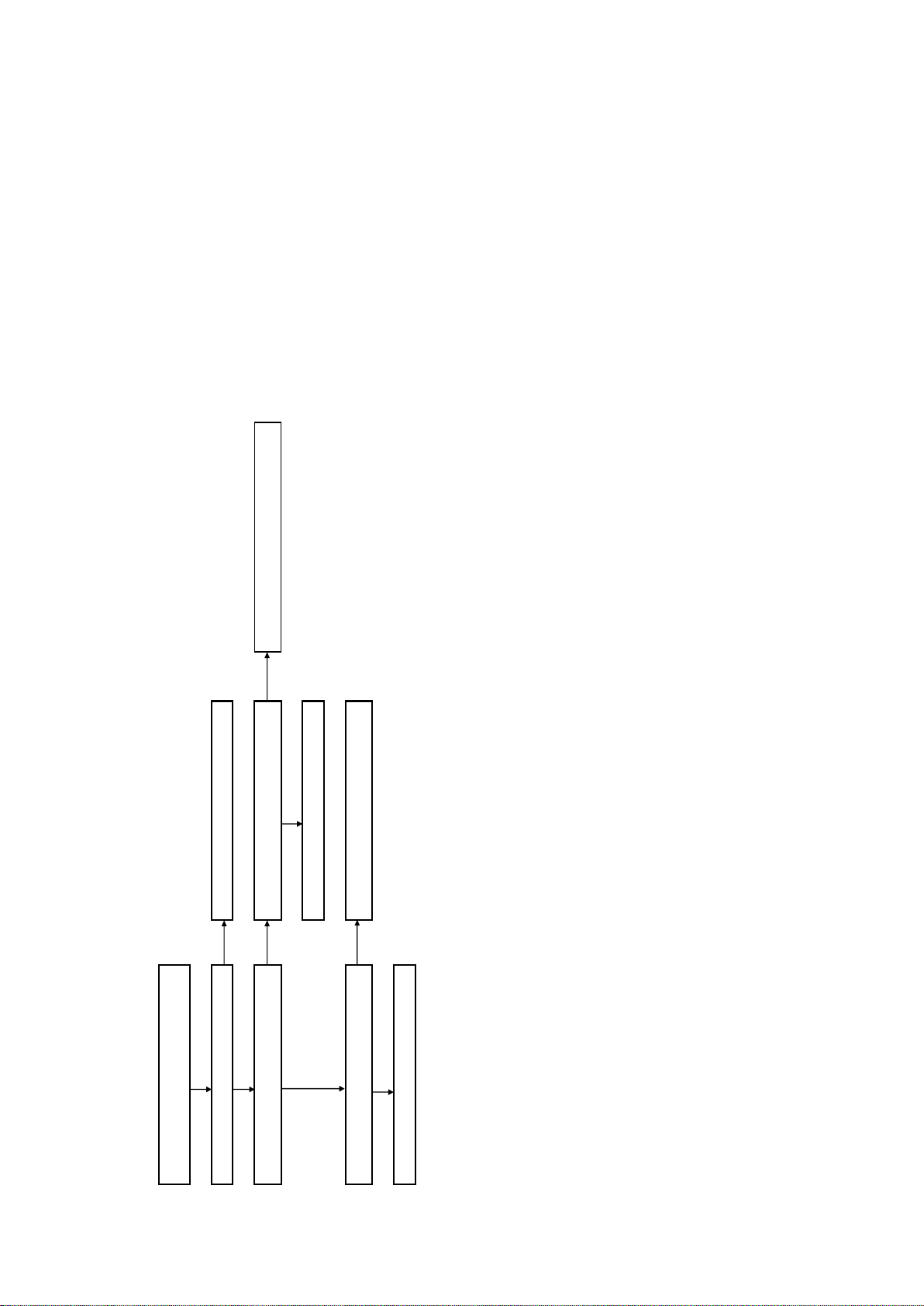

2-1. Disassembly Flow ........................................................ 2-1
2-2. Upper Case .................................................................. 2-1
2-3. Tray Cover Assy .......................................................... 2-2
2-4. Front Panel Assy, FL-203 and IF-170 Board .... ............... 2-2
2-5. Rear Panel Block ......................................................... 2-3
2-6. MB-138 Board ............................................................. 2-3
2-7. BD Drive
2-8. Switching Regulator ..................................................... 2-5E
2-9. Circuit Boards Location ................................................ 2-5E
.....................................................................
.. 2-4

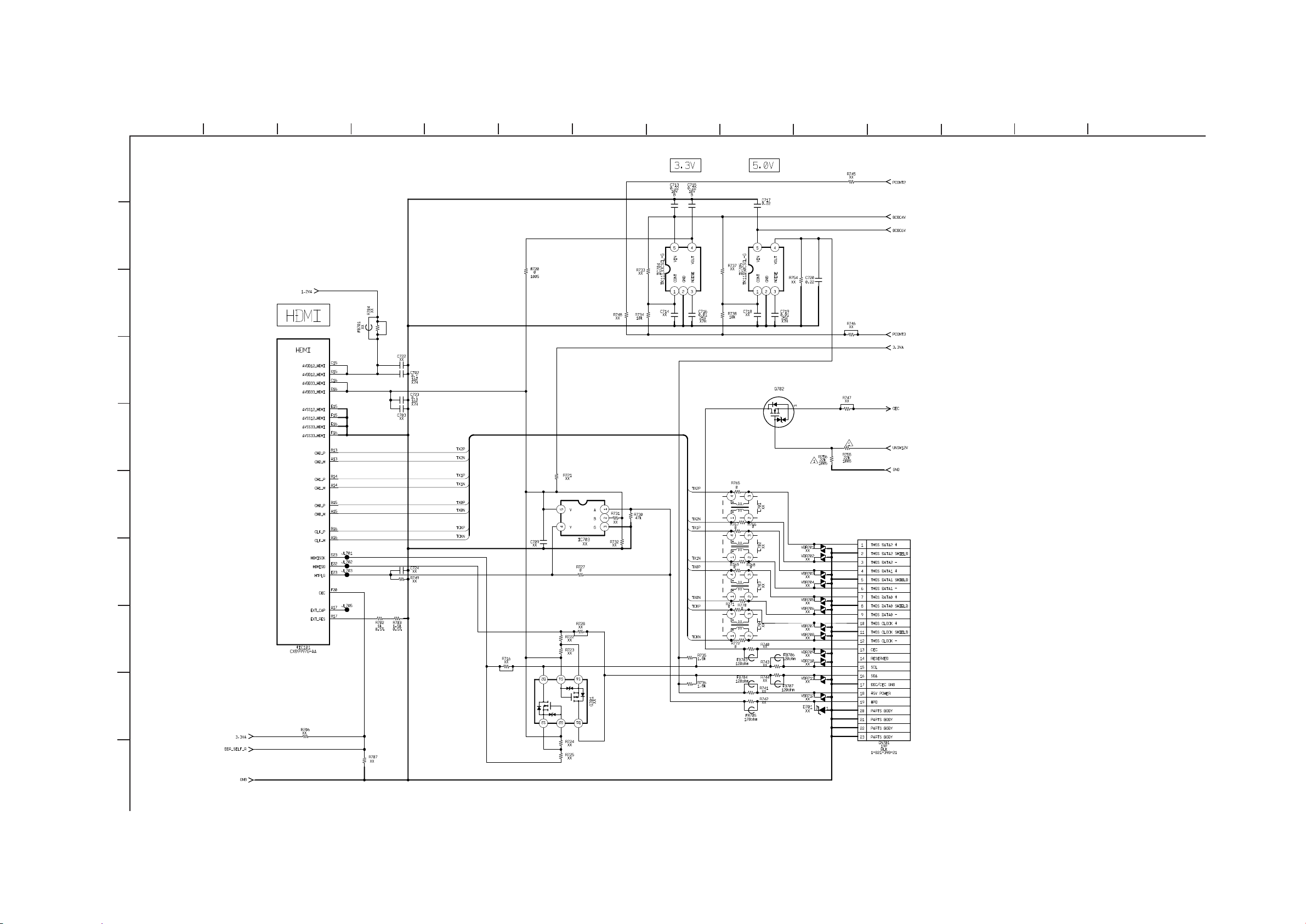

4-12. MB-138 Board (HDMI)
Schematic Diagram (7/14)............................................ 4-12

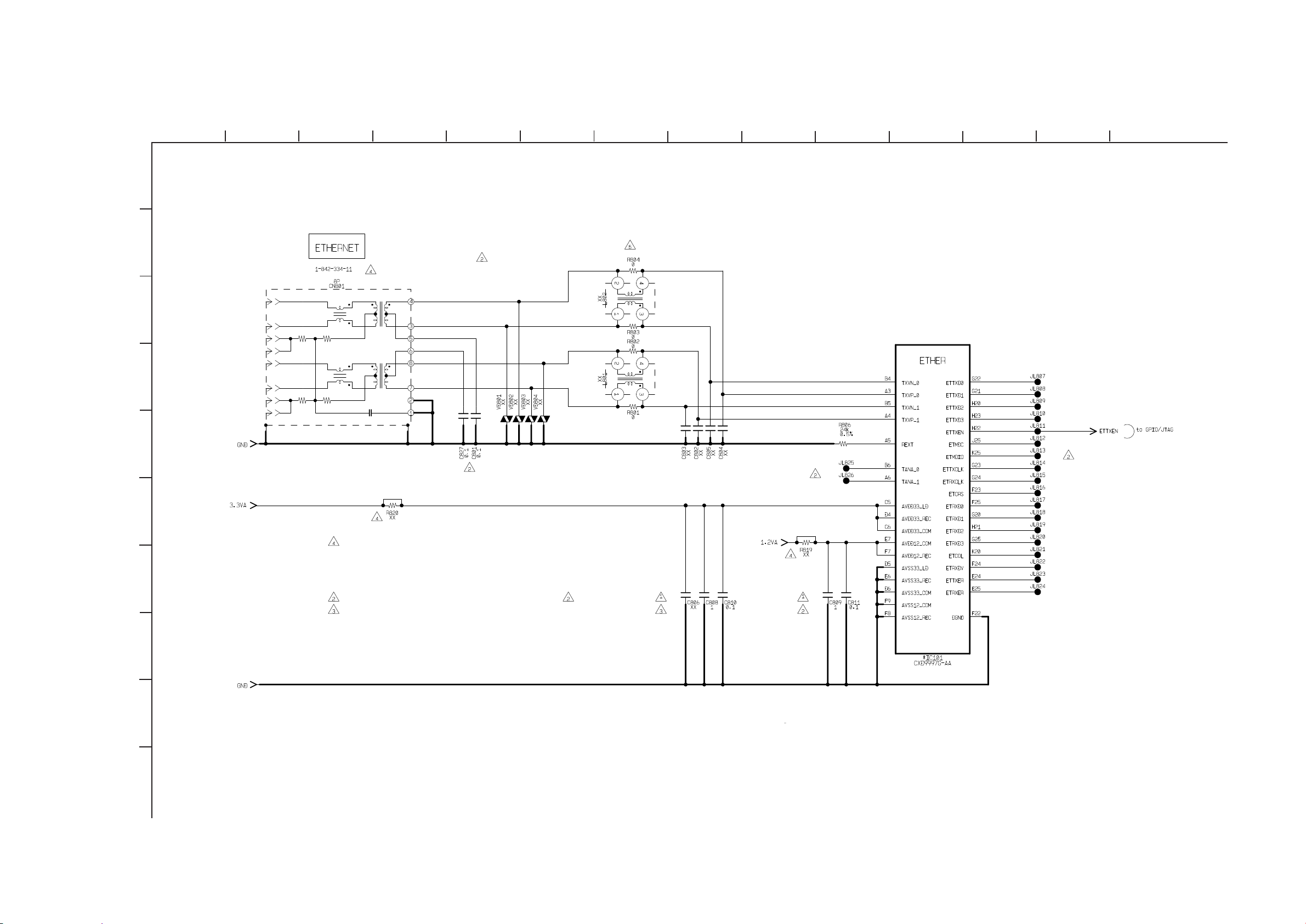

4-13. MB-138 Board (ETHERNET)
Schematic Diagram (8/14)............................................ 4-13

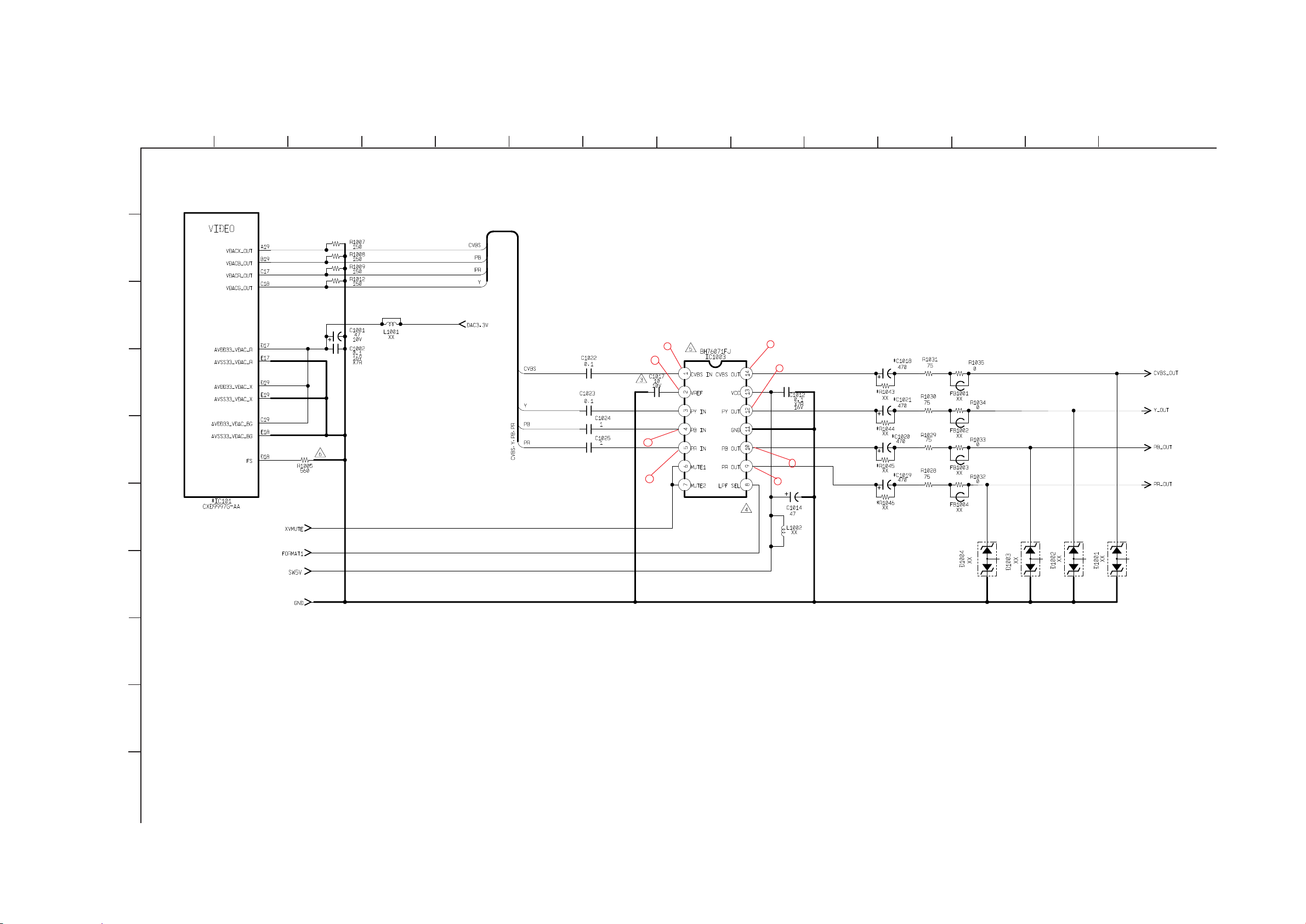

4-14. MB-138 Board (AUDIO)
Schematic Diagram (9/14)............................................ 4-14
4-15. MB-138 Board (VIDEO)
Schematic Diagram (10/14).......................................... 4-15
4-16. MB-138 Board (GPIO/JTAG)
Schematic Diagram (11/14) .......................................... 4-16
4-17. MB-138 Board (IF CON)
Schematic Diagram (12/14).......................................... 4-17

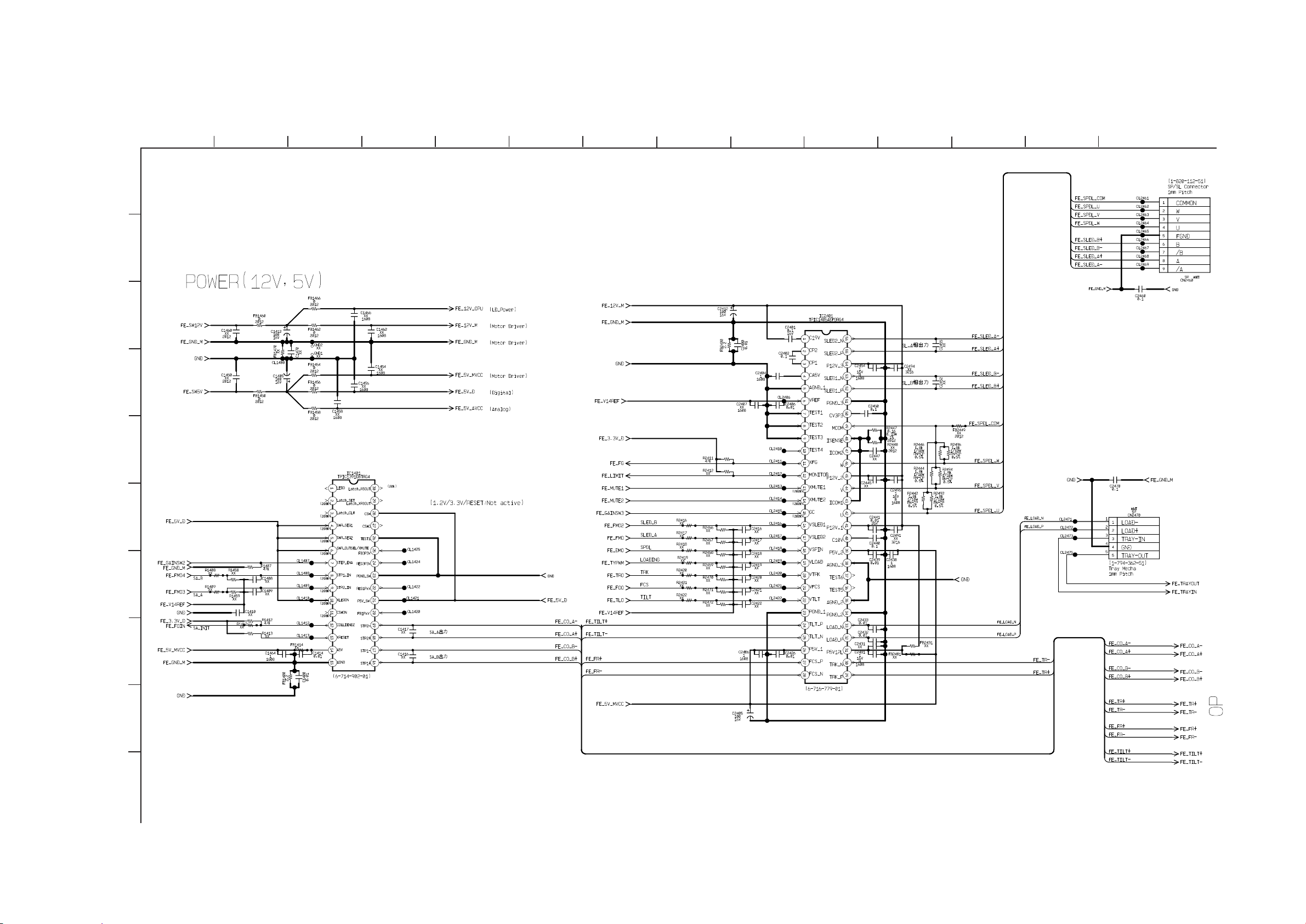

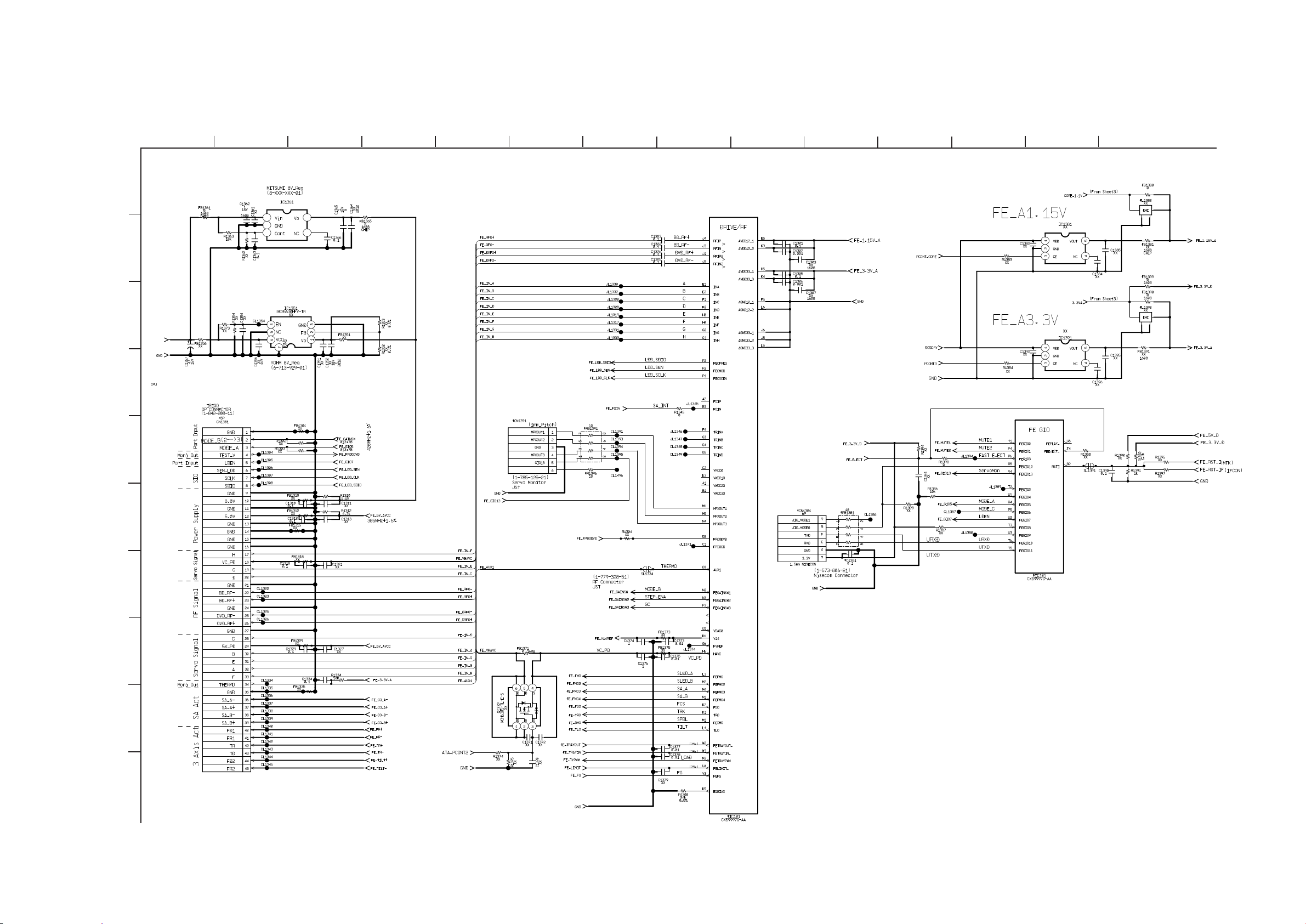

4-18. MB-138 Board (FE_POWER/OP/GIO)
Schematic Diagram (13/14).......................................... 4-18
4-19. MB-138 Board (FE_POWER/MOTOR DRIVE)
Schematic Diagram (14/14) ........................................ 4-19

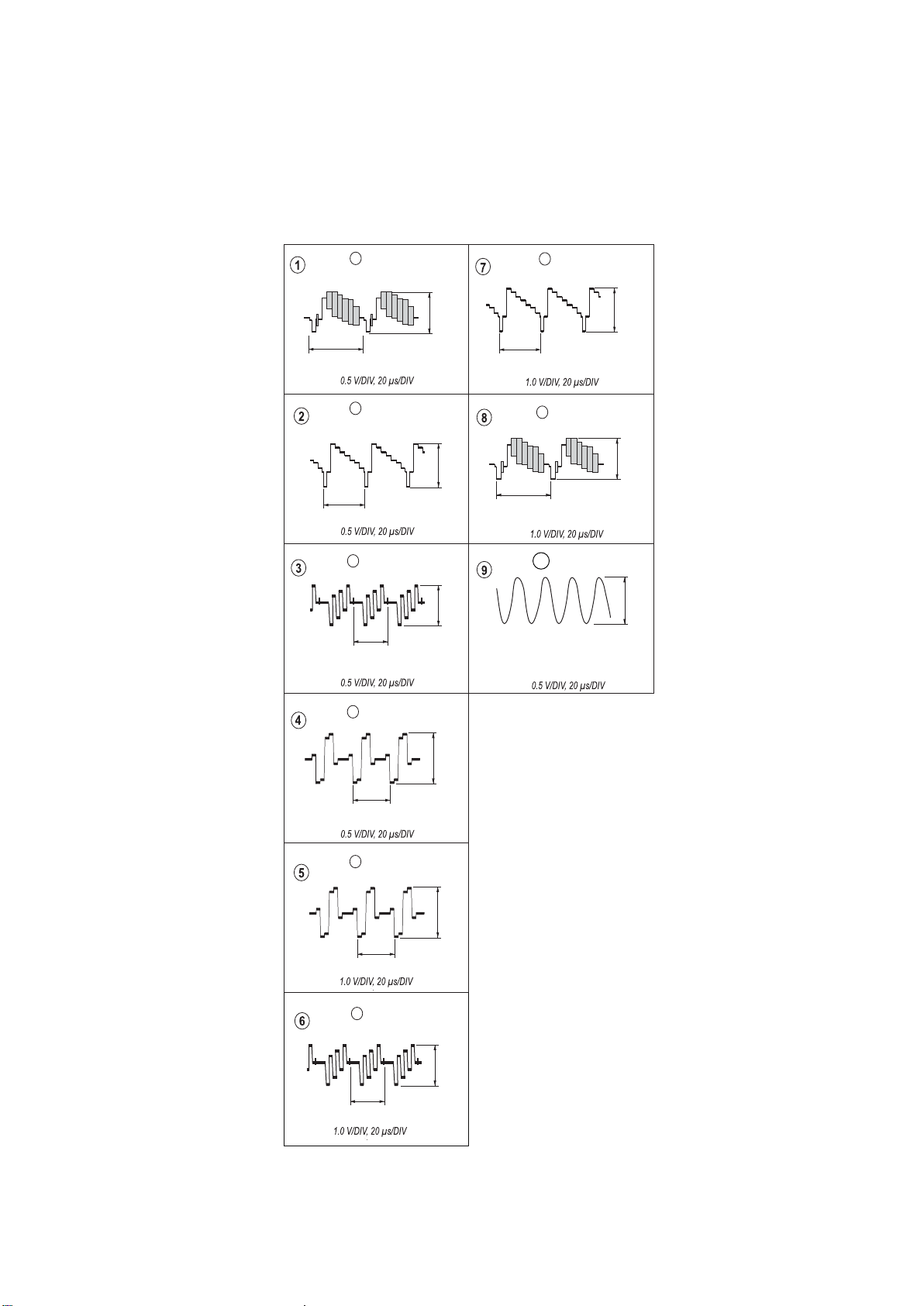

4-20. Waveforms ................................................................... 4-20E
5. PRINTED WIRING BOARDS
5-1. This Note Is Common For Printed Wiring Boards ........ 5-1

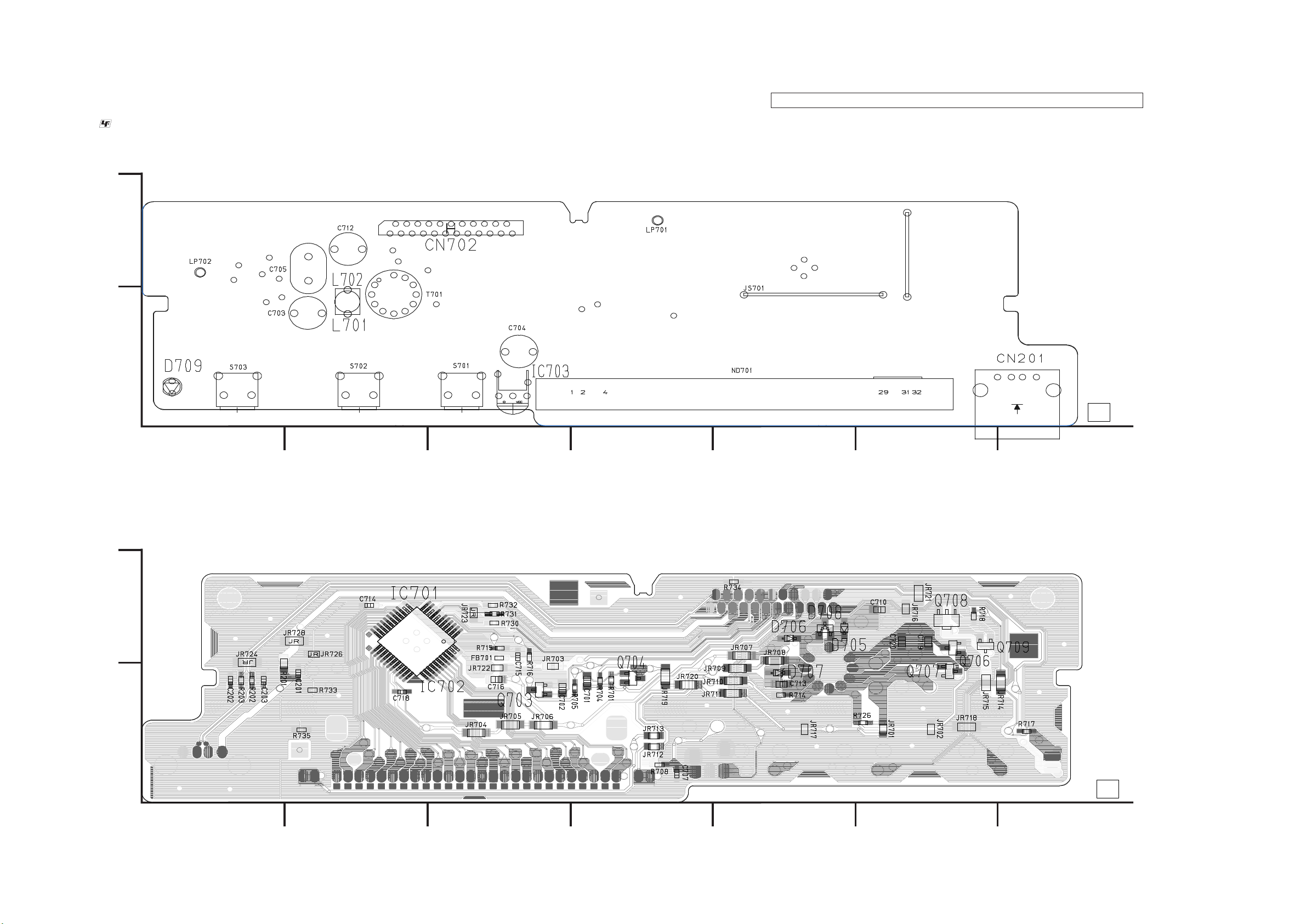

5-2. FL-203 Board (FRONT LEFT) Printed Wiring Board..... 5-2
5-3. IF-170 Board
Printed Wiring Board ...................................................... 5-3

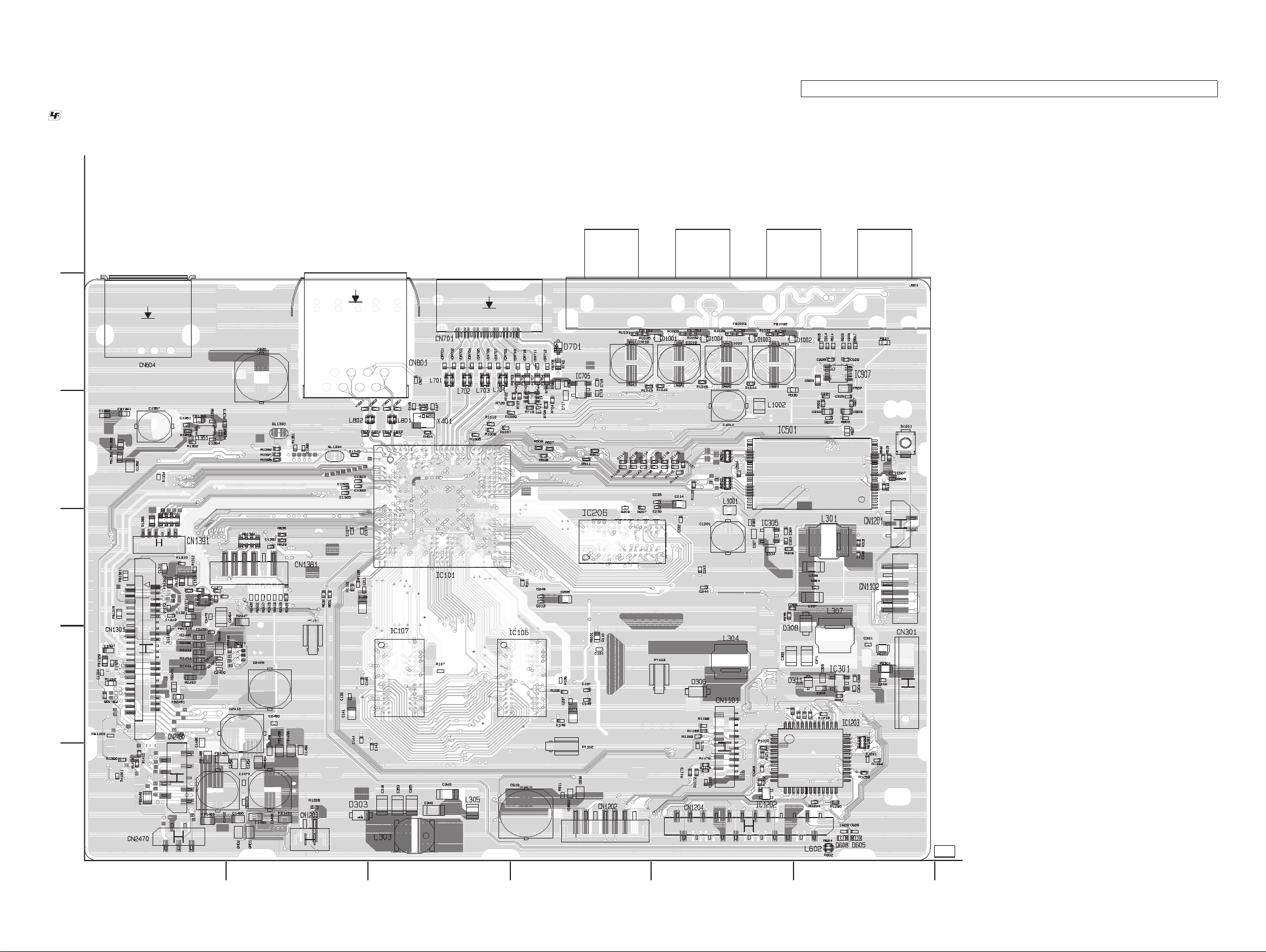

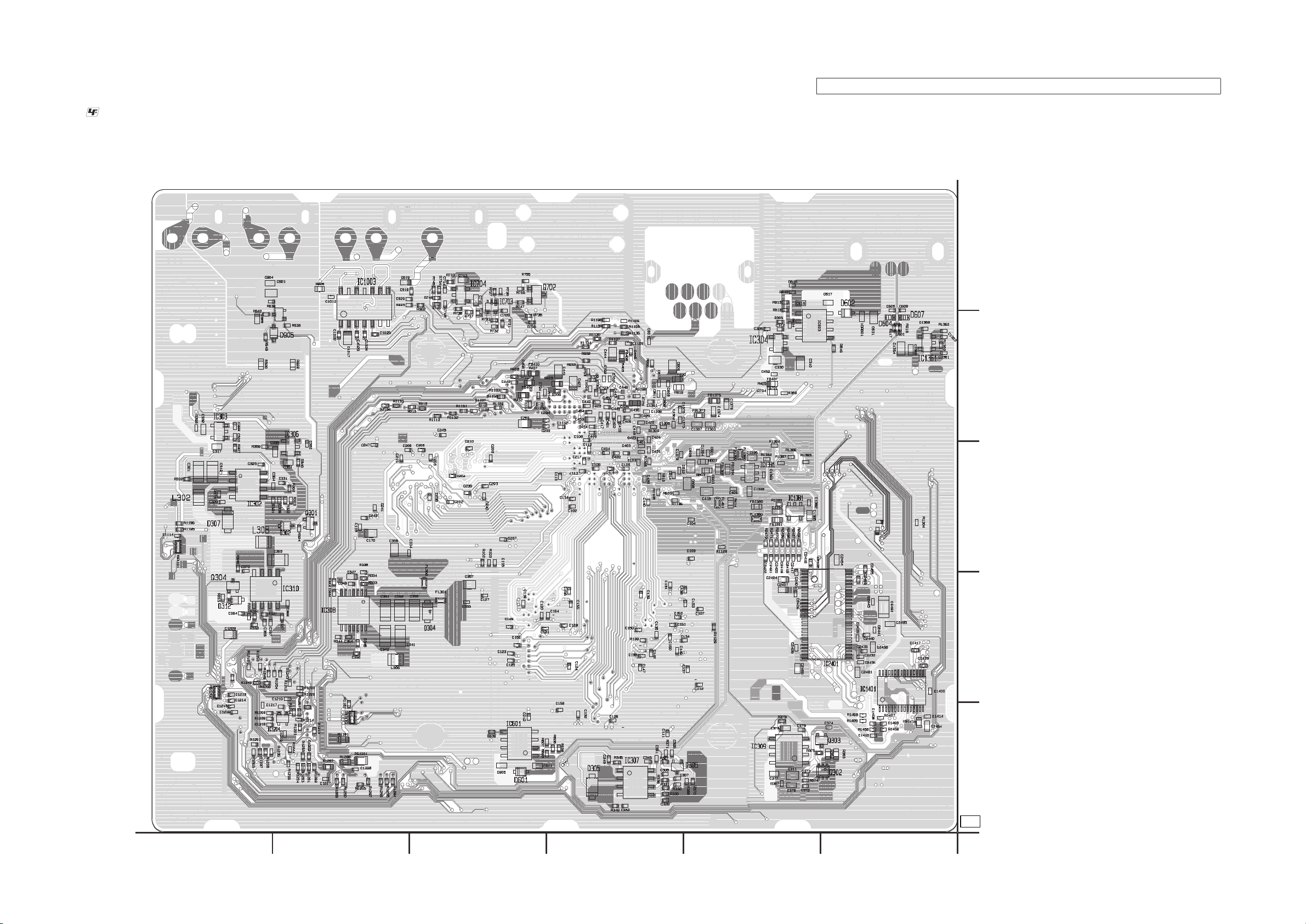

5-4. MB-138 Board(MAIN)
Printed Wiring Board (Side A) ..................................... 5-4
5-5. MB-138 Board (MAIN)
Printed Wiring Board (Side B) ...................................... 5-5E

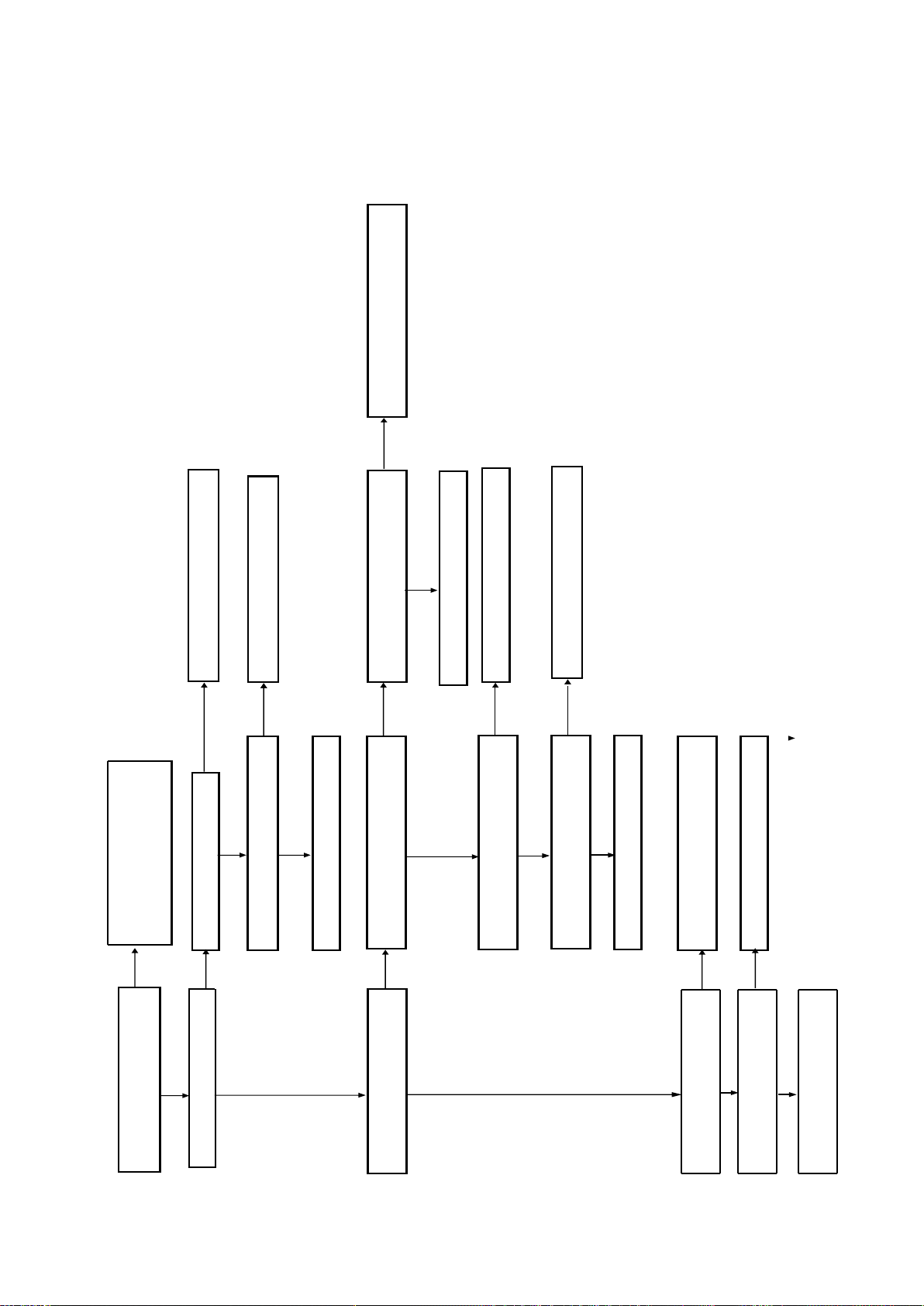

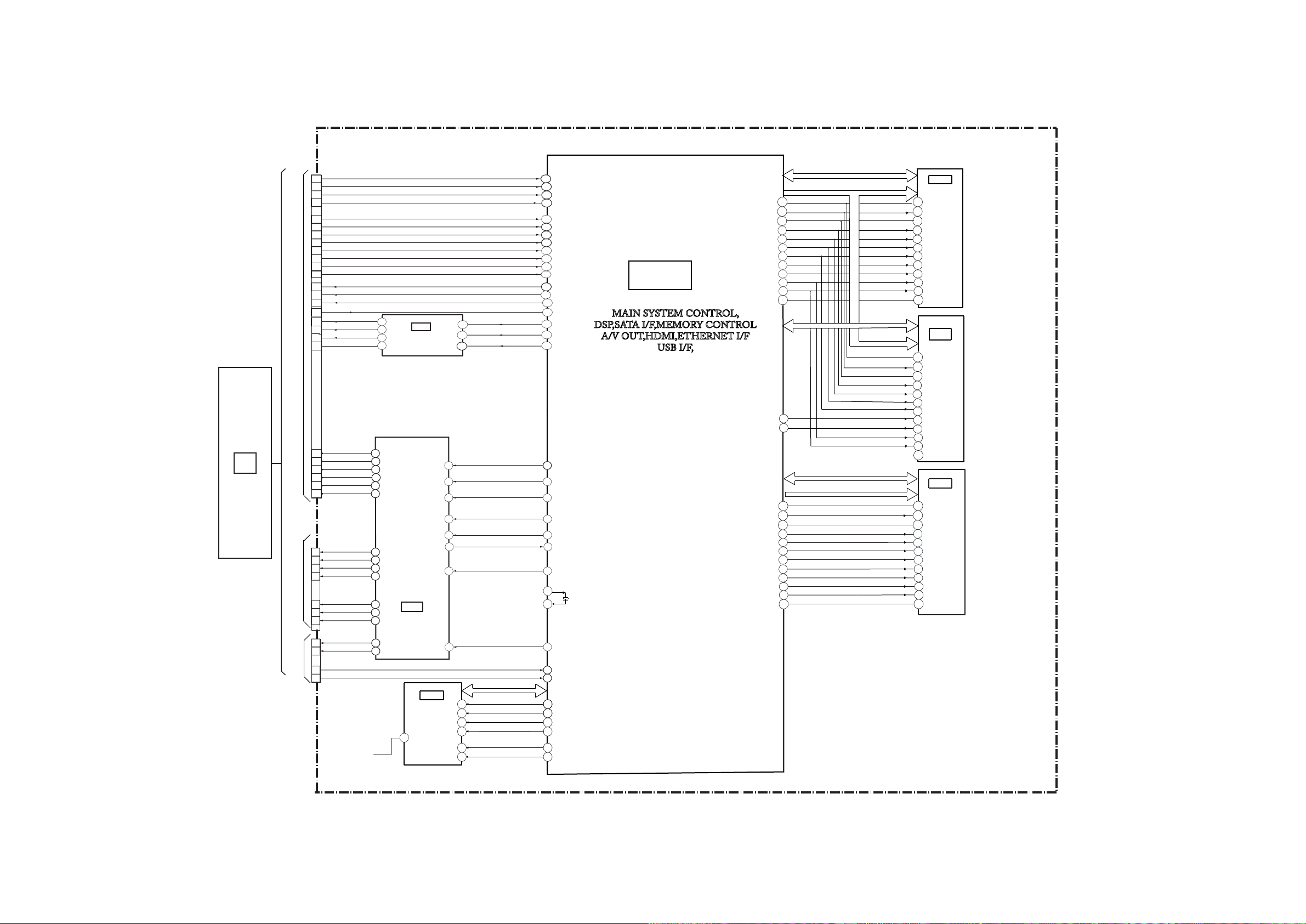

3. BLOCK DIAGRAMS

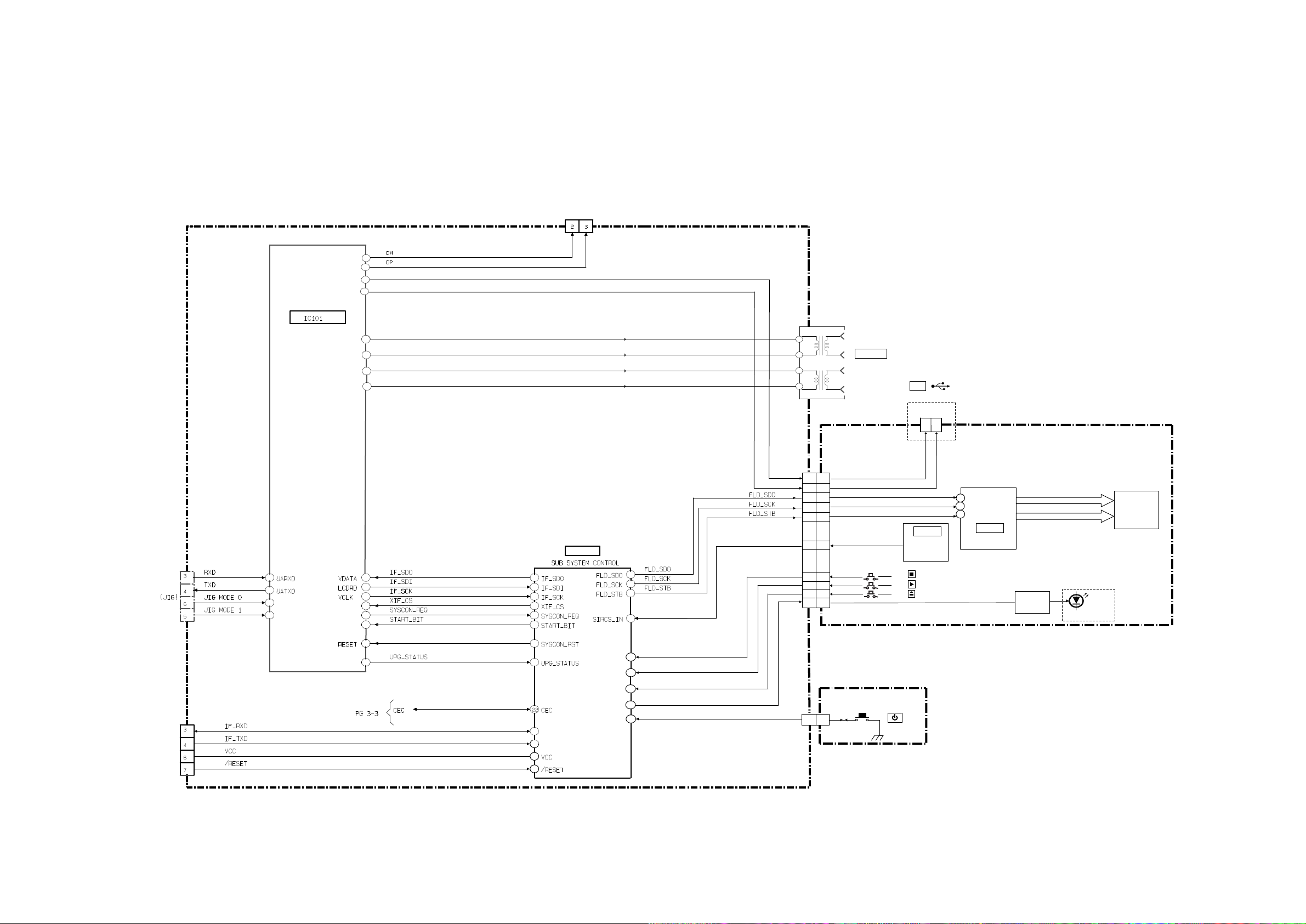

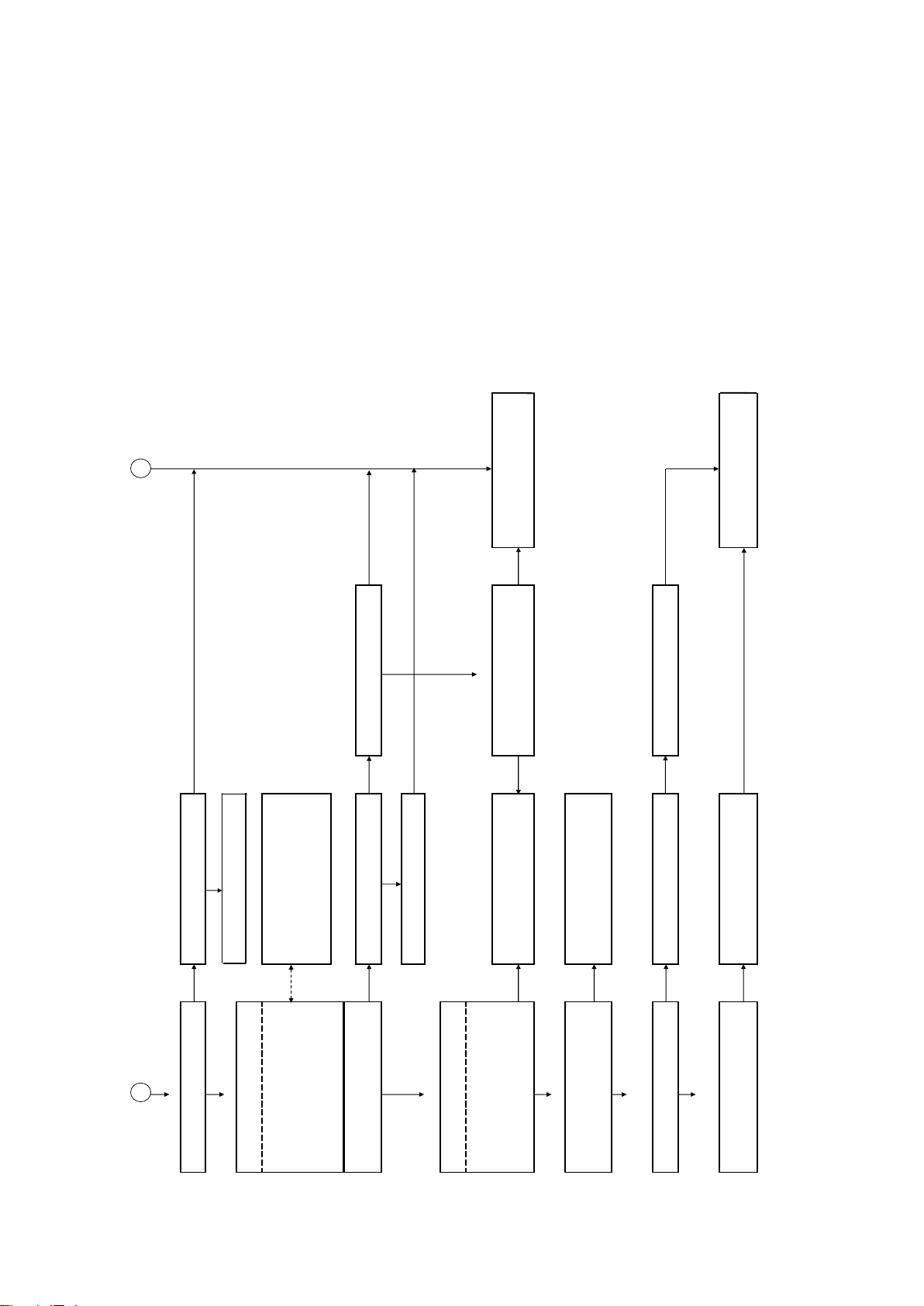

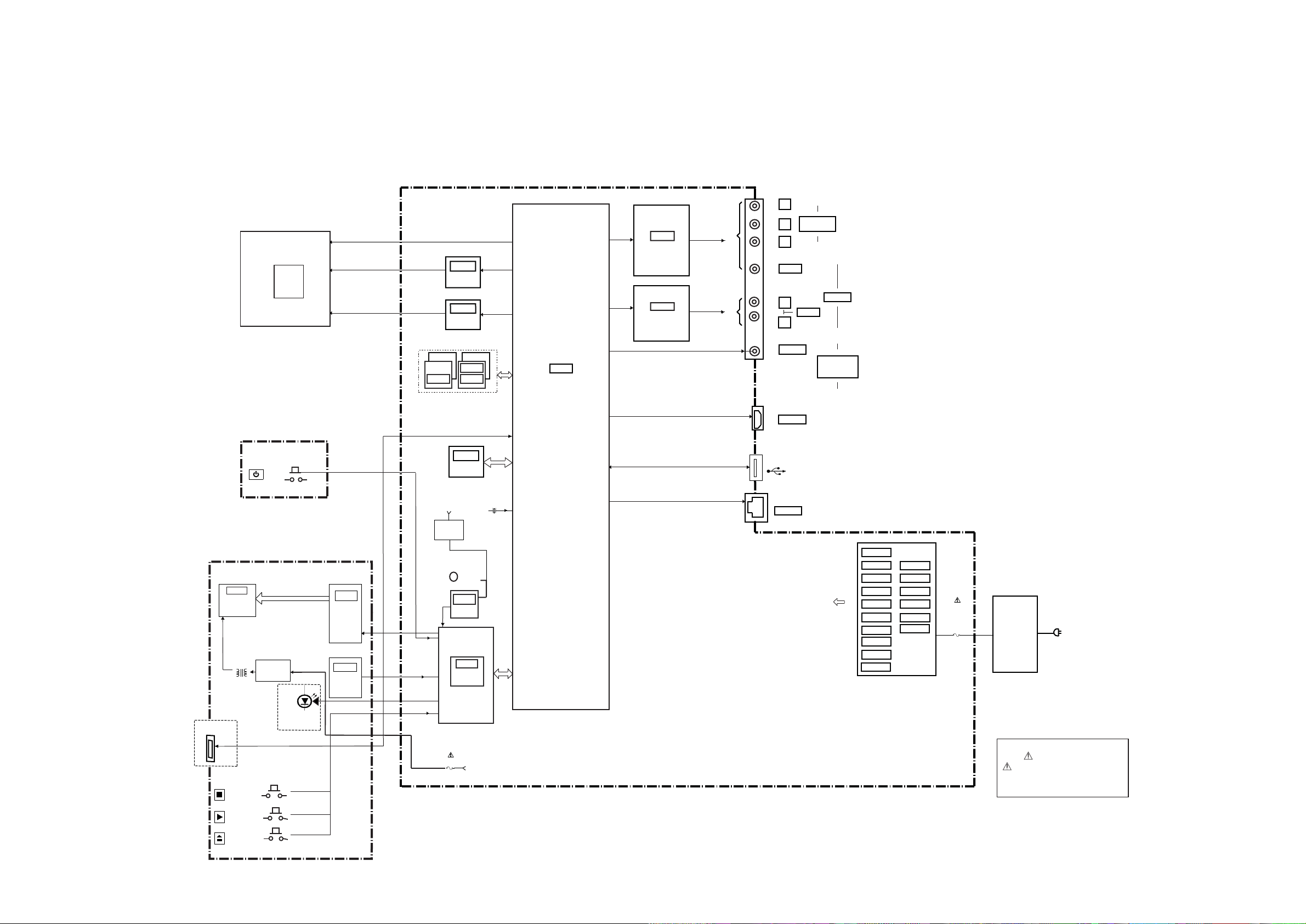

3-1. Overall Block Diagram.................................................. 3-1
3-2. DSP Block Diagram ...................................................... 3-2

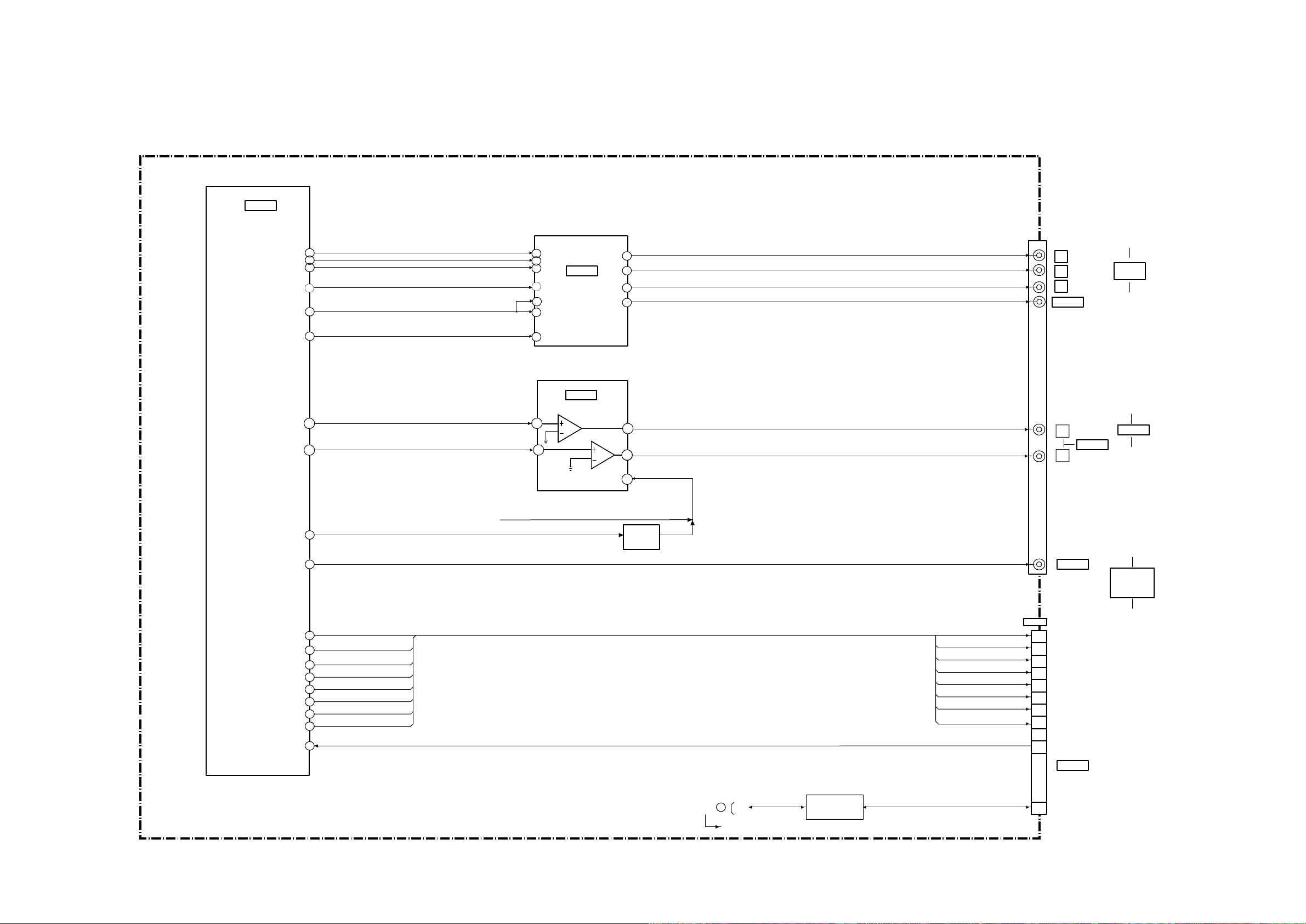

3-3. AV OUT Block Diagram ................................................ 3-3
3-4. USB/ETHER, Block Diagram .................................. 3-4

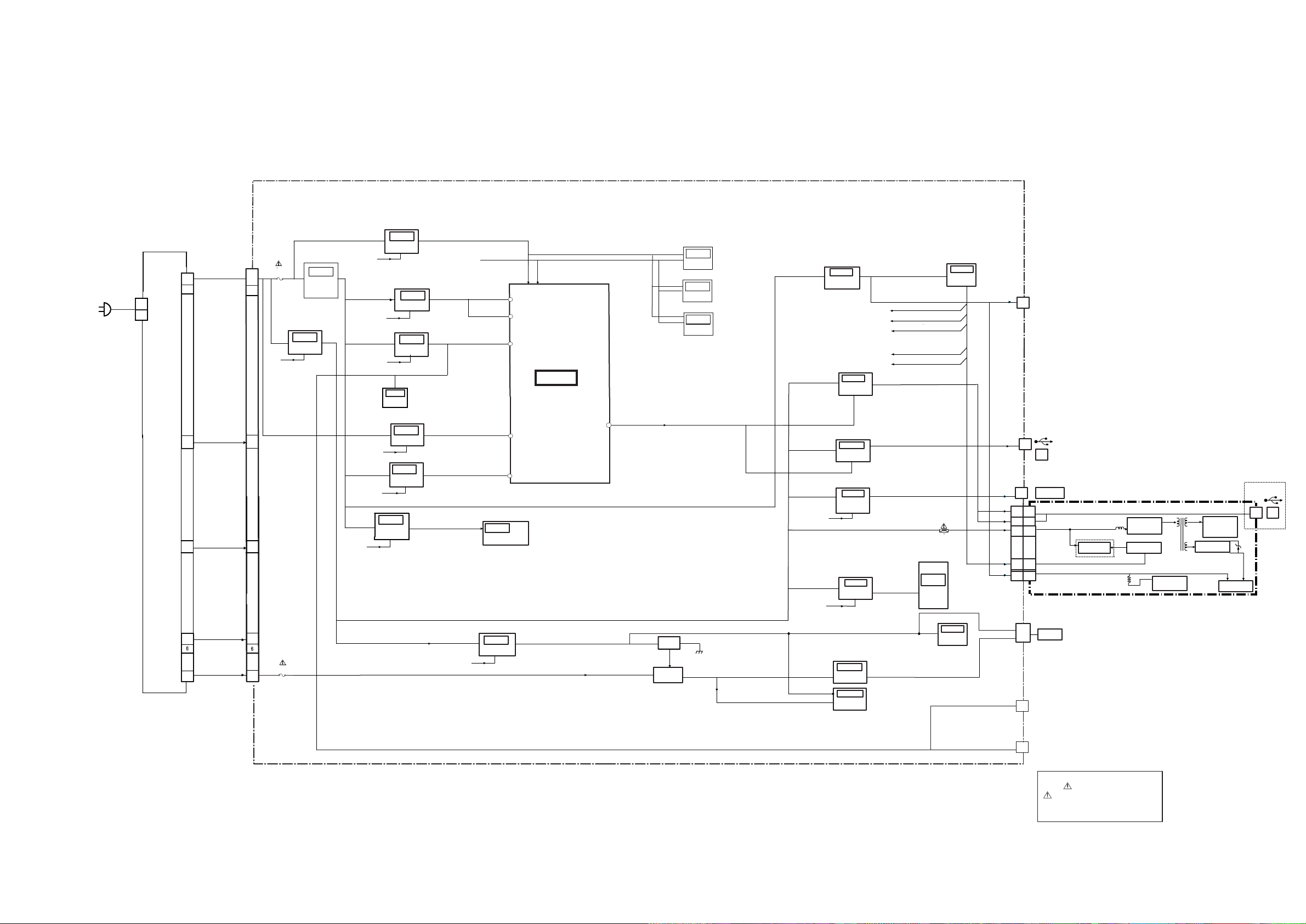

3-5. Power Block Diagram .......................................... 3-5E

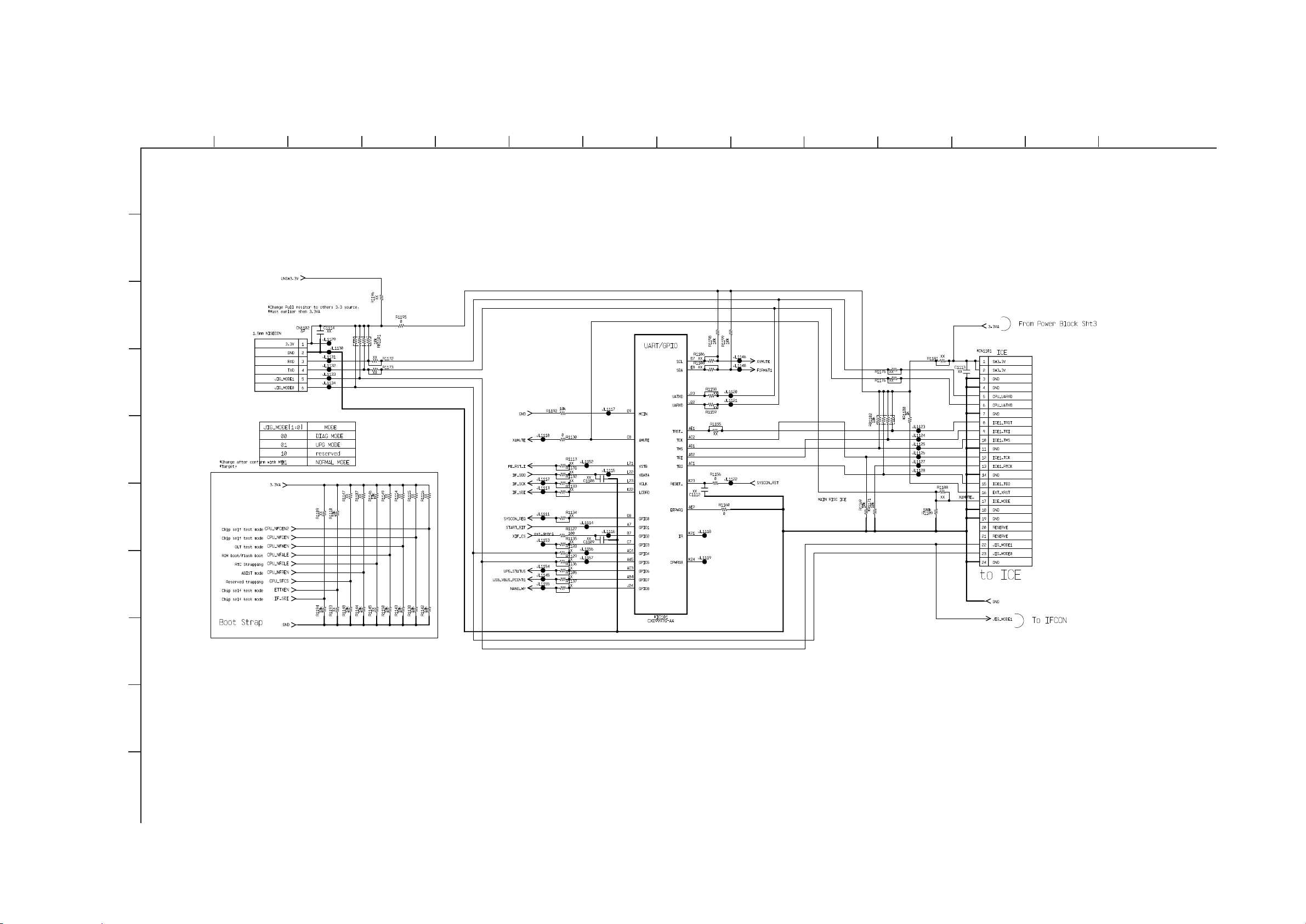

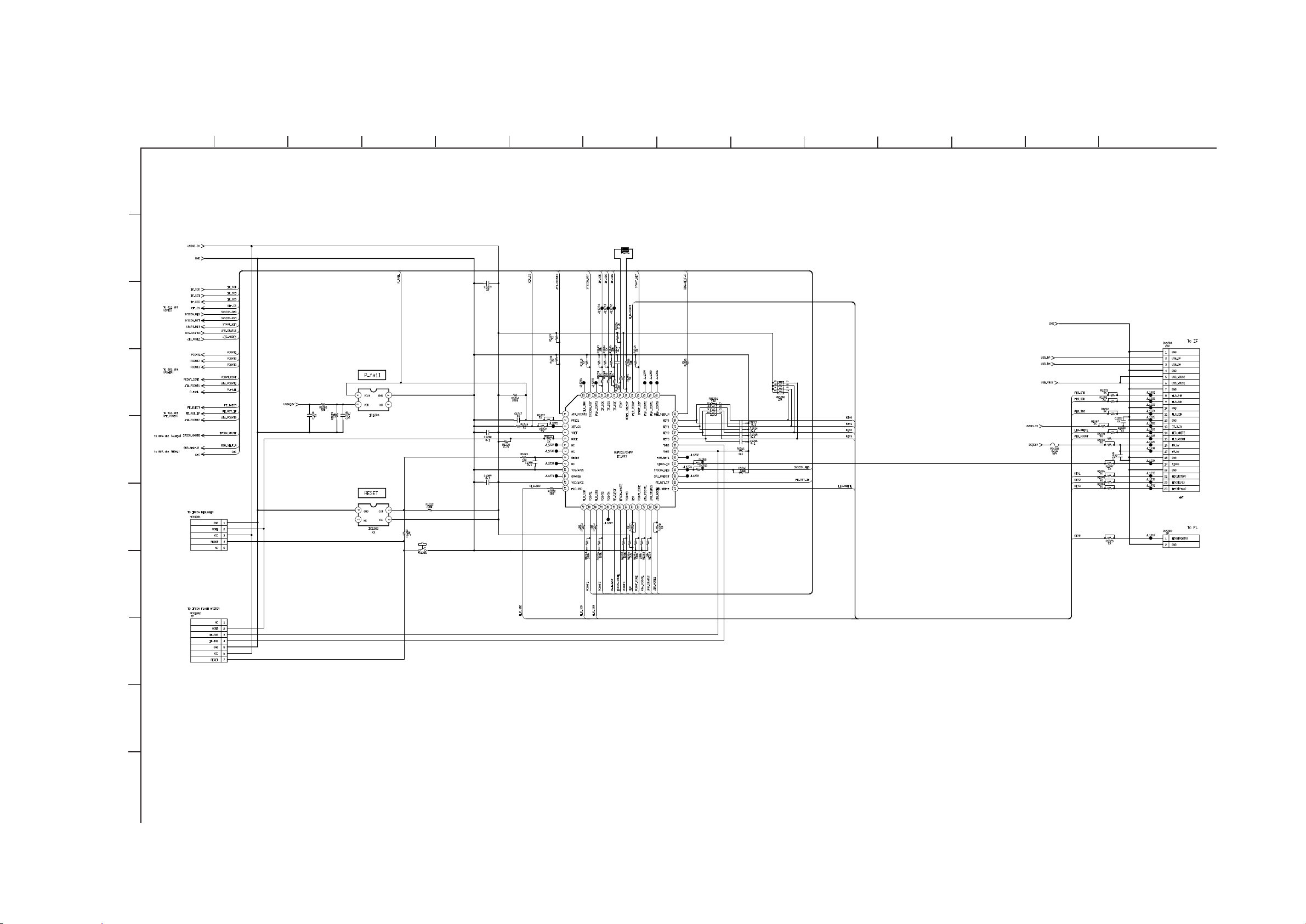

4. SCHEMATIC DIAGRAMS
4-1. This Note Is Common For Schematic Diagrams .......... 4-1

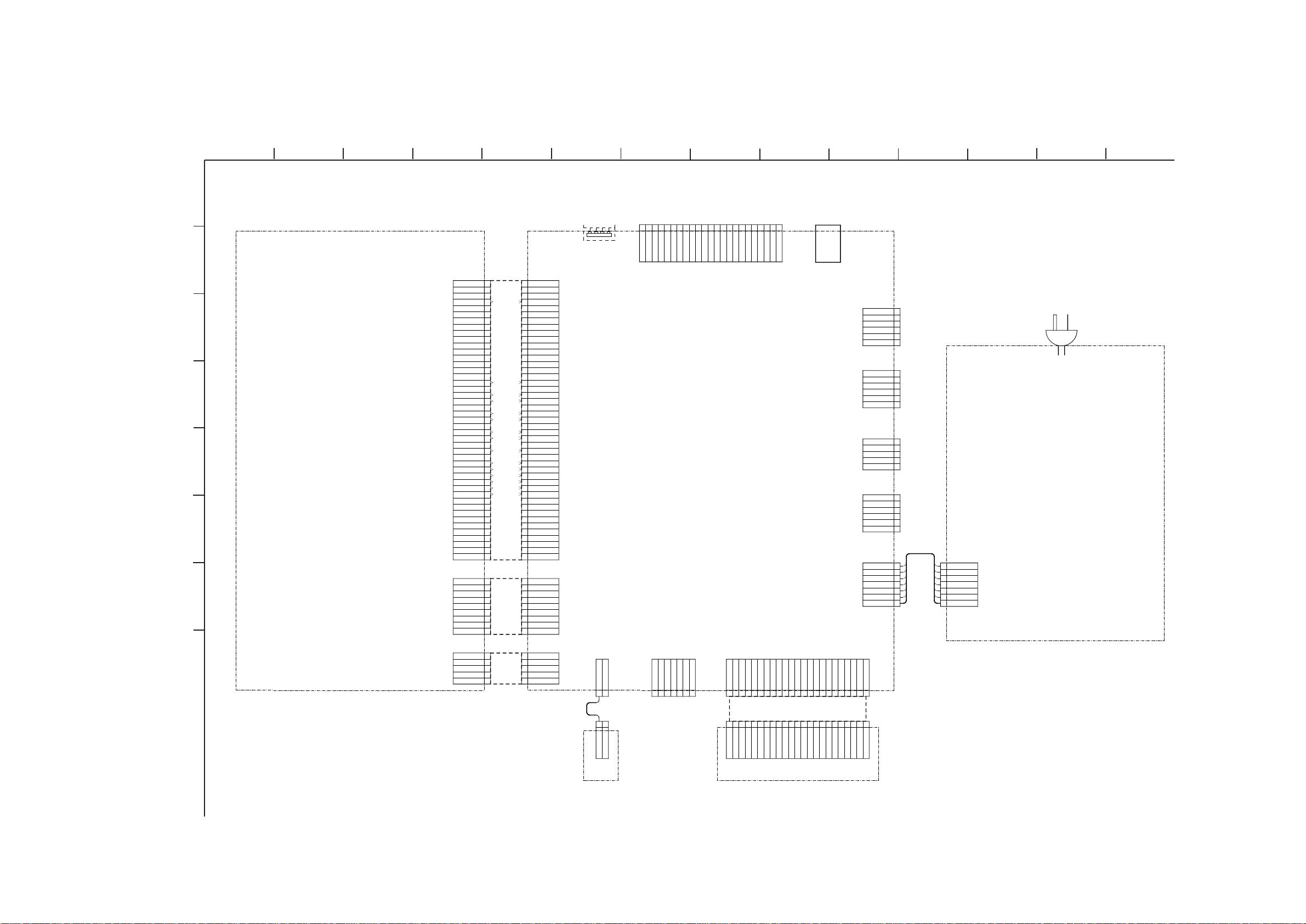

4-2. Frame Schematic Diagram........................................... 4-2
4-3. IF-170 Board (FRONT LEFT) Schematic Diagram ... 4-3
IF-170 Board (USB FRONT) Schematic Diagram ......
4-4.

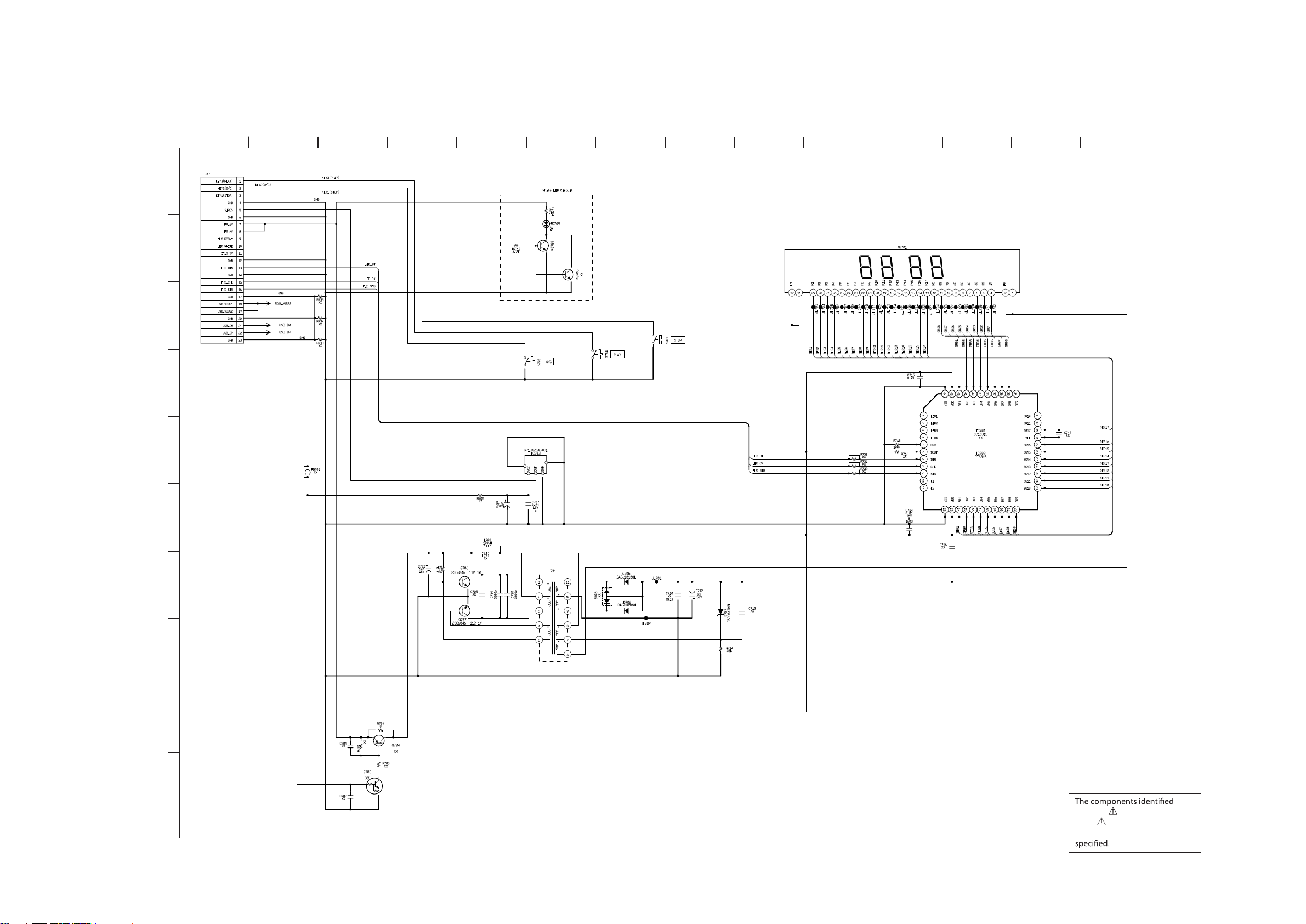

4-5. FL-203 Board (FRONT RIGHT)

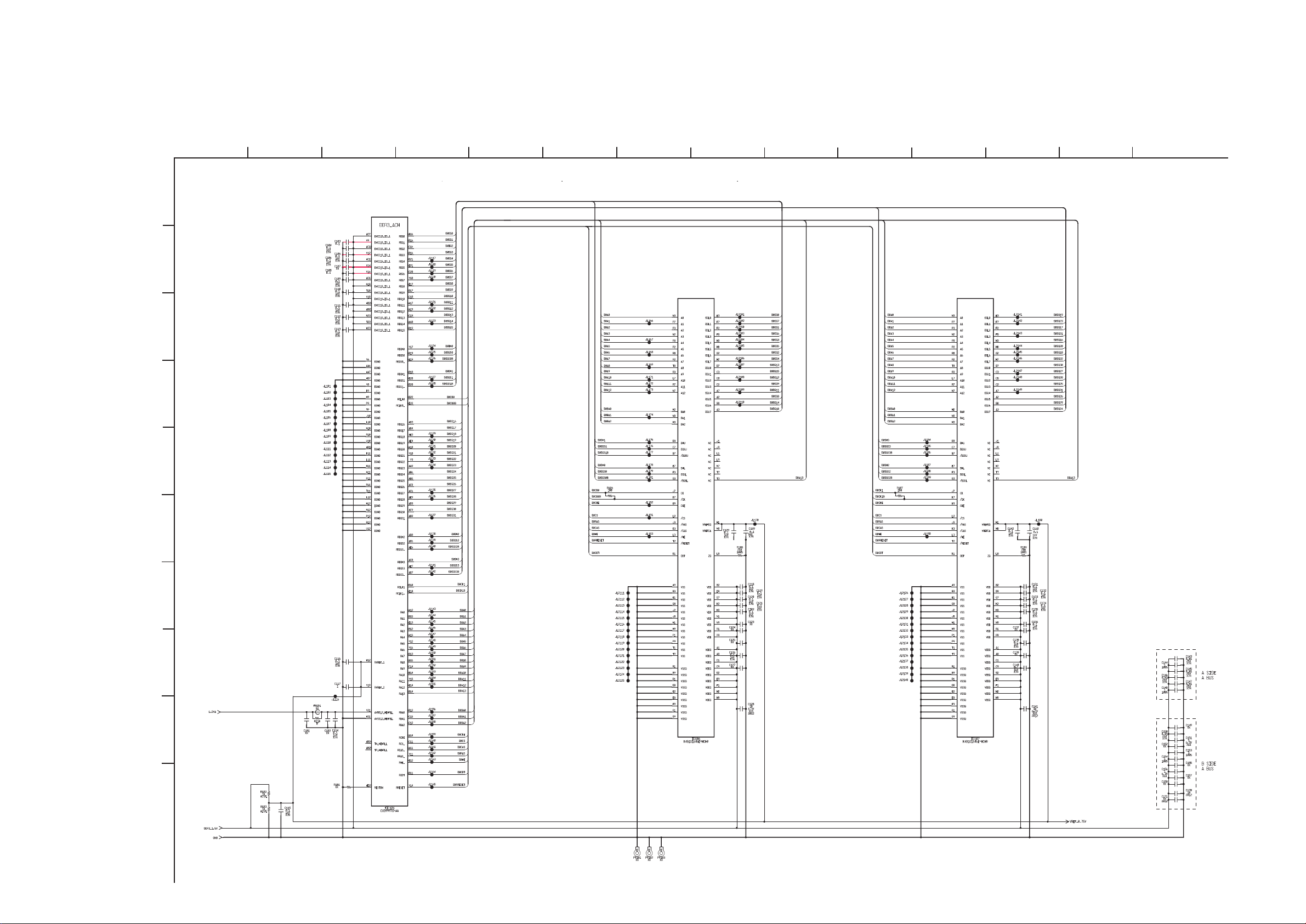

4-6. MB-138 Board (DDR 3 A)
Schematic Diagram (1/14)............................................ 4-6
4-7. MB-138 Board (DDR 3 B)
Schematic Diagram (2/14)............................................ 4-7

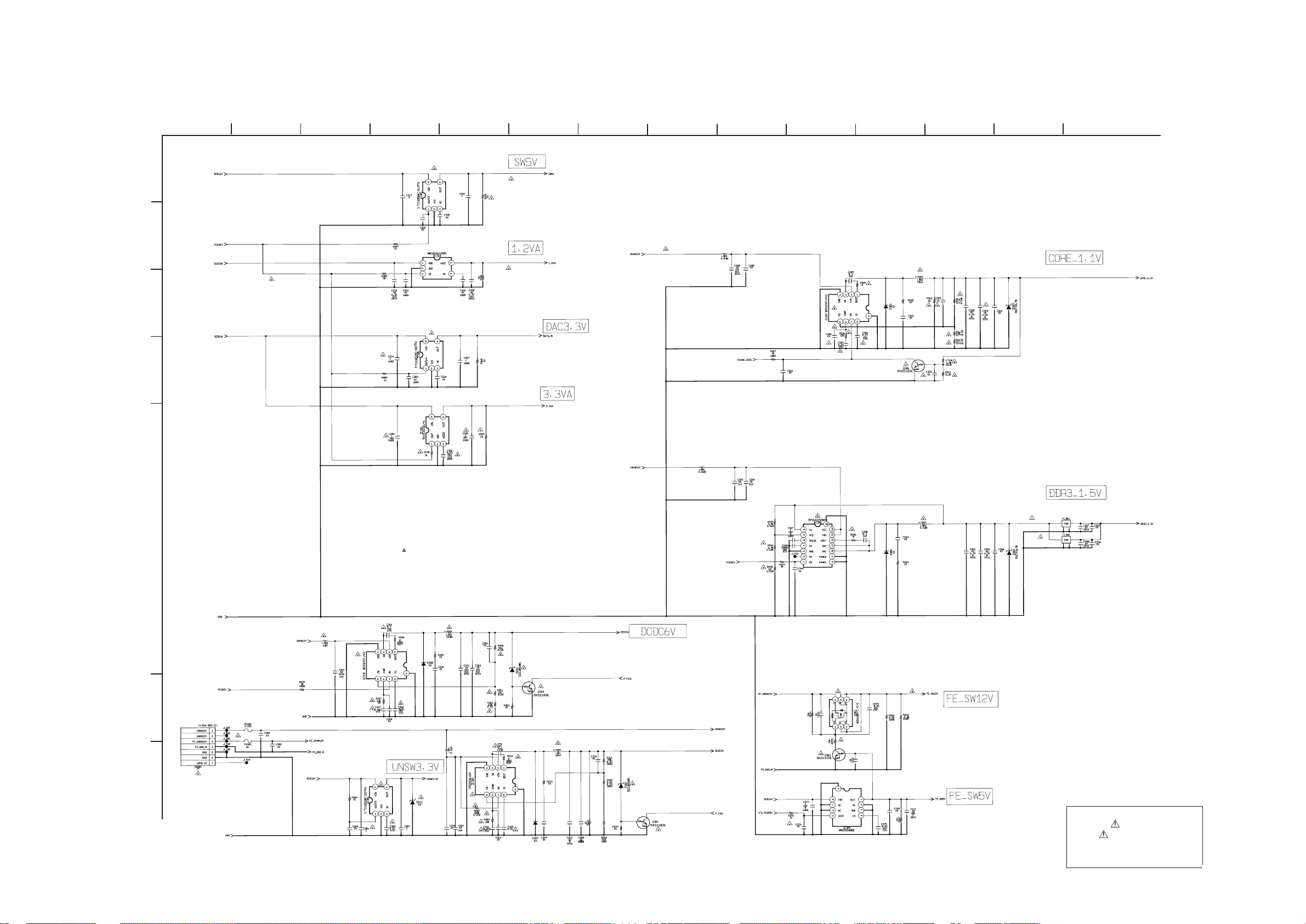

4-8. MB-138 Board (POWER)
Schematic Diagram (3/14)............................................ 4-8

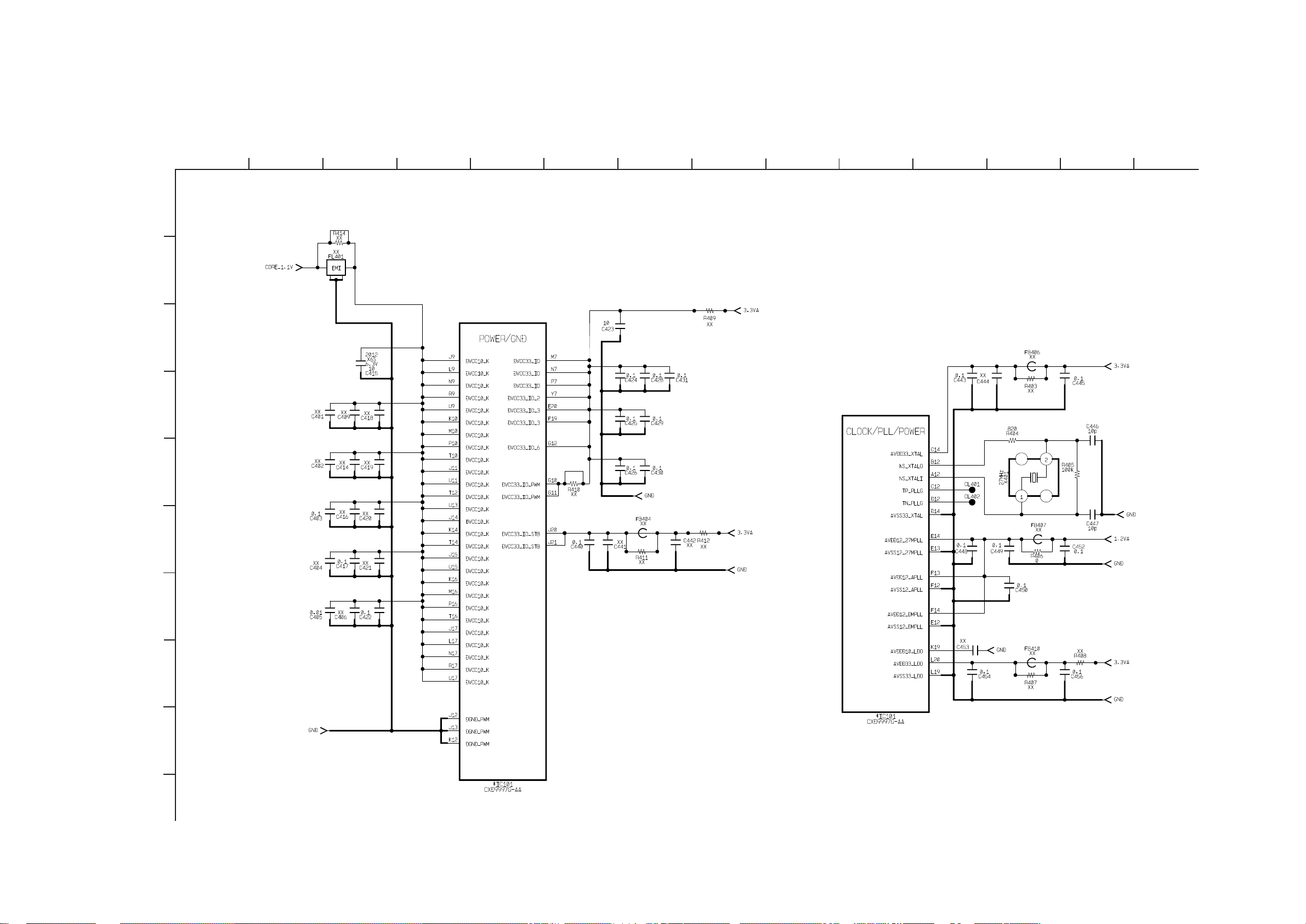

4-9. MB-138 Board (CLK/POWER)
Schematic Diagram (4/14)............................................ 4-9

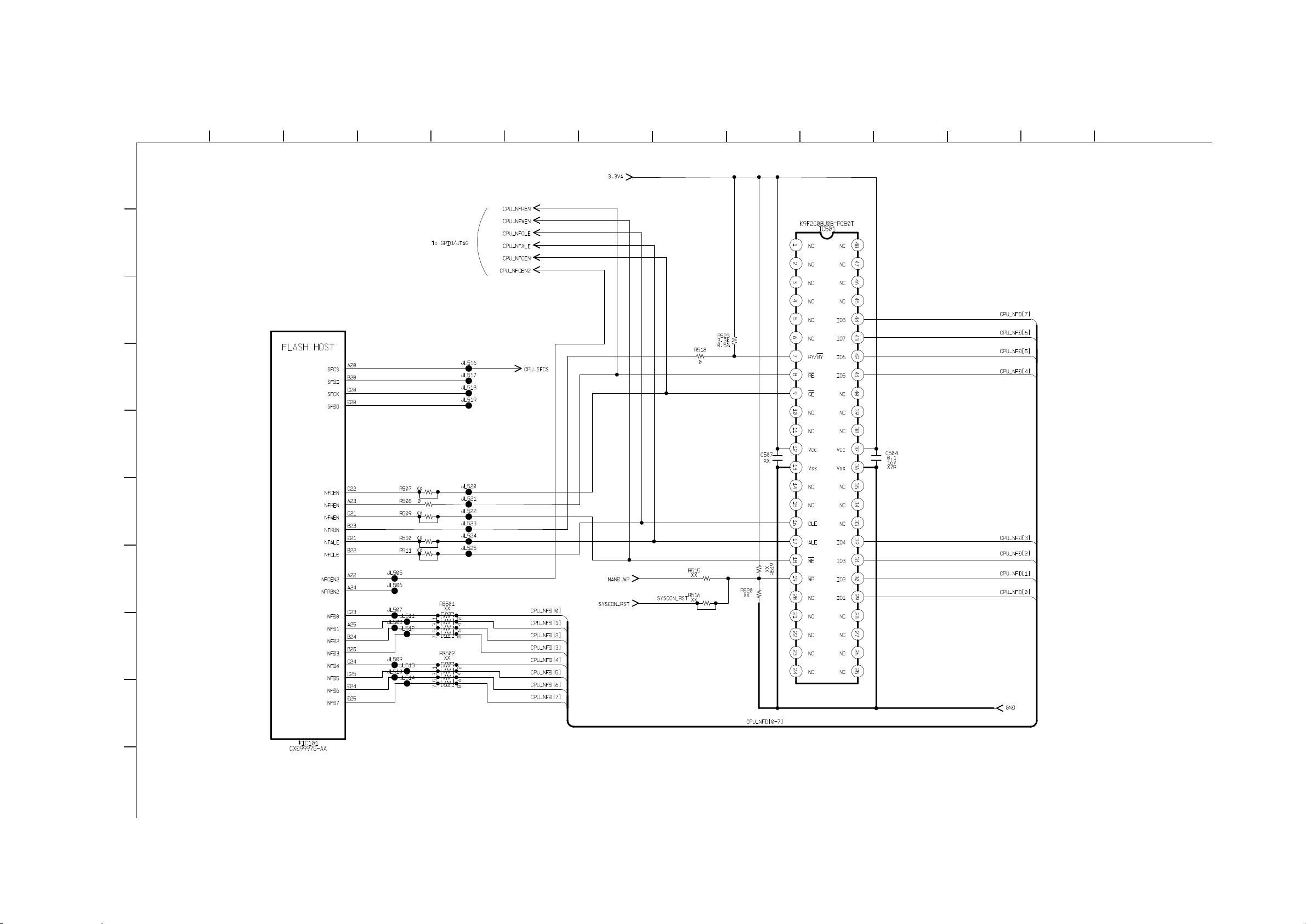

4-10. MB-138 Board (FLASH/HOST)
Schematic Diagram (5/14)............................................ 4-10

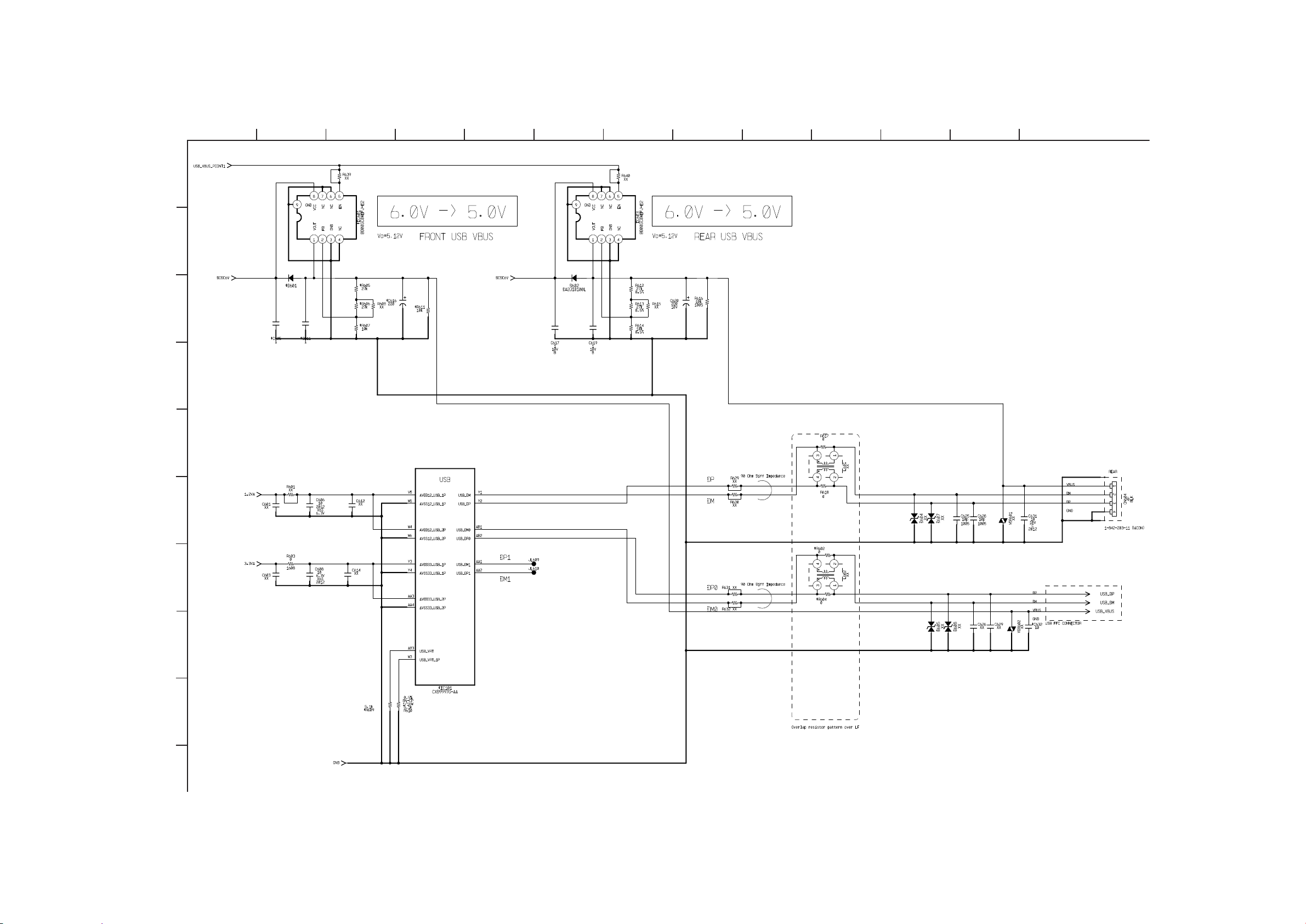

4-11. MB-138 Board (USB) Schematic Diagram (6/14)......... 4-11
Schematic Diagram ... 4-5
4-4
6. IC PIN FUNCTION DESCRIPTION ................... 6-1

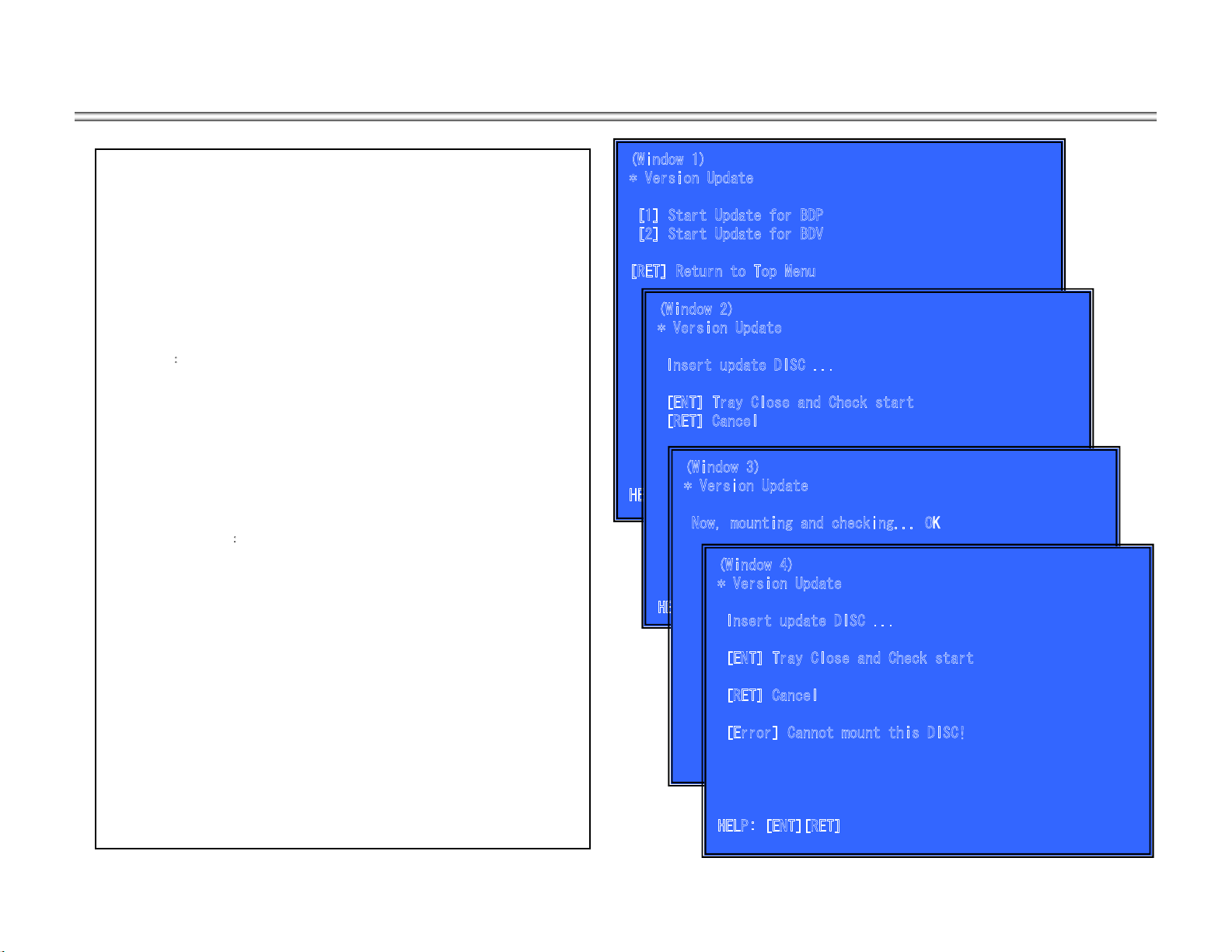

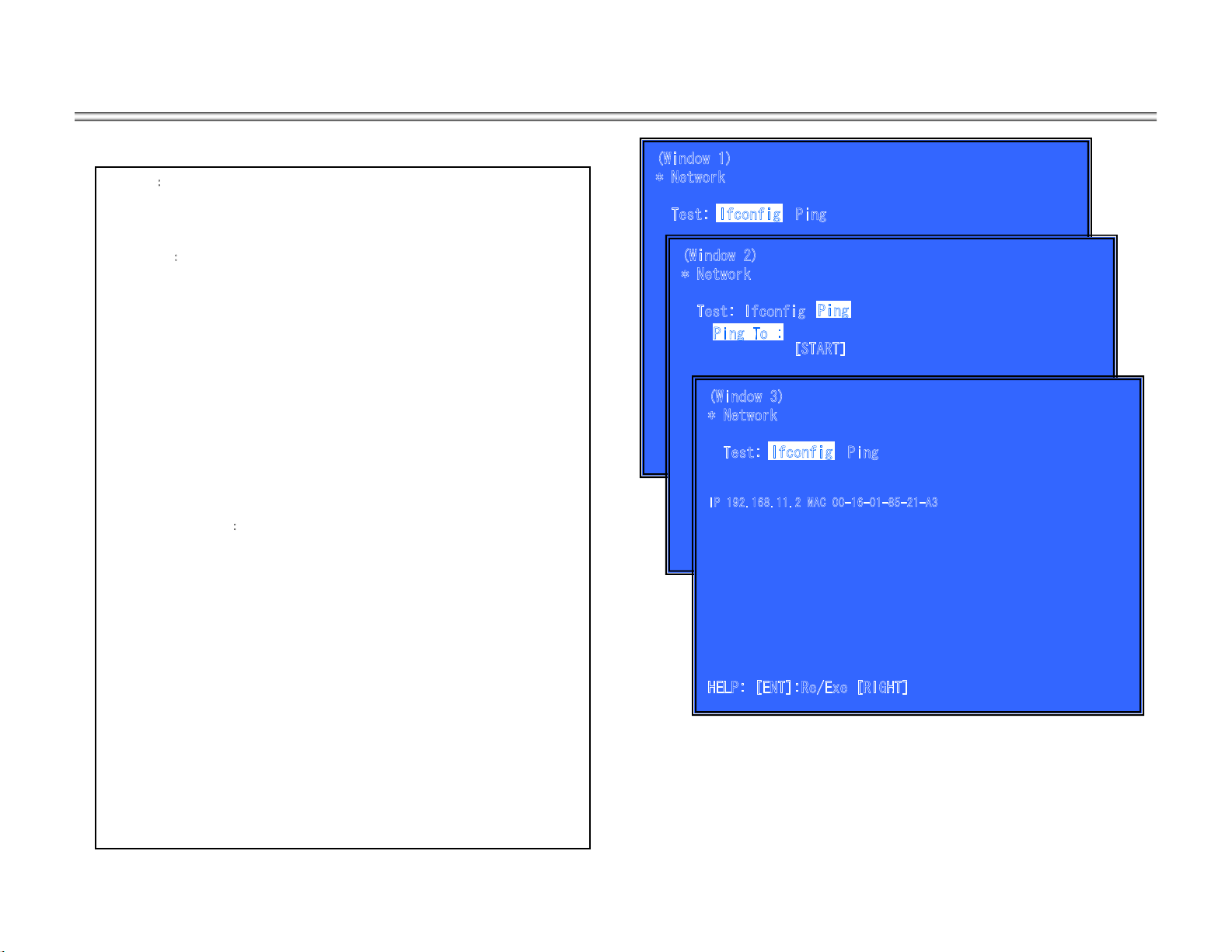

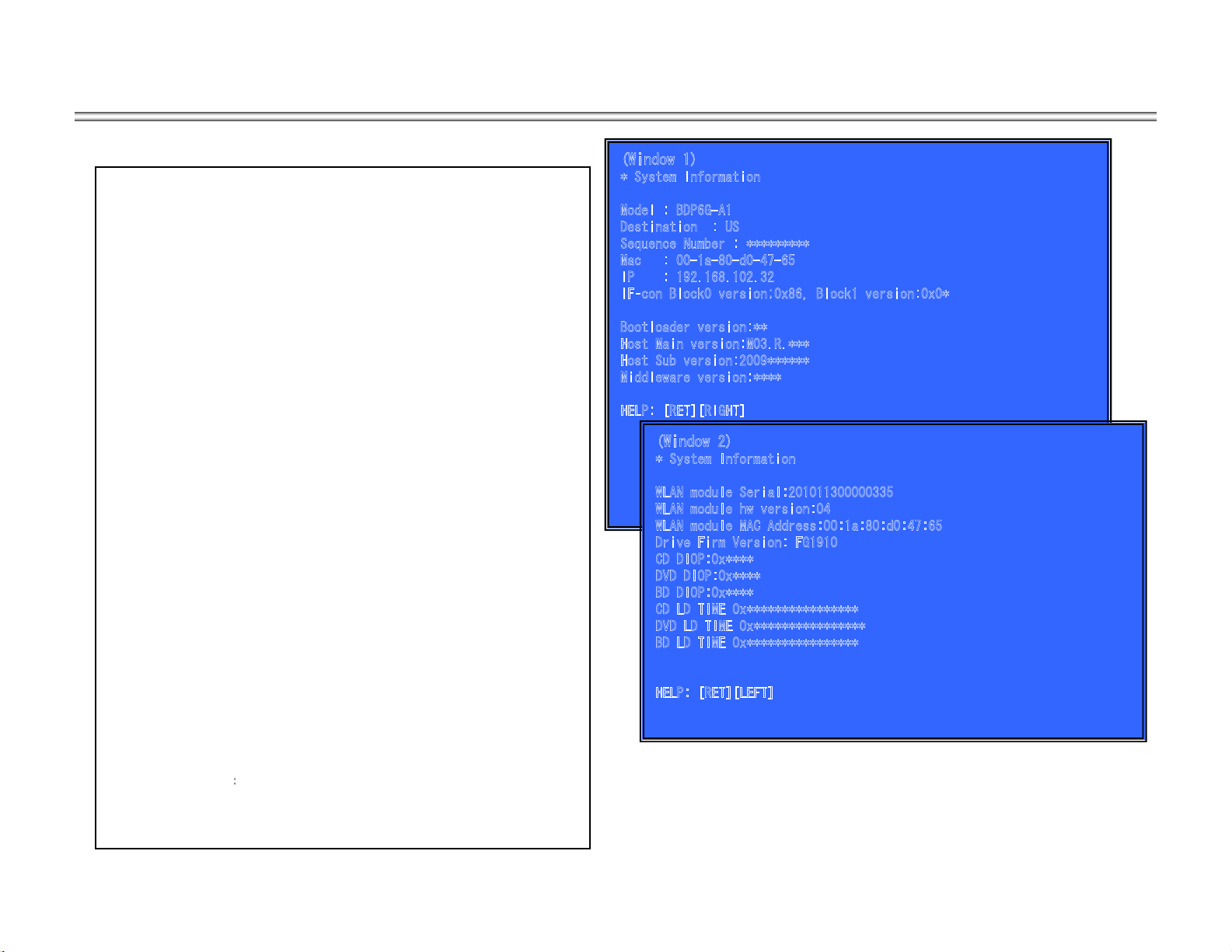

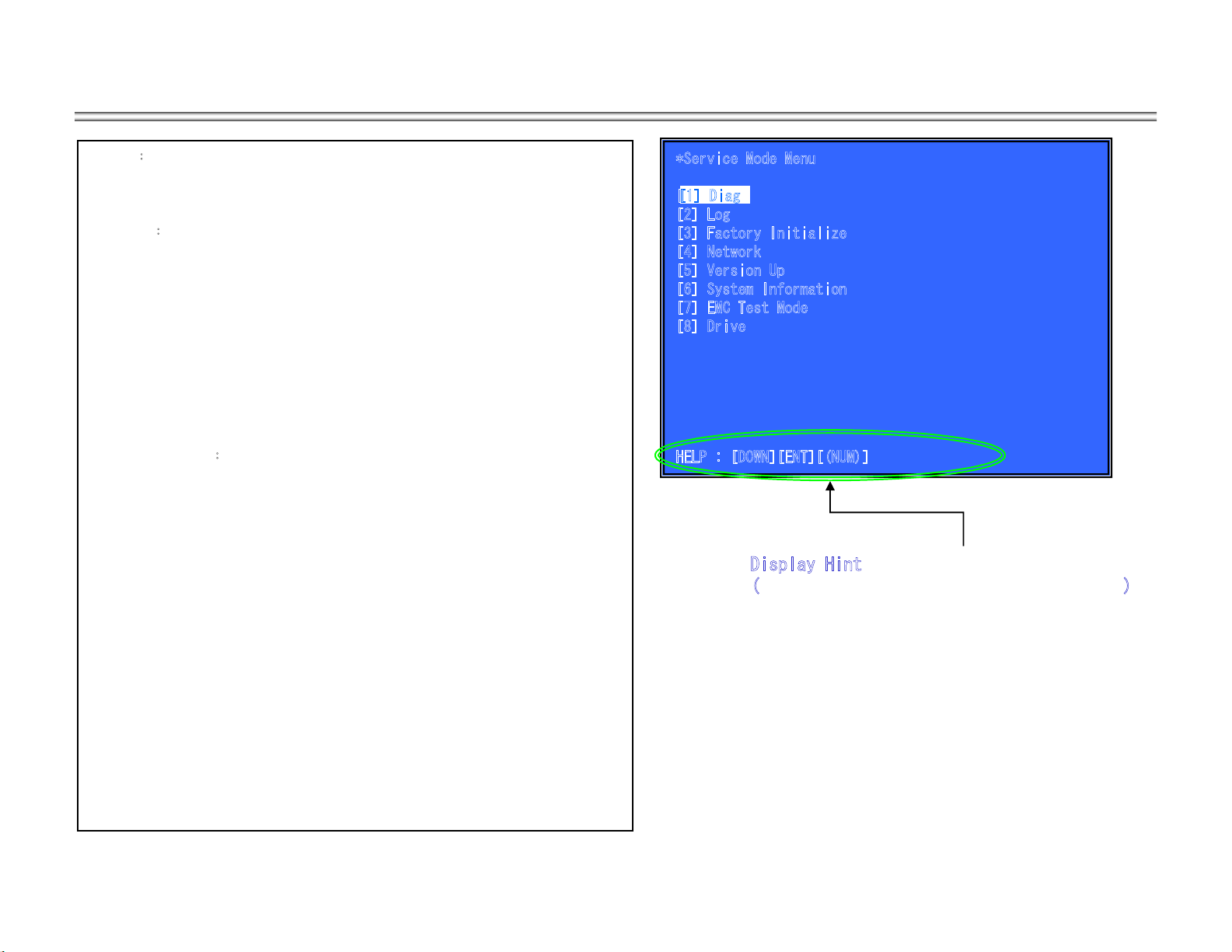

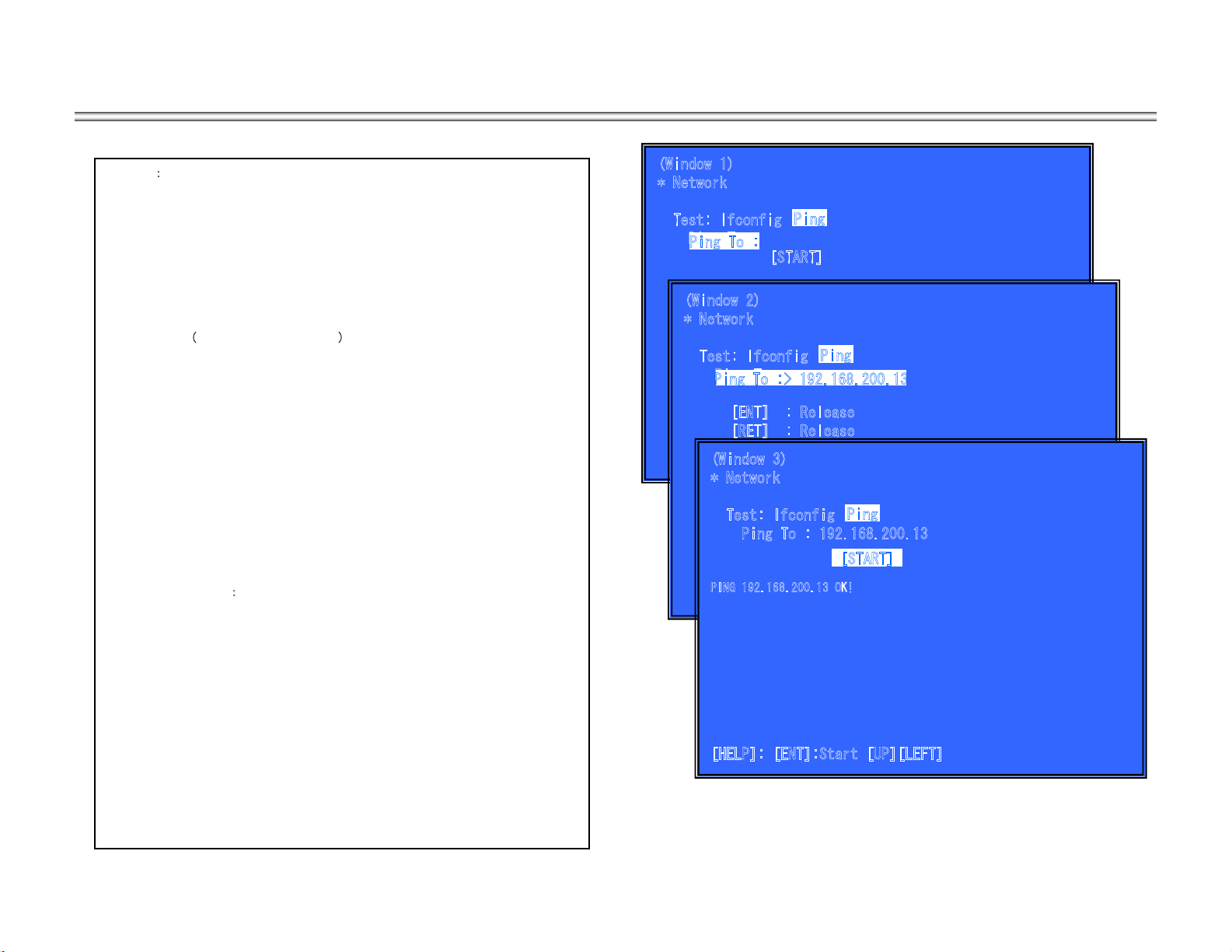

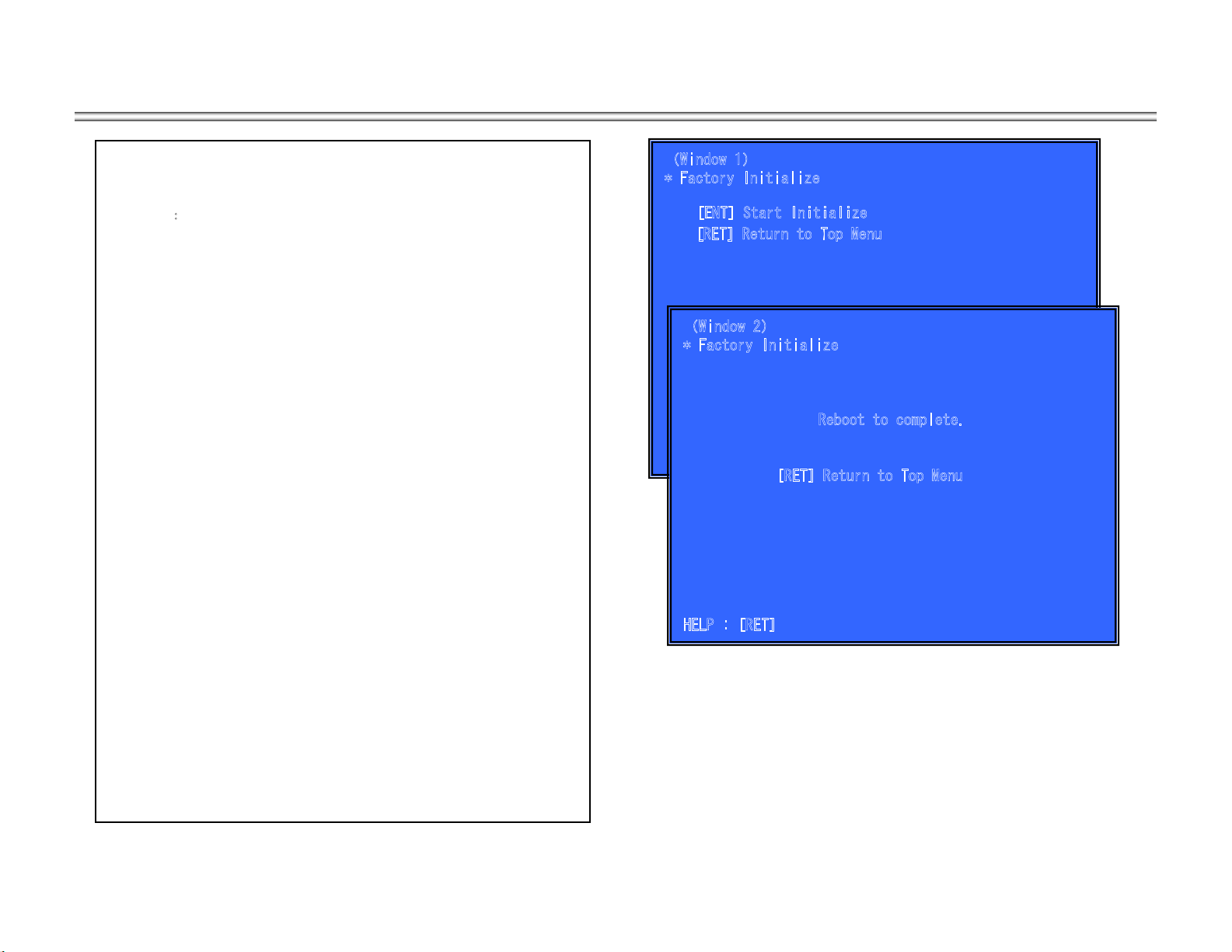

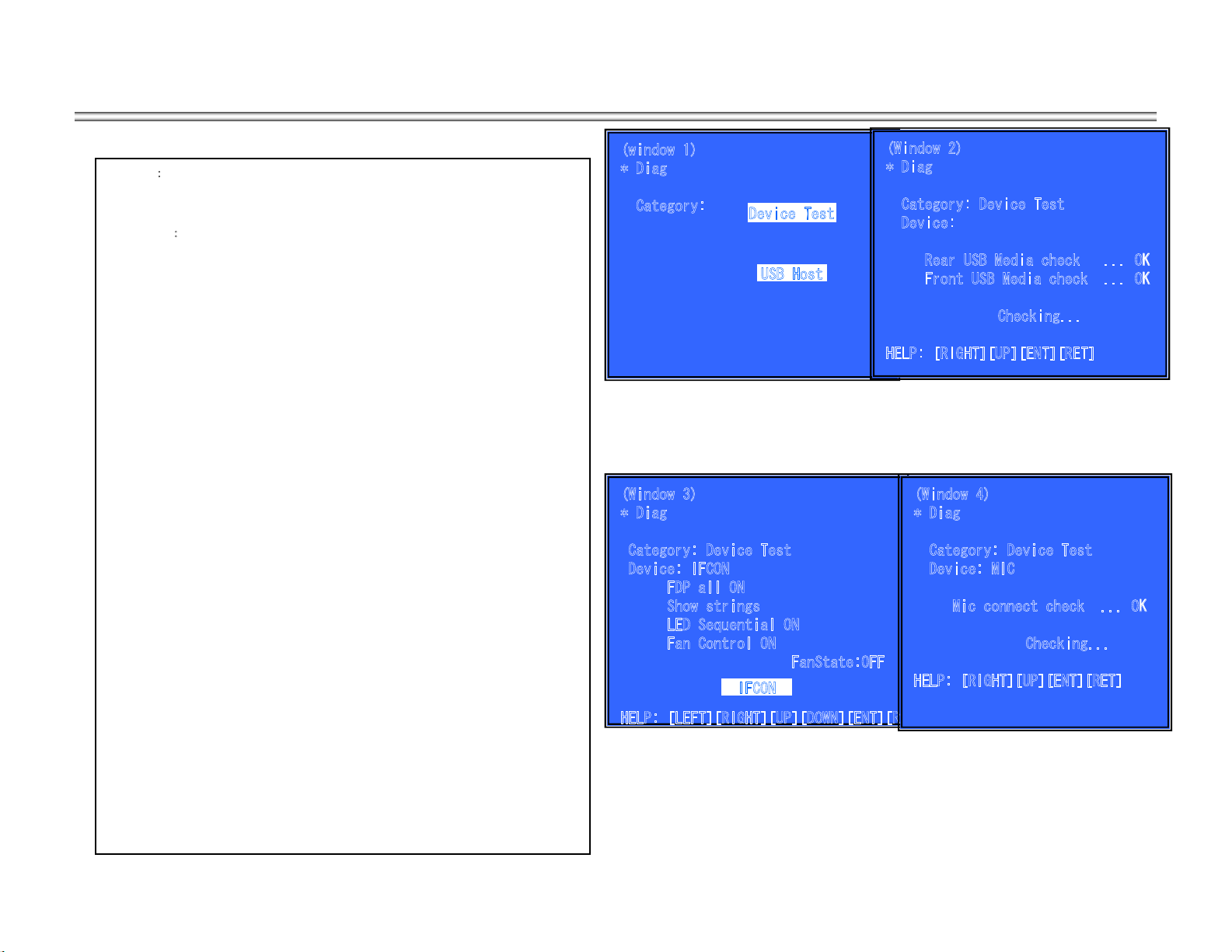

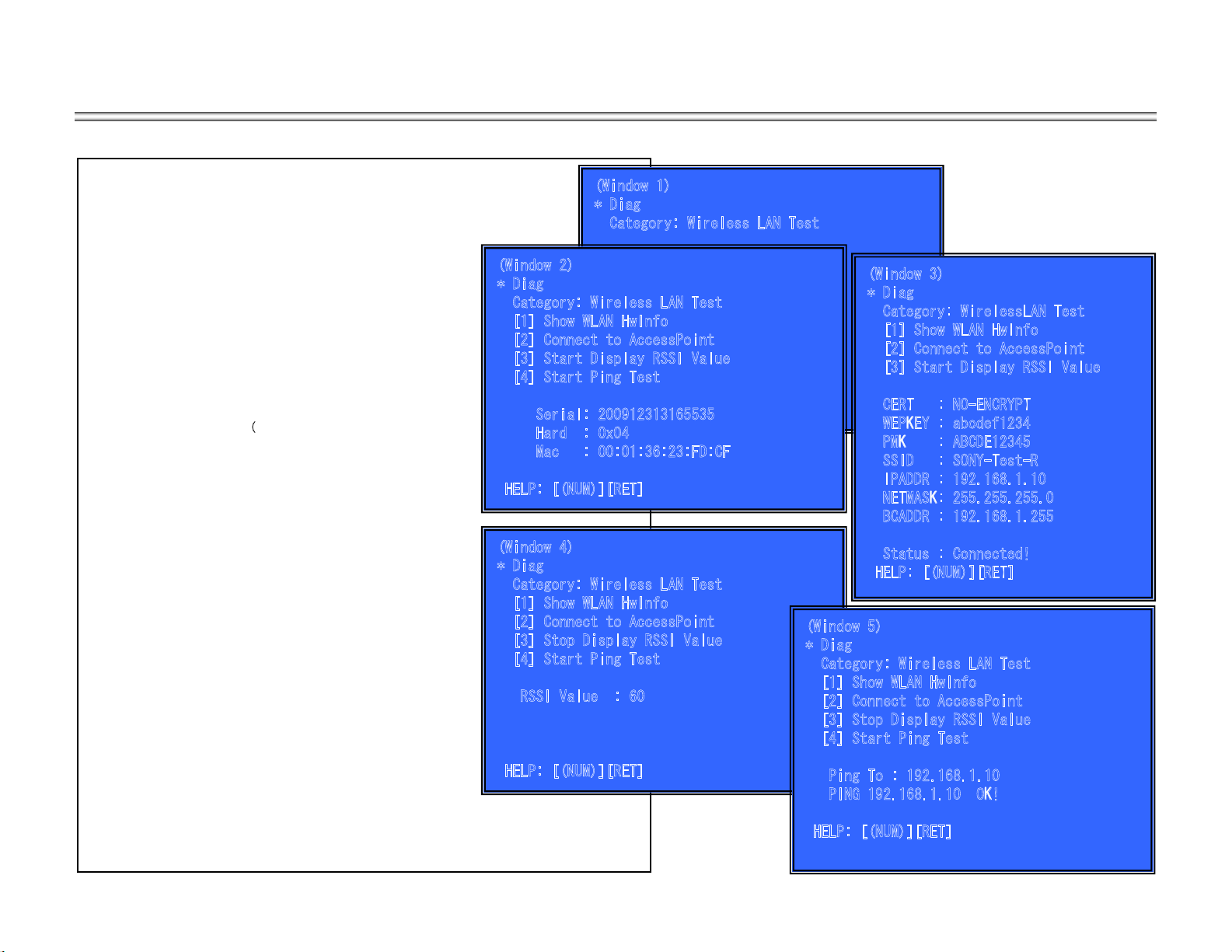

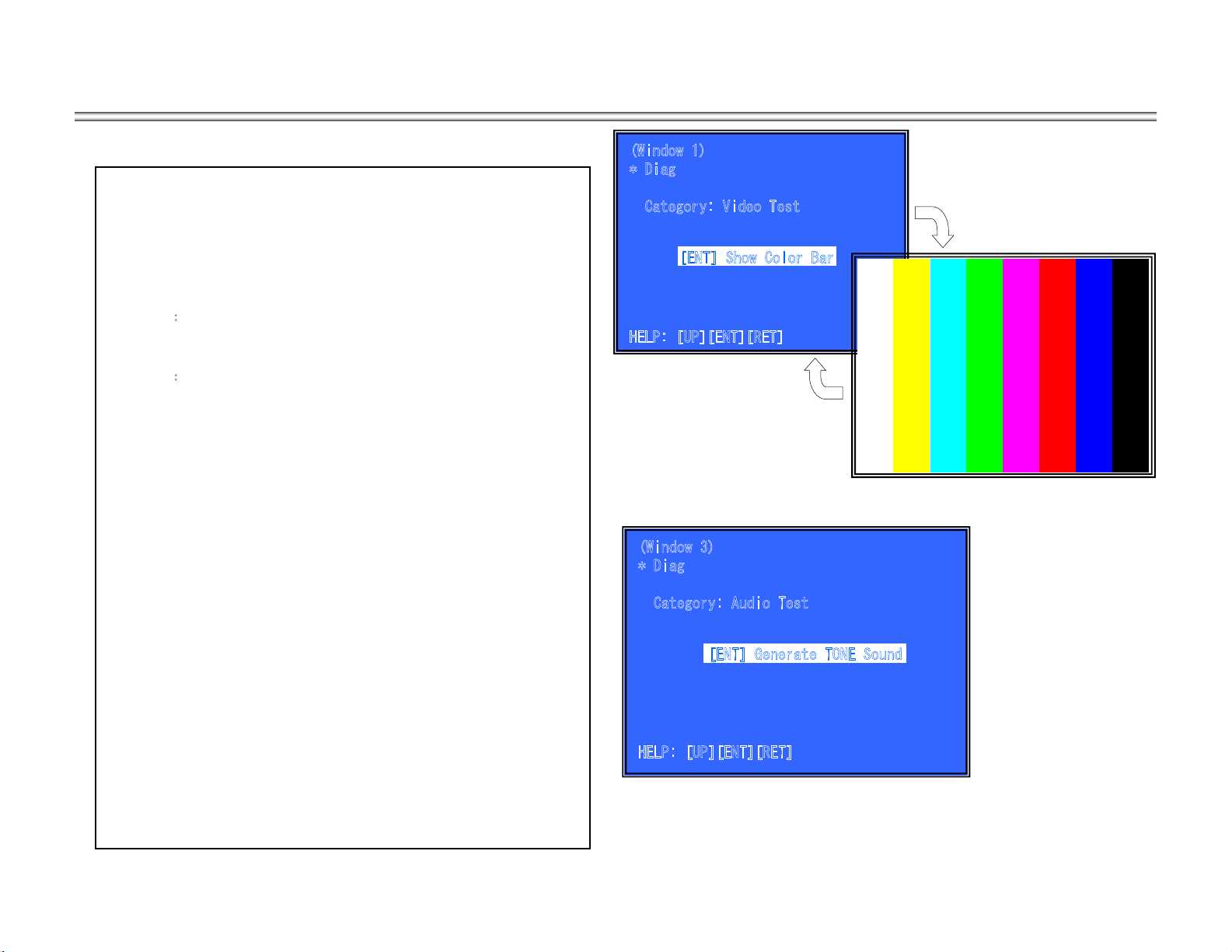

7. SERVICE MODE ..................................................... 7-1

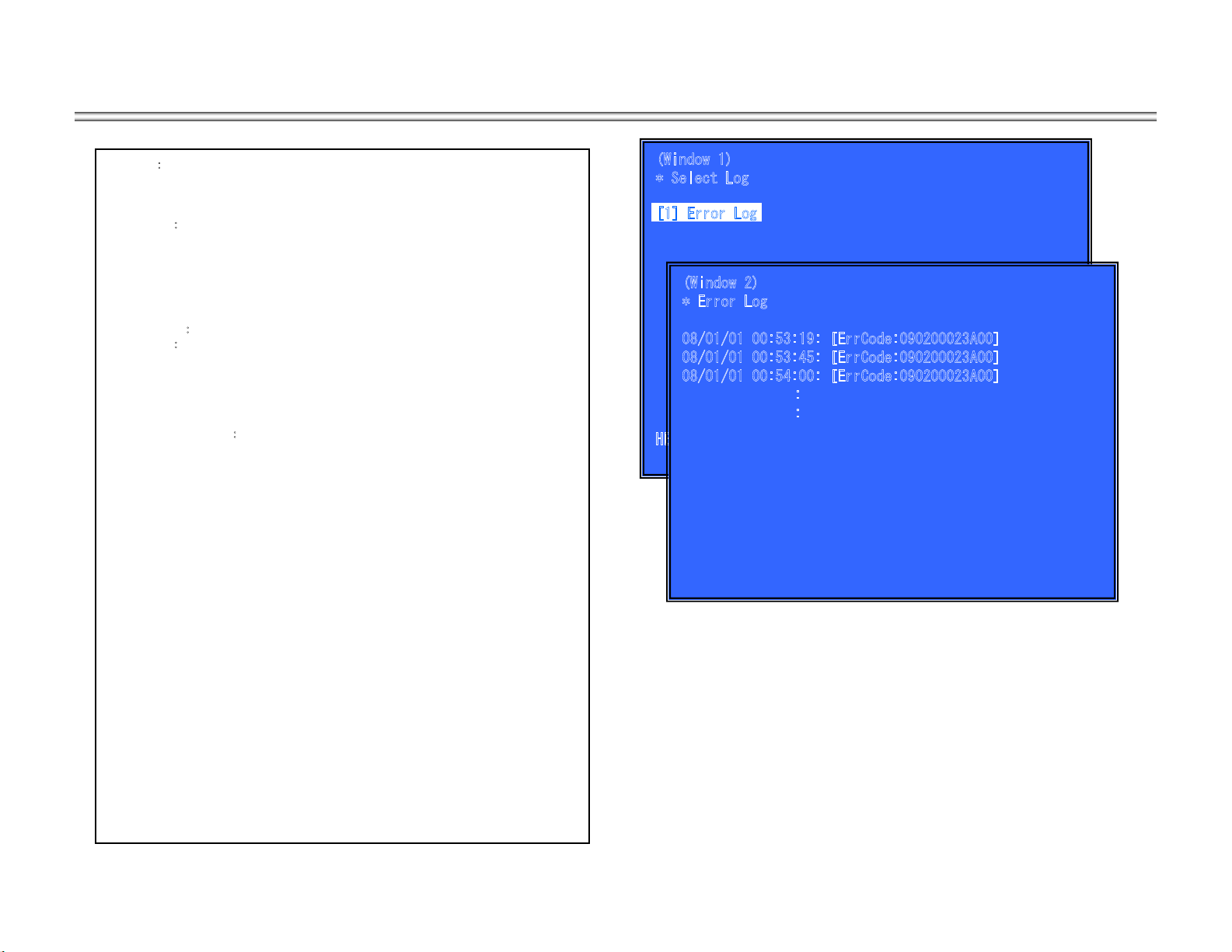

8. ERROR LOG LIST ................................................. 8-1

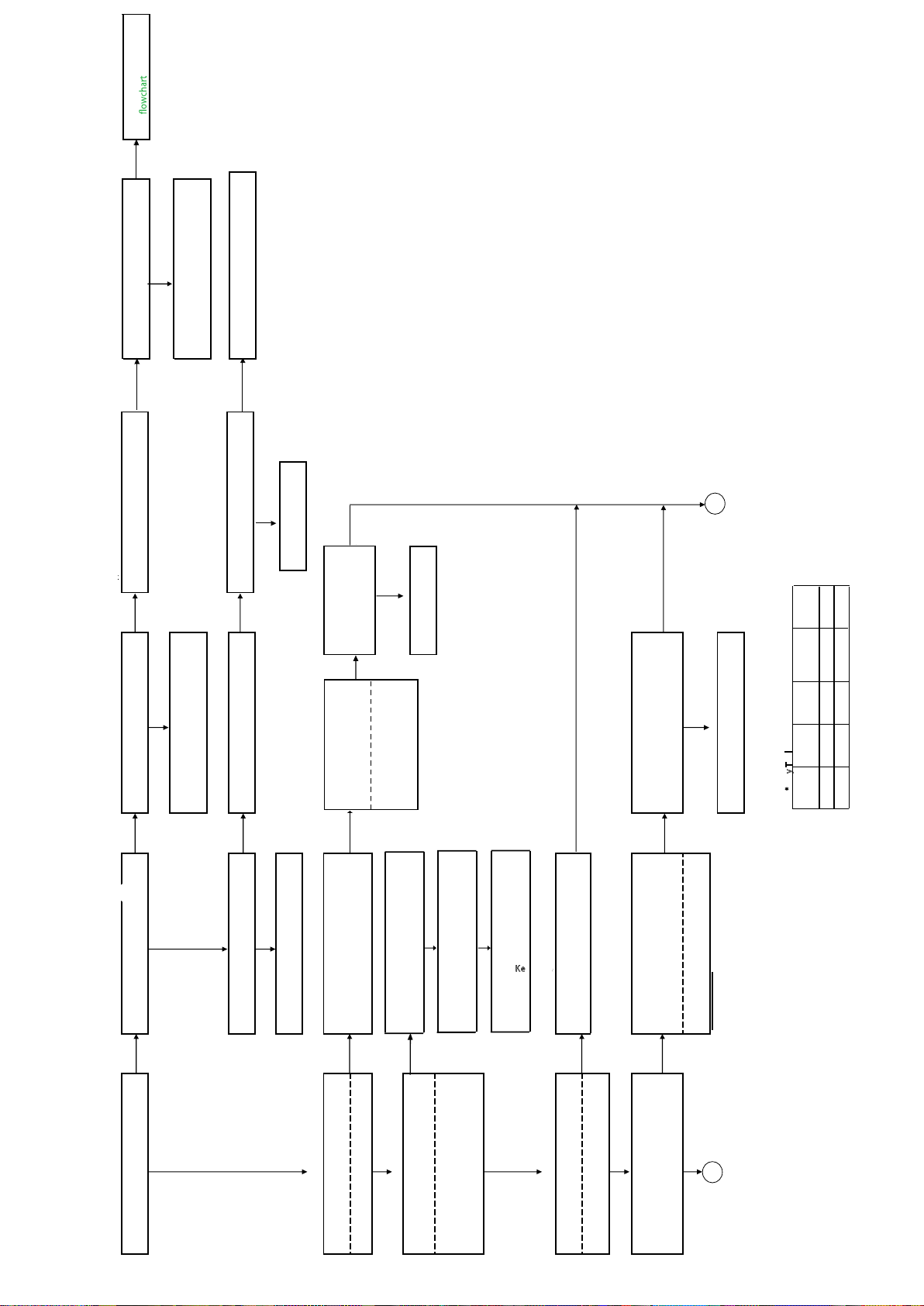

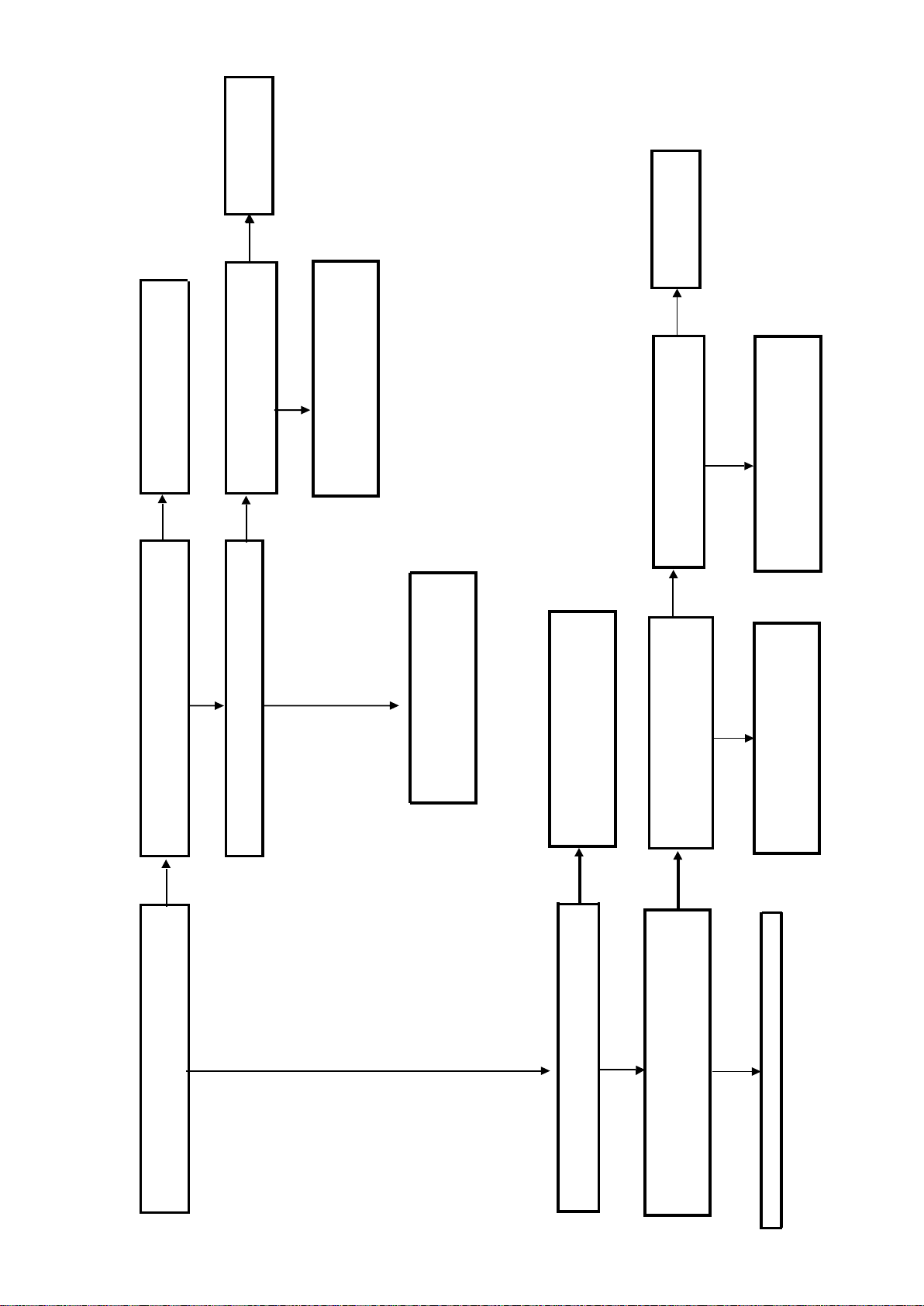

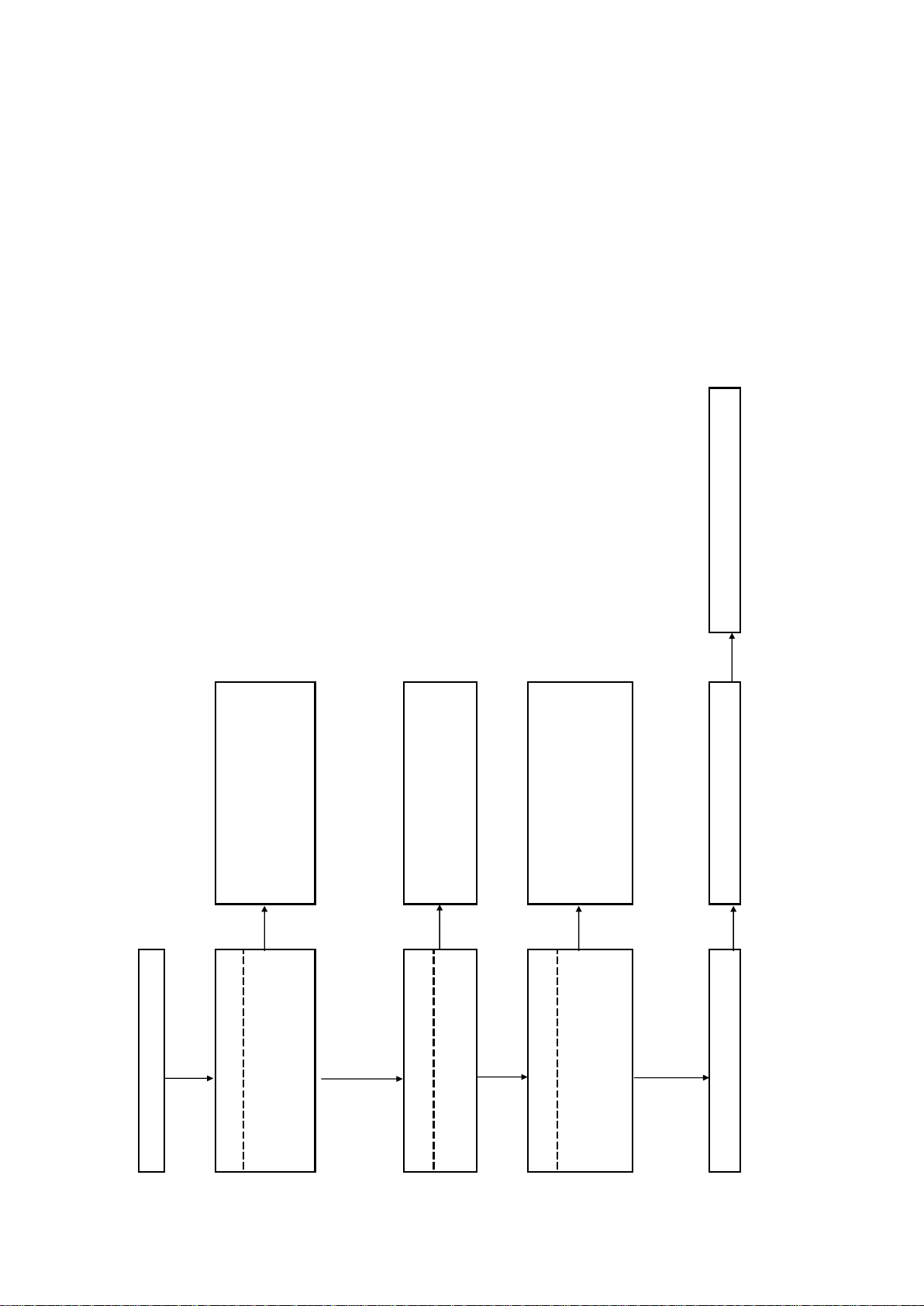

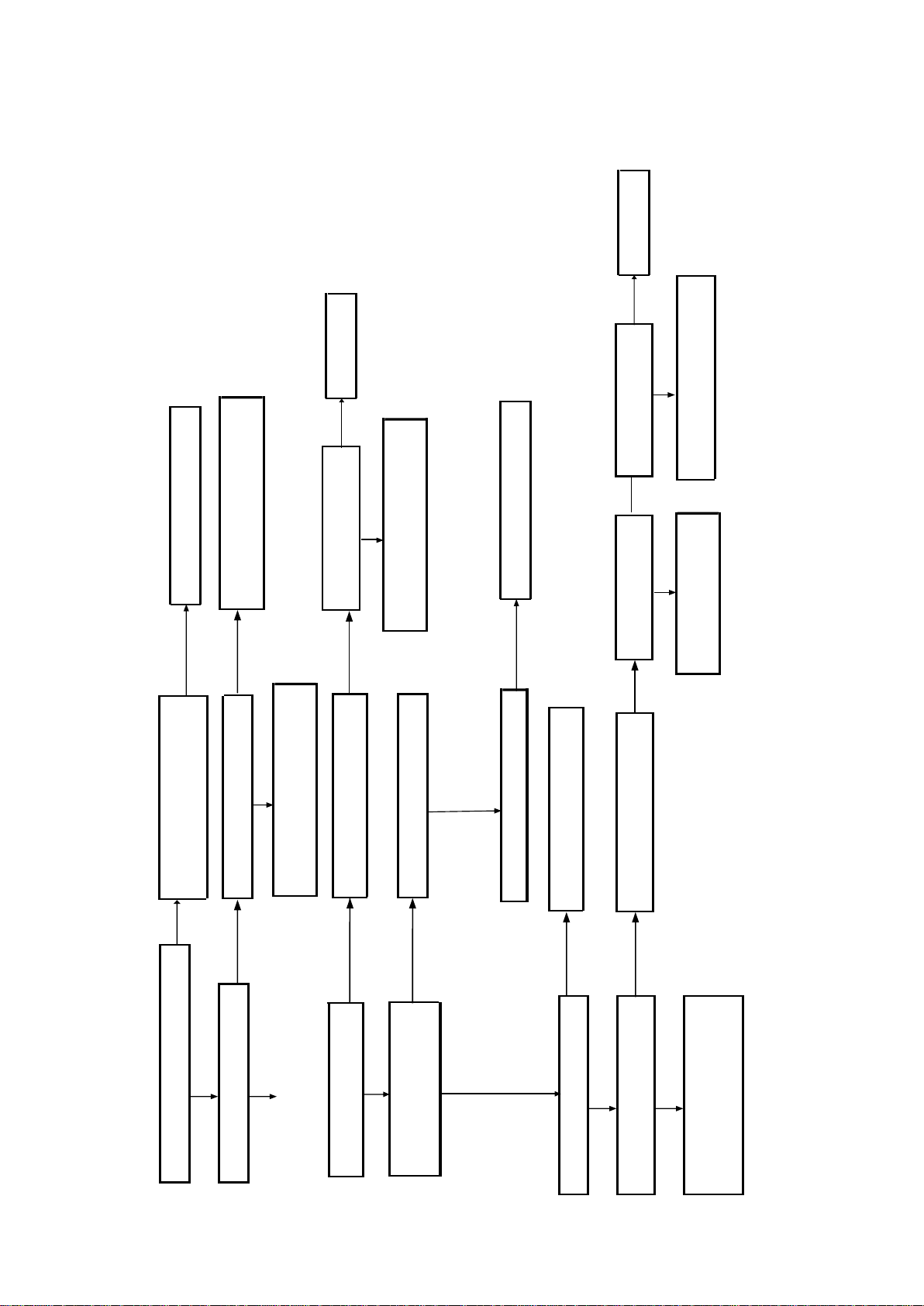

9. TROUBLESHOOTING ............................................. 9-1
10. REPAIR PARTS LIST

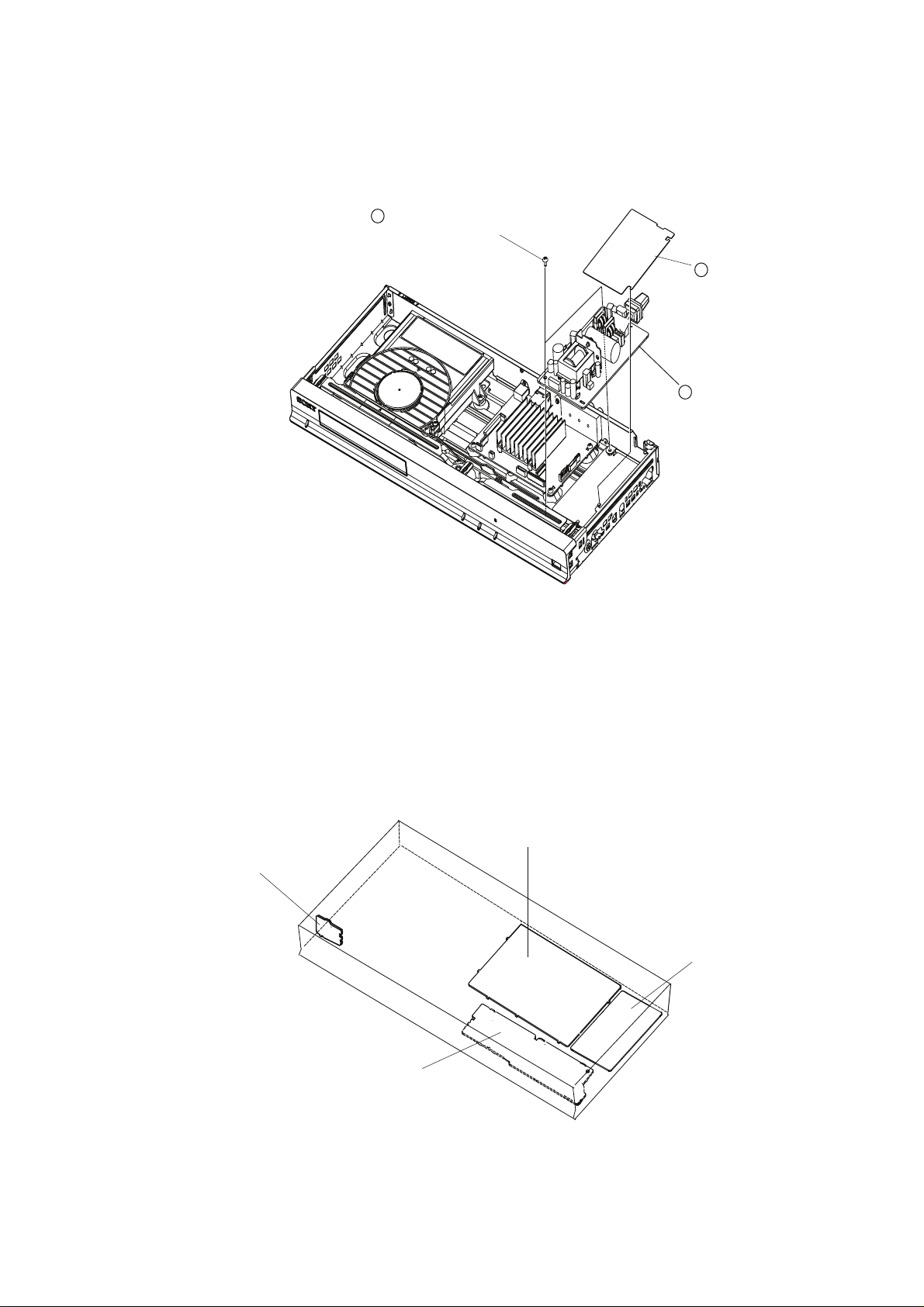

10-1. Exploded Views ............................................................ 10-1
10-1-1. Case Section ........................................................... 10-1
10-1-2. ........................................... 10-2
10-1-3.
10-1-4.
10-2. Electrical Parts List ....................................................... 10-5
Main Chassis Section
BD Section
Accessories
.............................................................
.......................................................... 10-4
10-3
– 3 –
BDP-BX38/S280/S380/S383
SECTION 1
SERVICE NOTE
1-1. DISC REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION)
1. Remove the upper case. (Refer to page 2-1)
2. Insert a clip in the hole of a drive and open a tray.
Note:
(Use clip diameter about 1.2 mm)
(12~32)mm
clip
hole
Fig.1
tray
1-2. Work when optical device are replaced
Note: Please do the following work when you replace the optical device.
1. Install it in PC after downloading two set of software from following URL.
(Refer to “1-4-9. BU Data Decode Jig” on page 1-19)
STEP 1
Microsoft .NET Framework Version 2.0 Redistributable Package (x86)
http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=0856eacb-4362-4b0d-8edd-aab15c5e04f5
STEP 2
Microsoft .NET Framework 2.0 Service Pack 1 (x86)
http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=79bc3b77-e02c-4ad3-aacf-a7633f706ba5
2. Take a photograph of the bar code on the optical device. The valid bar code photo as shown in Fig.2
Fig.2
3. Drag-and-drop the bar code photograph to the icon of decode software (BDPRdec).
* The decode software is a complete set of “BDPRdec”, “Tasman.Bars.dll”, and “SavePath”.
* Because decode software cannot be attached, it separately distributes it.
4. Input the password when you start decode software.
* Inquire of each service headquarters because the password cannot be disclosed.
5. Write the decode data to the set.
(Refer to “1-4-4. BU (Optical Block) Repair Guide” on page 1-16 and “1-4-5. BU Adjustment Flow [yy]” on page 1-17)
1-1
BDP-BX38/S280/S380/S383
1-3. TEST DISC
Part No. Description Layer
J-6090-199-A BLX-104 Single Layer
J-6090-200-A BLX-204 Dual Layer
J-2501-307-A CD (HLX-A1)
J-2501-305-A HLX-513 Single Layer (NTSC)
J-2501-306-A HLX-514 Dual Layer (NTSC)
J-6090-077-A HLX-506 Single Layer (PAL)
J-6090-078-A HLX-507 Dual Layer (PAL)
1-3-1. Operation and Display
Check Items
1) BLX-104
1. Select 23.976Hz/1080p
2. Play “4.Motion pictures”
3. Check whether player can play back or not
4. Check each outputs
Video:
Composite/component/HDMI
Audio:
Digital out (Coaxial/Optical)/Audio out/5.1Ch output
* When 1080/24p monitor is nothing, 1080i (59.94Hz or 50Hz) can use instead of 1080/24p.
However this is temporary correspondence.
2) BLX-204
1. Select 1080i (59.94Hz or 50Hz)
2. Play “4.Motion pictures”
3. Check whether player can play back or not
(Check the picture and sound output)
3) CD (HLX-A1)
Check whether player can play back or not
(Check the sound output)
4) HLX-513/514 (NTSC), HLX-506/507 (PAL)
1. After displayed Main Menu, select “1.Video”
2. Play “1.Color Bar 100%”
(Check the picture and sound output)
3. Return to Menu
4. Play “Demonstration 4:3” or “5.Demonstration 16:9”
(Check the picture and sound output)
1-2
1-3-1-1. BLX-104 Menu Function (1)
Main Menu
BDP-BX38/S280/S380/S383
X X X
X
X
X
X
X
X
X
X
X
X
X
X
X
1) When the disc is inserted, 1. Video Signal of 59.94Hz/1080i of the Main Menu is selectively displayed.
1-3-1-2. BLX-104 Menu Function (2)
Main Menu
To Main Menu after playback of T62_C1
To Main Menu after playback of T61_C1
To Main Menu after playback from T54_C1 to T60_C1
Sub_menu3 is displayed
To Main Menu after playback of T21_C1
To Main Menu after playback of T20_C1
To Main Menu after playback from T2_C1 to T19_C1
Sub_menu1 is displayed
* When returning to Main Menu after playback from each button of 59.94Hz/1080i, 1. Video Signal of 59.94Hz/1080i is selectively dis-
played.
* When returning to Main Menu after playback from each button of 50Hz/1080i, 1. Video Signal of 50Hz/1080i is selectively displayed.
* 5. AV Sync does not operate.
Note:
Txx_ Cxx
Chapter No.
Title No.
1-3
1-3-1-3. BLX-104 Menu Function (3)
Main Menu
BDP-BX38/S280/S380/S383
To Main Menu after playback of T52_C1
To Main Menu after playback of T51_C1
To Main Menu after playback from T44_C1 to T50_C1
Sub_menu2 is displayed
To Main Menu after playback of T42_C1
To Main Menu after playback of T41_C1
To Main Menu after playback from T23_C1 to T40_C1
Sub_menu4 is displayed
* When returning to Main Menu after playback from each button of 59.94Hz/720P, 1. Video Signal of 59.94Hz/720P is selectively dis-
played.
* When returning to Main Menu after playback from each button of 23.976Hz/1080P, 1. Video Signal of 23.976Hz/1080P is selectively
displayed.
* 5. AV Sync does not operate.
1-4
1-3-1-4. BLX-104 Menu Function (4)
Sub menu1
X
BDP-BX38/S280/S380/S383
X
X
X
X
X
1) At the display of Sub menu1, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu1 after seamless playback from T1_C1 to T1_C13. 1. Color Bar 100% is selec-
tively displayed on Sub menu1 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu1 after seamless playback from T1_C2 to T1_C13. 1. Color Bar 100% is selectively
displayed on Sub menu1 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu1, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/1080i
is selectively displayed.
6) Selection of LPCM Audio t Playback from T2_C1 to T19_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.
7) Selection of Dolby AC-3 Audio t Playback of T20_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.
8) Selection of Motion
Picture t Return to Sub menu1 after playback of T21_C1. 1. ColorBar 100% is selectively displayed on Sub
menu1 screen.
9) At the selection of Main Menu, 1. VideoSignal of 1080/59.94i of Main Menu is selectively displayed.
10) AV Sync does not operate.
1-5
1-3-1-5. BLX-104 Menu Function (5)
Sub menu2
X
BDP-BX38/S280/S380/S383
X
X
X
X
X
1) At the display of Sub menu2, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu2 after seamless playback from T43_C1 to T43_C13. 1. Color Bar 100% is
selectively displayed on Sub menu2 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu2 after seamless playback from T43_C2 to T43_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu2 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu2, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of
23.976Hz/1080P is selectively displayed.
6) Selection of LPCM Audio t Playback from T44_C1 to T50_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
7) Selection of Dolby AC-3 Audio t Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
8) Selection of Motion Picture t Return to Sub menu2 after playback of T52_C1. 1. Color Bar 100% is selectively displayed on Sub
menu2 screen.
9) At the selection of Main Menu, 1. Video Signal of 1080/23.976P of Main Menu is selectively displayed.
10) AV Sync does not operate.
1-6
1-3-1-6. BLX-104 Menu Function (6)
Sub menu3
X
BDP-BX38/S280/S380/S383
X
X
X
X
X
1) At the display of Sub menu3, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu3 after seamless playback from T53_C1 to T53_C13. 1. Color Bar 100% is
selectively displayed on Sub menu3 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu3 after seamless playback from T53_C2 to T53_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu3 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu3, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 50Hz/1080i
is selectively displayed.
6) Selection of LPCM Audio t Playback from T54_C1 to T60_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
7) Selection of Dolby AC-3 Audio t Playback of T61_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
8) Selection of Motion Picture t Return to Sub menu3 after playback of T62_C1. 1. Color Bar 100% is selectively displayed on Sub
menu3 screen.
9) At the selection of Main Menu, 1. Video Signal of 1080/50i of Main Menu is selectively displayed.
10) AV Sync does not operate.
1-7
1-3-1-7. BLX-104 Menu Function (7)
Sub menu4
X
BDP-BX38/S280/S380/S383
X
X
X
X
X
1) At the display of Sub menu4, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu4 after seamless playback from T22_C1 to T22_C13. 1. Color Bar 100% is
selectively displayed on Sub menu4 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu4 after seamless playback from T22_C2 to T22_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu4 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu4, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/720P
is selectively displayed.
6) Selection of LPCM Audio t Playback from T44_C1 to T50_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
7) Selection of Dolby AC-3 Audio t Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
8) Selection of Motion Picture t Return to Sub menu4 after playback of T52_C1. 1. Color Bar 100% is selectively displayed on Sub
menu4 screen.
9) At the selection of Main Menu, 1. Video Signal of 720/59.94P of Main Menu is selectively displayed.
Sync does not operate.
10) AV
1-8
BDP-BX38/S280/S380/S383
1-3-2
Menu Function
1-3-2-1. BLX-204 Menu Function (1)
Main Menu
X X X X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
1) When the disc is inserted, 1. Video Signal of 59.94Hz/1080i of the Main Menu is selectively displayed.
1-3-2-2. BLX-204 Menu Function (2)
Main Menu
To Main Menu after playback of T83_C1
To Main Menu after playback of T62tT82
To Main Menu after playback of T61_C1
To Main Menu after playback of T54_C1-T60_C1tT83_C1-T94_C1
Sub_menu3 is displayed
To Main Menu after playback of T67_C1
To Main Menu after playback of T21tT63tT64tT65tT66
To Main Menu after playback of T20_C1
To Main Menu after playback from T2_C1 to T19_C1
Sub_menu1 is displayed
* When returning to Main Menu after playback from each button of 59.94Hz/1080i, 1. Video Signal of 59.94Hz/1080i is selectively dis-
played.
* When returning to Main Menu after playback from each button of 50Hz/1080i, 1. Video Signal of 50Hz/1080i is selectively displayed.
Note:
Txx_ Cxx
Chapter No.
Title No.
1-9
1-3-2-3. BLX-204 Menu Function (3)
Main Menu
BDP-BX38/S280/S380/S383
To Main Menu after playback of T70_C1
To Main Menu after playback of T52_C1t T69
To Main Menu after playback of T51_C1
To Main Menu after playback of T44_C1-T50_C1t T71_C1-T81_C1
Sub_menu2 is displayed
To Main Menu after playback of T68_C1
To Main Menu after playback of T42_C1
To Main Menu after playback of T41_C1
To Main Menu after playback from T23_C1 to T40_C1
Sub_menu4 is displayed
* When returning to Main Menu after playback from each button of 59.94Hz/720P, 1. Video Signal of 59.94Hz/720P is selectively dis-
played.
* When returning to Main Menu after playback from each button of 23.976Hz/1080P, 1. Video Signal of 23.976Hz/1080P is selectively
displayed.
1-10
1-3-2-4. BLX-204 Menu Function (4)
Sub menu 1
X
BDP-BX38/S280/S380/S383
X
X
X
X
X
1) At the display of Sub menu1, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu1 after seamless playback from T1_C1 to T1_C13. 1. Color Bar 100% is selec-
tively displayed on Sub menu1 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu1 after seamless playback from T1_C2 to T1_C13. 1. Color Bar 100% is selectively
displayed on Sub menu1 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu1, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of
59.94Hz/1080i is selectively displayed.
6) Selection of LPCM Audio t Playback from T2_C1 to T19_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.
7) Selection of Dolby AC-3 Audio t Playback of T20_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.
8) Selection of Motion Picture t Return to Sub menu1 after playback of T21_C1. 1. Color Bar 100% is selectively displayed on Sub
menu1 screen.
9) Selection of AV Sync t Return to Sub menu1 after playback of T67_C1. 1. Color Bar 100% is selectively displayed on Sub menu1
screen.
10) At the selection of Main Menu, 1. Video Signal of 1080/59.94i of Main Menu is selectively displayed.
1-11
1-3-2-5. BLX-204 Menu Function (5)
Sub menu 2
X
BDP-BX38/S280/S380/S3838
X
X
X
X
X
1) At the display of Sub menu2, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu2 after seamless playback from T43_C1 to T43_C13. 1. Color Bar 100% is
selectively displayed on Sub menu2 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu2 after seamless playback from T43_C2 to T43_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu2 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu2, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of
23.976Hz/1080P is selectively displayed.
6) Selection of LPCM Audio t Playback from T44_C1 to T50_C1 and from T71_C1 to T81_C1. SubPic that corresponds to Audio stream
1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
7) Selection of Dolby AC-3 Audio t Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
8) Selection of Motion Picture t Return to Sub menu2 after playback of T52_C1 and T69. 1. Color Bar 100% is selectively displayed on
Sub menu2 screen.
9) Selection of AV Sync t Return
to Sub menu2 after playback of T70_C1. 1. Color Bar 100% is selectively displayed on Sub menu2
screen.
10) At the selection of Main Menu, 1. Video Signal of 1080/23.976P of Main Menu is selectively displayed.
1-12
1-3-2-6. BLX-204 Menu Function (6)
Sub menu 3
X
BDP-BX38/S280/S380/S383
X
X
X
X
X
1) At the display of Sub menu3, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu3 after seamless playback from T53_C1 to T53_C13. 1. Color Bar 100% is
selectively displayed on Sub menu3 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu3 after seamless playback from T53_C2 to T53_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu3 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu3, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 50Hz/1080i
is selectively displayed.
6) Selection of LPCM Audio t Playback from T54_C1 to T60_C1 and from T84_C1 to T94_C1. SubPic that corresponds to Audio stream
1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
7) Selection of Dolby AC-3 Audio t Playback of T61_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
8) Selection of Motion Picture t Return to Sub menu3 after playback of T62_C1 and T82. 1. Color Bar 100% is selectively displayed on
Sub menu3 screen.
9) Selection of AV Sync t Return to Sub menu3 after playback of T83_C1. 1. Color Bar 100% is selectively displayed on Sub menu3
screen.
10) At the selection of Main Menu, 1. Video Signal of 1080/50i of Main Menu is selectively displayed.
1-13
1-3-2-7. BLX-204 Menu Function (7)
Sub menu 4
X
BDP-BX38/S280/S380/S383
X
X
X
X
X
1) At the display of Sub menu4, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu4 after seamless playback from T22_C1 to T22_C13. 1. Color Bar 100% is
selectively displayed on Sub menu4 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu4 after seamless playback from T22_C2 to T22_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu4 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu4, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/720P
is selectively displayed.
6) Selection of LPCM Audio t Playback from T44_C1 to T50_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
7) Selection of Dolby AC-3 Audio t Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
8) Selection of Motion Picture t Return to Sub menu4 after playback of T52_C1. 1. Color Bar 100% is selectively displayed on Sub
menu4 screen.
9) Selection of AV Sync t Return
to Sub menu4 after playback of T68_C1. 1. Color Bar 100% is selectively displayed on Sub menu4
screen.
10) At the selection of Main Menu, 1. Video Signal of 720/59.94P of Main Menu is selectively displayed.
1-14
1-4.
DRIVE REPAIRING
1-4-1. Preparation
• ESD Measures
It is necessary to check the working space ESD condition
before starting the Drive Part (BU) repairs
The ESD-resistance of BD Laser is weaker than DVD/CD Laser
To prevent ESD destruction, please make sure the working
space and human ESD.
How to open FFC Holder. Refer below picture.
•
BDP-BX38/S280/S380/S383
1-4-2.
Checking Flow ~ Drive (BU) section ~
Drive flowchart
BLX-104
BDP-S380 can play the BD-disc
YES
DVD: HLX-513
CD: HLX-A1
NO
Check / replace the FFC cable, then check
1
1
2
2
1
2
Check Drive Power Supply
CN301 Pin 3: 12V
IC309 Pin 1: 5V
YES
BDP-S380 operates normally
OP FFC cable (1-838-615-11)
SPD FFC cable (1-838-617-11)
YES
OK
NO
NO
Check PS301, PS302
Replace PS when open
Check the Optical Block Unit (BU) by
service mode. (Flowchart zz)
BU IOP is OK?
NO
Replace the Optical Block Unit (BU)
Optical Block Unit (BU) replace
(Flowchart yy)
BDP-S380 can play the DVD/CD-disc
NO
1-15
1-4-3. BU Check Flow [zz] ~
BDP-BX38/S280/S380/S383
Before
Optical Block Unit (BU) IOP check flow (zz) ~ [Before BU Replacement]
Enter Service Mode
<OPEN/CLOSE>., <PLAY>,<STOP>
Press
and plug in AC Power
Inside *Service Mode Menu
Select [8] Drive
Inside *Drive
Select [7] OP Check Menu
Inside *OP Check Menu
Select [2] dIOP then press 'ENTER'
Specification dIOP
+
BD: 3mA
-
DVD, CD: 3mA
AC Power OFF
1-4-4. BU (Optical Block) Repair Guide
+
-
YES
BU Replacement ~
NO
IOP out of specification need BU
replacement
Optical Block Unit (BU) replace
(Flowchart yy)
BDP 6G (BDP-S380) series component structure is as same as conventional DVD Players.
However BD player requires precise read out functions and also secure contents Protection
system.
Since above requirement, it is necessary to set/adjust BU data to EEPROM.
The following cases need Adjustments;
(1)Replace BU (MB is original)
(2)Replace MB (BU is original)
(3)Replace both BU and MB
•JIG Requirement
Digital camera (recommend with macro mode)
Barcode decoder (BDPRdec_ver2.0
) installed in JIG PC’s
USB memory
ESD work bench
•Procedure (all cases)
Refer the diagram
Remarks:
The servo adjustment procedure will be carried out during OP data Writing.
There is no manual adjustment procedure. LD ON TIME history doesn’t carry over.
Do not touch any optical block parts, Turn Table and during replacing. BD Laser diode
is very sensitive!
1-16
1-4-5. BU Adjustment Flow [yy] ~
Optical Block Unit (BU) OP Data Write Flow (yy) ~ [After BU/MB Replacement]
BDP-BX38/S280/S380/S383
Remove the defective BU from Loading
Assy and also remove BU insulator (4pcs)
Unpack new BU and take OP Data Barcode
Assemble BU with Insulators to Loading
Decode the OP Data Barcode phot using
BDPRdec.exe
USB memory(File Name: BuData.txt)
Enter Service Mode and insert USB memory
And confirm dIOP by select [7] OP Check
photo by camera
Assy (tighten screw with 2kgf)
and save the test data to
to USB connector

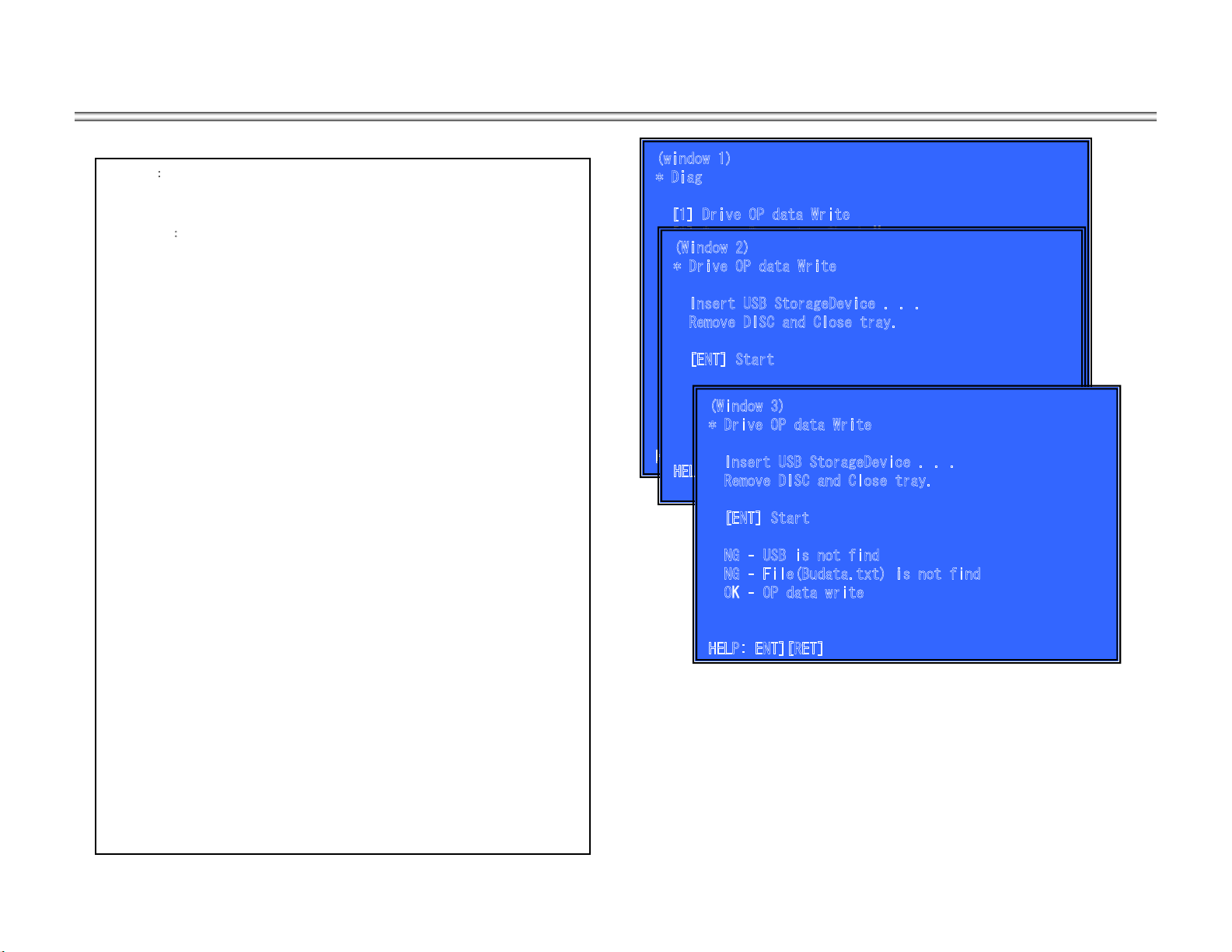

Select [8] Drive -->
Select [1] Drive OP data Write
Press ENTER
After Finishing ReWrite OP data
--> Turn AC Power OFF
Menu to verify IOP in specification
The following cases need OP Data Write:
(1) Replace BU (MB is original)
(2) Replace MB (BU is original)
(3) Replace both BU and MB
JIG requirement
Digital camera (with macro mode)
Barcode decoder (BDPRdec.exe)
installed in jig
PC's (jig purpose)
USB memory
ESD free work bench
IOP in specification --> Turn AC Power OFF
Turn Power ON and check playback
performance using BD, DVD and CD
KEM-430AAA/C2RP Packing Spec.
1-4-6. KEM-470AAA/C2RP Packing Spec.
BLX-104
DVD: HLX-513
CD: HLX-A1
1-17
1-4-7. KEM-470AAA/C2RP Packing
BDP-BX38/S280/S380/S383
Lid foam tray
Instruction
Manual
Antistatic Bag
1) Store it in Cushion Carton
2) Store the Cushion carton in the individual carton
Cushion Carton
C surface cut facing front
Individual Carton (4-272-629-0)
Antistatic Bag
2) Store it in Individual Carton
3) Store it in Master Carton
Store 10 individual cartons 1 step X 2 steps
= 20 individual cartons in the master carton.
Master Carton (E430-BU-RP)
4) Master carton is sealed
with the PP tape.
Shipment Label
(Care Mark 3)
Individual Carton (E430-BU-RP)
PPTape
Stic
kit
toH.
1-18
BDP-BX38/S280/S380/S383
BU Data Decode Jig
1-4-8. BU Data Decode Jig
・JIG Name: BDPRdec. exe
・
Release : 2010.11.26
・Version : 2.0.0.0
・Software Contents:
BDPRdec.exe ; Software
SavePath.ini ; decoded file destination setting file (initial destination is C:¥BuData.txt
Tasman.Bars.dll ; decode dll
Uninst.exe ; unistall BDPRd ec.exe from PC
・Installations
1.Unzip files to any PC Folder
2.Check the attached 2D code photo(OK_sample.JPG) drag-and-drop onto BDPRdec.exe, the
Password will be required at first time only, no need P/W from second time.
3.If there is the error message (.NET frame work requirements) please apply
Microsoft .NET Framework 2.0 (or 2.0 SP1) from Microsoft download site.
STEP 1
Microsoft .NET Framework Version 2.0 Redistributable Package (x86)
http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=0856eacb-4362-4
8edd-aab15c5e04f5
)
b0d-
STEP 2
Microsoft .NET Framework 2.0 Service Pack 1 (x86)
http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=79bc3b77-e02c-4
aacf-a7633f706ba5
*Hou to use
Case1
Drag-and-drop 2Dcode photo onto BDPRdec.exe
Case2
Drag-and-drop BU data file onto BDPRdec.exe
Data file name be changed to specify format and end of 7 character are defined
Player : ****BDP.txt
Recoder: ****BRD.txt
#You can also enter the file path at the prompt.
*Remarks
Do not change the decoded file name “BuData.txt”.
ad3-
1-19
BDP-BX38/S280/S380/S383
Laser Caution Label
Loading For Service
1-4-9. Loading For Service
BDP 6G Loading Ass’y service parts consists from 3 parts.
①Holder, Clamper Assy
②Loading Assy
③Holder FFC
Currently these parts are producing 2 vendors. But the THERE IS NO COMPATIBILITY
So, please DO NOT MIX
“Loading for service” A-1750-926-A
the ① and ② of Loading for service and original Loading.
FFC
1-838-615-11
.
Laser Caution Label
Holder, Clamper Assy
①
1-4-10. Laser Caution Label
The Loading Ass’y service parts does not have Laser Caution Label.
So that please reuse the original Laser Caution label and paste it on top of
1-838-619-11
②Loading Assy
FFC
③ Holder, FFC
4-167-321-01
(FFC Holder can be used
both service parts and original
parts)
FFC
1-838-617-11
new Loading Ass’y.
Limit Sample
Following peel off condition are acceptable
1-20
BDP-BX38/S280/S380/S383
In case of BU assy replacement:
1. OP related data for new assy is controlled by BU factory
2. All of data is recorded into a barcode label
3. The label is put on the assy
4. Service parts will be followed
5. In service, the data should be read out from problem assy
6. The read data should be saved to new assy
Fact finding:
1. The label is “DATA MATRIX” format
2. The number of data is 91 words
3. The method of reading and saving is required when BU and
main board are replaced.
New service method
1. All of BU data on the barcode label is shot by digital camera in
order to make a JPEG file of BU data.
2. Application software in the PC makes digital data from JPEG file.
3. The converted data is stored to USB memory.
4. The USB memory is connected to BDP 6G unit.
5. In service mode, there is a command to save the data from USB
memory to board memory.
1-21
Shoot the barcode
Format is JPEG
Application Software
Data convert from
JPEG
TEXT
BDP-BX38/S280/S380/S383
Save the TEXT data
USB device is connected
to symbol on the
rear unit, and the TEXT
data as new data is
loaded to unit by service
mode.
The application software will be a service jig .
service jig, and the recording media will be CD-R.
Description: BDPRdec.exe
When instruction to PC, password is required.
The password will be supplied to only service HQ, and service center
name, q’ty and all of software registered information should be
maintained by service HQ, and Video will ask to report the registration
information.
1-22
BDP-BX38/S280/S380/S383
1-5.
REAR PANEL ASSEMBLY CAUTION
Whenever you need to assemble the rear panel, please make sure that the Ethernet connector (CN801)
Top Contact Springs are in good condition with height ≥2.0mm ± 0.5mm (refer to Fig 1)
Fig.1
If the Top Contact Springs are in at condition (Fig2), please lift them up to good condition
before assembling the rear panel.
Good Contact
Fig.2
When assembling the rear panel, please ensure good contact
between the Top Contact Springs to the rear panel.
1-23E
Spec.
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SET
2-2. UPPER CASE
(Page 2-1)
2-3. TRAY COVER ASSY
(Page 2-2)
FRONT PANEL ASSY
FL-203 & IF-170 boards
2-4.
(Page 2-2)
BDP-BX38/S280/S380/S383
SECTION 2
DISASSEMBLY
2-5. REAR PANEL
(Page 2-3)
Note: Follow the disassembly procedure in the numerical order given.
2-6. MB-138 BOARD
(Page 2-3)
2-2. UPPER CASE
Three tapping screws
2
(tightening torque =
1 Tapping
(tightening torque =5 to 6
screw
Upper case
3
kgf•cm)
2-7.
BD DRIVE
(Page 2-4)
5 to6
2-8. SWITCHING REGULATOR
(Page 2-5)
kgf•cm)
2-1
tapping screw
1
(tightening torque = 5 to 6 kgf•cm)
2-3. TRAY COVER ASSY
3 Tray cover assy
1 Insert a clip in the hole of a drive
to
open a tray.
tray
2
BDP-BX38/S280/S380/S383
2-4.
FRONT PANEL ASSY, FL-203 AND IF-170 BOARD
5
FL-203 Board
One screws
(tightening torque = 6 to 7 kgf•cm)
+BV3 (3-CR)
4
2
Front Panel
3
Harness (FLM-001)

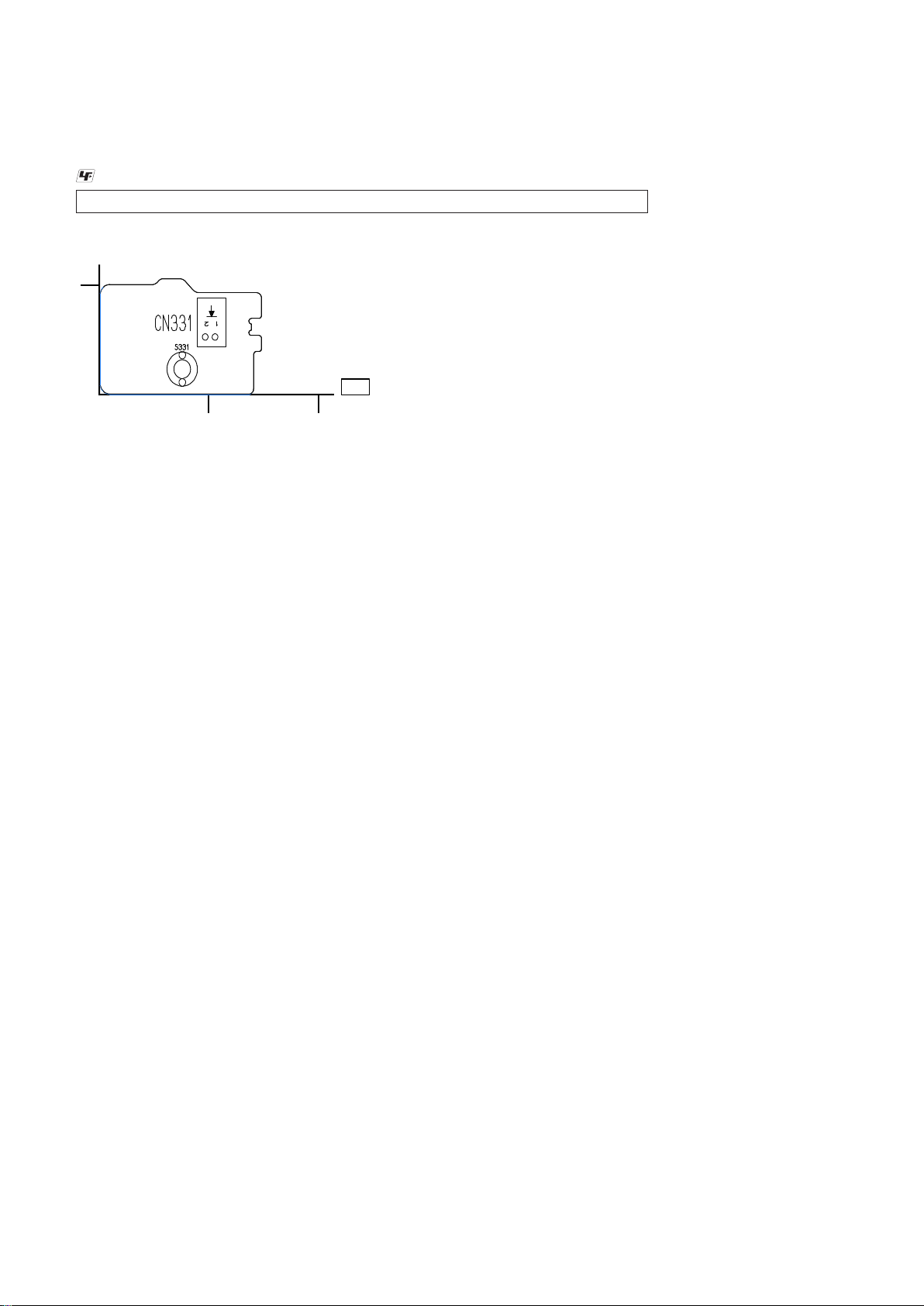

CN331
Light guide
6
cover
Except BDP-S280
Eight hook
1
Two screws +BV3 (3-CR)
7
(tightening torque = 6 to 7 kgf•cm)
9
IF-170 Board
8
One screws
(tightening torque = 6 to 7 kgf•cm)
+BV3 (3-CR)
2-2
2-5. REAR PANEL BLOCK
4
Rear panel block
Two screws+P 3X3
3
(tightening torque = 4 to 5 kgf•cm)
BDP-BX38/S280/S380/S383
2
Three ‘black’
(tightening torque = 6 to 7 kgf•cm)
1
PS Insulator top
screws +BV3(3-CR)
2-6. MB-138 BOARD
4
5
flexible flat
(CN2460)
6
flexible flat
(CN2470)
flexible flat
(CN1301)
cable (LDG-002)
cable (OPT-001)
cable (SPD-001)
Four screws +BV3(3-CR)
7
(tightening torque = 6 to
8
MB-138 board
1 harness (PM-163)
(CN301)
7 kgf•cm)
3 harness (FLM-001)
(CN1203)
2-3
2 Flexible flat cable
(CN1204)
(FIM-031)
2-7. BD DRIVE
5 BD drive
four screws +BV3(3-CR)
1
(tightening torque = 6 to 7 kgf•cm)
2
Optical flexible flat cable (OPT-001)
(CN1301)
BDP-BX38/S280/S380/S383
Splindle flexible flat cable (SPD-001)
3
(CN2460)
4
Loading flexible flat cable (LDG-002)
(CN2470)
2-4
Loading...
