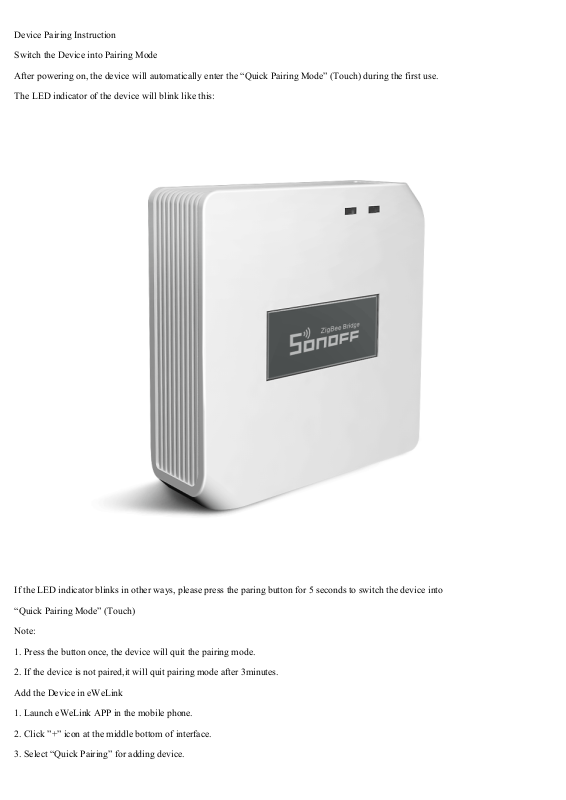

Device Pairing Instruction
Switch the Device into Pairing Mode
After powering on, the device will automatically enter the “Quick Pairing Mode” (Touch) during the first use.
The LED indicator of the device will blink like this:
If the LED indicator blinks in other ways, please press the paring button for 5 seconds to switch the device into
“Quick Pairing Mode” (Touch)
Note:
1. Press the button once, the device will quit the pairing mode.
2. If the device is not paired,it will quit pairing mode after 3minutes.
Add the Device in eWeLink
1. Launch eWeLink APP in the mobile phone.
2. Click ”+” icon at the middle bottom of interface.
3. Select “Quick Pairing” for adding device.
4. Choose the WiFi network that the device will connect with.
(User Tips: Before choosing the WiFi network, location services should be turned on and location permission should be allowed.)
5. Enter the correct WiFi password and click “Next”.
6. Wait for eWeLink to search for the device.
7. eWeLink finds the device.
8. Name the device and group it.
9. Success.
Note:
1. The device only works with 2.4GHz WiFi.
2. If the router is working in dual-band (2.4GHz & 5GHz), please upgrade the eWeLink app to V4.0.0 or higher.
3. The Pairing will fail if a wrong WiFi password is input.
4. The device shall get close to router for a good transmission signal condition while pairing.
