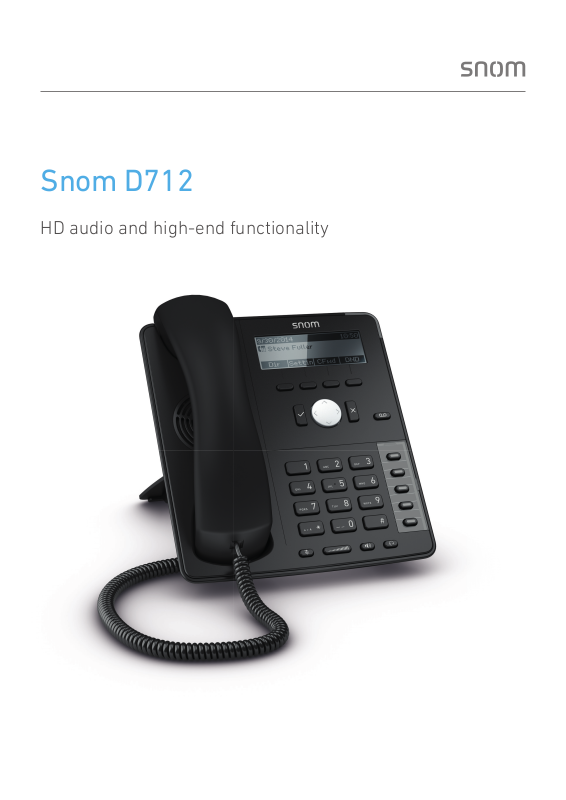

Snom D712

HD audio and high-end functionality

Datasheet

Wideband audio

D712

Key Features

· Wideband audio

· 4 context sensitive keys

· 5 configurable function keys with LEDs

· 4 SIP identities

· IPv6 capable

High End Audio

The D712 is built from the ground up for HD audio.
Its ergonomically designed handset has an advanced
speaker and microphone system. By supporting a broad
range of codecs, the phone delivers superior, crystal­clear call quality in both handset and handsfree use.

Intuitive user interface

The D712 features a four-line black and white graphi­cal display. The four context-sensitive keys and an in­tuitive, user-friendly menu, makes using the D712 easy.
Five programmable function keys with built-in LEDs for
visual call indication can be configured for a variety of
one-touch telephony functions such as speed dial, busy
lamp field or presence indication.

Advanced Features

Using a preinstalled certificate, the D712 supports the
latest VoIP security protocols to ensure secure com­munications. Advanced remote management and pro­visioning capabilities make the D712 an ideal endpoint
for service providers of hosted VoIP deployments. The
D712’s IPv6 capabilities emphazises its claim to be per­fect in large-scale installations.

Four SIP identities make the D712 flexible to use in de­manding environments. The D712 is the perfect phone
for everyday business telephony.

Technical Specications

Benefits

· Backlit graphical display, 4 lines

· Dual-angle footstand: 46° and 28°

· Wall mountable

· Hands-free talking (speakerphone)

· Digital Signal Processor (DSP) enhanced audio quality

· 2-port 10/100 Mbps Ethernet switch (RJ45)

· Power over Ethernet IEEE 802.3af, Class 1

(1)

· Electronic Hook Switch (EHS)

support

for wireless headsets

· IPv6

Firmware

Features

· 4 SIP identities / accounts

· XML browser

· Call lists for dialed, received, missed calls

· Local directory with 1000 entries

· Multiple language support

· DTMF in-band / out-of-band / SIP-INFO

· Interoperable with all major IP PBX platforms

Call Features

· Speed dialing

· URL dialing

· Local dial plan

· Automatic redial on busy

· Call completion (busy/unreachable)

(2)

· Caller identification

· Call waiting

· Call blocking (deny list)

· Auto answer

· Hold

· Music on hold

(2)

· Handling of up to 4 simultaneous calls

· Blind and attended transfer

· Call forwarding

· 3-way conferencing on the phone

· Extension monitoring, call pickup

· Call park, call unpark

(2)

(2)

· Multicast paging

· DND mode (do not disturb)

· Keyboard lock

· Client matter code (CMC)

(2)

· Unified communications ready

Audio

· Codecs:

· G.711 A-law, µ-law

· G.722 (wideband)

· G.726, G.729AB, GSM 6.10 (FR)

· Built-in assignable ringtones

· Comfort Noise Generator (CNG)

· Voice Activity Detection (VAD)

Setup

· Configuration via web interface

· Provisioning:

· Automatic loading of settings via HTTP/HTTPS/TFTP

· DHCP Options 66/67

· Snom Redirection Service

· Remote management via TR-069 / TR-111

Specification

Protocols

· SIP (RFC3261)

· DHCP, NTP

· HTTP / HTTPS / TFTP

· LDAP (Directory)

· Dual Stack IPv4 / IPv6

User Interface

· Localization (language, time, dial tone)

· Red LED for call indication / message waiting

· 4 context-sensitive keys

· 5 programmable line / function keys with green LEDs

· Paper inlay for labeling of function keys

· Dedicated message key

· Audio keys with LED indication:
Mute, speakerphone, headset

· Volume key

· 4-way navigation key

· OK and Cancel

· Menu-driven user interface

Technical Specications

Security

· 802.1X Authentication and EAPOL

· Transport layer security (TLS)

· SRTP (RFC3711), SIPS, RTCP

· HTTPS server/client

· Password-protected web interface

· VPN support

· VLAN (IEEE 802.1Q)

· LLDP-MED, RTCP-XR

Phone Features

· Dimensions (approx.):

· 205 x 185 x 40 mm (LxWxD) w/o footstand

· 205 x 185 x 200/220 mm (LxWxD) with footstand

· Weight (approx.): device 440 g, footstand 120 g

· Input voltage: 5 Vdc (SELV)

· Power supply: PoE or 5Vdc power adapter

(1)

· Handset: 4P4C connector

· Headset: 4P4C

· Hearing aid compatible (HAC) handset

· Environmental conditions:

· Ambient temperature: 0°C to 35°C (32°F to 95°F)

· Storage temperature: -10°C to 45°C (14°F to 113°F)

· Humidity: 5% to 95% (non-condensing)

· Included in delivery:

· Phone unit

· Footstand

· Handset with cord

· Ethernet cable

· Quick Installation Guide

· Color: black

· Warranty: 2 Years

· Part Number: 00004353 (all markets)

(1)

Optional accessory (see below for part numbers)

(2)

If supported by PBX

Part numbers for optional accessories
00004325 Power Adapter A6 with EU clip
00004326 Power Adapter A6 with US clip
00001168 UK clip for Power Adapter A6
00001167 AUS clip for Power Adapter A6
00002362 Snom EHS Advanced
00004341 Monaural Headset Snom A100M
00004342 Binaural Headset Snom A100D

Type Approval

· CE Mark

· FCC Class B

· Safety IEC 60950

Version 1.0.2 / en / 05 · 2017
