Instructions
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when handling food
inside the oven cavity.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, as long they
are supervised or instructed by
adults who are responsible for
their safety.
• Children must not be allowed to
play with the appliance.
• Do not allow children younger
than 8 years old to come near the
appliance when in operation.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• The cooking process must always
be monitored. Short cooking
processes must be monitored
continuously.
• Never leave the appliance
unattended during cooking
operations in which fats or oils
could be released that could
overheat and catch fire. Be very
careful.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Keep children under eight years of
age at a safe distance if they are
not constantly supervised.
74
• Switch the appliance off
immediately after use.
Instructions
EN
• DO NOT USE OR STORE
FLAMMABLE MATERIALS NEAR
THE APPLIANCE.
• NEVER USE AEROSOL CANS
NEAR THE APPLIANCE WHILE IT
IS IN OPERATION.
• DO NOT MODIFY THIS
APPLIANCE.
• Have authorised persons carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of authorised persons.
• Do not pull the cable to remove
the plug.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Switch off the burners or the
electric hot plates of the cooktop,
if installed above the appliance,
during the pyrolytic process
(where available).
• Do not use cleaning products
containing chlorine, ammonia or
bleach on steel parts or parts with
metallic surface finishes (e.g.
anodizing, nickel- or chromiumplating).
• Racks and trays must be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not spray any spray products
near the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave objects on the
cooking surface.
• DO NOT USE THE APPLIANCE
TO HEAT ROOMS FOR ANY
REASON.
75
Instructions
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
panel.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
• This appliance can be used up to
a maximum altitude of 4000
metres above sea level.
Installation and maintenance
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS.
• The appliance must not be
installed on a stand.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• To prevent overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have authorised persons carry out
installation and assistance
interventions according to the
standards in force.
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
76
Instructions
EN
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Before carrying out any work on
the appliance (installation,
maintenance, positioning or
moving), wear personal protective
equipment.
• Before carrying out any work on
the appliance, disconnect the
mains power supply.
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
• Do not install / use the appliance
outdoors.
1.3 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than the
one envisaged;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• the use of non-original spare parts.
1.4 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and in an accessible place for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
77
Instructions
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the power cable from the
socket.
• Deliver the appliance to the appropriate
recycling facility for electrical and
electronic equipment waste, or deliver it
back to the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in nonpolluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling facility.
Plastic packaging
Danger of suffocation
1.7 How to read the user manual
This user manual uses the following reading
conventions:
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for authorised persons:
installation, operation and
inspection.
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
78
Safety instructions
Information
Advice
1. Sequence of instructions for use.
• Standalone instruction.
EN
2 Description
2.1 General Description
Description
1 Control panel
2 Oven light
3 Seal
4 Door
2.2 Control panel
1 Return knob
Using this knob you can return to the
appliance’s previous menu item. It also
allows you to turn the oven light on and off
manually.
5 Fan
6 Oven light
Frame shelf
2 Display
Displays the current time, the cooking
parameters, and all the appliance’s
functions.
79
Description
3 Control knob
This knob allows you to turn the appliance
on and off and select the various available
functions.
Turn the knob right or left to change/select
the required item.
Press to confirm.
Keep the knob pressed in for at
least 5 seconds to immediately
complete any cooking operation.
2.3 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is started apart from
the ECO Pyrolytic and Pyrolytic
functions.
• When the temperature knob is turned
briefly to the right (manual activation/
deactivation).
When the door is open, it is not
possible to turn off the interior
lighting.
80
Description
EN
2.4 Available accessories
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Rack
Useful for supporting containers with food
during cooking.
Some models are not provided
with all accessories.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.
81
Use
3 Use
3.1 Instructions
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
appliance when it is in operation.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
82
Use
EN
3.3 Using the accessories
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
The mechanical safety locks that prevent the
rack from being removed accidentally must
face downwards and towards the back of
the oven cavity.
Carefully insert the racks and trays
as far as they will go into the oven
cavity.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
83
Use
3.4 Using the oven
First use
On the first use, or after a power failure,
will flash on the appliance’s
display. In order to be able to start any
cooking operation, the current time must be
set (if the oven is being turned on for the first
time, it is also recommended you set the
required language).
Press the control knob to enter the settings
menu, see “3.9 Settings”.
The appliance language is set to
“English” by default.
Reactivating the display
If the Eco-Light mode is active (see “EcoLight” in the “Settings” section), the display
will switch off 2 minutes after the appliance
was last used.
To reactivate the display when it is off:
• turn or press one of the two knobs on the
appliance.
The appliance will emit a series of sounds
and the display will switch on after a few
seconds. The display shows the current time
screen when it is switched on again.
The lamp inside the oven cavity
switches on if you turn the return
knob to the right or left to
reactivate the display.
The main menu will appear on the
display if you reactivate the
display by pressing the control
knob.
84
When first connecting or after the
power has been cut for a time it
will be necessary to wait a few
seconds before you can interact
with the appliance.
Use
EN
Favourites
Press the return knob from the clock screen
to display the last preset programs or
personal recipes used.
Deleting favourites
If you wish to delete the favourites:
1. Press the return knob from the clock
screen to display the last preset
programs or personal recipes used.
2. Hold the control knob down for a few
seconds.
3. Select YES if you wish to delete the
favourites.
Cooking functions
1. On the clock screen, press the control
knob to access the main menu.
2. Turn the control knob to the right or left to
select cooking functions from the main
menu.
3. Press the control knob to confirm.
85
Use
4. Turn the control knob to select the
required function.
5. Press the control knob to confirm the
selection.
For safety reasons, it is only
possible to set cooking functions
when the door is closed.
The appliance will begin preheating. The
display will show the selected function, the
pre-set temperature, the current time and
the progress bar of the temperature
reached.
When the preheating stage is over a
buzzer will sound to indicate that the food
can be placed inside the oven.
Interrupting a function
To interrupt a cooking function:
1. Press the return knob.
2. Select the required option
3. Press the return knob to confirm.
86
Turn the control knob to change
the preset temperature at any time.
Press to confirm or wait 5 seconds.
It is not recommended to put the
dish in the oven whilst the oven is
warming up.
Keep the control knob pressed in
for at least 5 seconds to
immediately interrupt cooking at
any time and return to the main
menu.
EN
List of cooking functions
Use
Eco
This low energy consumption
function is particularly suitable for
cooking on a single shelf.
Ideal when cooking meat, fish and
vegetables. It is not recommended
for foods that require proving.
For greater energy savings and to
reduce the time required, it is
recommended to put foods in the
oven cavity without preheating it.
When using the ECO function,
avoid opening the oven door
during cooking.
When using the ECO function,
cooking times (and pre-heating, if
used) are longer.
Convection
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, ribs and bacon. This
function enables large quantities of
food, particularly meat, to be grilled
evenly.
Bottom
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when cooked
simultaneously on several levels.
(For multiple-level cooking, we
st
recommend using the 1
shelves.)
and 4th
87
Use
Fan grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. pork shank).
Baker’s function
The combination of the fan with just
the bottom heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
Fan forced
The combination of the fan and the
circular heating element
(incorporated in the rear of the oven
cavity) allows you to cook different
foods on several levels, as long as
they require the same temperature
and type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Supercook
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking. (For multiple-level cooking,
st
we recommend using the 1
shelves.)
Fan forced + fan grill
The combination of fan-assisted
cooking and traditional cooking
allows you to cook different foods
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking.
and 4th
88
Use
EN
Timer during a function
This function only activates the
buzzer, without stopping cooking.
1. Press the control knob during a cooking
function.
2. Turn the control knob right or left to set the
duration (from 1 minute to 4 hours). After
a few seconds, the symbol stops
flashing and the countdown starts.
3. Wait for the buzzer to indicate that the
time has finished. The symbol
flashes.
Timed cooking
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Activation of timed cooking
cancels any minute minder timer
which may previously have been
set.
1. After selecting a cooking function and
temperature, press the control knob
twice.
2. Turn the knob right or left to set the
minutes of cooking from 00:01 to 13:00.
Keep the knob turned to produce a
faster increase or decrease.
Turn the knob right or left to select
another timer or press the control
knob to deactivate the buzzer.
89
3. A few seconds after the required
duration is set, the symbol stops
flashing and timed cooking starts.
Use
Turn the control knob to add some
minutes of cooking time.
To extend the cooking time
manually, press the control knob
again. The appliance will resume
its normal operation with the
previously selected cooking
settings.
4. At the end of the cooking cycle, “function
ended” appears on the display and a
buzzer sounds.
5. To turn off the buzzer, press or turn one of
the two knobs or open the door.
To turn off the appliance see
“ Interrupting a function”.
Modifying the data set during timed
cooking
During operation, it is possible to modify
timed cooking duration:
1. When the symbol is steady and the
appliance is cooking, press the control
knob. The symbol starts flashing.
2. Turn the control knob right or left to alter
the previously set cooking duration.
90
Use
EN
Programmed cooking
Programmed cooking is the
function that allows cooking to
stop at a time set by the user, after
which the oven will switch off
automatically.
1. After selecting a function and a cooking
temperature, press the control knob to set
the cooking time.
2. Press the control knob before the
symbol stops flashing to set the cooking
end time.
3. The symbol flashes. Turn the knob
right or left to set the end of cooking time.
4. After a few seconds the and
symbols stop flashing. The appliance
waits for the delay start time.
5. Based on the values set, the appliance
will a start preheating stage of
approximately 10 minutes.
6. It will then proceed with the selected
function.
91
Use
7. At the end of the cooking cycle, “function
ended” appears on the display and a
buzzer sounds.
8. To turn off the buzzer, press or turn one of
the two knobs or open the door.
To extend the cooking time
manually, press the control knob
again. The appliance will resume
its normal operation with the
previously selected cooking
settings.
For safety reasons, it is not possible
to set the cooking end time by itself
without setting the cooking
duration.
Modifying the data set during
programmed cooking
After modifying the cooking
duration, the end of cooking time
must be re-set.
During operation, it is possible to modify
programmed cooking duration:
1. When the and symbols are lit
steadily and the appliance is waiting for
cooking to start, press the control knob.
The symbol starts flashing.
2. Turn the control knob to alter the
previously set cooking time.
3. Press the control knob again. The
symbol switches off and starts
flashing. The display shows the end of
cooking time.
4. Turn the control knob to delay the end of
cooking time.
5. After a few seconds the and
symbols stop flashing and programmed
cooking restarts its operation with the
new settings.
92
If the cooking duration is modified,
the end of cooking time is deleted.
Use
EN
3.5 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
• For the same total weight, cooking time
will be greater when cooking a whole
piece than when it is cut into smaller
pieces.
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan grill function, we
recommend that you preheat the oven
cavity before grilling.
• We recommend placing the food at the
centre of the rack.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• When cooking on multiple levels, food
should ideally be positioned on the
second and fourth shelves; increase the
cooking time by a few minutes and only
use fan assisted functions.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out
of the oven, on the next occasion reduce
the set temperature by about 10°C,
selecting a longer cooking time if
necessary.
• The cooking time for meringues and
profiteroles will vary depending on their
size.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven cavity.
• Avoid overlapping the food.
93
Use
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• Fruit and bread, if divided into pieces,
take the same amount of time to defrost
regardless of the quantity and the total
weight.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed at the bottom of
the oven cavity.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean at
all times.
• (Where fitted) When it is not being used,
remove the pizza stone from the bottom
of the oven cavity.
3.6 Special functions
Some functions such as the oven
off timer, defrost or cleaning
functions are grouped in the
special functions menu.
1. On the clock screen, press the control
knob to access the main menu.
2. Turn the control knob to the right or left to
select special functions from the main
menu.
3. Press the control knob to confirm.
Certain functions are not available
on all models.
94
EN
List of special functions
Use
Timer
This function sounds a buzzer when
the time set has elapsed.
Defrost by weight
This function defrosts foods on the
basis of the type and weight of the
frozen product.
Defrost by time
This function allows you to defrost
food on the basis of a selectable
time.
Proving
The proving function, using the heat
coming from the top, makes it
possible to prove all types of
dough, guaranteeing perfect results
quickly.
Food warming
To heat food or keep it hot.
Sabbath mode
This function allows food to be
cooked in accordance with the
provisions of the Jewish religion day
of rest.
ECO pyrolytic
When this function is set, the oven
carries out a pyrolytic cycle at
500°C for a pre-set time. For use in
the case of ovens which are not too
dirty.
Pyrolytic
When this function is set, the
appliance reaches temperatures of
up to 500°C, destroying all the
grease which forms on the internal
walls.
The more complex special
functions will be described below.
For the ECO Pyrolytic and
Pyrolytic functions see “4 Cleaning
and maintenance”.
95
Use
Timer
1. Turn the control knob to the right or left to
select timer from the “special functions”
menu.
2. Press the control knob to confirm.
3. Turn the control knob right or left to set the
duration (from 1 minute to 4 hours). After
a few seconds, the symbol stops
flashing and the countdown starts.
4. If you leave the timer setting screen, the
symbol will be displayed at the top
left, indicating that a timer is active.
You must return the counter to zero
to remove the special timer.
If a function is activated after
setting a minute minder time, this
time will be automatically used as
a timer for the function, except for
some special functions, automatic
programs and personal recipes.
96
This function only activates the
buzzer, without stopping cooking.
Use
EN
Defrost by weight
1. Place the food inside the appliance.
2. Turn the control knob to the right or left to
select defrost by weight from the
“special functions” menu.
3. Press the control knob to confirm.
4. Turn the control knob to select the type of
food to defrost.
5. Turn the control knob to select the weight
(in kilograms) of the food to defrost.
6. Press the control knob to confirm the set
parameters.
7. Press the control knob again to start
defrosting, or select change to further
modify the set parameters.
97
Use
8. When finished, “function ended”
appears on the display and a buzzer
sounds.
9. To turn off the buzzer, press or turn one of
the two knobs or open the door.
Pre-set parameters:
Type
Meat
Fish
Weight
(g)
0.1 to 1.1
(default 0.5)
0.1 to 0.7
(default 0.3)
Time
(default)
02h 00m
00h 55m
Defrost by time
1. Place the food inside the appliance.
2. Turn the control knob to the right or left to
select defrost by time from the “special
functions” menu.
3. Press the control knob to confirm.
4. Turn the control knob to adjust the value
(from 1 minute to 13 hours).
Fruit
Bread
*Defrosting times can vary according to the
shape and size of the food to be defrosted.
98
0.1 to 0.5
(default 0.3)
0.1 to 0.5
(default 0.3)
00h 35m
00h 25m
Use
EN
5. Press the control knob to confirm the set
parameters.
6. Press it again to start defrosting.
7. While the function is in progress, it is
possible to further modify the defrosting
duration. Turn the control knob to the
right or left to make the required
changes.
8. Press the control knob to confirm the new
defrosting duration set. In any event, the
defrosting will automatically resume 5
seconds from the last modification.
9. When finished, “function ended”
appears on the display and a buzzer
sounds.
10. To turn off the buzzer, press or turn one
of the two knobs or open the door.
Proving
For successful proving, a container
of water should be placed at the
bottom of the oven cavity.
1. Position the dough to prove on the
second level.
2. Turn the control knob to the right or left to
select proving from the “special
functions” menu.
3. Press the control knob to confirm.
4. Press the control knob to start the
function.
99
Use
5. The appliance will begin preheating.
6. It will then proceed with the selected
function.
While the function is in progress, it is
possible to set a timer for a maximum of 4
hours (see “Timer during a function”), a
proving duration (see “Timed cooking”) or
delayed proving (see “Programmed
cooking”).
7. Press the control knob to make the
required changes.
Unless otherwise set, the proving
will have a maximum duration of
13 hours.
The light inside the oven will
remain off during the proving
function.
8. When finished, “function ended”
appears on the display and a buzzer
sounds.
9. To turn off the buzzer, press or turn one of
the two knobs or open the door.
100
It is not possible to modify the
temperature of the proving
function.
Use
EN
Food warming
1. Put the tray on the first shelf and place the
plates to be warmed on it.
Do not stack plates too high. Stack
plates no more than 5/6 high in a
maximum of two rows.
2. Turn the control knob to the right or left to
select food warming from the “special
functions” menu.
3. Press the control knob to confirm.
4. Press the control knob to activate the
function, or turn it to adjust the pre-set
temperature (from 40° to 80°).
5. The appliance will begin preheating.
101
Use
6. It will then proceed with the selected
function.
While the function is in progress, it is
possible to set a timer for a maximum of 4
hours (see “Timer during a function”), a
warming duration (see “Timed cooking”) or
a delayed warming (see “Programmed
cooking”).
7. Press the control knob to make the
required changes.
8. When finished, “function ended”
appears on the display and a buzzer
sounds.
9. To turn off the buzzer, press or turn one of
the two knobs or open the door.
102
It is not possible to modify the
temperature of the food warming
function.
Use
EN
Sabbath mode
This function results in the
appliance operating in a particular
way:
• Cooking can proceed
indefinitely, it is not possible to
set any cooking duration.
• No preheating will be
performed.
• The cooking temperature which
can be selected varies between
60-100 °C.
• The oven light remains turned off,
any attempt to turn it on by
opening the door or manually
turning on the oven using the
control knob does not turn the
light on.
• The internal fan remains turned
off.
• Knob lights and buzzers
disabled.
2. Press the control knob to confirm.
3. Turn the control knob to the right or left to
change the heating temperature.
4. Press the control knob to start the
Sabbath mode.
After activating the Sabbath mode
the settings cannot be altered.
Any action on the knobs will
produce no effect; only the control
knob remains active to allow you
to return to the main menu.

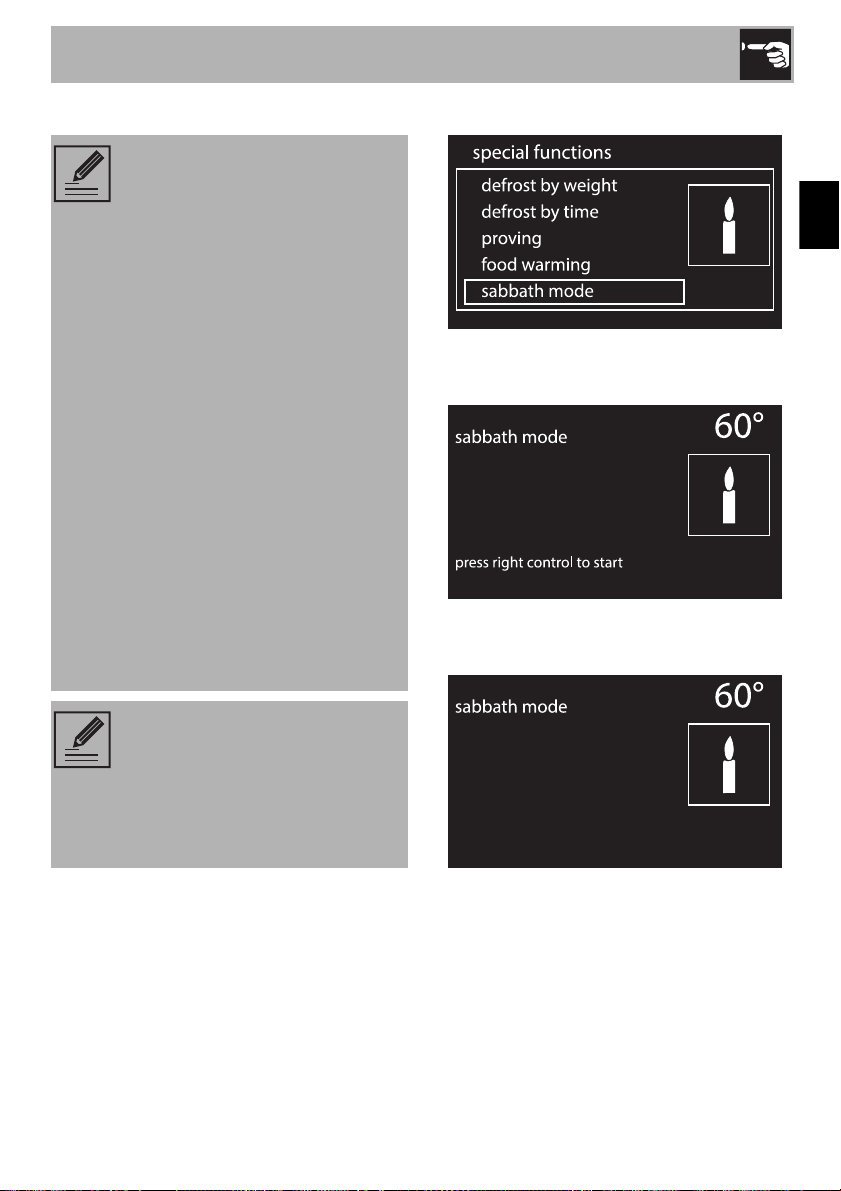

1. Turn the control knob to the right or left to
select sabbath mode from the “special
functions” menu.
5. When finished, press and hold the
control knob for at least 5 seconds to
return to the main menu.
103
Use
3.7 Preset programs
This mode allows you to select a
previously stored program for
cooking food. The appliance will
automatically calculate the
optimum cooking parameters
according to the weight selected.
1. On the clock screen, press the control
knob to access the main menu.
2. Turn the control knob to the right or left to
select preset programs from the “main”
menu.
3. Press the control knob to confirm.
Starting a program
1. Turn the control knob to the right or left to
select the required type of dish from the
“preset programs” menu.
2. Press the control knob to confirm.
3. Select the sub-category of food to be
cooked and press the control knob to
confirm.
104
Use
EN
4. Select the type of cooking (where
possible, depending on the dish chosen)
and press the control knob to confirm.
5. Turn the control knob to select the dish
weight.
It is now possible to start the selected
program, permanently modify the settings,
or use the delayed cooking function.
6. If you select the start option, cooking will
start using the default program settings
and all the set parameters will be shown
on the display.
The time indicated does not
include the time required to reach
the set temperature.
Some of the predefined cooking
parameters can be changed at
any time, even after cooking has
started.
105
Use
7. A message will indicate when to place
the food in the oven and enable the start
of cooking.
8. Press the control knob to start cooking.
End of program
1. When the preset program has finished,
the appliance will warn the user with
buzzers and the symbol flashing.
2. Press the control knob to perform
cooking with the same parameters
currently set (press the knob twice if the
buzzer is active). The appliance will
restart cooking automatically if it is still at
the correct temperature, otherwise it will
also restart the preheating stage.
Cooking dishes one after another
is useful when cooking dishes of
the same type. For example, when
baking pizzas in succession.
106
It is not recommended to put the
dish in the oven whilst the oven is
warming up. Wait for the
appropriate message to appear.
3. Press the return knob to exit and end the
preset program.
Use
EN
Making permanent changes to a
program
1. Inside the selected preset program, turn
the control knob to the left or right to
select change from the menu of the
selected dish.
2. Press the control knob to confirm.
3. Turn the control knob to the right or left to
select the function to associate with the
preset program.
5. Turn the control knob to the right or left to
select the weight to associate with the
preset program.
6. Press the control knob to confirm.
7. Turn the control knob to the right or left to
select the duration to associate with the
preset program.
4. Press the control knob to confirm.
8. Press the control knob to confirm.
107
Use
9. Turn the control knob to the right or left to
select the temperature to associate with
the preset program.
10. Press the control knob to confirm.
11. Turn the control knob to the right or left
to select the shelf to associate with the
preset program.
13. Pressing the control knob again will
return to point 2 of the change sequence.
You must press the return knob to save
the preset program. You will be
prompted to confirm the changes you
have just made.
If you do not confirm the changes
the program will remain
unchanged.
14. If the changes are confirmed the
display will show confirmation of this.
12. Press the control knob to confirm.
108
EN
Preset program table
MEAT
Subcategory Cooking
Use
Weight
(Kg)
Level Function
Temp.
(°C)
Time
(minutes)
rare
Roast beef
medium
well done 1.4 2 200 70
Pork loin -
medium
Lamb
well done
Veal -
Pork spare ribs -
Pork chops -
Pork sausages -
Bacon -
Turkey roasted
1.3 2 200 49
1.3 2 200 56
0.8 2 190 88
2 2 190 105
2.1 2 190 130
1 2 190 80
1 4 250
1.3 4 280
1 4 280
0.4 4 250
10 + 6
14 + 4
7 + 5
4 + 2
2.3 2 190 115
(1)
(1)
(1)
(1)
Chicken roasted
1 2 200 80
Rabbit roasted 0.9 2 190 75
(1)
When you grill food, it is recommended to cook it on both sides referring to the times
indicated in the table. The longer length of time indicated always refers to the first side to be
cooked starting from the uncooked food.
109
FISH
Subcategory Cooking
Use
Weight
(Kg)
Level Function
Temp.
(°C)
Time
(minutes)
Fresh fish -
Frozen fish -
Firm fish - 1
Delicate fish -
Snapper - 1.2
0.5 2 160 35
0.6 2 160 50
2
160 50
0.5 2 160 57
2
180 65
Flounder - 1 2 160 40
VEGETABLES
Subcategory Cooking
grilled
Weight
(Kg)
Level Function
0.5 4 250
Temp.
(°C)
Time
(minutes)
15 + 8
Mixed vegetables
roasted
roasted
12 200 33
12 200 30
Potatoes
frozen
0.5 2 220 18
(1)
(1)
When you grill food, it is recommended to cook it on both sides referring to the times
indicated in the table. The longer length of time indicated always refers to the first side to be
cooked starting from the uncooked food.
110
EN
DESSERTS/PASTRIES
Subcategory Cooking
Use
Weight
(Kg)
Level Function
Temp.
(°C)
Time
(minutes)
Ring cake -
Biscuits -
Muffins -
Profiteroles -
Meringues -
Sponge cake -
Strudel -
Tarts -
Brioche bread -
Croissants -
BREAD
Subcategory Cooking
1.5 2 160 50
0.5 2 160 23
0.5 2 160 21
0.5 2 180 70
0.4 2 130 93
12 150 60
0.8 2 170 45
12 170 43
0.9 2 180 39
0.5 2 160 35
Weight
(Kg)
Level Function
Temp.
(°C)
Time
(minutes)
Leavened bread -
Focaccia -
Pan baked pizza -
0.8 2 200 27
12 180 20
0.9 2 280 12
111
PIZZA
Subcategory Cooking
Use
Weight
(Kg)
Level Function
Temp.
(°C)
Time
(minutes)
fresh
0.7
(2)
1
280 7
Stone baked pizza
frozen
(2)
The stone must be placed on the bottom of the oven cavity.
(3)
Frozen pizzas of different weights cooked on the stone do not require different cooking
0.2
(2) (3)
1
230 4
times.
PASTA/RICE
Subcategory Cooking
Pasta bake -
Lasagne -
Paella -
Weight
(Kg)
Level Function
1.9 1 220 35
31 230 40
0.5 2 190 25
Temp.
(°C)
Time
(minutes)
Quiche - 1 1 200 40
Soufflé -
0.5 2 180 25
112
EN
SLOW COOKING
Subcategory Cooking
Use
Weight
(Kg)
Level Function
Temp.
(°C)
Time
(minutes)
Veal -
Beef
Pork -
Lamb -
The cooking times in the tables
refer to the food indicated in the
recipe. They are a guide only and
may vary depending on personal
taste.
The tables give the factory-set
data. To reset a preset program
with the original settings after it has
been changed permanently, just
enter the data given in the table
above.
rare
well done
1.5 2 90 540
1.4 2 90 190
1 2 90 480
1 2 90 420
1.5 2 90 480
If ECO logic mode (see 3.9
Settings) has been activated,
cooking times or preheating times
may vary.
113
Use
3.8 Personal recipes
This menu allows you to enter a
personal recipe with the
parameters you wish to use. On
first use, the appliance will only
offer you to add a new recipe.
After storing your personal recipes,
they will be available in the relative
menu.
1. On the clock screen, press the control
knob to access the main menu.
2. Turn the control knob to the right or left to
select personal recipes from the main
menu.
3. Press the control knob to confirm.

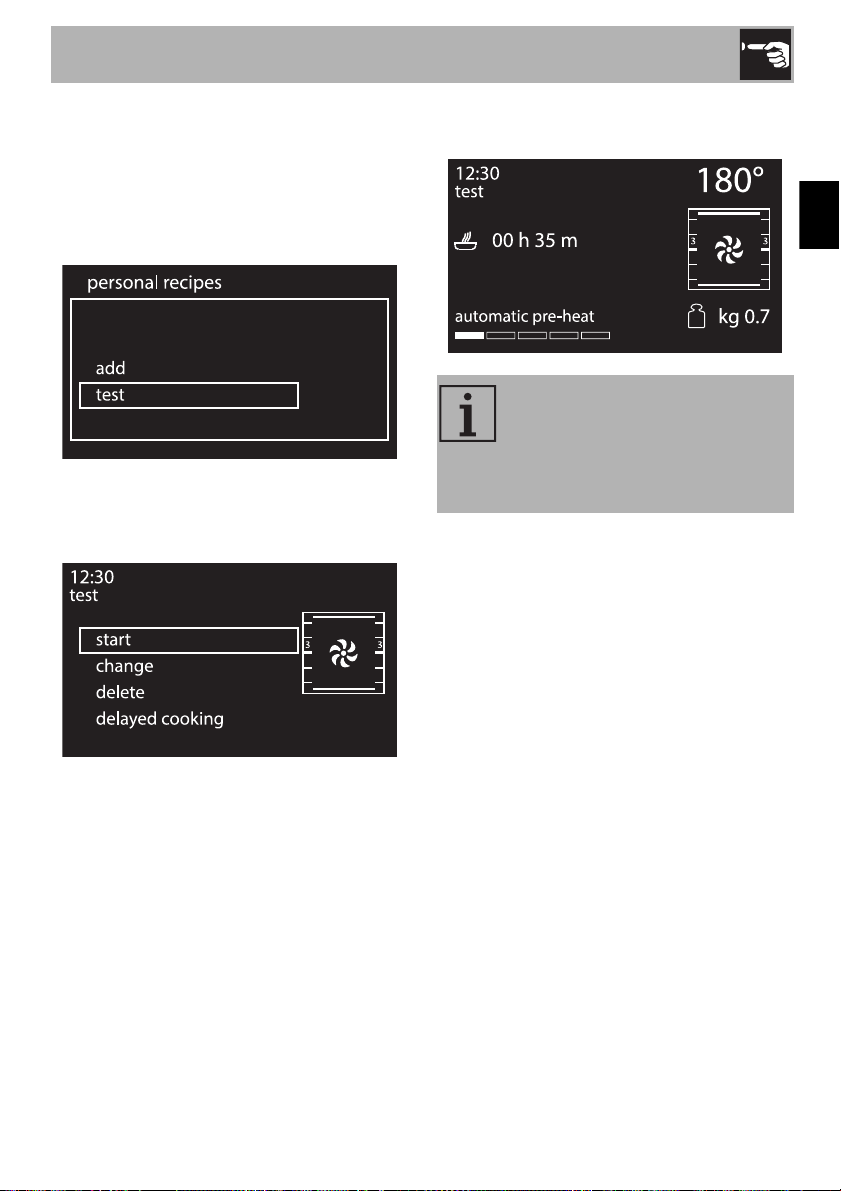

Adding a recipe
1. Select add from the “personal recipes”
menu.
2. Turn the control knob to the right or left to
select the function to associate with the
recipe.
114
It is possible to store around 10
personal recipes.
Use
EN
3. Press the control knob to confirm.
4. Turn the control knob to the right or left to
select the weight to associate with the
recipe.
5. Press the control knob to confirm.
The weight can be set or modified
up to 5 kg, but the user is
responsible for ensuring that the
dish will fit inside the oven.
6. Turn the control knob to the right or left to
select the duration to associate with the
recipe.
7. Press the control knob to confirm.
8. Turn the control knob to the right or left to
select the temperature to associate with
the recipe.
9. Press the control knob to confirm.
10. Turn the control knob to the right or left
to select the shelf to associate with the
recipe.
11. Press the control knob to confirm.
115
Use
12. Pressing the control knob again will
return to point 2 of the change sequence.
You must press the return knob to save
the recipe. The appliance will ask you to
enter a name for the recipe you have just
created.
13. Enter the name of the recipe. Turn the
control knob to select the character to
enter. Each time the control knob is
pressed, a character of the name will be
entered. The character deletes the
previous letter.
The name of the recipe can
contain a maximum 10 characters,
including spaces.
14. After entering the name of your recipe,
press the return knob to confirm or cancel
the information you have entered. Select
YES if you wish to store the recipe.
If you select “NO”, you will lose all
changes made.
15. If the changes are confirmed the
display will show confirmation of this.
116
The name must contain at least one
character in order to store the
recipe.
Use
EN
Using a personal recipe
1. Turn the control knob to the right or left to
select a previously stored personal
recipe from the “personal recipes” menu
(in the example, the recipe test has been
stored).
2. Press the control knob to confirm.
3. Turn the control knob to the right or left to
select start.
Cooking will start with the parameters that
were previously set for the recipe.
During cooking it is always
possible to modify the temperature
and cooking time, but this will not
be saved to the recipe for future
use.
4. Press the control knob to confirm.
117
Use
Changing a personal recipe
1. Turn the control knob to the right or left to
select a previously stored personal
recipe from the “personal recipes” menu
(in the example, the recipe test has been
stored).
2. Press the control knob to confirm.
3. Turn the control knob to the right or left to
select change.
Deleting a personal recipe
1. Turn the control knob to the right or left to
select a previously stored personal
recipe from the “personal recipes” menu
(in the example, the recipe test has been
stored).
2. Press the control knob to confirm.
3. Turn the control knob to the right or left to
select delete.
4. Press the control knob to confirm.
5. Repeat the same steps starting from point
2 in chapter “Adding a recipe”.
118
4. Press the control knob to confirm.
Use
EN
5. Confirm the deletion. Select YES to
delete the recipe permanently.
6. If you confirm the deletion, the display
will show a confirmation message.
Delayed cooking
1. Turn the control knob to the right or left to
select a previously stored personal
recipe from the “personal recipes” menu
(in the example, the recipe test has been
stored).
2. Press the control knob to confirm.
3. Turn the control knob to the right or left to
select delayed cooking.
4. Press the control knob to confirm.
119
Use
5. Turn the control knob to the right or left to
select the cooking end time with the
control knob. The symbol flashes.
6. Press the control knob to confirm.
After a few seconds the
flashing. The appliance waits for the delay
start time.
symbol stops
3.9 Settings
The product’s configuration can be
set using this menu.
1. On the clock screen, press the control
knob to access the main menu.
2. Turn the control knob to the right or left to
select settings from the main menu.
3. Press the control knob to confirm.
120
Use
EN
Language
Sets the interface language from those
available.
1. Turn the control knob to the right or left to
select language from the “settings”
menu.
2. Press the control knob to confirm.
3. Turn the control knob to the right or left to
select the required language.
Clock
Sets the time displayed.
1. Turn the control knob right or left to set the
hour.
2. Press the control knob to move to
changing the minutes.
3. Turn the control knob right or left to set the
minutes.
4. Press the control knob to confirm the
selected language.
4. Press the return knob to confirm.
121
Use
Control lock
Allows the appliance to automatically lock
the controls after one minute of normal
operation without any intervention from the
user.
• To confirm that you wish to activate the
control lock, select YES.
Demo mode (for showrooms only)
This mode allows the appliance to
deactivate all heating elements, while
keeping the control panel active.
• To confirm the activation of the demo
mode, select YES.
During normal operation, it is indicated by
the indicator light coming on.
• To release the lock temporarily during
cooking, hold the return knob down for 3
seconds. One minute after the last setting
the lock will become active again.
Touching or varying the position of
the control and return knobs, the
display will show a warning for
two seconds.
122
If the mode is active, “demo
mode” will be shown on the
display.
To use the appliance normally, set
this mode to OFF.
Use
EN
Eco-Logic (on some models only)
This mode allows the appliance to limit the
power used.
with further home appliances.
If this option is enabled, the symbol will
appear on the display.
• To confirm the activation of the eco-logic
mode, select YES.
Suitable for simultaneous use
Sound
Whenever one of the knobs is pressed, the
appliance beeps. This setting disables these
sounds.
• To disable sounds when the knobs are
pressed, select NO.
When eco-logic mode is active,
preheating and cooking times may
be extended.
123
Use
Keep warm
This mode allows the appliance to keep
cooked food warm (at low temperatures)
after cooking finishes with a cooking cycle
for which a duration has been set (if this is
not manually interrupted), without altering
the taste and aromas obtained during
cooking.
• To confirm the activation of the keep
warm mode, select YES.
Eco-Light
For greater energy savings, the light is
turned off automatically one minute after the
start of cooking.
• To confirm that you wish to activate the
Eco-Light mode, select YES.
124
• To prevent the appliance from turning off
the light automatically after one minute,
set this mode to OFF.
Use
EN
Digital clock
If the Eco-Light function is set to
OFF, the appliance is in standby
and displays the current time dimly.
If the Eco-Light function is set to
OFF, the appliance consumes
more energy when it is in standby
mode.
The manual off/on control is
always available with both settings
by turning the return knob to the
right.
The Eco-Light mode also turns off
the display after 2 minutes of
inactivity.
Displays the time in digital format.
• To confirm the activation of the digital
clock, select YES.
When no appliance function is active, the
display will show the current time in digital
format.
125
Cleaning and maintenance
4 Cleaning and maintenance
4.1 Instructions
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on steel
parts or parts with metallic surface
finishes (e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
We recommend the use of
cleaning products distributed by
the manufacturer.
Ordinary daily cleaning
Always use only specific products that do
not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges or sharp scrapers
as they will damage the surfaces.
Use ordinary non-abrasive products with
the aid of wooden or plastic utensils if
necessary. Rinse thoroughly and dry with a
soft cloth or a microfibre cloth.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
4.2 Cleaning the surfaces
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
126
Cleaning and maintenance
EN
4.3 Cleaning the door
Removing the door
For easier cleaning, it is recommended to
remove the door and to place it on a tea
towel.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, raise it so that it forms an angle of
around 30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
We recommend the use of
cleaning products distributed by
the manufacturer.
127
Cleaning and maintenance
Removing the internal glass panels
For easier cleaning, the internal glass
panels of the door can be removed.
1. Open the door.
2. Insert the locking hooks into the holes
on the hinges to prevent the door from
being closed by accident.
3. Pull the rear part of the internal glass
panel gently upwards, following the
movement indicated by the arrows (1).
4. Remove the internal glass panel from
the front strip (2) to remove it from the
door.
5. Remove the intermediate glass panels
by lifting them upwards.
6. Clean the external glass panel and the
panels removed previously. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp
sponge and neutral detergent.
128
7. When you have finished cleaning,
replace the intermediate glass panel
into the housing on the door.
8. Reposition the internal glass panel,
place the upper part into the strip on the
door and insert the 2 rear pins into their
housings on the oven door by applying
slight pressure.
Cleaning and maintenance
EN
4.4 Cleaning the oven
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Do not allow food residues to dry inside the
oven cavity because doing so could
damage the enamel.
Before cleaning, remove all the parts that
can be removed.
For easier cleaning, it is recommended to
remove:
• The door
• The rack/tray support frames
•The oven seal.
If you use specific oven cleaning
products, it is recommended to
operate the appliance at maximum
temperature for about 15-20
minutes afterwards in order to burn
off any residues.
Removing rack/tray support frames
Removing the rack/tray support frames
enables the sides to be cleaned more
easily.
Removing the rack/tray support frames:
• Pull the frame towards the inside of the
oven cavity to unhook it from its groove A,
then slide it out of the seats B at the back.
• After cleaning, repeat the above
procedures to replace the rack/tray
support frames.
129
Cleaning and maintenance
4.5 Pyrolytic
The pyrolytic function consists of an
automatic high-temperature
cleaning procedure which causes
dirt to dissolve. Thanks to this
process, it is possible to clean the
oven cavity very easily.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the oven cavity.
• Switch off the burners or the electric hot
plates of the cooktop if installed above
the appliance.
Preliminary operations
Before starting the pyrolytic cycle:
• Clean the internal glass panel following
the usual cleaning instructions.
• For very stubborn encrustations spray an
oven cleaning product onto the glass
(read the warnings on the product);
leave for 60 minutes, then rinse and dry
the glass using kitchen roll or a microfibre
cloth.
• Completely remove all accessories from
inside the oven.
• Remove the rack/tray support frames.
• Remove the upper guard (if present).
•Close the door.
Pyrolytic function setting
1. Turn the control knob to the right or left to
select eco pyrolytic or pyrolytic from
the “special functions” menu. Then press
it to confirm.
130
Cleaning and maintenance
EN
2. Turn the control knob to set the duration
of the cleaning cycle from a minimum of
2 hours to a maximum of 3 hours (except
for the function, the duration of
which is set to 2 hours).
3. Press the control knob. The symbol
will now be lit solidly. The display shows
a warning to remove accessories from
inside the oven cavity.
4. Press the control knob to start the
pyrolytic cycle.
Recommended pyrolytic cycle
duration:
• Light dirt: 2 hours.
• Medium dirt: 2 ½ hours.
•Heavy dirt: 3 hours.
131
Cleaning and maintenance
Pyrolytic
1. The display shows “cleaning in progress”
and the remaining time to indicate that
the appliance is carrying out the
automatic cleaning cycle. Two minutes
after the pyrolytic cycle has started the
door is locked (the door lock indicator
light comes on) by a device that
prevents the door from being opened
.
2. At the end of the pyrolytic cycle, the door
remains locked until the temperature
inside the oven cavity returns to a safe
level.
3. The display indicates that the cooling
procedure inside the oven cavity is in
progress.
132
It is not possible to select any
function once the door lock device
has been activated.
Cleaning and maintenance
EN
4. Wait for the appliance to cool down and
collect the residues deposited inside
using a damp microfibre cloth.
During the first pyrolytic cycle,
unpleasant odours may occur due
to the normal evaporation of oily
manufacturing substances. This is
an absolutely normal phenomenon
which disappears after the first
pyrolytic cycle.
During the pyrolytic cycle the fans
produce a more intense level of
noise due to a greater rotation
speed. This is an absolutely normal
operation, intended to provide
more effective heat dispersal. At
the end of the pyrolytic cycle, the
fans will continue to operate for
long enough to prevent the walls
of adjacent units and the front of
the oven from overheating.
If the pyrolytic cycle gives
unsatisfactory results at minimum
duration, it is recommended to set
a longer time for successive
cleaning cycles.
Setting of programmed pyrolytic cycle
It is possible to program the pyrolytic cycle
start time.
1. After selecting the pyrolytic cycle
duration, press the control knob. The
display shows the current time and the
symbol comes on.
2. Turn the control knob to set the time you
wish the pyrolytic cycle to finish.
3. After a few seconds, the and
symbols remain lit steadily and the
appliance waits for the set start time
before starting the cleaning cycle.
It is not possible to select any
function once the door lock device
has been activated. It remains
possible, however, to switch off the
appliance using the specific
controls.
133
Cleaning and maintenance
4.6 Extraordinary maintenance
Replacing the internal light bulb
Live parts
Danger of electrocution
• Unplug the appliance from the power
supply.
The oven cavity is fitted with a
40W light bulb.
1. Completely remove all accessories from
inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
Be careful not to scratch the
enamel on the side of the oven.
4. Slide out and remove the light bulb.
Do not touch the halogen lamp
directly with your fingers, but hold it
using insulating material.
5. Fit the new light bulb.
6. Replace the bulb cover. Ensure that the
moulded internal part of the glass (A) is
facing towards the door.
134
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Cleaning and maintenance
EN
What to do if...
The display is completely off:
• Check the mains power supply.
• Check whether an omnipolar switch
upstream of the appliance supply line is
in the “ON” position.
The appliance does not heat up:
• Check whether it has been set in “demo”
mode (for further details see “Settings”).
The controls do not respond:
• Check whether it has been set to “control
lock” mode (for further details see
“Settings”).
The cooking times are longer than those
indicated in the table:
• Check whether it has been set to “ecologic” mode (for further details see
“Settings”).
After the automatic (pyrolytic) cleaning
cycle it is not possible to select a function:
• Verify whether the door lock has
deactivated. If not, the appliance has a
safety device that does not allow
functions to be selected while the door
lock is active. This is because the
temperature in the oven cavity is still too
high to allow any type of cooking.
The display shows “Error 4”:
• The door lock has not properly attached
to the door. This might be because the
door was accidentally opened during
the door lock activation. Switch the
appliance off and on again, wait a few
minutes before selecting a new cleaning
cycle.
If the door is opened during a fan assisted
function, the fan stops:
• This is not a fault. It is a normal operation
of the appliance, useful when cooking
foods in order to avoid excessive heat
escaping. When the door is closed, the
oven will return to normal operation.
If the problem has not been
resolved or in the case of other
types of fault, contact your local
technical support centre.
If other Error XX error messages
are indicated:
Note down the error message,
function and set temperature and
contact your local technical
support centre.
135
Installation
5 Installation
5.1 Electrical connection
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance works at 220-240 V~.
Use a three-pole cable (3 x 2.5 mm
internal conductors).
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
2
Fixed connection
Fit the power line with an omnipolar circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters, gang sockets or
extensions as these could cause
overheating and a risk of burns.
5.2 Instructions for the installer
• The plug must be accessible after
installation. Do not bend or trap the
electrical power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
136
Installation
EN
5.3 Cable replacement
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
1. Unscrew the 4 screws on the rear casing.
Position of the screws and the power cable
(rear view)
2. Lift the upper casing slightly and remove
the rear casing to gain access to the
terminal board.
3. Replace the cable.
4. Make sure that the cables (for the oven
or any cooktop) follow the best route in
order to avoid any contact with the
appliance.
5.4 Positioning
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cutout with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
Heat production during appliance
operation
Risk of fire
• Check that the piece of furniture material
is heat resistant.
• Check that the piece of furniture has the
required slots.
• Do not install the appliance in a recess
which can be closed with a door or in a
cupboard.
137
Installation
Fastening bushings
1. Mount the appliance into the recess.
2. Open the door completely.
position of covers
(front view)
3 Remove the bushing covers from the front
of the oven.
4 Secure the appliance to the piece of
furniture using screws.
5 Cover the bushings with the previously
removed covers.
138
Installation
EN
Front panel seal
When installing under a worktop, the seal
provided must be glued to the back of the
front panel to prevent water or other liquids
leaking in from the worktop above.
Install a wooden bar underneath the
worktop.
Appliance overall dimensions (mm)
139
Installation
Mounting under worktops (mm)
140
Make sure that the piece of
furniture rear/bottom part has an
opening of approx. 60 mm.
Installation
EN
Mounting under cooktops
Whenever a cooktop is installed above the
oven, a wooden separator has to be
installed at a minimum distance of 20 mm
from the top of the oven to prevent
overheating when the two appliances are
used at the same time. It must only be
possible to remove the separator by using
suitable tools.
When using a wooden separator,
a wooden bar has to be installed
under the worktop in order to use
the adhesive seal that is glued to
the back of the front panel to
prevent water or other liquids
leaking in.
141
Mounting into a column (mm)
Make sure that the piece of
furniture top/rear part has an
opening approx. 35-40 mm deep.
Installation
142
Loading...
