Smeg SC110SG, SC110, SC110EBO, SC110NE User Manual

Table of Contents

1. PRECAUTIONS FOR USE ................................................................... 33

2. DISPOSAL INSTRUCTIONS - OUR ENVIRONMENT POLICY ........... 34

3. SAFETY PRECAUTIONS ..................................................................... 35

4. GET TO KNOW YOUR OVEN .............................................................. 36

5. BEFORE INSTALLATION..................................................................... 36

6. DESCRIPTION OF FRONT PANEL CONTROLS ................................ 37

7. USING THE OVEN ............................................................................... 39

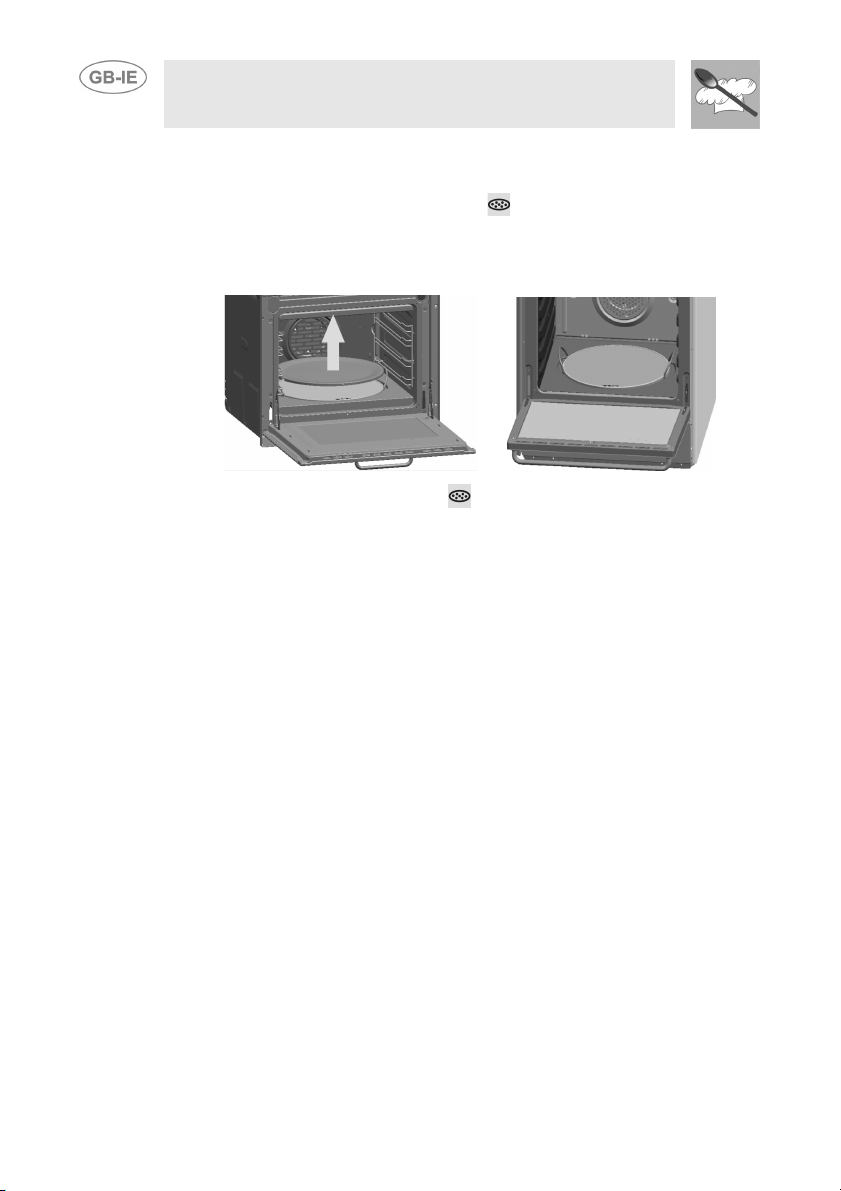

8. USING THE PIZZA FUNCTION (ON SOME MODELS ONLY) ............ 46

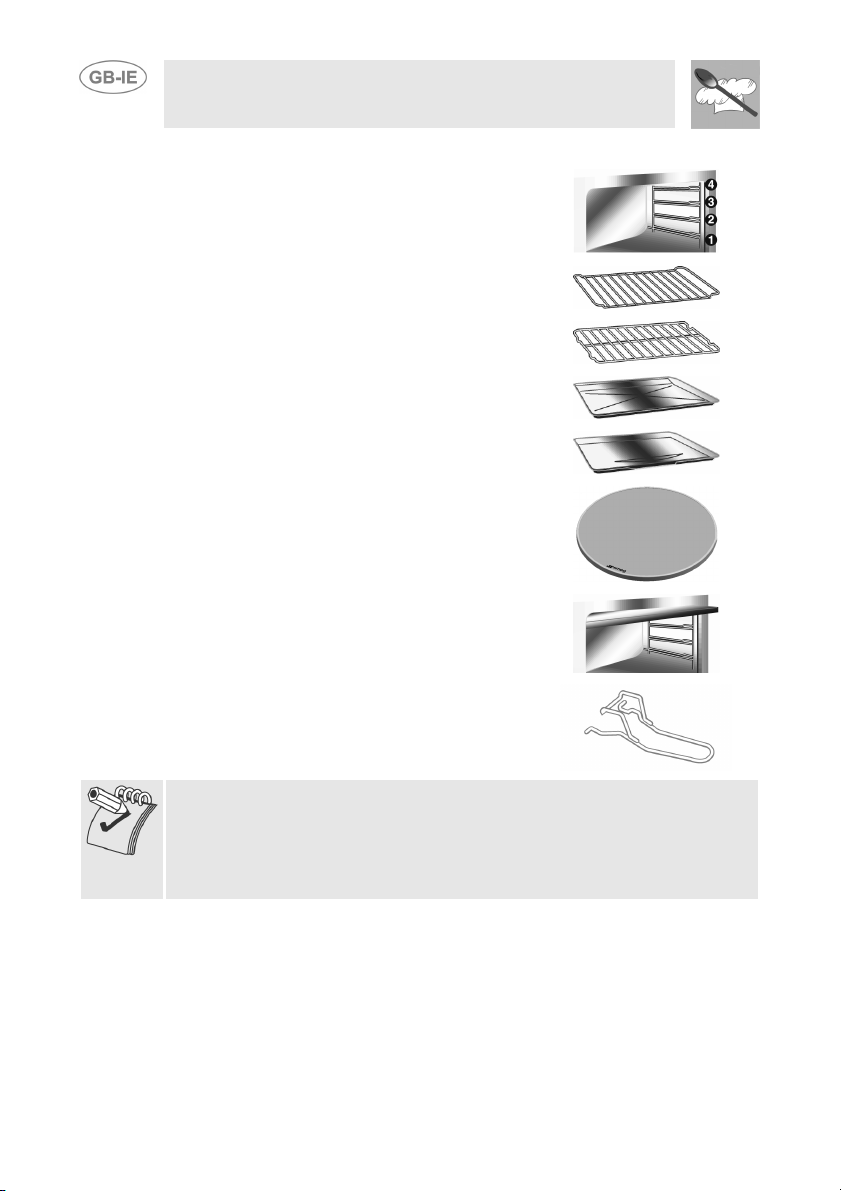

9. ACCESSORIES AVAILABLE................................................................ 48

10. RECOMMENDED COOKING TABLES ................................................ 49

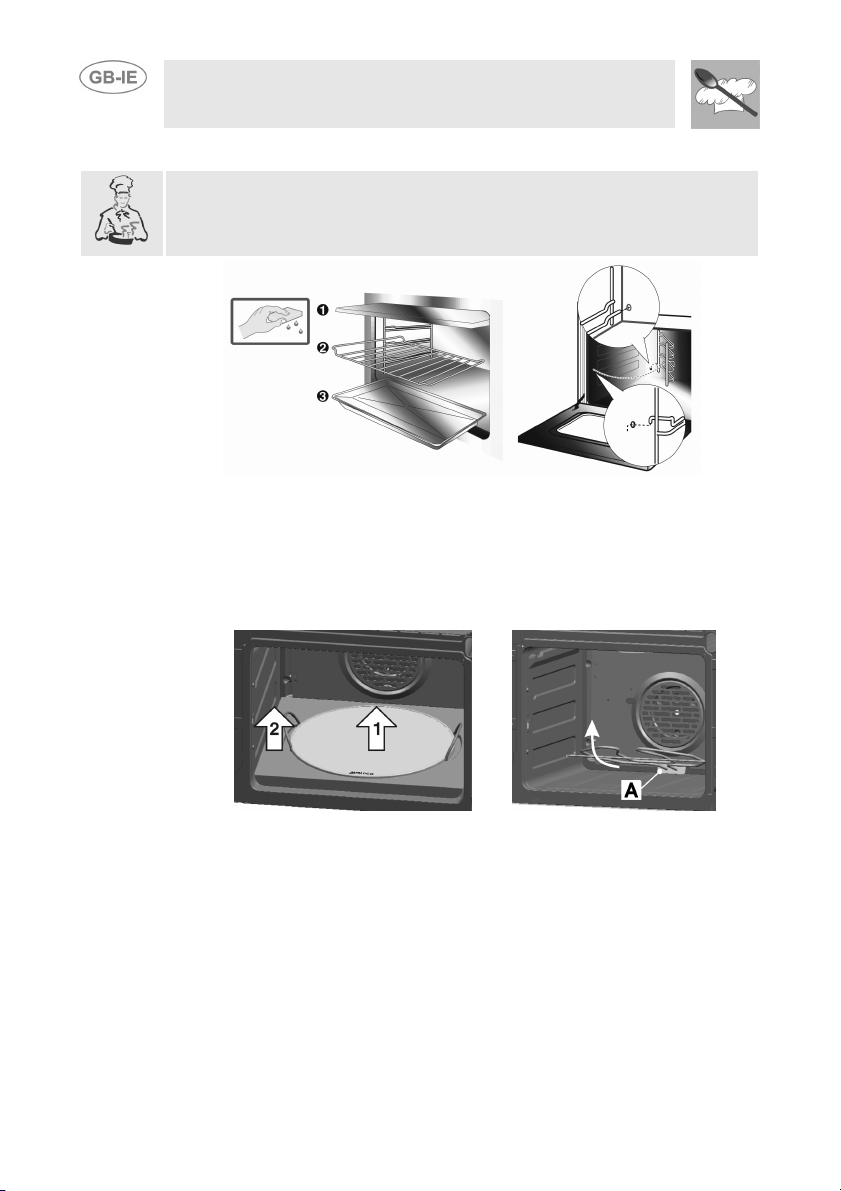

11. CLEANING AND MAINTENANCE ........................................................ 51

12. EXTRAORDINARY MAINTENANCE .................................................... 55

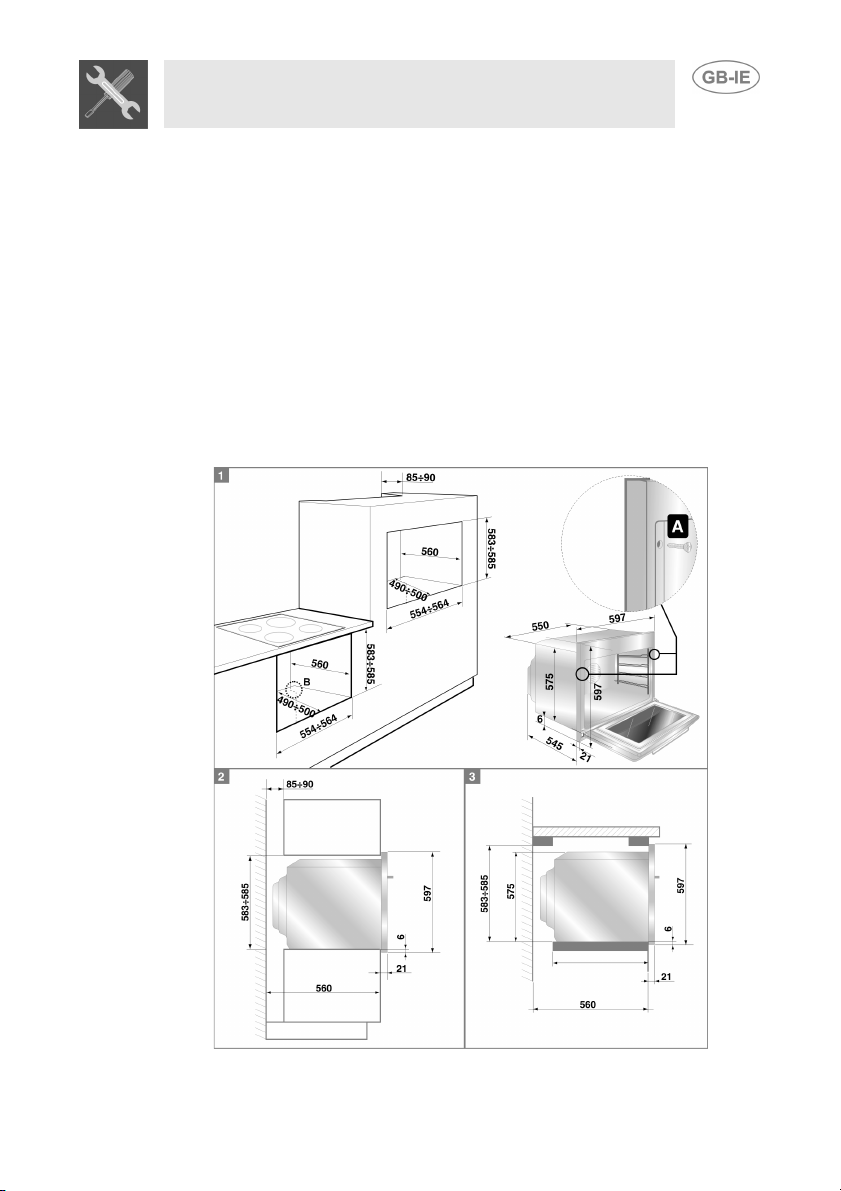

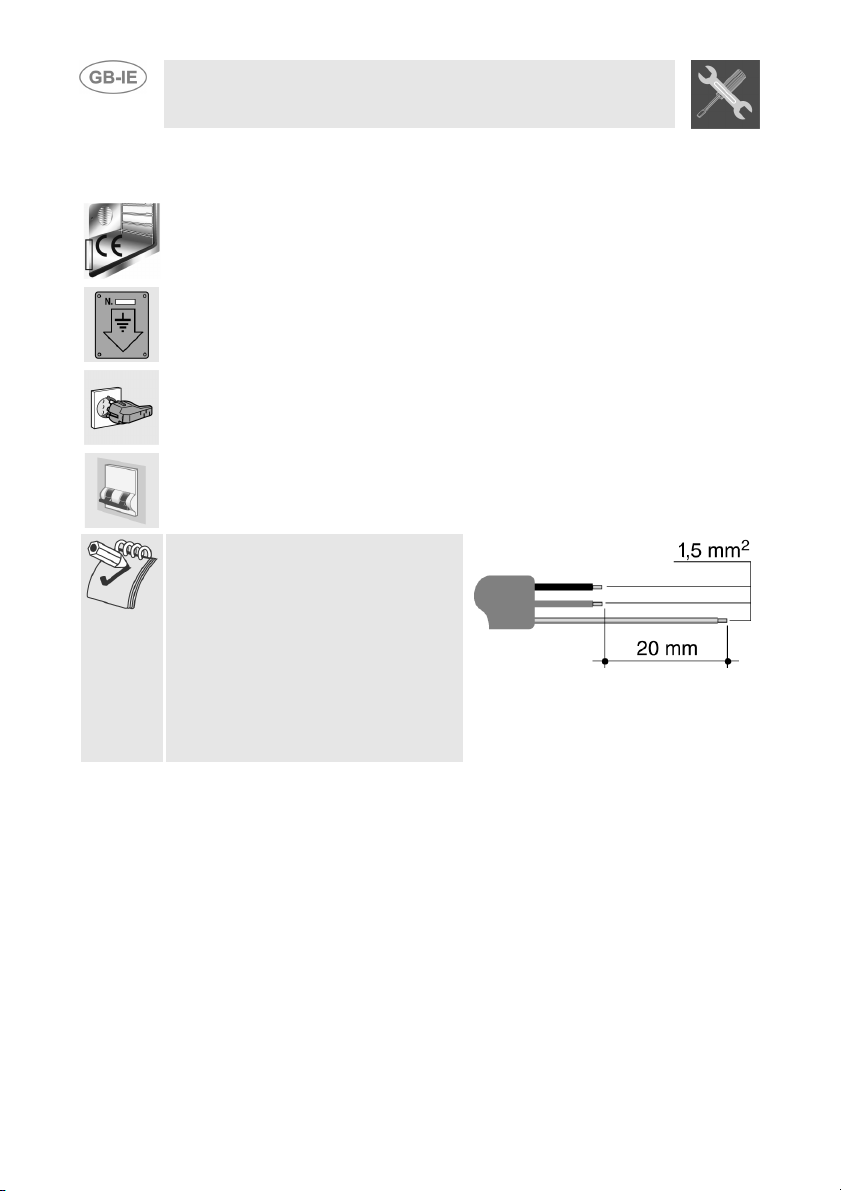

13. INSTALLING THE APPLIANCE............................................................ 58

INSTRUCTIONS FOR THE USER: these provide recommendations for use, a description of the controls and the correct procedures for cleaning and maintaining the appliance

INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified engineer who is to install, commission and test the appliance

Precautions for Use

1. PRECAUTIONS FOR USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. TAKE GOOD CARE OF IT AND KEEP IT TO HAND THROUGHOUT THE OVEN'S LIFE CYCLE. WE URGE YOU TO READ THIS MANUAL AND ALL THE INFORMATION IT CONTAINS CAREFULLY BEFORE USING THE APPLIANCE. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED STAFF IN COMPLIANCE WITH THE RELEVANT REGULATIONS. THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE AND COMPLIES WITH THE EEC DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE IS BUILT TO PROVIDE THE FOLLOWING FUNCTION: COOKING AND HEATING FOODS; ALL OTHER USES ARE TO BE CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL LIABILITY FOR USES OTHER THAN THOSE STATED ABOVE.

NEVER USE THIS APPLIANCE FOR HEATING ROOMS.

NEVER LEAVE PACKAGING RESIDUES UNATTENDED IN THE HOME. SEPARATE THE VARIOUS PACKAGING MATERIALS BY TYPE AND CONSIGN THEM TO THE NEAREST SEPARATE DISPOSAL CENTRE.

THIS APPLIANCE IS TAGGED UNDER EUROPEAN DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE). THIS DIRECTIVE CONTAINS THE REGULATIONS GOVERNING THE COLLECTION AND RECYCLING OF DECOMMISSIONED APPLIANCES THROUGHOUT THE EUROPEAN UNION.

NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR VENTILATION AND HEAT DISPERSAL.

THE NAMEPLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND MARK IS IN A VISIBLE POSITION ON THE OVEN DOOR FRAME. THE NAMEPLATE MUST NEVER BE REMOVED.

NEVER USE METAL SCOURING PADS OR SHARP SCRAPERS; THEY WILL DAMAGE SURFACES. USE ORDINARY NON-ABRASIVE PRODUCTS WITH THE AID OF WOODEN OR PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY WITH A SOFT CLOTH OR CHAMOIS LEATHER. DO NOT ALLOW SPILLS OF FOODS WITH HIGH SUGAR CONTENT (E.G. JAM) TO DRY INSIDE THE OVEN. IF THEY DRY FOR TOO LONG, THEY MIGHT DAMAGE THE ENAMEL COATING OF THE INSIDE OF THE OVEN.

Disposal instructions

2. DISPOSAL INSTRUCTIONS - OUR ENVIRONMENT POLICY

Our products are only packaged using non-pollutant, environment-friendly, recyclable materials. We urge you to cooperate by disposing of the packaging properly. Contact your local dealer or the competent local organisations for the addresses of collection, recycling and disposal facilities. Never leave all or part of the packaging lying around. Packaging parts, and especially plastic bags, may represent a suffocation hazard for children.

Your old appliance must also be disposed of properly. Important: deliver the appliance to your local organisation authorised to collect scrapped appliances. Proper disposal allows the intelligent recovery of valuable materials.

Before scrapping your appliance it is important to remove doors and leave shelves in position as for use, to ensure that children cannot accidentally become trapped inside the oven during play. Also, cut the power supply lead and remove it and the plug.

Safety precautions

3. SAFETY PRECAUTIONS

REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS. IN YOUR INTEREST AND TO ENSURE YOUR SAFETY, BY LAW ALL ELECTRIC APPLIANCES MUST ONLY BE INSTALLED AND SERVICED BY QUALIFIED STAFF, IN ACCORDANCE WITH THE RELEVANT REGULATIONS. OUR APPROVED INSTALLATION ENGINEERS GUARANTEE YOU A JOB WELL DONE. GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY SUITABLY SKILLED PEOPLE.

THE PLUG TO BE CONNECTED TO THE POWER SUPPLY LEAD AND THE RELATIVE SOCKET MUST BE OF THE SAME TYPE AND COMPLY WITH THE RELEVANT REGULATIONS. THE POWER SUPPLY SOCKET MUST BE ACCESSIBLE EVEN AFTER THE APPLIANCE HAS BEEN BUILT-IN. NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY LEAD.

THE APPLIANCE MUST BE CONNECTED TO EARTH IN COMPLIANCE WITH ELECTRICAL SYSTEM SAFETY REGULATIONS.

IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE APPLIANCE FOLLOWING THE INSTRUCTIONS PROVIDED LATER IN THIS MANUAL. IF THE APPLIANCE FAILS TO OPERATE, DISCONNECT IT FROM THE ELECTRICAL MAINS AND CONTACT YOUR NEAREST SERVICE CENTRE. NEVER ATTEMPT TO REPAIR THE APPLIANCE.

NEVER PLACE INFLAMMABLE OBJECTS IN THE OVEN: IF IT SHOULD ACCIDENTALLY BE SWITCHED ON, THIS MIGHT CAUSE A FIRE.

THE APPLIANCE BECOMES VERY HOT DURING USE. TAKE CARE NOT TO TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING CHILDREN) OF REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR INSTRUCTED BY ADULTS OR PEOPLE RESPONSIBLE FOR THEIR SAFETY.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE PROTECTIVE FILMS APPLIED ON THE OUTSIDE MUST BE REMOVED.

The manufacturer declines all responsibility for injury or damage caused by failure to comply with the above regulations or deriving from tampering with even just one part of the appliance and the use of non-original spare par ts.

Instructions for the User

4. GET TO KNOW YOUR OVEN

CONTROL PANEL

OVEN LIGHT

OVEN FAN

SHELF AND TRAY RUNNERS

TEMPERATURE SENSOR

BOTTOM PLATE (ON SOME MODELS ONLY)

PIZZA PLATE / COVER RECESS (ON SOME MODELS ONLY)

5. BEFORE INSTALLATION

Never leave packaging residues unattended in the home. Separate waste packaging materials by type and consign them to the nearest separate disposal centre.

The inside of the appliance should be cleaned to remove all manufacturing residues. For further information about cleaning, see point "11. CLEANING AND MAINTENANCE".

PT1

DSP1

DSP2

DSP3

Instructions for the User

6. DESCRIPTION OF FRONT PANEL CONTROLS

All the appliance's control and monitoring devices are placed together on the front panel. The table below provides the key to the symbols used.

THERMOSTAT-TIMER KNOB

This knob allows you to set the time, select the cooking temperature and duration and program the cooking start and end times. From now on,

for convenience it will be referred to as PT1.

For instructions on how to use it correctly, see point “7.3 First use” and “7.5 Programmed cooking procedures”.

CURRENT TIME/PROGRAMMED COOKING OPERATION DISPLAY

This display shows the current time or the cooking duration.

From now on, for convenience it will be referred to as DSP1.

TEMPERATURE DISPLAY

This display shows the temperature set for the function required, or the temperature set by the user. Also visible are the function cutout light (see point “7.6.1 Child safety

lock-out function”) and the preheating level (see point “7.4 Selecting the function”).

From now on, for convenience it will be referred to as DSP2.

FUNCTION DISPLAY

This display shows (illuminated) all the cooking functions available for selection. For instructions on how to select a cooking function, see point “7.2 Operating modes”.

From now on, for convenience it will be referred to as DSP3.

Instructions for the User

PT2

This knob allows access to the oven's three operating modes, and is also used to select a cooking function (see point “7.2 Operating modes”).

From now on, for convenience it will be referred to as PT2.

The table below provides a short description of the functions available.

GRILL ELEMENT IN OPERATION ALTERNATING WITH BOTTOM HEATING ELEMENT + FAN

TOP + BOTTOM HEATING ELEMENTS

FUNCTION-SWITCH ON KNOB

GRILL ELEMENT + FAN

BOTTOM HEATING ELEMENT + FAN

GRILL ELEMENT PIZZA FUNCTION (ON SOME

GRILL ELEMENT + TOP HEATING ELEMENT

TOP + BOTTOM HEATING ELEMENTS+FAN

MODELS ONLY)

ROUND HEATING ELEMENT

FAN HEATING ELEMENT + TOP + BOTTOM HEATING ELEMENTS

DEFROSTING AND PROVING

Instructions for the User

7. USING THE OVEN

7.1 Precautions and General Advice

All cooking operations must be carried out with the door closed

When the oven and grill are used for the first time, they should be heated to the maximum temperature for long enough to burn off any oily residues left by the manufacturing process, which might contaminate foods with unpleasant smells.

During cooking, do not cover the bottom of the oven with aluminium or tin foil, and do not place pans or trays on it; this may damage the enamel coating. If you wish to use greaseproof paper, position it so that it does not interfere with the hot air circulation inside the oven.

Oven accessories which may come into contact with foods are made from materials compliant with directive 89/109/EEC of 21/12/88 and national relevant regulations.

To avoid unpleasant contact with any steam inside the oven, open the door in two stages: hold it halfopen (about 5 cm) for 4-5 seconds, then open it completely. If you have to carry out any procedures on foods, leave the door open for as short a time as possible to prevent a drop in the oven temperature which will impair the cooking results.

To prevent excessive amounts of condensation from forming on the internal glass, food should not be left inside the oven for too long after cooking.

7.2 Operating modes

This product is programmed to provide 3 operating settings, which can be modified by pressing PT2. Standby setting: activated as soon as the current time has been confirmed, with DSP1 on and showing the current time. ON setting: from the standby setting, press PT2 once. All the displays and knobs light up. OFF setting:from the ON setting, press PT2 once.

Only the symbol on DSP1 remains on.

The heating system is not activated immediately in any of these functions, in order to improve operator safety.

Instructions for the User

7.3 First use

At first use, or after a power failure, the oven's left hand-display, DSP1, will show a flashing symbol. To start any cooking operation, the current

time must be set.

7.3.1 Setting the current time

To set the current time, turn PT1 to the right and left to increase or decrease the hours. Press it once to move on to setting the minutes. Turn it the right and left to increase or decrease the minutes and press it to set

the current time. The symbol will appear on the display, which will stop flashing.

7.3.2 Changing the current time

It might become necessary to change the current time, for example at the switch from summer to winter time. To do this, starting from the standby setting (see point “7.2 Operating modes”) keep PT1 pressed until the figures on DSP1 flash. Now repeat the operations described in point “7.3.1 Setting the current time”.

7.4 Selecting the function

In the ON state only, a cooking function can be selected by simply turning PT2 to the right or left. The function selected will change colour to red on DSP3. The preset cooking temperature will be displayed on DSP2.

7.4.1 Cooking with preset temperature

After selection of the function required, the oven will start the cooking procedure at the preset temperature. Cooking itself is preceeded by a preheating stage, which allows the oven to heat to the cooking temperature more quickly. The ° symbol flashes on DSP2 to indicate that

this stage is in progress. The symbols will light up one at a time, from the bottom up, indicating the rise in the temperature inside the oven. When

the preheating stage is over, the ° and symbols will remain constantly on to indicate that the food can be placed inside the oven.

7.4.2 Changing the preset temperature

The temperature preset for each function can be changed to suit the user's requirements. At any time while cooking is in progress, turn PT1 in either direction to increase or decrease the cooking temperature by 5 degrees at a time. PT1 can also be held in the left or right position to increase or decrease the setting more quickly.
