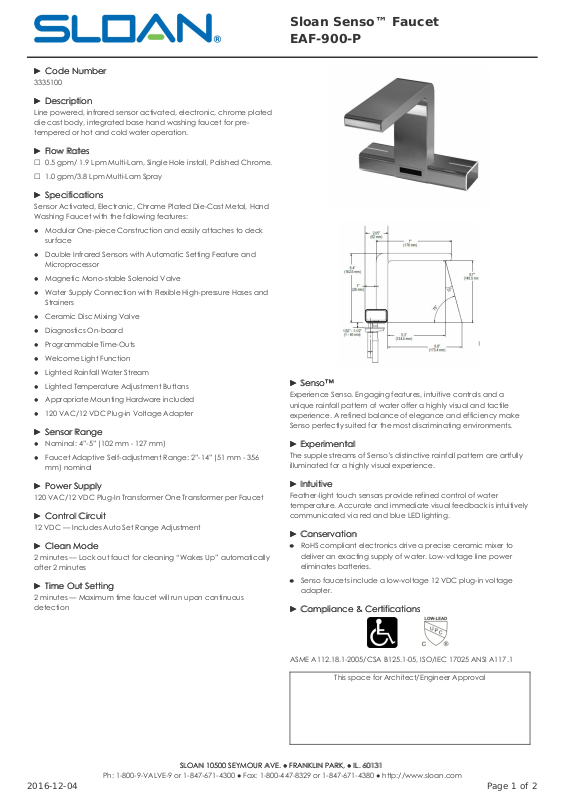

Sloan EAF-900-P User Manual

►► Code NumberCode Number

3335100

►► DescriptionDescription

Line powered, infrared sensor activated, electronic, chrome plated
die cast body, integrated base hand washing faucet for pre­tempered or hot and cold water operation.

►► Flow RatesFlow Rates

☐ 0.5 gpm/ 1.9 Lpm Multi-Lam, Single Hole install, Polished Chrome.

☐ 1.0 gpm/3.8 Lpm Multi-Lam Spray

►► SpecificationsSpecifications

Sensor Activated, Electronic, Chrome Plated Die-Cast Metal, Hand
Washing Faucet with the following features:

● ● Modular One-piece Construction and easily attaches to deck
surface

● ● Double Infrared Sensors with Automatic Setting Feature and
Microprocessor

● ● Magnetic Mono-stable Solenoid Valve

● ● Water Supply Connection with Flexible High-pressure Hoses and
Strainers

● ● Ceramic Disc Mixing Valve

● ● Diagnostics On-board

● ● Programmable Time-Outs

● ● Welcome Light Function

● ● Lighted Rainfall Water Stream

● ● Lighted Temperature Adjustment Buttons

● ● Appropriate Mounting Hardware included

● ● 120 VAC/12 VDC Plug-in Voltage Adapter

►► Sensor RangeSensor Range

● ● Nominal: 4”-5” (102 mm - 127 mm)

● ● Faucet Adaptive Self-adjustment Range: 2”-14” (51 mm - 356
mm) nominal

►► Power SupplyPower Supply

120 VAC/12 VDC Plug-In Transformer One Transformer per Faucet

►► Control CircuitControl Circuit

12 VDC — Includes Auto Set Range Adjustment

►► Clean ModeClean Mode

2 minutes –– Lock out fauct for cleaning “Wakes Up” automatically
after 2 minutes

►► Time Out SettingTime Out Setting

2 minutes — Maximum time faucet will run upon continuous
detection

►► Senso™Senso™

Experience Senso. Engaging features, intuitive controls and a
unique rainfall pattern of water offer a highly visual and tactile
experience. A refined balance of elegance and efficiency make
Senso perfectly suited for the most discriminating environments.

►► ExperimentalExperimental

The supple streams of Senso’s distinctive rainfall pattern are artfully
illuminated for a highly visual experience.

►► IntuitiveIntuitive

Feather-light touch sensors provide refined control of water
temperature. Accurate and immediate visual feedback is intuitively
communicated via red and blue LED lighting.

►► ConservationConservation

● ● RoHS compliant electronics drive a precise ceramic mixer to
deliver an exacting supply of water. Low-voltage line power
eliminates batteries.

● ● Senso faucets include a low-voltage 12 VDC plug-in voltage
adapter.

►► Compliance & CertificationsCompliance & Certifications

ASME A112.18.1-2005/CSA B125.1-05, ISO/IEC 17025 ANSI A117.1

This space for Architect/Engineer Approval

Sloan Senso™ Faucet
EAF-900-P

2016-12-04 Page 1 of 2

SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131

Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: [phone] or 1-847-671-4380 ● http://www.sloan.com

As the user’s hands enter the beam’s effective range, the

beam is reflected back into the sensor receiver and activates

the solenoid valve allowing water to flow from the faucet.

Water will flow until the hands are removed or until the faucet

reaches its automatic time out limit setting.

Sloan Senso™ Faucet
EAF-900-P

2016-12-04 Page 2 of 2
