Page 1

Code No. 0816673

Rev. 2 (07/15)

INSTALLATION INSTRUCTIONS

FOR COMPLETE SLOAN HAND

DRYER SPOUT

EHD-511 SPOUT

LIMITED WARRANTY

Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or industrial uses, to be free from defects in material and workmanship for a period of three (3) years (one (1) year for special finishes, SF faucets, PWT electronics and 30 days for PWT software) from date of first purchase. During this period, Sloan Valve Company will, at its option, repair, replace, or refund the purchase price of any product which fails to conform with this warranty under normal use and service. This shall be the sole and exclusive remedy under this warranty. Products must be returned to Sloan Valve Company, at customer’s cost. No claims will be allowed for labor, transportation or other costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company’s products directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.

IMPORTANT

Read this entire installation manual to ensure proper installation. When nished with the installation, le this manual with the owner or maintenance department. Compliance and conformity to local codes and ordinances is the responsibility of the installers.

Separate parts from packaging and make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not begin installation until you obtain the missing parts.

Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation. Electrical power MUST remain off until installation is complete.

Wear all proper safety equipment prior to installation.

TOOLS REQUIRED FOR INSTALLATION

• Slotted screwdriver • Wire stripper/crimping tool

PRIOR TO INSTALLATION

Prior to installing the Hand Dryer spout install the items listed below.

IMPORTANT:

• INSTALL ALL ELECTRICAL WIRING IN ACCORDANCE WITH NATIONAL/LOCAL CODES AND REGULATIONS.

• INSTALL ALL PLUMBING IN ACCORDANCE WITH APPLICABLE CODES AND REGULATIONS.

• A 24 VAC STEP-DOWN TRANSFORMER MUST BE USED.

• USE APPROPRIATE PRECAUTIONS WHILE CONNECTING THE POWER SOURCE.

THIS PRODUCT CONTAINS MECHANICAL AND/OR

ELECTRICAL COMPONENTS THAT ARE SUBJECT TO NORMAL

WEAR. THESE COMPONENTS SHOULD BE CHECKED ON A

REGULAR BASIS AND REPLACED AS NEEDED TO MAINTAIN

THE VALVES PERFORMANCE.

If you have questions about how to install your hand dryer, consult

your local Sloan Representative

or call Sloan Technical Support at:

1-888-SLOAN-14 (1-888-756-2614)

!!! IMPORTANT !!!

Page 2

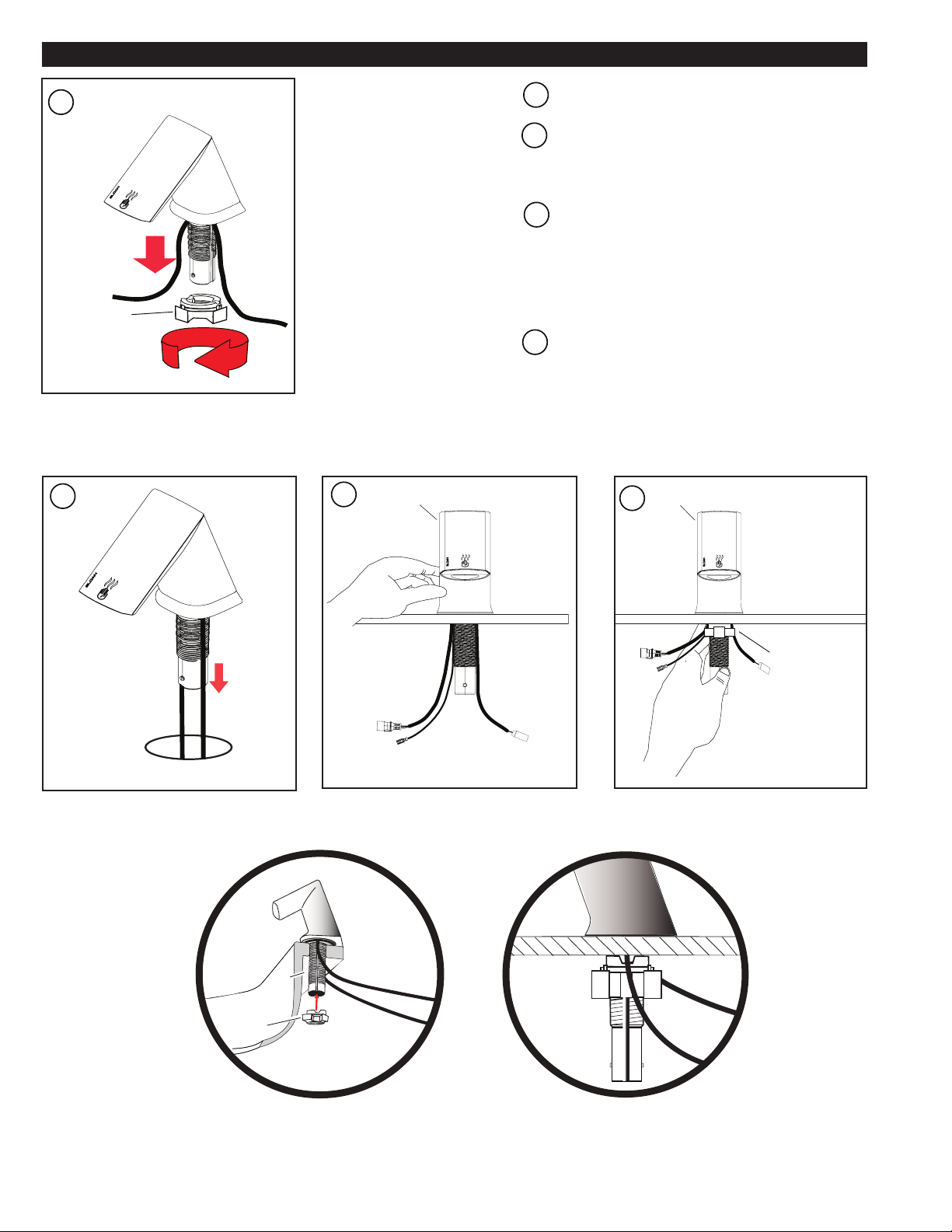

1 - INSTALL SPOUT

HOLDING NUT

SSEMBLY

BASYS DRYER SPOUT

LOCKING NUT WASHER

BASYS DRYER SPOUT

LOCKING NUT WASHER

Remove holding nut assembly from the spout shank.

Unscrew counterclockwise.

Ensure the wires are located inside corresponding slots on the sides of the spout shank. Insert spout shank into the deck hole.

Holding the spout down on the sink deck, Spread wires away from spout shank, align wires into grooves on locking nut washer (1). Turn the locking nut until it makes contact with the wires. Align spread wires in corresponding relief grooves on top of the locking nut washer.

(2) Spread the wires horizontally. Turn the locking nut until snug making sure the wires are in the corresponding wire relief grooves on the locking nut washer. Align the spout as desired and tighten the locking nut until the spout is rmly locked into place.

SPOUT SHANK

HOLDING NUT ASSEMBLY

Page 3

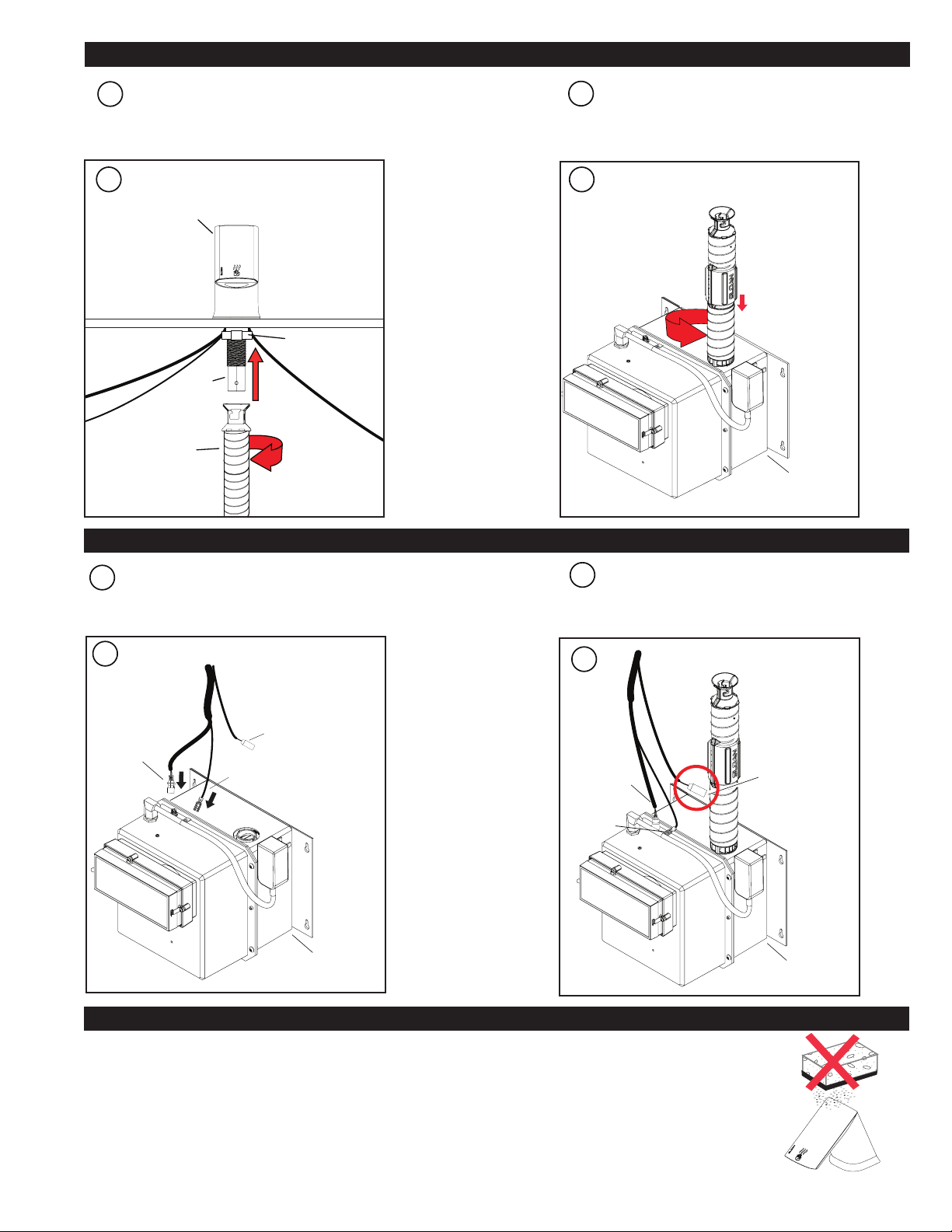

2 - CONNECT HOSE

BASYS DRYER SPOUT

LOCKING NUT WASHER

HOSE

SPOUT SHANK

BLOWER MOTOR

GROUND

4 PIN CABLE

PROGRAMMING CABLE

Align slots in ared connector end of hose with shank guides.

Slide over the spout shank until it stops. Rotate the ared connector clockwise until it locks into place (will feel it snap into place).

Align slots of round squared connector end of hose

to opening guides on hand dryer motor into the opening until it stops, rotate the connector counterclockwise until it locks into place.

3- CONNECT WIRES

Plug the four (4) pin cable from the spout into

the Four (4) pin socket on the Hand Dryer Motor. Plug the ground cable into the ground tab on the Blower Motor.

CARE AND CLEANING

Leave the Programming Cable unattached. Do not

remove or cut-off cable. Cord can be bundled.

4 PIN CABLE

GROUND

PROGRAMMING CABLE

BLOWER MOTOR

Important: DISCONNECT ELECTRICAL SUPPLY TO DRYER PRIOR TO SERVICING.

Gently wash spout using a soft cloth or sponge and a mild soap or detergent with lukewarm water to loosen dirt and grime.

CLEANING SHOULD BE PERFORMED BY QUALIFIED SERVICE PERSONNEL

With normal use, dryer will require cleaning once a year. Heavier usage requires more frequent cleaning. Use a small, soft brush to gently clean all parts.

Page 4

ERROR CODES AND SOLUTIONS

DRYER

STATE

ERROR

MESSAGE

1st FLASH 2nd

FLASH

DRYER

OPERATION

POSSIBLE SOLUTION

OFF No error or

condition, user absent

ON No error or

condition, user

presenting hands

ON Time to clean prelter

or change HEPA Filter

OFF Motor over current

severe

OFF Motor quick over

current

ON Heater open condition 2 long 4 short Dryer still runs. Code

ON Notication of recent

mains over voltage

ON Notication of recent

mains under voltage

Off Mains over voltage in

progress

OFF Mains under voltage

in progress

OFF Control Temperature

over temp severe

No ash, steady OFF (at dryer box) and No

ash, steady ON

(at spout)

No ash, steady OFF (at dryer box) and No

ash, steady ON

(at spout)

1 Short 1 long Dryer still runs Check and clean prelter. Code should reset

1 long 3 short dryer stops running until

1 long

3 long 1 short Dryer still runs Dryer had a spike of higher voltage than

3 long 2 short Dryer still runs Dryer had a spike of lower voltage than normal.

3 long 3 short Dryer stops running until

3 long 4 short Dryer stops running

4 long 3 short Dryer stops running until

_ Dryer ready for

operation

_ Dryer running Dryer running while hands are under unit.

power is removed, fault

has been repaired and

power reapplied

3 short

dryer stops running until

power is removed, fault

has been repaired and

power reapplied

clears when power is

removed and fault is

repaired.

mains voltage returns

to a safe level. When

safe level returns, dryer

runs. The code changes

to notication of recent

mains over voltage.

untill mains voltage

returns to a safe level.

When safe level returns,

dryer runs. The code

changes to notication

of recent mains under

voltage.

power is removed, fault has been repaired and power reapplied.

Normal

after repowering unit. If code reappears then

HEPA lter may need replacing.

Motor is drawing much more current than

normal. Motor coould be failing. Replace motor.

Call Sloan Tech Support 1-888-756-2614.

Motor drew a quick over current than normal.

Could have been caused by a quick over

voltage condition or something blocking motor.

Motor could be failing. Replace motor. Call

Sloan Tech Support 1-888-756-2614.

Heating element had opened during operation

(thermostat tripped). check for clogged lter, blocked or kinked hose and blocked mufer.

If problem persists heating element may be

broken or disconnected. Replace or reconnect.

Call Sloan Tech Support 1-888-756-2614.

normal. Code is for information purposes. Code

will clear if unit power is removed and

reapplied.

Code is for information purposes. Code will

clear if unit power is removed and reapplied.

Dryer has unsafe voltage applied. Check

voltage source. Code will reset when voltage is

back to normal.

Dryer has unsafe voltage applied.

Check voltage source. Code will reset when

voltage is back to normal.

Dryer control is running very hot. Filter clog may have been disregarded. Check lter and reapply power. If continues Call Sloan Tech Support 1-888-756-2614.

Page 5

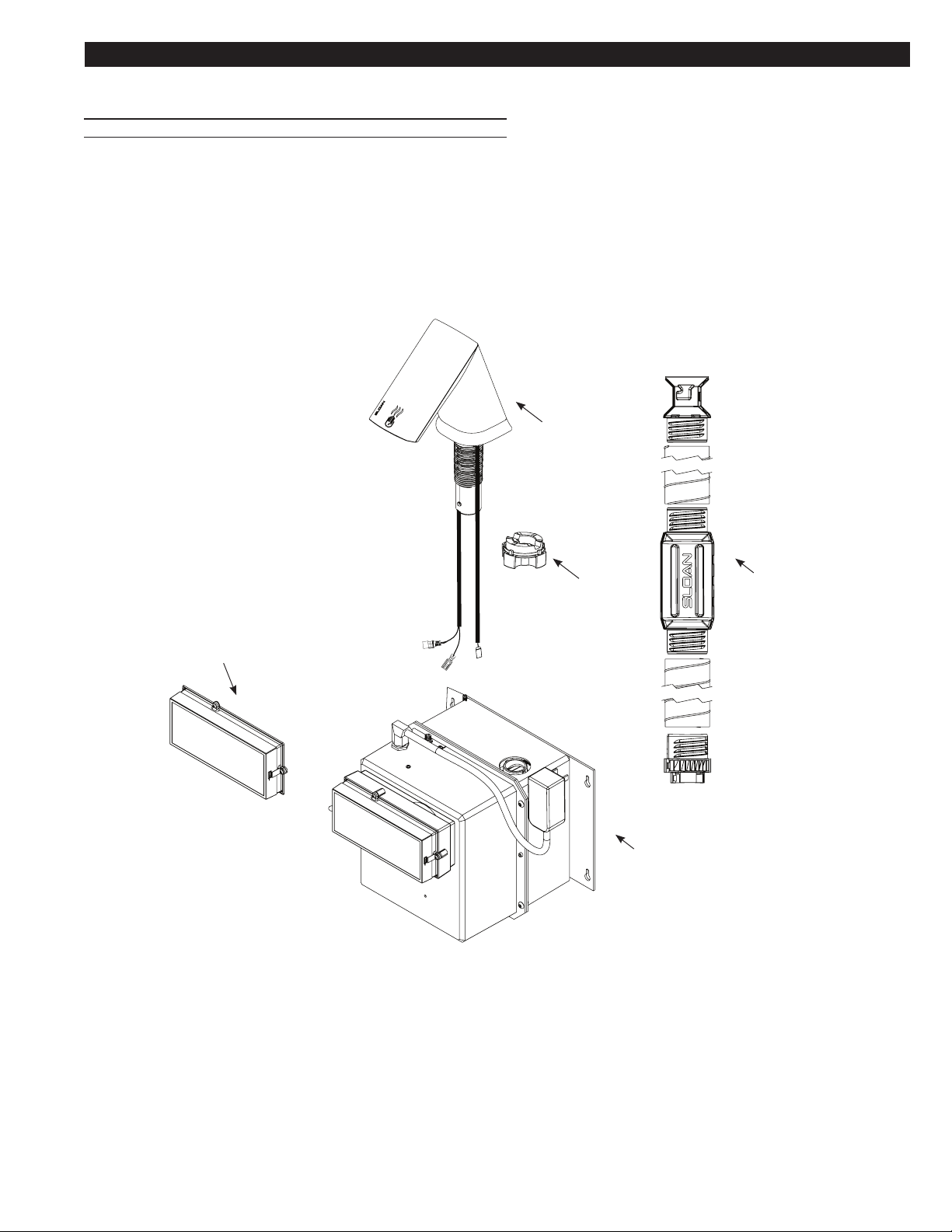

PARTS LIST

Item Code No. Part No. Description

1. 0366050 EHD-511A BASYS Style Dryer Spout Repair Kit

2. 0366015 EHD-515A Holding Nut Assembly Repair Kit

3. 0366008 EHD-512A Hose and Muffler Repair Kit

4. 0366009 EHD-513A Motor Assembly 110/120V w/HEPA Filter

5. 0366014 EHD-514A HEPA Filter Repair Kit (filter with screen)

If further assistance is required, please

contact Sloan Technical Support at:

1-888-SLOAN-14 or visit us online at:

www.sloanvalve.com

The information contained in this document is subject to change without notice.

SLOAN • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131

Phone: 1-888-SLOAN-14 (1-888-756-2614) • Fax: 1-800-447-8329 • www.sloanvalve.com
