Page 1
►► Code NumberCode Number
3315156
►► DescriptionDescription
Back Mounted, Battery Powered, Sensor Activated Electronic
Gooseneck Hand Washing Faucet for tempered or hot/cold water
operation.
►► Flow RatesFlow Rates
2.2 gpm/8.3 Lpm Laminar Flow Spray Head
►► SpecificationsSpecifications
● ● Appropriate Mounting Hardware included
● ● Splash-proof Circuit Control Module
● ● Isolated Latching Solenoid Operator, isolates magnetic
components from water contact
● ● Serviceable Filtered Solenoid Valve
● ● Sensor Range Adjustment Screw
● ● User Friendly Variable Time Out Settings
● ● Low Battery LED Indicator Light
● ● Metal Jacketed Wire Protection for Sensor lead
● ● Includes four (4) AA-size Alkaline Batteries
● ● Spray Head with Pressure Compensating Flow Control
● ● ADA Compliant, Battery Powered, Sensor Activated, Chrome
Plated Brass Gooseneck Hand Washing Faucet with the following
features:
● ● Optional 6 VDC Plug-in Adapter available (Batteries act as
backup when using optional adaptor)
►► AccessoriesAccessories
See OPTIMA Accessories Section of the Sloan Catalog for a
Complete listing of OPTIMA Faucet Accessories and Variations.
►► Indicator LightsIndicator Lights
Range Adjustment
►► Sensor RangeSensor Range
Factory Set: 4” - 5” (102 mm - 127 mm)
Adjustable: 1” - 8” (25 mm - 203 mm)
►► Battery LifeBattery Life
2 Years @ 8,000 Flushes / Month
►► Control CircuitControl Circuit
6 VDC — operates on four (4) alkaline AA-size batteries. Optional 6
VDC Plug-in Adapter.
►► Solenoid ValveSolenoid Valve
Filtered Solenoid Valve with serviceable Strainer Filter.
►► Max. Distance Control Module may be installed fromMax. Distance Control Module may be installed from
SpoutSpout
With Standard Cable: 15” (381 mm)
►► Extension Cable (Optional)Extension Cable (Optional)
EBF-203-A-16 16” (406 mm)
►► Automatic OperationAutomatic Operation
The Sloan OPTIMA Plus® EBF-550 Battery Powered Gooseneck Hand
Washing Faucet operates by means of an infrared sensor. Once the
user’s hands enter the sensor’s effective range, the Solenoid
activates the water flow. Tempered water flows from the Faucet
until hands are moved away. The Faucet then automatically shuts
off.
►► HygienicHygienic
The ultimate in sanitary protection — there are no handles to turn or
buttons to push. Helps to control the spread of infectious diseases.
Ideal for high traffic commercial installations.
►► EconomicalEconomical
Automatic operation provides water usage savings over other
faucet devices. Reduces maintenance and operation costs. Battery
operation ideal for Retrofit installations. Optional plug-in adapter
available.
►► Compliance & CertificationsCompliance & Certifications
This space for Architect/Engineer Approval
Optima® Gooseneck Faucet
EBF-550
2016-13-04 Page 1 of 3
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2
►► OPERATIONOPERATION
1.A continuous invisible beam of light is emitted from the OPTIMA® Sensor located at the base of the lavatory faucet.
2. As the user’s hands enter the beam’s effective range, the beam is reflected back into the Sensor Receiver and activates the
solenoid valve allowing tempered water to flow from the faucet. Water will flow until the hands are removed or until the faucet reaches
its automatic time out limit setting.
3. When hands are moved away from the OPTIMA® Sensor, the loss of reflected light initiates an electrical signal that deactivates the
Solenoid Valve shutting off the water flow. The Circuit then automatically resets and is ready for the next user.
►► Time Out Adjustment SettingsTime Out Adjustment Settings
30 seconds — The Faucet Time Out Setting determines the
maximum time the faucet will run upon continuous detection. The
EBF-550 is Factory set at the 30 second time out.

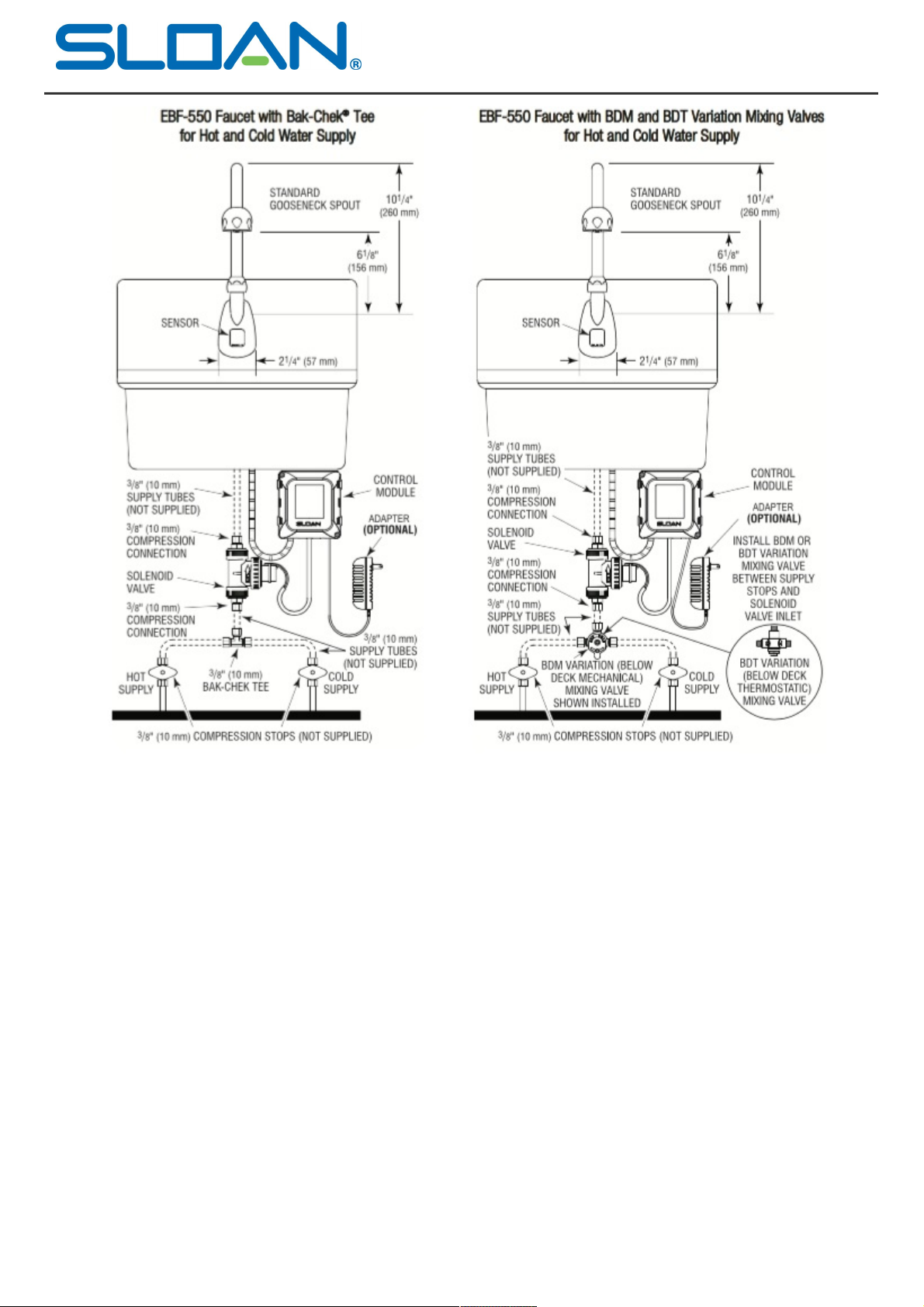

►► ROUGH-INROUGH-IN
EBF-550 Faucet with Bak-Chek® Tee for Hot and Cold Water Supply
Optima® Gooseneck Faucet
EBF-550
2016-13-04 Page 2 of 3
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 3
Optima® Gooseneck Faucet
EBF-550
2016-13-04 Page 3 of 3
