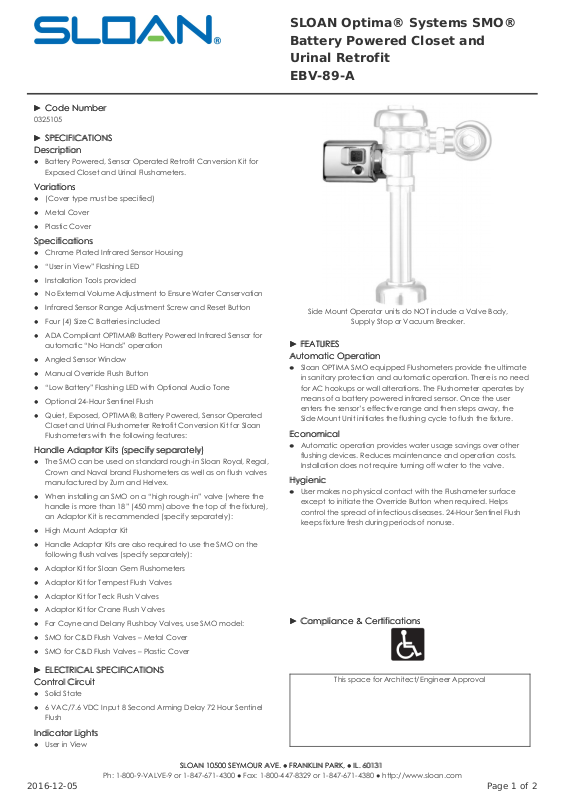

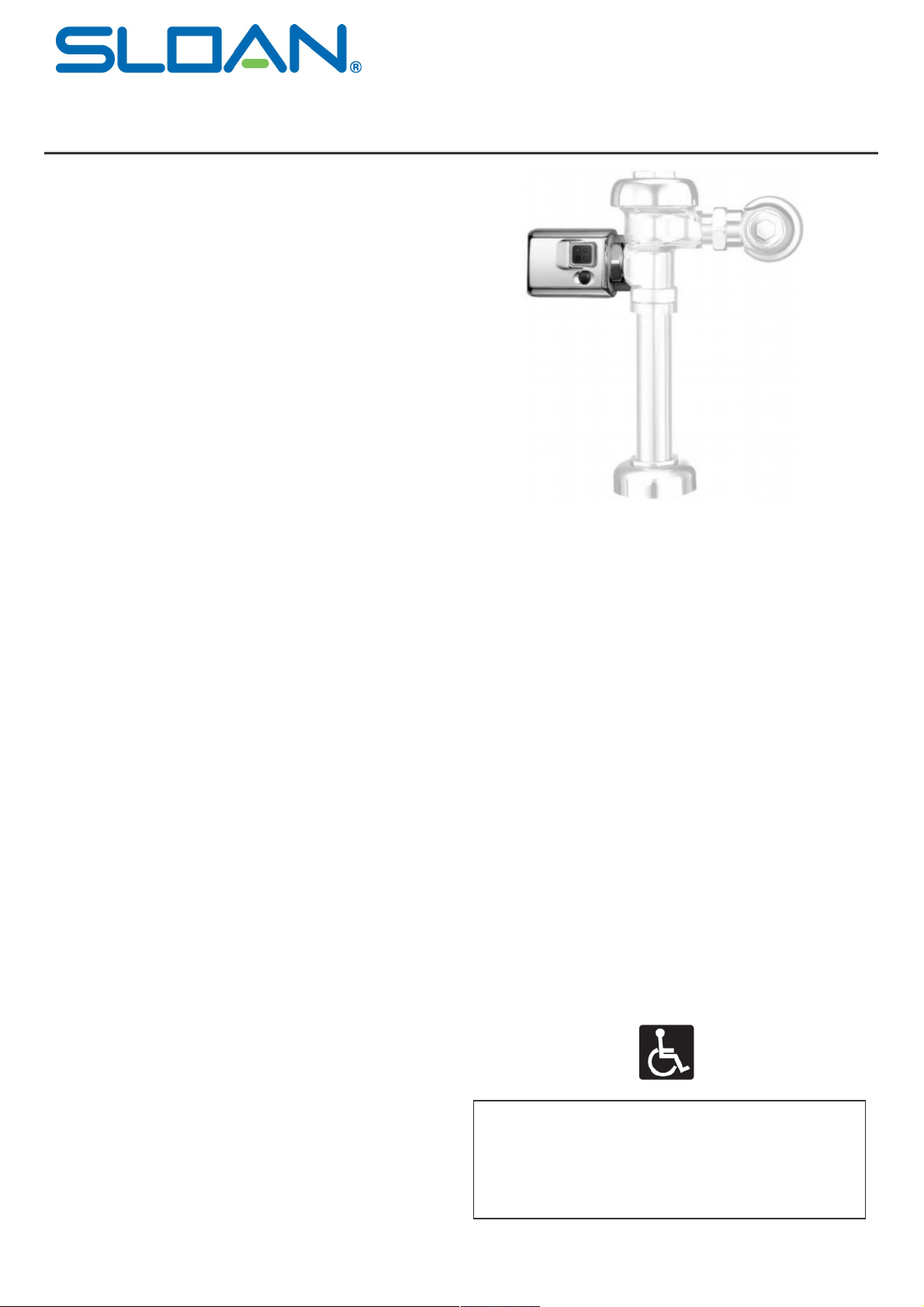

►► Code NumberCode Number
0325105
►► SPECIFICATIONSSPECIFICATIONS
DescriptionDescription
● ● Battery Powered, Sensor Operated Retrofit Conversion Kit for
Exposed Closet and Urinal Flushometers.
VariationsVariations
● ● (Cover type must be specified)
● ● Metal Cover
● ● Plastic Cover
SpecificationsSpecifications
● ● Chrome Plated Infrared Sensor Housing
● ● “User in View” Flashing LED
● ● Installation Tools provided
● ● No External Volume Adjustment to Ensure Water Conservation
● ● Infrared Sensor Range Adjustment Screw and Reset Button
● ● Four (4) Size C Batteries included
● ● ADA Compliant OPTIMA® Battery Powered Infrared Sensor for
automatic “No Hands” operation
● ● Angled Sensor Window
● ● Manual Override Flush Button
● ● “Low Battery” Flashing LED with Optional Audio Tone
● ● Optional 24-Hour Sentinel Flush
● ● Quiet, Exposed, OPTIMA®, Battery Powered, Sensor Operated
Closet and Urinal Flushometer Retrofit Conversion Kit for Sloan
Flushometers with the following features:
Handle Adaptor Kits (specify separately)Handle Adaptor Kits (specify separately)
● ● The SMO can be used on standard rough-in Sloan Royal, Regal,
Crown and Naval brand Flushometers as well as on flush valves
manufactured by Zurn and Helvex.
● ● When installing an SMO on a “high rough-in” valve (where the
handle is more than 18” (450 mm) above the top of the fixture),
an Adaptor Kit is recommended (specify separately):
● ● High Mount Adaptor Kit
● ● Handle Adaptor Kits are also required to use the SMO on the
following flush valves (specify separately):
● ● Adaptor Kit for Sloan Gem Flushometers
● ● Adaptor Kit for Tempest Flush Valves
● ● Adaptor Kit for Teck Flush Valves
● ● Adaptor Kit for Crane Flush Valves
● ● For Coyne and Delany Flushboy Valves, use SMO model:
● ● SMO for C&D Flush Valves – Metal Cover
● ● SMO for C&D Flush Valves – Plastic Cover
►► ELECTRICAL SPECIFICATIONSELECTRICAL SPECIFICATIONS
Control CircuitControl Circuit
● ● Solid State
● ● 6 VAC/7.6 VDC Input 8 Second Arming Delay 72 Hour Sentinel
Flush
Indicator LightsIndicator Lights
● ● User in View
Side Mount Operator units do NOT include a Valve Body,
Supply Stop or Vacuum Breaker.
►► FEATURESFEATURES
Automatic OperationAutomatic Operation
● ● Sloan OPTIMA SMO equipped Flushometers provide the ultimate
in sanitary protection and automatic operation. There is no need
for AC hookups or wall alterations. The Flushometer operates by
means of a battery powered infrared sensor. Once the user
enters the sensor’s effective range and then steps away, the
Side Mount Unit initiates the flushing cycle to flush the fixture.
EconomicalEconomical
● ● Automatic operation provides water usage savings over other
flushing devices. Reduces maintenance and operation costs.
Installation does not require turning off water to the valve.
HygienicHygienic
● ● User makes no physical contact with the Flushometer surface
except to initiate the Override Button when required. Helps
control the spread of infectious diseases. 24-Hour Sentinel Flush
keeps fixture fresh during periods of nonuse.
►► Compliance & CertificationsCompliance & Certifications
This space for Architect/Engineer Approval
SLOAN Optima® Systems SMO®
Battery Powered Closet and
Urinal Retrofit
EBV-89-A
2016-12-05 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2
Operating PressureOperating Pressure
● ● 15-100 psi (104-689 kPa)
Operation FeaturesOperation Features
● ● (can be turned on and off)
● ● 24-Hour Sentinel Flush
● ● Audio Low Battery Tone
Battery TypeBattery Type
● ● (4) C Alkaline
Battery LifeBattery Life
● ● 6 Years @ 4,000 flushes/month
Sensor TypeSensor Type
● ● Infrared Convergence Type Object Lock Detection
Sensor RangeSensor Range
● ● Nominal 8” - 54” (203 mm- 1372 mm), Factory Set at 24” (610
mm)
►► FUNCTION SETTINGSFUNCTION SETTINGS
►► OPERATIONOPERATION
1. A continuous, invisible light beam is emitted from the Object
Lock Infrared Sensor.
2. As the user enters the beam’s effective range, 8” to 54” (203
mm - 1372 mm), the Object Lock Infrared Sensor senses the
user
3. When the user steps away from the Object Lock Infrared
Sensor, the circuit initiates the flushing cycle to flush the fixture.
The Circuit then automatically resets and is ready for the next
user.

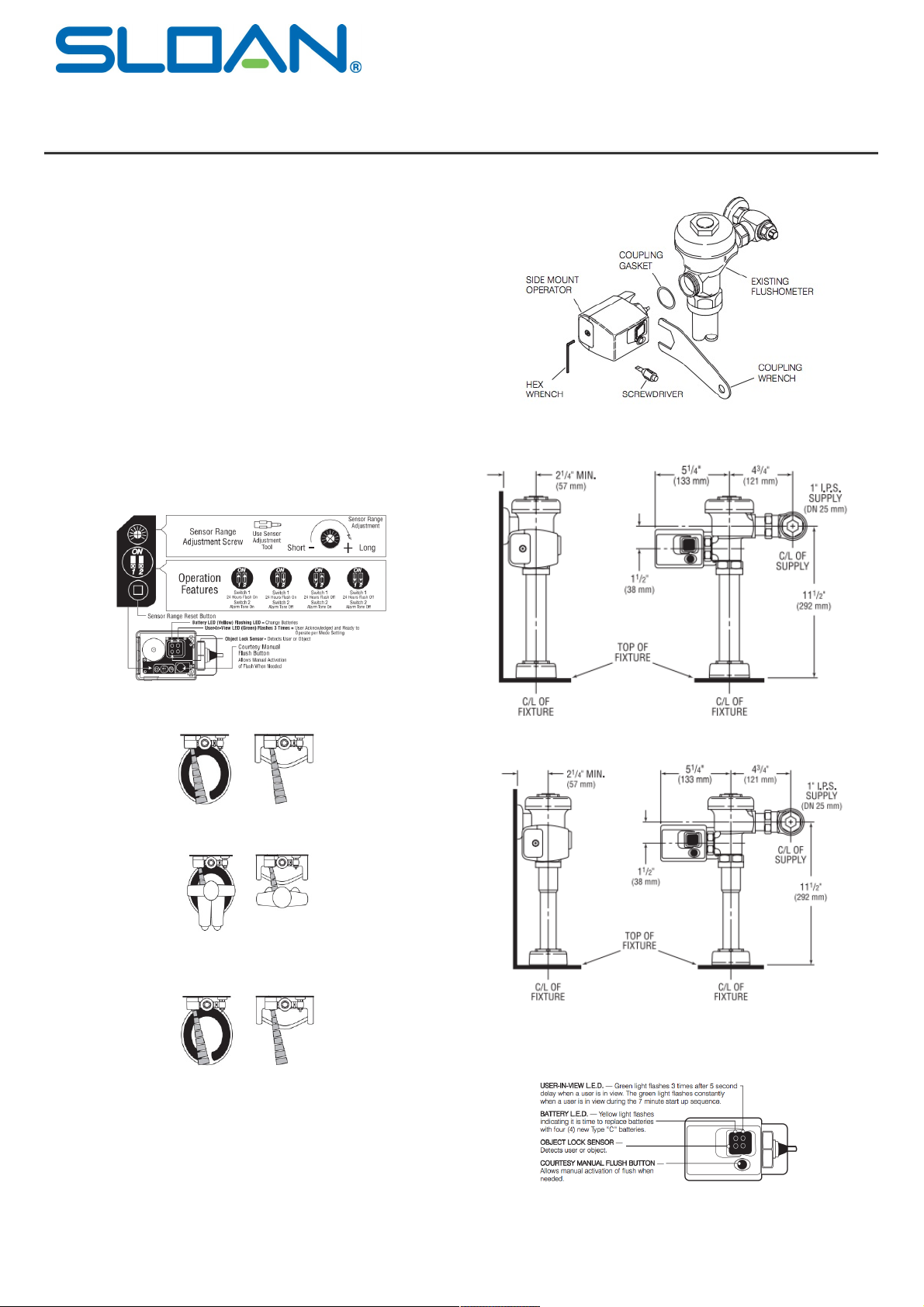

►► SIDE MOUNT OPERATOR COMPONENTSSIDE MOUNT OPERATOR COMPONENTS
►► ROUGH-INROUGH-IN
Side Mount Operator unit shown on an existing Sloan Regal
Model 110/111 Closet Flushometer
Side Mount Operator unit shown on an existing Sloan Regal
Model 180 or 186 Urinal Flushometer
